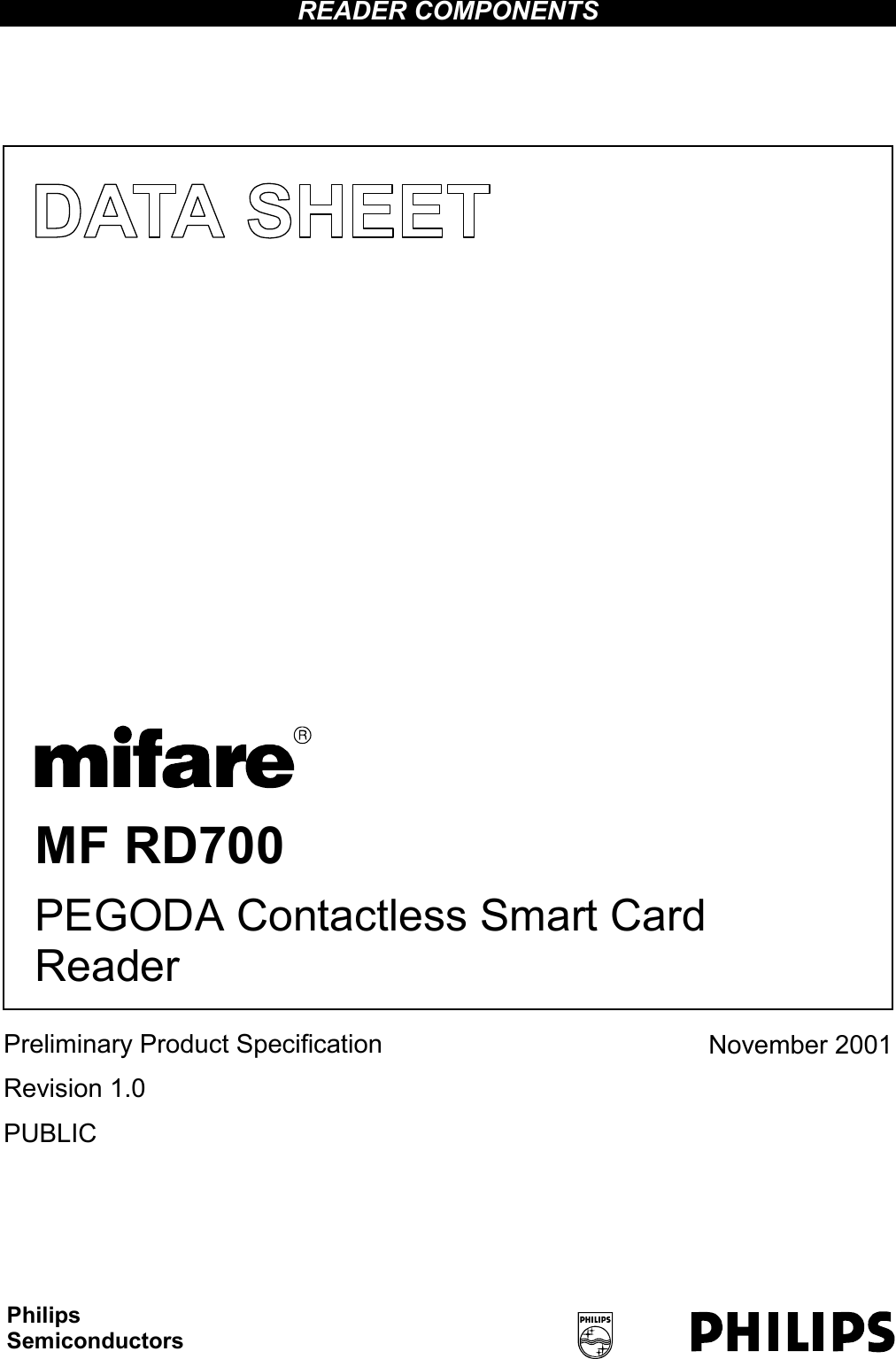

READER COMPONENTS MF RD700 PEGODA Contactless Smart Card Reader November 2001 Preliminary Product Specification Revision 1.0 PUBLIC PhilipsSemiconductors

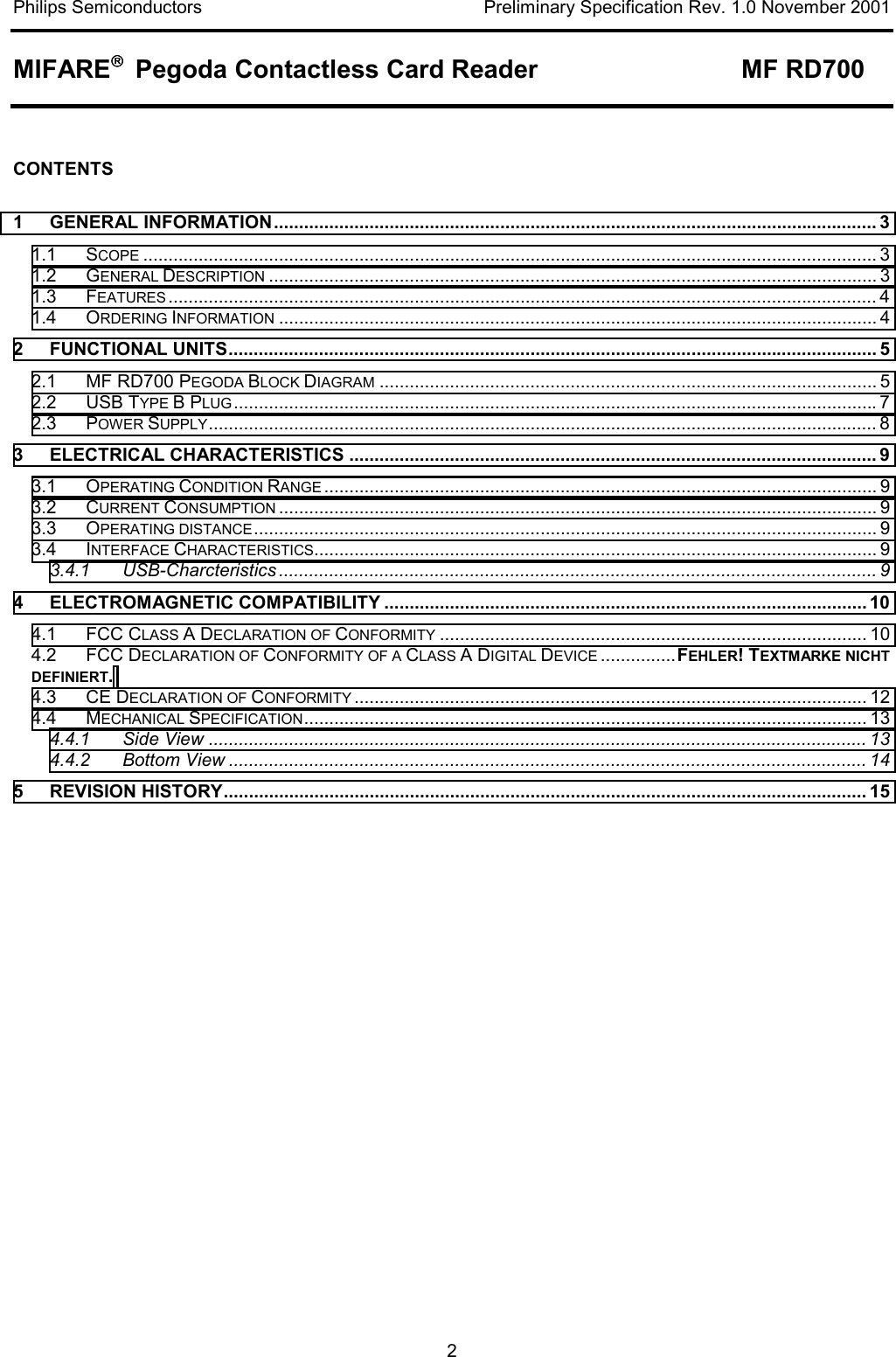

Philips Semiconductors Preliminary Specification Rev. 1.0 November 2001 MIFARE Pegoda Contactless Card Reader MF RD700 2 CONTENTS 1 GENERAL INFORMATION........................................................................................................................ 3 1.1 SCOPE .................................................................................................................................................. 3 1.2 GENERAL DESCRIPTION ......................................................................................................................... 3 1.3 FEATURES ............................................................................................................................................. 4 1.4 ORDERING INFORMATION ....................................................................................................................... 4 2 FUNCTIONAL UNITS................................................................................................................................. 5 2.1 MF RD700 PEGODA BLOCK DIAGRAM ................................................................................................... 5 2.2 USB TYPE B PLUG ................................................................................................................................7 2.3 POWER SUPPLY..................................................................................................................................... 8 3 ELECTRICAL CHARACTERISTICS ......................................................................................................... 9 3.1 OPERATING CONDITION RANGE .............................................................................................................. 9 3.2 CURRENT CONSUMPTION ....................................................................................................................... 9 3.3 OPERATING DISTANCE............................................................................................................................ 9 3.4 INTERFACE CHARACTERISTICS................................................................................................................ 9 3.4.1 USB-Charcteristics ....................................................................................................................... 9 4 ELECTROMAGNETIC COMPATIBILITY ................................................................................................ 10 4.1 FCC CLASS A DECLARATION OF CONFORMITY ..................................................................................... 10 4.2 FCC DECLARATION OF CONFORMITY OF A CLASS A DIGITAL DEVICE ...............FEHLER! TEXTMARKE NICHT DEFINIERT. 4.3 CE DECLARATION OF CONFORMITY ...................................................................................................... 12 4.4 MECHANICAL SPECIFICATION................................................................................................................ 13 4.4.1 Side View ................................................................................................................................... 13 4.4.2 Bottom View ............................................................................................................................... 14 5 REVISION HISTORY................................................................................................................................ 15

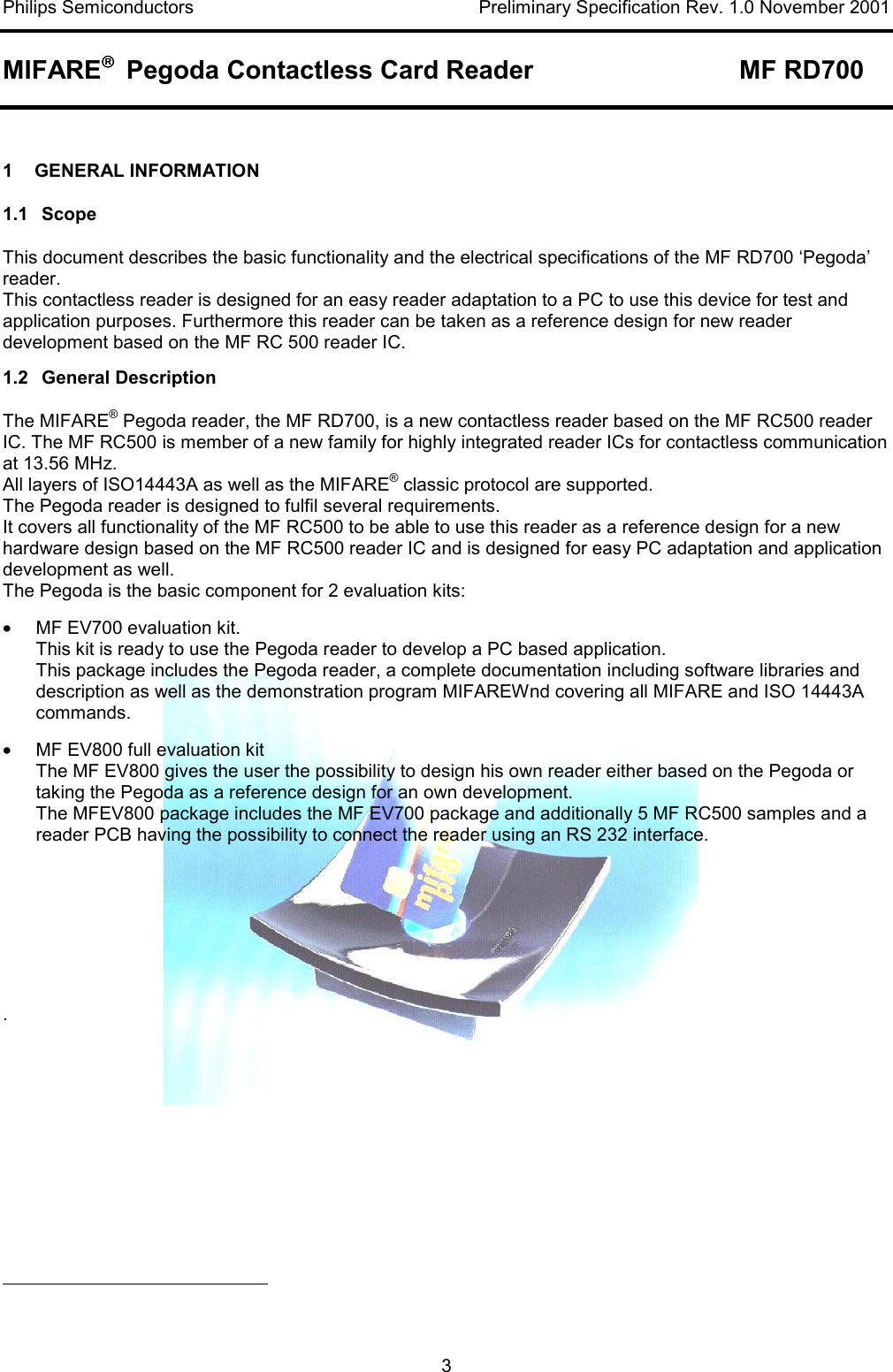

Philips Semiconductors Preliminary Specification Rev. 1.0 November 2001 MIFARE Pegoda Contactless Card Reader MF RD700 3 1 GENERAL INFORMATION 1.1 Scope This document describes the basic functionality and the electrical specifications of the MF RD700 ‘Pegoda’ reader. This contactless reader is designed for an easy reader adaptation to a PC to use this device for test and application purposes. Furthermore this reader can be taken as a reference design for new reader development based on the MF RC 500 reader IC. 1.2 General Description The MIFARE® Pegoda reader, the MF RD700, is a new contactless reader based on the MF RC500 reader IC. The MF RC500 is member of a new family for highly integrated reader ICs for contactless communication at 13.56 MHz. All layers of ISO14443A as well as the MIFARE® classic protocol are supported. The Pegoda reader is designed to fulfil several requirements. It covers all functionality of the MF RC500 to be able to use this reader as a reference design for a new hardware design based on the MF RC500 reader IC and is designed for easy PC adaptation and application development as well. The Pegoda is the basic component for 2 evaluation kits: • MF EV700 evaluation kit. This kit is ready to use the Pegoda reader to develop a PC based application. This package includes the Pegoda reader, a complete documentation including software libraries and description as well as the demonstration program MIFAREWnd covering all MIFARE and ISO 14443A commands. • MF EV800 full evaluation kit The MF EV800 gives the user the possibility to design his own reader either based on the Pegoda or taking the Pegoda as a reference design for an own development. The MFEV800 package includes the MF EV700 package and additionally 5 MF RC500 samples and a reader PCB having the possibility to connect the reader using an RS 232 interface. .

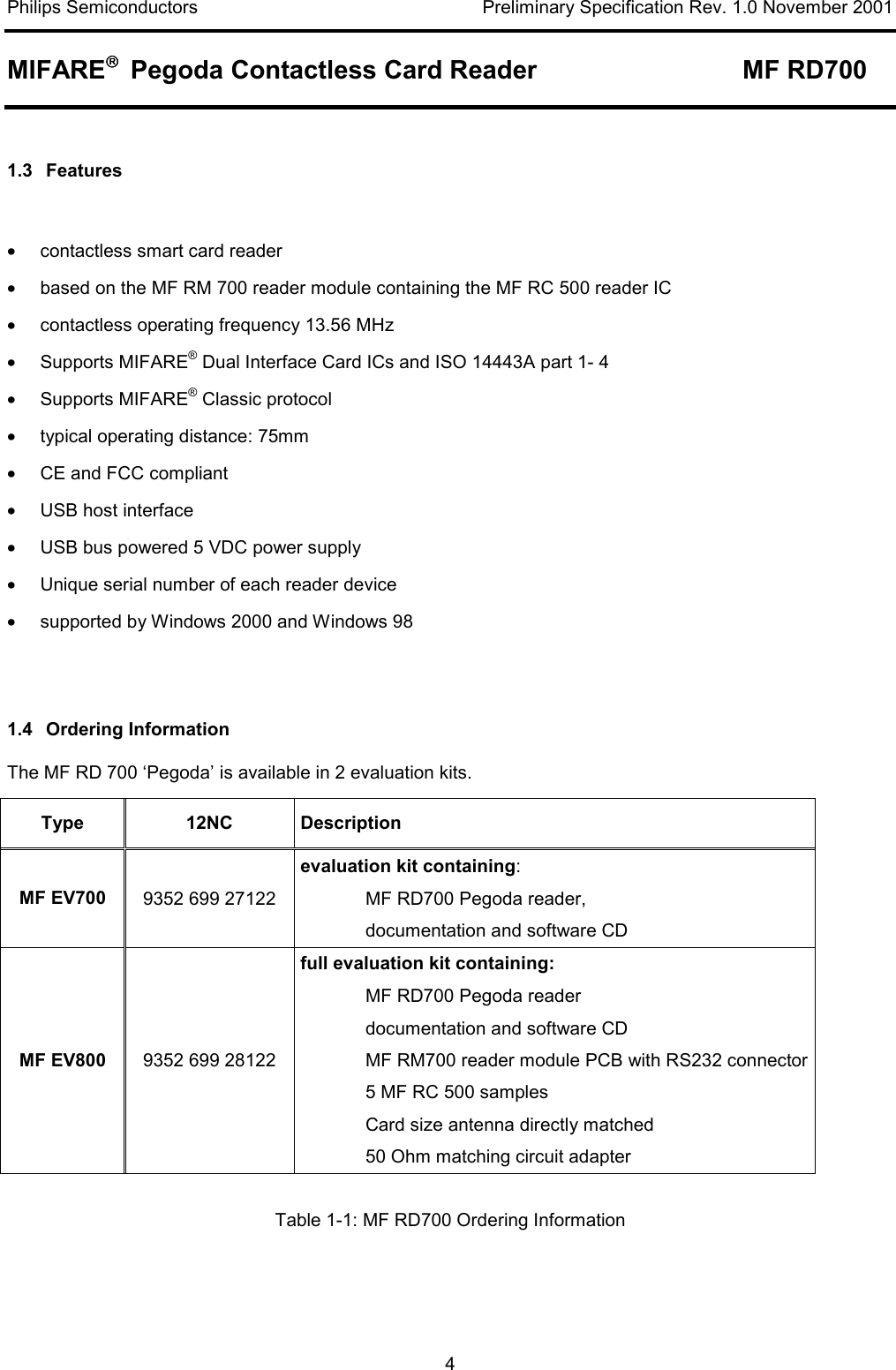

Philips Semiconductors Preliminary Specification Rev. 1.0 November 2001 MIFARE Pegoda Contactless Card Reader MF RD700 4 1.3 Features • contactless smart card reader • based on the MF RM 700 reader module containing the MF RC 500 reader IC • contactless operating frequency 13.56 MHz • Supports MIFARE® Dual Interface Card ICs and ISO 14443A part 1- 4 • Supports MIFARE® Classic protocol • typical operating distance: 75mm • CE and FCC compliant • USB host interface • USB bus powered 5 VDC power supply • Unique serial number of each reader device • supported by Windows 2000 and Windows 98 1.4 Ordering Information The MF RD 700 ‘Pegoda’ is available in 2 evaluation kits. Type 12NC Description MF EV700 9352 699 27122 evaluation kit containing: MF RD700 Pegoda reader, documentation and software CD MF EV800 9352 699 28122 full evaluation kit containing: MF RD700 Pegoda reader documentation and software CD MF RM700 reader module PCB with RS232 connector 5 MF RC 500 samples Card size antenna directly matched 50 Ohm matching circuit adapter Table 1-1: MF RD700 Ordering Information

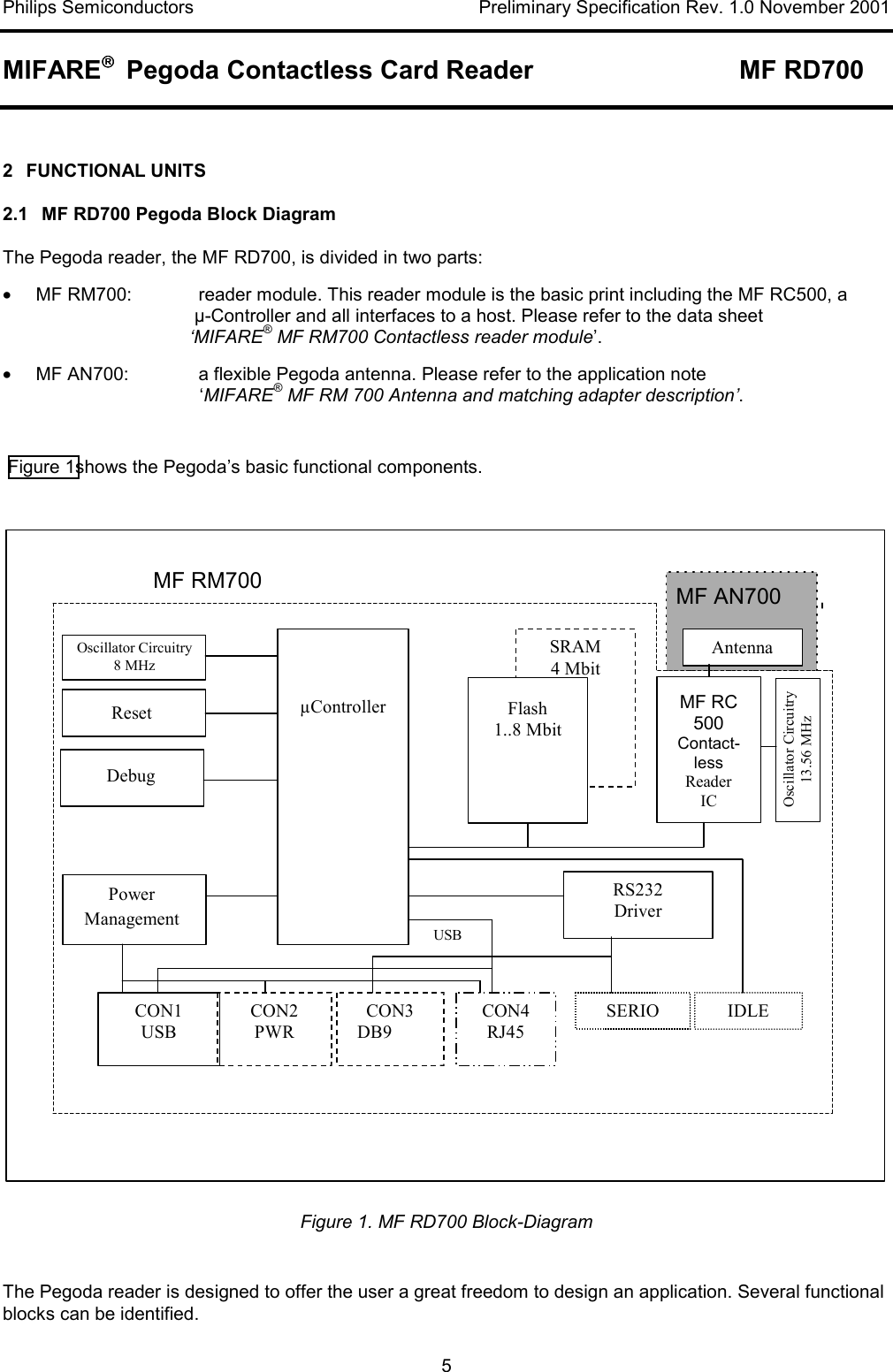

Philips Semiconductors Preliminary Specification Rev. 1.0 November 2001 MIFARE Pegoda Contactless Card Reader MF RD700 5 2 FUNCTIONAL UNITS 2.1 MF RD700 Pegoda Block Diagram The Pegoda reader, the MF RD700, is divided in two parts: • MF RM700: reader module. This reader module is the basic print including the MF RC500, a µ-Controller and all interfaces to a host. Please refer to the data sheet ‘MIFARE® MF RM700 Contactless reader module’. • MF AN700: a flexible Pegoda antenna. Please refer to the application note ‘MIFARE® MF RM 700 Antenna and matching adapter description’. Figure 1shows the Pegoda’s basic functional components. USBSRAM4 MbitResetDebugPowerManagementµController Flash1..8 MbitMF RC500Contact-lessReaderICAntennaRS232DriverCON1USBCON2PWRCON3DB9CON4RJ45SERIO IDLEMF RM700 MF AN700Oscillator Circuitry8 MHzOscillator Circuitry13.56 MHz Figure 1. MF RD700 Block-Diagram The Pegoda reader is designed to offer the user a great freedom to design an application. Several functional blocks can be identified.

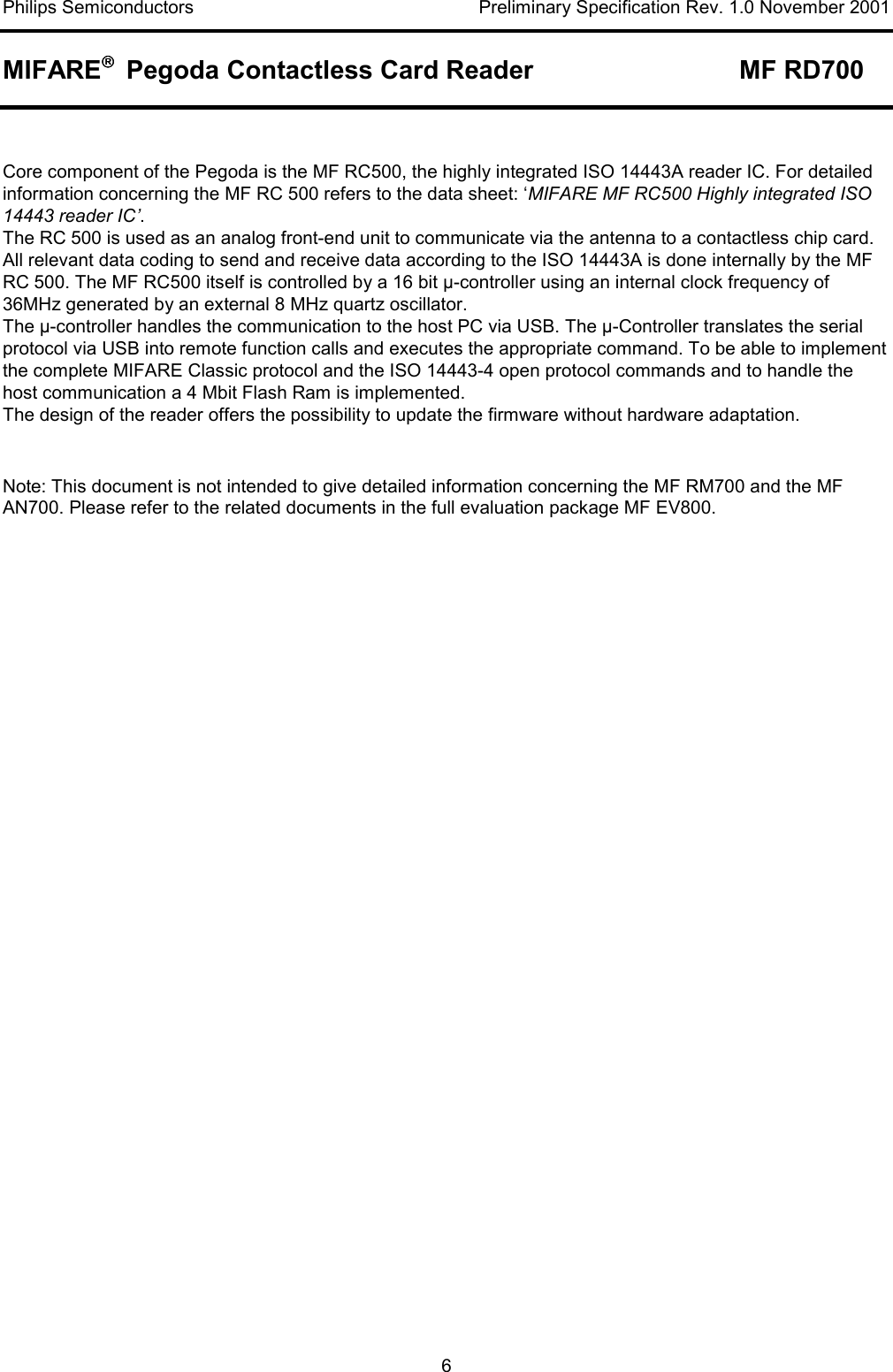

Philips Semiconductors Preliminary Specification Rev. 1.0 November 2001 MIFARE Pegoda Contactless Card Reader MF RD700 6 Core component of the Pegoda is the MF RC500, the highly integrated ISO 14443A reader IC. For detailed information concerning the MF RC 500 refers to the data sheet: ‘MIFARE MF RC500 Highly integrated ISO 14443 reader IC’. The RC 500 is used as an analog front-end unit to communicate via the antenna to a contactless chip card. All relevant data coding to send and receive data according to the ISO 14443A is done internally by the MF RC 500. The MF RC500 itself is controlled by a 16 bit µ-controller using an internal clock frequency of 36MHz generated by an external 8 MHz quartz oscillator. The µ-controller handles the communication to the host PC via USB. The µ-Controller translates the serial protocol via USB into remote function calls and executes the appropriate command. To be able to implement the complete MIFARE Classic protocol and the ISO 14443-4 open protocol commands and to handle the host communication a 4 Mbit Flash Ram is implemented. The design of the reader offers the possibility to update the firmware without hardware adaptation. Note: This document is not intended to give detailed information concerning the MF RM700 and the MF AN700. Please refer to the related documents in the full evaluation package MF EV800.

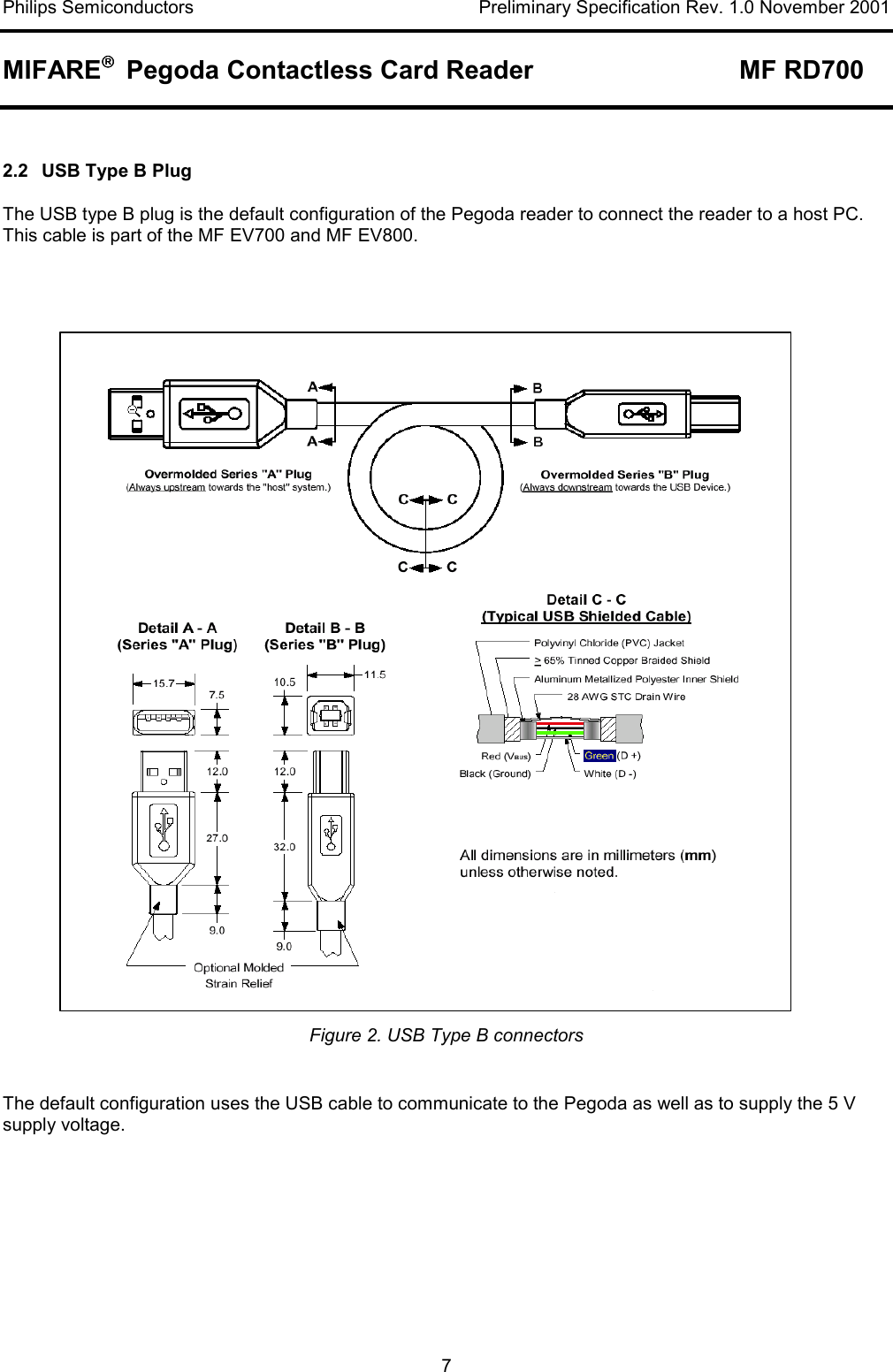

Philips Semiconductors Preliminary Specification Rev. 1.0 November 2001 MIFARE Pegoda Contactless Card Reader MF RD700 7 2.2 USB Type B Plug The USB type B plug is the default configuration of the Pegoda reader to connect the reader to a host PC. This cable is part of the MF EV700 and MF EV800. Figure 2. USB Type B connectors The default configuration uses the USB cable to communicate to the Pegoda as well as to supply the 5 V supply voltage.

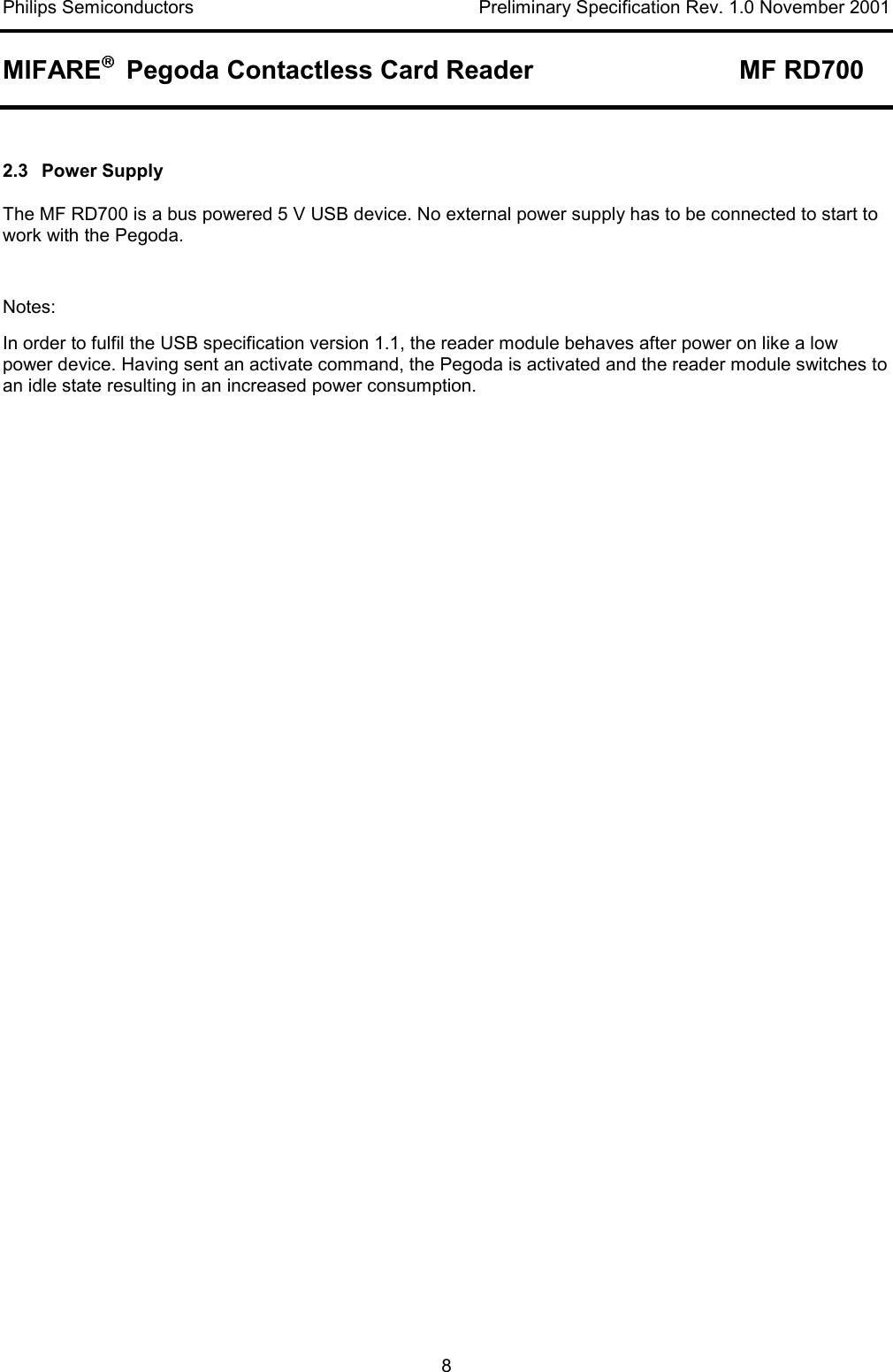

Philips Semiconductors Preliminary Specification Rev. 1.0 November 2001 MIFARE Pegoda Contactless Card Reader MF RD700 8 2.3 Power Supply The MF RD700 is a bus powered 5 V USB device. No external power supply has to be connected to start to work with the Pegoda. Notes: In order to fulfil the USB specification version 1.1, the reader module behaves after power on like a low power device. Having sent an activate command, the Pegoda is activated and the reader module switches to an idle state resulting in an increased power consumption.

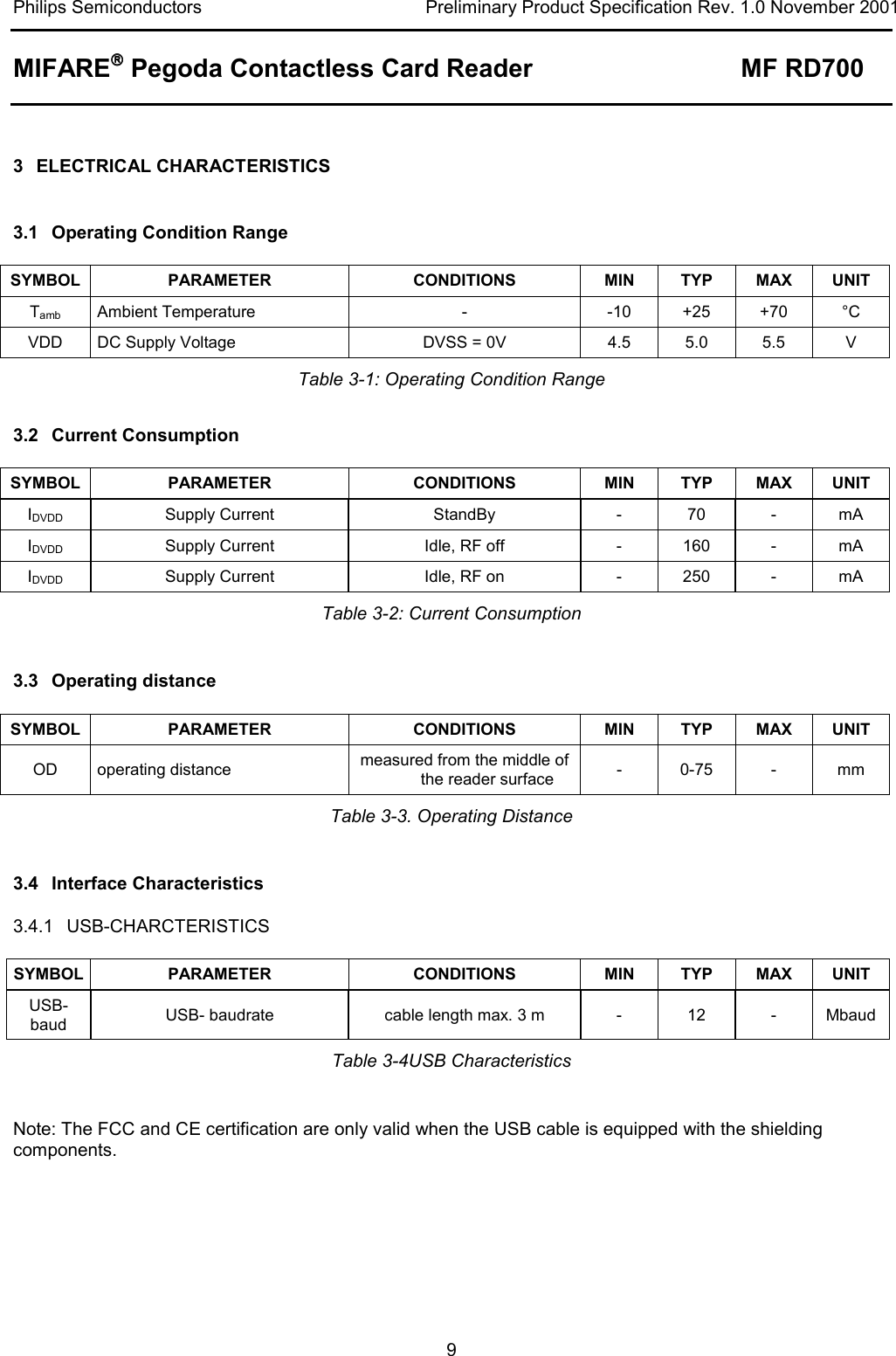

Philips Semiconductors Preliminary Product Specification Rev. 1.0 November 2001 MIFARE Pegoda Contactless Card Reader MF RD700 9 3 ELECTRICAL CHARACTERISTICS 3.1 Operating Condition Range SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNIT Tamb Ambient Temperature - -10 +25 +70 °C VDD DC Supply Voltage DVSS = 0V 4.5 5.0 5.5 V Table 3-1: Operating Condition Range 3.2 Current Consumption SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNIT IDVDD Supply Current StandBy - 70 - mA IDVDD Supply Current Idle, RF off - 160 - mA IDVDD Supply Current Idle, RF on - 250 - mA Table 3-2: Current Consumption 3.3 Operating distance SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNIT OD operating distance measured from the middle of the reader surface - 0-75 - mm Table 3-3. Operating Distance 3.4 Interface Characteristics 3.4.1 USB-CHARCTERISTICS SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNIT USB- baud USB- baudrate cable length max. 3 m - 12 - Mbaud Table 3-4USB Characteristics Note: The FCC and CE certification are only valid when the USB cable is equipped with the shielding components.

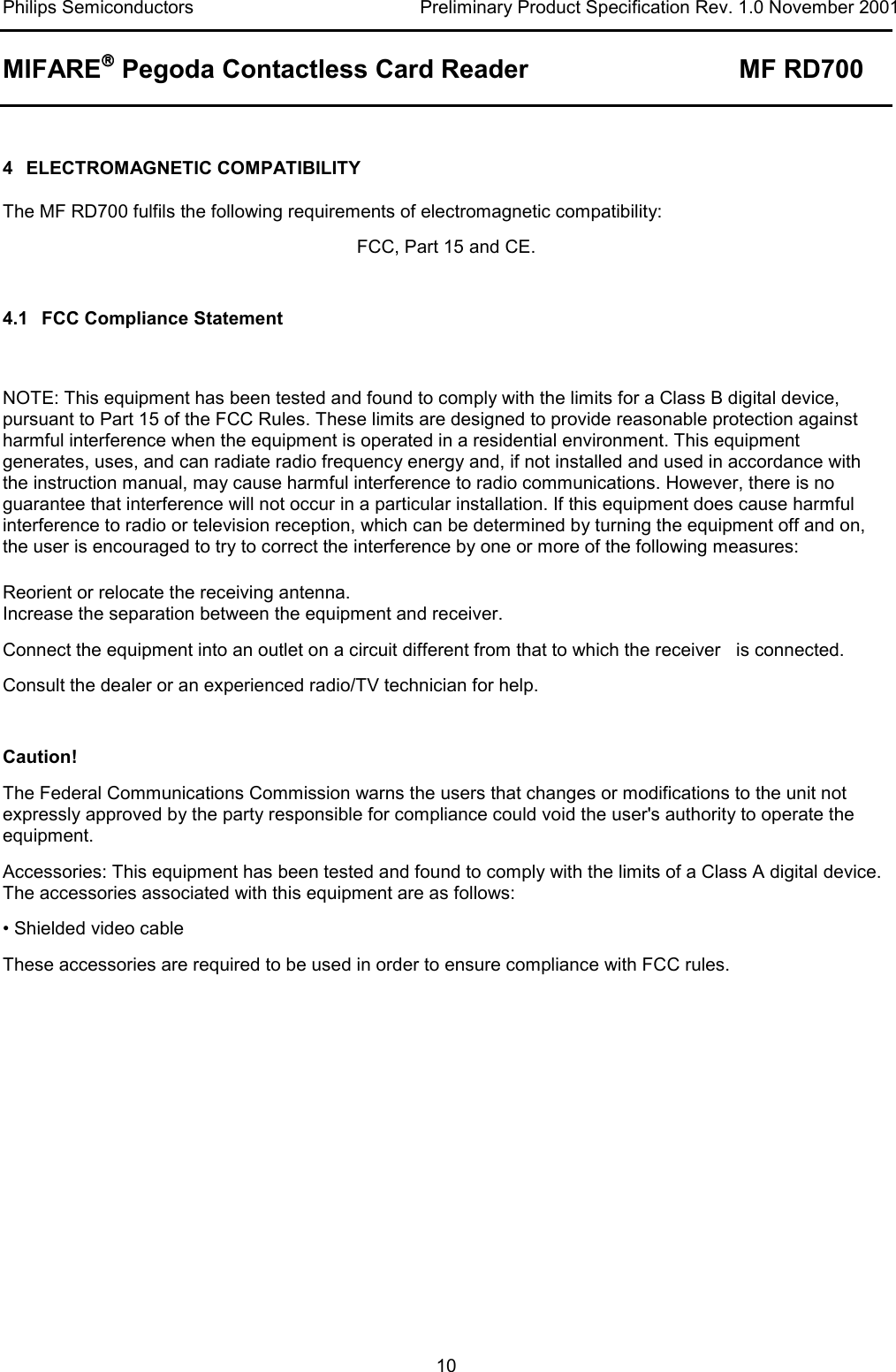

Philips Semiconductors Preliminary Product Specification Rev. 1.0 November 2001 MIFARE Pegoda Contactless Card Reader MF RD700 10 4 ELECTROMAGNETIC COMPATIBILITY The MF RD700 fulfils the following requirements of electromagnetic compatibility: FCC, Part 15 and CE. 4.1 FCC Compliance Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Caution! The Federal Communications Commission warns the users that changes or modifications to the unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Accessories: This equipment has been tested and found to comply with the limits of a Class A digital device. The accessories associated with this equipment are as follows: • Shielded video cable These accessories are required to be used in order to ensure compliance with FCC rules.

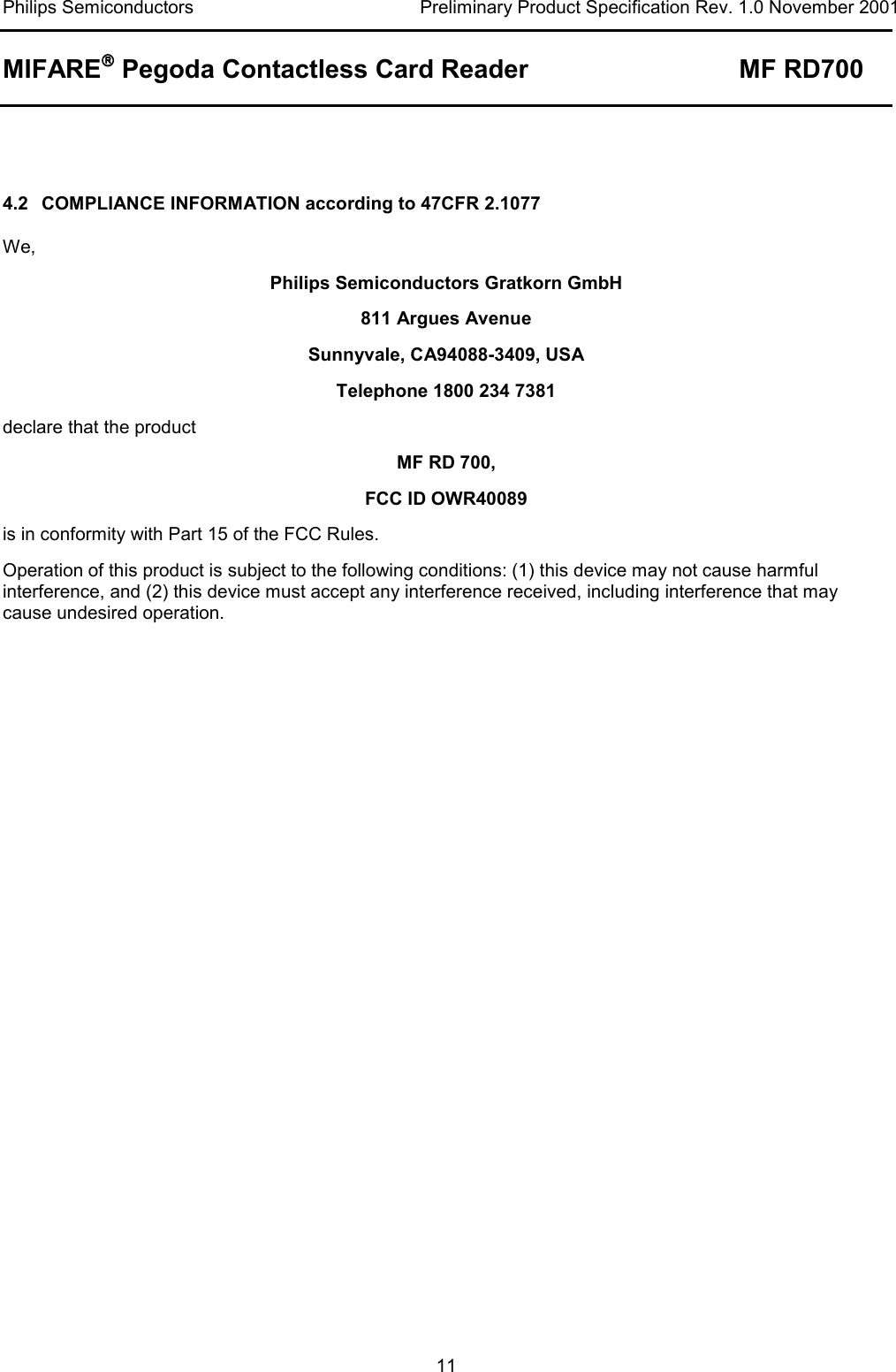

Philips Semiconductors Preliminary Product Specification Rev. 1.0 November 2001 MIFARE Pegoda Contactless Card Reader MF RD700 11 4.2 COMPLIANCE INFORMATION according to 47CFR 2.1077 We, Philips Semiconductors Gratkorn GmbH 811 Argues Avenue Sunnyvale, CA94088-3409, USA Telephone 1800 234 7381 declare that the product MF RD 700, FCC ID OWR40089 is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

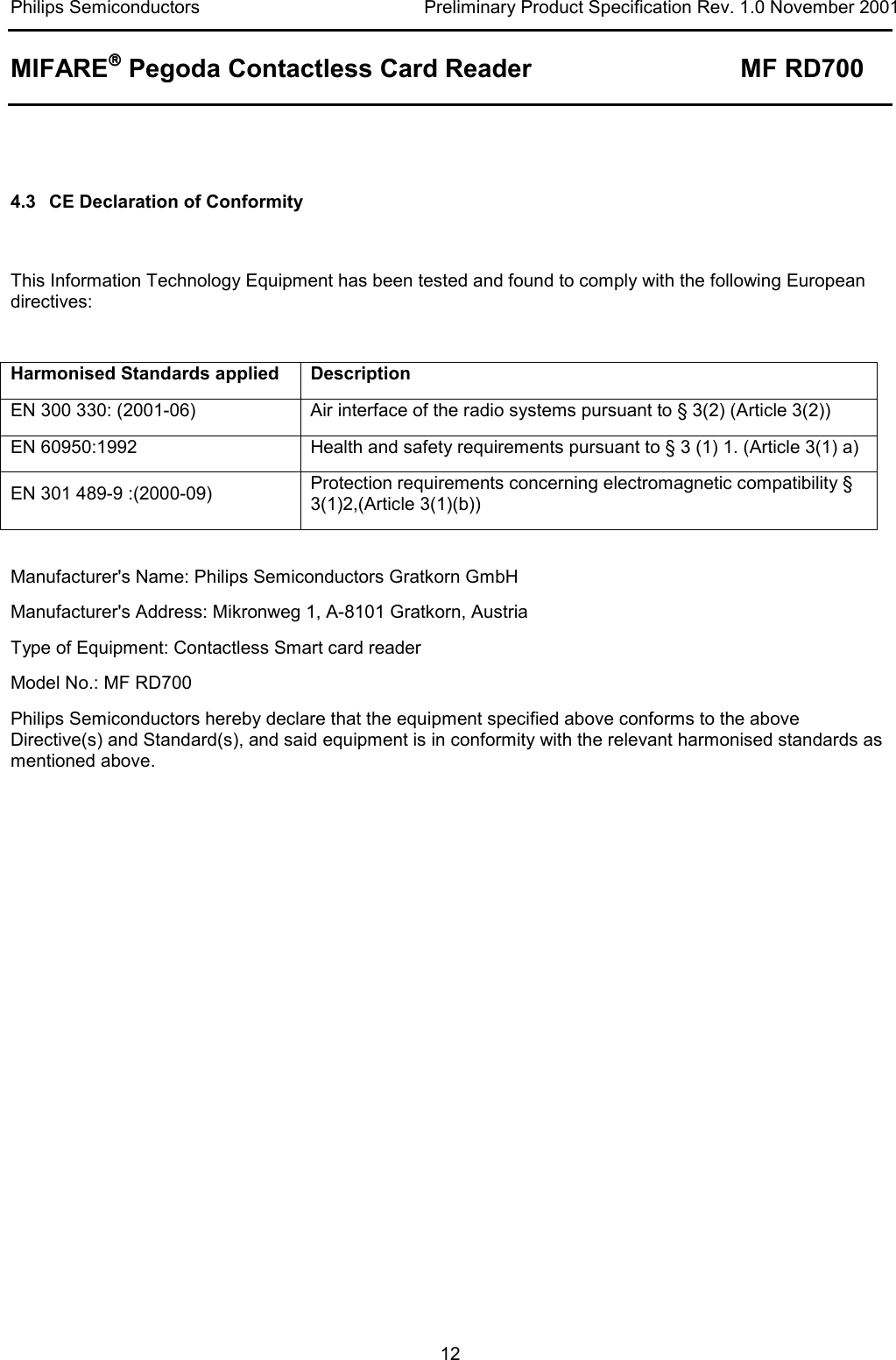

Philips Semiconductors Preliminary Product Specification Rev. 1.0 November 2001 MIFARE Pegoda Contactless Card Reader MF RD700 12 4.3 CE Declaration of Conformity This Information Technology Equipment has been tested and found to comply with the following European directives: Harmonised Standards applied Description EN 300 330: (2001-06) Air interface of the radio systems pursuant to § 3(2) (Article 3(2)) EN 60950:1992 Health and safety requirements pursuant to § 3 (1) 1. (Article 3(1) a) EN 301 489-9 :(2000-09) Protection requirements concerning electromagnetic compatibility § 3(1)2,(Article 3(1)(b)) Manufacturer's Name: Philips Semiconductors Gratkorn GmbH Manufacturer's Address: Mikronweg 1, A-8101 Gratkorn, Austria Type of Equipment: Contactless Smart card reader Model No.: MF RD700 Philips Semiconductors hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s), and said equipment is in conformity with the relevant harmonised standards as mentioned above.

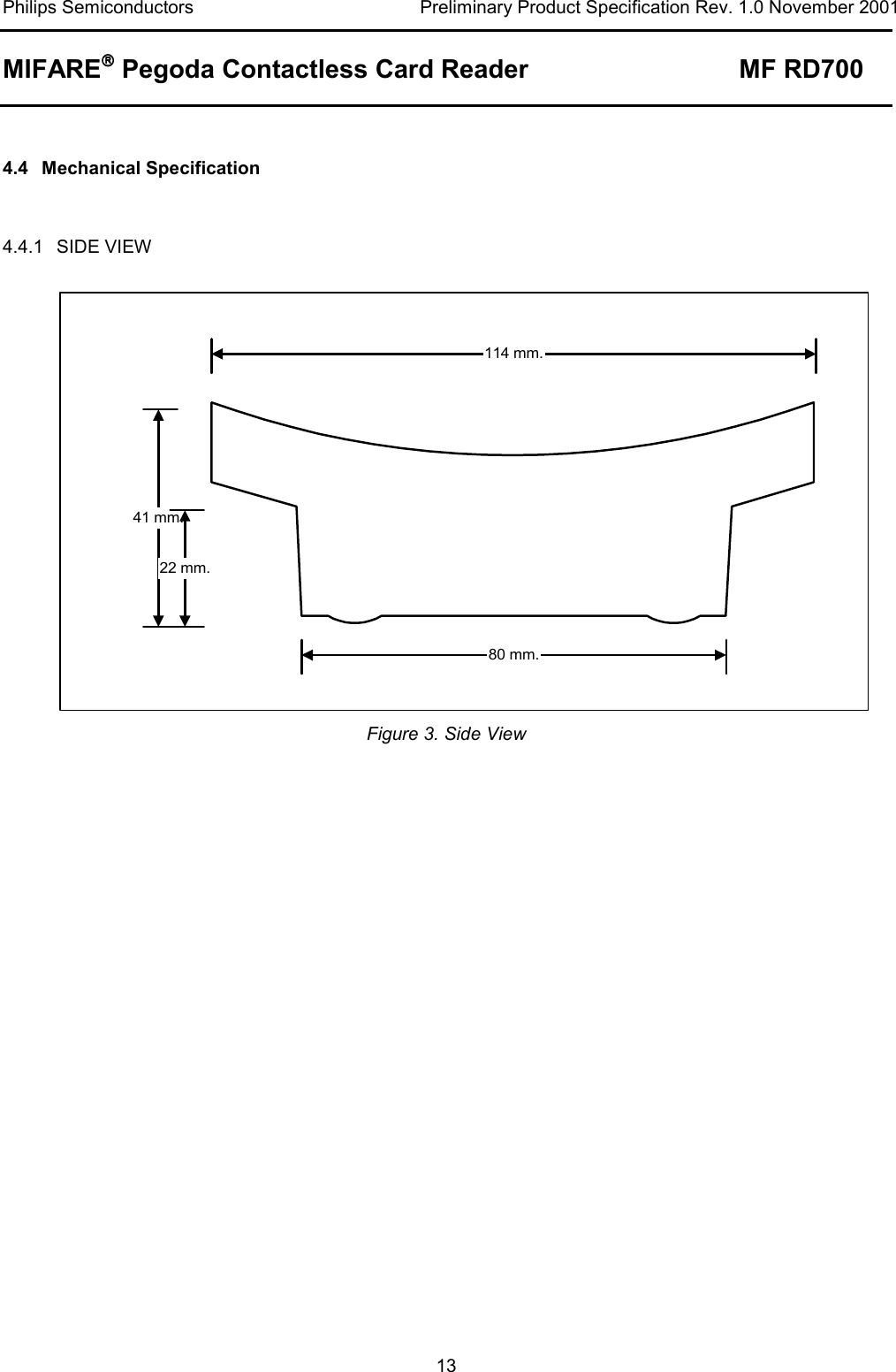

Philips Semiconductors Preliminary Product Specification Rev. 1.0 November 2001 MIFARE Pegoda Contactless Card Reader MF RD700 13 4.4 Mechanical Specification 4.4.1 SIDE VIEW Figure 3. Side View 114 mm.41 mm.22 mm.80 mm.

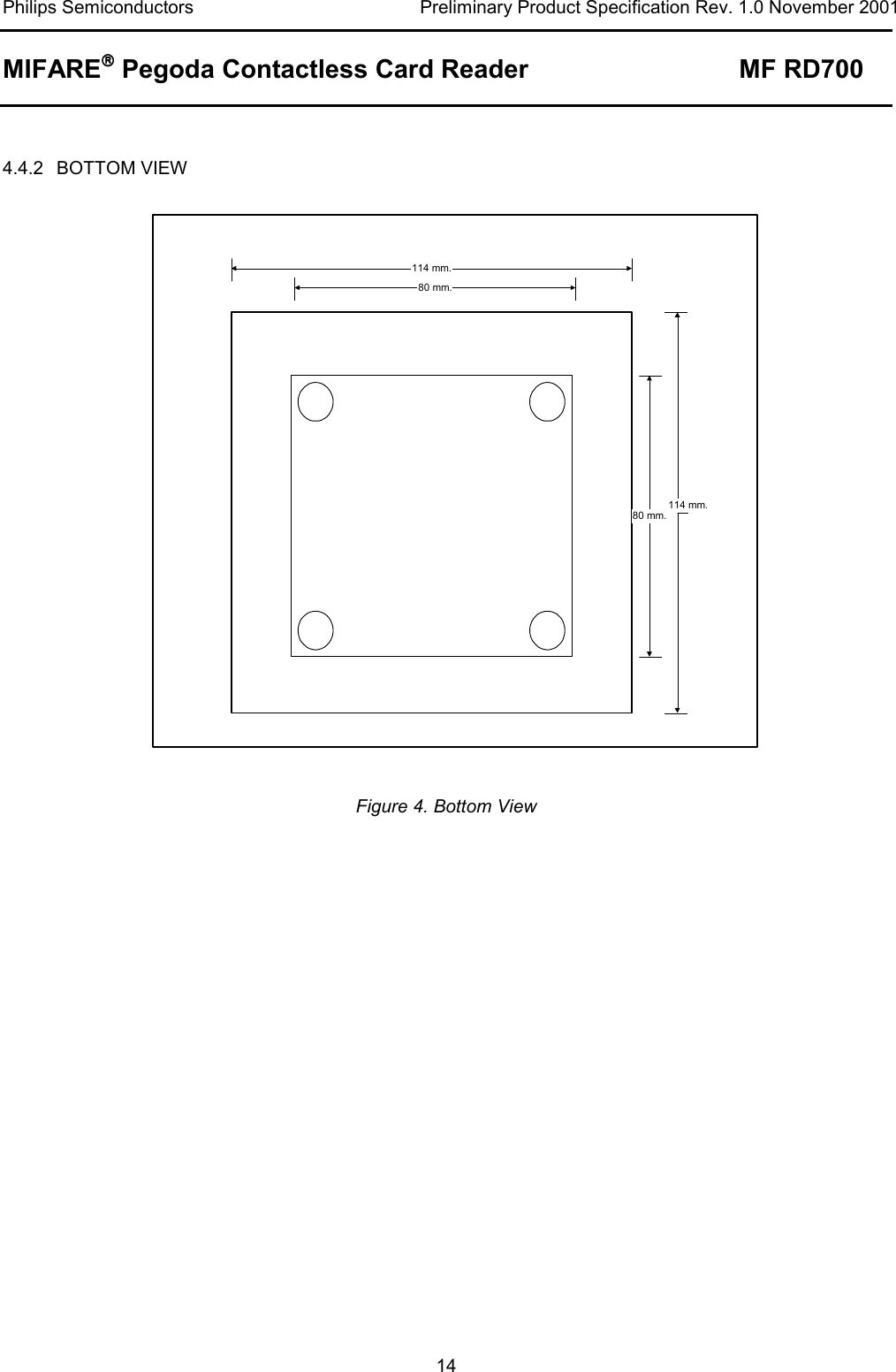

Philips Semiconductors Preliminary Product Specification Rev. 1.0 November 2001 MIFARE Pegoda Contactless Card Reader MF RD700 14 4.4.2 BOTTOM VIEW Figure 4. Bottom View 114 mm.80 mm.114 mm.80 mm.

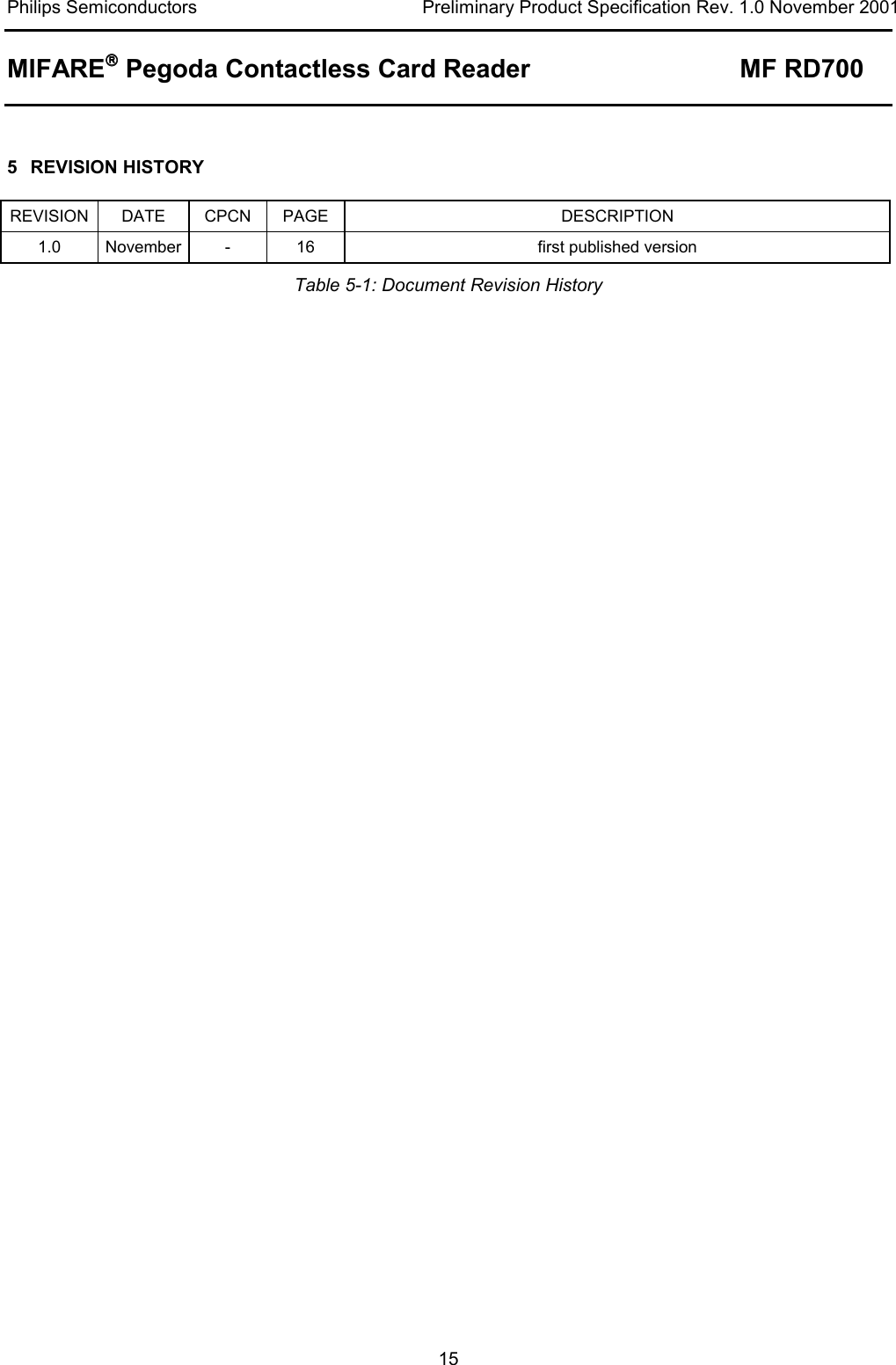

Philips Semiconductors Preliminary Product Specification Rev. 1.0 November 2001 MIFARE Pegoda Contactless Card Reader MF RD700 15 5 REVISION HISTORY REVISION DATE CPCN PAGE DESCRIPTION 1.0 November - 16 first published version Table 5-1: Document Revision History

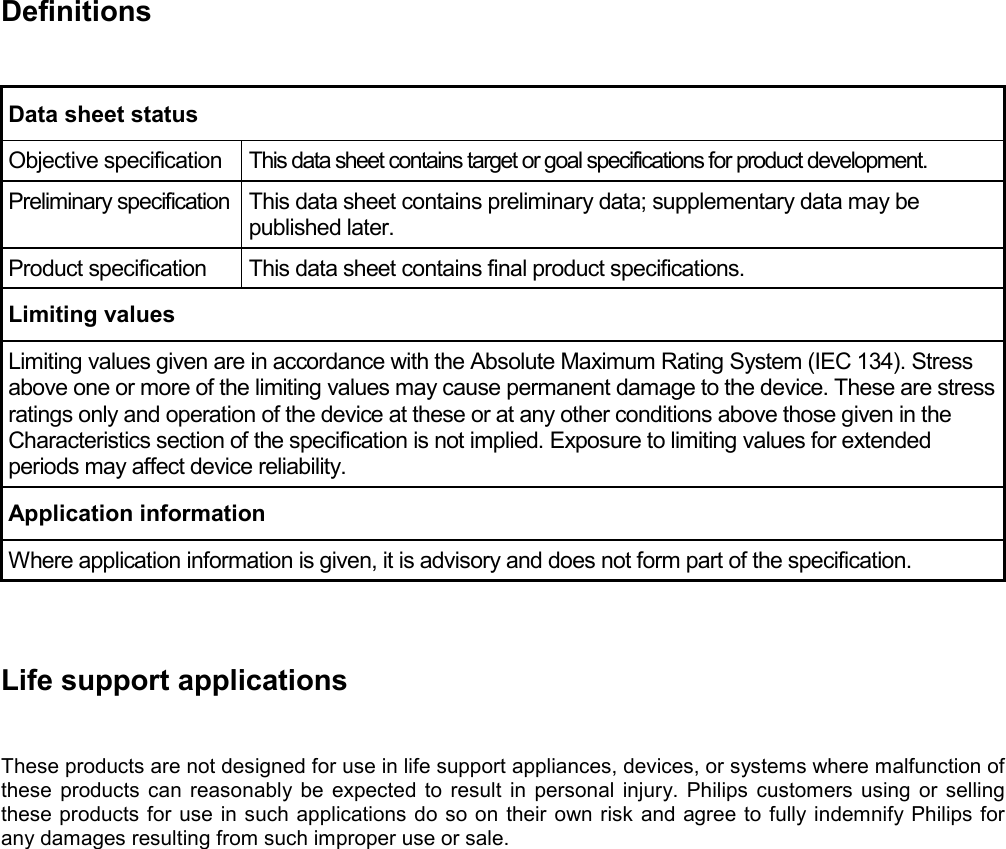

Definitions Data sheet status Objective specification This data sheet contains target or goal specifications for product development. Preliminary specification This data sheet contains preliminary data; supplementary data may be published later. Product specification This data sheet contains final product specifications. Limiting values Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given in the Characteristics section of the specification is not implied. Exposure to limiting values for extended periods may affect device reliability. Application information Where application information is given, it is advisory and does not form part of the specification. Life support applications These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Philips customers using or selling these products for use in such applications do so on their own risk and agree to fully indemnify Philips for any damages resulting from such improper use or sale.

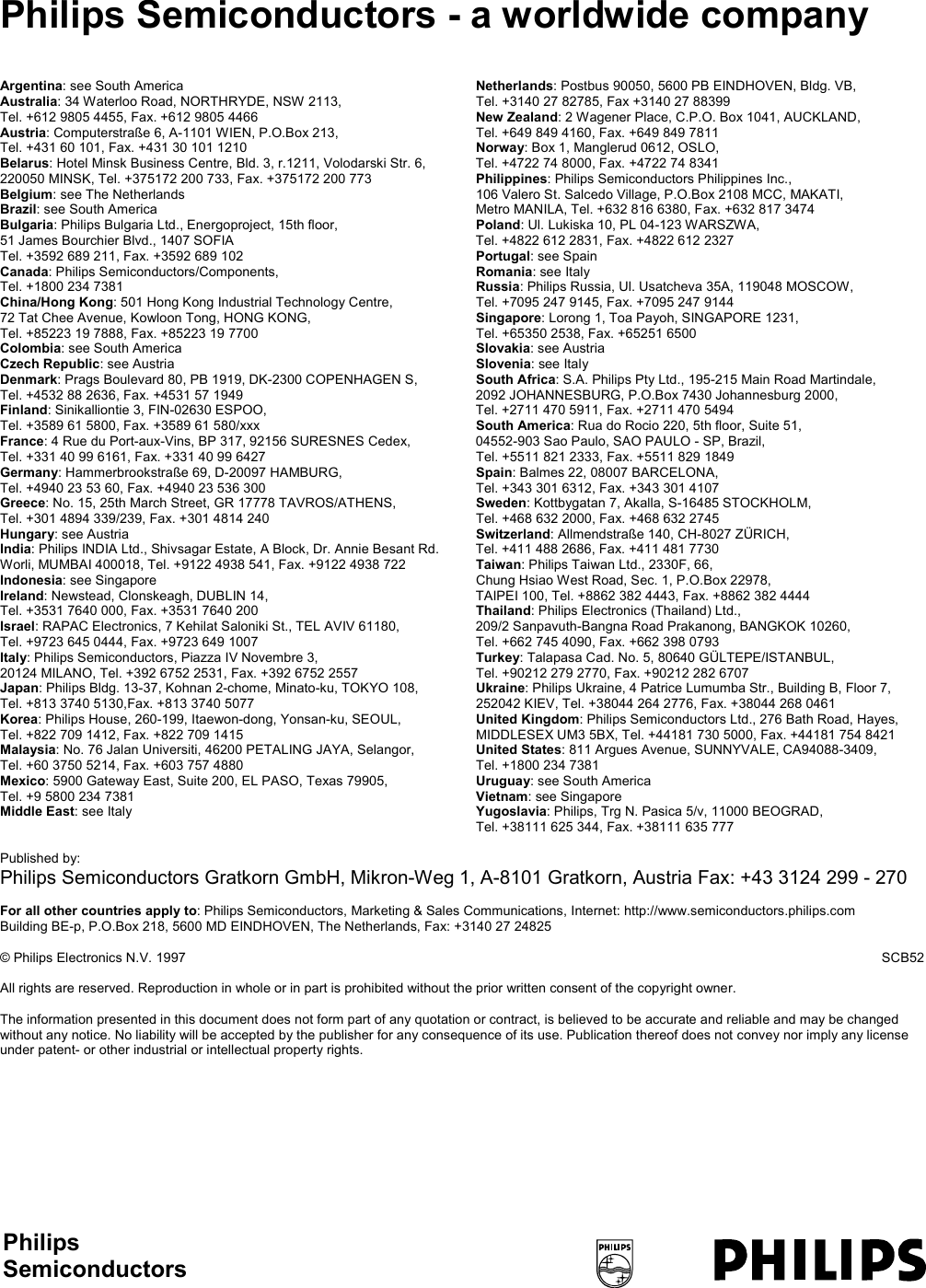

Philips Semiconductors - a worldwide company Argentina: see South America Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB, Australia: 34 Waterloo Road, NORTHRYDE, NSW 2113, Tel. +3140 27 82785, Fax +3140 27 88399 Tel. +612 9805 4455, Fax. +612 9805 4466 New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND, Austria: Computerstraße 6, A-1101 WIEN, P.O.Box 213, Tel. +649 849 4160, Fax. +649 849 7811 Tel. +431 60 101, Fax. +431 30 101 1210 Norway: Box 1, Manglerud 0612, OSLO, Belarus: Hotel Minsk Business Centre, Bld. 3, r.1211, Volodarski Str. 6, Tel. +4722 74 8000, Fax. +4722 74 8341 220050 MINSK, Tel. +375172 200 733, Fax. +375172 200 773 Philippines: Philips Semiconductors Philippines Inc., Belgium: see The Netherlands 106 Valero St. Salcedo Village, P.O.Box 2108 MCC, MAKATI, Brazil: see South America Metro MANILA, Tel. +632 816 6380, Fax. +632 817 3474 Bulgaria: Philips Bulgaria Ltd., Energoproject, 15th floor, Poland: Ul. Lukiska 10, PL 04-123 WARSZWA, 51 James Bourchier Blvd., 1407 SOFIA Tel. +4822 612 2831, Fax. +4822 612 2327 Tel. +3592 689 211, Fax. +3592 689 102 Portugal: see Spain Canada: Philips Semiconductors/Components, Romania: see Italy Tel. +1800 234 7381 Russia: Philips Russia, Ul. Usatcheva 35A, 119048 MOSCOW, China/Hong Kong: 501 Hong Kong Industrial Technology Centre, Tel. +7095 247 9145, Fax. +7095 247 9144 72 Tat Chee Avenue, Kowloon Tong, HONG KONG, Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231, Tel. +85223 19 7888, Fax. +85223 19 7700 Tel. +65350 2538, Fax. +65251 6500 Colombia: see South America Slovakia: see Austria Czech Republic: see Austria Slovenia: see Italy Denmark: Prags Boulevard 80, PB 1919, DK-2300 COPENHAGEN S, South Africa: S.A. Philips Pty Ltd., 195-215 Main Road Martindale, Tel. +4532 88 2636, Fax. +4531 57 1949 2092 JOHANNESBURG, P.O.Box 7430 Johannesburg 2000, Finland: Sinikalliontie 3, FIN-02630 ESPOO, Tel. +2711 470 5911, Fax. +2711 470 5494 Tel. +3589 61 5800, Fax. +3589 61 580/xxx South America: Rua do Rocio 220, 5th floor, Suite 51, France: 4 Rue du Port-aux-Vins, BP 317, 92156 SURESNES Cedex, 04552-903 Sao Paulo, SAO PAULO - SP, Brazil, Tel. +331 40 99 6161, Fax. +331 40 99 6427 Tel. +5511 821 2333, Fax. +5511 829 1849 Germany: Hammerbrookstraße 69, D-20097 HAMBURG, Spain: Balmes 22, 08007 BARCELONA, Tel. +4940 23 53 60, Fax. +4940 23 536 300 Tel. +343 301 6312, Fax. +343 301 4107 Greece: No. 15, 25th March Street, GR 17778 TAVROS/ATHENS, Sweden: Kottbygatan 7, Akalla, S-16485 STOCKHOLM, Tel. +301 4894 339/239, Fax. +301 4814 240 Tel. +468 632 2000, Fax. +468 632 2745 Hungary: see Austria Switzerland: Allmendstraße 140, CH-8027 ZÜRICH, India: Philips INDIA Ltd., Shivsagar Estate, A Block, Dr. Annie Besant Rd. Tel. +411 488 2686, Fax. +411 481 7730 Worli, MUMBAI 400018, Tel. +9122 4938 541, Fax. +9122 4938 722 Taiwan: Philips Taiwan Ltd., 2330F, 66, Indonesia: see Singapore Chung Hsiao West Road, Sec. 1, P.O.Box 22978, Ireland: Newstead, Clonskeagh, DUBLIN 14, TAIPEI 100, Tel. +8862 382 4443, Fax. +8862 382 4444 Tel. +3531 7640 000, Fax. +3531 7640 200 Thailand: Philips Electronics (Thailand) Ltd., Israel: RAPAC Electronics, 7 Kehilat Saloniki St., TEL AVIV 61180, 209/2 Sanpavuth-Bangna Road Prakanong, BANGKOK 10260, Tel. +9723 645 0444, Fax. +9723 649 1007 Tel. +662 745 4090, Fax. +662 398 0793 Italy: Philips Semiconductors, Piazza IV Novembre 3, Turkey: Talapasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL, 20124 MILANO, Tel. +392 6752 2531, Fax. +392 6752 2557 Tel. +90212 279 2770, Fax. +90212 282 6707 Japan: Philips Bldg. 13-37, Kohnan 2-chome, Minato-ku, TOKYO 108, Ukraine: Philips Ukraine, 4 Patrice Lumumba Str., Building B, Floor 7, Tel. +813 3740 5130,Fax. +813 3740 5077 252042 KIEV, Tel. +38044 264 2776, Fax. +38044 268 0461 Korea: Philips House, 260-199, Itaewon-dong, Yonsan-ku, SEOUL, United Kingdom: Philips Semiconductors Ltd., 276 Bath Road, Hayes, Tel. +822 709 1412, Fax. +822 709 1415 MIDDLESEX UM3 5BX, Tel. +44181 730 5000, Fax. +44181 754 8421 Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA, Selangor, United States: 811 Argues Avenue, SUNNYVALE, CA94088-3409, Tel. +60 3750 5214, Fax. +603 757 4880 Tel. +1800 234 7381 Mexico: 5900 Gateway East, Suite 200, EL PASO, Texas 79905, Uruguay: see South America Tel. +9 5800 234 7381 Vietnam: see Singapore Middle East: see Italy Yugoslavia: Philips, Trg N. Pasica 5/v, 11000 BEOGRAD, Tel. +38111 625 344, Fax. +38111 635 777 Published by: Philips Semiconductors Gratkorn GmbH, Mikron-Weg 1, A-8101 Gratkorn, Austria Fax: +43 3124 299 - 270 For all other countries apply to: Philips Semiconductors, Marketing & Sales Communications, Internet: http://www.semiconductors.philips.com Building BE-p, P.O.Box 218, 5600 MD EINDHOVEN, The Netherlands, Fax: +3140 27 24825 © Philips Electronics N.V. 1997 SCB52 All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without any notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent- or other industrial or intellectual property rights. PhilipsSemiconductors
