Antenna Data
Specifications subject to change without notice.
3425 N.44
th
Street, LINCOLN, NE 68504 USA
SALES PHONE: 800.228.4563
PHONE: 402.467.4491 • FAX: 402.467.4528
www.centurion.com • sales@centurion.com
Copyright 2004 Centurion Wireless Technologies, Inc. All Rights Reserved

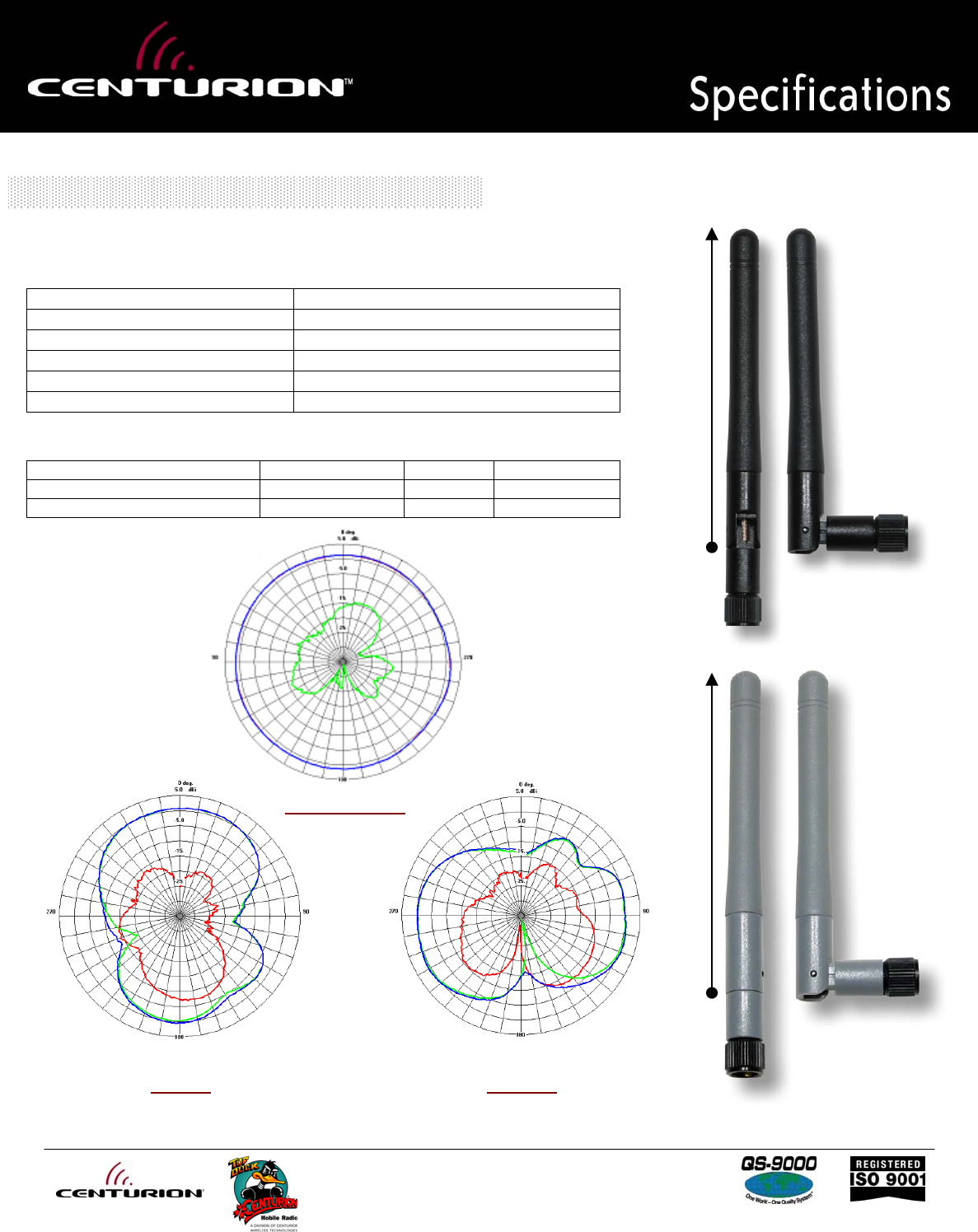

Specifications:
Covers 802.11b for all U.S., European & Japanese WLAN applications
Center fed coaxial dipole
Frequency 2.4 – 2.5 GHz
Gain 1.3 dBi (2.45 GHz)
Polarization Vertical, Omnidirectional
Nominal Impedance 50 ohms
VSWR 2:1 max across all bands
Size (Length) 10.9 cm (180°) or 8.8 cm (90°)
Connectors:
Model # Part # Color Connector
WRR2400-RPSMA-B MAF94028 Black RP-SMA
WRR2400-RPSMA-G MAF94046 Gray RP-SMA
WRR RPSMAa – 5/18/04
WRR
- RPSMA Model Number:
WRR2400-RPSMA
External Antenna – Connector Mount
Elevation Plane
phi = 0
2.45 GHz
Elevation Plane
phi = 90
2.45 GHz
Azimuth Plane
2.45 GHz
8.8 cm 8.8 cm
