DR1198 JN5168 USB Dongle

Reference Manual

JN-RM-2065

Revision 1.0

17-Dec-2012

DR1198 JN5168 USB Dongle

Reference Manual

2 © NXP Laboratories UK 2012 JN-RM-2065 v1.0

Contents

About this Manual 3

Organisation 3

Conventions 3

Acronyms and Abbreviations 3

Related Documents

JN-DS-JN5168 JN5168 Data Sheet

DR1198 JN5168 USB Dongle

Reference Manual

4 © NXP Laboratories UK 2012 JN-RM-2065 v1.0

1 Introduction

This manual provides a detailed reference for the DR1198 JN5168 USB Dongle,

supplied with JN516x EK001 evaluation kit. The dongle provides a platform for

hardware development environment for wireless microcontroller applications with

a USB interface.

1.1 Overview

The DR1198 JN5168-001-U00 Dongle provides an easy way of interfacing a

host machine (such as a PC) to a wireless network based on the IEEE802.15.4,

JenNet-IP, ZigBee Light Link, ZigBee Smart Energy and RF4CE

networking applications. The dongle incorporates the NXP JN5168 wireless

microcontroller, allowing a direct USB connection between the host machine and

the JN5168 device, which then provides the radio interface to the wireless

network.

Typical uses of the dongle include:

 A complete and stable hardware environment for the development of

IEEE802.15.4, JenNet-IP, ZigBee Light Link, ZigBee Smart Energy

and RF4CE networking applications, facilitating an accelerated time-

to-market for wireless network products

 The basis of a packet sniffer for IEEE 802.15.4-based wireless

communications

 A means of integrating the host machine into a wireless network, typically

as the network Co-ordinator

The small-footprint PCB of the dongle provides all the necessary components for

a wireless microcontroller with access to a USB connection. All RF layout and

decoupling issues are handled by the design of this dongle. Therefore, this

design is ready for application development without the necessity of hardware

development.

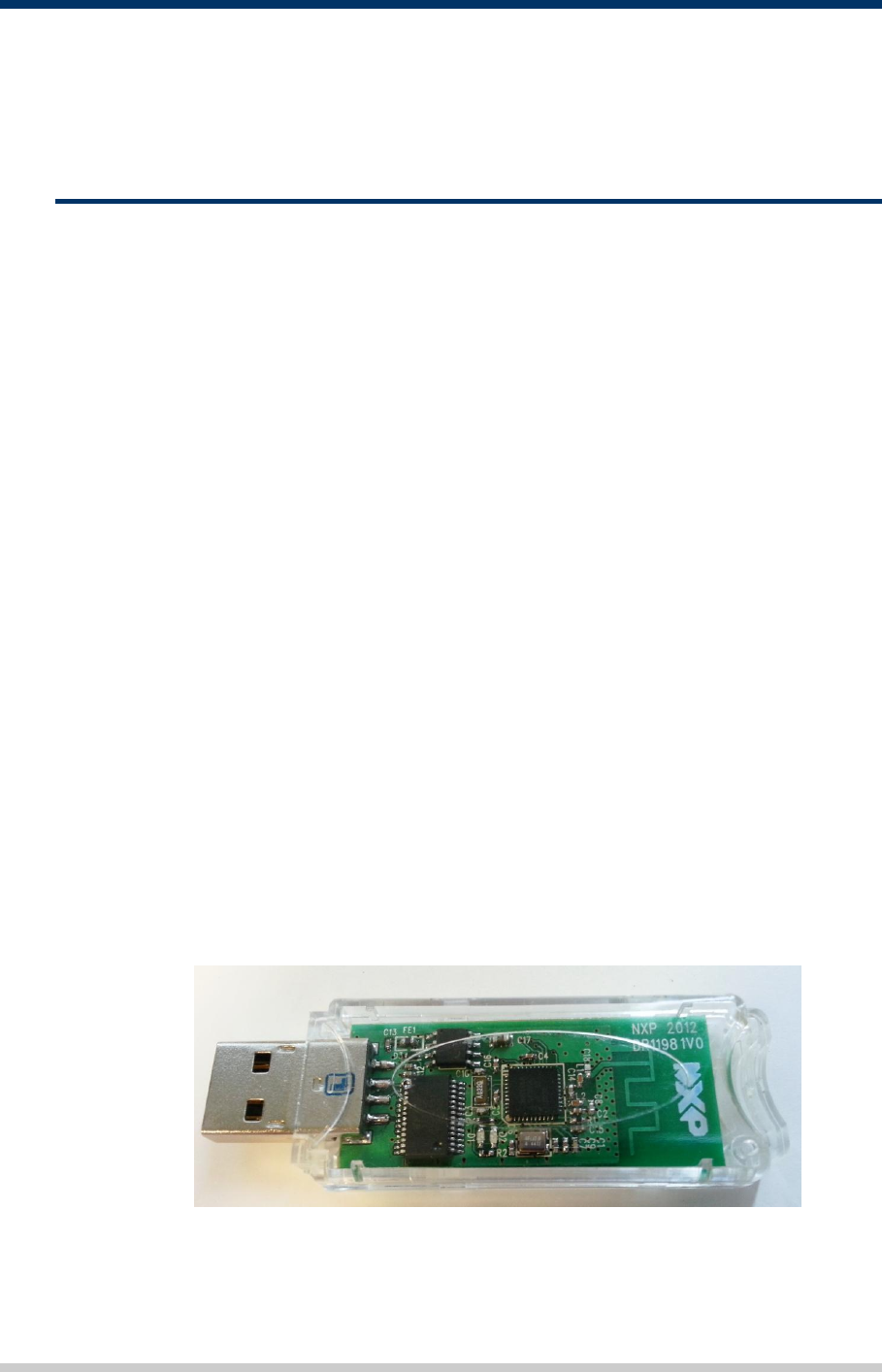

The dongle is shown below.

DR1198 JN5168 USB Dongle

Reference Manual

JN-RM-2065 v1.0 © NXP Laboratories UK 2012 5

1.2 Features

The dongle has the following features:

 USB 2.0 Full-Speed Compatible Interface

 IEEE 802.15.4-based wireless microcontroller (JN5168) with the following

radio characteristics:

 Transmit Power: 2.5 dBm (typ.)

 Transmit Current: 15mA (typ.)

 Receive Sensitivity: –95dBm (typ.)

 Receive Current: 17.5mA (typ.)

 Printed RF antenna general-purpose LEDs (one green, one orange)

 Serial Flash memory device

 32-kHz crystal oscillator

1.3 Reference Design

A reference design (JN-RD-6039) for the JN5168 High-Power USB Dongle is

available from www.nxp.com/jennic/support. The reference design comprises a

ZIP file containing the following files:

 This Reference Manual

 The schematic diagram for the board

 The BOM (Bill Of Materials) for the board

 Gerbers for the board

DR1198 JN5168 USB Dongle

Reference Manual

6 © NXP Laboratories UK 2012 JN-RM-2065 v1.0

2 Hardware Overview

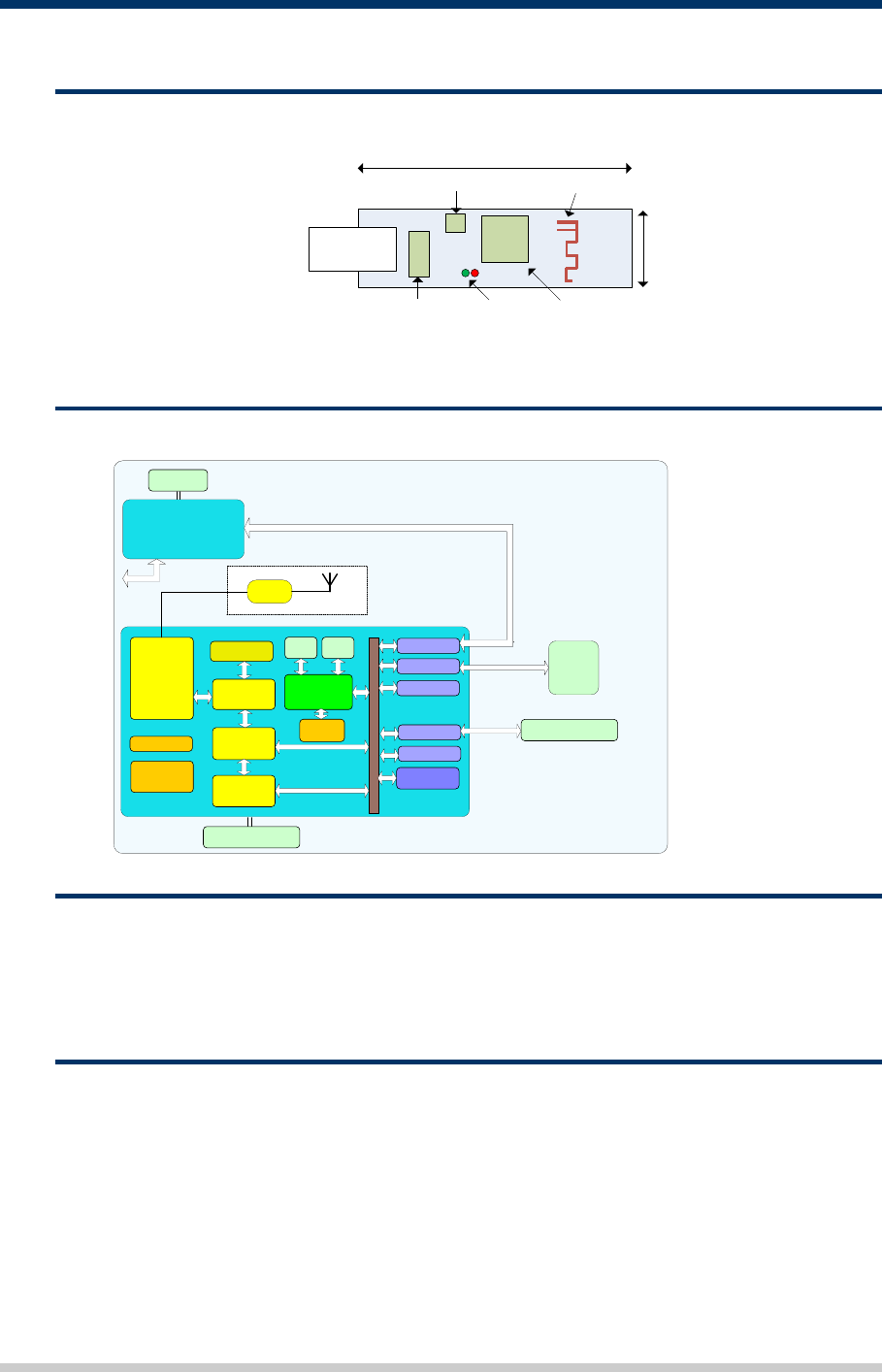

2.1 Dongle Layout

16mm

30mm

USB

JN5168

LEDS

FT232RL

Antenna

SPI Flash

Figure 1: DR1198 Board Layout

2.2 Dongle Block Diagram

Timers

UART

Temp sensor

SPI

RAM

32kB

128-bit AES

Encryption

Accelerator

2.4GHz

Radio

Flash

256kB

RISC CPU

Power

Management

XTAL

32.768 kHz

O-QPSK

Modem

IEEE802.15.4

MAC

Accelerator

512kB

Serial Flash

Memory

JN5148 chip

Integrated Antenna

32kHz ext Xtal

Sleep Counters

4kB EEPROM

Watchdog timer

Time of Flight

Engine

USB

FT232RL

XTAL

32 MHz

XTAL

12 MHz

Matching

2.3 FT232L Device

The FT232L device is connected to the USB connector and acts as an interface

between the PC and the JN5168 device. The FT232L will enumerate on the PC

as a virtual COM port connected directly to UART0 on the JN5168.

2.4 JN5168 Device

The JN5168 circuit is based around the standard JN-RD-6038 JN5168 reference

design; however it is built on a 2 layer board as the DIOs do not need to be

externally available.

DR1198 JN5168 USB Dongle

Reference Manual

JN-RM-2065 v1.0 © NXP Laboratories UK 2012 7

2.5 LEDs

There are two surface-mounted LEDs that can be controlled by the JN5148

wireless microcontroller (see Figure 2 for locations):

 LED D1 which is green

 LED D2 which is orange

Both LEDs are connected to DIO16 and DIO17. These DIOs can be used to

control the LEDs as indicated in the table below.

DIO 17

Low

High

DIO16

Low

D1: Off

D2: Off

D2: On

High

D1: On

D1: Off

D2: Off

2.6 32-kHz Crystal Oscillator

The JN5168 has an internal 32-kHz RC oscillator. In order to provide more

accurate system timings, an external 32-kHz crystal can be used with the device.

This is provided on the USB dongle and can be enabled using the JN516x

Integrated Peripherals API - refer to JN516x Integrated Peripherals API User

Guide (JN-UG-3087).

DR1198 JN5168 USB Dongle

Reference Manual

8 © NXP Laboratories UK 2012 JN-RM-2065 v1.0

3 Programming

When the IEEE 802.15.4 USB Dongle is powered up, it attempts to load an

application from the internal Flash and then run the application. This may be a

self-contained application that sends and receives wireless data, and which does

not need to communicate with the host. Alternatively, it may communicate via the

USB to an application running on the host, such as a Windows program, and

communicate with a wireless device or network.

In order to program the serial Flash memory device, the JN51xx Flash

Programmer can be used, which is described in the JN51xx Flash Programmer

User Guide (JN-UG-3007). This programming utility will place the JN5168 into its

programming mode. It will then download the program to the Flash device and

then reset the JN5168, causing the application to be loaded and executed.

DR1198 JN5168 USB Dongle

Reference Manual

JN-RM-2065 v1.0 © NXP Laboratories UK 2012 9

4 Compliance Statements & Documentation

4.1 FCC Statements and Documentation

This section contains the Federal Communication Commission (FCC) statements

and documents.

4.1.1 Federal Communication Commission Interference

Statement

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this

equipment.

4.1.2 WARNING!

FCC Radiation Exposure Statement:

This portable equipment with its integrated antenna complies with FCC’s RF

radiation exposure limits set forth for an uncontrolled environment. To maintain

compliance follow the instructions below;

Avoid direct contact to the antenna, or keep it to a minimum while using this

equipment.

DR1198 JN5168 USB Dongle

Reference Manual

10 © NXP Laboratories UK 2012 JN-RM-2065 v1.0

4.1.3 FCC Declaration of Conformity

JN5139-000-M00

JN5139-000-M01

JN5139-000-M02

JN5139-000-M03

JN5139-000-M04

FCC COMPLIANCE INFORMATION STATEMENT

DECLARATION OF CONFORMITY

Manufacturer:

NXP Semiconductors Netherlands B.V

Responsible Party in the USA:

Niel P Smith

NXP Semiconductors

411 E. Plumeria Drive

San Jose

CA 95134

USA

Tel 001 408-518 5302

Product:

DR1198 JN5168-001-U00 USB Dongle

Authorisation Procedure:

Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

We, NXP Laboratories (UK) Ltd, have determined that the above named

equipment has been shown to comply with the applicable technical standards.

Furthermore, we warrant that each unit of equipment marketed is identical to the

unit tested and found acceptable with the standards. The records maintained

continue to reflect the equipment being produced within the variation that can be

expected due to quantity production and testing on a statistical basis.

NXP Semiconductors BV

DR1198 JN5168-001-U00

USB Dongle

Sheffield, December 4th, 2012

Conrad Farlow, Senior RF Hardware Engineer, NXP Laboratories Ltd

TELEPHONE: +44 (0) 114 281 2655

FACSIMILE: +44 (0) 114 281 2951

E MAIL: info@jennic.com

WEB: www.jennic.com

NXP LABORATORIES (UK) LTD

FURNIVAL STREET

SHEFFIELD

S1 4QT

UNITED KINGDOM

DR1198 JN5168 USB Dongle

Reference Manual

4.2 Industry Canada Statement

This device complies with Industry Canada

licence-exempt RSS standard(s). Operation is

subject

to the following two conditions: (1) this device

may not cause interference, and (2) this device

must accept any interference, including

interference that may cause undesired

operation of the

device.

Le présent appareil est conforme aux

CNR d'Industrie Canada applicables aux

appareils radio

exempts de licence. L'exploitation est

autorisée aux deux conditions suivantes :

(1) l'appareil ne

doit pas produire de brouillage, et (2)

l'utilisateur de l'appareil doit accepter tout

brouillage

radioélectrique subi, même si le brouillage

est susceptible d'en compromettre le

fonctionnement.

4.3 European R & TTE Directive 1999/5/EC Statement

The JN5168-001-U00 is compliant with the following standards:

 Radio - ETSI EN 300 328 V1.7.1 (2006-10),

 EMC - EN 301 489-17 v2.1.1 (2009-02) and the

 Basic Safety Assessment (BSA) EN 60950-1:2006 (2006-06)

The JN5168-001-U00 is subject to a Notified Body Opinion.

DR1198 JN5168 USB Dongle

Reference Manual

Revision History

Version

Date

Description

1.0

17-Dec-2012

First release

DR1198 JN5168 USB Dongle

Reference Manual

Important Notice

Limited warranty and liability — Information in this document is believed to be accurate and reliable.

However, NXP Semiconductors does not give any representations or warranties, expressed or implied, as to

the accuracy or completeness of such information and shall have no liability for the consequences of use of

such information. NXP Semiconductors takes no responsibility for the content in this document if provided by

an information source outside of NXP Semiconductors.

In no event shall NXP Semiconductors be liable for any indirect, incidental, punitive, special or consequential

damages (including - without limitation - lost profits, lost savings, business interruption, costs related to the

removal or replacement of any products or rework charges) whether or not such damages are based on tort

(including negligence), warranty, breach of contract or any other legal theory.

Notwithstanding any damages that customer might incur for any reason whatsoever, NXP Semiconductors’

aggregate and cumulative liability towards customer for the products described herein shall be limited in

accordance with the Terms and conditions of commercial sale of NXP Semiconductors.

Right to make changes — NXP Semiconductors reserves the right to make changes to information published

in this document, including without limitation specifications and product descriptions, at any time and without

notice. This document supersedes and replaces all information supplied prior to the publication hereof.

Suitability for use — NXP Semiconductors products are not designed, authorized or warranted to be suitable

for use in life support, life-critical or safety-critical systems or equipment, nor in applications where failure or

malfunction of an NXP Semiconductors product can reasonably be expected to result in personal injury, death

or severe property or environmental damage. NXP Semiconductors and its suppliers accept no liability for

inclusion and/or use of NXP Semiconductors products in such equipment or applications and therefore such

inclusion and/or use is at the customer’s own risk.

Applications — Applications that are described herein for any of these products are for illustrative purposes

only. NXP Semiconductors makes no representation or warranty that such applications will be suitable for the

specified use without further testing or modification.

Customers are responsible for the design and operation of their applications and products using NXP

Semiconductors products, and NXP Semiconductors accepts no liability for any assistance with applications or

customer product design. It is customer’s sole responsibility to determine whether the NXP Semiconductors

product is suitable and fit for the customer’s applications and products planned, as well as for the planned

application and use of customer’s third party customer(s). Customers should provide appropriate design and

operating safeguards to minimize the risks associated with their applications and products.

NXP Semiconductors does not accept any liability related to any default, damage, costs or problem which is

based on any weakness or default in the customer’s applications or products, or the application or use by

customer’s third party customer(s). Customer is responsible for doing all necessary testing for the customer’s

applications and products using NXP Semiconductors products in order to avoid a default of the applications

and the products or of the application or use by customer’s third party customer(s). NXP does not accept any

liability in this respect.

Export control — This document as well as the item(s) described herein may be subject to export control

regulations. Export might require a prior authorization from competent authorities.

NXP Laboratories UK Ltd

(Formerly Jennic Ltd)

Furnival Street

Sheffield

S1 4QT

United Kingdom

Tel: +44 (0)114 281 2655

Fax: +44 (0)114 281 2951

For the contact details of your local NXP/Jennic office or distributor, refer to:

NXP Laboratories UK JN5168U0 JN5168-001-U00 Wireless USB Dongle User Manual DR1198 JN5168 USB Dongle

NXP Laboratories UK Ltd JN5168-001-U00 Wireless USB Dongle DR1198 JN5168 USB Dongle

manual

Navigation menu

Namespaces

Views

Navigation
