NXP Semiconductors FRDMKW24D512 FRDM-KW24D512 Freedom Development Platform User Manual
NXP Semiconductors FRDM-KW24D512 Freedom Development Platform Users Manual
Users Manual
EXTERNAL USE
FRDM-KW24D512
QUICK START GUIDE FOR
NXP FREEDOM
DEVELOPMENT PLATFORM
EXTERNAL USE
1
Contents
• Quick Start Package Overview
• Get to Know the FRDM-KW24D512
• Getting Started Out of the Box
• Introduction to OpenSDA
• Explore Further
EXTERNAL USE
2
Quick Start Package Overview

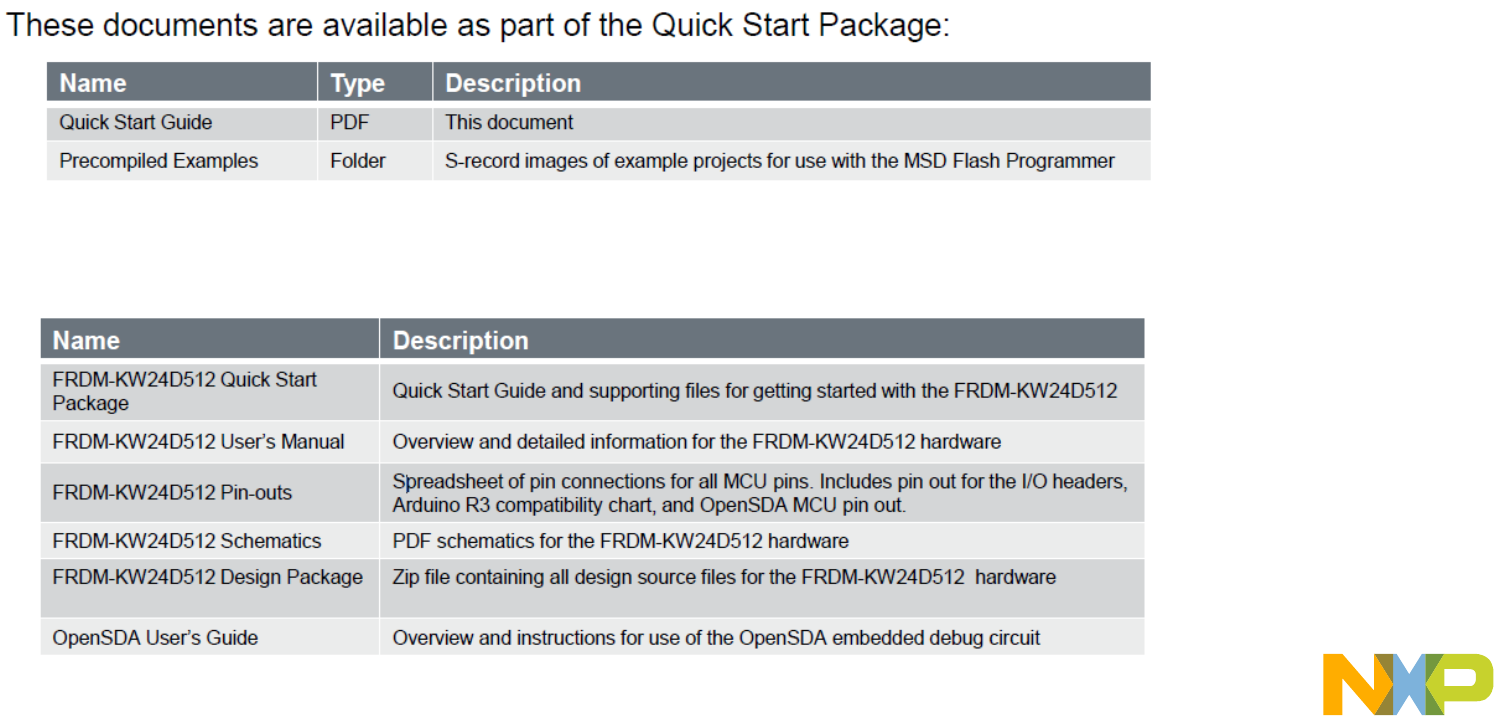

Additional reference documents are available on nxp.com/FRDM-KW24D512
EXTERNAL USE
3
Get to Know the FRDM-KW24D512 1 of 3
EXTERNAL USE
4
Get to Know the FRDM-KW24D512 2 of 3
EXTERNAL USE
5
Get to Know the FRDM-KW24D512 3 of 3
The NXP Freedom development platform is a set of software and hardware tools for evaluation and development. It is
ideal for rapid prototyping of microcontroller-based applications. The NXP Freedom KW24 hardware, FRDM-
KW24D512, is a simple, yet sophisticated design featuring a Kinetis W series MCU, the industry’s first MCU built on
the ARM® Cortex® M4 core.
This equipment is to be used by developers for evaluation purposes only, and must be incorporated into any other
device or system. Integrators are responsible for re-evaluating the end product (including the transmitter) and obtaining
a separate authorization.
Features:
MKW24D512VHA5 MCU – 50MHz, 512KB Flash, 64KB SRAM, 63LGA
Small RF reference design area marked in silkscreen, combo sensor
FXOS8700CQ, Tri-color LED, Flexible power supply options – USB, external source
Two (4) user push-button switches (SW1-SW4)

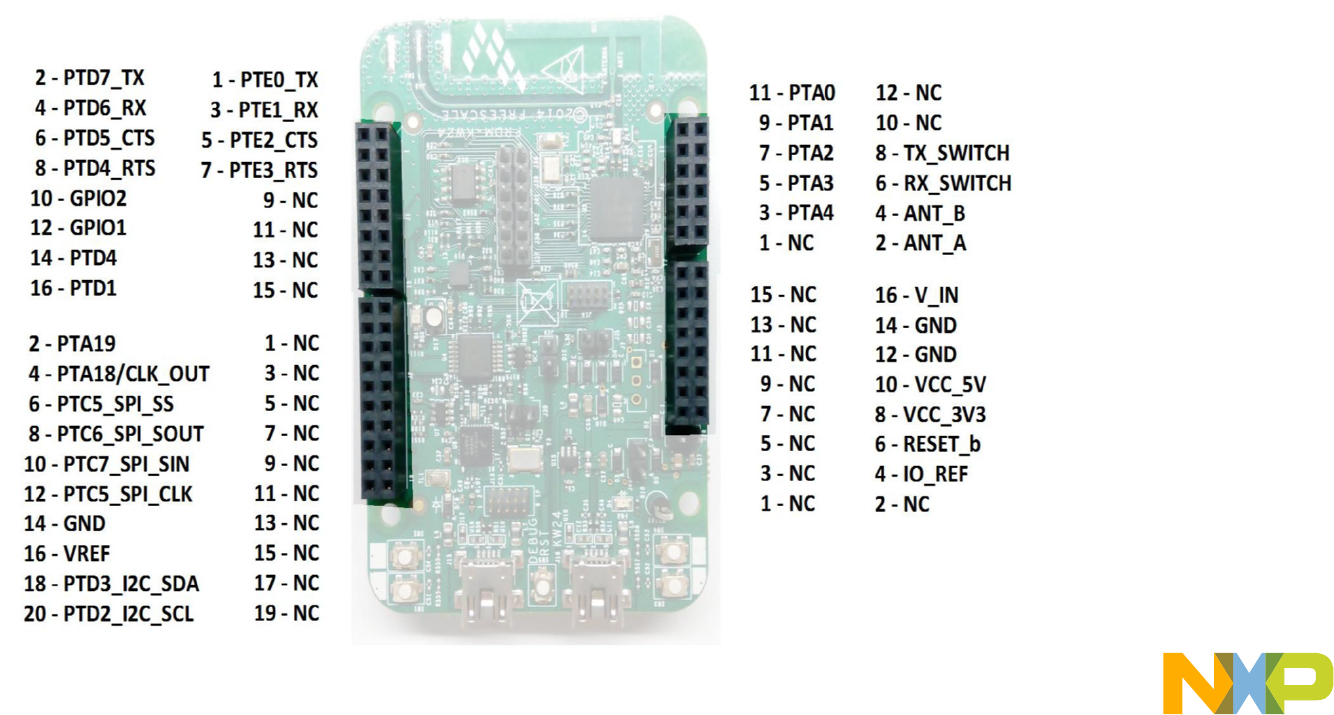

Easy access to MCU I/O
Power-measurement access points
UART, SPI, I2C, optional USB 2.0 FS/LS H/D/OTG
Form factor compatible with Arduino ™ R3 pin layout
New, OpenSDA debug interface
oMass storage device flash programming interface (default) – no tool
installation required to evaluate demo apps
oCMSIS-DAP interface: new ARM standard for embedded debug interface
Refer to the FRDM-KW24D512 User’s Manual and OpenSDA
User’s Guide for more information.
EXTERNAL USE
6
FRDM-KW24D512 Operation Description
The KW24 operating frequency range is 2405 MHz to 2480 MHz, the data rate is 250 Kbps,
and the modulation type is O-QPSK – all of these parameters are defined by the 802.15.4
standard.
The antenna is a fixed printed inverted “F”, or PIFA antenna on the PCB. The operating
voltage for the KW24 is 5V and the current for TX/RX is < 20 mA. The KW24 crystal
oscillator is 32 MHz and the radio uses an internal PLL to generate the RF frequency.
EXTERNAL USE
7
Getting Started Out of the Box

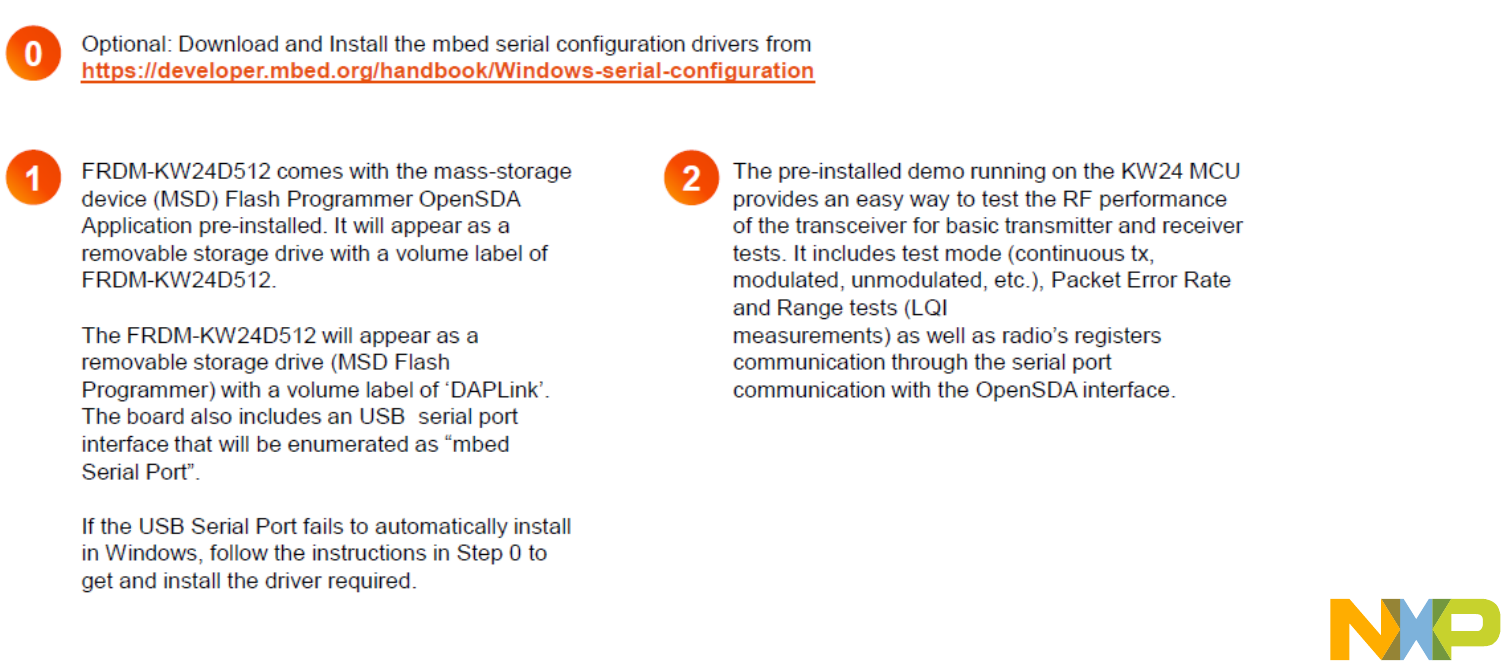

Installing Drivers and Running the Out of Box Demo
EXTERNAL USE
8
Introduction to OpenSDA 1 of 2

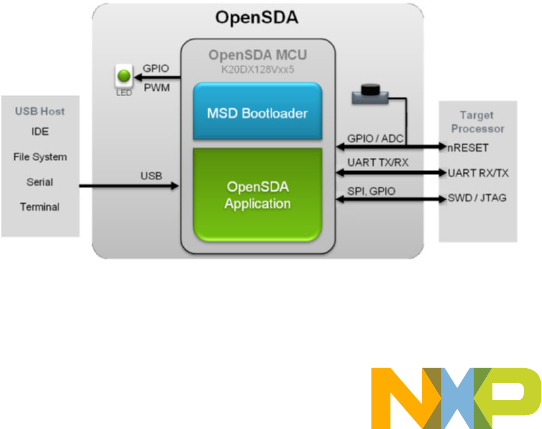

OpenSDA is an open-standard serial and debug adapter. It bridges serial and debug communications between a USB host and an
embedded target processor. OpenSDA software includes a flash-resident USB mass-storage device (MSD) bootloader and a collection
of OpenSDA Applications. FRDM-KW24D512 comes with the following applications preloaded:
- MSD Flash Programmer
- Debug Application
- Virtual mbed serial port

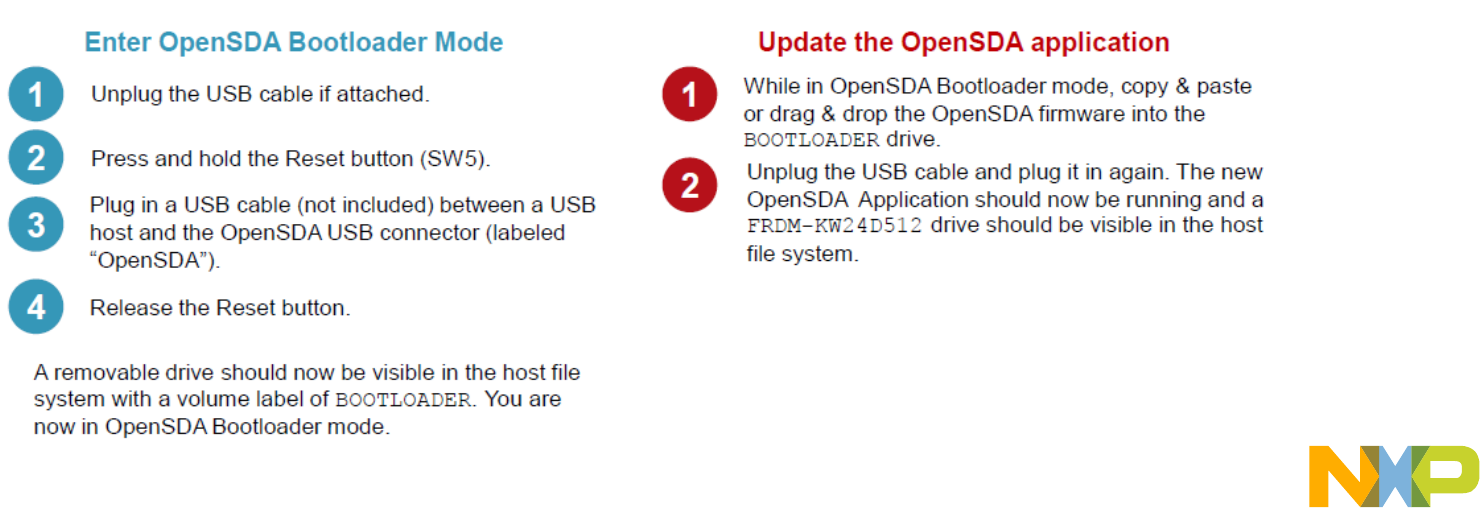

Follow these instructions to run the OpenSDA Bootloader and change the installed OpenSDA application:
EXTERNAL USE
9
Introduction to OpenSDA 2 of 2

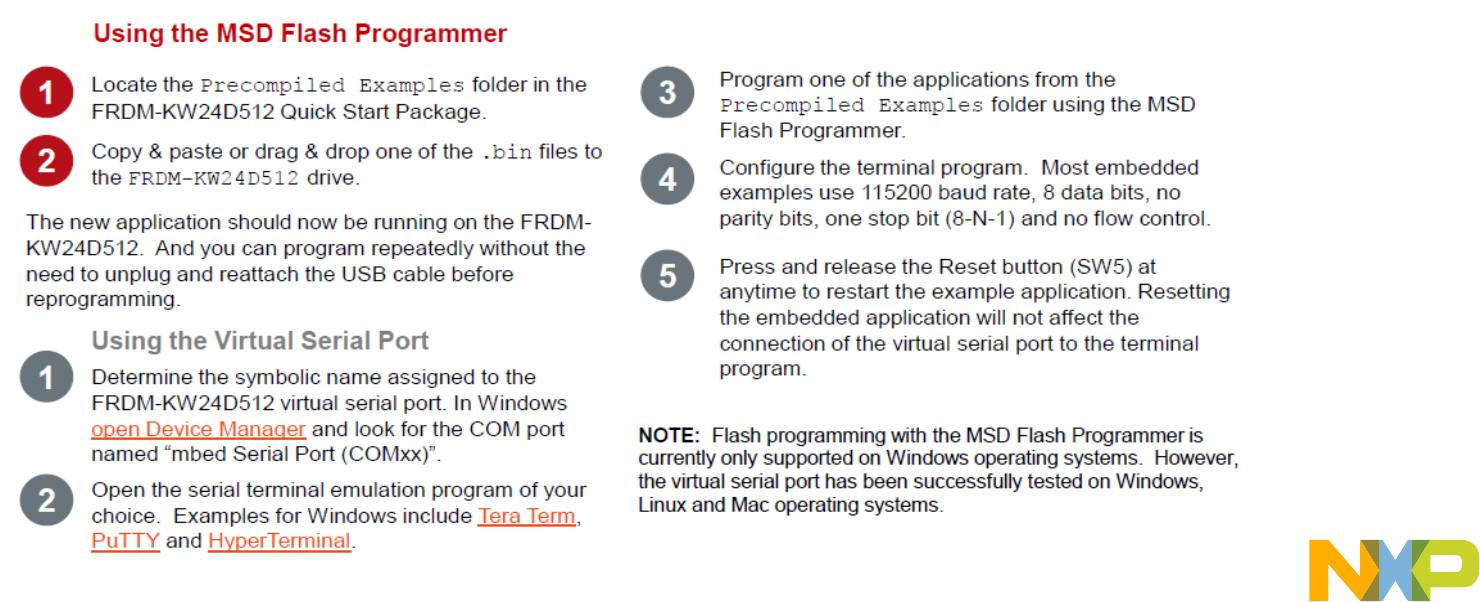

The MSD Flash Programmer is a composite USB application that provides a virtual serial port and an easy and convenient way to
program applications into the KW24 MCU. It emulates a FAT16 file system, appearing as a removable drive in the host file system with
a volume label of ‘DAPLink’. Raw binary files that are copied to the drive are programmed directly into the flash of the KW24 and
executed automatically. The virtual serial port can be opened with standard serial terminal applications.
EXTERNAL USE
10
Explore Further
The MSD Flash Programmer is a composite USB application that provides a virtual serial port and an easy and convenient way to
program applications into the KW24 MCU. It emulates a FAT16 file system, appearing as a removable drive in the host file system with
a volume label of ‘DAPLink’. Raw binary files that are copied to the drive are programmed directly into the flash of the KW24 and
executed automatically. The virtual serial port can be opened with standard serial terminal applications.
Now that you are familiar with the FRDM-
KW24D512 and OpenSDA, it’s time to
explore the additional software and lab
guides available on
www.nxp.com/FRDM-KW24D512.
Select your next path from the links in the
Jump Start Your Design section.
FCC NOTE:
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
ISED Warning：
This device complies with Innovation, Science and Economic Development Canada
licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'ISED applicables aux appareils radio exempts
de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment .This equipment should be installed and operated with minimum distance
20cm between the radiator& your body.
ISED RF exposure statement:
This equipment complies with ISED radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with minimum
distance 20cm between the radiator& your body.This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
Le rayonnement de la classe b repecte ISED fixaient un environnement non
contrôlés.Installation et mise en œuvre de ce matériel devrait avec échangeur distance
minimale entre 20 cm ton corps.Lanceurs ou ne peuvent pas coexister cette antenne ou
capteurs avec d’autres.
FCC/ISED Label Instructions
The outside of final products that contains this module device must display a label referring to the
enclosed module. This exterior label can use wording such as: “Contains Transmitter Module
FCC ID:XXMFRDMKW24D512,IC:8764A-FRDMKW24D" or “Contains
FCC ID:XXMFRDMKW24D512,IC:8764A-FRDMKW24D” Any similar wording that expresses the
same meaning may be used.
