NYNE MULTIMEDIA ADS15 Speaker Box User Manual

NYNE MULTIMEDIA INC. Speaker Box

User Manual

All registered and unregistered trademarks are property of their respective owners.
© 2015 Nyne Multimedia Inc. All rights reserved.
Designed and tuned in Silicon Valley, California
EN
ADS15
All-in-one Bluetooth
®
Portable PA System
USER MANUAL and
SAFETY GUIDE
Printed in ChinaV1.0-415
TECH SUPPORT: 805.751.4812
www.nyne.com/supportcenter
PROFESSIONAL SERIES
ADS15
All-in-one Bluetooth
®
Portable PA System
USER MANUAL and
SAFETY GUIDE
PROFESSIONAL SERIES
ADS15-UM-draft-v1.0.indd 1-2 3/16/2015 12:34:59 PM
All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or
by any means, including photocopying, recording, or other electronic or mechanical methods, without the
prior written permission of NYNE Multimedia Inc.
All other trademarks and trade names are those of their respective owners.
Copyright © 2015 NYNE Multimedia Inc.
TABLE OF CONTENTS
INTRODUCTION----------------------------------------------------------------------------------- 2
SUPPORT ------------------------------------------------------------------------------------------- 2
THIS PACKAGE CONTAINS ------------------------------------------------------------------- 3
IMPORTANT SAFETY INFORMATION TO THE USER --------------------------------- 4
INSTALLATION SAFETY PRECAUTIONS ------------------------------------------------- 5
BEFORE YOU START ------------------------------------------------------------------------- 7
POWER CONNECTIONS ----------------------------------------------------------------------- 9
GETTING STARTED -----------------------------------------------------------------------------10
TRIPOD STAND SETUP ------------------------------------------------------------------------11
ADS15 I/O AUDIO CONNECTIONS ----------------------------------------------------------13
FM OPERATION -----------------------------------------------------------------------------------14
USB/SD MEDIA OPERATION -----------------------------------------------------------------15
BLUETOOTH OPERATION --------------------------------------------------------------------16
STREAMING MUSIC -----------------------------------------------------------------------------17
AUX-INPUT OPERATION -----------------------------------------------------------------------18
MICROPHONE OPERATION ------------------------------------------------------------------19
EQ OPERATION -----------------------------------------------------------------------------------20
EXPANDING THE SYSTEM --------------------------------------------------------------------21
TROUBLE SHOOTING GUIDE ----------------------------------------------------------------22
DIMENSIONS---------------------------------------------------------------------------------------22
SPECIFICATIONS ---------------------------------------------------------------------------------23
ADS15-UM-draft-v1.0.indd 5-6 3/16/2015 12:34:59 PM
23
ENGLISH
ENGLISH
1 - ADS15 Bluetooth 15” Amplified Speaker System
1 - Tripod Speaker Stand
1 - Wired Microphone
1 - AC Power Cord
1 - User Manual / Safety Guide
1 - Warranty Card
ADS15 Professional Series


Professional
This User Guide contains important information that will help
you get the most from your NYNE ADS15 professional loudspeaker.
Please take a moment to read through these instructions carefully
so you will know how to safely setup and operate your model
properly.
After you have finished reading these instructions, keep this
document in a safe place for future reference.

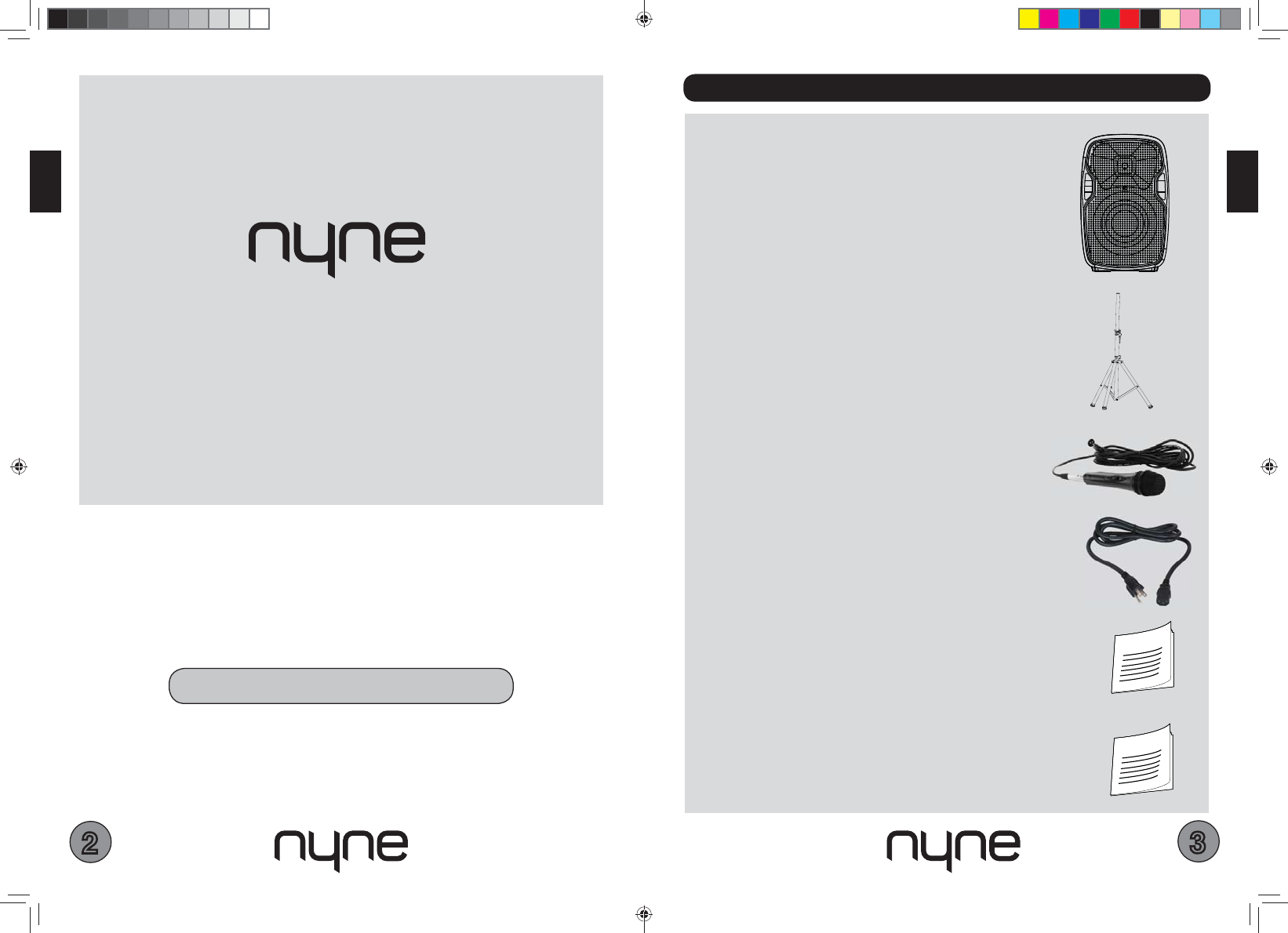

THIS PACKAGE CONTAINS
SUPPORT
For the latest information about this product visit www.nyne.com
TECH SUPPORT: 805.751.4812
www.nyne.com/supportcenter
ADS15-UM-draft-v1.0.indd 2-3 3/16/2015 12:35:03 PM
45
ENGLISH
ENGLISH
IMPORTANT SAFETY INFORMATION TO THE USER IMPORTANT SAFETY INFORMATION TO THE USER


materials
WEEE NOTICE







































operable




ADS15-UM-draft-v1.0.indd 4-5 3/16/2015 12:35:04 PM
67
ENGLISH
ENGLISH
INFORMATION TO THE USER
FCC COMPLIANCE STATEMENT





This transmitter must not be 

























CAUTION!!


BEFORE YOU START
To avoid potential shock, be sure to disconnect the
main power cord from the AC source before setting
up the system. Failure to do so may result in a shock
hazard, fire or malfunction.
CAUTION!!

INSTALLATION SAFETY PRECAUTIONS
 is not responsible for the misuse of its












NO TOOLS NEEDED
ADS15-UM-draft-v1.0.indd 6-7 3/16/2015 12:35:04 PM
89
ENGLISH
ENGLISH
BEFORE INSTALLING THIS PRODUCT
BEFORE INSTALLING THIS PRODUCT
IMPORTANT SAFETY PRECAUTIONS











/ 6m














instruments
MAIN ON/OFF POWER SWITCH
IEC AC MAINS INPUT SOCKET
VOLTAGE MAINS SWITCH

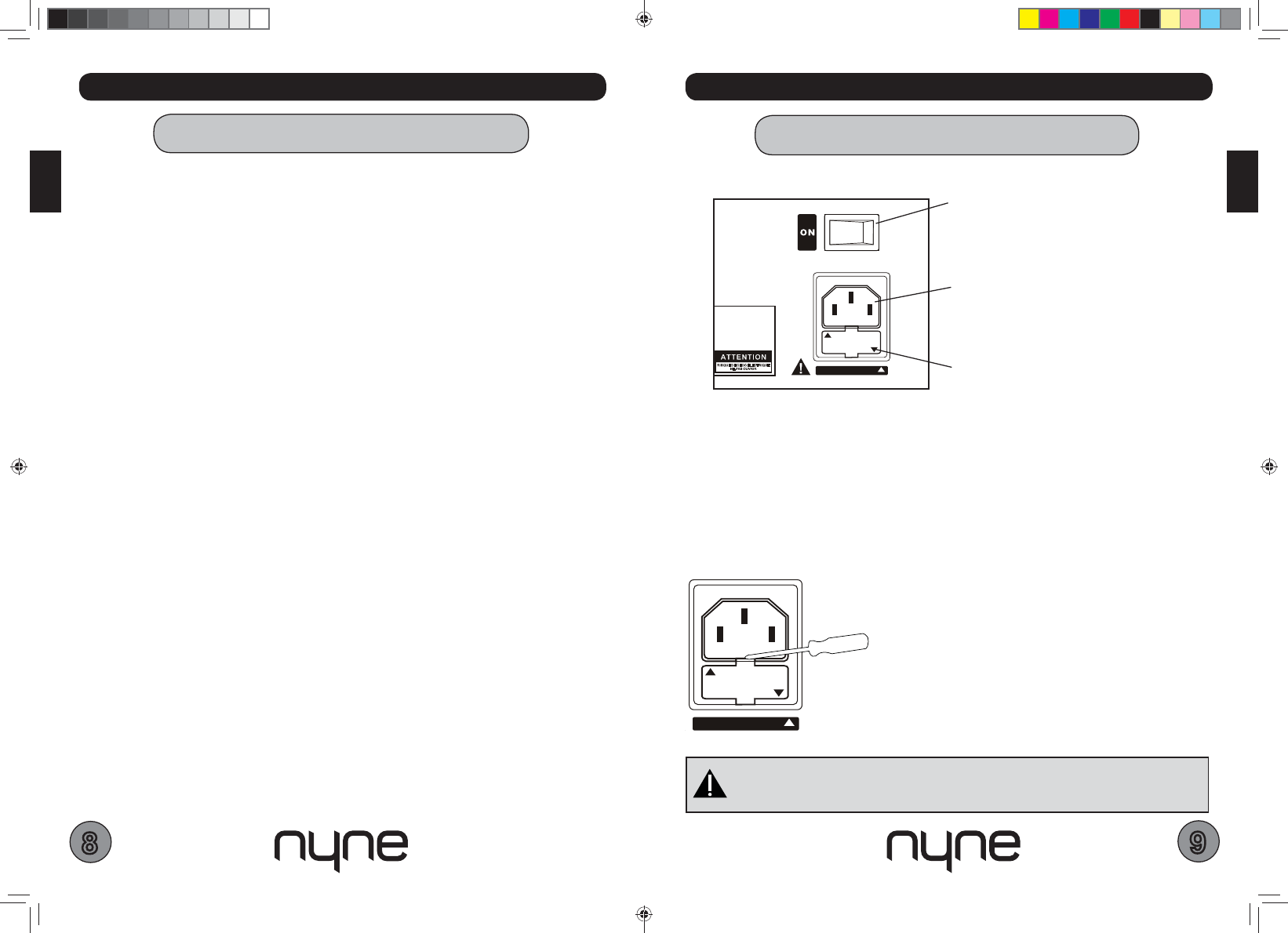

POWER CONNECTIONS





CAUTION!!


110/120
220/240
USE ONLY WITH 250V FUSE
POWER
AC LINE INPUT
100~240V
50/60Hz 2A 27OW
O
R ADDITIONAL INFORMATION
3.15A FUSE REPLACEMENT
! CAUTION !
DO NOT USE IN
WET OR DAMP
ENVIRONMENT
! ATTENTION !
NE PAS UTILISER
EN MILIEU HUMIDE
VOLTAGE SELECT
CONFORMS TO
ANSI/UL STD. 60065
CERTIFIED TO
CAN/CSA STD.
C22.2 NO. 60065
RISQUE DE CHOC ÉLECTRIQUE
NE PA S OUVRIR
110/120
220/240
USE ONLY WITH 250V FUSE
3.15A FUSE REPLACEMENT
VOLTAGE SELECT
ADS15-UM-draft-v1.0.indd 8-9 3/16/2015 12:35:05 PM
10 11
ENGLISH
ENGLISH



Tips:
!! WARNING !!


 

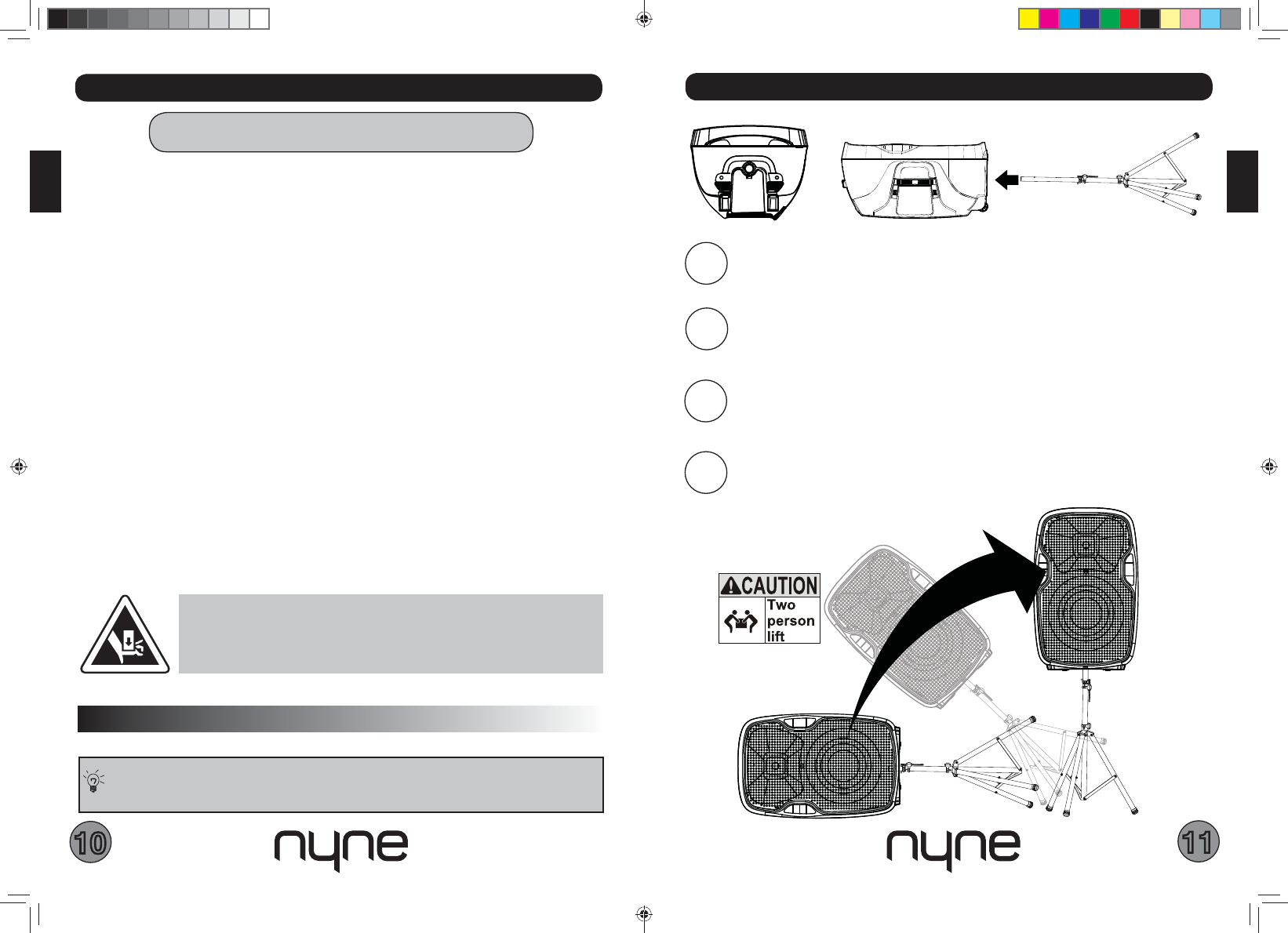

TRIPOD STAND SETUP
TRIPOD STAND SETUP



surface











TRIPOD STAND SETUP
Assemble the stand safety clamp and anti-slip rubber feet
Lay down the ADS15 in a horizontal position
Insert the stand into the 35mm standard cup located on the
bottom of the ADS15 cabinet, adjust the extension bar to the
desired height and firmly tighten the thumb screws
Slowly lift the ADS15 to the vertical position
1
2
3
INSERT
4
ADS15-UM-draft-v1.0.indd 10-11 3/16/2015 12:35:13 PM
12 13
ENGLISH
ENGLISH
MEDIA VOLUME
BASS
TREBLE
LEVEL LEVEL
POWER LIMIT
SERIES
1
2
3
4
5
6
7
8
9
MEDIA MAIN CONTROLLER DISPLAY
MODE
PLAY/PAUSE
STOP
REPEAT
PREVIOUS TRACK / VOL -
NEXT TRACK / VOL +
USB PORT
SD CARD SLOT

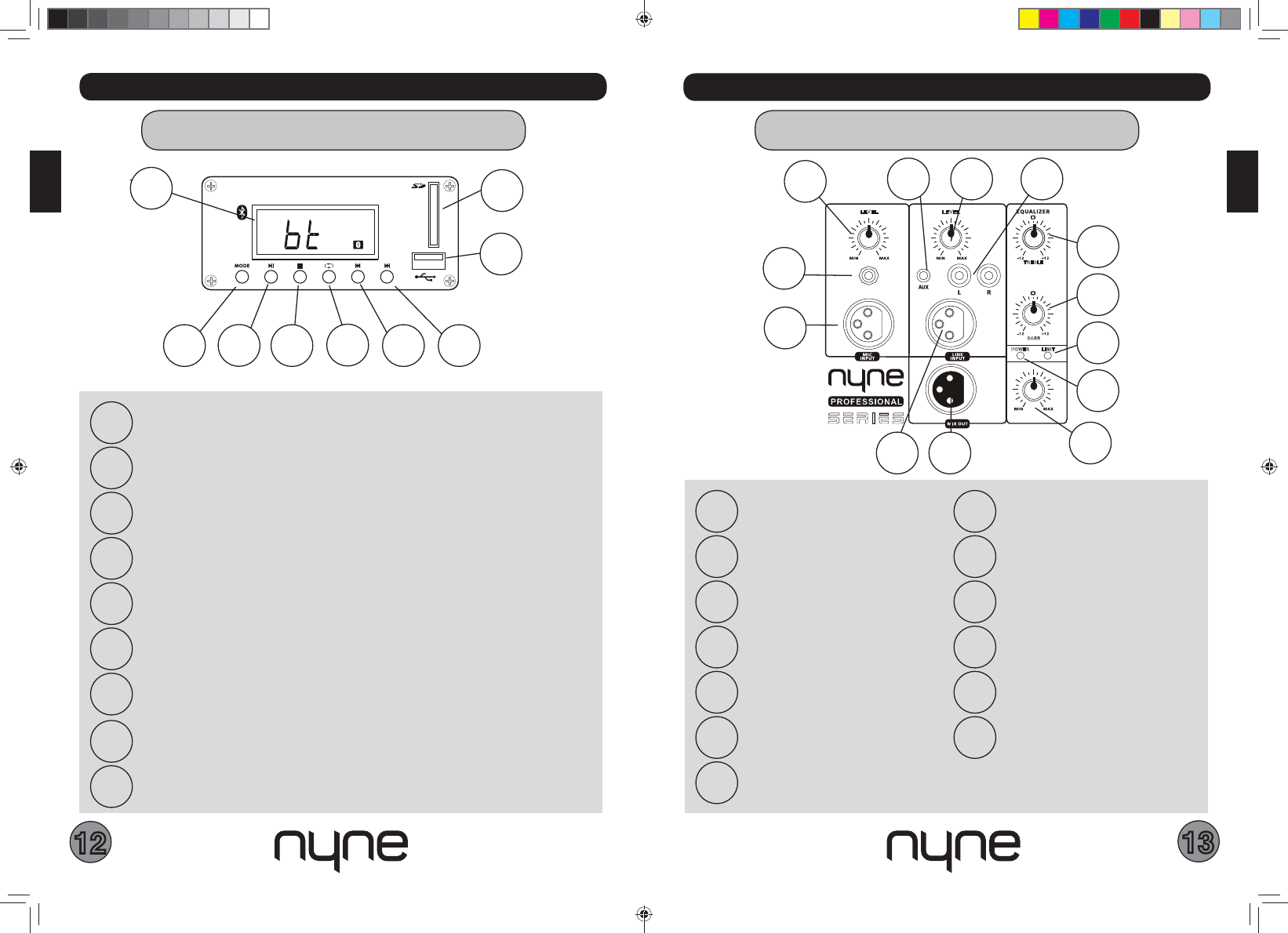

GETTING STARTED
GETTING TO KNOW YOUR
ADS15 MEDIA CONTROLLER
6 72 3
19
5
4
8
GETTING STARTED
10
11
12
13
14
15
16
MIC INPUT LEVEL
3.5mm AUXILIARY INPUT
AUXILIARY INPUT LEVEL
RCA AUXILIARY INPUT
EQ TREBLE
EQ BASS
CLIP LIMIT INDICATOR
GETTING TO KNOW YOUR
ADS15 I/O AUDIO CONNECTIONS
12 13
15
17
18
19
20
21
22
POWER INDICATOR
MEDIA VOLUME CONTROL
XLR MIX OUTPUT
XLR AUXILIARY INPUT
XLR MIC INPUT
TRS MIC INPUT
17
16
14
18
1920
21
22
11
10
MU LT I- F OR M AT MEDIA PLAYER
5VDC
ADS15-UM-draft-v1.0.indd 12-13 3/16/2015 12:35:15 PM
14 15
ENGLISH
ENGLISH

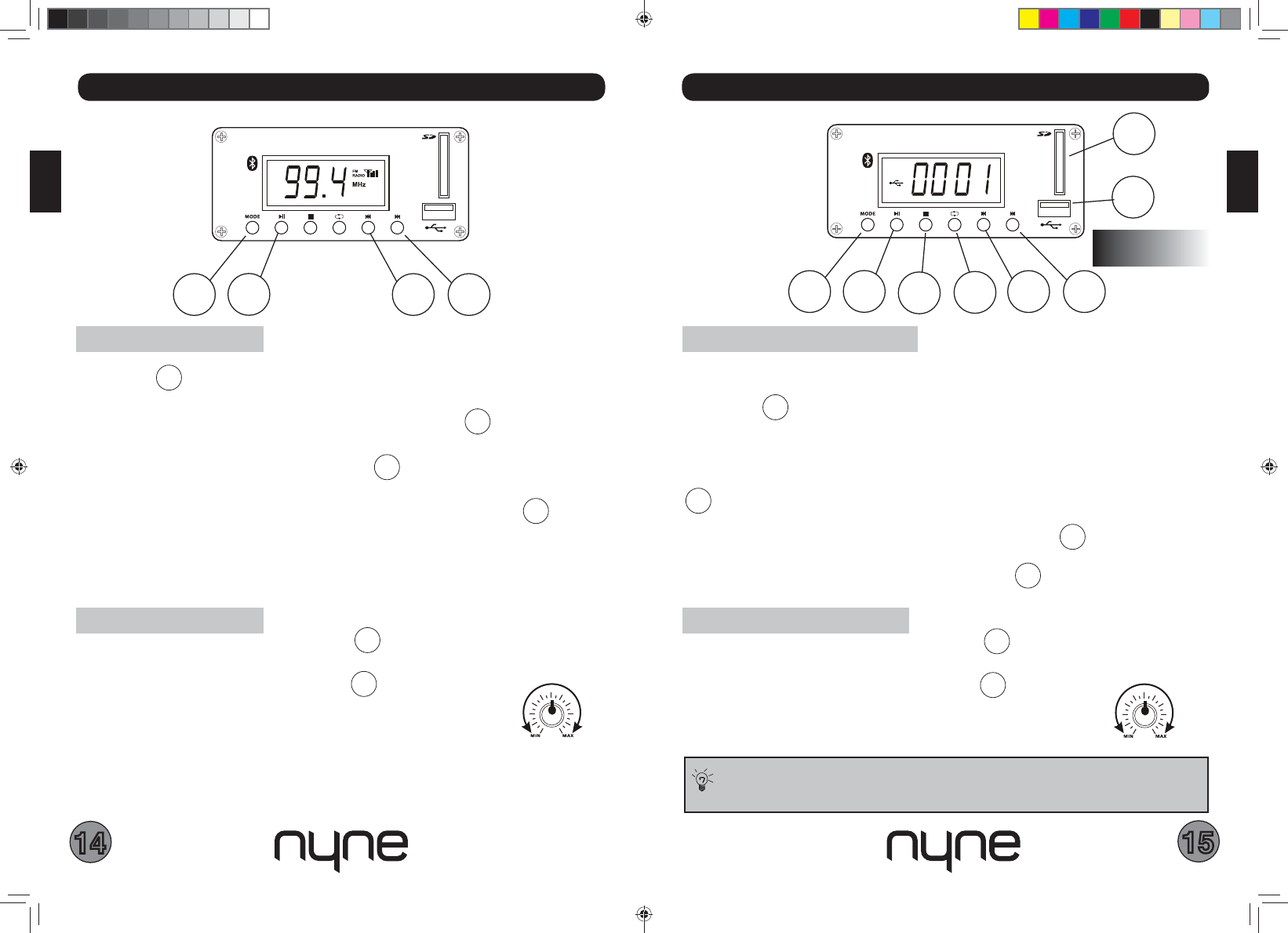

FM TUNER OPERATION
1) Press the 2 MODE button to select to the FM RADIO MODE
2) To select the previous station, press the  6 button
3) To advance stations, press the NEXT TRACK 7 button
4) To AUTO STORE the strongest stations in your area, press the PLAY 3 button
5) To recall AUTO STORED stations press the 
FM VOLUME CONTROL
1) To lower the FM  press and hold 6 button
2) To raise the FM  press and hold 7 button
3) Turn the  rotary controller to a comfortable level
FM OPERATION
MEDIA PLAYER OPERATION
1) Insert the USB drive or  media, the MEDIA PLAYER will automatically start
2) Press the 3 PLAY/PAUSE once to start playing music or press the PLAY button
from your device touch screen, press again to PAUSE
3) To STOP playback and return to the beginning of the media list press the STOP
4button
4) To select the previous song, press the  6 button
5) To skip or advance songs, press the NEXT TRACK 7 button
MEDIA VOLUME CONTROL
1) To lower the MEDIA  press and hold 6 button
2) To raise the MEDIA VOLUME press and hold 7 button
3) Turn the  rotary controller to a comfortable level
USB/SD MEDIA OPERATION

Tips:
MULTI-FORMAT MEDIA PLAYER
5VDC
USB PORT
NOT FOR
CHARGING
6 72 3
MULTI-FORMAT MEDIA PLAYER
5VDC
USB PORT
NOT FOR
CHARGING
6 72 3
9
5
4
8
MEDIA VOLUME
MEDIA VOLUME
USB port is for

ADS15-UM-draft-v1.0.indd 14-15 3/16/2015 12:35:16 PM
16 17
ENGLISH
ENGLISH

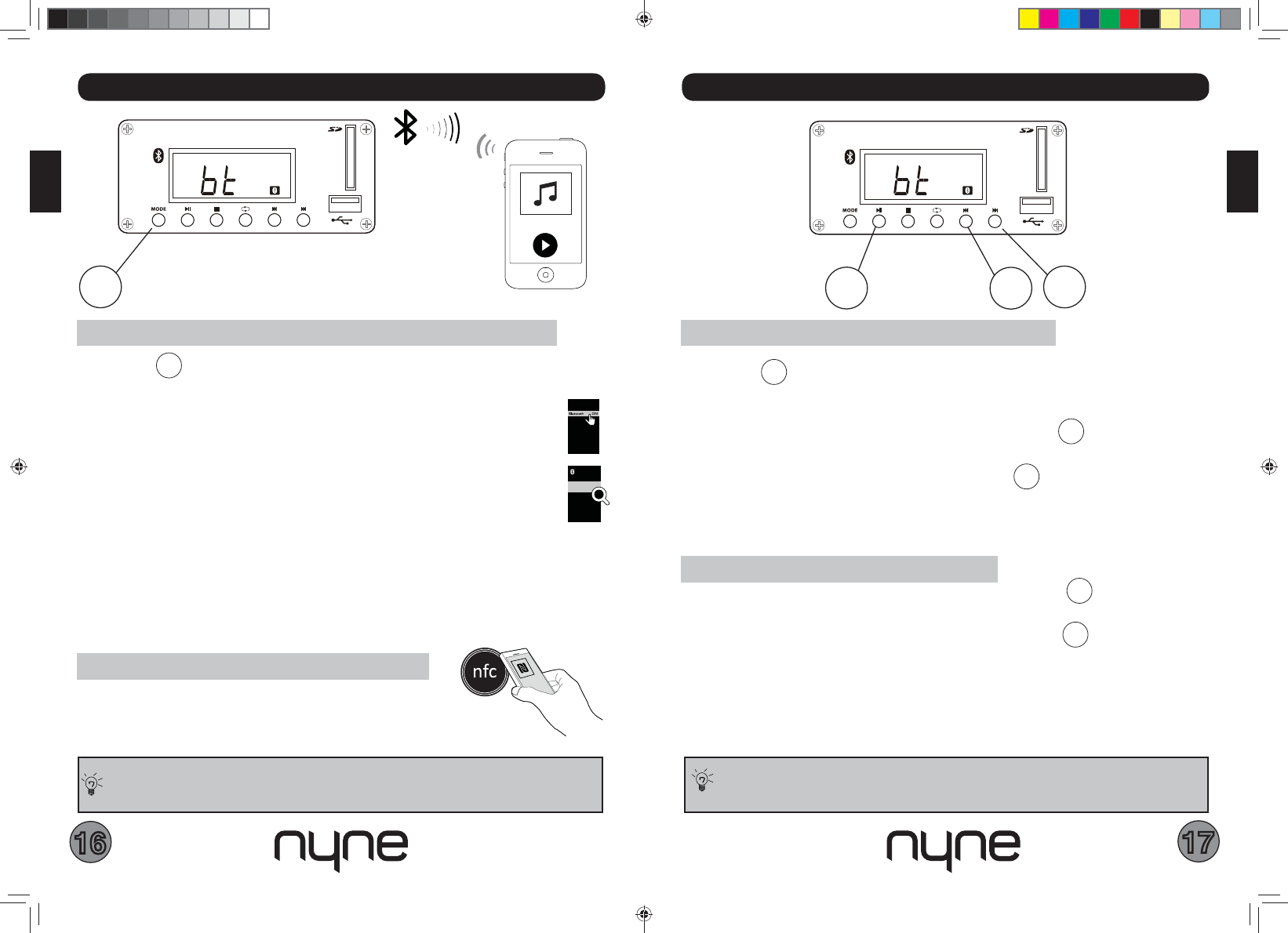

PAIRING & DISCOVERING A NEW BLUETOOTH CONNECTION
1) Press the 2 MODE button to select to the BLUETOOTH MODE
2) The ADS15 is NOW in pairing mode:
ANDROID users:
a. Go into the Settings Menu of your device
b. Enter the Bluetooth Menu and press SCAN
c. “NYNE ADS15” will now be displayed under 
d. If prompted, enter passcode: “0000”
iOS users:
a. Go into the Settings Menu of your iOS device
b. Enter the Bluetooth Menu
c. “NYNE ADS15” will now be displayed
d. If prompted, enter passcode: “0000”
3) If the ADS15 is not seen, repeat the above steps to refresh the “Device List”
NFC SIMPLE PAIRING FOR ANDROID USERS
1) Make sure you NFC function is enabled on your device
2) Tap on the NFC tag located on the side panel of the ADS15


Tips:
BLUETOOTH OPERATION
MEDIA CONTROLLER BLUETOOTH OPERATION
1) Press the 3 PLAY/PAUSE once to start playing music or press the PLAY button
from your device touch screen, press again to PAUSE
2) To select the previous song, press the  6 button
3) To skip songs or advance, press the NEXT TRACK 7 button
BLUETOOTH MEDIA VOLUME CONTROL
1) To lower the BLUETOOTH MEDIA  press and hold 6 button
2) To raise the BLUETOOTH MEDIA VOLUME press and hold 7 button
3) Turn the BLUETOOTH  rotary controller to a comfortable level
STREAMING MUSIC

Turn the BLUETOOTH volume level on

Tips:
MULTI-FORMAT MEDIA PLAYER
5VDC
USB PORT
NOT FOR
CHARGING
2
MU LT I- F OR M AT MEDIA PLAYER
5VDC
USB PORT
NOT FOR
CHARGING
6
37
Nyne ADS15
ADS15-UM-draft-v1.0.indd 16-17 3/16/2015 12:35:18 PM
18 19
ENGLISH
ENGLISH


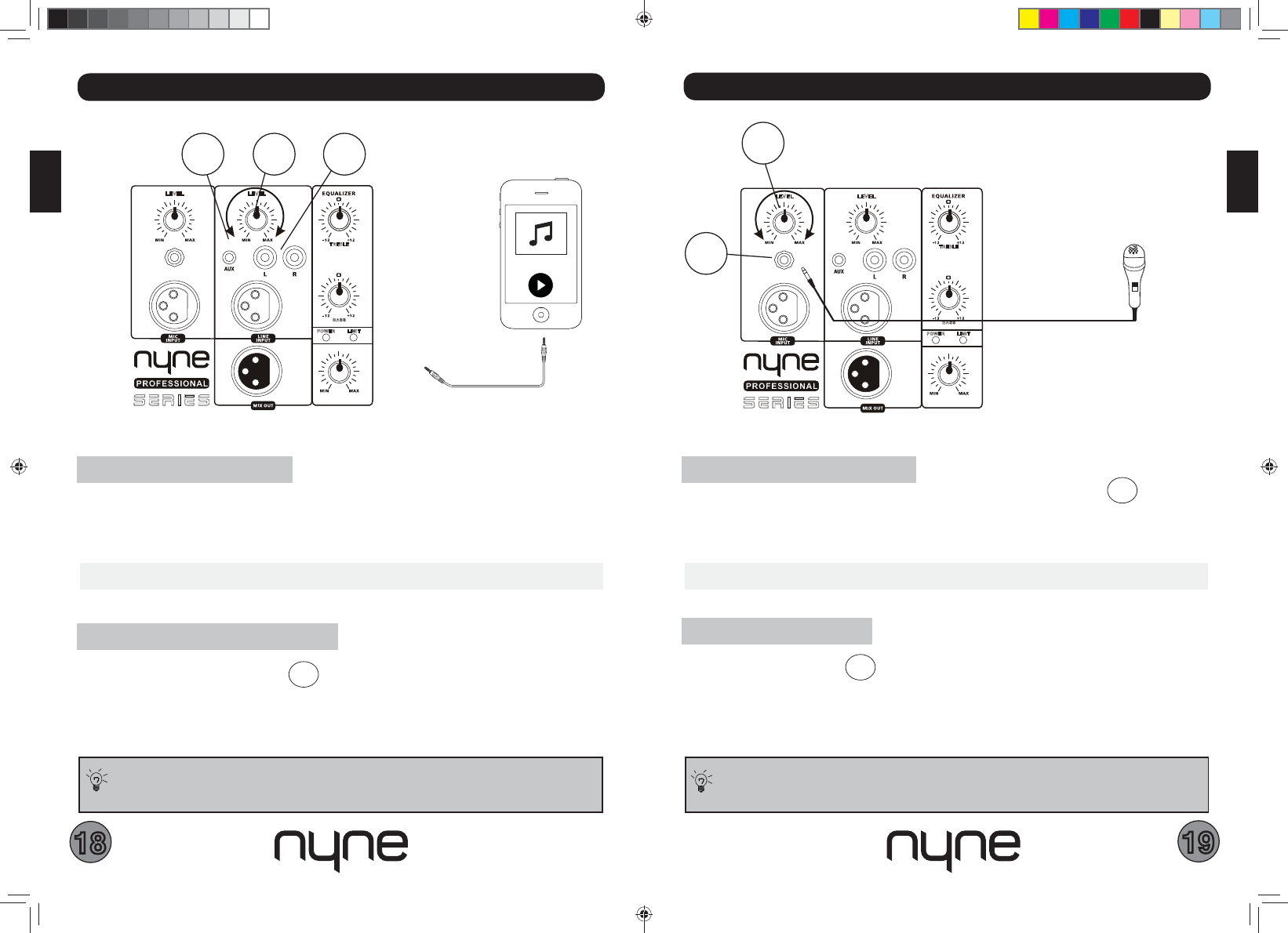

AUX-INPUT OPERATION
1) Insert optional HEADPHONE adaptor cable in to the LINE INPUT port
LINE INPUT VOLUME CONTROL
1) Turn the  12 rotary controller to a comfortable level

MEDIA VOLUME
BASS
TREBLE
LEVEL LEVEL
POWER LIMIT
SERIES
Turn the HEADPHONE volume level on

Tips:
YOUR CABLE
NOTE: The LINE INPUT will mix together with whichever MODE is currently playing
12 1311
MICROPHONE OPERATION


Tips:
MICROPHONE OPERATION
1) Insert optional MICROPHONE 1/4” TRS cable in to the MIC INPUT 9port
2) Turn the MIC switch to the ON position
MIC VOLUME CONTROL
1) Turn the  12 rotary controller to a comfortable level
NOTE: The MIC INPUT will mix together with whichever MODE is currently playing
MEDIA VOLUME
BASS
TREBLE
LEVEL LEVEL
POWER LIMIT
SERIES
10
9
INCLUDED
MICROPHONE
ADS15-UM-draft-v1.0.indd 18-19 3/16/2015 12:35:20 PM
20 21
ENGLISH
ENGLISH

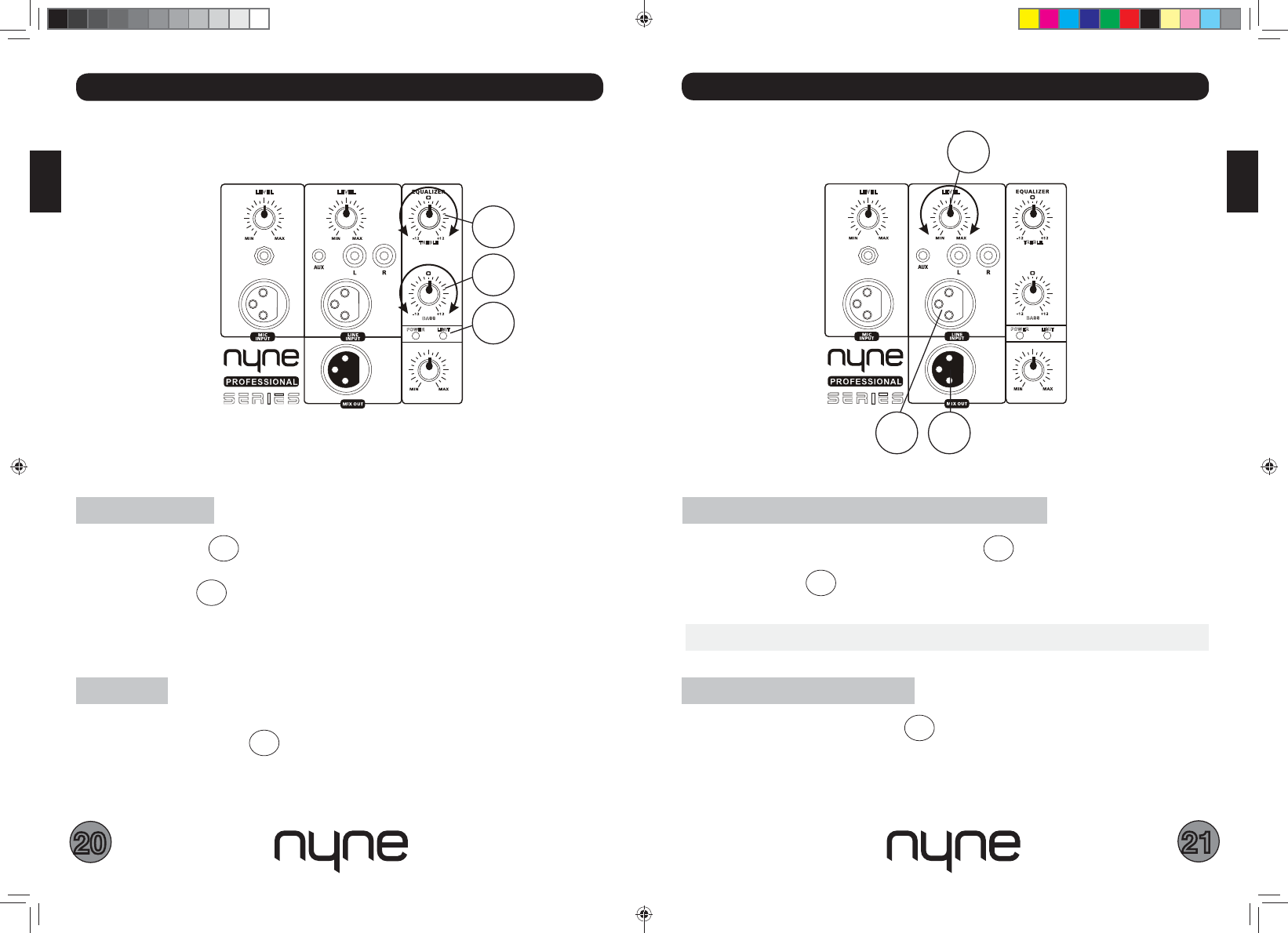

EXPANDING THE SYSTEM
EQ OPERATION
MEDIA VOLUME
BASS
TREBLE
LEVEL LEVEL
POWER LIMIT
SERIES
15
16
14
EQ OPERATION
1) Turn the TREBLE 14 rotary controller to a desired level
2) Turn the BASS 15 rotary controller to a desired level
CLIP LIMIT
1) Adjust the EQ BASS/ TREBLE levels so that they do not overdrive the amplifier
output, the CLIP LIMIT LED 16 will illuminate if the system has reached its limit
MEDIA VOLUME
BASS
TREBLE
LEVEL LEVEL
POWER LIMIT
SERIES
1920
ADDING AN ADDITIONAL ADS15 SPEAKER
1) Plug an optional XLR cable from the MIX OUT 19 to the next (sold separately)
ADS15 LINE INPUT 20
SYSTEM VOLUME CONTROL
1) Turn the  12 rotary controllers of both systems to
matching sound levels
12
Optional ADS15 and XLR cable sold separately
ADS15-UM-draft-v1.0.indd 20-21 3/16/2015 12:35:21 PM
22 23
ENGLISH
ENGLISH
SPECIFICATIONS
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
TROUBLE SHOOTING GUIDE
TROUBLE CAUSE SOLUTION
Unit will not turn on
The fuse is blown Check / replace the fuse
Main switch not engaged Turn switch to on position
No sound is heard
Volume is low / muted Turn the volume level up
Device is paused or muted
Check your devices playing /
volume status
Cannot pair Bluetooth
The Bluetooth function of the
device is not enabled
Refer to the user manual of
the device for how to enable
the Bluetooth function
The ADS15 is not in Bluetooth
mode
Follow how to connect on PG
16
The audio quality is poor
after connection with a
Bluetooth enabled
device
The Bluetooth reception is
poor
Move the device closer to the
audio system or remove any
obstacle between the device
Unit has become
unresponsive Power glitch or interference
Disconnect power for
10 seconds to reset
FM TUNER FREQUENCY RANGE



BLUETOOTH



AMPLIFIER





SPEAKER


Maximum Peak SPL: 135 dB @ 1 m
USB / SD CARD SUPPORTED MEDIA (USB for Playback only, not for charging)




CHASSIS






   
GENERAL

oF to 113oF / -15oC to 45oC
oF to 104oF / -10oC to 40oC

(Replace with AGU Fuse Type Only)
FRONT SIDE TOP
17.5”
26.75”
13.5”
DIMENSIONS
ADS15-UM-draft-v1.0.indd 22-23 3/16/2015 12:35:24 PM

Navigation menu
