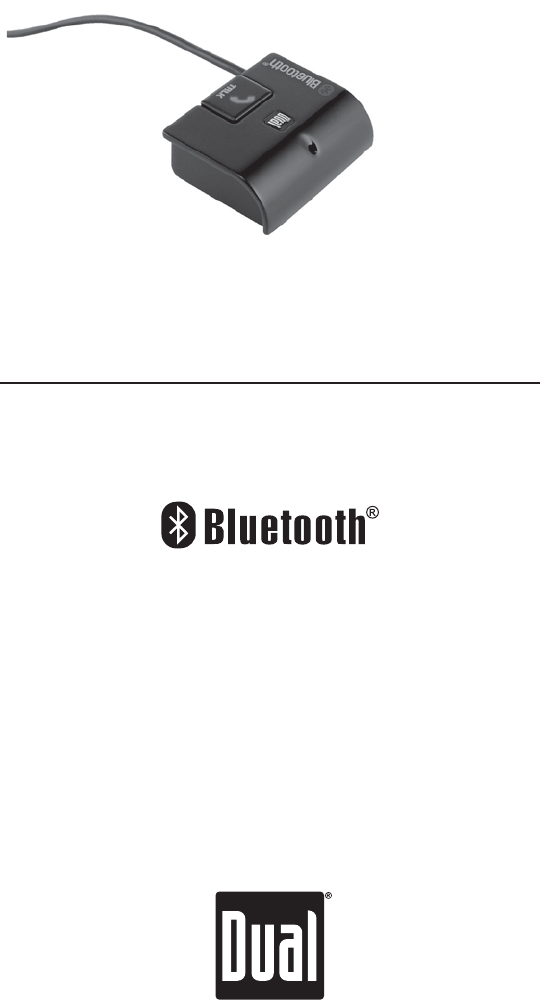

Namsung BTM60 Bluetooth Module User Manual GJW BTM60 Manual
Namsung Corporation. Bluetooth Module GJW BTM60 Manual
Namsung >
User Manual
>CHI6AA6I>DC$FJ>8@HI6GI<J>9:
L^gZaZhh7ajZiddi]BdYjaZ
7IB+%
DRAFT
2
7IB+%>CHI6AA6I>DC
>chiVaaVi^dcFj^X`GZ[ZgZcXZ

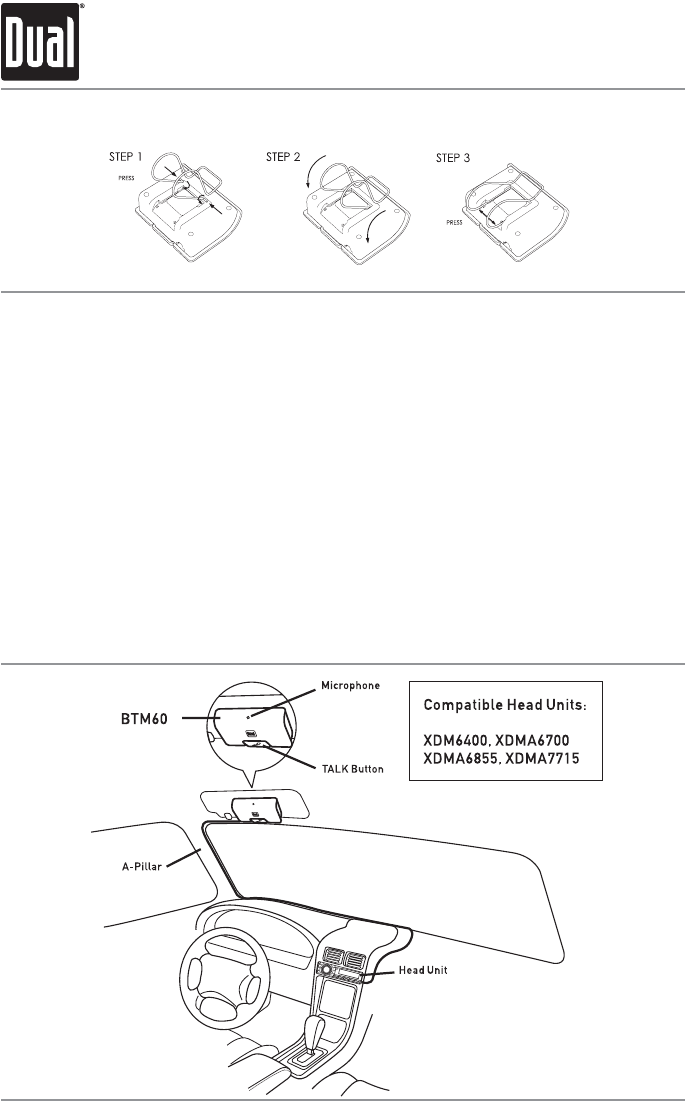

• Attach the mounting clip into the guide holes, and clip secure onto the BTM60
module as seen in the picture above.
• Mount the BTM60 onto the visor using the using the mounting clip, ensuring the
microphone is facing the driver. Refer to the picture below for reference.
• Carefully route the attached wire down the A-pillar of the vehicle, then to the
back of your Dual Bluetooth® Ready head unit.
• Plug the BTM60 connector into the corresponding connector on the back of the
head unit. Ensure to line up the arrows before connecting. Refer to the owner's
manual for your head unit for more information.
Ine^XVa>chiVaaVi^dc
3
7IB+%DE:G6I>DC
Fj^X`HiVgi<j^YZ
CdiZ/You must firstpair and connect your Bluetooth® mobile device to the BTM60
before proceeding with the following operations. See your head unit owner's
manual for pairing, and detailed operation instructions.
GZXZ^k^c\V8Vaa
• When the BTM60 detects an incoming call, your head unit will automatically
switch to Bluetooth mode, and display the caller ID phone number.
• To receive an incoming call, press I6A@ on the BTM60 or your head unit when
the phone is ringing.
• During a phone call, press I6A@ to activate the call waiting feature. Press I6A@
once more to return to the original call.
• To reject an incoming call or to end the current call, press and hold BJI: on the
head unit for 3 seconds.
EaVX^c\V8Vaa
• To make a call using the head unit, first press I6A@ or BD9: to change to
Bluetooth standby mode.
• While in Bluetooth standby mode, press I6A@ to enter the dialing screen.
• From the dialing screen, enter the phone number using 0-9, *, # on the front
panel of the head unit.
• Once the number is entered, press I6A@ to place the call.
4
Dual Electronics Corp.
Toll Free: 1-866-382-5476
www.dualav.com
©2007 Dual Electronics Corp. All rights reserved.
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Movon is under
license. Other trademarks and trade names are those of their respective owners.
NSA0207-V01
7IB+%L6GG6CIN
A^b^iZYDcZNZVgLVggVcin
This warranty gives you specific legal rights. You may also
have other rights which vary from state to state.
Dual Electronics Corp. warrants this product to the
original purchaser to be free from defects in material and
workmanship for a period of one year from the date of the
original purchase.
Dual Electronics Corp. agrees, at our option, during
the warranty period, to repair any defect in material or
workmanship or to furnish an equal new, renewed or
comparable product (whichever is deemed necessary) in
exchange without charges, subject to verification of the defect
or malfunction and proof of the date of purchase. Subsequent
replacement products are warranted for the balance of the
original warranty period.
L]d^hXdkZgZY4This warranty is extended to the original
retail purchaser for products
purchased and used in the U.S.A.
L]Vi^hXdkZgZY4This warranty covers all defects in material
and workmanship in this product. The following are not
covered:
installation/removal costs, damage resulting from accident,
misuse, abuse, neglect, product modification, improper
installation, incorrect line voltage, unauthorized repair or
failure to follow instructions supplied with the product, or
damage occurring during return shipment of the product.
L]ViidYd4
1. Before you call for service, check the troubleshooting
guide in your owner’s manual. A slight adjustment of any
custom controls may save you a service call.
2. If you require service during the warranty period, you
must carefully pack the product (preferably in the original
package) and ship it by prepaid transportation with a copy
of the original receipt from the retailer to an
authorized service center.
3. Please describe your problem in writing and include
your name, a return UPS shipping address (P.O. Box not
acceptable), and a
daytime phone number with your shipment.
4. For more information and for the location of the nearest
authorized service center please contact us by one of the
following methods:
• Call us toll-free at 1-866-382-5476
• E-mail us at cs@dualav.com
Exclusion of Certain Damages: This warranty is exclusive
and in lieu of any and all other warranties, expressed or
implied, including without limitation the implied warranties
of merchantability and fitness for a particular purpose and
any obligation, liability, right, claim or remedy in contract or
tort, whether or not arising from the company’s negligence,
actual or imputed. No person or representative is authorized
to assume for the company any other liability in connection
with the sale of this product. In no event shall the company be
liable for indirect, incidental or consequential damages.
