User Manual
NAMSUNG CO., LTD.
1
PRODUCT SPECIFICATION AND MANUAL
2017.08
BUYER / PROJECT
FCCC
/ KESM
BUYER MODEL
PCB PACKAGE ASSY – Smart Key
PART No.
COMPANY
NAMSUNG Co,.
MAKER/NATION
NAMSUNG Co,./Republic of Korea
DRAFT PART
Research Center
DRAFTER
JEONG WOO SEOK
Title
Certification Request Document
Project Name
KESM
Drawn
2017-08-16
Model Name
Released
2017-08-16
Made by
JEONG W.S
NAMSUNG CO., LTD.
2
Table of Contents
1.
CONTENTS ............................................................................................................ 3
2.
ELECTRONIC SPEC ............................................................................................. 3
3.
SPECIFICATION .................................................................................................... 4
4.
REPAIR OF UNIT & CIRCUIT EXPLANATION ........................................................ 4
5.
THE METHOD OF UNIT OPERATING ...................................................................... 5
6.
THE SYSTEM OF EACH UNIT CODE DISCRIMINATION .................................... 6
Title
Certification Request Document
Project Name
KESM
Drawn
2017-08-16
Model Name
Released
2017-08-16
Made by
JEONG W.S
NAMSUNG CO., LTD.
3
1.
Contents
TYPE
Wireless controller about wireless electronic equipment of specific
low output radio station
MODEL NAME
USE
Vehicle of door keyless controller what use 133.3KHz & 433.92 MHz
frequency
SUMMARY
1. This equipment use semiconductor and integrated circuit, so it
designs to get high reliability.
2. This equipment use oscillation circuit of crystal, so it designs to
satisfy about legally frequency an allowable error and bandwidth of
exclusive frequency.
3. The transmitter has each other specific identification code.
4. The power use Li-ion coin Battery (DC 3.0V)
COMPOSITION
1. RF Transmitter part
2. Pattern Antenna
3. LF Receiver
4. LF Antenna.
2.
ELECTRONIC SPEC
UNIT
List
TRANSMITTER(FOB)
Rated voltage
DC 3.0V
Voltage range
UNIT 2.1 ~ 3.6V
( except Battery influence)
Operating Temperature range
-20 ~ +60℃
Storage temperature range
-30 ~ +80℃
Dark current
6.1μA ±0.4uA
Title
Certification Request Document
Project Name
KESM
Drawn
2017-08-16
Model Name
Released
2017-08-16
Made by
JEONG W.S
NAMSUNG CO., LTD.
4
3.
Specification
TYPE
TRANSMITTER ASSY – SMART KEY
NAME
Wireless controller about wireless electronic equipment of
specific low output radio station)
Equipment List
RF Transmitter, LF Receiver
Frequency
TX: 433.920MHz, RX: 133.3KHz
Antenna composition
Pattern ANTENNA, LF ANTENNA
Oscillation method
Crystal oscillation
Modulation method
FSK
Communication method
Two-Way Communication ( LF & RF each other)
Frequency multiplier
32 multiplier
4.
Repair of Unit & Circuit Explanation
4.1 Repair of Unit
Exchange an old unit.
4.2 Circuit Explanation
If User presses specific Switch of transmitter, MCU makes inherent serial value
and Encryption value, so it print what CPU make data, at the same time , RF IC get to be
ENABLE.
Printing data are falsified into TxIC and it synthesize through CRYSTAL. Compounded
frequency is amplified by TxIC and it transmits through antenna from matching circuit
diagram of output.
FOB receives RANDOM DATA through LF Antenna and print to encrypt result value from
MCU, at the same time RF IC get to be ENABLE. As following, it transmits PATTERN
Antenna how to change falsification, synthesis, and multiplier.
Title
Certification Request Document
Project Name
KESM
Drawn
2017-08-16
Model Name
Released
2017-08-16
Made by
JEONG W.S
NAMSUNG CO., LTD.
5
5.
The Method of Unit Operating

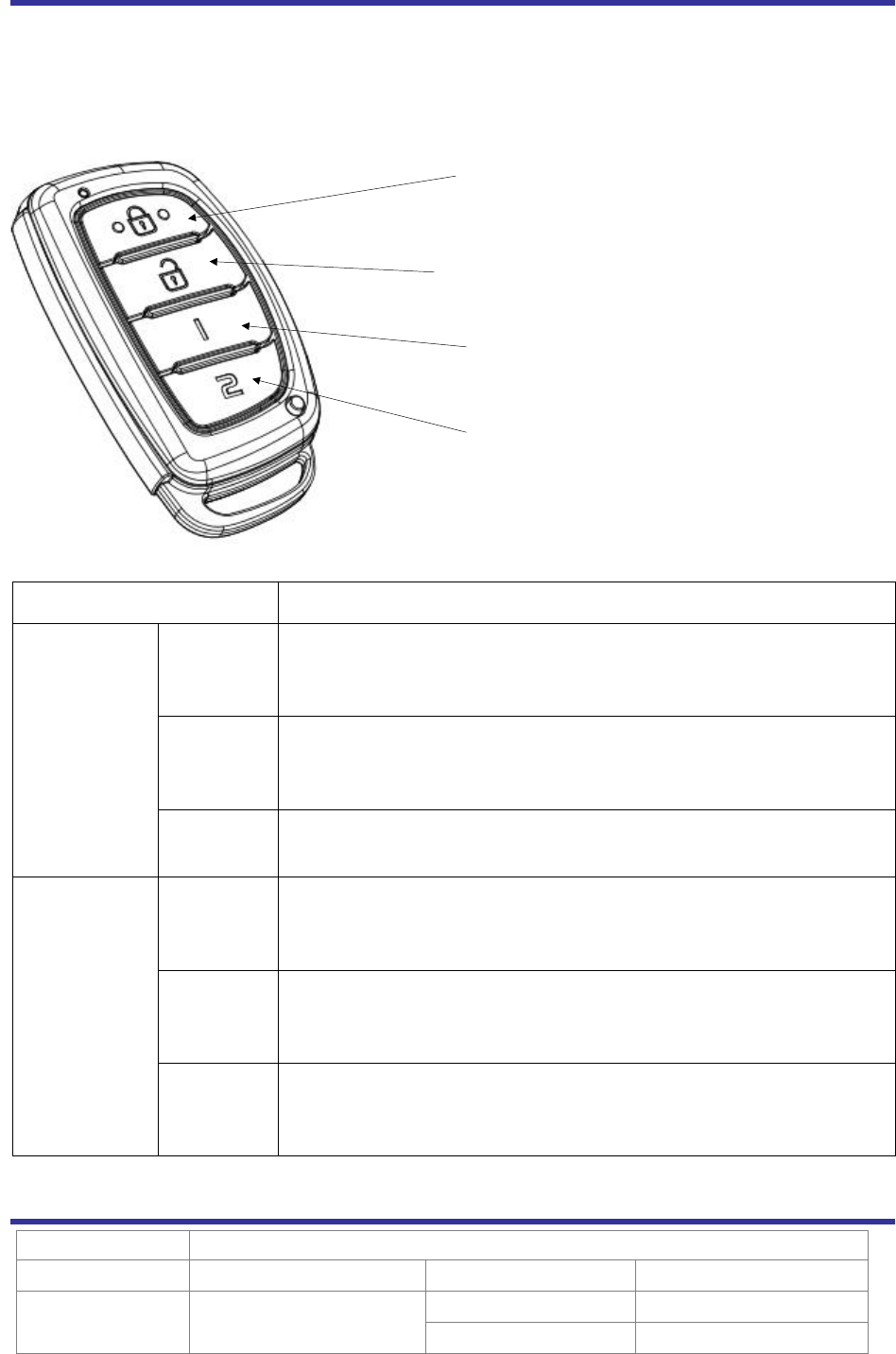

5.1 REMOTE
Lock Button
Unlock Button
Button 1
Button 2
FUNCTION
SWITCH FUNCTION
LOCK
BUTTON
Short
Press
SHORT PRESSING LOCK BUTTON less 0.5s
- RED LED flicker once as short time
Double
Press
SHORT PRESSING LOCK BUTTON x2 less 0.5s
- RED LED flicker once as short time
Long
Press
Long PRESSING LOCK BUTTON more 1s
-RED LED ON as Long time
UNLOCK
BUTTON
Short
Press
SHORT PRESSING LOCK BUTTON less 0.5s
- RED LED flicker once as short time
Double
Press
SHORT PRESSING LOCK BUTTON x2 less 0.5s
- RED LED flicker once as short time
Long
Press
Long PRESSING LOCK BUTTON more 1s
-RED LED ON as Long time
Title
Certification Request Document
Project Name
KESM
Drawn
2017-08-16
Model Name
Released
2017-08-16
Made by
JEONG W.S
NAMSUNG CO., LTD.
6
Button
1
Short
Press
SHORT PRESSING LOCK BUTTON less 0.5s
- RED LED flicker once as short time
Double
Press
SHORT PRESSING LOCK BUTTON x2 less 0.5s
- RED LED flicker once as short time
Long
Press
Long PRESSING LOCK BUTTON more 1s
- RED LED ON as Long time
Button
2
Short
Press
SHORT PRESSING LOCK BUTTON less 0.5s
- RED LED flicker once as short time
Double
Press
SHORT PRESSING LOCK BUTTON x2 less 0.5s
- RED LED flicker once as short time
Long
Press
Long PRESSING LOCK BUTTON more 1s
- RED LED ON as Long time
Title
Certification Request Document
Project Name
KESM
Drawn
2017-08-16
Model Name
Released
2017-08-16
Made by
JEONG W.S
NAMSUNG CO., LTD.
7
6.
The System of Each Unit Code Discrimination
6.1 TRANSMISSION CODE
<RF Transmit>
항목
bit
비고
preamble
50
header
2
1100
start bit
1
10
Serial
24
'R'
8
Frame
Number
8
Command
4
0x02
V_low
4
CRC8
8
Stop bit
1
<RKE Transmit>
항목
bit
비고
preamble
200
160000
header
1100
start bit
1
10
Serial
24
버튼 동작 정보
Count
16
Count
Command
4
Command
V_low
4
low voltage
CRC8
8
Stop bit
1
Title
Certification Request Document
Project Name
KESM
Drawn
2017-08-16
Model Name
Released
2017-08-16
Made by
JEONG W.S
NAMSUNG CO., LTD.
8

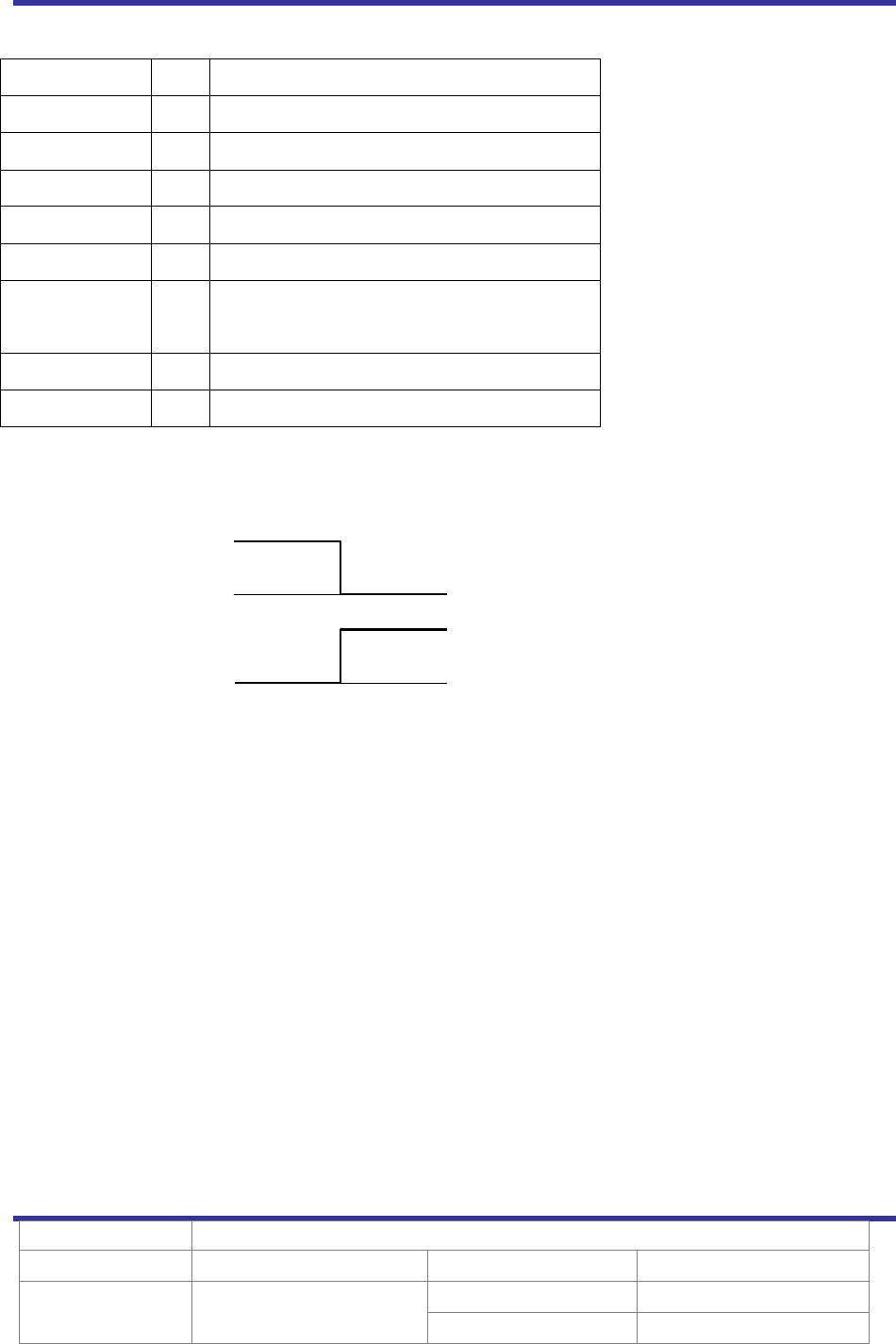

<LF Transmit>
항목
bit
비고
wake up bit
WakeUp bit
Start bit
Start bit
High bit
High bit
Low bit
low bit
Pattern
4
Wake Pattern : D
ReWake Up
bit
ReWake bit
Data
56
EOB
End of bit
6.2 DATA STRUCTURE (“1", "0”)
송신 “0”
“1”
Title
Certification Request Document
Project Name
KESM
Drawn
2017-08-16
Model Name
Released
2017-08-16
Made by
JEONG W.S
400us
400us
400us
400us
