USER’S MANUAL
RF30
Remote & Receiver

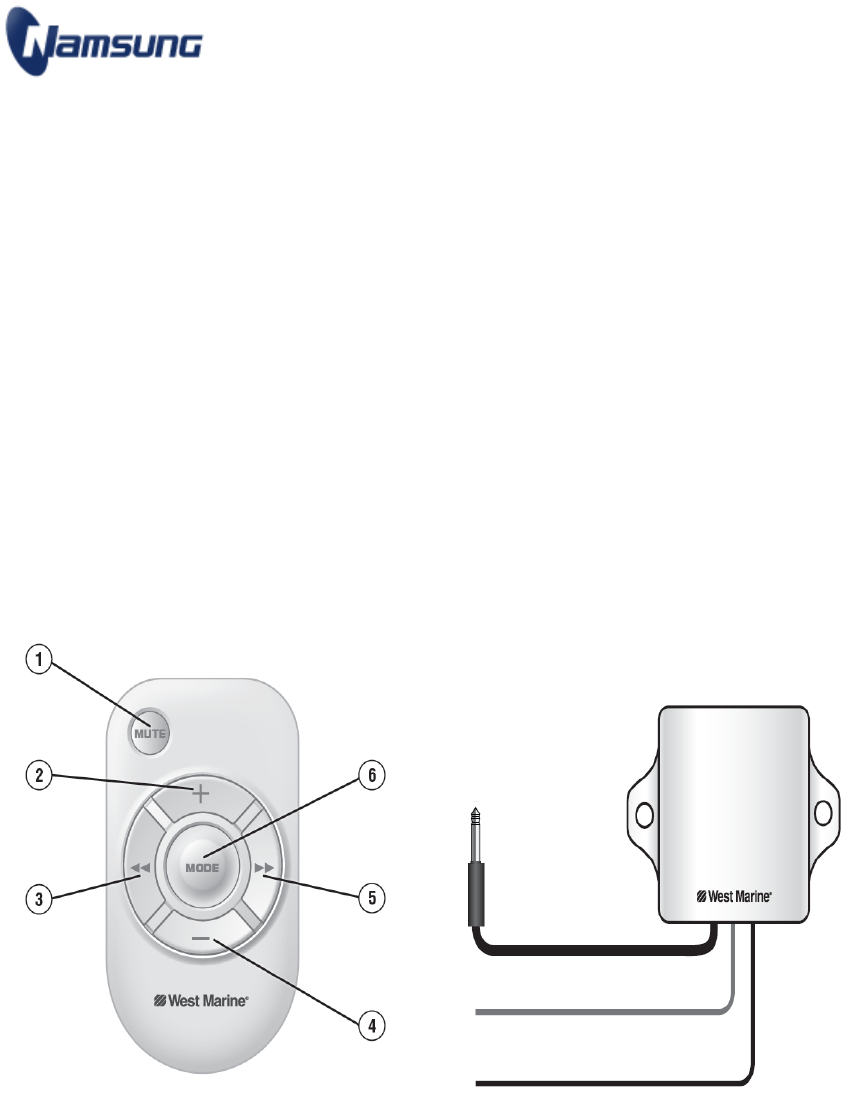

RF30 Remote RF30 Receiver
RF30
© 2010 All rights reserved Printed in China
http://www.namsung.com
Installation
Installing the RF30 Receiver
1. Connect the 3.5mm cable to the REMOTE IN input on the back of the radio. ex)
WM3000RF
2. Connect the black wire from the RF30 receiver to a good ground (-) source.
Typically, the ground wire connection from the radio wiring harness can be used.
3. Connect the red wire from the RF30 receiver to a 12 volt accessory switched
power source. This may be connected to the red accessory power wire at the
radio wiring harness.

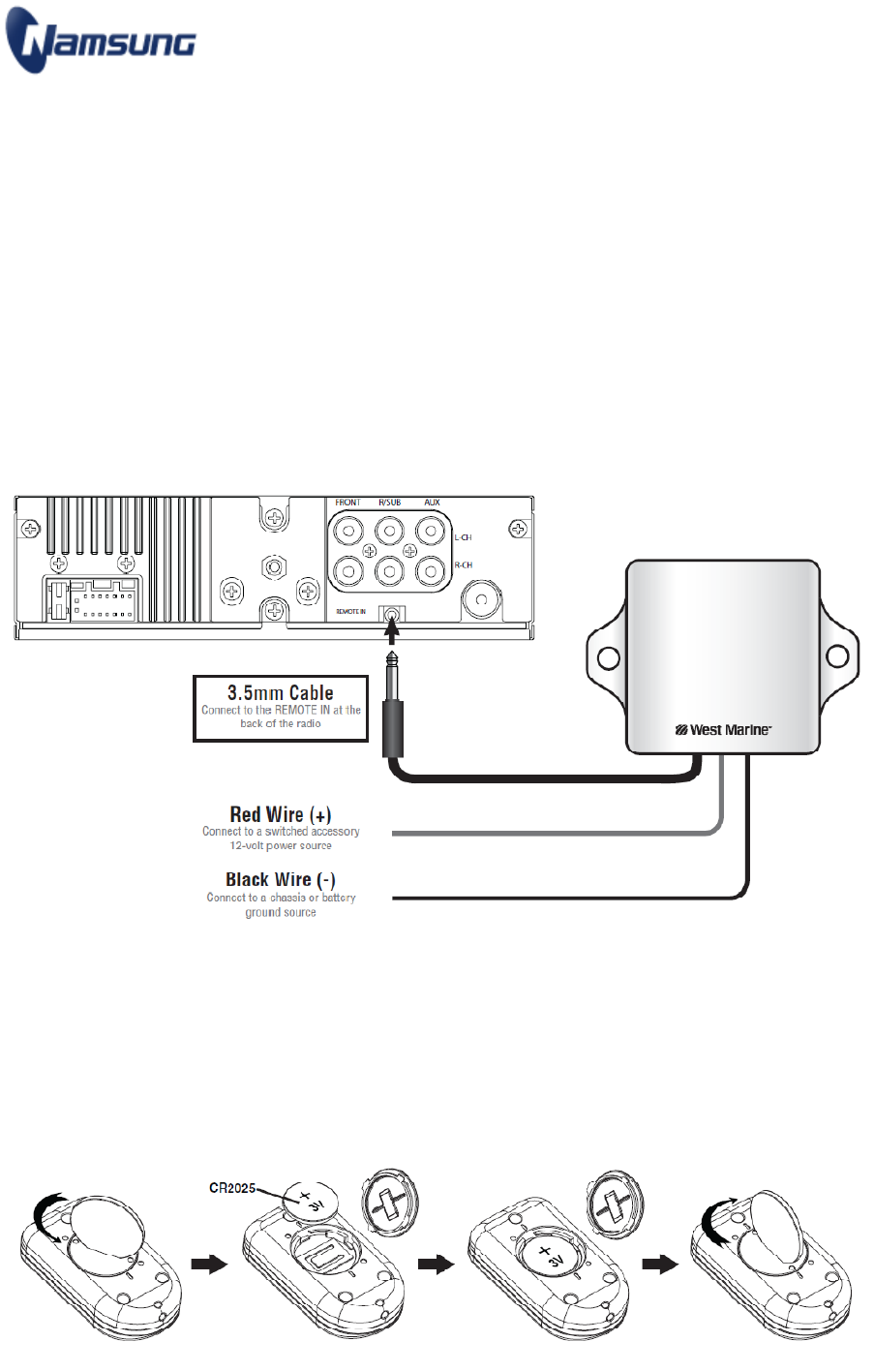

See illustration below for connection details.
Inserting the battery in the RF30 remote
Insert the battery (CR2025) into the RF30 remote control with the (-) negative battery
terminal facing in toward the RF remote, and the (+) positive battery terminal facing
outward toward the battery cover. See illustration below.
RF30
© 2010 All rights reserved Printed in China
http://www.namsung.com

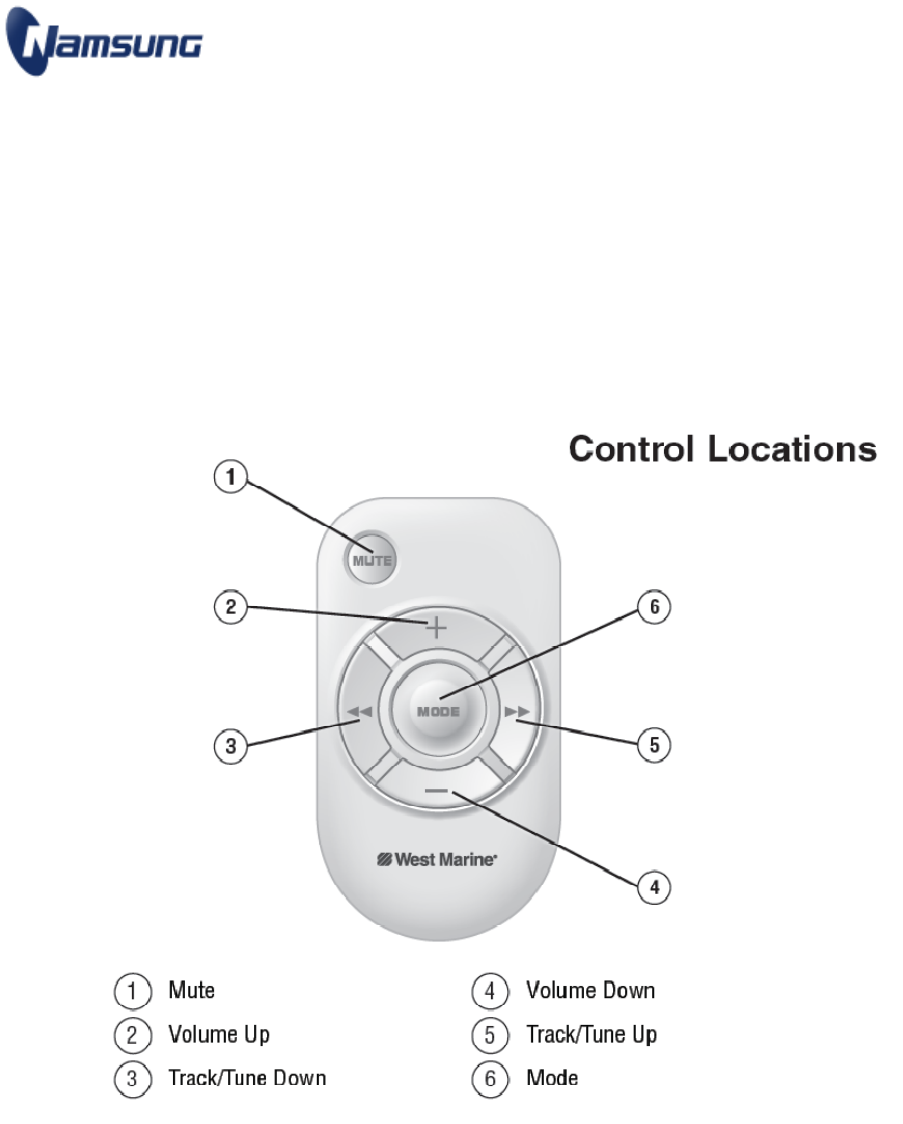

Initial setup
1. Turn on the power to the radio and RF30 receiver. A blue LED should be visible
through the top of the receiver.
2. Link the RF30 remote to the receiver by pressing and holding the MUTE button
on the RF30 remote for 5 seconds, while the remote is within 3 feet of the
receiver. The LED on the receiver will flash to confirm the connection. Note :
this step must be repeated if the battery is remove from the RF30 remote.
3. Mount the RF30 receiver using cable ties or screws. The receiver should be
mounted away from areas that may be splashed by water.
RF30
© 2010 All rights reserved Printed in China
http://www.namsung.com

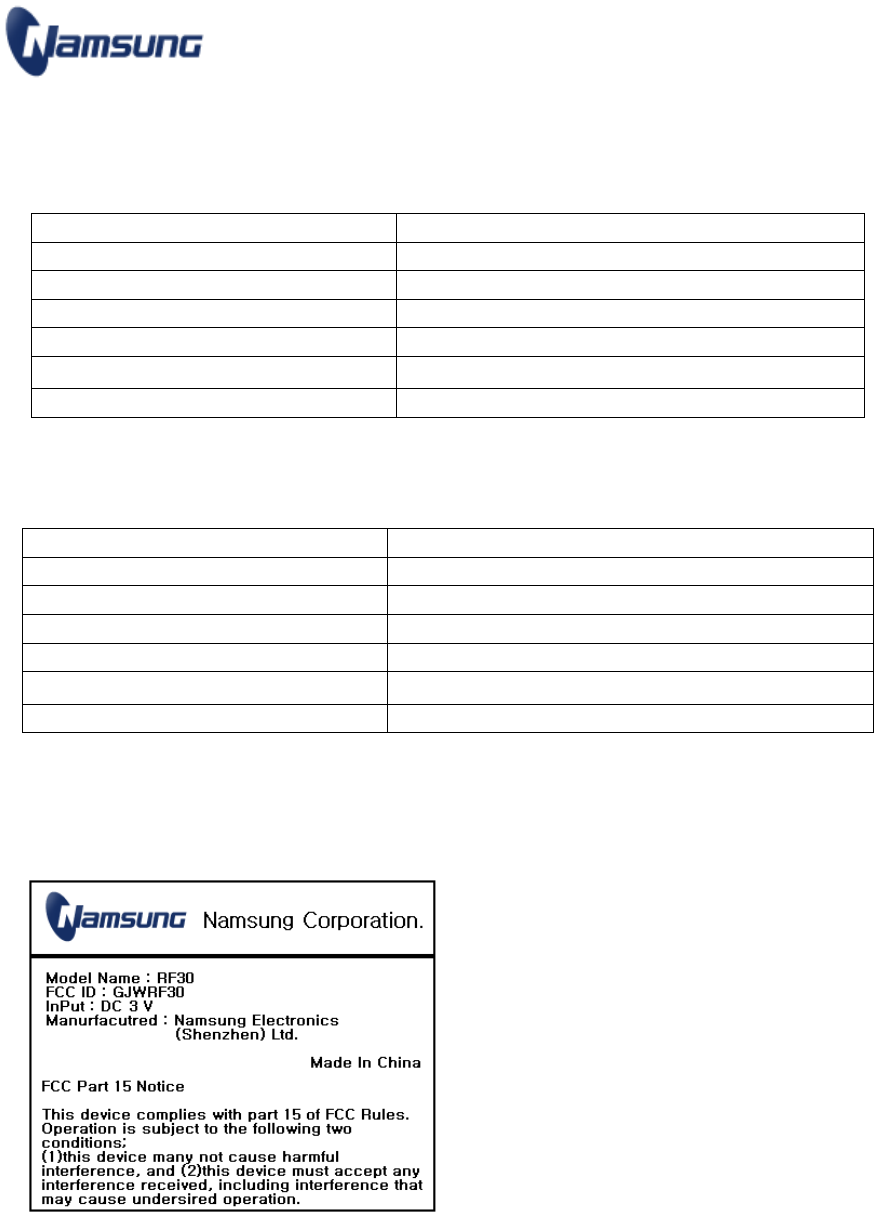

RF30 Specifications
RF30 Remote
Tx Frequency Range 2400 ~ 2483.5 MHz
Channel List 2415.4/2420.4/2425.4/2430.4/2435.4 MHz
The Number of Channel 5
Input Voltage DC 3 V (CR2025 Battery)
Dimensions 35.2 X 63.8 X 16.0 mm
Operating Temperature Range -10 ~ +50
Modulation Type GFSK
RF30 Receiver
Rx Frequency Range 2400 ~ 2483.5 MHz
Channel List 2415.4/2420.4/2425.4/2430.4/2435.4 MHz
The Number of Channel 5
Input Voltage DC 12 V
Dimensions 44.5 X 44.5 X 15.7 mm
Operating Temperature Range -10 ~ +50
Modulation Type GFSK
RF30 FCC ID Label Information
RF30
© 2010 All rights reserved Printed in China
http://www.namsung.com
FCC RF INTERFERENCE STATEMENT
NOTE :
The users manual or instruction manual for an intentional or unintentional radiator
shall caution the user that changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
In cases where the manual is provided only in a form other than paper, such as on a
computer disk or over the Internet, the information required by this section may be
included in the manual in that alternative form, provided the user can reasonably be
expected to have the capability to access information in that form.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio, TV technical for help.
- Only shielded interface cable should be used.
Finally, any changes or modifications to the equipment by the user not expressly
approved by the grantee or manufacturer could void the users authority to operate
such equipment
