Namsung XGPS160 SkyPro GPS Receiver User Manual Owner s Manual

User Manual

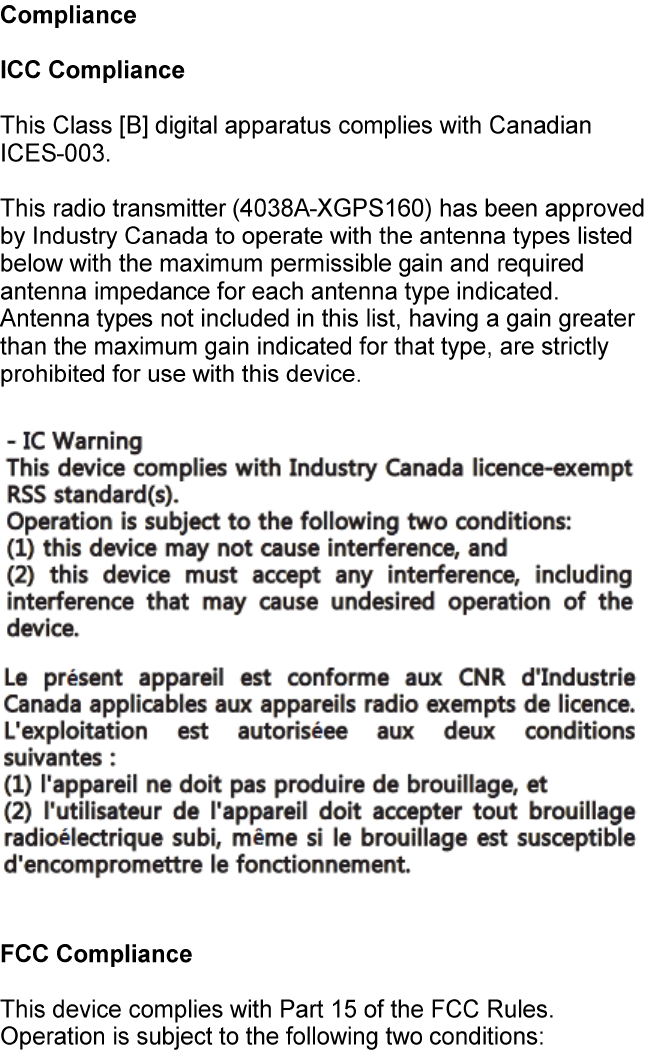

FCC ID : GJW-XGPS160

IC ID : 4038A-XGPS160



Dimensions(WxHxD in mm)

- XGPS160 :: 55.0 x 70.0 x 22.0

- Non-slip Pad: 107.0 x 122.0 x 25.0

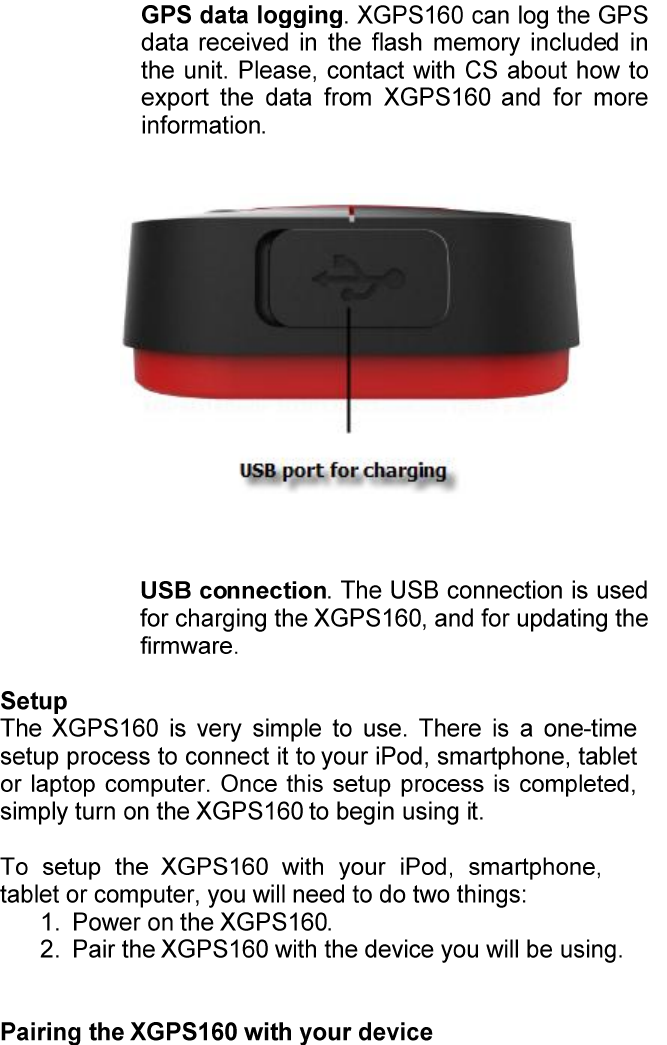

Charging Voltage

- Input Voltage : 5V DC

Cigarette Lighter Power Adapter Voltage

- Input : 12V DC ~ 30V DC

- Output : 5V DC

GPS/GLONASS

- GPS and GLONASS supported simultaneously.

- SBAS(WASS, MSAS, EGNOS, GAGAN) supported.

- GPS : L1 1575.42 MHz

- GLONASS : L1 1598.0625 MHz ~ 1605.375 MHz

- Cold Start : <29 sec. Typical(Open sky)

- Warm Start : <25 sec. Typical(Open sky)

Bluetooth

- CSR engine

- Version : 2.1+EDR

- Range : ~10m(~33ft) (Open space)

Internal battery

- Capacity : 1,400mAh

- Operation time : ~10.0 hours(based on good GPS receiving

and one device connection)

- Charging time : ~3 hours

Environmental requirements

- Operating temperature: 14°F ~ 140°F(-10°C ~ 60°C)

- Storage temperature: -4°F ~ 176°F(-20°C ~ 80°C)

- Relative humidity : 5% to 95%(non-condensing)

•
