Nanjing Hanlong Technology UC6090SERIAL IP PHONE User Manual A9RCC10 tmp

Nanjing Hanlong Technology Co.,Ltd. IP PHONE A9RCC10 tmp

User manual

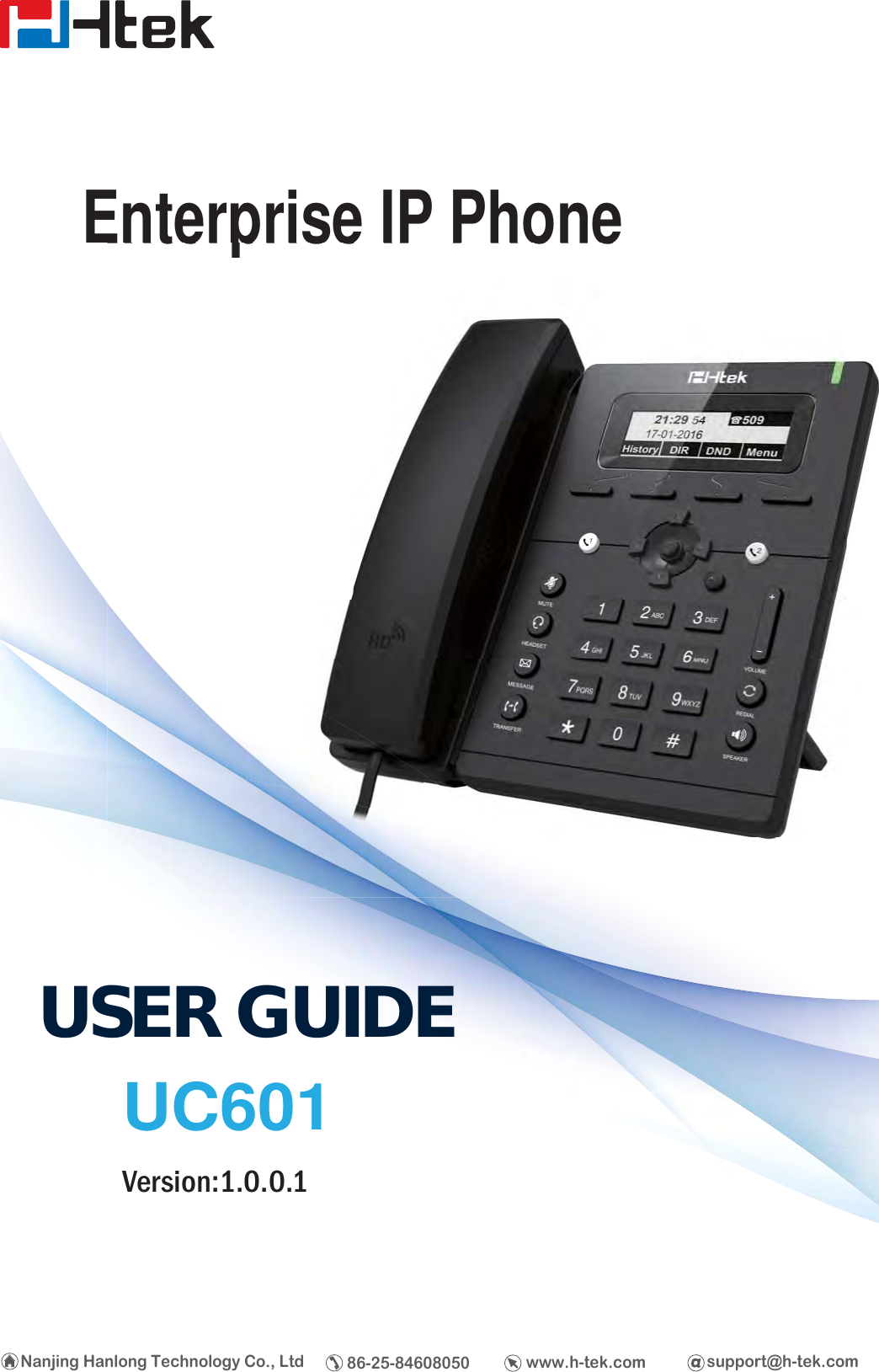

support@h-tek.comwww.h-tek.comNanjing Hanlong Technology Co., LtdUSER GUIDEUC601Version:1.0.0.1Enterprise IP Phone86-25-84608050

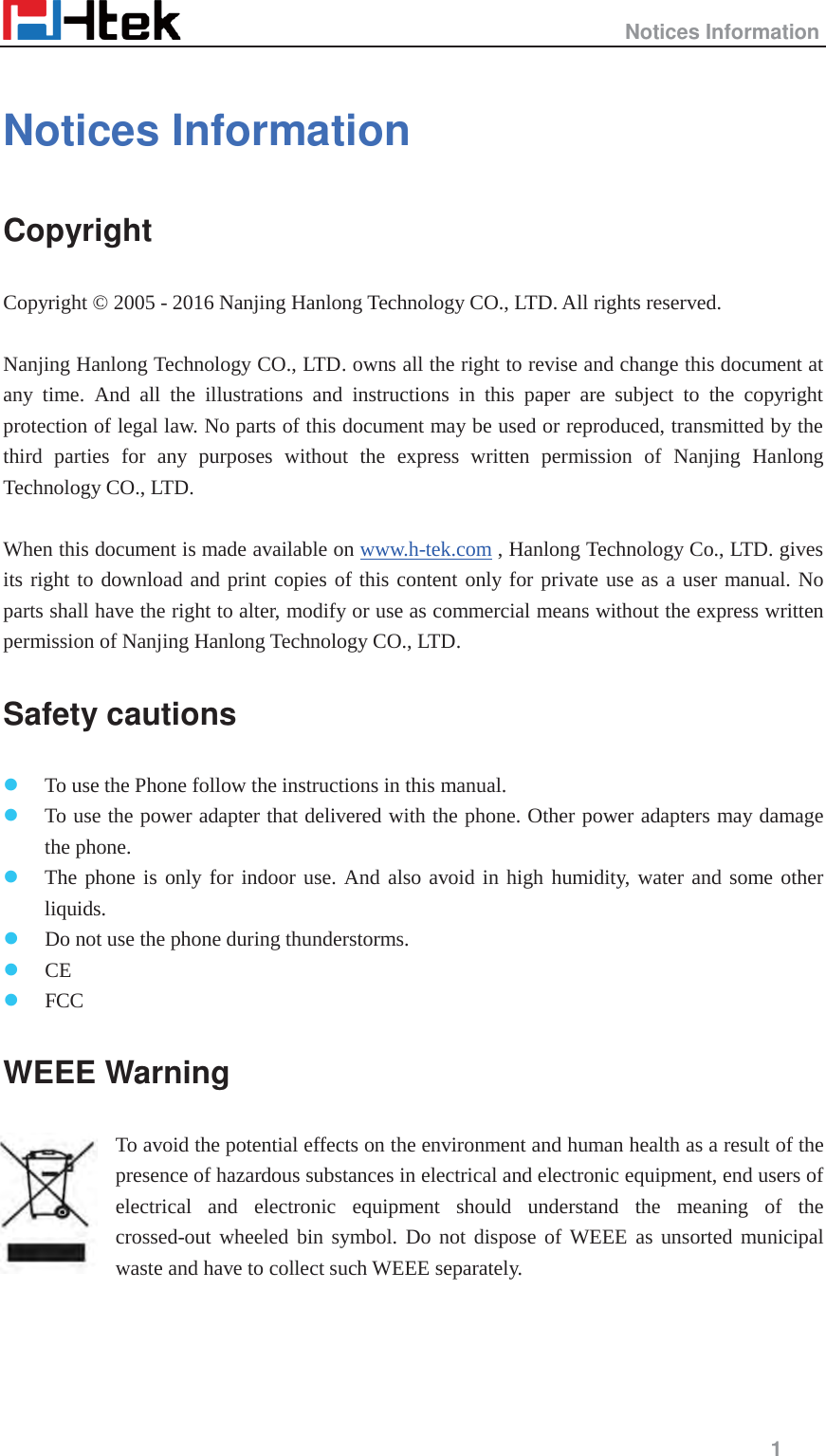

                                                  Notices Information     1  Notices Information Copyright Copyright © 2005 - 2016 Nanjing Hanlong Technology CO., LTD. All rights reserved.  Nanjing Hanlong Technology CO., LTD. owns all the right to revise and change this document at any time. And all the illustrations and instructions in this paper are subject to the copyright protection of legal law. No parts of this document may be used or reproduced, transmitted by the third parties for any purposes without the express written permission of Nanjing Hanlong Technology CO., LTD.    When this document is made available on www.h-tek.com , Hanlong Technology Co., LTD. gives its right to download and print copies of this content only for private use as a user manual. No parts shall have the right to alter, modify or use as commercial means without the express written permission of Nanjing Hanlong Technology CO., LTD.   Safety cautions z To use the Phone follow the instructions in this manual. z To use the power adapter that delivered with the phone. Other power adapters may damage the phone. z The phone is only for indoor use. And also avoid in high humidity, water and some other liquids. z Do not use the phone during thunderstorms. z CE z FCC WEEE Warning To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately.

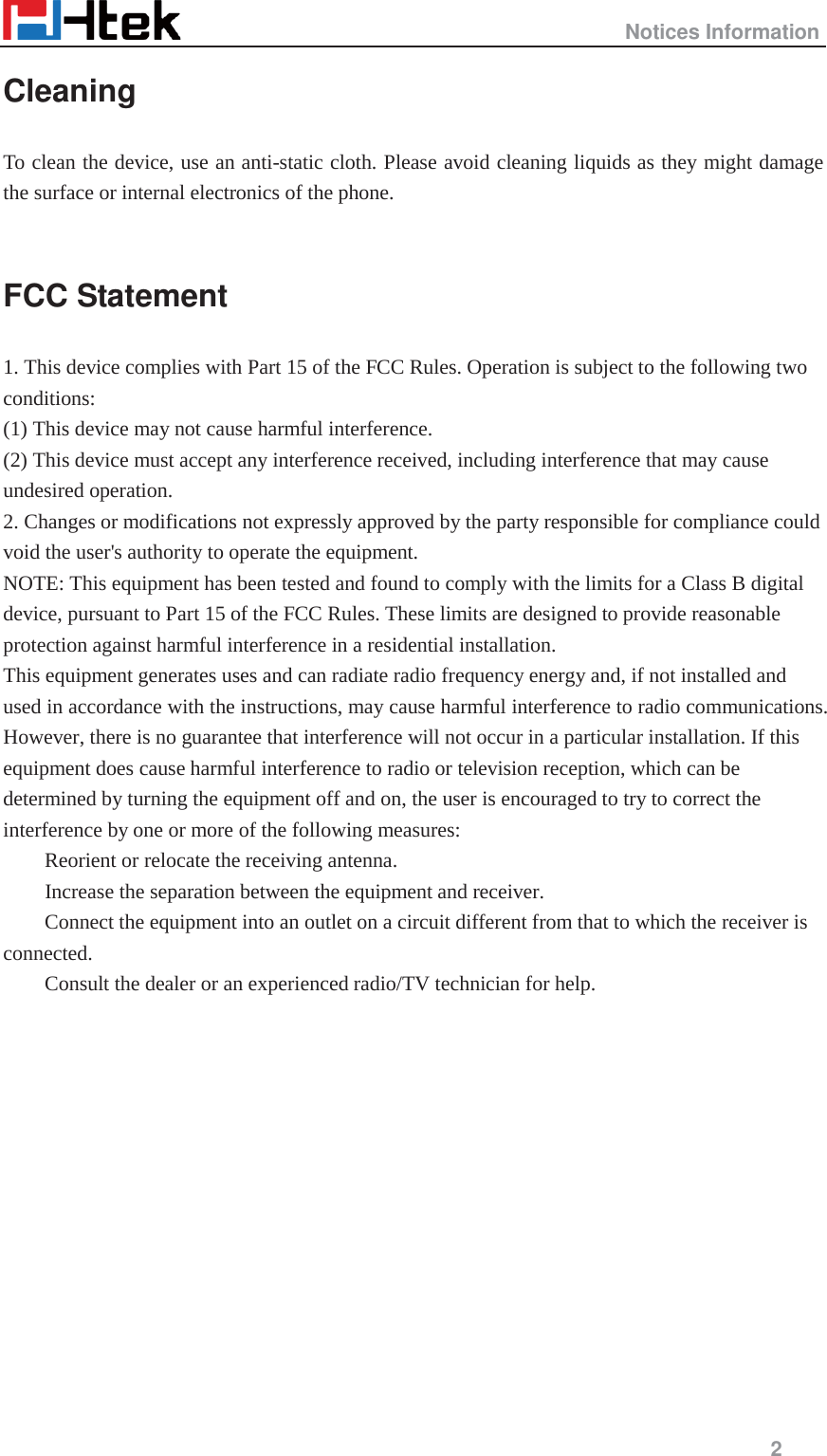

                                                  Notices Information     2  Cleaning  To clean the device, use an anti-static cloth. Please avoid cleaning liquids as they might damage the surface or internal electronics of the phone.  FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:  (1) This device may not cause harmful interference.   (2) This device must accept any interference received, including interference that may cause undesired operation.   2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.   NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.   This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:    Reorient or relocate the receiving antenna.    Increase the separation between the equipment and receiver.    Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.   Consult the dealer or an experienced radio/TV technician for help.

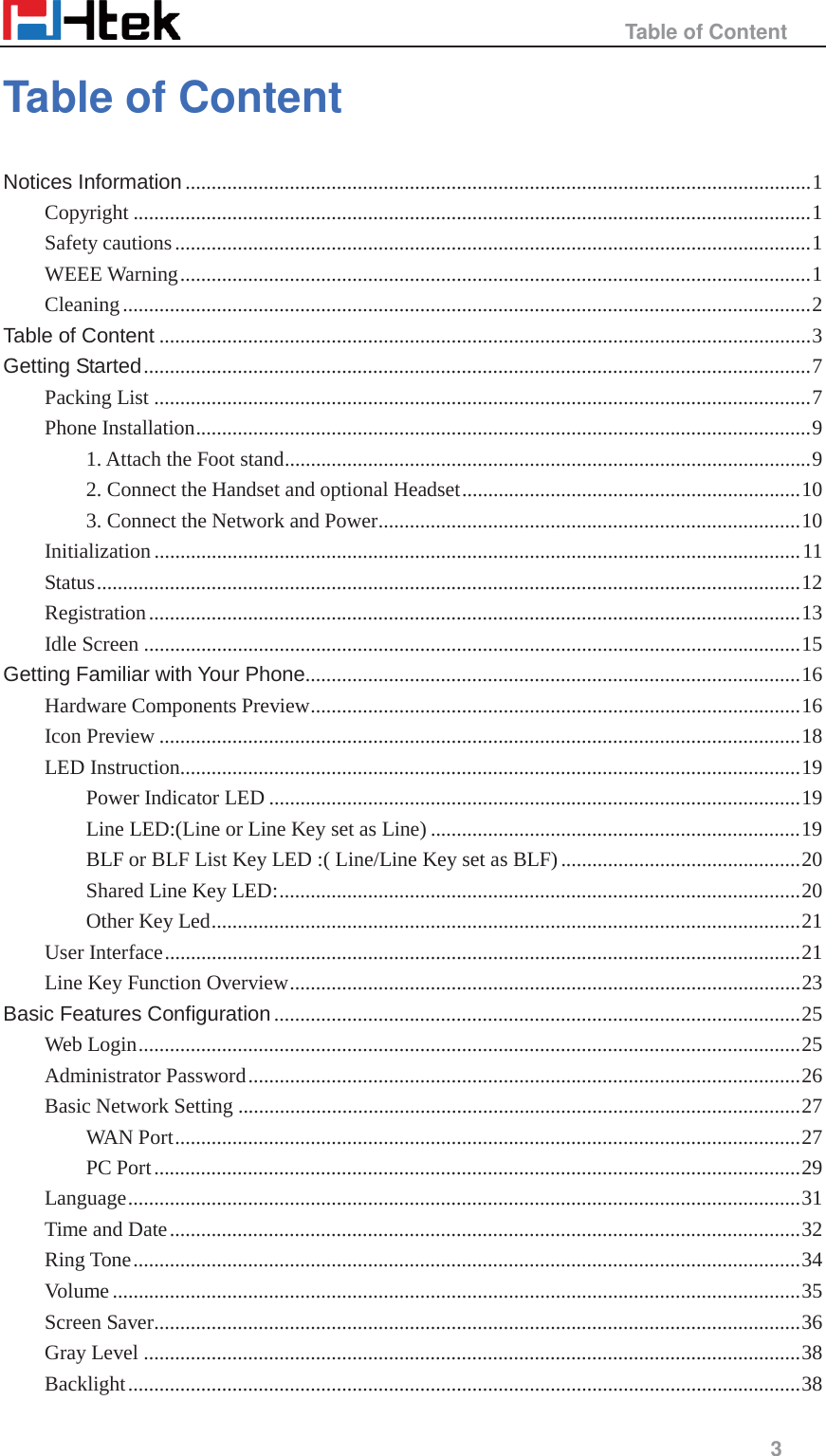

                                                  Table of Content     3  Table of Content Notices Information ........................................................................................................................ 1 Copyright .................................................................................................................................. 1 Safety cautions .......................................................................................................................... 1 WEEE Warning ......................................................................................................................... 1 Cleaning .................................................................................................................................... 2 Table of Content ............................................................................................................................. 3 Getting Started ................................................................................................................................ 7 Packing List .............................................................................................................................. 7 Phone Installation ...................................................................................................................... 9 1. Attach the Foot stand ..................................................................................................... 9 2. Connect the Handset and optional Headset ................................................................. 10 3. Connect the Network and Power ................................................................................. 10 Initialization ............................................................................................................................ 11 Status ....................................................................................................................................... 12 Registration ............................................................................................................................. 13 Idle Screen .............................................................................................................................. 15 Getting Familiar with Your Phone............................................................................................... 16 Hardware Components Preview .............................................................................................. 16 Icon Preview ........................................................................................................................... 18 LED Instruction....................................................................................................................... 19 Power Indicator LED ...................................................................................................... 19 Line LED:(Line or Line Key set as Line) ....................................................................... 19 BLF or BLF List Key LED :( Line/Line Key set as BLF) .............................................. 20 Shared Line Key LED: .................................................................................................... 20 Other Key Led ................................................................................................................. 21 User Interface .......................................................................................................................... 21 Line Key Function Overview .................................................................................................. 23 Basic Features Configuration ..................................................................................................... 25 Web Login ............................................................................................................................... 25 Administrator Password .......................................................................................................... 26 Basic Network Setting ............................................................................................................ 27 WAN Port ........................................................................................................................ 27 PC Port ............................................................................................................................ 29 Language ................................................................................................................................. 31 Time and Date ......................................................................................................................... 32 Ring Tone ................................................................................................................................ 34 Volume .................................................................................................................................... 35 Screen Saver ............................................................................................................................ 36 Gray Level .............................................................................................................................. 38 Backlight ................................................................................................................................. 38
                                                  Table of Content     4  Contact Management .............................................................................................................. 39 Local Directory ....................................................................................................................... 39 Remote Phonebook ................................................................................................................. 43 Call History ............................................................................................................................. 43 LDAP Phonebook ................................................................................................................... 46 Search Contact: ....................................................................................................................... 48 Other features settings ................................................................................................................ 50 Dial Plan .................................................................................................................................. 50 Emergency Call ....................................................................................................................... 51 LED Status Setting .................................................................................................................. 52 Action URL ............................................................................................................................. 53 Softkey Layout ........................................................................................................................ 54 Programmable Key ................................................................................................................. 55 Basic Call Features ...................................................................................................................... 56 Place a Call ............................................................................................................................. 56 End a Call ................................................................................................................................ 58 Receive a Call ......................................................................................................................... 58 Incoming Call Show Mode ..................................................................................................... 59 Auto Answer ........................................................................................................................... 59 Call Hold ................................................................................................................................. 60 Call Transfer ............................................................................................................................ 61 Call Conference....................................................................................................................... 64 Call Forward ........................................................................................................................... 65 Call Return .............................................................................................................................. 68 Call Waiting Tone .................................................................................................................... 69 Hide Caller ID ......................................................................................................................... 70 Reject Anonymous .................................................................................................................. 70 Call Mute ................................................................................................................................ 71 DND ........................................................................................................................................ 71 Key as Send ............................................................................................................................. 72 No Key Entry Timeout ............................................................................................................ 72 Dail-Now Timeout .................................................................................................................. 73 Keypad Lock ........................................................................................................................... 73 Hot Line .................................................................................................................................. 75 Function Key Features Settings ................................................................................................. 76 Line ......................................................................................................................................... 76 Speed Dial ............................................................................................................................... 77 BLF ......................................................................................................................................... 78 BLF List .................................................................................................................................. 79 Voice Message ......................................................................................................................... 81 Direct Pickup .......................................................................................................................... 81 Group Pickup .......................................................................................................................... 82 Call Park .................................................................................................................................. 83 Intercom .................................................................................................................................. 84

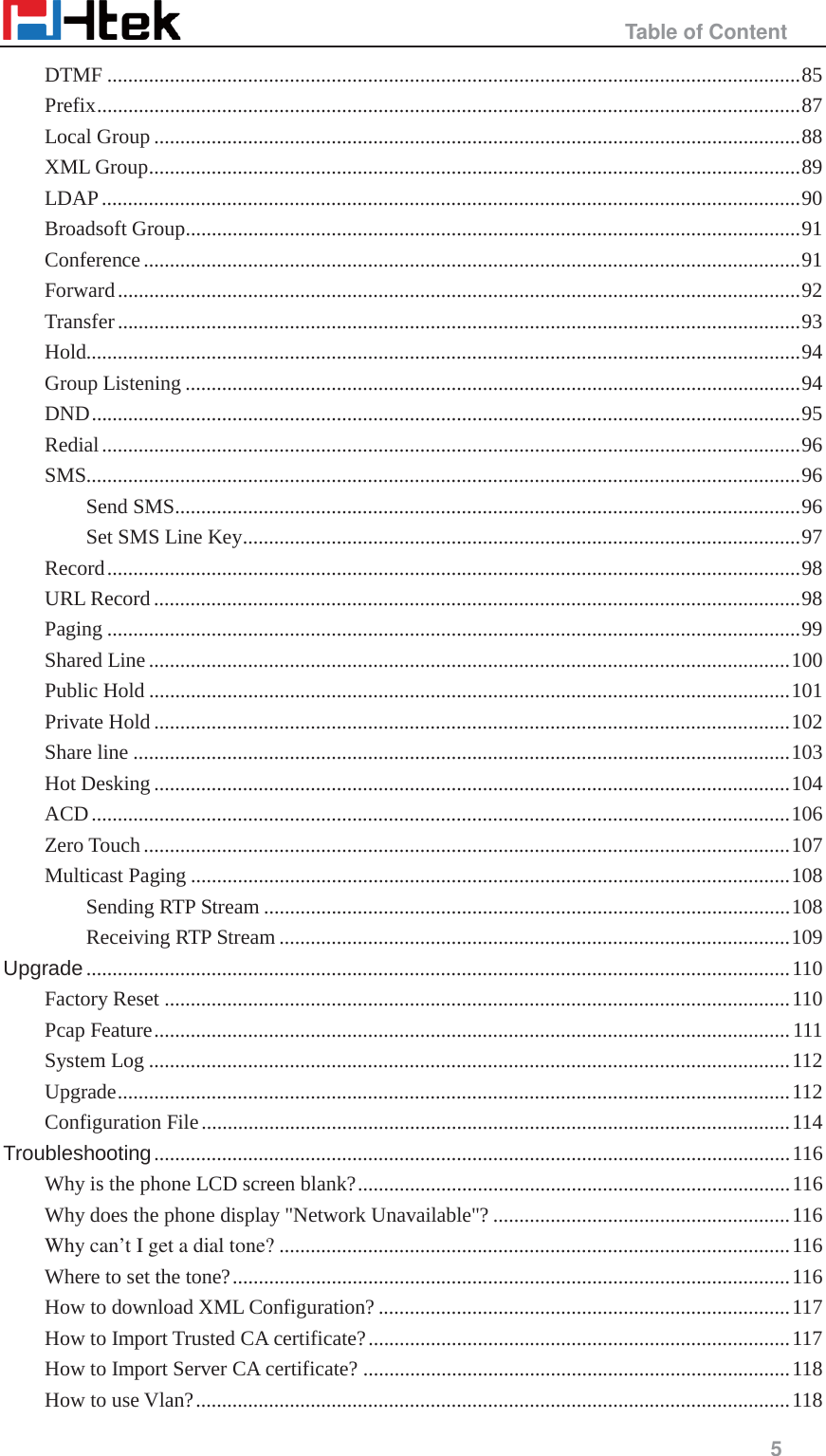

                                                  Table of Content     5  DTMF ..................................................................................................................................... 85 Prefix ....................................................................................................................................... 87 Local Group ............................................................................................................................ 88 XML Group ............................................................................................................................. 89 LDAP ...................................................................................................................................... 90 Broadsoft Group ...................................................................................................................... 91 Conference .............................................................................................................................. 91 Forward ................................................................................................................................... 92 Transfer ................................................................................................................................... 93 Hold......................................................................................................................................... 94 Group Listening ...................................................................................................................... 94 DND ........................................................................................................................................ 95 Redial ...................................................................................................................................... 96 SMS......................................................................................................................................... 96 Send SMS ........................................................................................................................ 96 Set SMS Line Key ........................................................................................................... 97 Record ..................................................................................................................................... 98 URL Record ............................................................................................................................ 98 Paging ..................................................................................................................................... 99 Shared Line ........................................................................................................................... 100 Public Hold ........................................................................................................................... 101 Private Hold .......................................................................................................................... 102 Share line .............................................................................................................................. 103 Hot Desking .......................................................................................................................... 104 ACD ...................................................................................................................................... 106 Zero Touch ............................................................................................................................ 107 Multicast Paging ................................................................................................................... 108 Sending RTP Stream ..................................................................................................... 108 Receiving RTP Stream .................................................................................................. 109 Upgrade ....................................................................................................................................... 110 Factory Reset ........................................................................................................................ 110 Pcap Feature .......................................................................................................................... 111 System Log ........................................................................................................................... 112 Upgrade ................................................................................................................................. 112 Configuration File ................................................................................................................. 114 Troubleshooting .......................................................................................................................... 116 Why is the phone LCD screen blank? ................................................................................... 116 Why does the phone display "Network Unavailable"? ......................................................... 116 Why can’t I get a dial tone? .................................................................................................. 116 Where to set the tone? ........................................................................................................... 116 How to download XML Configuration? ............................................................................... 117 How to Import Trusted CA certificate? ................................................................................. 117 How to Import Server CA certificate? .................................................................................. 118 How to use Vlan? .................................................................................................................. 118

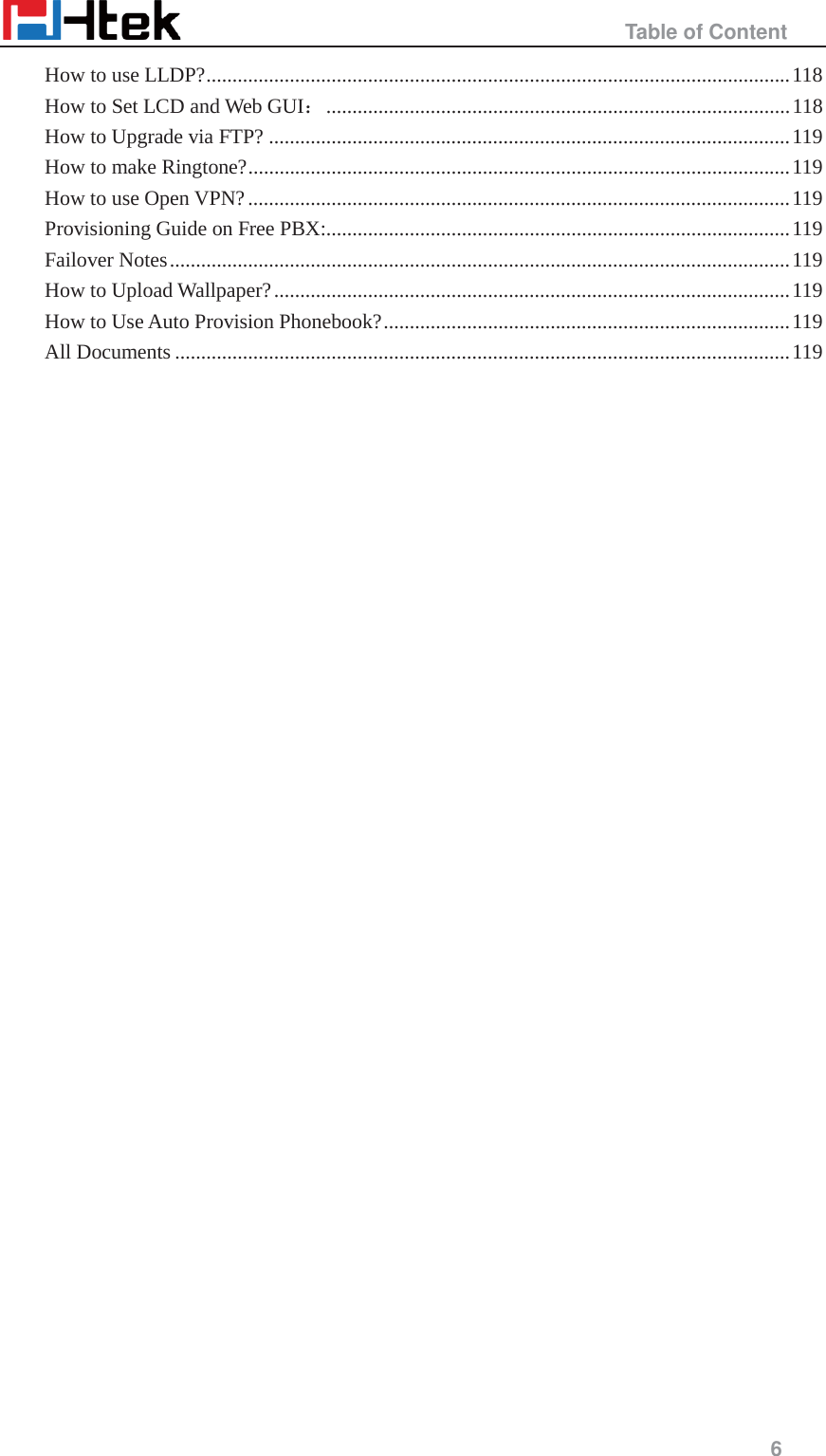

                                                  Table of Content     6  How to use LLDP? ................................................................................................................ 118 How to Set LCD and Web GUI˖ .........................................................................................  118 How to Upgrade via FTP? .................................................................................................... 119 How to make Ringtone? ........................................................................................................ 119 How to use Open VPN? ........................................................................................................ 119 Provisioning Guide on Free PBX:......................................................................................... 119 Failover Notes ....................................................................................................................... 119 How to Upload Wallpaper? ................................................................................................... 119 How to Use Auto Provision Phonebook? .............................................................................. 119 All Documents ...................................................................................................................... 119

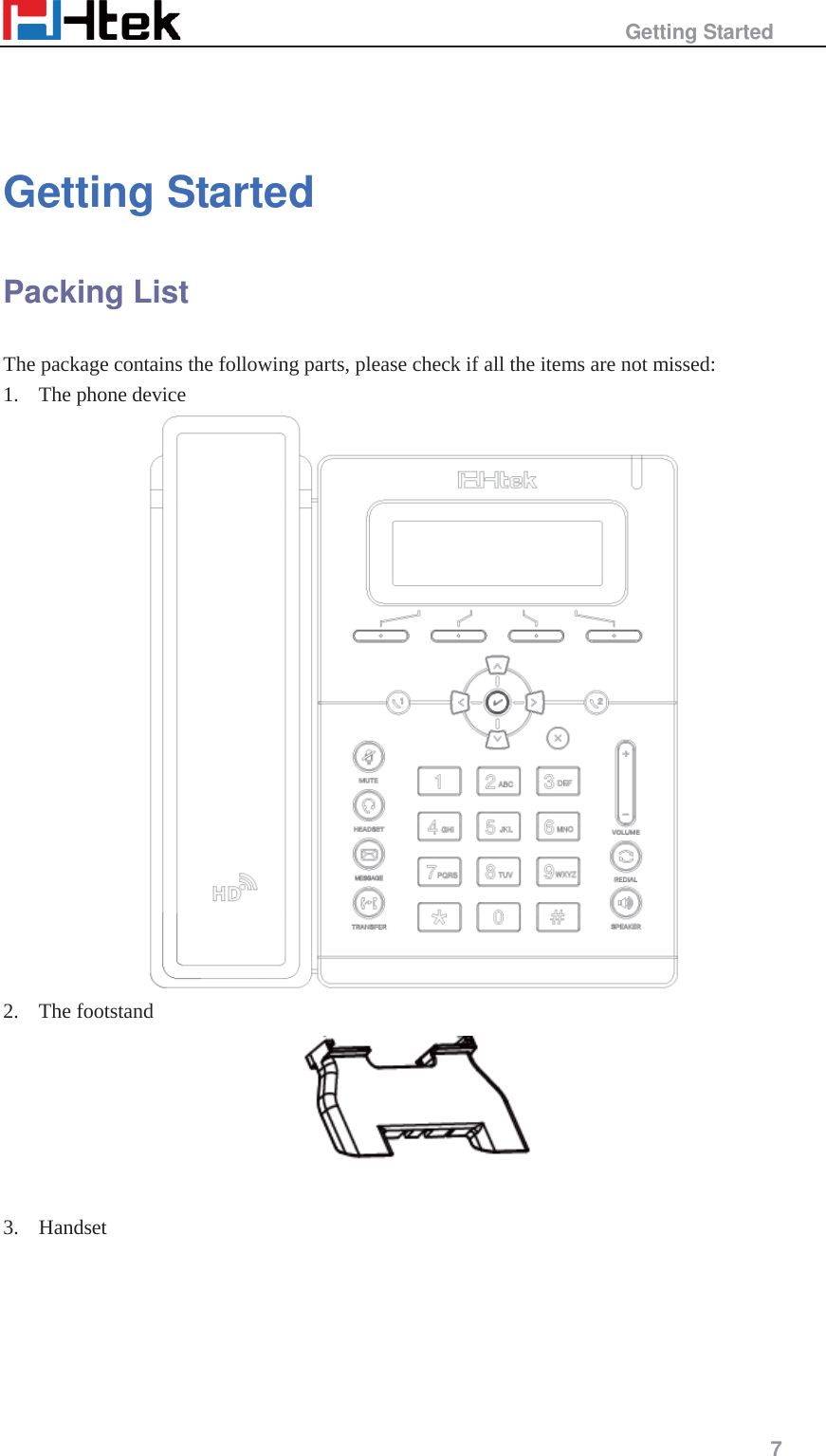

                                                  Getting Started     7    Getting Started   Packing List The package contains the following parts, please check if all the items are not missed: 1. The phone device  2. The footstand   3. Handset

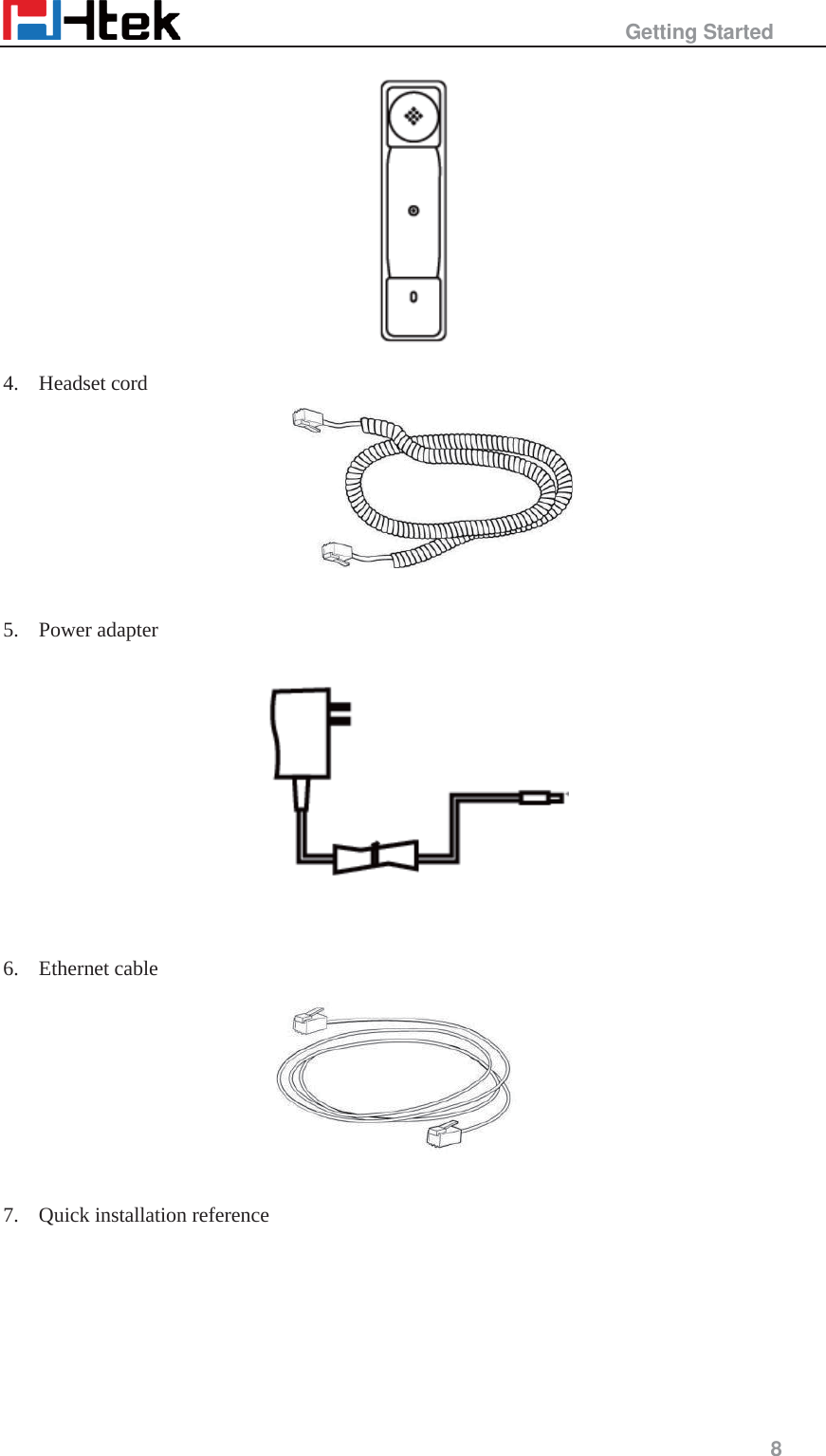

                                                  Getting Started     8   4. Headset cord        5. Power adapter     6. Ethernet cable   7. Quick installation reference

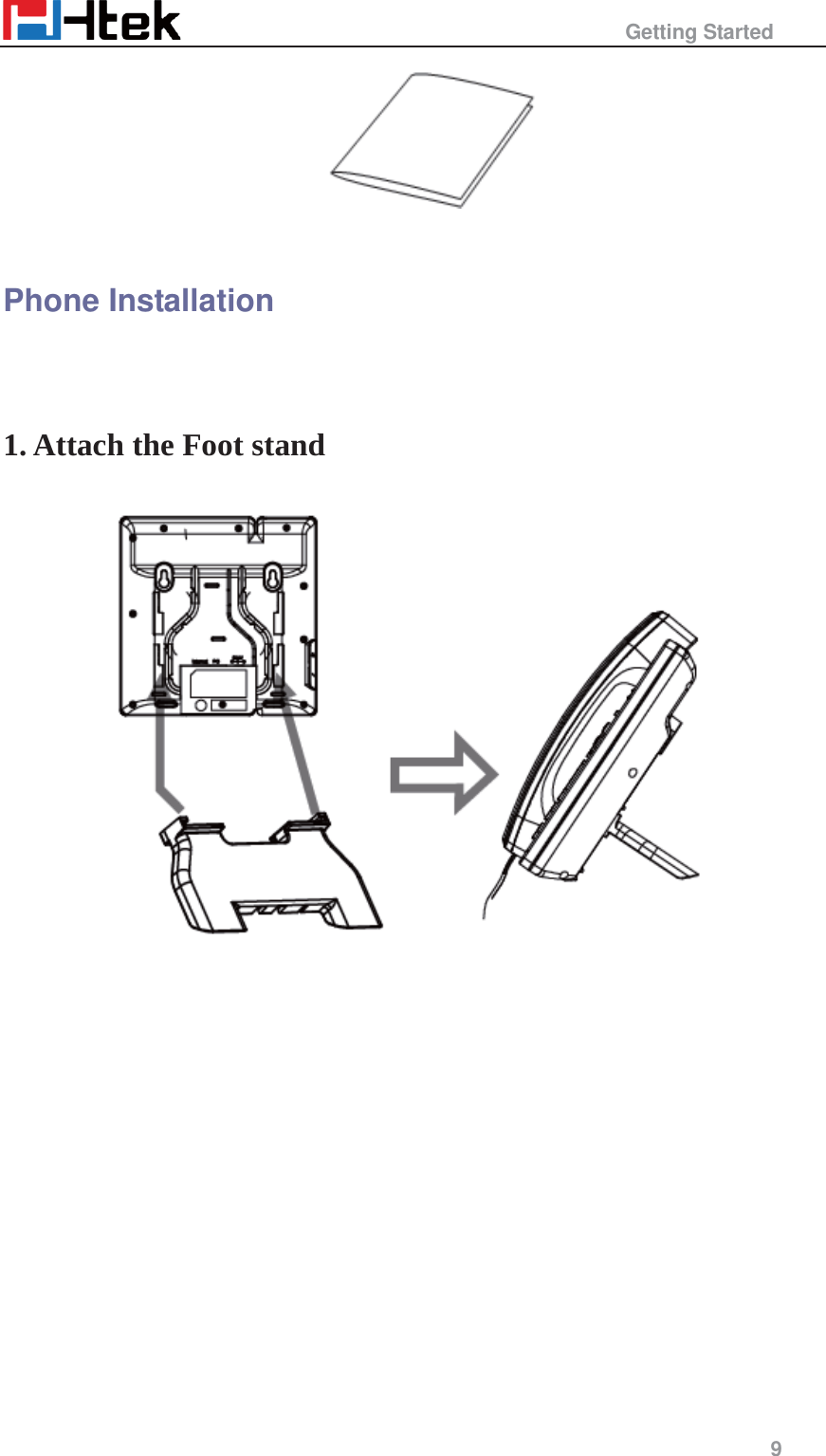

                                                  Getting Started     9    Phone Installation  1. Attach the Foot stand

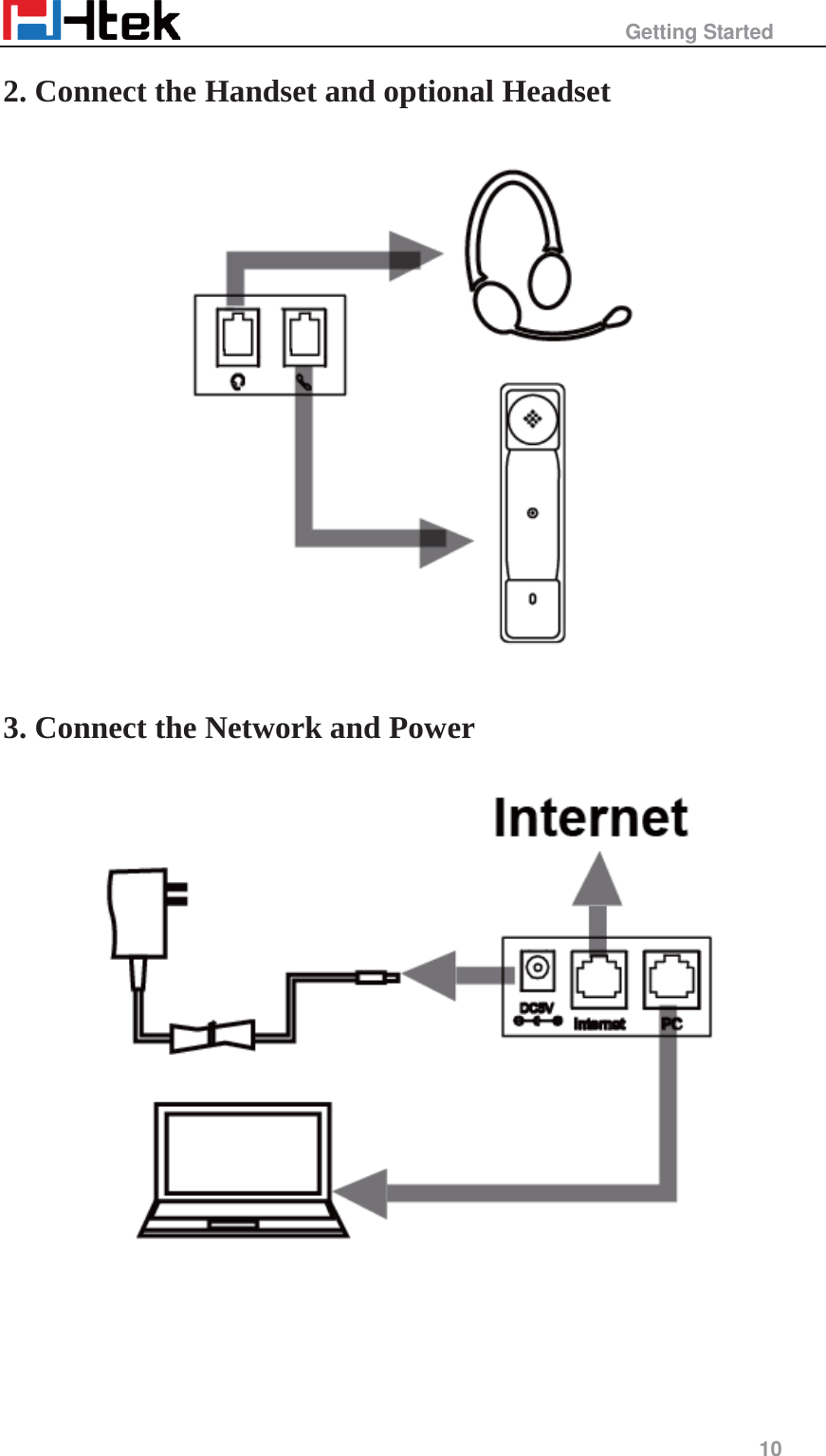

                                                  Getting Started     10  2. Connect the Handset and optional Headset  3. Connect the Network and Power

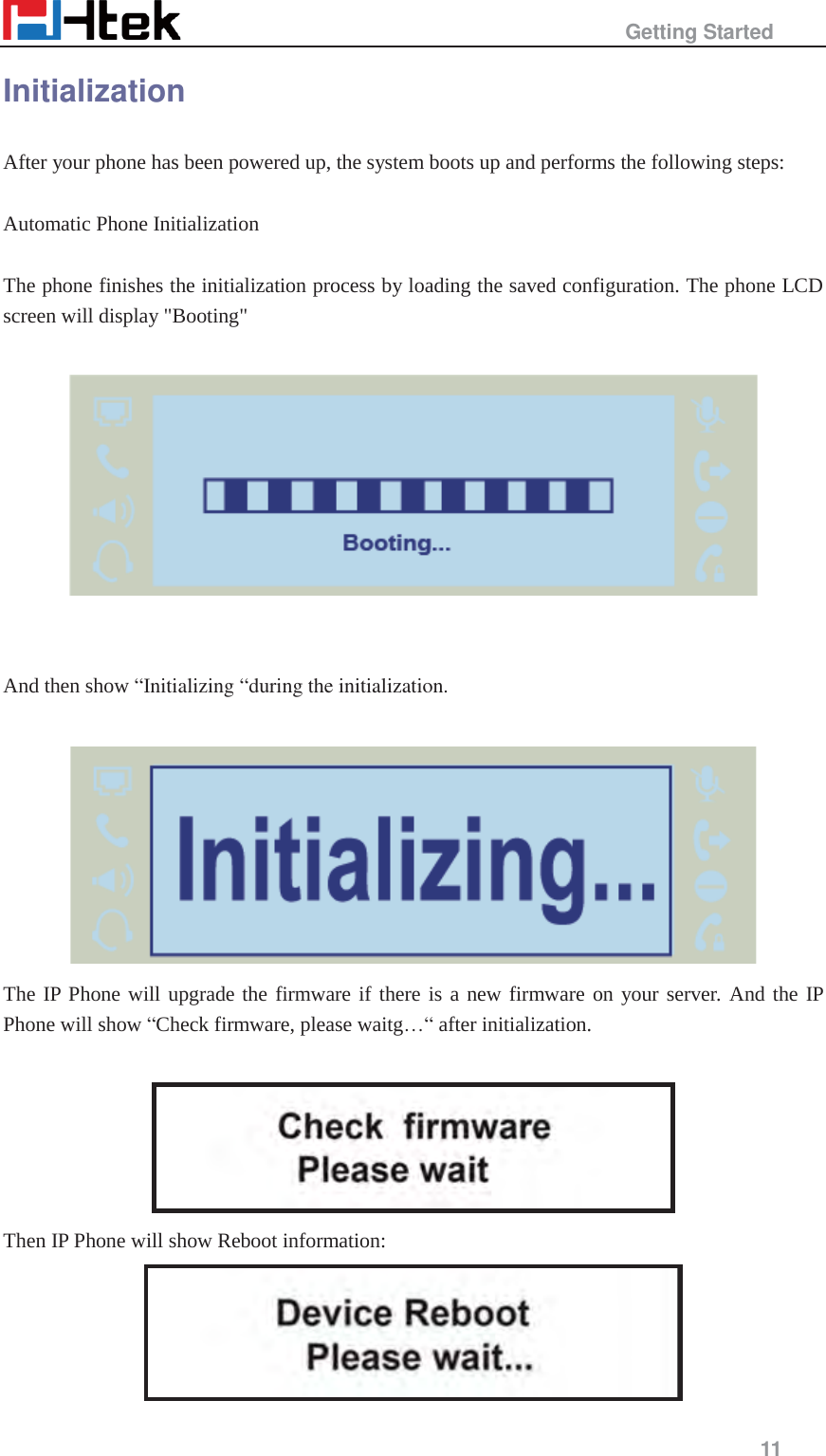

                                                  Getting Started     11  Initialization After your phone has been powered up, the system boots up and performs the following steps:  Automatic Phone Initialization  The phone finishes the initialization process by loading the saved configuration. The phone LCD screen will display "Booting"       And then show “Initializing “during the initialization.   The IP Phone will upgrade the firmware if there is a new firmware on your server. And the IP Phone will show “Check firmware, please waitg…“ after initialization.   Then IP Phone will show Reboot information:

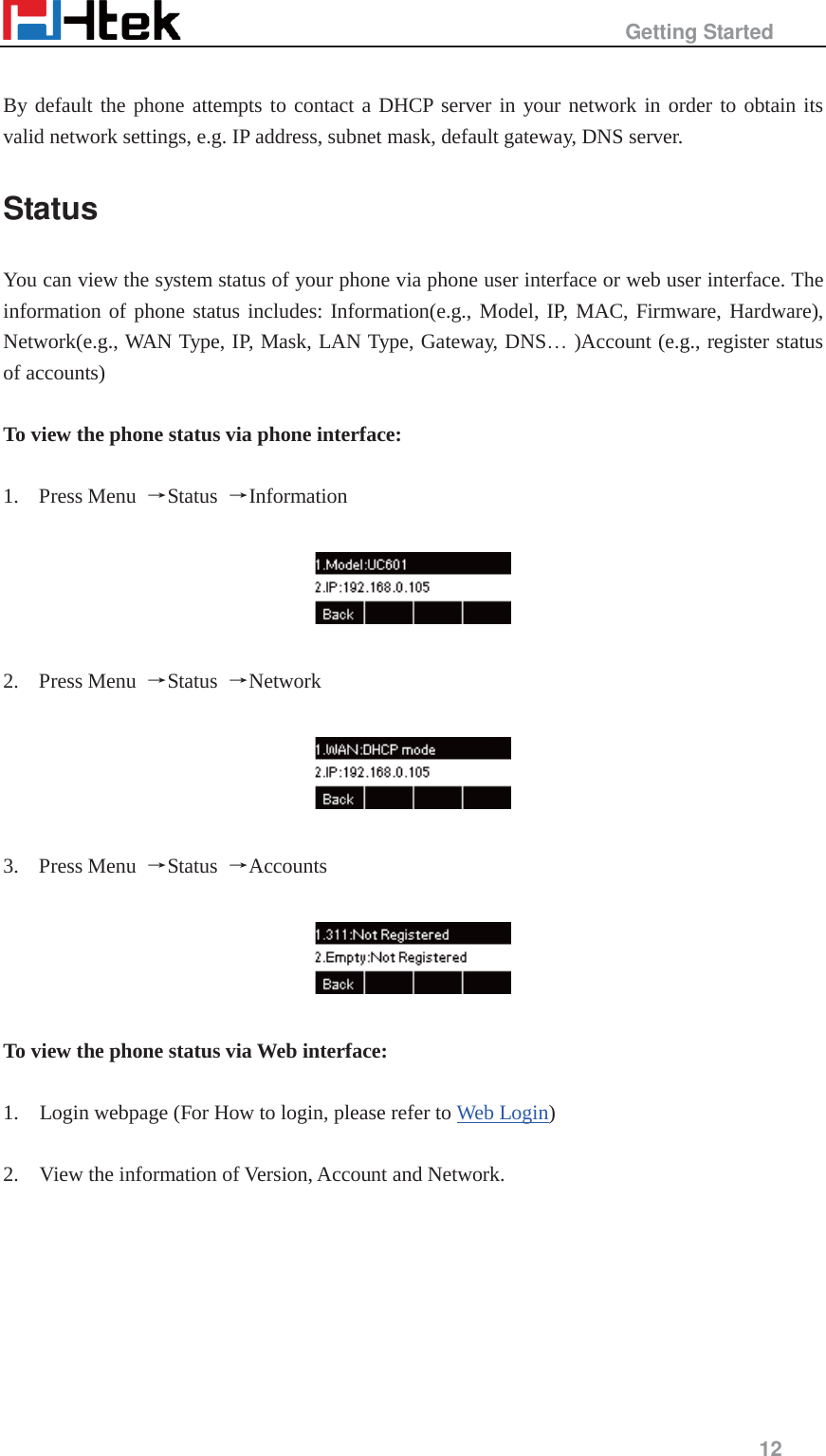

                                                  Getting Started     12   By default the phone attempts to contact a DHCP server in your network in order to obtain its valid network settings, e.g. IP address, subnet mask, default gateway, DNS server. Status You can view the system status of your phone via phone user interface or web user interface. The information of phone status includes: Information(e.g., Model, IP, MAC, Firmware, Hardware), Network(e.g., WAN Type, IP, Mask, LAN Type, Gateway, DNS… )Account (e.g., register status of accounts)  To view the phone status via phone interface:  1. Press Menu  ėStatus  ėInformation    2. Press Menu  ėStatus  ėNetwork    3. Press Menu  ėStatus  ėAccounts    To view the phone status via Web interface:  1.    Login webpage (For How to login, please refer to Web Login)  2.    View the information of Version, Account and Network.

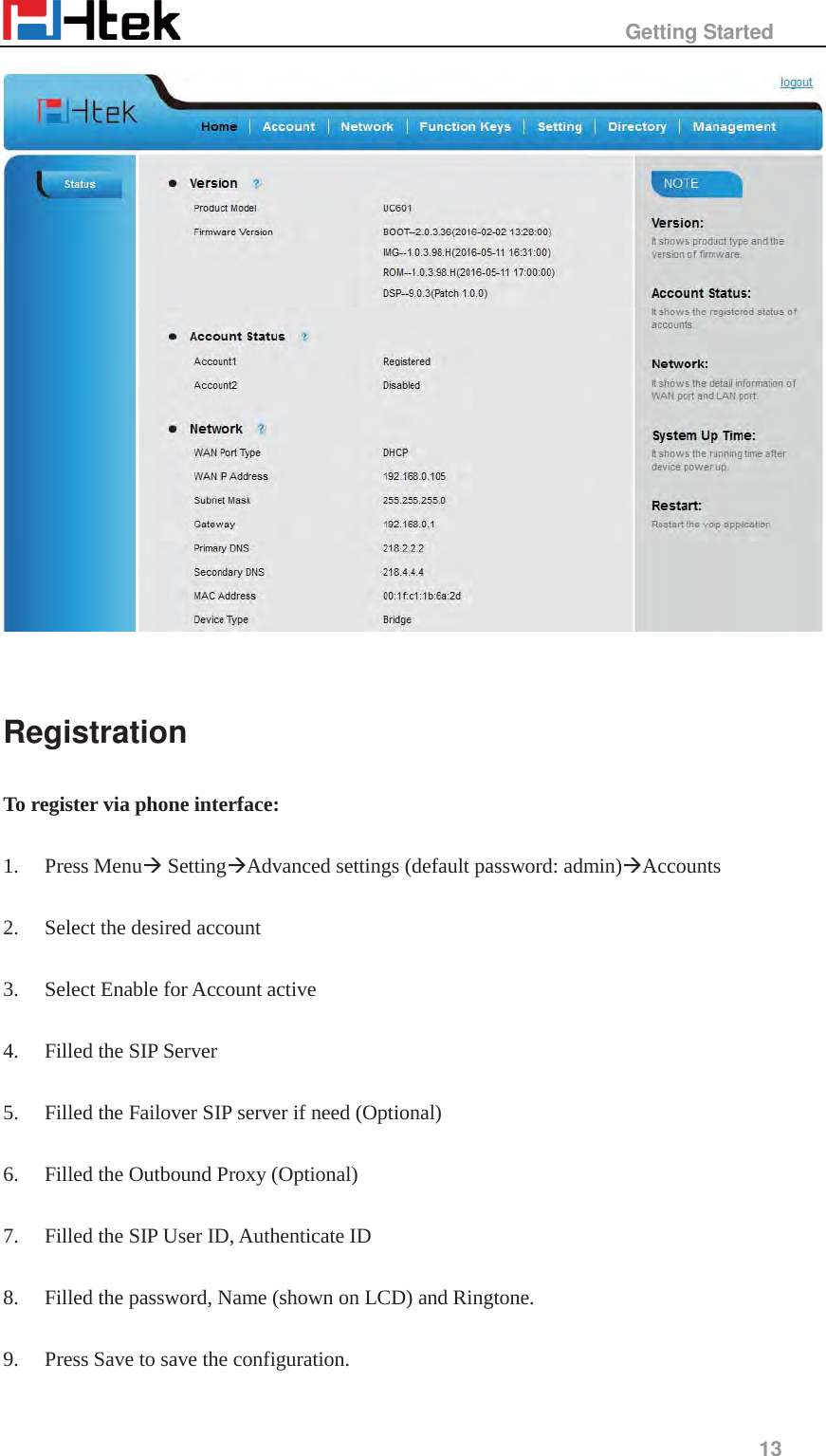

                                                  Getting Started     13    Registration To register via phone interface:  1. Press MenuÆ SettingÆAdvanced settings (default password: admin)ÆAccounts  2. Select the desired account  3. Select Enable for Account active  4. Filled the SIP Server  5. Filled the Failover SIP server if need (Optional)  6. Filled the Outbound Proxy (Optional)  7. Filled the SIP User ID, Authenticate ID  8. Filled the password, Name (shown on LCD) and Ringtone.  9. Press Save to save the configuration.

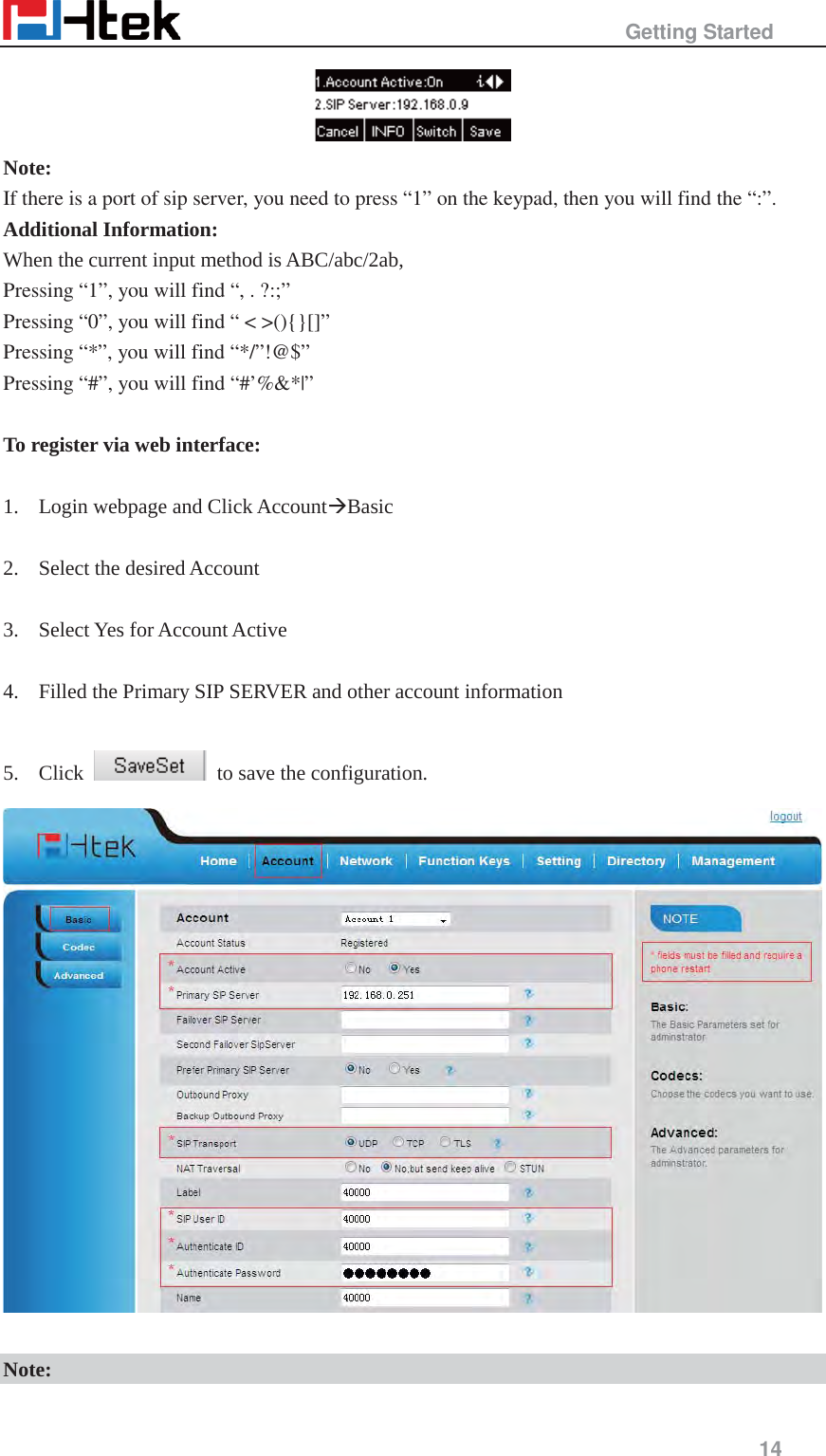

                                                  Getting Started     14   Note: If there is a port of sip server, you need to press “1” on the keypad, then you will find the “:”. Additional Information: When the current input method is ABC/abc/2ab, Pressing “1”, you will find “, . ?:;” Pressing “0”, you will find “ < >(){}[]” Pressing “*”, you will find “*/”!@$” Pressing “#”, you will find “#’%&*|”  To register via web interface:  1. Login webpage and Click AccountÆBasic  2. Select the desired Account    3. Select Yes for Account Active  4. Filled the Primary SIP SERVER and other account information  5. Click    to save the configuration.   Note:

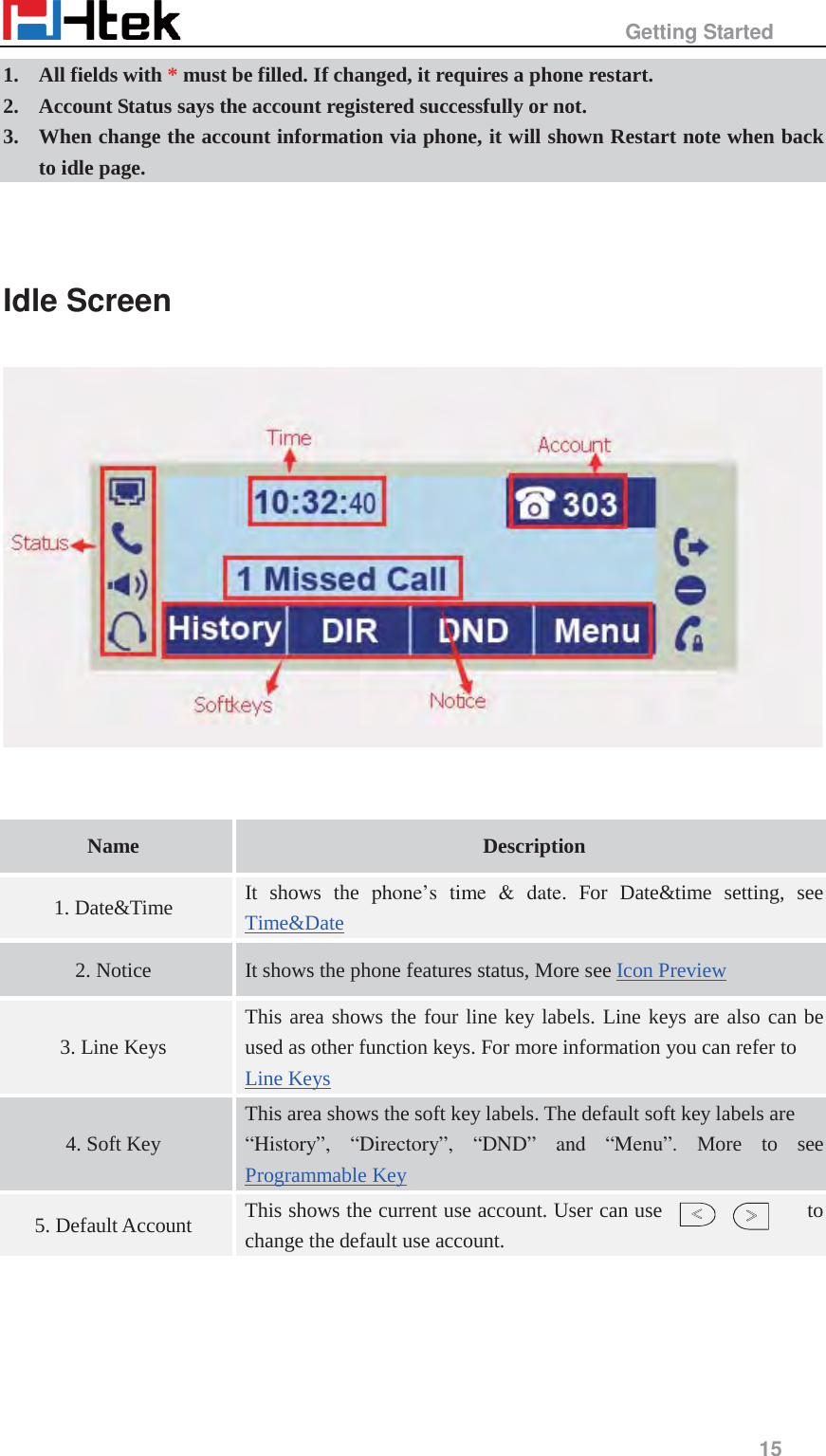

                                                  Getting Started     15  1. All fields with * must be filled. If changed, it requires a phone restart. 2. Account Status says the account registered successfully or not. 3. When change the account information via phone, it will shown Restart note when back to idle page.   Idle Screen    Name  Description 1. Date&Time It shows the phone’s time & date. For Date&time setting, see Time&Date 2. Notice   It shows the phone features status, More see Icon Preview 3. Line Keys This area shows the four line key labels. Line keys are also can be used as other function keys. For more information you can refer to Line Keys 4. Soft Key This area shows the soft key labels. The default soft key labels are “History”, “Directory”, “DND” and “Menu”. More to see Programmable Key 5. Default Account This shows the current use account. User can use  to change the default use account.

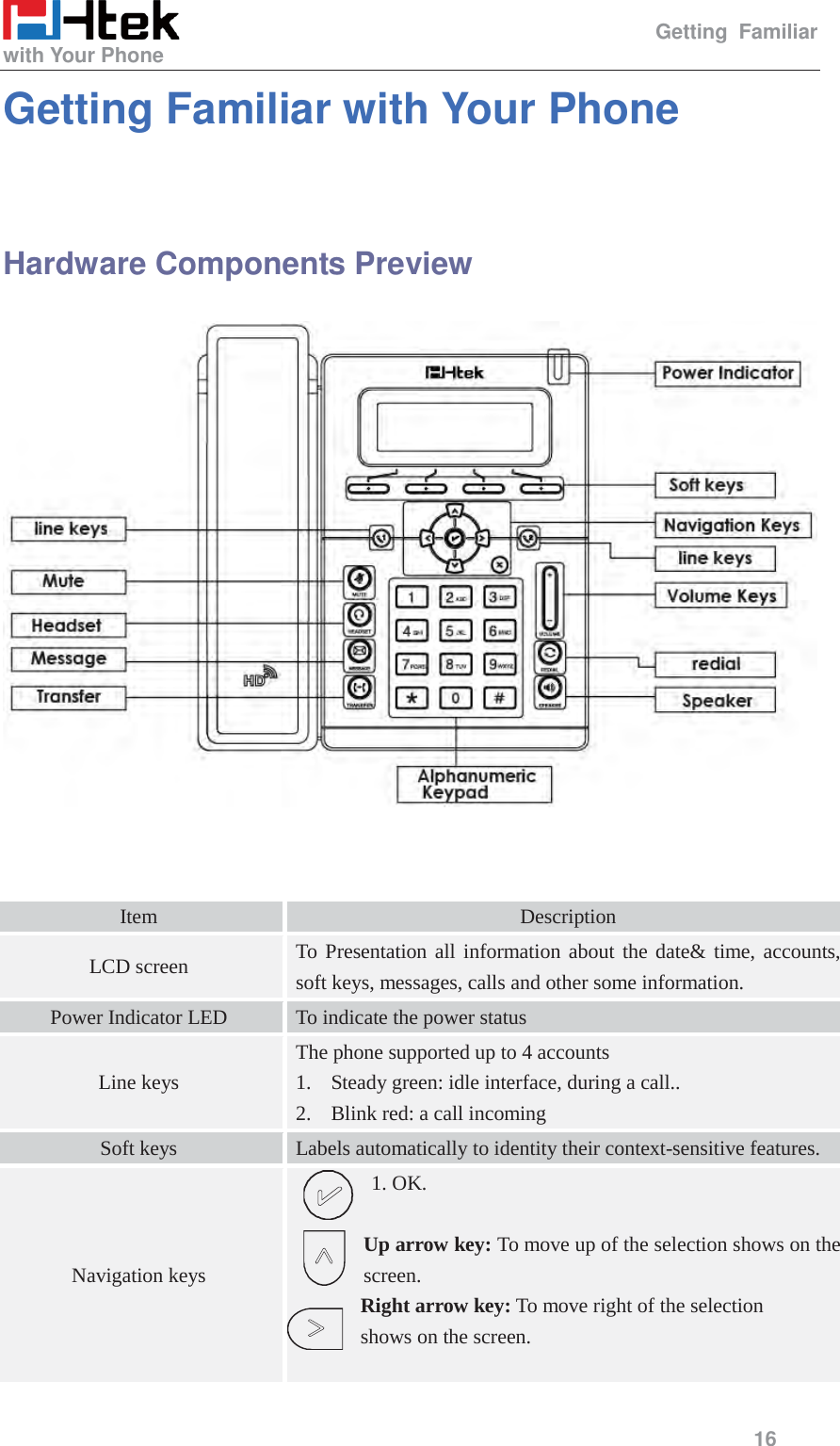

                                                  Getting Familiar with Your Phone     16  Getting Familiar with Your Phone  Hardware Components Preview       Item Description LCD screen To Presentation all information about the date& time, accounts, soft keys, messages, calls and other some information.   Power Indicator LED To indicate the power status   Line keys The phone supported up to 4 accounts 1. Steady green: idle interface, during a call.. 2. Blink red: a call incoming   Soft keys Labels automatically to identity their context-sensitive features. Navigation keys 1. OK.   Up arrow key: To move up of the selection shows on the screen. Right arrow key: To move right of the selectionshows on the screen.

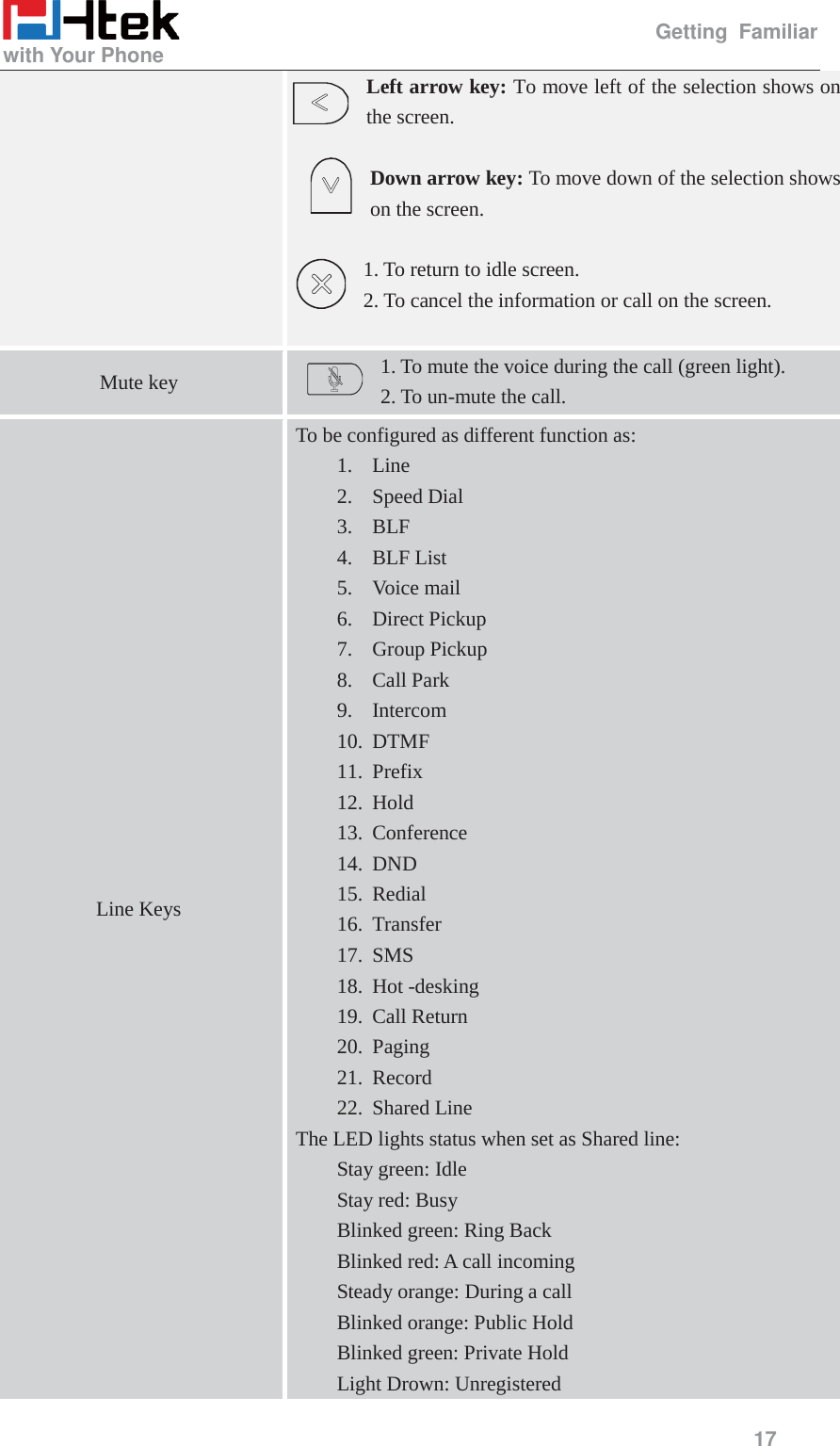

                                                  Getting Familiar with Your Phone     17  Left arrow key: To move left of the selection shows on the screen.  Down arrow key: To move down of the selection shows on the screen.  1. To return to idle screen.     2. To cancel the information or call on the screen. Mute key 1. To mute the voice during the call (green light). 2. To un-mute the call. Line Keys To be configured as different function as: 1. Line 2. Speed Dial 3. BLF 4. BLF List 5. Voice mail 6. Direct Pickup 7. Group Pickup 8. Call Park 9. Intercom 10. DTMF 11. Prefix 12. Hold 13. Conference 14. DND 15. Redial 16. Transfer 17. SMS 18. Hot -desking 19. Call Return 20. Paging  21. Record 22. Shared Line The LED lights status when set as Shared line: Stay green: Idle Stay red: Busy  Blinked green: Ring Back   Blinked red: A call incoming Steady orange: During a call Blinked orange: Public Hold Blinked green: Private Hold Light Drown: Unregistered

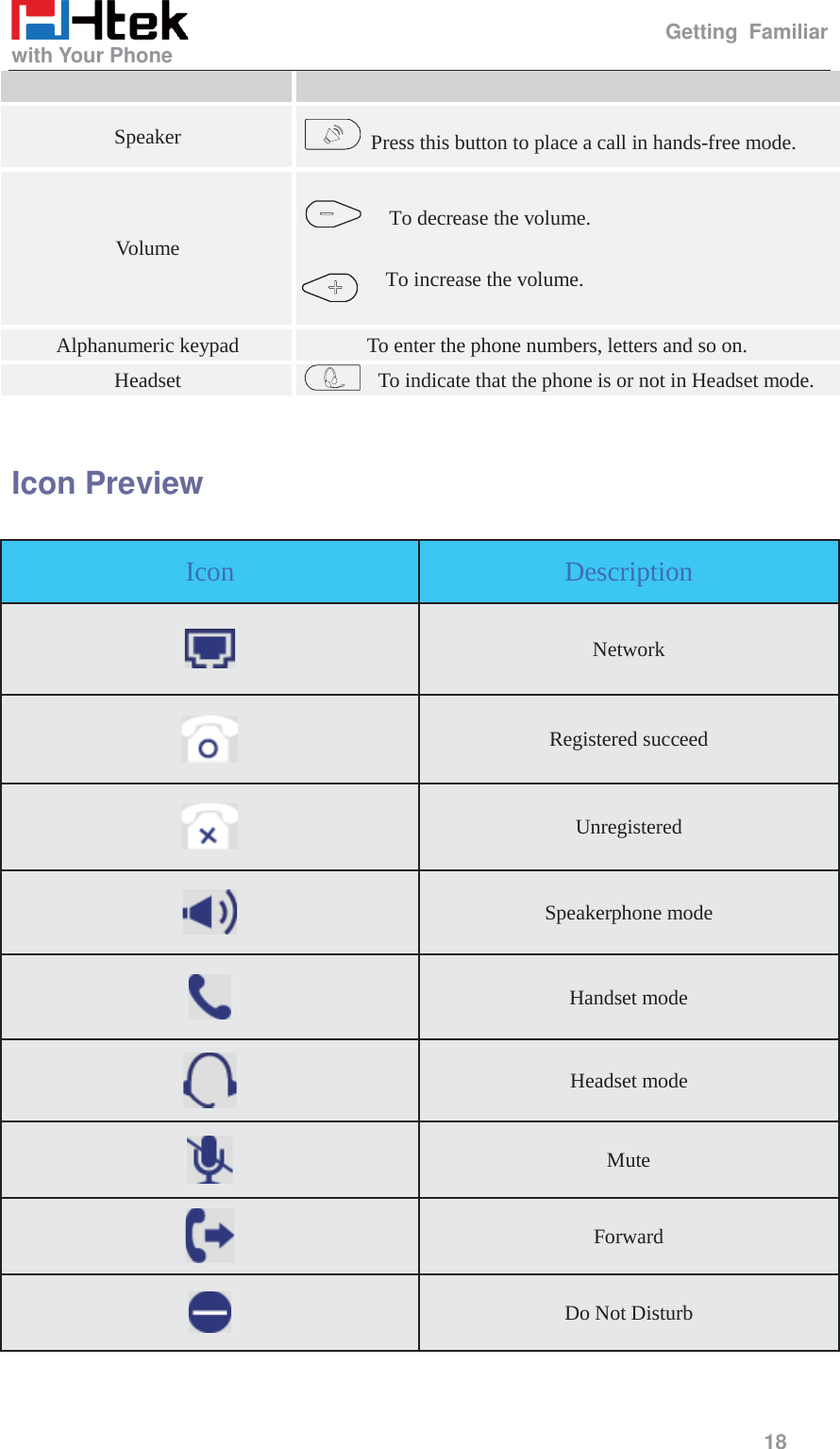

                                                  Getting Familiar with Your Phone     18   Speaker    Press this button to place a call in hands-free mode. Vo lu m e    To decrease the volume.   To increase the volume.  Alphanumeric keypad To enter the phone numbers, letters and so on. Headset To indicate that the phone is or not in Headset mode.  Icon Preview Icon  Description  Network  Registered succeed  Unregistered  Speakerphone mode  Handset mode  Headset mode  Mute  Forward  Do Not Disturb

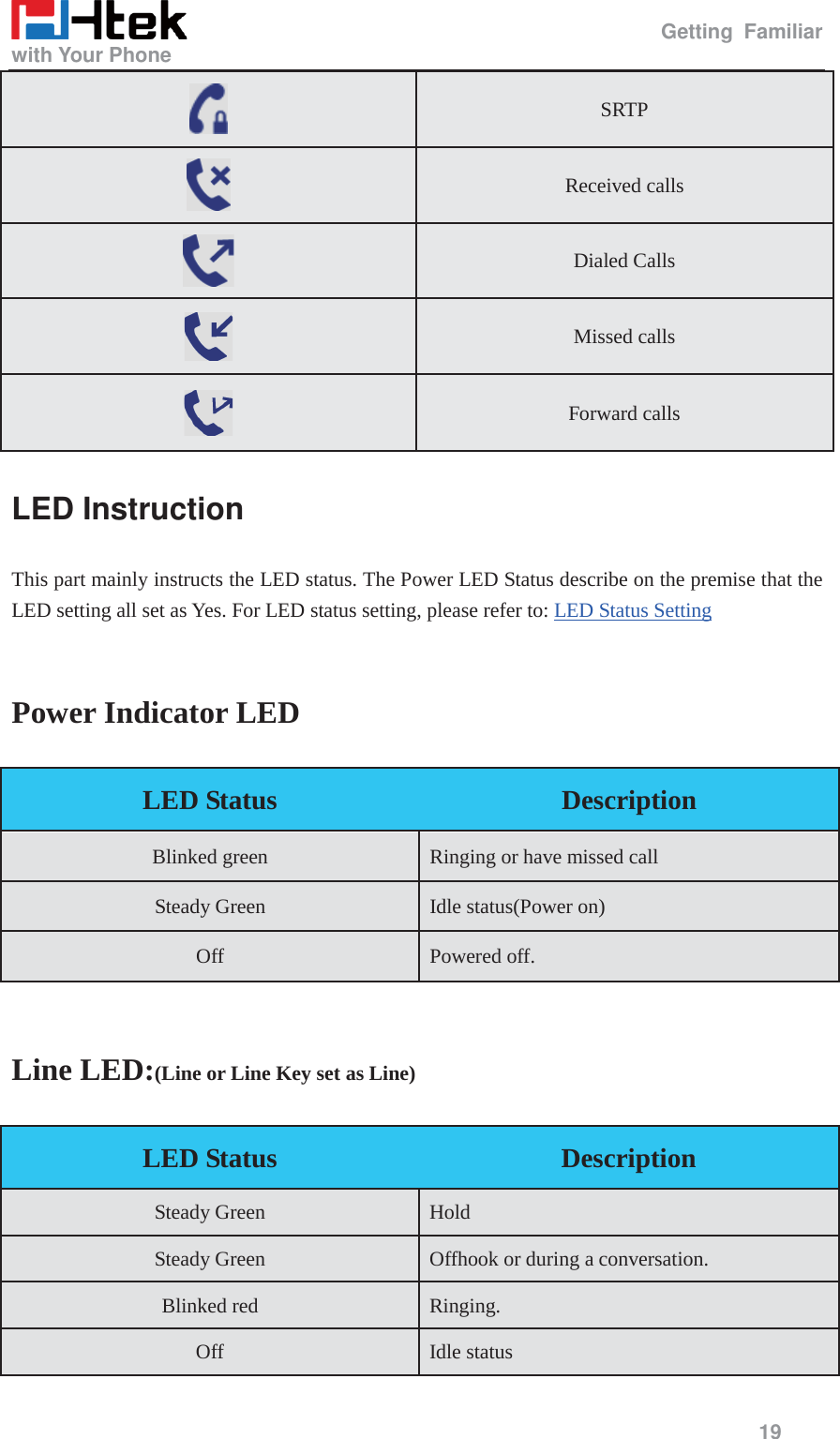

                                                  Getting Familiar with Your Phone     19  LED Instruction This part mainly instructs the LED status. The Power LED Status describe on the premise that the LED setting all set as Yes. For LED status setting, please refer to: LED Status Setting  Power Indicator LED  Line LED:(Line or Line Key set as Line)  SRTP  Received calls  Dialed Calls  Missed calls  Forward calls LED Status  Description Blinked green Ringing or have missed call Steady Green Idle status(Power on) Off Powered off. LED Status  Description Steady Green Hold Steady Green Offhook or during a conversation. Blinked red Ringing. Off Idle status

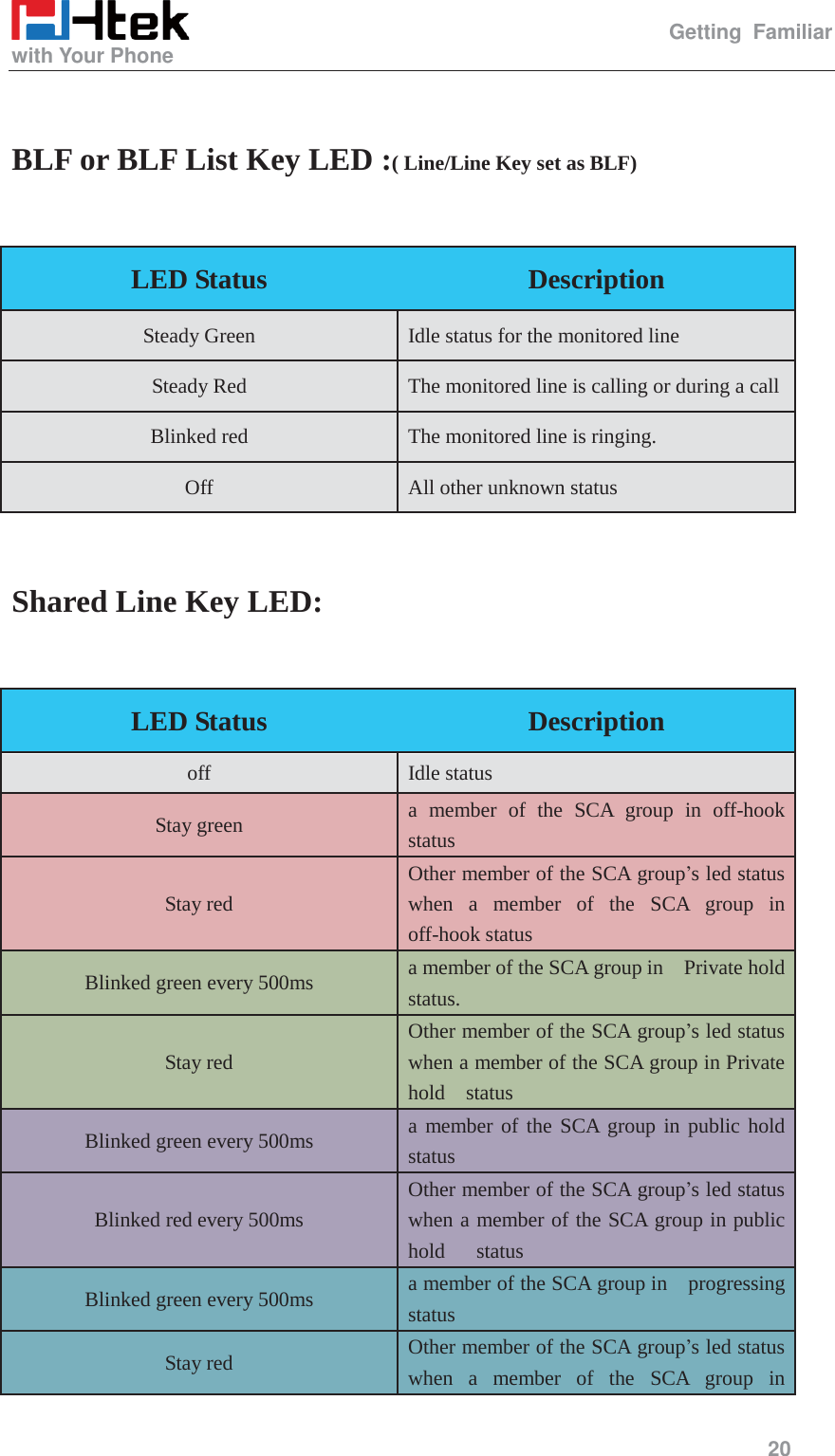

                                                  Getting Familiar with Your Phone     20   BLF or BLF List Key LED :( Line/Line Key set as BLF)  LED Status  Description Steady Green Idle status for the monitored line Steady Red The monitored line is calling or during a call Blinked red The monitored line is ringing. Off All other unknown status  Shared Line Key LED:  LED Status  Description off Idle status Stay green a member of the SCA group in off-hook status Stay red Other member of the SCA group’s led status when a member of the SCA group in off-hook status Blinked green every 500ms a member of the SCA group in    Private hold status. Stay red Other member of the SCA group’s led status when a member of the SCA group in Private hold  status Blinked green every 500ms a member of the SCA group in public hold status  Blinked red every 500ms Other member of the SCA group’s led status when a member of the SCA group in public hold   status Blinked green every 500ms a member of the SCA group in    progressing status  Stay red Other member of the SCA group’s led status when a member of the SCA group in

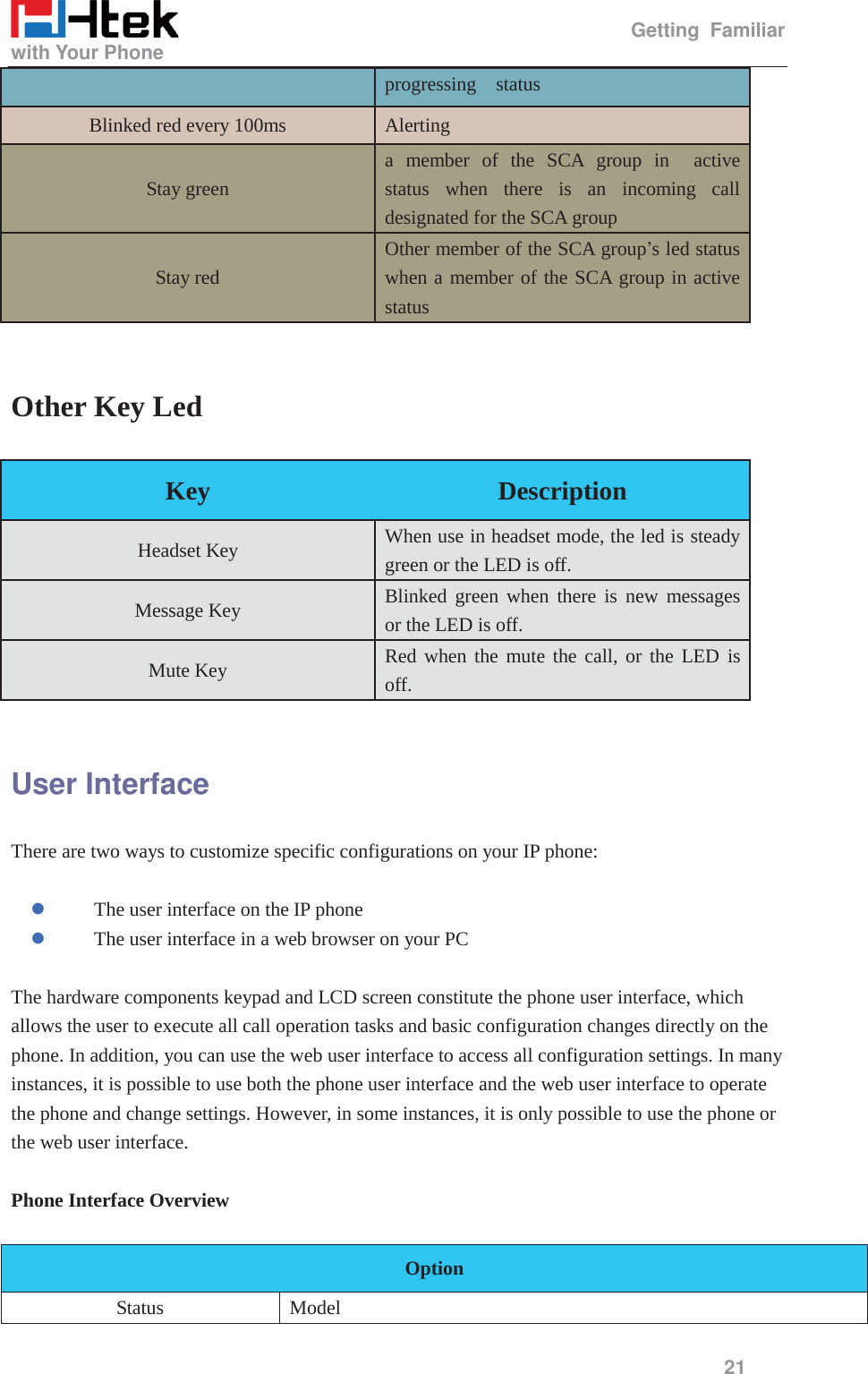

                                                  Getting Familiar with Your Phone     21   Other Key Led  User Interface There are two ways to customize specific configurations on your IP phone:  z  The user interface on the IP phone z  The user interface in a web browser on your PC  The hardware components keypad and LCD screen constitute the phone user interface, which allows the user to execute all call operation tasks and basic configuration changes directly on the phone. In addition, you can use the web user interface to access all configuration settings. In many instances, it is possible to use both the phone user interface and the web user interface to operate the phone and change settings. However, in some instances, it is only possible to use the phone or the web user interface.  Phone Interface Overview  Option Status Model progressing  status Blinked red every 100ms Alerting Stay green a member of the SCA group in  active status when there is an incoming call designated for the SCA group Stay red Other member of the SCA group’s led status when a member of the SCA group in active status  Key  Description Headset Key When use in headset mode, the led is steady green or the LED is off. Message Key Blinked green when there is new messages or the LED is off. Mute Key Red when the mute the call, or the LED is off.

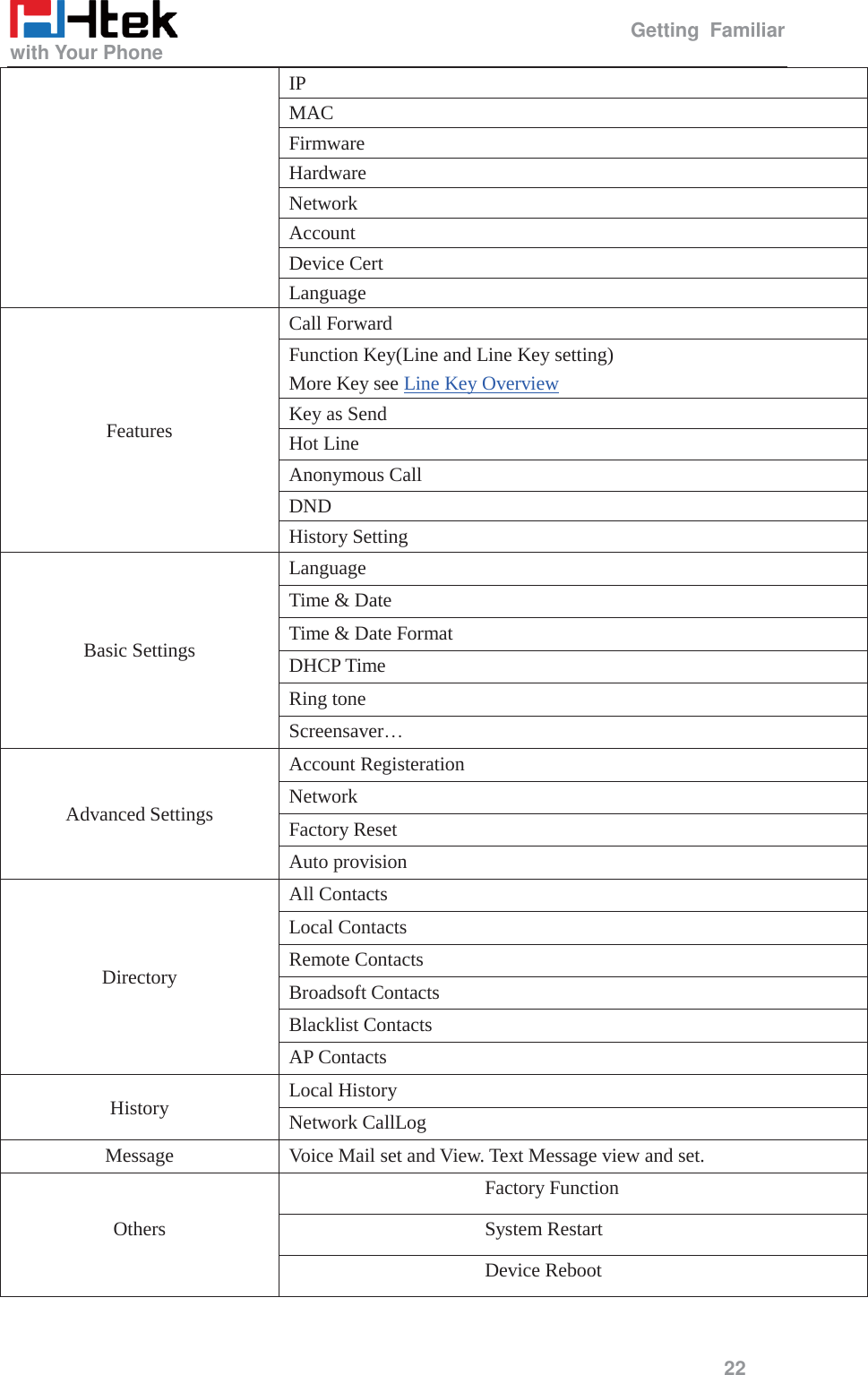

                                                  Getting Familiar with Your Phone     22  IP MAC Firmware Hardware Network Account Device Cert Language Features Call Forward Function Key(Line and Line Key setting) More Key see Line Key Overview Key as Send Hot Line Anonymous Call DND History Setting Basic Settings Language Time & Date Time & Date Format DHCP Time Ring tone Screensaver… Advanced Settings Account Registeration Network Factory Reset Auto provision Directory All Contacts Local Contacts Remote Contacts Broadsoft Contacts Blacklist Contacts AP Contacts History Local History Network CallLog Message Voice Mail set and View. Text Message view and set. Others Factory Function System Restart Device Reboot

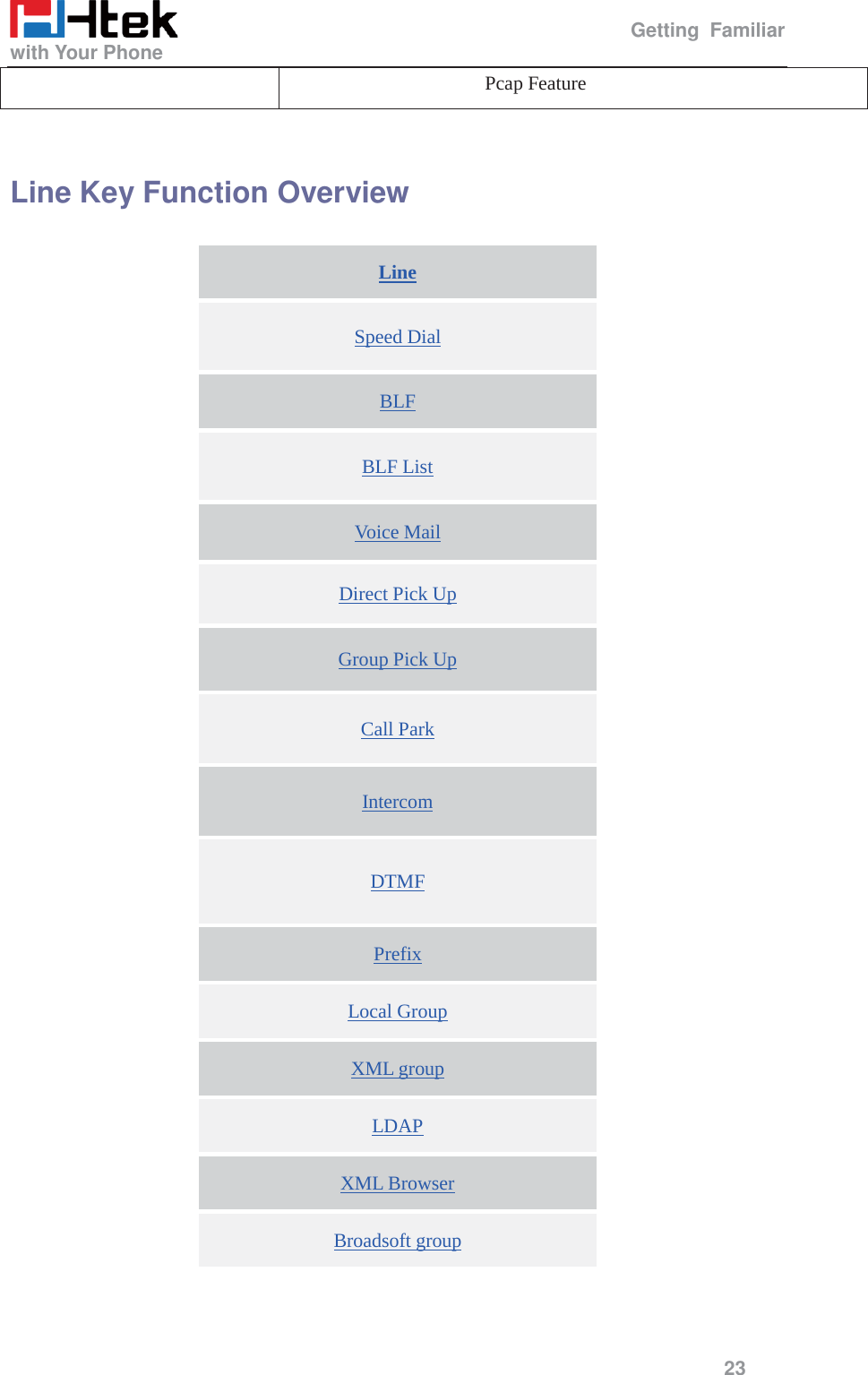

                                                  Getting Familiar with Your Phone     23  Pcap Feature  Line Key Function Overview Line Speed Dial BLF BLF List Voice Mail Direct Pick Up Group Pick Up Call Park Intercom DTMF Prefix Local Group XML group LDAP XML Browser Broadsoft group

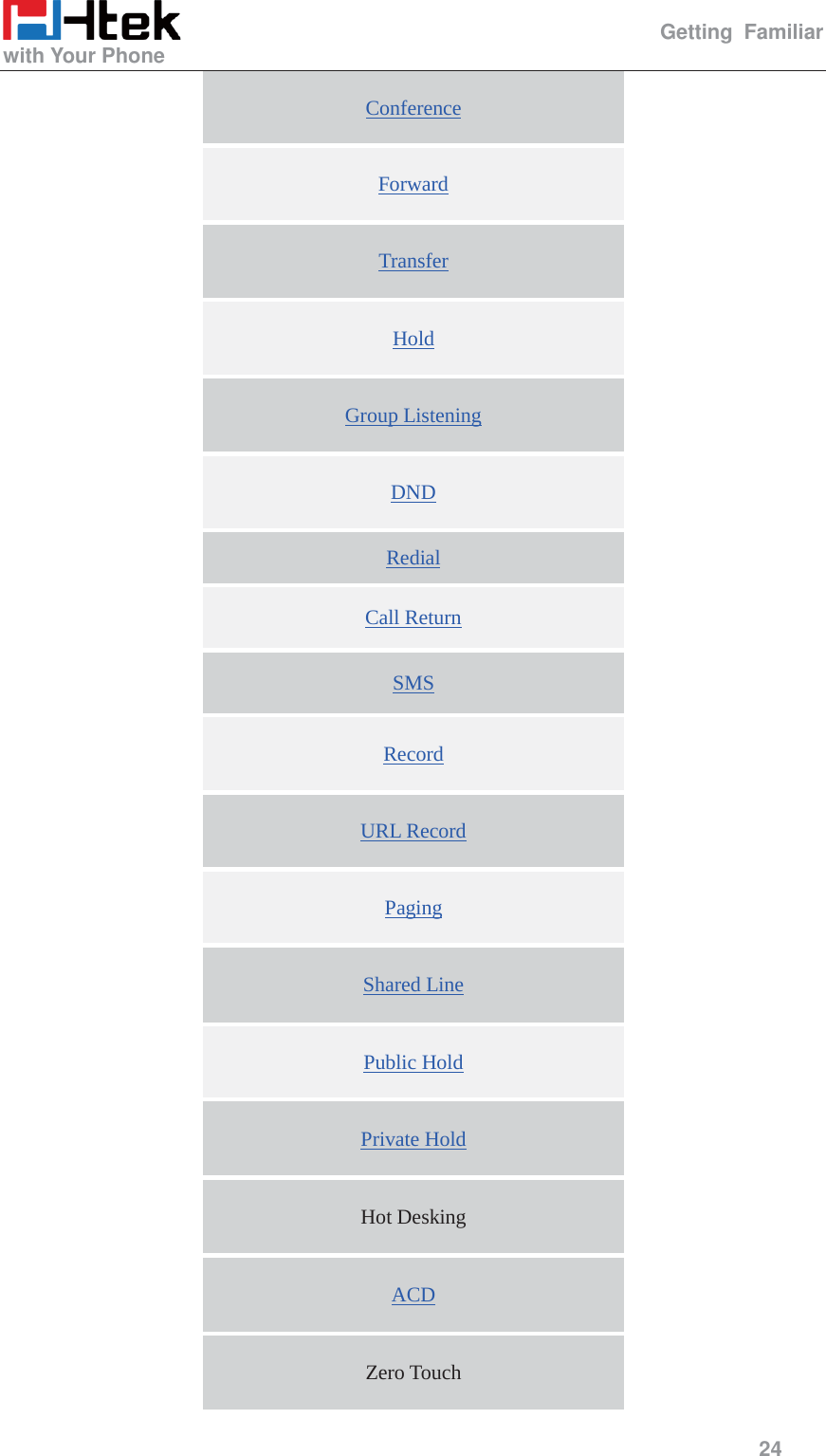

                                                  Getting Familiar with Your Phone     24  Conference Forward Transfer Hold Group Listening DND Redial Call Return SMS Record URL Record Paging Shared Line Public Hold Private Hold Hot Desking ACD Zero Touch

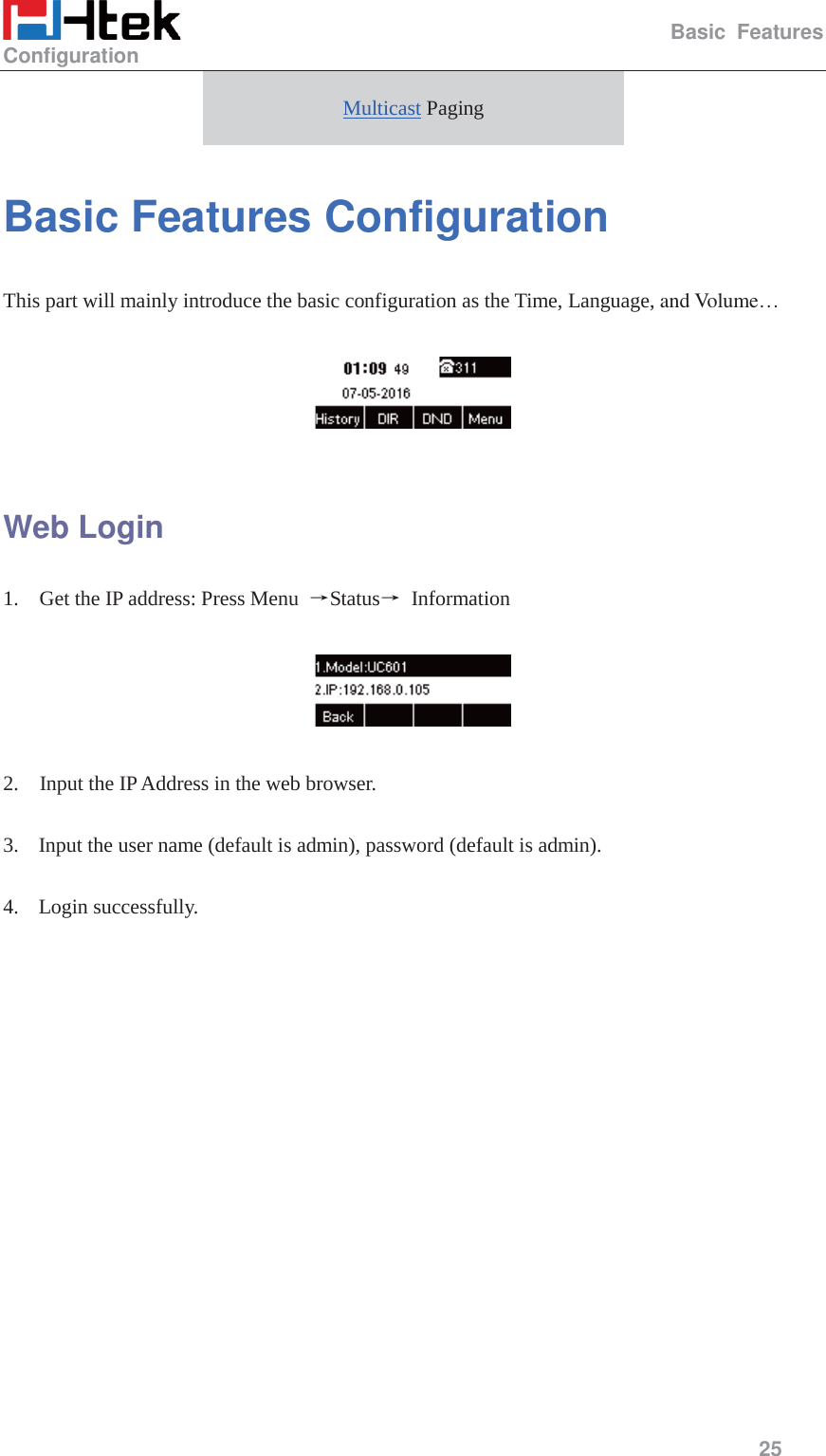

                                                  Basic Features Configuration     25  Multicast Paging Basic Features Configuration This part will mainly introduce the basic configuration as the Time, Language, and Volume…    Web Login 1.    Get the IP address: Press Menu  ėStatusė Information    2.    Input the IP Address in the web browser.  3. Input the user name (default is admin), password (default is admin).  4. Login successfully.

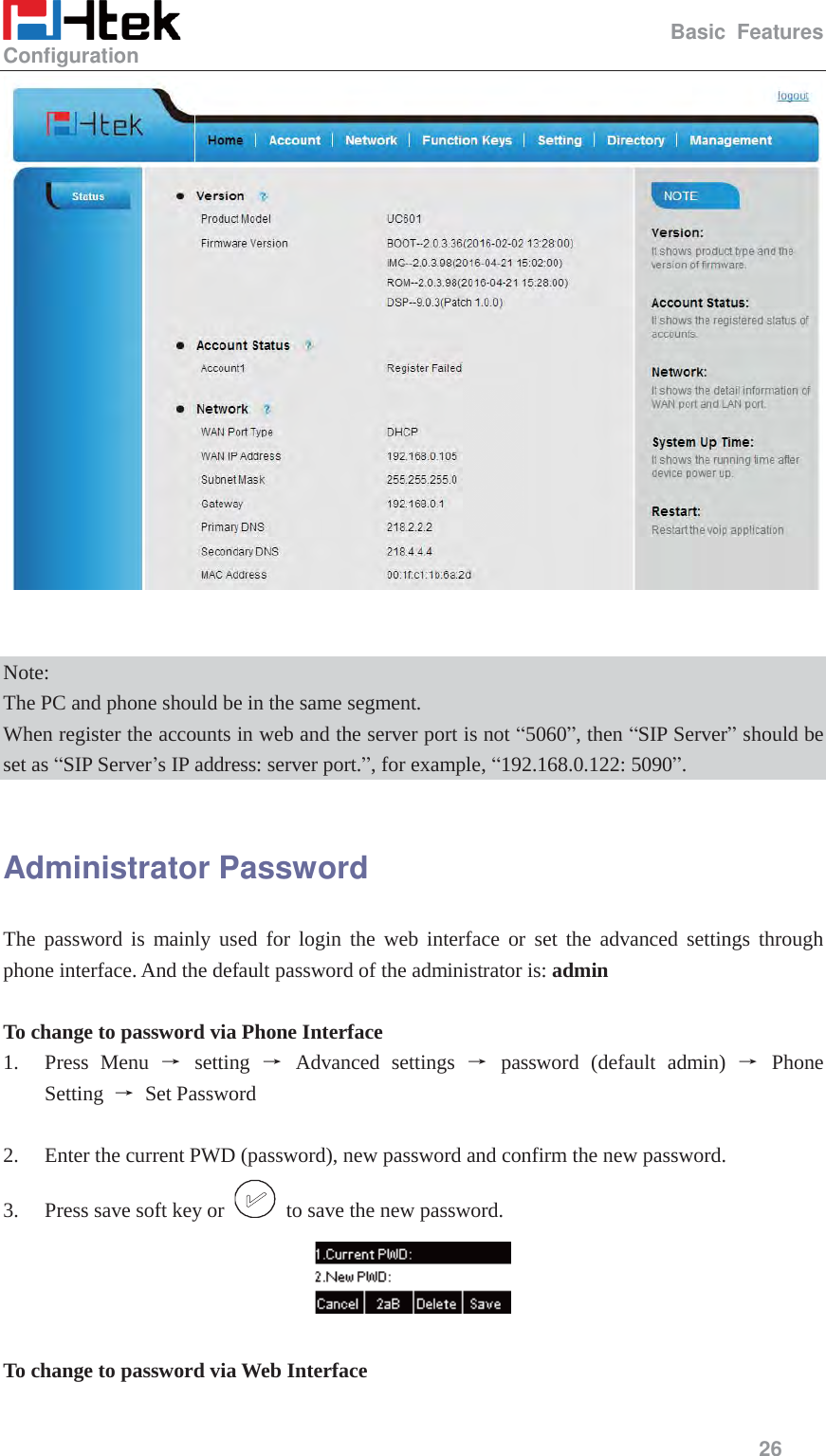

                                                  Basic Features Configuration     26     Note: The PC and phone should be in the same segment. When register the accounts in web and the server port is not “5060”, then “SIP Server” should be set as “SIP Server’s IP address: server port.”, for example, “192.168.0.122: 5090”.  Administrator Password The password is mainly used for login the web interface or set the advanced settings through phone interface. And the default password of the administrator is: admin  To change to password via Phone Interface 1. Press Menu ė setting ė Advanced settings ė password (default admin) ė Phone Setting  ė Set Password  2. Enter the current PWD (password), new password and confirm the new password. 3. Press save soft key or    to save the new password.   To change to password via Web Interface

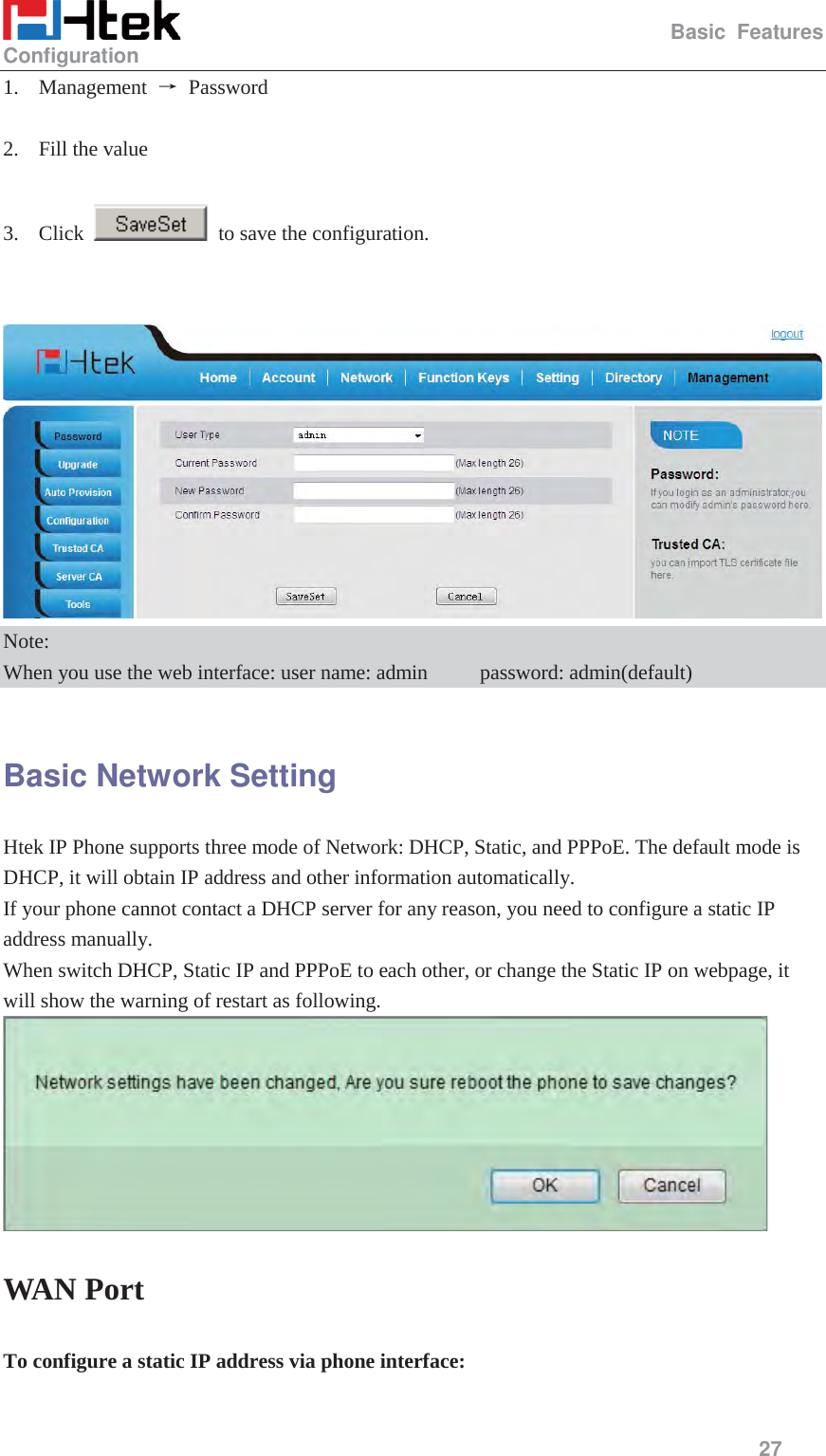

                                                  Basic Features Configuration     27  1. Management  ė Password   2. Fill the value  3. Click    to save the configuration.    Note: When you use the web interface: user name: admin          password: admin(default)  Basic Network Setting Htek IP Phone supports three mode of Network: DHCP, Static, and PPPoE. The default mode is DHCP, it will obtain IP address and other information automatically.     If your phone cannot contact a DHCP server for any reason, you need to configure a static IP address manually. When switch DHCP, Static IP and PPPoE to each other, or change the Static IP on webpage, it will show the warning of restart as following.  WAN Port To configure a static IP address via phone interface:

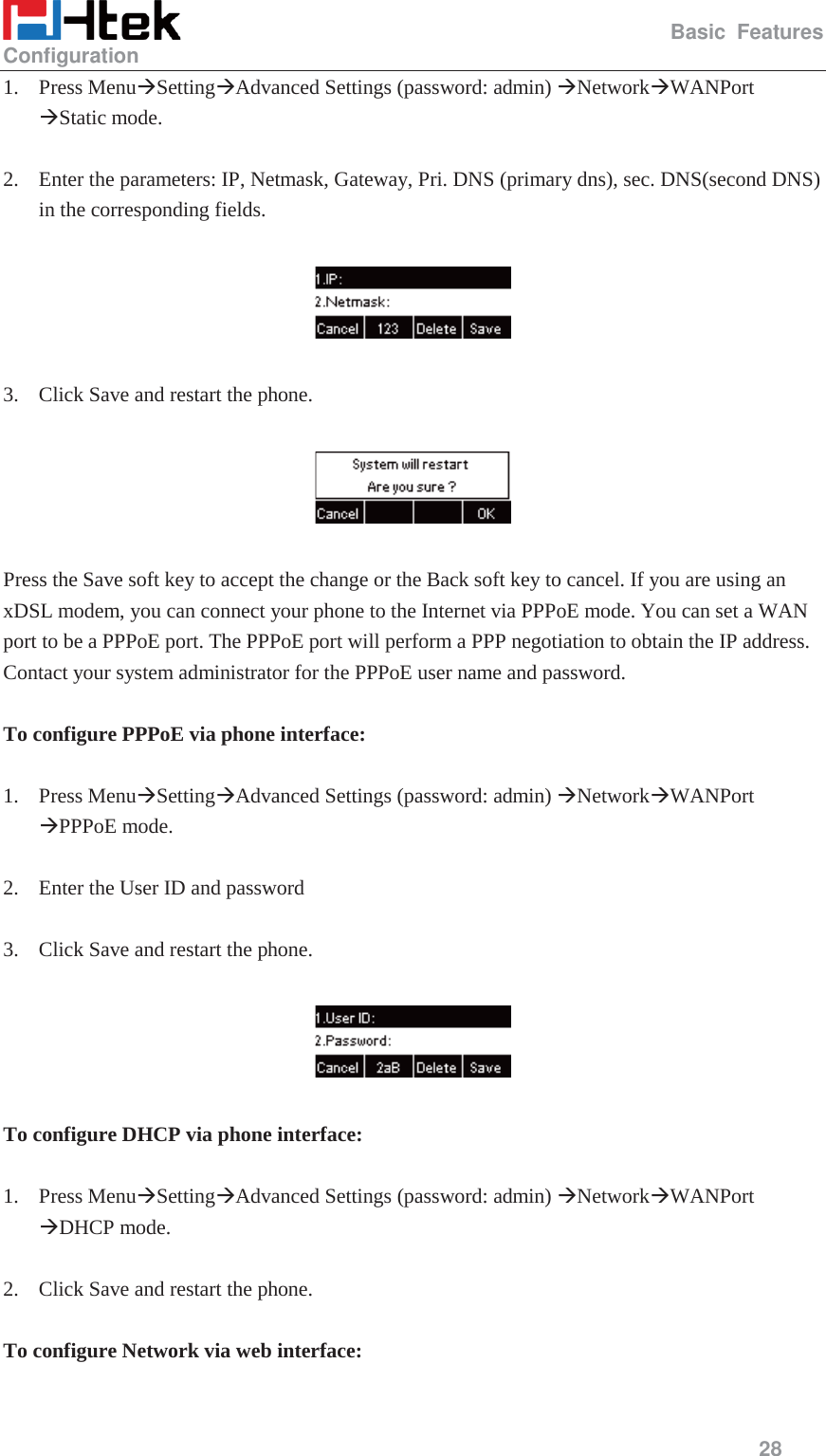

                                                  Basic Features Configuration     28  1. Press MenuÆSettingÆAdvanced Settings (password: admin) ÆNetworkÆWANPort ÆStatic mode.  2. Enter the parameters: IP, Netmask, Gateway, Pri. DNS (primary dns), sec. DNS(second DNS) in the corresponding fields.    3. Click Save and restart the phone.    Press the Save soft key to accept the change or the Back soft key to cancel. If you are using an xDSL modem, you can connect your phone to the Internet via PPPoE mode. You can set a WAN port to be a PPPoE port. The PPPoE port will perform a PPP negotiation to obtain the IP address. Contact your system administrator for the PPPoE user name and password.  To configure PPPoE via phone interface:  1. Press MenuÆSettingÆAdvanced Settings (password: admin) ÆNetworkÆWANPort ÆPPPoE mode.  2. Enter the User ID and password  3. Click Save and restart the phone.    To configure DHCP via phone interface:  1. Press MenuÆSettingÆAdvanced Settings (password: admin) ÆNetworkÆWANPort ÆDHCP mode.  2. Click Save and restart the phone.  To configure Network via web interface:

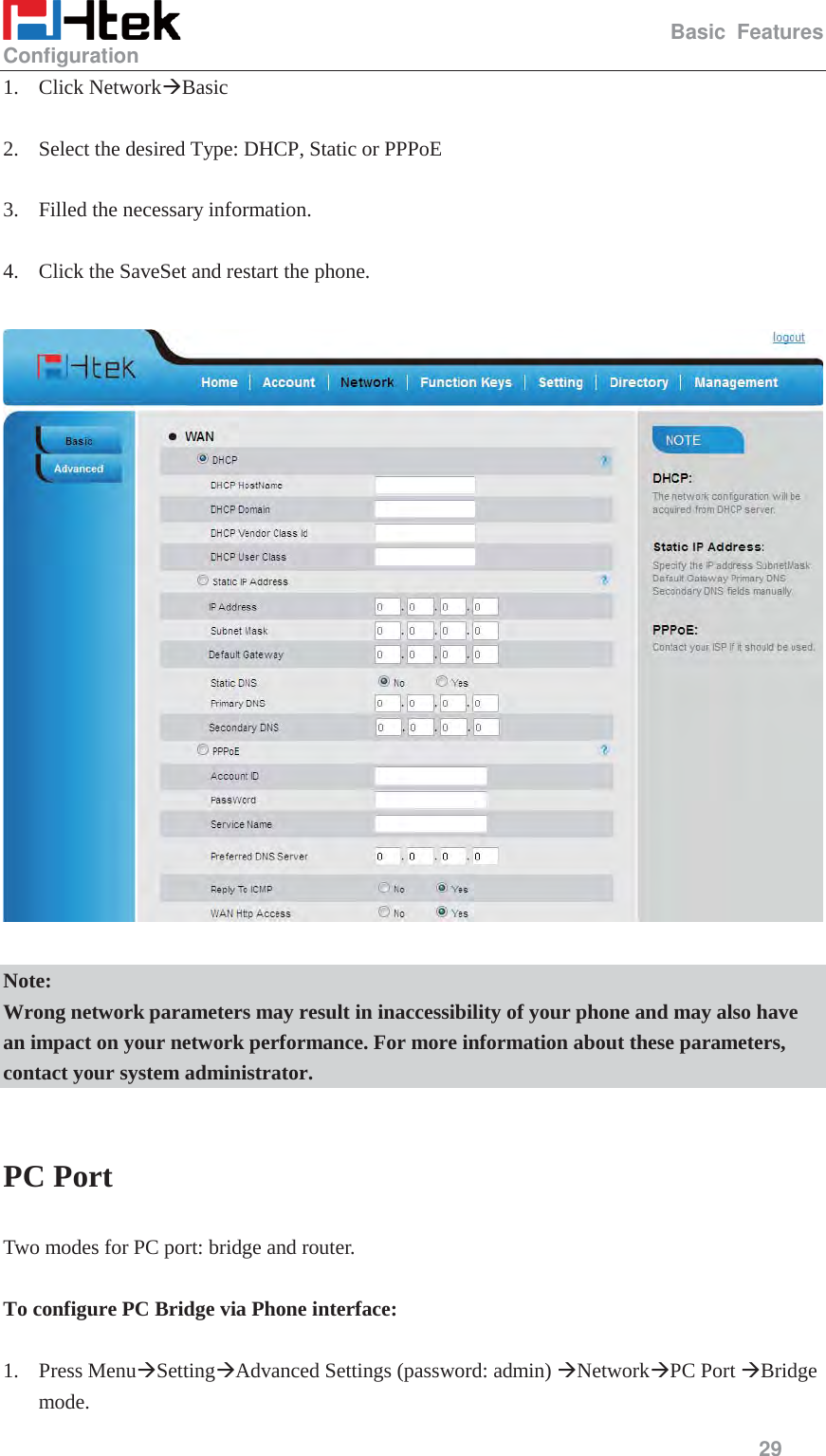

                                                  Basic Features Configuration     29  1. Click NetworkÆBasic  2. Select the desired Type: DHCP, Static or PPPoE  3. Filled the necessary information.  4. Click the SaveSet and restart the phone.    Note: Wrong network parameters may result in inaccessibility of your phone and may also have an impact on your network performance. For more information about these parameters, contact your system administrator.  PC Port Two modes for PC port: bridge and router.  To configure PC Bridge via Phone interface:  1. Press MenuÆSettingÆAdvanced Settings (password: admin) ÆNetworkÆPC Port ÆBridge mode.

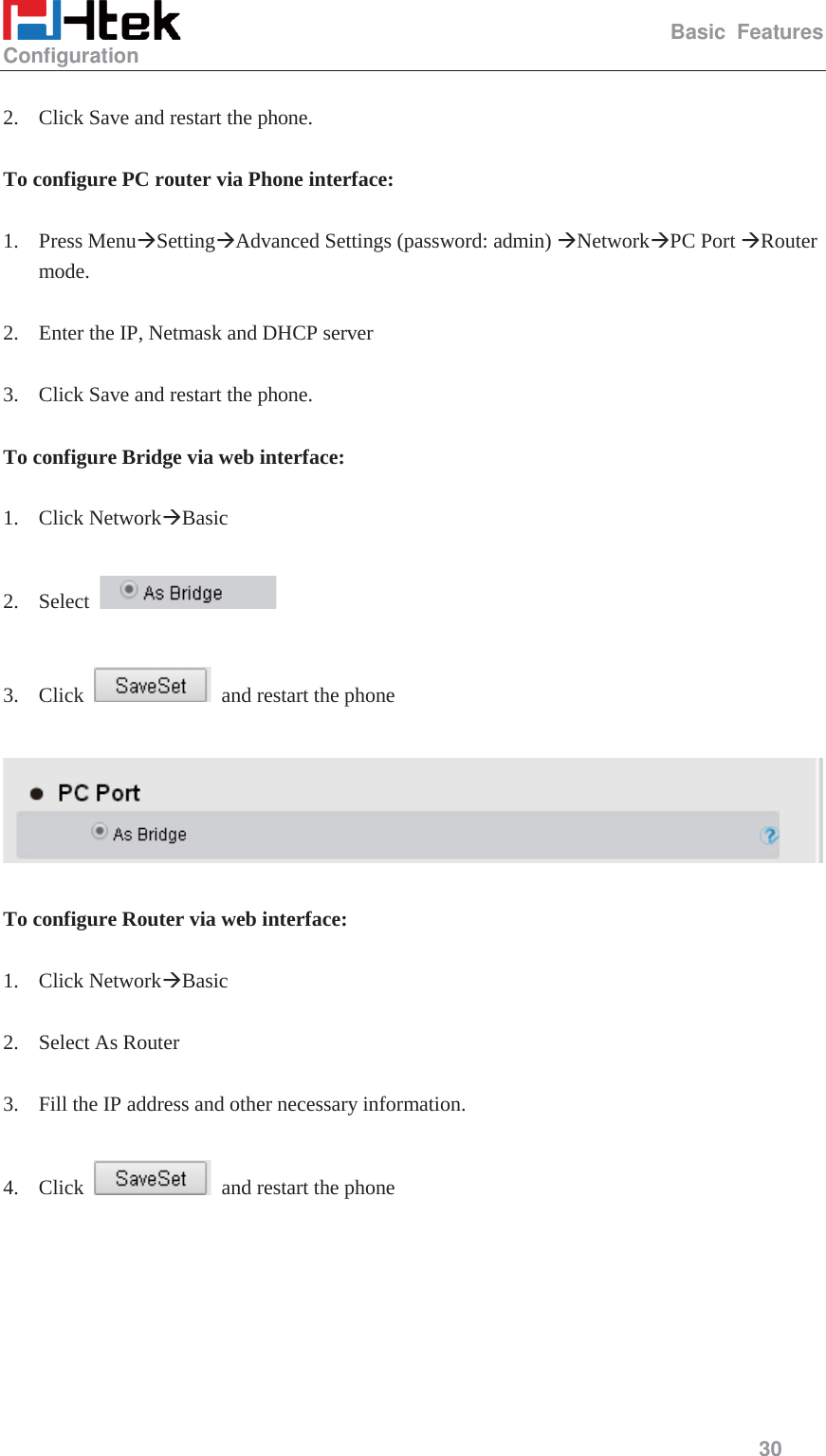

                                                  Basic Features Configuration     30   2. Click Save and restart the phone.  To configure PC router via Phone interface:  1. Press MenuÆSettingÆAdvanced Settings (password: admin) ÆNetworkÆPC Port ÆRouter mode.  2. Enter the IP, Netmask and DHCP server  3. Click Save and restart the phone.  To configure Bridge via web interface:  1. Click NetworkÆBasic   2. Select     3. Click    and restart the phone    To configure Router via web interface:  1. Click NetworkÆBasic   2. Select As Router  3. Fill the IP address and other necessary information.  4. Click    and restart the phone

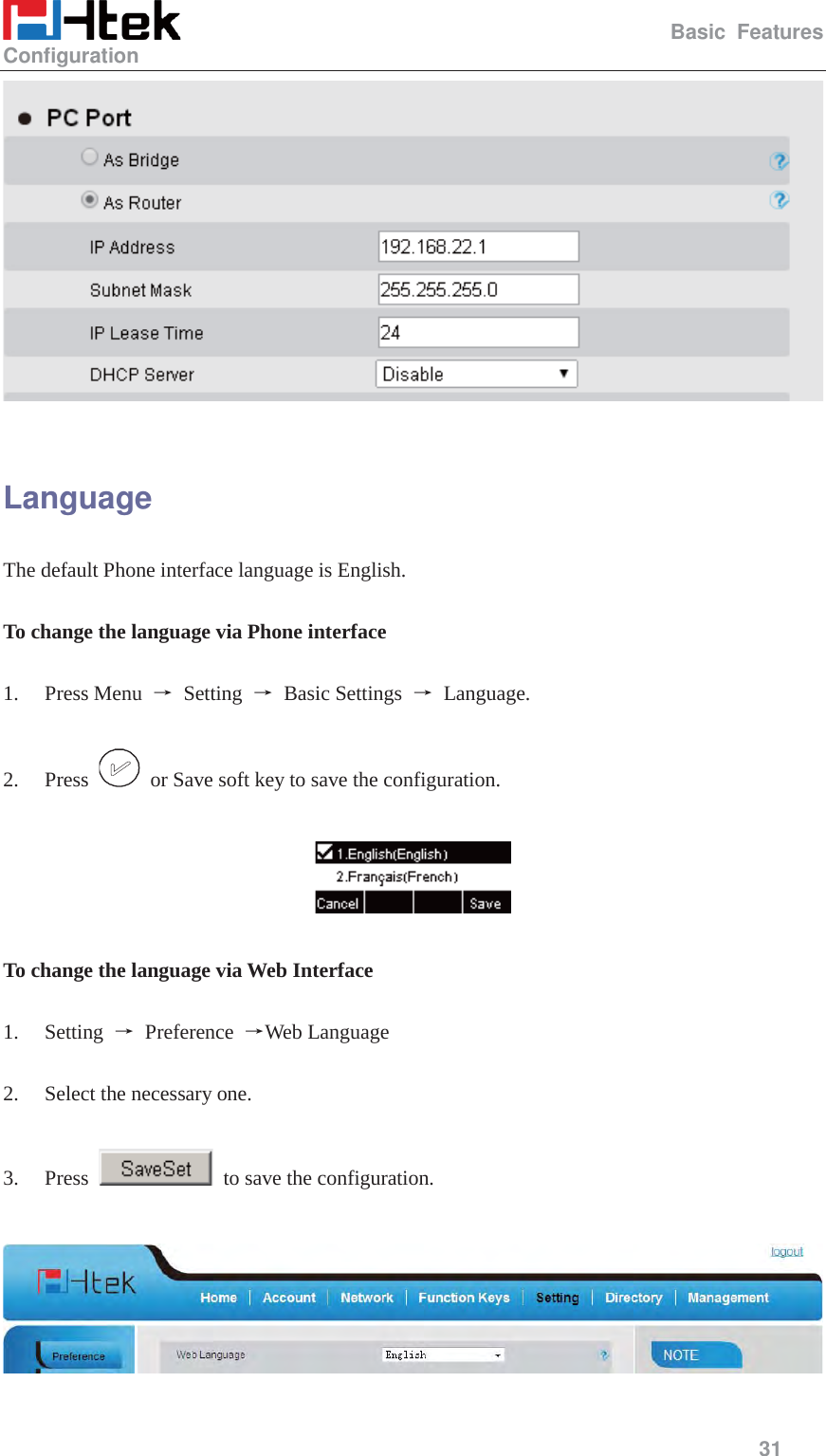

                                                  Basic Features Configuration     31    Language The default Phone interface language is English.    To change the language via Phone interface  1. Press Menu  ė Setting ė Basic Settings ė Language.  2. Press    or Save soft key to save the configuration.    To change the language via Web Interface  1. Setting  ė Preference ėWeb Language  2. Select the necessary one.    3. Press    to save the configuration.

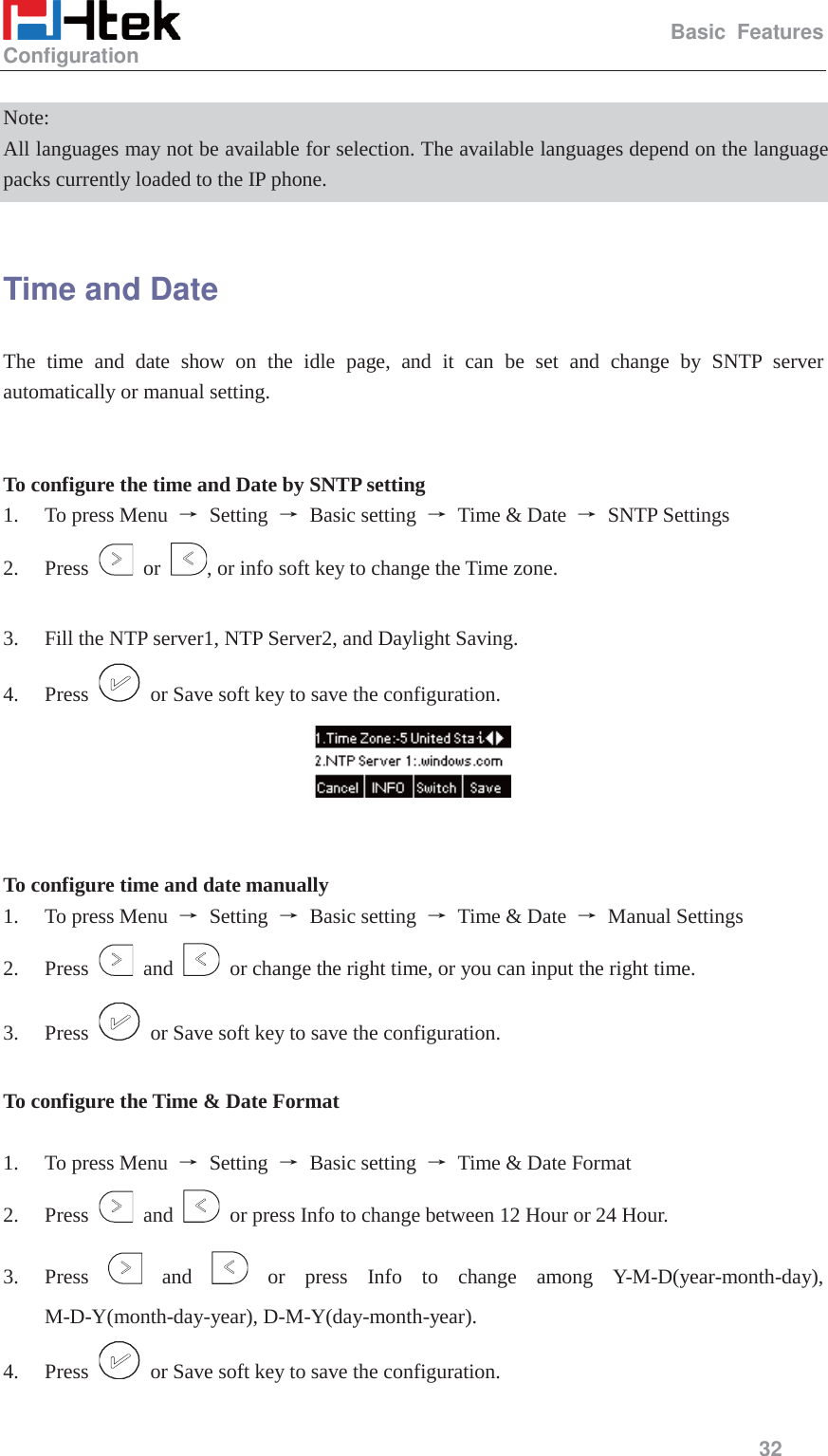

                                                  Basic Features Configuration     32   Note: All languages may not be available for selection. The available languages depend on the language packs currently loaded to the IP phone.  Time and Date The time and date show on the idle page, and it can be set and change by SNTP server automatically or manual setting.   To configure the time and Date by SNTP setting 1. To press Menu  ė Setting ė Basic setting ė  Time & Date  ė SNTP Settings 2. Press   or  , or info soft key to change the Time zone.  3. Fill the NTP server1, NTP Server2, and Daylight Saving. 4. Press    or Save soft key to save the configuration.    To configure time and date manually 1. To press Menu  ė Setting ė Basic setting ė  Time & Date  ė Manual Settings 2. Press   and    or change the right time, or you can input the right time. 3. Press    or Save soft key to save the configuration.  To configure the Time & Date Format  1. To press Menu  ė Setting ė Basic setting ė  Time & Date Format 2. Press   and    or press Info to change between 12 Hour or 24 Hour. 3. Press   and   or press Info to change among Y-M-D(year-month-day), M-D-Y(month-day-year), D-M-Y(day-month-year). 4. Press    or Save soft key to save the configuration.

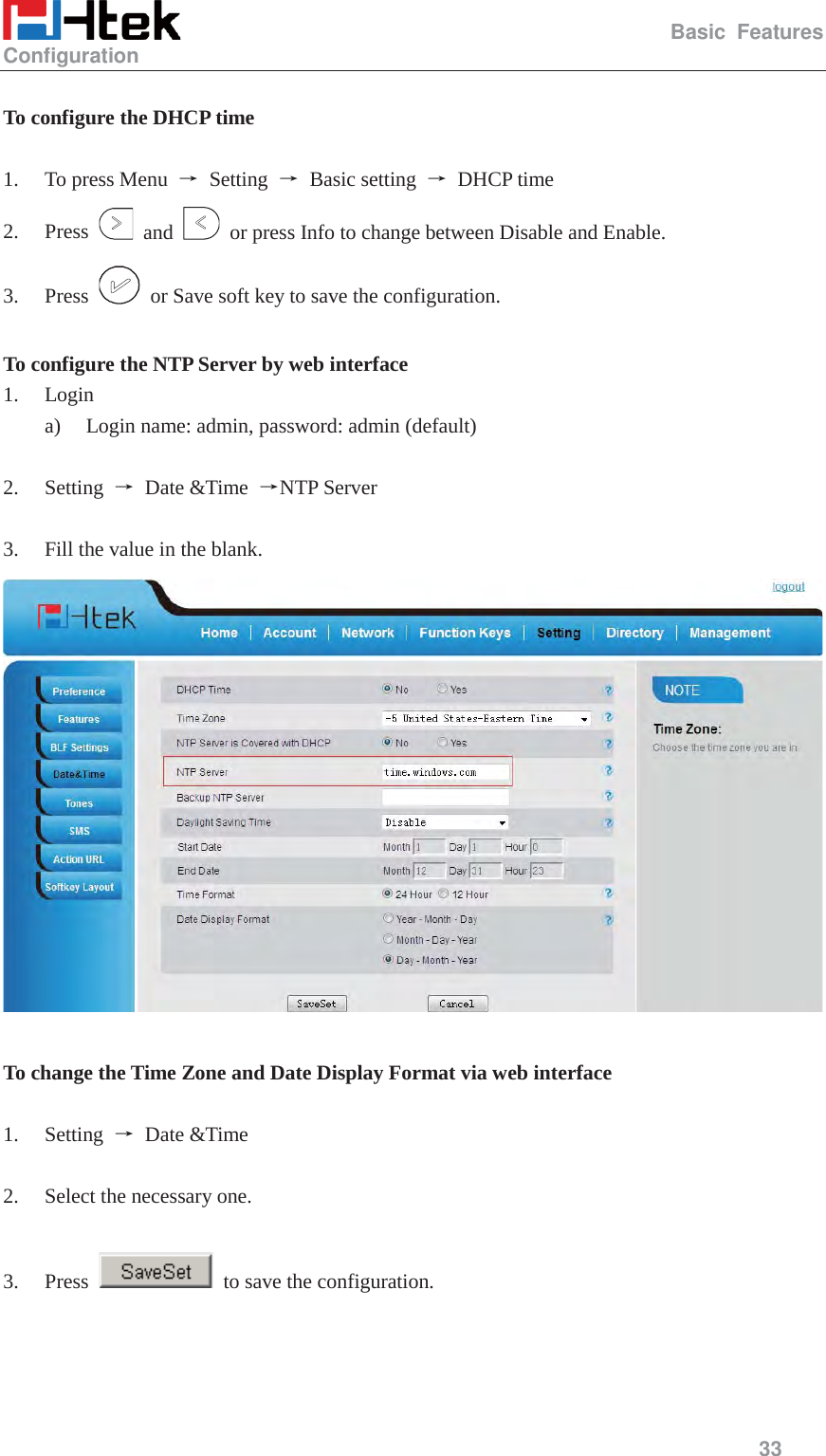

                                                  Basic Features Configuration     33   To configure the DHCP time  1. To press Menu  ė Setting ė Basic setting ė DHCP time 2. Press   and    or press Info to change between Disable and Enable. 3. Press    or Save soft key to save the configuration.  To configure the NTP Server by web interface 1. Login a) Login name: admin, password: admin (default)  2. Setting  ė Date &Time ėNTP Server  3. Fill the value in the blank.   To change the Time Zone and Date Display Format via web interface  1. Setting  ė Date &Time  2. Select the necessary one.    3. Press    to save the configuration.

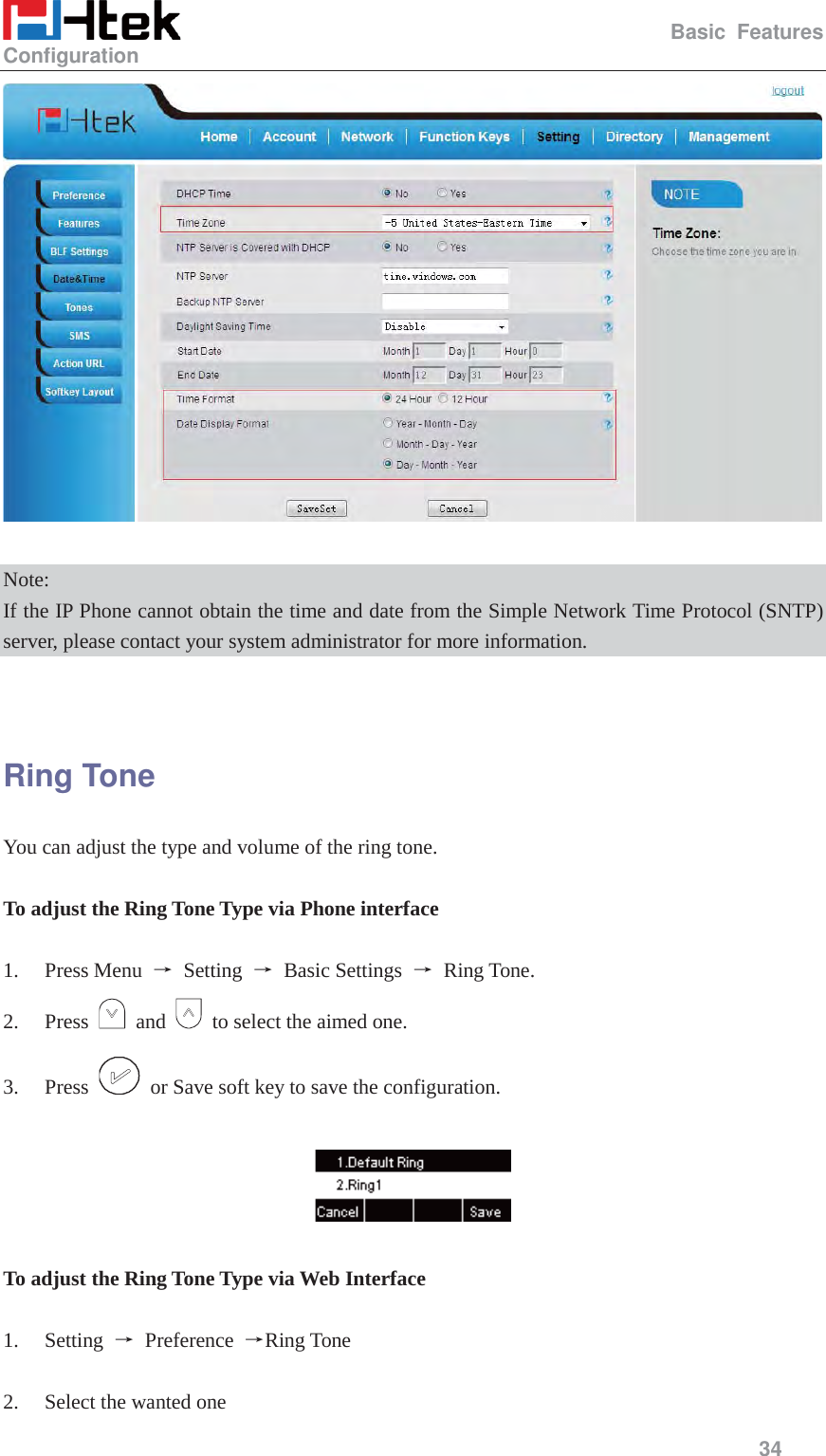

                                                  Basic Features Configuration     34    Note: If the IP Phone cannot obtain the time and date from the Simple Network Time Protocol (SNTP) server, please contact your system administrator for more information.   Ring Tone You can adjust the type and volume of the ring tone.  To adjust the Ring Tone Type via Phone interface  1. Press Menu  ė Setting ė Basic Settings ė Ring Tone. 2. Press   and    to select the aimed one. 3. Press    or Save soft key to save the configuration.    To adjust the Ring Tone Type via Web Interface  1. Setting  ė Preference ėRing Tone  2. Select the wanted one
                                                  Basic Features Configuration     35   3. Click    to save the configuration.    To configure Distinctive Ring Tone via Phone Interface  1. Press Directory    2. Select the target contact  3. Press Detail soft key to edit the contact.  4. Press   and    to select the wanted Ring Tone for the contact  5. Press Save soft key to save the contact.  Volume You can adjust the volume for the phone by the volume keys:   and  .  To adjust the Ring tone volume 1. Option 1: To press   and    on the idle page

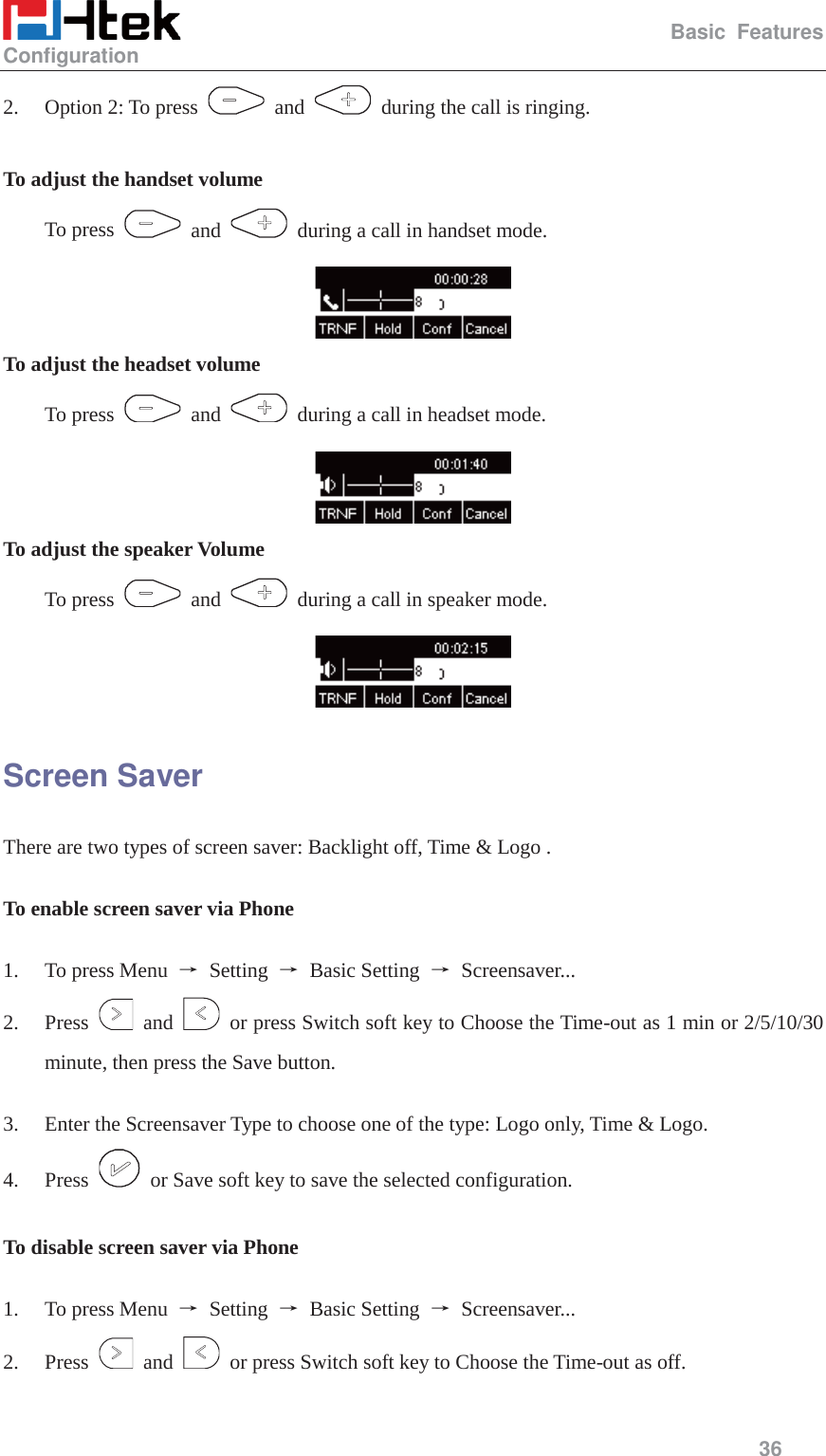

                                                  Basic Features Configuration     36  2. Option 2: To press   and    during the call is ringing.  To adjust the handset volume To press   and    during a call in handset mode.  To adjust the headset volume To press   and    during a call in headset mode.  To adjust the speaker Volume To press   and    during a call in speaker mode.  Screen Saver There are two types of screen saver: Backlight off, Time & Logo .  To enable screen saver via Phone    1. To press Menu  ė Setting ė Basic Setting ė Screensaver...  2. Press   and    or press Switch soft key to Choose the Time-out as 1 min or 2/5/10/30 minute, then press the Save button.  3. Enter the Screensaver Type to choose one of the type: Logo only, Time & Logo. 4. Press    or Save soft key to save the selected configuration.  To disable screen saver via Phone   1. To press Menu  ė Setting ė Basic Setting ė Screensaver...  2. Press   and    or press Switch soft key to Choose the Time-out as off.

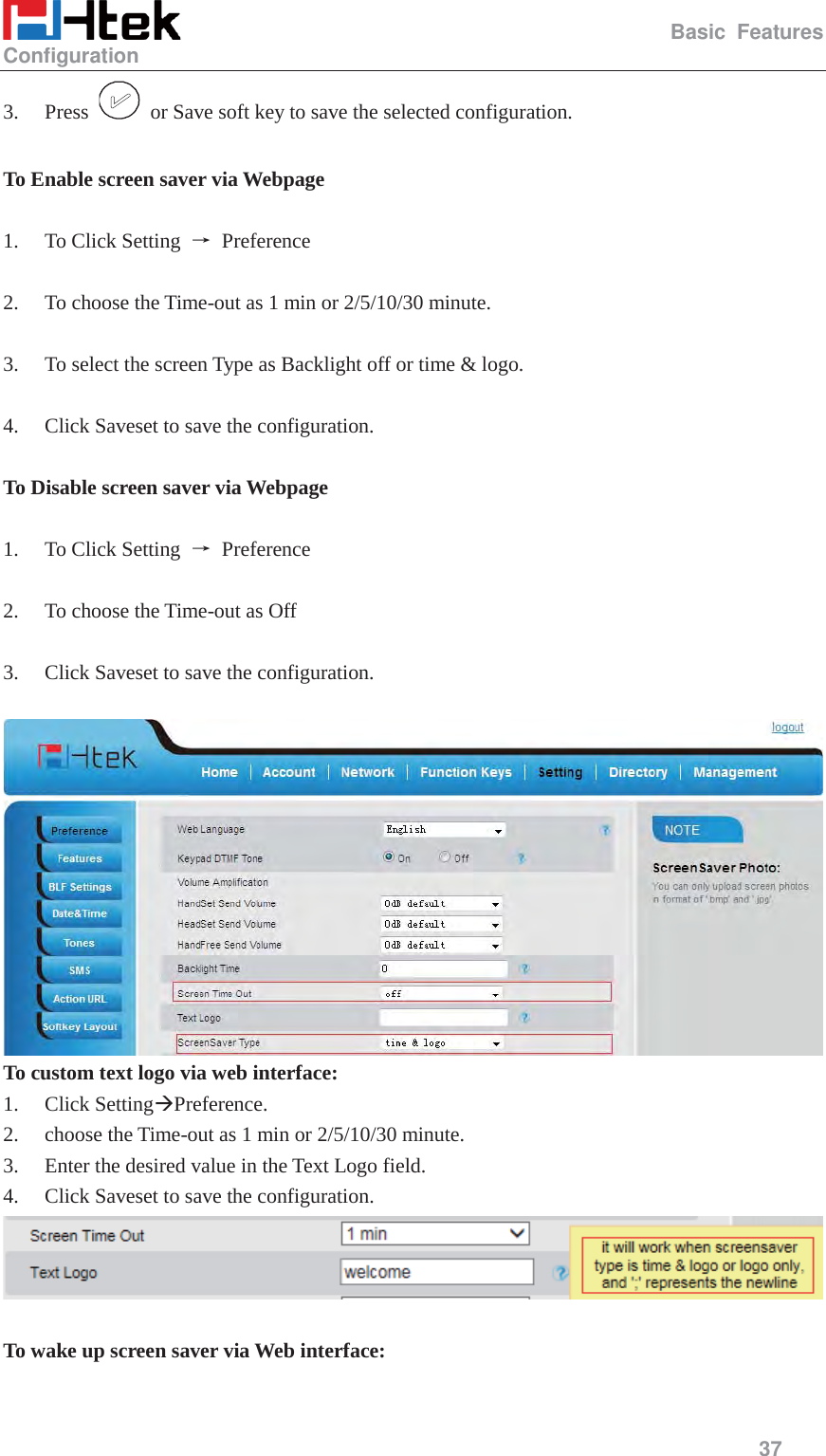

                                                  Basic Features Configuration     37  3. Press    or Save soft key to save the selected configuration.  To Enable screen saver via Webpage  1. To Click Setting  ė Preference  2. To choose the Time-out as 1 min or 2/5/10/30 minute.  3. To select the screen Type as Backlight off or time & logo.  4. Click Saveset to save the configuration.  To Disable screen saver via Webpage  1. To Click Setting  ė Preference  2. To choose the Time-out as Off  3. Click Saveset to save the configuration.   To custom text logo via web interface: 1. Click SettingÆPreference. 2. choose the Time-out as 1 min or 2/5/10/30 minute. 3. Enter the desired value in the Text Logo field. 4. Click Saveset to save the configuration.   To wake up screen saver via Web interface:

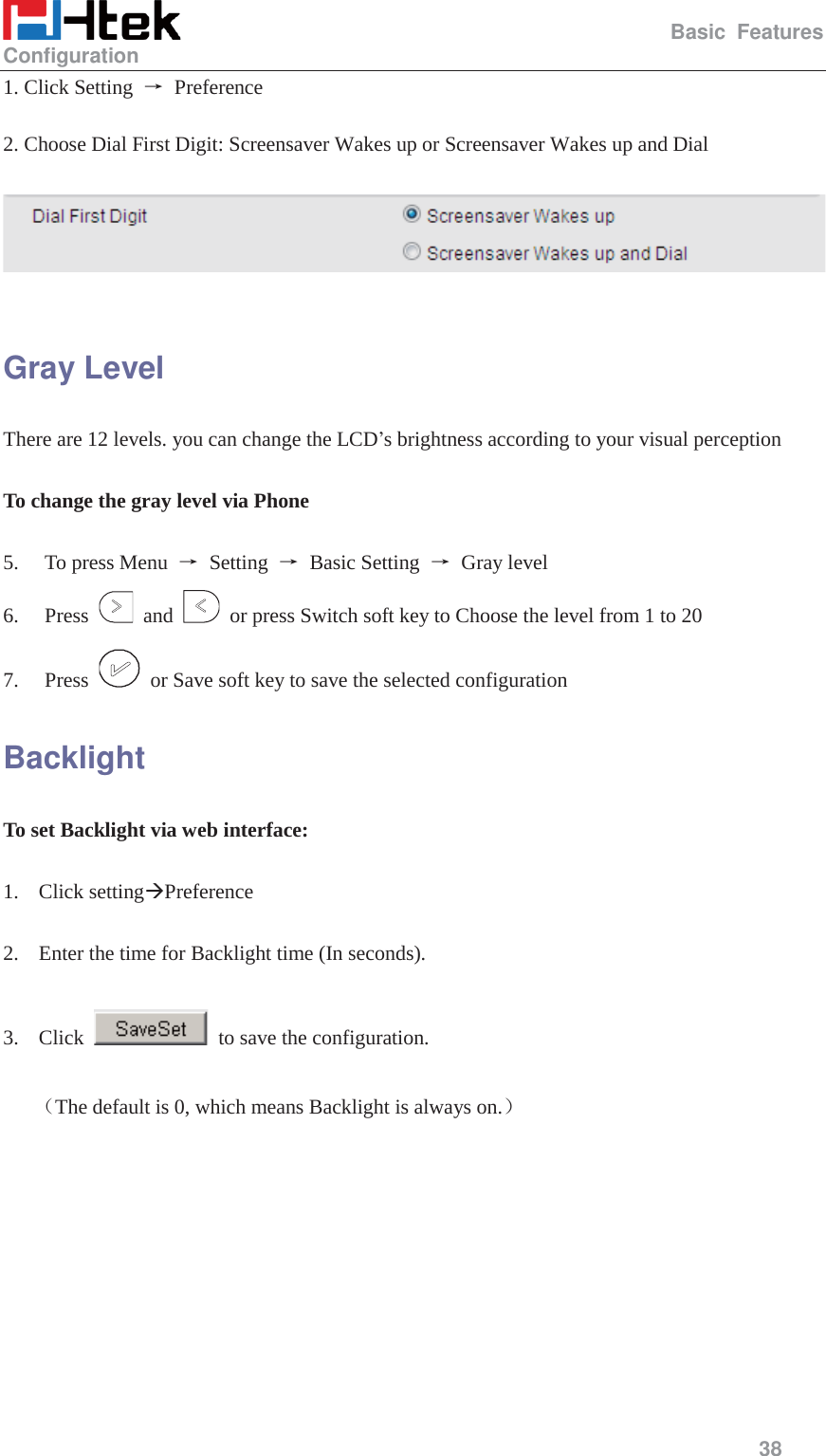

                                                  Basic Features Configuration     38  1. Click Setting  ė Preference  2. Choose Dial First Digit: Screensaver Wakes up or Screensaver Wakes up and Dial    Gray Level There are 12 levels. you can change the LCD’s brightness according to your visual perception  To change the gray level via Phone    5. To press Menu  ė Setting ė Basic Setting ė Gray level 6. Press   and    or press Switch soft key to Choose the level from 1 to 20 7. Press    or Save soft key to save the selected configuration Backlight To set Backlight via web interface:  1. Click settingÆPreference  2. Enter the time for Backlight time (In seconds).  3. Click    to save the configuration.  ˄The default is 0, which means Backlight is always on.˅

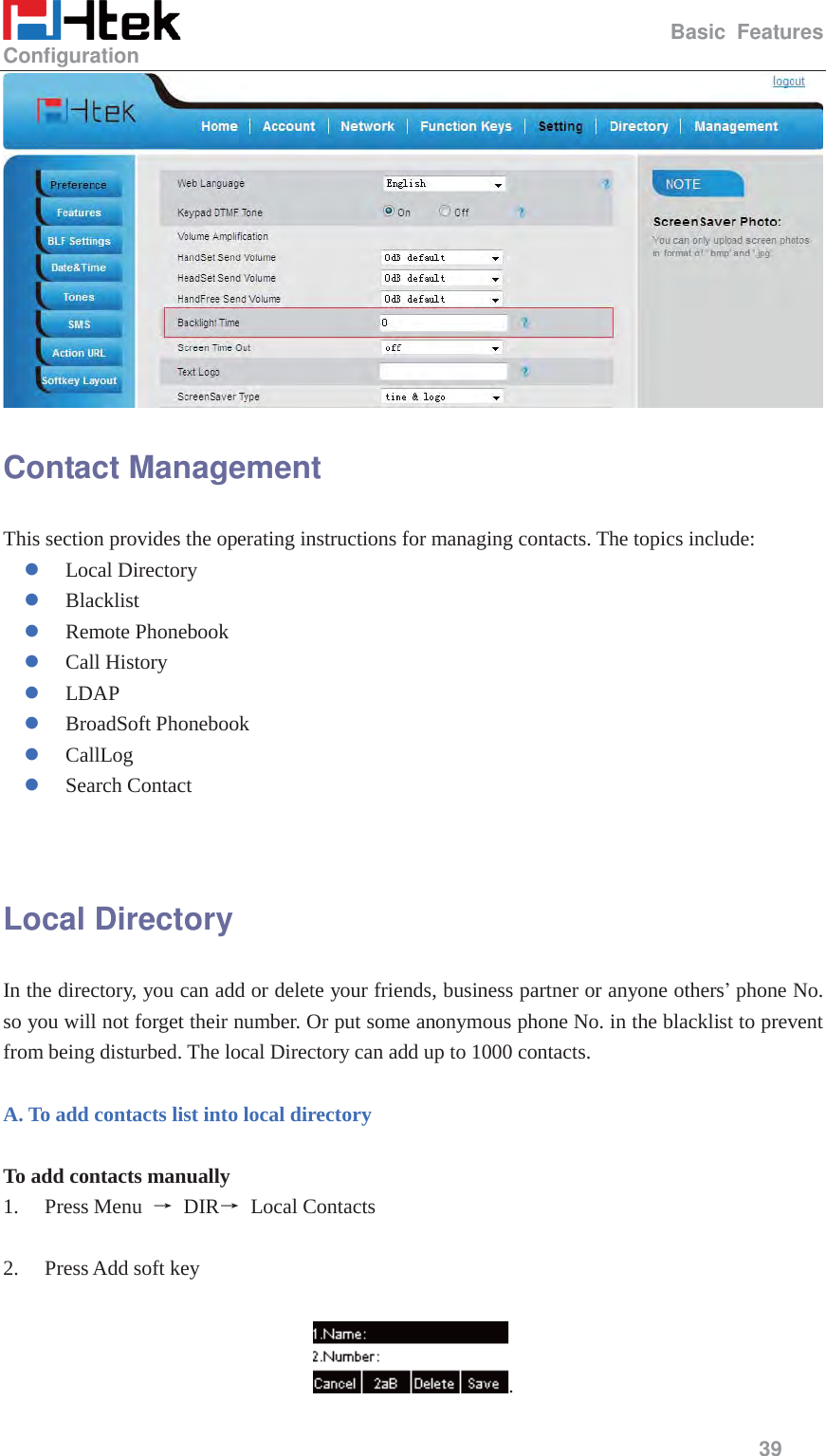

                                                  Basic Features Configuration     39   Contact Management This section provides the operating instructions for managing contacts. The topics include: z Local Directory z Blacklist z Remote Phonebook z Call History z LDAP z BroadSoft Phonebook z CallLog z Search Contact   Local Directory In the directory, you can add or delete your friends, business partner or anyone others’ phone No. so you will not forget their number. Or put some anonymous phone No. in the blacklist to prevent from being disturbed. The local Directory can add up to 1000 contacts.  A. To add contacts list into local directory  To add contacts manually 1. Press Menu  ė DIRė Local Contacts  2. Press Add soft key  .

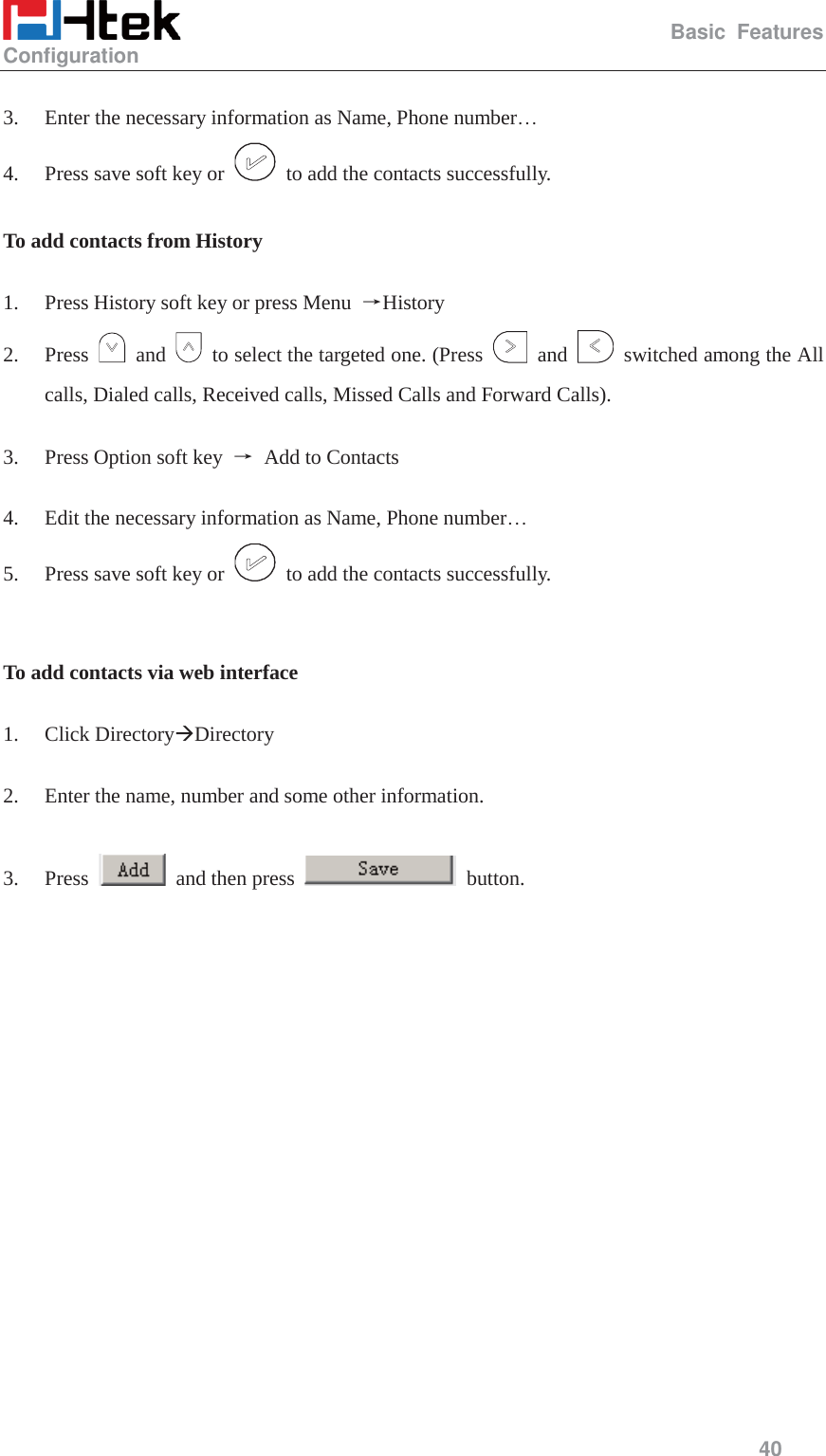

                                                  Basic Features Configuration     40   3. Enter the necessary information as Name, Phone number… 4. Press save soft key or    to add the contacts successfully.  To add contacts from History  1. Press History soft key or press Menu  ėHistory 2. Press   and    to select the targeted one. (Press   and   switched among the All calls, Dialed calls, Received calls, Missed Calls and Forward Calls).  3. Press Option soft key  ė  Add to Contacts  4. Edit the necessary information as Name, Phone number… 5. Press save soft key or    to add the contacts successfully.   To add contacts via web interface  1. Click DirectoryÆDirectory  2. Enter the name, number and some other information.  3. Press    and then press   button.

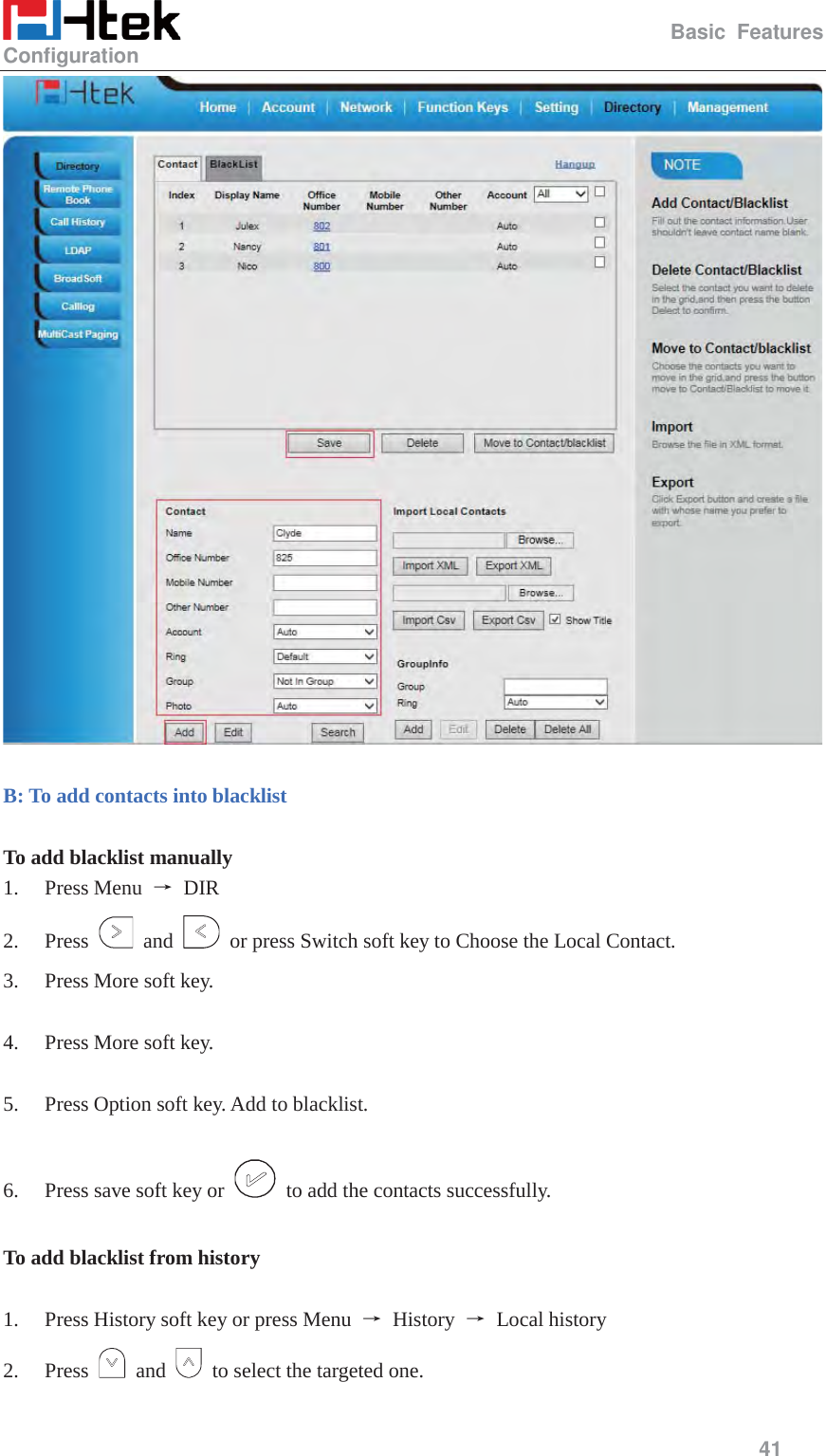

                                                  Basic Features Configuration     41    B: To add contacts into blacklist  To add blacklist manually 1. Press Menu  ė DIR 2. Press   and    or press Switch soft key to Choose the Local Contact. 3. Press More soft key.  4. Press More soft key.  5. Press Option soft key. Add to blacklist.  6. Press save soft key or    to add the contacts successfully.  To add blacklist from history  1. Press History soft key or press Menu  ė History ė Local history 2. Press   and    to select the targeted one.

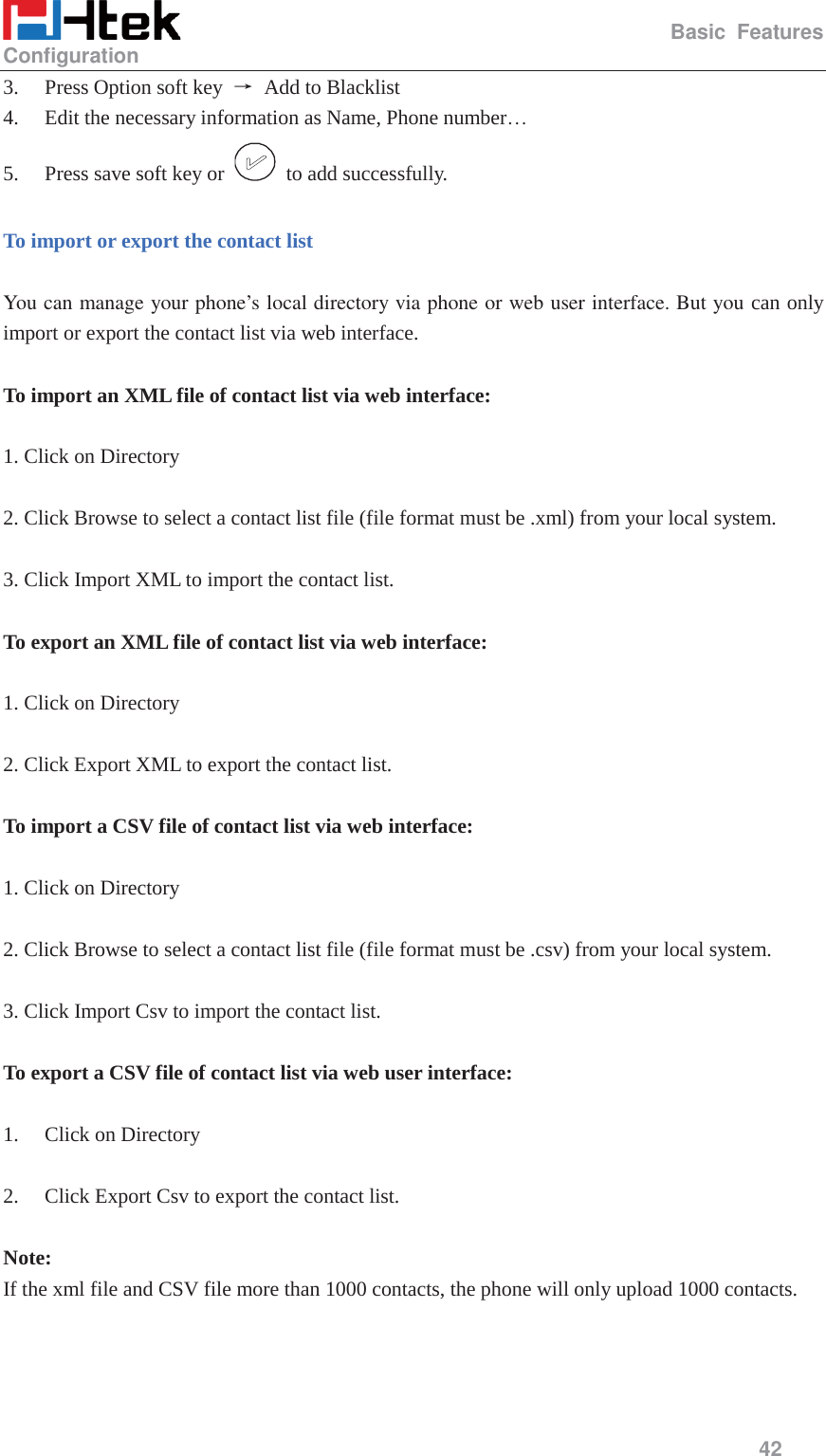

                                                  Basic Features Configuration     42  3. Press Option soft key  ė  Add to Blacklist 4. Edit the necessary information as Name, Phone number… 5. Press save soft key or    to add successfully.  To import or export the contact list    You can manage your phone’s local directory via phone or web user interface. But you can only import or export the contact list via web interface.  To import an XML file of contact list via web interface:  1. Click on Directory  2. Click Browse to select a contact list file (file format must be .xml) from your local system.  3. Click Import XML to import the contact list.  To export an XML file of contact list via web interface:  1. Click on Directory  2. Click Export XML to export the contact list.  To import a CSV file of contact list via web interface:  1. Click on Directory  2. Click Browse to select a contact list file (file format must be .csv) from your local system.  3. Click Import Csv to import the contact list.  To export a CSV file of contact list via web user interface:  1. Click on Directory  2. Click Export Csv to export the contact list.  Note: If the xml file and CSV file more than 1000 contacts, the phone will only upload 1000 contacts.

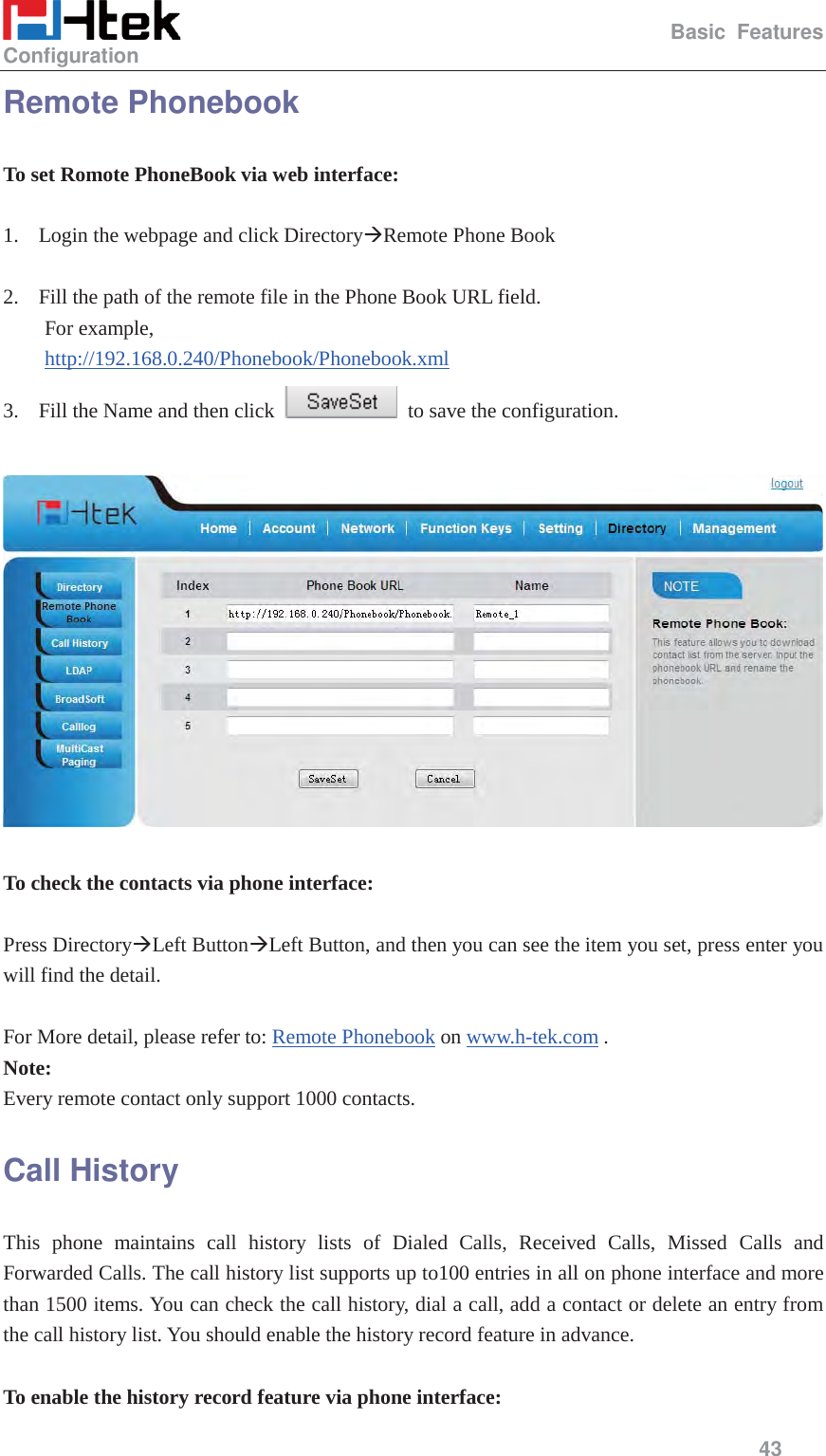

                                                  Basic Features Configuration     43  Remote Phonebook To set Romote PhoneBook via web interface:  1. Login the webpage and click DirectoryÆRemote Phone Book  2. Fill the path of the remote file in the Phone Book URL field.   For example,   http://192.168.0.240/Phonebook/Phonebook.xml 3. Fill the Name and then click    to save the configuration.    To check the contacts via phone interface:  Press DirectoryÆLeft ButtonÆLeft Button, and then you can see the item you set, press enter you will find the detail.  For More detail, please refer to: Remote Phonebook on www.h-tek.com . Note: Every remote contact only support 1000 contacts. Call History This phone maintains call history lists of Dialed Calls, Received Calls, Missed Calls and Forwarded Calls. The call history list supports up to100 entries in all on phone interface and more than 1500 items. You can check the call history, dial a call, add a contact or delete an entry from the call history list. You should enable the history record feature in advance.  To enable the history record feature via phone interface:

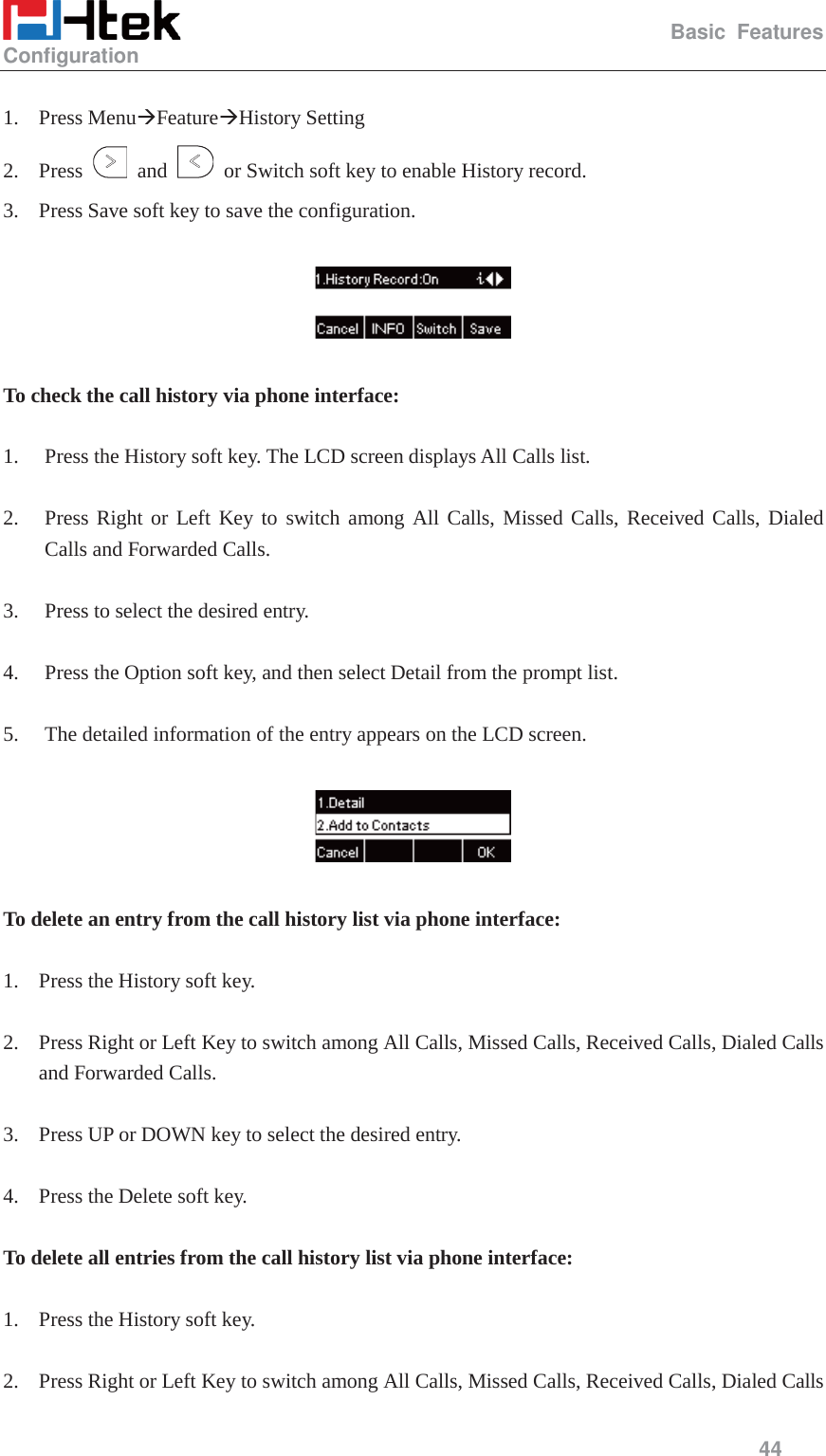

                                                  Basic Features Configuration     44   1. Press MenuÆFeatureÆHistory Setting   2. Press   and    or Switch soft key to enable History record. 3. Press Save soft key to save the configuration.    To check the call history via phone interface:  1. Press the History soft key. The LCD screen displays All Calls list.  2. Press Right or Left Key to switch among All Calls, Missed Calls, Received Calls, Dialed Calls and Forwarded Calls.  3. Press to select the desired entry.  4. Press the Option soft key, and then select Detail from the prompt list.  5. The detailed information of the entry appears on the LCD screen.    To delete an entry from the call history list via phone interface:  1. Press the History soft key.  2. Press Right or Left Key to switch among All Calls, Missed Calls, Received Calls, Dialed Calls and Forwarded Calls.  3. Press UP or DOWN key to select the desired entry.  4. Press the Delete soft key.  To delete all entries from the call history list via phone interface:  1. Press the History soft key.  2. Press Right or Left Key to switch among All Calls, Missed Calls, Received Calls, Dialed Calls

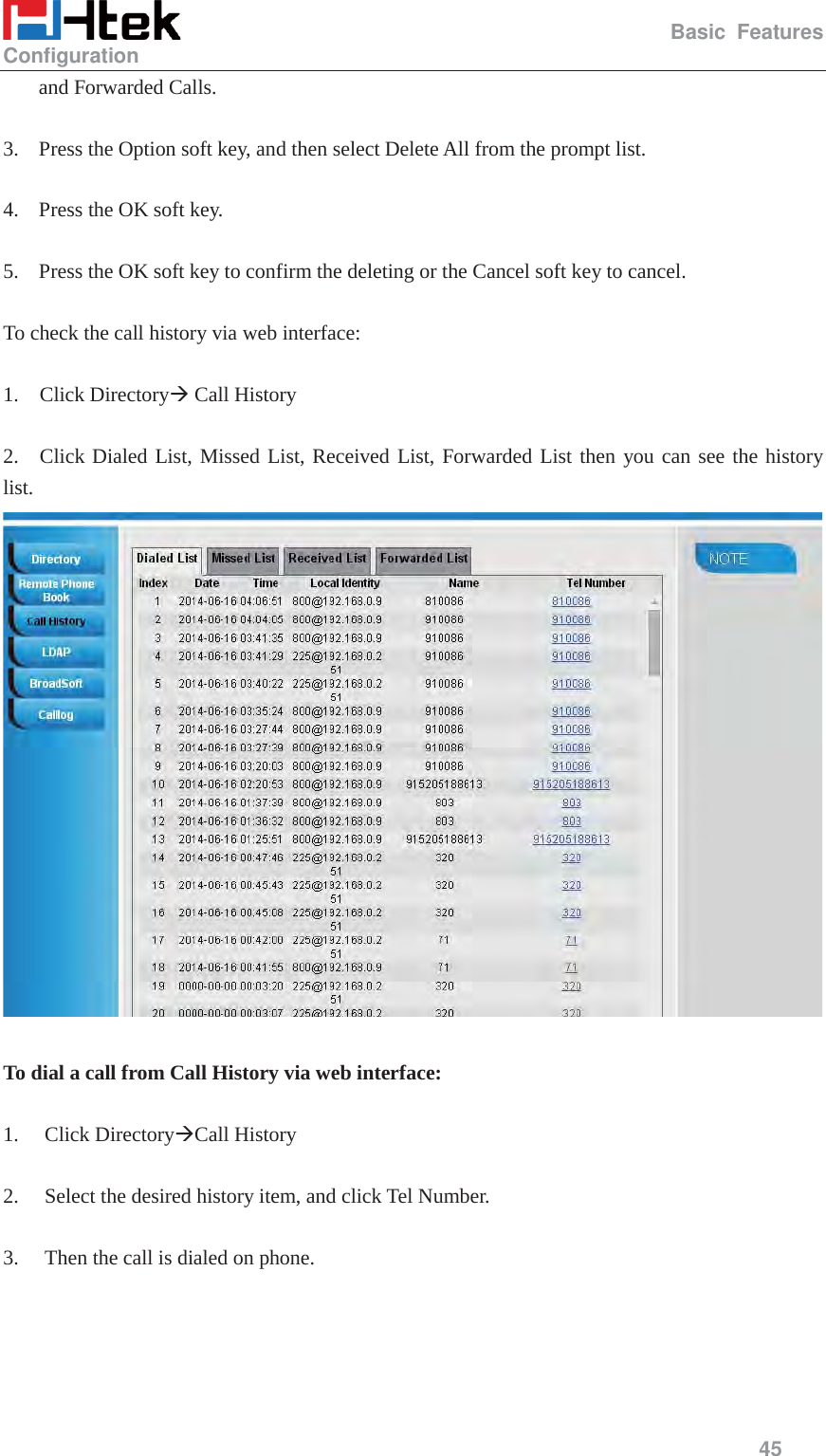

                                                  Basic Features Configuration     45  and Forwarded Calls.  3. Press the Option soft key, and then select Delete All from the prompt list.  4. Press the OK soft key.  5. Press the OK soft key to confirm the deleting or the Cancel soft key to cancel.  To check the call history via web interface:  1.  Click DirectoryÆ Call History  2.  Click Dialed List, Missed List, Received List, Forwarded List then you can see the history       list.   To dial a call from Call History via web interface:  1. Click DirectoryÆCall History  2. Select the desired history item, and click Tel Number.  3. Then the call is dialed on phone.

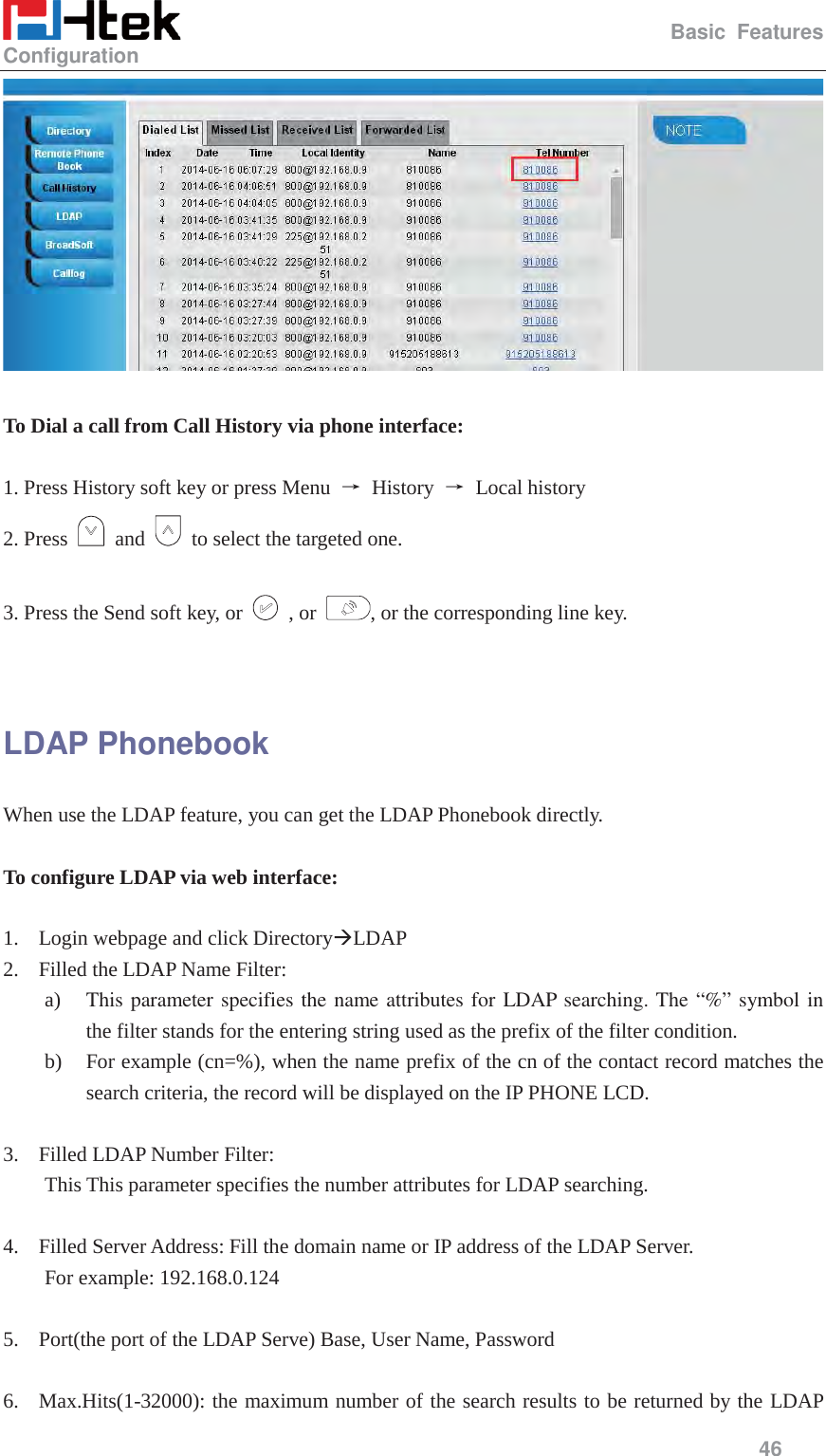

                                                  Basic Features Configuration     46    To Dial a call from Call History via phone interface:  1. Press History soft key or press Menu  ė History ė Local history 2. Press   and    to select the targeted one.  3. Press the Send soft key, or   , or  , or the corresponding line key.   LDAP Phonebook When use the LDAP feature, you can get the LDAP Phonebook directly.  To configure LDAP via web interface:  1. Login webpage and click DirectoryÆLDAP 2. Filled the LDAP Name Filter: a) This parameter specifies the name attributes for LDAP searching. The “%” symbol in the filter stands for the entering string used as the prefix of the filter condition. b) For example (cn=%), when the name prefix of the cn of the contact record matches the search criteria, the record will be displayed on the IP PHONE LCD.  3. Filled LDAP Number Filter:   This This parameter specifies the number attributes for LDAP searching.  4. Filled Server Address: Fill the domain name or IP address of the LDAP Server.   For example: 192.168.0.124  5. Port(the port of the LDAP Serve) Base, User Name, Password  6. Max.Hits(1-32000): the maximum number of the search results to be returned by the LDAP

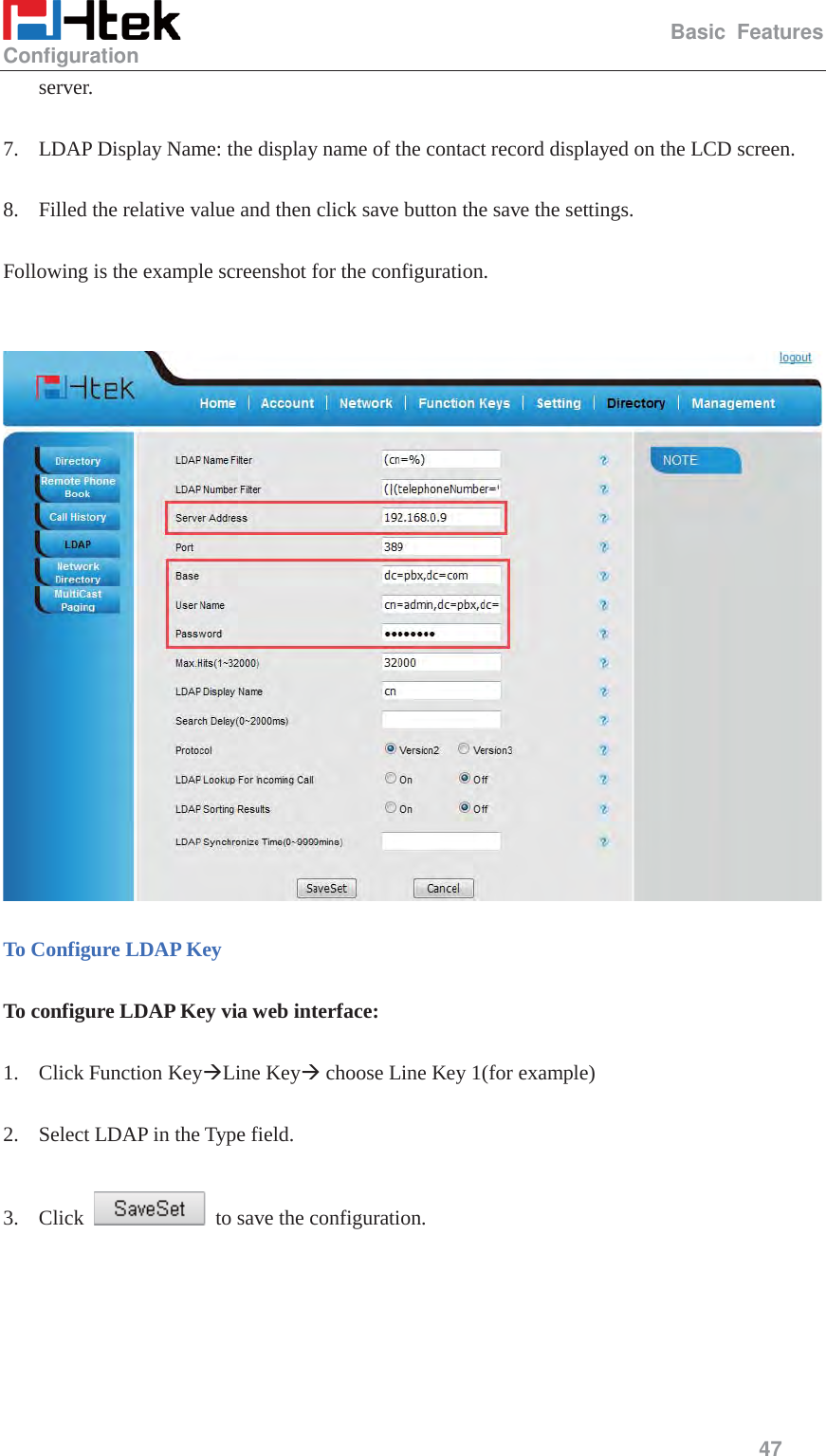

                                                  Basic Features Configuration     47  server.  7. LDAP Display Name: the display name of the contact record displayed on the LCD screen.  8. Filled the relative value and then click save button the save the settings.  Following is the example screenshot for the configuration.     To Configure LDAP Key  To configure LDAP Key via web interface:  1. Click Function KeyÆLine KeyÆ choose Line Key 1(for example)  2. Select LDAP in the Type field.  3. Click    to save the configuration.

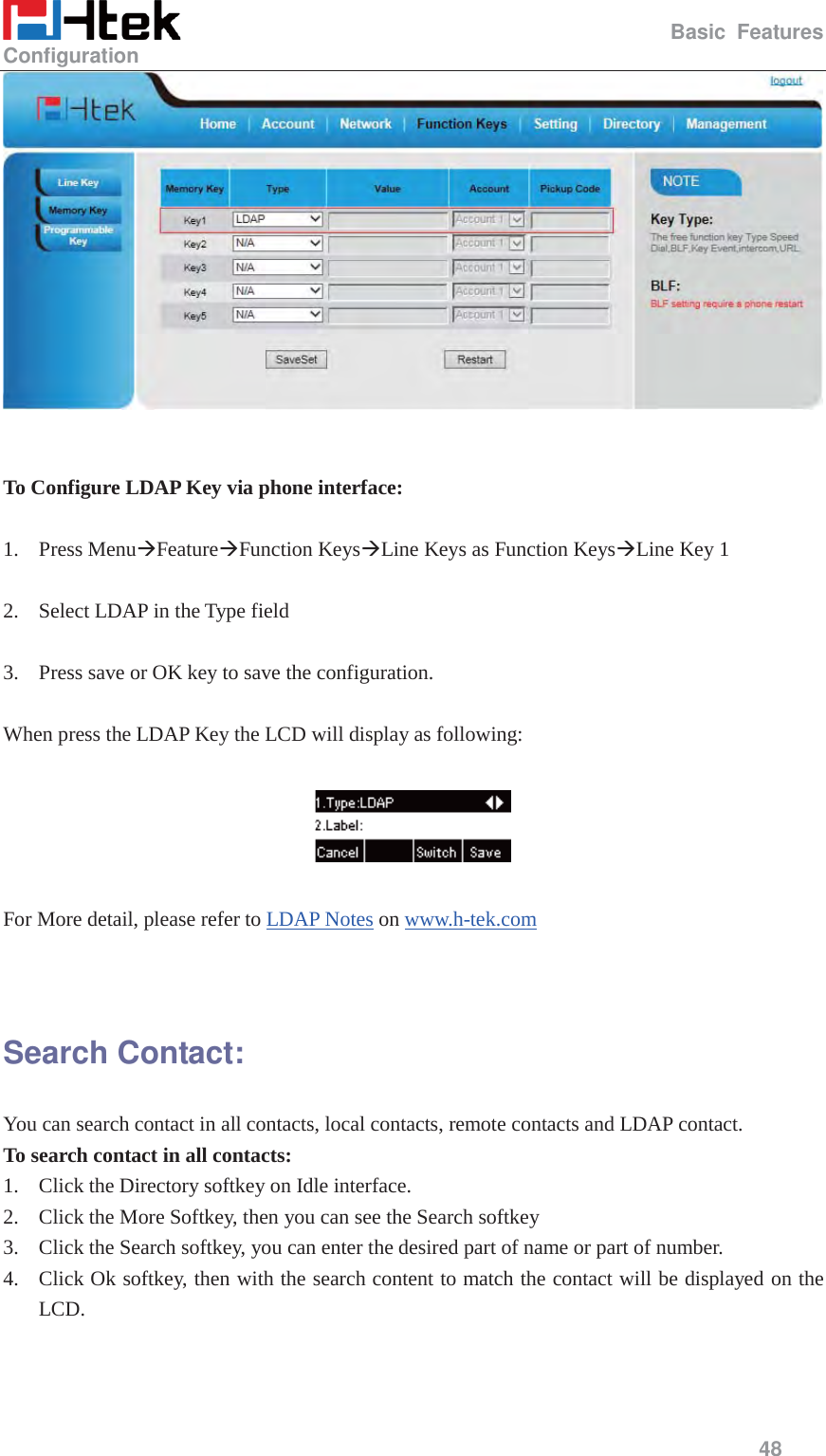

                                                  Basic Features Configuration     48     To Configure LDAP Key via phone interface:  1. Press MenuÆFeatureÆFunction KeysÆLine Keys as Function KeysÆLine Key 1    2. Select LDAP in the Type field  3. Press save or OK key to save the configuration.  When press the LDAP Key the LCD will display as following:    For More detail, please refer to LDAP Notes on www.h-tek.com    Search Contact: You can search contact in all contacts, local contacts, remote contacts and LDAP contact. To search contact in all contacts: 1. Click the Directory softkey on Idle interface. 2. Click the More Softkey, then you can see the Search softkey 3. Click the Search softkey, you can enter the desired part of name or part of number. 4. Click Ok softkey, then with the search content to match the contact will be displayed on the LCD.

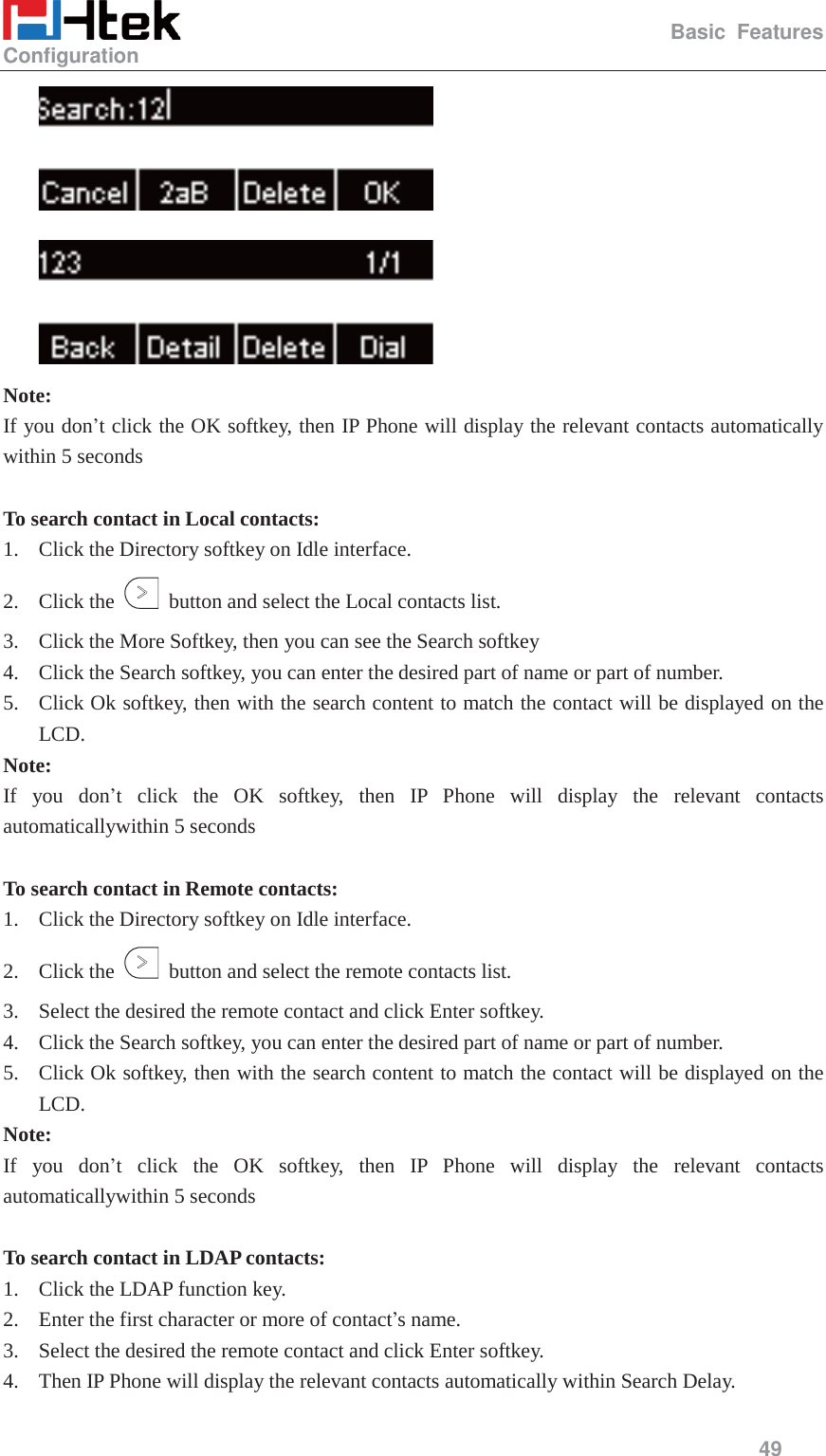

                                                  Basic Features Configuration     49    Note: If you don’t click the OK softkey, then IP Phone will display the relevant contacts automatically within 5 seconds  To search contact in Local contacts: 1. Click the Directory softkey on Idle interface. 2. Click the    button and select the Local contacts list. 3. Click the More Softkey, then you can see the Search softkey 4. Click the Search softkey, you can enter the desired part of name or part of number. 5. Click Ok softkey, then with the search content to match the contact will be displayed on the LCD. Note: If you don’t click the OK softkey, then IP Phone will display the relevant contacts automaticallywithin 5 seconds  To search contact in Remote contacts: 1. Click the Directory softkey on Idle interface. 2. Click the    button and select the remote contacts list. 3. Select the desired the remote contact and click Enter softkey. 4. Click the Search softkey, you can enter the desired part of name or part of number. 5. Click Ok softkey, then with the search content to match the contact will be displayed on the LCD. Note: If you don’t click the OK softkey, then IP Phone will display the relevant contacts automaticallywithin 5 seconds  To search contact in LDAP contacts: 1. Click the LDAP function key. 2. Enter the first character or more of contact’s name. 3. Select the desired the remote contact and click Enter softkey. 4. Then IP Phone will display the relevant contacts automatically within Search Delay.

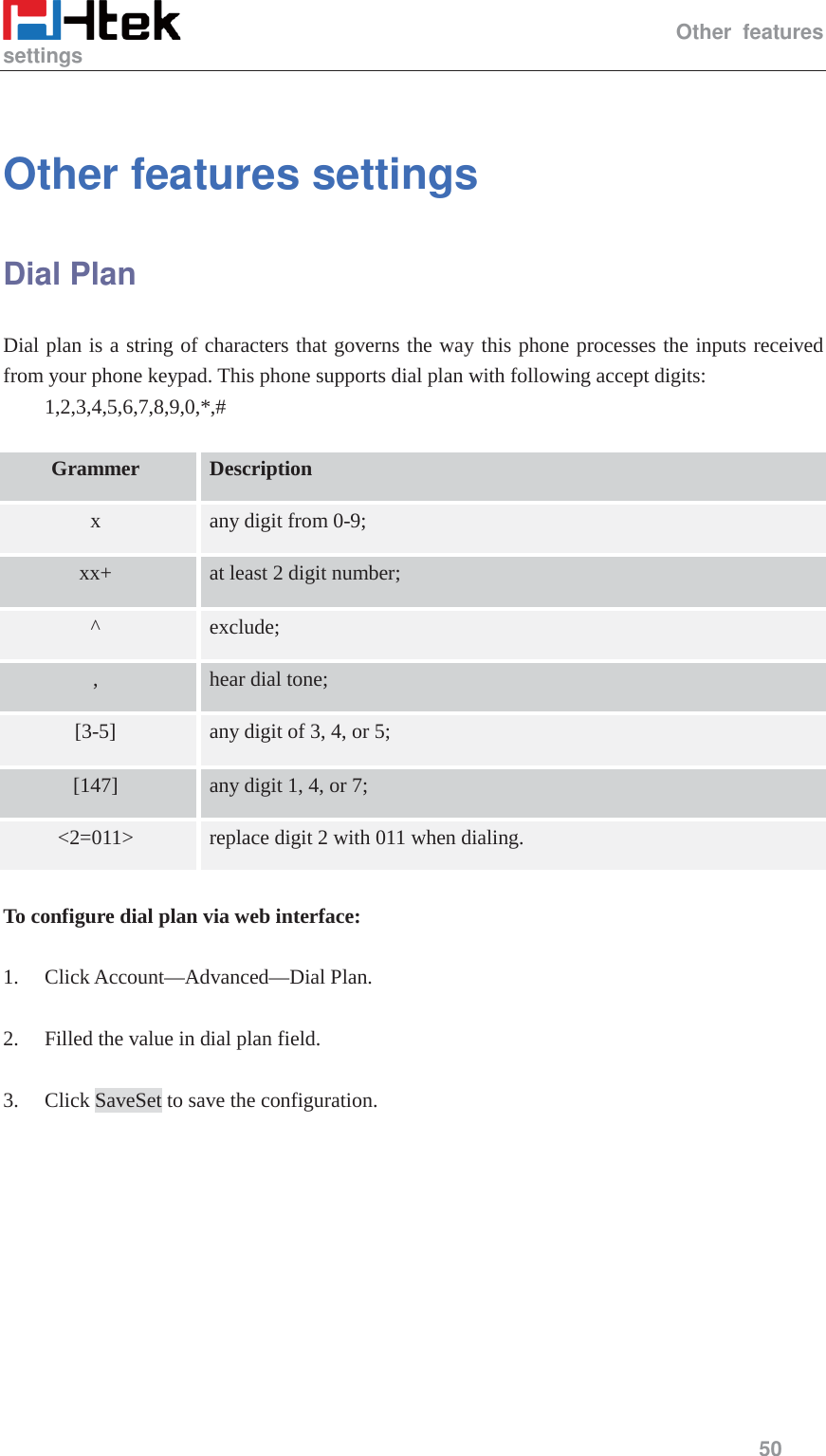

                                                  Other features settings     50   Other features settings   Dial Plan Dial plan is a string of characters that governs the way this phone processes the inputs received from your phone keypad. This phone supports dial plan with following accept digits:     1,2,3,4,5,6,7,8,9,0,*,#  Grammer Description x any digit from 0-9; xx+ at least 2 digit number; ^ exclude; , hear dial tone; [3-5] any digit of 3, 4, or 5; [147] any digit 1, 4, or 7; <2=011> replace digit 2 with 011 when dialing.   To configure dial plan via web interface:  1. Click Account—Advanced—Dial Plan.  2. Filled the value in dial plan field.  3. Click SaveSet to save the configuration.

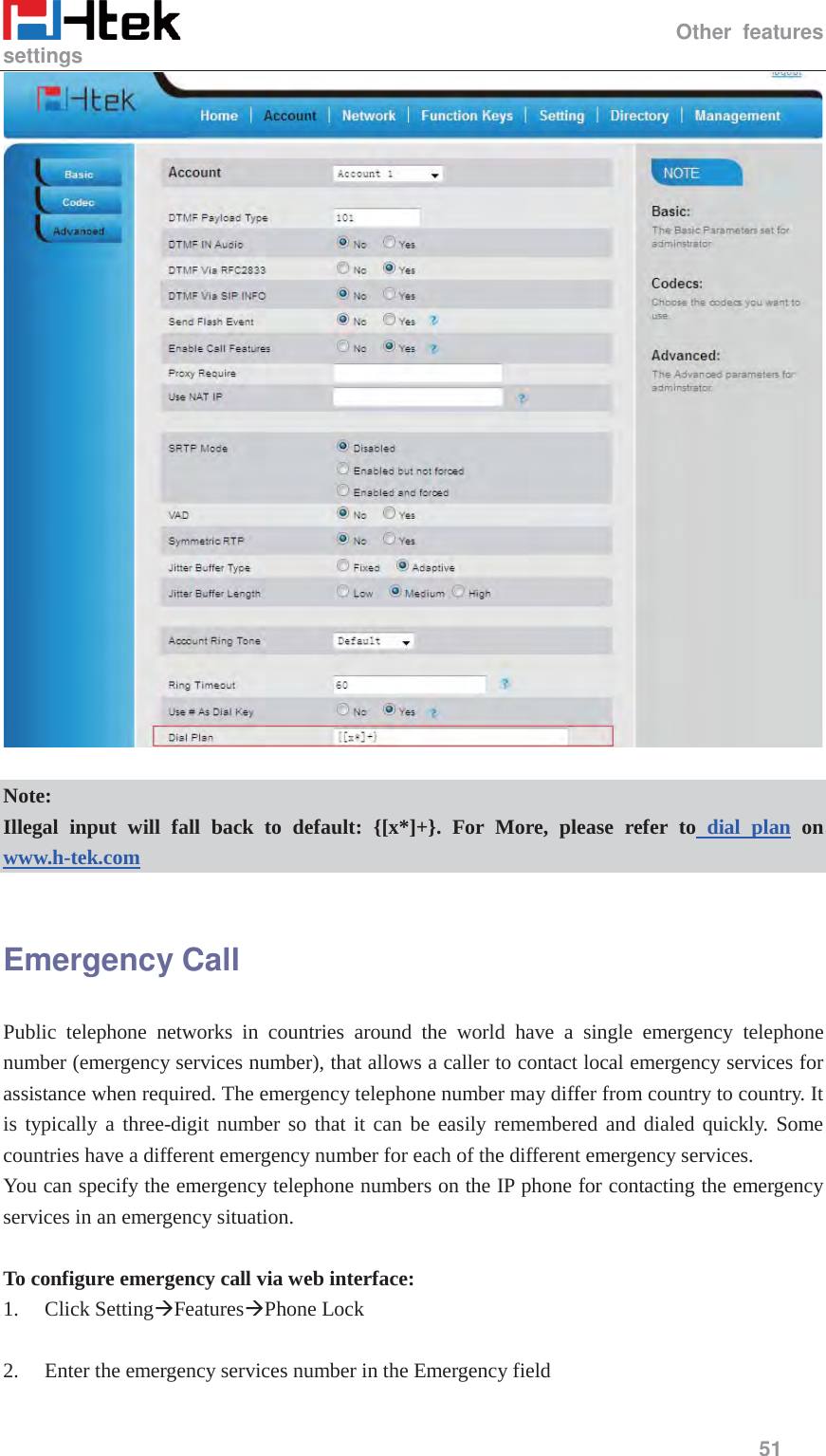

                                                  Other features settings     51    Note: Illegal input will fall back to default: {[x*]+}. For More, please refer to dial plan on www.h-tek.com   Emergency Call Public telephone networks in countries around the world have a single emergency telephone number (emergency services number), that allows a caller to contact local emergency services for assistance when required. The emergency telephone number may differ from country to country. It is typically a three-digit number so that it can be easily remembered and dialed quickly. Some countries have a different emergency number for each of the different emergency services. You can specify the emergency telephone numbers on the IP phone for contacting the emergency services in an emergency situation.  To configure emergency call via web interface: 1. Click SettingÆFeaturesÆPhone Lock  2. Enter the emergency services number in the Emergency field

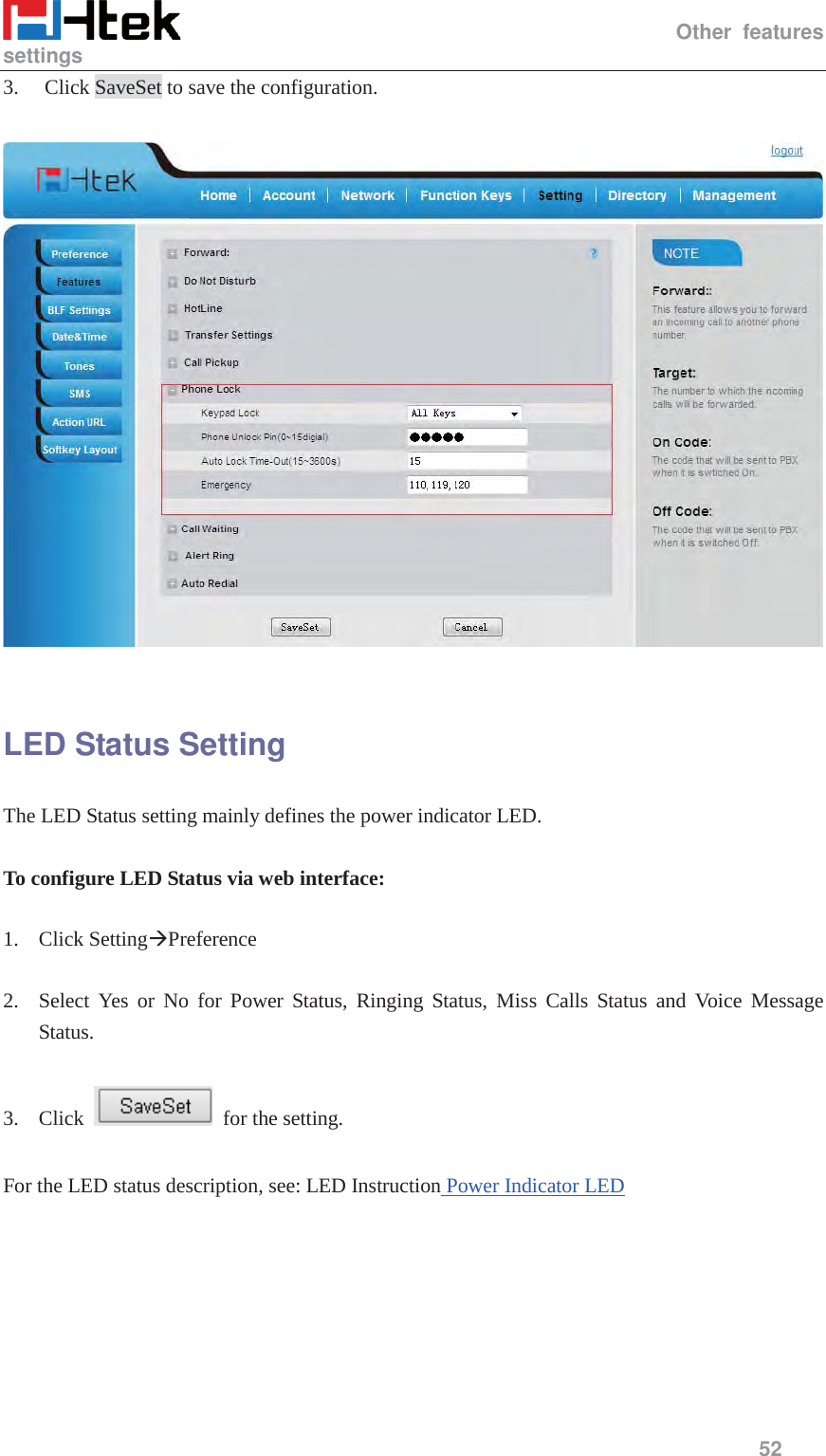

                                                  Other features settings     52  3. Click SaveSet to save the configuration.    LED Status Setting The LED Status setting mainly defines the power indicator LED.  To configure LED Status via web interface:  1. Click SettingÆPreference   2. Select Yes or No for Power Status, Ringing Status, Miss Calls Status and Voice Message Status.  3. Click    for the setting.    For the LED status description, see: LED Instruction Power Indicator LED

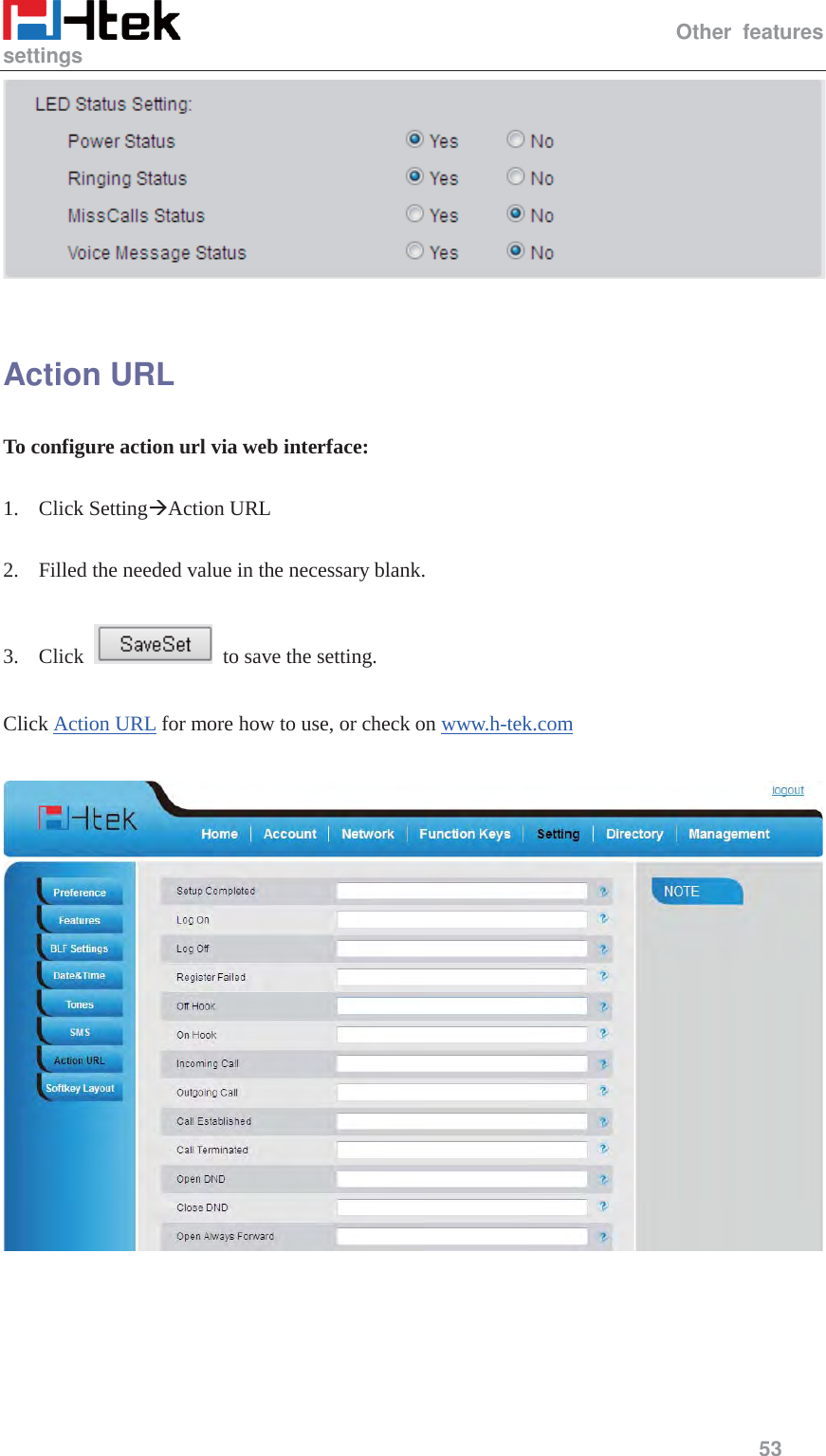

                                                  Other features settings     53    Action URL To configure action url via web interface:  1. Click SettingÆAction URL  2. Filled the needed value in the necessary blank.  3. Click    to save the setting.  Click Action URL for more how to use, or check on www.h-tek.com

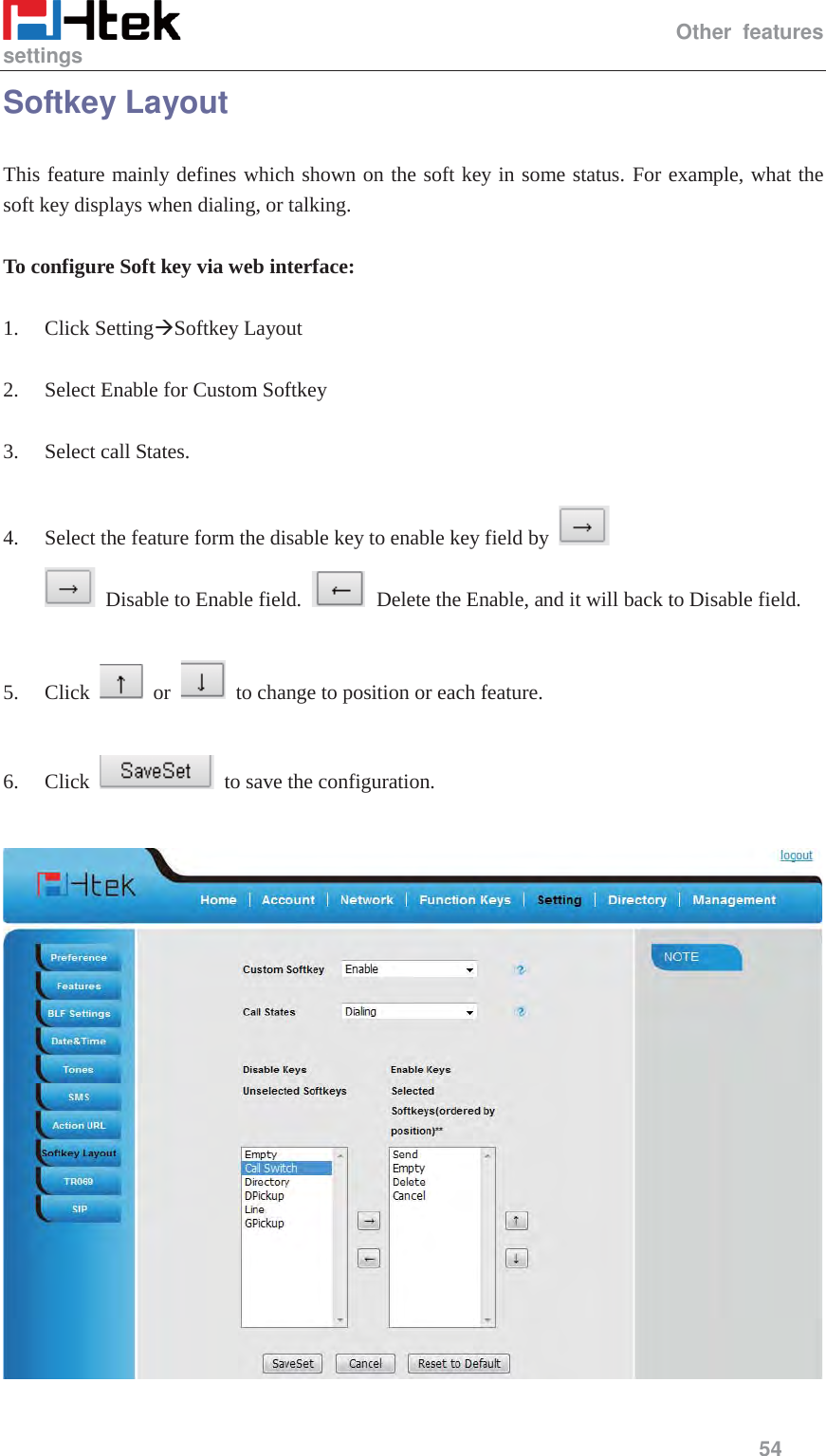

                                                  Other features settings     54  Softkey Layout This feature mainly defines which shown on the soft key in some status. For example, what the soft key displays when dialing, or talking.  To configure Soft key via web interface:  1. Click SettingÆSoftkey Layout  2. Select Enable for Custom Softkey  3. Select call States.  4. Select the feature form the disable key to enable key field by     Disable to Enable field.     Delete the Enable, and it will back to Disable field.  5. Click   or    to change to position or each feature.  6. Click    to save the configuration.

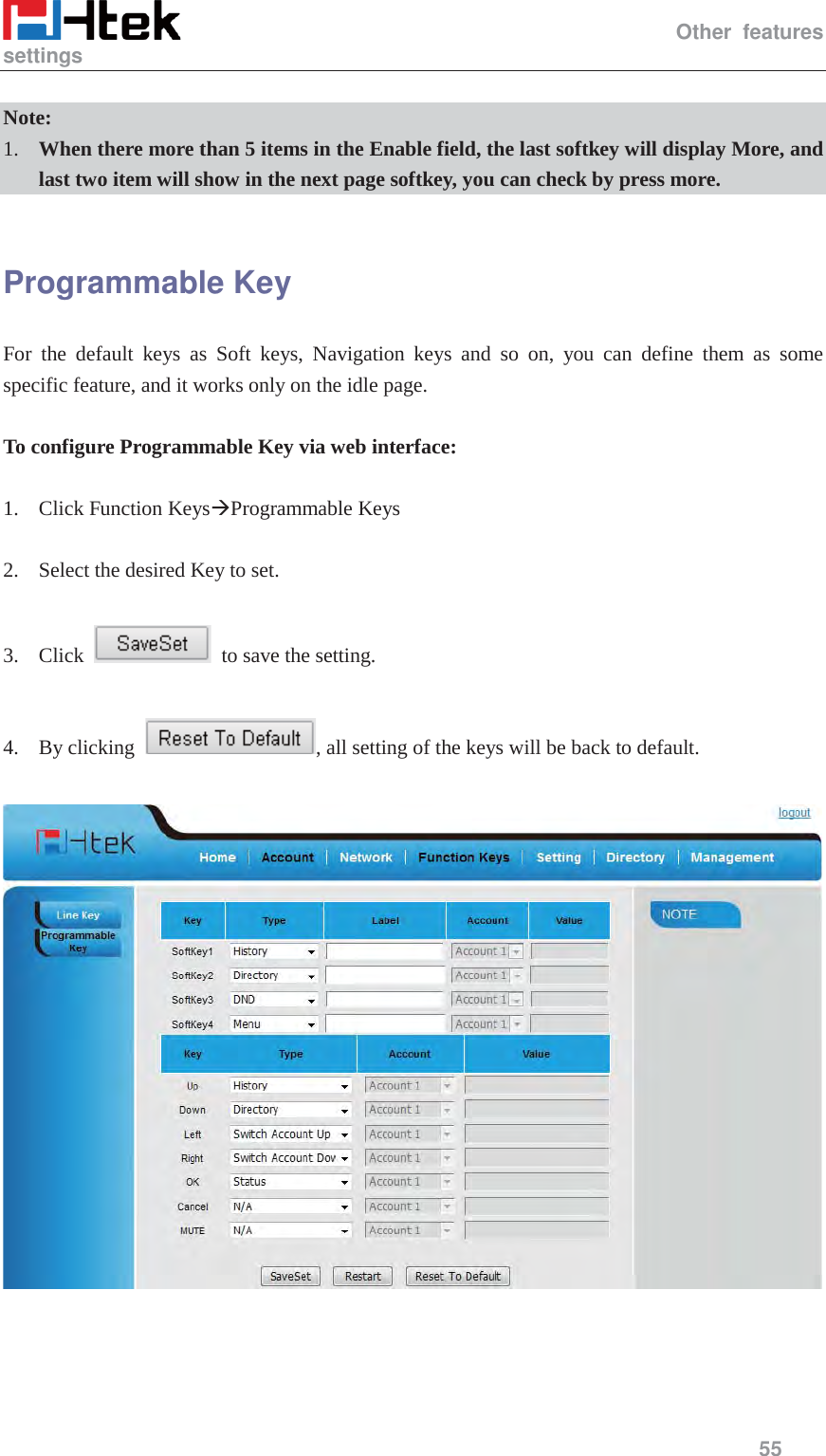

                                                  Other features settings     55   Note: 1. When there more than 5 items in the Enable field, the last softkey will display More, and last two item will show in the next page softkey, you can check by press more.  Programmable Key   For the default keys as Soft keys, Navigation keys and so on, you can define them as some specific feature, and it works only on the idle page.  To configure Programmable Key via web interface:  1. Click Function KeysÆProgrammable Keys  2. Select the desired Key to set.  3. Click    to save the setting.    4. By clicking  , all setting of the keys will be back to default.

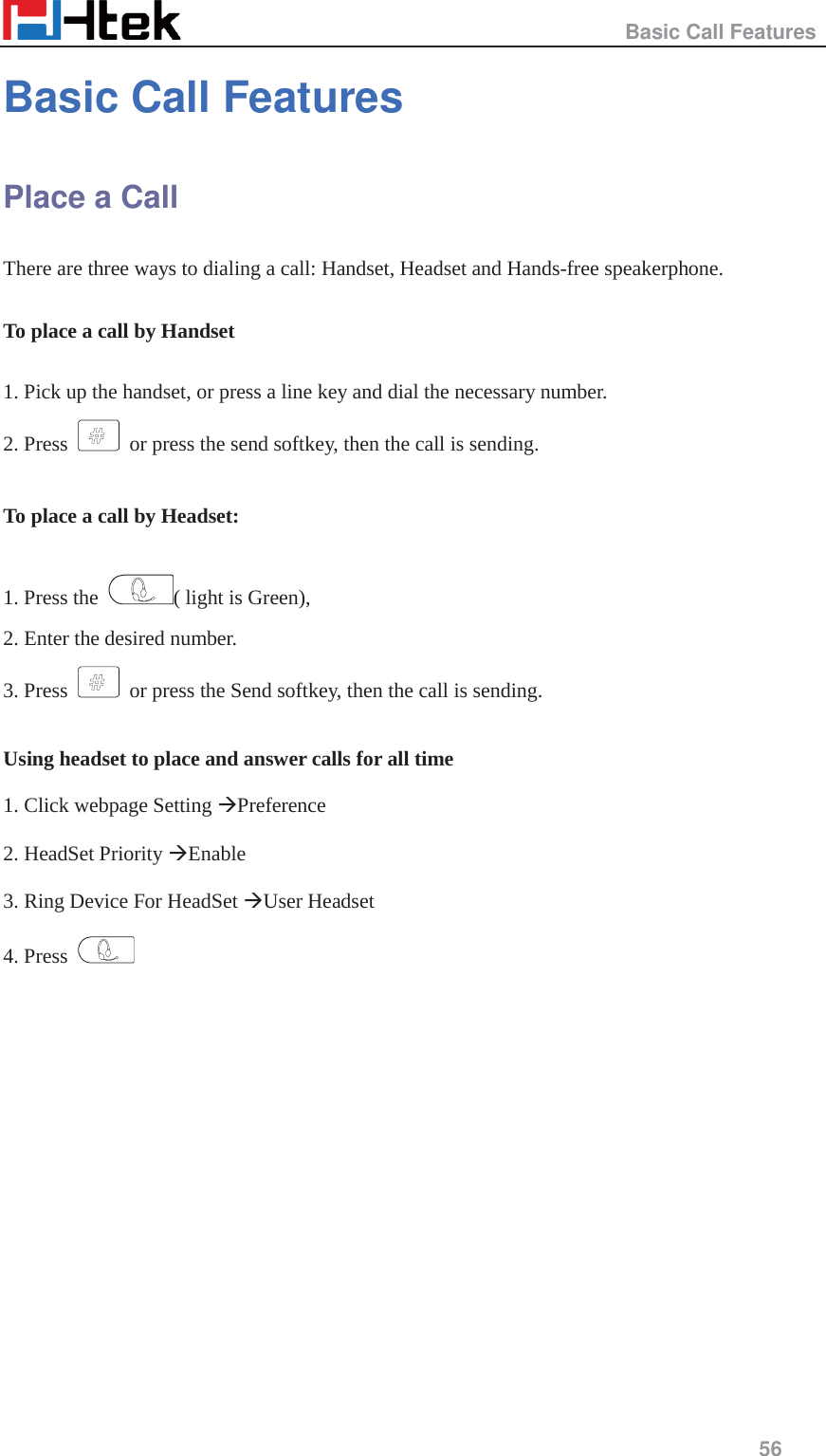

                                                  Basic Call Features     56  Basic Call Features Place a Call There are three ways to dialing a call: Handset, Headset and Hands-free speakerphone.  To place a call by Handset  1. Pick up the handset, or press a line key and dial the necessary number. 2. Press    or press the send softkey, then the call is sending.  To place a call by Headset:  1. Press the  ( light is Green),   2. Enter the desired number. 3. Press    or press the Send softkey, then the call is sending.  Using headset to place and answer calls for all time  1. Click webpage Setting ÆPreference  2. HeadSet Priority ÆEnable  3. Ring Device For HeadSet ÆUser Headset  4. Press

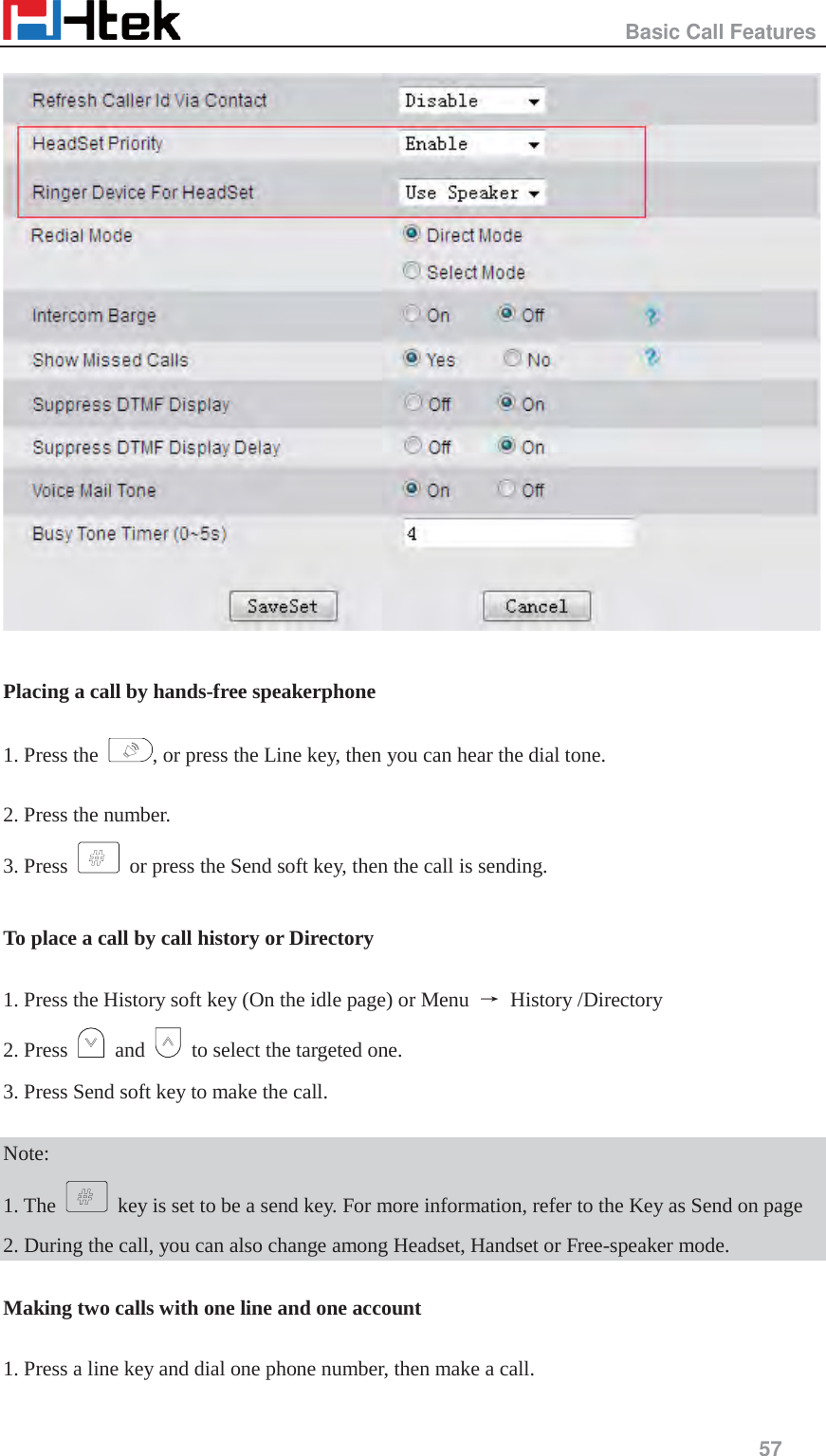

                                                  Basic Call Features     57    Placing a call by hands-free speakerphone  1. Press the  , or press the Line key, then you can hear the dial tone.  2. Press the number. 3. Press    or press the Send soft key, then the call is sending.  To place a call by call history or Directory  1. Press the History soft key (On the idle page) or Menu  ė History /Directory 2. Press   and    to select the targeted one. 3. Press Send soft key to make the call.  Note: 1. The    key is set to be a send key. For more information, refer to the Key as Send on page 2. During the call, you can also change among Headset, Handset or Free-speaker mode.  Making two calls with one line and one account  1. Press a line key and dial one phone number, then make a call.

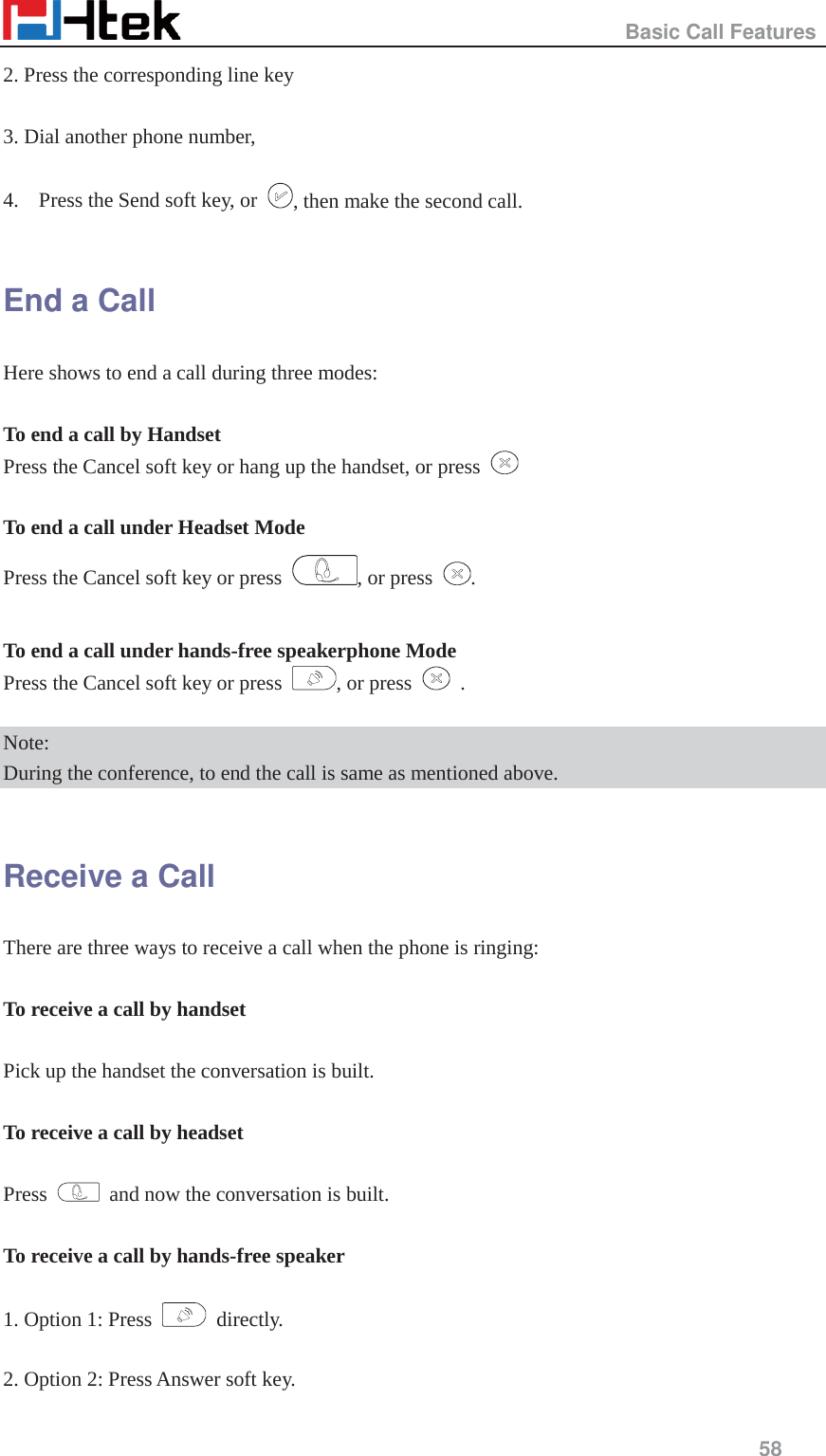

                                                  Basic Call Features     58  2. Press the corresponding line key  3. Dial another phone number,    4. Press the Send soft key, or  , then make the second call.  End a Call Here shows to end a call during three modes:  To end a call by Handset Press the Cancel soft key or hang up the handset, or press    To end a call under Headset Mode Press the Cancel soft key or press  , or press  .  To end a call under hands-free speakerphone Mode Press the Cancel soft key or press  , or press   .  Note:  During the conference, to end the call is same as mentioned above.  Receive a Call There are three ways to receive a call when the phone is ringing:  To receive a call by handset  Pick up the handset the conversation is built.  To receive a call by headset  Press    and now the conversation is built.  To receive a call by hands-free speaker  1. Option 1: Press   directly.  2. Option 2: Press Answer soft key.

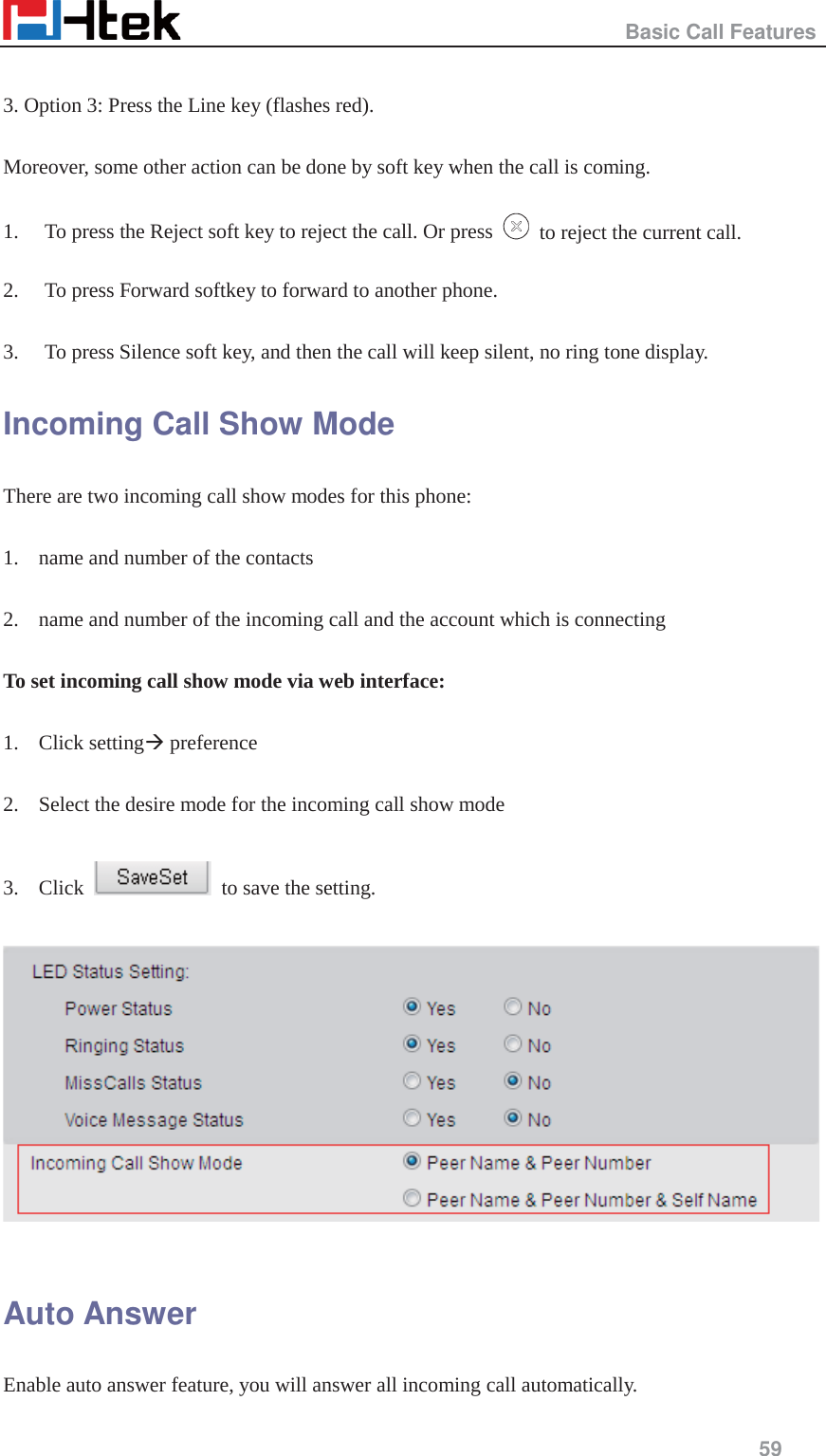

                                                  Basic Call Features     59   3. Option 3: Press the Line key (flashes red).  Moreover, some other action can be done by soft key when the call is coming.  1. To press the Reject soft key to reject the call. Or press    to reject the current call.  2. To press Forward softkey to forward to another phone.  3. To press Silence soft key, and then the call will keep silent, no ring tone display. Incoming Call Show Mode There are two incoming call show modes for this phone:  1. name and number of the contacts  2. name and number of the incoming call and the account which is connecting  To set incoming call show mode via web interface:  1. Click settingÆ preference  2. Select the desire mode for the incoming call show mode  3. Click    to save the setting.    Auto Answer Enable auto answer feature, you will answer all incoming call automatically.

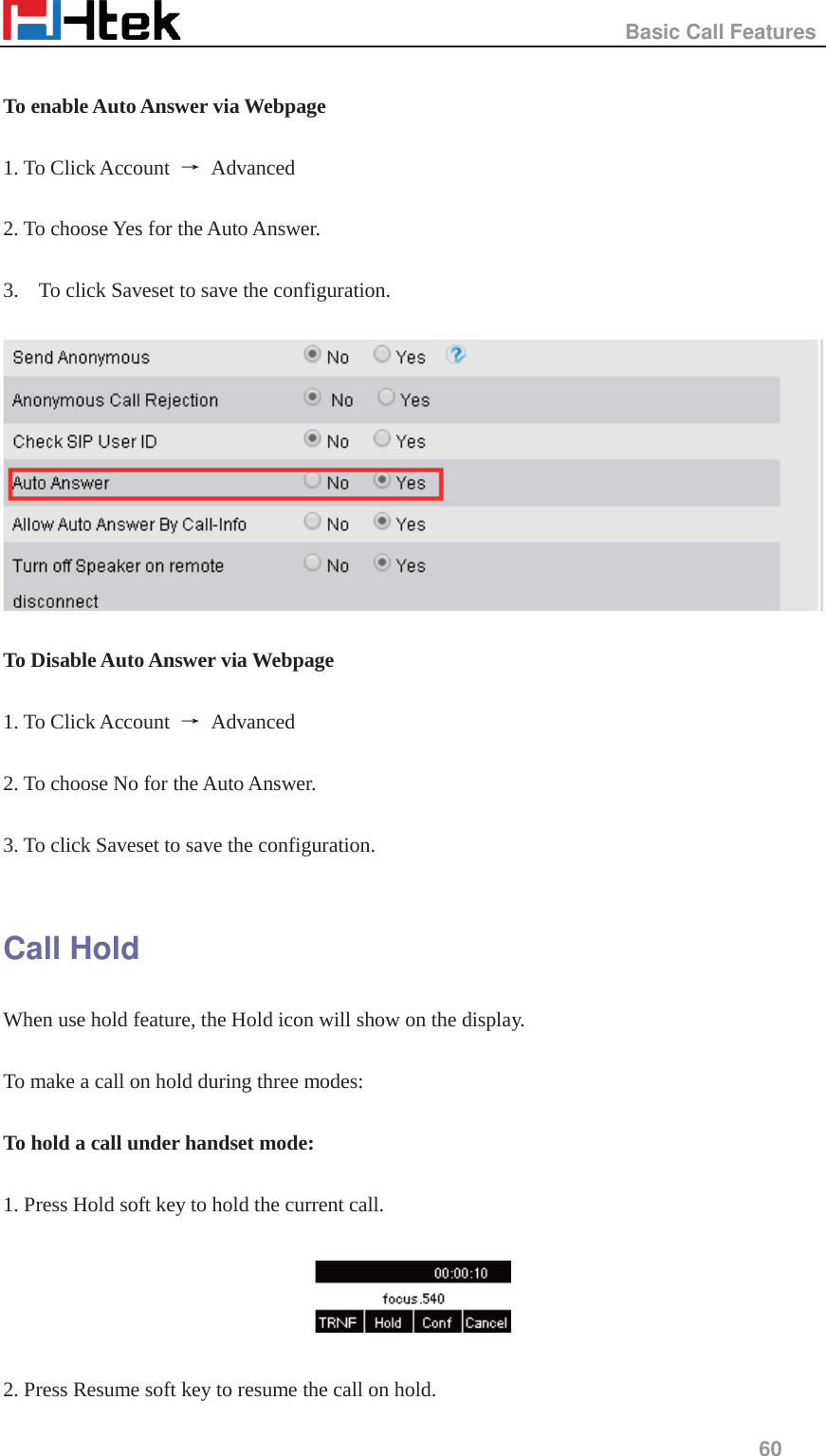

                                                  Basic Call Features     60   To enable Auto Answer via Webpage  1. To Click Account  ė Advanced   2. To choose Yes for the Auto Answer.  3. To click Saveset to save the configuration.    To Disable Auto Answer via Webpage  1. To Click Account  ė Advanced   2. To choose No for the Auto Answer.  3. To click Saveset to save the configuration.  Call Hold When use hold feature, the Hold icon will show on the display.  To make a call on hold during three modes:  To hold a call under handset mode:  1. Press Hold soft key to hold the current call.    2. Press Resume soft key to resume the call on hold.

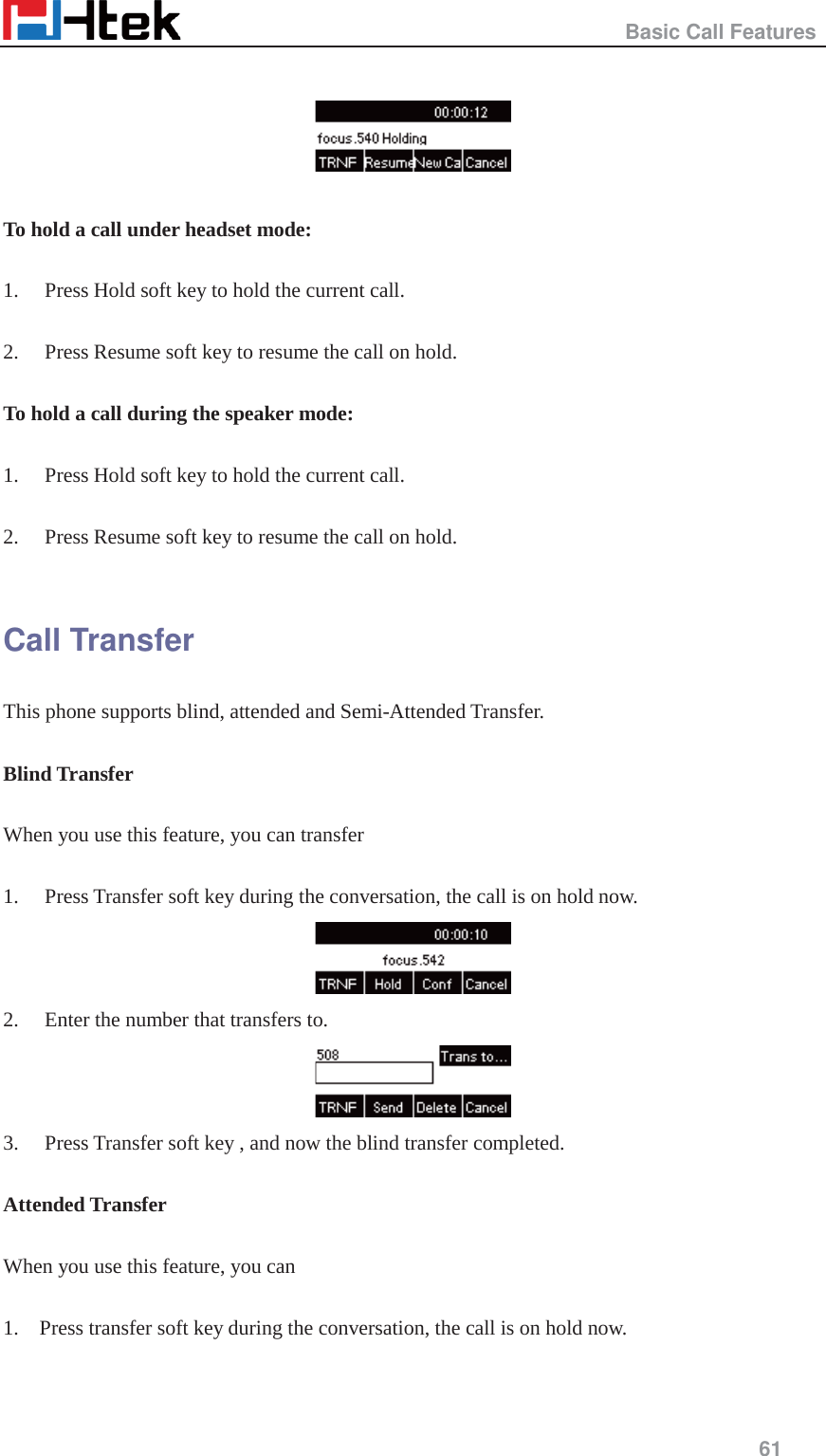

                                                  Basic Call Features     61     To hold a call under headset mode:  1. Press Hold soft key to hold the current call.  2. Press Resume soft key to resume the call on hold.  To hold a call during the speaker mode:  1. Press Hold soft key to hold the current call.  2. Press Resume soft key to resume the call on hold.  Call Transfer This phone supports blind, attended and Semi-Attended Transfer.    Blind Transfer  When you use this feature, you can transfer    1. Press Transfer soft key during the conversation, the call is on hold now.  2. Enter the number that transfers to.    3. Press Transfer soft key , and now the blind transfer completed.  Attended Transfer  When you use this feature, you can  1.    Press transfer soft key during the conversation, the call is on hold now.

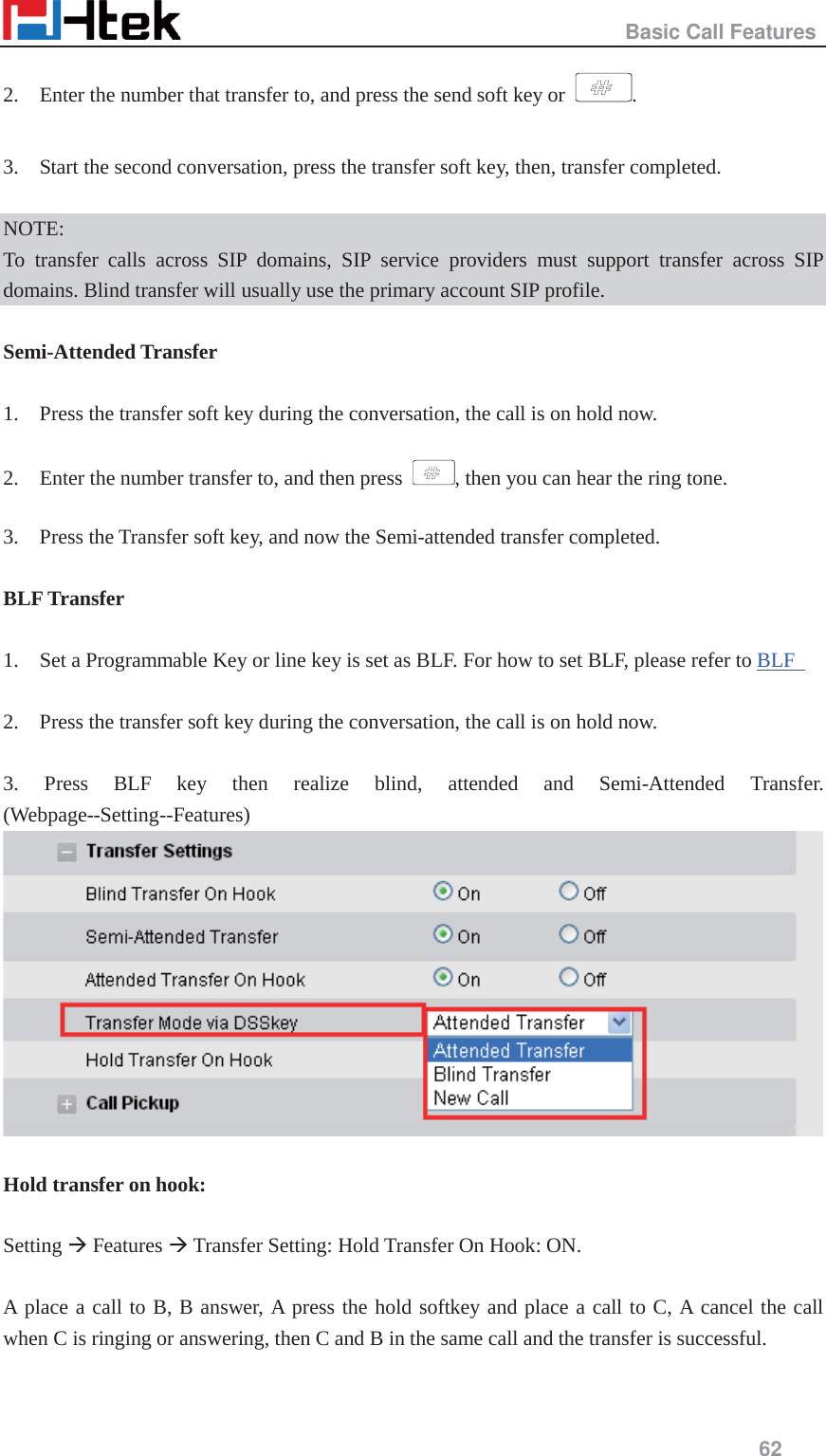

                                                  Basic Call Features     62  2.    Enter the number that transfer to, and press the send soft key or  .  3.    Start the second conversation, press the transfer soft key, then, transfer completed.  NOTE: To transfer calls across SIP domains, SIP service providers must support transfer across SIP domains. Blind transfer will usually use the primary account SIP profile.  Semi-Attended Transfer  1.    Press the transfer soft key during the conversation, the call is on hold now.  2.    Enter the number transfer to, and then press  , then you can hear the ring tone.  3.    Press the Transfer soft key, and now the Semi-attended transfer completed.  BLF Transfer  1.    Set a Programmable Key or line key is set as BLF. For how to set BLF, please refer to BLF    2.    Press the transfer soft key during the conversation, the call is on hold now.  3. Press BLF key then realize blind, attended and Semi-Attended Transfer. (Webpage--Setting--Features)   Hold transfer on hook:  Setting Æ Features Æ Transfer Setting: Hold Transfer On Hook: ON.  A place a call to B, B answer, A press the hold softkey and place a call to C, A cancel the call when C is ringing or answering, then C and B in the same call and the transfer is successful.

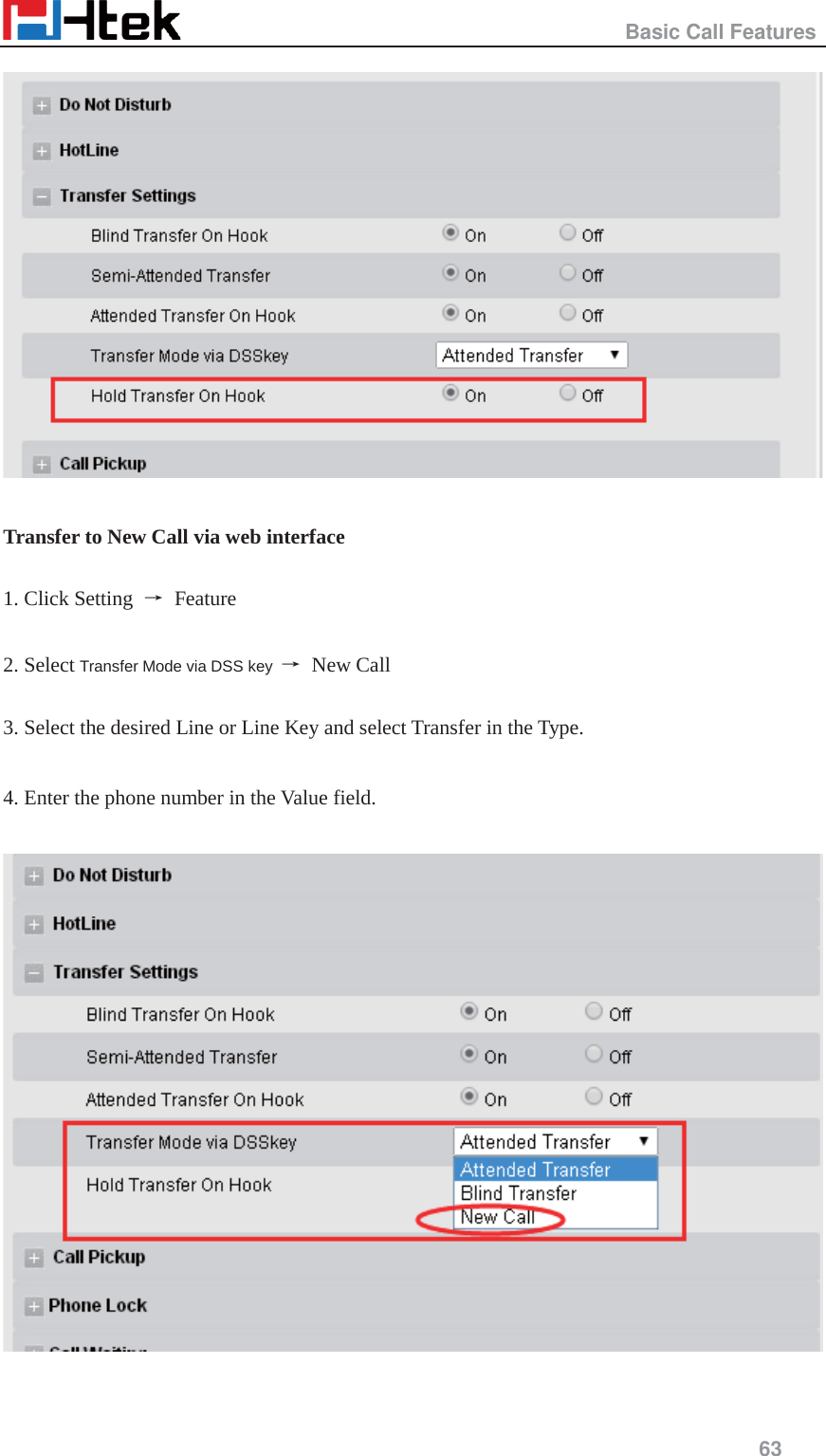

                                                  Basic Call Features     63    Transfer to New Call via web interface  1. Click Setting  ė Feature  2. Select Transfer Mode via DSS key  ė New Call  3. Select the desired Line or Line Key and select Transfer in the Type.  4. Enter the phone number in the Value field.

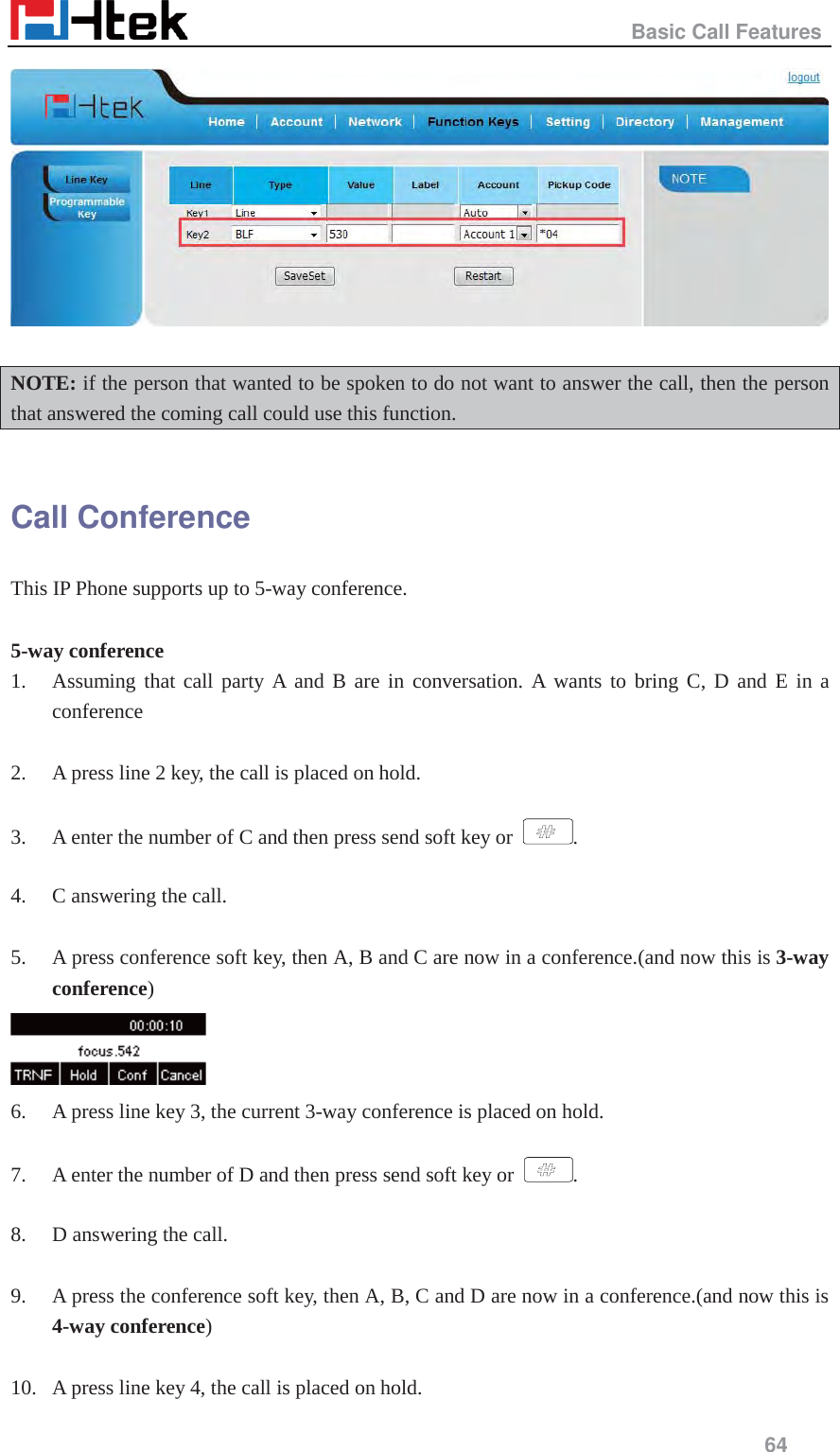

                                                  Basic Call Features     64    NOTE: if the person that wanted to be spoken to do not want to answer the call, then the person that answered the coming call could use this function.  Call Conference This IP Phone supports up to 5-way conference.  5-way conference 1. Assuming that call party A and B are in conversation. A wants to bring C, D and E in a conference  2. A press line 2 key, the call is placed on hold.  3. A enter the number of C and then press send soft key or  .  4. C answering the call.  5. A press conference soft key, then A, B and C are now in a conference.(and now this is 3-way conference)  6. A press line key 3, the current 3-way conference is placed on hold.  7. A enter the number of D and then press send soft key or  .  8. D answering the call.  9. A press the conference soft key, then A, B, C and D are now in a conference.(and now this is 4-way conference)  10. A press line key 4, the call is placed on hold.

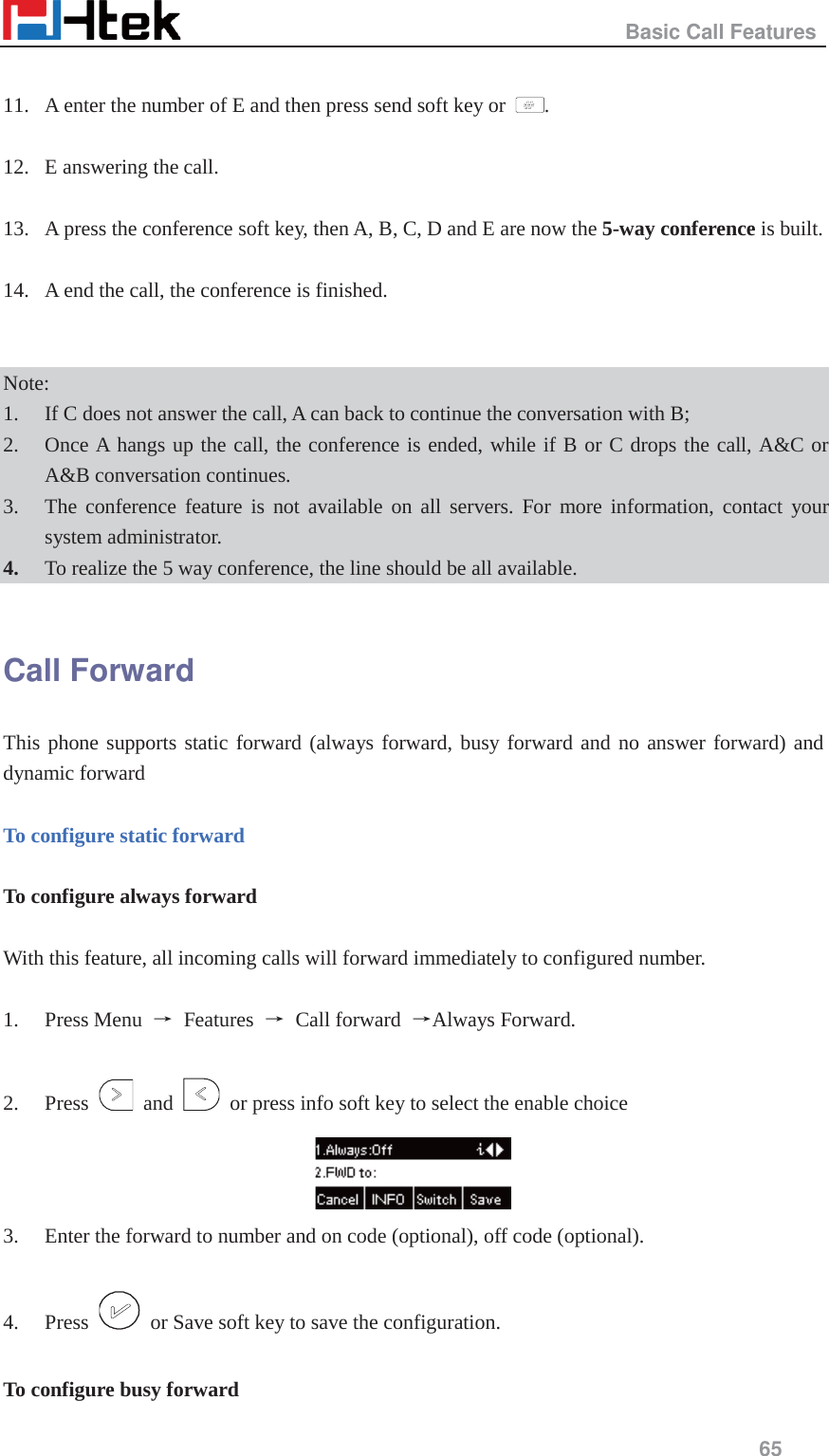

                                                  Basic Call Features     65   11. A enter the number of E and then press send soft key or  .  12. E answering the call.  13. A press the conference soft key, then A, B, C, D and E are now the 5-way conference is built.    14. A end the call, the conference is finished.   Note:  1. If C does not answer the call, A can back to continue the conversation with B;   2. Once A hangs up the call, the conference is ended, while if B or C drops the call, A&C or A&B conversation continues. 3. The conference feature is not available on all servers. For more information, contact your system administrator. 4. To realize the 5 way conference, the line should be all available.  Call Forward This phone supports static forward (always forward, busy forward and no answer forward) and dynamic forward    To configure static forward  To configure always forward  With this feature, all incoming calls will forward immediately to configured number.  1. Press Menu  ė Features ė Call forward ėAlways Forward.  2. Press   and    or press info soft key to select the enable choice  3. Enter the forward to number and on code (optional), off code (optional).  4. Press    or Save soft key to save the configuration.  To configure busy forward

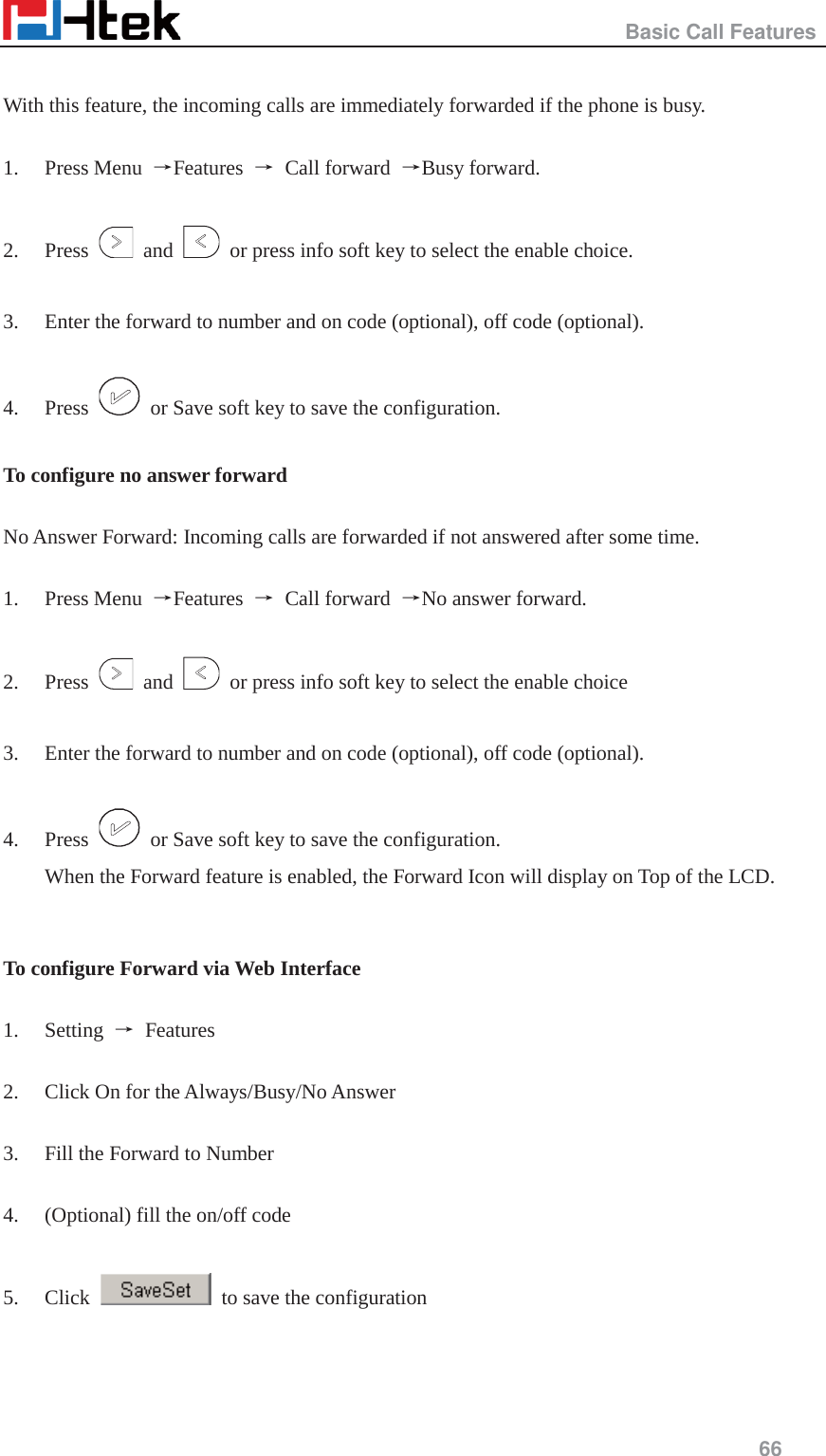

                                                  Basic Call Features     66   With this feature, the incoming calls are immediately forwarded if the phone is busy.  1. Press Menu  ėFeatures  ė Call forward ėBusy forward.  2. Press   and    or press info soft key to select the enable choice.  3. Enter the forward to number and on code (optional), off code (optional).  4. Press    or Save soft key to save the configuration.  To configure no answer forward  No Answer Forward: Incoming calls are forwarded if not answered after some time.  1. Press Menu  ėFeatures  ė Call forward ėNo answer forward.  2. Press   and    or press info soft key to select the enable choice  3. Enter the forward to number and on code (optional), off code (optional).  4. Press    or Save soft key to save the configuration. When the Forward feature is enabled, the Forward Icon will display on Top of the LCD.   To configure Forward via Web Interface  1. Setting  ė Features   2. Click On for the Always/Busy/No Answer  3. Fill the Forward to Number  4. (Optional) fill the on/off code  5. Click    to save the configuration

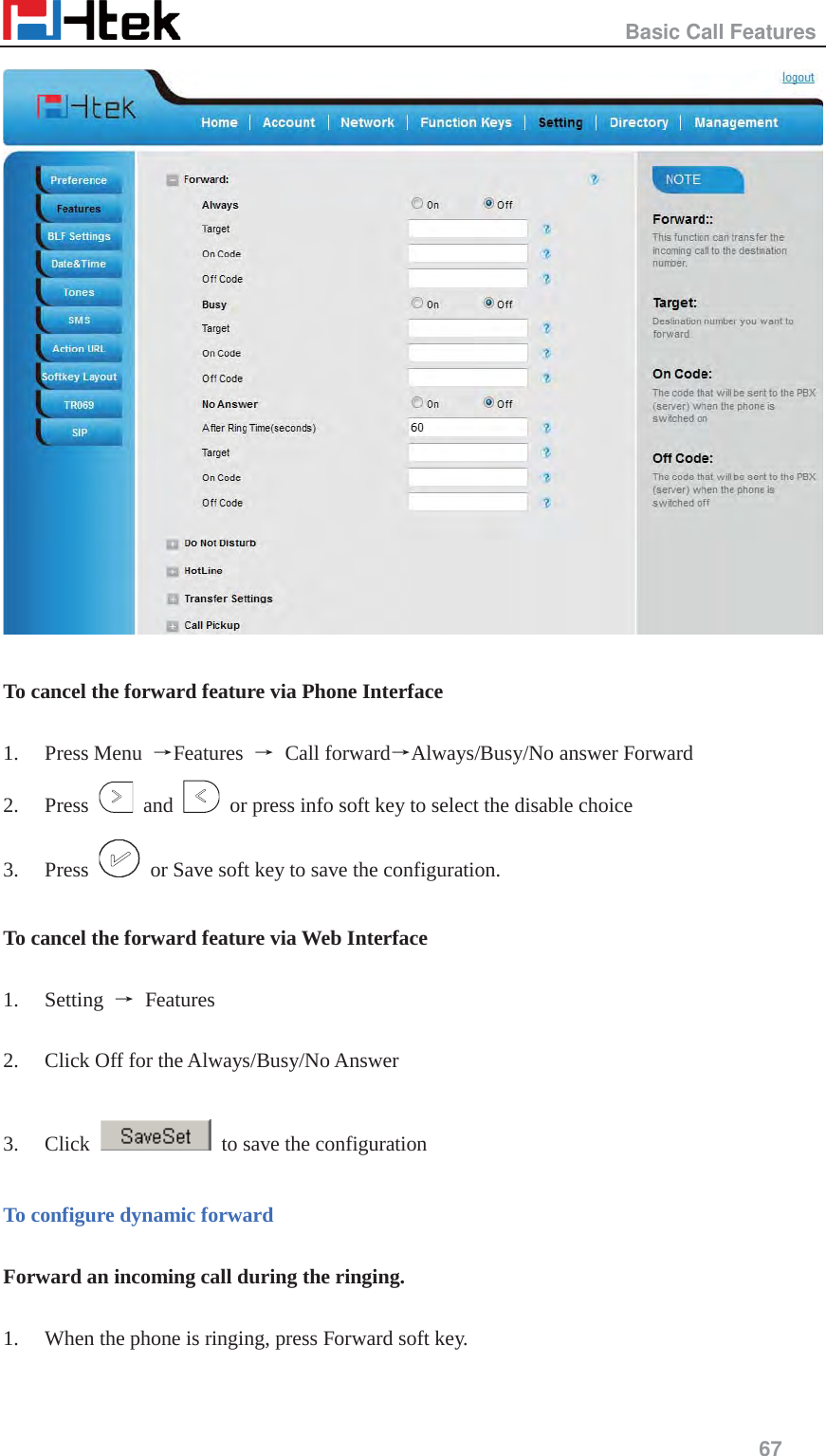

                                                  Basic Call Features     67    To cancel the forward feature via Phone Interface  1. Press Menu  ėFeatures  ė Call forwardėAlways/Busy/No answer Forward 2. Press   and    or press info soft key to select the disable choice 3. Press    or Save soft key to save the configuration.  To cancel the forward feature via Web Interface  1. Setting  ė Features   2. Click Off for the Always/Busy/No Answer  3. Click    to save the configuration  To configure dynamic forward  Forward an incoming call during the ringing.  1. When the phone is ringing, press Forward soft key.

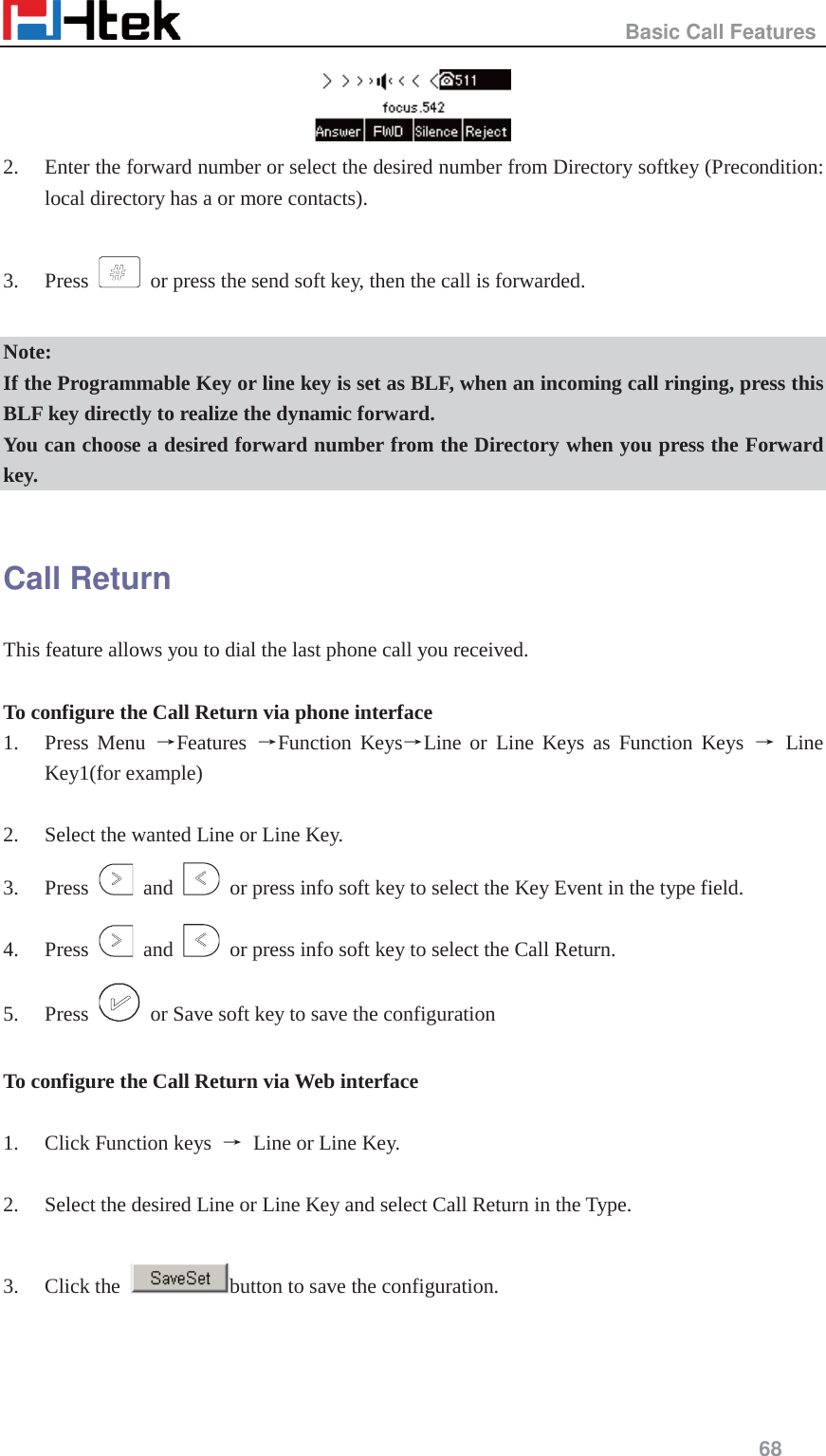

                                                  Basic Call Features     68   2. Enter the forward number or select the desired number from Directory softkey (Precondition: local directory has a or more contacts).  3. Press    or press the send soft key, then the call is forwarded.  Note: If the Programmable Key or line key is set as BLF, when an incoming call ringing, press this BLF key directly to realize the dynamic forward. You can choose a desired forward number from the Directory when you press the Forward key.  Call Return This feature allows you to dial the last phone call you received.  To configure the Call Return via phone interface 1. Press Menu ėFeatures  ėFunction KeysėLine or Line Keys as Function Keys ė Line Key1(for example)  2. Select the wanted Line or Line Key. 3. Press   and    or press info soft key to select the Key Event in the type field. 4. Press   and    or press info soft key to select the Call Return. 5. Press    or Save soft key to save the configuration  To configure the Call Return via Web interface  1. Click Function keys  ė Line or Line Key.  2. Select the desired Line or Line Key and select Call Return in the Type.  3. Click the  button to save the configuration.

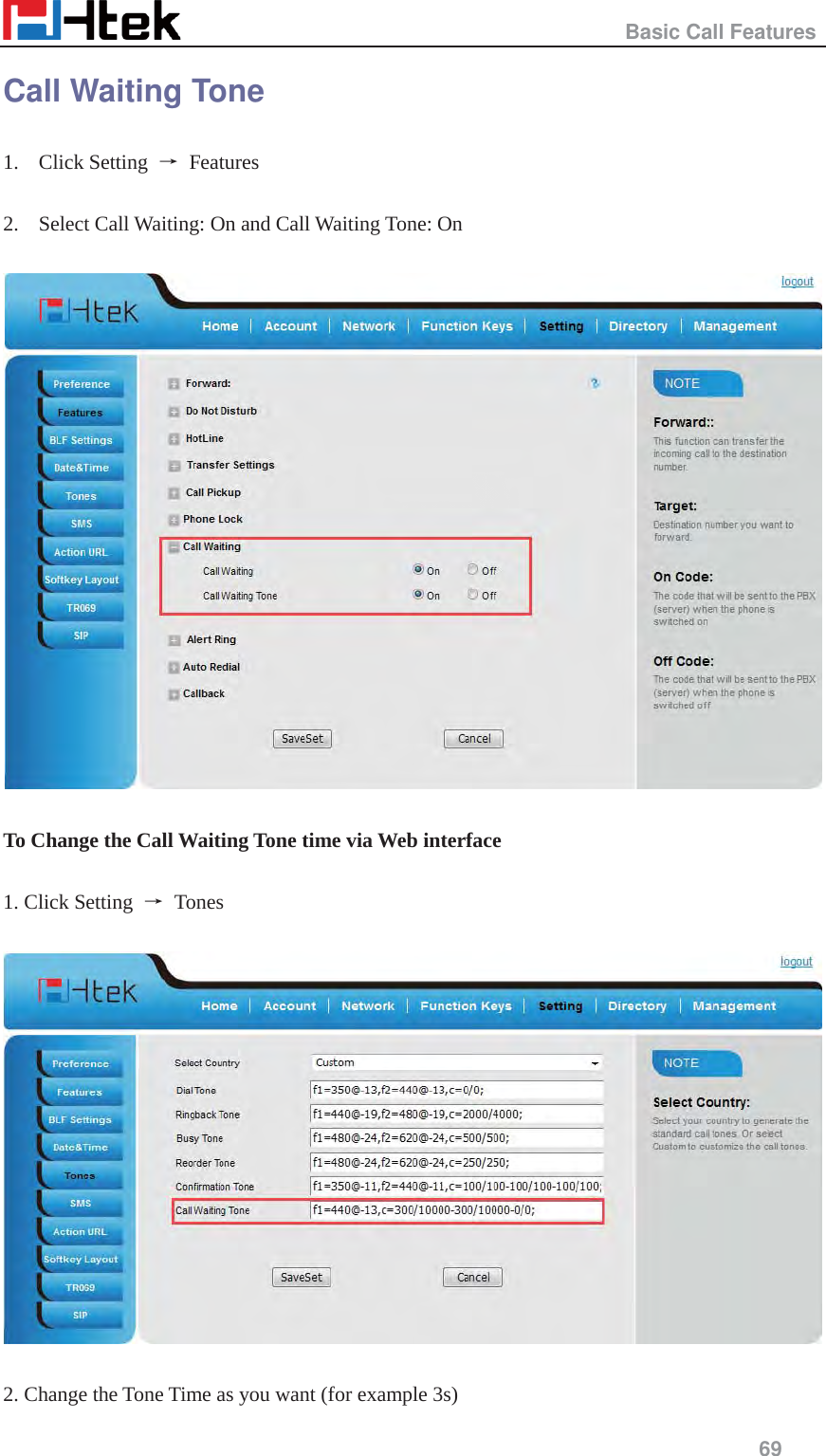

                                                  Basic Call Features     69  Call Waiting Tone 1. Click Setting  ė Features  2. Select Call Waiting: On and Call Waiting Tone: On    To Change the Call Waiting Tone time via Web interface  1. Click Setting  ė Tones     2. Change the Tone Time as you want (for example 3s)

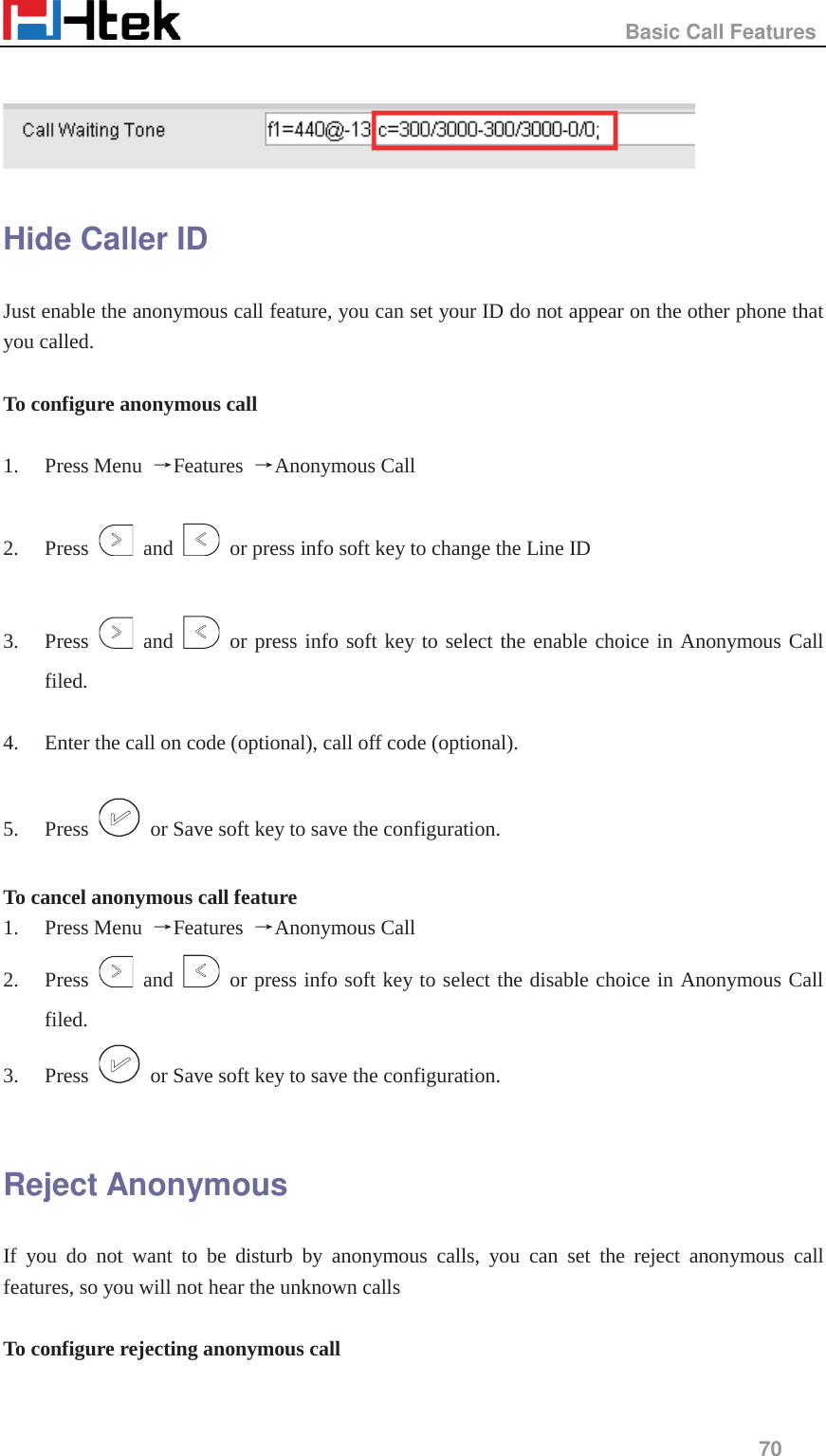

                                                  Basic Call Features     70    Hide Caller ID   Just enable the anonymous call feature, you can set your ID do not appear on the other phone that you called.  To configure anonymous call    1. Press Menu  ėFeatures  ėAnonymous Call  2. Press   and    or press info soft key to change the Line ID    3. Press   and   or press info soft key to select the enable choice in Anonymous Call filed.  4. Enter the call on code (optional), call off code (optional).  5. Press    or Save soft key to save the configuration.  To cancel anonymous call feature 1. Press Menu  ėFeatures  ėAnonymous Call 2. Press   and   or press info soft key to select the disable choice in Anonymous Call filed.  3. Press    or Save soft key to save the configuration.  Reject Anonymous If you do not want to be disturb by anonymous calls, you can set the reject anonymous call features, so you will not hear the unknown calls  To configure rejecting anonymous call

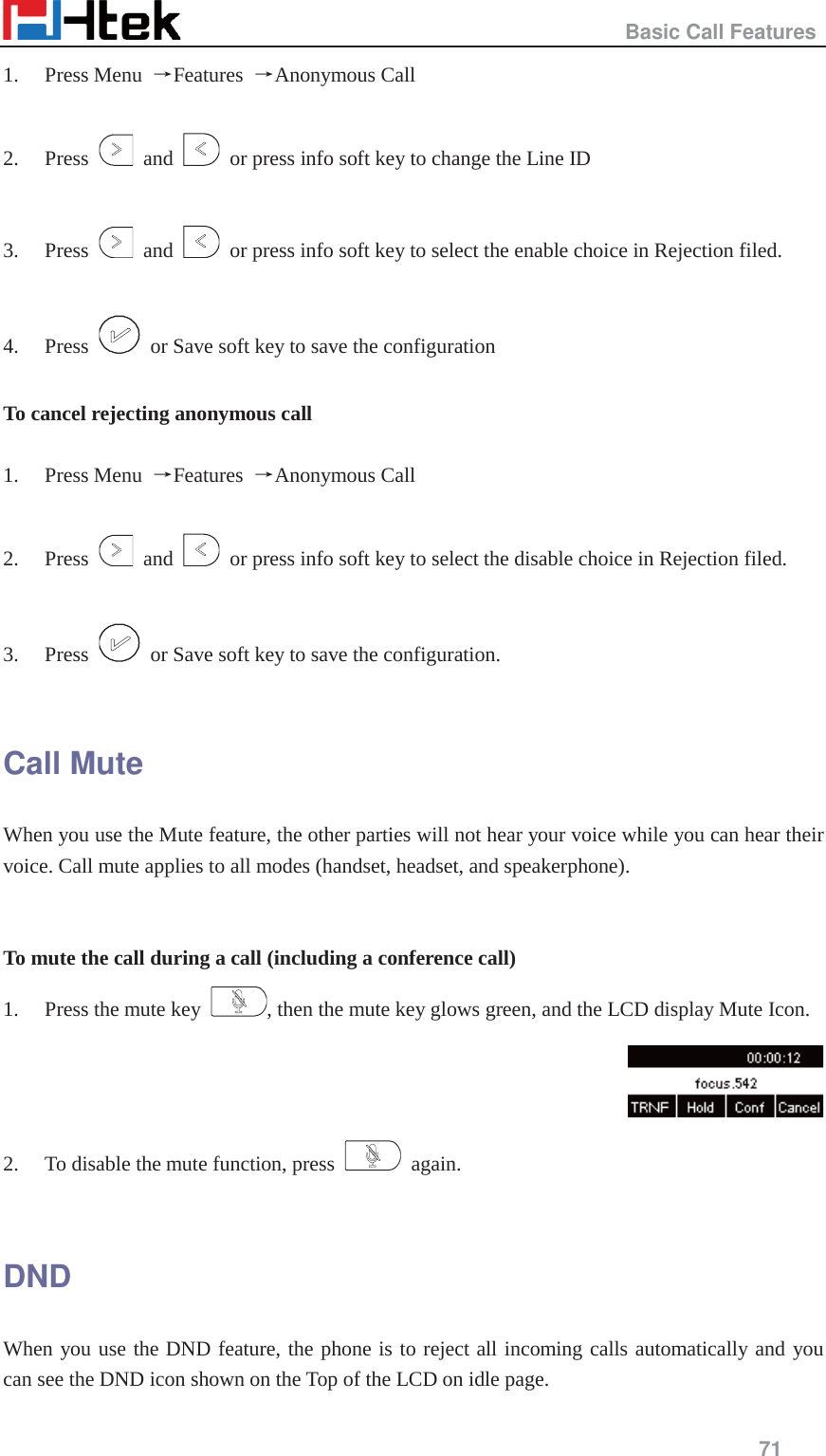

                                                  Basic Call Features     71  1. Press Menu  ėFeatures  ėAnonymous Call  2. Press   and    or press info soft key to change the Line ID    3. Press   and    or press info soft key to select the enable choice in Rejection filed.    4. Press    or Save soft key to save the configuration  To cancel rejecting anonymous call  1. Press Menu  ėFeatures  ėAnonymous Call  2. Press   and    or press info soft key to select the disable choice in Rejection filed.    3. Press    or Save soft key to save the configuration.  Call Mute When you use the Mute feature, the other parties will not hear your voice while you can hear their voice. Call mute applies to all modes (handset, headset, and speakerphone).   To mute the call during a call (including a conference call) 1. Press the mute key  , then the mute key glows green, and the LCD display Mute Icon.  2. To disable the mute function, press   again.  DND When you use the DND feature, the phone is to reject all incoming calls automatically and you can see the DND icon shown on the Top of the LCD on idle page.

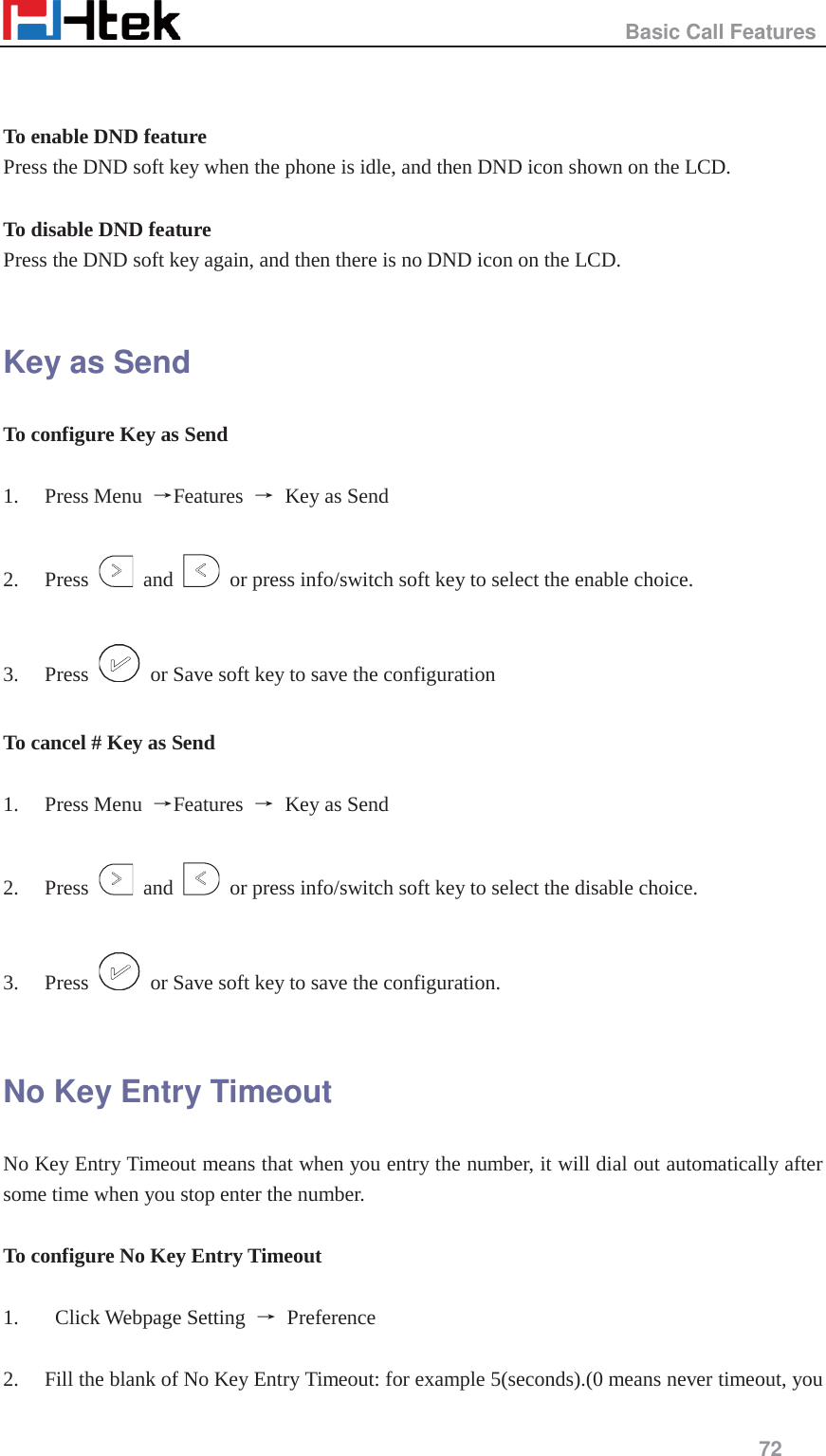

                                                  Basic Call Features     72    To enable DND feature   Press the DND soft key when the phone is idle, and then DND icon shown on the LCD.  To disable DND feature Press the DND soft key again, and then there is no DND icon on the LCD.  Key as Send To configure Key as Send    1. Press Menu  ėFeatures  ė  Key as Send  2. Press   and    or press info/switch soft key to select the enable choice.  3. Press    or Save soft key to save the configuration  To cancel # Key as Send    1. Press Menu  ėFeatures  ė  Key as Send  2. Press   and    or press info/switch soft key to select the disable choice.  3. Press    or Save soft key to save the configuration.  No Key Entry Timeout No Key Entry Timeout means that when you entry the number, it will dial out automatically after some time when you stop enter the number.  To configure No Key Entry Timeout  1.  Click Webpage Setting ė Preference  2. Fill the blank of No Key Entry Timeout: for example 5(seconds).(0 means never timeout, you
                                                  Basic Call Features     73  should press the send key the dial out the number.  3. Click the  button to save the configuration.     Dail-Now Timeout Dial-Now Timeout means that when you entry the number which matching with dial plan, it will dial out automatically after some time when you stop enter the number.  To configure Dial-Now Timeout via web interface:  1.  Click Webpage Setting ė Preference  2. Fill the blank of Dial-Now Timeout: for example 5(seconds).(0 means dial out immediately).  3. Click the  button to save the configuration  Keypad Lock To enable Keypad Lock via Phone

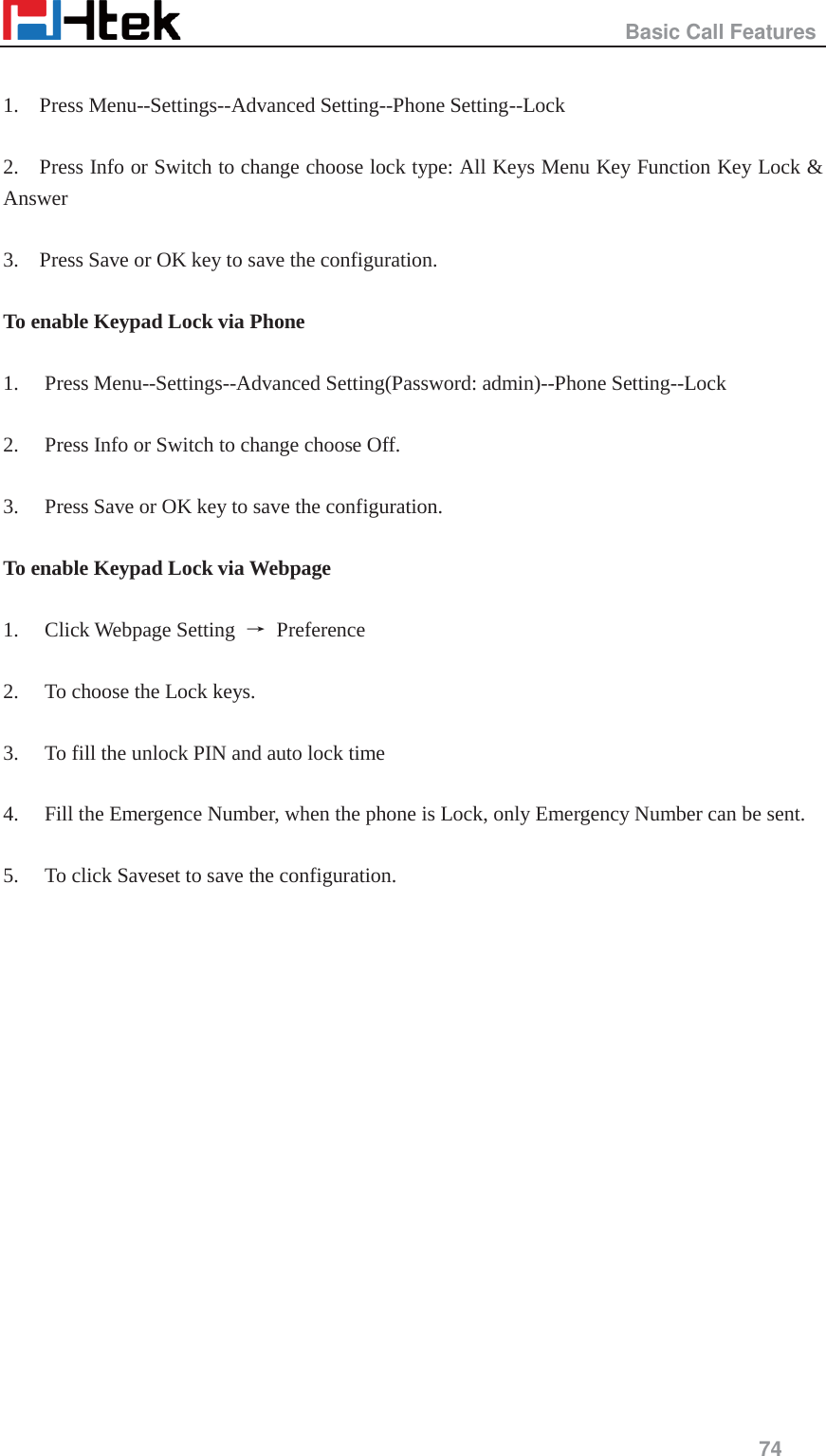

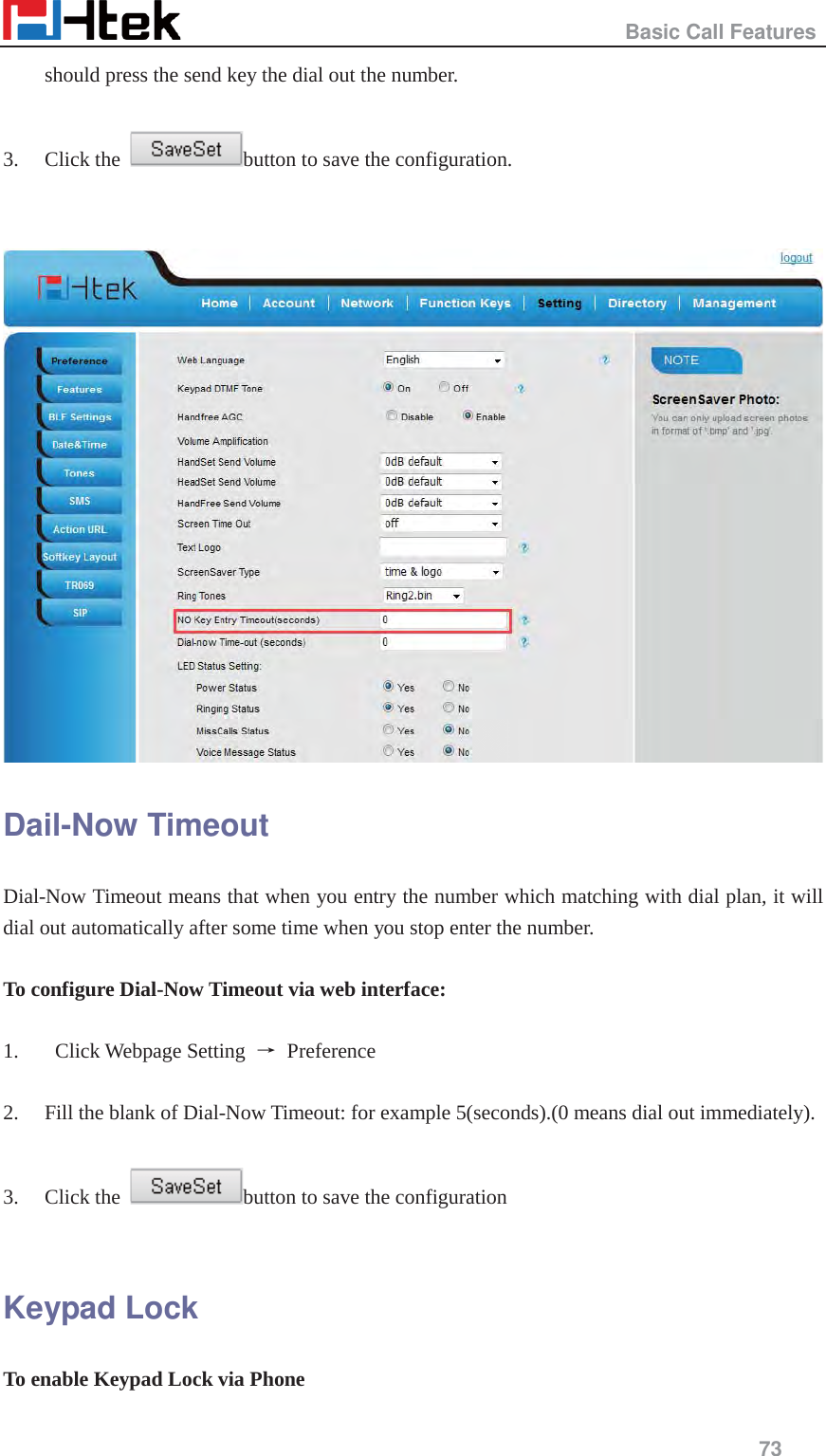

                                                  Basic Call Features     74   1.    Press Menu--Settings--Advanced Setting--Phone Setting--Lock  2.    Press Info or Switch to change choose lock type: All Keys Menu Key Function Key Lock & Answer  3.    Press Save or OK key to save the configuration.  To enable Keypad Lock via Phone  1. Press Menu--Settings--Advanced Setting(Password: admin)--Phone Setting--Lock  2. Press Info or Switch to change choose Off.  3. Press Save or OK key to save the configuration.  To enable Keypad Lock via Webpage  1. Click Webpage Setting  ė Preference  2. To choose the Lock keys.    3. To fill the unlock PIN and auto lock time  4. Fill the Emergence Number, when the phone is Lock, only Emergency Number can be sent.  5. To click Saveset to save the configuration.

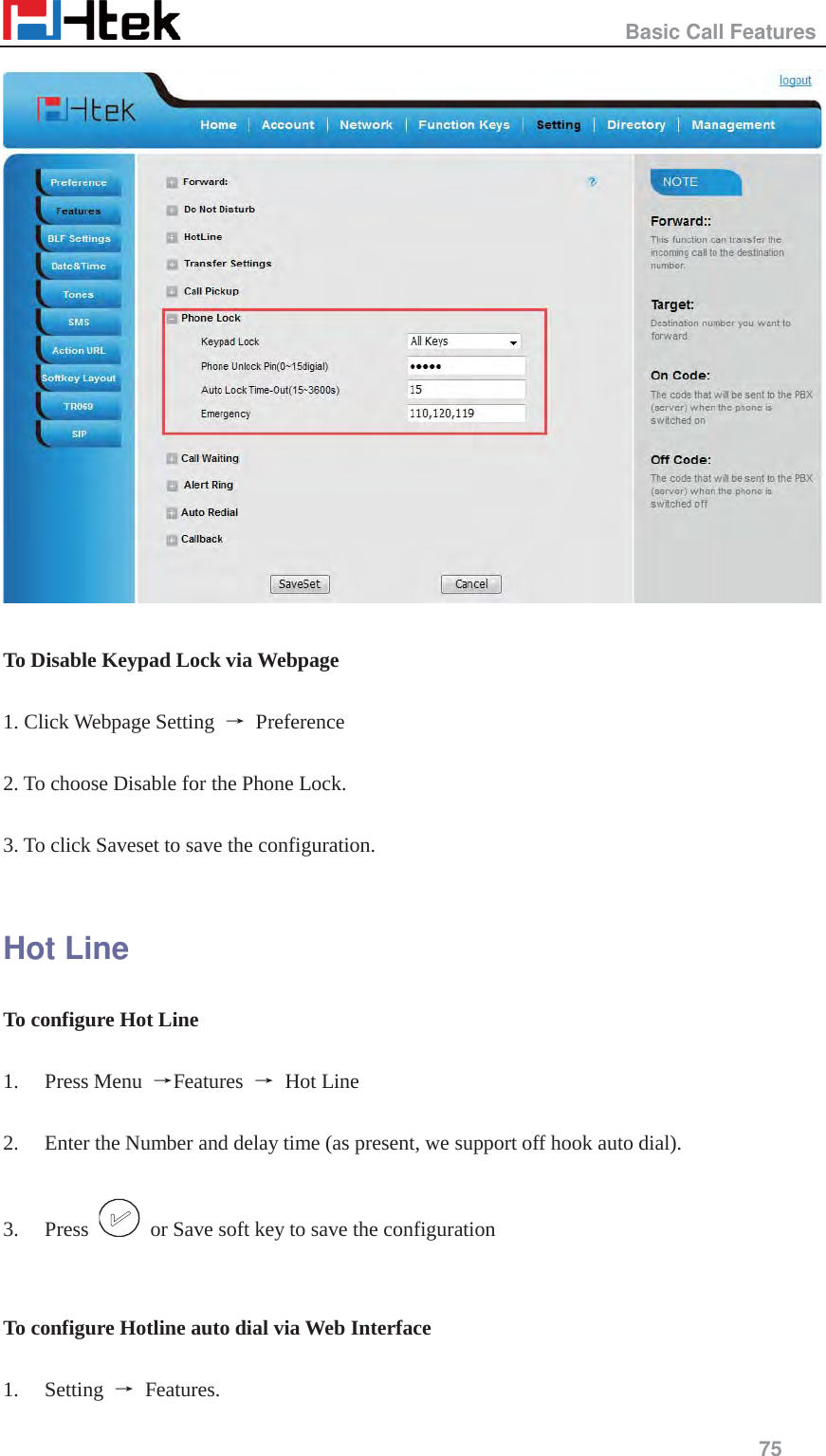

                                                  Basic Call Features     75    To Disable Keypad Lock via Webpage  1. Click Webpage Setting  ė Preference  2. To choose Disable for the Phone Lock.  3. To click Saveset to save the configuration.  Hot Line To configure Hot Line  1. Press Menu  ėFeatures  ė Hot Line  2. Enter the Number and delay time (as present, we support off hook auto dial).  3. Press    or Save soft key to save the configuration   To configure Hotline auto dial via Web Interface  1. Setting  ė Features.

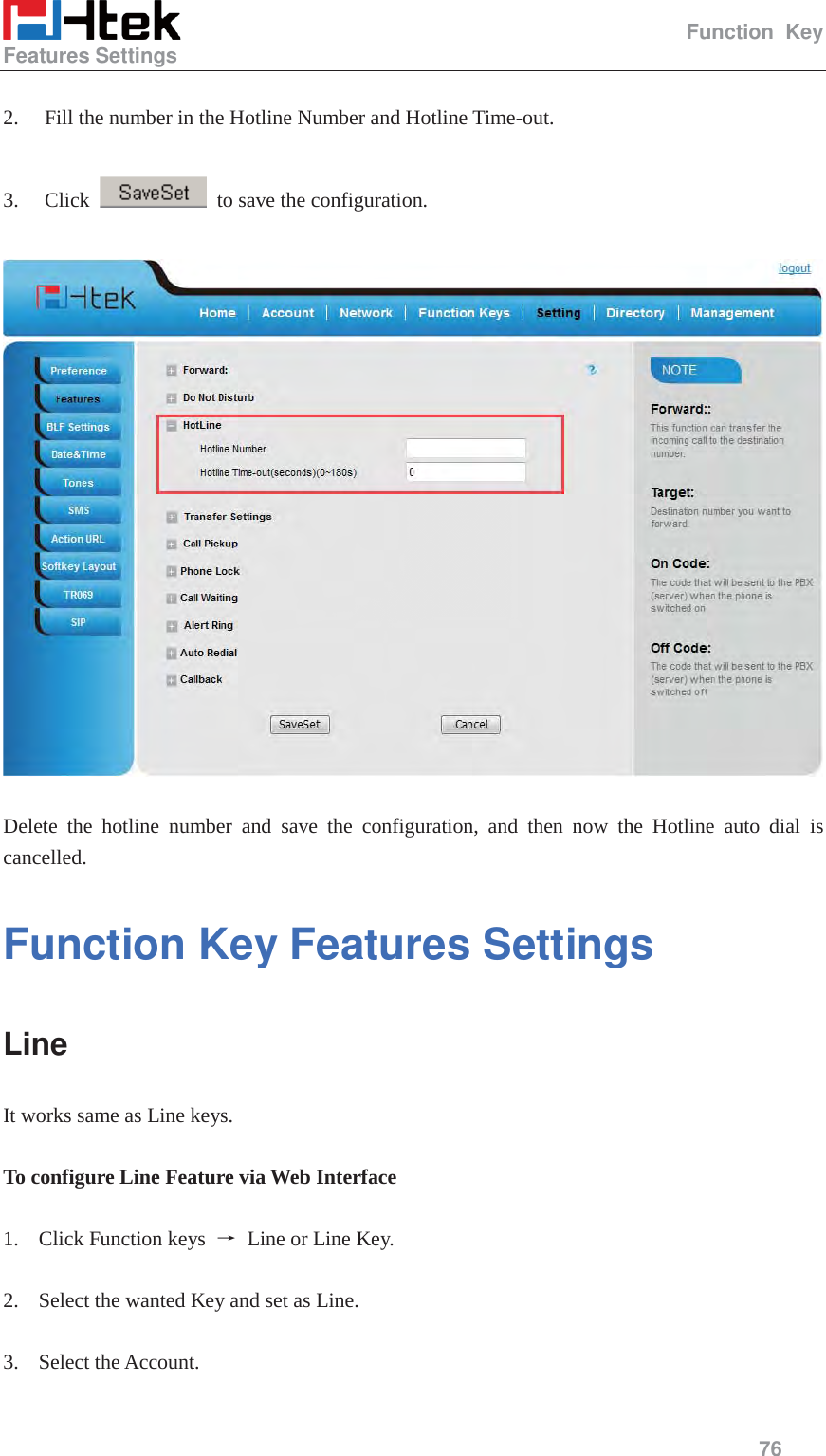

                                                  Function Key Features Settings     76   2. Fill the number in the Hotline Number and Hotline Time-out.  3. Click    to save the configuration.    Delete the hotline number and save the configuration, and then now the Hotline auto dial is cancelled. Function Key Features Settings   Line It works same as Line keys.  To configure Line Feature via Web Interface  1. Click Function keys  ė Line or Line Key.  2. Select the wanted Key and set as Line.  3. Select the Account.

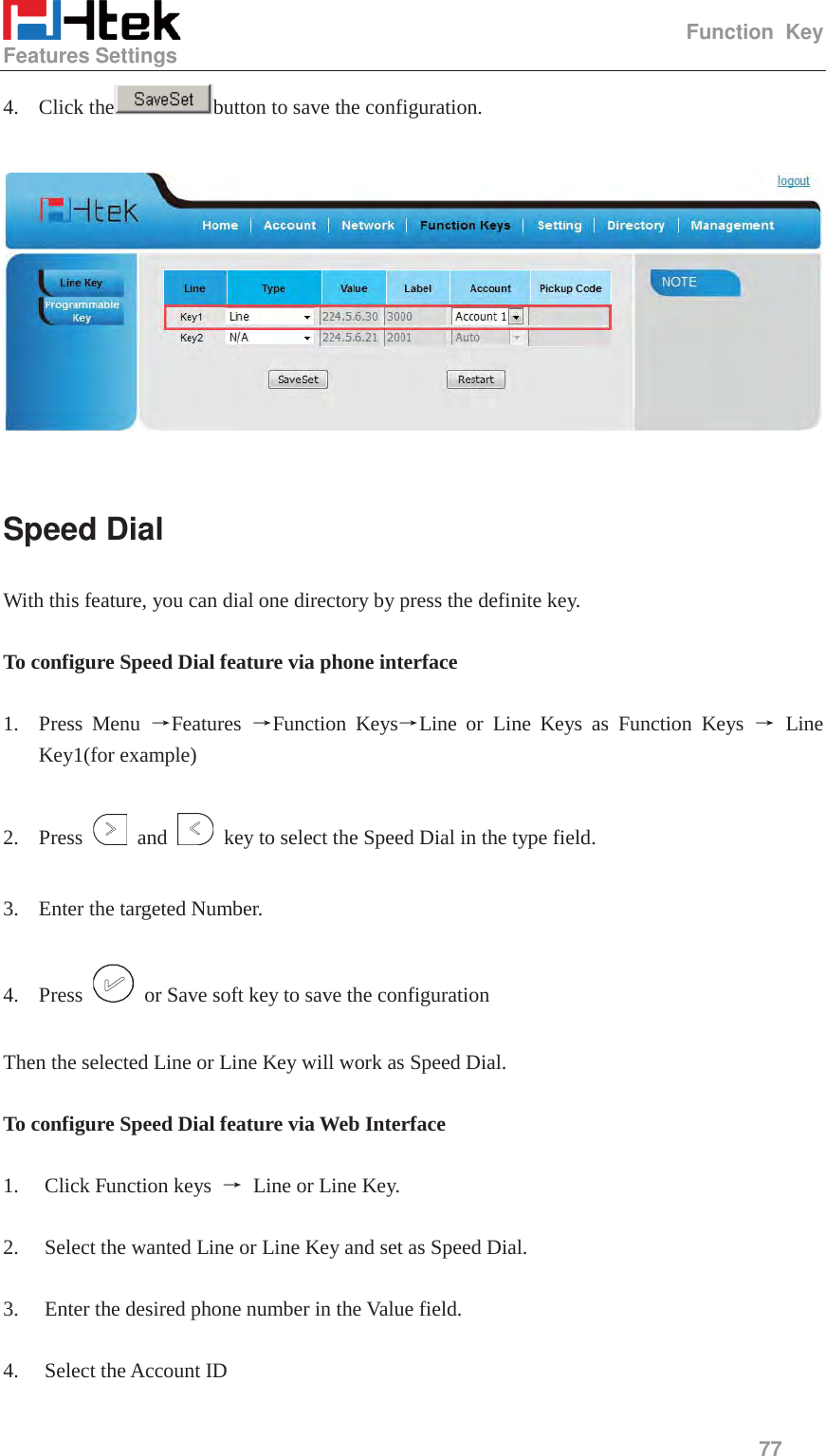

                                                  Function Key Features Settings     77  4. Click the button to save the configuration.    Speed Dial With this feature, you can dial one directory by press the definite key.      To configure Speed Dial feature via phone interface  1. Press Menu ėFeatures  ėFunction KeysėLine or Line Keys as Function Keys ė Line Key1(for example)  2. Press   and    key to select the Speed Dial in the type field.  3. Enter the targeted Number.  4. Press    or Save soft key to save the configuration  Then the selected Line or Line Key will work as Speed Dial.  To configure Speed Dial feature via Web Interface  1. Click Function keys  ė Line or Line Key.  2. Select the wanted Line or Line Key and set as Speed Dial.  3. Enter the desired phone number in the Value field.  4. Select the Account ID

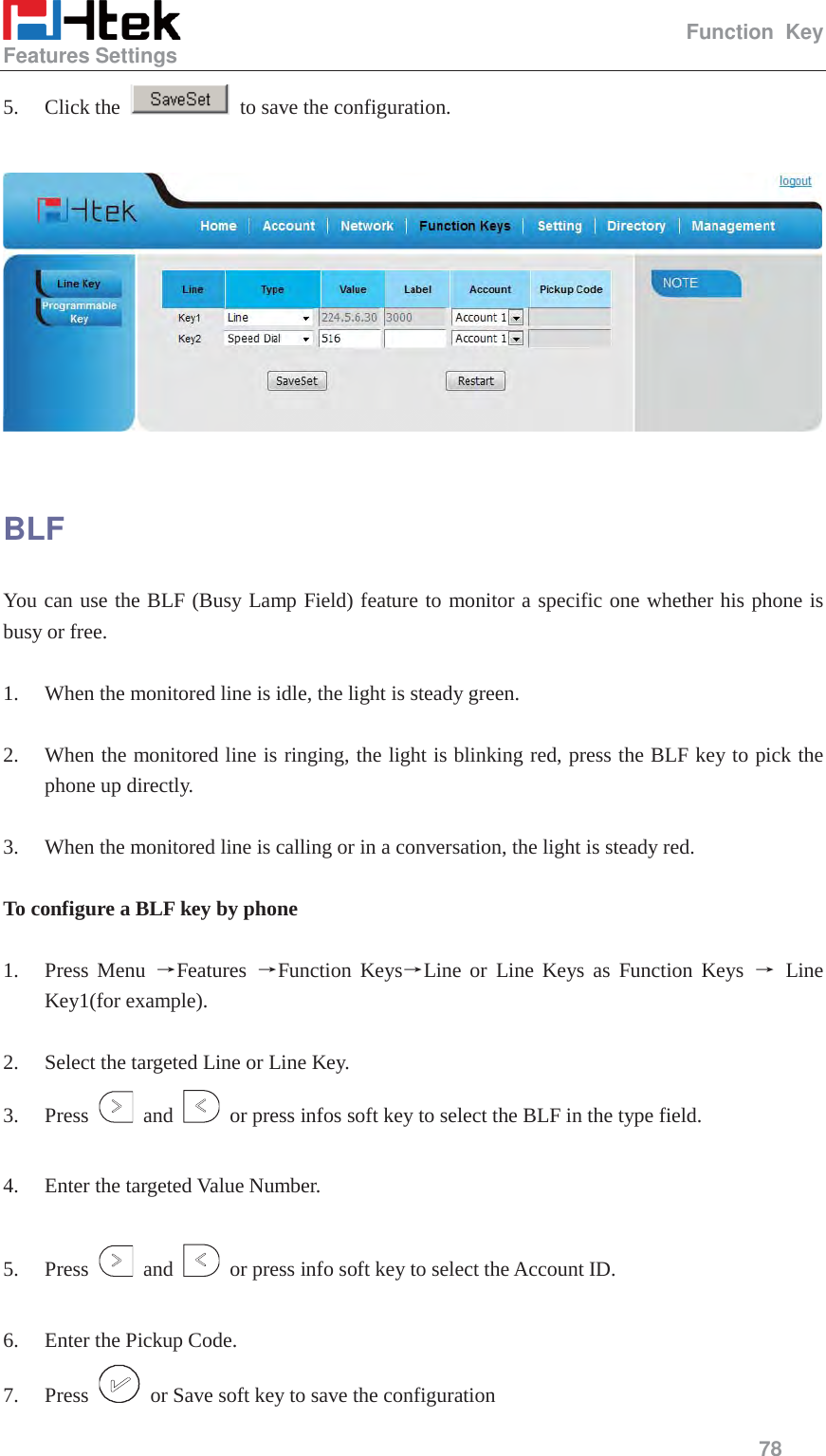

                                                  Function Key Features Settings     78  5. Click the    to save the configuration.    BLF You can use the BLF (Busy Lamp Field) feature to monitor a specific one whether his phone is busy or free.  1. When the monitored line is idle, the light is steady green.  2. When the monitored line is ringing, the light is blinking red, press the BLF key to pick the phone up directly.  3. When the monitored line is calling or in a conversation, the light is steady red.  To configure a BLF key by phone  1. Press Menu ėFeatures  ėFunction KeysėLine or Line Keys as Function Keys ė Line Key1(for example).  2. Select the targeted Line or Line Key. 3. Press   and    or press infos soft key to select the BLF in the type field.  4. Enter the targeted Value Number.  5. Press   and    or press info soft key to select the Account ID.  6. Enter the Pickup Code. 7. Press    or Save soft key to save the configuration

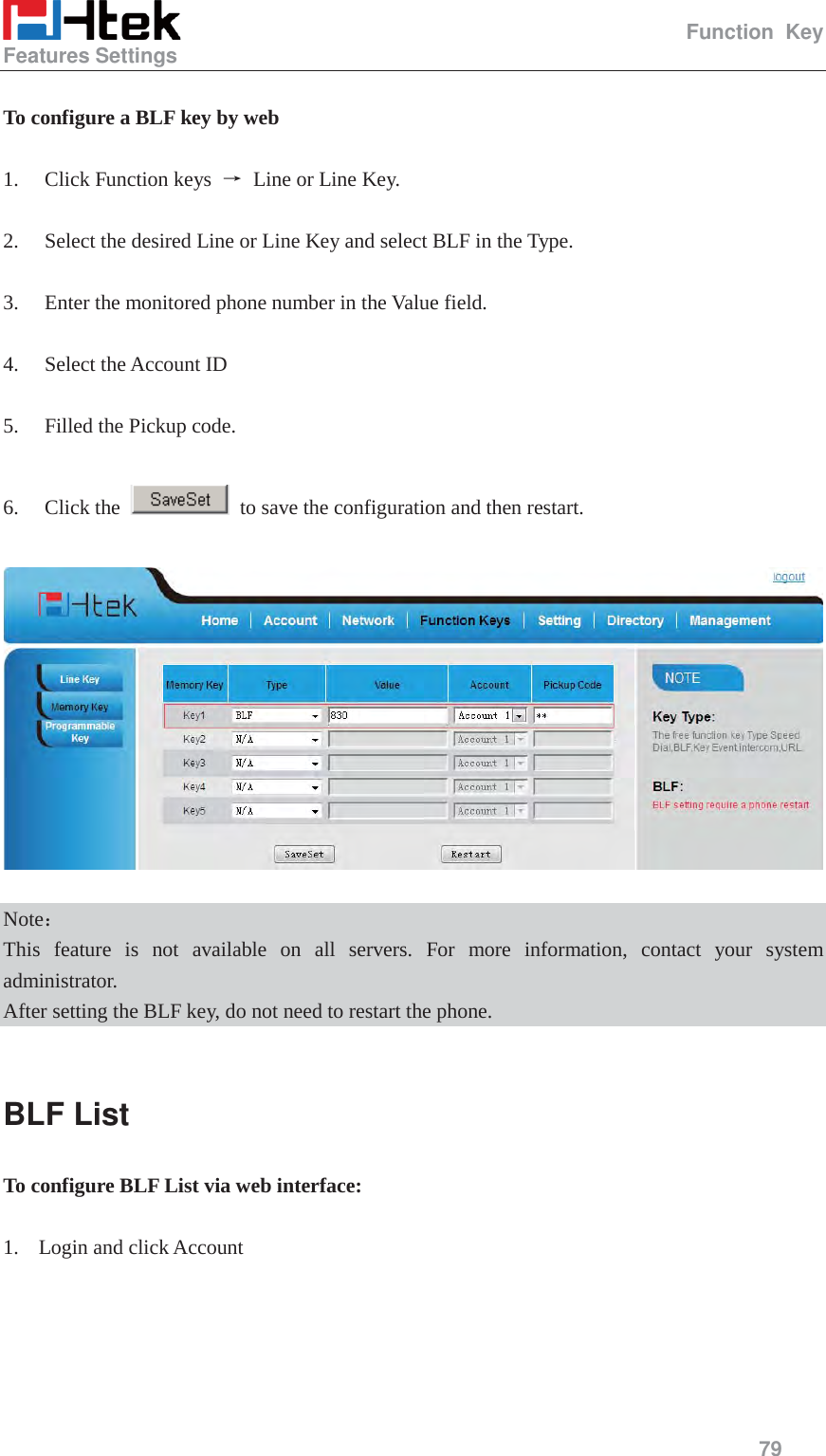

                                                  Function Key Features Settings     79   To configure a BLF key by web  1. Click Function keys  ė Line or Line Key.  2. Select the desired Line or Line Key and select BLF in the Type.  3. Enter the monitored phone number in the Value field.  4. Select the Account ID  5. Filled the Pickup code.  6. Click the    to save the configuration and then restart.    Note˖ This feature is not available on all servers. For more information, contact your system administrator. After setting the BLF key, do not need to restart the phone.  BLF List To configure BLF List via web interface:  1. Login and click Account

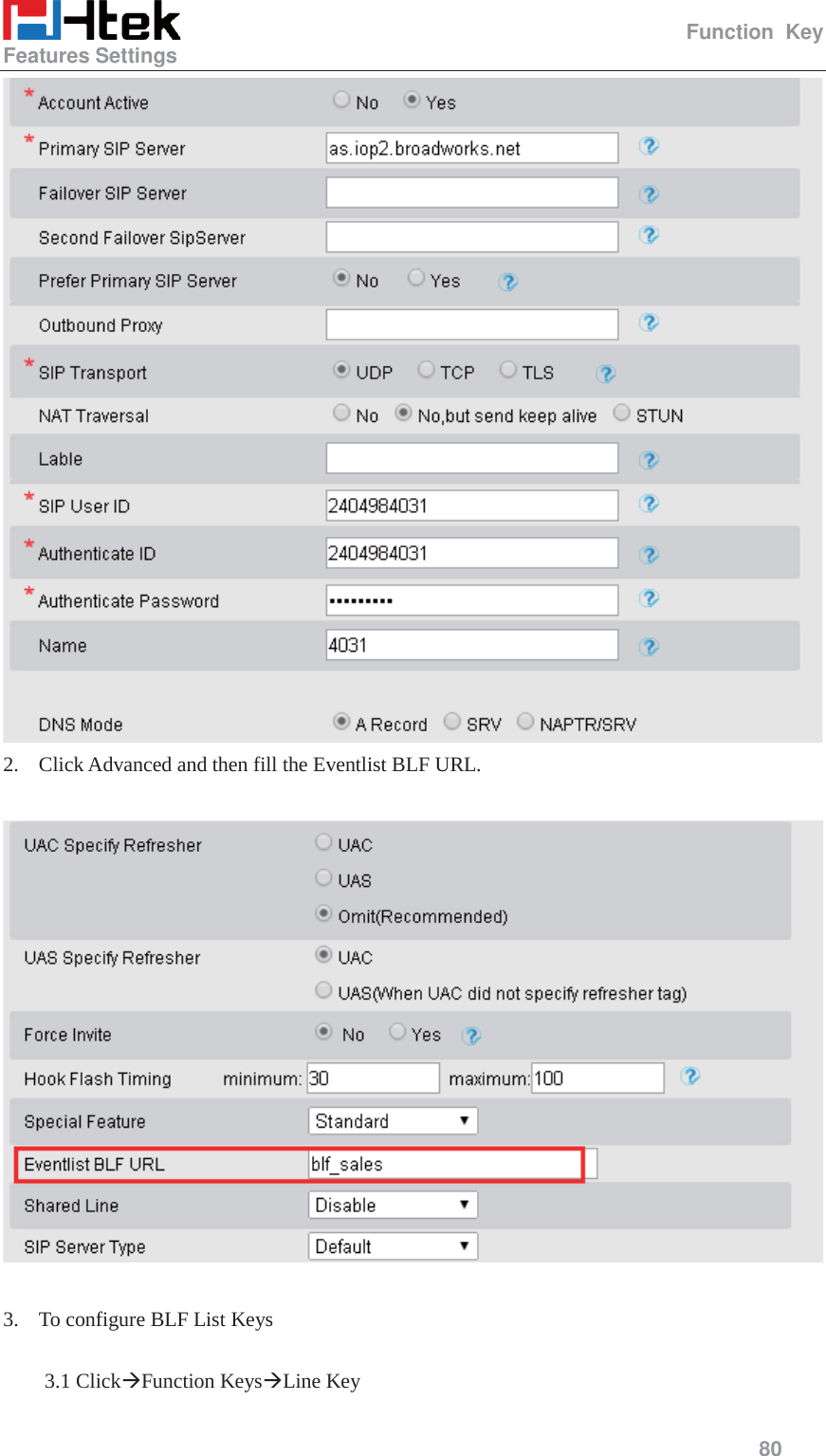

                                                  Function Key Features Settings     80   2. Click Advanced and then fill the Eventlist BLF URL.    3. To configure BLF List Keys  3.1 ClickÆFunction KeysÆLine Key

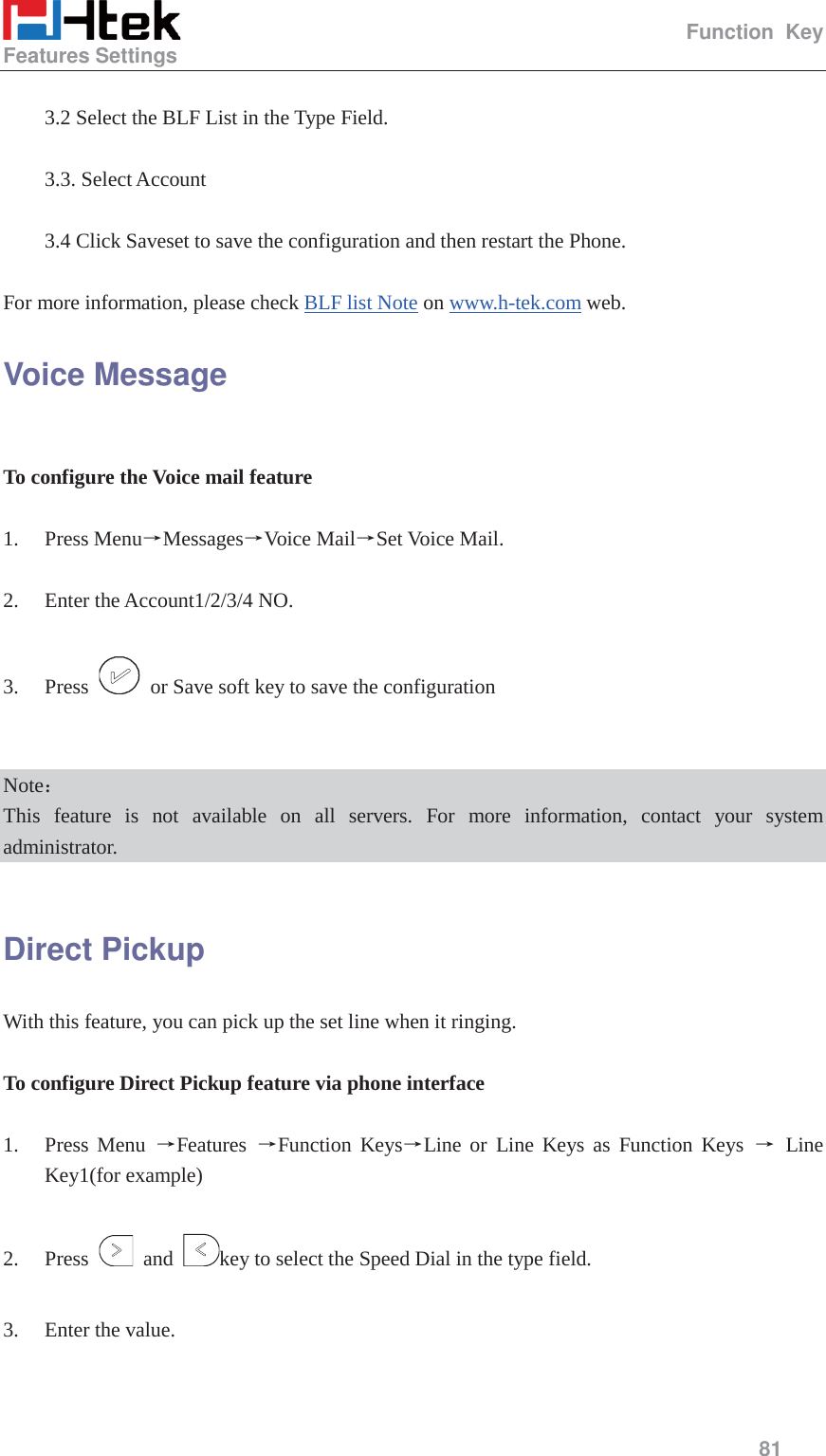

                                                  Function Key Features Settings     81   3.2 Select the BLF List in the Type Field.  3.3. Select Account  3.4 Click Saveset to save the configuration and then restart the Phone.  For more information, please check BLF list Note on www.h-tek.com web. Voice Message  To configure the Voice mail feature  1. Press MenuėMessagesėVoice MailėSet Voice Mail.  2. Enter the Account1/2/3/4 NO.  3. Press    or Save soft key to save the configuration   Note˖ This feature is not available on all servers. For more information, contact your system administrator.  Direct Pickup With this feature, you can pick up the set line when it ringing.      To configure Direct Pickup feature via phone interface  1. Press Menu ėFeatures  ėFunction KeysėLine or Line Keys as Function Keys ė Line Key1(for example)  2. Press   and  key to select the Speed Dial in the type field.  3. Enter the value.

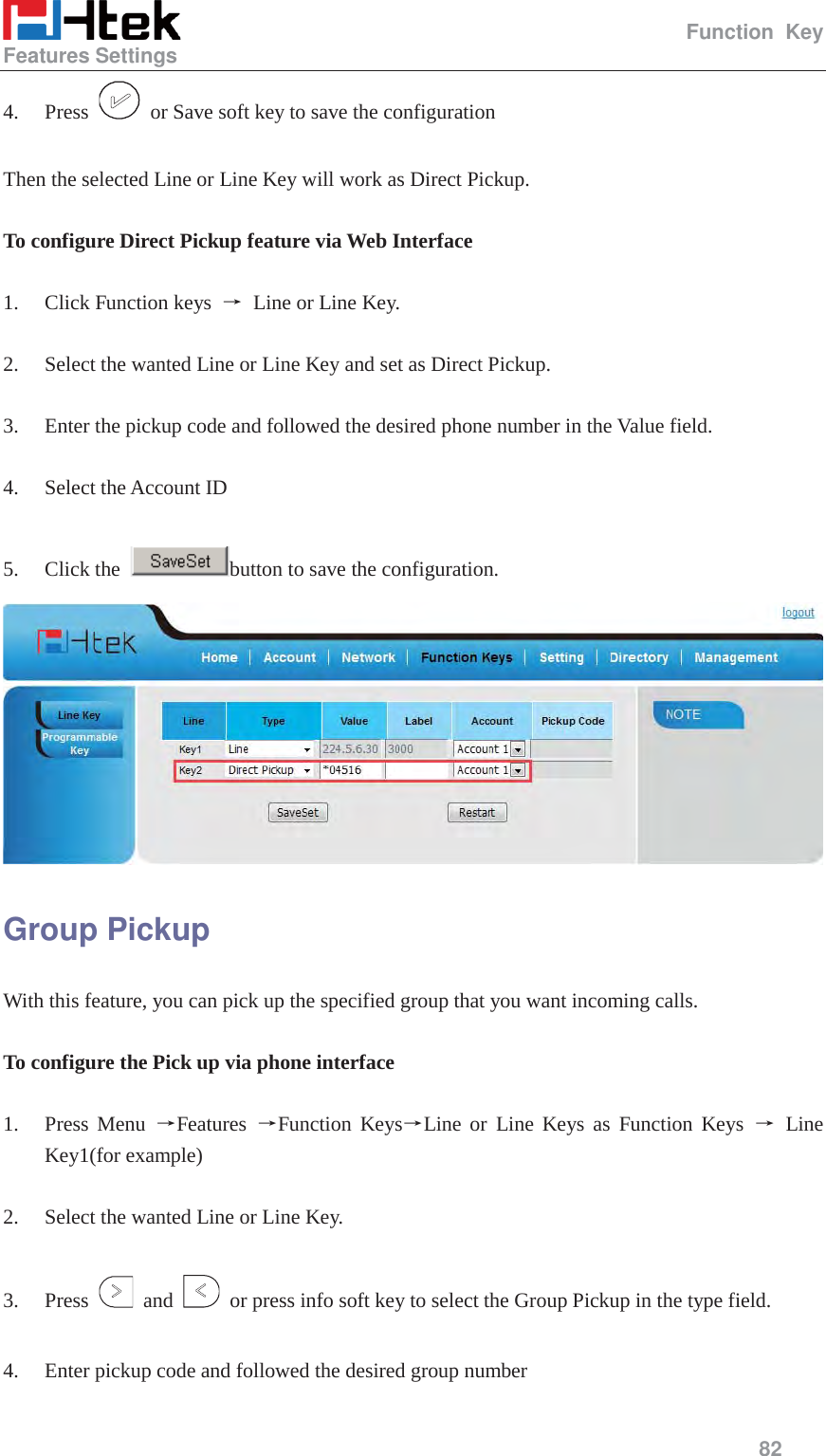

                                                  Function Key Features Settings     82  4. Press    or Save soft key to save the configuration  Then the selected Line or Line Key will work as Direct Pickup.  To configure Direct Pickup feature via Web Interface  1. Click Function keys  ė Line or Line Key.  2. Select the wanted Line or Line Key and set as Direct Pickup.  3. Enter the pickup code and followed the desired phone number in the Value field.  4. Select the Account ID  5. Click the  button to save the configuration.  Group Pickup With this feature, you can pick up the specified group that you want incoming calls.  To configure the Pick up via phone interface  1. Press Menu ėFeatures  ėFunction KeysėLine or Line Keys as Function Keys ė Line Key1(for example)  2. Select the wanted Line or Line Key.  3. Press   and    or press info soft key to select the Group Pickup in the type field.  4. Enter pickup code and followed the desired group number

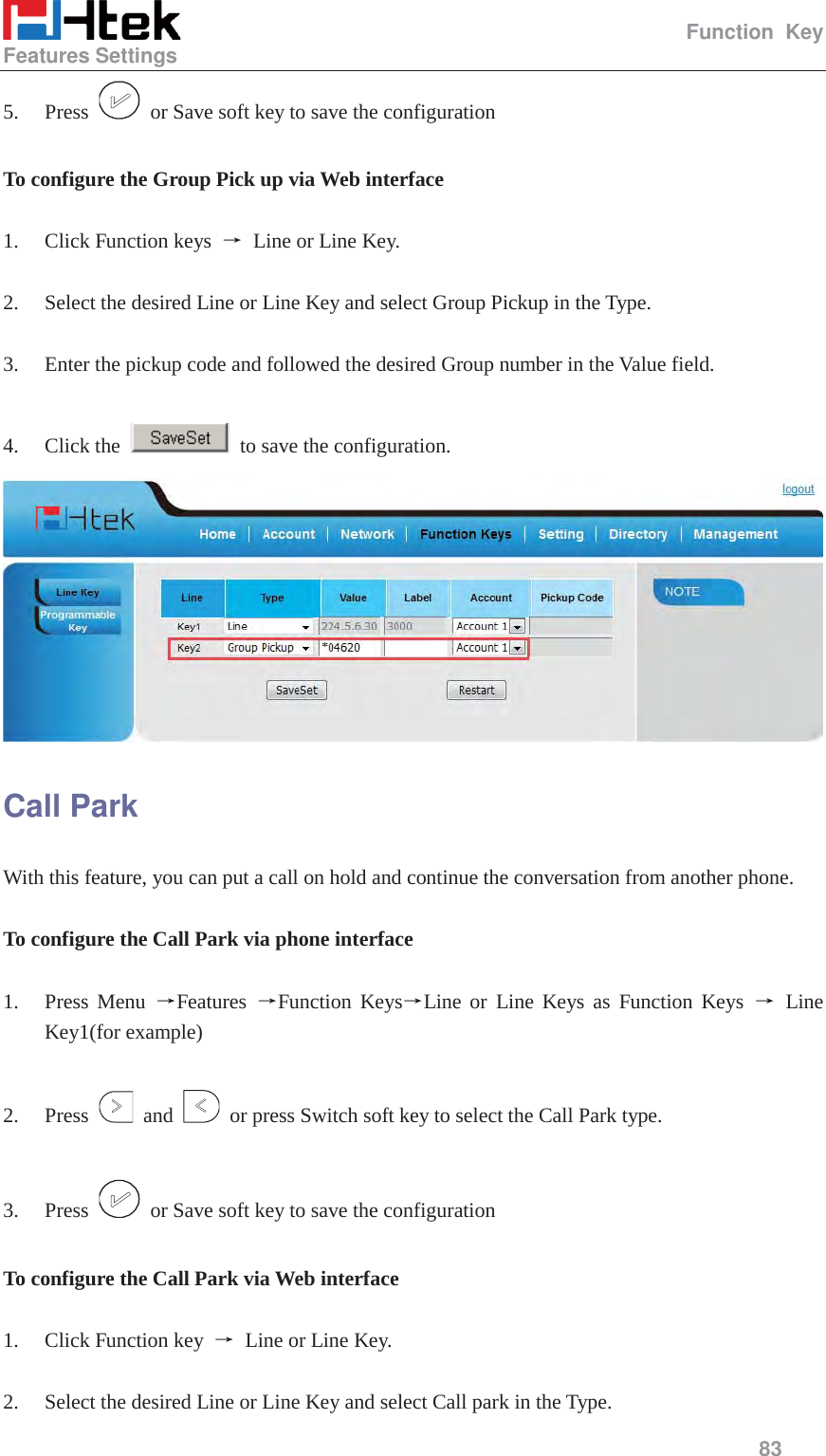

                                                  Function Key Features Settings     83  5. Press    or Save soft key to save the configuration  To configure the Group Pick up via Web interface  1. Click Function keys  ė Line or Line Key.  2. Select the desired Line or Line Key and select Group Pickup in the Type.  3. Enter the pickup code and followed the desired Group number in the Value field.  4. Click the    to save the configuration.  Call Park With this feature, you can put a call on hold and continue the conversation from another phone.  To configure the Call Park via phone interface  1. Press Menu ėFeatures  ėFunction KeysėLine or Line Keys as Function Keys ė Line Key1(for example)  2. Press   and    or press Switch soft key to select the Call Park type.  3. Press    or Save soft key to save the configuration  To configure the Call Park via Web interface  1. Click Function key  ė Line or Line Key.  2. Select the desired Line or Line Key and select Call park in the Type.

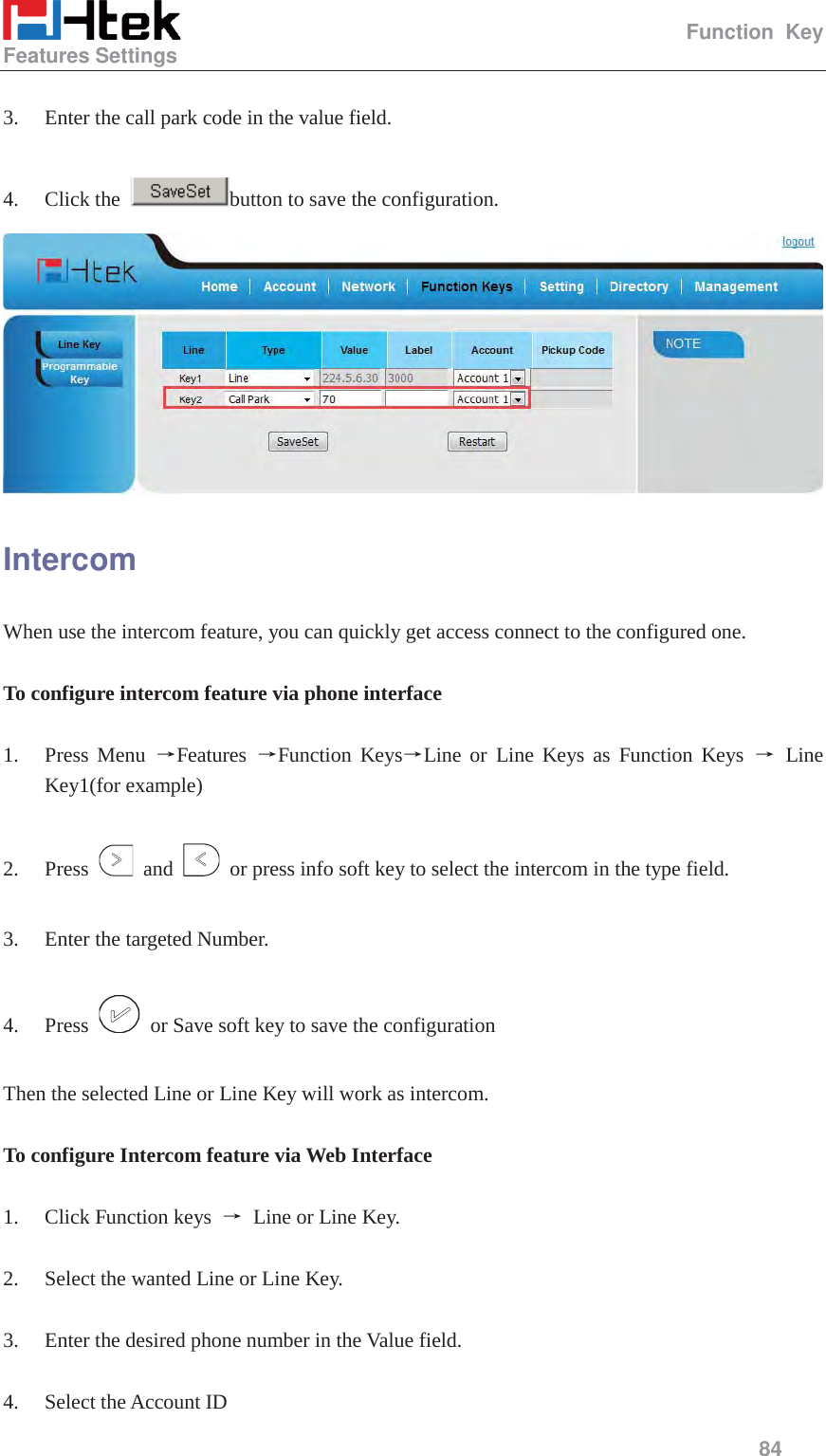

                                                  Function Key Features Settings     84   3. Enter the call park code in the value field.  4. Click the  button to save the configuration.  Intercom When use the intercom feature, you can quickly get access connect to the configured one.  To configure intercom feature via phone interface  1. Press Menu ėFeatures  ėFunction KeysėLine or Line Keys as Function Keys ė Line Key1(for example)  2. Press   and    or press info soft key to select the intercom in the type field.  3. Enter the targeted Number.  4. Press    or Save soft key to save the configuration  Then the selected Line or Line Key will work as intercom.  To configure Intercom feature via Web Interface  1. Click Function keys  ė Line or Line Key.  2. Select the wanted Line or Line Key.  3. Enter the desired phone number in the Value field.  4. Select the Account ID

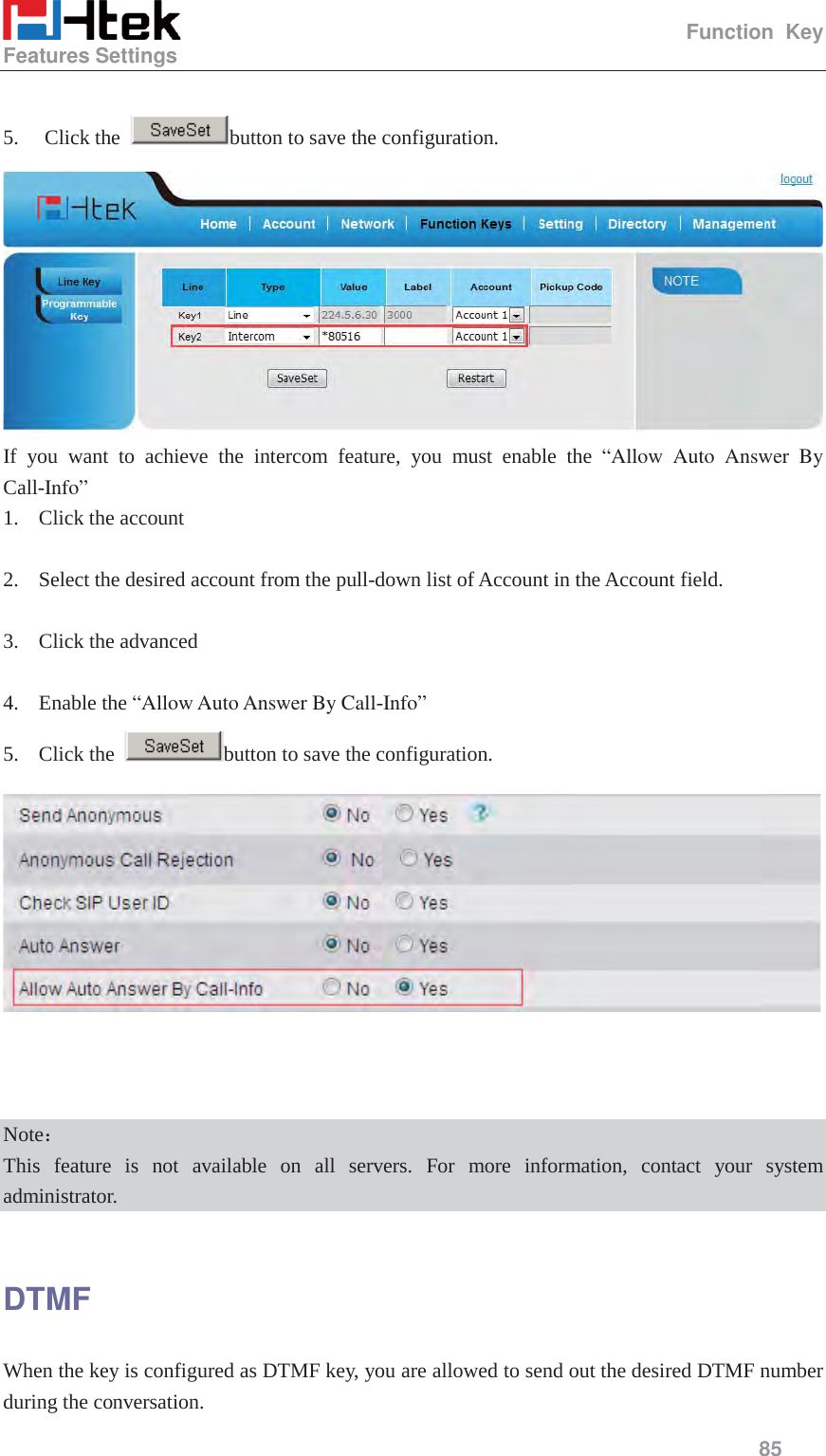

                                                  Function Key Features Settings     85   5. Click the  button to save the configuration.  If you want to achieve the intercom feature, you must enable the “Allow Auto Answer By Call-Info”  1. Click the account  2. Select the desired account from the pull-down list of Account in the Account field.  3. Click the advanced  4. Enable the “Allow Auto Answer By Call-Info”  5. Click the  button to save the configuration.     Note˖ This feature is not available on all servers. For more information, contact your system administrator.  DTMF When the key is configured as DTMF key, you are allowed to send out the desired DTMF number during the conversation.

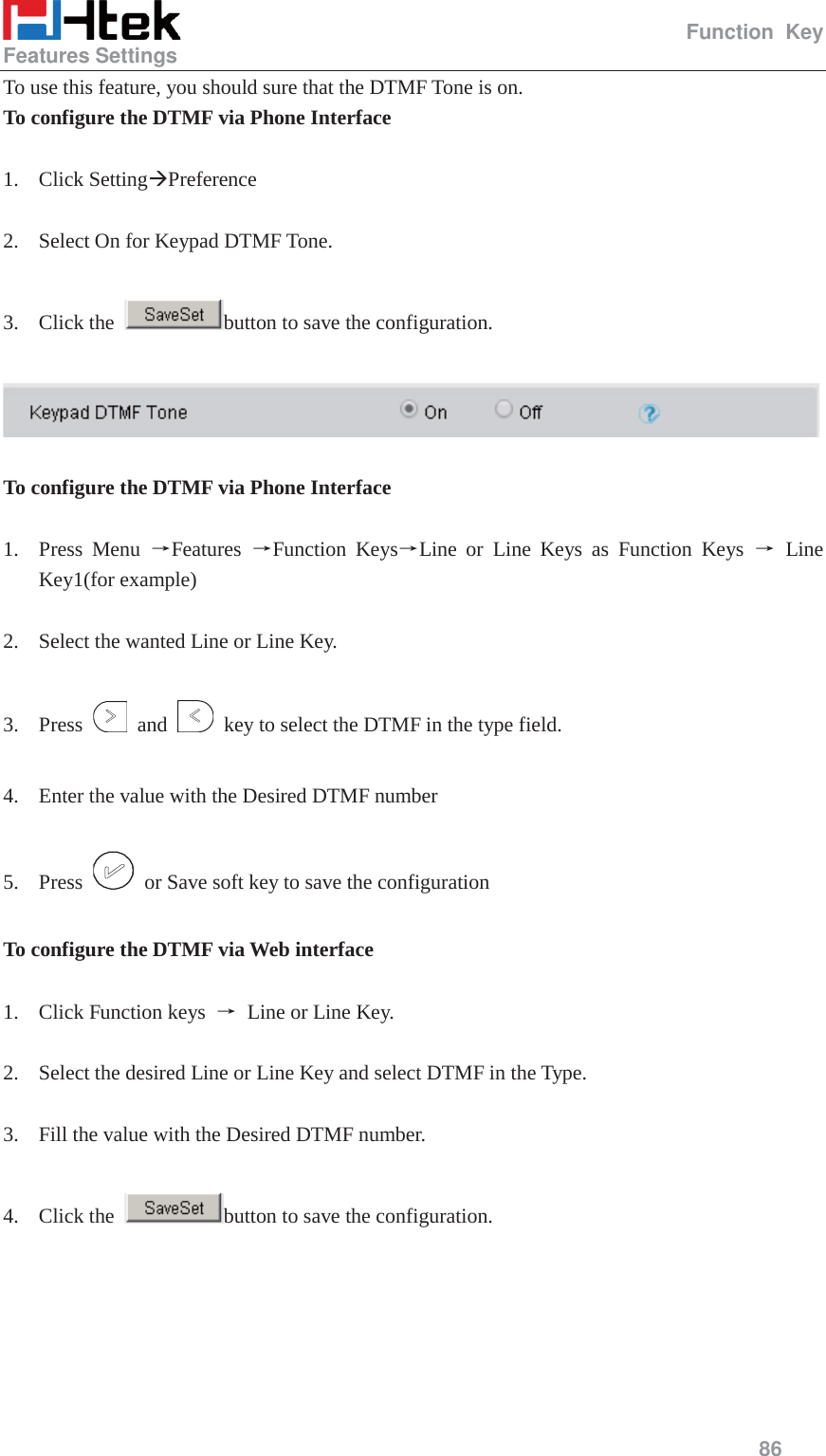

                                                  Function Key Features Settings     86  To use this feature, you should sure that the DTMF Tone is on. To configure the DTMF via Phone Interface  1. Click SettingÆPreference  2. Select On for Keypad DTMF Tone.  3. Click the  button to save the configuration.    To configure the DTMF via Phone Interface  1. Press Menu ėFeatures  ėFunction KeysėLine or Line Keys as Function Keys ė Line Key1(for example)  2. Select the wanted Line or Line Key.  3. Press   and    key to select the DTMF in the type field.  4. Enter the value with the Desired DTMF number  5. Press    or Save soft key to save the configuration  To configure the DTMF via Web interface  1. Click Function keys  ė Line or Line Key.  2. Select the desired Line or Line Key and select DTMF in the Type.  3. Fill the value with the Desired DTMF number.  4. Click the  button to save the configuration.

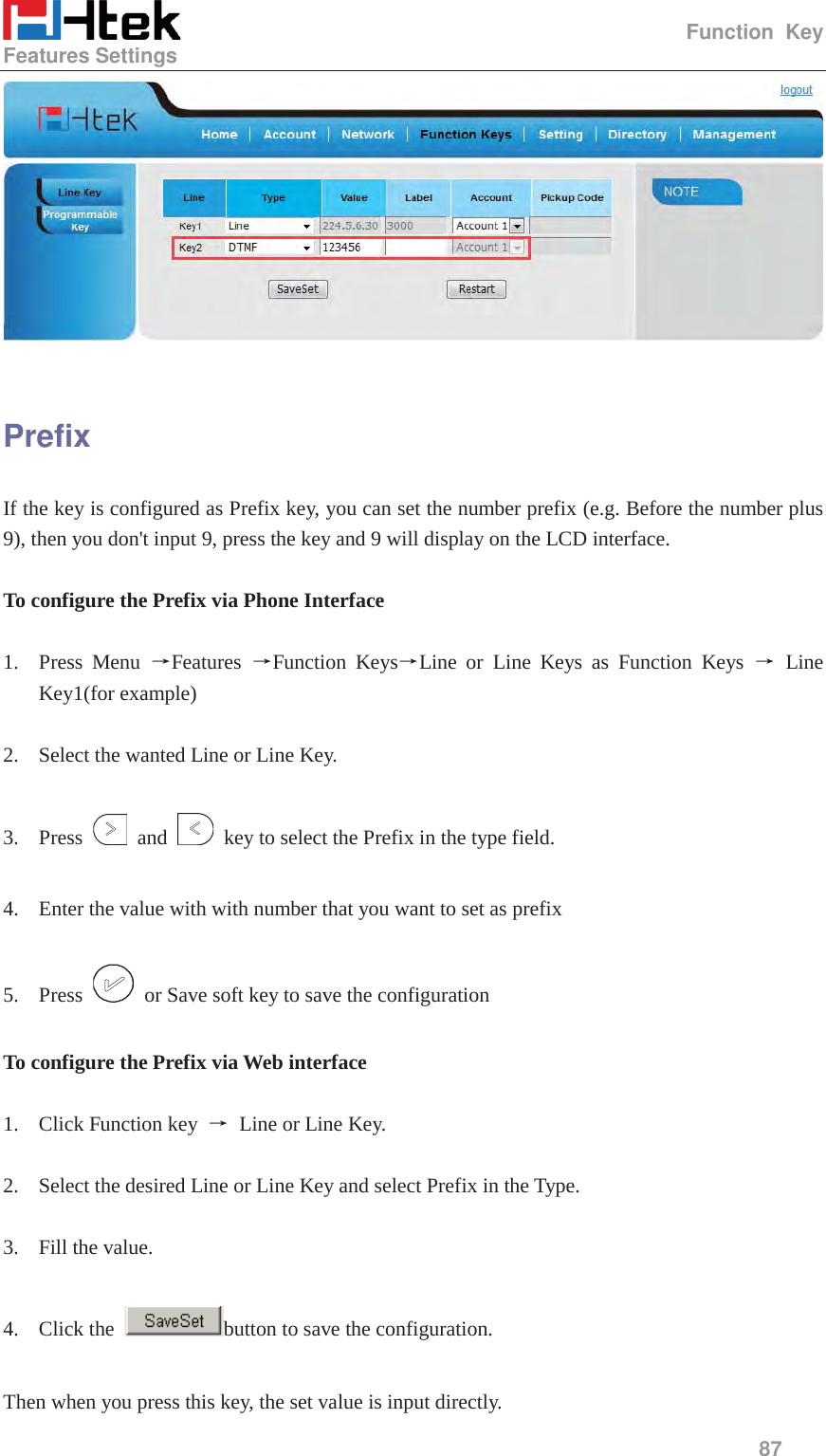

                                                  Function Key Features Settings     87    Prefix If the key is configured as Prefix key, you can set the number prefix (e.g. Before the number plus 9), then you don't input 9, press the key and 9 will display on the LCD interface.  To configure the Prefix via Phone Interface  1. Press Menu ėFeatures  ėFunction KeysėLine or Line Keys as Function Keys ė Line Key1(for example)  2. Select the wanted Line or Line Key.  3. Press   and    key to select the Prefix in the type field.  4. Enter the value with with number that you want to set as prefix  5. Press    or Save soft key to save the configuration  To configure the Prefix via Web interface  1. Click Function key  ė Line or Line Key.  2. Select the desired Line or Line Key and select Prefix in the Type.  3. Fill the value.  4. Click the  button to save the configuration.  Then when you press this key, the set value is input directly.

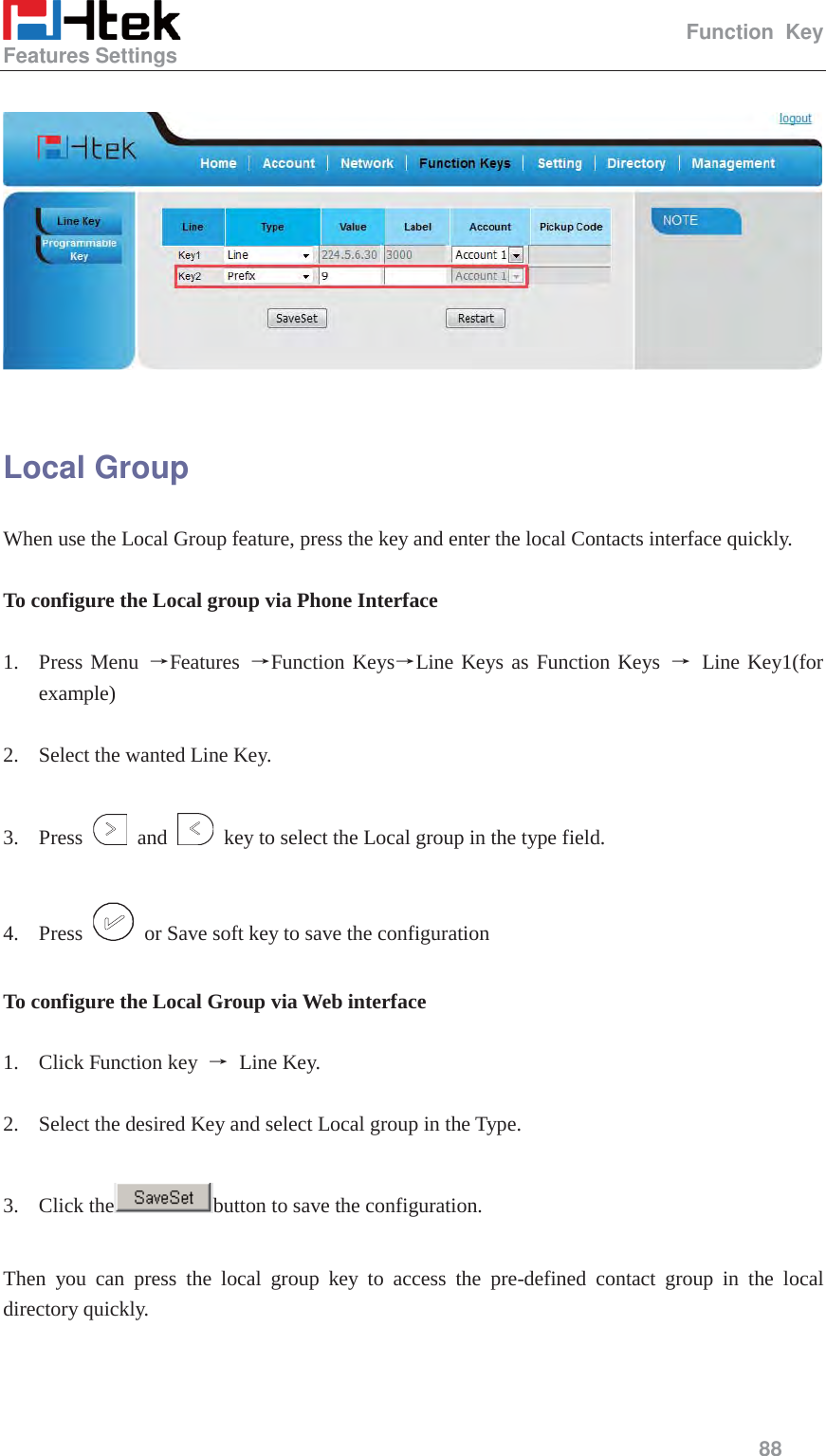

                                                  Function Key Features Settings     88     Local Group When use the Local Group feature, press the key and enter the local Contacts interface quickly.  To configure the Local group via Phone Interface  1. Press Menu ėFeatures  ėFunction KeysėLine Keys as Function Keys ė Line Key1(for example)  2. Select the wanted Line Key.  3. Press   and    key to select the Local group in the type field.  4. Press    or Save soft key to save the configuration  To configure the Local Group via Web interface  1. Click Function key  ė Line Key.  2. Select the desired Key and select Local group in the Type.  3. Click the button to save the configuration.  Then you can press the local group key to access the pre-defined contact group in the local directory quickly.

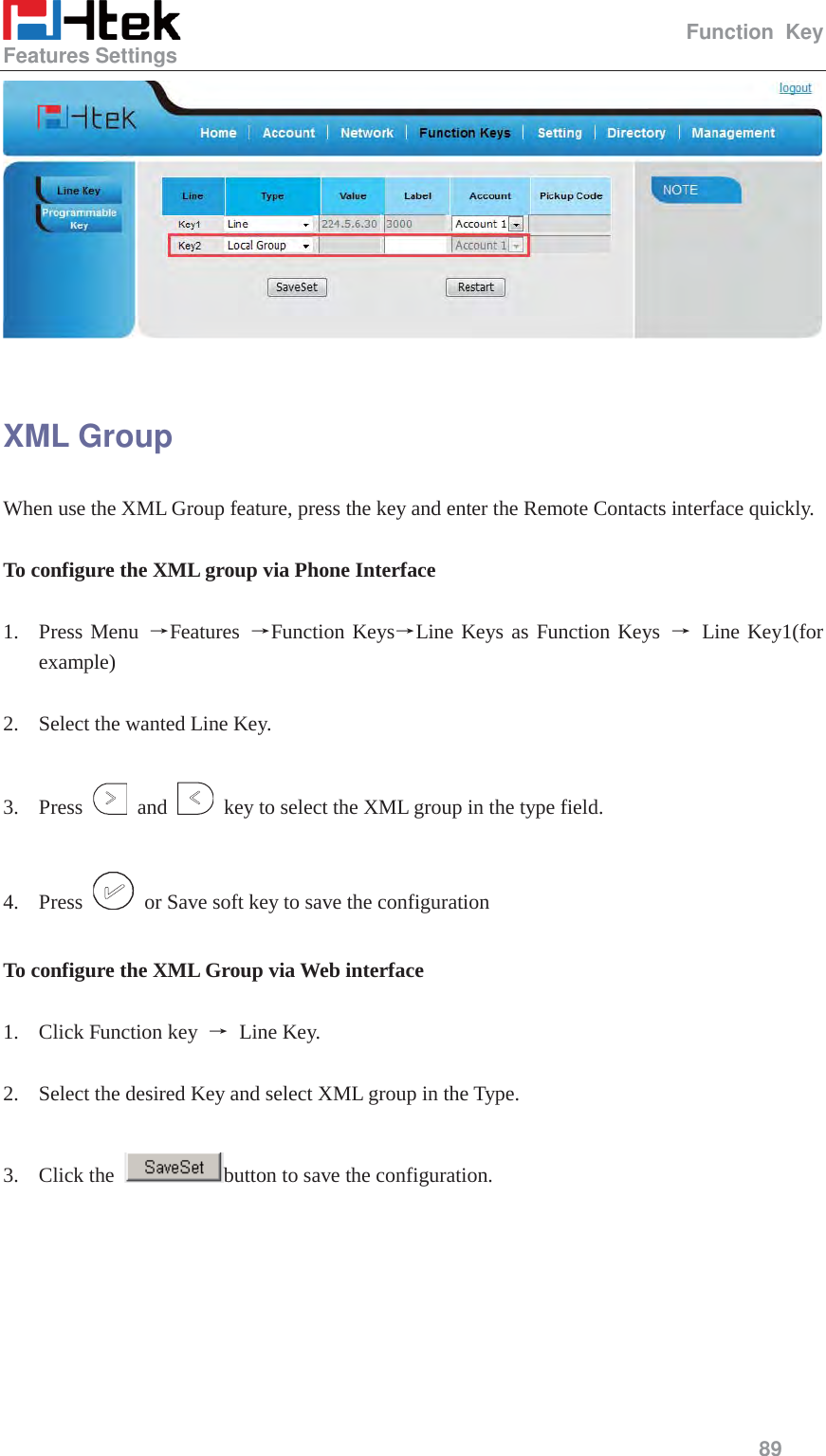

                                                  Function Key Features Settings     89    XML Group When use the XML Group feature, press the key and enter the Remote Contacts interface quickly.  To configure the XML group via Phone Interface  1. Press Menu ėFeatures  ėFunction KeysėLine Keys as Function Keys ė Line Key1(for example)  2. Select the wanted Line Key.  3. Press   and    key to select the XML group in the type field.  4. Press    or Save soft key to save the configuration  To configure the XML Group via Web interface  1. Click Function key  ė Line Key.  2. Select the desired Key and select XML group in the Type.  3. Click the  button to save the configuration.

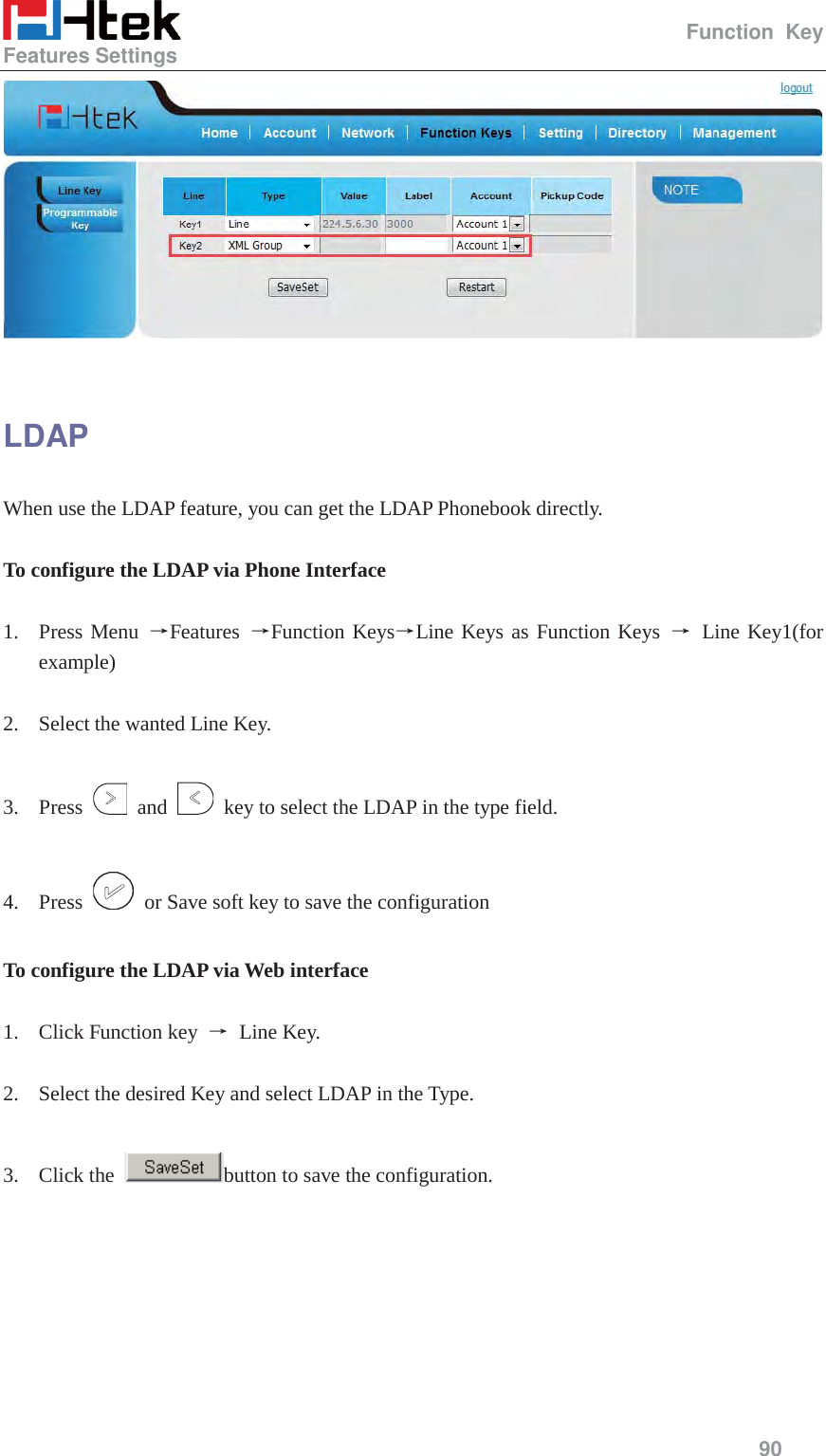

                                                  Function Key Features Settings     90    LDAP When use the LDAP feature, you can get the LDAP Phonebook directly.  To configure the LDAP via Phone Interface  1. Press Menu ėFeatures  ėFunction KeysėLine Keys as Function Keys ė Line Key1(for example)  2. Select the wanted Line Key.  3. Press   and    key to select the LDAP in the type field.  4. Press    or Save soft key to save the configuration  To configure the LDAP via Web interface  1. Click Function key  ė Line Key.  2. Select the desired Key and select LDAP in the Type.  3. Click the  button to save the configuration.

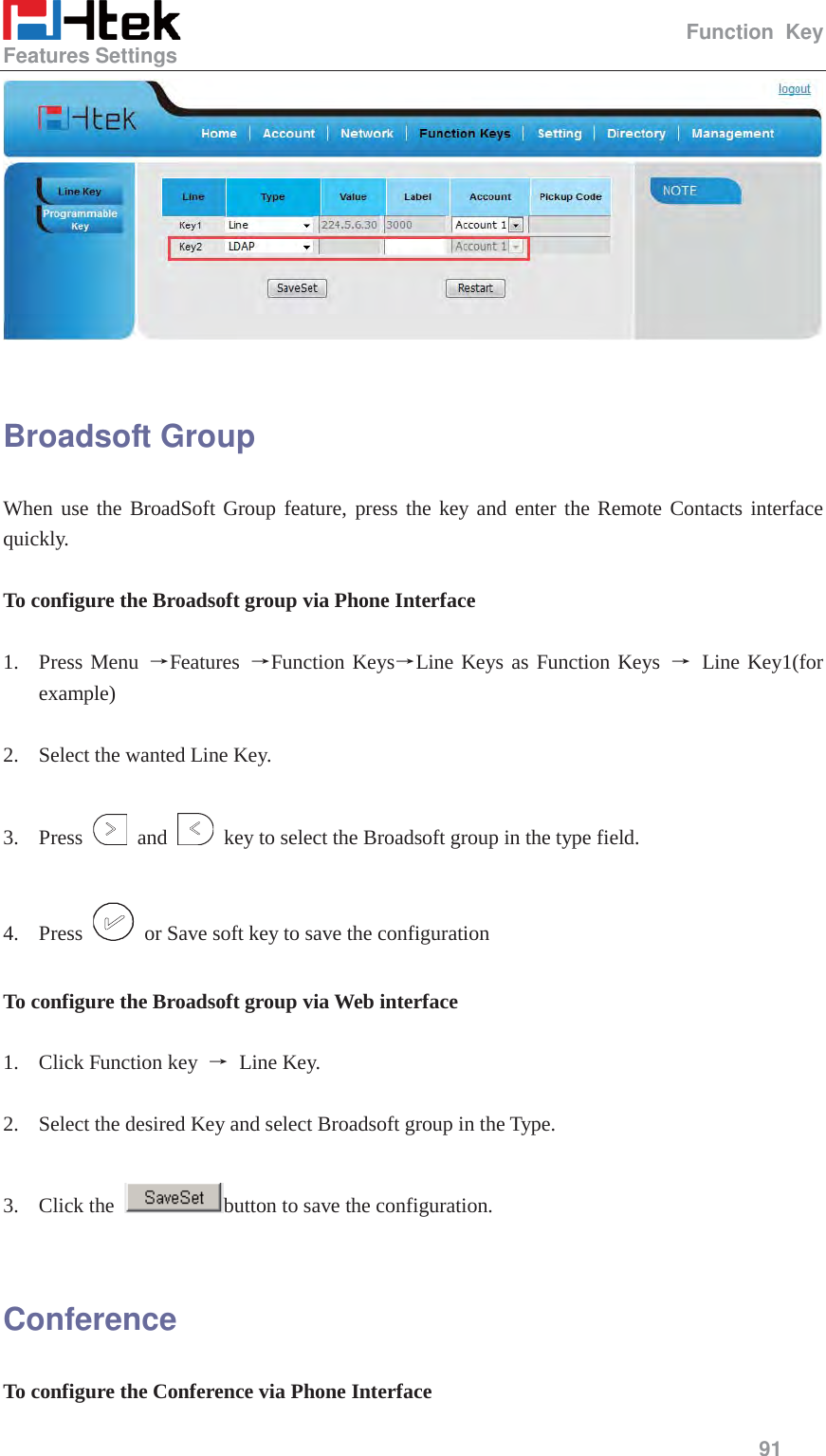

                                                  Function Key Features Settings     91    Broadsoft Group When use the BroadSoft Group feature, press the key and enter the Remote Contacts interface quickly.  To configure the Broadsoft group via Phone Interface  1. Press Menu ėFeatures  ėFunction KeysėLine Keys as Function Keys ė Line Key1(for example)  2. Select the wanted Line Key.  3. Press   and    key to select the Broadsoft group in the type field.  4. Press    or Save soft key to save the configuration  To configure the Broadsoft group via Web interface  1. Click Function key  ė Line Key.  2. Select the desired Key and select Broadsoft group in the Type.  3. Click the  button to save the configuration.  Conference To configure the Conference via Phone Interface

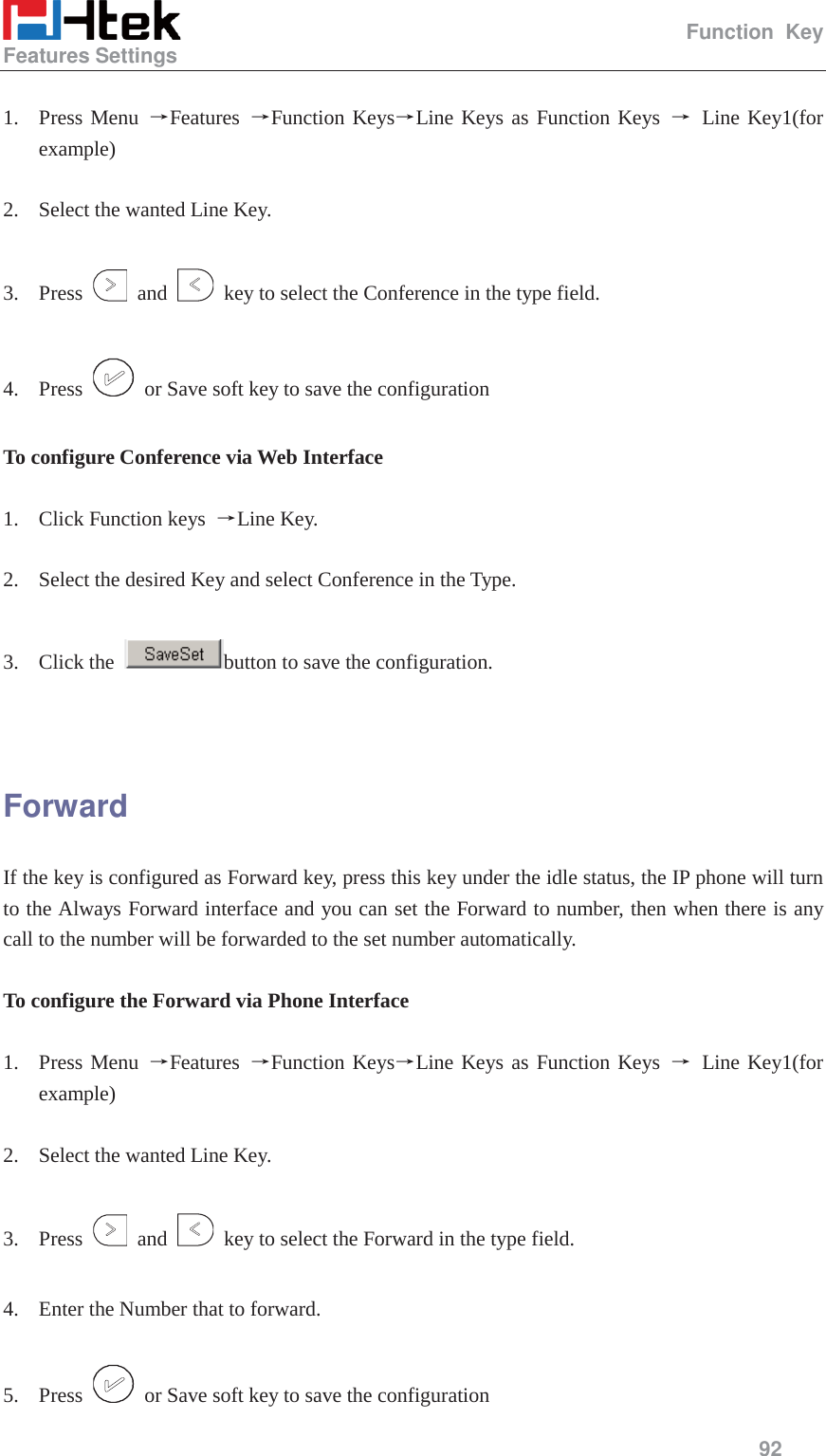

                                                  Function Key Features Settings     92   1. Press Menu ėFeatures  ėFunction KeysėLine Keys as Function Keys ė Line Key1(for example)  2. Select the wanted Line Key.  3. Press   and    key to select the Conference in the type field.  4. Press    or Save soft key to save the configuration  To configure Conference via Web Interface  1. Click Function keys  ėLine Key.  2. Select the desired Key and select Conference in the Type.  3. Click the  button to save the configuration.   Forward If the key is configured as Forward key, press this key under the idle status, the IP phone will turn to the Always Forward interface and you can set the Forward to number, then when there is any call to the number will be forwarded to the set number automatically.  To configure the Forward via Phone Interface  1. Press Menu ėFeatures  ėFunction KeysėLine Keys as Function Keys ė Line Key1(for example)  2. Select the wanted Line Key.  3. Press   and    key to select the Forward in the type field.  4. Enter the Number that to forward.  5. Press    or Save soft key to save the configuration

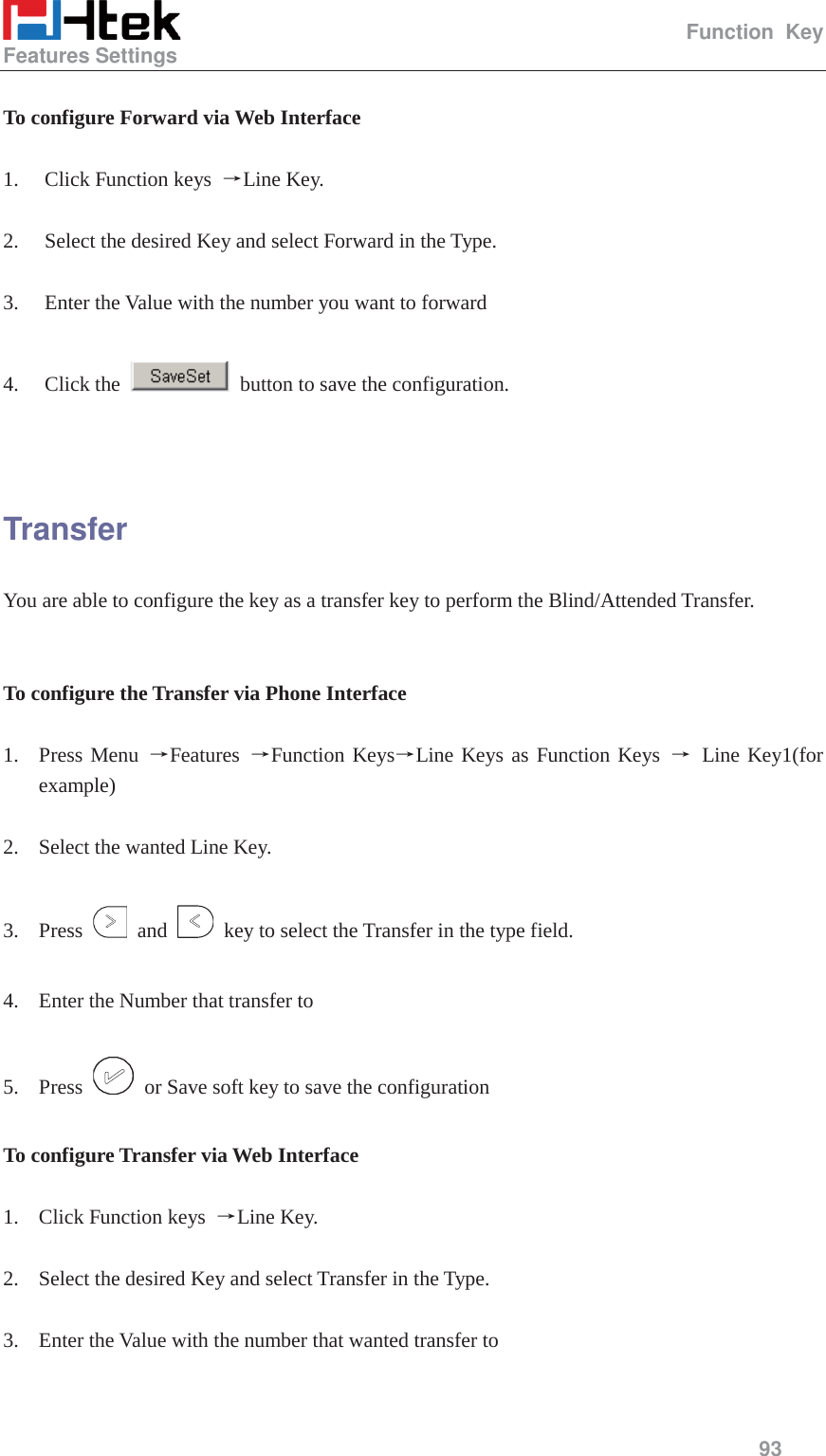

                                                  Function Key Features Settings     93   To configure Forward via Web Interface  1. Click Function keys  ėLine Key.  2. Select the desired Key and select Forward in the Type.  3. Enter the Value with the number you want to forward  4. Click the    button to save the configuration.   Transfer You are able to configure the key as a transfer key to perform the Blind/Attended Transfer.   To configure the Transfer via Phone Interface  1. Press Menu ėFeatures  ėFunction KeysėLine Keys as Function Keys ė Line Key1(for example)  2. Select the wanted Line Key.  3. Press   and    key to select the Transfer in the type field.  4. Enter the Number that transfer to  5. Press    or Save soft key to save the configuration  To configure Transfer via Web Interface  1. Click Function keys  ėLine Key.  2. Select the desired Key and select Transfer in the Type.  3. Enter the Value with the number that wanted transfer to

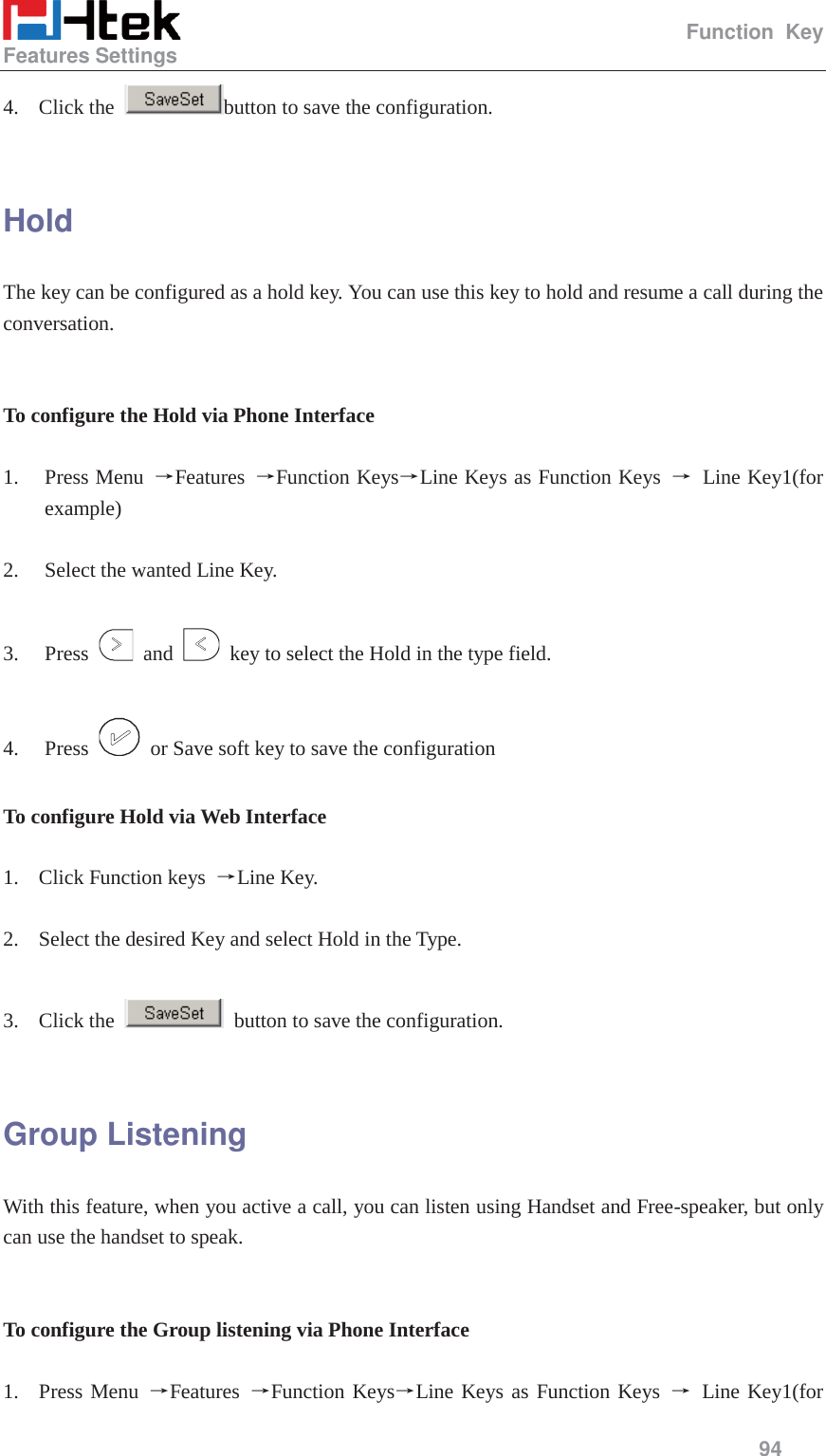

                                                  Function Key Features Settings     94  4. Click the  button to save the configuration.  Hold The key can be configured as a hold key. You can use this key to hold and resume a call during the conversation.   To configure the Hold via Phone Interface  1. Press Menu  ėFeatures  ėFunction KeysėLine Keys as Function Keys  ė Line Key1(for example)  2. Select the wanted Line Key.  3. Press   and    key to select the Hold in the type field.  4. Press    or Save soft key to save the configuration  To configure Hold via Web Interface  1. Click Function keys  ėLine Key.  2. Select the desired Key and select Hold in the Type.  3. Click the    button to save the configuration.  Group Listening With this feature, when you active a call, you can listen using Handset and Free-speaker, but only can use the handset to speak.   To configure the Group listening via Phone Interface  1. Press Menu ėFeatures  ėFunction KeysėLine Keys as Function Keys ė Line Key1(for

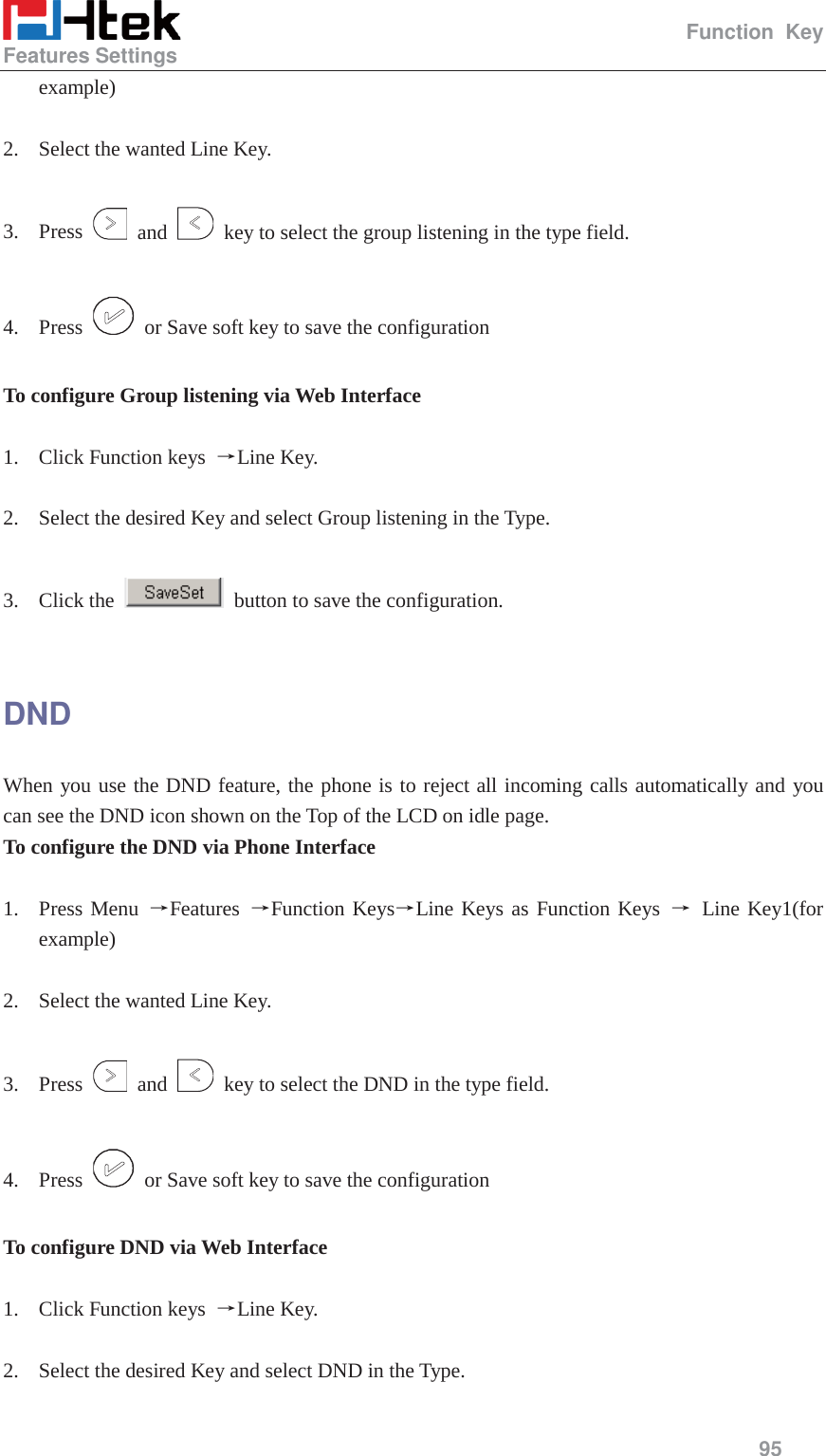

                                                  Function Key Features Settings     95  example)  2. Select the wanted Line Key.  3. Press   and    key to select the group listening in the type field.  4. Press    or Save soft key to save the configuration  To configure Group listening via Web Interface  1. Click Function keys  ėLine Key.  2. Select the desired Key and select Group listening in the Type.  3. Click the    button to save the configuration.  DND When you use the DND feature, the phone is to reject all incoming calls automatically and you can see the DND icon shown on the Top of the LCD on idle page. To configure the DND via Phone Interface  1. Press Menu ėFeatures  ėFunction KeysėLine Keys as Function Keys ė Line Key1(for example)  2. Select the wanted Line Key.  3. Press   and    key to select the DND in the type field.  4. Press    or Save soft key to save the configuration  To configure DND via Web Interface  1. Click Function keys  ėLine Key.  2. Select the desired Key and select DND in the Type.

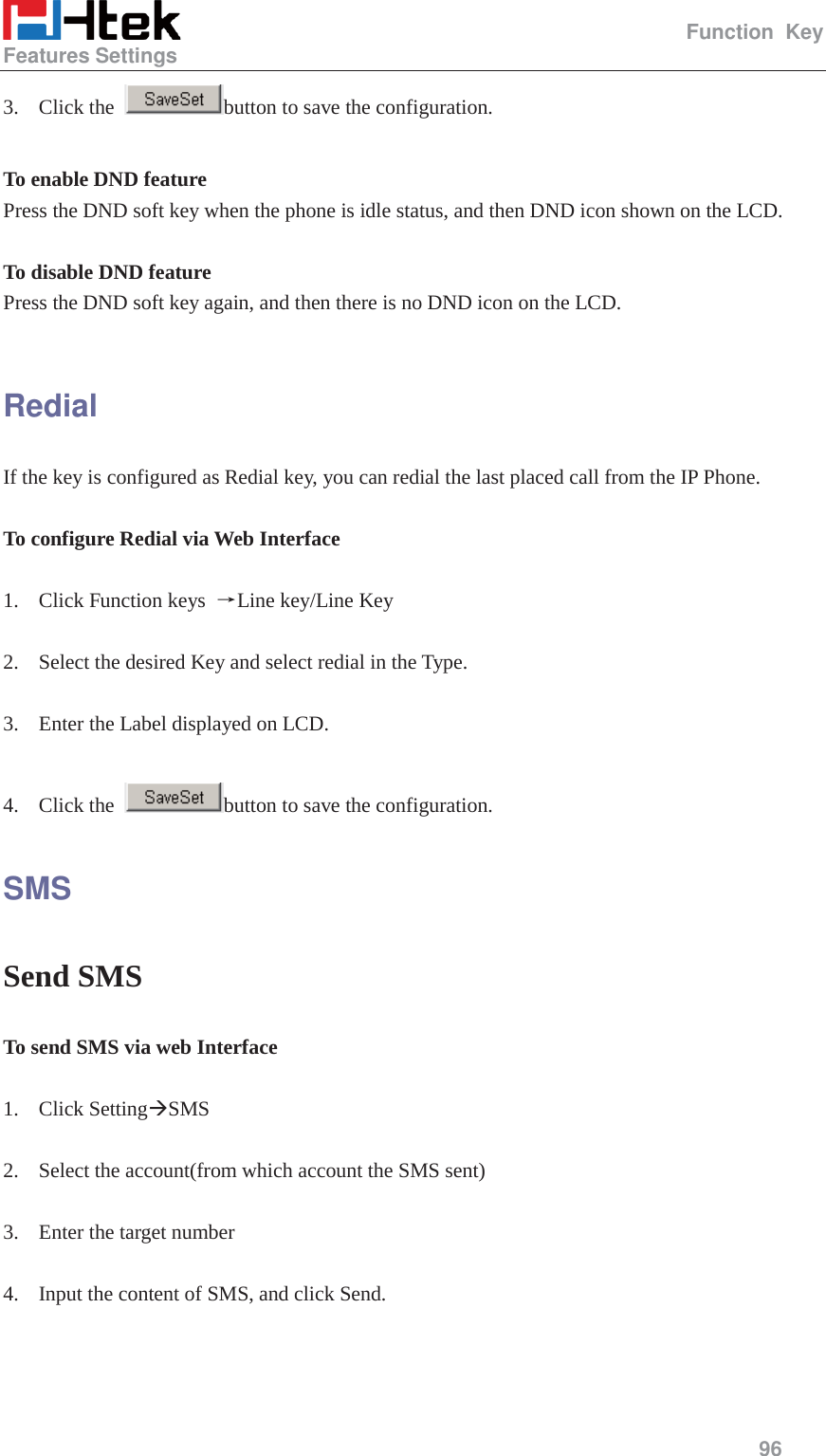

                                                  Function Key Features Settings     96  3. Click the  button to save the configuration.  To enable DND feature   Press the DND soft key when the phone is idle status, and then DND icon shown on the LCD.  To disable DND feature Press the DND soft key again, and then there is no DND icon on the LCD.  Redial If the key is configured as Redial key, you can redial the last placed call from the IP Phone.  To configure Redial via Web Interface  1. Click Function keys  ėLine key/Line Key  2. Select the desired Key and select redial in the Type.  3. Enter the Label displayed on LCD.  4. Click the  button to save the configuration. SMS Send SMS To send SMS via web Interface  1. Click SettingÆSMS  2. Select the account(from which account the SMS sent)  3. Enter the target number  4. Input the content of SMS, and click Send.

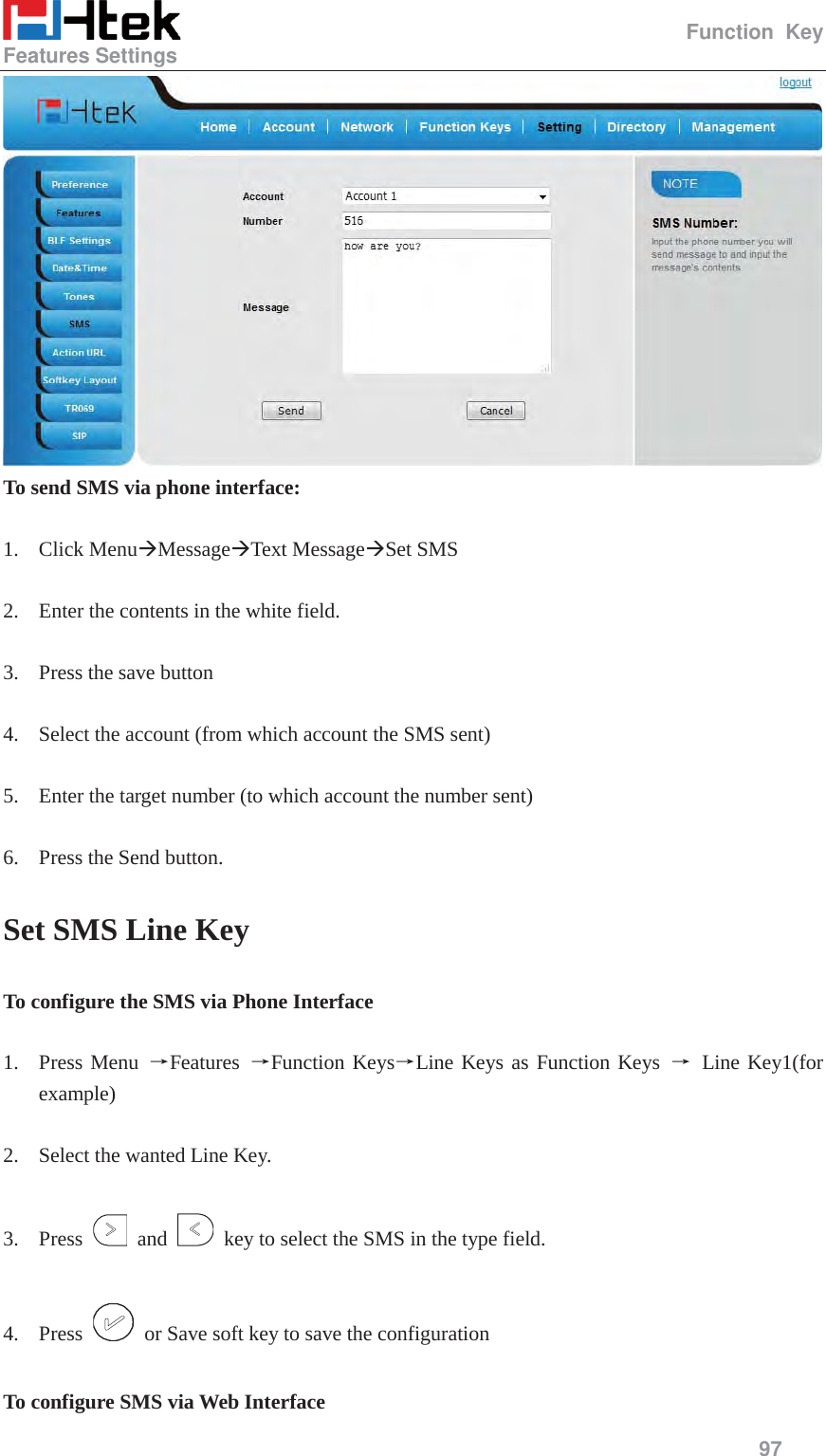

                                                  Function Key Features Settings     97   To send SMS via phone interface:  1. Click MenuÆMessageÆText MessageÆSet SMS  2. Enter the contents in the white field.  3. Press the save button  4. Select the account (from which account the SMS sent)  5. Enter the target number (to which account the number sent)  6. Press the Send button. Set SMS Line Key To configure the SMS via Phone Interface  1. Press Menu ėFeatures  ėFunction KeysėLine Keys as Function Keys ė Line Key1(for example)  2. Select the wanted Line Key.  3. Press   and    key to select the SMS in the type field.  4. Press    or Save soft key to save the configuration  To configure SMS via Web Interface

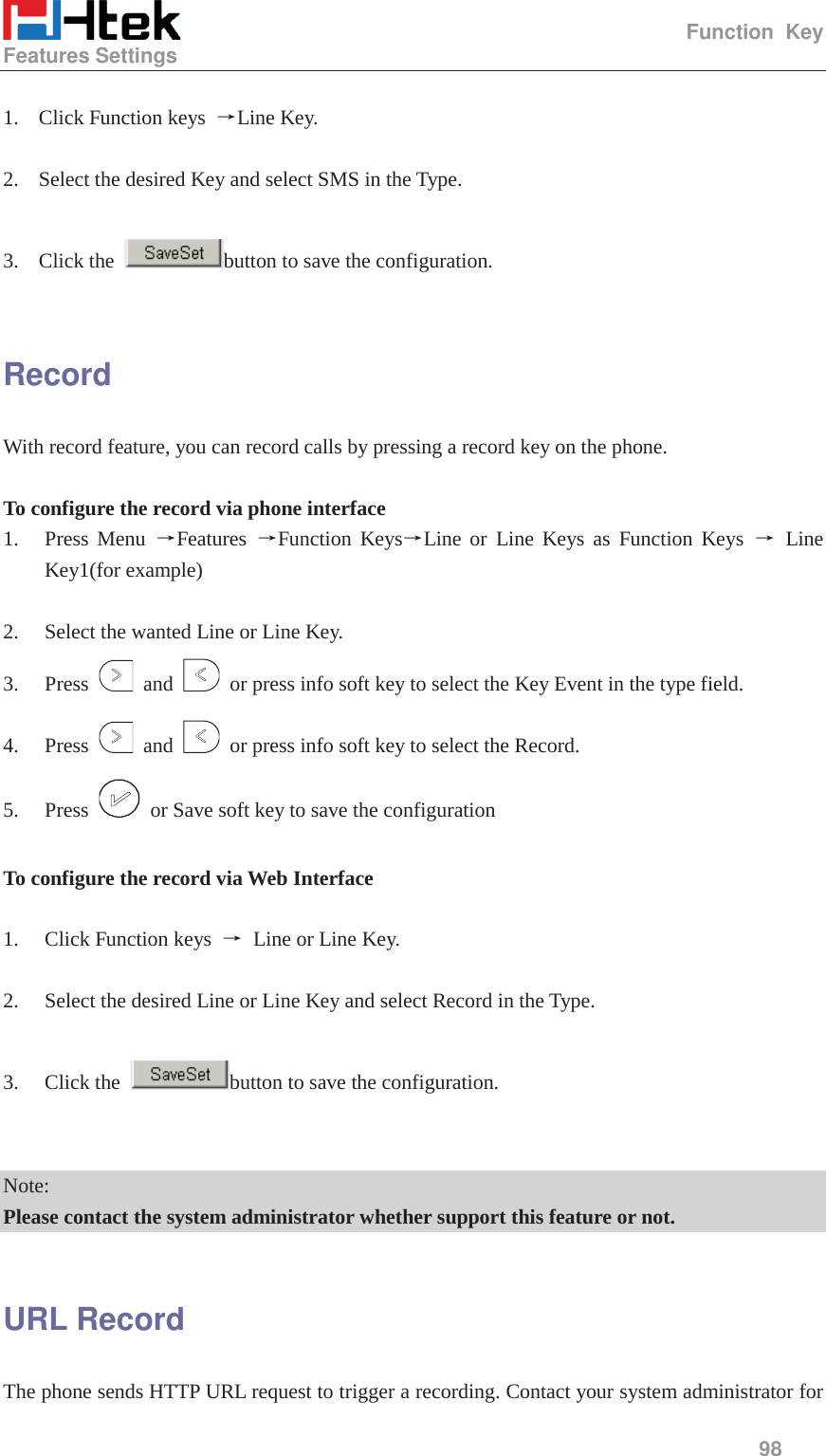

                                                  Function Key Features Settings     98   1. Click Function keys  ėLine Key.  2. Select the desired Key and select SMS in the Type.  3. Click the  button to save the configuration.  Record With record feature, you can record calls by pressing a record key on the phone.  To configure the record via phone interface 1. Press Menu ėFeatures  ėFunction KeysėLine or Line Keys as Function Keys ė Line Key1(for example)  2. Select the wanted Line or Line Key. 3. Press   and    or press info soft key to select the Key Event in the type field. 4. Press   and    or press info soft key to select the Record. 5. Press    or Save soft key to save the configuration  To configure the record via Web Interface  1. Click Function keys  ė Line or Line Key.  2. Select the desired Line or Line Key and select Record in the Type.  3. Click the  button to save the configuration.   Note: Please contact the system administrator whether support this feature or not.  URL Record The phone sends HTTP URL request to trigger a recording. Contact your system administrator for

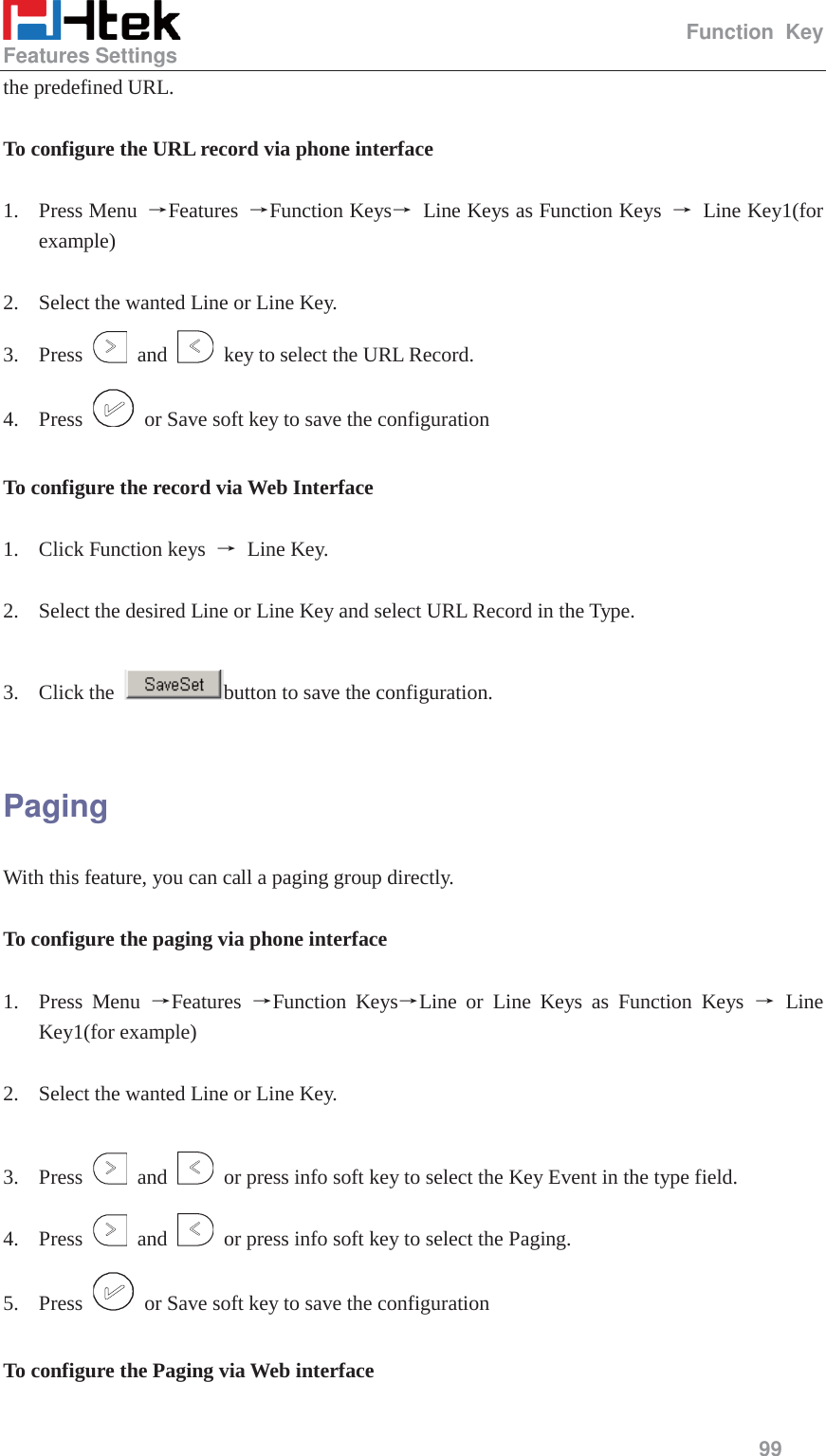

                                                  Function Key Features Settings     99  the predefined URL.  To configure the URL record via phone interface  1. Press Menu  ėFeatures  ėFunction Keysė Line Keys as Function Keys ė Line Key1(for example)  2. Select the wanted Line or Line Key. 3. Press   and    key to select the URL Record. 4. Press    or Save soft key to save the configuration  To configure the record via Web Interface  1. Click Function keys  ė Line Key.  2. Select the desired Line or Line Key and select URL Record in the Type.  3. Click the  button to save the configuration.  Paging  With this feature, you can call a paging group directly.  To configure the paging via phone interface  1. Press Menu ėFeatures  ėFunction KeysėLine or Line Keys as Function Keys ė Line Key1(for example)  2. Select the wanted Line or Line Key.  3. Press   and    or press info soft key to select the Key Event in the type field. 4. Press   and    or press info soft key to select the Paging. 5. Press    or Save soft key to save the configuration  To configure the Paging via Web interface

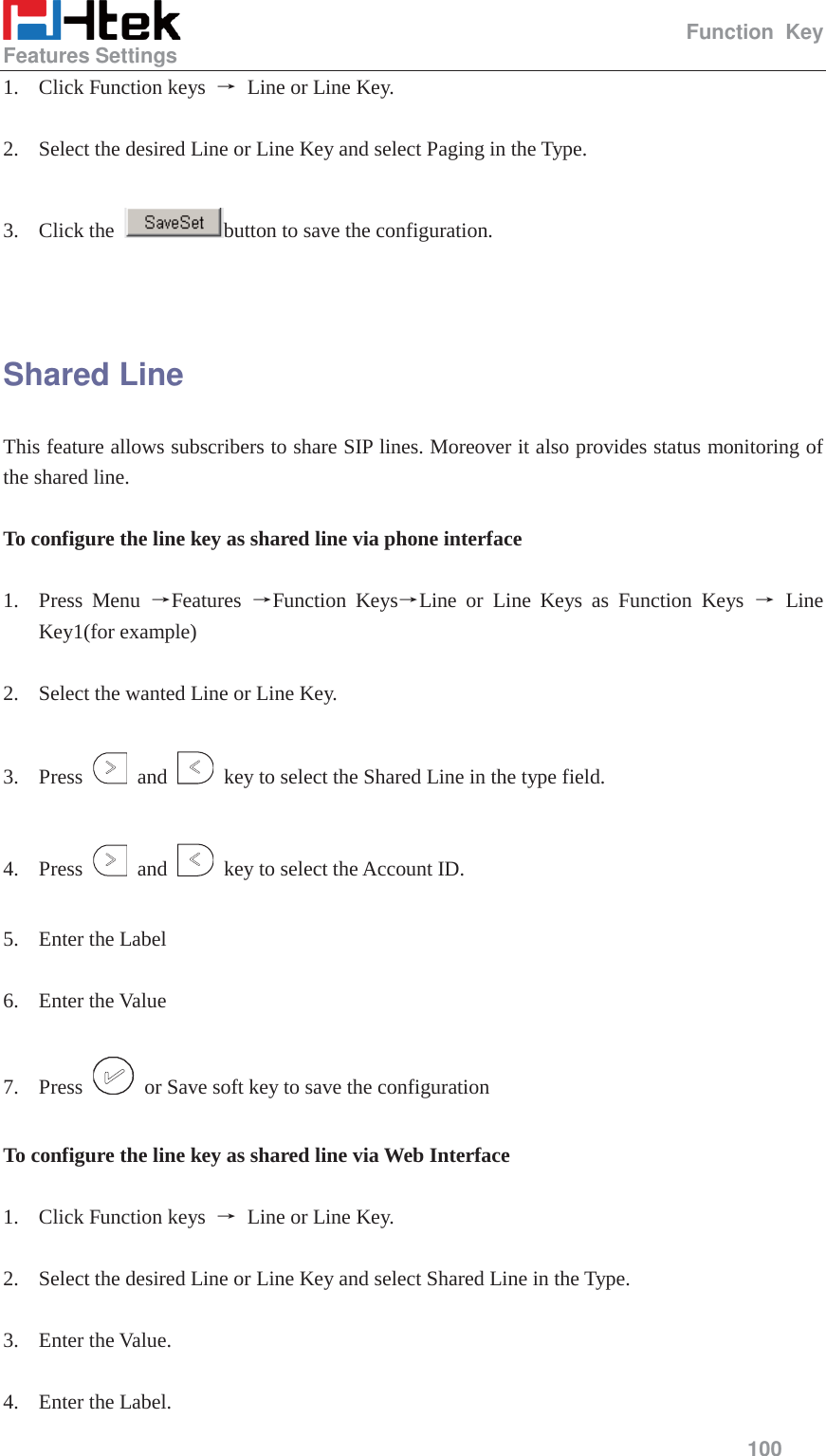

                                                  Function Key Features Settings     100  1. Click Function keys  ė Line or Line Key.  2. Select the desired Line or Line Key and select Paging in the Type.  3. Click the  button to save the configuration.   Shared Line This feature allows subscribers to share SIP lines. Moreover it also provides status monitoring of the shared line.  To configure the line key as shared line via phone interface  1. Press Menu ėFeatures  ėFunction KeysėLine or Line Keys as Function Keys ė Line Key1(for example)  2. Select the wanted Line or Line Key.  3. Press   and    key to select the Shared Line in the type field.  4. Press   and    key to select the Account ID.  5. Enter the Label  6. Enter the Value  7. Press    or Save soft key to save the configuration  To configure the line key as shared line via Web Interface  1. Click Function keys  ė Line or Line Key.  2. Select the desired Line or Line Key and select Shared Line in the Type.  3. Enter the Value.  4. Enter the Label.

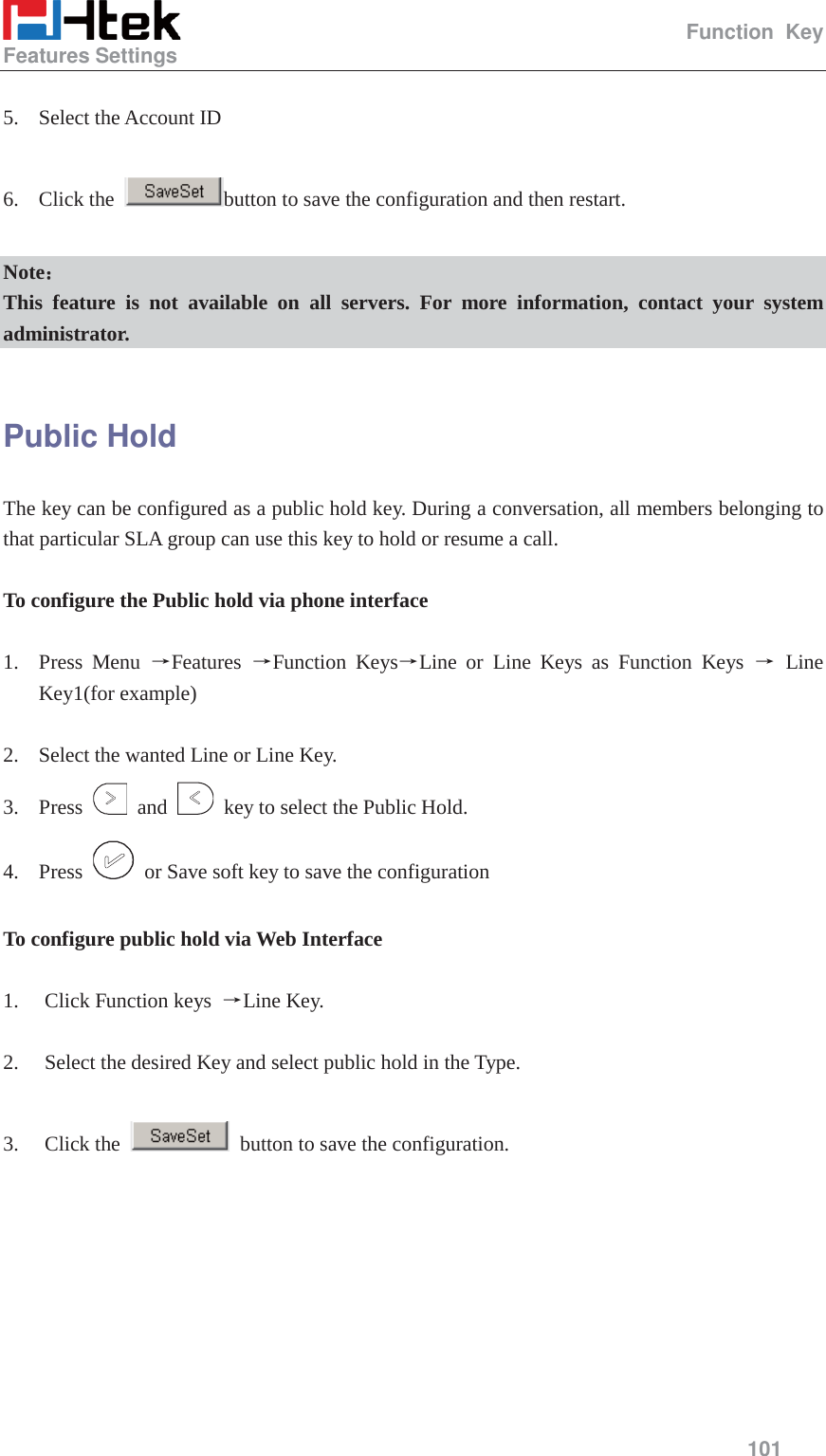

                                                  Function Key Features Settings     101   5. Select the Account ID  6. Click the  button to save the configuration and then restart.  Note˖˖ This feature is not available on all servers. For more information, contact your system administrator.  Public Hold The key can be configured as a public hold key. During a conversation, all members belonging to that particular SLA group can use this key to hold or resume a call.  To configure the Public hold via phone interface  1. Press Menu ėFeatures  ėFunction KeysėLine or Line Keys as Function Keys ė Line Key1(for example)  2. Select the wanted Line or Line Key. 3. Press   and    key to select the Public Hold. 4. Press    or Save soft key to save the configuration  To configure public hold via Web Interface  1. Click Function keys  ėLine Key.  2. Select the desired Key and select public hold in the Type.  3. Click the    button to save the configuration.

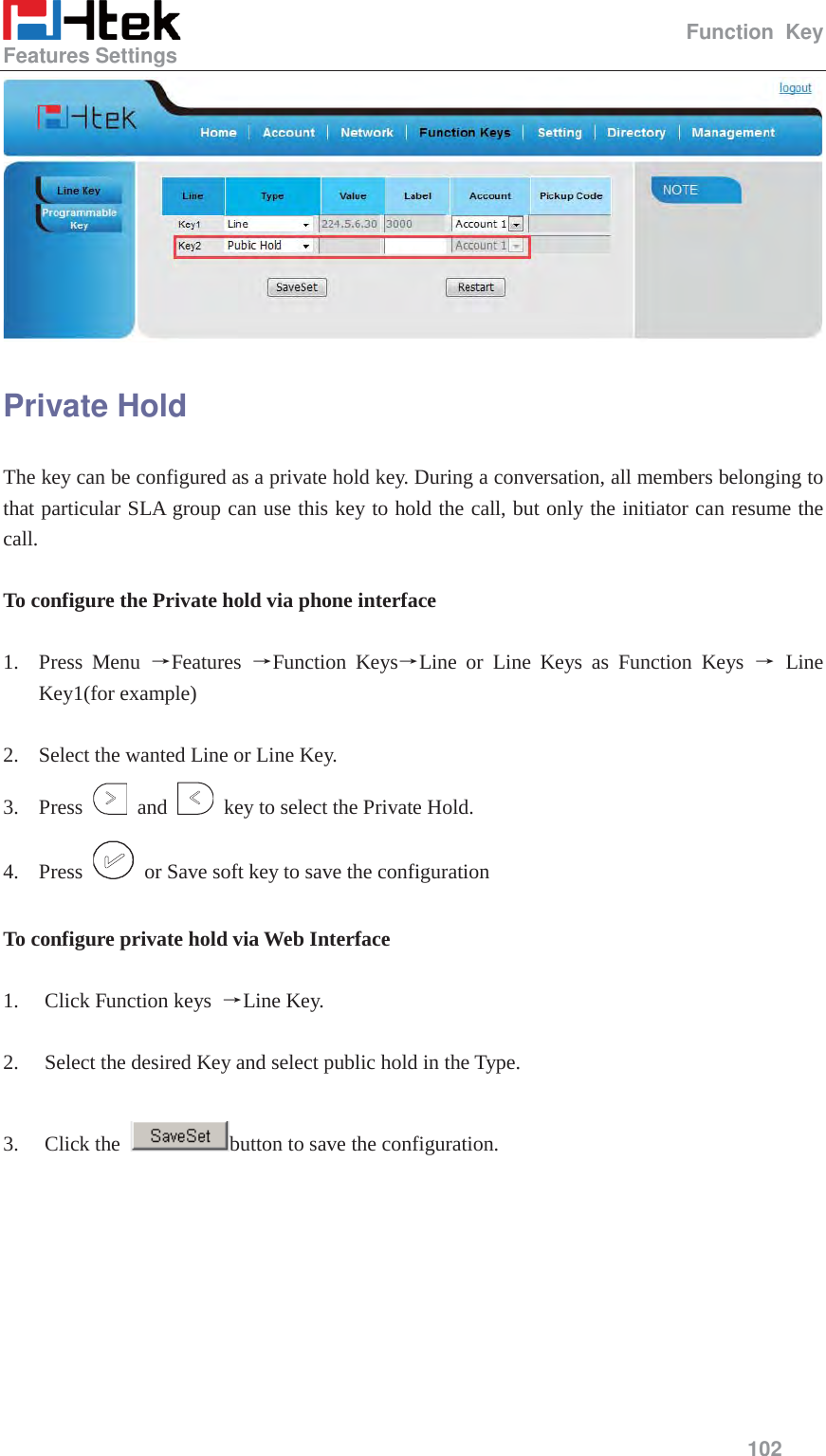

                                                  Function Key Features Settings     102   Private Hold The key can be configured as a private hold key. During a conversation, all members belonging to that particular SLA group can use this key to hold the call, but only the initiator can resume the call.  To configure the Private hold via phone interface  1. Press Menu ėFeatures  ėFunction KeysėLine or Line Keys as Function Keys ė Line Key1(for example)  2. Select the wanted Line or Line Key. 3. Press   and    key to select the Private Hold. 4. Press    or Save soft key to save the configuration  To configure private hold via Web Interface  1. Click Function keys  ėLine Key.  2. Select the desired Key and select public hold in the Type.  3. Click the  button to save the configuration.

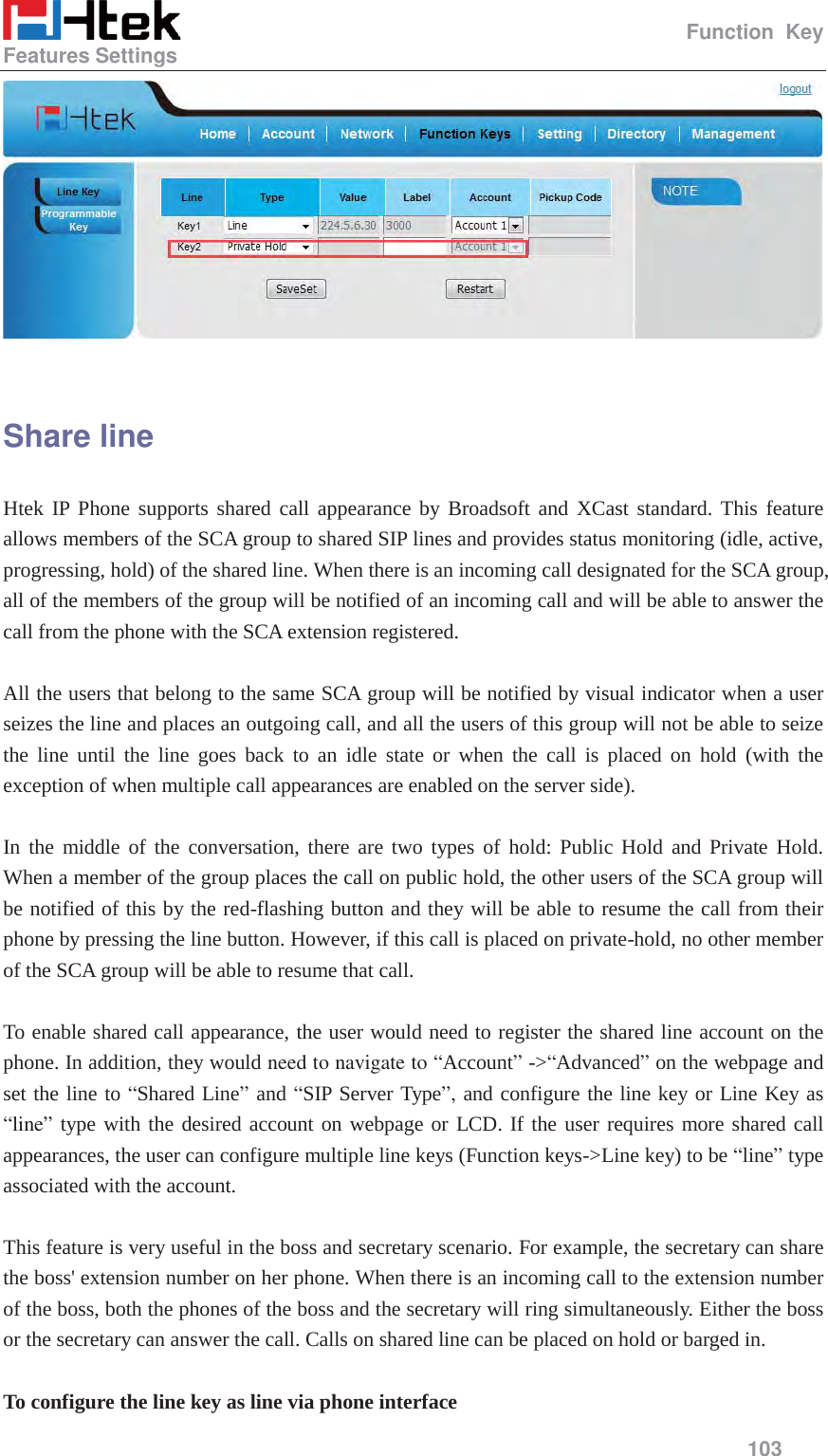

                                                  Function Key Features Settings     103    Share line Htek IP Phone supports shared call appearance by Broadsoft and XCast standard. This feature allows members of the SCA group to shared SIP lines and provides status monitoring (idle, active, progressing, hold) of the shared line. When there is an incoming call designated for the SCA group, all of the members of the group will be notified of an incoming call and will be able to answer the call from the phone with the SCA extension registered.    All the users that belong to the same SCA group will be notified by visual indicator when a user seizes the line and places an outgoing call, and all the users of this group will not be able to seize the line until the line goes back to an idle state or when the call is placed on hold (with the exception of when multiple call appearances are enabled on the server side).  In the middle of the conversation, there are two types of hold: Public Hold and Private Hold.  When a member of the group places the call on public hold, the other users of the SCA group will be notified of this by the red-flashing button and they will be able to resume the call from their phone by pressing the line button. However, if this call is placed on private-hold, no other member of the SCA group will be able to resume that call.    To enable shared call appearance, the user would need to register the shared line account on the phone. In addition, they would need to navigate to “Account” ->“Advanced” on the webpage and set the line to “Shared Line” and “SIP Server Type”, and configure the line key or Line Key as “line” type with the desired account on webpage or LCD. If the user requires more shared call appearances, the user can configure multiple line keys (Function keys->Line key) to be “line” type associated with the account.  This feature is very useful in the boss and secretary scenario. For example, the secretary can share the boss' extension number on her phone. When there is an incoming call to the extension number of the boss, both the phones of the boss and the secretary will ring simultaneously. Either the boss or the secretary can answer the call. Calls on shared line can be placed on hold or barged in.  To configure the line key as line via phone interface

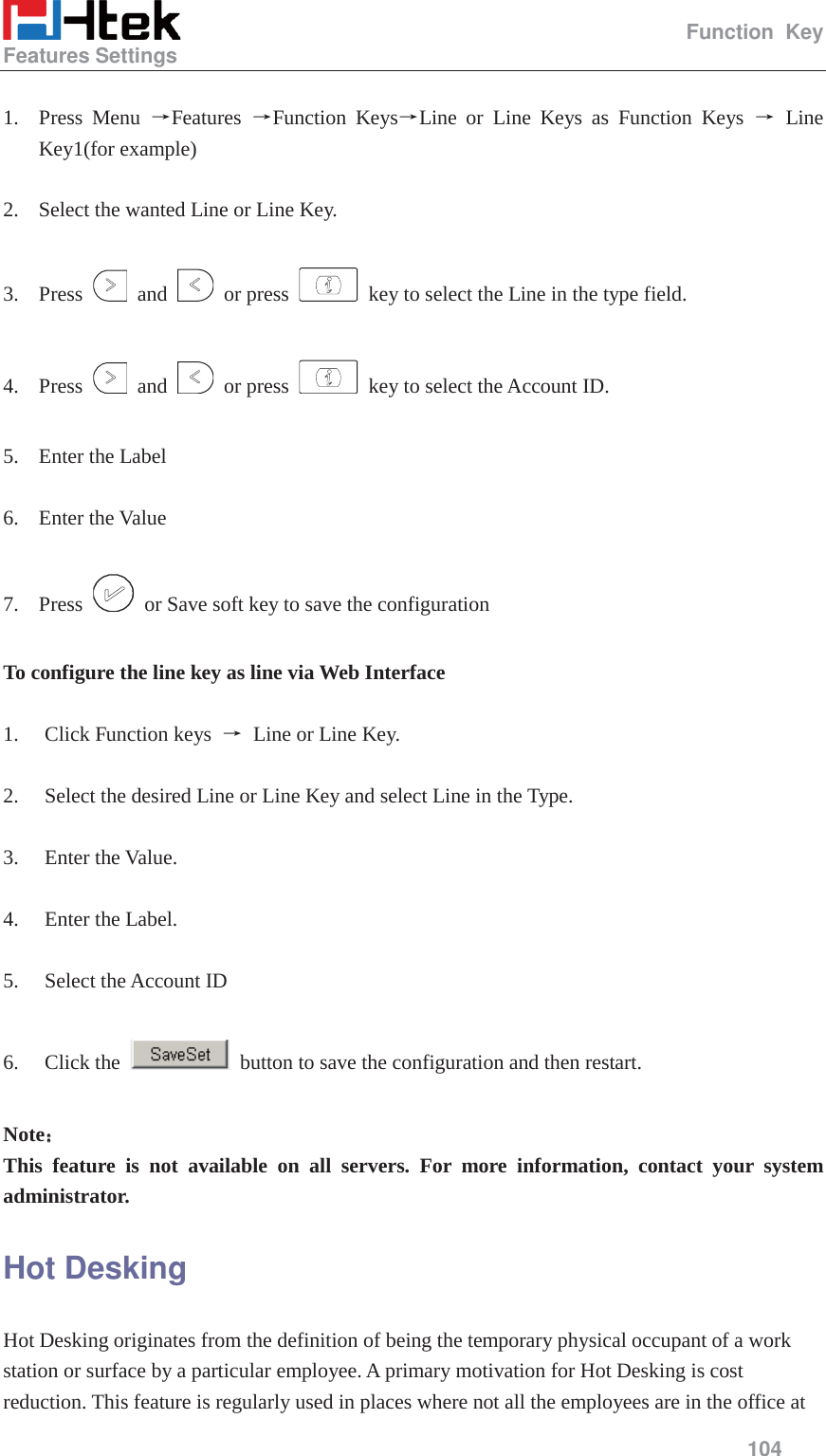

                                                  Function Key Features Settings     104   1. Press Menu ėFeatures  ėFunction KeysėLine or Line Keys as Function Keys ė Line Key1(for example)  2. Select the wanted Line or Line Key.  3. Press   and   or press    key to select the Line in the type field.  4. Press   and   or press    key to select the Account ID.  5. Enter the Label  6. Enter the Value  7. Press    or Save soft key to save the configuration  To configure the line key as line via Web Interface  1. Click Function keys  ė Line or Line Key.  2. Select the desired Line or Line Key and select Line in the Type.  3. Enter the Value.  4. Enter the Label.  5. Select the Account ID  6. Click the    button to save the configuration and then restart.  Note˖˖ This feature is not available on all servers. For more information, contact your system administrator. Hot Desking Hot Desking originates from the definition of being the temporary physical occupant of a work station or surface by a particular employee. A primary motivation for Hot Desking is cost reduction. This feature is regularly used in places where not all the employees are in the office at

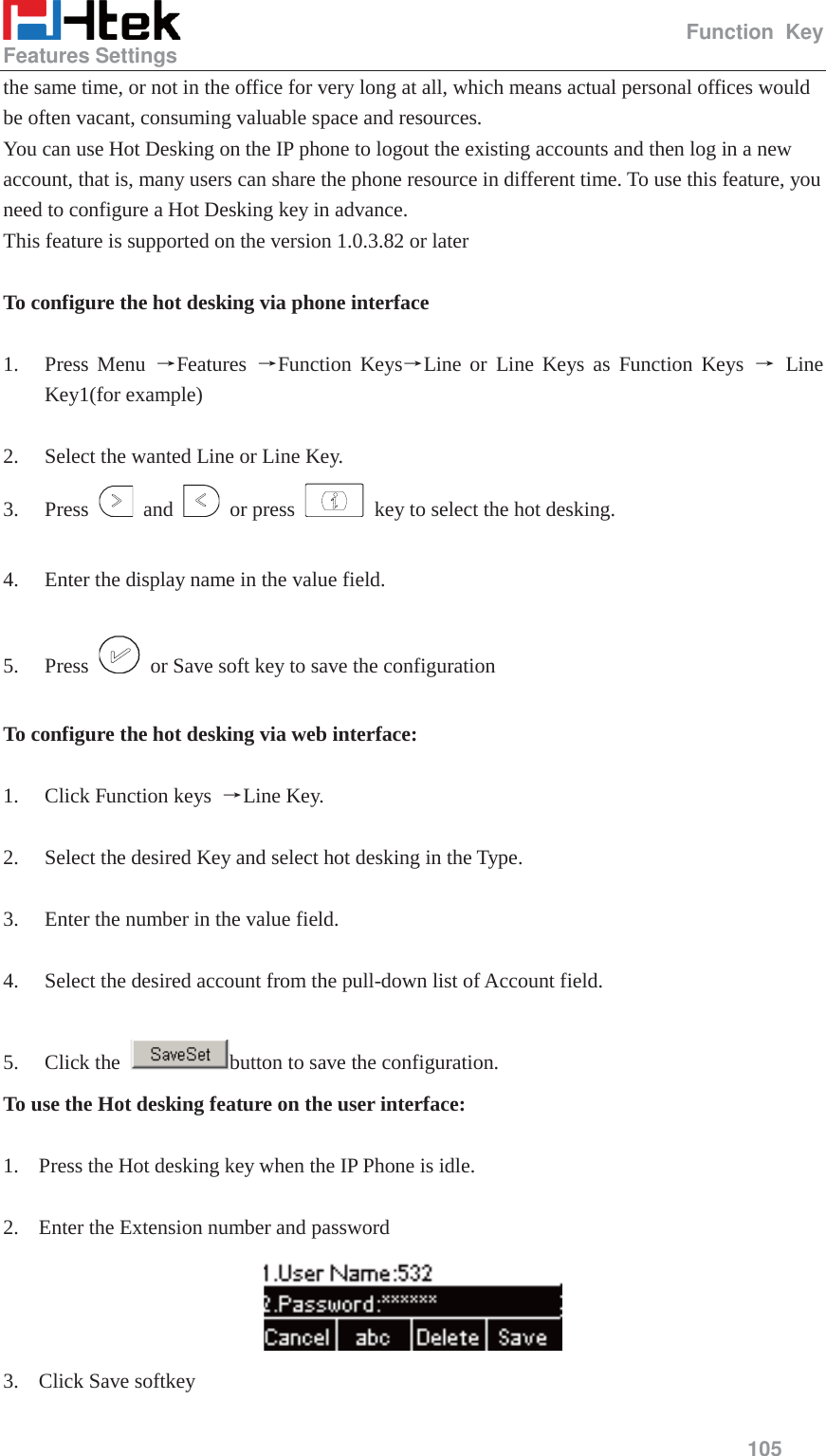

                                                  Function Key Features Settings     105  the same time, or not in the office for very long at all, which means actual personal offices would be often vacant, consuming valuable space and resources. You can use Hot Desking on the IP phone to logout the existing accounts and then log in a new account, that is, many users can share the phone resource in different time. To use this feature, you need to configure a Hot Desking key in advance. This feature is supported on the version 1.0.3.82 or later  To configure the hot desking via phone interface  1. Press Menu ėFeatures  ėFunction KeysėLine or Line Keys as Function Keys ė Line Key1(for example)  2. Select the wanted Line or Line Key. 3. Press   and   or press    key to select the hot desking.  4. Enter the display name in the value field.  5. Press    or Save soft key to save the configuration  To configure the hot desking via web interface:  1. Click Function keys  ėLine Key.  2. Select the desired Key and select hot desking in the Type.  3. Enter the number in the value field.  4. Select the desired account from the pull-down list of Account field.  5. Click the  button to save the configuration. To use the Hot desking feature on the user interface:  1. Press the Hot desking key when the IP Phone is idle.  2. Enter the Extension number and password  3. Click Save softkey

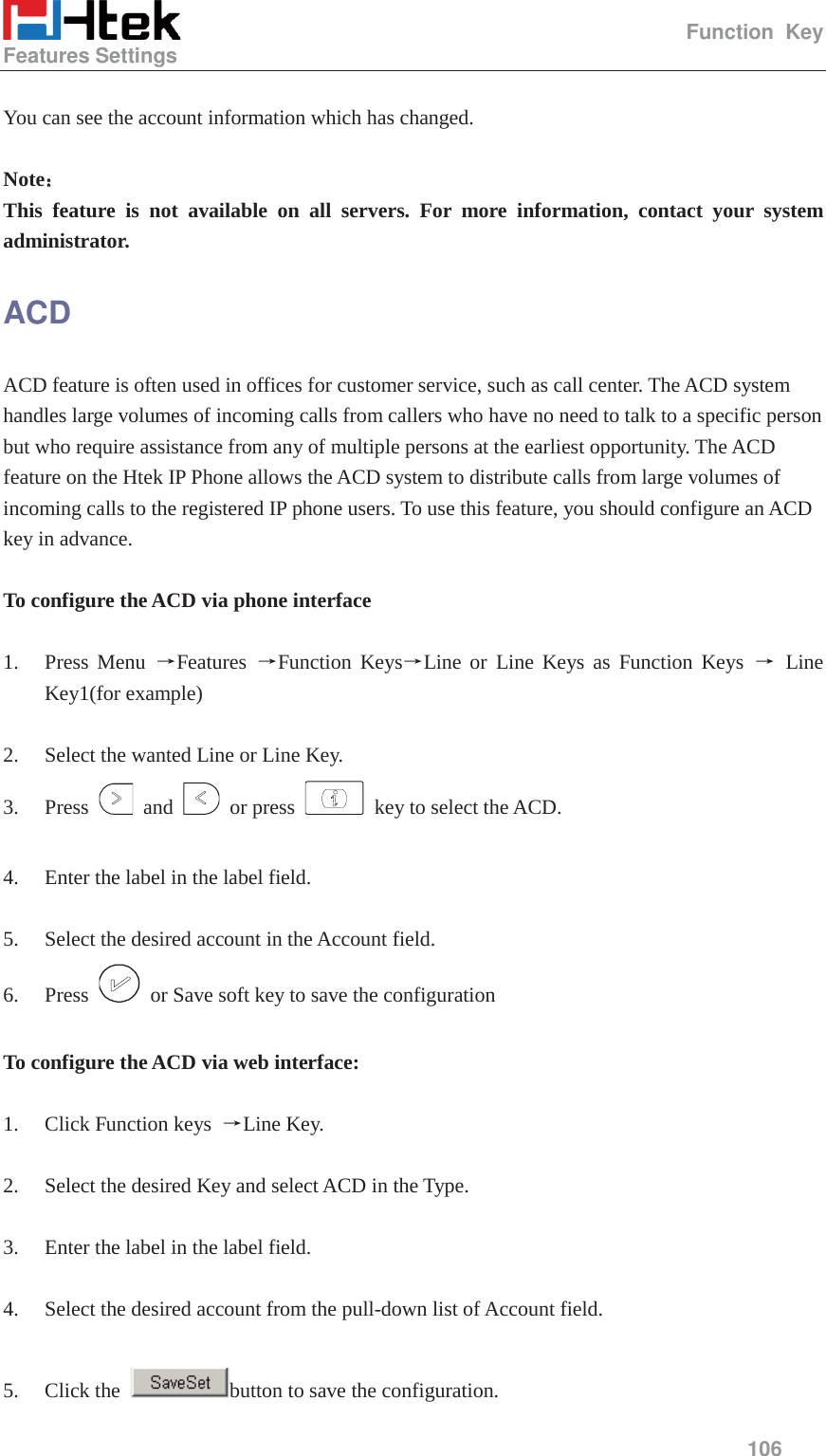

                                                  Function Key Features Settings     106   You can see the account information which has changed.  Note˖˖ This feature is not available on all servers. For more information, contact your system administrator. ACD  ACD feature is often used in offices for customer service, such as call center. The ACD system handles large volumes of incoming calls from callers who have no need to talk to a specific person but who require assistance from any of multiple persons at the earliest opportunity. The ACD feature on the Htek IP Phone allows the ACD system to distribute calls from large volumes of incoming calls to the registered IP phone users. To use this feature, you should configure an ACD key in advance.  To configure the ACD via phone interface  1. Press Menu ėFeatures  ėFunction KeysėLine or Line Keys as Function Keys ė Line Key1(for example)  2. Select the wanted Line or Line Key. 3. Press   and   or press    key to select the ACD.  4. Enter the label in the label field.  5. Select the desired account in the Account field. 6. Press    or Save soft key to save the configuration  To configure the ACD via web interface:  1. Click Function keys  ėLine Key.  2. Select the desired Key and select ACD in the Type.  3. Enter the label in the label field.  4. Select the desired account from the pull-down list of Account field.  5. Click the  button to save the configuration.

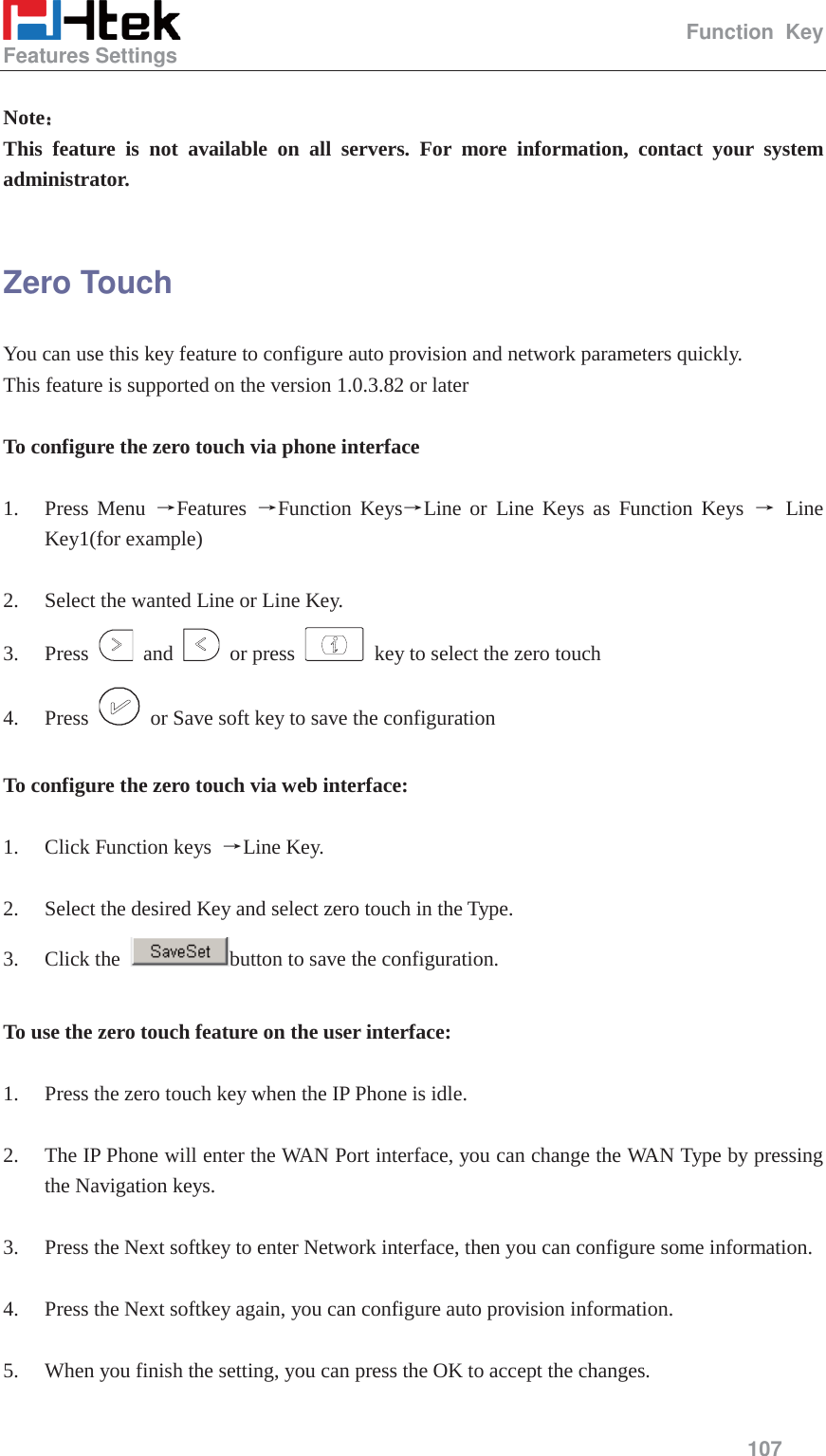

                                                  Function Key Features Settings     107   Note˖˖ This feature is not available on all servers. For more information, contact your system administrator.  Zero Touch You can use this key feature to configure auto provision and network parameters quickly. This feature is supported on the version 1.0.3.82 or later  To configure the zero touch via phone interface  1. Press Menu ėFeatures  ėFunction KeysėLine or Line Keys as Function Keys ė Line Key1(for example)  2. Select the wanted Line or Line Key. 3. Press   and   or press    key to select the zero touch 4. Press    or Save soft key to save the configuration  To configure the zero touch via web interface:  1. Click Function keys  ėLine Key.  2. Select the desired Key and select zero touch in the Type. 3. Click the  button to save the configuration.  To use the zero touch feature on the user interface:  1. Press the zero touch key when the IP Phone is idle.  2. The IP Phone will enter the WAN Port interface, you can change the WAN Type by pressing the Navigation keys.  3. Press the Next softkey to enter Network interface, then you can configure some information.  4. Press the Next softkey again, you can configure auto provision information.  5. When you finish the setting, you can press the OK to accept the changes.

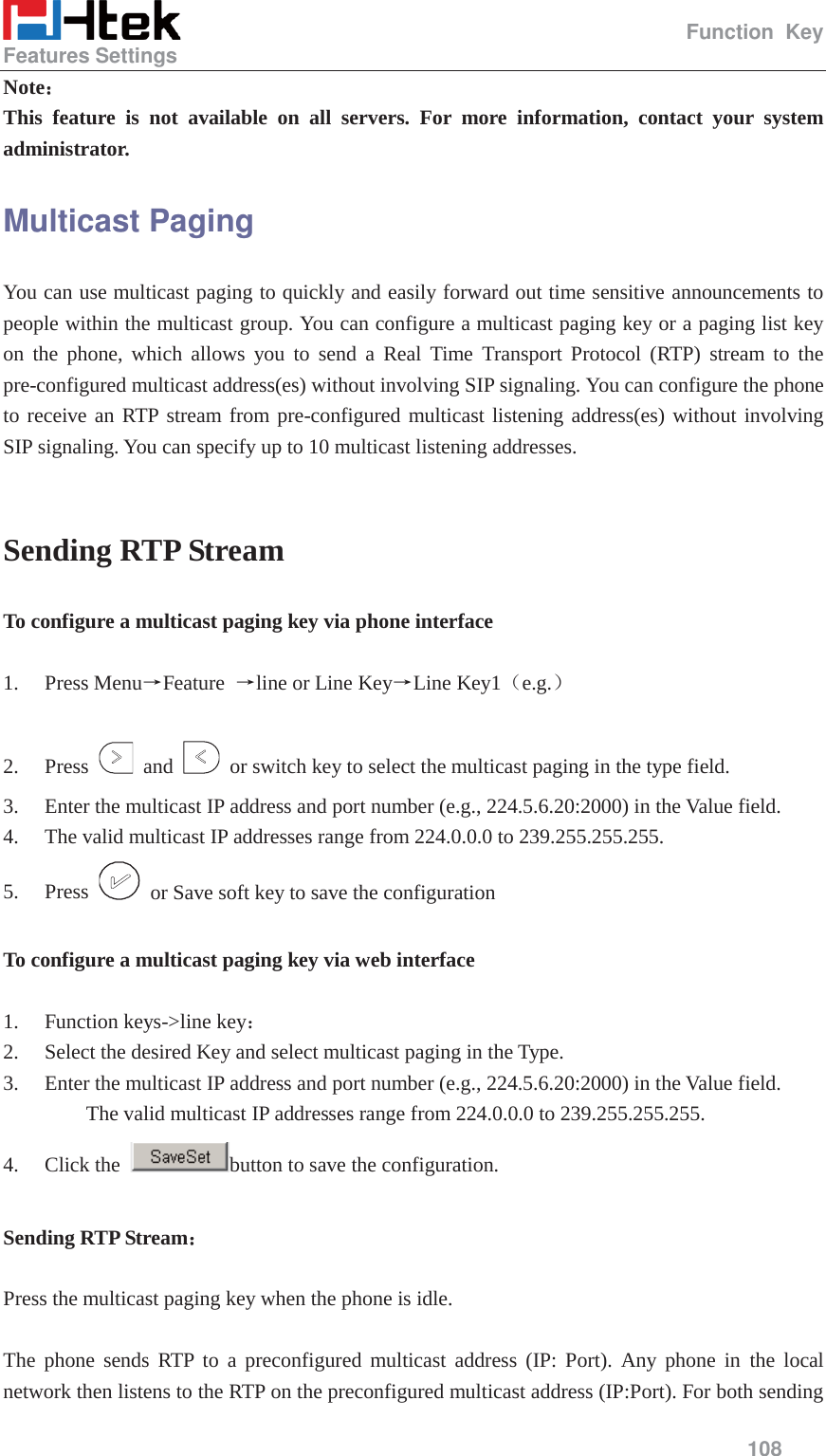

                                                  Function Key Features Settings     108  Note˖˖ This feature is not available on all servers. For more information, contact your system administrator. Multicast Paging You can use multicast paging to quickly and easily forward out time sensitive announcements to people within the multicast group. You can configure a multicast paging key or a paging list key on the phone, which allows you to send a Real Time Transport Protocol (RTP) stream to the pre-configured multicast address(es) without involving SIP signaling. You can configure the phone to receive an RTP stream from pre-configured multicast listening address(es) without involving SIP signaling. You can specify up to 10 multicast listening addresses.  Sending RTP Stream To configure a multicast paging key via phone interface  1. Press MenuėFeature  ėline or Line KeyėLine Key1˄e.g.˅  2. Press   and    or switch key to select the multicast paging in the type field. 3. Enter the multicast IP address and port number (e.g., 224.5.6.20:2000) in the Value field.   4. The valid multicast IP addresses range from 224.0.0.0 to 239.255.255.255. 5. Press    or Save soft key to save the configuration  To configure a multicast paging key via web interface   1. Function keys->line key˖ 2. Select the desired Key and select multicast paging in the Type. 3. Enter the multicast IP address and port number (e.g., 224.5.6.20:2000) in the Value field.   The valid multicast IP addresses range from 224.0.0.0 to 239.255.255.255. 4. Click the  button to save the configuration.  Sending RTP Stream˖   Press the multicast paging key when the phone is idle.  The phone sends RTP to a preconfigured multicast address (IP: Port). Any phone in the local network then listens to the RTP on the preconfigured multicast address (IP:Port). For both sending

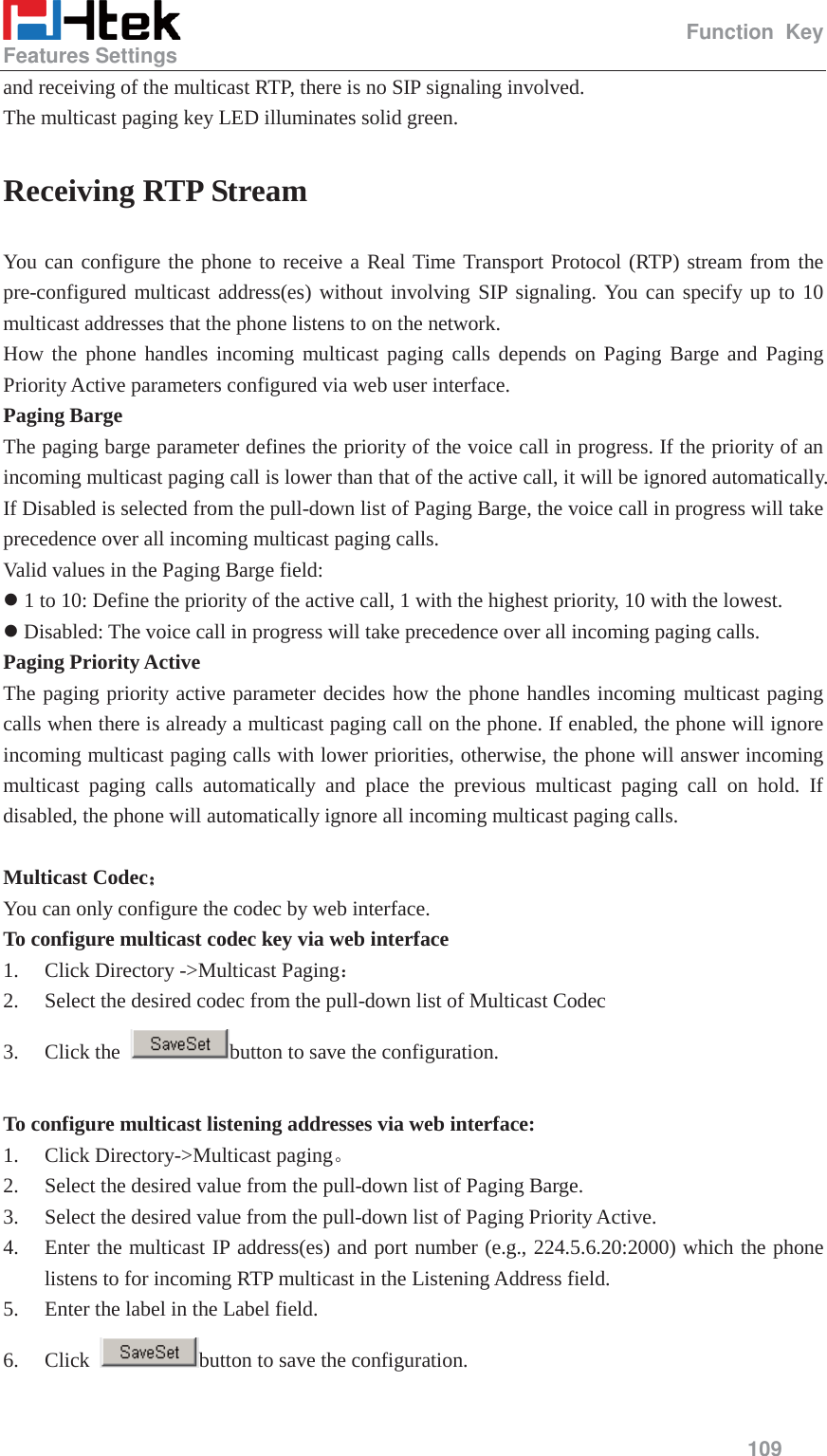

                                                  Function Key Features Settings     109  and receiving of the multicast RTP, there is no SIP signaling involved. The multicast paging key LED illuminates solid green. Receiving RTP Stream You can configure the phone to receive a Real Time Transport Protocol (RTP) stream from the pre-configured multicast address(es) without involving SIP signaling. You can specify up to 10 multicast addresses that the phone listens to on the network. How the phone handles incoming multicast paging calls depends on Paging Barge and Paging Priority Active parameters configured via web user interface. Paging Barge The paging barge parameter defines the priority of the voice call in progress. If the priority of an incoming multicast paging call is lower than that of the active call, it will be ignored automatically. If Disabled is selected from the pull-down list of Paging Barge, the voice call in progress will take precedence over all incoming multicast paging calls. Valid values in the Paging Barge field: z 1 to 10: Define the priority of the active call, 1 with the highest priority, 10 with the lowest. z Disabled: The voice call in progress will take precedence over all incoming paging calls. Paging Priority Active The paging priority active parameter decides how the phone handles incoming multicast paging calls when there is already a multicast paging call on the phone. If enabled, the phone will ignore incoming multicast paging calls with lower priorities, otherwise, the phone will answer incoming multicast paging calls automatically and place the previous multicast paging call on hold. If disabled, the phone will automatically ignore all incoming multicast paging calls.  Multicast Codec˖˖ You can only configure the codec by web interface. To configure multicast codec key via web interface   1. Click Directory ->Multicast Paging˖ 2. Select the desired codec from the pull-down list of Multicast Codec 3. Click the  button to save the configuration.  To configure multicast listening addresses via web interface: 1. Click Directory->Multicast pagingDŽ 2. Select the desired value from the pull-down list of Paging Barge. 3. Select the desired value from the pull-down list of Paging Priority Active. 4. Enter the multicast IP address(es) and port number (e.g., 224.5.6.20:2000) which the phone listens to for incoming RTP multicast in the Listening Address field.   5. Enter the label in the Label field.   6. Click  button to save the configuration.

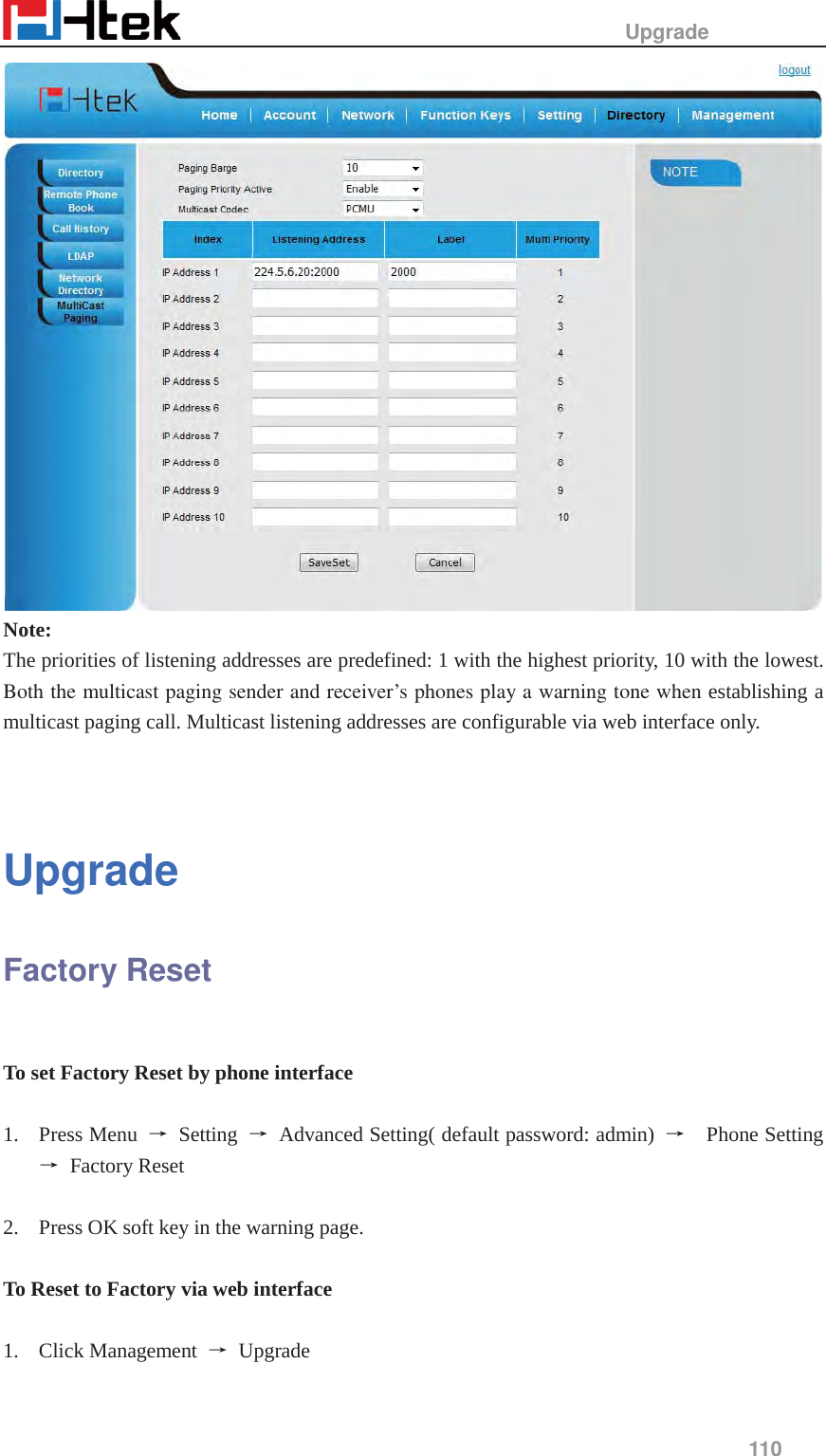

                                                  Upgrade     110   Note: The priorities of listening addresses are predefined: 1 with the highest priority, 10 with the lowest. Both the multicast paging sender and receiver’s phones play a warning tone when establishing a multicast paging call. Multicast listening addresses are configurable via web interface only.   Upgrade Factory Reset  To set Factory Reset by phone interface  1. Press Menu  ė Setting ė  Advanced Setting( default password: admin)  ė  Phone Setting ė Factory Reset  2. Press OK soft key in the warning page.  To Reset to Factory via web interface  1. Click Management  ė Upgrade

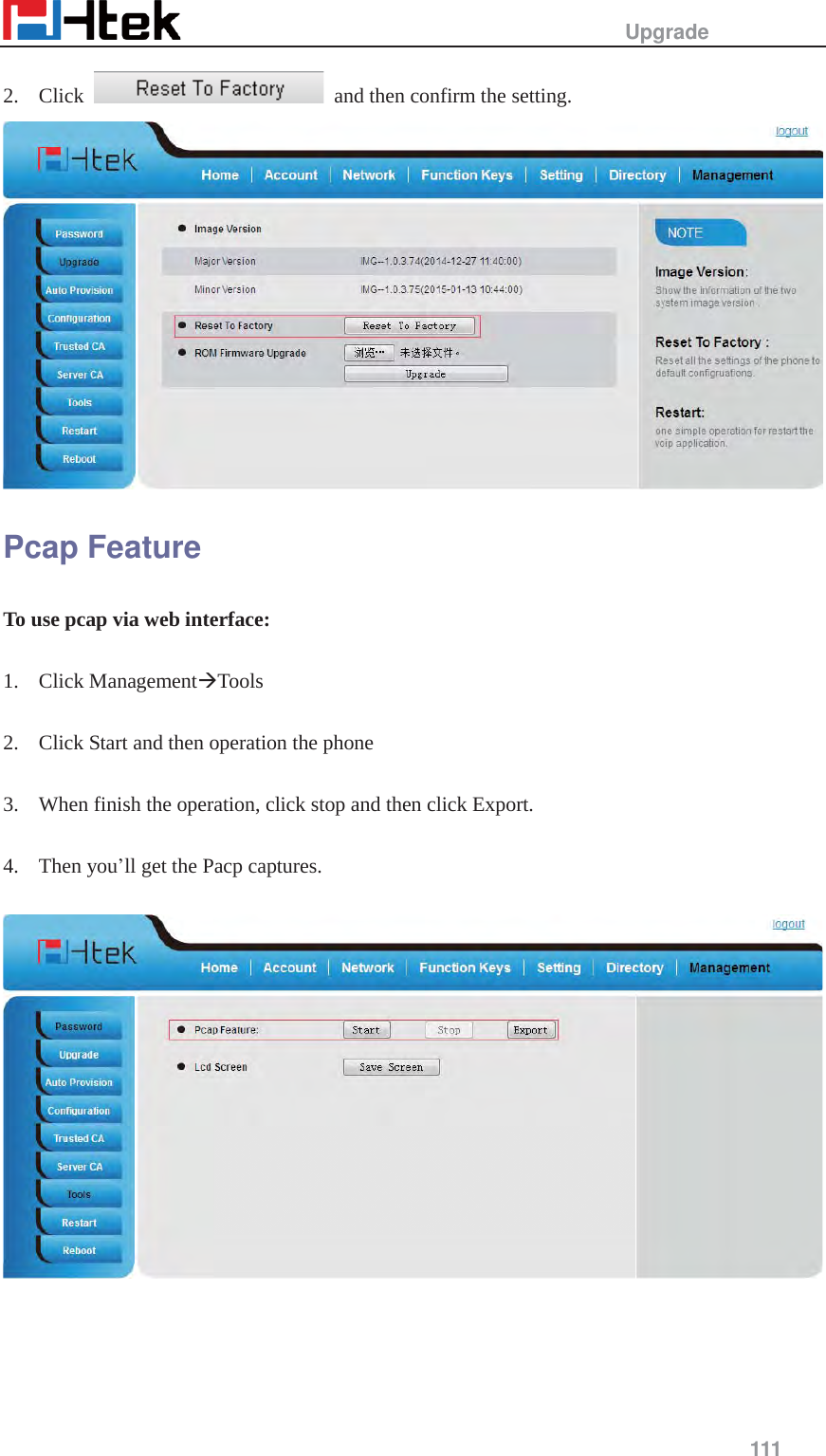

                                                  Upgrade     111  2. Click    and then confirm the setting.  Pcap Feature To use pcap via web interface:  1. Click ManagementÆTools   2. Click Start and then operation the phone  3. When finish the operation, click stop and then click Export.  4. Then you’ll get the Pacp captures.

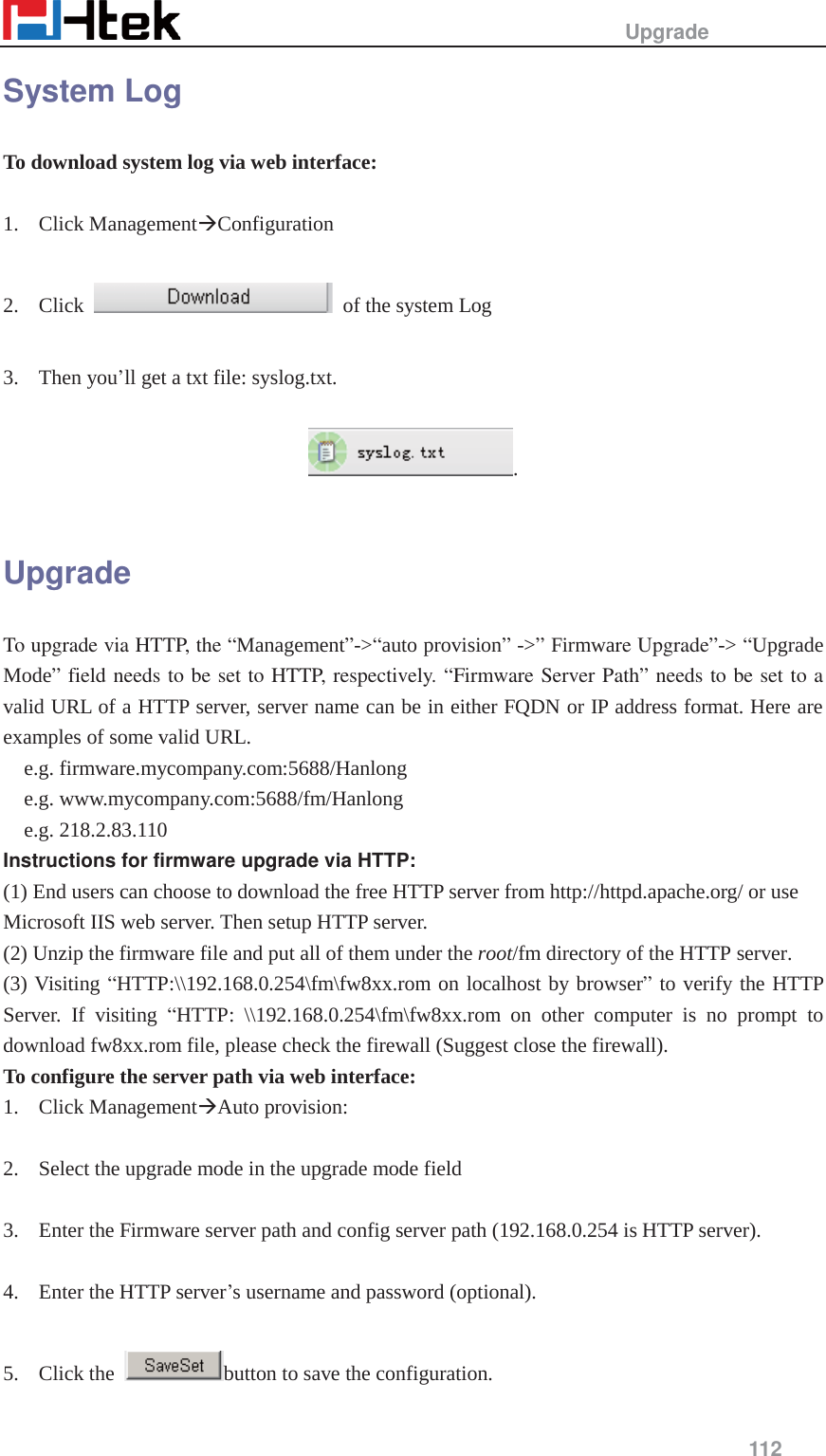

                                                  Upgrade     112  System Log To download system log via web interface:  1. Click ManagementÆConfiguration   2. Click    of the system Log  3. Then you’ll get a txt file: syslog.txt.  .  Upgrade To upgrade via HTTP, the “Management”->“auto provision” ->” Firmware Upgrade”-> “Upgrade Mode” field needs to be set to HTTP, respectively. “Firmware Server Path” needs to be set to a valid URL of a HTTP server, server name can be in either FQDN or IP address format. Here are examples of some valid URL. e.g. firmware.mycompany.com:5688/Hanlong e.g. www.mycompany.com:5688/fm/Hanlong e.g. 218.2.83.110 Instructions for firmware upgrade via HTTP: (1) End users can choose to download the free HTTP server from http://httpd.apache.org/ or use Microsoft IIS web server. Then setup HTTP server. (2) Unzip the firmware file and put all of them under the root/fm directory of the HTTP server. (3) Visiting “HTTP:\\192.168.0.254\fm\fw8xx.rom on localhost by browser” to verify the HTTP Server. If visiting “HTTP: \\192.168.0.254\fm\fw8xx.rom on other computer is no prompt to download fw8xx.rom file, please check the firewall (Suggest close the firewall). To configure the server path via web interface: 1. Click ManagementÆAuto provision:  2. Select the upgrade mode in the upgrade mode field  3. Enter the Firmware server path and config server path (192.168.0.254 is HTTP server).  4. Enter the HTTP server’s username and password (optional).  5. Click the  button to save the configuration.

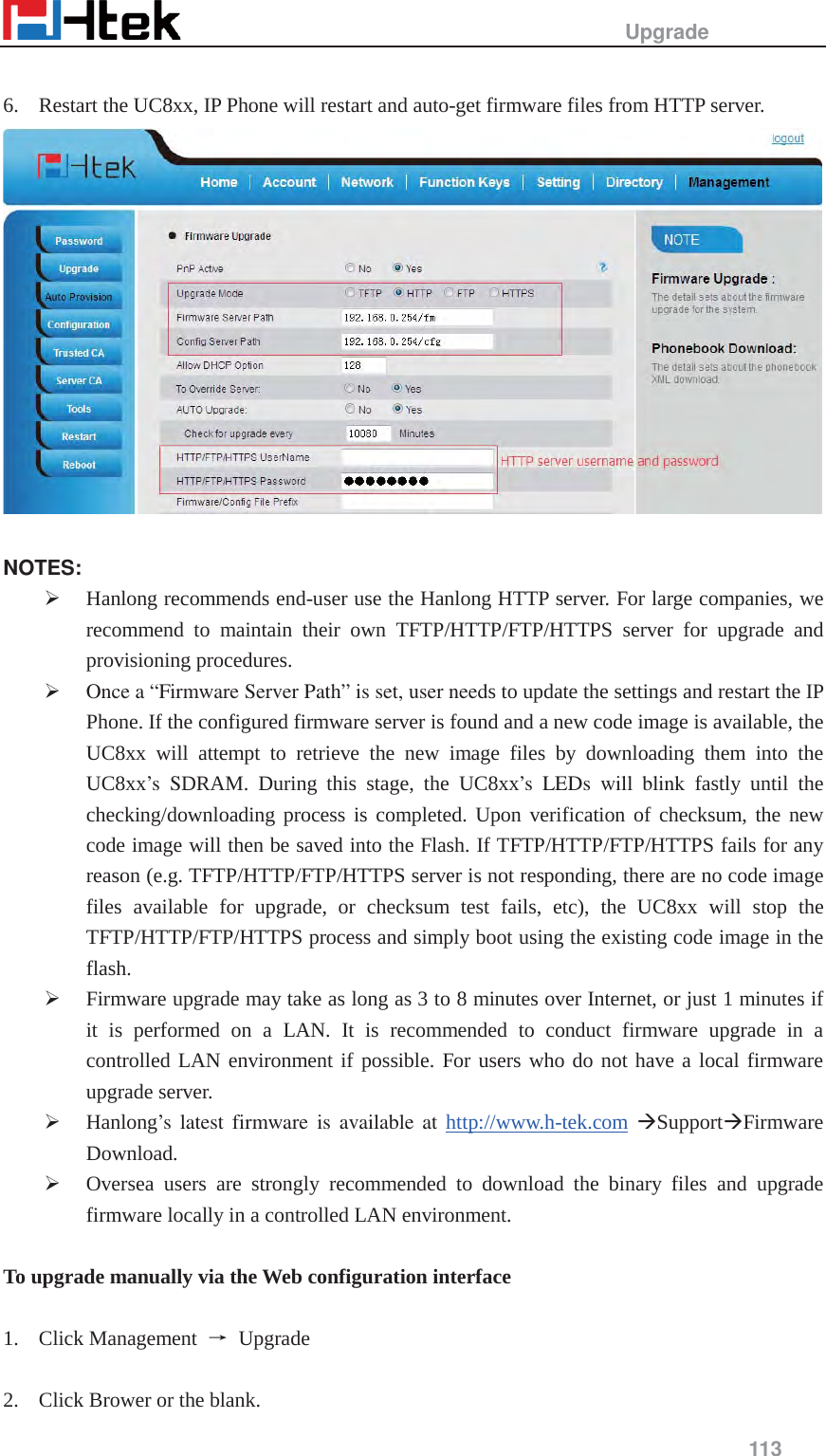

                                                  Upgrade     113   6. Restart the UC8xx, IP Phone will restart and auto-get firmware files from HTTP server.    NOTES: ¾ Hanlong recommends end-user use the Hanlong HTTP server. For large companies, we recommend to maintain their own TFTP/HTTP/FTP/HTTPS server for upgrade and provisioning procedures. ¾ Once a “Firmware Server Path” is set, user needs to update the settings and restart the IP Phone. If the configured firmware server is found and a new code image is available, the UC8xx will attempt to retrieve the new image files by downloading them into the UC8xx’s SDRAM. During this stage, the UC8xx’s LEDs will blink fastly until the checking/downloading process is completed. Upon verification of checksum, the new code image will then be saved into the Flash. If TFTP/HTTP/FTP/HTTPS fails for any reason (e.g. TFTP/HTTP/FTP/HTTPS server is not responding, there are no code image files available for upgrade, or checksum test fails, etc), the UC8xx will stop the TFTP/HTTP/FTP/HTTPS process and simply boot using the existing code image in the flash. ¾ Firmware upgrade may take as long as 3 to 8 minutes over Internet, or just 1 minutes if it is performed on a LAN. It is recommended to conduct firmware upgrade in a controlled LAN environment if possible. For users who do not have a local firmware upgrade server. ¾ Hanlong’s latest firmware is available at http://www.h-tek.com ÆSupportÆFirmware Download. ¾ Oversea users are strongly recommended to download the binary files and upgrade firmware locally in a controlled LAN environment.  To upgrade manually via the Web configuration interface  1. Click Management  ė Upgrade   2. Click Brower or the blank.

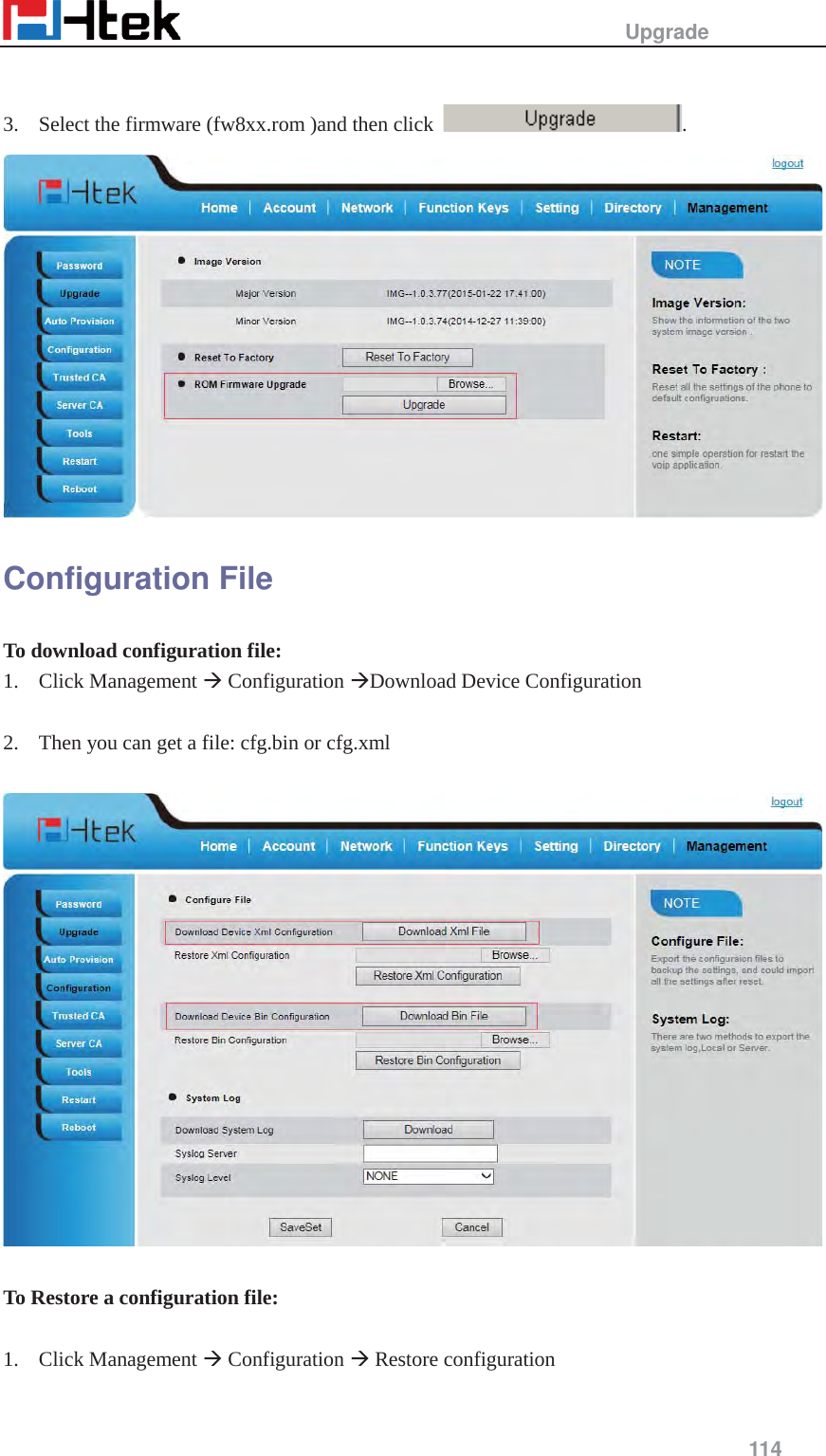

                                                  Upgrade     114   3. Select the firmware (fw8xx.rom )and then click  .  Configuration File To download configuration file: 1. Click Management Æ Configuration ÆDownload Device Configuration  2. Then you can get a file: cfg.bin or cfg.xml    To Restore a configuration file:  1. Click Management Æ Configuration Æ Restore configuration

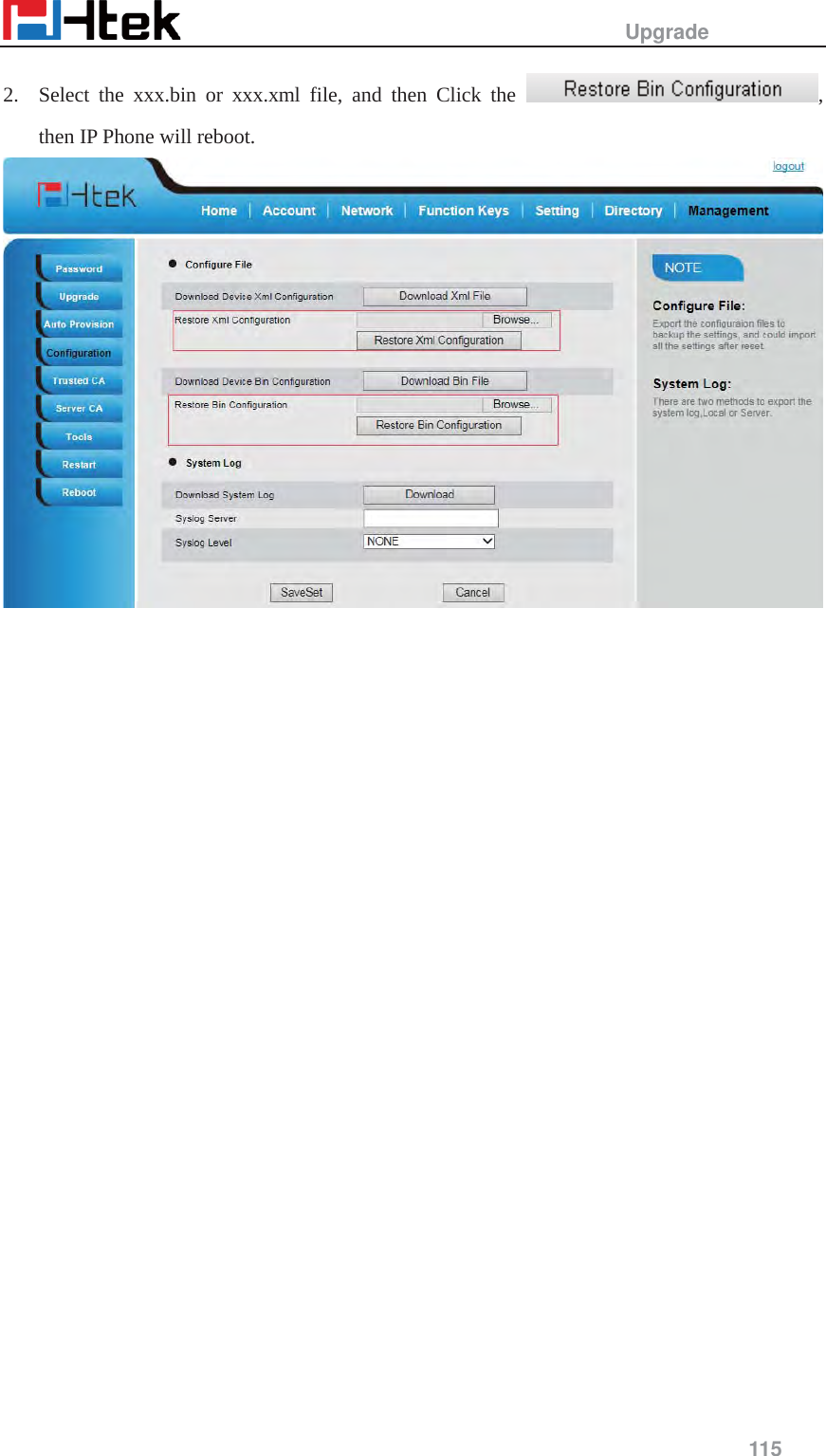

                                                  Upgrade     115  2. Select the xxx.bin or xxx.xml file, and then Click the  , then IP Phone will reboot.

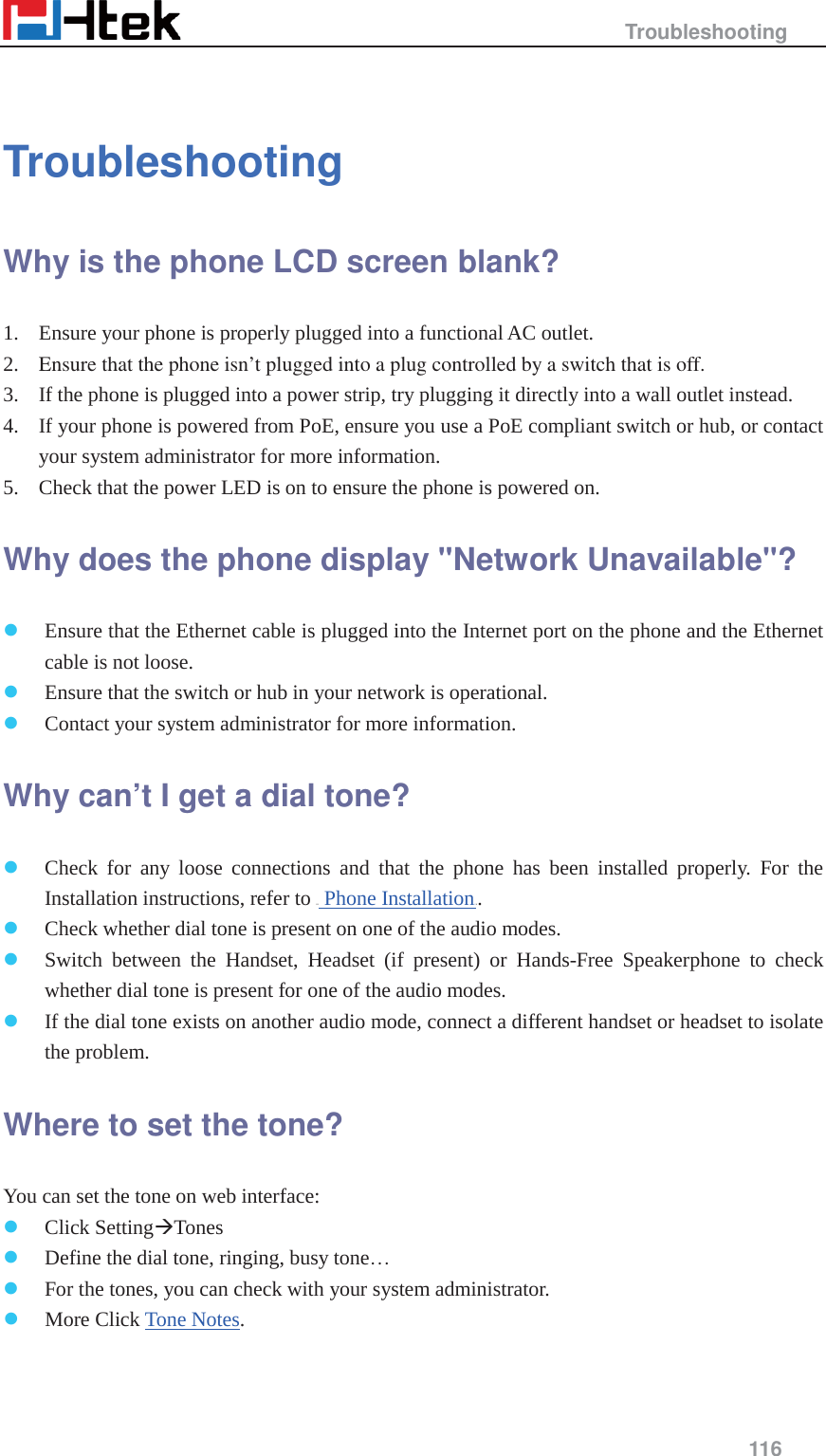

                                                  Troubleshooting     116   Troubleshooting Why is the phone LCD screen blank?   1. Ensure your phone is properly plugged into a functional AC outlet.   2. Ensure that the phone isn’t plugged into a plug controlled by a switch that is off.   3. If the phone is plugged into a power strip, try plugging it directly into a wall outlet instead.   4. If your phone is powered from PoE, ensure you use a PoE compliant switch or hub, or contact your system administrator for more information.   5. Check that the power LED is on to ensure the phone is powered on.   Why does the phone display "Network Unavailable"?   z Ensure that the Ethernet cable is plugged into the Internet port on the phone and the Ethernet cable is not loose.   z Ensure that the switch or hub in your network is operational.   z Contact your system administrator for more information.   Why can’t I get a dial tone?   z Check for any loose connections and that the phone has been installed properly. For the Installation instructions, refer to HU Phone InstallationUH.  z Check whether dial tone is present on one of the audio modes.   z Switch between the Handset, Headset (if present) or Hands-Free Speakerphone to check whether dial tone is present for one of the audio modes.   z If the dial tone exists on another audio mode, connect a different handset or headset to isolate the problem.   Where to set the tone?   You can set the tone on web interface:   z Click SettingÆTones  z Define the dial tone, ringing, busy tone… z For the tones, you can check with your system administrator. z More Click Tone Notes.

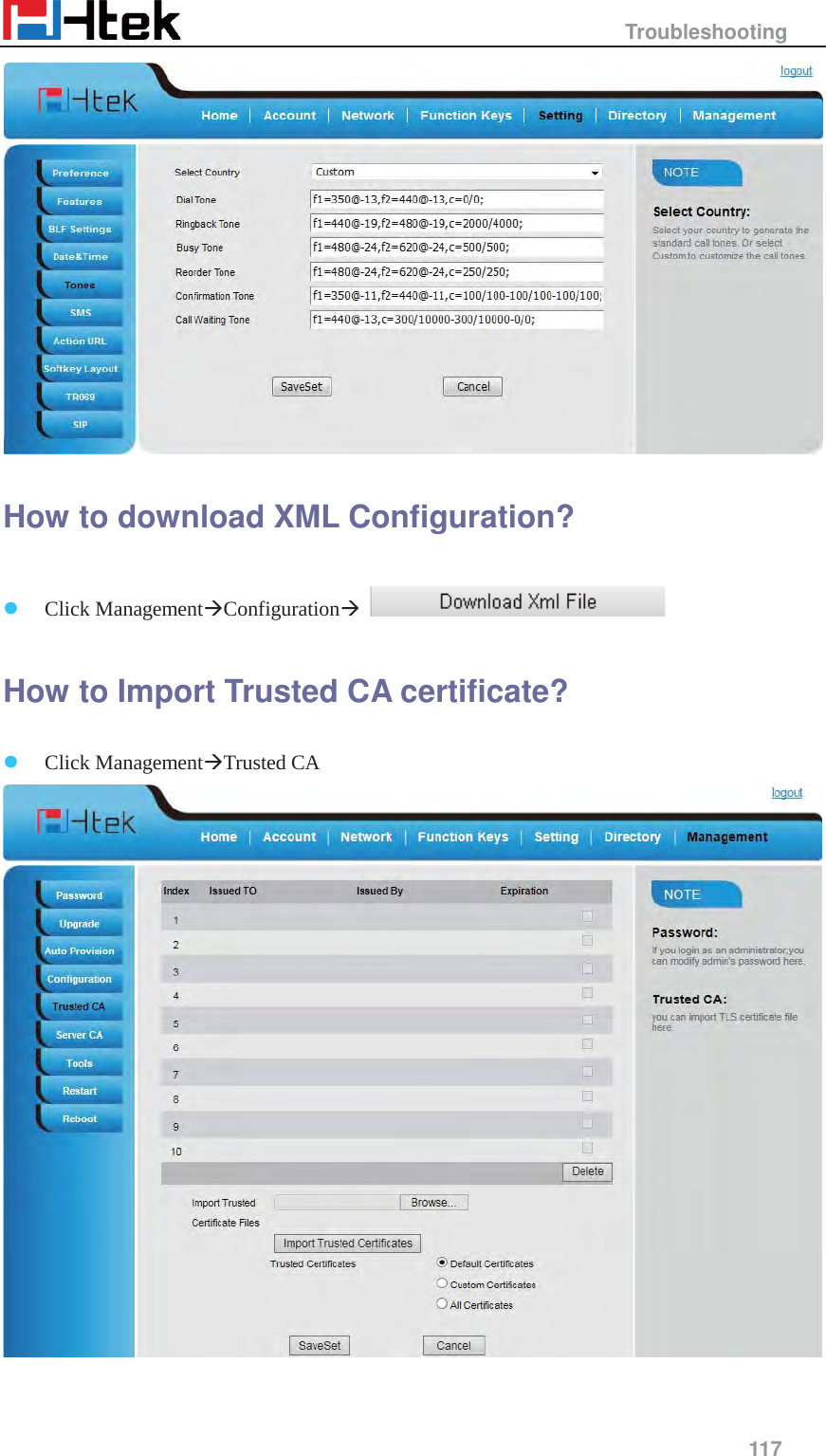

                                                  Troubleshooting     117   How to download XML Configuration?   z Click ManagementÆConfigurationÆ   How to Import Trusted CA certificate? z Click ManagementÆTrusted CA

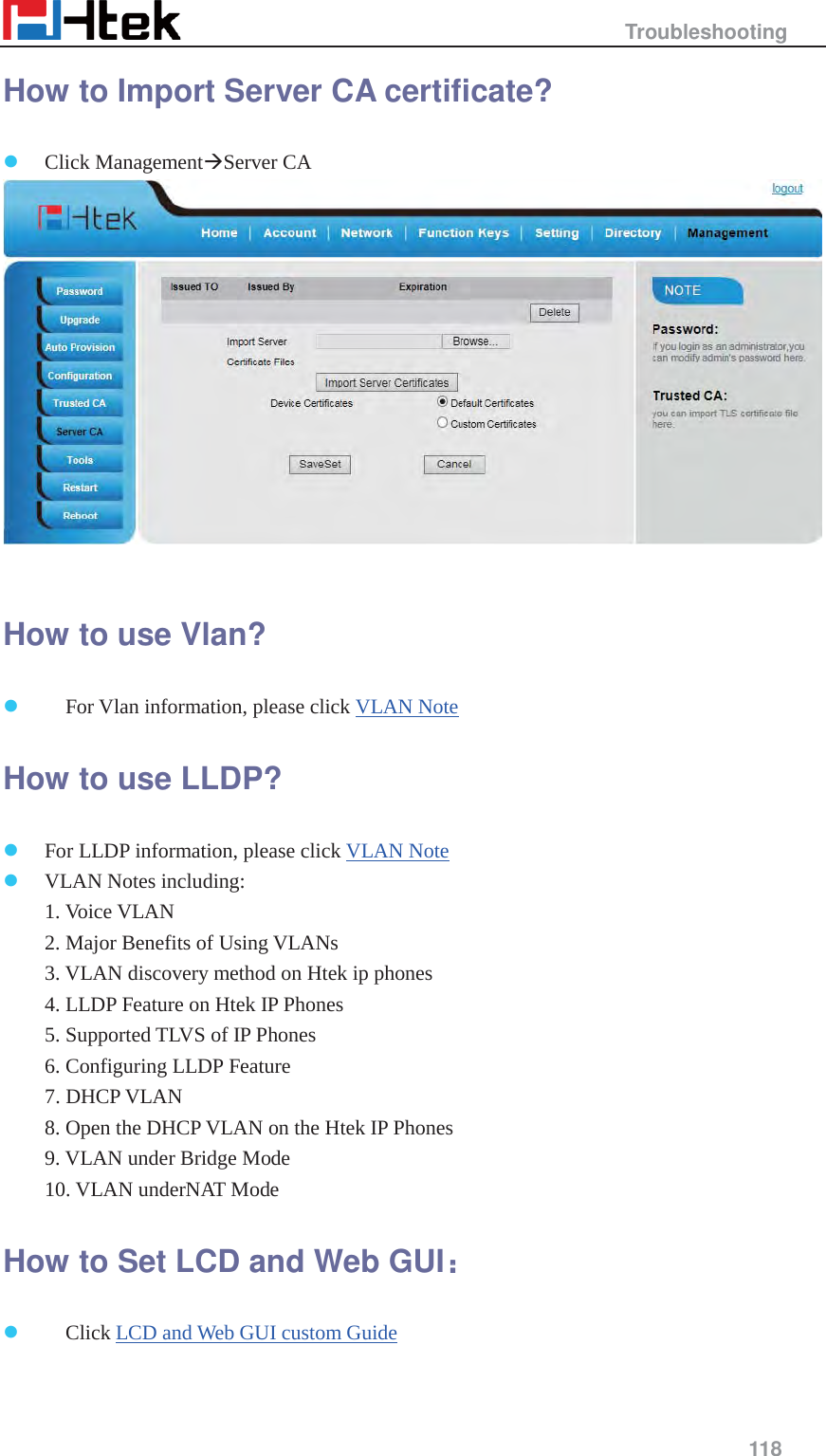

                                                  Troubleshooting     118  How to Import Server CA certificate? z Click ManagementÆServer CA   How to use Vlan? z     For Vlan information, please click VLAN Note How to use LLDP? z For LLDP information, please click VLAN Note z VLAN Notes including:  1. Voice VLAN  2. Major Benefits of Using VLANs  3. VLAN discovery method on Htek ip phones  4. LLDP Feature on Htek IP Phones  5. Supported TLVS of IP Phones  6. Configuring LLDP Feature  7. DHCP VLAN  8. Open the DHCP VLAN on the Htek IP Phones  9. VLAN under Bridge Mode  10. VLAN underNAT Mode How to Set LCD and Web GUIφφ z Click LCD and Web GUI custom Guide

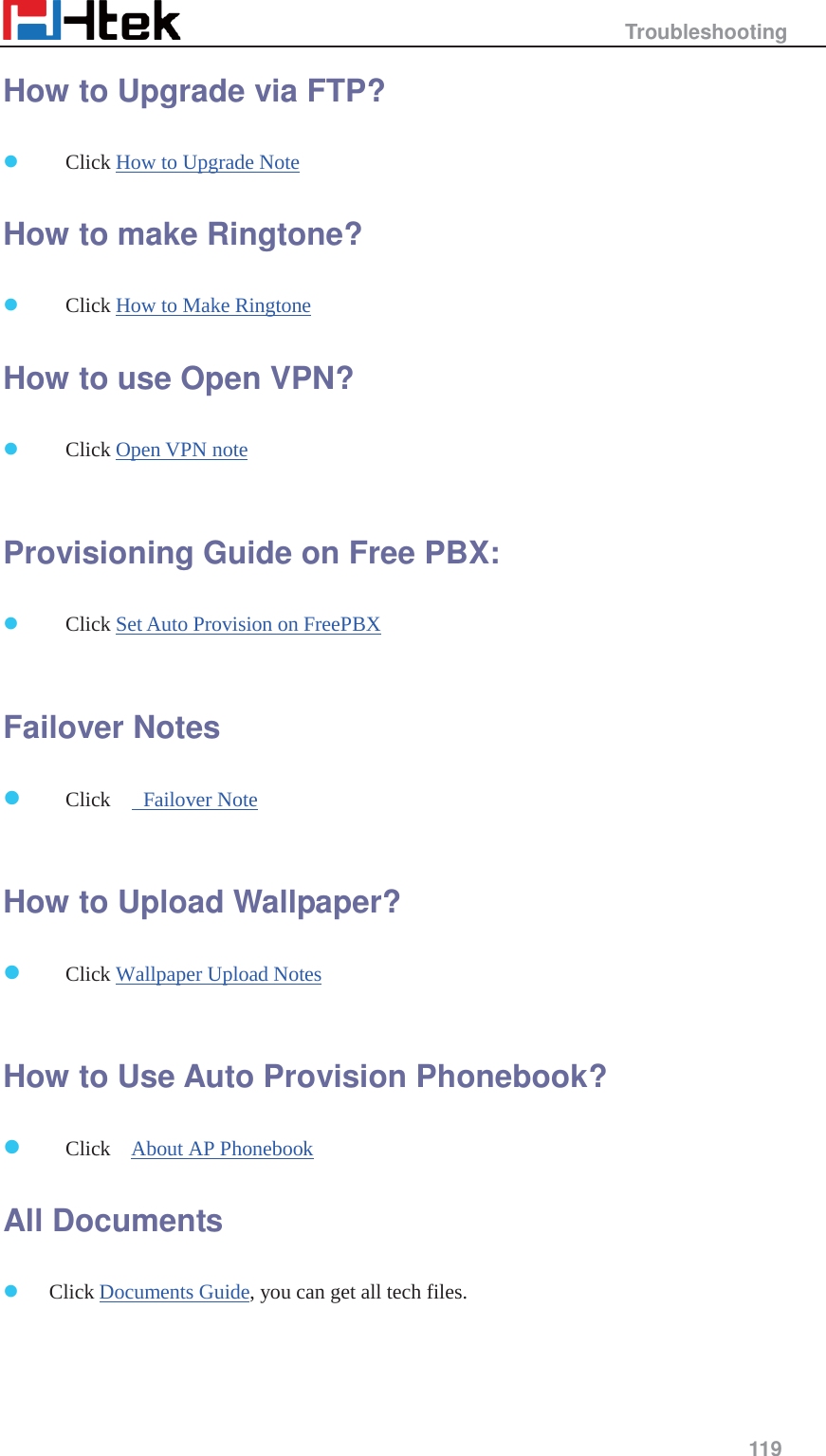

                                                  Troubleshooting     119  How to Upgrade via FTP? z Click How to Upgrade Note How to make Ringtone? z Click How to Make Ringtone How to use Open VPN? z Click Open VPN note  Provisioning Guide on Free PBX: z Click Set Auto Provision on FreePBX  Failover Notes z Click   Failover Note  How to Upload Wallpaper? z Click Wallpaper Upload Notes  How to Use Auto Provision Phonebook? z Click  About AP Phonebook All Documents z  Click Documents Guide, you can get all tech files.
