OVERVIEW
The Trilogy Networx™ AL-IME2-PIE Plug-in Expander
greatly extends the coverage area of version 2 series
Gateways. The AL-IME2-PIE is a
"plug-in" version of the AL-IME2-EXP
Expander; both models are functional-
ly identical. Installation is simple, with
the AL-IME2-PIE only requiring a con-
nection to a standard 120VAC wall
outlet, .
AL-IME2-PIE Expanders are cost-
effective, require no wiring, and fea-
ture a simplified 'Plug and Play' setup
where the Networx system automati-
cally identifies all newly powered Ex-
panders and quickly determines the
best wireless signal pathways. Up to
7 Expanders can be added to one ver-
sion 2 series Gateway.
Why use AL-IME2-PIE Expanders?
Less costly, Expanders allow large coverage areas
without using additional Gateways
Does not require network access / Ethernet cables
Can be added to existing systems to improve sig-
nal strength in weak signal areas
Allows for greater flexibility when positioning ver-
sion 2 Gateways
Allows large area signal coverage with a single net-
work connection to the Gateway
Note: Expanders are available in two different de-
signs: The AL-IME2-PIE Plug-In Expander and the AL
-IME2-EXP Expander (identical in operation; see
WI2156 for more information).
Version 2
The AL-IME2-PIE "version 2" Expanders (notice the
"2" in the model name) are the next generation of Net-
worx wireless devices. Because AL-IME2-PIE Ex-
panders only work with version 2 Gateways, a version
2 Gateway must be installed and operational in your
system for AL-IME2-PIE Expanders to function (AL-
IME2-PIE Expanders cannot communicate with old-
er "non-version 2" Gateways).
Note: Although the version 2 Gateways and AL-
IME2-PIE Expanders CAN be mixed into an existing
system that includes older "non-version 2" Gateways,
AL-IME2-PIE Plug-In Expander
Installation Instructions
© ALARM LOCK 2018 WI2219BLF 6/18
at least one new version 2 Gateway must be up and
running before an AL-IME2-PIE Plug-In Expander can
be used.
IMPORTANT: DL-Windows version 5.4.2 or later is
required to support version 2 Gateways and Expanders.
The AL-IME2-PIE Plug-In Expander is compatible with
Alarm Lock and Continental Access products. Refer to
the documentation supplied with your software for inte-
gration details.
AL-IME2-PIE SPECIFICATIONS
NETWORK RANGE
Note: Actual range varies with building construc-
tion.
Gateway/Expander to Locks: Clear field range 500'.
Typical indoor range: Networx 75-175'; ArchiTech
Networx: 50-125'.
Gateway/Expander to Expander: Clear field range
500'. Typical indoor range, 75- 175'.
AL RADIO LINK
902 - 928MHz
13.5mW typical RF power
POWER
Input Voltage: 120VAC @ 60Hz
Peak Supply Current: 10mA
Occupies one 120VAC outlet
ENVIRONMENTAL
Operating Temperature: -20˚ to 60˚C (-4˚ to 140˚F)
Storage Temperature: -40˚ to 85˚C (-40˚ to 185˚F)
PHYSICAL
Enclosure Size: 4.3"H x 2.5"W x 0.875"D, (5"H with
Mounting Tab)
Weight: 0.35lbs.
EXPANDER LOCATION GUIDELINES
Once your version 2 Gateway location has been select-
ed, the next step is to determine where to install Ex-
panders. However, the following must be taken into
consideration:
Although wood and wallboard construction can have
little effect upon signal strength, concrete or brick can
reduce signal strength by up to 35%. Steel-reinforced
concrete or metal lath and plaster can reduce signal
strength as much as 90%!
345 Bayview Avenue
Amityville, New York 11701
For Sales and Repairs 1-800-ALA-LOCK
For Technical Service 1-800-645-9440
or visit us at http://tech.napcosecurity.com/
(Note: Technical Service is for security professionals only)
Publicly traded on NASDAQ Symbol: NSSC
AL-IME2-PIE
NOTICE – Local Regulations in Canada do not permit use of a Mounting Tab. In Canada, do not use the Mounting Tab
to attach the unit to an outlet. Avis – Les réglementations locales au Canada ne permettent pas l'utilisation d'une patte
de montage. Au Canada, il est interdit de raccorder l'appareil à une prise de courant au moyen d'une patte de montage.
2

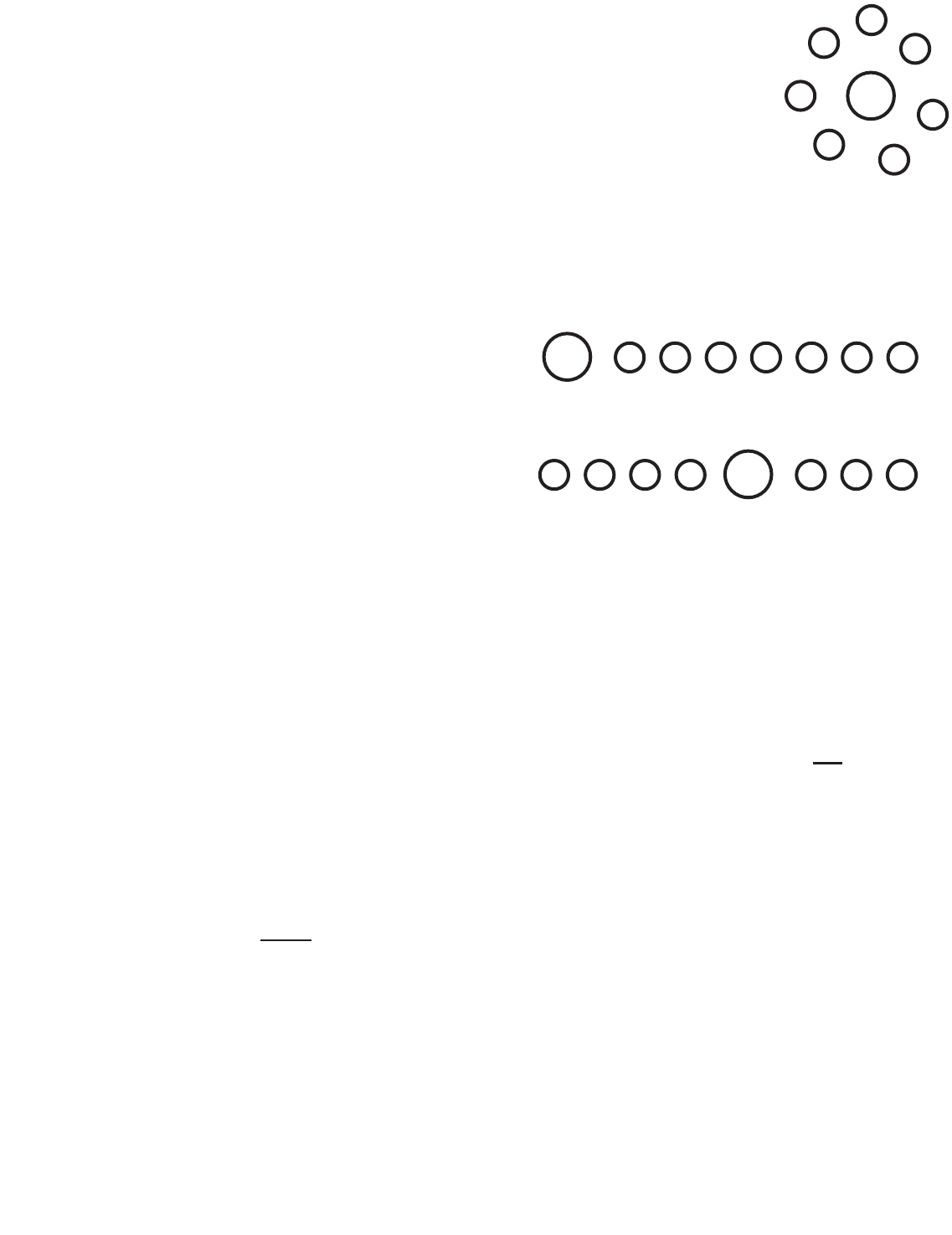

Gateway centrally located:
When a single version 2 Gate-
way is located in the center,
surrounded by up to 7 Expand-
ers (maximum), this configura-
tion covers a large area around
a centrally located Gateway.
Gateway located at one end
of a row of Expanders: Useful for covering very
long distances. Connects several Expanders in series
with a 100 foot maximum distance between the Gate-
way and the first (and between each subsequent) Ex-
pander. In this example, the signal is easily extended
over 700 feet in one direction, and provides coverage
for door locks located along this range:
The below example shows the Gateway centrally locat-
ed within a line of Expanders (a typical corridor config-
uration).
Note: The labels "E1" through "E7" are used only
for illustration purposes and do not necessarily reflect
Expander "numbers" nor the manner in which the Ex-
panders will self-configure. In addition, the examples
above are just 3 possible scenarios; in theory, endless
automatic (self-configuring) installation configurations
are possible!
INSTALLATION STEPS
1. Blue and White ID Cards
We recommend that when installing any model Gate-
way, a blue-colored "Gateway ID Card" (OI357) be
completed, and when installing the AL-IME2-PIE Plug-
In Expander, a white-colored "Expander ID
Card" (OI388) be completed.
Gateway and Expander physical locations may easily
be forgotten. These ID cards may prove to be very
useful when replacing Gateways or Expanders, when
using DL-Windows to select a particular Gateway or
Expander to discover locks, or whenever an installed
Gateway or Expander needs to be physically located.
2. Set "Expander Group" Value
On the inside surface of the Expander are two rotary
"Expander Group" dials. When the AL-IME2-PIE is
held in your hand in the orientation shown in Fig. 1,
use these dials to set the "Expander Group" value
("00" through "99" are valid selections). All version 2
Gateways include an identical set of dials. The dial
value set on your Gateway MUST match the dial value
set on your AL-IME2-PIE.
IMPORTANT: Each Gateway in your system MUST
Generally, depending on construction, the Expanders
should be typically mounted within approximately
100 feet of the Gateway or another Expander
Expanders should be typically located within approxi-
mately 75 feet from the intended wireless lock loca-
tions
Open areas will increase range while concrete
building construction, walls, ceilings and narrow
corridors will decrease range
ArchiTech series locks generally have shorter
range to and from an Expander
Any standard un-switched 120VAC outlet can be
used. Be aware signal levels can be affected by out-
let locations
(Optional) Use the Mounting Tab (see Fig. 1) to
prevent unauthorized access to the AL-IME2-PIE
by securing the unit to the wall outlet (replace the
existing center outlet cover screw with the supplied
screw)
Installing in computer closets or server rooms can
negatively impact range and performance
Helpful Tips
The AL-NSM Networx Signal Meter and the AL-
NSG Networx Signal Generator can assist with
identifying optimal Gateway locations relative to
Expanders and locks. See WI2092 for complete
information about how to properly use these devic-
es.
We recommend obtaining a floor plan and subse-
quently creating a layout of your intended system
identifying all proposed installation locations, also
noting building construction materials
AL-IME2-PIEs are also handy for quickly deter-
mining a suitable location for AL-IME2-EXP Ex-
panders (if required for your system). Simply plug
in an AL-IME2-PIE in a convenient location and
perform a Expander discovery. If the AL-IME2-PIE
appears in your DL-Windows list of discovered Ex-
panders, you can replace the plug-in AL-IME2-PIE
with an AL-IME2-EXP (or leave the AL-IME2-PIE
where it is).
IMPORTANT: Be sure to read the "INSTALLATION
STEPS" section on this page before powering your Ex-
panders.
Follow these tips for each additional Expander added
to the system; see below for Expander installation con-
figurations.
INSTALLATION CONFIGURATIONS
Gateways / Expanders will automatically determine the
optimal routing pathways between one another, ensur-
ing optimal signal levels. The following are NOT
"required" configurations, but are simply examples of
typical Expander configurations.
G
E3
E2
E6
E1
E4
E5
E7
G E1 E2 E3 E4 E5 E6 E7
G E1 E2 E3 E4 E5 E6 E7
3
4. Observe the LEDs
Upon power up:
● Red solid (momentarily)...
● Yellow blinks counting out "Expander Group"
setting (no blink = zero)...
● Yellow solid + green rapid flicker
Next, reset the Expander as follows:
5. Reset the Expander!
IMPORTANT: ALWAYS reset the Expander memory,
even if the Expander is new "out of the box" and/or has
never been used previously. The RESET button de-
scribed below can be accessed through a small hole in
the unit (location shown in Fig. 1). To depress the
RESET button, simply insert supplied Reset Pin
into the hole. Proceed as follows:
WHILE THE UNIT IS POWERED AND PLUGGED IN-
TO THE OUTLET:
● Press and hold the RESET button...
● ...Continue holding until the red LED turns on solid...
● ...Release and verify the green LED flickers rapidly
This "resetting" of the AL-IME2-PIE Expander clears
all memory and ensures that any previous data (such
as factory test data) is cleared from the unit.
EXPANDER LED INDICATIONS
be set to a different "Expander Group" value (along
with its associated Expanders). The "Expander Group"
value determines which Expanders are associated with
each Gateway, thus preventing Gateways from discov-
ering unintended Expanders. Note: The small
"selection arrow" on each dial must be pointing directly
to the desired value. Hold the AL-IME2-PIE with the
label "up" as shown in Fig. 1.
Example: Fig. 2 (below) displays the "Expander
Group" value set to "50". Use a small flat-head screw-
driver to turn the dials and make the selections.
3. Power the Expander
After setting the "Expander Group" values dials, simply
plug the AL-IME2-PIE into a standard un-switched
120VAC wall outlet, then observe the LEDs (see step 4
below).
Yellow
Upon Power up, displays "Expander Group" dial setting (in
two sequences)
Receiver On (i.e. normal operation)
Red Flickering during communications
Green
(Expander Status)
Not configured = Rapid blinking / flickering
Idle / configured = Approximately 1 blink per second
2 blinks repeated = Expander to lock communication error
4 blinks repeated = Expander to Expander communication
error
Congratulations! You're finished! Now go to the
DL-WINDOWS™ for Networx™ V5 USER'S GUIDE
(OI383) for instructions about discovering your Ex-
panders from DL-Windows.
"selection arrow"
pointing to "5"
Fig. 2: Example "Expander Group" value setting of "50"
"selection arrow"
pointing to "0"
Mounting
Tab
Reset Pin
"Expander
Group" Dial

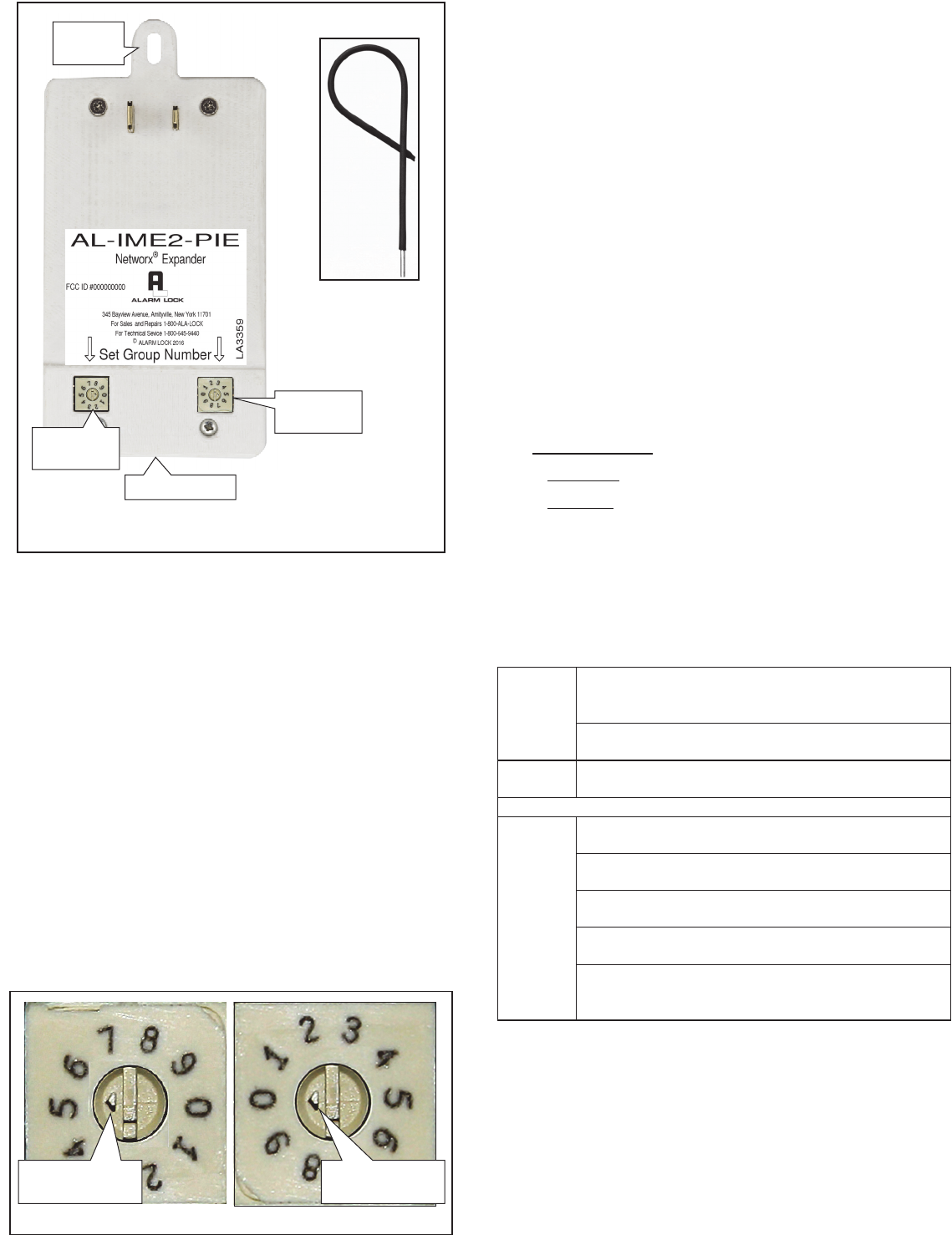

Fig. 1: Hold the AL-IME2-PIE as shown to ensure proper
"Expander Group" dial settings. Inset: The supplied Reset Pin.
RESET button
"Expander
Group" Dial
4
ALARM LOCK SYSTEMS, INC. (ALARM LOCK) war-
rants its products to be free from manufacturing defects in
materials and workmanship for twenty four months following
the date of manufacture. ALARM LOCK will, within said pe-
riod, at its option, repair or replace any product failing to
operate correctly without charge to the original purchaser or
user.
This warranty shall not apply to any equipment, or any
part thereof, which has been repaired by others, improperly
installed, improperly used, abused, altered, damaged, sub-
jected to acts of God, or on which any serial numbers have
been altered, defaced or removed. Seller will not be respon-
sible for any dismantling or reinstallation charges, environ-
mental wear and tear, normal maintenance expenses, or
shipping and freight expenses required to return products to
ALARM LOCK. Additionally, this warranty shall not cover
scratches, abrasions or deterioration due to the use of
paints, solvents or other chemicals.
THERE ARE NO WARRANTIES, EXPRESS OR IM-
PLIED, WHICH EXTEND BEYOND THE DESCRIPTION
ON THE FACE HEREOF. THERE IS NO EXPRESS OR
IMPLIED WARRANTY OF MERCHANTABILITY OR A
WARRANTY OF FITNESS FOR A PARTICULAR PUR-
POSE. ADDITIONALLY, THIS WARRANTY IS IN LIEU OF
ALL OTHER OBLIGATIONS OR LIABILITIES ON THE
PART OF ALARM LOCK.
Any action for breach of warranty, including but not lim-
ited to any implied warranty of merchantability, must be
brought within the six months following the end of the war-
ranty period.
IN NO CASE SHALL ALARM LOCK BE LIABLE TO
ANYONE FOR ANY CONSEQUENTIAL OR INCIDENTAL
DAMAGES FOR BREACH OF THIS OR ANY OTHER
WARRANTY, EXPRESS OR IMPLIED, EVEN IF THE
LOSS OR DAMAGE IS CAUSED BY THE SELLER'S OWN
NEGLIGENCE OR FAULT.
In case of defect, contact the security professional who
installed and maintains your security system. In order to
exercise the warranty, the product must be returned by the
security professional, shipping costs prepaid and insured to
ALARM LOCK. After repair or replacement, ALARM LOCK
assumes the cost of returning products under warranty.
ALARM LOCK shall have no obligation under this warranty,
or otherwise, if the product has been repaired by others,
improperly installed, improperly used, abused, altered, dam-
aged, subjected to accident, nuisance, flood, fire or acts of
God, or on which any serial numbers have been altered,
defaced or removed. ALARM LOCK will not be responsible
for any dismantling, reassembly or reinstallation charges,
environmental wear and tear, normal maintenance expens-
es, or shipping and freight expenses required to return prod-
ucts to ALARM LOCK. Additionally, this warranty shall not
cover scratches, abrasions or deterioration due to the use of
paints, solvents or other chemicals.
This warranty contains the entire warranty. It is the sole
warranty and any prior agreements or representations,
whether oral or written, are either merged herein or are ex-
pressly cancelled. ALARM LOCK neither assumes, nor au-
thorizes any other person purporting to act on its behalf to
modify, to change, or to assume for it, any other warranty or
liability concerning its products.
In no event shall ALARM LOCK be liable for an amount
in excess of ALARM LOCK's original selling price of the
product, for any loss or damage, whether direct, indirect,
incidental, consequential, or otherwise arising out of any
failure of the product. Seller's warranty, as hereinabove set
forth, shall not be enlarged, diminished or affected by and
no obligation or liability shall arise or grow out of Seller's
rendering of technical advice or service in connection with
Buyer's order of the goods furnished hereunder.
ALARM LOCK RECOMMENDS THAT THE ENTIRE
SYSTEM BE COMPLETELY TESTED WEEKLY.
Warning: Despite frequent testing, and due to, but
not limited to, any or all of the following; criminal tampering,
electrical or communications disruption, it is possible for the
system to fail to perform as expected. ALARM LOCK does
not represent that the product/system may not be compro-
mised or circumvented; or that the product or system will
prevent any personal injury or property loss by burglary,
robbery, fire or otherwise; nor that the product or system will
in all cases provide adequate warning or protection. A
properly installed and maintained alarm may only reduce
risk of burglary, robbery, fire or otherwise but it is not insur-
ance or a guarantee that these events will not occur. CON-
SEQUENTLY, SELLER SHALL HAVE NO LIABILITY FOR
ANY PERSONAL INJURY, PROPERTY DAMAGE, OR
OTHER LOSS BASED ON A CLAIM THE PRODUCT
FAILED TO GIVE WARNING. Therefore, the installer
should in turn advise the consumer to take any and all pre-
cautions for his or her safety including, but not limited to,
fleeing the premises and calling police or fire department, in
order to mitigate the possibilities of harm and/or damage.
ALARM LOCK is not an insurer of either the property or
safety of the user's family or employees, and limits its liabil-
ity for any loss or damage including incidental or conse-
quential damages to ALARM LOCK's original selling price
of the product regardless of the cause of such loss or dam-
age.
Some states do not allow limitations on how long an
implied warranty lasts or do not allow the exclusion or limita-
tion of incidental or consequential damages, or differentiate
in their treatment of limitations of liability for ordinary or
gross negligence, so the above limitations or exclusions
may not apply to you. This Warranty gives you specific legal
rights and you may also have other rights which vary from
state to state.
ALARM LOCK LIMITED WARRANTY

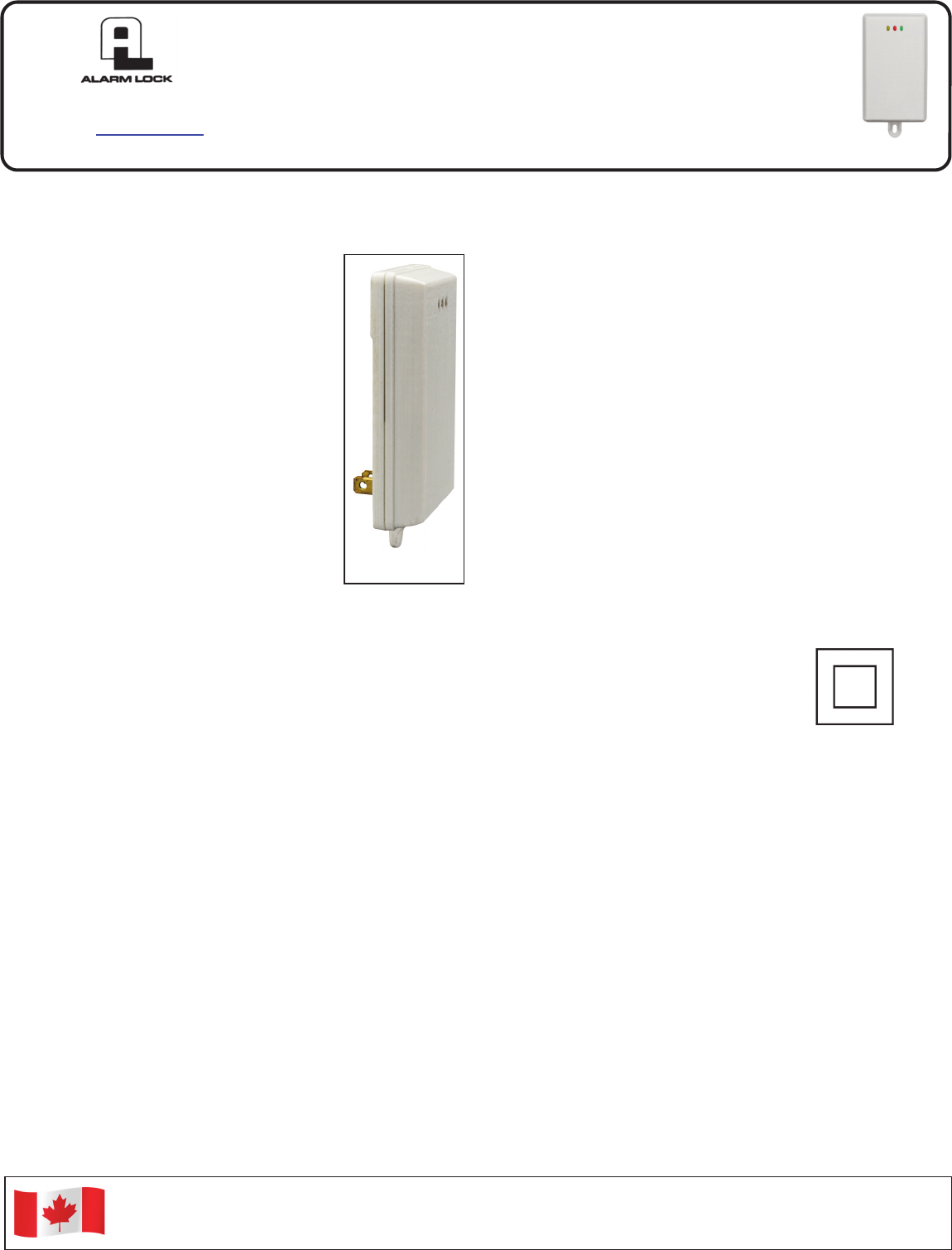

NOTICE – Local Regulations in Canada do not permit use of a Mounting Tab. In Canada, do not use the Mounting
Tab to attach the unit to an outlet. Avis – Les réglementations locales au Canada ne permettent pas l'utilisation
d'une patte de montage. Au Canada, il est interdit de raccorder l'appareil à une prise de courant au moyen d'une
patte de montage.
FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment o_ and on,
the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit di_erent from that to which the receiver is connected.
-Consult the dealer or an experienced radio/ TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this device could void the
user's authority to operate the
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
RF EXPOSURE WARNING
This equipment must be installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must
be installed to provide a separation distance of at least 20 cm from all persons and must not be
co-located or operating in conjunction
with any other antenna or transmitter. End-users and installers must be provide with antenna
installation instructions and transmitter
operating conditions for satisfying RF exposure compliance.
Canada, Industry Canada (IC) Notices
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the
following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.
Canada, avis d'Industry Canada (IC)
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le
fonctionnement.
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency
exposure limits. The Wireless Device
should be used in such a manner such that the potential for human contact during normal operation is
minimized.
This device has also been evaluated and shown compliant with the IC RF Exposure limits under
mobile exposure conditions. (antennas are
greater than 20cm from a person's body).
Informations concernant l'exposition aux fréquences radio (RF)
La puissance de sortie émise par l’appareil de sans fil est inférieure à la limite d'exposition aux
fréquences radio d'Industry Canada (IC).
Utilisez l’appareil de sans fil de façon à minimiser les contacts humains lors du fonctionnement normal.
Ce périphérique a également été évalué et démontré conforme aux limites d'exposition aux RF d'IC
dans des conditions d'exposition à des
appareils mobiles (antennes sont supérieures à 20 cm à partir du corps d'une personne).
