inside mounting plate and replace rear cover. If using external
contacts, skip to Step 7.
6. Install mounting plates. Use #6 flat-head screws to secure,
observing reed switch alignment mark. Mount magnet housing
within 5/8" of the transmitter cover. For internal contacts, skip to
Step 9.
7. (For external contacts only). Install contact or sensor and
transmitter mounting plate. Mount the contact or sensor as
described in its instructions. For recessed wiring, carefully drill
an access hole for the wires.
8. (For external contacts only). Insert wire plug into receptacle
on PC board (curl wires inside case to avoid pinching wires);
connect two wires to an external sensor having normally-closed
contacts (or a normally-closed loop). Set Jumper J1 to "LOOP".
9. Complete transmitter setup. If internal reed switch is used,
set Jumper J1 to "MAG". If both internal reed switch and exter-
nal contacts are used, remove Jumper J1 (see table below).
10. Close the transmitter case. Close the case by engaging the
retaining tabs at either end, then snapping the front cover to the
mounting plate. Be careful not to pinch wire harness (if used).
11. Program the panel. Each transmitter has a unique factory-
programmed ID code that distinguishes itself to the receiver.
Enter (a) the zone number to which the transmitter will be
mapped; (b) the 6-digit ID code with checksum digit; and (c) the
wireless point number. See control-panel instructions for
entering this ID code and checksum digit into the panel; be sure
to enter all numbers and/or letters, including leading zeros, if
any. Note: Program for "point 1" for all wiring options. Note: In
UL burglary installations, program the burglary alarm output for
all protective devices.
WIRING OPTIONS
The GEM-TRANSLP may be wired in any of the following
configurations. Refer to the following table:
GENERAL DESCRIPTION
The GEM-TRANSLP is a low profile window/door transmitter
designed for use in Napco GEM-series wireless systems. When
used with the supplied magnet, the transmitter functions as a
window/door sensor. However, plug-in wires are provided for nor-
mally-closed external contacts so that one or two additional devices
may be used in conjunction with (or instead of) the internal reed
switch. A jumper is provided allowing optional use of normally-
closed external contact (s) and/or internal reed switch.
The GEM-TRANSLP is powered by a 3-volt lithium battery
(Energizer CR2032 or Duracell DL2032), that powers the
transmitter for up to 5 years. When battery voltage drops below
normal, a low-battery report will be sent to the receiver.
INSTALLATION
Notes: The transmitter and magnet may be mounted in any
position with no degradation in performance. Thus, if a left-handed
reed switch is required, the unit may be mounted upside down.
However, for reference purposes in this text, the transmitter will be
considered oriented with the reed switch at the top, as shown in
Fig. 1. The PC board snaps into the transmitter front cover in only
one direction; a raised alignment mark on the transmitter front cover
indicates the location of the reed switch on the PC board. There is
also an alignment mark on the magnet mounting plate.
1. Open the case. Remove the GEM-TRANSLP transmitter cover
from its mounting plate by inserting a small screwdriver into ei-
ther slot; twist while applying upward pressure. See Fig. 2.
2. Insert the battery. Observe battery polarity. Insert battery un-
der the two gold contacts with the positive (+) terminal towards
you (facing up). See Fig. 3. Do not insert backwards.
3. Identify PC Board parts. Note location of reed switch in Fig. 1.
4. Select transmitter location. Avoid mounting the transmitter
near the floor. Low level mounting can reduce transmission
range and may subject the transmitter to damage.
5. Install magnet. Insert a small screwdriver into either retaining
tab in rear cover; push in and twist to separate. Insert magnet
R
333 Bayview Avenue
Amityville, New York 11701
For Sales and Repairs, (800) 645-9445
For Technical Service, (800) 645-9440
Publicly traded on NASDAQ Symbol: NSSC
© NAPCO 2008
GEM-TRANSLP
Low Profile Window / Door Transmitter
INSTALLATION INSTRUCTIONS

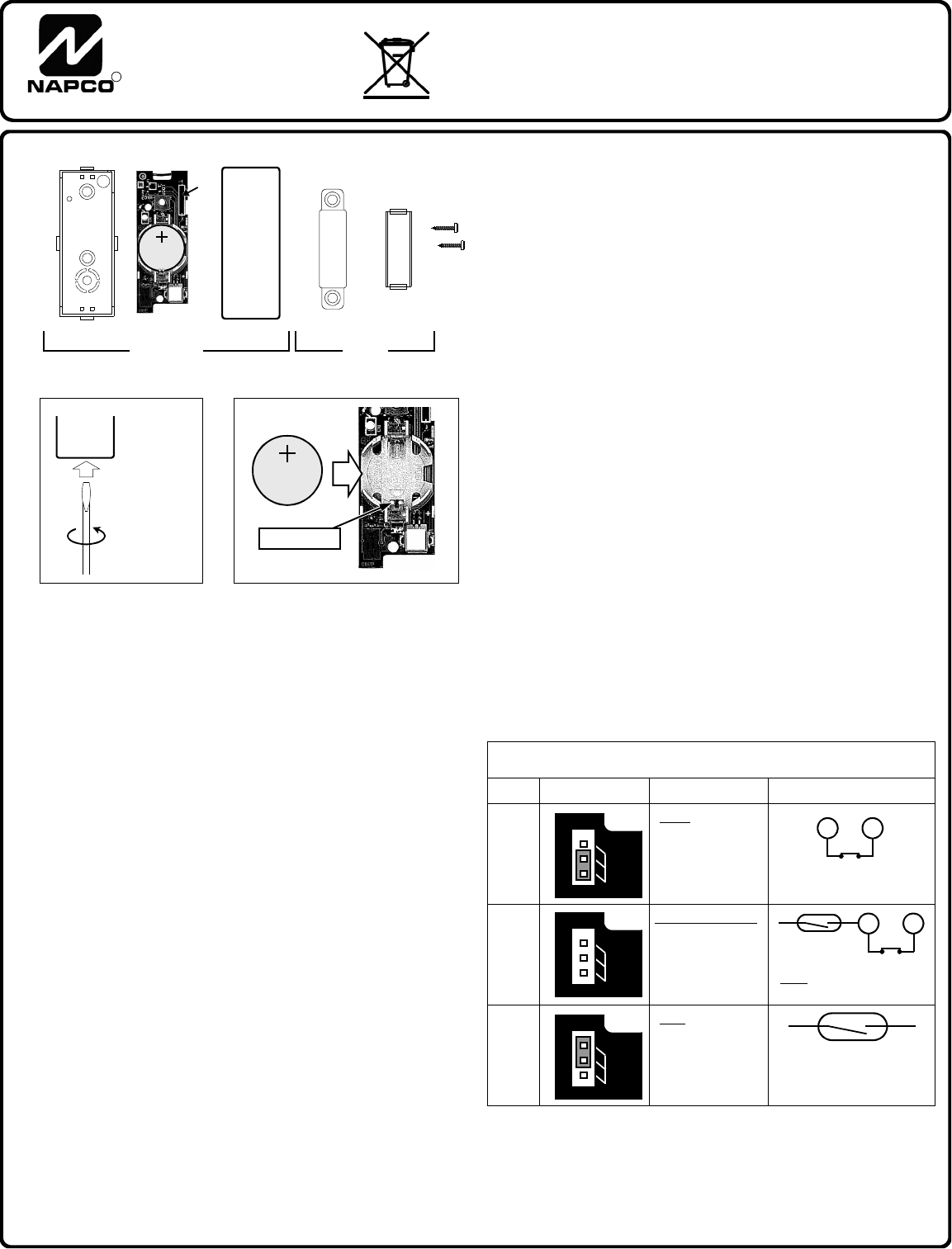

Fig. 2. Opening the case Fig. 3. Install battery under gold contacts
1. Push up
2. Twist
GOLD CONTACTS
Fig. 1. GEM-TRANSLP Component Parts
MAGNET TRANSMITTER
MOUNTING PLATE PC BOARD FRONT COVER MOUNTING PLATE REAR COVER
REED SWITCH
WIRING OPTIONS
OPTION JP1 SETTING FUNCTION DIAGRAM
1.
"LOOP":
External contact
enabled for point 1;
magnetic internal
contact (reed switch)
disabled.
2.
JUMPER REMOVED:
External contact
enabled for point 1
and magnetic internal
contact (reed switch)
enabled for point 1.
3.
"MAG":
Magnetic internal
contact enabled for
point 1; external con-
tact disabled.
Notes:
1. Caution: Changes or Modifications not approved by NAPCO may void
the user's authority to operate the equipment.
2. This device may not cause interference.
3. This device must accept any interference, including interference that
may cause undesired operation of the device.
N.C. EXTERNAL CONTACT ON
POINT 1 ("LOOP")
JUMPER REMOVED TO ENABLE
BOTH N.C. EXTERNAL AND N.C.
INTERNAL CONTACTS ON POINT 1
(REED SWITCH)
N.C. INTERNAL CONTACT ON
POINT 1 ("MAG")
WI1667A.02 4/08
DL2032 or
CR2032
DL2032 or
CR2032
Note: For a replacement wire harness, order part # W978.
JP1
MAG
LOOP
JP1
MAG
LOOP
JP1
MAG
LOOP
MAGNETIC REED SWITCH ONLY
