Narui Electronic M110 Wireless speaker User Manual
SHENZHEN NARUI ELECTRONIC CO., LTD. Wireless speaker
User manual
Wireless speaker
- M110 User Manual
Table of Content
1 Speaker Setup ................................................................................................................................................................................... 3
1.1 Buttons ......................................................................................................................................................................................... 3
1.2 Power on the device .............................................................................................................................................................. 4
1.3 Connect to Wi-Fi ..................................................................................................................................................................... 4
1.4 Alexa Voice service ............................................................................................................................................................... 5
1.5 AirPlay playing ......................................................................................................................................................................... 5
1.6 Android DLNA playing .......................................................................................................................................................... 6
2 Debug and Diagnostics ................................................................................................................................................................. 6
2.1 Updating software .................................................................................................................................................................. 6
2.2 Factory Reset ........................................................................................................................................................................... 7
2.3 Useful commands ................................................................................................................................................................... 8
2.3.1 Check Speaker Software Version ......................................................................................................................... 8
2.3.2 Dump Speaker Log File ............................................................................................................................................. 8
3 Reminder .............................................................................................................................................................................................. 8
4 Use Bluetooth connection mode ............................................................................................................................................... 8
5 Other functions .................................................................................................................................................................................. 8
6 Product Details: ................................................................................................................................................................................. 9
7 Electrical technical parameters ................................................................................................................................................. 9
8 Warranty terms: ................................................................................................................................................................................. 9
9 FCC Warning .................................................................................................................................................................................... 10
1 Speaker Setup

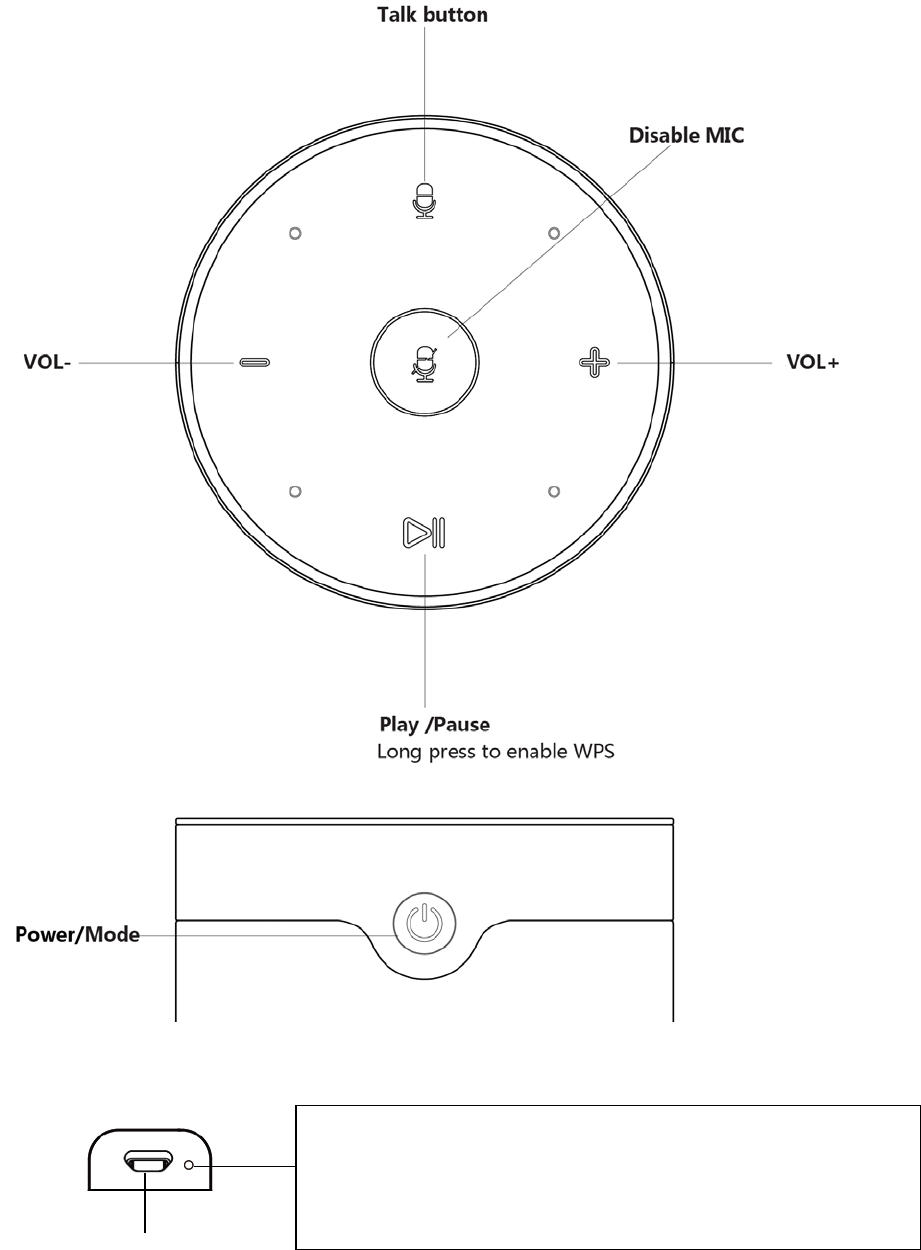

1.1 Buttons
DC IN
The indicator turns red under charging and turns off when
the speaker is fully charged. The fully charged speaker can
work around 3 hours. Low battery leads to alarm or auto
stopped. Please charge the speaker in time.
Power input

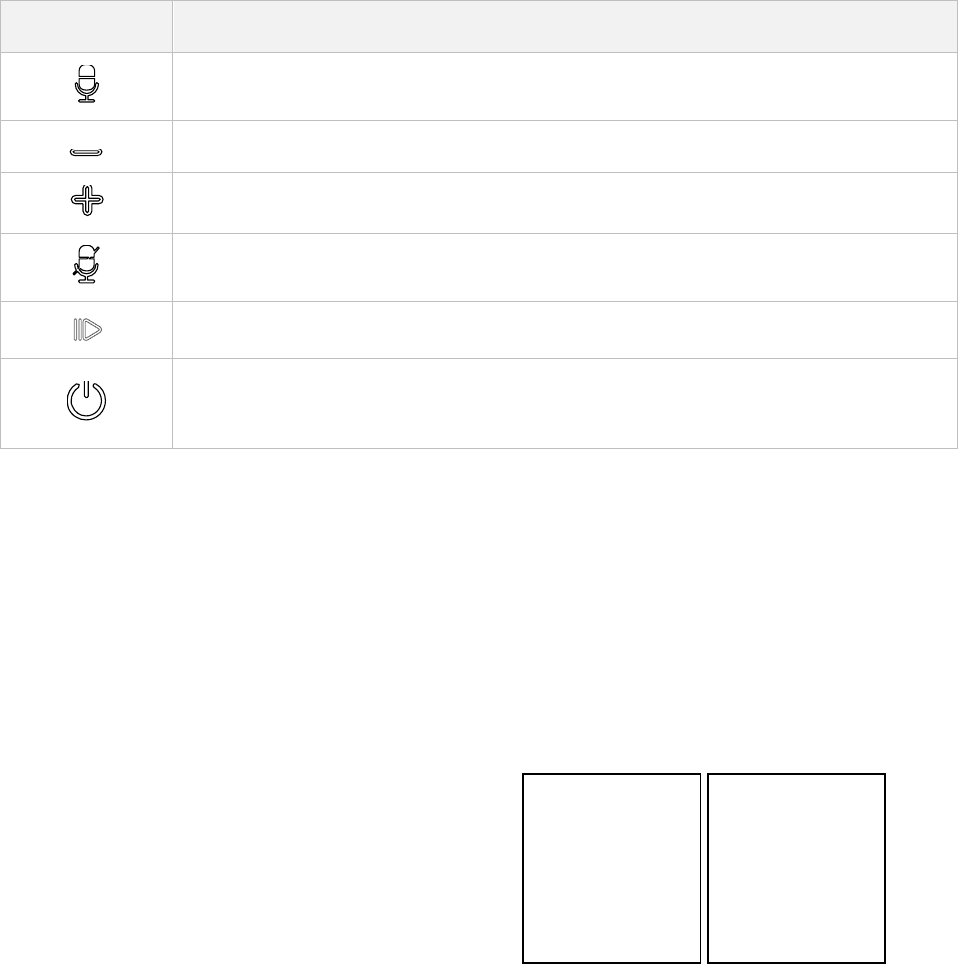

The definitions of these buttons are
Button Description
Talk button
Volume Down
Volume UP
Disable MIC
Short press to Play/Pause; Long press to enable WPS
Short Press to Mode switch
Press and hold the button 3 seconds to turn ON/OFF
1.2 Power on the device
The indicator turns red under charging and turns off when the speaker is fully charged. The fully charged
speaker can work around 3 hours.
Low battery leads to alarm or auto stopped. Please charge the speaker in time.

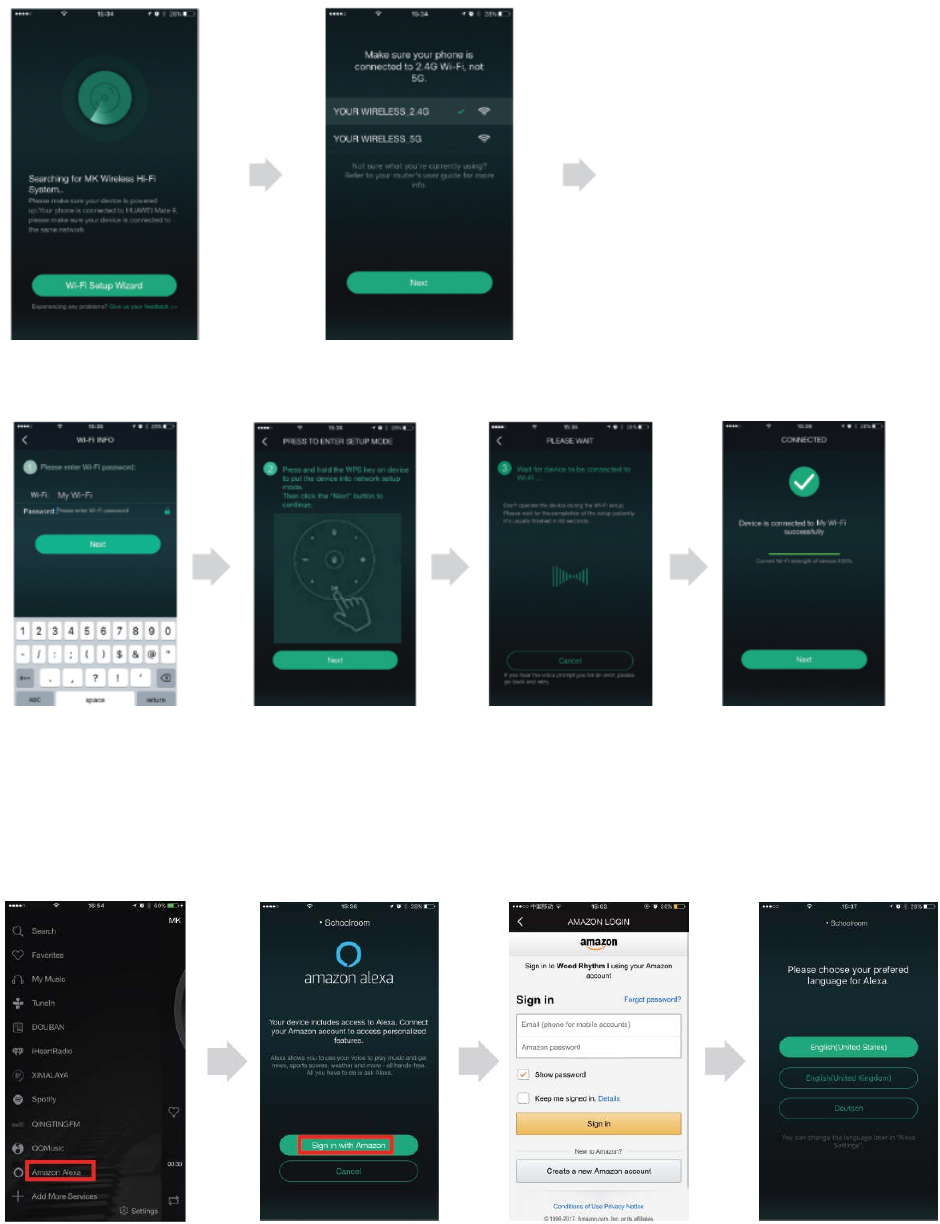

1.3 Connect to Wi-Fi
First step: Download and install “Soundbites Player”
APP in AppStore by iOS smart devices, in Google
Play store by Android smart devices, or scan the
following QR Code for download and installation.
Second Step: Turn on SoundBot-M110, press “MODE”
Button to switch to Wi-Fi mode. The “W” indicator light turns on or flickers.
Third step:
After making sure the smart device Press “Wi-Fi Setup Wizard” Choose SoundBot-Connected to Wi-Fi,
open “SoundBot- device is connected to 2.4 M110” to make sure your smart Wi-Fi. M110 Player” APP
and enter the searching page.
iOS QR code
Andriod
QR code
Input the Wi-Fi and complete the connection between M110 and your smart device according to the
APP’s display. Upon successful connection there will be voice prompt.
1.4 Alexa Voice service
Alexa is Amazon’s cloud computing voice service. You can use Alexa to play music, listen to news, check
the weather and so on. Choose Wi-Fi mode, Login your Amazon account on “SoundBot Player” APP,
press this button, and the functions of Alexa can be used to speak to “M110” directly.

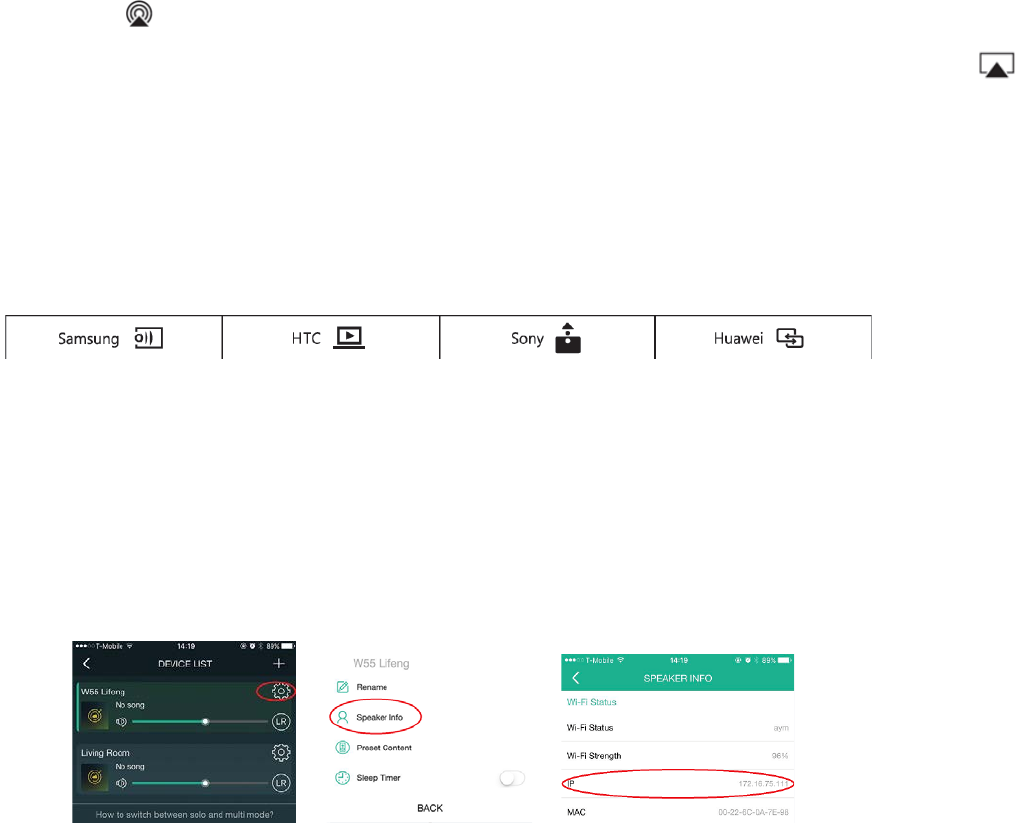

1.5 AirPlay playing
After M110 is connected to the same network. You will be able to use AirPlay to play music wirelessly
iOS10,iOS11 user: Open “Control Center” of your iphone. Swipe horizontally to find the “Now playing”
screen, Tap , select “M110”
iOS9, iOS8, Ios7 user: Swipe up from the bottom of your iphone to Open “Control Center”. Tap ,
select “M110”
1.6 Android DLNA playing
After M110 is connected to the same network. You can open the music player APP with DLNA function
on your smart device, click the icon on the playing interface and select your M110 for music streaming.
Tap icon examples:
2 Debug and Diagnostics
2.1 Updating software
You may have to update the speaker firmware, MCU firmware when there is a new release. Please follow
the following step to update the software.

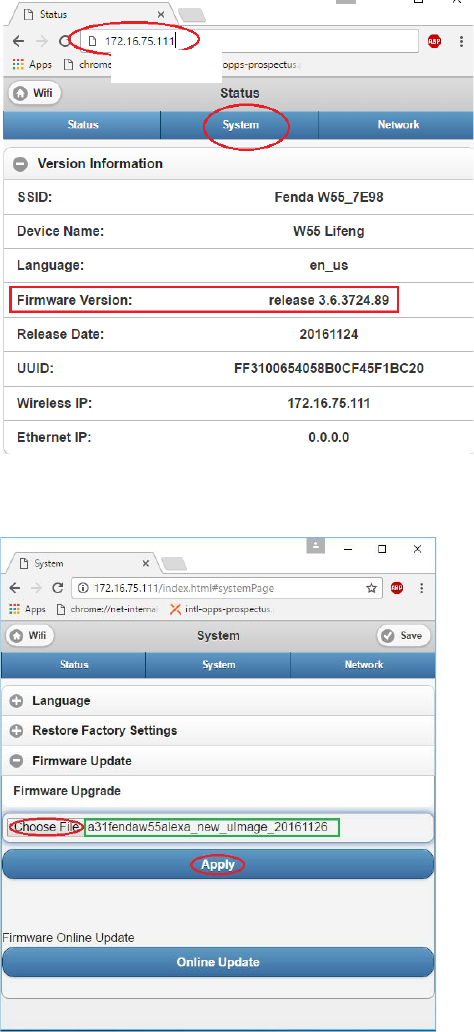

1. In the App, check and write down the device’s IP address by following below steps
-> ->
2. Download and UNZIP the firmware you want to update.
3. On a PC that is connected to the same network, open a browser, type the IP address of the
speaker in the address bar and hit enter. You’ll see the web portal of the speaker, as shown
below.
Then click the “System” table
Notice: You can check the firmware version on this page.
4. In the System table, choose the firmware file, then click the “Apply” button, as shown below
5. Wait until the firmware update is complete
6. Repeat the above steps to update other firmware
2.2 Factory Reset
There are two ways to reset the device into factory settings: use a hardware button or use the companion
App. If you don’t find the factory reset button in section 1.1, you will have to factory reset the device in the
companion App. To do this, go to the speaker settings (refer to section 2.1, step 1), click on Factory
Reset. You will hear a voice prompt before the speaker reboots.
10 10 10 25
2.3 Useful commands
2.3.1 Check Speaker Software Version
http://Speaker_IP/
2.3.2 Dump Speaker Log File
Use a HTTP command
http://Speaker_IP/httpapi.asp?command=getsyslog
Use the App
In the companion App, click on the “Send feedback” button in the App settings.
3 Reminder
If your Wi-Fi password is changed, or M110 is in a new Internet environment, you need to repeat the
above setting steps to reconnect Wi-Fi.
Please make sure your Wi-Fi frequency is 2.4 GHz. SoundBot-M110 doesn’t work under 5.0 GHz-
frequency Wi-Fi.
Please avoid overuse of broadband. It is suggested that the router should not be connected with
many devices.
Don’t use the device in a complicated network environment (such as offices, bars, bridge connection
of multiple routes, or too many router around) it may result in an unstable connection, interrupted
playing, connection failure, not available for use, etc.

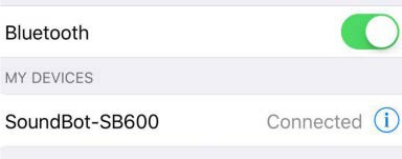

4 Use Bluetooth connection mode
Tap the mode change button “MODE” on M110 and switch to Bluetooth mode. Then open the Bluetooth
setting on your smart device, search for “SoundBot-M110”, choose and connect the device by Bluetooth
and then play.
5 Other functions
Low-voltage alarm: When battery power is lower than 10%, speaker gives out warning alerts. Please
charge the speaker in time. When battery power is lower than 3%, the system will be powered off
automatically.
Sleeping: When there is no operation in 30 minutes, the device will automatically enter standby state
and the light will turn off. You can wake up by press button or call “Alexa” directly and issue a command
to use the device.
6 Product Details:
Item NO. : SoundBot-M110
Product list: SoundBot-M110 host x 1, charging line x 1, manual x 1, warranty card x 1
Material: ABS, aluminum alloy, fabric
Dmensions: Top diameter 85mm, Bottom length 105mm, Bottom width 105mm, Height 200mm.
Net weight: 7O0g±1g
7 Electrical technical parameters
Wi-Fi
Frequency range of the Wi-Fi transmitter:
2.412GHz-2.462GHz for EU
2.412GHz-2.452GHz for FCC
Wi-Fi network compatibility: IEEE 802.11 b/g/n
Bluetooth Bluetooth version: 4.0
support HFPV1.6, HSPV1.2, A2DPV1.2,AVRCPV1.4，DIV1.3
Transmission
distance
about 110m for Wi-Fi
above 10m for Bluetooth
Max output power 3W× 2
Channel: Double channel
S/N ≥75DB
Frequency response 20Hz-20KHz
Distortion degree: THD: ＜10%
Speaker: Outside diameter 52mm, Inside magnet, 4Ω/5W x 2
Microphone: 2 x -32 dB +/-3dB,1x-40 dB +/-3dB
Power
Parameters
Rated voltage: DC 3.4～4.2V
Battery: Built-in double 18650 lithium battery, 3.7V/4400mAH
Charging voltage/ Current: 5V±0.25V/1A±200MA
Charging time: about 5.5～6.5 hours
8 Warranty terms:
1-YEAR warranty service and professional customer service & Technical Support, any question please
feel free to contact us via xxxx@soundBot.com (it would be greatful if you can add your amazon order
I). We will reply in 24 hours.
Attention:
Please avoid using the product in extreme high or low temperature and humid environment.
Please do not drop, bend or throw the product. Hard usage might lead to product damage.
If you do not use this product for a long time, please store it in a dry and dust-free environment with
little temperate change.
Please do not let children play with this product, so as to avoid accidents.
Please do not use this product in any place where inflammable and explosive materials are stored.
Please do not let children play with this product, so as to avoid any accidents.
This product has solid wood shell. Please avoid clashes and do not use solvent with corrosive to
clean. Please only use dry clean soft cloth to wipe gently. If the product is not going to be used for a
long time, please put it into a storage bag.
Ever piece of solid wood contains different life and natural textures or few ecological traces such as
insect bites. They are all natural phenomena. Please don’t worry and enjoy using the product.
All the trademarks, names and icons involved in the article are owned by the holders.
9 FCC Warning
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer could
void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
The device has been evaluated to meet general RF exposure requirement. The device can be used in po
rtable exposure condition without restriction.
