WINTECH USB Ultimate 2010- User Guide
The Mavic team has put all its passion, experience and skill into the design and manufacture of
your computer. It will be an important tool for you in the improvement of your performance.
Thank you for putting your trust in Mavic products.
INSIDE
1. PRODUCT DESCRIPTION
INSTALLATION
2. INSTALLING THE COMPUTER MOUNT
3. FITTING / REMOVING THE COMPUTER
4. INSTALLING THE SPEED SENSORS
4.1. E-Skewer
4.2. E-Bolt
4.3. Fork Sensor
5. INSTALLING THE WHEEL MAGNET
6. INSTALLING THE BATTERIES
BASIC NAVIGATION
7. DESCRIPTION OF THE DISPLAY
8. FUNCTION DISPLAY DEFAULT SEQUENCE
9. DEFAULT BUTTON FUNCTION MATRIX
SETTINGS
10. ENTERING THE SET UP MENU

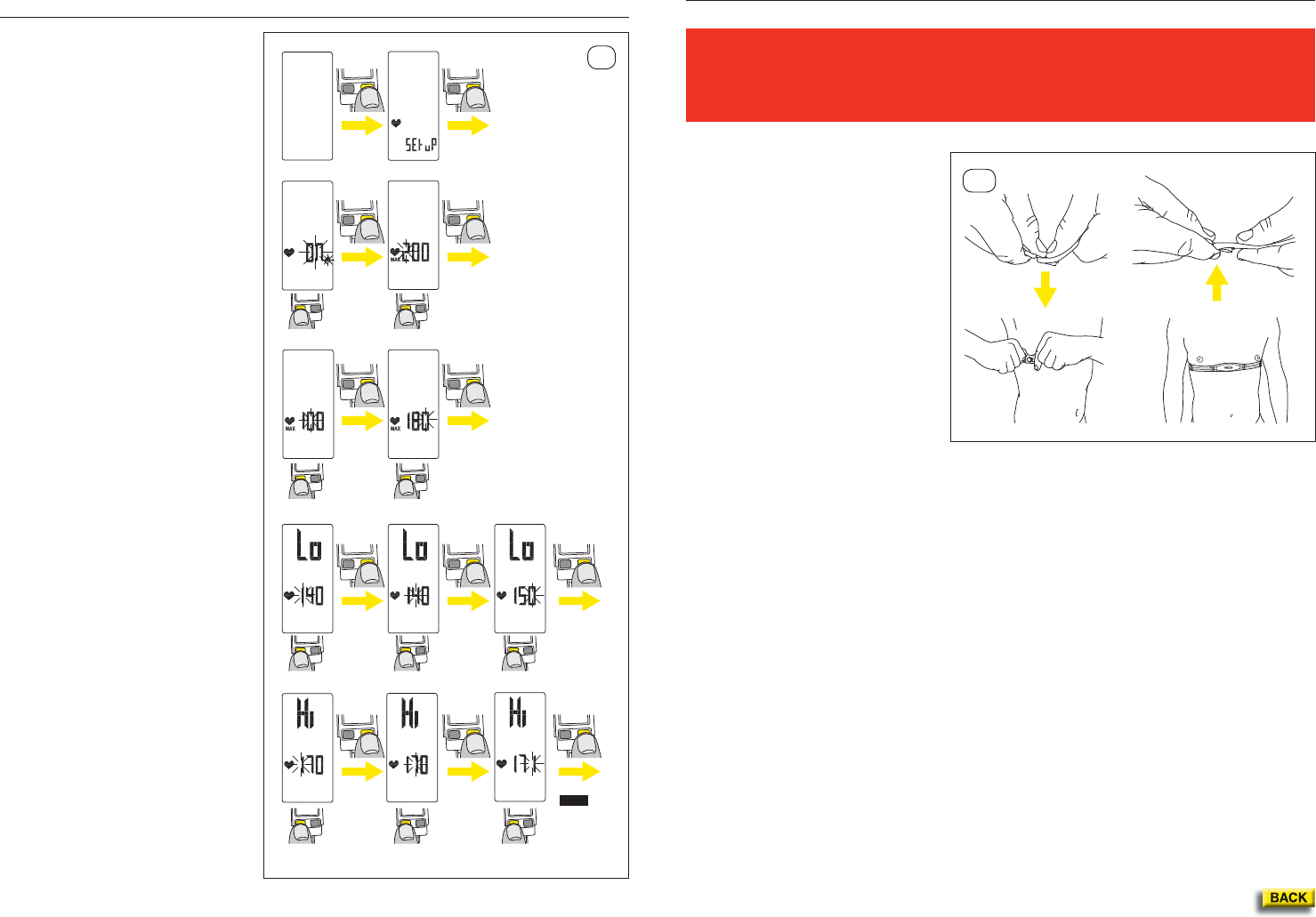

10.1. Heart rate alarm and workzone (Wintech USB HR and Wintech USB Ultimate only)
10.2. DIGITAL PAIRING
10.3. Elevation set up (Wintech USB Alti and Wintech USB Ultimate only)

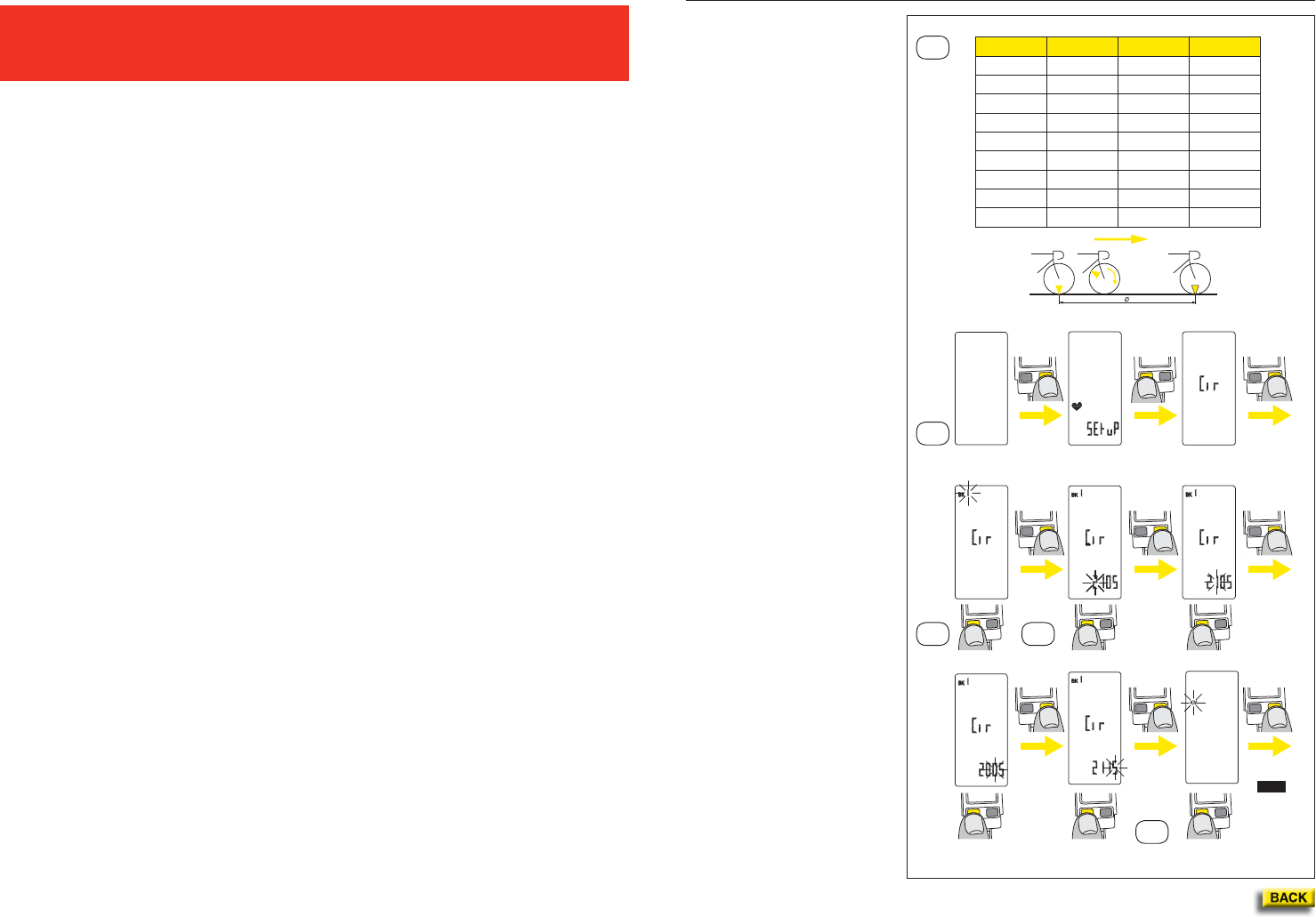

10.4. Wheel circumferences and distance unit set up
10.5. Clock set up
10.6. Odometers set up
USE
11. SLEEP MODE

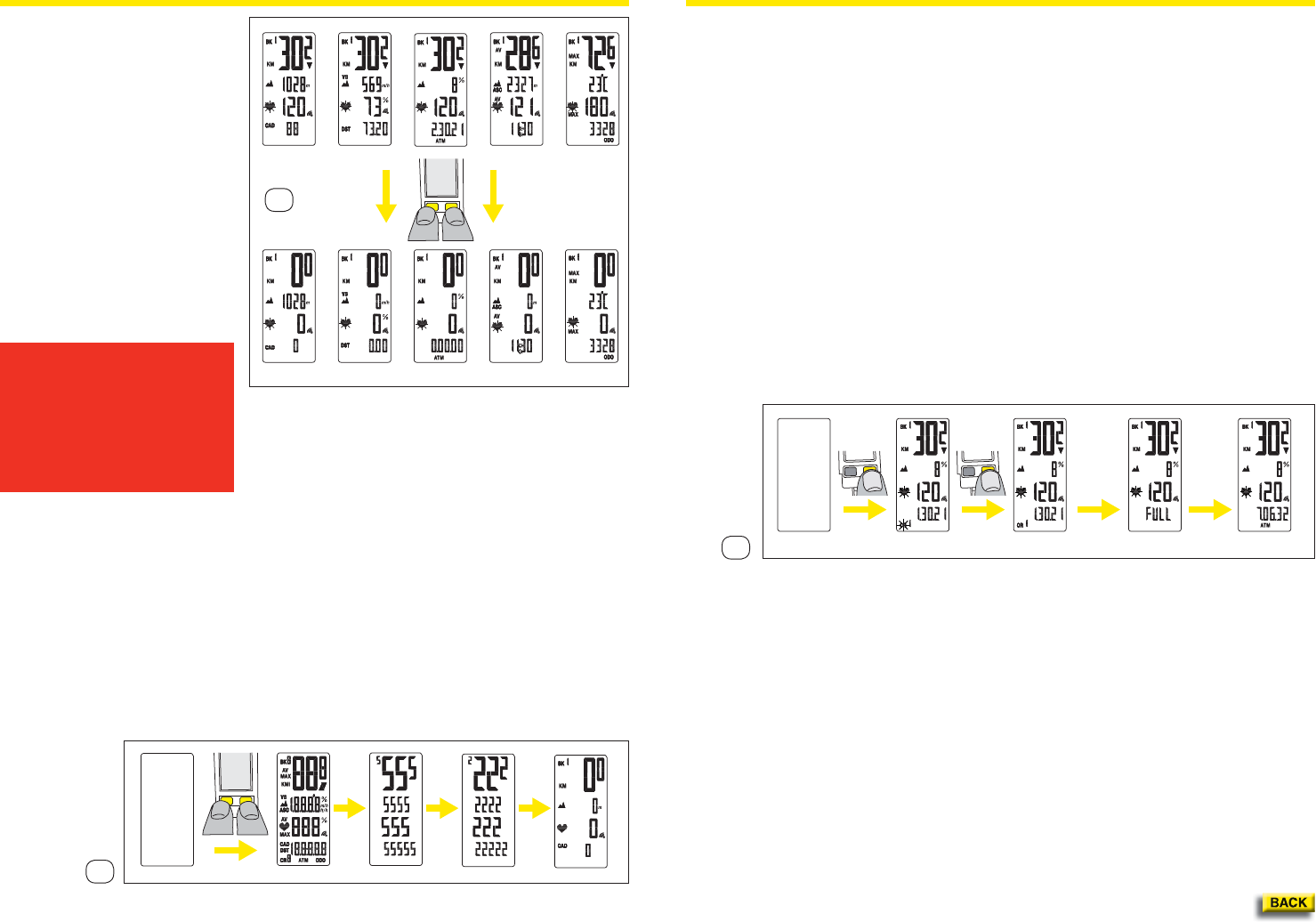

12. TRIP RESET
13. USE OF LAP TIME (CR)

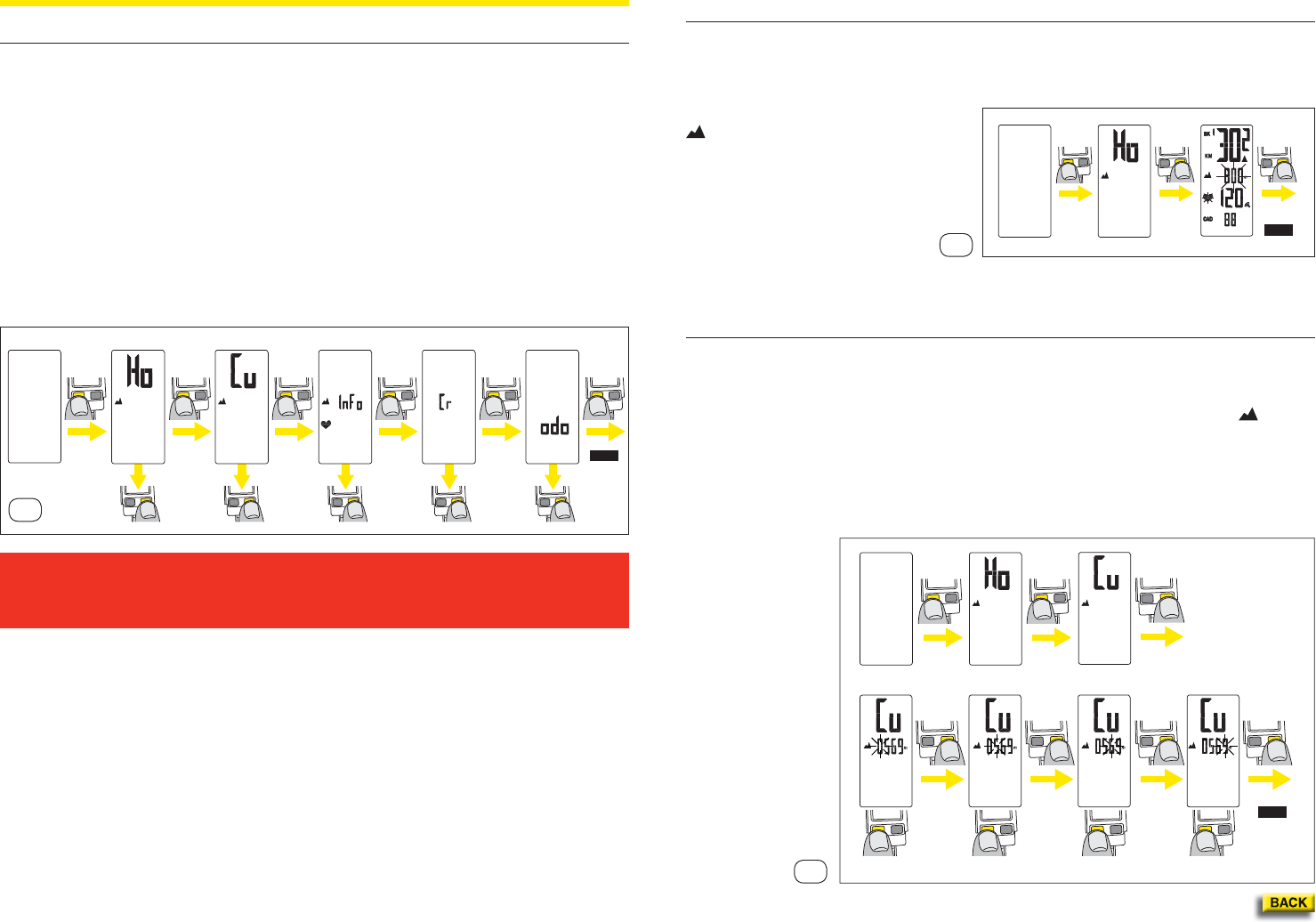

14. ELEVATION SET UP AND DATA REVIEW MENU
14.1. Entering the Elevation set up and data review menu
14.2. Recall of Home Altitude (Wintech USB Alti and Wintech USB Ultimate only)
14.3. Setting up the current elevation (Wintech USB Alti and Wintech USB Ultimate only)

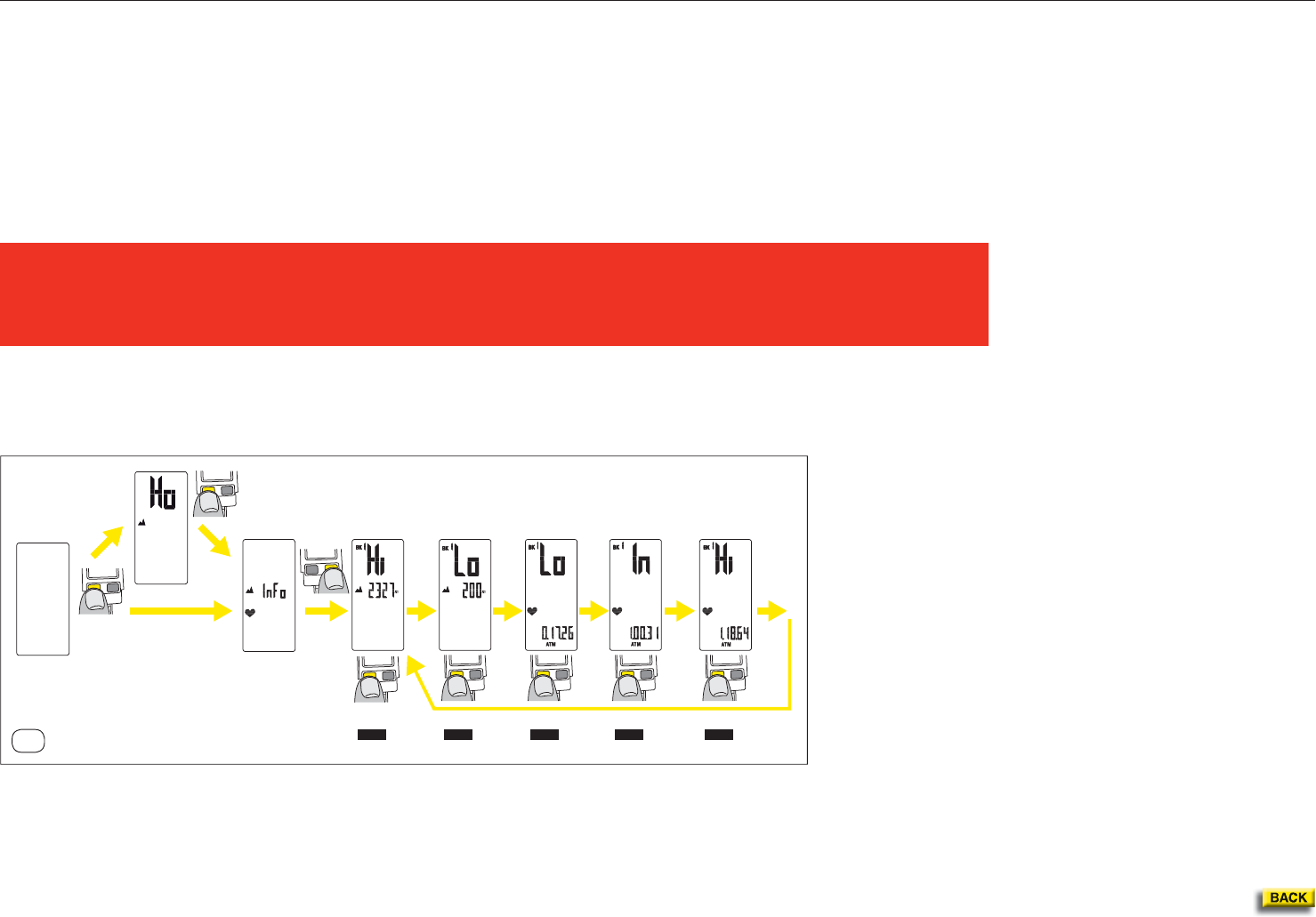

14.4. Trip Altitude and Heart Rate data review (Wintech USB Alti, Wintech USB HR and
Wintech USB Ultimate only)
14.5. Lap time data review

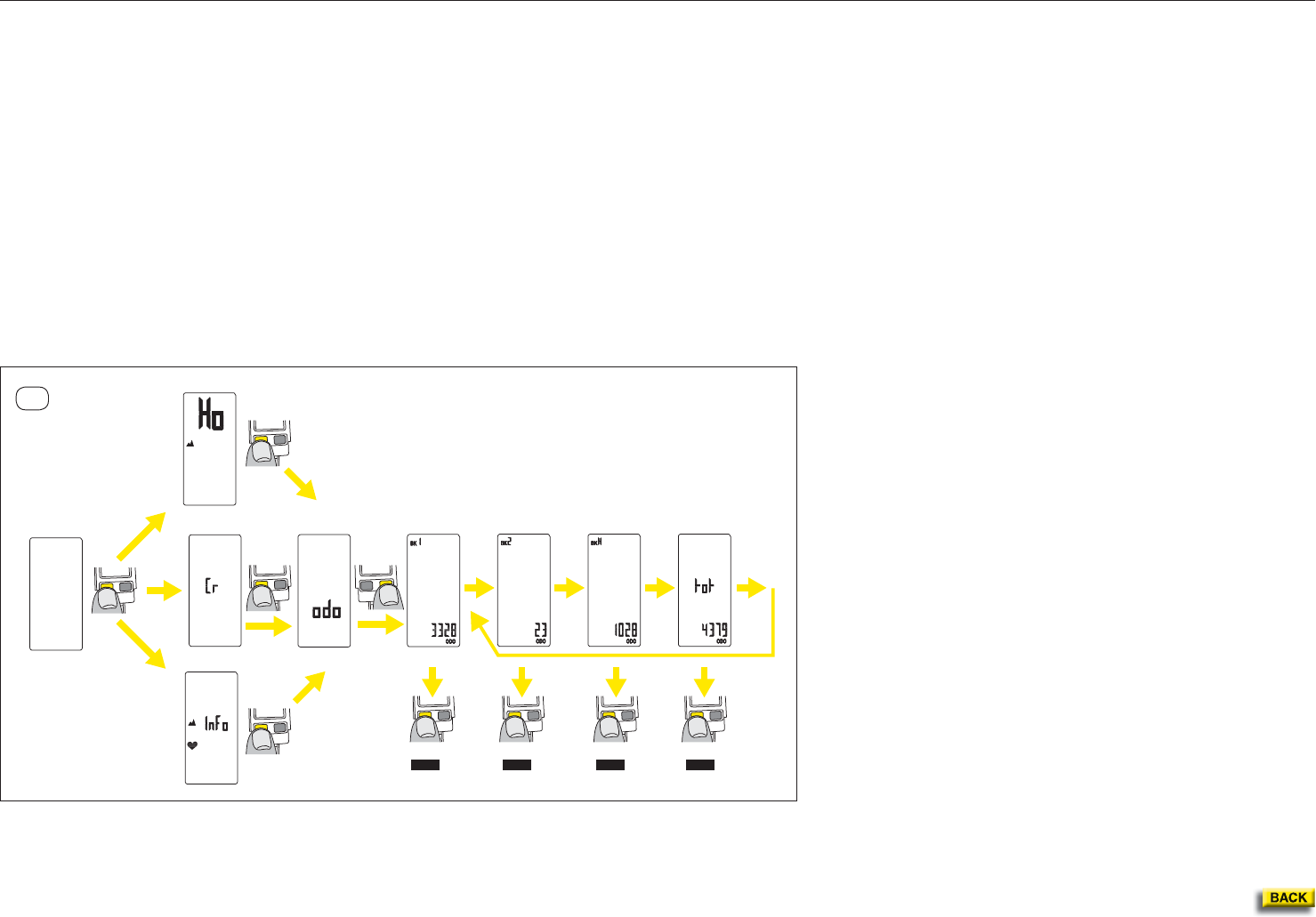

14.6. Odometers review
15. VERTICAL SPEED EXPLAINED (Wintech USB Alti and Wintech USB Ultimate only)
16. PC PLUG
17. MAINTENANCE AND RECOMMENDATION OF USE
18. WINTECH DEVICES TECHNICAL SPECIFICATIONS
19. WARRANTY
WINTECH MANAGER SOFTWARE
20. ENTERING WINTECH MANAGER
21. DATA TRANSFER

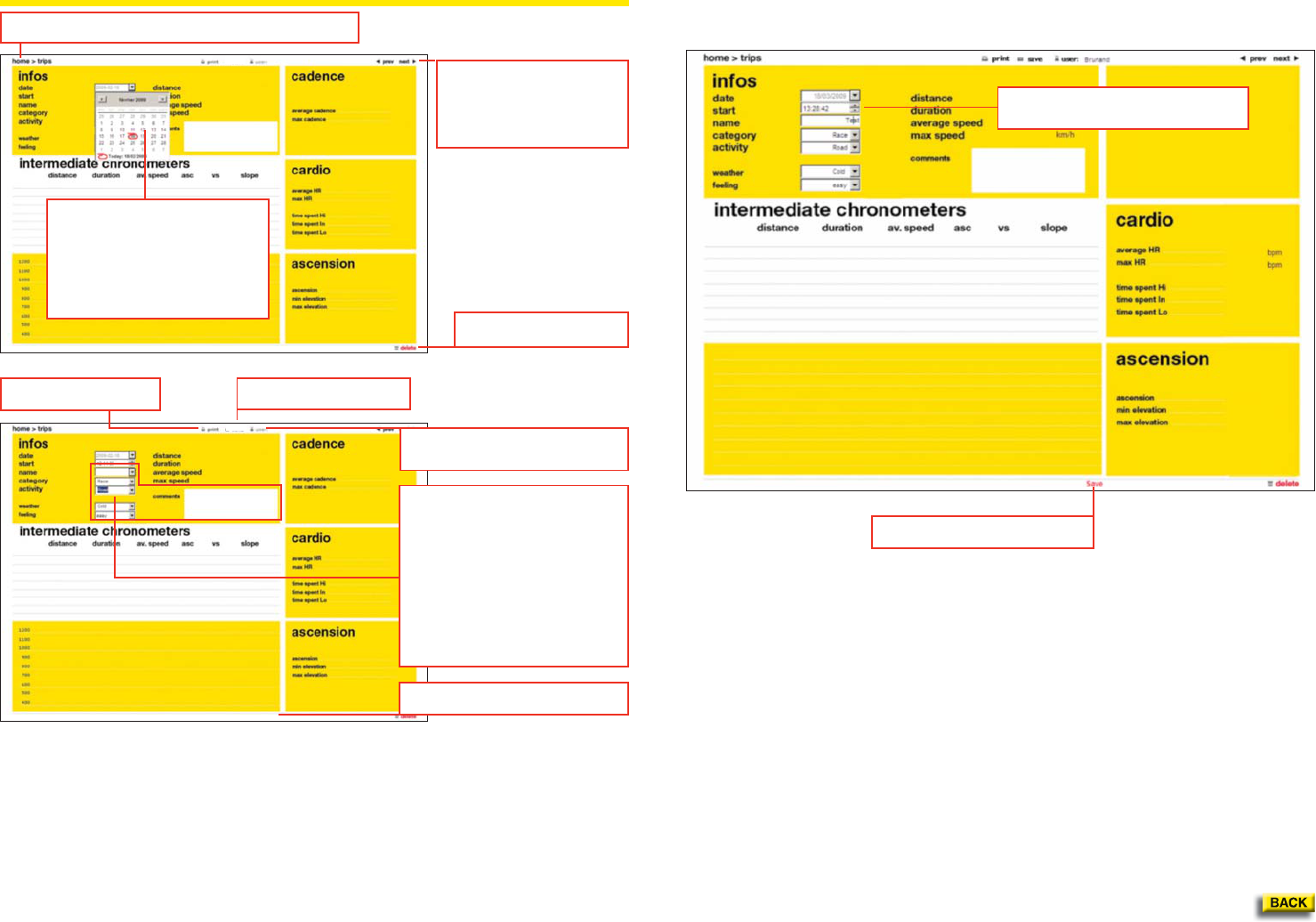

22. TRIPS

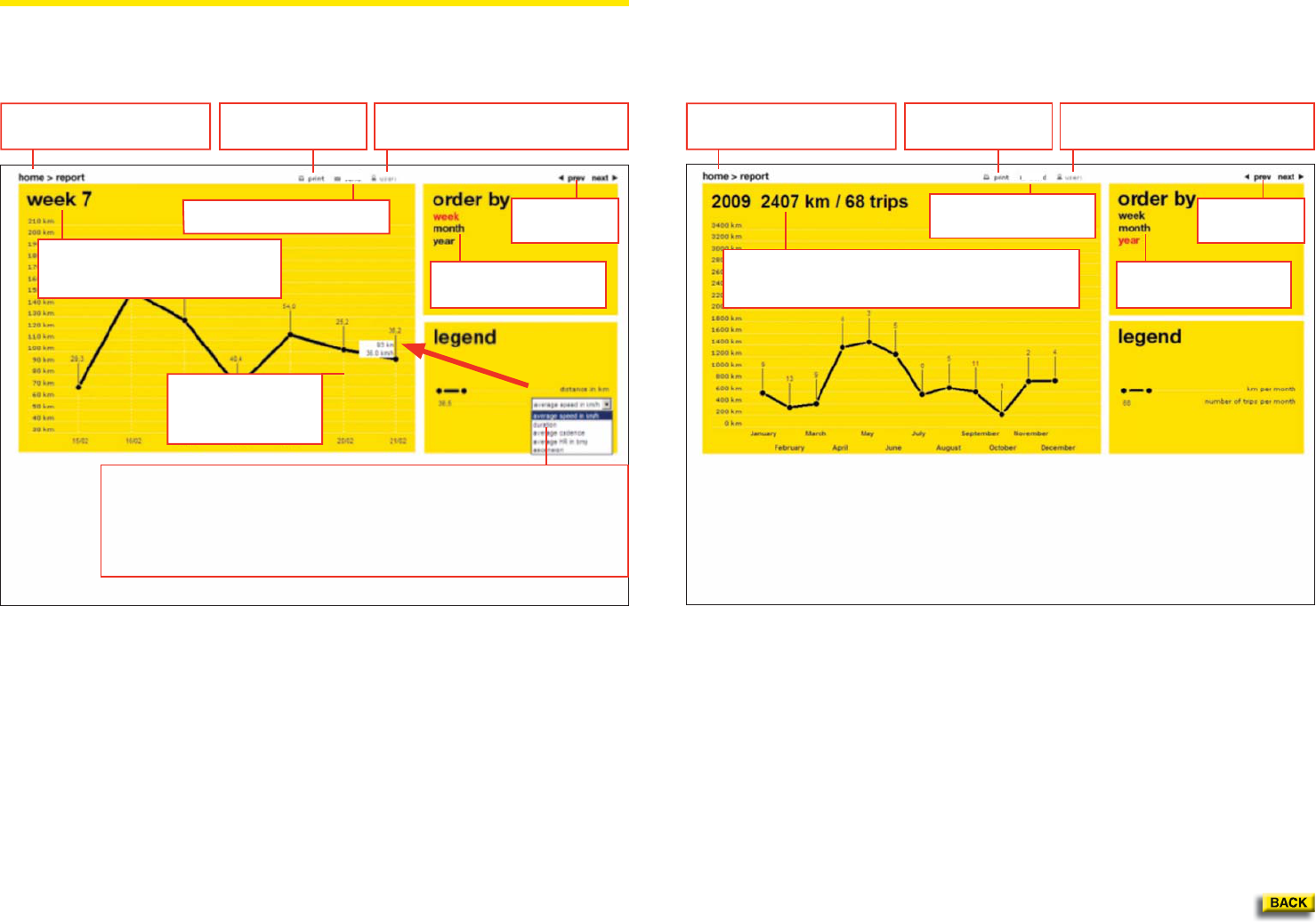

23. REPORTS

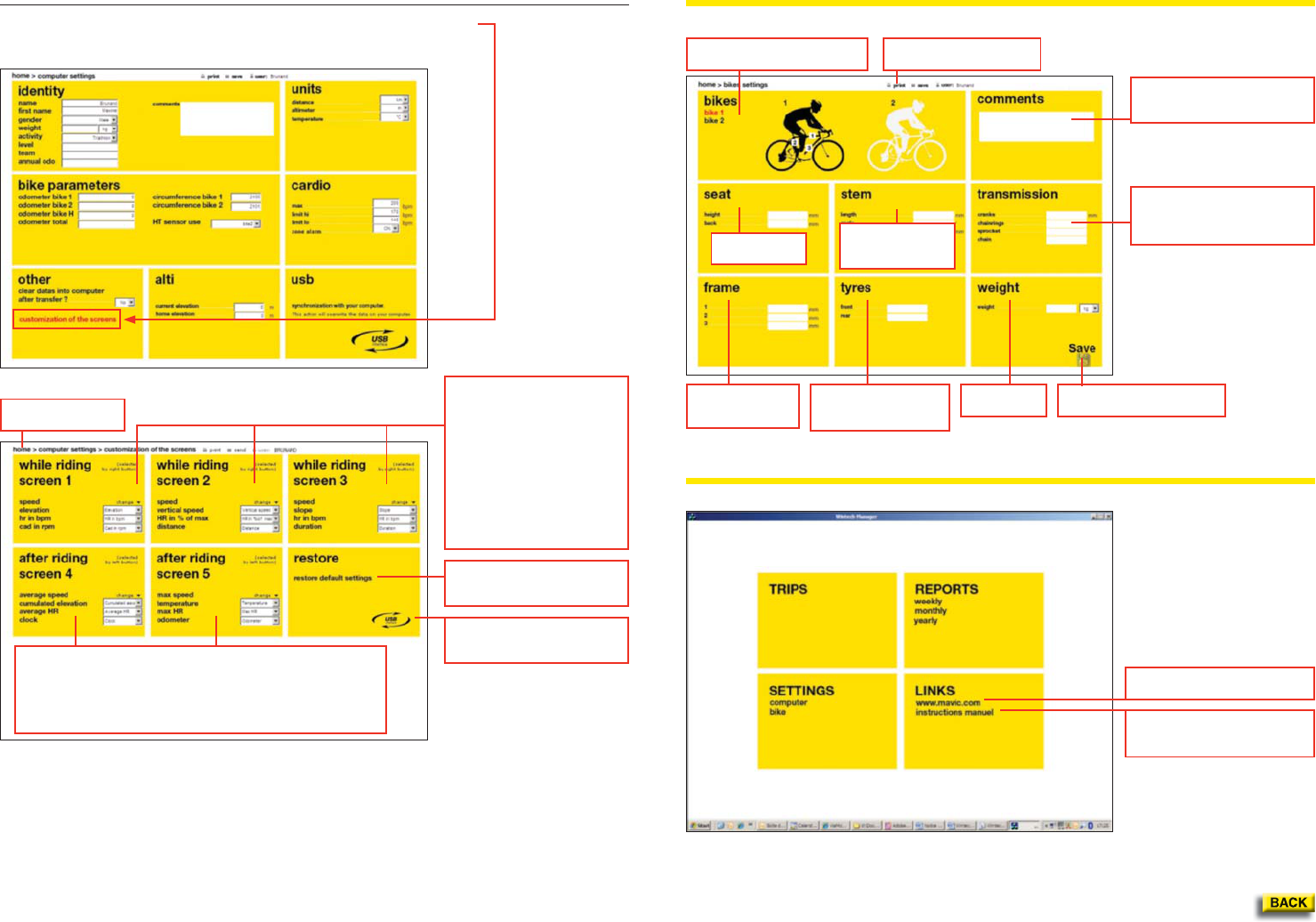

24. COMPUTER SETTINGS AND USER ACCOUNT MANAGEMENT
24.1. Create a new user or edit an already existing user
24.2. Screen customization
25. BIKE SETTINGS
26. LINKS
27. WINTECH MANAGER TECHNICAL SPECIFICATION
2

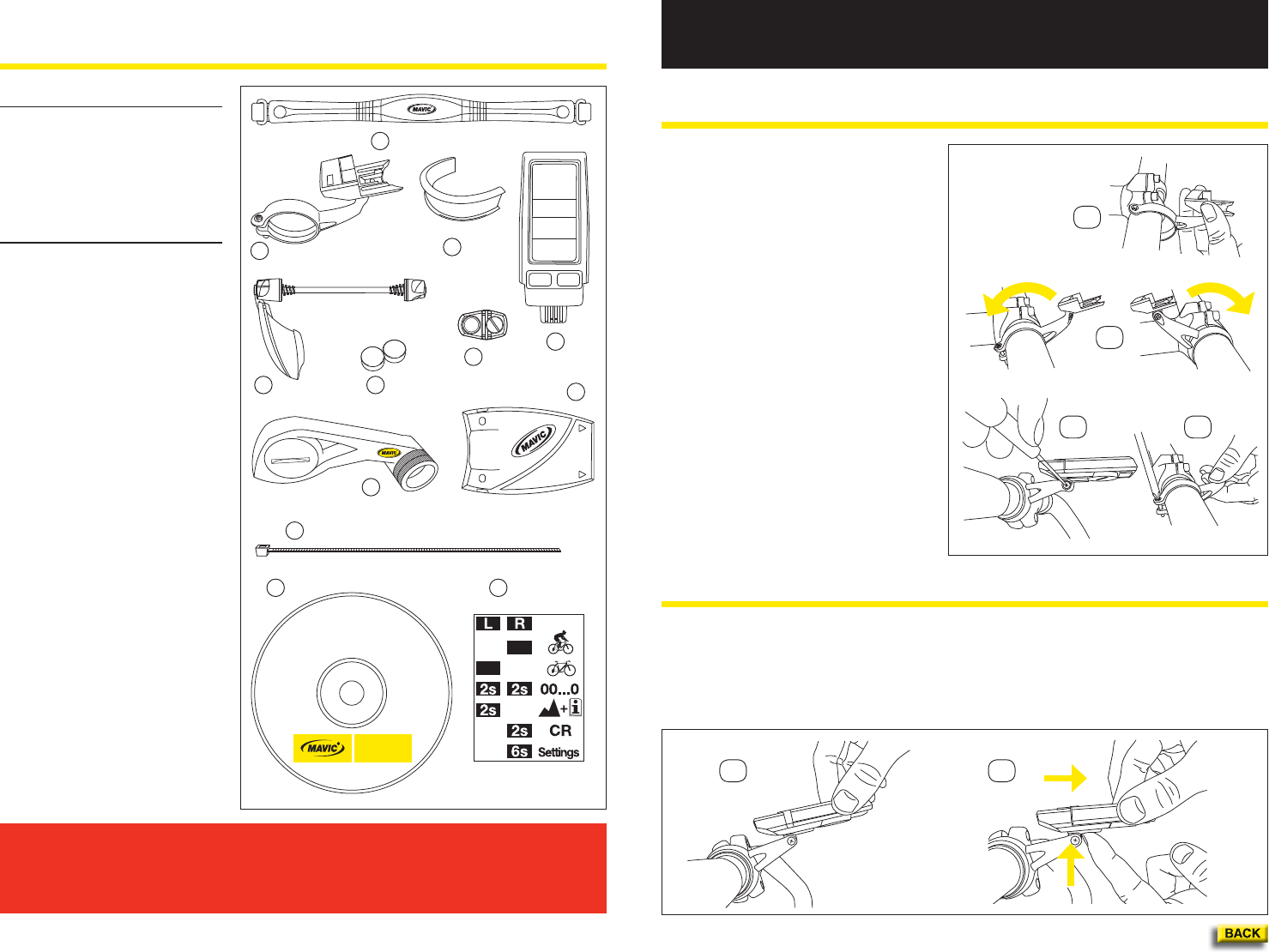

1. PRODUCT DESCRIPTION
Main Unit Box
a. Computer
b. Cardio Belt
c. Wintech Manager software
CD
d. Memo stick
Sensor Box
E-Skewer
e. E-Skewer sensor
f. Computer mount
g. 25,4mm handlebar reducer
h. Wheel magnet
E-Bolt
i. E-Bolt sensor
f. Computer mount
g. 25,4mm handlebar reducer
h. Wheel magnet
j. Adjustment magnets
Fork Sensor
k. Fork sensor
f. Computer mount
g. 25,4mm handlbar reducer
h. Wheel magnet
l. Zip ties (x3)
After installation and before you use your computer for the first time, you MUST
perform the digital pairing operation described in section 10.2. of this guide.
If you don’t, there will be no communication between the computer and the
different sensors and your system will not work.
INSTALLATION
2. INSTALLING THE COMPUTER MOUNT
2.1 Install the mount on the handlebar,
to the right of the stem. To fix it to an
oversize, 25.4 diameter handlebar,
use the 25.4 adapter.
2.2 The mount can be installed in a variety
of positions: with the computer forward
of, or above the handlebar stem.
2.3. When setting it, the computer support
needs to turn freely on the mount
arm. Loosen the screw using a cross-
slot screwdriver
2.4. Once you have chosen the right
position, tighten the mount screw with
a cross-slot screwdriver and secure
the computer support screw again.
3. FITTING/REMOVING THE COMPUTER
3.1. Slide the computer onto the mount from the front until it locks into place with an audible
click.
3.2. To remove the computer from its mount, press and hold the tab located under the computer
mount and slide the computer toward the front of the bicycle.
wintech manager
b
a
h
jk
i
l
c d
e
g
f
(x3)
1
2
2.1
2.3 2.4
2.2
3.1 3.2
3
4. INSTALLING THE SPEED SENSORS
4.1 E-Skewer
Fit the quick-release lever to the hub,
with the lever to the left (to the right
when using disc brakes).
Position of the locking lever
Adjust the tension on the adjusting
nut so that sufficient force is applied
when the locking lever is moved to
the “CLOSE” position (consult your
retailer).
If the quick release lever can be
moved too easily to the CLOSE
position, there will be insufficient
force holding the wheel. If this is the
case, place the quick release lever in
the OPEN position again and tighten
the adjusting nut to increase the force.
Then, push again the quick release
lever to the CLOSE position.
If too much force is needed to
move the quick release lever to
the CLOSE position, place the lever
in the OPEN position again, and
unscrew the adjustment nut to reduce
the force. Then, push again the quick
release lever to the CLOSE position.
Once the adjustment nut has been
set, the end of the quick release shaft
must not be sunk more than
2 mm in from the outside edge of the
adjustment nut.
Make sure the wheel is securely
tightened: raise the front wheel off
the ground and strike the top of
the wheel sharply in a downward
direction. The wheel must remain
firmly in place.
IMPORTANT:
At this point, your computer
is not yet ready to work. You
still need to set the necessary
programs, and then perform
the pairing operation of your
device.
4.2. E-Bolt
The speed sensor is integrated into a fixing nut compatible with
all quick-releases on the market.
To install it, unscrew the fixing nut on your quick-release.
Insert the quick release from the left-hand side of your bike and
tighten the electronic fixing nut from the right-hand side.
Adjust the tightness of the nut according to the
recommendation described in section 4.1 of this user
guide.
4.2.1 Road bike
Once sufficiently tightened, position the sensor towards the
rear before closing the quick-release.
4.2.2. Mountain bike.
Once sufficiently tightened, position the sensor towards the top
before closing the quick-release.
IMPORTANT:
At this point, your computer is not yet ready to work.
You still need to set the necessary programs, and
then perform the pairing operation of your device.
4.3 Fork Sensor
To install the Fork sensor, the wheel magnet must be installed
first. Read section 5 of this user guide first.
Adjust the position of the speed sensor so the center of the
magnet is aligned with one of the arrows on the sensor. The
distance between the magnet and the sensor must be between
5 - 10 mm. 5.4 Tighten the wire tires and cut them flush.
IMPORTANT:
At this point, your computer is not yet ready to work.
You still need to set the necessary programs, and
then perform the pairing operation of your device.
OK
OPEN OPEN
CLOSE
4.2.1
4.2
4.3
4.2.2
4.1
4

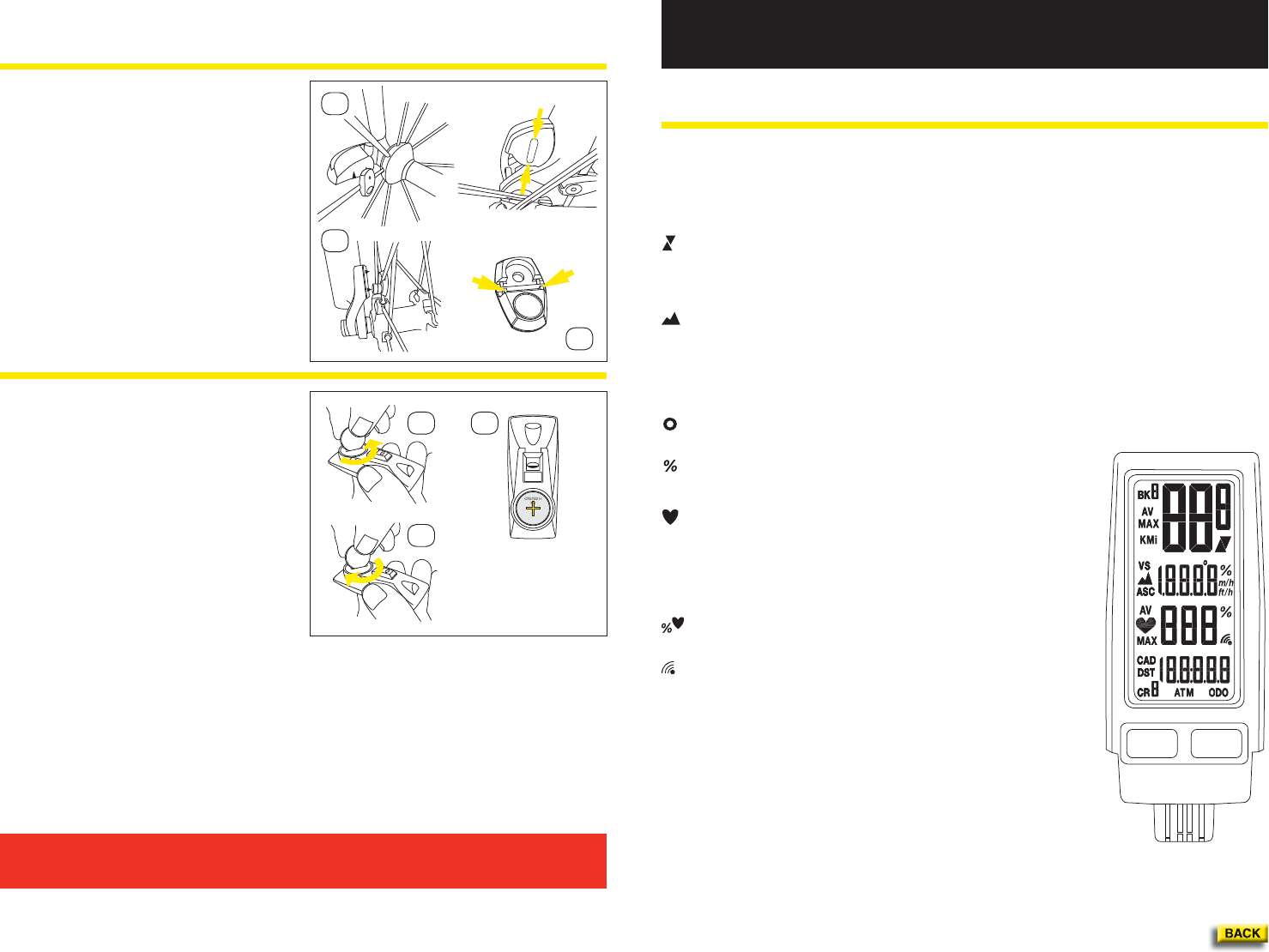

5. INSTALLING THE WHEEL MAGNET
5.1 Position the magnet on a spoke so that it
passes opposite either of the lever marks
and at a maximum distance of 5 mm.
The magnet must be facing outward from
the wheel.
5.2 If you use the E-Bolt sensor, on a
mountain bike, it might be necessary to
use the adjustment magnets to reduce
the distance between the sensor and
the magnet.The magnet must be facing
outward from the wheel.
5.3 Must be cut for use on bladed Zicral
spokes.
6. INSTALLING THE BATTERIES
Power supply for the computer:
1 CR2430 battery.
Power supply for the speed sensor:
1 CR2032 battery.
Power supply for the cardio belt (Wintech
USB HR and Wintech USB Ultimate only):
1 CR2032 battery.
Only use this type of battery.
Installing the batteries in the computer, speed
and cadence sensors:
6.1. Remove the battery cover by turning it a
quarter turn counterclockwise, using a
coin or a battery.
6.2. Insert the battery into its recess, keeping
the + side uppermost.
6.3. Refit the battery cover and close it by
turning it a quarter turn clockwise.
Do not to use excessive force, or you will damage the unit.
Check the condition of the seal on the battery cover each time you change the battery. Replace
the battery cover if the seal is damaged.
Always perform the above operations in a dry place.
Changing the computer’s batteries has the effect of zeroing the following parameters:
– total distance;
– measurement unit (M or KM);
– wheel circumference;
– time.
After installation, or after changing batteries (in sensors or computers), it is imperative
to repeat the digital pairing operation described in section 10.2 of this notice.
Battery life: 12 to 24 months depending on use.
BASIC NAVIGATION
7. DESCRIPTION OF THE DISPLAY
BK 1, 2 or H Number of bike used
AV Average speed (up to 99,9 km/h or 62 Mi/h)
MAX Maximum speed (up to 99,9 km/h or 62 Mi/h)
KM / Mi Distances in kilometres or miles
Trend indicator: if the current speed exceeds the average speed, the up arrow
is displayed. If the current speed is below the average speed, the down arrow is
displayed.
If the current speed equals the average speed, no arrow is displayed.
Altimeter indication line
(Wintech USB Alti and Wintech USB Ultimate only)
VS Vertical speed (up to 2500m/h or 8202,5 ft/h).
In meters per hour (m/h) or feet per hour (ft/h)
ASC Altitude gain
Temperature indicator
(from -15°C / 5°F to 50°C/122°F)
Slope indicator (from -25 to +25 %)
m/h ft/h Vertical speed in meter or feet
Heart rate indication line - up to 240 bpm
(Wintech USB HR and Wintech USB Ultimate
only)
AV Average heart rate
Max Maximum heart rate
Heart rate displayed as a percentage of maximum
heart rate
Sound alarm. Displayed only when alarm is turned on
CAD Pedaling cadence (optional – up to 180)
DST Trip distance (up to 1999.99)
CR 1 to 9 Lap time
ATM Stopwatch (up to 19 h 59 min 59 s)
ODO Distance totalizer (up to 99.999)
5.1
5.2
5.3
6.1
6.3
6.2
5

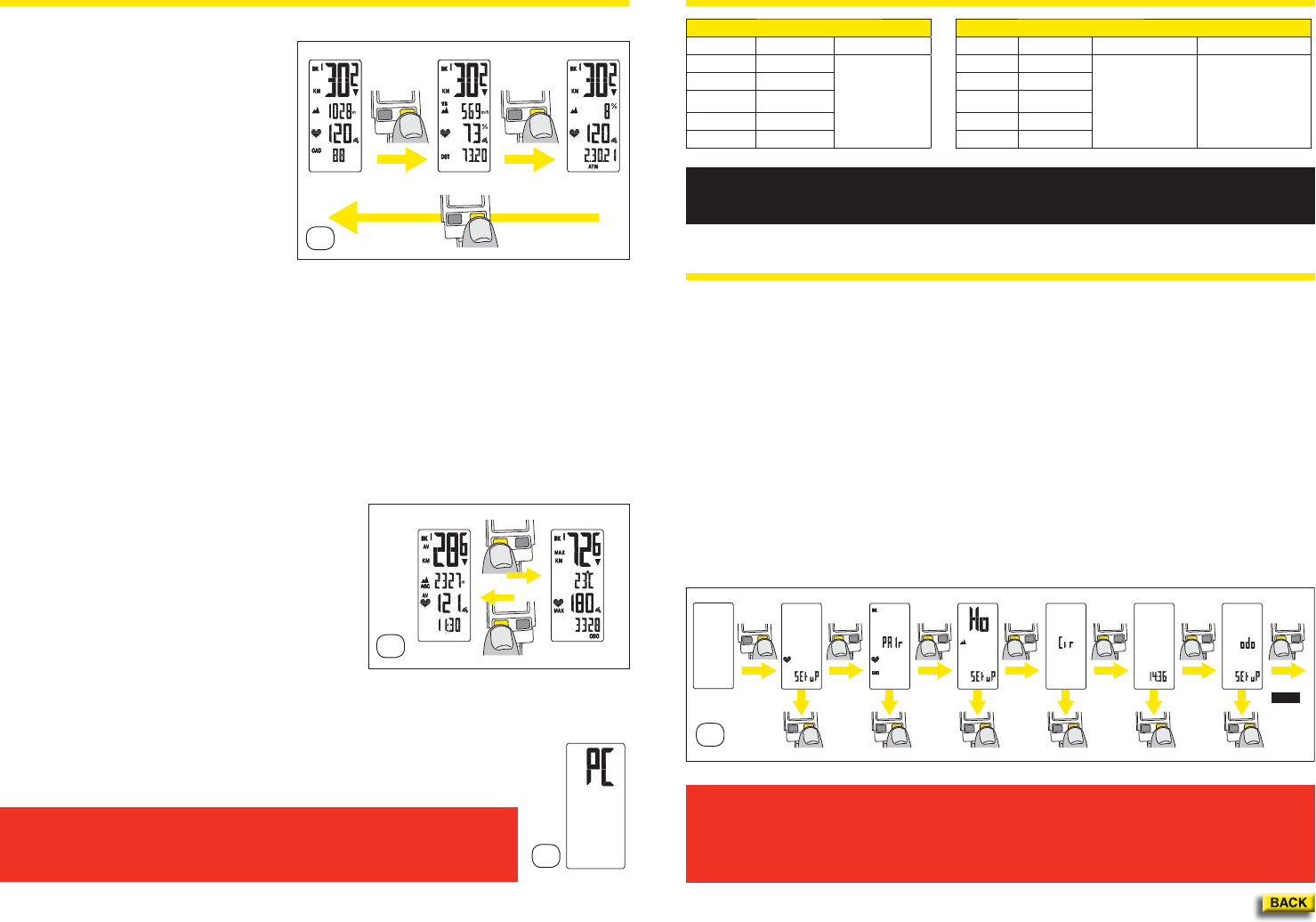

8. FUNCTION DISPLAY DEFAULT SEQUENCE
8.1 Briefly press right button (BPR) to scroll down the “while riding” displays
(live information)
Screen 1 – Current speed
– Number of bike used
– Distance unit (KM or Mi)
– Current elevation (Wintech
USB Alti and Wintech USB
Ultimate only)
– Current heart rate (Wintech
USB HR and Wintech USB
Ultimate only)
– Current pedalling cadence
(optional)
Screen 2 – Current speed
– Number of bike used
– Distance unit (KM or Mi)
– Vertical speed (Wintech USB Alti and Wintech USB Ultimate only)
– Heart rate as a percentage of maximum heart rate
(Wintech USB HR and Wintech USB Ultimate only)
– Trip distance
Screen 3 – Current speed
– Number of bike used
– Distance unit (KM or Mi)
– Slope % (Wintech USB Alti and Wintech USB Ultimate only)
– Current heart rate (Wintech USB HR and Wintech USB Ultimate only)
– Stopwatch (ATM)
8.2 Briefly press left button (BPL) to scroll down the “after riding” displays
(statistic information)
Screen 4 – Average speed
– Number of bike used
– Distance unit (KM or Mi)
– Cumulated altitude gain (Wintech USB
Alti and Wintech USB Ultimate only)
– Average heart rate (Wintech USB HR
and Wintech USB Ultimate only)
– Clock
Screen 5 – Max speed
– Number of bike used
– Distance unit (KM or Mi)
– Temperature (Wintech USB Alti and Wintech USB Ultimate only)
– Max heart rate (Wintech USB HR and Wintech USB Ultimate only)
– Total cumulated distance (odometer) of the active bike (BK1, BK2 or BKH).

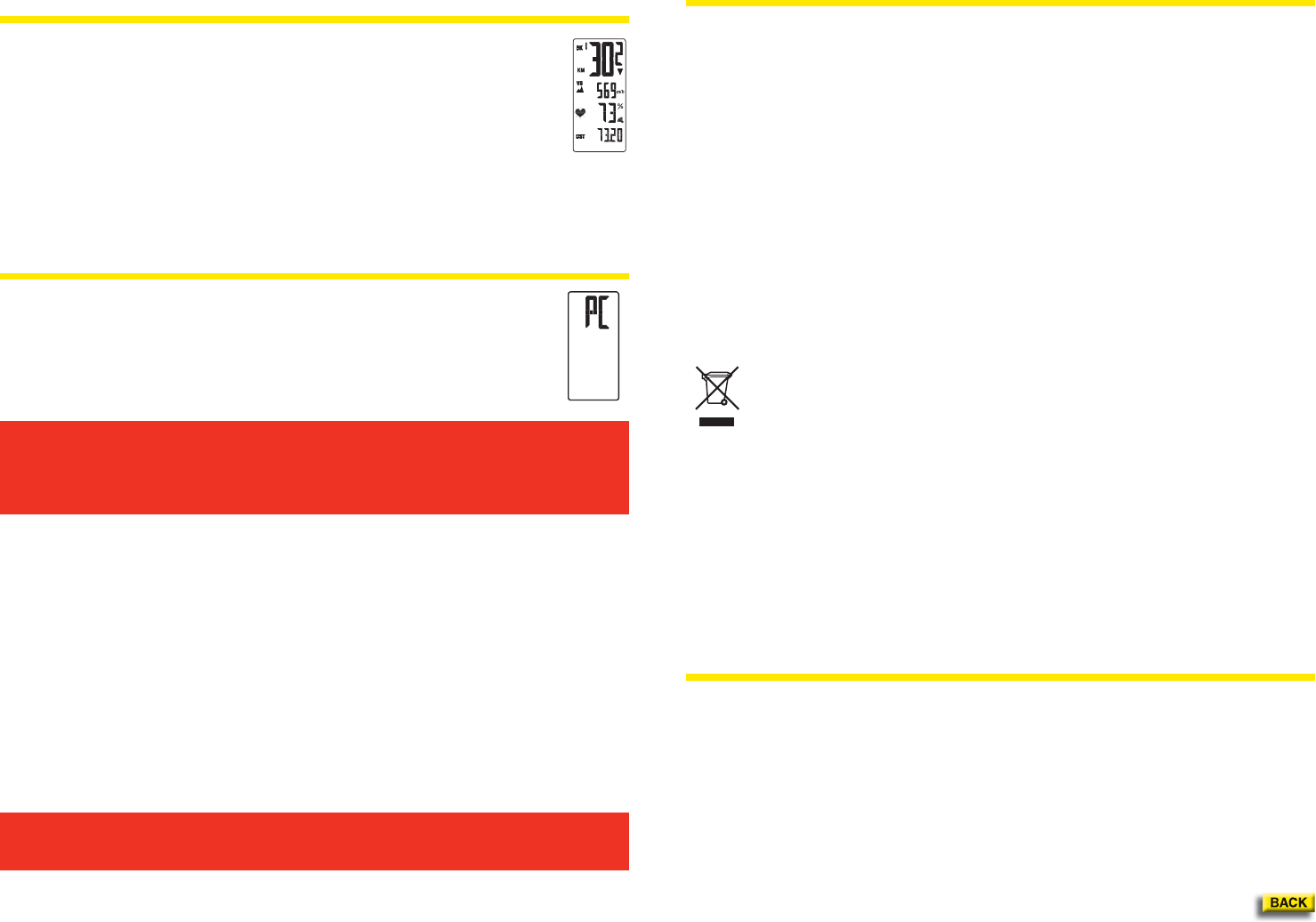

8.3 Active display when the computer is connected with USB to a laptop
or desktop. None of the buttons (BPR and BPL) are active.
You can customize the 5 default screens above by using the
Wintech Manager software included on the CD delivered with your
computer.
9. DEFAULT BUTTON FUNCTION MATRIX
Left Button Right Button
From Short press Long press > 2s From Short press Long press > 2s Long press > 6s
Screen 1 To screen 4
Elevation set up
+ data review
Screen 1 To screen 2
Start/stop CR
(intermediate
chrono)
Parameters set up
zone
Screen 2 To screen 5 Screen 2 To screen 3
Screen 3 To screen 4 Screen 3 To screen 1
Screen 4 To screen 5 Screen 4 To screen 2
Screen 5 To screen 4 Screen 5 To screen 3
SETTINGS
10. ENTERING THE SET UP MENU
From any screen, press and hold the right button (BPR) for 6 seconds to enter the set up menu.
The set up menu is sequentially organized in sub-menus, in the following order:
1. HR alarm and working zone (Wintech USB Alti and Wintech USB Ultimate only)
2. Digital pairing of bike sensor
3. Home elevation, altitude and temperature unit (Wintech USB HR and Wintech
USB Ultimate only)
4. Wheel circumference and distance unit

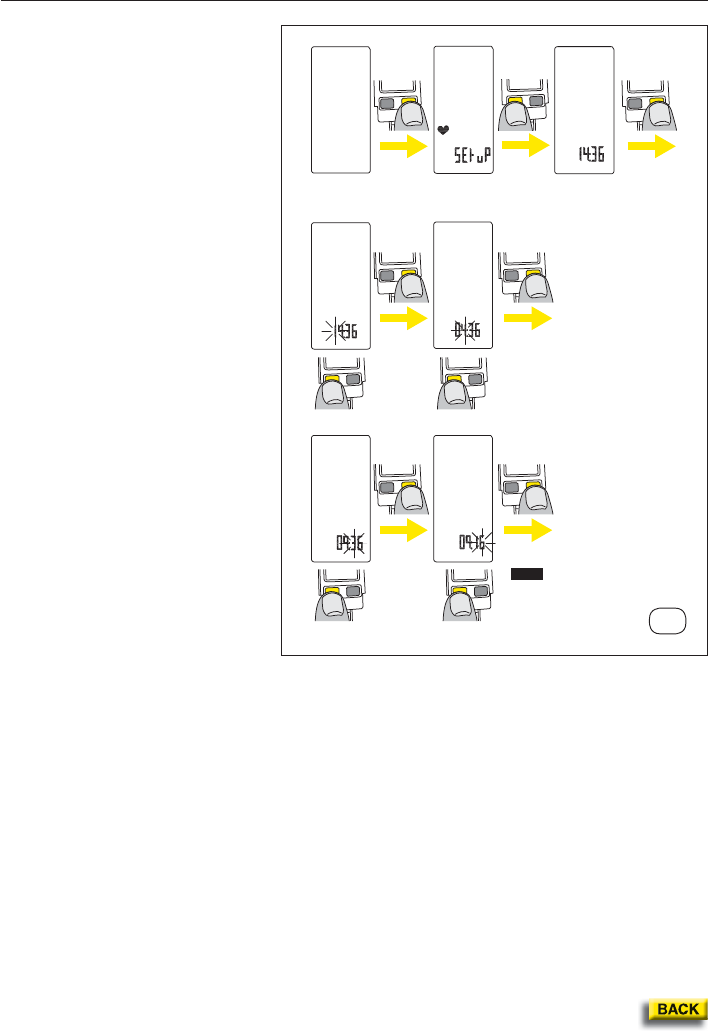

5. Clock

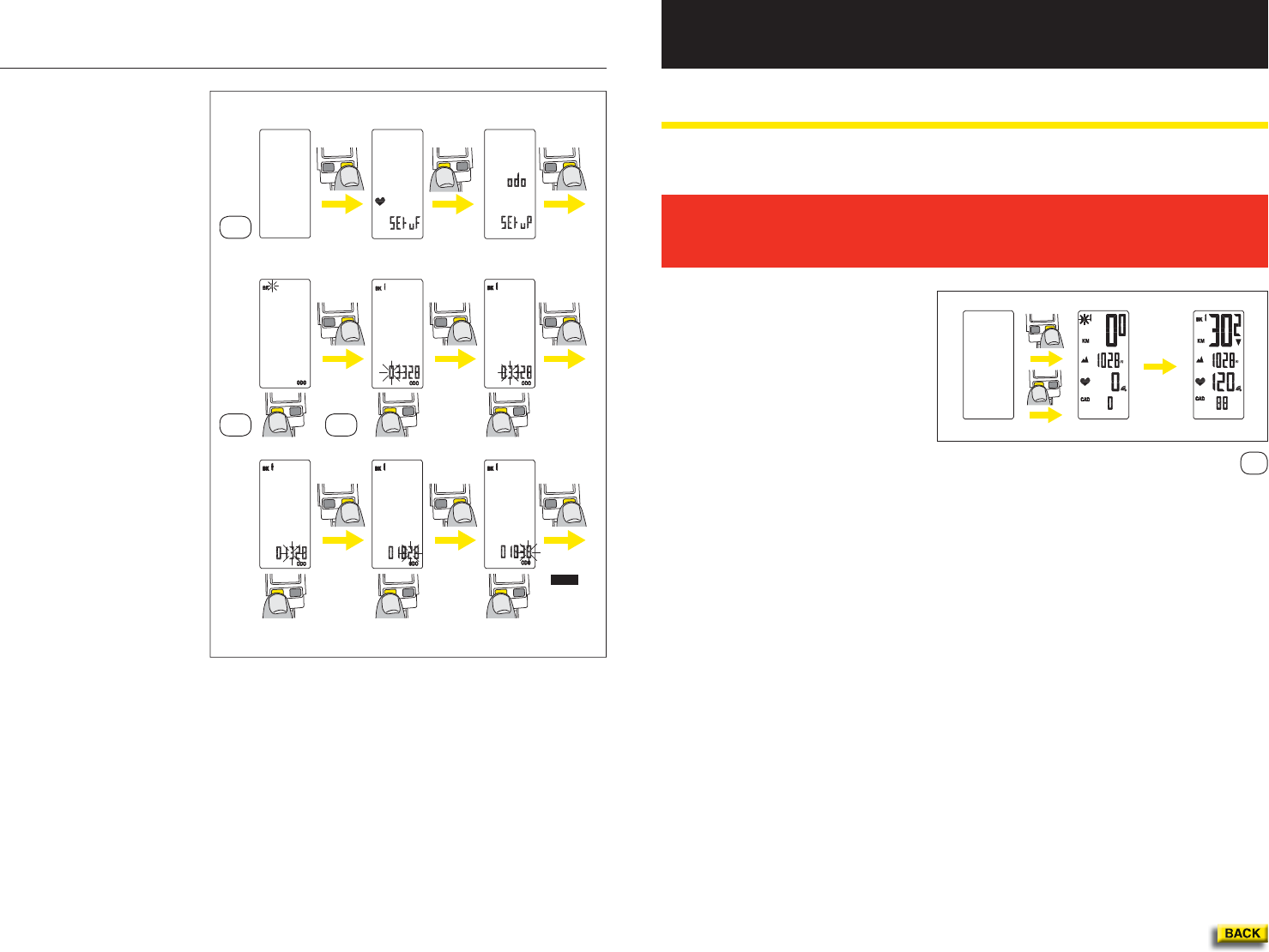

6. Odometers
To move from one sub-menu to the next one, briefly press the left button (BPL).
After the odo sub-menu, pressing again briefly the left button, exit the set up menu and return to
the previous active screen.
When on one of the sub-menu, briefly press the right button to enter this sub-menu.
In set up mode, when there is no operation for 2min, the computer automatically exits the set up
menu and return to the previous active screen.
Those set up operations have to be performed each time the battery is removed or
changed.

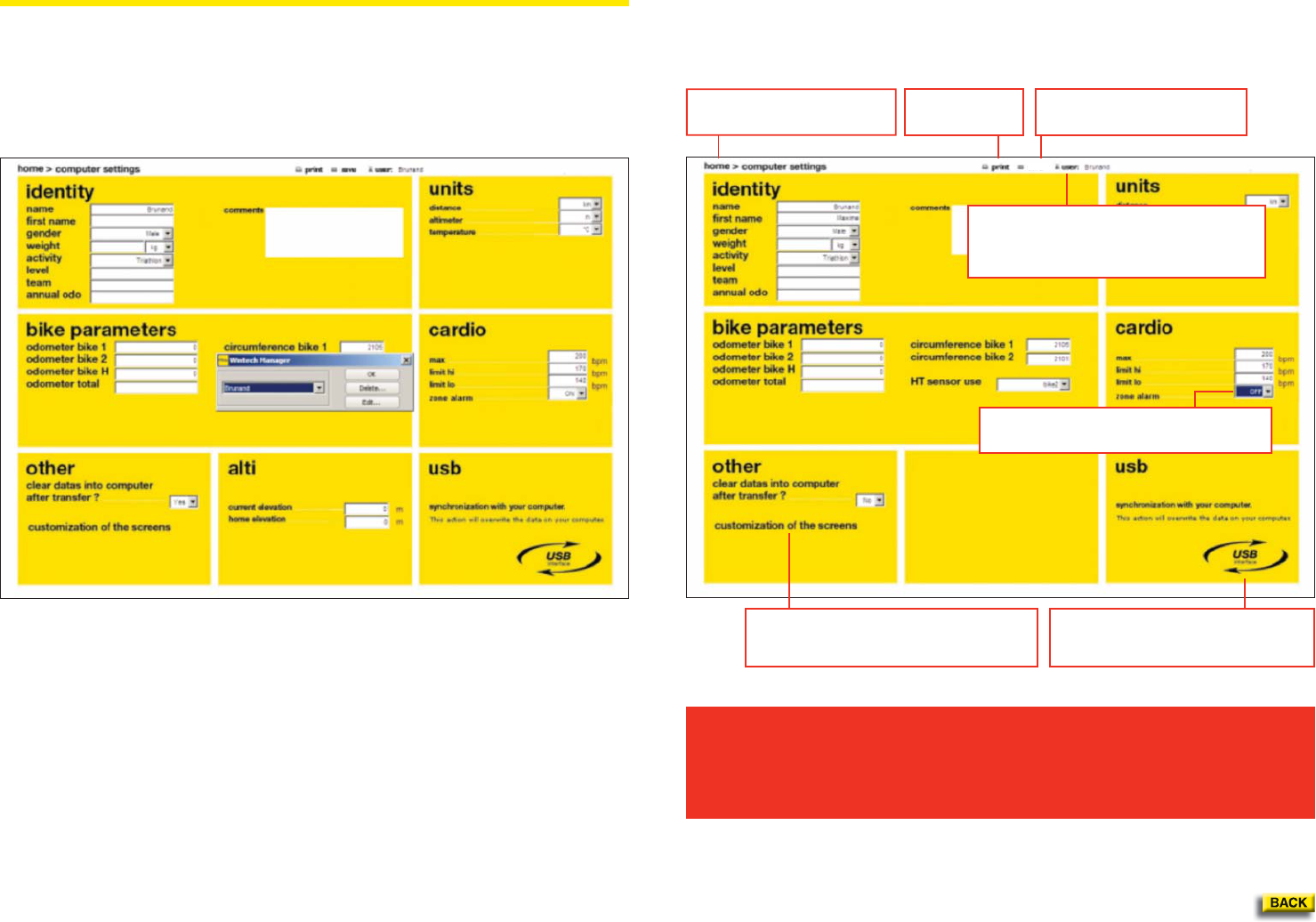

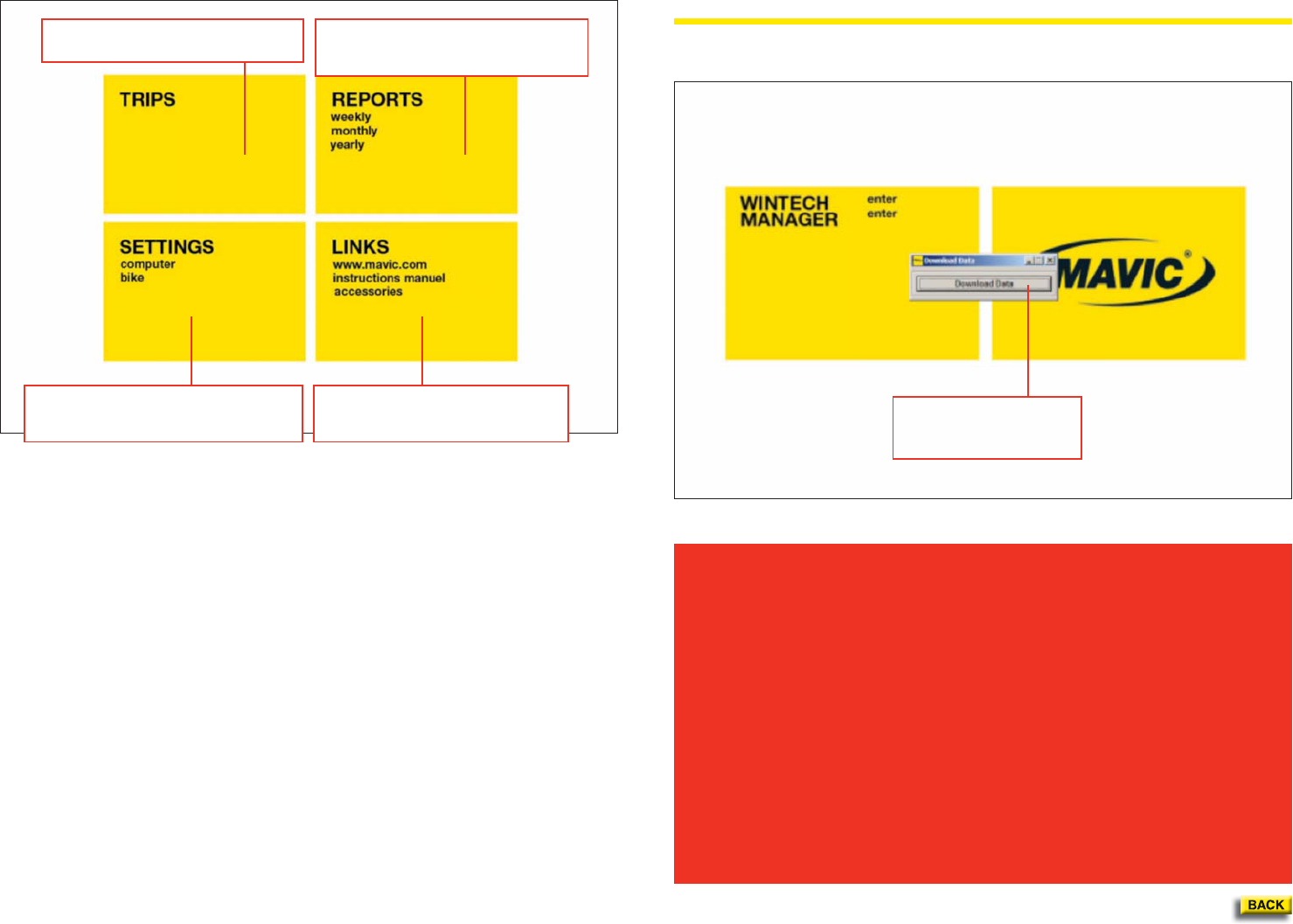

Those set up operation can be performed more easily and more rapidly using the
Wintech Manager software delivered with your computer.
Screen 1
Screen 4
Screen 6
Screen 5
Screen 2 Screen 3
8.1
8.2
8.3
6 sec.
any
screen
1 click
1 click
enter
1 click
enter
1 click
enter
1 click
enter
1 click
enter
1 click
enter
1 click 1 click 1 click 1 click 1 click
EXIT
10
6
10.1. Heart rate alarm and workzone
(Wintech USB HR and Wintech USB Ultimate only)
Press and hold the right button for 6
seconds.
Briefly press again the right button
(BPR) to enter the different stages of
the heart rate section:
10.1.1. Sound Alarm.
Briefly press the left button (BPL) to
turn on or off the alarm.
Briefly press the right button (BPR) to
validate your choice and move to the
next stages of the heart rate settings
(Heart rate limits).
10.1.2. Cardiac limits.
The first figure to set up is your
maximum heart rate (FC Max):
As a result from the last button
operation, the first digit of the
maximum heart rate flashes.
Briefly press the left button (BPL)
to set the first digit.
Briefly press the right button (BPR) to
validate the first digit and move to the
next one.
Repeat those 2 operations to set the
2nd and 3rd digit of your maximum
heart rate (MAX).
When validating the 3rd digit of
the maximum heart rate by briefly
pressing the right button (BPR), you
move to the set up of your lower HR
limit (Lo). Set this figure up using the
same method as for the maximum
Heart Rate. Then, you can proceed
to the upper limit (Hi) using the same
method.
When validating the 3rd digit of the
upper limit (Hi) by briefly pressing the
right button (BPR), you exit the set up
menu and return to last active display.
In order to learn these values
(maximum heart rate, lower and
upper limits), Mavic recommends
that you should take an effort test in a
specialized center.
Otherwise you can use the following
approximate values:
FC Max = 220 – age
Upper limit: 85% of FC Max
Lower limit: 70% of FC Max
10.2. Digital pairing
The digital pairing operations MUST be performed to ensure a reliable and efficient
communication between the Wintech computer and all its speed, cadence and
Heart Rate sensors.
If you don’t, the Wintech computer won’t read any data coming from the sensors.
10.2.1 First fit the cardio belt to
the body.
To do so, moisten the sensor zones
situated on the back of the belt.
Open the belt at one of its
extremities. Position the belt on
the torso, just under the pectoral
muscles. The Mavic logo should
be positioned at the centre of your
chest.
Then close the belt, making sure the
sensor zones are flat against the
skin. If necessary, adjust the
tightness of the elastic strap.
WARNINGS: Persons who have a
pacemaker, defibrillator, or other
implanted electronic device use
the heart rate monitor at their
own risk. Before starting the initial use of the heart rate monitor, we recommend an
exercise test under a doctor’s supervision. this will ensure the safety and reliability of
the pacemaker and the heart rate monitor when used simultaneously. Exercise may
include some risk, especially for those who have been sedentary. We strongly advise
consulting your doctor prior to beginning a regular exercise program.

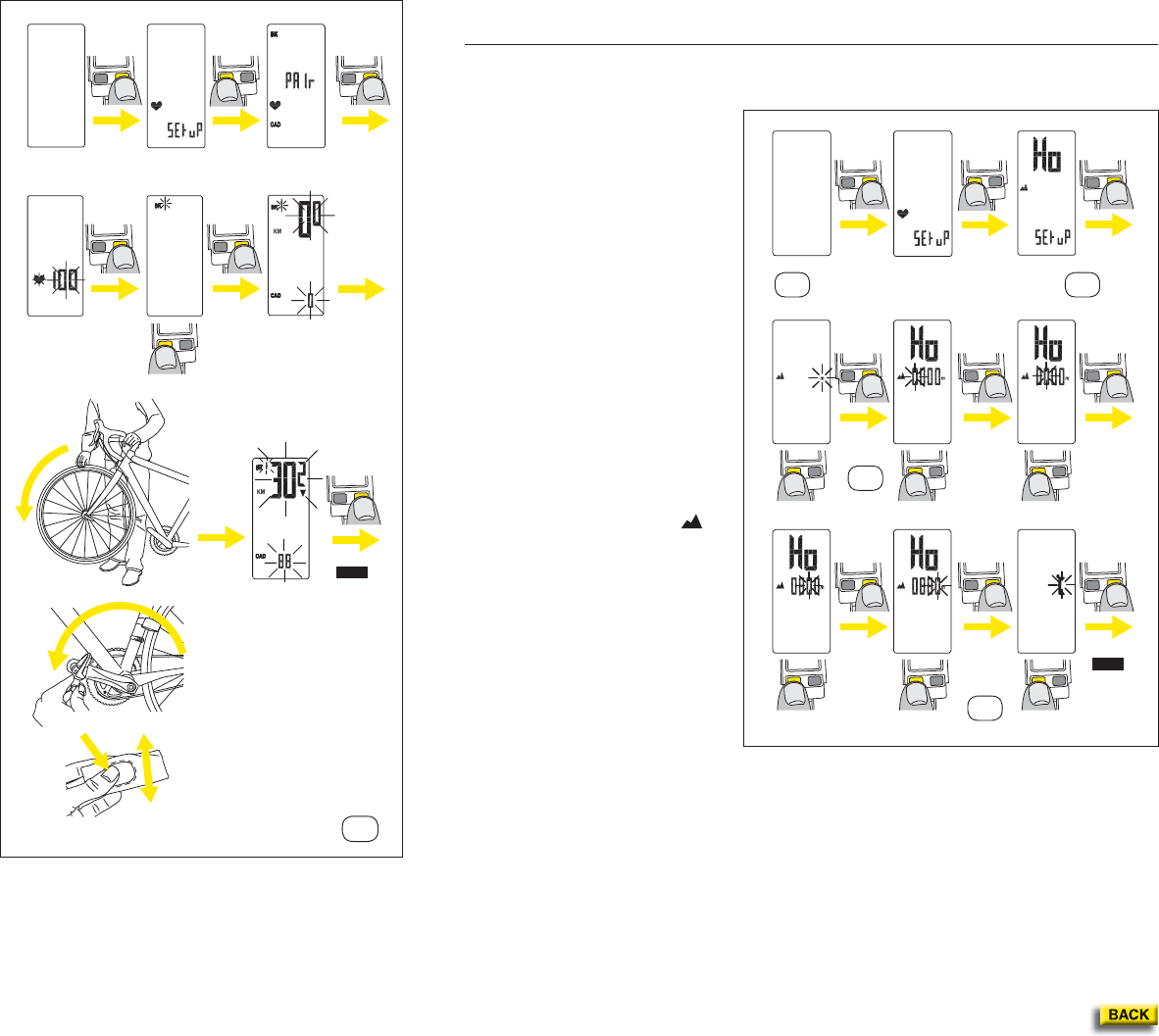

10.2.2. Enter the pairing menu:
From any active display, press and hold the right button (BPR) for 6 seconds.
On Wintech USB HR and Wintech USB Ultimate, briefly press the left button (BPL) once to
move to the Pair section.
Briefly press the right button (BPR) to start the pairing operations.
The heart pictogram will light up. As soon as the heart rate is displayed, the pairing of the HR
belt is done.
Briefly press the right button (BPR): the figure after BK is flashing, indicating the speed sensor
your are about to pair.
Briefly press the left button (BPL) to successively select BK 1, BK 2 or BK H according to the
sensor you wish to pair.
Briefly press the right button (BPR) to validate your sensor choice: the sensor number, speed
and cadence figure flashes.
Turn the front wheel until the speed is displayed. If you are using the pedalling cadence option,
turn the cranks also. When both speed and cadence are displayed, press the right button to
validate.
If the computer receives a signal but the speed is zero, the display OK appears.
6 sec.
any
screen
1 click
select
select
select
select
select
select
select
select
select
select
1 click
1 click
1 click
1 click
1 click
1 click
1 click
1 click
1 click
1 click
10.1
EXIT
10.2.1
7
To pair a 2nd bike sensor or the home
trainer sensor, proceed again to
the operations described above,
selecting the correct bike number
and corresponding sensor.
Heart Rate belt and cadence sensor
does not need to be paired again
when pairing a new sensor.
Digital pairing operations must be
performed after changing a battery.
– If you change the computer battery,
all sensors (speed, cadence and
heart rate belt) must be paired
again.
– If you change the battery of
only one of the sensors (speed,
cadence or heart rate belt), only
the pairing of this sensor needs to
be performed again.
After each pairing operation, ATM,
DST, AV, MAX, VS, Hi/Lo elevation
will be reset to 0.
Automatic detection of the speed
sensor (Mavic patent pending)
All paired sensor will automatically
be recognised when in use: the
BK display will flash, indicating it is
acquiring a new speed sensor signal.
When it is done, the BK display stops
flashing and the recognised sensor
numbers appears next to it.
This operation takes about 15
seconds.
Specific wheel circumferences
and odometers are linked to each
speed sensor. The computer
automatically adapts odometer and
wheel circumference according to
the detected speed sensor (see
part 10.4 and 10.6 of this user guide
to adjust wheel circumference
and odometer of each sensor/bike
number).
10.3. Elevation set up
(Wintech USB Alti and Wintech USB Ultimate only)
The elevation set up menu is divided in 3 parts:
– Elevation unit set up
– Home altitude set up
– Temperature unit set up
10.3.1. Enter the Elevation set
up menu:
From any active display, press and
hold the right button (BPR) for 6
seconds.
– On Wintech USB Ultimate, briefly
press the left button (BPL) twice
to move to the Elevation set up
section.
– On Wintech USB Alti, briefly
press the left button (BPL) once
to move to the Elevation set up
section.
Briefly press the right button (BPR)
to start the Elevation settings
operations.
10.3.2. Choose the elevation
unit (meter or feet).
As a result from the last brief press
on the right button (BPR), the
logo appears, and “m” flashes.
Briefly press the left button to
change from meters (m) to feet (ft).
Briefly press the right button to
validate your choice and move to
the next Elevation setting.
Choosing the elevation unit
(m or ft) automatically updates
the temperature (°C or °F)
and distance unit (km or mi)
according to the metric or imperial
measurement standard.
10.3.3. Set up your home elevation.
As a result from the last brief press on the right button (BPR) to validate the elevation unit, you
enter the home elevation (Ho) screen set up. The first digit of the home elevation flashes.
Briefly press the left button (BPL) to set up the first digit of your home elevation. Validate by
briefly pressing the right button (BPR) and move to the next digit.
Repeat those steps to the 4th digit. Validating the 4th digit by a brief press on the right button
(BPR) will move you to the last Elevation setting.
6 sec. 1 click
1 click 1 click
1 click
any
screen
1 click
select
Cadence Option
Smart Cadence Option
1. Press
2. Shake
1 click
1 click
10.2.2
10.3.1 10.3.2
10.3.3
10.3.4
6 sec.
1 click
1 click
1 click
1 click
1 click
1 click
1 click
any
screen
2 click (Ultimate)
1 click (Alti)
select
select
select
select
select
select
EXIT
EXIT
8

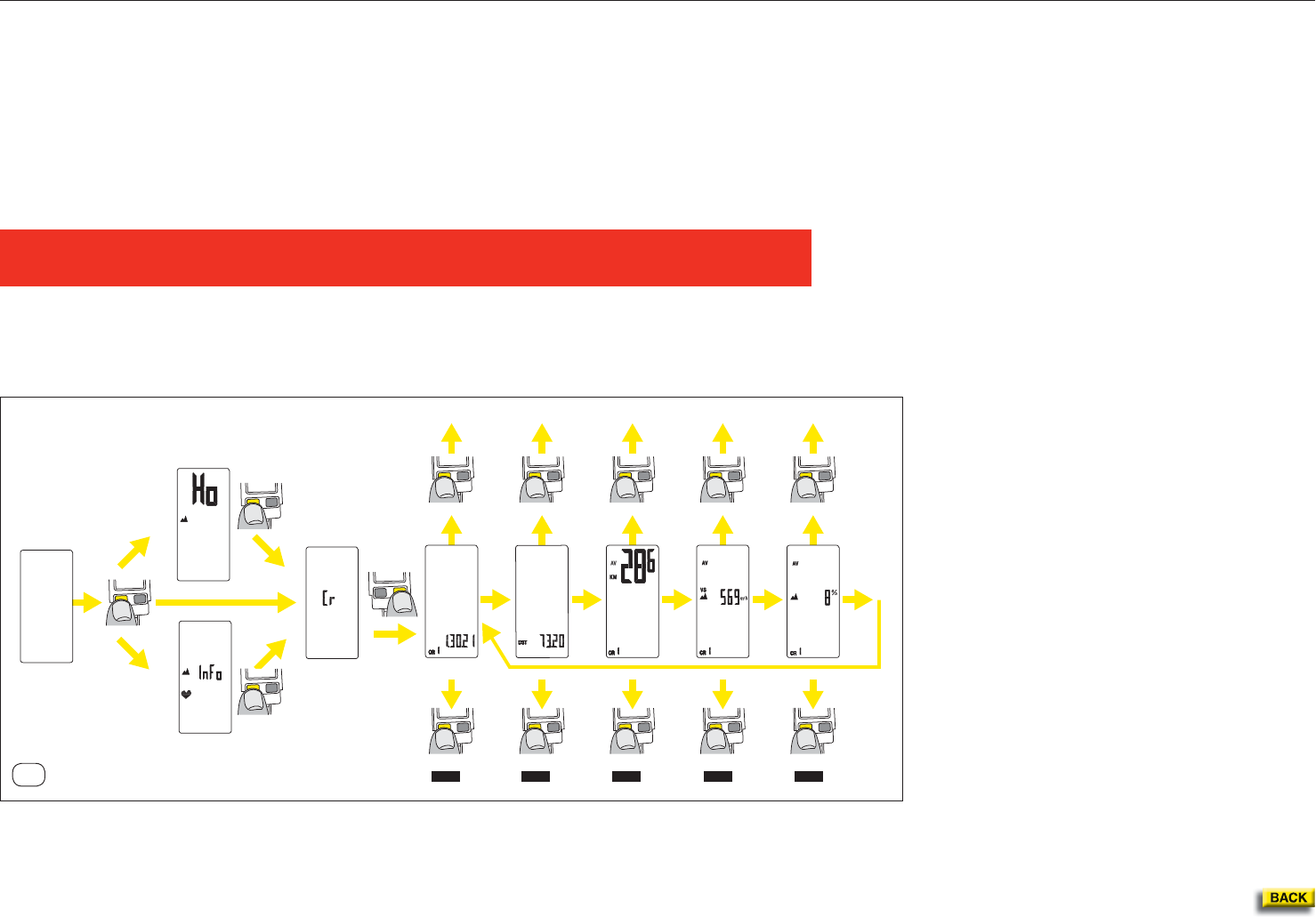

See part 14.2 of this user guide to learn how to use the Home Elevation.
The Home altitude is useful to easily and rapidly recalibrate your computer before
you start a new ride. The Home altitude shall be set up at your most frequent point
of departure. We recommend that you precisely know the elevation of this point.
10.3.4. Choose your temperature unit (Celsius or Fahrenheit).
As a result from the last brief press on the right button (BPR) to validate the home altitude, you
enter the temperature unit set up: ° flashes.
Briefly press the left button (BPL) to change from Celsius (C) to Fahrenheit (F).
Validate your choice by briefly pressing the right button (BPR) and exit the elevation menu. You
will automatically return to the last active display.
Choosing the temperature unit (°C or °F) automatically updates the elevation (m or ft) and
distance unit (km or mi) according to the metric or imperial measurement standard.
10.4. Wheel circumferences and distance unit set up
Consult the table of
approximate correspondences
to check your wheel
circumference (see table
10.4.). For a more precise
measurement, proceed as
follows:
– Make a mark on the tire and
on the ground at the point of
contact between the tire and
the ground.
– Do one full turn of the wheel
and mark on the ground the
place where the mark on the
tire touches the ground.
– Measure the distance (D)
between these two points in
millimeters.
10.4.1. Enter the Wheel
circumferences set up
menu:
From any active display, press
and hold the right button
(BPR) for 6 seconds.
– On Wintech USB Ultimate,
briefly press the left button
(BPL) 3 times to move to the
wheel circumferences and
distance unit set up section.
“Cir” appears on the screen.
– On Wintech USB Alti and
Wintech USB HR, briefly
press the left button (BPL)
twice to move to the wheel
circumferences and distance
unit set up section. “Cir”
appears on the screen.
– On Wintech USB, briefly
press the left button (BPL)
once to move to the wheel
circumferences and distance
unit set up section. “Cir”
appears on the screen.
Briefly press the right button
(BPR) to start the wheel
circumferences and distance
unit settings operations. Cir
and BK appear on the screen
and the bike number flashes
beside BK.
Tyre Circumf. Tyre Circumf.
26’’x1,5 2020 700Cx19 2100
26’’x1,75 2070 700Cx20 2110
26’’x1,9 2090 700Cx23 2130
26’’x2,0 2110 700Cx25 2140
26’’x2,1 2130 700Cx28 2150
26’’x2,2 2150 700Cx32 2170
26’’x2,3 2170 700Cx35 2200
650Cx19 1930
650Cx23 1990
10.4
10.4.1
10.4.2 10.4.3
10.4.4
6 sec.
3 click (Ultimate)
2 click (Alti, HR)
1 click (USB)
1 click
1 click
1 click
1 click
1 click
1 click
1 click
any
screen
select
select
select
select
select
select
EXIT
9
10.4.2. Choose the bike number you wish to set up the wheel circumference and
distance unit for.
Briefly press the left button (BPL) to change from BK 1, to BK 2 to BK H (for home trainer).
Briefly press the right button (BPR) to validate your selection and switch to the wheel
circumference set up screen. The first wheel circumference of the selected bike flashes.
10.4.3. Set up the wheel circumference of the selected bike.
Briefly press the left button (BPL) to set up the first digit of the chosen bike wheel circumference.
Briefly press the right button (BPR) to validate your choice and move to the next digit.
Repeat those steps to the 4th digit. Validating the 4th digit by a brief press on the right button
(BPR) will move you to the distance unit setting screen. The distance unit display flashes.
10.4.4. Select the distance unit of the selected bike.
Briefly press the left button to select kilometres (KM) or Miles (Mi).
Briefly press the right button (BPR) to validate your selection and exit the wheel circumference
and distance unit set up menu. You will automatically return to the last active display.
Choosing the distance unit (Km or Mi) automatically updates the elevation (m or ft) and
temperature unit (°C or °F) according to the metric or imperial measurement standard.
To set up the wheel circumference and distance unit for a 2nd bike sensor or the home trainer
sensor, proceed again to the operations described above, selecting the correct bike number.
10.5. Clock set up
Enter the Clock set up menu:
From any active display, press and
hold the right button (BPR) for 6
seconds.
– On Wintech USB Ultimate, briefly
press the left button (BPL) 4
times to move to the clock set
up section. The current clock is
displayed on the screen.
– On Wintech USB Alti and
Wintech USB HR, briefly press
the left button (BPL) 3 times to
move to the clock set up section.
The current clock is displayed on
the screen.
– On Wintech USB, briefly press
the left button (BPL) twice to
move to the clock set up section.
The current clock is displayed on
the screen.
Briefly press the right button
(BPR) to start the clock settings
operations. The first hour digit
flashes.
Briefly press the left button (BPL)
to adjust the first hour digit. Briefly
press the right button (BPR) to
validate your choice and move to
the next digit.
Repeat those steps to the 2nd
minute digit. Validating the 2nd
minute digit by a brief press on the
right button (BPR) will exit the set
up menu and switch back to the
last active screen.
10.5
6 sec.
4 click (Ultimate)
3 click (Alti, HR)
2 click (USB)
1 click
1 click
1 click
1 click
1 click
any
screen
select
select
select
select
EXIT
10
10.6. Odometers set up
10.6.1. Enter the
Odometers set up menu:
From any active display, press
and hold the right button
(BPR) for
6 seconds.
– On Wintech USB Ultimate,
briefly press the left button
(BPL) 5 times to move to
the odometer section. “odo”
appears on the screen.
– On Wintech USB Alti and
Wintech USB HR, briefly
press the left button (BPL)
4 times to move to the
odometer section. “odo”
appears on the screen.
– On Wintech USB, briefly
press the left button (BPL)
3 times to move to the
odometer section. “odo”
appears on the screen.
Briefly press the right button
(BPR) to start the odometers
settings operations. The bike
number flashes.
10.6.2. Select the bike
number you wish to adjust
the odometer for.
Briefly press the left button
(BPL) to select the bike
number you wish to adjust the
odometer for.
Briefly press the right button
(BPR) to validate the bike
number selection and switch
to the odometer set up
screen.
10.6.3. Adjust the odometer for the selected bike.
Briefly press the left button (BPL) to adjust the first digit.
Briefly press the right button (BPR) to validate your choice and move to the next digit.
Repeat those steps to the 5th odometer digit. Validating the 5th odometer digit by a brief press on
the right button (BPR) will exit the set up menu and switch back to the last active screen.
To set up the odometer for a 2nd bike sensor or the home trainer sensor, proceed again to the
operations described above, selecting the correct bike number.
USE
11. SLEEP MODE
When no speed, cadence and heart rate signals is detected and none of the buttons are
pressed for 15 minutes, then the computer automatically switches to sleep mode, to save the
battery.
Your Wintech computer does not wake up automatically when riding.
Press any of the 2 buttons to wake the computer up.
The last active display will be displayed.
When the computer wakes up, the
BK displays starts to flash. It means
that the computer is looking for the
speed sensor signals. When a signal
is recognized, the BK displays stops
flashing and is completed by the bike
number of the recognized sensor (1,2
or HT). The displayed data automatically
switch to the corresponding sensor.
6 sec.
5 click (Ultimate)
4 click (Alti, HR)
3 click (USB)
1 click
1 click
1 click
1 click 1 click
1 click 1 click
any
screen
select
select
select select
select select
or
auto
10.6.1
10.6.2 10.6.3
11
EXIT
11
12. TRIP RESET
12.1. To reset your last trip, press
and hold the 2 buttons together for
2 seconds.
The reset data are:
– Trip distance
– Average speed
– Maximum speed
– Vertical speed
– Cumulated vertical gain
– Lap time and their associated
data Clock, Odometers, Home
and Current altitude are not
reset.
Wintech USB computers can store
up to 10 trips of 5 hours each in
its internal memory. Only the last
one is displayed on the Wintech
computer itself.
When you reset the last
trip, it does not erase
the internal memory of
the Wintech computers.
Those 10 last trips are still
available for download at
the next PC connection.
So, if you ride for several days without downloading your Wintech data to your PC, you will not
lose any of the 10 last trips, while still being able to reset the last trip before the next one.
The 11th trip will replace the oldest of the 10 previous trips.
12.2. FULL 0 RESET
Once the daily trip has been reset, if you press and hold together the 2 buttons (BPR and BPL)
for 8 seconds, the reset of the whole system starts and all default settings will be restored.
All screen digits and logos will light up for 3 seconds. Then, the digits will count down from 9 to
0 and after 6 seconds, screen 1 will be displayed.
This operation erases your settings and replaces them with the default settings. It
also cancels the sensor pairing. So, before it works properly, you need to pair all the
sensors again, following the instruction described in section 10.2 of this user guide.
13. USE OF LAP TIME (CR)
In the course of a session you can use up to 9 lap times in order to evaluate your performance
on specific hills or sections.
Remember, the lap time only starts during a session i.e. when the computer already indicates a
speed.
From any screen in the course of a session, press and hold the right button for 2 seconds to
start the lap time. The “CR” symbol flashes. The lap time starts when you release the right button
and indicates the number of the lap time.
When a lap time has been started, the elapsed time of the current lap time replaces the “ATM”
data in screen 3.
To stop the current lap time, from any screen, press the right button for 2 seconds.
The screen automatically switches to screen 3, displaying the “ATM” of the lap time you have
just stopped. Press any button, to return to the overall display of your session.
To start the next lap time, press the right button for another 2 seconds, and so on for the
9 possible lap times.
When all 9 lap times are used, “FULL” appears on the display if you try to start a new lap time.
The computer automatically returns to screen 3 after 2 seconds.
To learn how to read the lap time data, go to section 14.4 of this user guide.
2 sec.
any
screen
8 sec.
3 sec.
auto
3 sec.
auto
3 sec.
auto
2 sec. 2 sec. After
2 sec. auto
to CR9
Start CR1 Stop CR1
any
screen
(1, 2, 3,
4, 5)
12.1
13
12.2
12
14. ELEVATION SET UP AND DATA REVIEW MENU
14.1. Entering the Elevation set up and data review menu
From any screen, press and hold the left button (BPL) for 2 seconds to enter the elevation set
up and data review menu.
The elevation set up and data review menu is sequentially organized in sub-menus, in the
following order:
1. Recall of home altitude “Ho” (Wintech USB Alti and Wintech USB Ultimate only)
2. Setting up the current altitude “Cu” (Wintech USB Alti and Wintech USB Ultimate only)
3. Lowest and highest trip elevation + time spent bellow, in and above the HRM target zone
“Info” (Wintech USB Alti, Wintech USB HR and Wintech USB Ultimate only)
4. Reading of lap time (“Cr”)
5. Reading of odometers per bike number (“odo”)
To move from one sub-menu to the next one, briefly press the left button (BPL).
When on one of the sub-menu, briefly press the right button to enter this sub-menu.
In this mode, if there is no operation for 2min, the computer automatically exits the menu and
return to the previous active screen.
When on one of the sub-menu, briefly press the right button to enter this sub-menu.
In this mode, if there is no operation for 2mn, the computer automatically exits the menu and
return to the previous active screen.
The reading of altitude and heart rate data, lap time and odometer per bike can
be performed more easily and more rapidly using the Wintech Manager software
delivered with your computer.
14.2. Recall of Home Altitude
(Wintech USB Alti and Wintech USB Ultimate only)
This function will make adjusting the altitude before a ride simple and easy, thanks to the home
altitude set at chapter 10.3.3 of this user guide.
Enter the elevation set up and data review menu:
From any screen, press the left button for
2 seconds: “Ho” appears together with the
logo.
Briefly press the right button (BPR) to
recall the home elevation. The figure
flashes.
Press the right button (BPR) again to
validate and return to the last active
display.
14.3. Setting up the current elevation
(Wintech USB Alti and Wintech USB Ultimate only)
When you occasionaly don’t start from the place which elevation is registered in your computer
(home elevation), you need to adjust the current altitude.
Enter the elevation set up and data review section:
From any screen, press the left button for 2 seconds: “Ho” appears together with the logo.
Briefly press the left button (BPL) once to switch to the Current elevation set up screen:
“Cu” appears on the computer screen.
Briefly press the right button (BPR) to enter the Current Altitude set up menu: the first digit of the
current altitude flashes.
Briefly press the left button (BPL) to adjust the first digit.
Briefly press the
right button (BPR)
to validate your
choice and move to
the next digit.
Repeat those steps
to the 4th current
altitude digit.
Briefly press the
right button (BPR)
to validate the 4th
current altitude digit,
exit the elevation set
up and data review
menu and switch
back to the last
active screen.
14.2
2 sec. 1 click
1 click
any
screen
EXIT
14.3
2 sec. 1 click 1 click
1 click
select select select select
1 click 1 click 1 click
any
screen
EXIT
14.1
2 sec.
any
screen
1 click 1 click 1 click 1 click 1 click
EXIT
1 click
enter
1 click
enter
1 click
enter
1 click
enter
1 click
enter
13
14.4. Trip Altitude and Heart Rate data review (Wintech USB Alti, Wintech USB HR and Wintech USB Ultimate only)
Enter the elevation set up and data review menu: From any screen, press the left button for 2 seconds.
– On Wintech USB Alti and Wintech USB Ultimate, briefly press the left button (BPL) twice to switch to the altitude and heart rate review data section: “Info” appears on the computer screen.
– On Wintech USB HR “Info” appears on the computer screen.
Briefly press the right button (BPR) to enter the altitude and heart rate review data section.
The review of trip altitude and heart rate data automatically starts in the following order:
– Highest trip elevation “Hi” (Wintech USB Alti and Wintech USB Ultimate only)
– Lowest trip elevation “Lo” (Wintech USB Alti and Wintech USB Ultimate only)
– Time spent bellow the HR target zone “Lo” (Wintech USB HR and Wintech USB Ultimate only)
– Time spent into the HR target zone “In” (Wintech USB HR and Wintech USB Ultimate only)
– Time spent above the HR target zone “Hi” (Wintech USB HR and Wintech USB Ultimate only)
Each piece of information is displayed for 3 seconds.
For Wintech USB HR, if no heart rate information has been recorded during the trip (when not wearing the HR belt for instance),
it is not possible to enter the Heart rate data review section when briefly pressing the right button on the “Info” screen.
For Wintech USB Ultimate, if no heart rate information has been recorded during the trip (when not wearing the HR belt for instance),
only elevation information will be displayed.
These data will cycle through until you press and hold the left button for 2 seconds. Then, the computer switches back to the last active screen.
If no button is pressed for 2 minutes, the computer automatically switches back to the last active screen.
14.4
2 sec.
Alti
Ultimate
HR
2 click
1 click
after
3 sec
auto
2 sec 2 sec 2 sec 2 sec 2 sec
after
3 sec
auto
after
3 sec
auto
after
3 sec
auto
after
3 sec
auto
any
screen
EXIT EXIT EXIT EXIT EXIT
14
14.5. Lap time data review
Enter the elevation set up and data review menu: From any screen, press the left button for 2 seconds.
– On Wintech USB Alti and Wintech USB Ultimate, briefly press the left button (BPL) 3 times to switch to the lap time data review section: “Cr” appears on the computer screen.
– On Wintech USB HR, briefly press the left button (BPL) once to switch to the lap time data review section: “Cr” appears on the computer screen.
– On Wintech USB “Cr” appears on the computer screen.
Briefly press the right button (BPR) to enter the lap time data review section.
The review of the first lap time automatically starts in the following order:
– Elapsed time in the first lap time
– Distance ridden during the lap time
– Average speed during the lap time
– Average vertical speed during the lap time (Wintech USB Alti and Wintech USB Ultimate only)
– Average slope in % during the lap time (Wintech USB Alti and Wintech USB Ultimate only)
Each piece of information is displayed for 3 seconds.
If no lap time has been recorded during the trip, it is not possible to enter the lap time data review section
when briefly pressing the right button on the “Info” screen.
At any time of the sequence, briefly press the left button (BPL) to switch to the next lap time.
These data will cycle through until you press and hold the left button for 2 seconds. Then, the computer switches back to the last active screen.
If no button is pressed for 2 minutes, the computer automatically switches back to the last active screen.
14.5
2 sec.
Alti
Ultimate
USB
HR
3 click
1 click
1 click
after
3 sec
auto
1 click 1 click 1 click 1 click 1 click
next CR next CR next CR next CR next CR
after
3 sec
auto
after
3 sec
auto
after
3 sec
auto
after
3 sec
auto
any
screen
2 sec 2 sec 2 sec 2 sec 2 sec
EXIT EXIT EXIT EXIT EXIT
15
14.6. Odometers review
Proceed this way to read the different bike / speed sensor odometers data.
Enter the elevation set up and data review menu: From any screen, press the left button for 2 seconds.
– On Wintech USB Alti and Wintech USB Ultimate, briefly press the left button (BPL) 4 times to switch to the odometer review section: “odo” appears on the computer screen.
– On Wintech USB HR, briefly press the left button (BPL) twice to switch to the odometer review section: “odo” appears on the computer screen.
– On Wintech USB, briefly press the left button (BPL) once to switch to the odometer review section. “odo” appears on the computer screen.
Briefly press the right button (BPR) to enter the odometer review section.
The review of odometers from the different speed sensors automatically starts in the following order:
– Bike 1
– Bike 2
– Bike H
– Total
Each piece of information is displayed for 3 seconds.
These data will run around until you press and hold the left button for 2 seconds. Then, the computer switches back to the last active screen.
If no button is pressed for 2 minutes, the computer automatically switches back to the last active screen.
14.6
2 sec.
Alti
Ultimate
USB
HR
4 click
1 click
2 click
1 click
after
3 sec
auto
after
3 sec
auto
after
3 sec
auto
after
3 sec
auto
any
screen
2 sec 2 sec 2 sec 2 sec
EXIT EXIT EXIT EXIT
16
15. VERTICAL SPEED EXPLAINED
(Wintech USB Alti and Wintech USB Ultimate only)
The Vertical Speed (VS) function available on Screen 2 gives you the opportunity
to measure your performance on any ascension of a pass, or a steep climb.
It expresses the vertical elevation achieved in one hour (in feet or meter); and
depends on the cyclist speed and the slope of the climb. For your information, a
professional cyclist extremely well prepared will be able to reach vertical speed
values around 5900 ft/h / 1800 m/h.
Your Wintech computer will provide you with an always positive vertical speed
value, when climbing or going downhill. The display is limited at 2500 m/h or 8202,5 ft/h.
16. PC PLUG
The data recorded in your Wintech computer can be read and changed from your
PC by pluging directly the Wintech computer into the USB port of your PC.
With the USB plug, connect your Wintech computer with to your PC to:
– Upload your personal settings into your Wintech computer: home elevation,
wheel circumferences, clock, odometers.
– Download your recorded rides to analyze distance, elevation, heart rate and Lap
time data on graphs and charts.
To perform those operation, you need to install on your PC the Wintech Manager
software included on the CD delivered with your Wintech computer (see Wintech
Manager user guide for details on installation and use of the Wintech Manager
software).
To plug your Wintech computer to your PC:
– Remove the computer from the handlebar mount
– Remove the USB plug cap from the USB plug of the Wintech computer
– Plug your Wintech computer directly to the USB port of your PC or using a USB extension
wire.
– The screen of your Wintech computer will indicate PC. If not, the Wintech computer might not
be plugged correctly. Reverse it.
Once the Wintech manager software is installed, when the Wintech computer is connected to
the PC, the Wintech Manager software is automatically launched.
The “Download data” dialog box pops up: click on “download data” to download the Wintech
computer’s data. A “Success” dialog box pops up when the download is complete.
If the last trip has not been reset to 0, it will not be downloaded. To remove your Wintech
computer from your PC, simply unplug it. Make sure no download is in progress.
The clock of the Wintech computer is automatically updated with the clock of the PC.
Read section 20 to 26 of this user guide to learn more about data download and the
Wintech Manager software.
17. MAINTENANCE AND RECOMMENDATION OF USE
– Changing the batteries: use CR 2032 batteries only for the speed sensor and cardio belt; and
CR2430 batteries only for the computer.
– Changing the computer battery automatically sets the following parameters at zero: odometer,
measuring unit (M or KM), wheel circumference, time. Remember to repeat the pairing
operation each time you change batteries.
– Service life of batteries: 12 to 24 months depending on usage.
– Although the electronic systems are watertight, avoid subjecting them to high-pressure water
jets.
– Although they resist solvents and oil-based products, avoid using this type of product in the
maintenance of the different components.
– Tip: use lukewarm water, with soap if necessary, and then wipe with a dry cloth.
– Do not leave the computer exposed to sunlight (e.g. behind a windscreen) when not in use.
– Do not disassemble any components or the guarantee will cease to be applicable.
– Cycling is a sport that can demand intense physical activity and present variable risks
depending on routes and the environment. Use your road sense and keep an eye out for
traffic. Remember to wear a helmet.
– Product characteristics, shape and general presentation are subject to modification without
prior warning.
Instructions for Disposal of Waste Equipment by Users in Private Household:
This symbol on the product or on its packaging indicates that this product must not be disposed
of with your other household waste. Instead, it is your responsibility to dispose of your waste
equipment by handing it over to a designated collection point for the recycling of waste electrical
and electronic equipment. The separate collection and recycling of your waste equipment at
the time of disposal will help to conserve natural resources and ensure that it is recycled in a
manner that protects human health and the environment. For more information about where
you can drop off your waste equipment for recycling, please contact your local city office, your
household waste disposal service or the shop where you purchased the product.
18. TECHNICAL SPECIFICATIONS
– Transmission: the use of digitally coded radio wave technology (WIN®) to transmit data
provides optimal reliability. However, disturbances may occur in the vicinity of electrical
apparatus, overhead power lines…
– Normal operating temperature: from –10 to +50°C / 14°F to 122°F.
– Speed: from 4.0 km/h to 99.9 km/h / from 2.5 mi/h to 62.0 mi/h
– Trip Distance: up to 1999,99 km or mi
– Odometer: up to 99999 km or mi
– Riding time: up to 19h59mn59sec
– Clock: 24h only
– Cadence: from 10 to 180 RPM
– Heart rate: from 25 to 240 BPM (Wintech USB HR and Wintech USB Ultimate only)
17
– Altimeter: from -500m to 5000m / -1640 ft to 16400 ft. Accuracy: +/- 5m / +/- 16 ft (Wintech
USB Alti and Wintech USB Ultimate only)
– Vertical speed: from 0 to 2500 m/h (8200 ft/h). Accuracy: +/- 10m/h (32,8 ft). Calculated on the
elevation change within the last 30 seconds. (Wintech USB Alti and Wintech USB Ultimate
only)
– Average vertical speed calculation: (Elevation at stop point – elevation at start point)/ATM in
minutes x 60. (Wintech USB Alti and Wintech USB Ultimate only)
– Cumulated altitude gain calculation: sum of all positive elevation change of the daily trip.
(Wintech USB Alti and Wintech USB Ultimate only)
– Slope: from -25% to +25%. Accuracy: 1%. Calculated on the elevation change over the last
100 meters. (Wintech USB Alti and Wintech USB Ultimate only)
– Average slope % calculation: (Elevation at stop point – elevation at start point)/DST in meters
x 100. (Wintech USB Alti and Wintech USB Ultimate only)
– Temperature: from -15°C to +50°C / From +5°F to +50°F. Accuracy: +/- 1°C (1°F). (Wintech
USB Alti and Wintech USB Ultimate only)
– Wheel circumference: from 1500mm to 2500mm. Step: 1 mm.
– Internal memory: up to 10 trips of 5 hours each
19. MAVIC® 2-YEAR WARRANTY
Mavic products purchased through an authorised retailer are warranted against defects in
materials and workmanship for 2 years from date of purchase by the initial user, under the
conditions defined below.
In order to make a claim under this warranty, the consumer must keep proof of purchase,
including the date and the name of the authorized dealer, and comply with the prescribed
procedure.
OBLIGATIONS
In the event of a defect on one of its products, Mavic’s sole obligation under this warranty is to
repair or replace, at its discretion, the defective part or product.
Moreover, in some countries, Mavic is obliged to ensure any legal warranty defined by law,
for the consumer’s protection. In this respect, in France, Mavic ensures legal warranty against
hidden defects under the conditions and limits of article 1641 and following of the French “Code
Civil”.
LIMITS OF WARRANTY
This warranty does not cover normal wear and tear or damage resulting from shipment,
storage, accidents, negligence, shocks or crashes, failure to follow the user’s guide and/or
recommendations for use, improper assembly or assembly with incompatible products, poor
maintenance, misuse, modification or alteration of the product.
The conditions of the Mavic warranty, including those applicable to product conformity, do not
apply to products purchased from outlets other than retailers authorized by Mavic.
This warranty is not transferable and is only applicable to the initial purchaser.
This warranty does not cover parts that are subject to wear in normal use, such as the braking
surfaces of wheel rims (if a rim braking system is used), brake pads, bearings, pawls, rear
derailleur jockey wheels, batteries...
This warranty does not cover products repaired or serviced by anyone other than Mavic After-
Sales Service personnel or Mavic’s representative in the country concerned (1).
This warranty does not cover products whose serial numbers or identification have been
erased, damaged or modified.
This warranty does not cover “Spécial Service Course Mavic®” (2) products.
This warranty does not exclude rights specific to each country. Consumers may have other
rights depending on their place of residence.
Certain juridictions make no provision for the exclusion or limitation of specific, incidental
or consequential damages, or limitations on the warranty period; the above exclusions and
limitations do not therefore apply to all. Local taxes, customs duties or freight charges may be
applied. In the United States, additional rights that differ from one state to another may also be
applied. Should part of this warranty be found to be inapplicable by virtue of administrative or
legal proceedings, the other parts remain applicable.
CLAIMS UNDER WARRANTY - PROCEDURE
Authorised retailers are at the users’ disposal to manage any warranty claims.
The authorised retailer must obtain the consent of Mavic® After- Sales Service (or its
representative in the country concerned (1)) prior to returning a product under warranty. The
entire product, accompanied by proof of the date of purchase (warranty card dated, signed and
stamped by the authorised retailer or other proof of the date of purchase) shall be sent by the
authorised retailer to Mavic® After-Sales Service (or its representative in the country concerned
(1)), which will undertake the operation.
The new or repaired product shall be returned to the authorized retailer.
WARRANTY CARD
The warranty card printed on this document must be dated, signed and stamped by the
authorised retailer and kept in a safe place indefinitely. It must be used for any claims.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
(1) Up-to-date list available on request from: MAVIC, 74996 ANNECY CEDEX 9.
(2) Claims made by other means or without obtaining prior consent for return cannot be taken
into consideration.
WIN-Tech is protected by one or more of the following patents: US 6204775 and other patent
pending.
SALOMON S.A.S. — MAVIC®
Capital : 23 509 981, 50 euros
Siège social : Lieu-dit «La Ravoire» Metz-Tessy (74)
R.C.S. Annecy 325 820 751 - 00106 - A.P.E. 364 Z
Adresse postale :
SALOMON S.A.S. - MAVIC DIVISION
74996 ANNECY • Cedex 9 - France
Tel. +33 (0)4 50 65 71 71 • Fax. +33 (0)4 50 65 71 72 • www.mavic.com
MAVIC® is a registered trademark of Salomon S.A.S.
Conformité / Conformity CE
Le symbole CE est utilisé pour indiquer la conformité de ce produit
avec les directives 89/336/CEE et 99/5/CEE.
The CEE mark is used to mark conformity with the European Union
directives 89/336/CEE and 99/5/CEE.
18
WINTECH MANAGER
The Wintech Manager software enables you to:
– Display on a PC all data of each trip coming from the Wintech computer
– Organize these data into reports (weekly,monthly,yearly)
– Manage up to 3 user accounts
– Export the data to share them
– Set up your Wintech computer
– Customize your Wintech computer’s screens
– Get links to external information (website, instruction manual…)
– Print and e-mail this information
– Store your bike settings
The Wintech Manager software is compatible with all Wintech models equipped with an
integrated USB connection (Wintech USB, Wintech USB Alti, Wintech USB HR and Wintech
USB Ultimate).
The display of the software may vary according to the version of Wintech computer
that you are using:
– Elevation information is only available when using a Wintech USB Alti and
Wintech USB Ultimate.
– Heart rate information is only available when using a Wintech USB HR and
Wintech USB Ultimate.
20. ENTERING WINTECH MANAGER
Installation
Insert the Wintech Manager CD into the CD drive or your PC and simply follow the instructions.
If the set up program does not automatically run, navigate the CD contents and double click on
the file “setup.exe”.
When the installation is complete, shortcuts are added on the program list of the “Start” menu
and on your computer desktop.
To launch the software, double click on the “Wintech Manager” icon of your program list or
desktop:
The first time you launch the software, you will be prompted to create a user
account. See section 24.1 of this user guide.
When a user account has already been created, the software opens on the last
active user account. To change user account, see section 24.1 of this user guide.
Choose your language
to enter the software
19
21. DATA TRANSFER
When the Wintech computer is plugged to the PC, the Wintech Manager software is
automatically launched and the download dialog box opens.
The data are automatically downloaded and integrated to the last active user
account data.
If the last trip has not been reset to 0, it will not be downloaded.
If you wish to download the Wintech computer data to another user account:
1. Open the Wintech Manager software
2. Select the user account you wish to download the data to (see section 24.1 of
this user guide)
3. Plug your Wintech computer to your PC to download the data.
If no User has been created yet, select “new user” in the dialog box. The “create
new user” screen will be displayed (see section 24.1. of this user guide to create a
new user account).
As the Wintech computers saves the last 10 trips in its internal memory, all trips
that haven’t been downloaded yet will then be added to the Wintech manager
database.
The clock of the Wintech computer is automatically updated with the clock of the
PC each time the Wintech computer is pluged to the PC.
Shows downloaded trip reports, by week,
month and year
(see section 23. Reports of this user guide)
Shows downloaded trip details
(see section 22. Trip of this user guide)
Provides more information on your
Wintech computer
(see section 26. Links of this user guide)
Uploads settings to your Wintech computer
Stores bike settings information
(see section 24. Settings of this user guide)
Click “download data” to
download the data of your
Wintech computer to your PC
20
22. TRIPS
This screen provides all the details about a specific trip:
– Distance, duration, average and maximum speed,
– Average and maximum cadence (if optional cadence sensor used during the trip),
– Average and maximum heart rate, time spent in workzone (for Wintech USB HR and Wintech
USB Ultimate only, and if heart rate belt used),
– Total vertical gain, minimum and maximum elevation, altigraph (distance and elevation graph)
(for Wintech USB Alti and Wintech USB Ultimate only),
– Details of lap time.
Adding a new trip manually
You can manually create a new trip by entering data manually (in case you rode without your
Wintech computer for instance).
Select a day. Select a start time.
Manually enter all other information
Click “save” to save this new trip
Go to previous or next trip.
If multiple trips are recorded
on the same day, use these
buttons to go to the next or
previous trip of the day
Choose the date of the report you
wish to consult:
– Navigate through the months with
left and right arrows
– Bold days are the one with trip
recorded
– Encircled day is current day
Navigation menu: click Home to go back to main menu
Delete the current trip
Print the current screen
Change user or edit user account
(see section 24.1. of this user guide)
Saves the trip as a .jpg file
Detail your trip (optional)
– Name your trip
– Category: choose Racing or
Training
– Activity: choose Road, Mountain
Bike or Home Trainer
– Weather: choose Cold, Rainy,
Cloudy, Sunny or Hot
– Feeling: choose easy, good or hard
– Comments: ad personal comments
such as places of interest, peloton
or alone…
Click “save” to save your changes
save
save
save
21
23. REPORTS
Weekly / Monthly reports:
Sums up all the trip for a specific week / month on a graph with
– Trip days on the horizontal axis
– Trip distance on the vertical axis
Yearly report:
Sums up all the trip for a specific year on a graph with
– Months on the horizontal axis
– Monthly odometer on the vertical axis
Cumulated distance and number of trip of the year:
– Full calendar year for past years
– From 1st of January to current day for the current year
Saves the current weekly
report as a .jpg file
save
Choose the second information that will be reported above each trip of the graph, among:
– Average speed
– Duration
– Average cadence (if optional cadence sensor used)
– Average heart rate (for Wintech USB HR and Wintech USB Ultimate only,
if heart rate belt used)
– Total vertical gain (for Wintech USB Alti and Wintech USB Ultimate only)
Roll your mouse over
a trip to detail the
distance and second
chosen information
Week/month number
Click on “week” or “month” to open a
calendar and select a new week/month
Navigation menu: click “Home”
to go back to main menu
Choose among weekly,
monthly or yearly report
Choose among weekly,
monthly or yearly report
Go to previous
or next week
Go to previous
or next week
Saves the trip as a .jpg file
save
Change user or edit user account
(see section 24.1. of this user guide)
Print the current
screen
Navigation menu: click “Home”
to go back to main menu
Change user or edit user account
(see section 24.1. of this user guide)
Print the current
screen
22
24. COMPUTER SETTINGS AND USER ACCOUNT MANAGEMENT
As you can manage up to 3 different users on the same PC, when you click on Computer
settings, the next screen asks you to choose among the registered users, to make sure you will
change the parameters of the correct user.
You can also choose to:
– add a new user by choosing “New user” in the user list
– edit an already existing user profile
– delete an already existing user profile
When the user name is confirmed, you can read the user account and associated computer
settings:
All information on this screen can be modified and downloaded to the Wintech
computer (if pluged) by clicking on the USB logo.
The modified information will become the default settings of the user.
You can also make these changes by following the instructions described in
section 10 of this user guide.
Click on “User” to edit any of the settings
indicated on that screen, click on User to
display the user choice dialog box again
(see section 24.1. of this user guide)
Set your workzone and turn ON and OFF the
audible alarm of the workzone
Click on the “USB interface” logo to upload
the user profile changes you have made to
the Wintech computer of the selected user
Click on Screen customization to customize the
screens of your Wintech computer
(see section 24.2. of this user guide)
Navigation menu: click “Home”
to go back to main menu
Print the current
screen
Saves the current weekly report
as a .jpg file
save
23
24.1 Create a new user or edit an already existing user
To display the user management dialog box:
– From the main menu, click on “Settings”
– From the Settings screen, click on “User”:
Chose “Edit” to go the settings screen and edit the user account:
*When you click on “save”, the modification are saved but not yet uploaded to the Wintech
computer. To do so, on the main Settings screen, click on the “USB interface” logo:
Edit User’s personal information
Edit User’s heart rate
information
(for Wintech USB HR and
Wintech USB Ultimate only)
Edit User’s preferred
distance, altitude and
temperature units
Edit User’s elevation
information
(for Wintech USB Alti and
Wintech USB Ultimate only)
Will save the settings*, and
return to the Settings main
display
If you choose:
– Yes: the Wintech computer data
will automatically be cleared once
downloaded to your PC
– No; the Wintech computer
data will not be cleared once
downloaded to your PC
Edit the bike parameters
associated to each sensors
you may have paired
Choose in the list the user name of whom you wish to edit the
profile. Choose New User to create a new user
Displays the chosen user’s
settings information
Delete the chosen user’s
account
Edit the chosen user’s
settings
24
24.2 Screen customization
Access the screen customization display from the settings main display:
Don’t’ forget to click on the “USB interface” logo to upload your changes to your Wintech
computer.
25. BIKE SETTINGS
You can store here your bikes’ settings information here:
26. LINKS
Free comments about bike
1 or bike 2
Transmission specification
Chain: date of last chain
renewal
Go to www.mavic.com
Open the complete user
guide of your Wintech
Saves all of your changesBike weightSize or date of last
tyre renewal.
Stem dimension
and position
Print the current screenChoose the bike number
Seat position
Frame size: see
upper drawing
Navigation menu
Customize the screen displayed using the left button of the
Wintech computer. The top line is not customizable.
According to your Wintech computer model (USB, USB Alti,
USB HR or USB Ultimate), only the available functions will be
displayed
Upload the new settings to
you Wintech computer
Restore the default screen
organization
Customize the screen
displayed using the right
button of the Wintech
computer.
The top line is not
customizable.
According to your Wintech
computer model (USB,
USB Alti, USB HR or USB
Ultimate), only the available
functions will be displayed
25
27. TECHNICAL SPECIFICATION
The Wintech Manager software can store data coming from 3 different users during 10 years ,
with 300 trips a year of 5 hours each, for each of the 3 users.
System requirements:
Windows XP or Vista only
Processor at 1.3 GHz minimum
512 MB of RAM memory
50 MB of hard drive disk free space
