National Electronics and Watch M13-470DBC cracker User Manual M13 470

National Electronics & Watch Co., Ltd cracker M13 470

User manual

Bluetooth Cracker device
Introduction
Thank you for purchasing the Bluetooth (BLE 4.0) Cracker device. This device can record the
Calories, Steps, Pace, Distance and Sleep that will track your sleep time, light sleep, deep
sleep, and wake-up time. It has one (1) button in the middle.
Note that the actual color and artwork may vary from style to style.

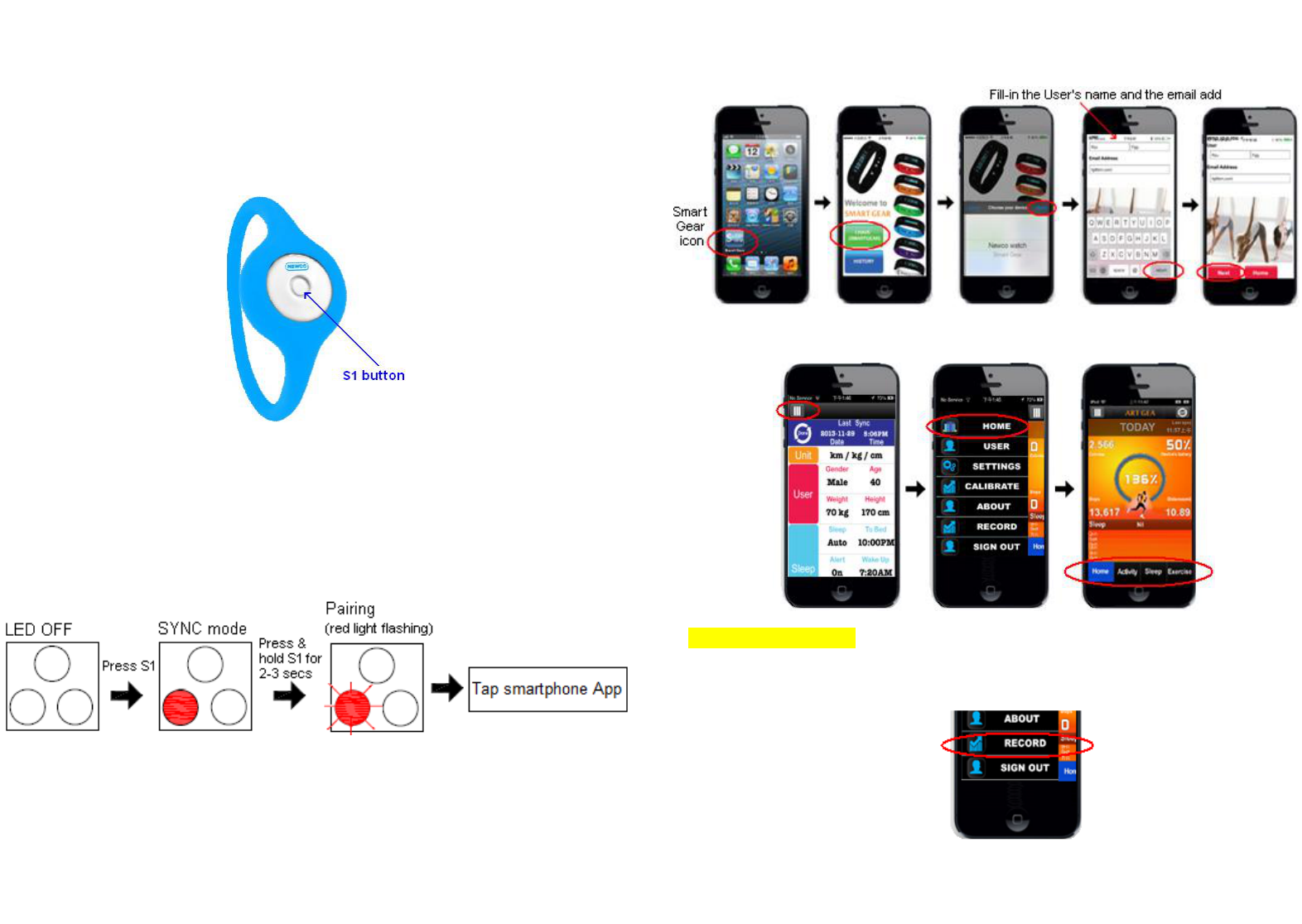

How to sync or pair your Cracker device with smart phone
Press S1 button from LED OFF to enter SYNC mode (red light appears).
Press and hold S1 for 2-3 seconds and the red light will flash. Then tap the smart phone App
to pair.
You may follow the function flow as shown.
Notes:
During the pairing process, the 3 LED’s will flash alternately and once pairing is
successful, the red light will flash.
If pairing is unsuccessful, the flashing red light will turn OFF.
Open the Apps by tapping the Smart Gear icon on the Smartphone.
The Welcome Smart Gear screen appears and continue tap as highlighted in red as shown.
Continue tap the icon highlighted in red of the screen as shown.
User can select the various screens such as, HOME, ACTIVITY, SLEEP and EXERCISE.
Important reminder:
Before use of the Cracker device, you may delete device data through the ff. steps:
Go to MENU screen on your smart phone and tap RECORD (highlighted in red as
shown).
Tap “Clear all saved data on device” then tap “YES” and tap “OK” on the phone.
Tap “Clear current user data in the appthen tap “YES” and tap “OK” on the phone.
Tap “Clear all user data in the appthen tap “YES” on the phone.
Tap “Home button on the phone.
Go to “Settings” and turn Bluetooth OFF then turn back ON.

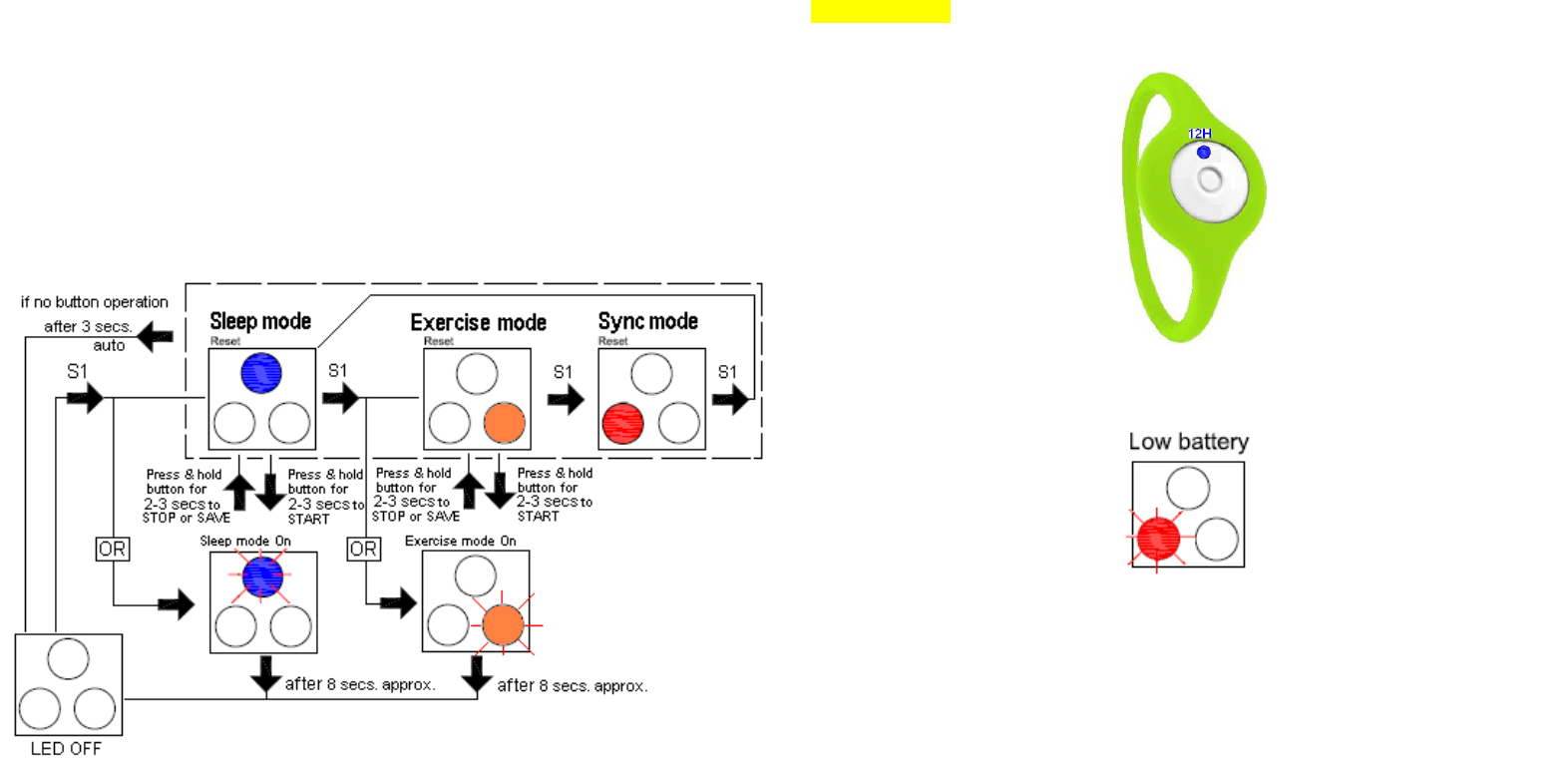

Knowing the Exercise or Sleep function of Cracker device
How to start and stop/save your Sleep function
Press S1 button from LED OFF to enter SLEEP mode. The blue light appears.
Press and hold S1 button to start your sleep and wait until the blue light will flash.
Press and hold S1 button to stop/save your sleep data while the blue light is flashing.
How to start and stop/save your Exercise
Press S1 button from LED OFF to enter EXERCISE mode. The orange light appears.
Press and hold S1 button to start your exercise and wait until the orange light will flash.
Press and hold S1 button to stop/save your exercise while the orange light is flashing.
You may follow the function flow as shown.
Note that there is no restart function on both Exercise and Sleep function.
If no button operation in Sleep mode, Exercise mode or Sync mode, after about 3
seconds it will automatically turn to LED OFF state.
When Sleep or Exercise data is saved, the light will stay only for about 8 seconds.
When Sleep or Exercise is ON, the light will flash for about 8 seconds.
Important note:
The arrow or blue light should be aligned in 12H location as shown. This is for better
performance of the device.
Battery low
When the battery level is low, the red light will flash for about 5 seconds.
Battery Replacement
The battery (CR2032) on this device is replaceable and it is highly recommended by an
authorized service personnel only.
Data Memory
Exercise / Activity: 10 files
Sleep data profile: 7 files
Size and Weight
Device size (Diameter / Thickness): approx. 24.5 x 8.0 mm.
Device weight: approx. 11 grams
Water Resistance
This device is an IPX7 standard.
Statement
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference and
(2) This device must accept any interference including interference that may cause undesired
operation of the device.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures: Reorient or relocate the
receiving antenna. Increase the separation between the equipment and receiver. Connect the
equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Compliance statement
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Warnings
Sound pressure:
Battery Caution: Risk of explosion if battery is replaced by an incorrect type. Dispose of
used batteries according to the instructions.
Temperature35
Hereby, National Electronics & Watch Co. Ltd, declares that this Bluetooth device is in
compliance with the
essential requirements and other relevant provisions of Directive1999/5/EC.
This device complies with Industry Canada licence-exemptRSSstandard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference,and (2) this device must accept any interference,including
interference that may cause undesired operation ofthe device.
Le présent appareil est conforme aux CNR d'Industrie
Canada applicables auxappareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes :(1) l'appareil ne doit pas produire de brouillage,et (2)
l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre lefonctionnement.
