DAQ

NI 6115/6120 User Manual

Multifunction I/O Devices for

PCI/PXI/CompactPCI Bus Computers

NI 6115/6120 User Manual

August 2002 Edition

Part Number 322812B-01

Support

Worldwide Technical Support and Product Information

ni.com

National Instruments Corporate Headquarters

11500 North Mopac Expressway Austin, Texas 78759-3504 USA Tel: 512 683 0100

Worldwide Offices

Australia 03 9879 5166, Austria 0662 45 79 90 0, Belgium 02 757 00 20, Brazil 55 11 3262 3599,

Canada (Calgary) 403 274 9391, Canada (Montreal) 514 288 5722, Canada (Ottawa) 613 233 5949,

Canada (Québec) 514 694 8521, Canada (Toronto) 905 785 0085, China 86 21 6555 7838,

Czech Republic 02 2423 5774, Denmark 45 76 26 00, Finland 09 725 725 11, France 01 48 14 24 24,

Germany 089 741 31 30, Greece 01 42 96 427, Hong Kong 2645 3186, India 91 80 4190000,

Israel 03 6393737, Italy 02 413091, Japan 03 5472 2970, Korea 02 3451 3400, Malaysia 603 9596711,

Mexico 001 800 010 0793, Netherlands 0348 433466, New Zealand 09 914 0488, Norway 32 27 73 00,

Poland 22 3390 150, Portugal 210 311 210, Russia 095 238 7139, Singapore 65 6 226 5886,

Slovenia 3 425 4200, South Africa 11 805 8197, Spain 91 640 0085, Sweden 08 587 895 00,

Switzerland 056 200 51 51, Taiwan 02 2528 7227, United Kingdom 01635 523545

For further support information, see the Technical Support and Professional Services appendix. To comment on

the documentation, send email to techpubs@ni.com.

© 2001–2002 National Instruments Corporation. All rights reserved.

Important Information

Warranty

The NI PCI-6115, NI PXI-6115, NI PCI-6120, and NI PXI-6120 devices are warranted against defects in materials and workmanship for a

period of one year from the date of shipment, as evidenced by receipts or other documentation. National Instruments will, at its option, repair

or replace equipment that proves to be defective during the warranty period. This warranty includes parts and labor.

The media on which you receive National Instruments software are warranted not to fail to execute programming instructions, due to defects

in materials and workmanship, for a period of 90 days from date of shipment, as evidenced by receipts or other documentation. National

Instruments will, at its option, repair or replace software media that do not execute programming instructions if National Instruments receives

notice of such defects during the warranty period. National Instruments does not warrant that the operation of the software shall be

uninterrupted or error free.

A Return Material Authorization (RMA) number must be obtained from the factory and clearly marked on the outside of the package before

any equipment will be accepted for warranty work. National Instruments will pay the shipping costs of returning to the owner parts which are

covered by warranty.

National Instruments believes that the information in this document is accurate. The document has been carefully reviewed for technical

accuracy. In the event that technical or typographical errors exist, National Instruments reserves the right to make changes to subsequent

editions of this document without prior notice to holders of this edition. The reader should consult National Instruments if errors are suspected.

In no event shall National Instruments be liable for any damages arising out of or related to this document or the information contained in it.

EXCEPT AS SPECIFIED HEREIN, NATIONAL INSTRUMENTS MAKES NO WARRANTIES, EXPRESS OR IMPLIED, AND SPECIFICALLY DISCLAIMS ANY WARRANTY OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. CUSTOMER’S RIGHT TO RECOVER DAMAGES CAUSED BY FAULT OR NEGLIGENCE ON THE PART OF

NATIONAL INSTRUMENTS SHALL BE LIMITED TO THE AMOUNT THERETOFORE PAID BY THE CUSTOMER. NATIONAL INSTRUMENTS WILL NOT BE LIABLE FOR

DAMAGES RESULTING FROM LOSS OF DATA, PROFITS, USE OF PRODUCTS, OR INCIDENTAL OR CONSEQUENTIAL DAMAGES, EVEN IF ADVISED OF THE POSSIBILITY

THEREOF. This limitation of the liability of National Instruments will apply regardless of the form of action, whether in contract or tort, including

negligence. Any action against National Instruments must be brought within one year after the cause of action accrues. National Instruments

shall not be liable for any delay in performance due to causes beyond its reasonable control. The warranty provided herein does not cover

damages, defects, malfunctions, or service failures caused by owner’s failure to follow the National Instruments installation, operation, or

maintenance instructions; owner’s modification of the product; owner’s abuse, misuse, or negligent acts; and power failure or surges, fire,

flood, accident, actions of third parties, or other events outside reasonable control.

Copyright

Under the copyright laws, this publication may not be reproduced or transmitted in any form, electronic or mechanical, including photocopying,

recording, storing in an information retrieval system, or translating, in whole or in part, without the prior written consent of National

Instruments Corporation.

Trademarks

CVI™, DAQ-STC™, LabVIEW™, Measurement Studio™, MITE™, MXI™, National Instruments™, NI™, ni.com™, NI-DAQ™, NI Developer

Zone™, and RTSI™ are trademarks of National Instruments Corporation.

Product and company names mentioned herein are trademarks or trade names of their respective companies.

Patents

For patents covering National Instruments products, refer to the appropriate location: Help»Patents in your software, the patents.txt file

on your CD, or ni.com/patents.

WARNING REGARDING USE OF NATIONAL INSTRUMENTS PRODUCTS

(1) NATIONAL INSTRUMENTS PRODUCTS ARE NOT DESIGNED WITH COMPONENTS AND TESTING FOR A LEVEL OF

RELIABILITY SUITABLE FOR USE IN OR IN CONNECTION WITH SURGICAL IMPLANTS OR AS CRITICAL COMPONENTS IN

ANY LIFE SUPPORT SYSTEMS WHOSE FAILURE TO PERFORM CAN REASONABLY BE EXPECTED TO CAUSE SIGNIFICANT

INJURY TO A HUMAN.

(2) IN ANY APPLICATION, INCLUDING THE ABOVE, RELIABILITY OF OPERATION OF THE SOFTWARE PRODUCTS CAN BE

IMPAIRED BY ADVERSE FACTORS, INCLUDING BUT NOT LIMITED TO FLUCTUATIONS IN ELECTRICAL POWER SUPPLY,

COMPUTER HARDWARE MALFUNCTIONS, COMPUTER OPERATING SYSTEM SOFTWARE FITNESS, FITNESS OF COMPILERS

AND DEVELOPMENT SOFTWARE USED TO DEVELOP AN APPLICATION, INSTALLATION ERRORS, SOFTWARE AND

HARDWARE COMPATIBILITY PROBLEMS, MALFUNCTIONS OR FAILURES OF ELECTRONIC MONITORING OR CONTROL

DEVICES, TRANSIENT FAILURES OF ELECTRONIC SYSTEMS (HARDWARE AND/OR SOFTWARE), UNANTICIPATED USES OR

MISUSES, OR ERRORS ON THE PART OF THE USER OR APPLICATIONS DESIGNER (ADVERSE FACTORS SUCH AS THESE ARE

HEREAFTER COLLECTIVELY TERMED “SYSTEM FAILURES”). ANY APPLICATION WHERE A SYSTEM FAILURE WOULD

CREATE A RISK OF HARM TO PROPERTY OR PERSONS (INCLUDING THE RISK OF BODILY INJURY AND DEATH) SHOULD

NOT BE RELIANT SOLELY UPON ONE FORM OF ELECTRONIC SYSTEM DUE TO THE RISK OF SYSTEM FAILURE. TO AVOID

DAMAGE, INJURY, OR DEATH, THE USER OR APPLICATION DESIGNER MUST TAKE REASONABLY PRUDENT STEPS TO

PROTECT AGAINST SYSTEM FAILURES, INCLUDING BUT NOT LIMITED TO BACK-UP OR SHUT DOWN MECHANISMS.

BECAUSE EACH END-USER SYSTEM IS CUSTOMIZED AND DIFFERS FROM NATIONAL INSTRUMENTS' TESTING

PLATFORMS AND BECAUSE A USER OR APPLICATION DESIGNER MAY USE NATIONAL INSTRUMENTS PRODUCTS IN

COMBINATION WITH OTHER PRODUCTS IN A MANNER NOT EVALUATED OR CONTEMPLATED BY NATIONAL

INSTRUMENTS, THE USER OR APPLICATION DESIGNER IS ULTIMATELY RESPONSIBLE FOR VERIFYING AND VALIDATING

THE SUITABILITY OF NATIONAL INSTRUMENTS PRODUCTS WHENEVER NATIONAL INSTRUMENTS PRODUCTS ARE

INCORPORATED IN A SYSTEM OR APPLICATION, INCLUDING, WITHOUT LIMITATION, THE APPROPRIATE DESIGN,

PROCESS AND SAFETY LEVEL OF SUCH SYSTEM OR APPLICATION.

Compliance

FCC/Canada Radio Frequency Interference Compliance

Determining FCC Class

The Federal Communications Commission (FCC) has rules to protect wireless communications from interference. The FCC

places digital electronics into two classes. These classes are known as Class A (for use in industrial-commercial locations only)

or Class B (for use in residential or commercial locations). Depending on where it is operated, this product could be subject to

restrictions in the FCC rules. (In Canada, the Department of Communications (DOC), of Industry Canada, regulates wireless

interference in much the same way.)

Digital electronics emit weak signals during normal operation that can affect radio, television, or other wireless products. By

examining the product you purchased, you can determine the FCC Class and therefore which of the two FCC/DOC Warnings

apply in the following sections. (Some products may not be labeled at all for FCC; if so, the reader should then assume these are

Class A devices.)

FCC Class A products only display a simple warning statement of one paragraph in length regarding interference and undesired

operation. Most of our products are FCC Class A. The FCC rules have restrictions regarding the locations where FCC Class A

products can be operated.

FCC Class B products display either a FCC ID code, starting with the letters EXN,

or the FCC Class B compliance mark that appears as shown here on the right.

Consult the FCC Web site at http://www.fcc.gov for more information.

FCC/DOC Warnings

This equipment generates and uses radio frequency energy and, if not installed and used in strict accordance with the instructions

in this manual and the CE Mark Declaration of Conformity*, may cause interference to radio and television reception.

Classification requirements are the same for the Federal Communications Commission (FCC) and the Canadian Department

of Communications (DOC).

Changes or modifications not expressly approved by National Instruments could void the user’s authority to operate the

equipment under the FCC Rules.

Class A

Federal Communications Commission

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated

in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct

the interference at his own expense.

Canadian Department of Communications

This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

Class B

Federal Communications Commission

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of

the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Canadian Department of Communications

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

Compliance to EU Directives

Readers in the European Union (EU) must refer to the Manufacturer’s Declaration of Conformity (DoC) for information*

pertaining to the CE Mark compliance scheme. The Manufacturer includes a DoC for most every hardware product except for

those bought for OEMs, if also available from an original manufacturer that also markets in the EU, or where compliance is not

required as for electrically benign apparatus or cables.

To obtain the DoC for this product, click Declaration of Conformity at ni.com/hardref.nsf/. This Web site lists the DoCs

by product family. Select the appropriate product family, followed by your product, and a link to the DoC appears in Adobe

Acrobat format. Click the Acrobat icon to download or read the DoC.

* The CE Mark Declaration of Conformity will contain important supplementary information and instructions for the user or

installer.

© National Instruments Corporation vii NI 6115/6120 User Manual

Contents

About This Manual

Conventions ...................................................................................................................xi

National Instruments Documentation ............................................................................xii

Related Documentation..................................................................................................xiii

Chapter 1

Introduction

About the NI 6115/6120 ...............................................................................................1-1

Using PXI with CompactPCI.........................................................................................1-2

What You Need to Get Started ......................................................................................1-3

Software Programming Choices ....................................................................................1-4

NI-DAQ...........................................................................................................1-4

National Instruments ADE Software...............................................................1-5

Optional Equipment.......................................................................................................1-6

Custom Cabling .............................................................................................................1-6

Unpacking......................................................................................................................1-7

Safety Information .........................................................................................................1-8

Chapter 2

Installing and Configuring the NI 6115/6120

Installing the Software ...................................................................................................2-1

Installing the Hardware..................................................................................................2-1

Configuring the Device..................................................................................................2-3

Chapter 3

Hardware Overview

Analog Input ..................................................................................................................3-2

Input Mode ......................................................................................................3-2

Input Polarity and Input Range........................................................................3-3

Considerations for Selecting Input Ranges.......................................3-4

Input Coupling.................................................................................................3-4

Analog Output................................................................................................................3-5

Analog Trigger...............................................................................................................3-5

Antialiasing Filters.........................................................................................................3-8

Phase-Locked Loop Circuit ...........................................................................................3-9

Correlated Digital I/O ....................................................................................................3-10

Contents

NI 6115/6120 User Manual viii ni.com

Timing Signal Routing .................................................................................................. 3-10

Programmable Function Inputs....................................................................... 3-12

Device and RTSI Clocks................................................................................. 3-12

RTSI Triggers ................................................................................................. 3-12

Chapter 4

Connecting Signals

I/O Connector ................................................................................................................ 4-1

I/O Connector Signal Descriptions ................................................................. 4-3

Types of Signal Sources ................................................................................................ 4-7

Floating Signal Sources .................................................................................. 4-7

Ground-Referenced Signal Sources................................................................ 4-8

Connecting Analog Input Signals.................................................................................. 4-8

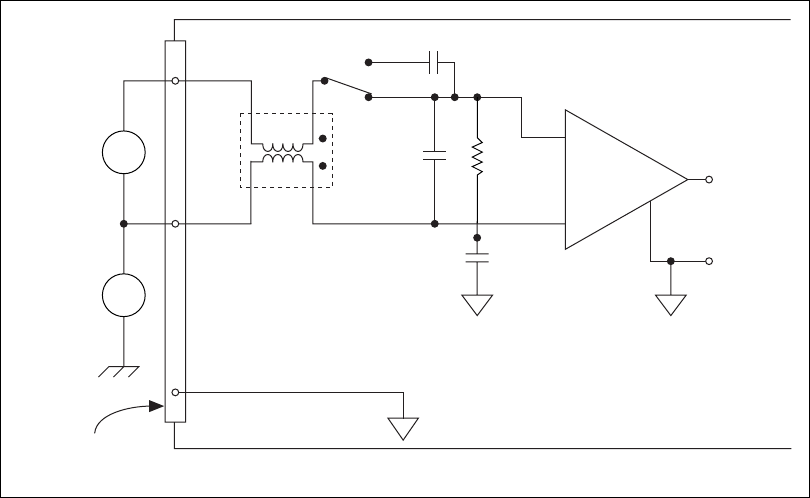

Connections for Ground-Referenced Signal Sources ..................................... 4-9

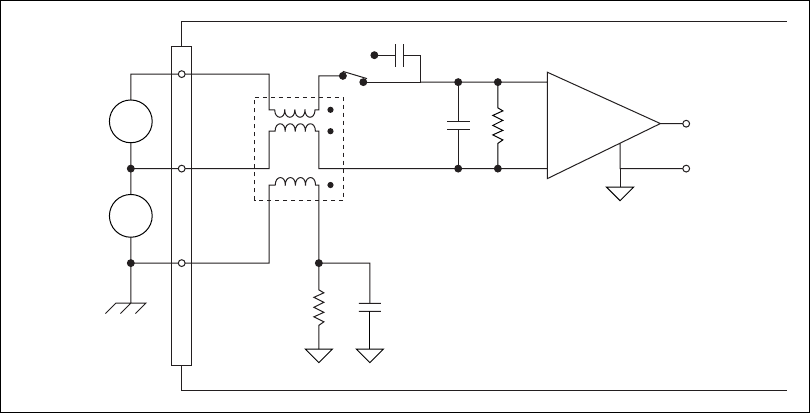

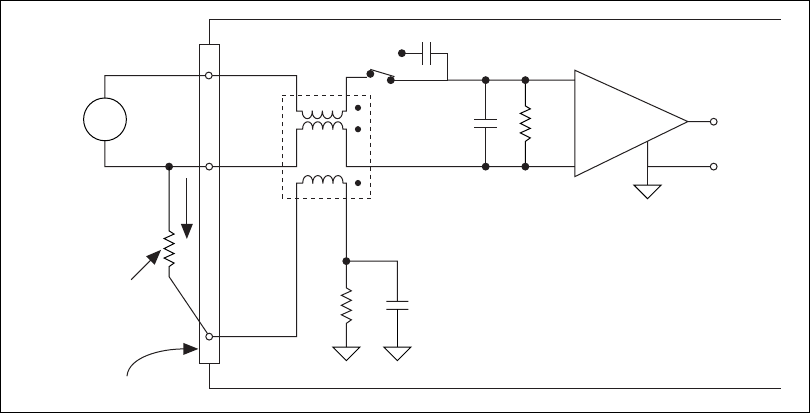

Connections for Nonreferenced or Floating Signal Sources........................... 4-11

Common-Mode Signal Rejection Considerations........................................... 4-12

Working Voltage Range ................................................................................................ 4-13

Connecting Analog Output Signals............................................................................... 4-14

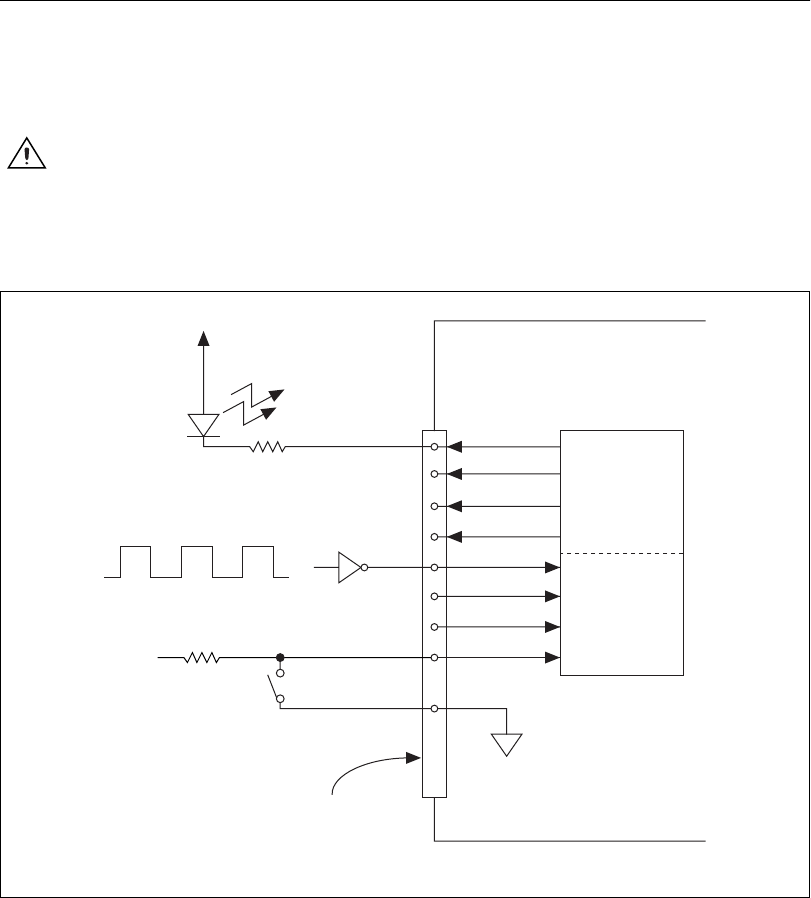

Connecting Digital I/O Signals ..................................................................................... 4-15

Correlating DIO Signal Connections............................................................................. 4-16

Power Connections........................................................................................................ 4-18

Connecting Timing Signals ........................................................................................... 4-18

Programmable Function Input Connections ................................................... 4-20

DAQ Timing Connections .............................................................................. 4-20

TRIG1 Signal.................................................................................... 4-21

TRIG2 Signal.................................................................................... 4-22

STARTSCAN Signal........................................................................ 4-24

CONVERT* Signal .......................................................................... 4-26

AIGATE Signal ................................................................................ 4-27

SISOURCE Signal............................................................................ 4-27

SCANCLK Signal ............................................................................ 4-28

EXTSTROBE* Signal...................................................................... 4-29

Waveform Generation Timing Connections ................................................... 4-29

WFTRIG Signal................................................................................ 4-29

UPDATE* Signal ............................................................................. 4-30

UISOURCE Signal ........................................................................... 4-31

General-Purpose Timing Signal Connections................................................. 4-32

GPCTR0_SOURCE Signal .............................................................. 4-32

GPCTR0_GATE Signal ................................................................... 4-33

GPCTR0_OUT Signal...................................................................... 4-34

GPCTR0_UP_DOWN Signal........................................................... 4-35

GPCTR1_SOURCE Signal .............................................................. 4-35

GPCTR1_GATE Signal ................................................................... 4-36

Contents

© National Instruments Corporation ix NI 6115/6120 User Manual

GPCTR1_OUT Signal ......................................................................4-36

GPCTR1_UP_DOWN Signal ...........................................................4-37

FREQ_OUT Signal ...........................................................................4-38

Field Wiring Considerations..........................................................................................4-39

Chapter 5

Calibration

Loading Stored Calibration Constants...........................................................................5-1

Self-Calibration..............................................................................................................5-2

External Calibration.......................................................................................................5-2

Appendix A

Specifications

Appendix B

Common Questions

Appendix C

Technical Support and Professional Services

Glossary

Index

© National Instruments Corporation xi NI 6115/6120 User Manual

About This Manual

This manual describes the electrical and mechanical aspects of the

NI 6115/6120 and contains information concerning its operation

and programming.

The NI 6115/6120 family includes the following devices:

• NI PCI-6115

• NI PXI-6115

• NI PCI-6120

• NI PXI-6120

The NI 6115/6120 is a high-performance multifunction analog, digital, and

timing I/O data acquisition (DAQ) device for PXI and PCI bus computers.

Supported functions include analog input (AI), analog output (AO),

digital I/O (DIO), and timing I/O (TIO).

Conventions

The following conventions appear in this manual:

<> Angle brackets that contain numbers separated by an ellipsis represent a

range of values associated with a bit or signal name—for example,

DIO<3..0>.

»The » symbol leads you through nested menu items and dialog box options

to a final action. The sequence File»Page Setup»Options directs you to

pull down the File menu, select the Page Setup item, and select Options

from the last dialog box.

♦The ♦ symbol indicates that the following text applies only to a specific

product, a specific operating system, or a specific software version.

This icon denotes a note, which alerts you to important information.

This icon denotes a caution, which advises you of precautions to take to

avoid injury, data loss, or a system crash. When this symbol is marked on

the product, refer to the Safety Information section of Chapter 1,

Introduction, for precautions to take.

About This Manual

NI 6115/6120 User Manual xii ni.com

bold Bold text denotes items that you must select or click on in the software,

such as menu items and dialog box options. Bold text also denotes

parameter names and hardware labels.

CompactPCI CompactPCI refers to the core specification defined by the PCI Industrial

Computer Manufacturer’s Group (PICMG).

italic Italic text denotes variables, emphasis, a cross reference, or an introduction

to a key concept. This font also denotes text that is a placeholder for a word

or value that you must supply.

monospace Monospace text denotes text or characters that you should enter from the

keyboard, sections of code, programming examples, and syntax examples.

This font is also used for the proper names of disk drives, paths, directories,

programs, subprograms, subroutines, device names, functions, operations,

variables, filenames and extensions, and code excerpts.

NI 6115/6120 This phrase refers to any device in the NI 6115/6120 family.

PCI Peripheral Component Interconnect—PCI is a high-performance

expansion bus architecture originally developed by Intel to replace ISA

and EISA.

Platform Text in this font denotes a specific platform and indicates that the text

following it applies only to that platform.

PXI A rugged, open system for modular instrumentation based on CompactPCI,

with special mechanical, electrical, and software features. The PXI bus

standard was originally developed by National Instruments in 1997, and is

now managed by the PXI bus Systems Alliance.

National Instruments Documentation

The NI 6115/6120 User Manual is one piece of the documentation set for

the DAQ system. You could have any of several types of documentation

depending on the hardware and software in the system. Use the

documentation you have as follows:

•DAQ Quick Start Guide—This guide describes how to install the DAQ

software and hardware, and confirm that the DAQ device is operating

properly. When using this guide, refer to the pinout diagram for the

NI 6110/6111. The pinouts for the NI 6110/6111 and the NI 6115/6120

are identical.

About This Manual

© National Instruments Corporation xiii NI 6115/6120 User Manual

• DAQ hardware documentation—This documentation has detailed

information about the DAQ hardware that plugs into or is connected to

the computer. Use this documentation for hardware installation and

configuration instructions, specification information about the DAQ

hardware, and application hints.

• Software documentation—You may have both application software

and NI-DAQ documentation. NI application software includes

LabVIEW and Measurement Studio. After you set up the hardware

system, use either your application software documentation or the

NI-DAQ documentation to help you write your application. If you

have a large, complicated system, it is worthwhile to look through the

software documentation before you configure the hardware.

• Accessory installation guides or manuals—If you are using accessory

products, read the terminal block and cable assembly installation

guides. They explain how to physically connect the relevant pieces

of the system. Consult these guides when you are making the

connections.

Related Documentation

The following documents contain information you may find helpful:

•DAQ Quick Start Guide, located at ni.com/manuals

•DAQ-STC Technical Reference Manual, located at ni.com/manuals

• NI Developer Zone tutorial, Field Wiring and Noise Considerations

for Analog Signals, located at ni.com/zone

•NI-DAQ User Manual for PC Compatibles, located at

ni.com/manuals

•NI-DAQ Function Reference Help. You can access this help file by

clicking Start»Programs»National Instruments»NI-DAQ»

NI-DAQ Help.

• PCI Local Bus Specification Revision 2.2

• PICMG 2.0 R3.0, CompactPCI Core Specification

• PXI Specification Revision 2.0, available from www.pxisa.org

© National Instruments Corporation 1-1 NI 6115/6120 User Manual

1

Introduction

This chapter describes the NI 6115/6120, lists what you need to get started,

describes the optional software and optional equipment, and explains how

to unpack the device.

About the NI 6115/6120

Thank you for buying an NI 6115/6120. The NI 6115/6120 is a Plug and

Play multifunction analog, digital, and timing I/O device for PXI and PCI

bus computers. The NI 6115 features a 12-bit A/D converter (ADC) per

channel with four simultaneously sampling analog inputs, and two 12-bit

D/A converters (DACs) with voltage outputs. The NI 6120 features a 16-bit

ADC per input channel and 16-bit DACs for output. Each device features

eight lines of TTL-compatible correlated DIO, and two 24-bit

counter/timers for TIO.

The NI 6115/6120 is a DAQ device for PXI or the PCI bus. The device

is software configured and calibrated, and completely switchless and

jumperless. This feature is made possible by the NI MITE bus interface

chip that connects the device to the PXI or PCI I/O bus. The MITE

implements the PCI Local Bus Specification so that you can configure

all the interrupts and base memory addresses with software.

The NI 6115/6120 uses the NI data acquisition system timing controller

(DAQ-STC) for time-related functions. The DAQ-STC consists of three

timing groups that control AI, AO, and general-purpose counter/timer

functions. These groups include a total of seven 24-bit and three 16-bit

counters and a maximum timing resolution of 50 ns. The DAQ-STC makes

possible such applications as buffered pulse generation and equivalent time

sampling.

The NI 6115/6120 uses the Real-Time System Integration (RTSI) bus to

easily synchronize several measurement devices to a common trigger or

timing event. The RTSI bus allows synchronization of the measurements.

The RTSI bus consists of the RTSI bus interface and a ribbon cable to route

timing and trigger signals between as many as five DAQ devices in the

computer. If you are using the NI PXI-6115/6120 in a PXI chassis, RTSI

lines, known as the PXI trigger bus, are part of the backplane. Therefore,

Chapter 1 Introduction

NI 6115/6120 User Manual 1-2 ni.com

you do not need the RTSI cable for system triggering and timing on the

PXI. In addition, a phase-locked loop (PLL) circuit accomplishes the

synchronization of multiple NI PXI-6115/6120 devices or other PXI

devices which support PLL synchronization by allowing these devices to

all lock to the same reference clock present on the PXI backplane. Refer to

the Phase-Locked Loop Circuit section of Chapter 3, Hardware Overview,

for more information.

Detailed specifications of the NI 6115/6120 are in Appendix A,

Specifications.

Using PXI with CompactPCI

The ability to use PXI-compatible products with standard CompactPCI

products is an important feature of PXI Specification Revision 2.0. If you

use a PXI-compatible plug-in device in a standard CompactPCI chassis,

you are unable to use PXI-specific functions, but you can still use the basic

plug-in device functions. For example, the RTSI interface on the

NI PXI-6115/6120 is available in a PXI chassis, but not in a CompactPCI

chassis.

The CompactPCI specification permits vendors to develop sub-buses that

coexist with the basic PCI interface on the CompactPCI bus. Compatible

operation is not guaranteed between CompactPCI devices with different

sub-buses nor between CompactPCI devices with sub-buses and PXI

devices. The standard implementation for CompactPCI does not include

these sub-buses. The NI PXI-6115/6120 works in any standard

CompactPCI chassis adhering to PICMG CompactPCI 2.0 R3.0.

PXI-specific features are implemented on the J2 connector of the

CompactPCI bus. Table 1-1 lists the J2 pins used by the NI PXI-6115/6120.

The PXI device is compatible with any CompactPCI chassis with a sub-bus

that does not drive these lines. Even if the sub-bus is capable of driving

these lines, the PXI device is still compatible as long as those pins on the

sub-bus are disabled by default and are never enabled.

Caution Damage can result if these lines are driven by the sub-bus.

Chapter 1 Introduction

© National Instruments Corporation 1-3 NI 6115/6120 User Manual

What You Need to Get Started

To set up and use the NI 6115/6120, you need the following:

❑A computer or a PXI/CompactPCI chassis and controller

(hereafter referred to as the computer)

❑At least one of the following devices:

– NI PCI-6115

– NI PXI-6115

– NI PCI-6120

– NI PXI-6120

❑NI 6115/6120 User Manual

❑NI-DAQ for PC compatibles

❑(Optional) One of the following software packages and

documentation:

– LabVIEW (Windows)

– Measurement Studio (Windows)

– VI Logger (Windows)

Table 1-1. NI PXI-6115/6120 J2 Pin Assignment

NI PXI-6115/6120 Signal PXI Pin Name

PXI J2 Pin

Number

RTSI<0..5> PXI Trigger<0..5> B16, A16, A17,

A18, B18, C18

RTSI 6 Star D17

RTSI Clock PXI Trigger 7 E16

Reserved LBL<0..12> C20, E20, A19,

C19

Reserved LBR<0..12> A21, C21, D21,

E21, A20, B20,

E15, A3, C3, D3,

E3, A2, B2

Chapter 1 Introduction

NI 6115/6120 User Manual 1-4 ni.com

Software Programming Choices

When programming National Instruments DAQ hardware, you can use an

NI application development environment (ADE) or other ADEs. In either

case, you use NI-DAQ.

NI-DAQ

NI-DAQ, which shipped with the NI 6115/6120, has an extensive library of

functions that you can call from the ADE. These functions allow you to use

all the features of the device.

NI-DAQ carries out many of the complex interactions, such as

programming interrupts, between the computer and the DAQ hardware.

NI-DAQ maintains a consistent software interface among its different

versions so that you can change platforms with minimal modifications

to the code. Whether you are using LabVIEW, LabWindows™/CVI™,

Measurement Studio, VI Logger, or other ADEs, your application uses

NI-DAQ, as illustrated in Figure 1-1.

Chapter 1 Introduction

© National Instruments Corporation 1-5 NI 6115/6120 User Manual

Figure 1-1. The Relationship Among the Programming Environment,

NI-DAQ, and the Hardware

To download a free copy of the most recent version of NI-DAQ, click

Download Software at ni.com.

National Instruments ADE Software

LabVIEW features interactive graphics, a state-of-the-art interface, and

a powerful graphical programming language. The LabVIEW Data

Acquisition VI Library, a series of virtual instruments for using LabVIEW

with National Instruments DAQ hardware, is included with LabVIEW.

LabWindows/CVI is a complete ANSI C ADE that features an interactive

user interface, code generation tools, and the LabWindows/CVI Data

Acquisition and Easy I/O libraries.

Measurement Studio, which includes tools for Visual C++ and tools for

Visual Basic, is a development suite that allows you to design test and

measurement applications. For Visual Basic developers, Measurement

Studio features a set of ActiveX controls for using National Instruments

Conventional

Programming Environment

NI-DAQ

Driver Software

DAQ

Hardware

Personal

Computer or

Workstation

LabVIEW,

LabWindows/CVI,

Measurement Studio,

or VI Logger

Chapter 1 Introduction

NI 6115/6120 User Manual 1-6 ni.com

DAQ hardware. These ActiveX controls provide a high-level programming

interface for building virtual instruments (VIs). For Visual C++ developers,

Measurement Studio offers a set of Visual C++ classes and tools to

integrate those classes into Visual C++ applications. The ActiveX controls

and classes are available with Measurement Studio and the NI-DAQ

software.

VI Logger is an easy-to-use yet flexible tool specifically designed for data

logging applications. Using dialog windows, you can configure data

logging tasks to easily acquire, log, view, and share your data. VI Logger

does not require any programming; it is a stand-alone, configuration-based

software program.

Using LabVIEW, LabWindows/CVI, Measurement Studio, or VI Logger

greatly reduces the development time for your data acquisition and control

application.

Optional Equipment

NI offers a variety of products to use with the NI 6115/6120, including

cables, connector blocks, and other accessories, as follows:

• Shielded cables and cable assemblies

• Connector blocks, shielded 50- and 68-pin screw terminals

• RTSI bus cables (PCI only)

• Low channel-count signal conditioning modules, devices, and

accessories, including conditioning for strain gauges, resistance

temperature detectors, and relays

For more specific information about these products, refer to the NI catalog

at ni.com/catalog.

Custom Cabling

NI offers cables and accessories to help you prototype your application or

to use if you frequently change device interconnections.

If you want to develop your own cable, however, adhere to the following

guidelines for best results:

• For AI signals, use shielded twisted-pair wires for each AI pair for

differential inputs. Tie the shield for each signal pair to the ground

reference at the source.

Chapter 1 Introduction

© National Instruments Corporation 1-7 NI 6115/6120 User Manual

• Route the analog lines separately from the digital lines.

• When using a cable shield, use separate shields for the analog and

digital halves of the cable. Failure to do so results in noise coupling

into the analog signals from transient digital signals.

Mating connectors and a backshell kit for making custom 68-pin cables are

available from NI.

The parts in the following list are recommended for connectors that mate to

the I/O connector on the device:

• Honda 68-position, solder cup, female connector

• Honda backshell

Unpacking

The NI 6115/6120 is shipped in an antistatic package to prevent

electrostatic damage to the device. Electrostatic discharge (ESD) can

damage several components on the device.

Caution Never touch the exposed pins of connectors.

To avoid such damage when handling the device, take the following

precautions:

• Ground yourself using a grounding strap or by holding a grounded

object.

• Touch the antistatic package to a metal part of the computer chassis

before removing the device from the package.

Remove the device from the package and inspect the device for

loose components or any sign of damage. Notify NI if the device appears

damaged in any way. Do not install a damaged device into the computer.

Store the NI 6115/6120 in the antistatic envelope when not in use.

Chapter 1 Introduction

NI 6115/6120 User Manual 1-8 ni.com

Safety Information

The following section contains important safety information that you must

follow when installing and using the product.

Do not operate the product in a manner not specified in this document.

Misuse of the product can result in a hazard. You can compromise the

safety protection built into the product if the product is damaged in any

way. If the product is damaged, return it to National Instruments for repair.

Do not substitute parts or modify the product except as described in this

document. Use the product only with the chassis, modules, accessories, and

cables specified in the installation instructions. You must have all covers

and filler panels installed during operation of the product.

Do not operate the product in an explosive atmosphere or where there may

be flammable gases or fumes. Operate the product only at or below the

pollution degree stated in Appendix A, Specifications. Pollution is foreign

matter in a solid, liquid, or gaseous state that can reduce dielectric strength

or surface resistivity. The following is a description of pollution degrees:

• Pollution Degree 1 means no pollution or only dry, nonconductive

pollution occurs. The pollution has no influence.

• Pollution Degree 2 means that only nonconductive pollution occurs in

most cases. Occasionally, however, a temporary conductivity caused

by condensation must be expected.

• Pollution Degree 3 means that conductive pollution occurs, or dry,

nonconductive pollution occurs that becomes conductive due to

condensation.

Clean the product with a soft nonmetallic brush. Make sure that the product

is completely dry and free from contaminants before returning it to service.

You must insulate signal connections for the maximum voltage for which

the product is rated. Do not exceed the maximum ratings for the product.

Remove power from signal lines before connecting them to or

disconnecting them from the product.

Clean the product with a soft nonmetallic brush. Make sure that the product

is completely dry and free from contaminants before returning it to service.

Operate this product only at or below the installation category stated in

Appendix A, Specifications.

Chapter 1 Introduction

© National Instruments Corporation 1-9 NI 6115/6120 User Manual

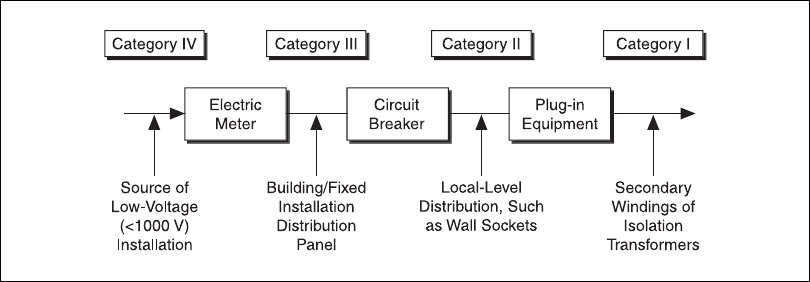

The following is a description of installation categories:

• Installation Category I is for measurements performed on circuits not

directly connected to MAINS1. This category is a signal level such as

voltages on a printed wire board (PWB) on the secondary of an

isolation transformer.

Examples of Installation Category I are measurements on circuits not

derived from MAINS and specially protected (internal)

MAINS-derived circuits.

• Installation Category II is for measurements performed on circuits

directly connected to the low-voltage installation. This category refers

to local-level distribution such as that provided by a standard wall

outlet.

Examples of Installation Category II are measurements on household

appliances, portable tools, and similar equipment.

• Installation Category III is for measurements performed in the building

installation. This category is a distribution level referring to hardwired

equipment that does not rely on standard building insulation.

Examples of Installation Category III include measurements on

distribution circuits and circuit breakers. Other examples of

Installation Category III are wiring including cables, bus-bars, junction

boxes, switches, socket outlets in the building/fixed installation, and

equipment for industrial use, such as stationary motors with a

permanent connection to the building/fixed installation.

• Installation Category IV is for measurements performed at the source

of the low-voltage (<1,000 V) installation.

Examples of Installation Category IV are electric meters, and

measurements on primary overcurrent protection devices and

ripple-control units.

1 MAINS is defined as the electricity supply system to which the equipment concerned is designed to be connected either for

powering the equipment or for measurement purposes.

Chapter 1 Introduction

NI 6115/6120 User Manual 1-10 ni.com

Below is a diagram of a sample installation.

© National Instruments Corporation 2-1 NI 6115/6120 User Manual

2

Installing and Configuring the

NI 6115/6120

This chapter explains how to install and configure the NI 6115/6120.

Installing the Software

Before you install the NI 6115/6120, complete the following steps to install

the software:

1. Install the ADE, such as LabVIEW or Measurement Studio, according

to the instructions on the CD and the release notes.

2. Install NI-DAQ according to the instructions on the CD and the

DAQ Quick Start Guide included with the device. When using the

DAQ Quick Start Guide, refer to the pinout for the NI 6110/6111,

which is identical to the pinout for the NI 6115/6120.

Note It is important to install NI-DAQ before installing the NI 6115/6120 to ensure that

the device is properly detected.

Installing the Hardware

You can install the NI 6115/6120 in any available expansion slot in the

computer. However, to achieve best noise performance, leave as much

room as possible between the NI 6115/6120 and other devices and

hardware.

The following are general installation instructions, so consult the computer

user manual or technical reference manual for specific instructions and

warnings.

♦NI PXI-6115/6120

1. Power off and unplug the computer.

2. Choose an unused PXI slot in the system. For maximum performance,

the NI PXI-6115/6120 has an onboard DMA controller that you can

use only if the device is installed in a slot that supports bus arbitration,

Chapter 2 Installing and Configuring the NI 6115/6120

NI 6115/6120 User Manual 2-2 ni.com

or bus master devices. NI recommends installing the

NI PXI-6115/6120 in such a slot.

Note The PXI specification requires all slots to support bus master devices, but the

CompactPCI specification does not. If you install in a CompactPCI non-master slot, you

must disable the onboard DMA controller using software.

3. Make sure there are no lighted LEDs on the chassis. If any are lit, wait

until they go out before continuing the installation.

4. Remove the filler panel for the slot you have chosen.

5. Ground yourself using a grounding strap or by touching a grounded

object. Follow the ESD protection precautions described in the

Unpacking section of Chapter 1, Introduction.

6. Remove the rubber front panel screw protectors.

7. Insert the NI PXI-6115/6120 into a 5 V PXI slot. Use the

injector/ejector handle to fully insert the device into the chassis.

8. Screw the front panel of the NI PXI-6115/6120 to the front

panel-mounting rail of the system.

9. Visually verify the installation. Make sure the device is not touching

other devices or components and is fully inserted in the slot.

10. Plug in and power on the computer.

The NI PXI-6115/6120 is now installed. You are now ready to configure

the hardware and software.

♦NI PCI-6115/6120

1. Power off and unplug the computer.

2. Remove the cover.

3. Make sure there are no lighted LEDs on the motherboard. If any are lit,

wait until they go out before continuing the installation.

4. Remove the expansion slot cover on the back panel of the computer.

5. Ground yourself using a grounding strap or by touching a grounded

object. Follow the ESD protection precautions described in the

Unpacking section of Chapter 1, Introduction.

6. Insert the NI PCI-6115/6120 into a PCI system slot. Gently rock the

device to ease it into place. It may be a tight fit, but do not force the

device into place.

7. Screw the mounting bracket of the device to the back panel rail of the

computer.

Chapter 2 Installing and Configuring the NI 6115/6120

© National Instruments Corporation 2-3 NI 6115/6120 User Manual

8. Replace the cover.

9. Plug in and power on the computer.

The NI PCI-6115/6120 is now installed. You are now ready to configure the

hardware and software.

Configuring the Device

Because of the NI standard architecture for data acquisition and the PCI bus

specification, the NI 6115/6120 is completely software-configurable. Two

types of configuration are performed on the NI 6115/6120: bus-related and

data acquisition-related configuration.

The NI PCI-6115/6120 is fully compatible with the industry-standard

PCI Local Bus Specification Revision 2.2. This compatibility allows the

PCI system to automatically perform all bus-related configurations with no

user interaction. Bus-related configuration includes setting the device base

memory address and interrupt channel.

The NI PXI-6115/6120 is fully compatible with the industry-standard PXI

Specification Revision 2.0. This allows the PXI/CompactPCI system to

automatically perform all bus-related configurations with no user

interaction. Bus-related configuration includes setting the device base

memory address and interrupt channel.

Data acquisition-related configuration, which you must perform, includes

such settings as analog input coupling and range, and others. You can

modify these settings using NI-DAQ or application-level software, such as

LabVIEW and Measurement Studio.

To configure the device in Measurement & Automation Explorer (MAX),

refer to either the DAQ Quick Start Guide or to the NI-DAQ User Manual

for PC Compatibles at ni.com/manuals. For operating system-specific

installation and troubleshooting instructions, refer to

ni.com/support/daq.

© National Instruments Corporation 3-1 NI 6115/6120 User Manual

3

Hardware Overview

This chapter presents an overview of the hardware functions on the

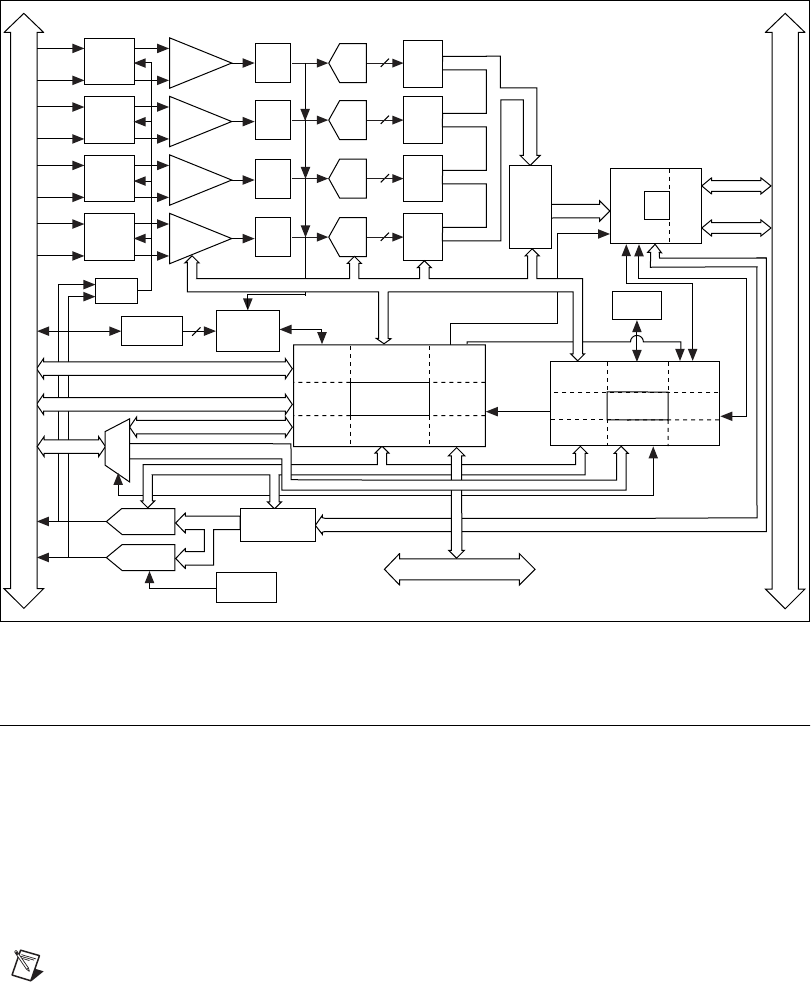

NI 6115/6120. Figures 3-1 and 3-2 provide block diagrams for the NI 6115

and NI 6120, respectively.

Figure 3-1. NI 6115 Block Diagram

Timing

PFI / Trigger

I/O Connector

RTSI Bus

STC Digital I/O (8)

EEPROM

+

CH0

Amplifier

–

Calibration

Mux

AI CH0

Mux

Analog

Trigger

Circuitry

2

Trigger Level

DACs

Trigger

Calibration

DACs

DAC1

DAQ - STC

Analog Input

Timing/Control

Analog Output

Timing/Control

Digital I/O

Trigger

Counter/

Timing I/O

RTSI Bus

Interface

DMA/IRQ

Bus

Interface

DAC

FIFO

Address/Data

Control

Data (32)

Analog

Input

Control

EEPROM

Control

DMA

Interface

FPGA

DAQ-STC

Bus

Interface

Analog

Output

Control

I/O

Bus

Interface

IRQ

DMA

Mini

MITE

Generic

Bus

Interface

PCI

Bus

Interface

CH0+

CH0–

+

CH1

Amplifier

–

AI CH1

Mux

CH1

Latch

CH1+

CH1–

+

CH2

Amplifier

–

AI CH2

Mux

CH2

Latch

CH2+

CH2–

+

CH3

Amplifier

–

AI CH3

Mux

CH3

Latch

CH3+

CH3–

AI Control

Data (16)

Data (16)

Data (16)

Data (16)

ADC

FIFO

Data (12)

DIO

FIFO

DIO

Control

AO Control

FPGA Digital I/O (8)

Digital I/O (8)

PXI/PCI Bus

DAC0

Anti-

Aliasing

Filter

CH0

12-Bit

ADC

12

Anti-

Aliasing

Filter

CH1

12-Bit

ADC

12

Anti-

Aliasing

Filter

CH2

12-Bit

ADC

12

Anti-

Aliasing

Filter

CH3

12-Bit

ADC

12

DIO

MUX

CH0

Latch

Data (32)

Chapter 3 Hardware Overview

NI 6115/6120 User Manual 3-2 ni.com

Figure 3-2. NI 6120 Block Diagram

Analog Input

The following sections describe in detail each AI category.

Input Mode

The NI 6115/6120 supports only differential (DIFF) input mode. For more

information about DIFF input, refer to the Connecting Analog Input

Signals section of Chapter 4, Connecting Signals, which contains diagrams

showing the signal paths for DIFF input mode.

Note The inputs are differential only in the sense that the ground loops are broken.

The negative input is not intended to carry signals of interest, rather it provides a DC

reference point for the positive input, which may be different than ground.

Timing

PFI / Trigger

I/O Connector

RTSI Bus

STC Digital I/O (8)

EEPROM

+

CH0

Amplifier

–

Calibration

Mux

AI CH0

Mux

Analog

Trigger

Circuitry

2

Trigger Level

DACs

Trigger

Calibration

DACs

DAC1

DAQ - STC

Analog Input

Timing/Control

Analog Output

Timing/Control

Digital I/O

Trigger

Counter/

Timing I/O

RTSI Bus

Interface

DMA/IRQ

Bus

Interface

DAC

FIFO

Address/Data

Control

Data (32)

Analog

Input

Control

EEPROM

Control DMA

Interface

FPGA

DAQ-STC

Bus

Interface

Analog

Output

Control

I/O

Bus

Interface

IRQ

DMA

Mini

MITE

Generic

Bus

Interface

PCI

Bus

Interface

CH0+

CH0–

+

CH1

Amplifier

–

AI CH1

Mux

CH1

Latch

CH1+

CH1–

+

CH2

Amplifier

–

AI CH2

Mux

CH2

Latch

CH2+

CH2–

+

CH3

Amplifier

–

AI CH3

Mux

CH3

Latch

CH3+

CH3–

AI Control

Data (16)

Data (16)

Data (16)

Data (16)

ADC

FIFO

Data (16)

DIO

FIFO

DIO

Control

AO Control

FPGA Digital I/O (8)

Digital I/O (8)

PXI/PCI Bus

DAC0

Anti-

Aliasing

Filter

CH0

16-Bit

ADC

16

Anti-

Aliasing

Filter

CH1

16-Bit

ADC

16

Anti-

Aliasing

Filter

CH2

16-Bit

ADC

16

Anti-

Aliasing

Filter

CH3

16-Bit

ADC

16

DIO

MUX

CH0

Latch

Data (32)

Chapter 3 Hardware Overview

© National Instruments Corporation 3-3 NI 6115/6120 User Manual

Input Polarity and Input Range

The NI 6115/6120 has bipolar inputs only. Bipolar input means that the

midpoint of the input voltage range is centered at zero volts.

You can independently configure each channel for a different input voltage

range.

The software-programmable gain on this device increases its overall

flexibility by matching the input signal ranges to those that the ADC can

accommodate. It has ranges of ±42 V, ±20 V, ±10 V, ±5 V, ±2 V, ±1 V,

±500 mV, and ±200 mV and is suited for a wide variety of signal levels.

By choosing the optimal gain setting, you can maximize usage of the

dynamic range of the ADC, which effectively increases input signal

resolution. Table 3-1 shows the overall input range and precision according

to the gain used.

Caution The NI 6115/6120 is not designed for input voltages greater than ±42 VDC.

Input voltages greater than ±42 VDC can damage the NI 6115/6120, any device connected

to it, and the host computer. Overvoltage can also cause an electric shock hazard for the

operator. NI is not liable for damage or injury resulting from such misuse.

Chapter 3 Hardware Overview

NI 6115/6120 User Manual 3-4 ni.com

Considerations for Selecting Input Ranges

The range you select depends on the expected range of the incoming signal.

A large input range can accommodate a large signal variation but reduces

the voltage resolution. Choosing a smaller input range improves the voltage

resolution but may result in the input signal going out of range. For best

results, match the input range as closely as possible to the expected range

of the input signal.

Input Coupling

You can configure the NI 6115/6120 for either AC or DC input coupling

on a per channel basis. Use AC coupling when the AC signal contains a

large DC component. If you enable AC coupling, you remove the large DC

offset for the input amplifier and amplify only the AC component. This

configuration effectively uses the dynamic range of the ADC.

The input impedance for the programmable gain instrumentation amplifier

(PGIA) channels is 1 MΩ for ranges ≤ ±10 V and 10 kΩ for

ranges > ±10 V. This configuration provides an AC-coupled corner

frequency of 2.34 Hz for ranges ≤ ±10 V and 234 Hz for ranges > ±10 V.

Table 3-1. Input Range and Measurement Precision

Input Range

Precision1

6115 (12-Bit) 6120 (16-Bit)

–50 to +50 V2

–20 to +20 V

–10 to +10 V

–5 to +5 V

–2 to +2 V

–1 to +1V

–500 to +500 mV

–200 to +200 mV

24.4 mV

9.77 mV

4.88 mV

2.44 mV

977 µV

488 µV

244 µV

97.7 µV

1.53 mV

610 µV

305 µV

153 µV

61.0 µV

30.5 µV

15.3 µV

6.10 µV

1 The value of 1 least significant bit (LSB) of the ADC; that is, the voltage increment

corresponding to a change of one count in the ADC count.

2 Do not exceed ±42 VDC maximum.

Note: Refer to Appendix A, Specifications, for absolute maximum ratings.

Chapter 3 Hardware Overview

© National Instruments Corporation 3-5 NI 6115/6120 User Manual

Analog Output

The NI 6115/6120 supplies two channels of AO voltage at the I/O

connector. The range is fixed at bipolar ±10 V.

The AO channels on the NI 6115 contain 12-bit DACs that are capable of

4 MS/s for one channel or 2.5 MS/s for each of two channels. The NI 6120

DACs are 16-bit, and they have the same AO capabilities as the NI 6115.

Refer to Appendix A, Specifications, for more detailed information about

the AO capabilities of the NI 6115/6120.

Note The AO channels do not have analog or digital filtering hardware and do produce

images in the frequency domain related to the update rate.

The NI 6115/6120 includes high-density memory modules allowing for

long waveform generations.

Analog Trigger

In addition to supporting internal software triggering and external digital

triggering to initiate a DAQ sequence, these devices also support analog

hardware triggering. You can configure the analog trigger circuitry to

accept either a direct analog input from the PFI0/TRIG1 pin on the

I/O connector or a post-gain signal from the output of the PGIA on any of

the channels, as shown in Figure 3-3. The trigger-level range for the direct

analog channel is ±10 V with a resolution of 78 mV for the NI 6115 and

4.88 mV for the NI 6120. The input impedance for the direct analog

channel is 10 kΩ. When this direct analog channel is configured for AC

coupling, the corner frequency is 159 Hz.

The range for the post-PGIA trigger from a selected channel is the

full-scale range of the selected channel with a resolution of that range

divided by 256 for the NI 6115 and 4,096 for the NI 6120.

Two trigger reference signals, lowValue and highValue, can then be

independently set to achieve advanced triggering modes. Refer to

Figures 3-3 through 3-8 for illustrations of these modes.

Note The PFI0/TRIG1 pin is an analog input when configured as an analog trigger.

Therefore, it is susceptible to crosstalk from adjacent pins, which can result in false

triggering when the pin is left unconnected. To avoid false triggering, make sure the

PFI0/TRIG1 pin is connected to a low-impedance signal source (less than 1 kΩ source

impedance) if you plan to enable this input using software.

Chapter 3 Hardware Overview

NI 6115/6120 User Manual 3-6 ni.com

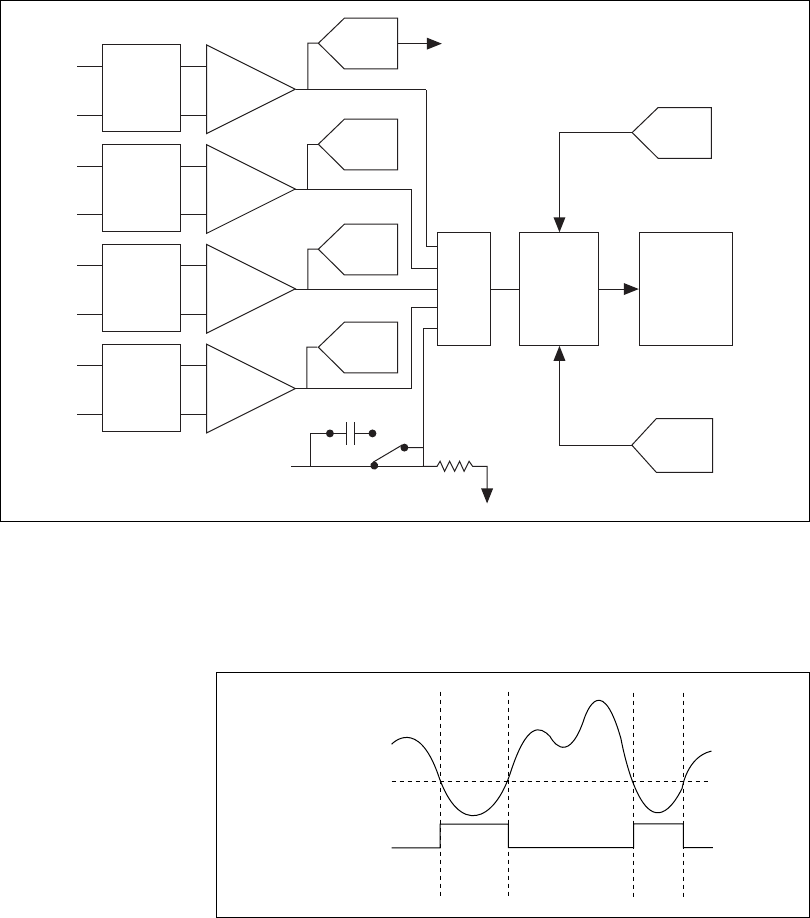

Figure 3-3. Analog Trigger Block Diagram for the NI 6115/6120

In below-low-level analog triggering mode, the trigger is generated when

the signal value is less than lowValue, as shown in Figure 3-4. HighValue

is unused.

Figure 3-4. Below-Low-Level Analog Triggering Mode

In above-high-level analog triggering mode, the trigger is generated when

the signal value is greater than highValue, as shown in Figure 3-5.

LowValue is unused.

PGIA

Analog

Input

CH0

+

–

ADC

ADC

ADC

DAQ-STC

Analog

Trigger

Circuit

Mux

PGIA

Analog

Input

CH1

+

–

PGIA

Analog

Input

CH2

+

–

PGIA

Analog

Input

CH3

+

–

ADC

PFI0/TRIG1

Digital Data

AC Couple

10 k

Trigger

DAC

Trigger

DAC

highValue

lowValue

lowValue

Trigger

Chapter 3 Hardware Overview

© National Instruments Corporation 3-7 NI 6115/6120 User Manual

Figure 3-5. Above-High-Level Analog Triggering Mode

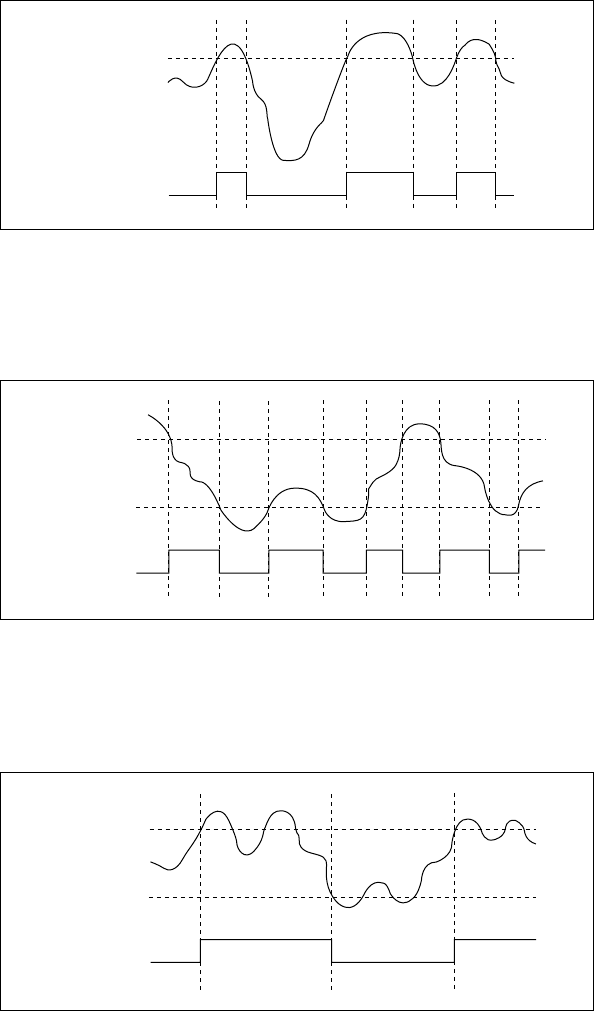

In inside-region analog triggering mode, the trigger is generated when the

signal value is between the lowValue and the highValue, as Figure 3-6

shows.

Figure 3-6. Inside-Region Analog Triggering Mode

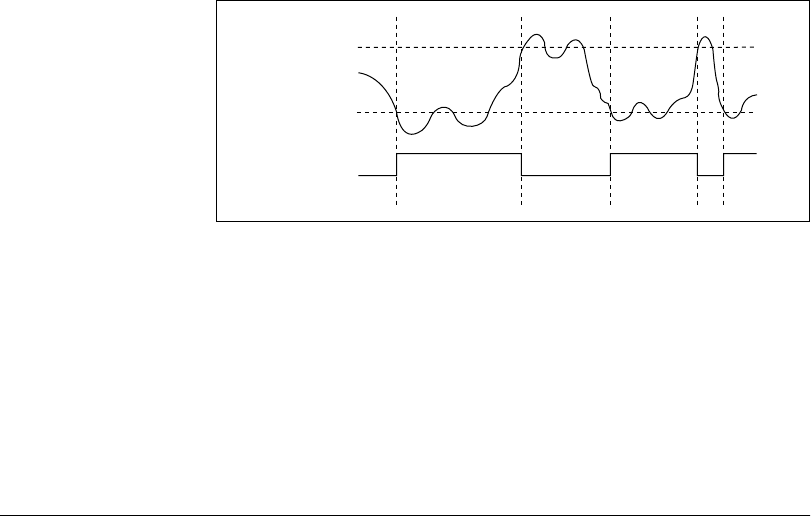

In high-hysteresis analog triggering mode, the trigger is generated when the

signal value is greater than highValue, with the hysteresis specified by

lowValue, as Figure 3-7 shows.

Figure 3-7. High-Hysteresis Analog Triggering Mode

highValue

Trigger

highValue

Trigger

lowValue

highValue

Trigger

lowValue

Chapter 3 Hardware Overview

NI 6115/6120 User Manual 3-8 ni.com

In low-hysteresis analog triggering mode, the trigger is generated when

the signal value is less than lowValue, with the hysteresis specified by

highValue, as Figure 3-8 shows.

Figure 3-8. Low-Hysteresis Analog Triggering Mode

The analog trigger circuit generates an internal digital trigger based on the

AI signal and the user-defined trigger levels. This digital trigger can be

used by any of the timing sections of the DAQ-STC, including the AI, AO,

and general-purpose counter/timer sections. For example, the AI section

can be configured to acquire n scans after the AI signal crosses a specific

threshold. As another example, the AO section can be configured to update

its outputs whenever the AI signal crosses a specific threshold.

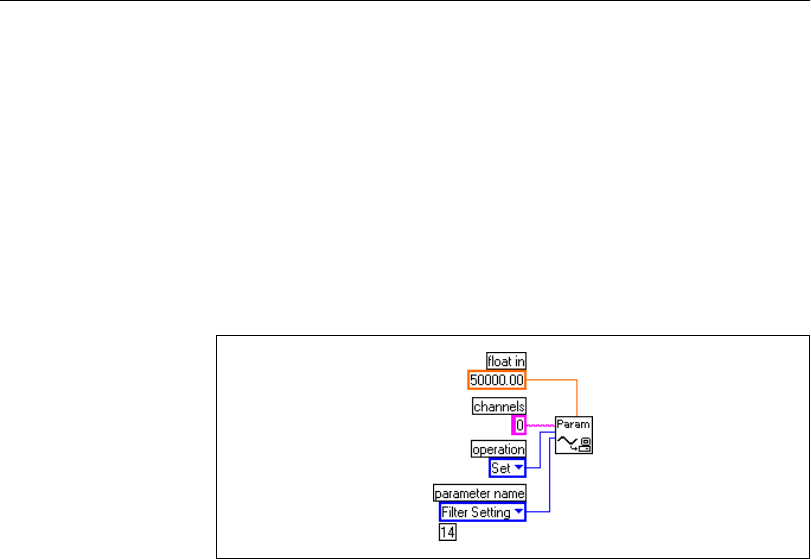

Antialiasing Filters

Each AI channel on the NI 6115/6120 is equipped with a programmable

antialaising Bessel filter. On the NI 6115, you can program the filters to

provide a third-order 50 kHz lowpass filter, a third-order 500 kHz lowpass

filter, or a pass-through mode with no filtering. On the NI 6120, you can

program the filters to provide a five-pole 100 kHz low-pass filter or

pass-through. These Bessel filters are highly effective at reducing signal

aliasing and are designed for use with software filters.

Existing software algorithms alone provide good roll-off at the cut-off

frequency as shown in Figure 3-9. However, aliasing can cause

high-frequency harmonics to make it through passbands in the filter. By

combining hardware and software filtering, it is possible to obtain both

steep roll-off and clean filtering of high-frequency aliases.

highValue

Trigger

lowValue

Chapter 3 Hardware Overview

© National Instruments Corporation 3-9 NI 6115/6120 User Manual

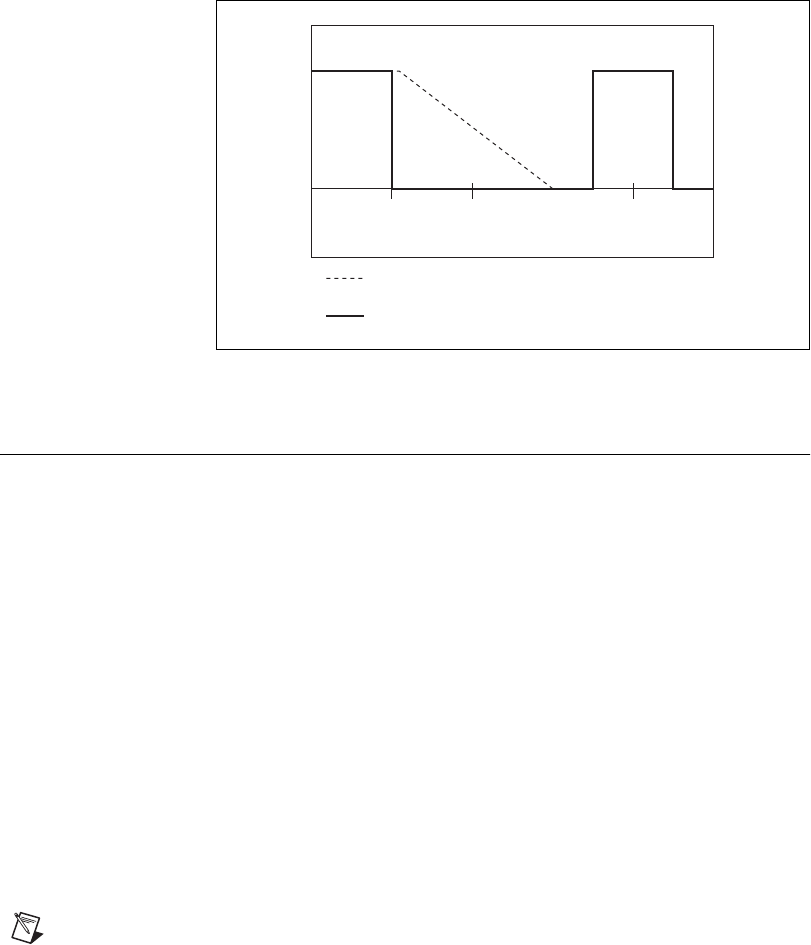

Figure 3-9. Effects of Hardware and Software Filtering on Antialiasing

Phase-Locked Loop Circuit

♦NI PXI-6115/6120

A phase-locked loop (PLL) circuit accomplishes the synchronization of

multiple NI PXI-6115/6120 devices or other PXI devices which support

PLL synchronization by allowing these devices to all lock to the same

reference clock present on the PXI backplane. This circuit allows you to

trigger input or output operations on different devices and ensures that

samples occur at the same time.

The PLL circuitry consists of a voltage-controlled crystal oscillator

(VCXO) with a tuning range of ±50 ppm. The VCXO generates the

60 MHz master clock used onboard the NI PXI-6115/6120.

The PLL locks to the 10 MHz oscillator line on the PXI backplane bus.

A phase comparator running at 1 MHz compares the PXI Bus and VCXO

clock. The loop filter then processes the error signal and outputs a control

voltage for the VCXO. Figure 3-10 illustrates the block diagram for the

NI PXI-6115/6120.

Note This feature is not available on the NI PCI-6115/6120.

The PLL circuit is automatically enabled when the NI 6115/6120 is

powered up. No configuration steps are required in order to utilize PLL

synchronization.

f

cutoff

f

Nyquist

(2 f

cutoff

)

4 f

cutoff

Response of Analog Hardware Filters

Response of Software Filters

Chapter 3 Hardware Overview

NI 6115/6120 User Manual 3-10 ni.com

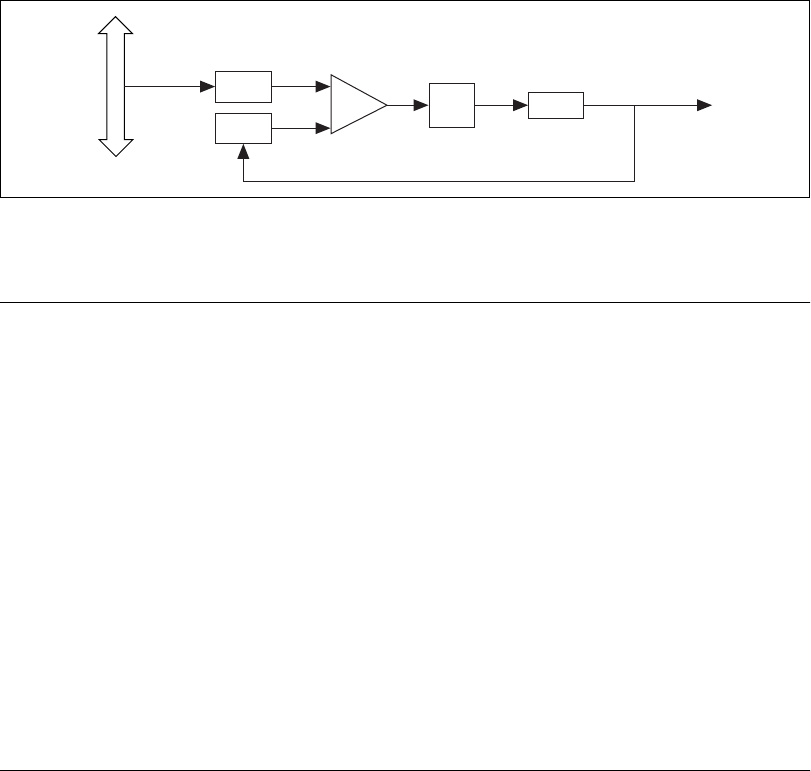

Figure 3-10. PLL Block Diagram

Correlated Digital I/O

The NI 6115/6120 contains eight lines of DIO for general-purpose use.

You can software-configure groups of individual lines for either input or

output. The NI 6115/6120 includes a FIFO for buffered operation. This

operation allows you to read/write an array of data, using either an internal

or external clock source, at a maximum rate of 10 MHz. In addition, you

can correlate DIO and AI/AO operations to the same clock. Refer to the

Correlating DIO Signal Connections section of Chapter 4, Connecting

Signals, for information on which signals you can use to clock DIO

operation. At system startup and reset, the DIO ports are all

high-impedance.

The hardware up/down control for general-purpose counters 0 and 1 are

connected onboard to DIO6 and DIO7, respectively. Thus, you can use

DIO6 and DIO7 to control the general-purpose counters. The up/down

control signals, GPCTR0_UP_DOWN and GPCTR1_UP_DOWN, are

input only and do not affect the operation of the DIO lines.

Timing Signal Routing

The DAQ-STC provides a flexible interface for connecting timing signals

to other devices or external circuitry. The NI 6115/6120 uses the RTSI bus

to interconnect timing signals between devices, and it uses the

programmable function input (PFI) pins on the I/O connector to connect the

device to external circuitry. These connections are designed to enable the

NI 6115/6120 to both control and be controlled by other devices and

circuits.

There are 13 timing signals internal to the DAQ-STC that can be controlled

by an external source. These timing signals can also be controlled by

signals generated by the DAQ-STC, and these selections are fully software

Phase Comp

Div/10

Div/60

VCXO

60 MHz out

synched to 10 MHZ

backplane clock

Loop

Filter

+

–

PXI Bus

10 MHz

Chapter 3 Hardware Overview

© National Instruments Corporation 3-11 NI 6115/6120 User Manual

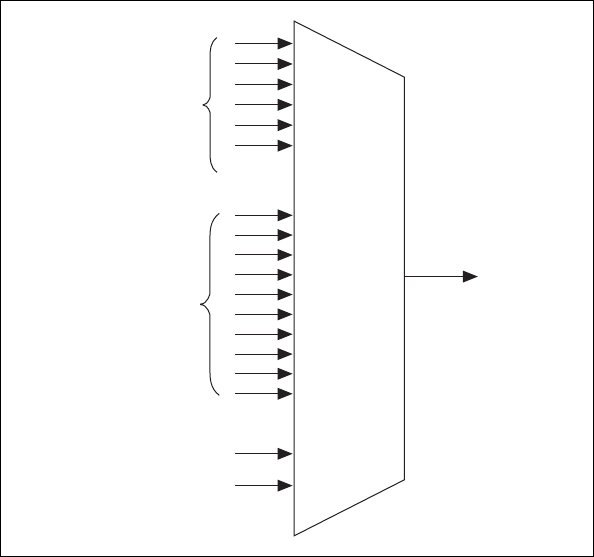

configurable. For example, Figure 3-11 shows the signal routing

multiplexer for controlling the STARTSCAN signal.

Figure 3-11. STARTSCAN Signal Routing

This figure shows that STARTSCAN can be generated from a number of

sources, including the external signals RTSI<0..6> and PFI<0..9> and the

internal signals Scan Interval Counter TC and GPCTR0_OUT.

Many of these timing signals are also available as outputs on the RTSI pins,

as indicated in the RTSI Triggers section later in this chapter, and on the

PFI pins, as indicated in Chapter 4, Connecting Signals.

RTSI Trigger <0..6>

PFI<0..9>

STARTSCAN

Scan Interval Counter TC

GPCTR0_OUT

Chapter 3 Hardware Overview

NI 6115/6120 User Manual 3-12 ni.com

Programmable Function Inputs

The 10 PFIs are connected to the signal routing multiplexer for each timing

signal, and software can select one of the PFIs as the external source for a

given timing signal. It is important to note that any PFI can be used as an

input by any timing signal and that multiple timing signals can

simultaneously use the same PFI. This flexible routing scheme reduces the

need to change physical connections to the I/O connector for different

applications. You can also individually enable each PFI pin to output a

specific internal timing signal. For example, if you need the UPDATE*

signal as an output on the I/O connector, software can enable the output

driver for the PFI5/UPDATE* pin.

Device and RTSI Clocks

Many functions performed by the NI 6115/6120 require a frequency

timebase to generate the necessary timing signals for controlling A/D

conversions, updates, or general-purpose signals at the I/O connector.

The NI 6115/6120 can use either its internal 20 MHz timebase or a

timebase received over the RTSI bus. In addition, if you configure the

device to use the internal timebase, you can also program the device to drive

its internal timebase over the RTSI bus to another device that is

programmed to receive this timebase signal. This clock source, whether

local or from the RTSI bus, is used directly by the device as the primary

frequency source. The default configuration at startup is to use the internal

timebase without driving the RTSI bus timebase signal. This timebase is

software-selectable.

RTSI Triggers

The seven RTSI trigger lines on the RTSI bus provide a very flexible

interconnection scheme for any device sharing the RTSI bus. These

bidirectional lines can drive any of eight timing signals onto the RTSI bus

and can receive any of these timing signals. The RTSI trigger lines connect

to other devices through the PXI bus on the PXI backplane or through a

special ribbon cable that must be installed for PCI. Figure 3-12 shows the

PCI signal connection scheme and Figure 3-13 shows the PXI connection

scheme.

Chapter 3 Hardware Overview

© National Instruments Corporation 3-13 NI 6115/6120 User Manual

In PCI, you can access all seven RTSI lines (RTSI<0..6>) through their

RTSI cable. With the NI PXI-6115/6120, RTSI<0..5> connects to PXI

Trigger <0..5>, respectively, through the NI PXI-6115/6120 backplane.

In PXI, RTSI<6> connects to the PXI Star Trigger line, allowing the

NI 6115/6120 to receive triggers from any Star Trigger controller plugged

into slot 2 of the chassis. For more information on the Star Trigger, refer to

the PXI Specification Revision 2.0.

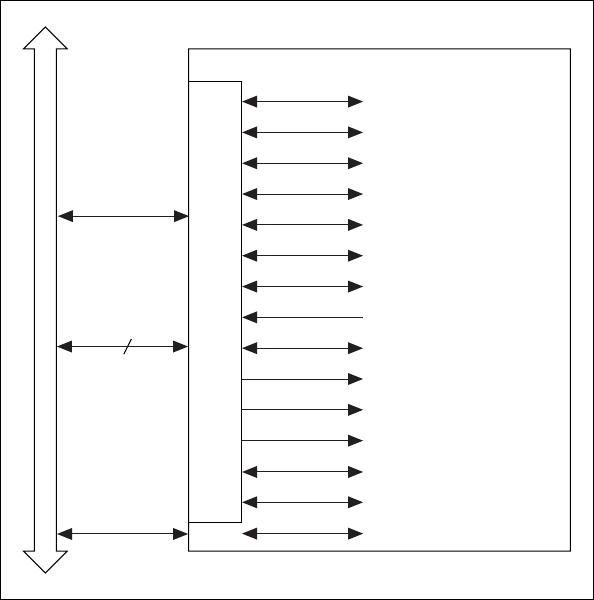

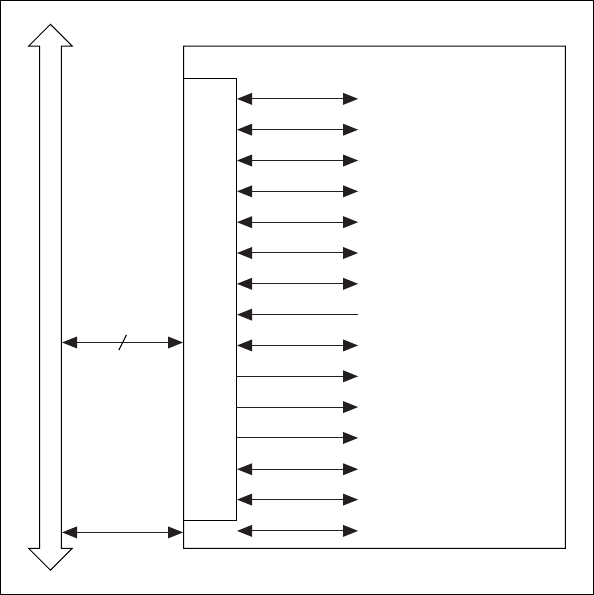

Figure 3-12. PCI RTSI Bus Signal Connection

RTSI Bus Connector

Clock

DAQ-STC

TRIG1

TRIG2

CONVERT*

UPDATE*

WFTRIG

GPCTR0_SOURCE

GPCTR0_GATE

GPCTR0_OUT

STARTSCAN

AIGATE

SISOURCE

UISOURSE

GPCTR1_SOURCE

GPCTR1_GATE

RTSI_OSC (20 MHz)

RTSI Switch

Switch

Trigger

7

Chapter 3 Hardware Overview

NI 6115/6120 User Manual 3-14 ni.com

Figure 3-13. PXI RTSI Bus Signal Connections

Refer to the Connecting Timing Signals section of Chapter 4, Connecting

Signals, for a description of the signals shown in Figures 3-12 and 3-13.

PXI Bus Connector

PXI Trigger (7)

DAQ-STC

TRIG1

TRIG2

CONVERT*

UPDATE*

WFTRIG

GPCTR0_SOURCE

GPCTR0_GATE

GPCTR0_OUT

STARTSCAN

AIGATE

SISOURCE

UISOURSE

GPCTR1_SOURCE

GPCTR1_GATE

RTSI_OSC (20 MHz)

RTSI Switch

Switch

PXI Trigger (0..5)

6

PXI Star (6)

© National Instruments Corporation 4-1 NI 6115/6120 User Manual

4

Connecting Signals

This chapter describes how to connect input and output signals to the

NI 6115/6120 using the device I/O connector.

I/O Connector

Figure 4-1 shows the pin assignments for the 68-pin I/O connector on the

NI 6115/6120. A signal description follows the connector pinouts.

Caution Connections that exceed any of the maximum ratings of input or output signals

on the NI 6115/6120 can damage the device and the computer. NI is not liable for any

damage resulting from such signal connections. The Protection column of Tables 4-3, 4-4,

and 4-5 show the maximum input ratings for each signal.

Table 4-1. I/O Connector Details

Device with I/O

Connector

Number

of Pins

Cable for Connecting

to 100-pin Accessories

Cable for Connecting

to 68-pin Accessories

NI 6115,

NI 6120

68 N/A SH6868 Shielded Cable,

SH68-68-EP, R6868,

SH68-68R1-EP

Chapter 4 Connecting Signals

NI 6115/6120 User Manual 4-2 ni.com

Figure 4-1. I/O Connector Pin Assignment for the NI 6115/6120

68

67

66

65

64

63

62

61

60

59

58

57

56

55

54

53

52

51

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

ACH0–

ACH1+

ACH1GND

ACH2–

ACH3+

ACH3GND

NC

NC

NC

NC

NC

NC

DAC0OUT

DAC1OUT

NC

DIO4

DGND

DIO1

DIO6

DGND

+5V OUTPUT

DGND

DGND

PFI0/TRIG1

PFI1/TRIG2

DGND

+5V OUTPUT

DGND

PFI5/UPDATE*

PFI6/WFTRIG

DGND

PFI9/GPCTR0_GATE

GPCTR0_OUT

FREQ_OUT

ACH0+

ACH0GND

ACH1–

ACH2+

ACH2GND

ACH3–

NC

NC

NC

NC

NC

NC

NC

AOGND

AOGND

DGND

DIO0

DIO5

DGND

DIO2

DIO7

DIO3

SCANCLK

EXTSTROBE*

DGND

PFI2/CONVERT*

PFI3/GPCTR1_SOURCE

PFI4/GPCTR1_GATE

GPCTR1_OUT

DGND

PFI7/STARTSCAN

PFI8/GPCTR0_SOURCE

DGND

DGND

NC = No Connect

Chapter 4 Connecting Signals

© National Instruments Corporation 4-3 NI 6115/6120 User Manual

I/O Connector Signal Descriptions

Table 4-2. Signal Descriptions for I/O Connector Pins

Signal Name Reference Direction Description

ACH<0..3>GND — — Ground for Analog Input Channels 0 through 3—These

pins are the bias current return point for

pseudodifferential measurements.

ACH<0..3>+ ACH<0..3>GND Input Analog Input Channels 0 through 3 (+)—These pins

are routed to the (+) terminal of the respective channel

amplifier and carry the input signal.

ACH<0..3>– ACH<0..3>GND Input Analog Input Channels 0 through 3 (–)—These pins are

routed to the (–) terminal of the respective channel

amplifier and are the DC reference for the (+) input

signal of that channel.

DAC0OUT AOGND Output Analog Channel 0 Output—This pin supplies the

voltage output of AO channel 0.

DAC1OUT AOGND Output Analog Channel 1 Output—This pin supplies the

voltage output of AO channel 1.

AOGND — — Analog Output Ground—The AO voltages are

referenced to this node.

DGND — — Digital Ground—This pin supplies the reference for the

digital signals at the I/O connector as well as the

+5 VDC supply.

DIO<0..7> DGND Input

Output

Digital I/O Signals—DIO6 and 7 can control the

up/down signal of general-purpose counters 0 and 1,

respectively.

+5V DGND Output +5 VDC Source—These pins are fused for up to 1 A of

+5 V supply. The fuse is self-resetting.

SCANCLK DGND Output Scan Clock—This pin pulses once for each A/D

conversion when enabled. The low-to-high edge

indicates when the input signal can be removed from

the input or switched to another signal.

EXTSTROBE* DGND Output External Strobe—This output can be toggled under

software control to latch signals or trigger events on

external devices.

Chapter 4 Connecting Signals

NI 6115/6120 User Manual 4-4 ni.com

PFI0/TRIG1 DGND Input

Output

PFI0/Trigger 1—As an input, this is either a PFI or the

source for the hardware analog trigger. PFI signals are

explained in the Connecting Timing Signals section

later in this chapter. The hardware analog trigger is

explained in the Analog Trigger section of Chapter 3,

Hardware Overview. As an output, this is the TRIG1

signal. In posttrigger DAQ sequences, a low-to-high

transition indicates the initiation of the DAQ sequence.

In pretrigger applications, a low-to-high transition

indicates the initiation of the pretrigger conversions.

PFI1/TRIG2 DGND Input

Output

PFI1/Trigger 2—As an input, this is a PFI. As an

output, this is the TRIG2 signal. In pretrigger

applications, a low-to-high transition indicates the

initiation of the posttrigger conversions. TRIG2 is not

used in posttrigger applications.

PFI2/CONVERT* DGND Input

Output

PFI2/Convert—As an input, this is a PFI. As an output,

this is the CONVERT* signal. A high-to-low edge on

CONVERT* indicates that an A/D conversion is

occurring.

PFI3/GPCTR1_SOURCE DGND Input

Output

PFI3/Counter 1 Source—As an input, this is a PFI. As

an output, this is the GPCTR1_SOURCE signal. This

signal reflects the actual source connected to the

general-purpose counter 1.

PFI4/GPCTR1_GATE DGND Input

Output

PFI4/Counter 1 Gate—As an input, this is a PFI. As an

output, this is the GPCTR1_GATE signal. This signal

reflects the actual gate signal connected to the

general-purpose counter 1.

GPCTR1_OUT DGND Output Counter 1 Output—This output is from the

general-purpose counter 1 output.

PFI5/UPDATE* DGND Input

Output

PFI5/Update—As an input, this is a PFI. As an output,

this is the UPDATE* signal. A high-to-low edge on

UPDATE* indicates that the AO primary group is being

updated.

PFI6/WFTRIG DGND Input

Output

PFI6/Waveform Trigger—As an input, this is a PFI.

As an output, this is the WFTRIG signal. In timed

AO sequences, a low-to-high transition indicates the

initiation of the waveform generation.

PFI7/STARTSCAN DGND Input

Output

PFI7/Start of Scan—As an input, this is a PFI. As an

output, this is the STARTSCAN signal. This pin pulses

once at the start of each AI scan in the interval scan.

A low-to-high transition indicates the start of the scan.

Table 4-2. Signal Descriptions for I/O Connector Pins (Continued)

Signal Name Reference Direction Description

Chapter 4 Connecting Signals

© National Instruments Corporation 4-5 NI 6115/6120 User Manual

PFI8/GPCTR0_SOURCE DGND Input

Output

PFI8/Counter 0 Source—As an input, this is a PFI. As

an output, this is the GPCTR0_SOURCE signal. This

signal reflects the actual source connected to the

general-purpose counter 0.

PFI9/GPCTR0_GATE DGND Input

Output

PFI9/Counter 0 Gate—As an input, this is a PFI. As an

output, this is the GPCTR0_GATE signal. This signal

reflects the actual gate signal connected to the

general-purpose counter 0.

GPCTR0_OUT DGND Output1Counter 0 Output—This output is from the

general-purpose counter 0 output.

FREQ_OUT DGND Output Frequency Output—This output is from the frequency

generator output.

1 The GPCTR0_OUT acts as an input when using external clock mode with correlated DIO.

Table 4-3. Analog I/O Signal Summary for the NI 6115

Signal Name

Signal

Type and

Direction

Impedance

Input/

Output

Protection

(Volts)

On/Off

Source

(mA at V)

Sink

(mA at V)

Rise

Time

(ns) Bias

ACH<0..3>+ AI 1MΩ in

parallel with

100 pF1

or 10 kΩ in

parallel with

40 pF2

42 V — — — ±300

pA

ACH<0..3>– AI 10 nF to

ACH<0..3>

GND

42 V — — — ±300

pA

DAC0OUT AO 50 ΩShort-circuit

to ground

5 at 10 5 at –10 — —

DAC1OUT AO 50 ΩShort-circuit

to ground

5 at 10 5 at –10 — —

1 Applies to range ≤ ±10 V, impedance refers to ACH<0..3> –.

2 Applies to range > ±10 V, impedance refers to ACH<0..3>–.

Table 4-2. Signal Descriptions for I/O Connector Pins (Continued)

Signal Name Reference Direction Description

Chapter 4 Connecting Signals

NI 6115/6120 User Manual 4-6 ni.com

Table 4-4. Analog I/O Summary for the NI 6120

Signal Name

Signal

Type and

Direction

Impedance

Input/

Output

Protection

(Volts)

On/Off

Source

(mA at V)

Sink

(mA at V)

Rise

Time

(ns) Bias

ACH<0..3>+ AI 100 GΩ

to GND

±42 V to

GND

— — — ±300 pA

ACH<0..3>– AI 100 GΩ

to GND

±42 V to

GND

— — — ±200 pA

Differential Pair

ACH<0..3>+ to

ACH<0..3>–

AI 1 MΩ in parallel

with 100 pF1 or

10k in parallel

with 40 pF2

— — — — ±300 pA

DAC0OUT AO 50 ΩShort-circuit

to ground

5 at 10 5 at –10 — —

DAC1OUT AO 50 ΩShort-circuit

to ground

5 at 10 5 at –10 — —

1 Applies to range ≤ ±10 V, impedance refers to ACH<0..3> –.

2 Applies to range > ±10 V, impedance refers to ACH<0..3>–.

Table 4-5. Digital I/O Signal Summary

Signal Name

Signal

Type and

Direction

Impedance

Input/

Output

Protection

(Volts)

On/Off

Source

(mA at V)

Sink

(mA at V)

Rise

Time

(ns) Bias

VCC DO 0.1 ΩShort-circuit

to ground

1 A — — —

DIO<0..7> DIO — VCC +0.5 13 at

(VCC –0.4)

24 at 0.4 1.1 50 kΩ

pu

SCANCLK DO — — 3.5 at

(VCC –0.4)

5 at 0.4 1.5 50 kΩ

pu

EXTSTROBE* DO — — 3.5 at

(VCC –0.4)

5 at 0.4 1.5 50 kΩ

pu

PFI0/TRIG1 AI

DIO

10 kΩ±35

VCC +0.5

3.5 at

(VCC –0.4)

5 at 0.4 1.5 9kΩ

pu and

10 kΩ

pd

PFI1/TRIG2 DIO — VCC +0.5 3.5 at

(VCC –0.4)

5 at 0.4 1.5 50 kΩ

pu

PFI2/CONVERT* DIO — VCC +0.5 3.5 at

(VCC –0.4)

5 at 0.4 1.5 50 kΩ

pu

Chapter 4 Connecting Signals

© National Instruments Corporation 4-7 NI 6115/6120 User Manual

Types of Signal Sources

When making signal connections, you must first determine whether the

signal sources are floating or ground-referenced. The following sections

describe these two types of signals.

Floating Signal Sources

A floating signal source is not connected in any way to the building ground

system but, rather, has an isolated ground-reference point. Some examples

of floating signal sources are outputs of transformers, thermocouples,

battery-powered devices, optical isolator outputs, and isolation amplifiers.

An instrument or device that has an isolated output is a floating signal

PFI3/GPCTR1_SOURCE DIO — VCC +0.5 3.5 at

(VCC –0.4)

5 at 0.4 1.5 50 kΩ

pu

PFI4/GPCTR1_GATE DIO — VCC +0.5 3.5 at

(VCC –0.4)

5 at 0.4 1.5 50 kΩ

pu

GPCTR1_OUT DO — — 3.5 at

(VCC –0.4)

5 at 0.4 1.5 50 kΩ

pu

PFI5/UPDATE* DIO — VCC +0.5 3.5 at

(VCC –0.4)

5 at 0.4 1.5 50 kΩ

pu

PFI6/WFTRIG DIO — VCC +0.5 3.5 at

(VCC –0.4)

5 at 0.4 1.5 50 kΩ

pu

PFI7/STARTSCAN DIO — VCC +0.5 3.5 at

(VCC –0.4)

5 at 0.4 1.5 50 kΩ

pu

PFI8/GPCTR0_SOURCE DIO — VCC +0.5 3.5 at

(VCC –0.4)

5 at 0.4 1.5 50 kΩ

pu

PFI9/GPCTR0_GATE DIO — VCC +0.5 3.5 at

(VCC –0.4)

5 at 0.4 1.5 50 kΩ

pu

GPCTR0_OUT DIO — VCC +0.5 3.5 at

(VCC –0.4)

5 at 0.4 1.5 50 kΩ

pu

FREQ_OUT DO — — 3.5 at

(VCC –0.4)

5 at 0.4 1.5 50 kΩ

pu

pu = pull up; pd = pull down; DO = Digital Output

The tolerance on the 50 kΩ pull-up and pull-down resistors is very large. Actual value may range between 17 and 100 kΩ.

Table 4-5. Digital I/O Signal Summary (Continued)

Signal Name

Signal

Type and

Direction

Impedance

Input/

Output

Protection

(Volts)

On/Off

Source

(mA at V)

Sink

(mA at V)

Rise

Time

(ns) Bias

Chapter 4 Connecting Signals

NI 6115/6120 User Manual 4-8 ni.com

source. You must tie the ground reference of a floating signal to the

NI 6115/6120 AI ground to establish a local or onboard reference for the

signal. Otherwise, the measured input signal varies as the source floats out

of the common-mode input range.

Ground-Referenced Signal Sources

A ground-referenced signal source is connected in some way to the

building system ground and is, therefore, already connected to a common

ground point with respect to the NI 6115/6120, assuming that the computer

is plugged into the same power system. Non-isolated outputs of

instruments and devices that plug into the building power system fall into

this category.

The difference in ground potential between two instruments connected to

the same building power system is typically between 1 and 100 mV but can

be much higher if power distribution circuits are not properly connected.

If a grounded signal source is improperly measured, this difference may

appear as an error in the measurement. The connection instructions for

grounded signal sources are designed to eliminate this ground potential

difference from the measured signal.

Connecting Analog Input Signals

The NI 6115/6120 channels are configured as pseudodifferential inputs.

The input signal of each channel, ACH<0..3>+, is tied to the positive input

of its PGIA, and each reference signal, ACH<0..3>–, is tied to the negative

input of its PGIA. The inputs are differential only in the sense that ground

loops are broken. The reference signal, ACH<0..3>–, is not intended to

carry signals of interest but only to provide a DC reference point for

ACH<0..3>+ that may be different from ground.

Pseudodifferential signal connections increase common-mode noise

rejection. They also allow input signals to float within the common-mode

limits of the PGIA.

Chapter 4 Connecting Signals

© National Instruments Corporation 4-9 NI 6115/6120 User Manual

Connections for Ground-Referenced Signal Sources

Figures 4-2 and 4-3 show how to connect a ground-referenced signal

source to a channel on the NI 6115 and NI 6120, respectively.

Figure 4-2. Pseudodifferential Input Connections on the NI 6115

for Ground-Referenced Signals

Vm

ACH0 Connections Shown

PGIA

100 pf*

10 nf

Ground-

Referenced

Signal

Source

Common-

Mode

Noise and

Ground

Potential

AC Coupling

1 M*

Instrumentation

Amplifier

I/O Connector

ACH0GND

ACH0–

ACH0+

Measured

Voltage

+

–

+

–

*10 kΩ40 pf for ranges > ±10 V

Vs

Vcm

+

–

+

–

Common-Mode

Choke

Chapter 4 Connecting Signals

NI 6115/6120 User Manual 4-10 ni.com

Figure 4-3. Pseudodifferential Input Connections on the NI 6120

for Ground-Referenced Signals

With this type of connection, the PGIA rejects both the common-mode

noise in the signal and the ground potential difference between the signal

source and the device ground, shown as Vcm in Figures 4-2 and 4-3.

+

–Vm

100 pF* 1 M*

50 Ω0.1 µF

High-Frequency

Common Mode Choke

ACH0+

ACH0–

ACH0GND

PGIA

Instrumentation

Amplifier

*10 kΩ40 pf for ranges > ±10 V

Ground-

Referenced

Signal

Source

AC Coupling

Common-

Mode

Noise and

Ground

Potential

Measured

Voltage

Vs

Vcm

+

–

+

–+

–

Chapter 4 Connecting Signals

© National Instruments Corporation 4-11 NI 6115/6120 User Manual

Connections for Nonreferenced or Floating Signal Sources

Figures 4-4 and 4-5 show how to connect a floating signal source to a

channel on the NI 6115 and NI 6120, respectively.

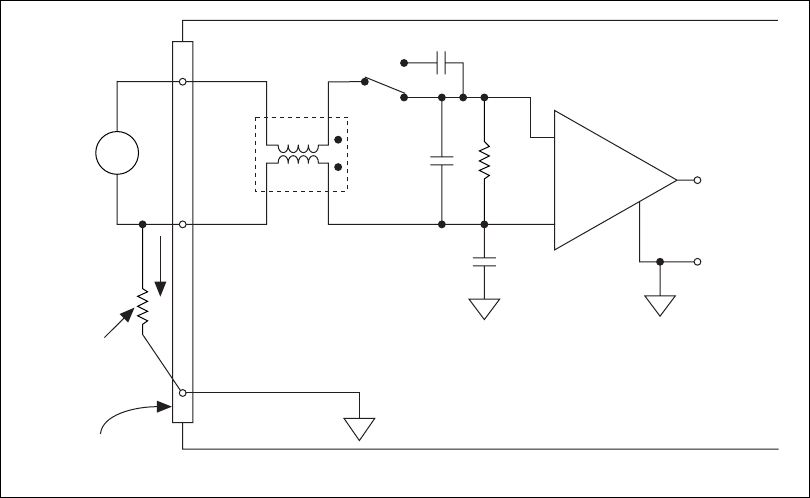

Figure 4-4. Differential Input Connections on the NI 6115 for Nonreferenced Signals

+

–

ACH0 Connections Shown

PGIA

1 M*

100 pf*

10 nf

Bias

Resistor

(see text)

AC Coupling

Vm

I/O Connector

Bias

Current

Return

Paths

Floating

Signal

Source

Instrumentation

Amplifier

Measured

Voltage

ACH0GND

ACH0–

ACH0+

+

–

*10 kΩ40 pf for ranges > ±10 V

Vs

+

–

Common-Mode

Choke

Chapter 4 Connecting Signals

NI 6115/6120 User Manual 4-12 ni.com

Figure 4-5. Differential Input Connections on the NI 6120 for Nonreferenced Signals

Figures 4-4 and 4-5 show a bias resistor connected between ACH0– and the

floating signal source ground. This resistor provides a return path for the

±200 pA bias current. A value of 10 kΩ to 100 kΩ is usually sufficient.

If you do not use the resistor and the source is truly floating, the source is

not likely to remain within the common-mode signal range of the PGIA,

and the PGIA saturates, causing erroneous readings. You must reference

the source to the respective channel ground.

Common-mode rejection might be improved by using another bias resistor

from the ACH0+ input to ACH0GND. This connection gives a slight

measurement error due to the voltage divider formed with the output

impedance of the floating source, but it also gives a more balanced input for

better common-mode rejection.

Common-Mode Signal Rejection Considerations

Figures 4-2 and 4-3 show connections for signal sources that are already

referenced to some ground point with respect to the NI 6115/6120. In

theory, the PGIA can reject any voltage caused by ground-potential

differences between the signal source and the device. In addition, with

pseudodifferential input connections, the PGIA can reject common-mode

noise pickup in the leads connecting the signal sources to the device.

+

–Vm

100 pF* 1 M*

50 Ω0.1 µF

High-Frequency

Common Mode Choke

ACH0+

ACH0–

ACH0GND

PGIA

Instrumentation

Amplifier

*10 kΩ40 pf for ranges > ±10 V

Floating

Signal

Source

AC Coupling

Measured

Voltage

Vs

+

–

Bias

Resistor

(see text)

I/O Connector

Bias

Current

Return

Paths

+

–

Chapter 4 Connecting Signals

© National Instruments Corporation 4-13 NI 6115/6120 User Manual

Like any amplifier, the common-mode rejection ratio (CMRR) of the PGIA

is limited at high frequency. This limitation has been compensated for in the

design of the NI 6115/6120 by using a common-mode choke on each

channel.

♦NI 6115

The purpose of the 10 nF capacitance on the ACH<0..3>– connection of the

NI 6115 is to provide an impedance for this choke to work against at high

frequency, thus improving the high-frequency CMRR. Depending on your

application and the type of common noise at your source, further

common-noise rejection might be gained by placing a 0.1 µF ceramic

bypass capacitor between ACH– and ACH0GND.

Working Voltage Range

The PGIA operates normally by amplifying signals of interest while

rejecting common-mode signals as long as the following three conditions

are met:

1. The common-mode voltage (Vcm), which is equivalent to subtracting

ACH<0..3>GND from ACH<0..3>– and which is shown in Figure 4-2,

must be less than ±2.5 V. This Vcm is a constant for all range selections.

2. The signal voltage (Vs), which is equivalent to subtracting

ACH<0..3>– from ACH<0..3>+ and which is shown in Figure 4-2,

must be less than or equal to the range selection of the given channel.

If Vs is greater than the range selected, the signal clips and information

is lost.

3. The total working voltage of the positive input, which can be thought

of as (Vcm + Vs) or simply as subtracting ACH<0..3>GND from

ACH<0..3>+, must be less than ±11 V for ranges ≤ ±10 V or less than

±42 V for ranges > ±10 V.

If any of these conditions are exceeded, current limiters limit the input

current to 20 mA maximum into any input until the fault condition is

removed.

Note All inputs are protected at up to ±42 V.

Chapter 4 Connecting Signals

NI 6115/6120 User Manual 4-14 ni.com

Connecting Analog Output Signals

The AO signals are DAC0OUT, DAC1OUT, and AOGND.

DAC0OUT is the voltage output signal for AO channel 0. DAC1OUT is the

voltage output signal for AO channel 1.

AOGND is the ground-reference signal for the AO channels. AOGND is a

hard ground.

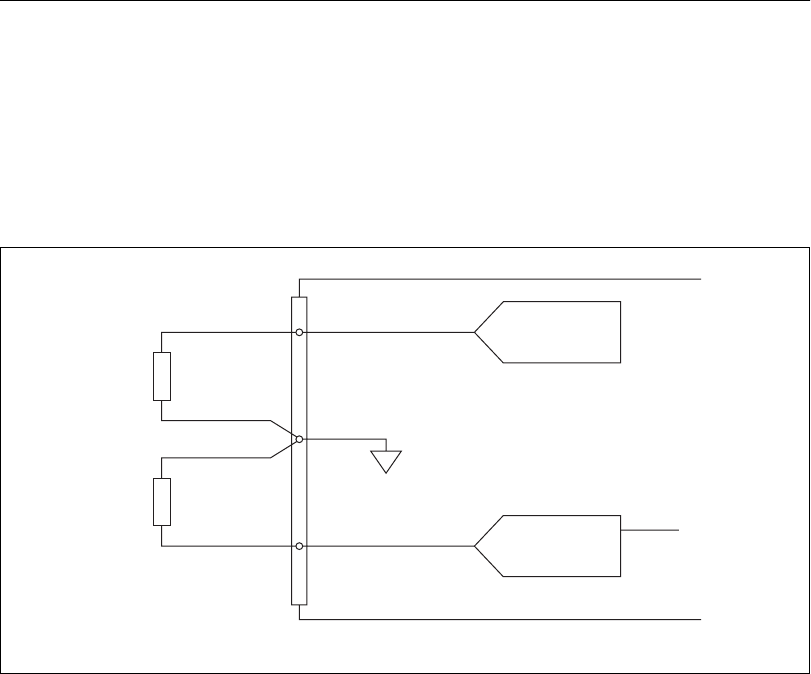

Figure 4-6 shows how to connect AO signals to the NI 6115/6120.

Figure 4-6. Analog Output Connections

NI 6115/6120

Analog Output Channels

Channel 0

DAC0OUT

AOGND

DAC1OUT

VOUT 0

VOUT 1

Load

Load

+

–

+

–

Channel 1

Chapter 4 Connecting Signals

© National Instruments Corporation 4-15 NI 6115/6120 User Manual

Connecting Digital I/O Signals

The DIO signals are DIO<0..7> and DGND. DIO<0..7> are the signals

making up the DIO port, and DGND is the ground-reference signal for the

DIO port. You can program groups of individual lines to be inputs or

outputs.

Caution Exceeding the maximum input voltage ratings, which are listed in Table 4-3, can

damage the NI 6115/6120 and the computer. NI is not liable for any damage resulting from

such signal connections.

Figure 4-7 shows signal connections for three typical DIO applications.

Figure 4-7. Digital I/O Connections

+5 V

LED

TTL Signal

+5 V

Switch

I/O Connector

DGND

NI 6115/6120

DIO<0..3>

DIO<4..7>

Chapter 4 Connecting Signals

NI 6115/6120 User Manual 4-16 ni.com

Figure 4-7 shows DIO<0..3> configured for digital input and DIO<4..7>

configured for digital output. Digital input applications include receiving

TTL signals and sensing external device states such as the switch state

shown in Figure 4-7. Digital output applications include sending TTL

signals and driving external devices such as the LED shown

in Figure 4-7.

Correlating DIO Signal Connections

You can correlate DIO and AI/AO operations to the same clock on the

NI 6115/6120. You can use any of the following signals as the clock

source:

• AI Scan Start

• AO Update

•GPCTR

• RTSI<0..5>

• External Clock

Notes To use either of the GPCTR signals or the external clock to clock DIO operations,

you must use one RTSI<0..5> pin.

To use an external clock for correlated DIO, the clock must have input on the Counter 0

output pin (GPCTR0_OUT). In this case, be sure that this counter is not used in any other

operation.

The following timing diagrams illustrate the use of these signals as clock

sources. You can software-configure DIO operations for either rising or

falling edge on whichever clock you choose as the source. Figure 4-8 shows

any clock signal, in general, driving two separate groups of lines configured

for digital input (DI) and DO. The DI operation is using the rising edge of

the clock and the DO operation is using its falling edge.

Chapter 4 Connecting Signals

© National Instruments Corporation 4-17 NI 6115/6120 User Manual

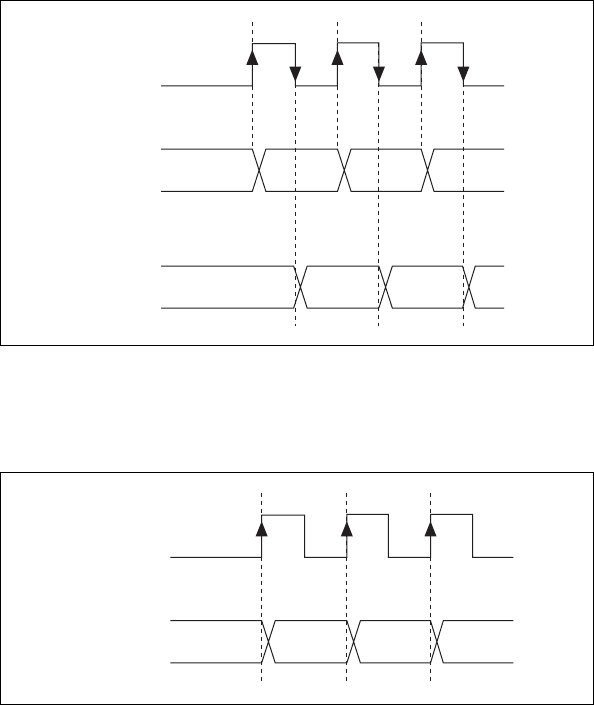

Figure 4-8. Clock Signal Driving DI and DO Signals

Figure 4-9 shows a DIO operation driven by the AO Update signal on its

rising edge.

Figure 4-9. Rising-Edge AO Update Signal Driving a DIO Signal

CLK

DI<7:4>

DO<3:0>

AO Update

DIO

Chapter 4 Connecting Signals

NI 6115/6120 User Manual 4-18 ni.com

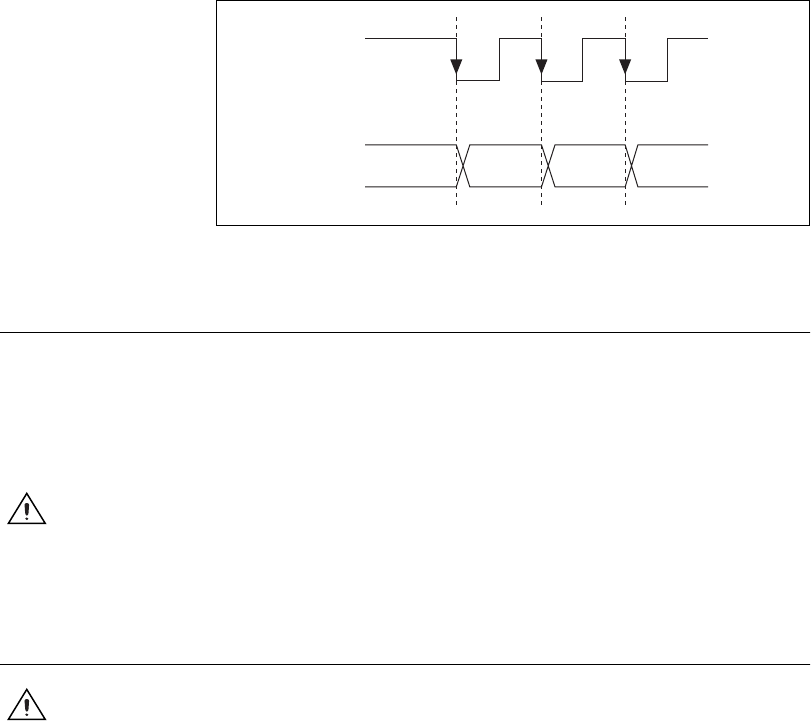

Figure 4-10 shows a DIO operation driven by an RTSI clock signal on its

falling edge.

Figure 4-10. Falling-Edge RTSI Clock Signal Driving a DIO Signal

Power Connections

Two pins on the I/O connector supply +5 V from the computer power

supply using a self-resetting fuse. The fuse resets automatically within a

few seconds after the overcurrent condition is removed. These pins are

referenced to DGND and can be used to power external digital circuitry.

The power rating is +4.65 to +5.25 VDC at 1 A.

Caution Under no circumstances should you connect these +5 V power pins directly to

analog or digital ground or to any other voltage source on the NI 6115/6120 or any other

device. Doing so can damage the NI 6115/6120 and the computer. NI is not liable for

damage resulting from such connections.

Connecting Timing Signals

Caution Exceeding the maximum input voltage ratings, which are listed in Table 4-3, can

damage the NI 6115/6120 and the computer. NI is not liable for any damage resulting from

such signal connections.

All external control over the timing of the NI 6115/6120 is routed through

the 10 PFIs, labeled PFI0 through PFI9. These signals are explained in

detail in the next section, Programmable Function Input Connections.

These PFIs are bidirectional; as outputs they are not programmable and

reflect the state of many DAQ, waveform generation, and general-purpose

timing signals. There are five other dedicated outputs for the remainder of

the timing signals. As inputs, the PFI signals are programmable and can

control DAQ, waveform generation, and general-purpose timing signals.

RTSI

DIO

Chapter 4 Connecting Signals

© National Instruments Corporation 4-19 NI 6115/6120 User Manual

The DAQ signals are explained in the DAQ Timing Connections section

later in this chapter. The Waveform Generation Timing Connections section

later in this chapter explains the waveform generation signals, and the

General-Purpose Timing Signal Connections section later in this chapter

explains the general-purpose timing signals.

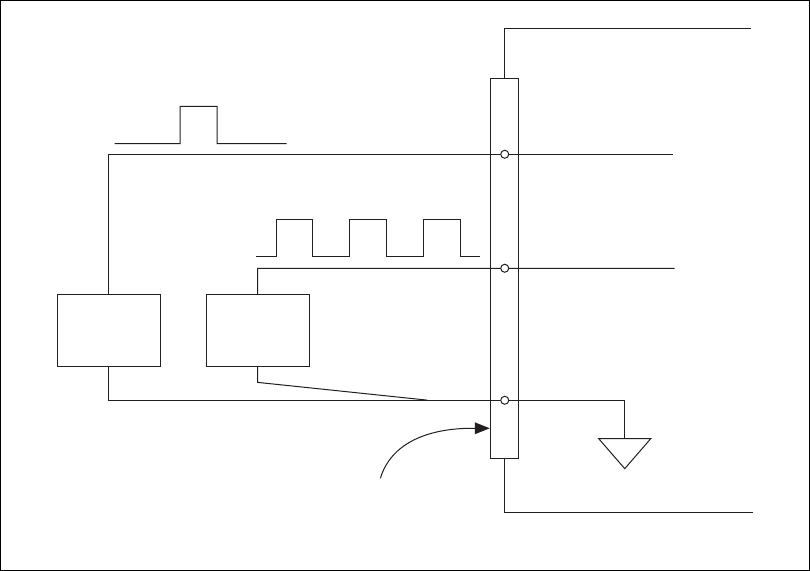

All digital timing connections are referenced to DGND. This reference is

demonstrated in Figure 4-11, which shows how to connect an external

TRIG1 source and an external STARTSCAN source to two PFI pins on the

NI 6115/6120.

Figure 4-11. Timing I/O Connections

DGND

PFI0/TRIG1

PFI7/STARTSCAN

I/O Connector

NI 6115/6120

TRIG1

Source

STARTSCAN

Source

Chapter 4 Connecting Signals

NI 6115/6120 User Manual 4-20 ni.com

Programmable Function Input Connections

You can externally control 13 internal timing signals from the PFI pins.

The source for each of these signals is software-selectable from any PFI

when you want external control. This flexible routing scheme reduces the

need to change the physical wiring to the device I/O connector for different

applications requiring alternative wiring.

You can individually enable each of the PFI pins to output a specific

internal timing signal. For example, if you need the STARTSCAN signal as

an output on the I/O connector, software can turn on the output driver for

the PFI7/STARTSCAN pin. Be careful not to drive a PFI signal externally

when it is configured as an output.

As an input, you can individually configure each PFI for edge or level

detection and for polarity selection, as well. You can use the polarity

selection for any of the timing signals, but the edge or level detection

depends upon the particular timing signal being controlled. The detection

requirements for each timing signal are listed within the section that

discusses that individual signal.

In edge-detection mode, the minimum pulse width required is 10 ns.

This setting applies for both rising-edge and falling-edge polarity settings.

Edge-detect mode does not have a maximum pulse-width requirement.

In level-detection mode, the PFIs themselves do not impose a minimum or

maximum pulse-width requirement, but the particular timing signal being

controlled can impose limits. These requirements are listed later in this

chapter.

DAQ Timing Connections

The DAQ timing signals are TRIG1, TRIG2, STARTSCAN, CONVERT*,

AIGATE, SISOURCE, SCANCLK, and EXTSTROBE*.

Posttriggered data acquisition allows you to view only data that is acquired

after a trigger event is received. A typical posttriggered DAQ sequence is

shown in Figure 4-12.

Note On the NI 6115/6120, each STARTSCAN pulse initiates one CONVERT* pulse,

which simultaneously samples all channels.

Chapter 4 Connecting Signals

© National Instruments Corporation 4-21 NI 6115/6120 User Manual

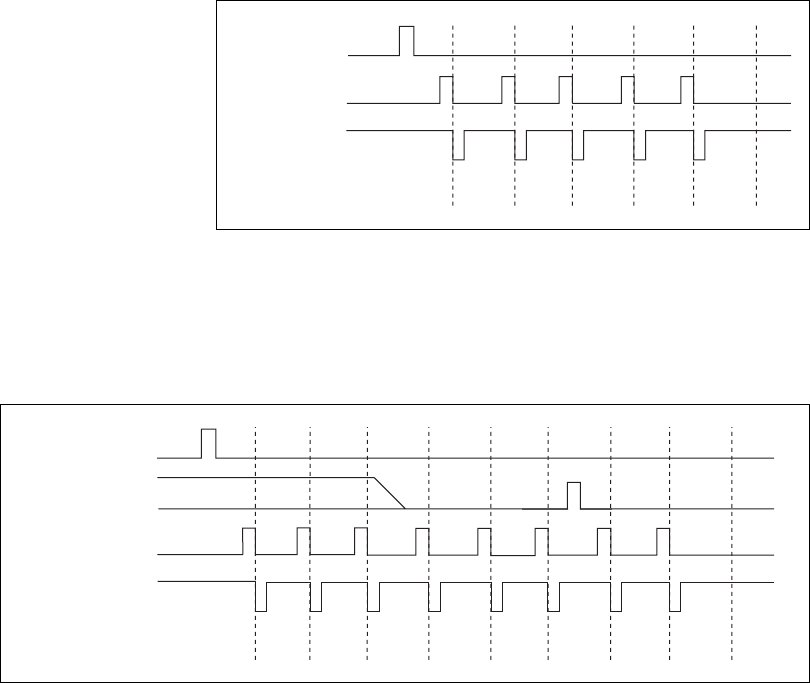

Figure 4-12. Typical Posttriggered Acquisition

Pretriggered data acquisition allows you to view data that is acquired before

the trigger of interest in addition to data acquired after the trigger.

Figure 4-13 shows a typical pretriggered DAQ sequence. The description

for each signal shown in these figures appears later in this chapter.

Figure 4-13. Typical Pretriggered Acquisition

TRIG1 Signal

Any PFI pin can receive as an input the TRIG1 signal, which is available

as an output on the PFI0/TRIG1 pin.

Refer to Figures 4-12 and 4-13 for the relationship of TRIG1 to the DAQ

sequence.

As an input, TRIG1 is configured in the edge-detection mode. You can

select any PFI pin as the source for TRIG1 and configure the polarity

selection for either rising or falling edge. The selected edge of TRIG1 starts

the DAQ sequence for both posttriggered and pretriggered acquisitions.

The NI 6115/6120 supports analog triggering on the PFI0/TRIG1 pin.

13042

TRIG1

STARTSCAN

CONVERT*

Scan Counter

n/a

01231 0222

TRIG1

TRIG2

STARTSCAN

CONVERT*

Scan Counter

Chapter 4 Connecting Signals

NI 6115/6120 User Manual 4-22 ni.com

Refer to Chapter 3, Hardware Overview, for more information on analog

triggering.

As an output, TRIG1 reflects the action that initiates a DAQ sequence even

if another PFI is externally triggering the acquisition. The output is an

active high pulse with a pulse width of 25 to 50 ns. This output is set to

high-impedance at startup.

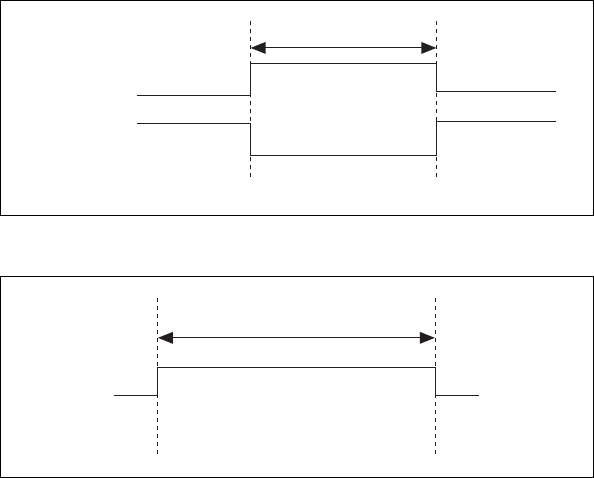

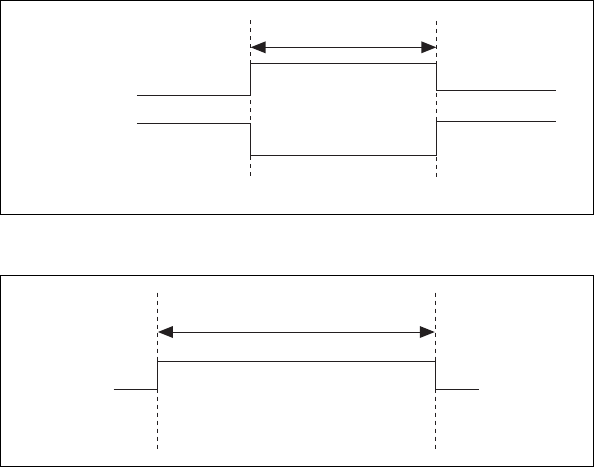

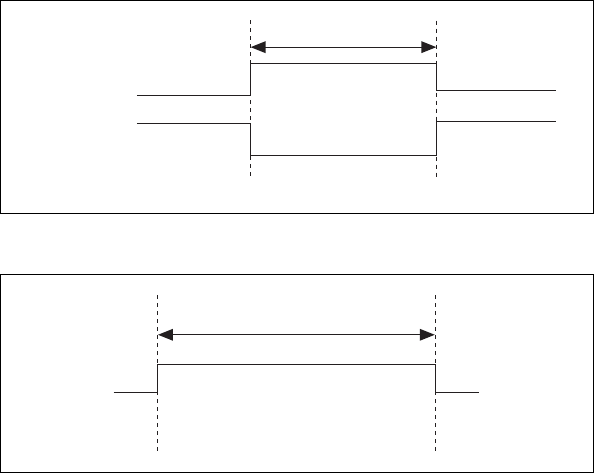

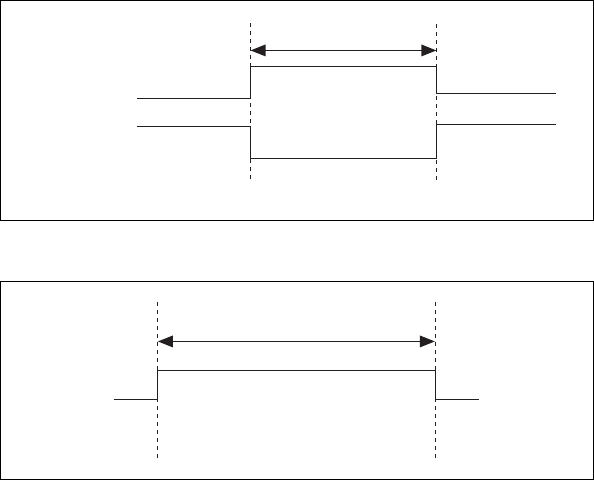

Figures 4-14 and 4-15 show the timing requirements for TRIG1.

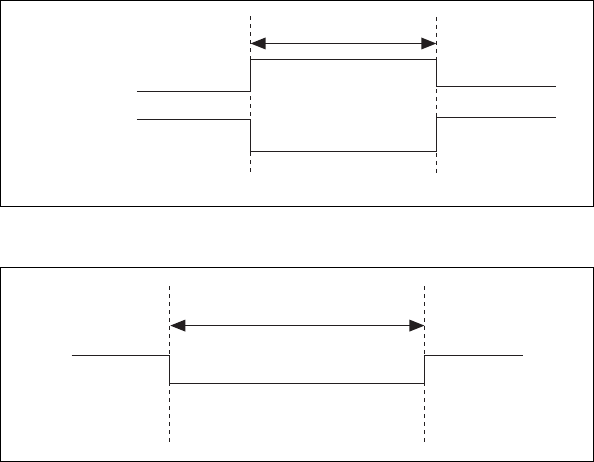

Figure 4-14. TRIG1 Input Signal Timing

Figure 4-15. TRIG1 Output Signal Timing

The device also uses TRIG1 to initiate pretriggered DAQ operations. In

most pretriggered applications, TRIG1 is generated by a software trigger.

Refer to the TRIG2 signal description for a complete description of the use

of TRIG1 and TRIG2 in a pretriggered DAQ operation.

TRIG2 Signal

Any PFI pin can receive as an input the TRIG2 signal, which is available

as an output on the PFI1/TRIG2 pin. Refer to Figure 4-13 for the

relationship of TRIG2 to the DAQ sequence.

As an input, TRIG2 is configured in the edge-detection mode. You can

select any PFI pin as the source for TRIG2 and configure the polarity

Rising-Edge

Polarity

Falling-Edge

Polarity

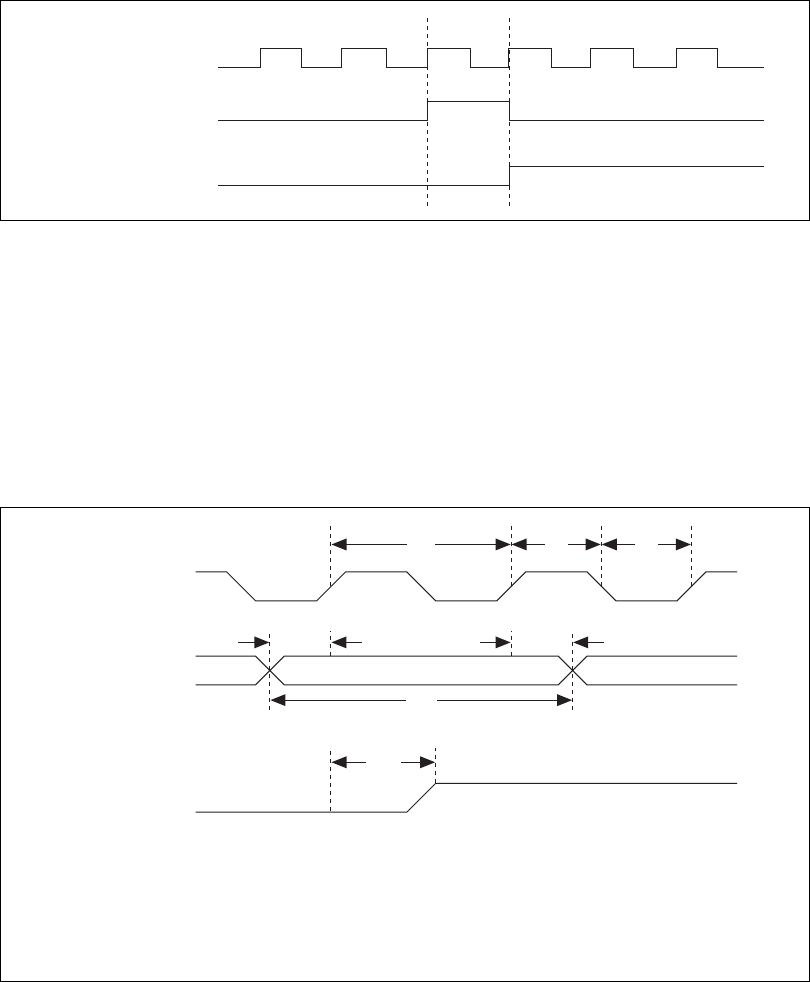

tw = 10 ns minimum

tw

tw

tw = 25 – 50 ns

Chapter 4 Connecting Signals

© National Instruments Corporation 4-23 NI 6115/6120 User Manual

selection for either rising or falling edge. The selected edge of TRIG2

initiates the posttriggered phase of a pretriggered DAQ sequence. In

pretriggered mode, the TRIG1 signal initiates the acquisition. The scan

counter indicates the minimum number of scans before TRIG2 can be

recognized. After the scan counter decrements to zero, it is loaded with the

number of posttrigger scans to acquire while the acquisition continues.

The device ignores TRIG2 if it is asserted prior to the scan counter

decrementing to zero. After the selected edge of TRIG2 is received, the

device acquires a fixed number of scans and the acquisition stops. This

mode acquires data both before and after receiving TRIG2.

As an output, TRIG2 reflects the posttrigger in a pretriggered DAQ

sequence even if another PFI is externally triggering the acquisition.

TRIG2 is not used in posttriggered data acquisition. The output is an active

high pulse with a pulse width of 25 to 50 ns. This output is set to

high-impedance at startup.

Figures 4-16 and 4-17 show the timing requirements for TRIG2.

Figure 4-16. TRIG2 Input Signal Timing

Figure 4-17. TRIG2 Output Signal Timing

Rising-Edge

Polarity

Falling-Edge

Polarity

tw = 10 ns minimum

tw

tw

tw = 25 – 50 ns

Chapter 4 Connecting Signals

NI 6115/6120 User Manual 4-24 ni.com

STARTSCAN Signal

Any PFI pin can receive as an input the STARTSCAN signal, which is

available as an output on the PFI7/STARTSCAN pin. Refer to Figures 4-21

and 4-22 for the relationship of STARTSCAN to the DAQ sequence.

As an input, STARTSCAN is configured in the edge-detection mode. You

can select any PFI pin as the source for STARTSCAN and configure the

polarity selection for either rising or falling edge. The selected edge of

STARTSCAN initiates a scan. The sample interval counter starts if you

select internally triggered CONVERT*.

As an output, STARTSCAN reflects the actual start pulse that initiates a

scan even if another PFI is externally triggering the starts. You have two

output options. The first is an active high pulse with a pulse width of 25 to

50 ns, which indicates the start of the scan. The second action is an active

high pulse that terminates at the start of the last conversion in the scan,

which indicates a scan in progress. STARTSCAN is deasserted toff after the

last conversion in the scan is initiated. This output is set to high-impedance

at startup.

Figures 4-18 and 4-19 show the timing requirements for STARTSCAN.

Figure 4-18. STARTSCAN Input Signal Timing

Rising-Edge

Polarity

Falling-Edge

Polarity

tw = 10 ns minimum

tw

Chapter 4 Connecting Signals

© National Instruments Corporation 4-25 NI 6115/6120 User Manual

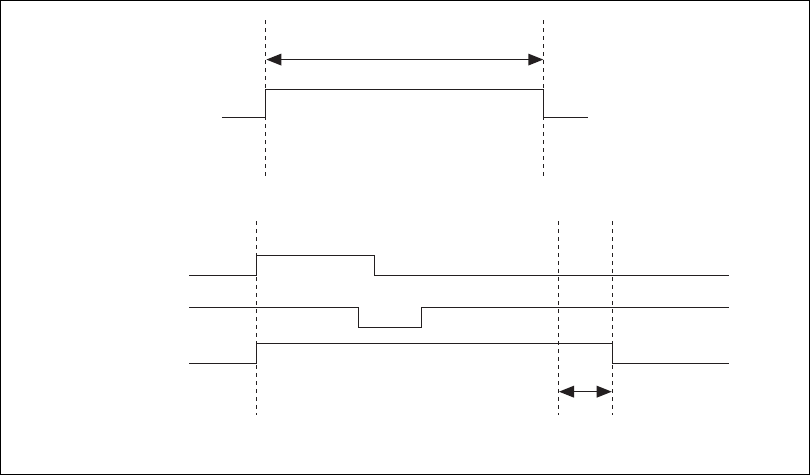

Figure 4-19. STARTSCAN Output Signal Timing

The CONVERT* pulses are masked off until the device generates

STARTSCAN. If you are using internally generated conversions, the first

CONVERT* appears when the onboard sample interval counter reaches

zero. If you select an external CONVERT*, the first external pulse after

STARTSCAN generates a conversion. STARTSCAN pulses should be

separated by at least one scan period.

A counter on the NI 6115/6120 internally generates STARTSCAN unless

you select some external source. This counter is started by the TRIG1

signal and is stopped by either software or the sample counter.

Scans generated by either an internal or external STARTSCAN signal are

inhibited unless they occur within a DAQ sequence. Scans occurring within

a DAQ sequence may be gated by either the hardware signal AIGATE or

the software command register gate.

tw

tw = 25 – 50ns

a. Start of Scan

b. Scan in Progress, Two Conversions per Scan

Start Pulse

CONVERT*

STARTSCAN

toff = 10 ns minimum toff

Chapter 4 Connecting Signals

NI 6115/6120 User Manual 4-26 ni.com

CONVERT* Signal

Any PFI pin can receive as an input the CONVERT* signal, which is

available as an output on the PFI2/CONVERT* pin.

Refer to Figures 4-23 and 4-24 for the relationship of CONVERT* to the

DAQ sequence.

As an input, CONVERT* is configured in the edge-detection mode. You

can select any PFI pin as the source for CONVERT* and configure the

polarity selection for either rising or falling edge. The selected edge of

CONVERT* initiates an A/D conversion.

As an output, CONVERT* reflects the actual convert pulse that is

connected to the ADC even if another PFI is externally generating the

conversions. The output is an active low pulse with a pulse width of

50 to 100 ns. This output is set to high-impedance at startup.

Figures 4-20 and 4-21 show the input and output timing requirements for

CONVERT*.

Figure 4-20. CONVERT* Input Signal Timing

Figure 4-21. CONVERT* Output Signal Timing

Rising-Edge

Polarity

Falling-Edge

Polarity

tw = 10 ns minimum

tw

tw

tw = 50 – 100 ns

Chapter 4 Connecting Signals

© National Instruments Corporation 4-27 NI 6115/6120 User Manual

The ADC switches to hold mode within 20 ns of the selected edge. This

hold-mode delay time is a function of temperature and does not vary from

one conversion to the next.

The sample interval counter on the NI 6115/6120 device normally

generates CONVERT* unless you select some external source. The counter

is started by the STARTSCAN signal and continues to count down and

reload itself until the scan is finished. It then reloads itself in preparation for

the next STARTSCAN pulse.

A/D conversions generated by either an internal or external CONVERT*

signal are inhibited unless they occur within a DAQ sequence. Scans

occurring within a DAQ sequence may be gated by either the hardware

signal AIGATE or the software command register gate.

AIGATE Signal

Any PFI pin can receive as an input the AIGATE signal, which is not

available as an output on the I/O connector. The AIGATE signal can mask

off scans in a DAQ sequence. You can configure the PFI pin you select as

the source for AIGATE in level-detection mode. You can configure the

polarity selection for the PFI pin for either active high or active low.

In the level-detection mode if AIGATE is active, the STARTSCAN signal

is masked off and no scans can occur.

AIGATE can neither stop a scan in progress nor continue a previously

gated-off scan. Once a scan has started, AIGATE does not gate off

conversions until the beginning of the next scan and, conversely, if

conversions are being gated off, AIGATE does not gate them back on until

the beginning of the next scan.

SISOURCE Signal

Any PFI pin can receive as an input the SISOURCE signal, which is not

available as an output on the I/O connector. The onboard scan interval

counter (SI) uses SISOURCE as a clock to time the generation of the

STARTSCAN signal. You must configure the PFI pin you select as the

source for SISOURCE in the level-detection mode. You can configure the

polarity selection for the PFI pin for either active high or active low.

The maximum allowed frequency is 20 MHz, with a minimum pulse width

of 23 ns high or low. There is no minimum frequency limitation.

Chapter 4 Connecting Signals

NI 6115/6120 User Manual 4-28 ni.com

Either the 20 MHz or 100 kHz internal timebase generates SISOURCE

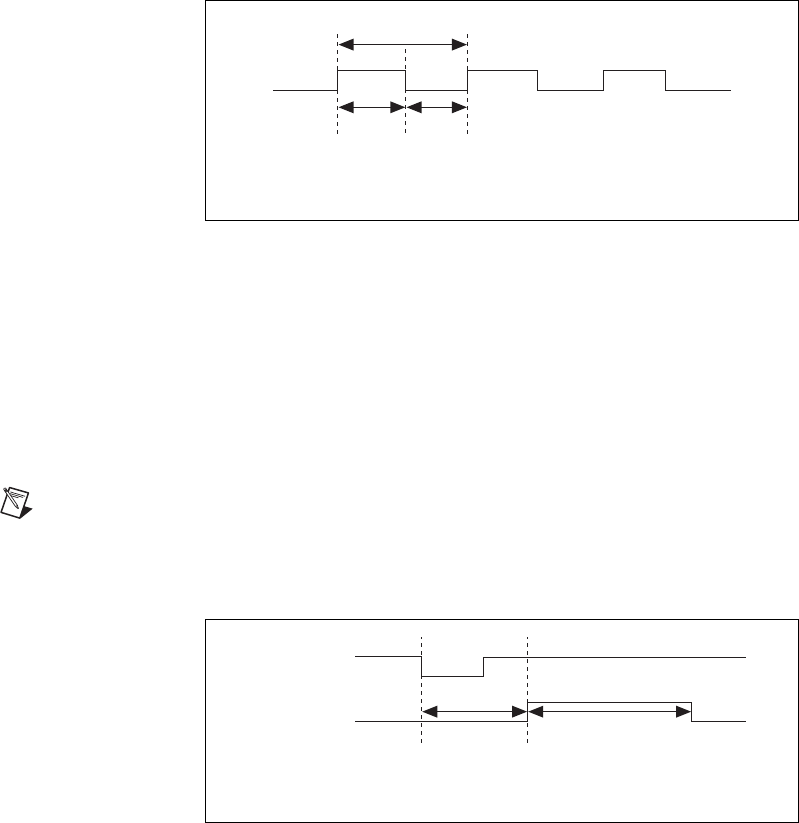

unless you select some external source. Figure 4-22 shows the timing

requirements for SISOURCE.

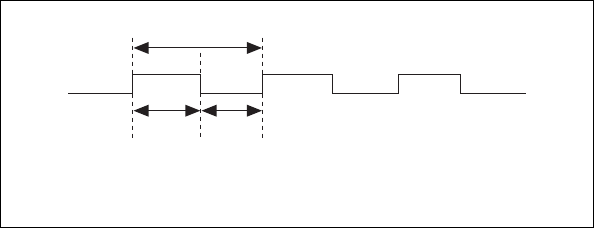

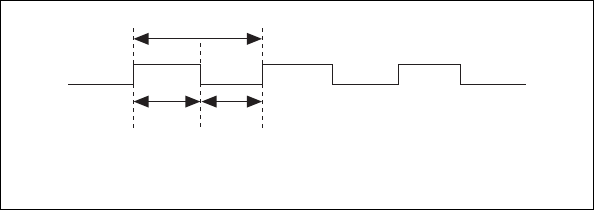

Figure 4-22. SISOURCE Signal Timing

SCANCLK Signal

SCANCLK is an output-only signal that generates a pulse with the leading

edge occurring approximately 50 to 100 ns after an A/D conversion begins.

The polarity of this output is software-selectable but is typically configured

so that a low-to-high leading edge can clock external AI multiplexers

indicating when the input signal has been sampled and can be removed.

This signal has a 450 ns pulse width and is software enabled.

Note When using NI-DAQ, SCANCLK polarity is low-to-high and cannot be changed

programmatically.

Figure 4-23 shows the timing for SCANCLK.

Figure 4-23. SCANCLK Signal Timing

tp = 50 ns minimum

tw = 23 ns minimum

twtw

tp

td = 50 to 100 ns

tw = 450 ns

td

CONVERT*

SCANCLK tw

Chapter 4 Connecting Signals

© National Instruments Corporation 4-29 NI 6115/6120 User Manual

EXTSTROBE* Signal

EXTSTROBE* is an output-only signal that generates either a single pulse

or a sequence of eight pulses in the hardware-strobe mode. An external

device can use this signal to latch signals or to trigger events. In the

single-pulse mode, software controls the level of EXTSTROBE*. A 10 µs

and a 1.2 µs clock are available for generating a sequence of eight pulses in

the hardware-strobe mode.

Note EXTSTROBE* cannot be enabled through NI-DAQ.

Figure 4-24 shows the timing for the hardware-strobe mode

EXTSTROBE* signal.

Figure 4-24. EXTSTROBE* Signal Timing

Waveform Generation Timing Connections

The AO group defined for the NI 6115/6120 is controlled by WFTRIG,

UPDATE*, and UISOURCE.

WFTRIG Signal

Any PFI pin can receive as an input the WFTRIG signal, which is available

as an output on the PFI6/WFTRIG pin.

As an input, WFTRIG is configured in the edge-detection mode. You can

select any PFI pin as the source for WFTRIG and configure the polarity

selection for either rising or falling edge. The selected edge of WFTRIG

starts the waveform generation for the DACs. If you select internally

generated UPDATE*, the UI counter starts.

As an output, WFTRIG reflects the trigger that initiates waveform

generation, even if another PFI is externally triggering the waveform

generation. The output is an active high pulse with a pulse width of

25 to 50 ns. This output is set to high-impedance at startup.

VOH

VOL

twtw

Chapter 4 Connecting Signals

NI 6115/6120 User Manual 4-30 ni.com

Figures 4-25 and 4-26 show the timing requirements for WFTRIG.

Figure 4-25. WFTRIG Input Signal Timing

Figure 4-26. WFTRIG Output Signal Timing

UPDATE* Signal

Any PFI pin can receive as an input the UPDATE* signal, which is

available as an output on the PFI5/UPDATE* pin.

As an input, UPDATE* is configured in the edge-detection mode. You can

select any PFI pin as the source for UPDATE* and configure the polarity

selection for either rising or falling edge. The selected edge of UPDATE*

updates the outputs of the DACs. In order to use UPDATE*, you must set

the DACs to posted-update mode.

As an output, UPDATE* reflects the actual update pulse that is connected

to the DACs, even if another PFI is externally generating the updates. The

output is an active low pulse with a pulse width of 50 to 75 ns. This output

is set to high-impedance at startup.

Rising-Edge

Polarity

Falling-Edge

Polarity

tw = 10 ns minimum

tw

tw

tw = 25 – 50 ns

Chapter 4 Connecting Signals

© National Instruments Corporation 4-31 NI 6115/6120 User Manual

Figures 4-27 and 4-28 show the timing requirements for UPDATE*.

Figure 4-27. UPDATE* Input Signal Timing

Figure 4-28. UPDATE* Output Signal Timing

The DACs are updated within 100 ns of the leading edge. Separate the

UPDATE* pulses with enough time that new data can be written to the DAC

latches.

The UI counter for the NI 6115/6120 normally generates UPDATE* unless

you select some external source. The UI counter is started by the WFTRIG

signal and can be stopped by software or the internal buffer counter (BC).

D/A conversions generated by either an internal or external UPDATE*

signal do not occur when gated by the software command register gate.

UISOURCE Signal

Any PFI pin can receive as an input the UISOURCE signal, which is not

available as an output on the I/O connector. The UI counter uses

UISOURCE as a clock to time the generation of the UPDATE* signal. You

must configure the PFI pin you select as the source for UISOURCE in the

level-detection mode. You can configure the polarity selection for the PFI

pin for either active high or active low. Figure 4-29 shows the timing

requirements for UISOURCE.

Rising-Edge

Polarity

Falling-Edge

Polarity

tw = 10 ns minimum

tw

tw

tw = 50 – 75 ns

Chapter 4 Connecting Signals

NI 6115/6120 User Manual 4-32 ni.com

Figure 4-29. UISOURCE Signal Timing

The maximum allowed frequency is 20 MHz, with a minimum pulse width

of 10 ns high or low. There is no minimum frequency limitation.

Either the 20 MHz or 100 kHz internal timebase normally generates

UISOURCE unless you select some external source.

General-Purpose Timing Signal Connections

The general-purpose timing signals are GPCTR0_SOURCE,

GPCTR0_GATE, GPCTR0_OUT, GPCTR0_UP_DOWN,

GPCTR1_SOURCE, GPCTR1_GATE, GPCTR1_OUT,

GPCTR1_UP_DOWN, and FREQ_OUT.

GPCTR0_SOURCE Signal

Any PFI pin can receive as an input the GPCTR0_SOURCE signal, which

is available as an output on the PFI8/GPCTR0_SOURCE pin.

As an input, GPCTR0_SOURCE is configured in the edge-detection mode.

You can select any PFI pin as the source for GPCTR0_SOURCE and

configure the polarity selection for either rising or falling edge.

As an output, GPCTR0_SOURCE reflects the actual clock connected to

general-purpose counter 0, even if another PFI is externally inputting the

source clock. This output is set to high-impedance at startup.

tp = 50 ns minimum

tw = 10 ns minimum

twtw

tp

Chapter 4 Connecting Signals

© National Instruments Corporation 4-33 NI 6115/6120 User Manual

Figure 4-30 shows the timing requirements for GPCTR0_SOURCE.

Figure 4-30. GPCTR0_SOURCE Signal Timing

The maximum allowed frequency is 20 MHz, with a minimum pulse width

of 10 ns high or low. There is no minimum frequency limitation.

The 20 MHz or 100 kHz timebase normally generates GPCTR0_SOURCE

unless you select some external source.

GPCTR0_GATE Signal

Any PFI pin can receive as an input the GPCTR0_GATE signal, which is

available as an output on the PFI9/GPCTR0_GATE pin.

As an input, GPCTR0_GATE is configured in the edge-detection mode.

You can select any PFI pin as the source for GPCTR0_GATE and configure

the polarity selection for either rising or falling edge. You can use the gate

signal in a variety of applications to perform actions such as starting and

stopping the counter, generating interrupts, and saving the counter contents.

As an output, GPCTR0_GATE reflects the actual gate signal connected to

general-purpose counter 0, even if another PFI is externally generating the

gate. This output is set to high-impedance at startup.

tp = 50 ns minimum

tw = 10 ns minimum

twtw

tp

Chapter 4 Connecting Signals

NI 6115/6120 User Manual 4-34 ni.com

Figure 4-31 shows the timing requirements for GPCTR0_GATE.

Figure 4-31. GPCTR0_GATE Signal Timing in Edge-Detection Mode

GPCTR0_OUT Signal

This signal is available as an output on the GPCTR0_OUT pin.

The GPCTR0_OUT signal reflects the terminal count (TC) of

general-purpose counter 0. You have two software-selectable output

options: pulse on TC and toggle output polarity on TC. The output polarity

is software-selectable for both options. This output is set to

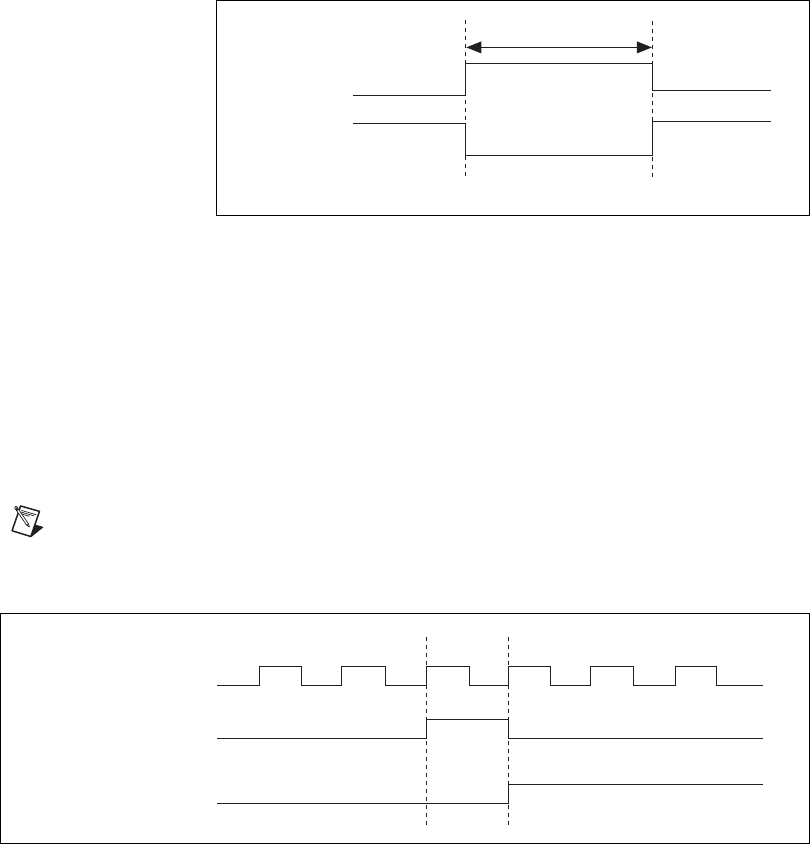

high-impedance at startup. Figure 4-32 shows the timing of

GPCTR0_OUT.

Note When using external clocking mode with correlated DIO, this pin is used as an input

for the external clock.

Figure 4-32. GPCTR0_OUT Signal Timing

Rising-Edge

Polarity

Falling-Edge

Polarity

tw = 10 ns minimum

tw

GPCTR0_SOURCE

GPCTR0_OUT

(Pulse on TC)

GPCTR0_OUT

(Toggle output on TC)

TC

Chapter 4 Connecting Signals

© National Instruments Corporation 4-35 NI 6115/6120 User Manual

GPCTR0_UP_DOWN Signal

This signal can be received as an input on the DIO6 pin and is not available

as an output on the I/O connector. The general-purpose counter 0 counts

down when this pin is at a logic low and count up when it is at a logic high.

You can disable this input so that software can control the up-down

functionality and leave the DIO6 pin free for general use.

GPCTR1_SOURCE Signal

Any PFI pin can receive as an input the GPCTR1_SOURCE signal, which

is available as an output on the PFI3/GPCTR1_SOURCE pin.

As an input, GPCTR1_SOURCE is configured in the edge-detection mode.

You can select any PFI pin as the source for GPCTR1_SOURCE and

configure the polarity selection for either rising or falling edge.

As an output, GPCTR1_SOURCE monitors the actual clock connected to

general-purpose counter 1, even if another PFI is externally generating the

source clock. This output is set to high-impedance at startup.

Figure 4-33 shows the timing requirements for GPCTR1_SOURCE.

Figure 4-33. GPCTR1_SOURCE Signal Timing

The maximum allowed frequency is 20 MHz, with a minimum pulse width

of 10 ns high or low. There is no minimum frequency limitation.

The 20 MHz or 100 kHz timebase normally generates GPCTR1_SOURCE

unless you select some external source.

tp = 50 ns minimum

tw = 10 ns minimum

twtw

tp

Chapter 4 Connecting Signals

NI 6115/6120 User Manual 4-36 ni.com

GPCTR1_GATE Signal

Any PFI pin can receive as an input the GPCTR1_GATE signal, which is

available as an output on the PFI4/GPCTR1_GATE pin.

As an input, GPCTR1_GATE is configured in edge-detection mode. You

can select any PFI pin as the source for GPCTR1_GATE and configure the

polarity selection for either rising or falling edge. You can use the gate

signal in a variety of applications to perform actions such as starting and

stopping the counter, generating interrupts, and saving the counter contents.

As an output, GPCTR1_GATE monitors the actual gate signal connected to

general-purpose counter 1, even if another PFI externally generates the

gate. This output is set to high-impedance at startup.

Figure 4-34 shows the timing requirements for the GPCTR1_GATE signal.

Figure 4-34. GPCTR1_GATE Signal Timing in Edge-Detection Mode

GPCTR1_OUT Signal

This signal is available only as an output on the GPCTR1_OUT pin.

The GPCTR1_OUT signal monitors the TC device general-purpose

counter 1. You have two software-selectable output options: pulse on TC

and toggle output polarity on TC. The output polarity is software-selectable

for both options. This output is set to high-impedance at startup.

Rising-Edge

Polarity

Falling-Edge

Polarity

tw = 10 ns minimum

tw

Chapter 4 Connecting Signals

© National Instruments Corporation 4-37 NI 6115/6120 User Manual

Figure 4-34 shows the timing requirements for GPCTR1_OUT.

Figure 4-35. GPCTR1_OUT Signal Timing

GPCTR1_UP_DOWN Signal

This signal can be received as an input on the DIO7 pin and is not available

as an output on the I/O connector. General-purpose counter 1 counts down

when this pin is at a logic low and counts up at a logic high. This input can

be disabled so that software can control the up-down functionality and

leave the DIO7 pin free for general use. Figure 4-36 shows the timing

requirements for the GATE and SOURCE input signals and the timing

specifications for the OUT output signals.

Figure 4-36. GPCTR Timing Summary

GPCTR1_SOURCE

GPCTR1_OUT

(Pulse on TC)

GPCTR1_OUT

(Toggle output on TC)

TC

tsc tsp tsp

tgsu tgh

tgw

tout

VIH

VIL

VIH

VIL

VOH

VOL

SOURCE

GATE

OUT

Source Clock Period

Source Pulse Width

Gate Setup Time

Gate Hold Time

Gate Pulse Width

Output Delay Time

50 ns minimum

23 ns minimum

10 ns minimum

0 ns minimum

10 ns minimum

80 ns maximum

tsc

tsp

tgsu

tgh

tgw

tout

Chapter 4 Connecting Signals

NI 6115/6120 User Manual 4-38 ni.com

The GATE and OUT signal transitions shown in Figure 4-36 are referenced

to the rising edge of the SOURCE signal. This timing diagram assumes that

the counters are programmed to count rising edges. The same timing

diagram, but with the source signal inverted and referenced to the falling

edge of the source signal, would apply when the counter is programmed to

count falling edges.

The GATE input timing parameters are referenced to the signal at the

SOURCE input or to one of the internally generated signals on the

NI 6115/6120. Figure 4-36 shows the GATE signal referenced to the rising

edge of a source signal. The gate must be valid (either high or low) for at

least 10 ns before the rising or falling edge of a source signal for the gate to

take effect at that source edge, as shown by tgsu and tgh in Figure 4-36. The

gate signal is not required to be held after the active edge of the source

signal.

If you use an internal timebase clock, the gate signal cannot be

synchronized with the clock. In this case, gates applied close to a source

edge take effect either on that source edge or on the next one. This

arrangement results in an uncertainty of one source clock period with

respect to unsynchronized gating sources.

The OUT output timing parameters are referenced to the signal at the

SOURCE input or to one of the internally generated clock signals on the

NI 6115/6120. Figure 4-36 shows the OUT signal referenced to the rising

edge of a source signal. Any OUT signal state changes occur within 80 ns

after the rising or falling edge of the source signal.

FREQ_OUT Signal

This signal is available only as an output on the FREQ_OUT pin. The

frequency generator for the NI 6115/6120 outputs the FREQ_OUT pin.

The frequency generator is a 4-bit counter that can divide its input clock by

the numbers 1 through 16. The input clock of the frequency generator is

software-selectable from the internal 10 MHz and 100 kHz timebases. The

output polarity is software-selectable. This output is set to high-impedance

at startup.

Chapter 4 Connecting Signals

© National Instruments Corporation 4-39 NI 6115/6120 User Manual

Field Wiring Considerations

Environmental noise can seriously affect the measurement accuracy of the

NI 6115/6120 if you do not take proper care when running signal wires

between signal sources and the device. The following recommendations

apply mainly to AI signal routing, although they also apply to signal

routing in general.

Minimize noise pickup and maximize measurement accuracy by taking the

following precautions:

• Use differential AI connections to reject common-mode noise.

• Use individually shielded, twisted-pair wires to connect AI signals to

the device. With this type of wire, the signals attached to the ACH+ and

ACH– inputs are twisted together and then covered with a shield. You

then connect this shield only at one point to the signal source ground.

This kind of connection is required for signals traveling through areas

with large magnetic fields or high electromagnetic interference.

• Route signals to the device carefully. Keep cabling away from noise

sources. The most common noise source in a PCI DAQ system is the

video monitor. Separate the monitor from the analog signals as far as

possible.

The following recommendations apply for all signal connections to the

NI 6115/6120:

• Separate the NI 6115/6120 signal lines from high-current or

high-voltage lines. These lines can induce currents in or voltages on

the NI 6115/6120 signal lines if they run in parallel paths at a close

distance. To reduce the magnetic coupling between lines, separate

them by a reasonable distance if they run in parallel, or run the lines at

right angles to each other.

• Do not run signal lines through conduits that also contain power lines.

• Protect signal lines from magnetic fields caused by electric motors,

welding equipment, breakers, or transformers by running them through

special metal conduits.

For more information, refer to the NI Developer Zone tutorial, Field Wiring

and Noise Consideration for Analog Signals, available at ni.com/zone.

© National Instruments Corporation 5-1 NI 6115/6120 User Manual

5

Calibration

This chapter discusses the calibration procedures for the NI 6115/6120.

NI-DAQ includes calibration functions for performing all of the steps in the

calibration process.

Calibration refers to the process of minimizing measurement and output

voltage errors by making small circuit adjustments. On the NI 6115/6120,

these adjustments take the form of writing values to onboard calibration

DACs (CalDACs).

Some form of device calibration is required for most applications. If you do

not calibrate the device, the signals and measurements could have very

large offset, gain, and linearity errors.

Three levels of calibration are available to you and are described in this

chapter. The first level is the fastest, easiest, and least accurate; whereas, the

last level is the slowest, most difficult, and most accurate.

Loading Stored Calibration Constants

The NI 6115/6120 is factory calibrated before shipment at approximately

25 °C to the levels indicated in Appendix A, Specifications. The associated

calibration constants—the values that were written to the CalDACs to

achieve calibration in the factory—are stored in the onboard nonvolatile

memory (EEPROM). Because the CalDACs have no memory capability,

they do not retain calibration information when the device is unpowered.

Loading calibration constants refers to the process of loading the CalDACs

with the values stored in the EEPROM. NI-DAQ determines when this is

necessary and does it automatically.

In the EEPROM, there is a user-modifiable calibration area in addition to

the permanent factory calibration area. Hence, you can load the CalDACs

with values either from the original factory calibration or from a calibration

that you subsequently performed.

Chapter 5 Calibration

NI 6115/6120 User Manual 5-2 ni.com

This method of calibration is not very accurate because it does not take into

account the fact that the device measurement and output voltage errors can

vary with time and temperature. It is better to self-calibrate when the device

is installed in the environment in which it is used.

Self-Calibration

The NI 6115/6120 can measure and correct for almost all of its

calibration-related errors without any external signal connections. NI-DAQ

software provides a self-calibration method. This self-calibration process,

which generally takes two to five minutes, is the preferred method of

assuring accuracy in your application. Initiate self-calibration to minimize

the effects of any offset and gain drifts, particularly those caused by

warming.

Immediately after self-calibration, the only significant residual calibration

error could be gain error due to time or temperature drift of the onboard

voltage reference. This error is addressed by external calibration, which is

discussed in the following section. If you are interested primarily in relative

measurements, you can ignore a small amount of gain error, and

self-calibration should be sufficient.

External Calibration

The NI 6115/6120 has an onboard calibration reference to ensure the

accuracy of self-calibration. Its specifications are listed in Appendix A,

Specifications. The reference voltage is measured at the factory and stored

in the EEPROM for subsequent self-calibrations. This voltage is stable

enough for most applications, but if you are using the device at an extreme

temperature or if the onboard reference has not been measured for a year or

more, you may wish to externally calibrate the device.

An external calibration refers to calibrating the device with a known

external reference rather than relying on the onboard reference.

Redetermining the value of the onboard reference is part of this process and

the results can be saved in the EEPROM, so you should not have to perform

an external calibration very often. You can externally calibrate the device

by calling the NI-DAQ calibration function.

Chapter 5 Calibration

© National Instruments Corporation 5-3 NI 6115/6120 User Manual

To externally calibrate your device, be sure to use a very accurate external

reference. The reference should be several times more accurate than the

device itself.

For a detailed calibration procedure for the NI 6115/6120, click Manual

Calibration Procedures at ni.com/calibration.

© National Instruments Corporation A-1 NI 6115/6120 User Manual

A

Specifications

This appendix lists the specifications of the NI 6115/6120. These

specifications are typical at 25 °C unless otherwise noted.

Analog Input

Input Characteristics

Number of channels ............................... 4 pseudodifferential

Type of ADC

Resolution

NI 6115 .................................... 12 bits, 1 in 4,096

NI 6120 .................................... 16 bits, 1 in 65,536

Pipeline

NI 6115 .................................... 4

NI 6120 .................................... 0

Sampling rate

Maximum

NI 6115 .................................... 10 million S/s

NI 6120 .................................... 800 kS/s

Minimum

NI 6115 .................................... 20 kS/s

NI 6120 .................................... No minimum

Input impedance

ACH+ to ACH–

Range ≤ ±10 V......................... 1 MΩ in parallel with 100 pF

Range > ±10 V......................... 10 kΩ in parallel with 40 pF

ACH– to ACHGND

NI 6115 .................................... 10 nF

NI 6120 .................................... 100 GΩ

Appendix A Specifications

NI 6115/6120 User Manual A-2 ni.com

ACH+ to ACHGND

NI 6115.....................................100 GΩ

NI 6120.....................................100 GΩ

Input bias current ....................................±300 pA

Input offset current .................................±200 pA

Input coupling.........................................DC/AC

Max working voltage for all analog input channels

Positive input (ACH+).....................±11 V for ranges < ±10 V;

±42 V for ranges ≥ ±10 V

Negative input (ACH–) ...................±2.5 V

Overvoltage protection ...........................±42 V

Input current during

overvoltage conditions............................±20 mA max

Input FIFO size....................................... 16 or 32 MS

Data transfers..........................................DMA, interrupts,

programmed I/O

DMA modes ...........................................Scatter-gather

DC Transfer Characteristics

INL

NI 6115............................................±0.35 LSB typ, ±1 LSB max

NI 6120............................................2.5 LSB max

DNL

NI 6115............................................±0.25 LSB typ, ±1 LSB max

NI 6120............................................0.75 LSB typ, no missing codes

Offset, gain error

NI 6115............................................Refer to Table A-1

NI 6120............................................Refer to Table A-2

Appendix A Specifications

© National Instruments Corporation A-3 NI 6115/6120 User Manual

Table A-1. NI 6115 Analog Input DC Accuracy Information

Nominal

Range

(V)

Absolute Accuracy Relative Accuracy

% of Reading

Offset

(mV)

Noise +

Quantization (mV) Temp

Drift

(%/°C)

Absolute

Accuracy at

Full Scale

(±mV)

Resolution (mV)

Full

Scale 24 Hours 1 Year

Single

Pt. Averaged

Single

Pt. Averaged

±50 0.346 0.348 33 42 3.6 0.0229 211.0 48 4.8

±20 0.271 0.273 13 17 1.4 0.0229 69.4 19 1.9

±10 0.026 0.028 6.7 8.3 0.72 0.0004 10.22 10 1.0

±5 0.016 0.018 3.4 4.2 0.36 0.0004 4.61 4.8 0.48

±2 0.036 0.038 1.3 1.8 0.16 0.0004 2.26 2.1 0.21

±1 0.043 0.045 0.68 1.1 0.09 0.0004 1.23 1.2 0.12

±0.5 0.058 0.060 0.35 0.69 0.061 0.0004 0.71 0.80 0.080

±0.2 0.103 0.105 0.15 0.43 0.039 0.0004 0.39 0.51 0.051

Table A-2. NI 6120 Analog Input DC Accuracy Information

Nominal

Range

(V)

Absolute Accuracy Relative Accuracy

% of Reading

Offset

(µV)

Noise +

Quantization (µV)

Temp

Drift

(%/°C)

Absolute

Accuracy

at Full

Scale

(±mV)

Resolution (µV)

Full

Scale

24

Hours 1 Year

Single

Pt. Av e ra g ed

Single

Pt. Averaged

±50 0.190 0.191 6274.4 5621.9 503.5 0.0106 101.5 6629.9 663.0

±20 0.152 0.156 2511.3 2248.7 201.4 0.0106 33.0 2652.0 265.2

±10 0.039 0.041 1257.0 1124.4 100.7 0.0006 5.28 1326.0 132.6

±5 0.040 0.041 630 562.2 50.4 0.0006 2.66 663.0 66.3

±2 0.040 0.042 253 224.9 20.1 0.0006 1.07 265.2 26.5

±1 0.041 0.043 128 150.0 13.7 0.0006 0.55 180.8 18.1

±0.5 0.045 0.046 66.0 144.3 13.7 0.0006 0.30 180.8 18.1

±0.2 0.050 0.052 29.1 112.8 11.0 0.0006 0.14 144.7 14.5

Appendix A Specifications

NI 6115/6120 User Manual A-4 ni.com

Dynamic Characteristics

Interchannel skew ...................................1 ns typ

Analog filters

Number

NI 6115.....................................2

NI 6120.....................................1

Type

NI 6115.....................................3-pole Bessel

NI 6120.....................................5-pole Bessel

Frequency

NI 6115.....................................50 and 500 kHz

(software-enabled)

NI 6120.....................................100 kHz

(software-enabled)

Crosstalk .................................................–80 dB, DC to 100 kHz

Table A-3. NI 6115 Analog Input Dynamic Characteristics

Input Range

Bandwidth

(MHz)1

SFDR Typ

(dB)2

SFDR Max

(dB)

CMRR

(dB)3

System Noise

(LSBrms)4

±50 V 5.5 78 70 34 0.35

±20 V 4.4 78 70 40 0.45

±10 V 7.2 81 75 46 0.35

±5 V 4.8 81 75 52 0.35

±2 V 4.8 85 75 60 0.45

±1 V 4.4 85 75 66 0.60

±500 mV 4.4 85 75 70 0.80

±200 mV 4.1 81 70 72 1.3

1 –3 dB frequency for input amplitude at 96% of the input range (–0.3 dB)

2 Measured at 100 kHz with twelfth-order bandpass filter after signal source

3 DC to 60 Hz

4 LSBrms, including quantization

Appendix A Specifications

© National Instruments Corporation A-5 NI 6115/6120 User Manual

Table A-4. NI 6120 Analog Input Dynamic Characteristics

Input Range

Bandwidth

(MHz)1

SFDR Typ

(dB)2

SFDR Max

(dB)3

CMRR

(dB)4

System Noise

(LSBrms)5

±50 V 1.0 95 90 60 1.2

±20 V 1.0 96 90 68 1.2

±10 V 1.0 95 90 76 1.2

±5 V 1.0 95 90 82 1.5

±2 V 1.0 96 90 90 1.7

±1 V 1.0 94 90 95 2.0

±500 mV 1.0 90 85 100 2.2

±200 mV 1.0 85 80 105 2.8

1 –3 dB frequency for input amplitude at 10% of the input range (–20 dB)

2 Measured at 100 kHz with twelfth-order bandpass filter after signal source

3 100% production tested at 100 kHz

4 DC to 60 Hz

5 LSBrms, not including quantization

Appendix A Specifications

NI 6115/6120 User Manual A-6 ni.com

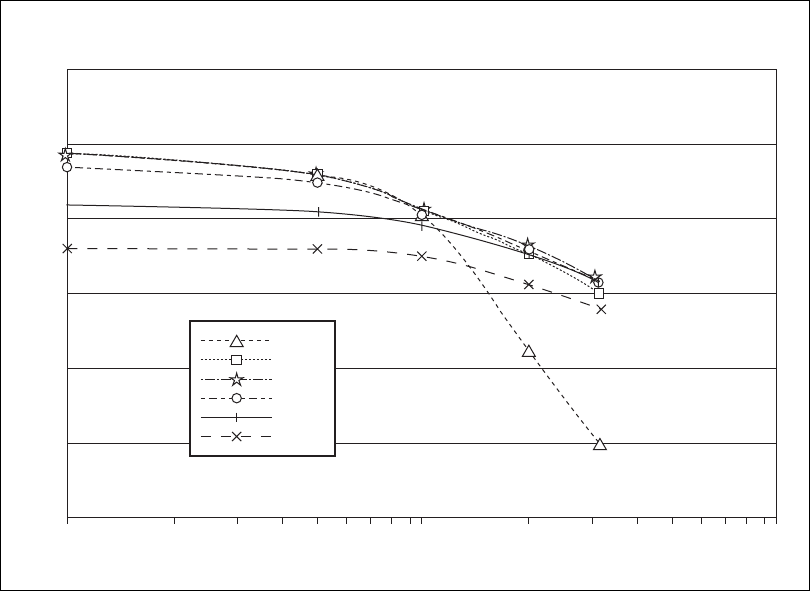

Figure A-1. NI 6115 Total Harmonic Distortion Plus Noise (THD + N)

0.1

38

44

50

56

62

68

74

1.0 10.0

THD+N (–dBc)

Frequency (MHz)

±10 V

±5 V

±2 V

±1 V

±0.5 V

±0.2 V

Full-Scale (–0.3 dB) Input Amplitude

Appendix A Specifications

© National Instruments Corporation A-7 NI 6115/6120 User Manual

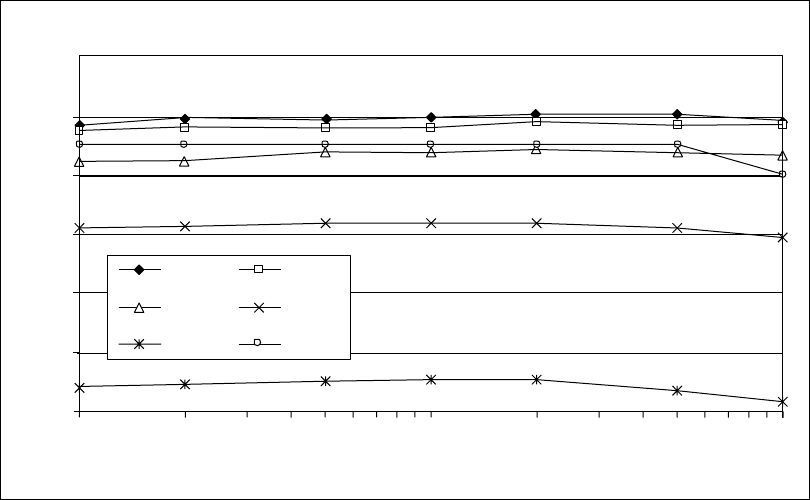

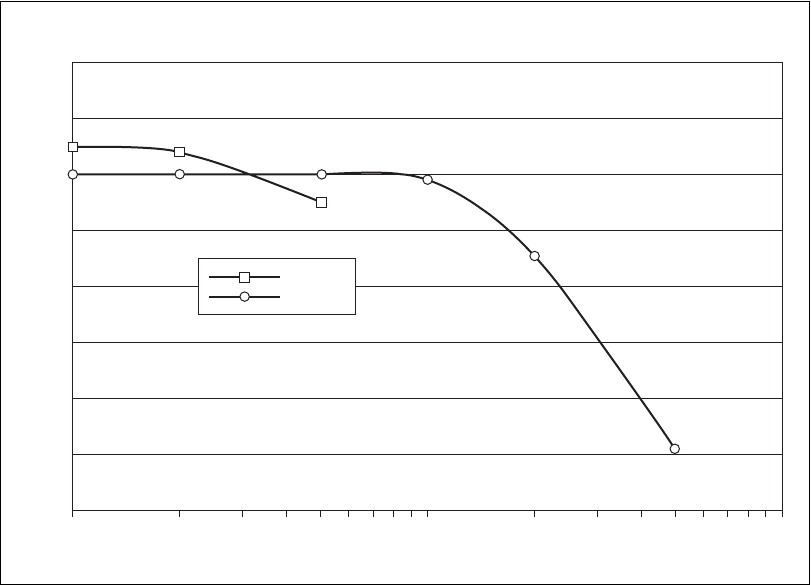

Figure A-2. NI 6120 Total Harmonic Distortion Plus Noise (THD + N)

Full-Scale (–0.3 dB) Input Amplitude

Frequency (kHz)

75

77

79

81

83

85

± 5 V ± 2 V

± 1 V ± 0.5 V

± 0.2 V ± 10 V

THD+N (–dBc)

1 10 100

Appendix A Specifications

NI 6115/6120 User Manual A-8 ni.com

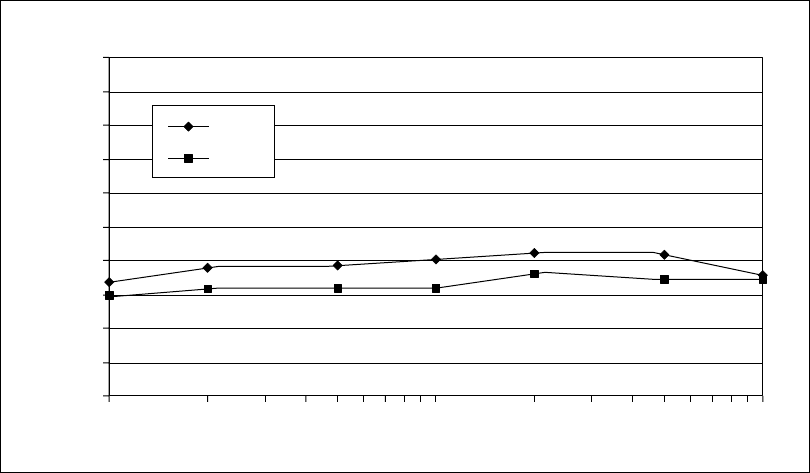

Figure A-3. NI 6115 High-Voltage THD + N

0.1

38

44

50

56

62

68

74

1.0 10.0

THD+N (–dBc)

Frequency (MHz)

High-Voltage Ranges, only ±10 V Input Amplitude

±50 V

±20 V

Appendix A Specifications

© National Instruments Corporation A-9 NI 6115/6120 User Manual

Figure A-4. NI 6120 High-Voltage THD + N

High-Voltage Ranges, only ±10 V Input Amplitude

80.0

80.5

81.0

81.5

82.0

82.5

83.0

83.5

84.0

84.5

85.0

1 10 100

Frequency (kHz)

THD+N (–dBc)

± 50 V

± 20 V

Appendix A Specifications

NI 6115/6120 User Manual A-10 ni.com

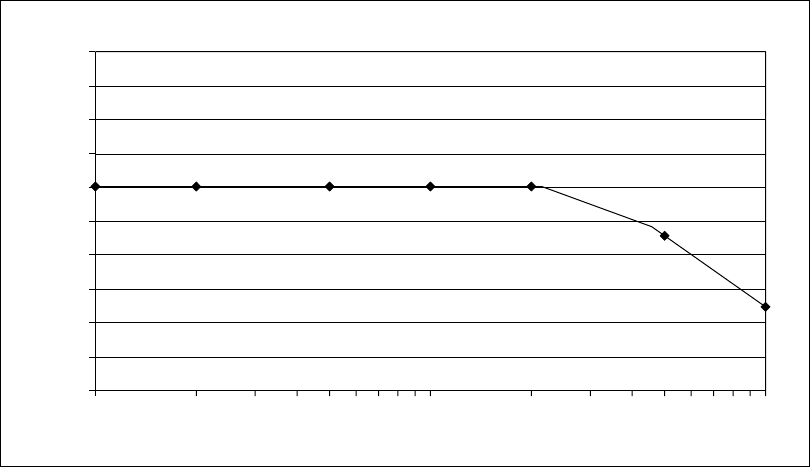

Figure A-5. NI 6115 THD + N with Filters

10

62

63.2

65.6

66.8

68

70.4

71.6

100 1000

THD+N (–dBc)

Frequency (kHz)

With Filters, Full-Scale Input for Range of ±1 V

69.2

64.4

50 kHz

500 kHz

Appendix A Specifications

© National Instruments Corporation A-11 NI 6115/6120 User Manual

Figure A-6. NI 6120 THD + N with Filters

Stability

Recommended warm-up time ................ 15 min

Offset temperature coefficient

Pregain

NI 6115 .................................... ±12 µV/°C

NI 6120 .................................... ±1.5 µV/°C

Postgain

NI 6115 .................................... ±64 µV/°C

NI 6120 .................................... ±2.1 LSB/°C

Gain temperature coefficient

NI 6115 ........................................... ±21.3 ppm/°C

NI 6120 ........................................... ±22.2 ppm/°C

With Filters, Full-Scale Input for Range of ±1 V

75

76

77

78

79

80

81

82

83

84

85

1 10 100

Frequency (kHz)

THD+N (–dBc)

Appendix A Specifications

NI 6115/6120 User Manual A-12 ni.com

Onboard calibration reference

Level................................................5.000 V (±2.5 mV)

(actual value stored in EEPROM)

Temperature coefficient...................±4.1 ppm/°C max

Long-term stability ..........................

Analog Output

Output Characteristics

Number of channels................................2 voltage

Resolution

NI 6115............................................12 bits, 1 in 4,096

NI 6120............................................16 bits, 1 in 65,536

Max update rate

1 channel..........................................4 MS/s, system dependent

2 channel..........................................2.5 MS/s, system dependent

Output buffer size ...................................16 or 32 MS

Data transfers..........................................DMA, interrupts,

programmed I/O

DMA modes ...........................................Scatter-gather

DC Transfer Characteristics

INL

NI 6115............................................±0.5 LSB typ, ±2 LSB max

NI 6120............................................±0.35 LSB typ, ±1 LSB max

DNL

NI 6115............................................±0.25 LSB typ, ±1 LSB max

NI 6120............................................±0.2 LSB typ, ±1 LSB max

Offset, gain error

NI 6115............................................Refer to Table A-5

NI 6120............................................Refer to Table A-6

6 ppm/ 1,000 h±

Appendix A Specifications

© National Instruments Corporation A-13 NI 6115/6120 User Manual

Voltage Output

Ranges.................................................... ±10 V

Output coupling...................................... DC

Output impedance .................................. 50 Ω ±5%

Current drive .......................................... ±5 mA

Output stability....................................... Any passive load

Protection .............................................. Short-circuit to ground

Power-on output voltage

(before software loads calibration values)

NI 6115 ........................................... ±400 mV

NI 6120 ........................................... ±80 mV

Initial power-up glitch

Magnitude ....................................... ±2 V

Duration .......................................... 200 ms

Table A-5. NI 6115 Analog Output DC Accuracy Information

Nominal

Range at

Full Scale

(V)

Absolute Accuracy Relative Accuracy

% of Reading

Offset

(mV)

Temp

Drift

(%/°C)

Absolute

Acc. at Full

Scale (mV)

Theoretical Resolution

(mV)

24 Hrs 90 Days 1 Year

±10 0.0437 0.0445 0.0454 8.9 0.0006 13.5 4.88

Table A-6. NI 6120 Analog Output DC Accuracy Information

Nominal

Range at

Full Scale

(V)

Absolute Accuracy Relative Accuracy

% of Reading

Offset

(mV)

Temp

Drift

(%/°C)

Absolute

Acc. at Full

Scale (mV)

Theoretical Resolution

(µV)

24 Hrs 90 Days 1 Year

±10 0.0460 0.0468 0.0477 1.9 0.0006 6.7 305.2

Appendix A Specifications

NI 6115/6120 User Manual A-14 ni.com

Dynamic Characteristics

Slew rate

NI 6115............................................300 V/µs

NI 6120............................................15 V/µs

Noise

NI 6115............................................600 µVrms, DC to 5 MHz

NI 6120............................................100 µVrms, DC to 1 MHz

Glitch energy at midscale transition

NI 6115............................................±30 mV for 1 µs

NI 6120............................................±10 mV for 1 µs

Settling time

NI 6115............................................300 ns to 0.01%

NI 6120............................................4 µs to ±1 LSB

Stability

Offset temperature coefficient

NI 6115............................................±35 µV/°C

NI 6120............................................±35 µV/°C

Gain temperature coefficient

NI 6115............................................±56.9 ppm/°C

NI 6120............................................±6.5 ppm/°C

Onboard calibration reference

Level................................................5.000 V (±2.5 mV)

(actual value stored in EEPROM)

Temperature coefficient...................±0.9 ppm/°C max

Long-term stability .......................... 6 ppm/ 1,000 h±

Appendix A Specifications

© National Instruments Corporation A-15 NI 6115/6120 User Manual

Digital I/O

Number of channels ............................... 8 input/output

Compatibility ......................................... TTL/CMOS

Power-on state........................................ Input (high-impedance)

Data transfers ......................................... DMA, interrupts,

programmed I/O

Input buffer ............................................ 2,000 bytes

Output buffer.......................................... 2,000 bytes

Transfer rate (1 word = 8 bits) ............... 10 Mwords/s

Timing I/O

Number of channels ............................... 2 up/down counter/timers,

1 frequency scaler

Resolution

Counter/timers ................................ 24 bits

Frequency scaler ............................. 4 bits

Compatibility ......................................... TTL/CMOS

Base clocks available

Counter/timers ................................ 20 MHz, 100 kHz

Frequency scaler ............................. 10 MHz, 100 kHz

Table A-7. Digital logic levels

Level Min Max

Input low voltage

Input high voltage

Input low current (Vin = 0 V)

Input high current (Vin = 5 V)

0.0 V

2.0 V

—

—

0.8 V

5.0 V

–320 µA

10 µA

Output low voltage (IOL = 24 mA)

Output high voltage (IOH = 13 mA)

—

4.35 V

0.4 V

—

Appendix A Specifications

NI 6115/6120 User Manual A-16 ni.com

Base clock accuracy................................±0.01%

Max source frequency.............................20 MHz

Min source pulse duration .....................10 ns, edge-detect mode

Min gate pulse duration .........................10 ns, edge-detect mode

Data transfers..........................................DMA, interrupts,

programmed I/O

DMA modes ...........................................Scatter-gather

Triggers

Analog Trigger

NI 6115/6120 source ..............................All analog input channels,

external trigger (PFI0/TRIG1)

Level .......................................................± full-scale, internal;

±10 V, external

Slope .......................................................Positive or negative

(software selectable)

Resolution

NI 6115............................................8 bits, 1 in 256

NI 6120............................................12 bits, 1 in 4,096

Hysteresis................................................Programmable

Bandwidth ..............................................(–3 dB) 5 MHz internal/external

External input (PFI0/TRIG1)

Impedance........................................10 kΩ

Coupling ..........................................AC/DC

Protection.........................................–0.5 V to (VCC + 0.5) V when

configured as a digital signal,

±35 V when configured as an

analog trigger signal or disabled,

±35 V powered off

Appendix A Specifications

© National Instruments Corporation A-17 NI 6115/6120 User Manual

Digital Trigger

Compatibility ......................................... TTL

Response ................................................ Rising or falling edge

Pulse width............................................. 10 ns min

RTSI

Trigger lines ........................................... 71

Bus Interface

Type ....................................................... Master, slave

Power Requirement

+5 VDC (±5%)

NI 6115 ........................................... 2.2 A

NI 6120 ........................................... 3.0 A

+3.3 V..................................................... 0.8 A

Power available at I/O connector ........... +4.65 to +5.25 VDC at 1 A

Physical

Dimensions (not including connectors)

NI PCI-6115/6120........................... 31.2 by 10.6 cm

(12.3 by 4.2 in.)

NI PXI-6115/6120 .......................... 16 by 10 cm

(6.3 by 3.9 in.)

I/O connector.......................................... 68-pin male SCSI-II type

Environmental

Operating temperature............................ 0 to 50 °C

Storage temperature ............................... –20 to 70 °C

Relative humidity................................... 10 to 90% noncondensing

1 RTSI Trigger<6> is configured as the PXI Star Trigger for the NI PXI-6115/6120. Refer to the RTSI Triggers section of

Chapter 3, Hardware Overview, for more information.

Appendix A Specifications

NI 6115/6120 User Manual A-18 ni.com

Maximum altitude...................................2,000 meters

Pollution Degree (indoor use only) ........2

Safety

The NI 6115/6120 was evaluated using the criteria of EN 61010-1 a-2:1995

and meets the requirements of the following standards for safety and

electrical equipment for measurement, control and laboratory use:

• EN 61010-1:1993/A2:1995, IEC 61010-1:1990/A2:1995

• UL 3101-1:1993, UL 3111-1:1994, UL 3121:1998

• CAN/CSA c22.2 no. 1010.1:1992/A2:1997

Maximum Working Voltage

Maximum working voltage refers to the signal voltage plus the

common-mode voltage.

Channel-to-earth .....................................42 V, Installation Category I

Channel-to-channel.................................42 V, Installation Category I

Electromagnetic Compatibility

EMC/EMI ...............................................CE, C-Tick, and FCC Part 15

(Class A) Compliant

Electrical emissions ................................EN 55011 Class A at 10 m

FCC Part 15A above 1 GHz

Electrical immunity ................................Evaluated to EN 61326:1998,

Table 1

Note For full EMC and EMI compliance, you must operate this device with shielded

cabling. In addition, all covers and filler panels must be installed. See the Declaration of

Conformity (DoC) for this product for any additional regulatory compliance information.

To obtain the DoC for this product, click Declaration of Conformity at

ni.com/hardref.nsf/. This Web site lists the DoCs by product family. Select the

appropriate product family, followed by the product, and a link to the DoC (in Adobe

Acrobat format) appears. Click the Acrobat icon to download or read the DoC.

© National Instruments Corporation B-1 NI 6115/6120 User Manual

B

Common Questions

This appendix contains a list of commonly asked questions and their

answers relating to usage and special features of the NI 6115/6120.

General Information

What is the NI 6115/6120?

The NI 6115/6120 is a switchless and jumperless enhanced MIO device

that uses the DAQ-STC for timing.

What is the DAQ-STC?

The DAQ-STC is the system timing control application-specific integrated

circuit (ASIC) designed by NI and is the backbone of the NI 6115/6120

device. The DAQ-STC contains seven 24-bit counters and three 16-bit

counters. The counters are divided into the following three groups:

• AI—two 24-bit, two 16-bit counters

• AO—three 24-bit, one 16-bit counters

• General-purpose counter/timer functions—two 24-bit counters

The groups can be configured independently with timing resolutions of

50 ns or 10 µs. With the DAQ-STC, you can interconnect a wide variety of

internal timing signals to other internal blocks. The interconnection scheme

is quite flexible and completely software configurable. New capabilities

such as buffered pulse generation and equivalent time sampling are

possible.

What does the maximum sampling rate mean to me?

Maximum sampling rate is the fastest you can acquire data on the device

and still achieve accurate results. The NI 6115 device has a maximum

sampling rate of 10 MS/s. This sampling rate is at 10 MS/s regardless if

1 or 4 channels are acquiring data. The NI 6120 has a maximum sampling

rate of 800 kS/s.

Appendix B Common Questions

NI 6115/6120 User Manual B-2 ni.com

What type of 5 V protection does the NI 6115/6120 have?

The NI 6115/6120 has 5 V lines equipped with a self-resetting 1 A fuse.

How do I use the NI 6115/6120 with the NI-DAQ C API?

The NI-DAQ User Manual for PC Compatibles describes the general

programming flow when using the NI-DAQ C API as well as contains

example code. For a list of functions that support the NI 6115/6120, you

can refer to the NI-DAQ Function Reference Help. You can access this help

file by clicking Start»Programs»National Instruments»NI-DAQ»

NI-DAQ Help.

Installing and Configuring the Device

How do you set the base address for the NI 6115/6120?

The base address of the NI 6115/6120 is assigned automatically through the

PCI bus protocol. This assignment is completely transparent to you.

What jumpers should I be aware of when configuring the

NI 6115/6120?

The NI 6115/6120 is jumperless and switchless.

Which NI document should I read first to get started using DAQ

software?

The DAQ Quick Start Guide and the NI-DAQ or application software

release notes documentation are good places to start.

What is the best way to test the NI 6115/6120 without programming the

device?

Measurement and Automation Explorer (MAX) has a Test Panel option

that is available by selecting Devices and Interfaces and then selecting the

device. The test panels are excellent tools for performing simple functional

tests of the device, such as AI, DIO and counter/timer tests.

Appendix B Common Questions

© National Instruments Corporation B-3 NI 6115/6120 User Manual

Analog Input and Output

Why is there a minimum sampling rate on the NI 6115?

The NI 6115 makes use of a pipelined ADC in order to achieve high

sampling rates. Sampling at rates below 20 kS/s can result in improper

digitization, which appear as noise in the acquired data.

How do I enable the programmable antialiasing filter on the

NI 6115/6120?

In LabVIEW, select Data Acquisition»Analog Input»Advanced Analog

Input»AI Parameter.vi from the function palette to set the filter values of

50 kHz and 500 kHz for the NI 6115, or to enable the 100 kHz filter for the

NI 6120, on a per channel basis. To disable the filter, set the filter value to 0.

Figure B-1. Setting Filter Values in LabVIEW

In NI-DAQ, use the AI_Change_Parameter function to set the filter

value. Set paramID to ND_Digital_Filter. Set ParamValue to

ND_High for a filter value of 500 kHz on the NI 6115 or 100 kHz on the

NI 6120. Use ND_Low for a filter value of 50 kHz on the NI 6115. Use

ND_None to disable the filter. The filter is disabled by default.

I have connected a differential input signal, but my readings are

random and drift rapidly. What is wrong?

Check your ground-reference connections. The signal may be referenced

to a level that is considered floating with reference to the device ground

reference. Even if you are in differential mode, the signal must still be

referenced to the same ground level as the device reference. There are

various methods of achieving this reference while maintaining a high

common-mode rejection ratio (CMRR). These methods are outlined in

Chapter 4, Connecting Signals.

Appendix B Common Questions

NI 6115/6120 User Manual B-4 ni.com

I’m using the DACs to generate a waveform, but I discovered with a

digital oscilloscope that there are glitches on the output signal. Is this

normal?

When the DAC switches from one voltage to another, any DAC produces

glitches due to released charges. The largest glitches occur when the most

significant bit (MSB) of the D/A code switches. You can build a lowpass

deglitching filter to remove some of these glitches, depending on the

frequency and nature of your output signal.

Can I synchronize a one-channel AI data acquisition with a

one-channel AO waveform generation on the NI 6115/6120?

Yes. One way to accomplish synchronization is to use the waveform

generation timing pulses to control the AI data acquisition. To do this,

follow steps 1 through 4 below, in addition to the usual steps for data

acquisition and waveform generation configuration.

1. Enable the PFI5 line for output, as follows:

• If you are using NI-DAQ, call

Select_Signal(deviceNumber, ND_PFI_5,

ND_OUT_UPDATE, ND_HIGH_TO_LOW).

• If you are using LabVIEW, select Data Acquisition»Calibration

and Configuration»Route Signal.vi from the function palette

and set signal name to PFI5 and signal source to AO Update.

2. Set up data acquisition timing so that the timing signal for A/D

conversion comes from PFI5, as follows:

• If you are using NI-DAQ, call

Select_Signal(deviceNumber, ND_IN_SCAN_START,

ND_PFI_7, ND_HIGH_TO_LOW).

• If you are using LabVIEW, select Data Acquisition»Analog

Input»Advanced Analog Input»AI Clock Config.vi with clock

source code set to PFI pin, high to low, and clock source

string set to 5.

3. Initiate AI data acquisition, which starts only when the AO waveform

generation starts.

4. Initiate AO waveform generation.

Appendix B Common Questions

© National Instruments Corporation B-5 NI 6115/6120 User Manual

Timing and Digital I/O

What types of triggering can be hardware-implemented on the

NI 6115/6120?

Hardware digital and analog triggering are both supported on the

NI 6115/6120.

If I’m using one of the general-purpose counter/timers on the

NI 6115/6120, but I do not see the counter/timer output on the I/O

connector, what am I doing wrong?

If you are using NI-DAQ or LabWindows/CVI, you must configure the

output line to output the signal to the I/O connector. Use the

Select_Signal call in NI-DAQ to configure the output line. By default,

all timing I/O lines except EXTSTROBE* are high-impedance.

What are the PFIs and how do I configure these lines?

PFIs are Programmable Function Inputs. These lines serve as connections

to virtually all internal timing signals.

If you are using NI-DAQ or LabWindows/CVI, use the Select_Signal

function to route internal signals to the I/O connector, route external signals

to internal timing sources, or tie internal timing signals together.

If you are using NI-DAQ with LabVIEW and you want to connect external

signal sources to the PFI lines, you can use AI Clock Config, AI Trigger

Config, AO Clock Config, AO Trigger and Gate Config, and Counter Set

Attribute advanced-level VIs to indicate which function the connected

signal serves. Use the Route Signal VI to enable the PFI lines to output

internal signals.

Table B-1. Signal Name Equivalencies

Hardware

Signal Name

LabVIEW

Route Signal NI-DAQ Select_Signal

TRIG1 AI Start Trigger ND_IN_START_TRIGGER

TRIG2 AI Stop Trigger ND_IN_STOP_TRIGGER

STARTSCAN AI Scan Start ND_IN_SCAN_START

SISOURCE —ND_IN_SCAN_CLOCK_TIMEBASE

CONVERT* AI Convert ND_IN_CONVERT

Appendix B Common Questions

NI 6115/6120 User Manual B-6 ni.com

Caution If you enable a PFI line for output, do not connect any external signal source to it;

if you do, you can damage the device, the computer, and the connected equipment.

What are the power-on states of the PFI and DIO lines on the

I/O connector?

At system power-on and reset, both the PFI and DIO lines are set to

high-impedance by the hardware. Hence, the device circuitry is not actively

driving the output either high or low. However, these lines may have pull-up

or pull-down resistors connected to them as shown in Table 4-5, Digital I/O

Signal Summary. These resistors weakly pull the output to either a

logic-high or logic-low state. For example, DIO(0) is in the

high-impedance state after power on, and Table 4-5 shows that there is a

50 kΩ pull-up resistor. This pull-up resistor sets the DIO(0) pin to a logic

high when the output is in a high-impedance state.

AIGATE —ND_IN_EXTERNAL_GATE

WFTRIG AO Start Trigger ND_OUT_START_TRIGGER

UPDATE* AO Update ND_OUT_UPDATE

UISOURCE —ND_OUT_UPDATE_CLOCK_TIMEBASE

AOGATE —ND_OUT_EXTERNAL_GATE

Table B-1. Signal Name Equivalencies (Continued)

Hardware

Signal Name

LabVIEW

Route Signal NI-DAQ Select_Signal

© National Instruments Corporation C-1 NI 6115/6120 User Manual

C

Technical Support and

Professional Services

Visit the following sections of the NI Web site at ni.com for technical

support and professional services:

•Support—Online technical support resources include the following:

–Self-Help Resources—For immediate answers and solutions,

visit our extensive library of technical support resources available

in English, Japanese, and Spanish at ni.com/support. These

resources are available for most products at no cost to registered

users and include software drivers and updates, a KnowledgeBase,

product manuals, step-by-step troubleshooting wizards, hardware

schematics and conformity documentation, example code,

tutorials and application notes, instrument drivers, discussion

forums, a measurement glossary, and so on.

–Assisted Support Options—Contact NI engineers and other

measurement and automation professionals by visiting

ni.com/ask. Our online system helps you define your question

and connects you to the experts by phone, discussion forum,

or email.

•Training—Visit ni.com/custed for self-paced tutorials, videos, and

interactive CDs. You also can register for instructor-led, hands-on

courses at locations around the world.

•System Integration—If you have time constraints, limited in-house

technical resources, or other project challenges, NI Alliance Program

members can help. To learn more, call your local NI office or visit

ni.com/alliance.

If you searched ni.com and could not find the answers you need, contact

your local office or NI corporate headquarters. Phone numbers for our

worldwide offices are listed at the front of this manual. You also can visit

the Worldwide Offices section of ni.com/niglobal to access the branch

office Web sites, which provide up-to-date contact information, support

phone numbers, email addresses, and current events.

© National Instruments Corporation G-1 NI 6115/6120 User Manual

Glossary

Prefix Meaning Value

p- pico- 10–12

n- nano- 10–9

µ-micro-10

–6

m- milli- 10–3

k- kilo- 103

M- mega- 106

Numbers/Symbols

°degree

> greater than

≥greater than or equal to

< less than

≤less than or equal to

/per

% percent

±plus or minus

+ positive of, or plus

– negative of, or minus

Ωohm

square root of

+5 V +5 VDC source signal

Glossary

NI 6115/6120 User Manual G-2 ni.com

A

A amperes

A/D analog-to-digital

AC alternating current

ACH analog input channel signal

ACH0GND analog input channel ground signal

ADC analog-to-digital converter—an electronic device, often an integrated

circuit, that converts an analog voltage to a digital number

ADE application development environment such as LabVIEW,

LabWindows/CVI, Measurement Studio, Visual Basic, C, and C++

AI analog input

AIGATE analog input gate signal

aliasing the consequence of sampling that causes signals with frequencies higher

than half the sampling frequency to appear as lower frequency

components in a frequency spectrum

ANSI American National Standards Institute

AO analog output

AOGND analog output ground signal

ASIC application-specific integrated circuit—a proprietary semiconductor

component designed and manufactured to perform a set of specific

functions

B

Bessel filter a filter with a maximally flat response in both magnitude and phase. The

phase response in the passband, which is usually the region of interest, is

nearly linear. Bessel filters reduce nonlinear phase distortion inherent in

all IIR filters.

bipolar a signal range that includes both positive and negative values

Glossary

© National Instruments Corporation G-3 NI 6115/6120 User Manual

C

CCelsius

CalDAC calibration DAC

cm centimeter

CMOS complementary metal-oxide semiconductor

CMRR common-mode rejection ratio—a measure of an instrument to reject

interference from a common-mode signal, usually expressed in

decibels (dB)

CompactPCI a Eurocard configuration of the PCI bus for industrial applications

CONVERT* convert signal

correlated DIO can clock digital I/O on the same clock as analog I/O

counter/timer a circuit that counts external pulses or clock pulses (timing)

CTR counter

D

D/A digital-to-analog

DAC digital-to-analog converter—an electronic device that converts a digital

number into a corresponding analog voltage or current

DAC0OUT analog channel 0 output signal

DAC1OUT analog channel 1 output signal

DAQ data acquisition—(1) collecting and measuring electrical signals from

sensors, transducers, and test probes or fixtures and inputting them to a

computer for processing; (2) collecting and measuring the same kinds of

electrical signals with A/D and/or DIO devices plugged into a computer,

and possibly generating control signals with D/A and/or DIO devices in

the same computer

Glossary

NI 6115/6120 User Manual G-4 ni.com

DAQ-STC data acquisition system timing controller—an application-specific

integrated circuit (ASIC) for the system timing requirements of a general

A/D and D/A system, such as a system containing the National

Instruments E Series devices

dB decibel—the unit for expressing a logarithmic measure of the ratio of

two signal levels: dB = 20log10 V1/V2, for signals in volts

DC direct current

DGND digital ground signal

DI digital input

DIFF differential mode—an analog input mode consisting of two terminals,

both of which are isolated from computer ground, whose difference is

measured

DIO digital input/output

DIP dual inline package

dithering the addition of Gaussian noise to an analog input signal for the purpose

of increasing the resolution of a measurement when using averaging

DMA direct memory access—a method by which data can be transferred

to/from computer memory from/to a device or memory on the bus while

the processor does something else; the fastest method of transferring data

to/from computer memory

DNL differential nonlinearity—a measure in least significant bit of the

worst-case deviation of code widths from their ideal value of 1 LSB

DO digital output

E

EEPROM electrically erasable programmable read-only memory—ROM that can

be erased with an electrical signal and reprogrammed

ENOB effective number of bits

Glossary

© National Instruments Corporation G-5 NI 6115/6120 User Manual

ESD electrostatic discharge

EXTSTROBE* external strobe signal

F

F farad—a measurement unit of capacitance

FIFO first-in first-out memory buffer—the first data stored is the first data sent

to the acceptor; often used on DAQ devices to temporarily store incoming

or outgoing data until that data can be retrieved or output

floating signal sources signal sources, including batteries, transformers, or thermocouples, with

voltage signals that are not connected to an absolute reference or system

ground; also called nonreferenced signal sources

FPGA field programmable gate array

FREQ_OUT frequency output signal

G

gain the factor by which a signal is amplified, sometimes expressed in decibels

GATE gate signal

GPCTR general-purpose counter signal

GPCTR0_GATE general-purpose counter 0 gate signal

GPCTR0_OUT general-purpose counter 0 output signal

GPCTR0_SOURCE general-purpose counter 0 clock source signal

GPCTR0_UP_DOWN general-purpose counter 0 up down signal

GPCTR1_GATE general-purpose counter 1 gate signal

GPCTR1_OUT general-purpose counter 1 output signal

GPCTR1_SOURCE general-purpose counter 1 clock source signal

Glossary

NI 6115/6120 User Manual G-6 ni.com

GPCTR1_UP_DOWN general-purpose counter 1 up down signal

grounded signal

sources

signal sources with voltage signals that are referenced to a system ground,

such as the earth or a building ground; also called grounded signal

sources

H

h hour

Hz hertz—the number of scans read or updates written per second

I

I/O input/output—the transfer of data to/from a computer system involving

communications channels, operator interface devices, and/or data

acquisition and control interfaces

impedance resistance

in. inch or inches

INL integral nonlinearity—a measurement in least significant bits of the

worst-case deviation from the ideal A/D or D/A transfer characteristic of

the analog I/O circuitry

IOH current, output high

IOL current, output low

IRQ interrupt request

K

kHz kilohertz

Glossary

© National Instruments Corporation G-7 NI 6115/6120 User Manual

L

LabVIEW Laboratory Virtual Instrument Engineering Workbench—a program

development application based on the programming language G and used

commonly for test and measurement purposes

LED light emitting diode

LSB least significant bit

M

master a functional part of a MXI/VME/VXIbus device that initiates data

transfers on the backplane; a transfer can be either a read or a write

MAX Measurement and Automation Explorer

MB megabytes of memory

Measurement Studio a set of test and measurement-oriented software tools from National

Instruments for C, C++, and Visual Basic users

MHz megahertz

MIO multifunction I/O

MITE MXI Interface to Everything

MSB most significant bit

mux multiplexer—a switching device with multiple inputs that sequentially

connects each of its inputs to its output, typically at high speeds, in order

to measure several signals with a single analog input channel

mV millivolts

MXI a high-performance communication link that interconnects devices using

round, flexible cables

Glossary

NI 6115/6120 User Manual G-8 ni.com

N

NC not connected (signal)

NI National Instruments

NI-DAQ National Instruments driver software for DAQ hardware

noise an undesirable electrical signal from external sources such as the AC

power line, motors, generators, transformers, fluorescent lights, soldering

irons, CRT displays, computers, electrical storms, welders, radio

transmitters, and internal sources such as semiconductors, resistors, and

capacitors; noise corrupts signals you are trying to send or receive

nonreferenced signal

sources

signal sources, including batteries, transformers, or thermocouples, with

voltage signals that are not connected to an absolute reference or system

ground; also called nonreferenced signal sources

Nyquist frequency the maximum signal frequency that a sampling system can accurately

represent in frequency spectrum measurement, which is half the sampling

frequency

O

OUT output pin—a counter output pin where the counter can generate various

TTL pulse waveforms

P

PCI Peripheral Component Interconnect—a high-performance expansion

bus architecture originally developed by Intel to replace ISA and EISA;

is achieving widespread acceptance as a standard for PCs and

work-stations, and offers a theoretical maximum transfer rate of

132 Mbytes/s

pd pull down

PFI programmable function input

PFI0/TRIG1 PFI0/trigger 1

PFI1/TRIG2 PFI1/trigger 2

Glossary

© National Instruments Corporation G-9 NI 6115/6120 User Manual

PFI2/CONVERT* PFI2/convert

PFI3/GPCTR1_SOURCE PFI3/general purpose counter 1 source

PFI4/GPCTR1_GATE PFI4/general-purpose counter 1 gate

PFI5/UPDATE* PFI5/update

PFI6/WFTRIG PFI6/waveform trigger

PFI7/STARTSCAN PFI7/start of scan

PFI8/GPCTR0_SOURCE PFI8/general-purpose counter 0 source

PFI9/GPCTR0_GATE PFI9/general-purpose counter 0 gate

PGIA programmable gain instrumentation amplifier

PLL phase-locked loop

ppm parts per million

pseudodifferential

channels

pseudodifferential channels are all referred to a common ground, but this

ground is not directly connected to the computer ground. Often this

connection is made by a relatively low value resistor to give some

isolation between the two grounds.

pu pull up

PWB printed wire board

PXI PCI eXtensions for Instrumentation—an open specification that builds

off the CompactPCI specification by adding instrumentation-specific

features

R

range the maximum and minimum parameters between which a sensor,

instrument, or device operates with a specified set of characteristics

referenced signal

sources

signal sources with voltage signals that are referenced to a system ground,

such as the earth or a building ground; also called grounded signal

sources

Glossary

NI 6115/6120 User Manual G-10 ni.com

rise time the difference in time between the 10% and 90% points of the step

response of a system

rms root mean square

RTD resistive temperature detector—a metallic probe that measures

temperature based upon its coefficient of resistivity

RTSI bus real-time system integration bus—the National Instruments timing bus

that connects DAQ devices directly, by means of connectors on top of the

devices for precise synchronization of functions

RTSI_OSC RTSI Oscillator—RTSI bus master clock

S

s seconds

S samples

S/s samples per second—used to express the rate at which a DAQ device

samples an analog signal

SCANCLK scan clock signal

scatter-gather a term that describes very high-speed DMA burst-mode transfers that are

made only by the bus master

signal conditioning the manipulation of signals to prepare them for digitizing

SFDR spurious free dynamic range

SISOURCE SI counter clock signal

SOURCE source signal

STARTSCAN start scan signal

STC system timing controller

system noise a measure of the amount of noise present in an analog circuit or when the

analog inputs are grounded

Glossary

© National Instruments Corporation G-11 NI 6115/6120 User Manual

T

TC terminal count—the ending value of a counter

tgh gate hold time

tgsu gate setup time

tgw gate pulse width

THD total harmonic distortion—the ratio of the total rms signal due to

harmonic distortion to the overall rms signal, in decibel or a percentage

thermocouple a temperature sensor created by joining two dissimilar metals whose

junction produces a small voltage as a function of the temperature

toff an offset (delayed) pulse; the offset is t nanoseconds from the falling edge

of the CONVERT* signal

tout output delay time

tpperiod of a pulse train

TRIG trigger signal

tsc source clock period

tsp source pulse width

TTL transistor-transistor logic

twpulse width

U

UI update interval

UISOURCE update interval counter clock signal

UPDATE* update signal

Glossary

NI 6115/6120 User Manual G-12 ni.com

V

Vvolts

VCC collector common voltage—power supply voltage

Vcm common-mode noise and ground potential

VCXO voltage-controlled crystal oscillator

VDC volts direct current

VI virtual instrument—(1) a combination of hardware and/or software

elements, typically used with a PC, that has the functionality of a classic

stand-alone instrument; (2) a LabVIEW software module (VI), which

consists of a front panel user interface and a block diagram program

Vin volts in

Vmmeasured voltage

VOH volts, output high

VOL volts, output low

VOUT volts out

Vrms volts, root mean square

Vsground-referenced signal source

W

WFTRIG waveform generation trigger signal

© National Instruments Corporation I-1 NI 6115/6120 User Manual

Index

Numerics

+5 V signal

description (table), 4-3

incorrect connections (caution), 4-15

self-resetting fuse, 4-18, B-2

A

above-high-level analog triggering mode, 3-7

AC input coupling, 3-4

ACH<0..3>– signal

analog input signal connections, 4-8

description (table), 4-3

signal summary (table), 4-5

ACH<0..3>+ signal

analog input signal connections, 4-8

description (table), 4-3

signal summary (table), 4-5

ACH<0..3>GND signal (table), 4-3

AIGATE signal

gating DAQ sequences, 4-25, 4-27

overview, 4-27

RTSI bus signal connections (figure), 3-13

analog input

input coupling, 3-4

input mode, 3-2

input polarity and range, 3-3

questions about, B-3

selection considerations, 3-4

analog input signal connections

common-mode signal rejection, 4-12

floating signal sources, 4-11

ground-referenced signal sources, 4-9

nonreferenced signal sources, 4-11

pseudodifferential connections

definition, 4-8

ground referenced signals (figure), 4-9

analog input specifications

DC transfer characteristics, A-2

dynamic characteristics, A-4

input characteristics, A-1

stability, A-11

analog output

overview, 3-5

questions about, B-3

signal connections, 4-14

analog output specifications

DC transfer characteristics, A-12

dynamic characteristics, A-14

output characteristics, A-12

stability, A-14

voltage output, A-13

analog trigger

above-high-level analog triggering mode

(figure), 3-7

avoiding false triggering (note), 3-6

below-low-level analog triggering mode

(figure), 3-6

block diagram, 3-6

high-hysteresis analog triggering mode

(figure), 3-7

highValue, 3-5, 3-6, 3-7, 3-8

inside-region analog triggering mode

(figure), 3-7

low-hysteresis analog triggering mode

(figure), 3-8

lowValue, 3-5, 3-6, 3-7, 3-8

overview, 3-5

specifications, A-16

antialiasing filters

description, 3-8

effects of hardware and software filtering

(figure), 3-9

enabling, B-3

Index

NI 6115/6120 User Manual I-2 ni.com

AOGND signal

analog output signal connections, 4-14

description (table), 4-3

avoiding false triggering (note), 3-6

B

base address for NI 6115/6120 device, B-2

below-low-level analog triggering mode, 3-6

bipolar input, 3-3

block diagrams

analog trigger, 3-6

NI 6115 block diagram, 3-1

NI 6120 block diagram, 3-2

phase-locked loop circuit (figure), 3-10

bus

CompactPCI

master device slot support (note), 2-2

using PXI with CompactPCI, 1-2

interface specifications, A-17

PCI

overview, 1-1

PCI Local Bus Specification, 1-1, 2-3

PXI, 1-1

master device slot support (note), 2-2

NI PXI-6115/6120 J2 pin

assignments (table), 1-3

PXI Specification Revision 2.0,

1-2, 2-3

RTSI

device and RTSI clocks, 3-12

overview, 1-1

PCI RTSI Bus Signal Connection

(figure), 3-13

RTSI triggers, 3-12

timing signal routing, 3-10

using PXI with CompactPCI, 1-2

C

cables

See also I/O connectors

custom cabling, 1-6

field wiring considerations, 4-39

optional equipment, 1-6

calibration

external calibration, 5-2

loading calibration constants, 5-1

self-calibration, 5-2

clocks

correlating DIO signals, 4-16

device and RTSI clocks, 3-12

commonly asked questions. See questions and

answers

common-mode signal rejection, 4-12

CompactPCI, using with PXI, 1-2

configuration

description, 2-3

questions about, B-2

connectors. See I/O connectors

contacting National Instruments, C-1

conventions used in manual, xi

CONVERT* signal

See also PFI2/CONVERT* signal

input timing (figure), 4-26

output timing (figure), 4-26

RTSI bus signal connections

(figure), 3-13

timing connections, 4-26

typical posttriggered acquisition

(figure), 4-21

typical pretriggered acquisition

(figure), 4-21

correlated digital I/O. See digital I/O

counter/timer applications, B-5

custom cabling, 1-6

Index

© National Instruments Corporation I-3 NI 6115/6120 User Manual

customer

education, C-1

professional services, C-1

technical support, C-1

D

DAC0OUT signal

analog output signal connections, 4-14

description (table), 4-3

signal summary (table), 4-5

DAC1OUT signal

analog output signal connections, 4-14

description (table), 4-3

signal summary (table), 4-5

DAQ timing connections. See data acquisition

timing connections

DAQ-STC system timing controller

overview, 1-1

questions about, B-1

timing signal routing, 3-10

data acquisition timing connections

AIGATE signal, 4-20, 4-27

CONVERT* signal, 4-20, 4-26

EXTSTROBE* signal, 4-29

SCANCLK signal, 4-20, 4-28

SISOURCE signal, 4-20, 4-27

STARTSCAN signal, 4-20, 4-24

TRIG1 signal, 4-20

TRIG2 signal, 4-20, 4-22

typical posttriggered acquisition

(figure), 4-21

typical pretriggered acquisition

(figure), 4-21

DC input coupling, 3-4

deglitching, questions about, B-4

device clocks, 3-12

device configuration. See configuration

DGND signal

description (table), 4-3

digital I/O signal connections, 4-15

power connections, 4-18

diagnostic resources, C-1

digital I/O

See also DGND signal

See also DIO<0..7> signal

correlated

clock signal driving DI and DO

signals (figure), 4-17

description, 3-10

falling-edge RTSI clock signal

driving DIO signal (figure), 4-18

rising-edge AO update signal driving

DIO signal (figure), 4-17

signals for clock source, 4-16

questions about, B-5

signal connections, 4-15

specifications, A-15

digital trigger

overview, 3-8

specifications, A-17

DIO<0..7> signal

description (table), 4-3

digital I/O signal connections, 4-15

signal summary (table), 4-6

documentation

about this manual, xi

conventions used in manual, xi

National Instruments documentation, xii

online library, C-1

related documentation, xiii

drivers

instrument, C-1

software, C-1

E

EEPROM storage of calibration constants, 5-1

electromagnetic compatibility

specifications, A-18

environmental noise, avoiding, 4-39

environmental specifications, A-17

Index

NI 6115/6120 User Manual I-4 ni.com

equipment, optional, 1-6

example code, C-1

external calibration, 5-2

EXTSTROBE* signal

description (table), 4-3

signal summary (table), 4-6

timing connections, 4-29

F

field wiring considerations, 4-39

floating signal sources

description, 4-7

signal connections, 4-11

FREQ_OUT signal

description (table), 4-5

general-purpose timing connections, 4-38

signal summary (table), 4-7

frequently asked questions. See questions and

answers

fuse, self-resetting, 4-18, B-2

G

general-purpose timing signal connections

FREQ_OUT signal, 4-38

GPCTR0_GATE signal, 4-33

GPCTR0_OUT signal, 4-34

GPCTR0_SOURCE signal, 4-32

GPCTR0_UP_DOWN signal, 4-35

GPCTR1_GATE signal, 4-36

GPCTR1_OUT signal, 4-36

GPCTR1_SOURCE signal, 4-35

GPCTR1_UP_DOWN signal, 4-37

questions about, B-5

getting started, equipment, 1-3

glitches, questions about, B-4

GPCTR0_GATE signal

See also PFI9/GPCTR0_GATE signal

general-purpose counter timing summary

(figure), 4-37

general-purpose timing connections, 4-33

RTSI bus signal connections

(figure), 3-13

GPCTR0_OUT signal

description (table), 4-5

general-purpose counter timing summary

(figure), 4-37

general-purpose timing connections, 4-34

RTSI bus signal connections

(figure), 3-13

signal summary (table), 4-7

GPCTR0_SOURCE signal

See also PFI8/GPCTR0_SOURCE signal

general-purpose counter timing summary

(figure), 4-37

general-purpose timing connections, 4-32

GPCTR0_OUT signal timing

(figure), 4-34

RTSI bus signal connections

(figure), 3-13

GPCTR0_UP_DOWN signal

digital I/O lines, 3-10

general-purpose timing connections, 4-35

GPCTR1_GATE signal

See also PFI4/GPCTR1_GATE signal

general-purpose counter timing summary

(figure), 4-37

general-purpose timing connections, 4-36

GPCTR1_OUT signal

description (table), 4-4

general-purpose counter timing summary

(figure), 4-37

general-purpose timing connections, 4-36

signal summary (table), 4-7

GPCTR1_SOURCE signal

See also PFI3/GPCTR1_SOURCE signal

general purpose timing connections, 4-35

general-purpose counter timing summary

(figure), 4-37

general-purpose timing connections, 4-35

Index

© National Instruments Corporation I-5 NI 6115/6120 User Manual

GPCTR1_OUT signal timing

(figure), 4-37

GPCTR1_UP_DOWN signal

digital I/O lines, 3-10

general-purpose timing connections, 4-37

ground-referenced signal sources

description, 4-8

questions about, B-3

signal connections, 4-9

H

hardware installation

procedure, 2-1

unpacking NI 6115/6120, 1-8

hardware overview

analog input

input coupling, 3-4

input mode, 3-2

input polarity and range, 3-3

selection considerations, 3-4

analog output, 3-5

analog trigger

block diagram, 3-6

overview, 3-5

antialiasing filters, 3-8

block diagrams

NI 6115 block diagram, 3-1

NI 6120 block diagram, 3-2

correlated digital I/O, 3-10

phase-locked loop circuit, 3-9

timing signal routing

clocks, 3-12

overview, 3-10

programmable function inputs, 3-12

RTSI triggers, 3-12

STARTSCAN* signal routing

(figure), 3-11

help

professional services, C-1

technical support, C-1

high-hysteresis analog triggering mode, 3-7

highValue, 3-5

I

I/O connectors

exceeding maximum ratings

(caution), 4-1

overview, 4-1

pin assignments (figure), 4-2

signal descriptions (table), 4-3

input coupling, 3-4

input polarity and range

bipolar input, 3-3

input range and measurement precision

(table), 3-4

overvoltage hazard (caution), 3-3

selection considerations, 3-4

inside-region analog triggering mode, 3-7

installation

hardware installation, 2-1

questions about, B-2

software installation, 2-1

unpacking NI 6115/6120, 1-7

instrument drivers, C-1

internal timebase, device and RTSI

clocks, 3-12

K

KnowledgeBase, C-1

L

loading calibration constants, 5-1

low-hysteresis analog triggering mode, 3-8

lowValue, 3-5

M

manual. See documentation

MITE bus interface chip, 1-1

Index

NI 6115/6120 User Manual I-6 ni.com

N

National Instruments

customer education, C-1

documentation, xii

professional services, C-1

system integration services, C-1

technical support, C-1

worldwide offices, C-1

NI 6115/6120 device

See also hardware overview

block diagrams

NI 6115 block diagram, 3-1

NI 6120 block diagram, 3-2

configuration, 2-3

custom cabling, 1-6

optional equipment, 1-6

overview, 1-1

questions about

analog input and output, B-3

general information, B-1

installation and configuration, B-2

timing and digital I/O, B-5

requirements for getting started, 1-3

safety information, 1-8

unpacking, 1-7

NI-DAQ driver software

questions about, B-2

noise, avoiding, 4-39

nonreferenced signal connections, 4-11

O

online technical support, C-1

optional equipment, 1-6

P

PFI0/TRIG1 signal

See also TRIG1 signal

analog triggering, 3-5

description (table), 4-4

signal summary (table), 4-6

PFI1/TRIG2 signal

See also TRIG2 signal

description (table), 4-4

signal summary (table), 4-6

PFI2/CONVERT* signal

See also CONVERT* signal

description (table), 4-4

signal summary (table), 4-6

PFI3/GPCTR1_SOURCE signal

See also GPCTR1_SOURCE signal

description (table), 4-4

signal summary (table), 4-7

PFI4/GPCTR1_GATE signal

See also GPCTR1_GATE signal

description (table), 4-4

signal summary (table), 4-7

PFI5/UPDATE* signal

See also UPDATE* signal

description (table), 4-4

signal summary (table), 4-7

PFI6/WFTRIG signal

See also WFTRIG signal

description (table), 4-4

signal summary (table), 4-7

PFI7/STARTSCAN signal

See also STARTSCAN signal

description (table), 4-4

signal summary (table), 4-7

PFI8/GPCTR0_SOURCE signal

See also GPCTR0_SOURCE signal

description (table), 4-5

signal summary (table), 4-7

Index

© National Instruments Corporation I-7 NI 6115/6120 User Manual

PFI9/GPCTR0_GATE signal

See also GPCTR0_GATE signal

description (table), 4-5

signal summary (table), 4-7

PFIs (programmable function inputs)

questions about, B-5

signal name equivalencies (table), B-5

signal routing, 3-10

timing connections, 4-20

phase-locked loop circuit

block diagram, 3-10

description, 3-9

phone technical support, C-1

physical specifications, A-17

pin assignments

I/O connector (figure), 4-2

PXI-6115/6120 J2 pin assignments

(table), 1-3

PLL. See phase-locked loop circuit, 3-9

polarity. See input polarity and range

posttriggered data acquisition, 4-20

power connections

+5 V power pins, 4-18, B-2

incorrect connections (caution), 4-18

power-on states of PFI and DIO lines, B-6

self-resetting fuse, 4-18, B-2

power requirement specifications, A-17

power-on states of PFI and DIO lines, B-6

pretriggered data acquisition, 4-21

professional services, C-1

programmable function inputs (PFIs). See

PFIs (programmable function inputs)

programming examples, C-1

pseudodifferential signal connections

definition, 4-8

ground-referenced signals (figure), 4-9

PXI

PXI-6115/6120 J2 pin assignments

(table), 1-3

using with CompactPCI, 1-2

Q

questions and answers

analog input and output, B-3

general information, B-1

installation and configuration, B-2

timing and digital I/O, B-5

R

Real-Time System Integration. See RTSI

related documentation, xiii

requirements for getting started, 1-3

RTSI

bus signal connections (figure), 3-13

clocks

correlating DIO signals, 4-16

description, 3-12

overview, 1-1

triggers

description, 3-12

specifications, A-17

S

safety information, 1-8

safety specifications, A-18

sampling rate

maximum, B-1

minimum, B-3

scan counter

typical posttriggered acquisition

(figure), 4-21

typical pretriggered acquisition, 4-21

SCANCLK signal

description (table), 4-3

signal summary (table), 4-6

timing connections, 4-28

self-calibration, 5-2

self-resetting fuse, 4-18, B-2

Index

NI 6115/6120 User Manual I-8 ni.com

signal connections

analog input connections

common-mode signal rejection, 4-12

floating signal sources, 4-11

ground-referenced signal

sources, 4-9

nonreferenced signal sources, 4-11

analog output connections, 4-14

data acquisition timing connections

AIGATE signal, 4-27

CONVERT* signal, 4-26

EXTSTROBE* signal, 4-29

SCANCLK signal, 4-28

SISOURCE signal, 4-27

STARTSCAN signal, 4-24

TRIG1 signal, 4-21

TRIG2 signal, 4-22

typical posttriggered acquisition

(figure), 4-21

typical pretriggered acquisition

(figure), 4-21

digital I/O

connections, 4-15

correlating, 4-16

exceeding maximum input voltage ratings

(caution), 4-18

field wiring considerations, 4-39

general-purpose timing signal

connections

FREQ_OUT signal, 4-38

GPCTR0_GATE signal, 4-33

GPCTR0_OUT signal, 4-34

GPCTR0_SOURCE signal, 4-32

GPCTR0_UP_DOWN signal, 4-35

GPCTR1_GATE signal, 4-36

GPCTR1_OUT signal, 4-36

GPCTR1_SOURCE signal, 4-35

GPCTR1_UP_DOWN signal, 4-37

I/O connectors

exceeding maximum ratings

(caution), 4-1

overview, 4-1

signal descriptions (table), 4-3

power connections, 4-18

programmable function input

connections, 4-20

timing connections

data acquisition timing

connections, 4-20

general-purpose timing signal

connections, 4-32

waveform generation timing

connections, 4-29

types of signal sources

floating, 4-7

ground-referenced, 4-8

waveform generation timing connections

UISOURCE signal, 4-31

UPDATE* signal, 4-30

WFTRIG signal, 4-29

working voltage range, 4-13

SISOURCE signal, 4-27

RTSI bus signal connections

(figure), 3-13

software drivers, C-1

software installation, 2-1

software-programmable gain

input range and measurement precision

(table), 3-4

overview, 3-3

specifications

analog input

DC transfer characteristics, A-2

dynamic characteristics, A-4

input characteristics, A-1

stability, A-11

analog output

DC transfer characteristics, A-12

dynamic characteristics, A-14

output characteristics, A-12

stability, A-14

voltage output, A-13

Index

© National Instruments Corporation I-9 NI 6115/6120 User Manual

bus interface, A-17

digital I/O, A-15

electromagnetic compatibility, A-18

environmental, A-17

physical, A-17

power requirements, A-17

RTSI trigger lines, A-17

safety, A-18

timing I/O, A-15

triggers

analog trigger, A-16

digital trigger, A-17

stability specifications

analog input, A-11

analog output, A-14

STARTSCAN signal

See also PFI7/STARTSCAN signal

input timing (figure), 4-24

output timing (figure), 4-25

RTSI bus signal connections

(figure), 3-13

signal routing (figure), 3-11

timing connections, 4-24

typical posttriggered acquisition

(figure), 4-21

typical pretriggered acquisition

(figure), 4-21

using the SISOURCE signal, 4-27

support

technical, C-1

system integration services, C-1

T

technical support, C-1

telephone technical support, C-1

timebase (clocks), 3-12

timing connections

data acquisition timing connections

AIGATE signal, 4-27

CONVERT* signal, 4-26

EXTSTROBE* signal, 4-29

SCANCLK signal, 4-28

SISOURCE signal, 4-27

STARTSCAN signal, 4-24

TRIG1 signal, 4-21

TRIG2 signal, 4-22

typical posttriggered acquisition

(figure), 4-21

typical pretriggered acquisition

(figure), 4-21

general-purpose timing signal

connections

FREQ_OUT signal, 4-38

GPCTR0_GATE signal, 4-33

GPCTR0_OUT signal, 4-34

GPCTR0_SOURCE signal, 4-32

GPCTR0_UP_DOWN signal, 4-35

GPCTR1_GATE signal, 4-36

GPCTR1_OUT signal, 4-36

GPCTR1_SOURCE signal, 4-35

GPCTR1_UP_DOWN signal, 4-37

programmable function input

connections, 4-20

questions about, B-5

timing I/O connections (figure), 4-19

waveform generation timing connections

UISOURCE signal, 4-31

UPDATE* signal, 4-30

WFTRIG signal, 4-29

timing I/O

questions about, B-5

specifications, A-15

timing signal routing

clocks, 3-12

programmable function inputs, 3-12

RTSI triggers, 3-12

STARTSCAN* signal routing

(figure), 3-11

training

customer, C-1

Index

NI 6115/6120 User Manual I-10 ni.com

TRIG1 signal

See also PFI0/TRIG1 signal

input timing (figure), 4-22

output timing (figure), 4-22

RTSI bus signal connections

(figure), 3-13

timing connections, 4-21

typical posttriggered acquisition

(figure), 4-21

typical pretriggered acquisition

(figure), 4-21

TRIG2 signal

See also PFI1/TRIG2 signal

input timing (figure), 4-23

output timing (figure), 4-23

RTSI bus signal connections

(figure), 3-13

timing connections, 4-22

typical pretriggered acquisition

(figure), 4-21

triggers

analog trigger

description, 3-5

specifications, A-16

digital trigger specifications, A-17

questions about, B-5

troubleshooting resources, C-1

U

UISOURCE signal, 4-31

RTSI bus signal connections

(figure), 3-13

unpacking NI 6115/6120, 1-7

UPDATE* signal

See also PFI5/UPDATE* signal

input timing (figure), 4-31

output timing (figure), 4-31

RTSI bus signal connections

(figure), 3-13

timing connections, 4-30

using with UISOURCE signal, 4-31

using with WFTRIG signal, 4-29

V

VCC signal (table), 4-6

voltage

output specifications, A-13

working voltage range, 4-13

voltage-controlled crystal oscillator

(VCXO), 3-9

W

waveform generation timing connections

UISOURCE signal, 4-31

UPDATE* signal, 4-30

WFTRIG signal, 4-29

waveform generation, questions about, B-4

Web

professional services, C-1

technical support, C-1

WFTRIG signal

See also PFI6/WFTRIG signal

input timing (figure), 4-30

output timing (figure), 4-30

RTSI bus signal connections

(figure), 3-13

timing connections, 4-29

wiring considerations, 4-39

working voltage range, 4-13

worldwide technical support, C-1
