Users Manual

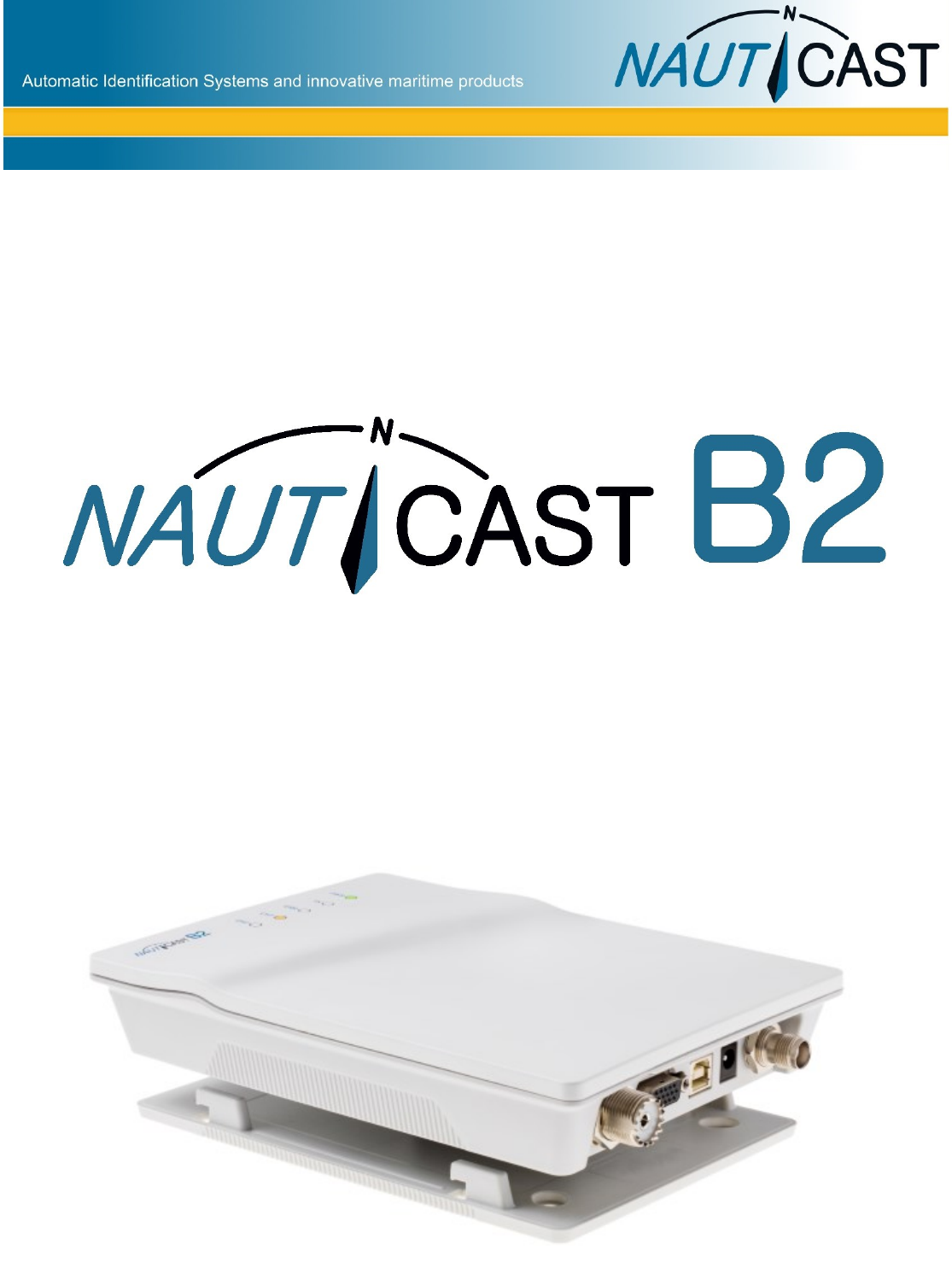

PRODUCT MANUAL
Class-B AIS Transponder
Art. No. 300 1001
Nauticast GmbH
Lützowgasse 12-14 / 3.OG
1140 Vienna, Austria
T: +43 (1) 5 237 237-0
F: +43 (1) 5 237 237-150
office@nauticast.com
DISCLAIMER
Although Nauticast GmbH strives for accuracy in all its publications this material may contain errors or omissions and is
subject to change without prior notice. Nauticast GmbH shall not be made liable for any specific, indirect, incidental or
consequential damages as a result of the usage of this manual. Please visit our website for the latest manual revision at
www.nauticast.com if necessary.
COPYRIGHT PROTECTION
This document is protected by copyright law. Copying or duplicating be it physically or electronically for any usage other
than the operation of a Nauticast B2 AIS System is prohibited and any offender may be liable to the payment of damages.
Dieses Dokument ist urheberrechtlich geschützt. Jede Weitergabe oder Vervielfältigung dieser Unterlage ist ausschließlich
zur Unterstützung des Betriebes eines Nauticast B2 AIS Systems zulässig. Zuwiderhandlungen verpflichten zu
Schadenersatz.
Ce document est protégé par le droit d'auteur. Toute redistribution ou reproduction de ce document est autorisée
exclusivement pour appuyer le fonctionnement d'un système AIS B2 Nauticast. Les contrevenants seront passibles de
dommages-intérêts.
Este documento está protegido por derechos de autor. Cualquier redistribución o reproducción de este documento está
permitida exclusivamente para apoyar la operación de un sistema AIS B2 Nauticast. Los infractores quedan obligados por
daños y perjuicios.
GENERAL WARNINGS
All marine Automatic Identification System (AIS) units utilize a satellite based system such as the Global Positioning Satellite
(GPS) network or the Global Navigation Satellite System (GLONASS) network to determine their position. The accuracy of
these networks is variable and is affected by factors such as the antenna positioning, the number of satellites that are
available to determine a position and how long satellite information has been received for. It is desirable wherever possible
to verify both your vessel’s AIS derived position data and other vessels’ AIS derived position data with visual or radar
based observations.
The compass safe distance of this unit is 0.55m or greater for 0.3° deviation.
In most countries the operation of an AIS unit is included under the vessel’s marine VHF license provisions. The vessel
onto which the AIS unit is to be installed must therefore possess a valid VHF radiotelephone license which lists the AIS
system and the vessel Call Sign and MMSI number. Please contact the relevant authority in your country for more
information.
LIMITED WARRANTY
This product is warranted against factory defect in material and workmanship for a period of 24 months from the date of
purchase. During the warranty period Nauticast GmbH will repair or at its option, replace the product at no cost to the
buyer provided that a return authorization is obtained from Nauticast GmbH, Lützowgasse 12-14 / 3. OG, 1140 Vienna,
Austria (see Contact & Support information). This warranty does not apply if the product has been damaged by accident
or misuse, or as a result of service or modification by unauthorized service personnel. For authorized service partners see
our homepage www.nauticast.com or contact Nauticast support directly.
Warranty and certification void if device is opened.
© 2014 Nauticast GmbH
NauticastTM is a protected trademark of Nauticast GmbH
Page 3 of 32
B2 Product Manual 2_0
Index
1 WHAT IS AIS? ................................................................................................................................................ 5
1.1 AIS CLASSES .................................................................................................................................................. 6
1.2 POSITION INFORMATION SOURCE ....................................................................................................................... 7
2 INSTALLATION .............................................................................................................................................. 7
2.1 THE CONTENTS OF THIS BOX .............................................................................................................................. 7
2.2 SOFTWARE PREREQUISITES ............................................................................................................................... 8
2.3 INSTALLING THE LINK2AIS SOFTWARE ONTO YOUR PC ............................................................................................ 8
2.4 ENTER YOUR SHIP’S DATA ................................................................................................................................. 8

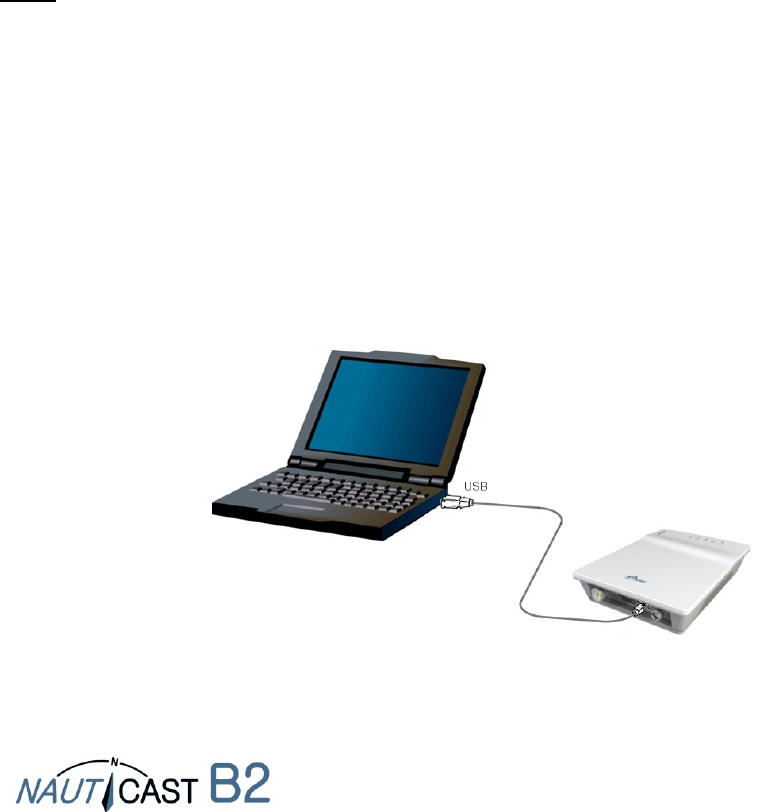

2.4.1 Connecting the Nauticast B2 to your PC ....................................................................................................... 8

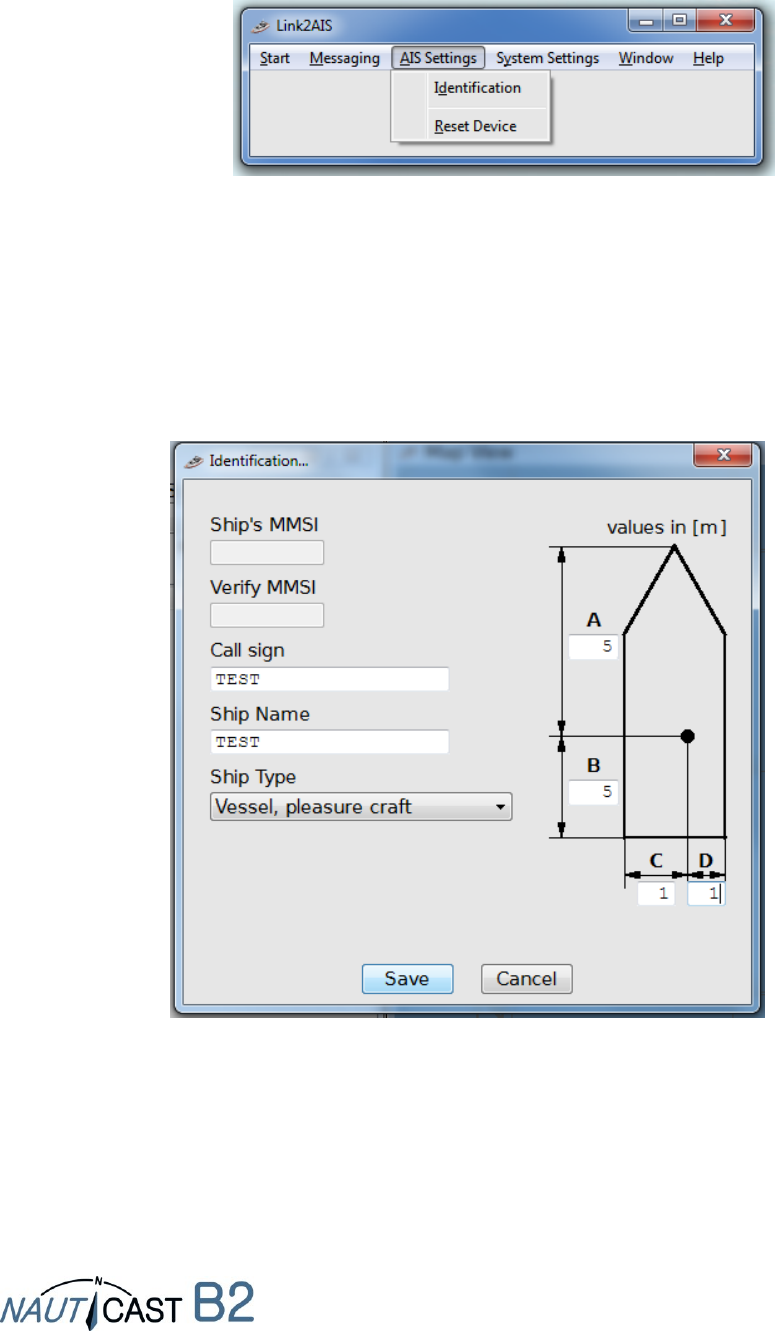

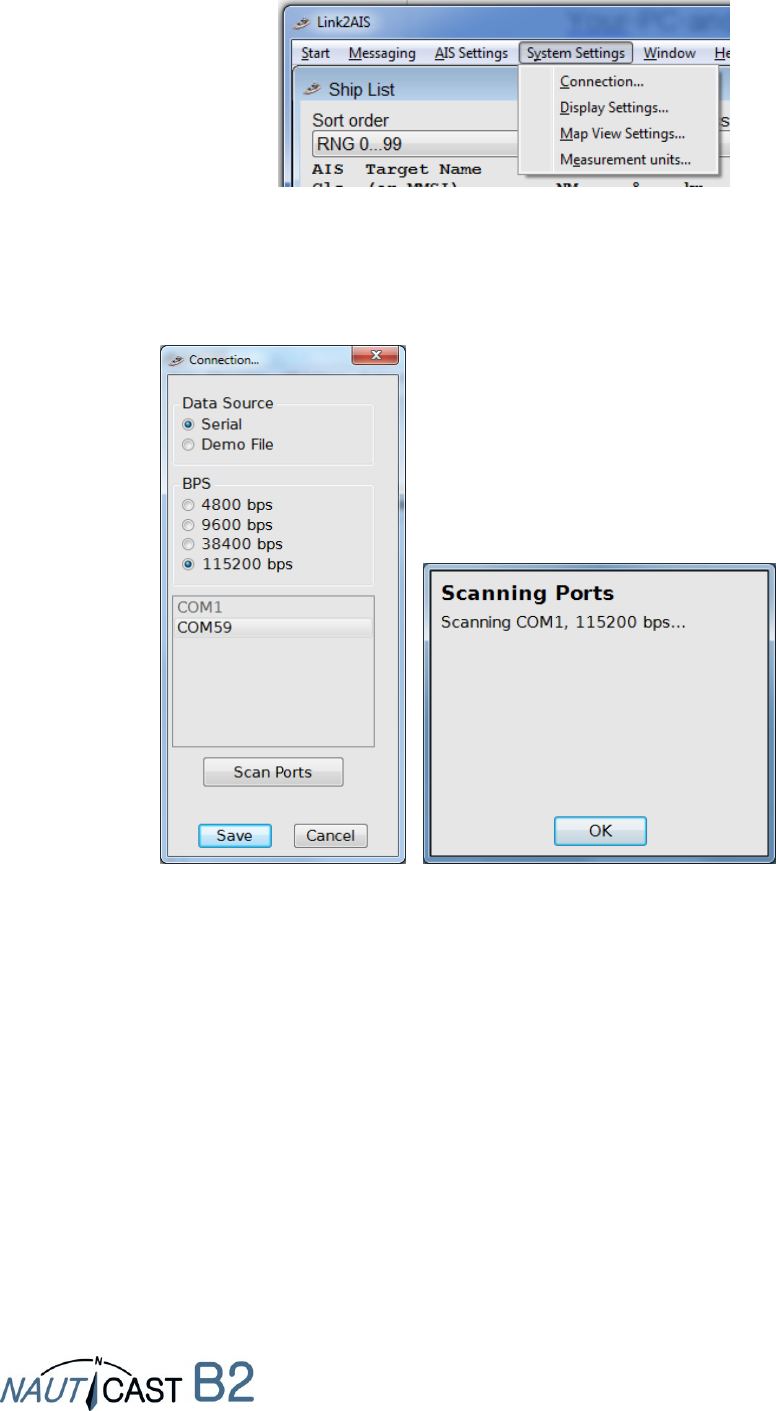

2.4.2 Configuring Software and Nauticast B2 static data .................................................................................... 10
2.5 INSTALLING YOUR NAUTICAST B2 HARDWARE ......................................................................................................12
2.5.1 Installation hints ......................................................................................................................................... 12
2.5.2 Connecting the antennas ............................................................................................................................ 12
2.5.3 Connecting Power ....................................................................................................................................... 13
2.5.4 Mounting the Nauticast B2 ......................................................................................................................... 13
2.5.5 Installation Check ........................................................................................................................................ 13
3 CONNECTING EXTERNAL EQUIPMENT ..................................................................................................14
3.1 CONNECTING TO A PC .....................................................................................................................................14
3.2 CONNECTING TO OTHER MARINE EQUIPMENT VIA NMEA0183 (OPTIONAL DATA CABLE REQUIRED) .................................14

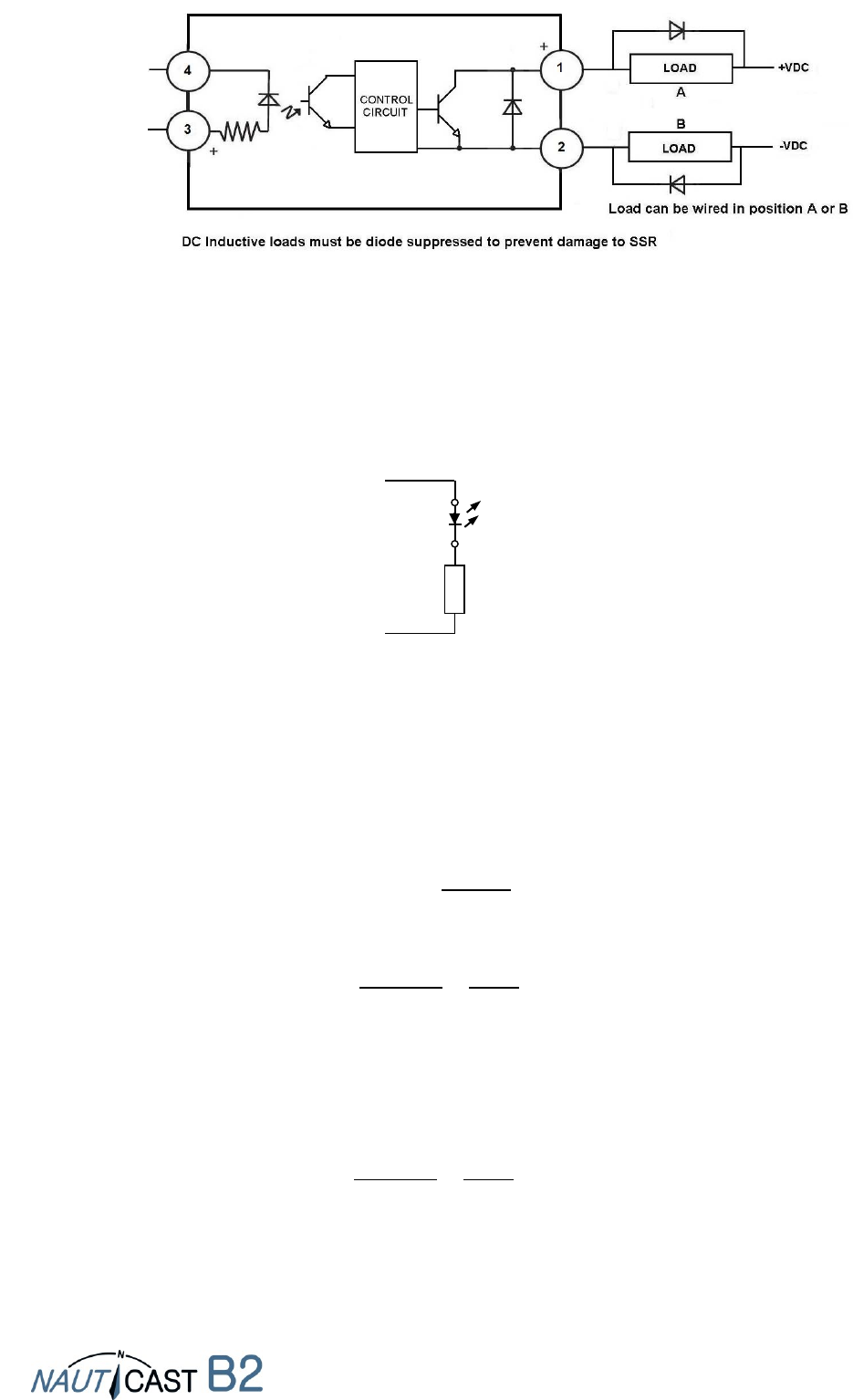

3.3 CONNECTING AN ALARM RELAY (OPTIONAL DATA CABLE REQUIRED) ...........................................................................14
3.4 SILENT MODE (OPTIONAL DATA CABLE REQUIRED) .................................................................................................14
3.5 EXTERNAL LED STATUS INDICATORS (OPTIONAL DATA CABLE REQUIRED).....................................................................14
4 OPERATION OF YOUR NAUTICAST B2 ...................................................................................................15

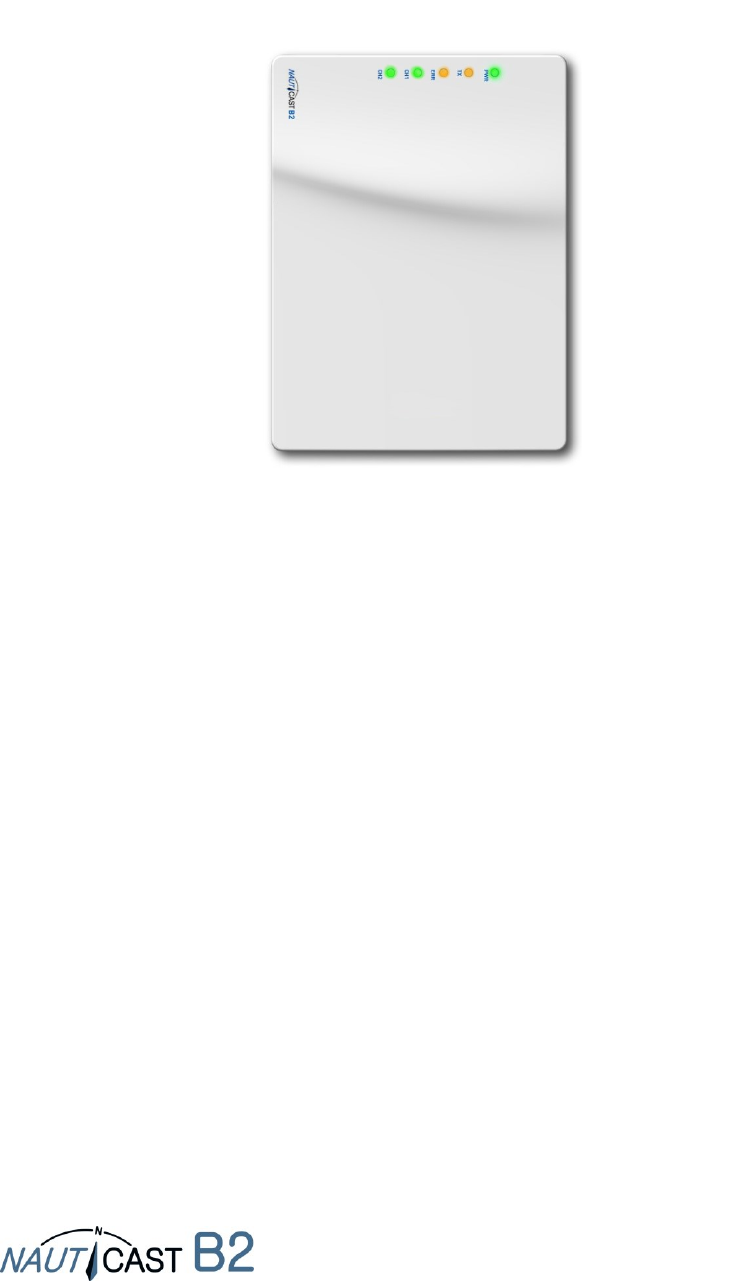

4.1 INTERPRETING STATUS LEDS ............................................................................................................................15
4.1.1 PWR............................................................................................................................................................. 15
4.1.2 TX (Timeout) ................................................................................................................................................ 15
4.1.3 ERR - Error ................................................................................................................................................... 15
4.1.4 CH1 and CH2 – channel information ........................................................................................................... 16
4.2 DATA PORT MESSAGES (NMEA 0183) .............................................................................................................16
4.3 USING DIFFERENT ANTENNAS ............................................................................................................................16
4.3.1 GPS Antenna ............................................................................................................................................... 16
4.3.2 VHF Antenna ............................................................................................................................................... 16
4.4 STANDARDS .................................................................................................................................................17
5 MAINTENANCE AND TROUBLESHOOTING ............................................................................................17
6 CONTACT & SUPPORT INFORMATION ...................................................................................................17
7 TECHNICAL DETAILS ..................................................................................................................................18
7.1 PRODUCT SPECIFICATION .................................................................................................................................18
7.2 INFORMATION REPORTING INTERVALS ................................................................................................................18
8 APPENDIX ......................................................................................................................................................19
8.1 APPENDIX A – BLOCK DIAGRAM ....................................................................................................................19
8.2 APPENDIX B – PIN LAYOUT / CABLE CONNECTIONS ............................................................................................20

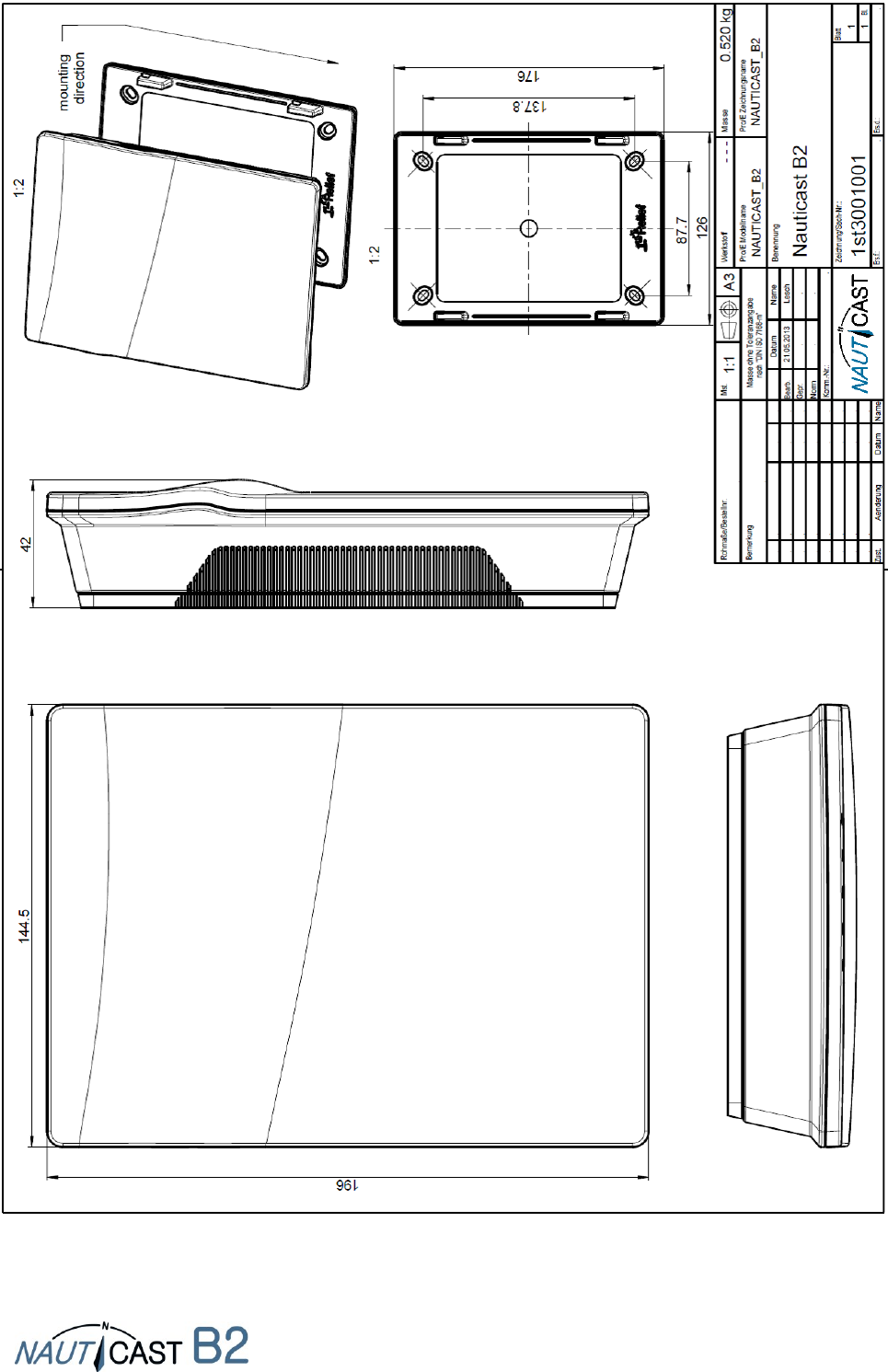

8.3 APPENDIX C – DIMENSIONS NAUTICAST B2 ......................................................................................................23

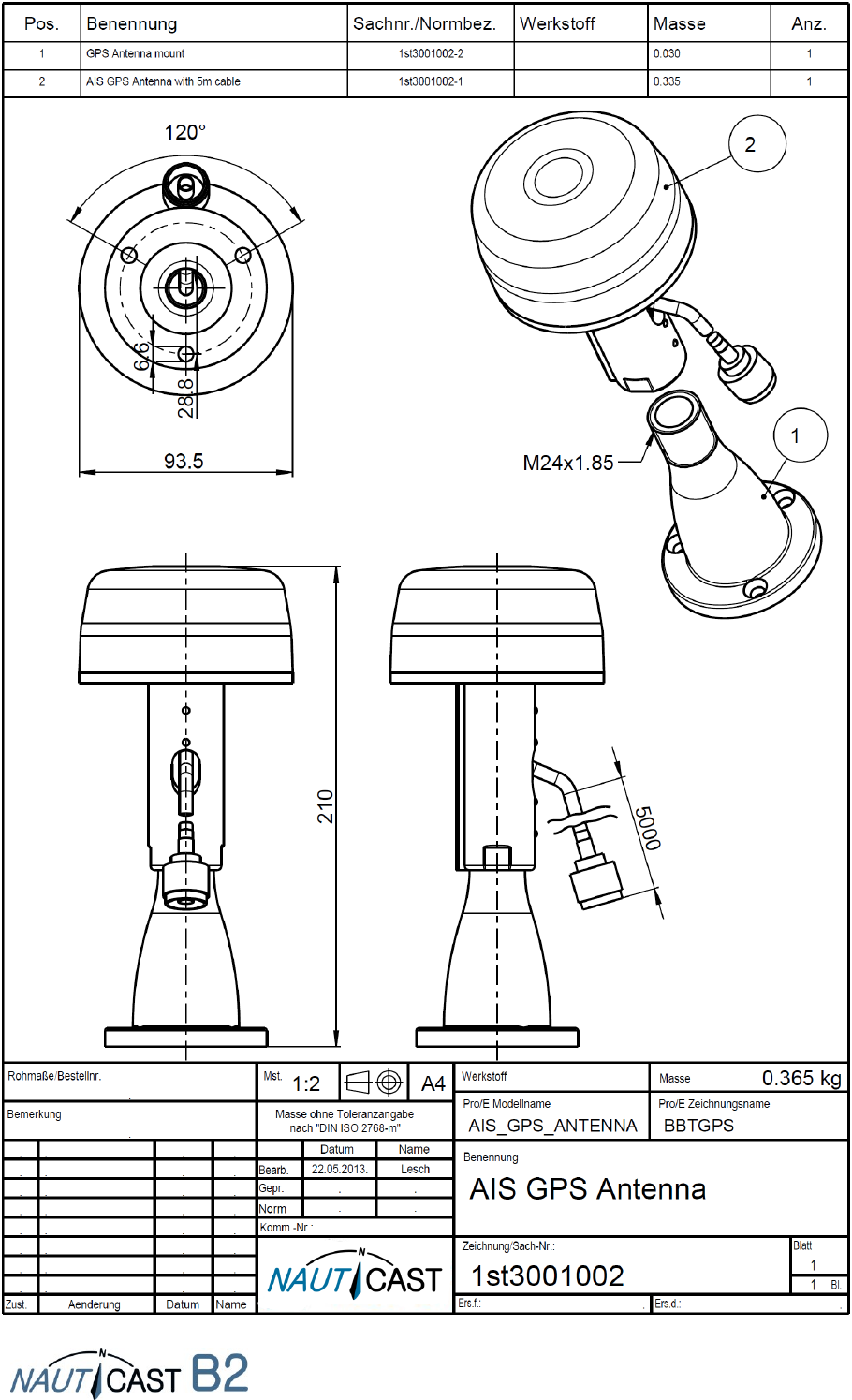

8.4 APPENDIX D – GPS ANTENNA ..........................................................................................................................24

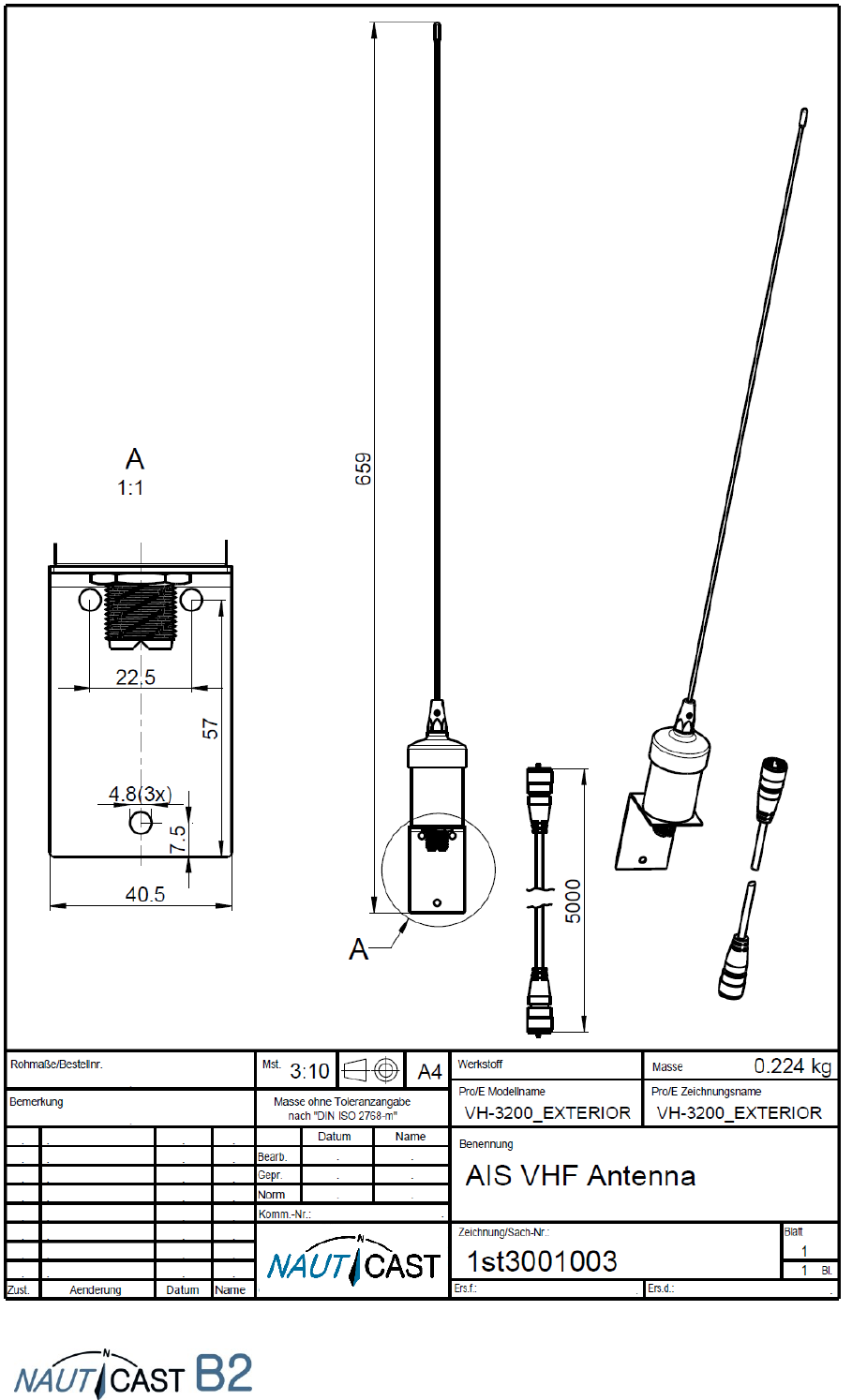

8.5 APPENDIX E – VHF ANTENNA ..........................................................................................................................25

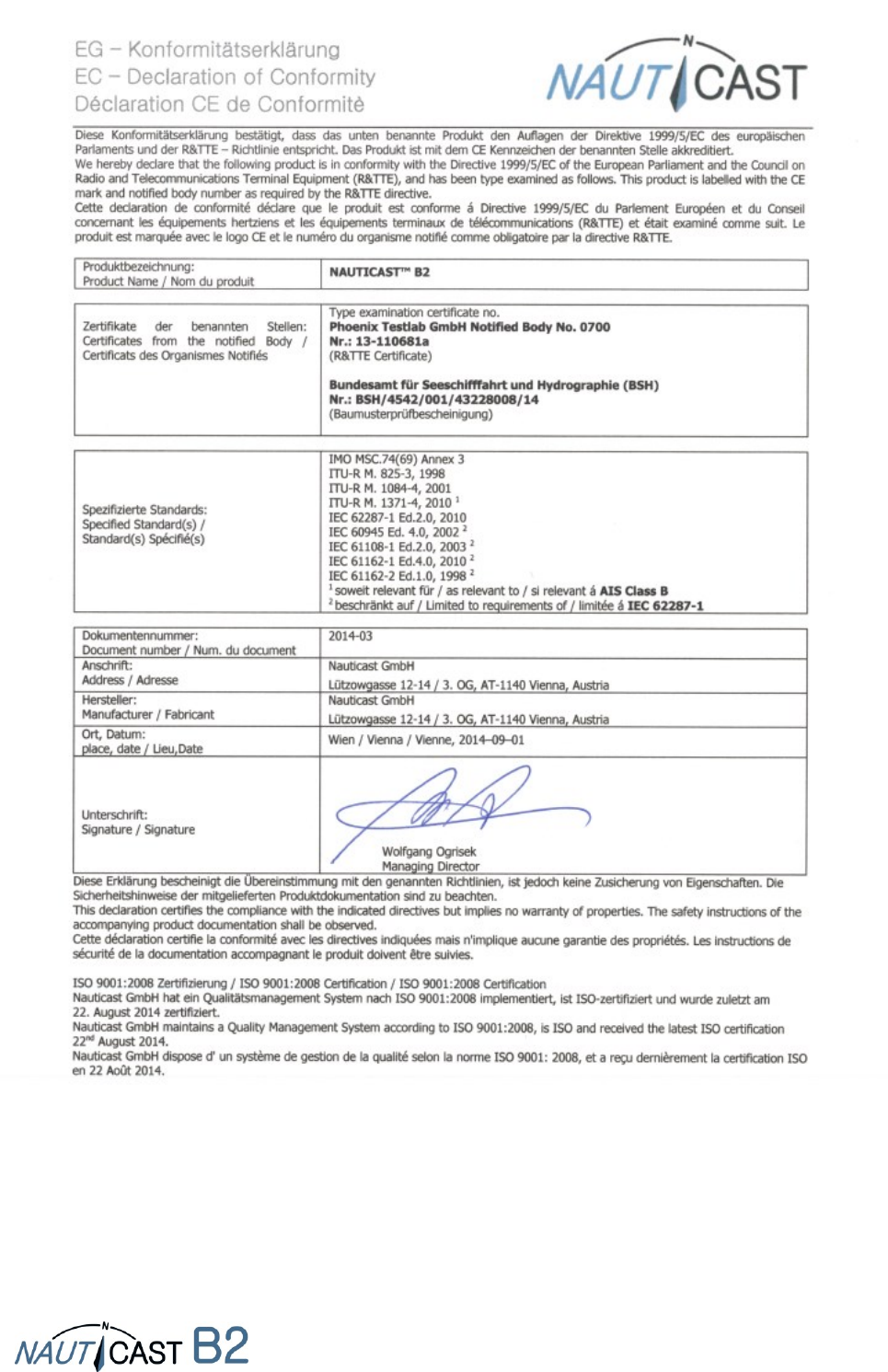

8.6 APPENDIX F – DECLARATION OF CONFORMITY .....................................................................................................26

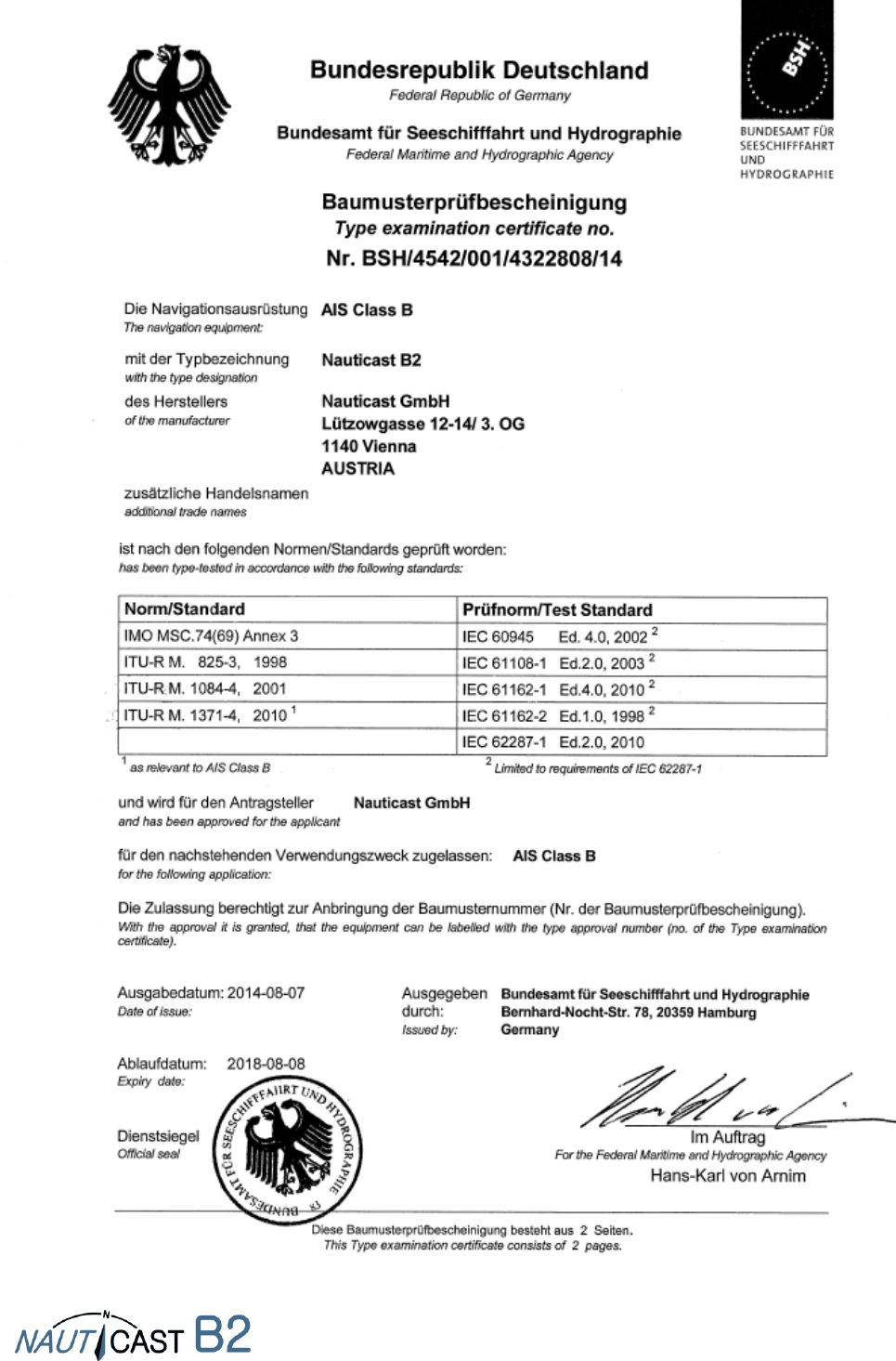

8.7 APPENDIX F – BSH CLASS B TYPE APPROVAL ......................................................................................................27
8.8 APPENDIX H – DIAGNOSTICS AND TROUBLESHOOTING ...........................................................................................28
Page 4 of 32
B2 Product Manual 2_0
History of Changes in this Product Manual
Software/firmware dependencies
This revision of the manual is valid for the latest software/firmware versions listed below and
any newer releases. Please check www.nauticast.com/downloads for available updates.
Safety warnings
This AIS transponder is solely an aid to navigation and can under no circumstances provide complete
and accurate navigation information. AIS is not a replacement for vigilant human lookouts and other
navigation aids such as RADAR. The performance of the transceiver may be seriously impaired if not
installed as instructed in the product manual or due to other factors such as weather and or nearby
transmitting devices. Compatibility with other systems may vary and relies on third party systems
recognising the standard outputs from the transceiver. The manufacturer reserves the right to
update and change these specifications at any time and without notice.
Safety of Life Systems
Nauticast devices may only be used in safety of life devices or systems with the express written
approval of Nauticast. The unsolicited and untested use of Nauticast devices in safety of life devices
or systems may jeopardize the safety or the life of the user or other persons.
Important information for US customers
There are specific laws in the USA regarding the configuration of AIS Class B transceivers.
If you are a US resident and intend to use your AIS Class B transceiver in US waters, you should
make sure that your retailer has configured your product prior to supplying it to you. If your AIS
transceiver has not been pre-configured please contact your dealer for details of how to have it
configured. In the United States the MMSI and static data may only be entered by an
authorized dealer; the end user of the equipment is not authorised to enter or change
their own vessel data.
Date
Version
Status
Comments
2013-07-31
1.14
Release
First Official Release
2013-08-19
1.15
Release
Editorial Changes
2014-07-14
1.2
Release
Editorial Changes
2014-09-30
2.0
Release
Structure updated, introduced new
troubleshooting guide
Date
B2 Firmware
Status
Comments
2014-11-16
FW01.3033-006
Release
Improvements to ship list data,
minor parameter changes
Date
Link2AIS
Status
Comments
2013-06-28
3.0
Released
2014-04-17
3.1
Released
Minor changes in interface
2014-11-25
3.2
Released
Bug fixes, interface changes, new debug
mode for data logging
Page 5 of 32
B2 Product Manual 2_0
1 WHAT IS AIS?
AIS stands for Automatic Identification System. AIS increases the navigational safety and helps
avoid collisions by interchanging vessel identification and route data between nearby ships and land
based stations. This makes identifying ships and their planned course much easier when not in sight
(e.g. at night, in radar blind arcs or shadows or at larger distance).
According to IALA regulations, AIS is defined as follows:
AIS is a broadcast transponder system, operating in the VHF maritime mobile band (using two VHF
channels: 87B - 161.975MHz and 88B - 162.025MHz). It is capable of sending ship information such
as identification, position, course, speed and more, to other ships and to shore. It can handle multiple
reports at rapid update rates and uses Carrier Sense Time Division Multiple Access (CSTDMA)
technology to meet these high broadcast rates and ensure reliable and robust ship to ship operation.
The IMO defines the performance standards as follows:
Ship to ship working, ship to shore working, including long range application, automatic and
continuous operation, provision of information messaging via PC and utilization of maritime VHF
channels .
The Modules:
GPS system, AIS Transponder, VHF Antenna, and the Power Supply (appropriate application
software connects the individual modules).
AIS systems are required to operate in a variety of modes:
The system shall be capable of
An "autonomous and continuous" mode for operation in all areas. This is the default
mode but can be forced to/from the following alternatives by an entitled authority;
An "assigned" mode for operation in an area subject to an entitled authority responsible for
traffic monitoring; data transmission interval and/or time slots may be set remotely;
A "polling or controlled" mode, where data transfer occurs in response to polling from a
ship or entitled authority.
This illustration depicts a typical AIS System where two or more AIS equipped vessels (and shore
based systems) are automatically communicating with each other:
Page 6 of 32
B2 Product Manual 2_0

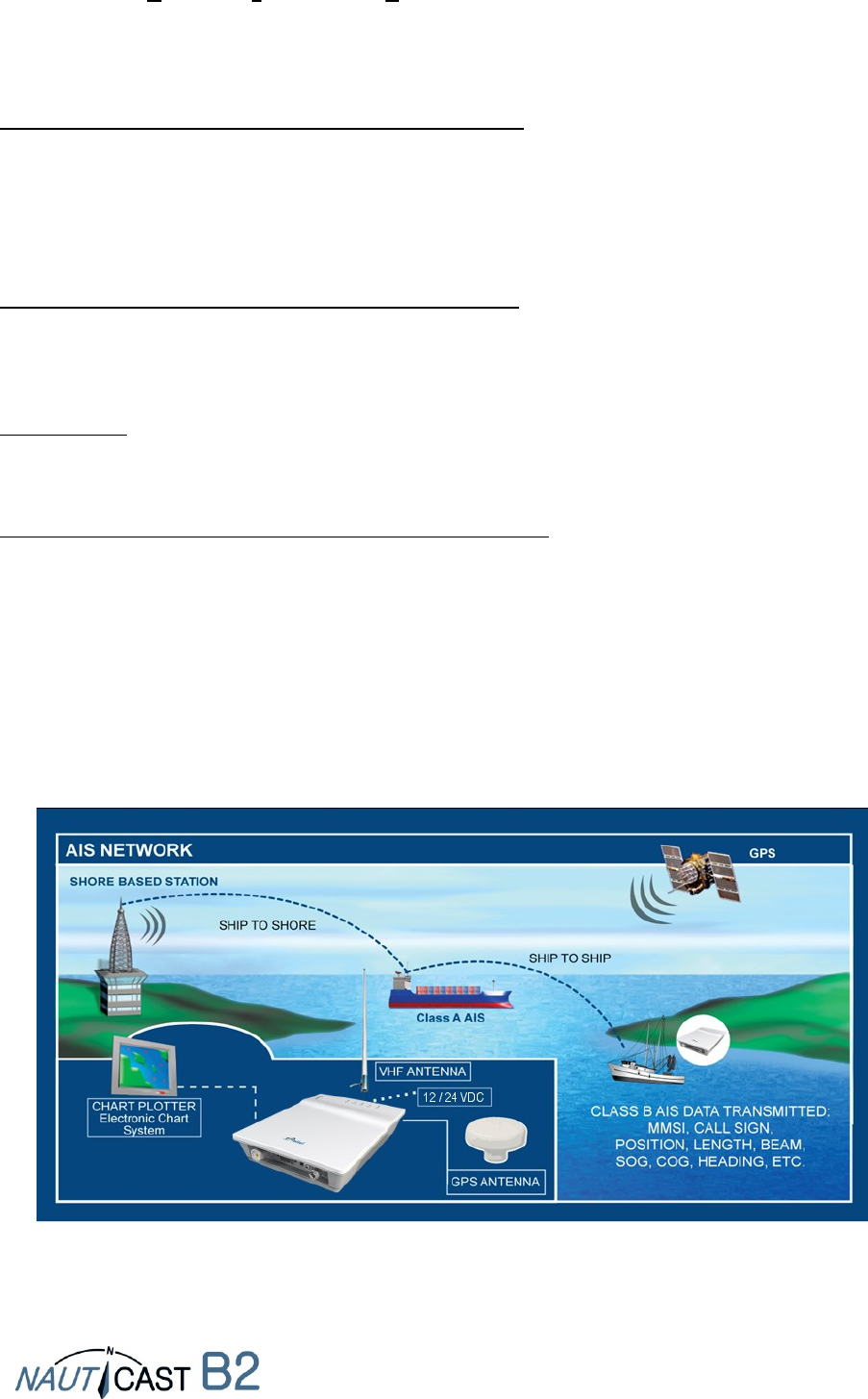

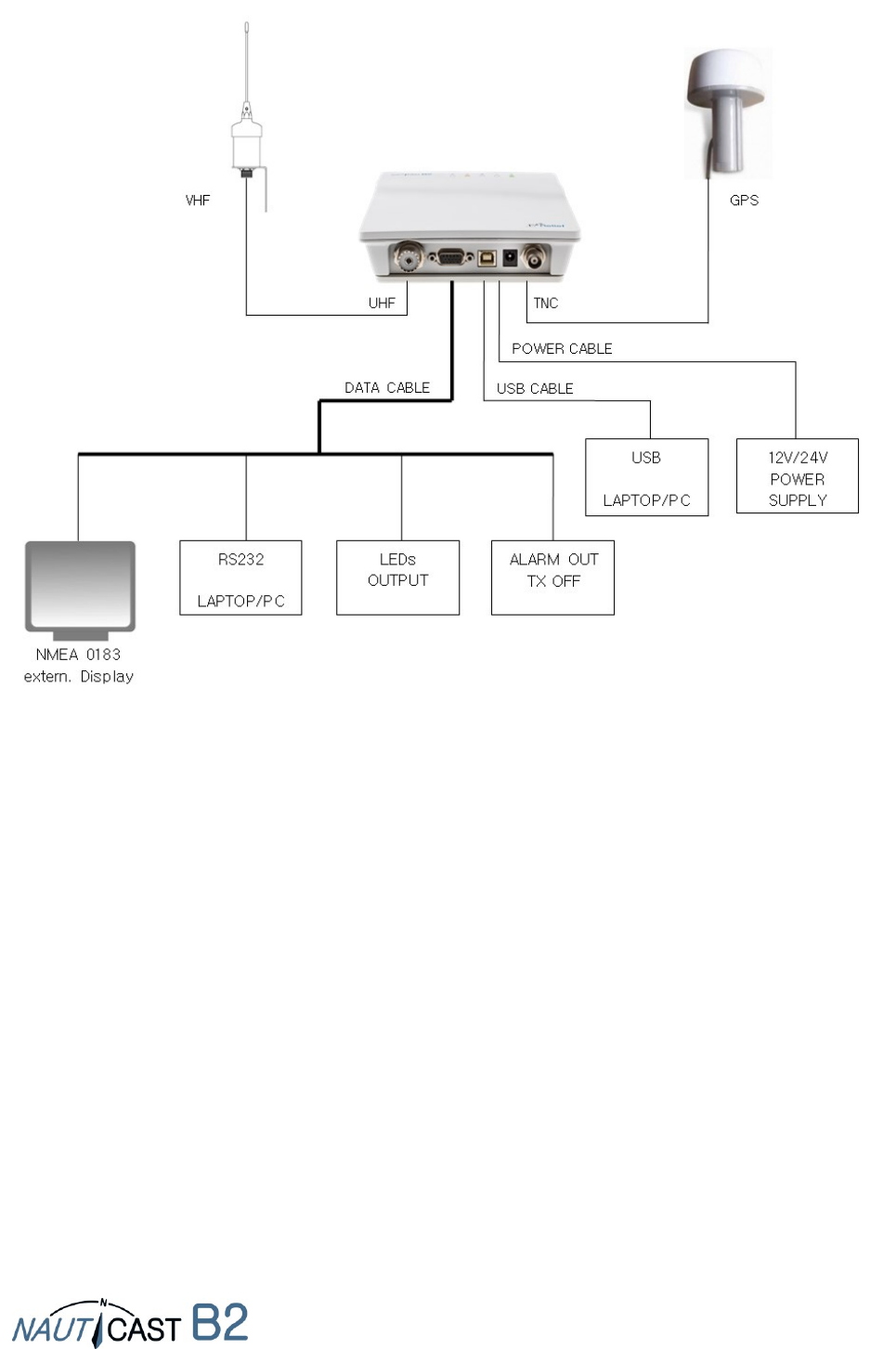

The illustration below depicts a typical Nauticast B2 installation in a common environment. When
the Nauticast B2 is connected to the vessel’s power supply and both VHF and GPS antenna it fulfils
the requirement for standard operation. The scenario shows a full AIS coverage area (including all
applications and complete shore infrastructure).
1.1 AIS Classes
There are two classes of AIS units fitted to vessels, Class-A and Class-B. In addition to those, AIS
base stations may be employed by the Coastguard, port authorities and other authorized bodies.
AIS units acting as Aids to Navigation (A to N) can also be fitted to fixed and floating navigation
markers such as channel markers and buoys.
Class-A units are a mandatory fit under the safety of life at sea (SOLAS) convention to vessels above
300 gross tons or those that carry more than 11 passengers in international waters. Many other
commercial vessels and some leisure craft are fitted with Class-A units voluntarily. Class-B units are
designed for vessels which do not fall under the mandatory Class-A requirements.
The Nauticast B2 is a fully compliant Class-B AIS unit.
Page 7 of 32
B2 Product Manual 2_0
Information transmitted from vessels that have a Class-A AIS transponder on board include:
• Name of Vessel
• Destination
• Vessel Dimensions
• Status
• Speed (SOG)
• Call Sign
• ETA
• Draft
• Position
• Course (COG)
• Type of Vessel
• MMSI Number
• Navigational Status
• Heading
• Rate of Turn
• IMO Number
• Cargo
Information transmitted from vessels that have a Class-B AIS transponder on-board include:
• Name of Vessel
• Vessel Dimensions
• Speed (SOG)
• Type of Vessel
• Position
• Heading
• MMSI Number
• Course (COG)
• Call Sign
1.2 Position Information Source
The marine AIS system uses position information derived from networks such as the Global
Positioning Satellite (GPS) or the Global Navigation Satellite System (GLONASS) in order to determine
the location of the AIS unit and thus the vessel to which it is fitted. The Nauticast B2 utilizes the GPS
satellite network.
2 Installation
2.1 The contents of this box
Before proceeding with the installation of the Nauticast B2 please check the contents of the box,
which should include:
The Nauticast B2 AIS transponder
Mounting plate
Power Cable
USB Cable
VHF Antenna with connection cable and mount
GPS Antenna with connection cable and mount
Documentation and Software CD containing:
o Nauticast B2 Product Manual
o Nauticast B2 Product Sheet
o Link2AIS Setup
o Link2AIS User Guide
o + other Documentation and Information Material
Installation should be completed in 3 separate steps. Complete each step before proceeding to the
next:
1. Install the Link2AIS software onto your PC
(please see our website http://www.nauticast.com/content/link2ais for the latest version).
2. Enter your ship’s data (MMSI, Vessel Name, Call sign, Length, Beam etc.) into the Link2AIS
software and save them onto the Nauticast B2 (only USB connection necessary).
3. Install your Nauticast B2 hardware to your vessel.
Page 8 of 32
B2 Product Manual 2_0
2.2 Software Prerequisites
The Link2AIS-software is designed to operate with Microsoft Windows® operating systems. The
recommended minimum system requirements are:
Microsoft Windows® XP SP2 or above till Microsoft Windows® 8.1.
Recommended screen resolution of 1280 x 1024 (although the Link2AIS-software can
operate on screens with smaller resolution, with the use of scroll bars).
One free USB port – minimum USB 2.0.
A pointing device (mouse or equivalent).
An Internet Browser used for the help system.
2.3 Installing the Link2AIS software onto your PC
The Link2AIS-software is part of the Nauticast B2-bundle or may be downloaded from the webpage
of Nauticast GmbH. Unzip the package when necessary, locate the file Setup.exe ind the “Software”
folder on the enclosed CD and double click on this file to start the installation process. Follow the
screen prompts to install the Link2AIS software.
* Refer to the Software User Guide (‘Help – Link2AIS-Help’, section Documentation)
for detailed installation instructions.
A Start Menu folder and a shortcut on your desktop will be created with the name 'Link2AIS'. This
short cut should be used to launch the application.
2.4 Enter your ship’s data
NOTE: To program your Nauticast B2 you will need to connect it to a personal computer or a
notebook with the Link2AIS software installed. There is no external power source needed when
using a USB connection. If you intend to use the optional data cable (product no.: 3001004) on the
vessel, we recommend you still perform the configuration of the Nauticast B2 via USB, in order to
make programming your device easier.
2.4.1 Connecting the Nauticast B2 to your PC
Connect the Nauticast B2 to your PC/notebook using USB. The LEDs on the device will
first cycle through. Then the PWR LED and the ERR LED will stay on, while the TX LED
flashes. This is the normal sytem behaviour if the device is only connected to the USB
port and no antennas are attached.
Make sure the device is recognized correctly by your PC (Windows shows a message on
the task panel what COM port has been assigned).
Page 9 of 32
B2 Product Manual 2_0
Start the Link2AIS software program on the PC.
Open the connection settings:
By pressing ‘Scan Ports’ the software checks the available ports for the device and gives
you a suggestion when ready. The serial port (port number can be found in the device
manager of Windows) can also be selected manually from the menu. Click 'Save' when
the right port is selected. For the Nauticast B2 115200 bps need to be used.
Once a connection is established the application is ready to use. Any error messages
shown during USB-only connection can be ignored (such as send and seceive erros,
postion errors etc.).
There is a context based Help available which explains what each data entry field means
and what sort of data is expected. The help system is started by pressing the F1 key on
your PC or via the menu “Help”.
Page 10 of 32
B2 Product Manual 2_0
2.4.2 Configuring Software and Nauticast B2 static data
The functions of Link2AIS are arranged in a series of menus. Depending on the version
of Link2AIS installed not all menu entries shown below may be visible.
Open ‘AIS Settings’ - ‘Identification’. This will display the 'Static Data' for the connected
transponder. This includes the vessel's name, call sign, MMSI number and other fixed
information.
To configure the transponder all of the data fields must be filled and saved.
CAUTION:
For security reasons the MMSI of the vessel cannot be changed by the end user once
they are programmed. Do NOT program the MMSI unless you are certain you have the
correct information. Please check the number entered carefully. If the MMSI is
programmed incorrectly or has to be changed at a later date you have to contact your
supplier or Nauticast GmbH (www.nauticast.com) for a MMSI reset.
Page 11 of 32
B2 Product Manual 2_0
Enter vessel information items in the appropriate boxes:
MMSI number - enter the vessel's Maritime Mobile Service Identity number (see
warning and further notes regarding MMSI below!)
Call Sign - enter the vessel's radio call sign (7 characters maximum)
Ship name - enter the name of the vessel (20 characters maximum)
Select the most appropriate vessel type from the drop down menu.
Enter the vessel’s dimensions as follows, rounded to the nearest meter:
o Dimension A - distance from GPS antenna location to bow
o Dimension B - distance from GPS antenna location to stern
o Dimension C - distance from GPS antenna location to max. port
o Dimension D - distance from GPS antenna to max. starboard
CAUTION:
If no valid MMSI is entered (MMSI is pre-set to 000000000) the AIS transponder
will only operate in Receive mode, which means the vessel’s position is NOT
transmitted. As a consequence, the TX LED will remain on (indicating a
transmission error) even when all antennas and main power are connected.
When you have entered all of the vessel's data click the 'Save' button to program this
configuration into the AIS transponder.
A warning will be displayed asking you to verify the MMSI number. The MMSI can only be
changed by your dealer once programmed into the transponder. You can change all other
data (except the MMSI) at any time, should the need arise. Please check the MMSI and if the
number is incorrect, click the 'No' button to cancel programming of the MMSI.
Click the 'Yes' button if the MMSI is correct.
When reopening the ‘Identification’ window you can now see the vessel information stored
on the device. The MMSI number will be displayed with a grey background, to indicate that
it has been programmed and cannot be changed.
You can now disconnect the device from the USB cable / PC and install the hardware on your
vessel. A PC is not necessary for normal operation but can be useful to display all AIS data,
maps and system status. For connecting a Chart Plotter please refer to section 3 “ Connecting
external equipment”.
For additional information about the Link2AIS software please refer to the Link2AIS Software
User Guide (‘Help – Link2AIS-Help’, section Documentation).
Page 12 of 32
B2 Product Manual 2_0
2.5 Installing your Nauticast B2 hardware
2.5.1 Installation hints
We strongly recommend that:
The GPS antenna is mounted in an elevated position and free of shadow effects from the
ship’s rigg or other super-structure.
The GPS antenna has a free view through 360 degrees with a vertical angle of 5 to 90 degrees
above the horizon.
As the received GPS signal is very sensitive to noise and interference generated by other on-
board transmitters, ensure that the GPS antenna is placed as far away as possible from radar,
Inmarsat and Iridium transmitters and that the GPS antenna is not mounted within the direct
radar or Inmarsat beams.
It is also important that the MF/HF and other VHF transmitter antennas are kept as far away
as possible from the GPS antenna. It is good practice never to install a GPS antenna within
a radius of 2 meters from these antennas.
The VHF antenna should be mounted with at least two meters of vertical separation from
any other VHF antenna, e.g. those used for speech or DCS communication.
The Nauticast B2 transponder should be mounted on a vertical bulkhead or surface with the
end featuring connectors / cables in the downward position. Use the procided mounting
plate. The mounting location must be protected from weather (e.g. rain, snow, ..) and direct
water spray. The best place, therefore, is at the navigation desk, under the helm station or
some other suitable location in the cabin.
Safe distance to other electronic equipment should be half a meter.
The GPS, VHF, power and data cables need to be secured to the bulkhead within 6” to 12”
(15 to 30cm) from the connectors.
CAUTION:
Use only the parts and cables provided with the Nauticast B2 set or Nauticast accessories to
connect antennas, power and display devices in order to ensure the proper functioning of
the system. When attaching other parts to the system follow the technical recommendations
in section 4.3 “Using different antennas”.
Do not connect the Nauticast B2 unit to a main line 110/220V AC electrical supply, as it could
cause electric shock or fire. Only use 12-24V DC power sources!
Do not connect the Nauticast B2 unit to a DC supply exceeding 24V DC or reverse the supply
polarity, because it may cause damage to the unit. Ensure that the power supply is limited
in accordance with EN 60950-1:2006 and protected with a fuse or breakers not exceeding
the specifications listed in this manual.
The length of either data or power cable must not exceed 3 meters.
Do not apply excessive force to connectors during installation!
The Nauticast B2 unit is designed for operation in the temperature range -25 °C to +55 °C.
Do not install (or use) the Nauticast B2 unit in environments which exceed this range.
Connecting a mismatched VHF antenna, leaving the VHF antenna port disconnected or
shorting the VHF antenna port will activate the VSWR alarm, will cause the unit to stop
sending position reports and can cause damage to the transponder and activate the Error
LED.
2.5.2 Connecting the antennas
Connect the down-lead from the VHF antenna to the VHF antenna port and connect the down-lead
of the GPS antenna to the GPS antenna port. Please see 8.1 APPENDIX A – Block Diagram for proper
antenna installation.
Page 13 of 32
B2 Product Manual 2_0
2.5.3 Connecting Power
Connect the power cable to a 12 VDC or 24 VDC power supply, capable of supplying 2A peak to the
DC power lead (red = positive, black = negative) and plug the power connector into the Nauticast
B2. Please see the Appendix B of this manual for details of the power, data and RF cables supplied.
2.5.4 Mounting the Nauticast B2
Attach the mounting plate with Phillips self tapping head screws (10-32 x 1,2) on a vertical surface.
Please see Appendix C for the mounting plate’s exact dimensions.
Then insert the Nauticast B2 main unit and press down firmly until it snaps in.
2.5.5 Installation Check
You now have successfully completed the installation of your Nauticast B2 AIS system. After
connecting the main power supply allow the system 5 minutes to calibrate and start operation.
Then check the LED status. Normal operation is indicated by:
PWR: green (note: LED will be a dimmer shade of green on USB power supply as well)
However, USB-only power supply is NOT sufficient for full operation,
so make sure 12-24VDC main power is actually supplied!
TX: off
ERR: off
CH1, CH2: blinking green, amber or red
(when actual transmissions occur, dark in between transmissions)
When you encounter a different behaviour please consult section 4 Operation of your Nauticast B2.
Page 14 of 32
B2 Product Manual 2_0
3 Connecting external equipment
External equipment can be any device complying with NMEA0183 standard or a PC with appropriate
AIS software installed. For information about the data see section 4.2 Data Port Messages (NMEA
0183).
3.1 Connecting to a PC
The connection to a PC can be established either via USB (provides a Virtual Serial Interface) or with
the optional Data Cable (prod. No.: 3001004) and a serial interface (RS232), if the latter is available.
3.2 Connecting to other marine equipment via NMEA0183 (optional data cable
required)
All other devices that support the NMEA0183 standard can be connected with Cable 1 (RS422) of
the optional Data Cable (prod. No.: 3001004). (see Appendix B for more details).
Note: Connections via USB and RS232 use a Baud rate of 115200 by default. If you are
connecting trough RS422 the default Baud rate is 38400. Please make sure to adjust the
port settings on any connected equipment accordingly.
3.3 Connecting an alarm relay (optional data cable required)
An alarm relay (prod. no.: 3001009) can be connected with Cable 3 of the optional Data Cable (prod.
no.: 3001004). (see Appendix B for more details).
3.4 Silent mode (optional data cable required)
By connecting a silent mode switch with Cable 3 of the optional Data Cable (prod. no.: 3001004)
the transmitting function of the Nauticast B2 can be switched off on on. (see Appendix B for more
details).
Note: The TX LED will start flashing when the silent mode is active.
3.5 External LED status indicators (optional data cable required)
If the Nauticast B2 is not visible and the status LEDs should still be monitored, external LEDs can be
connected with Cable 4 of the optional Data Cable (prod. no.: 3001004). (see Appendix B for more
details).
Note: The optional data cable provides the functions on the 4 output cables
simultaneously. Therefore only one cable is needed.
Page 15 of 32
B2 Product Manual 2_0
4 Operation of your Nauticast B2
4.1 Interpreting Status LEDs
Please note that a proper 12 / 24 VDC power suppply is necessary for the B2 to operate flawlessly.
The USB connection will not suffice!
All Class B Devices and hence the Nauticast B2 have a lower priority than Class A devices and base
stations whenever the AIS-channel is highly loaded.
Class B devices send with lower power than class A devices. Therefore a class A device may be
visible to the Nauticast B2, while the reverse may sometimes not be the case.
4.1.1 PWR
A green LED indicates that the unit is connected to an external power source.
NOTE: LED will be a dimmer shade of green on USB power supply as well; however, USB-only
power supply is NOT sufficient for full operation, so make sure 12-24VDC main power is actually
supplied if you want to operate the B2 in normal operational mode (i.e. transmitting AIS data
to other ships)
4.1.2 TX (Timeout)
This LED will show up in amber if the unit has failed to transmit a position report during the last
two reporting intervals.
Reasons for missing reporting intervals might be (examples):
• Message 23 “quiet period”
• A high VDL load
• Positional information unavailable
• Transmissions disabled
• Irregularities in the power supply (USB power alone is insufficient for sending!)
• Connection problems with one of the antennas
• Unit has not been configured
4.1.3 ERR - Error
An amber LED shows up if the unit has failed its integrity test. The unit is equipped with built-
in integrity tests (BIIT) which is performed in parallel with standard AIS operation.
The BIIT provide the following test functions:
• Receiver monitoring of background noise level – indicates if background noise level
exceeds -77dBm
Page 16 of 32
B2 Product Manual 2_0
• GPS antenna connection – indicates open or shorted circuit
• GPS module – indicates if module has failed
4.1.4 CH1 and CH2 – channel information
Two tri-colour LEDs briefly light up (flash), indicating activity of channel 1 and channel 2:
Green flash: channel has received an AIS message
Amber (red and green): channel is transmitting
Red indicates the channel is in DSC mode
4.2 Data Port Messages (NMEA 0183)
The data port will output the following:
Details of relevant AIS transmissions received (VDM messages)
Details of AIS transmissions sent (VDO messages)
Details of channel management messages received (VDM messages)
Alarm messages generated by the BIIT function (ALR messages)
System notifications generated by the transponder (TXT messages)
GPS information (RMC, GSA, GSV)
The data port will accept the following inputs:
Programming information (SSD, proprietary command PNAU)
Alarm acknowledgements (ACK)
For more information about the interface protocol refer to the latest “PROTOCOL SPECIFICATION”
of the Nauticast B2 or contact our Technical Support Team (see Section: Contact & Support
information).
4.3 Using different antennas
It is possible to use different antennas than the ones provided with the Nauticast B2. For instance,
a combined antenna for VHF and GPS (“combi antenna”) can be used, if there is not enough space
to fit two antennas on the vessel without disturbing other equipment. A combined antenna solution
is available on our website (prod. no.: 1001027 – “AC Marine VHF/GPS-2”).
If other antennas are being used, please take note of the following minimal requierements:
4.3.1 GPS Antenna
The Nauticast B2 has a TNC female bulkhead connector. This port provides a 5V DC feed for an
active GPS antenna, required by the Nauticast B2 unit (i.e. it should incorporate an LNA). Therefore,
the GPS antenna must be an active type using 5V. The antenna must be suitable for marine
applications (index of protection, ruggedness, means of mounting, etc.). An antenna should be
selected with a gain (in dB) depending on the length of cable between the antenna and the AIS unit.
After subtraction of cable and connector losses a minimum total gain of 20 dB should be available
at the Nauticast B2 unit GPS antenna connector. The GPS antenna must be a dedicated antenna,
i.e. not shared with any other GPS receiver. Installation of the GPS antenna is crucial for flawless
operation of the built in GPS receiver, which in turn is used for timing of the transmitted time slots
and for the supply of navigational information.
4.3.2 VHF Antenna
The Nauticast B2 has a UHF female bulkhead connector . The VHF antenna employed for AIS use:
Must be a dedicated antenna, i.e. not shared with any other VHF transmitter/receiver.
Must be suitable for marine applications (index of protection, ruggedness, means of
mounting, etc.).
Should be omni-directional and vertically polarized with unity gain (0 dB) with a bandwidth
sufficient to maintain VSWR <1.5 over the frequency range 156 – 163 MHz. As a minimum
the 3dB bandwidth must cover the two AIS channels and the DSC Channel.
Should be mounted at least 2 meter apart from any other VHF antenna used for speech or
Page 17 of 32
B2 Product Manual 2_0
DCS communication.
4.4 Standards
The Nauticast B2 complies with all standards under the European R&TTE directive Article 3.1(a),
3.1(b), 3.2 and 3.3(e). Among other, these standards have been implemented:
IEC 62287-1: 2006-03 Maritime navigation and radio communication equipment and systems
– Class-B ship borne equipment of the automatic identification system (AIS) – Part 1: Carrier-
sense time division multiple access (CSTDMA) techniques
IEC 60945: 2002-08 Maritime navigation and radio communication equipment and systems
– General requirements – Methods of testing and required test results
IEC 61162-1: Maritime navigation and radio communication equipment and systems – Digital
interfaces – Part 1: Single talker and multiple listeners
IEC 61108-1: GLOBAL NAVIGATION SATELLITE SYSTEMS (GNSS) – Part 1: Global positioning
system (GPS) -Receiver equipment - Performance standards, methods of testing and required
test results
EN 301 843-1 v2.1: Electromagnetic compatibility and Radio spectrum Matters (ERM);
Electromagnetic Compatibility (EMC) standard for marine radio equipment and services; Part
1: Common technical requirements
EN 50383: 2002 Basic standard for calculation and measurement of electromagnetic field
strength and SAR related to human exposure from radio base stations and fixed terminal
stations for wireless telecommunications system (110MHz – 40GHz)
EN 60950-1:2006 Information technology equipment – Safety – Part 1: General requirements
5 Maintenance and Troubleshooting
WARNING: Unauthorized opening of the Nauticast B2 (case) will invalidate the warranty!
CAUTION: Avoid using chemical solvents to clean the Nauticast B2 as some solvents
can damage the case material. To clean, wipe down with a damp cloth.
NOTE: The Nauticast B2 contains no user serviceable parts.

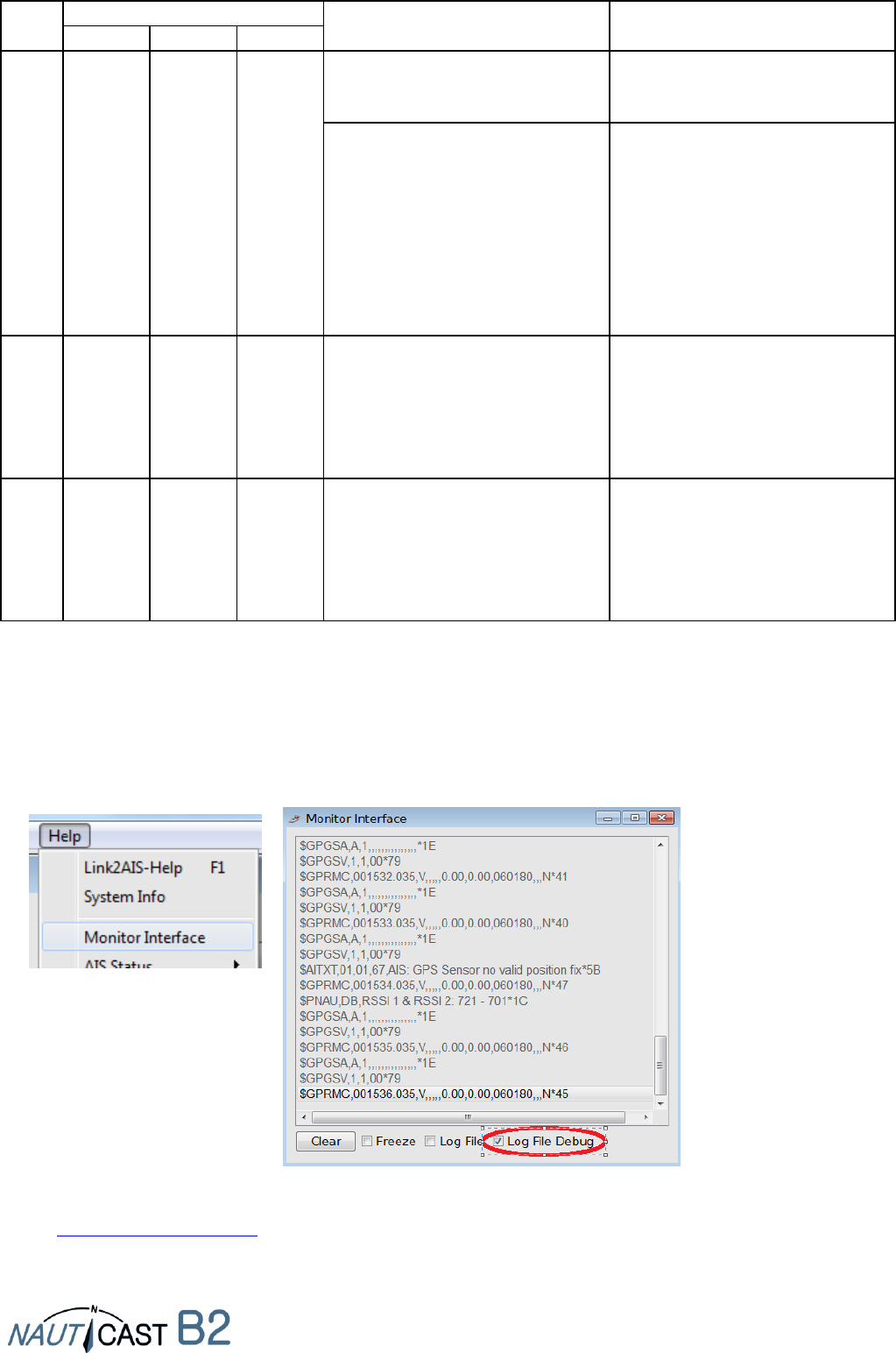

If you are experiencing unexpected behaviour or malfunctioning of the Nauticast B2, please follow
the instructions in section 8.8 Appendix H – Diagnostics and Troubleshooting. If the problem
is still unsolved, please attach a PC, start Link2AIS and log AIS data in operation for at least 2-3
hours as described in the same section. Contact support@nauticast.com with the log file attached.
6 Contact & Support information
Contact your local dealer for Nauticast B2 support. Please see our Website www.nauticast.com for
Dealer / Service Listings.
Nauticast GmbH
Lützowgasse 12-14 / 3. OG
1140 Vienna
Austria
Tel: +43 (1) 5 237 237-223
Fax: +43 (1) 5 237 237-150
Mail: technical.support@nauticast.com
Web: www.nauticast.com
Page 18 of 32
B2 Product Manual 2_0
7 Technical Details
7.1 Product Specification
Product Number:
3001001
Model Number:
Nauticast B2
Size:
195x145x35mm
Power:
12 VDC (24VDC)
3W average power consumption, 12W peak
consumption
1A (0,5A) peak current
Electrical Interfaces:
USB, RS232: Baud rate 115200
RS422: Baud rate 38400
VHF receivers:
2 AIS receivers (shared between AIS and DSC)
1 DSC receiver (shared between AIS and DSC)
Frequency 156–162MHz
Sensitivity @ -107dBm < 20% PER
VHF transmitter:
1 Transmitter
Output PWR 2W nominal
Frequency 161–162MHz
Internal GPS Receiver:
48 channel
1 Hz Update rate
5V DC Antenna feed
IEC61108-1 compliant
5 LEDs
PWR
Green
Connected to power supply (both USB and main!)
TX
Amber
Transmit Timeout
ERR
Amber
Rx noise level >77dBm
GPS antenna connection failure
GPS module failure
CH1 Tricolour
Green - Receive AIS data
Amber - Transmit AIS data
Red - DSC data mode
CH2 Tricolour
Green - Receive AIS data
Amber - Transmit AIS data
Red - DSC data mode
Environmental Class
“Protected” according to IEC 60945-Ed.4
Compass Safe Distance
0,55m
7.2 Information Reporting Intervals
The Nauticast Class-B AIS will transmit position reports (Message 18) in reporting intervals of
Every 30 seconds: if Speed over Ground (SOG) is > 2 kn;
Every 3 Minutes: if (Speed over Ground) SOG is < 2 kn;
These transmission intervals will be observed only if the device is connected to 12-24VDC
power supply; the device will not transmit when connected to USB power supply alone!
Transmissions by any class B device, and therefore also the B2, are subject to available time slots
in the broadcast area of the device; e.g. a command received by Message 23 or a large number of
class A devices can override the reporting interval!
Static Data sub messages 24A and 24B will be transmitted every 6 minutes in addition to and
independent of the position report.
Page 19 of 32
B2 Product Manual 2_0
8 Appendix
8.1 APPENDIX A – Block Diagram
System Block Diagram
(Note: Mount your unit with cable/connector side down)
Power supply, PC, NMEA compatible devices not included
Data Cable optional
Page 20 of 32
B2 Product Manual 2_0
DATA CABLE
8.2 APPENDIX B – Pin Layout / Cable Connections
Class-B
POWER CABLE
Description
Wire Type
Color
AWG
12VDC-24VDC +
Copper
RED
24
GND -
Copper
BLACK
24
Class-B
Description
DB15
Wire Type
Color
AWG
CABLE #
RS422 TX A (output)
15
Copper
YELLOW
24
CABLE 1
RS422 TX B (output)
5
Copper
GREEN
24
CABLE 1
RS422 RX A (input)
4
Copper
WHITE
24
CABLE 1
RS422 RX B (input)
10
Copper
GREY
24
CABLE 1
RS232 TX (output)
9
Copper
GREEN
24
CABLE 2
RS232 RX (input)
13
Copper
WHITE
24
CABLE 2
GND
2
Copper
BROWN
24
CABLE 2
GND
7
Copper
BROWN
24
CABLE 3
TX OFF (silent mode)
6
Copper
GREEN
24
CABLE 3
ALARM OUT
11
Copper
YELLOW
24
CABLE 3
+
14
Copper
GREY
24
CABLE 3
CH2 LED RED
3
Copper
BROWN
24
CABLE 4
TX TIMEOUT LED
8
Copper
WHITE
24
CABLE 4
ERROR LED
12
Copper
YELLOW
24
CABLE 4
CH1 LED RED
1
Copper
GREEN
24
CABLE 4
+
14
Copper
GREY
24
CABLE 4
Use of the Data Cable (Part No. 300 1004)
CABLE 1:
Connect the appropriate cable ends to the designated NMEA 0183 device (Baud rate 38400).
Wire end Nauticast B2
Possible end of attached NMEA device
RS422 TX A, yellow
connect to
RX A (+)
RS422 TX B, green
connect to
RX B (-)
RS422 RX A, white
connect to
TX A (+)
RS422 RX B, grey
connect to
TX B (-)
CABLE 2:
Connect the D-SUB 9-pin connector to a matching RS232 serial interface (directly to the PC or
using a serial to USB adapter). This connection uses a Baud rate of 115200 by default.
CABLE 3:
TX OFF:
You have to connect a switch between TX OFF (green) and GND (brown). To turn transmission off,
the switch has to be activated:
TX OFF
TX OFF
Page 21 of 32
B2 Product Manual 2_0
Transmission ON Transmission OFF
ALARM OUT:
If you want to signal an alarm with a LED only, you can connect the LED with a series resistor R
between + (grey) and ALARM OUT (yellow). Depending on the Voltage used for the Nauticast B2
you either have to use a 470(calculated 500) resistor (LED: UF=2V, IF=20mA) when using
12VDC or a 1k (calculated 1100 when using 24VDC.
See calculation in the Section for CABLE 4.
How to connect a LED to Alarm OUT
The next figures show the alarm relay (prod. no.: 3001009) and its dimensions, explain how to
connect the alarm relay to the data cable and how to connect the load (alarm circuit) to the alarm
relay. The input voltage of the alarm relay is matched with the operating voltage of the Nauticast
B2. The operating voltage of the alarm relay is 3 to 60 VDC with a load current of 0.1 to 2 A (3A
when using a heat sink).
Alarm Relay with dimensions
GND
GND
ALARM OUT
R
+
Page 22 of 32
B2 Product Manual 2_0
Connection of the Alarm Relay
CABLE 4:
Depending on the Voltage used for the Nauticast B2 you have to calculate the series resistor which
is connected with the LED between the + wire (grey) and the OUTPUT wire (CH1 LED RED, green;
CH2 LED RED, brown; TX TIMEOUT LED, white; ERROR LED, yellow). A series resistor of 330
(calculated 350) for 12VDC and 910 or 1k (calculated 950) for 24VDC are needed - see
calculation below.
How to connect a LED to XXX LED OUT
Calculation of the series resistor: Used variables
U... operating voltage of the Nauticast B2
UF... Forward Voltage of LED [V]
IF... Forward Current of LED[V]
R... Series Resistor[Ω]
P... Power consumption of the resistor[W]
Examples:
U=12V, UF=2V, IF=20mA:
As there is already a 150 resistor included for the LED OUT ports, you have to substract this from
the 500. Therefore 350 is the result.
(!) The ALARM OUT has no resistor included therefore 500 is the result. (see CABLE 3)
U=24V, UF=2V, IF=20mA:
As there is already a 150 resistor included for the LED OUT ports, you have to substract this from
the 1100. Therefore 950 is the result. (!) ALARM OUT has no resistor included, therefore the
result is 1100 (see CABLE 3).
ALARM OUT
+
XXX LED
R
+
Page 23 of 32
B2 Product Manual 2_0
8.3 APPENDIX C – Dimensions Nauticast B2
Page 24 of 32
B2 Product Manual 2_0
8.4 Appendix D – GPS Antenna
Page 25 of 32
B2 Product Manual 2_0
8.5 Appendix E – VHF Antenna
Page 26 of 32
B2 Product Manual 2_0
8.6 Appendix F – Declaration of Conformity
Page 27 of 32
B2 Product Manual 2_0
8.7 Appendix F – BSH Class B Type Approval
Page 28 of 32
B2 Product Manual 2_0
8.8 Appendix H – Diagnostics and Troubleshooting
B2
LED colour
Description / Reasons
Solutions
state
PWR
TX
ERR
(in order of likelihood)
1
(off)
(off)
(off)
No power supply (neither 12-
24VDC nor via USB cable
a. Connect 12-24VDC power
supply;
b. Check fuses and/or cables.
c. If problem persists: Check
condition of batteries / load
regulator using a multi-meter
2
constant
green
(off)
(off)
normal operation
3
constant
green
constant
amber
(off)
1. MMSI not programmed or
invalid MMSI
Program valid MMSI into B2, using
the Link2AIS software provided
2. VHF or GPS Antenna connection
is faulty
a. Check antenna connectors on
both ends (2 for VHF, 2 for GPS);
unplug, clean, reconnect and
screw in tightly
b. check VHF antenna for shorts,
connection with
metal/conductors
c. check antenna cabling for blank
patches, wear & tear; repair
3. No valid GPS position
information
a. Make sure GPS Antenna is not
covered / obstructed
b. Check GPS Antenna for visible
signs of damage
4. High VHF channel load (=VHF
traffic) near ship
a. Busy area (lots of marine traffic)
and SOG < 2kn, e.g in and near
harbours:
b. Quiet area or at high sea and
SOG > 2kn:
Wait for 15-20 minutes
Wait for 10 minutes
5. AIS Message 23 (Group
Assignment) has been received
from base station and calls for a
quiet period
Wait for at least 15-20 minutes;
base station will change group
assignment, i.e. lift quiet periods
4
constant
green
blinking
amber
(off)
1. Silent Mode activated
Deactivate Silent Mode (if it was
activated involuntarily)
2. if no Silent Switch is installed or
Silent Mode is definitely not
activated: Problem with main
12-24VDC power supply
a. Connect 12-24VDC power
supply;
b. Check fuses and/or cables.
c. If problem persists: Check
condition of batteries / load
regulator using a multi-meter
Page 29 of 32
B2 Product Manual 2_0
B2
LED colour
Description / Reasons
Solutions
state
PWR
TX
ERR
(in order of likelihood)
5
constant
green
(off)
constant
amber
1. VHF channel (background) noise
interferes with proper reception
of AIS messages
Restart device and wait for 10
minutes
2. GPS antenna connection
problem (open circuit)
a. Check GPS antenna connector
on device; unplug, clean,
reconnect and screw in tightly
b. Check GPS antenna cabling for
blank patches, wear & tear all
the way from device to antenna
If not using the original Nauticast
GPS antenna: Make sure you use
an active 5VDC GPS antenna.
6
constant
green
constant
amber
constant
amber
Same reasons as No. 5, but now
two subsequent transmission
cycles have been missed
(depending on required
transmission frequency: after
approx. 1 or 7 minutes)
See solutions listed for No. 5
7
constant
green
blinking
amber
constant
amber
Main 12-24VDC power supply
problem
a. Connect 12-24VDC power
supply;
b. Check fuses and/or cables.
c. If problem persists: Check
condition of batteries / load
regulator using a multi-meter
If the problem remains unsolved after completing the instructions above, we kindly ask you to
contact Nauticast Support with a log file (ideally: 2-3 hours of voyage) of your Nauticast B2 in
operation. To create the log:
Reconfigure the Nauticast B2 as described in Chapter 2 Installation. Connect to 12V or 24V
power.
Connect a PC with Link2AIS installed.
Start Help -> Monitor Window -> Data Log in Debug mode.
Locate the log-file named yy-mm-dd@hhmm in directory C:/Nauticast/Logs and send it to
support@nauticast.com with a description of the problems encountered. Nauticast support
will analyze the data and get back to you regarding further steps.
Page 30 of 32
B2 Product Manual 2_0
Nauticast GmbH
Lützowgasse 12-14 / 3.OG
1140 Vienna, Austria
T: +43 (1) 5 237 237-0
F: +43 (1) 5 237 237-150
office@nauticast.com
For more information
and the latest updates visit us at
www.nauticast.com
