ASSEMBLY MANUAL / OWNER’S MANUAL

Manual en Español Latino Americano:

http://www.nautilus.com

E618

Important Safety Instructions 3

Safety Warning Labels / Serial Number 5

Grounding Instructions 6

Specications  7

BeforeAssembly  7

Parts 8

Hardware 9

Tools 9

Assembly 10

Moving the Machine 23

Leveling the Machine 24

Features 25

Console Features 26

Bluetooth® Connectivity 29

Remote Heart Rate Monitor 31

Remote Resistance and Incline Controls 32

Suspension Adjust™ Pedals 32

Operations 33

Power Up / Idle Mode 34

Initial Setup 34

Quick Start Program 34

 UserProles  34

 ProlePrograms  37

Pausing or Stopping 40

Results / Cool Down Mode 40

GOAL TRACK Statistics 41

Console Setup Mode 43

Maintenance 44

Heart Rate Chest Strap Battery Replacement 44

Maintenance Parts 45

Troubleshooting  47

Warranty 51

TABLE OF CONTENTS

To validate warranty support, keep the original proof of purchase and record the following information:

Serial Number __________________________

Date of Purchase ____________________

To register your product warranty, go to: www.Nautilus.com/register

Or call 1 (800) 605–3369.

If you have questions or problems with your product, please call 1 (800) NAUTILUS (628–8458).

Nautilus, Inc., (800) NAUTILUS / (800) 628-8458, www.NautilusInc.com - Customer Service: North America (800) 605-3369,

registered in the United States. These marks may be registered in other nations or otherwise protected by common law. Nautilus,

theNautiluslogo,NautilusTrainer,NautilusConnect,Bowex,Schwinn,SuspensionAdjust,andUniversalaretrademarks

owned by or licensed to Nautilus, Inc. Polar®, OwnCode®, Loctite®, iTunes® and MyFitnessPal® are trademarks of their respective

owners. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such

marks by Nautilus, Inc. is under license.

IMPORTANT SAFETY INSTRUCTIONS

This icon means a potentially hazardous situation which, if not avoided, could result in death or serious

injury.

Obey the following warnings:

Read and understand all warnings on this machine.

Carefully read and understand the Assembly instructions. Read and understand the complete

Manual. Keep the Manual for future reference.

To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug this

machine from the electrical outlet immediately after using and before cleaning.

• Keep bystanders and children away from the product you are assembling at all times.

• Do not connect power supply to the machine until instructed to do so.

• The machine should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting

on or taking off parts.

• Beforeeachuse,examinethemachinefordamagetopowercord,loosepartsorsignsofwear.Donotuseiffoundin

this condition. Contact Nautilus Customer Service for repair information.

• Do not drop or put objects into any opening of the machine.

• Do not assemble this machine outdoors or in a wet or moist location.

• Makesureassemblyisdoneinanappropriateworkspaceawayfromfoottrafcandexposuretobystanders.

• Some components of the machine can be heavy or awkward. Use a second person when doing the assembly steps

involving these parts. Do not do steps that involve heavy lifting or awkward movements on your own.

• Set up this machine on a solid, level, horizontal surface.

• Do not try to change the design or functionality of this machine. This could compromise the safety of this machine and

will void the warranty.

• If replacement parts are necessary, use only genuine Nautilus replacement parts and hardware. Failure to use

genuine replacement parts can cause a risk to users, keep the machine from operating correctly and void the

warranty.

• Do not use until the machine has been fully assembled and inspected for correct performance in accordance with the

Manual.

• Use this machine only for its intended use as described in this manual. Do not use attachments not recommended by

the manufacturer.

• Do all assembly steps in the sequence given. Incorrect assembly can lead to injury or incorrect function.

• Connect this machine to a properly grounded outlet only (see Grounding Instructions).

• Keep the power cord away from heat sources and hot surfaces.

• Do no operate where aerosol products are being used.

• To disconnect, turn all controls to the off position, then remove plug from outlet.

• Silicone lubricant is not intended for human consumption. Keep out of reach of children. Store in a safe place.

• Thisproductcontainsmagnets.Magneticeldscaninterferewiththenormaluseofcertainmedicaldevicesataclose

range.Usersmaycomeintoproximityofthemagnetsintheassembly,maintenance,and/oruseoftheproduct.Given

the obvious importance of these devices, such as a pacemaker, it is important that you consult with your medical

provider in connection with the use of this equipment. Please consult the “Safety Warning Labels and Serial Number”

section to determine the location of the magnets on this product.

• SAVE THESE INSTRUCTIONS.

This icon means a potentially hazardous situation which, if not avoided, could result in death or serious

injury.

Before using this equipment, obey the following warnings:

Read and understand the complete Manual. Keep the Manual for future reference.

Read and understand all warnings on this machine. If at any time the Warning labels become loose,

unreadable or dislodged, contact Nautilus Customer Service for replacement labels.

• Children must not be let on or near to this machine. Moving parts and other features of the machine can be

dangerous to children.

• Not intended for use by anyone under 14 years of age.

• Consultaphysicianbeforeyoustartanexerciseprogram.Stopexercisingifyoufeelpainortightnessinyour

chest, become short of breath, or feel faint. Contact your doctor before you use the machine again. Use the

values calculated or measured by the machine’s computer for reference purposes only.

• Beforeeachuse,examinethismachineforloosepartsorsignsofwear.Donotuseiffoundinthiscondition.

Monitor the Pedals and Crank Arms closely. Contact Nautilus Customer Service for repair information.

• Maximumuserweightlimit:350lbs.(158.8kg).Donotuseifyouareoverthisweight.

• This machine is for home use only.

• Donotwearlooseclothingorjewelry.Thismachinecontainsmovingparts.Donotputngersorotherobjectsinto

movingpartsoftheexerciseequipment.

• Set up and operate this machine on a solid, level, horizontal surface.

• Make the Foot Pedals stable before you step on them. Use caution when you step on and off the machine.

• Disconnect all power before servicing this machine.

• Do not operate this machine outdoors or in moist or wet locations.

• Keep at least 24” (0.6 m) on each side of the machine clear. This is the recommended safe distance for access

and passage around and emergency dismounts from the machine. Keep third parties out of this space when

machine is in use.

• Donotoverexertyourselfduringexercise.Operatethemachineinthemannerdescribedinthismanual.

• Correctly adjust and safely engage all Positional Adjustment Devices. Make sure that the Adjustment Devices do

not hit the user.

• Keep the Foot Pedals clean and dry.

• Exerciseonthismachinerequirescoordinationandbalance.Besuretoanticipatethatchangesinspeedand

resistance level can occur during workouts, and be attentive in order to avoid loss of balance and possible injury.

• A machine should never be left unattended when plugged in. Unplug from outlet when not in use, and before

putting on or taking off parts.

• Prior to use, read and understand the owner’s manual. The appliance is not to be used by persons with functional

limitationsandimpairments,reducedphysical,sensoryormentalcapabilities,orlackofexperienceand

knowledge.

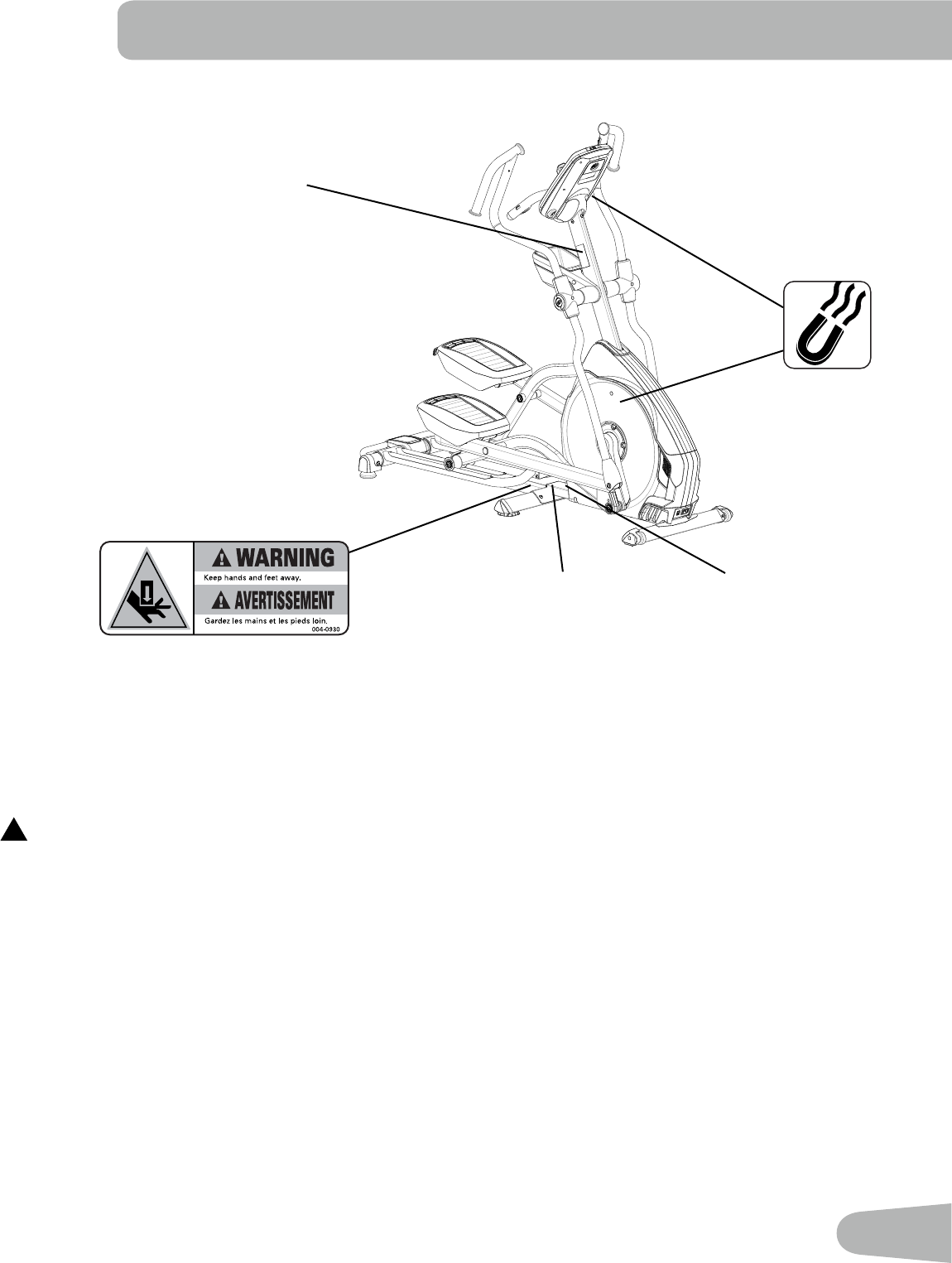

SAFETY WARNING LABELS AND SERIAL NUMBER

FCC Compliance

!Changesormodicationstothisunitnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidthe

user’s authority to operate the equipment.

The machine and power supply comply with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

Note: This machine and power supply have been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio

communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

Serial Number

REVISIONS

ECO

REVISION

REV DESCRIPTION

APPROVED

DATE

TITLE.

PART NO.

REV.

SHEET 1 OF 1

SCALE: 1:1

DO NOT SCALE DRAWING

1. ALL ITEMS MUST BE RoHS COMPLIANT

2. ALL DIMENSIONS APPLY BEFORE PLATING OR COATING.

3. REMOVE ALL BURRS, BREAK SHARP EDGES 0.5 MM MAX.

4. ALL MACHINES SURFACES Ra 3.2 uM.

5. ALL APPLICABLE NAUTILUS STANDARDS AND

SPECIFICATIONS APPLY.

6. ALL DIMENSIONS ARE IN MILLIMETERS

7. ALL DUAL DIMENSIONS ARE IN INCH

UNLESS OTHERWISE SPECIFIED:

METRIC

THIRD ANGLE

PROJECTION

INTERPRET DIMENSIONS AND TOLERANCES

PER ASME Y14.5M - 1994

2.5

1.5

0.75

0.25

1°

X.X

X.XX

X.XXX

ANGULAR

SIZE

This document is the property of Nautilus, Inc. It may not be reproduced in whole or part, provided to third parties, or used for any purposes other than the performance of work for Nautilus, Inc. without written authorization. All rights are reserved, including copyrights.

TOLERANCES.

DRAWN

DESIGNED

DATE

METRIC_C_REV G

NAUTILUS, INC.

16400 SE NAUTILUS DRIVE, VANCOUVER, WA 98683

LIFECYCLE

7-22-10

APPROVALS

- -

- - - -

WARRANTY ITEM:

A RELEASED

NPI 13149 DLOVELY 7-22-10

D.LOVELY

07 /22 / 2010

D.LOVELY

004-0930

CRUSH WARNING

21.78mm

54.8mm

MATERIAL.

COLOR.

DIE LINE

PMS 152

PMS 109

BLACK

WHITE

Labels must be created from an agency approved tamper proof labeling system

such as "UL Recognized component marking and labeling system (example: UL PGGU2) or equivalent.

Label and adhesive must be rated for surface it is applied to (painted metal or ABS plastic),

Label and adhesive must be rated for 60 degrees C minimum. Labels must meet UL 1647 Permanence of Marking Test.

•

Product Specication

WARNING!

• Injury or death is possible if caution is

not used while using this machine.

• Keep children and pets away.

• Read and follow all warnings on this

machine.

• Refer to the Owner’s Manual for

additional warnings and safety

information.

• The heart rate displayed is an

approximationandshouldbeusedfor

reference only.

• Not intended for use by anyone under

14 years of age.

•Themaximumuserweightforthis

machine is 350 lbs ( 158 kg ).

• This machine is for home use only.

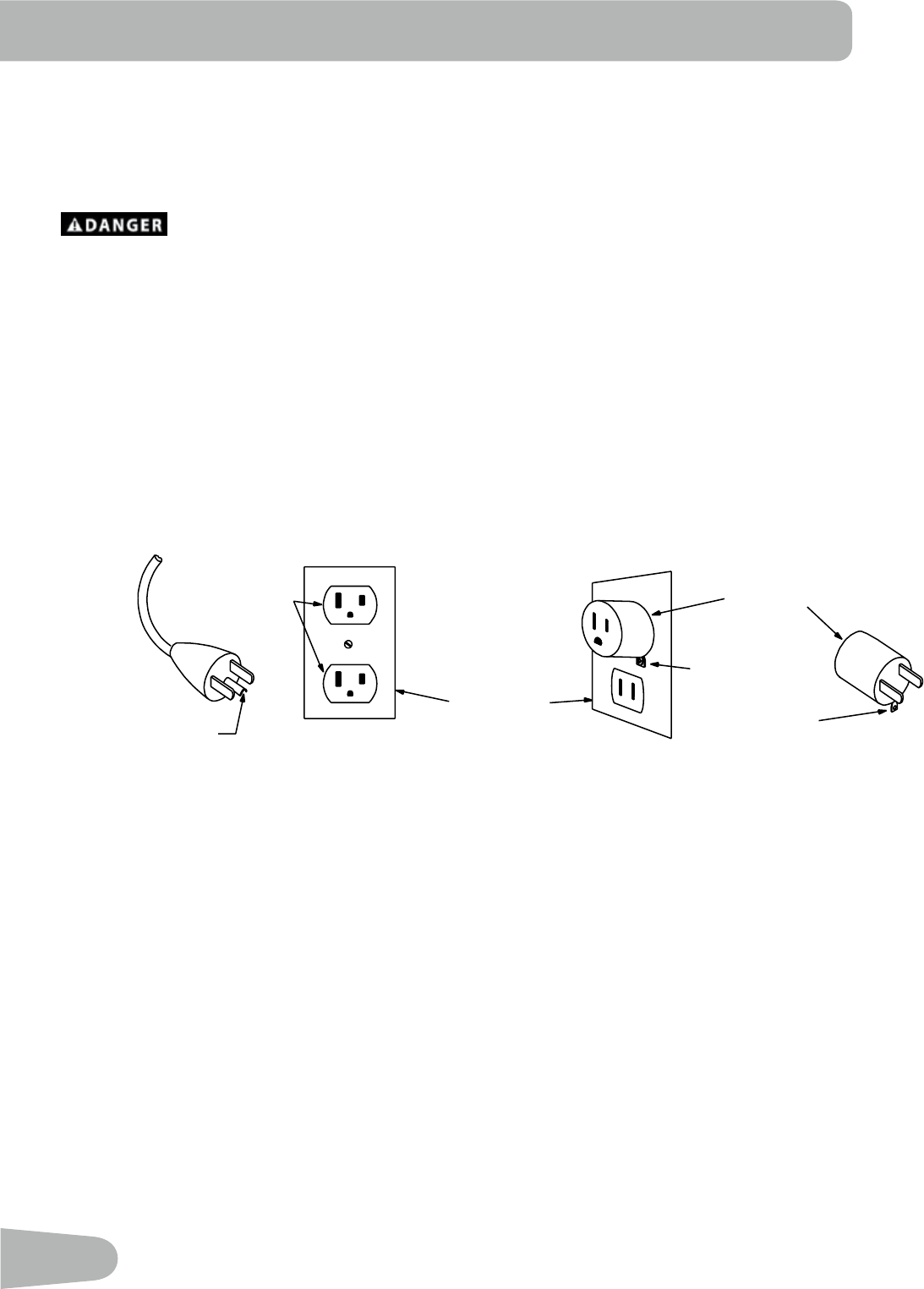

Grounding Instructions

This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for

electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding

conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and

grounded in accordance with all local codes and ordinances.

Improper connection of the equipment-grounding conductor can result in a risk of electric shock.

Check with a qualied electrician or serviceman if you are in doubt as to whether the product is

properly grounded. Do not modify the plug provided with the product – if it will not t the outlet,

have a proper outlet installed by a qualied electrician.

This machine is for use on a nominal 120-V circuit, and has a grounding plug that looks like the plug illustrated below. A

temporary adapter that looks like the adapter illustrated may be used to connect this plug to a 2-pole receptacle as shown

if a properly grounded outlet is not available.

Thetemporaryadaptershouldbeusedonlyuntilaproperlygroundedoutletcanbeinstalledbyaqualiedelectrician.

Thegreencoloredrigidear,lug,orthelikeextendingfromtheadaptermustbeconnectedtoapermanentgroundsuchas

aproperlygroundedoutletboxcover.Whenevertheadapterisused,itmustbeheldinplacebyametalscrew.

Metal Screw

Tab for

Grounding

Screw

Adapter

Grounded

OutletBox

Grounded

Outlet

Grounding Pin

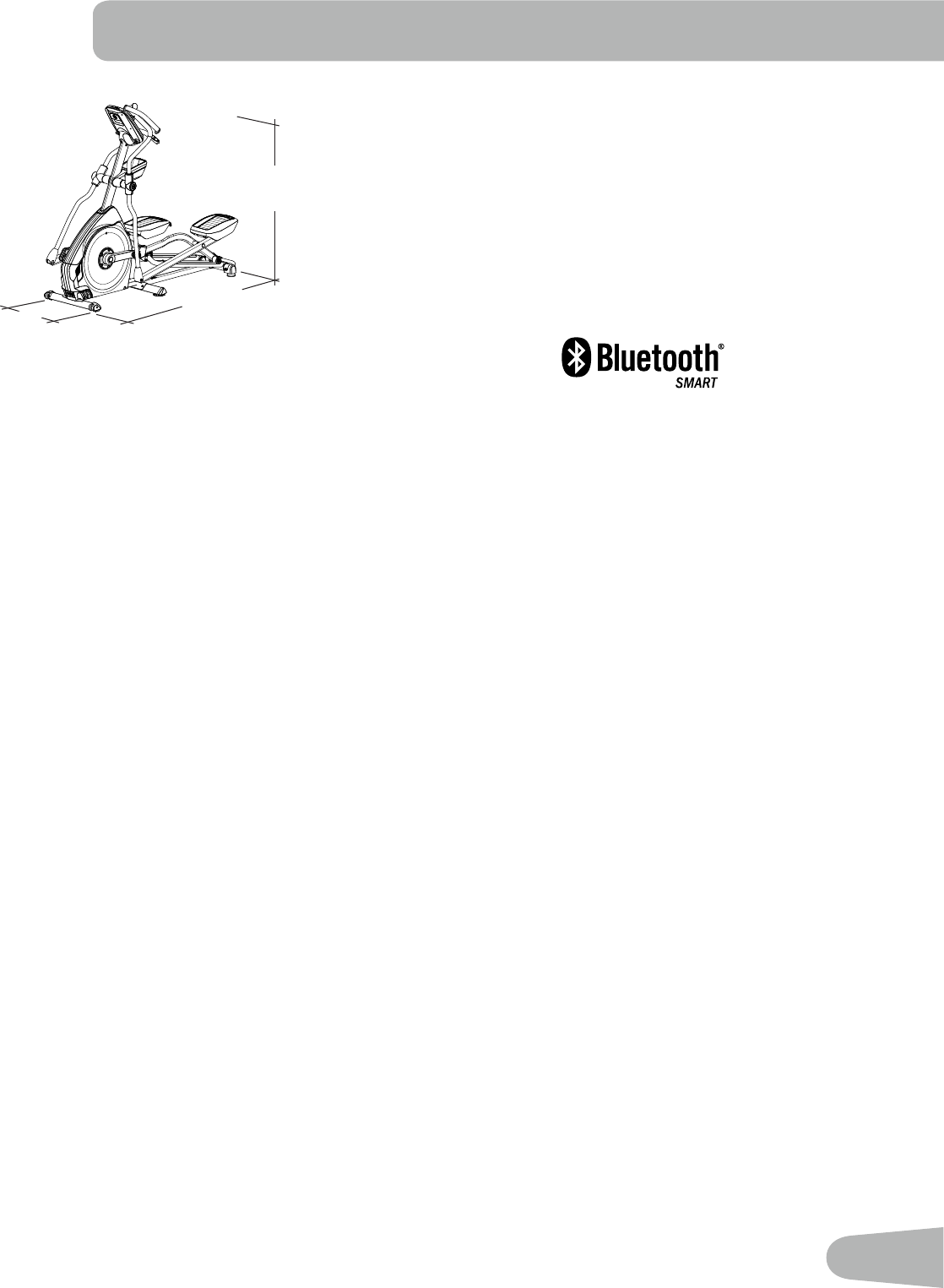

SPECIFICATIONS

Before Assembly

Select the area where you are going to set up and operate your machine. For safe operation, the location must be on a

hard,levelsurface.Allowaworkoutareaofaminimum75”x121”(1.9mx3m).Besurethattheworkoutspaceyouare

utilizinghasadequateheightclearance,takingintoconsiderationtheheightoftheuserandthemaximumheightofthe

pedals with the incline fully engaged.

Basic Assembly Tips

Follow these basic points when you assemble your machine:

• Read and understand the “Important Safety Instructions” before assembly.

• Collect all the pieces necessary for each assembly step.

• Using the recommended wrenches, turn the bolts and nuts to the right (clockwise) to tighten, and the left (counter-

clockwise) to loosen, unless instructed otherwise.

• When attaching 2 pieces, lightly lift and look through the bolt holes to help insert the bolt through the holes.

• The assembly can require 2 people.

Maximum User Weight: 350 lbs. (158.8 kg)

Maximum Pedal Height - with full incline: 28”(72cm)

Machine Weight: 209.7lbs.(95.1kg)

Power Requirements:

Operational Voltage: 120V AC

Operating Current: 2 A

Heart Rate Chest Strap: 1 CR2032 battery

Regulatory Approvals:

UL listed, Rated 120V AC, 60Hz Input, 2 A.

WARNING: This product, its packaging, and components contain chemicals known to the State of California to cause

cancer, birth defects, or reproductive harm. This Notice is provided in accordance with California’s Proposition 65. If you

would like additional information, please refer to our website at www.nautilus.com/prop65.

66.9”

(170 cm)

73”

(185.5 cm)

27”

(68.5 cm)

A decal has been applied to all right (“ R ”) and left (“ L ”) parts to assist with assembly.

Item Qty Description Item Qty Description

1 1 Console Mast 15 1 Left Pedal

2 1 Console Junction Cover 16 1 Frame

3 1 Console 17 1 Front Stabilizer

4 1 Static Handlebar 18 1 Lower Right Handlebar Arm

5 1 Water Bottle Holder Shroud, Right 19 1 Upper Right Handlebar Arm

6 1 Water Bottle Holder 20 1 Upper Shroud

71 Water Bottle Holder Shroud, Left 21 1 Shroud Cap

8 1 Upper Left Handlebar Arm 22 1 Right Leg

9 2 Handlebar Shroud, Outer 23 1 Right Pedal

10 2 Handlebar Shroud, Inner 24 1 MP3 Cord

11 1Rail Assembly 25 1 Power Cord

12 1 Arm Pivot Rod 26 1 Heart Rate (HR) Chest Strap

13 1 Left Leg 27 1 Silicone Lubricant, Bottle (not shown)

14 1 Lower Left Handlebar Arm

PARTS

911

Item Qty Description Item Qty Description

A 6 ButtonHeadHexScrew,M8x16(with

Loctite® adhesive)

G 8 Lock Washer, M8

B 4 Serrated Washer, M8 H 2 Pivot Sleeve

C 8 Wide Washer, M8 I 5 PhillipsHeadSelftapScrew,M4.2x16

D 4 ButtonHeadHexScrew,M8x16 J 4 PhillipsHeadScrew,M5x12

E 2 HexHeadScrew,M8x20

F 6 Wave Washer

Note: Select pieces of Hardware have been provided as spares on the Hardware Card. Be aware that there may be remain-

ing Hardware after the proper assembly of your machine.

HARDWARE / TOOLS

Tools

Included Not Included

6 mm (recommended)

A B C D E F G H IJ

13 mm

15 mm

19 mm

ASSEMBLY

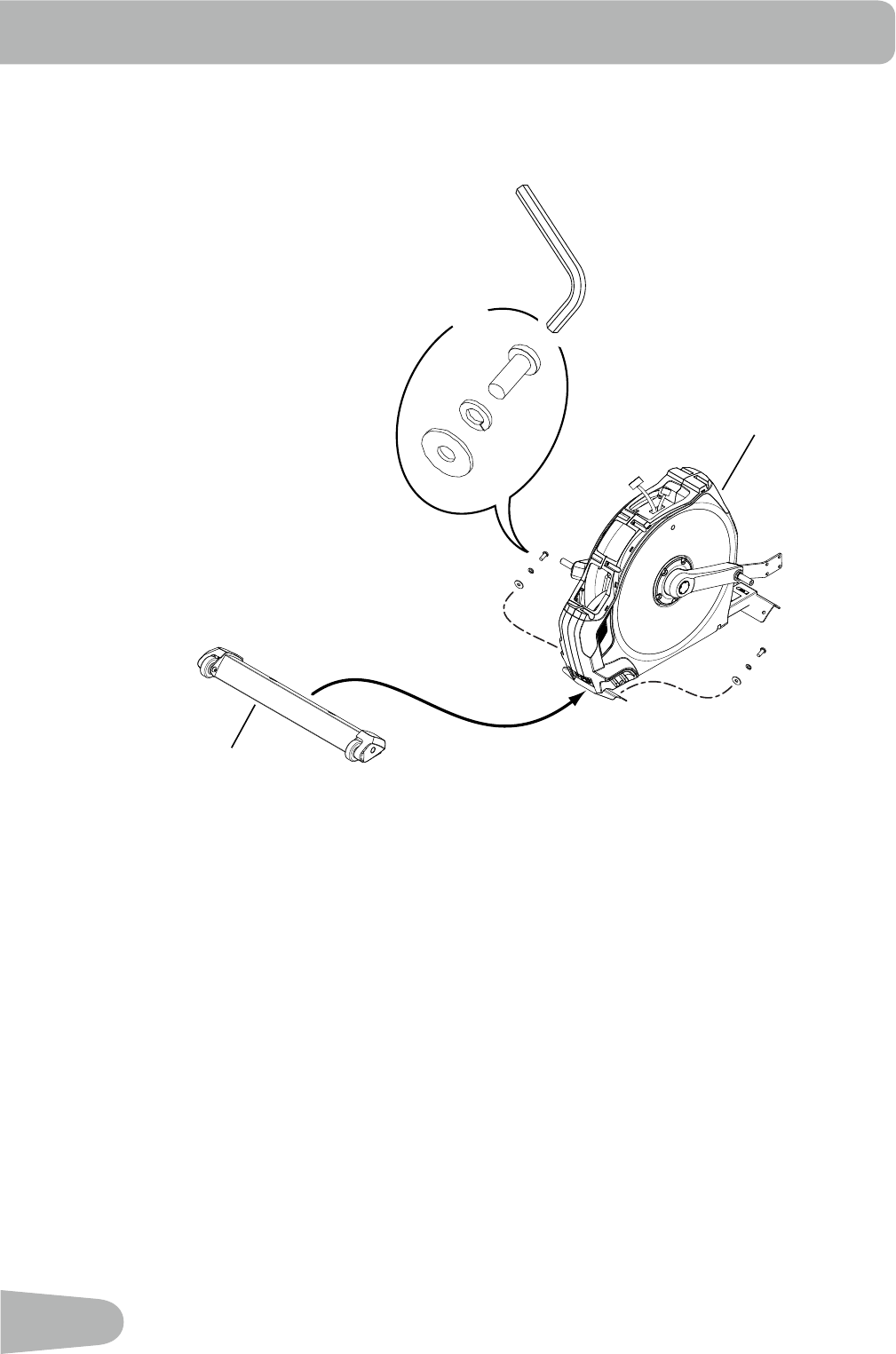

1. Attach Front Stabilizer to Frame

Note: Hardware (*) is pre-installed and not on the Hardware Card.

6mm

2. Attach Rail Assembly to Frame Assembly

Note: Hardware (*) is pre-installed and not on the Hardware Card. Separate the Rail mount plates (11a) and lift to

align the holes and install the hardware.

The plastic scratch guard strips on the Rails help to protect the finish during assembly.

11a

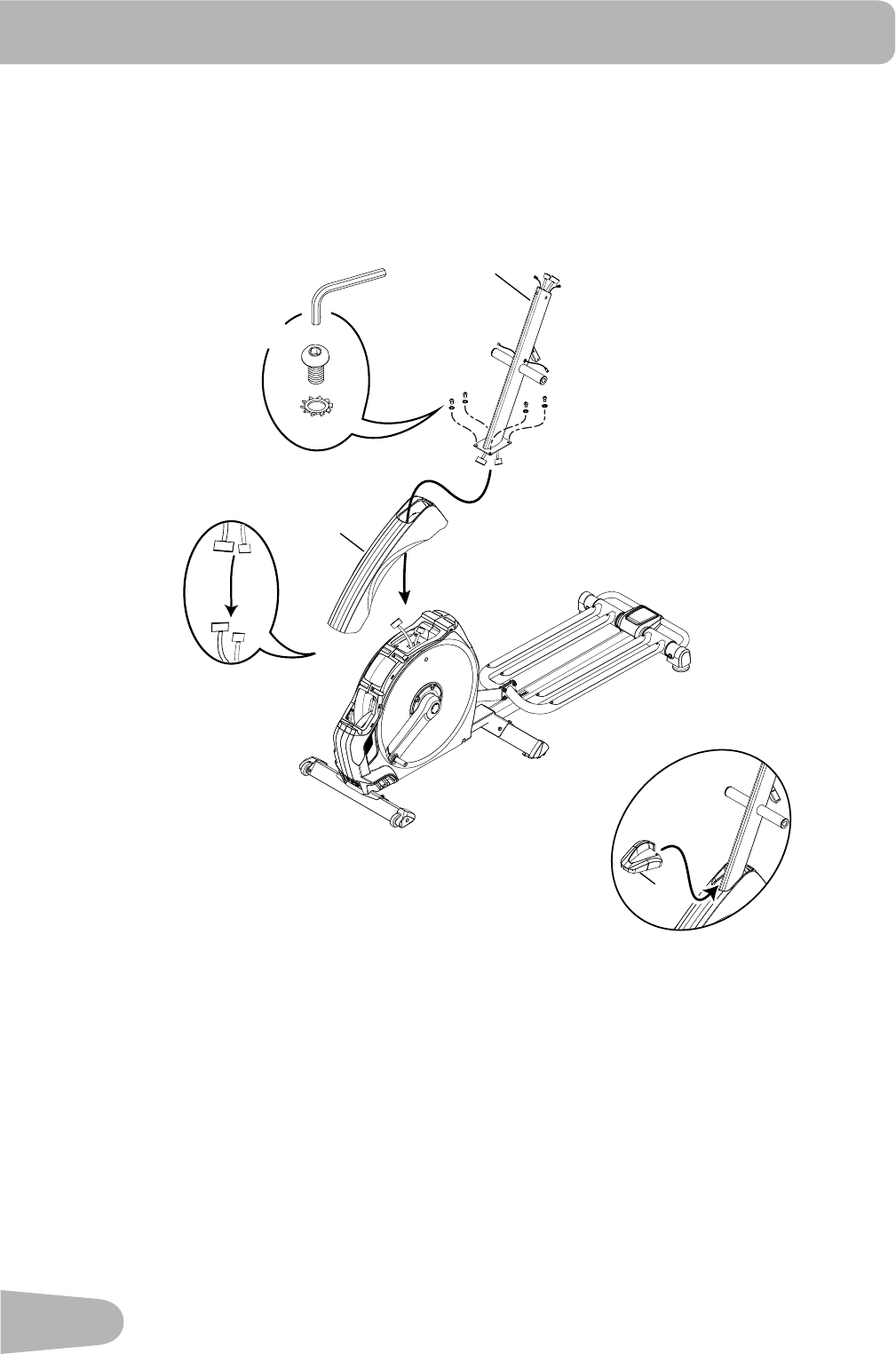

3. Connect the Cables and Attach the Console Mast to Frame Assembly

NOTICE : Put the Console Mast through the opening in the Upper Shroud. Before you connect the cables, remove

the wire tie that holds the Frame cables in place on the mount plate. Do not crimp cables. Fully tighten

the hardware.

6mm

4. Attach Legs to Frame Assembly

6mm

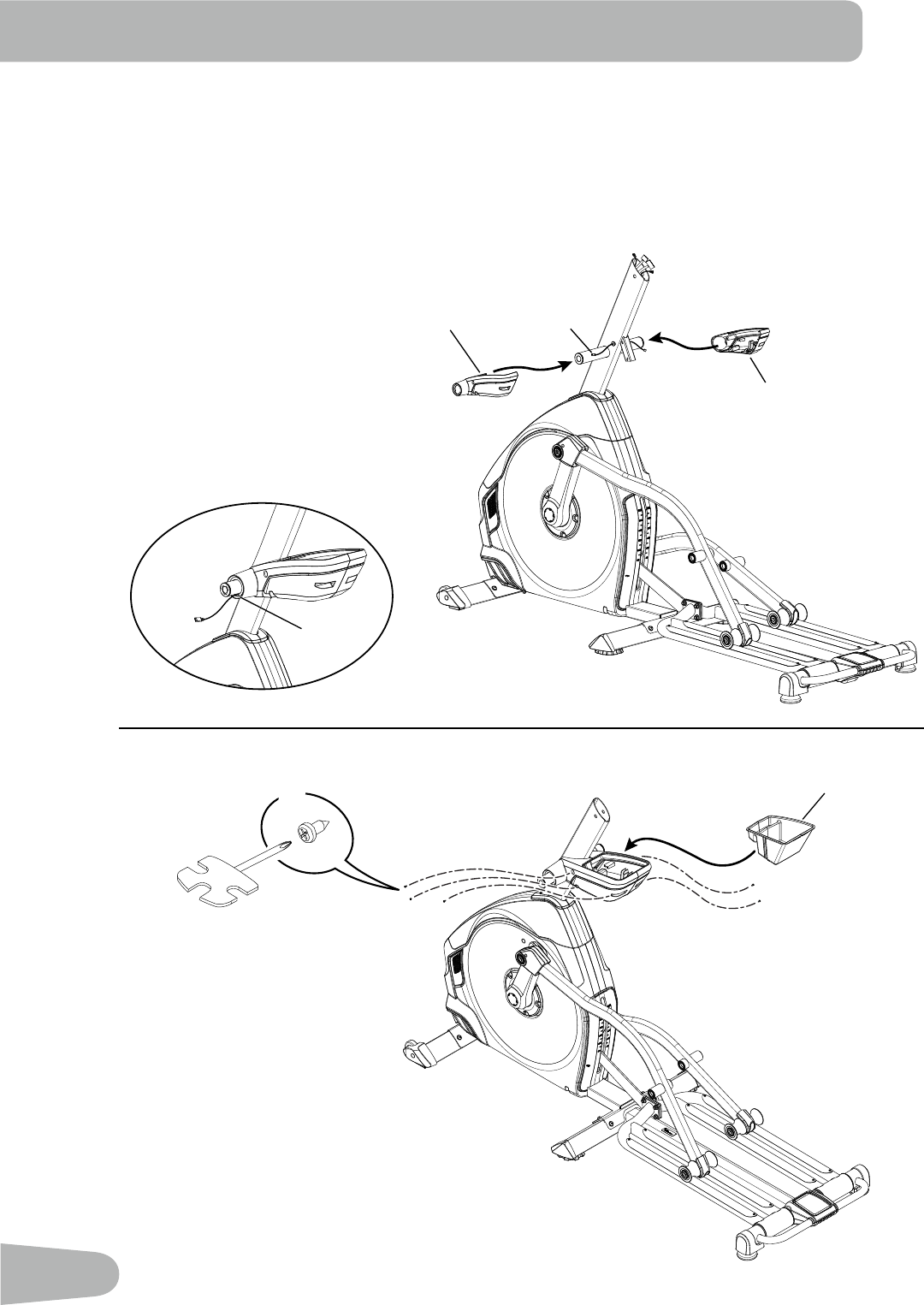

5. Install Water Bottle Holder on the Console Mast

NOTICE : Routethecable(1a)fromtheleftsideoftheMasttotherearofthecrossbarandthroughtheopening(7a)

in the Water Bottle Holder Shroud. Do not crimp cables.

Repeat on the right side.

Install hardware and Water Bottle Holder. Push down until it snaps in place.

X5 6

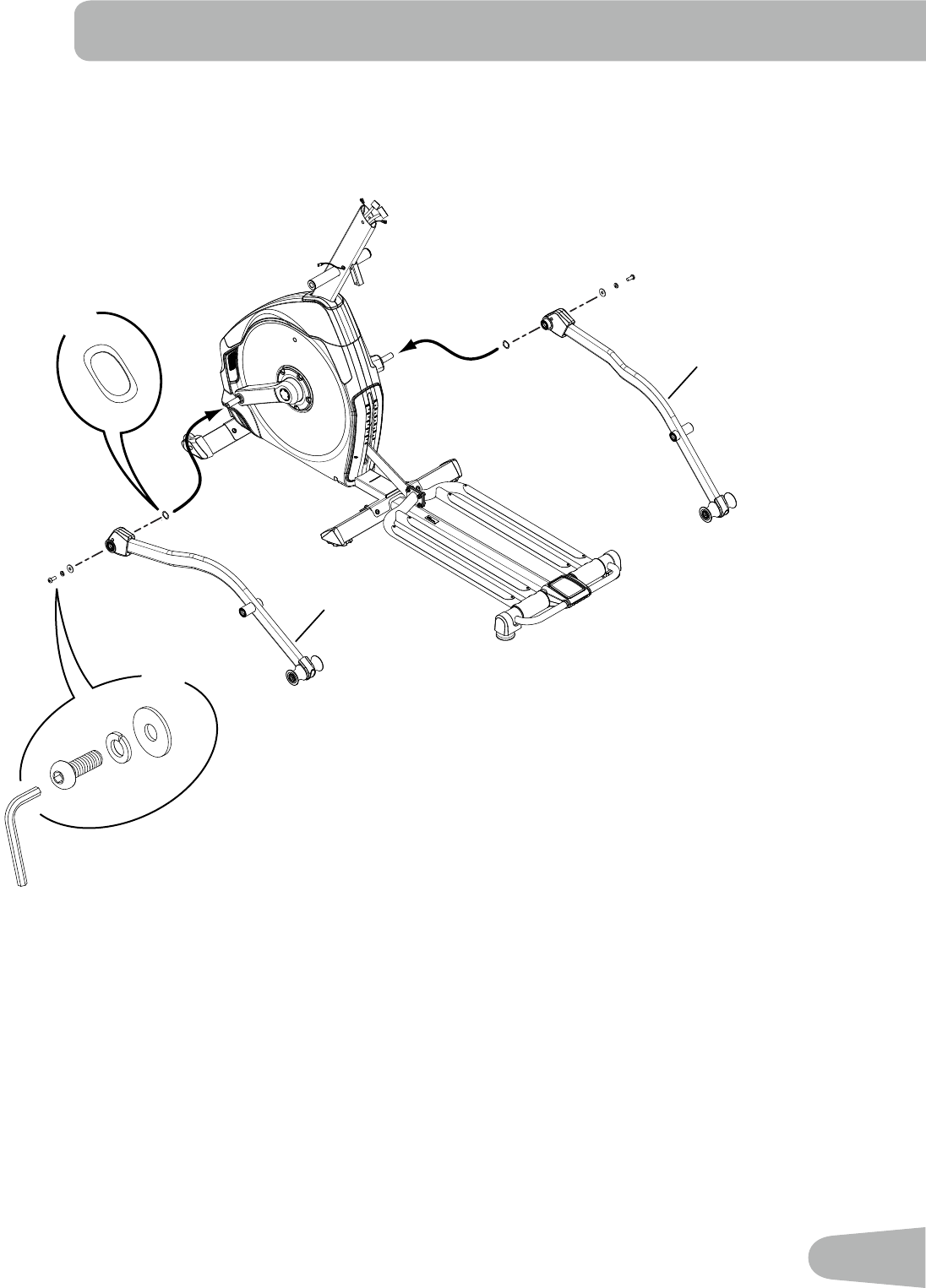

6. Install Arm Pivot Rod and Lower Handlebar Arms to Frame Assembly

Note: Be sure to put Wave Washers (F) on Arm Pivot Rod before attaching the Lower Handlebar Arms.

13 mm

7. Attach Left Pedal to Leg and Lower Handlebar Arm

NOTICE : Attach the Pedal to the Leg first. Make sure the Pivot Sleeve (H) engages the Handlebar knuckle cover.

Repeat step on opposite side with the Right Pedal (Item 23 ).

6mm

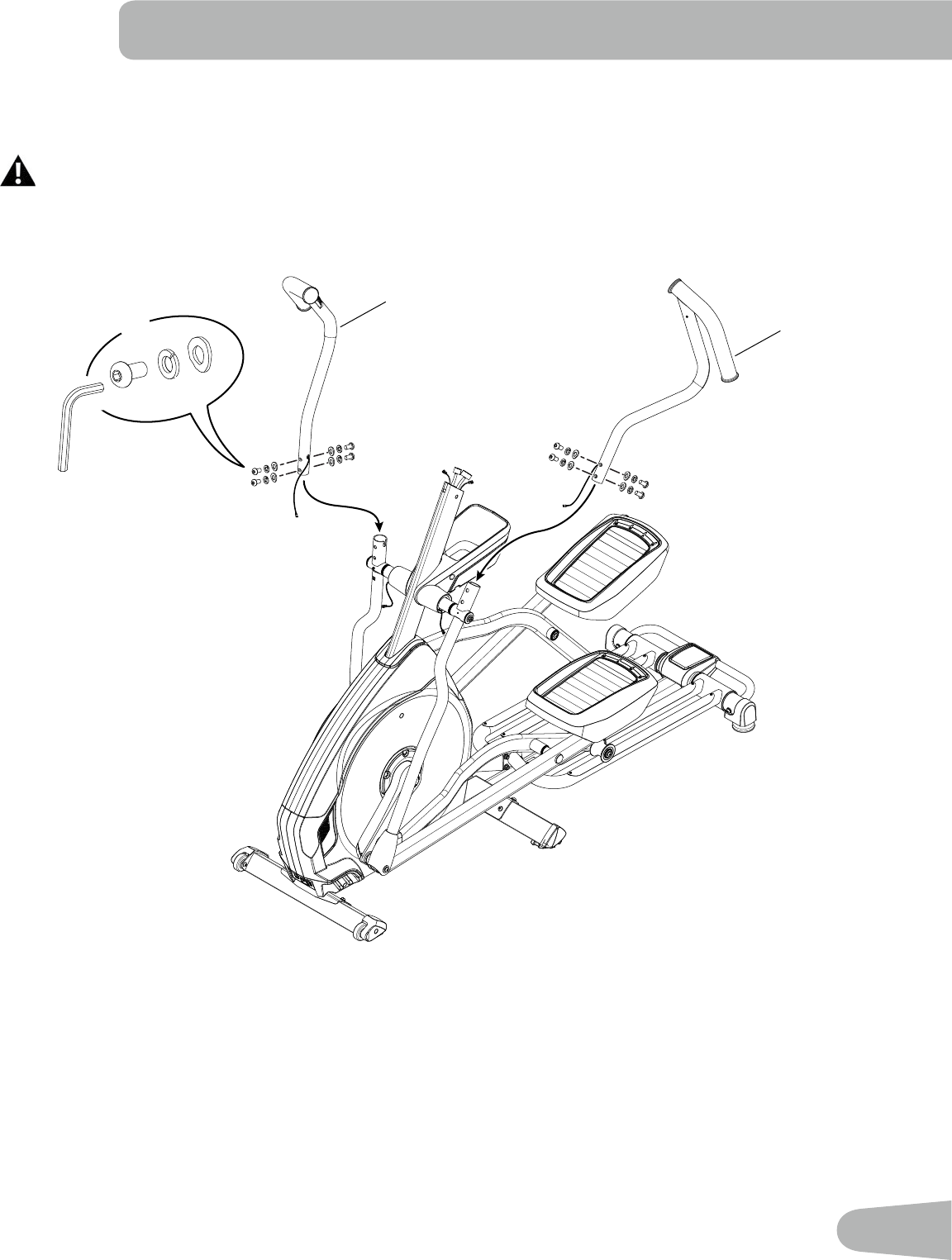

8. Attach the Upper Handlebar Arms to Frame Assembly

NOTICE : Hardware (*) is pre-installed and not on the Hardware Card. Do not crimp the cables.

Make sure the Upper Handlebar Arms are secure before you exercise.

***

6mm

9. Remove Hardware from Console

Note: Hardware (*) is pre-installed and not on the Hardware Card. If desired, apply the French Canadian overlay to

the Console face.

10. Route Console Cables through the Static Handlebar and Attach Static Handlebar to the Console

NOTICE : Carefully place the Console face down on a padded surface. Route the Console Cables through the Static

Handlebar. Attach the Static Handlebar to the Console using the screws that were removed in Step 9.

Connect the Heart Rate Cable (4a) from the Static Handlebar to the Console Heart Rate Cable. Do not

crimp the cables.

11. Connect Cables and Install the Static Handlebar Assembly to the Console Mast

NOTICE : Hardware (*) is pre-installed and not on the Hardware Card. Align the clips on the cable connectors and

make sure the connectors lock. Do not crimp cables. PushtheextrawiredownintotheConsoleMastto

allow pivot clearance.

12. Attach the Console Junction Cover

6mm

13. Connect Console Mast Cables to Cables from Handlebar Arms and Attach Rear Handlebar Shrouds

NOTICE : Connect the cables. Route the wire through the 3 guides inside the rear Handlebar Shroud and fit the

connectors inside the cavity as shown. Do not crimp cables. Make sure the inner edge of the Handlebar

Shroud is seated in the Water Bottle Holder Shroud.

14. Attach Front Handlebar Shrouds and Install Screws

NOTICE : Do not crimp cables.

15. Connect the Power Cord to Frame Assembly

Connect this machine to a properly grounded outlet only (see Grounding Instructions).

16. Final Inspection

Inspect your machine to ensure that all hardware is tight and components are properly assembled.

Note: Remove the plastic scratch guard strips from Rails. Apply silicone lubricant to a cloth and

wipe the Rails to eliminate roller noise.

Silicone lubricant is not intended for human consumption. Keep out of reach of children. Store in a safe

place.

Besuretorecordtheserialnumberintheeldprovidedatthefrontofthismanual.

Do not use until the machine has been fully assembled and inspected for correct performance in

accordance with the Owner’s Manual.

Moving the Machine

The machine may be moved by one or more persons depending on their physical abilities and capacities.

Make sure that you and others are all physically t and able to move the machine safely.

1. Remove the power cord.

2. Use the Transport Handle to carefully lift the machine onto the transport rollers.

3. Push the machine into position.

4. Carefully lower the machine into position.

NOTICE: Be careful when you move the elliptical. Abrupt motions can affect the computer operation.

BEFORE YOU START

Leveling the Machine

ThemachineneedstobeleveledifyourworkoutareaisunevenoriftheRailAssemblyisslightlyofftheoor.Toadjust:

1. Place the machine in your workout area.

2. SafelystandonthebackoftheRailAssemblyforapproximately20seconds.

3. Step off the machine.

4. Loosenthelockingnutsandadjustthelevelersuntiltheyallcontacttheoor.

Do not adjust the levelers to such a height that they detach or unscrew from the machine. Injury to you or

damage to the machine can occur.

5. Adjust until the machine is level. Tighten the locking nuts.

Makesurethemachineislevelandstablebeforeyouexercise.

FEATURES

A Console O Water Bottle Holder

B Static Handlebar P Remote Resistance Controls

C Contact Heart Rate (CHR) Sensors Q Telemetry Heart Rate (HR) Receiver

D Upper Handlebar R USB Port

E Remote Incline Controls S MP3 Input

F Fully Shrouded Flywheel T Media Tray

G Adjustable Foot Pedal U Fan

H Rail V Speakers

I Transport Handle W Bluetooth® Connectivity (not shown)

J Leveler X Heart Rate (HR) Chest Strap

KIncline Arm Y MP3 Cord

L Stabilizer Z Power Cord

M Transport Roller AA Silicone Lubricant, Bottle (not shown)

N Power Connector / Power Switch

PQRS

WARNING! Use the values calculated or measured by the machine’s computer for reference purposes only. The

heart rate displayed is an approximation and should be used for reference only. Over exercising may

result in serious injury or death. If you feel faint stop exercising immediately.

Console Features

The Console provides important information about your workout and lets you control the resistance levels while you

exercise.TheConsolefeaturestheNautilusDualTrack™ display with touch control buttons to navigate you through the

exerciseprograms.

Keypad Functions

Resistance Increase () button- Increases the workout resistance level

Resistance Decrease () button- Decreases the workout resistance level

Incline Increase () button- Increases the Incline angle of the Rail Assembly

Incline Decrease () button- Decreases the Incline angle of the Rail Assembly

QUICK START button- Begins a Quick Start workout

USERbutton-SelectsaUserprole

PROGRAMS button- Selects a category and workout program

PAUSE / END button- Pauses an active workout, ends a paused workout, or goes back to the previous screen

GOALTRACKbutton-DisplaystheWorkoutTotalsandAchievementsfortheselectedUserProle

Increase () button- Increases a value (age, time, distance, or calories) or moves through options

Left () button- Displays different workout values during a workout, and moves through options

OKbutton-StartsaProgramworkout,conrmsinformation,orresumesapausedworkout

Upper Display

Lower Display

Incline Level Quick Buttons

Resistance Level Quick Buttons

Achievement Indicator Lights

Fan

Right () button- Displays different workout values during a workout, and moves through options

Decrease () button- Decreases a value (age, time, distance, or calories) or moves through options

FAN button- Controls 3-speed fan

Resistance Level Quick Buttons- Shifts the resistance levels to the setting quickly during a workout

Incline Level Quick Buttons- Shifts the incline level to the setting quickly during a workout

Achievement Indicator Lights- when an achievement level is reached or a result is reviewed, the achievement indicator

light will activate

Nautilus Dual Track™ Display

Upper Display Data

Program Display

TheProgramDisplayshowsinformationtotheUserandthegriddisplayareashowsthecourseprolefortheprogram.

Eachcolumnintheproleshowsoneinterval(workoutsegment).Thehigherthecolumn,thehighertheresistancelevel.

Theashingcolumnshowsyourcurrentinterval.

Intensity Display

The Intensity Display shows the level of work at that moment based on the current resistance level.

Heart Rate Zone Display

The Heart Rate Zone shows which zone the current heart rate value falls into for the current User. These Heart Rate

Zones can be used as a workout guide for a certain target zone (anaerobic, aerobic, or fat burn).

Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in

your chest, become short of breath, or feel faint. Contact your doctor before you use the machine again.

The heart rate displayed is an approximation and should be used for reference only.

Note: If no heart rate is detected, the display will be blank.

NOTICE: To prevent interference with the telemetry HR receiver, do not place any personal electronic devices in the left

side of the media tray.

Goal Display

The Goal Display shows the currently selected type of goal (Distance, Time or Calories), the current value to achieve the

goal, and the percent completed toward the goal.

User Display

TheUserDisplayshowswhichUserProleiscurrentlyselected.

User Display

Achievement Display

Program Display

Achievement Display

The Achievement Display activates when a workout goal is reached or a workout milestone is surpassed from past

workouts. The Console display will congratulate and inform the User of their achievement, along with a celebratory sound.

Lower Display Data

TheLowerDisplayshowstheWorkoutValuesandcanbecustomizedforeachUser(Consultthe“EditUserProle”

section of this manual).

Speed

TheSpeeddisplayeldshowsthemachinespeedinmilesperhour(mph)orkilometersperhour(km/h).

Time

TheTIMEdisplayeldshowsthetotaltimecountoftheworkout,theaverageTimefortheUserProle,orthetotalopera-

tional time of the machine.

Note: If a Quick Start workout is performed for more than 99 minutes and 59 seconds (99:59), the units for Time will shift

to hours and minutes ( 1 hour, 40 minutes ).

Distance

The Distance display shows the distance count (miles or km) in the workout.

Note: To change the measurement units to English Imperial or metric, refer to the “Console Setup Mode” section in this

manual.

Level

The LEVEL display shows the current resistance level in the workout.

RPM

TheRPMdisplayeldshowsthepedalrevolutionsperminute(RPM).

Heart Rate (Pulse)

The Heart Rate display shows the beats per minute (BPM) from the heart rate monitor. When a heart rate signal is re-

ceivedbytheConsole,theiconwillash.

Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in

your chest, become short of breath, or feel faint. Contact your doctor before you use the machine again.

The heart rate displayed is an approximation and should be used for reference only.

Calories

TheCaloriesdisplayeldshowstheestimatedcaloriesthatyouhaveburnedduringtheexercise.

TIMESPEED DISTANCE LEVEL CALORIESRPM HEART RATE

MPH km/h Hr MIN AVG MILES KM AVG BPM AV G

DISTANCE

QUICK START PAUSE/END

PROGRAMS

GOAL TRACK USER

100%

Anaerobic

80-90%

Aerobic

70-80%

Fat burn

50-70%

Warm up

Less than

50%

LONGEST WORKOUT LAST 7 DAYS

LAST 30 DAYSCALORIE RECORD

LAST WORKOUTCURRENT WORKOUT

SHARE AND TRACK

YOUR PROGRESS

100%

70%

20%

40%

Connectivity on your ﬁtness machine

This Nautilus®tnessmachineisequippedwithBluetooth® connectivity and can wirelessly sync with the Fitness App on

supported devices.

Note: For a complete list of supported devices, visit www.nautilusconnect.com.

Fitness App ( “ Nautilus Trainer™ ” )

TheSoftwareAppsyncswithyourtnessmachinetotracktotalcaloriesburned,time,distance,andmore.Recordsand

stores every workout for quick reference. Plus, it automatically syncs your workout data with MyFitnessPal® to make hit-

ting your daily goals easier than ever! Track your results and share with friends and family.

1. Download the free software app, named Nautilus Trainer™. The software app is available on iTunes®.

Note: For a complete list of supported devices, visit www.nautilusconnect.com.

2. FollowtheinstructionsontheSoftwareApptosyncyourdevicetoyourexercisemachine.

An information and common questions guide for the Software App can be found online at www.nautilusconnect.com.

Export Workout Results to USB Drive

This Nautilus®fitnessmachineisequippedwithaUSBPortandcanexportyourWorkoutResultstoaUSBDrive.With

theWorkoutsexportedfromthefitnessmachine,connecttheUSBDrivetoacomputeranduploadthefiletoyourNautilus

Connect™ account.

ToexporttheGOALTRACKstatisticsofaUserProle:

1. From the Power-Up screen, push the USER button to select a User Profile.

2. Push the GOAL TRACK button. The Console will display the LAST WORKOUT values and activate the corresponding

Achievement light.

3. Push the Decrease() button to move to the “CLEAR WORKOUT DATA -OK?” prompt.

4. Push the Decrease() button to move to the “SAVE TO USB - OK?” prompt. Push OK, and the “ARE YOU SURE?

-NO” prompt will display. Push the Increase() button to change it to yes and push OK. The Console will display the

“INSERT USB” prompt. Insert a USB Flash Drive into the USB Port. The Console will record the Statistics to the USB

Flash Drive.

The Console will display “SAVING”, and then “REMOVE USB” when it is safe to remove the USB Flash Drive.

Note:PushthePAUSE/ENDbuttontoforceanexitfromthe“SAVING”prompt.

5. Push GOAL TRACK to return to the Power-Up screen.

Track Your Results at www.nautilusconnect.com

Take advantage of the Nautilus Connect™ website to see your progress over time and share your data with MyFitnessPal®.

Review your workouts and results away from the machine when convenient for you. The Nautilus Connect™ website allows

for a workout value to be selected and have it graphed for weekly, monthly, or yearly comparison review.

If using a Bluetooth® device to import workout results to Nautilus Connect™:

1. Sign in to the Nautilus Connect™ website to instantly sync your workout data with it. Once you have an account, your

Workouts will be uploaded to the Nautilus Connect™ website immediately after a workout through your Bluetooth®

device.

2. To sync your workout data with MyFitnessPal®, select the Menu option in the upper left corner of the web page and

select the “Sync to MyFitnessPal® ” option.

Note: The Nautilus Connect™ software will automatically sync your workouts with MyFitnessPal® after the initial

syncing.

If using a USB Drive to import workout results to the Nautilus Connect™ website:

1. Insert the USB Drive with your workout data into a device connected to the internet.

2. Sign in to the Nautilus Connect™ website.

3. Click the Upload button on the web site.

4. IntheUploadFilewindow,locateyourUSBDrive.Selecttheworkoutdatalefromit,andclicktheuploadbutton.

Your workout data will upload into your account.

5. To sync your workout data with MyFitnessPal®, select the Menu option in the upper left corner of the web page and

select the “Sync to MyFitnessPal® ” option.

Note: The Nautilus Connect™ website will automatically sync your workouts with MyFitnessPal® after the initial

syncing.

A User’s Guide for the Nautilus Connect™ website can be found online at www.nautilusconnect.com.

Chest Strap

Using the provided heart rate transmitter chest strap lets you monitor your heart rate at any time during your workout.

Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in

your chest, become short of breath, or feel faint. Contact your doctor before you use the machine again.

The heart rate displayed is an approximation and should be used for reference only.

The heart rate transmitter is attached to a chest strap to keep your hands free during your workout. To put on your chest

strap:

1. Attach the transmitter to the elastic chest strap.

2. Secure the strap around your chest with the curve of the transmitter oriented upward,

just below the chest muscles.

3. Lift the transmitter off your chest and moisten the two Grooved Electrode Areas on the

back.

4. Checkthatthewetelectrodeareasarermlyagainstyourskin.

The transmitter will send your heart rate to the machine’s receiver and display your

estimated Beats Per Minute (BPM).

Always remove the transmitter before you clean the chest strap. Clean the chest strap

regularly with mild soap and water, and thoroughly dry it. Residual sweat and moisture may

keep the transmitter active and drain the battery in the transmitter. Dry and wipe clean the

transmitter after each use.

Note: Do not use abrasives or chemicals such as steel wool or alcohol when you clean the chest strap, as they can

damage the electrodes permanently.

IftheConsoledoesnotdisplayaheartratevalue,thetransmittermaybeatfault.Checkthatthetexturedcontact

areas on the chest strap are making contact with your skin. You may need to lightly wet the contact areas. Check that

the curve of the transmitter is oriented upward. If no signal appears or you need further assistance, call your Nautilus

Representative.

Before discarding a chest strap, remove the battery. Dispose of in accordance with local regulations and/or

at approved recycling centers.

Remote Heart Rate Monitor

MonitoringyourHeartRateisoneofthebestprocedurestocontroltheintensityofyourexercise.ContactHeartRate

(CHR) sensors are installed to send your heart rate signals to the Console. The Console can also read telemetry HR

signals from a Heart Rate Chest Strap Transmitter that operates in the 4.5kHz - 5.5kHz range.

Note: The heart rate chest strap must be an uncoded heart rate strap from

Polar Electro or an uncoded POLAR® compatible model. (Coded

POLAR® heart rate straps such as POLAR® OwnCode® chest straps

will not work with this equipment.)

If you have a pacemaker or other implanted electronic device,

consult your doctor before using a wireless chest strap or other

telemetric heart rate monitor.

NOTICE: To prevent interference with the telemetry HR receiver, do not

place any personal electronic devices in the left side of the media

tray.*

Contact Heart Rate Sensors

Contact Heart Rate (CHR) sensors send your heart rate signals to the Console. The CHR sensors are the stainless steel

parts of the Handlebars. To use, put your hands comfortably around the sensors. Be sure that your hands touch both the

topandthebottomofthesensors.Holdrm,butnottootightorloose.Bothhandsmustmakecontactwiththesensorsfor

the Console to detect a pulse. After the Console detects four stable pulse signals, your initial pulse rate will be shown.

Once the Console has your initial heart rate, do not move or shift your hands for 10 to 15 seconds. The Console will now

validatetheheartrate.Manyfactorsinuencetheabilityofthesensorstodetectyourheartratesignal:

• Movement of the upper body muscles (including arms) produces an electrical signal (muscle artifact) that can interfere

with pulse detection. Slight hand movement while in contact with the sensors can also produce interference.

• Calluses and hand lotion may act as an insulating layer to reduce the signal strength.

• Some Electrocardiogram (EKG) signals generated by individuals are not strong enough to be detected by the sensors.

• Theproximityofotherelectronicmachinescangenerateinterference.

If your heart rate signal ever seems erratic after validation, wipe off your hands and the sensors and try again.

Heart Rate Calculations

Yourmaximumheartrateusuallydecreasesfrom220BeatsPerMinute(BPM)inchildhoodtoapproximately160BPMby

age60.Thisfallinheartrateisusuallylinear,decreasingbyapproximatelyoneBPMforeachyear.Thereisnoindication

thattraininginuencesthedecreaseinmaximumheartrate.Individualsofthesameagecouldhavedifferentmaximum

heartrates.Itismoreaccuratetondthisvaluebycompletingastresstestthanbyusinganagerelatedformula.

Yourat-restheartrateisinuencedbyendurancetraining.Thetypicaladulthasanatrestheartrateofapproximately72

BPM, whereas highly trained runners may have readings of 40 BPM or lower.

The Heart Rate table is an estimate of what Heart Rate Zone (HRZ) is effective to burn fat and improve your cardiovas-

cular system. Physical conditions vary, therefore your individual HRZ could be several beats higher or lower than what is

shown.

Themostefcientproceduretoburnfatduringexerciseistostartataslowpaceandgraduallyincreaseyourintensity

untilyourheartratereachesbetween60–85%ofyourmaximumheartrate.Continueatthatpace,keepingyourheart

rate in that target zone for over 20 minutes. The longer you maintain your target heart rate, the more fat your body will

burn.

20-24

FAT-BURNING TARGET HEART RATE

Heart Rate BPM (beats per minute)

Age

25-29

100

150

200

250

30-34 35-39 40-44 45-49 50-54 55-59 60-64 65-69 70+

196 191 186 181 176 171 166 161 156 151 146

167 162 158 154 150 145 141 137 133 128 126

Maximum Heart Rate

Target Heart Rate Zone

(keep within this range

for optimum fat-burning)

118 115 112 109 106 103 100 97 94 91 88

Remote Resistance and Incline Controls

The remote resistance and incline controls are located on the upper handlebar arms. The resistance and incline can be

controlled from these keypads. The keypad on the left upper handlebar arm includes a Resistance Increase key () and

a Resistance Decrease () key. The keypad on the right upper handlebar arm includes an Incline Increase key () and a

Incline Decrease ()key.ThesekeysworkexactlythesameastheResistanceandInclineIncreaseandDecreasekeys

on the console.

Suspension Adjust™ Pedals

The pedals are equipped with the Suspension Adjust™ Performance Cushion System which adjusts the angle and impact

resistance of the pedals. Adjustment of the pedals may adapt the same workout to affect different muscle groups. The

heelareasofthepedalshavea10degreerangeofverticalmotion.Theadjustmentlevercansetthermnessofthe

action according to the weight of the user.

The graph is a brief guideline, describing the generally suggested target heart rates based on age. As noted above, your

optimal target rate may be higher or lower. Consult your physician for your individual target heart rate zone.

Note:Aswithallexercisesandtnessregimens,alwaysuseyourbestjudgmentwhenyouincreaseyourexercisetime

or intensity.

OPERATIONS

What to Wear

Wearrubber-soledathleticshoes.Youwillneedtheappropriateclothesforexercisethatallowyoutomovefreely.

How Often Should You Exercise

Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in

your chest, become short of breath, or feel faint. Contact your doctor before you use the machine again.

Use the values calculated or measured by the machine’s computer for reference purposes only. The heart

rate displayed on the console is an approximation and should be used for reference only.

• 3 times a week for 30 minutes each day.

• Schedule workouts in advance and try to follow the schedule.

Adjusting the Pedals

The Pedals are equipped with the Suspension Adjust™ Performance Cushion System

which adjusts the angle and impact resistance of the Pedals. Adjustment of the Pedals

may adapt the same workout to affect different muscle groups. The adjustment lever

cansettheangleandrmnessoftheactionaccordingtotheweightoftheuser:0isthe

lowestcushionsetting(at);1forunder150lbs.(68kg);2for150-225lbs.(68-102kg);

3 for over 225 lbs. (102 kg).

Note: It is recommended to adjust both Pedals to the same setting.

To adjust the Pedal:

1. Tilt the back of the Pedal up.

2. Lift the adjustment lever out of the notch for the current setting and move it to the

desired setting. Be sure the lever is engaged in the notch at the new setting.

Mounting and Dismounting the Machine

Care should be used when mounting or dismounting the machine.

Be aware that the Pedals and the Handlebars are connected and when either of these parts move the other

does as well. In order to avoid possible serious injury, only grasp the Static Handlebars to steady yourself.

Tomountthetnessmachine:

1. Move the Pedals until the one nearest you is in the lowest position.

2. Grasp the Static Handlebars under the Console.

3. Steadying yourself with the Static Handlebars, step up onto the lowest Pedal and place your other foot onto the

opposite Pedal.

Todismountthetnessmachine:

1. Move the Pedal you want to dismount from to the highest position, and bring the machine to a complete stop.

This machine is not equipped with a free-wheel. Pedal speed should be reduced in a controlled manner.

2. Grasp the Static Handlebars under the Console to steady yourself.

3. Withyourweightonthelowestfoot,swingtheupperfootoffthemachineanddownontotheoor.

4. Step off of the machine and release your grip from the Static Handlebars.

Power-Up / Idle Mode

The Console will enter Power-Up / Idle Mode if it is plugged into a power source and the Power Switch turned on, any but-

ton is pushed, or if it receives a signal from the RPM sensor as a result of pedaling the machine.

Auto Shut-Off (Sleep Mode)

IftheConsoledoesnotreceiveanyinputinapproximately5minutes,itwillautomaticallyshutoff.TheLCDdisplayisoff

while in Sleep Mode.

Note: The Console does not have an On/Off switch.

To disconnect, turn all controls to the off position, then remove plug from outlet.

Initial Setup

Duringtherstpower-up,theConsoleshouldbesetupwiththedate,timeandyourpreferredmeasurementunits.

1. Date:PushtheIncrease/Decreasebuttonstoadjustthecurrentlyactivevalue(ashing).PushtheLeft/Rightbuttons

to change which segment is the currently active value (month / day / year).

2. Push OK to set.

3. Time:PushtheIncrease/Decreasebuttonstoadjustthecurrentlyactivevalue(ashing).PushtheLeft/Rightbuttons

to change which segment is the currently active value (hour / minute / AM or PM).

4. Push OK to set.

5. Units of Measurement: Push the Increase/Decrease buttons to adjust between “MILES” (Imperial English) or “KM”

(metric).

6. Push OK to set. The Console goes back to the Power-Up / Idle Mode screen.

Note: To adjust these selections, consult the “Console Set-Up Mode” section.

Quick Start ( Manual ) Program

The Quick Start ( Manual ) program lets you start a workout without entering any information.

During a Manual Workout, each column represents a 2 minute time period. The active column will advance across the

screenevery2minutes.Iftheworkoutlastsformorethan30minutes,theactivecolumnisxedonthefarthestcolumnon

the right and pushes the previous columns off the display.

1. Stand on the machine.

2. PushtheUserbuttontoselectthecorrectUserprole.IfyoudonothaveaUserprolesetup,youcanselectaUser

prolethathasnocustomizeddata(defaultvaluesonly).

3. Push the QUICK START button to start the Manual program.

4. To change the resistance level, push the Resistance Increase/Decrease buttons. The current interval and future

intervals are set to the new level. The default Manual resistance level is 4. The time will count up from 00:00.

Note: If a Manual workout is performed for more than 99 minutes and 59 seconds (99:59), the units for Time will shift to

hours and minutes ( 1 hour, 40 minutes ).

5. When done with your workout, stop pedaling and push PAUSE/END to pause the workout. Push PAUSE/END again

to end the workout.

Note: The workout results are recorded to the current User Profile.

User Profiles

The Console lets you store and use 4 User profiles. The User profiles automatically record the workout results for each

workout, and allow the workout data to be reviewed.

The User profile stores the following data:

• Name—up to 10 characters

• Age

• Weight

• Height

• Gender

• Preferred Workout Values

Select a User Profile

EveryworkoutissavedtoaUserProle.BesuretoselecttheproperUserProlebeforestartingaworkout.ThelastUser

that completed a workout will be the default user.

UserProlesareassignedthedefaultvaluesuntiltheyarecustomizedbyediting.BesuretoedittheUserProleformore

accurate calorie and heart rate information.

FromthePower-UpModescreen,pushtheUserbuttontoselectoneoftheUserProles.TheConsolewilldisplaythe

nameoftheUserProleandtheUserProleIcon.

Edit User Profile

1. From the Power-Up Mode screen, push the User button toselectoneoftheUserProles.

2. Push the OK button to select it.

3. The Console display shows the EDIT prompt and the current User Profile name. Push OK to start the Edit User Prole

option.

 ToexittheEditUserProleoption,pushthePAUSE/ENDbuttonandtheconsolewillgobacktothePower-Up Mode

screen.

4. The Console display shows the NAME prompt and the current User Profile name.

Note: The User name will be blank if this is the first edit. The name of a User Profile is limited to 10 characters.

The currently active segment will flash. Use the Increase/Decrease buttons to move through the alphabet and blank

space (found between A and Z). To set each segment, use the Left() or Right() buttons to shift between segments.

Push the OK button to accept the displayed User name.

5. To edit the other User data (EDIT AGE, EDIT WEIGHT, EDIT HEIGHT, EDIT GENDER), use the Increase/Decrease

buttons to adjust, and push OK to set each entry.

6. The Console display shows the SCAN prompt. This option controls how the workout values are displayed in the Lower

Display during a workout. The “OFF” setting allows the user to push the RIGHT or LEFT buttons to view the other

workout value channels when desired. The “ON” setting allows the Console to automatically display the workout value

channels every 6 seconds.

The default is “OFF”.

Push the OK button to set how the workout values are displayed.

7. TheConsoledisplayshowstheWIRELESSHRprompt.IfyouareusingtheConsolespeakersattheirhighersettings

and / or using a larger sized personal electronic device, the Console may show Heart Rate interference. This option

allows the Telemetry Heart Rate Receiver to be deactivated blocking the interference.

The Upper Display shows the current value setting: “ON” or “OFF”. Push the Increase() or Decrease() buttons to

change the value.

The default is “ON”.

Push the OK button to set the Telemetry Heart Rate Receiver to active.

8. The Console display shows the EDIT LOWER DISPLAY prompt. This option allows you to customize which Workout

Values are displayed during a workout.

 TheLowerDisplaywillshowalloftheworkoutvalues,withtheactiveWorkoutValueashing.TheUpperDisplay

shows the active value setting: “ON” or “OFF”. Push the Increase() or Decrease() buttons to hide the active

workout value, and push the Left() or Right() buttons to shift the active workout value.

Note: to show a hidden workout value, repeat procedure and change Upper Display value to “ON” for that value.

When done with customizing the Lower Display, push the OK button to set it.

9. The Console will go to the Power-Up Mode screen with the user selected.

Reset a User Profile

1. From the Power-Up Mode screen, push the User button toselectoneoftheUserProles.

2. Push the OK button to select it.

3. The Console display shows the current User Profile name and the EDIT prompt. Push the Increase() or Decrease()

buttons to change the prompt.

Note: ToexittheEditUserProleoption,pushthePAUSE/ENDbuttonandtheconsolewillgobacktothePower-Up

Mode screen.

4. The Console display shows the RESET prompt and the current User Profile name. Push OK to start the Reset User

Proleoption.

5. The Console will now confirm the request to reset the User profile (the default selection is ‘NO’). Push the Increase()

or Decrease() buttons to adjust the selection.

6. Push OK to make your selection.

7. TheConsolewillgotothePower-UpModescreen.

Changing Resistance Levels

Push the Resistance Level Increase() or Decrease() buttons to change the resistance level at any time in a workout

program. To rapidly change the resistance level, push the desired Resistance Level Quick Button. The Console will adjust

to the selected resistance level of the quick button.

Changing Incline Levels

Push the Incline Level Increase() or Decrease() buttons to change the incline angle

of the rail assembly at any time in a workout program. To rapidly change the incline

level, push the desired Incline Level Quick Button. The Console will adjust to the se-

lected incline level of the quick button.

Be sure the area below the machine is clear before lowering. Fully lower the

Incline Assembly after each workout.

Exercise on this machine requires coordination and balance. Be sure to

anticipate that changes in speed, incline angle and resistance level can

occur during workouts, and be attentive in order to avoid loss of balance

and possible injury.

Note: Be sure that the workout space you are utilizing has adequate height clearance, taking into consideration the

heightoftheuserandthemaximuminclineoftheellipticalmachine.Thoughtheinclineanglechangestheexercise

motion, it does not affect the calorie values.

Proﬁle Programs

Theseprogramsautomatedifferentresistanceandworkoutlevels.TheProleProgramsareorganizedintoCategories

(Fun Rides, Mountains, and Challenges).

Note:OnceaUserviewsalltheCategories,theywillbeexpandedtodisplaytheProgramswithineachofthe

Categories.

FUN RIDES

Rolling Hills Ride in the Park

Secondary Case 6: Profile Programs

Rolling Hills

FUN RIDES

Ride in the Park Easy Tour

Pike’s Peak

MOUNTAINS

Mount Hood Pyramids

Uphill Finish

CHALLENGES

Cross-Training Interval

Stream Crossing

Summit Pass

Stairs

REVED : 122612

Secondary Case 6: Profile Programs

Rolling Hills

FUN RIDES

Ride in the Park Easy Tour

Pike’s Peak

MOUNTAINS

Mount Hood Pyramids

Uphill Finish

CHALLENGES

Cross-Training Interval

Stream Crossing

Summit Pass

Stairs

REVED : 122612

Easy Tour Stream Crossing

Secondary Case 6: Profile Programs

Rolling Hills

FUN RIDES

Ride in the Park Easy Tour

Pike’s Peak

MOUNTAINS

Mount Hood Pyramids

Uphill Finish

CHALLENGES

Cross-Training Interval

Stream Crossing

Summit Pass

Stairs

REVED : 122612

Secondary Case 6: Profile Programs

Rolling Hills

FUN RIDES

Ride in the Park Easy Tour

Pike’s Peak

MOUNTAINS

Mount Hood Pyramids

Uphill Finish

CHALLENGES

Cross-Training Interval

Stream Crossing

Summit Pass

Stairs

REVED : 122612

MOUNTAINS

Pike’s Peak Mount Hood

Secondary Case 6: Profile Programs

Rolling Hills

FUN RIDES

Ride in the Park Easy Tour

Pike’s Peak

MOUNTAINS

Mount Hood Pyramids

Uphill Finish

CHALLENGES

Cross-Training Interval

Stream Crossing

Summit Pass

Stairs

REVED : 122612

Secondary Case 6: Profile Programs

Rolling Hills

FUN RIDES

Ride in the Park Easy Tour

Pike’s Peak

MOUNTAINS

Mount Hood Pyramids

Uphill Finish

CHALLENGES

Cross-Training Interval

Stream Crossing

Summit Pass

Stairs

REVED : 122612

Pyramids Summit Pass

Secondary Case 6: Profile Programs

Rolling Hills

FUN RIDES

Ride in the Park Easy Tour

Pike’s Peak

MOUNTAINS

Mount Hood Pyramids

Uphill Finish

CHALLENGES

Cross-Training Interval

Stream Crossing

Summit Pass

Stairs

REVED : 122612

Secondary Case 6: Profile Programs

Rolling Hills

FUN RIDES

Ride in the Park Easy Tour

Pike’s Peak

MOUNTAINS

Mount Hood Pyramids

Uphill Finish

CHALLENGES

Cross-Training Interval

Stream Crossing

Summit Pass

Stairs

REVED : 122612

CHALLENGES

Uphill Finish Cross-Training

Secondary Case 6: Profile Programs

Rolling Hills

FUN RIDES

Ride in the Park Easy Tour

Pike’s Peak

MOUNTAINS

Mount Hood Pyramids

Uphill Finish

CHALLENGES

Cross-Training Interval

Stream Crossing

Summit Pass

Stairs

REVED : 122612

Secondary Case 6: Profile Programs

Rolling Hills

FUN RIDES

Ride in the Park Easy Tour

Pike’s Peak

MOUNTAINS

Mount Hood Pyramids

Uphill Finish

CHALLENGES

Cross-Training Interval

Stream Crossing

Summit Pass

Stairs

REVED : 122612

Interval Stairs

Secondary Case 6: Profile Programs

Rolling Hills

FUN RIDES

Ride in the Park Easy Tour

Pike’s Peak

MOUNTAINS

Mount Hood Pyramids

Uphill Finish

CHALLENGES

Cross-Training Interval

Stream Crossing

Summit Pass

Stairs

REVED : 122612

Secondary Case 6: Profile Programs

Rolling Hills

FUN RIDES

Ride in the Park Easy Tour

Pike’s Peak

MOUNTAINS

Mount Hood Pyramids

Uphill Finish

CHALLENGES

Cross-Training Interval

Stream Crossing

Summit Pass

Stairs

REVED : 122612

Workout Proﬁle and Goal Program

TheConsoleletsyouselecttheProleProgramandtypeofGoalforyourworkout(Distance,TimeorCalories),andset

the Goal value.

1. Stand on the machine.

2. PushtheUserbuttontoselectthecorrectUserprole.

3. Push the Programs button.

4. Push the Left() or Right() buttons to select a Category of Workout.

5. Push the Increase() or Decrease() buttons to select a Profile Workout, and push OK.

6. Use the Increase() or Decrease() buttons to select a type of Goal (Distance, Time or Calories), and push OK.

7. Use the Increase() or Decrease() buttons to adjust the workout value.

8. Push OK to begin the goal-oriented workout. The GOAL value will count down as the value for percent completed

increases.

Note: During a Calories Goal, each column is for a 2 minute time period. The active column will advance across the

screenevery2minutes.Iftheworkoutlastsformorethan30minutes,theactivecolumnwillxtothelastright

column and push the previous columns off the display.

Fitness Test Program

TheFitnessTestmeasurestheimprovementstoyourphysicaltnesslevel.Thetestcomparesyourpoweroutput(in

watts)toyourheartrate.Asyourtnesslevelimproves,yourpoweroutputwillincreaseatagivenheartrate.

Note: The Console must be able to read the heart rate information from the Contact Heart Rate (CHR) sensors or Heart

Rate Monitor (HRM) to work correctly.

YoucanstarttheFitnessTestfromtheFEEDBACKcategory.TheFitnessTestprogramrstpromptsyoutoselectyour

tnesslevel—Beginner(“BEG”)orAdvanced(“ADV”).TheConsolewillusetheAgeandWeightvaluesfortheselected

UserProletocalculatetheFitnessScore.

Start to work out and hold the Heart Rate Sensors. When the test starts, the intensity of the workout slowly increases. This

means you will work harder, and as a result, your heart rate increases. The intensity continues to increase automatically

untilyourheartratereachesthe“TestZone”.Thiszoneisindividuallycomputedtobenear75percentofthemaximum

heartrateofyourUserProle.WhenyoureachtheTestZone,themachineholdstheintensitysteadyfor3minutes.

This lets you reach a stable condition (where your heart rate becomes steady). At the end of the 3 minutes, the Console

measures your heart rate and the power output. These numbers, along with information about your age and weight, are

computed to produce a “Fitness Score”.

Note: Fitness Test scores should only be compared to your previous scores and not to other User Profiles.

Compare your Fitness Scores to see your improvement.

Recovery Test Program

RecoveryTestshowshowquicklyyourheartrecoversfromanexercisestatetoamorerestfulstate.Improvedrecoveryis

anindicatorofincreasingtness.

Note: The Console must be able to read the heart rate information from the Contact Heart Rate (CHR) sensors or Heart

Rate Monitor (HRM) to work correctly.

From an elevated heart rate, select the Recovery Test Program. The Console will show “STOP EXERCISING” and the

goalwillbegintocountdown.Stopexercisingbutcontinuetogripthecontactheartratesensors.After5seconds,the

display will show “RELAX” and will continue to count down to 00:00. For the entire minute the console will also show your

heart rate. You must grip the heart rate sensors for the duration of the test if not using a Remote Heart Rate Monitor.

The display will continue to show “RELAX” and your heart rate until the goal reaches 00:00. The console will then calcu-

late your recovery score.

Recovery Score = Your heart rate at 1:00 (the beginning of the test) minus your heart rate at 00:00 (the end of the test).

The higher the Recovery Test score value, the quicker your heart rate is returning to a more restful state and is an indica-

tionofimprovingtness.Byrecordingthesevaluesovertimeyoucanseethetrendtowardbetterhealth.

When you select the Recovery Test Program and there is no heart rate signal or display, the Console will show “NEED

HEART RATE”. This message will show for 5 seconds. If no signal is detected, the program will end.

Helpful Tip: For a more relevant score, try to obtain a steady heart rate for 3 minutes before starting the Recovery Pro-

gram. This will be easier to achieve, and obtain the best result, in the Manual program so you can control the levels of

resistance.

Heart Rate Control (HRC) Workout Programs

The Heart Rate Control (HRC) programs let you set a heart rate goal for your workout. The program monitors your heart

rate in beats per minute (BPM) from the Contact Heart Rate (CHR) sensors on the machine or from a Heart Rate Monitor

(HRM) chest strap, and adjusts the workout to keep your heart rate in the selected zone.

Note: The console must be able to read the heart rate information from the CHR sensors or HRM for the HRC program

to work correctly.

The Target Heart Rate programs use your age and other User information to set the Heart Rate Zone values for your

workout. The console display then gives prompts for you to set up your workout:

1. Select the Heart Rate Control workout level: BEGINNER ( “BEG” ) or ADVANCED ( “ADV” ) and push OK.

2. Push the Increase() or Decrease() buttons to selectthepercentageofmaximumheartrate:50–60%,60–70%,

70–80%,80–90%.

Consult a physician before you start an exercise program. Stop exercising if you feel pain or tightness in

your chest, become short of breath, or feel faint. Contact your doctor before you use the machine again.

Use the values calculated or measured by the machine’s computer for reference purposes only. The heart

rate displayed on the console is an approximation and should be used for reference only.

3. Push the Increase() or Decrease() buttons to select the Goal type, and push OK.

4. Push the Increase() or Decrease() buttons to set the goal value for the workout.

Note: Be sure to allow time for your heart rate to reach the desired heart rate zone when setting the goal.

5. Push OK to start the workout.

A User can set a Heart Rate zone instead of a value by selecting the Heart Rate Control - User program. The Console will

adjust the workout to keep the User in the desired Heart Rate zone.

1. Select HEART RATE CONTROL - USER, and push OK.

2. Push the Increase() or Decrease() buttons to set the Heart Rate zone for the workout, and push OK. The Console

shows the Heart Rate zone (percent) on the left, and the Heart Rate range for the User on the right side of the display.

3. Push the Increase() or Decrease() buttons to select the Goal type, and push OK.

4. Push the Increase() or Decrease() buttons to set the value for the workout.

5. Push OK to start the workout.

Changing a Workout Program During a Workout

The Console allows a different Workout Program to be started from an active workout.

1. From an active workout, push PROGRAMS.

2. Push the Increase() or Decrease() buttons to select the desired workout program, and push OK.

3. Push the Increase() or Decrease() buttons to select the Goal type, and push OK.

4. Push the Increase() or Decrease() buttons to set the value for the workout.

5. Push OK to stop the active workout and start the new workout.

ThepreviousworkoutvaluesaresavedtotheUserProle.

Pausing or Stopping

The Console will go into Pause Mode if the user stops pedaling and pushes PAUSE/END during a workout, or there is no

RPM signal for 5 seconds (user not pedaling). The Console will cycle through a series of messages that change every 4

seconds:

- WORKOUT PAUSED

- PEDAL TO CONTINUE (if a bike) / STRIDE TO CONTINUE (if an elliptical)

- PUSH END TO STOP

During a paused workout, you can use the Increase/Decrease buttons to move through the result channels manually.

1. Stop pedaling and push the PAUSE/END button to pause your workout.

2. To continue your workout, push OK or start pedaling.

To stop the workout, push the PAUSE/END button. The Console will go into Results / Cool Down mode.

Results / Cool Down Mode

After a workout the GOAL display shows 03:00 and then starts to count down. During this Cool Down period, the Console

showstheWorkoutResults.AllworkoutsexceptQuickStarthavea3-minuteCoolDownperiod.

The LCD display shows the Current Workout values in three channels:

a.) TIME (total), DISTANCE (total), and CALORIES (total)

b.) SPEED (average), RPM (average), and HEART RATE (average)

c.) TIME (average), LEVEL (average), and CALORIES (average).

Push the Left() or Right() buttons to move through the result channels manually.

During the Cool Down period, the Resistance Level will adjust to a third of the average Level of the workout. The Cool

Down resistance level can be adjusted with the Resistance Increase and Decrease buttons, but the Console will not dis-

play the value.

You can push PAUSE/END to stop the Results / Cool Down period and go back to Power-Up Mode. If there is no RPM or

HR signal, the Console automatically goes into Sleep Mode.

GOAL TRACK Statistics (and Achievements)

ThestatisticsfromeveryworkoutarerecordedtoaUserProle.

The Nautilus Dual Track™ Console shows the Goal Track workout Statistics on the Lower Display in three channels:

a.) TIME (total), DISTANCE (total), and CALORIES (total)

b.) SPEED (average), RPM (average), and HEART RATE (average)

c.) TIME (average), DISTANCE (average) / or LEVEL (average) *, and CALORIES (average)

* If the Goal Track Statistic is a single workout, LEVEL (average) is displayed. If the Goal Track Statistic is a

combination of multiple workouts, DISTANCE (average) is displayed instead of LEVEL (average).

ToviewtheGOALTRACKstatisticsofaUserProle:

1. From the Power-Up screen, pushtheUserbuttontoselectthecorrectUserprole.

2. Push the GOAL TRACK button. The Console will display the LAST WORKOUT values and activate the corresponding

Achievement light.

Note: Goal Track statistics can be viewed even during a workout. Push GOAL TRACK and the LAST WORKOUT values

willbedisplayed.TheworkoutvaluesforthecurrentworkoutwillbehiddenexceptfortheGOALdisplay.Push

GOAL TRACK again to return to the Power-Up screen.

3. Push the Increase() buttontomovetothenextGOALTRACKstatistic,“LAST7DAYS”.TheConsolewilldisplay

the calories burned on the display (50 calories per segment) for the previous seven days, along with the workout value

totals. Use the Left() or Right() buttons to move through all the workout statistic channels.

4. Push the Increase() button to move to “LAST 30 DAYS”. The Console will display the total values for the previous

thirty days. Use the Left() or Right() buttons to move through all the workout statistic channels.

5. Push the Increase() button to move to the “LONGEST WORKOUT”. The Console will display the workout values with

the most Time value. Use the Left() or Right() buttons to move through all the workout statistic channels.

6. Push the Increase() button to move to the “CALORIE RECORD”. The Console will display the workout values with the

most Calories value. Use the Left() or Right() buttons to move through all the workout statistic channels.

7. Pushthe Increase() button to move to “BMI”, or BodyMassIndex. The Console will display the BMI value based on

the User settings. BesuretheheightvalueiscorrectforyourUserProle,andtheweightvalueiscurrent.

The BMI Measurement is a useful tool that shows the relationship between weight and height that is associated with body

fat and health risk. The table below gives a general rating for the BMI score:

Underweight Below 18.5

Normal 18.5 – 24.9

Overweight 25.0 – 29.9

Obesity 30.0 and above

Note: The rating may overestimate body fat in athletes and others who have a muscular build. It may also underesti-

mate body fat in older persons and others who have lost muscle mass.

Contact your doctor for more information about Body Mass Index (BMI) and the weight that is appropriate

for you. Use the values calculated or measured by the machine’s computer for reference purposes only.

8. Push the Increase() button to move to the “SAVE TO USB - OK?” prompt. Push OK and the “ARE YOU SURE?

-NO” prompt will display. Push the Increase() button to change it to yes and push OK. The Console will display the

“INSERT USB” prompt. Insert a USB Flash Drive into the USB Port. The Console will record the Statistics to the USB

Flash Drive.

The Console will display “SAVING”, and then “REMOVE USB” when it is safe to remove the USB Flash Drive.

Note:PushthePAUSE/ENDbuttontoforceanexitfromthe“SAVING”prompt.

9. Push the Increase() button to move to the “CLEAR WORKOUT DATA -OK?” prompt. Push OK, and the “ARE YOU

SURE? - NO” prompt will display. Push the Increase() button to change to the “ARE YOU SURE? - YES” display, and

push OK. The user workouts have been reset.

10. Push GOAL TRACK to return to the Power-Up screen.

When a User performs a workout that surpasses the “LONGEST WORKOUT” or “CALORIE RECORD” of the previous

workouts, the Console will congratulate with an audible sound and tell the User the new achievement. The corresponding

Achievement Indicator Light will also be active.

CONSOLE SETUP MODE

The Console Setup Mode lets you input the date and time, set the units of measurement to either English or Metric,

control the sound settings ( on/ off), or see maintenance statistics (Error Log and Run Hours – for service technician use

only).

1. Hold down the PAUSE/END button and Left button together for 3 seconds while in the Power-Up Mode to go into the

Console Setup Mode.

Note:PushPAUSE/ENDtoexittheConsoleSetupModeandreturntothePower-UpModescreen.

2. The Console display shows the Date prompt with the current setting. To change, push the Increase/Decrease buttons

toadjustthecurrentlyactivevalue(ashing).PushtheLeft/Rightbuttonstochangewhichsegmentisthecurrently

active value (month / day / year).

3. Push OK to set.

4. The Console display shows the Time prompt with the current setting. Push the Increase/Decrease buttons to adjust

thecurrentlyactivevalue(ashing).PushtheLeft/Rightbuttonstochangewhichsegmentisthecurrentlyactivevalue

(hour / minute / AM or PM).

5. Push OK to set.

6. The Console display shows the Units prompt with the current setting. To change, push OK to start the Units option.

Push the Increase/Decrease buttons to change between “MILES” (Imperial English units) and “KM” (metric units).

Note: If the units change when there is data in User Statistics, the statistics convert to the new units.

7. PushOKtoset.

8. The Console display shows the Sound Settings prompt with the current setting. Push the Increase/Decrease buttons

to change between “ON” and “OFF”.

9. Push OK to set.

10. The Console display shows the TOTAL RUN HOURS for the machine.

11. Forthenextprompt,pushtheOKbutton.

12. The Console display shows the Software Version prompt.

13. Forthenextprompt,pushtheOKbutton.

14. The Console will display the Power-Up Mode screen.

MAINTENANCE

Read all maintenance instructions fully before you start any repair work. In some conditions, an assistant is required to do

the necessary tasks.

Equipment must be regularly examined for damage and repairs. The owner is responsible to make sure that

regular maintenance is done. Worn or damaged components must be repaired or replaced immediately.

Only manufacturer supplied components can be used to maintain and repair the equipment.

If at any time the Warning labels become loose, unreadable or dislodged, contact Nautilus Customer

Service for replacement labels.

To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the

power cord from the wall outlet and the machine and wait 5 minutes before cleaning, maintaining or repairing the

machine. Place the power cord in a secure location.

Daily: Beforeeachuse,examinetheexercisemachineforloose,broken,damaged,orwornparts.

Donotuseiffoundinthiscondition.Repairorreplaceallpartsattherstsignofwearor

damage. After each workout, use a damp cloth to wipe your machine and Console free of

moisture.

Note:AvoidexcessivemoistureontheConsole.

Weekly: Check for smooth roller operation. Wipe the machine to remove dust, dirt, or grime. Clean the

rails and surface of the rollers with a damp cloth.

Apply silicone lubricant to a dry cloth and wipe the rails to eliminate roller noise.

Silicone lubricant is not intended for human consumption. Keep out of reach of

children. Store in a safe place.

Note: Do not use petroleum based products.

Monthly

or after 20 hours:

Make sure all bolts and screws are tight. Tighten as necessary.

NOTICE: Do not clean with a petroleum based solvent or an automotive cleaner. Be sure to keep the Console free

of moisture.

Heart Rate Chest Strap Battery Replacement

The heart rate (HR) chest strap uses a CR2032 battery.

!Do not perform this procedure outdoors or in moist or wet locations.

1. Using a coin, loosen the slotted cover on the battery bay. Remove the cover

and battery.

2. When replacing the battery, insert it in the battery bay with the + symbol

facing up.

3. Reinstall the cover on the strap.

4. Discard the old battery. Dispose of in accordance with local regulations and/

or at approved recycling centers.

CR2032

Maintenance Parts

5. Inspect your chest strap to ensure function.

Do not use until the equipment has been fully assembled and inspected for correct performance in

accordance with the Owner’s Manual.

A Console Q Shroud, Left GG Drive Belt

B Heart Rate (HR) Cable R Handlebar Shroud, Outer HH Drive Pulley

C Handlebar, Static S Handlebar Shroud, Inner II Speed Sensor Magnet

D Data (I/O) Cable, Upper T Data (I/O) Cable, Lower JJ RPM (Speed) Sensor

E Arm Pivot Rod U Incline Adjuster Assembly KK Flywheel

F Console Mast V Frame Assembly LL Motor Control Board (MCB)

G Water Bottle Holder W Front Stabilizer MM Servo Motor

H Handlebar Arm, Lower Right X Rail Assembly NN Brake Assembly

I Handlebar Arm, Upper Right Y Crank Assembly, Left OO Incline Motor Assembly

JPedal Arm, Right Z Leg, Left PP Power Switch

KCrank Assembly, Right AA Pedal Arm, Left QQ AC Power Cord

L Leg, Right BB Handlebar Arm, Lower Left RR Media Cable

M Roller CC Handlebar Arm, Upper Left SS Silicone Lubricant, Bottle

N Shroud, Right DD Transport Wheel Assembly TT Cover, Console Junction

O Shroud Cap EE Lift Motor Wire, Upper UU Remote Incline Control Wire

P Shroud, Upper FF Lift Motor Wire, Lower VV Remote Resistance Control Wire

Condition/Problem Things to Check Solution

No display/partial display/

unit will not turn on

Check electrical (wall)

outlet

Make sure unit is plugged into a functioning wall outlet.

Check connection at front

of unit

Connection should be secure and undamaged. Replace

adapter or connection at unit if either are damaged.

Check data cable integrity All wires in cable should be intact. If any are visibly crimped or

cut, replace cable.

Check data cable

connections/orientation

Be sure cable is connected securely and oriented properly.

Small latch on connector should line up and snap into place.

Check console display for

damage

Check for visual sign that console display is cracked or other-

wise damaged. Replace Console if damaged.

Console Display IfConsoleonlyhaspartialdisplayandallconnectionsarene,

replace the Console.

If the above steps do not resolve the problem, contact Cus-

tomer Care for further assistance.

Unit operates but Contact

HR not displayed

HR cable connection at

Console

Be sure cable is connected securely to Console.

HRcableboxconnection Be sure cables from handlebars and cable to Console are

secure and undamaged.

Sensor grip Be sure hands are centered on HR sensors. Hands must be

kept still with relatively equal pressure applied to each side.

Dry or calloused hands Sensorsmayhavedifcultywithdriedoutorcallousedhands.

A conductive electrode cream (heart rate cream) can help

make better conduct. These are available on the web or at

medicalorsomelargertnessstores.

Static Handlebar If tests reveal no other issues, Static Handlebar should be

replaced.

Unit operates but

Telemetric HR not

displayed

Chest Strap (optional) Strap should be “POLAR®” compatible and uncoded. Make

sure strap is directly against skin and contact area is wet.

Chest Strap Batteries If strap has replaceable batteries, install new batteries.

CheckUserProle SelecttheEditUserProleoptionfortheUserProle.Goto

the WIRELESS HR setting and make sure that the current

value is set to ON.

Interference Try moving unit away from sources of interference (TV, Micro-

wave, etc).

Replace Chest Strap If interference is eliminated and HR does not function, replace

strap.

Replace Console If HR still does not function, replace Console.

Unit operates but

Telemetric HR displayed

incorrectly

Interference Make sure that the HR receiver is not blocked by a personal

electronic device in the left side of the media tray.

No speed/RPM reading,

Console displays “Please

Stride” error code

Check data cable integrity All wires in cable should be intact. If any are cut or crimped,

replace cable.

Check data cable

connections/orientation

Be sure cable is connected securely and oriented properly.

Small latch on connector should line up and snap into place.

Check magnet position

(requires shroud removal)

Magnet should be in place on pulley.

Check Speed Sensor

(requires shroud removal)

Speed sensor should be aligned with magnet and connected to

data cable. Realign sensor if necessary. Replace if there is any

damage to the sensor or the connecting wire.

TROUBLESHOOTING

Condition/Problem Things to Check Solution

Resistance does not

change (machine turns on

and operates)

Check Console Check for visual sign that Console is damaged. Replace Con-

sole if damaged.

Check data cable integrity All wires in cable should be intact. If any are visibly crimped or

cut, replace cable.

Check data cable

connections/orientation

Be sure cable is connected securely and oriented properly.

Reseat all connections. Small latch on connector should line up

and snap into place.

Resistance handlebar

connection (requires

handlebar shroud removal)

Be sure cable from left Upper Handlebar and cables to Console

are secure and undamaged.

Check Servo Motor

(requires shroud removal)

If magnets move, adjust until they are within the proper range.

Replace Servo Motor if not functioning properly.

MCB (requires shroud

removal)

Replace MCB.

If the above steps do not resolve the problem, contact Cus-

tomer Care for further assistance.

Incline does not adjust

(machine turns on and

operates)

Check Console Check for visual sign that Console is damaged. Replace Con-

sole if damaged.

Incline handlebar

connection (requires

handlebar shroud removal)

Be sure cable from right Upper Handlebar and cables to Con-

sole are secure and undamaged.

Lower and Upper I/O

Cables (requires shroud

removal)

All wires in the cables should be intact. If any are cut or

crimped, replace cable.

Incline Adjuster Assembly

(requires shroud removal)

Be sure Incline Adjuster Assembly is attached to Incline Motor

drive screw.

If the above steps do not resolve the problem, contact Cus-

tomer Care for further assistance.

Console shuts off (enters

sleep mode) while in use

Check electrical (wall)

outlet

Make sure unit is plugged into a functioning wall outlet.

Check connection at front

of unit

Connection should be secure and undamaged. Replace

adapter or connection at unit if either are damaged.

Check data cable integrity All wires in the cable should be intact. If any are cut or crimped,

replace cable.

Check data cable

connections/orientation

Be sure cable is connected securely and oriented properly.

Small latch on connector should line up and snap into place.

Reset machine Unplug unit from electrical outlet for 3 minutes. Reconnect to

outlet.

Check magnet position

(requires shroud removal)

Magnet should be in place on pulley.

Check Speed Sensor

(requires shroud removal)

Speed sensor should be aligned with magnet and connected to

data cable. Realign sensor if necessary. Replace if there is any

damage to the sensor or the connecting wire.

Condition/Problem Things to Check Solution

Fan will not turn on or will

not turn off

Check data cable integrity All wires in cable should be intact. If any are cut or crimped,

replace cable.

Check data cable

connections/orientation

Be sure cable is connected securely and oriented properly.

Small latch on connector should line up and snap into place.

Reset machine Unplug unit from electrical outlet for 3 minutes. Reconnect to

outlet.

Fan will not turn on, but

Console operates

Check for blockage of fan Unplug unit from electrical outlet for 5 minutes. Remove mate-

rial from fan. If necessary, detach the Console to help with

removal. Replace the Console if unable to remove blockage.

Unit rocks/does not sit

level

Check leveler adjustment Adjust levelers until machine is level.

Check surface under unit Adjustmentmaynotbeabletocompensateforextremelyun-

even surfaces. Move machine to level area.

Foot pedals loose/unit

difculttooperate

Hardware Tightly secure all hardware on the Pedal Arms and Handlebar

Arms.

Drive train click/tick

noise once per full crank

revolution

Check crank/pulley

assembly

Disconnect left and right foot assemblies and rotate crank. If

sound persists, replace crank/pulley assembly. If sound does

not come from rotating crank, check foot assemblies and up-

per/lower handlebars.

Check foot assemblies,

leg assemblies, handlebar

assemblies

Manually move foot, leg, and handlebar assemblies to isolate

sound. Replace part making sound.

Check for loose hardware Tightly secure all hardware on the Stabilizers and the base of

the Console Mast.

Knocking sound during

machine operation

Check hardware at

junction between Lower

Handlebar Arm and Pedal

Make sure that the alignment tab on the Pivot Sleeve goes into

theslotinthehole.BesurethePivotSleeveextendsthrough

the opposite hole in the joint cover.

Squeaking noise

that appears a few

minutes into a workout

and normally will get

progressively worse as

the workout continues

Bolt that connects the

swingarmstotheaxle

running through the

console mast

Loosen pivot rod bolt slightly until noise goes away. White

lithiumgreasecanalsobeappliedforatemporaryx.Contact

Customer Care for assistance.

Roller squeaking on rail Apply silicone lubricant to a dry cloth and wipe the rails to

eliminate roller noise.

WARRANTY

Who Is Covered

This warranty is valid only to the original purchaser and is not transferable or applicable to any other person(s).

What Is Covered

Nautilus, Inc. warrants that this product is free from defects in materials and workmanship, when used for the purpose intended, under normal conditions, and provided it receives

proper care and maintenance as described in the Product’s Assembly and Owner’s manual. This warranty is good only for authentic, original, legitimate machines manufactured by

Nautilus, Inc. and sold through an authorized agent and used in the United States or Canada.

Terms

• Frame 15 years

• Mechanical parts 5 years

• Electronics 1 year

• Labor 3 months

(Labor support does not include the installation of replacement parts involved in the initial product assembly and preventative maintenance services.)

How Nautilus Will Support the Warranty

Throughout the terms of the warranty coverage, Nautilus, Inc. will repair any machine that proves to be defective in materials or workmanship. Nautilus reserves the right to replace

the product in the event a repair is not possible. When Nautilus determines replacement is the correct remedy, Nautilus may apply a limited credit reimbursement toward another

Nautilus, Inc. brand Product, at our discretion. This reimbursement may be prorated based on length of ownership. Nautilus, Inc. provides repair service within major metropolitan

areas. Nautilus, Inc. reserves the right to charge the consumer for travel outside these areas. Nautilus, Inc. is not responsible for dealer labor or maintenance charges beyond the

applicable warranty period(s) stated herein. Nautilus, Inc. reserves the right to substitute material, parts or products of equal or better quality if identical materials or products are

not available at the time of service under this warranty. Any replacement of the product under the terms of the Warranty in no way extends the original Warranty period. Any limited

credit reimbursement may be prorated based on length of ownership. THESE REMEDIES ARE THE EXCLUSIVE AND SOLE REMEDIES FOR ANY BREACH OF WARRANTY.

What You Must Do

• Retain appropriate and acceptable Proof of Purchase.

• Operate, maintain, and inspect the Product as speciﬁed in the Product Documentation (Assembly, Owner’s Manuals, etc.).

• Product must be used exclusively for the purpose intended.

• Notify Nautilus within 30 days after detecting an issue with the Product.

• Install replacement parts or components in accordance with any Nautilus instructions.

• Perform diagnostic procedures with a trained Nautilus, Inc representative if requested.

What Is Not Covered

• Damage due to abuse, tampering or modiﬁcation of the Product, failure to properly follow assembly instructions, maintenance instructions, or safety warnings as stated in the

Product Documentation (Assembly, Owner’s Manuals, etc), damage due to improper storage or the effect of environmental conditions such as moisture or weather, misuse,

mishandling, accident, natural disasters, power surges.

• A machine placed or used in a commercial or institutional setting. This includes gyms, corporations, work places, clubs, ﬁtness centers and any public or private entity that

has a machine for use by its members, customers, employees or afﬁliates.

• Damage caused by exceeding maximum user weights as deﬁned in the Product’s Owner’s manual or warning label.

• Damage due to normal usage and wear and tear.

• This warranty does not extend to any territories or countries outside the United States and Canada.

How to Obtain Service

For Products purchased directly from Nautilus, Inc. contact the Nautilus ofﬁce listed on the Contacts page of the products Owner’s manual. You may be required to return the

defective component to a speciﬁed address for repair or inspection, at your expense. Standard ground shipping of any warranty replacement parts will be paid by Nautilus, Inc. For

products purchased from a retailer, you may be asked to contact your retailer for warranty support.

Exclusions

The preceding warranties are the sole and exclusive express warranties made by Nautilus, Inc. They supersede any prior, contrary or additional representations, whether oral or

written. No agent, representative, dealer, person or employee has the authority to alter or increase the obligations or limitations of this warranty. Any implied warranties, including

the WARRANTY OF MERCHANTABILITY and any WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, are limited in duration to the term of the applicable express warranty

provided above, whichever is longer. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Limitation of Remedies

EXCEPT AS OTHERWISE REQUIRED BY APPLICABLE LAW, THE PURCHASER’S EXCLUSIVE REMEDY IS LIMITED TO REPAIR OR REPLACEMENT OF ANY COMPONENT DEEMED BY

NAUTILUS, INC. TO BE DEFECTIVE UNDER THE TERMS AND CONDITIONS STATED HEREIN. IN NO EVENT WILL NAUTILUS, INC. BE LIABLE FOR ANY SPECIAL, CONSEQUENTIAL,

INCIDENTAL, INDIRECT OR ECONOMIC DAMAGES, REGARDLESS OF THE THEORY OF LIABILITY (INCLUDING, WITHOUT LIMITATION, PRODUCT LIABILITY, NEGLIGENCE OR OTHER

TORT) OR FOR ANY LOST REVENUE, PROFIT, DATA, PRIVACY OR FOR ANY PUNITIVE DAMAGES ARISING OUT OF OR RELATED TO THE USE OF THE FITNESS MACHINE EVEN IF

NAUTILUS, INC. HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THIS EXCLUSION AND LIMITATION SHALL APPLY EVEN IF ANY REMEDY FAILS OF ITS ESSENTIAL

PURPOSE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF CONSEQUENTIAL OR INCIDENTAL TYPE DAMAGES SO THE ABOVE LIMITATION MAY NOT APPLY TO

YOU.

State Laws

This warranty gives you speciﬁc legal rights. You may also have other rights, which vary from state to state.

Expirations

If the warranty has expired, Nautilus, Inc. may assist with replacements or repairs to parts and labor, but there will be a charge for these services. Contact a Nautilus ofﬁce for

information on post-warranty parts and services. Nautilus does not guarantee availability of spare parts after expiration of warranty period.

International Purchases

If you purchased your machine outside of the United States consult your local distributor or dealer for warranty coverage.

Nautilus®Bowex®Schwinn®Universal®

8010877.060716.B

Nautilus 100495 User Manual E618 Manuals And Guides 1608036L

Navigation menu

Versions of this User Manual:

Views

Navigation
