Navico SHGEN2 Marine Entertainment System User Manual
Navico Auckland Limited Marine Entertainment System
Navico >
User Manual
![](/img.php?id=2748584&img=bg1.png)
Regulatory Statements
• complies with CE under R&TTE directive 1999/5/EC
• complies with the requirements of level 2 devices of the
Radio communications (Electromagnetic Compatibility)
standard 2008
• This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
Warning
The user is cautioned that any changes or modications
not expressly approved by the party responsible for
compliance could void the user’s authority to operate
the equipment.
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
Industry Canada IC RSS-GEN, Sec 7.1.3 Warning Statement- (Required for license-exempt devices)
This device complies with Industry Canada‘s license-exempt
RSSs. Operation is subject to the following two
conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including
interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d’Industrie
Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
(2) this device must accept any interference received,
including interference that may cause undesired operation.
The relevant Declaration of Conformity is available on
the following websites, under the model documentation
section:
www.lowrance.com
www.simrad-yachting.com
www.bandg.com
the interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or
television reception, which can be determined by turning
the equipment o and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and
receiver
• Connect the equipment into an outlet on a circuit dierent
from that of the receiver
• Consult the dealer or an experienced technician for help
Countries of intended use in the EU
AT - Austria
BE - Belgium
BG - Bulgaria
CH - Switzerland
CY - Cyprus
CZ - Czech Republic
DE - Germany
DK - Denmark
EE - Estonia
ES - Spain
FI - Finland
FR - France
GR - Greece
HU - Hungary
IE - Ireland
IS - Iceland
IT - Italy
LI - Liechtenstein
LT - Lithuania
LU - Luxembourg
LV - Latvia
MT - Malta
NL - Netherlands
NO - Norway
PL - Poland
PT - Portugal
RO - Romania
SE - Sweden
SI - Slovenia
SK - Slovakia
TR - Turkey
UK - United Kingdom
*988-10938-001*
SonicHub 2:
![](/img.php?id=2748584&img=bg2.png)

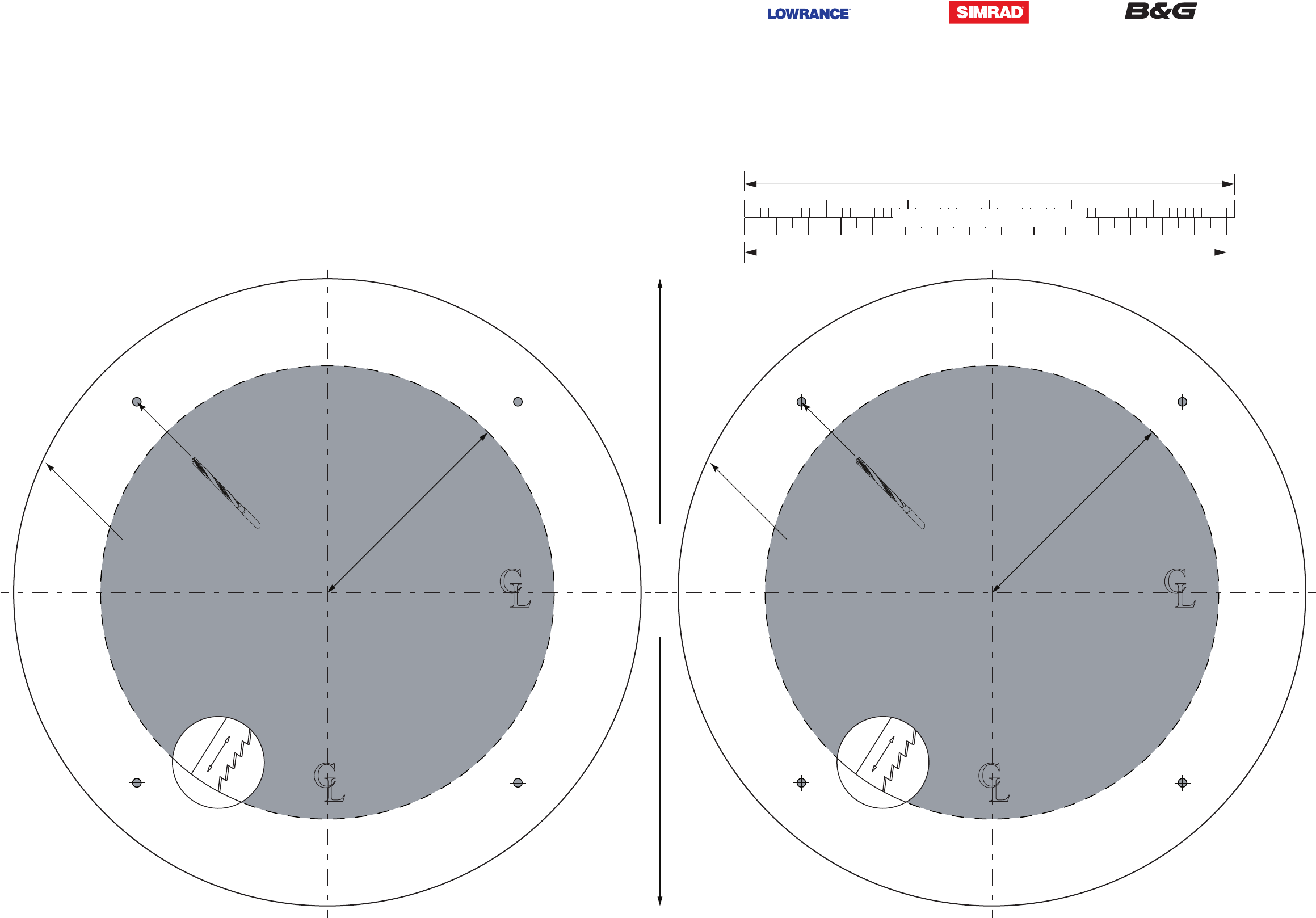

SonicHub™ 2
6.5” Speaker
MOUNTING TEMPLATE
*988-10965-001*
6"
150 mm
Check dimensions before cung
IMPORTANT. Do not use this template if it has been rescaled by copying or printing. If this is not the original, or is a print from a le, please check the dimension lines
below are to scale before use.
IMPORTANT. Ne pas utiliser ce gabarit s’il a été photocopié ou imprimé en format réduit ou agrandi. Si ce gabarit n’est ni un original ni une version imprimée d’un
chier PDF, veuillez véri er qu’il est à l’échelle avant de l’utiliser.
IMPORTANTE. no usar la plantilla si hay peligro que la escala original exacta se ha alterado por copias o procesos de impresión imprecisos. Si esto no es el original, o
un PDF, veri car que las líneas abajo están a la escala antes de usar.
WICHTIG. Diesen Vordruck nicht verwenden, wenn er durch Kopieren oder Drucken im Maßstab verändert wurde. Sollte es nicht das Original oder ein PDF-Ausdruck
sein, müssen untenstehende Zeilen vor erwendung an den richtigen Maßstab angepasst werden.
BELANGRIJK. Gebruik deze mal niet indien de schaal is veranderd doordat het is gecopieerd of gedrukt. Indien deze mal niet het origineel of een print van PDF is,
controleer dan of de onderstaande lijnen de juiste schaal zijn voordat u ze gebruikt.
IMPORTANTE. Não utilize este gabarito se a escala do mesmo tiver sido alterada por cópia ou impressão. Se não for o original ou uma cópia impressa de um arquivo
PDF, veri que as linhas abaixo, para acertar a escala antes da utilização.
VIKTIGT. Använd inte denna mall om den skalats om genom utskrift eller kopiering. Om detta inte är originalet eller en utskrift från en PDF, kontrollera att linjerna
nedan stämmer med skalan innan det används.
IMPORTANTE. Non utilizzare questo modello se è stato ridimensionato copiandolo o stampandolo. Se questo non è l’originale o la stampa di un le PDF, veri care se
le linee che seguono devono essere dimensionate prima di essere utilizzate.
TÄRKEÄÄ. Älä käytä tätä kaaviota, jos sen mittakaava on muuttunut kopio-idessa tai tulostaessa. Jos tämä ei ole alkuperäinen tai PDF tuloste tarkista rajat mittakaavas-
ta alla ennen käyttöä.
195 mm (7.67”)
Remove material from shaded area only
Drill 4 x pilot hole to suit
#6 self tapping screw
Product Outline
70.50 mm (2.77”)
L
C
L
C
Remove material from shaded area only
Drill 4 x pilot hole to suit
#6 self tapping screw
Product Outline
70.50 mm (2.77”)
L
C
L
C
![](/img.php?id=2748584&img=bg3.png)

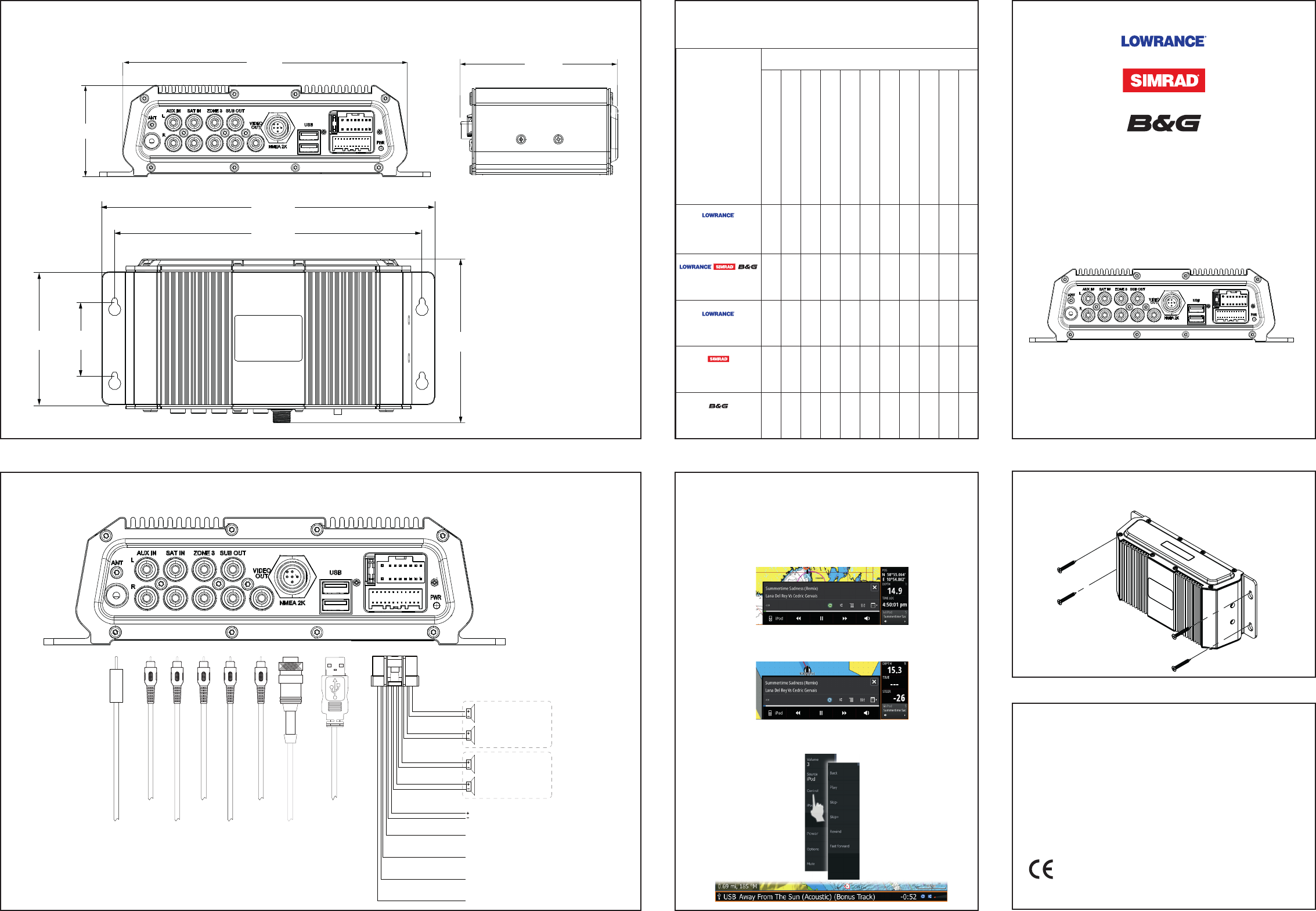

1942
SonicHub™ 2
Marine Audio Server
INSTALLATION GUIDE
Parts included
Mounting
Information
For compliance information see the reglatory statement
included with this product. Visit one of the websites
listed below for software updates and more information
about SonicHub™ 2.
www.lowrance.com
www.simrad-yaching.com
www.bandg.com
Operation by an MFD
The SonicHub™ 2 is operated by a compatible
Multi-Function Display (MFD). Examples below.
Wiring connectors
Dimensions
*988-10964-001*
90.0 mm
(3.54”)
50.0 mm
(1.97”)
225.0 mm
(8.85”)
207.5 mm
(8.17”)
107.2 mm
(4.22”)
62.0 mm
(2.44”)
193.6 mm
(7.62”)
107.2 mm
(4.22”)
LEFT
RIGHT
ZONE 1
LEFT
RIGHT
ZONE 2
WHITE
POWER L.E.D.
WHITE/BLACK
GREY
GREY/BLACK
GREEN
GREEN/BLACK
PURPLE
PURPLE/BLACK
HIGH LEVEL INPUT (MIC.)
BATTERY (+12 V DC)
BROWN
BROWN/WHITE
BATTERY (-)
RED
BLACK
EXT. AMPLIFIER ON
BLUE/WHITE
POWER CONTROL BUS
(IGNITION)
YELLOW
ANTENNA
(Not Supplied)
SUBWOOFER
OUT
ZONE 3
OUT
VIDEO
OUT
SATELLITE IN
(AUX 2)
AUXILARY
IN
NMEA 2000
USB x 2
Lowrance - HDS Gen3 & HDS Gen2 Touch
Simrad - NSS evo2 & NSO evo2
B&G - Zeus² & Zeus² Glass Helm
Pack
Part No.
Pack Contents
SonicHub™ 2
SonicHub™ 2 Mounting kit
SonicHub 2 Installation guide
SonicHub™ 2 Power cable
6’ NMEA 2000 Cable
NMEA 2000 T-Connector
6.5” Speaker x2
Speaker mounting kit
Speaker mounting template
2 x 2 m Speaker connector cable
Warranty card
000-12301-001
SonicHub™ 2
2 x 6.5” Speakers •••••••••••
000-12302-001
SonicHub™ 2 •••••• •
000-12304-001
2 x 6.5” Speakers •••••
000-12305-001
2 x 6.5” Speakers •••••
000-12306-001
2 x 6.5” Speakers •••••
Copyright © 2015 Navico Holding AS.
![](/img.php?id=2748584&img=bg4.png)

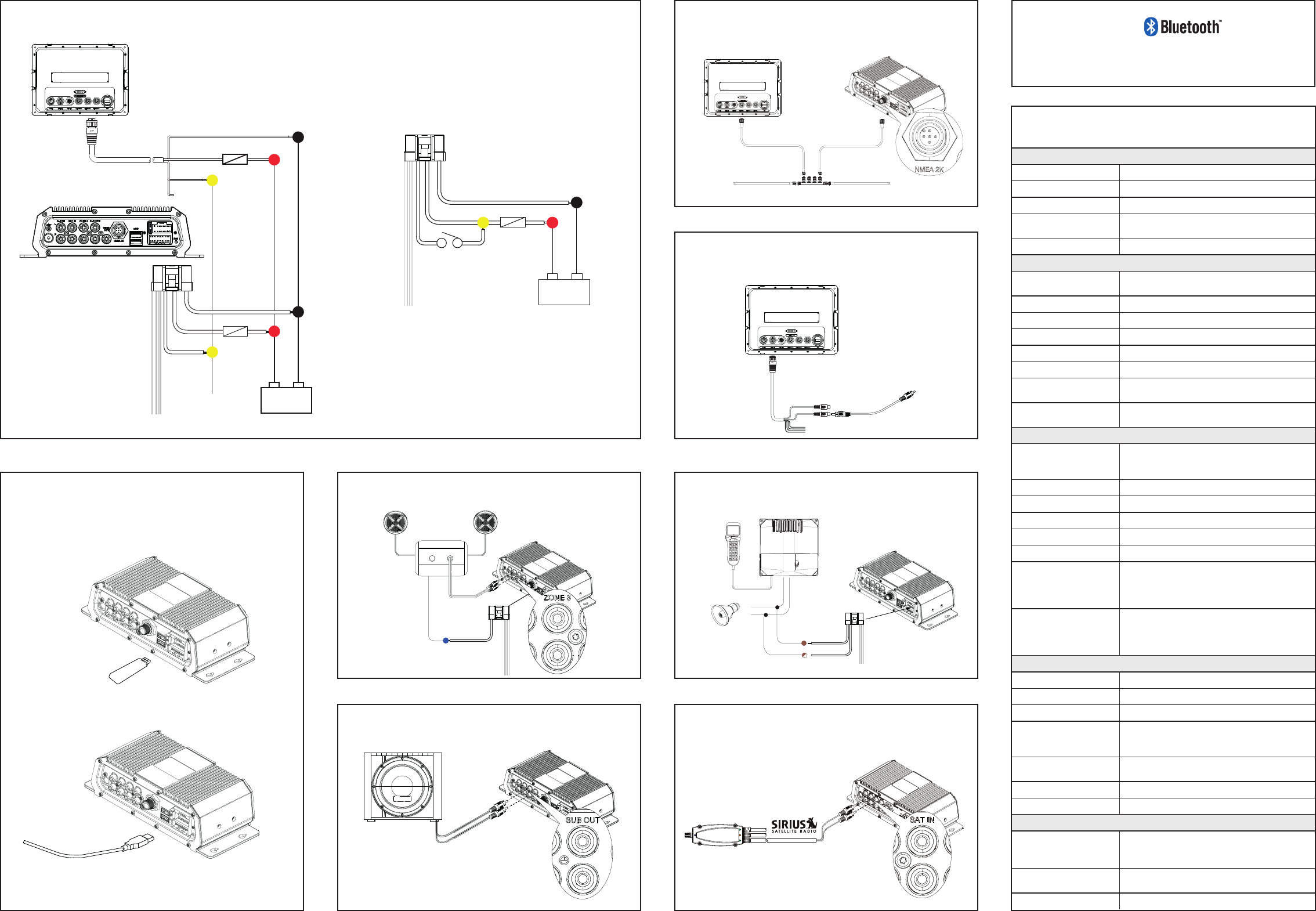

USB Connection
Connection via
Refer to the relevant brand manual or website for Bluetooth
connectivity instructions .
MIC connection
Preferred power control method Alternative switched power
control method
NMEA 2000 network connection
Speaker connection
Subwoofer connection
Video out connection
SAT IN (AUX 2) connection
WM-3
Weather Module
Tri-Cable Splitter
12-24Vdc
Power
Antenna
Network
Audio
+
-
Specications
General
Dimensions (L x W x H) 107.2 x 225.0 x 62.0 mm (4.2 x 8.9 x 2.4”)
Weight 0.88 kg (1.96 lbs)
Waterproof rating IPX2
Temperature Operating: -20 to 60°C (-4 to 140°F)
Storage: -40 to 80°C (-40 to 176°F)
Compliance FCC part B, Subpart J; CE per EN 60945; C-Tick
AM Tuner
Tuning range 531 to 1611 kHz EU with 9 kHz/step; 530 to 1710
USA with 10 kHz/step
Usable sensitivity 28 dBuV = 25 uV
Auto seek sensitivity <20 dBuV
Signal to noise ratio 50 dB @ 60 dBuV signal
Ultimate S/N ratio >60 dB @ 80 dBuV signal
Distortion <0.4% @ 60 dBuV signal, 80% modulation
Adjacent channel
selectivity
33 dB @ Adjacent channel = 9 kHz oset, 30%
modulation. SINAD = 26 dB
Alternate channel
selectivity
50 dB @ Alternate channel = 18 kHz oset, 30%
modulation. SINAD = 26 dB
FM Tuner
Tuning range
JPN: 76.0 to 90.0 MHz
EU: 87.5 to 108.0 MHz
US: 87.9 to 107.9 MHz
Usable sensitivity 28 dBuV = 25 uV
Auto seek sensitivity -6.5 dBuV = 0.5 uV for 30 dB S/N ratio
Signal to noise ratio 50 dB @ 10 dBuV signal
Ultimate S/N ratio >70 dB @ 60 dBuV signal
Distortion <0.1% @ 10 dBuV signal
Adjacent channel
selectivity
30 dB @ SINAD = 30 dB, 40 dBuV signal strength.
400 Hz tone, 40 kHz deviation.
Adjacent channel = 100 kHz oset, 1 kHz tone,
40 kHz deviation.
Alternate channel
selectivity
63 dB @ SINAD = 30 dB, 40 dBuV signal strength.
400 Hz tone, 40 kHz deviation.
Adjacent channel = 100 kHz oset, 1 kHz tone,
40 kHz deviation.
Audio Amplier
Output per channel 50 W
Total Output 200 W
Signal-to-noise ratio 95 dB
Total harmonic distortion
(1W Output, 4 ohm load,
20Hz to 20kHz)
0.04% typical
<0.1% max
Power supply
requirements 10 to 16 V DC
Current (Muted) <250 mA
Current (Max) <20 A
AUX Input/Outputs
AUX 1 In; SAT IN (AUX
2 In); RCA Output;
Subwoofer Out
Line inputs 2 V peak to peak. High level inputs
max 6 V, 2 V typical.
Video out = PAL and NTSC
Antenna Connection SonicHub input: Female
External cable required: Male
USB/MP3 Industry Standard
USB Stick
USB Cable
EXT. Amp
PWR On
Amplier
Blue Hailer
VHF
Video In
Brown
Brown / White
Weather Module
2m (6.5 ft)
Multi-Function Display
+-
Black
Black
Fuse
Fuse
Yellow
Yellow
Power
control bus
Red
Red
Battery (12 V DC)
Multi-Function Display
Power control master
Multi-Function Display
RCA Male / Male
(Not supplied)
NMEA 2000 Backbone
Cable 4 m (13 ft)
Amplied
Subwoofer
+-
Black
Fuse
Yellow
Red
Switch
(Optional)
Battery (12 V DC)
