TalkTime Max™ 920

Owner’s Manual

i

ATTENTION

Before Using the Phone:

It is necessary that you CHARGE your phone

battery fully before attempting to make or receive a call.

Battery Disposal:

DO NOT PLACE USED BATTERIES IN YOUR REGULAR

TRASH. THIS NICKEL-CADMIUM (Ni-Cd) BATTERY MUST

BE COLLECTED, RECYCLED OR DISPOSED OF IN AN

ENVIRONMENTALLY SOUND MANNER.

Battery Recommendations:

The NEC TalkTime MAX™ 920 cellular phone you have

purchased was designed to deliver quality performance and

provide you with years of use. In order to maintain optimum

performance, NEC recommends that only NEC Authentic

Accessories™ be used with the TalkTime phones.

Specifically, NEC recommends only the use of Nickel

Cadmium (NiCd) batteries with the TalkTime MAX™ 920

phone. Use of other batteries, such as Nickel Metal Hydride

(NiMH) may result in poor battery performance, and in some

cases, create a potential safety risk due to overheating of the

battery.

The incineration, landfilling or mixing of nickel-cadmium

(Ni-Cd) batteries with municipal solid waste stream is

PROHIBITED BY LAW in most areas.

Return this battery to a federal or state approved nickel-

cadmium (or “sealed lead”) battery recycler. This may be

where you purchased the battery or a local seller of

automotive batteries. In all states, call 1-800-822-8837,

except Minnesota if further disposal information is required.

In Minnesota, call 1-800-225-PRBA.

Contact local waste management officials for other

information regarding the environmentally sound collection,

recycling and disposal of this battery.

In-Vehicle Operation:

For In-Vehicle Operations, the phone battery must be

charged, since In-Vehicle Adapter Kits serve only as a trickle

battery charger.

ii

IMPORTANT

READ THIS INFORMATION BEFORE USING

YOUR HAND-HELD PORTABLE CELLULAR

TELEPHONE

First introduced in 1984, the hand-held portable cellular

telephone is one of the most exciting and innovative

electronic products ever developed. With it you can stay in

contact with your office, your home, emergency services, and

others.

For the safe and efficient operation of your phone, observe

these guidelines.

Your cellular telephone is a radio transmitter and receiver.

When it is ON, it receives and also sends out radio frequency

(RF) energy. The phone operates in the frequency range of

824 MHz to 894 MHz and employs commonly used

frequency modulation (FM) techniques. When you use your

phone, the cellular system handling your call controls the

power level at which your phone transmits. The power level

can range from 0.006 of a watt to 0.6 of a watt.

Exposure to Radio Frequency Energy

In 1991 the Institute of Electrical and Electronics Engineers

(IEEE), and in 1992 the American National Standards

Institute (ANSI) updated the 1982 ANSI Standard for safety

levels with respect to human exposure to RF energy. Over

120 scientists, engineers, and physicians from universities,

government health agencies, and industry, after reviewing the

available body of research, developed this updated Standard.

In March, 1993, the Federal Communications Commission

(FCC) proposed the adoption of this updated Standard.

The design of your phone complies with this updated

Standard. Of course, if you want to limit RF exposure even

further than the updated ANSI Standard, you may choose to

control the duration of your calls and operate your phone in

the most power efficient manner.

Efficient Phone Operation

For your phone to operate at the lowest power level,

consistent with satisfactory call quality, please observe the

following guidelines:

iii

If your phone has an extendable antenna, extend it

fully. Some models allow you to place a call with the

antenna retracted. However, your phone operates more

efficiently with the antenna fully extended.

Hold the phone as you would any other telephone. While

speaking directly into the mouthpiece, position the antenna

up and over your shoulder. Do not hold the antenna when

the phone is “IN USE.” Holding the antenna affects call

quality and may cause the phone to operate at a higher

power level than needed.

Antenna Care and Replacement

Do not use the phone with a damaged antenna. If a

damaged antenna comes into contact with the skin, a minor

burn may result. Replace a damaged antenna immediately.

Consult your manual to see if you can change the antenna

yourself. If so, use only a manufacturer approved antenna.

Otherwise, take your phone to a qualified service center for

repair.

Use only the supplied or approved antenna. Non-approved

antennas, modifications, or attachments could impair call

quality, damage the phone, and violate FCC regulations.

Driving

Check the laws and regulations on the use of cellular

telephones in the areas where you drive. Always obey them.

Also, when using your phone while driving, please:

* give full attention to driving,

* use hands-free operation, if available, and

* pull off the road and park before making or answering

a call if driving conditions so require.

Electronic Devices

Most modern electronic equipment is shielded from RF

energy. However, RF energy from cellular telephones may

affect inadequately shielded electronic equipment.

iv

RF energy may affect improperly installed or inadequately

shielded electronic operating and entertainment systems in

motor vehicles. Check with the manufacturer or its

representative to determine if these systems are adequately

shielded from external RF energy. You should also check

with the manufacturer of any equipment that has been added

to your vehicle.

Consult the manufacturer of any personal medical devices

(such as pacemakers, hearing aids, etc.) to determine if they

are adequately shielded from external RF energy.

Turn your phone OFF in health care facilities when

any regulations posted in the areas instruct you to do so.

Hospitals or health care facilities may be using equipment

that could be sensitive to external RF energy.

Aircraft

Turn your phone OFF before boarding any aircraft.

* Use it on the ground only with crew permission.

* Do not use it in the air.

To prevent possible interference with aircraft systems,

Federal Aviation Administration (FAA) regulations require you

to have permission from a crew member to use your phone

while the plane is on the ground. To prevent interference

with cellular systems, FCC regulations prohibit using your

phone while the plane is in the air.

Children

Do not allow children to play with your phone. It is not a toy.

Children could hurt themselves or others (by poking

themselves or others in the eye with the antenna for

example). Children also could damage the phone, or make

calls that increase your telephone bills.

Blasting Areas

To avoid interfering with blasting operations, turn your unit

OFF when in a “blasting area” or in areas posted:

“Turn off two-way radio.”

Construction crews often use remote control RF devices to

set off explosives.

Air Bags

An air bag inflates with great force. DO NOT place objects,

including both installed or portable wireless equipment, in the

area over the air bag or in the bag deployment area. If in-

vehicle wireless equipment is improperly installed and the air

bag inflates, serious injury could result.

v

Potentially Explosive Atmospheres

Turn your phone OFF when in any area with a potentially

explosive atmosphere. It is rare, but your phone or its

accessories could generate sparks. Sparks in such areas

could cause an explosion or fire resulting in bodily injury or

even death.

Areas with a potentially explosive atmosphere are often, but

not always, clearly marked. They include fueling areas such

as gas stations; below deck on boats; fuel or chemical

transfer or storage facilities; areas where the air contains

chemicals or particles, such as grain, dust, or metal powders;

and any other area where you would normally be advised to

turn off your vehicle engine.

Do not transport or store flammable gas, liquid, or explosives

in the compartment of your vehicle that contains your phone

or accessories.

Vehicles using liquefied petroleum gas (such as propane or

butane) must comply with the National Fire Protection

Standard (NFPA-58). For a copy of this standard, contact

the National Fire Protection Association, One Batterymarch

Park, Quincy, MA 02269, Attn: Publication Sales Division.

Pacemaker/ICDs

Research sponsored by the Wireless Technology Research,

LLC (“WTR”), indicates that some wireless telephones cause

interference with pacemakers. Accordingly, NEC America

endorses the following recommendations issued by the WTR:

Wireless phones should be kept at a safe distance from a

pacemaker. Existing data indicate that the greater the

distance between a pacemaker and a wireless phone, the

less risk of interference. These data further indicate that six

inches is the proper separation distance for minimal risk.

Practical steps to achieve this separation distance include:

o The wireless telephone should not be placed over the

pacemaker, such as in a breast pocket, when it is in the

“ON” position. (A phone is “ON” when power is being

supplied to the telephone by the battery.)

o The phone should be used at the ear opposite the

pacemaker.

Note: There is nothing in the comprehensive data to

suggest that bystanders with pacemakers would be at risk of

interference from others who are using wireless phones.

vi

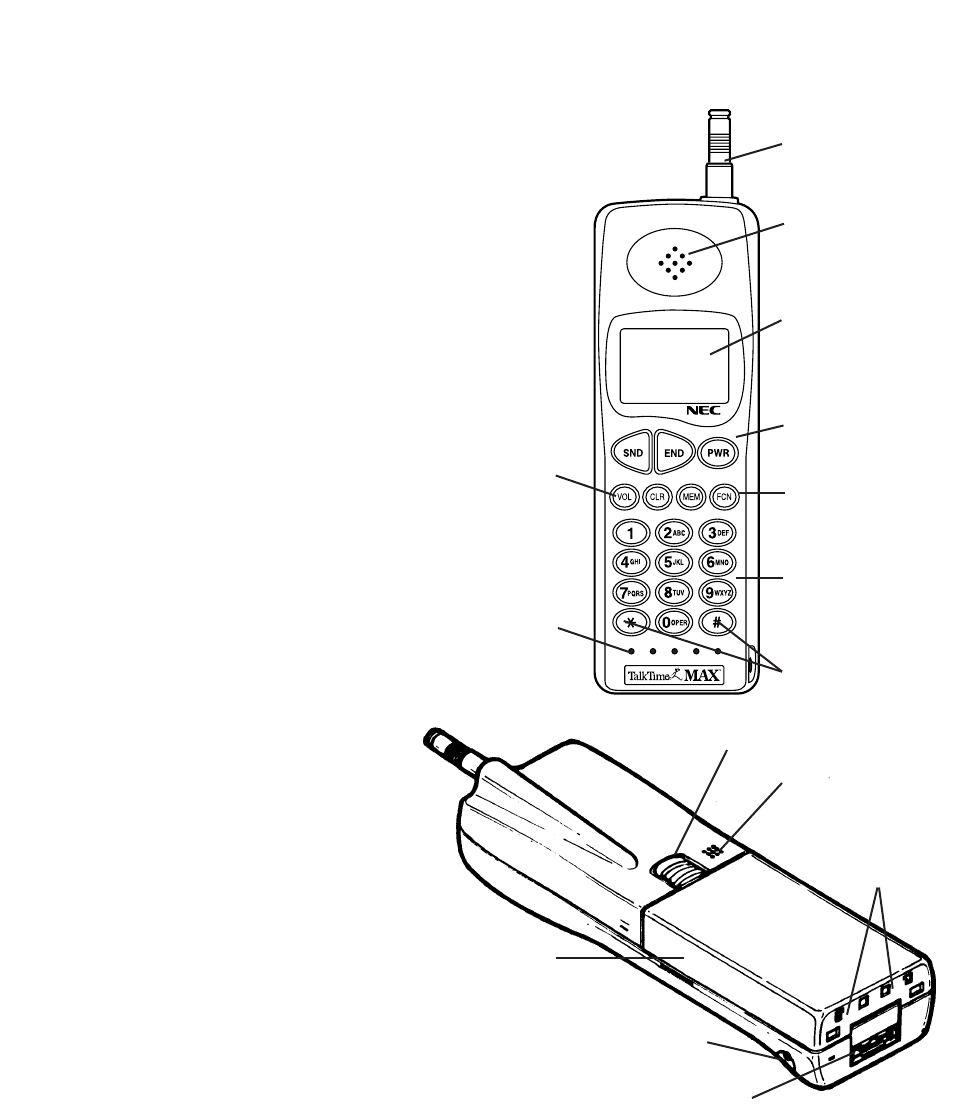

CONTROLS AND FEATURES

Antenna

Earpiece Receiver

Liquid Crystal

Display

Call Control Keys

Function Keys

Dialing

Indicators

Symbol Keys/

Scroll Keys

Volume Key

Microphone

Battery Locking Catch

Sounder/Speaker

Rechargeable

Battery Pack

Battery Charging

Jack

External Connector

Battery

Charging

Contacts

-1-

CONTENTS

Getting Started 2

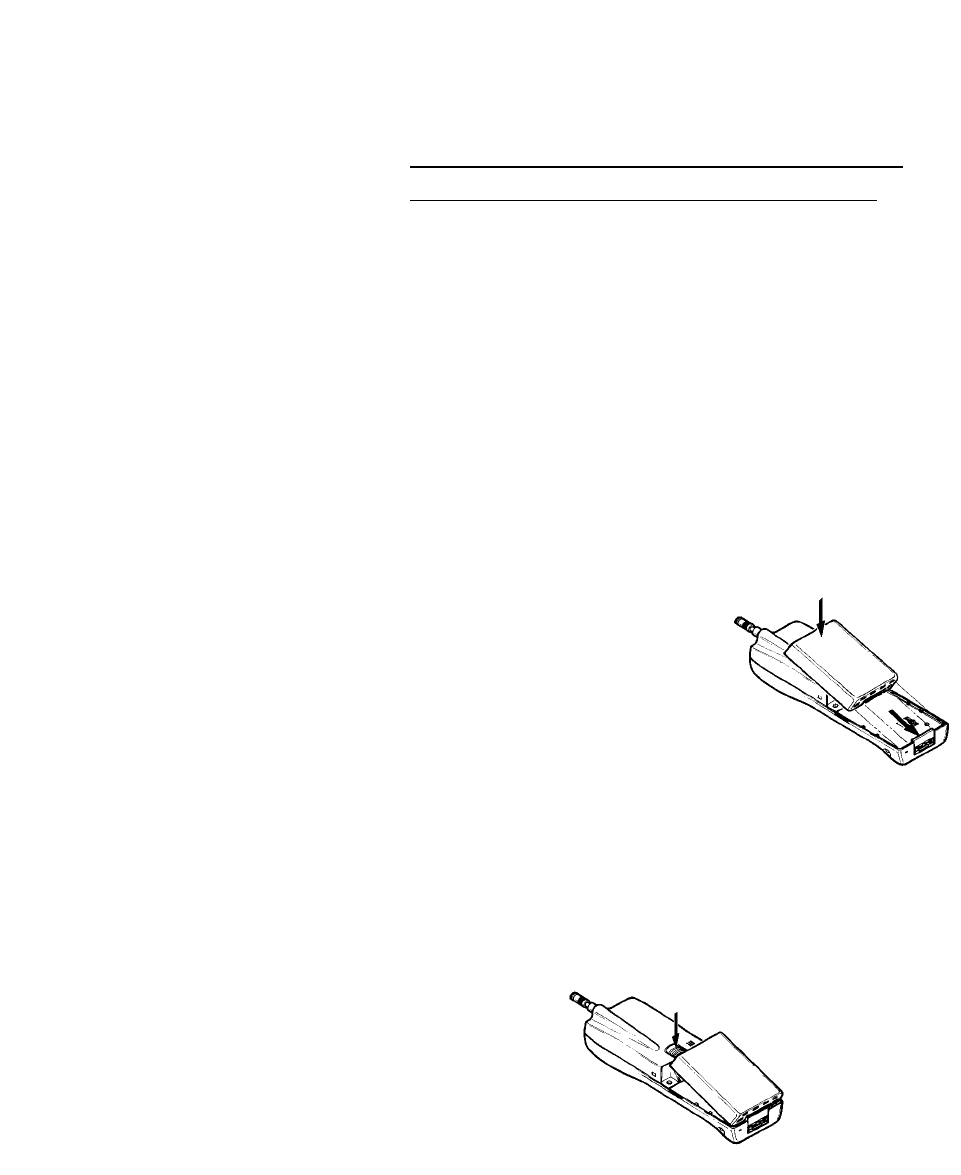

Installing and Removing the Battery 2

The Battery Charge Indicator 3

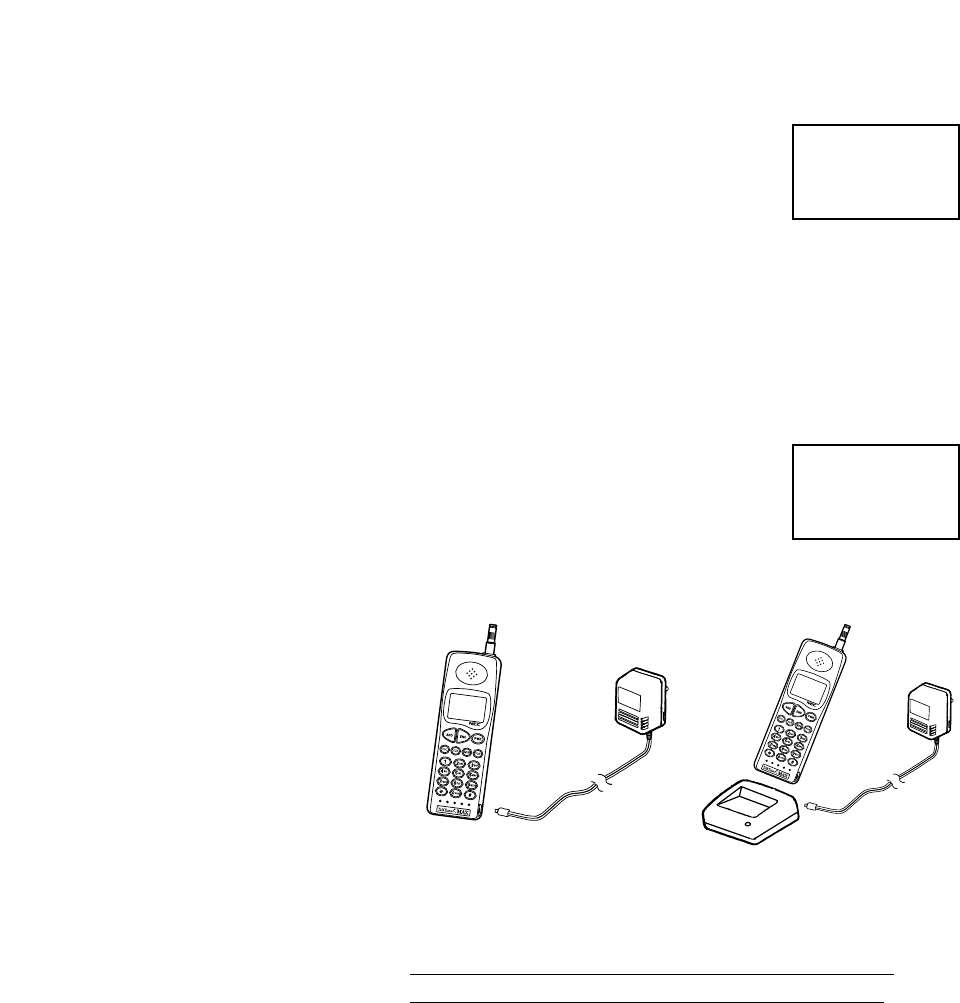

Charging and Recharging the Battery 3

Display Indicators 4

Quick Reference Guide 4,5

Operation of the Phone 6

Turning On or Off 6

Placing a Call 6

Receiving a Call 7

Signal Strength 7

Volume Key 7

Last Number Redial 8

Speed Dialing 8

The Memory 8

Storing Information 9

Recalling A Number From Memory 9

Editing Numbers 9

Displaying “Hidden” Numbers 10

Deleting Information from Memory 10

Scanning for a Number 10

Scratchpad 11

Displaying Your Own Phone Number 11

Features 11

NAM Select 11

Locking/Unlocking the Phone 11

Length of Your Calls 13

Resetting the Call Timers 14

Backlighting 15

Setting the Ringing Volume 15

Using the Phone on Two Networks 15

Pause Dialing 16

Roaming(System Select) 16

SID Management 18

DTMF Tone 18

Mute 19

Low Battery Alarm 20

Error Tone 20

Self Diagnostic Check 20

NAM Programming 20

Temporary Lock Code Set 21

One-Touch Dialing 21

Hands-Free 22

Caller Line Identification 22

Voice Messaging Service 23

Voice Mail Message Indication 23

Limited Warranty 24

Troubleshooting 26

Technical Information 27

Care and Maintenance 27

NEC Service Support 28

-2-

GETTING STARTED

Your phone is powered by a rechargeable battery.

A new battery must be fully charged

before being used for the first time.

If left unused, a fully charged battery will discharge itself in

about a month. Store batteries uncharged in a cool, dark,

and dry place.

The battery pack is a sealed unit with no serviceable parts

inside. Do not attempt to open the case.

WARNING: Use only NEC approved batteries, antennas,

and chargers. The use of any other types will invalidate

any approval or warranty applying to the telephone.

INSTALLING AND REMOVING THE BATTERY

To Install the Battery:

1. Insert the bottom of the battery into

the base of the phone.

2. Fasten it to the phone by

pressing slightly downward on

the battery until the locking

catch snaps into place.

3. Make sure the battery is properly

installed.

To Remove the Battery:

Remember to switch the power off before removing

the battery.

1. Slide the locking latch located at the top of the battery

upward and gently pull the battery away from the phone.

➁

①

THE BATTERY CHARGE INDICATOR

The Battery Charge Indicator can be

accessed by pressing [FCN] [8] keys

after power has been applied to the

phone. The display screen indicates the

battery charge level ranging from [o] to

[oooo]. [o] representing low battery and

[oooo] representing full battery.

CHARGING AND RECHARGING THE BATTERY

Charging the battery can be accomplished two ways.

(A) By direct connect of the AC Adapter to the charging jack

of the phone.

(B) By placing the phone into the charging stand.

(A)

1. Plug the AC Adapter into a standard

110V AC outlet.

2. Insert the DC plug into the phones

battery jack.

3. With PWR on display will show:

(B)

1. Plug the AC Adapter into a standard 110V AC outlet.

2. Plug the Charging Stand into the Adapter.

Note: Initial charging and recharging of the battery

usually takes approximately 10 hours.

A new battery must be fully charged

before being used for the first time.

Batteries last longer and perform better if allowed to

discharge fully at least once a week. You can do this by

leaving the phone switched on overnight, or until the

message RECHARGE BATTERY is displayed and the phone

shuts itself off.

NOTE: If the battery is too hot or cold, charging will be

interrupted until the battery reaches a normal temperature.

-3-

PWR

b a t t

o o o o

PWR

o o o o

C H A r g i n g

(B)

(A)

-4-

DISPLAY INDICATORS

(Power-Up Display)

“NO SVC” shows until automatic

lock-in with Carrier Service. Stays

on for no signal or no connection

with Carrier Service.

(Normal Operating Display)

QUICK REFERENCE GUIDE

Turn On/Off Press and hold PWR.

Make Call Key in number, press SND.

End call Press END.

Answer call Press any key except PWR.

Clear digit Press CLR.

Clear display Press and hold CLR.

Last number redial Press SND.

Adjust volume Press VOL for each level.

(4-levels off-max)

PWR FCN HF MUTE

8 8 8 8 8 8 8 8

8 8 8 8 8 8 8 8

IN USE NOSVC ROAM-B

PWR

o o o o

IN USE NOSVC

Received Signal Strength

Indicator

PWR

o o o o

IN USE

-5-

QUICK REFERENCE GUIDE

___________________The Memory___________________

Store a phone Press [FCN][MEM].

number Desired memory location

by number.(01,02,14 etc.)

Press [MEM] to store if occupied.

Speed Dialing Press [MEM] and memory

location number.

Press SND.

Scan through Press [MEM] + 0 + 1, # or ✶

memory

_______________List of Menu Functions______________

TOTAL TIME FCN + 1

Home & Roam

CALL TIME FCN + 2

MUTE FCN + 3

TX MUTE FCN + 3

FULL MUTE FCN + 3(HOLD 3)

DTMF TONE FCN + 4

(Long/Standard) Press 4 to change.

SYSTEM SELECT FCN + 5

(Home,Standard, Press 5 to change.

A-Only,B-Only)

NAM SELECT FCN + 6

(NAM1,NAM2) Press 6 to change.

RING TONE VOLUME FCN + 7

(4 LEVELS 1,2,3,4) Press VOL to change.

BATTERY LEVEL FCN + 8

PAUSE DIAL FCN + 9

FULL LOCK FCN + #

PARTIAL LOCK FCN + ✶

HIDDEN DIGITS FCN(Hold)

-6-

OPERATION OF THE PHONE

1) Press the PWR key and hold it for at least 2 seconds.

The phone will carry out a short self-test sequence, then

briefly display an all “8” pattern.

2) When the RSSI Indicator appears on the display, the

phone is ready for use.

If NO SVC appears it means that you are outside the cellular

service area and the network cannot serve you.

A cellular phone can only send and receive calls when it

is switched on.

3) Press the PWR key and hold it for at least 2 seconds to

switch the phone off.

PLACING A CALL

For optimum performance, fully extend the antenna before

sending or receiving a call.

Note: Push in the antenna when you are not using the

phone.

You can use the phone without extending the antenna in a

good coverage area.

1) Key in the number (include the area code if you're

making a long distance call).

If you make a mistake, press the CLR key to delete the last

keystroke; or to clear the whole display, press and hold the

CLR key.

2) The number will appear on the display.

3) Press SND.

4) The IN USE indicator will appear, and the number will

disappear from the display.

5) Lift the phone to your ear, and wait until your call is

answered.

-7-

6) When you have finished the call, press END.

If the message NO SVC appears, you are outside the cellular

service area.

If lock indicators (FL)(PL) appear on the display, your phone

has been electronically LOCKED (see Locking the Phone).

You can still make emergency calls when the phone is

locked.

RECEIVING A CALL

1) When there is an incoming call, the phone rings, and the

CALL message flashes on the display.

If the ringing tone has been switched off-the flashing of the

display and keypad will alert you of an incoming call.

2) Press SND (or any key except PWR) and lift the phone to

your ear.

3) When you have finished your conversation, press END.

If you don’t answer the call, the CALLED message will

remain on the display (showing that someone has tried to

phone you). Press CLR key to clear the display.

SIGNAL STRENGTH

The quality of your call depends on the strength of the

cellular signal in your area. The phone displays current signal

strength as a series of circles on the left side of the display

screen. The more circles, the better the signal. If the signal is

poor, try moving the phone slightly to improve reception. If

you are using the phone in a building, it may be necessary to

move near a window, or outdoors for better reception.

VOLUME KEY

The earpiece volume can be controlled by the volume key

VOL while in conversation mode.

PWR

o o o o

Received Signal

Strength Indicator

-8-

LAST NUMBER REDIAL

The last number dialed can be redialed automatically

without re-entering it. (The number can still be retrieved

even if the phone has been switched off and back on.)

1) With the display clear, press SND.

2) The number you last called will momentarily appear on the

display and is automatically redialed.

SPEED DIALING

The phone dials quickly by recalling phone numbers from

memory using the memory location number and the SND

key.

1) Press MEM and the Memory Location Number (i.e.12)

2) Press SND. The phone number will disappear and

the signal strength indicator will appear.

THE MEMORY

Your phone has 24 memory locations which allow you to

store numbers of up to 32 digits.

o Memory Address MEM #: Displayed as “OC” 32 digits.

Auto-Stored when Last Number Dialed is sent. Erased by

next number sent.

o Memory Address MEM 00: Your own phone number and

NAM used.

o Memory Address 1 to 24: 32 digits. Keypad Entry.

PWR

2141234567

IN USE

PWR

o o o o

IN USE

PWR

12

2141234567

PWR

2141234567

IN USE

PWR

o o o o

IN USE

-9-

STORING INFORMATION

1) Key in the phone number.

2) Press FCN + MEM.

3) Press in Memory Location number (01,02,12, etc.).

4) The number will automatically be stored in the memory

location selected.

Note: If the memory location you have selected is

already occupied, an alarm tone will sound, the display

will flash and the contents of the memory location will be

displayed.

5) If you wish to overwrite the contents in this memory

location, simply press MEM.

6) If you do not want to overwrite the contents of the

memory location, simply press and hold the CLR key.

RECALLING A NUMBER FROM MEMORY

Numbers stored in any of the 24 memory locations can be

recalled for viewing and or changing as the user prefers.

1) Press MEM + Memory Location Number(i.e. 12)(if

known). If not known use # or ✶to find the desired number.

2) Press SND to proceed with the call.

EDITING NUMBERS

If you make a mistake while keying in a number, you can

correct it as follows:

1) Press CLR to delete the last digit.

2) Press and hold CLR to clear the whole display.

PWR

S t o r E

PWR

r E C A L L

PWR

12

2141234567

-10-

DISPLAYING “HIDDEN” NUMBERS

The phone can display up to 16 digits (dashes count as

digits). If you key in more than 16, the first digits will

disappear off the side of the display.

If you want to check these hidden digits, press and hold FCN

and they will appear on the display. When you release the

FCN key, the original 16 digit display will reappear.

Remember to clear the whole display (press CLR and hold)

after having displayed a long number.

DELETING INFORMATION FROM MEMORY

1) Press and hold CLR to clear display.

2) Press FCN + MEM.

3) The display will read.

4) Key in the number of the memory location you want to

delete.

5) An alarm tone will sound, and the contents of the memory

location will be displayed and flashing.

6) Press MEM. The contents of the memory location will be

deleted.

SCANNING FOR A NUMBER

1) To scan the entire memory, press MEM and # or ✶ to

display each occupied memory location.

2) When you find the name you want, make the call by

pressing SND.

PWR

S t o r E

PWR

01

2141234567

Flashing

PWR

12

2141234567

-11-

SCRATCHPAD

Digits can be entered during a conversation and will stay on

the display after the call. If you wish to keep the scratchpad

use the FCN + MEM function to store the scratchpad

information.

Note: DTMF tones will be sent out over the voice channel

unless the phone is first muted.

DISPLAYING YOUR OWN PHONE NUMBER

1) Press MEM + 0 + 0.

Note: If your phone is registered on two cellular

networks, the number displayed will be for the network

that is currently being used. P1 is NAM1, P2 is NAM2.

FEATURES

NAM SELECT

1) Press FCN + 6.

2) Press 6 to change.

Note: If only one NAM has been programmed, FCN + 6

will not operate. Error tone will sound.

LOCKING/UNLOCKING THE PHONE

Your phone has a simple security system. It can be locked by

using a 4-digit or 3-digit lock code to prevent unauthorized

use.

The lock code is supplied by the dealer. If you forget

your lock code contact your dealer. The factory default

lock code is 0000.

PWR

P-1 2 1 4

1 2 3 - 4 5 6 7

PWR

P-1 2 1 4

1 2 3 - 4 5 6 7

PWR

P-2 2 1 4

2 3 4 - 5 6 7 8

-12-

FULL LOCK

When the phone is fully locked, only emergency calls (911)

can be made, but any call can be received. Storing to the

memory is also prevented.

1) Press FCN + #. The display will read:

2) Enter 4-digit lock code. If you key in the correct code, FL

(Full Lock) will appear on the right side of the display. If the

key is incorrect, the display will go back to the standby mode.

CORRECT INCORRECT

Note: For security the display will not show the 4-digit

lock code.

3) Unlocking is carried out in the same way. Press FCN + #,

enter in your 4-digit code. When the lock is cleared the

display will go back to the standby mode. If the key is

incorrect, the display will remain with the FL indicator on the

right side of the display.

CORRECT INCORRECT

When the phone is partially locked, only emergency calls

(911) and any numbers stored in memory locations 1through

9can be made, but any call can be received. Storing to the

memory is also prevented.

PWR

E n t E r C d

PWR

o o o o FL

PWR

o o o o

PWR

o o o o

PWR

o o o o FL

-13-

PARTIAL LOCK

1) Press FCN + ✶. The display will read:

2) Enter 4-digit lock code. If you key in the correct code, PL

(Partial Lock) will appear on the right side of the display. If

the key is incorrect, the display will go back to the standby

mode.

CORRECT INCORRECT

Note: For security the display will not show the 4-digit

lock code.

3) Unlocking is carried out in the same way. Press FCN + ✶.

When the lock is cleared the display will go back to the

standby mode. If the key is incorrect, the display will remain

with the PL indicator on the right side of the display.

CORRECT INCORRECT

LENGTH OF YOUR CALLS

The phone allows you to check the duration of your calls.

Upon sending or receiving a call, the current call timer begins

counting. This can be viewed at anytime on the display

by pressing FCN + 2.

Note: The current call timer will be reset upon receipt or

sending of another call.

PWR

o o o o

PWR

o o o o PL

PWR

o o o o PL

PWR

o o o o

PWR

E n t E r C d

PWR

C A L L - t

0 1 - 1 6

Minutes Seconds

-14-

RESETTING THE CALL TIMERS

Each NAM has a Total Time Counter. The Total Time of all

incoming and outgoing calls are registered by these

counters.

SINGLE - NAM

o To View Total Time: Press FCN + 1.

DUAL - NAM

o To Change NAMs: Press FCN + 6. Press 6 to change.

oTo View Total Time: Press FCN + 1.

RESETTING TOTAL TIME COUNTER

To reset the Total Time Counters:

o Press FCN + 1+ #.

o Enter 0000.

oPress CLR to exit.

PWR

P - 1 2 1 4

1 2 3 - 4 5 6 7

PWR

P - 2 2 1 4

2 3 4 - 5 6 7 8

PWR

t o t A l - t

0 0 3 - 2 9

Hours Minutes

PWR

t o t A l - t

0 0 4 - 1 5

Hours Minutes

PWR

E n t E r C d

PWR

t o t A L - t

C L E A r E d

-15-

BACKLIGHTING

The phone keypad and display are illuminated to make them

easier to read. The backlights come on when you press any

key, and go off 10 seconds after your last key press. To turn

them on again, simply press another key.

SETTING THE RINGING VOLUME

The ringing tone sounds when there’s an incoming call. you

can select the volume of the tone or switch it off (SILENT

MODE).

1) Press FCN + 7.

Ring tone sounds at the last volume set.

2) Use VOL key to step through the levels 0 thru 4.

If you select level 0, when a call is coming in, the display

will flash, the CALL message will appear and flash.

USING THE PHONE ON TWO NETWORKS

The phone two number capability feature lets you subscribe

to both cellular services in your area as well as cellular

service in other cities, usually one for each network. (NAM

stands for Number Assignment Module).

Note: You cannot change from one network to the other

during a call. (If you are only registered on one network,

you cannot access the other.)

To Change the Network:

1) Press FCN + 6.

PWR

r i n 9 - 4

PWR

P - 1 2 1 4

1 2 3 - 4 5 6 7

-16-

2) Press 6.

3) Press CLR. Phone will re-initialize on the NAM selected.

PAUSE DIALING

PAUSES - FCN + 9 . This function creates pauses while

sending out DTMF signaling tones during conversation

mode. When a manual pause is encountered in the DTMF

string, the phone will pause indefinitely, until the user presses

the SND key.

More than one pause may be placed in a sequence,

separating several groups of DTMF digits.

For example, this function may be used for calling a paging

system and sending commands, ID numbers (PIN), and/or

numeric messages:

(1) (2) (3) (4) (5)

“123456789” + “P” + “123456789#” + SND + SND

(1) This is the phone number to be called via the cellular

system.

(2) This character indicates a Manual Pause. The user will

wait for the initial prompt from the paging system before

pressing the SND key.

(3) This is a DTMF digit sequence which may represent the

PIN of the called pager.

(4) This is the initial send keypress which causes the phone

to initiate a call using the number up to the first pause mark.

(5) This is the second send keypress, while in conversation

mode, which will end the manual pause and start the sending

of DTMF digits.

ROAMING (SYSTEM SELECT)

Each cellular service area can have two cellular service

suppliers called carriers. One carrier is called the ‘non-

wireline’ or ‘A’ system and the other carrier is called the

‘wireline’ or ‘B’ system. Your phone is designed to work with

either or both carriers.The system priority feature allows you

to program your phone for optimum operation when in your

home serving area or when away from your home area. This

is called roaming. When you buy your phone, you may

register (receive a phone number) with either or both of your

PWR

P - 2 2 1 4

2 3 4 - 4 5 6 7

-17-

local carriers. Contact the office of your home cellular phone

company for information about the roaming agreements they

have with other cellular phone companies. In some areas,

roaming telephones are automatically recognized by the

cellular system’s computer. In other areas, you must contact

the cellular phone operator before it can recognize your

phone. The company needs to know your telephone number,

your phone ESN (electronic serial number), and how you

plan to pay for your calls. There is usually an additional

charge for roaming calls.

Note: The ESN for your phone is located in the battery

compartment of the phone, and is comprised of the first

8 digits preceded by NEC’s company code of 189.

To Select the Roaming Mode:

1) Press FCN + 5.

Home Only

This service is limited to your home area.

2) Press 5to advance through the system selections.

Sys A only

This service is limited to the ‘A’ (non-wireline) carrier

only.

Sys B only

This service is limited to the ‘B’ (wireline) carrier only.

PWR

S y S - S E L

H - O n L y

PWR

S y S - S E L

A - O n L y

PWR

S y S - S E L

b - O n L y

-18-

Standard

This allows the phone to first search for a free channel

in the Home system. If the phone cannot find a free

channel, it searches the other system.

The ROAM indicator is displayed when the phone is using a

system other than your home system. The roam systems

your phone accesses can be specified through the use of

system identification management, referred to as SID

management. SID Management is described below.

SID MANAGEMENT

The SID Management feature lets the phone operate only

within specifically identified (Preferred) systems. The service

provider can enter up to thirty (30) preferred System ID

numbers that identify the systems that you want your phone

to access.

Programming of your System ID numbers is accomplished

by your service provider and is only associated with NAM1.

DTMF TONE

The DTMF Tone generator has two settings, Standard and

Long. If the DTMF Tone generator is set to Standard, the

phone sends each DTMF signaling tone for 100 milli-

seconds. With the DTMF Tone generator set to Long, the

phone sends each DTMF signaling tone for as long as the

key is pressed, up to 3 seconds maximum.

PWR

S y S - S E L

S t A n d A r d

PWR

o o o o

ROAM- A

-19-

1) Press FCN + 4.

2) Press 4 to change.

MUTE

The Mute function operates only when the phone is in the

conversation mode. There are two (2) Mute positions, MUTE

or FULL MUTE.

MUTE - This function switches off the microphone while in

the conversation mode.

FULL MUTE - In the portable configuration, this function

switches off both the microphone and the earpiece while in

the conversation mode. While mounted in a vehicle (HF

Adapter), this function turns off the phones external

microphone and speaker.

MUTE:

1) Press FCN + 3. This switches off the microphone.

2) Press FCN + 3. This switches the microphone back on.

PWR MUTE

o o o o

IN USE

PWR

o o o o

IN USE

PWR

t o n E

L o n 9

PWR

t o n E

S t A n d A r D

-20-

FULL MUTE:

1) Press and hold FCN + 3. This switches off both the

microphone and earpiece or speaker.

2) Press FCN + 3. This switches the microphone and

speaker back on.

LOW BATTERY ALARM

The Low Battery Alarm warns the user when the battery

power is getting low, by emitting a short double tone. The

double tone will sound 6 times at 10 second intervals and the

display will show the PWR indicator flashing. When this

occurs, the phone will shut down automatically 60 seconds

after the first indication.

ERROR TONE

A Error Tone will sound to inform the user of miss key

operations, or when a keypress is ignored.

SELF DIAGNOSTIC CHECK

The phone will show a blank display if it finds any trouble

within the unit during its self diagnostic check. If this occurs,

immediately turn the phone off and return it to your dealer for

repair.

NAM PROGRAMMING

Consult your dealer for NAM Programming information.

PWR MUTE

o o o o

IN USE

Flashing

PWR

o o o o

IN USE

-21-

TEMPORARY LOCK CODE SET

This function allows the user to program any 3-digit

temporary lock code to lock or unlock the phone without

revealing the personal 4-digit lock code.

Note: The 3-digit temporary code cannot be the same as

the first three digits of your personal lock code.

1) Press FCN + 0.

2) Enter any three digits. Press the ★key.

3) Enter your 4-digit lock code.

Note: Your 3-digit Temporary Lock Code is now set.

4) Press CLR. Phone returns to stand-by.

ONE-TOUCH DIALING

When One-Touch dialing is enabled, the user will have up to

three (3) one-touch keys available. Each one-touch key

corresponds to one of the first three (3) memory locations

(i.e. one-touch 1 = RCL 01). When turned on this function

will allow the user to press a single digit (1 thru 3)(Hold) and

have the phone automatically display and dial (SND) the

number residing in that memory location.

1) Press FCN + 3.(Stand-by Mode Only)

PWR

E n t E r C d

PWR

t - C d S E t

PWR

1 - t o u c h

O n

PWR

E n t E r 3 d

-22-

2) Press 3 to switch On or Off.

3) Press CLR to return to standby.

HANDS-FREE

This function operates only when phone is installed in the

Simple Hands-Free Adapter and you are in conversation

mode. FCN + VOL turns the Hands-Free function On or Off.

With Hands-Free mode On and the phone in the

conversation mode, the display shows:

To go out of the Hands-Free mode, press FCN + VOL.

Hands-Free OFF Hands-Free ON

CALLER LINE IDENTIFICATION

The caller line identification feature (where available) allows

the phone number of the incoming call to appear on the

phone display. Contact your cellular service provider for

information on caller line identification.

With the phone in standby, an incoming call appears on the

display as shown below.

Once the incoming call is answered, the caller line identi-

fication information is removed from the display.

PWR HF

o o o o

IN USE

PWR

o o o o

IN USE

PWR HF

o o o o

IN USE

PWR

C A L L 2 1 4

5 5 5 - 1 2 1 2

Incoming Call

Phone

Number

VOICE MESSAGING SERVICE

Cellular Digital Messaging Service (CDMS), if available

through the cellular service provider in the area, is a voice

message service for the cellular customer. When a cellular

customer turns off or does not answer the cellular phone, or

when the customer is currently on a call, CDMS answers the

incoming call. The caller is provided with the option to leave

a voice mail message. The cellular phone user is notified of

messages through a voice mail message indication.

VOICE MAIL MESSAGE INDICATION

When an incoming caller leaves a message through the

cellular provider's digital messaging service, the cellular

phone user is notified by a voice mail message indication.

The type of voice mail message notification varies between

cellular service providers. Upon receiving a voice mail

message, the voice mail message indication is one of the

following: a phone beep and displayed “MAIL” indication, a

phone beep without a displayed indication, or a series of

beeps generated by the service provider and transmitted to

the phone user through the earpiece receiver when an

outgoing call is made. The displayed indication is shown

below.

If additional messages are received before the current voice

message information is retrieved, the voice mail message

number in the displayed indicator increases.

Voice messages can be retrieved from the messaging

service by following the service provider instructions for voice

message retrieval. Contact your service provider for

information on availability of voice messaging services and

for any additional information on voice mail messaging.

-23-

PWR

o o o o

A I L 0 1

Voice Mail

Message

Indication

PWR

o o o o

A I L 0 2

Voice Mail

Message

Number

Increases

-24-

LIMITED WARRANTY

1. What Products May Be Covered By This Limited

Warranty?

The following products (the "Products" or the "Product")

purchased through an NEC America, Inc. (NECAM), Wireless

Communications Division Authorized Dealer (the "Dealer") in

the United States on or after January 1, 1997, may be

covered by this warranty:

[TALKTIME MAX™ 920 ANALOG CELLULAR TELEPHONE]

2. What Does This Warranty Cover?

NECAM warrants to the original end-user Product purchaser

("You") that the Products will conform to the applicable

published specifications in effect at the time of shipment from

NECAM to the Dealer, and that the Products will be free from

defects in materials or workmanship under normal use and

service during the warranty period described in Paragraph 4.

3. When Does Your Warranty Begin?

The warranty period will begin on the date You purchase the

Product. Dated proof of purchase is necessary to

accompany any Product returned for warranty service

consideration. Valid proof of purchase must identify the point

of purchase, date of purchase, Product model or trade name,

and Electronic Serial Number or Mechanical Serial Number

for transceivers and boosters.

4. How Long Does The Coverage Last?

The warranty period for the Product is:

[ONE (1) YEAR]

Any Products repaired or replaced under the terms of this

warranty are covered under the warranty for the remainder of

the original warranty period or ninety (90) days from the date

of service return shipping, whichever is longer.

5. What Will The Manufacturer Do If The Product

Becomes Defective In Materials Or Workmanship During

The Warranty Period?

If any Product covered under this warranty becomes defec-

tive in materials or workmanship during the applicable war-

ranty period, NECAM will, at its option, either repair the

defective Product without charge for parts and labor, or pro-

vide a replacement in exchange for the defective Product.

-25-

6. What Is Not Covered By This Warranty?

(a) This warranty does not extend to:

(i) Products which have been subjected to misuse, acci-

dent, physical damage, improper installation, abnormal

operation or handling, neglect, inundation, fire, water, or

other liquid intrusion, or;

(ii) Products which have been damaged due to repair,

altered, or modified by anyone other than an authorized

service warranty component-level representative of

NECAM, or;

(iii) Defects caused by components, parts, or acces-

sories not compatible with the warranted Product, or;

(iv) Products whose warranty/quality labels, product

serial number plates or electronic serial numbers have

been removed, altered, or rendered illegible, or;

(v) Accessory items such as antenna, cables, curl

cords, cases, etc., or;

(vi) Products shipped to NECAM for repair from outside

the United States.

(b) Any other warranties, including but not limited to the

implied warranties of merchantibility and fitness for a

particular purpose, shall be limited to the duration of

this warranty. Some states do not allow limitations on

how long an implied warranty lasts, so the above limita-

tion may not apply to you.

(c) NECAM's total liability for damages for any cause relat-

ed to or arising out of the use or inability to use the

product, whether in contract, negligence, strict tort, or

based on any other legal theory, shall not exceed the

original price paid for the product.

(d) In no case shall NECAM be liable for any indirect, spe-

cial, incidental, or consequential damages based upon

breach of warranty, breach of contract, negligence,

strict tort, or any other legal theory. Such damages

include, but are not limited to, loss of profits, loss of

savings or revenues, inability to use the products or any

associated equipment, cost of capital, cost of any sub-

stitute equipment, facilities or services, claims by third

parties other than you, and injury to property. These

limitations do not apply to claims for personal injury.

Some states do not allow the exclusion or limitation of

incidental or consequential damages, so the above limi-

tation or exclusion may not apply to you.

-26-

7. How Do You Get Warranty Service?

If Your Product requires warranty service, it must be returned

to an NEC Authorized Service Center along with a descrip-

tion of the Product malfunction or difficulty. You are required

to substantiate warranty status with a dated proof of pur-

chase (as explained in item #3), inclusive of Product's serial

number (if applicable). The address of the nearest NECAM

Authorized Service Center may be obtained by calling (800)

637-5917 or (972) 751-7500, or by writing to: NEC America,

Inc., Attention: Service Support & Administration, 1621

Walnut Hill Lane, Irving, Texas, 75038. NECAM assumes no

risk for damage or loss in transit.

If, in NECAM's sole opinion, the Product failure is not cov-

ered under this warranty, or proof of purchase does not meet

the terms of this warranty, You will be notified and Your

authorization will be requested for any further repair activity.

Products repaired under warranty will be returned to You,

transportation prepaid.

8. How Does State Law Apply To This Warranty?

This warranty gives You specific legal rights, and You may

also have other rights which vary from state to state.

9. This Warranty Is The Entire Agreement.

Unless modified in writing, signed by both You and NECAM,

this warranty is understood to be the complete and exclusive

agreement. REV: LW012097

TROUBLESHOOTING

If the power does not come on or stay on:

Make sure the battery is installed in the phone properly.

Be sure the contacts are clean on the battery and the

charger.

Battery charge may be too low for operation. Listen for

the low battery alarm or check battery level by pressing

FCN + 8.

If the power comes on, but the phone does not work:

Check the NO Service (NO SVC) message, you might

be out of the cellular service area.

Make sure that the antenna is extended to its full

length.

-27-

TECHNICAL INFORMATION

Dimensions 147.32x50.8x27.94mm

(5.8"x2.0"x1.1")

Weight 7.8 ounces

Transmitting Power 0.6 W max. ERP

Operating Voltage 4.8V(int. battery)

Frequency Band 824.040 - 848.970 MHz (TX)

869.040 - 893.970 MHz (RX)

Standard Battery

Capacity 1000 mAh

Number of Channels 832

Memory Locations 24

Memory Capacity 32 digits memory locations 1-24

CARE AND MAINTENANCE

Your phone is a product of superior design and

craftsmanship and should be treated with care. The

suggestions below will help you enjoy this product for many

years.

Keep it dry. (Water contains minerals that will corrode

electronic circuits.) Avoid all liquid spills. Any form of liquid

will cause permanent damage to your phone.

Do not store in hot area. High temperatures can shorten the

life of electronic devices, damage batteries, and warp or melt

certain plastics.

Do not drop it. This might cause permanent damage. The

internal circuit boards can be broken.

Do not use or store in dusty, dirty areas. This will cause

permanent damage to moving parts.

Do not use harsh chemicals, cleaning solvents, or strong

detergents to clean it. Wipe it with a soft cloth slightly

dampened in a mild soap-and-water solution. If the unit is

not working properly, take it to your nearest authorized

dealer. The personnel there will assist you, and, if necessary,

arrange for service.

-28-

NEC SERVICE SUPPORT

NEC's Service Support group is ready to assist you with any

additional information that you may need in the operation and

integration of your NEC Cellular Telephone and NEC

Authentic Accessories. Service Support can be obtained by

contacting NEC at:

Telephone: Writing:

1-800-637-5917 * NEC America, Inc.

1-972-751-7500 Service Support

1621 Walnut Hill Lane

Irving, Texas 75038

* The 800 number listed above also provides access to the

NEC Repair Service and Parts Sales groups.

NEC Marketing & Sales

Marketing: Sales Agency:

NEC America Inc. NMI Corporation

Wireless Marketing Div. 14110 N. Dallas Parkway

1621 Walnut Hill Lane Suite 300

Irving, Texas 75038 Dallas, Texas 75240

1-800-421-2141 1-800-CALL-NMI (225-5664)

Copyright A1998 by NEC Corporation

Manual Part Number: 621-0301

2nd Edition February 1999

All Rights Reserved. Printed in U.S.A.

All Specifications and conditions are subject to change without notice.

LICENSED UNDER ONE OR MORE OF THE FOLLOWING U.S. PATENTS

4,954,951 4,942,516 4,896,260 4,829,419 4,825,364 4,686,622 4,531,182

4,396,976 4,371,923 4,121,284 4,120,583 4,435,732 4,471,385 4,672,457

4,739,396 4,675,863 4,817,089 4,912,705 5,022,024 5,121,391

Topic Page

-A-

Aircraft

Use on iv

Alarm

Battery 20

Alert

Call 15

Antenna

Care iii

Replacement iii

-B-

Battery

Alarm 20

Charging 3

Indicator 3

Installing 2

Recharging 3

Removing 2

Backlighting 15

-C-

Call

Placing 6

Receiving 7

Length of 13

Timers 14

Caller Line ID 22

Care 27

-D-

Deleting

Information 10

Dialing

One Touch 21

Pause 16

Speed 8

Display

Hidden Numbers 10

Indicators 4

Own Number 11

-E-

Error Tone 20

-G-

Guide

Quick Reference 4,5

-H-

Handsfree 22

-I-

Information

Deleting 10

Editing 9

Recalling 9

Storing 9

-L-

Last # Redial 8

Lights 15

Topic Page

-L-

Locking

Full 12

Partial 13

Temporary 21

-M-

Memory 8

Deleting 10

Editing 9

Hidden Digits 10

Locking 11-13,21

Recalling 9

Scanning 10

Scratchpad 11

Speed Dial 8

Storing 9

Menu

Functions 5

Mute

Mute 19

Full Mute 20

-O-

One Touch 21

Operating 6

Own Phone # 11

-P-

Pause Dialing 16

-R-

Recall 9

Receiving 7

Redial (Last #) 8

Resetting

Call Timers 14

Ring

“Volume 15

Roam/Sys Select 16-18

-S-

SID Management 18

-T-

Technical Info 27

Tones

Low Battery 20

Troubleshoot 26

-U-

Unlock 11-13

Unmute 19

-V-

Voice Messaging 23

Voice Mail Indication23

Volume

Ring 15

Voice 7

-W-

Warranty Info 24-26

Alphabetical Index

NEC TalkTime MAX™ 920 Manual

OPERATION SUMMARY Page

_________________________________________

NOTES:

o[X][X] = Memory Address 01 to 24.

[X] = Memory Address 1 to 9.

KEY OPERATION TERMS:

o Press = Press Key firmly.

o Press(Hold) = Press and hold down key.

o Turn = Change Mode

o Key-In = Enter a series of digits

_________________________________________

BASIC OPERATION:

Power On/Off:

oPress(Hold): [PWR]. For On or Off. 6

Place A Call:

oKey-in [Number]. Dial Number 6

Send A Number:

oPress [SND] 6

Receive A Call:

oPress Any Key Except [PWR] 7

End A Call:

oPress [END] 7

_________________________________________

CONVENIENCE FUNCTIONS:

Edit Display:

oPress [CLR]. Erase Digit. 9

Press [CLR Hold].Erase display 9

Backlight:

oPress [Any Key] Except [PWR]

For 10-second backlight. 15

View Hidden Digits:

oPress [FCN Hold].

With Number Displayed. 10

Earpiece Volume Control:

oPress [VOL] during standby. 7

View Own Number:

oPress [MEM]+ 0 + 0 11

_________________________________________

MEMORY STORING AND RECALL:

Store Number to Memory Address:

o Key-in Number. Press [FCN]+[MEM]+

[Memory Location]. 9

Store Number to Occupied Address:

oKey-in Number. Press [FCN]+[MEM]+

[Memory Location]. Press [MEM]

again to overwrite. 9

NEC TalkTime MAX™ 920 Manual

OPERATION SUMMARY Page

_________________________________________

Store Number From Scratchpad:

oKey-in Number During Conversation. 11

Press [FCN+MEM]+[Memory Location].

Recalling Stored Numbers:

For Direct Recall

oPress [MEM] + [Memory Location]. 9

For Scanning All Locations.

Press [MEM] # or ✶. 10

_________________________________________

FCN KEY OPERATIONS:

FCN 1: Total Time(View/Reset) 14

FCN 2: Call Time (View) 13

FCN 3: Mute (Conversation Mode Only) 19

FCN 3: One Touch Dial(Standby Only) 21

FCN 4: DTMF Tone (Long/Standard) 18

FCN 5; System Select 16

FCN 6: NAM Select 11

FCN 7: Ring Tone Volume 15

FCN 8: Battery Level 3

FCN 9: Pause Dial 16

FCN 0: Temporary Lock Code Set 21

FCN #: Phone Full Lock/Unlock 12

FCN ✶: Partial Lock/Unlock 13

FCN (Hold): View Hidden Digits 10

FCN VOL: Handsfree Mode On/Off 22

FCN MEM: Storing Information 9
