Portable Projector
LT380/LT280
User’s Manual
© NEC Viewtechnology, Ltd. 2005
First edition October 2005
•IBM is a trademark or registered trademark of International Business Machines Corporation.
•Macintosh, Mac OS X and PowerBook are trademarks of Apple Computer, Inc., registered in the U.S. and other
countries.
•Windows, Windows 98, Windows Me, Windows XP or Windows 2000 are trademarks or registered trademarks of
Microsoft Corporation.
•Other product and company names mentioned in this user's manual may be the trademarks or registered trade-
marks of their respective holders.
NOTES
(1) The contents of this guide may not be reprinted in part or whole without permission.
(2) The contents of this guide are subject to change without notice.
(3) Great care has been taken in the preparation of this manual; however, should you notice any questionable points,
errors or omissions, please contact us.
(4) Notwithstanding article (3), NEC will not be responsible for any claims on loss of profit or other matters deemed to
result from using the Projector.
i
Important Information
Safety Cautions
Precautions
Please read this manual carefully before using your NEC LT380/LT280 projector and keep the manual handy for future
reference. Your serial number is located on the bottom of your projector. Record it here:

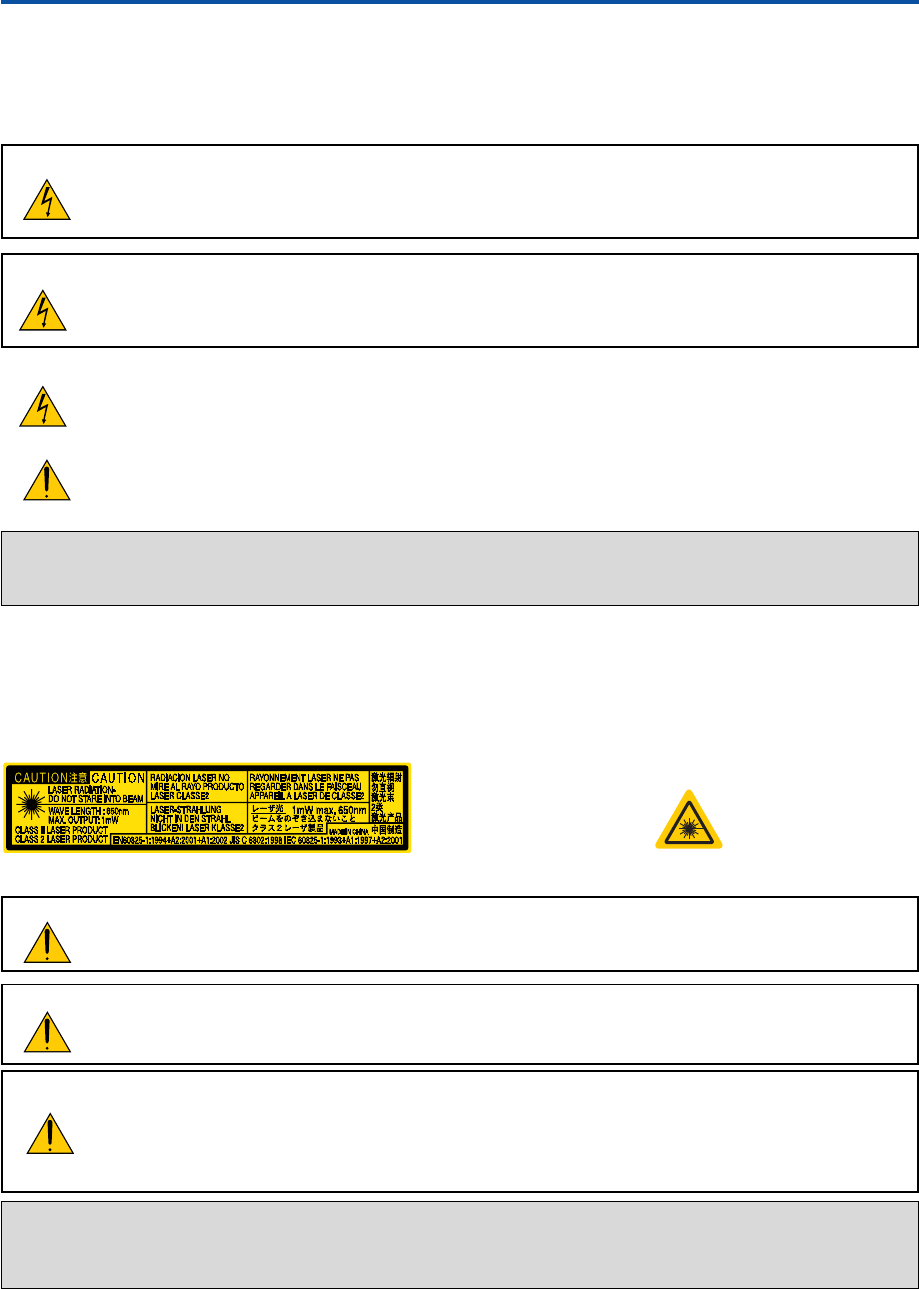

CAUTION
To turn off main power, be sure to remove the plug from power outlet.
The power outlet socket should be installed as near to the equipment as possible, and should be easily
accessible.
CAUTION
TO PREVENT SHOCK, DO NOT OPEN THE CABINET.
THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol warns the user that uninsulated voltage within the unit may be sufficient to cause electrical
shock. Therefore, it is dangerous to make any kind of contact with any part inside of the unit.
This symbol alerts the user that important information concerning the operation and maintenance of this
unit has been provided.
The information should be read carefully to avoid problems.
WARNING: TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
DO NOT USE THIS UNIT’S PLUG WITH AN EXTENSION CORD OR IN AN OUTLET UNLESS ALL THE PRONGS
CAN BE FULLY INSERTED.
DOC Compliance Notice (for Canada only)
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Acoustic Noise Information Ordinance-3. GSGV (for Germany only):
The sound pressure level is less than 70 dB (A) according to ISO 3744 or ISO 7779.
WARNING TO CALIFORNIA RESIDENTS:
Handling the cables supplied with this product, will expose you to lead, a chemical known to the State of California
to cause birth defects or other reproductive harm. Wash hands after handling.
CAUTION
Use of controls or adjustments or performance of procedures other than those specified herein may result
in hazardous radiation exposure.

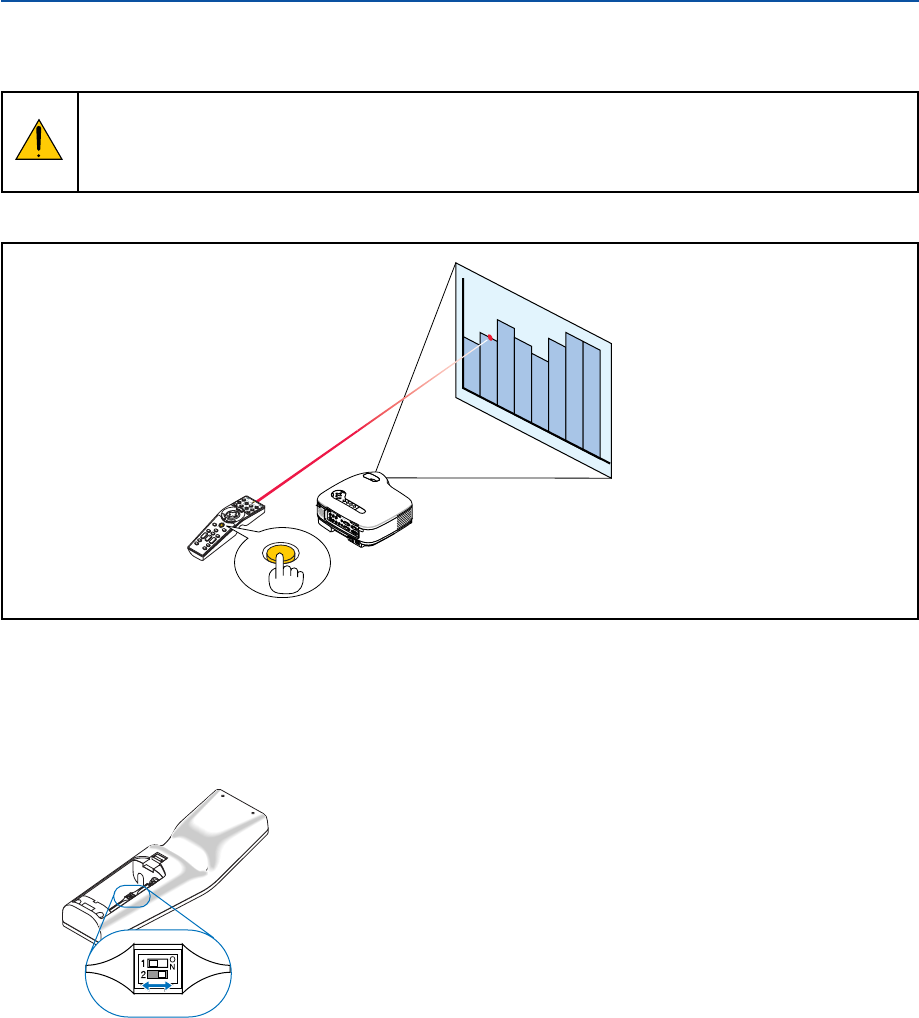

CAUTION
Do not look into the laser pointer while it is on and do not point the laser beam at a person. Serious injury
could result.
CAUTION
Avoid displaying stationary images for a prolonged period of time.
Doing so can result in these images being temporarily sustained on the surface of the LCD panel.
If this should happen, continue to use your projector. The static background from previous images will
disappear.
This label is on the side of the remote control. This mark is on the top of the remote control.
ii
Important Information
EU-wide legislation as implemented in each Member State requires that used electrical and electronic
products carrying the mark (left) must be disposed of separately from normal household waste. This
includes projectors and their electrical accessories or lamps. When you dispose of such products, please
follow the guidance of your local authority and/or ask the shop where you purchased the product.
After collecting the used products, they are reused and recycled in a proper way. This effort will help us
reduce the wastes as well as the negative impact such as mercury contained in a lamp to the human
health and the environment at the minimum level.
The mark on the electrical and electronic products only applies to the current European Union Member
States.
Disposing of your used product
iii
Important Information
RF Interference (for USA only)
WARNING
The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those
specified by NEC Solutions (America), Inc. in this manual. Failure to comply with this government regulation could
void your right to operate this equipment. This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses, and can radi-
ate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio / TV technician for help.
For UK only: In UK, a BS approved power cable with moulded plug has a Black (five Amps) fuse installed for use with
this equipment. If a power cable is not supplied with this equipment please contact your supplier.
Important Safeguards
These safety instructions are to ensure the long life of your projector and to prevent fire and shock. Please read them
carefully and heed all warnings.
Installation
• Do not place the projector in the following conditions:
-on an unstable cart, stand, or table.
- near water, baths or damp rooms.
-in direct sunlight, near heaters or heat radiating appliances.
-in a dusty, smoky or steamy environment.
-on a sheet of paper or cloth, rugs or carpets.
• If you wish to have the projector installed on the ceiling:
-Do not attempt to install the projector yourself.
-The projector must be installed by qualified technicians in order to ensure proper operation and reduce the
risk of bodily injury.
-In addition, the ceiling must be strong enough to support the projector and the installation must be in accor-
dance with any local building codes.
-Please consult your dealer for more information.

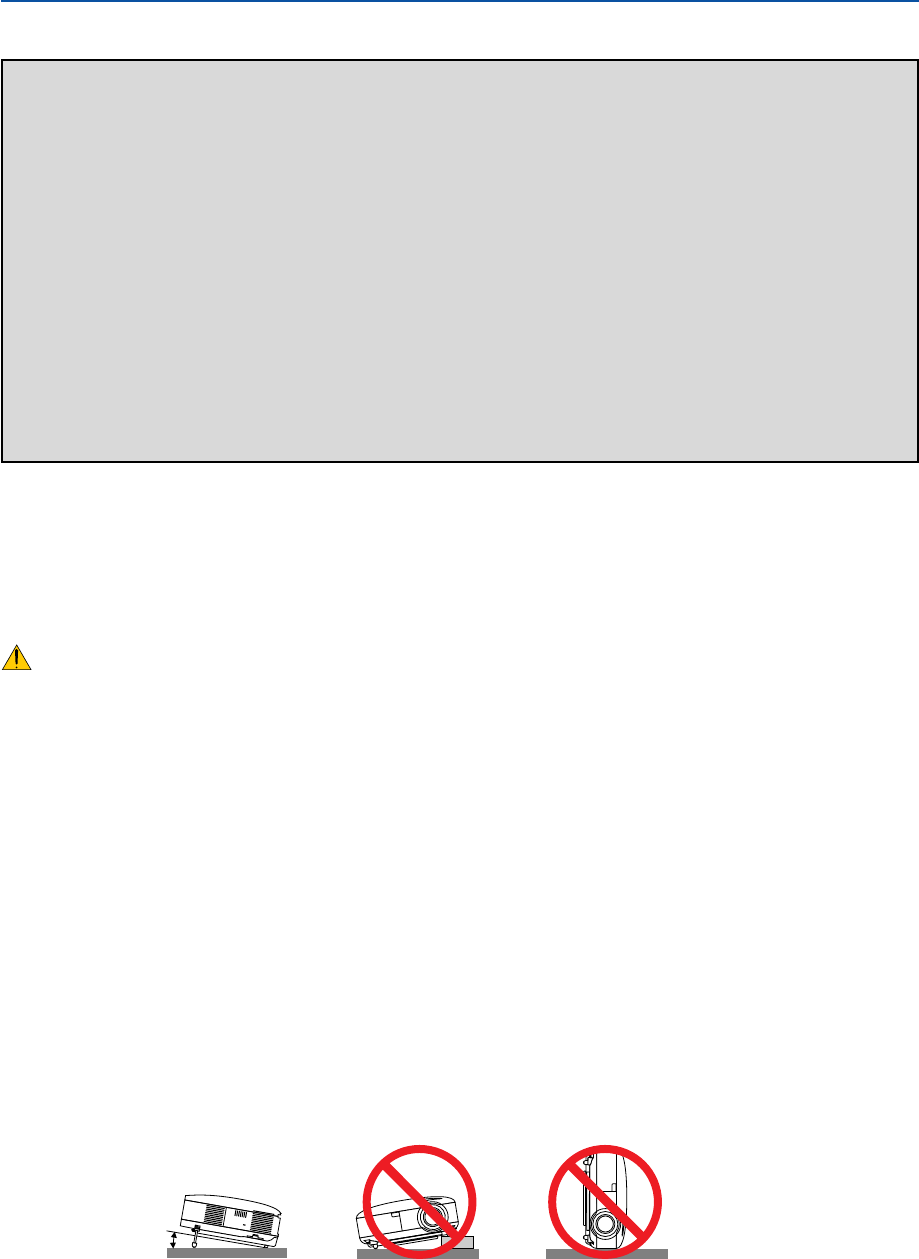

10˚
Place the projector in a horizontal position
The tilt angle of the projector should not exceed 10 degrees, nor should the projector be installed in any way other than
the desktop and ceiling mount, otherwise lamp life could decrease dramatically.
iv
Important Information
Fire and Shock Precautions
•Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the build-up of heat inside your
projector. Allow at least 4 inches (10cm) of space between your projector and a wall.
•Do not try to touch the ventilation outlet on the left front (when seen from the front) as it can become heated while
the projector is turned on.
•Prevent foreign objects such as paper clips and bits of paper from falling into your projector. Do not attempt to
retrieve any objects that might fall into your projector. Do not insert any metal objects such as a wire or screwdriver
into your project. If something should fall into your projector, disconnect it immediately and have the object removed
by a qualified service personnel.
•Do not place any objects on top of the projector.
• Do not touch the power plug during a thunderstorm. Doing so can cause electrical shock or fire.
•The projector is designed to operate on a power supply of 100-240V AC 50/60 Hz. Ensure that your power supply
fits this requirement before attempting to use your projector.
•Do not look into the lens while the projector is on. Serious damage to your eyes could result.
•Keep any items such as magnifying glass out of the light path of the projector. The light being projected from the lens
is extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can cause unpre-
dictable outcome such as fire or injury to the eyes.
•Do not cover the lens with the black lens cap or equivalent while the projector is on. Doing so can lead to melting of
the cap and possibly burning your hands due to the heat emitted from the light output.
•Do not place any objects, which are easily affected by heat, in front of the projector lens or a projector exhaust vent.
Doing so could lead to the object melting or getting your hands burned from the heat that is emitted from the light
output and exhaust.
•Handle the power cable carefully. A damaged or frayed power cable can cause electric shock or fire.
-Do not use any power cables than the supplied one.
-Do not bend or tug the power cable excessively.
-Do not place the power cable under the projector, or any heavy object.
-Do not cover the power cable with other soft materials such as rugs.
-Do not heat the power cable
-Do not handle the power plug with wet hands.
•Turn off the projector, unplug the power cable and have the object removed by a qualified NEC service personnel
under the following conditions:
-When the power cable or plug is damaged or frayed.
-If liquid has been spilled into the projector, or if it has been exposed to rain or water.
-If the projector does not operate normally when you follow the instructions described in this user's manual.
- If the projector has been dropped or the cabinet has been damaged.
-If the projector exhibits a distinct change in performance, indicating a need for service.
-If the projector is not to be used for an extended period of time.
•Disconnect the power cable and any other cables before carrying the projector
•Turn off the projector and unplug the power cable before cleaning the cabinet or replacing the lamp.
• When using a LAN cable:
For safety, do not connect to the connector for peripheral device wiring that might have excessive voltage.
CAUTION
•Do no use the tilt-foot for purposes other than originally intended. Misuses such as using the tilt foot to carry or
hang (from the wall or ceiling) the projector can cause damage to the projector.
•Do not send the projector in the soft case by parcel delivery service or cargo shipment. The projector inside
the soft case could be damaged.

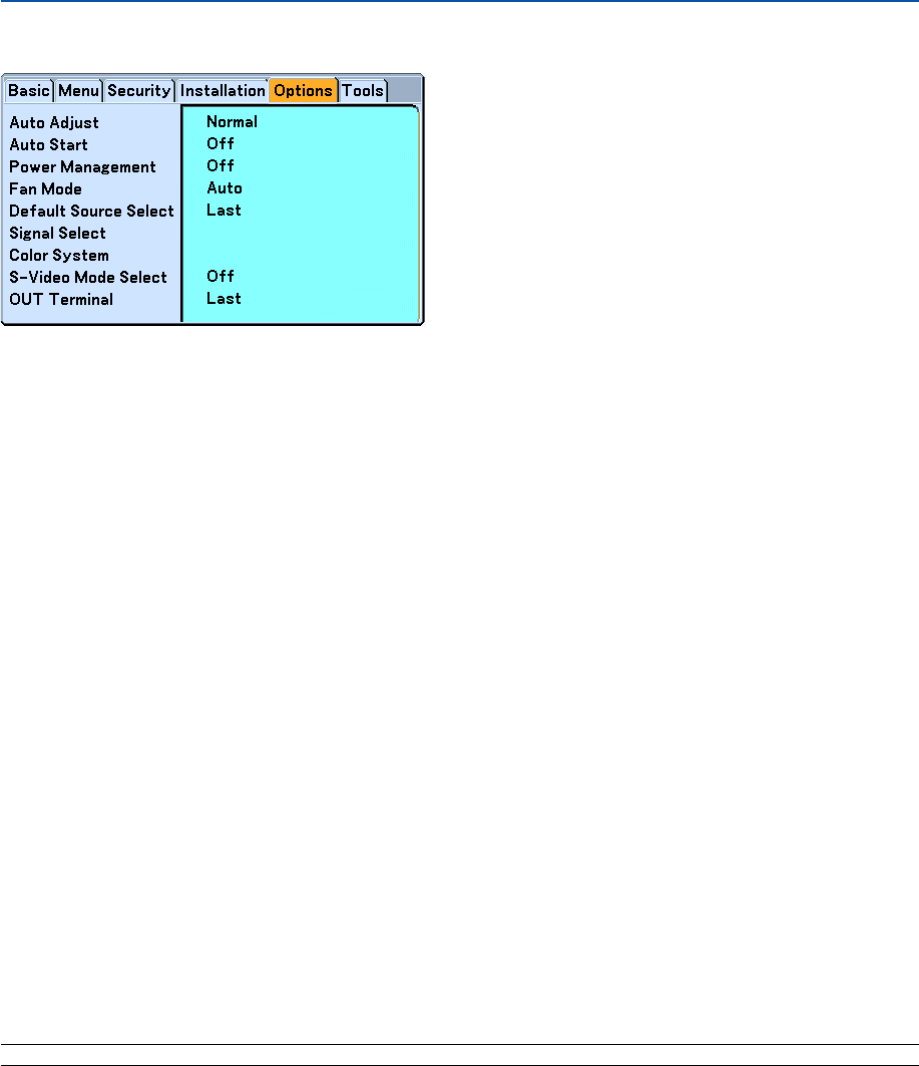

• Select [High] in Fan mode if you continue to use the projector for consecutive days. (From the menu, select
[Setup - Options] → [Fan Mode] → [High].)
•Do not unplug the power cable from the wall outlet under any one of the following circumstances.
Doing so can cause damage to the projector:
- While the projector's lamp lights.
- While the cooling fans are running. The cooling fans continue to work for 30 seconds after the projector is
turned off.

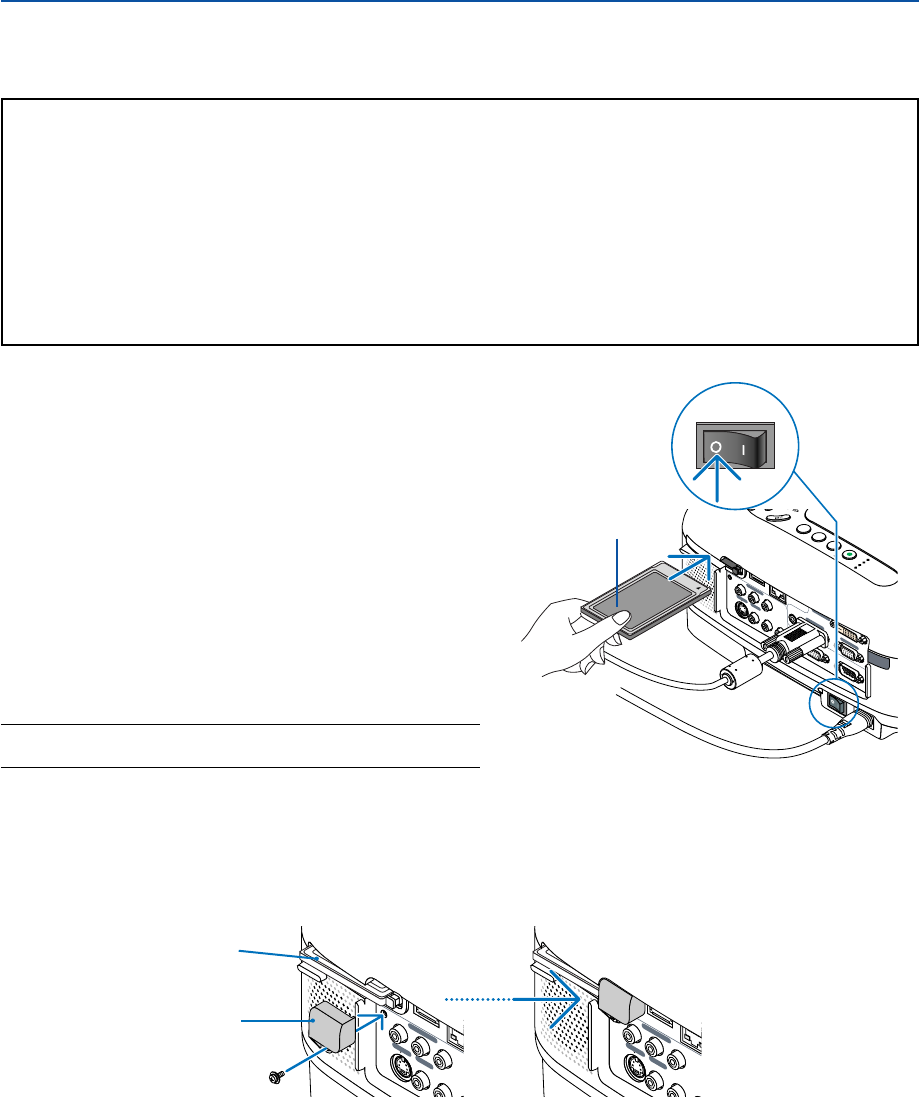

- While the PC CARD Access Indicator lights. Doing so can damage your PC memory card.
v

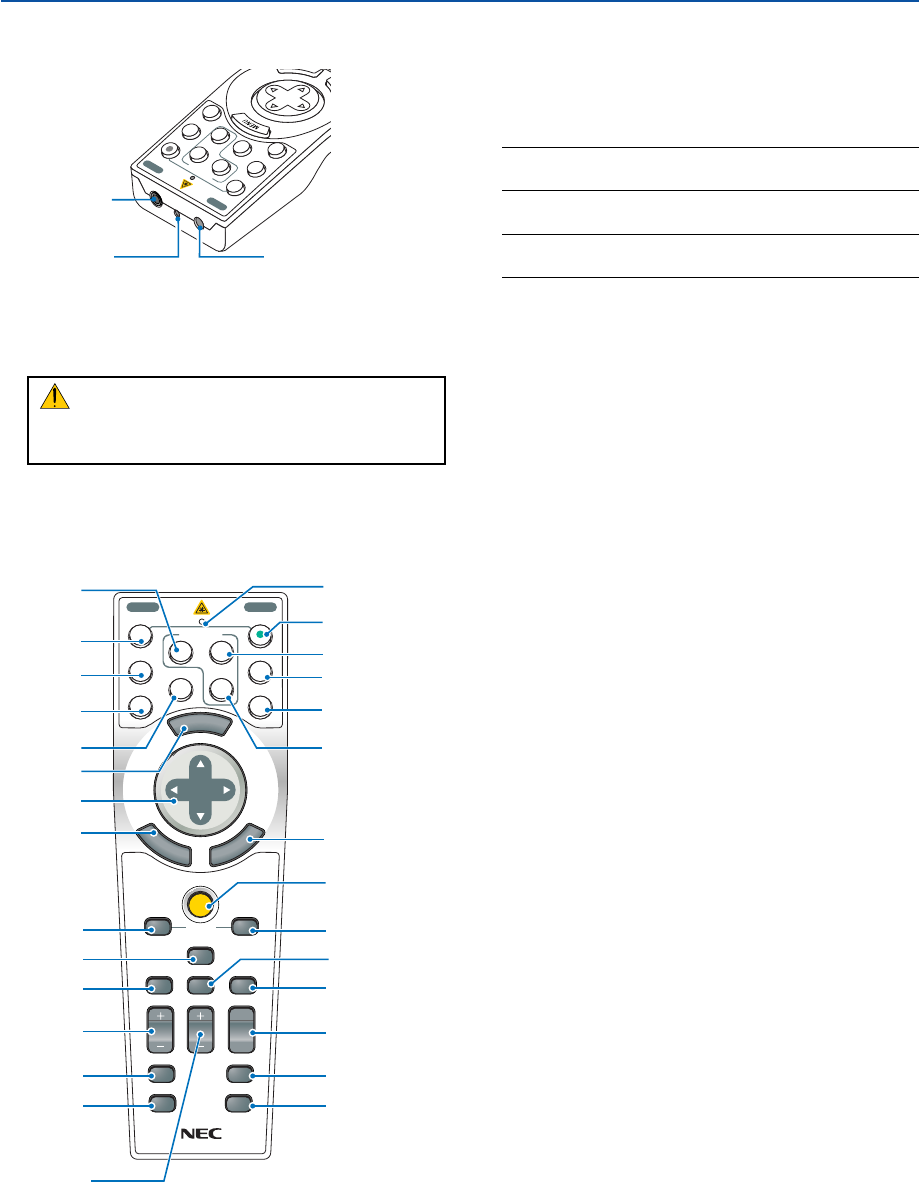

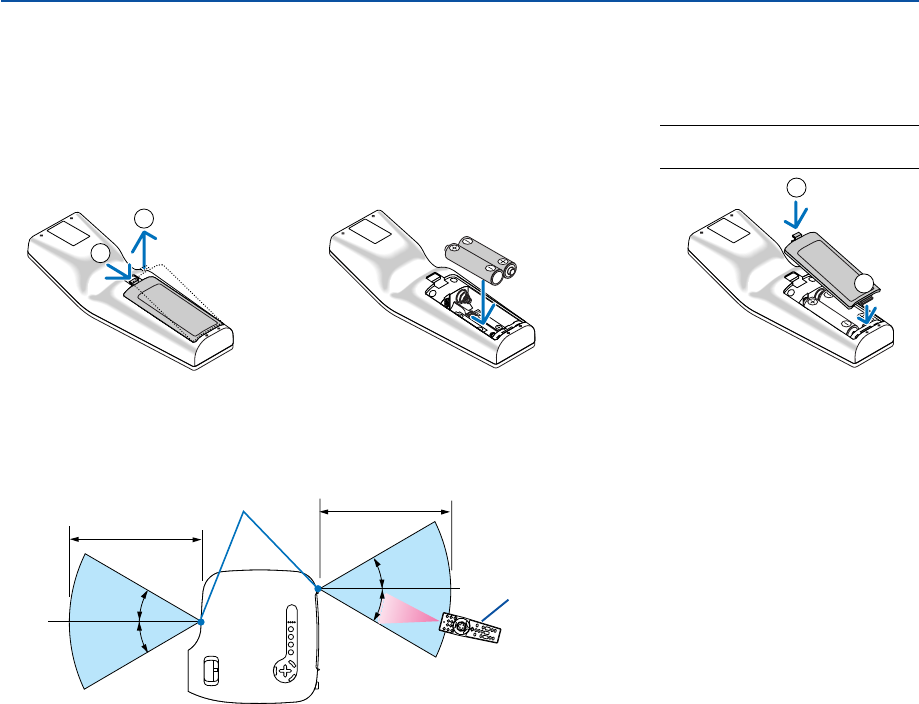

Remote Control Precautions
•Handle the remote control carefully.
• If the remote control gets wet, wipe it dry immediately.
•Avoid excessive heat and humidity.
•Do not heat, take apart, or throw batteries into fire.
•If you will not be using the remote control for a long time, remove the batteries.
•Ensure that you have the batteries' polarity (+/–) aligned correctly.
•Do not use new and old batteries together, or use different types of batteries together.
•Dispose of used batteries according to your local regulations.

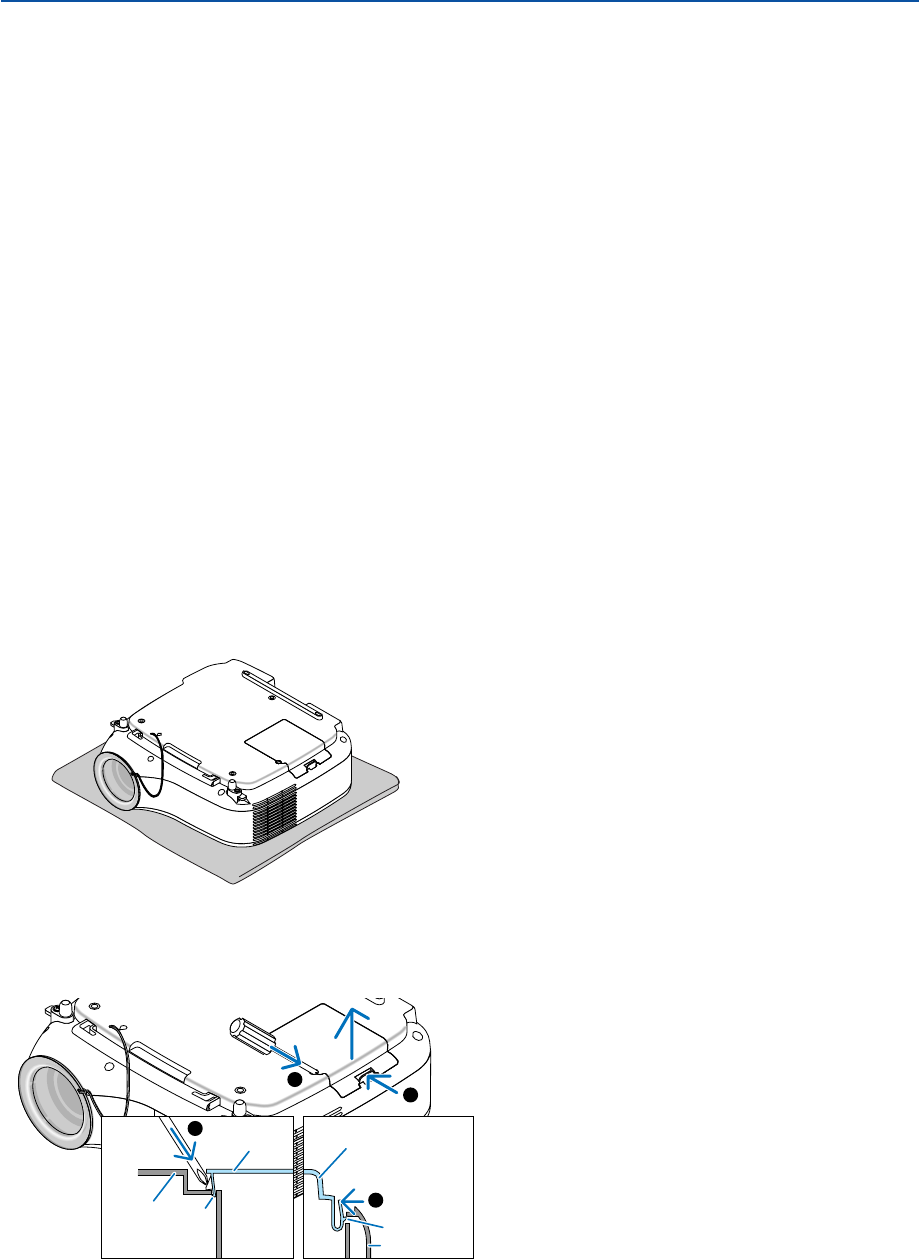

Lamp Replacement

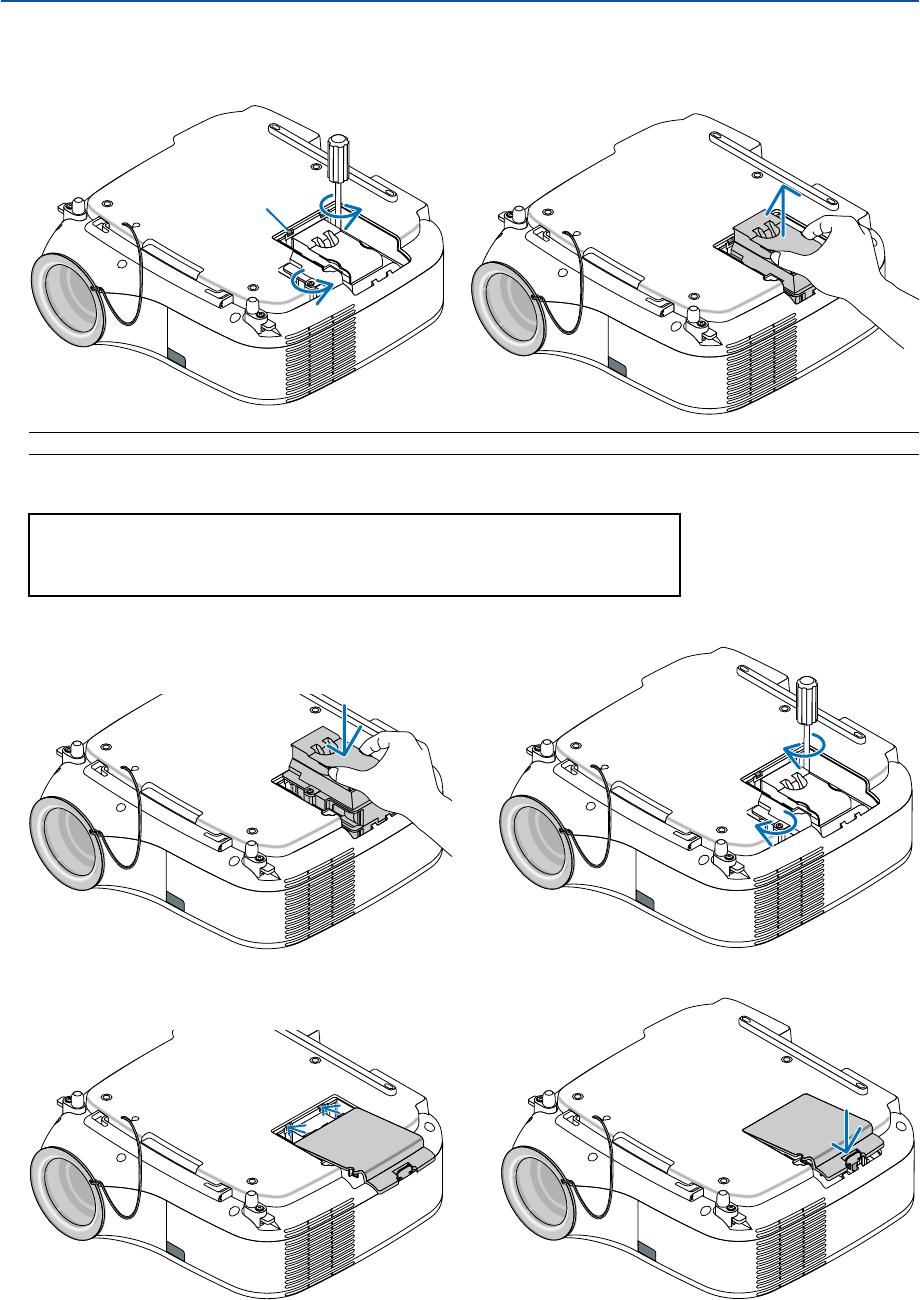

•To replace the lamp, follow all instructions provided on page 104.
•Be sure to replace the lamp when the message [The lamp has reached the end of its usable life. Please
replace the lamp.] appears. If you continue to use the lamp after the lamp has reached the end of its usable
life, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp case. Do not touch them as the
pieces of glass may cause injury.
If this happens, contact your dealer for lamp replacement.
A Lamp Characteristic
The projector has a high-pressure mercury lamp as a light source.
A lamp has a characteristic that its brightness gradually decreases with age. Also repeatedly turning the lamp on
and off will increase the possibility of its lower brightness.
CAUTION:
When removing the lamp from a ceiling-mounted projector, make sure that no one is under the projector. Glass
fragments could fall if the lamp has been burned out.
Important Information
vi
Table of Contents
Important Information .......................................................................................... i
1. Introduction ......................................................................................................... 1

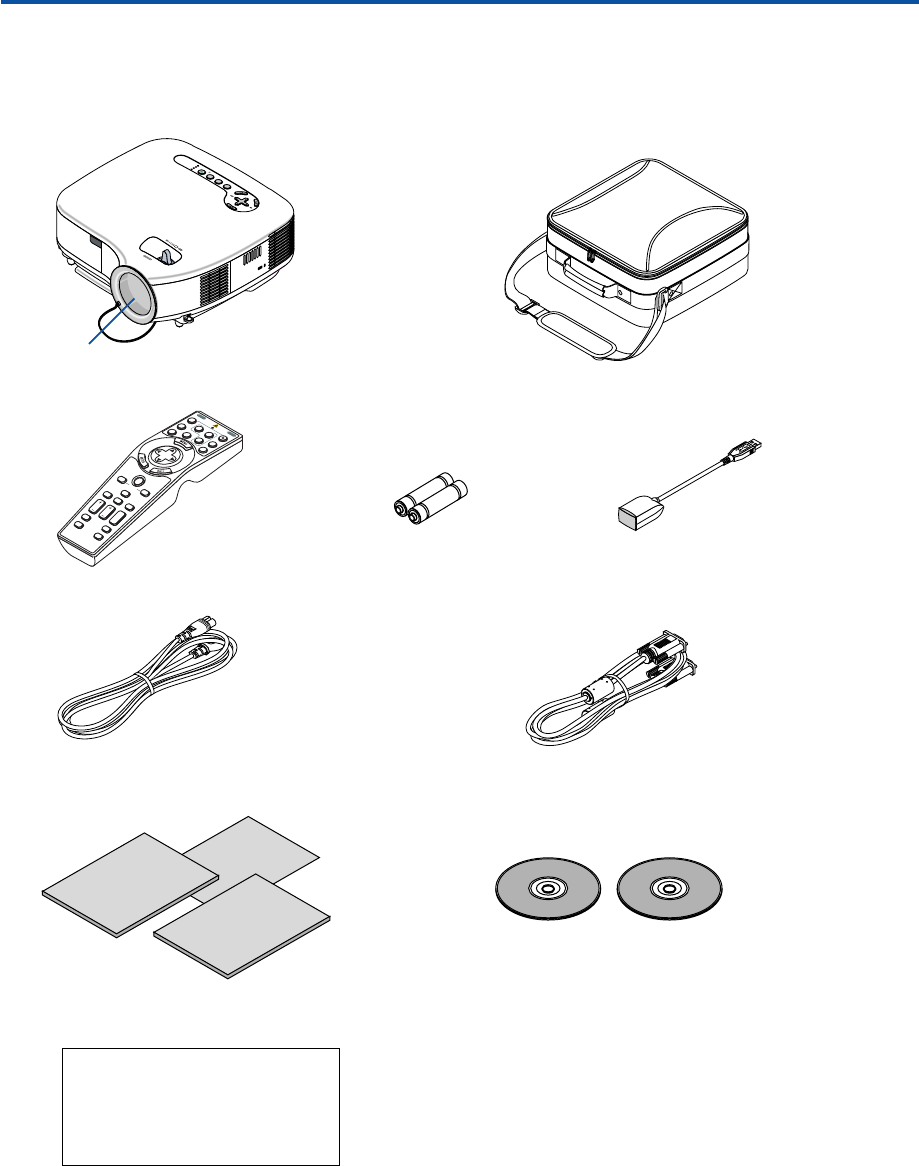

What's in the Box? ........................................................................................................ 1
Introduction to the Projector ......................................................................................... 2
Congratulations on Your Purchase of the Projector ................................................ 2
Features you’ll enjoy ............................................................................................... 2
About this user's manual......................................................................................... 3

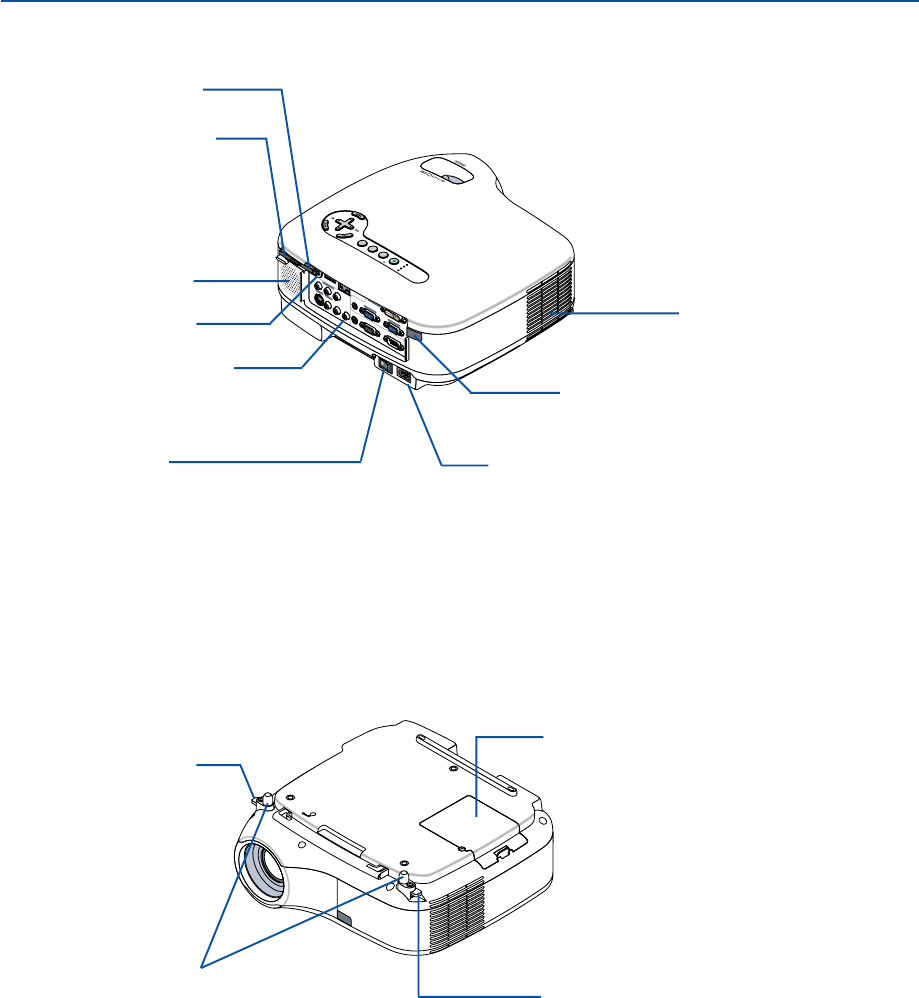

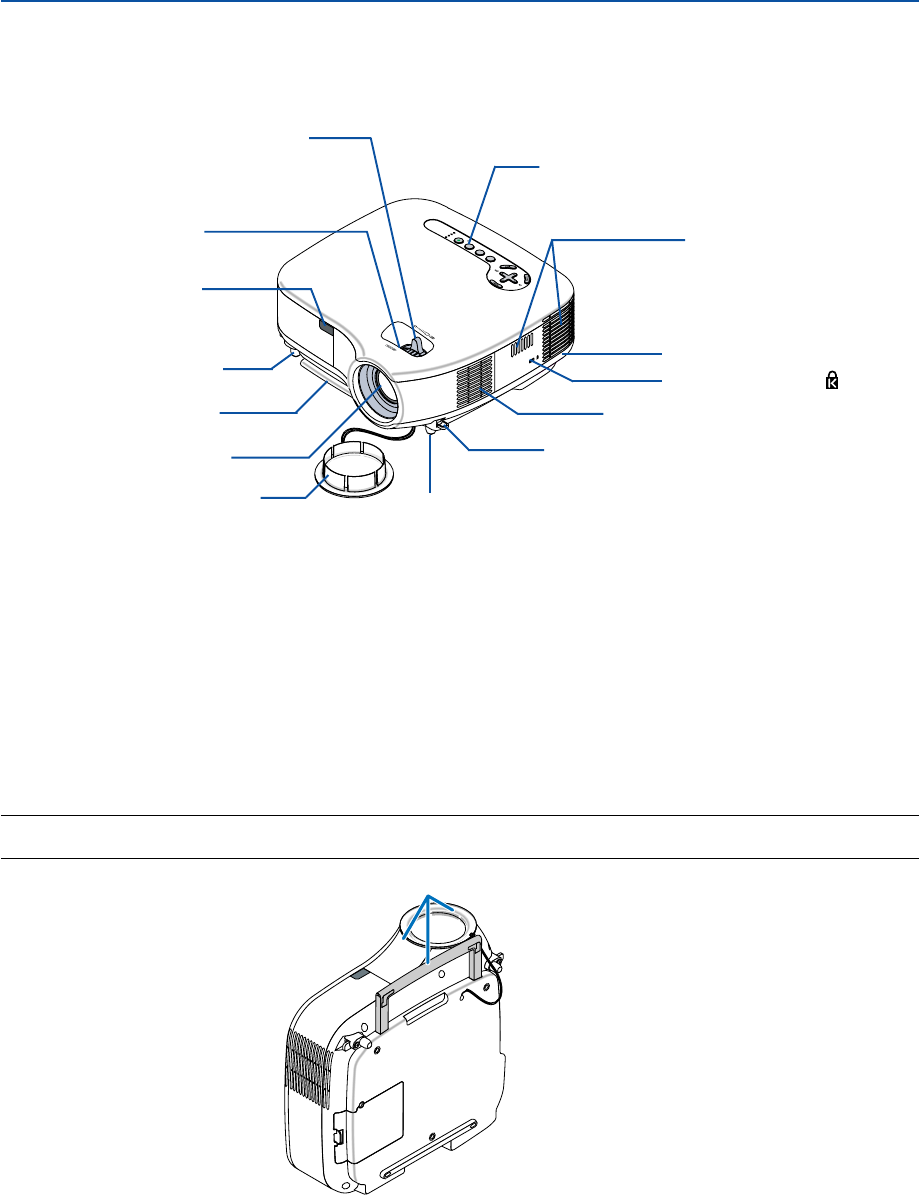

Part Names of the Projector ......................................................................................... 4
Front/Top ................................................................................................................. 4
Carrying the Projector ............................................................................................. 4
Rear ........................................................................................................................ 5
Bottom..................................................................................................................... 5

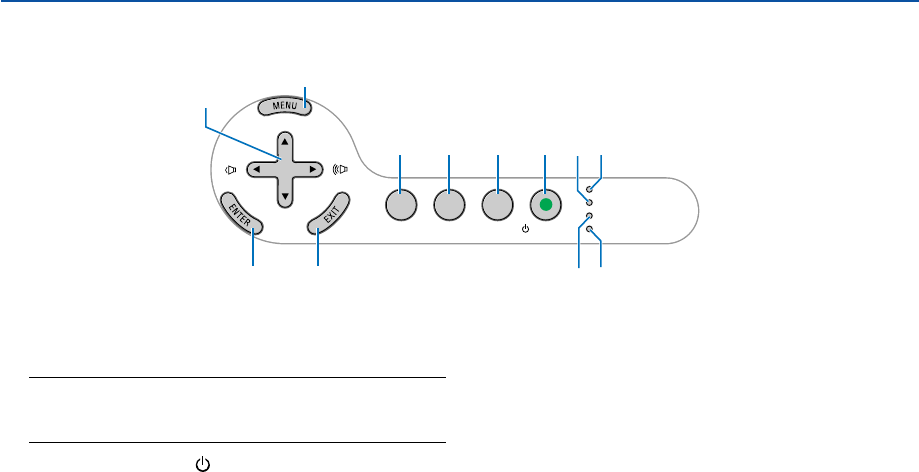

Top Features ........................................................................................................... 6

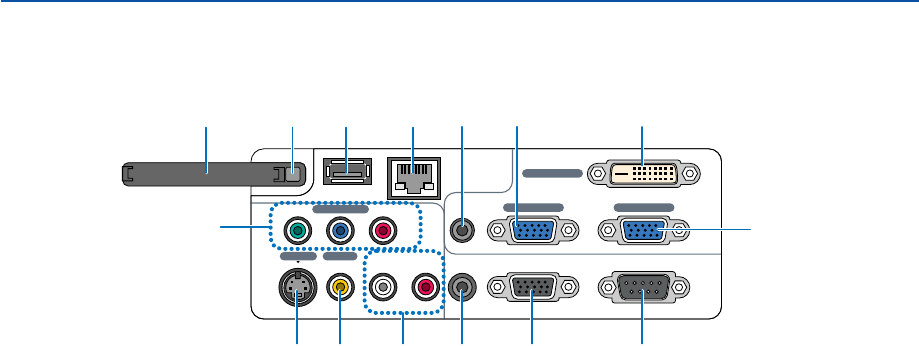

Ter minal Panel Features ......................................................................................... 7
Part Names of the Remote Control .............................................................................. 8
Battery Installation .................................................................................................. 9
Operating Range for Wireless Remote Control ...................................................... 9
Remote Control Precautions ................................................................................... 9
2. Installation and Connections .................................................................. 10
Setting Up the Screen and the Projector .................................................................... 10
Selecting a Location.............................................................................................. 10

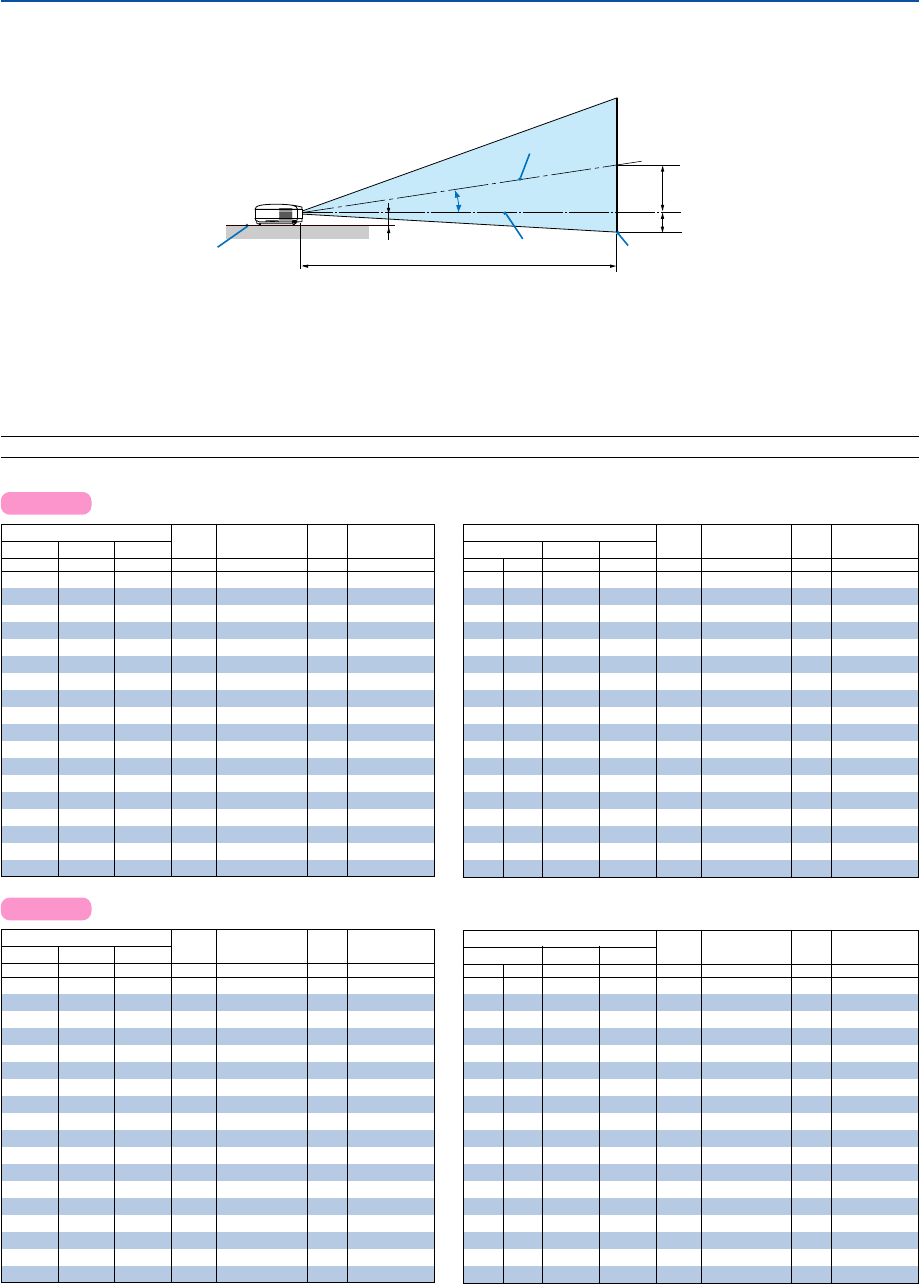

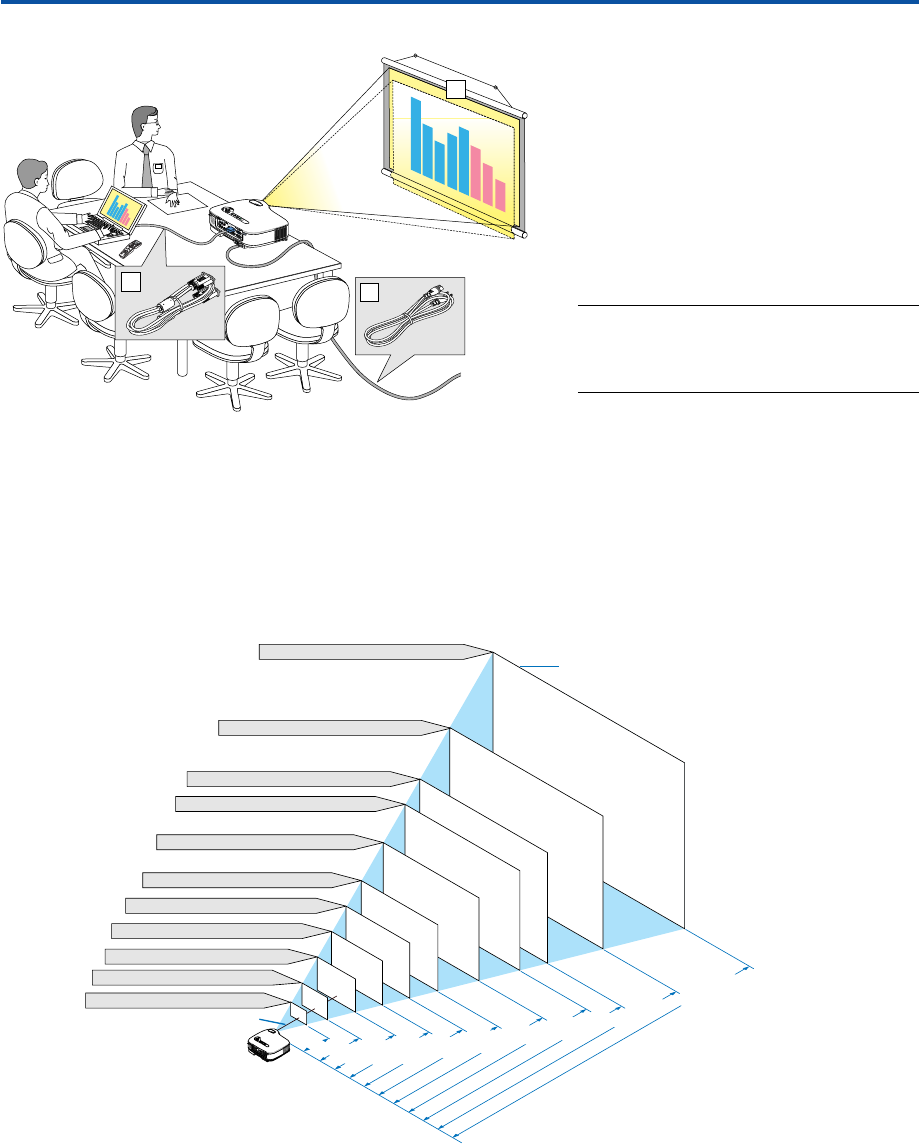

Throw Distance and Screen Size.......................................................................... 11
Making Connections ................................................................................................... 13

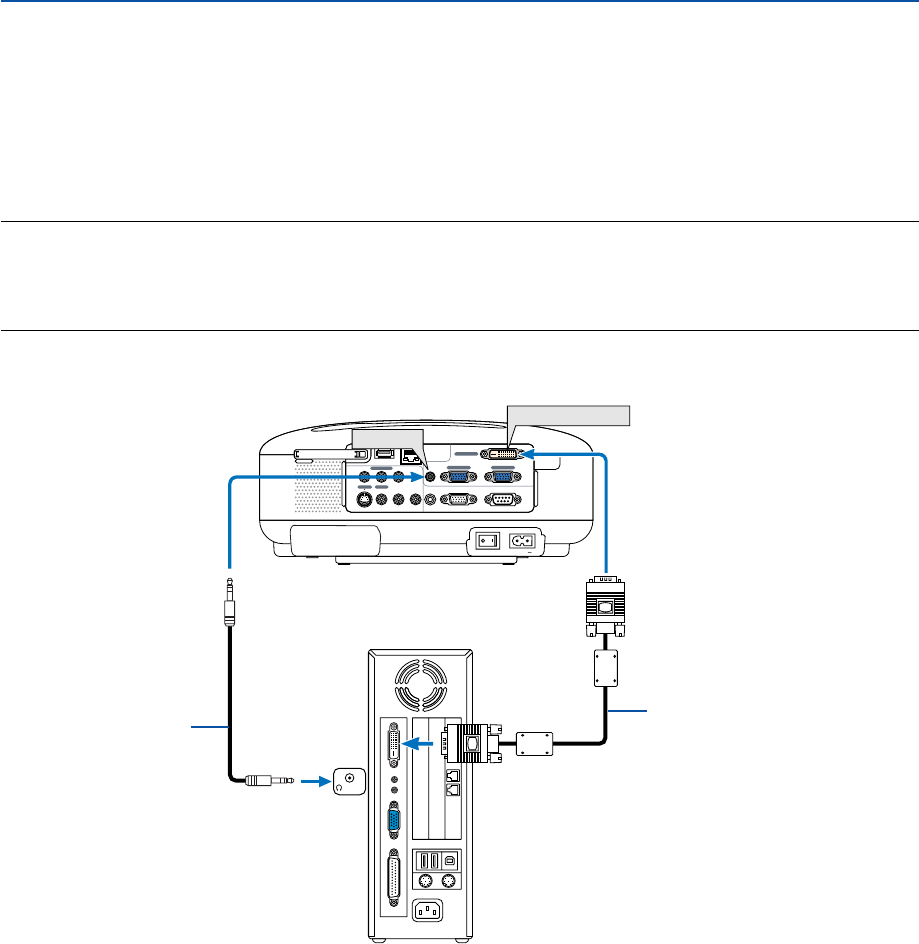

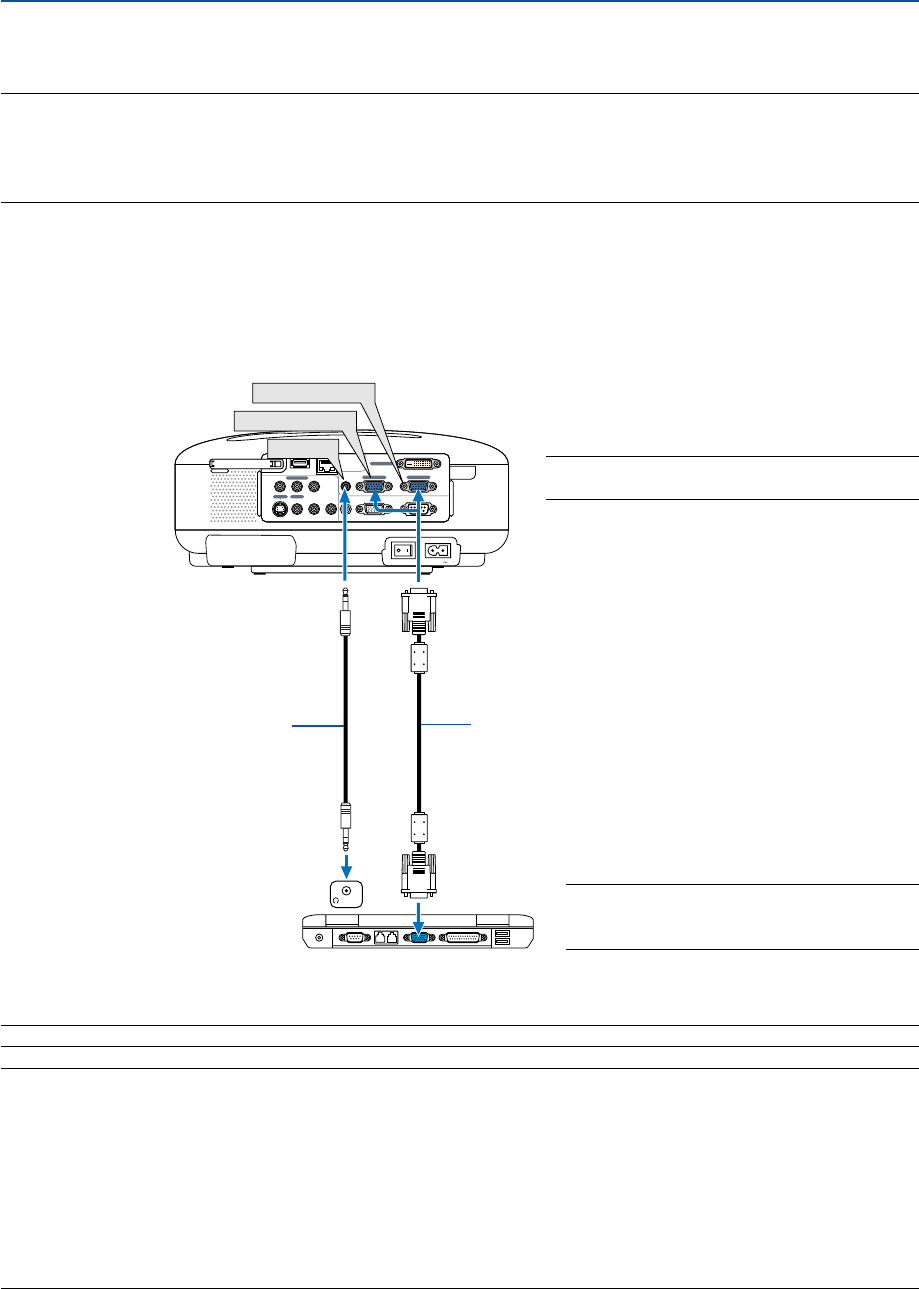

Connecting Your PC or Macintosh Computer ....................................................... 13

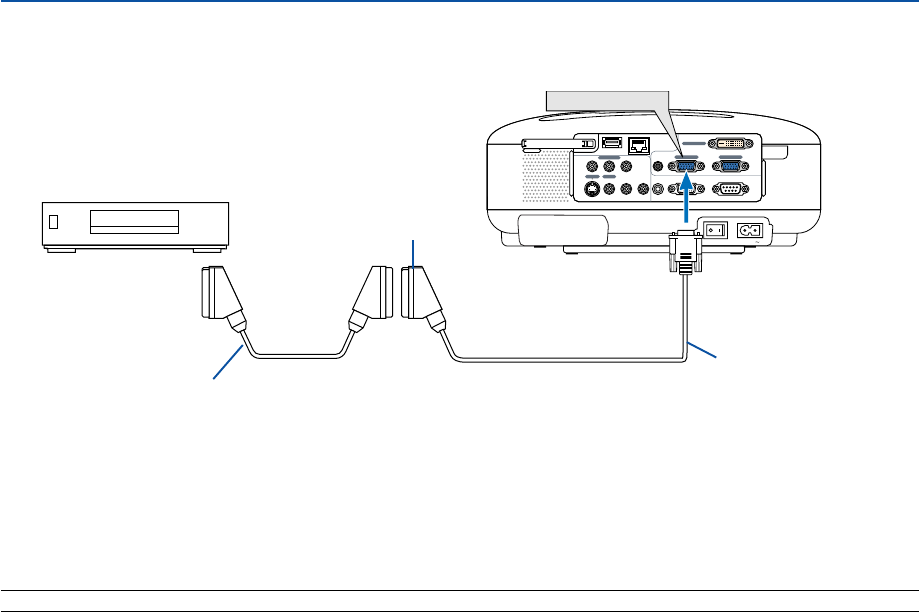

To connect SCART output (RGB) ......................................................................... 15

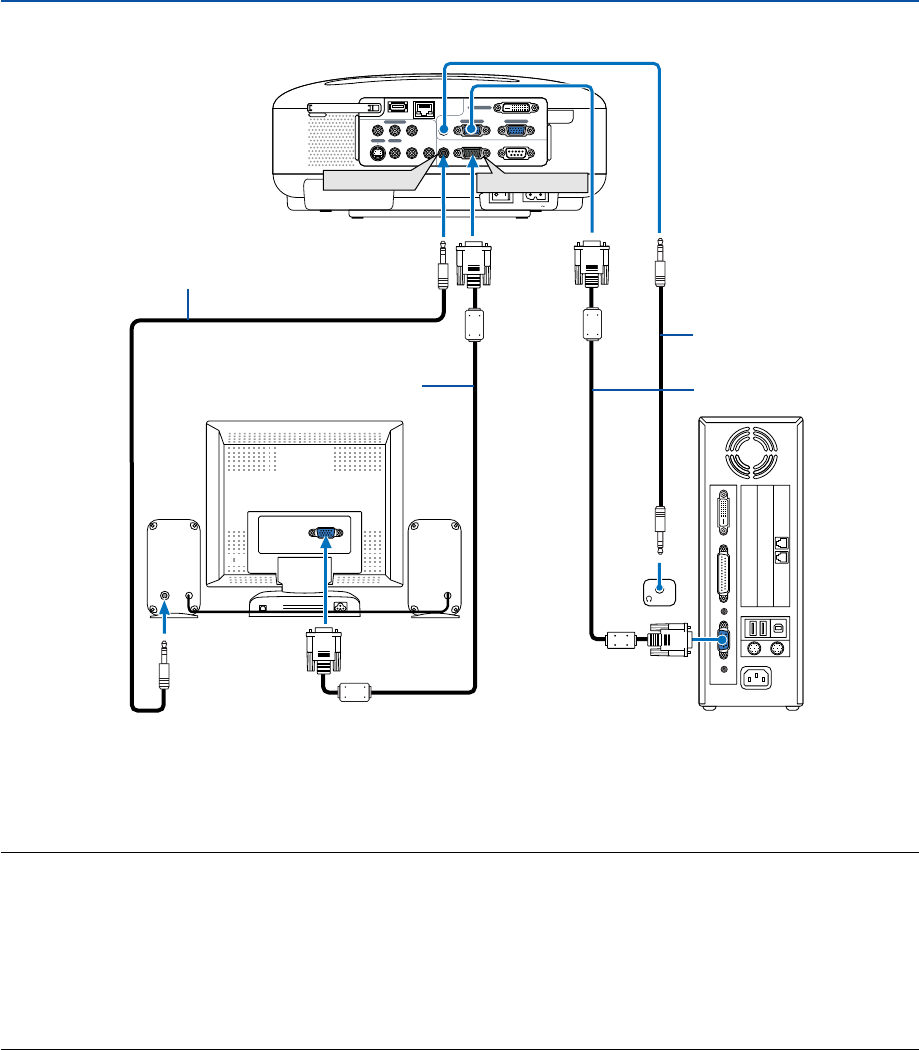

Connecting an External Monitor............................................................................ 16

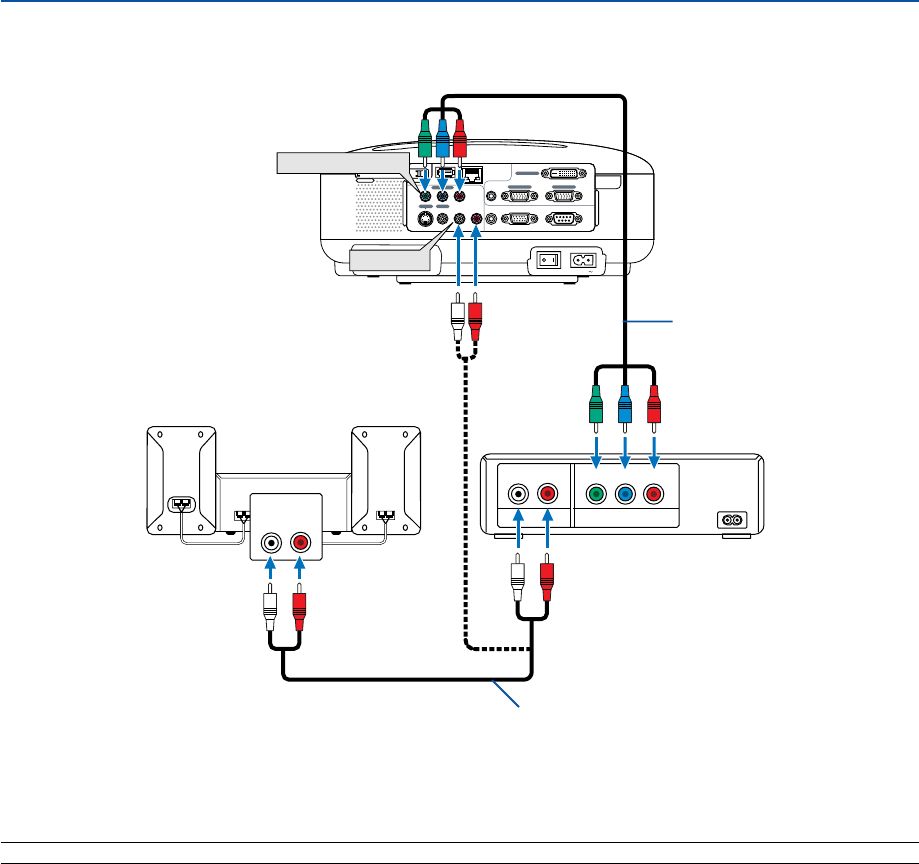

Connecting Your DVD Player with Component Output ......................................... 17
Connecting Your VCR or Laser Disc Player.......................................................... 18

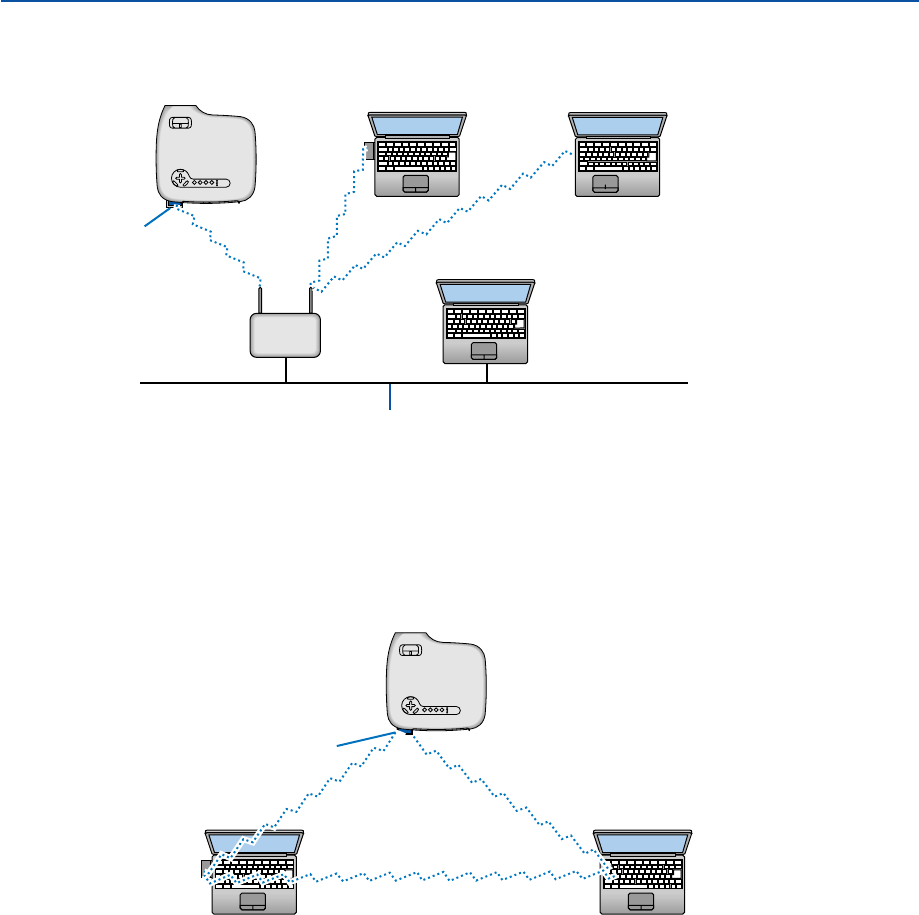

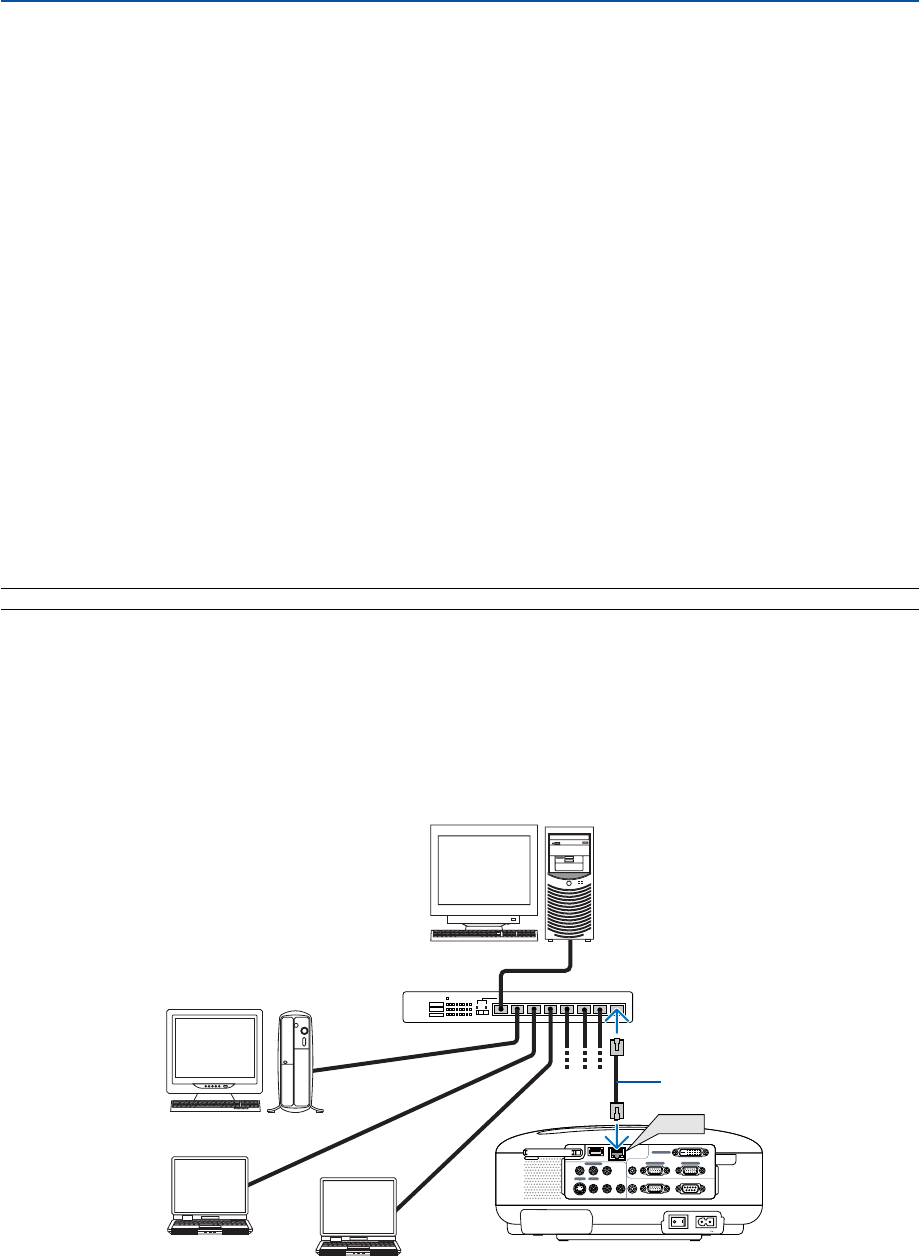

Connecting to a Network....................................................................................... 19
Inserting and Removing a PC Card ...................................................................... 21
PC Card Type ....................................................................................................... 22

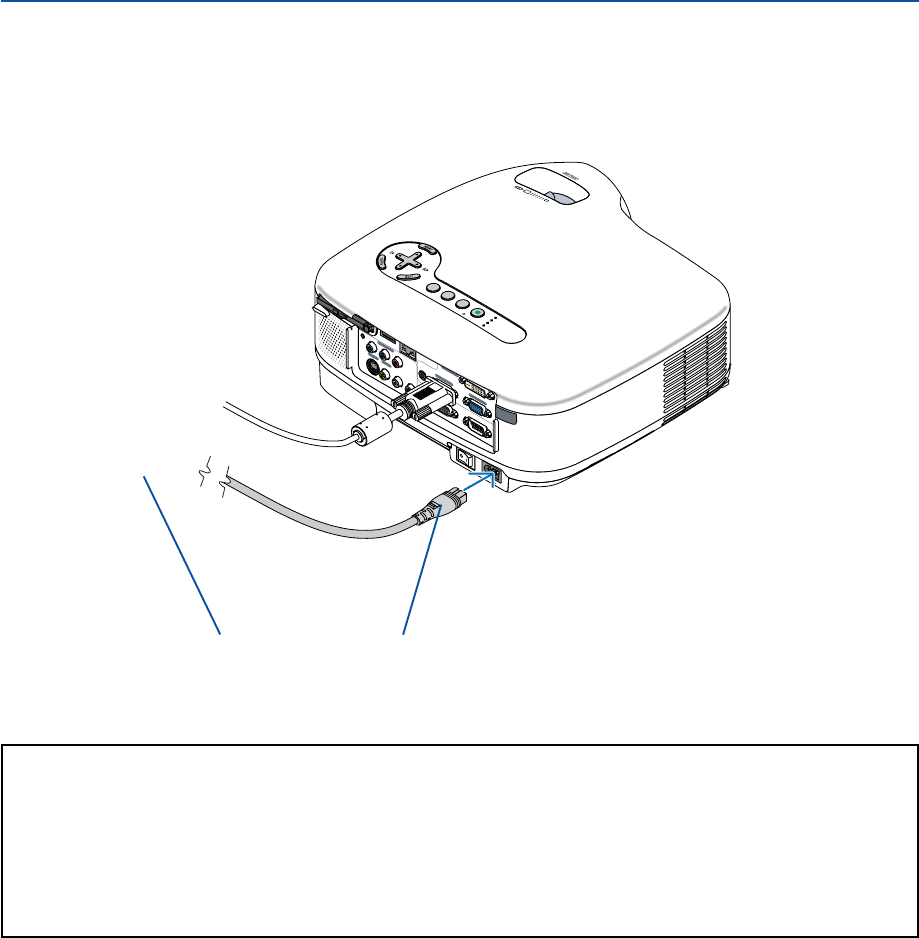

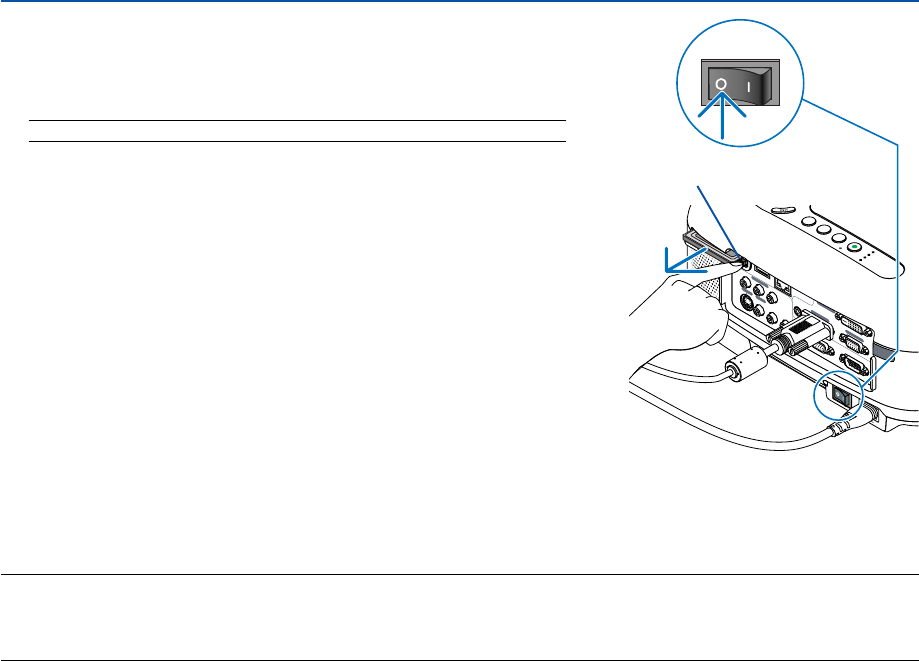

Connecting the Supplied Power Cable ................................................................. 23
3. Projecting an Image (Basic Operation) ............................................. 24

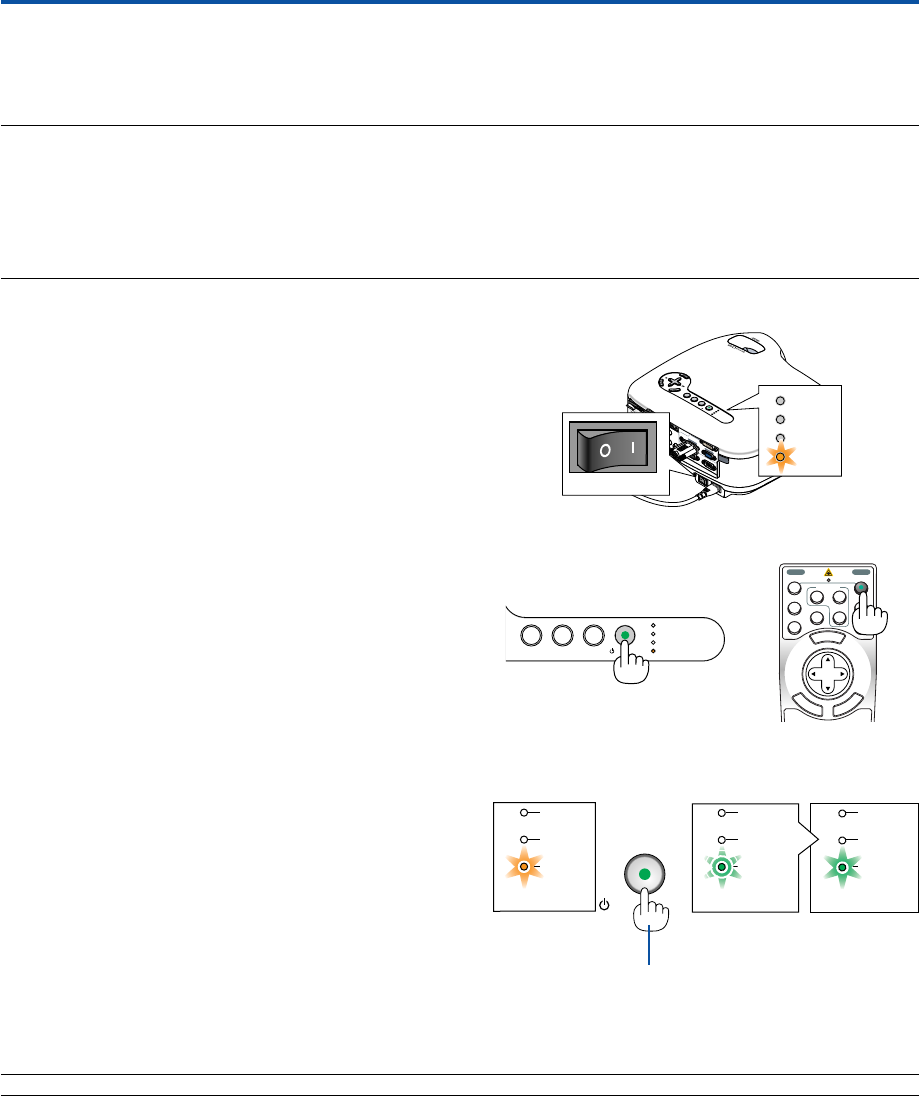

Tur ning on the Projector ............................................................................................. 24

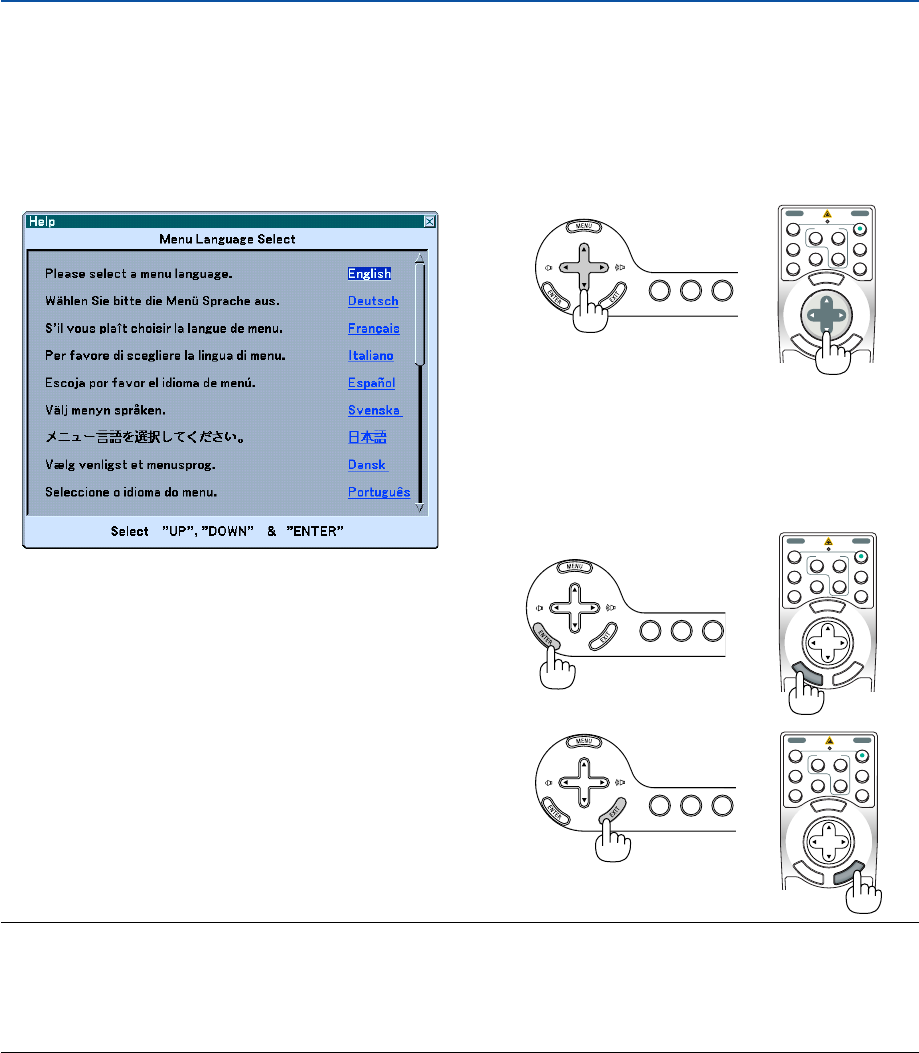

Note on Startup screen (Menu Language Select screen) ..................................... 25

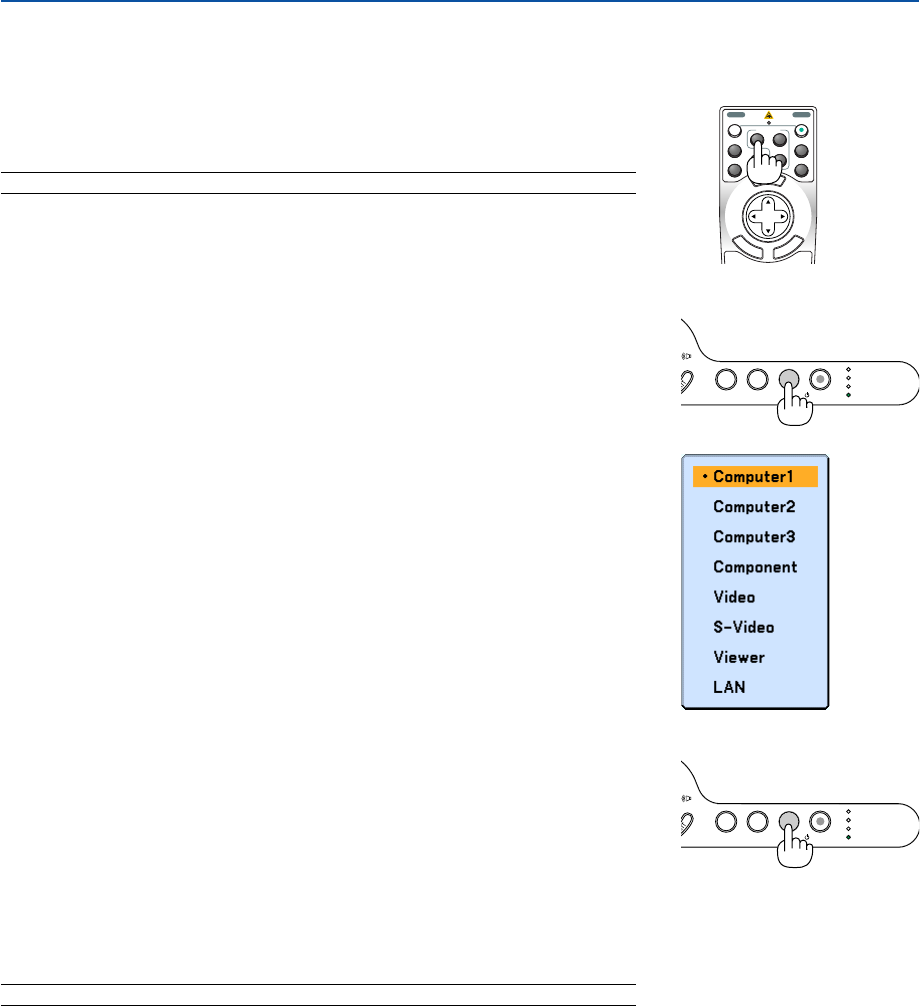

Selecting a Source ..................................................................................................... 26
Selecting the computer or video source................................................................ 26
Adjusting the Picture Size and Position ...................................................................... 27
Adjust the Tilt Foot ................................................................................................ 27

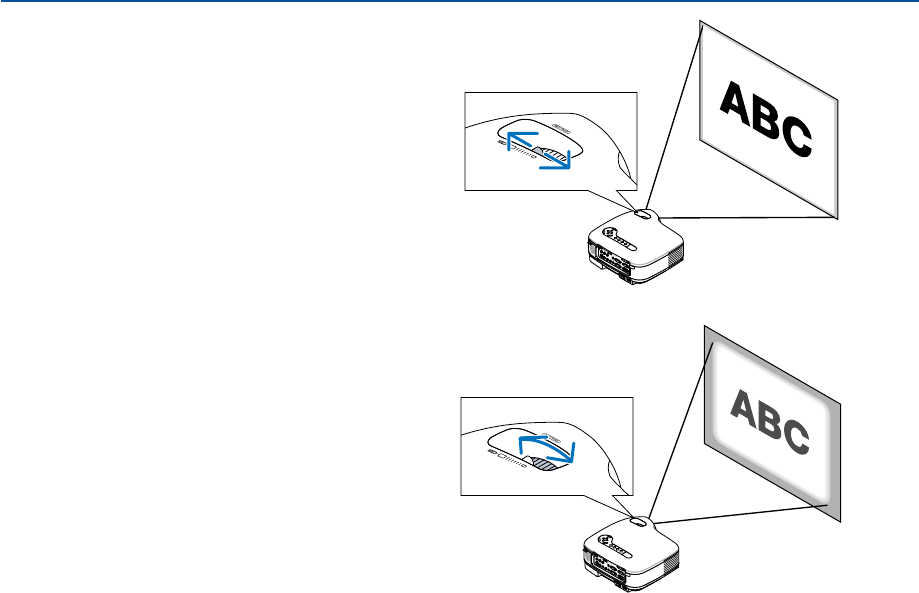

Zoom ..................................................................................................................... 28
Focus .................................................................................................................... 28
vii
Table of Contents

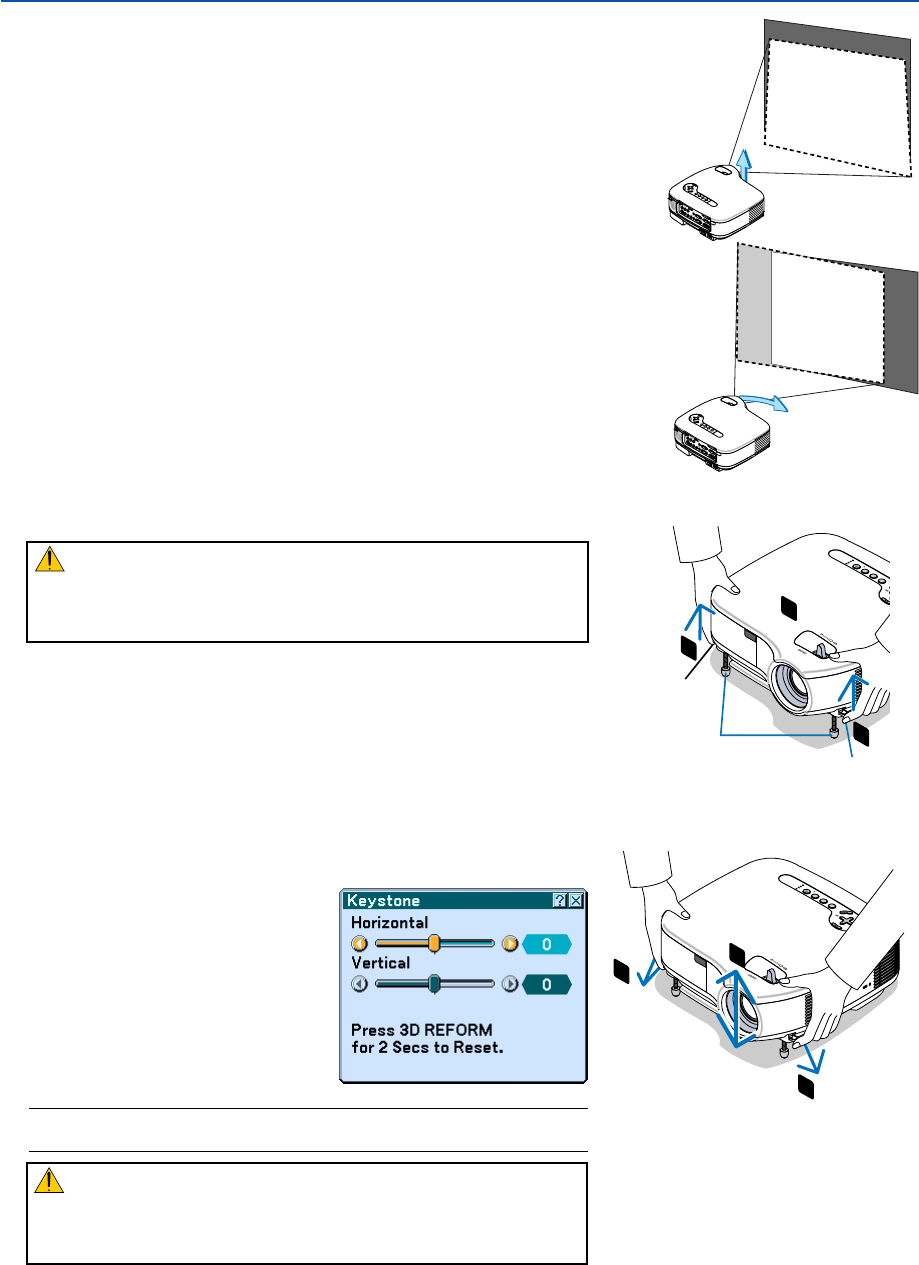

Correcting Keystone Distortion ................................................................................... 29
Auto Keystone Correction ..................................................................................... 29

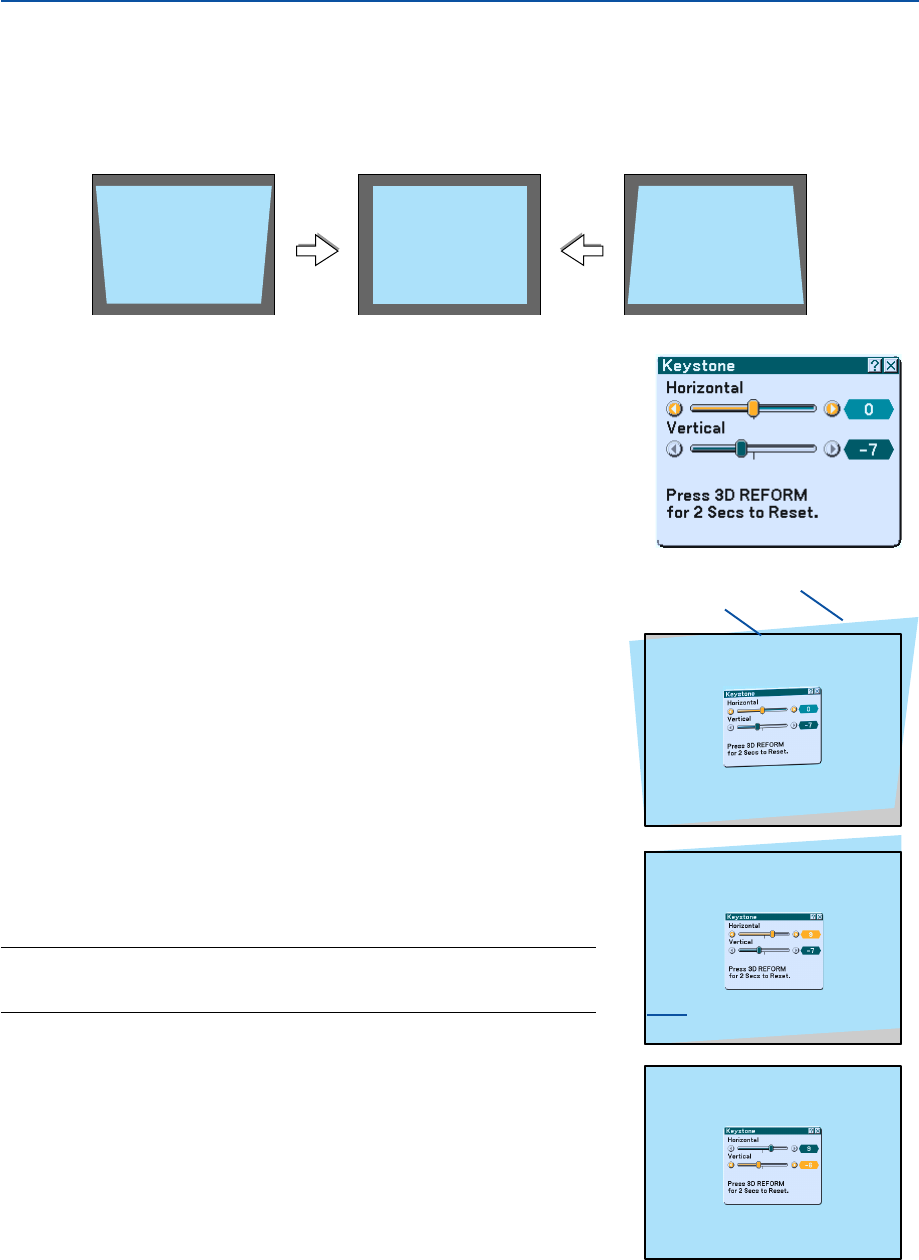

Manual Keystone Correction................................................................................. 29
Optimizing an RGB Image Automatically.................................................................... 31
Adjusting the Image Using Auto Adjust ................................................................. 31
Adjusting Volume Up & Down..................................................................................... 31
Using the Laser Pointer .............................................................................................. 32
Setting the function switch .................................................................................... 32

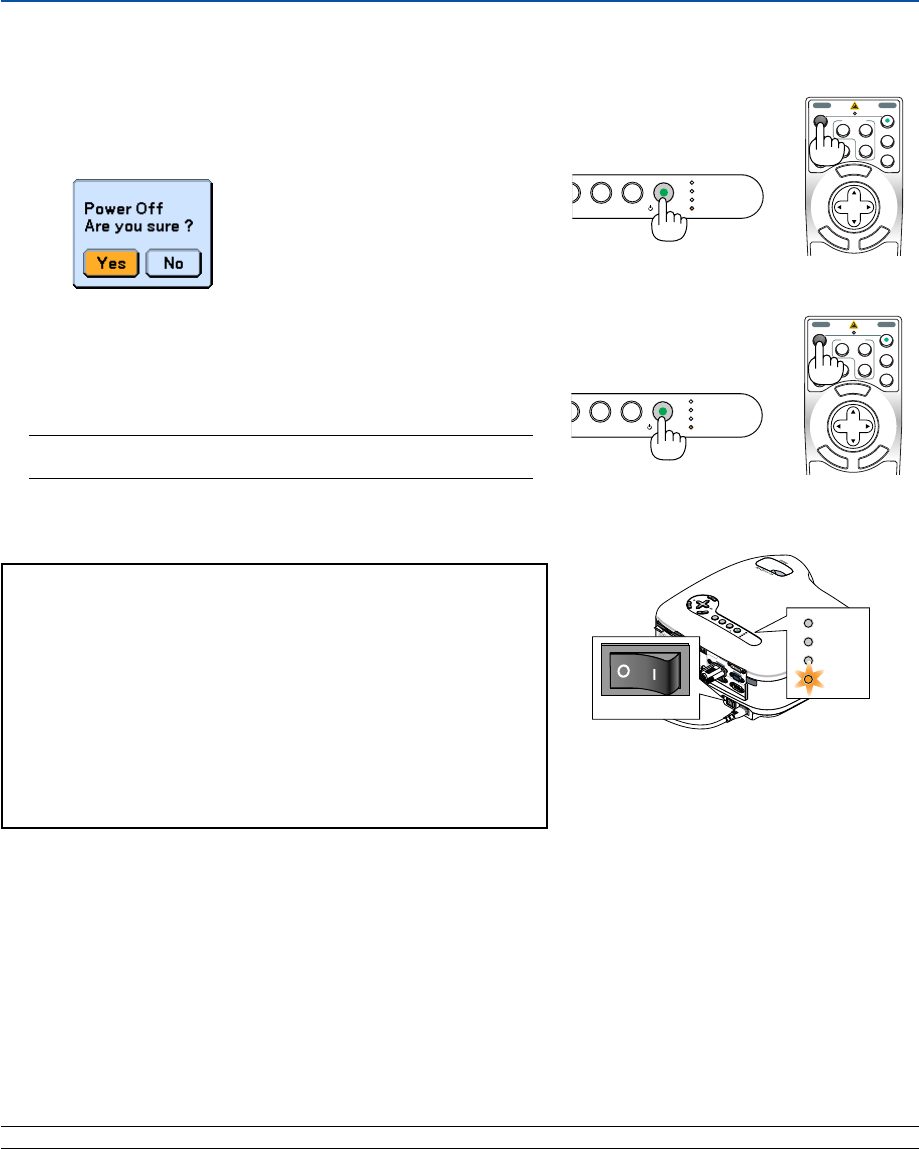

Tu r ning off the Projector ............................................................................................. 33
After Use ..................................................................................................................... 33
4. Convenient Features .................................................................................... 34
Tu r ning Off the Image and Sound .............................................................................. 34
Freezing a Picture ...................................................................................................... 34
Enlarging and Moving a Picture.................................................................................. 34
Changing Lamp Mode ................................................................................................ 34
Getting Integrated Help .............................................................................................. 35

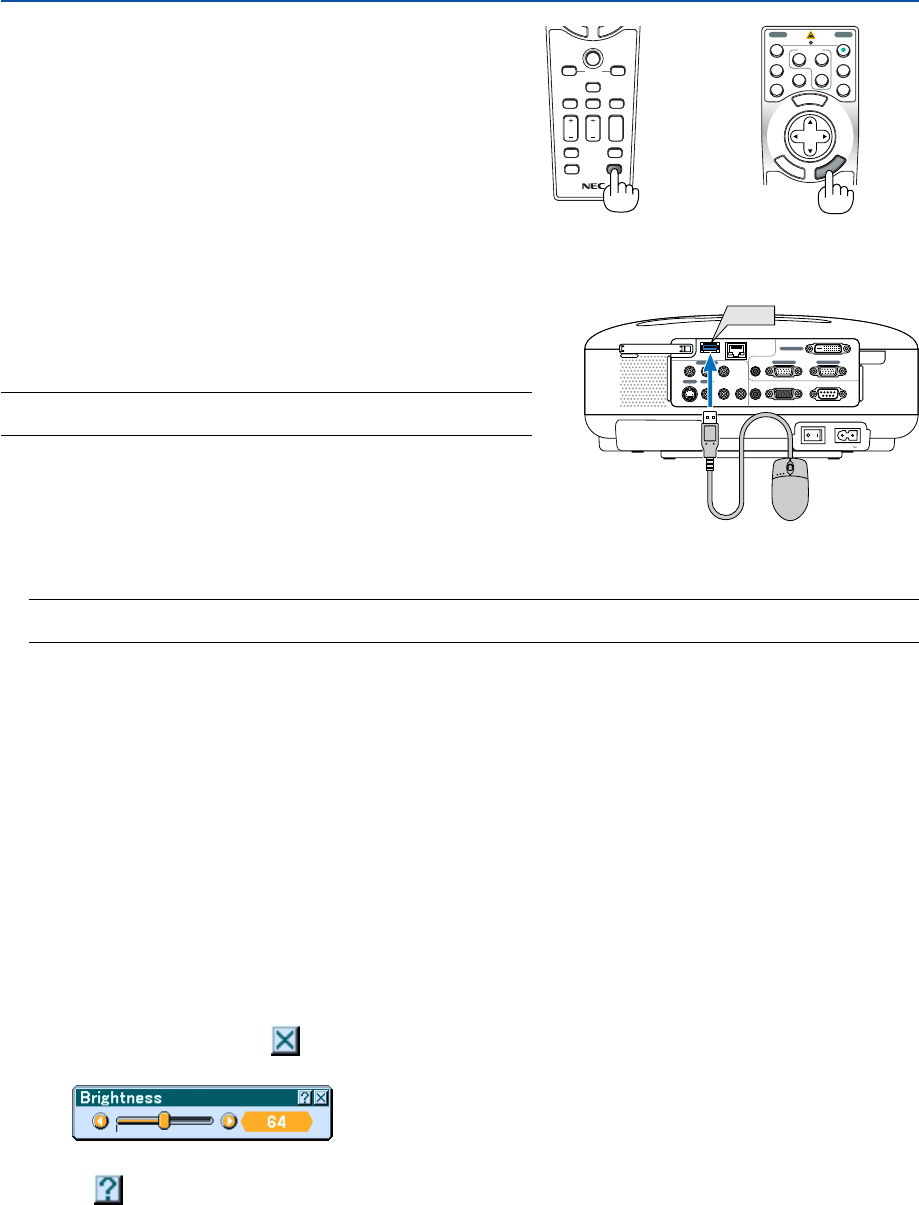

Using a USB Mouse ................................................................................................... 35

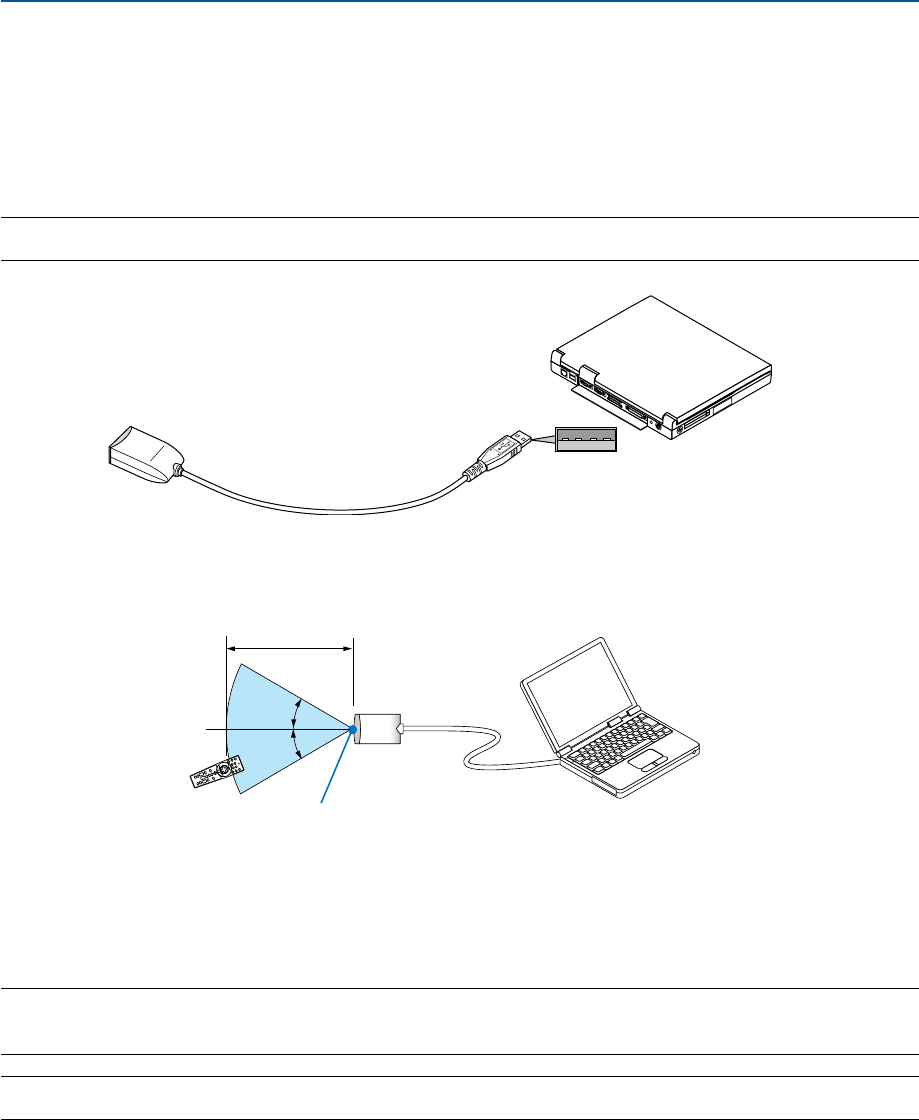

Using Remote Mouse Receiver .................................................................................. 36

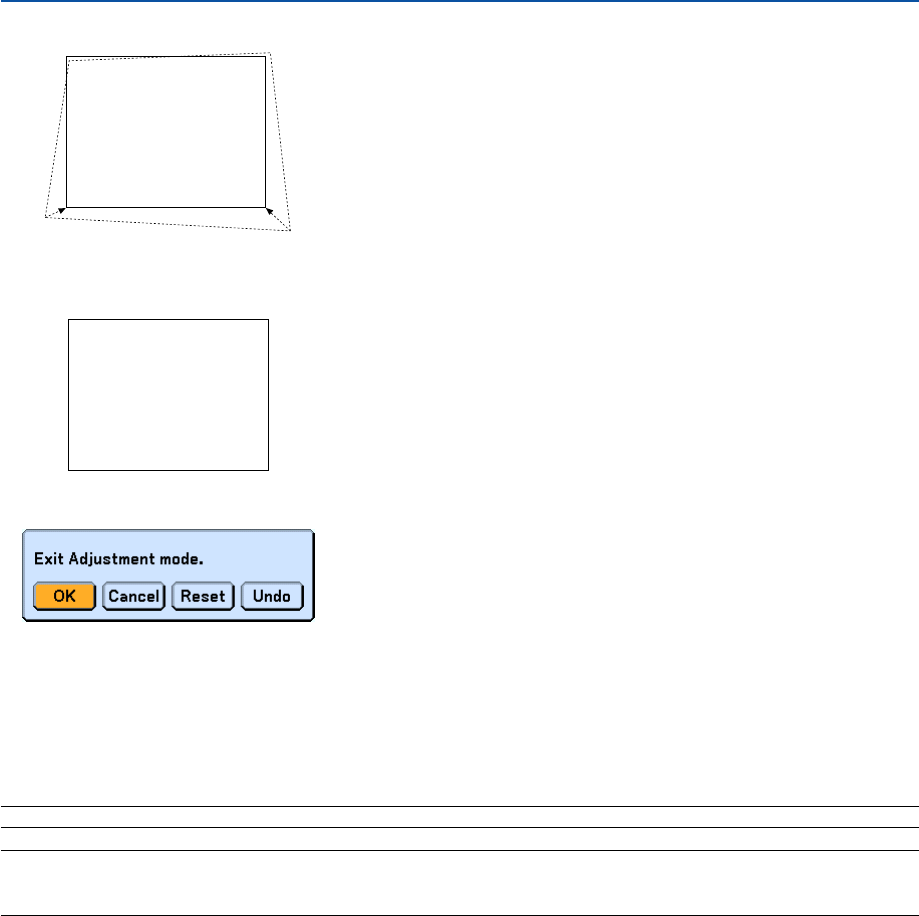

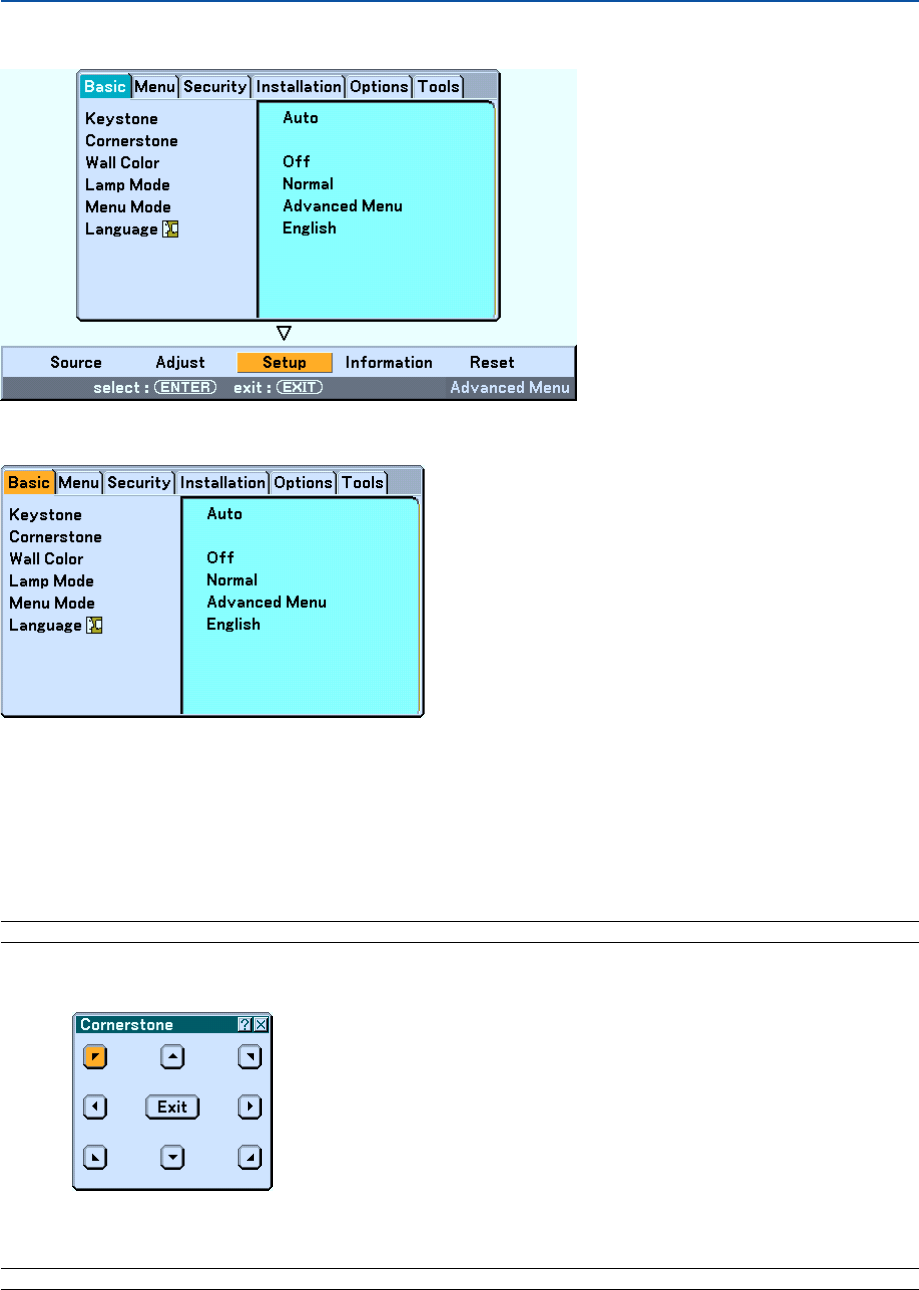

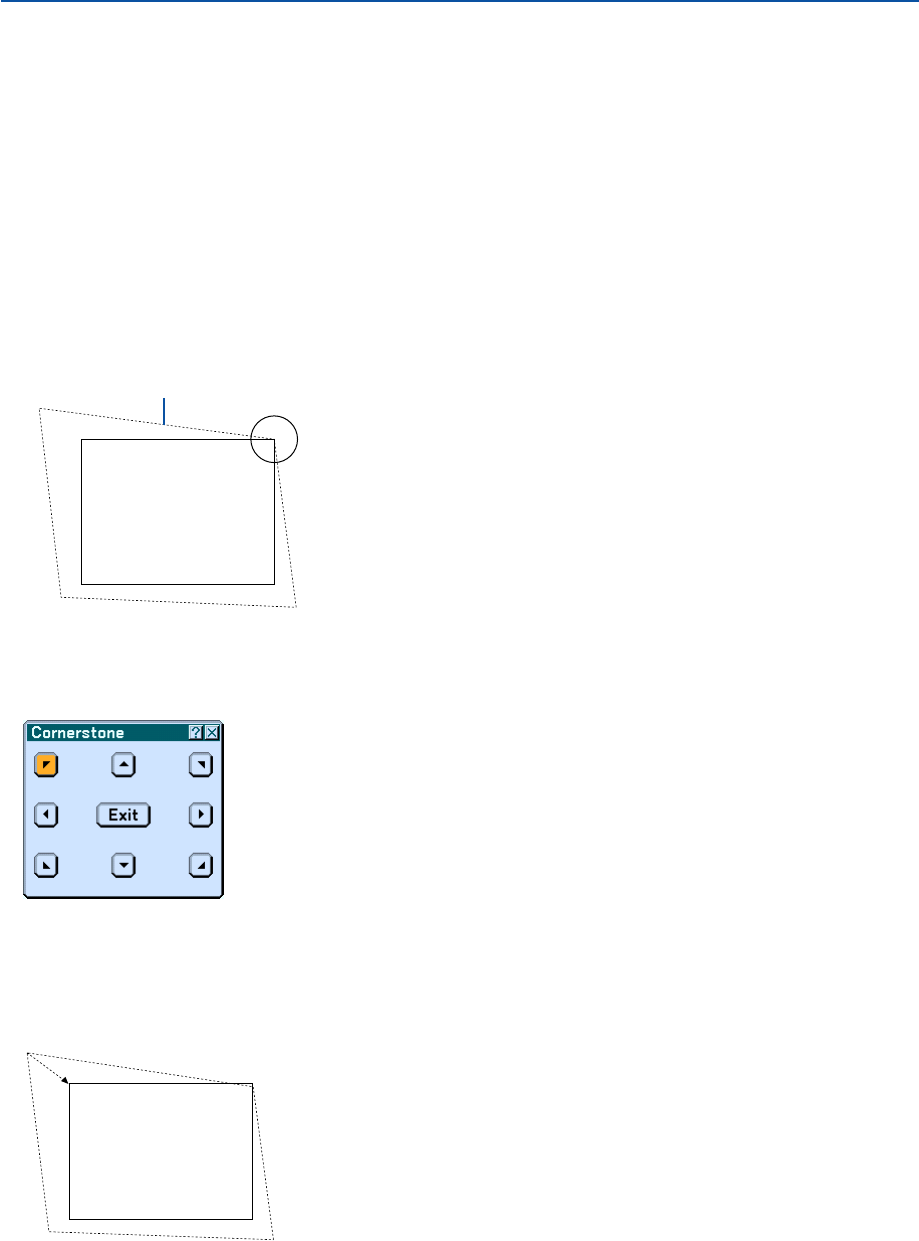

Correcting Horizontal and Vertical Keystone Distortion (Cornerstone) ....................... 38

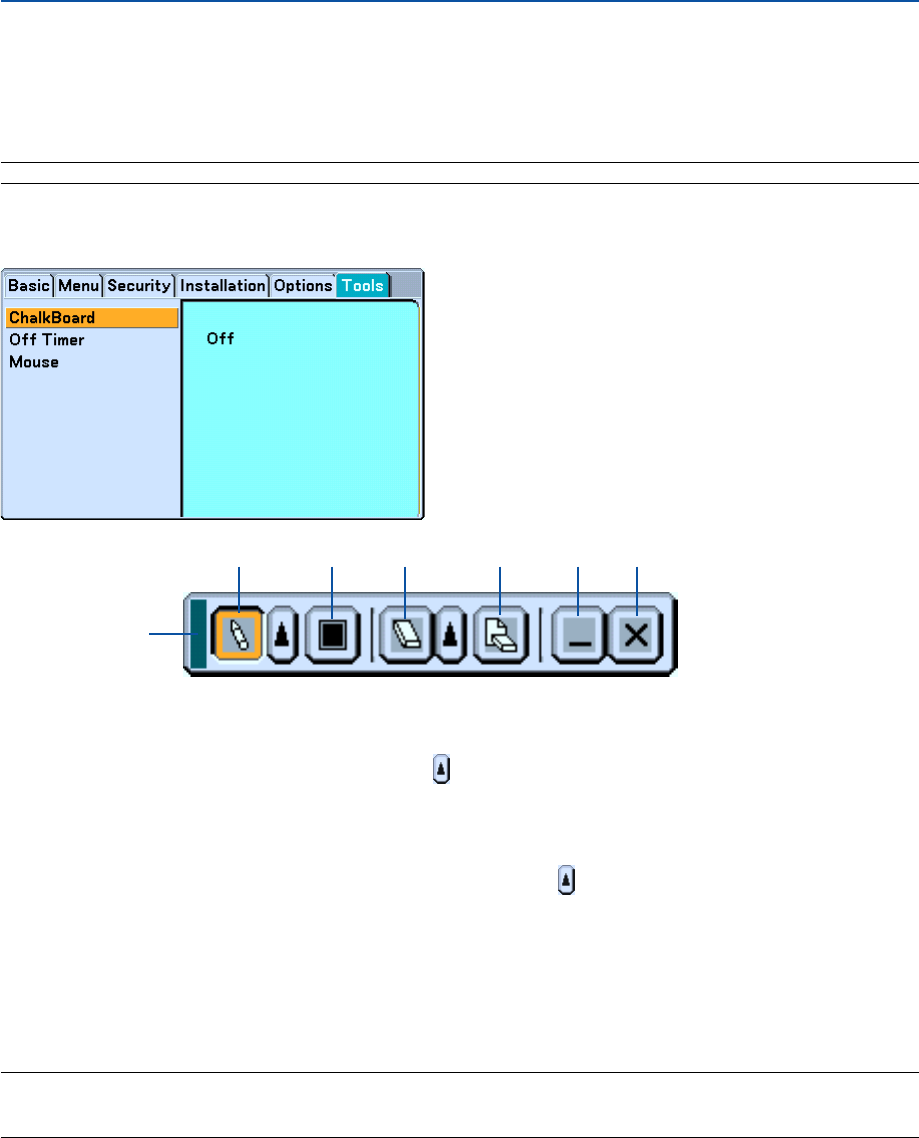

Making Freehand Drawings on a Projected Image (ChalkBoard) .............................. 41

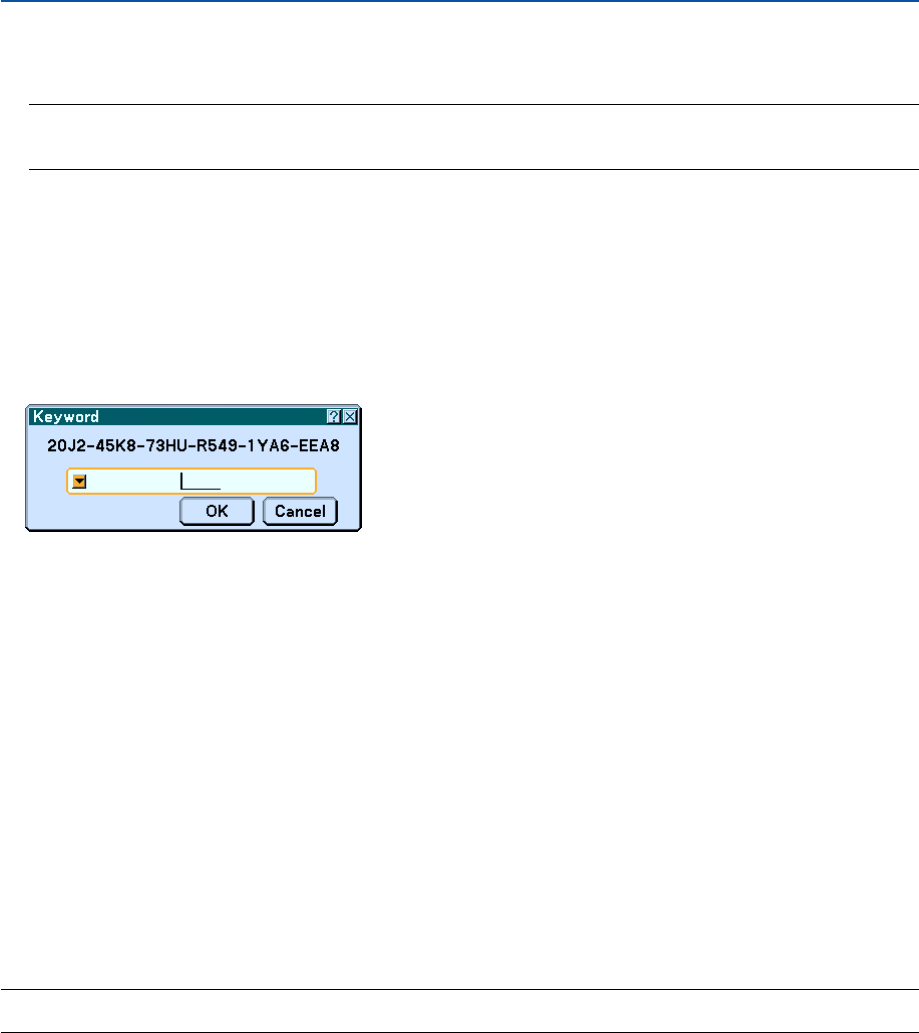

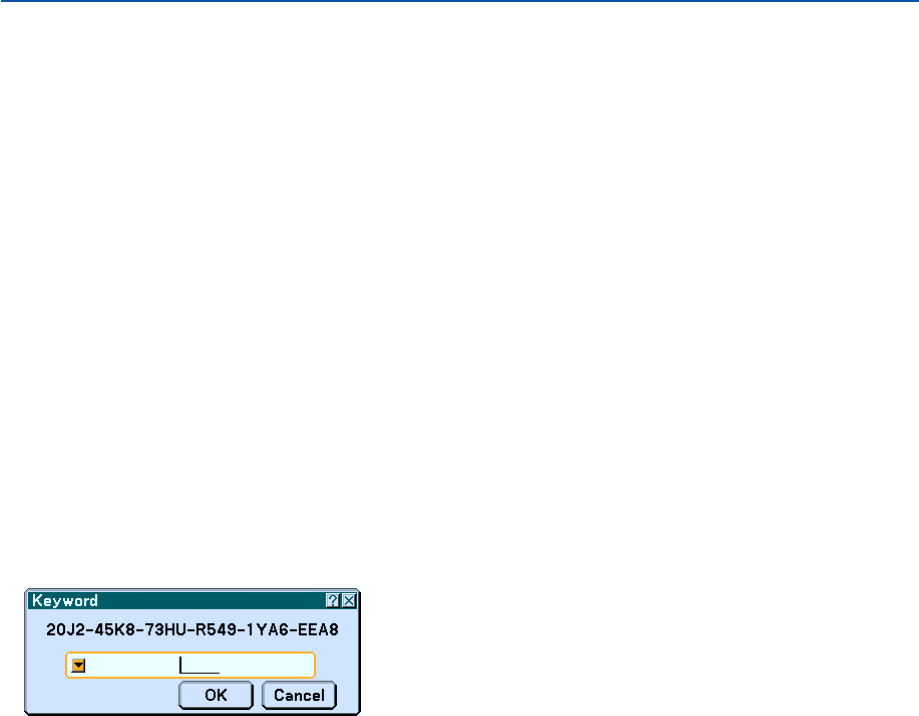

쐅 Preventing Unauthorized Use of the Projector ........................................................... 42

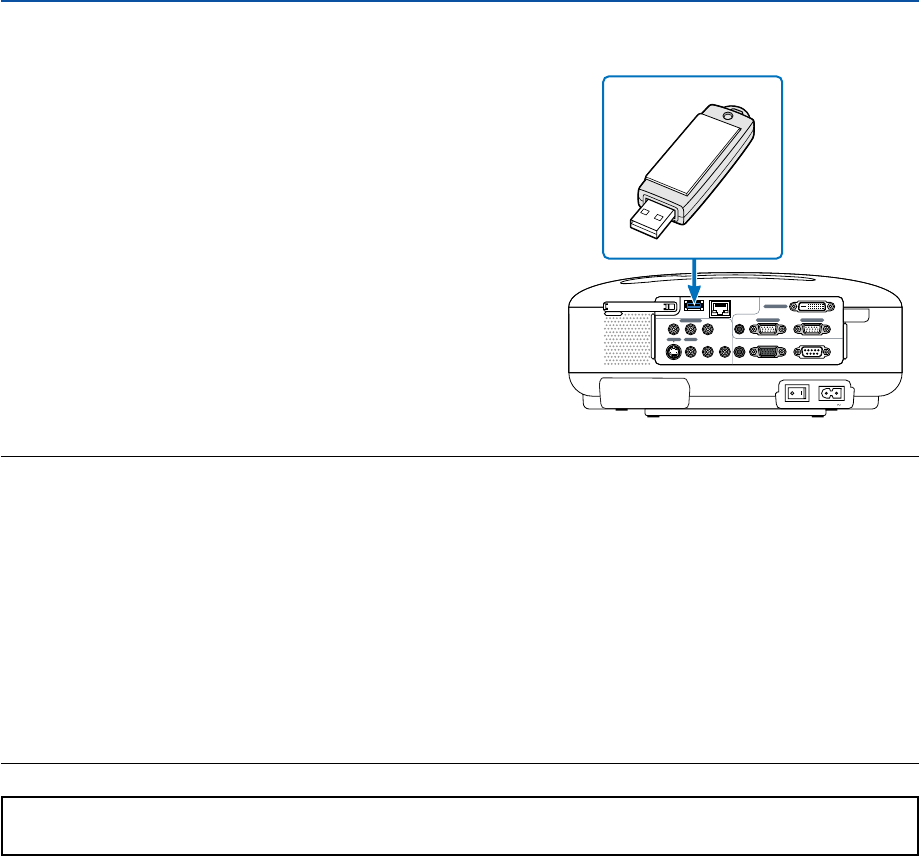

쐈 Using a USB Memory Device ..................................................................................... 47

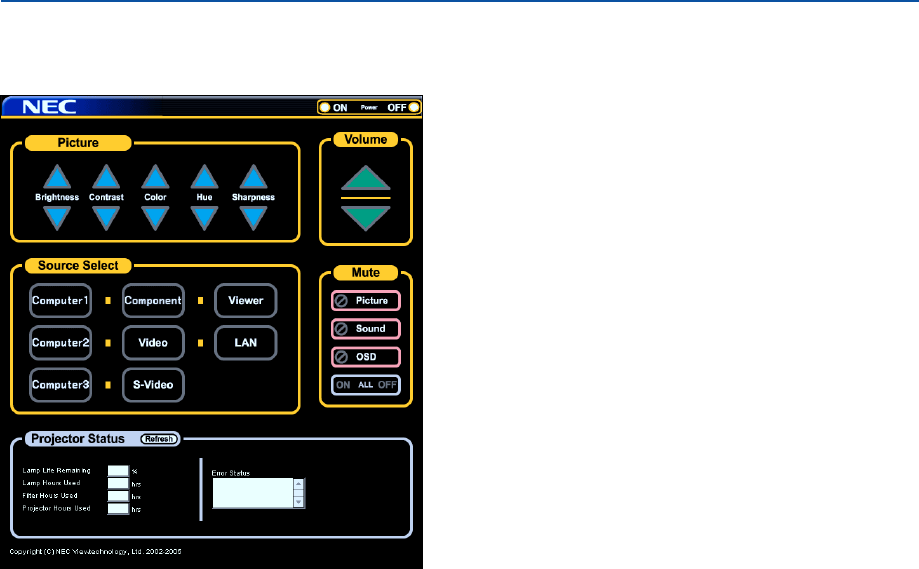

쐉 Operation Using an HTTP Browser ............................................................................ 48

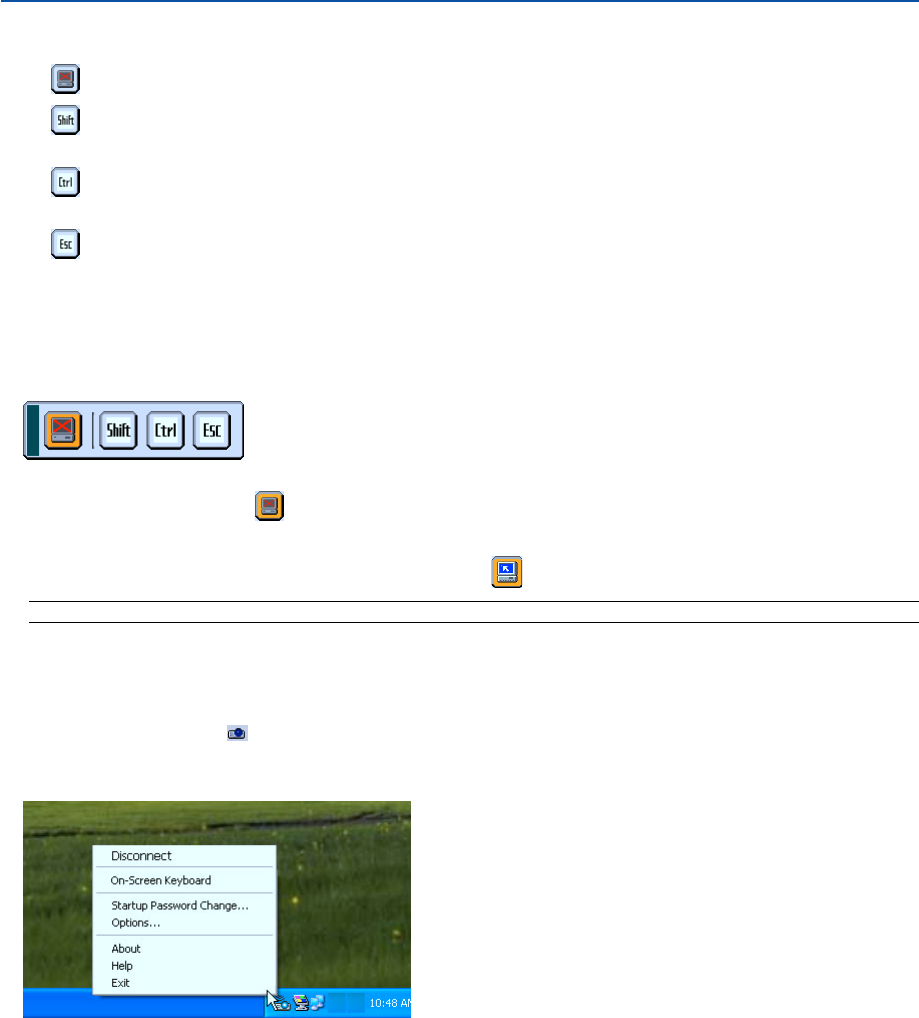

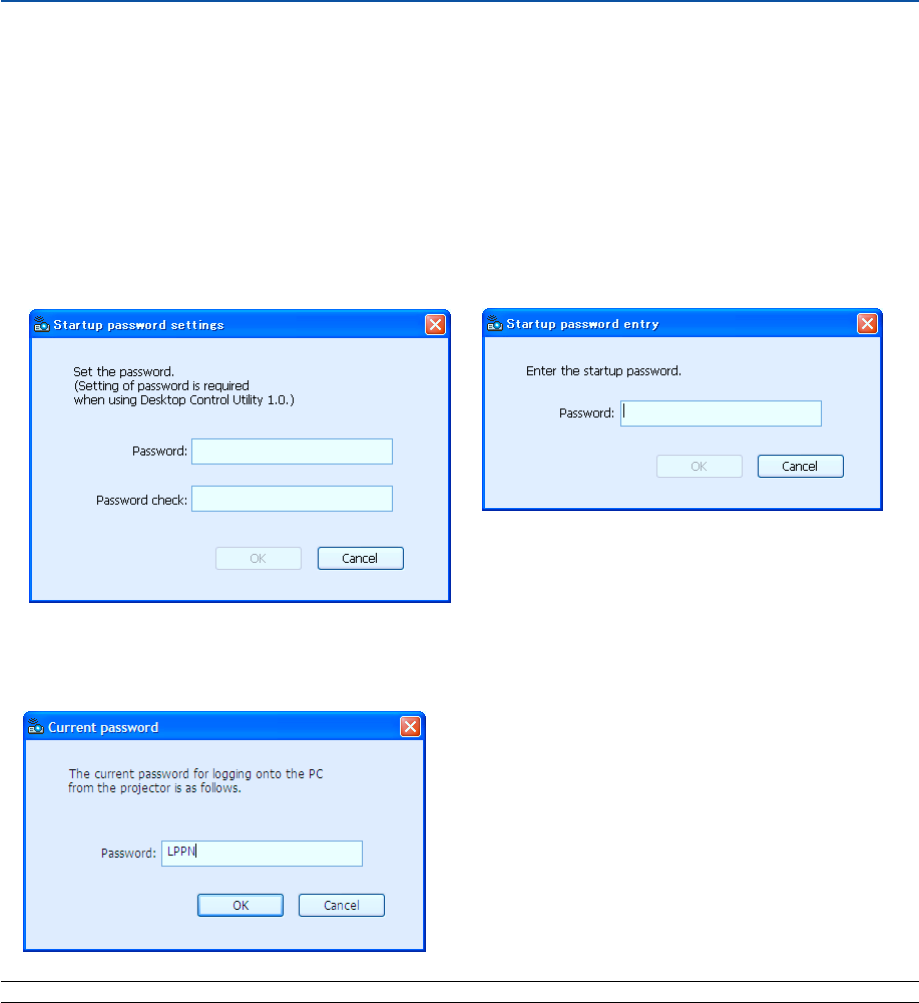

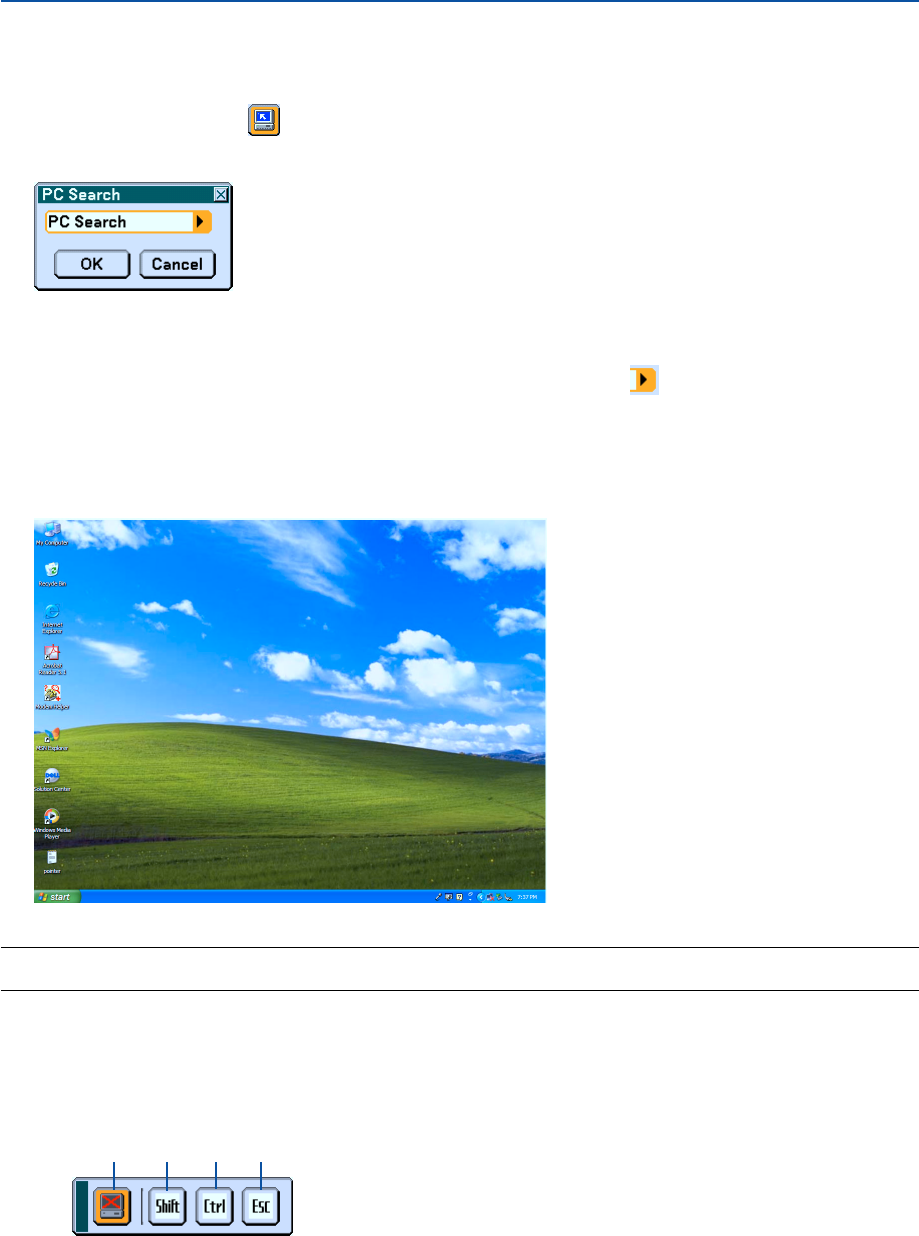

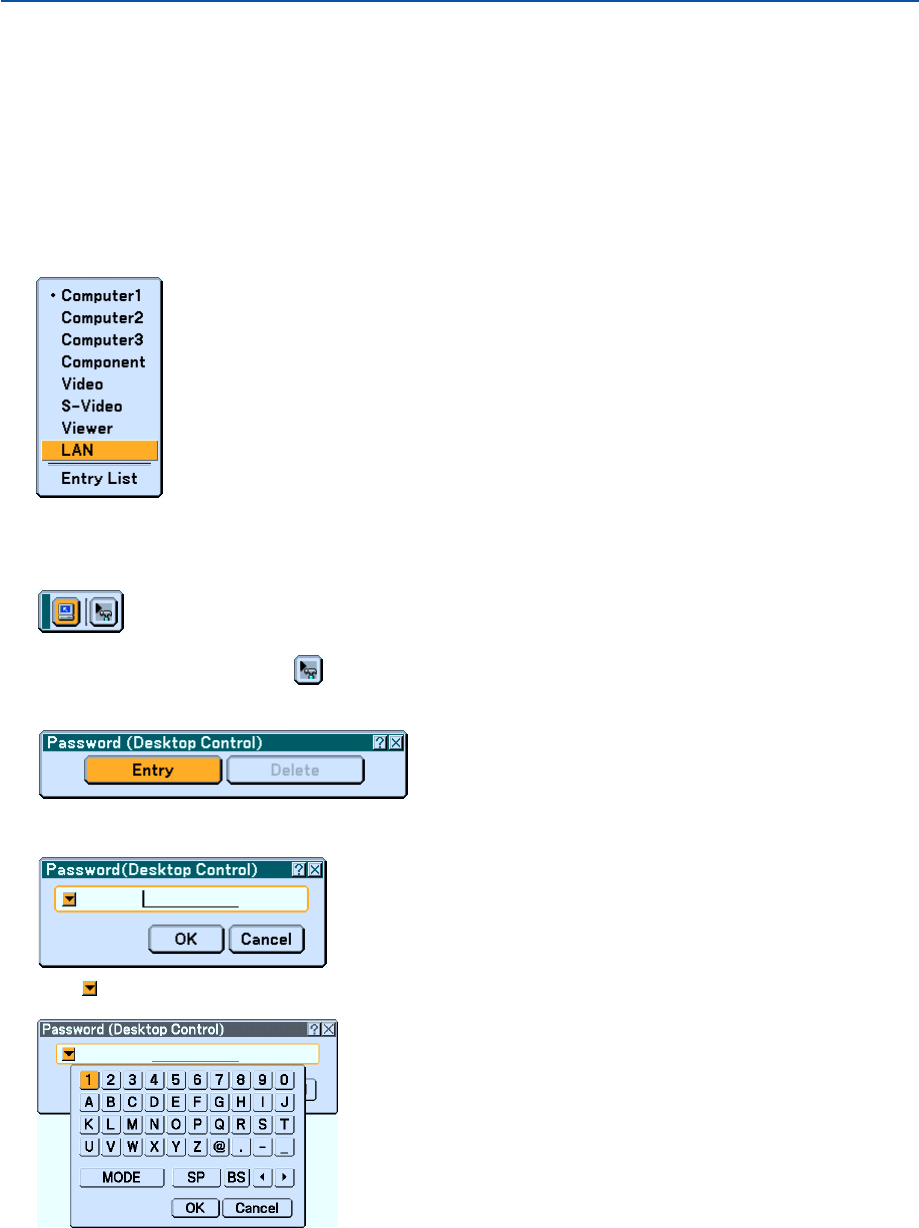

씈 Using the Projector to Operate a Computer Connected on a Network
(Desktop Control Utility 1.0) .................................................................................. 51
5. Using the Viewer ............................................................................................ 56
Making the Most out of the Viewer Function .............................................................. 56

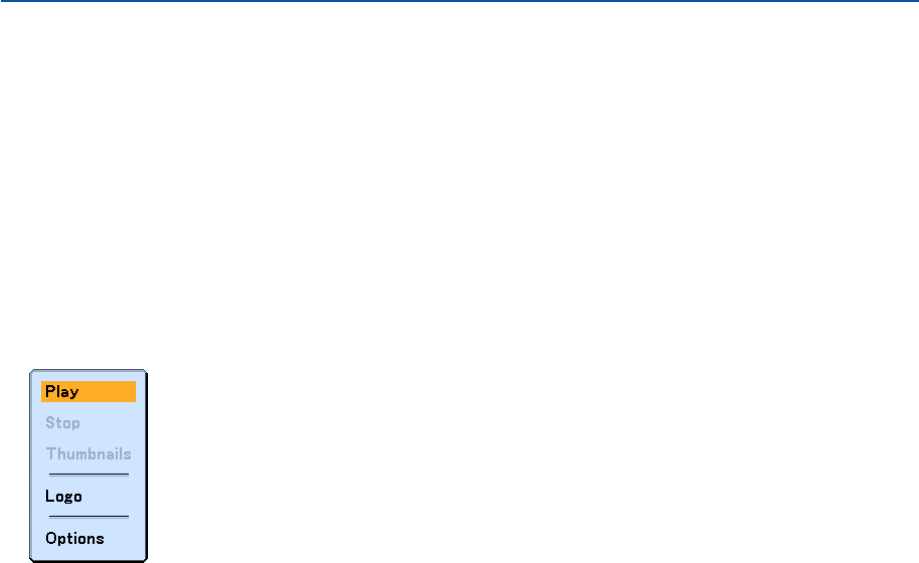

Operating the Viewer Function from the Projector (playback) .................................... 57
Projecting slides (Viewer) ..................................................................................... 57

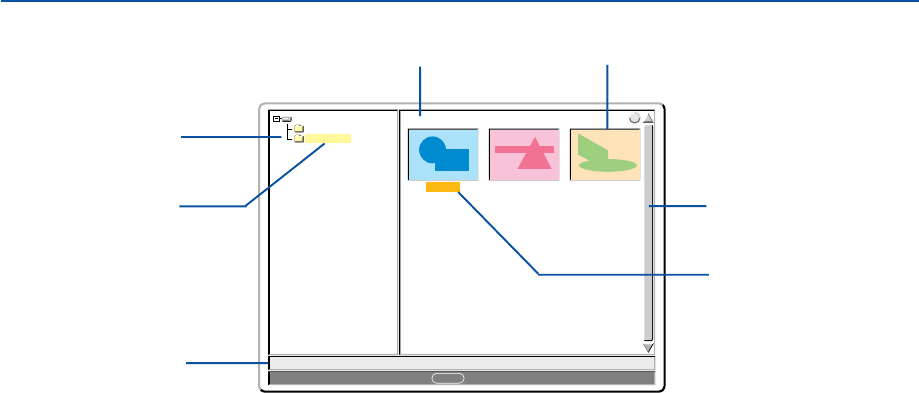

Viewer Window Elements ..................................................................................... 58

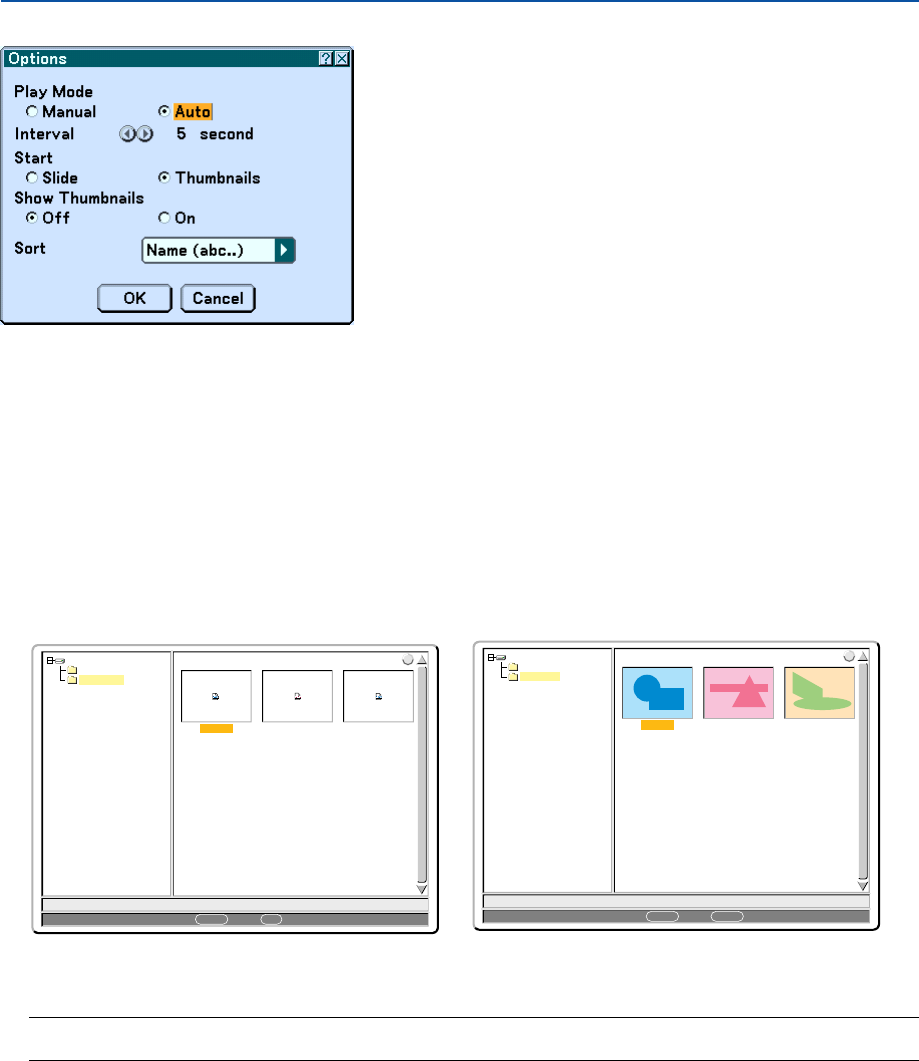

Setting Option for Viewer ...................................................................................... 59
Exiting Viewer ....................................................................................................... 60
Viewing Digital Images .......................................................................................... 60

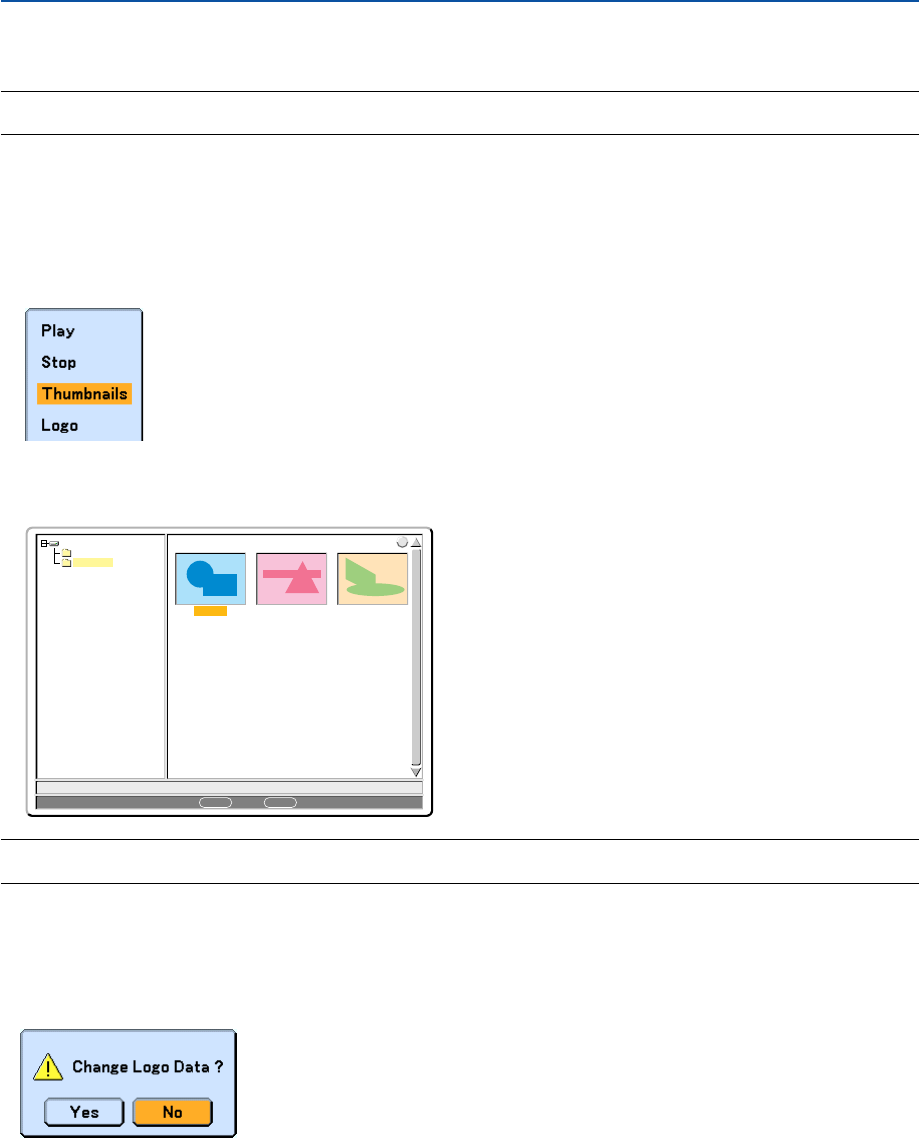

Changing Background Logo ....................................................................................... 61
6. Using On-Screen Menu ............................................................................... 62

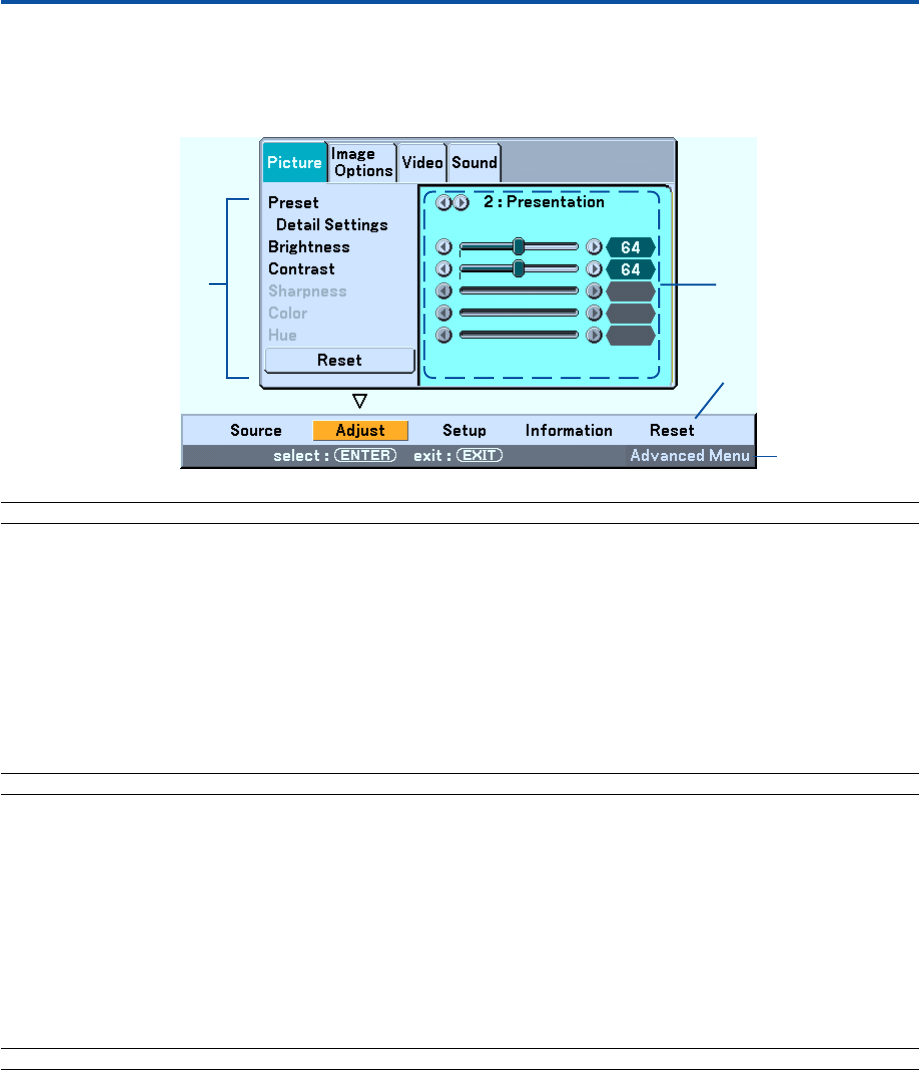

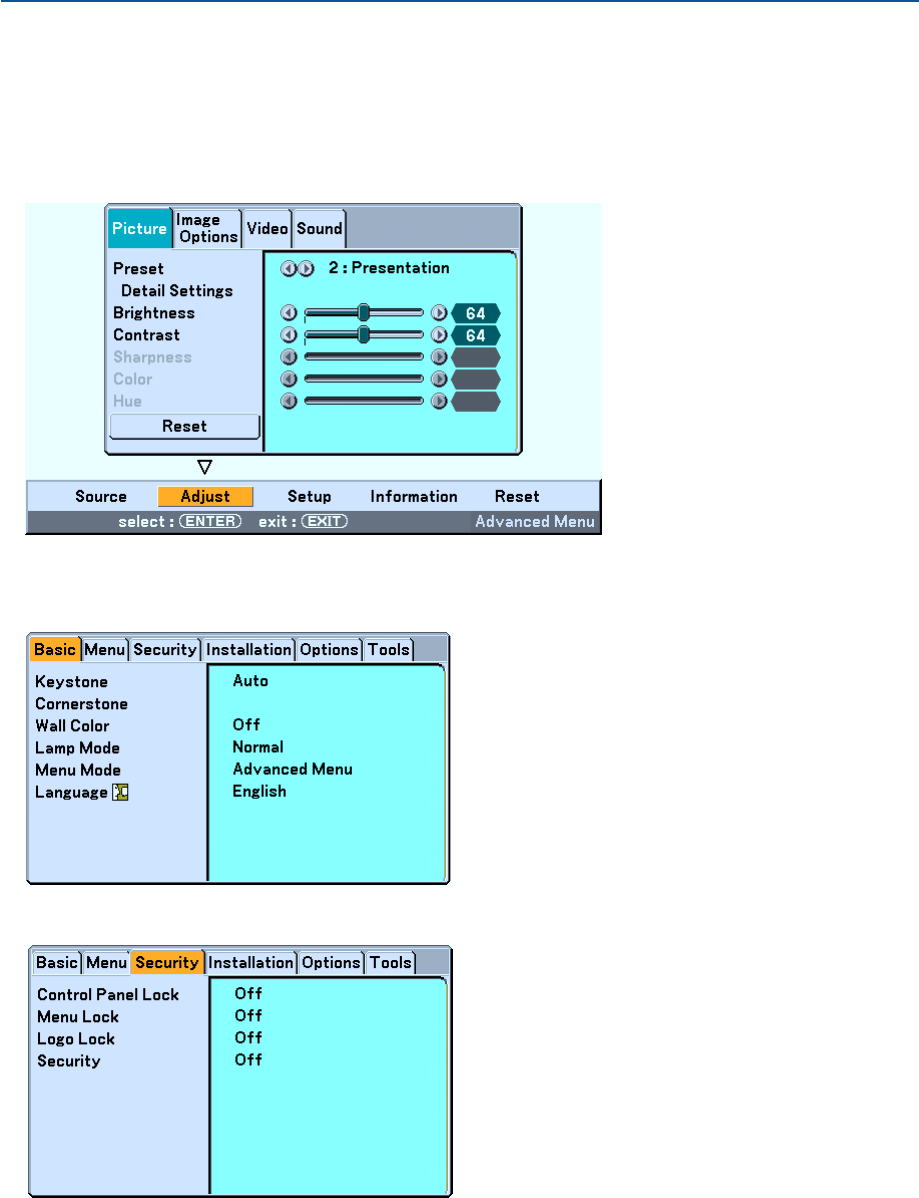

Using the Menus......................................................................................................... 62
Menu tree ................................................................................................................... 63

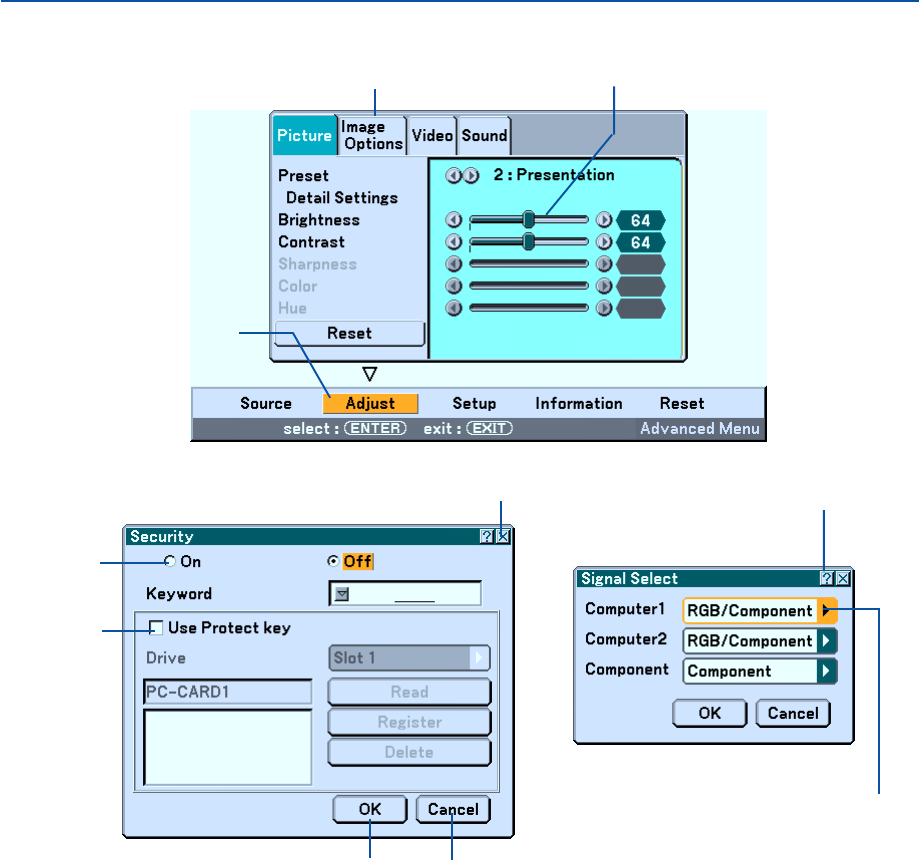

Menu Elements........................................................................................................... 65

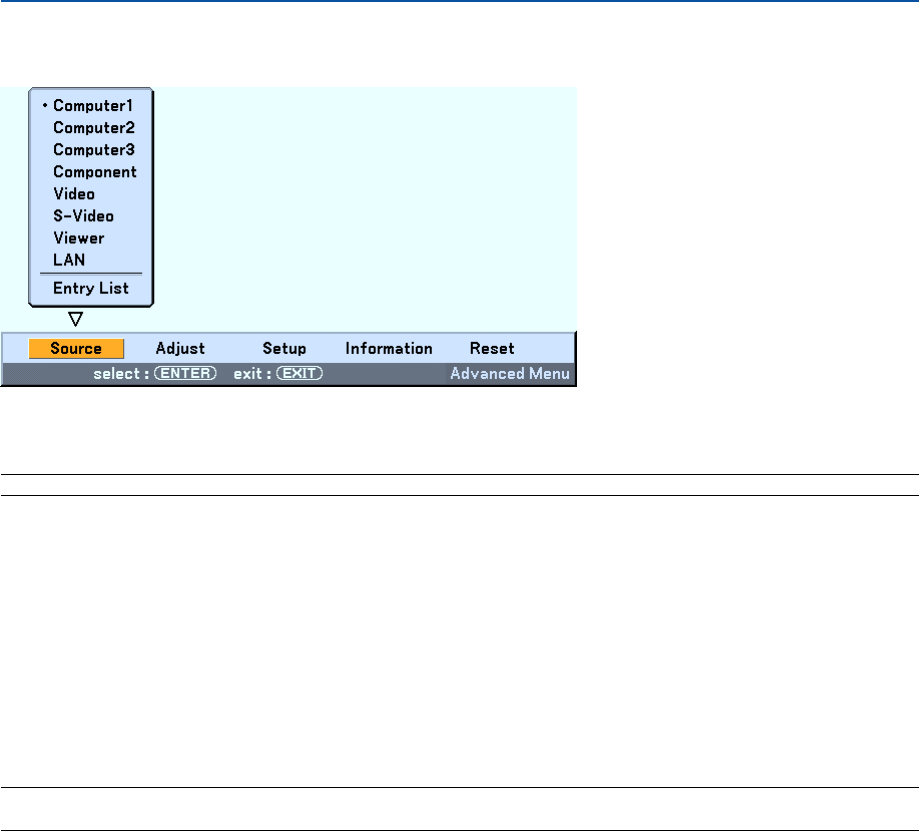

Menu Descriptions & Functions [Source] ................................................................... 66
Computer 1 and 2 ................................................................................................. 66
Computer 3 (LT380 only) ...................................................................................... 66
Component ........................................................................................................... 66
viii
Video ..................................................................................................................... 66
S-Video ................................................................................................................. 66
Viewer ................................................................................................................... 66

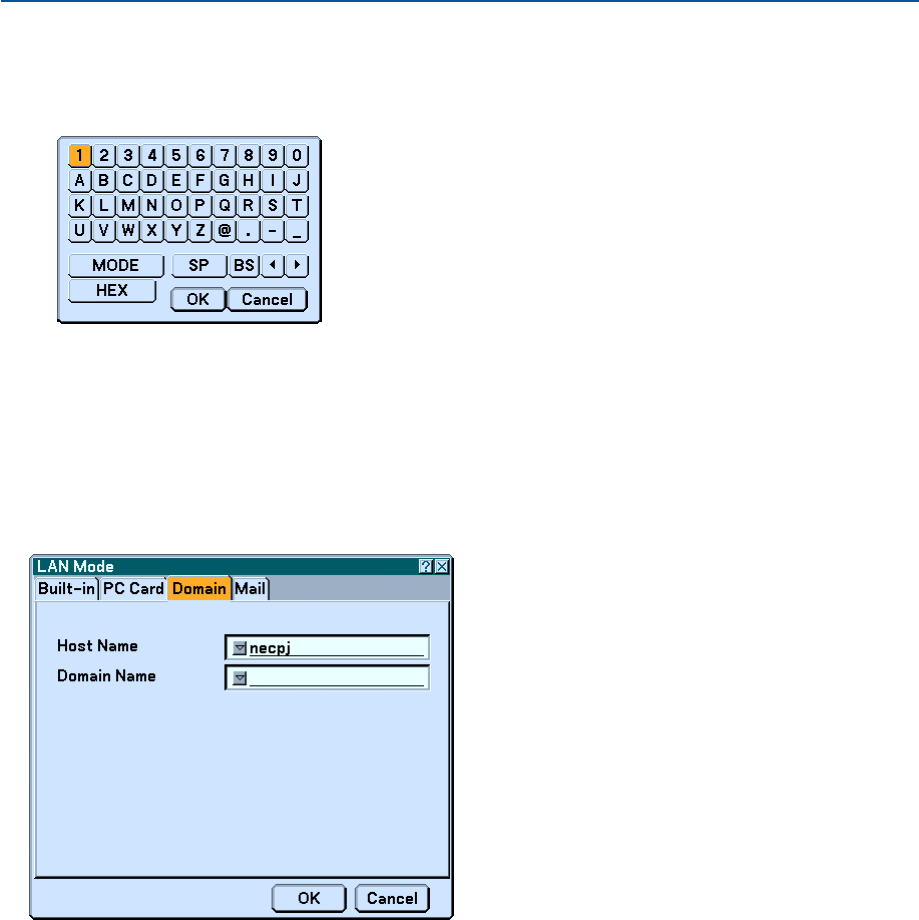

LAN ....................................................................................................................... 66

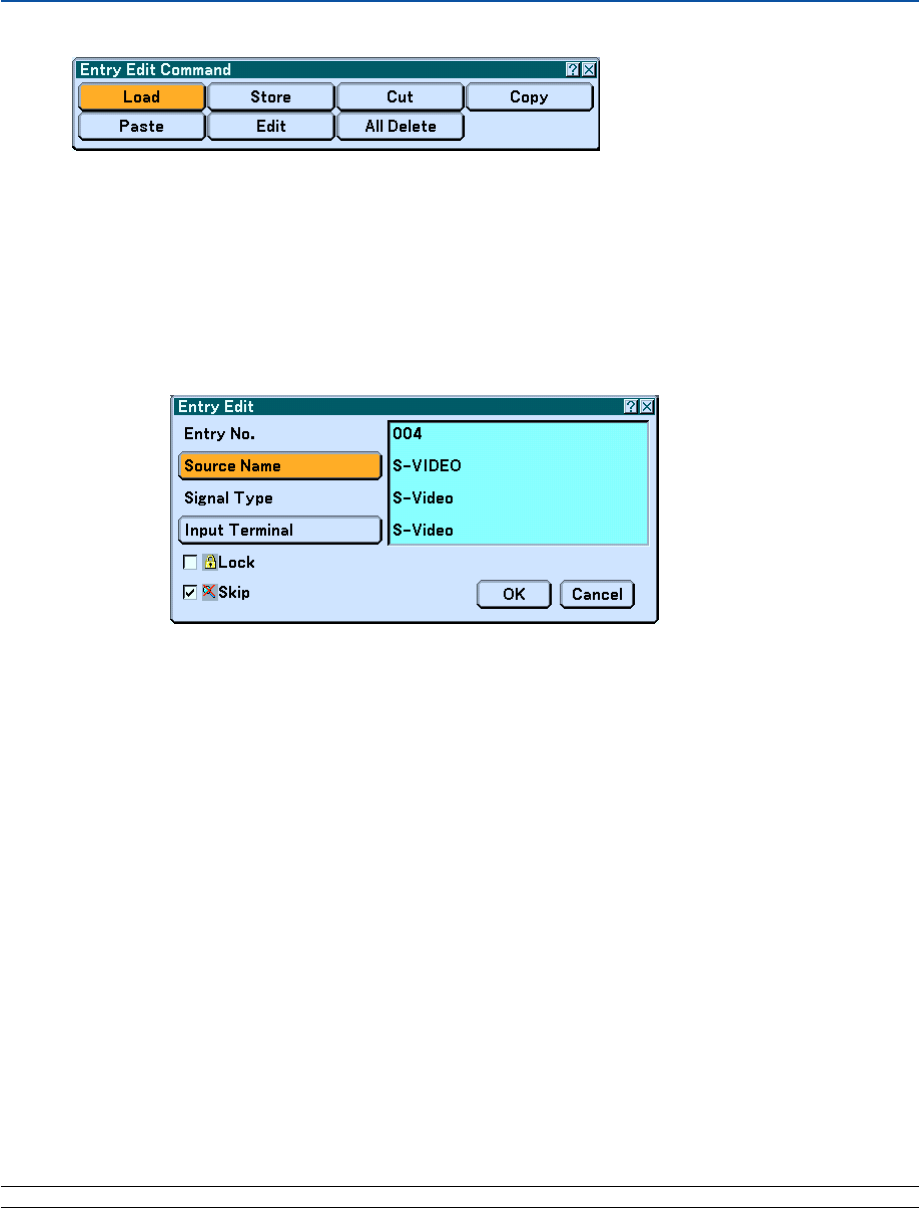

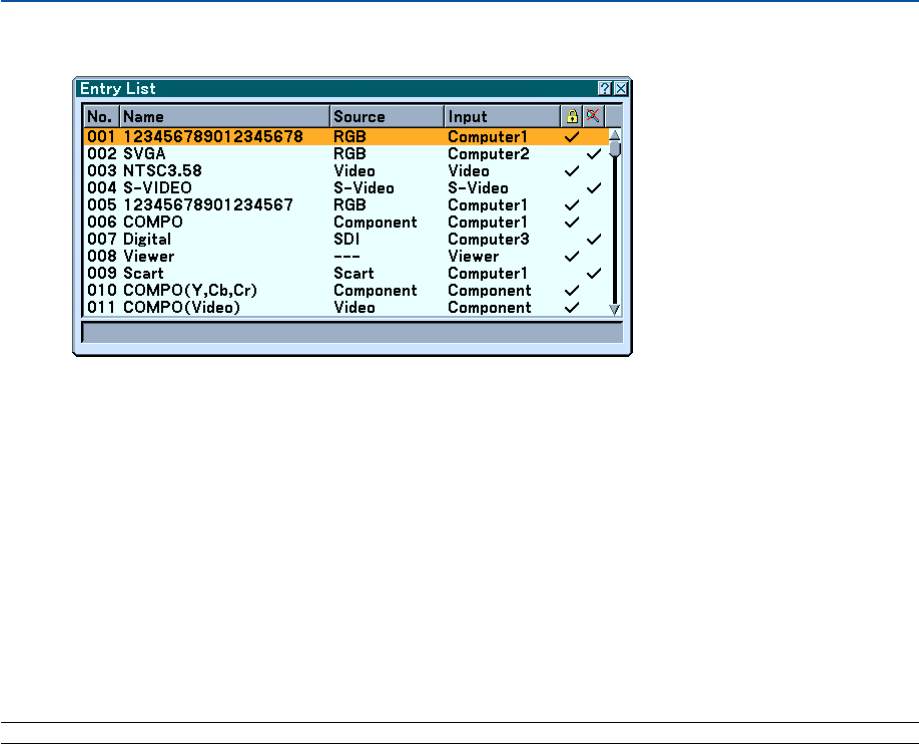

[Entry List] ............................................................................................................. 67
Menu Descriptions & Functions [Adjust] ..................................................................... 69

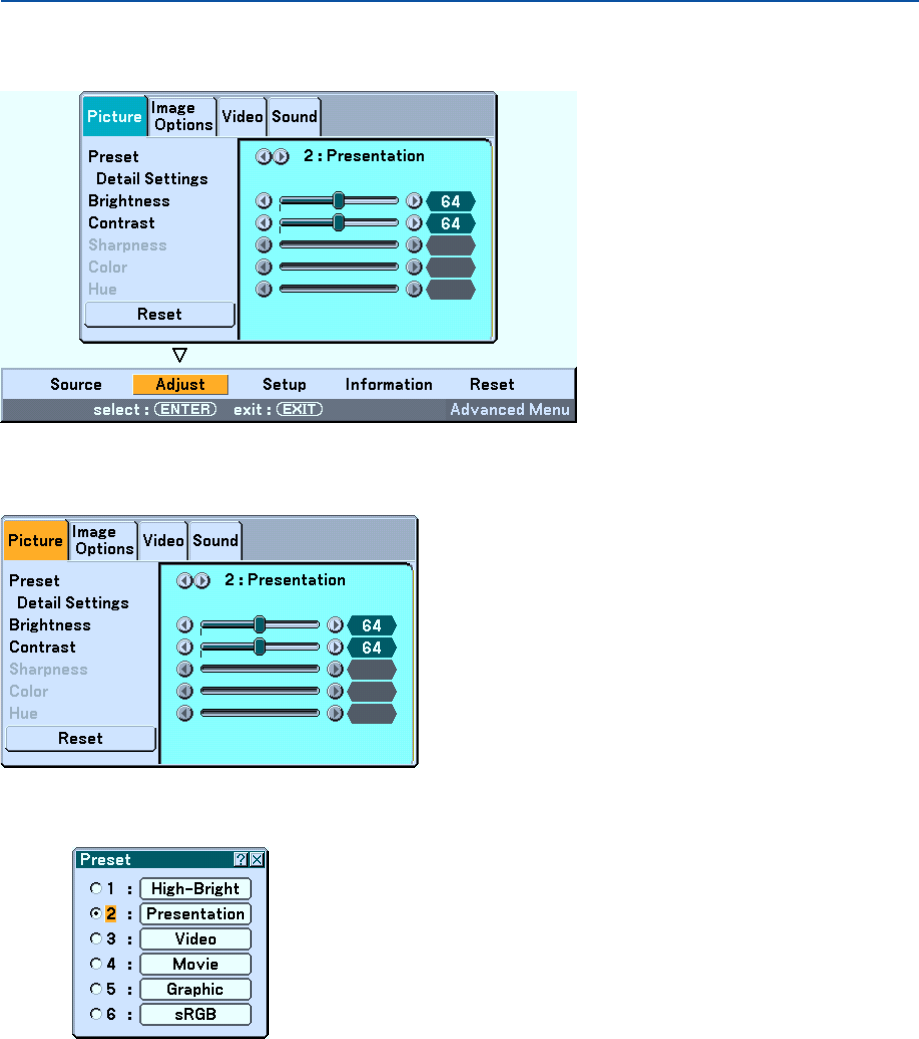

[Picture] ................................................................................................................. 69

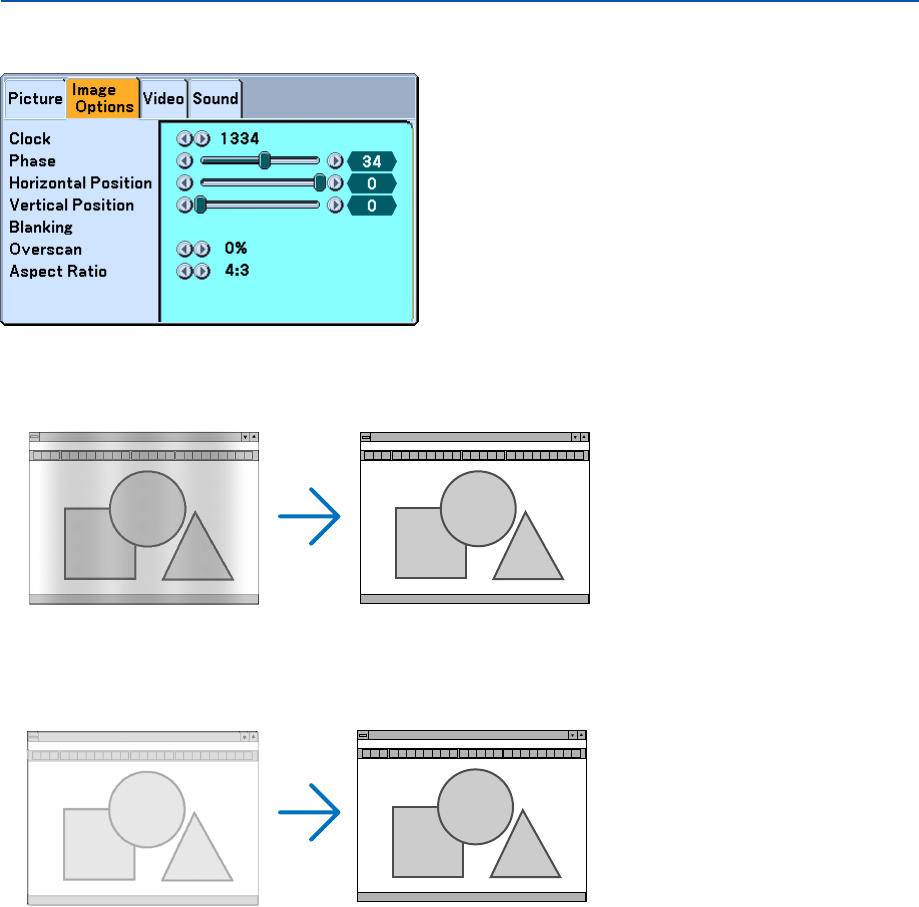

[Image Options]..................................................................................................... 72

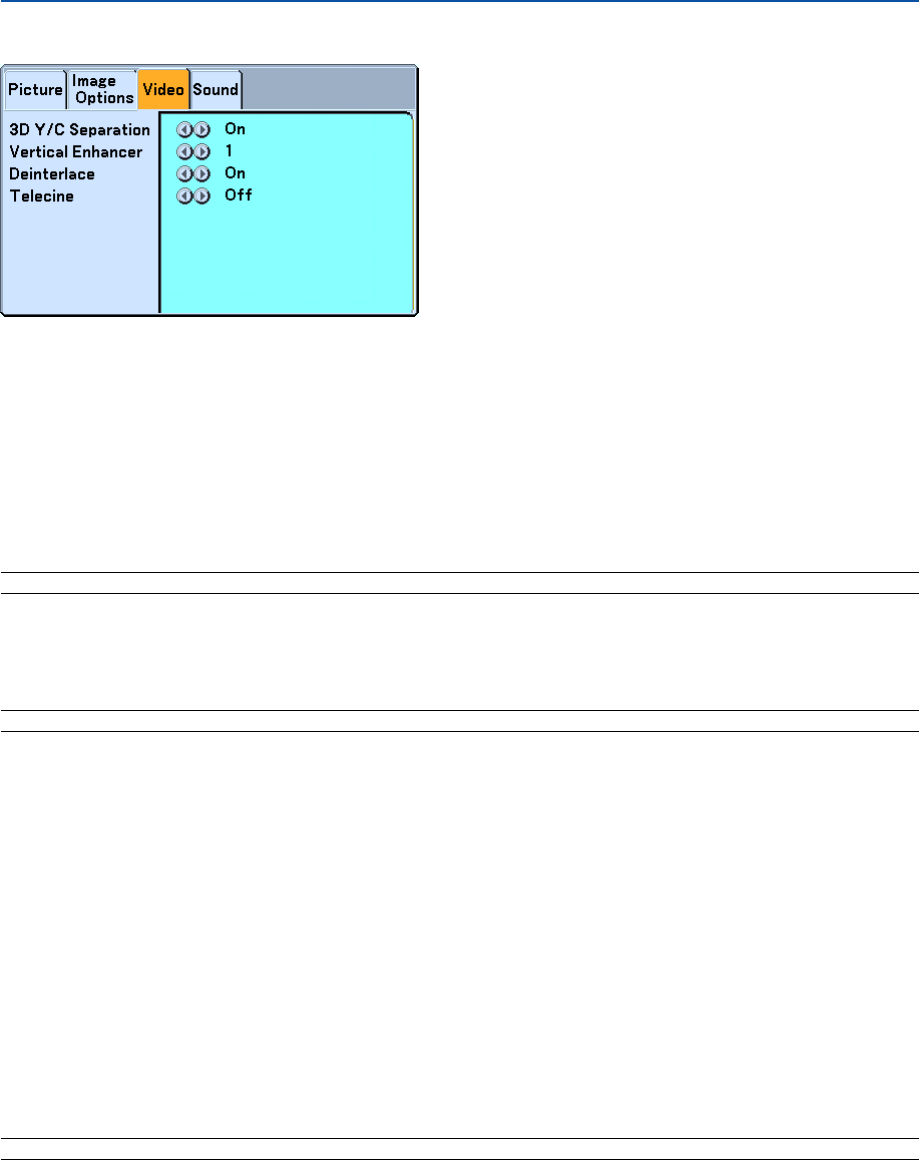

[Video] ................................................................................................................... 75

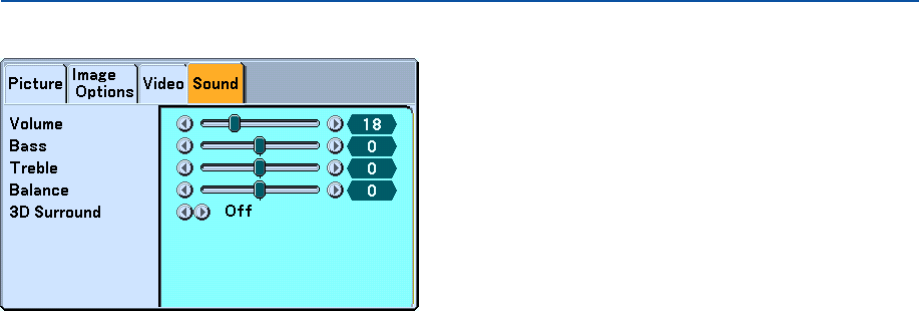

[Sound].................................................................................................................. 76
Menu Descriptions & Functions [Setup] ..................................................................... 77
[Basic] ................................................................................................................... 77

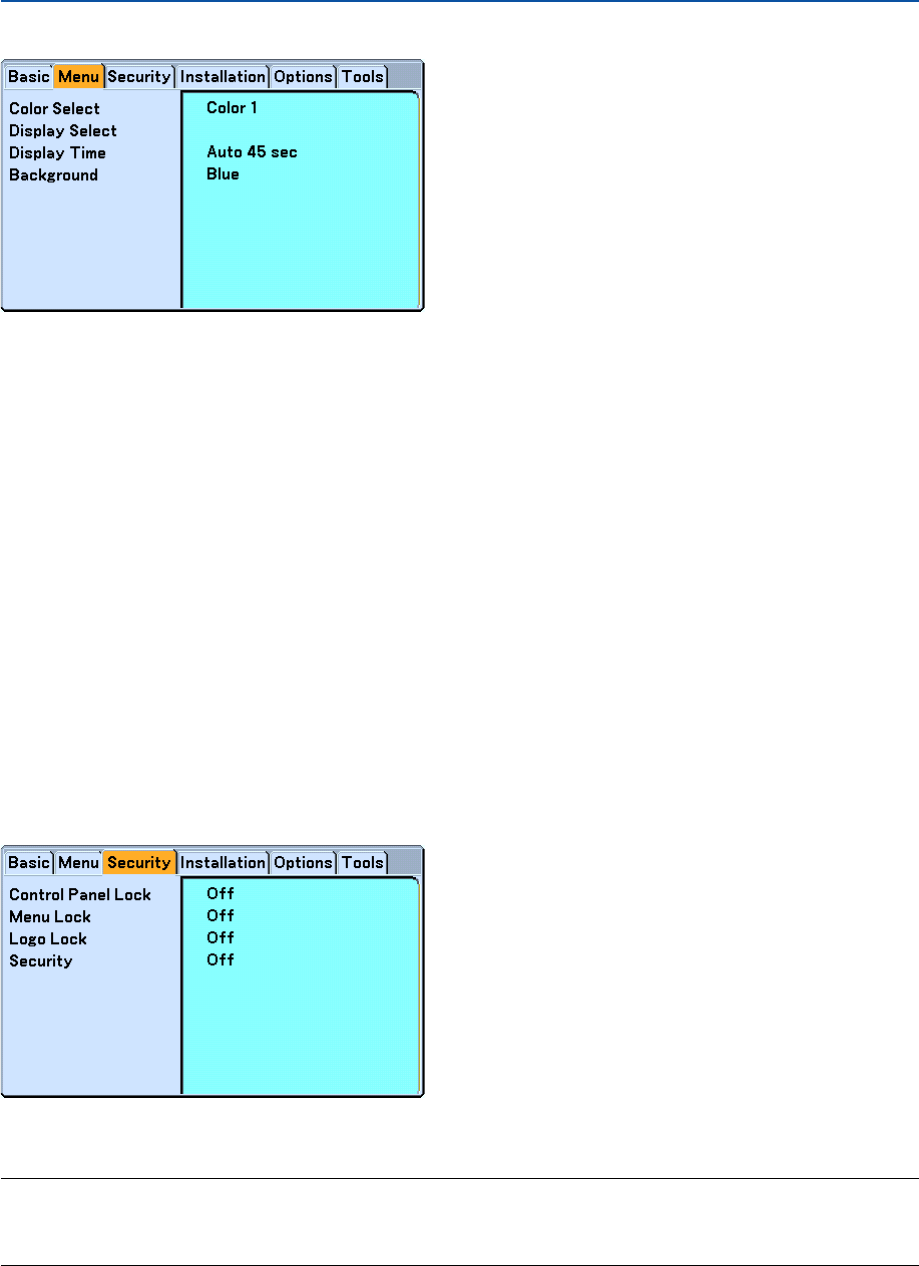

[Menu] ................................................................................................................... 79

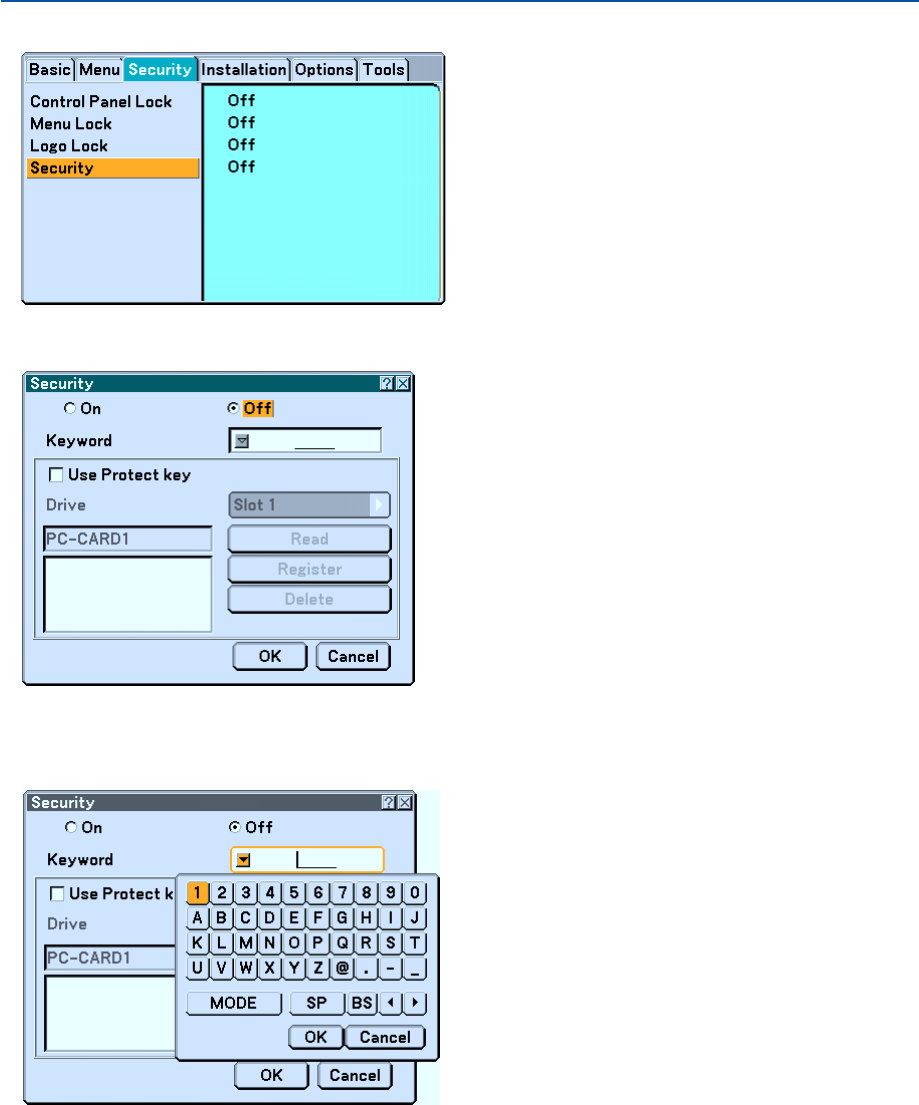

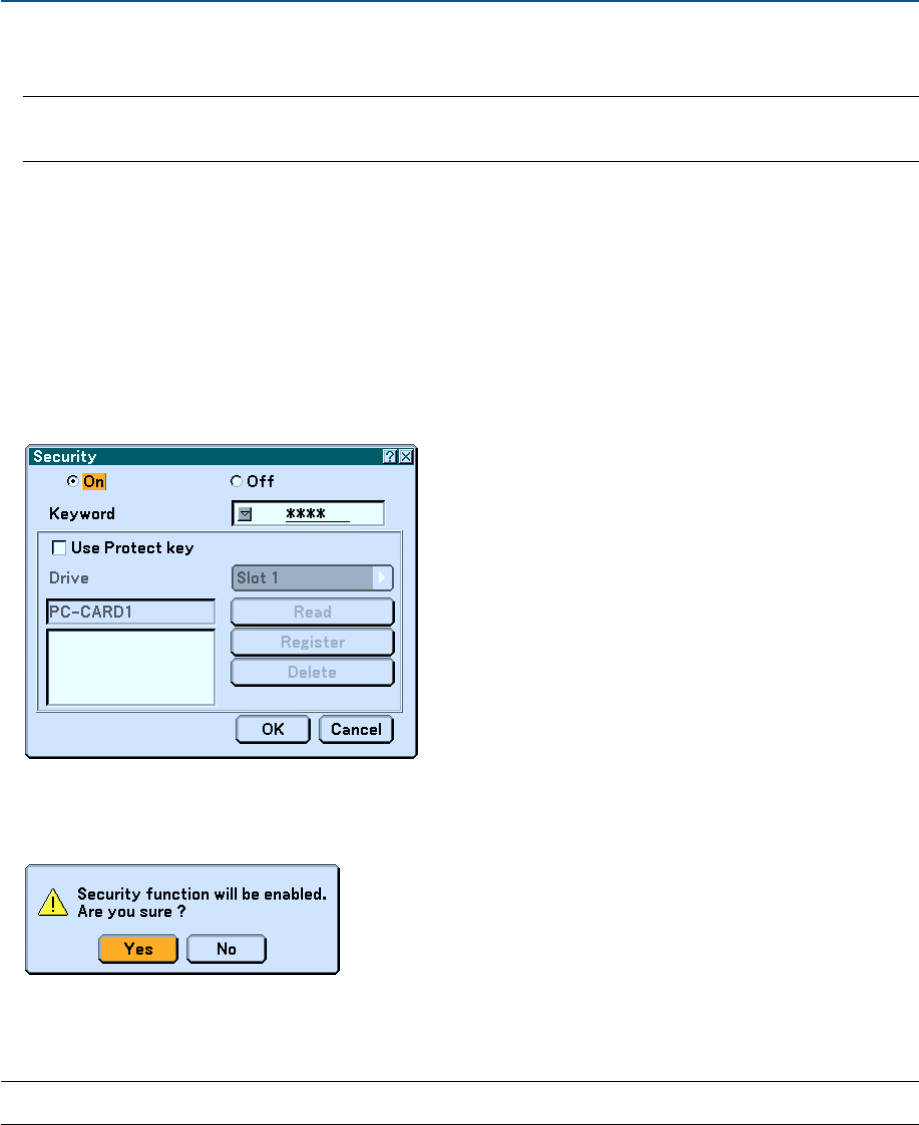

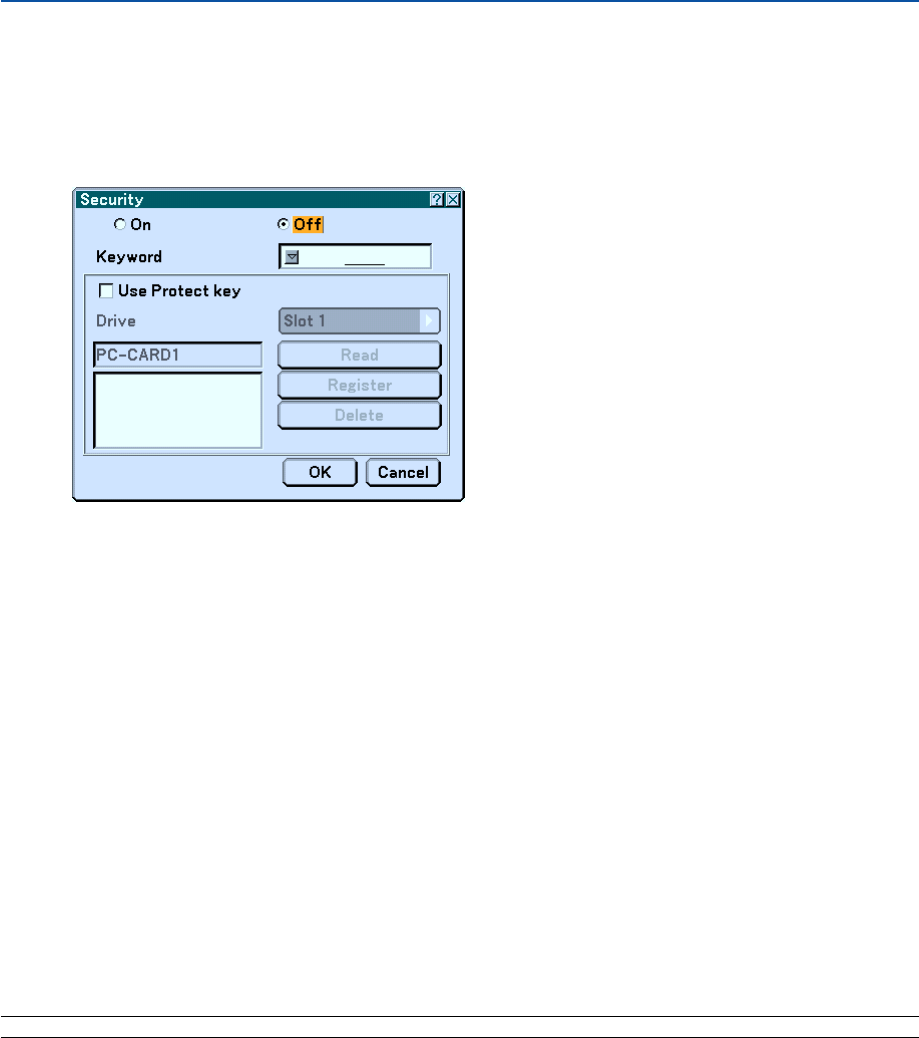

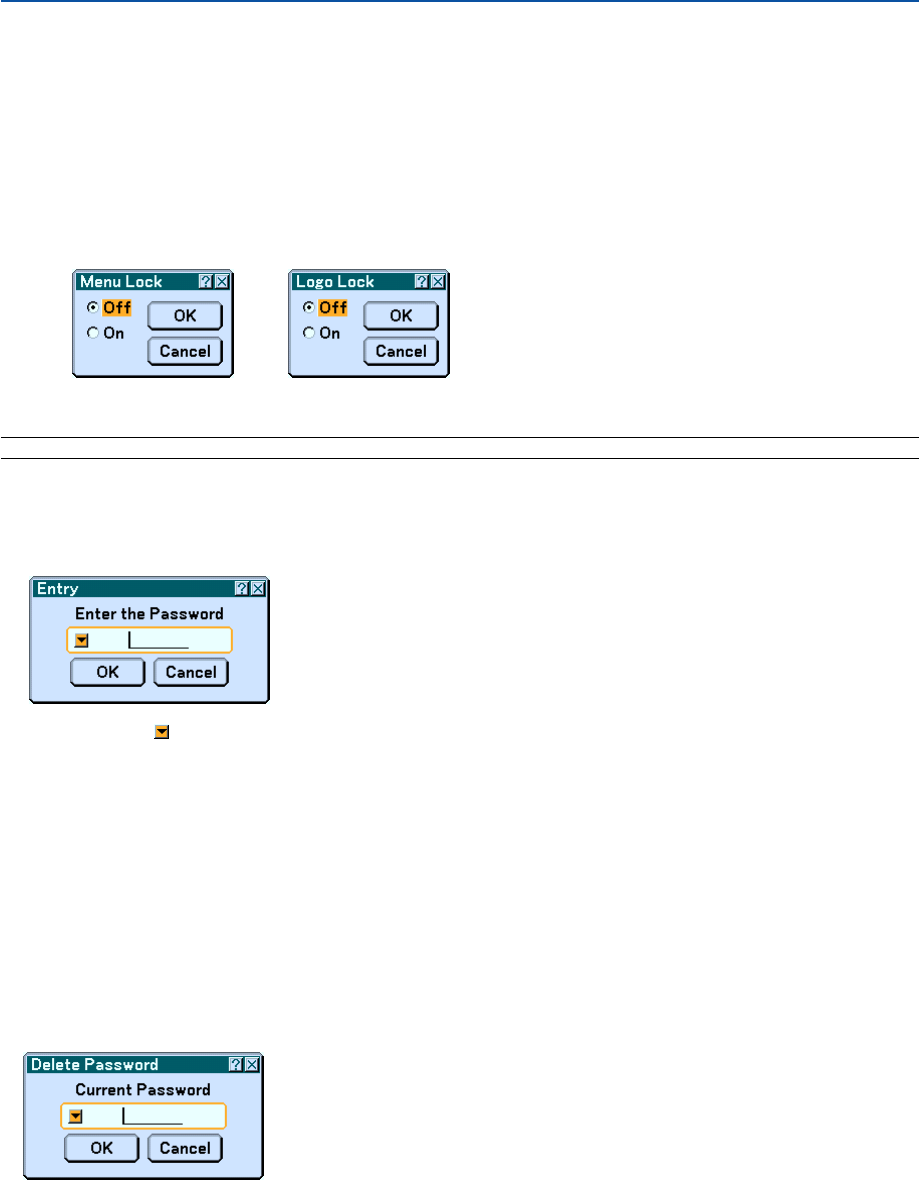

[Security] ............................................................................................................... 79

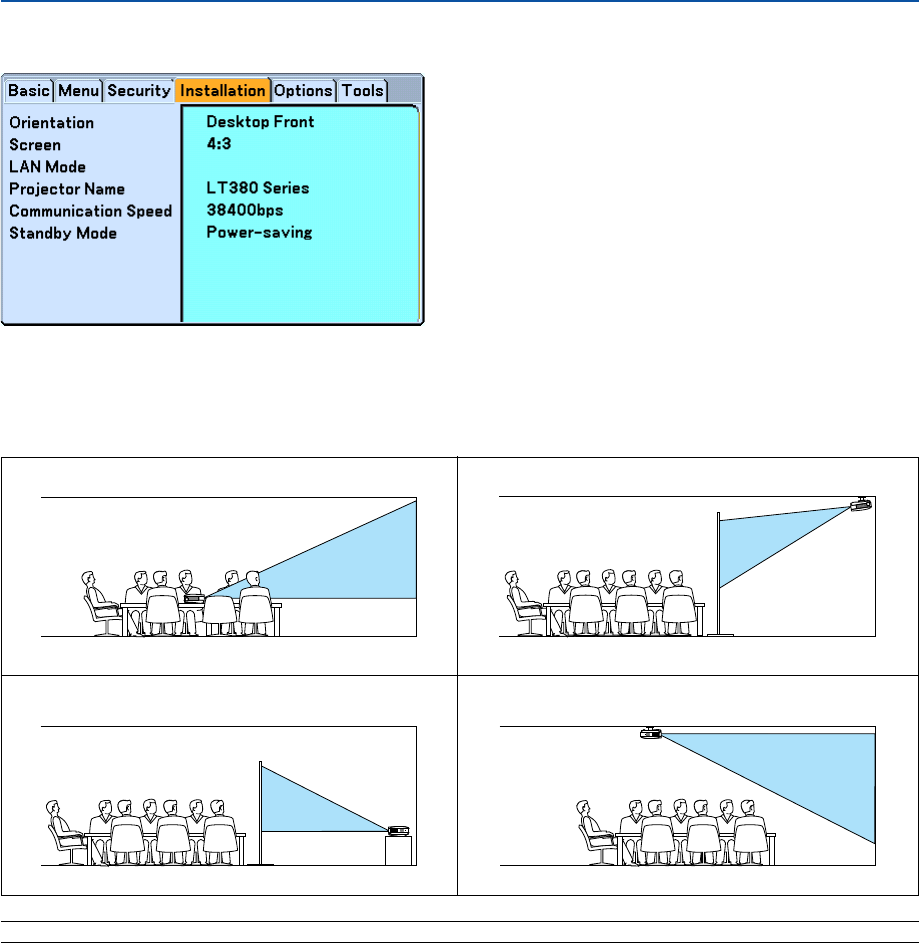

[Installation] ........................................................................................................... 84
[Options]................................................................................................................ 94

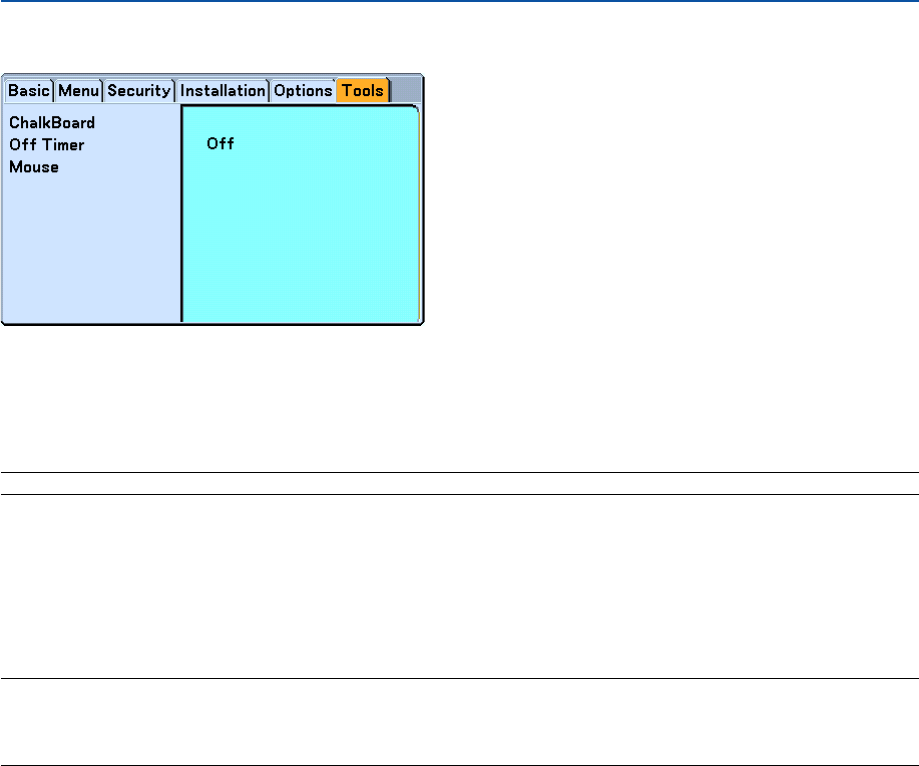

[Tools].................................................................................................................... 96
Menu Descriptions & Functions [Information] ............................................................. 97

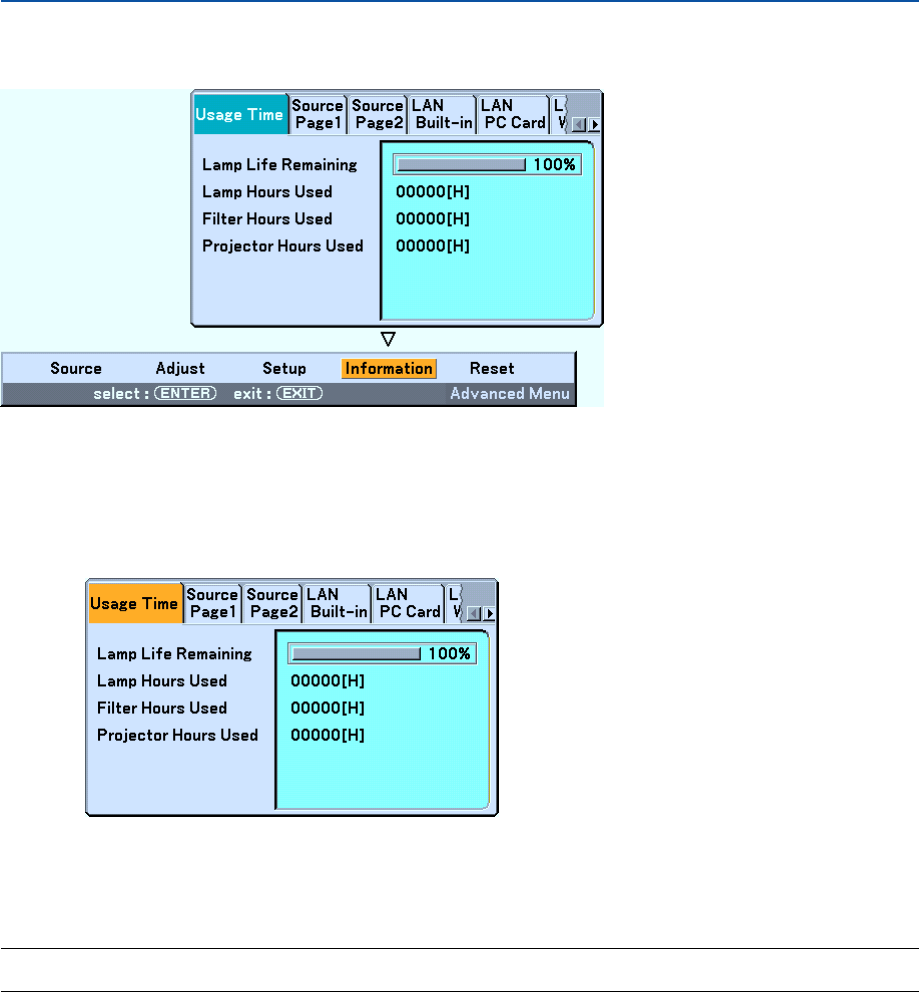

[Usage Time] ......................................................................................................... 97

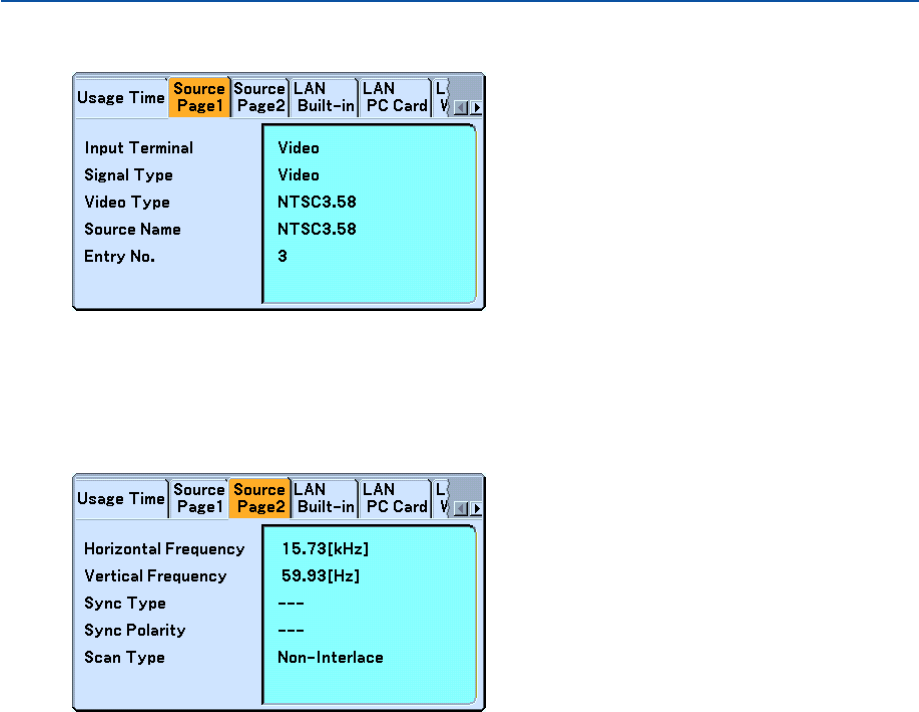

[Source Page1] ..................................................................................................... 98
[Source Page2] ..................................................................................................... 98

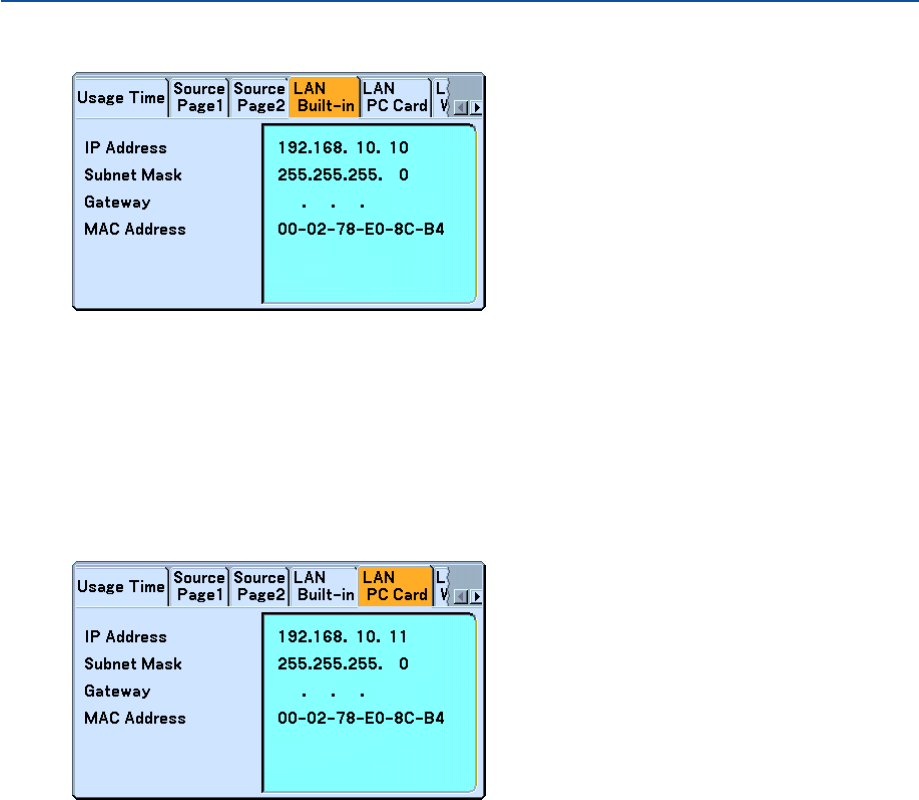

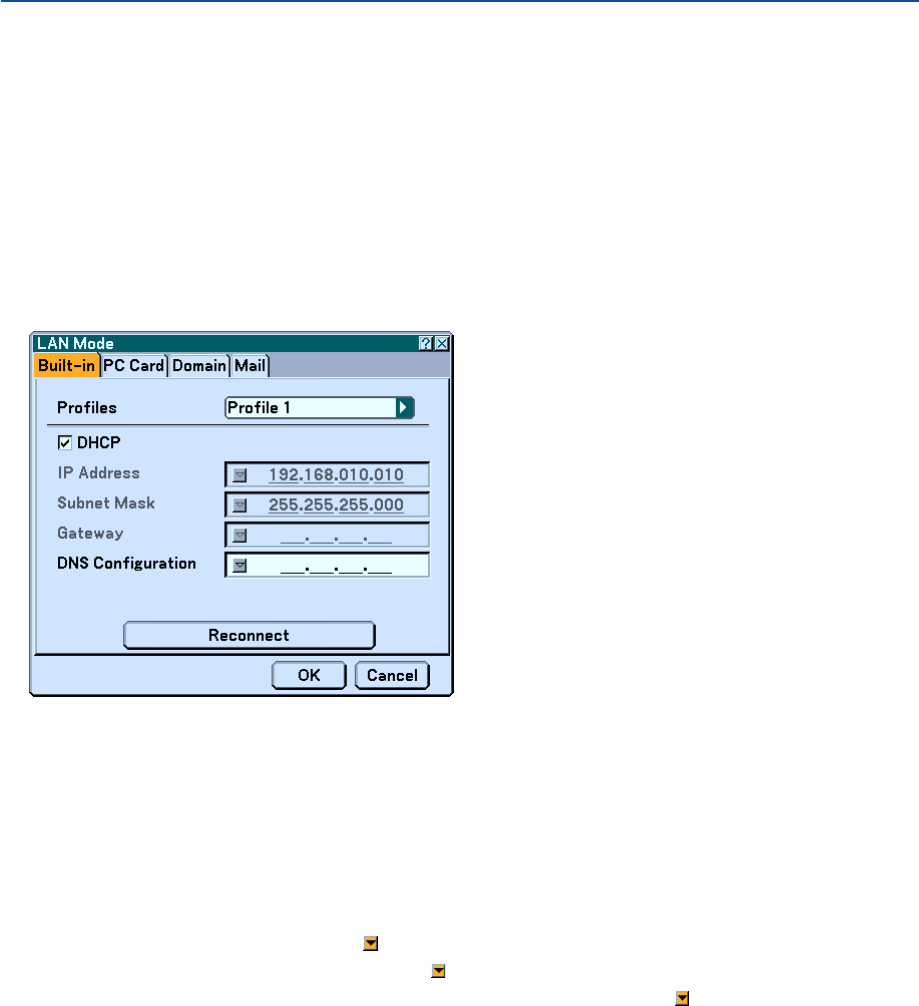

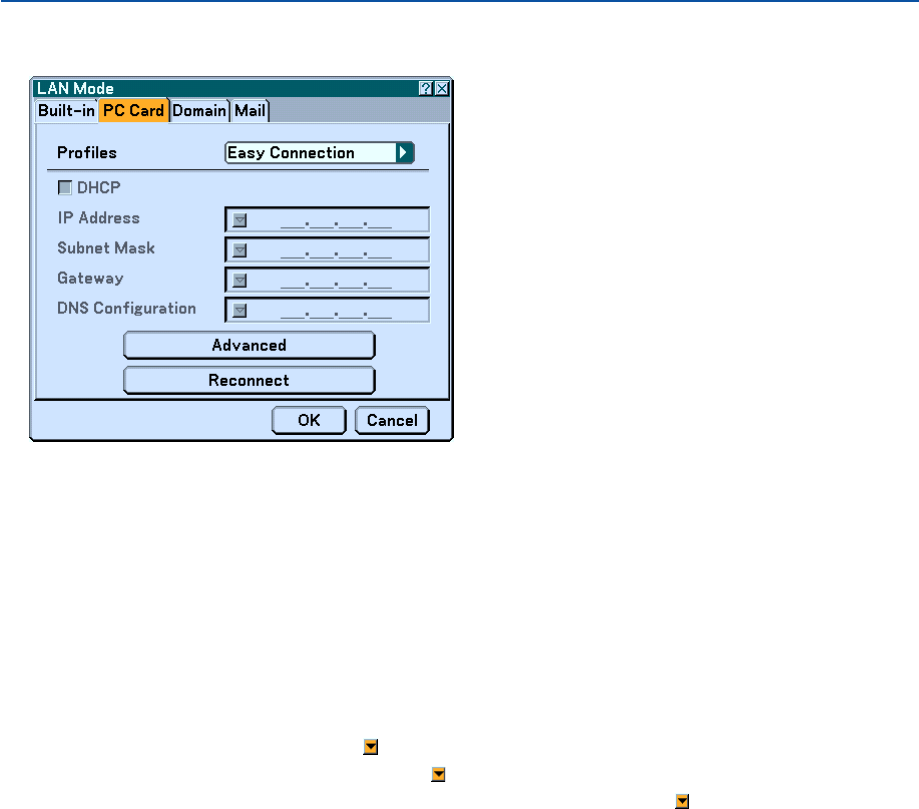

[LAN Built-in] ......................................................................................................... 99
[LAN PC Card] ...................................................................................................... 99

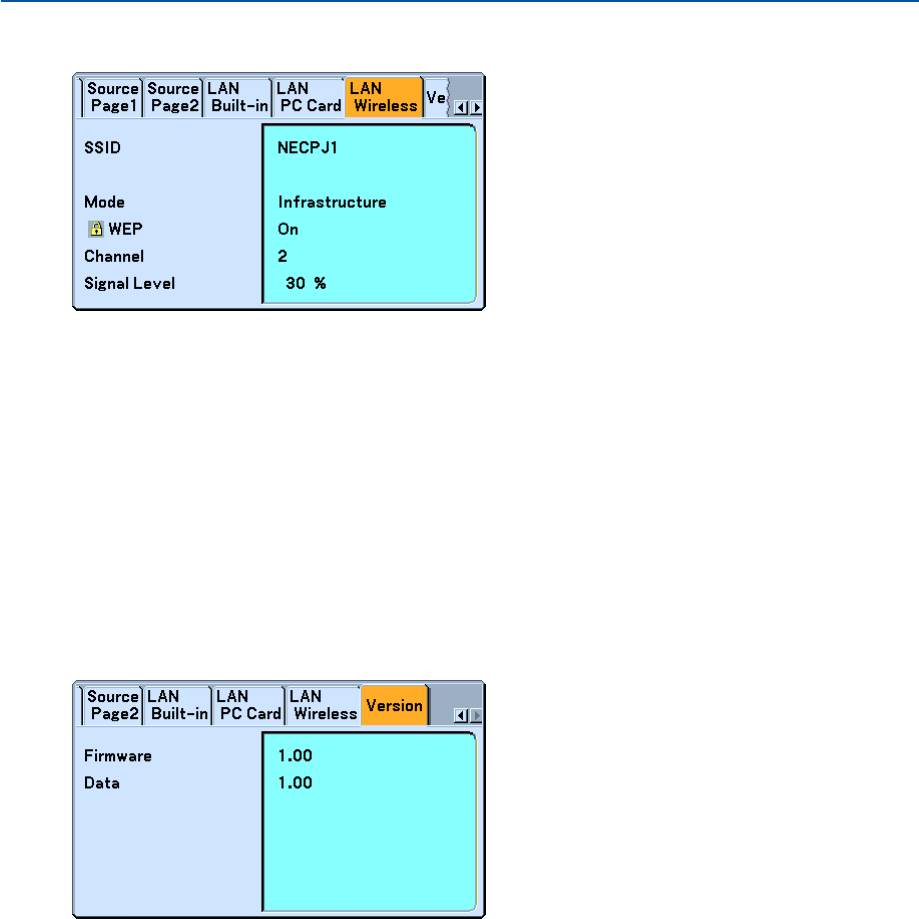

[LAN Wireless] .................................................................................................... 100
[Version] .............................................................................................................. 100

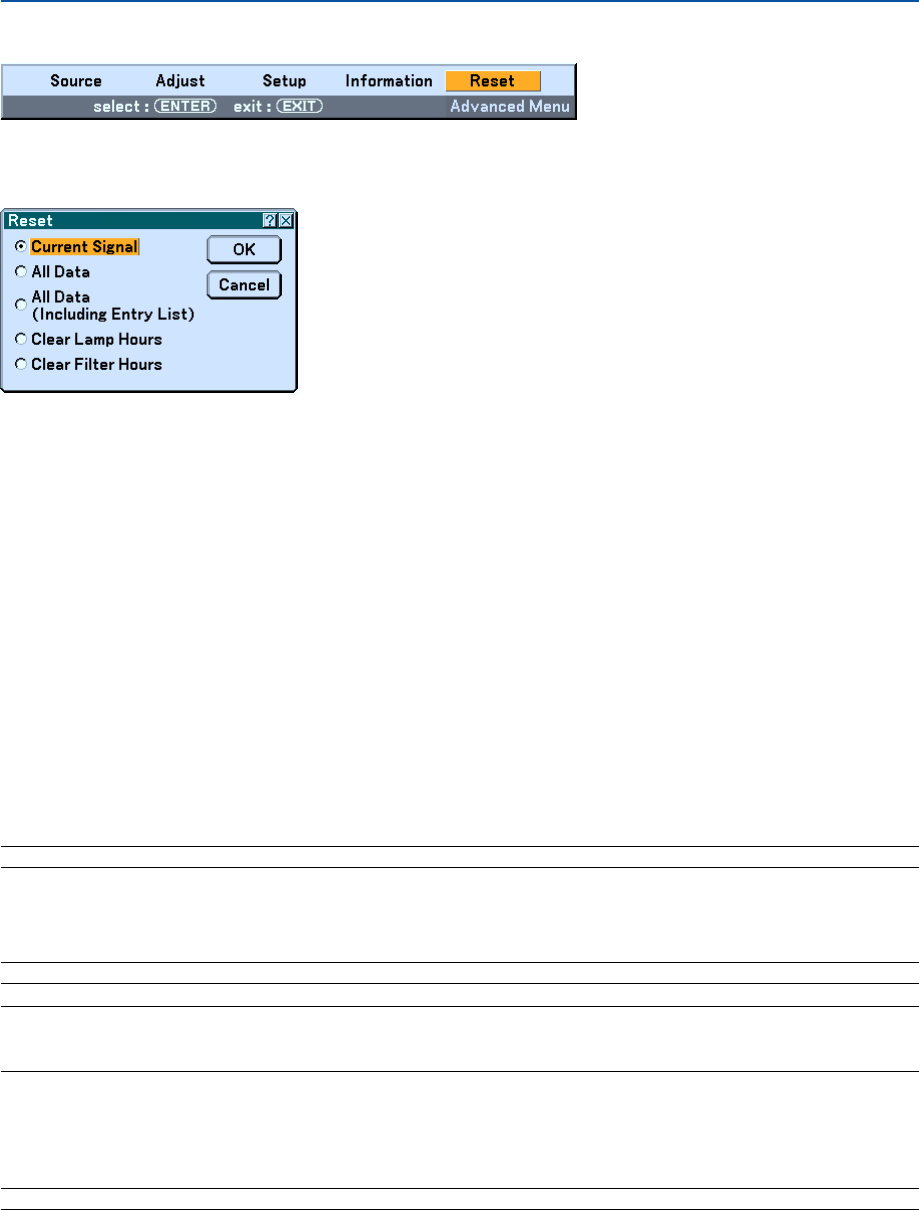

Menu Descriptions & Functions [Reset] ................................................................... 101
Returning to Factory Default ............................................................................... 101
7. Maintenance ................................................................................................... 102
Cleaning or Replacing the Filter ............................................................................... 102
Cleaning the Cabinet and the Lens .......................................................................... 103
Replacing the Lamp.................................................................................................. 104
8. Appendix............................................................................................................ 107
Troubleshooting ........................................................................................................ 107
Specifications ........................................................................................................... 110

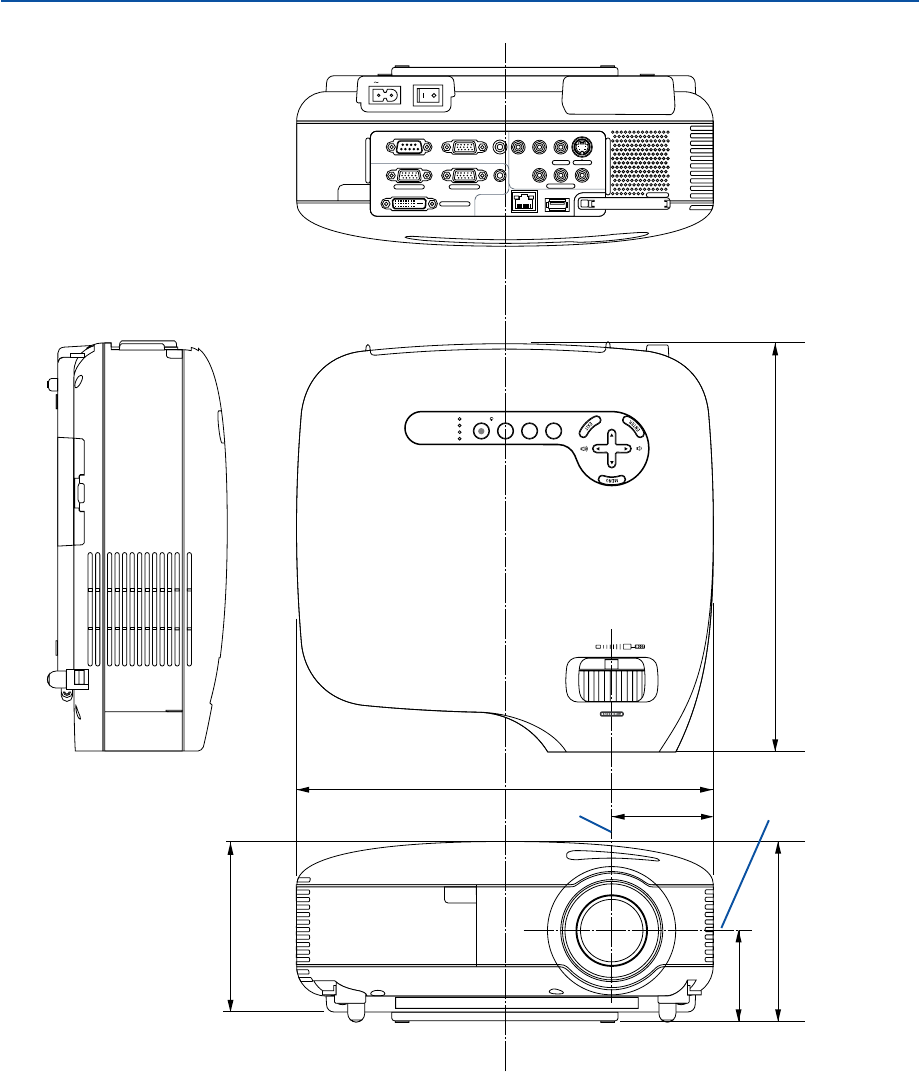

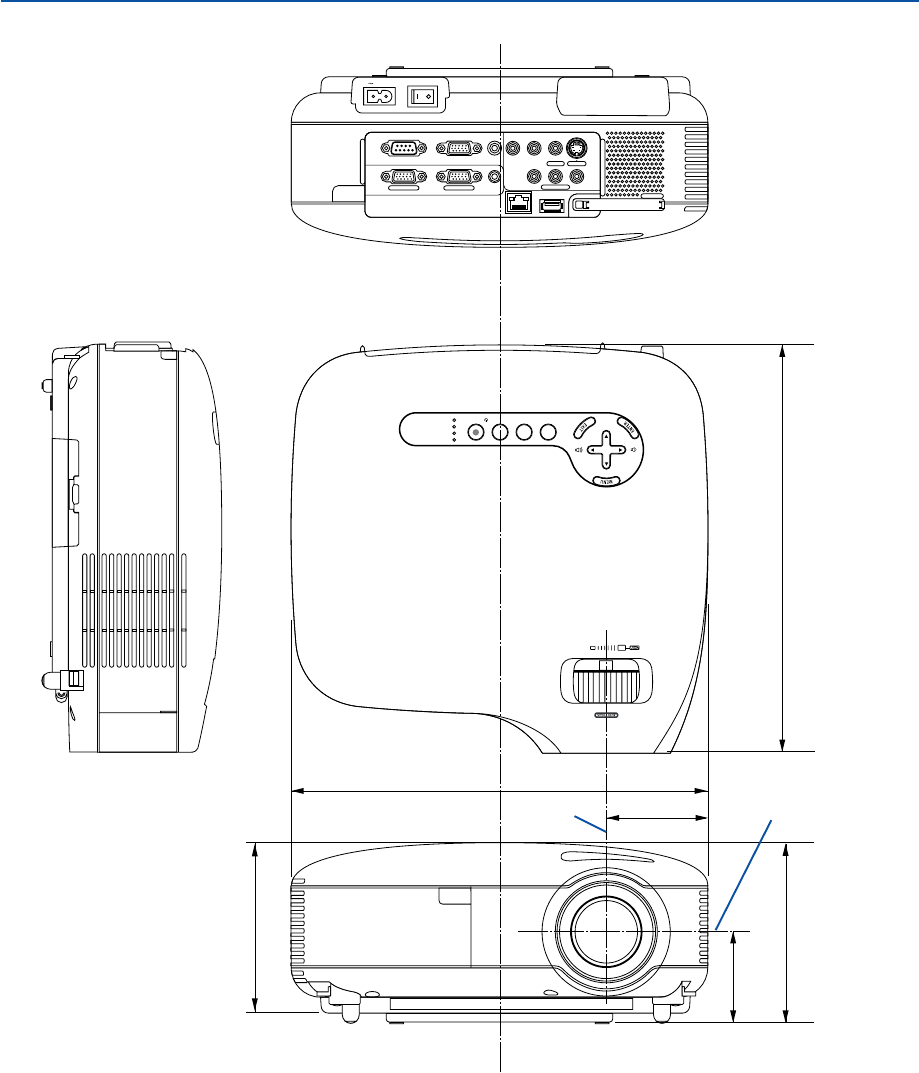

Cabinet Dimensions ................................................................................................. 112

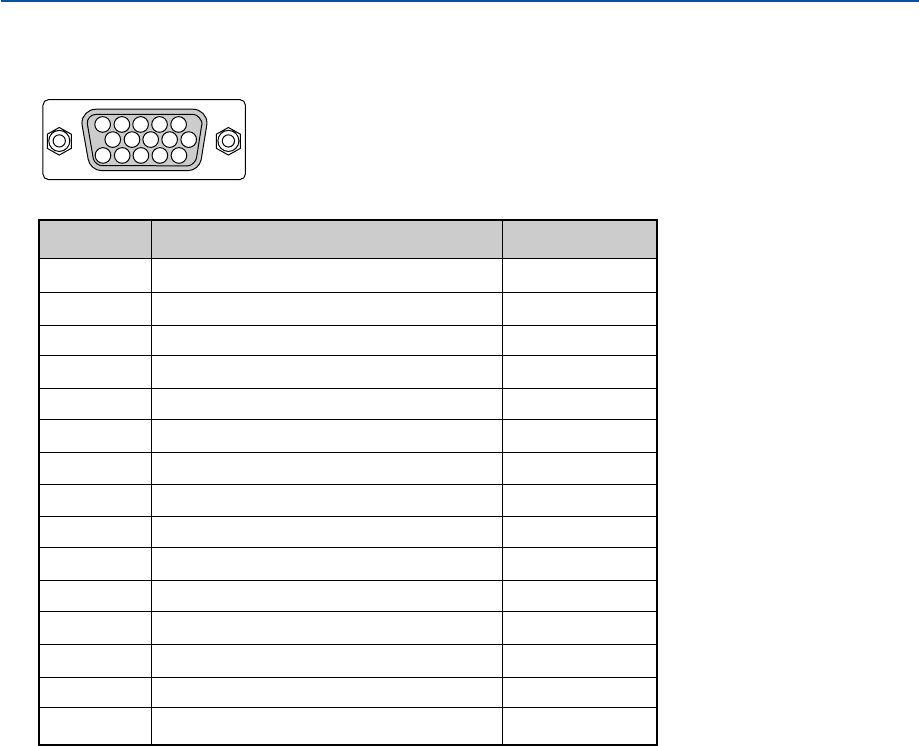

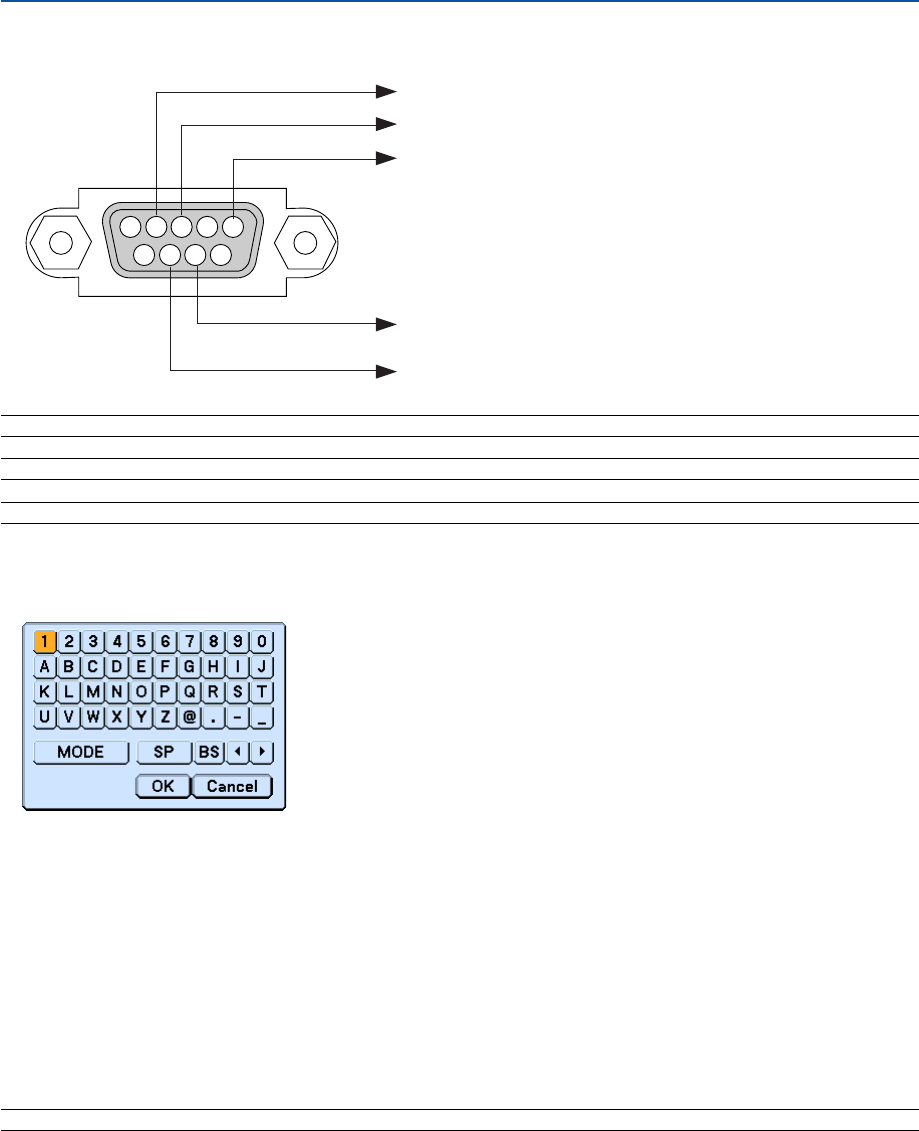

Pin Assignments of D-Sub COMPUTER 1/2 Input Connector.................................. 114
Compatible Input Signal List ..................................................................................... 115
PC Control Codes and Cable Connection ................................................................ 116

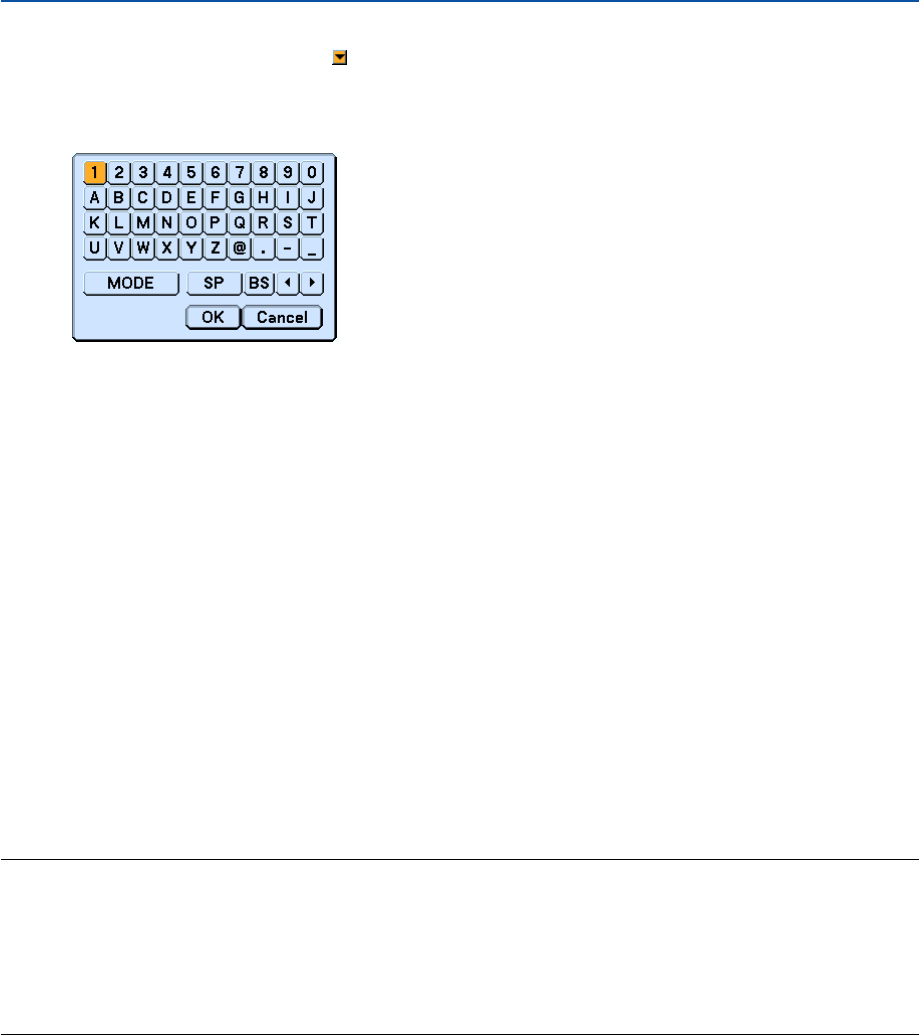

Using Software Keyboard ......................................................................................... 117

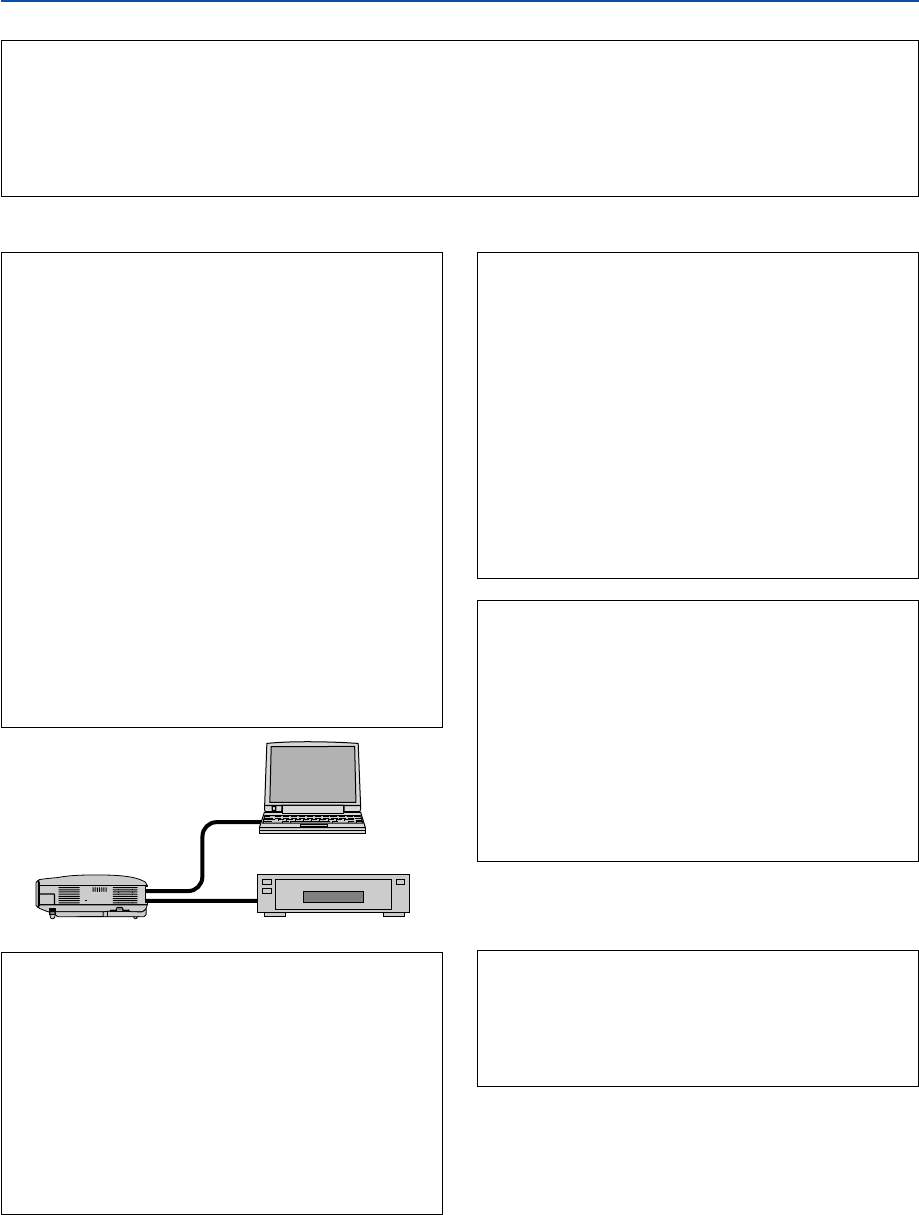

Troubleshooting Check List ...................................................................................... 118
TravelCare Guide ..................................................................................................... 120
Table of Contents
1
1. Introduction
What's in the Box?
Make sure your box contains everything listed. If any pieces are missing, contact your dealer.
Please save the original box and packing materials if you ever need to ship your Projector.
PC CARD
LAMP
STATUS
POWER
SOURCE
AUTO ADJUST
3D REFORM ON/STAND BY
SELECT
OFF
VIDEO
S-VIDEO
VIEWER
LAN
COMPUTER
COMPONENT
ON
POWER
POWER
LASER
3D REFORM
AUTO ADJ.
ASPECT
HELP
PIC-MUTE
LAMP MODE
R-CLICK
L-CLICK
MOUSE
FREEZE
VOLUMEMAGNIFYPAGE
SELECT
3
12
UP
DOWN
Projector
Lens cap
(24F41091)
Soft case
(24BS7561)
Remote control
(7N900691)
Batteries (AA x 2) Remote mouse receiver
(7N900721)
Power cable
(7N080220) US
(7N080007) EU
VGA signal cable
(7N520054)
CD-ROM
User’s manual and User Supportware 3
For North America only
Registration card
Limited warranty
For Europe only
Guarantee policy
•Security sticker
•PC card lock (24F41391)
Screw x 1 (24V00281)
2
1. Introduction
Introduction to the Projector
This section introduces you to the LT380/LT280 projector and describes key features and controls.
Congratulations on Your Purchase of the Projector
The LT380/LT280 is a sophisticated XGA projector that produces an enhanced display. With the LT380/LT280 you will
be able to project images up to 300” (measured diagonally). Enjoy crisp and sharp large screen display from your PC,
workstation or Macintosh computer, DVD player, VCR, satellite hookup, HDTV source, ) and images from your digital
camera PC Card, compact flash memory or USB storage device. The LT380/LT280 provides for enhanced security
options to help deter projector theft and provides for full projector control through the PC control port (mini D-Sub 9
Pin) and LAN support. With input and output flexibility, long lamp life and a full function remote, the LT380/LT280 lets
you enjoy larger than life viewing from a compact and easy to setup and use projector.
Features you’ll enjoy :
•Quick start & quick cool down
15 seconds after turning on the power, the projector is ready to display PC or video images.
Powering down; The fans stop 30 seconds after turning off the power from the remote control or cabinet control
panel. The projector can be put away immediately after the projector is powered down.
•Automatic vertical keystone correction for fast and easy application setup.
•3D Reform™ enhanced image technology for increased projector placement versatility that provides for horizon-
tal, vertical and diagonal keystone correction.

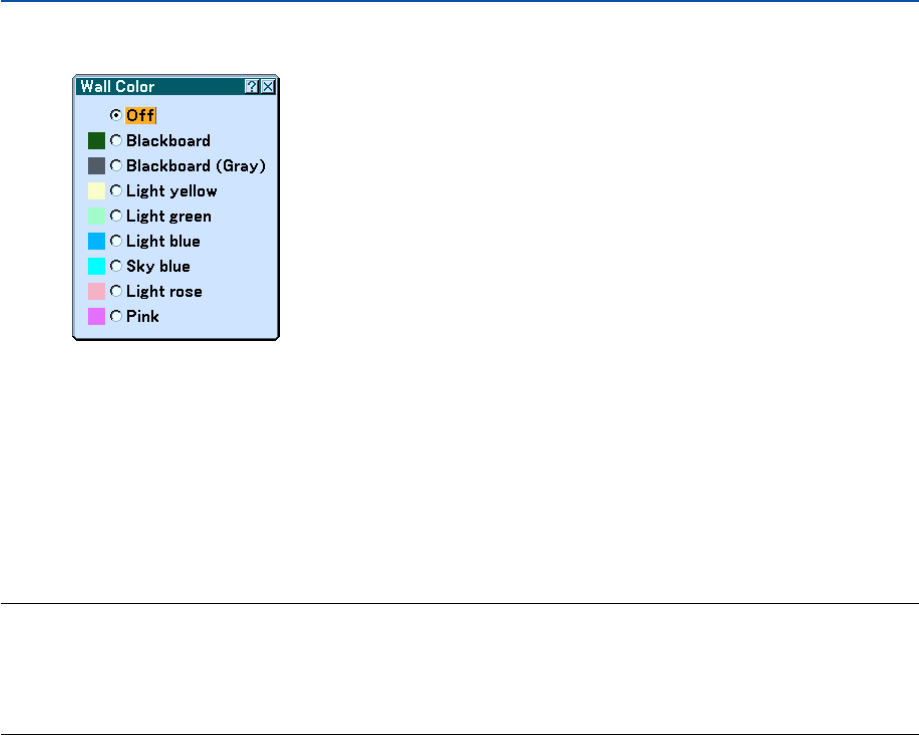

•Built-in Wall Color Correction presets provide for adaptive color correction when projecting onto non-white screen
material (or a wall).
•USB memory or PC card interfaces provide for computer-free presentations.
•Enhanced smart security settings for password protection, cabinet control panel lock, menu lock and PC card
protection key to help prevent unauthorized access, adjustments and theft deterrence.
• High resolution display - up to UXGA compatible, XGA native resolution.
•Variable audio out control of external amplified speakers via the projector remote.
•Extensive user adjustable picture and color management settings.

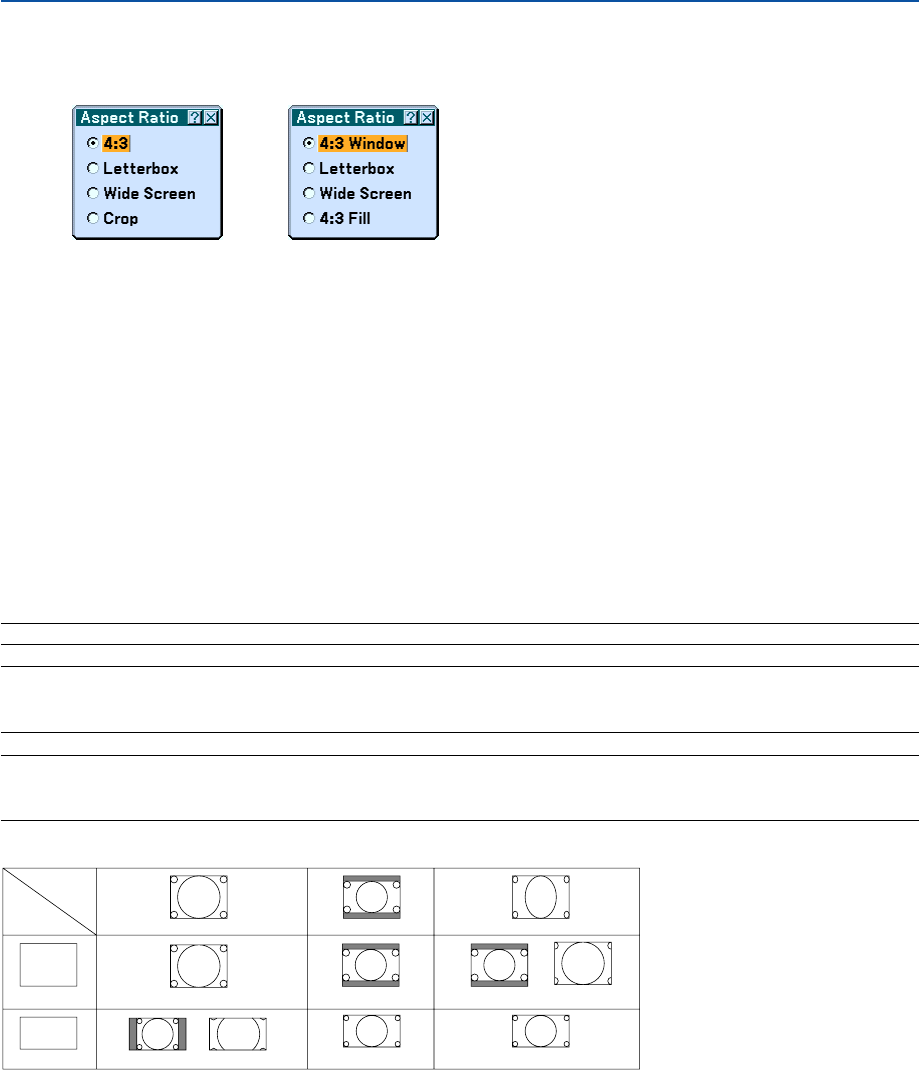

•Display 16:9 or 4:3 aspect ratio sources and fill the screen.
•HDTV (1080i, 720p) and SDTV (480p/576p, 480i/576i) compatibility.
•Digital photo viewer to display larger than life images from your digital cameras PC card, compact flash card or
USB storage device.
•Integrated RJ-45 connector for wired networking capability.

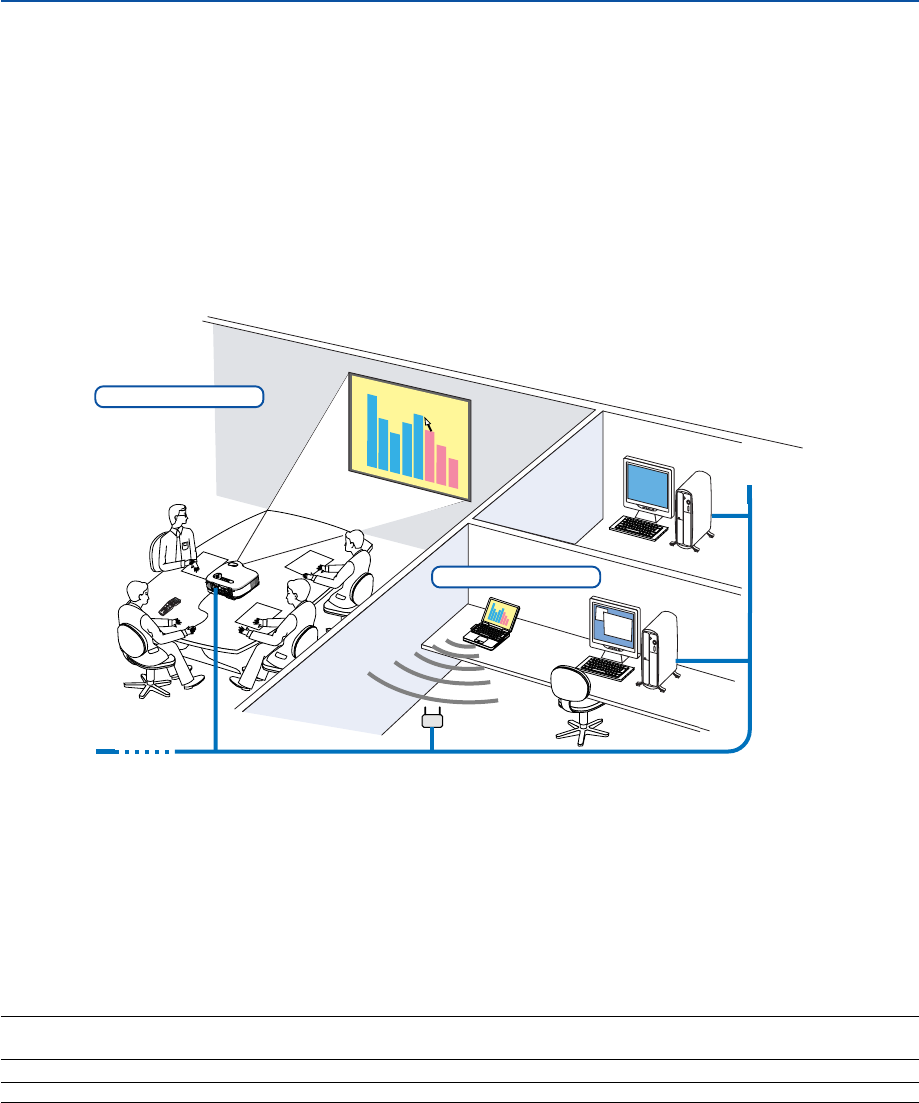

•Wireless networking capable.
Present from anywhere in the room when using as a wireless LAN projector, no physical signal cable connection
to a PC is required.
* The NEC optional wireless LAN card is required (NWL-100* See page 86).
•Supplied User Supportware 3 CD-ROM containing five software utilities allowing you to make the most of your
NEC projector.
•The supplied wireless remote control and remote mouse receiver allows you to operate your PC mouse from
across the room. The remote mouse receiver supports most PCs with USB interface.
•Easy set up, use and operation.
•Eco-mode lamp technology for increased lamp life, reduced energy consumption and overall total cost of owner-
ship savings.
•Built-in laser pointer on the supplied remote control allows you to draw your audience's attention in a presentation.
3
•Free downloadable Software Geometric Correction Tool 3.0.
Corrects the geometry of an image projected onto a cylindrical, spherical or corner screen via serial connection.
For additional information visit:
US : http://www.necvisualsystems.com
Europe : http://www.neceurope.com/
Global : http://www.nec-pj.com/
About this user's manual
The fastest way to get started is to take your time and do everything right the first time. Take a few minutes now to
review the user's manual. This may save you time later on. At the beginning of each section of the manual you'll find an
overview. If the section doesn't apply, you can skip it.
1. Introduction
4
1. Introduction
Part Names of the Projector
PC CARD
LAMP
STATUS
POWER
SOURCE
AUTO ADJUST
3D REFORMON/STAND BY
SELECT
Controls
(
→
page 6)
Built-in Security Slot ( )*
Ventilation (inlet)
Lens
Lens Cap
Adjustable Tilt Foot
(
→
page 27)
Remote Sensor
(
→
page 9)
Focus Ring
(
→
page 28)
Zoom Lever
(
→
page 28)
Adjustable Tilt Foot Lever
(
→
page 27)
*This security slot supports the MicroSaver® Security System. MicroSaver® is a registered trademark of Kensington
Microware Inc. The logo is trademarked and owned by Kensington Microware Inc.

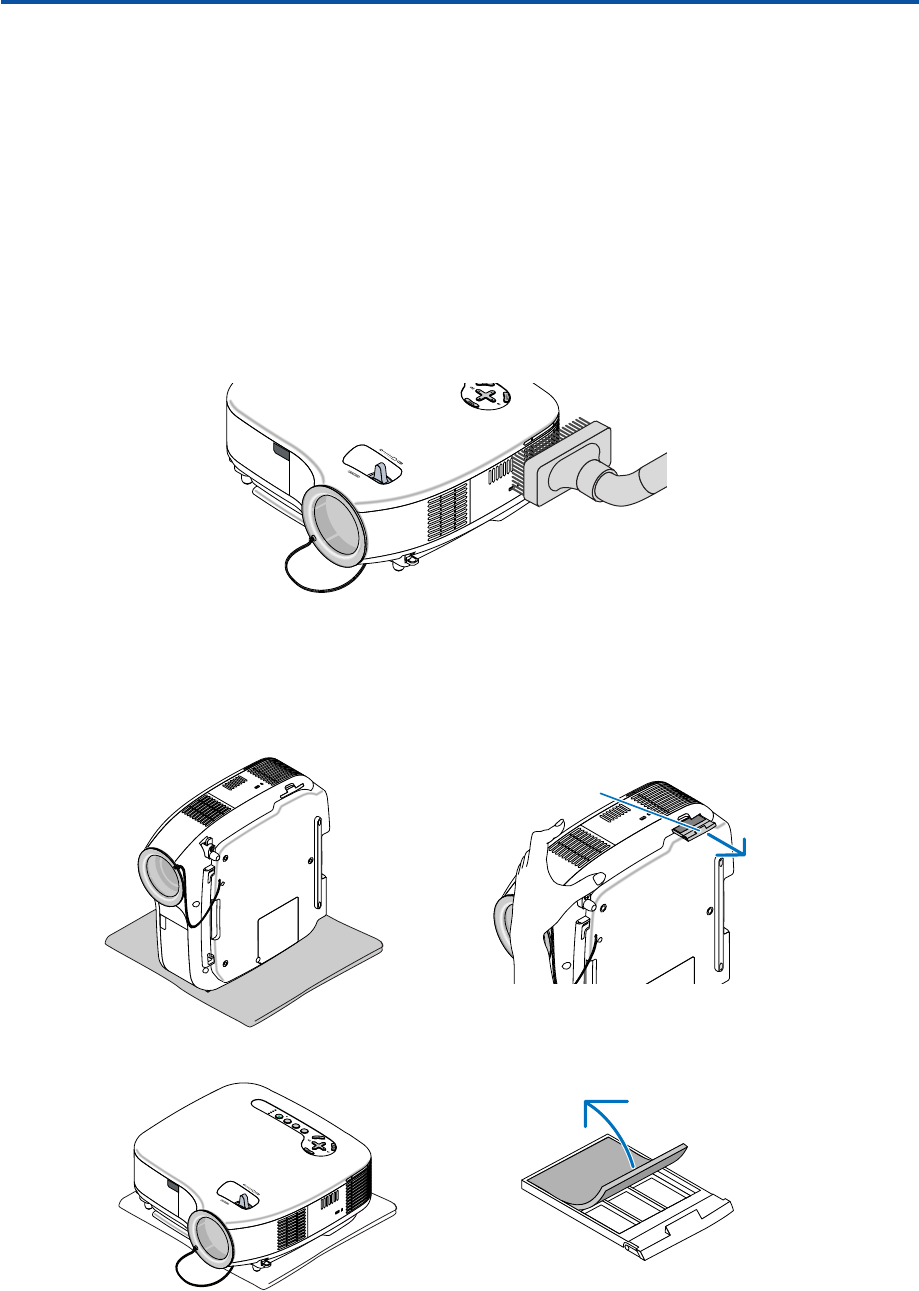

Carrying the Projector
Always carry your projector by the handle.
Ensure that the power cable and any other cables connecting to video sources are disconnected before moving the
projector.
When moving the projector or when it is not in use, cover the lens with the lens cap.
Ventilation (inlet)
Adjustable Tilt Foot
(
→
page 27)
Carrying Handle
Front/Top
Filter
NOTE: To stand the projector on its end, do so by holding the cabinet, not by holding the carrying handle.
Doing so can cause damage to the carrying handle.
5
1. Introduction
PC CARD
COMPONENT IN
USBLAN
AUDIO IN
COMPUTER 3 IN
COMPUTER 1 IN COMPUTER 2 IN
PC CONTROL
MONITOR OUT
AUDIO OUT
S-VIDEO IN VIDEO IN
AUDIO IN
Cb/Pb
L/MONOR
YCr/Pr
PC CARD
LAMP
STATUS
POWER
ON/STAND BY
SOURCE
AUTO ADJUST
3D REFORM
SELECT
Monaural Speaker (1W)
AC Input
Connect the supplied power cable's two-pin plug here, and
plug the other end into an active wall outlet.
(
→
page 23)
Main Power Switch
When you plug the supplied power cable into an active
wall outlet and turn on the Main Power switch, the
POWER indicator turns orange and the projector is in
standby mode.
(
→
page 24)
Remote Sensor
(
→
page 9)
PC Card Slot
PC Card Eject Button
Lamp cover
(
→
page 104)
Ventilation (outlet)
Heated air is exhausted from
here.
Rear
Bottom
Te r minal Panel
(
→
page 7)
Adjustable Tilt Foot
(
→
page 27)Adjustable Tilt Foot Lever
(
→
page 27)
Adjustable Tilt Foot Lever
(
→
page 27)
Threaded screw hole for
PC card lock
6
1. Introduction
Top Features
PC CARD
LAMP
STATUS
POWER
ON/STAND BY
SOURCE
AUTO ADJUST
3D REFORM
SELECT
12
145
23
678
11
10
9
1. POWER Button (ON / STAND BY) (→ page 24, 33)
NOTE: To turn on the projector, press and hold this button
for a minimum of two seconds. To turn off the projector,
press this button twice.
2. POWER Indicator ( ) (→ page 24, 33, 107)
3. STATUS Indicator (→ page 107)
4. LAMP Indicator (→ page 104, 107)
5. PC CARD Access Indicator (→ page 22)
6. SOURCE Button
7. AUTO ADJUST Button (→ page 31)
8. 3D REFORM Button (→ page 29, 38)
9. MENU Button
10. SELECT 왖왔왗왘 (+) (–) / Volume Buttons
11. ENTER Button
12. EXIT Button
7
1. Introduction
Te r minal Panel Features
PC CARD
COMPONENT IN
USB LAN
AUDIO IN
COMPUTER 3 IN
COMPUTER 1 IN COMPUTER 2 IN
PC CONTROL
MONITOR OUT
AUDIO OUT
S-VIDEO IN VIDEO IN
AUDIO IN
Cb/Pb
L/MONO R
YCr/Pr
14
3
2
11
569 108
7
1
4
13 1215
1. COMPUTER 1 IN/Component Connector (Mini D-
Sub 15 Pin) (→ page 13, 15, 16)
2. COMPUTER 2 IN/Component Connector (Mini D-
Sub 15 Pin) (→ page 13, 16)
3. COMPUTER 3 IN Connector (DVI-D 24 Pin) (HDCP
compatible) (→ page 14) (Not available on LT280)
4. AUDIO IN (Stereo Mini Jack) (→ page 13, 14, 16)
5. MONITOR OUT Connector (Mini D-Sub 15 Pin) (→
page 16)
6. AUDIO OUT (Stereo Mini Jack) (→ page 16)
7. COMPONENT IN (Y, Cb/Pb, Cr/Pr) Connectors
(RCA) (→ page 17)
8. S-VIDEO IN Connector (Mini DIN 4 Pin) (→ page
18)
9. VIDEO IN Connector (RCA) (→ page 18)
10. AUDIO L/MONO, R (RCA) (→ page 17, 18)
11. PC CONTROL Port (Mini D-Sub 9 Pin) (→ page 116,
117)
Use this port to connect your PC or control system to
control your projector via a serial cable. This enables
you to control the projector using serial communica-
tion protocol. A commercially available RS232C cross
cable is required to use this port. You can also control
the projector by using PC Control Utility 3.0 contained
on the supplied User Supportware 3 CD-ROM. To do
so you must first have PC Control Utility 3.0 installed
on your PC. If you are writing your own program, typi-
cal PC control codes are on page 116.
12. LAN Port (RJ-45) (→ page 19, 48)
13. USB Port (Type A) (→ page 35, 47)
14. PC CARD Eject Button (→ page 22)
15. PC CARD Slot (→ page 21)
(LT380 only)
The actual appearance of the terminal panel may differ slightly from that shown in the drawing, but this does not affect
the projector's performance.
8
1. Introduction
쐏 Part Names of the Remote Control
4. LED
Flashes when any button is pressed.
5. POWER ON Button (→ page 24)
NOTE: To turn on the projector, press and hold the POWER
ON button for a minimum of two seconds.
6. POWER OFF Button (→ page 33)
NOTE: To turn off the projector, press the POWER OFF but-
ton twice.
7. COMPUTER 1 Button (→ page 26)
8. COMPUTER 2 Button (→ page 26)
9. COMPUTER 3 Button (→ page 26)
(Not available on LT280)
10. VIDEO Button (→ page 26)
11. S-VIDEO Button (→ page 26)
12. COMPONENT Button (→ page 26)
13.VIEWER Button (→ page 26)
14. LAN Button (→ page 26)
15. MENU Button
16. SELECT 왖왔왗왘 Button
17. ENTER Button
18. EXIT Button
19. LASER Button (→ page 32)
20. MOUSE R-CLICK Button (→ page 37)
21. MOUSE L-CLICK Button (→ page 37)
22. FREEZE Button (→ page 34)
23. ASPECT Button (→ page 74)
24. VOLUME +/– Buttons (→ page 31)
25. PICTURE Button (→ page 69, 71)
26. PIC-MUTE Button (→ page 34)
27. MAGNIFY +/– Buttons (→ page 34)
28. LAMP MODE Button (→ page 34)
29. AUTO ADJ. Button (→ page 31)
30. PAGE UP/DOWN Buttons (→ page 37)
31. 3D REFORM Button (→ page 29, 38)
32. HELP Button (→ page 35)
LASER
3D REFORM
AUTO ADJ.
ASPECT
HELP
PIC-MUTE
LAMP MODE
R-CLICKL-CLICK
MOUSE
FREEZE
VOLUME MAGNIFY PAGE
SELECT
M
E
N
U
E
N
T
E
R
E
X
I
T
OFF
VIDEO
S-VIDEO
VIEWER
LAN
COMPUTER
COMPONENT
ON
POWERPOWER
3
12
UP
DOWN
5
8
9
4
6
7
10
11
12
13
14
21
23
22
24
25
26
27
20
29
30
31
32
28
19
15
16
17 18
OFF
VIDEO
S-VIDEO
VIEWER
LAN
COMPUTER
COMPONENT
ON
POWER
POWER
R
3
12
SELECT
1
2
3
1. Infrared Transmitter
2. Laser Pointer
CAUTION:
* Do not look into the laser pointer while it is on.
* Do not point the laser beam at a person.
3. Remote jack
(Not available on this model)
9
1. Introduction
30°
30°
30°
30°
Battery Installation
1Press the catch and remove
the battery cover.
2Install new ones (AA). Ensure
that you have the batteries' po-
larity (+/–) aligned correctly.
3Slip the cover back over the bat-
teries until it snaps into place.
NOTE: Do not mix different types of
batteries or new and old batteries.
Remote sensor on projector cabinet
7m/22 feet
•The infrared signal operates by line-of-sight up to a distance of about 22 feet/7 m and within a 60-degree angle of
the remote sensor on the projector cabinet.
•The projector will not respond if there are objects between the remote control and the sensor, or if strong light falls
on the sensor.
Weak batteries will also prevent the remote control from properly operating the projector.
Remote Control Precautions
•Handle the remote control carefully.
• If the remote control gets wet, wipe it dry immediately.
•Avoid excessive heat and humidity.
•Do not heat, take apart, or throw batteries into fire.
•If you will not be using the remote control for a long time, remove the batteries.
•Ensure that you have the batteries' polarity (+/–) aligned correctly.
•Do not use new and old batteries together, or use different types of batteries together.
•Dispose of used batteries according to your local regulations.
Operating Range for Wireless Remote Control
2
1
2
1
Remote control
7m/22 feet
10
This section describes how to set up your projector and how to connect PCs, video and audio sources.
2. Installation and Connections
Setting Up the Screen and the Projector
The further your projector is from the screen or wall, the larger the image. The minimum size the image can be is
approximately 21 inches (0.5 m) measured diagonally when the projector is roughly 28 inches (0.7 m) from the wall or
screen. The largest the image can be is 300 inches (7.6 m) when the projector is about 390 inches (10 m) from the wall
or screen. Use the drawing below as a guide.
Selecting a Location
Your projector is simple to set up and use.
But before you get started, you must first:
zSet up a screen and the projector.
xConnect your computer or video equip-
ment to the projector. See pages 13 -
22.
cConnect the supplied power cable. See
page 23.
NOTE: Ensure that the power cable and any other
cables are disconnected before moving the pro-
jector. When moving the projector or when it is
not in use, cover the lens with the lens cap.
To the wall outlet.
3
2
1
Cb/Pb
Y
AC IN
SELECT
Distance
Lens center
Screen size
Screen size (Unit: cm/inch)
609.6 (W) X 457.2 (H) / 240 (W) X 180 (H)
487.7 (W) X 365.8 (H) / 192 (W) X 144 (H)
406.4 (W) X 304.8 (H) / 160 (W) X 120 (H)
365.8 (W) X 274.3 (H) / 144 (W) X 108 (H)
304.8 (W) X 228.6 (H) / 120 (W) X 90 (H)
243.8 (W) X 182.9 (H) / 96 (W) X 72 (H)
203.2 (W) X 152.4 (H) / 80 (W) X 60 (H)
162.6 (W) X 122.0 (H) / 64 (W) X 48 (H)
121.9 (W) X 91.4 (H) / 48 (W) X 36 (H)
81.3 (W) X 61.0 (H) / 32 (W) X 24 (H)
51.0 (W) X 38.1 (H) / 20 (W) X 15 (H)
300"
240"
200"
180"
150"
120"
100"
60"
80"
10.0/393.7
8.0/315.0
6.6/259.8
6.0/236.2
5.0/196.9
4.0/157.5
3.3/129.9
2.6/102.4
1.9/74.8
1.3/
51.2
0.8/
31.5
40"
25"
Unit: m/inch
TIP:
•The screen sizes above are intermediate values between tele (minimum display area) and wide (maximum display area). Image size
can be adjusted with the zoom adjustment up to a maximum of 10%.
•To avoid premature lamp failure, do not tilt the front of the projector up or down by more than 10
°
from level.
11
D
B
C
α
2. Installation and Connections
Throw Distance and Screen Size
The following shows the proper relative positions of the projector and screen. Refer to the table to determine the
position of installation.
Distance Chart
B = Vertical distance between lens center and screen center
C = Throw distance
D = Vertical distance between lens center and screen bottom (top of screen for ceiling application)
α = Throw angle
NOTE: Distances may vary +/-5%.
α
Wide – Tele
degree
––9.2
11.2 – 9.2
11.1 – 9.0
10.8 – 8.9
10.6 – 8.7
10.5 – 8.7
10.5 – 8.7
10.5 – 8.7
10.5 – 8.6
10.4 – 8.6
10.4 – 8.6
10.4 – 8.6
10.4 – 8.6
10.3 – 8.6
10.3 – 8.6
10.3 – 8.6
10.3 – 8.5
10.3 – 8.5
inch
13
15
18
24
36
43
48
50
54
60
72
90
108
120
126
144
162
180
Screen Size B C
Wide – Tele
D
Diagonal Width Height
inch
–– 28
27 – 33
33 – 41
45 – 55
69 – 84
83 – 102
93 – 113
98 – 119
105 – 128
117 – 142
141 – 171
176 – 214
212 – 257
236 – 286
248 – 301
284 – 344
320 – 387
356 – 431
inch
-2
-2
-3
-3
-5
-6
-7
-7
-8
-8
-10
-13
-15
-17
-18
-20
-23
-25
inch
5
5
6
9
13
16
17
18
19
22
26
32
39
43
45
52
58
65
inch
21
25
30
40
60
72
80
84
90
100
120
150
180
200
210
240
270
300
inch
17
20
24
32
48
58
64
67
72
80
96
120
144
160
168
192
216
240
LT380
α
Wide – Tele
degree
––9.2
11.2 – 9.2
11.1 – 9.0
10.8 – 8.9
10.6 – 8.7
10.5 – 8.7
10.5 – 8.7
10.5 – 8.7
10.5 – 8.6
10.4 – 8.6
10.4 – 8.6
10.4 – 8.6
10.4 – 8.6
10.3 – 8.6
10.3 – 8.6
10.3 – 8.6
10.3 – 8.5
10.3 – 8.5
mm
320
381
457
610
914
1097
1219
1280
1372
1524
1829
2286
2743
3048
3200
3658
4115
4572
Screen Size B C
Wide – Tele
D
Diagonal Width Height
mm
–– 710
690 – 850
840 – 1040
1150 – 1400
1750 – 2140
2120 – 2580
2360 – 2870
2480 – 3020
2660 – 3240
2970 – 3600
3570 – 4340
4480 – 5440
5390 – 6540
6000 – 7270
6300 – 7640
7210 – 8740
8120 – 9840
9030 – 10940
mm
-45
-54
-64
-86
-129
-154
-171
-180
-193
-214
-257
-322
-386
-429
-450
-514
-579
-643
mm
115
137
164
219
329
394
438
460
493
548
657
821
986
1095
1150
1314
1479
1643
mm
533
635
762
1016
1524
1829
2032
2134
2286
2540
3048
3810
4572
5080
5334
6096
6858
7620
mm
427
508
610
813
1219
1463
1626
1707
1829
2032
2438
3048
3658
4064
4267
4877
5486
6096
inch
21
25
30
40
60
72
80
84
90
100
120
150
180
200
210
240
270
300
α
Wide – Tele
degree
––10.0
12.1 – 10.0
11.9 – 9.8
11.8 – 9.8
11.7 – 9.6
11.6 – 9.6
11.6 – 9.6
11.6 – 9.6
11.6 – 9.6
11.6 – 9.6
11.5 – 9.6
11.5 – 9.5
11.5 – 9.5
11.5 – 9.5
11.5 – 9.5
11.5 – 9.5
11.5 – 9.5
11.5 – 9.5
inch
13
15
18
24
36
43
48
50
54
60
72
90
108
120
126
144
162
180
Screen Size B C
Wide – Tele
D
Diagonal Width Height
inch
–– 28
28 – 34
34 – 41
46 – 56
69 – 84
83 – 102
93 – 113
98 – 119
105 – 127
117 – 141
141 – 170
176 – 213
211 – 256
235 – 285
247 – 299
283 – 342
318 – 385
354 – 428
inch
-1
-2
-2
-2
-4
-4
-5
-5
-6
-6
-7
-9
-11
-12
-13
-15
-17
-18
inch
5
6
7
10
14
17
19
20
21
24
29
36
43
48
50
57
64
72
inch
21
25
30
40
60
72
80
84
90
100
120
150
180
200
210
240
270
300
inch
17
20
24
32
48
58
64
67
72
80
96
120
144
160
168
192
216
240
LT280
α
Wide – Tele
degree
––10.0
12.1 – 10.0
11.9 – 9.8
11.8 – 9.8
11.7 – 9.6
11.6 – 9.6
11.6 – 9.6
11.6 – 9.6
11.6 – 9.6
11.6 – 9.6
11.5 – 9.6
11.5 – 9.5
11.5 – 9.5
11.5 – 9.5
11.5 – 9.5
11.5 – 9.5
11.5 – 9.5
11.5 – 9.5
mm
320
381
457
610
914
1097
1219
1280
1372
1524
1829
2286
2743
3048
3200
3658
4115
4572
Screen Size B C
Wide – Tele
D
Diagonal Width Height
mm
–– 720
710 – 860
860 – 1050
1160 – 1410
1760 – 2140
2120 – 2580
2360 – 2870
2480 – 3010
2660 – 3230
2960 – 3590
3570 – 4320
4470 – 5410
5370 – 6510
5970 – 7230
6270 – 7600
7180 – 8690
8080 – 9780
8980 – 10870
mm
-33
-39
-47
-62
-93
-112
-125
-131
-140
-156
-187
-234
-280
-311
-327
-374
-420
-467
mm
127
152
182
243
364
437
485
509
546
606
728
909
1091
1213
1273
1455
1637
1819
mm
533
635
762
1016
1524
1829
2032
2134
2286
2540
3048
3810
4572
5080
5334
6096
6858
7620
mm
427
508
610
813
1219
1463
1626
1707
1829
2032
2438
3048
3658
4064
4267
4877
5486
6096
inch
21
25
30
40
60
72
80
84
90
100
120
150
180
200
210
240
270
300
Screen center
Lens center Screen bottom
2.54”/64.5mm
Projector bottom
12
2. Installation and Connections
WARNING
*Installing your projector on the ceiling must be done
by a qualified technician. Contact your NEC dealer for
more information.
*Do not attempt to install the projector yourself.
•Only use your projector on a solid, level surface. If the
projector falls to the ground, you can be injured and
the projector severely damaged.
•Do not use the projector where temperatures vary
greatly. The projector must be used at temperatures
between 41˚F (5˚C) and 104˚F (40˚C). (Eco mode se-
lected automatically at 95° to 104°F/35° to 40°C. Op-
erational temperatures during use of wireless LAN
card: 41° to 95°F / 5° to 35°C).
•Do not expose the projector to moisture, dust, or
smoke. This will harm the screen image.
•Ensure that you have adequate ventilation around your
projector so heat can dissipate. Do not cover the vents
on the side or the front of the projector.
Reflecting the Image
Using a mirror to reflect your projector's image enables
you to enjoy a much larger image when a smaller space
is required. Contact your NEC dealer if you need a mir-
ror system. If you're using a mirror system and your im-
age is inverted, use the MENU and SELECT buttons on
your projector cabinet or your remote control to correct
the orientation. (→ page 84)
13
PC CARD
COMPONENT IN
USB LAN
AUDIO IN
COMPUTER 3 IN
COMPUTER 1 IN COMPUTER 2 IN
PC CONTROL
MONITOR OUT
AUDIO OUT
S-VIDEO IN VIDEO IN
AUDIO IN
Cb/Pb
L/MONO R
YCr/Pr
AC IN
PHONE
COMPUTER 1 IN
COMPUTER 2 IN
AUDIO IN
2. Installation and Connections
Making Connections
Connecting Your PC or Macintosh Computer
NOTE: When using with a notebook PC, be sure to connect the projector and notebook PC while the projector is in standby mode and
before turning on the power to the notebook PC.
In most cases the output signal from the notebook PC is not turned on unless connected to the projector before being powered up.
*If the screen goes blank while using your remote control, it may be the result of the computer's screen-saver or power manage-
ment software.
Enabling the computer’s external display
Displaying an image on the notebook PC’s screen does not necessarily mean it outputs a signal to the projector.
When using a PC compatible laptop, a combination of function keys will enable/disable the external display.
Usually, the combination of the ‘Fn” key along with one of the 12 function keys gets the external display to come on or
off. For example, NEC laptops use Fn + F3, while Dell laptops use Fn + F8 key combinations to toggle through external
display selections.
VGA signal cable (supplied)
To mini D-Sub 15-pin connector on the projector. It is recom-
mended that you use a commercially available distribution
amplifier if connecting a signal cable longer than the supplied
one.
Audio cable (not supplied)
IBM VGA or Compatibles (Notebook
type) or Macintosh (Notebook type)
NOTE: The COMPUTER 1 IN connector supports Plug
& Play (DDC2).
NOTE: The LT380/LT280 is not compatible with video decoded outputs of either the NEC ISS-6020 and ISS-6010 switchers.
NOTE: An image may not be displayed correctly when a Video or S-Video source is played back via a commercially available scan
converter.
This is because the projector will process a video signal as a computer signal at the default setting. In that case, do the following.

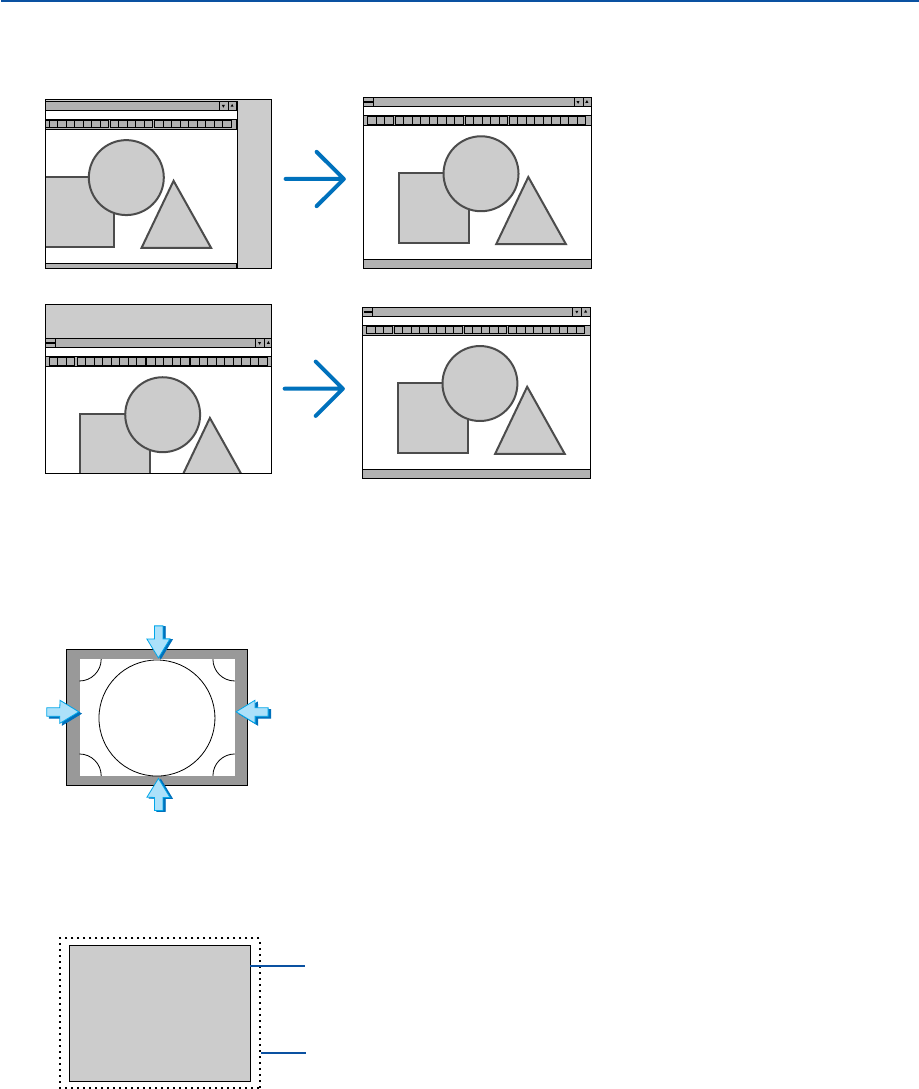

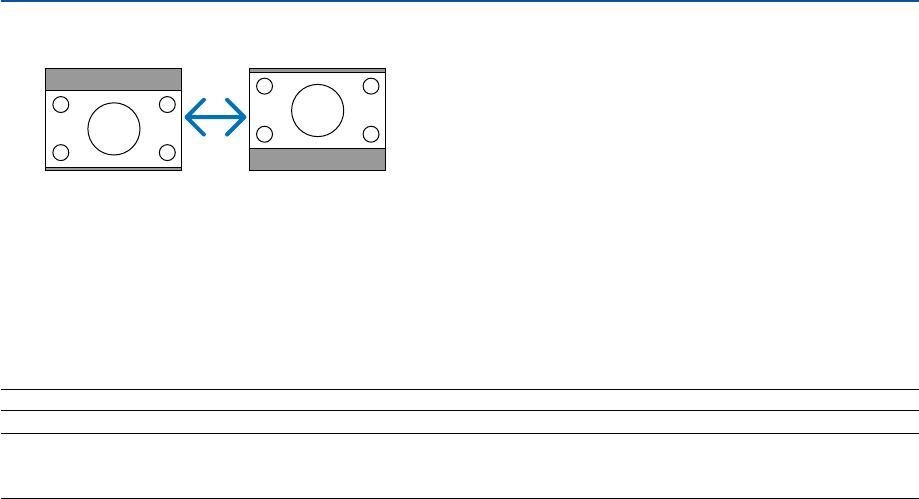

* When an image is displayed with the lower and upper black portion of the screen or a dark image is not displayed correctly:
Project an image to fill the screen and then press the AUTO ADJ button on the remote control or the AUTO ADJUST button on the
projector cabinet.
*When noise appears on the sides of the screen:
Use the Overscan feature to display the image correctly.
Be sure to change the Overscan to 0% before pressing the AUTO ADJ or AUTO ADJUST button, otherwise an image may be
displayed with its sides cut off.
NOTE: For older Macintosh, use a commercially
available pin adapter (not supplied) to connect to
your Mac's video port.
14
PC CARD
COMPONENT IN
USB LAN
AUDIO IN
COMPUTER 3 IN
COMPUTER 1 IN COMPUTER 2 IN
PC CONTROL
MONITOR OUT
AUDIO OUT
S-VIDEO IN VIDEO IN
AUDIO IN
Cb/Pb
L/MONO R
YCr/Pr
AC IN
COMPUTER 3 IN
PHONE
AUDIO IN
2. Installation and Connections
When Viewing a DVI Digital Signal (LT380 only)
To project a DVI digital signal, be sure to connect the PC and the projector using a DVI-D signal cable (not supplied)
before turning on your PC or projector. Turn on the projector first and select DVI (DIGITAL) from the source menu
before turning on your PC.
Failure to do so may not activate the digital output of the graphics card resulting in no picture being displayed. Should
this happen, restart your PC.
Do not disconnect the DVI-D signal cable while the projector is running. If the signal cable has been disconnected and
then re-connected, an image may not be correctly displayed. Should this happen, restart your PC.
NOTE:
•Use a DVI-D cable compliant with DDWG (Digital Display Working Group) DVI (Digital Visual Interface) revision 1.0 standard. The
DVI-D cable should be within 10 m (394") long.
•The DVI (DIGITAL) connector (COMPUTER 3) accepts VGA (640x480), SVGA (800x600), 1152x864, XGA (1024x768) and SXGA
(1280x1024 @ up to 60Hz).
DVI-D cable
Audio cable (not supplied)
IBM VGA or Compatibles or Macintosh
(DVI-D connector with HDCP)
What is HDCP/HDCP technology?
HDCP is an acronym for High-bandwidth Digital Content Protection. High bandwidth Digital Content Protection (HDCP)
is a system for preventing illegal copying of video data sent over a Digital Visual Interface (DVI).
If you are unable to view material via the DVI input, this does not necessarily mean the projector is not functioning
properly. With the implementation of HDCP, there may be cases in which certain content is protected with HDCP and
might not be displayed due to the decision/intention of the HDCP community (Digital Content Protection, LLC).
15
2. Installation and Connections
PC CARD
COMPONENT IN
USB LAN
AUDIO IN
COMPUTER 3 IN
COMPUTER 1 IN COMPUTER 2 IN
PC CONTROL
MONITOR OUT
AUDIO OUT
S-VIDEO IN VIDEO IN
AUDIO IN
Cb/Pb
L/MONO R
YCr/Pr
AC IN
COMPUTER 1 IN
Before connections: An exclusive SCART adapter (ADP-SC1) and a commercially available SCART cable are re-
quired for this connection.
From the menu, select [Setup] → [Options] → [Signal Select] → [Computer 1] → [Scart].
SCART is a standard European audio-visual connector for TVs, VCRs and DVD players. It is also referred to as Euro-
connector.
NOTE: Audio signal is not available for this connection.
TIP: The ADP-SC1 SCART adapter is obtainable from your NEC dealer in Europe. Contact your NEC dealer in Europe for more
information.
To connect SCART output (RGB)
Video equipment such as DVD player
Commercially available SCART cable
Female
ADP-SC1
Projector
16
AUDIO
IN
PC CARD
COMPONENT IN
USB LAN
AUDIO IN
COMPUTER 3 IN
COMPUTER 1 IN COMPUTER 2 IN
PC CONTROL
MONITOR OUT
AUDIO OUT
S-VIDEO IN VIDEO IN
AUDIO IN
Cb/Pb
L/MONO R
YCr/Pr
AC IN
AUDIO OUT
PHONE
MONITOR OUT
2. Installation and Connections
Connecting an External Monitor
You can connect a separate, external monitor to your projector to simultaneously view on a monitor the RGB analog
image you're projecting.
NOTE:
•The MONITOR OUT connector will output no sound when the projector is in standby mode.
• The MONITOR OUT connector will output no signal when [Power-saving] is selected in [Standby Mode] from the menu.
•When the projector is in the standby mode, the image may not be correctly displayed while the cooling fans are running immedi-
ately after turning on or off the power.
•The AUDIO OUT jack cannot be used as a headphone jack.
•Output sound level can be adjusted in accordance with the sound level.
• When audio equipment is connected, the projector speaker is disabled.
•Daisy chain connection is not possible.
VGA signal cable (supplied) VGA signal cable (not supplied)
Audio cable (not supplied)
Audio cable (not supplied)
17
AUDIO IN
LR
AUDIO OUT
L R
Component
YCbCr
PC CARD
COMPONENT IN
USB LAN
AUDIO IN
COMPUTER 3 IN
COMPUTER 1 IN COMPUTER 2 IN
PC CONTROL
MONITOR OUT
AUDIO OUT
S-VIDEO IN VIDEO IN
AUDIO IN
Cb/Pb
L/MONO R
YCr/Pr
AC IN
COMPONENT IN
AUDIO IN
2. Installation and Connections
You can connect a video cable to the "Y" connector of the COMPONENT connectors to display a VCR source. To do
so, from the menu, select [Setup] → [Options] → [Signal Select] → [Component] → [Video].
NOTE: Refer to your DVD player's owner's manual for more information about your DVD player's video output requirements.
Connecting Your DVD Player with Component Output
DVD player
Audio Equipment
Audio cable (not supplied)
Component video RCA
⳯
3
cable (not supplied)
18
AUDIO IN
LR
AUDIO OUT
L R
VIDEO OUT
S-VIDEO VIDEO
PC CARD
COMPONENT IN
USB LAN
AUDIO IN
COMPUTER 3 IN
COMPUTER 1 IN COMPUTER 2 IN
PC CONTROL
MONITOR OUT
AUDIO OUT
S-VIDEO IN VIDEO IN
AUDIO IN
Cb/Pb
L/MONO R
YCr/Pr
AC IN
S-VIDEO IN
VIDEO IN AUDIO IN
2. Installation and Connections
Connecting Your VCR or Laser Disc Player
S-Video cable (not supplied)
Video cable (not supplied)
VCR/ Laser disc player
Audio equipment
Audio cable (not supplied)
NOTE: Refer to your VCR or laser disc player owner's manual for more information about your equipment's video output require-
ments.
NOTE: An image may not be displayed correctly when a Video or S-Video source is played back in fast-forward or fast-rewind via a
scan converter.
19
PC CARD
COMPONENT IN
USB LAN
AUDIO IN
COMPUTER 3 IN
COMPUTER 1 IN COMPUTER 2 IN
PC CONTROL
MONITOR OUT
AUDIO OUT
S-VIDEO IN VIDEO IN
AUDIO IN
Cb/Pb
L/MONO R
YCr/Pr
AC IN
LAN
Connecting to a Network
The LT380/LT280 comes standard with a LAN port (RJ-45) which provides a LAN connection using a LAN cable.
Placing the optional wireless LAN card (NWL-100*) in the PC card slot of the projector also provides a wireless LAN
connection. To use a LAN connection, you are required to assign an IP address to the projector. For setting the LAN
mode, see page 86 (From the menu, select [Setup] → [Installation] → [LAN Mode])
With the LAN connection, two features are available: Projector control and Picture transmission.
Projector control feature
With the wired or wireless LAN connection, you can control (power on/off, input select, etc.) and receive information
from the projector over the network using a computer. The following two methods are available:
*Using the HTTP Server feature on the projector. (→ page 48)
*Using PC Control Utility 3.0 from the supplied User Supportware 3 CD-ROM.
Picture transmission feature
With the wired or wireless LAN connection, you can send images and slides from a personal computer to the projector
which then can be projected on the screen. The following two methods are available:
*Using Image Express Utility 2.0 from the supplied User Supportware 3 CD-ROM.
*Using Ulead Photo Explore 8.0 from the supplied User Supportware 3 CD-ROM.
With the USB mouse connected to the projector, you can also operate the desktop screen on your Windows PC
connected to the LAN or the wireless LAN.
* Using Desktop Control Utility 1.0 from the supplied User Supportware 3 CD-ROM.
NOTE: Use a wireless LAN card conforming to the Wi-Fi standard for your personal computer.
TIP: Five Windows software programs (Image Express Utility 2.0, Desktop Control Utility 1.0, Ulead Photo Explorer 8.0, Viewer PPT
Converter and PC Control Utility 3.0) and a Macintosh software program (Image Express Utility 2 for Mac OS X) are contained on the
supplied Projector User Supportware 3 CD-ROM. For their functions and operations, see the user's guides (PDF) contained on the
same CD-ROM.
Example of LAN connection
(A) Example of wired LAN connection
Server
Hub
LAN cable (not supplied)
2. Installation and Connections
20
(B) Example of wireless LAN connection
(Network Type → Mode: Infrastructure)
2. Installation and Connections
Access
Point
Wired LAN

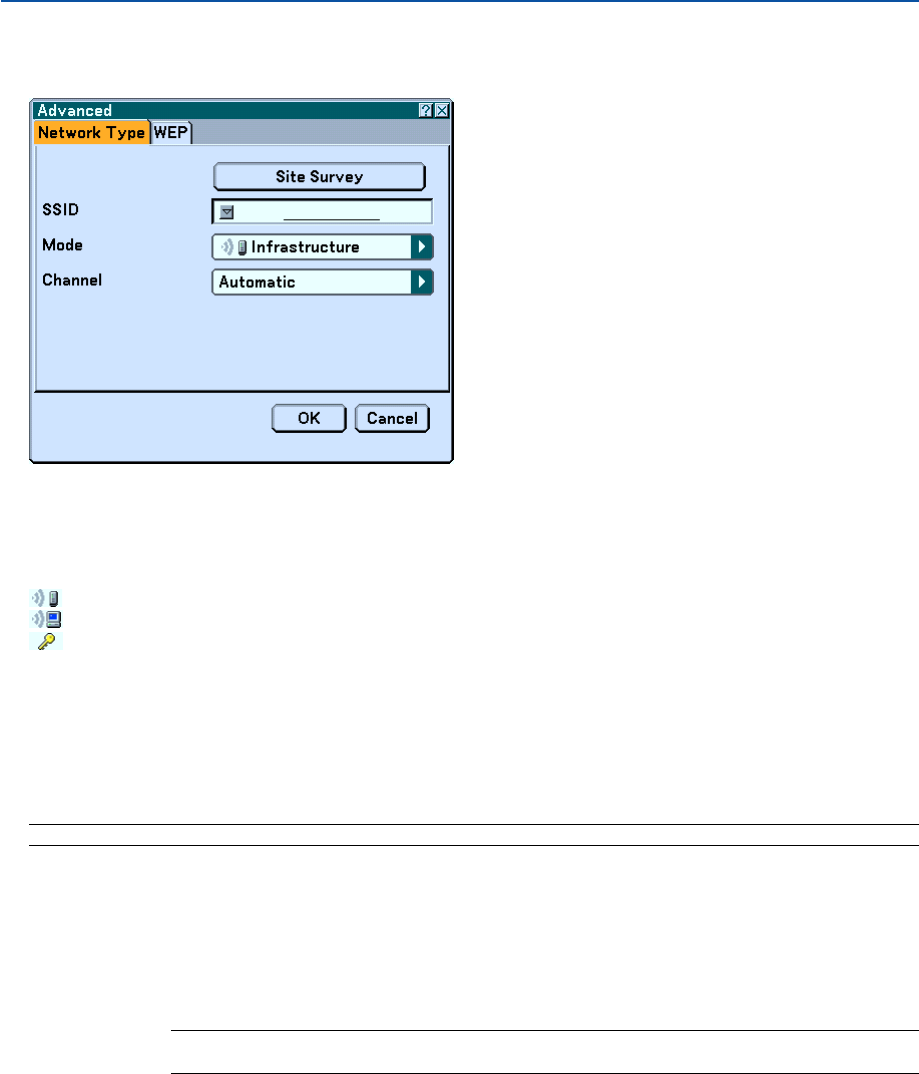

To make connection with a wired LAN via an access point, you need to select the Infrastructure mode.
From the menu, select [Setup] → [Installation] → [LAN Mode] → [PC Card] → [Advanced] → [Network Type] →
[Mode] → [Infrastructure].
(C) Example of wireless LAN connection (Network Type → Mode: 802.11 Ad Hoc)
To enable direct communication (i.e., peer-to-peer) between personal computers and projectors, you need to
select the 802.11 Ad Hoc mode.
From the menu, select [Setup] → [Installation] → [LAN Mode] → [PC Card] → [Advanced] → [Network Type] →
[Mode] → [802.11 Ad Hoc].
The 802.11 Ad Hoc mode complies with IEEE802.11 standard.
When in Ad Hoc mode, only 802.11b is available for communication method.
Data transmission speed in Ad Hoc mode is limited up to 11Mbps.
Wireless LAN card
(Optional)
PC with wireless
LAN card inserted
PC with built-in wireless
LAN function
Wireless LAN card
(Optional)
PC with wireless
LAN card inserted
PC with built-in wireless
LAN function
21
2. Installation and Connections
Inserting the PC Card
1. Make sure the main power is off before inserting the
PC card. (This step is needed only when the wireless
LAN card being inserted into the projector's PC CARD
slot)
2. Hold the PC card horizontally and insert it slowly into
the PC card slot with its top facing up.
The eject button pops out once the PC card is fully inserted.
Check that the PC card is fully inserted.
NOTE: Do not try to force the PC card into the slot or you may bend
the pins inside the slot.
Inserting and Removing a PC Card
To insert the NEC optional wireless LAN card or a PC memory card (also referred to as PC card in this manual), follow
the steps below.
CAUTION:
* Direction for Inserting the PC Card
The PC card has a top and bottom and must be inserted into the PC card slot in a specific direction. It cannot
be inserted backwards or upside-down.
Attempting to force it into the slot in the wrong direction may break the internal pin and damage the card slot.
Refer to the PC card's operating instructions for the proper direction of insertion.
*Back up your PC card's data in case it will need to be restored.
*To prevent electrostatic discharge damage to the wireless LAN card, wear an anti-static wrist strap. If no wrist
strap is available, ground yourself by touching metal such as a door knob.
PC card (not supplied)
PC CARD
COMPONENT IN
USB LAN
AUDIO IN
COMPUTER 3 IN
COMPUTER 1 IN COMPUTER 2 IN
PC CONTROL
MONITOR OUT
AUDIO OUT
Cb/Pb
L/MONO R
YCr/Pr
S-VIDEO IN VIDEO IN
AUDIO IN
AC IN
PC CARD
LAMP
STATUS
POWER
ON/STAND BY
SOURCE
AUTO ADJUST
3D REFORM
A dummy card is inserted into the PC CARD slot at the time of
shipment. First remove the dummy cards before use.
PC Card Lock
The supplied PC card lock prevents a PC card or an optional wireless LAN card from being ejected during use. Some
PC cards cannot be used based on their size and shape.
Use the supplied screw to fix the PC card lock.
PC CARD
COMPONENT IN
USB
Cb/Pb
L/MONO
YCr/Pr
S-VIDEO IN VIDEO IN
AUDIO IN
PC CARD
COMPONENT IN
USB
Cb/Pb
L/MONO
R
YCr/Pr
S-VIDEO IN VIDEO IN
AUDIO IN
Wireless LAN car or PC card
PC card lock
22
2. Installation and Connections
PC Card Type
The PC Card slot accepts PCMCIA Type II only.
NOTE: The projector does not support NTFS formatted flash memory card or USB memory device.
Be sure to use a flash memory card or USB memory device formatted with the FAT32, FAT16 or FAT file system.
To format your flash memory card or USB memory device in your computer, refer to the document or help file that comes with your
Windows operating systems.
PC CARD
COMPONENT IN
USBLAN
AUDIO IN
COMPUTER 3 IN
COMPUTER 1 IN COMPUTER 2 IN
PC CONTROL
MONITOR OUT
AUDIO OUT
Cb/Pb
L/MONO R
YCr/Pr
S-VIDEO IN VIDEO IN
AUDIO IN
AC IN
PC CARD
LAMP
STATUS
POWER
ON/STAND BY
SOURCE
AUTO ADJUST
3D REFORM
Eject button
Removing the PC Card
1. Make sure that the PC CARD access indicator is not lit. (This
step is needed only when the PC memory card being inserted
into the projector’s PC CARD slot.)
NOTE: The PC CARD access indicator lights while its data is being accessed.
2. To remove the wireless LAN card, make sure that the main power
is off. (This step is needed only when the wireless LAN card be-
ing inserted into the projector's PC CARD slot)
3. Press the eject button. The PC card pops out a little. Grasp the
edges of the PC card and pull it out.
23
2. Installation and Connections
Connecting the Supplied Power Cable
Connect the supplied power cable to the projector.
First connect the supplied power cable's two-pin plug to the AC IN of the projector, and then connect the other plug of
the supplied power cable in the wall outlet.
Make sure that the prongs are fully
inserted into both the AC IN and the
wall outlet.
To wall outlet
PC CARD
COMPONENT IN
USB LAN
AUDIO IN
COMPUTER 3 IN
COMPUTER 1 INCOMPUTER 2 IN
PC CONTROL
MONITOR OUT
AUDIO OUT
Cb/Pb
L/MONOR
YCr/Pr
S-VIDEO INVIDEO IN
AUDIO IN
AC IN
PC CARD
LAMP
STATUS
POWER
ON/STAND BY
SOURCE
AUTO ADJUST
3D REFORM
SELECT
CAUTION:
Do not unplug the power cable from the wall outlet under any one of the following circumstances.
Doing so can cause damage to the projector or PC card:
•While the projector's lamp is lighted.
•While the cooling fans are running. The cooling fans continue to work for 30 seconds after the projector is
turned off.
• While the PC CARD Access Indicator lights. Doing so can damage your PC memory card.
24
OFF
VIDEO
S-VIDEO
VIEWER
LAN
COMPUTER
COMPONENT
ON
SELECT
POWERPOWER
M
E
N
U
E
N
T
E
R
E
X
I
T
3
12
POWER
ON/STAND BY
PC CARD
LAMP
STATUS
SOURCE
AUTO ADJUST
3D REFORM
3. Projecting an Image (Basic Operation)
This section describes how to turn on the projector and to project a picture onto the screen.
Turning on the Projector
NOTE:
•The projector has two power switches: a main power switch and a POWER (ON/STAND BY) button (POWER ON and OFF on the
remote control).
•When plugging in or unplugging the supplied power cable, make sure that the main power switch is pushed to the off (
䡬
)
position. Failure to do so may cause damage to the projector.
•The projector has a feature to prevent itself from being used by unauthorized individuals. To use this feature, register a keyword.
(
→
page 42)
1. To turn on the main power to the projector, press the
Main Power switch to the on position ( I ).
•The POWER indicator will light orange.
See the Power Indicator section on page 107 for more
details.
2. Remove the lens cap.
3. Press the POWER (ON/STAND BY) button on the pro-
jector cabinet or POWER ON button on the remote
control for a minimum of 2 seconds when the power
indicator turns a steady green, and the projector is
ready to use.
•After you turn on your projector, ensure that the computer
or video source is turned on and that your lens cap is
removed.
NOTE: When no signal is available, a blue, black or logo screen is displayed.
PC CARD
COMPONENT IN
USB LAN
AUDIO IN
COMPUTER 3 IN
COMPUTER 1 IN COMPUTER 2 IN
PC CONTROL
MONITOR OUT
AUDIO OUT
S-VIDEO IN VIDEO IN
AUDIO
Cb/Pb
L/MONOR
YCr/Pr
AC IN
PC CARD
LAMP
STATUS
POWER
ON/STAND BY
SOURCE
AUTO ADJUST
3D REFORM
SELECT
PC CARD
LAMP
STATUS
POWER
POWER POWER POWER
STATUS
LAMP
STATUS
LAMP
STATUS
LAMP
ON/STAND BY
Standby Blinking for
one minute Power On
Steady orange
light Blinking green
light
Steady green
light
(→ page 107)
Press this button for a
minimum of 2 seconds.
25
SOURCE
AUTO ADJUST
3D REFORM
SELECT
OFF
VIDEO
S-VIDEO
VIEWER
LAN
COMPUTER
COMPONENT
ON
POWERPOWER
M
E
N
U
E
N
T
E
R
E
X
I
T
3
12
SELECT
SOURCE
AUTO ADJUST
3D REFORM
SELECT
3. Projecting an Image (Basic Operation)
Note on Startup screen (Menu Language Select screen)
When you first turn on the projector, you will get the Startup menu. This menu gives you the opportunity to select one
of the 21 menu languages.
To select a menu language, follow these steps:
1. Use the SELECT
왖
or
왔
button to select one of the 21
languages for the menu.
2. Press the ENTER button to execute the selection.
NOTE:
• The projector cannot be turned off for 60 seconds after the lamp is turned on and while the POWER indicator is blinking green.
•Immediately after the lamp is turned off or when the ambient temperature is high, the cooling fans will run for a moment and then
you will get an image on the screen.
•Immediately after turning on the projector, screen flicker may occur. This is normal. Wait 3 to 5 minutes until the lamp lighting is
stabilized.
• When the Lamp mode is set to Eco, the Lamp indicator will light green.
•If one of the following things happens, the projector will not turn on.
-If the internal temperature of the projector is too high, the projector detects abnormal high temperature. In this
condition the projector will not turn on to protect the internal system. If this happens, wait for the projector's
internal components to cool down.
- When the lamp reaches its end of usable life, the projector will not turn on. If this happens, replace the lamp.
(→ page 104)
-If the lamp fails to light, and if the STATUS indicator flashes on and off in a cycle of six times, wait a full minute
and then turn on the power.
OFF
VIDEO
S-VIDEO
VIEWER
LAN
COMPUTER
COMPONENT
ON
SELECT
POWERPOWER
3
12
M
E
N
U
E
N
T
E
R
E
X
I
T
SOURCE
AUTO ADJUST
3D REFORM
SELECT
OFF
VIDEO
S-VIDEO
VIEWER
LAN
COMPUTER
COMPONENT
ON
SELECT
POWERPOWER
M
E
N
U
3
12
E
N
T
E
R
E
X
I
T
3. To close the menu, press the EXIT button.
After this has been done, you can proceed to the menu op-
eration.
If you want, you can select the menu language later. (→ [Lan-
guage] on page 78)
26
POWER
AUTO ADJUST
PC CARD
LAMP
STATUS
ON/STAND BY
SOURCE3D REFORM
3. Projecting an Image (Basic Operation)
Selecting a Source
Selecting the computer or video source
Using the Remote Control
Press any one of the COMPUTER 1/2/3, Component, VIDEO, S-VIDEO, VIEWER
or LAN buttons.
NOTE: The COMPUTER 3 button is not available for LT280.
Detecting the Signal Automatically
Press and hold the SOURCE button for a minimum of 1 second, the projector will
search for the next available input source. Each time you press and hold the
SOURCE button for a minimum of 1 second, the input source will change as
follows:
Computer1 → Computer2 → Computer3 → Componet → Video → S-Video →
Viewer → Computer1 → ...
If no input signal is present, the input will be skipped. When the input source you
wish to project is displayed, release the button.
NOTE: The COMPUTER 3 connector is available on LT380 only.
OFF ON
SELECT
POWERPOWER
M
E
N
U
E
N
T
E
R
E
X
I
T
VIDEO
S-VIDEO
VIEWER
LAN
COMPUTER
COMPONENT
3
12
Selecting from Source List
Press and quickly release the SOURCE button on the projector cabinet to display
the Source list. Each time the SOURCE button is pressed, the input source will
change as follows: “Computer 1/2/3”, “Component”, “Video” (VCR or laser disc
player), “S-Video”, “Viewer” (slides on a PC card) or “LAN” (LAN port [RJ-45] or
wireless LAN card).
To display the selected source, press the ENTER button.
POWER
AUTO ADJUST
PC CARD
LAMP
STATUS
ON/STAND BY
SOURCE3D REFORM
27
22
PC CARD
LAMP
STATUS
POWER
SOURCE
AUTO ADJUST
3
D REFORMON/STAND BY
1
3. Projecting an Image (Basic Operation)
Place your projector on a flat level surface and ensure that the projector is
square to the screen.
Lift the front edge of the projector to center the image vertically.
If the projected image does not appear square to the screen, use the Keystone
feature for proper adjustment. (→ page 29, 38)
Adjusting the Picture Size and Position
Adjust the Tilt Foot
1. Lift the front edge of the projector.
CAUTION:
Do not try to touch the ventilation outlet during Tilt Foot adjustment as
it can become heated while the projector is turned on and during its
cool down period after it is turned off.
2. Push up the Adjustable Tilt Foot Levers on the right and left sides
of the projector to extend the adjustable tilt feet (maximum height).
3. Lower the front of the projector to the desired height.
4. Release the Adjustable Tilt Foot lever to lock the Adjustable tilt foot.
There is approximately 10 degrees (up) of adjustment for the front of the
projector.
Adjustable Tilt Foot
Rotate the front of the projector right or left (to the right in this example) to
center the image horizontally on the screen.
4
4
PC CARD
LAMP
STATUS
POWER
SOURCE
AUTO ADJUST
3D REFORMON/STAND BY
SELECT
3
Adjustable Tilt
Foot Lever
Adjustable Tilt
Foot Lever
NOTE: Your "Keystone" correction data can be reset by pressing and holding the
3D REFORM button for a minimum of 2 seconds.
CAUTION:
Do not use the tilt-foot for purposes other than originally intended.
Misuses such as using the tilt foot to carry or hang (from the wall or
ceiling) the projector can cause damage to the projector.
TIP: When [Auto Keystone] is turned on,
adjusting the height of a projected image
or changing projection angle will result in
Auto Keystone function to work to quickly
correct the vertical distortion. The [Key-
stone] screen will be displayed.
For operating the [Keystone] screen, see
"
Correcting Keystone Distortion" on
page 29.
28
3. Projecting an Image (Basic Operation)
Zoom
Use the ZOOM lever to adjust the image size on the screen.
Focus
Use the FOCUS ring to obtain the best focus.
29

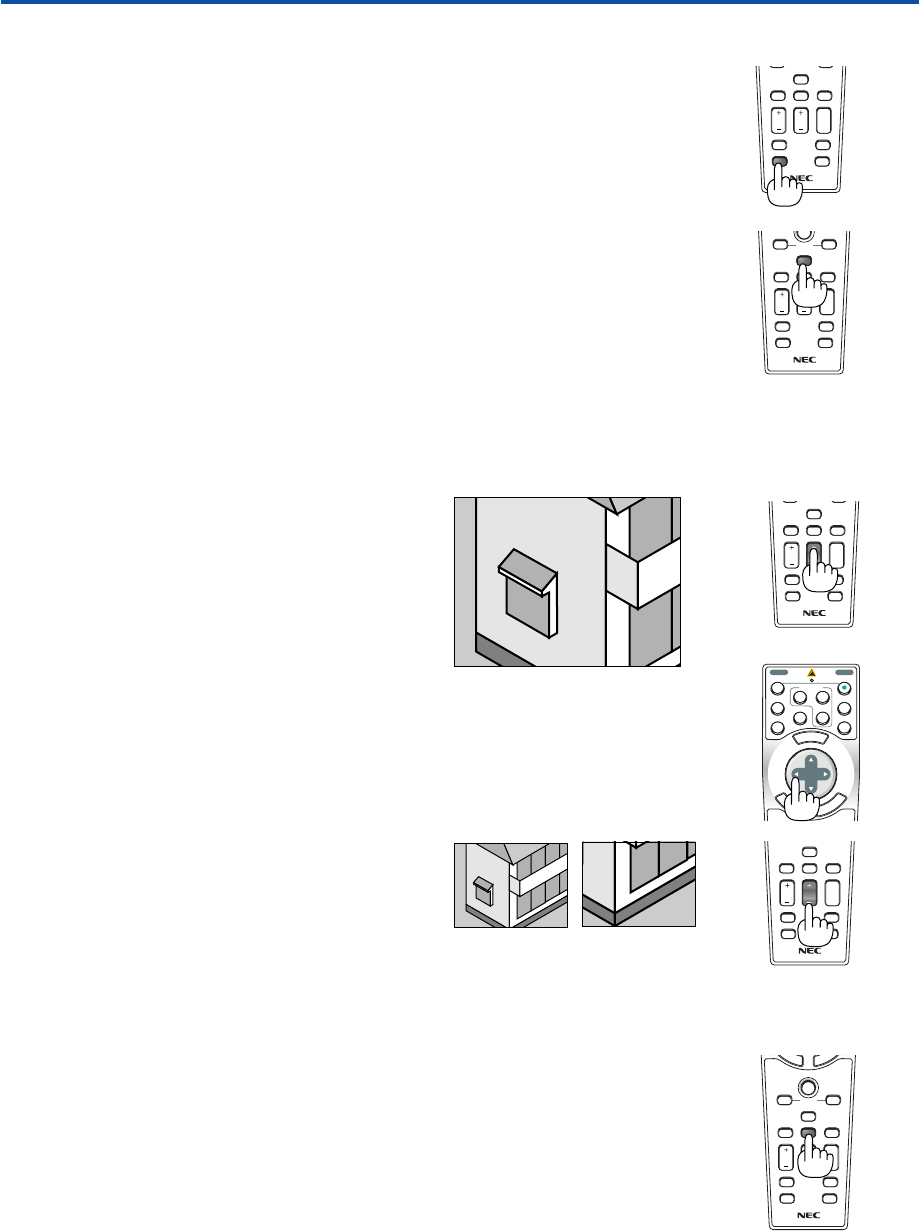

Correcting Keystone Distortion
Auto Keystone Correction
The Auto Keystone correction feature will correct vertical distortion of a projected image on the screen. No special
operation required. Just put the projector on a flat surface.
To use the Auto Keystone function, first you must select [Auto] in [Keystone] from the menu.
Manual Keystone Correction
You can also correct keystone distortion manually.
To do so:
1. Press the 3D REFORM button on the remote control or the projector
cabinet.
The Keystone screen will be displayed on the screen.
•When [Auto] is selected in [Keystone] from the menu, start from step 3.
2. Press the SELECT
왔
button to select [Vertical] and then use the
SELECT
왗
or
왘
so that the left and right sides of the projected im-
age are parallel.
* Adjust the vertical keystone distortion.
3. Align the left (or right) side of the screen with the left (or right) side
of the projected image.
•Use the shorter side of the projected image as the base.
•In the right example, use the left side as the base.
NOTE: When [Manual] is selected in [Keystone] from the menu, project an image
adjusting projector position so that the screen is smaller than the area of the projected
image. See page 77 for selecting [Manual] in [Keystone].
3. Projecting an Image (Basic Operation)
Screen frame
Projected area
Align left side
4. Press the SELECT
왖
button to select [Horizontal] and then use the
SELECT
왗
or
왘
so that the top and bottom sides of the projected
image are parallel.
•Adjust the horizontal keystone distortion.
30
5. Repeat steps 2 and 4 to correct keystone distortion.
6. After completing Keystone correction, press the ENTER button.
The Keystone screen will disappear.
• To perform Keystone correction again, press the 3D REFORM button to
display the Keystone screen and repeat above steps 1 to 6.
NOTE:
•Turning on the projector will reset the previous correction setting values and correct distortion anew if the projection angle is
changed from the last use.
If the projection angle is the same as in the last use, the previous correction setting values are retained in the memory.
To use the previous correction setting values after changing projection angle, select [Manual] in [Keystone] from the menu.
(
→
page 77)
•To reset the 3D Reform correction setting values, press and hold the 3D REFORM button for a minimum of 2 seconds.
•Each time the 3D REFORM button is pressed, the item will change as follows: Keystone
→
Cornerstone
→
None
→
Keystone
→
...
For information on [Cornerstone], see “Correcting Horizontal and Vertical Keystone Distortion (Cornerstone) on page 38.
• The 3D Reform feature can cause an image to be slightly blurred because the correction is made electronically.
3. Projecting an Image (Basic Operation)
31
VOLUME
LASER
3D REFORM
AUTO ADJ.
ASPECT
HELP
PIC-MUTE
LAMP MODE
R-CLICKL-CLICK
MOUSE
FREEZE
MAGNIFY PAGE
UP
DOWN
N
T
E
R
E
X
I
T
AUTO ADJ.
LASER
3D REFORM
ASPECT
HELP
PIC-MUTE
LAMP MODE
R-CLICKL-CLICK
MOUSE
FREEZE
VOLUME MAGNIFY PAGE
UP
DOWN
R
SOURCE3D REFORM
SELECT
AUTO ADJUST
3. Projecting an Image (Basic Operation)

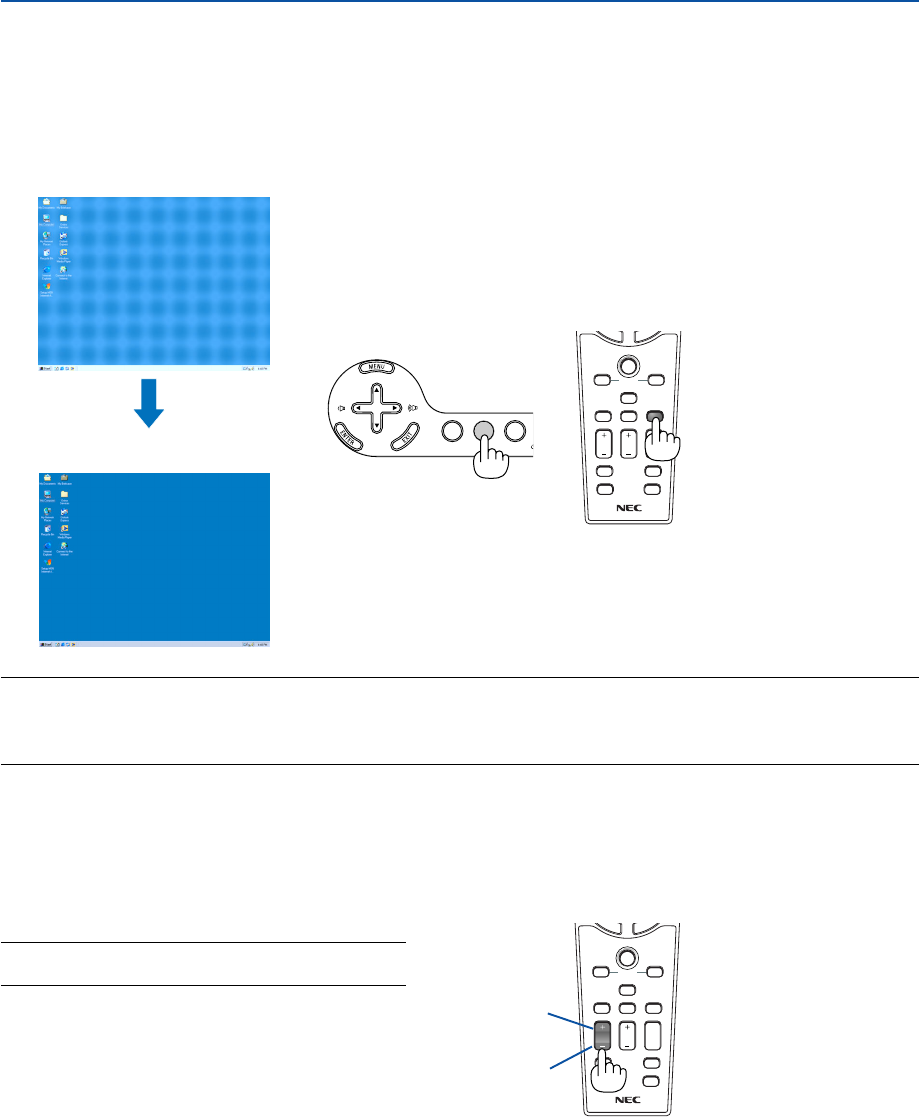

Optimizing an RGB Image Automatically
Adjusting the Image Using Auto Adjust
Optimizing an RGB image automatically.
Press the Auto Adjust button to optimize an RGB image automatically.
This adjustment may be necessary when you connect your computer for the first time.
[Poor picture]
[Normal picture]
Increase volume
Decrease volume
Sound level from the speaker and the AUDIO OUT
jack (Stereo mini) on the projector can be adjusted.
NOTE: When no menus appear, the SELECT
왗왘
buttons
on the projector cabinet work as a volume control.
NOTE:
• Some signals may take time to display or may not be displayed correctly.
•The Auto Adjust function does not work for component or video signals.
•If the Auto Adjust operation cannot optimize the RGB signal, try to adjust Clock and Phase manually. (
→
page 72)
Adjusting Volume Up & Down
32
3. Projecting an Image (Basic Operation)
쐆 Using the Laser Pointer
You can use the laser to draw your audience's attention to a red dot that you can place on any object.
CAUTION:
• Do not look into the laser pointer while it is on.
• Do not point the laser beam at a person.
• Do not allow children to use the laser pointer.
Press and hold the LASER button to activate the laser pointer.
LASER
LASER
Setting the function switch
There are two switches on the bottom of the battery case: an applicable projector selector switch (1) and laser enable/
disable switch (2). Check the projector being used and decide whether to enable or disable laser, then set these
switches as necessary using the tip of a thin ball-point pen. On this model, an applicable projector selector switch (1)
is not used.
ON
OFF
Switch (2)
On ......................... Enabled (the laser lights when the LASER button is pressed) [Factory default]
Off ......................... Disabled (the laser does not light even when the LASER button is pressed)
Disable the laser when using in an environment in which the unit is accessible to children.
33
OFF
VIDEO
S-VIDEO
VIEWER
LAN
COMPUTER
COMPONENT
ON
SELECT
POWERPOWER
M
E
N
U
E
N
T
E
R
E
X
I
T
3
12
쐊 Turning off the Projector
To turn off the projector:
3. Projecting an Image (Basic Operation)
1. Press the POWER (ON/STAND BY) button on the projector
cabinet or the POWER OFF button on the remote control. The
[Power Off / Are you sure?] message will appear.
2. Press the ENTER button or the POWER (ON/STANDBY) or
the POWER OFF button again.
The power indicator will glow orange. After the projector turns
off, the cooling fans keep operating for 30 seconds (Cooling-off
time).
NOTE: Immediately after turning on the projector and displaying an im-
age, you cannot turn off the projector for 60 seconds.
3. Turn off the Main Power switch. The power indicator will go
out.
CAUTION
Do not unplug the power cable from the wall outlet or do
not turn off the main power under any one of the following
circumstances.
Doing so can cause damage to the projector or PC card:
•While the projector lamp is lighted.
•While the cooling fans are running. (The cooling fans continue
to work for 30 seconds after the projector is turned off).
•While the PC CARD Access Indicator lights. Doing so can dam-
age your PC memory card.
쐎 After Use
Preparation: Make sure that the main power is turned off.
1. Unplug the power cable.
2. Disconnect any other cables.
3. Retract adjustable tilt feet if extended.
4. Cover the lens with the lens cap.
5. Put the projector and accessories in the supplied soft case.
NOTE: Before putting the projector in the soft case, be sure to retract the feet. Failure to do so may cause the damage to the projector.
POWER
ON/STAND BY
PC CARD
LAMP
STATUS
SOURCE
AUTO ADJUST
O
RM
PC CARD
COMPONENT IN
USBLAN
AUDIO IN
COMPUTER 3 IN
COMPUTER 1 INCOMPUTER 2 IN
PC CONTROL
MONITOR OUT
AUDIO OUT
S-VIDEO IN VIDEO IN
AUDIO
Cb/Pb
L/MONOR
YCr/Pr
AC IN
PC CARD
LAMP
STATUS
POWER
ON/STAND BY
SOURCE
AUTO ADJUST
3D REFORM
SELECT
PC CARD
LAMP
STATUS
POWER
OFF
VIDEO
S-VIDEO
VIEWER
LAN
COMPUTER
COMPONENT
ON
SELECT
POWERPOWER
M
E
N
U
E
N
T
E
R
E
X
I
T
3
12
POWER
ON/STAND BY
PC CARD
LAMP
STATUS
SOURCE
AUTO ADJUST
O
RM
34
FREEZE
3D REFORM
AUTO ADJ.
ASPECT
HELP
PIC-MUTE
LAMP MODE
R-CLICKL-CLICK
MOUSE
VOLUME MAGNIFY PAGE
UP
DOWN
PIC-MUTE
3D REFORM
AUTO ADJ.
ASPECT
HELP
LAMP MODE
FREEZE
VOLUME MAGNIFY PAGE
UP
DOWN
4. Convenient Features
쐃 Turning Off the Image and Sound
Press the PIC-MUTE button to turn off the image and sound for a short period of time.
Press again to restore the image and sound.
쐇 Freezing a Picture
Press the FREEZE button to freeze a picture. Press again to resume motion.
MAGNIFY
3D REFORM
AUTO ADJ.
ASPECT
HELP
PIC-MUTE
LAMP MODE
FREEZE
VOLUME PAGE
UP
DOWN
Enlarging and Moving a Picture
You can enlarge the area you want up to 400 percent.
To do so:
OFF
VIDEO
S-VIDEO
VIEWER
LAN
COMPUTER
COMPONENT
ON
POWERPOWER
M
E
N
U
E
N
T
E
R
E
X
I
T
3
12
SELECT
MAGNIFY
3D REFORM
AUTO ADJ.
ASPECT
HELP
PIC-MUTE
LAMP MODE
FREEZE
VOLUME PAGE
UP
DOWN
1. Press the MAGNIFY (+) button.
Each time the MAGNIFY (+) button is pressed,
the image is magnified.
* Image can be magnified up to 400%
2. Press the SELECT
왖왔왗왘
button.
The area of the magnified image will be moved
3. Press the MAGNIFY (-) button.
Each time the MAGNIFY (-) button is pressed, the
image is reduced.
Changing Lamp Mode
The lamp life can be extended by using the Eco mode.
To change to the [Eco] mode, do the following:
1. Press the LAMP MODE button to display [Lamp Mode] screen.
2. Use the SELECT
왖
or
왔
button to select [Eco] mode.
3. Press the ENTER button. Or press the SELECT
왘
button to select [OK] and
press the ENTER button.
To cancel it, select [Cancel] and press the ENTER button.
To change from [Eco] to [Normal], Go back to Step 2 and select [Normal]. Repeat
Step 3.
LAMP MODE
LASER
3D REFORM
AUTO ADJ.
ASPECT
HELP
PIC-MUTE
R-CLICKL-CLICK
MOUSE
FREEZE
VOLUME MAGNIFY PAGE
UP
DOWN
N
T
E
R
E
X
I
T
35
4. Convenient Features
Using a USB Mouse
Using a USB mouse gives you a smooth operation. A commercially
available USB mouse can be used.
NOTE: There may be some brands of a USB mouse that the projector does
not support.
Operate the Menus using the USB mouse
Mouse Cursor
When connecting a USB mouse to the projector, you get a mouse cursor on the screen.
Unless you use your USB mouse within 10 seconds, the mouse cursor disappears.
NOTE: You can change the shape of the mouse cursor. To do so, select the menu
→
[Setup]
→
[Tools]
→
[Mouse]
→
[Mouse
Pointer].
Menu Display
Clicking with the left mouse button displays the menu.
To close the menu, click anywhere in the background.
Adjusting and Setting Display
You can select a menu item and click with the left mouse button to make adjustments and settings.
Using the middle button on the mouse
The projector supports the middle button on your mouse.
With the middle button you can do the following:
•You can use a scroll bar in the menu or the help.
•You can click the middle button to display or hide the ChalkBoard toolbar.
Example:
Click (or press and hold) the left mouse button on the 왗 or 왘 to adjust the brightness. Or click and drag the left
mouse button on the slide bar horizontally to adjust it.
To save the adjustments, click . The display is closed.
•Click with the left mouse button to display a description of the selected menu item.
•Click and drag the title bar with the left mouse button to move the adjustment or setting dialog box.
PC CARD
COMPONENT IN
USB LAN
AUDIO IN
COMPUTER 3 IN
COMPUTER 1 IN COMPUTER 2 IN
PC CONTROL
MONITOR OUT
AUDIO OUT
S-VIDEO IN VIDEO IN
AUDIO IN
Cb/Pb
L/MONO R
YCr/Pr
AC IN
USB
OFF
VIDEO
S-VIDEO
VIEWER
LAN
COMPUTER
COMPONENT
ON
SELECT
POWERPOWER
M
E
N
U
3
12
E
N
T
E
R
E
X
I
T
Getting Integrated Help
You get the contents about Help in English, German and
Japanese.
Display Help Exit Help
HELP
LASER
3D REFORM
AUTO ADJ.
ASPECT
PIC-MUTE
LAMP MODE
R-CLICKL-CLICK
MOUSE
FREEZE
VOLUME MAGNIFY PAGE
UP
DOWN
N
T
E
R
E
X
I
T
36
4. Convenient Features
Using Remote Mouse Receiver
The remote mouse receiver enables you to operate your computer’s mouse functions from the remote control. It is a
great convenience for your computer-generated presentations.
Connecting the remote mouse receiver to your computer
If you wish to use the remote mouse function, connect the mouse receiver and computer.
The mouse receiver can be connected directly to the computer’s USB port (type A).
NOTE: Depending on the type of connection or OS installed on your computer, you may have to restart your computer or change
your computer settings.
30°
30°
Remote mouse receiver
Computer
To USB port of PC or Macintosh
When operating a computer via the remote mouse receiver
Remote sensor on the remote mouse receiver
7m/22 feet
When connecting using the USB port
For PC, the mouse receiver can only be used with a Windows 98/Me/XP*, Windows 2000 or MacOS X 10.0.0 or later
operating system.
* NOTE: In SP1 or older verison of Windows XP, if the mouse cursor will not move correctly, do the following:
Clear the Enhance pointer precision check box underneath the mouse speed slider in the Mouse Properties dialog box [Pointer
Options tab].
NOTE: Wait at least 5 seconds after disconnecting the mouse receiver before reconnecting it and vice versa. The computer may not
identify the mouse receiver if it is repeatedly connected and disconnected in rapid intervals.
37
4. Convenient Features
Operating your computer’s mouse from the remote control
You can operate your computer's mouse from the remote control.
PAGE UP/DOWN Button ................. scrolls the viewing area of the window or to move to the previous or next slide in PowerPoint
on your computer.
SELECT 왖왔왗왘 Button................. moves the mouse cursor on your computer.
MOUSE L-CLICK Button ................. works as the mouse left button.
MOUSE R-CLICK Button................. works as the mouse right button.
NOTE: When you operate the computer using the SELECT
왖왔왗왘
button with the menu displayed, both the menu and the mouse
pointer will be affected. Close the menu and perform the mouse operation.
About Drag Mode:
By pressing the MOUSE L-CLICK or R-CLICK button for 2 or 3 seconds then releasing, the drag mode is set and the
drag operation can be performed simply by pressing the SELECT 왖왔왗왘 button. To drop the item, press the MOUSE
L-CLICK (or R-CLICK) button. To cancel it, press the MOUSE R-CLICK (or L-CLICK) button.
TIP: You can change the Pointer speed on the Mouse Properties dialog box on the Windows. For more information, see the user
documentation or online help supplied with your computer.
38
Correcting Horizontal and Vertical Keystone Distortion (Cor-
nerstone)
Use the 3D Reform feature to correct keystone (trapezoidal) distortion to make the top or bottom and the left or right
side of the screen longer or shorter so that the projected image is rectangular.
4. Convenient Features
Screen
Projected image
Cornerstone
1. Press and hold the 3D REFORM button for a minimum of 2 seconds to reset current adjustments.
Current adjusments for [Keystone] or [Cornerstone] will be cleared.
2. Project an image so that the screen is smaller than the area of the raster.
3. Pick up any one of the corners and align the corner of the image with a corner of the screen.
The drawing shows the
upper right corner.
4. Press the 3D REFORM button on the remote control twice.
The Cornerstone adjustment screen is displayed.
Screen
5. Use the SELECT
왖왔왗왘
button to select one icon which points in the direction you wish to move the
projected image frame.
6. Press the ENTER button.
7. Use the SELECT
왖왔왗왘
button to move the projected image frame as shown on the example.
39
Screen
8. Press the ENTER button.
4. Convenient Features
10
.Press the SELECT
왗
or
왘
button to highlight the [OK] and press the ENTER button.
This completes the keystone correction.
Selecting [Cancel] will return to the adjustment screen without saving changes (Step 3).
Selecting [Reset] will return to the factory default.
Selecting [Undo] will exit without saving changes.
NOTE: To reset the 3D Reform correction setting values, press and hold the 3D REFORM button for a minimum of 2 seconds.
NOTE: During 3D Reform adjustment, [Aspect Ratio] and [Screen] may not be available. Should this happen, first reset the 3D
Reform data and then do each setting. Second repeat the 3D Reform adjustment. Changing [Aspect Ratio] and/or [Screen] setting
can limit [3D Reform] in its adjustable range.
Screen
9. Use the SELECT
왖왔왗왘
button to select another icon which points in the direction.
On the Cornerstone adjustment screen, select [Exit] or press the EXIT button on the remote control.
The confirmation screen is displayed.
40
4. Convenient Features
*The following are conditions under which the maximum angle is achived:
• Image is projected in Wide (Zoom lever)
•Resolution is XGA
Higher resolution than XGA narrows the adjustable range.
•Menu items should be set as follows:
Aspect Ratio ........... 4:3
Screen Type ........... 4:3
•Horizontal and Vertical are adjusted separately.
A combination of both adjustments narrows the adjustable range.
• When [4:3 Fill] is selected in [Aspect Ratio], [Cornerstone] and "Horizontal Keystone" are not available.
NOTE:
•If the Cornerstone screen is unavailable (grayed), press and hold the 3D REFORM button for a minimum of 2 seconds to reset the
current correction data. The Cornerstone function becomes available.
•Turning on the projector will reset the previous correction setting values and correct distortion anew if the projection angle is
changed from the last use.
If the projection angle is the same as in the last use, the previous correction setting values are retained in the memory.
To use the previous correction setting values after changing projection angle, select [Manual] in [Keystone] from the menu. (
→
page 77)
NOTE: Using 3D Reform correction can cause the image to be slightly blurred because the correction is made electronically.
The adjustable ranges for 3D Reform are as follows:
Horizontal Vertical
Cornerstone Max. +/– 35° approx.
Keystone Max. +/– 27° approx. Max. +/– 40° approx.
41
4. Convenient Features
Making Freehand Drawings on a Projected Image
(ChalkBoard)
The ChalkBoard feature allows you to write and draw messages on a projected image.
NOTE: The ChalkBoard feature is available only when a USB mouse is used.
To display the ChalkBoard tool bar, click the middle button on your mouse or select [ChalkBoard] from the menu.
The tool bar contains the following icons.
Drag ................. Drags to move the tool bar.
Pen ................... Left-click and drag to draw. Left-click or right-click the pen icon to display the pen palette containing four
lines of different thickness from which you can select a line you prefer by left-clicking.
Color ................ Selects a color. Left-click to display the color palette from which you can select a color you prefer by left-
clicking.
Eraser ............... Left-click and drag to erase part of a drawing. Left-click or right-click the eraser icon to display the eraser
palette containing four erasers of different thickness from which you can select an eraser you prefer by left-
clicking.
Clear ................. Left-click to clear the drawing completely from the ChalkBoard screen.
Hide .................. Hides the tool bar by left-clicking. Right-clicking anywhere on the screen displays the ChalkBoard tool bar
again.
Exit ................... Clears the complete drawing and exits the ChalkBoard.
NOTE:
•The menu is not available while you display the ChalkBoard screen.
•Selecting another source or switching slides in the Viewer clears a drawing completely.

42
4. Convenient Features
쐅 Preventing Unauthorized Use of the Projector
Assigning a keyword prevents the projector from being used by unauthorized individuals.
Assigning a Keyword for the first time
1. Press the MENU button.
The menu will be displayed.
2. Press the SELECT
왘
button to highlight the [Setup] submenu and press the ENTER button.
The page tab [Basic] will be highlighted.
3. Press the SELECT
왘
button twice to highlight the page tab [Security].
43
4. Convenient Features
4. Press the SELECT
왔
button four times to highlight [Security].
5. Press the ENTER button to display the Security screen.
6. Press the SELECT
왔
button once to highlight the Keyword entry box and press the ENTER button.
The Software keyboard will be displayed.
44
4. Convenient Features
7. Enter an alphanumeric keyword using the Software keyboard
For example, to enter “1234”, follow the steps 7-1 to 7-4 below.
NOTE:
• Please make a note of your keyword.
• Do not use spaces (SP) in your keyword.
7-1. Highlight the number “1” and press the ENTER button.
The asterisk “
쏄
” will be displayed in the Keyword entry box.
7-2. Press the SELECT
왘
button once to highlight “2” and press the ENTER button.
The asterisk “
쏄쏄
” will be displayed in the Keyword entry box.
7-3. For “3” and “4”, use the same procedure as step 7-2.
The asterisk “
쏄쏄쏄쏄
” will be displayed in the Keyword entry box.
7-4. Press the SELECT
왔
button to highlight [OK] and press the ENTER button.
The Software keyboard will disappear.
8. Press the SELECT
왖
button once to highlight [Off] and press the SELECT
왗
button to highlight [On].
9. Press the SELECT
왔
button to highlight [OK] and press the ENTER button.
The confirmation screen will be displayed.
10
.Select [Yes] and press the ENTER button.
The Security Function is now enabled.
NOTE: A PC card can be used as a protect key. You can skip the keyword entry by inserting a registered PC card when turning on the
projector. (
→
page 82)
45
4. Convenient Features
Checking If Security is enabled
Turn off the projector and turn it back on to check if the Security function is enabled.
1. Press the POWER (ON/STANDBY) button.
The [Power Off / Are you sure?] message will appear.
Press the ENTER button or the POWER (ON/STANDBY) or the POWER OFF button again.
The lamp lights off and the POWER indicator flashes orange. Please wait until the POWER indicator changes from
flashing to steady light.
2. When the POWER indicator lights steady orange, push the Main POWER switch to the off position (O).
The projector will turn off.
3. Push the Main POWER switch to the on position (I).
The POWER indicator lights orange. The projector is in standby condition.
4. Press and hold the POWER (ON/STANDBY) button for a minimum of two seconds.
The projector will turn on. The [Projector is locked! Enter your keyword.] message will be displayed at the bottom of
the screen.
5. Press the MENU button.
The Keyword entry screen will be displayed
6. Press the ENTER button.
The Software keyboard will be displayed.
7. Use the same procedures as steps 1 to 7 described in the “Assigning a Keyword for the first time” section
to enter “1234”.
Each time one number is entered, an “
쏄
” (asterisk) will appear. Keyword appears as asterisks so the real keyword
is hidden.
8. After entering your keyword, highlight [OK] and press the ENTER button.
The Software keyboard will disappear. This will allow you to operate the projector.
46
Disabling the Security
1. Press the MENU button.
The on-screen menu will be displayed.
NOTE: Immediately after the projector has been turned on and the “Projector is locked! Enter your keyword.” message is
displayed at the bottom of the screen, pressing the MENU button will display the Keyword entry will be displayed. At this time,
pressing the MENU button will display the on-screen menu.
2. Press the SELECT
왘
button to highlight [Setup] and press the ENTER button.
The page tab [Basic] will be highlighted.
3. Press the SELECT
왘
button twice to highlight the page tab [Security].
4. Press the SELECT
왔
button four times to highlight [Security] and press the ENTER button.
The Keyword entry screen will be displayed
4. Convenient Features
5. Press the ENTER button.
The Software keyboard will be displayed.
6. Use the same procedures as steps 1 to 7 described in the “Assigning a Keyword for the first time” section
to enter “1234”.
Each time one number is entered, an “
쏄
” (asterisk) will appear. Keyword appears as asterisks so the real keyword
is hidden.
7. After entering your keyword, highlight [OK] and press the ENTER button.
The Software keyboard will disappear. The Security screen will be displayed.
8. Highlight [On] and press the SELECT
왘
button to highlight [Off].
9. Press the SELECT
왔
button to highlight [OK] and press the ENTER button.
The Security Function is now disabled.
NOTE: Do not forget your keyword. However, if you forget your keyword, NEC or your dealer will provide you with your Release Code
upon proof of ownership.
47
4. Convenient Features
쐈
Using a USB Memory Device
The projector is compatible with a USB memory device which sup-
ports the viewer and security features.
•To use a USB memory device, connect the device to the USB
port (type A).
•Select one of the drive icons for your USB memory in a pane on
the left side of the Viewer window.
•To use a USB memory device as a Protect key for Security func-
tion, select one from the Drive icons in the Security setting screen.
(→ page 82)
NOTE:
•Use commercially available USB memory devices. Some USB memory devices (brands) may not work. See our website for
available USB memory devices:http://www.nec-pj.com
•The projector does not support NTFS formatted flash memory card or USB memory device.
Be sure to use a flash memory card or USB memory device formatted with the FAT32, FAT16 or FAT file system.
To format your flash memory card or USB memory device in your computer, refer to the document or help file that comes with
your Windows.
•You cannot use a USB memory device when connecting a USB mouse to the projector.
•Do not do the following while the USB memory device’s access indicator is lit or flashing (while data is being accessed.) Doing so
can damage your USB memory device. Back up your data in case it will need to be restored.
*Pulling out the USB memory device from the USB port of the projector.
*Turning off the main power switch or unplugging the power cable.
•The drive for ”USB 1-4” is displayed only when the USB memory device is connected to the projector.
•Some USB memory devices (brands) cannot be used as Protect key for the projector’s Security function.
CAUTION: Do not insert a USB memory device into the LAN port (RJ-45). Doing so can cause damage to the LAN
port (RJ-45).
PC CARD
COMPONENT IN
USB LAN
AUDIO IN
COMPUTER 3 IN
COMPUTER 1 IN COMPUTER 2 IN
PC CONTROL
MONITOR OUT
AUDIO OUT
S-VIDEO IN VIDEO IN
AUDIO IN
Cb/Pb
L/MONO R
YCr/Pr
AC IN
48
쐉 Operation Using an HTTP Browser
Overview
The use of HTTP server functions will allow control of the projector from a web browser without the installation of
special software. Please be sure to use “Microsoft Internet Explorer 4.x” or a higher version for the web browser. (This
device uses “JavaScript” and “Cookies” and the browser should be set to accept these functions. The setting method
will vary depending on the version of browser. Please refer to the help files and the other information provided in your
software.)
NOTE:
*The display’s or button’s response can be slowed down or operation may not be accepted depending the settings of your network.
Should this happen, consult your network administrator.
*The projector may not respond if its buttons are repeatedly pressed in rapid intervals. Should this happen, wait a moment and
repeat. If you still can’t get any response, turn off and back on the projector.
Access is gained to the HTTP server functions by specifying
http:// <the projector’s IP address> /index.html
in the entry column of the URL.
CAUTION:
Do not use the HTTP Server functions and PC Control Utility 3.0 included on the supplied CD-ROM. Using both at
the same time may result in a connection failure or slow response.
Preparation Before Use
Make network connections and set up the projector and confirm that it is complete before engaging in browser opera-
tions. (→ [LAN Mode] on page 86)
Operation with a browser that uses a proxy server may not be possible depending on the type of proxy server and the
setting method. Although the type of proxy server will be a factor, it is possible that items that have actually been set
will not be displayed depending on the effectiveness of the cache, and the contents set from the browser may not be
reflected in operation. It is recommended that a proxy server not be used unless it is unavoidable.
Handling of the Address for Operation via a Browser
Regarding the actual address that is entered for the address or entered to the URL column when operation of the
projector is via a browser, the host name can be used as it is when the host name corresponding to the IP address of
the projector has been registered to the domain name server by a network administrator, or the host name corre-
sponding to the IP address of the projector has been set in the “HOSTS” file of the computer being used.
Example 1: When the host name of the projector has been set to “pj.nec.co.jp”,
http://pj.nec.co.jp/index.html
is specified for the address or the entry column of the URL.
Example 2: When the IP address of the projector is “192.168.73.1”, access is gained to the
HTTP server functions by specifying
http://192.168.73.1/index.html
for the address or the entry column of the URL.
4. Convenient Features
49
Structure of the HTTP Server
Power: This controls the power of the projector.
On ................... Power is switched on.
Off ................... Power is switched off.
Volume: This controls the volume of the projector.
왖..................... Increases the volume adjustment value.
왔..................... Decreases the volume adjustment value.
Mute: This controls the mute function of the projector.
Picture On ....... Mutes the video.
Picture Off ....... Cancels the video muting.
Sound On ........ Mutes the audio.
Sound Off ........ Cancels the audio muting.
OSD On .......... Mutes the on-screen display.
OSD Off .......... Cancels the muting of the on-screen display.
All On .............. Mutes each of the video, audio, and on-screen display functions.
All Off .............. Cancels the muting of each of the video, audio, and on-screen display functions.
Picture: Controls the video adjustment of the projector.
Brightness 왖... Increases the brightness adjustment value.
Brightness 왔... Decreases the brightness adjustment value.
Contrast 왖...... Increases the contrast adjustment value.
Contrast 왔...... Decreases the contrast adjustment value.
Color 왖........... Increases the color adjustment value.
Color 왔........... Decreases the color adjustment value.
Hue 왖............. Increases the hue adjustment value.
Hue 왔............. Decreases the hue adjustment value.
Sharpness 왖... Increases the sharpness adjustment value.
Sharpness 왔... Decreases the sharpness adjustment value.
• The functions that can be controlled will vary depending on the signal being input to the projector.
4. Convenient Features
50
Source Select: This switches the input connector of the projector.
Computer1 ...... Switches to the COMPUTER 1 IN connector.
Computer2 ...... Switches to the COMPUTER 2 IN connector.
Computer3 ...... Switches to the COMPUTER 3 IN connector. (LT380 only)
Component ..... Switches to the COMPONENT IN connectors.
Video ............... Switches to the VIDEO IN connector.
S-Video ........... Switches to the S-VIDEO IN connector.
Viewer ............. Switches to the Viewer.
LAN ................. Switches to a LAN signal.
Projector Status: This displays the condition of the projector.
Lamp Life Remaining
..... Displays the remaining life of the lamp as a percentage.
Lamp Hours Used ....... Displays how many hours the lamp has been used.
Filter Hours Used ........ Displays how many hours the filter has been used.
Projector Hours Used . Displays how many hours the projector has been used.
Error Status ................. Displays the status of errors occurring within the projector.
Refresh ....................... Updates the display of the following conditions.
4. Convenient Features
51
4. Convenient Features
씈 Using the Projector to Operate a Computer Connected on a
Network (Desktop Control Utility 1.0)
When Desktop Control Utility 1.0 on the included User Supportware 3 CD-ROM is installed on the computer, that
computer can be operated using the projector over a network.
For example, say you have a PowerPoint file on a computer in your office that you want to use for a presentation at a
meeting. If the computer in the office is connected by LAN to the projector in the meeting room, the projector can be
operated to project the image of the desktop of the computer (Windows 2000 or XP) in the office and display the
PowerPoint file during the meeting. This eliminates the need for taking the computer from the office to the meeting
room.
Meeting room
Office
Disclaimer
You can use the Desktop Control Utility 1.0 to operate a computer located in a separate room from the projector over
a network. This means there might be potential security risks that you may be exposed to which could cause damage
by unauthorized access or illegal use. We recommend you take some measures to prevent third parties from unautho-
rized access to your data or information.
We share neither liability nor responsibility to any loss or damages arising from information leak or power down
without notice.
NOTE: In Windows operating system, click [Control Panel]
→
[Power Options]
→
[System Standby]
→
[Never]. This will discon-
nect a LAN connection when the computer goes in standby mode.
NOTE: To use the Desktop Control Utility 1.0, you need to have a USB mouse inserted into the USB port of the projector.
52
4. Convenient Features
Important:
•Your startup password will be required each time
you start Desktop Control Utility 1.0.
•If you forget or lost your startup password, in-
stall the program again.
Operations on the Computer
1. Connect the computer to the LAN and make the required settings.
2. Install Desktop Control Utility 1.0 on the computer.
•For instructions on installation, refer to the included “NEC Software Utility Installation Guide”.
•For instructions on operating the software, see the Desktop Control Utility 1.0’s help file.
3. Prepare the documents to be presented at the meeting and save them on the computer.
4. Start up Desktop Control Utility 1.0.
The Startup password window appears.
Window at the first startup Window after entering your startup password
5. Input the startup password and click [OK].
The [Current password] input window appears.
NOTE: The [Current password] will be changed each time you start Desktop Control Utility 1.0.
6. Make a note of the password.
7. Click [OK].
Desktop Control Utility 1.0 starts.
Go to the room where the projector is installed, taking the password you made a note in the previous Step [6].
53
4. Convenient Features
Operations on the projector – Connecting to the computer

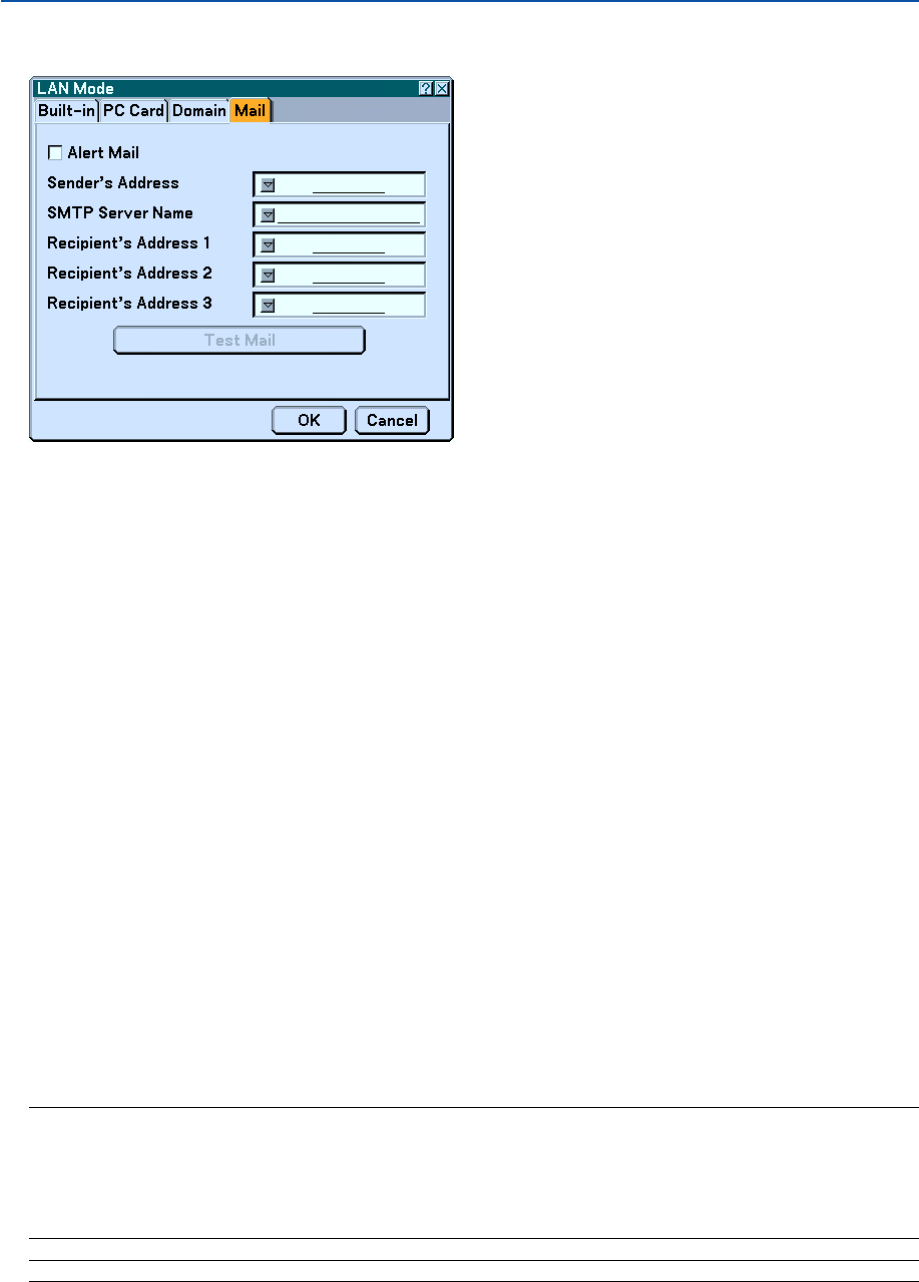

1. Make the LAN settings on the projector.
Make the LAN settings at [Setup]
→
[Installation]
→
[LAN Mode] in the menu. (
→
page 86)
2. Connect a commercially available USB mouse to the projector. (
→
page 35)
3. Click anywhere on the screen with the USB mouse.
The menu appears.
4. Click [Source], then click [LAN].
The help message is displayed.
The message is displayed only when a password for Desktop Control Utility 1.0 is not assigned.
5. Follow the message to press the MENU button on the projector cabinet or the remote control.
The connections bar appears at the bottom left of the screen.
6. Click the password input icon .
7. Click [Entry].
The password input window appears.
8. Click .
The character input window appears. (
→
page 117)
54
9. Input the password you made a note of in the previous Step [6] in “Operations on the Computer”.
10. Input the password and click [OK].
The password input window is turned off.
11. Click the PC search icon .
The PC search window appears.
12. Click [OK].
The connection selection window appears.
•To search by inputting the IP address of the connected computer, click on the PC Search window, click
[Input IP Address], then click [OK].
13. Click the computer to which you want to connect, then click [OK].
The desktop of the connected computer appears.
NOTE: Once the desktop appears, the menu will no longer appear when the USB mouse is clicked. To display the menu while the
desktop is displayed, press the button on the projector itself or on the remote control.
Operations on the projector –Operating the desktop
A USB mouse connected to the projector can be used to operate the displayed desktop.
If the MENU button on the projector cabinet or the remote control is pressed while the desktop is displayed, an
additional operations bar appears at the bottom left of the screen.
4. Convenient Features
햲햳햴햵
55
The following operations are available only with buttons on the projector cabinet or the remote control.
햲 Disconnect icon ................. Use to cut off communications with the computer.
햳 Shift icon............................ Select this icon and press the ENTER button to set the shift lock mode. Select this icon and
press the ENTER button again to cancel the shift lock mode.
햴 Ctrl icon ............................. Select this icon and press the ENTER button to set the control lock mode. Select this icon
and press the ENTER button again to cancel the control lock mode.
햵 Esc icon ............................. Use to do the same operation as when the “Esc” button on the computer is pressed. Use it
for example to stop a PowerPoint slideshow.
Operations on the projector – Disconnecting communication
1. Press the MENU button while the desktop is displayed.
The additional operations bar appears at the bottom left of the screen.
2. Select the disconnect icon and press the ENTER button.
The connections bar appears at the bottom left of the screen.
To reconnect the communication, click the PC search icon and repeat steps 12 and 13 in the previous page.
NOTE: Disconnection is possible by clicking the projector icon and then "Disconnect" on the task bar.
Operations on the projector – Exiting the desktop operation
Exiting the desktop operation using the taskbar in Windows.
1. Click the projector icon on the taskbar while the desktop is displayed.
The pop-up menu appears.
2. Click [Exit].
Desktop Control Utility 1.0 quits
3. Click anywhere on the screen.
The connections bar appears at the bottom left of the screen.
4. Click again anywhere on the screen.
The menu appears.
5. Click [Source] and then click any other source than [LAN].
The menu turns off.
4. Convenient Features
56
5. Using the Viewer
Making the Most out of the Viewer Function
Features
You can view presentation data and play images on the projector. A PC card is used to view presentation data pre-
pared on the computer and to play images projected with the projector.
The Viewer feature allows you to view slides stored on a PC memory card (referred to as PC card in this manual) or
USB memory on the projector. Even if no computer is available, presentations can be conducted simply with the
projector. This feature is convenient for holding presentations at meetings and in offices, as well as for playing images
taken on digital cameras.
NOTE:
•To use the Viewer, first you need to create presentation materials on your PC (JPEG, BMP, GIF*1, PNG*1, Index*2 files).
For creating presentation materials using the Ulead Photo Explore 8.0, see the supplied "User Supportware 3 User’s Guide" or On-
line help in Ulead Photo Explorer 8.0.
*1Both PNG and GIF format support non-interlaced images only.
*2“Index” file is a file created using the Ulead Photo Explore 8.0 contained on the supplied NEC User Supportware 3 CD-ROM.
See the supplied “User Supportware 3 User’s Guide” for installing the Ulead Photo Explore 8.0 on your computer.
Easy to use
• Presentations can be started immediately simply by inserting a PC card or USB memory (not supplied)
•Easy slide switching
•Remote control operation
•Jumping to a list of slides or any specific slide
Simple utility software (for computer)
•Ulead Photo Explore 8.0SE Basic operable on Windows XP/Windows 2000.
•Slides can be created by capturing the currently displayed image.
• Control screen for displaying lists of slides and editing.
*Microsoft, Windows and PowerPoint are registered trademarks of Microsoft Corporation.
57
5. Using the Viewer
Operating the Viewer Function from the Projector (playback)
This section describes the operation for showing slides created using the Viewer function with the projector. It is also
possible to make slides directly from the images projected with the projector.
Projecting slides (Viewer)
Preparation: Store JPEG or BMP files (JPEG, BMP, non-interlaced GIF or non-interlaced PNG files) in a PC card or
USB memory inserted into your PC.
1. Insert a PC card into the PC card slot or USB memory into the USB port of the projector.
2. Press the VIEWER button on the remote control or select the [Viewer] from the source list.
An image stored in the PC card or USB memory will be displayed.
3. Press the MENU button to display the Viewer menu.
The Viewer menu will appear when you press the MENU button on the remote control or the projector cabinet.
The Viewer menu includes the following commands:
Play ................... Plays back automatically or manually depending on the setting in Options. This allows you to move on to the
next slide when [Manual] is selected in the [Play Mode].
Stop ................... This allows you to stop Auto Play while you are playing back and to resume playing from the selected slide
or folder when [Auto] is selected in the [Play Mode].
Thumbnails........ Displays a list of thumbnails of Graphic files stored in the PC card or USB memory inserted into the projec-
tor.
Logo .................. Replace the default background logo with another logo in JPEG, BMP, non-interlaced GIF or non-interlaced
PNG format.
Options .............. Displays the Viewer setting options.
4. Select [Play] and then press the ENTER button to display the first slide or to start playing slides automati-
cally.
58
5. Using the Viewer
0000.jpg 0001.jpg 0002.jpg
3 Files
Slot 1
RECYCLED
1/3 0000.jpg 60KB 08/21/2005 06/29 263KB
select : ENTER
?
Highlight .................................. Indicates the selected folder or drive.
List of folders .......................... Indicates folders contained on a PC card or USB memory.
Information .............................. Indicates information of the selected file or folder.
Folder: folder name, creation date (month/day/year), creation time (hour/minute).
File: slide number/number of displayable slides in a folder, file name, creation date (month/day/
year), creation time (hour/minute), file size.
Number of files ........................ Indicates number of displayable slides in the selected folder. The maximum number of images
recognized as slides within one directory is about 1000.
Thumbnail/file name ................ Indicates thumbnails and names contained in a folder.
Cursor ..................................... Indicates the selected slide.
Scroll bar ................................. Used to view folders or files not visible in the window.
Viewer Window Elements
Highlight
List of folders
Information
Number of files Thumbnail/file name
Scroll bar
Cursor (orange)
59
5. Using the Viewer
Setting Option for Viewer
Play Mode:
Manual .................. Views a slide manually when the Viewer source is selected.
Auto ...................... Plays back slides automatically when the Viewer source is selected.
Interval:
Specifies interval time between 5 and 300 seconds.
Start:
Specifies start screen when the Viewer source is selected.
Show Thumbnails:
Selecting the Viewer source will display a list of thumbnails of graphic files stored in the PC card or USB memory
when [On] is selected.
0000.jpg 0001.bmp 0002.jpg
3 Files
Slot 1
RECYCLED
1/3 0000.jpg 60KB
select : ENTER folder :
EXIT
?
08/21/2005 06/29 263KB
0000.jpg 0001.jpg 0002.jpg
3 Files
Slot 1
RECYCLED
1/3 0000.jpg 60KB
select : ENTER
?
folder :
EXIT
08/21/2005 06/29 263KB
[Off] [On]
Sort:
Rearranges the slides or thumbnails by name, extension, date or size.
NOTE: This setting is not available for the following folders:
* Folders created with the "Output Viewer" feature of Ulead Photo Explorer 8.0 or with Viewer PPT Converter 3.0
OK/Cancel:
To close the Options menu with saving changes, select [OK] and press the ENTER button.
To close the Options menu without saving changes, select [Cancel] and press the ENTER button.
60
Exiting Viewer
To e xit Viewer, switch to another input such as Computer 1, Computer 2, Computer 3 (LT380 only), Component, Video,
S-Video or LAN.
*To switch to another input, there are two ways:
*Press the COMPUTER 1, COMPUTER 2, COMPUTER 3, COMPONENT, VIDEO, S-VIDEO or LAN button on
the remote control.
*Press the MENU button on the remote control to display the Viewer menu. Press the MENU button again to
display the main menu and select the input from the [Source] submenu.
With this function it is possible to switch directly to a slide when the picture of a VCR or computer is being projected.
Example: When conducting presentations using a combination of slides and moving pictures from a VCR, etc., it is
possible to switch from a Viewer slide to the video picture then back to the Viewer slide simply by using the Viewer
button.
NOTE: Even if you switch the current Viewer source to another source, the current slide is retained. When you return back to the
Viewer, you will get the slide that has been retained.
Viewing Digital Images
Digital images can be played with the Viewer if the following conditions are met:
•If the image can be stored on an MS-DOS format PC card.
•If the image can be stored in a format supported by the Viewer. With the Viewer, images on the card are searched
for in directories and images in JPEG, BMP, non-interlaced GIF or non-interlaced PNG format are recognized as
slides.
NOTE: The maximum number of images recognized as slides within one directory is about 1000.
5. Using the Viewer
61
5. Using the Viewer
Changing Background Logo
You can change the default background logo using the Viewer feature.
NOTE: File size must be 256KB or less. File formats other than JPEG, BMP, non-interlaced GIF or non-interlaced PNG are not
available.
Preparation: Store JPEG or BMP files (JPEG, BMP, non-interlaced GIF or non-interlaced PNG files) in a PC card or
USB memory inserted into your PC and insert the PC card into the projector's slot or USB memory into the projector's
USB port.
1. Press the VIEWER button on the remote control to display an image.
2. Press the MENU button to display the Viewer menu.
0000.jpg 0001.jpg 0002.jpg
3 Files
Slot 1
RECYCLED
1/3 0000.jpg 60KB
select : ENTER
?
folder :
EXIT
08/21/2005 06/29 263KB
3. Use the
왔
button to select [Thumbnails] and then press the ENTER button.
The Thumbnail screen will be displayed.
NOTE: To change highlight from the Thumbnails screen (right window) to a directory tree (left window) , press the EXIT button. To
return highlight to the Thumbnails screen, press the ENTER button.
4. Use
왖왔왗왘
button to select a file (slide) for your background logo.
5. Press the MENU button to display the Viewer menu.
6. Use the
왔
button to select [Logo] and then press the ENTER button.
A confirmation dialog box will be displayed.
7. Use the
왗
button to select [Yes] and press the ENTER button. This completes changing a logo for the
background.
*Once you have changed the background from the NEC logo to another, you cannot return the logo to background
even by using [Reset]. To put the NEC logo back in the background logo, repeat the above steps. The NEC logo file
is included on the supplied User Supportware 3 CD-ROM (/Logo/NEC_BB_X.JPG).
62
Using the Menus
1. Press the MENU button on the remote control or the projector cabinet to display the menu.
NOTE: The commands such as
왗왘
, ENTER, EXIT in the gray bar show available buttons for your operation.
2. Press the SELECT
왗왘
buttons on the remote control or the projector cabinet to display the submenu.
3. Press the ENTER button on the remote control or the projector cabinet to highlight the top item or the first
tab.
4. Use the SELECT
왖왔
buttons on the remote control or the projector cabinet to select the item you want to
adjust or set.
You can use the SELECT
왗왘
buttons on the remote control or the projector cabinet to select the tab you
want.
NOTE: You can select a tab only when the tab color is orange.
5. Press the ENTER button on the remote control or the projector cabinet to display the submenu window.
6. Adjust the level or turn the selected item on or off by using the SELECT
왖왔왗왘
buttons on the remote
control or the projector cabinet.
Changes are stored until you adjust it again.
7. Repeat steps 2 -6 to adjust an additional item, or press the EXIT button on the remote control or the
projector cabinet to quit the menu display.
NOTE: When a menu or message is displayed, several lines of information may be lost, depending on the signal or settings.
Main menu
Submenu window
Currently available
buttons
Submenu
6. Using On-Screen Menu
63
Menu tree
Menu Item
Source Computer 1, Computer 2, Computer 3 (LT380 only), Component, Video, S-Video, Viewer, LAN, Entry List
Adjust Picture Preset 1 to 6

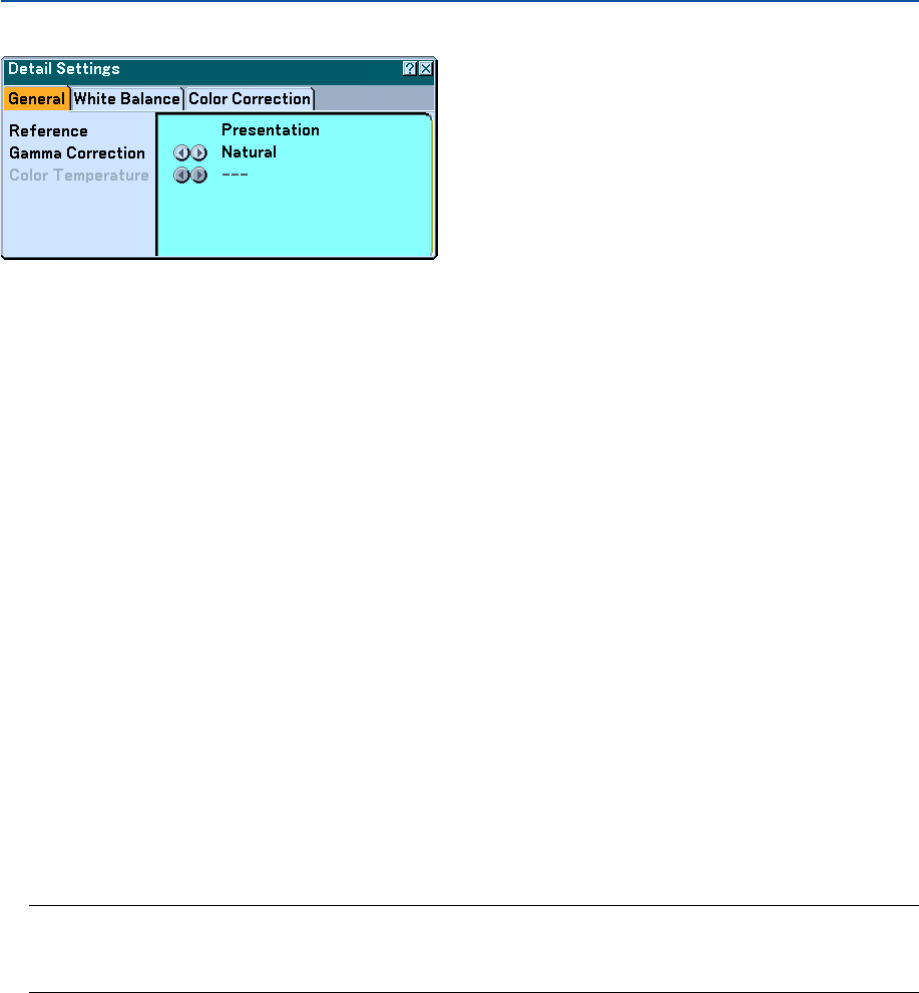

Detail Settings Reference High-Bright, Presentation, Video, Movie,
Graphic, sRGB
Gamma Correction
Dynamic, Natural, Black Detail
Color Temperature
5000, 6500, 7800, 8500, 9300, 10500
White Balance Brightness RGB, Contrast RGB
Color Correction Red, Green, Blue,Yellow, Magenta,
Cyan
Brightness
Contrast Manual, Auto
Sharpness
Color
Hue
Reset
Image Options Clock
Phase
Horizontal Position
Vertical Position
Blanking Top, Bottom, Left, Right
Overscan 0%, 5%, 10%
Aspect Ratio 4:3 4:3, Letterbox, Wide Screen, Crop
16:9 4:3 Window, Letterbox, Wide Screen, 4:3 Fill
Video 3D Y/C Separation Off, On: Still, Normal, Movie
Vertical Enhancer Off, 1, 2, 3
Deinterlace Off, On: Still, Normal, Movie
Telecine Off, On: 2-2/2-3 Auto, 2-2 On, 2-3 On
Sound Volume, Bass, Treble, Balance, 3D Surround
Setup Basic Keystone Auto, Manual
Cornerstone
Wall Color Off, Blackboard, Blackboard (Gray), Light yellow, Light green, Light blue,
Sky blue, Light rose, Pink
Lamp mode Normal, Eco
Menu Mode Basic Menu, Advanced Menu
Language English, Deutsch, Français, Italiano, Español, Svenska, Suomi, Norsk,
Nederlands, Türkçe, Polski, , , Magyar, Português,
Cestina
, , Dansk, , ,
Menu Color Select Color1 to 5, Monochrome
Display Select Source: On, Off / Message: On, Off
Display Time Manual, Auto 5 sec, Auto 15 sec, Auto 45 sec
Background Blue, Black, Logo
Security Control Panel Lock Off, On
Menu Lock Off, On
Logo Lock Off, On
Security Off, On, Keyword, Use Protect Key, Drive, Read, Register, Delete
6. Using On-Screen Menu
Basic menu items are indicated by
shaded area.
64
6. Using On-Screen Menu
Menu Item
Setup Installation Orientation Desktop Front, Ceiling Rear, Desktop Rear, Ceiling Front
Screen Screen Type: 4:3, 16:9 / Position
LAN Mode Built-in
PC Card Advanced: Network Type, WEP
Domain
Mail
Projector Name
Communication Speed 4800, 9600, 19200, 38400
Standby Mode Normal, Power-Saving
Options Auto Adjust Off, Normal, Fine
Auto Start Off, On
Power Management Off, 0:05, 0:10, 0:20, 0:30
Fan Mode Auto, High
Default Source Select Last, Auto, Select (Computer1, Computer2, Computer3 (LT380 only),
Component, Video, S-Video, Viewer, LAN)
Signal Select Computer1 RGB/Component, RGB, Componet, Scart
Computer2 RGB/Component, RGB, Componet
Component Component, Video
Color System Component (Video), Video, S-Video
S-Video Mode Select Off, S2
OUT Terminal Last, Computer1, Computer2, Component
Tools ChalkBoard
Off Timer Off, 0:30, 1:00, 2:00, 4:00, 8:00, 12:00, 16:00
Mouse Mouse Pointer: Pointer 1 to 9 / Button: Right Hand, Left Hand
Sensitivity: Fast, Medium, Slow
Information Usage Time Lamp Life Remaining, Lamp Hours Used, Filter Hours Used, Projector Hours Used
Source Page1 Input Terminal, Signal Type, Video Type, Source Name, Entry No.
Source Page2 Horizontal Frequency, Vertical Frequency, Sync Type, Sync Polarity, Scan Type
LAN Built-in IP Address, Subnet Mask, Gateway, MAC Address
LAN PC Card IP Address, Subnet Mask, Gateway, MAC Address
LAN Wireless SSID, Mode, WEP, Channel, Signal Level
Version Firmware, Data
Reset Current Signal, All Data, All Data (Including Entry List), Clear Lamp Hours, Clear Filter Hours
65
Menu Elements
Slide bar
Solid triangle
Highlight
Tab
Radio button
Check box
Cancel button
OK button
Menu windows or dialog boxes typically have the following elements:
Highlight................ Indicates the selected menu or item.
Solid triangle ......... Indicates further choices are available. A highlighted triangle indicates the item is active.
Tab ........................ Indicates a group of features in a dialog box. Selecting on any tab brings its page to the front.
Radio button ......... Use this round button to select an option in a dialog box.
Check box ............. Place a checkmark in the square box to turn the option On.
Slide bar ................ Indicates settings or the direction of adjustment.
OK button .............. Press to confirm your setting. You will return to the previous menu.
Cancel button ........ Press to cancel your setting. You will return to the previous menu.
Close button .......... Click to close the window and saving changes. (USB mouse only)
Help button ........... Indicates that help about that feature is available (USB mouse only). Press the HELP button on the remote
control to display help.
Help button
Close button
6. Using On-Screen Menu
66
6. Using On-Screen Menu
쐏 Menu Descriptions & Functions [Source]
Computer 1 and 2
Selects the computer connected to your COMPUTER 1 or COMPUTER 2 input connector signal.
NOTE: An optional component cable (Component V or ADP-CV1 cable) is needed for a component signal.
Computer 3 (LT380 only)
Selects the computer connected to your COMPUTER 3 (DVI-D) connector.
Component
Selects what is connected to your COMPONENT IN (Y, Cb/Pb, Cr/Pr).
Video
Selects what is connected to your VIDEO input-VCR, laser disc player, DVD player or document camera.
S-Video
Selects what is connected to your S-VIDEO input-VCR, DVD player, or laser disc player.
NOTE: A frame may freeze for a brief period of time when a video is played back in fast-forward or fast-rewind with a Video or S-
Video source.
Viewer
This feature enables you to make presentations using a PC card that contains captured images and slides created
with the exclusive Photo Explore 8.0 for NEC contained on the CD-ROM. See the supplied NEC Software Utility
Installation Guide for installing the Photo Explore 8.0 for NEC.
See page 56 for viewing slides.
LAN
Selects a signal from the LAN port (RJ-45) or the NEC optional wireless LAN card plugged into the projector's card
slot.
67
6. Using On-Screen Menu
[Entry List]
Use the SELECT 왖왔 buttons on your remote control or the projector cabinet to select the signal and press the
ENTER button on the remote control or the projector cabinet to display the [Entry Edit Command] screen.
Entering the Currently Projected Signal into the Entry List
1. Display the Entry List.
2. Use the SELECT
왖
or
왔
button on your remote control or the projector cabinet to select any number and
press the ENTER button on the remote control or the projector cabinet to display the [Entry Edit Com-
mand] screen.
3. Use the SELECT
왗
or
왘
button to select [Store] and press the ENTER button.
Using the [Entry List]
Making any adjustments to the current picture will automatically register its adjustments to the [Entry List]. The regis-
tered signal can be loaded any time from the [Entry List].
NOTE: Up to 100 presets can be registered except settings on the Picture.
68
6. Using On-Screen Menu
[Entry Edit Command]
You can edit signals on the [Entry List].
Load ...................... Enables you to select a signal from the list.
Store ..................... Enables you to store the currently projected signal.
Cut ........................ Enables you to remove a selected signal from the list and place it on the "clipboard" in the projector.
Copy ...................... Enables you to copy a selected signal from the list and place it on the "clipboard" in the projector.
Paste ..................... Enables you to paste the signal placed on the "clipboard" to any other line of the list.
Edit ........................ Enables you to change source names.
Source Name:
Enter a signal name. Up to 18 alphanumeric characters can be used.
Input Terminal:
Change the input terminal.
Lock:
Set so that the selected signal cannot be deleted when "All Delete" is executed. After executing [Lock], the
changes cannot be saved.
Skip:
Set so that the selected signal will be skipped during auto search.
When complete, select OK and press ENTER. To exit without storing the setting, select Cancel. Select [Source
Name] and press ENTER to display the Source Name Edit window. You can change source name on this
window. Press 왔 to display the software keyboard, which you can enter alphanumeric characters. See page
117 for the key function of the software keyboard.
All Delete ............... This feature enables you to delete all the registered signals in the Entry List.
The following buttons are not available for the currently projecting signals:
1) The Cut and Paste buttons on the [Entry Edit Command] screen
2) The Input Terminal button on the [Entry Edit] screen
NOTE: When all the signals in the [Entry List] are deleted, the currently projected signal will be also deleted except locked signals.
69
6. Using On-Screen Menu
쐄 Menu Descriptions & Functions [Adjust]
[Picture]
[Preset]
This option allows you to adjust neutral tint for yellow, cyan or magenta. There are six factory presets optimized for
various types of images, you can set user adjustable settings.
70
6. Using On-Screen Menu
[Detail Settings]
This will provide you with three pages of menus that provide more detailed settings.
[General]
Selecting Reference Setting [Reference]
This feature allows you to use color correction or gamma values as reference data to optimize for various types of
images. You can select one of the following six settings.
High-Bright ........ Recommended for the use in a brightly lit room.
Presentation ...... Recommended for making a presentation using a PowerPoint file.
Video ................. Recommended for regular picture such as TV program.
Movie ................ Recommended for movies.
Graphic .............. Recommended for graphics.
sRGB ................. Standard color values.
Selecting Gamma Correction Mode [Gamma Correction]
Each mode is recommended for:
Dynamic ............ Creates a high-contrast picture.
Natural ............... Natural reproduction of the picture.
Black Detail ........ Emphasizes detail in dark areas of the picture.
Adjusting Color Temperature [Color Temperature]
This feature adjusts the color temperature using the slide bar.
Move the slide bar to the right to increase color temperature (more blue); to the left to decrease color temperature
(more red).
NOTE:
•When [Presentation] or [High-Bright] is selected in [Reference], this function is not available.
•When [White Balance] settings has been changed, the color temperature value on screen does not reflect the real color
temperature.
[White Balance]
Adjusting White Balance [White Balance]
This allows you to adjust the white balance. Brightness for each color (RGB) is used to adjust the black level of the
screen; Contrast for each color (RGB) to adjust the white level of the screen.
[Color Correction]
Selecting Color Correction [Color Correction]
Adjusts red, green, blue, yellow, magenta and cyan each independently to correct the tint of the whole screen.
71
6. Using On-Screen Menu
[Brightness]
Adjusts the brightness level or the back raster intensity.
[Contrast]
Adjusts the intensity of the image according to the incoming signal.
You have two options: Manual and Auto.
NOTE: The Auto Contrast function will not work when the on-screen menu or a message is displayed
[Sharpness]
Controls the detail of the image for Video (not valid for RGB and digital signals).
[Color]
Increases or decreases the color saturation level (not valid for RGB and digital signals).
[Hue]
Varies the color level from +/- green to +/-blue. The red level is used as reference. This adjustment is only valid for
Video, Component and TV standard inputs (not valid for RGB and digital signals).
[Reset]
The settings and adjustments for [Picture] will be returned to the factory settings with the exception of the following;
Preset numbers and [Reference] within the [Preset] screen.
The settings and adjustments under [Detail Settings] within the [Preset] screen that are not currently selected will not
be reset.
72
6. Using On-Screen Menu
[Image Options]
Adjusting Clock and Phase [Clock/Phase]
This allows you to manually adjust Clock and Phase.
Clock ..................... Use this item to fine tune the computer image or to remove any vertical banding that might appear. This
function adjusts the clock frequencies that eliminate the horizontal banding in the image.
This adjustment may be necessary when you connect your computer for the first time.
Phase .................... Use this item to adjust the clock phase or to reduce video noise, dot interference or cross talk. (This is
evident when part of your image appears to be shimmering.)
Use [Phase] only after the [Clock] is complete.
73
6. Using On-Screen Menu
Adjusting Horizontal/Vertical Position [Horizontal/Vertical Position]
Adjusts the image location horizontally and vertically.
Masking Unwanted Area [Blanking]
This feature allows you to mask any unwanted area of the screen image.
Selecting Overscan Percentage [Overscan]
Select overscan percentage (0%, 5% and 10%) for signal.
Projected image
Overscaned by 10%
74
6. Using On-Screen Menu
Input
Signal
Screen
Type
4:3 Screen
16:9 Screen
4:3
4:3 Window 4:3 Fill
Squeeze
Wide Screen
Wide Screen
Crop
Letterbox
4:3 Letterbox
Letterbox
Selecting Aspect Ratio [Aspect Ratio]
Screen Type 4:3 Screen Type 16:9
Aspect Ratio allows you to select the best Aspect mode to display your source image.
When screen type 4:3 is selected for the source, the following selections will display:
4:3 ......................... Standard 4:3 aspect
Letter Box .............. Reduced to display the true aspect with black borders on top and bottom
Wide Screen .......... Left & Right stretched with black borders on top and bottom
Crop ...................... Left & Right stretched. Left & Right sides cut. Available for 4:3 only.
When screen type 16:9 is selected for the source, the following selections will display:
4:3 Window ........... Reduced to display the true aspect with black borders on right and left
Letter Box .............. Standard 16:9 aspect
Wide Screen .......... Left and right stretched to display the true aspect
4:3 Fill ................... Stretched to display in 16:9 aspect ratio
NOTE: You can adjust image position vertically for a source with black borders on top and bottom. (
→
page 85)
NOTE: Please note that using this projector for the purpose of commercial gain or the attraction of public attention in a venue such
as a coffee shop or hotel and employing compression or expansion of the screen image with a [Aspect Ratio] or [Screen] setting
may raise concern about the infringement of copyrights which are protected by copyright law.
NOTE: During 3D Reform adjustment, [Aspect Ratio] may not be available.
Should this happen, first reset the 3D Reform data and then do setting again. Second repeat the 3D Reform adjustment.
Changing the aspect ratio can limit 3D Reform in its adjustable range.
75
6. Using On-Screen Menu
[Video]
Turning On/Off 3 Dimension Separation [3D Y/C Separation]
This function turns on or off the 3 dimensional separation feature.
Off ............................... Turns off the function.
On Still ................. Recommended for a still image.
Normal ............ The projector detects and corrects the image automatically.
Movie .............. Recommended for a moving image.
TIP: When the image is poor quality, turn on [3D Y/C Separate]. If there is still poor quality, try turning off [Deinterlace] or try turning
off [3D Y/C Separate] and select [Normal] in [Deinterlace].
NOTE: This feature is available for NTSC3.58 of Video signal only.
Setting Vertical Edges [Vertical Enhancer]
This function enhances the vertical edges around objects in the image.
NOTE: This function is not available for an RGB, HDTV and Component signal.
Selecting Interlace or Deinterlace [Deinterlace]
This function allows you to select between "Interlace" and "Deinterlace".
Off ............................... Project the interlaced signal.
On Still ................. Select when a still image is displayed. When this option is selected for a moving image, jitter or artifacts
can be seen.
Normal ............ The projector automatically determines a still or moving image to display a clear picture. If selecting
[Normal] causes excess jitter or artifacts, select [Movie].
Movie .............. Select when a moving image is displayed. This will eliminate jitter and artifacts in a moving image. This
option is available only for SDTV.
Setting Telecine Mode [Telecine]
Use 3:2 pull down correction to eliminate jitter and artifacts in video.
NOTE: This feature is available only when [Deinterlace] is turned on and an SDTV signal is selected.
Off ..................................... Turns off the Telecine mode.
On 2-2/2-3 Auto ......... Detects pull-down correction method.
2-2 On .................. Uses 2-2 pull-down correction method
2-3 On .................. Uses 2-3 pull-down correction method
76
6. Using On-Screen Menu
[Sound]
Controlling Sound [Volume/Bass/Treble/Balance]
Adjusts the volume, bass and treble level, left and right balance of the projector speaker and AUDIO OUT (Stereo Mini
Jack).
Enabling 3D Surround [3D Surround]
Turn on or off the 3D surround effect.
If the AUDIO OUT stereo mini jack of the projector is connected to an external equipment, adjusting the sound on the
external equipment can cause sound to be distorted or cracked, depending on the bass, treble or 3D Surround
adjustment. If this happnes, return the adjustments of the projector to the factory default (Bass:0, Treble: 0, 3D Sur-
round: 0).
77
6. Using On-Screen Menu
쐂 Menu Descriptions & Functions [Setup]
[Basic]
Selecting Keystone Mode [Keystone]
This feature allows you to correct keystone distortion manually or automatically.
Selecting this item will display the Keystone setting menu.
Auto ...................... This feature allows the projector to detect its tilt and correct vertical distortion automatically.
Manual .................. You can correct vertical distortion manually from the menu.
Changes will be saved even when you turn off the projector.
Adjust .................... You can display the Keystone screen. (→ page 29)
NOTE: When [Cornerstone] is selected, [Adjust] is not available.
Selecting Cornerstone Mode [Cornerstone]
This option allows you to correct trapezoidal distortion.
Selecting this item will display the Cornerstone adjustment screen. (→ page 38)
NOTE: When [Keystone] is selected, [Cornerstone] is not available.
78
6. Using On-Screen Menu
Using the Wall Color Correction [Wall Color]
This function allows for quick adaptive color correction in applications where the screen material is not white.
The following nine options are available.
Setting Lamp Mode to Normal or Eco [Lamp Mode]
This feature enables you to select two brightness modes of the lamp: Normal and Eco modes. The lamp life can be
extended by using the Eco mode. Selecting Eco mode decreases fan noise compared to in Normal mode.
Normal Mode ........ This is the default setting (100% Brightness).
Eco Mode .............. Select this mode to increase the lamp life (80% Brightness).
NOTE: If the projector is overheated in Normal mode, there may be a case where the Lamp mode will be forced into the Eco mode to
protect the projector. This mode is called "forced Eco mode".
During "forced Eco mode" cannot be changed from the menu.When the projector is in forced Eco mode, the picture brightness
decreases.
When the projector comes back to normal temperature, the Lamp mode returns to Normal mode.
The LAMP indicator's steady green light indicates the lamp is in Eco mode.
Selecting Menu Mode [Menu Mode]
This feature allows you to select two menu modes: Basic Menu and Advanced Menu.
Basic Menu ........... This is the basic menu that contains minimum essentials of menus and commands.
Advanced Menu..... This is the menu that contains all the available menus and commands.
Selecting Menu Language [Language]
You can choose one of 21 languages for on-screen instructions.
79
6. Using On-Screen Menu
[Menu]
Selecting Menu Color [Color Select]
You can choose a color for the menu.
Turning On / Off Source Display and Message [Display Select]
Source ................... This option turns on or off input name display such as Computer 1, Computer 2, Computer 3 (LT380 only),
Component, Video, and No Input to be displayed in the top right corner of the screen.
Message ................ This option turns on and off messages. Even though selecting [Off], the following message will appear.
* “The lamp has reached the end of its usable life. Please replace the lamp.” Press the EXIT button and the
message will disappear.
* “Projector is locked” When unlocking the projector security, the message will disappear.
Selecting Menu Display Time [Display Time]
This option allows you to select how long the projector waits after the last touch of a button to turn off the menu. The
preset choices are [Manual], [Auto 5 sec], [Auto 15 sec], and [Auto 45 sec]. The [Auto 45 sec] is the factory preset.
Selecting a Color or Logo for Background [Background]
Use this feature to display a blue/black screen or logo when no signal is available. The default background is blue. You
can change the logo screen using the Viewer feature. (→ pages 61)
[Security]
Disabling the Cabinet Buttons [Control Panel Lock]
This option turns on or off the Control Panel Lock function.
NOTE:
• This Control Panel Lock does not affect the remote control functions.
•When the control panel is locked, pressing and holding the EXIT button on the projector cabinet for about 10 seconds will change
the setting to [Off].
80
6. Using On-Screen Menu
Setting a Password [Menu Lock] / [Logo Lock]
A password can be set for your projector to avoid operation by an unauthorized person.
When [Menu Lock] is set, changing the menu from Basic to Advanced will display the Password input screen.
When [Logo Lock] is set, doing any one of the following two operations will display the Password input screen.
•Changing the background either from or to [Logo]
•Changing the logo data in a PC card or USB memory.
[Entry]
To assign your password:
NOTE: Up to 15 alphanumeric characters can be assigned.
1. Type a password.
Select [On] and press the ENTER button.
The [Enter the Password] screen will be displayed.
Make sure that is highlighted and then press the ENTER button.
The Software keyboard appears. Use the Software keyboard to type a password and then highlight [OK] on
the [Enter the Password] screen and press the ENTER button.
The [Confirm Password] screen will be displayed.
2. Type the same password again. Highlight [OK] on the [Enter the Password] screen and press the ENTER
button.
Your password will be assigned.
[Delete] :
To delete your password:
1. Select [Off] and press the ENTER button. The [Current Password] screen will be displayed.
2. Use the Software keyboard to type your password. Highlight [OK] on the [Current Password] screen and
then press the ENTER button.
Your password will be deleted.
81
6. Using On-Screen Menu
[Security]
The Security function enables you to protect your projector so that the projector will not project a signal unless you
enter a keyword. There is also an option to lock the projector by using a registered PC card* or USB memory* as a
protect key. Once you have registered your PC card as a protect key, you are required to insert the registered PC card
into the PC card slot of the projector each time you turn on the projector. You can enable the Security function by using
a keyword only.
*The projector does not support NTFS formatted flash memory card or USB memory device.
Be sure to use a flash memory card or USB memory device formatted with the FAT32, FAT16 or FAT file system.
To format your flash memory card or USB memory device in your computer, refer to the document or help file that
comes with your Windows.
On/Off.................... This turns the Security function on or off.
Keyword ................ Enter an appropriate keyword when you use the Security function. (Up to 10 characters can be used.) The
Security function is available only when your keyword is entered.
Use Protect key ..... Check this box to lock your projector when using a PC card. To use a keyword without a PC card, do not
check this box.
Drive...................... Switches between PC Card slot and USB port (type A).
Read ...................... Reads data from a PC card.
Register ................. Registers data from the PC card. The Security function is not available unless at least one PC card is
registered. (if the [Use Protect key] check box is selected) Up to 5 PC cards can be registered.
Delete .................... Deletes data of a registered PC card.
To set up a keyword to enable the Security function without using a registered PC card.
1. Use the SELECT
왖왔
button to select [Keyword] and use the software keyboard to enter a keyword.
NOTE: Please make a note of your keyword.
2. Use the SELECT
왖왔
button to select [On] and use the SELECT
왖왔
button to select [OK], then the Security
function will be enabled.
An [Are you sure?] message will appear. Use the SELECT
왗왘
button to select [Yes] and press the ENTER
button.
The Security function takes effect.
82
6. Using On-Screen Menu
To register a PC card as a protect key.
1. Insert a PC card into the PC card slot of the projector.
2. Use the SELECT
왖왔
button to select [Use Protect Key] and press the ENTER button.
3. Use the SELECT
왖왔
button to select [Read] and press the ENTER button.
Data of the PC card will be read into the projector.
4. Use the SELECT
왖왔
button to select [Register] and press the ENTER button.
Downloaded data will be registered and be displayed in the list window.
5. Use the SELECT
왖왔
button to select [Keyword] and use the software keyboard to enter a keyword.
NOTE: To use a PC card as a protect key, you must also set up a keyword. Please make a note of your keyword.
This completes registration of your PC card.
To enable Security, use the SELECT 왖왔 button to select [On] and use the SELECT 왖왔 button to select [OK] and
Security function will be enabled. An [Are you sure?] message will appear. Use the SELECT 왗왘 button and press the
ENTER button.
The Security function takes effect.
To turn on the projector when Security is enabled (when using your keyword only).
1. Press and hold the POWER button for a minimum of two seconds.
The projector will be turned on and display a message to the effect that the projector is security-protected.
2. Press the MENU button.
The Release Code input screen will be displayed.
3. Enter your keyword in the Release Code input screen.
You can view the projected image.
NOTE: Do not forget your keyword. However, if you forget your keyword, NEC or your dealer will provide you with your Release
Code. See more information at the end of this section.
To turn on the projector when Security is enabled (when using PC card as a protect key).
1. Insert your registered PC card into the PC card slot.
2. Press and hold the POWER button for a minimum of two seconds.
The projector will turn on and then recognize the PC card. Once the image has been projected, it will stay
on without the PC card.
•The security disable mode is maintained until the main power is turned off (by setting the main power switch to
"O" or unplugging the power cord). In the following cases you will be asked to check the protect key or input the
keyword:
(1)When [OK] is selected at an image for which security is set and the power is turned off then back on
(2)When the main power is turned off then back on while the security function is enabled
(3)When you attempt to display an image for which security is set while the security function is enabled
•Blanks (spaces) cannot be used in the Keyword section.
83
6. Using On-Screen Menu
To delete PC card data you registered.
1. Use the SELECT
왖왔
button to select [Delete] and use the SELECT
왗
button to select the list window.
2. Use the SELECT
왖왔
button to select the PC card data you wish to delete.
3. Press the SELECT
왘
button to select [Delete] and press the ENTER button.
The PC card data will be deleted.
If you've lost your registered PC card, proceed as follows:
NOTE: NEC or your dealer will provide you with your Release Code in exchange for your registered keyword and Request Code. See
more information at the end of this section.
1. Press and hold the POWER button for a minimum of two seconds.
The projector will be turned on and display a message to the effect that the projector is security-protected.
2. Press the MENU button.
The Release Code input screen will be displayed as well as your Request Code (24 alphanumeric charac-
ters).
3. Enter your Release Code in the Release Code Input screen.
The projector will turn on.
*If the projector is turned on by entering the Release Code, your Security will be disabled.
NOTE:
•Some types of PC cards cannot be registered as your protect key.
•It is recommended that you register two or more PC cards in case you lose or damage your registered PC card.
• Formatting your registered PC card will disable your protect key function.
NOTE:
For additional information visit:
US : http://www.necvisualsystems.com
Europe : http://www.nec-europe.com/
Global : http://www.nec-pj.com/
84
6. Using On-Screen Menu
[Installation]
Selecting Projector Orientation [Orientation]
This reorients your image for your type of projection. The options are: desktop front projection, ceiling rear projection,
desktop rear projection, and ceiling front projection.
Desktop front Ceiling rear
Desktop rear Ceiling front
NOTE: Selecting one of the other options than [Desktop Front] will make the [Auto Keystone] unavailable.
85
Selecting Aspect Ratio and Position for Screen [Screen]
6. Using On-Screen Menu
Screen Type ........... Select one of two options: 4:3 Screen or 16:9 Screen for the screen to be used. See also [Aspect Ratio].
(→ page 74)
Position ................. This feature allows you to adjust the vertical position of the image when 16:9 has been selected for the
screen type.
When 16:9 has been selected there is black area above and below the image.
NOTE: This option is available only when [16:9] is selected in [Screen Type].
NOTE: During 3D Reform adjustment, [Screen Type] and [Screen Position] may not be available. To make available, first reset the 3D
Reform data and then do settings again. Secondly repeat the 3D Reform adjustment. Changing [Screen Type] and [Screen Position]
can limit 3D Reform in its adjustable range.
86
6. Using On-Screen Menu
[LAN Mode]
Setting LAN Mode
This feature allows you to set various setting items when the projector is used on your network.
CAUTION
•Consult with your network administrator about these settings.
•Connect a LAN cable (Eathernet cable) to the LAN port (RJ-45). (→ page 19)
•For wireless LAN connection, use the NEC optional wireless LAN card (NWL-100*).
*Last digit of the model code varies depending on which country you live in. For more information, visit our
Website.
•To use wireless LAN, insert the NEC optional wireless LAN card (NWL-100*) into the PC Card slot.
(→ "Inserting and Removing a PC Card” on page 21)
•Always insert or remove the wireless LAN card when the main power is turned off. Failure to do so may
cause projector malfunction or damage to the wireless LAN card. If the projector will not work correctly, turn
off the projector, wait 30 seconds, and turn it back on.
Hints on How to Set Up LAN Connection
To configure the projector to communicate on the network using the LAN port (RJ-45) or the optional wireless LAN
card:
1. Select the [Built-in] tab for the LAN port (RJ-45) or the [PC Card] tab for the optional wireless LAN card.
2. On the [Built-in] tab or the [PC Card] tab, select a number from the [Profiles] list for your LAN settings.
Two settings can be stored in memory for each the LAN port and the wireless LAN card respectively.
3. On the [Built-in] tab or the [PC Card] tab, turn on or off [DHCP], specify IP address, Subnet Mask,
Gateway and DNS Configuration. Select [OK] and press the ENTER button.
(
→
page 87, 88)
To recall the settings from memory:
After selecting the [Built-in] tab or the [PC Card] tab, select the number from the [Profiles] list.
Select [OK] and press the ENTER button. (→ page 87, 88)
To connect a DHCP server:
On the [Built-in] tab or the [PC Card] tab, select [DHCP] and press the ENTER button. A check mark will be placed.
Select again and press the ENTER button. The check box will be cleared.
When setting an IP address without using a DHCP server, clear the check box for [DHCP]. (→ page 87, 88)
To set only for wireless LAN (Network Type and WEP):
1. On the [PC Card] tab, select [Profiles] and then select [Profile 1] or [Profile 2].
2. On the [PC Card] tab, select [Advanced] and press the ENTER button. The [Advanced] menu will be
displayed.
(
→
page 89, 90)
To select a wireless LAN access point:
1. On the [PC Card] tab, select [Profiles] and then select [Profile 1] or [Profile 2].
2. On the [PC Card] tab, select [Advanced] and press the ENTER button.
3. On the Advanced menu, select [Network Type]
→
[Site Survey] and press the ENTER button.
4. Select [Mode] and then select [Infrastructure].
(
→
page 89)
87
6. Using On-Screen Menu
To receive error messages or information on the remaining lamp life via e-mail:
1. On the [Mail] tab, select [Alert Mail] and press the ENTER button. A check mark will be placed.
2. Set [Sender's Address], [SMTP Server Name] and [Recipient's Address]. Select [OK] and press the
ENTER button.
(
→
page 92)
To execute [Easy Connection] using Image Express Utility 2.0:
The [Easy Connection] is a mode that can abbreviate the troublesome LAN settings when using the Image Ex-
press Utility 2.0 and connecting the PC and projector via a wireless LAN.
The Image Express Utility 2.0 is contained on the supplied User Supportware 3 CD-ROM. To use [Easy Connec-
tion], select [PC Card] → [Profiles] → [Easy Connection]. (→ page 88)
[Built-in]
Profiles (for LAN port [RJ-45]):
Up to two settings for the LAN port (RJ-45) can be stored in memory of the projector.
Select [Profile 1] or [Profile 2] and then do settings for [DHCP] and the other options.
After doing this, select [OK] and press the ENTER button. This will store your settings in memory.
DHCP:
Enabling this option automatically assigns an IP address to the projector from your DHCP server.
Disabling this option allows you to register the IP address or subnet mask number obtained from your network
administrator.
IP Address............. Set your IP address. Press to display the software keyboard and type in 12 numeric characters.
Subnet Mask ......... Set your subnet mask number. Press to display the software keyboard and type in 12 numeric characters.
Gateway ................ Set the default gateway of the network connected to the projector. Press to display the software keyboard
and type in 12 numeric characters.
DNS Configuration Type in the IP address of DNS server on the network connected to the projector. Twelve numeric characters
are used.
Reconnect ............. Use this button to connect the projector to a network.
88
6. Using On-Screen Menu
[PC Card]
Profiles (for PC Card):
To execute a wireless LAN easily using Image Express Utility 2.0, select [Easy Connection].
Up to two settings for the optional wireless LAN card can be stored in memory of the projector.
Select [Profile 1] or [Profile 2] and then do settings for [DHCP] and the other options.
After doing this, select [OK] and press the ENTER button. This will store your settings in memory.
DHCP:
Place a check mark to automatically assign an IP address to the projector from your DHCP server.
Clear this check box to register the IP address or subnet mask number obtained from your network administrator.
IP Address............. Set your IP address. Press to display the software keyboard and type in 12 numeric characters.
Subnet Mask ......... Set your subnet mask number. Press to display the software keyboard and type in 12 numeric characters.
Gateway ................ Set the default gateway of the network connected to the projector. Press to display the software keyboard
and type in 12 numeric characters.
DNS Configuration Type in the IP address of DNS server on the network connected to the projector. Twelve numeric characters
are used.
Advanced .............. Displays the Advanced menu which includes various setting for wireless LAN connection (Network Type
and WEP). See the Advanced menu later on.
Reconnect ............. Use this button to connect the projector to a network.
89
6. Using On-Screen Menu
[Advanced] menu
[Network Type] (required for wireless only)
Site Survey:
Displays a list of available SSIDs for wireless LAN on site. Select an SSID which you can access.
To select an SSID, highlight [SSID] and use the SELECT 왘 to select [OK] and press the ENTER button.
: access point
: Ad Hoc PC
: WEP enabled
NOTE: You cannot connect to a device with the SSID for Channel 14 because it is not displayed in the list.
SSID (Network name):
Enter an identifier (SSID) for wireless LAN when selecting [Infrastructure] or [802.11 Ad Hoc] in [Mode]. Commu-
nication can be done only with equipment whose SSID matches SSID for your wireless LAN. Up to 32 alphanu-
meric characters can be used.
NOTE: To disable SSID, select a space (null) or [ANY] (All caps).
Mode:
Select communication method when using wireless LAN.
Infrastructure ........ Select this option when communicating with one or more equipment connected to the wireless or wired
LAN network via an access point.
802.11 Ad Hoc ...... Select this option when using the wireless LAN to directly communicate with a computer in peer-to-peer
mode. This is a method that meets the IEEE802.11 wireless standard.
NOTE: When in Ad Hoc mode, only 802.11b is available for communication method.
Data transmission speed in Ad Hoc mode is limited up to 11Mbps.
Channel:
Select a channel. There are 14 options available.
90
6. Using On-Screen Menu

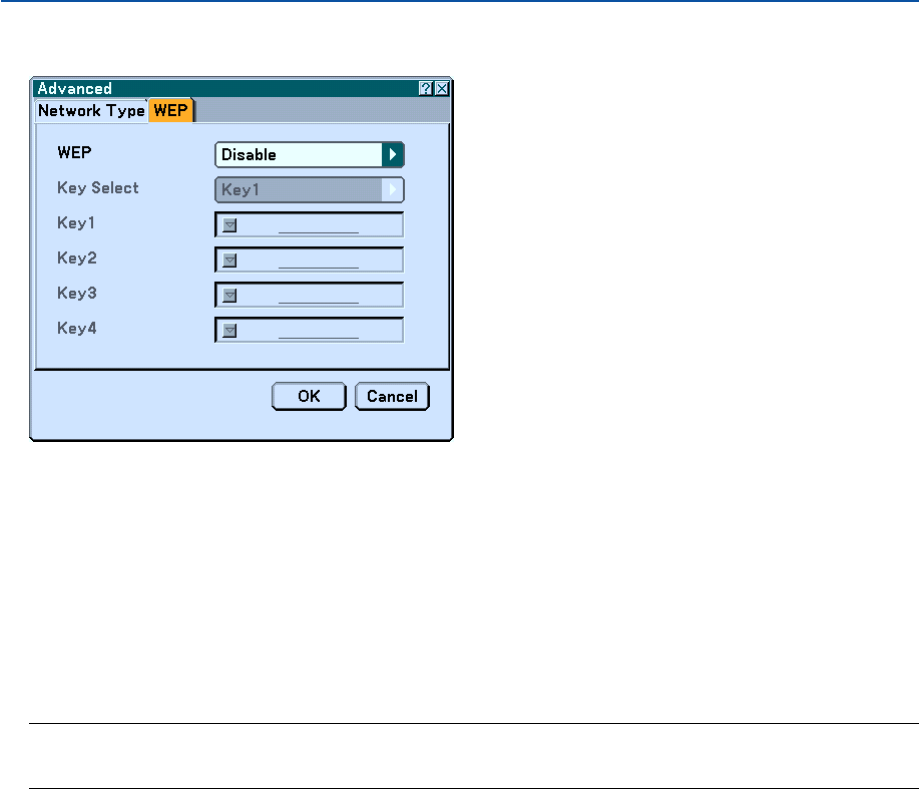

[WEP] (required for wireless only)
Select this option whether using the WEP (Wired Equivalent Privacy) key for encryption or not. To use encryption,
specify WEP key.
Disable .................. Will not turn on the encryption feature. Your communications may be monitored by someone.
64bit ...................... Uses 64-bit datalength for secure transmission.
128bit .................... Uses 128-bit datalength for secure transmission. This option will increase privacy and security when com-
pared to use of 64-bit datalength encryption.
152bit .................... Uses 152-bit datalength for secure transmission. This option will increase privacy and security when com-
pared to use of 128-bit datalength encryption.
NOTE:
•The WEP settings must be the same as communication devices such as PC or access point in your wireless network.
•When you use WEP, your image transmission speed will slow down.
Key Select:
Selects one key from the four keys below when selecting [64bit], [128bit] or [152bit] in [WEP].
Key1-4:
Enter encryption key when selecting [64bit], [128bit] or [152bit] in [WEP].
Up to 5 characters can be set in 64 bit, up to 13 characters in 128 bit and up to 16 characters in 152 bit. Press the
[HEX] button to change to [ASCII] to set the key in ASCII digit. You can toggle this button between [ASCII] and
[HEX].
The key can also be set in hexadecimal digit.
*Enter 0X(numeral and alphabet respectively) right in front of your key code.
*Hexadecimal uses 0 to 9 and A to F.
*When setting in a hexadecimal digit, up to 10 characters can be set in 64 bit, up to 26 characters in 128 bit and
up to 32 characters in 152 bit.
91
6. Using On-Screen Menu
Using Software Keyboard to enter an encryption key
1. Select one of [Key 1], [Key 2], [Key 3] and [Key 4] and press the ENTER button.
The software keyboard will be displayed.
2. Use the SELECT
왖왔왗왘
button to select one key and press the ENTER button.
3. After finishing entering the WEP key, use the SELECT
왖왔왗왘
button to select [OK] and press the
ENTER button.
The software keyboard will disappear.
[Domain]
Host Name ............ Type in a hostname. Up to 60 alphanumeric characters can be used.
Domain Name ....... Type in domain name of the network connected to the projector. Up to 60 alphanumeric characters can be
used.
92
6. Using On-Screen Menu
[Mail]
Alert Mail:
Checking this box enables Alert Mail feature.
This option notifies your computer of an error message via e-mail when using wireless or wired LAN. The error
message will be notified when the projector lamp has reached the end of its usable life or an error occurs in the
projector.
Sample of a message sent from the projector:
The lamp is at the end of its usable life. Please replace the lamp.
Projector Name: X X X X
Lamp Hours Used: xxxx [H]
Filter Hours Used: xxxx [H]
Projector Hours Used: xxxxxx [H]
Sender's Address:
Specify the senders address. Use the Software keyboard. Up to 60 alphanumeric and symbols characters can be
used. See "Using Software Keyboard" in Appendix for more details.
SMTP Server Name:
Type in the SMTP server name to be connected to the projector. Up to 60 alphanumeric characters can be used.
Recipient's Address 1 to 3:
Type in your recipient's address. Up to 60 alphanumeric and symbols characters can be used.
Test Mail:
Send a test mail to check if your settings are correct.
NOTE:
•If you entered an incorrect address in a test, you may not receive an Alert mail. Should this happen, check if the Recipient's
Address is correctly set.
•Unless any one of the [Sender's Address], [SMTP Server's Name] or [Recipient's Address 1-3] is selected, [Test Mail] is not
available.
• Be sure to highlight [OK] and press the ENTER button before executing [Test Mail].
NOTE: To use the Mail Alert feature on wireless LAN connection, select [Infrastructure] for [Mode] in [Network Type].
93
6. Using On-Screen Menu
[Projector Name]
Specify a unique projector name. Press to display the software keyboard and type in. Up to 16 alphanumeric
characters can be used. After entering a name, select [OK] and press the ENTER button.
Using Software Keyboard
1 to 0 and
Characters ....... Use to type in password or keyword.
MODE .................... Selects one of three modes for alphabet and special characters.
SP ......................... Inserts a space
BS ......................... Deletes one character backward
왗.......................... Returns to the previous
왘.......................... Advances to the next
OK ......................... Executes the selection
Cancel ................... Cancels the selection
Selecting Communication Speed [Communication Speed]
This feature sets the baud rate of the PC Control port (Mini D-Sub 9 Pin). It supports data rates from 4800 to 38400
bps. The default is 38400 bps. Select the appropriate baud rate for your equipment to be connected (depending on the
equipment, a lower baud rate may be recommended for long cable runs).
Your selected communication speed will not be affected even when [Reset] is done from the menu.
Selecting Power-saving in [Standby Mode]
The projector has two standby modes: [Normal] and [Power-saving].
Power-saving mode is the mode that allows you to put the projector in the power-saving condition which consumes
less power than the Normal mode. The projector is preset for Normal mode at the factory.
NOTE:
•The HTTP server functions are not available during Power-saving mode.
•The MONITOR OUT function is not available during Power-saving mode.
•Control through the PC Control connector and LAN mode is not available during Power-saving mode. For PC control and LAN
mode of the projector it is recommended to leave the projector in the Normal mode.
•Normal mode ....................... Power indicator: Orange light/ Status indicator: Green light
Power-saving mode ............. Power indicator: Orange light/Status indicator: Off
(
→
page 107)
94
6. Using On-Screen Menu
[Options]
Setting Auto Adjust [Auto Adjust]
This feature sets the Auto Adjust mode so that the RGB image can be automatically or manually adjusted for noise
and stability. You can automatically make adjustment in two ways: [Normal] and [Fine].
Off ......................... The RGB image will not be automatically adjusted.
You can manually optimize the RGB image.
Normal .................. Default setting. The RGB image will be automatically adjusted. Normally select this option.
Fine ....................... Select this option if fine adjustment is needed. It takes more time to switch to the source than when [Nor-
mal] is selected.
Enabling Auto Start [Auto Start]
Tur ns the projector on automatically when the power cable is inserted into an active power outlet and the main power
switch is turned on. This eliminates the need to always use the POWER (ON/STANDBY) button on the remote control
or projector cabinet.
To use the Auto Start function, you must first press the main power switch to the position "On" before plugging the
power cable.
Enabling Power Management [Power Management]
When this option is selected you can enable the projector to automatically turn off (at the selected time: 5min., 10min.,
20min., 30min.) if there is no signal received by any input.
Enabling High Speed Fan Mode [Fan Mode]
This option allows you to select two modes for fan speed: Auto mode and High speed mode.
Auto ...................... The built-in fans automatically run at a variable speed according to the internal temperature.
High ...................... The built-in fans run at high speed.
When you wish to cool down the temperature inside the projector quickly, select [High].
NOTE: Select High mode if you continue to use the projector for consecutive days.
Selecting Default Source [Default Source Select]
You can set the projector to default to any one of its inputs each time
the projector is turned on.
Last ....................... Sets the projector to default to the previous or last active input each time the projector is turned on.
Auto ...................... Searches for an active source in order of Computer1 → Computer2 → Computer3 (LT380 only) → Compo-
nent → Video → S-Video → Viewer → Computer1 and displays the first found source.
Select .................... Displays the selected source input every time the projector is started up. Select an input from the pull-down
menu.
95
6. Using On-Screen Menu
Selecting Signal Format [Signal Select]
Computer 1/2
Allows you to set [Computer 1] and [Computer 2] to automatically detect an incoming RGB or component source
such as a computer or DVD player. However there may be some RGB and component signals that the projector is
unable to detect. In this case, select [RGB] or [Component].
Select [Scart] in COMPUTER 1 for the European Scart signal.
Component
Select a signal type from the COMPONENT (Y, Cb/Pb, Cr/Pr) connectors.
Component............ Selects a component signal.
Video ..................... Selects a component signal such as Y/Cb/Cr or Y/Pb/Pr.
NOTE: When using the "Y" connector of the COMPONENT connectors to display a Video signal, select "Video".
Selecting [Color System]
This feature enables you to select video standards manually.
Normally select [Auto]. Select the video standard from the pulldown menu. This must be done for Component (Video),
Video and S-Video Connector separately.
Selecting S-Video Mode [S-Video Mode Select]
This feature is used to select the S-Video signal detection mode.
This allows identifying of the S-Video signals with different aspect ratio (16:9 and 4:3).
Off ......................... Does not identify any S-Video signal.
S2.......................... Identifies the 16:9 or 4:3 signal.
NOTE: The Aspect Ratio is not available when S2 signal is detected.
Setting MONITOR OUT Connector [OUT Terminal]
This option allows you to determine which RGB or component source is output from the MONITOR OUT connector
during Standby mode.
Last ....................... The signal from the last COMPUTER 1, COMPUTER 2 or COMPONENT input will be output to the MONITOR
OUT connector.
Computer 1, 2 ....... The signal from the COMPUTER1, COMPUTER2 or Component input will be output to the MONITOR OUT
connector.
Component............ The signal from the COMPONENT input will be output to the MONITOR OUT connectors.
NOTE: The MONITOR OUT function is not available during Power-saving mode
96
6. Using On-Screen Menu
[Tools]
Selecting the ChalkBoard [ChalkBoard]
This option displays the ChalkBoard tool bar.
The ChalkBoard feature allows you to write and draw messages on a projected image. (→ page 41)
NOTE: The ChalkBoard feature is available only when a USB mouse is used.
Using Off Timer [Off Timer]
1. Select your desired time between 30 minutes and 16 hours: Off, 0:30, 1:00, 2:00, 4:00, 8:00, 12:00, 16:00.
2. Select [OK] and press the ENTER button on the remote control.
3. The remaining time starts counting down.
4. The projector will turn off after the countdown is complete.
NOTE:
•To cancel the preset time, set [Off] for the preset time or turn off the power.
•When the remaining time reaches 3 minutes before the projector is turned off, the [Projector will turn off in 3 minutes] message
will be displayed on the bottom of the screen.
Setting Mouse Pointer, Button and Sensitivity [Mouse]
This option lets you to change your USB mouse settings. The mouse settings feature is available for USB mouse only.
Choose the settings you want:
Mouse Pointer ....... Pointer 1 - 9
Mouse Button ........ [Right Hand] or [Left Hand]
Mouse Sensitivity .. [Fast], [Medium] or [Slow]
97
6. Using On-Screen Menu
쐆 Menu Descriptions & Functions [Information]
Displays the lamp and the projector usage hours, the status of the current signal and settings and LAN settings. This
dialog box has seven pages.
The information included are as follows:
[Usage Time]
Lamp Life Remaining (%)
Lamp Hours Used (H)
Filter Hours Used (H)
Projector Hours Used (H)
NOTE: The progress indicator shows the percentage of remaining lamp life. The value informs you of the amount of lamp, filter and
projector usage respectively.
98
6. Using On-Screen Menu
[Source Page1]
Input Terminal Signal Type
Video Type Source Name
Entry No.
[Source Page2]
Horizontal Frequency Vertical Frequency
Sync Type Sync Polarity
Scan Type
99
6. Using On-Screen Menu
[LAN Built-in]
This page shows information on settings for the LAN port (RJ-45)
IP Address............. Indicates the IP address of the projector when the LAN port (RJ-45) is used.
Subnet Mask ......... Indicates the subnet mask of the projector when the LAN port (RJ-45) is used
Gateway ................ Indicates the gateway of the network connected to the projector when the LAN port (RJ-45) is used.
MAC Address ........ Indicates the MAC address of the LAN port (RJ-45).
[LAN PC Card]
This page shows information on settings for the optional wireless LAN card
IP Address............. Indicates the IP address of the projector when the optional wireless LAN card is used.
Subnet Mask ......... Indicates the subnet mask of the projector when the optional wireless LAN card is used.
Gateway ................ Indicates the gateway of the network connected to the projector when the optional wireless LAN card is
used.
MAC Address ........ Indicates the MAC address of the optional wireless LAN card.
100
6. Using On-Screen Menu
[LAN Wireless]
This page shows information on settings for WEP key for encryption.
SSID ...................... Indicates the identifier (SSID) for your wireless LAN.
Mode ..................... Indicates that [Infrastructure] or [802.11 Ad Hoc] is selected for your communication method
WEP ...................... Indicates your selected datalength encryption: On or Off
Channel ................. Indicates the channel you selected in the [Site Survey]. The channel must match for all wireless devices
communicating on your wireless LAN.
Signal Level ........... Indicates receiving condition of radio signal level while you are using a wireless LAN connection (Only when
PC Card is used)
[Version]
Firmware
Data
101
6. Using On-Screen Menu
쐊 Menu Descriptions & Functions [Reset]
Returning to Factory Default
The Reset feature allows you to change adjustments and settings to the factory preset for sources by the following
methods:
[Current Signal]
Resets the adjustments for the current signal to the factory preset levels.
All the items in [Adjust] can be reset.
[All Data]
Reset all the adjustments and settings for all the signals to the factory preset except [Entry List], [Language],
[Background], [Control Panel Lock], [Menu Lock], [Logo Lock], [Security], [LAN Mode], [Projector Name], [Commu-
nication Speed], [Standby Mode], [Lamp Life Remaining], [Lamp Hours Used], [Filter Hours Used] and [Projector
Hours Used].
[All Data (Including Entry List)]
Reset all the adjustments and settings for all the signals to the factory preset except [Language], [Background],
[Control Panel Lock], [Menu Lock], [Logo Lock], [Security], [LAN Mode], [Projector Name], [Communication Speed],
[Standby Mode], [Lamp Life Remaining], [Lamp Hours Used], [Filter Hours Used] and [Projector Hours Used].
Also deletes all the signals in the [Entry List] and returns to the factory preset.
NOTE: Locked signals in Entry List cannot be reset.
Clearing Lamp Hour Meter [Clear Lamp Hours]
Resets the lamp clock back to zero.
NOTE: Elapsed time of the lamp use will not be affected even when [Reset] is done from the menu.
NOTE: The projector will turn off and go into standby mode after 2100 hours (up to 3100 hours in Eco mode) of service. In this
condition you cannot clear the lamp hour meter on the menu. If this happens, press the HELP button on the remote control for 10
seconds to reset the lamp clock back to zero. Do this only after replacing the lamp.
Resetting the Filter Usage Hours [Clear Filter Hours]
Resets the filter usage back to zero.
NOTE: Elapsed time of the filter use will not be affected even when [Reset] is done from the menu.
102
7. Maintenance
SELECT
This section describes the simple maintenance procedures you should follow to clean the filter and replace the lamp.
Cleaning or Replacing the Filter
The air-filter sponge keeps dust and dirt from getting inside the projector and should be cleaned after every 100 hours
of operation (more often in dusty conditions). If the filter is dirty or clogged, your projector may overheat.
CAUTION
•Turn off the projector, turn off the main power switch and unplug the projector before replacing the filter.
•Only clean the outside of the filter cover with a vacuum cleaner.
• Do not attempt to operate the projector without the filter cover.
To clean the air-filter:
Vacuum the filter-through the filter cover.
To reset the filter usage time, from the menu, select [Reset] → [Clear Filter Hours].
(→ page 101 for resetting the filter usage time)
To replace the filter (sponge):
1. Remove the filter cover by pushing down on the catch of the cover until you feel it detach.
Catch
2. Gently peel off the filter (sponge) and replace it with the new one.
PC CARD
LAMP
STATUS
POWER
SOURCE
AUTO ADJUST
3D REFORMON/STAND BY
SELECT
103
7. Maintenance
3. Reinstall the new filter cover.
NOTE: Do not wash the filter with soap and water. Soap and water will damage the filter membrane. Before replacing the filter,
remove dust and dirt from the projector cabinet. Keep out dust and dirt during filter replacement.
NOTE: When you replace the lamp, it is also wise to replace the filter. The filter comes in the same package with your replacement
lamp.
쐇 Cleaning the Cabinet and the Lens
1. Turn off the projector before cleaning.
2. Clean the cabinet periodically with a damp cloth. If heavily soiled, use a mild detergent. Never use strong
detergents or solvents such as alcohol or thinner.
3. Use a blower or lens paper to clean the lens, and be careful not to scratch or mar the lens.
PC CARD
COMPONENT IN
USB LAN
AUDIO IN
COMPUTER 3 IN
COMPUTER 1 INCOMPUTER 2 IN
PC CONTROL
MONITOR OUT
AUDIO OUT
S-VIDEO INVIDEO IN
AUDIO IN
Cb/Pb
L/MONOR
YCr/Pr
AC IN
PC CARD
LAMP
STATUS
POWER
ON/STAND BY
SOURCE
AUTO ADJUST
3D REFORM
SELECT
PC CARD
LAMP
STATUS
POWER
SOURCE
AUTO ADJUST
3D REFORMON/STAND BY
SELECT
104
7. Maintenance
쐋 Replacing the Lamp
After your lamp has been operating for 2000 hours (up to 3000 hours in Eco mode) or longer, the LAMP indicator in the
cabinet will blink red and the message [The lamp has reached the end of its usable life. Please replace the lamp.]
will appear. Even though the lamp may still be working, replace it at 2000 (up to 3000 hours in Eco mode) hours to
maintain optimal projector performance. After replacing the lamp, be sure to clear the lamp hour meter. (→ page 101)
CAUTION
•DO NOT TOUCH THE LAMP immediately after it has been used. It will be extremely hot. Turn the projector off, wait
30 seconds, turn off the main power switch and then disconnect the power cable. Allow at least one hour for the
lamp to cool before handling.
• DO NOT REMOVE ANY SCREWS except two lamp case screws. You could receive an electric shock.
• Do not break the glass on the lamp housing.
Keep finger prints off the glass surface on the lamp housing. Leaving finger prints on the glass surface might cause
an unwanted shadow and poor picture quality.
•The projector will turn off and go into standby mode after 2100 (up to 3100 hours in Eco mode) hours of service. If
this happens, be sure to replace the lamp. If you continue to use the lamp after 2000 hours (up to 3000 hours in
Eco mode) of use, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp case. Do not touch
them as the pieces of glass may cause injury. If this happens, contact your NEC dealer for lamp replacement.
To replace the lamp:
Optional lamp and tools needed for replacement:
•Replacement lamp VT75LP
•Phillips screwdriver or equivalent
1. Place the projector on a soft cloth and turn it over to access the lamp cover on the bottom.
1
1
2
2
2. Use a Philips screwdriver to push and release the tab.
Push up and remove the lamp cover.
105
7. Maintenance
3. Loosen the two screws securing the lamp housing until the phillips screwdriver goes into a freewheeling
condition. The two screws are not removable.
Remove the lamp housing by holding it.
NOTE: There is an interlock on this case to prevent the risk of electrical shock. Do not attempt to circumvent this interlock.
4. Insert a new lamp housing until the lamp housing is plugged into the socket.
CAUTION
Do not use a lamp other than the NEC replacement lamp VT75LP.
Order this from your NEC dealer.
Secure it in place with the two screws.
Be sure to tighten the screws.
5. Reattach the lamp cover.
Slip the lamp cover back until it snaps into place.
Interlock
106
7. Maintenance
6. Connect the supplied power cable, turn on the Main Power switch and turn on the projector.
7. Finally, select the menu
→
[Reset]
→
[Clear Lamp Hours] to reset the lamp usage hours.
NOTE: When the lamp exceeds 2100 hours (up to 3100 hours in Eco mode) of service, the projector cannot turn on and the menu is
not displayed.
If this happens, press the HELP button on the remote control for 10 seconds to reset the lamp clock back to zero.
When the lamp time clock is reset to zero, the LAMP indicator goes out.
107
8. Appendix
Troubleshooting
This section helps you resolve problems you may encounter while setting up or using the projector.
Indicator Messages
Power Indicator
Indicator Condition Projector Condition Note
Off
Blinking light
Steady light
Green
Orange
Green
Orange
0.5 sec On,
0.5 sec Off
2.5 sec On,
0.5 sec Off
0.5 sec On,
0.5 sec Off
The main power is off
The projector is getting ready to turn on.
Off Timer is activated.
The projector is cooling down.
The projector is turned on.
The projector is in Standby.
–
Wait for a moment.
–
Wait for a moment.
–
–
Status Indicator
Indicator Condition Projector Condition Note
Off
Blinking light
Steady light
Red
Green
Orange
Orange
Green
1 cycle (0.5 sec On,
2.5 sec Off)
2 cycle (0.5 sec On,
0.5 sec Of)
3 cycle (0.5 sec On,
0.5 sec Off)
4 cycle (0.5 sec On,
0.5 sec Off)
6 cycle (0.5 sec On,
0.5 sec Off)
1 cycle(0.5 sec On,
2.5 sec Off)
Normal
Lamp cover error
Temperature error
Power error
Fan error
Lamp error
Re-firing the lamp
Network conflict
Control Panel Lock is on
The projector is in Standby.
–
Replace the lamp cover correctly.
(→ page 105)
The projector is overheated. Move
the projector to a cooler location.
Power unit will not work correctly.
Fans will not work correctly.
Lamp fails to light. Wait a full
minute and then turn on again.
The projector is re-firing.
Both the built-in LAN and the wireless
LAN cannot be connected to the same
network at the same time.
To use both built-in LAN and wireless
LAN at the same time, connect them to
different networks. (
→ page 87
)
You have pressed cabinet button
when Control Panel Lock is on.
(→ page 79)
–
Lamp Indicator
Indicator Condition Projector Condition Note
Off
Blinking light
Steady light
Normal
Lamp has reached its end of life. Lamp
replacement message will be displayed.
Lamp has been used beyond its limit. The
projector will not turn on until the lamp is
replaced.
Lamp is in Eco mode
Red
Red
Green
–
Replace the lamp.
(→ page 104)
Replace the lamp.
(→ page 104)
–
108
8. Appendix
Common Problems & Solutions (→ "Power/Status/Lamp Indicator" on page 107)
Does not turn on
Will turn off
No picture
Color tone or hue is
unusual
Image isn’t square to
the screen
Picture is blurred
Image is scrolling
vertically, horizontally
or both
Remote control does
not work
Indicator is lit or
blinking
Vertical stripes in RGB
mode
USB mouse does not
work
•Check that the power cable is plugged in and that the power button on the projector cabinet or the remote
control is on. (→ page 23, 24)
•Ensure that the lamp cover is installed correctly. (→ page 105)
•Check to see if the projector has overheated. If there is insufficient ventilation around the projector or if the
room where you are presenting is particularly warm, move the projector to a cooler location.
•Check to see if the lamp usage exceeds 2100 hours (up to 3100 hours : Eco mode). If so, replace the lamp.
After replacing the lamp, reset the lamp hours used. (→ page 101)
•The lamp may fail to light. Wait a full minute and then turn on the power again.
•Ensure that the Power Management or Off Timer is off. (→ page 94, 96)
•Use the SOURCE button on the projector cabinet or the VIDEO, the S-VIDEO, the COMPUTER 1, the COM-
PUTER 2, the COMPUTER 3 (LT380 only), COMPONENT, the VIEWER or the LAN button on the remote control
to select your source. (→ page 26)
•Ensure your cables are connected properly.
• Use menus to adjust the brightness and contrast. (→ page 71)
•Check to see if the image is muted. (→ page 34)
•Remove the lens cap.
•Reset the settings or adjustments to factory preset levels using the Reset in the Menu. (→ page 101)
• Enter your registered keyword if the Security function is enabled. (→ page 42)
•Be sure to connect the projector and notebook PC while the projector is in standby mode and before turning on
the power to the notebook PC.
In most cases the output signal from the notebook PC is not turned on unless connectedto the projector be-
fore being powered up.
*If the screen goes blank while using your remote control, it may be the result of the computer's screen-
saver or power management software.
•See also the next page.
•Check if an appropriate color is selected in [Wall Color]. If not, select an appropriate option. (→ page 78)
•Adjust [Hue] in [Adjust]. (→ page 71)
• Reposition the projector to improve its angle to the screen. (→ page 27)
•Use the 3DReform function to correct the trapezoid distortion. (→ page 29)
•Adjust the focus. (→ page 28)
• Reposition the projector to improve its angle to the screen. (→ page 27)
•Ensure that the distance between the projector and screen is within the adjustment range of the lens. (→ page
11)
•Condensation may form on the lens if the projector is cold, brought into a warm place and is then turned on.
Should this happen, let the projector stand until there is no condensation on the lens.
•Use the SOURCE button on the projector cabinet or the VIDEO, the S-VIDEO, the COMPUTER 1, the COM-
PUTER 2, the COMPUTER 3 (LT380 only), COMPONENT, the VIEWER or the LAN button on the remote control
to select your source (Video, S-Video, Computer, Component, Viewer or LAN). (→ page 26)
•Adjust the computer image manually with the [Clock]/[Phase] in [Adjust] → [Image Options]. (→ page 72)
•Install new batteries. (→ page 9)
•Make sure there are no obstacles between you and the projector.
•Stand within 22 feet (7 m) of the projector. (→ page 9)
•See the POWER/STATUS/LAMP Indicator. (→ page 107)
•Press the AUTO ADJUST button on the projector cabinet or the AUTO ADJ. button on the remote control. (→
page 31)
•Adjust the computer image manually with the [Clock]/[Phase] in [Adjust] → [Image Options].(→ page 72)
•Make sure that your USB mouse is properly connected to the projector.
The projector may not support some brands of a USB mouse.
Problem Check These Items
For more information contact your dealer.
109
8. Appendix
If there is no picture, or the picture is not displayed correctly.
•Power on process for the projector and the PC.
Be sure to connect the projector and notebook PC while the projector is in standby mode and before turning on the
power to the notebook PC.
In most cases the output signal from the notebook PC is not turned on unless connected to the projector before
being powered up.
NOTE: You can check the horizontal frequency of the current signal in the projector’s menu under Information. If it reads “0kHz”,
this means there is no signal being output from the computer. See page 98 or go to next step.
•Enabling the computer’s external display.
Displaying an image on the notebook PC’s screen does not necessarily mean it outputs a signal to the projector.
When using a PC compatible laptop, a combination of function keys will enable/disable the external display. Usu-
ally, the combination of the ‘Fn” key along with one of the 12 function keys gets the external display to come on or
off. For example, NEC laptops use Fn + F3, while Dell laptops use Fn + F8 key combinations to toggle through
external display selections.
•Non-standard signal output from the computer
If the output signal from a notebook PC is not an industry standard, the projected image may not be displayed
correctly. Should this happen, deactivate the notebook PC’s LCD screen when the projector display is in use. Each
notebook PC has a different way of deactivate/reactivate the local LCD screens as described in the previous step.
Refer to your computer’s documentation for detailed information.
•Image displayed is incorrect when using a Macintosh
When using a Macintosh with the projector, set the DIPswitch of the Mac adapter (not supplied with the projector)
according to your resolution. After setting, restart your Macintosh for the changes to take affect.
For setting display modes other than those supported by your Macintosh and the projector, changing the DIP
switch on a Mac adapter may bounce an image slightly or may display nothing. Should this happen, set the DIP
switch to the 13” fixed mode and then restart your Macintosh. After that, restore the DIP switches to a displayable
mode and then restart the Macintosh again.
NOTE: A Video Adapter cable manufactured by Apple Computer is needed for a PowerBook which does not have a mini D-Sub
15-pin connector.
•Mirroring on a PowerBook
*When using the projector with a Macintosh PowerBook, output may not be set to 1024 x 768 unless “mirroring”
is off on your PowerBook. Refer to owner’s manual supplied with your Macintosh computer for mirroring.
•Folders or icons are hidden on the Macintosh screen
Folders or icons may not be seen on the screen. Should this happen, select [View] ->[Arrange] from the Apple
menu and arrange icons.
110
8. Appendix
Specifications
This section provides technical information about the projector's performance.
Model Number LT380/LT280
Optical
LCD Panel LT380: 0.8" p-Si TFT active-matrix with Micro Lens Array
LT280: 0.7" p-Si TFT active-matrix with Micro Lens Array
Resolution 1024 ⳯ 768 pixels* up to UXGA with Advanced AccuBlend
Lens Manual zoom and focus:
LT380: F1.7 - 2.0 f=24.2 - 29.0 mm
LT280: F1.7 - 2.0 f=21.6 - 25.9 mm
Lamp 200 W DC (152 W DC in Eco mode)
Image Size 21 inches - 300 inches (0.53 m - 7.62 m) diagonal
Projection Distance LT380: 2.33 - 35.89 ft / 0.71 -10.94 m
LT280: 2.36 -35.66 ft / 0.72 -10.87 m
Projection Angle LT380: 10.3° - 11.2° (wide) / 8.5° - 9.2° (tele)
LT280: 11.5° - 12.1° (wide) / 9.5° - 10.0° (tele)
Electrical
Inputs 2 Analog RGB (Mini D-Sub 15 P), 1 Digital RGB (DVI-D 24 P : LT380
only), 1 Component Y, Cb/Pb, Cr/Pr (3 RCA), 2 Component (Mini D-Sub
15 P) shared with COMPUTER 1/2 input, 1 S-Video (Mini DIN 4P), 1
Video, 1 PC Card, 1 Stereo Mini Audio, 1 (L/R) RCA Audio, 1 PC Control
(Mini D-Sub 9P)
Outputs 1 RGB (Mini D-Sub 15P), 1 Stereo Mini Audio
USB Port 1 A Type
LAN Port RJ-45
Video Compatibility NTSC, NTSC4.43, PAL, PAL-60, PAL-N, PAL-M, SECAM, HDTV: 1080i,
1080i/50Hz, 720p, 576p, 576i, 480p, 480i/60Hz
Scan Rate Horizontal: 15 kHz to 100 kHz (RGB: 24 kHz or over)
Vertical: 48 Hz to 120 Hz
Video Bandwidth RGB: 100 MHz (-3dB)
Color Reproduction 16.7 million colors simultaneously, Full color
Horizontal Resolution NTSC / NTSC4.43 / PAL / PAL-M / PAL-N / PAL60: 540 TV lines
SECAM: 300 TV lines
RGB: 1024 dots (H) ⳯ 768 dots (V)
External Control RS232, IR, LAN, USB
Sync Compatibility Separate Sync / Composite Sync / Sync on G
Built-in Speakers 1W ⳯ 1 (monaural)
Power Requirement 100 - 240V AC, 50/60Hz
Input Current 3.3 - 1.4A
Power Consumption 292W in Lamp Normal mode
230W in Lamp Eco mode
16W in Standby Normal mode, 10W in Standby Power-saving mode
* Effective pixels are more than 99.99%.
111
8. Appendix
Mechanical
Installation Orientation: Desktop/Front, Desktop/Rear, Ceiling/Front, Ceiling/Rear
Dimensions 11.6" (W) ⳯ 4.7" (H) ⳯ 11.3" (D)
294 mm (W) ⳯ 120 mm (H) ⳯ 288 mm (D)
(not including protrusions)
Weight 7.7 lbs / 3.5 kg
Environmental Considerations
Operational Temperatures :
41° to 104°F / 5° to 40°C,
(Eco mode selected automatically at 95° to 104°F/35° to 40°C, opera-
tional temperatures during use of wireless LAN card: 41° to 95° F / 5° to
35°C ), 20% to 80% humidity (non-condensing)
Storage Temperatures :
14° to 122°F (-10° to 50°C), 20% to 80% humidity
(non-condensing)
Regulations UL/C-UL Approved (UL 60950-1, CSA 60950-1)
Meets DOC Canada Class B requirements
Meets FCC Class B requirements
Meets AS/NZS CISPR.22 Class B
Meets EMC Directive (EN55022, EN55024, EN61000-3-2, EN61000-3-
3)
Meets Low Voltage Directive (EN60950-1, TÜV GS Approved)
For additional information visit:
US : http://www.necvisualsystems.com
Europe : http://www.neceurope.com/
Global : http://www.nec-pj.com/
The specifications are subject to change without notice.
112
PC CARD
COMPONENT IN
USB LAN
AUDIO IN
COMPUTER 3 IN
COMPUTER 1 IN COMPUTER 2 IN
PC CONTROL
MONITOR OUT
AUDIO OUT
S-VIDEO IN VIDEO IN
AUDIO IN
Cb/Pb
L/MONO R
YCr/Pr
PC CARD
LAMP
STATUS
POWER
ON/STAND BY
SOURCE
AUTO ADJUST
3D REFORM
SELECT
AC IN
294 (11.57")
71.5 (2.82")
120 (4.72")
64.5 (2.54")
288 (11.34")
127.2 (5.0")
8. Appendix
Cabinet Dimensions
LT380
Lens center Lens center
Unit: mm (inch)
113
LT280
8. Appendix
PC CARD
COMPONENT IN
USB LAN
AUDIO IN COMPUTER 1 IN COMPUTER 2 IN
PC CONTROL
MONITOR OUT
AUDIO OUT
S-VIDEO IN VIDEO IN
AUDIO
Cb/Pb
L/MONO R
YCr/Pr
AC IN
PC CARD
LAMP
STATUS
POWER
ON/STAND BY
SOURCE
AUTO ADJUST
3D REFORM
SELECT
294 (11.57")
71.5 (2.82")
120 (4.72")
64.5 (2.54")
288 (11.34")
127.2 (5.0")
Lens center Lens center
Unit: mm (inch)
114
Mini D-Sub 15 Pin Connector
Pin Assignments of D-Sub COMPUTER 1/2 Input Connector
Signal Level
Video signal : 0.7Vp-p (Analog)
Sync signal : TTL level
* COMPUTER 1 IN connector only
51423
10
1112131415
6978
8. Appendix
Pin No. RGB Signal (Analog) YCbCr Signal
1Red Cr
2Green or Sync on Green Y
3Blue Cb
4Ground
5Ground
6Red Ground Cr Ground
7Green Ground Y Ground
8Blue Ground Cb Ground
9No Connection
10 Sync Signal Ground
11 SCART Sync
12 Bi-directional DATA (SDA)*
13 Horizontal Sync or Composite Sync
14 Vertical Sync
15 Data Clock*
115
8. Appendix
Compatible Input Signal List
Signal Resolution Frequency H. Refresh Rate
( Dots ) ( kHz ) ( Hz )
#: Signals in above flagged with # are compressed with Advanced AccuBlend.
D: Images above flagged with "D" are supported by digital signal.
NOTE: Some composite sync signals may not be displayed correctly.
Signals other than those specified in the table above may not be displayed correctly. If this should happen, change the refresh rate
or resolution on your PC. Refer to Display Properties help section of your PC for procedures.
UXGA (1600
⳯
1200) is supported for separate sync signal only.
NTSC – 15.73 60.00
PAL–15.63 50.00
PAL60 – 15.73 60.00
SECAM – 15.63 50.00
D VESA 640 ⳯480 31.47 59.94
DIBM 640 ⳯480 31.48 59.95
DMAC 640 ⳯480 35.00 66.67
D VESA 640 ⳯480 37.86 72.81
D VESA 640 ⳯480 37.50 75.00
DIBM 640 ⳯480 39.38 75.00
D VESA 640 ⳯480 43.27 85.01
D VESA 800 ⳯600 35.16 56.25
D VESA 800 ⳯600 37.88 60.32
D VESA 800 ⳯600 48.08 72.19
D VESA 800 ⳯600 46.88 75.00
D VESA 800 ⳯600 53.67 85.06
DMAC 832 ⳯624 49.72 74.55
DVESA 1024 ⳯768 48.36 60.00
DVESA 1024 ⳯768 56.48 70.07
DMAC 1024 ⳯768 60.24 74.93
DVESA 1024 ⳯768 60.02 75.03
DVESA 1024 ⳯768 68.68 85.00
#DVESA 1152 ⳯864 67.50 75.00
#DSUN 1152 ⳯900 61.80 65.95
#DVESA 1280 ⳯960 60.00 60.00
#DVESA 1280 ⳯1024 63.98 60.02
#MAC 1280 ⳯1024 69.87 65.18
#SXGA+ 1400 ⳯1050 – 60.00
#VESA 1600 ⳯1200 75.00 60.00
#VESA 1600 ⳯1200 81.25 65.00
#VESA 1600 ⳯1200 87.50 70.00
#VESA 1600 ⳯1200 93.75 75.00
#D
HDTV
(1080i)(1125i)
1920 ⳯1080 33.75 60.00 Interlace
#D
HDTV
(1080i)(1125i)
1920 ⳯1080 28.13 50.00 Interlace
#D
HDTV (720p)(750p)
1280 ⳯720 45.00 60.00 Progressive
#D
HDTV (720p)
1280 ⳯720 37.50 50.00 Progressive
D
SDTV(576p)(625p)
–31.25 50.00 Progressive
D
SDTV (480p)(525p)
–31.47 59.94 Progressive
DVD YCbCr – 15.73 59.94 Interlaced
DVD YCbCr – 15.63 50.00 Interlaced
116
8. Appendix
Cable Connection
Communication Protocol
Baud rate ........................................ 38400 bps
Data length ..................................... 8 bits
Parity .............................................. No parity
Stop bit .......................................... One bit
X on/off .......................................... None
Communications procedure ........... Full duplex
NOTE: Depending on the equipment, a lower baud rate may be recommended for long cable runs.
PC Control Codes and Cable Connection
PC Control Codes
Function Code Data
POWER ON 02H 00H 00H 00H 00H 02H
POWER OFF 02H 01H 00H 00H 00H 03H
INPUT SELECT COMPUTER 1 02H 03H 00H 00H 02H 01H 01H 09H
INPUT SELECT COMPUTER 2 02H 03H 00H 00H 02H 01H 02H 0AH
INPUT SELECT COMPUTER 3 02H 03H 00H 00H 02H 01H 1AH 22H
INPUT SELECT COMPONENT 02H 03H 00H 00H 02H 01H 10H 18H
INPUT SELECT VIDEO 02H 03H 00H 00H 02H 01H 06H 0EH
INPUT SELECT S-VIDEO 02H 03H 00H 00H 02H 01H 0BH 13H
INPUT SELECT VIEWER 02H 03H 00H 00H 02H 01H 1FH 27H
PICTURE MUTE ON 02H 10H 00H 00H 00H 12H
PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H
SOUND MUTE ON 02H 12H 00H 00H 00H 14H
SOUND MUTE OFF 02H 13H 00H 00H 00H 15H
ON SCREEN MUTE ON 02H 14H 00H 00H 00H 16H
ON SCREEN MUTE OFF 02H 15H 00H 00H 00H 17H
ASPECT RATIO (4:3 Screen)
4:3 03H 10H 00H 00H 05H 18H 00H 00H 00H 00H 30H
Letterbox 03H 10H 00H 00H 05H 18H 00H 00H 01H 00H 31H
Widescreen 03H 10H 00H 00H 05H 18H 00H 00H 02H 00H 32H
Crop 03H 10H 00H 00H 05H 18H 00H 00H 03H 00H 33H
ASPECT RATIO (16:9 Screen)
4:3 Window 03H 10H 00H 00H 05H 18H 00H 00H 00H 00H 30H
Letterbox 03H 10H 00H 00H 05H 18H 00H 00H 01H 00H 31H
Widescreen 03H 10H 00H 00H 05H 18H 00H 00H 02H 00H 32H
4:3 Fill 03H 10H 00H 00H 05H 18H 00H 00H 04H 00H 34H
AUTO ADJUST 02H 0FH 00H 00H 02H 05H 00H 18H
NOTE: Contact your local dealer for a full list of PC Control Codes if needed.
117
8. Appendix
Using Software Keyboard
1 to 0 and Characters
.............................. Use to type in password or keyword.
MODE .................... Selects one of three modes for alphabet and special characters.
SP ......................... Inserts a space
BS ......................... Deletes one character backward
왗.......................... Returns to the previous
왘.......................... Advances to the next
OK ......................... Executes the selection
Cancel ................... Cancels the selection
NOTE: You can drag the Software keyboard on the screen by clicking and holding any part on the keyboard except buttons.
NOTE 1: Pins 1, 4, 6 and 9 are no used.
NOTE 2: Jumper “Request to Send” and “Clear to Send” together on both ends of the cable to simplify cable connection.
NOTE 3: For long cable runs it is recommended to set communication speed within projector menus to 9600 bps.
15243
67 98
To GND of PC
To RxD of PC
To TxD of PC
To RTS of PC
To CTS of PC
PC Control Connector (D-SUB 9P)
118
No image is displayed from your PC or video equipment to the
projector.
Still no image even though you connect the projector to the PC
first, then start the PC.
Enabling your notebook PC’s signal output to the projector.
•A combination of function keys will enable/disable the ex-
ternal display. Usually, the combination of the “Fn” key along
with one of the 12 function keys turns the external display
on or off.
No image (blue background, logo, no display).
Still no image even though you press the AUTO ADJUST but-
ton.
Still no image even though you carry out [Reset] in the
projector’s menu.
Signal cable's plug is fully inserted into the input connector
A message appears on the screen.
( _____________________________________________ )
The source connected to the projector is active and available.
Still no image even though you adjust the brightness and/or
the contrast.
Input source's resolution and frequency are supported by the
projector.
쐊 Troubleshooting Check List
Before contacting your dealer or service personnel, check the following list to be sure repairs are needed also by
referring to the “Troubleshooting” section in your user’s manual. This checklist below will help us solve your problem
more efficiently.
* Print the following pages.
Frequency of occurrence 䡺 always 䡺 sometimes (How often?_____________________) 䡺 other (__________________)
Power
No power (POWER indicator does not light green) See also “Sta-
tus Indicator (STATUS)”.
Power cable's plug is fully inserted into the wall outlet.
Main power switch is pressed to the ON position.
Lamp cover is installed correctly .
Lamp Hours Used (lamp operation hours) was cleared after
lamp replacement.
No power even though you press and hold the POWER button
for a minimum of 2 seconds.
Shut down during operation.
Power cable's plug is fully inserted into the wall outlet.
Lamp cover is installed correctly .
Power Management is turned off (only models with the Power
Management function).
Off Timer is turned off (only models with the Off Timer func-
tion ).
Video and Audio
Image is too dark.
Remains unchanged even though you adjust the brightness
and/or the contrast.
Image is distorted.
Image appears to be trapezoidal (unchanged even though you
carry out the [Keystone] or [3D Reform] adjustment).
Parts of the image are lost.
Still unchanged even though you press the AUTO ADJUST but-
ton.
Still unchanged even though you carry out [Reset] in the
projector’s menu.
Image is shifted in the vertical or horizontal direction.
Horizontal and vertical positions are correctly adjusted on a
computer signal.
Input source's resolution and frequency are supported by the
projector.
Some pixels are lost.
Image is flickering.
Still unchanged even though you press the AUTO ADJUST but-
ton.
Still unchanged even though you carry out [Reset] in the
projector’s menu.
Image shows flickering or color drift on a computer signal.
Image appears blurry or out of focus.
Still unchanged even though you checked the signal’s resolu-
tion on PC and changed it to projector’s native resolution.
Still unchanged even though you adjusted the focus.
No sound.
Audio cable is correctly connected to the audio input of the
projector.
Still unchanged even though you adjusted the volume level.
AUDIO OUT is connected to your audio equipment (only mod-
els with the AUDIO OUT connector).
Other
Remote control does not work.
No obstacles between the sensor of the projector and the re-
mote control.
Projector is placed near a fluorescent light that can disturb the
infrared remote controls.
Batteries are new and are not reversed in installation.
If present on the remote control, projector selector switch is
not used.
Buttons on the projector cabinet do not work ( only models with
the Control Panel Lock function).
Control Panel Lock is not turned on or is disabled in the menu.
Still unchanged even though you press and hold the EXIT but-
ton for a minimum of 10 seconds.
8. Appendix
119
In the space below please describe your problem in detail.
Information on application and environment where your projector is used
Projector
Model number:
Serial No.:
Date of purchase:
Lamp operating time (hours):
Lamp Mode: 䡺 Normal 䡺 Eco
Information on input signal:
Horizontal synch frequency [ ] kHz
Vertical synch frequency [ ] Hz
Synch polarity H 䡺 (+) 䡺 (–)
V 䡺 (+) 䡺 (–)
Synch type 䡺 Separate 䡺 Composite
䡺 Sync on Green
STATUS Indicator:
Steady light 䡺 Orange 䡺 Green
Flashing light [ ] cycles
Remote control model number:
Signal cable
NEC standard or other manufacturer’s cable?
Model number: Length: inch/m
Distribution amplifier
Model number:
Switcher
Model number:
Adapter
Model number:
Projector PC
DVD player
Installation environment
Screen size: inch
Screen type: 䡺 White matte 䡺 Beads 䡺 Polarization
䡺 Wide angle 䡺 High contrast
Throw distance: feet/inch/m
Orientation: 䡺 Ceiling mount 䡺 Desktop
Power outlet connection:
䡺Connected directly to wall outlet
䡺Connected to power cord extender or other (the num-
ber of connected equipment______________)
䡺Connected to a power cord reel or other (the number
of connected equipment______________)
Computer
Manufacturer:
Model number:
Notebook PC 䡺 / Desktop 䡺
Native resolution:
Refresh rate:
Video adapter:
Other:
Video equipment
VCR, DVD player, Video camera, Video game or other
Manufacturer:
Model number:
8. Appendix
120
8. Appendix
쐎 TravelCare Guide
TravelCare - a service for international travelers
This product is eligible for "TravelCare", NEC's unique international war-
ranty.
Please note that TravelCare coverage differs in part from coverage un-
der the warranty included with the product.
Services offered with TravelCare
This warranty allows customers to receive service on their product at
the NEC and NEC-designated service stations in the countries listed
herein when temporarily traveling internationally for business or plea-
sure.
For details on services offered by the different service stations, please
refer to the "List of TravelCare Outlets" below.
1 Repair services
The product will be repaired and delivered within 10 business days,
not including shipping time.
During the term of warranty, the cost of maintenance parts, labor
costs for repairs and shipping costs within the service station's cov-
erage area are covered by the warranty.
2 Replacement product rental service
If the customer desires, he or she can rent a replacement product
while the original product is being repaired.
Fee: US$200 for 12 days
This fee must be paid at the local service station in cash or credit
card.
The US$200 rental fee is non-refundable even if the customer rents it
less than 12 days before returning.
The replacement product will be delivered within 3 business days.
If the customer did not return the replacement product within 12 days,
the customer will be charged the price of the unit.
If the customer returned the replacement product in a faulty or dam-
aged condition, the repair cost will be charged to the customer.
Note that this service is not offered in all countries and regions. Please
refer to the "List of TravelCare Outlets".
In addition, this replacement product rental service is not offered af-
ter the product's warranty has expired.
Term of warranty
1
a. Upon presentation of the warranty or receipt received upon pur-
chase:
Valid for the term indicated on the warranty or the normal term of
warranty for the country of purchase.
b. When only the product is brought in:
Valid for a period of within 14 months of the date of manufacture
indicated by the serial number attached to the product.
2When a product whose term of warranty is expired is brought in:
Repairs will be offered for a fee. In this case the customer is not
eligible for the replacement product rental service.
3In the following cases, repairs may be charged, even if the product's
warranty is still in effect:
1) If the term of warranty, model name, serial number and name of
the store of purchase are not indicated on the warranty or have
been altered.
2) Problems or damage caused by dropping or shocks during ship-
ment or movement by the customer or by improper handling by
the customers.
3) Problems or damage caused by improper usage or unwarrant-
able alterations or repairs by the customer.
4) Problems or damage caused by fire, salt damage, gas damage,
earthquakes, lightning damage, storm or flood damage or other
natural disasters or such external factors as dust, cigarette
smoke, abnormal voltage, etc.
5) Problems or damage caused by use in hot or humid places, in
vehicles, boats or ships, etc.
6) Problems or damage caused by expendable supplies or devices
connected to the product other than those designated by NEC.
7) Problems caused by natural consumption, wear or deterioration
of parts under normal usage conditions.
8) Problems or damage to lamps and other expendable supplies,
included parts or optional parts.
9) Other conditions stipulated in the warranty included with the prod-
uct also apply.
NOTE: The product can be used overseas with voltages of 100 to 120V and 200
to 240V by using a power cable suited for the standards and power source volt-
age of the country in which the product is being used.
List of TravelCare Outlets
This list applies as of October 1, 2005.
For the most up-to-date information, please refer to the websites of the
service stations in the various countries on the List of TravelCare Out-
lets or to the NEC website at http://www.nec-pj.com.
In Europe
NEC Europe, Ltd. / European Technical Centre
Address: Unit G, Stafford Park 12, Telford TF3 3BJ, U.K.
Telephone: +44 1952 237000
Fax Line: +44 1952 237006
Email Address: AFR@uk.neceur.com
WEB Address: http://www.neceur.com
(Regions Covered)
EU: Austria*, Belgium*, Denmark*, Finland*, France*, Germany*,
Greece*, Ireland*, Italy*, Luxembourg*, The Netherlands*,
Portugal*, Spain*, Sweden* and the United Kingdom*
EEA: Norway*, Iceland and Liechtenstein
In North America
NEC Solutions (America), Inc.
Address: 1250 N. Arlington Heights Road,
Itasca, Illinois 60143, U.S.A.
Telephone: +1 800 836 0655
Fax Line: +1 800 356 2415
Email Address: vsd.tech-support@necsam.com
WEB Address: http://www.necvisualsystems.com
(Regions Covered)
U.S.A. *, Canada*
In Oceania
NEC Australia Pty., Ltd.
Address: New South Wales;
184 Milperra Road, Reversby 2212
Victoria;
Unit 1/6 Garden Road, Clayton 3168
South Australia;
84A Richmond Road, Keswick 5035
Queensland;
Unit 4/305 Montague Road West End 4101
Western Australia;
45 Sarich Court Osborne Park 6017
Telephone: 131 632 (from domestic)
+61 8 8375 5706 (from overseas)
Fax Line: +61 8 8375 5757
Email Address: lee.gramola@nec.com.au
WEB Address: http://www.nec.com.au
(Regions Covered)
Australia*, New Zealand
121
8. Appendix
Lenso Communication Co., Ltd.
Address: 292 Lenso House 4, 1st Floor, Srinakarin Road,
Huamark, Bangkapi, Bangkok 10240, Thailand
Telephone: +66 2 375 2425
Fax Line: +66 2 375 2434
Email Address: pattara@lenso.com
WEB Address: http://www.lenso.com
(Regions Covered)
Thailand
ABBA Electronics L.L.C.
Address: Tariq Bin Ziyad Road, P.O.Box 327, Dubai,
United Arab Emirates
Telephone: +971 4 371800
Fax Line: +971 4 364283
Email Address: ABBA@emirates.net.ae
(Regions Covered)
United Arab Emirates
Samir Photographic Supplies
Address: P.O.Box 599, Jeddah 21421, Saudi Arabia
Telephone: +966 2 6828219
Fax Line: +966 2 6830820
Email Address: asif@samir-photo.com
Riyadh
Address: P.O.Box 5519, Riyadh 11432, Saudi Arabia
Telephone: +966 1 4645064
Fax Line: +966 1 4657912
Email Address: bhimji@samir-photo.com
Alkhobar
Address: P.O.Box 238, Alkhobar 31952, Saudi Arabia
Telephone: +966 3 8942674
Fax Line: +966 3 8948162
Email Address: chamsedin@samir-photo.com
(Regions Covered)
Saudi Arabia
NOTE: In countries designated with an asterisk(*), replacement product rental
service are offered.
In Asia and Middle East
NEC Viewtechnology, Ltd.
Address: 686-1, Nishioi, Oi-Machi, Ashigarakami-Gun,
Kanagawa 258-0017, Japan
Telephone: +81 465 85 2369
Fax Line: +81 465 85 2393
Email Address: support_pjweb@nevt.nec.co.jp
WEB Address: http://www.nec-pj.com
(Regions Covered)
Japan*
NEC Hong Kong Ltd.
Address: 25/F.,The Metropolis Tower, 10 Metropolis Drive,
Hunghom, Kowloon, Hong Kong
Telephone: +852 2369 0335
Fax Line: +852 2795 6618
Email Address: esmond_au@nechk.nec.com.hk
WEB Address: http://www.nec.com.hk
(Regions Covered)
Hong Kong
NEC Taiwan Ltd.
Address: 7F, No.167, SEC.2, Nan King East Road, Taipei,
Taiwan, R.O.C.
Telephone: +886 2 8500 1714
Fax Line: +886 2 8500 1420
Email Address: chenguanfu@nec.com.tw
WEB Address: http://www.nec.com.tw
(Regions Covered)
Taiwan
NEC Solutions Asia Pacific Pte. Ltd
Address: 401 Commonwealth Drive, #07-02, Haw Par
Technocentre, Singapore 149598
Telephone: +65 6 273 8333
Fax Line: +65 6 274 2226
Email Address: tehgh@rsc.ap.nec.com.sg
WEB Address: http://www.nec.com.sg/ap
(Regions Covered)
Singapore
NEC Systems Integration Malaysia Sdn Bhd
Address:
Ground Floor, Menara TA One, 22, Jalan P. Ramlee,
50250 Kuala Lumpur, Malaysia
Telephone: +6 03 2178 3600 (ISDN)
Fax Line: +6 03 2178 3789
Email Address: necare@nsm.nec.co.jp
WEB Address: http://www.necarecenter.com
(Regions Covered)
Malaysia
Tele Service Co., Ltd.
Address: 2nd Fl., Ire B/D. #2, 4Ga, Yangpyeng-Dong,
Youngdeungpo-Gu, Seoul, Korea 150-967
Telephone: +82 2 2163 4193
Fax Line: +82 2 2163 4196
Email Address: moneybear@hyosung.com
(Regions Covered)
South Korea
122
8. Appendix
TO: NEC or NEC's Authorized Service Station:
FM:
(Company & Name with signature)
Dear Sir (s),
I would like to apply your TravelCare Service Program based on attached registration and qualification sheet and agree with your
following conditions, and also the Service fee will be charged to my credit card account, if I don't return the Loan units within the
specified period. I also confirm following information is correct. Regards.
Application Sheet for TravelCare Service Program
P-1/ ,
Country,
product purchased :
User's Company Name :
User's Company Address :
Phone No., Fax No. :
User's Name :
User's Address :
Phone No., Fax No. :
Local Contact office :
Local Contact office Address :
Phone No., Fax No. :
User's Model Name :
Date of Purchase :
Serial No. on cabinet :
Problem of units per User :
Required Service : (1) Repair and Return (2) Loan unit
Requested period of Loan unit :
Payment method : (1) Credit Card (2) Travelers Cheque (3) Cash
In Case of Credit Card :
Card No. w/Valid Date :
Date: / / ,
123
8. Appendix
5. Loan Service Charges and Conditions:
Upon acceptance of this NEC Projector, Customer agrees to assume
liability for this loan unit.
The current cost of use of this loan unit is $200.00 USD for 12 calendar
days.
If Customer does not return the unit within the 12 calendar days, Cus-
tomer will be charged the next highest cost up to and including the full
list price to Credit Cards, which price will be informed by NEC Autho-
rized Service Stations. Please see the attached listing of contacts for
each country to arrange for pickup of the loan unit.
If you return to their country of origin with the loan unit, you will be
charged additional freight to return the unit to the loaning country.
Thank you for your understanding of this program.
Condition of your TravelCare Service Program
Enduser is requested to understand following condition of TravelCare
Service Program and complete the necessary information on the appli-
cation sheet.
1. Service Options:
There are 3 types of "Service" available. Enduser has to understand
following condition and is required to fill in the Application Sheet.
1) Repair and Return:
The 'Faulty unit' is sent or collected from the customer. It is repaired
and returned within 10 days to the customer, excluding transport time.
There may have a case, repair and return can't be done by NEC
Authorized Service Station, because of shortage of spare parts due
to same model is not sold in the territory.
2) Repair and Return with Loan: (This service is limited to some Ser-
vice Stations)
This service is offered to the Enduser, who cannot wait until their unit
is repaired.
The customer can borrow a unit for $200 up to 12 days. Customer
then sends in inoperable unit to nearest NEC Authorized Service
Station for service. In order to prevent collection problem, Enduser is
required to fill in Application Sheet.
Enduser needs to confirm the availability of the Service to NEC Au-
thorized Service Stations.
3) Loan Only:
For this service, NEC Authorized Service Station supplies the cus-
tomer with a loan unit for US$200 up to 12 days. Customer keeps the
inoperable unit and when customer returns home, customer arranges
to have the projector serviced in the home country.
2. Warranty Exclusions:
This program does not apply if the Projector's serial number has been
defaced, modified or removed.
If, in the judgement of NEC Authorized Service Station or its agent the
defects or failures result from any cause other than fair wear and tear or
NEC neglect, or fault including the following without limitation:
1) Accidents, transportation, neglect, misuse, abuse, water, dust, smoke
or default of or by the Customer its employees or agents or any third
party;
2) Failure or fluctuation of electrical power, electrical circuitry, air condi-
tioning, humidity control or other environmental conditions such as
use it in smoking area;
3) Any fault in the attachments or associated products or components
(whether or not supplied by NEC or its agents which do not form part
of the Product covered by this warranty);
4) Any act of God, fire, flood, war, act of violence or any similar occur-
rence;
5) Any attempt by any person other than any person authorized by NEC
to adjust, modify, repair, install or service the product.
6) Any Cross-border charges such as, duty, insurance, tax etc.
3. Charges for Warranty Exclusions and Out of Warranty Case:
In case faulty unit is under warranty exclusions case or under Out of
Warranty period, NEC Authorized Service Station will Inform estimation
of actual service cost to the Enduser with reason.
4. Dead on Arrival (DOA):
Enduser must take this issue up with their original supplier in the coun-
try of purchase.
NEC Authorized Service Station will repair the DOA unit as a Warranty
repair, but will not exchange DOA unit with new units.
Ver. 1 10/05
