User’s Manual

MultiSync LCD4020

MultiSync LCD4620

Index

Declaration of conformity ............................................................................................................................. English-1

Important Information ................................................................................................................................... English-2

Warning, Caution ......................................................................................................................................... English-2

Declaration ................................................................................................................................................... English-2

Safety Precautions, Maintenance & Recommended Use ............................................................................ English-3

Contents ....................................................................................................................................................... English-4

Parts Name and Functions .......................................................................................................................... English-5

Control Panel...................................................................................................................................... English-5

Terminal Panel.................................................................................................................................... English-6

Wireless Remote Control ................................................................................................................... English-7

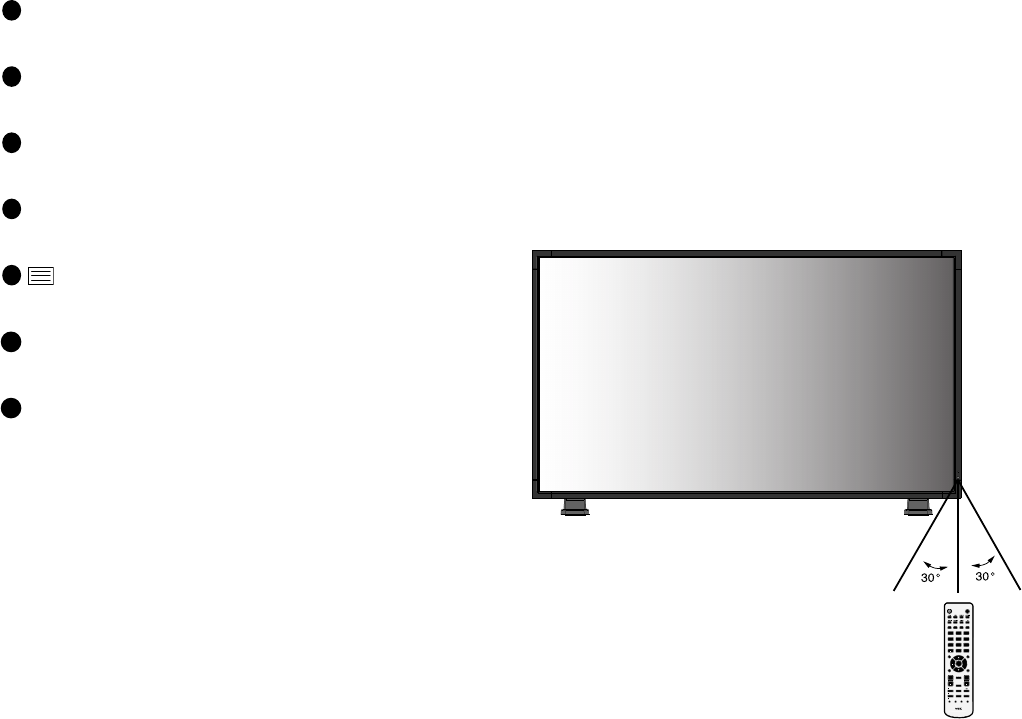

Operating Range for the Remote Control........................................................................................... English-8

Handling the remote control ........................................................................................................... English-8

Installation .................................................................................................................................................... English-9

Setup.............................................................................................................................................................English-12

Connections ................................................................................................................................................. English-14

Connecting a Personal Computer ...................................................................................................... English-14

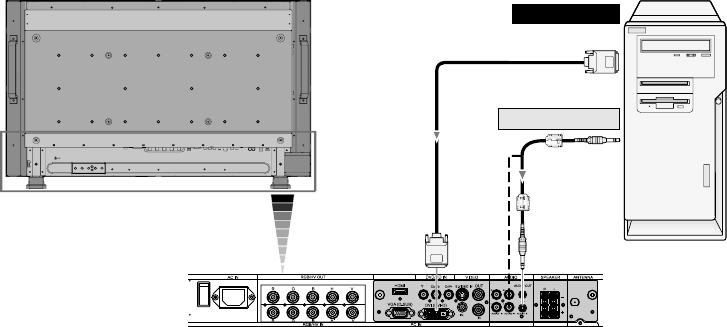

Connect the LCD Monitor to a Personal Computer ........................................................................ English-14

Connecting to a Macintosh Computer ................................................................................................ English-15

Connect the LCD Monitor to Macintosh ......................................................................................... English-15

Connecting with Digital Interface Equipment...................................................................................... English-16

Connect the LCD Monitor to a Computer with a Digital Output ...................................................... English-16

Connecting a DVD Player with component out .................................................................................. English-17

Connect the LCD Monitor to a DVD Player .................................................................................... English-17

Connecting a DVD Player with HDMI out ...........................................................................................English-18

Connect the LCD Monitor to a DVD Player .................................................................................... English-18

Connecting a DVD Player with SCART out ........................................................................................ English-18

Connect the LCD Monitor to a DVD Player .................................................................................... English-18

Connecting to a Stereo Amplifier ........................................................................................................ English-19

Connect the LCD Monitor to a Stereo Amplifier ............................................................................. English-19

Connecting to a TV............................................................................................................................. English-20

Basic Operation ........................................................................................................................................... English-21

Power ON and OFF Modes ................................................................................................................ English-21

Power Indicator .................................................................................................................................. English-22

Using Power Management ................................................................................................................. English-22

Selecting a video source .................................................................................................................... English-22

Picture Size ........................................................................................................................................ English-22

Picture Mode ...................................................................................................................................... English-22

Information OSD................................................................................................................................. English-22

OSD (On-Screen-Display) Controls ............................................................................................................. English-23

PICTURE............................................................................................................................................ English-24

ADJUST ............................................................................................................................................. English-24

AUDIO ................................................................................................................................................ English-25

SCHEDULE ........................................................................................................................................ English-25

PIP...................................................................................................................................................... English-26

OSD.................................................................................................................................................... English-26

MULTI DISPLAY ................................................................................................................................. English-27

DISPLAY PROTECTION .................................................................................................................... English-27

ADVANCED OPTION ......................................................................................................................... English-27

TV TUNER ......................................................................................................................................... English-29

Controlling the LCD monitor via RS-232C Remote Control ......................................................................... English-32

Features ....................................................................................................................................................... English-34

Troubleshooting ........................................................................................................................................... English-35

Specifications - LCD4020 ............................................................................................................................ English-36

Specifications - LCD4620 ............................................................................................................................ English-37

Pin Assignment ............................................................................................................................................ English-38

Manufacturer’s Recycling and Energy Information ...................................................................................... English-39

English-1

English

DECLARATION OF CONFORMITY

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not

cause harmful interference, and (2) this device must accept any interference received, including interference that may cause

undesired operation.

U.S. Responsible Party: NEC Display Solutions of America, Inc.

Address: 500 Park Boulevard, Suite 1100

Itasca, Illinois 60143

Tel. No.: (630) 467-3000

Type of Product: Computer Monitor

Equipment Classification: Class B Peripheral

Model: MultiSync LCD4020 (L406T6)/MultiSync LCD4620 (L466T7)

We hereby declare that the equipment specified above

conforms to the technical standards as specified in the FCC Rules.

Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation.

OmniColor is a registered trademark of NEC Display Solutions Europe GmbH in the countries of EU and Switzerland.

All other brands and product names are trademarks or registered trademarks of their respective owners.

Canadian Department of Communications Compliance Statement

DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No. 60950-1.

FCC Information

1. Use the attached specified cables with the MultiSync LCD4020 (L406T6)/MultiSync LCD4620 (L466T7) colour monitor so as

not to interfere with radio and television reception.

(1) Please use the supplied power cord or equivalent to ensure FCC compliance.

(2) Please use the supplied shielded video signal cable, Mini D-SUB 15 pin to Mini D-SUB 15 pin.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult your dealer or an experienced radio/TV technician for help.

If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions.

The user may find the following booklet, prepared by the Federal Communications Commission, helpful: “How to Identify

and Resolve Radio-TV Interference Problems.” This booklet is available from the U.S. Government Printing Office, Washington,

D.C., 20402, Stock No. 004-000-00345-4.

The product you purchased may not have this feature.

LCD4020-AV, LCD4020-ATV, LCD4620-AV, LCD4620-ATV only

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

English-2

Declaration

Declaration of the Manufacturer

We hereby certify that the colour monitor MultiSync

LCD4020 (L406T6)/MultiSync LCD4620 (L466T7)

is in compliance with

Council Directive 73/23/EEC:

– EN 60950-1

Council Directive 89/336/EEC:

– EN 55022

– EN 61000-3-2

– EN 61000-3-3

– EN 55024

and marked with

NEC Display Solutions, Ltd.

4-13-23, Shibaura,

Minato-Ku

Tokyo 108-0023, Japan

Important Information

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT

USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS

THE PRONGS CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM

WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE

POWER CORD FROM THE AC OUTLET. DO NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause

electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit

has been included. Therefore, it should be read carefully in order to avoid any problems.

Disposing of your old NEC product

Within the European Union

EU-wide legislation, as implemented in each Member State, requires that waste electrical and

electronic products carrying the mark (left) must be disposed of separately from normal household

waste. This includes monitors and electrical accessories, such as signal cables or power cords. When

you need to dispose of your NEC display products, please follow the guidance of your local authority,

or ask the shop where you purchased the product, or if applicable, follow any agreements made

between yourself and NEC.

The mark on electrical and electronic products only applies to the current European Union Member

States.

Outside the European Union

If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local

authority so as to comply with the correct disposal method.

English-3

English

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE

FOLLOWING WHEN SETTING UP AND USING

THE MULTI-FUNCTION MONITOR:

•DO NOT OPEN THE MONITOR. There are no user

serviceable parts inside and opening or removing covers

may expose you to dangerous shock hazards or other risks.

Refer all servicing to qualified service personnel.

•Do not spill any liquids into the cabinet or use your monitor

near water.

•Do not insert objects of any kind into the cabinet slots, as

they may touch dangerous voltage points, which can be

harmful or fatal or may cause electric shock, fire or

equipment failure.

•Do not place any heavy objects on the power cord.

Damage to the cord may cause shock or fire.

•Do not place this product on a sloping or unstable cart,

stand or table, as the monitor may fall, causing serious

damage to the monitor.

•When operating the MultiSync monitor with its AC 220-240V

power supply in Europe, use a power supply cord provided

with the monitor.

•In UK, use a BS-approved power cord with molded plug

having a black (13A) fuse installed for use with this monitor.

If a power cord is not supplied with this monitor, please

contact your supplier.

•When operating the MultiSync monitor with a 220-240V AC

power source in Australia, use the power cord provided with

the monitor. If a power cord is not supplied with this

equipment, please contact your supplier.

•For all other cases, use a power cord that matches the AC

voltage of the power outlet and has been approved by and

complies with the safety standard of your particular country.

•Do not place any objects onto the monitor and do not use

the monitor outdoors.

•The inside of the fluorescent tube located within the LCD

monitor contains mercury. Please follow the bylaws or rules

of your municipality to dispose of the tube properly.

•Do not bend, crimp or otherwise damage the power cord.

•If glass is broken, handle with care.

•Do not cover vent on monitor.

•Do not use monitor in high temperature, humid, dusty, or

oily areas.

•If monitor or glass is broken, do not come in contact with the

liquid crystal and handle with care.

•Allow adequate ventilation around the monitor, so that heat

can properly dissipate. Do not block ventilated openings or

place the monitor near a radiator or other heat sources.

Do not put anything on top of the monitor.

•The power cable connector is the primary means of

detaching the system from the power supply. The monitor

should be installed close to a power outlet, which is easily

accessible.

•Handle with care when transporting. Save packaging for

transporting.

•Do not hold the display by the bezel when moving or shifting

the display.

•Please clean the holes of back cabinet to reject dirt and

dust at least once a year because of set reliability.

•If using the cooling fan continuously, it’s recommended to

wipe holes a minimum of once a month.

Immediately unplug your monitor from the wall outlet and refer

servicing to qualified service personnel under the following

conditions:

•When the power supply cord or plug is damaged.

•If liquid has been spilled, or objects have fallen into the

monitor.

•If the monitor has been exposed to rain or water.

•If the monitor has been dropped or the cabinet damaged.

•If the monitor does not operate normally by following

operating instructions.

Recommended Use

•For optimum performance, allow 20 minutes for warm-up.

•Rest your eyes periodically by focusing on an object at least

5 feet away. Blink often.

•Position the monitor at a 90° angle to windows and other

light sources to minimize glare and reflections.

•Clean the LCD monitor surface with a lint-free, non-abrasive

cloth. Avoid using any cleaning solution or glass cleaner!

•Adjust the monitor’s brightness, contrast and sharpness

controls to enhance readability.

•Avoid displaying fixed patterns on the monitor for long

periods of time to avoid image persistence (after image

effects).

•Get regular eye checkups.

Ergonomics

To realize the maximum ergonomic benefits, we recommend

the following:

•Use the preset Size and Position controls with standard

signals.

•Use the preset Colour Setting.

•Use non-interlaced signals.

•Do not use primary colour blue on a dark background, as it

is difficult to see and may produce eye fatigue due to

insufficient contrast.

Cleaning the LCD Panel

•When the liquid crystal panel is stained with dust or dirt,

please wipe with soft cloth gently.

•Please do not rub the LCD panel with hard material.

•Please do not apply pressure to the LCD surface.

•Please do not use OA cleaner it will cause deterioration or

discolor on the LCD surface.

Cleaning the Cabinet

•Unplug the power supply

•Gently wipe the cabinet with a soft cloth

•To clean the cabinet, dampen the cloth with a neutral

detergent and water, wipe the cabinet and follow with a dry

cloth.

NOTE: The surface of the cabinet is composed of many types

of plastic. DO NOT clean with benzene thinner, alkaline

detergent, alcoholic system detergent, glass cleaner,

wax, polish cleaner, soap powder, or insecticide.

Rubber or vinyl should not be in contact with the cabinet

for an extended period of time. These types of fluids

and materials can cause the paint to deteriorate, crack

or peel.

Safety Precautions, Maintenance & Recommended Use

English-4

VGA RGB/HV OPTION

DISPLAY

AUTO

SET UP

TRANSPARENCY

SIZE

VGA

RGB/HV

OPTION

DISPLA

TRAN

PARE N

VGA

RGB/HV

OPTION

Contents

Power Cord

User’s Manual

Video Signal Cable

(Mini D-SUB 15 pin to

Mini D-SUB 15 pin)

Wireless Remote Control

and AA Batteries

(The product you purchased has one

of these remote controls)

Clamp x 3

Your new MultiSync LCD4020/MultiSync LCD4620 monitor box* should contain the following:

•LCD monitor

•Power Cord

•Video Signal Cable

•User’s Manual

•Wireless Remote Control and AA Batteries

•Cable Cover

•Clamp x 3

•Screw (M4 x 10) x 9

•CD-ROM

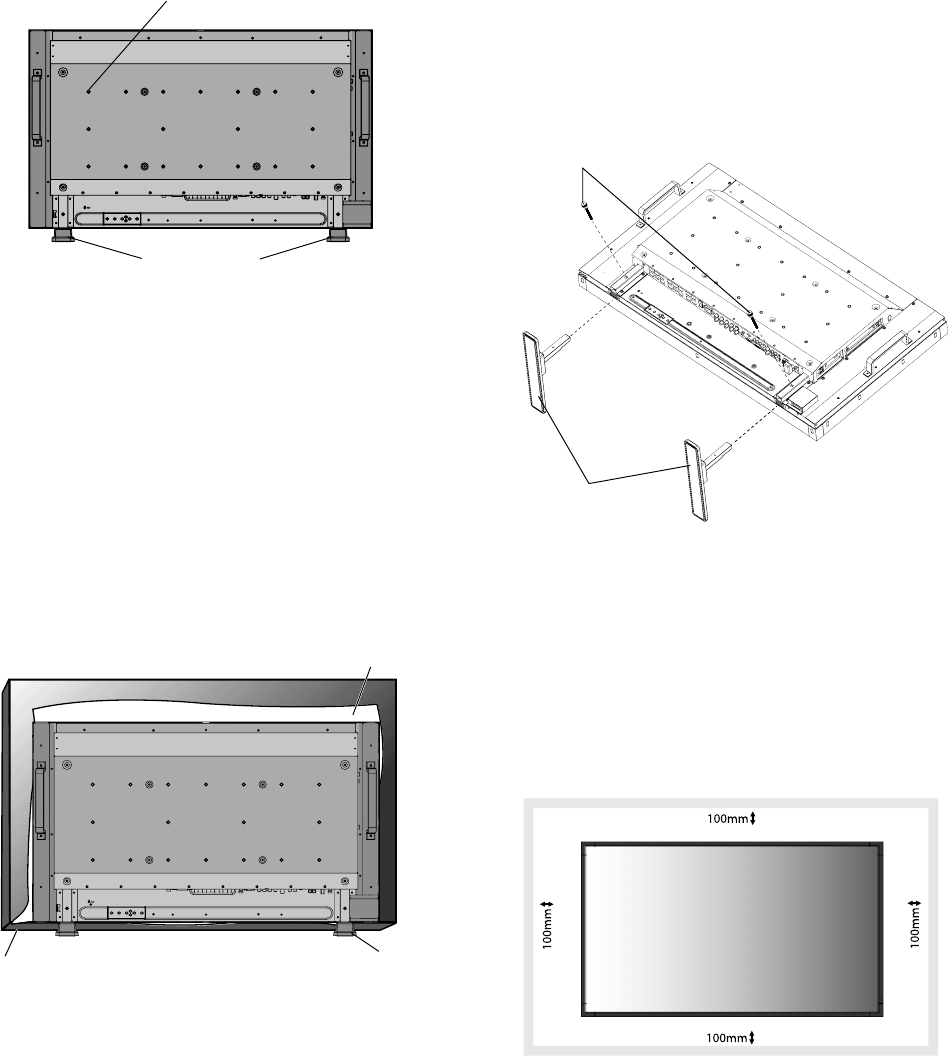

•Stand x 2

•Thumbscrew for stand x 2

CD-ROM

Screw (M4 x 10) x 9

Stand x 2

*Install the stands at the time of unpacking if the display will be used with the stand.

*Remember to save your original box and packing material to transport or ship the monitor.

The following components are prepared as option.

•External Speaker Unit

Thumbscrew for stand x 2

Cable Cover

English-5

English

INPUT button

Acts as SET button within OSD menu. (Toggle switches

between [DVI], [VGA], [RGB/HV], [HDMI], [DVD/HD],

[VIDEO], [S-VIDEO] or [TV]). [S-VIDEO] is enabled by

selecting the “SEPARATE” mode in the OSD or by having

the “S-VIDEO” cable connected with the “S-VIDEO” signal

present and selecting “PRIORITY” MODE. See page 28.

Remote control sensor and Power Indicator

Receives the signal from the remote control (when using the

wireless remote control). See also page 8.

Glows green when the LCD monitor is in active*. Glows red

when the LCD is in POWER OFF (ECO standby) mode.

Glows Amber when the LCD is in POWER OFF (standby).

Amber blinks when the monitor is in Power Save Mode.

Green and Amber blink alternately while in Power Standby

with the “SCHEDULE SETTINGS” function enabled. When a

component failure is detected within the monitor, the

indicator will blink red.

* If “OFF” is selected in “POWER INDICATOR” (see page 27),

LED will not light when the LCD monitor is in active mode.

Main Power Switch

On/off Switch to turn main power on/off.

Control Key Lock Mode

This control completely locks out access to all Control Key

functions. To activate the control key lock function, press both

of and and hold down simultaneously for more than

3seconds. To resume back to user mode, press both of

and and hold simultaneously for more than 3 seconds.

POWER button ( )

Switches the power on/off. See also page 21.

EXIT button

Activates the OSD menu when the OSD menu is turned-off.

Acts as EXIT button to move to previous menu with OSD

menu.

PLUS (+) button

Acts as (+) button to increase the adjustment with OSD menu.

Increases the audio output level when the OSD menu is

turned off.

MINUS (-) button

Acts as (-) button to decrease the adjustment with OSD menu.

Decreases the audio output level when the OSD menu is

turned off.

UP ( ) button

Activates the OSD menu when the OSD menu is turned-off.

Acts as button to move the highlighted area up to select

the adjustment with OSD menu.

DOWN ( ) button

Activates the OSD menu when the OSD menu is turned-off.

Acts as button to move the highlighted area down to

select the adjustment with OSD menu.

Control Panel

Parts Name and Functions

OFFON

English-6

Terminal Panel

AUDIO OUT*

To output the audio signal from the AUDIO IN 1, 2, 3, HDMI, and

TV jack to an external device (stereo receiver, amplifier, etc.).

10 VIDEO INPUT/OUTPUT Connector*

VIDEO IN connector (BNC and RCA): To input a

composite video signal. BNC and RCA connectors are not

available at the same time (Use only one input).

VIDEO OUT connector (BNC): To output the composite

video signal from the VIDEO IN connector.

S-VIDEO IN connector (Mini DIN 4 pin): To input the

S-video (Y/C separate signal). See page 28, S-VIDEO

MODE SETTING.

11 EXTERNAL CONTROL (D-Sub 9 pin)

IN connector: Connect RS-232C input to external equipment

such as a PC in order to control RS-232C functions.

Out connector: Connect RS-232C output. To connect to

multiple MultiSync monitors via RS-232C daisy Chain.

12 EXTERNAL SPEAKER TERMINAL*

To output the audio signal from AUDIO 1, 2, 3, HDMI and TV

jack.

Note: This speaker terminal is for 15W + 15W (8 ohm) speaker.

13 Option board slot

Slot for board accessories. Please contact your supplier for

detail information.

Antenna Input*

Connects to antenna or to TV signal.

15 Kensington Lock

For security and theft prevention.

*: The product you purchased may not have this feature.

AC IN connector

Connects with the supplied power cord.

DVI IN (DVI-D)

To input digital RGB signals from a computer or HDTV

device having a digital RGB output.

* This connector does not support analog input.

VGA IN (mini D-Sub 15 pin)

To input analog RGB signals from a personal computer or

other RGB equipment.

RGB/HV IN [R, G, B, H, V] (BNC)

To input analog RGB signals or signals from other RGB

equipment.

This is also to connect equipment such as a DVD player,

HDTV device and Set-Top-Box. A Sync-on-Green signal can

be connected to the G connector.

RGB/HV OUT (BNC)

To outputs the signal from the RGB/HV IN connector to an

input on a separate device.

HDMI connector*

To input digital HDMI signals.

DVD/HD connector (RCA)*

Connecting equipment such as a DVD player, HDTV device,

or Set-Top-Box.

AUDIO IN 1, 2, 3*

To input audio signal from external equipment such as a

computer, VCR or DVD player.

In Out

English-7

English

POWER button

Switches the power on/off.

INPUT button*

Selects which input signal, [DVI], [VGA], [RGB/HV], [HDMI],

[DVD/HD], [VIDEO], [TV] or [S-VIDEO].

[S-VIDEO] is enabled by selecting the “SEPARATE” mode in

the OSD or by having the “S-VIDEO” cable connected with

the “S-VIDEO” signal present and selecting “PRIORITY”

MODE. See page 28.

PICTURE MODE button

Selects from picture mode, [HIGHBRIGHT], [STANDARD],

[sRGB], [CINEMA]. See page 22.

HIGHBRIGHT: for moving images such as DVD

STANDARD: for images

sRGB: for text based images

CINEMA: for movies.

SIZE button

Selects picture size, [FULL], [NORMAL], [WIDE] and [ZOOM].

See page 22.

SOUND button*

Artificial surround sound.

AUDIO INPUT button*

Selects from input audio source [IN1], [IN2], [IN3], [HDMI],

[TV].

KEYPAD

Press to set and change passwords, change channel and

set REMOTE ID.

ENT button

Sets channels.

DISPLAY button

Turns on/off the information OSD. See page 22.

10 MENU button

Turns on/off the menu mode.

AUTO SETUP button

Enters auto setup menu. See page 24.

12 EXIT button

Turns to previous menu with OSD menu.

13 UP/DOWN button

Acts as button to move the highlighted area up or

down to select the adjustment with OSD menu.

Small screen which adjusted “PIP” mode moves up or down.

MINUS/PLUS (+/-) button

Increases or decreases the adjustment with OSD menu.

Small screen which adjusted “PIP” mode moves left or right.

15 SET button

Makes selection.

16 VOLUME UP/DOWN button

Increases or decreases audio output level.

CH +/- button*

Moves channel up or down.

18 CH RTN button*

Returns to previous channel.

19 MUTE button*

Turns on/off mute function.

STILL button

ON/OFF button: Activates/deactivates on/off still picture

mode.

STILL CAPTURE button: Captures still picture.

PIP (Picture In Picture) button

ON/OFF button: Toggle switches between PIP, POP, side-

by-side (aspect) and side-by-side (full). See page 26.

INPUT button: Selects the “picture in picture” input signal.

CHANGE button: Replaces to the main picture and sub

picture.

*: The product you purchased may not have this feature.

Wireless Remote Control

(The product you purchased has one of these remote controls)

DVI VGA RGB/HV HDMI DVD/HD VIDEO TV

DVI - - - -

VGA - - - -

RGB/HV - - - -

HDMI - - - -

DVD/HD -

VIDEO --

TV --

Sub picture

Main


English-8

POWER

RGB1 RGB2 RGB3 HDMI

DVD/HD


MODE

DISPLAY

AUTO

SET UP

VOL

STILL

PIP

REMOTEID

ON/OFF

SET RESET

REMOTE CONTROLLER RU-M111

MTS SLEEP

INPUT CHANGE

ON/OFF CAPTURE

MUTE

CHRTN

EXIT

AUDIO

INPUT

VIDEO

SIZE SOUND

TV OPTION

GUIDE

123

456

ENT

SET

POWER


MODE

DISPLA

AUT

SET

VOL

STILL

PIP

REMOTE

ON/OFF

SET

RESET

REMOTECONTROLLER RU

MTS

SLEEP

INPUT

CHANGE

ON/OFF

CAPTURE

MUTE

EXIT

AUDIO

INPUT

SIZE

SOUND

GUIDE

ENT

SET

Point the top of the remote control toward the LCD monitor’s

remote sensor during button operation.

Use the remote control within a distance of about 7 m/23 ft.

from the front of the LCD monitor’s remote control sensor

and at a horizontal and vertical angle of within 30° within a

distance of about 3.5 m/10 ft.

Operating Range for the Remote

Control

Caution: Important, the remote control

system may not function when direct

sunlight or strong illumination strikes

the remote control sensor of the

LCD monitor, or when there is an

object in the path.

Handling the remote control

•Do not subject to strong shock.

•Do not allow water or other liquid to splash the remote

control. If the remote control gets wet, wipe it dry

immediately.

•Avoid exposure to heat and steam.

•Other than to install the batteries, do not open the

remote control.

REMOTE ID button

Activates REMOTE ID function.

MTS button*

Multichannel television sound.

SLEEP button*

Sets power off timer.

GUIDE button*

Use in TELETEXT mode. See page 20.

button*

TELETEXT controls. See page 20.

TRANSPARENCY button*

Determines the level of OSD transparency.

28 INPUT button*

Cycles through available inputs.

*: The product you purchased may not have this feature.

English-9

English

This device cannot be used or installed without the Tabletop

Stand or other mounting accessory for support. For proper

installation it is strongly recommended to use a trained,

NEC authorized service person. Failure to follow NEC

standard mounting procedures could result in damage to the

equipment or injury to the user or installer. Product warranty

does not cover damage caused by improper installation.

Failure to follow these recommendations could result in

voiding the warranty.

For further mounting information see page 9.

For Stand information see page 10~11.

Mounting

DO NOT mount the monitor yourself. Please ask dealer. For

proper installation it is strongly recommended to use a

trained, qualified technician. Please inspect the location

where the unit is to be mounted. Mounting on wall or ceiling

is the customer’s responsibility. Not all walls or ceilings are

capable of supporting the weight of the unit. Product

warranty does not cover damage caused by improper

installation, remodelling, or natural disasters. Failure to

comply with these recommendations could result in voiding

the warranty.

DO NOT block ventilated openings with mounting

accessories or other accessories.

For NEC Qualified Personnel:

To insure safe installation, use two or more brackets to

mount the unit. Mount the unit to at least two points on the

installation location.

Please note the following when mounting

on wall or ceiling

•When using mounting accessories other than those that

are NEC approved, they must comply with the VESA-

compatible (FDMlv1) mounting method.

•NEC strongly recommends

using size M6 screws

(10mm + thickness of

bracket in length). If using

screws longer than 10mm,

check the depth of the hole.

(Recommended Fasten

Force: 470 - 635N•cm)

NEC recommends mounting

interfaces that comply with

UL1678 standard in North

America.

•Prior to mounting, inspect the installation location to

insure that it is strong enough to support the weight of

the unit so that the unit will be safe from harm.

•Refer to the instructions included with the mounting

equipment for detailed information.

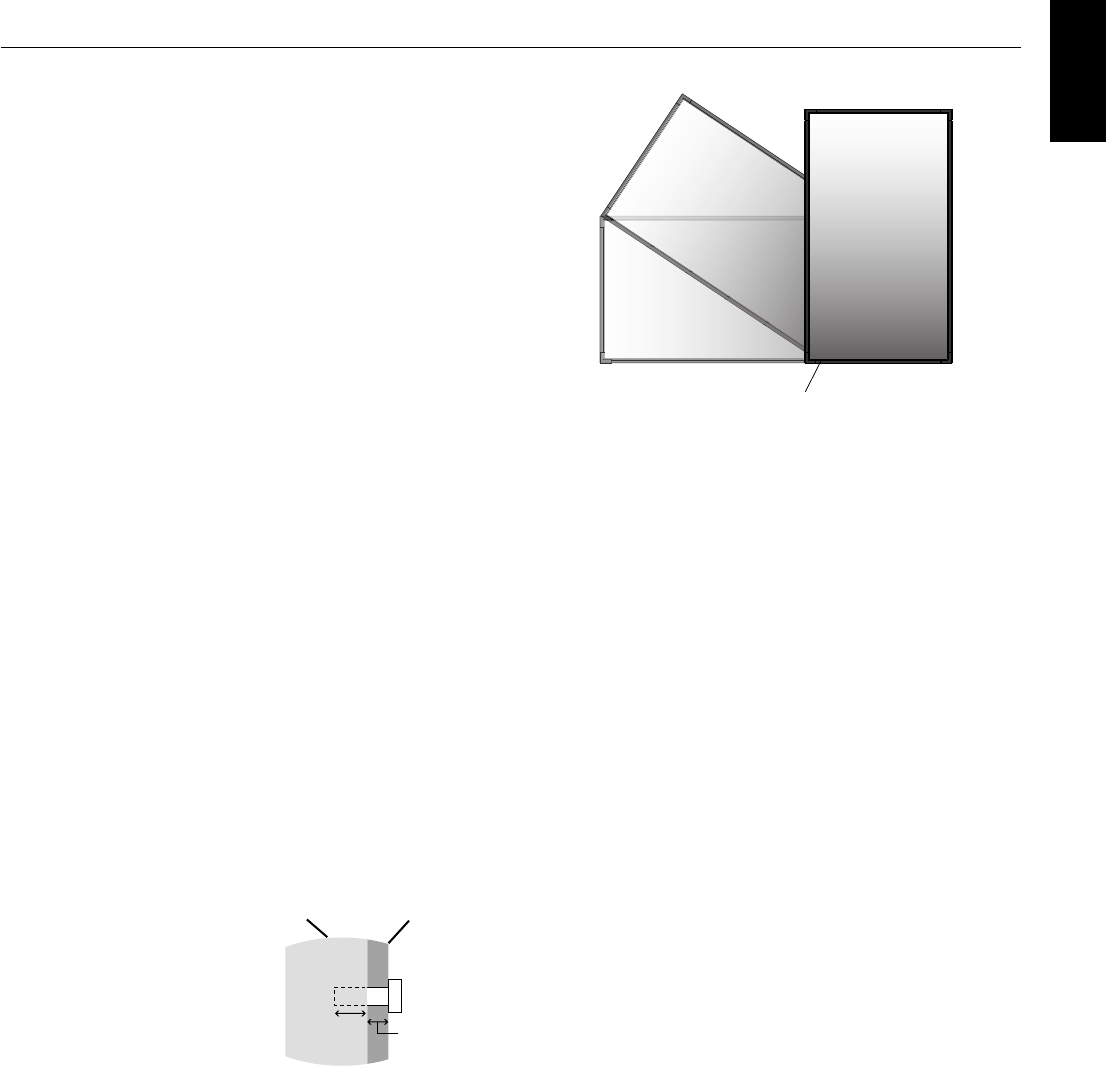

Orientation

•When using the display in the portrait position, the

monitor should be rotated clockwise so that the left side

is moved to the top and the LCD indicator light is on the

bottom. This will allow for proper ventilation and will

extend the lifetime of the monitor. Improper ventilation

may shorten the lifetime of the monitor.

Installation

Unit Mounting

Bracket

Screw

10mm Thickness

of Bracket

Screw length should equal

depth of hole (10mm) + the

thickness of mounting bracket.

LED Indicator

Mounting location

•The ceiling and wall must be strong enough to support

the monitor and mounting accessories.

•DO NOT install in locations where a door or gate can hit

the unit.

•DO NOT install in areas where the unit will be subjected

to strong vibrations and dust.

•DO NOT install near where the main power supply

enters the building.

•Do not install in where people can easily grab and hang

onto the unit or the mounting apparatus.

•When mounting in a recessed area, as in a wall, leave at

least 4 inches (10cm) of space between the monitor and

the wall for proper ventilation.

•Allow adequate ventilation or provide air conditioning

around the monitor, so that heat can properly dissipate

away from the unit and mounting apparatus.

Mounting on ceiling

•Ensure that the ceiling is sturdy enough to support the

weight of the unit and the mounting apparatus over time,

against earthquakes, unexpected vibrations, and other

external forces.

•Be sure the unit is mounted to a solid structure within the

ceiling, such as a support beam. Secure the monitor

using bolts, spring lock washers, washer and nut.

•DO NOT mount to areas that have no supporting internal

structure. DO NOT use wood screws or anchor screws

for mounting. DO NOT mount the unit to trim or to

hanging fixtures.

Maintenance

•Periodically check for loose screws, gaps, distortions, or

other problems that may occur with the mounting

apparatus. If a problem is detected, please refer to

qualified personnel for service.

•Regularly check the mounting location for signs of

damage or weakness that may occur over time.

English-10

Attaching Mounting Accessories

The display is designed for use with the VESA mounting

system.

1. Attach Mounting Accessories

Mounting accessories can be attached while the monitor

is on the Tabletop Stand in the upright position (Figure 1).

Be careful to avoid tipping monitor when attaching

accessories. After accessories are attached, stand can

be removed.

Mounting accessories can be attached with the monitor in

the face down position. To avoid damaging the screen face,

place the protective sheet on the table underneath the LCD

(Figure 2). The protective sheet was wrapped around the

LCD in the original packaging. Make sure there is nothing

on the table that can damage the monitor.

When using mounting accessories other than NEC

compliant and approved, they must comply with the VESA-

compatible mounting method. NEC strongly recommends

using screws M6 size and 10mm in length. If using screws

longer than 10mm, check the depth of the hole.

(Recommended Fasten Force: 470-635N•cm)

NEC recommends using mounting interface that comply with

UL1678 standard in North America.

2. Installing and removing stand

CAUTION: Installing and removing the stand must be done

by two or more people.

How to install stand

1. Please turn monitor off.

2. Place stand onto monitor with the long ends of the feet in

front of the monitor.

3. After inserting stand in guide block, fasten thumbscrews

on both sides of the monitor.

How to remove the stand

1. Spread the protective sheet on a flat surface, such as a

desk.

2. Place monitor on the protective sheet.

3. Remove thumbscrews with a screwdriver or with your

fingers and place them in a safe place for reuse.

Figure 1

VESA Mounting Interface

Tabletop Stand

Thumbscrews

Stand

Figure 3

3. Ventilation Requirements

When mounting in an enclosure or in a recessed area allow

heat to disperse, leave space between surrounding the

monitor and surrounding objects allow heat to disperse, as

shown in Figure 3.

Protective Sheet

Tabletop Stand

Table

Figure 2

NOTE: Place stand onto monitor so that the long end of

the feet are in the front.

CAUTION: Handle with care when mounting LCD monitor

stand and avoid pinching your fingers.

English-11

English

Screw Holes

Screw

Cord or chain

Clamp

4. Prevent Tipping

When using the display with the Tabletop Stand fasten the

LCD to a wall using a cord or chain that can support the

weight of the monitor (approx. LCD4020: 31.1 Kg/LCD4620:

37.9 Kg) in order to prevent the monitor from falling. Fasten

the cord or chain to the monitor using the provided clamp

and screw.

Before attaching the LCD monitor to the wall, make sure

that the wall can support the weight of the monitor.

Be sure to remove the cord or chain from the wall before

moving the LCD.

LCD4020: 250mm/LCD4620: 210mm

English-12

1. Determine the installation location

CAUTION: Installing your LCD display must be done by a

qualified technician. Contact your dealer for

more information.

CAUTION: MOVING OR INSTALLING THE LCD MONITOR

MUST BE DONE BY TWO OR MORE PEOPLE.

Failure to follow this caution may result in injury

if the LCD monitor falls.

CAUTION: Do not mount or operate the display upside

down, face up, or face down.

CAUTION: This LCD has a temperature sensor and cooling

fan. If the LCD becomes too hot, the cooling fan

will turn on automatically. If the LCD becomes

overheated while the cooling fan is running, the

“Caution” menu will appear. If the “Caution”

menu appears, discontinue use and allow the

unit to cool. Using the cooling fan will reduce the

likelihood of early circuit failure and may help

reduce image degradation and “Image

Persistance”.

If the LCD is used in an enclosed area or if the

LCD panel is covered with a protective screen,

please check the inside temperature of the

monitor by using the “HEAT STATUS” control in

the OSD (see page 27). If the temperature is

higher than the normal operating temperature,

please turn the cooling fan to ON within the FAN

CONTROL menu within the OSD (see page 27).

IMPORTANT: Lay the protective sheet, which was wrapped

around the LCD monitor when it was

packaged, beneath the LCD monitor so as

not to scratch the panel.

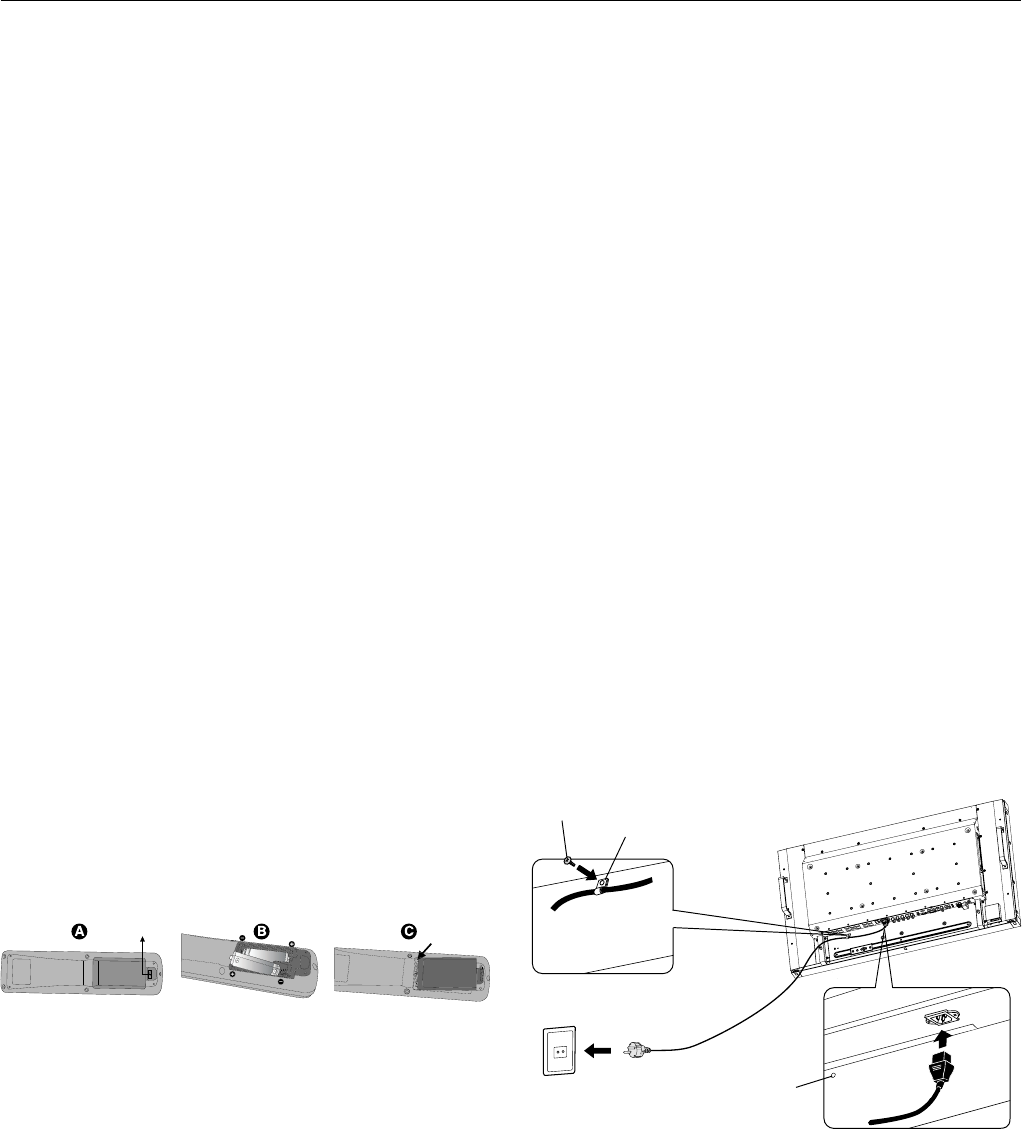

2. Install the remote control batteries

The remote control is powered by two 1.5V AA batteries.

To install or replace batteries:

NEC recommends the following battery use:

•Place “AA” size batteries matching the (+) and (-) signs

on each battery to the (+) and (-) signs of the battery

compartment.

•Do not mix battery brands.

•Do not combine new and old batteries. This can shorten

battery life or cause liquid leakage of batteries.

•Remove dead batteries immediately to prevent battery

acid from leaking into the battery compartment.

•Do not touch exposed battery acid, it may injure skin.

NOTE: If you do not intend to use the Remote Control for a

long period of time, remove the batteries.

3. Connect external equipment

(See pages 14-20)

•To protect the external equipment; turn off the main

power before making connections.

•Refer to your equipment user manual for further

information.

4. Connect the supplied power cord

•The equipment should be installed close to an easily

accessible power outlet.

•Please attach power cord to the LCD monitor by

attaching the screw and clamp.

•Fully insert the prongs into the power outlet socket.

A loose connection may cause image degradation.

NOTE: Please refer to “Safety Precautions and

Maintenance” section of this manual for proper

selection of AC power cord.

Setup

A. Press and slide to open the cover.

B. Align the batteries according to the (+) and (–)

indications inside the case.

C. Replace the cover.

CAUTION: Incorrect usage of batteries can result in leaks

or bursting.

Screw Clamp

Screw hole for clamp

English-13

English

5. Attach the cable cover

•Remove the six screws (Figure 4).

•Use 6 of the M4 x 10 screws (included) to attach the

cable cover (Figure 5).

6. Switch on the power of all the attached

external equipment

When connected with a computer, switch on the power of

the computer first.

7. Operate the attached external

equipment

Display the signal from the desired input source.

8. Adjust the sound

Make adjustments when adjustment of the volume is

required.

9. Adjust the screen (See pages 24 and 25)

Make adjustments of the screen display position when

necessary.

10. Adjust the image (See page 24)

Make adjustments such as brightness or contrast when

required.

Figure 4

Figure 5

11. Recommended Adjustments

To reduce the risk of the “image persistence”, please adjust

the following items based on the application being used:

“SCREEN SAVER”, “SIDE BORDER COLOR” (See page

27) “DATE & TIME”, “SCHEDULE SETTINGS” (See page

25). It is recommended that the “FAN CONTROL” setting

(See page 27) be turned to ON also.

English-14

Connections

Before making connections:

*First turn off the power of all the attached equipment and make connections.

*Refer to the user manual included with each separate piece of equipment.

Connecting a Personal Computer

Connecting your computer to your LCD monitor will enable you to display your computer’s screen image.

Some video cards and pixel clock over 165MHz may not display an image correctly.

Your LCD monitor displays proper image adjusting the factory preset timing signal automatically.

Horizontal Vertical

640 x 480 31.5kHz 60Hz

800 x 600 37.9kHz 60Hz

1024 x 768 48.4kHz 60Hz

1280 x 768 48kHz 60Hz

1360 x 768 48kHz 60Hz Recommended resolution

1280 x 1024 64kHz 60Hz Compressed image

1600 x 1200 75kHz 60Hz Compressed image

Resolution Remarks

Scanning frequency

Connect the LCD Monitor to a Personal Computer

•To connect the VGA IN connector (mini D-sub 15 pin) on the LCD monitor, use the supplied PC - Video RGB signal cable

(mini D-sub 15 pin to mini D-sub 15 pin).

•To connect the RGB/HV connector (BNC) on the LCD monitor, use a signal cable which is available separately

(mini D-sub 15 pin to BNC x 5). Select RGB/HV from the INPUT button.

•When connecting one or more LCD monitors, use the RGB OUT connector (BNC) (BNC INPUT only).

•The AUDIO IN 1, 2 and 3 can be used for audio input. For connection, select [IN1], [IN2] or [IN3] from the AUDIO INPUT

button.

LCD monitor

LCD monitor (second monitor)

BNC x 5

PC or IBM compatible

BNC x 5

Mini D-sub 15 pin

Mini D-sub

15 pin

To RGB/HV IN

To analog RGB output

To audio output

English-15

English

Connect the LCD Monitor to Macintosh

•To connect the VGA IN connector (mini D-sub 15 pin) on the LCD monitor, use the supplied PC - Video RGB signal cable

(mini D-sub 15 pin to mini D-sub 15 pin).

•To connect the RGB/HV IN connector (BNC) on the LCD monitor, use the signal cable available separately (mini D-sub

15 pin to BNC x 5) (BNC INPUT only).

•If you use with a Macintosh PowerBook, set “Mirroring” to Off.

Refer to your Macintosh’s owner’s manual for more information about your computer’s video output requirements and any

special identification or configuring your monitor’s image and monitor may require.

•The AUDIO IN 1, 2 and 3 can be used for audio input. For connection, select [IN1], [IN2] or [IN3] from the AUDIO INPUT

button.

Connecting to a Macintosh Computer

Connecting your Macintosh computer to your LCD monitor will enable you to display your computer’s screen image. Some

video cards or drivers may not display images correctly.

LCD monitor

LCD monitor (second monitor)

BNC x 5

Macintosh

BNC x 5

Mini D-sub 15 pin

Mini D-sub

15 pin

To audio output

To RGB/HV IN

To analog RGB output

English-16

LCD monitor

Equipment with a

digital interface such

as a personal

computer with RGB

output (TMDS)

DVI-D connector

To DVI output

To audio output

Connect the LCD Monitor to a Computer with a Digital Output

•The DVI IN connector also accepts a DVI-D cable.

•Input TMDS signals conforming to DVI standards.

•To maintain display quality, use a cable with a quality prescribed by DVI standards.

•The AUDIO IN 1, 2 and 3 can be used for audio input. For connection, select [IN1], [IN2] or [IN3] from the AUDIO INPUT

button.

•Mode selection, see “DVI MODE” of page 28.

Connecting with Digital Interface Equipment

Connections can be made with equipment that is equipped with a digital interface compliant with the DVI (Digital Visual

Interface) standard.

English-17

English

Connect the LCD Monitor to a DVD Player

•To connect the DVD/HD IN connector (RCA) on the LCD monitor, use a separately available RCA connector cable.

Some DVD players may have different connectors such as DVI-D connector.

Select [DVI/HD] mode from the “DVI MODE” menu when you connect a DVI-D connector. Mode selection, see “DVI

MODE” of page 28.

The AUDIO IN 1, 2 and 3 (both RCA) can be used for audio input. For connection, select [IN1], [IN2] or [IN3] from the

AUDIO INPUT button.

Connecting a DVD Player with component out*

Connecting your DVD player to your LCD monitor will enable you to display DVD video.

Refer to your DVD player user’s manual for more information.

LCD monitor

To audio left output

DVI-D connector

RCA

To DVD Component video output

To DVI output

To audio right

output

*: The product you purchased may not have this feature.

RCA

English-18

Connect the LCD Monitor to a DVD Player

•Please use the HDMI cable with HDMI logo.

•You may need some seconds to show the signal.

•We do not support PC-DVI signal.

Connecting a DVD Player with HDMI out*

Connecting your DVD player to your LCD monitor will enable you to display DVD video.

Refer to your DVD player user’s manual for more information.

Select [HDMI] from the AUDIO INPUT button.

LCD monitor

HDMI connector

To HDMI output

*: The product you purchased may not have this feature.

Connect the LCD Monitor to a DVD Player

•To connect the DVD/HD IN connector (RCA) on the LCD monitor and connect the video (sync) and the Video In connector

(RCA), use a separately available RCA connector cable.

Some DVD players may have different connectors such as DVI-D connector.

Select [ON] mode from the “SCART MODE” menu when you use a SCART connector. Mode selection, see “SCART” on

page 28.

The AUDIO IN 1, 2 and 3 (both RCA) can be used for audio input. For connection, select [IN1], [IN2] or [IN3] from the

AUDIO INPUT button.

Connecting a DVD Player with SCART out*

Connecting your DVD player to your LCD monitor will enable you to display SCART.

LCD monitor

SCART

To DVD Component video output

*: The product you purchased may not have this feature.

RCA

To audio left output

To audio right output

English-19

English

Connect the LCD Monitor to a Stereo Amplifier

•Turn on the LCD monitor and the amplifier only after all connections have been made.

•Use a stereo Mini-RCA cable to connect the AUDIO OUT connector (Stereo Mini Jack) on the LCD monitor and the audio

input on the amplifier.

•Do not reverse the audio left and right jacks.

•The AUDIO IN is used for audio input.

•The AUDIO OUT jack outputs sound from the selected Audio input.

Connecting to a Stereo Amplifier*

You can connect your stereo amplifier to your LCD monitor. Refer to your amplifier owner’s manual for more information.

LCD monitor

RCA

To audio right output

To audio left output

To audio right input

To audio left intput

Amplifier

External speaker

VCR or Laser disc player

*: The product you purchased may not have this feature.

External speaker

English-20

Connecting to a TV*

Precautions when connecting the antenna

•Use a coaxial cable which is free from

interference. Avoid using a parallel flat wire as

interference may occur, causing the reception

to become unstable and noise to appear on the

screen.

•Avoid using an indoor antenna as this may be

affected by interference and poor reception.

•Cable distribution system should be grounded

(earthed) in accordance with ANSI/NFPA 70,

the National Electrical Code (NEC), in

particular Section 820.93, Grounding of Outer

Conductive Shield of a Coaxial Cable.

•Keep the power cord as far away from the

antenna wire as possible.

•Auto Tuning. Please refer to page 29.

VHF(300-Ohm) antenna / UHF antenna

•When using a 300-ohm twin lead from an

outdoor antenna, connect the VHF or UHF

antenna leads to the screws of the VHF or UHF adapter.

Plug the 300-ohm to 75-ohm adapter into the antenna on the LCD MONITOR.

•When both VHF and UHF antennas are combined: Attach an optional antenna cable signal combiner to the LCD

MONITOR antenna terminal, and connect the cables to the antenna mixer. Consult your local electronics retailer about

available signal combiners.

Reconnect the unit to the power source and turn on the power

•Using the Remote Control or User Controls, select the “TV TUNER”. Select the appropriate menu based upon which

source (cable or antenna) is being used.

•Refer to page 29 for further information on the “TV TUNER” as well as for information on how to use the “CHANNEL

SEARCH” function to program available channels.

CAUTION: The screen of the coaxial cable is intended to be connectd to earth in the building installation.

TELETEXT SELECT

Press the button between TV (VIDEO) picture, TELETEXT or

MIXED.

TV PICTURE TELETEXT MIXED [TV & TELETEXT]

PAGE SELECTION

Use the KEYPAD buttons 0 to 9 to select the required page (3 digit

number).

PAGE UP/DOWN

Press the CH +/- buttons to increase or decrease the page number

selected.

HOLD

Some TELETEXT information is contained in more than one page.

The pages automatically changing after a given reading time.

Press the STILL ON/OFF button to stop the page changing (the

symbol will appear on the page heading).

Press the STILL ON/OFF button again to allow the page to change

(the symbol will disappear).

REVEAL

Some TELETEXT pages contain quiz or game questions with

hidden answers.

Press the STILL CAPTURE button to see the answers.

Press the STILL CAPTURE button again to hide the answers.

CANCEL

1. Periodically revised NEWS FLASHES can be obtained from

TELETEXT broadcasts.

Select the News Flash page in TELETEXT mode then press the

PIP ON/OFF button.

You can now watch the TV program and every time the news

flash page is updated it will be automatically displayed in the TV

picture.

Press the PIP ON/OFF button to cause the news flash to

disappear.

2. When a page is selected in TELETEXT mode it may take some

time before it becomes available, pressing the PIP ON/OFF

button will switch to the TV mode.

When the required page is found the page number will appear at

the top of the TV picture, press the PIP ON/OFF button to return

to the selected TELETEXT page.

Note: You cannot change TV program while in this mode.

FAST TEXT (For possible future reference)

The “PICTURE MODE”, “SIZE”, “SOUND” and “AUDIO INPUT”

buttons are used for quick access to color coded pages transmitted

by FAST TEXT broadcast.

RED: PICTURE MODE

GREEN: SIZE

YELLOW: SOUND

CYAN: AUDIO INPUT

INDEX

Press the GUIDE button to select the INDEX page.

*: The product you purchased may not have this feature.

English-21

English

Basic Operation

Power ON and OFF Modes

The LCD monitor power indicator will turn green while powered on and will turn red while powered off.

NOTE: The Main Power Switch must be in the ON position in order to power up the monitor using the remote control or the

Power Button on the front of the LCD.

Power Button

POWER

RGB1 RGB2 RGB3 HDMI

DVD/HD


MODE

DISPLAY

AUTO

SET UP

VOL

STILL

PIP

REMOTEID

ON/OFF

SET RESET

REMOTE CONTROLLER RU-M111

MTS SLEEP

INPUT CHANGE

ON/OFF CAPTURE

MUTE

CHRTN

EXIT

AUDIO

INPUT

VIDEO

SIZE SOUND

TV OPTION

GUIDE

123

456

ENT

SET

POWER


MODE

DISPLA

AUT

SET

VOL

STILL

PIP

REMOTE

ON/OFF

SET

RESET

REMOTECONTROLLER RU

MTS

SLEEP

INPUT

CHANGE

ON/OFF

CAPTURE

MUTE

EXIT

AUDIO

INPUT

SIZE

SOUND

GUIDE

ENT

SET

Main Power Switch

English-22

Picture Mode

DVI,VGA, RGB/HV STANDARD sRGB HIGHBRIGHT

HDMI, DVD/HD, STANDARD CINEMA HIGHBRIGHT

VIDEO, TV

Power Indicator

Mode Status Indicator Light

Power ON Green*2

Power OFF (Eco Standby)*1Red

Power consumption under 1W

Power OFF (Standby) Amber

Power consumption under 5W

Power Save Amber Blinking

Power Standby when Green and Amber

“SCHEDULE SETTINGS” enabled blink alternately

Diagnosis (Detecting failure) Red Blinking

(See Troubleshooting page 35)

*1 When in Eco Standby Mode RS-232C controls do not function.

*2 If “OFF” is selected in POWER INDICATOR (page 27), the LED will not

light when the LCD monitor is in active mode.

Information OSD

The Information OSD provides information such as:

Monitor ID, Input Source, Picture Size, etc. Press the

DISPLAY button on the remote to bring up the Information

OSD.

NORMAL: Display by the inputed signal aspect ratio by PC

signal, or display in 4:3 aspect ratio at DVD/HD or VIDEO

signal.

FULL: Display in entire screen.

WIDE*: Expand 16:9 letter box signal to entire screen.

ZOOM (DYNAMIC): Expand 4:3 pictures to the entire

screen with non-linearity. (Some around image will be cut by

expansion).

ZOOM

Image can be expanded beyond the active display area.

The image which is outside of active display area is not

displayed.

ZOOM

ID number assigned to current monitor

ID number assigned monitor to be controlled via RS-232C

Input Source

Audio input mode*

Picture size

Input Signal Information

Sub picture information

*: The product you purchased may not have this feature.

Using Power Management

The LCD monitor follows the VESA approved DPM Power

Management function.

The power management function is an energy saving

function that automatically reduces the power consumption

of the display when the keyboard or the mouse has not been

used for a fixed period.

The power management feature on your new display has

been set to the “ON” mode. This allows your display to enter

a Power Saving Mode when no signal is applied. This could

potentially increase the life and decrease the power

consumption of the display.

STANDBY mode is used when the display is connected to

an RS-232C cable or when using the INPUT DETECT

function.

ECO STANDBY uses less power, put the RS-232C and

INPUT DETECT functions are not available.

Selecting a video source

To view a video source:

Use the input button to set [VIDEO].

Use the COLOR SYSTEM menu to set [AUTO], [NTSC],

[PAL], [SECAM], [PAL60], [4.43NTSC], according to your

video format.

Picture Size

DVI,VGA, RGB/HV FULL ZOOM NORMAL

HDMI, DVD/HD, FULL WIDE* ZOOM NORMAL

VIDEO, TV

Aspect ratio

of image

NORMAL

ZOOM

(DYNAMIC)

FULL

WIDE*

4:3

Squeeze

Letterbox

Unchanged view*1Recommended selection

for picture size*1

*1 Grey areas indicate unused portions of the screen.

English-23

English

OSD (On-Screen-Display) Controls

Press UP or DOWN

button to select

sub-menu.

Press SET. Press UP or DOWN,

PLUS or MINUS to select

the function or setting to

be adjusted.

Press MENU or EXIT.

Remote Control

Press UP or DOWN

button to select.

Press INPUT button

to decide.

Press UP or DOWN, PLUS

or MINUS button to select.

Press EXIT

Control Panel

OSD screen

ADAPTIVE CONTRAST

Goto Adjustment

Select Return Close

Input source

Main Menu Icons

Main Menu Item

Sub Menu

Key Guide

Adjustment Settings

English-24

OSD Setting

PICTURE BRIGHTNESS Adjusts the overall image and background brightness. Press + or - to adjust.

CONTRAST Adjusts the image brightness in relationship to the background. Press + or - to adjust.

Note: The sRGB picture mode is standard and cannot be changed.

SHARPNESS Adjusts the crispness of the image. Press + or - to adjust.

BLACK LEVEL Adjusts the image brightness in relationship to the background. Press + or - to adjust.

TINT* Adjusts the tint of the screen. Press + or - to adjust.

INPUT HDMI, DVD/HD, VIDEO, TV only

COLOR* Adjusts the color depth of the screen. Press + or - to adjust.

INPUT HDMI, DVD/HD, VIDEO, TV only

COLOR TEMPERATURE Adjusts the color temperature of the entire screen. A low color temperature will make the

screen reddish. A high color temperature will make the screen bluish.

Note: The sRGB picture mode is set to a predefined 6500 K standard and cannot be

changed.

COLOR CONTROL Adjusts the levels of the Red, Yellow, Green, Cyan, Blue, Magenta and Saturation.

INPUT DVI, VGA, RGB/HV, HDMI only Note: The sRGB picture mode is standard and cannot be changed.

GAMMA SELECTION Select a display gamma for best picture quality.

NATIVE Gamma correction is handled by the LCD panel.

2.2 Typical display gamma for use with a PC.

2.4 Good for video (TV, DVD, etc.)

S GAMMA Special gamma for certain types of movies. Raises the dark parts and lowers the light parts

of the image. (S-Curve)

DICOM SIM. DICOM GSDF curve simulated for LCD type.

PROGRAMMABLE A programmable gamma curve can be loaded using NEC software.

ADAPTIVE CONTRAST* Sets the level of adjustment for dynamic contrast.

INPUT HDMI, DVD/HD, VIDEO, TV only

OFF

MID

HIGH

MOVIE SETTINGS*

NOISE REDUCTION Adjusts the amount of noise reduction. Press + or - to adjust.

INPUT TV, VIDEO only

FILM MODE Selects Film mode.

INPUT HDMI, DVD/HD, VIDEO, TV only

PICTURE RESET Resets the following settings within the PICTURE menu back to factory setting:

BRIGHTNESS, CONTRAST, SHARPNESS, BLACK LEVEL, TINT, COLOR, COLOR

TEMPERATURE, COLOR CONTROL , GAMMA SELECTION, ADAPTIVE CONTRAST,

MOVIE SETTINGS.

ADJUST AUTO SETUP Automatically adjusts screen size, H position, V position, Clock, Clock Phase, White Level,

INPUT VGA, RGB/HV only and Black Level.

AUTO ADJUST H Position, V Position and Clock Phase are adjusted automatically upon power on.

INPUT VGA, RGB/HV only

H POSITION Controls the horizontal position of the image within the Display area of the LCD.

Press + to move right. Press - to move left.

V POSITION Controls the vertical position of the image within the Display area of the LCD.

Press + to move up. Press - to move down.

CLOCK Press + to expand the width of the image on the right of the screen.

INPUT VGA, RGB/HV only Press - to narrow the width of the image on the left.

CLOCK PHASE Adjusts the visual “noise” on the image.

INPUT VGA, RGB/HV, DVD/HD only

*: The product you purchased may not have this feature.

English-25

English

H RESOLUTION Adjusts the horizontal size of the image.

INPUT DVI, VGA, RGB/HV only

V RESOLUTION Adjusts the vertical size of the image.

INPUT DVI, VGA, RGB/HV only

ZOOM MODE Select the aspect ratio of the screen image.

BASE ZOOM

16:9* For input sources that have a 16:9 aspect ratio.

14:9* For input sources that have a 14:9 aspect ratio.

DYNAMIC* Expands 4:3 picture to fill the screen. Some of the image is lost due to expansion.

OFF Selecting “OFF” will display the image in a 1 by 1 pixel format. (If the input resolution is

higher than a 1360 x 768 resolution, the image will be scaled down to fit the screen.)

CUSTOM Displays an image as large as possible without changing the aspect ration.

ZOOM Maintains the aspect ratio while zooming.

H ZOOM Amount of horizontal zoom. Can be adjusted for each BASE ZOOM setting.

V ZOOM Amount of vertical zoom. Can be adjusted for each BASE ZOOM setting.

H POS Horizontal position. Can be adjusted for each BASE ZOOM setting.

V POS Vertical position. Can be adjusted for each BASE ZOOM setting.

INPUT RESOLUTION If there is a problem with signal detection, this function forces the monitor to display the

INPUT VGA, RGB/HV only signal at the desired resolution.

If no problem is detected, the only available option will be “AUTO”.

AUTO

1024x768

1280x768

1360x768

1366x768

1440x1050

1680x1050

ADJUST RESET Resets the following settings within the ADJUST menu back to factory setting:

AUTO ADJUST, H POSITION, V POSITION, CLOCK, CLOCK PHASE, H RESOLUTION,

V RESOLUTION, ZOOM MODE, INPUT RESOLUTION.

AUDIO* BALANCE

TREBLE

BASS

PIP AUDIO Selects source of PIP audio.

AUDIO RESET Resets “AUDIO” options back to factory settings.

SCHEDULE OFF TIMER Sets the monitor to power off after a length of time.

A time between 1 to 24 hours is available.

SCHEDULE SETTING Creates a working schedule for the monitor to use.

SCHEDULE LIST List of schedules.

DATE & TIME Sets the date, time, and daylight saving region. Date & time must be set in order for the

“SCHEDULE” function to operate.

YEAR

MONTH

DAY

*: The product you purchased may not have this feature.

English-26

TIME

DAYLIGHT SAVING

SCHEDULE RESET Resets the following settings within the SCHEDULE menu back to factory setting:

OFF TIMER, SCHEDULE SETTINGS.

PIP KEEP PIP MODE* Allows the monitor to remain in “PIP” mode after powering off. When Power is returned, PIP

appears without having to enter the OSD.

PIP MODE* Picture-in-Picture

OFF OFF

PIP PIP

POP POP

SIDE BY SIDE (ASPECT)

SIDE BY SIDE ASPECT

SIDE BY SIDE (FULL) SIDE BY SIDE FULL

PIP SIZE Selects the size of the sub-picture used in Picture-in-Picture (PIP) mode.

SMALL

MIDDLE

LARGE

PIP POSITION Determines where the PIP appears on the screen.

PIP RESET Resets PIP options back to factory settings.

OSD LANGUAGE Select the language used by the OSD.

ENGLISH

DEUTSCH

FRANÇAIS

ITALIANO

ESPAÑOL

SVENSKA

OSD TURN OFF Turns off the OSD after a period of inactivity. The preset choices are 10-240 seconds.

OSD POSITION Determines the location where the OSD appears on the screen.

DOWN

LEFT

RIGHT

INFORMATION OSD Selects whether the information OSD is displayed or not. The information OSD will be

displayed when the input signal or source changes. The information OSD will also give a

warning when there is no-signal or the signal is out-of range.

An interval between 3 to 10 seconds for the Information OSD to appear is available.

MONITOR INFORMATION Monitor Information.

OSD TRANSPARENCY Set the transparency level of the OSD.

OFF

TYPE1

TYPE2

*: The product you purchased may not have this feature.

English-27

English

OSD RESET Resets the following settings within the OSD menu back to factory setting:

OSD TURN OFF, OSD POSITION, INFORMATION OSD, OSD TRANSPARENCY.

MULTI DISPLAY MONITOR ID Sets the monitor ID number from 1-26.

IR CONTROL Selects the mode of the monitor for use with the infra-red remote control when using the

RS-232C daisy chain.

NORMAL The monitor will be controlled normally by wireless remote controller.

PRIMARY Choose “PRIMARY” for the first monitor within an RS-232C daisy chain.

SECONDARY Choose “SECONDARY” for all subsequent monitors within an RS-232C daisy chain.

LOCK Prevents the monitor from being controlled by wireless remote controller. To return to normal

operation, press the “DISPLAY” button on the remote controller for 5 seconds.

TILE MATRIX Allows one image to be expanded and displayed over multiple screens (up to 25) through a

distribution amplifier.

H MONITORS Number of monitors arranged horizontally.

V MONITORS Number of monitors arranged vertically.

POSITION Select which section of the tiled image to be displayed on the monitor.

TILE COMP Turns the TILE COMP feature on.

ENABLE Enables Tile Matrix.

POWER ON DELAY Adjusts the delay time between being in “standby” mode and entering “power on” mode.

“POWER ON DELAY” can be set between 0 and 50 seconds.

POWER INDICATOR Turns ON or OFF the LED located at the front of the monitor.

If “OFF” is selected, LED will not light when the LCD monitor is in active mode.

MULTI DISPLAY RESET Resets the following settings within the MULTI DISPLAY menu back to factory setting:

MONITOR ID, IR CONTROL, TILE MATRIX, POWER ON DELAY.

DISPLAY POWER SAVE Sets how long the monitor waits to go into power save mode after a lost signal.

PROTECTION except TV input Note: When connecting DVI, video card might not stop sending digital data even if image has

disappeared. In this case the monitor does not get to power management mode.

STANDBY MODE Lowers power consumption.

Note: RS-232C Function is lost when in Eco Standby mode.

HEAT STATUS Displays status of the COOLING FAN, BRIGHTNESS and TEMPERATURE.

FAN CONTROL Cooling fan reduces the temperature of the display.

SCREEN SAVER Use the SCREEN SAVER function to reduce the risk of Image Persistence.

GAMMA The display gamma is changed and fixed when “ON” is selected.

BRIGHTNESS The brightness is decreased when “ON” is selected.

MOTION The screen image is slightly expanded and moves in 4 directions (UP, DOWN, RIGHT, LEFT)

at user determined intervals.

SIDE BORDER COLOR Adjusts the color of the side borders when a 4:3 image is displayed.

Press + button, the bar will become lighter.

Press - button, the bar will become darker.

AUTO BRIGHTNESS Adjusts the brightness level according to the input signal.

INPUT DVI, VGA, RGB/HV only

CHANGE SECURITY Allows the security password to be changed.

PASSWORD The factory preset password is 0000.

SECURITY LOCK Locks the security password.

DDC/CI ENABLE/DISABLE: Turns On or OFF the two way communication and control of the monitor.

DISPLAY PROTECTION Resets the following settings within the Picture menu back to factory setting:

RESET POWER SAVE, STANDBY MODE, FAN CONTROL, SCREEN SAVER, SIDE BORDER

COLOR, AUTO BRIGHTNESS.

*: The product you purchased may not have this feature.

English-28

ADVANCED INPUT DETECT Selects the method of input detection the monitor uses when more than two input devices

OPTION except TV input are connected.

NONE The Monitor will not search the other video input ports.

FIRST DETECT When the current video input signal is not present, then the monitor searches for a video

INPUT DVI, VGA, RGB/HV only signal from the other video input port. If the video signal is present in the other port, then the

monitor switches the video source input port to the new found video source automatically.

The monitor will not look for other video signals while the current video source is present.

LAST DETECT When the monitor is displaying a signal from the current source and a new secondary source

INPUT DVI, VGA, RGB/HV only is supplied to the monitor, the monitor will automatically switch to the new video source.

When current video input signal is not present, the monitor searches for a video signal from

the other video input port. If the video signal is present in the other port, then the monitor

switches the video source input port to the new found video source automatically.

VIDEO DETECT* DVD/HD or VIDEO inputs will have priority over DVI, VGA, RGB/HV. When DVD/HD or

VIDEO input signal is present the monitor will change and keep to the DVD/DH or VIDEO

input.

LONG CABLE ON/OFF Compensates for image degradation caused from using a long cable.

INPUT VGA, RGB/HV only

LONG CABLE MANUAL Manually compensates for image degradation caused from using a long cable.

INPUT VGA, RGB/HV only

RED DELAY Adjusts the phase of the red signal.

GREEN DELAY Adjusts the phase of the green signal.

BLUE DELAY Adjusts the phase of the blue signal.

RED SHARPNESS Adjusts the performance degradation of the RED signal.

GREEN SHARPNESS Adjusts the performance degradation of the GREEN signal.

BLUE SHARPNESS Adjusts the performance degradation of the BLUE signal.

SOG PEAK. Adjusts the shape of Sync on Green signal.

VIDEO EQ. Optimize the shape (Tailing) of RED, GREEN and BLUE signals.

SYNC TERMINATE Selects the terminate resistance for matching the cable impedance.

DVI MODE Selects the kind of DVI-D equipment which is connected DVI.

Select “DVI-PC” when PC or other computer equipment is connected.

Select “DVI-HD” when DVD player, which has DVI-D output, is connected.

SCAN CONVERSION Selects the IP (Interlace to Progressive) conversion function.

except VGA, RGB/HV

PROGRESSIVE Converts interlaced signals to progressive. This is the default setting.

INTERLACE Disables IP conversion. This setting is best suited for motion pictures, but increases the risk

of image retention.

SCART MODE* Input mode for devices using SCART connectors.

S-VIDEO MODE* Selects the S-Video input port function.

PRIORITY When an S-Video cable is connected to the S-Video input, it will have priority over the

composite input port.

SEPARATE The S-Video port and Composite port can be selected as independent input ports.

COLOR SYSTEM The selected Color System depends on the video format of the input signal.

INPUT VIDEO only

AUTO Automatically chooses Color System setting based on input signal.

NTSC

PAL

SECAM

4.43NTSC

PAL-60

*: The product you purchased may not have this feature.

English-29

English

NOTE 1: CREATING A SCHEDULE

The schedule function allows the display to be set to power on and off at different times. Up to seven different schedules can be

programmed.

To program the schedule:

1. Enter the SCHEDULE menu. Highlight SCHEDULE SETTING using the up and down buttons. Press the SET or the + button to enter the

Settings menu. Highlight the desired schedule number and press set. The box next to the number will turn yellow. The schedule can now

be programmed.

2. Use the up and down arrows to highlight INPUT. Use the + and - buttons to choose the input source.

3. After the INPUT source is selected, use the down button to highlight the hours setting in the ON timeslot. Use the + and - buttons to set the

hour. Use the up and down buttons to highlight the minutes setting. Use the + and - buttons to set the minutes. Set the OFF time in the

same manner.

4. Use the down button to select a day on which the schedule will be enabled. Push the set button to enable. If the schedule is to be ran

every day, use the choose EVERY DAY and press the SET button the circle next to EVERY DAY will turn yellow. If a weekly schedule is

desired, choose the days of the week using the up and down buttons and pressing SET to select. Then highlight the EVERY WEEK option

and press SET.

5. After a schedule is programmed the remaining schedules can then be set. Press MENU to leave the OSD or press EXIT to go back to the

previous menu.

Note: If schedules are overlapping then the schedule with the highest number will have priority over the schedule with the lowest number.

For example schedule #7 will have priority over schedule #1.

SCHEDULE:

INPUT: DVI

ON: 10 : 30

OFF: 17 : 45

• EVERY DAY

MON TUE WED THU

FRI SAT SUN

EVERY WEEK

DVI

TODAY: SEP.27.2006 12:18

SETTINGS:

OFF TIMER

SCHEDULE SETTING

SCHEDULE LIST

DATE & TIME

SCHEDULE RESET RESET

1 2 3 4 5 6 7

Choose Mark Return Close

SCAN MODE* Some video formats may require scan conversion in order to best display the image.

INPUT HDMI, DVD/HD, VIDEO, TV only

OVER SCAN Image size is larger than what can be displayed. The image edge will appear cropped.

Approximately 95% of the image will be shown on the screen.

UNDER SCAN Image size stays within the display area. The whole image is displayed on the screen.

ADVANCED OPTION Resets the following settings within the ADVANCED OPTION menu back to factory setting:

RESET INPUT DETECT, LONG CABLE ON/OFF, LONG CABLE MANUAL, DVI MODE, SCAN

CONVERSION, S-VIDEO MODE, SCAN MODE.

FACTORY RESET Resets OSD options back to factory settings EXCEPT FOR: CHANGE SECURITY

PASSWORD and SECURITY PASSWORD.

TV TUNER* REGION Selects region.

CHANNEL SEARCH Automatically stores available channels.

CHANNEL EDIT Manually adds or removes channels from TV mode.

*: The product you purchased may not have this feature.

English-30

NOTE 2: IMAGE PERSISTENCE

Please be aware that LCD Technology may experience a phenomena known as Image Persistence. Image Persistence occurs when a

residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image persistence is not

permanent, but constant images being displayed for a long period of time should be avoided.

To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the

monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.

As with all personal display devices, NEC DISPLAY SOLUTIONS recommends displaying moving images and using a moving screen

saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.

Please set “SCREEN SAVER”, “DATE &TIME” and “SCHEDULE SETTINGS” functions to further reduce the risk of Image persistence.

For long life use of Public Display

< Image Sticking of LCD Panel >

When LCD panel is operated continuously for long hours, a trace of electric charge remains near the electrode inside LCD, and residual or

“ghost” image of previous image may be observed. (Image Persistence)

Image Persistence is not permanent, but when fixed image is displayed for long period, ionic impurities inside LCD are accumulated along

the displayed image, and it is observed permanently. (Image Sticking)

< Recommendations >

For preventing the fast transition to Image Sticking, and for longer life usage of LCD, following are recommended.

1. Fixed image should not be displayed for long period, and changed to another images with short cycle.

2. When no use, please turn off the monitor by remote control, or use Power Management Function of monitor or use Schedule Function of

monitor.

3. Reducing the environmental temperature is effective for long life use.

When Protection board (glass, acryl) is installed over the LCD surface, enclosed into the box / wall, or stack the monitor, please utilize the

temperature sensors inside monitor.

To reduce the environmental temperature, the monitor should be set Low Brightness or Cooling Fan “ON” by using Screen sever Function.

4. Please use “Screen Saver Mode” of monitor.

Remote Control ID Function

REMOTE CONTROL ID

The remote control included with the display can be used to control up to 26 individual

MultiSync monitors using what is called the REMOTE CONTROL ID mode. The REMOTE

CONTROL ID mode works in conjunction with the Monitor ID, allowing control of up to 26

individual MultiSync monitors. For example: if there are many monitors being used in the

same area, a remote control in normal mode would send signals to every monitor at the

same time Figure 1. Using the remote in REMOTE CONTROL ID mode will only operate

one specific monitor within the group Figure 2.

TO SET REMOTE CONTROL ID

While holding down the REMOTE ID SET button on the remote control, use the KEYPAD

to input the Monitor ID (1-26) of the display to be controlled via remote. The remote can

then be used to operate the monitor having that specific Monitor ID number.

When 0 is selected or when the remote control is in normal mode, all monitors will be

operated.

TO SET REMOTE CONTROL ID

ID Mode - To enter ID Mode press the REMOTE ID SET button and hold down for 2

seconds.

Normal Mode - To return to Normal Mode press the REMOTE ID RESET button and hold

down for 2 seconds.

In order for this feature to work properly, the display must be assigned a Monitor ID

number. The Monitor ID number can be assigned under the MULTI DISPLAY menu in the

OSD (See page 27).

Press the “DISPLAY” button on the remote to bring up the Information OSD. The

Information OSD shows the monitor ID number and other information such as signal type,

zoom method, etc.

Monitor ID:1 Monitor ID:2 Monitor ID:3

Remote does

not work

Remote does

not work

Remote works

Remote works Remote works Remote works

Figure 1

Remote in

Normal mode or

the REMOTE ID

is set to 0

Figure 2

Remote set up to

use REMOTE

ID:3

English-31

English

This LCD monitor can be controlled via personal computer or wireless remote control using an RS-232C connection.

MONITOR ID and IR CONTROL

Using one PC or one infrared wireless controller, up to 26 individual LCD4020/LCD4620 monitors can be controlled through a daisy chain

via RS-232C connection.

1. Connect PC and LCD4020/LCD4620.

Connect a PC’s RS-232C control output to the LCD4020/LCD4620’s RS-232C input. You can then connect the RS-232C output from the

LCD4020/LCD4620 to another LCD4020/LCD4620’s RS-232C input. Up to 26 monitors can be connected using RS-232C.

2. Set Monitor ID and IR Control mode.

For proper operation, the Monitor ID should be set in the OSD menu of each monitor that is in the chain. The Monitor ID can be set under

the “MULTI DISPLAY” menu in the OSD. The Monitor ID number can be set within a range from 1 to 26. No two monitors should share the

same Monitor ID number. It is recommended to number each monitor in a daisy chain sequentially from 1. The first monitor in the daisy

chain is designated as the primary monitor. Subsequent monitors with the chain are secondary monitors.

In the “ADVANCED OPTION” menu on the first monitor in the RS-232C daisy chain set the “IR CONTROL” to “PRIMARY”.

Set the “IR CONTROL” to “SECONDARY” on all other monitors.

3. Press the “DISPLAY” button on the remote control while aiming at the “PRIMARY” monitor. The Information OSD will be shown at

top left side of the screen.

Monitor ID: Displays the ID number of the current monitor within the daisy chain.

Target ID: Displays the ID number of the monitor that to be controlled via daisy chain from the current monitor.

Press the “+” or “-” buttons to change the “Target ID” to show the ID number of the monitor to be controlled. To control the entire daisy

chained monitors simultaneously, select “ALL” as the “Target ID.”

Note: If the monitor is in ECO Standby mode, RS-232C functionality is stopped.

4. Use the wireless remote controller to control the “SECONDARY” monitor while aiming at the “PRIMARY” monitor.

The “MENU OSD” will appear on the selected target monitor.

NOTE: If the “ID No.” mode select OSD is showing, press the “DISPLAY” button on the remote control while pointing at the “PRIMARY”

monitor to clear this OSD.

HINT: If you lost control due to the incorrect setting of “IR CONTROL”, pressing the “DISPLAY” button on the remote control for 5 or

more seconds will reset the “IR CONTROL” menu to “NORMAL” function.

English-32

Controlling the LCD monitor via RS-232C Remote Control

This LCD monitor can be controlled by connecting a personal computer with a RS-232C terminal.

Functions that can be controlled by a personal computer are:

•Power ON or OFF

•Switching between input signals

Connection

LCD Monitor + PC

NOTE: If your PC (IBM or IBM compatible) is equipped only with a 25-pin serial port connector, a 25-pin serial port adapter is

required. Contact your dealer for details.

*In order to function, the RS-232C OUT terminal can only be connected to another monitor of the same model.

Do not connect to other types of equipment.

The following control sequence is used for a single LCD4020/LCD4620. To control multiple LCD4020/LCD4620 monitors that

are daisy-chained together please use the extended control command. Instructions for the extended control command can be

found on the CD included with the display. The file is called “External_control_LCD4X20.pdf”. When using the following

control commands, all of the daisy-chained monitors can be controlled at the same time from one monitor. Reply and status

commands, however, will only pertain to the primary monitor, not secondary monitors.

1) Interface

This LCD monitor uses RXD, TXD and GND lines for RS-232C control.

2) Control command diagram

The command is structured by the address code, function code, data code and end code. The length of the command is

different for each function.

[Address code] 30h 30h (ASCII code, '0' '0'), fixed.

[Function code] A code of each fixed control move.

[Data code] A code of each fixed control data (number) and not always indicated.

[End code] 0Dh (In ASCII code, ' ') fixed.

PROTOCOL RS-232C

BAUD RATE 9600 [bps]

DATA LENGTH 8 [bits]

PARITY BIT NONE

STOP BIT 1 [bits]

FLOW CONTROL NONE

Address code Function code Data code End code

HEX 30h 30h Function Data 0Dh

ASCII '0' '0' Function Data

RS-232C Cable

(Out)

RS-232C Cable

RS-232C (OUT)

MultiSync

RS-232C (IN)RS-232C (OUT)RS-232C (IN)

IN OUT

MultiSync MultiSync

English-33

English

3) Control sequence

(1) The command from a computer to the LCD monitor will be sent in 400ms.

(2) The LCD monitor will send a return command 400ms* after it has received and encoded. If the command isn’t

received correctly, the LCD monitor will not send the return command.

(3) The personal computer checks the command and confirms if the command, which has been sent, has been executed or not.

(4) This LCD monitor sends various codes other than return code. When having a control sequence by RS-232C, reject other

codes from personal computers side.

*: The sending time of return command may delay depending on the condition (during changing of the input signal, etc.).

Example: Turn the power ON ( ’ ’ is for ASCII code)

4) Operation commands

The operation commands execute the basic operation setting of this LCD monitor.

It may not operate when changing the signal:

•POWER OFF command should be operated over 1 minute after the power is turned on.

•POWER ON command should be operated over 1 minute after the power is turned off.

*1 S-VIDEO is enabled by having the “S-VIDEO” cable connected with the “S-VIDEO” signal present and selecting “PRIORITY MODE”.

*2 S-VIDEO is SEPARATE only.

5) Read command

Host computer sends the command without Data-code to monitor.

After receiving this command, the monitor returns the command with Data-code of current status to host computer.

< ex. > When Host computer ask Power status of monitor, the status of monitor is powered-on.

Command from computer Command from Monitor Detail of command

30 30 76 50 0D 0''0'v''P'[enter] Ask about the power status of monitor.

30 30 76 50 31 0D '0''0''v''P''1'[enter] Monitor is powered-on.

Structure of the Read-command

Function Data (Receive) Function Data (Receive)

ON vP 1 76 50 31

OFF(stand by) vP 0 76 50 30

DVI(DVI-D) vI r1 76 49 72 31

VGA(D-SUB) vI r2 76 49 72 32

RGB/HV(BNC) vI r3 76 49 72 33

HDMI vI h1 76 49 68 31

Video vI v1 76 49 76 31

DVD/HD vI v2 76 49 76 32

S-VIDEO vI v3 76 49 76 33

TV vI t1 76 49 74 31

HIGHBRIGHT vM p1 76 4D 70 31

STANDARD vM p2 76 4D 70 32

resolution 0.5˚C tcx1 (ex.) +25.0 74 63 78 31 2B 20 32 35 2E 30

resolution 1˚C tc1 (ex.) +25 74 63 31 2B 20 32 35

resolution 0.5˚C tcx2 (ex.) +30.5 74 63 78 32 2B 20 33 30 2E 35

resolution 1˚C tc2 (ex.) +31 74 63 32 2B 20 33 31

resolution 0.5˚C tcx3 (ex.) +30.5 74 63 78 33 2B 20 33 30 2E 35

resolution 1˚C tc3 (ex.) +31 74 63 33 2B 20 33 31

NOTE: For complete information please see file “External_Control_LCD4X20.pdf” on the CD-ROM.

Sending commands

from the PC

Status code from

LCD monitor Meaning

30 30 21 0D

’0’ ’0’ ’!’ ’ ’

30 30 21 0D

’0’ ’0’ ’!’ ’ ’

Command received

(Command echoed back)

Command for

POWER ON

Input

Picture mode

Temperature

of Internal

monitor

Around

AV board

Around

Inverter

PCB

POWER

ASCII HEX

Operation ASCII HEX

POWER ON ! 21h

POWER OFF " 22h

INPUT DVI _r1 5Fh 72h 31h

INPUT VGA _r2 5Fh 72h 32h

INPUT RGB/HV _r3 5Fh 72h 33h

Operation ASCII HEX

INPUT HDMI _h1 5Fh 68h 31h

INPUT VIDEO*1_v1 5Fh 76h 31h

INPUT DVD/HD _v2 5Fh 76h 32h

INPUT S-VIDEO*2_v3 5Fh 76h 33h

INPUT TV _t1 5Fh 74h 31h

Around

Mainboard

English-34

Features

Reduced Footprint: Provides the ideal solution for environments requiring superior image quality but with size and weight

limitations.

Colour Control Systems: Allows you to adjust the colours on your screen and customize the colour accuracy of your monitor

to a variety of standards.

OmniColor: Combines Six-axis colour control and the sRGB standard. Six-axis colour control permits colour adjustments via

six axes (R, G, B, C, M and Y) rather than through the three axes (R, G and B) previously available. The sRGB standard

provides the monitor with a uniform colour profile. This assures that the colours displayed on the monitor are exactly the same

as on the colour printout (with sRGB supporting operating system and sRGB printer). This allows you to adjust the colours on

your screen and customise the colour accuracy of your monitor to a variety of standards.

sRGB Colour Control: A new optimized colour management standard which allows for colour matching on computer displays

and other peripherals. The sRGB standard, which is based on a calibrated colour space, allows for optimal colour

representation and backward compatibility with other common colour standards.

OSD (On-Screen-Display) Controls: Allow you to quickly and easily adjust all elements of your screen image via simple to

use on-screen menus.

Plug and Play: The Microsoft® solution with the Windows® operating system facilitates setup and installation by allowing the

monitor to send its capabilities (such as screen size and resolutions supported) directly to your computer, automatically

optimizing display performance.

IPM (Intelligent Power Manager) System: Provides innovative power-saving methods that allow the monitor to shift to a

lower power consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions

and lowering the air conditioning costs of the workplace.

FullScan Capability: Allows you to use the entire screen area in most resolutions, significantly expanding image size.

VESA Standard (FDMIv1) Mounting Interface: Allows users to connect their LCD monitor to any VESA standard (FDMIv1)

third party mounting arm or bracket. Allows for the monitor to be mounted on a wall or an arm using any third party compliant

device. NEC recommends using mounting interface that comply with TÜV-GS and/or UL1678 standard in North America.

DVI-D: The digital-only subset of DVI ratified by the Digital Display Working Group (DDWG) for digital connections between

computers and displays. As a digital-only connector, analog support is not provided off a DVI-D connector. As a DVI-based

digital only connection, only a simple adapter is necessary for compatibility between DVI-D and other DVI-based digital

connectors such as DFP and P&D. The DVI interface of this display supports HDCP.

TILE MATRIX, TILE COMP: Demonstrates multiple screens with an accurate image and compensates for the bezel width.

ZOOM: Expands the image individually for horizontal and vertical direction.

RS-232C daisy chain: You can control the multiple monitors by controller or wireless remote controller.

Self-diagnosis: When an internal error should occur, a failure state will be indicated.

CableComp: Automatic long cable compensation prevents image quality degradation (colour shift and dull signals) caused by

long cable lengths.

English-35

English

Troubleshooting

No picture

•The signal cable should be completely connected to the

display card/computer.

•The display card should be completely seated in its slot.

•Front Power Switch and computer power switch should

be in the ON position.

•Check to make sure that a supported mode has been

selected on the display card or system being used.

(Please consult display card or system manual to

change graphics mode.)

•Check the monitor and your display card with respect to

compatibility and recommended settings.

•Check the signal cable connector for bent or pushed-in

pins.

Power Button does not respond

•Unplug the power cord of the monitor from the AC outlet

to turn off and reset the monitor.

Image persistence

•Please be aware that LCD Technology may experience a

phenomenon known as Image Persistence. Image

Persistence occurs when a residual or “ghost” image of a

previous image remains visible on the screen. Unlike

CRT monitors, LCD monitors’ image persistence is not

permanent, but constant images being displayed for a

long period of time should be avoided. To alleviate image

persistence, turn off the monitor for as long as the

previous image was displayed. For example, if an image

was on the monitor for one hour and a residual image

remains, the monitor should be turned off for one hour to

erase the image.

NOTE: As with all personal display devices, NEC DISPLAY

SOLUTIONS recommends displaying moving

images and using a moving screen saver at regular

intervals whenever the screen is idle or turning off

the monitor when not in use.

Image is unstable, unfocused or swimming is apparent

•Signal cable should be completely attached to the

computer.

•Use the OSD Image Adjust controls to focus and adjust

display by increasing or decreasing the fine adjustment.

When the display mode is changed, the OSD Image

Adjust settings may need to be re-adjusted.

•Check the monitor and your display card with respect to

compatibility and recommended signal timings.

•If your text is garbled, change the video mode to non-

interlace and use 60Hz refresh rate.

Image of component signal is greenish

•Check to see if the DVD/HD input connector is selected.

LED on monitor is not lit

(no green or red colour can be seen)

•Power Switch should be in the ON position and power

cord should be connected.

•Make certain the computer is not in a power-saving

mode (touch the keyboard or mouse).

RED LED on monitor is blinking

•A certain failure might have occurred, please contact

your nearest authorized NEC DISPLAY SOLUTIONS

service facility.

Display image is not sized properly

•Use the OSD Image Adjust controls to increase or

decrease the coarse adjustment.

•Check to make sure that a supported mode has been

selected on the display card or system being used.

(Please consult display card or system manual to

change graphics mode.)

Selected resolution is not displayed properly

•Use OSD Display Mode to enter Information menu and

confirm that the appropriate resolution has been

selected. If not, select corresponding option.

No Sound

•Check to see if speaker cable is properly connected.

•Check to see if mute is activated.

•Check to see if volume is set at minimum.

Remote Control is not available

•Check the Remote Control’s batteries status.

•Check if batteries are inserted correctly.

•Check if the Remote Control is pointing at the monitor’s

remote sensor.

•Check the Remote Control Mode status.

•The remote control system may not function when direct

sunlight or strong illumination strikes the remote control

sensor of the LCD monitor, or when there is an object in

the path.

“SCHEDULE”/“OFF TIMER” function is not working

properly

•The “SCHEDULE” function will be disabled when the

“OFF TIMER” is set.

•If the “OFF TIMER” function is enable and the power to

the LCD monitor is turned off if the power supply is

interrupted unexpectedly, then the “OFF TIMER” will be

reset.

RS-232C is not working

•Make sure the monitor is not in “Eco Standby” mode

(see page 27).

Snowy Picture, Poor Sound in TV

•Check antenna/cable connection. Use new cable if

necessary.

Interference in TV

•Check components for shielding, move away from

monitor if necessary.

Either light vertical or horizontal stripes may appear, depending on the specific display pattern. This is no product fault or

degradation.

English-36

Specifications - LCD4020

Product Specifications

LCD Module 40" /101.6cm diagonal

Pixel Pitch: 0.648mm

Resolution: 1366 x 768 dots

Colour: Over 16 million colours (depending on video card used)

Brightness: 700cd/m2 (Max.), 500cd/m2 (Typ.)

Contrast Ratio: 1200:1

Viewing Angle: Up 89°/ Down 89°/ Left 89°/ Right 89° (typ) @ CR>10

Design View Distance: 1100mm

Frequency Horizontal: 15.625/15.734kHz, 31.5kHz - 91.1kHz (Analog Input)

31.5kHz - 91.1kHz (Digital Input)

Vertical: 50.0 - 85.0 Hz

Pixel Clock 25.2MHz - 162.0MHz

Viewable Size 885.168 x 497.664mm

Input Signal

DVI DVI-D 24pin Digital RGB DVI (HDCP)

VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60*, 1920X1080* (60Hz)

VGA 15pin Mini D-sub Analog RGB 0.7V p-p, Input Impedance 75 ohm

VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60*, 1920X1080* (60Hz)

Sync Separate: TTL level (Pos./Neg.)

Composite sync on Green Video: 0.3Vp-p Neg.

RGB/HV BNC (R,G,B,H,V) Analog RGB 0.7V p-p, Input Impedance 75 ohm

VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60*, 1920X1080* (60Hz)

Sync Separate: TTL level (Pos./Neg.)

Composite sync on Green Video: 0.3Vp-p Neg.

HDMI HDMI Type-A Digital RGB HDMI

1080p*, 1080i*, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz

DVD/HD RCA (Y, Cb/Pb, Cr/Pr) Component Y : 1.0Vp-p/75ohm, Cb/Cr (Pb/Pr) : 0.7Vp-p/75 ohm

HDTV/DVD:1080p*, 1080i*, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 576i@50Hz, 480i@60Hz

VIDEO BNC Composite 1.0V p-p Input Impedance 75 ohm

RCA NTSC/PAL/SECAM/4.43NTSC/PAL60

S-VIDEO Mini DIN 4 pin S-VIDEO Y: 1.0Vp-p/75 ohm C: 0.286Vp-p/75 ohm (NTSC), 0.3Vp-p/75 ohm (PAL/SECAM)

NTSC/PAL/SECAM/4.43NTSC/PAL60

Output Signal

RGB/HV BNC (R,G,B,H,V) Analog RGB Analog RGB Video: 0.7V p-p with 75 ohm terminated

Separate HV sync: TTL level (Posi / Nega)

VIDEO BNC Composite Composite 1.0V p-p with 75 ohm terminated

AUDIO

AUDIO RCA (L/R) X2 Analog Audio Stereo L/R 0.5Vrms

Input STEREO Mini Jack

HDMI Type-A Digital Audio PCM 32, 44.1, 48KHz (16/20/24bit)

AUDIO STEREO Mini Jack Analog Audio STEREO Mini Jack L/R: 1, 0.5Vrms

Output

Speaker Output External Speaker Jack 15W + 15W (8 ohm)

Control RS-232C In: 9 Pin D-sub

RS-232C Out: 9 Pin D-sub (with daisy chain)

TV F-connector: Antenna Impedance 75ohm

Channel Coverage: VHF: E2 to E12/R1 to R12

UHF: E21 to E69

CATV: S1 to S41

Power Supply 3.0 - 1.2 A @ 100-240VAC, 50/60Hz

Operational Environment Temperature: 5 - 40°C (Default brightness), 5 - 20°C (Max brightness)

Humidity: 20 - 80% (without condensation)

Storage Environment Temperature: -20 - 60°C

Humidity: 10 - 90% (without condensation)/ 90% - 3.5% x (Temp - 40°C) regarding over 40°C

Dimension Net: 919.7 (W) x 567.7 (H) x 330 (D) mm (with stand)

919.7 (W) x 532.2 (H) x 140 (D) mm (without stand)

Gross: 1147 (W) x 761 (H) x 312 (D) mm

Weight Net: 31.1Kg (With stand), 29.4Kg (Without stand)

Gross: 38.9Kg

VESA compatible arm mounting interface 3 x 200mm x 200mm (8 Holes)

2 x 200 mm x 200 mm (6 Holes)

Complied Regulatory and Guidelines UL60950-1/CSA C22.2 No.60950-1/ TUV-GS/EN60950-1/NOM

FCC-B/DOC-B/EN55022-A/EN55024/EN61000-3-2/EN61000-3-3/CE/GOST-R

Power Management VESA DPM

Plug & Play VESA DDC2B, DDC/CI

Accessories User’s manual, Power Cord, Video Signal Cable, Remote Control, AA Battery x 2, Clamp x 3,

Screw x 9, CD-ROM, Stand x 2, Thumbscrew for stand x 2, Cable cover

NOTE: Technical specifications are subject to change without notice. *: Compressed image

English-37

English

Specifications - LCD4620

Product Specifications

LCD Module 46" /116.8cm diagonal

Pixel Pitch: 0.7455mm

Resolution: 1366 x 768 dots

Colour: Over 16 million colours (depending on video card used)

Brightness: 650cd/m2 (Max.), 500cd/m2 (Typ.)

Contrast Ratio: 1200:1

Viewing Angle: Up 89°/ Down 89°/ Left 89°/ Right 89° (typ) @ CR>10

Design View Distance: 1300mm

Frequency Horizontal: 15.625/15.734kHz, 31.5kHz - 91.1kHz (Analog Input)

31.5kHz - 91.1kHz (Digital Input)

Vertical: 50.0 - 85.0 Hz

Pixel Clock 25.2MHz - 162.0MHz

Viewable Size 1018.353 x 572.54mm

Input Signal

DVI DVI-D 24pin Digital RGB DVI (HDCP)

VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60*, 1920X1080* (60Hz)

VGA 15pin Mini D-sub Analog RGB 0.7V p-p, Input Impedance 75 ohm

VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60*, 1920X1080* (60Hz)

Sync Separate: TTL level (Pos./Neg.)

Composite sync on Green Video: 0.3Vp-p Neg.

RGB/HV BNC (R,G,B,H,V) Analog RGB 0.7V p-p, Input Impedance 75 ohm

VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60*, 1920X1080* (60Hz)

Sync Separate: TTL level (Pos./Neg.)

Composite sync on Green Video: 0.3Vp-p Neg.

HDMI HDMI Type-A Digital RGB HDMI

1080p*, 1080i*, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz

DVD/HD RCA (Y, Cb/Pb, Cr/Pr) Component Y : 1.0Vp-p/75ohm, Cb/Cr (Pb/Pr) : 0.7Vp-p/75 ohm

HDTV/DVD:1080p*, 1080i*, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 576i@50Hz, 480i@60Hz

VIDEO BNC Composite 1.0V p-p Input Impedance 75 ohm

RCA NTSC/PAL/SECAM/4.43NTSC/PAL60

S-VIDEO Mini DIN 4 pin S-VIDEO Y: 1.0Vp-p/75 ohm C: 0.286Vp-p/75 ohm (NTSC), 0.3Vp-p/75 ohm (PAL/SECAM)

NTSC/PAL/SECAM/4.43NTSC/PAL60

Output Signal

RGB/HV BNC (R,G,B,H,V) Analog RGB Analog RGB Video: 0.7V p-p with 75 ohm terminated

Separate HV sync: TTL level (Posi / Nega)

VIDEO BNC Composite Composite 1.0V p-p with 75 ohm terminated

AUDIO

AUDIO RCA (L/R) X2 Analog Audio Stereo L/R 0.5Vrms

Input STEREO Mini Jack

HDMI Type-A Digital Audio PCM 32, 44.1, 48KHz (16/20/24bit)

AUDIO STEREO Mini Jack Analog Audio STEREO Mini Jack L/R: 1, 0.5Vrms

Output

Speaker Output External Speaker Jack 15W + 15W (8 ohm)

Control RS-232C In: 9 Pin D-sub

RS-232C Out: 9 Pin D-sub (with daisy chain)

TV F-connector: Antenna Impedance 75ohm

Channel Coverage: VHF: E2 to E12/R1 to R12

UHF: E21 to E69

CATV: S1 to S41

Power Supply 3.4 - 1.35 A @ 100-240VAC, 50/60Hz

Operational Environment Temperature: 5 - 40°C (Default brightness), 5 - 20°C (Max brightness)

Humidity: 20 - 80% (without condensation)

Storage Environment Temperature: -20 - 60°C

Humidity: 10 - 90% (without condensation)/ 90% - 3.5% x (Temp - 40°C) regarding over 40°C

Dimension Net: 1055.4 (W) x 644.1 (H) x 351 (D) mm (with stand)

1055.4 (W) x 608.6 (H) x 140 (D) mm (without stand)

Gross: 1278 (W) x 837 (H) x 312 (D) mm

Weight Net: 37.9Kg (With stand), 36.1Kg (Without stand)

Gross: 47.1Kg

VESA compatible arm mounting interface 3 x 200mm x 200mm (8 Holes)

2 x 200 mm x 200 mm (6 Holes)

Complied Regulatory and Guidelines UL60950-1/CSA C22.2 No.60950-1/ TUV-GS/EN60950-1/NOM

FCC-B/DOC-B/EN55022-A/EN55024/EN61000-3-2/EN61000-3-3/CE/GOST-R

Power Management VESA DPM

Plug & Play VESA DDC2B, DDC/CI

Accessories User’s manual, Power Cord, Video Signal Cable, Remote Control, AA Battery x 2, Clamp x 3,

Screw x 9, CD-ROM, Stand x 2, Thumbscrew for stand x 2, Cable cover

NOTE: Technical specifications are subject to change without notice. *: Compressed image

English-38

Pin Assignment

1) Analog RGB input (MiniDsub15p): VGA

Pin No Name

1Video Signal Red

2Video Signal Green

3Video Signal Blue

4GND

5DDC-GND

6Red-GND

7Green-GND

8Blue-GND

9+5V (DDC)

10 SYNC-GND

11 GND

12 DDC-SDA

13 H-SYNC

14 V-SYNC

15 DDC-SCL

2) S-VIDEO input: VIDEO

Pin No Name

1GND

2GND

3Y (Luminance)

4C (Chroma)

3) Digital RGB input (DVI-D): DVI

4) RS-232C input/output

Pin No Name

1connected to 7&8

2RXD

3TXD

4connected to 6

5GND

6connected to 4

7connected to 1&8

8connected to 1&7

9NC

Pin - Assignment of DVI connector:

1TX2- 9 TX1- 17 TX0-

2TX2+ 10 TX1+ 18 TX0+

3Shield (TX2 / TX4) 11 Shield (TX1 / TX3) 19 Shield (TX0 / TX5)

4NC 12NC20NC

5NC 13NC21NC

6DDC-Serial Clock 14 +5V power 22 Shield (TXC)

7DDC-Serial Data 15 Ground 23 TXC+

8NC16Hot plug detect 24 TXC-

Mini D-SUB 15P

D-SUB 9P

17 24

This LCD monitor uses RXD, TXD and GND lines for RS-232C control.

English-39

English

NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company’s

top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentally-

friendly products, and always strive to help define and comply with the latest independent standards from agencies such as

ISO (International Organisation for Standardization) and TCO (Swedish Trades Union).

Disposing of your old NEC product

The aim of recycling is to gain an environmental benefit by means of re-use, upgrading, reconditioning or reclamation of

material. Dedicated recycling sites ensure that environmentally harmful components are properly handled and securely

disposed. To ensure the best recycling of our products, NEC DISPLAY SOLUTIONS offers a variety of recycling

procedures and gives advice on how to handle the product in an environmentally sensitive way, once it has reached the end

of its life.

All required information concerning the disposal of the product and country-specific information on recycling facilities can be

found on our following websites:

http://www.nec-display-solutions.com/greencompany/ (in Europe),

http://www.nec-display.com (in Japan) or

http://www.necdisplay.com (in USA).

Energy Saving

This monitor features an advanced energy saving capability. When a VESA Display Power Management Signalling (DPMS)

Standard signal is sent to the monitor, the Energy Saving mode is activated. The monitor enters a single Energy Saving mode.

Mode Power consumption LED colour

Normal Operation Approx. 300W Green

Energy Saving Mode Less than 5W Amber

Off Mode (ECO standby) Less than 1W Red

Mode Power consumption LED colour

Normal Operation Approx. 340W Green

Energy Saving Mode Less than 5W Amber

Off Mode (ECO standby) Less than 1W Red

Manufacturer’s Recycling and Energy Information

WEEE Mark (European Directive 2002/96/EC)

Within the European Union

EU-wide legislation, as implemented in each Member State, requires that waste electrical and electronic

products carrying the mark (left) must be disposed of separately from normal household waste. This includes

monitors and electrical accessories, such as signal cables or power cords. When you need to dispose of your

NEC display products, please follow the guidance of your local authority, or ask the shop where you

purchased the product, or if applicable, follow any agreements made between yourself and NEC.

The mark on electrical and electronic products only applies to the current European Union Member States.

Outside the European Union

If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local

authority so as to comply with the correct disposal method.

LCD4620

LCD4020

Nec Multisync Lcd4020 Lcd4620 Users Manual

LCD4020, LCD4620 to the manual 4d334cda-67a0-41d9-9143-606a677a7dcb
