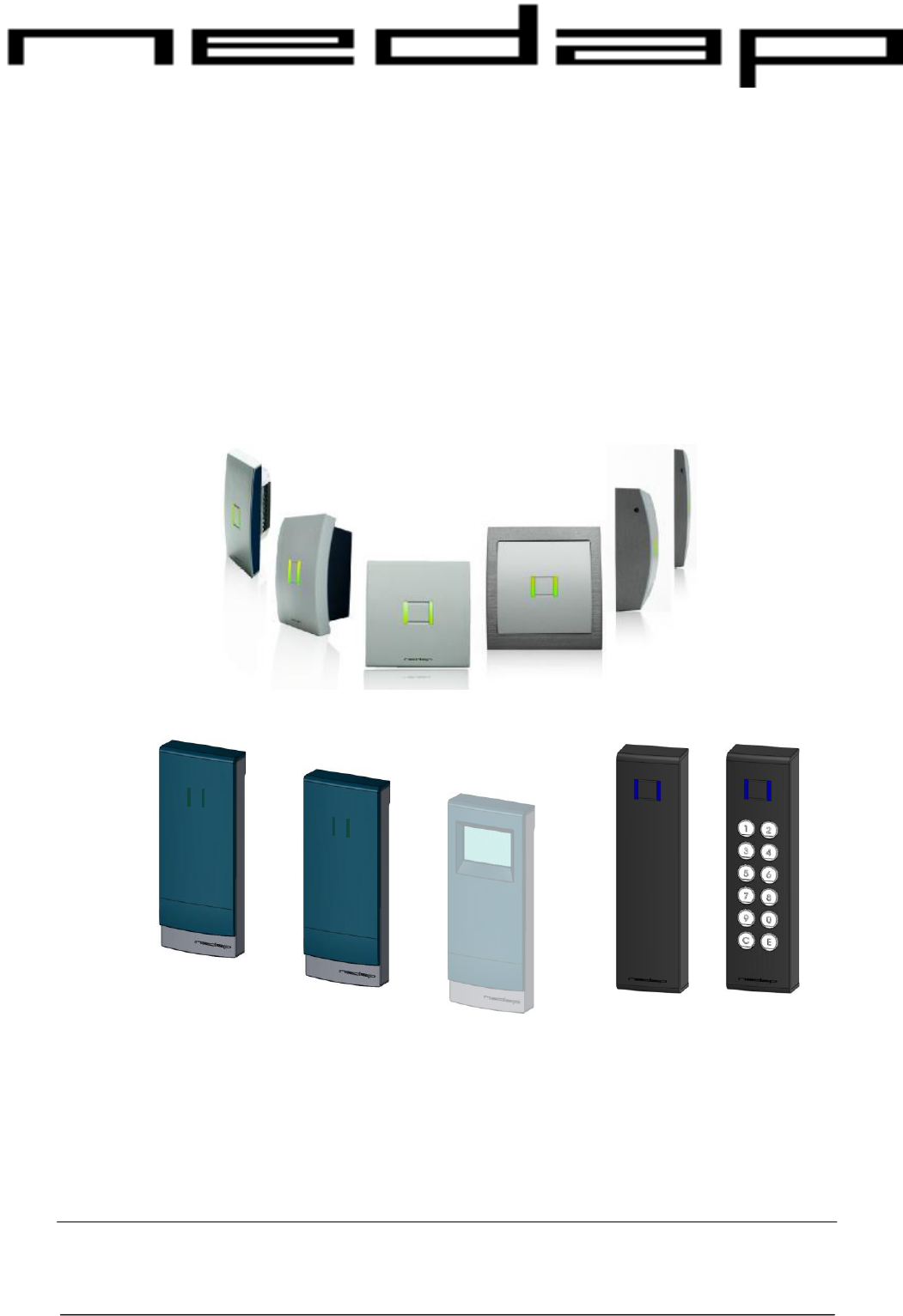

Nedap Readers Convexs & Invexs

Installation Guide and User Manual

®

1

2

3

4

5

6

7

8

9

C

0

E

1

2

3

4

5

6

7

8

9

C

0

E

Page 2 of 21

0 CONTENTS

1. Nedap Readers General Information ______________________________________________________ 4

1.1. Nedap readers principle ____________________________________________________________ 4

1.2. Availability Convexs 80 readers: ____________________________________________________ 4

1.3. Availability Invexs 170 readers: _____________________________________________________ 4

1.4. Availability Invexs 190 readers: _____________________________________________________ 5

1.5. Functionality ____________________________________________________________________ 5

2. Cards read by Convexs/Invexs ___________________________________________________________ 7

2.1. Nedap cards _____________________________________________________________________ 7

2.2. Mifare cards ____________________________________________________________________ 7

3. Convexs/Invexs Protocols ______________________________________________________________ 8

3.1. RS485NR (including RS485NR2) ___________________________________________________ 8

3.2. RF output _______________________________________________________________________ 8

3.2.1. RF output to AX1014 on AEpacks ____________________________________________ 8

3.2.2. RF output to Nedap XS readers for AEOS integration _____________________________ 9

3.2.3. RF output to Nedap XS readers at a WinXS system _______________________________ 9

3.3. Wiegand _______________________________________________________________________ 9

3.3.1. Wiegand formats _________________________________________________________ 10

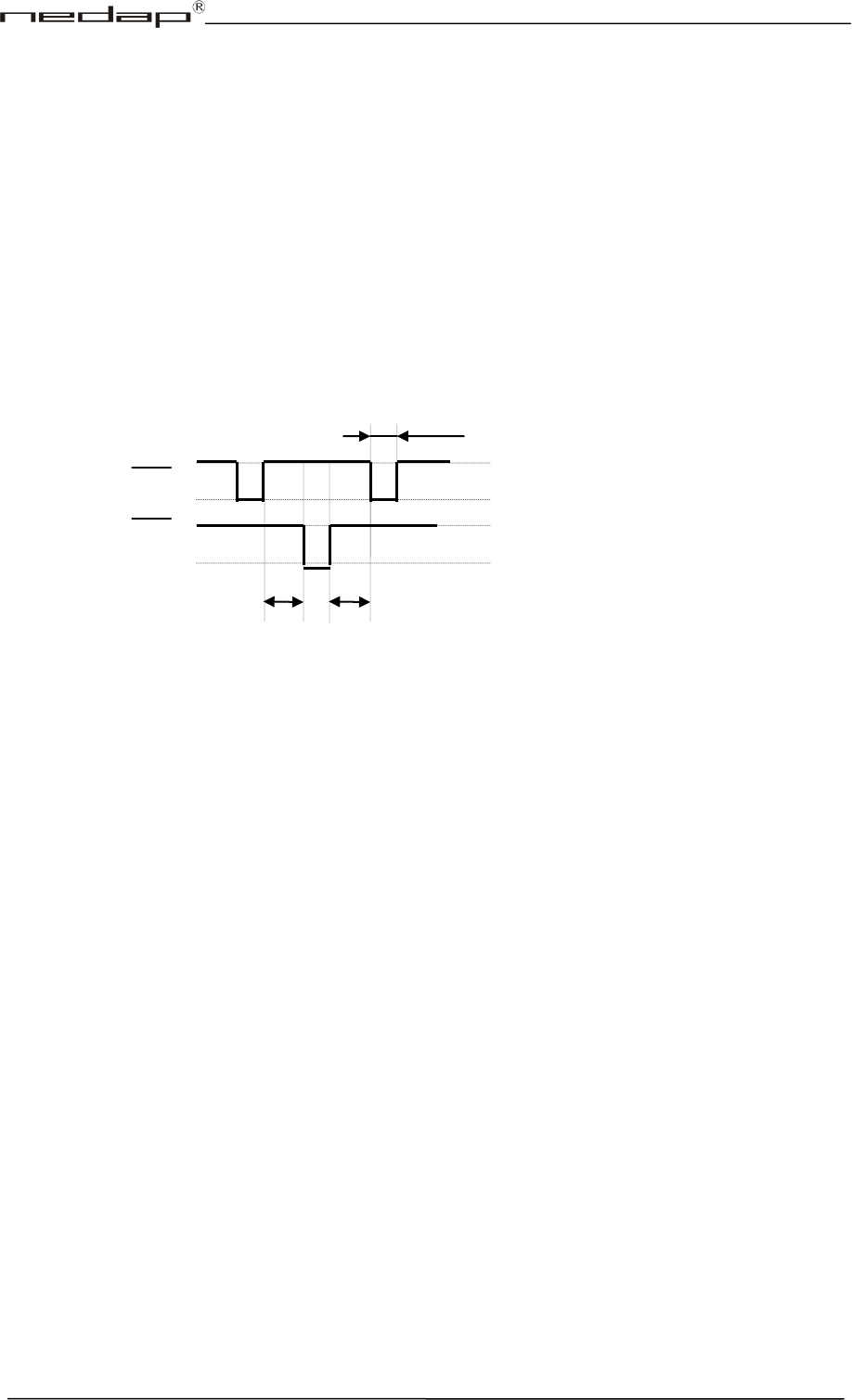

3.3.2. Wiegand timing __________________________________________________________ 10

3.3.3. Wiegand 26 _____________________________________________________________ 10

3.3.4. Wiegand 32 _____________________________________________________________ 11

3.3.5. Wiegand 32bin __________________________________________________________ 11

3.3.6. Wiegand 37 _____________________________________________________________ 11

3.3.7. Wiegand 64bin __________________________________________________________ 11

3.3.8. Wiegand 128bin _________________________________________________________ 11

3.4. Serial RS485 (RS485 Ascii) _______________________________________________________ 12

3.4.1. Default settings __________________________________________________________ 12

3.4.2. Data format _____________________________________________________________ 12

3.5. USB Desktop reader _____________________________________________________________ 12

3.5.1. Default settings __________________________________________________________ 12

3.5.2. Data format _____________________________________________________________ 12

4. Convexs/Invexs connections ___________________________________________________________ 13

4.1. Convexs Connections ____________________________________________________________ 13

4.2. Invexs 170 Connections __________________________________________________________ 13

4.3. Invexs 190 Connections __________________________________________________________ 13

4.4. Connections using RS485 _________________________________________________________ 14

4.5. Connections using RF output ______________________________________________________ 14

4.6. Wiegand ______________________________________________________________________ 15

Convexs MN80(F)X, Convexs MND80(F)X (X is G or C) with FCC ID: CGDCONVEXS

Convexs MND80G with IC ID: 1444A-CONVEXS

This device complies with part 15 of the FCC Rules and to RSS210 of Industry Canada.

Operating is subject to the following two conditions: (1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by party responsible for compliance could void the user’s

authority to operate the equipment.

Cet appareil se conforme aux normes RSS 210 exemptés de license du Industry Canada. L'opération est soumis

aux deux conditions suivantes (1) cet appareil ne doit causer aucune interférence, et (2) cet appareil doit accepter

n'importe quelle interférence, y inclus interférence qui peut causer une opération non pas voulu de cet appareil.

Page 3 of 21

5. Convexs/Invexs LED and Beeper control _________________________________________________ 16

5.1. User LED’s ____________________________________________________________________ 16

5.2. Beeper ________________________________________________________________________ 16

5.3. Status LED’s ___________________________________________________________________ 16

6. Invexs PIN modes ___________________________________________________________________ 16

6.1. RS485NR _____________________________________________________________________ 16

6.2. Wiegand ______________________________________________________________________ 16

7. Configuring the Convexs/Invexs ________________________________________________________ 17

7.1. Nedap reader Configuration file ____________________________________________________ 17

7.2. Configuration card _______________________________________________________________ 18

8. Updating firmware of the Convexs/Invexs _________________________________________________ 18

9. Default settings of the Convexs/Invexs ___________________________________________________ 18

10. Available reader firmware _____________________________________________________________ 19

10.1. AEOS versions _________________________________________________________________ 19

11. Known problems ____________________________________________________________________ 20

11.1. Convexs/Invexs to AP1002 ________________________________________________________ 20

11.2. Convexs/Invexs to Nedap readers with AM badges _____________________________________ 20

11.3. Convexs/Invexs to AP4003 using RS485 _____________________________________________ 20

11.4. Convexs/Invexs to AP4003 using RS485 Tamperswith / PIN _____________________________ 20

11.5. Convexs/Invexs to AP4x03X series before production code W2 using RS485 ________________ 20

11.6. Invexs with display / screen ________________________________________________________ 20

12. AEreco cards enquiry information _______________________________________________________ 21

13. Document History ___________________________________________________________________ 21

Page 4 of 21

1. Nedap Readers General Information

The Nedap readers (e.g. Convexs or Invexs readers) enables smooth migration to Mifare card technology in both

existing Nedap XS and Nedap AEOS Enterprise systems. It is capable of reading both Nedap and Mifare cards.

The cards that are read are converted (and optionally filtered) to the selected output format.

The readers output (the data the Convexs or Invexs reader sends) can be set to either Wiegand, XS RF

modulation or RS485 protocol (encrypted for connection to AEOS or plain output).

Installation aspects and technical data of the Nedap readers can be found in their corresponding Installation

sheets (e.g. Convexs_InstallSheet_E)

With Mifare also the Mifare Ultralight card is included, DESFire included EV1 card (check firmware version).

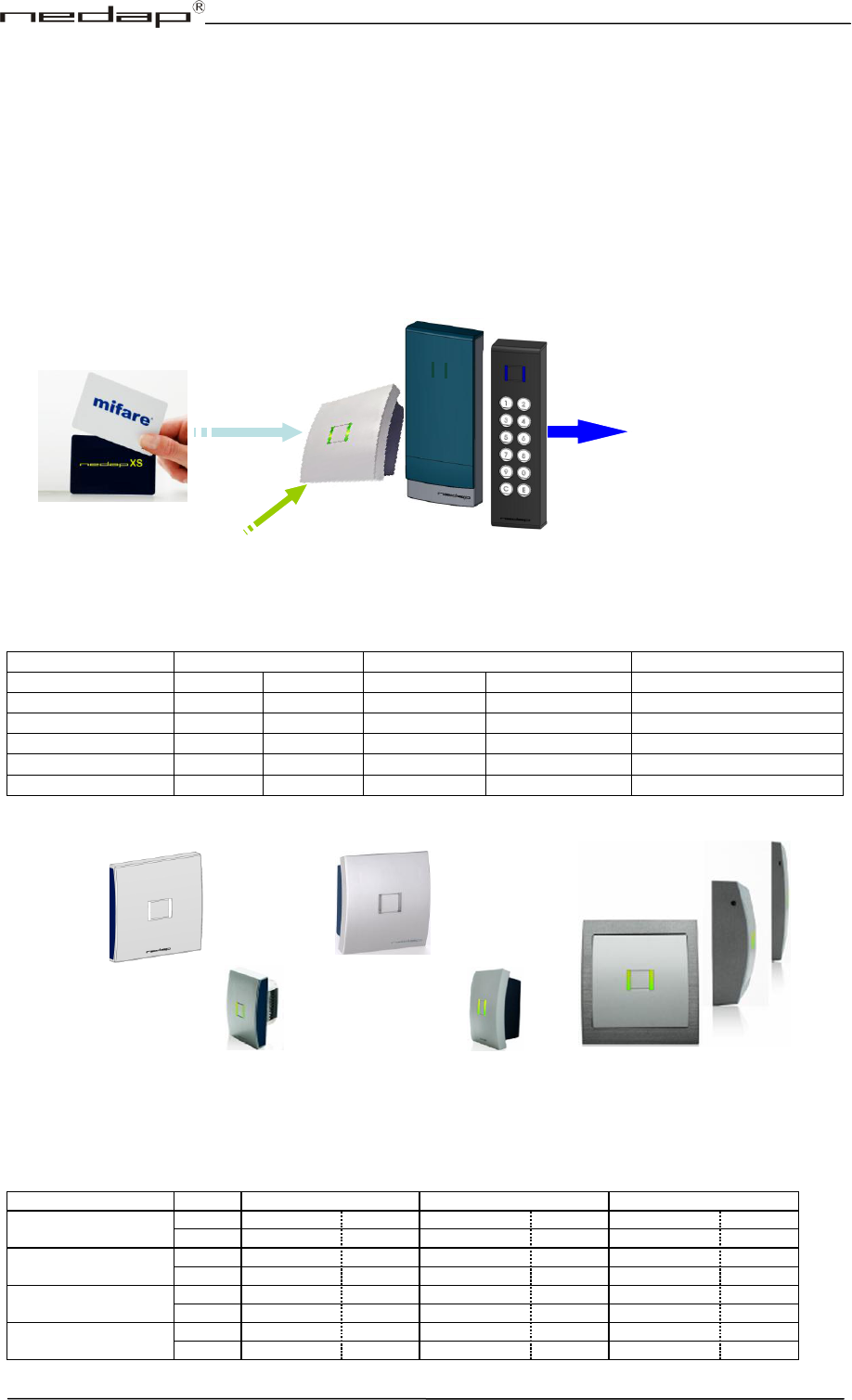

1.1. Nedap readers principle

1.2. Availability Convexs 80 readers:

Surface mounted

Flush mounted

G

C

FG

FC

Credentials

Convexs M80xx

9856250

9895400

9856420

9895540

Mifare

Convexs MD80xx

9856900

9895680

9857060

9895710

Mifare - DESFire

Convexs MN80xx

9856110

9895850

9856390

9895990

Mifare - Nedap

Convexs MND80xx

9896210

9896040

9896350

9896180

Mifare - Nedap – DESFire

Gray

Charcoal

Flush, Gray

Flush, Charcoal

Gray=Light, Charcoal=Dark

For both Surface mounting and flush mounting rugged Protectors are available, making the Convexs more vandal

resistant.

1.3. Availability Invexs 170 readers:

The Invexs can read Mifare, DESFire and Nedap cards, and is equipped with keypad and / or a display.

Following Invexs 170 readers are available (with white or black back plane, Screen / display only on request)

Colour

Reader

Keypad

Screen / Display

M170

Mifare

Black

M170B

9833900

MK170B

9834230

MKS170B

9939822

White

M170W

9832750

MK170W

9832920

MKS170W

9833390

MD170

Mifare DESFire

Black

MD170B

9834400

MDK170B

9834680

MDKS170B

9939849

White

MD170W

9834370

MDK170W

9834540

MDKS170W

9891820

MN170

Mifare Nedap

Black

MN170B

9834060

MNK170B

9833730

MNKS170B

9833870

White

MN170W

9832890

MNK170W

9833080

MNKS170W

9833420

MND170

Mifare DESFire Nedap

Black

MND170B

9899570

MNDK170B

9938761

MNDKS170B

9938796

White

MND170W

9899430

MNDK170W

9938753

MNDKS170W

9938788

Outputs:

- Nedap RF data

- Nedap RF badge

- RS485 NR

- Wiegand

- Serial (RS485) plain

Card credentials

- Nedap

- Mifare

Nedap reader configuration

(Conversion settings and formats)

Flush mounting

Surface mounting

Protectors

1

2

3

4

5

6

7

8

9

C

0

E

Page 5 of 21

Accessor III /

SimpleXS

AC3/2TR

AB350

AX1011

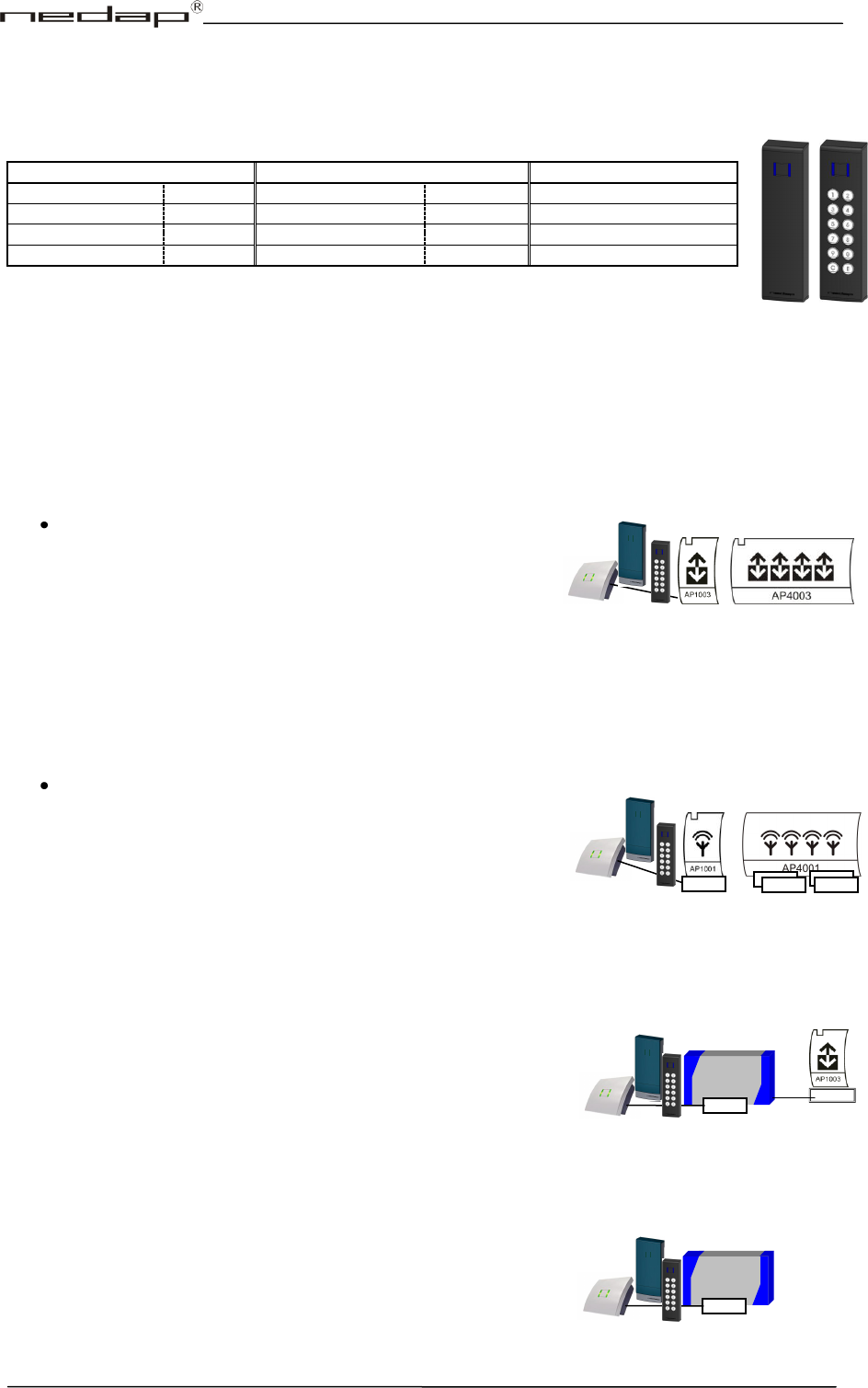

1.4. Availability Invexs 190 readers:

The Invexs 190 is designed to be used on door pillars (mullion) and suitable for outside and inside use. A model

with keypad is also available.

Invexs 190 Reader

Invexs 190 Reader + Keypad

Credentials

Invexs M190

9945512

Invexs MK190

9948422

Mifare

Invexs MD190

9948406

Invexs MDK190

9948457

Mifare + DESFire

Invexs MN190

9948392

Invexs MNK190

9948449

Mifare + Nedap

Invexs MND190

9948414

Invexs MNDK190

9948465

Mifare + Nedap + DESFire

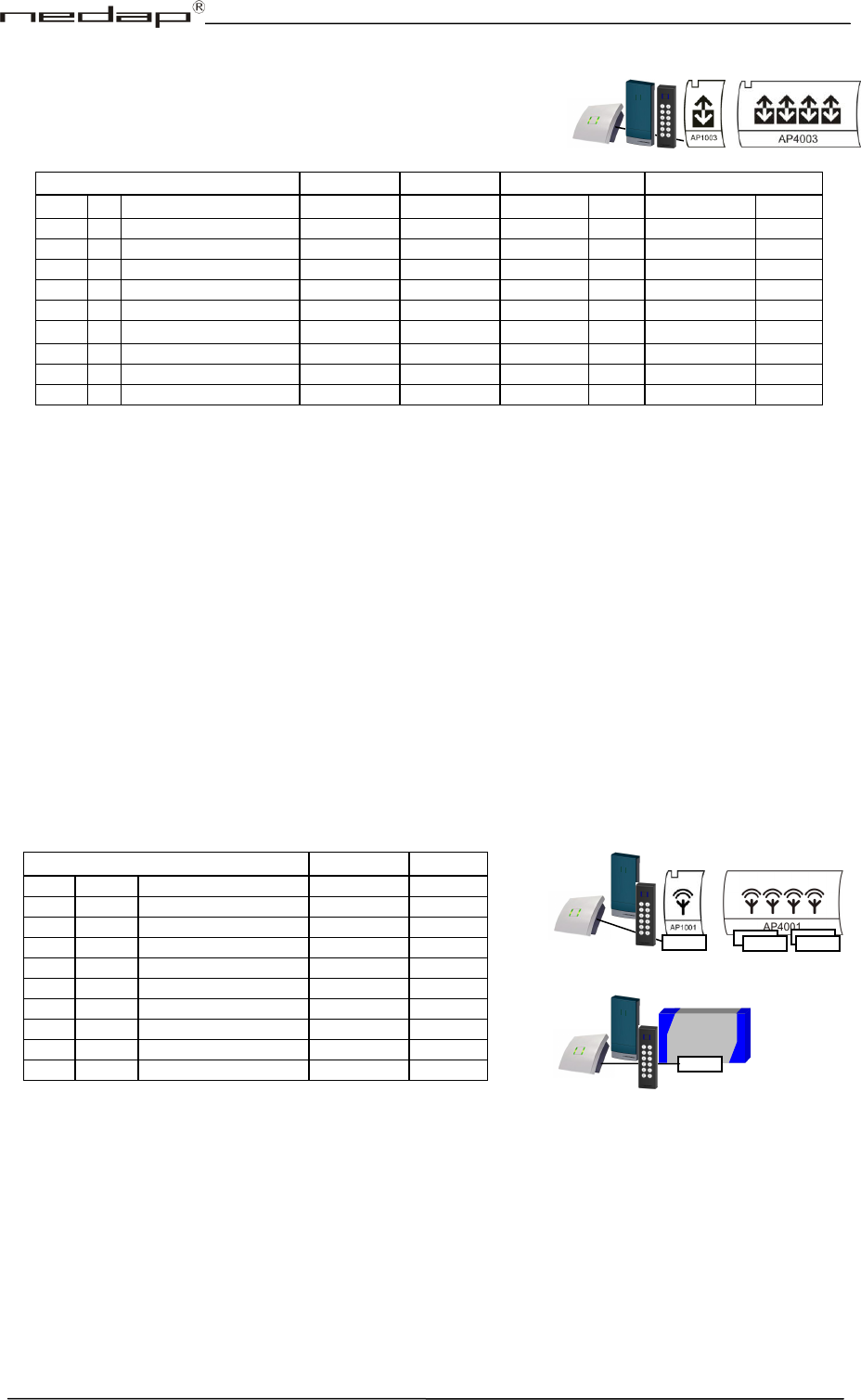

1.5. Functionality

Functionality and output format of the Convexs or Invexs reader is determined by the configuration of the

Convexs reader. This configuration is defined using the program AEreco, and deployed by the Convexs

configuration card or via AEmon (the configuration file is then uploaded to the Convexs as connected to the

APx003).

Depending of the used configuration the cards read by the Convexs (XS and/or Mifare) can be sent to the output

using different communication principles:

RS485NR, all data read by the Convexs is transparently sent to AEOS.

To be connected to

o AEOS reader interface AEpacks (e.g. AP1003,

AP4003), use firmware: APx003rs485NR2

Data read from card is transferred (encrypted) directly

to AEpack.

LED’s and Beeper are controlled by the communication over RS485. (No separate cables for the LED’s

are used.). Beeper also can be controlled by hardware or configuration.

Power must be supplied additionally to the Convexs/Invexs.

Not all Nedap AEpacks have RS485 on board. Check the used AEpacks. Use the AX1012 to convert

RS232 to RS485.

RF output

To be connected to

o AEOS Nedap reader AEpacks (e.g. AP1001, AP4001)

using AX1014.

All data (Nedap RF data) or the (converted) badge

(Nedap RF badge) is sent over the existing RF cable.

Check firmware in AEpack:

- New updated firmware (± 03-2008) transfers all data read from the card transparently to

AEpack (‘no’ limitions to card number)

- Not advisable using the older firmware: the Mifare cards must be converted to XS code,

max label number 999.999

o Nedap XS readers (AB350 on Accessor, SimpleXS,

AC3/2TR), to be connected to AP1003 and AX1011 for

integration with AEOS.

All data (Nedap RF data) or the (converted) badge

(Nedap RF badge) is sent over the existing RF cable.

- New updated firmware (± 03-2008) transfers all data read from the card transparently to

AEpack (‘no’ limitions to card number)

- Not advisable using the older firmware: the Mifare cards must be converted to XS code,

max label number 999.999

o Nedap XS readers (AB350 on Accessor, SimpleXS,

AC3/2TR), to be connected to WinXS systems.

The (converted) badge (Nedap RF badge) is send over

the existing RF cable.

AX1014

Accessor III /

SimpleXS

AC3/2TR

AB350

1

2

3

4

5

6

7

8

9

C

0

E

1

2

3

4

5

6

7

8

9

C

0

E

1

2

3

4

5

6

7

8

9

C

0

E

1

2

3

4

5

6

7

8

9

C

0

E

Page 6 of 21

Mifare cards must be converted to XS code, max label number 220.000 depending of amount

or RAM memory in XS reader.

Attention: At the XS readers only one customer code for each type can be used!

LED’s controlled by separate connections between Convexs/Invexs and AX1014/AB350 (use existing

cabling).

Beeper controlled by hardware or configuration.

Power at Convexs/Invexs is retrieved from RF line (no additional power cables needed, existing cabling is

used).

Convexs/Invexs readers cannot be connected parallel to a RF reader. (Despite using antennas, where in

some situations it was possible to connected the antennas parallel, e.g. for In/Out usage at a single door).

Wiegand

To be used for connection to third party systems, using different

Wiegand protocols.

The card data can be transferred using different Wiegand protocols.

LED’s are controlled by the two separate connections between

Convexs/Invexs and the third party system.

Beeper controlled by hardware or configuration.

Power must be supplied additionally to the Convexs/Invexs.

Serial RS485 (RS485 Ascii)

To be used for connection to third party systems, using a serial

connection. Requires special configuration in Convexs/Invexs:

NR9002.cfg

LED’s can be controlled by the two separate connections between

Convexs/Invexs and the third party system.

Beeper controlled by hardware or configuration.

Power must be supplied additionally to the Convexs/Invexs.

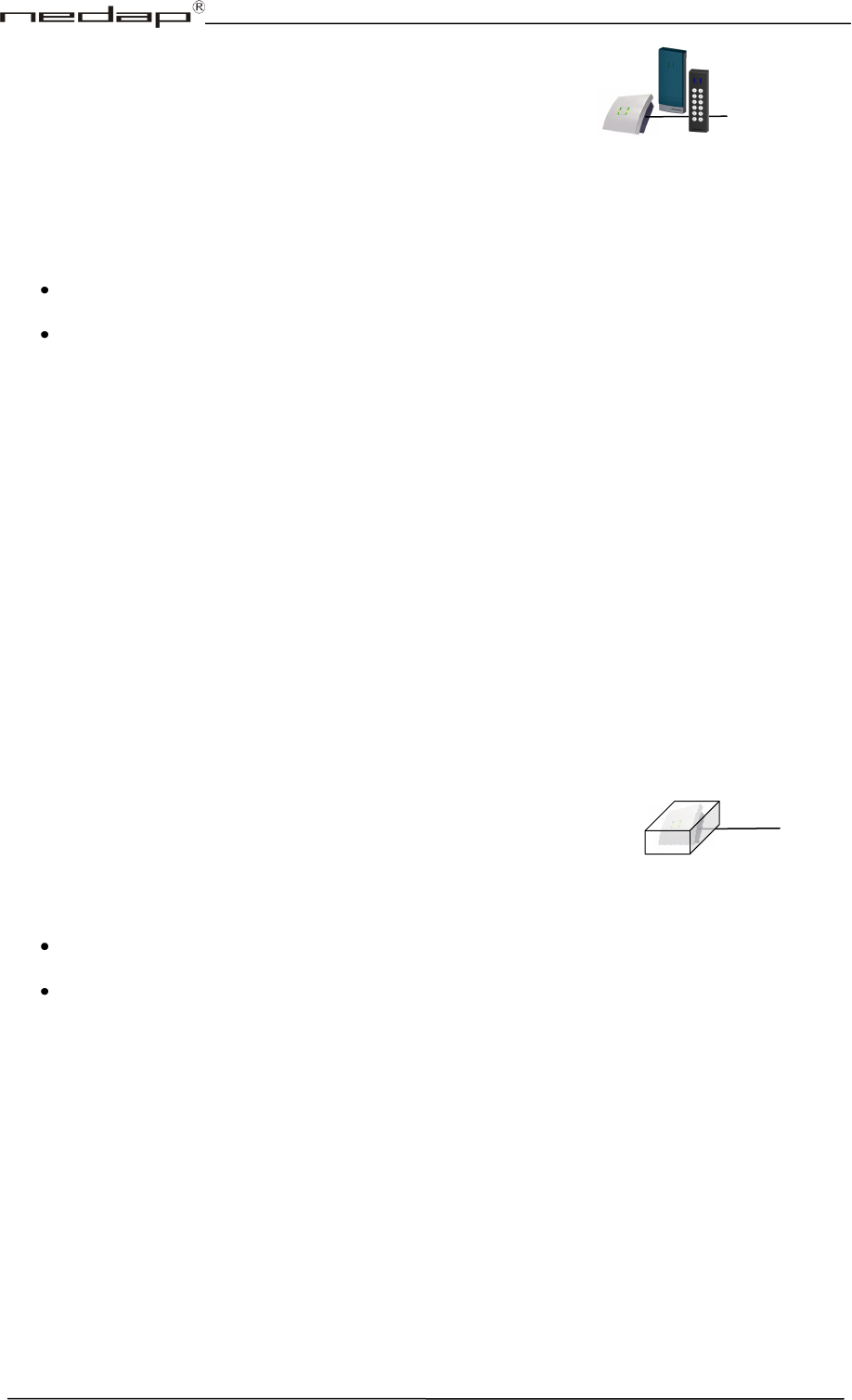

USB Desktop reader

Inside the USB Desktop reader the Convexs is used, with special

configuration NR9004.cfg in Convexs:

Check the installation manual of the USB Desktop reader for more

details

Power can be supplied by USB (check power requirements).

Remark: Depending of the used output the cable distances differ! (See for cabling details the corresponding

installation sheets.)

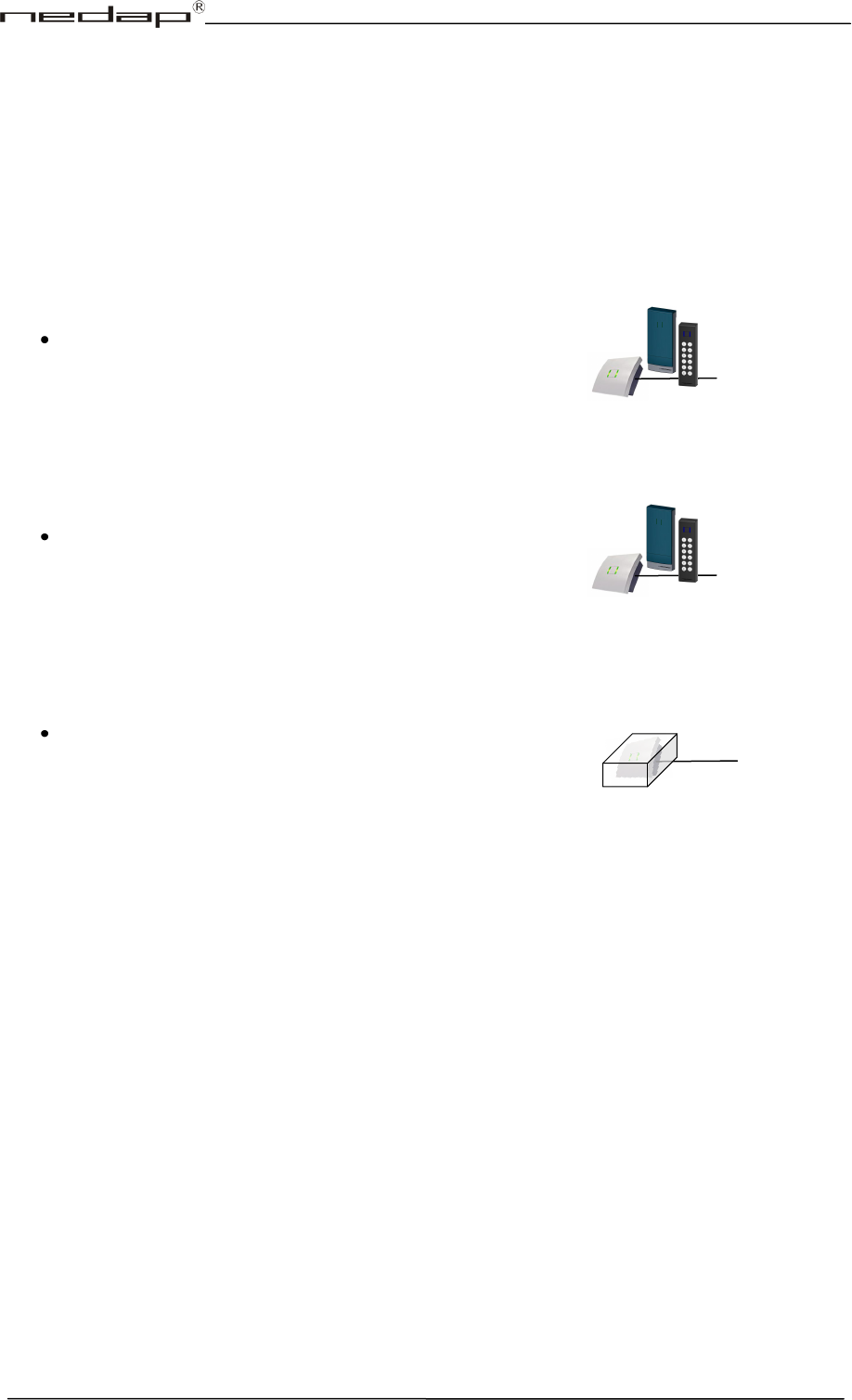

- Third party systems

- AEOS Wiegand

- Third party systems

- Serial output

- USB output

1

2

3

4

5

6

7

8

9

C

0

E

1

2

3

4

5

6

7

8

9

C

0

E

Page 7 of 21

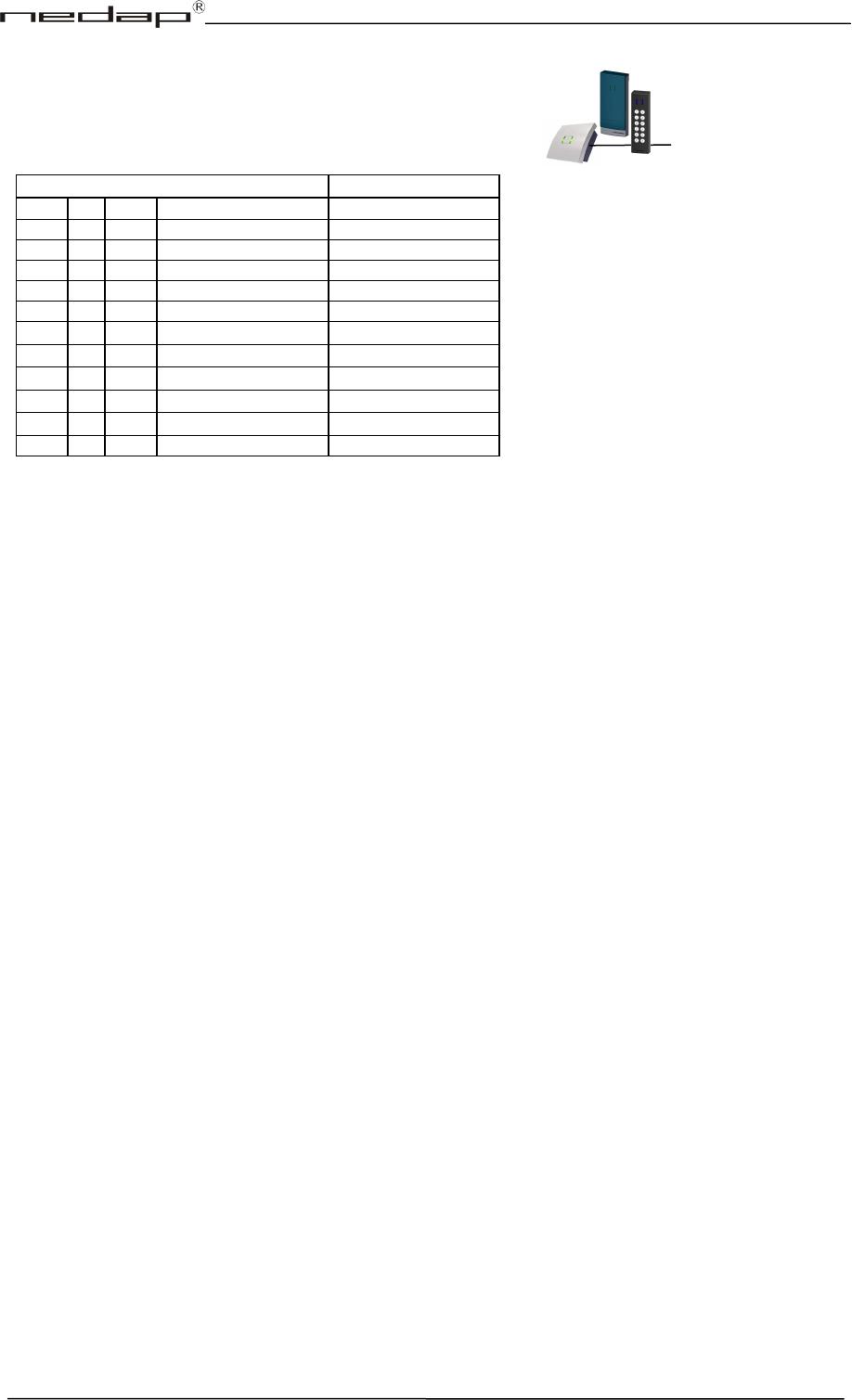

2. Cards read by Convexs/Invexs

The Convexs/Invexs is capable of reading different card credentials simultaneously. The letter stands for the card

credentials:

M : Mifare MD : Mifare and DESFire

MN : Mifare and Nedap MND : Mifare and Nedap and DESFire

Depending of the configuration of the Convexs/Invexs the user itself can determine how the cards that are read

must be sent to the output.

The Convexs/Invexs MN and Convexs/Invexs M can be made suitable for reading DESFire cards at the customer

using a special card (DEScount card); contact Nedap for more details. (Or order the Convexs/Invexs MD at

Nedap.)

2.1. Nedap cards

All Nedap cards can be read:

CF, DF and GF codes, C, D and G codes, A and B codes

At the ‘Direct transmission mode’ (all data read is sent unchanged to the output, defined with AEreco as Nedap

RF data or RS485NR), no additional configurations have to be made.

If needed a check at the customer code is possible. If this is configured, only cards with one of the defined

customer codes are read and sent to the output.

If the data read is been translated to another code (e.g. Wiegand) you can state for each Nedap customer code a

specific Wiegand customer code (or another Wiegand code). (Keep in mind if this makes any sense!)

2.2. Mifare cards

For Mifare the common used types can be read (Mifare, Mifare Ultralight and DESFire, including EV1):

Card Serial Number (CSN, 7 bytes or 4 bytes)

Data direct from one of the sectors / files

Data from one of the sectors, using MAD (Mifare Application Directory)

All necessary settings (MAD or sector number, used security keys, location of data, interpretation of the data,

etc) have to be made using AEreco. If desired this can be done by the customer itself so the customer keeps the

control over the Mifare security keys.

At the ‘Direct transmission mode’ (all data read is sent unchanged to the output, defined with AEreco as Nedap

RF data or RS485NR), no additional configurations have to be made. The interpretion of the card data is now

done at AEOS, not at the Convexs/Invexs.

The Mifare cards can also be transferred to the output as Nedap cards (pay attention of the maximum card

number and the chosen customer code, this is depending of the Nedap device that is connected to the

Convexs/Invexs).

Remark: This last option can only at special request be programmed at Nedap, so not with the standard AEreco

program.

At the Mifare part it is possible to determine a part of the Mifare data as customer code. This customer code of

the Mifare part can be used to expand the data read to different codes to the output.

Attention: For programming the correct settings at AEreco for the reading and handling the Mifare cards,

knowledge of Mifare cards must be available. E.g. for retrieving the data from the Mifare card it must be know

where the data is located, which principle is used, what the keys are, etc, etc.

Page 8 of 21

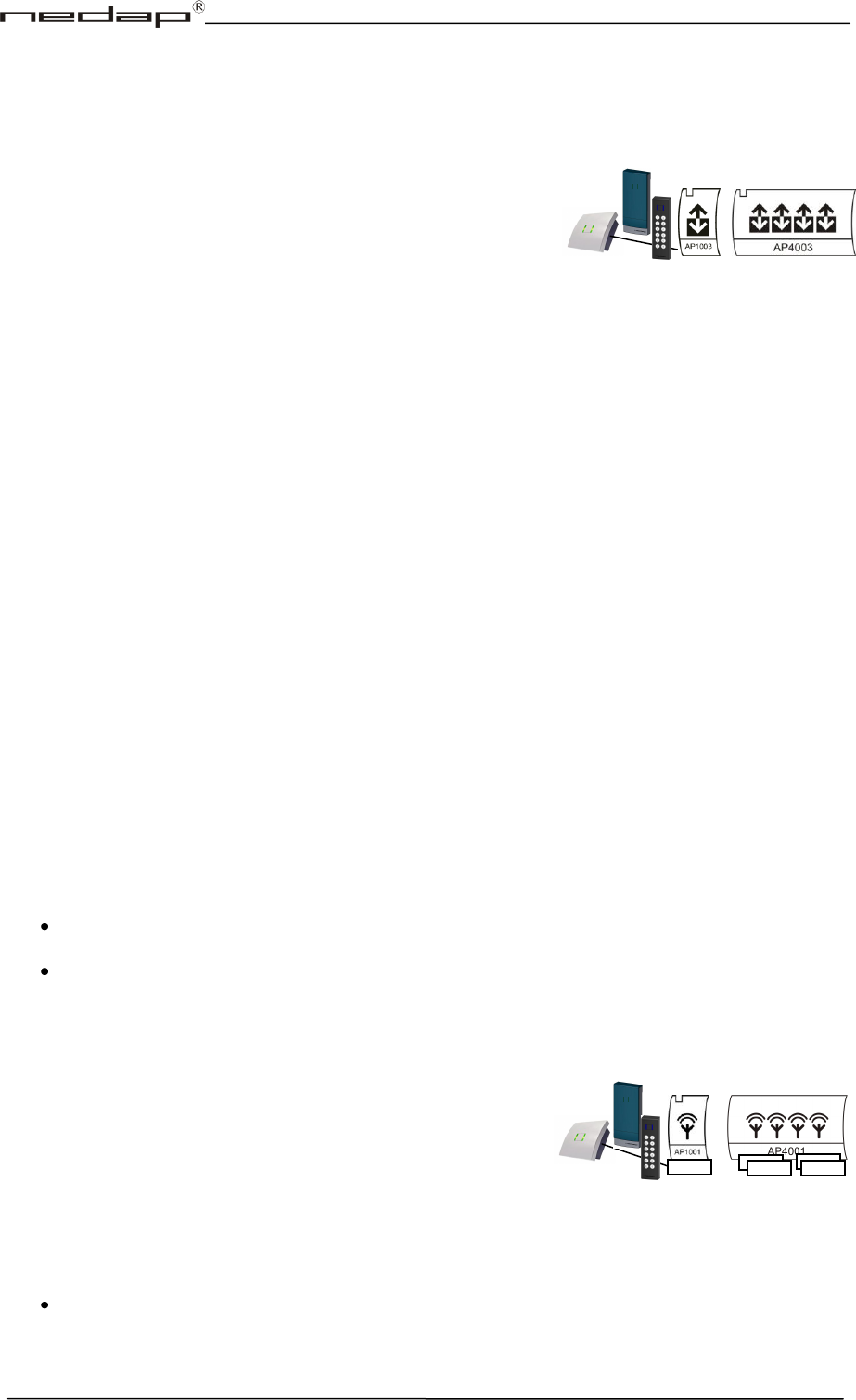

3. Convexs/Invexs Protocols

Depending of how the Convexs/Invexs is configurated several output protocols are available.

3.1. RS485NR (including RS485NR2)

RS485 enables the possibility to have bi-directional encrypted

communication. If possible use this protocol.

The RS485 is used for connecting the Convexs/Invexs to the Nedap

AEOS AEpacks APx003 These AEpacks must have the correct

firmware (APx003rs485NR/APx003rs485NR2) for handling the

Convexs/Invexs. The APx003rs485NR2 is the successor of the APx003rs485NR, having more features and less

limitations (see chapter 10, Available reader firmware)

Using RS485 enables the option that the Nedap reader configuration file and firmware can be downloaded using

AEmon. The Convexs/Invexs configuration file still is generated by AEreco.

With RS485 the data from the cards read at the Convexs/Invexs is transmitted transparently (‘Direct transmission

mode’) and encrypted to the AEpack.

If both Nedap and Mifare cards must be read use at the Access Point the Primarily- and Secondarily Identifier

type can be defined. (Check is your AEOS version is capable of handling this.)

Cabling distance: Max 1000 meters

LED control: LED’s are controlled over the RS485 communication line (by software)

Beeper control: By hardware connection or software (configuration depending)

PIN code: For corresponding Invexs readers PIN code can be used over RS485 communication.

At AEreco the output format must be configured as: RS485NR.

3.2. RF output

Using Convexs converters (AX1014 / AB350) enables re-use of existing cabling (both for antenna and LED’s)

The RF output is to be used if the Convexs/Invexs have to be connected to the former Nedap XS readers

(Accessor/SimpleXS) or the Nedap AEpacks.

Depending of the possibilities and firmware of the used Nedap readers following options are available:

Cabling distance: Max 50 meters

LED control: LED’s are controlled by existing cabling (hardware connection)

Beeper control: By hardware connection or software (configuration depending)

PIN code: Not possible

For RF output following options are available

Nedap RF data All data read is transparently sent the the AEpack (‘Direct transmission mode’)

Most preferable, but can not be used in combination with a WinXS system

Nedap RF badge Mifare badges: data read is converted towards another customer code

XS badges: sent directly or converted towards another customer code.

Use this only in case the Convexs/Invexs is used towards a WinXS system.

3.2.1. RF output to AX1014 on AEpacks

Can be used if e.g. the existing Nedap RF antenna connected to an

AEpack is replaced with the Convexs/Invexs, thus enabling that both

Nedap and Mifare cards or Mifare cards replacing Nedap cards can be

read.

For each AEpack (or AEpack reader channel) one AX1014 (Convexs

adapter) must be placed on the AEpack, on which the Convexs/Invexs

is connected. If e.g. a AP4001 with 4 Nedap antennas is converted to

Convexs/Invexs readers 4 AX1014 are needed.

Depending on the type of firmware in the AEpack following options are possible:

With new updated firmware at the AEpacks:

AX1014

1

2

3

4

5

6

7

8

9

C

0

E

1

2

3

4

5

6

7

8

9

C

0

E

Page 9 of 21

Accessor III /

SimpleXS

AC3/2TR

AB350

AX1011

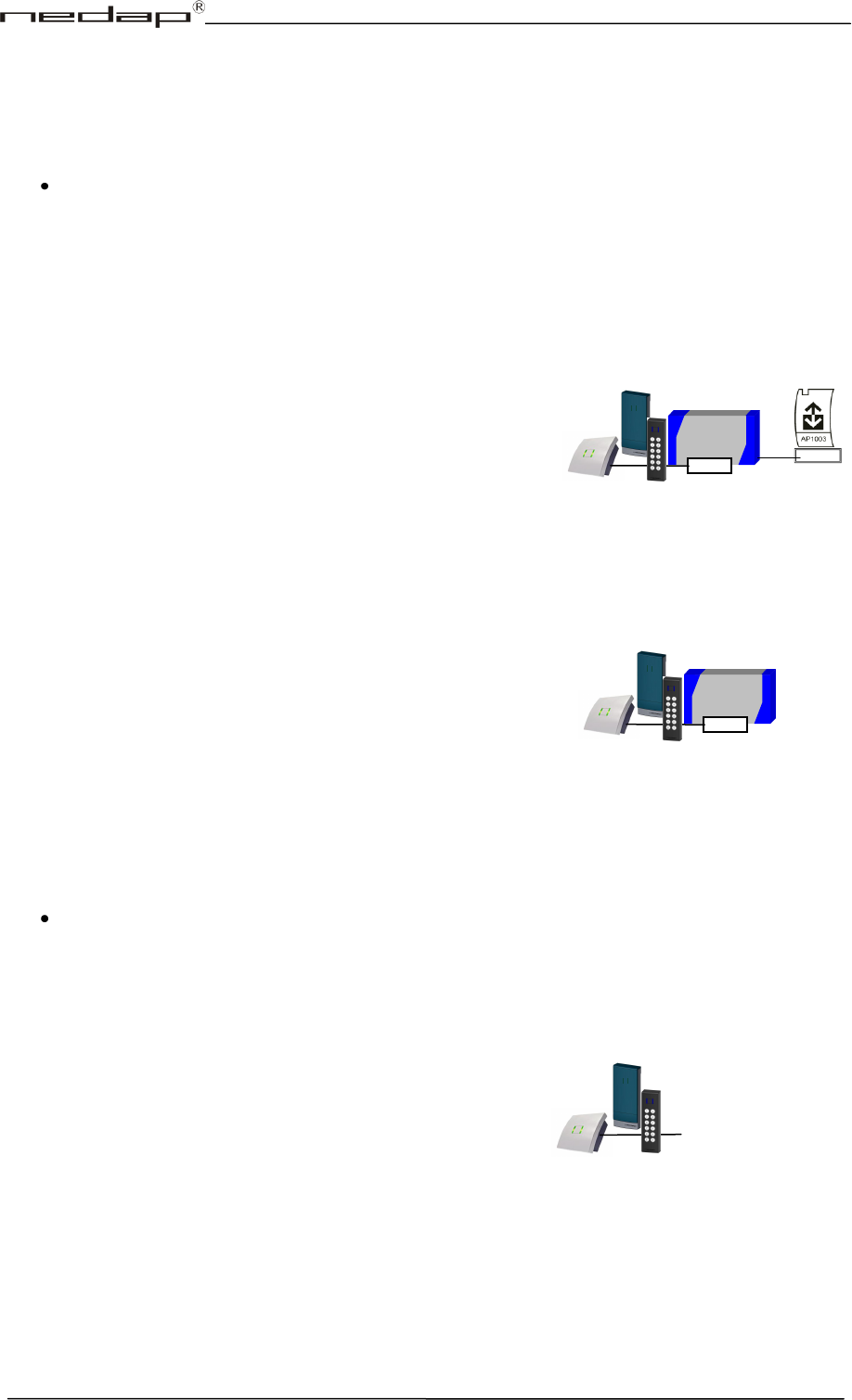

The data from the cards read at the Convexs/Invexs is transparently sent (‘Direct transmission mode’) to

the AEpack. If both Nedap and Mifare cards must be read, use at the Access Point the Primarly and

Secondarly Identifier type (check your AEOS version if this is available).

At AEreco the output format must be configured as: Nedap RF data.

Not advisable, but with older firmware at the AEpack the Mifare cards must be converted to XS code,

The maximum label number 999.999 (in combination with a GF code). At the Access Point in AEOS the

XS Identifier is choosen. So now both Mifare (GF) and the Nedap XS cards can be identified.

XS cards will be transparently transmitted.

The chosen XS code may not be used already with existing XS cards.

At AEreco the output format must be configured as: Nedap RF badge.

Remark: This option can at special request only be programmed at Nedap, so not with the standard

AEreco programm.

3.2.2. RF output to Nedap XS readers for AEOS integration

Same as 3.2.1, but now for Nedap XS readers (AB350 on Accessor,

SimpleXS). Connected using the MD300 to an AX1001 on the AP1003

for integration with AEOS.

This option can be used if e.g. the existing Nedap RF antenna on the XS

reader is replaced with the Convexs/Invexs, thus enabling that both

Nedap and Mifare cards or Mifare cards replacing Nedap cards can be read.

For each XS reader one AB350 (Convexs adapter) must be placed on the XS reader antenna connector, on which

the Convexs/Invexs is connected.

Possibilities and settings are identical as at 3.2.1. Preferable is to use the Nedap RF data output.

3.2.3. RF output to Nedap XS readers at a WinXS system

Same as 3.2.1, but now for Nedap XS readers (AB350 on Accessor,

SimpleXS), to be connected to the WinXS system (using e.g. LanBoXS or

InterVisor, or directly to the WinXS PC) .

This option can be used if e.g. the existing Nedap RF antenna on the XS

reader is replaced with the Convexs/Invexs, thus enabling that both Nedap

and Mifare cards or Mifare cards replacing Nedap cards can be read.

For each XS reader one AB350 (Convexs adapter) must be placed on the XS reader antenna connector, on which

the Convexs/Invexs is connected.

The Mifare cards must be converted to an XS code:

The maximum label number is 220.000 (in combination with a GF code) and depending on the amount of

memory in the XS reader.

If beside the Mifare still the Nedap XS cards are used, the Eprom at the XS readers must be capable of

reading both factory codes. The chosen XS code may not be used already with existing XS cards.

At AEreco the output format must be configured as: Nedap RF badge.

Remark: This option can only be programmed at Nedap, so not with the standard AEreco programm.

3.3. Wiegand

Maximum cable distance is 150 meters, the LED’s on Convexs/Invexs

are controlled by hardware signals on the Convexs/Invexs connector.

Beeper control: By hardware connection or software (configuration depending)

PIN code: 8 bits message 4 bits PIN + 4 bits complement, (Dorado format)

For the possible Wiegand protocols, see the section below. Depending of the data read (Card type and Customer

code) a different Wiegand code can be transmitted. Also if the selected Wiegand protocol is capable of using

facility codes for each code read a different Wiegand facility code can be transmitted

Attention: The card number and customer code that is read must fit in the chosen Wiegand protocol.

If no *bin Wiegand is used, the data format must be specified (AEreco in the Block decoder part).

- Third party systems

- AEOS Wiegand

Accessor III /

SimpleXS

AC3/2TR

AB350

1

2

3

4

5

6

7

8

9

C

0

E

1

2

3

4

5

6

7

8

9

C

0

E

1

2

3

4

5

6

7

8

9

C

0

E

Page 10 of 21

The Wiegand output can be used to connect to Third party systems or to the AEOS APx003 readers with the

appropriate Wiegand protocol.

At AEreco the output format must be configured as: Wiegand and the correct type of Wiegand protocol.

3.3.1. Wiegand formats

Several Wiegand formats can be used:

- Wiegand 26

- Wiegand 32

- Wiegand 32bin

- Wiegand 37

- Wiegand 64bin

- Wiegand 128bin

Wiegand data is been sent at D0 and D1, signals are active low.

3.3.2. Wiegand timing

Timing:

Tpw Pulse Width Time : 60usec

Tpi Pulse Interval Time : 60 usec

3.3.3. Wiegand 26

Format: Facility code: 8 bits: range: 0..255

Label number: 16 bits: range: 1..65535

Parity: 2 bits

3.3.3.1. Wiegand 26 data definition

The Wiegand 26-bit format consists of a parity bit, followed by eight facility code bits, followed by 16 label

number code bits and a final parity bit. The first parity bit shall create even parity when combined with the next

twelve bits. The last parity bit shall create odd parity when combined with the remaining 12 bits.

The data is represented in bits. (unsigned binary coded)

The complete message consists of the following:

Bit position : 1 23456789 0123456789012345 6

Bit contents : P FFFFFFFF NNNNNNNNNNNNNNNN P

Parity (even) : P FFFFFFFF NN

(odd) : NNNNNNNNNNNNNN P

Legend : F : Facility code (8 bits: range: 0..255)

N : Label number (16 bits: range: 1..65535)

P : Even parity over the first 12 bits

Odd parity over the next 12 bits

WDat1

Tpw

+5V

GND

+5V

GND

WDat0

Tpi

Page 11 of 21

3.3.4. Wiegand 32

Format: Facility code: 16 bits: range: 0..65535

Label number: 16 bits: range: 1..65535

3.3.4.1. Wiegand 32 data definition

The Wiegand 32-bit format consists 16 facility code bits, followed by 16 label number code bits. There are no

parity bits. The data is sent in bits. (unsigned binary coded)

The complete message consists of the following:

Bit position : 1234567890123456 7890123456789012

Bit contents : FFFFFFFFFFFFFFFF NNNNNNNNNNNNNNNN

Legend : F : Facility code (16 bits: range: 0-65535)

N : Label number (16 bits: range: 1..65535)

3.3.5. Wiegand 32bin

Format: Label number: 32 bits: range: 1..FF FF FF FF

Data is represented in hex, first bit first.

3.3.6. Wiegand 37

Format: Label number: 35 bits: range: 1..34359738368

3.3.6.1. Wiegand 37 data definition

The Wiegand 37-bit format consists of one number, no facility code. There are 2 parity bits.

The data is sent in bits. (unsigned binary coded)

The complete message consists of the following:

Bit position : 1 23456789 0123456789 0123456789 0123456 7

Bit contents : P NNNNNNNN NNNNNNNNNN NNNNNNNNNN NNNNNNN P

Parity (even) : P 12345678 9012345678

(odd) : 1 2345678901 2345678 P

Legend : N : Label number (35 bits)

P : Even parity over the first 18 bits

Odd parity over the next 18 bits (starts from bit 18)

3.3.7. Wiegand 64bin

Format: Label number: 64 bits: range: 1.. FF FF FF FF FF FF FF FF

Data is represented in hex, first bit first.

3.3.8. Wiegand 128bin

Format: Label number: 128 bits: range: 1.. FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF

Data is represented in hex, first bit first.

Page 12 of 21

3.4. Serial RS485 (RS485 Ascii)

Maximum cable distance is 1000 meters, the LED’s on Convexs/Invexs are

controlled by hardware signals on the Convexs/Invexs connector.

Beeper control: By hardware connection or software (configuration

depending)

Requires configuration NR9002.cfg or NR9003.cfg. This configuration can be changed using AEreco.

3.4.1. Default settings

Nedap cards: Card number

No customer code is sent (default), no check on customer code

Mifare cards: CSN number (CSN reversed: NR9003.cfg)

(Only Mifare, no DESFire at default file)

For other settings the NR9002.cfg or NR9003.cfg file must be changed by using AEreco.

3.4.2. Data format

Format: 9600 Baud, No parity, 8 bits, 1 stop bit

Data: X 12AB56789 <CR> <LF>

X Identifier type : N Nedap

M Mifare

D Mifare DESfire

U Mifare ultralight

12AB56789 Identifier data (depending of type of identifier and configuration file !)

<CR> OD hex

<LF> OA hex

Remark: If Mifare block data is used, the block decoder must be used to interpret the data.

Using AEreco (from version 2.00) user specific header/trailer can be detemined. (Check AEreco user manual)

3.5. USB Desktop reader

Uses USB to communicate to other systems. Inside the USB Desktop reader a

Convexs reader is used with special configuration NR9004.cfg or NR9005.cfg

Two colour LED on the USB Desktop reader cannot be changed

Configuration NR9004.cfg or NR9005.cfg can be changed using AEreco.

3.5.1. Default settings

Nedap cards: Card number

No customer code is sent (default), no check on customer code

Mifare cards: CSN number (CSN reversed: NR9005.cfg)

For other settings the NR9004.cfg file must be changed by using AEreco.

3.5.2. Data format

Format: USB 2.0

Data: 12AB56789

12AB56789 Identifier data (depending of type of identifier and configuration file !)

Remark: If Mifare block data is used, the block decoder must be used to interpret the data.

- Third party systems

- Serial output

- USB output

1

2

3

4

5

6

7

8

9

C

0

E

Page 13 of 21

R

GND

UL*/NA* / BEEP

4. Convexs/Invexs connections

The Convexs/Invexs is not hot-swappable, so when making or changing connections be sure power is Off.

General:

- Check corresponding documentation of used AEpacks, Convexs converters and third party systems.

- Use correct shielded cables, cable shield must be connected to Power GND of Convexs (A2) Invexs (2)

and GND of external device (or metal case)

- Beeper can also optional be controlled by configuration settings (see chapter 5).

- Check for Invexs 190 cabling colours

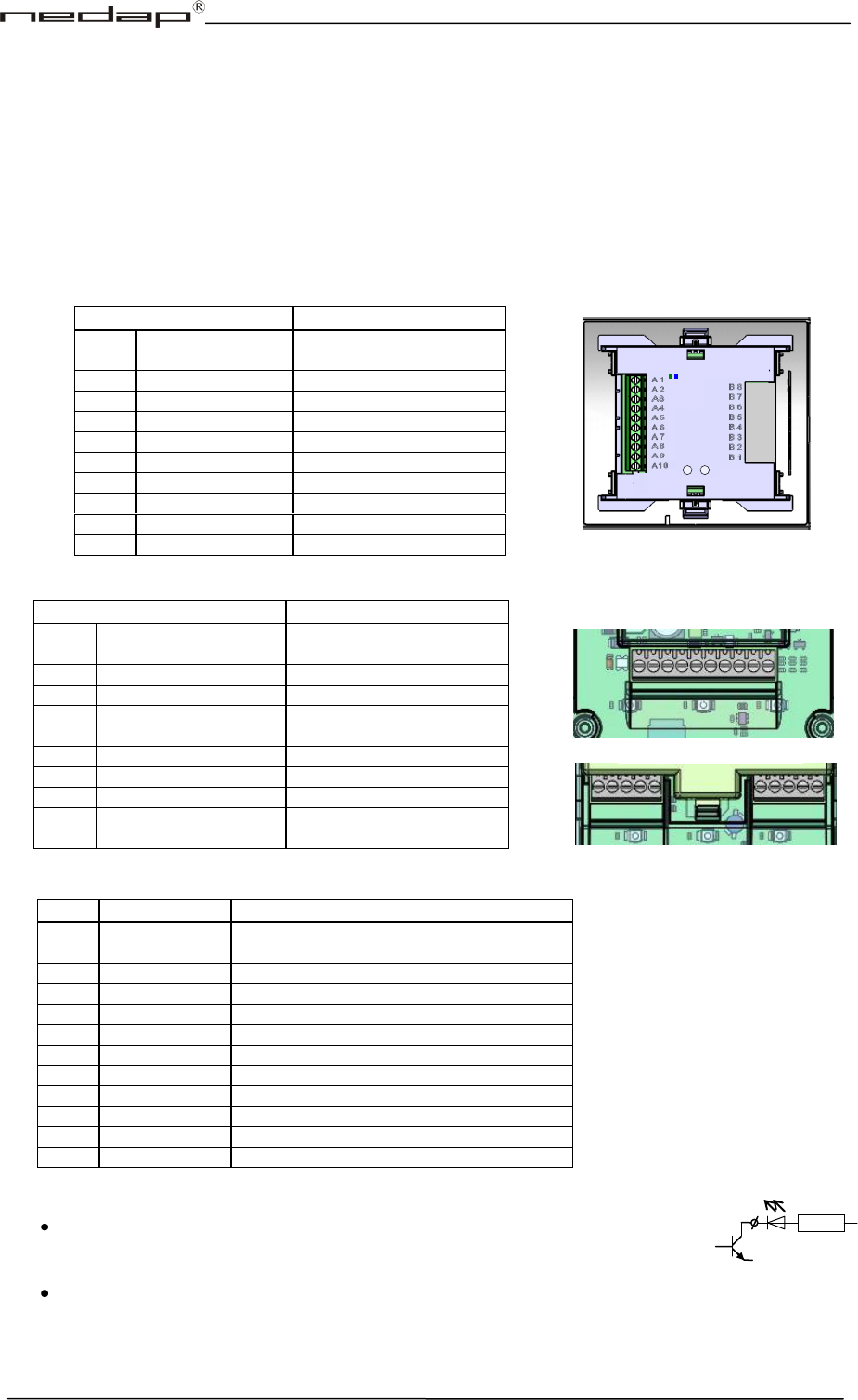

4.1. Convexs Connections

4.2. Invexs 170 Connections

4.3. Invexs 190 Connections

Remark:

UL*,NA*, MD* and BEEP are Open Collector to GND.

If Convexs adapters (AX1014 or AB350) are used, the original UL and NA signals

of the reader are converted to be used with UL* and NA* of the Convexs/Invexs.

Invexs 190 to AX1014 or AB350 needs additional connection between GND (for UL and NA) and

Antenna GND on the AX1014 / AB350 (Invexs 190 has no separate cable for this connection)

Convexs

Function

A1

Power /

XSMOD

Power in (10-30VDC) /

XS modulator (120kHz)

A2

POWER GND/shield

Power Ground

A3

A (-)

RS485

A4

B (+)

RS485

A5

D0

Wiegand Data 0

A6

D1

Wiegand Data 1

A7

BEEP

Beep input

A8

UL*

UL led input

A9

GND

Led/Beep Common Ground

A10

NA*

NA led input

Convexs Rear view

Invexs

Function

1

Power /

XSMOD

Power in (10-30VDC) /

XS modulator (120kHz)

2

POWER GND/Shield

Power Ground

3

A (-)

RS485

4

B (+)

RS485

5

D0

Wiegand Data 0

6

D1

Wiegand Data 1

7

BEEP

Beep input

8

UL*

UL led input

9

GND

Led/Beep Common Ground

10

NA*

NA led input

1

10

1

10

5

1

6

1

Invexs with display

Invexs without display

Wire

Colour

Function

w1

Red

Power in (10-30VDC) /

XS modulator (120kHz)

w2

Black

Power Ground / RF Ground

w3

Grey

RS485 A (-)

w4

Violet

RS485 B (+)

w5

Green

Wiegand Data 0 (D0)

w6

White

Wiegand Data 1 (D1)

w7

Yellow

Beep input (BEEP)

w8

Pink

UL led input (UL*)

w9

Blue

MD led input (MD*)

w10

Brown

NA led input (NA*)

w11

Shield / Metal

EM shield (connected to power ground)

E

Cable shield (wire 11) must be

connected to the metal case of

the external device

Page 14 of 21

4.4. Connections using RS485

Convexs/Invexs connected to Nedap AEpacks using RS485: For those

AEpacks not having RS485 on board use the additional AX1012 (RS485

to RS232 converter)

Remarks:

1 On AP1003 the RS485 is available on Upper Row connector points 13 - 16, only from PMS D or higher

2 For AP1003 with PMS below D use the additional AX1012 to convert RS232 from AP1003 to RS485 for

Convexs

3 Power for Convexs can be supplied by

- External Power Supply

- AEpack, check correct voltage and current at given AEpack output

4 Beeper on Convexs can be optional controlled

- on AP6003 this can be done by pin 16

- on other AEpacks use Relais output

5 LED control is supplied over the RS485 communication, so no additional wiring is needed

6 Cable shield must be connected to Power GND of Convexs (A2) and GND of external device or metal

case of the external device (at housing of AP6003, AP4x03x, AEbox)

7 If Convexs replaces e.g. DC130 antenna the existing cabling of the DC130 antenna (4 x 0,25qmm) can be

reused for RS485 and Power only if cable length not exeeds 50 meters and cable shield is correct

connected.

8 PIN code for the Invexs reader is transmitted using the RS485 communication.

4.5. Connections using RF output

Remarks:

1 For Nedap reader AEpacks the AX1014 must be applied to

each AEpack

2 For the Accessor III / SimpleXS / AC3/2TR the AB350 must be applied

3 Existing cabling can be re-used when the Nedap antenna is replaced by the Convexs

4 Power is supplied to the Convexs by the RF signals on A1 and A2, no additional Power Supply is needed.

5 Beeper can be controlled optional by making the correct configuration settings or hardware connection.

6 Cable shield must be connected to Power GND of Convexs (A2) and GND of external device or metal

case of the external device (at housing of Accessor, AP4x01, AEbox)

7 PIN code for Invexs readers is NOT possible

8 Invexs 190 to AX1014 or AB350 needs additional connection between GND (for UL and NA) and

Antenna GND on the AX1014 / AB350 (Invexs 190 has no separate cable for this connection)

AX1014

Accessor III /

SimpleXS

AC3/2TR

AB350

Convexs / Invexs

AP6003

AP4x03x

AP1003 1)

AP1003+AX1012 2)

A1

1

Power / XSMOD

Lower 1 3)

1 3)

Upper

1 3)

Upper

1 3)

A2

2

POWER GND/shield

14

Lower

1

Lower

1

A3

3

A (-)

8

Upper

13

AX1012

Rx+

A4

4

B (+)

10

Upper

16

AX1012

Rx-

A5

5

D0

--

A6

6

D1

--

A7

7

BEEP

16 4)

--

A8

8

UL*

--

A9

9

GND

--

A10

10

NA*

--

Convexs / Invexs

AX1014

AB350

A1

1

Power / XSMOD

11 – ANT

ANT

A2

2

POWER GND/shield

12 – GND

GND

A3

3

A (-)

A4

4

B (+)

A5

5

D0

--

A6

6

D1

--

A7

7

BEEP

relay

relay--

A8

8

UL*

13 – UL*

UL*

A9

9

GND 8

14 – GND

GND

A10

10

NA*

15 – NA*

NA*

1

2

3

4

5

6

7

8

9

C

0

E

1

2

3

4

5

6

7

8

9

C

0

E

1

2

3

4

5

6

7

8

9

C

0

E

Page 15 of 21

4.6. Wiegand

If the Convexs is connected to a Third party system using Wiegand

the Power must be supplied external or from the Third party system.

- Third party systems

- AEOS Wiegand

Remarks:

1 Beeper and LED control is depending of the

third party system and optional from the used

configuration.

2 Cable shield must be connected to Power

GND of Convexs (A2) and GND of external

device or metal case of the external device.

3 PIN code is possible over Wiegand

1

2

3

4

5

6

7

8

9

C

0

Convexs / Invexs

Third party system

A1

1

w1

Power / XSMOD

Power +

A2

2

w2

POWER GND/shield

Power GND

A3

3

w3

A (-)

--

A4

4

w4

B (+)

--

A5

5

w5

D0

Data 0

A6

6

w6

D1

Data 1

A7

7

w7

BEEP

? 1)

A8

8

w8

UL*

? 1)

A9

9

GND

? 1)

A10

10

w10

NA*

? 1)

w9

MD*

? 1)

w11

Cable shield

Metal case

Page 16 of 21

5. Convexs/Invexs LED and Beeper control

The Convexs/Invexs has three LED’s (red, green and blue) and a buzzer to give additional information to the

user. At the backside of the Convexs/Invexs, a status LED (blue) and ID led (green) are available.

5.1. User LED’s

UL LED (green), controlled by a hardware signal to connector A8

Or if rs485NR protocol is used, UL LED is controlled over the RS485 communication line.

NA LED (red), controlled by a hardware signal to connector A10

Or if rs485NR protocol is used, NA LED is controlled over the RS485 communication line.

Status LED (blue):

The blue LED is used as status indication to the user.

Up from certain AEOS and firmware versions the blue LED can also be controlled over the RS485NR

protocol. Otherwise it must be activated at the Configuration (AEreco). If activated the blue LED will be

active if both other LED’s or OFF. So if both UL and NA are OFF )NA LED must be OFF ±1 sec) , the

blue LED automatically will be ON.

5.2. Beeper

The Beeper can be controlled by:

Hardware signal to connector A7

Or if rs485NR2 protocol is used, Beeper is controlled over the RS485 communication line.

Software if card is detected (at AEreco: NA/UL beep):

o If UL LED is activated (valid card) beeper is shortly activated

o IF NA LED is activated (invalid card) beeper is 3 times shortly activated

The volume of the beeper can also be controlled by AEreco (valid for both hardware and software setting).

The beeper is also used for indicating the status of loading the configuration at the Convexs/Invexs.

5.3. Status LED’s

The blue LED at the front side is used to indicate if a configuration is loaded at the Convexs/Invexs.

The blue status LED at the backside is used to indicate the status of the Convexs/Invexs reader, the green ID

LED to indicate the detection of a card.

See Installation sheet for detailed information.

6. Invexs PIN modes

On the Invexs different modes for using the PIN code are available. These are depending off the used

communication protocol.

6.1. RS485NR

The activation of the PIN is controlled over the RS485NR communication, by the used AEbcs. The AEbcs

determine if the PIN code is activated or not (and if also the PIN code LED’s are activated then).

6.2. Wiegand

The PIN code (if the LED’s behind the ciphers are activated) acts different, depending on the version of the

Invexs firmware:

Invexs versions before 2.06

If card is detected by the Invexs, the PIN code LED’s are turned on.

At Wiegand the PIN code LED’s are turned off by: change at NA or UL LED, or after time-out

Invexs versions after 2.06

Up from 2.06 it is possible to make a setting on AEreco (version > 2.1.0) to set the PIN code always on.

Default setting as with version before 2.06, if via AEreco the new option is activated, the PIN code is

always on (independent of a badge detection)

This option requires also modified firmware at the used AEpack (check AEpack version file for this).

Page 17 of 21

7. Configuring the Convexs/Invexs

Functionality and output protocol of the Convexs/Invexs reader is determined by the configuration that is loaded

in the reader. This configuration is defined using the program AEreco, and deployed by the configuration card or

via AEmon (the specific configuration file is uploaded to the Convexs/Invexs, identical as AEpack firmware).

With AEreco a Configuration file or Configuration card can be generated. These contain all settings for the

Convexs/Invexs:

Configuration file:

The configuration card contains the configuration for a Convexs/Invexs and can be handled as follows:

o With AEmon this file can be loaded into the (or all) Convexs/Invexs

o Can be used to generate a configuration card

o With AEreco this file can be loaded directly into the connected Convexs/Invexs

Configuration card

By presenting this card to a Convexs/Invexs the configuration in this card is transferred to the

Convexs/Invexs.

DEScount card

For situations where existing Convexs/Invexs MN or Convexs/Invexs M must be made suitable to read

DESFire cards this special DEScount card is used. On this card the amount of Convexs/Invexs readers

that must be made suitable to read DESFire is programmed. For each converted Convexs/Invexs to

DESFire the amount on the DEScount card is decreased.

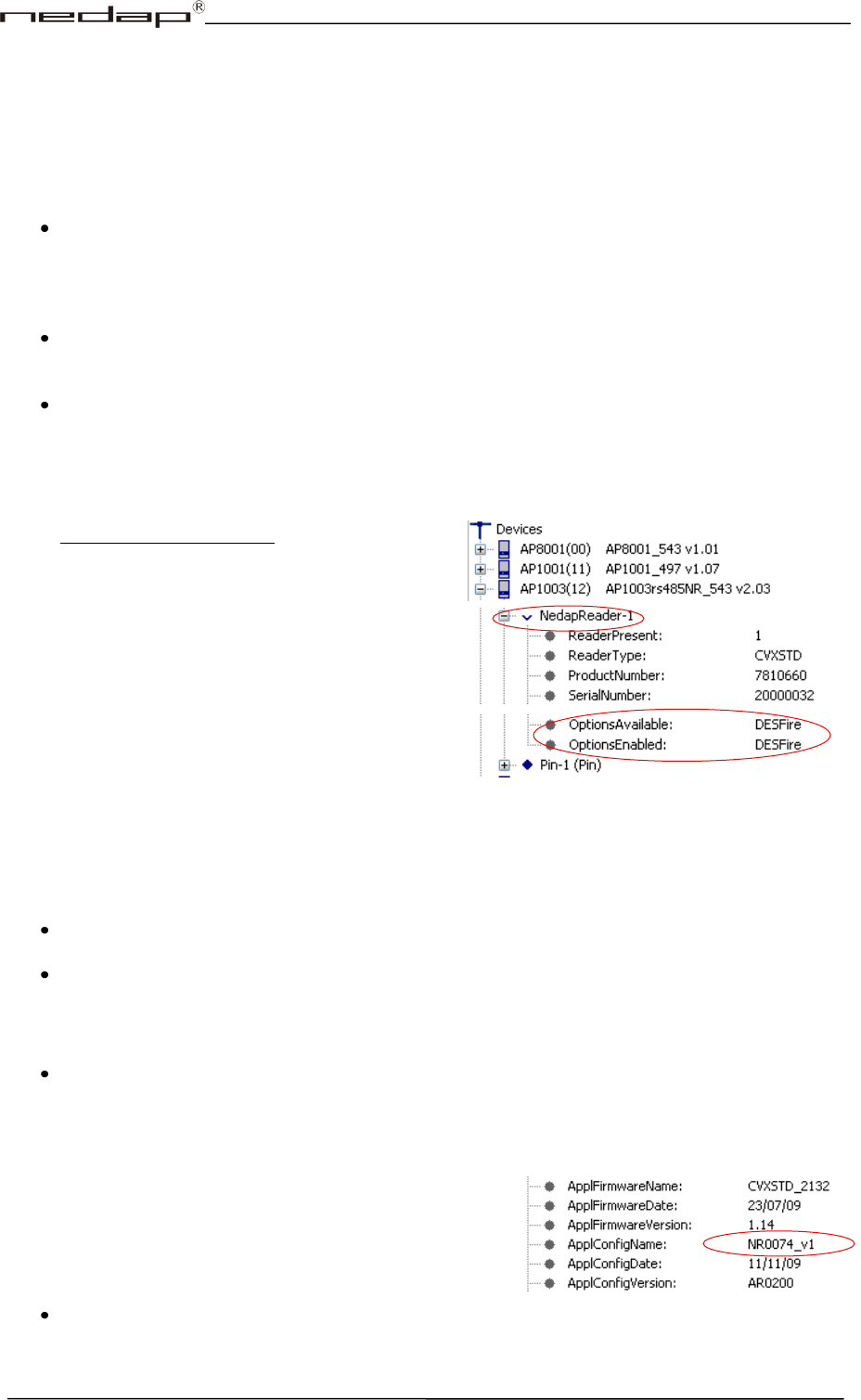

DESFire available / enabled:

If DESFire is enabled (and this reader is suitable

using DESFire) can be checked with AEmon at the

View Hardware: (only with the rs485NR protocols):

Select the Nedap reader and check with options are

available (OptionsAvailable) and which are enabled

(OptionsEnabled):

A configuration of a Convexs/Invexs can not be read back from the Convexs/Invexs, so when making changes to

a configuration you always need to use AEreco with the (original) configuration settings for this specific

customer.

After loading the configuration the beeper is used to indicate if the loaded configuration is correct or not:

High sound: Configuration is loaded, a second High sound indicates that this configuration can

be used at this reader.

Low sound: Configuration is not loaded, error has occurred.

7.1. Nedap reader Configuration file

The Configuration file can be uploading to the Nedap reader by:

Using AEmon, the Convexs/Invexs is connected to the AEOS reader AEpack (APx003rs485NR, the

Convexs/Invexs must have the RS485NR output protocol)

At AEmon in the Hardware view the connected Convexs/Invexs reader(s) are available. Selecting now

these Convexs/Invexs reader(s) gives the opertunity to load a new configuration file.

Using AEmon all connected Convexs/Invexs readers can easily be updated to a new configuration file.

At the Hardware view the correct Configuration file can

be checked (beside other important settings of the Nedap

reader, e.g. Options, Firmware, Kernel versions, etc)

Connect the Convexs/Invexs directly to AEreco and load the configuration file direct to this

Convexs/Invexs

Page 18 of 21

Remark: If the Configuration file is uploaded as above to the Convexs/Invexs, no checks are made if this

configuration file is suitable for this Convexs/Invexs. This is in contradiction with the use of the Configuration

card (then only specific cards with specific keys can be used to program these Convexs/Invexs).

7.2. Configuration card

The configuration made with AEreco can be stored on a configuration card. By presenting this configuration card

to a new Convexs/Invexs (default, factory settings) the settings on the configuration card are programmed into

the Convexs/Invexs reader. Up from now only these specific unique configuration cards can be used to program

the configuration in the corresponding Convexs/Invexs readers.

During the configuration process the beeper will sound, to indicate the configuration is loading (and the card

should not be taken away from the Convexs/Invexs). This process takes about 5 seconds.

The uniqueness of the combination of Configuration card and Convexs/Invexs is made with the Reader read key

that is determined at AEreco (General – Configuration card). This Reader read key is also stored in the

Convexs/Invexs and every following time a Configuration card is offered, this Reader read key is compared

against this key of the Configuration card. This principle results that only Configuration cards with the same

Reader read key can change the configuration of a Convexs/Invexs. This key is independent of the Mifare keys.

8. Updating firmware of the Convexs/Invexs

If new firmware must be loading into the Convexs/Invexs reader this can be done by:

Using AEmon, the Convexs/Invexs is connected to the AEOS reader AEpack (APx003rs485NR or

APx003rs485NR2, the Convexs/Invexs must have the RS485NR output protocol).

At AEmon in the Hardware view the connected Convexs/Invexs reader(s) are available. Selecting now

these Convexs/Invexs reader(s) gives the opertunity to load a new firmware

Using AEmon all connected Convexs/Invexs readers can easily be updated with new firmware.

Connect the Convexs/Invexs directly to AEreco (RS485) and load the new firmware direct to this

Convexs.

Remark: After updating the firmware the configuration must be reloaded. Updating the firmware will

automatically remove the configuration.

9. Default settings of the Convexs/Invexs

Default settings (factory settings, NR9000.cfg) of the Convexs/Invexs are:

Mifare reader enabled, Mode: CSN (CSN reversed: NR9001.cfg)

Conversion table

Beeper: No NA / UL beep

Led Mode: Red / Green

Preferred Card Type: Nedap XS Card

Configuration card enable

Reader read key: FC9011EE5339

With this default configuration (file NR9000.cfg and NR9001.cfg) the Convexs/Invexs acting for XS cards as a

normal antenna, and can be connected to AEpacks (on RS485NR) or Nedap reader AEpacks (with AX1014) or

XS readers (with AB350).

Input Type

Output Type

Nedap XS

RS485NR

Nedap XS

Nedap RF badge

Mifare CSN

RS485NR

Mifare CSN

Nedap RF data

Page 19 of 21

10. Available reader firmware

Pay attention that not for all output protocols suitable firmware is available at the applied readers.

The Nedap RF badge can always be used on Nedap readers. Wiegand formats can always be used on APx003

series with corresponding firmware.

For the Nedap RF data and RS485NR not for all readers the suitable firmware is available. Please check always

for the correct firmware version.

Nedap RF data

RS485NR

Remarks

AP1001

AP1001_548v210

X

AP1002

AP1002_548v211

X

AP1009

AP1009_548v211

X

AP4001

AP4001_543v204

X

AP4001X

AP4001_543v305

X

AP1003

X

AP1003rs485NR2_543v200

AP1003rs485NR_543v200

AP4003

X

AP4003rs485NR2_543v210

AP4003X

X

AP4003rs485NR2_543v210

AP4003rs485NR_543v31x

See remark AP4x03

below

AP6003

X

AP6003rs485NR2_2368v100

AP6003rs485NR_2368v100

Accessor III on AEOS

A3PNU_AEOS_v2.01

X

SimpleXS on AEOS

A0PNU_AEOS_v2.01

X

AC3/2TR on AEOS

H7A3U_AEOS_v2.02

X

Remarks:

X in above table means NOT possible.

Two RS485 protocols are available:

o rs485NR2 (up from 8-2009) able to show the Convexs/Invexs as an AEpack in AEmon,

offering full implementation for AP4x03 and AP4x03X (PIN, tamper switch) and additional

features such as Beeper control over RS485.

Can be used for all most corresponding AEpacks (including AP4x03).

Highly preferable to use always this protocol!

o rs485NR: Convexs/Invexs is not visible in AEmon, only AEpack to it is connected is shown.

First implementation of rs485NR protocol.

Not available for AP4x03. The AP4x03 (RS485NR) is only available for the X version up from

version v3.1x, and must have at least Kernel version 3.10.

Tamper switch and PIN not available at the AP4x03X, only at the AP1003 with RS485.

AP4003X (rs485NR) / AP4003 (rs485NR2) connected to

o AP8001X: needs AP8001X_543v302 or higher

o AP8001: needs AP8001_543v102 or higher (and kernel for AP8001 version 1.04 or higher)

o AP4801X, AP4803X, AP4807X: needs kernel 3.11 or higher

o AP4801, AP4803, AP4807: needs kernel 2.11 or higher

For XS readers connected to WinXS Nedap RF data is not possible (use always RF badge).

When using RS485 check if the applied AEpack is equipped with RS485 interface. Otherwise the

AX1012 (RS232 to RS485 converter) must be placed at the AEpack).

10.1. AEOS versions

The Convexs/Invexs can be connected to AEOS for (almost) all versions; in-depending of the communication

method between the AEpack and Convexs/Invexs (the AEpacks must have the correct firmware, see above).

If the Convexs/Invexs is not supported by an older AEOS version, the data from the card will still be read by

AEOS and normal handled, It is not possible to see these Convexs/Invexs in AEmon or to load (using AEmon) a

new configuration in the Convexs/Invexs (in case RS485 is used):

Up from 2.2.0 Convexs/Invexs supported

Up from 2.1.7 / 2.2.0: Primary and secondary identifier type at Access Points

Page 20 of 21

So if using the Convexs/Invexs with e.g. RS485 it can be connected to AEOS version before 2.2.0 or 2.1.7. If the

configuration of the Convexs/Invexs differs from default this configuration must be loaded using a configuration

card (using firmware APx003rs485NR)

Remark: Check always the AEOS release notes for detailed information and the Know Problems in chapter 11.

11. Known problems

11.1. Convexs/Invexs to AP1002

In case the Convexs/Invexs reader is connected to an AP1002 (both Nedap RF data and Nedap RF badge) the

potentiometer for the transmitter level must be set to minimum. Otherwise detection can be intermittend.

11.2. Convexs/Invexs to Nedap readers with AM badges

In case the Convexs/Invexs reader is connected to Nedap readers (e.g. AP4001 or AP1001) with output Nedap

RF badge the AM badges (A, B, C, D, G codes) will not be read on the Nedap reader. In this cases use as output

the Nedap RF data.

11.3. Convexs/Invexs to AP4003 using RS485

Using rs485NR firmware: Connecting the Convexs/Invexs to the 4000 series using rs485NR can only to the

AP4003X (and AP4803X), so not to AP4003 (or AP4803). The AP4x03X requires at least kernel 3.10 and

corresponding firmware. For the AP4x03 (with kernel version 2) connecting the Convexs/Invexs with RS485

using the rs485NR firmware is NOT possible.

This is solved with the rs485NR2 firmware. This firmware is suitable for both AP4x03 and APx03X (and

AP1003, AP6003)

Check always the version of firmware for the AEpu (see Remarks at chapter 10).

11.4. Convexs/Invexs to AP4003 using RS485 Tamperswith / PIN

If rs485NR is used, the Tamperswitch and PIN at the Convexs/Invexs is only available at the AP1003 with

RS485, not at the AP4000 series.

Advisable is to use the rs485NR2 protocol, supporting these features on AP4003 series.

11.5. Convexs/Invexs to AP4x03X series before production code W2 using RS485

The first series of AP4803X and AP4003X (Production codes before W2) will put this AEpack out of order after

uploading the Convexs/Invexs configurations and/or firmware to the Convexs/Invexs (or Nedap Readers), when

using the RS485NR protocol.

Solution for this is to replace this AEpacks. (These AEpacks can be used for other protocols without problems.)

AP4x03X produced before June 2009 could sometimes have communication problems on the RS485 line. Due to

this the Convexs/Invexs can malfunction.

11.6. Invexs with display / screen

Invexs MNKS with display is only available on request, depending on the application to be used (what

information must be shown on the screen).

Page 21 of 21

12. AEreco cards enquiry information

For this part check the document AEreco cards enquiry Information (available on www.nedap.net). This

document described the necessary data (regarding to Mifare cards) for making a configuration file with AEreco.

13. Document History

Date

#

Who

Changes

11-04-2011

9

REW

Invexs 190 to AB350/AX1014 needs additional GND, FCC changed

17-01-2011

8

REW

Invexs 190, FCC certifications and UID 7 bytes added

12-10-2010

7

REW

Invexs with screen / display only available on reques.

18-05-2010

6

REW

Blue led always available (so not only with RS485 communication !), PIN

code modes for Invexs added, Enquiry information removed to separate doc.

25-01-2010

5

REW

Blue led only with RS485 communication available added

23-11-2009

5

REW

MND added, check DESFire in AEmon added

08-09-2009

4

REW

Known problems extended with Nedap readers instead of AP4001 (AM badge)

16-07-2009

4

REW

rs485NR2 added (available also for AP4x03), LED/Beeper control changed

28-05-2009

3

REW

Invexs added

12-03-2009

REW

Known problem added about first AP4803X

09-03-2009

REW

EV1 added in Enquiry part DES EV1 and Native settings

26-11-2008

REW

Tamper switch not available on AP4000 added

20-11-2008

REW

Configuration files naming changed to NRxxxx

28-10-2008

REW

Serial output + USB reader added, DESfire enquiry changed

Restrictions AP480x series added (in chapter 10)

09-09-2008

REW

Conversion MN/M to DESFire added (DEScount).

Using Convexs with older AEOS versions added

15-08-2008

REW

Mifare DESFire added

Nedap N V CONVEXS Inductive Proximity RFID Card Reader User Manual Nedap Readers Installation Guide

N. V. Nederlandsche Apparatenfabriek NEDAP Inductive Proximity RFID Card Reader Nedap Readers Installation Guide

Contents

User manual 02

Navigation menu

Namespaces

Views

Navigation
