Nedap N V FC180RRFMD Anti-Pilferage device User Manual Commercial guidelines Doorframe i7

N. V. Nederlandsche Apparatenfabriek NEDAP Anti-Pilferage device Commercial guidelines Doorframe i7

Contents

TempConfidential_15a_Commercial guidelines Doorframe i7 CGDFC180RRFMD

Page of 1 3 Commercial guidelines Doorframe i7
Commercial guidelines Doorframe i7
The Doorframe i7 is a special product, please follow these commercial guidelines. By doubt contact
The lead time of this product is on request. Informlissa.kooijman@nedap.com (mailto:lissa.kooijman@nedap.com)
yourself in advance because the lead time might be longer than expected.
The best RF system you never see! The Doorframe i7 is a concealed solution especially designed for
narrow entrances and entrances where it is not preferred or practical to place gates on the floor
Create more sales space! Because the detection field is closer to the exit, this also creates less false
alarms by secured items moving in store
Note: be aware that when there is an alarm, people causing the alarm will already be outside of the
store (because it is positioned so close to the exit)
Doorframe i7 has Standard integrated Customer counting
Doorframe i7 is part of !Sense, Intelligent Loss Prevention.
The Doorframe i7 has the option for a real-time !Sense Dashboard. A local API for integrations. Nedap
Retail Analytics, to focus on increasing dwell time, managing staff efficiently, know store’s peak hours
etc. Remote firmware upgrades, so the system can improve over time. Device Management for quick
service to continuously keep shrinkage low
Best homogeneous RF 8.2 MHz rotation detection field
The preferred installation for best performance is to use 2 x i7 in ‘Focussed field’. This means that there
is no detection on the outsides. Focussed field is an unique Nedap !Sense software setting that no
competitor has
Page of 2 3 Commercial guidelines Doorframe i7

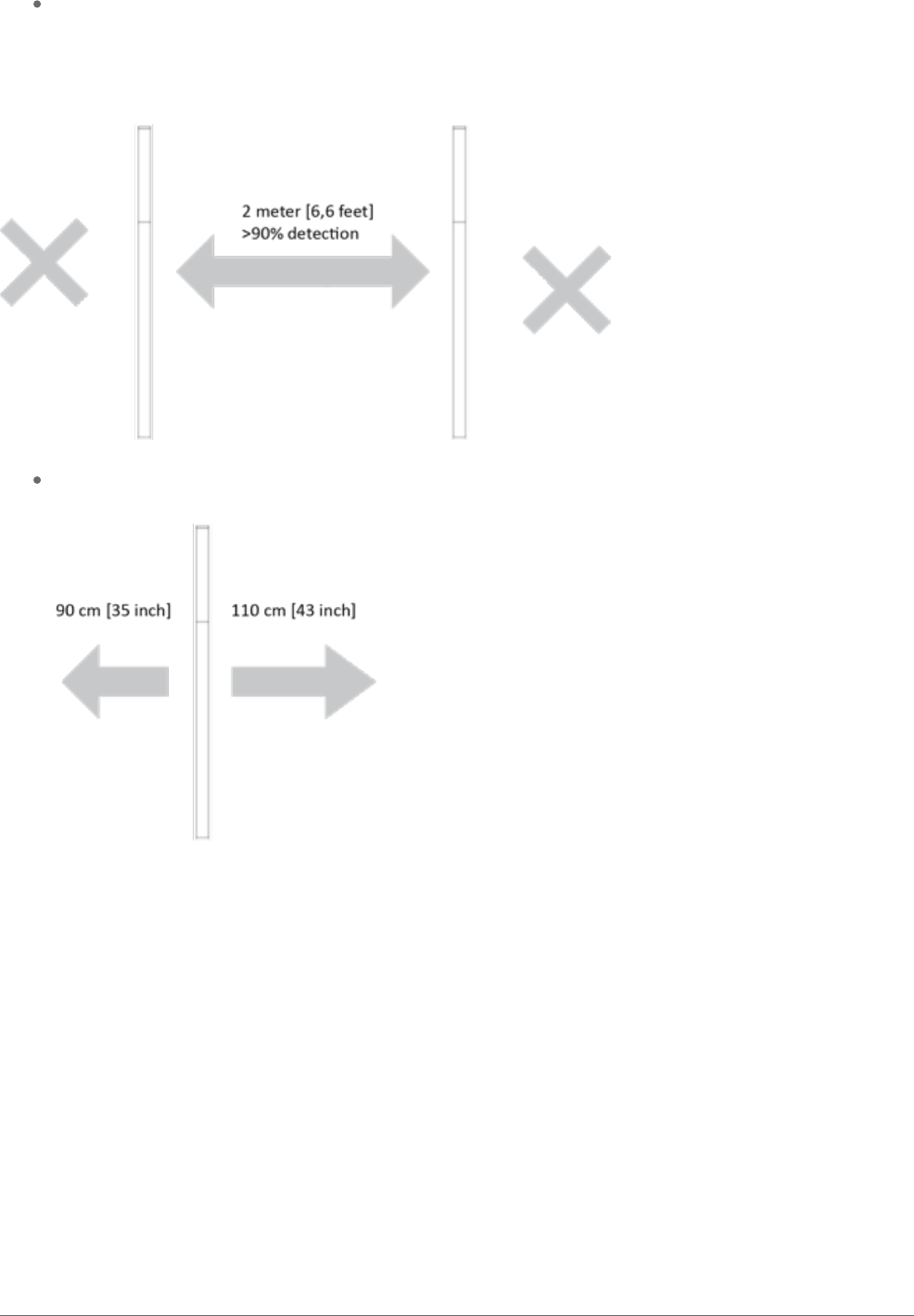

The preferred installation is 2 times an i7 in focussed field. The performance in focused field, with a
distance between the i7 of 2 meter [6,6 feet] gives a detection chance of 90% or higher can be
reached with a NT4040 label. When the distance is 2,20 meter [7 feet] a detection chance of 75% or
higher can be reached with a NT4040 label
It is possible to place the Doorframe i7 in ‘Full field’ and use only 1 x i7 in the middle of an entrance.
Please note the Asymmetrical field of 90 cm on one side and 110 cm on the other side
Page of 3 3 Commercial guidelines Doorframe i7
The Doorframe i7 should be placed around 20/30 cm [8/12 in] from the floor
The Doorframe i7 can be mounted to the wall or be placed on a Floor mount column. The Floor mount
column is recommended for best performance
The material of the wall or Frame of the retailer can strongly influence the RF performance. Especially
when the frame is made of metal. Therefore the installation material includes distance holders (2,5 cm
[0,9 in] from the frame)
Optional: Metal Detection. Only possible when there are no moving doors with metal (i.e. an aluminum
frame around the door)
Last modification: 13 July 2015 13:27
