User manual SENSIT
2009-11-23
This information is furnished for guidance, and with no guarantee as to its accuracy or completeness; its publication
conveys no license under any patent or other right, nor does the publisher assume liability for any consequence of
its use; specifications and availability of goods mentioned in it are subject to change without notice; it is not to be
reproduced in any way, in whole or in part, without the written consent of the publisher.
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 1 of 10

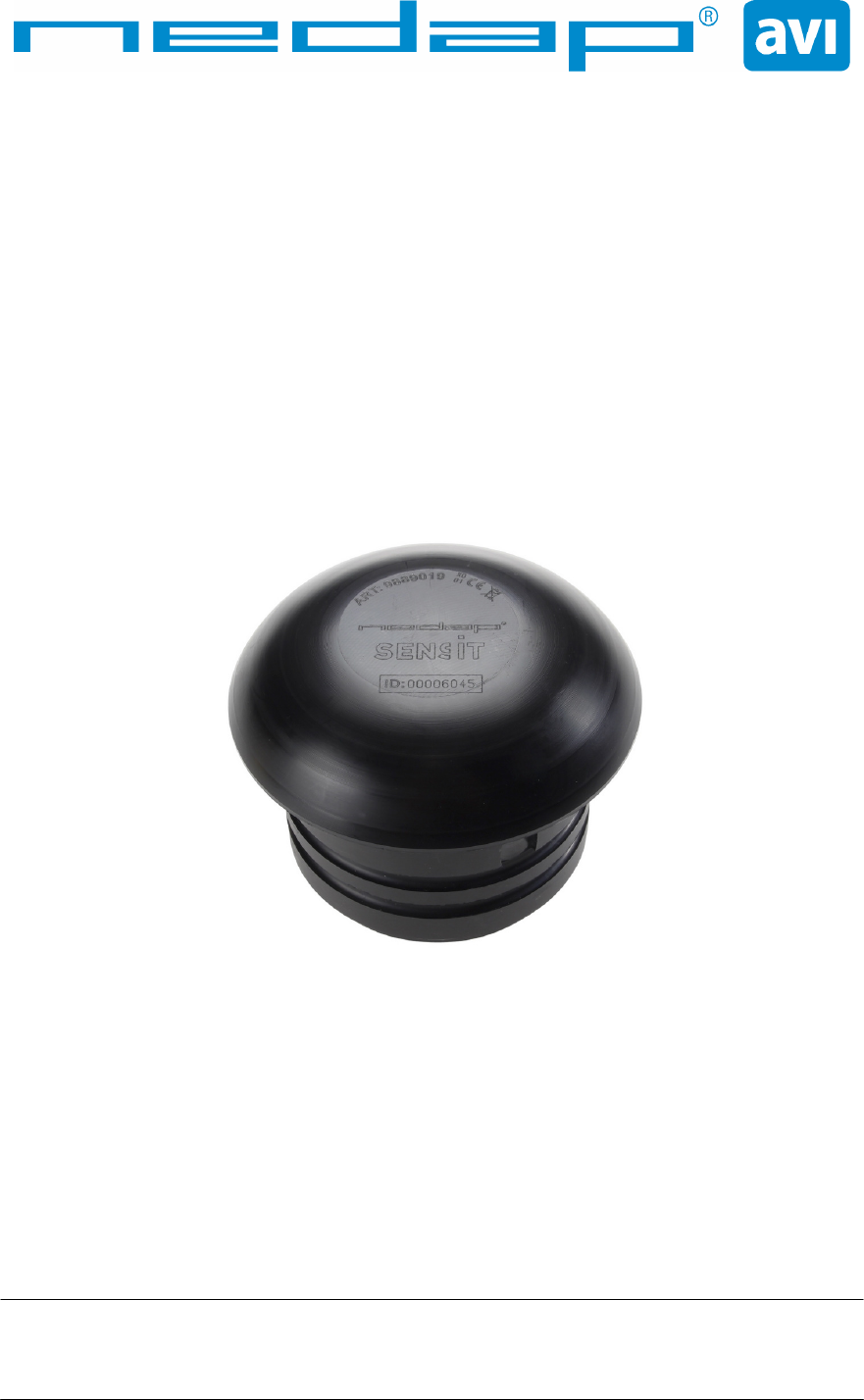

Wireless Space
Count
Manual SENSIT
Wireless Space Count: SENSIT
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 2 of 10
CONTENTS
1
INTRODUCTION..............................................................................................................................3
1.1
SENSIT ...................................................................................................................... 3
2
INSTALLATION SENSIT ..................................................................................................................4
2.1
SAFETY PRECAUTIONS........................................................................................... 4
2.2
DIMENSIONS............................................................................................................. 4
2.3
REPLACEMENT ........................................................................................................ 4
2.4
MOUNTING PROCEDURE SENSITS ........................................................................ 5
3
PROJECT SUPPORT ......................................................................................................................7
3.1
SITE SURVEY & INSTALLATION ADVICE................................................................ 7
3.2
ON-SITE CERTIFICATION......................................................................................... 7
4
FCC AND IC DECLARATION...........................................................................................................8
4.1
Compliance statements (part15.19) ........................................................................... 8
4.2
Warning (part15.21)................................................................................................... 8
4.3
RF Exposure (OET Bulletin 65).................................................................................. 8
4.4
Information to the User (Part 15.106(b)) .................................................................... 8
5
TECHNICAL SPECIFICATIONS.......................................................................................................9
A
PART NUMBERS...........................................................................................................................10
Wireless Space Count: SENSIT
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 3 of 10
1 INTRODUCTION
The Wireless Space Count system facilitates accurate measurement on occupancy of individual parking
spaces in car parks, and on-street parking spaces. This information can be used to guide traffic to free
parking spaces but can also be used for on-street parking enforcement and overstay detection. For on-
street enforcement the number of occupied parking spaces can be compared with the number of
payments realized by the pay station. For overstay detection the system alerts instantly a parking officer
to the presence of nearby overstaying vehicles. Based on this information you can exactly determine
which space to enforce.
1.1 SENSIT
The SENSIT are mounted into the floor of each parking space. The SENSIT is suitable for floor mounting
as well outdoor as indoor. The SENSIT are featured with detection and communicate wireless with each
other, creating their own network. The SENSIT do not require power wiring, in contrast to conventional
systems that require wiring throughout the car park and mounting onto the ceiling.
Wireless Space Count: SENSIT
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 4 of 10
2 INSTALLATION SENSIT
2.1 SAFETY PRECAUTIONS
The following safety precautions should be observed during normal use, service and repair.
• The SENSIT may only be installed and serviced by qualified service personnel.
• To be sure of safety, do not modify or add anything to the SENSIT other than mentioned in this
manual or indicated by NEDAP N.V.

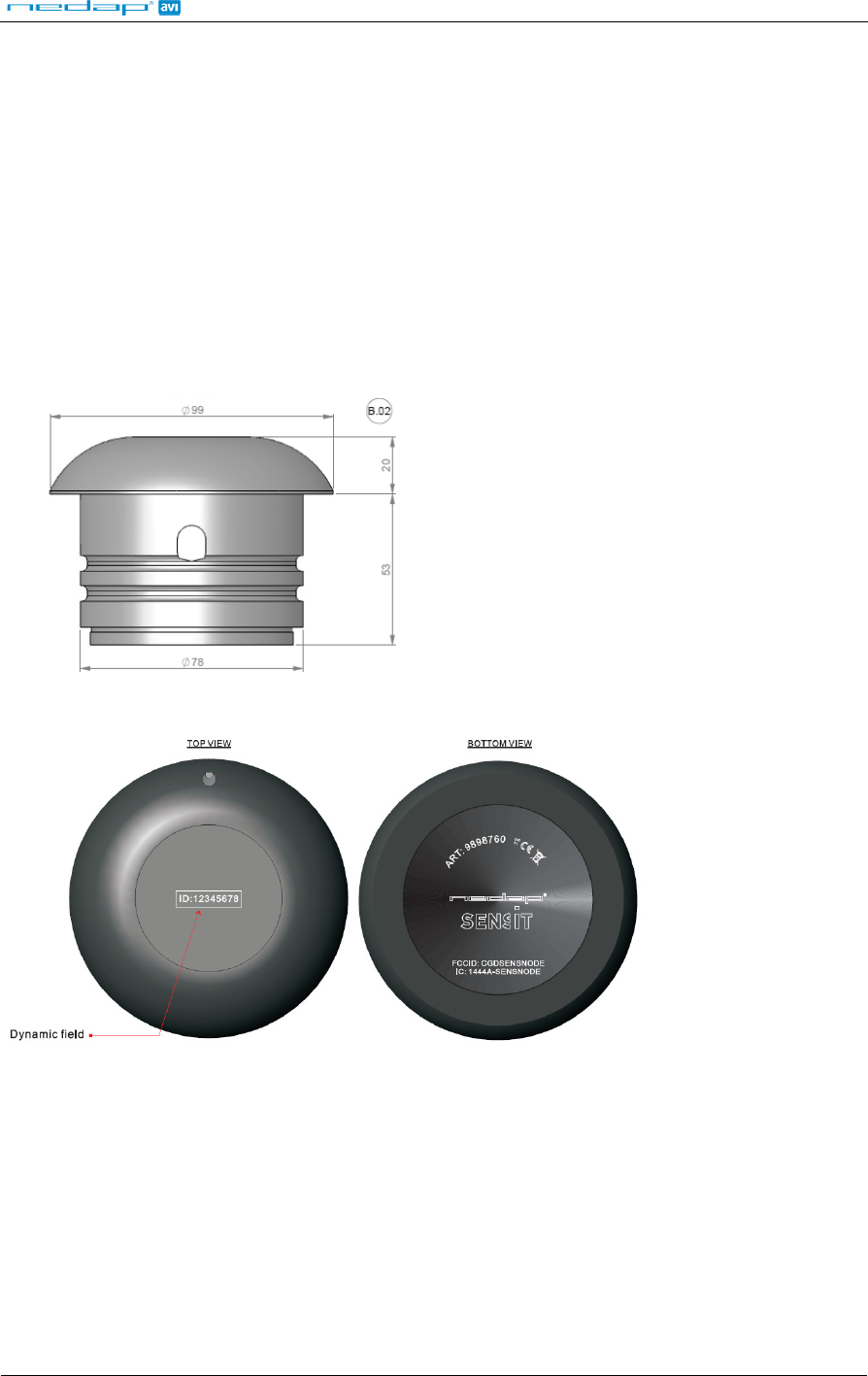

2.2 DIMENSIONS
The SENSIT is designed for mounting into the floor of a parking space. See Figure 1 for the dimensions
of the unit in mm. The front of the SENSIT is laser engraved with the node ID number, see Figure 2.
Figure 1: Dimensions SENSIT
Figure 2: Top and bottom laser engraved sides of the SENSIT
The node ID is mentioned on the top of the housing under ID. There is also a 125kHz passive RFID label
embedded into the SENSIT. This can be used for verification of the SENSIT or to localize the SENSIT
on the parking lot.
2.3 REPLACEMENT
When the battery life of the SENSIT fails after specified life time, we advise to replace the unit
completely. The SENSIT is fully sealed and for outdoor use therefore batteries cannot be replaced.
Drill out the old SENSIT and complete the mounting procedure as describe in the next paragraph.
Wireless Space Count: SENSIT
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 5 of 10

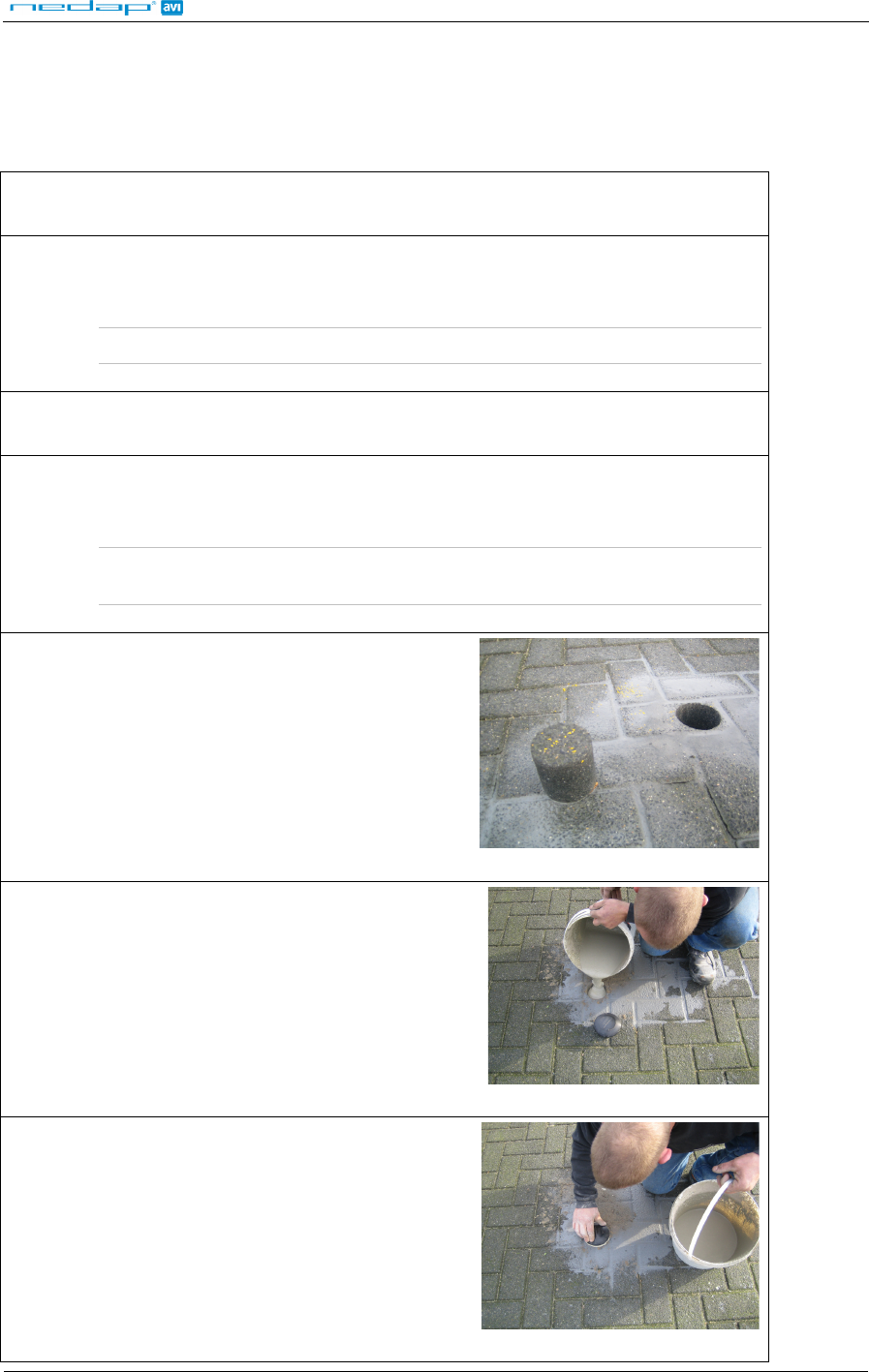

2.4 MOUNTING PROCEDURE SENSITS
Below the mounting procedure for the SENSIT.
Step 1: Distribute the SENSIT over the empty parking lot (without mounting them into
the floor).
Step 2: All SENSIT are set to transport/stock mode during shipment. Prior to installation
all SENSIT must be swept with a strong magnet. This will give the SENSIT a
reset. Please ensure to use a strong magnet (Neodymium).
Note: Once out of the transport/stock mode the battery lifetime starts to count.
Step 3: Write down the node ID number on your installation plan so you are sure which
SENSIT is positioned in which parking bay.
Step 4: Verify if all the SENSIT are online and if communication is received by the
SENSIT DATACOLLACTOR after the magnet sweep. Do this prior to mounting
the units into the ground.
Note: Only once all SENSIT are live and seen in the software they can be
installed into the pavement.
Step 5: Drill a hole of 85 mm (3.35 in) into the
centre of the parking bay.
Figure 3: SENSIT installation
Step 6: Use the right amount of filler
Figure 4: SENSIT installation
Step 7: Double-check the node ID number
and the parking bay on the
installation plan and place the
SENSIT into the hole
Figure 5: SENSIT installation
Wireless Space Count: SENSIT
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 6 of 10
Step 8: After installation the SENSIT must be calibrated with no car on top of the sensor
or on neighbouring parking bays.
Note: When the SENSIT are not calibrated they hardly send any messages.
This is due to the fact that there are no events generated because the
magnetic tressholds are not crossed.

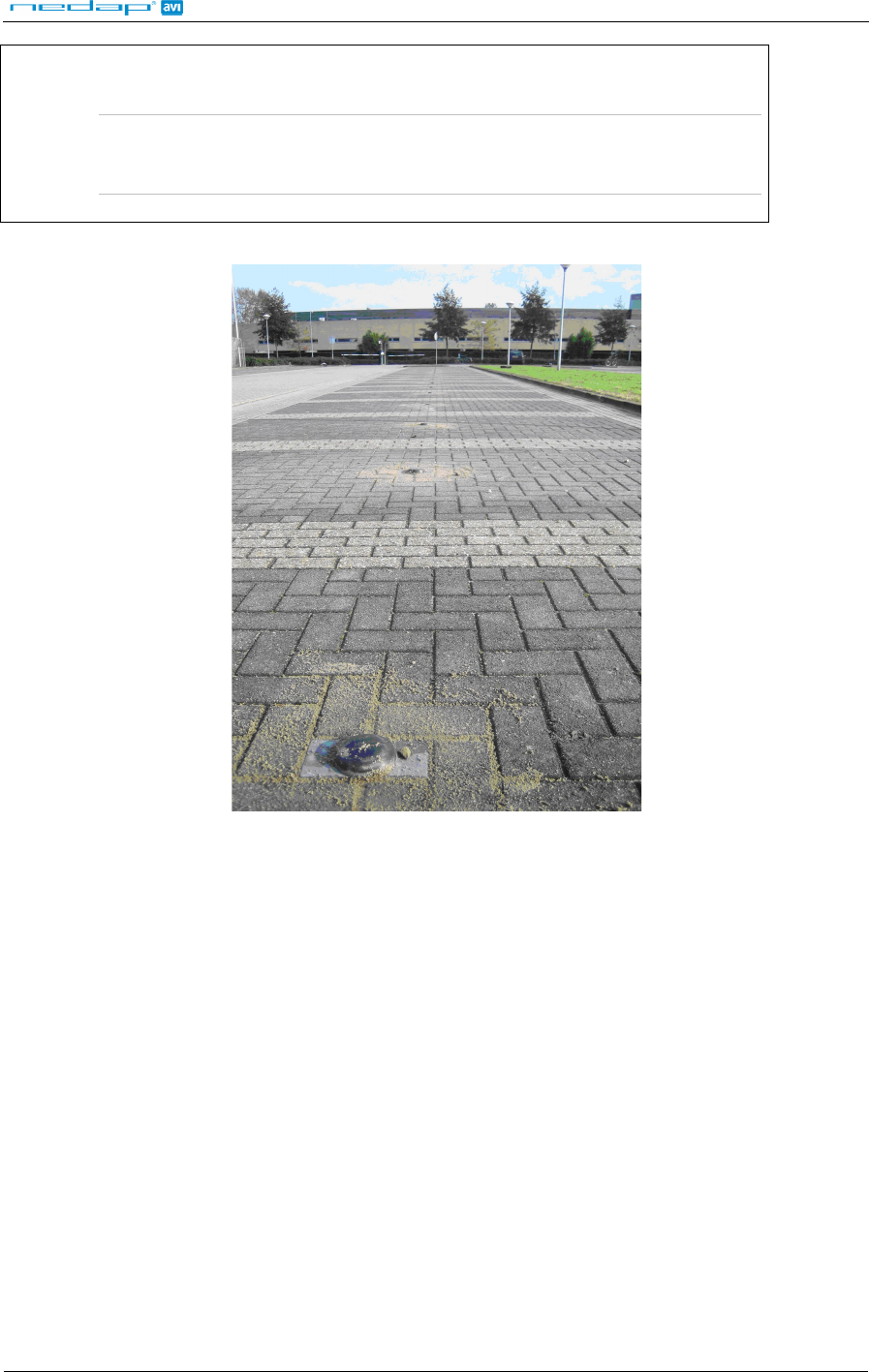

Figure 6: Finished SENSIT installation
Wireless Space Count: SENSIT
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 7 of 10
3 PROJECT SUPPORT
Based on our thorough project analysis including configuration and installation advice we can offer the
customer the best AVI solution.
3.1 SITE SURVEY & INSTALLATION ADVICE
This will consist of an engineer visiting the site to visually inspect and analyze the location. We will then
carry out calculations and provide you with detailed configuration and installation advice for the Wireless
Space Count equipment for a specific project.
3.2 ON-SITE CERTIFICATION
An engineer will visit the site to inspect the installation of the equipment on reliable and accurate
detection. Nedap engineers are not involved in installation (wiring) of any equipment. The installation
must be completed before the engineer arrives on-site. We will ensure that the operation confirms our
commissioning requirements, only on condition of prior given installation advice.
Wireless Space Count: SENSIT
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 8 of 10
4 FCC AND IC DECLARATION
4.1 Compliance statements (part15.19)
This device complies with part 15 of the FCC Rules and to RSS210 of Industry Canada.
Operating is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
4.2 Warning (part15.21)
Changes or modifications not expressly approved by party responsible for compliance could void the
user’s authority to operate the equipment.
4.3 RF Exposure (OET Bulletin 65)
To comply with FCC RF exposure requirements for mobile transmitting devices, this transmitter should
only be used or installed at locations where there is at least 20cm separation distance between the
antenna and all persons.
4.4 Information to the User (Part 15.106(b))
Note: This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequent energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does not cause harmful interference to radio or television reception, which can be determine
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate some node
- Consult the dealer or an experienced radio/TV technician for help.
Wireless Space Count: SENSIT
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 9 of 10
5 TECHNICAL SPECIFICATIONS
SENSIT (EU) 9889019
Operating frequency 868.2 MHz
CE compliant
EN 60950-1
EN50357 and EN 50364
EN 301 4889-1 V1.6.1 and EN 301 489-3
V1.4.1
EN 61000-6.1, EN 61000-6-2 and 61000-6-3
EN 55011 Class B
EN 61204-3
EN 300-220-1
ERV REC 70-03
Dimensions Ø 80 mm (3.15 inch) and 70 mm (2.8 inch)
Weight 365 g (12.87oz)
Protection IP67, completely sealed housing
Material Black Polyethylene
Operational
temperature -20°C … +85°C (-4°F … +185°F)
Storage temperature -20°C … +85°C (-4°F … +185°F)
Communication range From sensor to sensor >10m (33 feet) Dependent on the
environment
Power supply Built-in lithium battery Expected battery life 5
years
Mounting Into the floor of a parking space
Detection Magnetic
Detection height 90 cm (35.5 inch)
SENSIT (US and Canada) 9898760
Operating frequency 902-928 MHz (FHSS)
FCCID: CGDSENSDATA
IC: 1444A-SENSDATA
Dimensions Ø 80 mm (3.15 inch) and 70 mm (2.8 inch)
Weight 365 g (12.87oz)
Protection IP67, completely sealed housing
Material Black Polyethylene
Operational
temperature -20°C … +85°C (-4°F … +185°F)
Storage temperature -20°C … +85°C (-4°F … +185°F)
Communication range From sensor to sensor >10m (33 feet) Dependent on the
environment
Power supply Built-in lithium battery Expected battery life 5
years
Mounting Into the floor of a parking space
Detection Magnetic
Detection height 90 cm (35.5 inch)
Wireless Space Count: SENSIT
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 10 of 10
A PART NUMBERS
SENSIT
SENSIT (EU) part number: 9889019
SENSIT (US) part number: 9898760
