Control Unit Senzafil Copyright © NEDAP Installation Manual
Installation Manual
Senzafil Control Unit
1. Mounting Instructions
The control unit has a construction with the ability to mount on a DIN rail.
Nedap recommends to use the Nedap Light Controls
Box to build-in the control unit.
(Nedap p/n …………..)

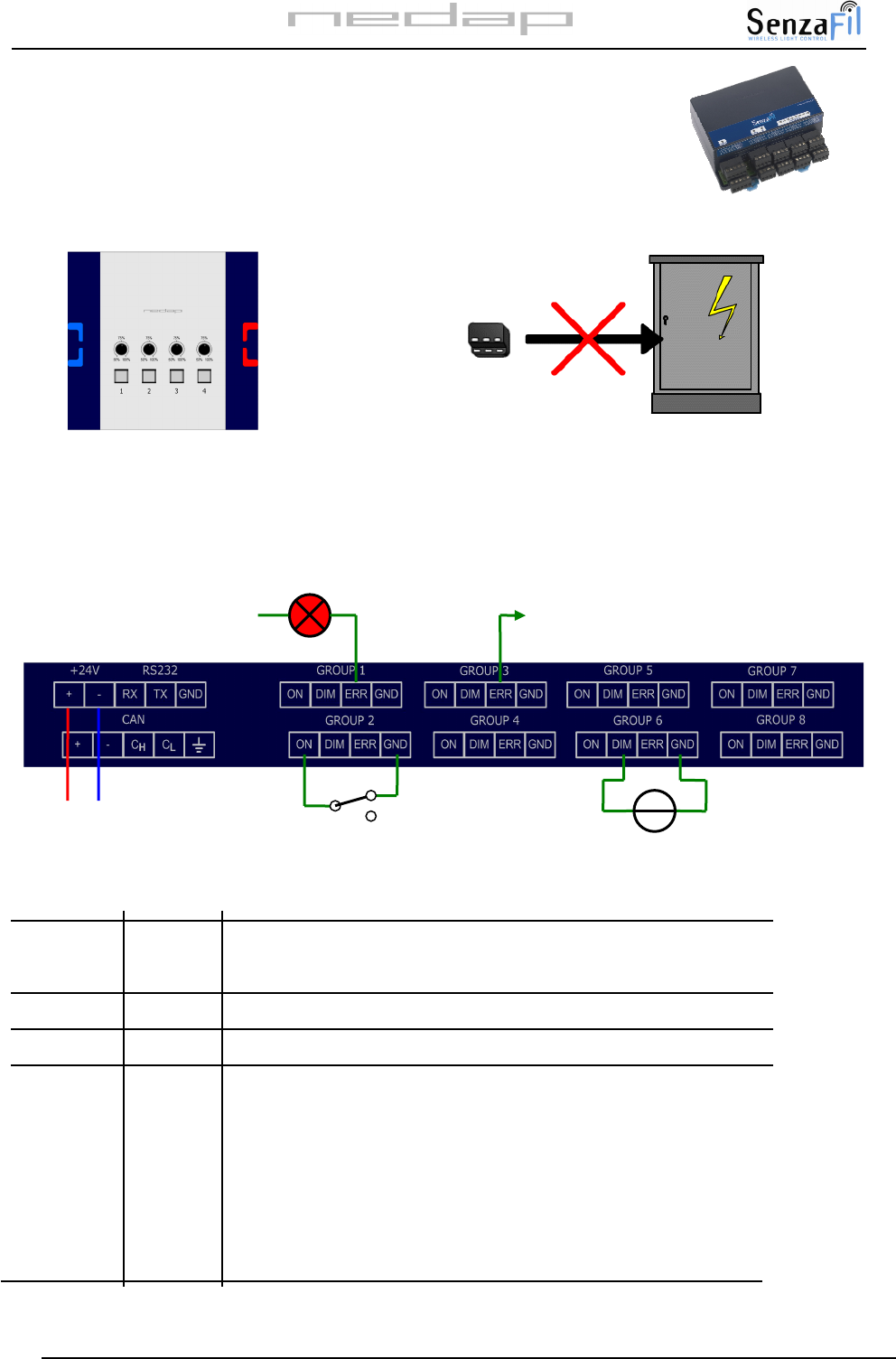

2. Connections
Details inputs and outputs
+24V* + +24Vdc / 2% power input
Input current: 0.3Adc max
- gnd
RS232 Optional
CAN Optional
Group 1..8 ON ON/OFF Input
Closed=ON Open=OFF
Levels: <3.5Vdc OFF and >4.5Vdc ON
DIM DIM Input (Source current: 1mA (for light sensors))
Via switch: Closed=50% Open=100%
Via 10kΩ potmeter: 0kΩ=50% 10kΩ=100%
Via 1-10V Light Sensor: 1V=50% 10V=100%
Via 1-10V PLC/BMS: 1V=50% 10V=100%
ERR Error Output
Contact to gnd: 30V/2A max
* NOTE: Use isolated 24Vdc limited power supply with 2.5A max current. For US/Canada use a listed class 2 power
supply. (e.g. MAIN WELL type GS15E-6P1J)
+24Vdc ON inputs
+24Vdc
Indicator
T
o e.g. PLC
O
R
Use of error contact
1-10V DIM inputs
Note: The control unit must never be
installed in a metal power cabinet. This
would im
p
ede wireless communication.
Control Unit Senzafil Copyright © NEDAP Installation Manual

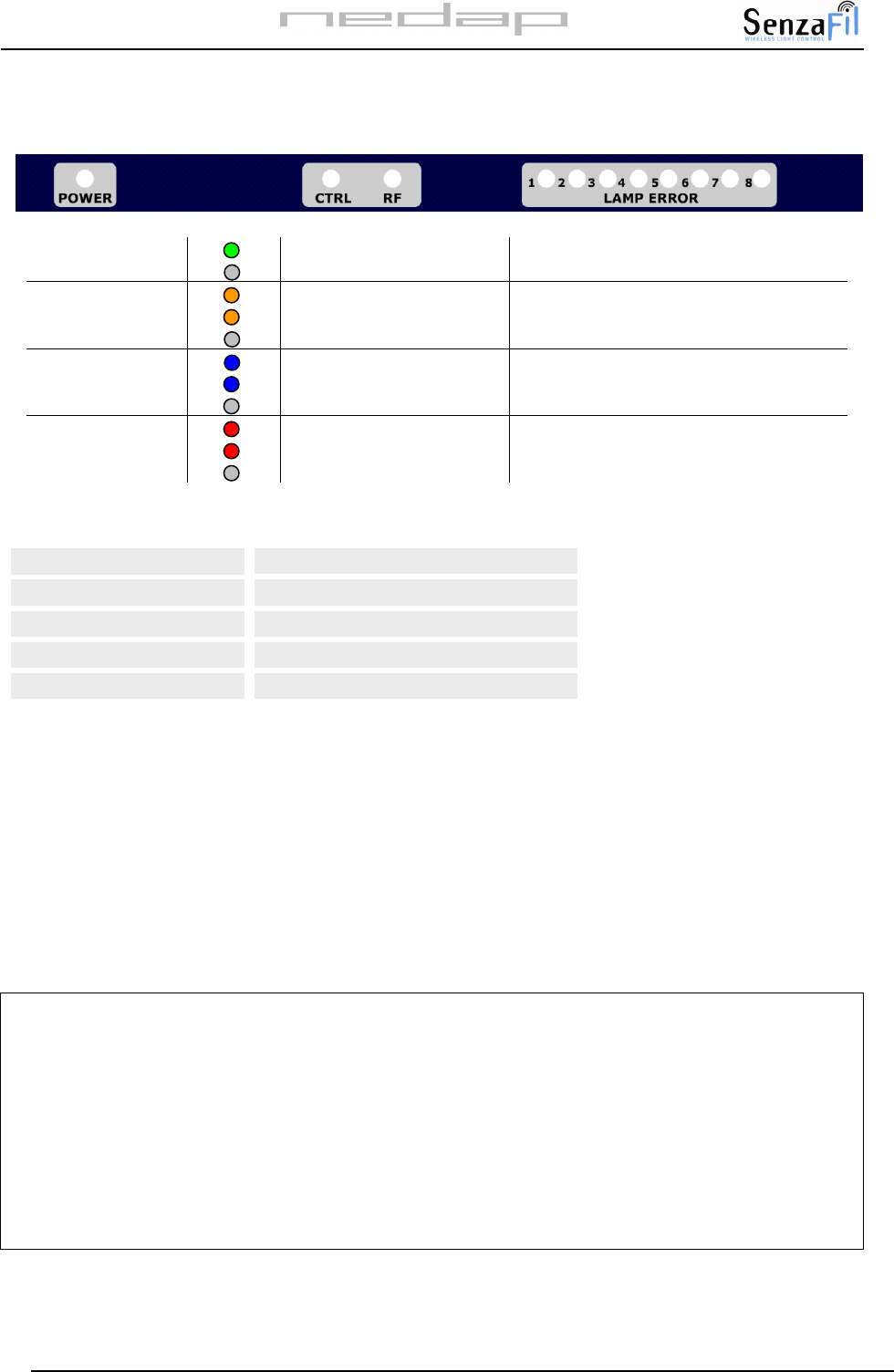

2. Led indications
POWER On Power on
Off Power off
CRTL Fast blinking Controlling lamps
Regular blinking (1s) EEPROM error (RF LED also blinking)
Off Control ready
RF Irregular blinking Receiving RF packets
Regular blinking (1s) EEPROM error (CTRL LED also blinking)
Off Receiving no RF packets
LAMP ERROR x On Lamp driver fault group x (>threshold)
Blinking Lamp fault group x
Off No errors group x
4. Specifications
FCC Declarations
Compliance statement (part 15.19)
This device complies with part 15 of the FCC Rules and to RSS210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Warning (part 15.21)
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
RF Exposure (OET Bulletin 65)
To comply with FCC RF exposure requirements for mobile transmitting devices, this transmitter should only be used
or installed at locations where there is at least 20cm separation distance between the antenna and all persons.
Version: 1.0
Nedap P/N: 8015228
Input Voltage
Operating temperature
Safety
EMC
24Vdc ±2%
0
–
60°C
EN60950 / Design to meet UL60950-1
EN301489-1 / FCC47 part 15 and 18
Dimensions (l x b x h) 145 x 120 x 65 mm
