Nedap N V TRANSE 2.4 GHz Microwave ID System User Manual Revised
N. V. Nederlandsche Apparatenfabriek NEDAP 2.4 GHz Microwave ID System Users Manual Revised
Users Manual Revised
2008-12-02 Part # : 5268672
This information is furnished for guidance, and with no guarantee as to its accuracy or completeness;
its publication conveys no license under any patent or other right, nor does the publisher assume
liability for any consequence of its use; specifications and availability of goods mentioned in it are
subject to change without notice; it is not to be reproduced in any way, in whole or in part, without the
written consent of the publisher.
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 1 of 8

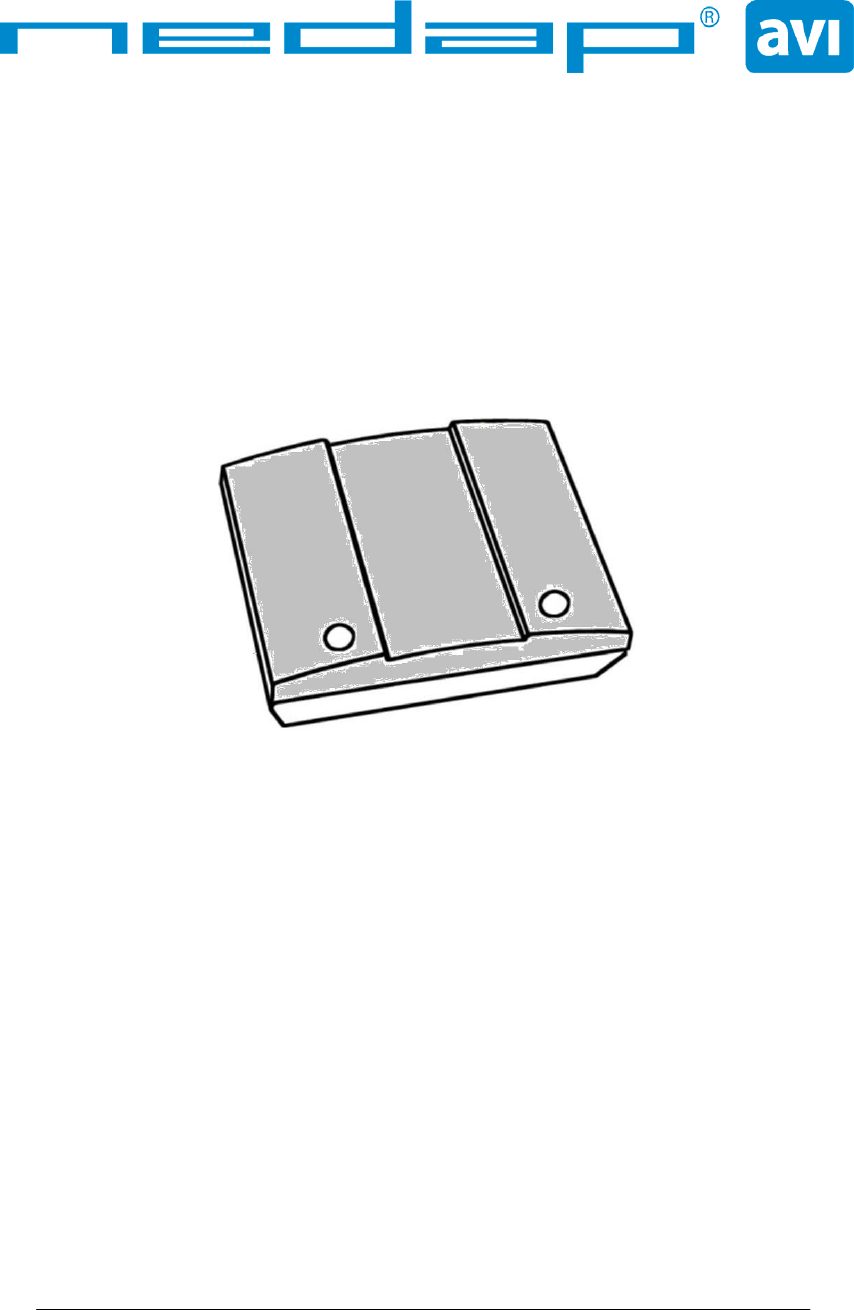

TRANSIT EDGE
TRANSIT EDGE WIRELESS
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 2 of 8
CONTENTS
1 Introduction .............................................................................................. 3
2 System diagram....................................................................................... 4
3 Wiring diagram......................................................................................... 5
4 Contact Information ................................................................................. 6
5 FCC Declarations..................................................................................... 7
Appendix ........................................................................................................ 8
A.1 Specification TRANSIT.................................................................... 8
A.2 Specification EDGEPLUS SOLO ES400......................................... 8
TRANSIT EDGE WIRELESS
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 3 of 8
1 Introduction
Thank you for your purchase of the NEDAP TRANSIT EDGE system. Nedap
AVI manufactures some of the most reliable long range RFID readers on the
market today. Specializing in long range automatic vehicle identification,
Nedap’s readers are able to identify both the vehicle and driver up to 33’ and
at speeds up to 125 mph!
The TRANSIT EDGE , a long range reader, showcases specially developed
technology from both HID and to provide a powerful
web accessible reader at your perimeter.
The NEDAP TRANSIT EDGE part no (9876510) exists of the following main
components.
• TRANSIT NEDAP USA
EDGEPLUS SOLO ES400
TRANSIT EDGE WIRELESS
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 4 of 8

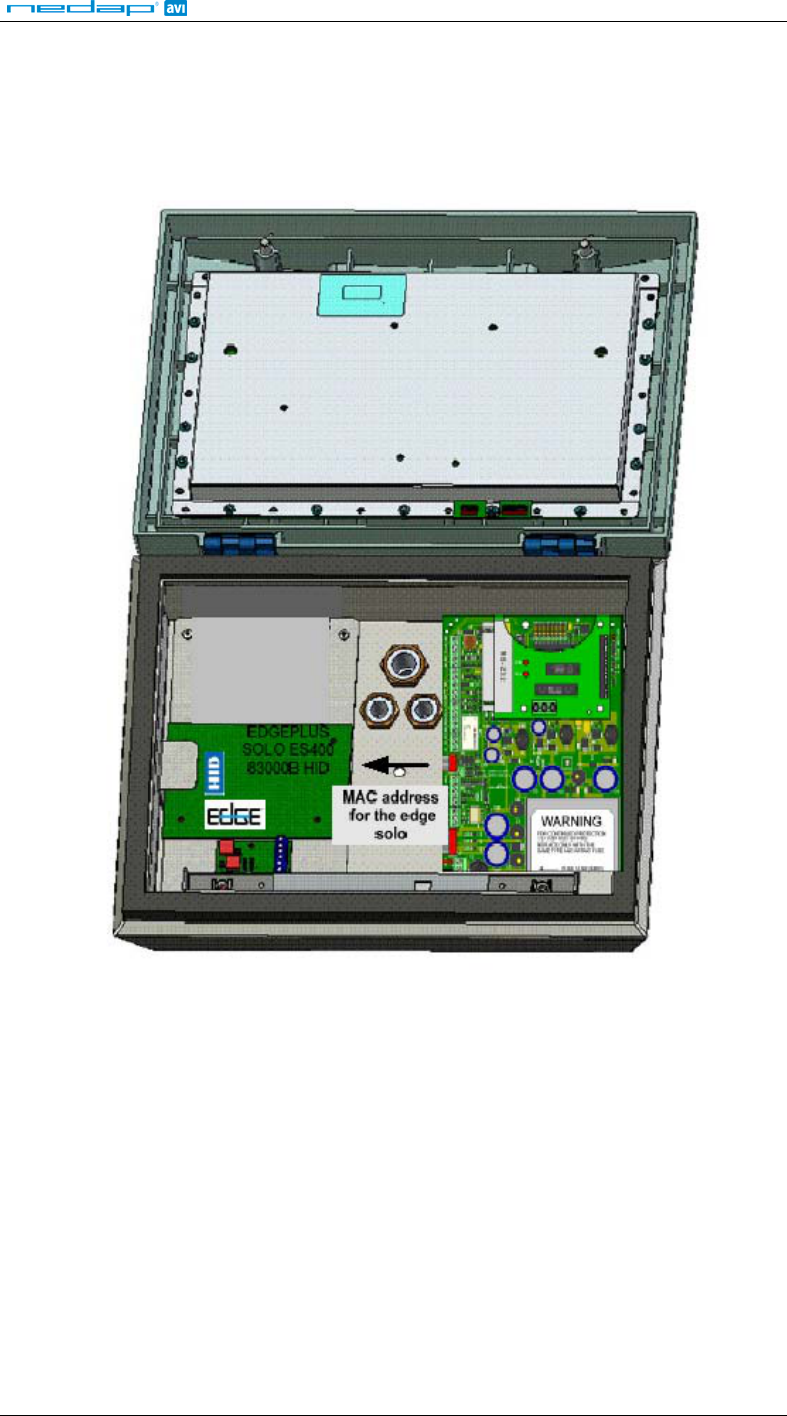

2 System diagram
The TRANSIT EDGE is complete wired up and ready for use.
You have only to follow the next steps.
Install the TRANSIT EDGE according the TRANSIT manual and
the quick reference.
Power up the TRANSIT EDGE with a 24 VDC 2A
power supply.
Connect the Edge Plus wiring according to the Installation Guide
P/N 82000-902-ENEN.
To configure and communicate with the Edge Plus use the Quick
Installation Guide. (Document number 82000-901A.20).
TRANSIT EDGE WIRELESS
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 5 of 8

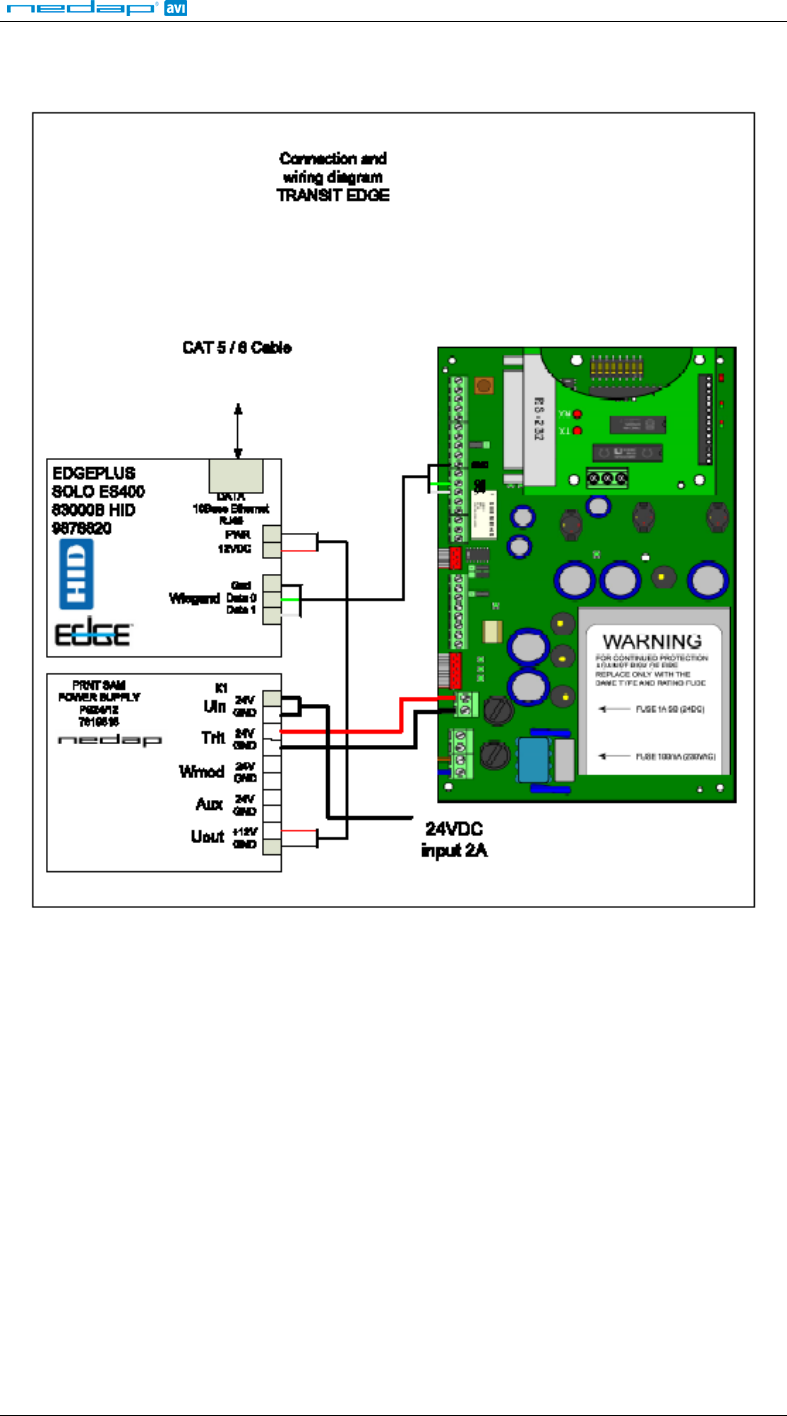

3 Wiring diagram
The diagram above shows schematically the internal connection between the
used modules.
The Main connections are:
• TRANSIT
o TRANSIT Wiegand output to the EdgePlus Module.
o 24VDC Power connection to the PS24/12 Power Supply
• Edge Plus module
o Power connection to PS24/12 Power Supply
o Wiegand Input from TRANSIT
o Ethernet Cable
TRANSIT EDGE WIRELESS
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 6 of 8
4 Contact Information
If you have any questions when configuring your TRANSIT EDGE
Please contact:
Curtis Dennis
NEDAP AVI
Tuxen &Associates. Inc.
Exclusive Agent – The Americas
Phone: 417-339-4730 ext. 101
e-mail: cdennis@tuxen.us
web: www.nedapavi.com
If you have any questions when configuring your HID edge system.
Please contact:
HID Global (California, USA)
Support: support_na@hidvertx.com
Sales: sales@hidvertx.com
Main: (949) 598-1600
Sales: (800) 210-4744
Telephone 1-800-237-7769
Fax number: (949) 598-1690
TRANSIT EDGE WIRELESS
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 7 of 8
5 FCC Declarations
Compliance statement (part 15.19)
This device complies with part 15 of the FCC Rules and to RSS210 of
Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Warning (part 15.21)
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This in particular is applicable for the antenna which has been delivered
with the TRANSIT EDGE.
RF Exposure ( OET Bulletin 65 )
To comply with FCC RF exposure requirements for mobile transmitting
devices, this transmitter should only be used or installed at locations where
there is at least 20cm separation distance between the antenna and all
persons.
Information to the User (Part 15.105 (b))
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver.
--Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
TRANSIT EDGE WIRELESS
© Nedap IDEAS, P.O. Box 103, NL-7140 AC GROENLO Page 8 of 8
Appendix
A.1 Specification TRANSIT
ITEM SPECIFICATION
Protection class IP65
Operational temperature -30°C … +50°C (-22°F … +122°F)
Storage temperature -40°C … +85°C (-40°F … +185°F)
Relative humidity 10 … 93% non-condensing
Identification range Typical 10 meters (33 ft)
Power supply 24VDC +/- 10%, 500mA
Frequency range 2438.4MHz … 2457.0MHz
Safety EN 60950
Complies to the following
regulations FCC Part 15.245
A.2 Specification EDGEPLUS SOLO ES400
