Service manual
For installation, operation and service

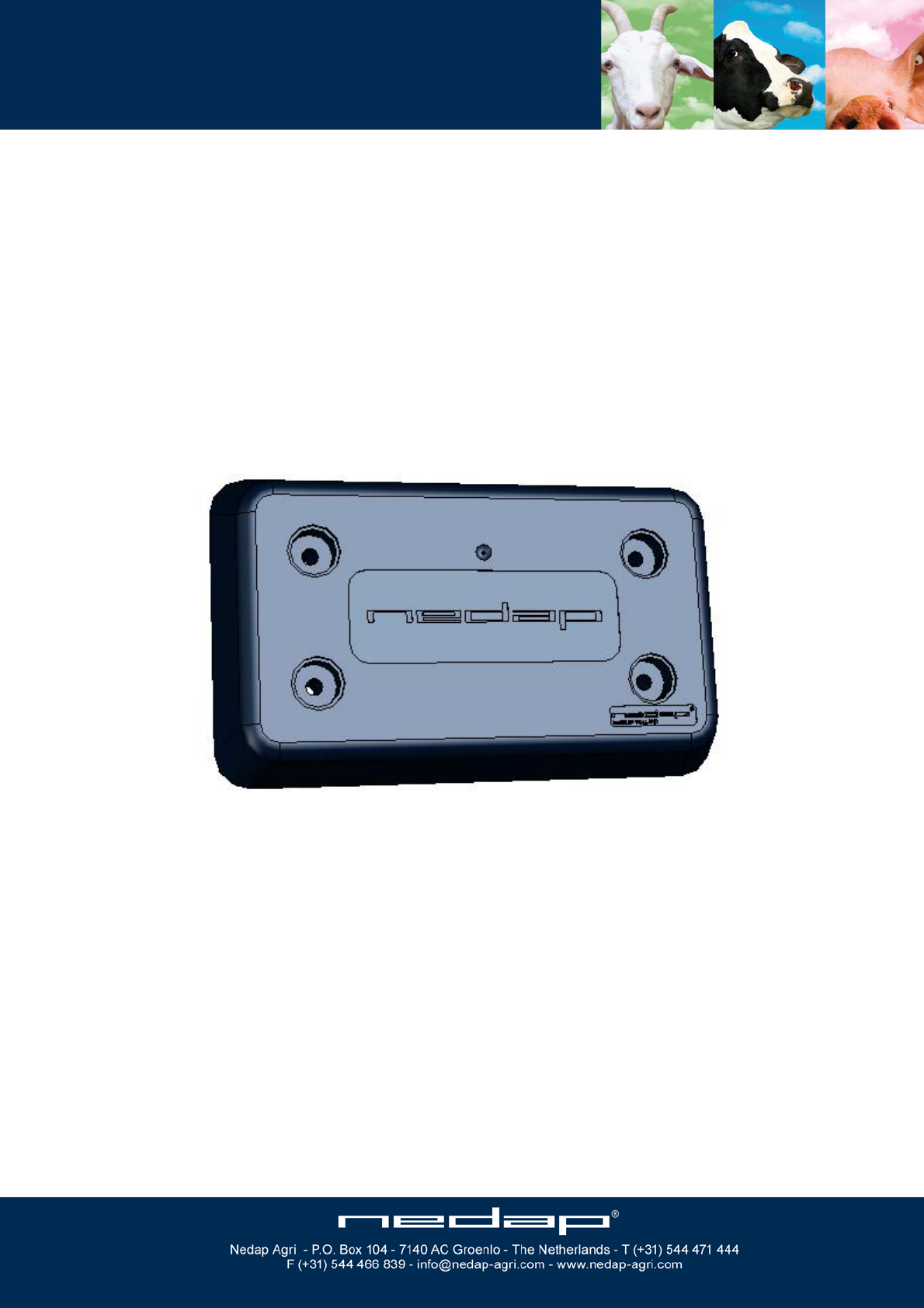

ISO Reader Solid (CAN)
VP1101
March 2009 / Manual version 1.0
VP1101-200PM-00 ISO Reader Solid (CAN) Manual version 1.0
Version overview
Manual version 1.0 / 3-2009
First release
This information is furnished for guidance, and with no guarantee as to its accuracy or completeness; its publication conveys no
license under any patent or other right, nor does the publisher assume liability for any consequence of its use; specifications and
availability of goods mentioned in it are subject to change without notice; it is not to be reproduced in any way, in whole or in
part, without the written consent of the publisher.
© Nedap N.V., AGRI P.O. Box 104 NL-7140 AC GROENLO The Netherlands
VP1101-200PM-00 ISO Reader Solid (CAN) Manual version 1.0
VP1101 ISO Reader Solid CAN
Contents
1 Introduction 1
2 Description and functioning 1
3 Safety 1
4 Installation 2
4.1 Mounting 2
4.2 Connections 2
5 Adjustments 2
6 Trouble shooting 2
7 Maintenance, cleaning and disposal 2
Appendix A: Specifications 3
VP1101-200PM-00 ISO Reader Solid (CAN) Manual version 1.0
VP1101-200PM-00 ISO Reader Solid (CAN) Manual version 1.0 / Page 1
Preface
This manual is part of the service documentation for Nedap Velos. Reference is also made to other
manuals that are part of the Nedap Velos documentation. For an overview of available Nedap Velos
manuals see the manual “Nedap Velos General Description”, or visit the Nedap Agri website
www.nedap-agri.com.
1 Introduction

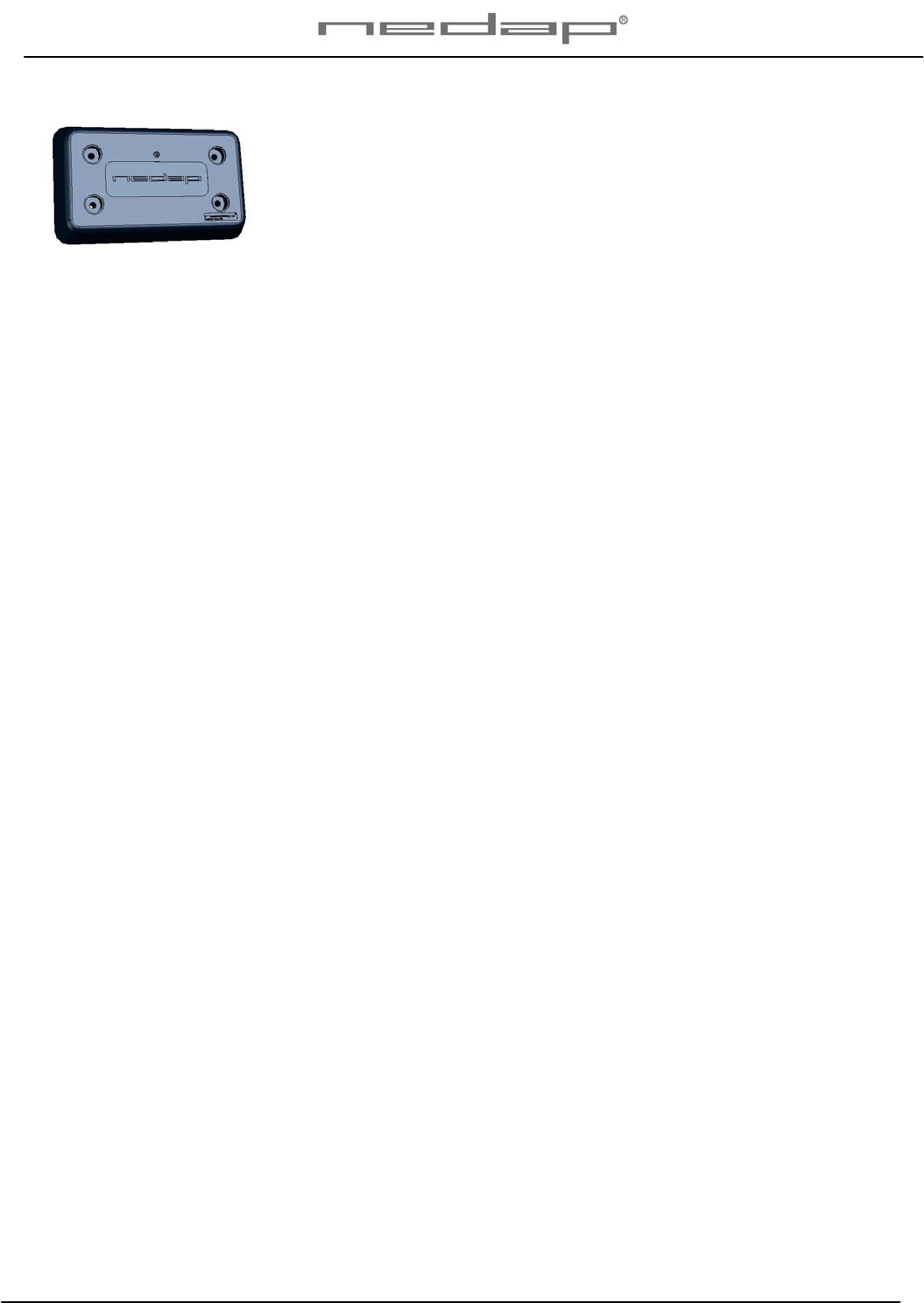

The Velos VP1001 is a Velos component that is used to identify RFID tags on animals. The VP1101 is
installed close to the spot where identification is required, for example on the animal feeder.
2 Description and functioning
A VP1101 is connected to the CAN-bus and can identify tags on ISO frequency 134.2 kHz.
There are two types, FDX/HDX or FDX only.
3 Safety
Installation and service only by trained personnel.
Always turn off the main power when working on the electrical installation.
Compliance statement (part 15.19)
This device complies with part 15 of the FCC Rules and to RSS210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Warning (part 15.21)
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
VP1101-200PM-00 ISO Reader Solid (CAN) Manual version 1.0 / Page 2
4 Installation
4.1 Mounting
See the relevant equipment manual relating to where the VP1101 is to be installed. (e.g. feeder).
4.2 Connections
Details VP1101 wiring
Brown +
Input voltage 25 VDC, +20% -20%
White -
Minus
Green CH CAN high
Yellow CL CAN low
Shield Shielding of CAN-bus cable
Grey ~
Synchronization (antenna)
Pink ~
Synchronization (antenna)
5 Adjustments
A VP1101 is pre-tuned and ready for use. No antenna adjustments required because of automatic fine
tuning.
6 Trouble shooting
Errors / malfunctioning are indicated at the controlling computer.
7 Maintenance, cleaning and disposal
Maintenance
No regular maintenance required.
Software update
By the CAN bus there is a possibility to update the software.
Cleaning
A VP1101 can be cleaned with water and sponge. Avoid (aggressive) cleaning liquids.
Disposal
Discard according to the regulations prevailing at the time of disposal
VP1101-200PM-00 ISO Reader Solid (CAN) Manual version 1.0 / Page 3
Appendix A: Specifications
Specifications VP 1101
Dimensions 2850 x 1700 x 45 mm LxWxH
CAN CAN-bus communication 125 kBit
Power Input voltage 25 VDC, +20% -20%
Power consumption 200 mA with antenna switched on
Protected against reverse connection power supply
Software Downloadable by the CAN network
Antennas Internal fixed antenna
Detection distance Depending on used tags
Synchronization Synchronization according to ISO 11785, ISO 24631-7
Environment Temperature: Operating: -10 – 50 °C, Storage: -25 – 70 °C
Relative humidity: 10 – 93% non condensing
IP class IP 65.
Always use a NEDAP power supply.
The Nedap guarantee-regulations are only valid when is installed as indicated in this manual.
Install data cables at a safe distance from (high) powered cables
More information
For more detailed information contact your local Nedap supplier or check the internet site.
