VP1104-FDX Reader Solid LELY - Quick start NEDAP 1-2012 Doc.part.no. 5279747 1/ 1
Quick start
VP1104 LELY

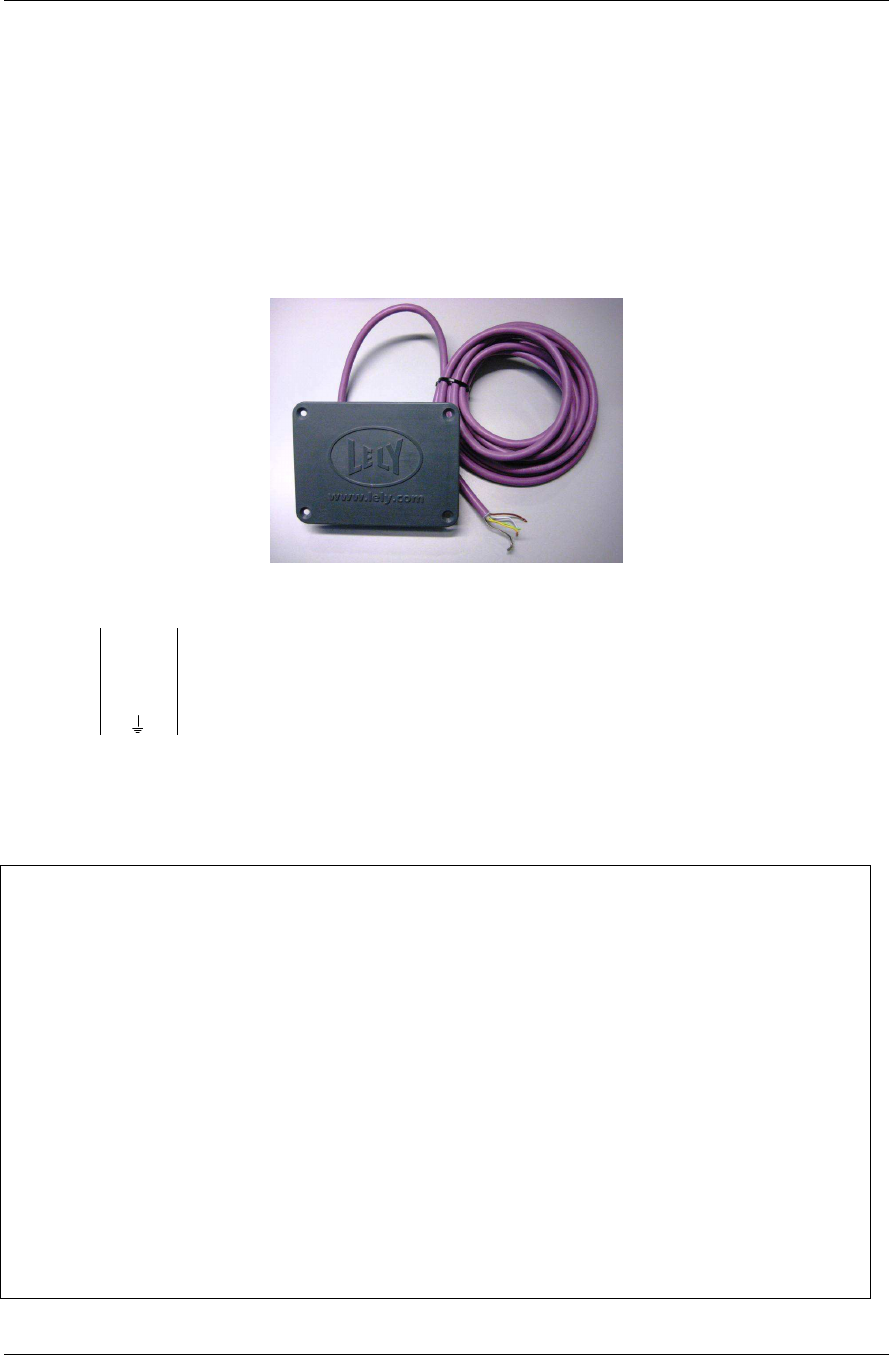

The VP1104 ID Module FDX-ISO LELY CAN is an RFID (=Radio Frequency Identification) reader for
detection of animals carrying RF transponders
This Model: VP1104 LELY is a FDX (=Full Dupex) reader developped according to the ISO 11785
standard and therefor has the possibility to read tags designed for FDX mode.
It consists of a long wave 134.2 kHz transmitter and a FDX receiver. The information is transported over
CAN bus to the host computer process controller and is eg. used for automatic cattle feeding, separation
of animals, milk registration etc.
Details VP1
1
04
wiring
Brown
+
Input voltage
12
-
48 Vdc
White
-
Minus
Yellow
C
H
CAN high
Green
C
L
CAN low
Shield
Shielding of CAN-bus cable
Cable: extension not allowed, shortening allowed.
Antenna adjustment
No antenna adjustments required because of automatic fine tuning.
