Product Manual (NE-1202)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications not expressly approved by the manufacturer
responsible for compliance could void the user's authority to operate the
equipment
FCC Information
NeonHome-LAN’s subscriber device, NE-1202, is NeonHome-LAN
Ethernet exchange device that is to be connected with PC
through Ethernet (RJ-45) to provide internet access at 1.2Mbps.
It can be used for lap tops to which PC internal type card (NI-
1201) cannot be installed or in the case when multiple number
of PC are connected through the hub.
[How to install NE-1202]

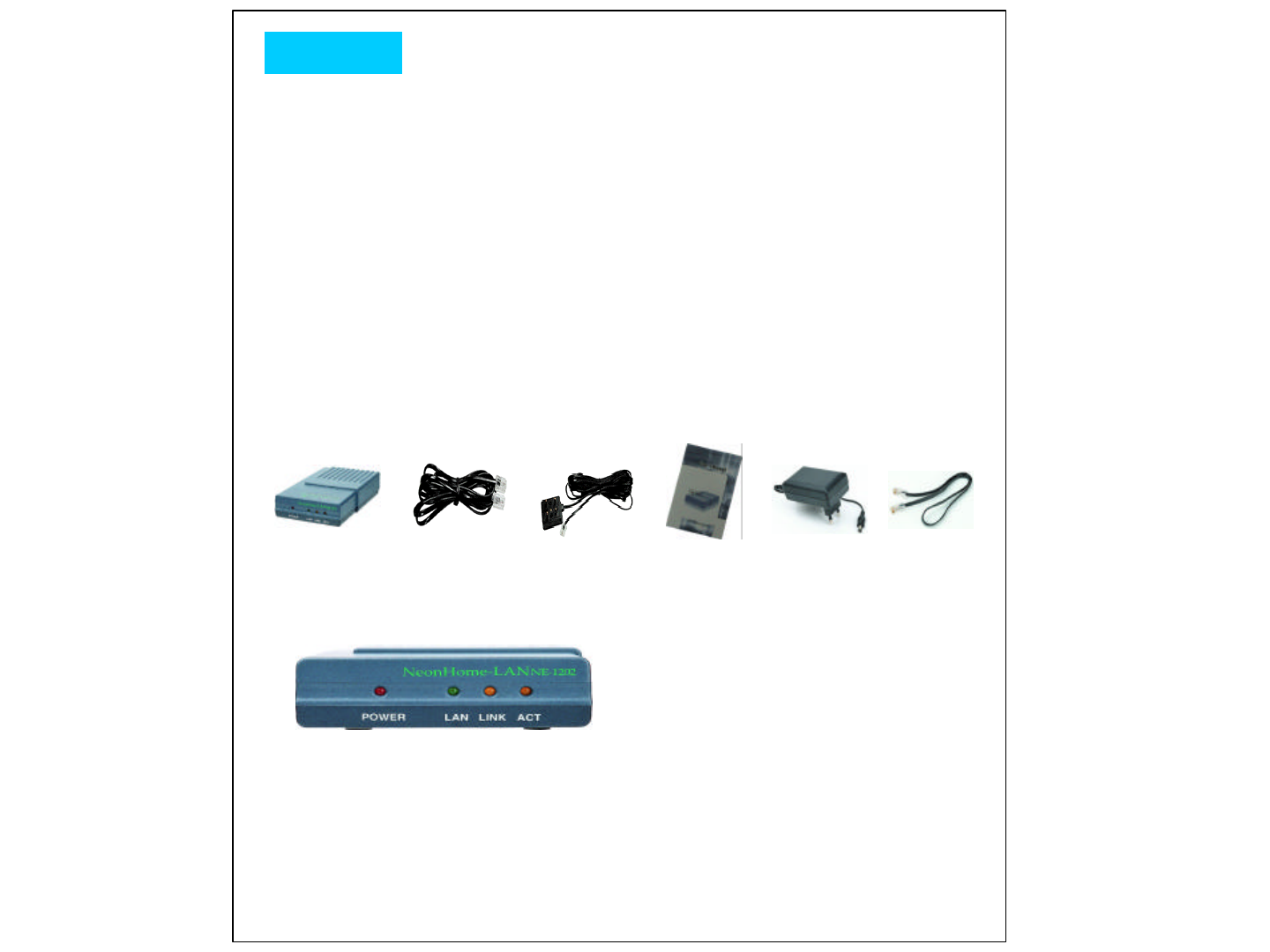

1. Please check your package to make sure that it
includes the following items.
a. NE-1202 b. Telephone connection cord (RJ-11 to RJ-11)
c. 4-Pin connection cord d. User.s manual
e. Power adapter f. Ethernet cable
NE1202
2. Product Specification
1) Front View
Power : Display Power on/off
LAN : Light when it is connected with PC Ethernet
LINK : Light when it is connected with central unit
(NH-1216 or NH-12104)
ACT : Light when data are exchanged with central unit
(This sign blinks twice a second even while the data are not
exchanged. And the light is on while the data are exchanged.)
(a) (e)(d)(c)(b) (f)
PHONE : Connect with the telephone connection cord(RJ-11to RJ-11)
LINE : Connect with the 4-pin connection cord(RJ-11)
10BASE-T: Ethernet port to connect with PC with the Ethernet cable(RJ-45)
POWER : Connect with Power adapter

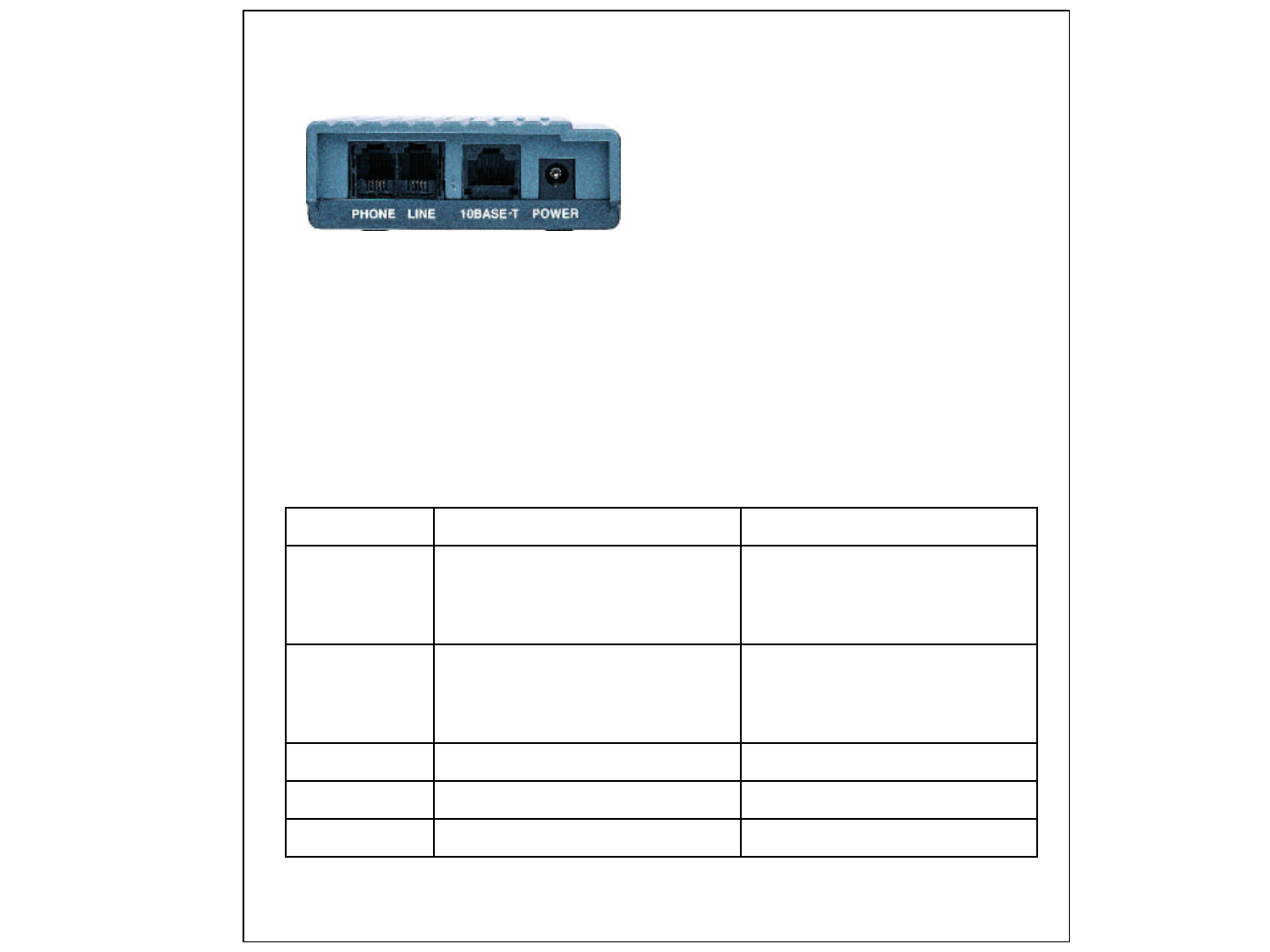

2) Rear View
3) NE-1202 Specification
133gWeight
Windows 95,98,2000,NT OS
width*length*height80*132*25(mm)Dimensions
Rated output voltage
Rated voltage
Rated input capacity
DC 5V 800mA
AC 110/220V 60Hz
7VA Input
Voltage of
the
adapter
For PC connection
For telephone line
or telephone connection
RJ-45*1
RJ-11*2 Interface
Remark
Specifications
Item
3. How to install the system
¨ç Connect the power adapter provided along with NE-1202 to the wall outlet
and power connection part of the NE-1202.
¨è When the local line is used, insert the 4-Pin connection cord into
the 4-hole wall outlet in the room in which the PC will be installed
and then connect RJ-11 connector to the LINE port which is back
of the NE-1202.
¨é Connect the Ethernet cable of which both ends are RJ-45 with the 10Base-T
part of the NE-1202 and LAN card of the PC
¨ê To use telephone, telephone connection cord insert phone jack which is back
of NE-1202.
¨ë When NE-1202 is connected with central unit (NH-1216, NH-12104) installed
at MDF, LINK LED on the front panel will light..
¨ì LAN LED will light when the Ethernet cable of NE-1202 is connected with LAN
card of PC.
¨íACT LED on the front panel will blink when the data are normally
communicated after the NE-1202 is connected to both central unit(NH-
1216 or NH-12104) and PC.
Quality Warrant
Name
Customer Address
Name
Seller Address
1 yearWarrant period
(date)Manufactured on
Neon Home-LAN(NE-1202)Model Name
Warranty Period
1. The product is warranted for one year from the date when the equipment is
purchased.
2. Free-charging repair service will be provided within the period of warranty when the
product is out of order in normal operation and use.
3. In the following cases, the customer will be charged when receiving repair services
based on the ‘Regulations for the Warrant’.
A. Malfunction caused not by product itself but other external reasons.
B. Malfunction caused by disassembly conducted by the customer on its
own decision
C. Malfunction caused by natural disaster (fire, flood, lighting, etc)
D. Malfunction or damage caused by failure of customer during
transportation
4. For the case above No.3 actual cost shall be charged for repair services.
¡ØFree repair service will be provided by regulations for the warrant only when the
product is out of order in normal operation and use.
Repair Application
Form
(In detail)
Configuration
Address :Address :
Contact :
Person in charge :
Purchased at :
Details of defect
Symptom
Contact :
Model Name
Manufacturing number
Person in charge :
Sales shop :
Date :
(Remark)
¡ØFill out and submit this form when the malfunction is found during the period of product
warranty.
NEON GATE INC.
Address : Yu-il B/D 4F, #411-14 Dogok-dong, Gangnam-gu,
Seoul, Korea (zip : 135-270)
Homepage : http://www.neongate.com
Customer conseling / Product sales
Tel : 82-2-576-9730 (Ext. 230,241,243)
Fax : 82-2-576-6418,9
e-mail : sales@neongate.com
Technical Support
Tel : 82-2-576-9730 (Ext. 221,204)
Fax : 82-2-576-6418,9
e-mail : network@neongate.com
