Neoway Technology 112X GPRS Module User Manual

Neo_M660

User Manual

Version V1.0

Shenzhen Neoway Technology Co.,Ltd

Neo_M660 User Manual V1.0

Copyright Statement

The trademark belongs to Shenzhen Neoway Technology Co.,Ltd. Other

trademarks in this manual belongs to their owners.

Clarification

This specification is for system engineer, research engineer and test engineer.

As the upgrading of the product version or some other reasons, we’ll do some necessity

updating to the content of this specification without advance notice.

Unless we have other additional assumpsit, all statements, information and suggestions in

this manual do not constitute any express or implied guarantees.

Shenzhen Neoway Technology Co.,Ltd can supply all the technological support. If you have

any problem, please feel free to contact to the sales representative or send E-mail to these

two mailboxes:

Sales@neoway.com.cn

Support@neoway.com.cn

Website: www.neoway.com.cn

Neo_M660 User Manual V1.0

Contents

1 Overview ............................................. 5

2 Figuration ............................................ 5

3 Block Diagram ........................................ 5

4 Character............................................. 6

5 Pin Definition & Encapsulation ......................... 8

5.1 Pin Definition ...........................................................................8

5.2 PCB Packaging .......................................................................9

6 General AT Commends ............................... 10

7 Call Control Commends .............................. 11

8 TCP/UDP AT Commends.............................. 11

9 Assembling.......................................... 11

Neo_M660 User Manual V1.0

Revision Record

Version Content Revised Effective date

V1.0 Initial

version 2012-06

Neo_M660 User Manual V1.0

1 Overview

M660 is an open platform that supports GSM/GPRS wireless industry module, reserved

CPU resources and a wealth of hardware interface which is widely used in various

industrial and commercial fields to provide high quality voice, message, data business and

other functions.

2 Figuration

Table 2-1 M660 Figuration Specification

Specifications Description

Dimensions 23.6mm*23.6mm*2.6mm (length*width*height)

Weight 2.8g

Overview

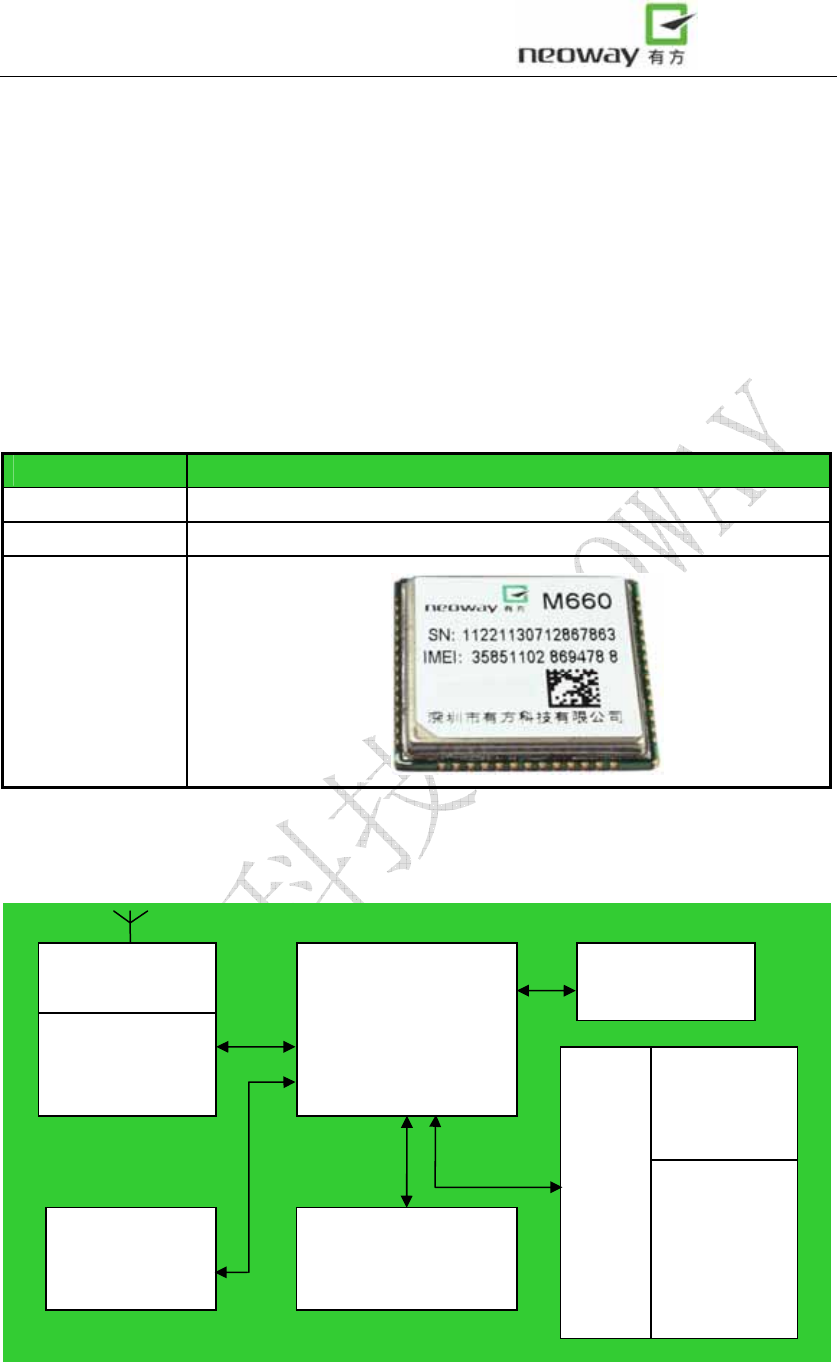

3 Block

Diagram

Baseband

Controller

PA

Power

Manager

Application Interface

RF

Section

FLASH

Audio

Section

SIM

UART

Neo_M660 User Manual V1.0

4 Character

Table 4-1

General parameters Description

Operating temperature -30℃～+70℃

Operating voltage 3.5V～4.3V（recommendation 3.9V ）

Operating Current See table 4-2 and 4-3

Storage temperature -40℃～+80℃

Humidity range 0%～95%

Table 4-2

GSM Specifications Description

Frequency 900/1800/850/1900

Sensitivity ＜ -106dBm

850/900 Class4(2W)

The Maximum transmission

Power 1800/1900 Class1(1W)

Protocol Compatible with GSM/GPRS Phase2/2+

GSM07.07 AT

Extended command sets

Audio FR、EFR、HR、AMR voice coding

TEXT/PDU SMS

Point to point/cell broadcast

Grouped Data GPRS CLASS 12

Coding scheme CS1~CS4

Mobile Station type Class B

Support CSD data service

Circuit Switched Data

Support USSD

Call forward（CFB,CFNA,CFU）

Call waiting

Supplement Service

Threeway calling

Main Processor ARM7-EJ@104MHz, 32Mbits SRAM,32~64Mbits Nor

Flash

Reserved software 16Mbits RAM，16~32Mbits Flash

Neo_M660 User Manual V1.0

resource

Reserved software

resource

UART x 2，I2C，LCD（SPI），MMC，USB，ADC，PWM，

GPIO x 20，Keypad

Instantaneous Current Max 1.8A

Average working Current ＜ 300mA

Standby Current 2.5mA typ.

Neo_M660 User Manual V1.0

5 Pin Definition & Encapsulation

5.1 Pin Definition

The signal connection uses 28pin SMD pad of stamp hole(half hole).

Note: M660 module IO interface level is 2.8V.

Because the module IO uses 2.8V power supply system, the maximum input voltage of all

the IO interface can not exceed the maximum 3.3V, otherwise it may damage the module

IO. Considering the signal integrality designing reasons,while the external circuit use 3.3V

power system the IO interface output voltage will exceed 3.3V because of overshoot

phenomenon, sometimes can even reach 3.5V.Therefore,the IO pin of the module will be

damaged if 3.3V IO signal is connected to 2.8V IO of the module directly.

Table 5-1 M660 Pin Definition

Pin Signal Name I/O Function Description Remark

1 VSIM PWR Main Power Compatible to 1.8/3.0V SIM card

2 SIM_CLK DO Clock of SIM card

3 SIM_DATA DIO Data input & output of

SIM card

Built-in 5K pull-up resistor

4 GND PWR GRAND

5 SIM_RST

DO SIM card reset

6 MICP AI Positive electrode of

MIC audio input

Alternating peak voltage≤200mV

7 MICN AI Negative electrode of

MIC audio input

Alternating peak voltage≤200mV

8 EARP AO Positive electrode of 32Ω earphone driving output

Neo_M660 User Manual V1.0

earphone audio output

9 EARN AO Negative electrode of

earphone audio output

32Ω earphone driving output

10 DTR DO Low power consumption

set

11 GND PWR Grand

12 RING DI Ring output

13 VCCIO PWR 2.8V output Can be supplied to IO level shift

circuit, loading capacity < 50mA

14 Reserved

Reserved

15 Reserved

Reserved

16 URXD DI UART data receiving

17 UTXD DO UART data transmitting

Used to GPRS communications

and AT commands

18 GND PWR Grand

19 Reset DI Reset Soft reset input, low level reset

20 BACK_LIG

HT

DO Working station

indicator, output square

signal of 0.5s high level,

1.5s low level

High level light LED，need to

parallel connect a capacitor of

0.1uF

21 ON/OFF DI ON/OFF input low level pulse can change

ON/OFF state, need to keep high

level，Refer to chapter 6.1.3

22 ANT I/O GPS antenna RF

interface

23 GND PWR Grand

24 GND PWR Grand

25 GND PWR Grand

26 VBAT PWR Main Power 3.5V~4.3V，recommend 3.9V

27 VBAT PWR Main Power 3.5V~4.3V，recommend 3.9V

28 GND PWR Grand

5.2 PCB Packaging

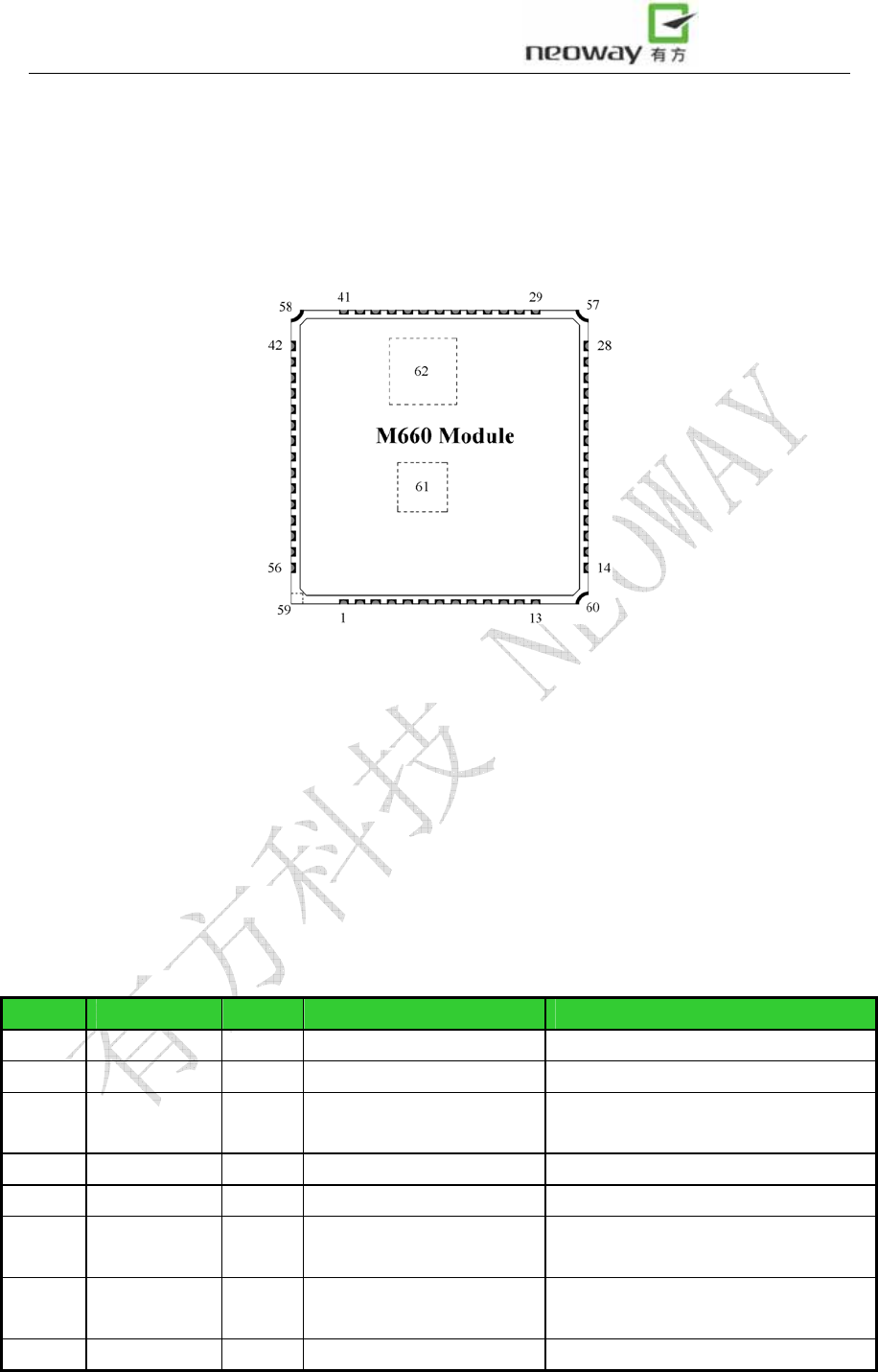

The signal connection use 74pin SMD pad.The pin is stamp hole(half hole).The pitch is

1.27mm.The PCB encapsulation we recommend is as chart 5-1.Unit:mm

Neo_M660 User Manual V1.0

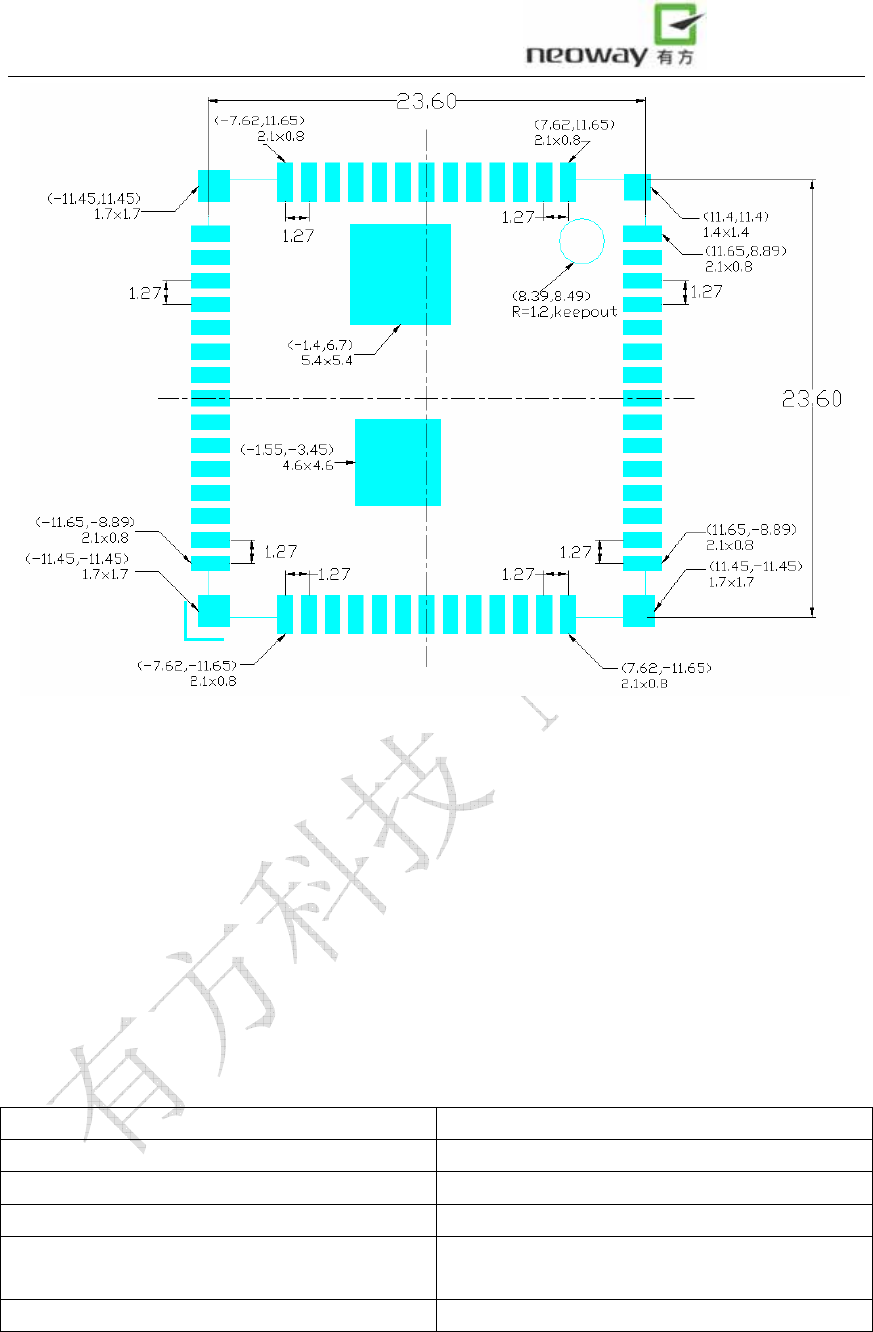

Chart 5-1 Recommend PCB packaging（topview）

Note：The number in the brackets stand for coordinate figure of the pad.The original point is

the center of the mudule.

The number below the coordinate figure stand for shape size of the pad’s LxW.

The top right corner and the bottom right corner is two circle regions(R=1.3).The circle

regions are route keep out regions.The requirements of the wiring refer to chapter 6.6.

Reliability and Testing standards

6 General

AT Commends

CHECK THE MANUFACTURE AT+CGMI

QUERY MODULE MODEL AT+CGMM

QUERY VERSION AT+GETVERS

GET SEQUENCE NUMBER AT+CGSN

GET INTERNATIONAL MOBILE

SUBSCRIBER IDENTIFICATION

AT+CIMI

GET SIM CARD IDENTIFICATION AT+CCID

Neo_M660 User Manual V1.0

7 Call

Control Commends

CALL ANSWERING ATA

DIALING COMMENDS ATD

HAND UP CALLS ATH

8 TCP/UDP AT Commends

ESTABLISH PPP LINK AT+XIIC

ESTABLISH TCP LINK AT+TCPSETUP

SEND TCP DATA AT+TCPSEND

CLOSE TCP LINK AT+TCPCLOSE

ESTABLISH UDP LINK AT+UDPSETUP

SEND UDP DATA AT+UDPSEND

CLOSE UDP LINK AT+UDPCLOSE

9 Assembling

In order to prevent the product of M660 from being affected with damp, caused by using

the SMT way to perform the furnace welding, in the process of production and use of the

costumer, we employ the way of damp-proof packing, such as Aluminum Foil Bag,

desiccating agent, Humidity Indicator Cards, Suck plastic trays, and vacuolization. As a

result the product is kept dry and its life span will be long.

In order to make the SMT way easy, we use the tray to load the product. The user only

needs to install it in the chip machine according to the fixed direction.

M660 storage and SMT notes, please refer to <Neoway module SMT reflow production

recommendation_V1.0>.

FCC Caution

Any Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment .This equipment should be installed and operated with

minimum distance 20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other antenna

or transmitter.
