Neoway Technology 1500 WCDMA Module User Manual

WM620 Hardware User Guide V1.1

Neo_WM620

User Manual

Version V1.0

Let's enjoy the wireless life

WM620 Hardware User Guide V1.1

Copyright

is a trade mark of Shenzhen Neoway Technology Co., Ltd.

Notice

This document is intended for the customer engineers.

This document is subject to change without any notice.

No responsibility is assumed by Neoway Technology for the use of this document.

Neoway Technology always provides the best supports.

For pricing, ordering information and delivery please contact:

Sales@neoway.com.cn

For any technical support requests please contact:

Support@neoway.com.cn

For further information please visit:

http://www.neoway.com.cn

EU Regulatory Conformance Hereby, Galaxy Microsystems Ltd. declares that this device is in compliance with

the essential requirements and other relevant provisions of Directive 1999/5/EC.

WM620 Hardware User Guide V1.1

Revision History

Document Version

Content Revised

Date

V1.0

First issue

2013.09

V1.1

Add UART description

2013.10

WM620 Hardware User Guide V1.1

Contents

1 Features and Description ................................................................................................................................. 2

1.1 HW block diagram and block description ................................................................................................... 2

1.2 Key Features ................................................................................................................................................ 2

1.3 Pin assignment and description ................................................................................................................... 0

2 Applicable interface .......................................................................................................................................... 3

2.1 Power supply Interface ................................................................................................................................ 3

2.1.1 Power Supply Requirements ................................................................................................................ 3

2.1.2 VRTC Interface .................................................................................................................................... 5

2.1.3 Power Supply Output............................................................................................................................ 6

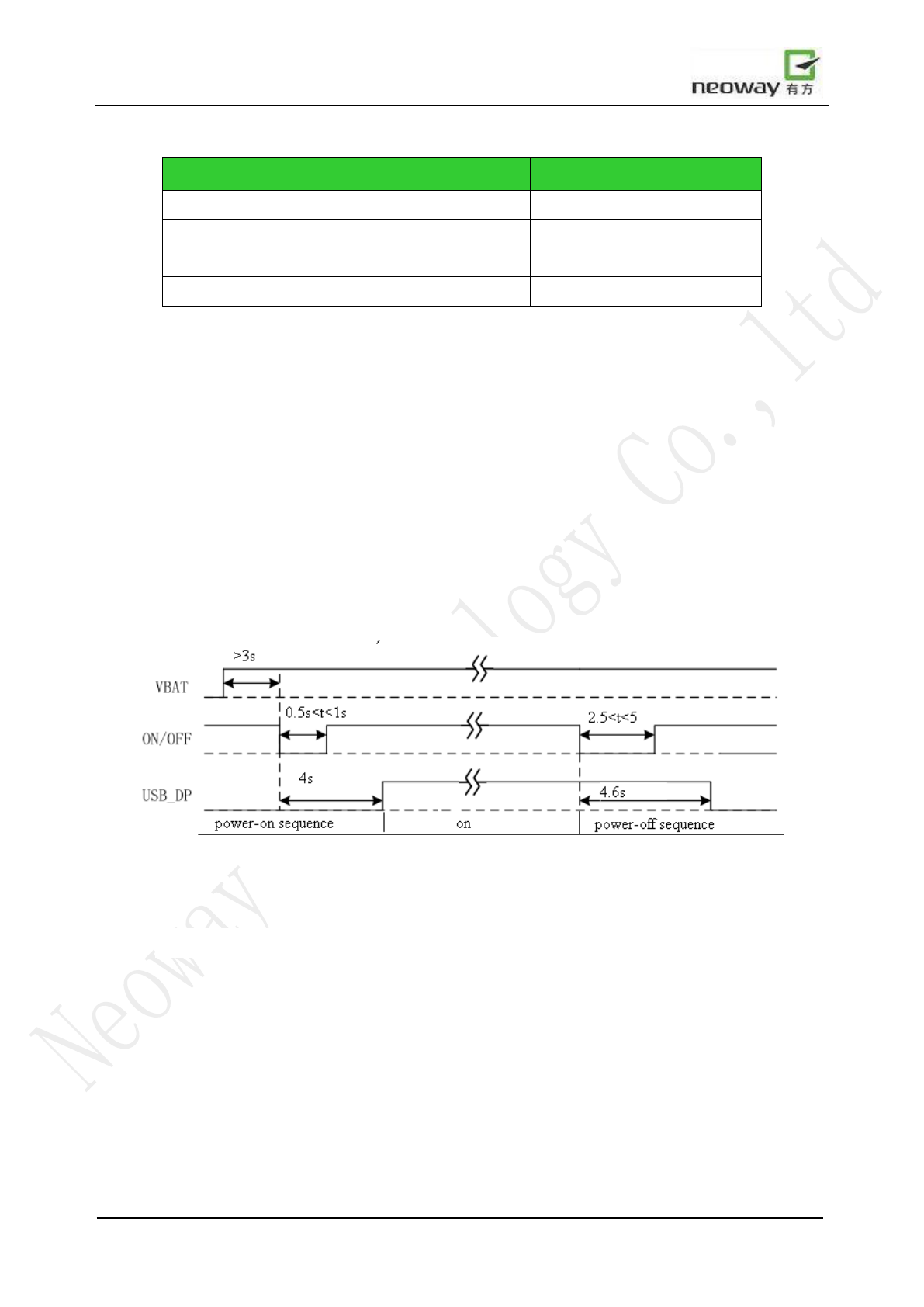

2.1.4 Power on Sequences ............................................................................................................................. 6

2.2 Power ON/OFF and Reset ........................................................................................................................... 6

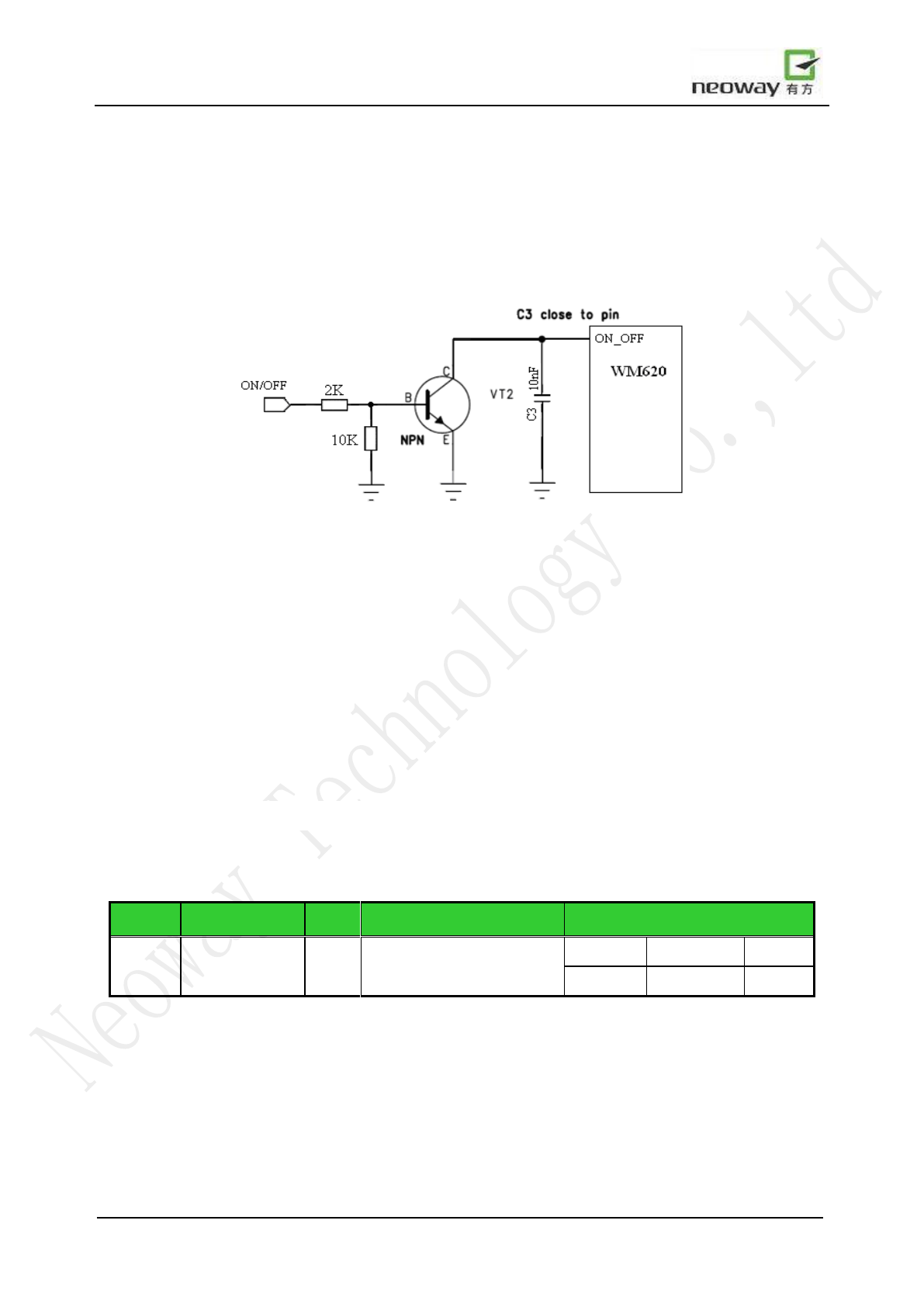

2.2.1 ON_OFF ............................................................................................................................................... 6

2.2.2 RESET_N ............................................................................................................................................. 7

2.3 Module Status Output .................................................................................................................................. 7

2.3.1 LED Indicator ....................................................................................................................................... 7

2.3.2 Ring ...................................................................................................................................................... 8

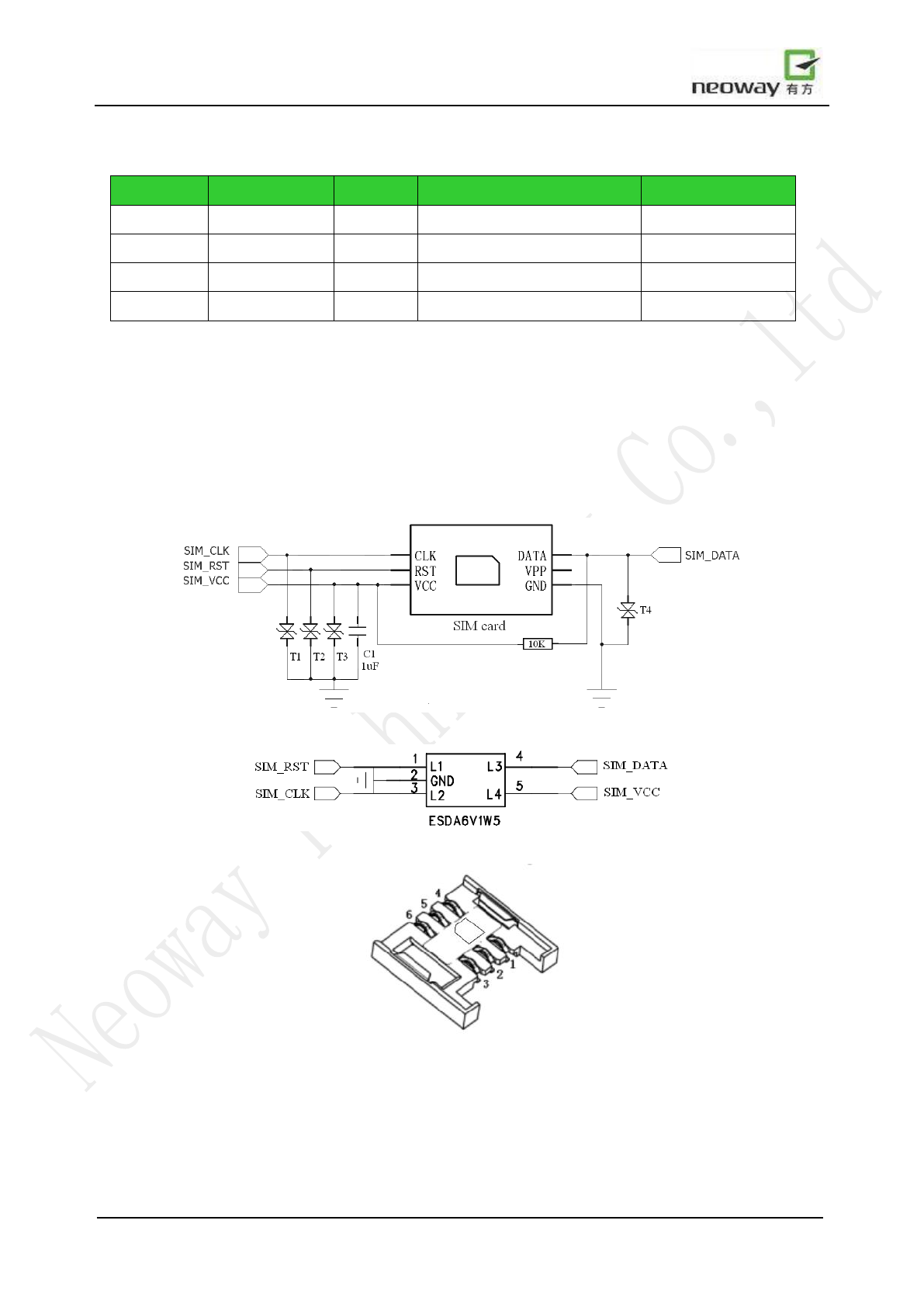

2.4 SIM Card ..................................................................................................................................................... 9

2.5 USB Interface ............................................................................................................................................ 10

2.6 UART ......................................................................................................................................................... 11

2.6.1 Basic Descriptions of UART ............................................................................................................... 11

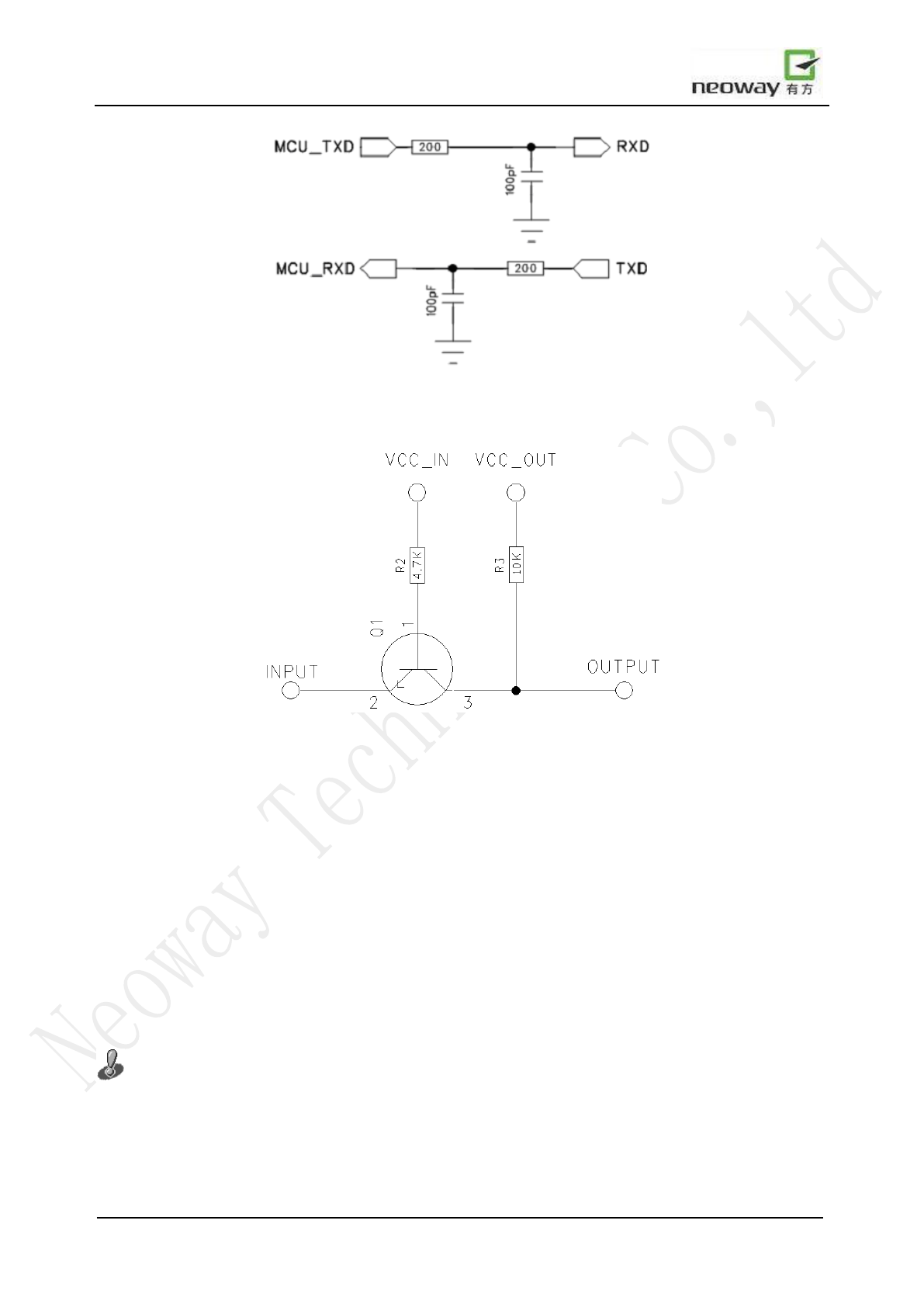

2.6.2 Level Translators for UART ................................................................................................................ 11

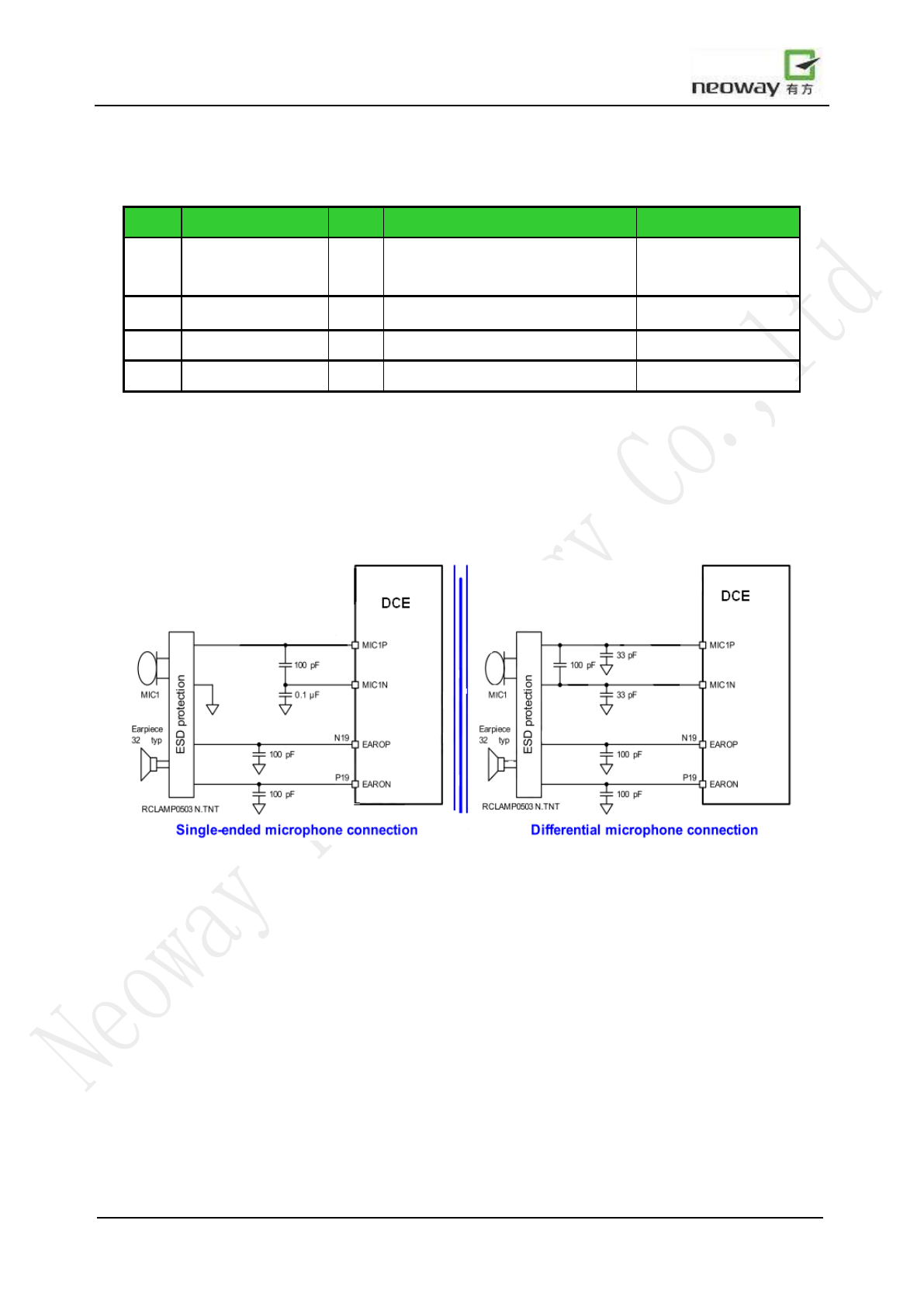

2.7 Audio interface .......................................................................................................................................... 13

3 Mechanics, Mounting and Packaging ........................................................................................................... 14

3.1 Dimension and PCB layout ....................................................................................................................... 14

3.2 Assembly ................................................................................................................................................... 14

3.3 Packaging and solder ................................................................................................................................. 15

4 Typical Application SCH ............................................................................................................................... 16

5 Abbreviations .................................................................................................................................................. 17

WM620 Hardware User Guide V1.1

1 Features and Description

WM620 is a WCDMA module supporting multiple modes of HSDPA/UMTS/EDGE/GPRS/GSM. The HSDPA

supports 3.6Mbps downlink data rate and 384Kbps uplink data rate. WM620 provides high-quality data and

voice communication, SMS and other functions, widely applied to various industrial and commercial areas.

WM620 is SMT module in LCC compact package. It can be easily adapted to standard Mini PCI-E Interface.

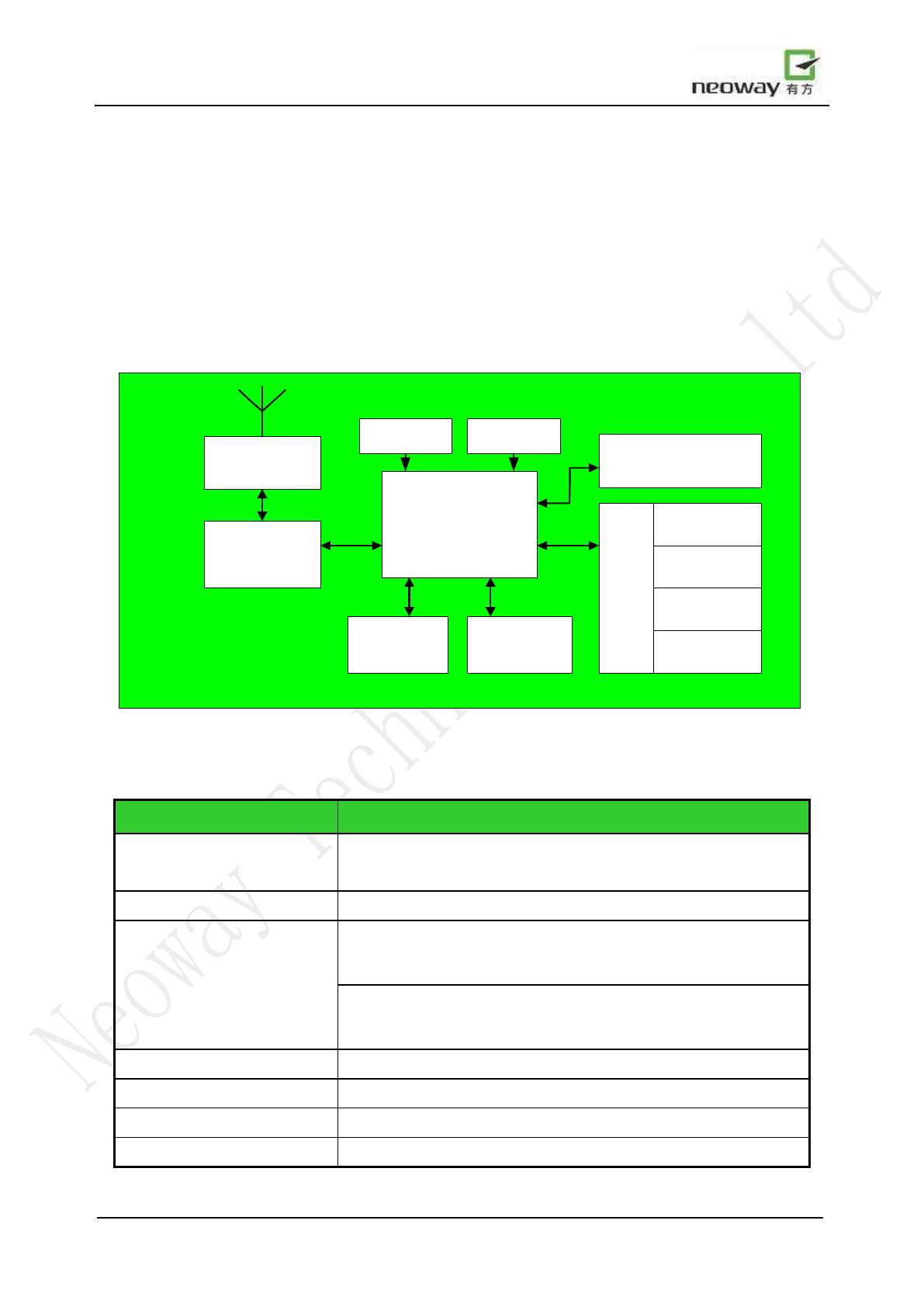

1.1 HW block diagram and block description

Antenna

Switch RAM&FLASH

A

p

l

i

c

a

t

i

o

n

i

n

t

e

r

f

a

c

e

Baseband

Controller

32.768KHz

RF

Section

SIM

USB

UART

PCM

Power

Manager

Audio

Section

19.2MHz

1.2 Key Features

Specification

Description

Frequency Band

WM620:

UMTS2100/1900/900/850MHz GSM850/900/1800/1900 MHz

Sensitivity

-106dBm

Max. transmitter power

GSM/GPRS 850M/900MHz：32±1dBm (Power Class 4)

GSM/GPRS 1800MHz/1900MHz：30±0.5dBm (Power Class 1)

WCDMA: 23±1dBm (Power Class 3)

HSDPA:22±1dBm (Power Class 3)

Transient Current

Max 2A

Standby Current (Idle)

<5.0mA

Operating Temperature Range

Normal working temperature: –30°C to + 80°C

Storage Temperature Range

–40°C to + 85°C

WM620 Hardware User Guide V1.1

Dimension (mm)

30*30*2.7

Power supply

DC power input range 3.3 Volts to 4.2 Volts（recommended 3.9V ）

AT Command

GSM07.07

Neoway extended AT command

Driver

Supporting Windows XP、Linux(2.6.1)、Android

Voice

FR, EFR, HR, AMR Voice Coding , DTMF

SMS

TEXT/PDU

Point of Point/ Cell Broadcast

Technical Standard

UMTS/WCDMA/GSM/GPRS/EDGE Specification Release ‘99

(3GPP R99)

UMTS/WCDMA Specification Release 5 (3GPP R5)

HSDPA and equalizer; 3.6Mbps

GSM/GPRS/EDGE Specification Release 4 (3GPP R4)

GPRS/EDGE Multislot Class 12, Release 4

DTM Multislot Class 11

Data Rate

GSM CS: UL 14.4kbps / DL 14.4kbps

GPRS:UL 85.6kbps / DL 85.6kbps

EDGE: DL 236.8kbps / UL: 236.8kbps

WCDMA CS: UL 64kbps / DL 64kbps

WCDMA PS: UL 384kbps / DL 384kbps

HSDPA: DL 3.6Mbps / UL 384kbps

Circuit Switched Data

Support CSD

Support USSD

Supplementary Service

Call Transfer (CFB, CFNA, CFU)

Call Waiting

Three-Way Calling

WM620 Hardware User Guide V1.1

1.3 Pin assignment and description

NO.

Pin Name

I/O

Pad

group

Description

COMMENT

GND

1、12、

17、21、

24、34、

43、45、

50、61

GND

PWR

Ground

NC

2

NC

Reserved

3

NC

Reserved

4

NC

Reserved

NC

5

NC

Reserved

6

NC

Reserved

7

NC

Reserved

8

NC

Reserved

NC

9

NC

Reserved

10

NC

Reserved

11

NC

Reserved

SIM card

interface

13

V_SIM

PWR

1.8V/2.8V

USIM VCC

14

SIM_RST

O

1.8V/2.8V

USIM reset

15

SIM_DAT

A

I/O

1.8V/2.8V

USIM data

Needs an external 10K

pull-up resistance to

V_SIM

16

SIM _CLK

I/O

1.8V/2.8V

USIM clock

USB

transceiver

interface

18

USB_D+

I/O

High-speed USB

differential data (+)

19

USB_D-

I/O

High-speed USB

differential data (-)

20

V_USB

PWR

USB Power input

Input range from 3.3 to

5.25 V.

Needs a 4.7uF decoupling

MLCC Cap to GND

Power

22

VBAT

PWR

Main battery power

input

23

Reset

25

RESET_N

DI

VDD_1.8V

Reset input

WM620 Hardware User Guide V1.1

Power

26

VDD_1.8V

PWR

Linear regulator

1.8V output

27

VDD_2.6V

PWR

Linear regulator

2.6V output

Audio

interface

28

EAR_1P

AO

Earphone amplifier

output（+）

29

EAR_1N

AO

Earphone amplifier

output（-）

30

MIC_1N

AI

Microphone

difference input1 (-)

31

MIC_1P

AI

Microphone

difference input (+)

NC

32

NC

Reserved

33

NC

35

NC

36

NC

37

NC

38

NC

39

NC

40

NC

41

NC

42

NC

ANT

44

ANT_M

AI/A

RF main antenna

interface

46

ON_OFF

I

Control power-on

and power-off

Pulled up internally

with a 250k to

DVDD;

approximately+2.8 V

Indicator

Light

47

VRTC

PWR

Coin cell backup

voltage input

Range

1.5~3.25VDC,Typical

3.0VDC

48

SIG_LED

O

VDD_2.6V

Signal show

LIGHT

ADC

49

ADC

AI

12bit ADC input

Input Range：0~2.2V

51

RING

O

VDD_2.6V

Call and SMS

WM620 Hardware User Guide V1.1

indicating Output

NC

52

CTS

I

VDD_2.6V

High-speed UART

clear to send signal

53

RTS

O

VDD_2.6V

High-speed UART

ready for receive

signal

54

RXD

I

VDD_2.6V

High-speed UART

receive data input

(allow input 3V)

55

TXD

O

VDD_2.6V

High-speed UART

transmit data

output

56

NC

Reserved

57

NC

Reserved

58

NC

Reserved

59

NC

Reserved

60

SLEEP_IN

DI

VDD_1.8V

Sleep control pin

input

62

NC

Reserved

WM620 Hardware User Guide V1.1

2 Applicable interface

2.1 Power supply Interface

The Power supply part of the WM620 module contains:

Signal name

I/O

Function description

Note

22、23

VBAT

PWR

For power voltage input

47

VRTC

PWR

Coin cell backup voltage input

26

VDD_1.8V

PWR

Linear regulator 1.8V output

27

VDD_2.6V

PWR

Linear regulator 2.6V output

Characteristics of the VBAT are shown in the table 2-1.

Table 2-1, Input voltage characteristics

Status

Min. voltage

Typical voltage

Max. voltage

VBAT

+3.3 VDC

+3.8 VDC

+4.2VDC

NOTE：Make sure that the VBAT can never exceed 4.5VDC. Voltage higher than 4.5VDC may damage the

WM620 module.

2.1.1 Power Supply Requirements

VBAT is the main power input ranged from 3.3V to 4.2V DC, 3.8V DC is recommended. The average current

is less than 500mA@3.8VDC. But in the module’s transmitting mode, the largest current can burst up to 1.8A

providing the RF power amplifier. The burst current may cause deep voltage drop, and trigger the module into

a power reset. Thus a high value and low ESR capacitor must be installed on the VBAT, to avoid or reduce the

voltage drop caused by the RF power amplifier.

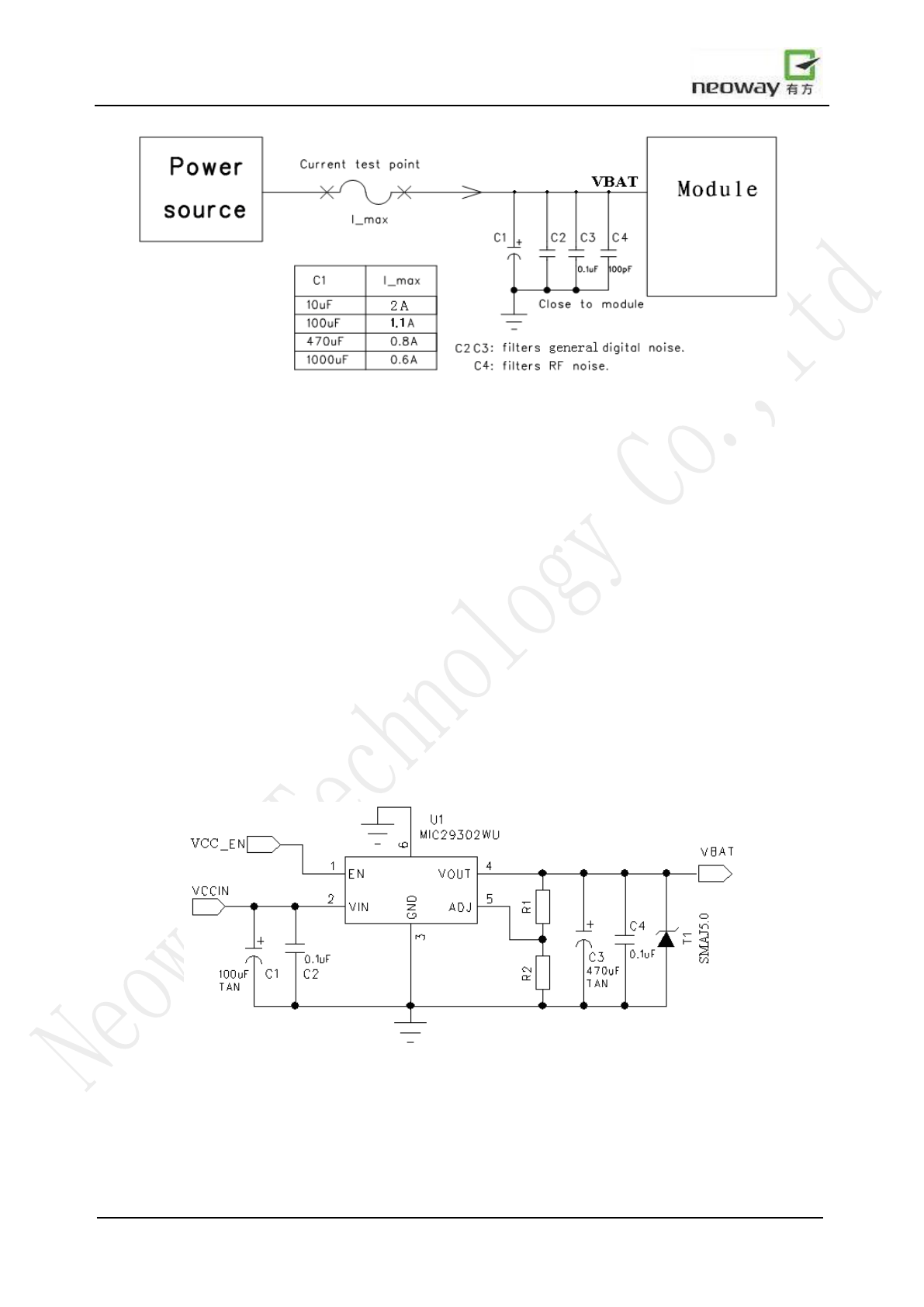

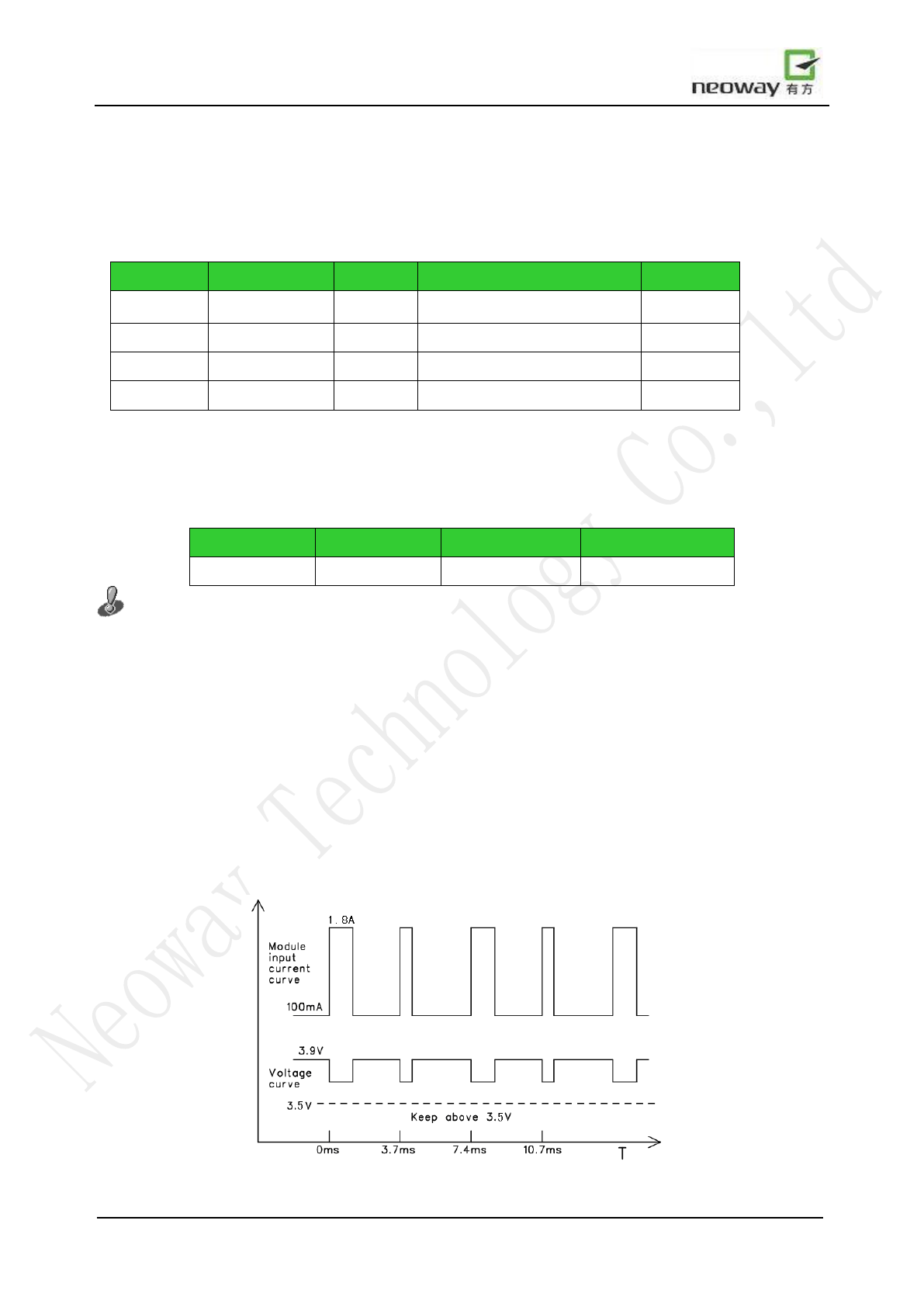

Figure 2-1a, current and voltage curve of VBAT

WM620 Hardware User Guide V1.1

Figure 2-1b, Schematic circuit for current test

The current test results related to the ESR of the capacitors and the internal resistance of the power source. A

470uF tantalum electrolytic capacitor or a 1000uF low ESR aluminum electrolytic capacitor is recommended

for C1. Lithium battery is a very low resistance power source. If the VBAT is supplied by a lithium battery,

220uF or 100uF tantalum capacitor can fit the current require for VBAT. These 10uF, 0.1uF, 100pF and 33pF

MLCC capacitors should be placed close to the VBAT pin.

ESD, Lightning Surge or other interferences can rarely cause the WM620 to stop running. Reset the power

supply can recover the module. So the power control is very important in the unattended applications. VCC_EN

in figure 2-2 is the switch to control the power.

The recommended design of power supply is shown in figure 2-2a. In this circuit, with the EN pin of

LDO/DC-DC, power supply can be controlled by the external MCU or other master device. If the LDO or

DC-DC has no EN pin, a low on-resistance P-MOSFET can work as a power switch. The P-MOSFET power

switch shown in Figure 2-2b can replace the function of EN pin.

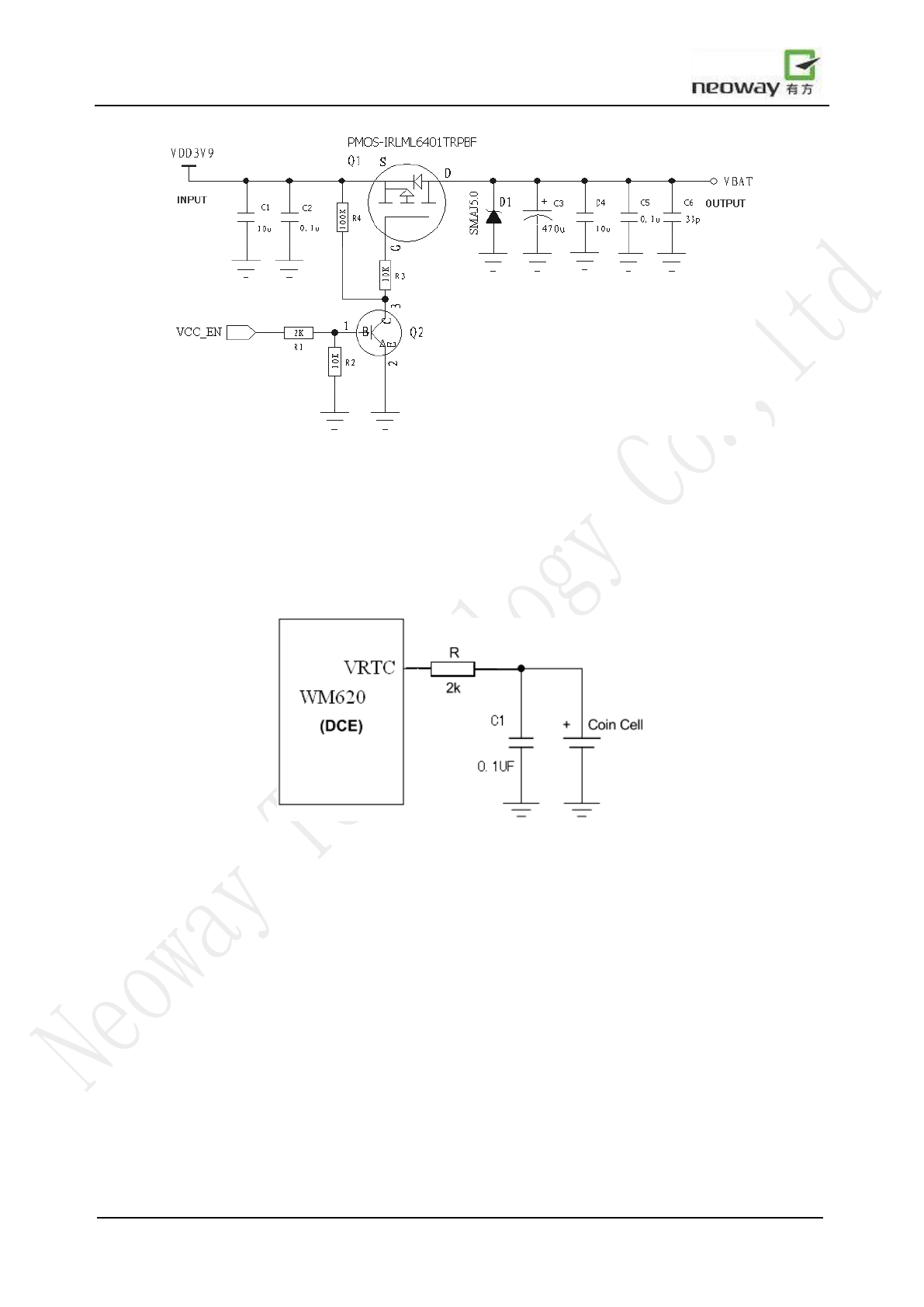

Figure 2-2a

WM620 Hardware User Guide V1.1

Figure 2-2b

2.1.2 VRTC Interface

VRTC Pin is used as an analog input from the 3 V coin cell for SMPL(Sudden Momentary Power Loss),

RTC(Real-time Clock), and crystal oscillator to keep alive power when the module is powered off. A capacitor

(rather than a coin cell) can be used if only SMPL is supported (not RTC or XTAL).

Figure 2-3

VRTC pin is also used as an analog output to charge a coin cell or a capacitor. When supply current is sourced

from the main power supply through VBAT pin. The on-chip coin cell charger is implemented using a voltage

regulator and series resistor.

If the monitored VBAT drops out-of-range (< 2.55V nominal), the SMPL feature initiates a power-on sequence

without software intervention, and then VBAT returns in-range within a programmable interval of between 0.5

and 2.0 seconds. SMPL achieves immediately and automatically recovery from momentary power loss. A valid

voltage on VRTC is required to run the SMPL timer.

If a capacitor is used instead of a coin cell, it must be connected between VRTC PIN and the ground, Figure

2-3 shows the reference RTC circuit. The capacitor must be charged to operate properly as the SMPL power

source. The capacitor value depends on the SMPL timer setting. Table 2-2 shows the capacitor value of VS

SMPL time.

WM620 Hardware User Guide V1.1

Table 2-2 Keep-alive capacitor values vs. SMPL timer settings

SMPL timer setting

Capacitor value

Capacitor package (X7R)

0.5 sec

1.5 µF

0805

1.0 sec

3.3 µF

0805

1.5 sec

4.7 µF

0805

2.0 sec

6.8 µF

1206

2.1.3 Power Supply Output

The VDD_1.8V and VDD_2.6V pins are two linear regulator outputs. These two pins can supply the same

output current of 20mA (typical value). These two power supplies can be used for logic level conversion

circuits between WM620 and external devices, and not recommended as a general-purpose power source for

other application circuits.

VDD_2.6V circuit keeps operating while the WM620 module in sleep mode.

2.1.4 Power on Sequences

Figure 2-4 shows the power on sequencing of WM620.

Figure 2-4

2.2 Power ON/OFF and Reset

2.2.1 ON_OFF

ON_OFF is an input pin with an internal pull-up resistance. Launch a valid low level pulse to ON_OFF can

control the WM620’s system into Start-up or shut-down mode. The pulse width requirement and power on

sequence are shown in figure 2-4.

When the WM620 power on, the VDD_2.6V pin would rise up and keep on 2.6V DC, and then the module's

serial port will automatically issue a keyword string, means that the module system is running and AT

commands is ready.

WM620 Hardware User Guide V1.1

While the WM620 is in running mode, low level pulse can put the module system into shutdown procedure.

And then the module would power off within after 5S.

Instead of ON_OFF pin, An AT command can also shutdown the module. For more specific, please refer to the

WM620’s AT command manual.

Keeps the ON_OFF low or connecting to GND, WM620 can automatically power up when VBAT is supplied.

High level pulse control circuit of ON_OFF is shown in Figure 2-5：

Figure 2-5

2.2.2 RESET_N

RESET_N is an active low signal with an internal pull-up resistance and acts as hardware reset input.

Low level pulse longer than 20mS can reset the WM620. After reset the module, power on operations, such as

launch a low level pulse to the ON_OFF pin, must be done again. The recommended reset pulse is 50ms, but

can not exceed 2S. Otherwise, the WM620 module will power off.

If keeps the ON_OFF low or connecting to GND, the WM620 can automatically power up after reset the

module.

2.3 Module Status Output

2.3.1 LED Indicator

Signal Name

I/O

Function Description

DC Characteristics (V)

48

SIG_LED

O

running status indication

Min

typical

max

-0.3

2.6

2.9

SIG_LED is the WM620’s working status output. The SIG_LED pin can supply 8mA drive current. WM620

provide several flash mode to indicate different running status. For more specific, please refer to the WM620’s

AT command manual.

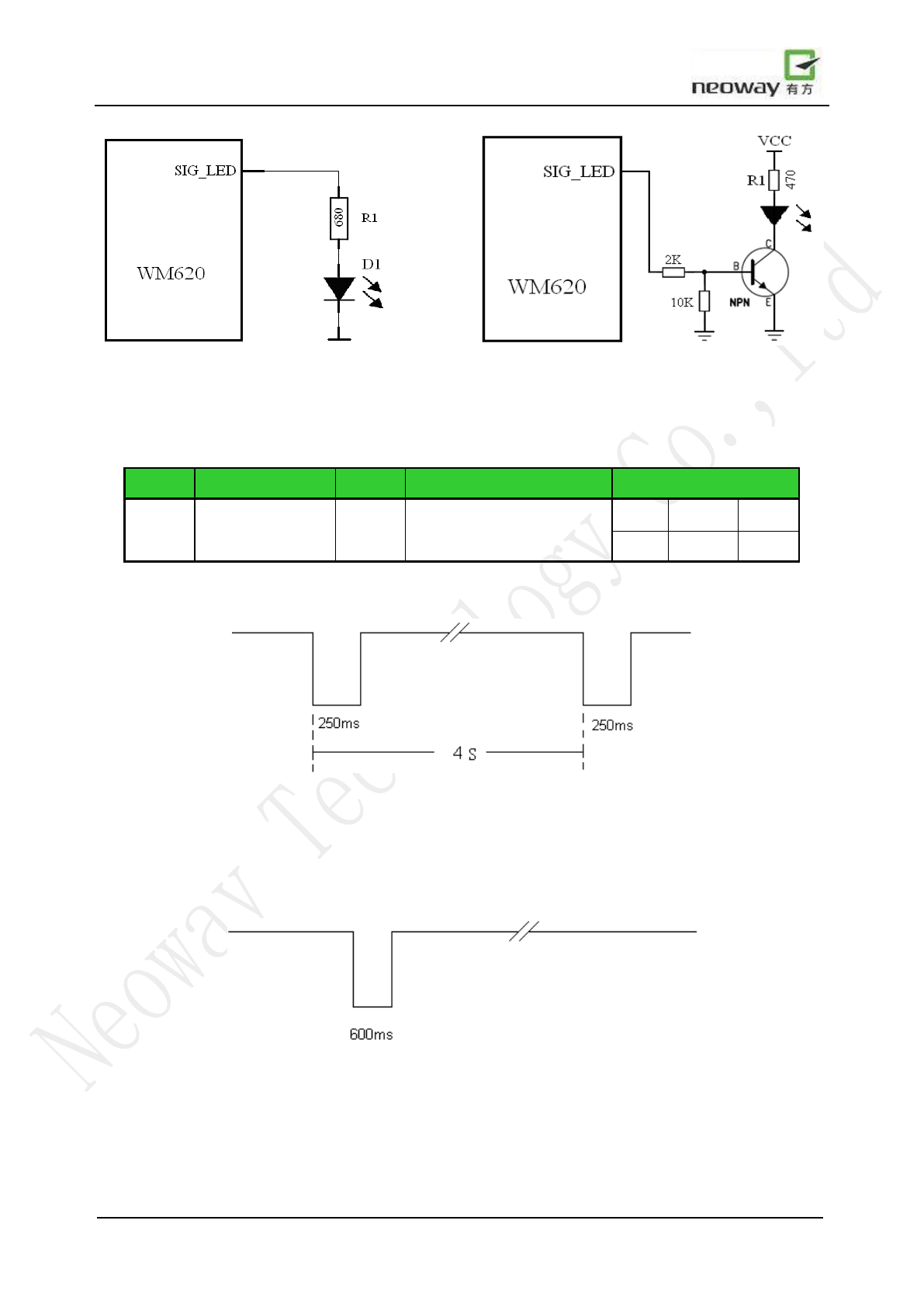

SIG_LED can drive the LED directly, shown in Figure 2-6a. Figure 2-6b is the reference circuit to increase the

brightness of LED. The LED’s brightness depends on the value of R1 and VCC.

WM620 Hardware User Guide V1.1

Figure 2-6a Figure 2-6b

2.3.2 Ring

Signal Name

I/O

Function Description

DC Characteristics (V)

51

RING

O

Ring output

Min

typical

max

-0.3

2.6

2.9

When a phone call is coming, the RING pin will issue several low level pulses. Shows in Figure 2-7.

Figure 2-7

When WM620 receives a SMS, the RING pin will issue one low level pulse, Shown in Figure 2-8. The pulse

width can be configured through an AT command. For more specific, please refer to the WM620’s AT

command manual.

Figure 2-8

WM620 Hardware User Guide V1.1

2.4 SIM Card

Signal name

I/O

Function description

Note

13

V_SIM

PWR

SIM ard power output

1.8/3.0V

14

SIM_CLK

DO

SIM card clock output

1.8/3.0V

15

SIM_RST

DO

SIM card reset output

1.8/3.0V

16

SIM_DATA

I/O

SIM card data input/output

1.8/3.0V

WM620 module supports 3V & 1.8V SIM cards. The SIM_DATA pin needs an externally 10K pull-up

resistor connected to V_SIM.The SIM_CLK is the clock signal, normally 3.25MHz. Bifurcation is not

recommended at the PCB trace of SIM_CLK.

Include SIM_DATA and SIM_CLK, the traces should be as short as possible and surrounded by the ground

copper to reduce the RF interference. The total distributed capacitance, include the junction capacitance of the

ESD diode or other device, can’t be higher than 120pF.

Figure 2-9a, SIM card and ESD devices

Figure 2-9b, the recommended ESD diode array

Figure 2-9c, a sample of SIM card socket

PIN1, VCC PIN2, RST PIN3, CLK PIN4, GND PIN5, VPP PIN6, DATA

The SIM card application circuit is shown in Figure 2-9. In automotive electronics or other applications with

strong ESD, ESD diodes or ESD varistors are strongly recommended, such as T1 to T4. T1 to T4 should be

place closed to SIM card. In some clear applications, SIM card is installed in closed box without human touch,

22~33pF MLCC capacitors can replace the ESD diodes for cost down.

WM620 Hardware User Guide V1.1

Note：SIM card is very sensitive to RF interference.

Serious RF interference to SIM card will cause the WM620 to miss the detection to SIM card and out of service.

So, it is very importance in the PCB design listed as the following message.

 The antenna should be installed a long distance away from the SIM card and SIM card traces.

 The SIM card traces should be routed as short as possible and shielded with GND copper.

 The ESD diodes or capacitors should be placed closed to SIM card.

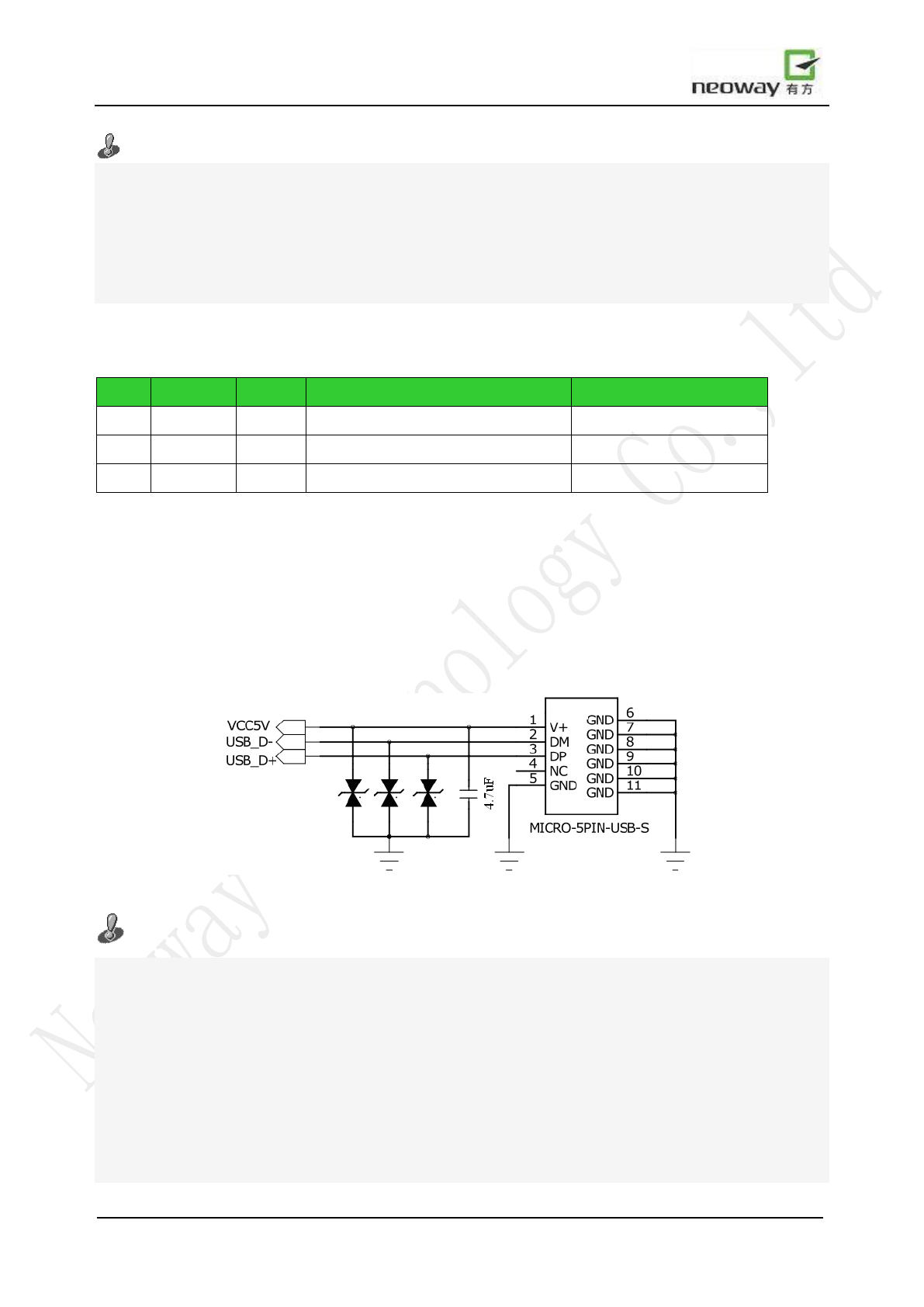

2.5 USB Interface

Table 2-3, USB Interface

Pin Name

I/O

Function description

Note

18

USB D+

I/O

High-speed USB differential data, (+)

19

USB D-

I/O

High-speed USB differential data, (-)

20

V_USB

PWR

USB Power

Input voltage 3.3 to 5.5V.

The WM620 module is compliant with USB2.0 full speed device. The USB2.0 specification requires the hosts

such as PCs to support three USB speeds, namely low-speed (1.5Mbps), full-speed (12Mbps) and high-speed

(480Mbps).

The V_USB pin is an analog input. A 4.7µF decoupling MLCC capacitor to GND is strongly recommended,

and should be placed as closely as possible to V_USB Pin. It will increase the USB stability. ESD diodes

should be installed to these three signals. Shown in Figure 2-10.

Figure 2-10

Note: The layout design of this USB should comply with the USB 2.0.

 The traces of USB_D+ and USB_D- must be routed as a group of differential pair with 90Ω differential

impedance.

 The USB differential pair should be routed side-by-side and on the same layer.

 USB_D+ and D- is a pair of high speed signals, so the trace lengths should match as well as possible.

 Please to connect USB or set aside the relevant test points, to facilitate subsequent upgrade or debugging.

WM620 Hardware User Guide V1.1

2.6 UART

Pin Name

I/O

Function description

Note

52

CTS

I

High-speed UART clear to send

signal

53

RTS

O

High-speed UART ready for receive

signal

54

RXD

I

High-speed UART receive data input

(allow input 3V)

55

TXD

O

High-speed UART transmit data

output

2.6.1 Basic Descriptions of UART

UART1 is for AT commands, data sending/receiving, firmware updating, etc.

As a DCE device, the module is connected to DTE as shown in Figure 2-11.

Supported baud rates are 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400bps, and the default is

115200.

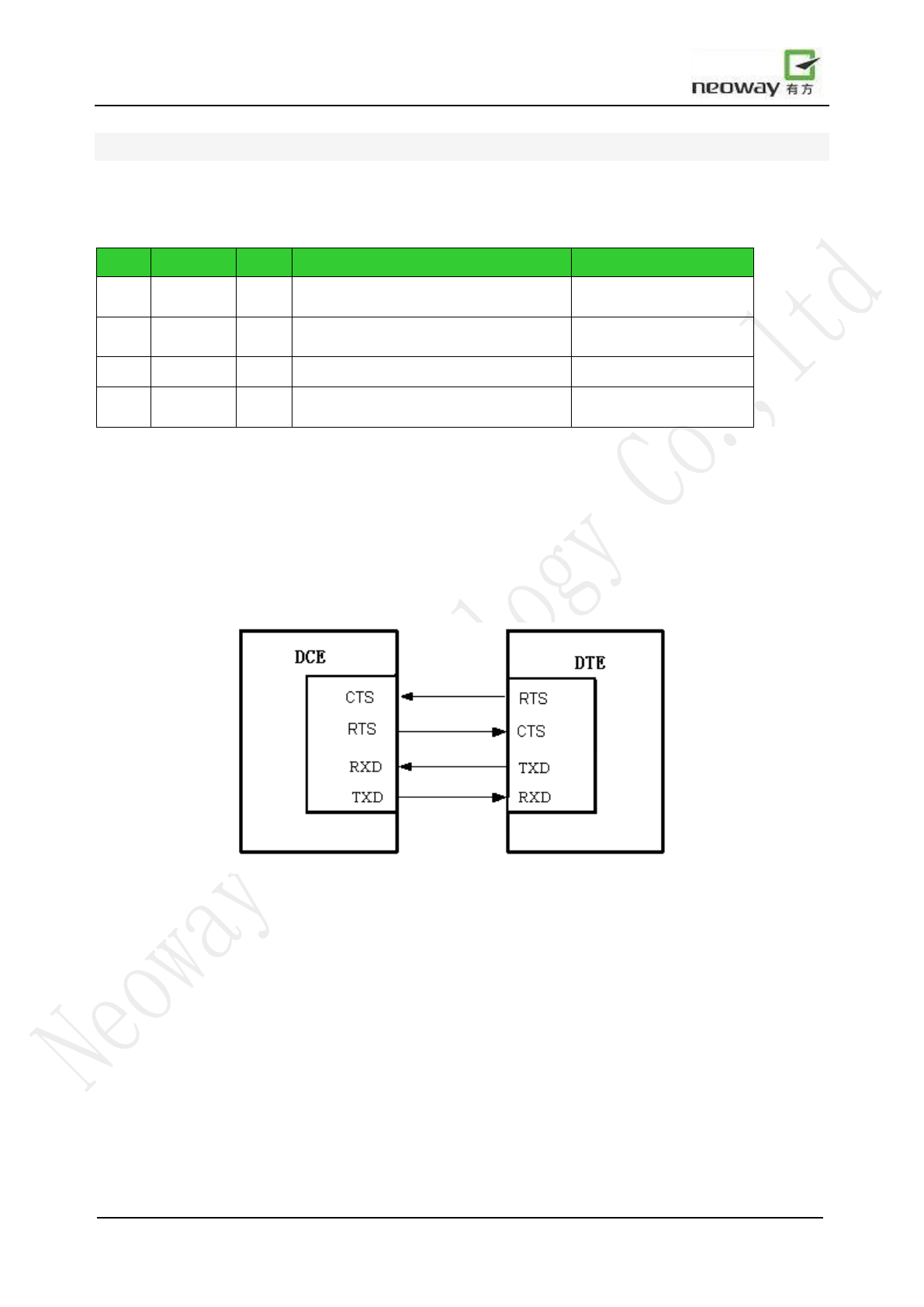

Figure 2-11, Connection between DCE (module) and DTE

The UART of WM620 works at 2.6V CMOS logic level. The voltages for input high level should not exceed

3.0V.

2.6.2 Level Translators for UART

If the UART is interfacing with a MCU that has 3.3V logic levels, resistors should be connected in series with

the signals, shown in figure 2-12.

WM620 Hardware User Guide V1.1

Figure 2-12, Interfacing with 3.3V logic levels of MCU

If the UART is interfacing with a MCU that has 5V logic levels, general level translators are required, for both

inputs and outputs. As shown in Figure 2-13.

Figure 2-13, Interfacing with 5V logic levels of MCU

Reference components:

R2: 2K-10K. The higher rate the UART works at, the smaller value used

R3: 4.7K-10K. The higher rate the UART works at, the smaller value used

Q1: MMBT3904 or MMBT2222. High-speed transistors preferred.

Used for 5V logic -> 2.6V logic:

While this circuit used between MCU TXD and module RXD, the INPUT signal is connected to MCU TXD,

and OUTPUT connected to module RXD. VCC_IN powered from 5V and VCC_OUT powered from 2.6V

(module’s VDD_2.6V).

Used for 2.6V logic -> 5V logic:

It can be used between module TXD and MCU RXD as well, with INPUT connected to module TXD, and

OUTPUT connected to MCU RXD. VCC_IN powered from 2.6V (module’s VDD_2.6V) and VCC_OUT

powered from 5V. This applies to RING signal as well.

Note:

Avoid sparks and glitches on UART signals while the module is in a turning on procedure.

Avoid sending any data to UART during the beginning of 2 seconds after the module being turned on.

WM620 Hardware User Guide V1.1

2.7 Audio interface

Table 2-4, Audio interface

Signal Name

I/O

Function Description

Note

28

EAR_1P

AO

Earphone amplifier output（+）

32Ω Earpiece;

typical:35mW

29

EAR_1N

AO

Earphone amplifier output（-）

30

MIC_1N

AI

Microphone #1 input (-)

31

MIC_1P

AI

Microphone #1 input (+)

The WM620’s typical audio interfaces are shown in Figure 2-14. The earpiece output pins are connected

directly to the earpiece, each with its own bypass capacitor. The capacitor value is selected to optimize

performance in each design, but a value of 100pF or less is expected (100pF is used in the example). The

output power for the differential ear output is typically 35mW for a full-scale +3dBm sine wave into a 32Ω

speaker.

Figure 2-14

WM620 Hardware User Guide V1.1

3 Mechanics, Mounting and Packaging

3.1 Dimension and PCB layout

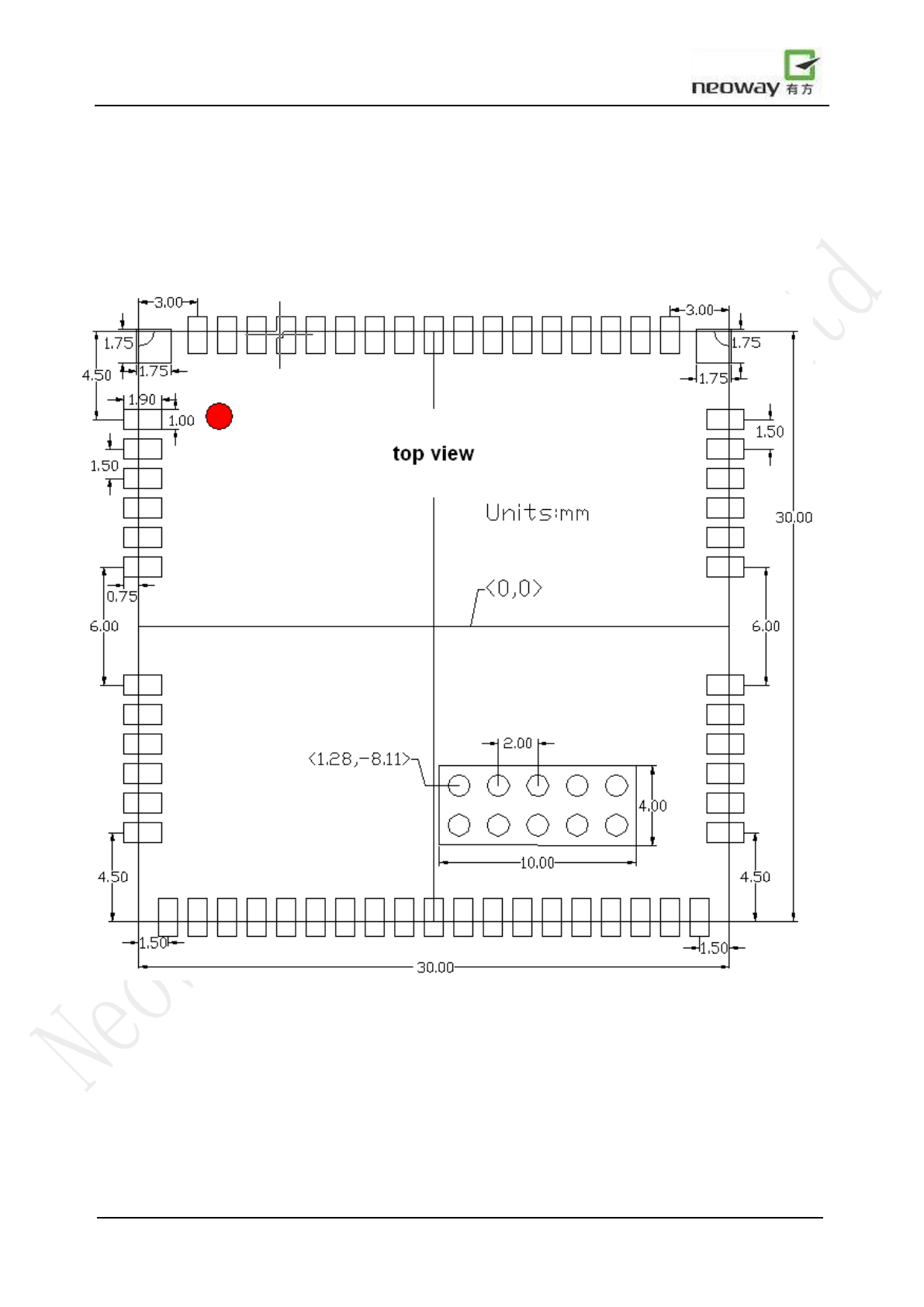

Figure 3-1, WM620 PCB foot print

3.2 Assembly

The WM620 introduces 62 Pin LCC castellation technology, less pin counts and wide pitch, these features are very suitable

for low-cost and simple designs with 2 layer PCB. Benefit from it’s ultra-compact size and high reliability,

WM620 can be easily designed in. Moreover, WM620supports manual soldering, can adapt to mass production

and also low quantity perfectly, and has low technical requirement for manufacturing equipment.

WM620 Hardware User Guide V1.1

3.3 Packaging and solder

WM620 modules are packaged in sealed bags on delivery to guarantee a long shelf life. Package the modules

again in case of opening for any reasons.

If exposed in air for more than 48 hours at conditions not worse than 30°C/60% RH, a baking procedure should

be done before SMT. Or, if the indication card shows humidity greater than 20%, the baking procedure is also

required. The baking should last for at least 24 hours at 90℃.

In order to prevent the product of from being affected with damp, caused by using the SMT way to perform the

furnace welding, in the process of production and use of the costumer, we employ the way of damp-proof

packing, such as Aluminum Foil Bag, desiccating agent, Humidity Indicator Cards, Suck plastic trays, and

vacuolization. As a result the product is kept dry and its life span will be long.

For more storage and SMT information, please refer to 《Neoway modules’ recommendation for SMT and

reflow solder》.

WM620 Hardware User Guide V1.1

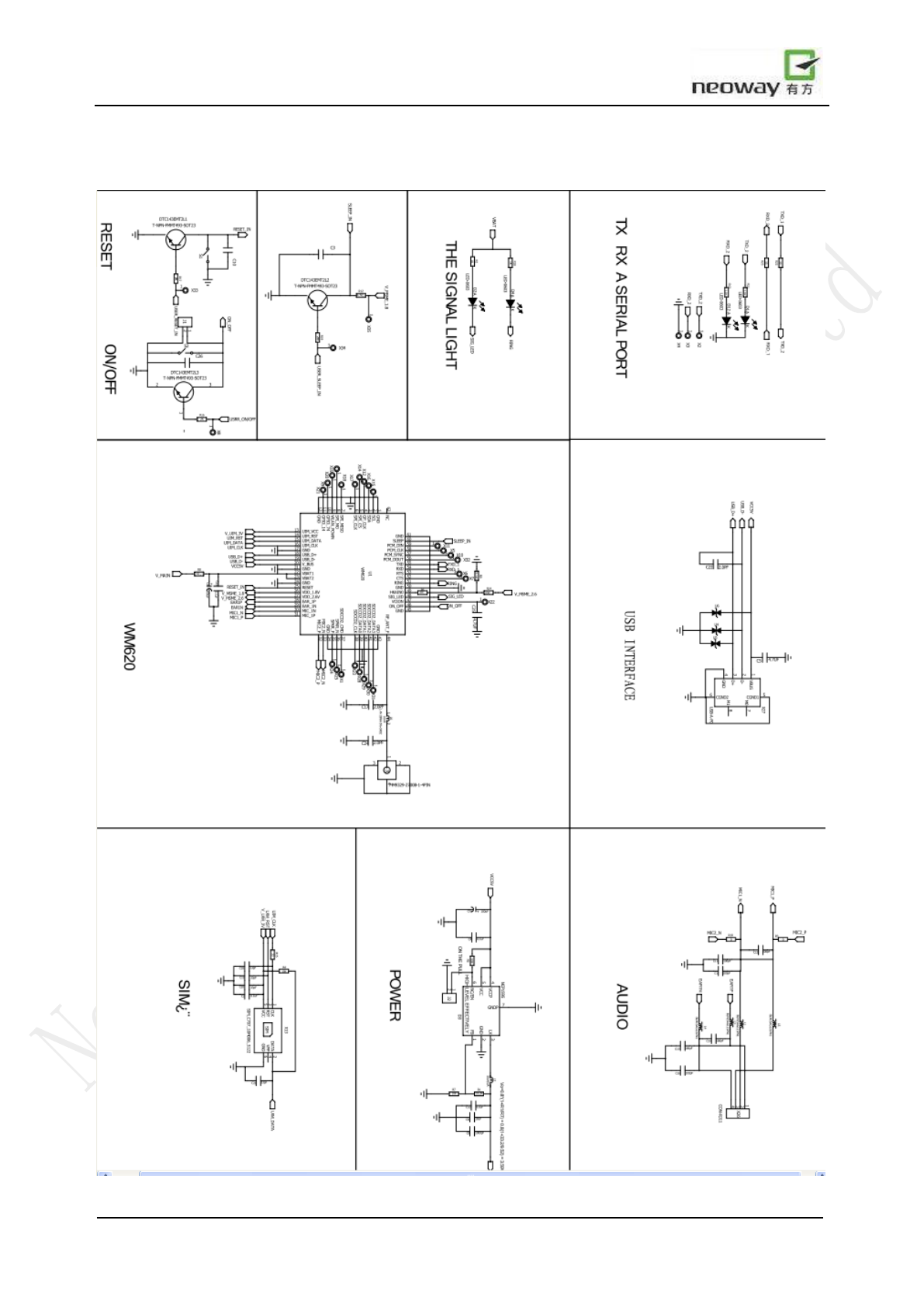

4 Typical Application SCH

WM620 Hardware User Guide V1.1

5 Abbreviations

ADC

Analog-Digital Converter

AFC

Automatic Frequency Control

AGC

Automatic Gain Control

AMR

Acknowledged multirate (speech coder)

CSD

Circuit Switched Data

CPU

Central Processing Unit

DAI

Digital Audio interface

DAC

Digital-to-Analog Converter

DCE

Data Communication Equipment

DSP

Digital Signal Processor

DTE

Data Terminal Equipment

DTMF

Dual Tone Multi-Frequency

DTR

Data Terminal Ready

EFR

Enhanced Full Rate

EGSM

Enhanced GSM

EMC

Electromagnetic Compatibility

EMI

Electro Magnetic Interference

ESD

Electronic Static Discharge

ETS

European Telecommunication Standard

FDMA

Frequency Division Multiple Access

FR

Full Rate

GPRS

General Packet Radio Service

GSM

Global Standard for Mobile Communications

HR

Half Rate

IC

Integrated Circuit

IMEI

International Mobile Equipment Identity

LCD

Liquid Crystal Display

LED

Light Emitting Diode

MS

Mobile Station

PCB

Printed Circuit Board

PCS

Personal Communication System

RAM

Random Access Memory

RF

Radio Frequency

ROM

Read-only Memory

WM620 Hardware User Guide V1.1

RMS

Root Mean Square

RTC

Real Time Clock

SIM

Subscriber Identification Module

SMS

Short Message Service

SRAM

Static Random Access Memory

TA

Terminal adapter

TDMA

Time Division Multiple Access

UART

Universal asynchronous receiver-transmitter

VSWR

Voltage Standing Wave Ratio

WM620 Hardware User Guide V1.1

Warning Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio

frequency energy and if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try correct the

interference by one or more of the following measures:

- Reorient the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into and outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

You are cautioned that changes or modifications not expressly approved by the party responsible for

compliance could void your authority to operate the equipment.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1)

this device may not cause harmful interference, and 2) this device must accept any interference received,

including interference that may cause undesired operation.

Important announcement

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This

equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

IMPORTANT NOTE:

This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance

requirement of the end product, which integrates this module.

20cm minimum distance has to be able to be maintained between the antenna and the users for the host this

module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an

population/uncontrolled environment can be satisfied.

Any changes or modifications not expressly approved by the manufacturer could void the user's authority to

operate this equipment.

USERS MANUAL OF THE END PRODUCT:

In the users manual of the end product, the end user has to be informed to keep at least 20cm

separation with the antenna while this end product is installed and operated. The end user has to

be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment

can be satisfied. The end user has to also be informed that any changes or modifications not

expressly approved by the manufacturer could void the user's authority to operate this equipment.

WM620 Hardware User Guide V1.1

LABEL OF THE END PRODUCT:

The final end product must be labeled in a visible area with the following" Contains TX FCC ID:

PJ7-1500 ". The FCC part 15.19 statement below has to also be available on the label: This

device complies with Part 15 of FCC rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference and (2) this device must accept any

interference received, including interference that may cause undesired operation.

To comply with FCC regulations limiting both maximum RF output power and human exposure to RF radiation,

the maximum antenna gain including cable loss in a mobile-only exposure condition must not exceed 1dBi in

the cellular band and 1dBi in the PCS or WCDMA band.

A user manual with the end product must clearly indicate the operating requirements and conditions that must

be observed to ensure compliance with current FCC RF exposure guidelines.

The end product with an embedded WM620 Module may also need to pass the FCC Part 15 unintentional

emission testing requirements and be properly authorized per FCC Part 15.

Note: If this module is intended for use in a portable device, you are responsible for separate approval to

satisfy the SAR requirements of FCC Part 2.1093.

Neoway Technology 1500 WCDMA Module User Manual

Shenzhen Neoway Technology Co., Ltd WCDMA Module

User Manual

Navigation menu

Namespaces

Views

Navigation
