User manual

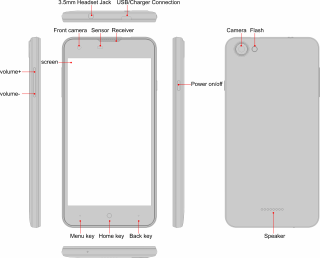

Phone overview
Knowing the Keys
Key Function
Power Key
•Press and hold to power
on, or power off.
•Press to turn off or on the
screen display.
Home Key
•Touch to return to the
Home Screen from any
application or screen.
•Touch and hold to switch
between recent apps.
Menu Key
•Touch to get the options
for the current screen.
Back Key •Touch to go to the
previous screen.
Volume Up/
Down
•Press or hold to turn the
volume up or down.
Getting started
Please make sure that the phone is powered off before
proceeding：Open card slot, then install Micro SIM card
SIM Slot 1: Micro SIM card slot
SIM Slot 2: Micro SIM card slot
Note: 4G LTE can work in both SIM slots individually,
but not simultaneously (i.e. one SIM slot works as 4G
LTE and other as 2G based on the data subscription
set).
Screen
M54T features a larger 5 inch(12.78cm) with 1280*720
Resolution which makes your phone look fascinating.
Screen lock
You can increase the security of yourphone by
selecting screen lock .Screen lock settings can be
found under “Settings”>“Security”> “Screen lock”.
Customize home screen
In standby mode, touch and hold an empty area to add
set wallpapers. You can also remove items from the
home screen, move items, and add items to home
screen to customize the home screen.
Camera
is equipped with 5 MP front camera and 13 MP
Rear facing camera, which are designed for you to
share wonderful moments with friends and family.
Adjust focus, exposure, zoom in or zoom out, switch
between cameras by flipping the icon on the screen
and switch between the functions.
M54T
Support rear camera flash function.
Internet
You can enjoy network by selecting 4G, 3G, WLAN,
and GSM. Enjoy music, videos, apps and news
anywhere and anytime as you like.
Make a call
You can make a call under the interface of speed dial,
recent, contacts (which contains a phone number). In
standby mode, press call key to make a call.
Support video call function.
Bluetooth
Before using the Bluetooth, you should first turn it on
by selecting System settings -> Bluetooth, and then
tap the button to turn Bluetooth on, and You may also
have to pair your phone with other Bluetooth devices
by steps System settings -> Bluetooth, your phone will
search for the devices automatically, and then select
the device you want to connect to.
Messaging
Touch and hold the text box to select an input method.
You can insert smiley, picture, audio or video files and
send to single or multiple recipients.
Email
The email app enables you to read, compose and send
emails, and is configured to work with all the major
service providers. M54T supports multiple account
mode, and you may not miss any email.
Music
M54T supports various music formats: PCM, MP3,
AAC, AAC+, eAAC+, MIDI, AC3, FLAC.
Videos
To enjoy a visual feast in a variety of video formats,
please choose M54T .You may trim, mute and
share a video.
FM
Please connect earphone to your phone, go to home
screen, click Apps to check all the applications in the
phone. Then find FM Radio, click FM Radio, choose
the right FM frequency, now you can enjoy radio
through the earphone.
Photos
You will find it very easy to view all the photos. Flick
right or left to move among images. Double-tap or
pinch the photo to zoom. You may edit, rotate, crop
share, and print a photo.
Intelligent keyboard
M54T automatically corrects and suggests words as
you type and it also supports pictures and audio input.
Cut, copy, and paste
Touch and hold text content to bring up the magnifying
glass, and then slide your finger to move the insertion
points. Then tap to cut, copy, or paste. It is very easy to
copy text from web pages, email, or text messages.
Quick setting
You can do the quick settings , when drag notification
bar in the locked device screen，like brightness, wifi、
bluetooth, data, areoplane mode, auto rotation, torch,
cast screen, hotspot.
Map
You can view satellite images or street map with
detailed route instructions just as you are walking in
the street. The Map app can be used to locate yourself,
view real-time traffic conditions, pedestrian, bus routes
or car driving route instructions.
Language
Can support 10 Indian language：English, Hindi,
Bengali, Malayalam, Tam i l, Tel u gu, Kannada, Gujarati、
Marathi, Urdu.
Extending Battery Life
•Few point s, to improve batt ery life.
• Turn OFF radio services i.e. Wi-Fi, Bluetooth and
GPS, when not needed.
• Keep screen brightness on Auto Mode.
• Use Bluetooth tethering or USB tethering (when you
have a cable) instead of portable Wi-Fi hotspot to
share your phone’s data service.
• From the home screen, hold the home key to close
the recent apps running in background.
Note:
Due to non-usage of Phone for long time battery may
be drained out and it needs to be connect with
charger and allow battery to charge about 30-40
minutes in off state. If still the problem persists,
suggested to visit the nearest Device Care Centre.
Correct disposal
Do not dispose off your mobile and its battery in fire.
Do not dispose your mobile with the regular waste.
For proper disposal please contact customercare.
This marking on the product, accessories
or literature indicates that the product
and its electronic accessories (e.g.
charger, headset, and USB cable)
should not be disposed of with other household waste.
This product is RoHS compliant.
This marking on the battery, manual or
packaging indicates that the batteries in
this product should not be disposed of with other
household waste.
Safety information
Read all safety information before using the device to
ensure safe and proper use.
Warning
Following are the warning information provided
below to prevent incidents such as fire or
explosion
Do not expose the device to physical impact or
damage.
-Do not carry your device in your back pockets or
on your waist.
Use manufacturer-approved batteries, chargers,
accessories, and supplies
Prevent the multipurpose jack and battery terminals
from contacting conductive elem ents, such as metal
or liquids.
Do not touch the devic e with wet hands. Also, do
not use the device in humid environments, such as
rest rooms, or during water-based activities, such
as swimming.
If any part of the device is cracked or broken, or if
the device becom es very hot, stop using the device
immediately and take it to a Device care Centre.
Do not turn on or use the device when the battery
compartment is exposed
Following are the warnings below to prevent injury
to people or damage to the device
Do not allow children or animals to chew or suck the
device.
Do not poke eyes, ears, or other body parts with the
device or insert the device into the mouth.
If the device has a cam era flash or light, do not use
it close to the eyes of people or animals.
Do not store your device in very hot or very cold
areas. It is recommended to use your device at
temperature between 5℃ t o 35℃.
Do not store your device near or in heaters,
microwaves, cooking equipment, or high pressure
containers.
Keep your device dry.
Do not use your device outdoor during a
thunderstorm.
Comply with all safety warnings and regulations
regarding mobile device usage while operating a
vehicle.
To prevent possible hearing damage
when using a headset, do not listen to
sound at high volume for long periods.
Specific Absorption Rate (SAR)
Certification information
Precautions:
Use a wireless hands-free system (headphone,
headset) with a low power Bluetooth emitter
Make sure the cell phone a low SAR
Keep your calls short or send a text message (SMS)
instead. This advice applies especially to children,
adolescents and pregnant women.
Use cell-phone when signal quality is good.
People having active medical implants should
preferably keep the cell phone at least 15cm from the
implant
FCC Caution
• 15.19 Labelling requirements.
This device complies with part 15 of the FCC Rules.
Operation is subject to the condition that this device does
not cause harmful interference
• 15.21 Information to user.
Any Changes or modifications not expressly
approved by the party responsible for compliance
could void the user's authority to operate the
equipment.
• 15.105 Information to the user.
Note: This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates
uses and can radiate radio frequency energy and,
if not installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to
try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and receiver.
- Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV
technician for help.
Specific Absorption Rate (SAR) information:
This Smartphone meets the government's
requirements for exposure to radio waves. The
guidelines are based on standards that were
developed by independent scientific organizations
through periodic and thorough evaluation of
scientific studies. The standards include a
substantial safety margin designed to assure the
safety of all persons regardless of age or health.
FCC RF Exposure Information and Statement The
SAR limit of USA (FCC) is 1.6 W/kg averaged over
one gram of tissue. Device types: Smartphone
(FCC ID: PJ7-M54T)has also been tested
against this SAR limit. The highest SAR value
reported under this standard during product
certification for use at the ear is 0.836 W/Kg and
when properly worn on the body is 1.120 W/Kg.
This device was tested for typical body-worn
operations with the back of the handset kept 5mm
for body worn and 10mm for hotspot. To maintain
compliance with FCC RF exposure requirements,
use accessories that maintain a 5mm for body
worn and 10mm for hotspot. The use of belt clips,
holsters and similar accessories should not
contain metallic components in its assembly. The
use of accessories that do not satisfy these
requirements may not comply with FCC RF
exposure requirements, and should be avoided.
Body-worn Operation
This device was tested for typical body-worn
operations. To comply with RF exposure
requirements, a minimum separation distance of
5mm for body worn and 10mm for hotspot must be
maintained between the user's body and the
handset, including the antenna. Third-party belt-
clips, holsters, and similar accessories used by
this device should not contain any metallic
components. Body-worn accessories that do not
meet these requirements may not comply with RF
exposure requirements and should be avoided.
Use only the supplied or an approved antenna.
