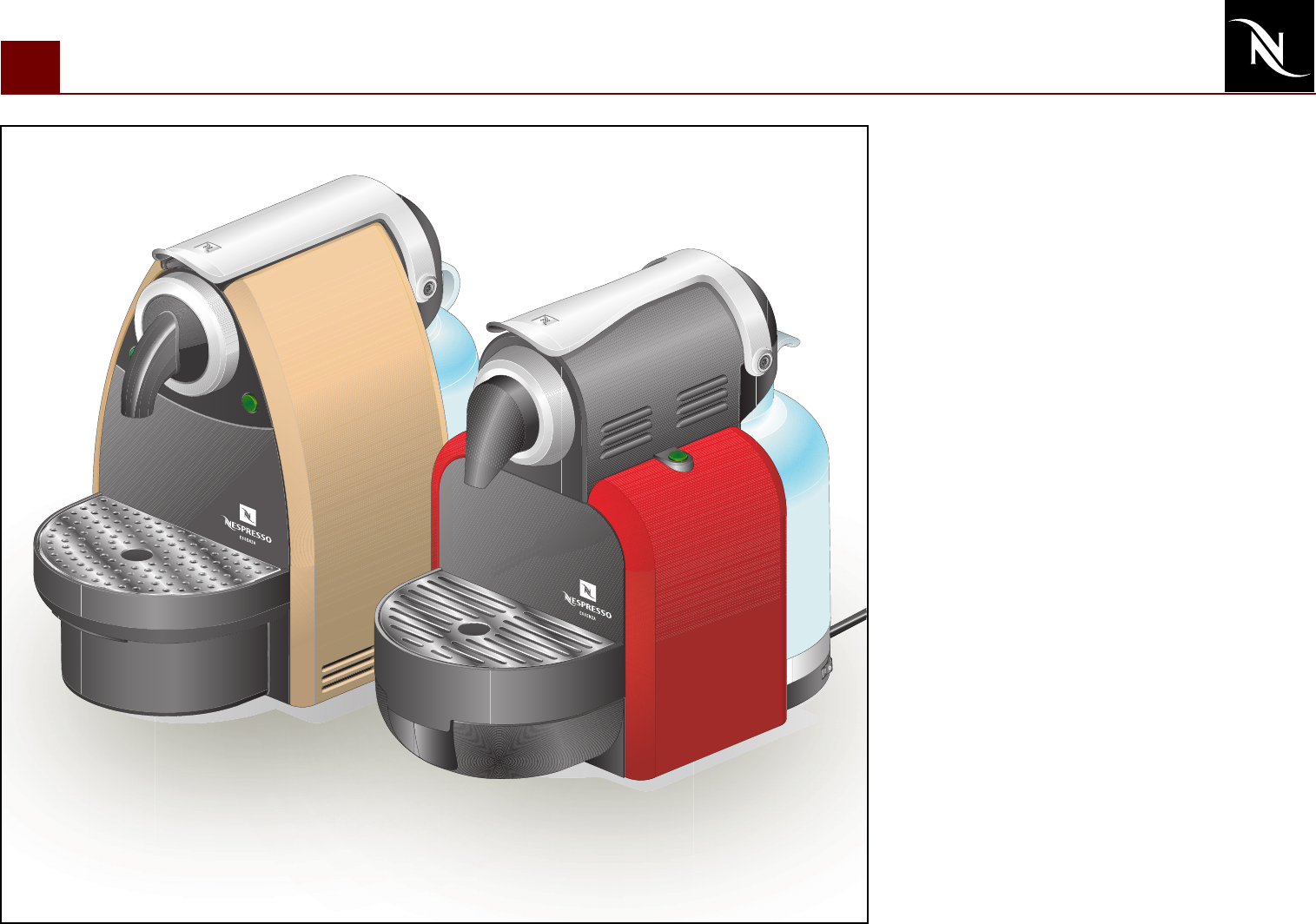

en Service Manual Coffee Machine

EF 473

EF 474

Essenza FS

Service Manual EF 473 / EF 474 enVersion 1.0

Contents

Preface _____________________________ 3

Main Components__________________ 4

Overview ___________________________ 4

Overview of rating plates ______________ 5

Water circuit _________________________ 6

Technical data _______________________ 7

Operation___________________________ 8

Preparation _________________________ 8

Fill water system _____________________ 9

Making coffee ______________________ 10

Programming _______________________ 11

Reset to factory settings______________ 12

Empty water system _________________ 13

Coffee machine status _______________ 14

Troubleshooting___________________ 15

Checking the machine on receipt ______ 15

Repair _____________________________ 17

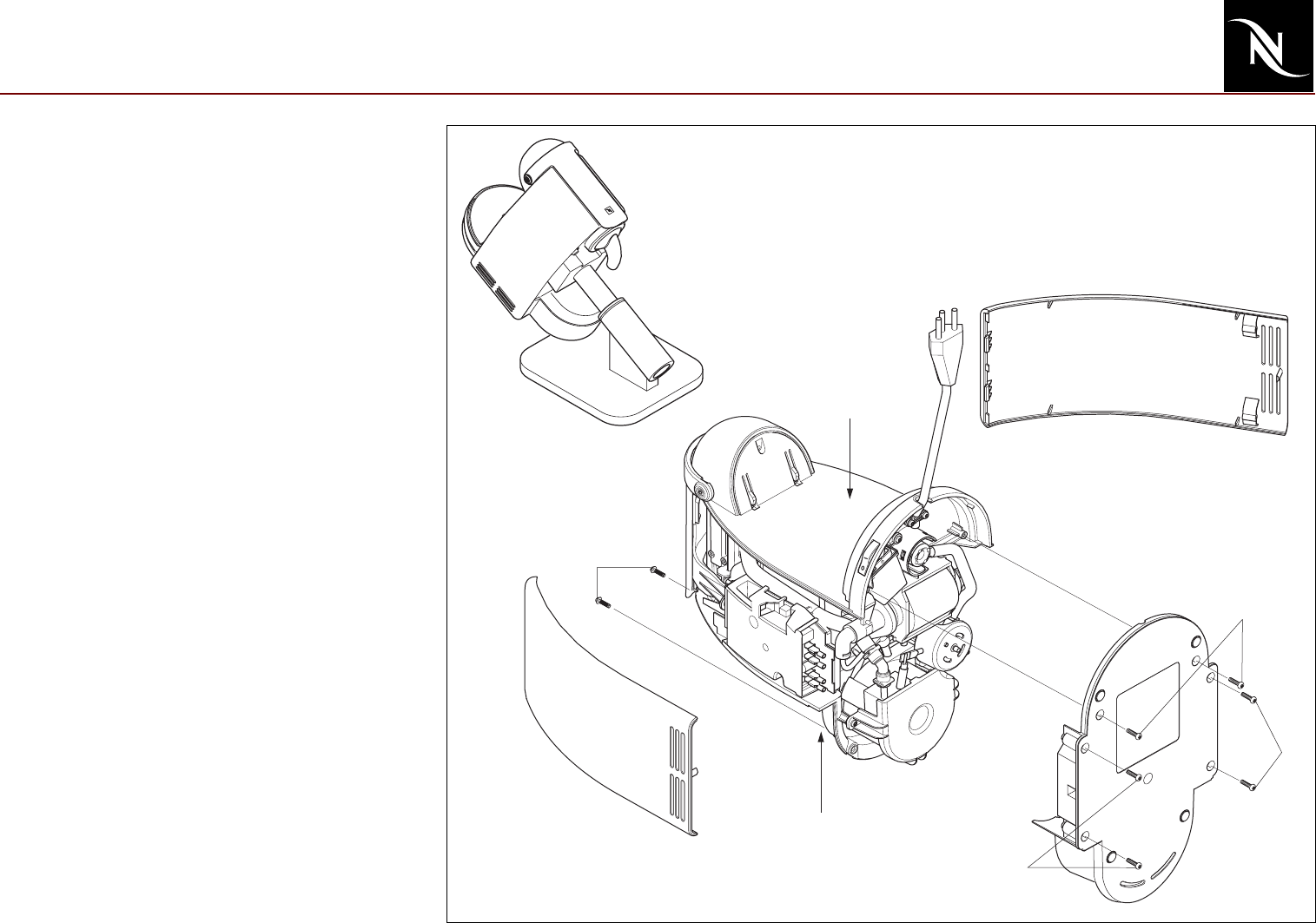

General disassembly ________________ 17

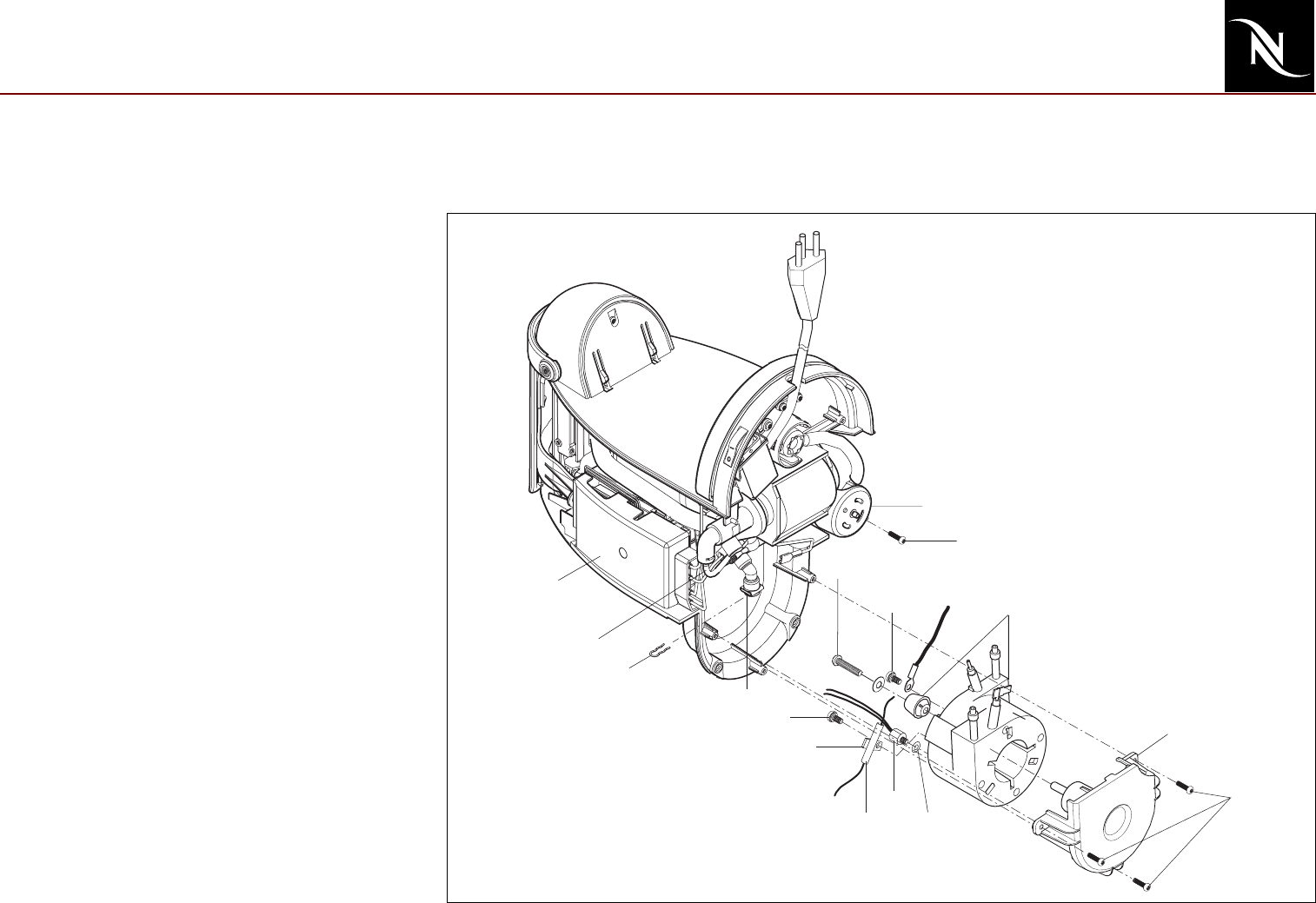

Replacing thermoblock and NTC ______ 18

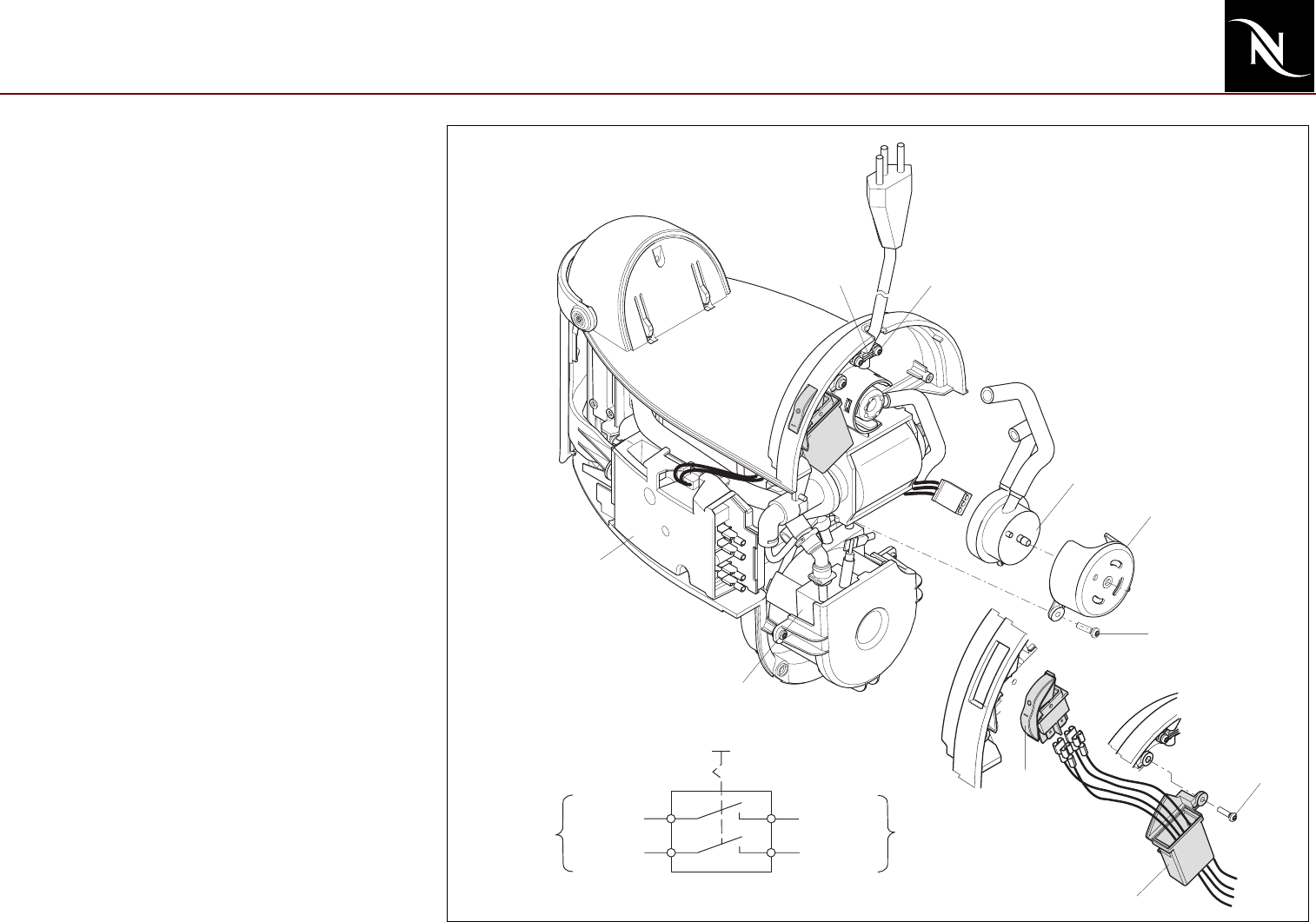

Replacing flow meter and On/Off switch 19

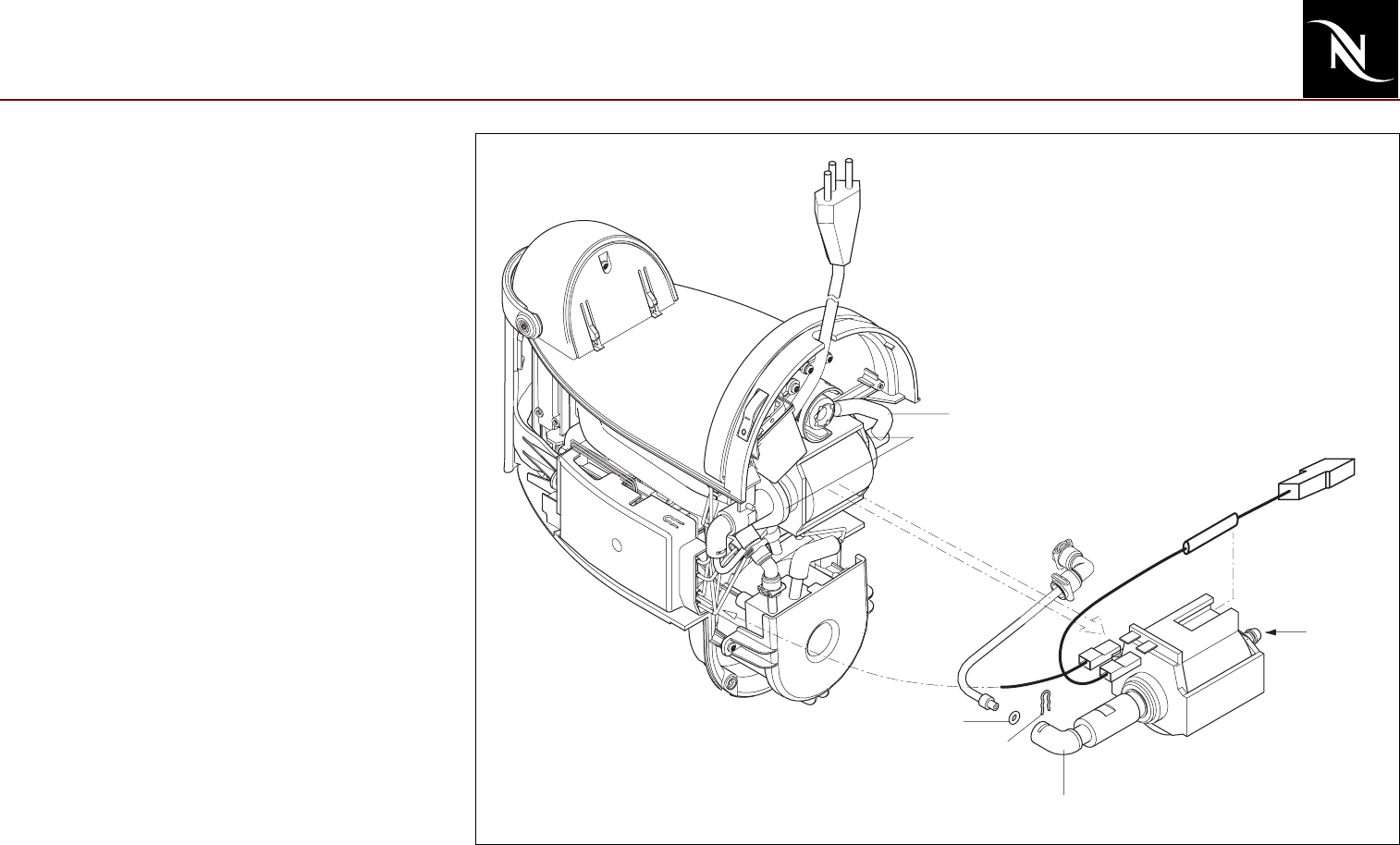

Replacing pump ____________________ 20

Replacing electronic control board with

button prints ________________________ 21

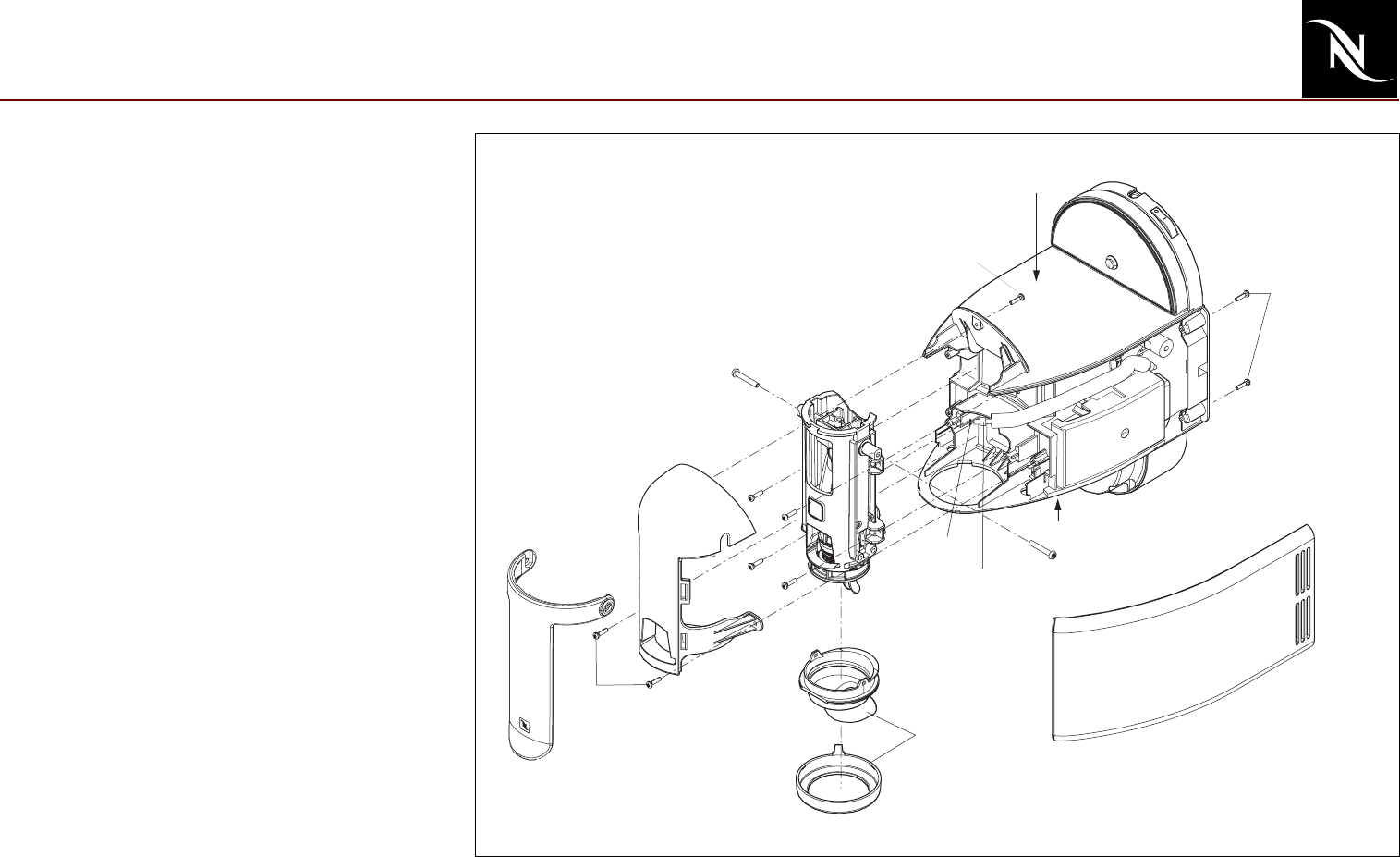

Replacing compact brewing unit (CBU) _22

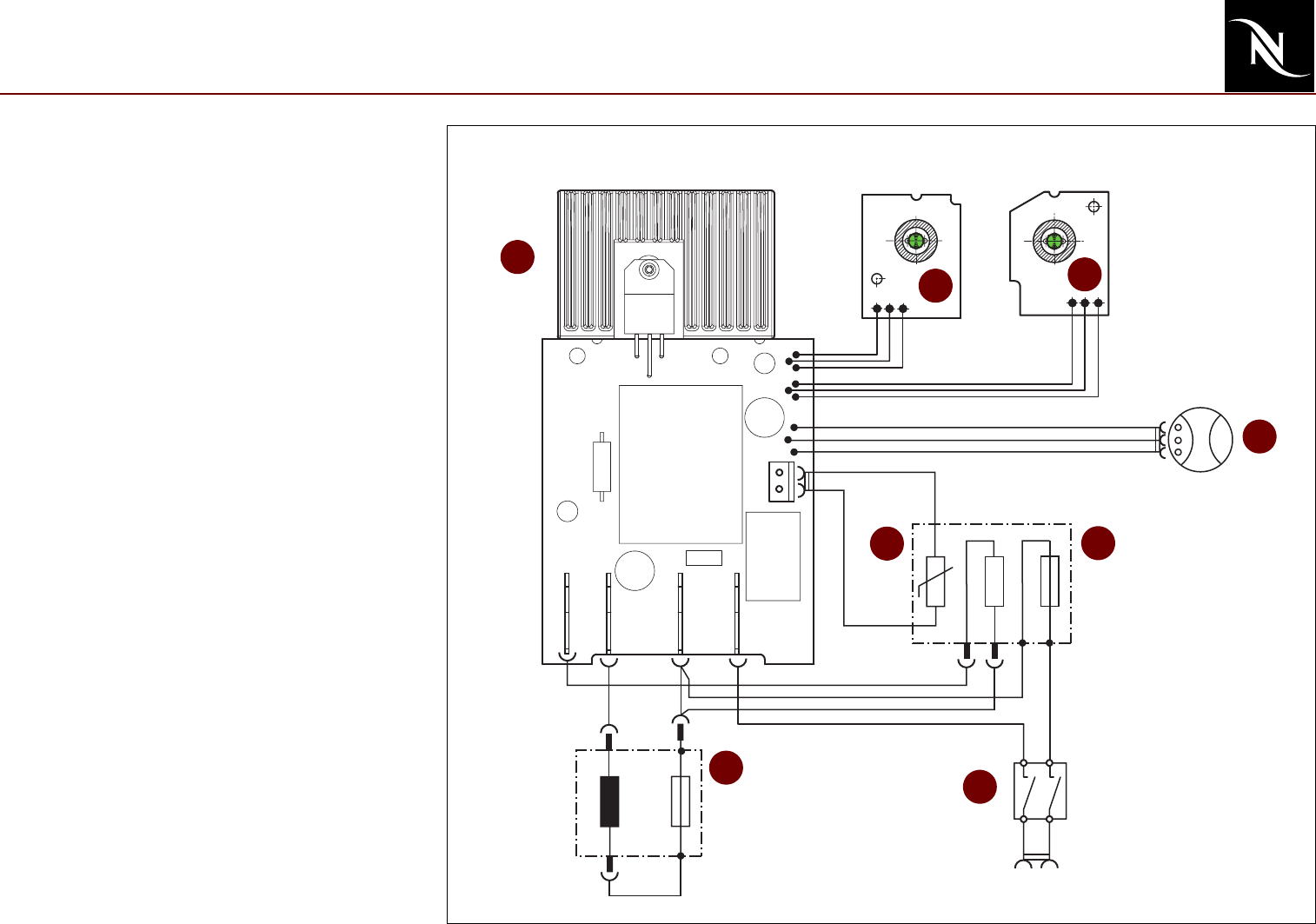

Electronic control board, wiring diagram -

Europe (230V / 50 Hz) _______________ 23

Electronic control board, wiring diagram -

USA (UL, 120 V / 60 Hz) _____________ 24

Electronic control board, wiring diagram -

Japan (100 V / 50-60 Hz)_____________ 25

Descaling (1) _______________________ 26

Descaling (2) _______________________ 27

Measuring flow rate _________________ 28

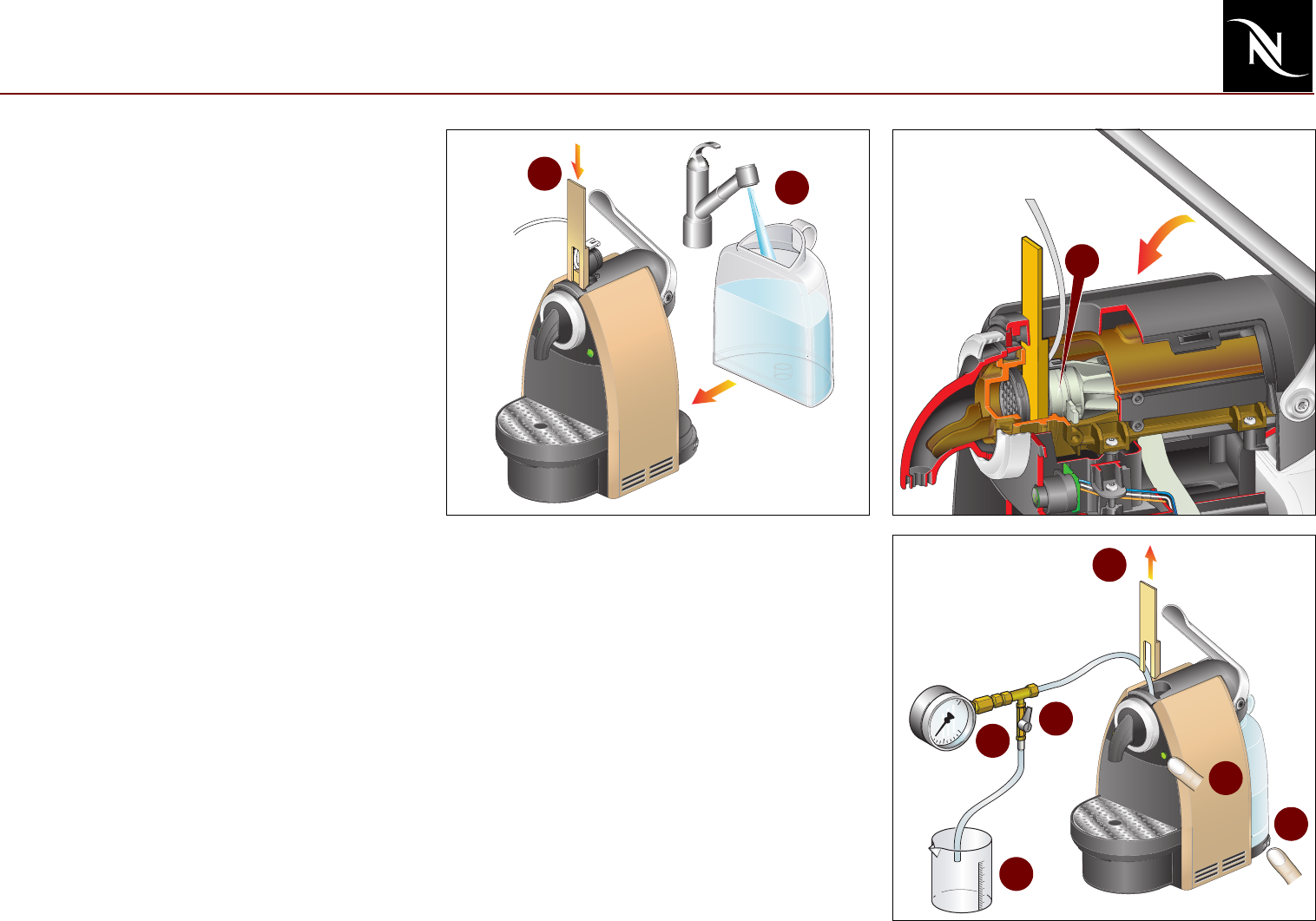

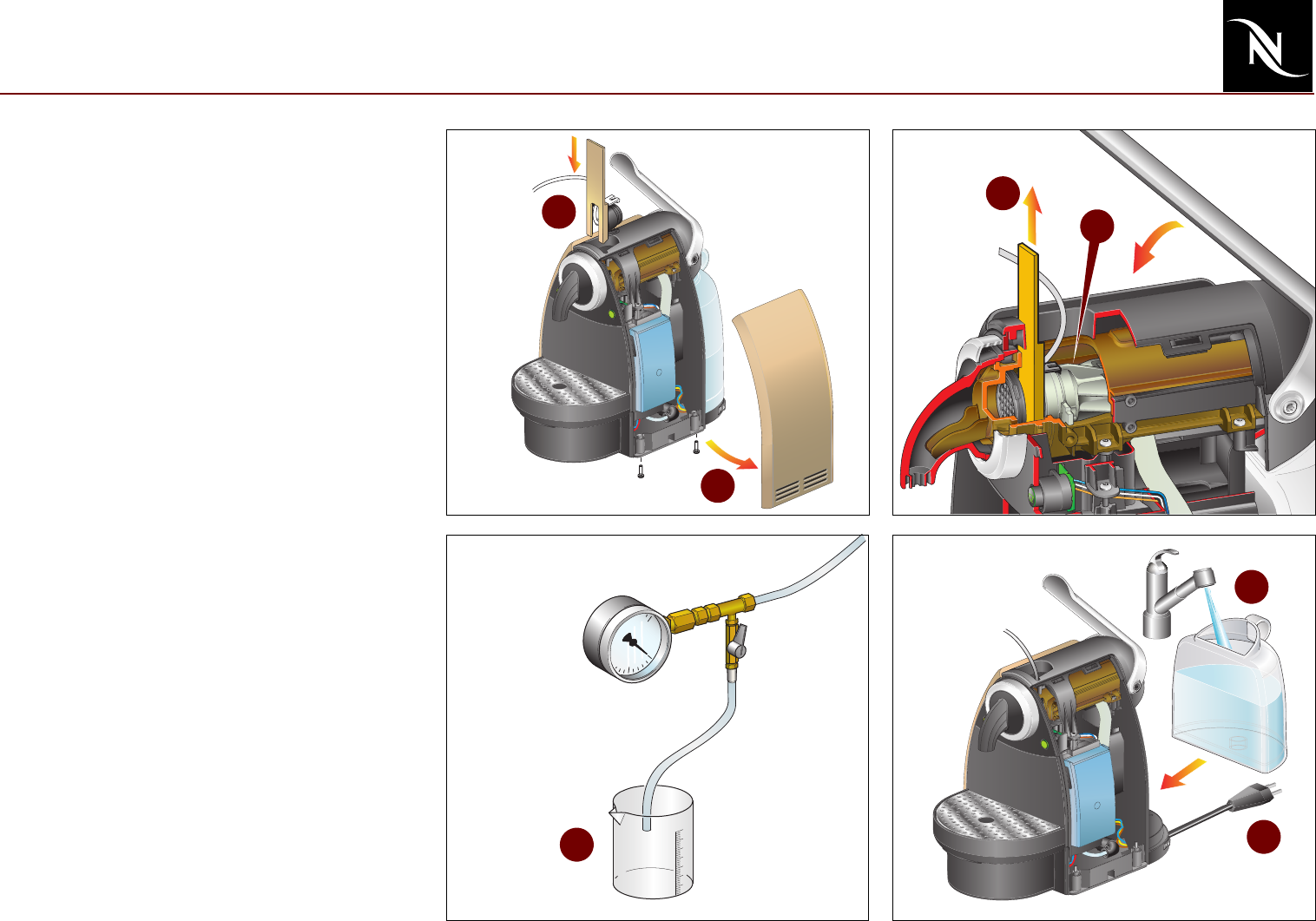

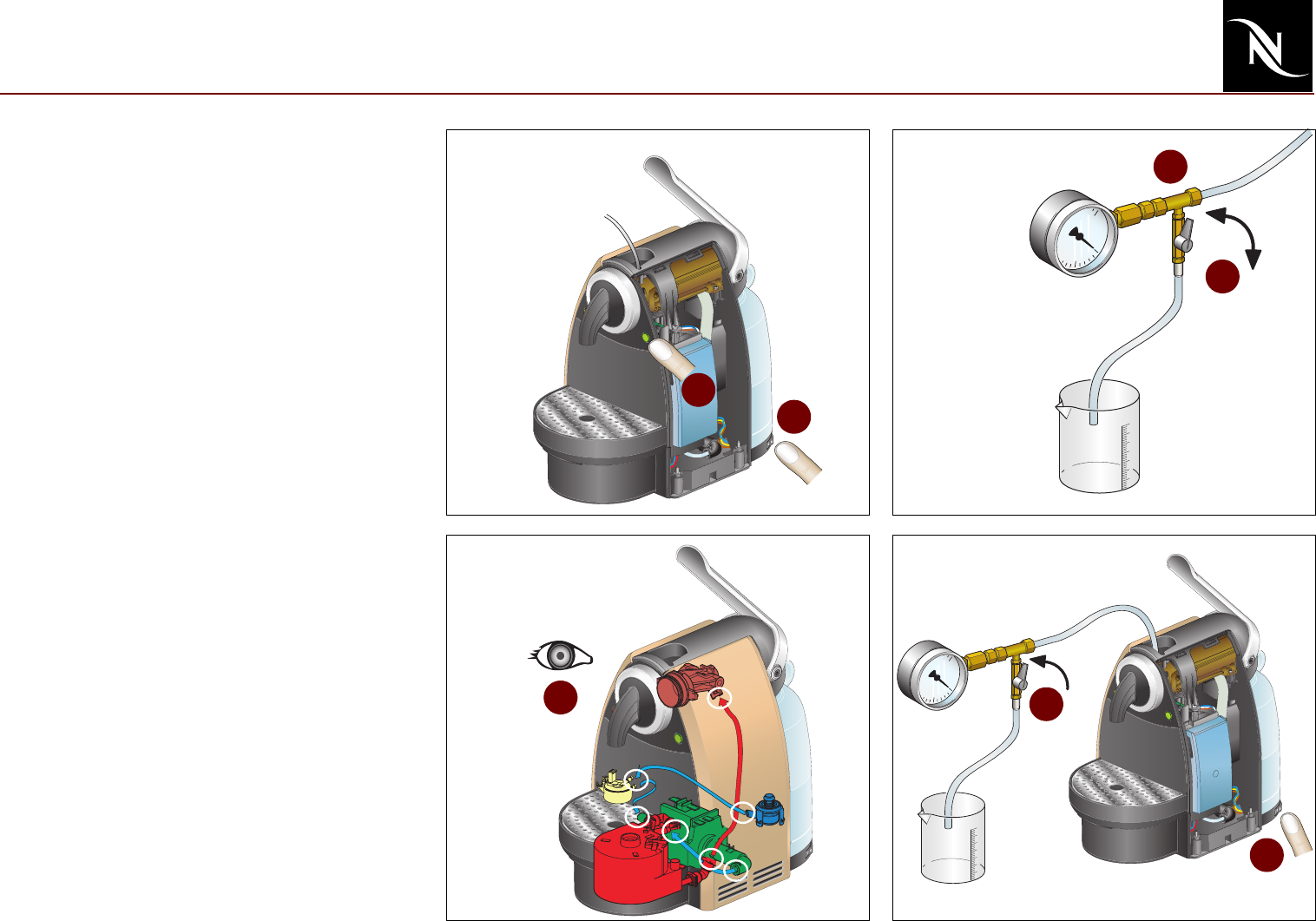

Checking for leaks and pump

pressure (1) ________________________ 29

Checking for leaks and pump

pressure (2) ________________________ 30

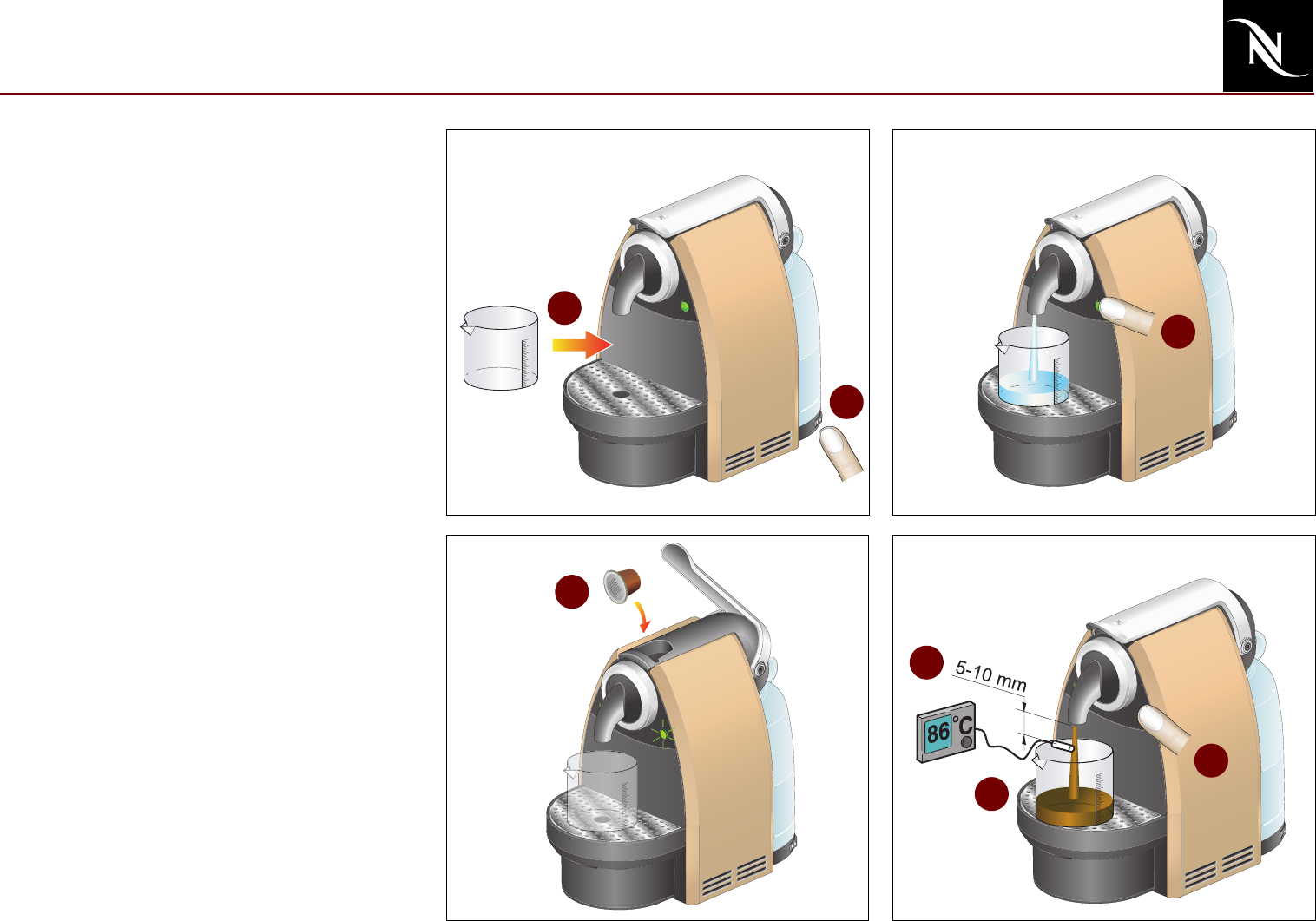

Measuring coffee temperature ________ 31

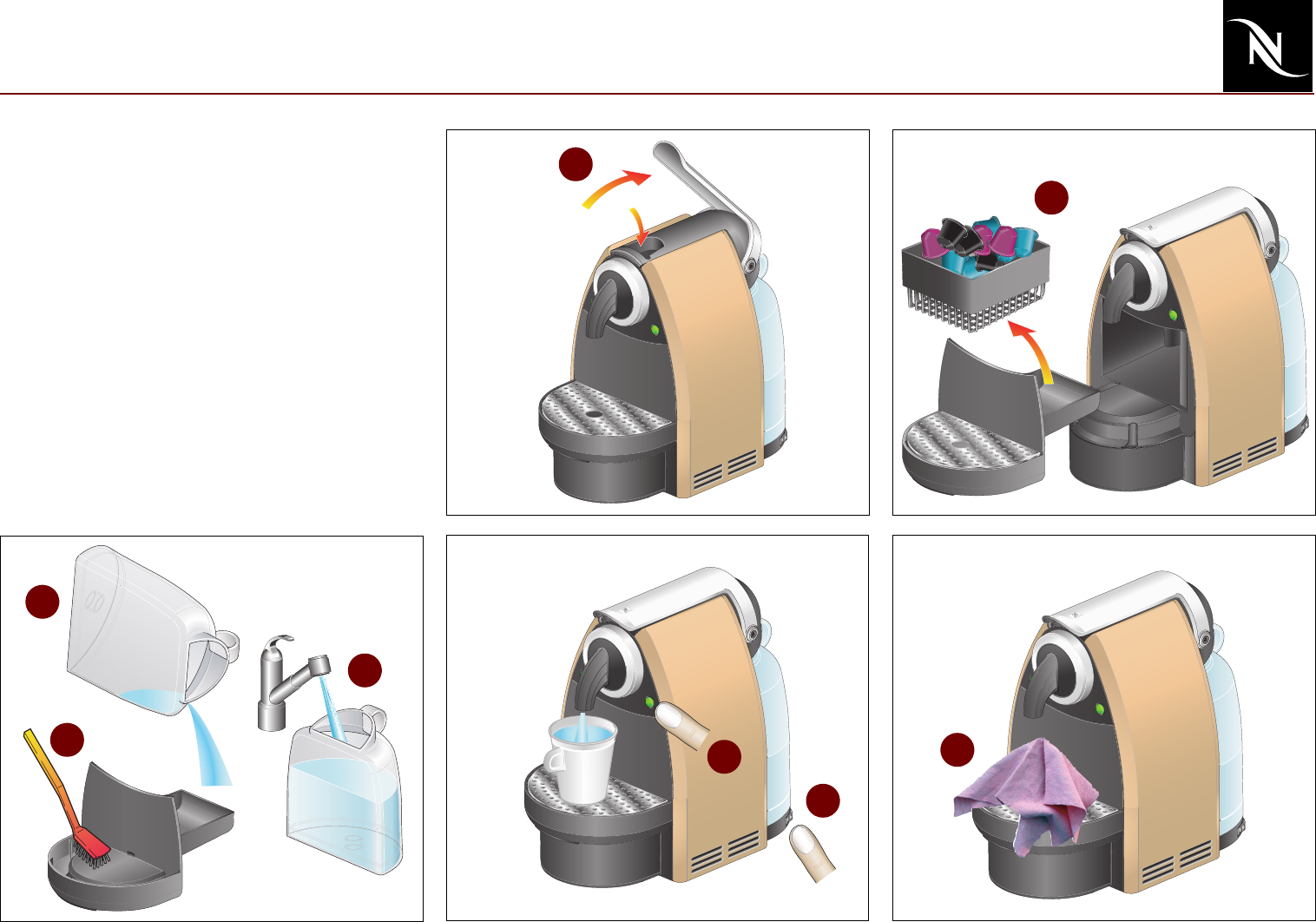

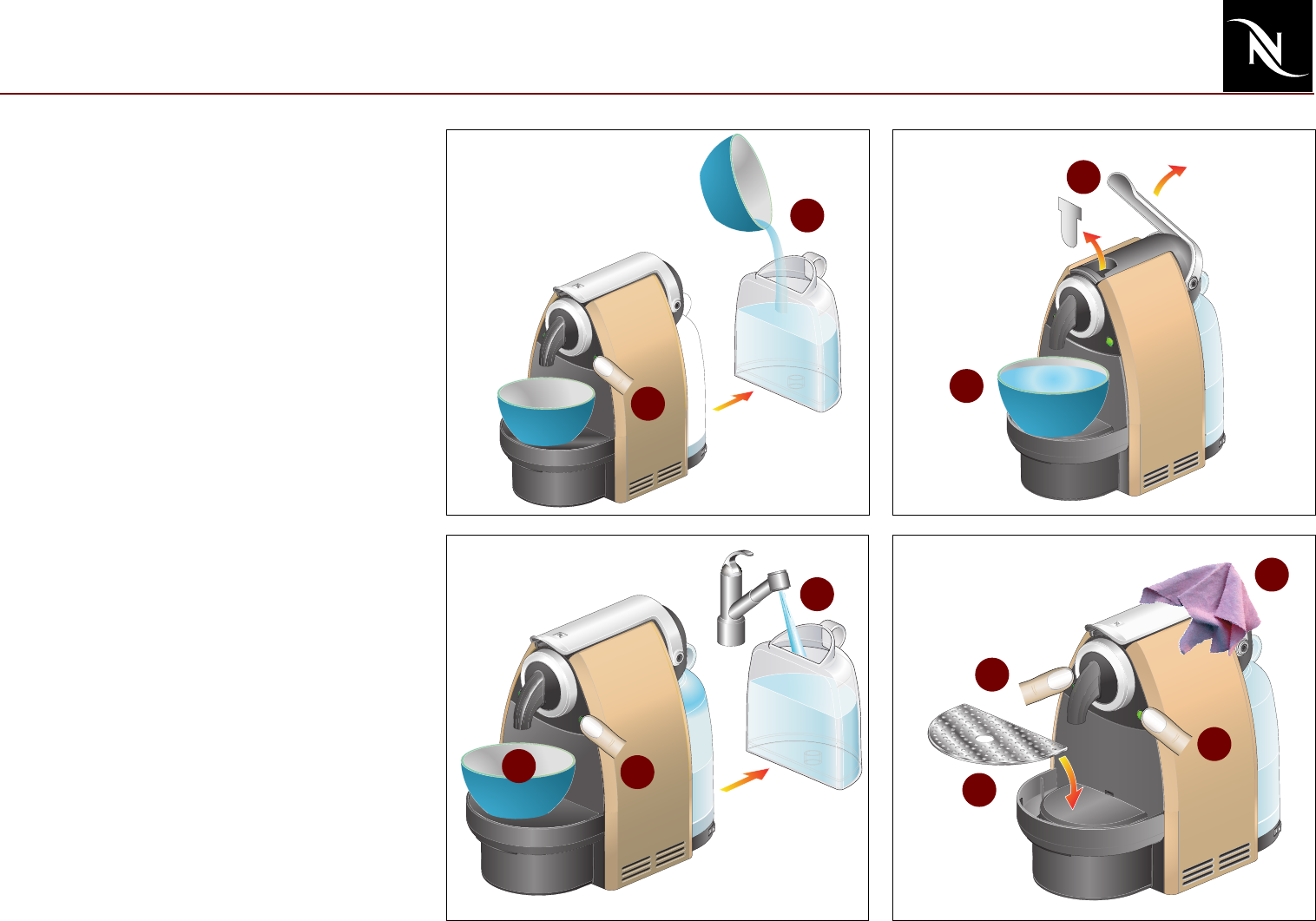

Daily care and final cleaning __________ 32

Spare Parts ________________________ 33

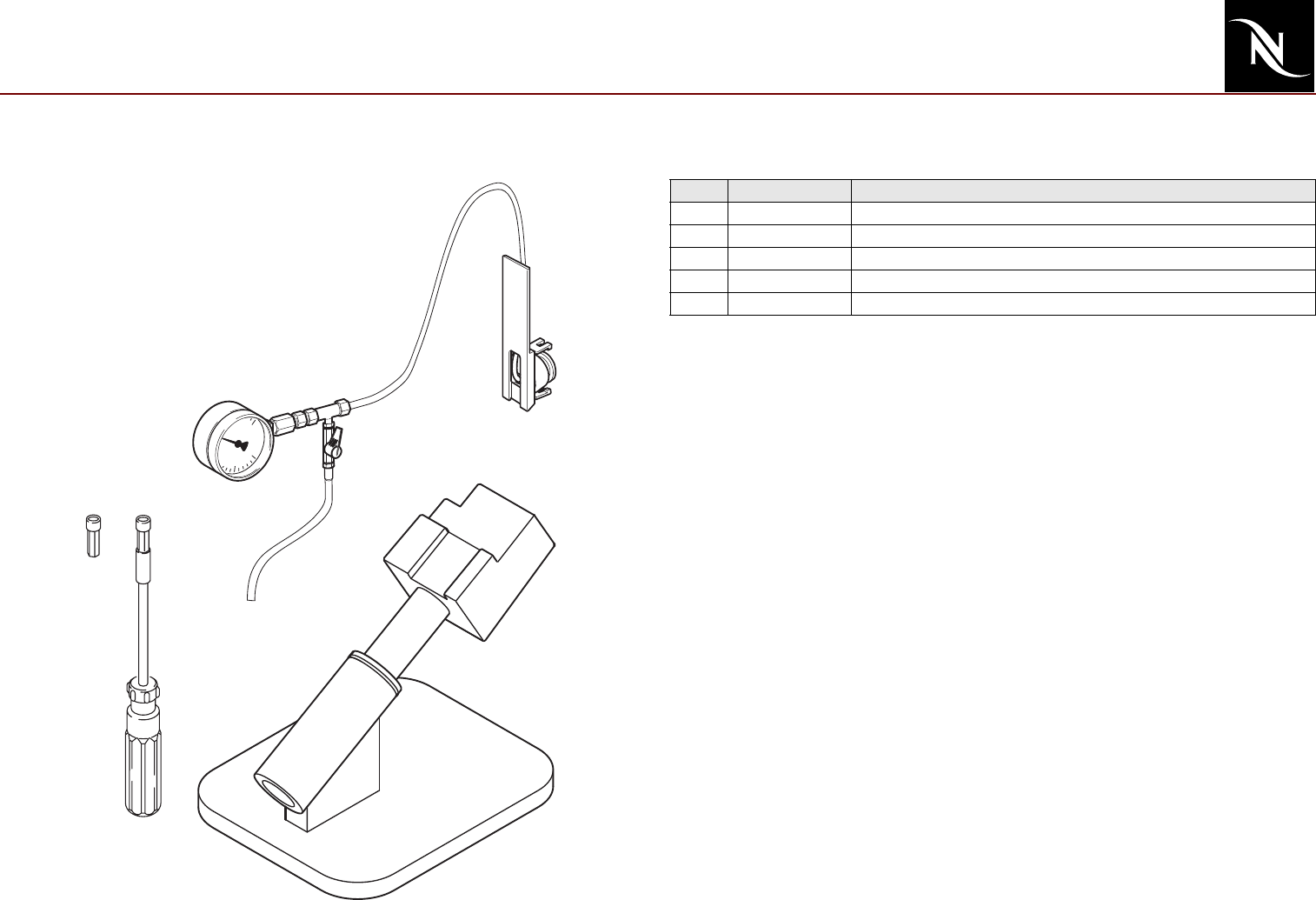

Repair accessories __________________ 33

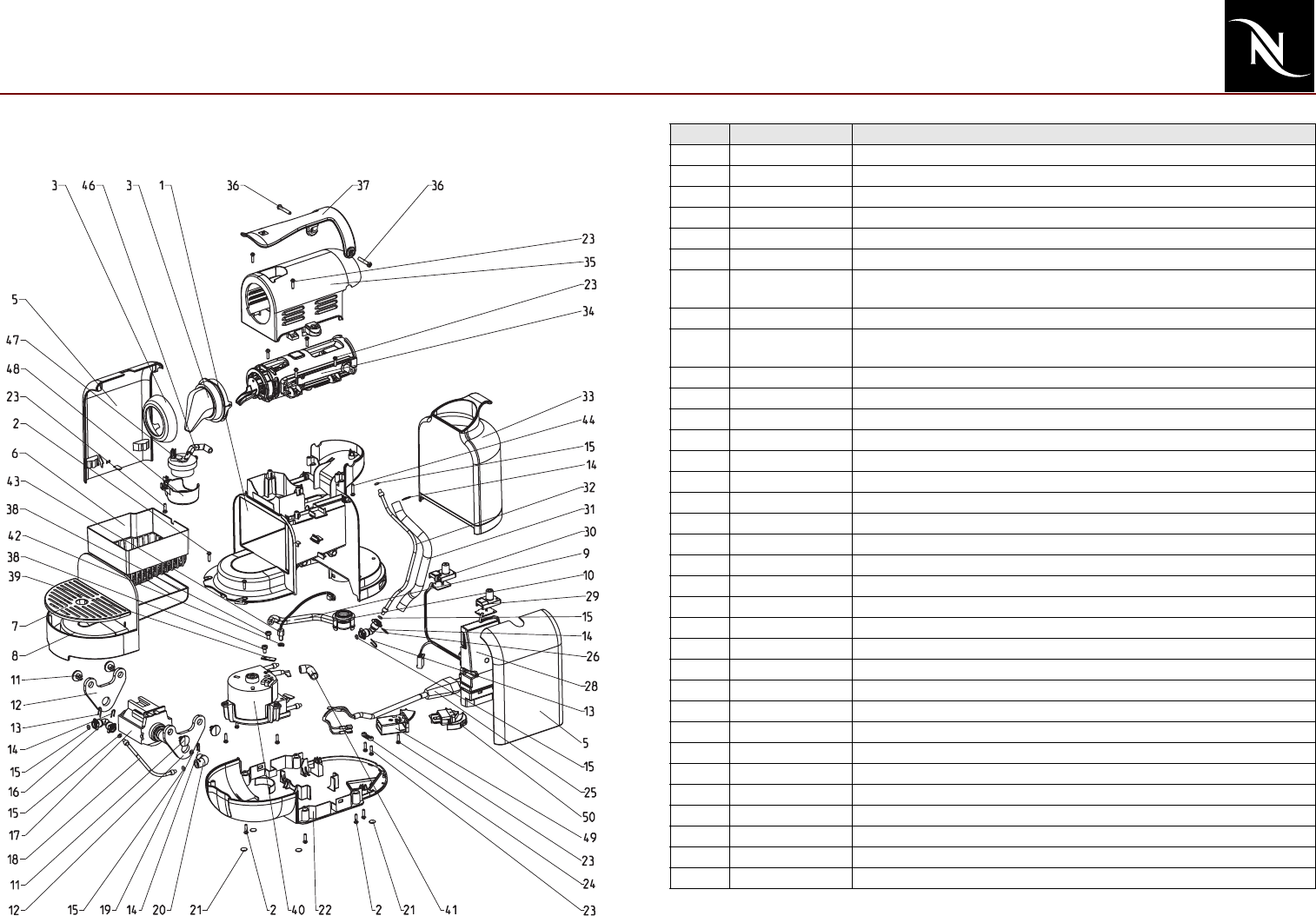

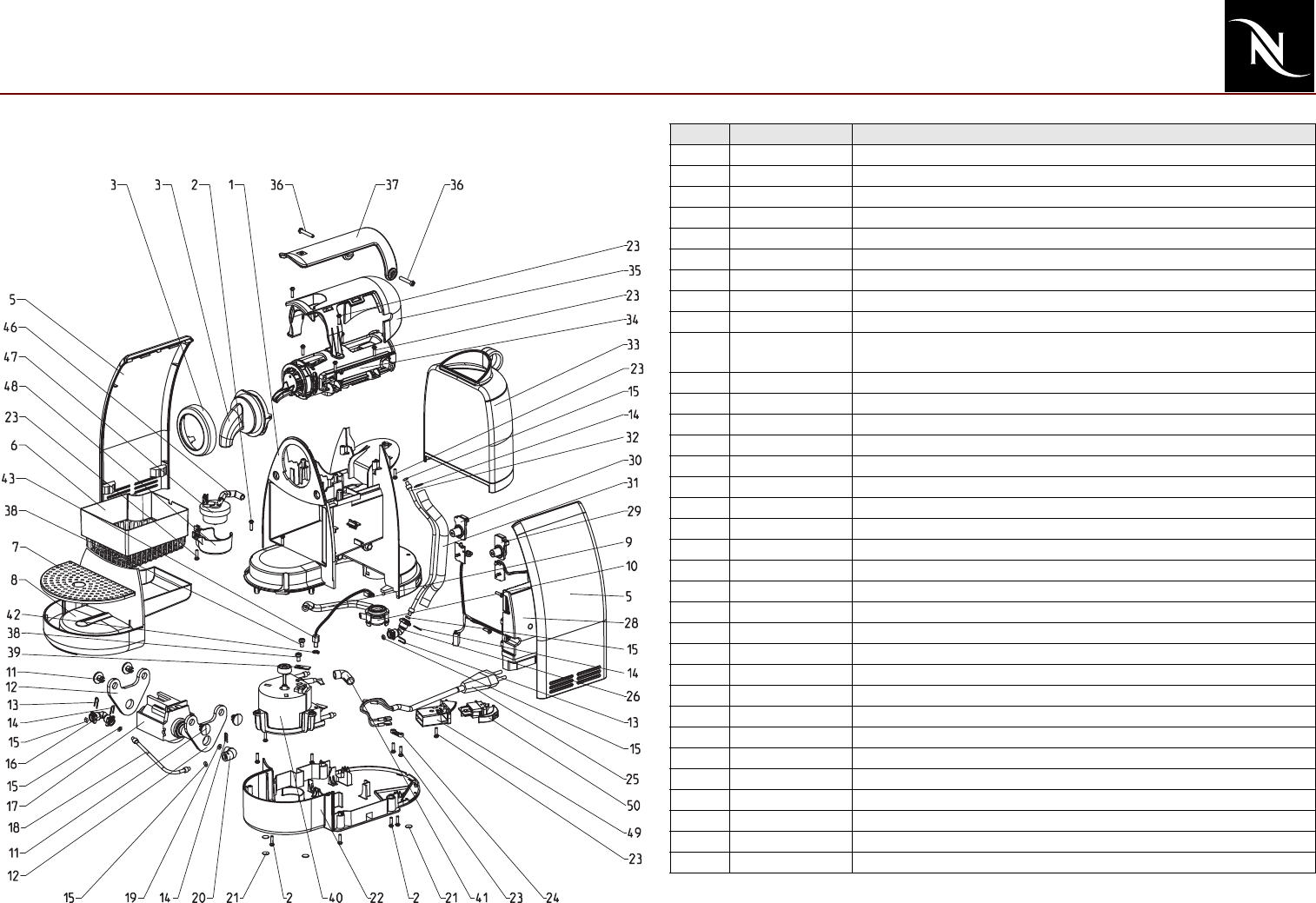

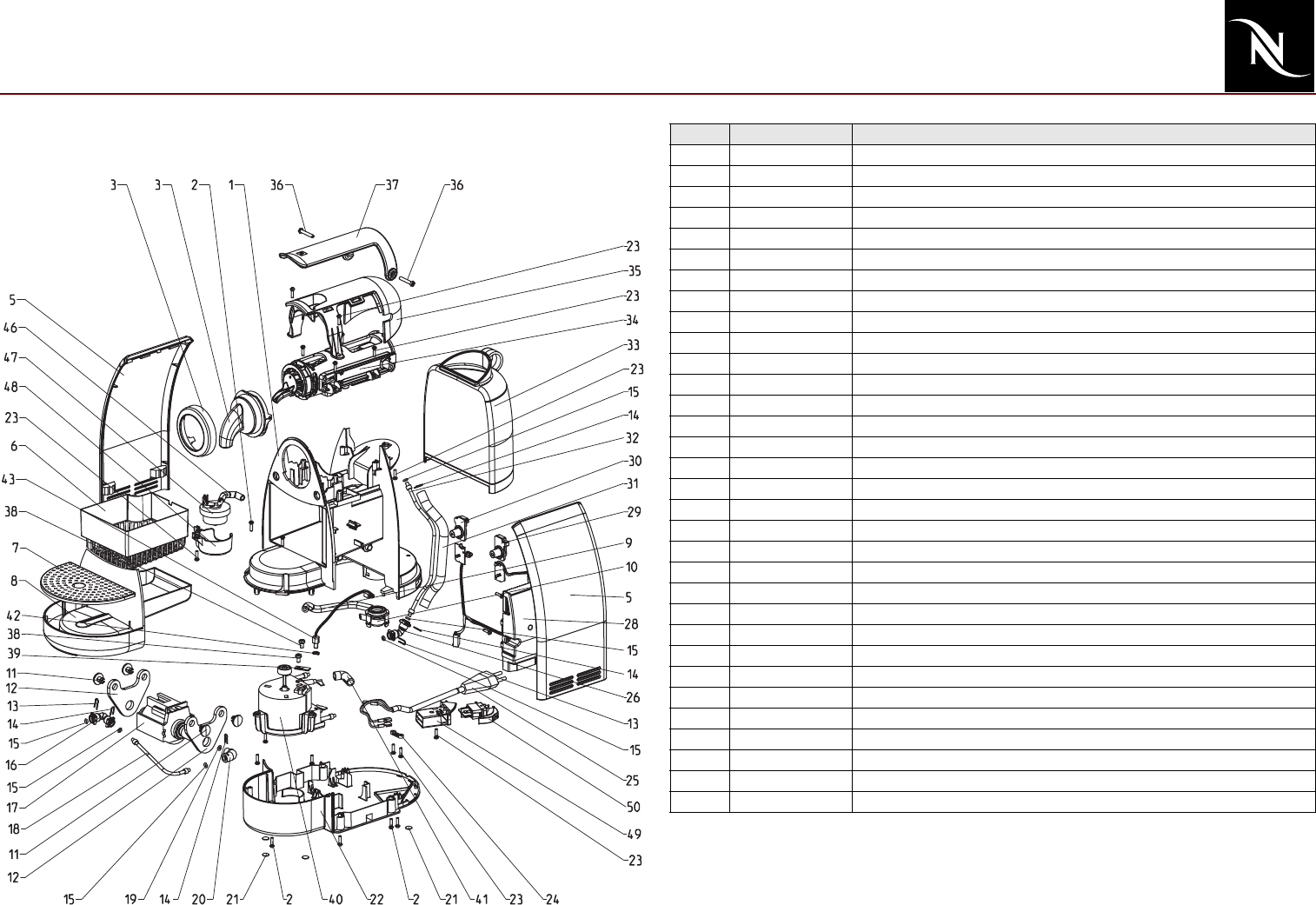

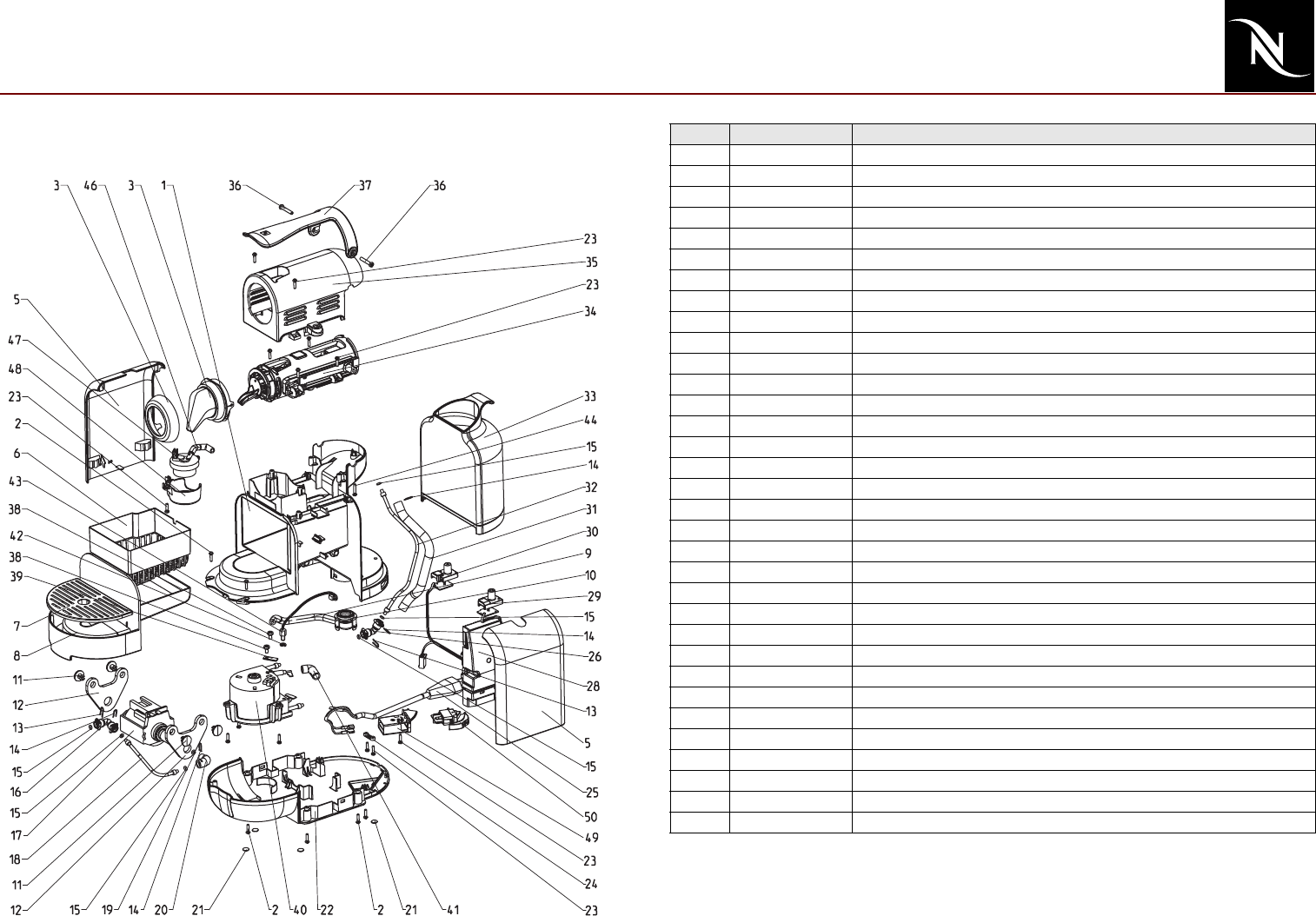

Spare parts EF 473__________________ 34

Spare parts EF 474__________________ 36

Notes ______________________________ 38

Service Manual EF 473 / EF 474 enVersion 1.0

Preface

The purpose of this Service Manual is to

provide the service personnel with all

necessary information with regards to correct

handling, maintenance and repair of the coffee

machines EF 473 and EF 474.

This manual should be used by the technicians

as a valuable aid to guarantee the permanent

readiness for use of the machine. In order to

take full advantage of all the functions, it is

absolutely necessary to follow the instructions

in this manual.

Please keep this manual together with the

corresponding service documentation. This

way you are assured to have the necessary

information.

For fast access to information directly from the

PC or MAC monitor, this manual is also

available on CD-ROM. The required utility

(Adobe Acrobat), also on this CD-ROM, runs

on PC and MAC computers.

Service Manual EF 473 / EF 474 enVersion 1.0

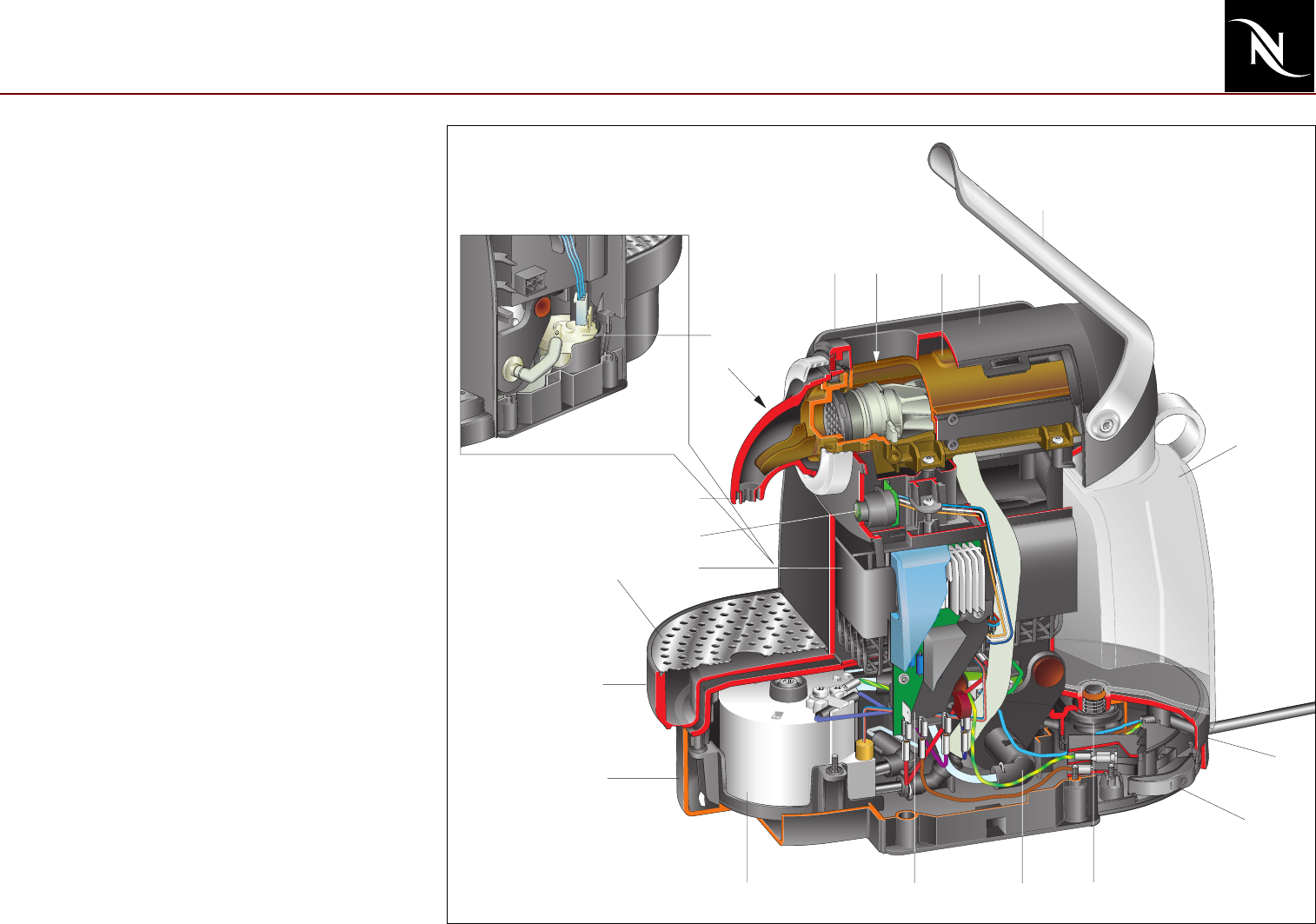

Main Components

Overview

1) Closing handle

2) Cover

3) Compact brewing unit (CBU)

4) Capsule inlet

5) Side panel

6) Flow meter

7) Button "small cup", back lighted

8) Coffee outlet

9) Button "large cup", back lighted

10) Container for used capsules

11) Drip grid

12) Drip tray

13) Lower chassis

14) Thermoblock TB 2003

15) Electronic control board

16) Pump CP4-SP C2

17) Water tank connector

18) On/Off switch

19) Upper chassis

20) Water tank

14 15

Main Components

Service Manual EF 473 / EF 474 enVersion 1.0

Overview of rating plates

The rating plate

- can be found at the underside of the coffee

machine,

- may be of varying design, depending on

the brand,

- carries the following information:

• Machine type

• Voltage and power rating

• Approval seal(s)

• Data matrix

• Serial number

• Bar code (Krups)

Serial number codification

Example: 0527 8074 7305 9100 015

05278 production date: 278

day of year 2005

07 machine partner codification

473 machine type

05 voltage / mains plug version

9 color version

1 production site

0001 incremental number per production day

5 checksum number

0043801

1260W50Hz

MADE IN SWITZERLAND

0527 8044 7405 2100 015

Typ: KOENIG

Capri Automatic 03165

220-240V~

KOENIG APPARATE AG ZÜRICH 05105

1260W50Hz

Made in Switzerland

0043809

ref 11244

0527 8064 7405 2100 017

MAGIMIX M100 AUTO

220-240V

Fabriqué en Suisse

1260W50Hz

XN210540/1M0-4005

MADE IN SWITZERLAND

0044164

TYPE XN 2105

0527 8054 7305 4100 017

220-240V~

0044217

1260W50Hz

MADE IN SWITZERLAND

0527 8074 7305 9100 015

NESPRESSO Type C100

220-240V~

1260W50Hz

MADE IN SWITZERLAND

0044074

TURMIX AG, 8645 Jona, Switzerland

0527 8084 7305 9100 016

220-240V~

Turmix TX150

05105

1260W50/60Hz

MADE IN EUROPE

0044016

Type EN 95.M

0527 8014 7405 2100 012

220-240V~

P = 19 bar

Ser.Nr. 54013 S300075

Main Components

Service Manual EF 473 / EF 474 enVersion 1.0

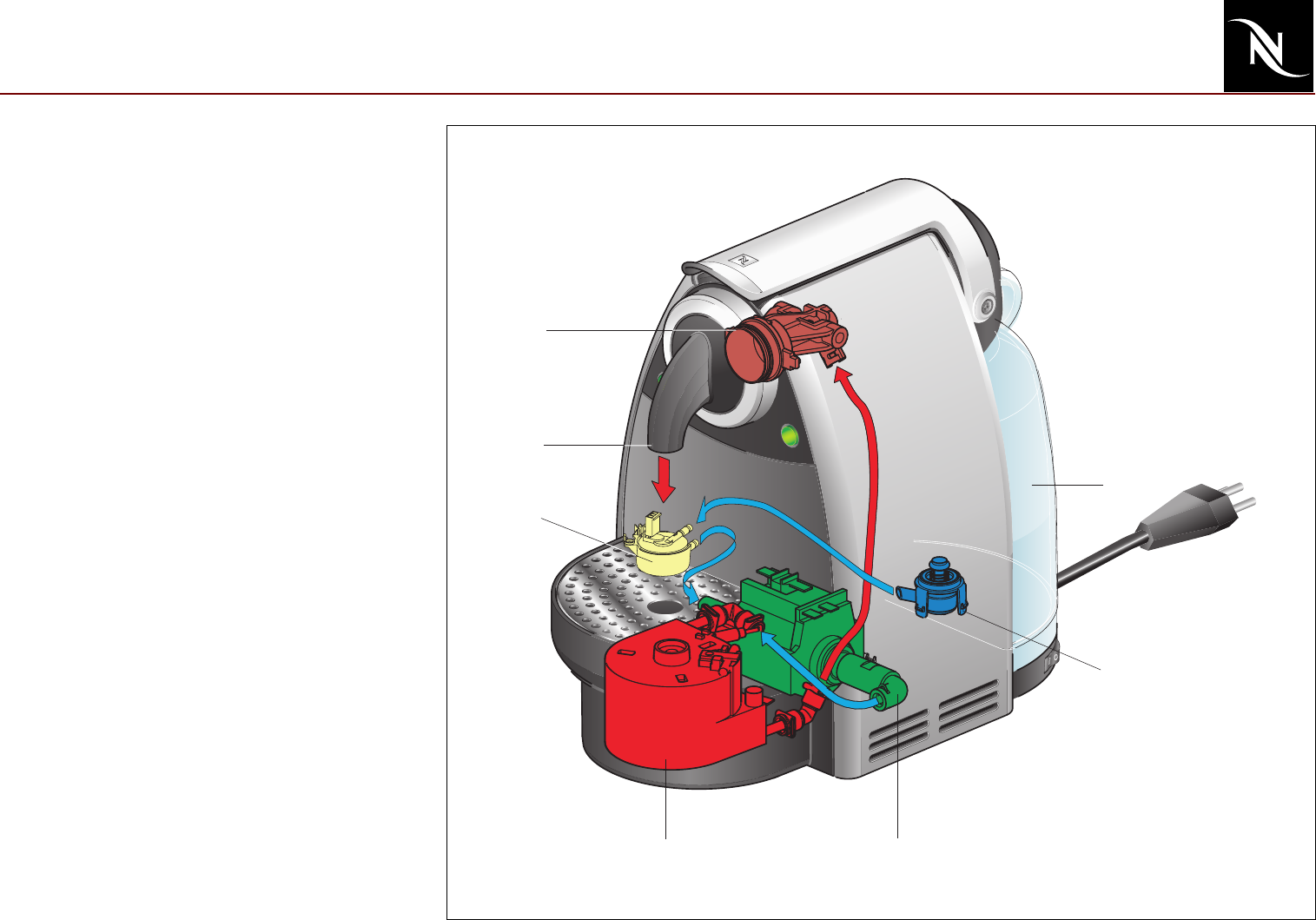

Water circuit

1) Water tank

2) Water tank valve and connector

3) Flow meter

4) Pump

5) Thermoblock

6) Compact brewing unit (CBU)

7) Coffee outlet

Main Components

Service Manual EF 473 / EF 474 enVersion 1.0

Technical data Mains

EUR 230V / 50 Hz

USA /CAN 120 V / 60 Hz

JAP 100 V / 50-60 Hz

Approvals SEV, CENELEC, CE-conform,

UL, CUL, MITI

Cable length ~1,5 m

Pump data

Pump pressure

- max. permissible 17,5 bar ±1,5 bar

- during coffee preparation 9 -13 bar

(depending on brand of coffee)

Flow performance 120-240 ml/min. at 12 bar

Capacities

Water tank 0.9 l

Drip tray approx. 100 ml

Capsule container 10 - 14 pcs.

Power consumption

(at all voltages and frequencies)

Thermoblock 1’200 W

Pump 60 W

Ratings

Preheating 8.0 Wh

1 small cup (40 ml*) 4.5 Wh

1 large cup (110 ml*) 9.5 Wh

Stand-by mode (in 1 h) 11 Wh

* factory setting

Various data

Pre-heating time approx. 50 s

Safety temperature (thermal cut-off) 167° C

Coffee temperature at outlet 86° C ± 3° C

Weight of machine approx. 3 kg

(without water)

166 mm

255 mm

291 mm

166 mm

254 mm

291 mm

EF 473

EF 474

Service Manual EF 473 / EF 474 enVersion 1.0

Operation

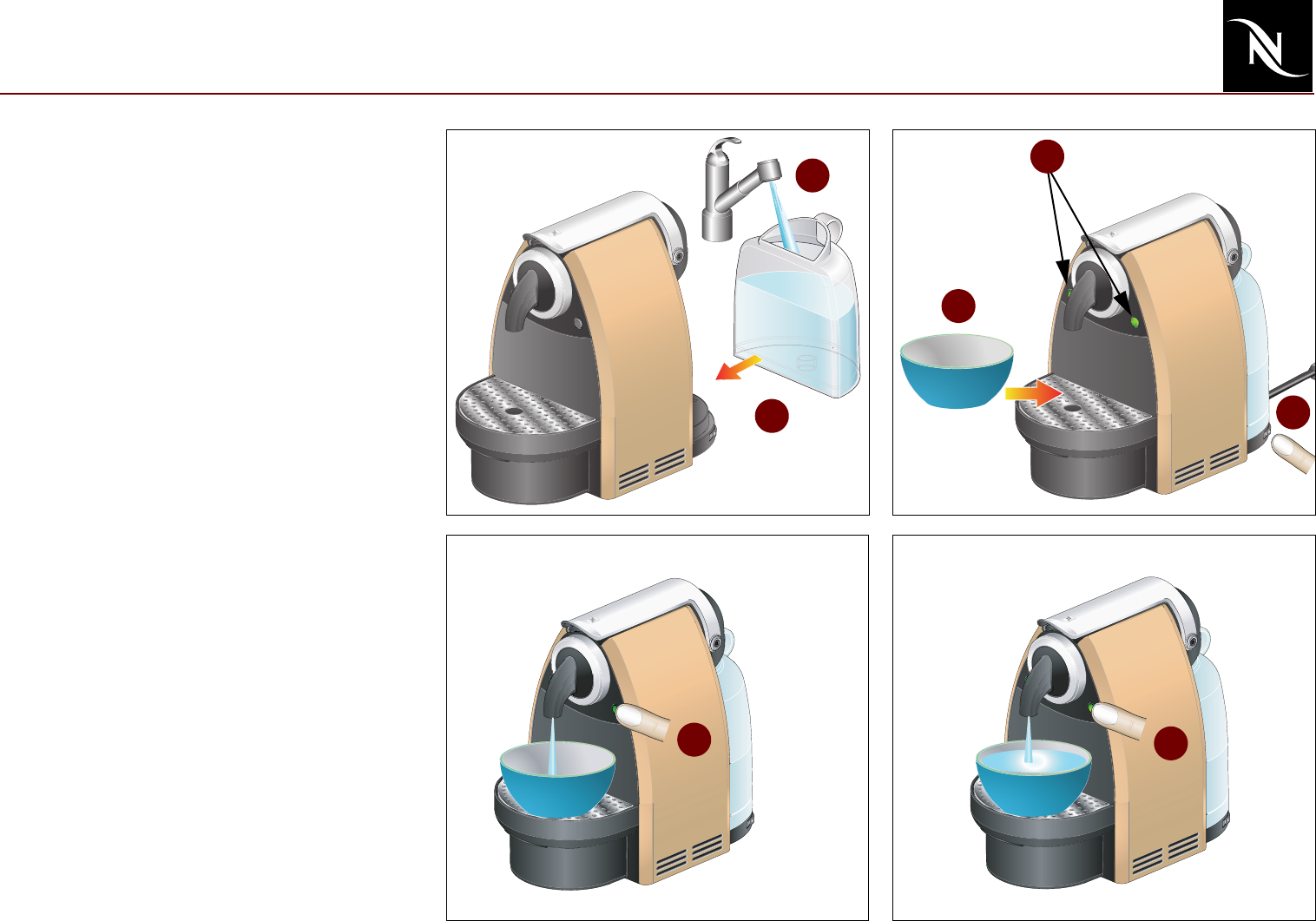

Preparation

1. Fill tank with water.

2. Insert water tank in coffee machine.

3. Switch on machine with On/Off switch.

4. Position receptacle with a capacity of

min.100 ml under coffee outlet.

)Do not insert a capsule yet.

5. Wait until machine is ready (both buttons

are lighted).

6. Press button "small cup" or "large cup" to

rinse coffee outlet.

7. Press the same button again in case the

receptacle is filled.

Operation

Service Manual EF 473 / EF 474 enVersion 1.0

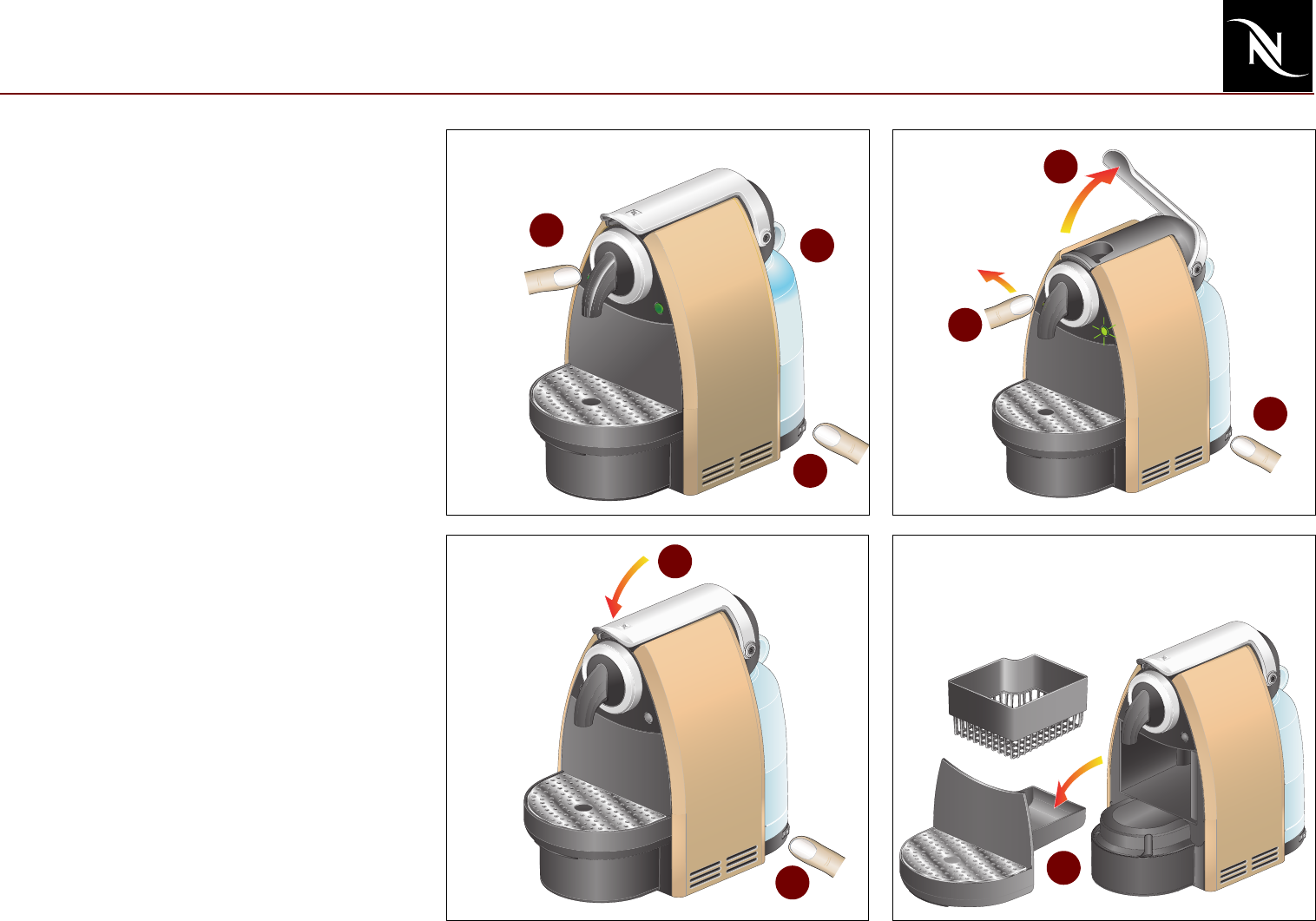

Fill water system

If the coffee machine cannot pump water

although there is water in the tank, the water

circuit may be empty.

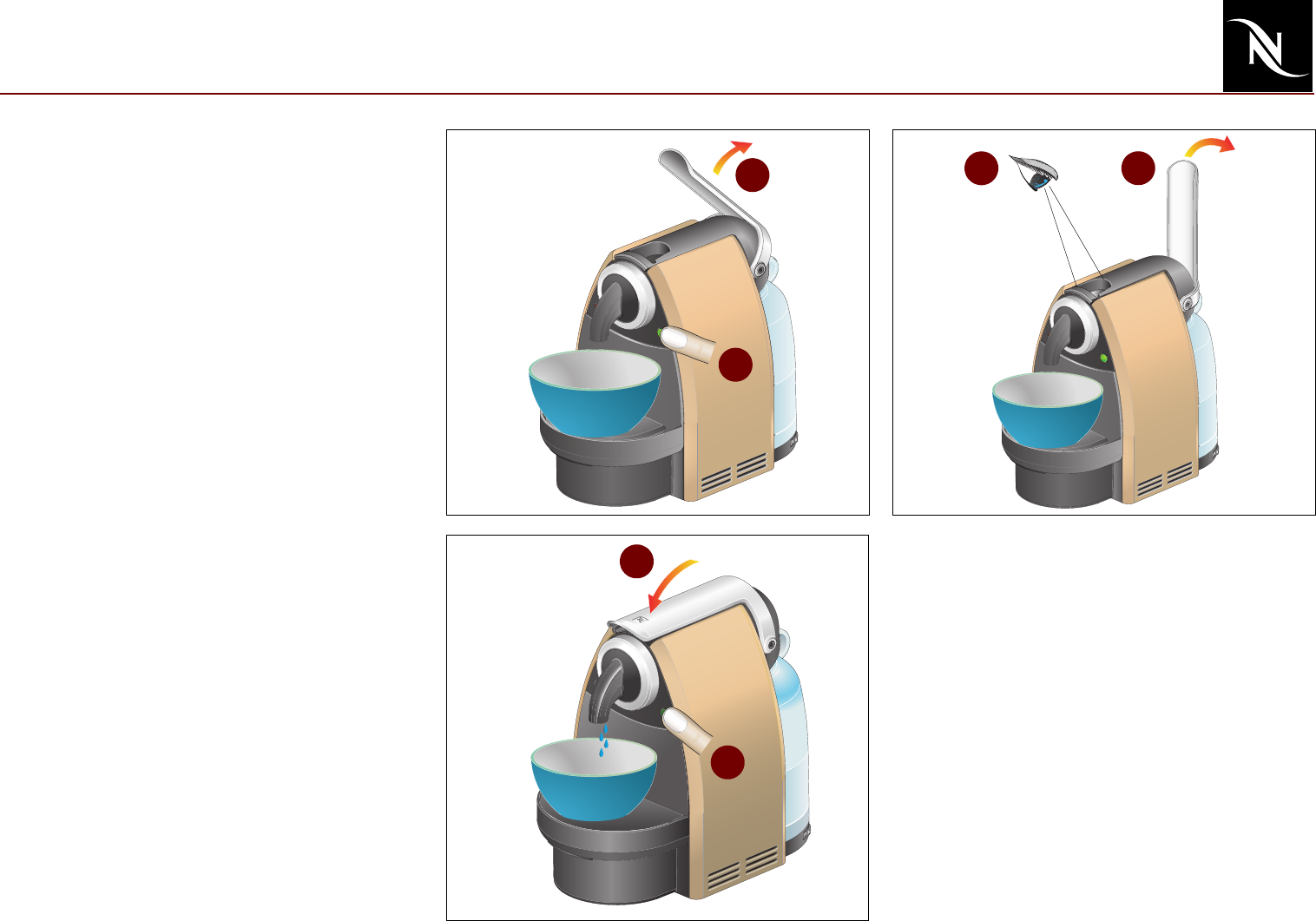

Procedure to fill water system:

1. Perform steps 1 to 5 for preparation (see

page 8).

2. Open closing handle in vertical position.

3. Press button "large cup".

4. Press and hold closing handle to rear end

position.

5. Observe capsule inlet for appearing

water.

6. Press down closing handle immediately

when first droplets are visible.

7. Press button "large cup" again to stop

water flow.

Operation

Service Manual EF 473 / EF 474 enVersion 1.0

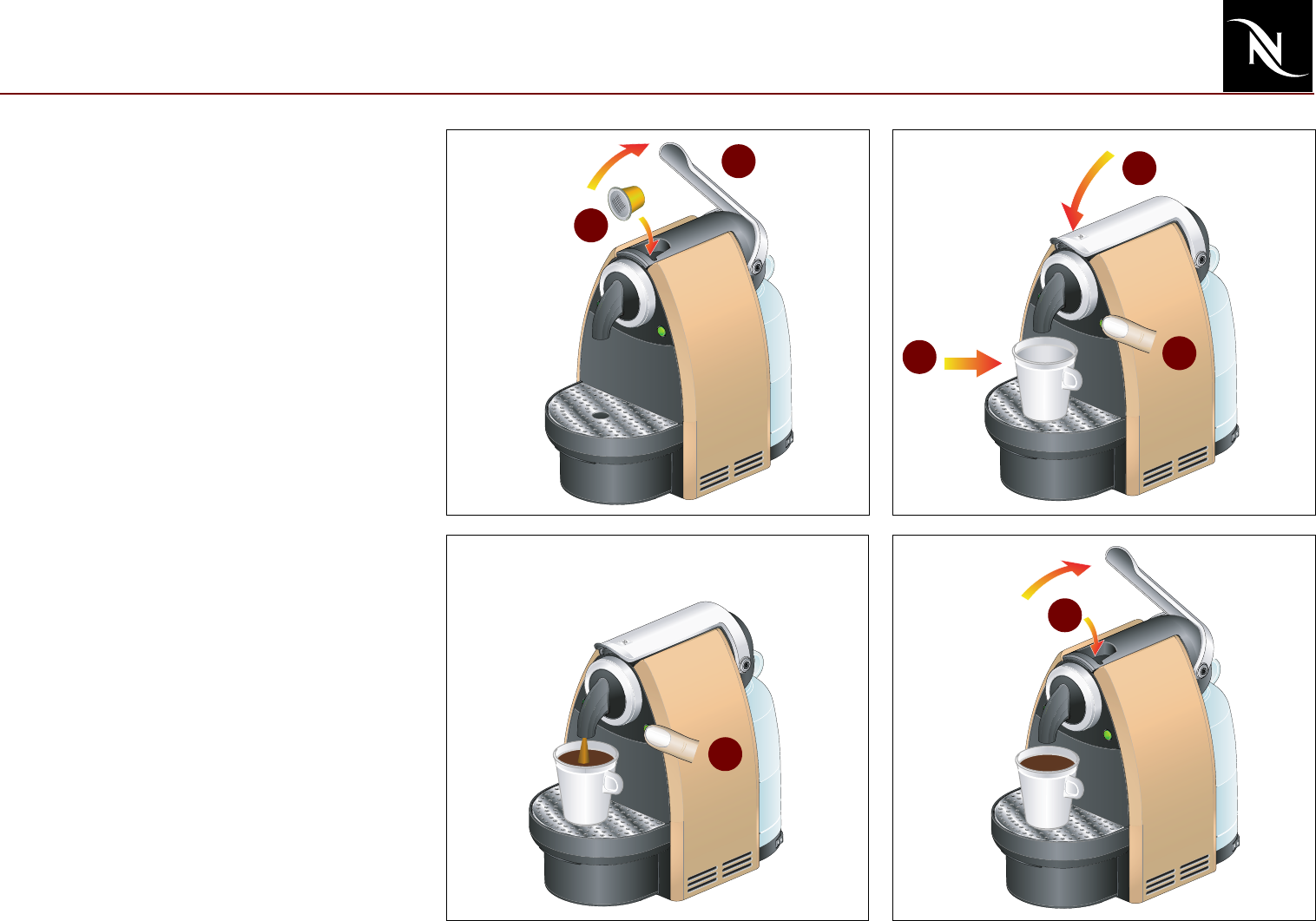

Making coffee

1. Open closing handle.

2. Insert capsule.

3. Press down closing handle completely.

4. Position cup under coffee outlet.

5. Press button "small cup" or "large cup".

Coffee flow starts and stops automaticly.

6. In case the cup is going to flow over, press

the same button again.

7. Briefly open closing handle after coffee

preparation and eject capsule into capsule

container.

Operation

Service Manual EF 473 / EF 474 enVersion 1.0

Programming

The filling amount for coffee is preset and can

be changed with the following procedure.

)Factory settings:

Button "small cup" ........................40ml

Button "large cup".......................110ml

1. Switch on machine.

2. Open closing handle.

3. Insert capsule.

4. Press down closing handle completely.

5. Position a cup under coffee outlet.

6. Press and hold button "small cup" for at

least 3 seconds to start the programming

mode.

7. Release button after desired filling

amount is in cup.

8. Briefly open closing handle after coffee

preparation and eject capsule into capsule

container.

9. Repeat programming procedure with

button "large cup".

3 sec

Operation

Service Manual EF 473 / EF 474 enVersion 1.0

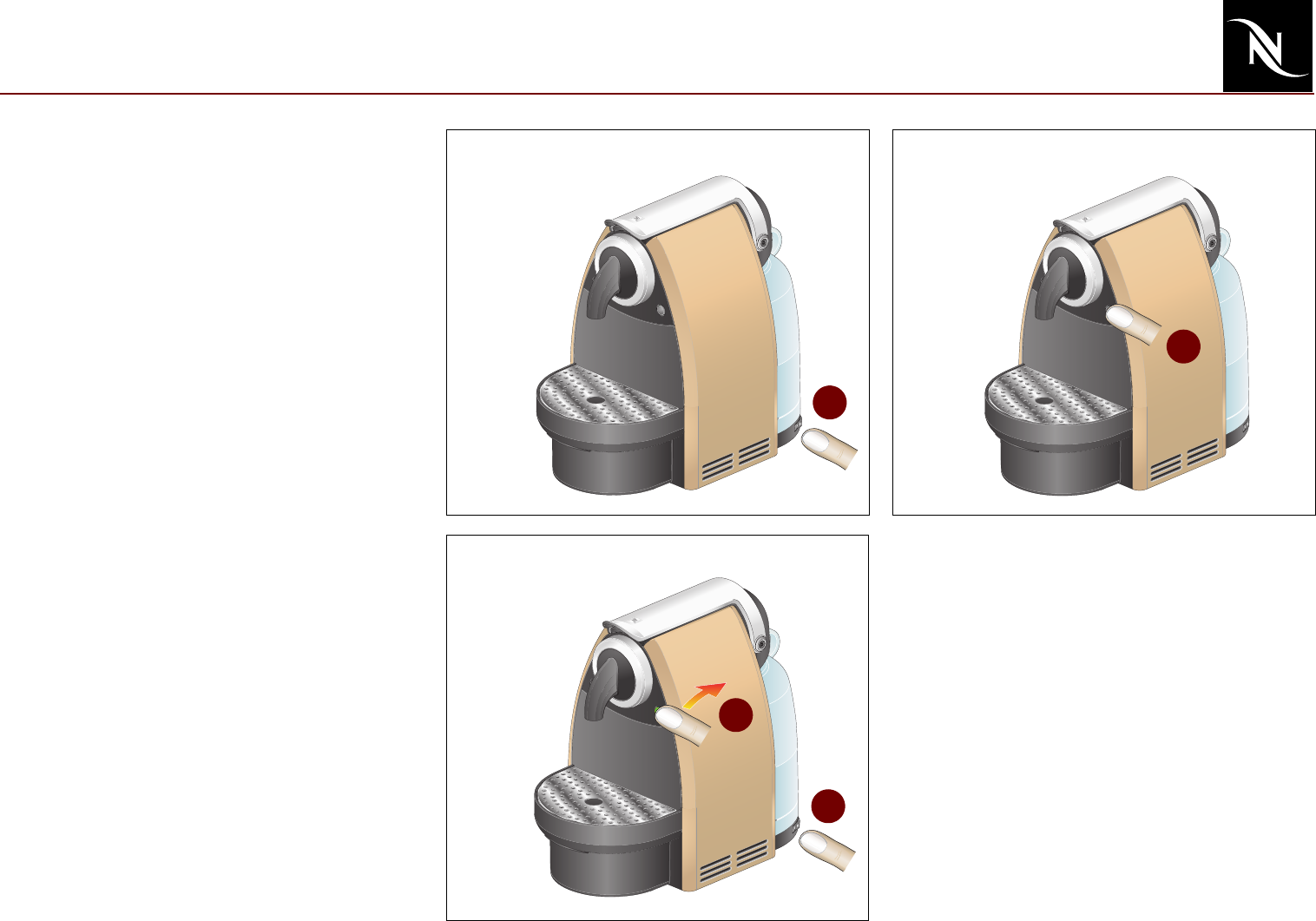

Reset to factory settings

1. Switch off machine.

2. Press and hold button "large cup".

3. Switch on machine.

4. Release button.

Operation

Service Manual EF 473 / EF 474 enVersion 1.0

Empty water system

After operation, residual water remains in the

water circuit.

This residual water can be removed

- before a longer period of non-use,

- for frost protection,

- before repair and following shipping.

1. Switch off machine.

2. Empty or remove water tank.

3. Press and hold button "small cup".

4. Then switch on machine and release

button.

The pump begins to empty the water

system and stops automatically after

approximately 5 seconds.

5. Simultaneously, open closing handle fully

and press it backwards.

The thermoblock heats up and vaporizes

water residues.

6. Switch off machine when buttons start to

blink alternately (stand-by).

7. Close closing handle.

8. Empty drip tray.

)After this procedure the machine is

blocked for approx. 10 minutes (till

thermoblock temperature < 100° C).

Operation

Service Manual EF 473 / EF 474 enVersion 1.0

Coffee machine status

After switching on, an automatic self-test is

performed to check if

- the NTC is connected,

- the NTC is short circuited,

- the thermoblock reaches the standby

temperature within 2 minutes.

Operating modes and detected failures are

indicated by backlighted coffee buttons as

listed in the following table.

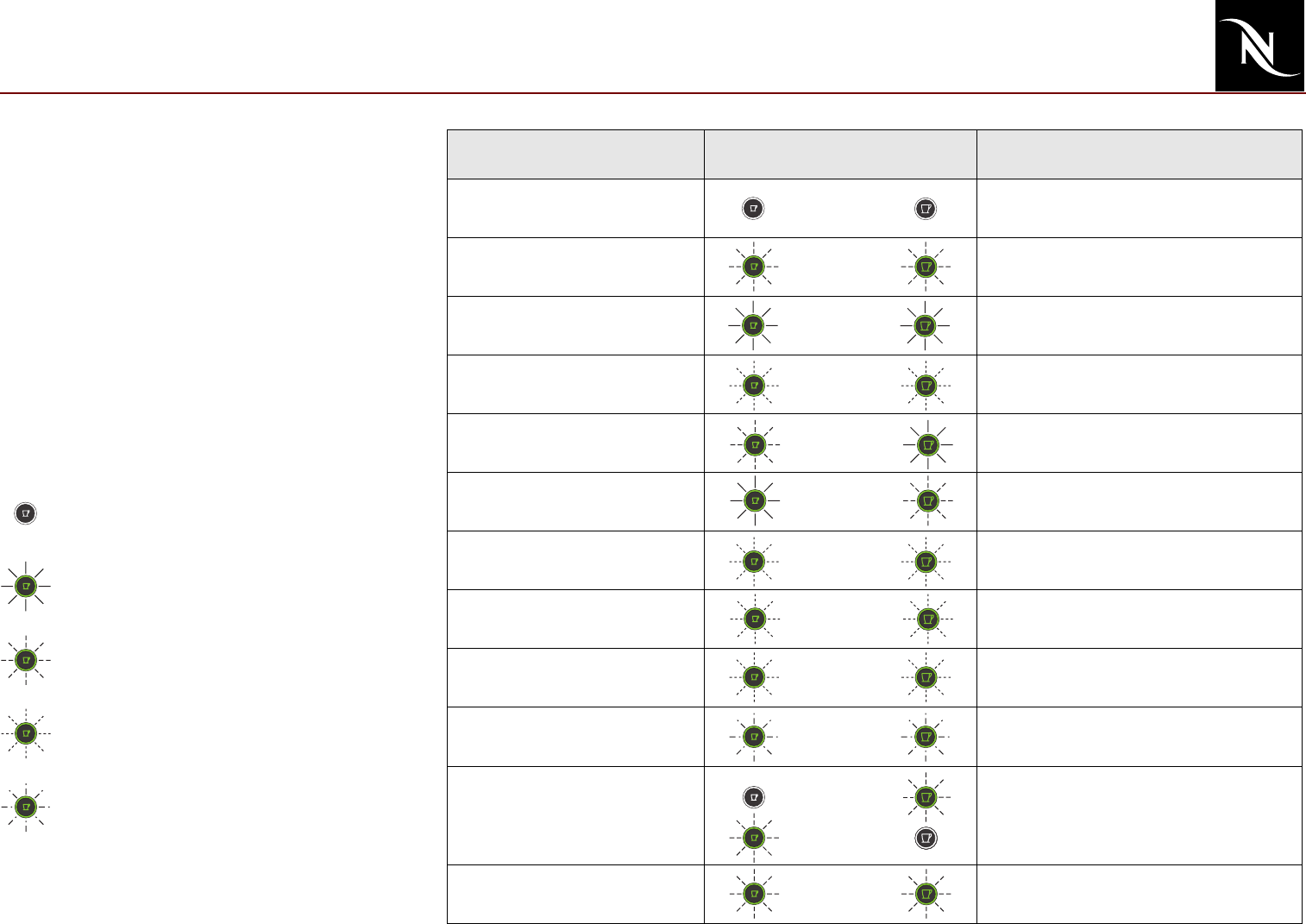

Operating status of coffee buttons

Led off

Led on

Led blinking slow

Led blinking fast

Led blinking three times fast

Operating modes Coffee buttons

left right LED signals

Off off

Heat up (coffee) / self-test blinking slow

Ready on

Heat up (descaling) blinking fast

Small coffee / rinsing /

programming

Button “small cup“ is blinking slow

Button “large cup“ is on

Large coffee / rinsing /

programming

Button “small cup“ is on

Button “large cup“ is blinking slow

Descaling ready blinking fast

Pump on/off

(while descaling) blinking fast

Emptying water system blinking fast

Failure blinking three times fast

Stand-by blinking slow, left/right alternately

Resetting blinking slow

Service Manual EF 473 / EF 474 enVersion 1.0

Troubleshooting

Checking the machine on receipt

The receipt check enables you to rapidly

locate faults on the machine and to initiate

appropriate repair action.

Follow the check procedure.

Repair any faults found and check if the

machine is operating perfectly.

Check procedure Symptoms Action / repair work Further action / repair work

1 Check appliance for visible

damage

1.1 Parts of housing broken or damaged YES - Replace parts if necessary

NO - Go to point 1.2

1.2 Mains cable damaged YES - Replace mains cable

NO - Plug machine to the mains and go to point 2.1

2 Check mechanical elements

2.1 Closing handle works correctly

YES - Go to point 2.2

NO - It is hard or impossible to close the closing handle

YES - Screw on new closing handle screws at

defined torque (see page 22) or replace CBU

NO - Replace the CBU

2.2 Is the capsule correctly ejected? YES - Go to point 2.3

NO - Replace CBU

2.3 Is the capsule cage seal damaged?

(feel with a finger if the seal is damaged)

YES - Replace CBU

NO - Go to point 3

3 Fill water tank 3.1 Water tank is leaking YES - Replace water tank

NO - Go to point 4

4 Turn-on On/Off switch to perform

automatic self test 4.1 Machine is not working (no function)

YES - a) Check if mains cable is functional YES - Go to point b)

NO - Replace it

YES - b) Check if On/Off switch is functional YES - Go to point c)

NO - Replace it

YES - c) Check if pump is working (press coffee

button)

YES - Go to point f)

NO - Go to point d)

YES - d) Check if coffee buttons are functional YES - Go to point e)

NO - Replace defective button(s)

YES - e) Check if pump's fine wire fuse (128°C) is

defective

YES - Replace it

NO - Replace pump

YES - f) Check if thermoblock’s fine wire fuse (167°C)

is defective

YES - Replace it together with electronic control

board and if necessary with the thermoblock

NO - Go to point g)

Troubleshooting

Service Manual EF 473 / EF 474 enVersion 1.0

4 Press On/Off button to perform

automatic self test - continued

4.1 Machine is not working (no function)

- continued

YES - g) Check if electrical wires are functional YES - Replace electronic mainboard

NO - Replace defective(s) wire(s)

NO - Go to point 4.2

4.2 Backlighted coffee button blinks at irregular

intervals

YES - Check if thermoblock heating element is func-

tional

YES - Replace NTC

NO - Replace thermoblock

NO - Self test ok. Go to point 5

5 Check coffee temperature while

preparing a coffee (see page 30)

5.1 No coffee outlet

YES - a) Water circuit is empty YES - Fill water circuit (see page 9)

NO - Go to point b)

YES - b) Flow meter is clogged YES - Clean or replace it

NO - Go to point c)

YES - c) Pyramid plate is clogged YES - Replace CBU

NO - Go to point d)

YES - d) Machine is blocked by scale YES - Descale machine (see page 25)

NO - Go to point 5.2

5.2 Temperature is too low (less than 83°C) YES - Descale the machine (see page 25)

NO - Go to point 5.3

5.3 Temperature is too high (more than 89°C) YES - Change NTC

NO - Go to point 6

6 Check for leaks and check flow

rate (see pages 27, 28 and 29)

6.1 Leakage at extraction system YES - Replace CBU

NO - Go to point 6.2

6.2 Leakage at tubes connection YES - Replace defective tube and seal

NO - Go to point 6.3

6.3 Flow rate out of range

YES - Machine is scaled YES - Descale machine (see page 25)

NO - Replace pump

NO - No trouble found during the check procedure. Contact Nespresso Technical Correspondant for

further details in order to take decision.

7 Descaling process (if needed) 7.1 Machine scaled YES - Descale machine (see page 25)

NO - Go to point 8

8 Final cleaning (see page 31)

End of check procedure

Check procedure Symptoms Action / repair work Further action / repair work

Service Manual EF 473 / EF 474 enVersion 1.0

Repair

General disassembly

Tool:

- Oval screwdriver

)Empty water system if necessary

(see page 12).

Unplug from the mains before

disassembling machine - appliance

must be isolated!

Procedure:

1. Remove water tank (33) and drip tray (8)

together with drip grid (7) and capsule

container (6).

2. Remove 2 screws (2) on the front side of

the machine.

3. Place machine on the repairing/service

holder device (see page 32).

4. Remove 6 screws (2) on the bottom of the

machine.

5. Swing out (EF 473) or snap out (EF 474)

and remove both side panels (5).

6. Remove lower chassis (22).

7 + 8 + 6

Repair

Service Manual EF 473 / EF 474 enVersion 1.0

Replacing thermoblock and NTC

Tools:

- Torx screwdrivers T10, T30

- Open-ended spanner 10 mm AF

- Torque wrench

Procedure:

1. Follow general disassembly (see page 16).

2. Remove screw (23) and detach holder

(48) with flow meter (47).

3. Remove 3 screws (23) and separate

thermoblock (40) with support (40) from

chassis.

4. Remove screw M3.5 x 25, washer and

rubber gasket and separate thermoblock

(40) from its support.

5. Remove screw (38) and separate fine wire

fuse (900) from thermoblock.

6. Remove electronic housing (28).

7. Unplug NTC connector from electronic

control board (28).

8. Remove NTC (43) from thermoblock and

replace it if defective.

9. Remove clips (13) and hose connectors

(16, 26) from thermoblock.

10. Remove ground wire and electrical

connections from thermoblock.

11. Replace defective thermoblock.

12. Assemble in reverse sequence.

)Use a torque wrench (90 - 110 Ncm)

to tighten NTC temperature sensor

(43) with spring washer (42).

900

M3.5 x 25

47 + 48

Repair

Service Manual EF 473 / EF 474 enVersion 1.0

Replacing flow meter and On/Off

switch

Tools:

- Torx screwdriver T10

Procedure for flow meter:

1. Follow general disassembly (see page 16).

2. Remove screw (23) and detach holder

(48) with flow meter (47).

3. Snap holder (48) from flow meter (47).

4. Unplug connector from flow meter (47).

5. Remove hoses from flow meter (47) and

replace it.

6. Assemble in reverse sequence.

Procedure for On/Off switch:

1. Follow general disassembly (see page 16).

2. Remove screw (23) and detach support

(49) with On/Off switch (50).

3. Remove 2 screws (23) and strain relief

(24) of mains cable.

4. Press in lockings and slide support (49)

backwards.

5. Unplug all connectors from On/Off switch

(50) and replace it.

6. Assemble in reverse sequence.

)Check for correct wiring of On/Off

switch.

11a

22a

Line

Neutral Neutral

Line

On/Off switch

to mains to machine

Repair

Service Manual EF 473 / EF 474 enVersion 1.0

Replacing pump

Tools:

- Torx screwdriver T10

- Long-nose pliers

- Blade screwdriver, no. 7

Procedure:

1. Follow general disassembly (see page 16)

2. Unplug fixed pump cable and electrical

connection on pump (17).

3. Remove clip (14), hose (18) and o-ring

(15).

4. Remove angled hose (9).

5. Release pump (17) first from rubber strap

(12) at the side of the angled hose.

6. Release pump from second rubber strap

(12) and remove right angled connector

(20).

7. Replace defective pump (17).

8. Fix right angled connector (20) to new

pump (17).

9. Attach new pump (17) to rubber strap with

right angled connector (20) first.

10. Plug in electrical connection on pump and

connect pump cable.

)Check for correct wiring of pump.

11. Attach pump to second rubber strap.

12. Insert new seal (15), mount hose (18) and

clamp (14).

13. Mount angled hose (9).

T 128°C

Repair

Service Manual EF 473 / EF 474 enVersion 1.0

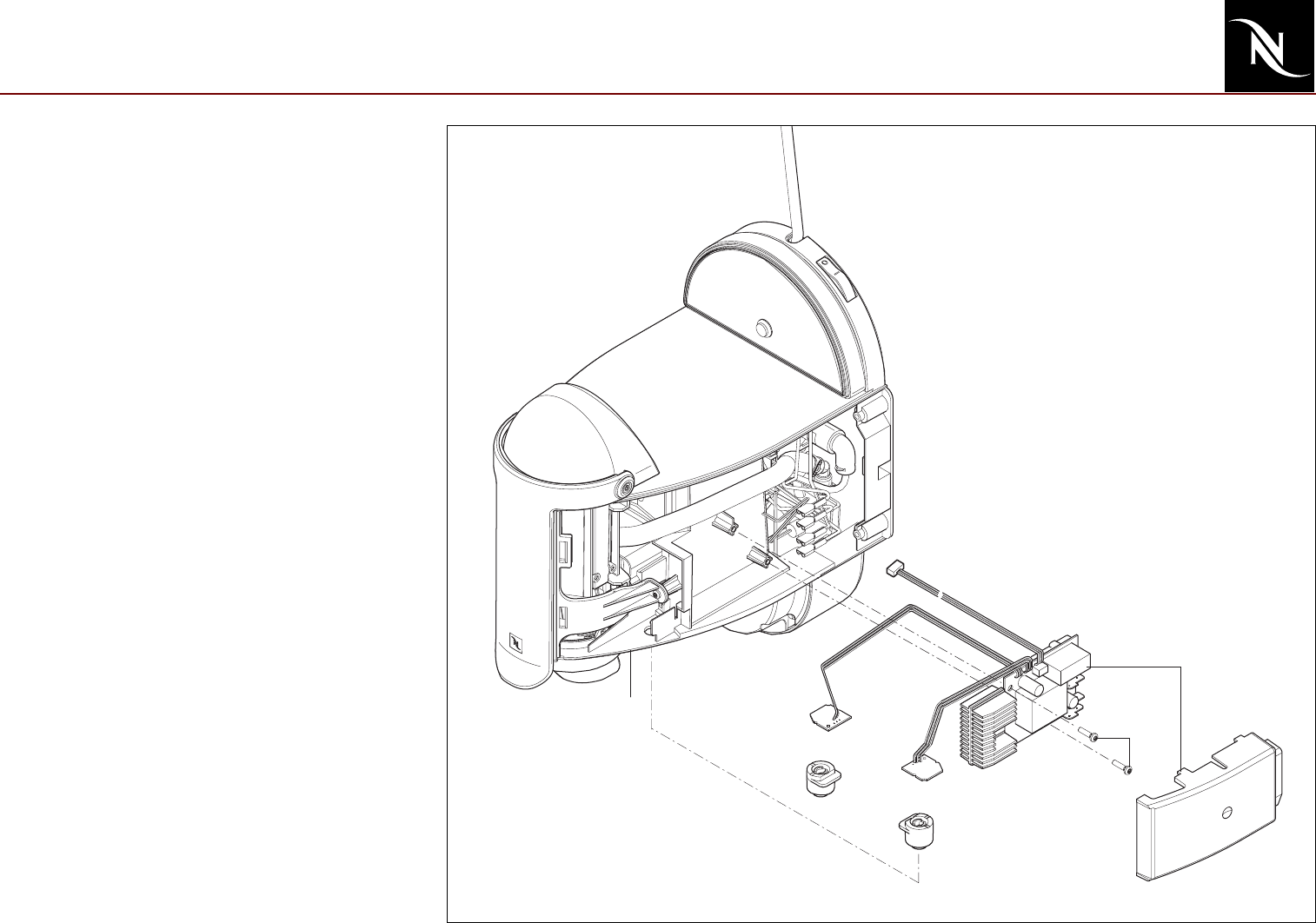

Replacing electronic control board

with button prints

Tools:

- Torx screwdriver T10

The service engineer must be

earthed using an earthing strap!

)Only touch button prints with

dedicated gloves to avoid oxydation.

Procedure:

1. Follow general disassembly (see page 16).

2. Detach prints of buttons "small cup" (30)

and "large cup" (29) from upper chassis

(1).

3. Remove housing (28) from electronic

control board (28).

4. Unplug NTC connector and all wires from

electronic control board (28).

5. Unplug connector at flow meter (47).

6. Remove 2 screws (23) and replace

defective electronic control board with

button prints (29, 30).

7. Assemble in reverse sequence.

)Check for correct wiring of electronic

control board (see pages 22, 23 or

24).

Repair

Service Manual EF 473 / EF 474 enVersion 1.0

Replacing compact brewing unit (CBU)

Tools:

- Torx screwdrivers T10, T20

- Blade screwdriver no. 4

- Oval screwdriver

- Long-nose pliers

- Torque wrench

Procedure:

1. Remove water tank (33) and drip tray (8)

together with drip grid (7) and capsule

container (6).

2. Place machine on the repairing/service

holder device (see page 32).

3. Remove 4 screws (2) on the bottom of the

machine.

4. Swing out (EF 473) or snap out (EF 474)

and remove both side panels (5).

5. Remove 2 screws (36) and pull off closing

handle (37).

6. Remove 2 screws (23) at the front and 1

screw (23) at the back to detach cover (35).

7. Unlatch coffee outlet (3) from compact

brewing unit (34) with a blade screwdriver.

8. Remove 4 screws (23) and detach

compact brewing unit (34).

9. Remove clip (14) and hose (32) with o-ring

(15) from compact brewing unit (34).

10. Assemble new compact brewing unit

together with new coffee outlet (3) in

reverse sequence.

Replace o-ring (15).

)Tighten new (EFR nr. 39256) closing

handle screws (36) with a torque of

450 N/cm.

7+8+6

14+32

Repair

Service Manual EF 473 / EF 474 enVersion 1.0

Electronic control board, wiring

diagram - Europe (230V / 50 Hz)

1) Heat sink

2) Print for button "large cup" with LED

3) Print for button "small cup" with LED

4) Flow meter

5) NTC temperature sensor

6) Fine-wire fuse on thermoblock

7) On/Off switch

8) Fine-wire fuse on pump

Electronic Main Board

NTC

Print “large cup”

N PE

Thermoblock

T 167°C

Pump

T 128°C

Mains Plug

GND

Flow meter

Print “small cup”

Heat

Pump

Neutral

Line

On/Off switch

1a 2a

Repair

Service Manual EF 473 / EF 474 enVersion 1.0

Electronic control board, wiring

diagram - USA (UL, 120 V / 60 Hz)

1) Heat sink

2) Print for button "large cup" with LED

3) Print for button "small cup" with LED

4) Flow meter

5) NTC temperature sensor

6) Fine-wire fuse on thermoblock

7) On/Off switch

8) Fine-wire fuse on pump

Electronic Main Board

NTC

Thermoblock

T 167°C

Pump

T 128°C

Mains Plug

Heat

Pump

Flow meter

Print “large cup” Print “small cup”

Neutral

Line

On/Off switch

1a 2a

Repair

Service Manual EF 473 / EF 474 enVersion 1.0

Electronic control board, wiring

diagram - Japan (100 V / 50-60 Hz)

1) Heat sink

2) Print for button "large cup" with LED

3) Print for button "small cup" with LED

4) Flow meter

5) NTC temperature sensor

6) Fine-wire fuse on thermoblock

7) On/Off switch

8) Fine-wire fuse on pump

Electronic Main Board

NTC

Thermoblock

T 167°C

Pump

T 128°C

Mains Plug

Heat

Pump

Flow mete

Neutral

Line

On/Off switch

Print “large cup” Print “small cup”

1a 2a

Repair

Service Manual EF 473 / EF 474 enVersion 1.0

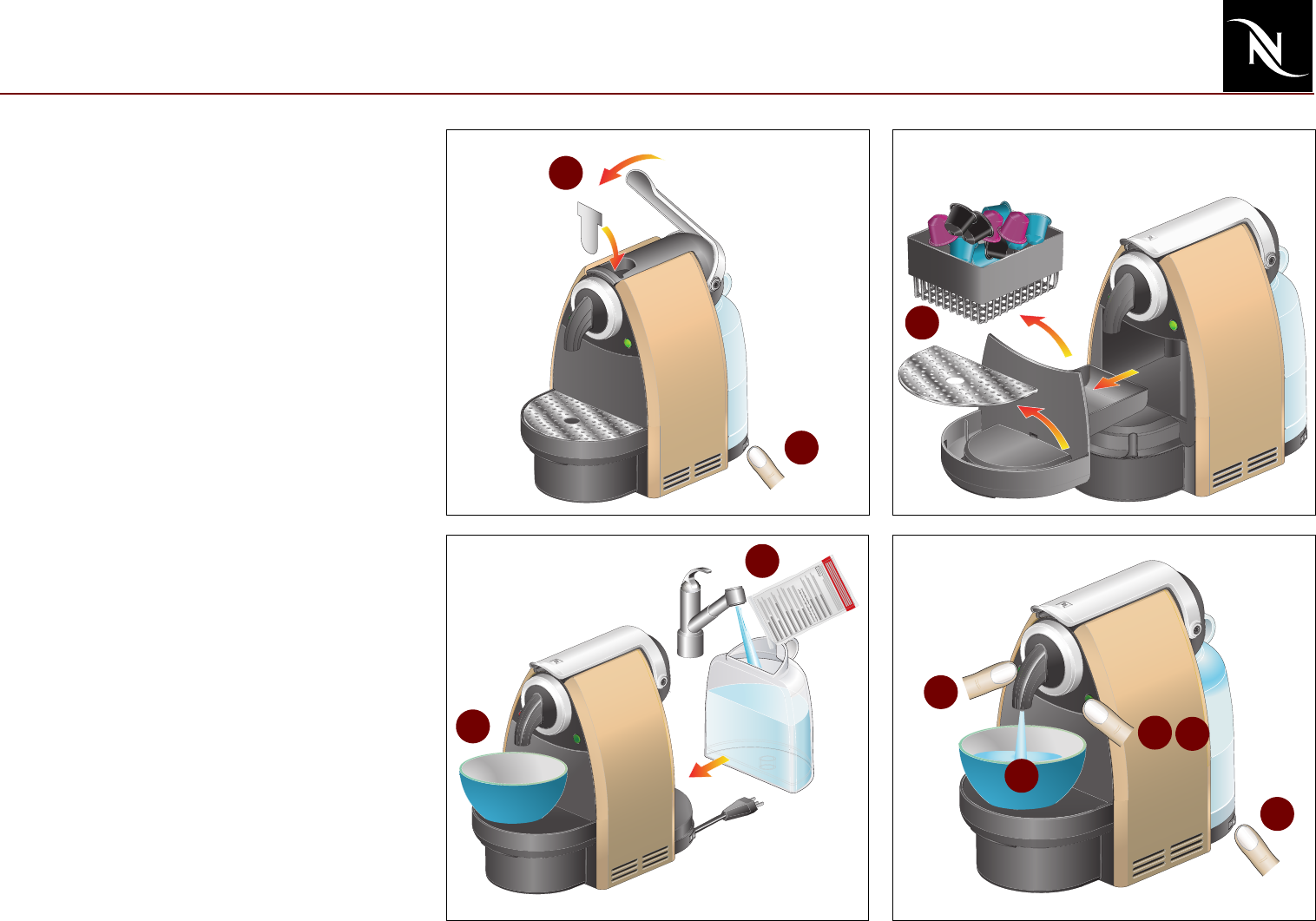

Descaling (1)

Only use Nespresso decalcifier -

never vinegar!

Decalcifier is aggressive to surfaces.

Preparation:

1. Switch off machine.

2. Eject capsule. Insert filter from descaling

kit in capsule inlet and close handle.

3. Empty drip tray and capsule container and

remove drip grid.

4. Re-insert drip tray and place a pot on it.

)Carefully read safety instructions on

decalcifier package.

5. Fill water tank with 0.1 l descaling fluid

and 0.5 l water. Re-insert water tank.

6. Switch on machine.

7. Press and hold both coffee buttons for at

least 3 seconds to start descaling mode

(fast blinking coffee buttons). The

temperature of the thermoblock is

regulated to 65° C.

Descaling:

8. Press button "large cup" to start pump.

9. Let entire descaling solution pass through

coffee outlet.

3 sec

Repair

Service Manual EF 473 / EF 474 enVersion 1.0

Descaling (2)

10. Fill water tank again with descaling

solution from pot.

11. Repeat descaling procedure one more

time: Press button "large cup" and let

entire descaling solution run through.

Rinsing:

12. Empty pot.

13. Remove filter from capsule inlet.

14. Rinse water tank thoroughly and fill it with

fresh water.

15. Place pot on drip tray.

16. Press button "large cup" to start pump.

Let complete content of water tank run

through coffee outlet.

17. Press both coffee buttons simultaneously

for at leat 3 seconds to exit the descaling

mode.

18. Insert drip grid.

19. Clean machine.

)When machine is switched off during

descaling procedure: After machine

is switched on again, it is in the ready

state (slow blinking coffee buttons)

and resumes with the descaling

procedure (fast blinking coffee

buttons).

15 16

3 sec

Repair

Service Manual EF 473 / EF 474 enVersion 1.0

Measuring flow rate

Procedure:

1. Fill water tank.

2. Insert pressure plug in capsule inlet.

3. Press down closing handle lightly till

pressure plug fits in capsule cage.

4. Pull off holding device. The pressure plug

clamps itself to the capsule cage.

5. Position measuring beaker underneath

exit tube of pressure plug.

6. Switch on machine.

7. Press button "large cup" after heating-up.

8. Open valve fully till water begins to flow.

9. Close valve until 12 bar are indicated.

)The manometer must be observed

continuously and the pressure

regulated using the valve if

necessary. With increasing

temperature the pressure also

increases, if necessary readjust the

pressure to 12 bar.

10. Perform measurement for approx. 30 sec.

11. There must be at least 60-120 ml water in

the measuring beaker.

Notice:

- With a flow of < 60 ml the pump is defective

or there is a leak in the system.

- Large fluctuations in the pressure gauge

readings (± 4 bar) during measurement are

indicative of a defective pump.

Repair

Service Manual EF 473 / EF 474 enVersion 1.0

Checking for leaks and pump

pressure (1)

The following components are checked for

leaks:

- Compact brewing unit

- Connections

- Thermoblock

-Pump

Preparation (unplug machine from mains):

1. Remove right side panel (pump is visible).

2. Insert pressure plug in capsule inlet.

3. Press down closing handle lightly till

pressure plug fits in capsule cage.

4. Pull off holding device. The pressure plug

clamps itself to the capsule cage.

5. Position pot underneath exit tube of

pressure plug.

6. Fill water tank.

7. Connect mains cable.

Dangerous voltage inside coffee

machine! - Do not touch any live part

while performing checks.

Hot, pressurized parts inside coffee

machine! - Do not touch any hot part

while performing checks. Wear

safety glasses during inspection.

Continued on next page.

Repair

Service Manual EF 473 / EF 474 enVersion 1.0

Checking for leaks and pump

pressure (2)

Procedure (continued):

8. Switch on machine.

9. Press button "large cup" after heating-up.

10. Open valve and leave water to run out for

approx. 10 s.

11. Fully close valve. The pressure will rise

rapidly initially and stabilise between

16 - 19 bar (check of pump pressure).

)The pressure will rise slowly due to

the temperature increase.

If the pressure exceeds 23 bar, the

machine has to be switched off and

pressure released through the

pressure valve.

12. Perform visual and acoustic checks on all

pressurized connections.

The pump must not be in operation

for longer than 50 s without water

flow.

13. Switch off machine.

14. Open valve to empty pressure gauge.

Repair

Service Manual EF 473 / EF 474 enVersion 1.0

Measuring coffee temperature

Procedure:

1. Switch on machine.

2. Position measuring beaker underneath

coffee outlet.

3. After warming up, press button "large cup"

and preheat coffee outlet with hot water.

4. Insert a capsule (Cosi is the most suitable).

5. Press a button "large cup".

6. Wait until 20 ml coffee has flown in the

measuring beaker.

7. Measure the coffee temperature approx.

5 - 10 mm below the outlet opening.

)Coffee temperature should be

approx. 86 °C ± 3 °C (187 °F ± 5.4 °F).

Repair

Service Manual EF 473 / EF 474 enVersion 1.0

Daily care and final cleaning

Procedure (machine is switched off):

1. Eject capsule.

2. Empty capsule container.

3. Empty water tank and drip tray.

4. Clean water tank and drip tray.

5. Fill tank with fresh water.

6. Reassemble coffe machine.

7. Switch on machine.

8. Press a coffee button and rinse coffee

outlet.

9. Clean coffee machine.

Service Manual EF 473 / EF 474 enVersion 1.0

Spare Parts

Repair accessories

Only available through Nespresso. Please call your Nespresso contact.

0004878

0004872

Pos. EFR nr. Component

1 * Pressure gauge

2 * Repairing/service holder device A (for EF 473)

2 * Repairing/service holder device B (for EF 474)

3 0004872 Special screwdriver with oval bit

4 0004878 Oval bit for screwdriver

Spare Parts

Service Manual EF 473 / EF 474 enVersion 1.0

Spare parts EF 473 Pos. EFR nr. Component

1 42501 Upper chassis EF 473

2 24863 Safety screw 3,0 x 12 KST/PT

3 40686 Coffee outlet & front ring EF 470 (package)

5 43070 Side panel EF 473 titan-Pelikan lacquered

5 43069 Side panelEF 473 black high finish

6 39170 Capsule container EF 470 black

7 39150 Drip grid EF 470 Inox

8 40478 Drip tray EF 470 print: Krups/Nespresso, silvery

8 43212 Drip tray EF 473 print: Turmix TX150/Nespresso, silvery

8 43211 Drip tray EF 473 print: Nespresso Essenza

Automatic, silvery

9 43073 Hose water tank / pump

10 40691 Water tank connector assembled

11 39195 Pump attachment

12 39196 Pump fixation

13 37384 Clip D=5mm

14 5470 Clip to tube 770

15 24374 O-ring 3,40x1,90 silicone

16 42570 Angle connection for hoses

17 44637 Pump 230V EF 473

17 Pump 120V EF 473

17 Pump 100V EF 473

18 39199 Hose pump / thermoblock

19 1565 O-ring 5,28x1,78 EPDM

20 42569 Angle connection for pump

21 13299 Elastic stop

22 39164 Lower chassis EF 470

23 16052 Screw 3,0 x 12 Torx 10

24 1053 Strain relief screwed

25 43461 Power cord SEV 1,30m

25 43462 Power cord

Cebec 1,30m

25 43465 Power cord Israel 1,30m

25 43463 Power cord GB 1,30m

25 Power cord UL 1,30m

25 Power cord Japan 1,30m

Spare Parts

Service Manual EF 473 / EF 474 enVersion 1.0

Spare parts EF 473 (continued) Pos. EFR nr. Component

26 42572 Angle connection for hoses

28 44636 Electronic set 230V EF 473

28 Electronic set 120V EF 473

28 Electronic set 100V EF 473

29 39153 "Coffee" button EF 470

30 43060 "Espresso" button EF 473

31 26392 Silicon hose

32 39198 Hose thermoblock / CBU

33 39142 Water tank EF 470

34 40685 Compact brewing unit (CBU)

35 39168 Cover EF 470

36 39256 Screw M4 x 25 Torx 20

37 39162 Closing handle EF 470

38 19799 Screw M4 x 8 Torx 20

39 21542 Thermal cutoff clip

40 44638 Thermoblock complete 230V EF 473

40 Thermoblock complete 120V EF 473

40 Thermoblock complete 100V EF 473

41 43202 Bushing insulator electrical

42 5245 Spring washer M5

43 43233 Temperature sensor EF 473 (NTC)

46 13697 Silicon hose flow meter / pump

47 43066 Flow meter

48 43067 Holder flow meter EF 473

49 43059 Support main switch EF 473

50 43068 Main switch

900 43101 Safety thermostat 167°C

900 43095 Strand wire blue 130mm

900 43094 Strand wire brown 80mm

900 39630 Strand wire yellow/green 220mm

900 6328 Strand wire white 100mm

900 39263 Strand wire black 100mm

Spare Parts

Service Manual EF 473 / EF 474 enVersion 1.0

Spare parts EF 474 Pos. EFR nr. Component

1 42502 Upper chassis EF 474

2 24863 Safety screw 3,0 x 12 KST/PT

3 40687 Coffee outlet & front ring EF 471 (package)

5 43071 Side panel EF 474 platin lacquered

6 39171 Capsule container EF 471 black

7 39151 Drip grid EF 471 Inox

8 43215 Drip tray EF 474 print: Nespresso Essenza

Automatic, silvery

8 40483 Drip tray EF 474 print: DeLonghi/Nespresso,silvery

8 43214 Drip tray EF 474 print: Koenig Capri Autom./

Nespresso, silvery

8 40481 Drip tray EF 474 print: Magimix/Nespresso, silvery

9 43073 Hose water tank / pump

10 40691 Water tank connector assembled

11 39195 Pump attachment

12 39196 Pump fixation

13 37384 Clip D=5mm

14 5470 Clip to tube 770

15 24374 O-ring 3,40x1,90mm

16 42570 Angle connection for hoses

17 44637 Pump 230V EF 473

17 Pump 120V EF 473

17 Pump 100V EF 473

18 39199 Hose pump / thermoblock

19 1565 O-ring 5,28 x 1,78 EPDM

20 42569 Angle connection for pump

21 13299 Elastic stop

22 39165 Lower chassis EF 471

23 16052 Screw 3,0 x 12 Torx 10

24 1053 Strain relief screwed

25 43461 Power cord

SEV 1,30m

25 43462 Power cord

Cebec 1,30m

25 43465 Power cord

Israel

1,30m

25 43463 Power cord

GB 1,30m

25 Power cord

UL 1,30m

25 Power cord

Japan 1,30m

Spare Parts

Service Manual EF 473 / EF 474 enVersion 1.0

Spare parts EF 474 (continued) Pos. EFR nr. Component

26 42572 Angle connection for hoses

28 44636 Electronic set 230V EF 473

28 Electronic set 120V EF 473

28 Electronic set 100V EF 473

29 39154 "Coffee" buttonEF 471

30 43061 "Espresso" button EF 474

31 26392 Silicon hose

32 39198 Hose thermoblock / CBU

33 39143 Water tank EF 471

34 40685 Compact brewing unit (CBU)

35 39169 Cover EF 471

36 39256 Screw M4 x 25 Torx 20

37 43441 Closing handle EF 471

38 19799 Screw M4 x 8 Torx 20

39 21542 Thermal cutoff clip

40 44638 Thermoblock complete 230V EF 473

40 Thermoblock complete 120V EF 473

40 Thermoblock complete 100V EF 473

41 43202 Bushing insulator electrical

42 5245 Spring washer M5

43 43233 Temperature sensor EF 473 (NTC)

44 18904 Screw 3,0 x 16 Torx 10

46 13697 Silicon hose flow meter / pump

47 43066 Flow meter

48 43067 Holder flow meter EF 473

49 43059 Support main switch EF 473

50 43068 Main switch

900 43101 Safety thermostat 167°C

900 43095 Strand wire blue 130mm

900 43094 Strand wire brown 80mm

900 39630 Strand wire yellow/green 220mm

900 6328 Strand wire white 100mm

900 39263 Strand wire

black 100mm

Service Manual EF 473 / EF 474 enVersion 1.0

Notes

Nespresso Ef 473 Users Manual Essenza_Flowstop_en

EF 473 to the manual b85f6903-52e1-471f-adac-af92aab8c47a

Navigation menu

Versions of this User Manual:

Views

Navigation
