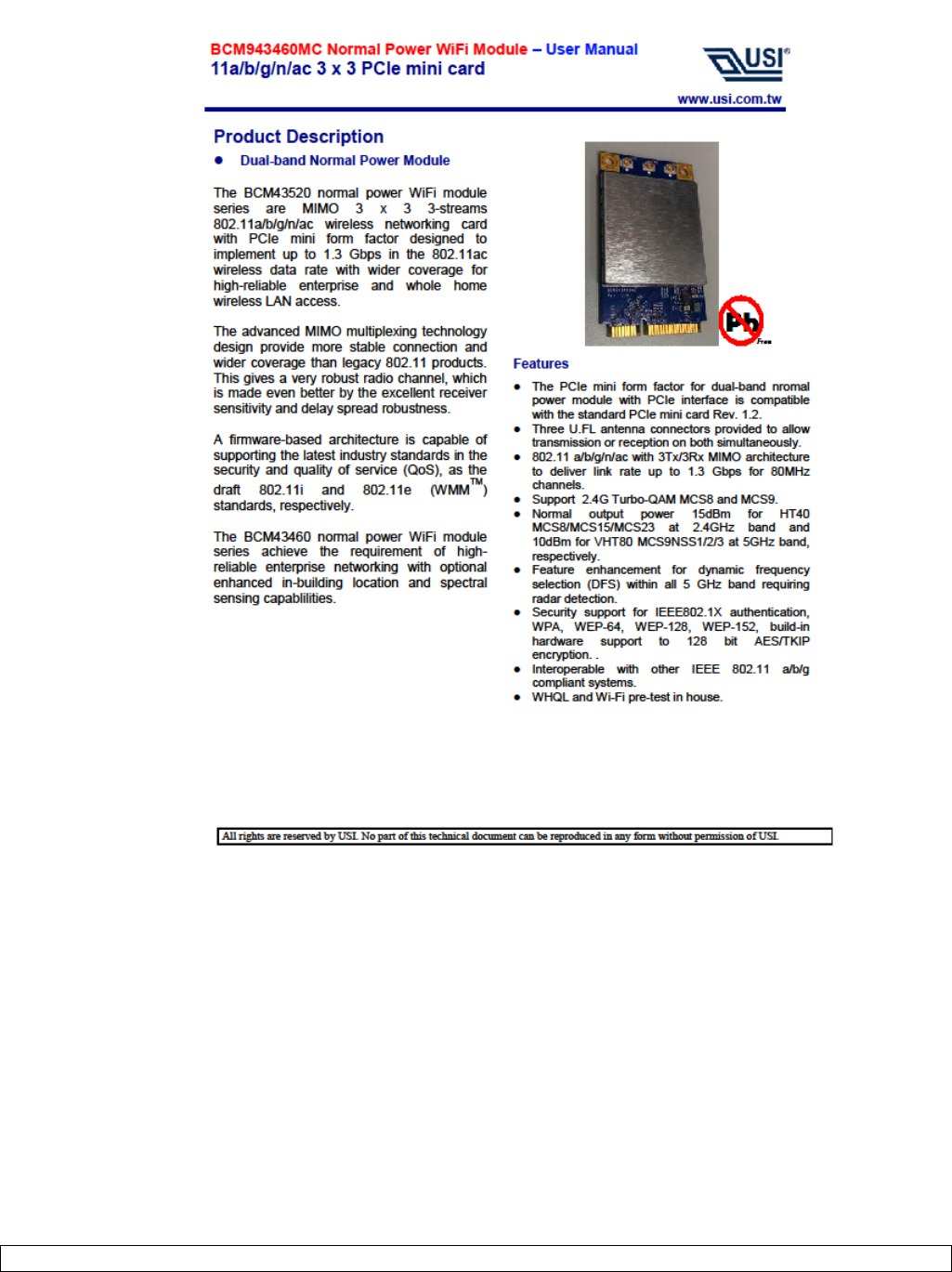

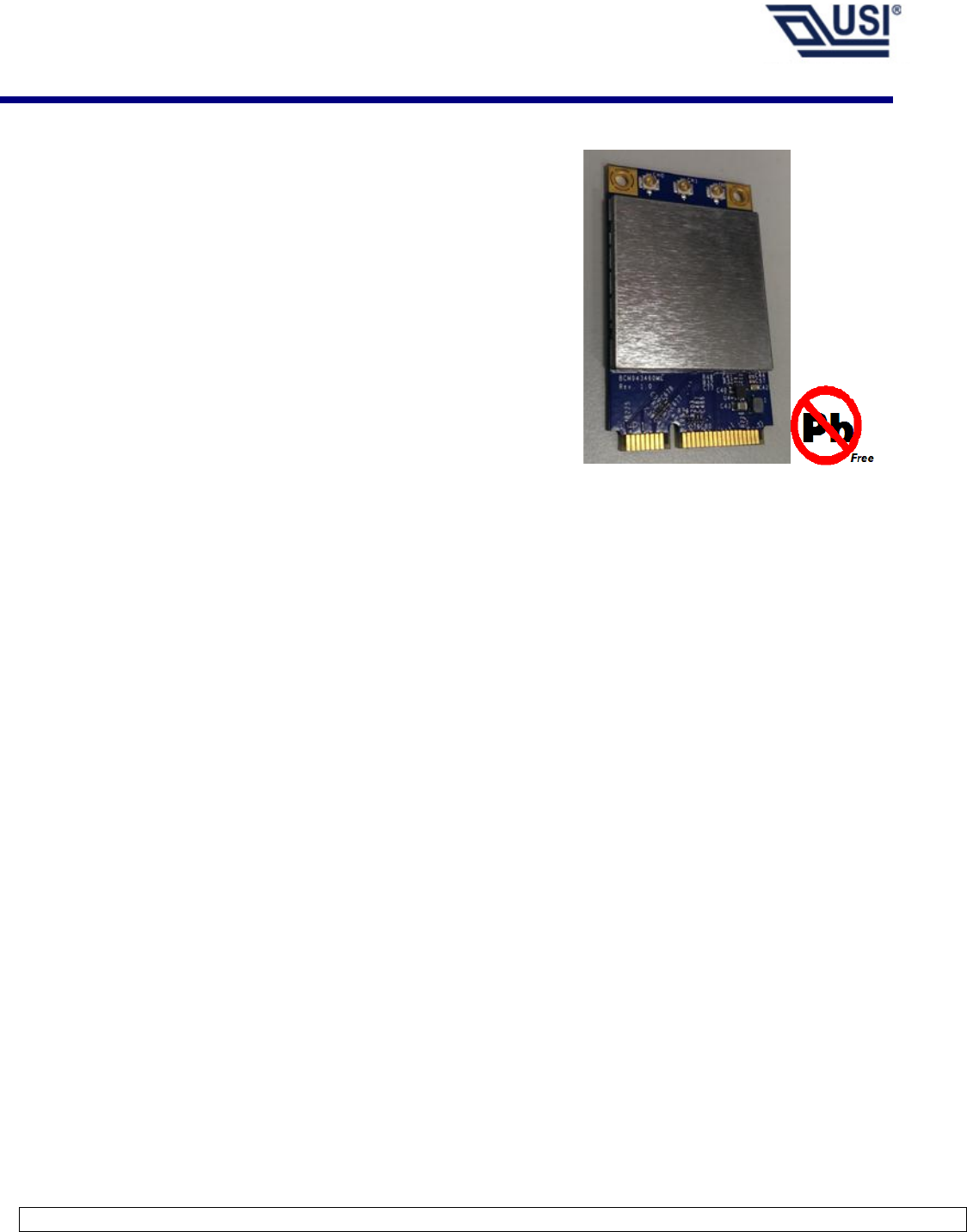

BCM43460 Normal Power WiFi Module – User Manual
11a/b/g/n/ac 3 x 3 PCIe mini card
www.usi.com.tw
Features
The PCIe mini form factor for dual-band nromal
power module with PCIe interface is compatible
with the standard PCIe mini card Rev. 1.2.
Three U.FL antenna connectors provided to allow
transmission or reception on both simultaneously.
802.11 a/b/g/n/ac with 3Tx/3Rx MIMO architecture
to deliver link rate up to 1.3 Gbps for 80MHz
channels.
Support 2.4G Turbo-QAM MCS8 and MCS9.
Normal output power 15dBm for HT40
MCS8/MCS15/MCS23 at 2.4GHz band and
10dBm for VHT80 MCS9NSS1/2/3 at 5GHz band,
respectively.
Feature enhancement for dynamic frequency
selection (DFS) within all 5 GHz band requiring
radar detection.
Security support for IEEE802.1X authentication,
WPA, WEP-64, WEP-128, WEP-152, build-in
hardware support to 128 bit AES/TKIP
encryption. .
Interoperable with other IEEE 802.11 a/b/g
compliant systems.
WHQL and Wi-Fi pre-test in house.
Product Description
Dual-band Normal Power Module
The BCM43520 normal power WiFi module
series are MIMO 3 x 3 3-streams
802.11a/b/g/n/ac wireless networking card
with PCIe mini form factor designed to
implement up to 1.3 Gbps in the 802.11ac
wireless data rate with wider coverage for
high-reliable enterprise and whole home
wireless LAN access.
The advanced MIMO multiplexing technology
design provide more stable connection and
wider coverage than legacy 802.11 products.
This gives a very robust radio channel, which
is made even better by the excellent receiver
sensitivity and delay spread robustness.
A firmware-based architecture is capable of
supporting the latest industry standards in the
security and quality of service (QoS), as the
draft 802.11i and 802.11e (WMMTM)
standards, respectively.
The BCM43460 normal power WiFi module
series achieve the requirement of high-
reliable enterprise networking with optional
enhanced in-building location and spectral
sensing capablilities.
All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI.

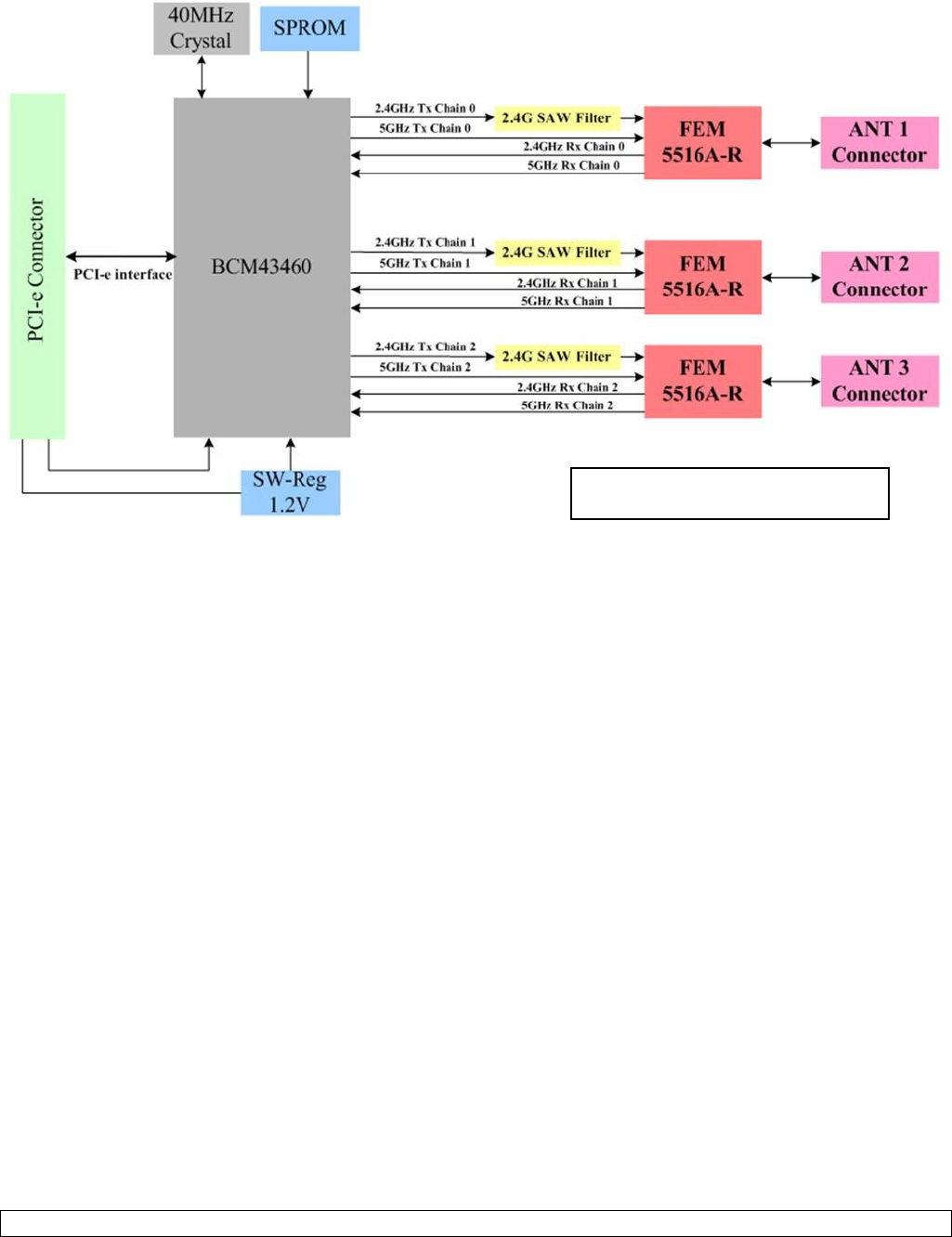

BCM943520MC Normal Power Module Block Diagram
Only 3.3V for Power Supply
All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI.
Pin Arrangement
Pin #
PCIe v1.2
Pin #
PCIe v1.2
BCM43520 NP
Module
51
Reserved
52
+3.3Vaux
+3.3V DC
49
Reserved
50
GND
GND
47
Reserved
48
+1.5V
NC
45
Reserved
46
LED_WPAN#
NC
43
GND
44
LED_WLAN#
LED_WLAN
41
+3.3Vaux
42
LEDWWAN#
NC
39
+3.3Vaux
40
GND
GND
37
GND
38
USB_D+
NC
35
GND
36
USB_D-
NC
33
PETp0
34
GND
GND
31
PETn0
32
SMB_DATA
SMB_DATA
29
GND
30
SMB_CLK
NC
27
GND
28
+1.5V
NC
25
PERp0
26
GND
GND
23
PERn0
24
+3.3Vaux
+3.3V DC
21
GND
22
PERST#
PCIE_PERST_L
19
Reserved (UIM_C4)
20
W_DISABLE#
RF_DISABLE_L
17
Reserved (UIM_C8)
18
GND
GND
15
GND
16
UIM_VPP
NC
13
REFCLK+
14
UIM_RESET
NC
11
REFCLK-
12
UIM_CLK
NC
9
GND
10
UIM_DATA
NC
7
CLKREQ#
8
UIM_PWR
NC
5
COEX2
6
1.5V
NC
3
COEX1
4
GND
GND
1
WAKE#
2
3.3Vaux
+3.3V DC
Table 1. Connector pin-out comparison table of BCM943460MC normal power module
Operating Conditions
Table 2 summarizes the recommended operating conditions for the BCM943460MC normal
power WiFi module.
Item
Specification
Remark
3.3V Supply Voltage
3.3 VDC from host (+/-0.2V)
3.3V Pin arrangements are compliant with
PCIe mini card specification v1.2.
Operating Temperature
0 ~50 ℃
HW testing is performed at Ambient temp
only.
Operating temperature ever achieved up
to 70 ℃ in practical experiment.
Storage Temperature
-40 ~ 80 ℃
Humidity
0% ~ 95%
Non condensing, relative humidity
Table 2. Recommended Operating Conditions
All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI.
Wireless Specification
The BCM943520MC normal power WiFi module will comply with the following wireless
specification and standards:
Chip set
BCM43460
Interface/System bus support
PCI express Mini Card v1.2
Standard
IEEE 802.11a/b/g/n/ac
Operating frequencies
2400MHz-2483.5MHz, 4900MHz-5825MHz
Operating channels
802.11 b/g/gn:
FCC Chan1-11(2412-2462 MHz)
EU: Chan 1-13 (2412-2472 MHz)
Japan: Chan 14 (2484 MHz)
(CH 1 to 13 b/g/n, CH 14 b)
802.11 a/an/ac:
FCC (US and Canada):
5.180 to 5.320 GHz; 8 channels - UNII band I
5.500 to 5.700 GHz, 5 channels - UNII band II
5.680 to 5.700 GHz; 2 channels - UNII band II
5.745 to 5.825 GHz; 5 channels - UNII band III
EU (Europe) :
5.180 to 5.320 GHz; 8 channels
5.500 to 5.700 GHz, 11 channels
Japan :
4.920 to 4.980 GHz; 4 channels
5.180 to 5.320 GHz; 8 channels
5.500 to 5.700 GHz, 11 channels
Data rate (Mbps)
802.11a: 6, 9, 12, 18, 24, 36, 48 and 54Mbps
802.11b: 1, 2, 5.5 and 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48 and 54Mbps
802.11n: MCS0-MCS23 (20 & 40 MHz bandwidth)
802.11ac: MCS0NSS1-MCS9NSS3 (20, 40 & 80
MHz bandwidth)
11ac Mode: Data Rate of up to 1.3Gbps for 80MHz
channels.
Modulation
DSSS, CCK, BPSK, QPSK, 16QAM, 64QAM,
256QAM, DBPSK, DQPSK
TX EVM
1. 2.4GHz Band 802.11g (54Mbps):
EVM SPEC ≤ -25dB.
2.4GHz Band 802.11n HT20 (MCS7/15/23):
EVM SPEC ≤ -27dB.
2.4GHz Band 802.11n HT40 (MCS7/15/23):
EVM SPEC ≤ -27dB.
2. 5GHz Band 802.11a (54Mbps):
EVM SPEC ≤ -25dB.
5GHz Band 802.11n HT20 (MCS7/15/23):
EVM SPEC ≤ -27dB.
All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI.
5GHz Band 802.11n HT40 (MCS7/15/23):
EVM SPEC ≤ -27dB.
5GHz Band 802.11ac VHT20 (MCS8NSS1/2/3):
EVM SPEC ≤ -30dB.
5GHz Band 802.11ac VHT40 (MCS9NSS1/2/3):
EVM SPEC ≤ -32dB.
5GHz Band 802.11ac VHT80 (MCS9NSS1/2/3):
EVM SPEC ≤ -32dB.
Spectrum Mask
20/40/80MHz bandwidth
Frequency accuracy
+20 / -20ppm
Power consumption
2.4GHz normal
power Tx
TBD
5GHz normal
power Tx
TBD
Antenna connectors
Allowing transmission or reception 3T x 3R with 3
U.FL antenna connectors.
Human health &
Environment-friendly compliance
REACH and RoHS
Regulation compliance
FCC, CE
Federal Communication Commission and Industry Canada Interference requirements.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC & IC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio ITV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC & IC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI.
IMPORTANT NOTE: FCC & IC Radiation Exposure Statement:
This equipment complies with FCC & IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm between
the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
The availability of some specific channels and/or operational frequency bands are country dependent
and not accessible by the end user.
The end user must affix a label on the outside of the product containing this module’s FCCID that is
visible to the user in the format of FCCID: WA7-43460AC
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation
of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type
and maximum (or lesser) gain approved for the transmitter by Industry Canada.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen
that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful
communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec
une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada.
All rights are reserved by USI. No part of this technical document can be reproduced in any form without permission of USI.
Dans le but de ré duire les
risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne
et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité
nécessaire à l'établissement d'une communication satisfaisante.
