NetComm Wireless 3G8WV 3G8WV HSPA WI-FI ROUTER User Manual
NetComm Wireless Limited 3G8WV HSPA WI-FI ROUTER Users Manual
Users Manual
3G8WV User Guide
Page 1 of 43
Table Of Content
1. Introduction .......................................................................................................................................... 3
Your 3G8WV – HSPA Wi-Fi Router with Voice .......................................................................................... 3
1.1 Package Contents ................................................................................................................................ 3
1.2 Key Features ........................................................................................................................................ 4
2. Placement of your 3G8WV .................................................................................................................... 4
2.1 Router Placement ............................................................................................................................... 5
2.2 Avoid obstacles and interference ....................................................................................................... 5
2.3 Cordless Phones .................................................................................................................................. 5
2.4 Choose the “Quietest” Channel for your Wireless Network .............................................................. 6
3. Product Layout ...................................................................................................................................... 6
3.1 Connecting and Configuring your Router ........................................................................................... 6
3.2 Network and System Requirements ................................................................................................... 7
3.3 Connecting your 3G8WV ..................................................................................................................... 8
Step1 – Insert SIM card ......................................................................................................................... 8
Step2 – Connect a computer ................................................................................................................ 8
Step3 – Plug in the power ..................................................................................................................... 8
4. Advanced Features................................................................................................................................ 8
4.1 Login Procedure .................................................................................................................................. 9

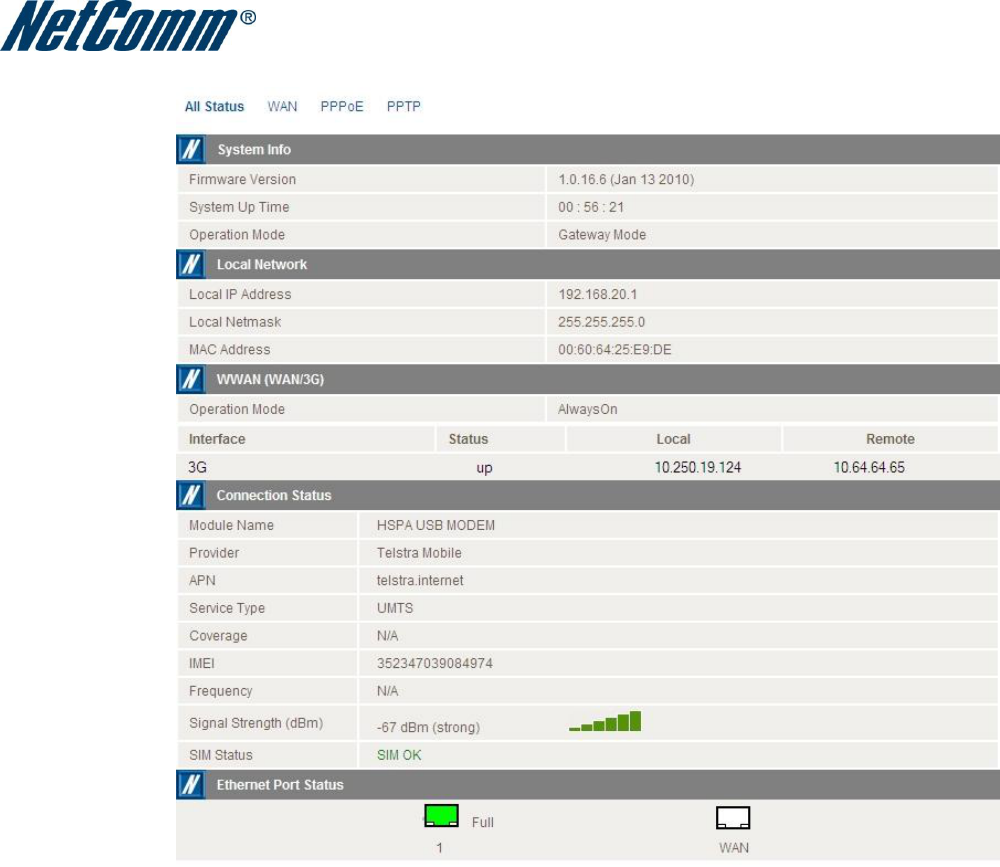

4.2 Status .................................................................................................................................................. 9
4.3 Internet Settings ............................................................................................................................... 10

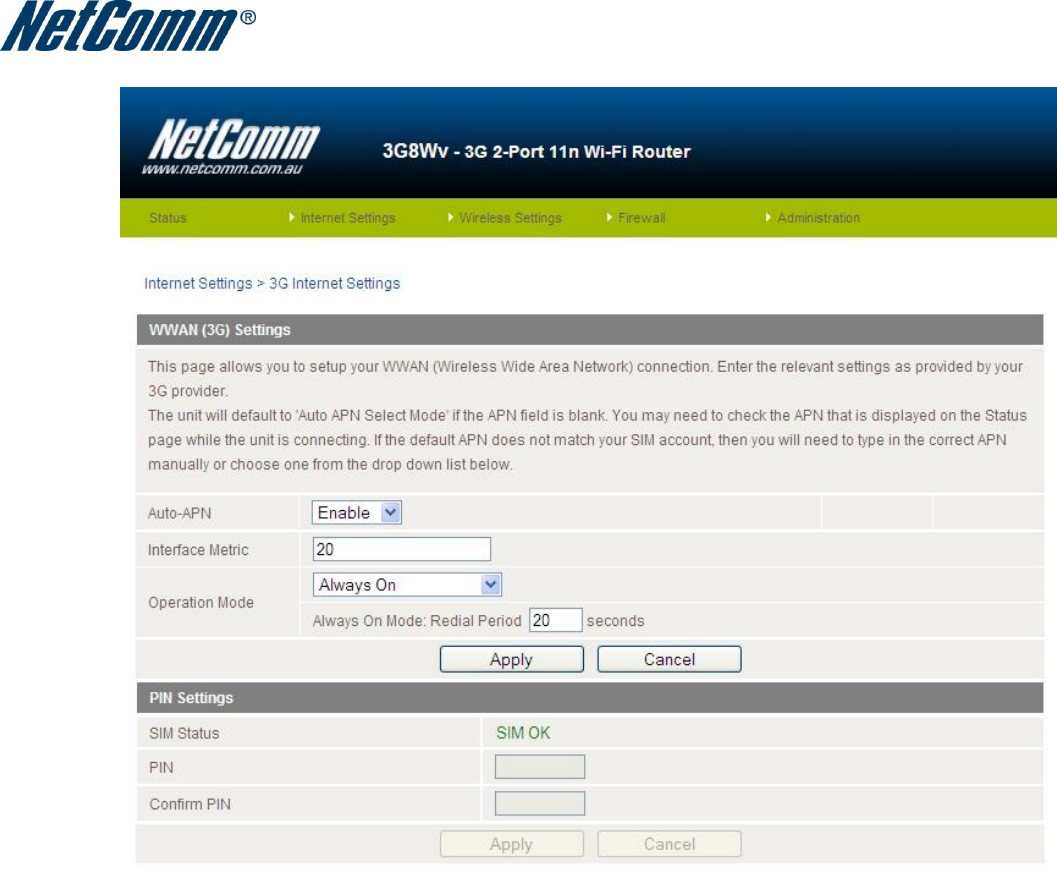

4.3.1 3G Internet Settings ................................................................................................................... 10

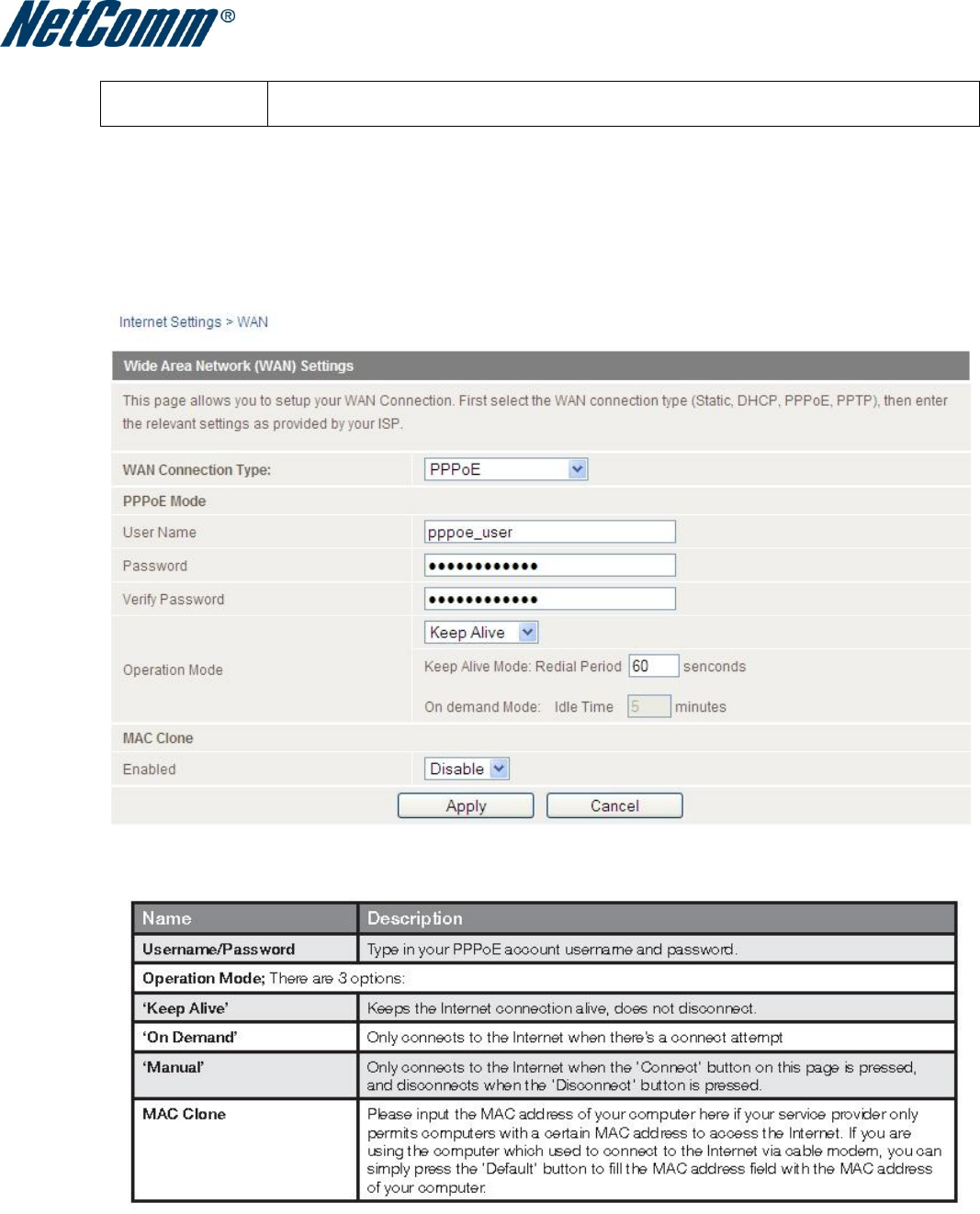

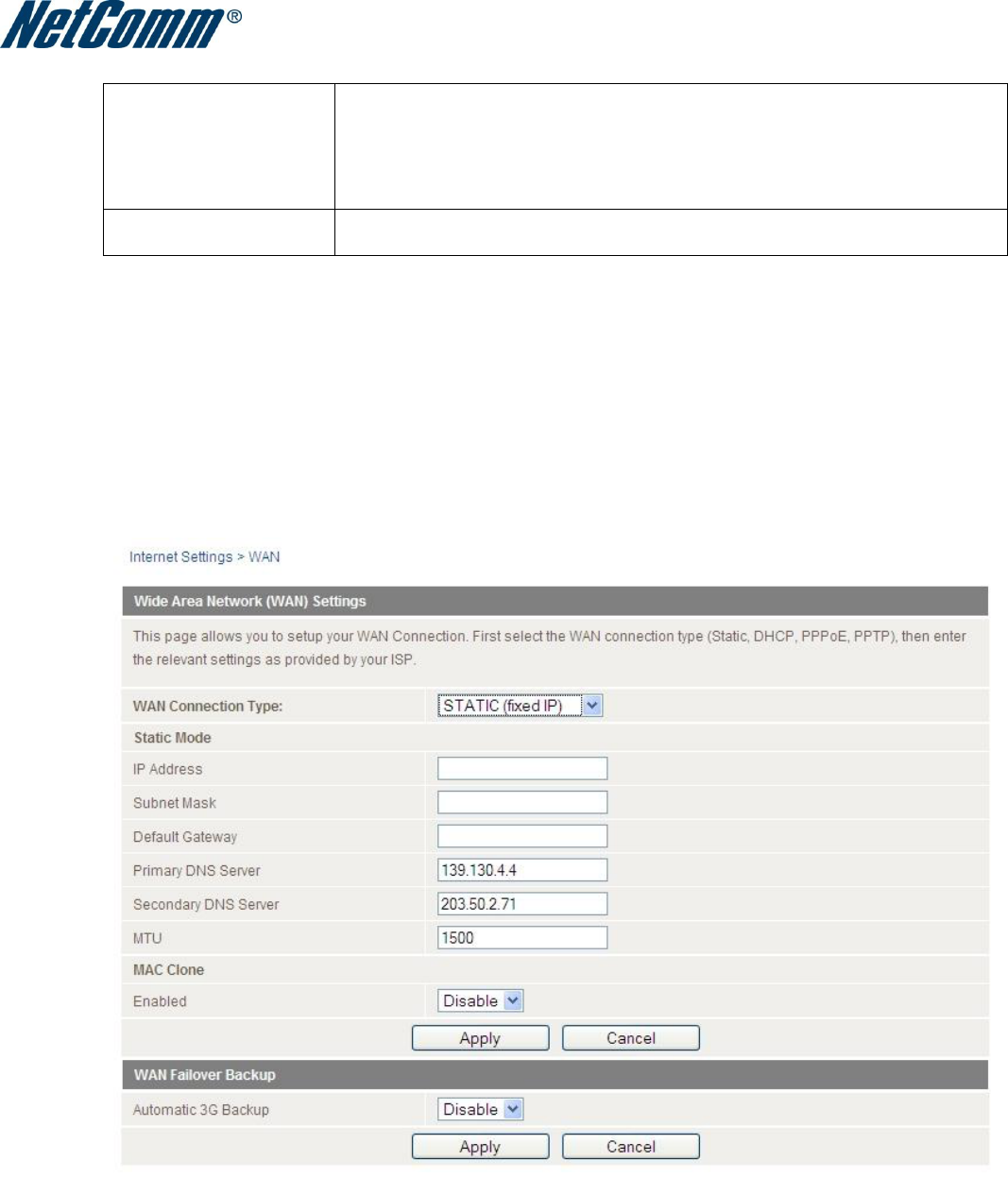

4.3.2 WAN ........................................................................................................................................... 13

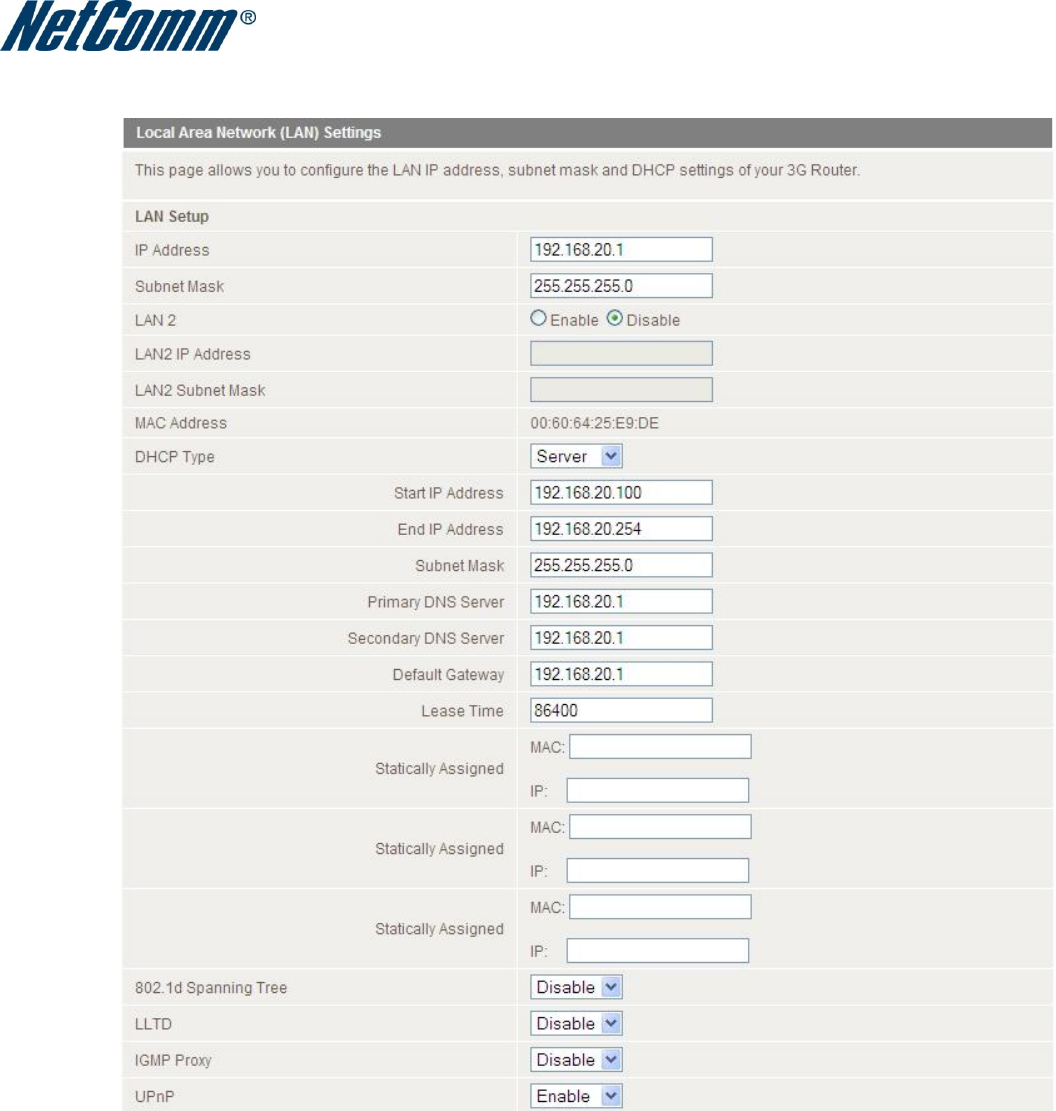

4.3.3 LAN ............................................................................................................................................. 18

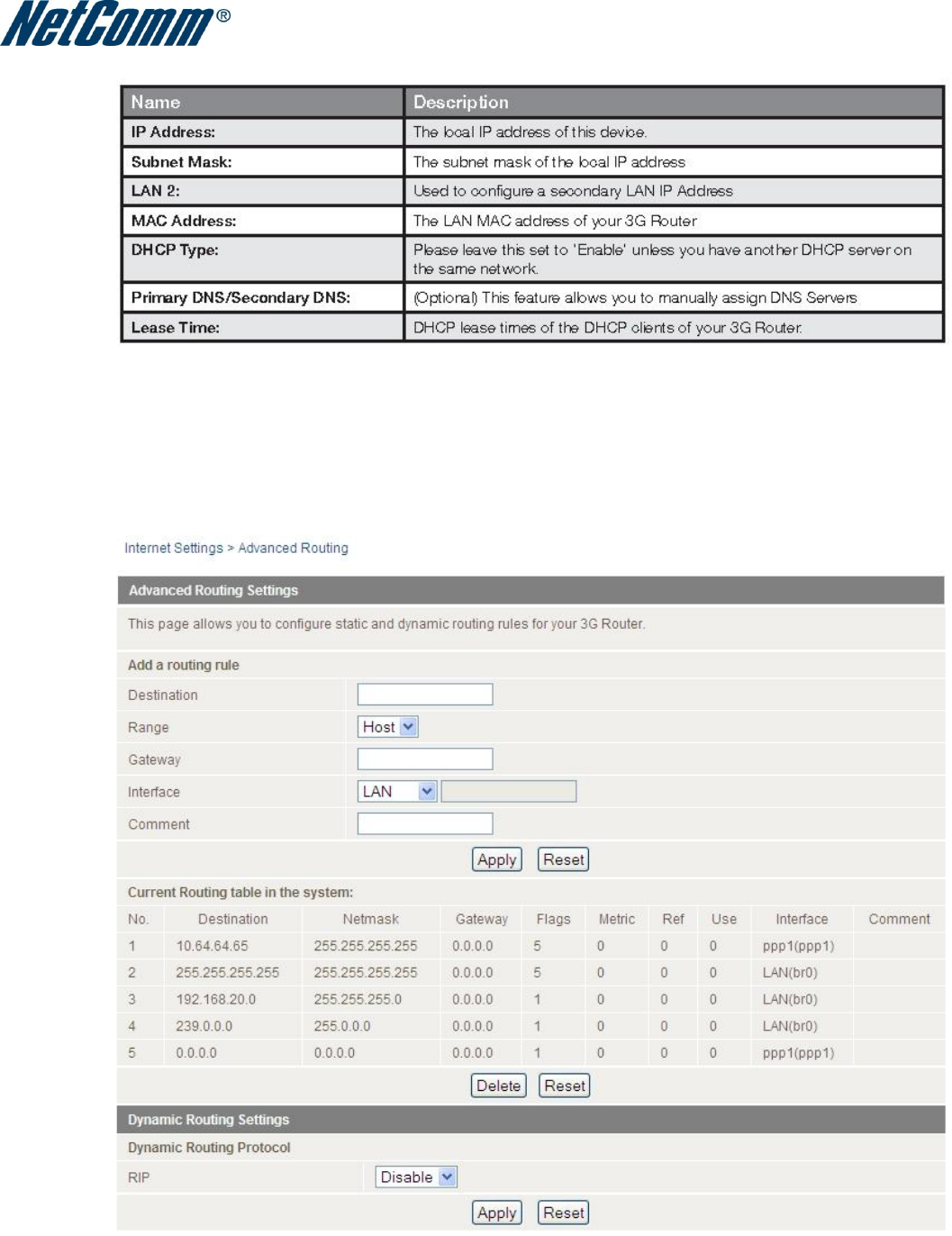

4.3.4 Advanced Routing ...................................................................................................................... 19
3G8WV User Guide
Page 2 of 43
4.3. 5 DHCP Client ....................................................................................................................... 20
5.0 Wireless Setting .................................................................................................................................... 20

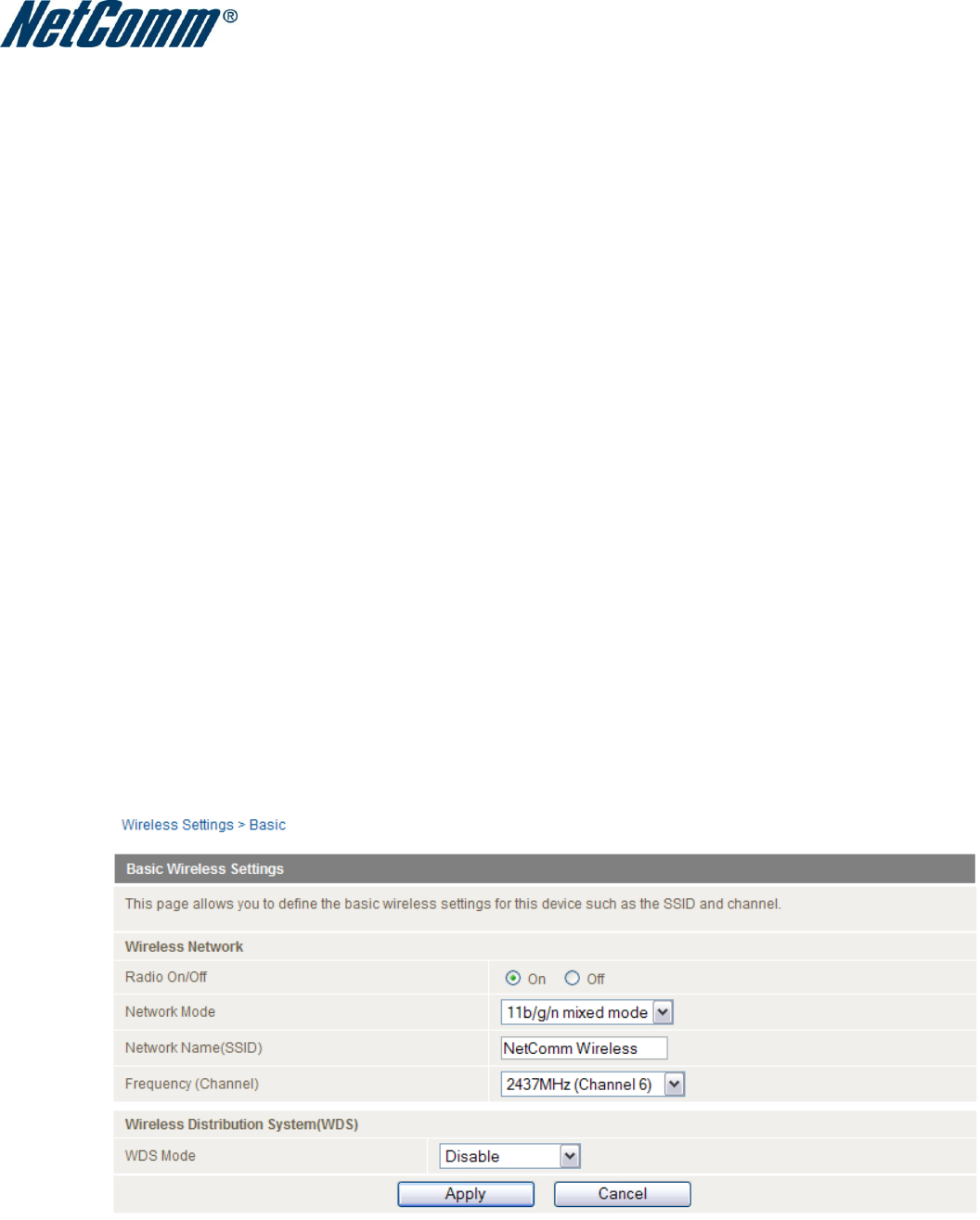

5.1 Basic .................................................................................................................................................. 20

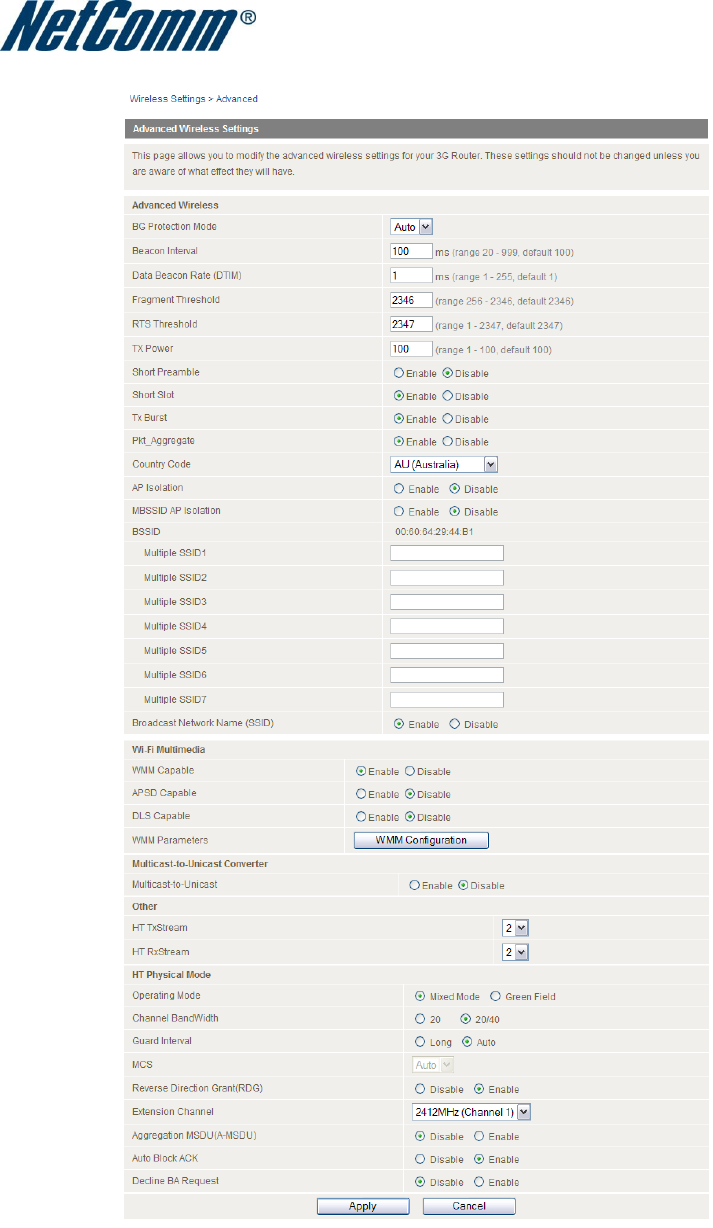

5.2 Advanced ........................................................................................................................................... 21

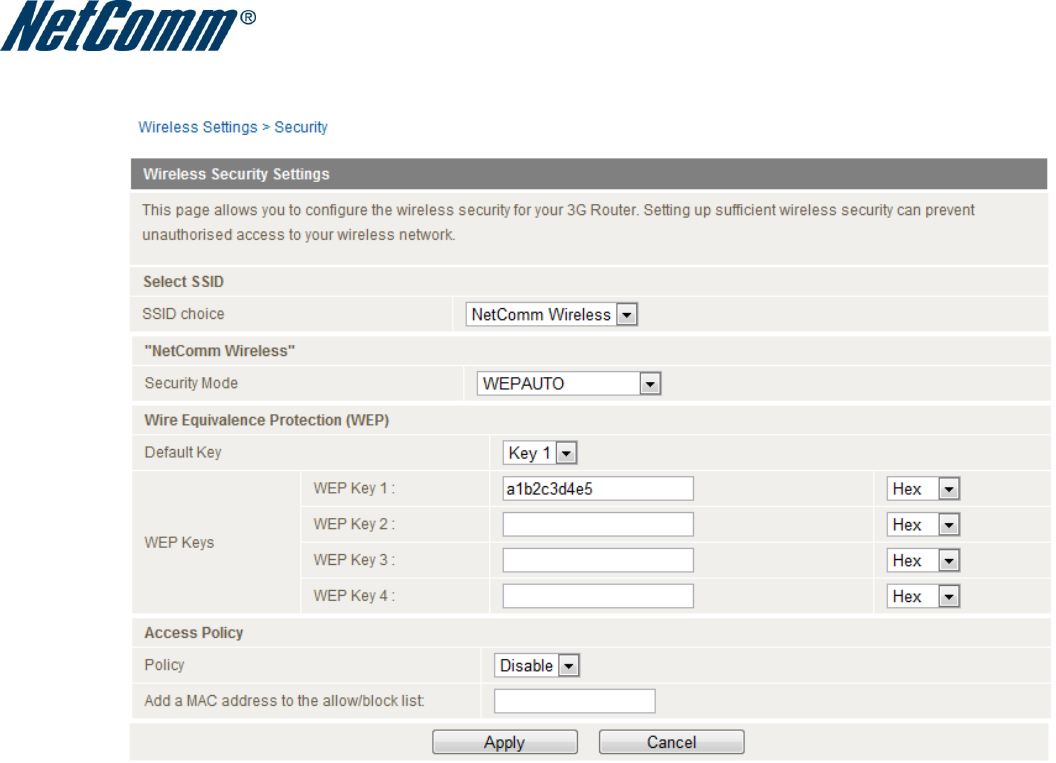

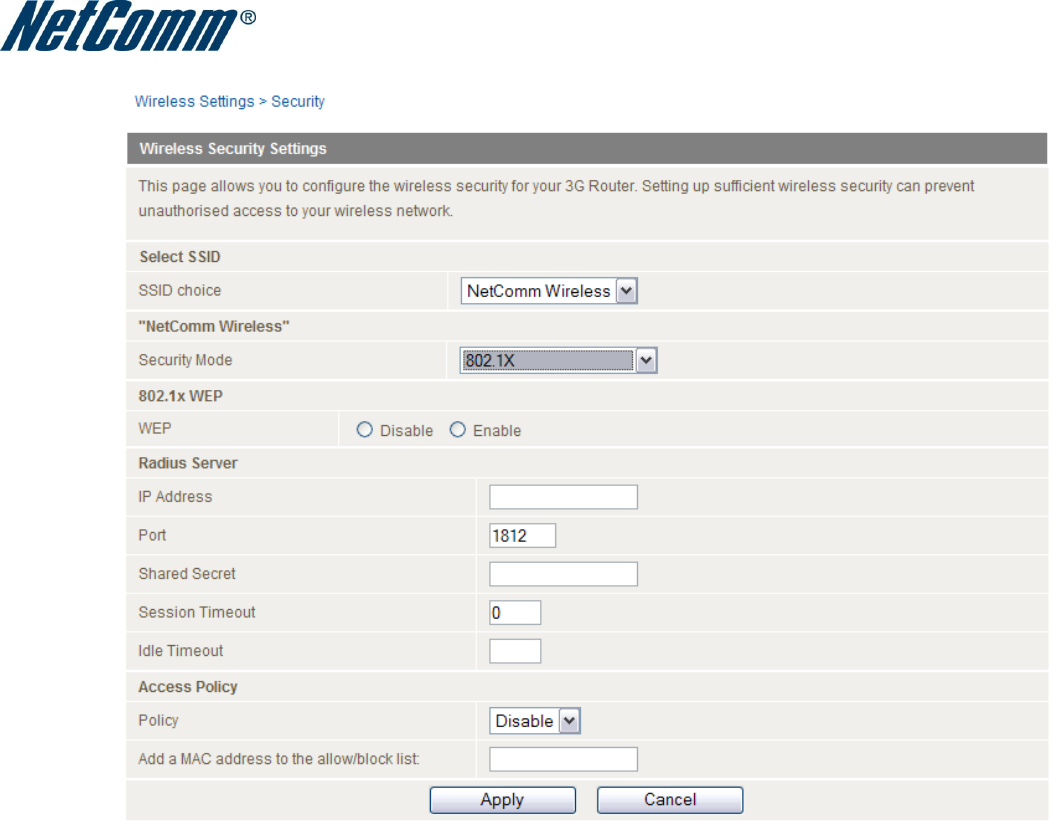

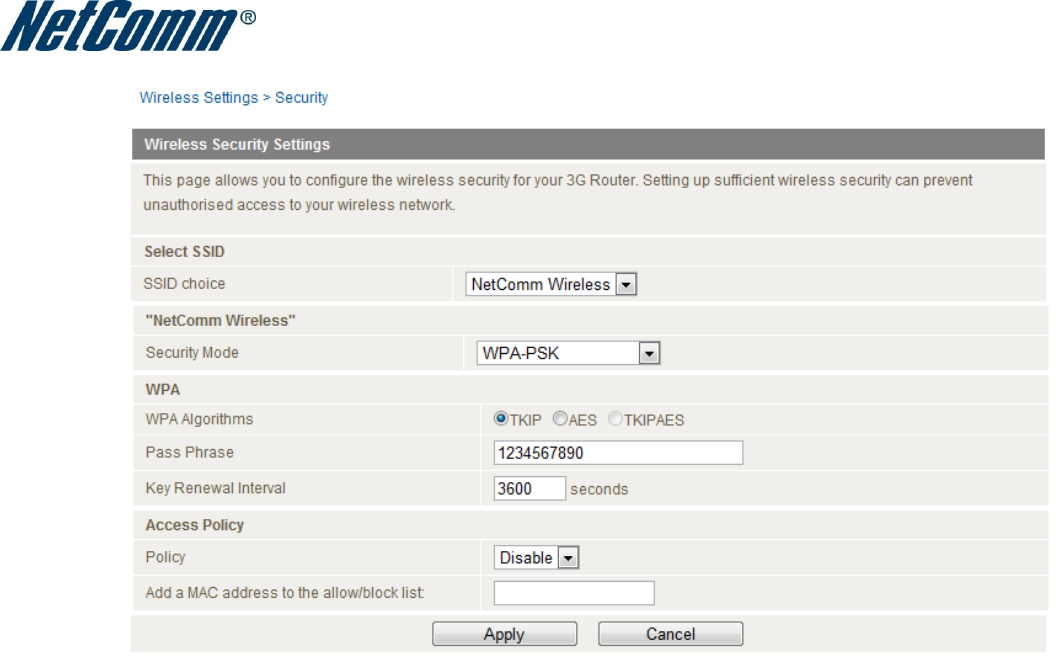

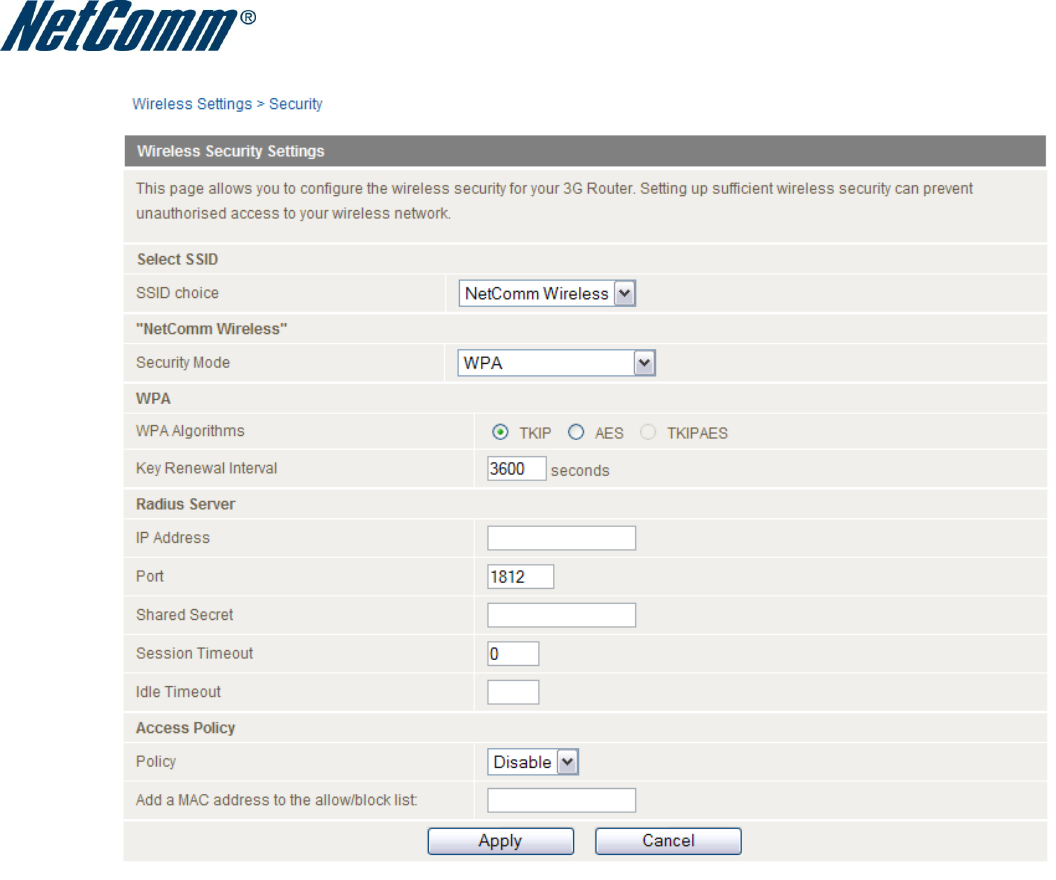

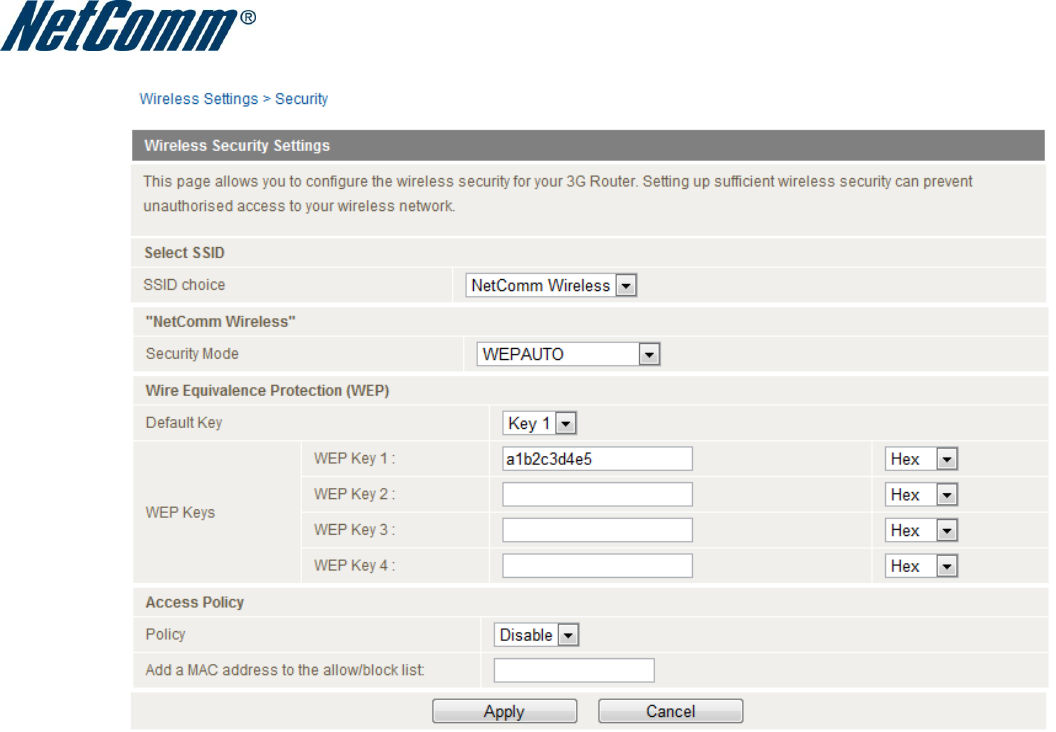

5.3 Security ............................................................................................................................................. 23

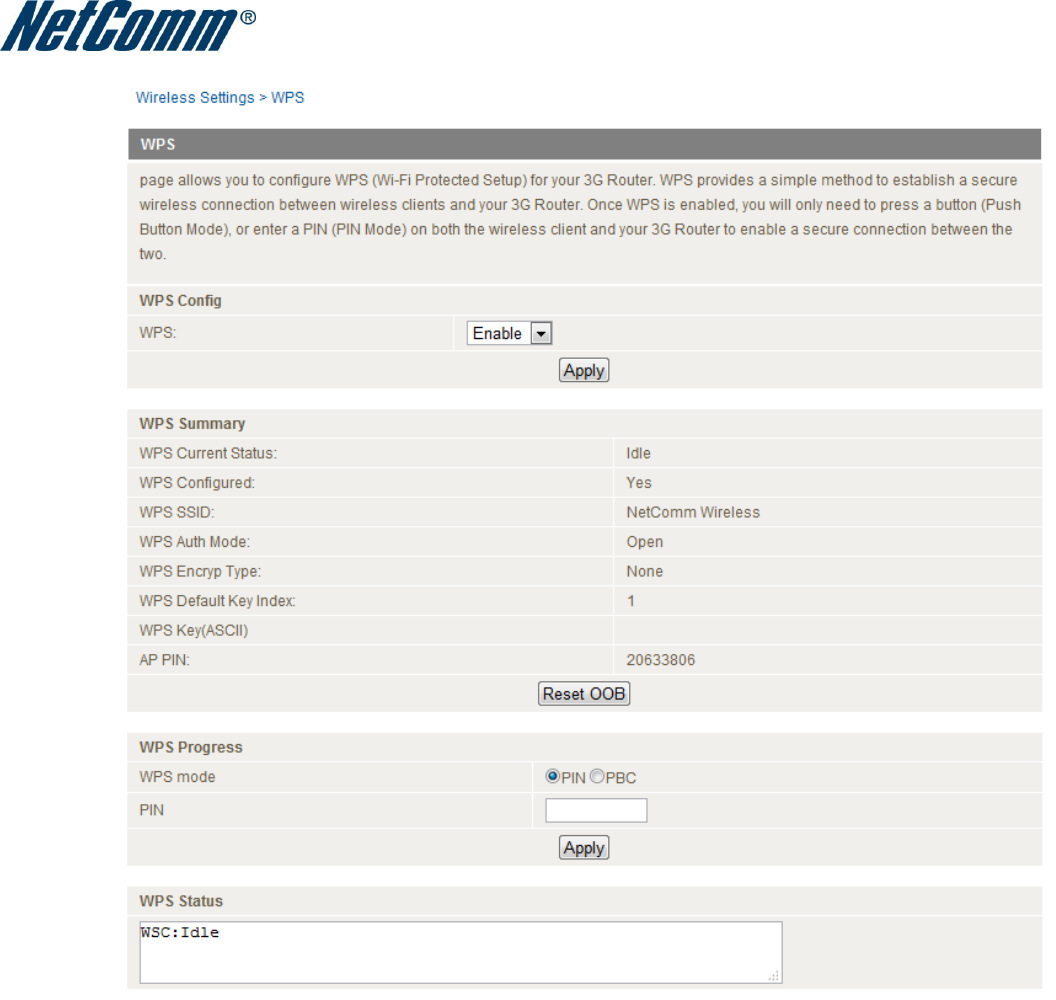

5.4 WPS ................................................................................................................................................... 28
5.5 Station List ......................................................................................................................................... 30
6.0 Firewall .................................................................................................................................................. 30

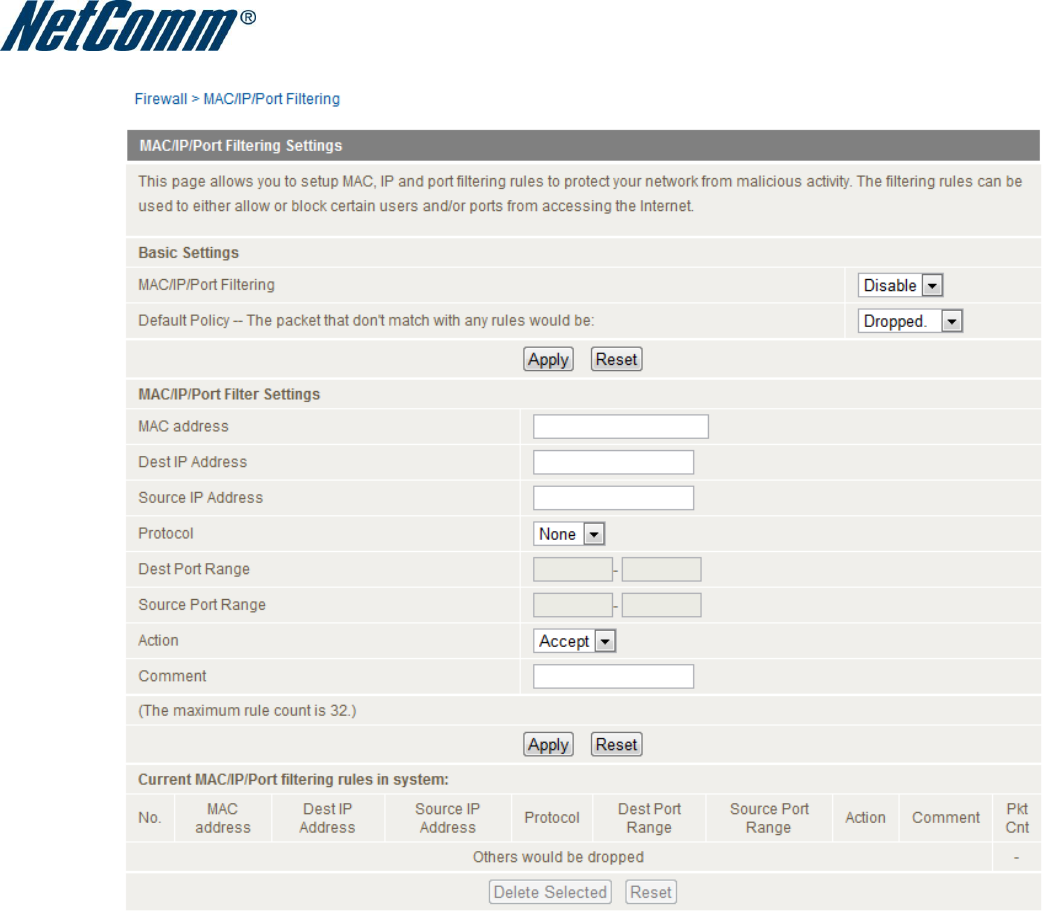

6.1 Mac/IP/Port Filtering ........................................................................................................................ 30

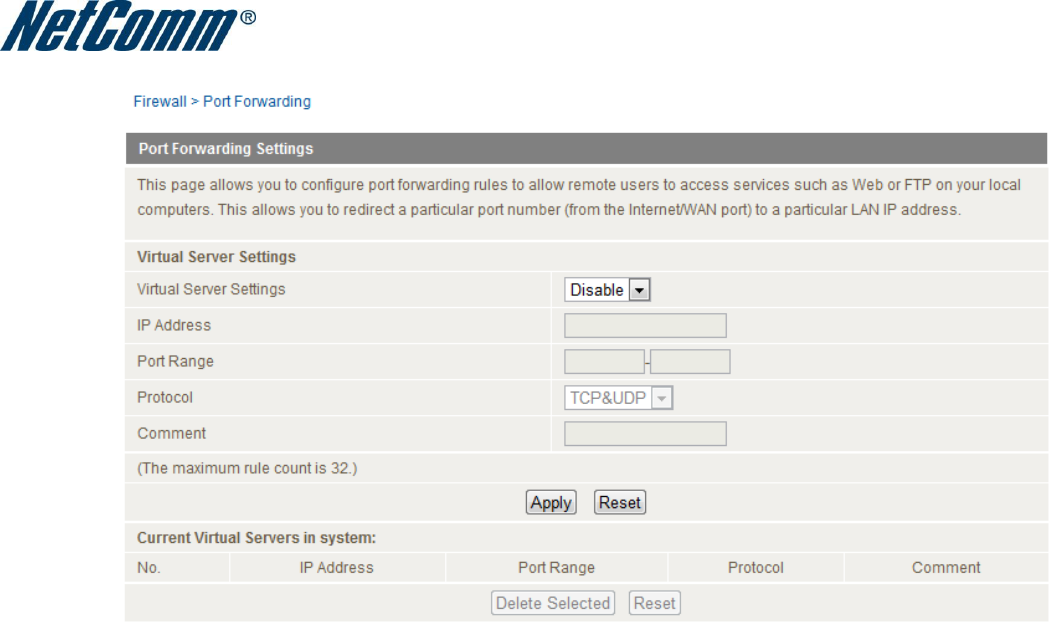

6.2 Port Forwarding ................................................................................................................................ 32

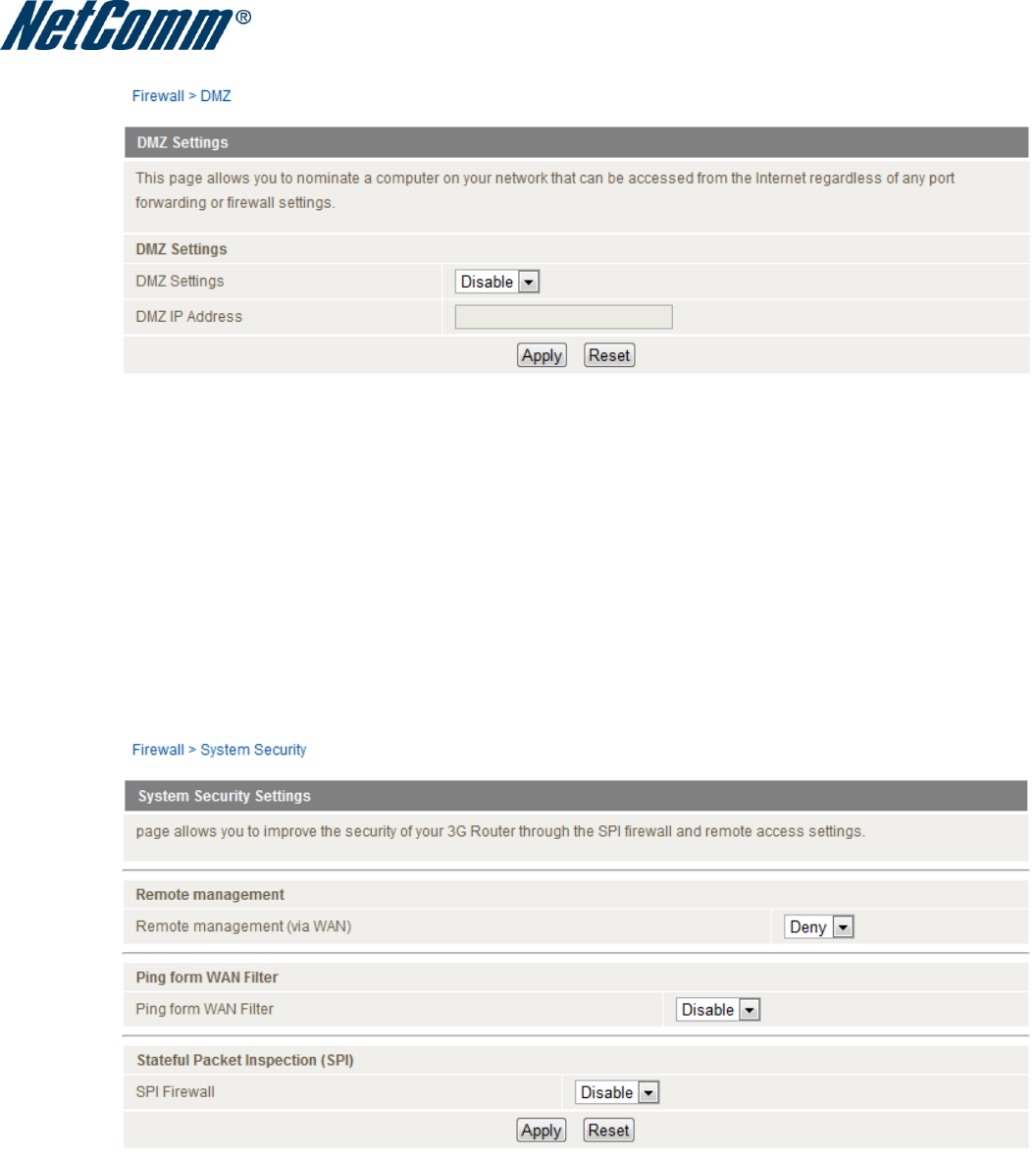

6.3 DMZ ................................................................................................................................................... 33
6.4 System Security ................................................................................................................................. 34

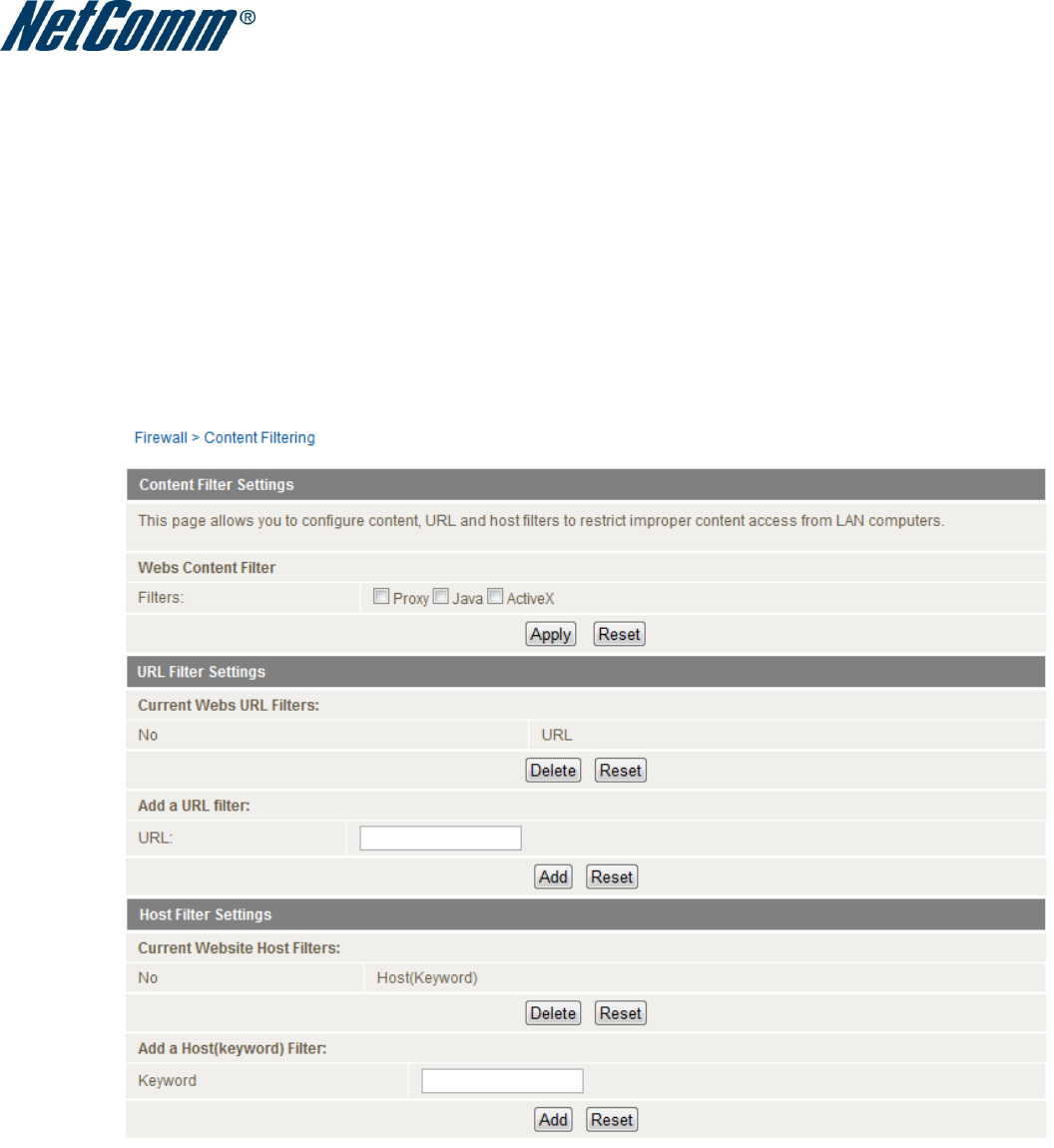

6.5 Content Filtering ............................................................................................................................... 35
7.0 Administration ...................................................................................................................................... 36

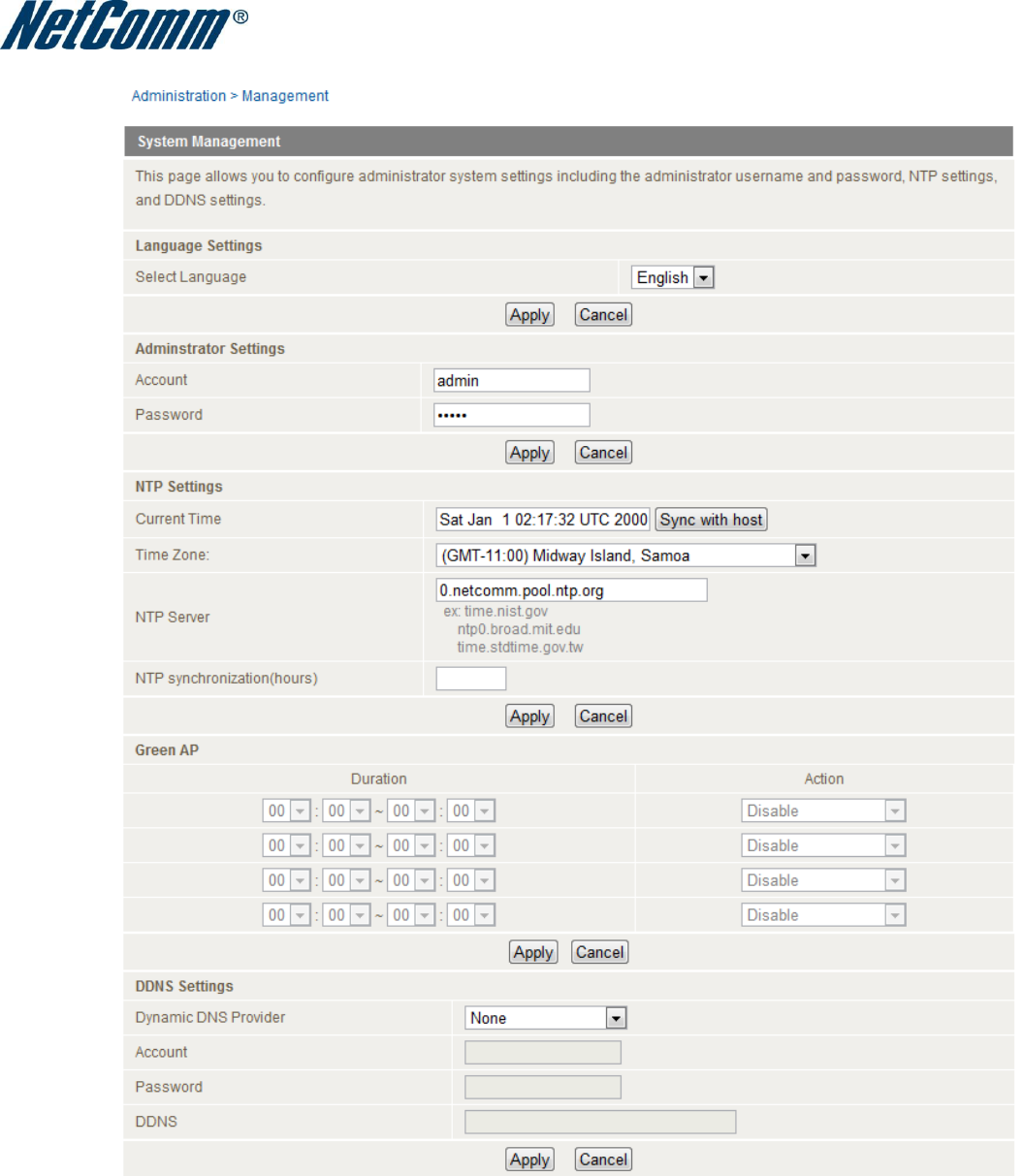

7.1 Management ..................................................................................................................................... 36
7.2 Upload Firmware .............................................................................................................................. 38

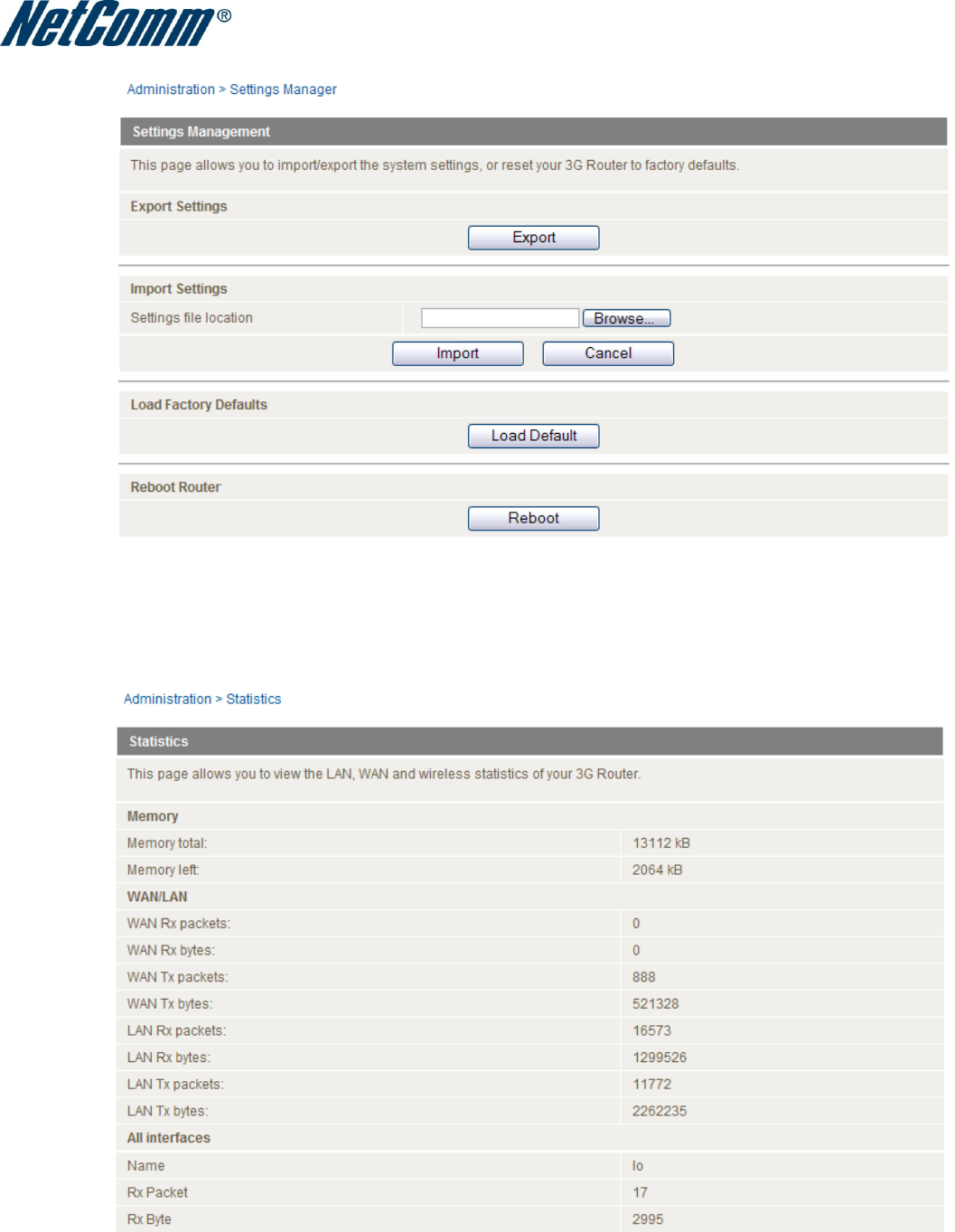

7.3 Setting Manager ................................................................................................................................ 38
7.4 Statistics ............................................................................................................................................ 39

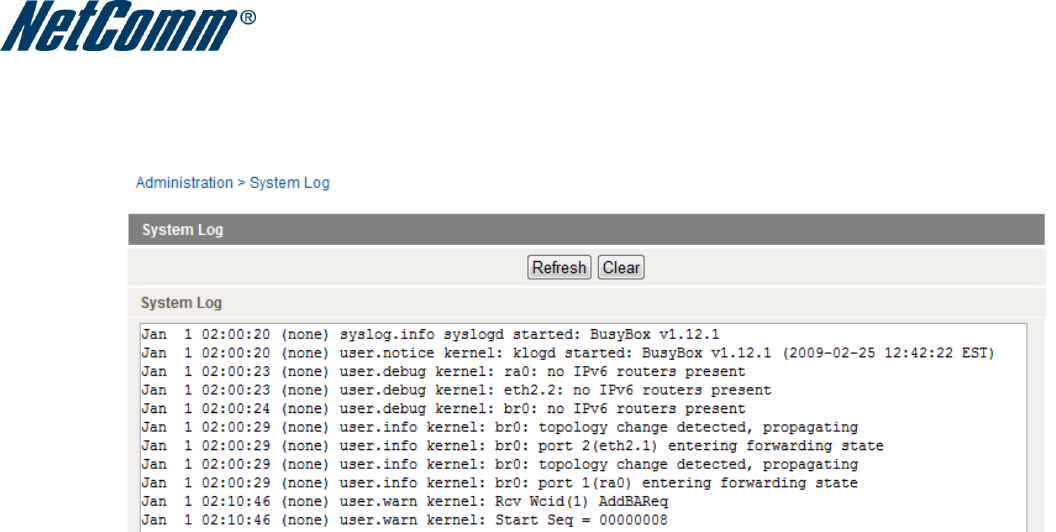

7.5 System Log ........................................................................................................................................ 40
8.0 Legal & Regulatory Information ............................................................................................................ 41
8.1 Customer Information ...................................................................................................................... 41
8.2 Federal Communication Commission Interference Statement ........................................................ 41
3G8WV User Guide
Page 3 of 43
1. Introduction

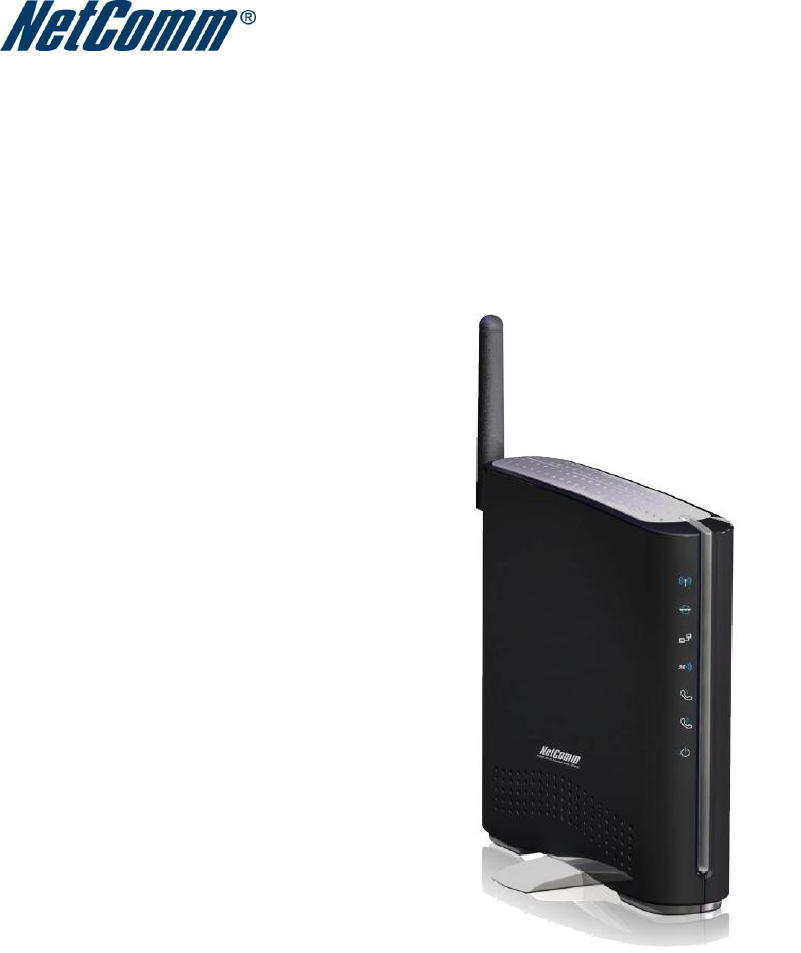

Your 3G8WV – HSPA Wi-Fi Router with Voice
The NetComm 3G8WV integrates a Wireless LAN, HSPA module and voice gateway into one stylish unit. Insert an
active HSPA SIM card into the slot on the rear panel and get instant access to a 3G Internet connection.
The NetComm 3G8WV incorporates a WLAN 802.11b/g/n access point, two Ethernet 10/100Mbps ports and two
phone ports for voice calls. It features the latest security options such as WPA2 data encryption, SPI Firewall and
VPN pass through.
This feature packed device enables you to quickly and simply create a secure Wi-Fi network and provide Internet
access using a 3G network. Share your 3G connection with multiple wireless and wired devices, without the hassle
of a fixed line Internet connection. Featuring a voice port means you can now stay connected using the Internet
and telephone. If you need a flexible Internet connection for your business, this is the perfect solution for you.
1.1 Package Contents
1. 3G8WV – HSPA Wi-Fi Router with Voice
2. 12VDC~1.5A Power Adapter
3. RJ45 LAN Cable
4. Quick Install Guide
3G8WV User Guide
Page 4 of 43
5. CD(User’s Manual)
1.2 Key Features
1. Tri-band UMTS / Quad-band GSM/EDGE
2. 7.2Mbps down / 5.76Mbps up
3. 2 x Voice port (circuit-switched)
4. 2 x 10/100 Ethernet ports (Configurable as WAN or LAN)
5. 802.11n/300Mbps wireless1
6. WAN port for alternate Internet connection (ADSL/Cable/Satellite)

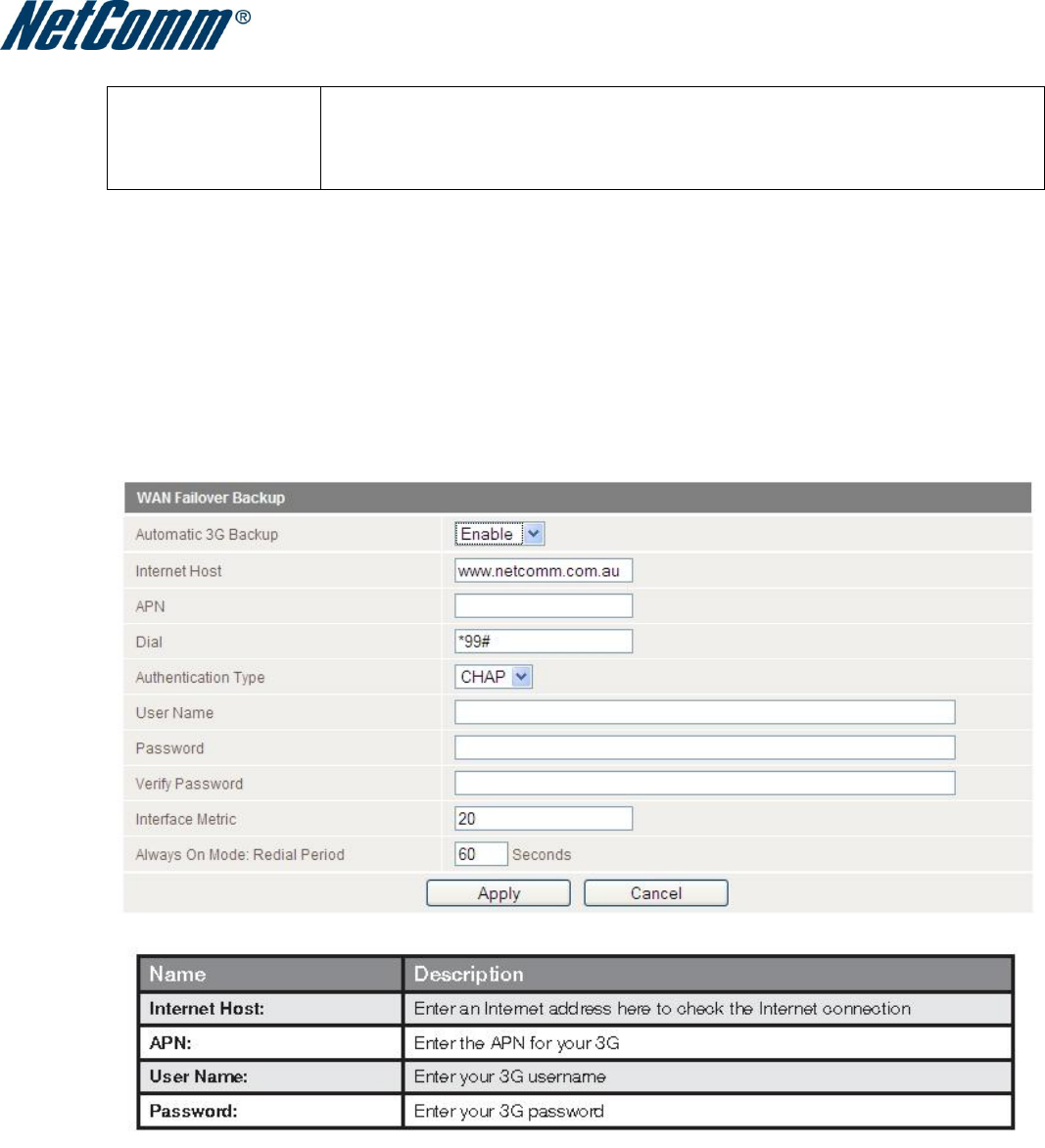

7. Supports auto Internet failover to 3G
8. 2 Transmit and 2 Receive Internal Wi-Fi antennas
9. Wi-Fi Protected Setup (WPS) for an easy and secure wireless connection
10. Browser based interface for configuration and management: OS independent and easy to use
11. Full wireless security - WEP, WPA, WPA2
2. Placement of your 3G8WV
Just like your mobile phone, a 3G Router’s location will affect its signal strength to the 3G Mobile Base Station (Cell
Tower). The data speed achievable from a 3G Router is relative to this signal strength, which is affected by many
environmental factors. Please keep in mind that the 3G Router will need adequate signal strength in order to
provide Internet connectivity whilst choosing a location to place your 3G8WV.
Similarly to the 3G Router, the wireless connection between the Router and your Wi-Fi devices will be stronger the
closer your connected devices are to your Router. Your wireless connection and performance will degrade as the
distance between your Router and connected devices increases. This may or may not be directly noticeable, and is
greatly affected by the individual installation environment.
If you have concerns about your network’s performance that might be related to range or obstruction factors, try
moving the computer to a position between three to five meters from the Router in order to see if distance is the
problem. If difficulties persist even at close range, please contact NetComm Technical Support.
Note: While some of the items listed below can affect network performance, they will not prohibit your wireless
network from functioning; if you are concerned that your network is not operating at its maximum effectiveness,
this checklist may help.
3G8WV User Guide
Page 5 of 43
2.1 Router Placement
Place your Router as close as possible to the centre of your wireless network devices. To achieve the best wireless
network coverage for your “wireless clients” (i.e., computers with built in or USB Wireless Adapters, Laptops with
Built-in Wireless, Wireless PDA / iPhone, etc):
• Ensure that your Router’s antennas are parallel to each other, and are positioned vertically (toward the ceiling).
If your Router itself is positioned vertically, point the antennas in an upward direction as much as possible.
• In multi-storey homes, place the Router on a floor that is as close to the centre of the home as possible. This may
mean placing the Router on an upper floor.
• Try not to place the Router near a cordless telephone that operates at the same radio frequency as the 3G8WV
(2.4GHz).
2.2 Avoid obstacles and interference
Avoid placing your Router near devices that may emit radio “noise,” such as microwave ovens. Dense objects that
can inhibit wireless communication include:
• Refrigerators
• Washers and/or dryers
• Metal cabinets
• Large aquariums
• Metallic-based, UV-tinted windows
If your wireless signal seems weak in some spots, make sure that objects such as these are not blocking the signal’s
path (between your devices and Router).
2.3 Cordless Phones
If the performance of your wireless network is impaired after considering the above issues, and you have a
cordless phone:
• Try moving cordless phones away from your Router and your wireless-enabled computers.
• Unplug and remove the battery from any cordless phone that operates on the 2.4GHz band (check
manufacturer’s information). If this fixes the problem, your phone may be interfering with the Wi-Fi Router.
3G8WV User Guide
Page 6 of 43
• If your phone supports channel selection, change the channel on the phone to the farthest channel from your
wireless network. For example, change the phone to channel 1 and move your Router to channel 11. See your
phones user manual for detailed instructions.
• If necessary, consider switching to a 900MHz or 5GHz cordless phone.
2.4 Choose the “Quietest” Channel for your Wireless Network
In locations where homes or offices are close together, such as apartment buildings or office complexes, there may
be wireless networks nearby that can conflict with your wireless network.
Use the Site Survey capabilities found in the Wireless Utility of your wireless adapter to locate any other wireless
networks that are available (see your wireless adapter’s user manual), and switch your Router and computers to a
channel as far away from other networks as possible.
• Experiment with more than one of the available channels, in order to find the clearest connection and avoid
interference from neighbouring cordless phones or other wireless devices.
• For NetComm wireless networking products, use the detailed Site Survey and wireless channel information
included with your wireless network card. See your network card’s user guide for more information.
These guidelines should allow you to cover the maximum possible area with your Router. Should you need to cover
an even wider area, you should consider looking at building a hybrid network by combining your wireless network
with a HomePlug Network. See the NetComm website for more details on HomePlug products.
3. Product Layout
3.1 Connecting and Configuring your Router
The Router has been designed to be placed on a desktop. All of the cables exit from the rear of the Router for
better organization. The display is easily visible on the FRONT of the Router to provide you with information about
network activity and status. See below for explanation of each of the features.
Front Panel
Description
Wireless
Lights up when WLAN is enabled. Blinks on traffic
WAN
Lights up when the router is connected via WAN
LAN
Lights up when specific LAN connection is established. Blinks on LAN PORT trafficLAN
3G
Lights up when the router is connected via 3G
3G8WV User Guide
Page 7 of 43
Phone 1
Lights up when the handset connected to Phone 1 is on hook
Phone 2
Lights up when the handset connected to Phone 2 is on hook
Power
Lights up and flashing when powered ON
Rear Ports
SIM Slot
Insert your SIM card here
3G Antenna
Screw in the 3G Antenna here
WAN
WAN Ethernet port for Fixed Line (ADSL/Cable/Satellite) connection
LAN
LAN Port for wired Ethernet clients (Computers, Laptops, etc)
Phone 2
Phone Port for Handset
Phone 1
Phone Port for Handset
Reset
Hold this button down for 10 seconds to reset to factory defaults.
Power
Power connector, connects to DC 12V 1.25A Power Adapter
3.2 Network and System Requirements
Before continuing with the installation of your 3G8WV, please confirm that you comply with the minimum system
requirements below.
• Compatible 3G SIM card(850MHz/1900MHz/2100MHz) with Active SIM/Data Service if you want to use 3G
Broadband service.
Note: Subject to terms and conditions from your 3G Mobile Broadband Service Provider.
• Computer with Windows, Macintosh, or Linux-based operating systems with a working Ethernet adapter with
TCP/IP Protocol installed.
• A Web Browser such as Internet Explorer, Netscape Navigator, Mozilla Firefox, Opera, Safari etc.
Wireless Computer System Requirements
3G8WV User Guide
Page 8 of 43
• Computer with a working 802.11b, 802.11g or 802.11n wireless adapter.
3.3 Connecting your 3G8WV
Step1 – Insert SIM card
Insert SIM card into the SIM Slot.
Step2 – Connect a computer
Connect one end of the Ethernet cable into a LAN Port on the back panel of the 3G8WV, and the other end into an
available Ethernet port on the network adapter in the computer you will use to configure the unit.
Step3 – Plug in the power
Connect the power adapter to the port on the back panel of your 3G Router. Then plug the other end of the power
adapter into a wall outlet or power strip.
Default Settings
LAN (Management)
Static IP Address: 192.168.20.1
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.20.1
WAN (Internet)
WAN mode: DHCP
Wireless
SSID: NetComm Wireless
Channel: 11
Security: WEP, 64bit
WEP Key: a1b2c3d4e5
Modem Access
Username: admin
Password: admin
4. Advanced Features
This section explains other features that you may want to enable depending on your application. Some features
can add extra stability and error recovery. Other features are available to assist with integrating the 3G8WV with
your application.
3G8WV User Guide
Page 9 of 43

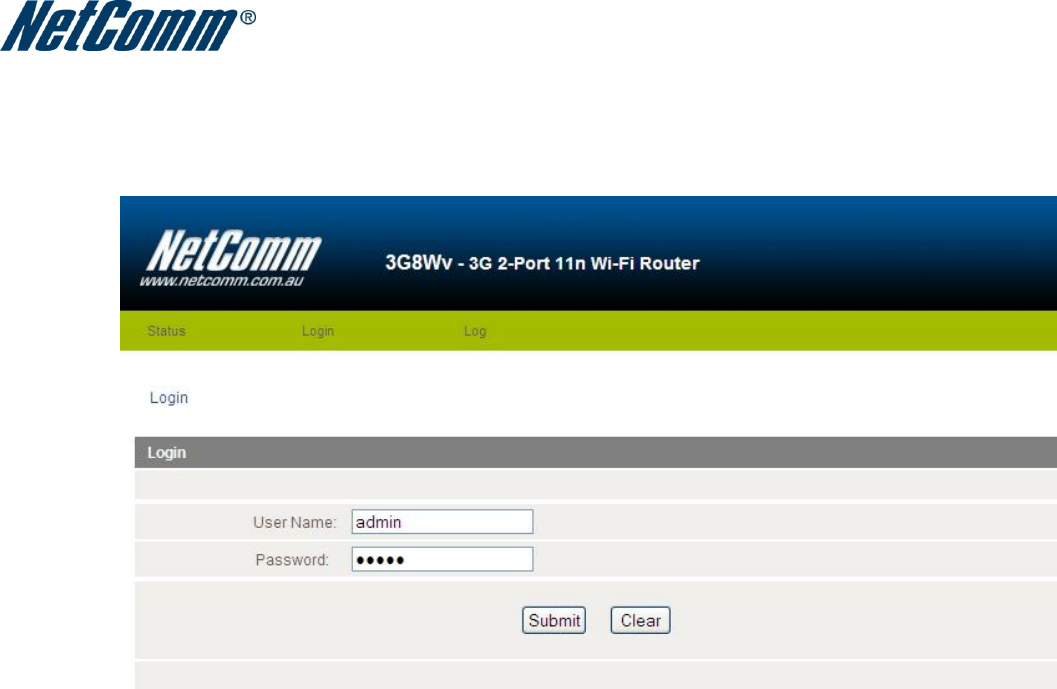

4.1 Login Procedure
1. Open your web browser (e.g. Internet Explorer/Firefox/Safari) and navigate to http://192.168.20.1/
2. Click Login and type “admin” (without quotes) in the Username and Password fields. Then click on Submit.
Note: admin is the default username and password for the unit.
4.2 Status
The status page provides system related information. It is shown on login to the 3G8WV, and can also be accessed
by selecting Status from the top menu.
By default, the status page will show System Info, Local Network, WWAN, Connection Status and Ethernet Status.
To view either WAN, PPPoE or PPTP individually, click on their relevant buttons. To view them all, click on the All
Status button.
3G8WV User Guide
Page 10 of 43
4.3 Internet Settings
4.3.1 3G Internet Settings
This page allows you to setup your WWAN (Wireless Wide Area Network) connection. Enter the relevant settings
as provided by your 3G provider.
Note For 3G WAN connection: The 3G connection fields may not be necessary for your connection. The information on this page will only be used when your service
provider requires you to enter a User Name and Password to connect to the 3G network.
3G8WV User Guide
Page 11 of 43
3G8WV User Guide
Page 12 of 43
Name
Description
Auto-APN
Default is “enabled”, 3G8WV will fill up the APN automatically by detecting your SIM
card.
User Name
Enter your 3G Username
Password
Enter your 3G Password
Operation Mode
There are 3 Options as following:
‘Always On’
Keeps the Internet connection alive, does not disconnect
‘OFF’
Does not connect to the Internet
3G8WV User Guide
Page 13 of 43
‘Automatic 3G Backup’
The Automatic 3G Backup feature of the 3G8WV is designed to provide a backup 3G
Internet connection in case your primary connection should fail. To use this feature,
you will need both an Ethernet WAN connection (from an xDSL
modem/ISDN/Satellite etc) and a 3G WAN connection.
PIN
Enter the Pin Code for your SIM card
Note: For current APN’s of various providers, consult the Setting Up Your Router section of this user manual.
4.3.2 WAN
Select the WAN connection type suitable for your environment and configure parameters according to the
selected connection type.
STATIC (fixed IP)
If your WAN connection uses a static IP address, please select Static IP Address and fill in the required information
in the fields provided.
3G8WV User Guide
Page 14 of 43
Click Apply to save the settings.
DHCP (Auto config)
This connection will get the IP address from the Internet service provider. Choose this connection if you are
connecting the router to a Cable Modem service. Leave everything as default unless instructed by your Internet
Service Provider.
Name
Description
Host Name
Please input the host name of your computer. This is optional, and only required if your
service provider asks you to do so.
Mac Clone
Please input the MAC address of your computer here if your service provider only permits
computers with a certain MAC address to access the Internet. If you are using the computer
which used to connect to Internet via a cable modem, you can simply press the ‘Default’
3G8WV User Guide
Page 15 of 43
button to fill the MAC address field with the MAC address of your computer.
Click Apply to save the settings.
PPPoE (ADSL)
Most ADSL services use the PPP over Ethernet protocol. Use this if you connect your 3G Router to a bridged ADSL
modem.
Click Apply to save the settings.
3G8WV User Guide
Page 16 of 43
PPTP
Name
Description
Server IP
Type in the server IP address assigned by your Internet Service Provider.
User Name/Password
Type in the username and password assigned by your provider.
Address Mode
Select Dynamic if your service uses a DHCP server, or select Static and type in the IP
address, Subnet Mask and Default Gateway assigned by your Internet Service Provider.
Operation Mode
‘Keep Alive’
Keeps the Internet connection alive, does not disconnect.
‘On Demand’
Only connects to Internet when there’s a connect attempt
‘Manual’
Only connects to the Internet when the ‘Connect’ button on this page is pressed, and
disconnects when the ‘Disconnect’ button is pressed.
Mac Clone
Please input the MAC address of your computer here if your service provider only
permits computers with a certain MAC address to access the Internet. If you are using
3G8WV User Guide
Page 17 of 43
the computer which used to connect to the Internet via a cable modem, you can simply
press the ‘Default’ button to fill the MAC address field with the MAC address of your
computer.
Click Apply to save the settings.
WAN Failover Backup
The WAN Failover Backup feature of the 3G8WV is designed to provide a backup 3G Internet connection in case
your primary connection should fail. To use this feature, you will need both an Ethernet WAN connection (from an
xDSL modem/ISDN/Satellite etc) and a 3G WAN connection.
To set up WAN failover on your 3G Router, first tick “Enable automatic 3G backup”, then fill in the fields that
appear.
Click Apply to save the settings.
3G8WV User Guide
Page 18 of 43
4.3.3 LAN
3G8WV User Guide
Page 19 of 43
Click Apply to save the settings.
4.3.4 Advanced Routing
This page allows you to configure static and dynamic routing rules for your 3G Router.
3G8WV User Guide
Page 20 of 43
Advanced Routing – Static
Static Routing allows computers that are connected to your 3G Router to communicate with computers on another
LAN segment which are connected to it via another router. To set a rule, you need to specify the following:
• Destination
• Subnet mask
• Gateway
• Interface
Advanced Routing – Dynamic
Dynamic Routing uses the RIP protocol to allow the 3G Router to adapt to changes in the network. RIP enables the
device to determine the best route for each packet based on the “hop count” or number of hops between Source
and Destination. To enable Dynamic Routing, select Enable from the drop box and click Apply.
4.3. 5 DHCP Client
This page allows you to view the current DHCP client of your 3G Router.
5.0 Wireless Setting
5.1 Basic
This page allows you to define the basic wireless settings for this device such as the SSID and channel.
3G8WV User Guide
Page 21 of 43
Radio On/Off: On by default. Changing this option to Off will turn off the wireless feature on the unit and
you will not be able to connect to your 3G Router wirelessly.
Network Mode: You can select which wireless standards are able to connect to your wireless network:
o 11b/g mixed mode: Both 802.11b and 802.11g wireless devices are in your network.
o 11b only: Select this if all of your wireless clients are 802.11b.
o 11g only: Select this if all of your wireless clients are 802.11g.
o 11a only: Select this if all of your wireless clients are 802.11a.
o 11a/n mixed mode: Both 802.11a and 802.11n wireless devices are in your network.
o 11/b/g/n mixed mode: Select this if 802.11b and 802.11g and 802.11n wireless devices are in
your network.
Network Name (SSID): The SSID (Service Set Identifier) is the name of your wireless network. Use a
unique name to identify your wireless device so that you can easily connect from your wireless clients.
This field is case sensitive and can be up to 32 characters. You should change the default SSID for added
security.
Frequency (Channel): This setting configures the frequency that the Wireless Radio uses for wireless
connectivity. Select one channel that you wish to use from the drop down list.
WDS Mode: WDS (Wireless Distribution System), is a system that enables the wireless interconnection of
access points, and allows a wireless network to be expanded using multiple access points without a wired
backbone to link them. Each WDS Access Point needs to be set with the same channel and encryption
type.
Click Apply to save the settings.
5.2 Advanced
This page allows you to modify the advanced wireless settings for your 3G Router. These settings should not be
changed unless you are aware of what effect they will have.
3G8WV User Guide
Page 22 of 43
Beacon Interval: Interval of time the wireless router broadcasts a beacon, used to synchronize the
wireless network.
3G8WV User Guide
Page 23 of 43
Data Beacon Rate (DTIM): Enter a value between 1 and 255 for the Delivery Traffic Indication Message
(DTIM). A DTIM is a countdown informing clients of the next window for listening to broadcast and
multicast messages
Fragment Threshold: This specifies the maximum size of a packet during the fragmentation of data to be
transmitted. If you set this value too low, it will result in bad performance.
RTS Threshold: When the packet size is smaller than the RTS threshold, the wireless router will not use the
RTS/CTS mechanism to send this packet.
AP Isolation: This feature allows you to isolate clients on your wireless network. To enable communication
between the wireless clients connected to your 3G Router, select Disabled. To cut the communication
between the wireless clients, please choose Enabled.
TX Power: This determines the output power of the antenna
WMM Capable: WMM (Wi-Fi MultiMedia) if enabled supports QoS for experiencing better audio, video
and voice in applications
WMM Parameters: Click on the WMM Configuration button to configure the WMM parameters
Broadcast Network Name (SSID): Select ‘Disabled’ to hide the SSID of your 3G Router. If disabled, other
people will not be able scan and detect this product’s SSID.
Click Apply to save the settings.
5.3 Security
This page allows you to configure the wireless security for your 3G Router. Setting up sufficient wireless security
can prevent unauthorised access to your wireless network.
3G8WV User Guide
Page 24 of 43
SSID Choice: Select the SSID on which to configure the security settings
Security Mode: Select the security mode for the wireless network. See below for more information
Access Policy: This feature allows MAC Address Control, which prevents unauthorized clients from
accessing your wireless network. Select whether to allow/block users on the policy list, and add their MAC
addresses to the list on the format XX:XX:XX:XX:XX:XX
Click Apply to save the settings.
Security Mode
You may choose from the following wireless security options: Disabled, Open, Shared, WEPAUTO, WPA, WPA-PSK,
WPA2, WPA2-PSK, WPA-PSK-WPA2-PSK, WPA1-WPA2 or 802.1x.
WEP: WEP (Wired Equivalent Privacy) is enabled by default to help prevent against unwanted wireless
users accessing your 3G Router. The default 64 bit Hexadecimal WEP key is: a1b2c3d4e5
3G8WV User Guide
Page 25 of 43
WPA/WPA2: WPA (Wi-Fi Protected Access) authentication is suitable for enterprises. It must be used in
conjunction with an authentication server such as RADIUS to provide centralized access control and
management. It can provide stronger encryption and authentication solution than non WPA modes.
3G8WV User Guide
Page 26 of 43
WPA-PSK/WPA2-PSK: A newer type of security is WPA-PSK (TKIP) and WPA2-PSK (AES). This type of
security gives a more secure network compare to WEP. Use TKIP Encryption Type for WPA-PSK and AES
for WPA2-PSK. After that, please enter the key in the Passphrase field. The key needs to be more than 8
characters and less than 63 characters and it can be any combination of letters and numbers. Please note
that the configuration for WPA-PSK and WPA2-PSK is identical.
3G8WV User Guide
Page 27 of 43
802.1x: In order to use 802.1X security, you need to have a RADIUS server on your network that will act as
the authentication server. Please type in the details for your RADIUS server in the fields required.
3G8WV User Guide
Page 28 of 43
Note: After configuring wireless security, you also need to configure your wireless adapter to use the same security
settings before you can connect wirelessly. Not all wireless adapters support WPA-PSK/WPA2-PSK/WPA/WPA2
security; please refer to your wireless adapter user guide for more details. It is strongly recommended to set up a
simple wireless security such as WEP 64bit or WPA (when the wireless client supports WPA) in order to secure your
network.
5.4 WPS
WPS is the simplest way to establish a connection between wireless clients and your 3G Router. This method
removes the need to manually select the encryption mode and fill in the passphrase. You only need to press a
button on both wireless client and wireless router, and the WPS will do the rest for you. The wireless router
supports two types of WPS:
WPS via Push Button – you have to push a specific button on the wireless client or in your wireless client
utility to start the WPS mode, and switch the wireless router to WPS mode. You can simply push the WPS
button of the wireless router, or click the ‘Start to Process’ button in the web configuration interface.
WPS via PIN code – you have to know the PIN code of the wireless client and switch it to WPS mode, then
input the wireless client PIN to the wireless router web interface.
3G8WV User Guide
Page 29 of 43
WPS: Use the dropbox to either enable or disable the WPS function.
WPS Current Status: If the wireless security (encryption) function of this wireless router is properly set,
you will see a ‘Success’ message here. Otherwise, you will see ‘Idle’.
WPS SSID: This is the network broadcast name (SSID) of the router.
WPS Auth Mode: It shows the active authentication mode for the wireless connection.
WPS PIN: This is the WPS PIN code of the wireless router. You may need this information when connecting
to other WPS-enabled wireless devices.
WPS Mode: Select either PIN or PBC.
3G8WV User Guide
Page 30 of 43
5.5 Station List
The Station List shows the wireless clients currently associated with your 3G Router.
6.0 Firewall
6.1 Mac/IP/Port Filtering
This page allows you to setup MAC, IP and port filtering rules to protect your network from malicious activity. The
filtering rules can be used to either allow or block certain users and/or ports from accessing the Internet.
3G8WV User Guide
Page 31 of 43
Basic Settings
MAC/IP/Port Filtering: Select Enable to enable MAC/IP/Port Filtering
Default Policy: Select whether packets that do not match any rules are accepted or dropped
3G8WV User Guide
Page 32 of 43
MAC/IP/Port Filtering Settings
MAC Address: MAC address of a local computer
Dest IP Address: Destination IP Address for the filter rule
Source IP Address: Source IP Address for the filter rule
Protocol: Select the port number protocol type (TCP, UDP or both). If you are unsure, then leave it to the
default “TCP&UDP” setting
Dest Port Range: Destination Port Range of the filter rule
Source Port Range: Source Port Range of the filter rule
Action: Either accept or drop the packet that matches the rule
Comment: Add a comment to identify the rule (optional)
Click Apply to save the settings.
6.2 Port Forwarding
This page allows you to configure port forwarding rules to allow remote users to access services such as Web or
FTP on your local computers. This allows you to redirect a particular port number (from the Internet/WAN port) to
a particular LAN IP address.
3G8WV User Guide
Page 33 of 43
Virtual Server Settings: Enable/Disable port forwarding
IP Address: The LAN IP address that the public port number packet will be sent to
Port Range: The public port numbers to be sent to the specific LAN IP address
Protocol: Select the port number protocol type (TCP, UDP or both). If you are unsure, then leave it as the
default “TCP&UDP” setting
Comment: Add a comment to identify the rule (optional)
Click Apply to save the settings.
6.3 DMZ
If you have a client PC that cannot run an Internet application (e.g. Games) properly from behind the NAT firewall,
then you can open up the firewall restrictions to allow unrestricted two-way Internet access by defining a DMZ
Host.
The DMZ function allows you to re-direct all packets going to your WAN port IP address, to a particular IP address
in your LAN. The difference between the virtual server and the DMZ function is that the virtual server re-directs a
particular service/Internet application (e.g. FTP, websites) to a particular LAN client/server, whereas DMZ re-
directs all packets (regardless of services) going to your WAN IP address to a particular LAN client/server.
3G8WV User Guide
Page 34 of 43
DMZ Settings: Enable/disable DMZ.
DMZ IP Address: Fill-in the IP address of a particular host in your LAN Network that will receive all the
packets originally going to the WAN port/Public IP address of your 3G Router.
Click Apply to save the above configurations.
6.4 System Security
This page allows you to improve the security of your 3G Router through the SPI firewall and remote access settings.
Remote Management (via WAN): Enable/Disable remote management on the WAN interface.
Deny ping from WAN interface: Select Enable to deny ICMP packets received on the WAN interface.
Otherwise, select Disable to allow ICMP packets received on the WAN interface.
3G8WV User Guide
Page 35 of 43
SPI Firewall: Enable/Disable the SPI (Stateful Packet Inspection) firewall to improve the security of your 3G
Router.
Click Apply to save the settings.
6.5 Content Filtering
This page allows you to configure content, URL and host filters to restrict improper content access from LAN
computers
Web Content Filter: Tick the boxes to enable Proxy, Java or ActiveX content filtering
URL Filter: Block access to a website by entering its full URL address.
Host Filter: Block access to block access to certain websites by entering a keyword
3G8WV User Guide
Page 36 of 43
Click Apply to save the settings.
7.0 Administration
7.1 Management
This page allows you to configure administrator system settings including the administrator username and
password, NTP settings, and DDNS settings.
3G8WV User Guide
Page 37 of 43
Select Language: Select a language for the web interface.
Administrator Settings (account/password): Configure a new administrator username and password.
3G8WV User Guide
Page 38 of 43
NTP Settings: The NTP (Network Time Protocol) settings allow your router to synchronise its internal clock
with the global Internet Time. These settings will affect functions such as System Log entries and Firewall
settings.
DDNS: DDNS (Dynamic Domain Name Service) allows you to map the static domain name to a dynamic IP
address. To use this features, you must sign up for an account from a DDNS service provider. This router
supports DynDNS, TZO and other common DDNS service providers.
Click Apply to save the settings.
7.2 Upload Firmware
This page allows you to upgrade the router’s firmware. To upgrade the firmware of your 3G Router, you need to
download the firmware file to your local hard disk, and then click the Browse button to locate the firmware file on
your computer.
Once you have selected the new firmware file, click Apply to start the upgrade process.
7.3 Setting Manager
This page allows you to import/export the system settings, reset your 3G Router to factory defaults, or reboot your
3G Router.
3G8WV User Guide
Page 39 of 43
7.4 Statistics
This page allows you to view the LAN, WAN and wireless statistics of your 3G Router.
3G8WV User Guide
Page 40 of 43
7.5 System Log
All important system events are logged. You can use this function to check the event log of your 3G Router.
3G8WV User Guide
Page 41 of 43
8.0 Legal & Regulatory Information
This manual is copyright. Apart from any fair dealing for the purposes of private study, research, criticism or review,
as permitted under the Copyright Act, no part may be reproduced, stored in a retrieval system or transmitted in
any form, by any means, be it electronic, mechanical, recording or otherwise, without the prior written permission
of NetComm Limited. NetComm Limited accepts no liability or responsibility, for consequences arising from the
use of this product.
NetComm Limited reserves the right to change the specifications and operating details of this product without
notice.
NetComm is a registered trademark of NetComm Limited.
All other trademarks are acknowledged the property of their respective owners.
8.1 Customer Information
ACA (Australian Communications Authority) requires you to be aware of the following information and warnings:
(1) This unit shall be connected to the Telecommunication Network through a line cord which meets the
requirements of the ACA TS008 Standard.
(2) This equipment has been tested and found to comply with the Standards for C-Tick and or A-Tick as set by the
ACA . These standards are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio noise and, if not installed and used in
accordance with the instructions detailed within this manual, may cause interference to radio communications.
However, there is no guarantee that interference will not occur with the installation of this product in your home
or office. If this equipment does cause some degree of interference to radio or television reception, which can be
determined by turning the equipment off and on, we encourage the user to try to correct the interference by one
or more of the following measures:
• Change the direction or relocate the receiving antenna.
• Increase the separation between this equipment and the receiver.
• Connect the equipment to an alternate power outlet on a different power circuit from that to which the
receiver/TV is connected.
• Consult an experienced radio/TV technician for help.
(3) The power supply that is provided with this unit is only intended for use with this product. Do not use this
power supply with any other product or do not use any other power supply that is not approved for use with this
product by NetComm. Failure to do so may cause damage to this product, fire or result in personal injury.
8.2 Federal Communication Commission Interference Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiated radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
3G8WV User Guide
Page 42 of 43
in a particular installation If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user‘s authority to operate the equipment.
The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. In
order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to
the antenna shall not be less than 20cm (8 inches) during normal operation.
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired operation of
the device.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen
that the equivalent isotropically radiated power (EIRP) is not more than that required for successful
communication
3G8WV User Guide
Page 43 of 43
This device has been designed to operate with an antenna having a maximum gain of 4.35 dBi. Antenna
having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna
impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen
that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful
communication.
