User Manual
• Read these instructions carefully before starting the installation.
• The Netatmo Thermostat must be installed according to
applicable standards.
• Before any intervention, make sure power is turned off.

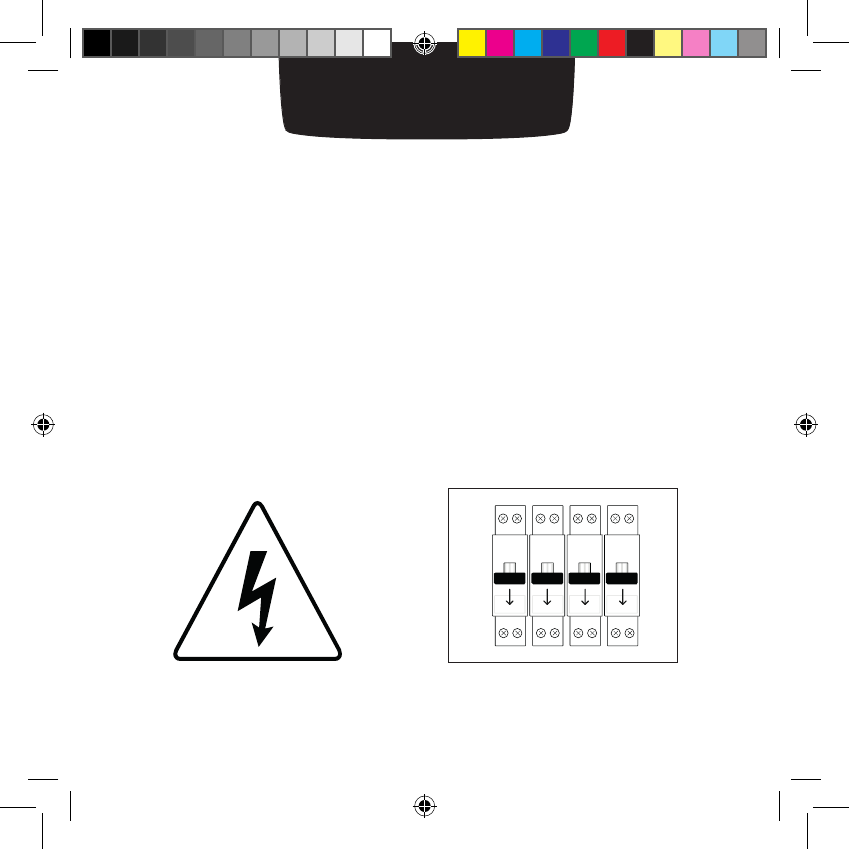

Warning
Warning!
Manuel 2_EN.indd 2 13/01/2014 10:26:46

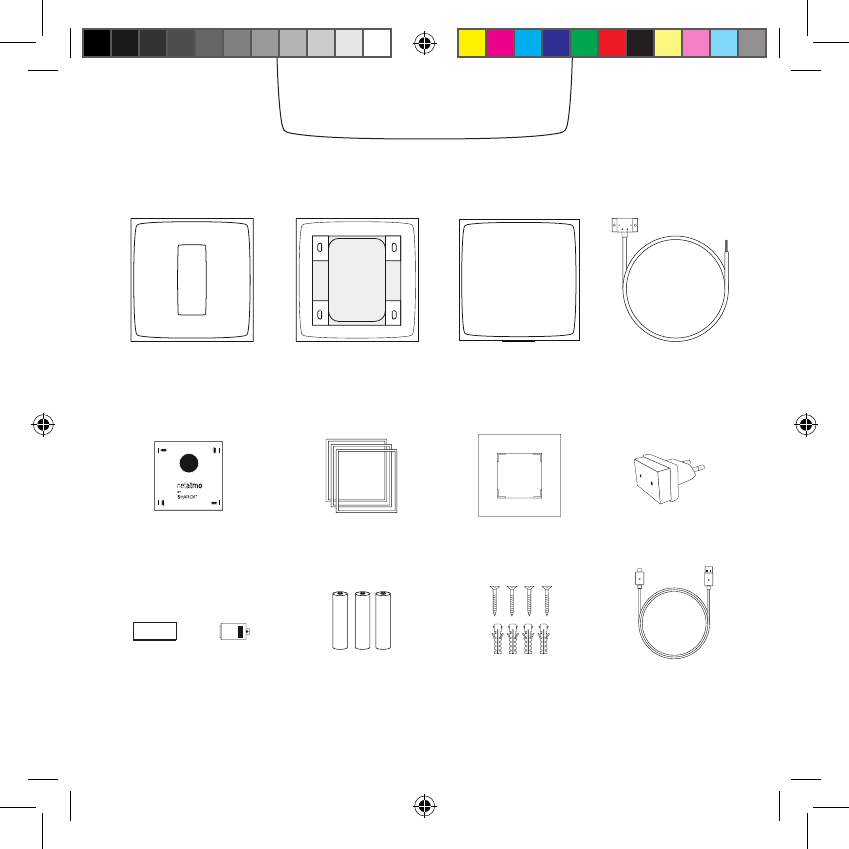

In the box
Color Adhesives (Trim plate)*
3 AAA batteries
4 screw anchors
4 screws
(Mains adapter)*
1 USB cable
Thermostat Relay Boiler adapter
Mobile stand
* not used in this setup
Mounting Plate
Tape Cover
Manuel 2_EN.indd 3 13/01/2014 10:26:47
Identify
Open the boiler door using the
manual, if necessary.
Find your former thermostat’s
relay. Follow its wires to identify
to which boiler terminals they are
connected.
Take a picture of the wiring.
Note: Some thermostats are
connected to different terminals from
those on the diagram’s list (for exa-
mple, eBus, EMS…). In this case,
you will have to identify the right
thermostat terminals, labeled LS-LR,
TA, or COM-NO
220V Power supply terminals
Usually blue and brown wires
Thermostat terminal
Usually black or grey
wires
P / N
L / N
or
LS / LR
TA
COM / NO
or
or
Manuel 2_EN.indd 4 13/01/2014 10:26:47

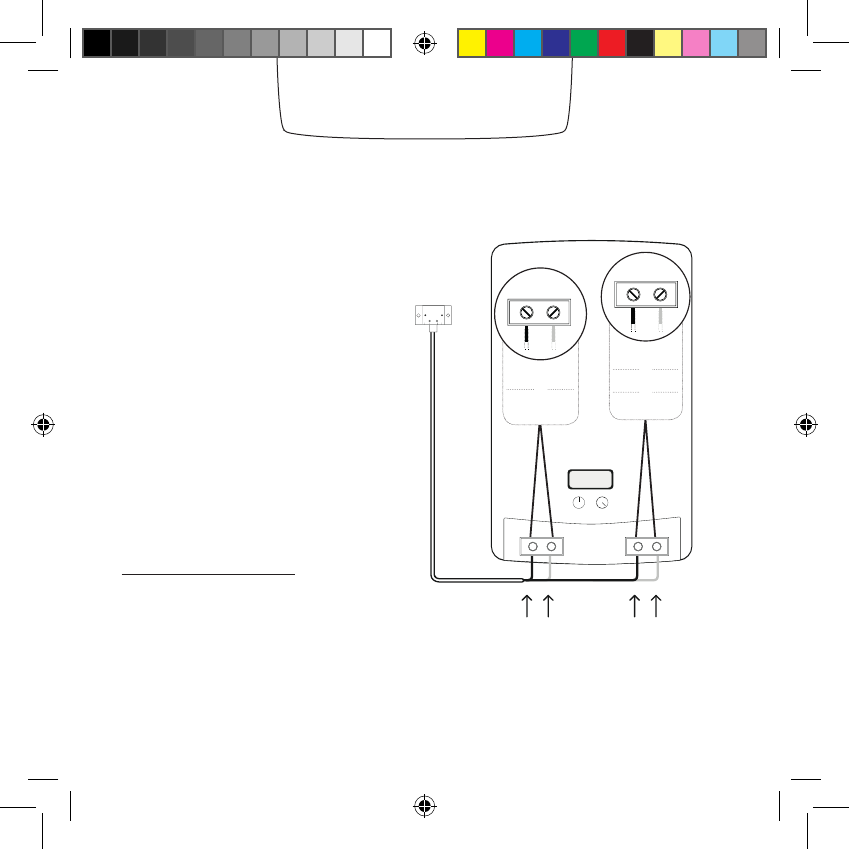

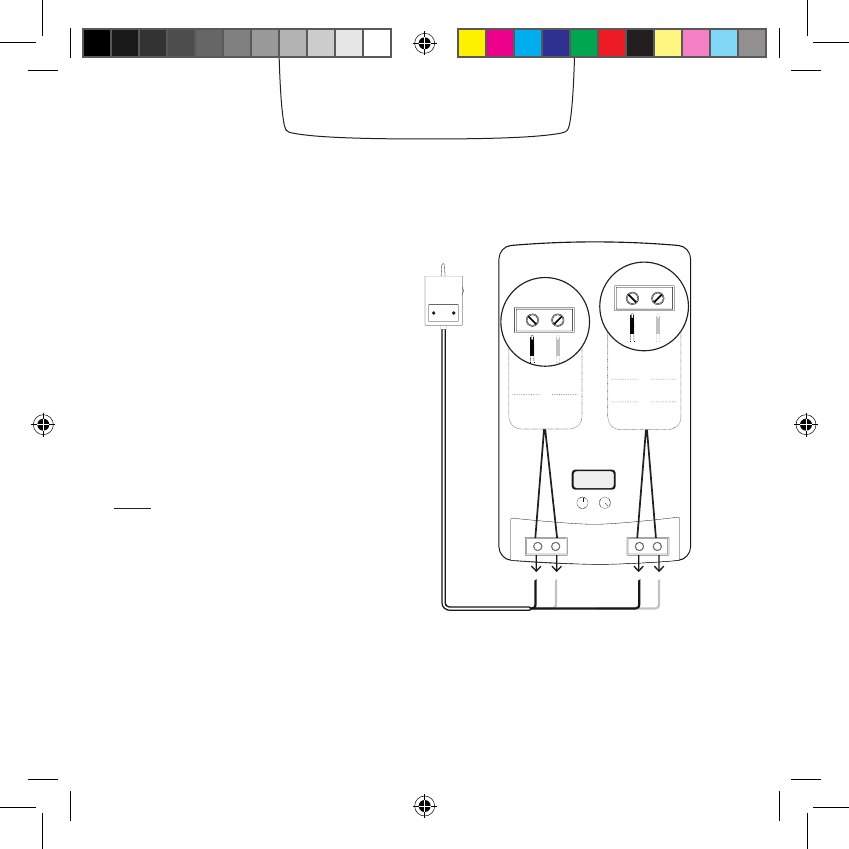

Replace
Disconnect your former ther-
mostat’s relay.
Connect the wires of the boiler
adapter in place of the former
thermostat’s relay, as shown on
the diagram.
Our forum can help you identify
where to plug the wires in,
at forum.netatmo.com.
In doubt, please send a picture
of your wiring to:
photo@netatmo.com
and our support team will help
you identify the right terminals.
Thermostat terminal
Usually black or grey
wires
220V Power supply terminals
Blue and brown wires
Thermostat terminal
Black and grey wires
P / N
L / N
or
Ls / LR
TA
COM / NO
or
or
Manuel 2_EN.indd 5 13/01/2014 10:26:47

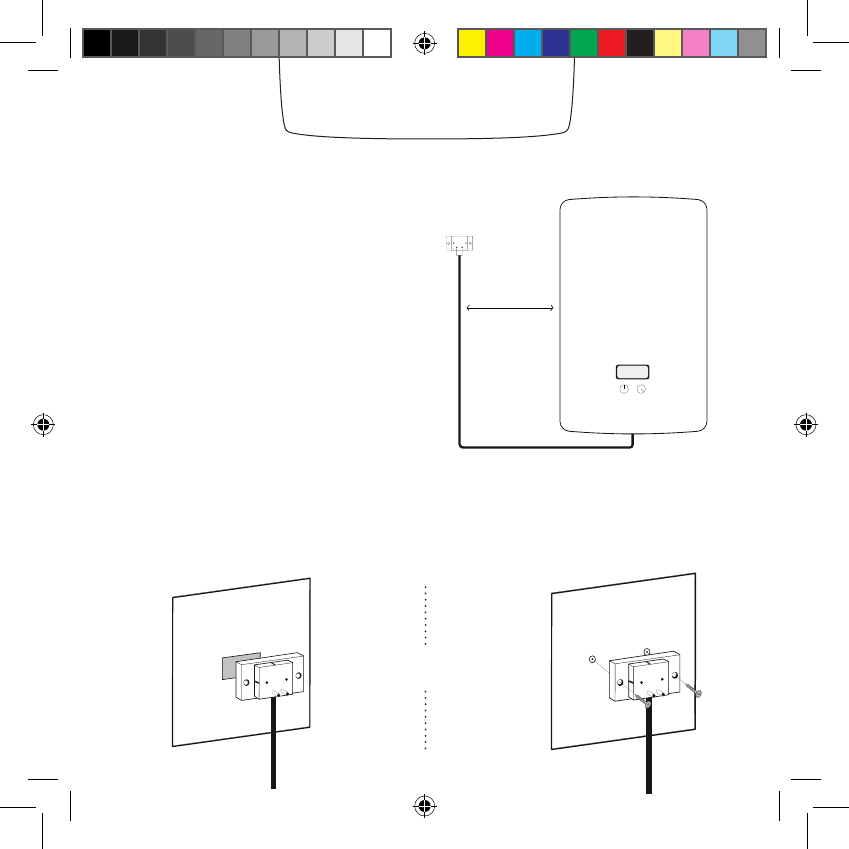

The boiler adapter should be placed
as far as possible from metallic items
(wiring, pipes, electrical grid…).
The boiler adapter can be afxed to the wall with the double-sided tape
or the screws provided.
Note: If the relay does not blink after turning the power back on, it is not power supplied.
Please check how the blue and brown wires are wired. Do not forget to switch off the power
supply before any intervention.
30 cm
Setting the relay
or
Manuel 2_EN.indd 6 13/01/2014 10:26:48
The boiler adapter can be afxed to the wall with the double-sided tape
or the screws provided.

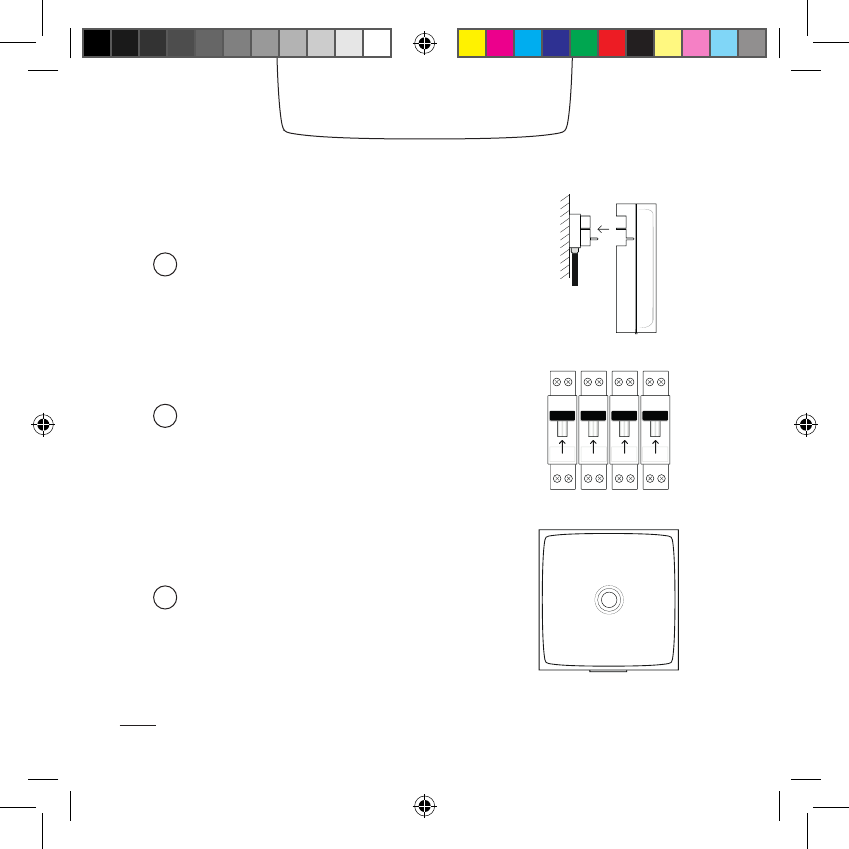

Connect the relay into the boiler
adapter.
Switch the power supply back on.
The relay will blink blue.
Note: If the relay does not blink after turning the power back on, it is not power supplied.
Please check how the blue and brown wires are wired. Do not forget to switch off the power
supply before any intervention.
1
2
3
Testing the relay
Manuel 2_EN.indd 7 13/01/2014 10:26:48

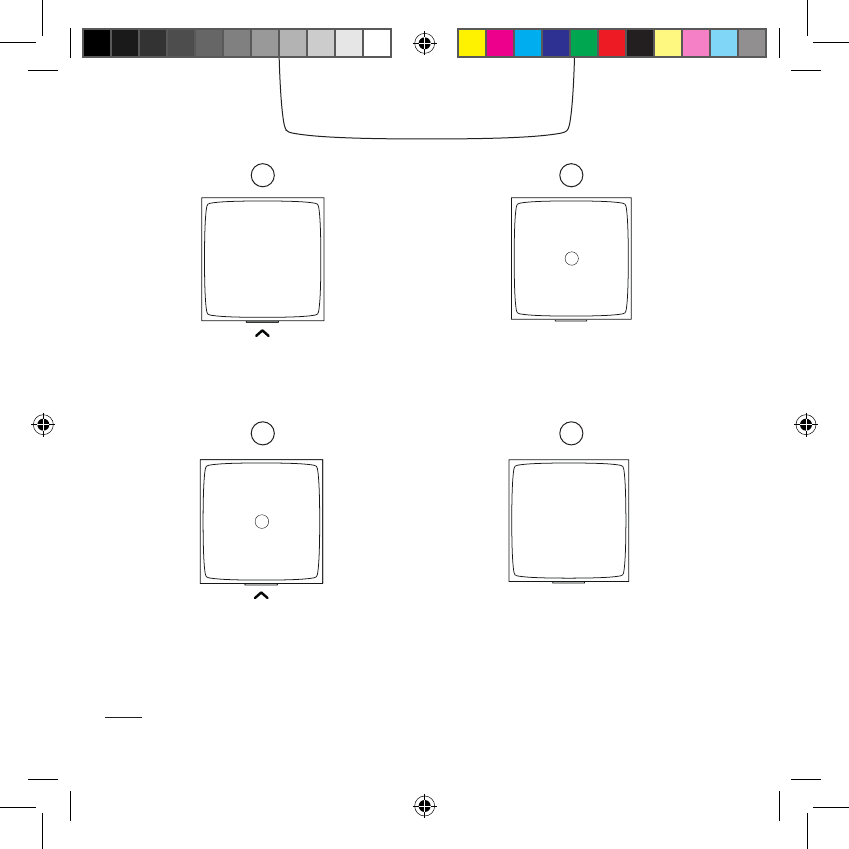

Push the relay
button.
The relay will light up blue
and switch on the boiler.
Push the relay
button again. The relay light will turn off
to indicate the boiler is off.
Note: If the boiler doesn’t switch on when the blue light is on, the relay is incorrectly wired to the
boiler. In this case, check where the grey and black wires are connected. In doubt, please read in
your boiler’s instructions manual [ the «room thermostat» section].
1
3
2
4
Testing the relay
Manuel 2_EN.indd 8 13/01/2014 10:26:48
Note: If the boiler doesn’t switch on when the blue light is on, the relay is incorrectly wired to the
boiler. In this case, check where the grey and black wires are connected. In doubt, please read in
your boiler’s instructions manual [ the «room thermostat» section].

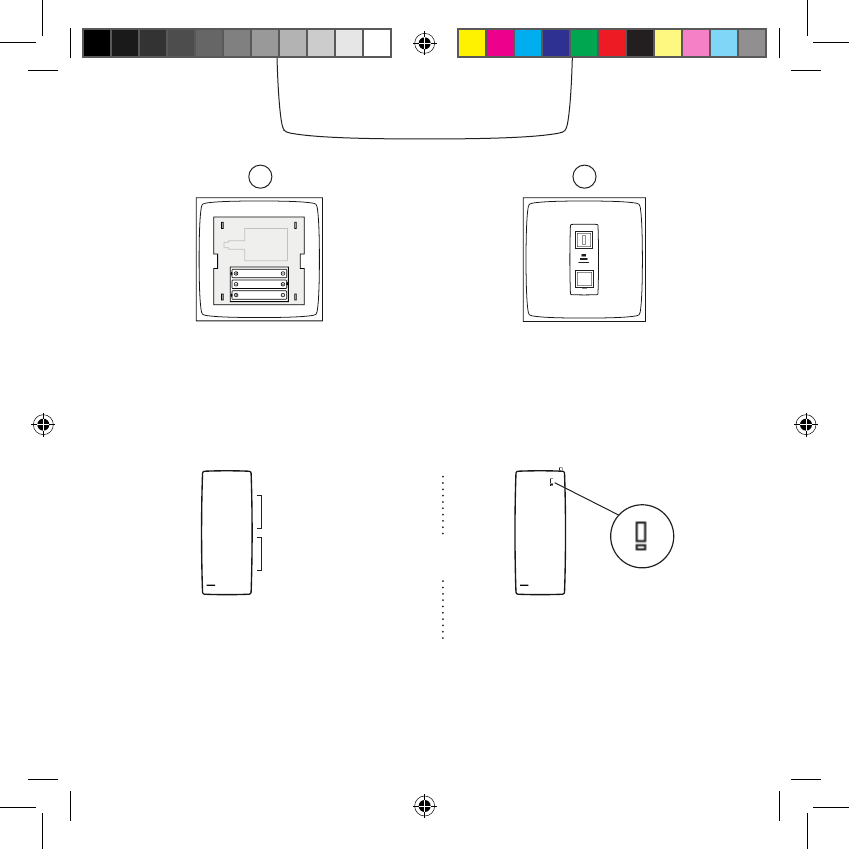

Insert the batteries into
the Thermostat.
The Thermostat will display the
start screen and search for
the relay.
1 2
Thermostat
If the Thermostat has found the
relay, it will display the setpoint and
the room temperatures.
If the Thermostat hasn’t found the
relay, it will display the «!» symbol.
In this case, move the relay closer to
the Thermostat and wait until the «!»
symbol disappears.
20
215
0
+
Measured temperature
Desired temperature
or 20
215
0
+
Manuel 2_EN.indd 9 13/01/2014 10:26:48
Test
20
215
0
+
200
+

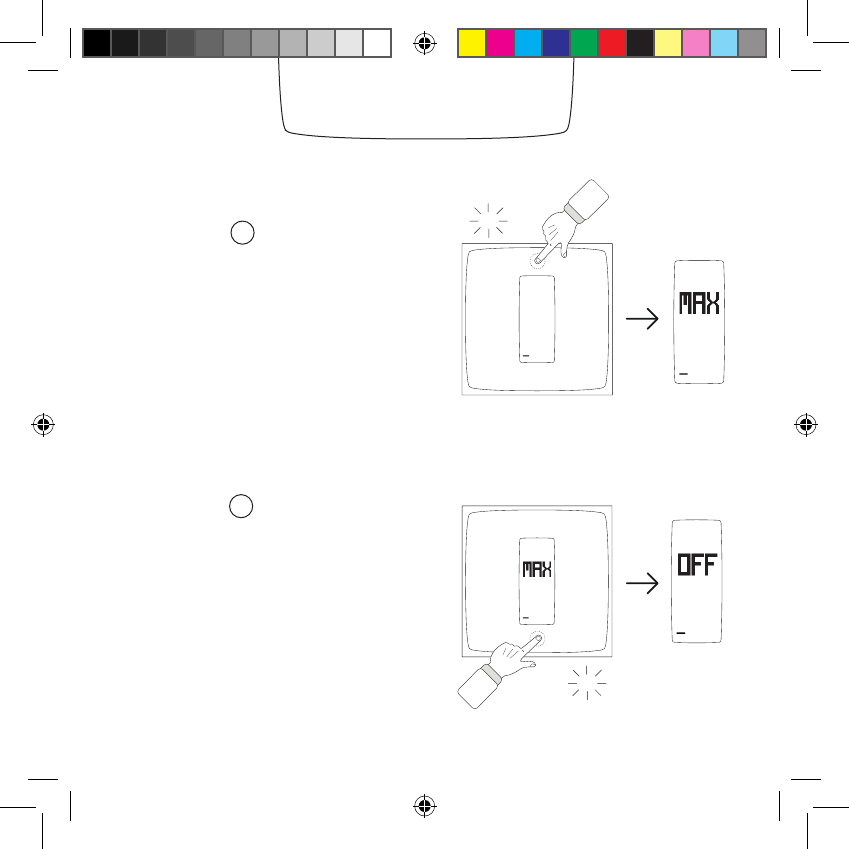

Tap the top of the Thermostat until
the screen shows «MAX».
The Thermostat will switch on the
boiler.
Tap the bottom of the Thermostat
until it displays «OFF».
The Thermostat will switch off the
boiler.
1
2
200
+
200
+
clic
clic
Manuel 2_EN.indd 10 13/01/2014 10:26:49

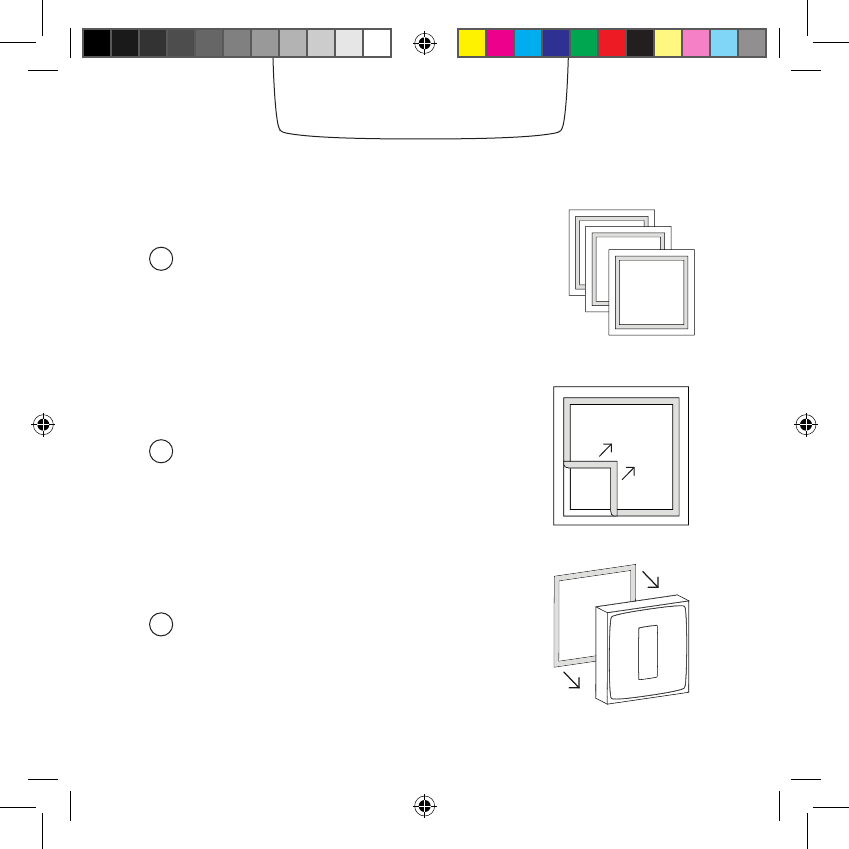

Customisation
You can choose to customise your Thermostat
by using one of the colour adhesives.
Take off the outer frame of the adhesive.
Stick it on the back of your Thermostat.
1
2
3
Manuel 2_EN.indd 11 13/01/2014 10:26:49

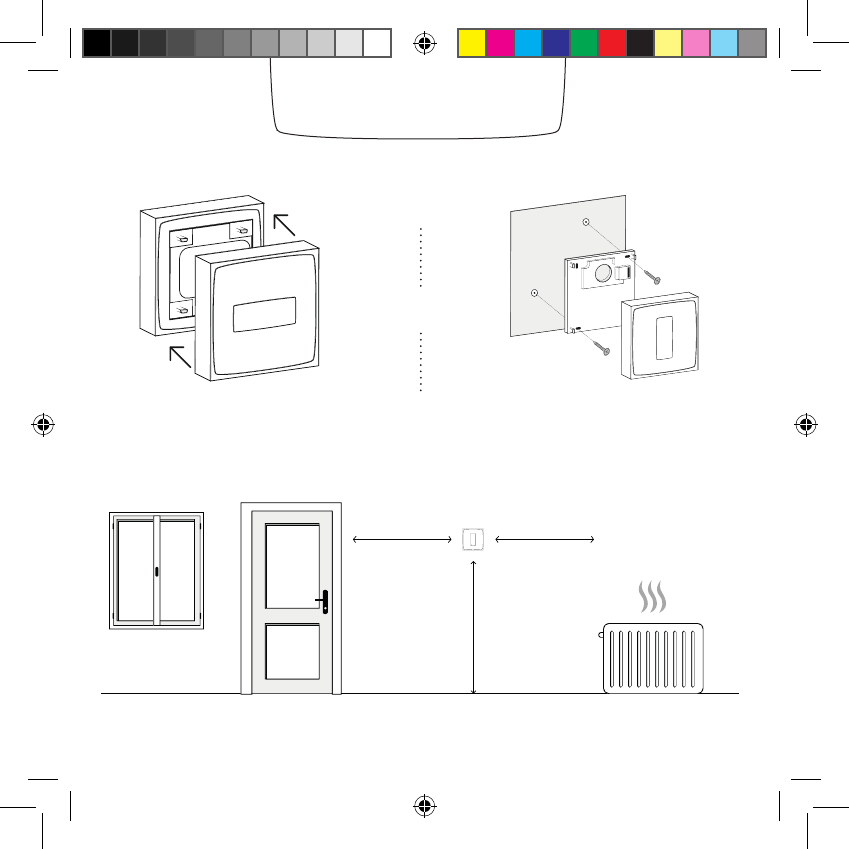

Clip the Thermostat on its mobile
stand and place it on a shelf in the
living room.
More than 1m from the
openings
Away from any cold or
heat source
1.5m high
Set the Thermostat on the mounting
plate.
1 m 1 m
1.5 m
Location
22
18
5
+
or
Manuel 2_EN.indd 12 13/01/2014 10:26:50
Away from any cold or
heat source
To use your Thermostat from your smartphone, tablet or
computer, visit:
http://thermostat.netatmo.com
App
PC / Mac Smartphone / Tablettes
Manuel 2_EN.indd 13 13/01/2014 10:26:50
Specications
SIZE
Thermostat : 83x83x22 mm
DESIGN
Designed by Starck.
Translucent minimalist plexiglass cube.
5 interchangeable colors in the box.
SENSORS AND MEASUREMENTS
Temperature (measurement):
Ranges from 0°C to 50°C
Accuracy: +- 0.5° C
Temperature (setpoint):
Ranges from 7°C to 30°C
Increment: 0.5°C
Unit: °C
E-INK DISPLAY
Energy efcient, longer battery life and
optimal readability.
FREE APP, LIFETIME SUPPORT
No subscription fee.
App available on the App Store and on
Google Play.
Free access to your online personal
dashboard.
Accessible from multiple devices.
WIRELESS SPECIFICATIONS
Wi-Fi 802.11 b/g/n compatible (2.4GHz).
Supported security: Open/WEP/WPA/
WPA2-personal (TKIP and AES).
Wireless connection between thermostat and relay:
radio long range 100m.
POWER AND BATTERIES
3 AAA batteries.
1 year battery life.
SETUP AND COMPATIBILITY
Compatible with gas, fuel and wood boilers.
Switching current: max 4 A
Switching voltage: max 250 VAC
Switching power: max 120 W
COMPATIBLE WITH IPHONE AND IPAD
iPhone 4, iPhone 4s, iPhone 5, iPhone 5c / 5s
iPad mini, iPad mini with Retina display, iPad 2,
iPad (3rd generation), iPad (4th generation),
iPad Air
iPod touch (5th generation)
COMPATIBLE WITH ANDROID SMARTPHONE
Android 4.0 required

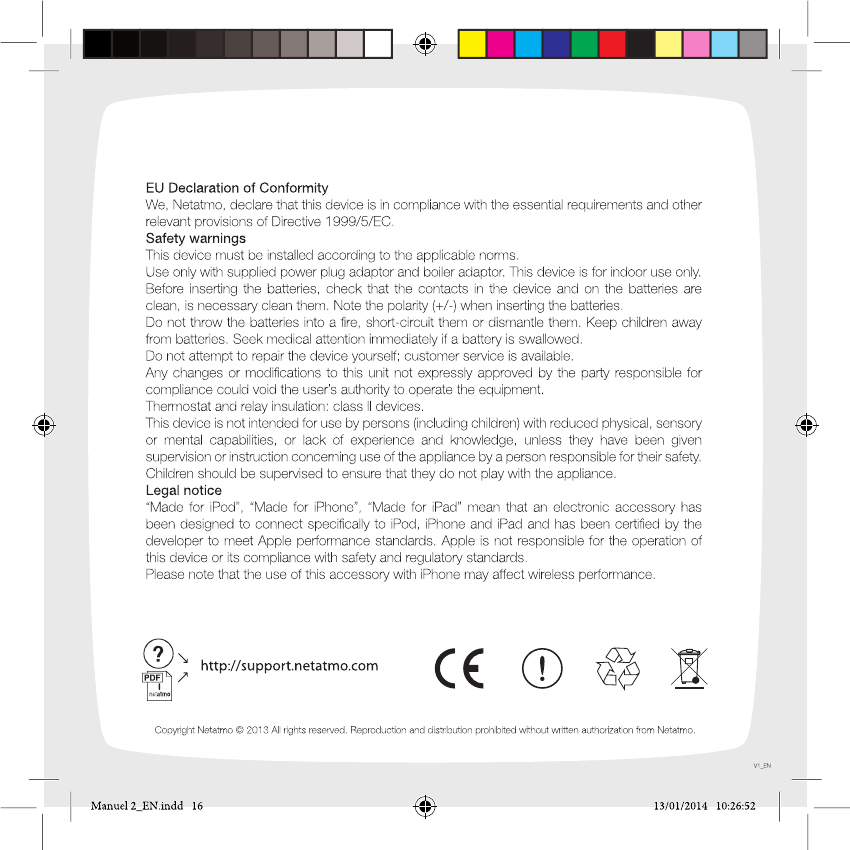

Manuel 2_EN.indd 14 13/01/2014 10:26:50
