Netgear orporated 05300016 RANGEMAX ADSL MODEM WIRELESS ROUTER User Manual FullManual
Netgear Incorporated RANGEMAX ADSL MODEM WIRELESS ROUTER FullManual
User Manual
August 2005
BETA
August 2005
NETGEAR, Inc.
4500 Great America Parkway
Santa Clara, CA 95054 USA
Phone 1-888-NETGEAR
Reference Manual for the
Model DG834PN 108
Mbps RangeMaxTM
Wireless ADSL Modem
Router
ii
August 2005
© 2005 by NETGEAR, Inc. All rights reserved. August 2004.
Trademarks
NETGEAR is a trademark of Netgear, Inc.
Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation.
Other brand and product names are registered trademarks or trademarks of their respective holders.
Statement of Conditions
In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to
make changes to the products described in this document without notice.
NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit
layout(s) described herein.
Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Federal Communications Commission (FCC) Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid
the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less
than 20 cm (8 inches) during normal operation.
EN 55 022 Declaration of Conformance
This is to certify that the DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router is shielded against the
generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article 4a.
Conformity is declared by the application of EN 55 022 Class B (CISPR 22).
August 2005
iii
Bestätigung des Herstellers/Importeurs
Es wird hiermit bestätigt, daß das DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router gemäß der im
BMPT-AmtsblVfg 243/1991 und Vfg 46/1992 aufgeführten Bestimmungen entstört ist. Das vorschriftsmäßige Betreiben
einiger Geräte (z.B. Testsender) kann jedoch gewissen Beschränkungen unterliegen. Lesen Sie dazu bitte die
Anmerkungen in der Betriebsanleitung.
Das Bundesamt für Zulassungen in der Telekommunikation wurde davon unterrichtet, daß dieses Gerät auf den Markt
gebracht wurde und es ist berechtigt, die Serie auf die Erfüllung der Vorschriften hin zu überprüfen.
Certificate of the Manufacturer/Importer
It is hereby certified that the DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router has been suppressed
in accordance with the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some
equipment (for example, test transmitters) in accordance with the regulations may, however, be subject to certain
restrictions. Please refer to the notes in the operating instructions.
Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market
and has been granted the right to test the series for compliance with the regulations.
Voluntary Control Council for Interference (VCCI) Statement
This equipment is in the second category (information equipment to be used in a residential area or an adjacent area
thereto) and conforms to the standards set by the Voluntary Control Council for Interference by Data Processing
Equipment and Electronic Office Machines aimed at preventing radio interference in such residential areas.
When used near a radio or TV receiver, it may become the cause of radio interference.
Read instructions for correct handling.
Customer Support
Refer to the Support Information Card that shipped with your DG834PN 108 Mbps RangeMaxTM Wireless ADSL
Modem Router.
World Wide Web
NETGEAR maintains a World Wide Web home page that you can access at the universal resource locator (URL)
http://www.netgear.com. A direct connection to the Internet and a Web browser such as Internet Explorer
or Netscape are required.
Regulatory Approvals
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this equipment.
(Example - use only shielded interface cables when connecting to computer or peripheral
devices).
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The antennas used for this transmitter must be installed to provide a separation distance of at
least 20 cm from all persons and must not be co-located or operating in conjunction with any
other antenna or transmitter.
Channel
The Wireless Channel sets the radio frequency used for communication.
•Access Points use a fixed Channel. You can select the Channel used. This allows you to
choose a Channel which provides the least interference and best performance. In the USA
and Canada, 11 channel are available. If using multiple Access Points, it is better if adjacent
Access Points use different Channels to reduce interference.
• In "Infrastructure" mode, Wireless Stations normally scan all Channels, looking for an
Access Point. If more than one Access Point can be used, the one with the strongest
signal is used. (This can only happen within an ESS.)
• If using "Ad-hoc" mode (no Access Point), all Wireless stations should be set to use the
same Channel. However, most Wireless stations will still scan all Channels to see if there
is an existing "Ad-hoc" group they can join.
CAUTION:
1) To comply with FCC RF exposure compliance requirements, a separation
distance of at least 20 cm must be maintained between the antenna of this
device and all persons.
2) This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
Contents v
August 2005
Contents
Chapter 1
About This Guide
Audience, Conventions, Scope ......................................................................................1-1
How to Print this Manual .................................................................................................1-2
Chapter 2
Introduction
About the Wireless ADSL Modem Router ......................................................................2-1
Key Features ..................................................................................................................2-2
802.11g Wireless Networking ...................................................................................2-2
A Powerful, True Firewall .........................................................................................2-3
Easy Installation and Management ..........................................................................2-3
Protocol Support ......................................................................................................2-4
Content Filtering .......................................................................................................2-5
Auto Sensing and Auto Uplink™ LAN Ethernet Connections ..................................2-6
What’s in the Box? ..........................................................................................................2-6

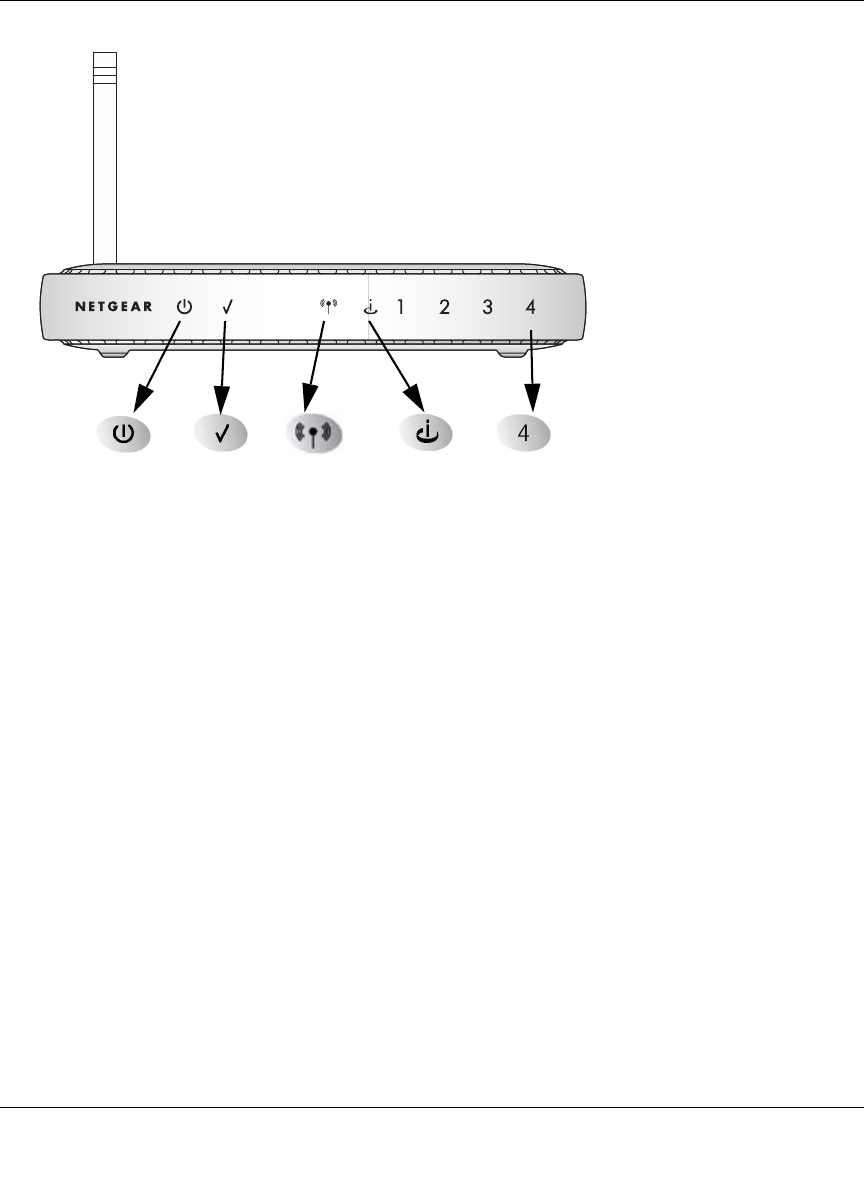

The Router’s Front Panel .........................................................................................2-6
The Router’s Rear Panel .........................................................................................2-8
Chapter 3
Connecting the Router to the Internet
What You Need Before You Begin ..................................................................................3-1
ADSL Microfilter Requirements ................................................................................3-1

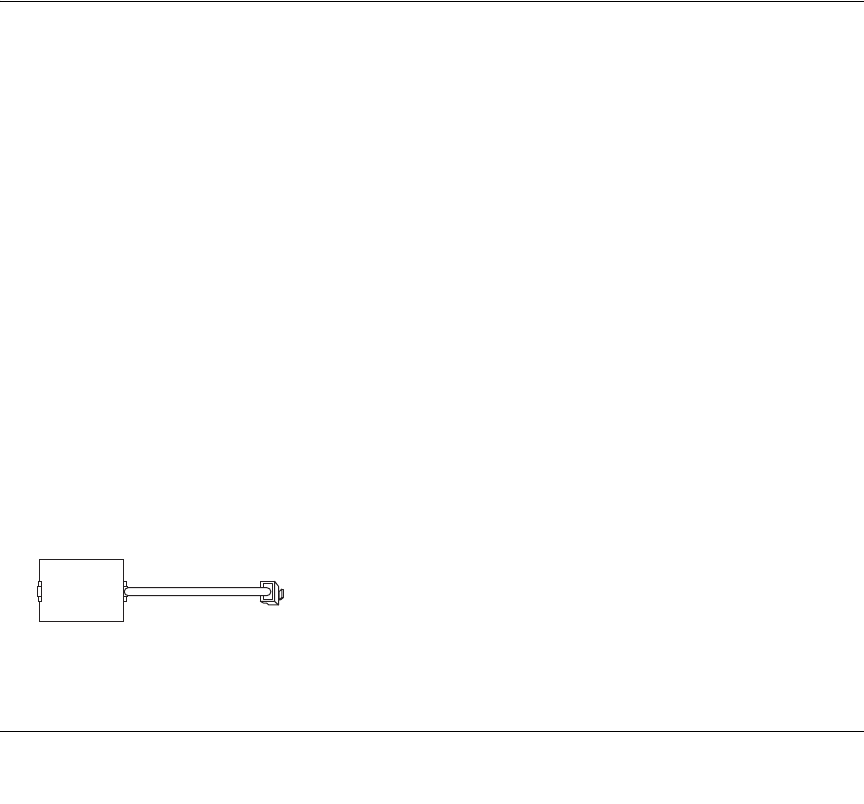

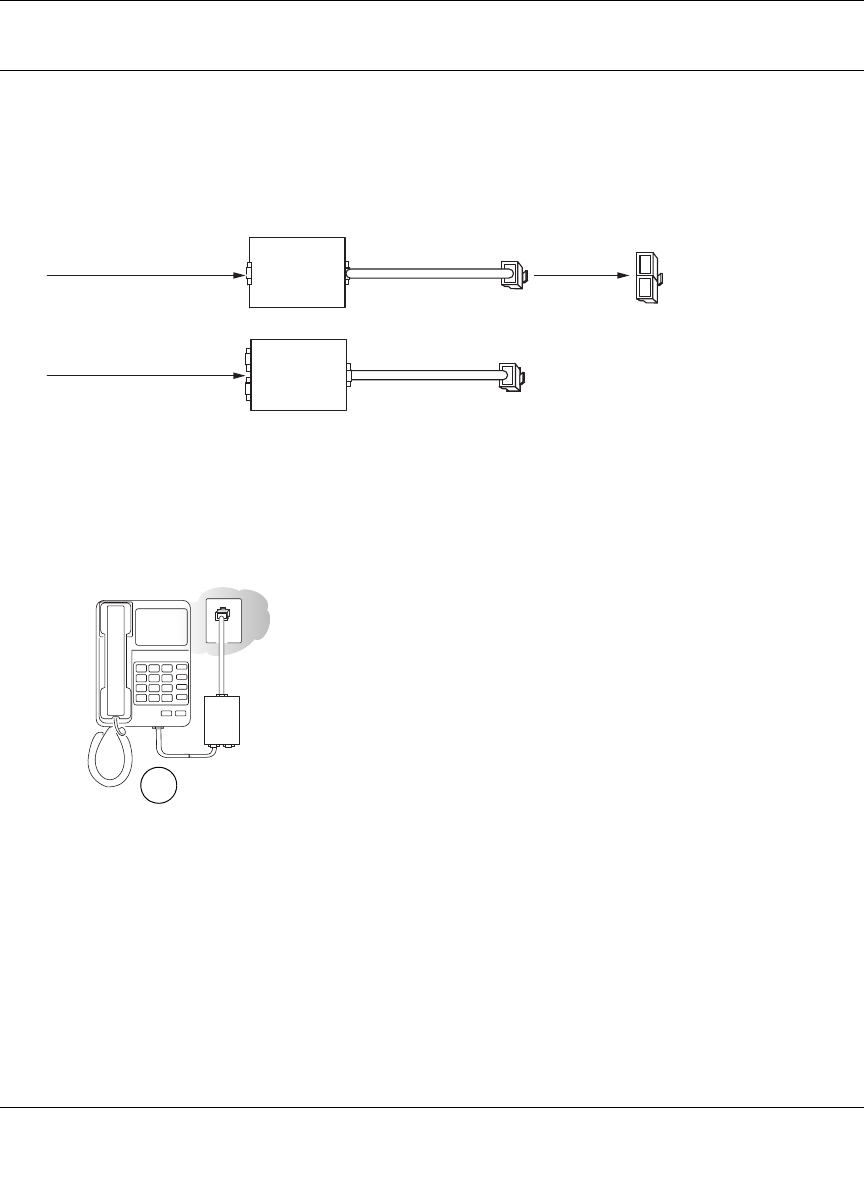

ADSL Microfilter .................................................................................................3-1
ADSL Microfilter with Built-In Splitter .................................................................3-2
Ethernet Cabling Requirements ...............................................................................3-2
Computer Hardware Requirements .........................................................................3-2
LAN Configuration Requirements ............................................................................3-2
Internet Configuration Requirements .......................................................................3-3
Where Do I Get the Internet Configuration Parameters? .........................................3-3
Record Your Internet Connection Information ..........................................................3-3
August 2005
vi Contents

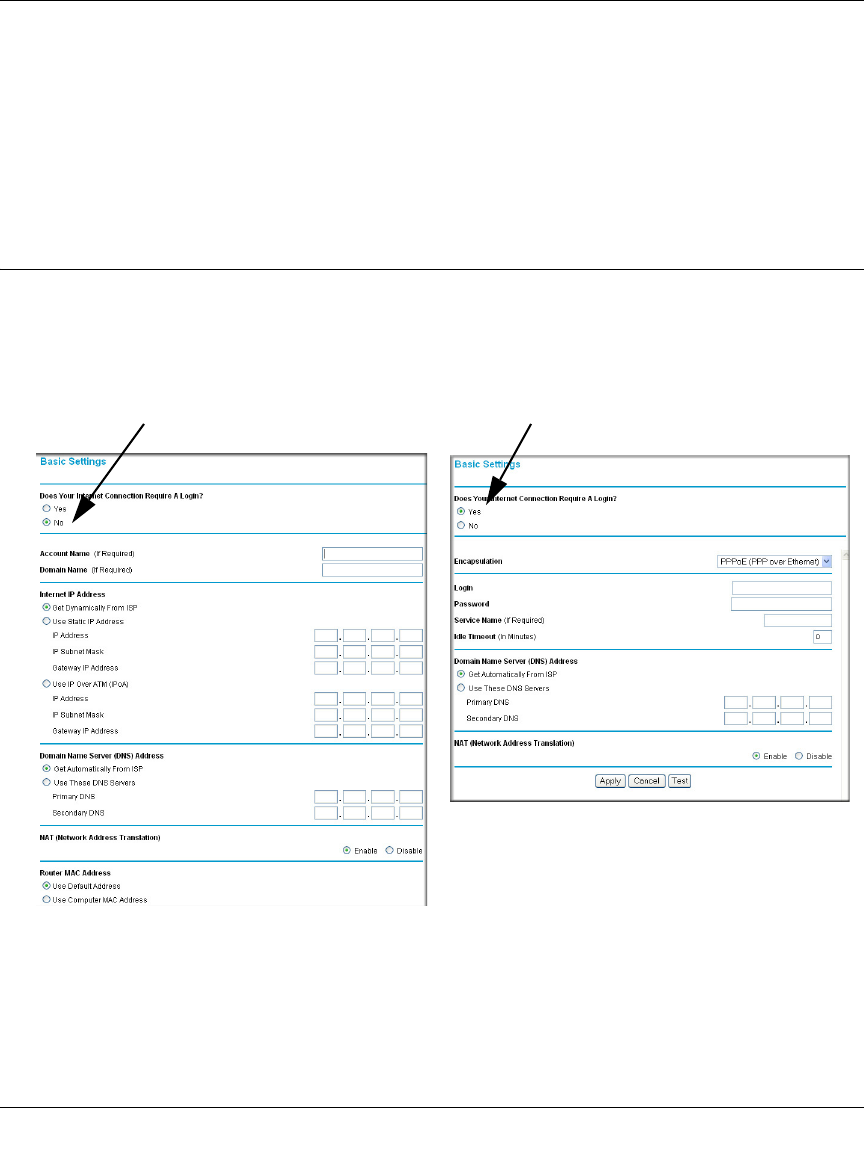

Manually Configuring Your Internet Connection ...........................................................3-10
How to Perform Manual Configuration ...................................................................3-10
Internet Connection Requires Login and Uses PPPoE ................................... 3-11
Internet Connection Requires Login and Uses PPPoA ...................................3-12
Internet Connection Does Note Require A Login ............................................3-13
ADSL Settings ........................................................................................................3-14
Chapter 4
Wireless Configuration
Considerations for a Wireless Network ..........................................................................4-1
Observe Performance, Placement, and Range Guidelines .....................................4-1
Implement Appropriate Wireless Security ................................................................4-2

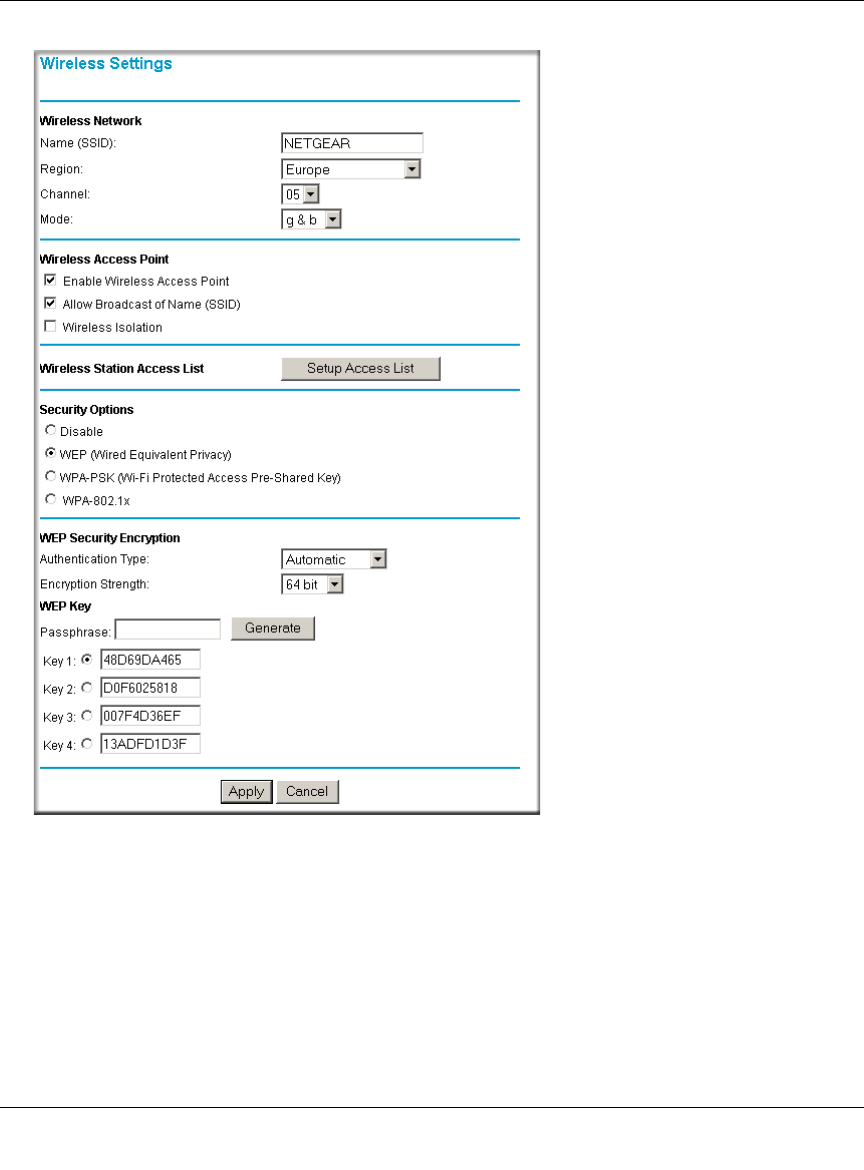

Understanding Wireless Settings ...................................................................................4-3
How to Set Up and Test Basic Wireless Connectivity ..............................................4-7
How to Restricting Wireless Access to Your Network ..............................................4-8
Restricting Access to Your Network by Turning Off Wireless Connectivity ........4-9
Restricting Wireless Access Based on the Wireless Network Name (SSID) .....4-9
Restricting Wireless Access Based on the Wireless Station Access List ..........4-9
Choosing WEP Authentication and Security Encryption Methods ......................... 4-11
Authentication Type Selection ......................................................................... 4-11
Encryption Choices ..........................................................................................4-12
How to Configure WEP ..........................................................................................4-13
How to Configure WPA-PSK ..................................................................................4-14
Chapter 5
Protecting Your Network
Protecting Access to Your DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
5-1

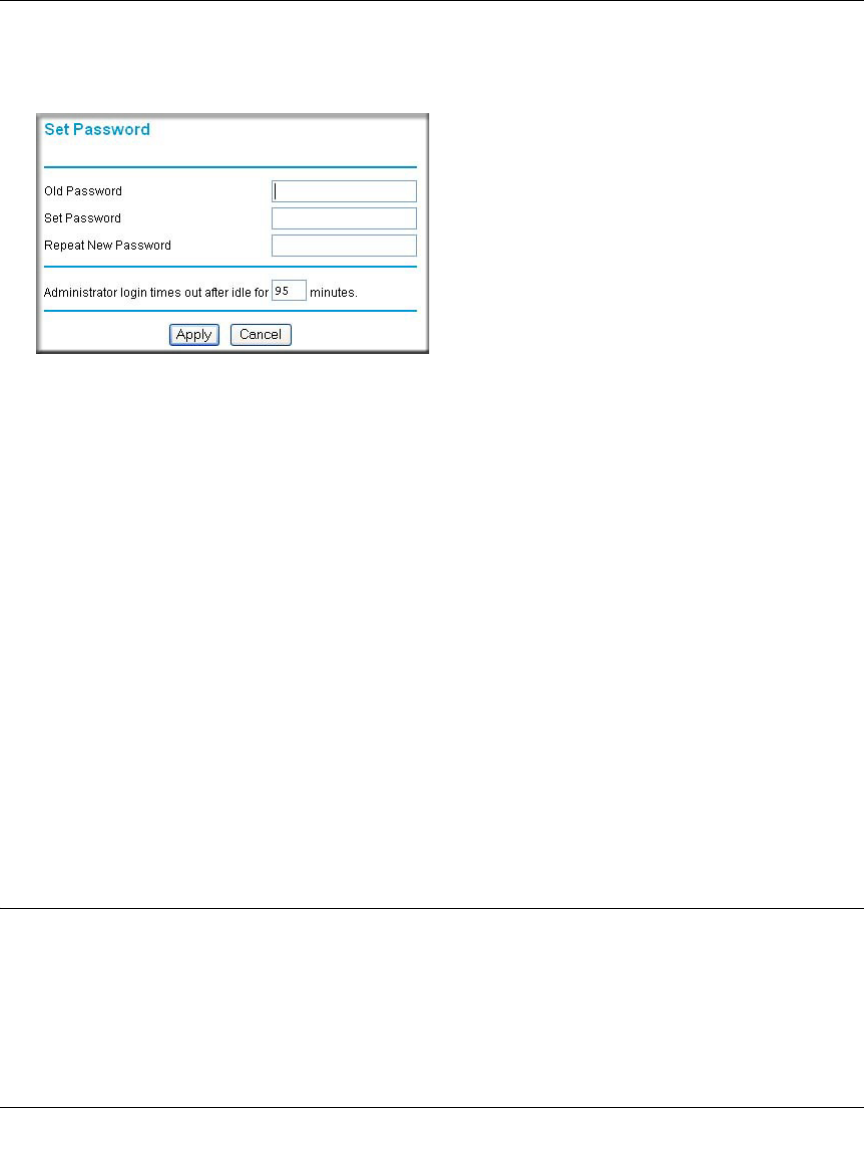

How to Change the Built-In Password .....................................................................5-1
Changing the Administrator Login Timeout ..............................................................5-2
Configuring Basic Firewall Services ...............................................................................5-2
Blocking Keywords, Sites, and Services ..................................................................5-3
How to Block Keywords and Sites ...........................................................................5-3

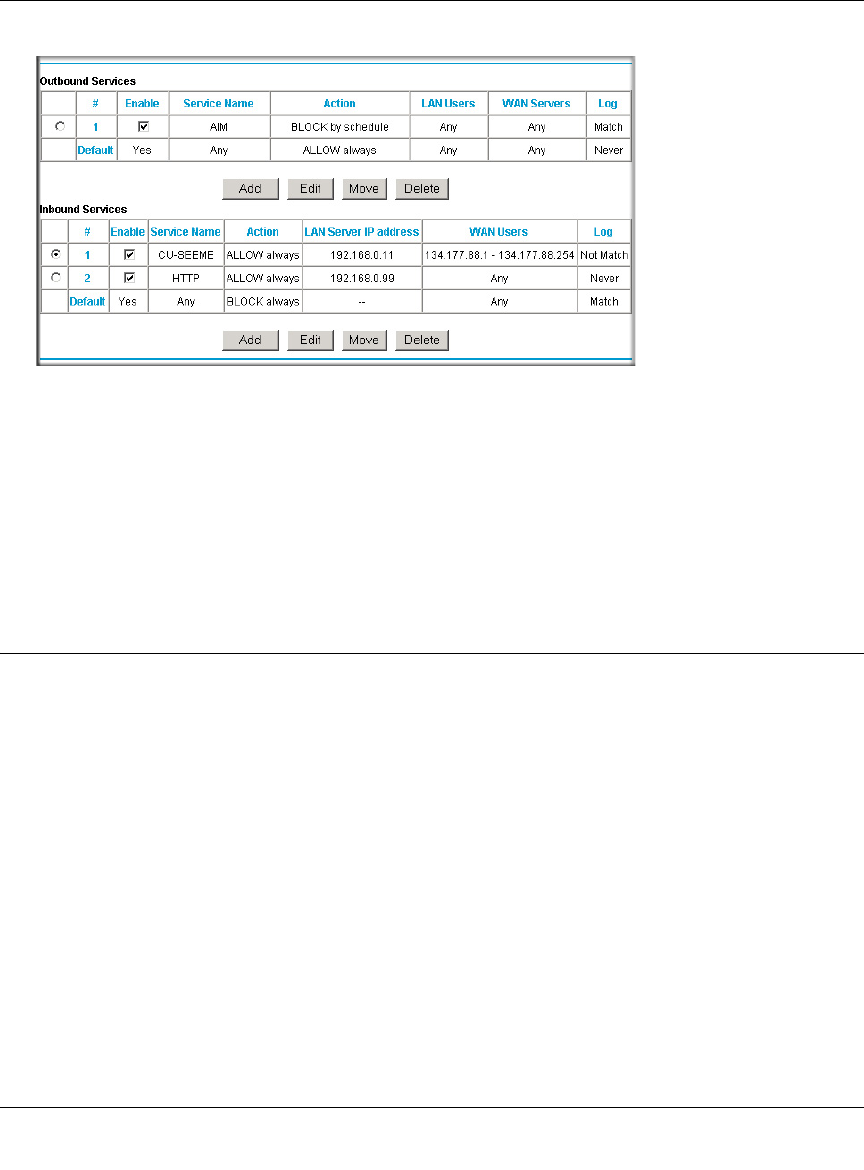

Firewall Rules .................................................................................................................5-5
Inbound Rules (Port Forwarding) .............................................................................5-6
Inbound Rule Example: A Local Public Web Server ..........................................5-6
Inbound Rule Example: Allowing Videoconferencing ........................................5-8
Considerations for Inbound Rules .....................................................................5-9
Contents vii
August 2005
Outbound Rules (Service Blocking) .........................................................................5-9
Outbound Rule Example: Blocking Instant Messenger ...................................5-10
Order of Precedence for Rules .............................................................................. 5-11
Services ........................................................................................................................5-12

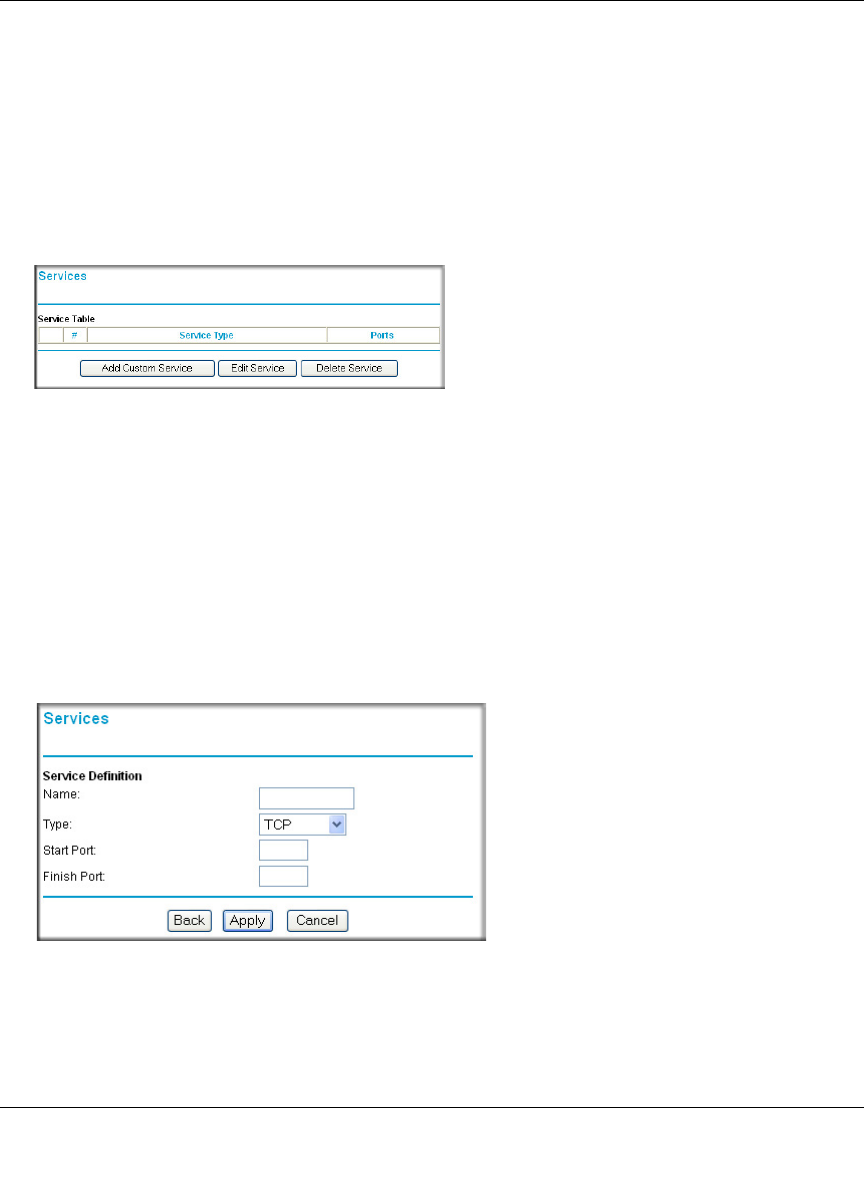

How to Define Services ..........................................................................................5-13
Setting Times and Scheduling Firewall Services ..........................................................5-14
How to Set Your Time Zone ...................................................................................5-14
How to Schedule Firewall Services ........................................................................5-15
Chapter 6
Managing Your Network

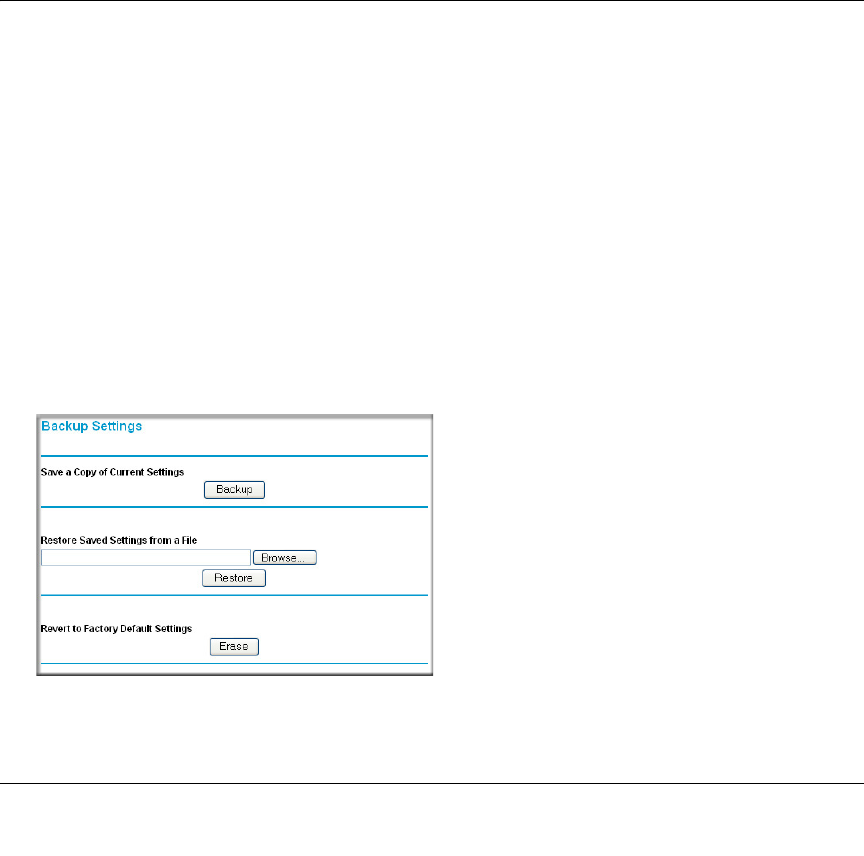

Backing Up, Restoring, or Erasing Your Settings ...........................................................6-1
How to Back Up the Configuration to a File .............................................................6-1
How to Restore the Configuration from a File ..........................................................6-2
How to Erase the Configuration ...............................................................................6-2
Upgrading the Wireless ADSL Modem Router’s Firmware ............................................6-2
How to Upgrade the Wireless ADSL Modem Router Firmware ...............................6-3
Network Management Information .................................................................................6-4

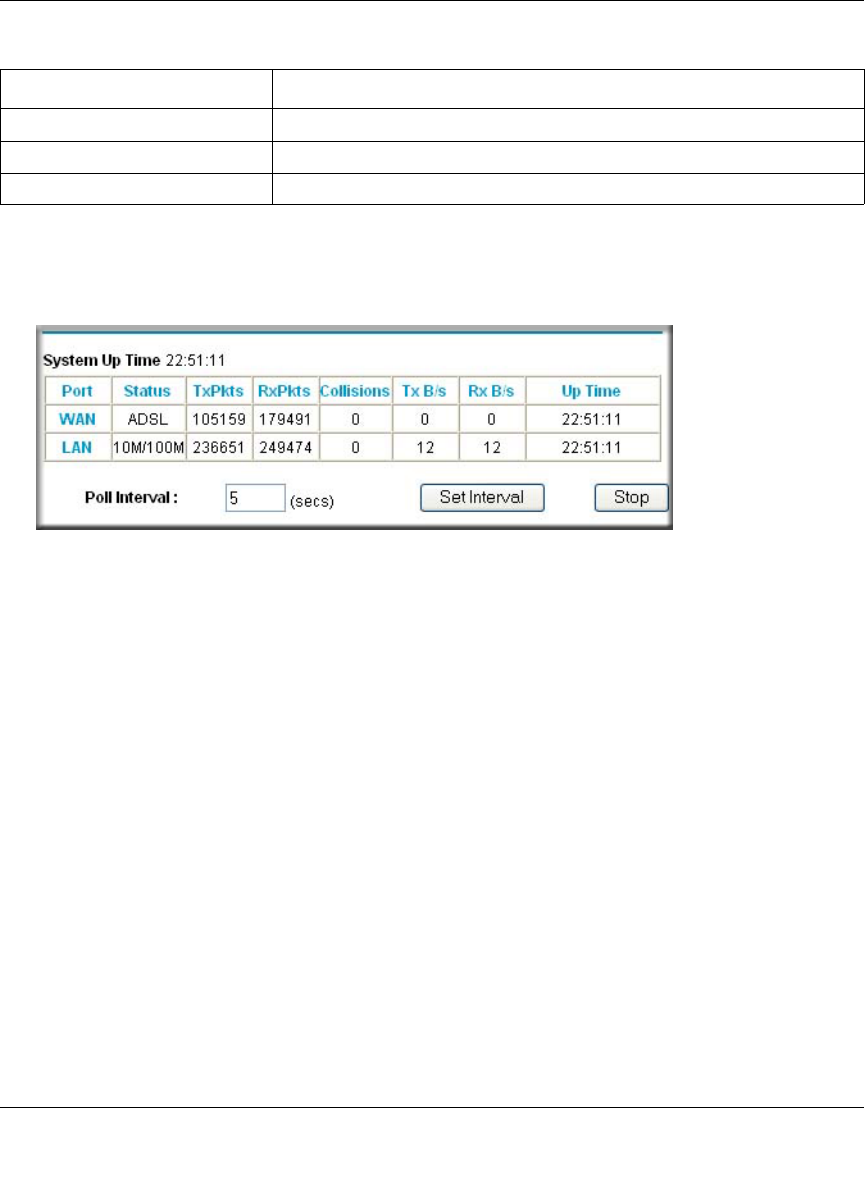

Viewing Wireless ADSL Modem Router Status and Usage Statistics ......................6-4
Viewing Attached Devices ...................................................................................... 6-11

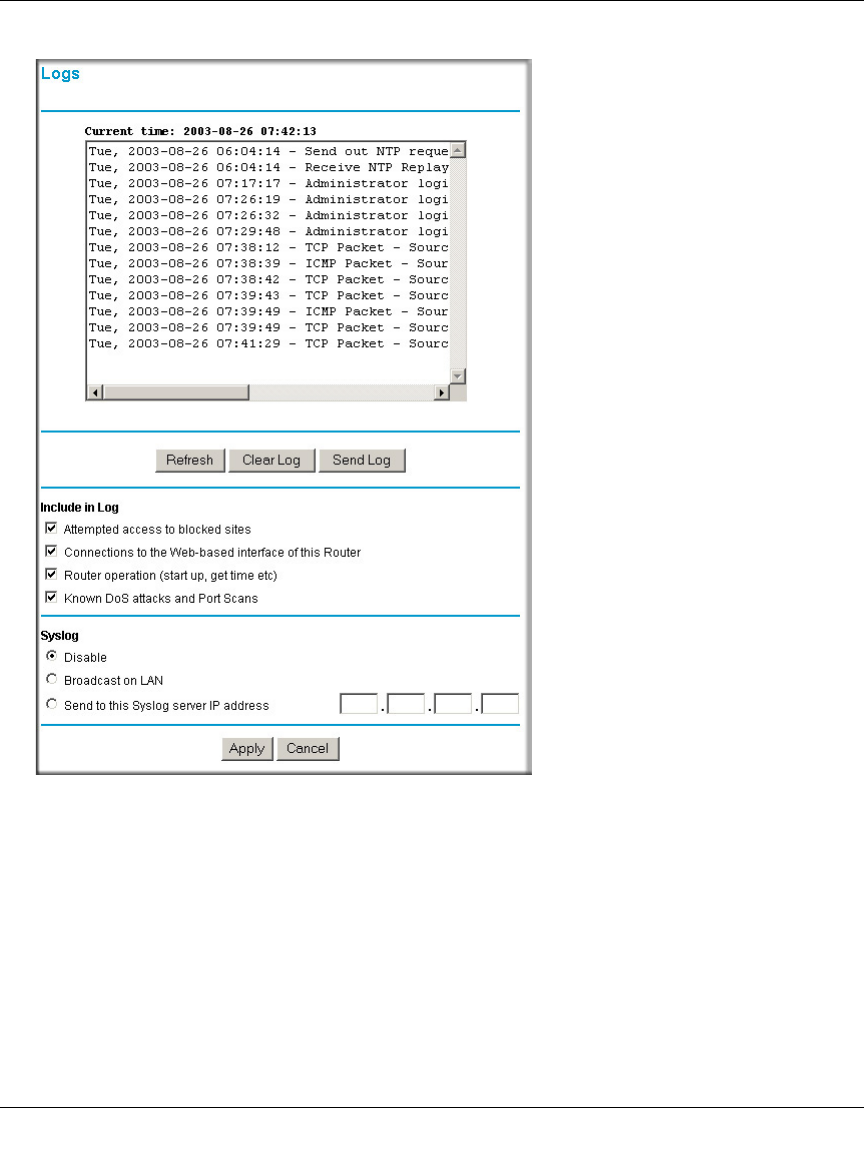

Viewing, Selecting, and Saving Logged Information .............................................. 6-11
Selecting What Information to Log ..................................................................6-13
Saving Log Files on a Server ..........................................................................6-14
Examples of Log Messages ...................................................................................6-14
Activation and Administration ..........................................................................6-14
Dropped Packets .............................................................................................6-14
Enabling Security Event E-mail Notification .................................................................6-15
Running Diagnostic Utilities and Rebooting the Wireless ADSL Modem Router .........6-16
Enabling Remote Management ....................................................................................6-17
Configuring Remote Management .........................................................................6-17
Chapter 7
Advanced Configuration
Configuring Advanced Security ......................................................................................7-1
Setting Up A Default DMZ Server ............................................................................7-1
How to Configure a Default DMZ Server ...........................................................7-2
Connect Automatically, as Required ........................................................................7-3
August 2005
viii Contents
Disable Port Scan and DOS Protection ...................................................................7-3
Respond to Ping on Internet WAN Port ...................................................................7-3
MTU Size .................................................................................................................7-3

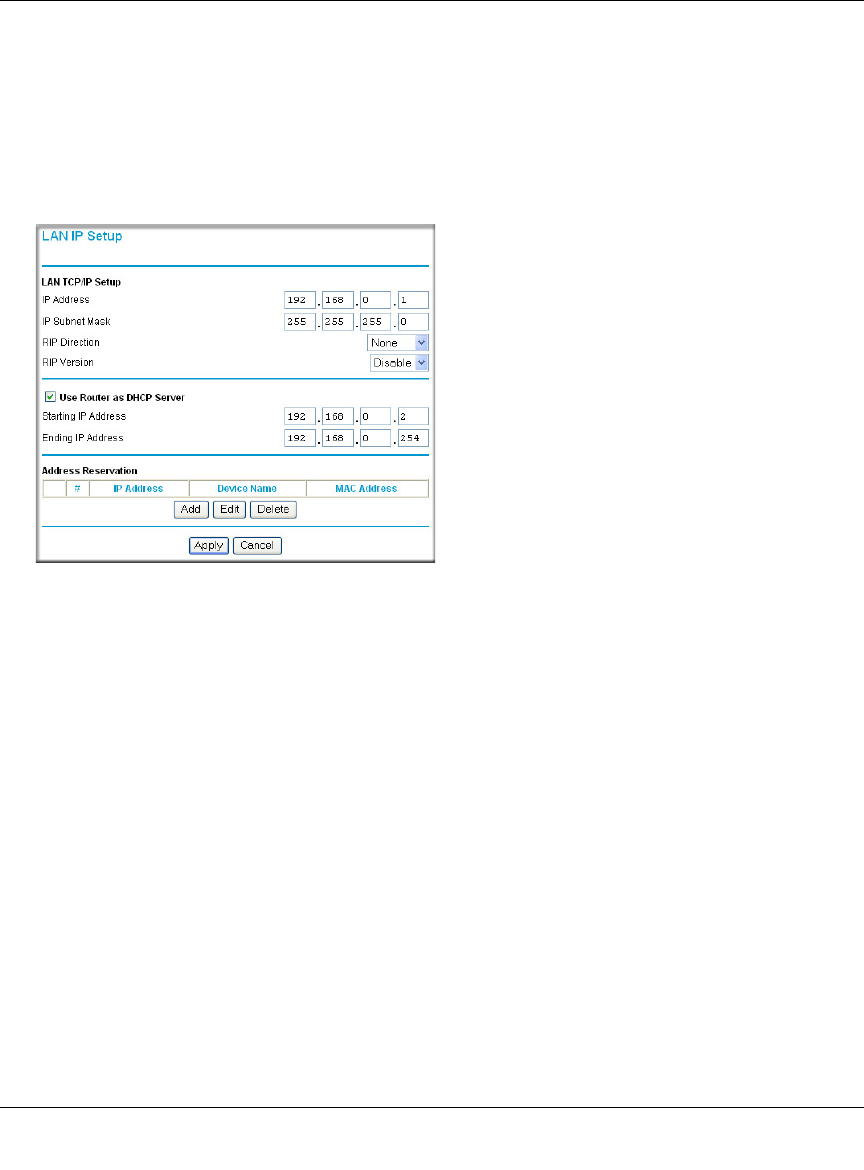

Configuring LAN IP Settings ...........................................................................................7-3
DHCP .......................................................................................................................7-5
Use Router as DHCP server .............................................................................7-5
Reserved IP addresses .....................................................................................7-6
How to Configure LAN TCP/IP Settings ...................................................................7-7

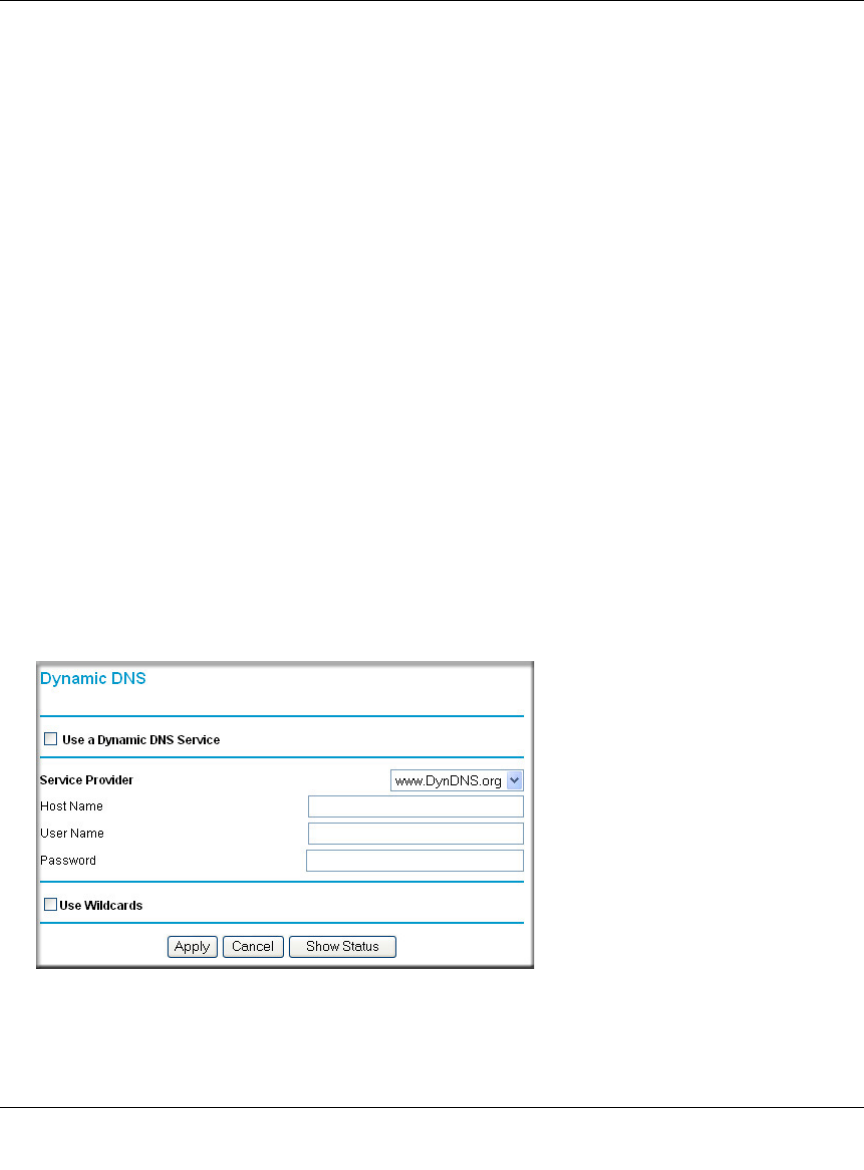

Configuring Dynamic DNS .......................................................................................7-8
How to Configure Dynamic DNS ..............................................................................7-8

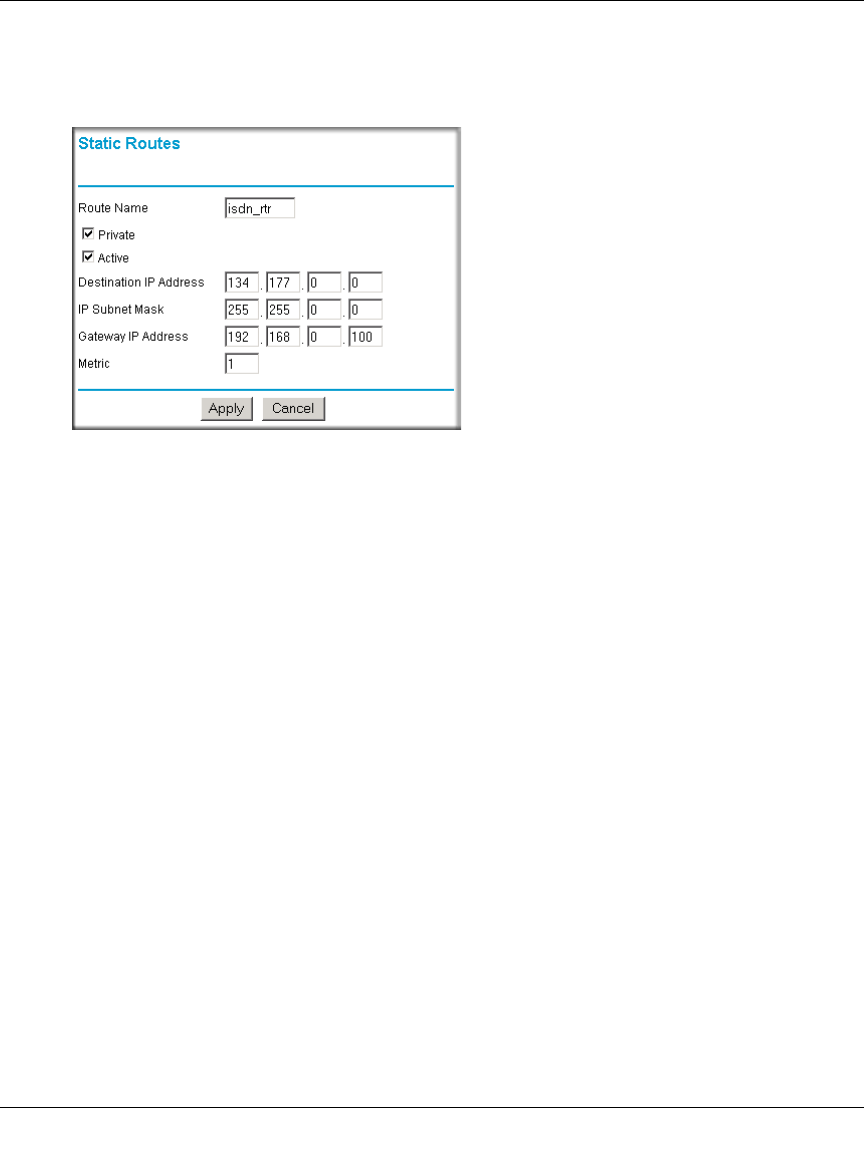

Using Static Routes ........................................................................................................7-9
Static Route Example ...............................................................................................7-9
How to Configure Static Routes .............................................................................7-10
Chapter 8
Troubleshooting
Basic Functioning ...........................................................................................................8-1
Power LED Not On ...................................................................................................8-2
Test LED Never Turns On or Test LED Stays On .....................................................8-2
LAN or WAN Port LEDs Not On ...............................................................................8-2
Troubleshooting the Web Configuration Interface ..........................................................8-3
Troubleshooting the ISP Connection ..............................................................................8-4
ADSL link .................................................................................................................8-4
WAN LED Blinking Yellow ..................................................................................8-4
WAN LED Off .....................................................................................................8-4
Obtaining a WAN IP Address ...................................................................................8-5
Troubleshooting PPPoE or PPPoA ..........................................................................8-6
Troubleshooting Internet Browsing ..........................................................................8-6
Troubleshooting a TCP/IP Network Using the Ping Utility ..............................................8-7
Testing the LAN Path to Your Router .......................................................................8-7
Testing the Path from Your Computer to a Remote Device .....................................8-8
Restoring the Default Configuration and Password ........................................................8-9
Using the Reset button .............................................................................................8-9
Problems with Date and Time .........................................................................................8-9
Appendix A
Technical Specifications
About This Guide 1-1
August 2005
Chapter 1
About This Guide
Thank you for purchasing the NETGEAR™ DG834PN 108 Mbps RangeMaxTM Wireless ADSL
Modem Router.
Audience, Conventions, Scope
This reference manual assumes that the reader has basic-to-intermediate computer and Internet
skills. However, basic computer network, Internet, firewall, and networking technology tutorial
information is provided in the Appendices.
This guide uses the following typographical conventions:
This manual is written for the DG834PN RangeMax Wireless ADSL Modem Router according to
these specifications:
Table 1. Typographical conventions
italics Emphasis, books, CDs, URL names
bold User input
mono space Screen text, file and server names, extensions, commands, IP addresses
Note: This format is used to highlight information of importance or special interest.
Table 1-1. Manual Specifications
Product Version DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Manual Publication Date August 2005
Note: Product updates are available on the NETGEAR, Inc. Web site at
http://kbserver.netgear.com/DG834PN.asp.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
1-2 About This Guide
August 2005
How to Print this Manual
To print this manual you can choose one of the following several options, according to your needs.
•Printing a “How To” Sequence of Steps in the HTML View. Use the Print button on the
upper right of the toolbar to print the currently displayed topic. Using this button when a
step-by-step procedure is displayed will send the entire procedure to your printer–you do not
have to worry about specifying the correct range of pages.

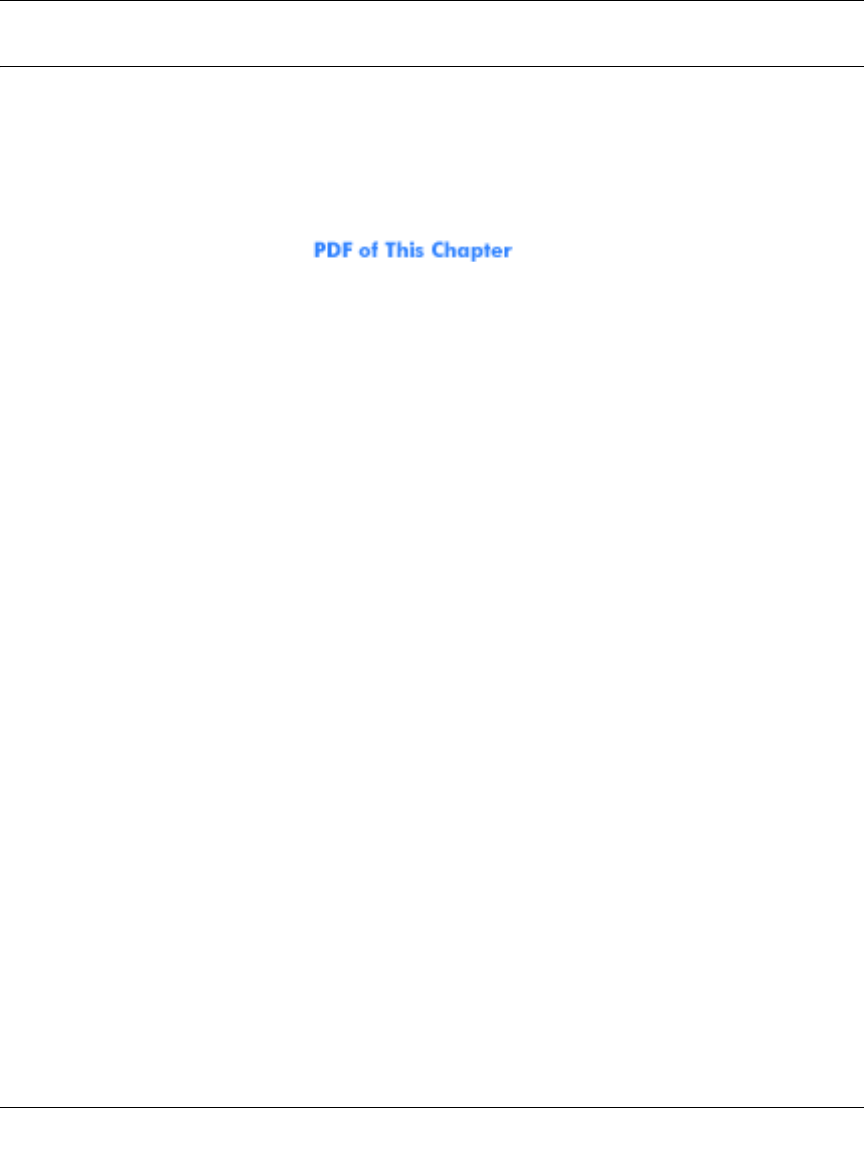

•Printing a Chapter. Use the link at the top right of any page.
– Click “PDF of This Chapter” link at the top right of any page in the chapter you want to
print. A new browser window opens showing the PDF version of the chapter you were
viewing.
– Click the print icon in the upper left of the window.
–Tip: If your printer supports printing two pages on a single sheet of paper, you can save
paper and printer ink by selecting this feature.
•Printing the Full Manual. Use the PDF button in the toolbar at the top right of the browser
window.
– Click PDF button. A new browser window opens showing the PDF version of the chapter
you were viewing.
– Click the print icon in the upper left of the window.
–Tip: If your printer supports printing two pages on a single sheet of paper, you can save
paper and printer ink by selecting this feature.
Introduction 2-1
August 2005
Chapter 2
Introduction
This chapter describes the features of the NETGEAR DG834PN 108 Mbps RangeMaxTM Wireless
ADSL Modem Router. The DG834PN RangeMax Wireless ADSL Modem Router is a
combination of a built-in ADSL modem, wireless ADSL modem router, 4-port switch, firewall,
and up to 108 Mbps wireless access point that enables your entire network to safely share an
Internet connection that otherwise is used by a single computer.
About the Wireless ADSL Modem Router
The DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router provides continuous,
high-speed 10/100 Ethernet access between your Ethernet devices. The DG834PN RangeMax
Wireless ADSL Modem Router enables your entire network to share an Internet connection
through the built-in ADSL modem that otherwise is used by a single computer. With minimum
setup, you can install and use the wireless ADSL modem router within minutes.
The DG834PN RangeMax Wireless ADSL Modem Router provides multiple Web content filtering
options, plus e-mail browsing activity, reporting, and instant alerts. Parents and network
administrators can establish restricted access policies based on time of day, Web site addresses,
and address keywords. They can also share high-speed ADSL Internet access for up to 253
personal computers. The included firewall and Network Address Translation (NAT) features
protect you from hackers.
Note: If you are unfamiliar with networking and routing, refer to Appendix B, “Network
and Routing Basics” to become more familiar with the terms and procedures used in this
manual.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
2-2 Introduction
August 2005
Key Features
The DG834PN RangeMax Wireless ADSL Modem Router provides the following features:
• 802.11g wireless networking, with the ability to operate in Auto 108 Mbps mode, 108 Mbps
“turbo-g” only, the 802.11b+g modes, 802.11g-only, and 802.11b-only.
• A built-in ADSL modem
• A powerful, true firewall
• Easy, Web-based setup for installation and management
• Extensive Internet protocol support
• Content filtering
• Auto Sensing and Auto Uplink™ LAN Ethernet connections
These features are discussed below.
802.11g Wireless Networking
The DG834PN RangeMax Wireless ADSL Modem Router includes an 802.11g wireless access
point, providing continuous, high-speed 54 Mbps access between your wireless and Ethernet
devices. The access point provides:
• 802.11g wireless networking at up to 108 Mbps.
• 802.11g wireless networking, with the ability to operate in the following modes, thus
providing backwards compatibility with 802.11b devices or dedicating the wireless network to
the higher bandwidth 802.11g or 108 Mbps only devices:
— Auto 108 Mbps mode (i.e., all 802.11g, 802.11b, and Netgear 108 Mbps wireless stations
can be used; this mode is the second fastest mode)
— 108 Mbps only (fastest)
Note: Only use the 108 Mbps only mode when all wireless adapters in your open network
bear the 108 Mbps logo.
Figure 2-1: 108 Mbps Logo
10 8
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Introduction 2-3
August 2005
— 802.11b+g modes
— 802.11g-only
— 802.11b-only
• 64-bit and 128-bit WEP encryption security.
• WEP keys can be generated manually or by passphrase.
• Wireless access can be restricted by MAC address.
• Wireless network name broadcast can be turned off so that only devices that have the network
name (SSID) can connect.
A Powerful, True Firewall
Unlike simple Internet sharing NAT routers, the DG834PN is a true firewall, using stateful packet
inspection to defend against hacker attacks. Its firewall features include:
• Denial of Service (DoS) protection
Automatically detects and thwarts Denial of Service (DoS) attacks such as Ping of Death,
SYN Flood, LAND Attack and IP Spoofing.
• Blocks unwanted traffic from the Internet to your LAN.
• Blocks access from your LAN to Internet locations or services that you specify as off-limits.
• Logs security incidents
The DG834PN will log security events such as blocked incoming traffic, port scans, attacks,
and administrator logins. You can configure the wireless ADSL modem router to email the log
to you at specified intervals. You can also configure the wireless ADSL modem router to send
immediate alert messages to your email address or email pager whenever a significant event
occurs.
Easy Installation and Management
You can install, configure, and operate the DG834PN within minutes after connecting it to the
network. The following features simplify installation and management tasks:
• Browser-based management
Browser-based configuration allows you to easily configure your wireless ADSL modem
router from almost any type of personal computer, such as Windows, Macintosh, or Linux. A
user-friendly Setup Wizard is provided and online help documentation is built into the
browser-based Web Management Interface.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
2-4 Introduction
August 2005

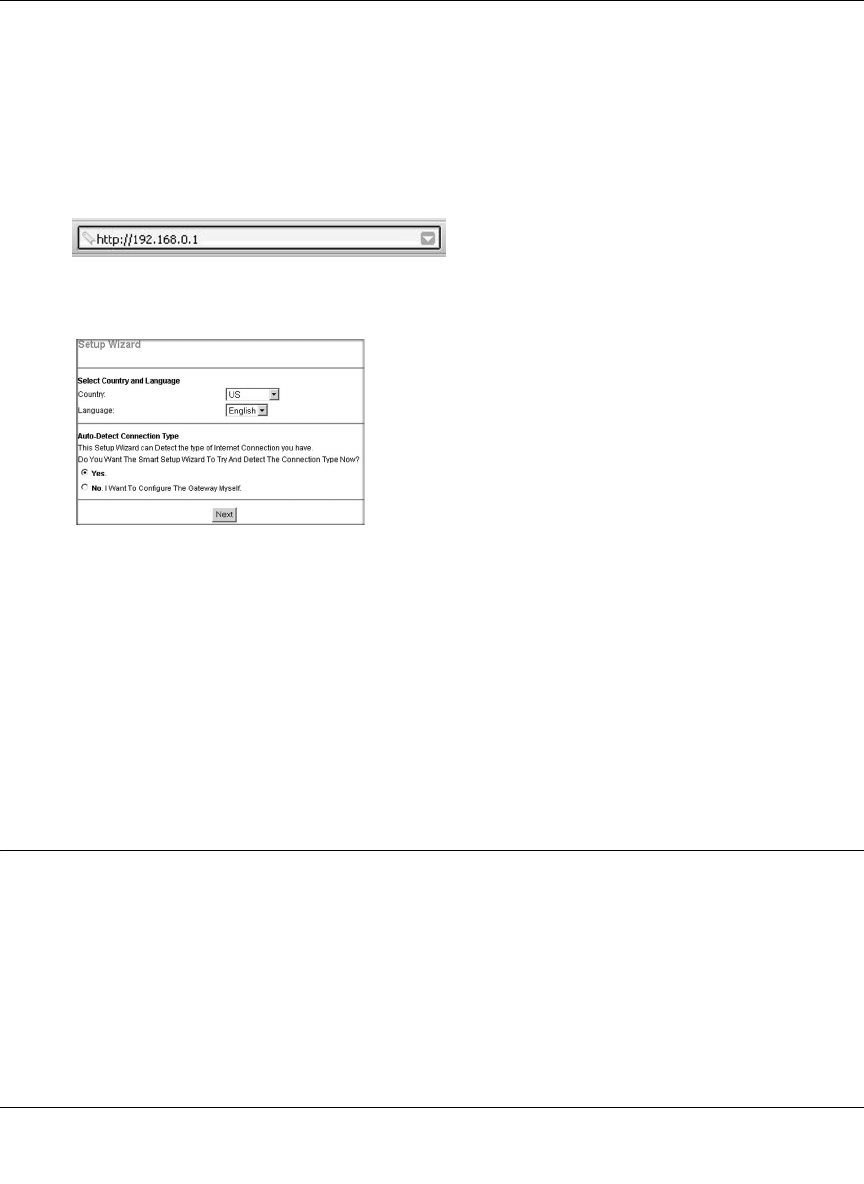

• Smart Wizard
The wireless ADSL modem router automatically senses the type of Internet connection, asking
you only for the information required for your type of ISP account.
• Remote management
The wireless ADSL modem router allows you to log in to the Web management interface from
a remote location via the Internet. For security, you can limit remote management access to a
specified remote IP address or range of addresses, and you can choose a nonstandard port
number.
• Diagnostic functions
The wireless ADSL modem router incorporates built-in diagnostic functions such as Ping,
DNS lookup, and remote reboot. These functions allow you to test Internet connectivity and
reboot the wireless ADSL modem router. You can use these diagnostic functions directly from
the DG834PN when you are connected on the LAN or when you are connected over the
Internet via the remote management function.
• Visual monitoring
The wireless ADSL modem router’s front panel LEDs provide an easy way to monitor its
status and activity.
• Flash erasable programmable read-only memory (EPROM) for firmware upgrades.
Protocol Support
The DG834PN supports Transmission Control Protocol/Internet Protocol (TCP/IP) and Routing
Information Protocol (RIP). Appendix B, “Network and Routing Basics” provides further
information on TCP/IP.
• The Ability to Enable or Disable IP Address Sharing by NAT
The DG834PN allows several networked PCs to share an Internet account using only a single
IP address, which may be statically or dynamically assigned by your Internet service provider
(ISP). This technique, known as Network Address Translation (NAT), allows the use of an
inexpensive single-user ISP account. This feature can also be turned off completely while
using the DG834PN if you want to manage the IP address scheme yourself.
• Automatic Configuration of Attached PCs by DHCP
The DG834PN dynamically assigns network configuration information, including IP, wireless
ADSL modem router, and domain name server (DNS) addresses, to attached PCs on the LAN
using the Dynamic Host Configuration Protocol (DHCP). This feature greatly simplifies
configuration of PCs on your local network.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Introduction 2-5
August 2005
• DNS Proxy
When DHCP is enabled and no DNS addresses are specified, the wireless ADSL modem
router provides its own address as a DNS server to the attached PCs. The wireless ADSL
modem router obtains actual DNS addresses from the ISP during connection setup and
forwards DNS requests from the LAN.
• Classical IP (RFC 1577)
Some Internet service providers, in Europe for example, use Classical IP in their ADSL
services. In such cases, the wireless ADSL modem router is able to use the Classical IP
address from the ISP.
• PPP over Ethernet (PPPoE)
PPP over Ethernet is a protocol for connecting remote hosts to the Internet over an ADSL
connection by simulating a dial-up connection. This feature eliminates the need to run a login
program such as EnterNet or WinPOET on your computer.
• PPP over ATM (PPPoA)
PPP over ATM is a protocol for connecting remote hosts to the Internet over an ADSL
connection by simulating an ATM connection.
• Dynamic DNS
Dynamic DNS services allow remote users to find your network using a domain name when
your IP address is not permanently assigned. The wireless ADSL modem router contains a
client that can connect to many popular Dynamic DNS services to register your dynamic IP
address.
• Universal Plug and Play (UPnP)
UPnP is a networking architecture that provides compatibility between networking
technologies. UPnP compliant routers provide broadband users at home and small businesses
with a seamless way to participate in online games, videoconferencing and other peer-to-peer
services.
Content Filtering
With its content filtering feature, the DG834PN prevents objectionable content from reaching your
PCs. The wireless ADSL modem router allows you to control access to Internet content by
screening for keywords within Web addresses. You can configure the wireless ADSL modem
router to log and report attempts to access objectionable Internet sites.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
2-6 Introduction
August 2005
Auto Sensing and Auto Uplink™ LAN Ethernet Connections
With its internal 4-port 10/100 switch, the DG834PN can connect to either a 10 Mbps standard
Ethernet network or a 100 Mbps Fast Ethernet network. The local LAN ports are autosensing and
capable of full-duplex or half-duplex operation.
The wireless ADSL modem router incorporates Auto UplinkTM technology. Each local Ethernet
port will automatically sense whether the Ethernet cable plugged into the port should have a
‘normal’ connection such as to a computer or an ‘uplink’ connection such as to a switch or hub.
That port will then configure itself to the correct configuration. This feature also eliminates the
need to worry about crossover cables, as Auto Uplink will accommodate either type of cable to
make the right connection.
What’s in the Box?
The product package should contain the following items:
• DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
• AC power adapter (varies by region)
• Category 5 (Cat 5) Ethernet cable
• Telephone cable
• Microfilters (quantity and type vary by region)
•Resource CD, including:
—This guide
— Application Notes
• A printed Quick Installation Guide
• Warranty and Support Information cards
If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the
carton, including the original packing materials, in case you need to return the product for repair.
The Router’s Front Panel
The DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router front panel shown below
contains status LEDs.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Introduction 2-7
August 2005
Figure 2-2: DG834PN Front Panel
You can use the LEDs to verify various conditions. Table 2-1 lists and describes each LED on the
front panel of the router. These LEDs are green when lit.
Power Test Internet
Wireless LAN
NEED NEW IMAGE
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
2-8 Introduction
August 2005
The Router’s Rear Panel
The rear panel of the DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
(Figure 2-3) contains port connections.
Table 2-1. LED Descriptions
Label Activity Description
Power On
Off
Power is supplied to the router.
Power is not supplied to the router.
Tes t On
Off
The system is initializing.
The system is ready and running.
Wireless On
Off
Indicates that the Wireless port is initialized.
The Wireless Access Point is turned off.
Internet Blink -- Amber
On -- Green
Blink -- Green
Indicates ADSL training.
The Internet port has detected a link with an attached device.
Data is being transmitted or received by the Internet port.
LAN On (Green)
Blink (Green)
On (Amber)
Blink (Amber)
Off
The Local port has detected a link with a 100 Mbps device.
Data is being transmitted or received at 100 Mbps.
The Local port has detected a link with a 10 Mbps device.
Data is being transmitted or received at 10 Mbps.
No link is detected on this port.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Introduction 2-9
August 2005
Figure 2-3: DG834PN Rear Panel
Viewed from left to right, the rear panel contains the following elements:
• ADSL port for connecting the router to an ADSL line
• Four Local Ethernet RJ-45 LAN ports for connecting the router to the local computers
• Factory Default Reset push button
•DC power in
• Wireless antenna
Power
ADSL
Wireless
LAN
Reset
Internet
NEED NEW IMAGE
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
2-10 Introduction
August 2005
Connecting the Router to the Internet 3-1
August 2005
Chapter 3
Connecting the Router to the Internet
This chapter describes how to set up the router on your Local Area Network (LAN) and connect to
the Internet. It describes how to configure your DG834PN 108 Mbps RangeMaxTM Wireless
ADSL Modem Router for Internet access using the Setup Wizard, or how to manually configure
your Internet connection.
What You Need Before You Begin
You need to prepare the following before you can establish an Internet connection through your
router:
1. The router connected to an ADSL line and a computer properly connected to the router as
explained below.
2. Active Internet service such as that provided by an ADSL account.
3. The Internet Service Provider (ISP) configuration information for your DSL account.
Note: If you purchased the DG834PN in a country where a microfilter is not included, you must
acquire one.
ADSL Microfilter Requirements
ADSL technology uses the same wires as your telephone service. However, ADSL adds signals to
the telephone lines which create noise in the telephone service. You must use ADSL microfilters to
filter out these signals before they reach your telephone.
ADSL Microfilter
Figure 3-1: ADSL microfilter
Phone
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
3-2 Connecting the Router to the Internet
August 2005
Each device such as a telephone, fax machine, answering machine, or caller ID display will require
an ADSL microfilter.
Note: Do not connect the DG834PN to the ADSL line through a microfilter unless the microfilter
is a combination microfilter/splitter specifically designed for this purpose. Doing so will prevent
the built-in ADSL modem in the DG834PN from establishing a connection to the Internet. If you
have any doubts about this, connect the DG834PN directly to the ADSL line.
ADSL Microfilter with Built-In Splitter
Figure 3-2: ADSL microfilter with built-in splitter
Use an ADSL microfilter with built-in splitter when there is a single wall outlet which must
provide connectivity for both the DG834PN and telephone equipment.
Ethernet Cabling Requirements
The DG834PN RangeMax Wireless ADSL Modem Router connects to your Ethernet LAN via
twisted-pair cables. If the computer will connect to your network at 100 Mbps, you must use a
Category 5 (CAT5) cable such as the one provided with your wireless ADSL modem router.
Computer Hardware Requirements
To use the DG834PN RangeMax Wireless ADSL Modem Router on your network, each computer
must have an installed Ethernet adapter and an Ethernet cable, or a 802.11g wireless adapter.
LAN Configuration Requirements
For the initial connection to the Internet and configuration of your router, you need to connect a
computer to the router which is set to automatically get its TCP/IP configuration from the router
via DHCP.
Note: Please refer to Appendix C, “Preparing Your Network” for assistance with DHCP
configuration.
Phone
DSL
Line
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Connecting the Router to the Internet 3-3
August 2005
Internet Configuration Requirements
Depending on how your ISP set up your Internet account, you need one or more of these
configuration parameters to connect your router to the Internet:
• Virtual Path Identifier (VPI)/Virtual Channel Indentifier (VCI) parameters
• Multiplexing Method
• Host and Domain Names
• ISP Login Name and Password
• ISP Domain Name Server (DNS) Addresses
• Fixed or Static IP Address
Where Do I Get the Internet Configuration Parameters?
There are several ways you can gather the required Internet connection information.
• Your ISP should have provided you with all the information needed to connect to the Internet.
If you cannot locate this information, you can ask your ISP to provide it or you can try one of
the options below.
• If you have a computer already connected using the active Internet access account, you can
gather the configuration information from that computer.
• For Windows 95/98/ME, open the Network control panel, select the TCP/IP entry for the
Ethernet adapter, and click Properties.
• For Windows 2000/XP, open the Local Area Network Connection, select the TCP/IP entry
for the Ethernet adapter, and click Properties.
• For Macintosh computers, open the TCP/IP or Network control panel.
• You can also refer to the DG834PN Resource CD for the NETGEAR Router ISP Guide which
provides Internet connection information for many ISPs.
Once you locate your Internet configuration parameters, you may want to record them on the next
page.
Record Your Internet Connection Information
Print the following page. Fill in the configuration parameters from your Internet Service Provider
(ISP).
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
3-4 Connecting the Router to the Internet
August 2005
ISP Multiplexing Method and Virtual Circuit Number: The default settings of your DG834PN
108 Mbps RangeMaxTM Wireless ADSL Modem Router will work fine for most ISPs. However,
some ISPs use a specific Multiplexing Method or a Virtual Circuit Number for either the Virtual
Path Identifier (VPI) or Virtual Channel Identifier (VCI). If your ISP provided you with a specific
Multiplexing Method or VPI/VCI number, then fill in the following:
Multiplexing Method, circle one: LLC-based or VC-based
VPI: ________ A number between 0 and 255.
VCI: ___________ A number between 1 and 65535.
ISP Login Name: The login name and password are case sensitive and must be entered exactly as
given by your ISP. Some ISPs use your full e-mail address as the login name. The Service Name is
not required by all ISPs. If you use a login name and password, then fill in the following:
Login Name: ______________________________ Password: ____________________________
Service Name: _____________________________
Fixed or Static IP Address: If you have a static IP address, record the following information. For
example, 169.254.141.148 could be a valid IP address.
Fixed or Static Internet IP Address: ______.______.______.______
Wireless ADSL Modem Router IP Address: ______.______.______.______
Subnet Mask: ______.______.______.______
ISP DNS Server Addresses: If you were given DNS server addresses, fill in the following:
Primary DNS Server IP Address: ______.______.______.______
Secondary DNS Server IP Address: ______.______.______.______
Host and Domain Names: Some ISPs use a specific host or domain name like CCA7324-A or
home. If you did not get host or domain names, use the following examples as a guide:
• If your main e-mail account with your ISP is aaa@yyy.com, then use aaa as your host name.
Your ISP might call this your account, user, host, computer, or system name.
• If your ISP’s mail server is mail.xxx.yyy.com, then use xxx.yyy.com as the domain name.
ISP Host Name: _________________________ ISP Domain Name: _______________________
For Wireless Access: For configuration of the wireless network, record the following:
Wireless Network Name (SSID): _________________________
WEP Authentication (circle one): Automatic, Open System, or Shared Key
WEP Encryption (circle one): 64 or 128; Passphrase or Key: _________________________
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Connecting the Router to the Internet 3-5
August 2005
Set up the Router
1. CONNECT THE DG834PN TO THE ADSL LINE
ADSL signals degrade phone sound quality. Microfilters block such problems and are required
for each phone or fax. There are two types: one-line microfilters; and two-line microfilters,
which include a built-in splitter. Sharing a phone outlet with two devices requires a splitter.
The procedure below illustrates using a two-line combo microfilter/splitter.
You can accomplish the same result using a one-line microfilter with a separate phone line
splitter.
a. Insert the filter into the phone outlet and connect the phone to the phone connector (A).
b. Turn off your computer.
0HONE
0HONE
!$3,
,INE
4WO,INE#OMBO
-ICROFILTER3PLITTER
/NE,INE-ICROFILTER 3PLITTER
+j
.
j
A
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
3-6 Connecting the Router to the Internet
August 2005

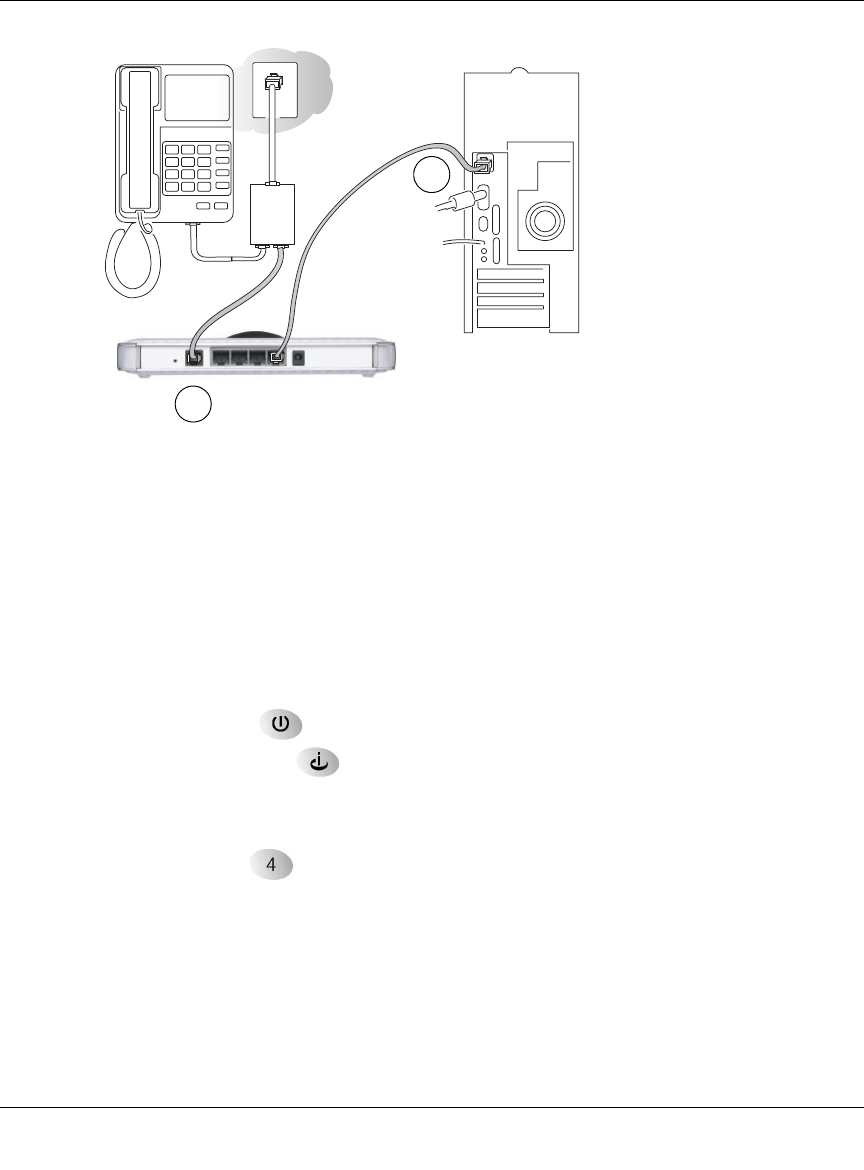

c. Connect the ADSL port (B) of the DG834PN to the ADSL connector of the two-line filter.
Note: Improperly connecting a filter to your DG834PN will block ADSL signals and prevent
connecting to the Internet.
d. Connect the NRJ-45 Ethernet cable (C) from a LAN port of your DG834PN to the
Ethernet adapter in your computer.
Note: The unshielded RJ-45 Ethernet cable is supplied for the connection of the NETGEAR
product to your PC and is not intended for connection to the telecommunications network.
e. Plug in the router and verify the following:
• The power light is lit after applying power to the router.
• The ADSL link light is solid green, indicating a link has been established to the
ADSL network.
f. Now, turn on your computer and verify the following:
• The local lights are lit for any connected computers.
• If software usually logs you in to the Internet, do not run it.
• The Internet Explorer Tools Internet Options Connections page should be set to
“Never dial a connection.”
g. Install a filter on each phone device that shares the phone line with your router.
Note: Use one-line filters for connecting additional phones.
+j
.
j
B
C
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Connecting the Router to the Internet 3-7
August 2005
2. LOG IN TO THE DG834PN
Your computer needs to be configured for DHCP. For help with this, see the Reference
Manual or tutorials on the Resource CD.
a. Connect to the router by typing http://192.168.0.1 in the address field of your Internet
browser.
b. When prompted, enter admin for the user name and password for the password, both in
lower case letters. After logging in, you will see the menu below.
If you do not see the menu above, click the Setup Wizard link on the upper left of the main menu.
3. CONNECT TO THE INTERNET
a. Choose your country and language. Click Next to let the Setup Wizard detect the type of
Internet connection your have.
b. Follow the steps in the Setup Wizard to input the Internet configuration
parameters from your ISP.
If you were unable to connect to the router, please refer to the Troubleshooting Chapter in
the Reference Manual on the Resource CD that came with the router.
Now, Set Up Wireless Connectivity
1. Configure the DG834PN Wireless Settings
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
3-8 Connecting the Router to the Internet
August 2005
a. If you are not already logged in the
DG834PN, type
http://192.168.0.1 in your browser and
click Enter.
When prompted, type admin for the
user name and password for the
password, both in lower case letters.
b. Click Wireless Settings in the DG834PN main menu. Select a Region. Do not change the
other settings. Click Apply.
2. Configure the computer’s Wireless Adapter Settings
Configure the wireless adapter of your computer to match these settings exactly.
Warning: The SSID is case sensitive. Entering nETgear will not work.
Use these settings to verify that you have wireless connectivity. Set up wireless security after
you are sure you have wireless connectivity.
3. Verify Wireless Connectivity
Verify wireless connectivity. Connect to the Internet or log in to the DG834PN from a
computer with a wireless adapter. For wireless connectivity problems, see the Troubleshooting
Tips below or in the Reference Manual on the CD.
You can use the Dome LED link in the main configuration menu to control when the antenna
lights are on or turn them off completely.
4. Implement Wireless Security
• Wireless networks are vulnerable to intrusion if you do not use the available security
options. The wireless security options you choose depend on the options available in your
wireless computers.
• Implement wireless security according to the instructions in the Wireless chapter of the
Reference Manual on the CD.
You are now wirelessly connected to the Internet!
WIRELESS FEATURE DEFAULT SETTING
Network Name (SSID) NETGEAR
WEP/WPA Security Disabled
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Connecting the Router to the Internet 3-9
August 2005
Troubleshooting Tips
Here are some tips for correcting simple problems you may have.
Be sure to restart your network in the correct sequence.
Always follow this sequence:
1. Unplug and turn off the DG834PN. Turn off the computer.
2. Plug in and turn on the DG834PN, wait two minutes.
3. Turn on the computer.
Make sure the Ethernet cables are securely plugged in.
• For each powered on computer connected to the DG834PN with a securely plugged in
Ethernet cable, the corresponding DG834PN LAN port status light will be lit. The label on the
bottom of the wireless ADSL modem router identifies the number of each LAN port.
• The Internet port status light on the wireless ADSL modem router will be lit if the phone cable
is plugged in securely to the DG834PN ADSL port and the DG834PN is turned on.
Make sure the computer & router wireless settings match exactly.
The Wireless Network Name (SSID) and security settings (WEP/WPA, MAC access control list)
of the DG834PN and wireless computer must match exactly.
Make sure the network settings of the computer are correct.
• LAN and wirelessly connected computers must be configured to obtain an IP address
automatically via DHCP. For help with this, please see the animated tutorials on the CD or the
Reference Manual Appendix C on the CD.
• Some cable modem ISPs require you to use the MAC address of the computer registered on
the account. If so, in the Router MAC Address section of the Basic Settings menu, select, “Use
this Computer’s MAC Address.” The router will then capture and use the MAC address of the
computer that you are now using. You must be using the computer that is registered with the
ISP. Click Apply to save your settings. Restart the network in the correct sequence.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
3-10 Connecting the Router to the Internet
August 2005
Check the router status lights to verify correct router operation.
• If the Power light does not turn solid green within 2 minutes after turning the router on, reset
the router according to the instructions in the Reference Manual on the CD.
• If the Wireless light does not come on, verify that the wireless feature is turned on according to
the instructions in the Reference Manual on the CD.
Manually Configuring Your Internet Connection
You can manually configure your wireless ADSL modem router using the menu below, or you can
allow the Setup Wizard to determine your configuration as described in the previous section.
Figure 3-3: Basic Settings menu
How to Perform Manual Configuration
We recommend that you start the manual configuration from the Setup Wizard:
ISP Does Not Require Login ISP Does Require Login
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Connecting the Router to the Internet 3-11
August 2005
1. Select your country and language. Language choices are English, French, German, and Italian.
After you change the language, the remaining setup screens change to the language of your
choice.
2. Select No to manually configure your wireless ADSL modem router connection.
3. Click Next.
4. Manually configure the wireless ADSL modem router in the Basic Settings menu shown in
Figure 3-3.
5. Follow the instructions below according to the encapsulation method and whether your
Internet connection requires a login. The following methods are available:
• Internet Connection Requires Login and Uses PPPoE
• Internet Connection Requires Login and Uses PPPoA
• Internet Connection Does Not Require a Login
6. Usually the default ADSL Settings work fine for most ISPs and you can skip this step. If you
have any problems with your connection, check the ADSL Settings. See “ADSL Settings” on
page 3-14 for more details.
Internet Connection Requires Login and Uses PPPoE
1. If your Internet connection does require login, select Yes and fill in the settings according to
the instructions below.
Note: You will no longer need to launch the ISP’s login program on your computer in order to
access the Internet. When you start an Internet application, your wireless ADSL modem router
automatically logs you in.
2. Choose PPPoE for the encapsulation method.
3. Enter the login name (frequently the email address your ISP provided), password, and service
name (if required).
4. If you want to change the login timeout, enter a new value in minutes. This determines how
long the wireless ADSL modem router keeps the Internet connection active after there is no
Internet activity from the LAN. Entering an Idle Timeout value of zero means never log out.
5. When a connection uses PPPoE, the IP address is normally assigned automatically. However,
the DG834PN allows this address to be set manually.
• Select “Get Automatically from ISP” if your ISP assigns your IP address.
• Select “Use Static IP Address” if your ISP gave you a statically assigned address.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
3-12 Connecting the Router to the Internet
August 2005
6. The DNS server is used to look up site addresses based on their names.
• Select “Get Automatically from ISP” if your ISP uses DHCP to assign your DNS servers.
Your ISP will automatically assign this address.
• Select “Use These DNS Servers” if your ISP gave you one or two DNS addresses. Type
the primary and secondary addresses.
7. You should only disable NAT if you are sure you do not require it. NAT automatically assigns
private IP addresses (192.168.0.x) to LAN connected devices. When NAT is disabled, only
standard routing is performed by this router.
Classical routing lets you directly manage the IP addresses the DG834PN uses. Classical
routing should be selected only by experienced users.
Note: Disabling NAT will reboot the router and reset all the DG834PN configuration settings
to the factory default. Disable NAT only if you plan to install the DG834PN in a setting where
you will be manually administering the IP address space on the LAN side of the router.
Internet Connection Requires Login and Uses PPPoA
1. If your Internet connection does require login, select Yes and fill in the settings according to
the instructions below.
Note: You will no longer need to launch the ISP’s login program on your computer in order to
access the Internet. When you start an Internet application, your wireless ADSL modem router
automatically logs you in.
2. Choose PPPoA for the encapsulation method.
3. Enter the login name (frequently the email address your ISP provided), and password.
4. If you want to change the login timeout, enter a new value in minutes. This determines how
long the wireless ADSL modem router keeps the Internet connection active after there is no
Internet activity from the LAN. Entering an Idle Timeout value of zero means never log out.
5. When a connection uses PPPoA, the IP address is normally assigned automatically. However,
the DG834PN allows this address to be set manually.
• Select “Get Automatically from ISP” if your ISP assigns your IP address.
• Select “Use Static IP Address” if your ISP gave you a statically assigned address.
6. The DNS server is used to look up site addresses based on their names.
• Select “Get Automatically from ISP” if your ISP uses DHCP to assign your DNS servers.
Your ISP will automatically assign this address.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Connecting the Router to the Internet 3-13
August 2005
7. Select “Use These DNS Servers” if your ISP gave you one or two DNS addresses. Type the
primary and secondary addresses.You should only disable NAT if you are sure you do not
require it. NAT automatically assigns private IP addresses (192.168.0.x) to LAN connected
devices. When NAT is disabled, only standard routing is performed by this router.
Classical routing lets you directly manage the IP addresses the DG834PN uses. Classical
routing should be selected only by experienced users.
Note: Disabling NAT will reboot the router and reset all the DG834PN configuration settings
to the factory default. Disable NAT only if you plan to install the DG834PN in a setting where
you will be manually administering the IP address space on the LAN side of the router.
Internet Connection Does Note Require A Login
1. If your Internet connection does not require a login, select No and fill in the settings according
to the instructions below.
2. Enter your Account Name (may also be called Host Name) and Domain Name.
These parameters may be necessary to access your ISP’s mail or news servers.
3. Internet IP Address:
• Select “Get Dynamically from ISP” if your ISP uses DHCP to assign your IP address.
Your ISP will automatically assign these addresses.
• Select “Use Static IP Address” if your ISP has assigned you a permanent, fixed (static) IP
address. Enter the IP address that your ISP assigned. Also enter the IP Subnet Mask and
the Gateway IP Address. The gateway is the ISP’s wireless ADSL modem router to which
your wireless ADSL modem router will connect.
• Select “IP Over ATM (IPoA)” if your ISP uses Classical IP Addresses (RFC1577). Enter
the IP address, IP Subnet Mask, and Gateway IP Addresses that your ISP assigned.
4. Domain Name Server (DNS) Address:
• Select “Get Dynamically from ISP” if your ISP uses DHCP to assign your IP address.
Your ISP will automatically assign this address.
• If you know that your ISP does not automatically transmit DNS addresses to the wireless
ADSL modem router during login, select “Use these DNS servers” and enter the IP
address of your ISP’s Primary DNS Server. If a Secondary DNS Server address is
available, enter it also.
A DNS server is a host on the Internet that translates Internet names (such as
www.netgear.com) to numeric IP addresses. Typically your ISP transfers the IP address of one
or two DNS servers to your wireless ADSL modem router during login. If the ISP does not
transfer an address, you must obtain it from the ISP and enter it manually here.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
3-14 Connecting the Router to the Internet
August 2005
5. You should only disable NAT if you are sure you do not require it. NAT automatically assigns
private IP addresses (192.168.0.x) to LAN connected devices. When NAT is disabled, only
standard routing is performed by this router.
Classical routing lets you directly manage the IP addresses the DG834PN uses. Classical
routing should be selected only by experienced users.
Note: Disabling NAT will reboot the router and reset all the DG834PN configuration settings
to the factory default. Disable NAT only if you plan to install the DG834PN in a setting where
you will be manually administering the IP address space on the LAN side of the router
6. Wireless ADSL Modem Router MAC Address:
This section determines the Ethernet MAC address that will be used by the wireless ADSL
modem router on the Internet port. Some ISPs will register the Ethernet MAC address of the
network interface card in your computer when your account is first opened. They will then
only accept traffic from the MAC address of that computer. This feature allows your wireless
ADSL modem router to masquerade as that computer by “cloning” its MAC address.
To change the MAC address, select “Use this Computer’s MAC address”. The wireless ADSL
modem router will then capture and use the MAC address of the computer that you are now
using. You must be using the one computer that is allowed by the ISP. Alternatively, select
“Use this MAC address” and enter it.
7. Click Apply to save your settings.
8. Click the Test button to test your Internet connection.
If the NETGEAR Web site does not appear within one minute, refer to Chapter 8,
“Troubleshooting”.
ADSL Settings
The default settings of your DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
will work fine for most ISPs. However, some ISPs use a specific Multiplexing Method and Virtual
Circuit Number for the Virtual Path Identifier (VPI) and Virtual Channel Identifier (VCI).
Note: The correct country must be selected from the Setup Wizard’s first page for the default
ADSL Settings to work.
If your ISP provided you with a specific Multiplexing Method or VPI/VCI number, then fill in the
following:
1. Select the ADSL Settings link from the main menu.
2. For the Multiplexing Method, select LLC-based or VC-based.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Connecting the Router to the Internet 3-15
August 2005
3. Type a number between 0 and 255 for the VPI. The default is 8.
4. Type a number between 1 and 65535 for the VCI. The default is 35.
5. Click Apply.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
3-16 Connecting the Router to the Internet
August 2005
Wireless Configuration 4-1
August 2005
Chapter 4
Wireless Configuration
This chapter describes how to configure the wireless features of your DG834PN 108 Mbps
RangeMaxTM Wireless ADSL Modem Router.
Considerations for a Wireless Network
In planning your wireless network, you should consider the level of security required. You should
also select the physical placement of your wireless ADSL modem router in order to maximize the
network speed. For further information, refer to Appendix D, “Wireless Networking Basics”.
To ensure proper compliance and compatibility between similar products in your area, the
operating channel and region must be set correctly.
Observe Performance, Placement, and Range Guidelines
The operating distance or range of your wireless connection can vary significantly based on the
physical placement of the wireless firewall. The latency, data throughput performance, and
notebook power consumption also vary depending on your configuration choices.
For best results, place your firewall:
• Near the center of the area in which your computers will operate
• In an elevated location such as a high shelf where the wirelessly connected computers have
line-of-sight access (even if through walls)
• Away from sources of interference, such as computers, microwaves, and cordless phones
• With the Antenna tight and in the upright position
• Away from large metal surfaces
Note: Failure to follow these guidelines can result in significant performance
degradation or inability to wirelessly connect to the router. For complete range/
performance specifications, please see Appendix A, “Technical Specifications”.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
4-2 Wireless Configuration
August 2005
The time it takes to establish a wireless connection can vary depending on both your security
settings and placement. WEP connections can take slightly longer to establish. Also, WEP
encryption can consume more battery power on a notebook computer.
Implement Appropriate Wireless Security
Unlike wired network data, your wireless data transmissions can extend beyond your walls and
can be received by anyone with a compatible adapter. For this reason, use the security features of
your wireless equipment. The DG834PN RangeMax Wireless ADSL Modem Router provides
highly effective security features which are covered in detail in this chapter. Deploy the security
features appropriate to your needs.
Figure 4-1: DG834PN wireless data security options
There are several ways you can enhance the security of your wireless network:
•Restrict Access Based on MAC Address. You can allow only trusted PCs to connect so that
unknown PCs cannot wirelessly connect to the DG834PN. Restricting access by MAC address
adds an obstacle against unwanted access to your network, but the data broadcast over the
wireless link is fully exposed.
Note: Indoors, computers can connect over 802.11g wireless networks at a maximum
range of up to 300 feet. Such distances can allow for others outside of your immediate
area to access your network.
1) Open System: Easy but no security
2) MAC Access List: No data security
3) WEP: Security but some performance impact
4) WPA-PSK
Wireless Data
Security Options
Range: Up to 300 Feet
PCs
Servers
DG834PN
NEED NEW IMAGE
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Wireless Configuration 4-3
August 2005
•Turn Off the Broadcast of the Wireless Network Name SSID. If you disable broadcast of
the SSID, only devices that have the correct SSID can connect. This nullifies wireless network
‘discovery’ feature of some products, such as Windows XP, but the data is still exposed.
•WEP. Wired Equivalent Privacy (WEP) data encryption provides data security. WEP Shared
Key authentication and WEP data encryption will block all but the most determined
eavesdropper.
•WPA-PSK. Wi-Fi Protected Access (WPA) data encryption provides data security. The very
strong authentication along with dynamic per frame re-keying of WPA make it virtually
impossible to compromise. Because this is a new standard, wireless device driver and software
availability may be limited.
Understanding Wireless Settings
To configure the Wireless interface of your wireless ADSL modem router, click the Wireless link
in the main menu of the browser interface. The following Wireless Settings menu will appear after
WEP (Wired Equivalent Privacy) under Security Options is subsequently selected:
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
4-4 Wireless Configuration
August 2005
Figure 4-2: Wireless Settings menu
The following parameters are in the Wireless Settings menu:
•Wireless Network.
—Name (SSID). The Service Set ID, also known as the wireless network name. Enter a
value of up to 32 alphanumeric characters. The same Name (SSID) must be assigned to all
wireless devices in your network. The default SSID is NETGEAR, but NETGEAR
strongly recommends that you change your network Name to a different value.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Wireless Configuration 4-5
August 2005
Note: This value is case sensitive. For example, Wireless is not the same as wireless.
—Region. Select your region from the drop-down list. This field displays the region of
operation for which the wireless interface is intended. It may not be legal to operate the
wireless ADSL modem router in a region other than the region shown here.
—Channel. This field determines which operating frequency will be used. It should not be
necessary to change the wireless channel unless you notice interference problems with
another nearby access point.
—Mode.
• "g & b" allows both "g" and "b" wireless stations to access this device (default).
• “g only” allows only 802.11g wireless stations to be used.
• “b only” allows 802.11b wireless stations; 802.11g wireless stations can still be used if
they can operate in 802.11b mode.
• “Auto 108 Mbps” means all 802.11g, 802.11b, and Netgear 108 Mbps wireless
stations can be used. The Auto 108 Mbps mode is the second fastest mode.
• “108 Mbps only” means only compatible 802.11g wireless stations that support 108
Mbps can connect. The 108 Mbps only mode is the fastest mode.
Note: Only use the 108 Mbps only mode when all wireless adapters in your open
network bear the 108 Mbps logo.
Figure 4-3: 108 Mbps Logo
•Wireless Access Point.
—Enable Wireless Access Point. This field lets you turn off or turn on the wireless access
point built in to the wireless ADSL modem router. The wireless icon on the front of the
wireless ADSL modem router will also display the current status of the Wireless Access
Point to let you know if it is disabled or enabled. The wireless access point must be
enabled to allow wireless stations to access the Internet.
—Allow Broadcast of Name (SSID). If enabled, the SSID is broadcast to all Wireless
Stations. Stations which have no SSID (or a "null" value) can then adopt the correct SSID
for connections to this Access Point.
10 8
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
4-6 Wireless Configuration
August 2005
—Wireless Isolation. If enabled, Wireless Stations will not be able to communicate with
each other or with Stations on the wired network. This feature should normally be
disabled.
• Wireless Station Access List.
— By default, any wireless computer that is configured with the correct wireless network
name or SSID will be allowed access to your wireless network. For increased security, you
can restrict access to the wireless network to only specific computers based on their MAC
addresses. Click Setup Access List to display the Wireless Station Access List menu.
• Security Options
Table 4-1. Wireless Security Options
Field Description
Disable Wireless security is not used.
WEP (Wired
Equivalent
Privacy)
You can select the following WEP options:
Authentication Type
• Open: the DG834PN does not perform any authentication.
• Shared: WEP shared key authentication. For a full explanation of WEP shared key, see
“Authentication and WEP Data Encryption” on page D-2.
Encryption Strength
• If Shared or Open Network Authentication is enabled, you can choose 64- or 128-bit
WEP data encryption.
Note: With Open Network Authentication and 64- or 128-bit WEP Data Encryption, the
DG834PN does perform 64- or 128-bit data encryption but does not perform any
authentication.
Security Encryption (WEP) Key
These key values must be identical on all wireless devices in your network (key 1 must be
the same for all, key 2 must be the same for all, and so on).
The DG834PN provides two methods for creating WEP encryption keys:
• Passphrase. These characters are case sensitive. Enter a word or group of printable
characters in the Passphrase box and click the Generate button.
Note: Not all wireless adapters support passphrase key generation.
• Manual. These values are not case sensitive.
64-bit WEP: enter 10 hexadecimal digits (any combination of 0-9, a-f, or A-F).
128-bit WEP: enter 26 hexadecimal digits (any combination of 0-9, a-f, or A-F).
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Wireless Configuration 4-7
August 2005
How to Set Up and Test Basic Wireless Connectivity
Follow the instructions below to set up and test basic wireless connectivity. Once you have
established basic wireless connectivity, you can enable security settings appropriate to your needs.
1. Log in to the DG834PN firewall at its default LAN address of http://192.168.0.1 with its
default user name of admin and default password of password, or using whatever LAN
address and password you have set up.
2. Click the Wireless Settings link in the main menu of the DG834PN firewall.
3. Choose a suitable descriptive name for the wireless network name (SSID). In the SSID box,
enter a value of up to 32 alphanumeric characters. The default SSID is Wireless.
Note: The SSID of any wireless access adapters must match the SSID you configure in the
DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router. If they do not match, you
will not get a wireless connection to the DG834PN.
4. Set the Region. Select the region in which the wireless interface will operate.
WPA-PSK
(Wi-Fi Protected
Access
Pre-Shared Key)
WPA Pre-Shared-Key uses a pre-shared key to perform the authentication and generate
the initial data encryption keys. Then, it dynamically varies the encryption key. For a full
explanation of WPA, see “WPA Wireless Security” on page D-8.
Note: Not all wireless adapters support WPA. Furthermore, client software is required on
the client. Windows XP and Windows 2000 with Service Pack 3 do include the client
software that supports WPA. Nevertheless, the wireless adapter hardware and driver
must also support WPA.
WPA-802.1x User authentication is implemented using 802.1x and RADIUS servers. For a full
explanation of WPA, see “WPA Wireless Security” on page D-8.
Fill in the following:
• Radius Server Name/IP Address
This field is required. Enter the name or IP address of the Radius Server on your LAN.
• Radius Port
Enter the port number used for connections to the Radius Server.
• Radius Shared Key
Enter the desired value for the Radius shared key. This key enables the DG834PN to
log in to the Radius server and must match the value used on the Radius server.
Table 4-1. Wireless Security Options
Field Description
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
4-8 Wireless Configuration
August 2005
5. Set the Channel. The default channel is 11.
This field determines which operating frequency will be used. It should not be necessary to
change the wireless channel unless you notice interference problems with another nearby
wireless router or access point. Select a channel that is not being used by any other wireless
networks within several hundred feet of your firewall. For more information on the wireless
channel frequencies please refer to “Wireless Channels” on page D-7.
6. For initial configuration and test, leave the Wireless Card Access List set to allow everyone
access by making sure that “Turn Access Control On” is not selected in the Wireless Station
Access List. In addition, leave the Encryption Strength set to “Disabled.”
7. Click Apply to save your changes.
8. Configure and test your computers for wireless connectivity.
Program the wireless adapter of your computers to have the same SSID and channel that you
configured in the router. Check that they have a wireless link and are able to obtain an IP
address by DHCP from the firewall.
Once your computers have basic wireless connectivity to the firewall, you can configure the
advanced wireless security functions of the firewall.
How to Restricting Wireless Access to Your Network
By default, any wireless PC that is configured with the correct SSID will be allowed access to your
wireless network. For increased security, the DG834PN 108 Mbps RangeMaxTM Wireless ADSL
Modem Router provides several ways to restrict wireless access to your network:
• Turn off wireless connectivity completely
• Restrict access based on the Wireless Network Name (SSID)
• Restrict access based on the Wireless Card Access List
These options are discussed below.
Note: If you are configuring the firewall from a wireless computer and you change the
firewall’s SSID, channel, or security settings, you will lose your wireless connection
when you click Apply. You must then change the wireless settings of your computer to
match the firewall’s new settings.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Wireless Configuration 4-9
August 2005
Figure 4-4: Wireless Access Point settings
Restricting Access to Your Network by Turning Off Wireless Connectivity
You can completely turn off the wireless portion of the DG834PN. For example, if your notebook
computer is used to wirelessly connect to your router and you take a business trip, you can turn off
the wireless portion of the router while you are traveling. Other members of your household who
use computers connected to the router via Ethernet cables will still be able to use the router.
Restricting Wireless Access Based on the Wireless Network Name (SSID)
The DG834PN can restrict wireless access to your network by not broadcasting the wireless
network name (SSID). However, by default, this feature is turned off. If you turn this feature on,
wireless devices will not ‘see’ your DG834PN. You must configure your wireless devices to match
the wireless network name (SSID) you configure in the DG834PN RangeMax Wireless ADSL
Modem Router.
Note: The SSID of any wireless access adapters must match the SSID you configure in the
DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router. If they do not match, you will
not get a wireless connection to the DG834PN.
Restricting Wireless Access Based on the Wireless Station Access List
This list determines which wireless hardware devices will be allowed to connect to the firewall.
To restrict access based on MAC addresses, follow these steps:
1. Log in to the DG834PN firewall at its default LAN address of http://192.168.0.1 with its
default user name of admin and default password of password, or using whatever LAN
address and password you have set up.
2. From the Wireless Settings menu, Wireless Station Access List section, click the Setup Access
List button to display the list, shown below:
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
4-10 Wireless Configuration
August 2005
Figure 4-5. Wireless Access menu
3. Select the Turn Access Control On check box to enable restricting wireless computers by their
MAC addresses.
4. If the wireless station is currently connected to the network, you can select it from the
Available Wireless Stations list. Click Add to add the station to the Trusted Wireless Stations
list.
5. If the wireless station is not currently connected, you can enter its address manually. Enter the
MAC address of the authorized computer. The MAC address is usually printed on the wireless
card, or it may appear in the wireless ADSL modem router’s DHCP table. The MAC address
will be 12 hexadecimal digits.
Click Add to add your entry. You can add several stations to the list, but the entries will be
discarded if you do not click Apply.
Note: You can copy and paste the MAC addresses from the wireless ADSL modem router’s
Attached Devices menu into the MAC Address box of this menu. To do this, configure each
wireless computer to obtain a wireless link to the wireless ADSL modem router. The
computer should then appear in the Attached Devices menu.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Wireless Configuration 4-11
August 2005
6. Make sure the Turn Access Control On check box is selected, then click Apply.
Now, only devices on this list will be allowed to wirelessly connect to the DG834PN. This
prevents unauthorized access to your network.
Choosing WEP Authentication and Security Encryption Methods
Figure 4-6. Security Encryption section
Restricting wireless access prevents intruders from connecting to your network. However, the
wireless data transmissions are still vulnerable to snooping. Using the WEP data encryption
settings described below will prevent a determined intruder from eavesdropping on your wireless
data communications. Also, if you are using the Internet for such activities as purchases or
banking, those Internet sites use another level of highly secure encryption called SSL. You can tell
if a web site is using SSL because the web address begins with HTTPS rather than HTTP.
Authentication Type Selection
The DG834PN lets you select the following wireless authentication schemes.
Note: If you are configuring the wireless ADSL modem router from a wireless
computer whose MAC address is not in the Trusted Wireless Stations list, and you select
Trusted Wireless Stations only, you will lose your wireless connection when you click
Apply. You must then access the wireless ADSL modem router from a wired computer
to make any further changes.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
4-12 Wireless Configuration
August 2005
• Automatic
• Open System
• Shared key
Set your wireless adapter according to the authentication scheme you choose for the DG834PN
RangeMax Wireless ADSL Modem Router. Please refer to “Authentication and WEP Data
Encryption” on page D-2 for a full explanation of each of these options, as defined by the IEEE
802.11g wireless communication standard.
Encryption Choices
Please refer to “Overview of WEP Parameters” on page D-5 for a full explanation of each of the
following choices, as defined by the IEEE 802.11g wireless communication standard. Choose the
encryption strength from the drop-down list:
Disable
No encryption will be applied. This setting is useful for troubleshooting your wireless connection,
but leaves your wireless data fully exposed.
64 or 128 bit WEP
When 64 Bit WEP or 128 Bit WEP is selected, WEP encryption will be applied.
If WEP is enabled, you can manually or automatically program the four data encryption keys.
These values must be identical on all computers and access points in your network.
There are two methods for creating WEP encryption keys:
• Passphrase. Enter a word or group of printable characters in the Passphrase box and click the
Generate button.
• Manual. 64-bit WEP: Enter 10 hexadecimal digits (any combination of 0-9, a-f, or A-F).
128-bit WEP: Enter 26 hexadecimal digits (any combination of 0-9, a-f, or A-F).
Select the radio button for the key you want to make active.
Note: The authentication scheme is separate from the data encryption. You can choose
an authentication scheme which requires a shared key but still leave the data
transmissions unencrypted. If you require strong security, use both the Shared Key and
WEP encryption settings.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Wireless Configuration 4-13
August 2005
How to Configure WEP
To configure WEP data encryption, follow these steps:
1. Log in to the DG834PN firewall at its default LAN address of http://192.168.0.1 with its
default user name of admin and default password of password, or using whatever LAN
address and password you have set up.
2. Click the Wireless Settings link in the main menu of the DG834PN wireless ADSL modem
router.
3. Go to the Security Encryption portion of the page:
Figure 4-7. Wireless WEP menu
4. Select the Authentication Type.
5. Select the Encryption setting.
6. Enter the encryption keys. You can manually or automatically program the four data
encryption keys. These values must be identical on all computers and Access Points in your
network.
• Automatic — enter a word or group of printable characters in the Passphrase box and click
the Generate button. The four key boxes will be automatically populated with key values.
• Manual — enter hexadecimal digits (any combination of 0-9, a-f, or A-F).
Select which of the four keys will be active.
7. Select the radio button for the key you want to make active.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
4-14 Wireless Configuration
August 2005
Be sure you clearly understand how the WEP key settings are configured in your wireless
adapter. Wireless adapter configuration utilities such as the one included in Windows XP only
allow entry of one key which must match the default key you set in the DG834PN.
8. Click Apply to save your settings.
How to Configure WPA-PSK
Note: Not all wireless adapters support WPA. Furthermore, client software is required on the
client. Windows XP and Windows 2000 with Service Pack 3 do include the client software that
supports WPA. Nevertheless, the wireless adapter hardware and driver must also support WPA.
Consult the product document for your wireless adapter and WPA client software for instructions
on configuring WPA settings.
To configure WPA-PSK, follow these steps:
1. Log in at the default LAN address of http://192.168.0.1, with the default user name of admin
and default password of password, or using whatever LAN address and password you have
set up.
2. Click Wireless Settings in the Setup section of the main menu of the DG834PN.
3. Choose the WPA-PSK radio button. The WPA-PSK menu will open.
4. Enter the pre-shared key in the Passphrase field.
5. Click Apply to save your settings.
Note: When configuring the wireless ADSL modem router from a wireless computer, if
you configure WEP settings, you will lose your wireless connection when you click
Apply. You must then either configure your wireless adapter to match the wireless
ADSL modem router WEP settings or access the wireless ADSL modem router from a
wired computer to make any further changes.
Protecting Your Network 5-1
August 2005
Chapter 5
Protecting Your Network
This chapter describes how to use the basic firewall features of the DG834PN 108 Mbps
RangeMaxTM Wireless ADSL Modem Router to protect your network.
Protecting Access to Your DG834PN 108 Mbps RangeMaxTM
Wireless ADSL Modem Router
For security reasons, the wireless ADSL modem router has its own user name and password. Also,
after a period of inactivity for a set length of time, the administrator login will automatically
disconnect. When prompted, enter admin for the wireless ADSL modem router User Name and
password for the wireless ADSL modem router Password. You can use procedures below to
change the wireless ADSL modem router's password and the amount of time for the
administrator’s login timeout.
Note: The user name and password are not the same as any user name or password your may use
to log in to your Internet connection.
NETGEAR recommends that you change this password to a more secure password. The ideal
password should contain no dictionary words from any language, and should be a mixture of both
upper and lower case letters, numbers, and symbols. Your password can be up to 30 characters.
How to Change the Built-In Password
1. Log in to the wireless ADSL modem router at its default LAN address of http://192.168.0.1
with its default User Name of admin, default password of password, or using whatever
Password and LAN address you have chosen for the wireless ADSL modem router.
Figure 5-1: Log in to the wireless ADSL modem router
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
5-2 Protecting Your Network
August 2005
2. From the Main Menu of the browser interface, under the Maintenance heading, select Set
Password to bring up the menu shown in Figure 5-2.
Figure 5-2: Set Password menu
3. To change the password, first enter the old password, and then enter the new password twice.
4. Click Apply to save your changes.
Note: After changing the password, you will be required to log in again to continue the
configuration. If you have backed up the wireless ADSL modem router settings previously, you
should do a new backup so that the saved settings file includes the new password.
Changing the Administrator Login Timeout
For security, the administrator's login to the wireless ADSL modem router configuration will
timeout after a period of inactivity. To change the login timeout period:
1. In the Set Password menu, type a number in ‘Administrator login times out’ field. The
suggested default value is 5 minutes.
2. Click Apply to save your changes or click Cancel to keep the current period.
Configuring Basic Firewall Services
Basic firewall services you can configure include access blocking and scheduling of firewall
security. These topics are presented below.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Protecting Your Network 5-3
August 2005
Blocking Keywords, Sites, and Services
The wireless ADSL modem router provides a variety of options for blocking Internet based
content and communications services. With its content filtering feature, the DG834PN RangeMax
Wireless ADSL Modem Router prevents objectionable content from reaching your PCs. The
wireless ADSL modem router allows you to control access to Internet content by screening for
keywords within Web addresses. Key content filtering options include:
• Keyword blocking of HTTP traffic.
• Outbound Service Blocking limits access from your LAN to Internet locations or services that
you specify as off-limits.
• Denial of Service (DoS) protection. Automatically detects and thwarts Denial of Service
(DoS) attacks such as Ping of Death, SYN Flood, LAND Attack and IP Spoofing.
• Blocking unwanted traffic from the Internet to your LAN.
The section below explains how to configure your wireless ADSL modem router to perform
these functions.
How to Block Keywords and Sites
The DG834PN RangeMax Wireless ADSL Modem Router allows you to restrict access to Internet
content based on functions such as Web addresses and Web address keywords.
1. Log in to the wireless ADSL modem router at its default LAN address of http://192.168.0.1
with its default User Name of admin, default password of password, or using whatever
Password and LAN address you have chosen for the wireless ADSL modem router.
2. Select the Block Sites link of the Security menu.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
5-4 Protecting Your Network
August 2005
Figure 5-3: Block Sites menu
3. To enable keyword blocking, select one of the following:
• Per Schedule—to turn on keyword blocking according to the settings on the Schedule
page.
• Always—to turn on keyword blocking all of the time, independent of the Schedule page.
4. Enter a keyword or domain in the Keyword box, click Add Keyword, then click Apply.
Some examples of Keyword application follow:
• If the keyword “XXX” is specified, the URL <http://www.badstuff.com/xxx.html> is
blocked.
• If the keyword “.com” is specified, only Web sites with other domain suffixes (such as
.edu or .gov) can be viewed.
• Enter the keyword “.” to block all Internet browsing access.
Up to 32 entries are supported in the Keyword list.
5. To delete a keyword or domain, select it from the list, click Delete Keyword, then click Apply.
6. To specify a trusted user, enter that computer’s IP address in the Trusted IP Address box and
click Apply.
You can specify one trusted user, which is a computer that will be exempt from blocking and
logging. Since the trusted user will be identified by an IP address, you should configure that
computer with a fixed IP address.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Protecting Your Network 5-5
August 2005
7. Click Apply to save your settings.
Firewall Rules
Firewall rules are used to block or allow specific traffic passing through from one side of the router
to the other. Inbound rules (WAN to LAN) restrict access by outsiders to private resources,
selectively allowing only specific outside users to access specific resources. Outbound rules (LAN
to WAN) determine what outside resources local users can have access to.
A firewall has two default rules, one for inbound traffic and one for outbound. The default rules of
the DG834PN are:
• Inbound: Block all access from outside except responses to requests from the LAN side.
• Outbound: Allow all access from the LAN side to the outside.
You can define additional rules that will specify exceptions to the default rules. By adding custom
rules, you can block or allow access based on the service or application, source or destination IP
addresses, and time of day. You can also choose to log traffic that matches or does not match the
rule you have defined.
You can change the order of precedence of rules so that the rule that applies most often will take
effect first. See “Order of Precedence for Rules” on page 5-11 for more details.
To access the rules configuration of the DG834PN, click the Firewall Rules link on the main menu,
then click Add for either an Outbound or Inbound Service.
Figure 5-4: Rules menu
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
5-6 Protecting Your Network
August 2005
• To edit an existing rule, select its button on the left side of the table and click Edit.
• To delete an existing rule, select its button on the left side of the table and click Delete.
• To move an existing rule to a different position in the table, select its button on the left side
of the table and click Move. At the script prompt, enter the number of the desired new
position and click OK.
Inbound Rules (Port Forwarding)
Because the DG834PN uses Network Address Translation (NAT), your network presents only one
IP address to the Internet, and outside users cannot directly address any of your local computers.
However, by defining an inbound rule you can make a local server (for example, a Web server or
game server) visible and available to the Internet. The rule tells the wireless ADSL modem router
to direct inbound traffic for a particular service to one local server based on the destination port
number. This is also known as port forwarding.
Remember that allowing inbound services opens holes in your firewall. Only enable those ports
that are necessary for your network. Following are two application examples of inbound rules:
Inbound Rule Example: A Local Public Web Server
If you host a public Web server on your local network, you can define a rule to allow inbound Web
(HTTP) requests from any outside IP address to the IP address of your Web server at any time of
day. This rule is shown in Figure 5-5:
Note: Some residential broadband ISP accounts do not allow you to run any server
processes (such as a Web or FTP server) from your location. Your ISP may periodically
check for servers and may suspend your account if it discovers any active services at
your location. If you are unsure, refer to the Acceptable Use Policy of your ISP.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Protecting Your Network 5-7
August 2005
Figure 5-5: Rule example: A Local Public Web Server
The parameters are:
•Service
From this list, select the application or service to be allowed or blocked. The list already
displays many common services, but you are not limited to these choices. Use the Services
menu to add any additional services or applications that do not already appear.
• Action
Choose how you want this type of traffic to be handled. You can block or allow always, or
you can choose to block or allow according to the schedule you have defined in the
Schedule menu.
• Send to LAN Server
Enter the IP address of the computer or server on your LAN which will receive the
inbound traffic covered by this rule.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
5-8 Protecting Your Network
August 2005
• WAN Users
These settings determine which packets are covered by the rule, based on their source
(WAN) IP address. Select the desired option:
• Any — all IP addresses are covered by this rule.
• Address range — if this option is selected, you must enter the Start and Finish fields.
• Single address — enter the required address in the Start field.
•Log
You can select whether the traffic will be logged. The choices are:
• Never — no log entries will be made for this service.
• Always — any traffic for this service type will be logged.
• Match — traffic of this type which matches the parameters and action will be logged.
• Not match — traffic of this type which does not match the parameters and action will
be logged.
Inbound Rule Example: Allowing Videoconferencing
If you want to allow incoming videoconferencing to be initiated from a restricted range of outside
IP addresses, such as from a branch office, you can create an inbound rule. In the example shown
in Figure 5-6, CU-SeeMe connections are allowed only from a specified range of external IP
addresses. In this case, we have also specified logging of any incoming CU-SeeMe requests that
do not match the allowed parameters.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Protecting Your Network 5-9
August 2005
Figure 5-6: Rule example: Videoconference from Restricted Addresses
Considerations for Inbound Rules
• If your external IP address is assigned dynamically by your ISP, the IP address may change
periodically as the DHCP lease expires. Consider using the Dynamic DNS feature in the
Advanced menu so that external users can always find your network.
• If the IP address of the local server computer is assigned by DHCP, it may change when the
computer is rebooted. To avoid this, use the Reserved IP address feature in the LAN IP menu
to keep the computer’s IP address constant.
• Local computers must access the local server using the computer’s local LAN address
(192.168.0.11 in the example in Figure 5-6 above). Attempts by local computers to access the
server using the external WAN IP address will fail.
Outbound Rules (Service Blocking)
The DG834PN allows you to block the use of certain Internet services by computers on your
network. This is called service blocking or port filtering. You can define an outbound rule to block
Internet access from a local computer based on:
• IP address of the local computer (source address)
• IP address of the Internet site being contacted (destination address)
•Time of day
• Type of service being requested (service port number)
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
5-10 Protecting Your Network
August 2005
Following is an application example of outbound rules:
Outbound Rule Example: Blocking Instant Messenger
If you want to block Instant Messenger usage by employees during working hours, you can create
an outbound rule to block that application from any internal IP address to any external address
according to the schedule that you have created in the Schedule menu. You can also have the
wireless ADSL modem router log any attempt to use Instant Messenger during that blocked
period.
Figure 5-7: Rule example: Blocking Instant Messenger
The parameters are:
•Service
From this list, select the application or service to be allowed or blocked. The list already
displays many common services, but you are not limited to these choices. Use the Add
Custom Service feature to add any additional services or applications that do not already
appear.
• Action
Choose how you want this type of traffic to be handled. You can block or allow always, or
you can choose to block or allow according to the schedule you have defined in the
Schedule menu.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Protecting Your Network 5-11
August 2005
• LAN Users
These settings determine which packets are covered by the rule, based on their source
LAN IP address. Select the desired option:
• Any — all IP addresses are covered by this rule.
• Address range — if this option is selected, you must enter the Start and Finish fields.
• Single address — enter the required address in the Start field.
• WAN Users
These settings determine which packets are covered by the rule, based on their destination
WAN IP address. Select the desired option:
• Any — all IP addresses are covered by this rule.
• Address range —if this option is selected, you must enter the Start and Finish fields.
• Single address — enter the required address in the Start field.
•Log
You can select whether the traffic will be logged. The choices are:
• Never — no log entries will be made for this service.
• Always — any traffic for this service type will be logged.
• Match — traffic of this type that matches the parameters and action will be logged.
• Not match — traffic of this type that does not match the parameters and action will be
logged.
Order of Precedence for Rules
As you define new rules, they are added to the tables in the Rules menu, as shown in Figure 5-8:
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
5-12 Protecting Your Network
August 2005
Figure 5-8: Rules table with examples
For any traffic attempting to pass through the firewall, the packet information is subjected to the
rules in the order shown in the Rules Table, beginning at the top and proceeding to the default rules
at the bottom. In some cases, the order of precedence of two or more rules may be important in
determining the disposition of a packet. The Move button allows you to relocate a defined rule to a
new position in the table.
Services
Services are functions performed by server computers at the request of client computers. For
example, Web servers serve Web pages, time servers serve time and date information, and game
hosts serve data about other players’ moves. When a computer on the Internet sends a request for
service to a server computer, the requested service is identified by a service or port number. This
number appears as the destination port number in the transmitted IP packets. For example, a packet
that is sent with destination port number 80 is an HTTP (Web server) request.
The service numbers for many common protocols are defined by the Internet Engineering Task
Force (IETF) and published in RFC1700, “Assigned Numbers.” Service numbers for other
applications are typically chosen from the range 1024 to 65535 by the authors of the application.
Although the DG834PN already holds a list of many service port numbers, you are not limited to
these choices. Use the procedure below to create your own service definitions.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Protecting Your Network 5-13
August 2005
How to Define Services
1. Log in to the wireless ADSL modem router at its default LAN address of http://192.168.0.1
with its default User Name of admin, default password of password, or using whatever
Password and LAN address you have chosen for the wireless ADSL modem router.
2. Select the Services link of the Security menu to display the Services menu shown in
Figure 5-9:
Figure 5-9: Services menu
• To create a new Service, click the Add Custom Service button.
• To edit an existing Service, select its button on the left side of the table and click Edit
Service.
• To delete an existing Service, select its button on the left side of the table and click Delete
Service.
3. Use the page shown below to define or edit a service.
Figure 5-10: Add Services menu
4. Click Apply to save your changes.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
5-14 Protecting Your Network
August 2005
Setting Times and Scheduling Firewall Services
The DG834PN RangeMax Wireless ADSL Modem Router uses the Network Time Protocol (NTP)
to obtain the current time and date from one of several Network Time Servers on the Internet.
How to Set Your Time Zone
In order to localize the time for your log entries, you must specify your Time Zone:
1. Log in to the wireless ADSL modem router at its default LAN address of http://192.168.0.1
with its default User Name of admin, default password of password, or using whatever
Password and LAN address you have chosen for the wireless ADSL modem router.
2. Select the Schedule link of the Security menu to display menu shown below.
Figure 5-11: Schedule Services menu
3. Select your Time Zone. This setting will be used for the blocking schedule according to your
local time zone and for time-stamping log entries.
Select the Adjust for daylight savings time check box if your time zone is currently in daylight
savings time.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Protecting Your Network 5-15
August 2005
Note: If your region uses Daylight Savings Time, you must manually select Adjust for
Daylight Savings Time on the first day of Daylight Savings Time, and clear it at the end.
Enabling Daylight Savings Time will cause one hour to be added to the standard time.
4. The wireless ADSL modem router has a list of NETGEAR NTP servers. If you would prefer
to use a particular NTP server as the primary server, enter its IP address under Use this NTP
Server.
5. Click Apply to save your settings.
How to Schedule Firewall Services
If you enabled services blocking in the Block Services menu or Port forwarding in the Ports menu,
you can set up a schedule for when blocking occurs or when access is not restricted.
1. Log in to the wireless ADSL modem router at its default LAN address of http://192.168.0.1
with its default User Name of admin, default password of password, or using whatever
Password and LAN address you have chosen for the wireless ADSL modem router.
2. Select the Schedule link of the Security menu to display menu shown above in the Schedule
Services menu.
3. To block Internet services based on a schedule, select Every Day or select one or more days. If
you want to limit access completely for the selected days, select All Day. Otherwise, to limit
access during certain times for the selected days, enter Start Blocking and End Blocking times.
Note: Enter the values in 24-hour time format. For example, 10:30 am would be 10 hours and
30 minutes and 10:30 pm would be 22 hours and 30 minutes. If you set the start time after the
end time, the schedule will be effective through midnight the next day.
4. Click Apply to save your changes.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
5-16 Protecting Your Network
August 2005
Managing Your Network 6-1
August 2005
Chapter 6
Managing Your Network
This chapter describes how to perform network management tasks with your DG834PN 108 Mbps
RangeMaxTM Wireless ADSL Modem Router.
Backing Up, Restoring, or Erasing Your Settings
The configuration settings of the DG834PN RangeMax Wireless ADSL Modem Router are stored
in a configuration file in the wireless ADSL modem router. This file can be backed up to your
computer, restored, or reverted to factory default settings. The procedures below explain how to do
these tasks.
How to Back Up the Configuration to a File
1. Log in to the wireless ADSL modem router at its default LAN address of http://192.168.0.1
with its default User Name of admin, default password of password, or using whatever User
Name, Password and LAN address you have chosen for the wireless ADSL modem router.
2. From the Maintenance heading of the Main Menu, select the Backup Settings menu as seen in
Figure 6-1.
Figure 6-1: Backup Settings menu
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
6-2 Managing Your Network
August 2005
3. Click Backup to save a copy of the current settings.
4. Store the .cfg file on a computer on your network.
How to Restore the Configuration from a File
1. Log in to the wireless ADSL modem router at its default LAN address of http://192.168.0.1
with its default User Name of admin, default password of password, or using whatever User
Name, Password and LAN address you have chosen for the wireless ADSL modem router.
2. From the Maintenance heading of the Main Menu, select the Settings Backup menu as seen in
Figure 6-1.
3. Enter the full path to the file on your network or click the Browse button to locate the file.
4. When you have located the .cfg file, click the Restore button to upload the file to the wireless
ADSL modem router.
5. The wireless ADSL modem router will then reboot automatically.
How to Erase the Configuration
It is sometimes desirable to restore the wireless ADSL modem router to the factory default
settings. This can be done by using the Erase function.
1. To erase the configuration, from the Maintenance menu Settings Backup link, click the Erase
button on the screen.
2. The wireless ADSL modem router will then reboot automatically.
After an erase, the wireless ADSL modem router's password will be password, the LAN IP
address will be 192.168.0.1, and the wireless ADSL modem router's DHCP client will be
enabled.
Note: To restore the factory default configuration settings without knowing the login password or
IP address, you must use the Default Reset button on the rear panel of the wireless ADSL modem
router. See “DG834PN Rear Panel“ on page 2-9.
Upgrading the Wireless ADSL Modem Router’s Firmware
The software of the DG834PN RangeMax Wireless ADSL Modem Router is stored in FLASH
memory, and can be upgraded as new software is released by NETGEAR.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Managing Your Network 6-3
August 2005
Upgrade files can be downloaded from NETGEAR's Web site. If the upgrade file is compressed
(.ZIP file), you must first extract the binary (.BIN or .IMG) file before uploading it to the wireless
ADSL modem router.
How to Upgrade the Wireless ADSL Modem Router Firmware
Note: NETGEAR recommends that you back up your configuration before doing a firmware
upgrade. After the upgrade is complete, you may need to restore your configuration settings.
1. Download and unzip the new software file from NETGEAR.
The Web browser used to upload new firmware into the wireless ADSL modem router must
support HTTP uploads. NETGEAR recommends using Microsoft Internet Explorer 5.0 or
above, or Netscape Navigator 4.7 or above.
2. Log in to the wireless ADSL modem router at its default LAN address of http://192.168.0.1
with its default User Name of admin, default password of password, or using whatever User
Name, Password and LAN address you have chosen for the wireless ADSL modem router.
3. From the Main Menu of the browser interface, under the Maintenance heading, select the
Wireless ADSL Modem Router Upgrade heading to display the menu shown in Figure 6-2.
Figure 6-2: Wireless ADSL Modem Router Upgrade menu
4. In the Wireless ADSL Modem Router Upgrade menu, click the Browse to locate the binary
(.BIN or .IMG) upgrade file.
5. Click Upload.
Note: When uploading software to the wireless ADSL modem router, it is important not
to interrupt the Web browser by closing the window, clicking a link, or loading a new
page. If the browser is interrupted, it may corrupt the software. When the upload is
complete, your wireless ADSL modem router will automatically restart. The upgrade
process will typically take about one minute. In some cases, you may need to clear the
configuration and reconfigure the wireless ADSL modem router after upgrading.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
6-4 Managing Your Network
August 2005
Network Management Information
The DG834PN provides a variety of status and usage information which is discussed below.
Viewing Wireless ADSL Modem Router Status and Usage
Statistics
From the Main Menu, under Maintenance, select Wireless ADSL Modem Router Status to view
the screen in Figure 6-3.
Figure 6-3: Wireless ADSL Modem Router Status screen
The Wireless ADSL Modem Router Status menu provides status and usage information.
This screen shows the following parameters:
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Managing Your Network 6-5
August 2005
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
6-6 Managing Your Network
August 2005
Table 6-1. Menu 3.2 - Wireless ADSL Modem Router Status Fields
Field Description
Account Name The Host Name assigned to the wireless ADSL modem router in the
Basic Settings menu.
Firmware Version This field displays the wireless ADSL modem router firmware version.
ADSL Port These parameters apply to the Internet (ADSL) port of the wireless ADSL
modem router.
MAC Address This field displays the Ethernet MAC address being used by the Internet
(ADSL) port of the wireless ADSL modem router.
IP Address This field displays the IP address being used by the Internet (ADSL) port
of the wireless ADSL modem router. If no address is shown, the wireless
ADSL modem router cannot connect to the Internet.
DHCP If None, the wireless ADSL modem router will use a fixed IP address on
the ADSL.
If Client, the wireless ADSL modem router will obtain an IP address
dynamically from the ISP.
IP Subnet Mask This field displays the IP Subnet Mask being used by the Internet (ADSL)
port of the wireless ADSL modem router.
Domain Name Server (DNS) This field displays the DNS Server IP addresses being used by the
wireless ADSL modem router. These addresses are usually obtained
dynamically from the ISP.
LAN Port These parameters apply to the Local (ADSL) port of the wireless ADSL
modem router.
MAC Address This field displays the Ethernet MAC address being used by the Local
(LAN) port of the wireless ADSL modem router.
IP Address This field displays the IP address being used by the Local (LAN) port of
the wireless ADSL modem router. The default is 192.168.0.1.
DHCP If OFF, the wireless ADSL modem router will not assign IP addresses to
PCs on the LAN.
If ON, the wireless ADSL modem router will assign IP addresses to PCs
on the LAN.
IP Subnet Mask This field displays the IP Subnet Mask being used by the Local (LAN)
port of the wireless ADSL modem router. The default is 255.255.255.0.
Modem These parameters apply to the Local (WAN) port of the wireless ADSL
modem router.
ADSL Firmware Version The version of the firmware.
Modem Status The connection status of the modem.
Downstream Speed The speed at which the modem is receiving data from the ADSL line.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Managing Your Network 6-7
August 2005
Click the Show Statistics button to display wireless ADSL modem router usage statistics, as
shown in Figure 6-3 below:
Figure 6-4: Wireless ADSL Modem Router Statistics screen
This screen shows the following statistics:.
Upstream Speed The speed at which the modem is transmitting data to the ADSL line.
VPI The Virtual Path Identifier setting.
VCI The Virtual Channel Identifier setting.
Table 6-1. Menu 3.2 - Wireless ADSL Modem Router Status Fields
Field Description
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
6-8 Managing Your Network
August 2005
Click the Connection Status button to display wireless ADSL modem router connection status, as
shown in Figure 6-5 and Figure 6-6.
Table 6-1. Router Statistics Fields
Field Description
WAN, LAN, or
Serial Port
The statistics for the WAN (Internet), LAN (local), and Serial ports. For each port, the
screen displays:
Status The link status of the port.
TxPkts The number of packets transmitted on this port since reset or manual clear.
RxPkts The number of packets received on this port since reset or manual clear.
Collisions The number of collisions on this port since reset or manual clear.
Tx B/s The current line utilization—percentage of current bandwidth used on this port.
Rx B/s The average line utilization for this port.
Up Time The time elapsed since the last power cycle or reset.
Poll Interval Specifies the interval at which the statistics are updated in this window. Click Stop to
freeze the display.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Managing Your Network 6-9
August 2005
Figure 6-5: Connection Status screen for Dynamic IP
Clicking the Renew button updates the status information.
This screen shows the following statistics:
Table 6-1. Connection Status Fields for Dynamic IP
Field Description
IP Address The IP Address assigned to the WAN port by the ADSL Internet Service Provider.
Subnet Mask The Network Mask assigned to the WAN port by the ADSL Internet Service Provider.
Default Gateway The default gateway wireless ADSL modem router assigned to the WAN port by the
ADSL Internet Service Provider.
DHCP Server The DHCP server’s IP address.
DNS Server The DNS server’s IP address.
Lease Obtained Date and time the lease was obtained.
Lease Expires Date and time the lease expires.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
6-10 Managing Your Network
August 2005
An alternate view of the Connection Status screen is shown in Figure 6-6 below:
Figure 6-6: Connection Status screen for PPPoA
Clicking the Renew button updates the status information.
This screen shows the following statistics:
Table 6-1. Connection Status Fields for PPPoA
Field Description
Connection Time The time elapsed since the last connection to the Internet via the ADSL port.
Connecting to
Sender
The connection status.
Negotiation ON or OFF
Authentication ON or OFF
IP Address The IP Address assigned to the WAN port by the ADSL Internet Service Provider.
Network Mask The Network Mask assigned to the WAN port by the ADSL Internet Service Provider.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Managing Your Network 6-11
August 2005
Viewing Attached Devices
The Attached Devices menu contains a table of all IP devices that the wireless ADSL modem
router has discovered on the local network. From the Main Menu of the browser interface, under
the Maintenance heading, select Attached Devices to view the table, shown in Figure 6-7:
Figure 6-7: Attached Devices menu
For each device, the table shows the IP address, Device Name if available, and the Ethernet MAC
address. Note that if the wireless ADSL modem router is rebooted, the table data is lost until the
wireless ADSL modem router rediscovers the devices. To force the wireless ADSL modem router
to look for attached devices, click the Refresh button.
Viewing, Selecting, and Saving Logged Information
The wireless ADSL modem router will log security-related events such as denied incoming service
requests, hacker probes, and administrator logins. If you enabled content filtering in the Block
Sites menu, the Logs page can show you when someone on your network tries to access a blocked
site. If you enabled e-mail notification, you will receive these logs in an e-mail message. If you do
not have e-mail notification enabled, you can view the logs here.
An example of the logs file is shown below.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
6-12 Managing Your Network
August 2005
Figure 6-8: Security Logs menu
Log entries are described in Table 6-1 below:
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Managing Your Network 6-13
August 2005
Log action buttons are described in Table 6-2 below:
Selecting What Information to Log
Besides the standard information listed above, you can choose to log additional information. Those
optional selections are as follows:
• Attempted access to blocked site
• Connections to the Web-based interface of the wireless ADSL modem router
• Wireless ADSL Modem Router operation (start up, get time, etc.)
• Known DoS attacks and Port Scans
Table 6-1. Security Log entry descriptions
Field Description
Date and Time The date and time the log entry was recorded.
Description or
Action
The type of event and what action was taken if any.
Source IP The IP address of the initiating device for this log entry.
Source port and
interface
The service port number of the initiating device, and whether it
originated from the LAN or WAN
Destination The name or IP address of the destination device or Web site.
Destination port
and interface
The service port number of the destination device, and whether
it’s on the LAN or WAN.
Table 6-2. Security Log action buttons
Field Description
Refresh Refresh the log screen.
Clear Log Clear the log entries.
Send Log Email the log immediately.
Apply Apply the current settings.
Cancel Clear the current settings.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
6-14 Managing Your Network
August 2005
Saving Log Files on a Server
You can choose to write the logs to a computer running a syslog program. To activate this feature,
select to Broadcast on Lan or enter the IP address of the server where the Syslog file will be
written.
Examples of Log Messages
Following are examples of log messages. In all cases, the log entry shows the timestamp as: Day,
Year-Month-Date Hour:Minute:Second
Activation and Administration
Tue, 2002-05-21 18:48:39 - NETGEAR activated
[This entry indicates a power-up or reboot with initial time entry.]
Tue, 2002-05-21 18:55:00 - Administrator login successful - IP:192.168.0.2
Thu, 2002-05-21 18:56:58 - Administrator logout - IP:192.168.0.2
[This entry shows an administrator logging in and out from IP address 192.168.0.2.]
Tue, 2002-05-21 19:00:06 - Login screen timed out - IP:192.168.0.2
[This entry shows a time-out of the administrator login.]
Wed, 2002-05-22 22:00:19 - Log emailed
[This entry shows when the log was emailed.]
Dropped Packets
Wed, 2002-05-22 07:15:15 - TCP packet dropped - Source:64.12.47.28,4787,WAN -
Destination:134.177.0.11,21,LAN - [Inbound Default rule match]
Sun, 2002-05-22 12:50:33 - UDP packet dropped - Source:64.12.47.28,10714,WAN -
Destination:134.177.0.11,6970,LAN - [Inbound Default rule match]
Sun, 2002-05-22 21:02:53 - ICMP packet dropped - Source:64.12.47.28,0,WAN -
Destination:134.177.0.11,0,LAN - [Inbound Default rule match]
[These entries show an inbound FTP (port 21) packet, User Datagram Protocol (UDP) packet
(port 6970), and Internet Control Message Protocol (ICMP) packet (port 0) being dropped as a
result of the default inbound rule, which states that all inbound packets are denied.]
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Managing Your Network 6-15
August 2005
Enabling Security Event E-mail Notification
In order to receive logs and alerts by e-mail, you must provide your e-mail information in the
E-mail subheading:
Figure 6-9: E-mail menu
•Turn e-mail notification on. Select this check box if you want to receive e-mail logs and
alerts from the wireless ADSL modem router.
•Send alerts and logs via email. Enter the name or IP address of your ISP’s outgoing (SMTP)
mail server (such as mail.myISP.com). You may be able to find this information in the
configuration menu of your e-mail program. Enter the e-mail address to which logs and alerts
are sent. This e-mail address will also be used as the From address. If you leave this box blank,
log and alert messages will not be sent via e-mail.
•Send alert immediately. Select the corresponding check box if you would like immediate
notification of a significant security event, such as a known attack, port scan, or attempted
access to a blocked site.
•Send logs according to this schedule. Specifies how often to send the logs: Hourly, Daily,
Weekly, or When Full.
– Day for sending log
Specifies which day of the week to send the log. Relevant when the log is sent weekly or
daily.
– Time for sending log
Specifies the time of day to send the log. Relevant when the log is sent daily or weekly.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
6-16 Managing Your Network
August 2005
If the Weekly, Daily or Hourly option is selected and the log fills up before the specified
period, the log is automatically e-mailed to the specified e-mail address. After the log is sent, it
is cleared from the wireless ADSL modem router’s memory. If the wireless ADSL modem
router cannot e-mail the log file, the log buffer may fill up. In this case, the wireless ADSL
modem router overwrites the log and discards its contents.
Running Diagnostic Utilities and Rebooting the Wireless
ADSL Modem Router
The DG834PN RangeMax Wireless ADSL Modem Router has a diagnostics feature. You can use
the diagnostics menu to perform the following functions from the wireless ADSL modem router:
• Ping an IP Address to test connectivity to see if you can reach a remote host.
• Perform a DNS Lookup to test if an Internet name resolves to an IP address to verify that the
DNS server configuration is working.
• Display the Routing Table to identify what other wireless ADSL modem routers the wireless
ADSL modem router is communicating with.
• Reboot the wireless ADSL modem router to enable new network configurations to take effect
or to clear problems with the wireless ADSL modem router’s network connection.
From the Main Menu of the browser interface, under the Maintenance heading, select the Wireless
ADSL Modem Router Diagnostics heading to display the menu shown in Figure 6-10.
Figure 6-10: Diagnostics menu
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Managing Your Network 6-17
August 2005
Enabling Remote Management
Using the Remote Management page, you can allow a user or users on the Internet to configure,
upgrade and check the status of your DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem
Router.
Configuring Remote Management
1. Log in to the wireless ADSL modem router at its default LAN address of http://192.168.0.1
with its default User Name of admin, default password of password, or using whatever User
Name, Password and LAN address you have chosen for the wireless ADSL modem router.
2. From the Advanced section of the main menu, select the Remote Management link.
3. Select the Turn Remote Management On check box.
4. Specify what external addresses will be allowed to access the wireless ADSL modem router’s
remote management.
For security, restrict access to as few external IP addresses as practical:
• To allow access from any IP address on the Internet, select Everyone.
• To allow access from a range of IP addresses on the Internet, select IP address range.
Enter a beginning and ending IP address to define the allowed range.
• To allow access from a single IP address on the Internet, select Only this Computer.
Enter the IP address that will be allowed access.
5. Specify the Port Number that will be used for accessing the management interface.
Web browser access normally uses the standard HTTP service port 80. For greater security,
you can change the remote management Web interface to a custom port by entering that
number in the box provided. Choose a number between 1024 and 65535, but do not use the
number of any common service port. The default is 8080, which is a common alternate for
HTTP.
6. Click Apply to have your changes take effect.
Note: Be sure to change the wireless ADSL modem router's default password to a very
secure password. The ideal password should contain no dictionary words from any
language, and should be a mixture of letters (both upper and lower case), numbers, and
symbols. Your password can be up to 30 characters.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
6-18 Managing Your Network
August 2005
When accessing your wireless ADSL modem router from the Internet, you will type your
wireless ADSL modem router's WAN IP address in your browser's Address (in IE) or Location
(in Netscape) box, followed by a colon (:) and the custom port number. For example, if your
external address is 134.177.0.123 and you use port number 8080, enter in your browser:
http://134.177.0.123:8080
Note: In this case, the http:// must be included in the address.
Advanced Configuration 7-1
August 2005
Chapter 7
Advanced Configuration
This chapter describes how to configure the advanced features of your DG834PN 108 Mbps
RangeMaxTM Wireless ADSL Modem Router.
Configuring Advanced Security
The DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router provides a variety of
advanced features, such as:
• Setting up a Demilitarized Zone (DMZ) Server
• Connecting Automatically, as Required
• Disabling Port Scan and DOS Protection
• Responding to a Ping on the Internet WAN Port
•MTU Size
• Flexibility on configuring your LAN TCP/IP settings
• Using the Router as a DHCP Server
• Configuring Dynamic DNS
• Configuring Static Routes
These features are discussed below.
Setting Up A Default DMZ Server
The Default DMZ Server feature is helpful when using some online games and videoconferencing
applications that are incompatible with NAT. The wireless ADSL modem router is programmed to
recognize some of these applications and to work properly with them, but there are other
applications that may not function well. In some cases, one local computer can run the application
properly if that computer’s IP address is entered as the Default DMZ Server.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
7-2 Advanced Configuration
August 2005
Incoming traffic from the Internet is normally discarded by the wireless ADSL modem router
unless the traffic is a response to one of your local computers or a service that you have configured
in the Ports menu. Instead of discarding this traffic, you can have it forwarded to one computer on
your network. This computer is called the Default DMZ Server.
How to Configure a Default DMZ Server
To assign a computer or server to be a Default DMZ server, follow these steps:
1. Log in to the wireless ADSL modem router at its default LAN address of http://192.168.0.1
with its default User Name of admin, default password of password, or using whatever
Password and LAN address you have chosen for the wireless ADSL modem router.
2. From the Main Menu, under Advanced, click the WAN Setup link to view the page shown in
Figure 7-1:
Figure 7-1: WAN Setup Page
3. Select the Default DMZ Server check box.
4. Type the IP address for that server.
5. Click Apply to save your changes.
Note: For security reasons, you should avoid using the Default DMZ Server feature.
When a computer is designated as the Default DMZ Server, it loses much of the
protection of the firewall, and is exposed to many exploits from the Internet. If
compromised, the computer can be used to attack your network.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Advanced Configuration 7-3
August 2005
Connect Automatically, as Required
Normally, this option should be enabled, so that an Internet connection will be made automatically,
whenever Internet-bound traffic is detected. If this causes high connection costs, you can disable
this setting.
If disabled, you must connect manually, using the sub-screen accessed from the "Connection
Status" button on the Status screen.
If you have an "Always on" connection, this setting has no effect.
Disable Port Scan and DOS Protection
The Firewall protects your LAN against Port Scans and Denial of Service (DOS) attacks. This
should be disabled only in special circumstances.
Respond to Ping on Internet WAN Port
If you want the wireless ADSL modem router to respond to a 'ping' from the Internet, select the
‘Respond to Ping on Internet WAN Port’ check box. This should only be used as a diagnostic tool,
since it allows your wireless ADSL modem router to be discovered. Do not select this box unless
you have a specific reason to do so.
MTU Size
The normal MTU (Maximum Transmit Unit) value for most Ethernet networks is 1500 Bytes, or
1492 Bytes for PPPoE connections. For some ISPs you may need to reduce the MTU. But this is
rarely required, and should not be done unless you are sure it is necessary for your ISP connection.
Configuring LAN IP Settings
The LAN IP Setup menu allows configuration of LAN IP services such as DHCP and RIP. These
features can be found under the Advanced heading in the Main Menu of the browser interface.
The wireless ADSL modem router is shipped preconfigured to use private IP addresses on the
LAN side, and to act as a DHCP server. The wireless ADSL modem router’s default LAN IP
configuration is:
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
7-4 Advanced Configuration
August 2005
• LAN IP addresses—192.168.0.1
• Subnet mask—255.255.255.0
These addresses are part of the Internet Engineering Task Force (IETF)-designated private address
range for use in private networks, and should be suitable in most applications. If your network has
a requirement to use a different IP addressing scheme, you can make those changes in this menu.
Figure 7-2: LAN IP Setup Menu
The LAN TCP/IP Setup parameters are:
• IP Address
This is the LAN IP address of the wireless ADSL modem router.
• IP Subnet Mask
This is the LAN Subnet Mask of the wireless ADSL modem router. Combined with the IP
address, the IP Subnet Mask allows a device to know which other addresses are local to it, and
which must be reached through a gateway or wireless ADSL modem router.
• RIP Direction
RIP (Router Information Protocol) allows a wireless ADSL modem router to exchange routing
information with other routers. The RIP Direction selection controls how the Wireless ADSL
Modem Router sends and receives RIP packets. Both is the default.
— When set to Both or Out Only, the wireless ADSL modem router will broadcast its routing
table periodically.
— When set to Both or In Only, it will incorporate the RIP information that it receives.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Advanced Configuration 7-5
August 2005
— When set to None, it will not send any RIP packets and will ignore any RIP packets
received.
• RIP Version
This controls the format and the broadcasting method of the RIP packets that the wireless
ADSL modem router sends. It recognizes both formats when receiving. By default, this is set
for RIP-1.
— RIP-1 is universally supported. RIP-1 is probably adequate for most networks, unless you
have an unusual network setup.
— RIP-2 carries more information. Both RIP-2B and RIP-2M send the routing data in RIP-2
format.
— RIP-2B uses subnet broadcasting.
— RIP-2M uses multicasting.
DHCP
By default, the wireless ADSL modem router will function as a DHCP (Dynamic Host
Configuration Protocol) server, allowing it to assign IP, DNS server, and default gateway addresses
to all computers connected to the wireless ADSL modem router's LAN. The assigned default
gateway address is the LAN address of the router. IP addresses will be assigned to the attached
PCs from a pool of addresses specified in this menu. Each pool address is tested before it is
assigned to avoid duplicate addresses on the LAN.
For most applications, the default DHCP and TCP/IP settings of the router are satisfactory. See “IP
Configuration by DHCP”on page B-9 for an explanation of DHCP and information about how to
assign IP addresses for your network.
Use Router as DHCP server
If another device on your network will be the DHCP server, or if you will manually configure the
network settings of all of your computers, clear the ‘Use router as DHCP server’ check box.
Otherwise, leave it selected.
Note: If you change the LAN IP address of the wireless ADSL modem router while
connected through the browser, you will be disconnected. You must then open a new
connection to the new IP address and log in again.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
7-6 Advanced Configuration
August 2005
Specify the pool of IP addresses to be assigned by setting the Starting IP Address and Ending IP
Address. These addresses should be part of the same IP address subnet as the router’s LAN IP
address. Using the default addressing scheme, you should define a range between 192.168.0.2 and
192.168.0.254, although you may want to save part of the range for devices with fixed addresses.
The router will deliver the following parameters to any LAN device that requests DHCP:
• An IP Address from the range you have defined
• Subnet Mask
• Gateway IP Address is the router’s LAN IP address
• Primary DNS Server, if you entered a Primary DNS address in the Basic Settings menu;
otherwise, the router’s LAN IP address
• Secondary DNS Server, if you entered a Secondary DNS address in the Basic Settings menu
• WINS Server, short for Windows Internet Naming Service Server, determines the IP address
associated with a particular Windows computer. A WINS server records and reports a list of
names and IP address of Windows PCs on its local network. If you connect to a remote
network that contains a WINS server, enter the server’s IP address here. This allows your PCs
to browse the network using the Network Neighborhood feature of Windows.
Reserved IP addresses
When you specify a reserved IP address for a computer on the LAN, that computer will always
receive the same IP address each time it access the router’s DHCP server. Reserved IP addresses
should be assigned to servers that require permanent IP settings.
To reserve an IP address:
1. Click the Add button.
2. In the IP Address box, type the IP address to assign to the computer or server.
Choose an IP address from the router’s LAN subnet, such as 192.168.0.x.
3. Type the MAC Address of the computer or server.
Tip: If the computer is already present on your network, you can copy its MAC address from
the Attached Devices menu and paste it here.
4. Click Apply to enter the reserved address into the table.
Note: The reserved address will not be assigned until the next time the computer contacts the
router's DHCP server. Reboot the computer or access its IP configuration and force a DHCP
release and renew.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Advanced Configuration 7-7
August 2005
To edit or delete a reserved address entry:
1. Click the button next to the reserved address you want to edit or delete.
2. Click Edit or Delete.
How to Configure LAN TCP/IP Settings
1. Log in to the router at its default LAN address of http://192.168.0.1 with its default User Name
of admin, default password of password, or using whatever User Name, Password and LAN
address you have chosen for the router.
2. From the Main Menu, under Advanced, click the LAN IP Setup link to view the menu, shown
in Figure 7-3:
.
Figure 7-3: LAN IP Setup Menu
3. Enter the TCP/IP, DHCP, or Reserved IP parameters.
4. Click Apply to save your changes.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
7-8 Advanced Configuration
August 2005
Configuring Dynamic DNS
If your network has a permanently assigned IP address, you can register a domain name and have
that name linked with your IP address by public Domain Name Servers (DNS). However, if your
Internet account uses a dynamically assigned IP address, you will not know in advance what your
IP address will be, and the address can change frequently. In this case, you can use a commercial
dynamic DNS service that will allow you to register your domain to their IP address, and will
forward traffic directed at your domain to your frequently-changing IP address.
The router contains a client that can connect to a dynamic DNS service provider. To use this
feature, you must select a service provider and obtain an account with them. After you have
configured your account information in the router, whenever your ISP-assigned IP address
changes, your router will automatically contact your dynamic DNS service provider, log in to your
account, and register your new IP address.
How to Configure Dynamic DNS
1. Log in to the router at its default LAN address of http://192.168.0.1 with its default User Name
of admin, default password of password, or using whatever User Name, Password and LAN
address you have chosen for the router.
2. From the Main Menu of the browser interface, under Advanced, select Dynamic DNS to
display the page below.
Figure 7-4: Dynamic DNS menu
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Advanced Configuration 7-9
August 2005
3. Access the Web site of one of the dynamic DNS service providers whose names appear in the
‘Service Provider’ box, and register for an account.
For example, for dyndns.org, go to www.dyndns.org.
4. Select the “Use a dynamic DNS service” check box.
5. Select the name of your dynamic DNS Service Provider.
6. Type the Host Name that your dynamic DNS service provider gave you.
The dynamic DNS service provider may call this the domain name. If your URL is
myName.dyndns.org, then your Host Name is “myName.”
7. Type the User Name for your dynamic DNS account.
8. Type the Password (or key) for your dynamic DNS account.
9. If your dynamic DNS provider allows the use of wildcards in resolving your URL, you can
select the Use wildcards check box to activate this feature.
For example, the wildcard feature will cause *.yourhost.dyndns.org to be aliased to the same
IP address as yourhost.dyndns.org
10. Click Apply to save your configuration.
Using Static Routes
Static Routes provide additional routing information to your router. Under normal circumstances,
the router has adequate routing information after it has been configured for Internet access, and
you do not need to configure additional static routes. You must configure static routes only for
unusual cases such as multiple routers or multiple IP subnets located on your network.
Static Route Example
As an example of when a static route is needed, consider the following case:
• Your primary Internet access is through a cable modem to an ISP.
• You have an ISDN router on your home network for connecting to the company where
you are employed. This router’s address on your LAN is 192.168.0.100.
Note: If your ISP assigns a private WAN IP address such as 192.168.x.x or 10.x.x.x, the
dynamic DNS service will not work because private addresses will not be routed on the
Internet.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
7-10 Advanced Configuration
August 2005
• Your company’s network is 134.177.0.0.
When you first configured your router, two implicit static routes were created. A default route was
created with your ISP as the wireless ADSL modem router, and a second static route was created
to your local network for all 192.168.0.x addresses. With this configuration, if you attempt to
access a device on the 134.177.0.0 network, your router will forward your request to the ISP. The
ISP forwards your request to the company where you are employed, and the request will likely be
denied by the company’s firewall.
In this case you must define a static route, telling your router that 134.177.0.0 should be accessed
through the ISDN router at 192.168.0.100. The static route would look like Figure 7-6.
In this example:
• The Destination IP Address and IP Subnet Mask fields specify that this static route applies to
all 134.177.x.x addresses.
• The Wireless ADSL Modem Router IP Address fields specifies that all traffic for these
addresses should be forwarded to the ISDN router at 192.168.0.100.
• A Metric value of 1 will work since the ISDN router is on the LAN.
This represents the number of routers between your network and the destination. This is a
direct connection so it is set to 1.
• Private is selected only as a precautionary security measure in case RIP is activated.
How to Configure Static Routes
1. Log in to the router at its default LAN address of http://192.168.0.1 with its default User Name
of admin, default password of password, or using whatever User Name, Password and LAN
address you have chosen for the router.
2. From the Main Menu of the browser interface, under Advanced, click Static Routes to view
the Static Routes menu, shown in Figure 7-5.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Advanced Configuration 7-11
August 2005
Figure 7-5: Static Routes Table
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
7-12 Advanced Configuration
August 2005
3. To add or edit a Static Route:
a. Click the Edit button to open the Edit Menu, shown in Figure 7-6.
Figure 7-6: Static Route Entry and Edit Menu
b. Type a route name for this static route in the Route Name box under the table.
This is for identification purpose only.
c. Select Private if you want to limit access to the LAN only.
The static route will not be reported in RIP.
d. Select Active to make this route effective.
e. Type the Destination IP Address of the final destination.
f. Type the IP Subnet Mask for this destination.
If the destination is a single host, type 255.255.255.255.
g. Type the Gateway IP Address, which must be a router on the same LAN segment as the
router.
h. Type a number between 1 and 15 as the Metric value.
This represents the number of routers between your network and the destination. Usually,
a setting of 2 or 3 works, but if this is a direct connection, set it to 1.
4. Click Apply to have the static route entered into the table.
Troubleshooting 8-1
August 2005
Chapter 8
Troubleshooting
This chapter gives information about troubleshooting your DG834PN 108 Mbps RangeMaxTM
Wireless ADSL Modem Router. After each problem description, instructions are provided to help
you diagnose and solve the problem. For the common problems listed, go to the section indicated.
• Is the router on?
• Have I connected the router correctly?
Go to “Basic Functioning” on page 8-1.
• I can’t access the router’s configuration with my browser.
Go to “Troubleshooting the Web Configuration Interface” on page 8-3.
• I’ve configured the router but I can’t access the Internet.
Go to “Troubleshooting the ISP Connection” on page 8-4.
• I can’t remember the router’s configuration password.
• I want to clear the configuration and start over again.
Go to “Restoring the Default Configuration and Password” on page 8-9.
Basic Functioning
After you turn on power to the router, the following sequence of events should occur:
1. When power is first applied, verify that the Power LED is on (see “The Router’s Front Panel”
on page 2-6 for an illustration and explanation of the LEDs).
2. Verify that the Test LED lights within a few seconds, indicating that the self-test procedure is
running.
3. After approximately 10 seconds, verify that:
a. The Test LED is not lit.
b. The LAN port LEDs are lit for any local ports that are connected.
c. The WAN port LED is lit.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
8-2 Troubleshooting
August 2005
If a port’s LED is lit, a link has been established to the connected device. If a LAN port is
connected to a 100 Mbps device, verify that the port’s LED is green. If the port is 10 Mbps, the
LED will be amber.
If any of these conditions does not occur, refer to the appropriate following section.
Power LED Not On
If the Power and other LEDs are off when your router is turned on:
• Make sure that the power cord is properly connected to your router and that the power supply
adapter is properly connected to a functioning power outlet.
• Check that you are using the 12 V DC power adapter supplied by NETGEAR for this product.
If the error persists, you have a hardware problem and should contact technical support.
Test LED Never Turns On or Test LED Stays On
When the router is turned on, the Test LED turns on for about 10 seconds and then turns off. If the
Test LED does not turn on, or if it stays on, there is a fault within the router.
If you experience problems with the Test LED:
• Cycle the power to see if the router recovers and the LED blinks for the correct amount of
time.
If all LEDs including the Test LED are still on one minute after power up:
• Cycle the power to see if the router recovers.
• Clear the router’s configuration to factory defaults. This will set the router’s IP address to
192.168.0.1. This procedure is explained in “Using the Reset button” on page 8-9.
If the error persists, you might have a hardware problem and should contact technical support.
LAN or WAN Port LEDs Not On
If either the LAN LEDs or WAN LED do not light when the Ethernet connection is made, check
the following:
• Make sure that the Ethernet cable connections are secure at the router and at the hub or
workstation.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Troubleshooting 8-3
August 2005
• Make sure that power is turned on to the connected hub or workstation.
• Be sure you are using the correct cable:
— When connecting the router’s WAN ADSL port, use the cable that was supplied with the
DG834PN.
Troubleshooting the Web Configuration Interface
If you are unable to access the router’s Web Configuration interface from a computer on your local
network, check the following:
• If you are using an Ethernet-connected computer, check the Ethernet connection between the
computer and the router as described in the previous section.
• Make sure your computer’s IP address is on the same subnet as the router. If you are using the
recommended addressing scheme, your computer’s address should be in the range of
192.168.0.2 to 192.168.0.254. Refer to “Verifying TCP/IP Properties” on page C-6 or
“Verifying TCP/IP Properties for Macintosh Computers” on page C-17 to find your
computer’s IP address. Follow the instructions in Appendix C to configure your computer.
Note: If your computer’s IP address is shown as 169.254.x.x:
Recent versions of Windows and MacOS will generate and assign an IP address if the
computer cannot reach a DHCP server. These auto-generated addresses are in the range of
169.254.x.x. If your IP address is in this range, check the connection from the computer to the
router and reboot your computer.
• If your router’s IP address was changed and you do not know the current IP address, clear the
router’s configuration to factory defaults. This will set the router’s IP address to 192.168.0.1.
This procedure is explained in “Using the Reset button” on page 8-9.
• Make sure your browser has Java, JavaScript, or ActiveX enabled. If you are using Internet
Explorer, click Refresh to be sure the Java applet is loaded.
• Try quitting the browser and launching it again.
• Make sure you are using the correct login information. The factory default login name is
admin and the password is password. Make sure that CAPS LOCK is off when entering this
information.
If the router does not save changes you have made in the Web Configuration Interface, check the
following:
• When entering configuration settings, be sure to click the APPLY button before moving to
another menu or tab, or your changes are lost.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
8-4 Troubleshooting
August 2005
• Click the Refresh or Reload button in the Web browser. The changes may have occurred, but
the Web browser may be caching the old configuration.
Troubleshooting the ISP Connection
If your router is unable to access the Internet, you should check the ADSL connection, then the
WAN TCP/IP connection.
ADSL link
If your router is unable to access the Internet, you should first determine whether you have an
ADSL link with the service provider. The state of this connection is indicated with the WAN LED.
WAN LED Green or Blinking Green
If your WAN LED is green or blinking green, then you have a good ADSL connection. You can be
confident that the service provider has connected your line correctly and that your wiring is
correct.
WAN LED Blinking Yellow
If your WAN LED is blinking yellow, then your wireless ADSL modem router is attempting to
make an ADSL connection with the service provider. The LED should turn green within several
minutes.
If the WAN LED does not turn green, disconnect all telephones on the line. If this solves the
problem, reconnect the telephones one at a time, being careful to use a microfilter on each
telephone. If the microfilters are connected correctly, you should be able to connect all your
telephones.
If disconnecting telephones does not result in a green WAN LED, there may be a problem with
your wiring. If the telephone company has tested the ADSL signal at your Network Interface
Device (NID), then you may have poor quality wiring in your house.
WAN LED Off
If the WAN LED is off, disconnect all telephones on the line. If this solves the problem, reconnect
the telephones one at a time, being careful to use a microfilter on each telephone. If the microfilters
are connected correctly, you should be able to connect all your telephones.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Troubleshooting 8-5
August 2005
If disconnecting telephones does not result in a green WAN LED the problem may be one of the
following:
• Check that the telephone company has made the connection to your line and tested it.
• Verify that you are connected to the correct telephone line. If you have more than one phone
line, be sure that you are connected to the line with the ADSL service. It may be necessary to
use a swapper if you ADSL signal is on pins 1 and 4 or the RJ-11 jack. The DG834PN
RangeMax Wireless ADSL Modem Router uses pins 2 and 3.
Obtaining a WAN IP Address
If your wireless ADSL modem router is unable to access the internet, and your WAN LED is green
or blinking green, you should determine whether the wireless ADSL modem router is able to
obtain a WAN IP address from the ISP. Unless you have been assigned a static IP address, your
wireless ADSL modem router must request an IP address from the ISP. You can determine whether
the request was successful using the browser interface.
To check the WAN IP address from the browser interface:
1. Launch your browser and select an external site such as www.netgear.com.
2. Access the Main Menu of the wireless ADSL modem router’s configuration at http://
192.168.0.1.
3. Under the Maintenance heading check that an IP address is shown for the WAN Port.
If 0.0.0.0 is shown, your wireless ADSL modem router has not obtained an IP address from
your ISP.
If your router is unable to obtain an IP address from the ISP, the problem may be one of the
following:
• Your ISP may require a Multiplexing Method or Virtual Path Identifier/Virtual Channel
Identifier parameter.
Verify with your ISP the Multiplexing Method and parameter value, and update the router’s
ADSL Settings accordingly.
• Your ISP may require a login program.
Ask your ISP whether they require PPP over Ethernet (PPPoE) or PPP over ATM (PPPOA)
login.
• If you have selected a login program, you may have incorrectly set the Service Name, User
Name and Password. See “Troubleshooting PPPoE or PPPoA”, below.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
8-6 Troubleshooting
August 2005
• Your ISP may check for your computer's host name.
Assign the computer Host Name of your ISP account to the wireless ADSL modem router in
the browser-based Setup Wizard.
• Your ISP only allows one Ethernet MAC address to connect to Internet, and may check for
your computer’s MAC address. In this case:
Inform your ISP that you have bought a new network device, and ask them to use the router’s
MAC address.
OR
Configure your router to spoof your computer’s MAC address. This can be done in the Basic
Settings menu. Refer to “Manually Configuring Your Internet Connection” on page 3-10.
Troubleshooting PPPoE or PPPoA
The PPPoA or PPPoA connection can be debugged as follows:
1. Access the Main Menu of the router at http://192.168.0.1.
2. Under the Maintenance heading, select the Router Status link.
3. Click the Connection Status button.
4. If all of the steps indicate “OK” then your PPPoE or PPPoA connection is up and working.
5. If any of the steps indicates “Failed”, you can attempt to reconnect by clicking “Connect”. The
wireless ADSL modem router will continue to attempt to connect indefinitely.
If you cannot connect after several minutes, you may be using an incorrect Service Name, User
Name or Password. There also may be a provisioning problem with your ISP.
Troubleshooting Internet Browsing
If your wireless ADSL modem router can obtain an IP address but your computer is unable to load
any Web pages from the Internet:
• Your computer may not recognize any DNS server addresses.
Note: Unless you connect manually, the wireless ADSL modem router will not
authenticate using PPPoE or PPPoA until data is transmitted to the network.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Troubleshooting 8-7
August 2005
A DNS server is a host on the Internet that translates Internet names (such as www addresses)
to numeric IP addresses. Typically your ISP will provide the addresses of one or two DNS
servers for your use. If you entered a DNS address during the wireless ADSL modem router’s
configuration, reboot your computer and verify the DNS address as described in “Verifying
TCP/IP Properties” on page C-6. Alternatively, you can configure your computer manually
with DNS addresses, as explained in your operating system documentation.
• Your computer may not have the wireless ADSL modem router configured as its TCP/IP
wireless ADSL modem router.
If your computer obtains its information from the wireless ADSL modem router by DHCP,
reboot the computer and verify the wireless ADSL modem router address as described in
“Verifying TCP/IP Properties” on page C-6.
Troubleshooting a TCP/IP Network Using the Ping Utility
Most TCP/IP terminal devices and routers contain a ping utility that sends an echo request packet
to the designated device. The device then responds with an echo reply. Troubleshooting a TCP/IP
network is made very easy by using the ping utility in your computer.
Testing the LAN Path to Your Router
You can ping the router from your computer to verify that the LAN path to your router is set up
correctly.
To ping the router from a PC running Windows 95 or later:
1. From the Windows toolbar, click the Start button and select Run.
2. In the field provided, type Ping followed by the IP address of the router, as in this example:
ping 192.168.0.1
3. Click OK.
You should see a message like this one:
Pinging <IP address> with 32 bytes of data
If the path is working, you see this message:
Reply from < IP address >: bytes=32 time=NN ms TTL=xxx
If the path is not working, you see this message:
Request timed out
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
8-8 Troubleshooting
August 2005
If the path is not functioning correctly, you could have one of the following problems:
• Wrong physical connections
— Make sure the LAN port LED is on. If the LED is off, follow the instructions in “LAN
or WAN Port LEDs Not On” on page 8-2.
— Check that the corresponding Link LEDs are on for your network interface card and
for the hub ports (if any) that are connected to your workstation and router.
• Wrong network configuration
— Verify that the Ethernet card driver software and TCP/IP software are both installed
and configured on your PC or workstation.
— Verify that the IP address for your router and your workstation are correct and that the
addresses are on the same subnet.
Testing the Path from Your Computer to a Remote Device
After verifying that the LAN path works correctly, test the path from your PC to a remote device.
From the Windows run menu, type:
PING -n 10 <IP address>
where <IP address> is the IP address of a remote device such as your ISP’s DNS server.
If the path is functioning correctly, replies as in the previous section are displayed. If you do not
receive replies:
— Check that your PC has the IP address of your router listed as the default wireless ADSL
modem router. If the IP configuration of your PC is assigned by DHCP, this information
will not be visible in your PC’s Network Control Panel. Verify that the IP address of the
router is listed as the default wireless ADSL modem router as described in “Verifying
TCP/IP Properties” on page C-6.
— Check to see that the network address of your PC (the portion of the IP address specified
by the netmask) is different from the network address of the remote device.
— Check that your cable or DSL modem is connected and functioning.
— If your ISP assigned a host name to your PC, enter that host name as the Account Name in
the Basic Settings menu.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
Troubleshooting 8-9
August 2005
— Your ISP could be rejecting the Ethernet MAC addresses of all but one of your PCs. Many
broadband ISPs restrict access by only allowing traffic from the MAC address of your
broadband modem, but some ISPs additionally restrict access to the MAC address of a
single PC connected to that modem. If this is the case, you must configure your router to
“clone” or “spoof” the MAC address from the authorized PC. Refer to “Manually
Configuring Your Internet Connection” on page 3-10.
Restoring the Default Configuration and Password
This section explains how to restore the factory default configuration settings, changing the
router’s administration password to password and the IP address to 192.168.0.1. You can erase the
current configuration and restore factory defaults in two ways:
• Use the Erase function of the Web Configuration Manager (see “Backing Up, Restoring, or
Erasing Your Settings” on page 6-1).
• Use the Default Reset button on the rear panel of the router. Use this method for cases when
the administration password or IP address is not known.
Using the Reset button
To restore the factory default configuration settings without knowing the administration password
or IP address, you must use the Default Reset button on the rear panel of the router.
1. Press and hold the Default Reset button until the Test LED turns on (about 10 seconds).
2. Release the Default Reset button and wait for the router to reboot.
Problems with Date and Time
The E-mail menu in the Content Filtering section displays the current date and time of day. The
DG834PN RangeMax Wireless ADSL Modem Router uses the Network Time Protocol (NTP) to
obtain the current time from one of several Network Time Servers on the Internet. Each entry in
the log is stamped with the date and time of day. Problems with the date and time function can
include:
• Date shown is January 1, 2000
Cause: The router has not yet successfully reached a Network Time Server. Check that your
Internet access settings are configured correctly. If you have just completed configuring the
router, wait at least five minutes and check the date and time again.
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
8-10 Troubleshooting
August 2005
• Time is off by one hour
Cause: The router does not automatically sense Daylight Savings Time. In the E-mail menu,
check or uncheck the box marked “Adjust for Daylight Savings Time”.
Technical Specifications A-1
August 2005
Appendix A
Technical Specifications
This appendix provides technical specifications for the DG834PN 108 Mbps RangeMaxTM
Wireless ADSL Modem Router.
Network Protocol and Standards Compatibility
Data and Routing Protocols: TCP/IP, RIP-1, RIP-2, DHCP, PPP over Ethernet (PPPoE) or
PPP over ATM (PPPoA), RFC 1483 Bridged or Routed
Ethernet, and RFC 1577 Classical IP over ATM
Power Adapter
North America: 120V, 60 Hz, input
United Kingdom, Australia: 240V, 50 Hz, input
Europe: 230V, 50 Hz, input
Japan: 100V, 50/60 Hz, input
All regions (output): 15 V DC @ 1.0A output, 30W maximum
Physical Specifications
Dimensions: 10" x 6.7" x 1.3"
255 mm x 169 mm x 34 mm
Weight: 1.4 lbs.
0.62 kg
Environmental Specifications
Operating temperature: 0° to 40° C (32º to 104º F)
Operating humidity: 90% maximum relative humidity, noncondensing
Reference Manual for the Model DG834PN 108 Mbps RangeMaxTM Wireless ADSL Modem Router
A-2 Technical Specifications
August 2005
Electromagnetic Emissions
Meets requirements of: FCC Part 15 Class B
VCCI Class B
EN 55 022 (CISPR 22), Class B
Interface Specifications
LAN: 10BASE-T or 100BASE-Tx, RJ-45
WAN: ADSL, RJ-11, pins 2 and 3
T1.413, G.DMT, G.Lite
ITU Annex A (model DG834PN) or B (model DG834PNB)
