Netgear orporated 06100034 NEXT Wireless Notebook Adapter User Manual FullManual
Netgear Incorporated NEXT Wireless Notebook Adapter FullManual
User manual rev
Beta
April 2006
NETGEAR, Inc.
4500 Great America Parkway
Santa Clara, CA 95054 USA
NETGEAR RangeMax NEXT
Wireless Notebook Adapter
WN511B User Manual
ii
v1.0, April 2006
Technical Support
For customer support see http://kbserver.netgear.com/kb_web_files/n10005.asp
NETGEAR, INC. Support Information
Phone: 1-888-NETGEAR, for US & Canada only. For other countries, see your support
information card.
E-mail: support@netgear.com
North American NETGEAR Web site: http://www.netgear.com
Statement of Conditions
In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to
make changes to the products described in this document without notice.
NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit
layout(s) described herein.
© 2006 NETGEAR, Inc. NETGEAR, the NETGEAR logo, The Gear Guy and Everybody's Connecting are
trademarks or registered trademarks of NETGEAR, Inc. in the United States and/or other countries.
Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or
other countries. Other brand and product names are trademarks or registered trademarks of their respective
holders. Information is subject to change without notice. All rights reserved.
Maximum Wireless Signal Rate Derived from IEEE Standard 802.11 Specifications
Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic,
building materials and construction, and network overhead, lower actual data throughput rate.
Safety and Regulatory Notices
FCC Statement
The WN511B has been tested and complies with the specifications for a Class B digital device, pursuant to Part 15 of the
FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment or devices
• Connect the equipment to an outlet other than the receiver’s
• Consult a dealer or an experienced radio/TV technician for assistance
v1.0, April 2006
iii
FCC Caution: Any change or modification to the product not expressly approved by Netgear could void the user’s
authority to operate the device.
FCC RF Radiation Exposure and SAR Statements
SAR Statement
The Netgear WN511B has been tested for body-worn Specific Absorption Rate (SAR) compliance. The FCC has
established detailed SAR requirements and has established that these requirements have been met while installed in host
notebook computer.
RF Exposure Information
The radio module has been evaluated under FCC Bulletin OET 65C (01-01) and found to be compliant to the
requirements as set forth in CFR 47 Sections, 2.1093, and 15.247 (b) (4) addressing RF Exposure from radio frequency
devices. This model meets the applicable government requirements for exposure to radio frequency waves. The highest
SAR level measured for this device was 0.382w/kg.
Canadian Department of Communications Industry Canada (IC) Notice
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Cet appareil numérique de la classe B
est conforme à la norme NMB-003 et CNR-210 du Canada.
“To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from
windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to
licensing.”
“Pour empêcher que cet appareil cause du brouillage au service faisant l’objet d’une licence, il doit être utilisé à
l’intérieur et devrait être placé loin des fenêtres afin de fournir un écran de blindage maximal. Si le matériel (ou son
antenne d’émission) est installé à l’extérieur, il doit faire l’objet d’une licence.”
Europe - EU Declaration of Conformity with Regard to R&TTE Directive 1999/5/EC
A printed copy of the EU Declaration of Conformity certificate for this product is provided in the WN511B product
package.
Èesky
[Czech]
NETGEAR, Inc. tímto prohlašuje, že tento NETGEAR RangeMax™ NEXT Wireless
Notebook Adapter WN511B je ve shodì se základními požadavky a dalšími pøíslušnými
ustanoveními smìrnice 1999/5/ES.
Dansk
[Danish]
Undertegnede NETGEAR, Inc. erklærer herved, at følgende udstyr NETGEAR
RangeMax™ NEXT Wireless Notebook Adapter WN511B overholder de væsentlige krav
og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt NETGEAR, Inc., dass sich das Gerät NETGEAR RangeMax™ NEXT
Wireless Notebook Adapter WN511B in Übereinstimmung mit den grundlegenden
Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG
befindet.
Eesti
[Estonian]
Käesolevaga kinnitab NETGEAR, Inc. seadme NETGEAR RangeMax™ NEXT Wireless
Notebook Adapter WN511B vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud
direktiivist tulenevatele teistele asjakohastele sätetele.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause undesired operation of the device
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with Canada radiation exposure limits set forth for uncontrolled environments. This transmitter
must not be co-located or operating in conjunction with any other antenna or transmitter.
v1.0, April 2006
iv
English Hereby, NETGEAR, Inc., declares that this NETGEAR RangeMax™ NEXT Wireless
Notebook Adapter WN511B is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente NETGEAR, Inc. declara que el NETGEAR RangeMax™
NEXT Wireless Notebook Adapter WN511B cumple con los requisitos esenciales y
cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ NETGEAR, Inc. ∆ΗΛΩΝΕΙ ΟΤΙ NETGEAR RangeMax™ NEXT
Wireless Notebook Adapter WN511B ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩ∆ΕΙΣ
ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente NETGEAR, Inc. déclare que l'appareil NETGEAR RangeMax™ NEXT
Wireless Notebook Adapter WN511B est conforme aux exigences essentielles et aux
autres dispositions pertinentes de la directive 1999/5/CE.
Italiano
[Italian]
Con la presente NETGEAR, Inc. dichiara che questo NETGEAR RangeMax™ NEXT
Wireless Notebook Adapter WN511B è conforme ai requisiti essenziali ed alle altre
disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo NETGEAR, Inc. deklarç, ka NETGEAR RangeMax™ NEXT Wireless Notebook
Adapter WN511B atbilst Direktîvas 1999/5/EK bûtiskajâm prasîbâm un citiem ar to
saistîtajiem noteikumiem.
Lietuviø
[Lithuanian]
Šiuo NETGEAR, Inc. deklaruoja, kad šis NETGEAR RangeMax™ NEXT Wireless
Notebook Adapter WN511B atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos
nuostatas.
Nederlands
[Dutch]
Hierbij verklaart NETGEAR, Inc. dat het toestel NETGEAR RangeMax™ NEXT Wireless
Notebook Adapter WN511B in overeenstemming is met de essentiële eisen en de andere
relevante bepalingen van richtlijn 1999/5/EG.
Malti
[Maltese]
Hawnhekk, NETGEAR, Inc., jiddikjara li dan NETGEAR RangeMax™ NEXT Wireless
Notebook Adapter WN511B jikkonforma mal-tiijiet essenzjali u ma provvedimenti orajn
relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, NETGEAR, Inc. nyilatkozom, hogy a NETGEAR RangeMax™ NEXT Wireless
Notebook Adapter WN511B megfelel a vonatkozó alapvetõ követelményeknek és az
1999/5/EC irányelv egyéb elõírásainak.
Polski [Polish] Niniejszym NETGEAR, Inc. oœwiadcza, ¿e NETGEAR RangeMax™ NEXT Wireless
Notebook Adapter WN511B jest zgodny z zasadniczymi wymogami oraz pozosta³ymi
stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese]
NETGEAR, Inc. declara que este NETGEAR RangeMax™ NEXT Wireless Notebook
Adapter WN511B está conforme com os requisitos essenciais e outras disposições da
Directiva 1999/5/CE.
Slovensko
[Slovenian]
NETGEAR, Inc. izjavlja, da je ta NETGEAR RangeMax™ NEXT Wireless Notebook
Adapter WN511B v skladu z bistvenimi zahtevami in ostalimi relevantnimi doloèili direktive
1999/5/ES.
v1.0, April 2006
v
Product and Publication Details
Slovensky
[Slovak]
NETGEAR, Inc. týmto vyhlasuje, že NETGEAR RangeMax™ NEXT Wireless Notebook
Adapter WN511B spåòa základné požiadavky a všetky príslušné ustanovenia Smernice
1999/5/ES.
Suomi
[Finnish]
NETGEAR, Inc. vakuuttaa täten että NETGEAR RangeMax™ NEXT Wireless Notebook
Adapter WN511B tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä
koskevien direktiivin muiden ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar NETGEAR, Inc. att denna NETGEAR RangeMax™ NEXT Wireless
Notebook Adapter WN511B står I överensstämmelse med de väsentliga egenskapskrav
och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Model Number: WN511B
Publication Date: April 2006
Product Family: Wireless Adapter
Product Name: NETGEAR RangeMax™ NEXT Wireless Notebook Adapter WN511B
Home or Business Product: Home
Language: English
Publication Part Number: Beta 2
v1.0, April 2006
vi
vii
v1.0, April 2006
Contents
Chapter 1
About This Manual
Audience, Scope, and Conventions ...............................................................................1-1
Chapter 2
Basic Setup
A Road Map for “How to Get There From Here” ............................................................2-1
What You Need Before You Begin ..................................................................................2-4
Verify System Requirements ....................................................................................2-5
Observe Wireless Location and Range Guidelines ..................................................2-5
What’s in the Box? ...................................................................................................2-6
Default Wireless Settings .........................................................................................2-6

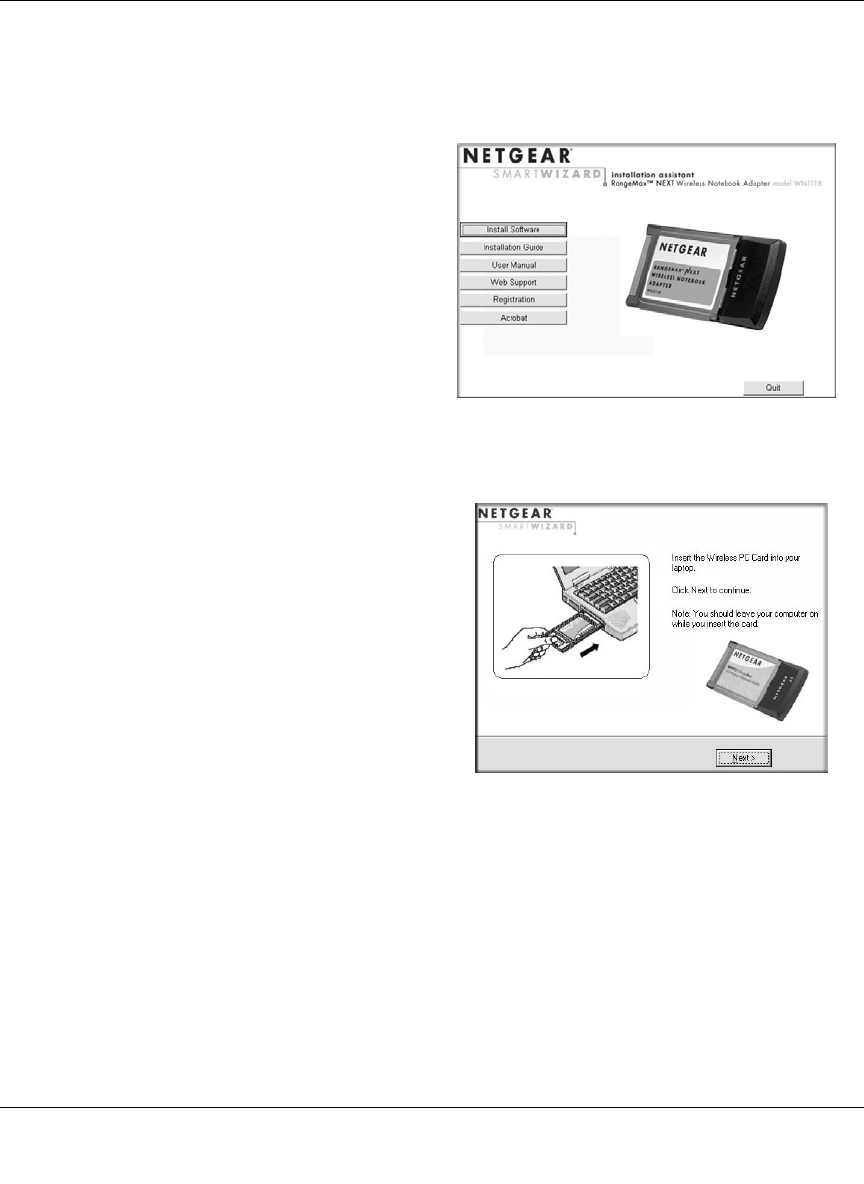

Installation Instructions ...................................................................................................2-6

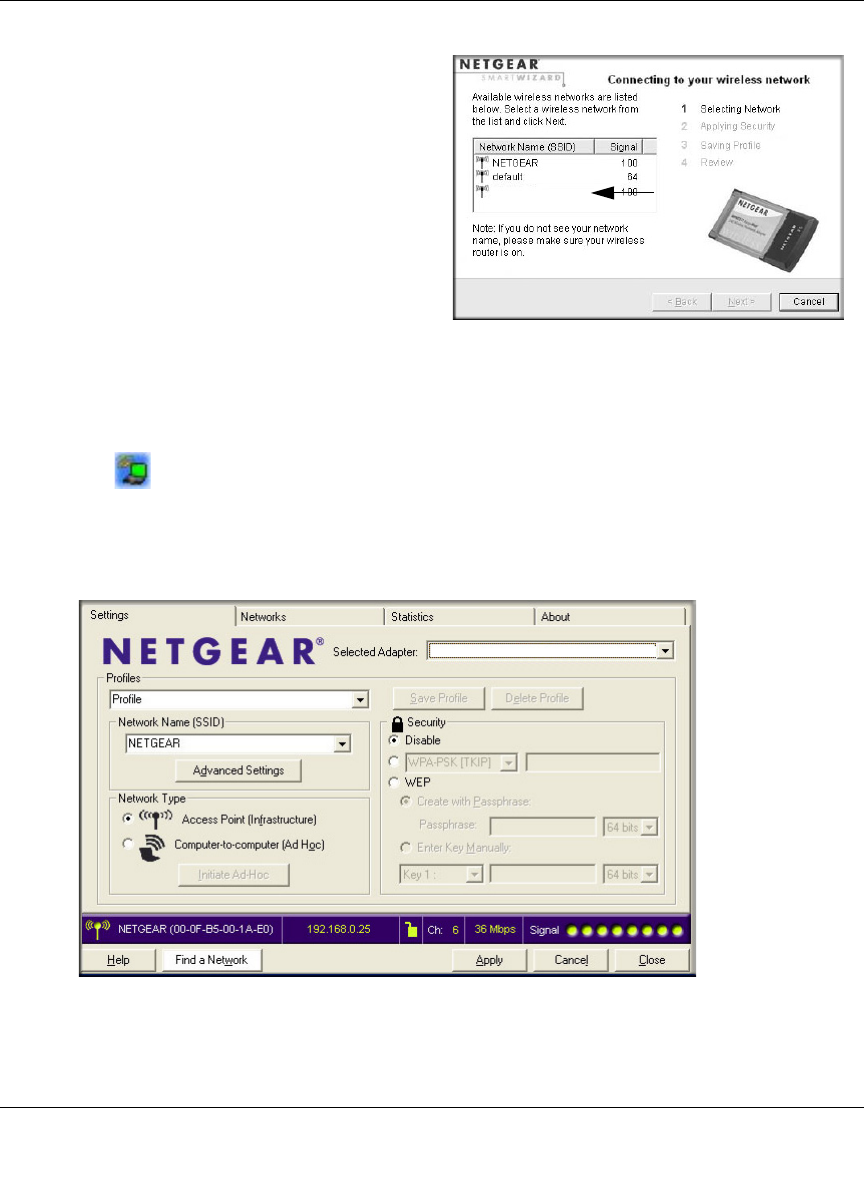

Connecting to Wireless Networks and the Internet ......................................................2-10

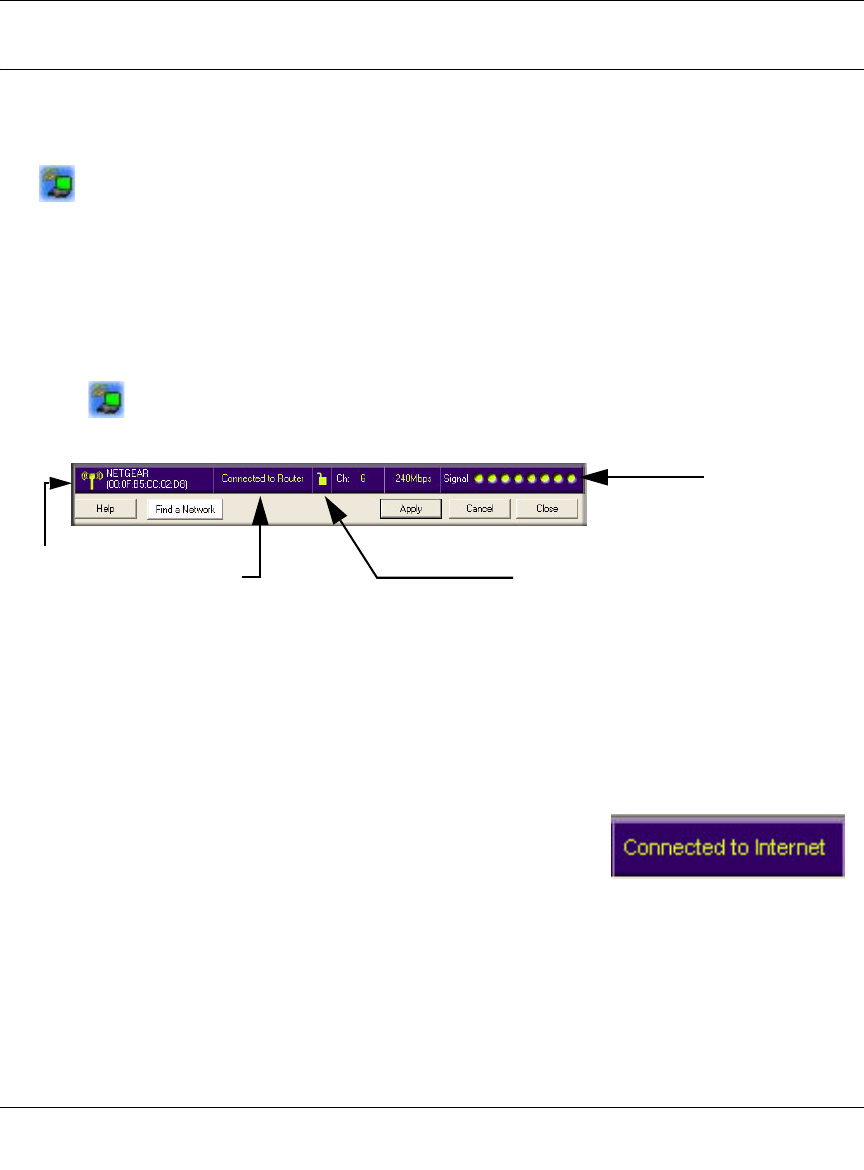

The Smart Wizard Status Bar .................................................................................2-10

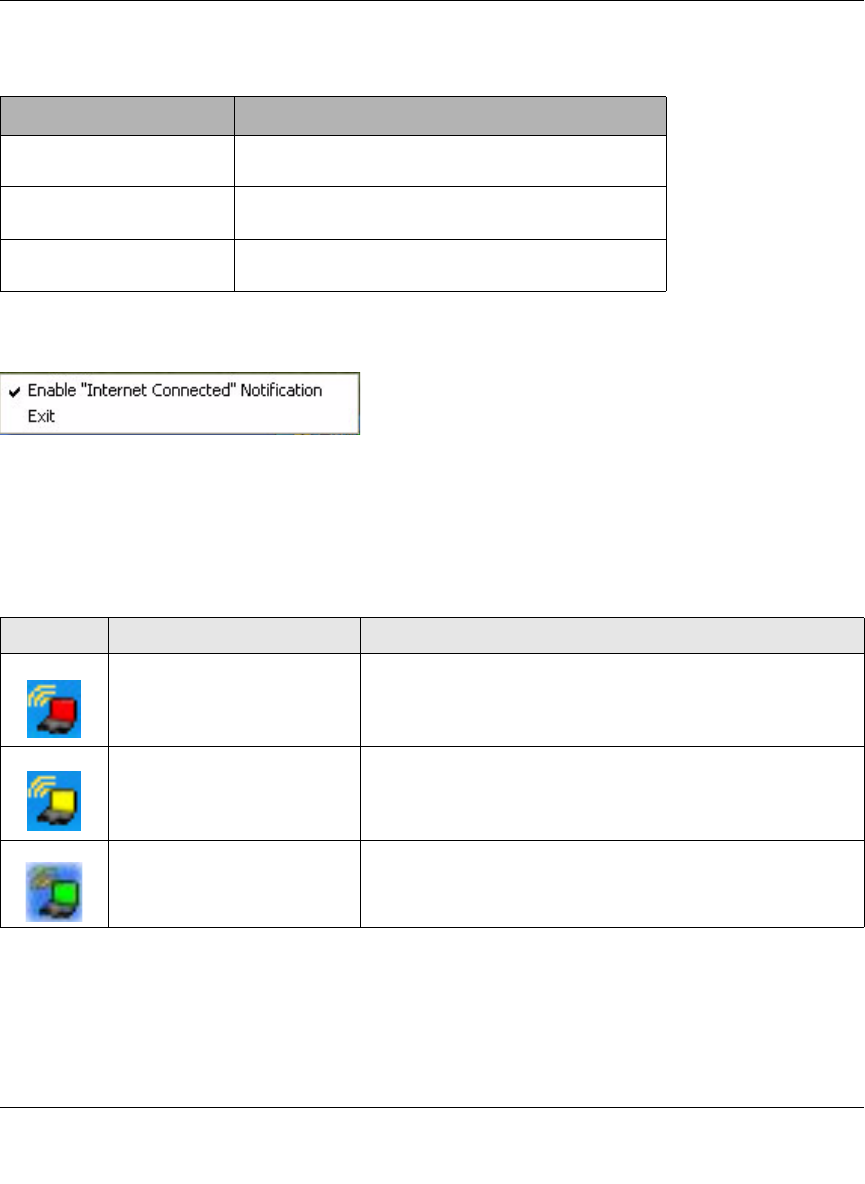

Icon Colors ............................................................................................................. 2-11
Removing the Software ................................................................................................2-12
Upgrading the Wireless Adapter Software ...................................................................2-12
Chapter 3
Network Connections and Wireless Security
Understanding the Smart Wizard ...................................................................................3-1

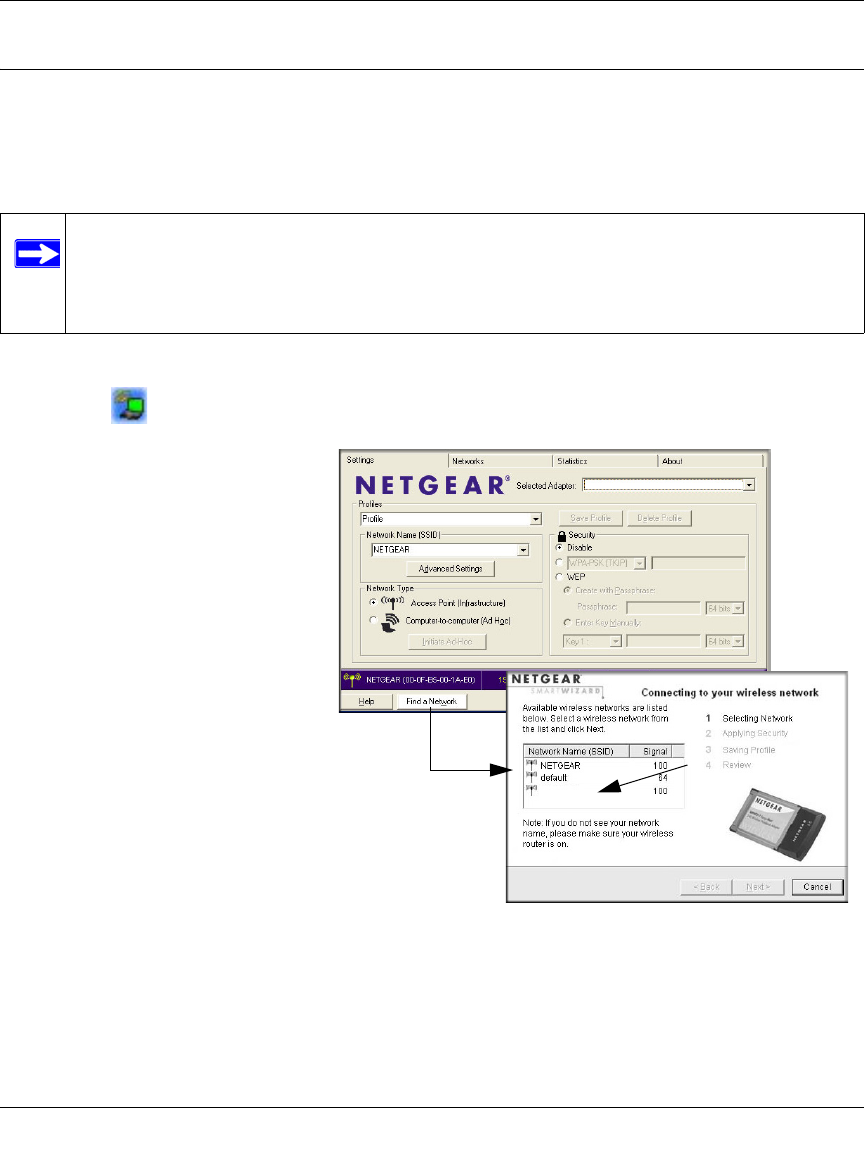

Finding a Network ...........................................................................................................3-2
Profiles ............................................................................................................................3-3
Adding Profiles .........................................................................................................3-3
Setting up a Profile to Connect to an Access Point or Router ........................................3-3

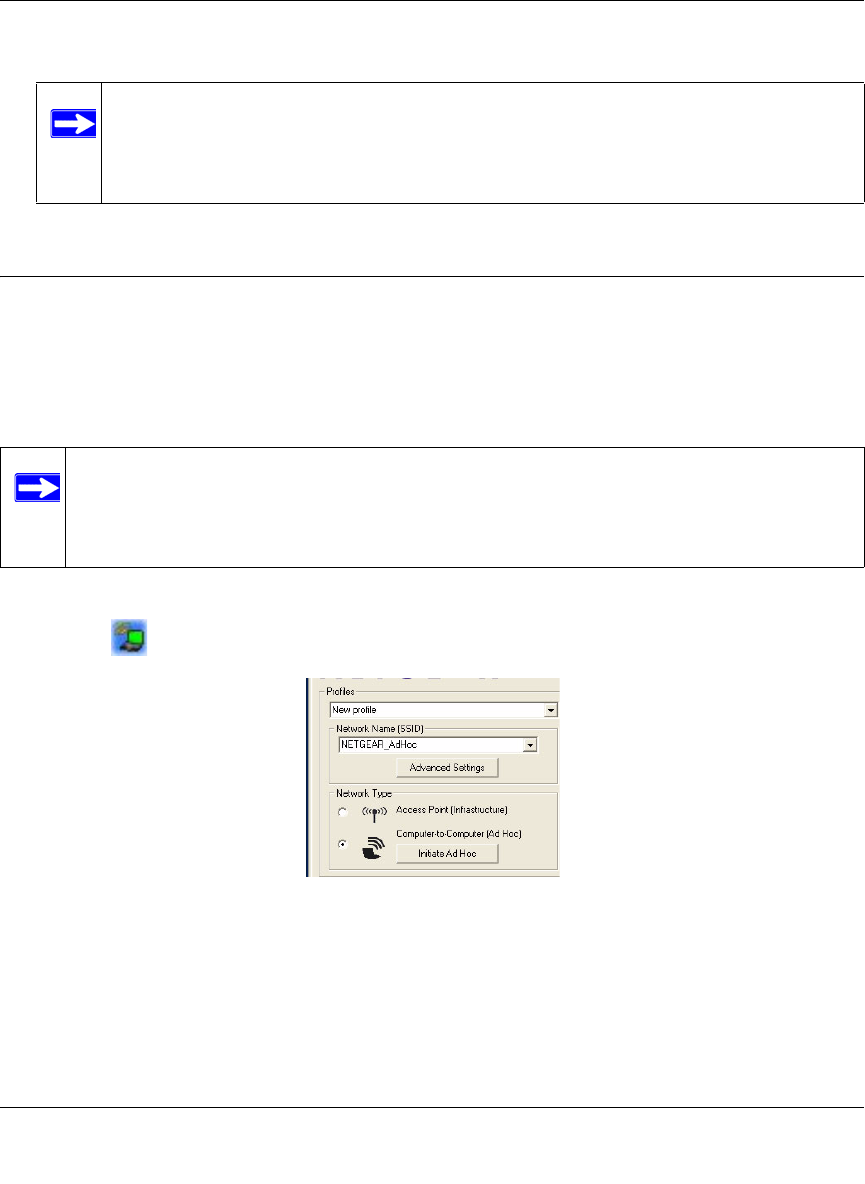

Setting up a Computer-to-Computer (Ad Hoc) Profile ....................................................3-5
Starting a Computer-to-Computer (Ad Hoc) Network Connection ...........................3-7
Wireless Security ............................................................................................................3-8
Know Your Wireless Network Settings .....................................................................3-8
Wireless Network Name (SSID) and Security Settings ..................................................3-9
viii
v1.0, April 2006

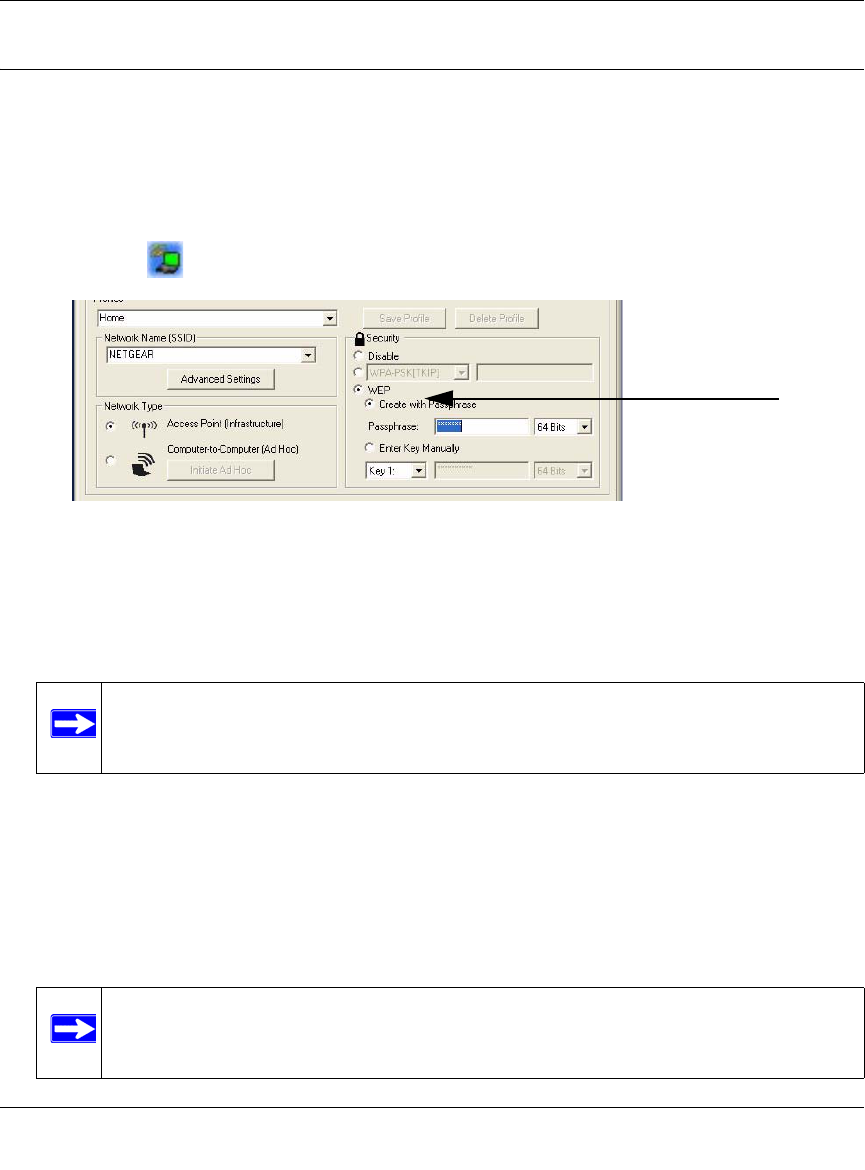

Setting up WEP Encryption Security ............................................................................3-10
Setting up WPA2-PSK Security .................................................................................... 3-11

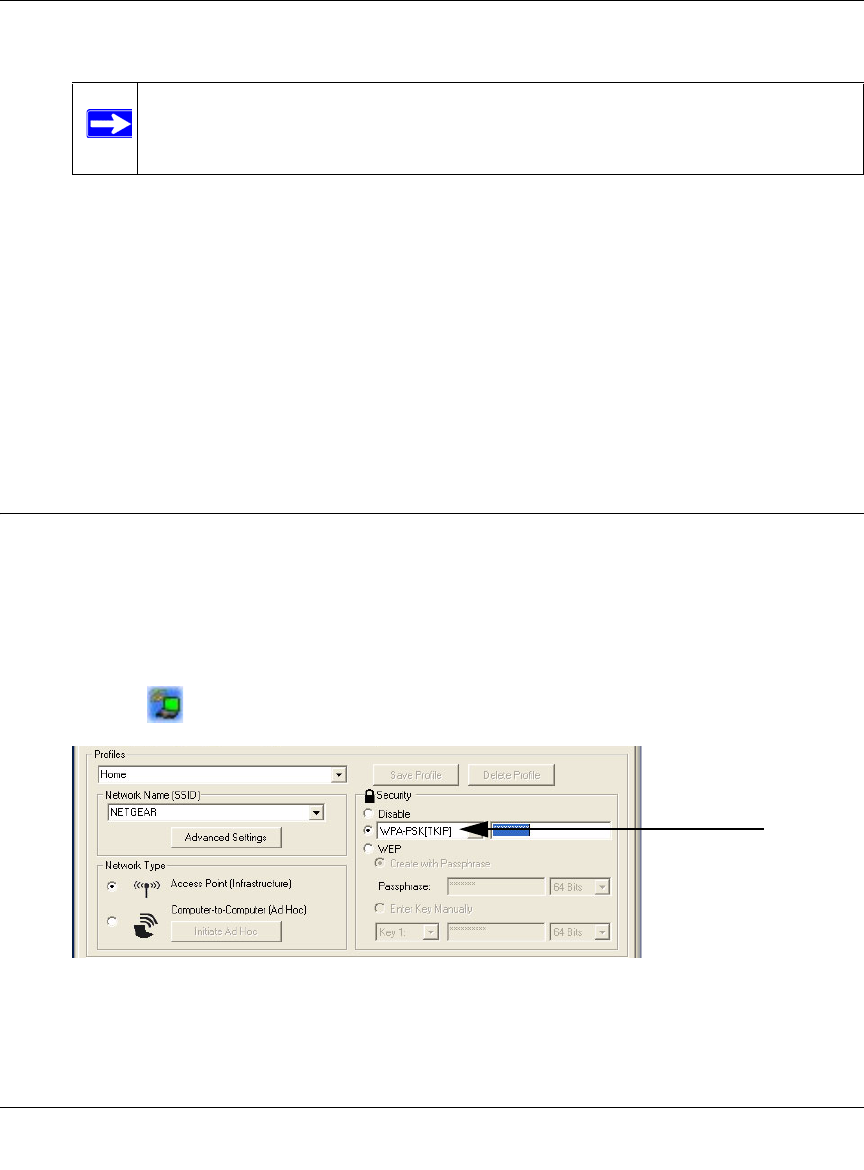

Setting up WPA-PSK Security ......................................................................................3-12
Advanced Settings .................................................................................................3-13

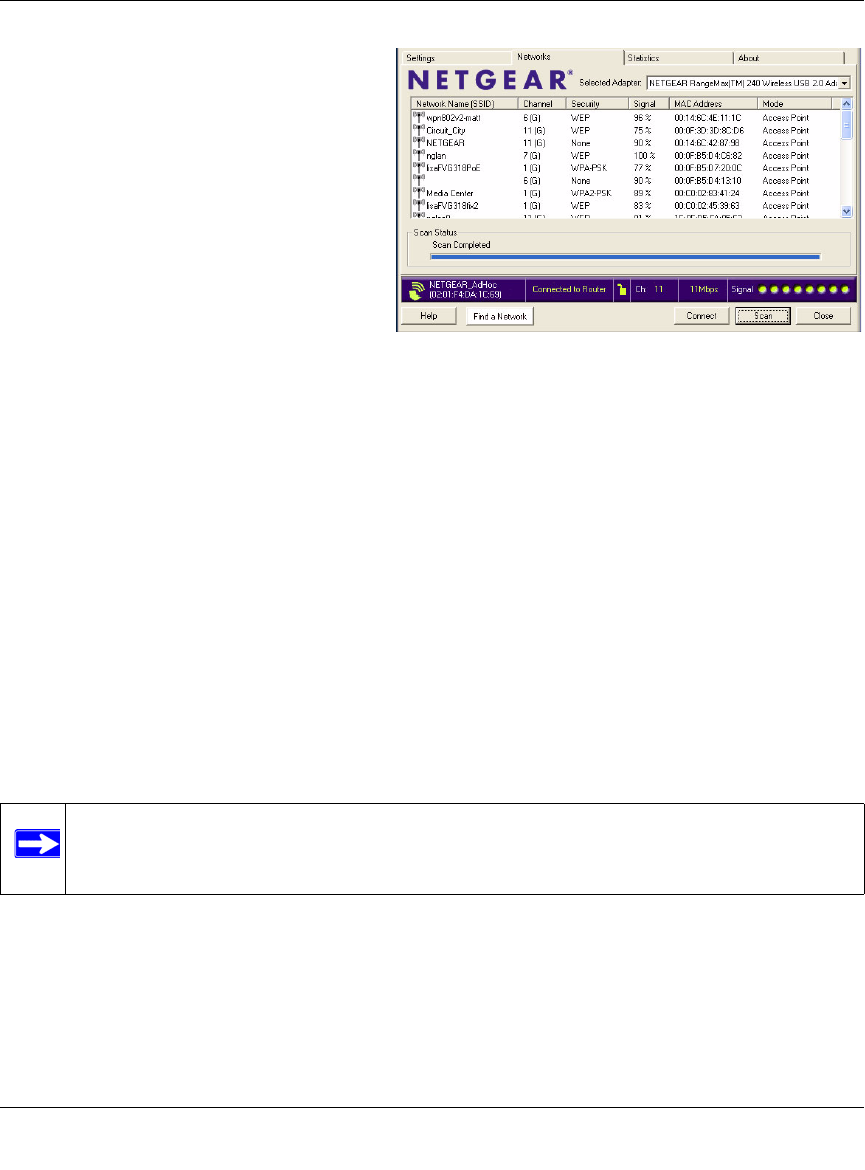

Networks Page .............................................................................................................3-13

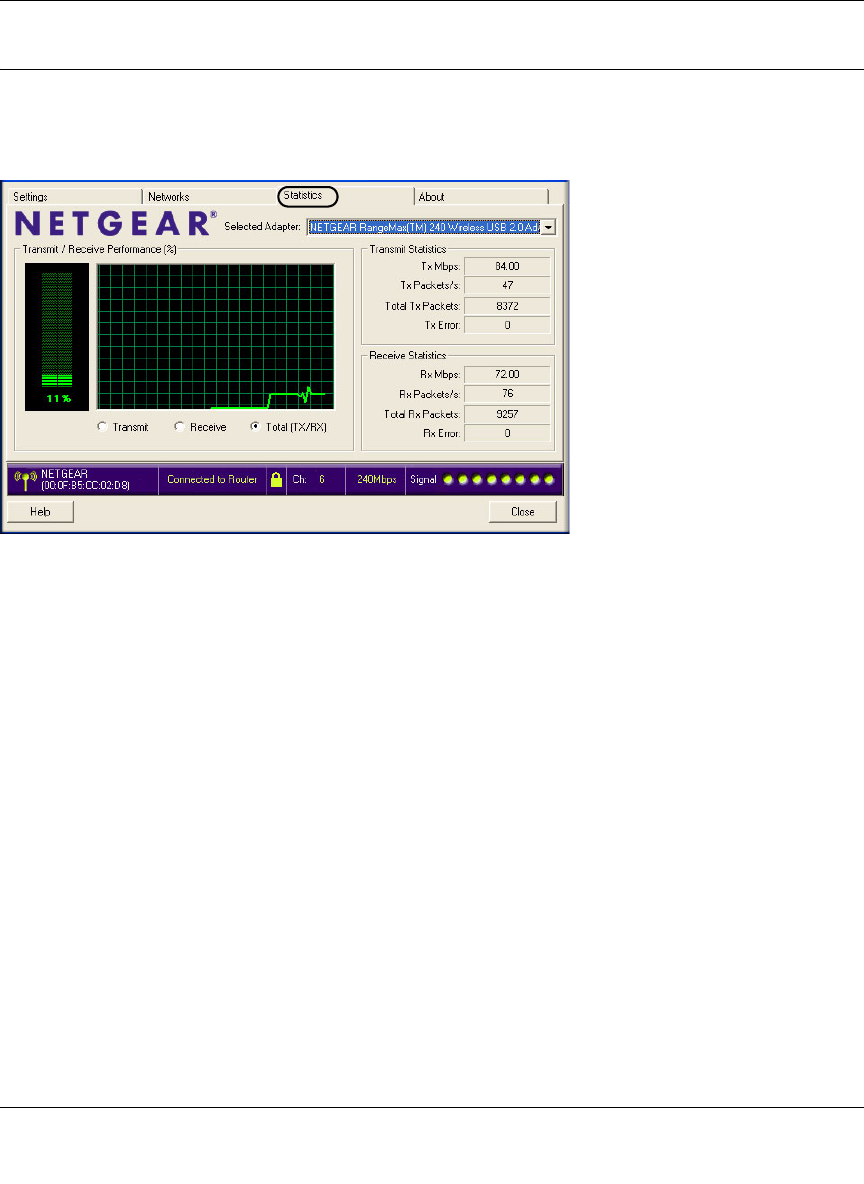

Statistics Page ..............................................................................................................3-15

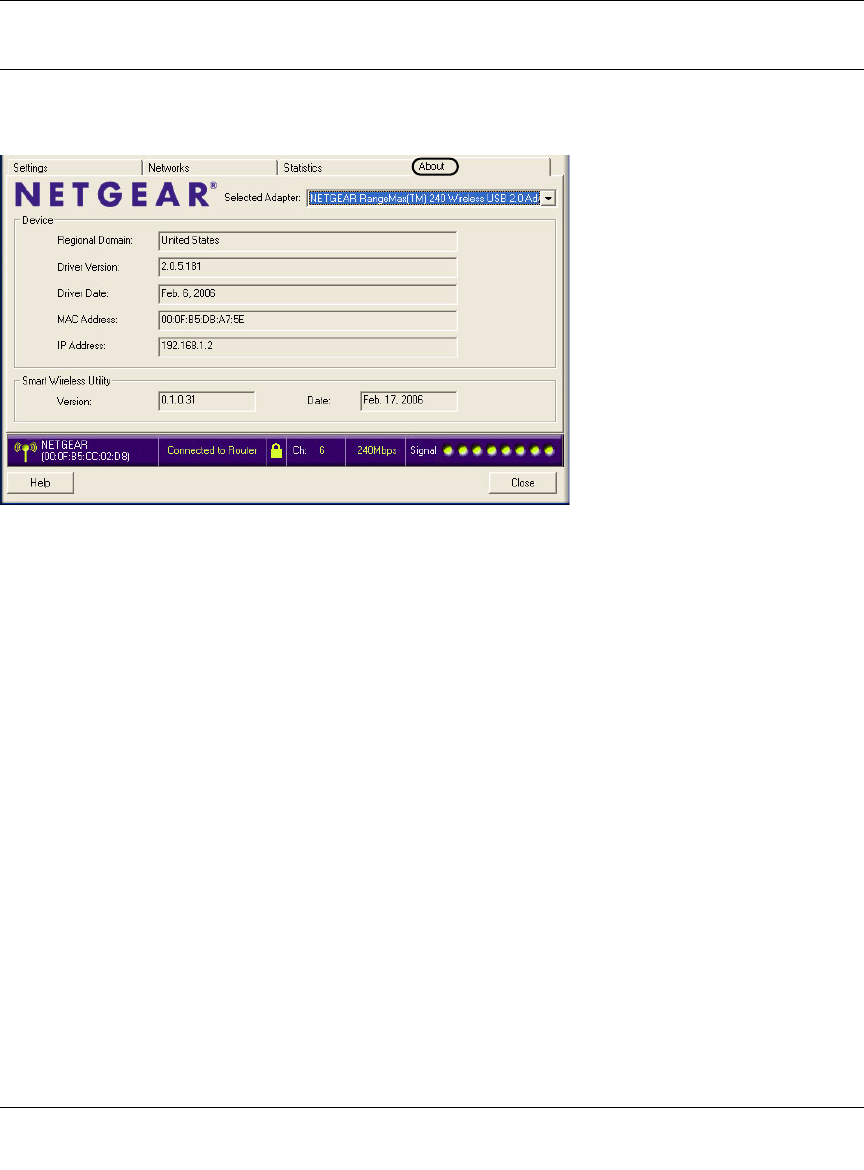

About Page ...................................................................................................................3-16
Chapter 4
Troubleshooting

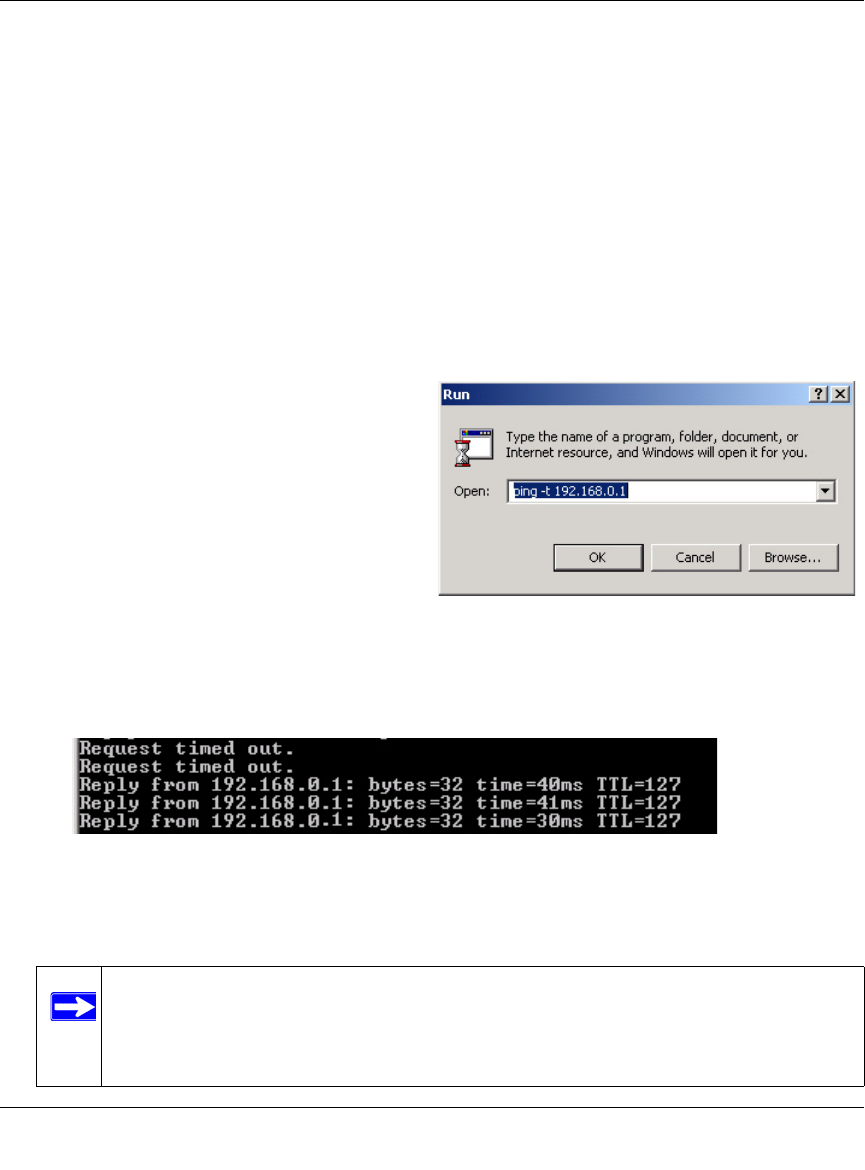

Troubleshooting Tips ......................................................................................................4-1
Frequently Asked Questions ..........................................................................................4-1
Appendix A
Default Configuration Settings and Technical Specifications
Default Configuration Settings ....................................................................................... A-1
Technical Specifications ................................................................................................. A-2
Appendix B
Related Documents
-1
v1.0, April 2006
Chapter 1
About This Manual
Audience, Scope, and Conventions
This manual assumes that you have basic to intermediate computer and Internet skills. However,
tutorial information is provided on the NETGEAR CD, and on the NETGEAR Web site.
This manual uses the following typographical conventions:
This manual uses the following formats to highlight special messages:
This manual is written according to these specifications:
Table 1-1. Typographical conventions
Italics Emphasis
Bold User input
Note: This format is used to highlight information of importance or special interest.
Table 1-2. Manual Specifications
Product Version NETGEAR RangeMax™ NEXT Wireless Notebook Adapter WN511B
Manual Part Number Beta 2
Manual Publication Date April 2006
Note: Product updates in English language tare available on the NETGEAR Web site at
http://kbserver.netgear.com/downloads_support.asp.
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-2
v1.0, April 2006
-1
v1.0, April 2006
Chapter 2
Basic Setup
The NETGEAR RangeMax™ NEXT Wireless Notebook Adapter WN511B lets you connect a PC
computer to wireless networks. It is designed for PC computers running Microsoft Windows. For
information about product features and compatible NETGEAR products, please see the
NETGEAR Web site at http://www.netgear.com.
This chapter describes how to install your Wireless Adapter and set up basic wireless connectivity
on your Wireless Local Area Network (WLAN). Advanced wireless network set up is covered in
Chapter 3, “Network Connections and Wireless Security”.
A Road Map for “How to Get There From Here”
Wireless technology has removed one of the barriers to networking—running wires. Wireless
technology also adds issues such as range, interference, signal quality, and security to the picture.
The table below shows how to complete common tasks with a network: connecting to a wireless
network, using security, connecting to the Internet, exchanging files with other computers, and
using printers in the combined wireless and wired network.
Table 2-1. A Road Map for How to Get There From Here ...
If I Want to... ? What Do I Do? What Is Needed? How Do I?
Connect to a
wireless
network
1. Get the wireless
network name (SSID)
and, if used, the
wireless security
settings.
2. Set up the Wireless
Adapter with the
settings from
Step 1.
1. A wireless network
2. A computer within the
operating range of the
wireless network.
For set up, see “Installation
Instructions” on page 2-6 and
follow the instructions.
For wireless network range,
see “Observe Wireless
Location and Range
Guidelines” on page 2-5.
For wireless networking, see
the Web link to “Wireless
Communications:” in
Appendix B.
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-2
v1.0, April 2006
Protect my
wireless
connection from
snooping,
hacking, or
information
theft.
1. Enable wireless
security for the
wireless network.
2. Set up wireless
security for your
Wireless Adapter to
match the network.
3. Use Windows
security features.
1. A wireless network with
authentication and WEP,
WPA-PSK, or WPA2-PSK
encryption enabled.
2. Wireless networking
equipment such as the
WN511B that supports these
security features.
To use wireless security
features, see “Internet
Networking and TCP/IP
Addressing:” in Appendix B
and set up your WN511B
accordingly.
Note: Secure Internet sites such as banks and online merchants use encryption security built into Web
browsers. Wireless security features that you implement are in addition to those on secure Internet sites.
Connect to the
Internet over my
wireless
network.
1. Activate my wireless
link and verify my
network connection.
2. Open an Internet
browser such as
Internet Explorer or
Netscape Navigator.
1. An Internet service such as
cable modem or DSL.
2. A network with a wireless
router or access point
connected to the cable/DSL
modem.
3. TCP/IP Internet networking
software installed and
configured on your PC
based on the requirements
of the Internet service
provider
4. An Internet browser.
To use your Wireless Adapter
in Infrastructure Mode, see
“Installation Instructions” on
page 2-6.
To set up a Profile, see.
“Profiles” on page 3-3.
For TCP/IP See the Web link
to “Internet Networking and
TCP/IP Addressing:” in
Appendix B.
Table 2-1. A Road Map for How to Get There From Here ...
If I Want to... ? What Do I Do? What Is Needed? How Do I?
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-3
v1.0, April 2006
Exchange files
between a
wirelessly
connected
computer and
other computers
in a combined
wireless and
wired network.
1. Use the Windows
Network
Neighborhood feature
to browse for
computers in the
combined wireless
and wired network.
2. Browse the hard drive
of a computer in the
network to locate the
directory or files you
want to work with.
3. Use the Windows
Explorer functions to
exchange files
between the
computers.
1. The computer that connects
to the wireless network must
be configured with:
• Windows Client and File
and Print Sharing
• The same Windows
Workgroup or Domain
settings as the other
Windows computers in the
combined wireless and
wired network.
2. When Windows prompts for
security access rights such
as login user name/
password, you must enter
them.
3. If Windows ‘peer’ Workgroup
networking is used, the
drive, file system directory,
or file need to be enabled for
sharing.
Windows Domain settings are
usually managed by corporate
computer support groups.
Windows Workgroup settings
are commonly managed by
individuals who set up small
networks in their homes, or
small offices.
For TCP/IP see the Web link
to “Internet Networking and
TCP/IP Addressing:” in
Appendix B.
For assistance with setting up
Windows networking, refer to
the PC Networking Tutorial on
the NETGEAR CD and the
Help information provided in
the Windows system you are
using.
Table 2-1. A Road Map for How to Get There From Here ...
If I Want to... ? What Do I Do? What Is Needed? How Do I?
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-4
v1.0, April 2006
What You Need Before You Begin
You need to verify that your computer meets the minimum system requirements and identify the
wireless network settings of the wireless network where you will connect before you can set up
your wireless notebook adapter and connect.
Use printers in a
combined
wireless and
wired network.
1. Use the Windows
Printers and Fax
features to locate
available printers in
the combined
wireless and wired
network.
2. Use the Windows
Add a Printer wizard
to add access to a
network printer from
the PC you are using
to wirelessly connect
to the network.
3. From the File menu of
an application such
as Microsoft Word,
use the Print Setup
feature to direct your
print output to the
printer in the network.
1. The computer that you are
using to connect to the
wireless network needs to
be configured with:
• Windows Client and File and
Print Sharing
• The same Windows
Workgroup or Domain settings
as the other Windows
computers in the combined
wireless and wired network.
2. Any Windows networking
security access rights such
as login user name/
password that have been
assigned in the Windows
network must be provided
when Windows prompts for
such information.
3. If so-called Windows ‘peer’
networking is being used,
the printer needs to be
enabled for sharing.
Windows Domain settings are
usually managed by corporate
computer support groups.
Windows Workgroup settings
are commonly managed by
individuals who want to set up
small networks in their homes,
or small offices.
For assistance with setting up
Windows networking, refer to
the PC Networking Tutorial on
the NETGEAR CD and the
Help information provided in
the Windows system you are
using.
For help with setting up
printers in Windows, refer to
the Help and Support
information that comes with
the version of the Windows
operating systems you are
using.
Table 2-1. A Road Map for How to Get There From Here ...
If I Want to... ? What Do I Do? What Is Needed? How Do I?
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-5
v1.0, April 2006
Verify System Requirements
Before installing the Wireless Adapter, please make sure that these minimum requirements have
been met. You must have a computer with:
• A Pentium 300 MHz or higher compatible processor with an available Cardbus slot.
•A CD drive.
• 10 MB of free hard disk space.
• Windows 2000 and Windows XP.
Observe Wireless Location and Range Guidelines
Computers can connect over wireless networks indoors at a range which vary significantly based
on the location of the computer with the Wireless Adapter. For best results, avoid potential sources
of interference, such as:
• Large metal surfaces
• Microwave ovens
• 2.4 GHz Cordless phones
In general, wireless devices can communicate through walls. However, if the walls are constructed
with concrete, or have metal, or metal mesh, the effective range will decrease if such materials are
between the devices.
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-6
v1.0, April 2006
What’s in the Box?
The product package should contain the following items:
• NETGEAR RangeMax™ NEXT Wireless Notebook Adapter WN511B
• NETGEAR RangeMax™ NEXT Wireless Notebook Adapter WN511B Installation Guide
•NETGEAR CD, including:
— Driver and Configuration Utility Software
— NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
• Warranty and Support information card
If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the
carton, including the original packing materials, in case you need to return the product.
Default Wireless Settings
If this is a new wireless network installation, use the factory default settings to set up the network
and verify wireless connectivity. If this is an addition to an existing wireless network, you need the
wireless network and wireless security settings that are already defined.
Your Wireless Adapter factory default basic settings are:
• Network Name Service Set Identification (SSID): NETGEAR
• Network Mode (Infrastructure or Ad-hoc): Infrastructure
• Data security WEP, WPA2-PSK, or WPA-PSK encryption: Disabled
The section below provides instructions for setting up the Wireless Adapter for basic wireless
connectivity to an access point.
Installation Instructions
The instructions in this chapter are for an Access Point (Infrastructure) installation. Wireless
security, advanced settings, and Computer-to-Computer (Ad Hoc) instructions are covered in
Chapter 3, “Network Connections and Wireless Security”.
Note: In order for the Wireless Adapter to communicate with a wireless access point
or wireless adapter, all devices must be set up to use the same wireless network
name (SSID).
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-7
v1.0, April 2006
Follow the instructions below to install the Wireless Adapter.
1. First, install the software.
a. Insert the NETGEAR CD in your
computer’s CD drive. If the CD main
page does not appear, double-click
autorun.exe on the CD.
b. Click Install Software. The Smart
Wizard starts.
c. Follow the Wizard steps, and click Next
to continue.
d. When the Installation Complete
message appears, click Next.
Figure 2-1
2. Now, when prompted, insert your wireless
notebook adapter.
Figure 2-2
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-8
v1.0, April 2006
3. For Windows XP users, choose the wizard.
If you use Windows 2000, skip to Step 4,
below.
a. Choose the NETGEAR Smart Wizard
(recommended) or the Windows XP
Configuration utility.
If you choose the Windows XP option,
then you must read the Windows XP
documentation for instructions.
b. Click Next to accept the NETGEAR
Smart Wizard.
Figure 2-3
4. Use the Smart Wizard to set up your
Wireless Adapter
a. When prompted, click Next to let the
wizard help you connect to a network
(recommended).
Figure 2-4
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-9
v1.0, April 2006
c. Follow the Wizard steps for Security (if used) and for saving a Profile.
d. After you have reviewed the settings, click Finish.
The icon appears in the System Tray and on the desktop. The wizard initiates your
wireless connection. It could take up to a minute for your wireless connection to be
established.
The Smart Wizard Settings page opens.
5. Use the status bar to verify your wireless connectivity. For more information about
connecting, see “Connecting to Wireless Networks and the Internet” on page 2-10.
b. Select the wireless network from the
drop-down list, and the wizard records
your choice.
Note: Hidden networks do not
broadcast the Network Name (SSID).
These networks are included in the
drop-down list, but the Network Name
(SSID) is blank.
If the network uses security, then the
Smart Wizard detects it.
Figure 2-5
Figure 2-6
Hidden
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-10
v1.0, April 2006
Connecting to Wireless Networks and the Internet
The Wireless Adapter has indicators that show the status of your connection to a wireless network
and to the Internet:
• Icon: After you install the software, this icon appears on the desktop and in the lower
right of the Windows task bar. It is color coded to show the status of the connection. See “The
Smart Wizard Status Bar” on page 2-10.
•Smart Wizard Status Bar: Clicking on the system tray icon opens the Smart Wizard. The
status bar at the bottom of the page shows details about your wireless and Internet connection.
The Smart Wizard Status Bar
Click the icon to open the Smart Wizard so you can view the status bar. The Smart Wizard
Settings page opens. The status bar is at the bottom of the page.
Connection Status: The color shows the connection status.
Signal Strength: Shows the signal strength of the wireless network. If the signal is poor, then try
moving closer to the wireless access point.
Lock icon: Shows if security is used on the network.
Figure 2-7
Router/Internet Connection Indicator: This shows the progress of
your connection. By default, this feature is on.
Figure 2-8
signal strength
Unlocked: Network does not use security
Locked: Network uses security
Router/Internet
connection
connection indicator
status
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-11
v1.0, April 2006
This connection indicator is useful in isolating a problem. For example, if you are connected to a
router, but not to the Internet, then check the router’s Internet connection.
If you right-click in the System Tray icon, you can disable the Internet notification feature by
clearing check mark on this line. If you do so, then only the IP address is shown.
Icon Colors
The icon is on the desktop and in the Windows System Tray. The System Tray resides on one end
of the taskbar in the Microsoft Windows desktop.
Connection Indicator Description
Connected to Internet
or IP Address
Wireless Internet connection OK.
Connected to Router Wireless connection to router OK but no Internet
connection at router.
___.___.___.___ or
169.254..x.x
Wireless connection to a router OK but problem with
the router. See Chapter 4, “Troubleshooting”.
Figure 2-9
Color Condition Description
Red The wireless notebook
adapter has no connection to
any other wireless node.
The Wireless Adapter can not link to any other wireless node
or the link is lost. Check your configuration or try moving to a
location where the wireless signal quality is better.
Yellow The wireless notebook
adapter has a connection with
another wireless node.
The wireless link is weak. You may need to move to a better
spot, such as closer to the wireless access point. Also, look
for possible interference such as a 2.4 GHz cordless phone or
large metal surface.
Green The wireless notebook
adapter has a connection with
another wireless node.
The wireless notebook adapter has established good
communication with an access point and the signal quality is
strong.
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-12
v1.0, April 2006
Removing the Software
You can remove the Wireless Adapter software in these two ways:
• Navigate the Windows Start menu to the Wireless Notebook Adapter program group, select
the uninstall option, and follow the screen prompts.
• Navigate the Windows Start menu to the Control Panel Add or Remove Program item, select
the Wireless Notebook Adapter option, and follow the screen prompts.
Upgrading the Wireless Adapter Software
Upgrades may be available at the NETGEAR Web site. To install an upgrade, follow these steps.
1. Go to http://kbserver.netgear.com
2. Click the latest version of upgrade.
3. Examine the Release Note. Make sure to read any warnings and Known Problems.
4. Download the upgrade using the link in the Release Note.
5. Follow the Release Note installation instructions.
-1
v1.0, April 2006
Chapter 3
Network Connections and Wireless Security
This chapter explains how to use your Wireless Adapter to connect to your Wireless Local Area
Network (WLAN) and how to set up wireless security for the Wireless Adapter so that it matches
the wireless security settings for your network.
Understanding the Smart Wizard
When you have installed the software from the NETGEAR CD, the icon appears on your
desktop and in the Windows System Tray. The Windows System Tray is located on the Windows
taskbar. You can either double-click this icon on the desktop, or click it in the System Tray at any
time, to use the Smart Wizard. This software automatically restarts when you reboot your
computer.
The Smart Wizard provides a complete and easy to use set of tools to:
• Choose the network that you want to use.
• Configure wireless settings for your wireless USB adapter.
• Monitor wireless network connections.
• Save your settings in profiles.
• Remove or reinstall the wireless adapter software.
The following sections in this chapter explain how to use the Smart Wizard.
Note: These instructions explain how to use the NETGEAR Smart Wizard to change the
Wireless Adapter wireless settings. If you use Windows XP, and chose the Windows XP
configuration utility during installation, then you must disable it now. Open the network
connections from the System Tray icon, click the Properties button, click the Wireless
Networks tab and then clear the “Use Windows to configure my wireless network
settings” check box.
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-2
v1.0, April 2006
Finding a Network
During the Wireless Adapter software installation, the Smart Wizard lists the available networks.
After installation you can use the Find a Network button on the Network tab at any time to view
the available networks and select the one that you want to use.
Follow the steps below to Find a Network.
The Smart Wizard initiates your wireless connection. You can use the Status Bar to verify your
network connection. For more information, see “The Smart Wizard Status Bar” in Chapter 2.
Note: Make sure that you know the security settings for the network that you want to use.
For example, if WEP is used then you need to know the WEP key. If you use secure
networks frequently, set up profiles for each network with the wireless network and
security settings.
1. Use the icon to open the
Smart Wizard.
The Settings tab page opens.
2. Click Find a Network.
3. Select a network from the
drop-down list. If you select a
hidden network then you must
enter the SSID. Click Next.
4. Follow the steps of the wizard
to specify the wireless security
if used, and to create a profile.
5. Review you settings, and click
Finish.
Figure 3-1
Hidden Network
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-3
v1.0, April 2006
Profiles
The WN511B Smart Wizard uses profiles to store all the settings for a particular wireless network.
There are two special profile names: Default and Profile.
Default: The Profile named Default automatically scans for any available network. You cannot
change this profile name.
Profile: If you do not enter a name in the Profile Name box, then the name Profile is used to save
your settings. If you do this more than once then you will be asked if you want to replace the
previous settings stored in Profile.
Adding Profiles
You can store multiple profiles and recall the one which matches the network you want to join.
If you use your computer to connect to different wireless networks, you can create a profile for
each wireless network. Then, you can easily load the profile that has all the settings that you need
to join the network you are using at the time.
There are two types of wireless network profiles that you can set up:
•Access Point (Infrastructure) — connect to an access point or router with the 802.11
infrastructure mode. For example, this mode is used when computers in a house connect to an
access point that is attached to a router, which lets multiple computers share a single cable or
DSL broadband Internet connection.
•Computer-to-Computer (Ad Hoc) — connect directly to another computer with the 802.11
ad hoc mode. For example, Ad Hoc mode is used when two Windows computers are
configured with file and print sharing enabled and you want to exchange files directly between
them.
For more information on 802.11 wireless network modes, see the wireless reference document at:
http://documentation.netgear.com/reference/enu/wireless/index.htm.
Setting up a Profile to Connect to an Access Point or Router
Follow these instructions to set up the Wireless Notebook Adapter to connect to a wireless access
point or router.
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-4
v1.0, April 2006
1. Use the icon to open the Smart Wizard. The Settings page opens.
2. Enter the network settings.
a. In the Network Type section, be sure that Access Point (Infrastructure) is selected.
b. In the Profile box, type the name of the profile.
c. In the Network Name (SSID) field select a network or enter the SSID.
3. Save your settings in a Profile.
a. Click Save Profile.
All the configuration settings are saved in this profile.
b. Click Apply.
c. Click Close to exit the wizard, or Cancel to return to the previous settings.
4. Verify wireless connectivity to your network.
Verify connectivity by using a browser such as Netscape or Internet Explorer to connect to the
Internet, or check for file and printer access on your network.
Figure 3-2
Note: You will not get a wireless network connection unless the network SSID
matches exactly the SSID used by the access point.
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-5
v1.0, April 2006
You can check the status bar in the Smart Wizard for the current connection status.
Setting up a Computer-to-Computer (Ad Hoc) Profile
The Computer-to-Computer setting uses Ad Hoc mode. Ad Hoc mode is an 802.11 networking
framework in which devices or computers communicate directly with each other, without the use
of an access point. For example, this mode is used when two Windows computers are configured
with file and print sharing enabled and you want to exchange files directly between them.
Follow the instructions below to create an Ad Hoc mode profile.
1. Use the icon to open the Smart Wizard. The Settings page opens.
3. Save your settings in a Profile.
Note: If you cannot connect, see Chapter 4, “Troubleshooting. Also, for problems
with accessing network resources, the Windows Client and File and Print Sharing
software might not be installed and configured properly on your computers. Please
refer to “Internet Networking and TCP/IP Addressing:” in Appendix B.
Note: Ad Hoc mode will not work using DHCP settings. Ad Hoc mode requires either
static IP addresses (such as 192.168.0.1) or the IPX protocol. For instructions on setting
up static IP addresses on a Windows PC, refer to the PC Networking Tutorial included on
the NETGEAR CD.
2. Enter the network settings.
a. Select Computer-to-
Computer (Ad Hoc) for
the Network Type.
b. Select or enter the
Network Name (SSID)
for the Ad Hoc network.
c. In the Profile box, type
the name of the profile.
d. Click Apply.
Figure 3-3
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-6
v1.0, April 2006
a. Click Save Profile.
All the configuration settings are saved in this profile.
b. Click Apply.
c. Click Close to exit the Smart Wizard, or Cancel to return to the previous settings.
4. Configure the PC network settings.
a. Configure each PC with either a static IP address or with the IPX protocol.
b. Restart the PCs.
5. Verify wireless connectivity between your peer devices.
You can use the ping utility to verify your wireless connection:
c. This sends a continuous ping to the device with the 192.168.0.1 static IP address. The ping
response should change to “reply.”
At this point the connection is established. For more information about using ping, see
http://kbserver.netgear.com/kb_web_files/N101453.asp.
a. On the Windows taskbar click Start, and
then click Run.
b. Assuming the target PC is configured
with 192.168.0.1 as its IP address, type
ping -t 192.168.0.1 and then click
OK.
Figure 3-4
Figure 3-5
Note: If you cannot connect, see “Removing the Software” in Chapter 2. Also, for
problems with accessing network resources, the Windows Client and File and Print
Sharing software might not be installed and configured properly on your computers.
Please see the link to “Internet Networking and TCP/IP Addressing:” in Appendix B.
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-7
v1.0, April 2006
Starting a Computer-to-Computer (Ad Hoc) Network Connection
1. On the Settings tab page of the Smart Wizard, select or type the Network Name (SSID).
2. Select the Computer-to-Computer (Ad Hoc) network type.
3. Click Initiate Ad Hoc. The Ad Hoc Setting dialog box opens:
4. In the Start Ad Hoc field, choose the wireless standard (802.11b, or 802.11g) for your Ad Hoc
computer-to-computer network.
5. In the Channel field, Automatic should work.
6. Click OK.
The Wireless Adapter automatically selects the highest connection speed.
Note: Ad Hoc is supported in 802.11b and 802.11g only. It is not supported at the
draft 802.11n specification.
Figure 3-6
Note: If there is interference from another nearby wireless device, use the Networks
tab page to see which channels are in use in your area. Then use a different channel.
For example, if your neighbors use channel 6 and the signal strength is strong, then
channels 4-8 would probably be poor choices for you.
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-8
v1.0, April 2006
Wireless Security
Many networks use wireless security to encrypt wireless data communications. If you try to
connect to a network with wireless security the Smart Wizard detects it. Before you can use that
network you must set up the Wireless Adapter with the same SSID, wireless security, and security
settings as that network. If you do not know what these are, contact the person who set up the
network.
The Wireless Adapter supports the following types of wireless security:
• Wi-Fi Protected Access 2 Pre-Shared Key (WPA2-PSK)
• Wi-Fi Protected Access Pre-Shared Key (WPA-PSK)
• Wired Equivalent Privacy (WEP)
For more information about wireless security, see the Web link to “Wireless Communications:” in
Appendix B, or the wireless reference document at:
http://documentation.netgear.com/reference/enu/wireless/index.htm
In addition to the wireless security features, networks should use LAN network security features
such as requiring a user name and password to access the shared resources in the network.
The procedures below explain how to configure the wireless encryption settings of your Wireless
Adapter.
Know Your Wireless Network Settings
You will need to know the settings for your wireless network. The form on the next page is set up
so that you can record this information. You can use either of these two methods to keep track of
these settings:
• Print the form on the next page and fill it out. If you are uncomfortable writing out secure
information, put a “hint” to yourself instead of the actual information. Put the form someplace
where it will be very easy for you to remember, or save two copies and put them in different
places.
• Save the information in a document on your computer. Later you can search for words such as
SSID to locate the information.
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-9
v1.0, April 2006
Wireless Network Name (SSID) and Security Settings
Print this form, fill in the configuration parameters and put it in a safe place for possible future
reference. For an existing wireless network, the person who set up the network will have this
information.
•Network Name (SSID): The Service Set Identification (SSID) identifies the wireless local
area network. Any (First available network) is the default WN511B wireless network name
(SSID). You may customize it using up to 32 alphanumeric characters. Write your customized
wireless network name (SSID) on the line below.
Wireless network name (SSID): ______________________________
•If WEP Authentication is Used.
–WEP Encryption key size. Identify one: 64-bit or 128-bit. The encryption key size must
the wireless network settings.
–Data Encryption (WEP) Keys. There are two methods for creating WEP data encryption
keys. Whichever method you use, record the key values in the spaces below.
•Passphrase method. ______________________________ These characters are case
sensitive. Enter a word or group of printable characters and click the Generate Keys
button. Not all wireless devices support the passphrase method.
•Manual method. These values are not case sensitive. For 64-bit WEP, enter 10 hex
digits (any combination of 0-9 or a-f). For 128-bit WEP, enter 26 hex digits.
Key 1: _____________________________ Key 2: _____________________________
Key 3: _____________________________ Key 4: _____________________________
•If WPA2-PSK or WPA-PSK Authentication is Used.
–Passphrase: ______________________________ These characters are case sensitive.
Enter a word or group of printable characters. When you use WPA-PSK, the other devices
in the network will not connect unless they are set to WPA-PSK as well and are configured
with the correct Passphrase.
Use the procedures below to set up basic security settings in the WN511B.
Note: The SSID in the wireless access point is the SSID you configure in the wireless
USB adapter. For the access point and wireless nodes to communicate with each
other, all must be configured with the same SSID.
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-10
v1.0, April 2006
Setting up WEP Encryption Security
Follow the steps below to configure WEP Encryption Security.
1. Run the Wireless Adapter Smart Wizard.
a. Make sure the software is installed and the Wireless Adapter is into the Cardbus slot in
your computer.
b. Use the icon to open the Smart Wizard. The Settings tab page opens.
2. Configure the Security settings.
a. In the Profile box, select the profile or type in a profile name.
b. In the Network Name (SSID) field select the network, or enter the SSID.
c. In the Security section, select WEP.
3. Select the WEP encryption strength you will use.
The choices are:
• 64-bit WEP data encryption
• 128-bit WEP data encryption
Figure 3-7
Note: You will not get a wireless network connection unless the network SSID
matches exactly what is configured in the access point.
Note: The 128-bit encryption keys require more processing, and slow performance
slightly.
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-11
v1.0, April 2006
4. Select Create with Passphrase and enter the passphrase. The configuration utility will
automatically generate the WEP keys.
If the passphrase method is not available in the other devices, you must manually enter the
keys to match exactly what is in the access point and other 802.11b wireless devices.
5. Save your settings in a Profile.
a. Click Save Profile. All the configuration settings are saved in this profile.
b. Click Apply.
c. Click Close to exit the configuration utility.
Setting up WPA2-PSK Security
Follow the steps below to configure WPA2-PSK Security.
1. Run the Wireless Adapter Smart Wizard.
a. Make sure the software is installed and the Wireless Adapter is fully inserted in a Cardbus
port in your computer.
b. Use the icon to open the Smart Wizard. The Settings tab page opens.
2. Configure the Security settings.
a. In the Profile box, select the profile or type in a profile name.
Note: The characters are case sensitive. Be sure to use the same passphrase for all the
wireless devices in the network.
Figure 3-8
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-12
v1.0, April 2006
b. In the Network Name (SSID) field select the network, or enter the SSID.
c. In the Security section, select WPA2-PSK [AES].
For more information about WPA2-PSK security, see the Web link to “Wireless
Communications:” in Appendix B.
3. Save your settings in a Profile.
a. Click the Save Profile button. All the configuration settings are saved in this profile.
b. Click Apply.
c. Click Close to exit the Smart Wizard.
Setting up WPA-PSK Security
Follow the steps below to configure WPA-PSK Security.
1. Run the Wireless Adapter Smart Wizard.
a. Make sure the software is installed and the Wireless Adapter is fully inserted in a Cardbus
slot in your computer.
b. Use the icon to open the Smart Wizard. The Settings tab page opens.
2. Configure the Security settings.
a. In the Profile box, select the profile or type in a profile name.
Note: You will not get a wireless network connection unless the network SSID
matches exactly what is configured in the access point.
Figure 3-9
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-13
v1.0, April 2006
b. In the Network Name (SSID) field select the network, or enter the SSID.
c. In the Security section, select WPA-PSK [TKIP].
For more information on WPA security, see the Web link to “Wireless Communications:”
in Appendix B.
3. Save your settings in a Profile.
a. Click Save Profile. All the configuration settings are saved in this profile.
b. Click Apply.
c. Click Close to exit the Smart Wizard.
Advanced Settings
Most people do not need to change the Wireless Adapter Advanced Settings. If you cannot connect
without making changes, or if your Internet Service Provider (ISP) or network administrator
recommend changes, then some of these will be important to you.
On the Settings tab click Advanced Settings. Use the Help button to understand these options.
Networks Page
The Networks Page scans and displays all available wireless networks in your area.
1. Use the icon to open the Smart Wizard. The Settings tab page opens.
2. Click the Networks tab.
Note: You will not get a wireless network connection unless the network SSID
matches exactly what is configured in the access point.
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-14
v1.0, April 2006
The screen also shows the following information for each network scanned:
•Network Name (SSID): The name assigned to a wireless network. This is the same as the
SSID or ESSID configuration parameter. Note that as a security measure, some wireless
access points do not broadcast their SSID. In such cases, the SSID field will be blank even
though the rest of the information will still be displayed.
•Channel: The channel determines which operating frequency will be used.
•Security: Identifies whether the wireless network uses WEP or WPA-PSK security settings.
•Signal: Identifies the signal strength of the communications.
•MAC Address: Identifies the hardware address (MAC Address) of the wireless device
broadcasting this information.
•Mode: Identifies the type of wireless network — Access Point (Infrastructure) or Computer-
to-Computer (Ad Hoc).
The following buttons are at the bottom of
the Networks tab:
•Help: Display online help.
•Find a Network: Use the wizard to
help you connect to a network. See
“Finding a Network” on page 3-2.
•Connect: Connect to the network that
you selected.
•Scan: Check for wireless networks.
•Close: Close the window of the Wizard.
Figure 3-10
Note: You can click Scan to see which networks are broadcasting in your area. This
refreshes the page.
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-15
v1.0, April 2006
Statistics Page
The Statistics page provides real time and historical trend information on the data traffic and
performance of your wireless adapter.
•Transmit/Receive Performance (%): A real time graph identifying the total, receive, and
transmit utilization as a percentage the total possible.
•Transmit, Receive, and Total (TxRx): Radio buttons let you select whether to display the
transmit performance, the receive performance, or both in the same graph.
•Transmit Statistics: Identifies transmit megabits per second (Mbps), transmit packets per
second (Tx Packets/s), total transmitted packets, and transmit errors.
•Receive Statistics: Identifies receive megabits per second (Mbps), receive packets per second
(Rx Packets/s), total received packets, and reception errors.
Figure 3-11
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-16
v1.0, April 2006
About Page
The About page displays the current software version information.
The following information is displayed in the About page:
•Regional Domain: This is the region setting for the wireless adapter. The approved channels
for the region are automatically scanned. Governments regulate the channels used for wireless
transmission. Operating the wireless adapter in a different region may violate local laws.
•Driver Version: The wireless adapter driver version.
•Driver Date: The wireless adapter driver date.
•MAC Address: The MAC address of the adapter. The Media Access Control address is a
unique 48-bit hardware address assigned to every network interface card. Some wireless
networks will restrict access based on a list of known MAC addresses. If you are
communicating with such a network, you would have to provide the address shown here to the
network administrator before you would be allowed to connect. Restricting access by MAC
address adds an obstacle against unwanted access to your network. However, if the only
wireless security that your network uses is MAC addressing, your data is easy for hackers to
read.
•IP Address: The IP address assigned to this adapter.
•Smart Wireless Utility: The version and date of the Smart Wizard.
Figure 3-12
-1
v1.0, April 2006
Chapter 4
Troubleshooting
This chapter provides information about troubleshooting your Wireless Adapter. After each
problem description, instructions are given to help you diagnose and solve the problem. For
information about connecting to wireless networks and the Internet, see “Connecting to Wireless
Networks and the Internet” in Chapter 2.
Also, for problems with accessing network resources, the Windows software might not be installed
and configured properly on your computers. Please refer to the link to “Internet Networking and
TCP/IP Addressing:” in Appendix B.
Troubleshooting Tips
Frequently Asked Questions
Use the information below to solve common problems you may encounter. Also, please refer to the
knowledge base on the NETGEAR Web site at http://kbserver.netgear.com. Unless you can solve a
problem right away, go online and upgrade to the latest firmware for your adapter, using the link
above.
Symptom Cause Solution
I can connect to an
access point, but I
cannot connect to
other computers on
the network or the
Internet.
This could be a
physical layer problem
or a network
configuration problem.
Check to make sure that the access point is physically
connected to the Ethernet network.
Make sure that the IP addresses and the Windows networking
parameters are all configured correctly.
Restart the cable or DSL modem, router, access point, and
notebook PC.
Refer to “A Road Map for ‘How to Get There From Here’” on
page 2-2 for additional suggestions.
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-2
v1.0, April 2006
The Smart Wizard keeps asking me to save my settings
This is because you have made changes to the settings and the Smart Wizard is offering you the
chance to save the changes. If you want to avoid these Profile setting prompts, simply click Apply
before you close the Smart Wizard.
Ad Hoc mode is not working correctly
You need to click the Initiate Ad Hoc button before you click Apply. Here is how you start an Ad
Hoc network:
1. Fill in the Network Name (SSID).
2. Select the Computer-to-Computer (Ad Hoc) Network Type.
3. Click Initiate Ad Hoc.
4. Accept the default settings or make your changes and click OK
5. Click Apply.
How to use the wireless configuration utility that comes with Windows XP
During the software installation the wizard prompts you to choose either the NETGEAR Smart
Wizard or the Windows configuration utility. Be sure the Wireless Adapter is inserted in the
Cardbus slot in the computer and follow these instructions to change your selection.
1. Go to Control Panel and select Network Connections.
2. Right click on the connection and select Properties.
3. Click the Wireless Networks tab.
4. Select or clear the WN511B “Use Windows to configure my wireless network settings” check
box.
Did the Wireless Adapter receive a valid IP address from the Wireless Router/AP?
The easiest way is to click the System Tray icon to open the Wireless Adapter Smart Wizard. Then
check the IP address in the About page.
Note: Be sure all computers in your Ad Hoc network are configured with static IP
addresses in the same subnet.
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-3
v1.0, April 2006
I cannot connect to the AP that I want from the Networks browser list.
The access point is available and there is good signal strength. There are a few possibilities:
• If the access point (AP) is WPA-PSK protected, you need the correct WPA-PSK passphrase.
Otherwise, the Wireless Adapter will still be connected to the previous access point and you
will not be able to change to the WPA-PSK access point.
• If the access point is WEP protected (either 64-bit or 128-bit encryption), you will be
prompted to enter the WEP encryption security information.
The Wireless Adapter is not getting an IP address
You probably upgraded your Wireless Adapter software and did not reboot your system.
To get an IP address assigned, you can either restart your computer or choose another access point
to connect to. If there are no additional access points for you to choose from, restart your system
and connect to your desired access point again.
Why do I see no more than 54 Mbps on the status bar?
The Wireless Adapter can operate at 240 Mbps. You are probably connecting to a standard 802.11g
network. If you use the NETGEAR WPNT834 RangeMax™ 240 Wireless Router you will see
network speeds up to 240 Mbps.
If you are connecting to an 802.11b network, the maximum 802.11b speed is 11 Mbps.
Why do I see two Wireless Adapter icons in the System Tray?
If you see two icons in the System Tray at the bottom right corner of the screen, you have an older
software version installed on your system and it needs to be removed. See “Removing the
Software” in Chapter 2 or “Upgrading the Wireless Adapter Software” in Chapter 2.
Note: It does not usually help to shut down the Smart Wizard or disable/enable the
adapter.
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-4
v1.0, April 2006
-1
v1.0, April 2006
Appendix A
Default Configuration Settings and Technical
Specifications
Default Configuration Settings
The following table lists the default settings of your Wireless Adapter.
Feature Description
Smart Wizard Enabled
Wireless
Wireless Communication Enabled
Wireless Network Name (SSID) NETGEAR
Security Disabled
Network Type Infrastructure
Transmission Speed Auto*
*. Maximum wireless signal rate (IEEE Standard 802.11n draft specification). Actual throughput will vary.
Network conditions and environmental factors, including volume of network traffic, building materials and
construction, and network overhead, lower actual data throughput rate.
Country/Region United States (varies by region)
Operating Mode g and b, 270 Mbps
Data Rate 270 Mbps
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-2
v1.0, April 2006
Technical Specifications
This table below describes technical specifications for the NETGEAR RangeMax™ NEXT
Wireless Notebook Adapter WN511B.
Antennas 2 separate PCB internal antennas
Standards 802.11g, 802.11b
Radio Data Rate 1, 2, 5.5, 6, 6.5, 9, 11, 12, 13.5, 18, 19.5, 24, 26, 27, 36, 39, 40, 40.5, 48,
52, 54, 58.5, 65, 72, 80, 81, 84, 96, 104, 108, 117, 120, 121.5, 130, 135,
144, 160, 168, 192, 216, 240, and 270 Mbps
Frequency 2.4GHz to 2.5GHz CCK and OFDM Modulation
Power 3.3V bus powered
Emissions FCC Part 15 Class B, CE, C-Tick
Bus interface Cardbus 5V
Provided drivers Microsoft Windows XP and Windows 2000
Operating Environment Operating temperature: 0 to 45 degree C
Encryption 40-bit (also called 64-bit) and 128-bit WEP data encryption, WPA2-PSK,
and WPA-PSK
Warranty Limited 1-year warranty
-1
v1.0, April 2006
Appendix B
Related Documents
This appendix provides links to reference documents you can use to gain a more complete
understanding of the technologies used in your NETGEAR product.
Document Link
Internet Networking and
TCP/IP Addressing: http://documentation.netgear.com/reference/enu/tcpip/index.htm
Wireless Communications: http://documentation.netgear.com/reference/enu/wireless/index.htm
Preparing a Computer for
Network Access: http://documentation.netgear.com/reference/enu/wsdhcp/index.htm
Virtual Private Networking
(VPN): http://documentation.netgear.com/reference/enu/vpn/index.htm
Glossary: http://documentation.netgear.com/reference/enu/glossary/index.htm
NETGEAR RangeMax NEXT Wireless Notebook Adapter WN511B User Manual
-2
v1.0, April 2006
