Netgear orporated 07100062 RangeMax Next Wireless-N Express Card User Manual FullManual
Netgear Incorporated RangeMax Next Wireless-N Express Card FullManual
User Manual
202-10259-01
April 2007
NETGEAR, Inc.
4500 Great America Parkway
Santa Clara, CA 95054 USA

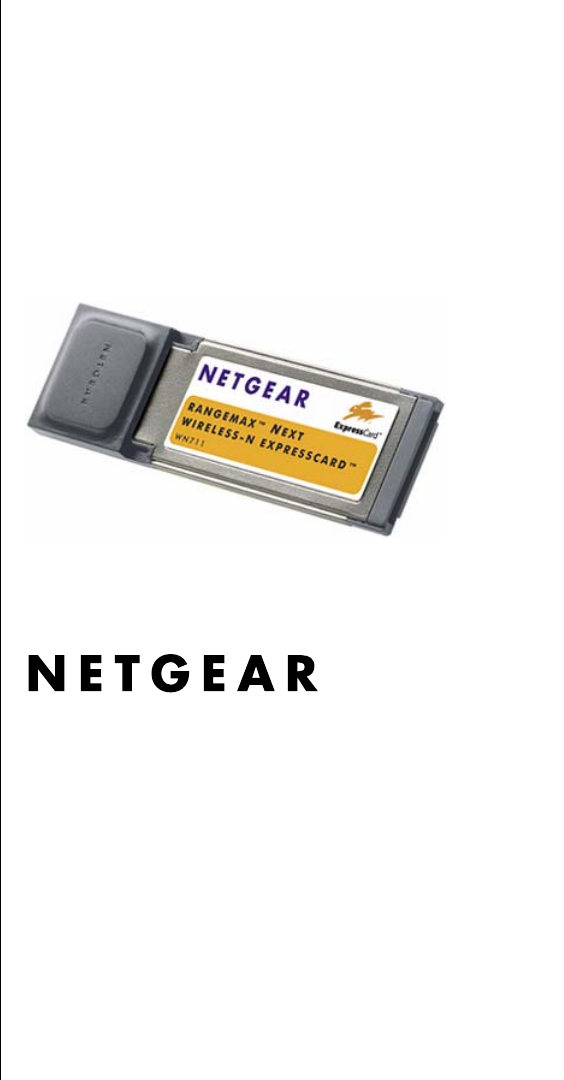

NETGEAR RangeMax Next
Wireless-N Express Card
WN711 User Manual
ii
v1.0, April 2007
Technical Support
See the support information card that shipped with your product. By registering your product at
http://www.netgear.com/register, we can provide you with faster expert technical support and
timely notices of product and software upgrades.
NETGEAR, INC. Support Information
Phone: 1-888-NETGEAR, for US & Canada only. For other countries, see your Support
information card.
E-mail: support@netgear.com
website: http://www.netgear.com
Statement of Conditions
In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to
make changes to the products described in this document without notice. NETGEAR does not assume any liability that
may occur due to the use or application of the product(s) or circuit layout(s) described herein.
© 2007 NETGEAR, Inc. NETGEAR, the NETGEAR logo, The Gear Guy and Everybody's Connecting are trademarks
or registered trademarks of NETGEAR, Inc. in the United States and/or other countries. Microsoft and Windows are
registered trademarks of Microsoft Corporation in the United States and/or other countries. Other brand and product
names are trademarks or registered trademarks of their respective holders. Information is subject to change without
notice. All rights reserved.
Maximum Wireless Signal Rate Derived from IEEE Standard 802.11 Specifications
Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic,
building materials and construction, and network overhead, lower actual data throughput rate.
Safety and Regulatory Notices
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used according to the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which is found by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver.
v1.0, April 2007
iii
• Connect the equipment into an outlet on a circuit different from that to which the reciver is connected.
• Consult a dealer or an experienced radio/TV technician help.
FCC Caution: Any change or modification to the product not expressly approved by NETGEAR could void the user’s
authority to operate the device.
This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter.
For product available in the USA market, only channel 1~11 can be operated. Selection of other channels is not possible.
FCC RF Radiation Exposure and SAR Statements
RF Exposure Information
The radio module has been evaluated under FCC Bulletin OET 65C (01-01) and found to be compliant to the
requirements as set forth in CFR 47 Sections, 2.1093, and 15.247 (b) (4) addressing RF Exposure from radio frequency
devices. This model meets the applicable government requirements for exposure to radio frequency waves. The highest
SAR level measured for this device was 0.486 W/kg.
Canadian Department of Communications Industry Canada (IC) Notice
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Cet appareil numérique de la classe B
est conforme à la norme NMB-003 et CNR-210 du Canada.
“To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from
windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to
licensing.”
“Pour empêcher que cet appareil cause du brouillage au service faisant l’objet d’une licence, il doit être utilisé à
l’intérieur et devrait être placé loin des fenêtres afin de fournir un écran de blindage maximal. Si le matériel (ou son
antenne d’émission) est installé à l’extérieur, il doit faire l’objet d’une licence.”
Europe - EU Declaration of Conformity
A printed copy of the EU Declaration of Conformity certificate for this product is provided in the WN711 product
package.
Èesky
[Czech] NETGEAR, Inc. tímto prohlašuje, že tento NETGEAR RangeMax Next Wireless-N
Express Card WN711 je ve shodì se základními požadavky a dalšími pøíslušnými
ustanoveními smìrnice 1999/5/ES.
Dansk
[Danish]
Undertegnede NETGEAR, Inc. erklærer herved, at følgende udstyr NETGEAR
RangeMax Next Wireless-N Express Card WN711 overholder de væsentlige krav og
øvrige relevante krav i direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt NETGEAR, Inc., dass sich das Gerät NETGEAR RangeMax Next
Wireless-N Express Card WN711 in Übereinstimmung mit den grundlegenden
Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG
befindet.
This EUT is compliance with SAR for general population/uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and
had been tested in accordance with measurement methods and procedures specified in OET Bulletin 65 Supplement C.
v1.0, April 2007
iv
Eesti
[Estonian]
Käesolevaga kinnitab NETGEAR, Inc. seadme NETGEAR RangeMax Next Wireless-N
Express Card WN711 vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist
tulenevatele teistele asjakohastele sätetele.
English Hereby, NETGEAR, Inc., declares that this NETGEAR RangeMax Next Wireless-N
Express Card WN711 is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente NETGEAR, Inc. declara que el NETGEAR RangeMax Next
Wireless-N Express Card WN711 cumple con los requisitos esenciales y cualesquiera
otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ NETGEAR, Inc. ΔΗΛΩΝΕΙ ΟΤΙ NETGEAR RangeMax Next
Wireless-N Express Card WN711 ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ
ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente NETGEAR, Inc. déclare que l'appareil NETGEAR RangeMax Next
Wireless-N Express Card WN711 est conforme aux exigences essentielles et aux autres
dispositions pertinentes de la directive 1999/5/CE.
Italiano
[Italian]
Con la presente NETGEAR, Inc. dichiara che questo NETGEAR RangeMax Next
Wireless-N Express Card WN711 è conforme ai requisiti essenziali ed alle altre
disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo NETGEAR, Inc. deklarç, ka NETGEAR RangeMax Next Wireless-N Express Card
WN711 atbilst Direktîvas 1999/5/EK bûtiskajâm prasîbâm un citiem ar to saistîtajiem
noteikumiem.
Lietuviø
[Lithuanian]
Šiuo NETGEAR, Inc. deklaruoja, kad šis NETGEAR RangeMax Next Wireless-N
Express Card WN711 atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos
nuostatas.
Nederlands
[Dutch]
Hierbij verklaart NETGEAR, Inc. dat het toestel NETGEAR RangeMax Next Wireless-N
Express Card WN711 in overeenstemming is met de essentiële eisen en de andere
relevante bepalingen van richtlijn 1999/5/EG.
Malti
[Maltese]
Hawnhekk, NETGEAR, Inc., jiddikjara li dan NETGEAR RangeMax Next Wireless-N
Express Card WN711 jikkonforma mal-tiijiet essenzjali u ma provvedimenti orajn relevanti li
hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, NETGEAR, Inc. nyilatkozom, hogy a NETGEAR RangeMax Next Wireless-N
Express Card WN711 megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC
irányelv egyéb elõírásainak.
Polski [Polish] Niniejszym NETGEAR, Inc. oœwiadcza, ¿e NETGEAR RangeMax Next Wireless-N
Express Card WN711 jest zgodny z zasadniczymi wymogami oraz pozosta³ymi
stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese] NETGEAR, Inc. declara que este NETGEAR RangeMax Next Wireless-N Express Card
WN711 está conforme com os requisitos essenciais e outras disposições da Directiva
1999/5/CE.
v1.0, April 2007
v
Product and Publication Details
Slovensko
[Slovenian] NETGEAR, Inc. izjavlja, da je ta NETGEAR RangeMax Next Wireless-N Express Card
WN711 v skladu z bistvenimi zahtevami in ostalimi relevantnimi doloèili direktive 1999/5/
ES.
Slovensky
[Slovak] NETGEAR, Inc. týmto vyhlasuje, že NETGEAR RangeMax Next Wireless-N Express
Card WN711 spåòa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/
5/ES.
Suomi
[Finnish] NETGEAR, Inc. vakuuttaa täten että NETGEAR RangeMax Next Wireless-N Express
Card WN711 tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä
koskevien direktiivin muiden ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar NETGEAR, Inc. att denna [utrustningstyp] står I överensstämmelse med
de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv
1999/5/EG.
Model Number: WN711
Publication Date: April 2007
Product Family: Wireless Adapter
Product Name: NETGEAR RangeMax Next Wireless-N Express Card WN711
Home or Business Product: Home
Language: English
Publication Part Number: 202-10259-01
v1.0, April 2007
vi
vii
v1.0, April 2007
Contents
About This Manual
Conventions, Formats and Scope .................................................................................... ix
How to Use This Manual ................................................................................................... x
How to Print this Manual .................................................................................................... x
Chapter 1
Basic Setup
What You Need Before You Begin ..................................................................................1-1
Observe Wireless Location and Range Guidelines ..................................................1-2
Default Wireless Settings .........................................................................................1-2

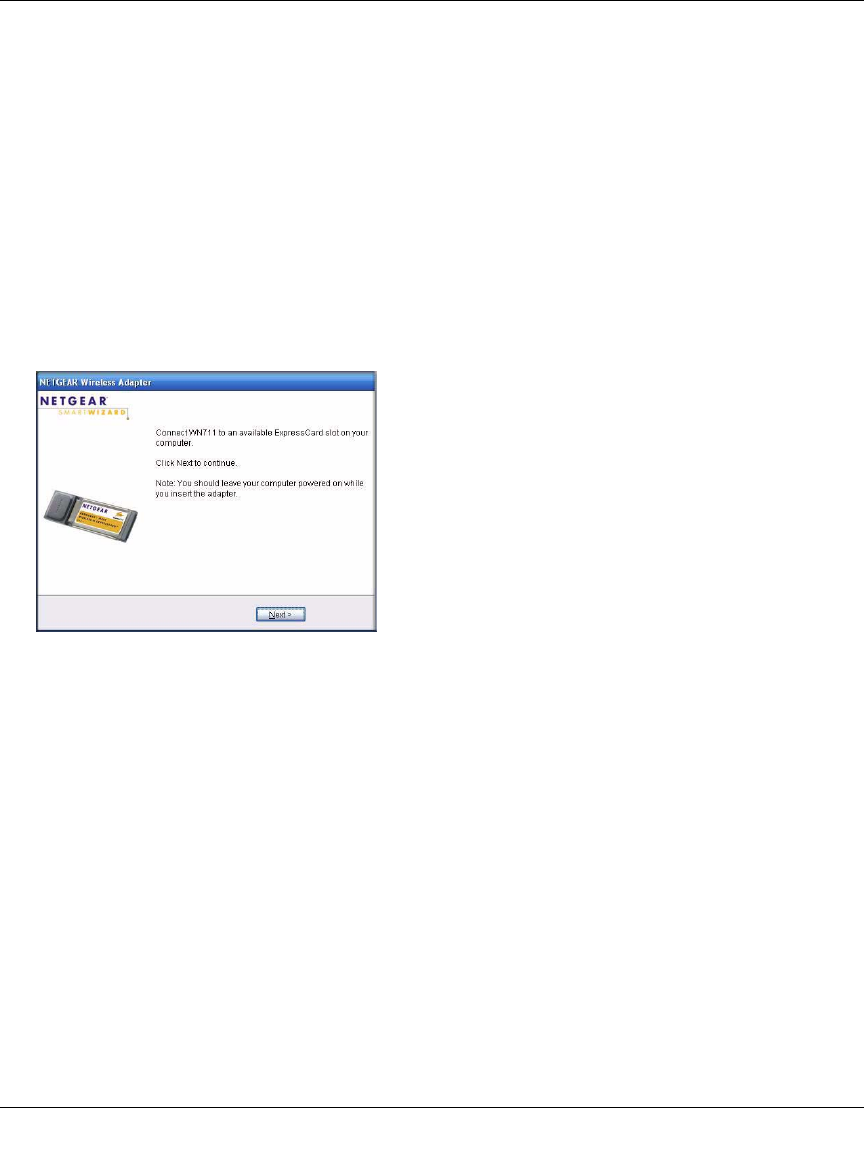

Installation ......................................................................................................................1-3

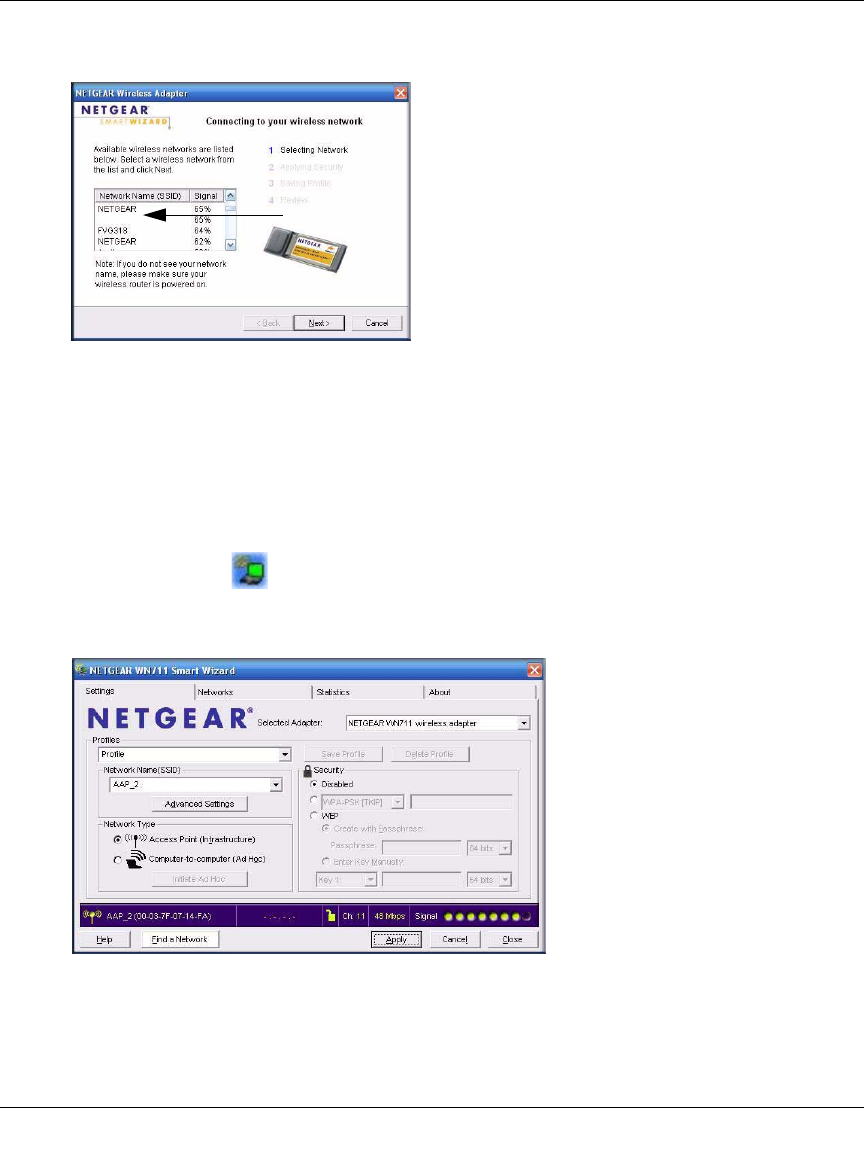

Connecting to Wireless Networks and the Internet ........................................................1-7
WN711 Icon Colors ..................................................................................................1-7

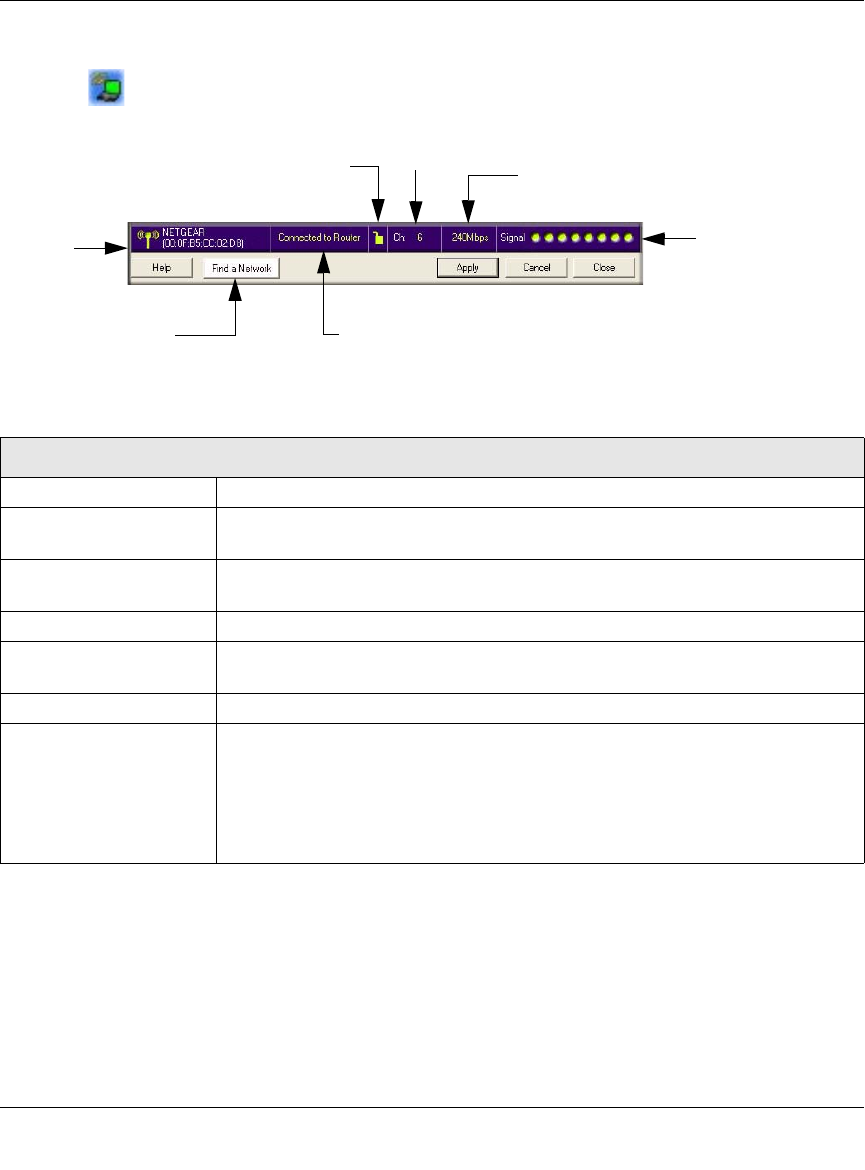

Smart Wizard Status Bar ..........................................................................................1-8
Removing the WN711 Software ......................................................................................1-9

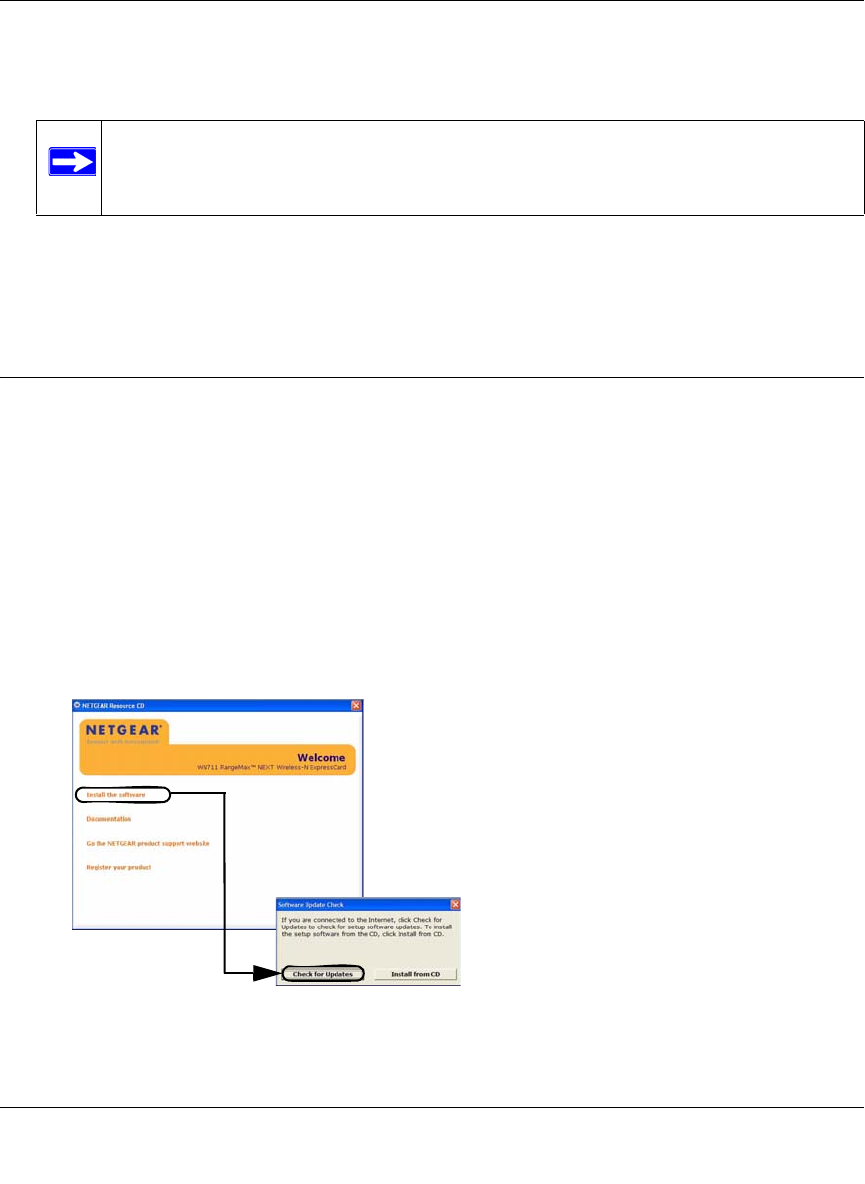

Upgrading the WN711 Software ...................................................................................1-10
Chapter 2
Network Connections and Wireless Security

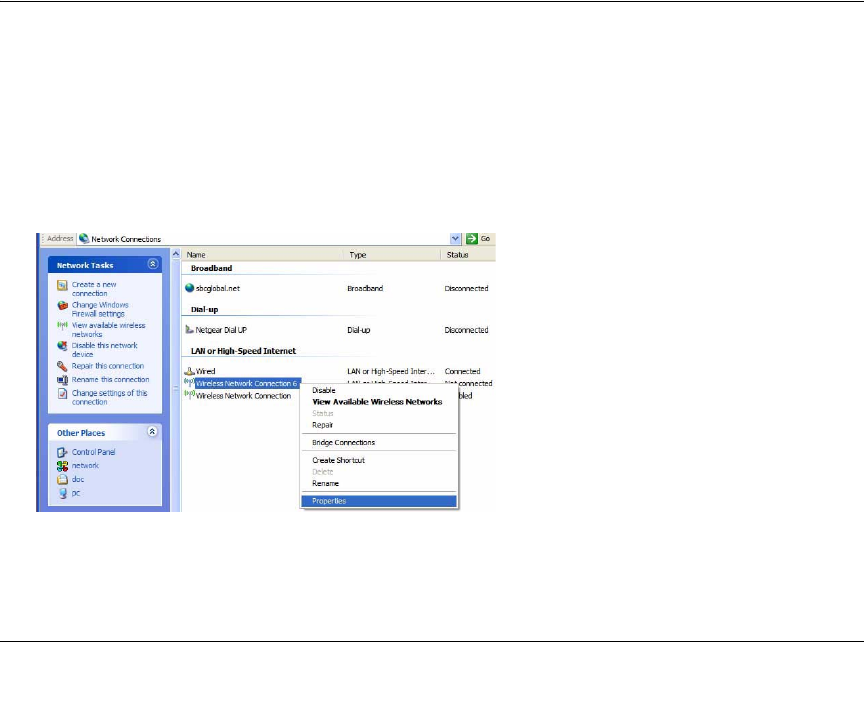

Disabling the Windows XP Zero Configuration Utility .....................................................2-1
Understanding the Smart Wizard ...................................................................................2-2
Viewing Wireless Networks in Your Area ........................................................................2-2
Finding a Network ...........................................................................................................2-4
Profiles ............................................................................................................................2-5
Adding Profiles .........................................................................................................2-5
Setting up a Profile to Connect to an Access Point or Router ........................................2-6
Setting up a Computer-to-Computer (Ad Hoc) Profile ....................................................2-7
Starting a Computer-to-Computer (Ad Hoc) Network Connection ...........................2-9
Wireless Security ..........................................................................................................2-10
Using Wireless Security Features ................................................................................2-10
Wireless Network Name (SSID) and Security Settings ................................................ 2-11
viii
v1.0, April 2007
Setting up WEP Encryption Security ............................................................................2-12

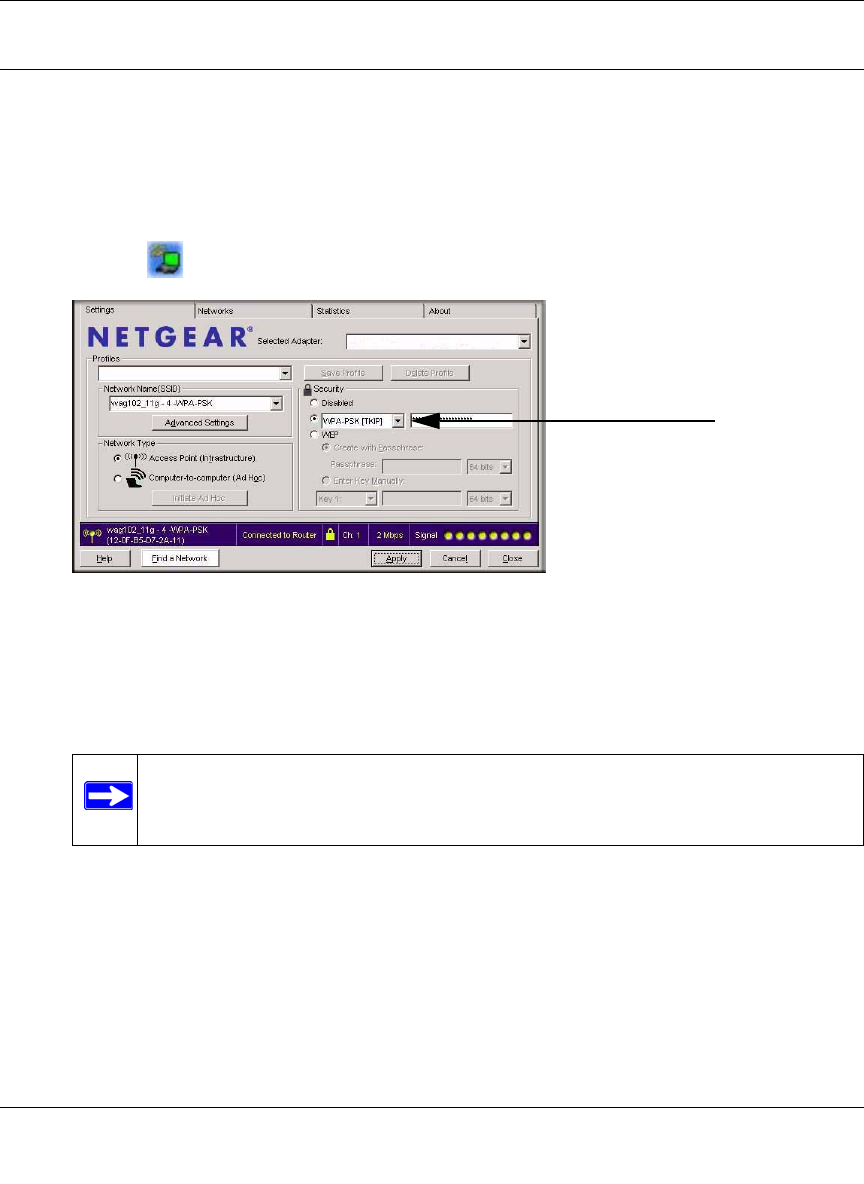

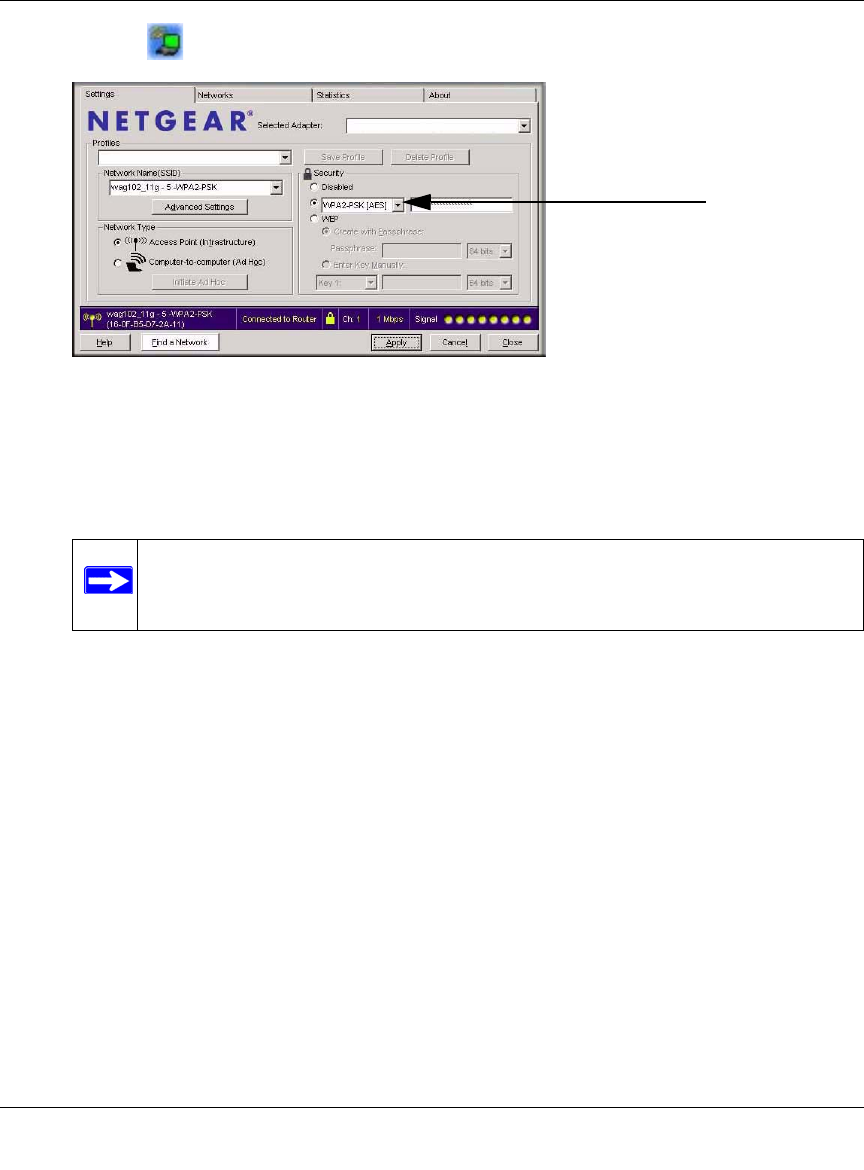

Setting up WPA2-PSK Security ....................................................................................2-13
Setting up WPA-PSK Security ......................................................................................2-15

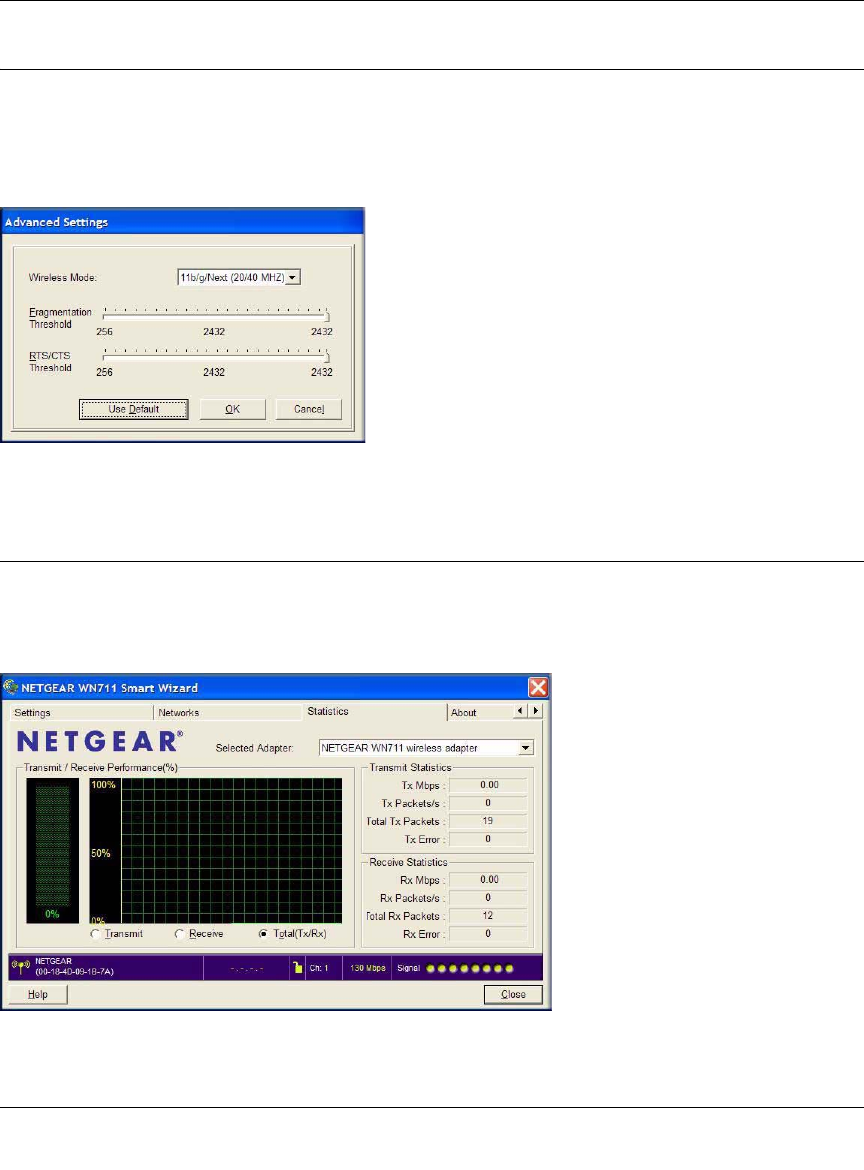

Advanced Settings ........................................................................................................2-16
Statistics Page ..............................................................................................................2-16

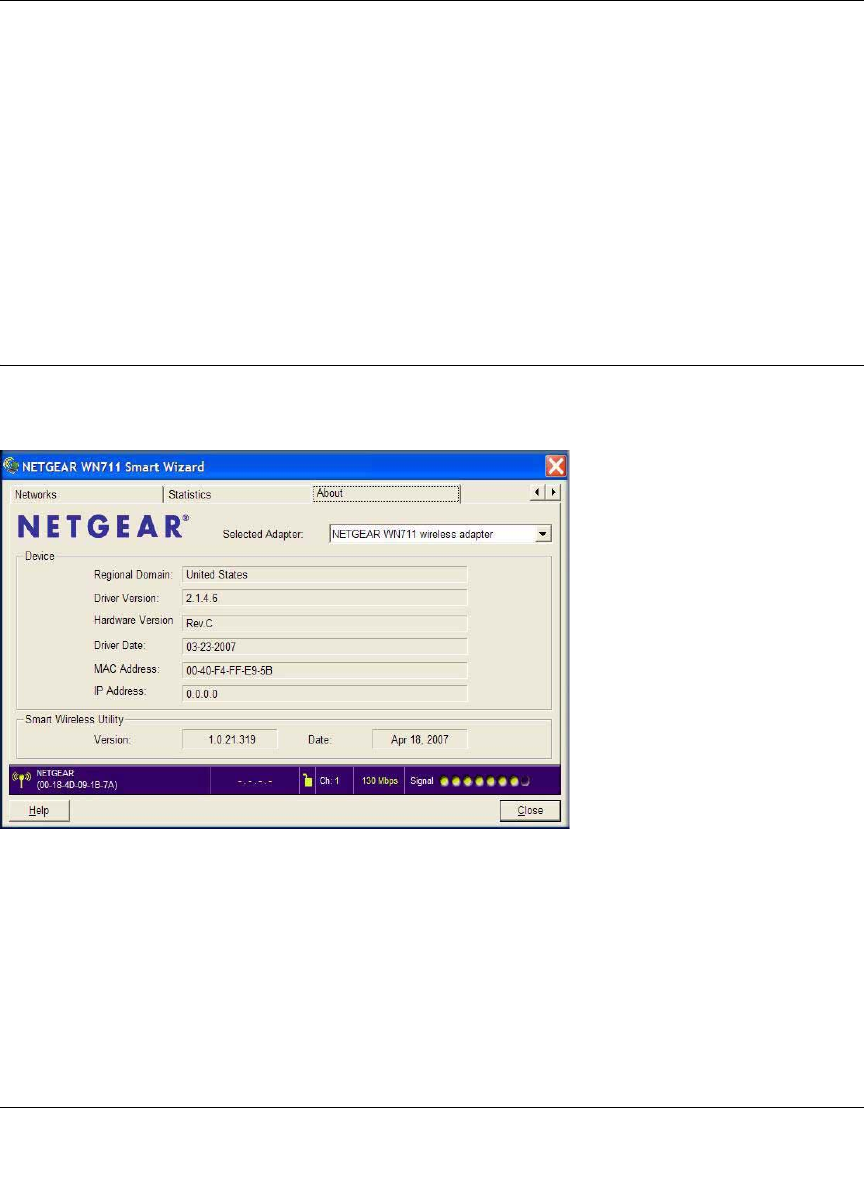

About Page ...................................................................................................................2-17
Chapter 3
Wireless Network Performance
Optimizing Wireless Performance ..................................................................................3-1
Optimizing Your Network Bandwidth ..............................................................................3-2
Overview of Home and Small Office Networking Technologies ......................................3-3
Assessing Your Speed Requirements ......................................................................3-4
Chapter 4
Troubleshooting
Troubleshooting Tips ......................................................................................................4-1
Ad Hoc Mode Is Not Working Correctly ..........................................................................4-2
Appendix A
Default Configuration Settings and Technical Specifications
Default Configuration Settings ....................................................................................... A-1
Technical Specifications ................................................................................................. A-2
Appendix B
Related Documents
ix
v1.0, April 2007
About This Manual
The NETGEAR® RangeMax™ Next Wireless-N ExpressCard WN711 User Manual describes how
to install, configure, and troubleshoot the NETGEAR RangeMax Next Wireless-N Express Card
WN711. The information in this manual is intended for readers with intermediate computer and
Internet skills.
Conventions, Formats and Scope
The conventions, formats, and scope of this manual are described in the following paragraphs:
•Typographical Conventions. This manual uses the following typographical conventions:
•Formats. This manual uses the following formats to highlight special messages:
•Scope. This manual is written for the Wireless Express Card according to these specifications:
Italics Emphasis, books, CDs, URL names
Bold User input
Note: This format is used to highlight information of importance or special interest.
Tip: This format is used to highlight a procedure that will save time or resources.
Product Version NETGEAR RangeMax Next Wireless-N Express Card WN711
Manual Publication Date April 2007
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
x
v1.0, April 2007
For more information about network, Internet, firewall, and VPN technologies, see the links to the
NETGEAR website in Appendix B, “Related Documents”.
How to Use This Manual
The HTML version of this manual includes the following:
• Buttons, and , for browsing forwards or backwards through the manual one page
at a time
• A button that displays the table of contents and an button. Double-click on a
link in the table of contents or index to navigate directly to where the topic is described in the
manual.
• A button to access the full NETGEAR, Inc. online knowledge base for the product
model.
• Links to PDF versions of the full manual and individual chapters.
How to Print this Manual
To print this manual you can choose one of the following several options, according to your needs.
•Printing a Page in the HTML View.
Each page in the HTML version of the manual is dedicated to a major topic. Use the Print
button on the browser toolbar to print the page contents.
•Printing a Chapter.
Note: Product updates are available on the NETGEAR, Inc. website at
http://kbserver.netgear.com/products/WN711.asp.
Tip: If your printer supports printing two pages on a single sheet of paper, you can
save paper and printer ink by selecting this feature.
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
xi
v1.0, April 2007
Use the PDF of This Chapter link at the top left of any page.
– Click the PDF of This Chapter link at the top left of any page in the chapter you want to
print. The PDF version of the chapter you were viewing opens in a browser window.
– Your computer must have the free Adobe Acrobat reader installed in order to view and
print PDF files. The Acrobat reader is available on the Adobe Web site at
http://www.adobe.com.
– Click the print icon in the upper left of the window.
•Printing the Full Manual.
Use the Complete PDF Manual link at the top left of any page.
– Click the Complete PDF Manual link at the top left of any page in the manual. The PDF
version of the complete manual opens in a browser window.
– Click the print icon in the upper left of the window.
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
xii
v1.0, April 2007
1-1
v1.0, April 2007
Chapter 1
Basic Setup
The NETGEAR RangeMax Next Wireless-N Express Card WN711 lets you connect a computer to
wireless networks. It is designed for laptop computers running Microsoft Windows. For
information about product features and compatible NETGEAR products, see the NETGEAR
website at http://www.netgear.com.
This chapter describes how to install your Wireless Express Card and set up basic wireless
connectivity on your Wireless Local Area Network (WLAN). Advanced wireless network settings
are covered in Chapter 2, “Network Connections and Wireless Security” in this manual.
What You Need Before You Begin
You must verify that your computer meets the minimum system requirements and identify the
wireless network settings of the wireless network where you will connect before you can set up
your wireless Express Card and connect.
Verify System Requirements
Before installing the Wireless Express Card, make sure that these minimum requirements have
been met. You must have a computer with:
• A Pentium 300 MHz or higher compatible processor with an available Express card slot.
•A CD drive.
• 105 Mbytes of free hard disk space.
• Microsoft Vista, Windows XP Home, XP Professional, or Windows 2000
Some versions of Windows may ask for the original Windows operating system installation
files to complete the installation of the WN711 driver software.
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
1-2
v1.0, April 2007
Observe Wireless Location and Range Guidelines
Computers can connect over wireless networks indoors at a range that can vary significantly based
on the location of the computer with the Wireless Express Card. For best results, avoid potential
sources of interference, such as:
• Large metal surfaces
• Microwave ovens
• 2.4 GHz cordless phones
In general, wireless devices can communicate through walls. However, if the walls are constructed
with concrete, or have metal, or metal mesh, the effective range will decrease if such materials are
between the devices. For more detailed information, see Chapter 3, “Wireless Network
Performance”.
What Is in the Box
The product package should contain the following items:
• NETGEAR RangeMax Next Wireless-N Express Card WN711
•Resource CD, including:
— Driver and Utility Software
—NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual (this
document)
— Animated Network Properties Configuration Tutorial
— PC Networking Tutorial
• Warranty card
• Support information card
If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the
carton, including the original packing materials, in case you need to return the product for repair.
Default Wireless Settings
If this is a new wireless network installation, use the factory default settings to set up the network
and verify wireless connectivity. If this is an addition to an existing wireless network, you need the
wireless network and wireless security settings that are already defined.
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
1-3
v1.0, April 2007
Your Wireless Express Card factory default basic settings are:
• Network Name Service Set Identification (SSID): Any
• Network Mode (Infrastructure or Ad-hoc): Infrastructure
• Data security WEP, WPA2-PSK, or WPA-PSK encryption: Disabled
Installation
The instructions in this chapter explain how to install the WN711 to connect to a network with an
access point or router. Wireless security, advanced settings, and Computer-to-Computer (Ad Hoc)
instructions are covered in Chapter 2, “Network Connections and Wireless Security”.
To install the Wireless Express Card:
1. First, install the WN711 software.
Insert the NETGEAR CD. If the CD main page does not appear, double click Autorun.exe on
the CD.
a. Click Install the Software.The Check for Updates window opens.
Note: In order for the Wireless Express Card to communicate with a wireless access
point or wireless adapter, all devices must be set up to use the same wireless
network name (SSID).
Figure 1-1
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
1-4
v1.0, April 2007
b. If you are connected to the Internet, click Check for Updates. If not, you can choose to
install from the CD.
c. Follow the onscreen instructions for the InstallShield wizard and the NETGEAR Smart
Wizard.
• For Windows XP or Windows 2000 if a Windows logo testing message appears, click
Continue Anyway.
• If a message that Windows Vista cannot verify the publisher of this driver appears,
click Install this driver software anyway.
d. When the Installation Complete message appears, click Next.
2. Now, insert the Wireless Express Card.
a. Locate an available Express card slot in your computer.
b. Insert the Wireless Adapter into the slot.
c. For Windows XP and Windows 2000 computers, the Found New Hardware Wizard opens.
Follow the wizard prompts.
d. For Windows Vista the Express Card is automatically added with the installed driver.
Figure 1-2
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
1-5
v1.0, April 2007
3. Windows 2000 users go to Step 4. Windows XP or Vista users can set up the wireless adapter
with the NETGEAR Smart Wizard (recommended) or the Windows configuration utilities.
•NETGEAR Smart Wizard: Reveals more information about each network and makes it
easier to troubleshoot network connection problems. See “Smart Wizard Status Bar” on
page 1-8 and “Connecting to Wireless Networks and the Internet” on page 1-7.
•Windows configuration utilities: See the Windows documentation or
http://documentation.netgear.com/reference/enu/winzerocfg/index.htm.

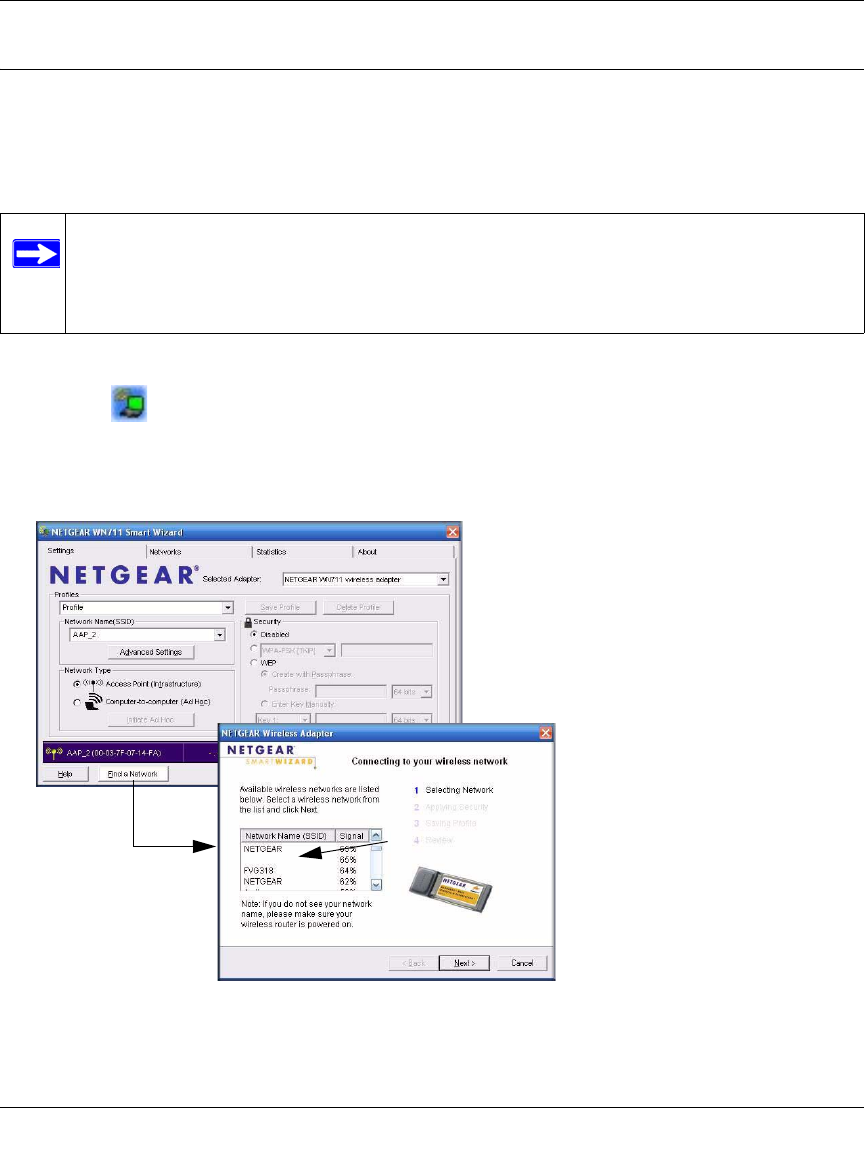

4. Use the Smart Wizard to set up your Wireless Express Card.
a. When prompted, click Next to let the wizard help you connect to a network
(recommended).
Figure 1-3
Figure 1-4
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
1-6
v1.0, April 2007
b. Select the wireless network from the drop-down list, and the wizard records your choice.
Hidden networks do not broadcast the Network Name (SSID). These networks are in the
drop-down list, but the Network Name (SSID) is blank. If the network uses security, the
Smart Wizard detects it.
c. Follow the Wizard steps for Security (if used) and for saving a Profile.
d. After you have reviewed the settings, click Finish.
The WN711 icon appears in the system tray and on the desktop. The wizard initiates
your wireless connection. It could take up to a minute to establish your wireless
connection. The Smart Wizard Settings page opens.
5. Use the status bar to verify your wireless connectivity. See “Connecting to Wireless Networks
and the Internet” on page 1-7.
Figure 1-5
Figure 1-6
Hidden
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
1-7
v1.0, April 2007
Connecting to Wireless Networks and the Internet
The WN711 has indicators in three locations that show the status of your connection to a wireless
network and to the Internet:
• Icon: After you install the software, this icon appears on the desktop and in the lower
right of the Windows task bar. It is color coded to show the status of the connection. See
“Smart Wizard Status Bar” on page 1-8.
•Smart Wizard Status Bar: Click the WN711 icon to open the Smart Wizard. The status bar at
the bottom of the page shows details about your wireless and Internet connection.
•Wireless Express Card LED: The LED on the Wireless Express Card shows the network
connection. Solid indicates a connection. The LED blinks when the Wireless Express Card is
transferring data.
WN711 Icon Colors
The WN711 icon is on the desktop and in the Windows System Tray. The System Tray is located
on one end of the taskbar in the Microsoft Windows desktop.
Color Condition Description
Red The wireless Express Card
has no connection to any
other wireless node.
The wireless Express Card cannot link to any other wireless
node or the link is lost. Check your configuration or try moving
to a location where the wireless signal quality is better.
Yellow The wireless Express Card
has a connection with another
wireless node.
The wireless link is weak. You may need to move to a better
spot, such as closer to the wireless access point. Also, look
for possible interference such as a 2.4 GHz cordless phone or
large metal surface.
Green The wireless Express Card
has a connection with another
wireless node.
The wireless Express Card has established good
communication with an access point and the signal quality is
strong.
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
1-8
v1.0, April 2007
Smart Wizard Status Bar
Click the icon to open the Smart Wizard so you can view the status bar. The Smart Wizard
Settings page opens. The status bar is located at the bottom of the Settings page.
The following table describes how to interpret the Smart Wizard status bar.
Note: To optimize throughput, connect to a network with a high-speed router or access point, and
a high-speed Internet connection. For more information about optimizing wireless
performance, and network bandwidth, see “Optimizing Wireless Performance” on page 3-1
and “Optimizing Your Network Bandwidth” on page 3-2.
The Connection status is useful in isolating a problem. For example, if you are connected to a
router, but not to the Internet, then check the router’s Internet connection.
Figure 1-7
Understanding the Status Bar
Wireless network Identifies which wireless network you have joined.
Security • Locked: security enabled.
• Unlocked: security not enabled.
Channel The wireless channel used by the network. If many wireless networks in your
area use the same channel they can interfere with one another.
Throughput Wireless throughput measured in Mega bits per second.
Signal strength More dots indicates a stronger signal. Usually, you will experience higher
throughput when the signal is strongest.
Find a Network Click Find a Network to open the Connection Wizard.
Connection
status
Identifies the status of your network connection.
•Connected to Internet: Wireless Internet connection is OK.
•Connected to Router: Wireless connection to the router is OK but the router
is not connected to the Internet.
•169.254.x.x or ___.___.___.___ : The wireless connection to the router is OK
but there is a problem with the router. See Chapter 4, “Troubleshooting”.
Wireless
network
Connection status
Security
Find a Network
Channel Throughput
Signal
strength
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
1-9
v1.0, April 2007

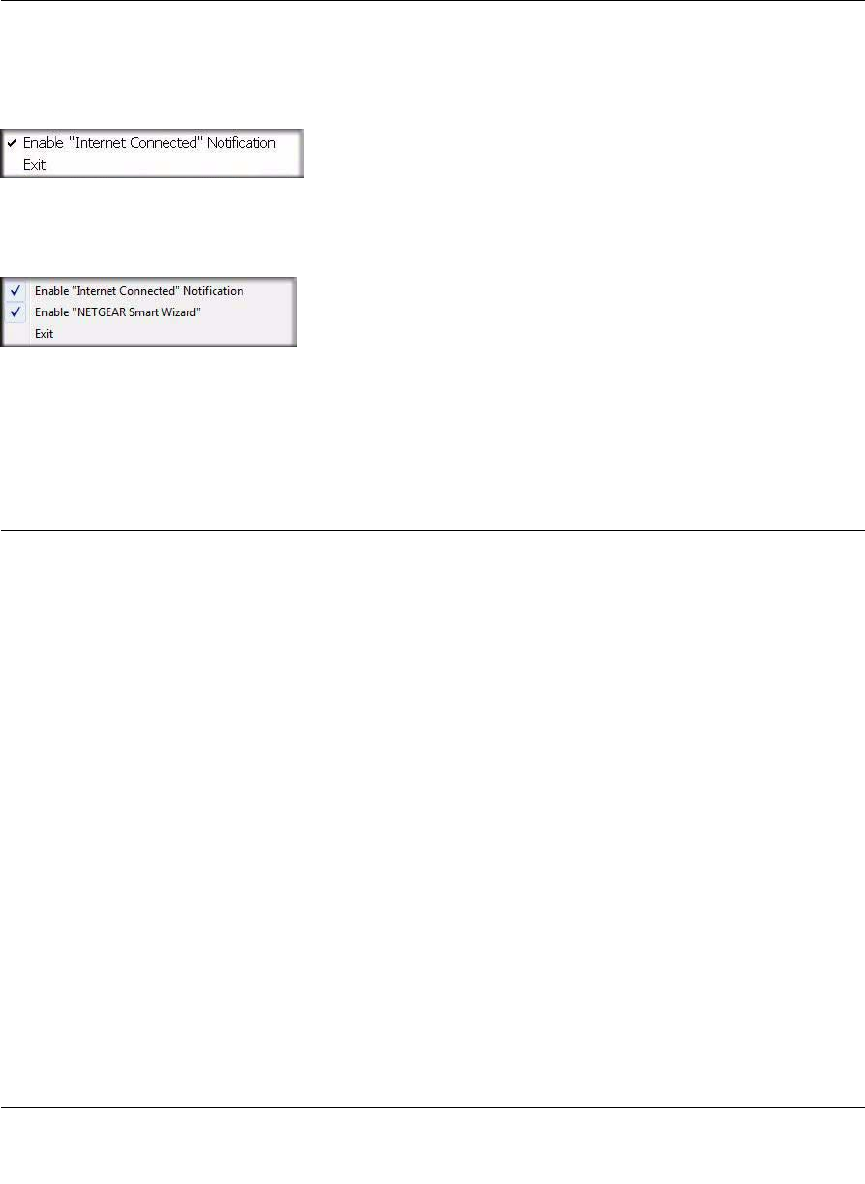

If you right-click the system tray icon, you can disable the Internet notification feature by clearing
the check mark enabling notification, as shown in Figure 1-8. If you do so, then only the IP
address is shown.
In Vista, there is one more option: Enable NETGEAR Smart Wizard.
If you clear the check mark for Enable NETGEAR Smart Wizard, the NETGEAR Smart Wizard
will be disabled and you will need to setup the wireless adapter with Vista Auto configuration.
Removing the WN711 Software
If necessary, you can remove the wireless adapter software in these ways:
• Navigate the Windows Start menu to the NETGEAR WN711 Smart Wizard program group,
select the uninstall option, and follow the screen prompts.
• For Windows 2000 or Windows XP, navigate the Windows Start menu to the Control Panel
Add or Remove Program item and follow the screen prompts.
• For Vista, navigate the Windows Start menu to the Control Panel Programs and Features item.
Then select the NETGEAR WN711 wireless adapter option, and follow the screen prompts.
Figure 1-8
Figure 1-9
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
1-10
v1.0, April 2007
Upgrading the WN711 Software
Upgrades may be available at the NETGEAR website.
To install an upgrade:
1. Write down the settings for any profiles that you want to save. They will not be retained.
2. Download the upgrade from the NETGEAR website Support page.
3. Remove the WN711 software from your computer.
4. Remove the Wireless Express Card adapter from your computer, and if prompted restart your
computer.
5. Run the installer that you downloaded (the file ends in .exe).
6. Follow the installer instructions, and if prompted, then restart your computer.
2-1
v1.0, April 2007
Chapter 2
Network Connections and Wireless Security
This chapter explains how to use your Wireless Express Card to connect to your Wireless Local
Area Network (WLAN) and how to set up wireless security for the Wireless Express Card so that
it matches the wireless security settings for your network.
If you chose the Windows XP Zero configuration during installation, and now you want to use the
Smart Wizard, then you need to disable the Windows utility. If you are working with the Vista
configuration utility, see the online document:
http://documentation.netgear.com/reference/enu/winzerocfg/index.htm
Disabling the Windows XP Zero Configuration Utility
To disable the Windows Zero Configuration utility:
1. Insert the wireless adapter into an Express card slot in your computer.
2. Go to Windows Start menu and select Network Connections.
3. On the Network connections page, select the Wireless Network Connection and right-click to
choose the Properties option.
4. Click the Wireless Networks tab. Then clear the “Use Windows to configure my wireless
settings” check box.
Figure 2-1
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
2-2
v1.0, April 2007
Understanding the Smart Wizard
These instructions explain how to use the NETGEAR WN711 Smart Wizard to change the
Wireless Express Card wireless settings.
When you have installed the software from the NETGEAR CD, the icon appears on your
desktop and in the Windows System Tray. The Windows System Tray is located on the Windows
taskbar. You can either double-click this icon on the desktop, or click it in the System Tray at any
time, to use the Smart Wizard. This software automatically restarts when you reboot your
computer.
The Smart Wizard provides a complete and easy to use set of tools to:
• View details about wireless networks in your area.
• Choose the network that you want to use.
• Configure wireless settings for your wireless connection.
• Save your wireless network settings in profiles.
• Remove or reinstall the wireless adapter software.
The following sections in this chapter explain how to use the Smart Wizard.
Viewing Wireless Networks in Your Area
You can use the Networks tab to view all available wireless networks in your area. You can also
scan to search for wireless networks and refresh the page.
To view information about wireless networks:
1. Use the icon to open the Smart Wizard. The Settings tab page opens.
2. Click the Networks tab to view the following page:
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
2-3
v1.0, April 2007
The screen shows the following information for each network scanned:
•Network Name (SSID): The name assigned to a wireless network. This is the same as the
SSID or ESSID configuration parameter. Note that as a security measure, some wireless
access points do not broadcast their SSID. In such cases, the SSID field will be blank even
though the rest of the information will still be displayed.
•Channel: The channel determines which operating frequency will be used.
•N: The router supports wireless N mode.
•Security: Identifies whether the wireless network uses security settings such as WEP,
WPA2-PSK, or WPA-PSK.
•Signal: Identifies the signal strength of the communications.
•MAC Address: Identifies the hardware address (MAC Address) of the wireless device
broadcasting this information.
•Mode: Identifies the type of wireless network — Access Point (Infrastructure) or Computer-
to-Computer (Ad Hoc)
The buttons located at the bottom of the Networks tab are:
•Help: Display online help.
•Find a Network: Find and connect to a network. See “Finding a Network” on page 2-4.
•Connect: Connect to the network that you selected.
•Scan: Check for wireless networks. Clicking Scan refreshes the page.
•Close: Close the window of the Wizard.
Figure 2-2
You can click a column
heading to sort.
If many networks use
the same channel they
can interfere with each
other.
The Status bar shows
your network connection
and Internet connection.
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
2-4
v1.0, April 2007
Finding a Network
During the WN711 software installation, the Smart Wizard lists the available networks. After
installation you can use the Find a Network button on the Network tab at any time to view the
available networks and select the one that you want to use.
To find a network:
1. Use the icon to open the Smart Wizard.
The Settings tab page opens.
2. On the Networks tab page, click Find a Network.
3. Select a network from the drop-down list. If you select a hidden network then you must enter
the SSID. Click Next.
Note: Make sure that you know the security settings for the network that you want to use.
For example, if Wired Equivalent Privacy (WEP) is used then you need to know the
WEP key. If you use secure networks frequently, set up profiles for each network
with the wireless network and security settings.
Figure 2-3
Hidden Network
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
2-5
v1.0, April 2007
4. Follow the steps of the wizard to specify the wireless security if used, and to create a profile.
5. Review you settings, and click Finish.
The Smart Wizard initiates your wireless connection. You can use the Status Bar to verify your
network connection. For more information, see “Smart Wizard Status Bar” on page 1-8.
Profiles
The WN711 Smart Wizard uses profiles to store all the settings for a particular wireless network.
There are two special profile names: Default and Profile.
Default: The Profile named Default automatically scans for any available network. You cannot
change this profile name.
Profile: If you do not enter a name in the Profile Name box, then the name Profile is used to save
your settings. If you do this more than once then you will be asked if you want to replace the
previous settings stored in Profile.
Adding Profiles
You can store multiple profiles and recall the one which matches the network you want to join.
If you use your computer to connect to different wireless networks, you can create a profile for
each wireless network. Then, you can easily load the profile that has all the settings that you need
to join the network you are using at the time.
There are two types of wireless network profiles that you can set up:
•Access Point (Infrastructure) — connect to an access point or router with the 802.11
infrastructure mode.
•Computer-to-Computer (Ad Hoc) — connect directly to another computer with the 802.11
ad hoc mode.
For more information on 802.11 wireless network modes, see the wireless reference document at:
http://documentation.netgear.com/reference/enu/wireless/index.htm
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
2-6
v1.0, April 2007
Setting up a Profile to Connect to an Access Point or Router
Follow these instructions to set up the Wireless Express Card to connect to a wireless access point
or router.
1. Use the icon to open the Smart Wizard. The Settings page opens.
2. Enter the network settings.
a. In the Network Type section, be sure that Access Point (Infrastructure) is selected.
b. In the Profile box, type the name of the profile.
c. In the Network Name (SSID) field select a network or enter the SSID.
3. Save your settings in a Profile.
a. Click the Save Profile button.
All the configuration settings are saved in this profile.
b. Click Apply.
c. Click Close to exit the wizard, or Cancel to return to the previous settings.
Figure 2-4
Note: You will not get a wireless network connection unless the SSID that you enter
exactly matches the SSID used by the access point.
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
2-7
v1.0, April 2007
4. Verify wireless connectivity to your network.
Use a browser to connect to the Internet, or check for file and printer access on your
network.You can check the status bar in the Smart Wizard for the current connection status.
Setting up a Computer-to-Computer (Ad Hoc) Profile
The Computer-to-Computer setting uses Ad Hoc mode. Ad Hoc mode is an 802.11 networking
framework in which devices or computers communicate directly with each other, without the use
of an access point. For example, this mode is used when two Windows computers are configured
with file and print sharing enabled and you want to exchange files directly between them.
To create an Ad Hoc mode profile:
1. Use the icon to open the Smart Wizard. The Settings page opens.
Note: If you cannot connect, see Chapter 4, “Troubleshooting. Also, for problems with
accessing network resources, the Windows Client and File and Print Sharing
software might not be installed and configured properly on your computers. Refer
to “Internet Networking and TCP/IP Addressing:” on page B-1.
Note: Ad Hoc mode will not work using DHCP settings. It requires either static IP
addresses (such as 192.168.0.1) or the IPX protocol. For help with static IP
addresses on Windows PCs, see the PC Networking Tutorial on the NETGEAR CD.
Figure 2-5
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
2-8
v1.0, April 2007
2. Enter the network settings.
a. Select Computer-to-Computer (Ad Hoc) for the Network Type.
b. Select or enter the Network Name (SSID) for the Ad Hoc network.
c. In the Profile box, type the name of the profile.
d. Click Apply.
3. Save your settings in a Profile.
a. Click the Save Profile button.
The configuration settings are saved in this profile.
b. Click Apply, and then click Close to exit the Smart Wizard, or Cancel to return to the
previous settings.
4. Configure the PC network settings.
a. Configure each PC with either a static IP address or with the IPX protocol.
b. Restart the PCs.

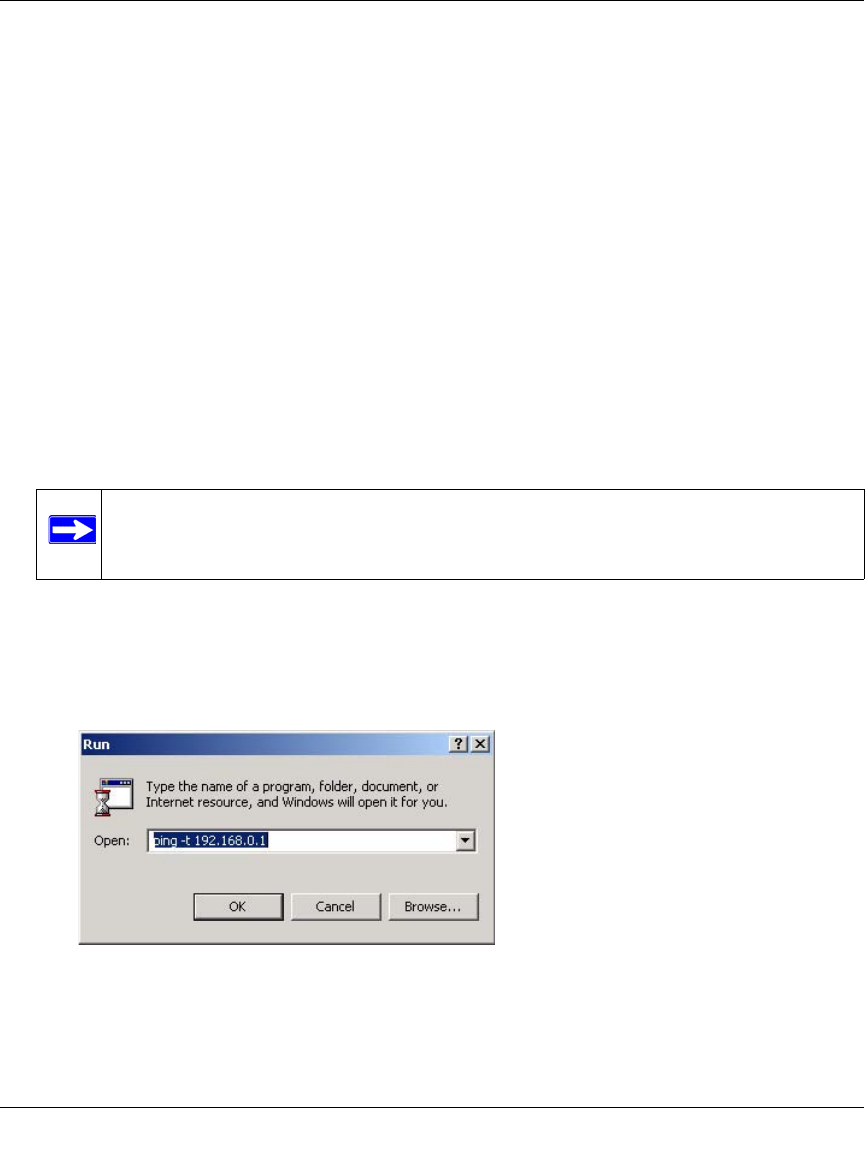

5. Verify wireless connectivity between your peer devices with the Ping program:
a. On the Windows taskbar click the Start button, and then click Run.
b. Assuming the target PC is configured with 192.168.0.1 as its IP address, type
ping -t 192.168.0.1 and then click OK.
Note: For instructions on configuring static IP addresses, refer to the networking
tutorial on your NETGEAR CD.
Figure 2-6
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
2-9
v1.0, April 2007

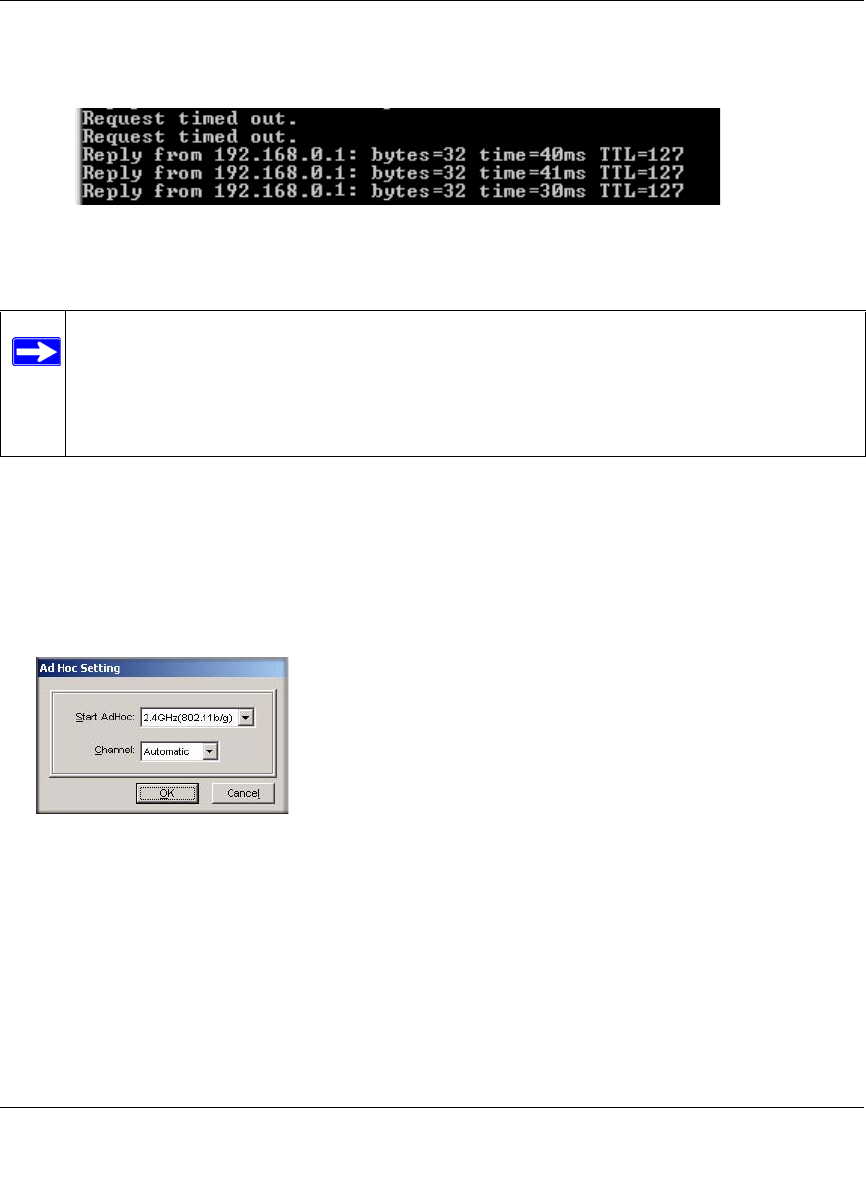

c. This will cause a continuous ping to be sent to the device with the 192.168.0.1 static IP
address. The ping response should change to “reply.”
At this point the connection is established.
Starting a Computer-to-Computer (Ad Hoc) Network Connection
1. On the Settings tab page of the Smart Wizard, select or type the Network Name (SSID).
2. Select the Computer-to-Computer (Ad Hoc) network type.
3. Click Initiate Ad Hoc. The Ad Hoc Setting dialog box opens:
4. In the Start Ad Hoc field, choose the wireless standard 802.11b, or 802.11g) for your Ad Hoc
computer-to-computer network.
5. In the Channel field, Automatic should work. If there is interference with another wireless
device, select a channel that is not being used by any other wireless networks near your
wireless adapter. Use the Networks tab page to view the channels in use in your area.
Figure 2-7
Note: If you cannot connect, see “Connecting to Wireless Networks and the Internet” in
Chapter 1. For problems with accessing network resources, the Windows Client and
File and Print Sharing software might not be installed and configured properly on
your computers. See the link to “Internet Networking and TCP/IP Addressing:” on
page B-1.
Figure 2-8
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
2-10
v1.0, April 2007
6. Click OK.
Wireless Security
Many networks use wireless security to encrypt wireless data communications. If you try to
connect to a network with wireless security the Smart Wizard detects it. Before you can use that
network you must set up the Wireless Express Card with exactly the same kind of wireless security
settings. The Wireless Express Card supports the following types of wireless security:
• Wi-Fi Protected Access 2 Pre-Shared Key (WPA2-PSK)
• Wi-Fi Protected Access Pre-Shared Key (WPA-PSK)
• Wired Equivalent Privacy (WEP)
For more information about wireless security, see the wireless reference document at:
http://documentation.netgear.com/reference/enu/wireless/index.htm
In addition to the wireless security features, networks should use LAN network security features
such as requiring a user name and password to access the shared resources in the network.
Using Wireless Security Features
You can strengthen the security of your wireless connection by enabling Wired Equivalent Privacy
(WEP) encryption of the wireless data communications. Or, you can use Wi-Fi Protected Access
Pre-Shared Key (WPA-PSK) encryption. For more information about wireless security, see the
online document http://documentation.netgear.com/reference/enu/wireless/index.htm
In addition to the Wireless Express Card wireless security features, you should also configure
appropriate LAN network security features such as requiring a user name and password to access
the shared resources in your network.
Note: The channel number differs depending on the country. The connection speed
automatically defaults to the highest speed.
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
2-11
v1.0, April 2007
Wireless Network Name (SSID) and Security Settings
Print this page, fill in the configuration details, and keep it in a safe place for future reference. For
an existing wireless network, the person who set up the network will be able to provide this
information.
•Network Name (SSID): The Service Set Identification (SSID) identifies the wireless local
area network. Any (First available network) is the default wireless network name (SSID).
You may customize it using up to 32 alphanumeric characters. Write your customized wireless
network name (SSID) on the line below:
Wireless network name (SSID): ______________________________
• If WEP Authentication is Used.
–WEP Encryption key size. Select one: 64-bit or 128-bit. The encryption key size must
the wireless network settings.
–Data Encryption (WEP) Keys. There are two methods for creating WEP data encryption
keys. Whichever method you use, record the key values in the spaces below.
•Passphrase method. ______________________________ These characters are case
sensitive. Enter a word or group of printable characters and click the Generate Keys
button. Not all wireless devices support the passphrase method.
•Manual method. These values are not case sensitive. For 64-bit WEP, enter 10 hex
digits (any combination of 0-9 or a-f). For 128-bit WEP, enter 26 hex digits.
Key 1: _____________________________ Key 2: _____________________________
Key 3: _____________________________ Key 4: _____________________________
• If WPA2-PSK or WPA-PSK Authentication is Used.
–Passphrase: ______________________________ These characters are case sensitive.
Enter a word or group of printable characters. When you use WPA-PSK, the other devices
in the network will not connect unless they are set to WPA-PSK as well and are configured
with the correct Passphrase.
Note: You must configure your Wireless Express Card with the SSID used by the
wireless access point. Otherwise the Wireless Express Card and the access
point will not be able to communicate with each other.
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
2-12
v1.0, April 2007
Setting up WEP Encryption Security
Follow the steps below to configure WEP Encryption Security.
1. Run the Smart Wizard.
a. Make sure the NETGEAR software is installed and the Wireless Express Card is fully
inserted in the Express card slot in your computer.
b. Use the icon to open the Smart Wizard. The Settings tab page opens.
2. Configure the Security settings.
a. In the Profile box, select the profile or type in a profile name.
b. In the Network Name (SSID) field select the network, or enter the SSID.
c. In the Security section, select WEP.
Figure 2-9
Note: You will not get a wireless network connection unless the network SSID
matches exactly what is configured in the access point.
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
2-13
v1.0, April 2007
4. Select the WEP encryption strength you will use:
• 64-bit WEP data encryption
• 128-bit WEP data encryption
3. Select Create with Passphrase and enter the passphrase. The configuration utility will
automatically generate the WEP keys.
If the passphrase method is not available in the other devices, you must manually enter the
keys to match exactly what is in the access point and other 802.11n, 802.11b, or 802.11g
wireless devices.
4. Save your settings in a Profile.
a. Click the Save Profile button. All the configuration settings are saved in this profile.
b. Click Apply.
c. Click Close to exit the configuration utility.
Setting up WPA2-PSK Security
Follow the steps below to configure WPA2-PSK Security.
1. Run the Smart Wizard.
a. Make sure the NETGEAR software is installed and the Wireless Express Card is fully
inserted in the Express card slot in your computer.
Note: Larger encryption keys require more processing and may slow the
communications response times.
Note: The characters are case sensitive. Be sure to use the same passphrase for all the
wireless devices in the network.
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
2-14
v1.0, April 2007
b. Use the icon to open the Smart Wizard. The Settings tab page opens.
2. Configure the Security settings.
a. In the Profile box, select the profile or type in a profile name.
b. In the Network Name (SSID) field select the network, or enter the SSID.
c. In the Security section, select WPA2-PSK [AES].
For more information about WPA2-PSK security, see the online document:
http://documentation.netgear.com/reference/enu/wireless/index.htm.
3. Save your settings in a Profile.
a. Click the Save Profile button. All the configuration settings are saved in this profile.
b. Click Apply.
c. Click Close to exit the Smart Wizard.
Figure 2-10
Note: You will not get a wireless network connection unless the SSID that you
enter exactly matches the SSID used by the access point
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
2-15
v1.0, April 2007
Setting up WPA-PSK Security
Follow the steps below to configure WPA-PSK Security.
1. Run the Smart Wizard.
a. Make sure the NETGEAR software is installed and the Wireless Express Card is fully
inserted in the Express card slot in your computer.
b. Use the icon to open the Smart Wizard. The Settings tab page opens.
2. Configure the Security settings.
a. In the Profile box, select the profile or type in a profile name.
b. In the Network Name (SSID) field select the network, or enter the SSID.
c. In the Security section, select WPA-PSK [TKIP].
For more information on WPA security, see the online document:
http://documentation.netgear.com/reference/enu/wireless/index.htm.
3. Save your settings in a Profile.
a. Click the Save Profile button. All the configuration settings are saved in this profile.
b. Click Apply, and then click Close to exit the Smart Wizard.
Figure 2-11
Note: You will not get a wireless network connection unless the SSID that you
enter exactly matches the SSID used by the access point
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
2-16
v1.0, April 2007
Advanced Settings
The Advanced Settings normally work in their default settings. To view them, click the Advanced
Settings button on the Settings tab. Changing these settings is only recommended for advanced
users who have a specific reason to adjust them. Use the Help button to understand these options.
Statistics Page
The Statistics page provides real-time and historical trend information on the data traffic and
performance of your wireless adapter.
Figure 2-12
Figure 2-13
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
2-17
v1.0, April 2007
The Statistics tab shows the following information:
•Transmit/Receive Performance (%): A real-time graph identifying the total, receive, and
transmit utilization as a percentage of the total possible.
•Transmit, Receive, and Total (TxRx): Radio buttons let you select whether to display the
transmit performance, the receive performance, or both in the same graph.
•Transmit Statistics: Identifies transmit megabits per second (Mbps), transmit packets per
second (Tx Packets/s), total transmitted packets, and transmit errors.
•Receive Statistics: Identifies receive megabits per second (Mbps), receive packets per second
(Rx Packets/s), total received packets, and reception errors.
About Page
The About page displays the current software version information.
The following information is displayed in the About page:
•Regional Domain: This is the region setting for the wireless adapter. The approved channels
for the region are automatically scanned. Governments regulate the channels used for wireless
transmission. Operating the wireless adapter in a different region may violate local laws.
•Driver Version: The wireless adapter driver version.
•Hardware Version: The wireless adapter hardware version.
Figure 2-14
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
2-18
v1.0, April 2007
•Driver Date: The wireless adapter driver release date.
•MAC Address: The MAC address of the adapter. The Media Access Control address is a
unique 48-bit hardware address assigned to every network interface card. Some wireless
networks will restrict access based on a list of known MAC addresses. If you are
communicating with such a network, you would have to provide the address shown here to the
network administrator before you would be allowed to connect. Restricting access by MAC
address adds an obstacle against unwanted access to your network. However, unless you use
data encryption security, the data broadcast over the wireless link is fully exposed.
•IP Address: The IP address assigned to this adapter.
•Smart Wireless Utility: The version and release date of the Smart Wizard.
3-1
v1.0, April 2007
Chapter 3
Wireless Network Performance
This chapter explains how to use your Wireless Express Card to connect to your Wireless Local
Area Network (WLAN) and how to set up wireless security for the Wireless Express Card so that
it matches the wireless security settings for your network.
Optimizing Wireless Performance
The speed and operating distance or range of your wireless connection can vary significantly based
on the location of the wireless router. You should choose a location for your router that will
maximize the network speed.
The following list describes how to optimize wireless router performance.
• Identify critical wireless links.
If your network has several wireless devices, decide which wireless devices need the highest
data rate, and locate the router near them. Many wireless products have automatic data-rate
fallback, which allows increased distances without losing connectivity. This also means that
devices that are further away may be slower. Therefore, the most critical links in your network
are those where the traffic is high and the distances are great. Optimize those first.
• Choose placement carefully.
For best results, place your router:
— Near the center of the area in which your computers will operate.
— In an elevated location such as a high shelf where the wirelessly connected computers
have line-of-sight access (even if through walls).
• Avoid obstacles to wireless signals.
— Keep wireless devices at least two feet from large metal fixtures such as file cabinets,
refrigerators, pipes, metal ceilings, reinforced concrete, and metal partitions.
— Keep away from large amounts of water such as fish tanks and water coolers.
• Reduce interference.
Avoid windows unless communicating between buildings.
Place wireless devices away from various electromagnetic noise sources, especially those in
the 2400–2500 MHz frequency band. Common noise-creating sources are:
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
3-2
v1.0, April 2007
— Computers and fax machines (no closer than one foot)
— Copying machines, elevators, and cell phones (no closer than 6 feet)
— Microwave ovens (no closer than 10 feet)
• Choose your settings.
— Use a scanning utility to determine what other wireless networks are operating nearby, and
choose an unused channel.
— Turn off SSID Broadcast, and change the default SSID. Other nearby devices may
automatically try to connect to your network several times a second, which can cause
significant performance reduction.
Optimizing Your Network Bandwidth
The speed of network connections depends on the type of equipment that you use. Try to use high-
speed technologies for network connections with the heaviest traffic to avoid lower-speed
bottlenecks in the path. The following figure shows a home network that includes many different
connection speeds.
Figure 3-1
3#4
3TORAGE#ENTRAL
WITH'IGABIT
0OWERLINE($
!DAPTER
"ROADBAND
MODEM
)NTERNET
$ESKTOP0#
WITH'IGABIT0#!DAPTER
.OTEBOOK0#
WITH'IGABIT0##ARD
-BPS
-BPS
-BPS
-BPS
-BPSTYPICAL
.OTEBOOK0#
WITH2ANGE-AX.%84
7IRELESS.ADAPTER
$ESKTOP0#
7.24
2ANGE-AX.%84
7IRELESS.ROUTER
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
3-3
v1.0, April 2007
In the network shown in Figure 3-1, the two PCs with gigabit (1000 Mbps) Ethernet adapters have
a gigabit connection through the router to the storage server. With a high-speed router this
connection allows for extremely fast backups or quick access to large files on the server. The PC
connected through a pair of Powerline HD adapters is limited to the 200 Mbps speed of the
Powerline HD connection. Although any of the links in this example would be sufficient for high-
traffic applications such as streaming HD video, the use of older devices such as 10 Mbps Ethernet
or 802.11b wireless would create a significant bottleneck.
In planning your network, think about which tasks will have the heaviest traffic flow between
them. Examples are:
• A media center in one room streaming high-definition video from a server in another room
• A storage device that is used for backing up your computers
Overview of Home and Small Office Networking
Technologies
Common connection types and their speed and security considerations are:
•Broadband Internet
Your Internet connection speed is determined by your modem type, such as ADSL or cable
modem, as well as the connection speed of the sites to which you connect, and general Internet
traffic. ADSL and cable modem connections are asymmetrical, meaning they have a lower
data rate to the Internet (upstream) than from the Internet (downstream). Keep in mind that
when you connect to someone else who also has an asymmetrical connection, the data rate
between your sites is limited by each side’s upstream data rate. A typical residential ADSL or
cable modem connection provides a downstream throughput of about one to three megabits
per second (Mbps). Newer technologies such as ADSL2+ and Fiber to the Home (FTTH) will
increase the connection speed to tens of Mbps.
•Wireless
A high-speed wireless router can provide a wireless data throughput of up to 300 Mbps using
technology called Multiple-Input Multiple-Output (MIMO), in which multiple antennas
transmit multiple streams of data. The use of multiple antennas also provides excellent range
and coverage. With the introduction of the newer WPA and WPA2 encryption and
authentication protocols, wireless security is extremely strong.
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
3-4
v1.0, April 2007
To get the best performance, use newer adapters such as RangeMax adapters for your
computers. A high-speed router may be compatible with older 802.11b and 802.11g adapters,
but the use of these older wireless technologies in your network can result in lower throughput
overall (typically less than 10 Mbps for 802.11b and less than 40 Mbps for 802.11g). In
addition, many older wireless products do not support the latest security protocols, WPA and
WPA2.
•Powerline
For connecting rooms or floors that are blocked by obstructions or are distant vertically,
consider networking over your building’s AC wiring. NETGEAR’s Powerline HD family of
products delivers up to 200 Mbps to any outlet, while the older generation XE family of
products delivers 14 Mbps or 85 Mbps. Data transmissions are encrypted for security, and you
can configure an individual network password to prevent neighbors from connecting.
The Powerline HD family of products can coexist on the same network with older generation
XE family products or HomePlug 1.0 products, but they are not interoperable with these
older products.
•Wired Ethernet
As Gigabit Ethernet ports become common on newer computers, wired Ethernet remains a
good choice for speed, economy, and security. Gigabit Ethernet can extend up to 100 meters
with twisted-pair wiring of CAT-5e or better. A wired connection is not susceptible to
interference, and eavesdropping would require a physical connection to your network.
Assessing Your Speed Requirements
Because your Internet connection is likely to operate at a much lower speed than your local
network, faster local networking technologies may not improve your Internet experience.
However, many emerging home applications require high data rates. For example:
• Streaming HD video requires 10 to 30 Mbps per stream. Because latency and packet loss can
disrupt your video, plan to provide at least twice the capacity you need.
• Streaming MP3 audio requires less than 1 Mbps per stream and does not strain most modern
networks. Like video, however, streaming audio is also sensitive to latency and packet loss, so
a congested network or a noisy link can cause problems.
Note: Actual data throughput will vary. Network conditions and environmental factors,
including volume of network traffic, building materials and construction, and
network overhead, can lower actual data throughput rate.
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
3-5
v1.0, April 2007
• Backing up computers over the network has become popular due to the availability of
inexpensive mass storage. Table 3-1 shows the time to transfer one gigabyte (1 GB) of data
using various networking technologies.
Table 3-1. Theoretical Transfer Time for 1 Gigabyte
Network Connection Theoretical Raw Transfer Time
Gigabit Wired Ethernet 8 seconds
RangeMax NEXT Wireless-N 26 seconds
Powerline HD 40 seconds
100 Mbps Wired Ethernet 80 seconds
802.11g wireless 150 seconds
802.11b wireless 700 seconds
10 Mbps Wired Ethernet 800 seconds
Cable Modem (3 Mbps) 2700 seconds
Analog Modem (56 kbps) 144,000 seconds (40 hours)
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
3-6
v1.0, April 2007
4-1
v1.0, April 2007
Chapter 4
Troubleshooting
This chapter provides information about troubleshooting your Wireless Express Card. For
information about connecting to wireless networks and the Internet, see “Connecting to Wireless
Networks and the Internet” in Chapter 1.
Troubleshooting Tips
Use the information below to solve common problems you may encounter. Also, refer to the
knowledge base on the NETGEAR website at http://www.netgear.com/support/main.asp.
Table 4-1. Troubleshooting Tips
Problem Action
I cannot connect to an access point.
The access point is available and there is
good signal strength.
• If the access point is WPA-PSK protected, you need the
correct WPA-PSK passphrase. Otherwise, the WN711 will
still be connected to the previous access point and you will
not be able to change to the WPA-PSK access point.
• If the access point is WEP protected (either 64 or 128 bit
encryption), you will be prompted to enter the WEP
encryption security information.
Throughput is only 54 Mbps. The Wireless Express Card can operate at faster speeds. You
are probably connecting to a standard 802.11g network. See
Chapter 3, “Wireless Network Performance” for help in
understanding how to get the best performance from your
Wireless Express Card.
The Smart Wizard keeps asking me to save
settings.
If you change the settings the Smart Wizard offers you the
chance to save the changes. To avoid this prompt, simply click
Apply before you close the Smart Wizard.
Two WN711 icons are in the system tray. You have an older software version installed on your system
and it needs to be removed. See “Removing the WN711
Software” in Chapter 1 or “Upgrading the WN711 Software” in
Chapter 1.
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
4-2
v1.0, April 2007
Ad Hoc Mode Is Not Working Correctly
You need to click the Initiate Ad Hoc button before you click Apply. Here is how you start an Ad
Hoc network:
1. Fill in the Network Name (SSID).
2. Select the Computer-to-Computer (Ad Hoc) Network Type.
3. Click Initiate Ad Hoc.
4. Accept the default settings or make your changes and click OK.
5. Click Apply.
I can connect to the access point, but not
the other computers on the network or to
the Internet.
This could be a physical layer problem or a network
configuration problem.
1. Check to make sure that the access point is physically
connected to the Ethernet network.
2. Make sure that the IP addresses and the Windows
networking parameters are all configured correctly. See
the link to “Internet Networking and TCP/IP Addressing:” in
Appendix B.
3. Restart the cable or DSL modem, router, access point, and
computer.
Viewing the IP address. To view the Wireless Express Card IP address, click the
WN711 icon to open the Smart Wizard. Then check the IP
address in the About page.
No IP address is assigned to the Wireless
Express Card.
This may occur if you upgraded your Wireless Express Card
software and did not reboot your system.
• Either restart your computer, or connect to a different access
point.
• It does not usually help to shut down the Smart Wizard or
disable/enable the card.
Note: Be sure all computers in your Ad Hoc network are configured with static IP
addresses in the same subnet.
Table 4-1. Troubleshooting Tips (continued)
Problem Action
A-1
v1.0, April 2007
Appendix A
Default Configuration Settings and Technical
Specifications
Default Configuration Settings
The following table lists the default settings of your Wireless Adapter.
Feature Description
Smart Wizard Enabled
Wireless
Wireless Communication Enabled
Wireless Network Name (SSID) Any (first available network)
Security Disabled
Network Type Infrastructure
Transmission Speed Auto*
*. Maximum wireless signal rate (IEEE Standard 802.11n draft specification). Actual throughput will vary.
Network conditions and environmental factors, including volume of network traffic, building materials and
construction, and network overhead, lower actual data throughput rate.
Country/Region United States (varies by region)
Operating Mode 802.11n, 802.11g and 802.11b
Data Rate up to 270 Mbps
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
A-2
v1.0, April 2007
Technical Specifications
This table below describes technical specifications for the NETGEAR RangeMax Next Wireless-
N Express Card WN711.
Antennas 2 separate PCB internal antennas
Standards 802.11n, 802.11g, 802.11b
Radio Data Rate 1, 2, 5.5, 6, 6.5, 9, 11, 12, 13, 13.5, 18, 19.5, 24, 26, 27, 36, 39, 40.5,
48, 52, 54, 58.5, 65, 78, 81,104, 108, 117, 121.5, 130, 135, 162, 216,
243, and 270 Mbps
Frequency 2.4GHz to 2.5GHz CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Modulations
LED Single LED
• solid indicates connected to network
• blinking indicates transferring data
Power 3.3V bus powered
Emissions FCC Part 15 Class B, CE, C-Tick, VCCI Class B, TELEC
Bus interface Express card 3.3V
Provided drivers Microsoft Vista, Windows XP, and Windows 2000
Operating Environment Operating temperature: 0 to 45 degree C
Encryption 40-bit (also called 64-bit) and 128-bit WEP data encryption, WPA2-PSK,
and WPA-PSK
Warranty Limited 1-year warranty
B-1
v1.0, April 2007
Appendix B
Related Documents
This appendix provides links to reference documents you can use to gain a more complete
understanding of the technologies used in your NETGEAR product.
Document Link
Windows XP and Vista
Wireless Configuration
Utilities
http://documentation.netgear.com/reference/enu/winzerocfg/
index.htm
Internet Networking and
TCP/IP Addressing: http://documentation.netgear.com/reference/enu/tcpip/index.htm
Wireless Communications: http://documentation.netgear.com/reference/enu/wireless/index.htm
Preparing a Computer for
Network Access: http://documentation.netgear.com/reference/enu/wsdhcp/index.htm
Virtual Private Networking
(VPN): http://documentation.netgear.com/reference/enu/vpn/index.htm
Glossary: http://documentation.netgear.com/reference/enu/glossary/index.htm
NETGEAR RangeMax Next Wireless-N Express Card WN711 User Manual
B-2
v1.0, April 2007
