Users manual 2
Reference Manual for the ADSL Modem Wireless Router DG834G
Advanced Configuration 7-9
v1.4, April 2007
Configuring Dynamic DNS
If your network has a permanently assigned IP address, you can register a domain name and have
that name linked with your IP address by public Domain Name Servers (DNS). However, if your
Internet account uses a dynamically assigned IP address, you will not know in advance what your
IP address will be, and the address can change frequently. In this case, you can use a commercial
dynamic DNS service that will allow you to register your domain to their IP address, and will
forward traffic directed at your domain to your frequently-changing IP address.
The router contains a client that can connect to a dynamic DNS service provider. To use this
feature, you must select a service provider and obtain an account with them. After you have
configured your account information in the router, whenever your ISP-assigned IP address
changes, your router will automatically contact your dynamic DNS service provider, log in to your
account, and register your new IP address.
How to Configure Dynamic DNS
1. Log in to the router at its default LAN address of http://192.168.0.1 with its default User Name
of admin, default password of password, or using whatever User Name, Password and LAN
address you have chosen for the router.
Warning: If your ISP assigns a private WAN IP address such as 192.168.x.x or 10.x.x.x,
the dynamic DNS service will not work because private addresses will not be
routed on the Internet.
Reference Manual for the ADSL Modem Wireless Router DG834G
7-10 Advanced Configuration
v1.4, April 2007
2. From the Main Menu of the browser interface, under Advanced, select Dynamic DNS to

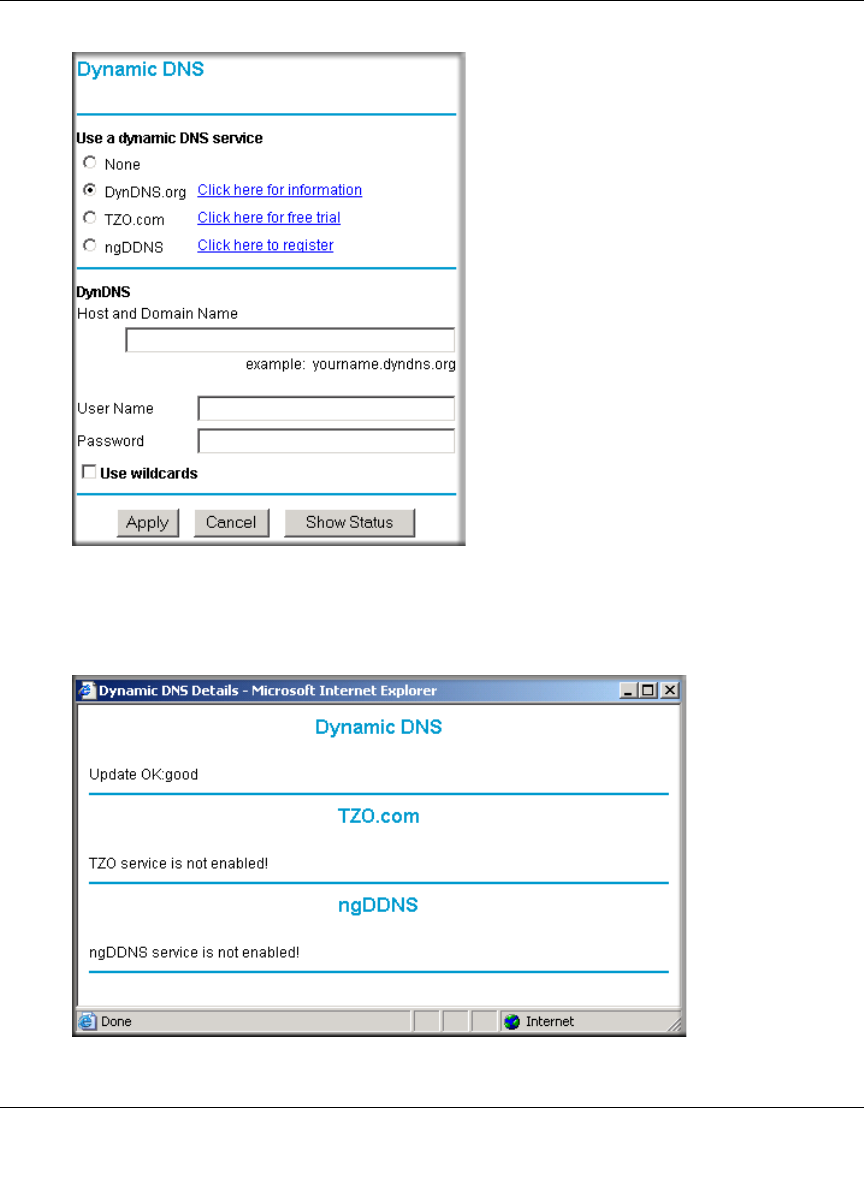

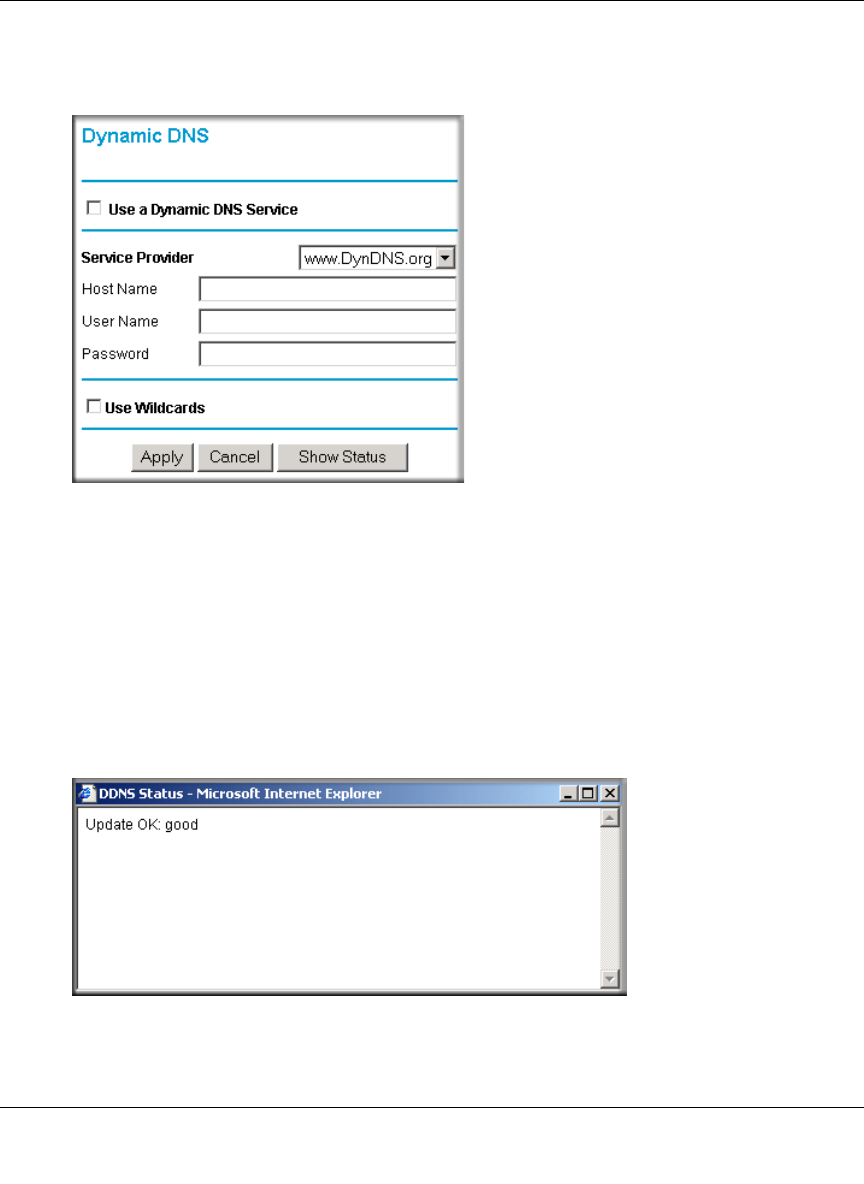

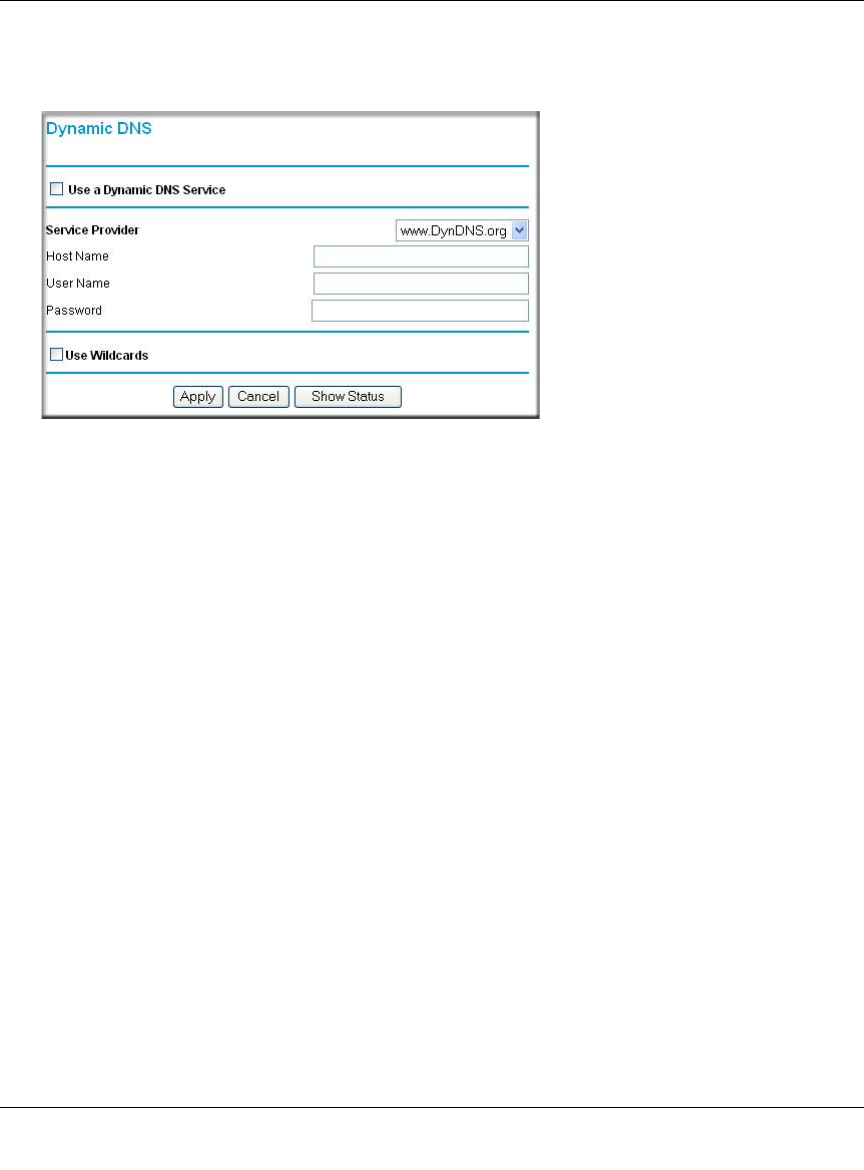

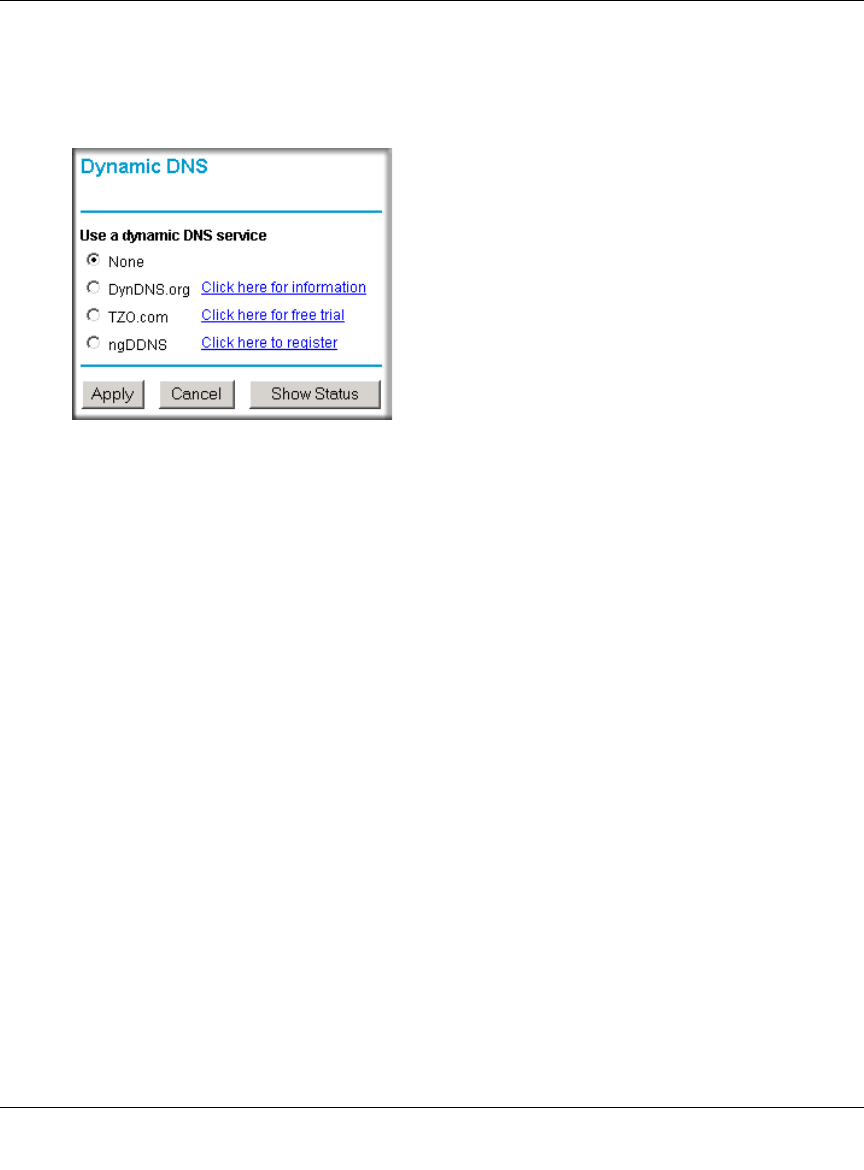

display the page below.
3. Access the Web site of one of the dynamic DNS service providers whose names appear in the
‘Service Provider’ box, and register for an account.
For example, for dyndns.org, go to www.dyndns.org.
4. Select the Use a dynamic DNS service check box.
5. Select the name of your dynamic DNS Service Provider.
6. Type the Host Name that your dynamic DNS service provider gave you.
The dynamic DNS service provider may call this the domain name. If your URL is
myName.dyndns.org, then your Host Name is “myName.”
7. Type the User Name for your dynamic DNS account.
8. Type the Password (or key) for your dynamic DNS account.
9. If your dynamic DNS provider allows the use of wildcards in resolving your URL, you can
select the Use wildcards check box to activate this feature.
For example, the wildcard feature will cause *.yourhost.dyndns.org to be aliased to the same
IP address as yourhost.dyndns.org
10. Click Apply to save your configuration.
Figure 7-4
Reference Manual for the ADSL Modem Wireless Router DG834G
Advanced Configuration 7-11
v1.4, April 2007
Using Static Routes
Static Routes provide additional routing information to your router. Under normal circumstances,
the router has adequate routing information after it has been configured for Internet access, and
you do not need to configure additional static routes. You must configure static routes only for
unusual cases such as multiple routers or multiple IP subnets located on your network.
Static Route Example
As an example of when a static route is needed, consider the following case:
• Your primary Internet access is through a cable modem to an ISP.
• You have an ISDN router on your home network for connecting to the company where you are
employed. This router’s address on your LAN is 192.168.0.100.
• Your company’s network is 134.177.0.0.
When you first configured your router, two implicit static routes were created. A default route was
created with your ISP as the modem router, and a second static route was created to your local
network for all 192.168.0.x addresses. With this configuration, if you attempt to access a device on
the 134.177.0.0 network, your router will forward your request to the ISP. The ISP forwards your
request to the company where you are employed, and the request will likely be denied by the
company’s firewall.
In this case you must define a static route, telling your router that 134.177.0.0 should be accessed
through the ISDN router at 192.168.0.100. The static route would look like Figure 7-6.
In this example:
• The Destination IP Address and IP Subnet Mask fields specify that this static route applies to
all 134.177.x.x addresses.
• The Modem Router IP Address fields specifies that all traffic for these addresses should be
forwarded to the ISDN router at 192.168.0.100.
• A Metric value of 1 will work since the ISDN router is on the LAN.
This represents the number of routers between your network and the destination. This is a
direct connection so it is set to 1.
• Private is selected only as a precautionary security measure in case RIP is activated.
Reference Manual for the ADSL Modem Wireless Router DG834G
7-12 Advanced Configuration
v1.4, April 2007
How to Configure Static Routes
1. Log in to the router at its default LAN address of http://192.168.0.1 with its default User Name
of admin, default password of password, or using whatever User Name, Password and LAN
address you have chosen for the router.
2. From the Main Menu of the browser interface, under Advanced, click Static Routes to view

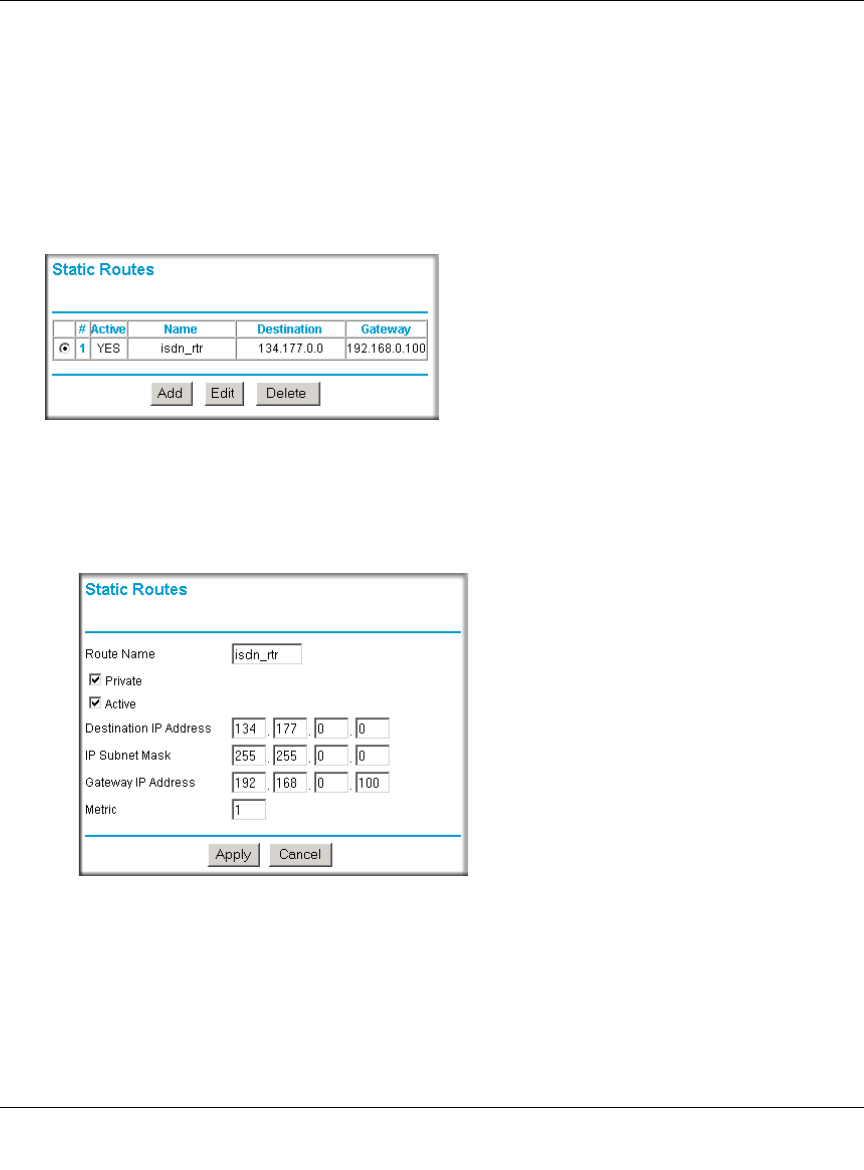

the Static Routes menu, shown in Figure 7-5.
3. To add or edit a Static Route:
a. Click the Edit button to open the Edit Menu, shown in Figure 7-6.
b. Type a route name for this static route in the Route Name box under the table.
This is for identification purpose only.
c. Select Private if you want to limit access to the LAN only.
The static route will not be reported in RIP.
Figure 7-5
Figure 7-6
Reference Manual for the ADSL Modem Wireless Router DG834G
Advanced Configuration 7-13
v1.4, April 2007
d. Select Active to make this route effective.
e. Type the Destination IP Address of the final destination.
f. Type the IP Subnet Mask for this destination.
If the destination is a single host, type 255.255.255.255.
g. Type the Gateway IP Address, which must be a router on the same LAN segment as the
router.
h. Type a number between 2 and 15 as the Metric value.
This represents the number of routers between your network and the destination. Usually,
a setting of 2 or 3 works, but if this is a direct connection, set it to 2.
4. Click Apply to have the static route entered into the table.
Universal Plug and Play (UPnP)
Universal Plug and Play (UPnP) helps devices, such as Internet appliances and computers, access
the network and connect to other devices as needed. UPnP devices can automatically discover the
services from other registered UPnP devices on the network.
1. Click UPnP on the main menu to invoke the UPnP menu:
2. Fill out the UPnP screen:
•Turn UPnP On: UPnP can be enabled or disabled for automatic device configuration. The
default setting for UPnP is enabled. If disabled, the Router will not allow any device to
automatically control the resources, such as port forwarding (mapping), of the Router.

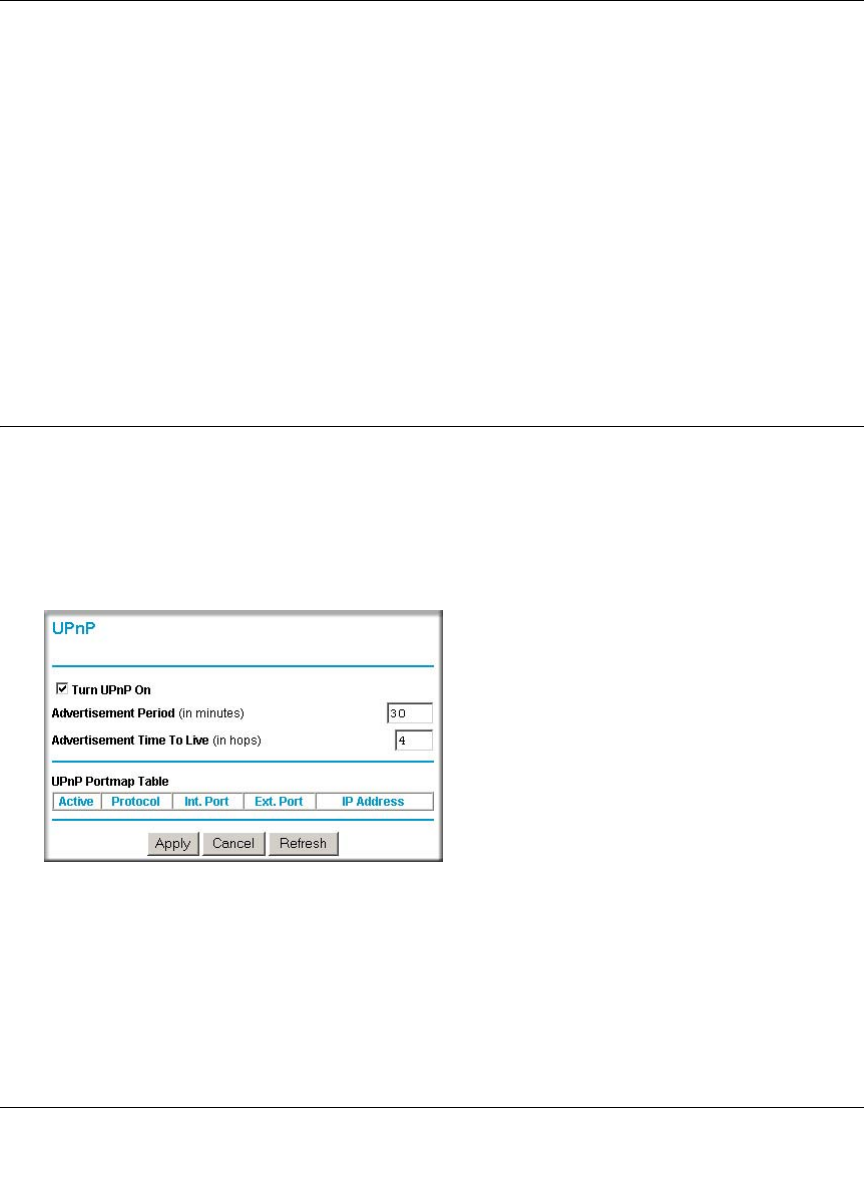

Figure 7-7
Reference Manual for the ADSL Modem Wireless Router DG834G
7-14 Advanced Configuration
v1.4, April 2007
•Advertisement Period: The Advertisement Period is how often the Router will advertise
(broadcast) its UPnP information. This value can range from 1 to 1440 minutes. The
default period is for 30 minutes. Shorter durations will ensure that control points have
current device status at the expense of additional network traffic. Longer durations may
compromise the freshness of the device status but can significantly reduce network traffic.
•Advertisement Time To Live: The time to live for the advertisement is measured in hops
(steps) for each UPnP packet sent. A hop is the number of steps allowed to propagate for
each UPnP advertisement before it disappears. The number of hops can range from 1 to
255. The default value for the advertisement time to live is 4 hops, which should be fine
for most home networks. If you notice that some devices are not being updated or reached
correctly, then it may be necessary to increase this value a little.
•UPnP Portmap Table: The UPnP Portmap Table displays the IP address of each UPnP
device that is currently accessing the Router and which ports (Internal and External) that
device has opened. The UPnP Portmap Table also displays what type of port is opened and
if that port is still active for each IP address.
3. To save, cancel or refresh the table:
a. Click Apply to save the new settings to the Router.
b. Click Cancel to disregard any unsaved changes.
c. Click Refresh to update the portmap table and to show the active ports that are currently
opened by UPnP devices.
Wireless Bridging and Repeating
The ADSL Modem Wireless Router lets you build large bridged wireless networks by being
configured into a Wireless Distribution System (WDS).
Examples of wireless bridged configurations are:
•Point-to-Point Bridge. The DG834G v4 communicates with another bridge-mode wireless
station. See “Point-to-Point Bridge Configuration” on page 7-16.
•Multi-Point Bridge. The DG834G v4 is the “master” for a group of bridge-mode wireless
stations. Then all traffic is sent to this “master,” rather than to other access points. See “Multi-
Point Bridge Configuration” on page 7-17.
Reference Manual for the ADSL Modem Wireless Router DG834G
Advanced Configuration 7-15
v1.4, April 2007
•Repeater with Wireless Client Association. Sends all traffic to the remote AP. See “Repeater
with Wireless Client Association” on page 7-19.

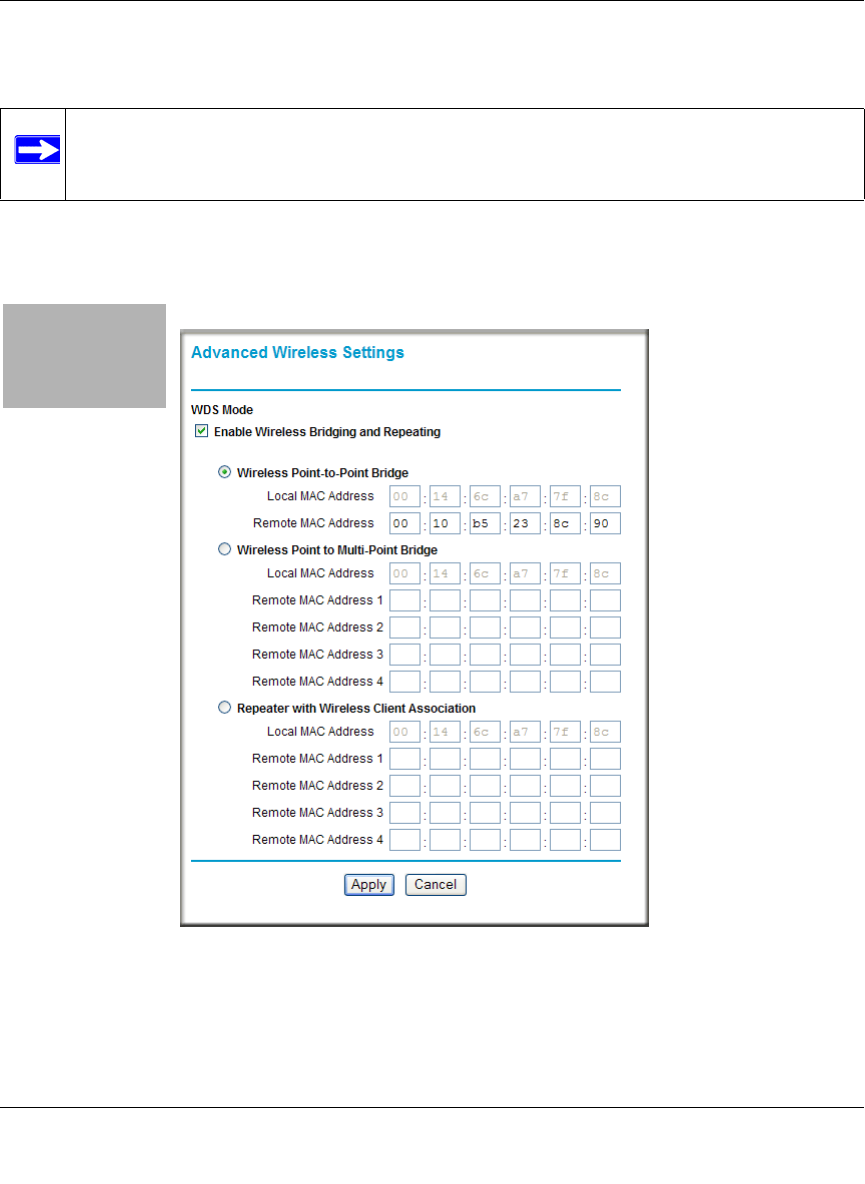

These configurations can be set up from the Advanced Access Point Settings page, shown in
Figure 7-1 below.
Note: The Wireless Bridging and Repeating feature uses the default Security Profile to
send and receive traffic.
Figure 7-1
Reference Manual for the ADSL Modem Wireless Router DG834G
7-16 Advanced Configuration
v1.4, April 2007
Point-to-Point Bridge Configuration
In Point-to-Point Bridge mode, the DG834G v4 communicates as an access point with another
bridge-mode wireless station. As a bridge, wireless client associations are disabled—only wired
clients can be connected. You must enter the MAC address of the other bridge-mode wireless
station in the field provided. Use wireless security to protect this communication. The figure below
shows an example of Point-to-Point Bridge mode.
The following steps describe how to set up the Point-to-Point Bridge configuration in Figure 7-2.
1. Configure the DG834G v4 (AP1) on LAN Segment 1 in Point-to-Point Bridge mode.
2. Configure the other access point (AP2) on LAN Segment 2 in Point-to-Point Bridge mode.
The DG834G v4 must have AP2’s MAC address in its Remote MAC Address field, and AP2
must have the DG834G v4’s MAC address in its Remote MAC Address field.
3. Configure and verify the following for both access points:
• Both APs must use the same SSID, Channel, authentication mode, if any, and security
settings if security is in use.
4. Verify connectivity across LAN Segment 1 and LAN Segment 2.
A computer on either LAN segment should be able to connect to the Internet or share files and
printers of any other PCs or servers connected to LAN Segment 1 or LAN Segment 2.

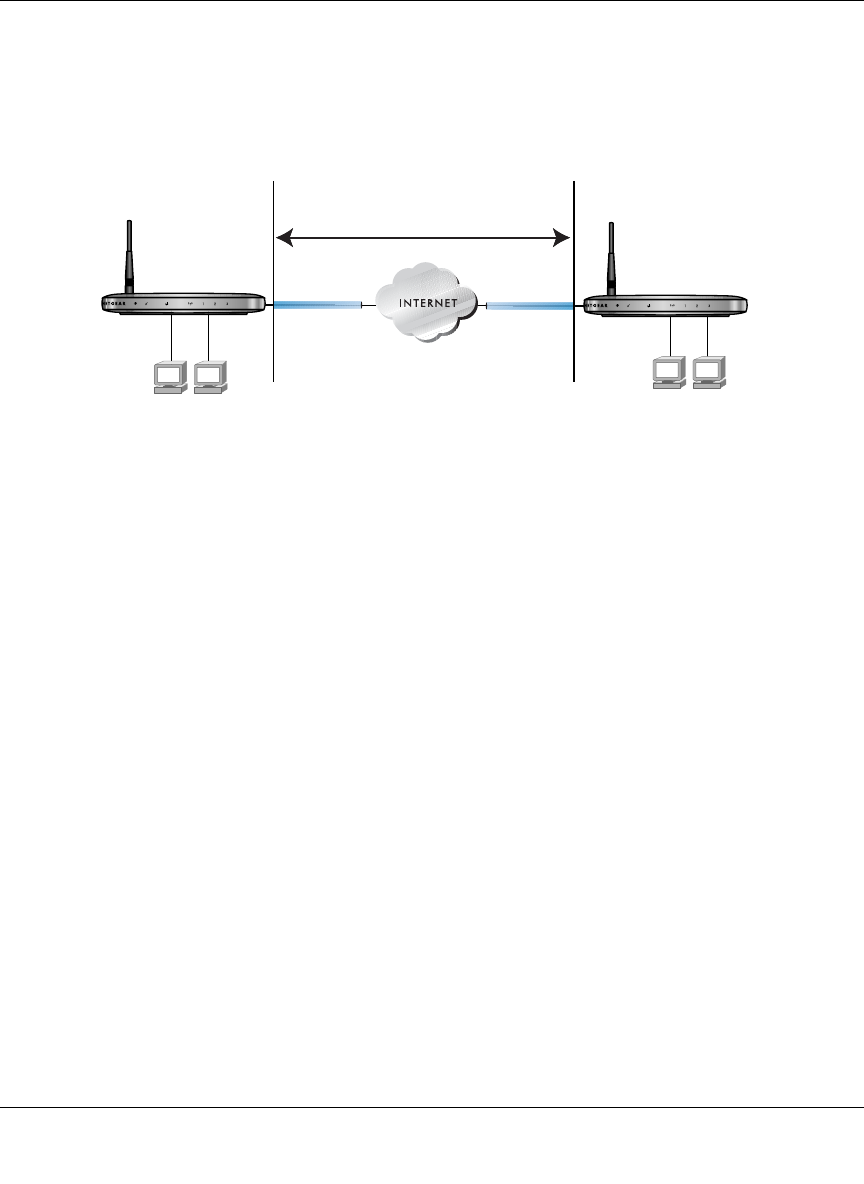

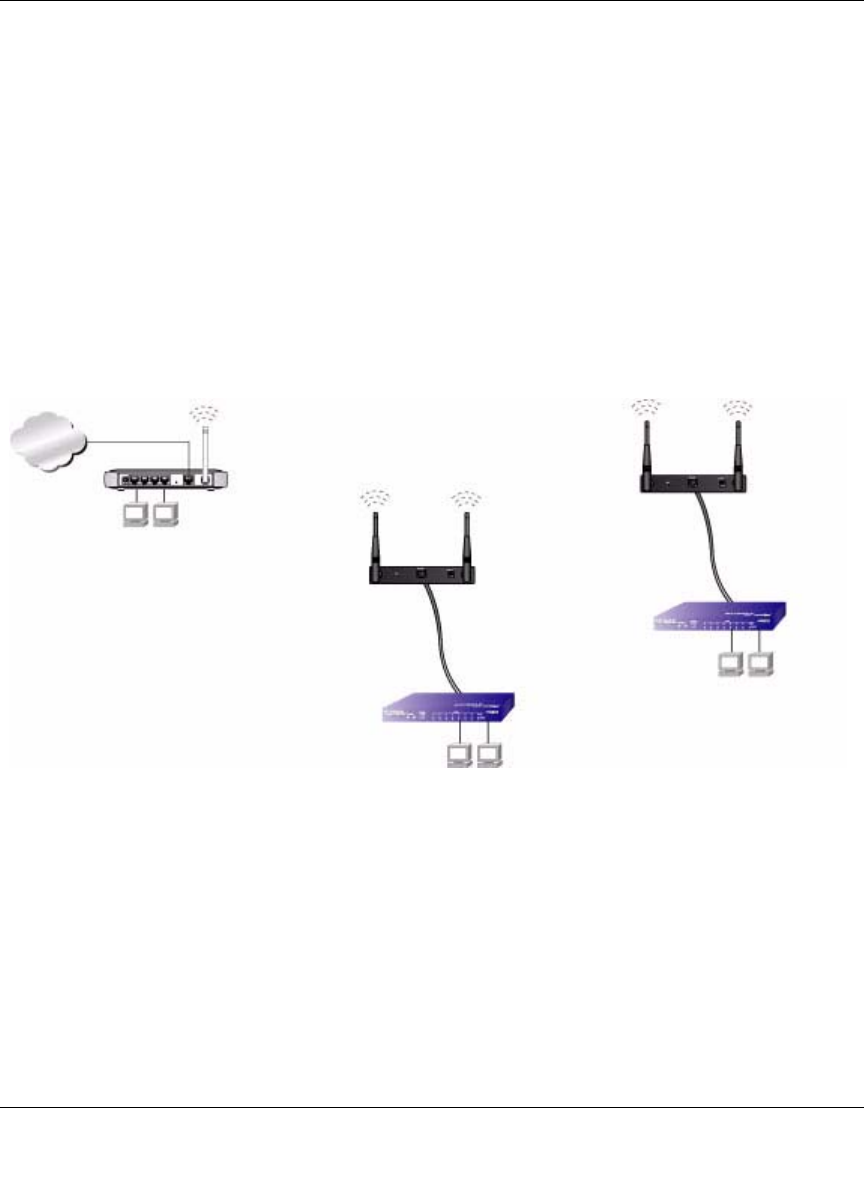

Figure 7-2
Internet
Both APs are in
Point-to-Point Bridge mode.
LAN Segment 1
LAN Segment 2
192.168.0.1 AP1 (DG834v3 Modem Router)
Access Point AP2
Switch or hub
PC’s
PC’s
Reference Manual for the ADSL Modem Wireless Router DG834G
Advanced Configuration 7-17
v1.4, April 2007
Multi-Point Bridge Configuration
Multi-point bridge mode allows a modem router to bridge to multiple peer access points
simultaneously. As a bridge, wireless client associations are disabled—only wired clients can be
connected. Multi-Point Bridge mode configuration includes the following steps:
• Entering the MAC addresses of the other access points in the fields provided.
• Setting the other bridge-mode access points to Point-to-Point Bridge mode, using the MAC
address of this DG834G v4 as the Remote MAC Address.
• Using wireless security to protect this traffic.
The figure below shows an example of a Multi-Point Bridge mode configuration.
The following steps describe how to set up the Multi-Point Bridge configuration shown in
Figure 7-3.
1. Configure the Operating Mode of the ADSL Modem Wireless Routers.
• Because it is in a central location, configure the DG834G v4 (AP 1) on LAN Segment 1 in
Point-to-Multi-Point Bridge mode and enter the MAC addresses of AP 2 and AP 3 in the
Remote MAC Address 1 and Remote MAC Address 2 fields.
Figure 7-3
AP 2
DG834v3
Internet
Hub or Switch
192.168.0.1
PCs
PCs
AP 3
PCs
LAN Segment 1
LAN Segment 2
LAN Segment 3
Hub or Switch
Point-to-Multi-Point
Bridge mode
Point-to-Point
Bridge Mode
Point-to-Point
Bridge Mode
“Master AP”
AP1
Reference Manual for the ADSL Modem Wireless Router DG834G
7-18 Advanced Configuration
v1.4, April 2007
• Configure the access point (AP2) on LAN Segment 2 in Point-to-Point Bridge mode with
the Remote MAC Address of the DG834G v4 ADSL Modem Wireless Router.
• Configure the access point (AP3) on LAN Segment 3 in Point-to-Point Bridge mode with
the Remote MAC Address of the DG834G v4 ADSL Modem Wireless Router.
2. Verify the following for all access points:
• The LAN network configuration of the ADSL Modem Wireless Router and other access
points are configured to operate in the same LAN network address range as the LAN
devices
• Only one AP, the DG834G v4 in Figure 7-3, is configured in Point-to-Multi-Point Bridge
mode; all the others are in Point-to-Point Bridge mode.
• All APs, including the DG834G v4 ADSL Modem Wireless Router, must be on the same
LAN. That is, all the AP LAN IP addresses must be in the same network.
• If using DHCP, all access points should be set to “Obtain an IP address automatically
(DHCP Client)” in the IP Address Source portion of the Basic IP Settings menu.
• All APs, including the DG834G v4 ADSL Modem Wireless Router, must use the same
SSID, Channel, authentication mode, if any, and encryption in use.
• All Point-to-Point APs must have the MAC address of AP1 (the DG834G v4 ADSL
Modem Wireless Router in the above diagram) in the Remote AP MAC address field.
3. Verify connectivity across the LANs.
• A computer on any LAN segment should be able to connect to the Internet or share files
and printers with any other PCs or servers connected to any of the three LAN segments.
Note: Wireless stations will not be able to connect to the ADSL Modem Wireless Router
or access points in Figure 7-3. If you require wireless stations to access any LAN
segment, you can use additional access points configured in Wireless Access Point
mode in any LAN segment.
Reference Manual for the ADSL Modem Wireless Router DG834G
Advanced Configuration 7-19
v1.4, April 2007
Repeater with Wireless Client Association
In this mode, the ADSL Modem Wireless Router sends all traffic to a remote AP. For repeater
mode, you must enter the MAC address of the remote “parent” access point. Alternatively, you can
configure the ADSL Modem Wireless Router as the parent by entering the address of a “child”
access point. Note that the following restrictions apply:
•You do not have the option of disabling client associations with this ADSL Modem Wireless
Router.
• You cannot configure a sequence of parent/child APs. You are limited to only one parent AP,
although if the DG834G v4 is the parent AP it can connect with up to four child APs.
The figure below shows an example of a Repeater Mode configuration.
To set up a repeater with wireless client association, follow the steps below:
1. Configure the Operating Mode of the ADSL Modem Wireless Routerdevices.
• Configure AP1 (the the DG834G v4 ADSL Modem Wireless Router in the above
diagram) on LAN Segment 1 with the MAC address of AP2 and AP3 in the first two
Remote MAC Address fields.
• Configure AP2 with the MAC address of AP1 in the Remote MAC Address field.
• Likewise, configure AP3 with the MAC address of AP1 in the Remote MAC Address
field.
Figure 7-4
DG834G
Internet
192.168.0.1
PCs AP3
AP in Repeater Mode
Wireless PC
Associated with AP2
Wireless PC
Associated with AP 3
Wireless PC
Associated with AP1
Parent AP in Repeater Mode
Modem Router
AP1
AP2
AP in Repeater Mode
Reference Manual for the ADSL Modem Wireless Router DG834G
7-20 Advanced Configuration
v1.4, April 2007
2. Verify the following for both access points:
• The LAN network configuration of the ADSL Modem Wireless Router and other AP
device are configured to operate in the same LAN network address range as the LAN
devices
• Both APs must be on the same LAN. That is, both the AP’s LAN IP address must be in the
same network.
• If using DHCP, both AP devices should be set to “Obtain an IP address automatically
(DHCP Client)” in the IP Address Source portion of the Basic IP Settings menu.
• Both AP devices use the same SSID, Channel, authentication mode, if any, and encryption
in use.
3. Verify connectivity across the LANs.
A computer on any LAN segment should be able to connect to the Internet or share files and
printers with any other PCs or servers connected to any of the three WLAN segments.
Virtual Private Networking 8-1
v1.4, April 2007
Chapter 8
Virtual Private Networking
This chapter describes how to use the virtual private networking (VPN) features of the ADSL
Modem Wireless Router. VPN communications paths are called tunnels. VPN tunnels provide
secure, encrypted communications between your local network and a remote network or computer.
See “Virtual Private Networking (VPN)” in Appendix C to learn more about VPN.
This chapter is organized as follows:
•“Overview of VPN Configuration” on page 8-2 provides an overview of the two most
common VPN configurations: Client-to-Gateway and Gateway-to-Gateway.
•“Planning a VPN” on page 8-4 provides a worksheet for recording the configuration
parameters of the VPN you want to set up, along with the VPN Committee (VPNC)
recommended default parameters set by the VPN Wizard.
•“VPN Tunnel Configuration” on page 8-6 summarizes the three ways to configure a VPN
tunnel: VPN Wizard (recommended for most situations), Auto Policy, and Manual Policy.
•“How to Set Up a Client-to-Gateway VPN Configuration” on page 8-7 provides the steps
needed to configure a VPN tunnel between a remote PC and a network gateway using the VPN
Wizard and the NETGEAR ProSafe VPN Client.
•“How to Set Up a Gateway-to-Gateway VPN Configuration” on page 8-21 provides the steps
needed to configure a VPN tunnel between two network gateways using the VPN Wizard.
•“VPN Tunnel Control” on page 8-29 provides the step-by-step procedures for activating,
verifying, deactivating, and deleting a VPN tunnel once the VPN tunnel has been configured.
•“How to Set Up VPN Tunnels in Special Circumstances” on page 8-38 provides the steps
needed to configure VPN tunnels when there are special circumstances and the VPNC
recommended defaults of the VPN Wizard are inappropriate. The two alternatives for
configuring VPN tunnels are Auto Policy and Manual Policy.
Reference Manual for the ADSL Modem Wireless Router DG834G
8-2 Virtual Private Networking
v1.4, April 2007
Overview of VPN Configuration
Two common scenarios for configuring VPN tunnels are between a remote personal computer and
a network gateway and between two or more network gateways. The DG834G v4 supports both of
these types of VPN configurations. The ADSL Modem Wireless Router supports up to five
concurrent tunnels.
Client-to-Gateway VPN Tunnels
Client-to-Gateway VPN Tunnels provide secure access from a remote PC, such as a telecommuter
connecting to an office network.
A VPN client access allows a remote PC to connect to your network from any location on the
Internet. In this case, the remote PC is one tunnel endpoint, running the VPN client software. The
ADSL Modem Wireless Router on your network is the other tunnel endpoint. See “How to Set Up
a Client-to-Gateway VPN Configuration” on page 8-7 to set up this configuration.

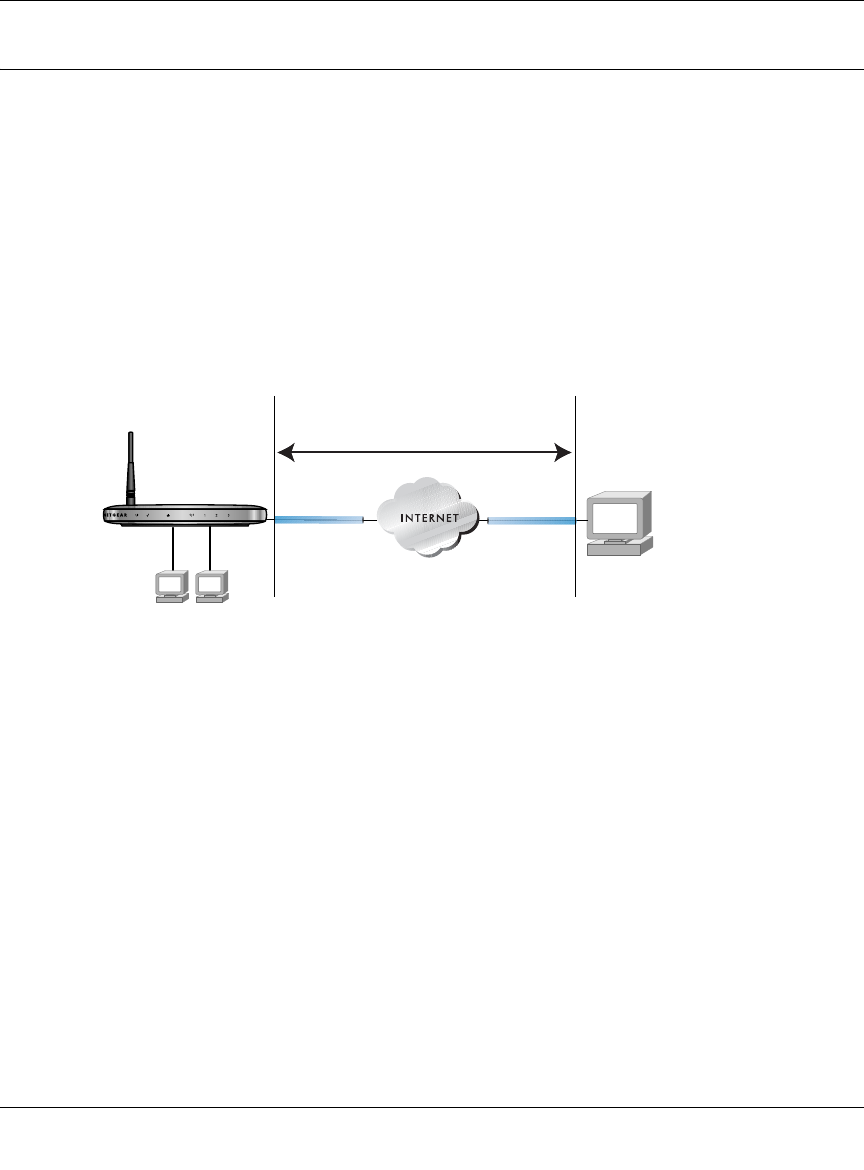

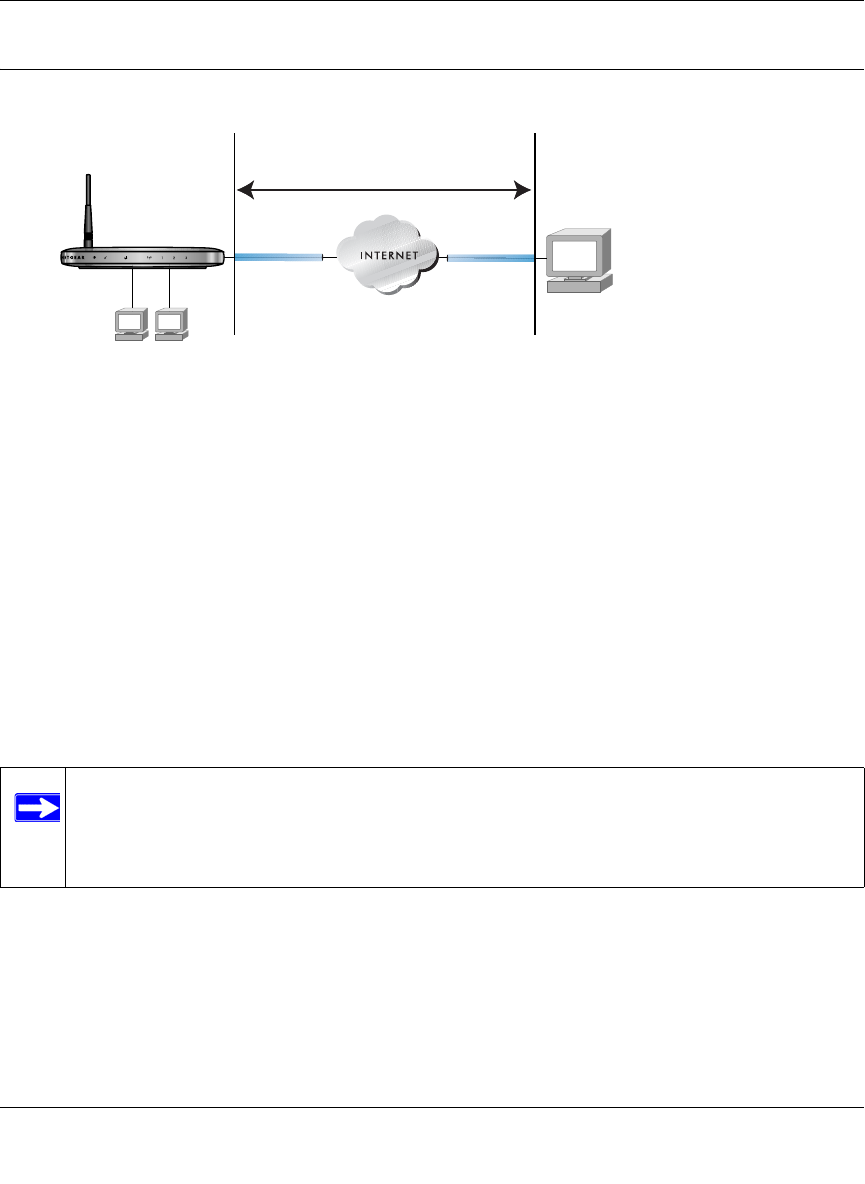

Figure 8-1
VPN Tunnel
DG834G
PC
(Running NETGEAR
ProSafe VPN Client)
PCs
Reference Manual for the ADSL Modem Wireless Router DG834G
Virtual Private Networking 8-3
v1.4, April 2007
Gateway-to-Gateway VPN Tunnels
• Gateway-to-Gateway VPN Tunnels provide secure access between networks, such as a branch
or home office and a main office.
A VPN between two or more NETGEAR VPN-enabled routers is a good way to connect branch or
home offices and business partners over the Internet. VPN tunnels also enable access to network
resources across the Internet. In this case, use DG834G v4s on each end of the tunnel to form the
VPN tunnel end points. See “How to Set Up a Gateway-to-Gateway VPN Configuration” on
page 8-21 to set up this configuration.
Figure 8-2
AB
VPN Tunnel
DG834G VPN Firewall DG834G VPN Firewall
PCs PCs
Reference Manual for the ADSL Modem Wireless Router DG834G
8-4 Virtual Private Networking
v1.4, April 2007
Planning a VPN
When you set up a VPN, it is helpful to plan the network configuration and record the
configuration parameters on a worksheet:
To set up a VPN connection, you must configure each endpoint with specific identification and
connection information describing the other endpoint. You must configure the outbound VPN
settings on one end to match the inbound VPN settings on other end, and vice versa.
This set of configuration information defines a security association (SA) between the two VPN
endpoints. When planning your VPN, you must make a few choices first:
• Will the local end be any device on the LAN, a portion of the local network (as defined by a
subnet or by a range of IP addresses), or a single PC?
• Will the remote end be any device on the remote LAN, a portion of the remote network (as
defined by a subnet or by a range of IP addresses), or a single PC?
Table 8-1. VPN Tunnel Configuration Worksheet
Connection Name:
Pre-Shared Key:
Secure Association -- Main Mode or Manual Keys:
Perfect Forward Secrecy -- Enabled or Disabled:
Encryption Protocol -- DES or 3DES:
Authentication Protocol -- MD5 or SHA-1:
Diffie-Hellman (DH) Group -- Group 1 or Group 2:
Key Life in seconds:
IKE Life Time in seconds:
VPN Endpoint Local IPSec ID LAN IP Address Subnet Mask
FQDN or Gateway IP
(WAN IP Address)
Reference Manual for the ADSL Modem Wireless Router DG834G
Virtual Private Networking 8-5
v1.4, April 2007
• Will either endpoint use Fully Qualified Domain Names (FQDNs)? FQDNs supplied by
Dynamic DNS providers (see “The Use of a Fully Qualified Domain Name (FQDN)” on
page B-8) can allow a VPN endpoint with a dynamic IP address to initiate or respond to a
tunnel request. Otherwise, the side using a dynamic IP address must always be the initiator.
• What method will you use to configure your VPN tunnels?
— The VPN Wizard using VPNC defaults (see Table 8-2)
— The typical automated Internet Key Exchange (IKE) setup (see “Using Auto Policy to
Configure VPN Tunnels” on page 8-38)
— A Manual Keying setup in which you must specify each phase of the connection (see
“Using Manual Policy to Configure VPN Tunnels” on page 8-48)?
• What level of IPSec VPN encryption will you use?
— DES - The Data Encryption Standard (DES) processes input data that is 64 bits wide,
encrypting these values using a 56 bit key. Faster but less secure than 3DES.
— 3DES - (Triple DES) achieves a higher level of security by encrypting the data three times
using DES with three different, unrelated keys.
• What level of authentication will you use?
— MDS: 128 bits, faster but less secure.
— SHA-1: 160 bits, slower but more secure.

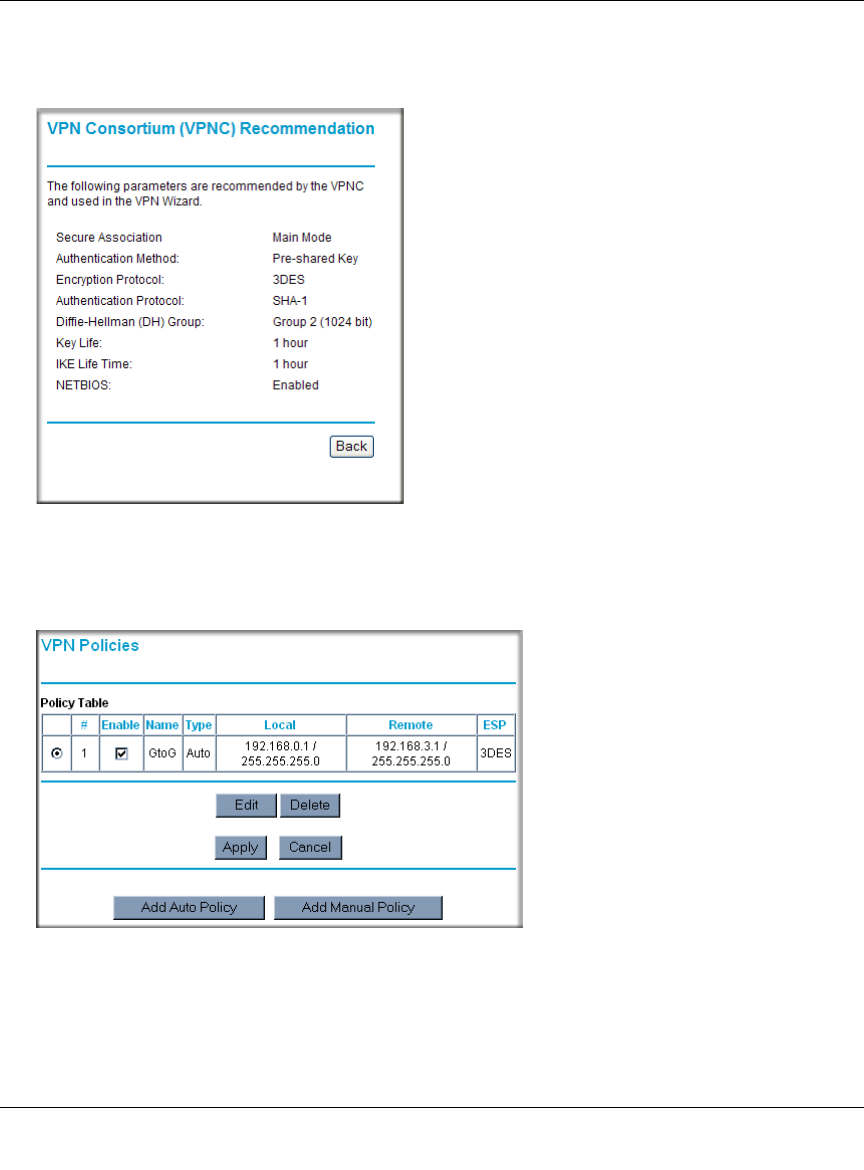

Table 8-2. Parameters Recommended by the VPNC and Used in the VPN Wizard
Parameter Factory Default
Secure Association Main Mode
Authentication Method Pre-shared Key
Encryption Method 3DES
Authentication Protocol SHA-1
Diffie-Hellman (DH) Group Group 2 (1024 bit)
Key Life 8 hours
IKE Life Time 1 hour
Reference Manual for the ADSL Modem Wireless Router DG834G
8-6 Virtual Private Networking
v1.4, April 2007
VPN Tunnel Configuration
There are two tunnel configurations and three ways to configure them:
• Use the VPN Wizard to configure a VPN tunnel (recommended for most situations):
— See “How to Set Up a Client-to-Gateway VPN Configuration” on page 8-7.
— See “How to Set Up a Gateway-to-Gateway VPN Configuration” on page 8-21.
• See “Using Auto Policy to Configure VPN Tunnels” on page 8-38 when the VPN Wizard and
its VPNC defaults (see Table 8-2) are not appropriate for your special circumstances, but you
want to automate the Internet Key Exchange (IKE) setup.
• See “Using Manual Policy to Configure VPN Tunnels” on page 8-48 when the VPN Wizard
and its VPNC defaults (see Table 8-2) are not appropriate for your special circumstances and
you must specify each phase of the connection. You manually enter all the authentication and
key parameters. You have more control over the process, however the process is more
complex and there are more opportunities for errors or configuration mismatches between
your DG834G v4 and the corresponding VPN endpoint gateway or client workstation.
Note: NETGEAR publishes additional interoperability scenarios with various
gateway and client software products. Look on the NETGEAR web site at
www.netgear.com for these interoperability scenarios.
Reference Manual for the ADSL Modem Wireless Router DG834G
Virtual Private Networking 8-7
v1.4, April 2007
How to Set Up a Client-to-Gateway VPN Configuration
Setting up a VPN between a remote PC running the NETGEAR ProSafe VPN Client and a
network gateway involves the following two steps:
•“Step 1: Configuring the Client-to-Gateway VPN Tunnel on the DG834G v4” on page 8-7
uses the VPN Wizard to configure the VPN tunnel between the remote PC and network
gateway.
•“Step 2: Configuring the NETGEAR ProSafe VPN Client on the Remote PC” on page 8-12
configures the NETGEAR ProSafe VPN Client endpoint.
Step 1: Configuring the Client-to-Gateway VPN Tunnel on the
DG834G v4
The worksheet below identifies the parameters used in the following procedure. A blank
worksheet is at “Planning a VPN” on page 8-4.

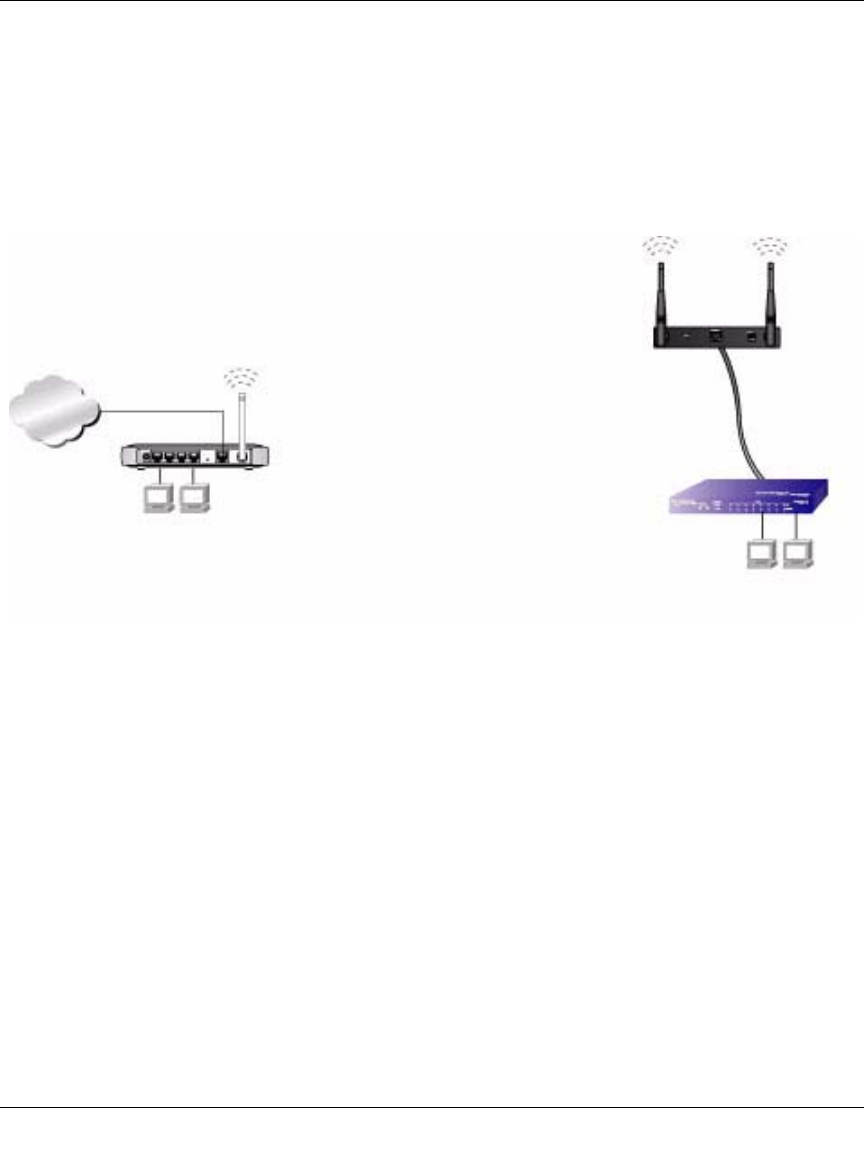

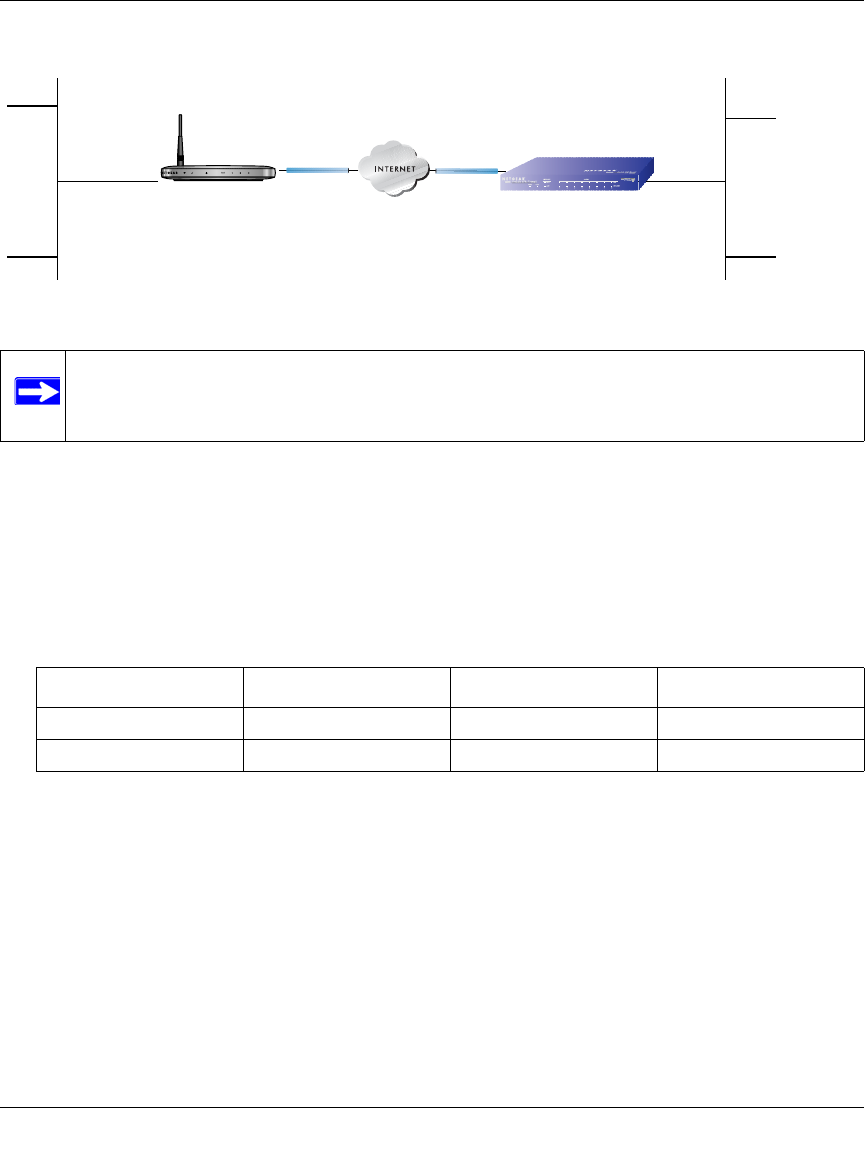

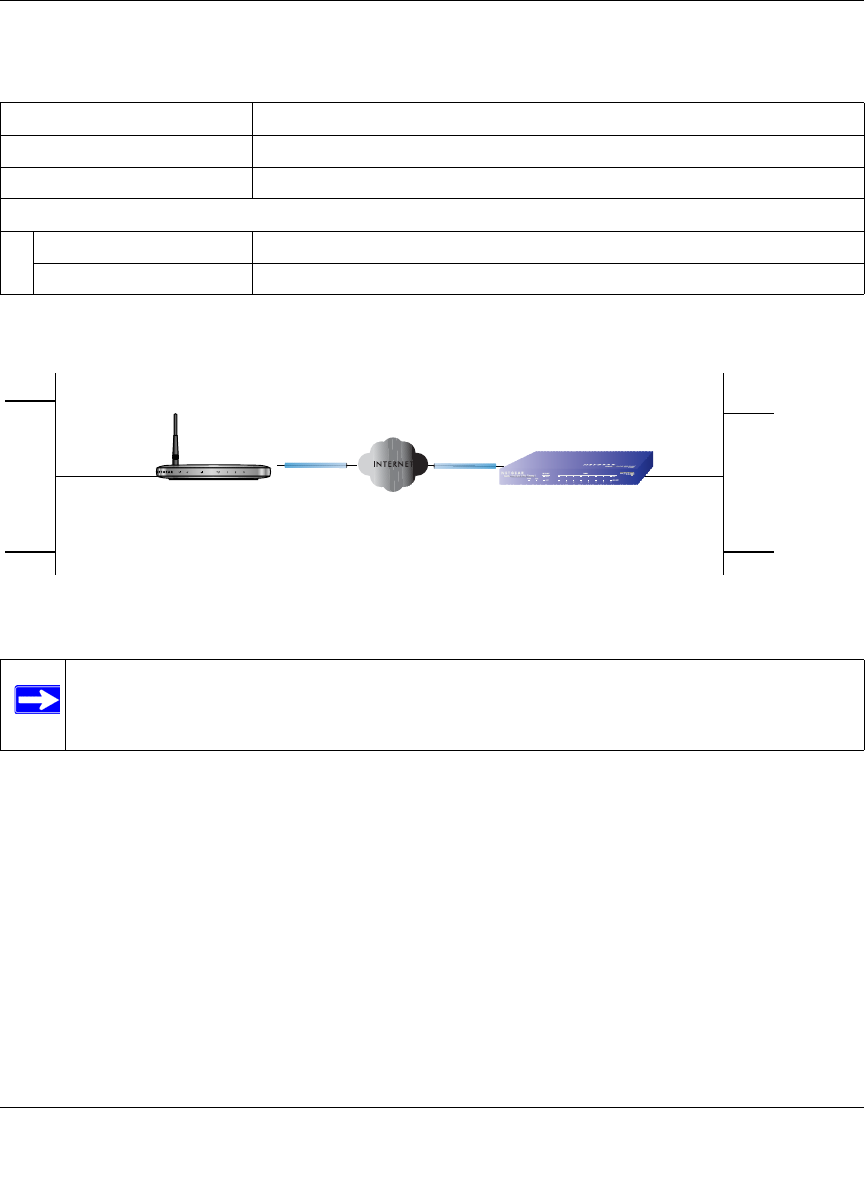

Figure 8-3
Note: This section uses the VPN Wizard to set up the VPN tunnel using the VPNC
default parameters listed in Table 8-2 on page 8-5. If you have special requirements
not covered by these VPNC-recommended parameters, refer to “How to Set Up
VPN Tunnels in Special Circumstances” on page 8-38 to set up the VPN tunnel.
192.168.3.1
VPN Tunnel
DG834G
22.23.24.25
PC
(Running NETGEAR
ProSafe VPN Client)
PCs
0.0.0.0
Reference Manual for the ADSL Modem Wireless Router DG834G
8-8 Virtual Private Networking
v1.4, April 2007
Follow this procedure to configure a client-to-gateway VPN tunnel using the VPN Wizard.

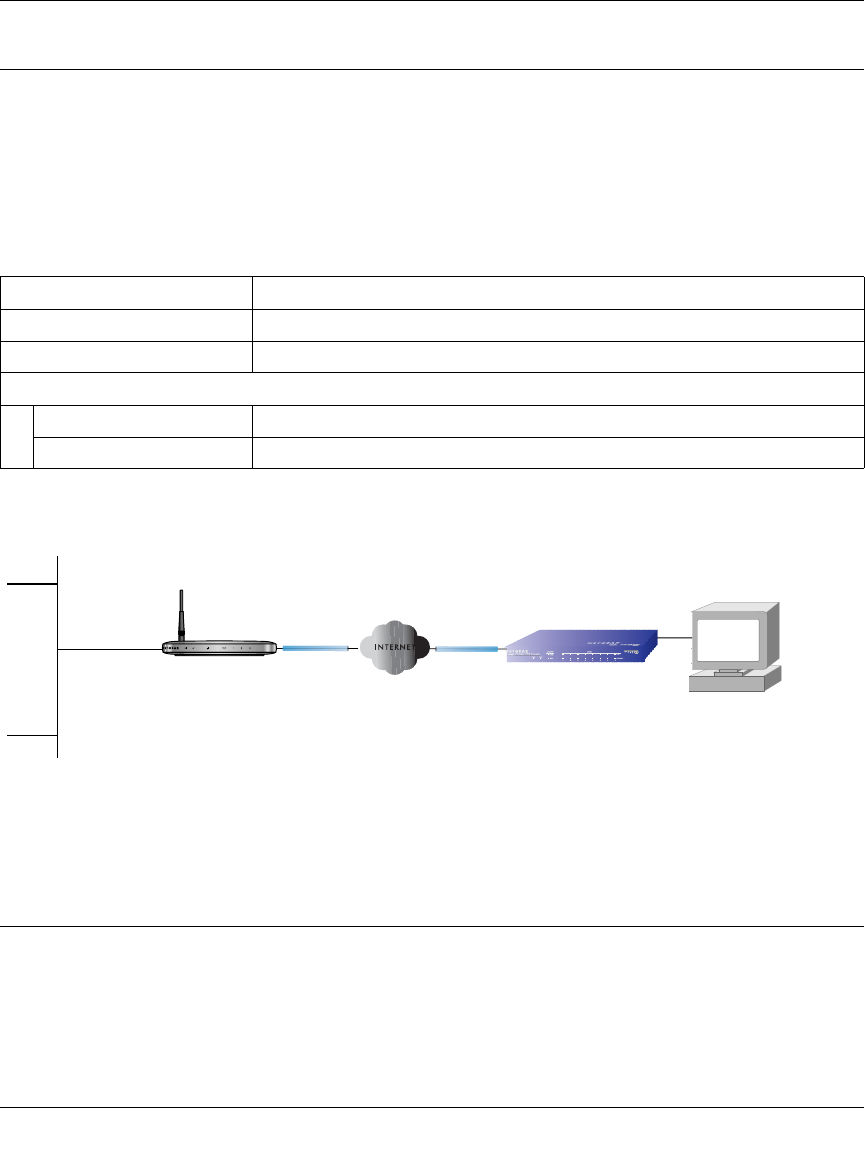

Table 8-3. VPN Tunnel Configuration Worksheet
Connection Name: RoadWarrior
Pre-Shared Key: 12345678
Secure Association -- Main Mode or Manual Keys: Main
Perfect Forward Secrecy -- Enabled or Disabled: Disabled
Encryption Protocol -- DES or 3DES: 3DES
Authentication Protocol -- MD5 or SHA-1: SHA-1
Diffie-Hellman (DH) Group -- Group 1 or Group 2: Group 2
Key Life in seconds: 28800 (8 hours)
IKE Life Time in seconds: 3600 (1 hour)
VPN Endpoint Local IPSec ID LAN IP Address Subnet Mask
FQDN or Gateway IP
(WAN IP Address)
Client toDG834 — — Dynamic
DG834G v4 toClient 192.168.3.1 255.255.255.0 22.23.24.25
Reference Manual for the ADSL Modem Wireless Router DG834G
Virtual Private Networking 8-9
v1.4, April 2007
1. Log in to the DG834G v4 at its LAN address of http://192.168.0.1 with its default user name
of admin and password of password. Click the VPN Wizard link in the main menu to
display this screen. Click Next to proceed.

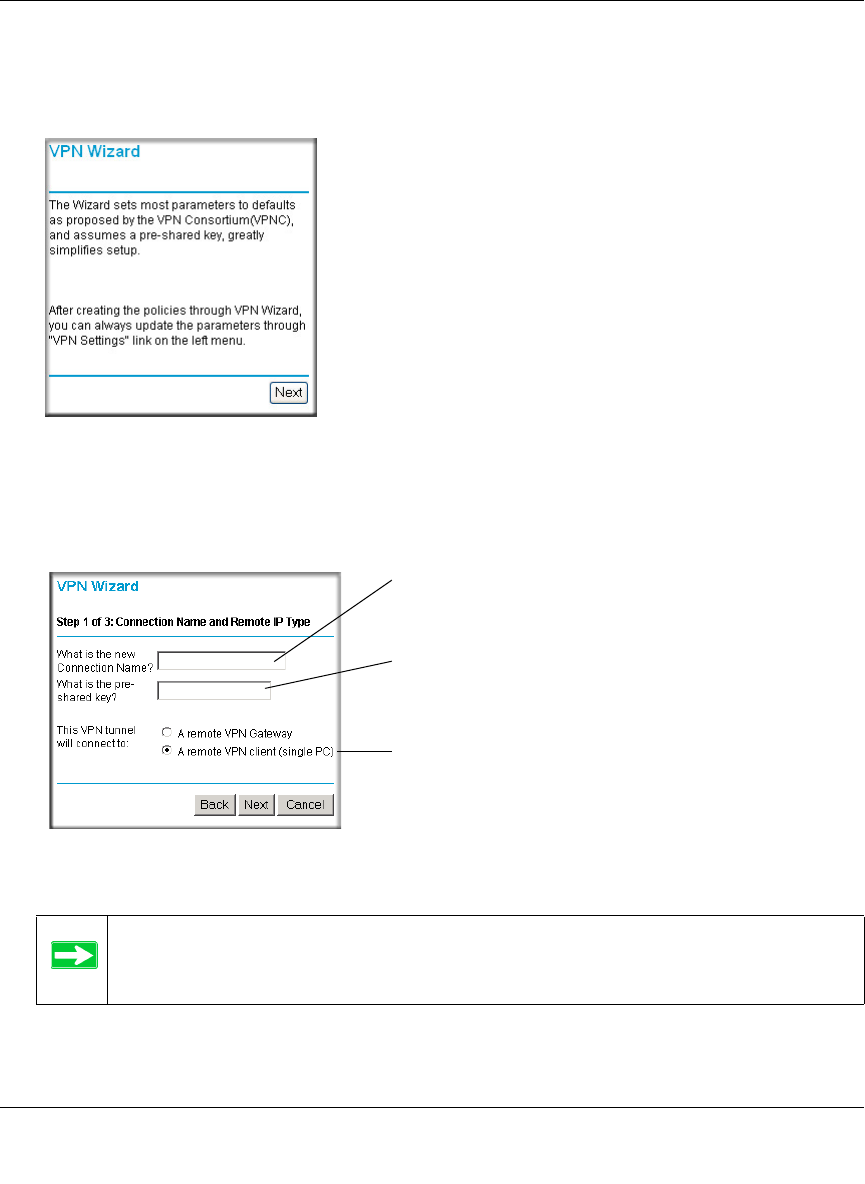

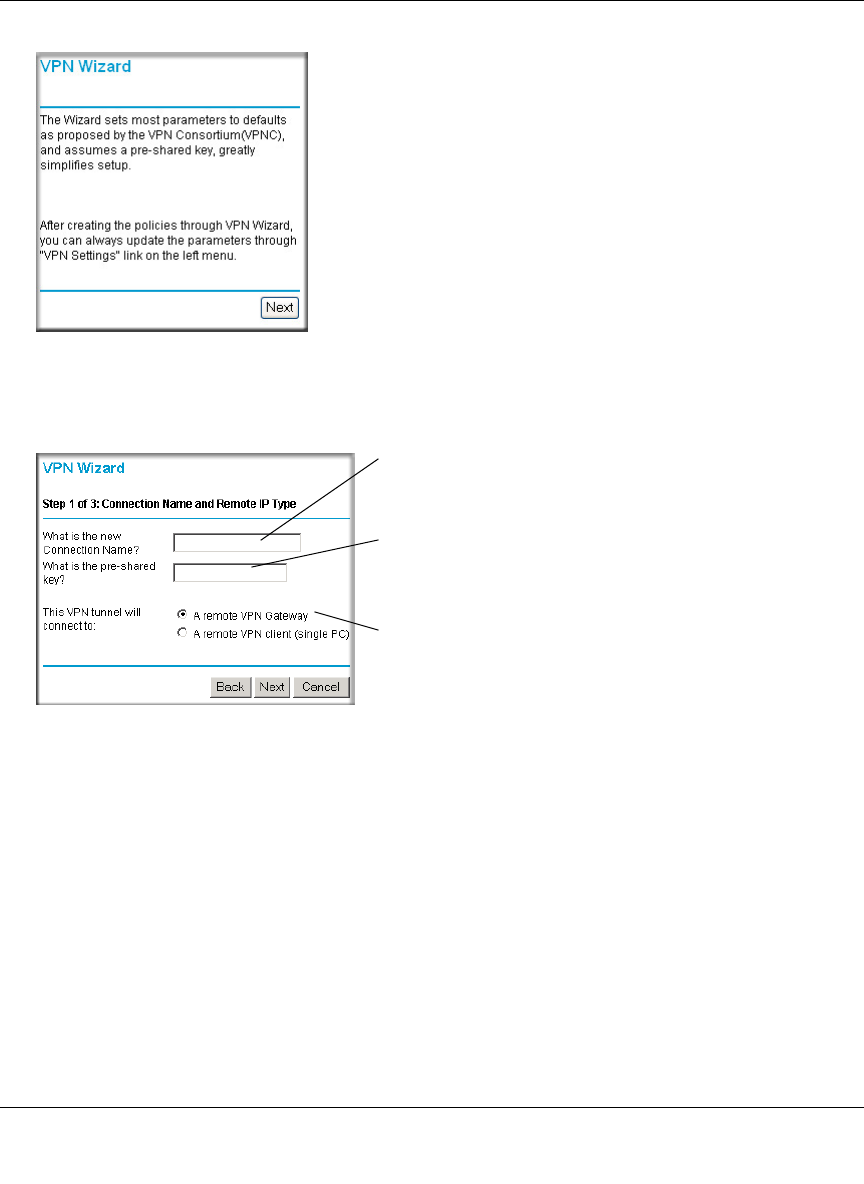

2. Fill in the Connection Name and the pre-shared key, select the type of target end point, and
click Next to proceed.
Figure 8-4
Figure 8-5
Tip: The Connection Name is arbitrary and not relevant to how the configuration
functions.
Enter the new Connection Name:
(e.g., RoadWarrior)
Enter the pre-shared key:
(e.g., 12345678)
Select the radio button:
A remote VPN client (single PC)
Reference Manual for the ADSL Modem Wireless Router DG834G
8-10 Virtual Private Networking
v1.4, April 2007

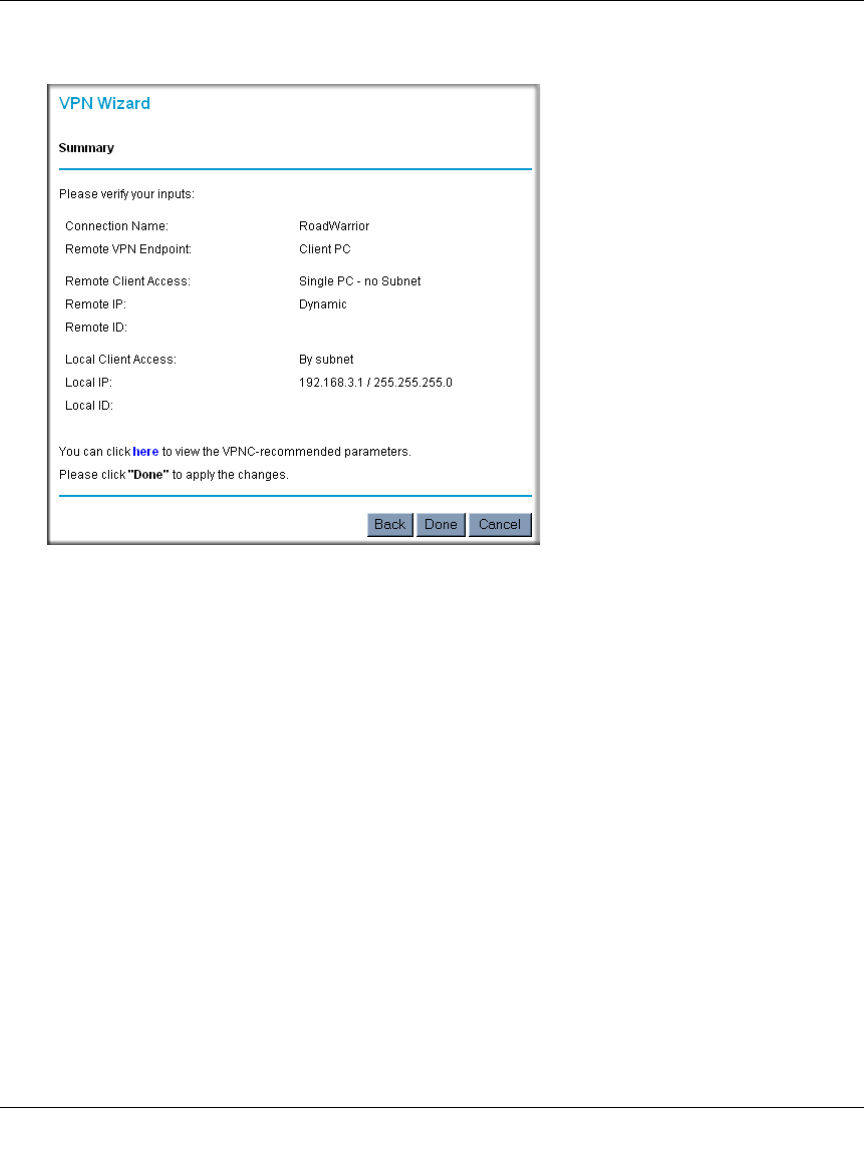

The Summary screen below displays.
Figure 8-6
Reference Manual for the ADSL Modem Wireless Router DG834G
Virtual Private Networking 8-11
v1.4, April 2007
To view the VPNC recommended authentication and encryption settings used by the VPN
Wizard, click the “here” link. Click Back to return to the Summary screen.

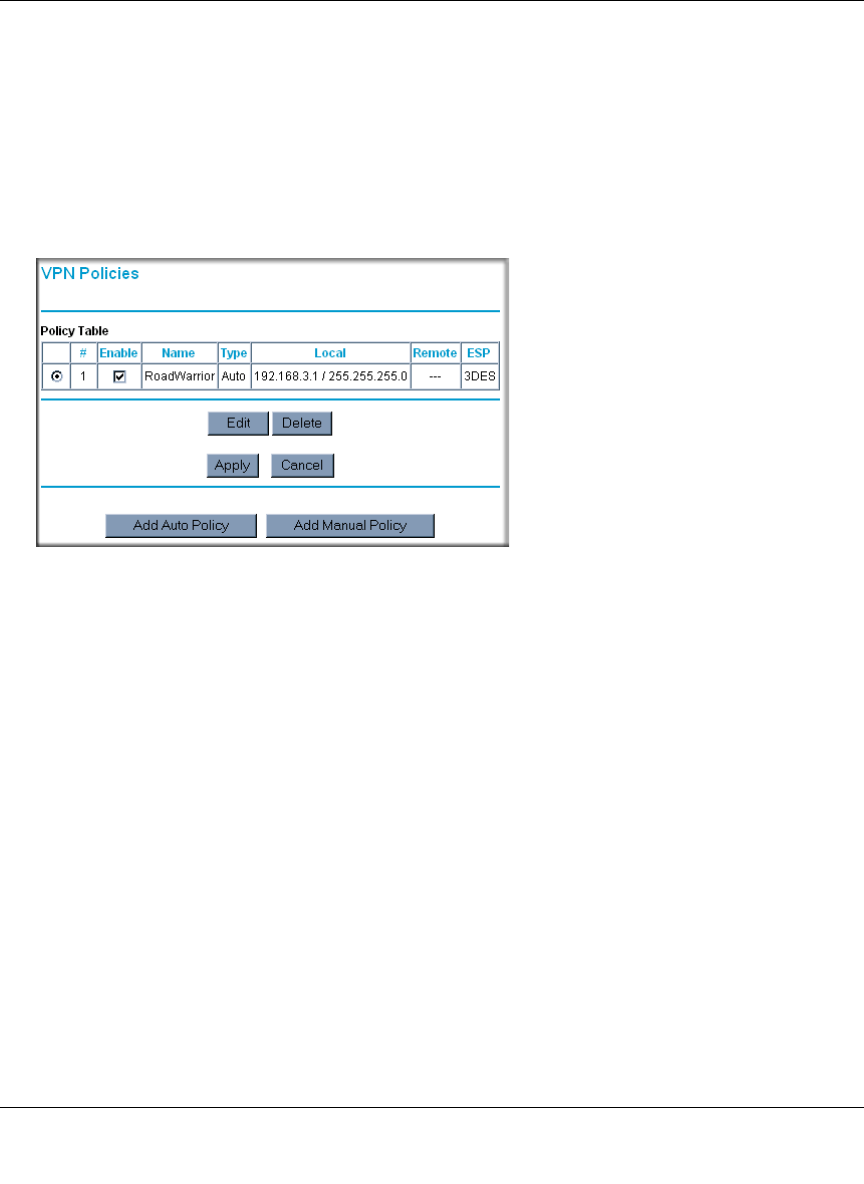

3. Click Done on the Summary screen to complete the configuration procedure. The VPN

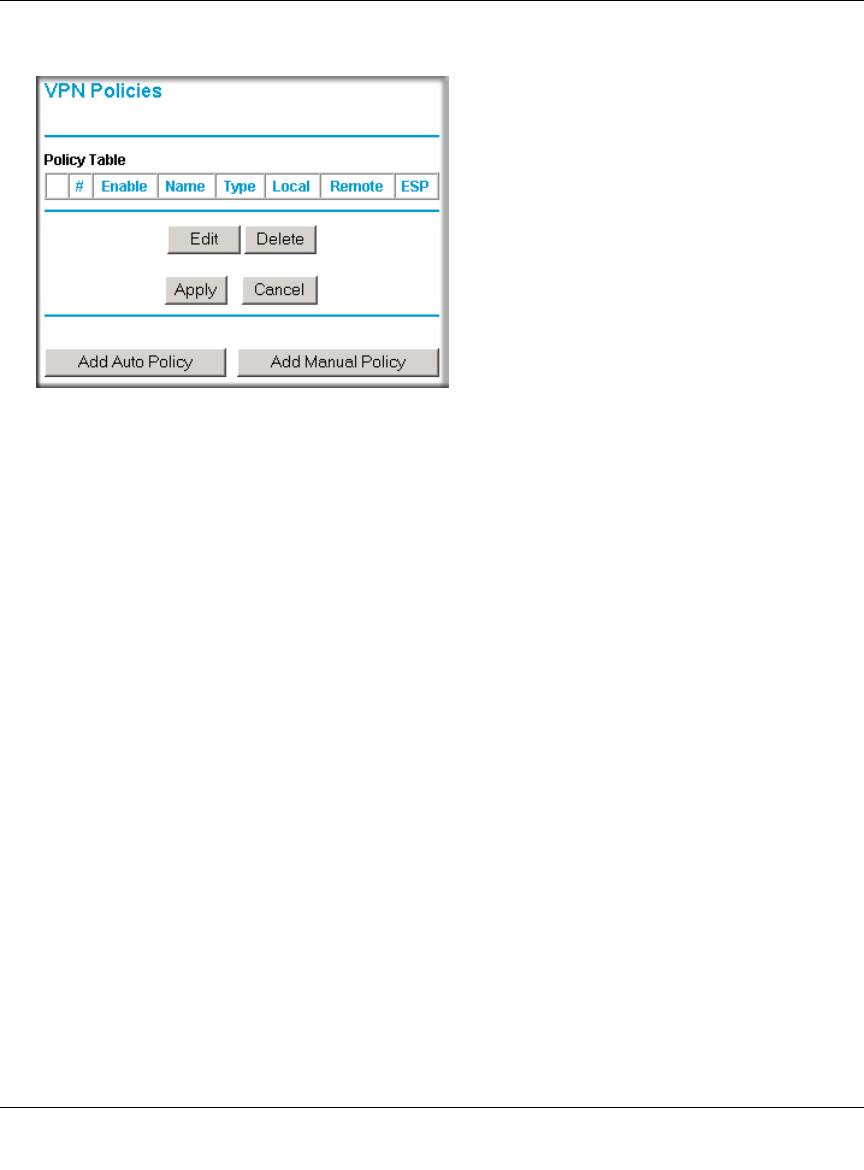

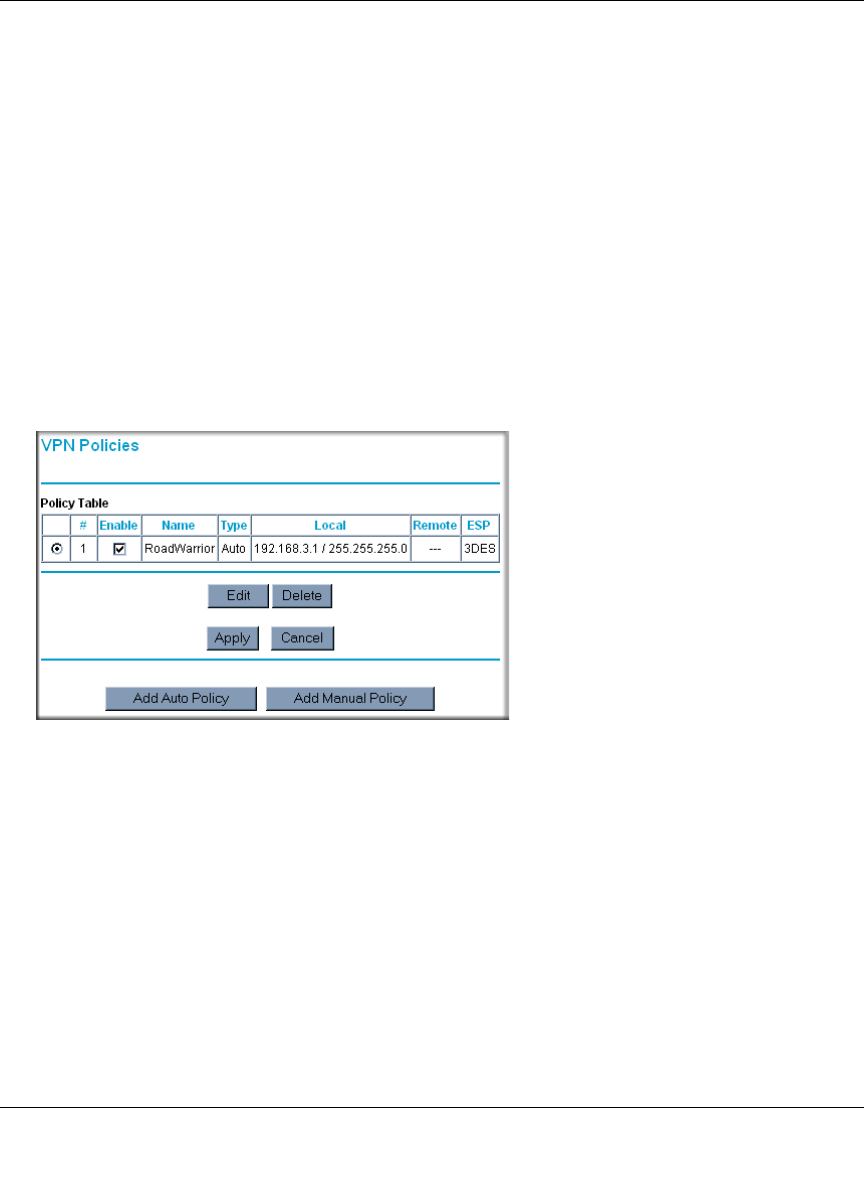

Policies menu below displays showing that the new tunnel is enabled.
Figure 8-7
Figure 8-8
Reference Manual for the ADSL Modem Wireless Router DG834G
8-12 Virtual Private Networking
v1.4, April 2007

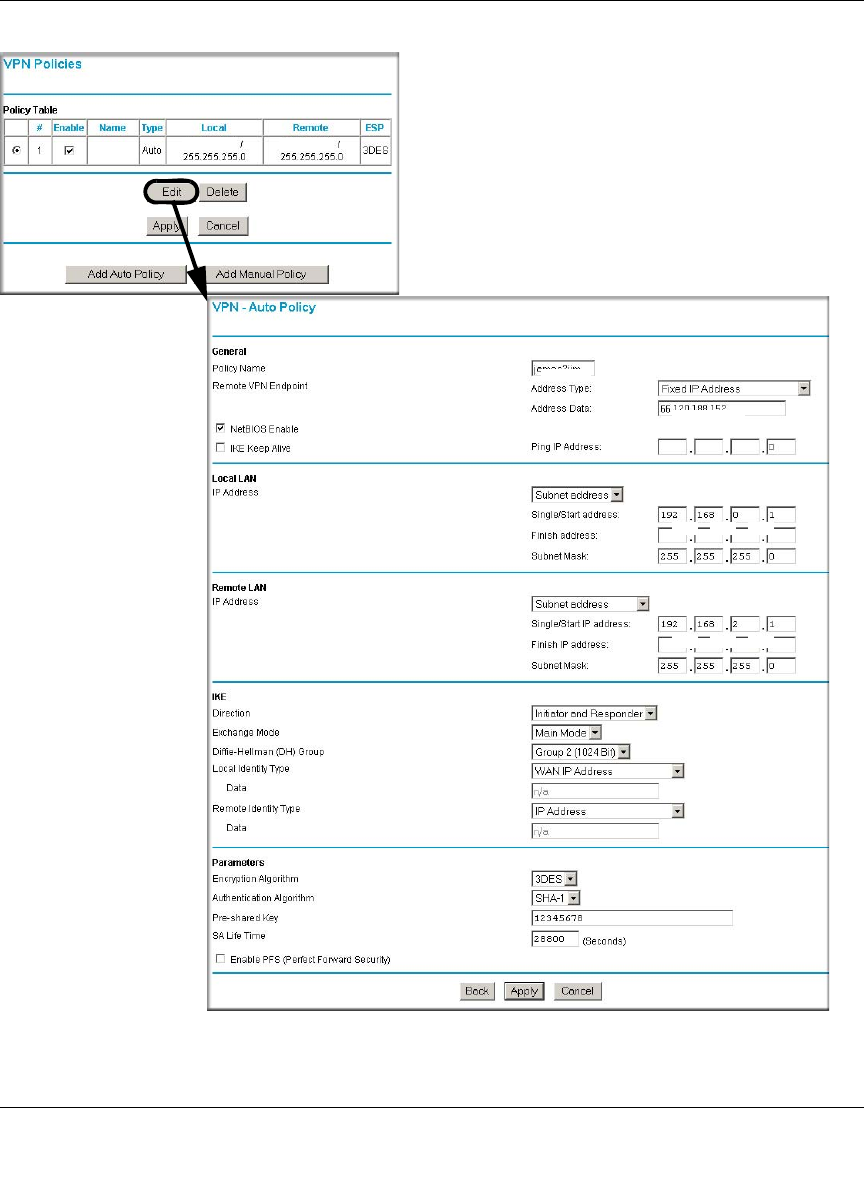

To view or modify the tunnel settings, select the radio button next to the tunnel entry and click
Edit.
Step 2: Configuring the NETGEAR ProSafe VPN Client on the
Remote PC
This procedure describes how to configure the NETGEAR ProSafe VPN Client. We will assume
the PC running the client has a dynamically assigned IP address.
The PC must have the NETGEAR ProSafe VPN Client program installed that supports IPSec. Go
to the NETGEAR website (http://www.netgear.com) and select VPN01L_VPN05L in the Product
Quick Find drop-down menu for information on how to purchase the NETGEAR ProSafe VPN
Client.
1. Install the NETGEAR ProSafe VPN Client on the remote PC and reboot.
• You may need to insert your Windows CD to complete the installation.
• If you do not have a modem or dial-up adapter installed in your PC, you may see the
warning message stating “The NETGEAR ProSafe VPN Component requires at least one
dial-up adapter be installed.” You can disregard this message.
• Install the IPSec Component. You may have the option to install either the VPN Adapter
or the IPSec Component or both. The VPN Adapter is not necessary.
• The system should show the ProSafe icon ( ) in the system tray after rebooting.
• Double-click the system tray icon to open the Security Policy Editor.
2. Add a new connection.
a. Run the NETGEAR ProSafe Security Policy Editor program and, using the “VPN Tunnel
Configuration Worksheet” on page 8-8, create a VPN Connection.
Note: Refer to “Using Auto Policy to Configure VPN Tunnels” on page 8-38 to enable
the IKE keepalive capability on an existing VPN tunnel.
Note: Before installing the NETGEAR ProSafe VPN Client software, be sure to turn off
any virus protection or firewall software you may be running on your PC.
Reference Manual for the ADSL Modem Wireless Router DG834G
Virtual Private Networking 8-13
v1.4, April 2007

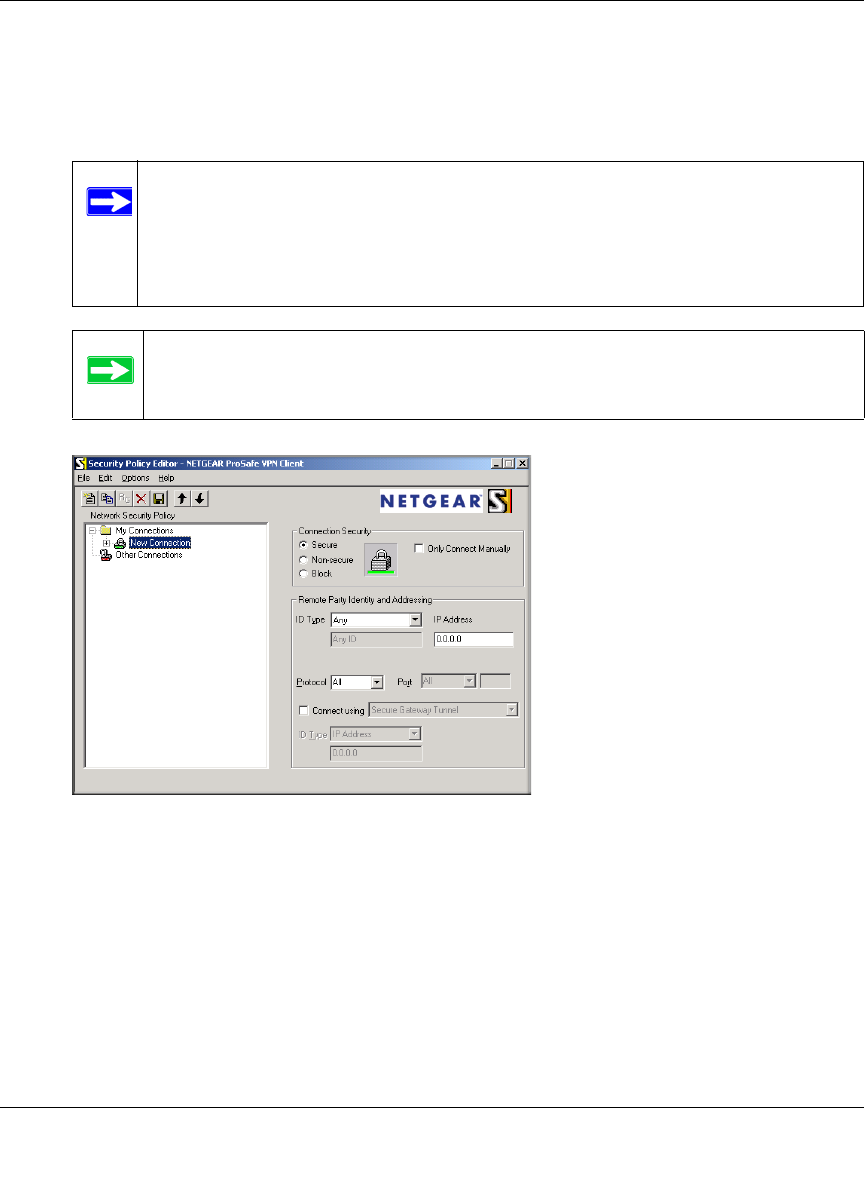

b. From the Edit menu of the Security Policy Editor, click Add, then Connection.
A “New Connection” listing appears in the list of policies. Rename the “New Connection”
so that it matches the Connection Name you entered in the VPN Settings of the DG834G
v4 on LAN A.
c. Select Secure in the Connection Security check-box group.
d. Select IP Subnet in the ID Type menu.
e. In this example, type 192.168.3.1 in the Subnet field as the network address of the
DG834G v4.
f. Enter 255.255.255.0 in the Mask field as the LAN Subnet Mask of the DG834G v4.
g. Select All in the Protocol menu to allow all traffic through the VPN tunnel.
Figure 8-9
Note: In this example, the Connection Name used on the client side of the VPN
tunnel is toDG834 and it does not have to match the RoadWarrior
Connection Name used on the gateway side of the VPN tunnel because
Connection Names are arbitrary to how the VPN tunnel functions.
Tip: Choose Connection Names that make sense to the people using and
administering the VPN.
Reference Manual for the ADSL Modem Wireless Router DG834G
8-14 Virtual Private Networking
v1.4, April 2007
h. Select the Connect using Secure Gateway Tunnel check box.
i. Select IP Address in the ID Type menu below the check box.
j. Enter the public WAN IP Address of the DG834G v4 in the field directly below the ID
Type menu. In this example, 22.23.24.25 would be used.

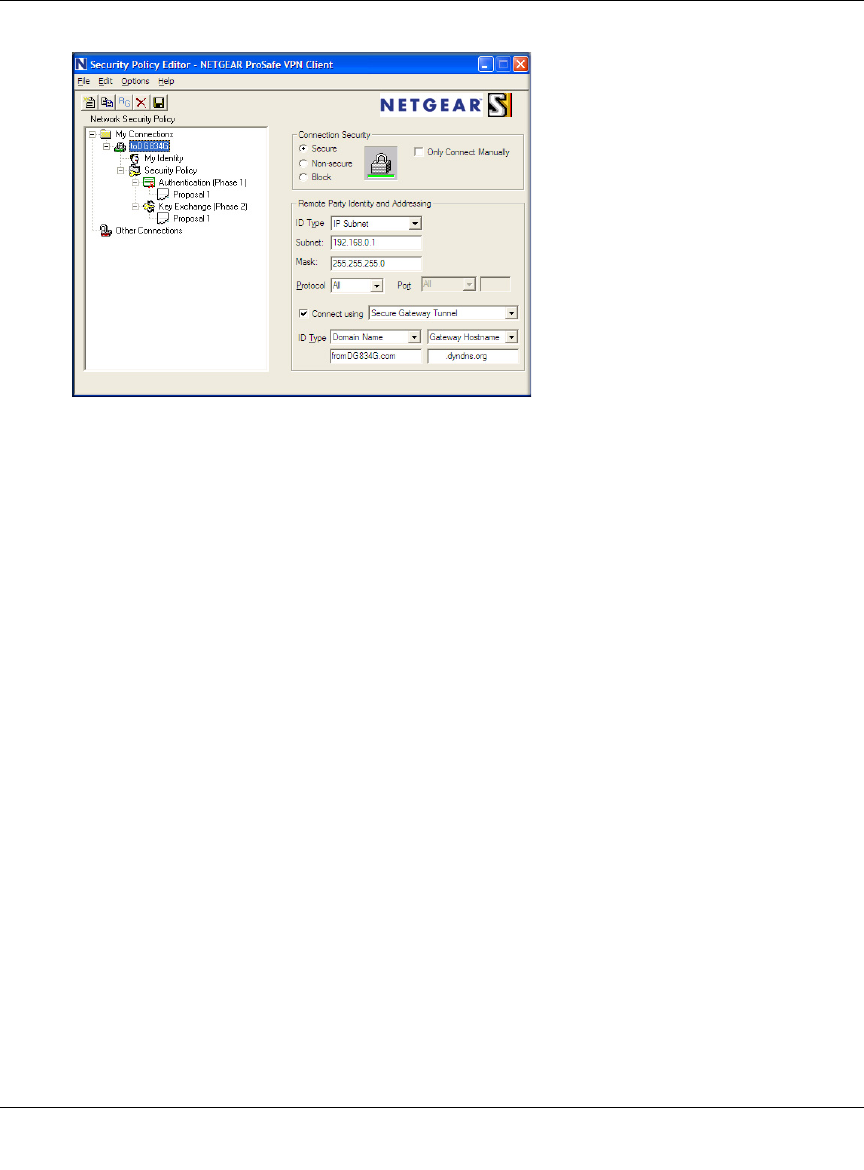

k. The resulting Connection Settings are shown in Figure 8-10.
3. Configure the Security Policy in the NETGEAR ProSafe VPN Client software:
a. In the Network Security Policy list, expand the new connection by double clicking its
name or clicking on the “+” symbol. My Identity and Security Policy subheadings appear
below the connection name.

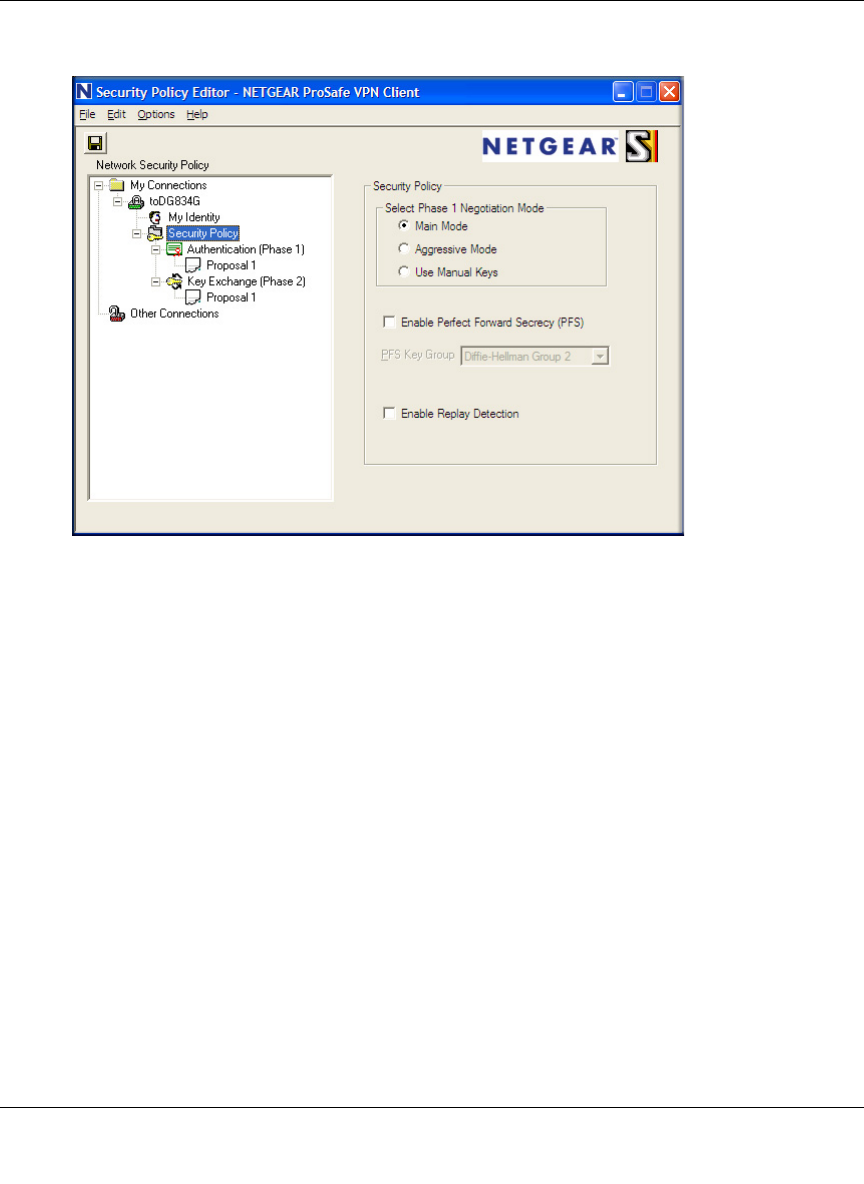

b. Click on the Security Policy subheading to show the Security Policy menu.

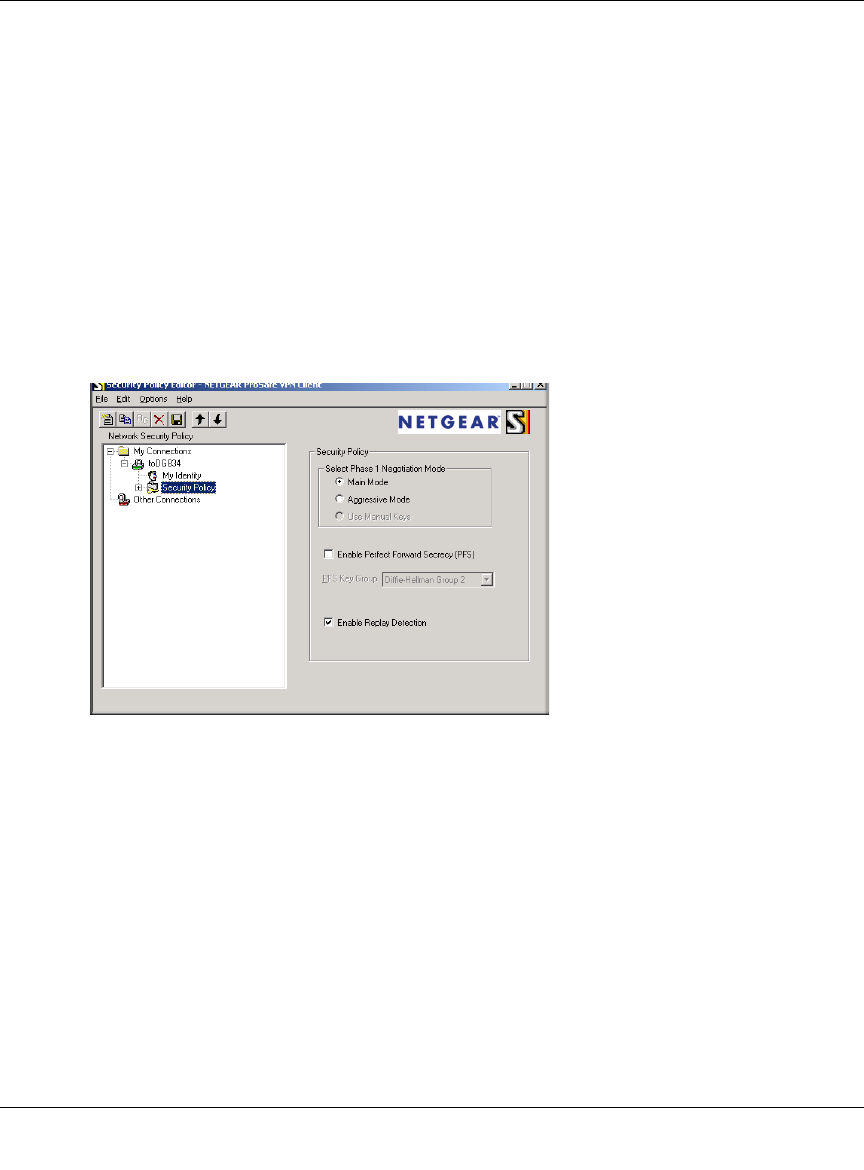

c. Select the Main Mode in the Select Phase 1 Negotiation Mode check-box group.
4. Configure the VPN Client Identity.
In this step, you will provide information about the remote VPN client PC. You will need to
provide the Pre-Shared Key that you configured in the DG834G v4 and either a fixed IP
address or a “fixed virtual” IP address of the VPN client PC.
Figure 8-10
Reference Manual for the ADSL Modem Wireless Router DG834G
Virtual Private Networking 8-15
v1.4, April 2007

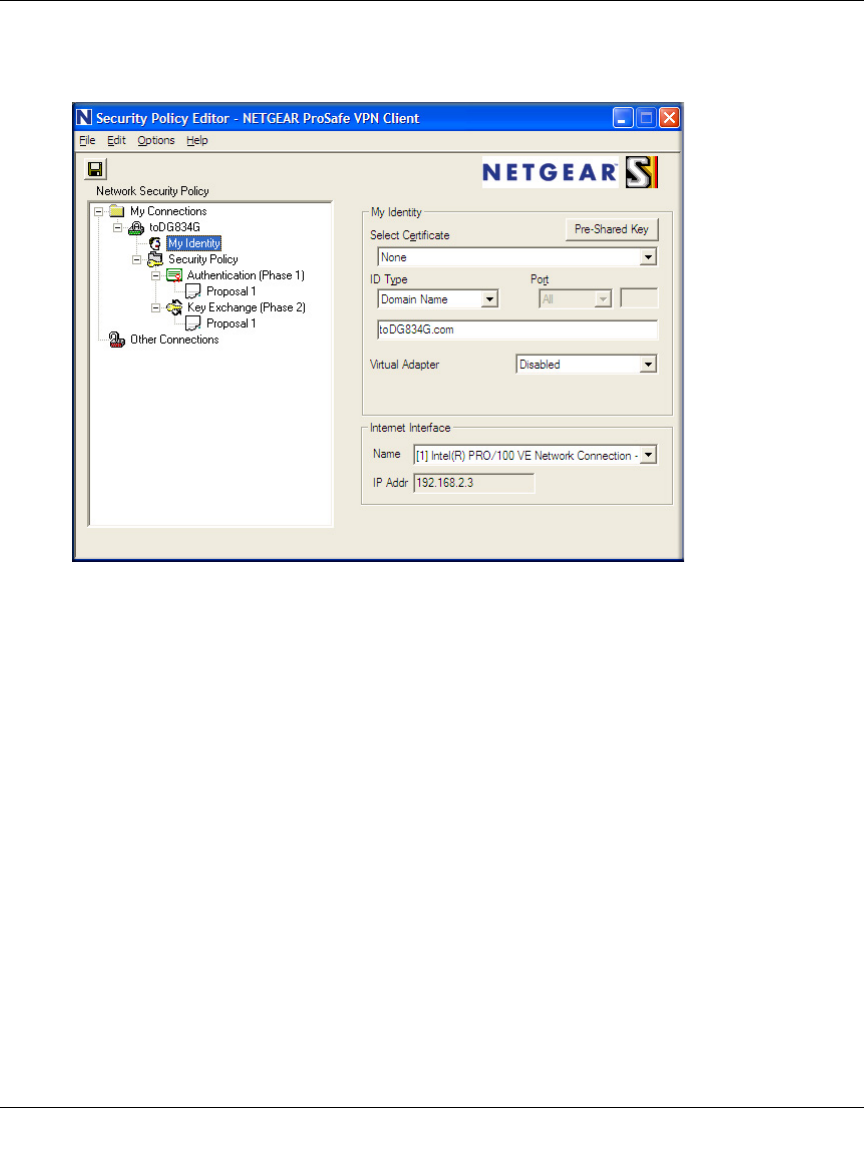

a. In the Network Security Policy list on the left side of the Security Policy Editor window,
click on My Identity.
b. Choose None in the Select Certificate menu.
c. Select IP Address in the ID Type menu. If you are using a virtual fixed IP address, enter
this address in the Internal Network IP Address box. Otherwise, leave this box empty.
d. In the Internet Interface box, select the adapter you use to access the Internet. Select PPP
Adapter in the Name menu if you have a dial-up Internet account. Select your Ethernet
adapter if you have a dedicated Cable or DSL line. You may also choose Any if you will
be switching between adapters or if you have only one adapter.
Figure 8-11
Reference Manual for the ADSL Modem Wireless Router DG834G
8-16 Virtual Private Networking
v1.4, April 2007

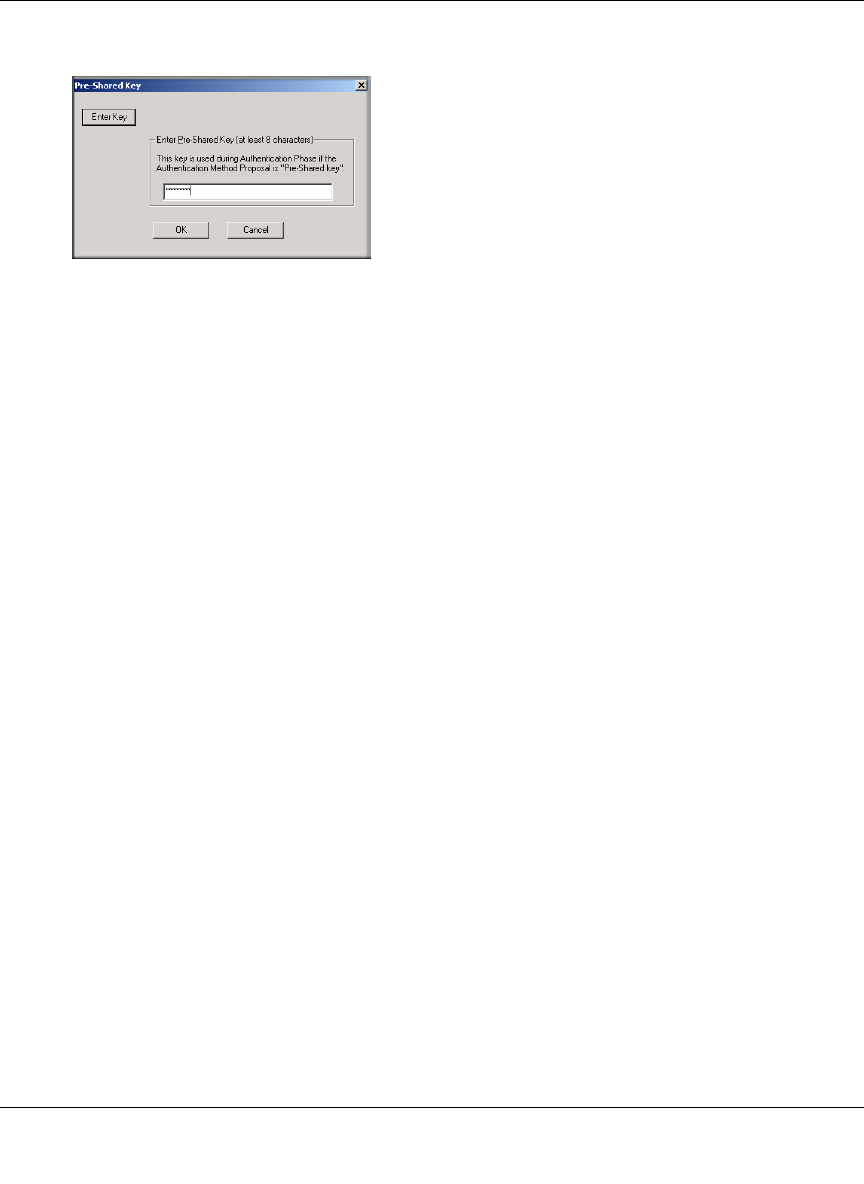

e. Click the Pre-Shared Key button. In the Pre-Shared Key dialog box, click the Enter Key
button. Enter the DG834G v4's Pre-Shared Key and click OK. In this example, 12345678
is entered. This field is case sensitive.
5. Configure the VPN Client Authentication Proposal.
In this step, you will provide the type of encryption (DES or 3DES) to be used for this
connection. This selection must match your selection in the DG834G v4 configuration.
a. In the Network Security Policy list on the left side of the Security Policy Editor window,
expand the Security Policy heading by double clicking its name or clicking on the “+”
symbol.
b. Expand the Authentication subheading by double clicking its name or clicking on the “+”
symbol. Then select Proposal 1 below Authentication.
Figure 8-12
Figure 8-13
Reference Manual for the ADSL Modem Wireless Router DG834G
Virtual Private Networking 8-17
v1.4, April 2007

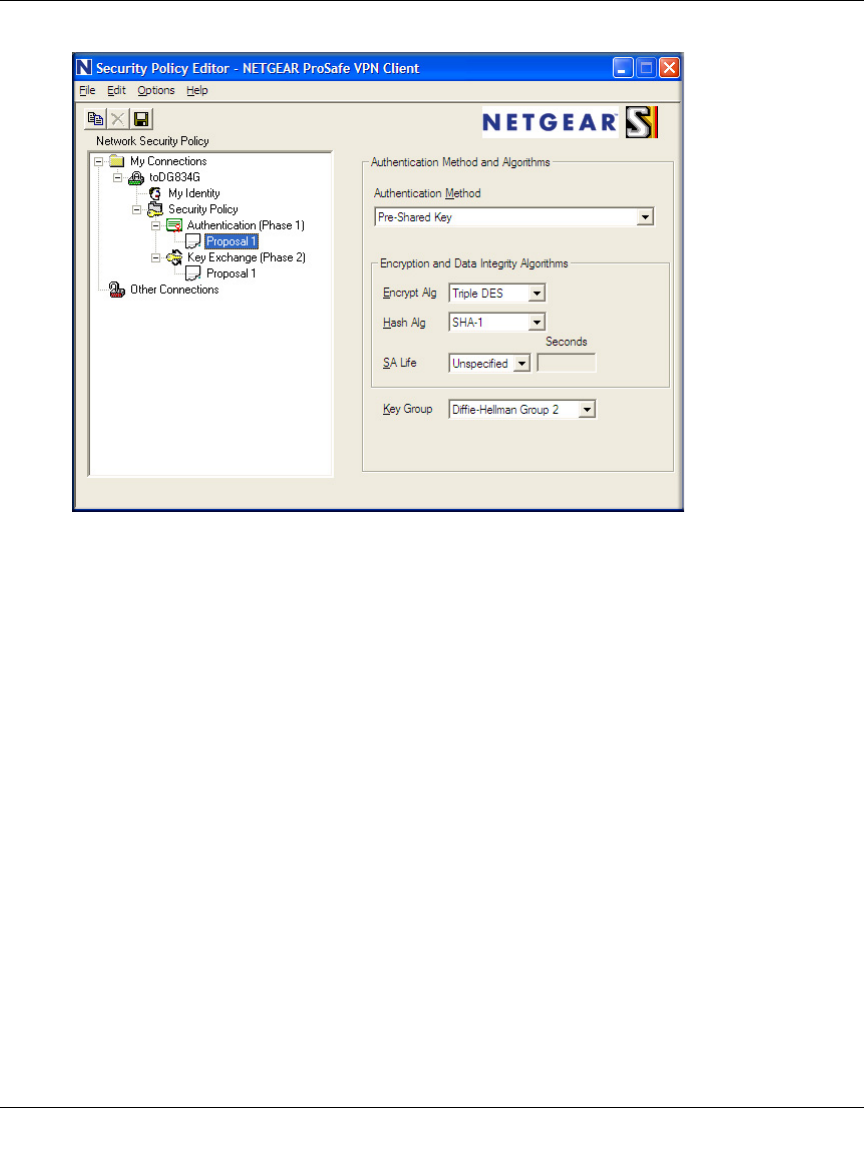

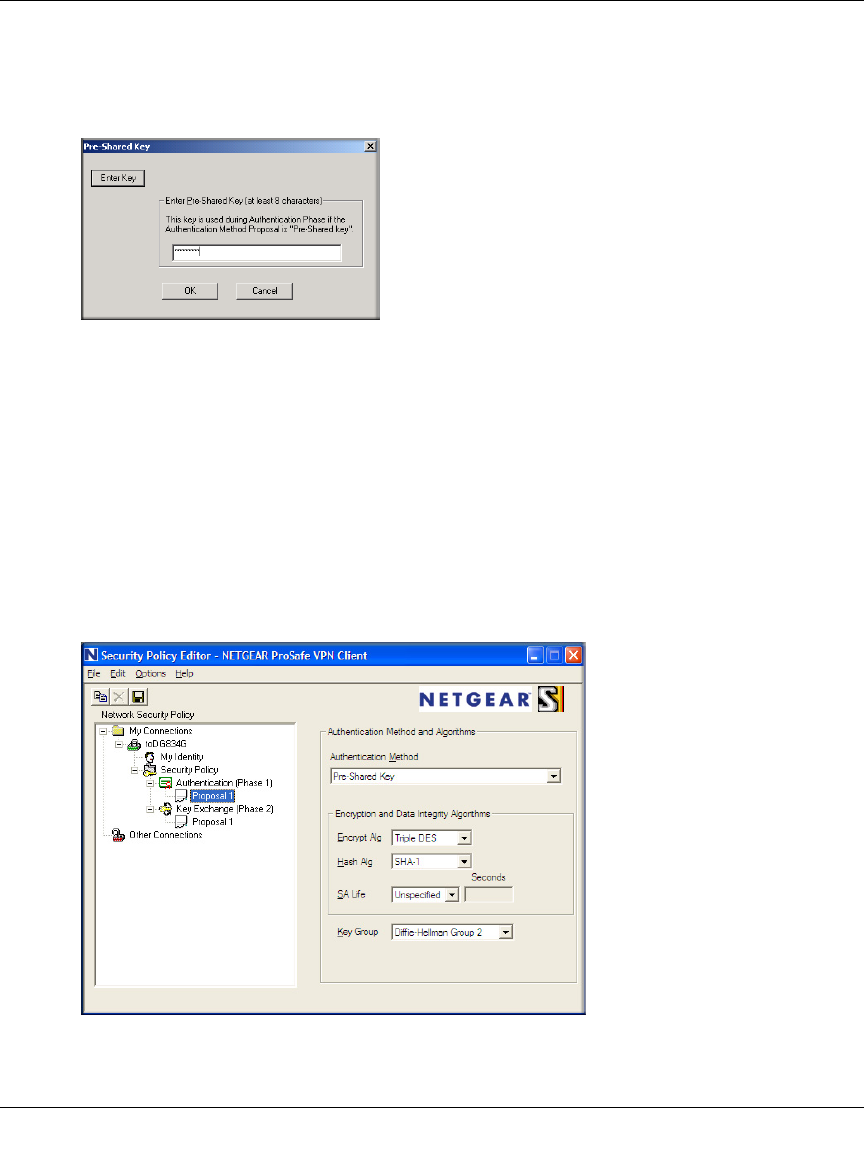

c. In the Authentication Method menu, select Pre-Shared key.
d. In the Encrypt Alg menu, select the type of encryption to correspond with what was
configured for the Encryption Protocol in the DG834G v4 in Table 8-3 on page 8-8. In this
example, use Triple DES.
e. In the Hash Alg menu, select SHA-1.
f. In the SA Life menu, select Unspecified.
g. In the Key Group menu, select Diffie-Hellman Group 2.
6. Configure the VPN Client Key Exchange Proposal.
In this step, you will provide the type of encryption (DES or 3DES) to be used for this
connection. This selection must match your selection in the DG834G v4 configuration.

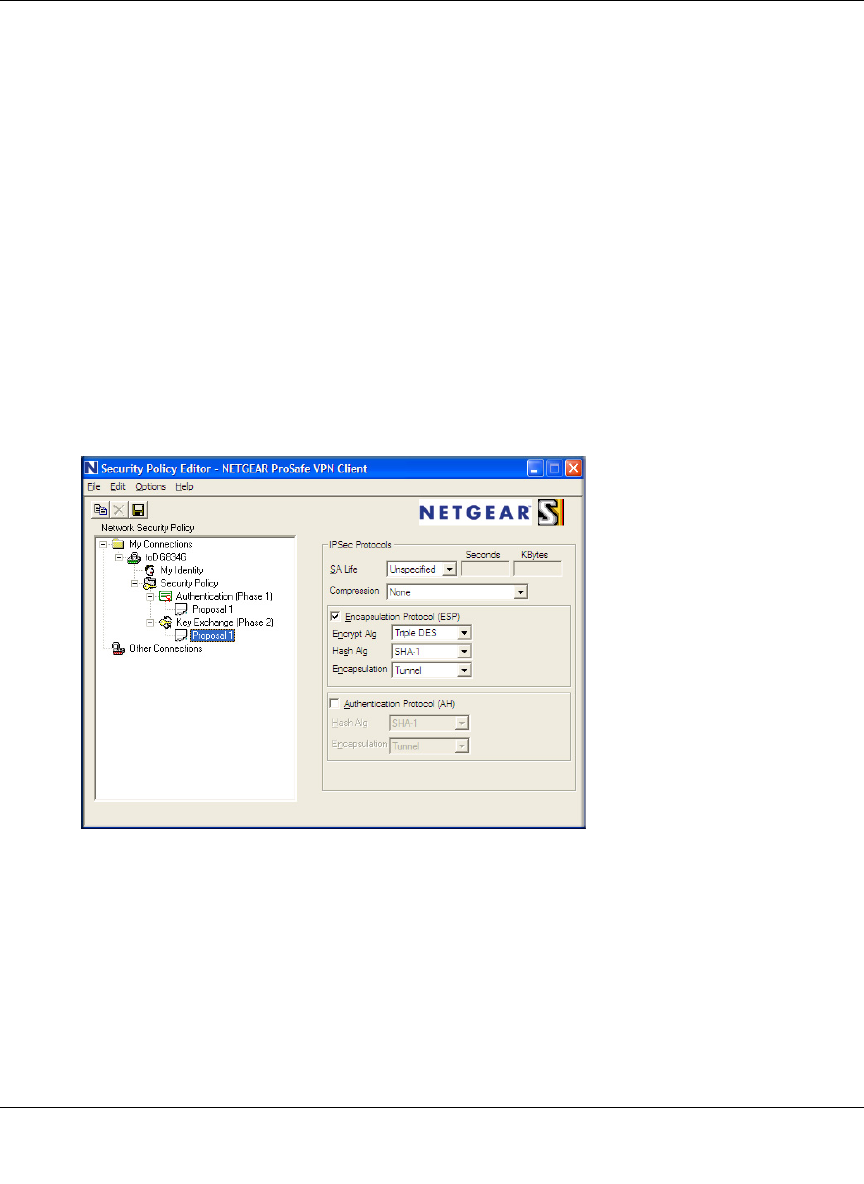

a. Expand the Key Exchange subheading by double clicking its name or clicking on the “+”
symbol. Then select Proposal 1 below Key Exchange.
b. In the SA Life menu, select Unspecified.
c. In the Compression menu, select None.
d. Check the Encapsulation Protocol (ESP) checkbox.
e. In the Encrypt Alg menu, select the type of encryption to correspond with what was
configured for the Encryption Protocol in the DG834G v4 in Table 8-3 on page 8-8. In this
example, use Triple DES.

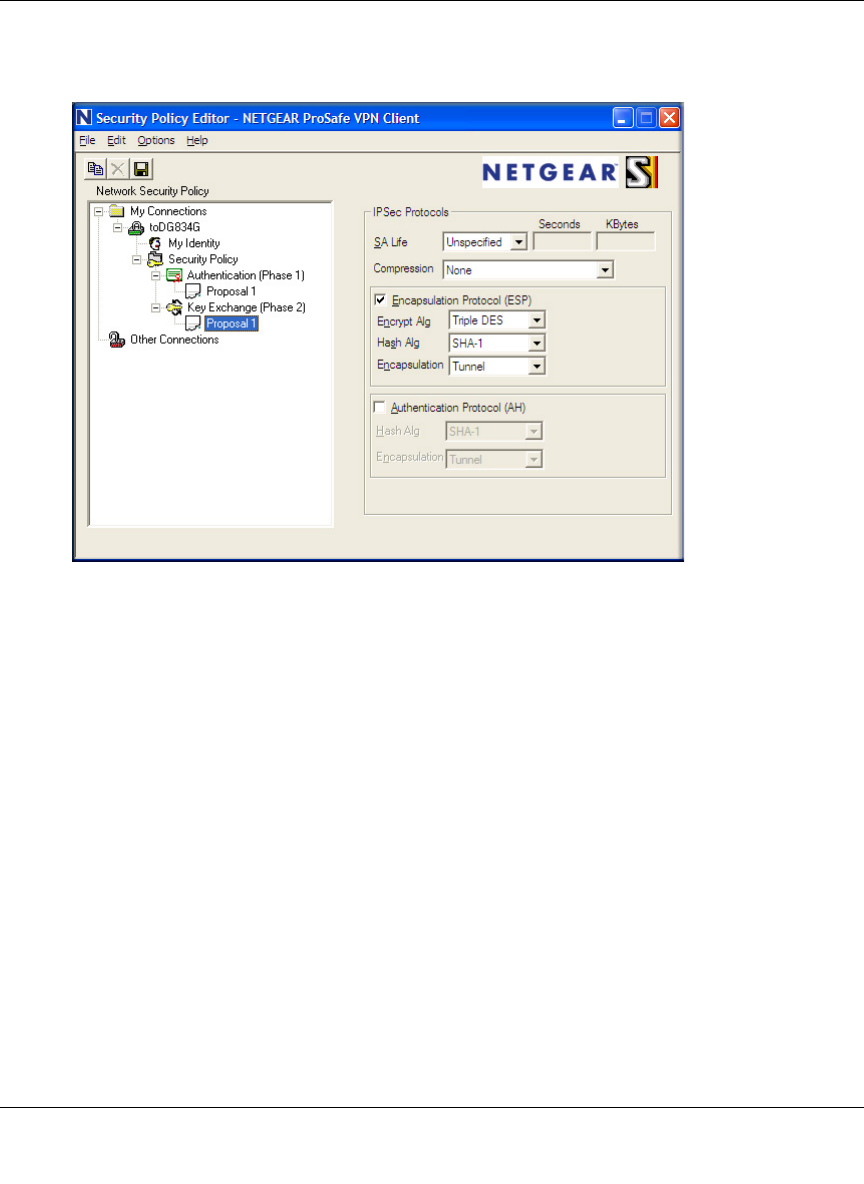

Figure 8-14
Reference Manual for the ADSL Modem Wireless Router DG834G
8-18 Virtual Private Networking
v1.4, April 2007
f. In the Hash Alg menu, select SHA-1.
g. In the Encapsulation menu, select Tunnel.
h. Leave the Authentication Protocol (AH) checkbox unchecked.
7. Save the VPN Client Settings.
From the File menu at the top of the Security Policy Editor window, select Save.
After you have configured and saved the VPN client information, your PC will automatically
open the VPN connection when you attempt to access any IP addresses in the range of the
remote VPN router’s LAN.
8. Check the VPN Connection.
To check the VPN Connection, you can initiate a request from the remote PC to the DG834G
v4’s network by using the “Connect” option in the NETGEAR ProSafe menu bar. The
NETGEAR ProSafe client will report the results of the attempt to connect. Since the remote
PC has a dynamically assigned WAN IP address, it must initiate the request.
To perform a ping test using our example, start from the remote PC:
a. Establish an Internet connection from the PC.

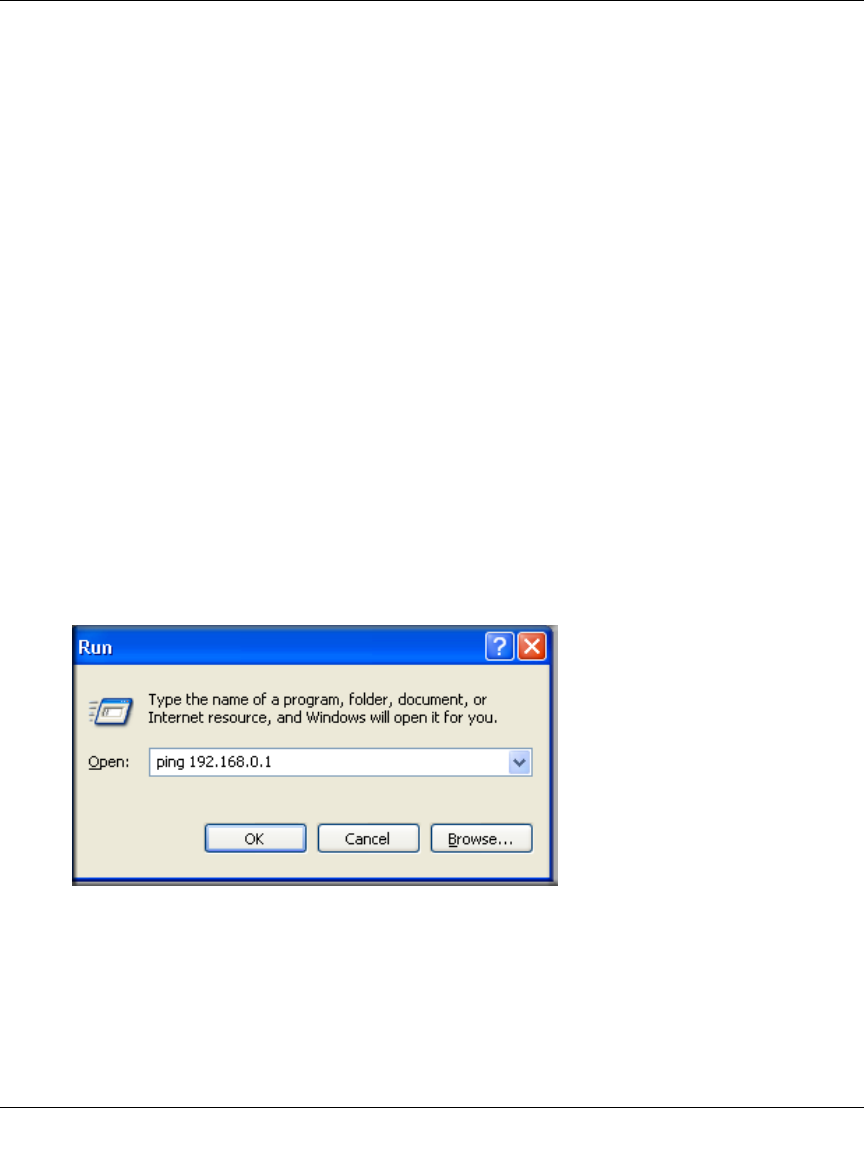

b. On the Windows taskbar, click the Start button, and then click Run.

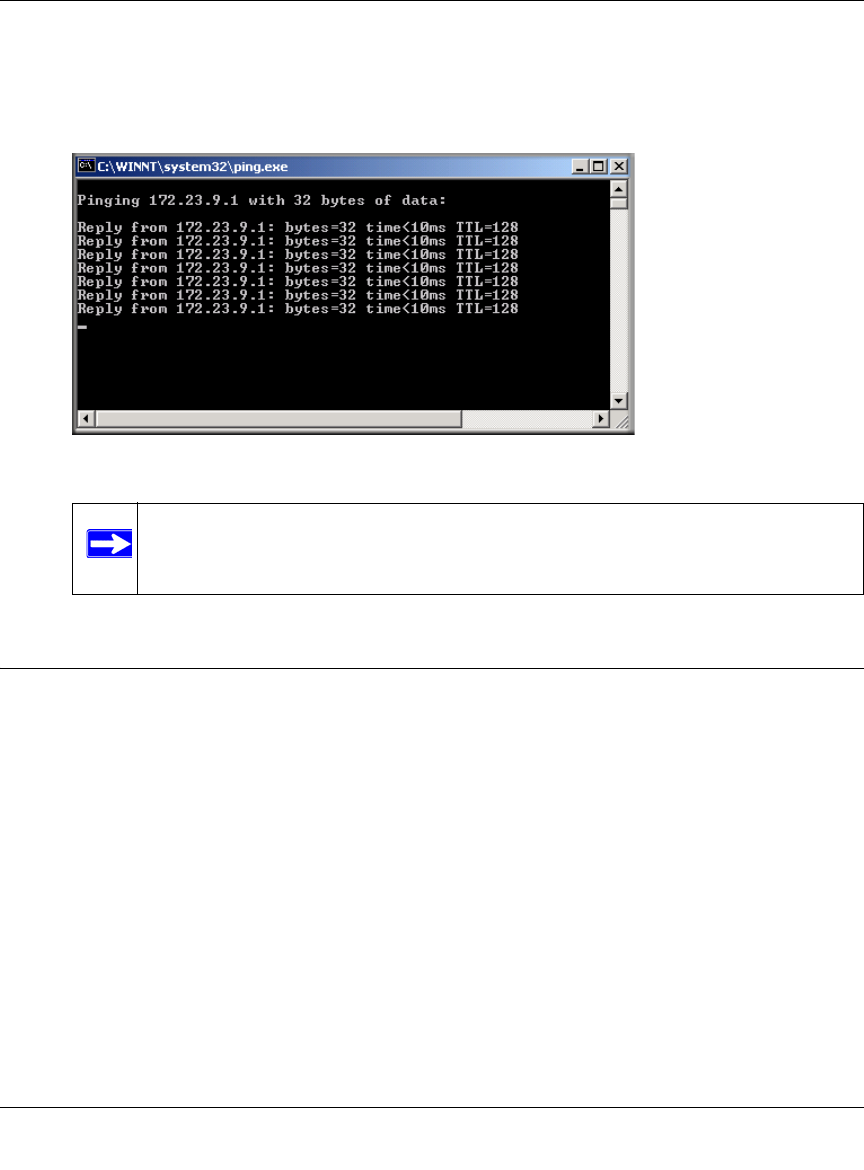

c. Type ping -t 192.168.3.1 , and then click OK.
Figure 8-15
Reference Manual for the ADSL Modem Wireless Router DG834G
Virtual Private Networking 8-19
v1.4, April 2007

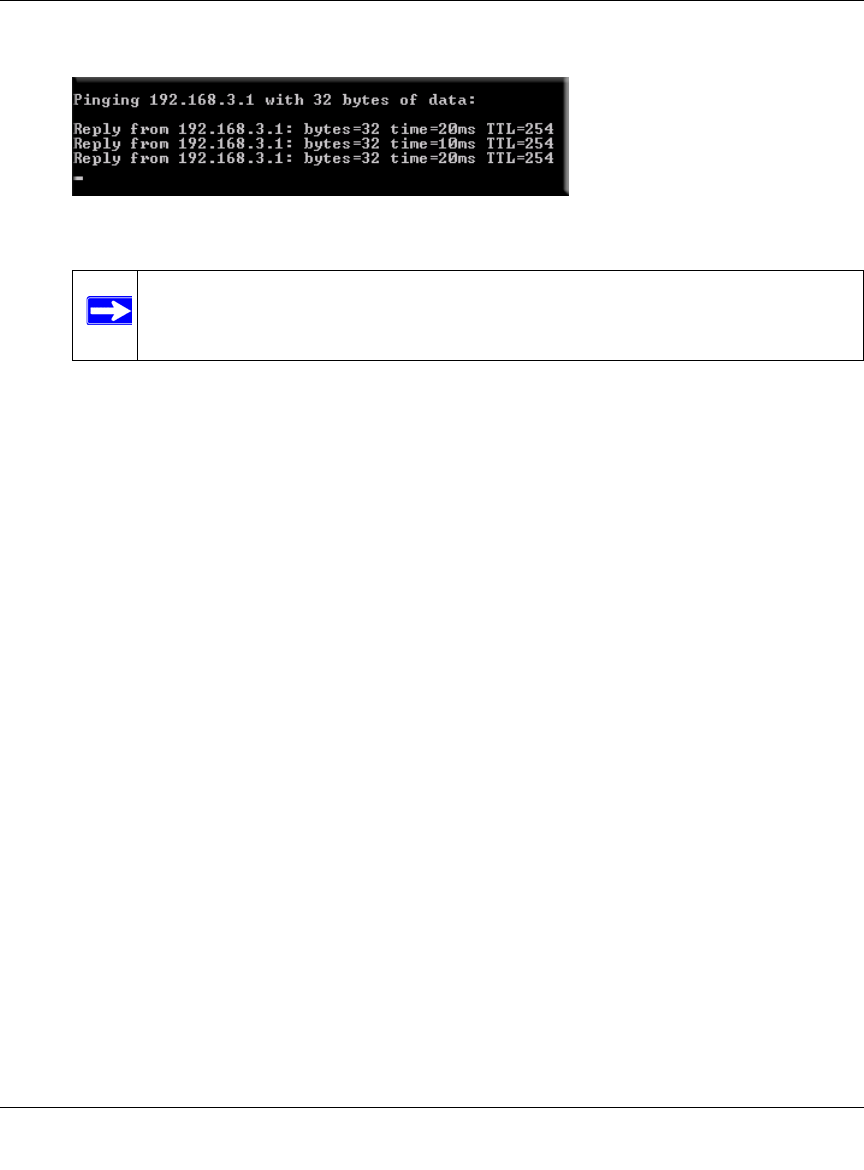

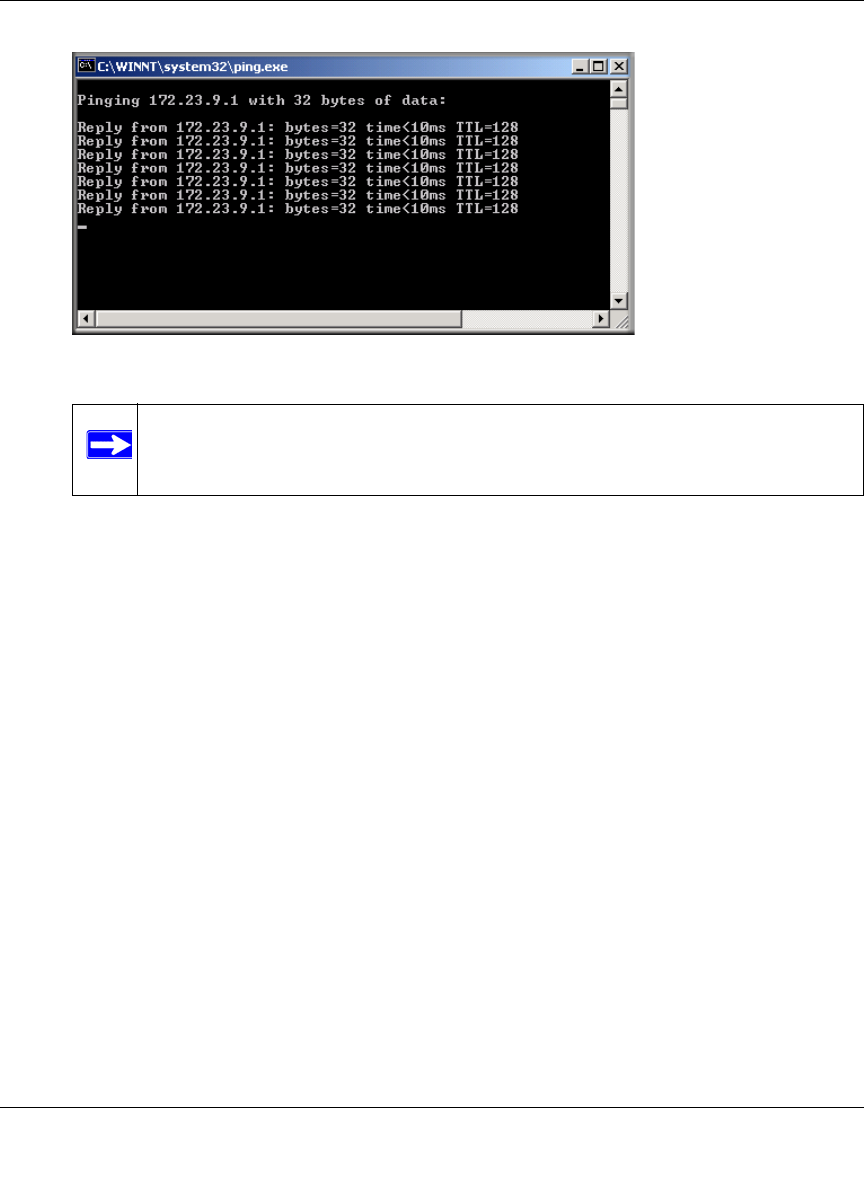

This will cause a continuous ping to be sent to the first DG834G v4. After between several
seconds and two minutes, the ping response should change from “timed out” to “reply.”
Once the connection is established, you can open the browser of the PC and enter the LAN IP
address of the remote DG834G v4. After a short wait, you should see the login screen of the
Modem Router (unless another PC already has the DG834G v4 management interface open).

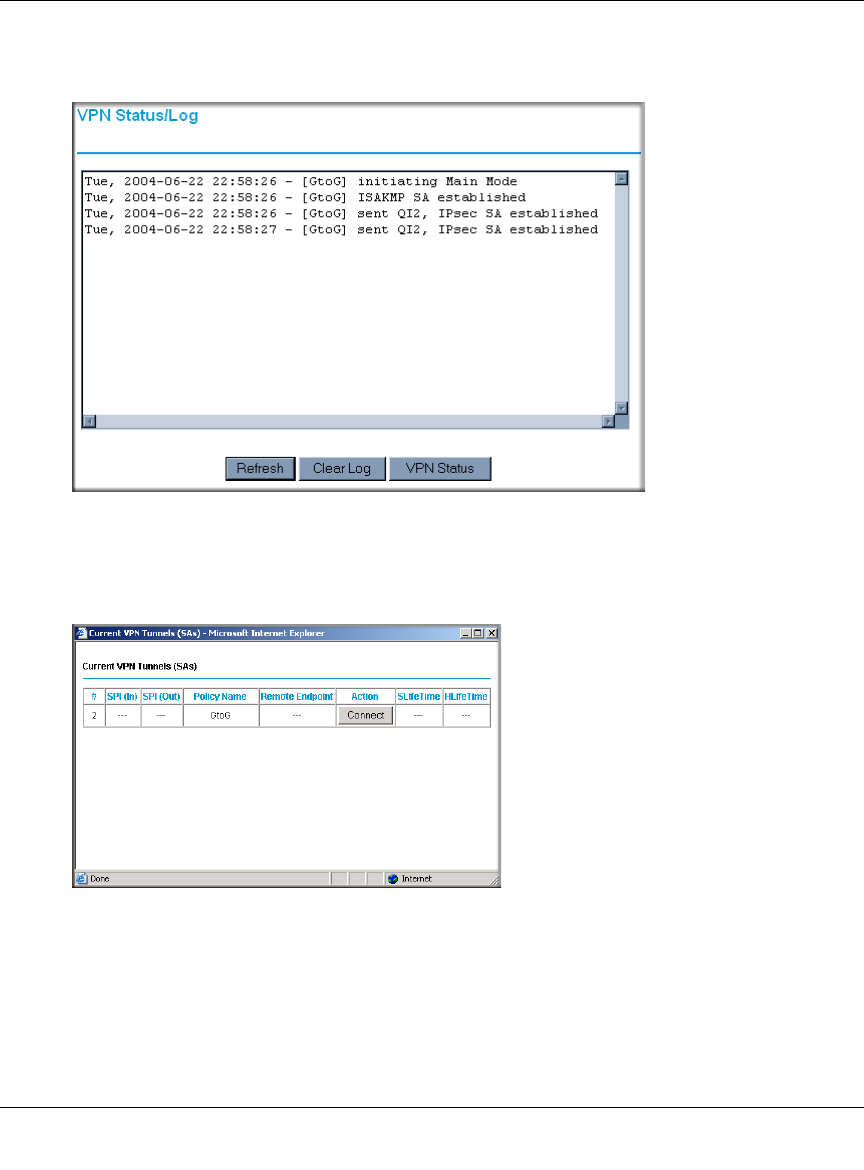

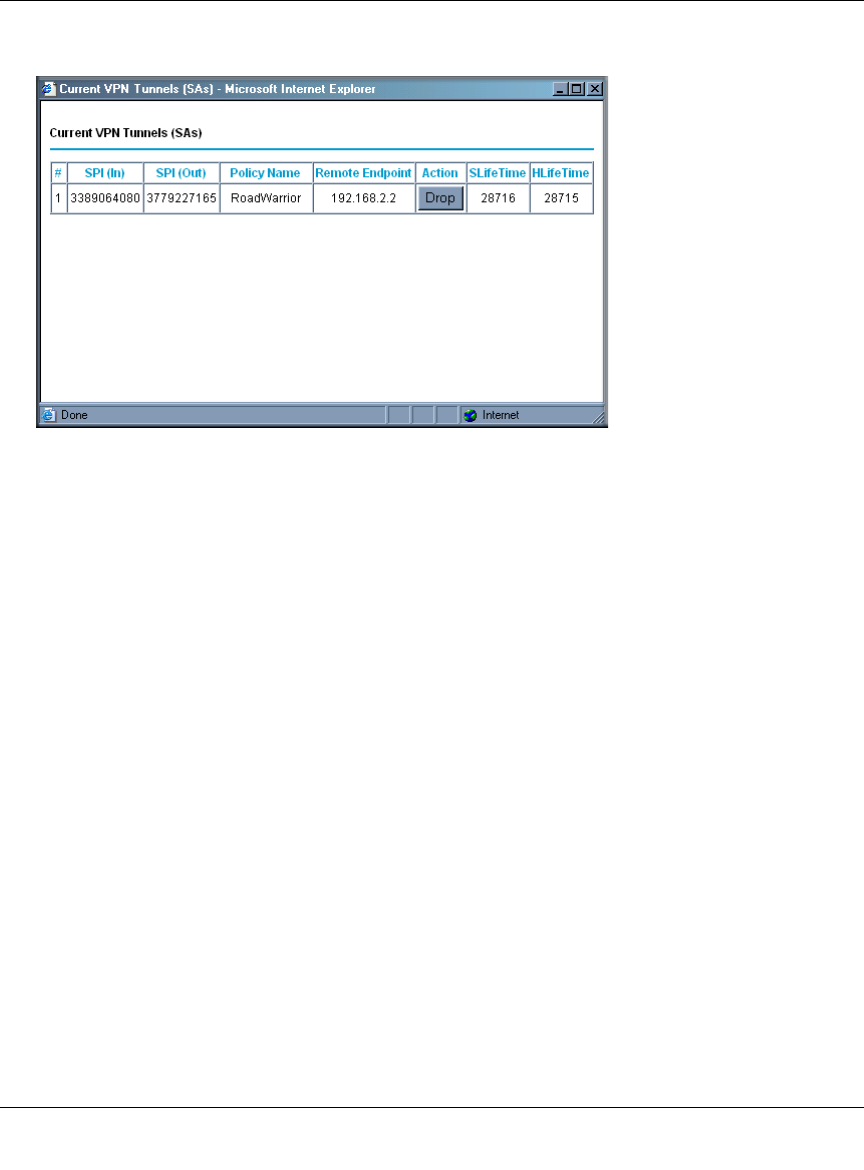

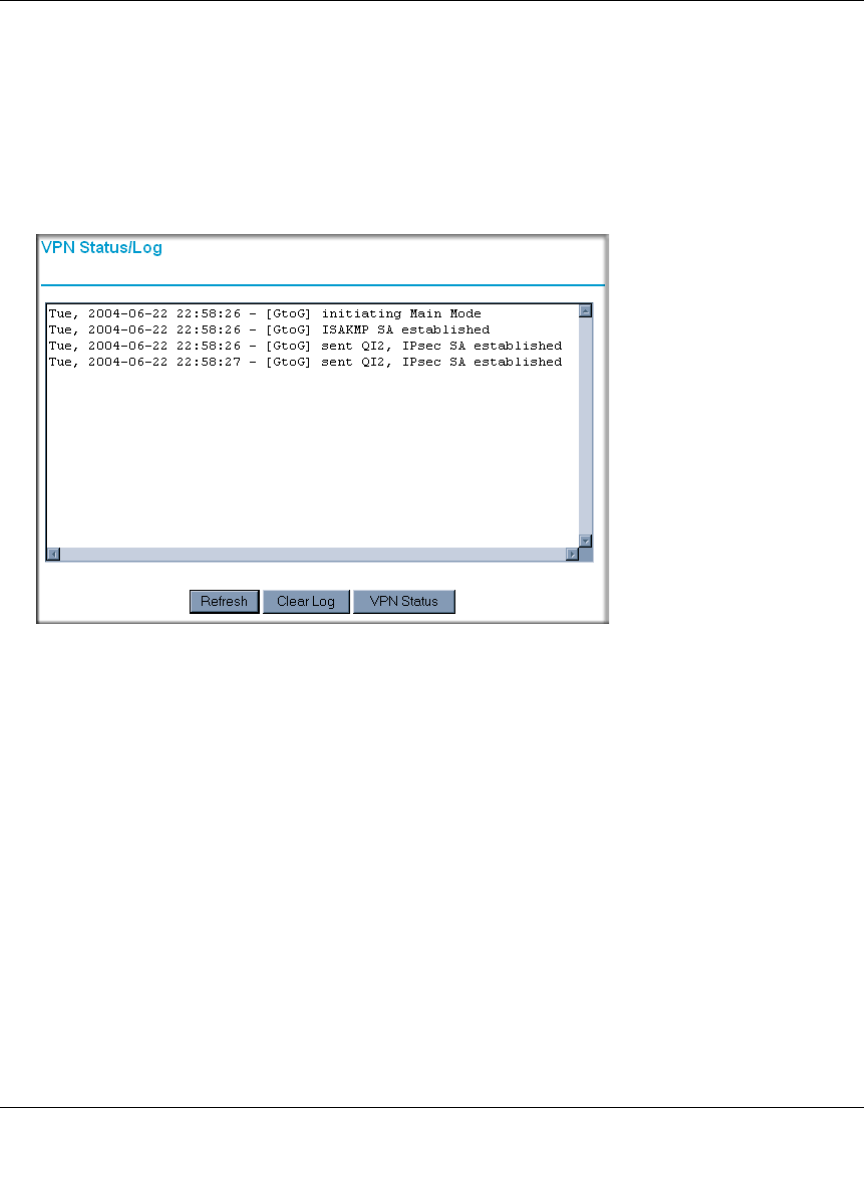

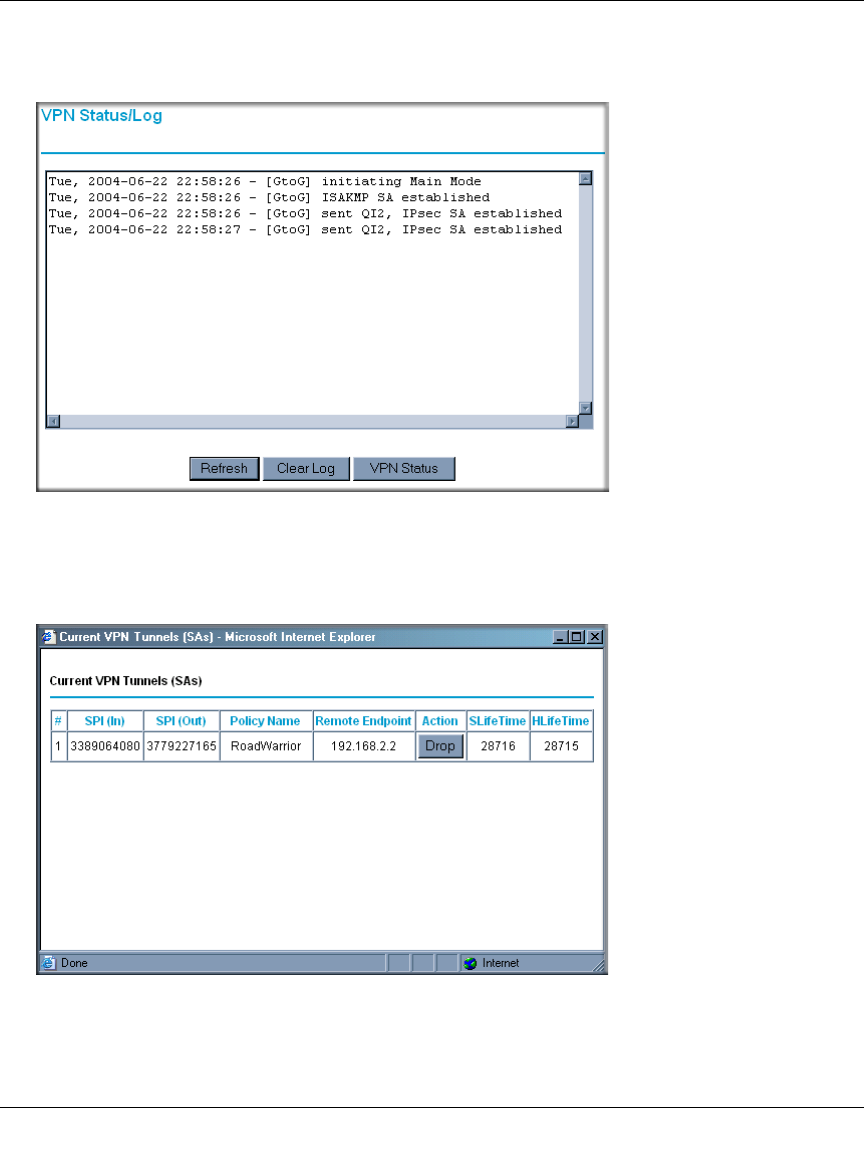

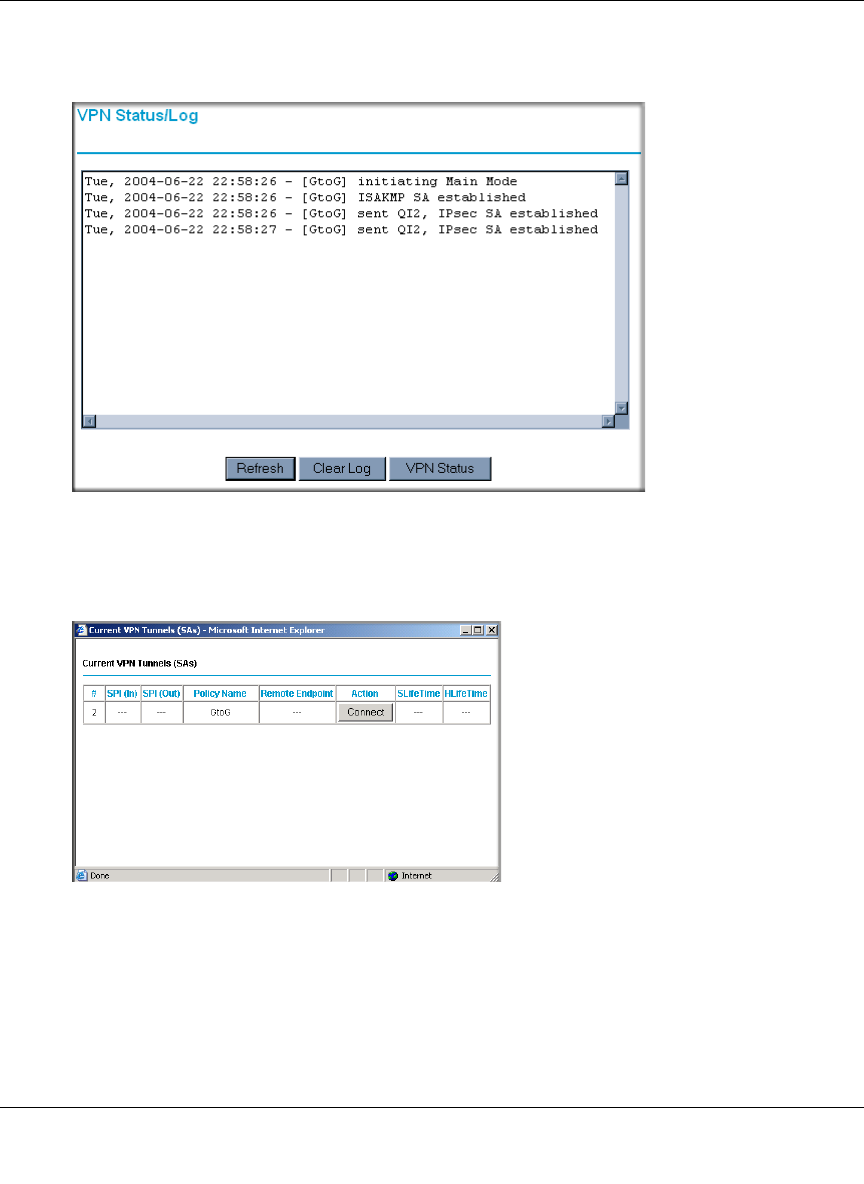

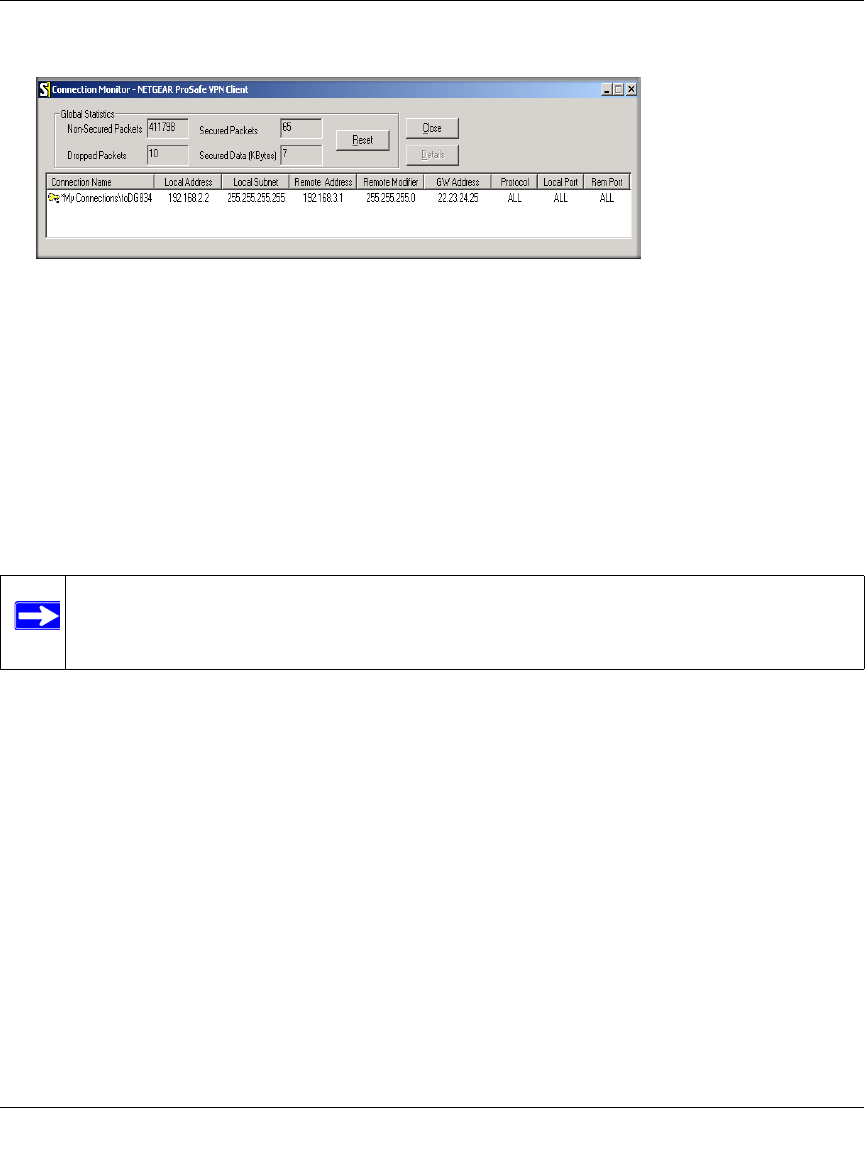

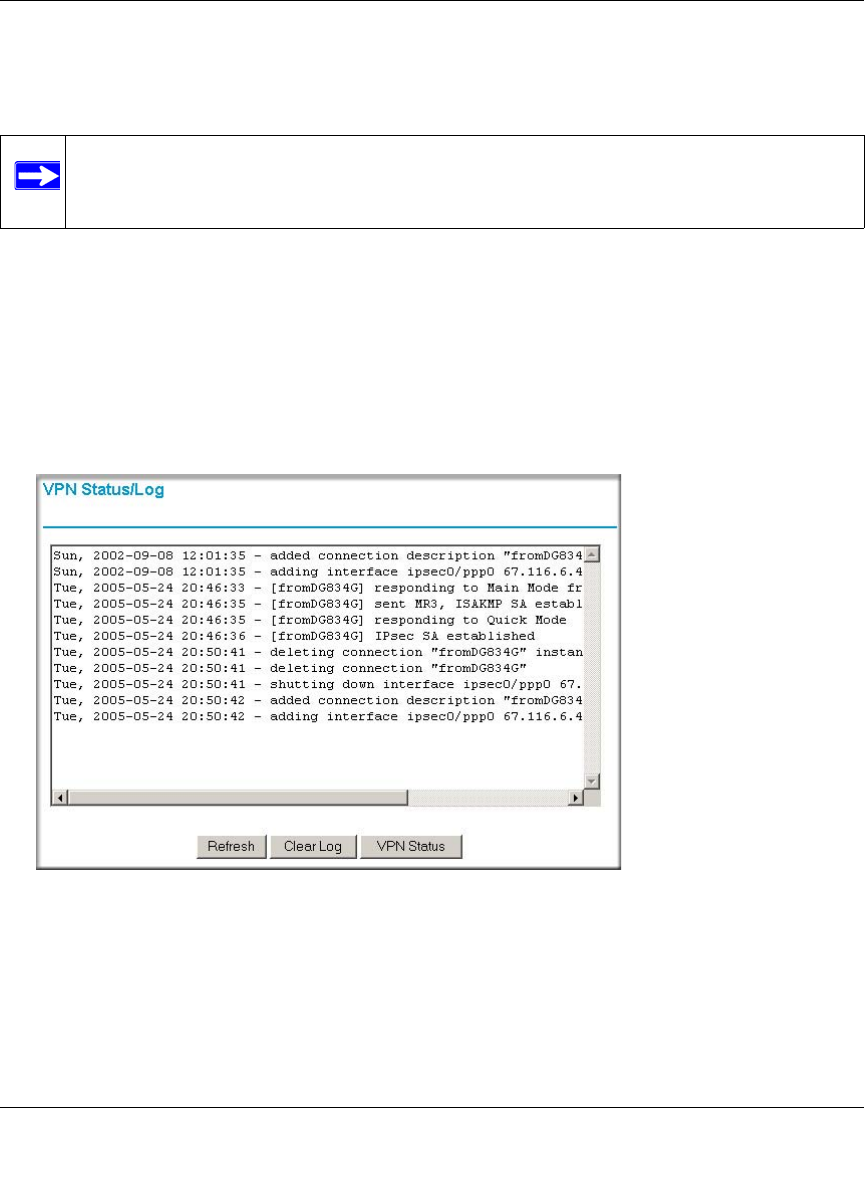

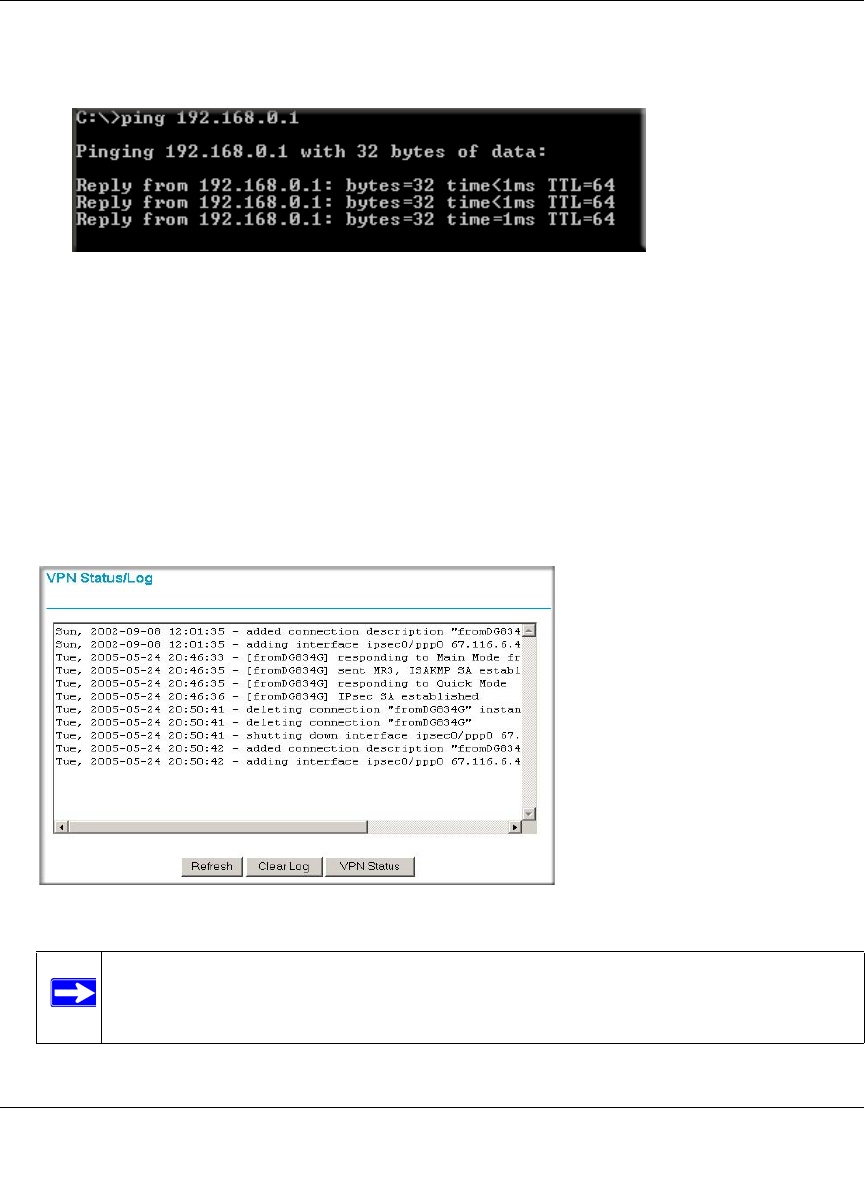

Information on the progress and status of the VPN client connection can be viewed by opening
the NETGEAR ProSafe Log Viewer.
To launch this function, click on the Windows Start button, then select Programs, then
NETGEAR ProSafe VPN Client, then Log Viewer. The Log Viewer screen for a successful
connection is shown below:
Figure 8-16
Figure 8-17
Note: Use the active VPN tunnel information and pings to determine whether a failed
connection is due to the VPN tunnel or some reason outside the VPN tunnel.
Reference Manual for the ADSL Modem Wireless Router DG834G
8-20 Virtual Private Networking
v1.4, April 2007
9. The Connection Monitor screen for this connection is shown below:
In this example you can see the following:
• The DG834G v4 has a public IP WAN address of 22.23.24.25.
• The DG834G v4 has a LAN IP address of 192.168.3.1.
• The VPN client PC has a dynamically assigned address of 192.168.2.2.
While the connection is being established, the Connection Name field in this menu will say “SA”
before the name of the connection. When the connection is successful, the “SA” will change to the
yellow key symbol shown in the illustration above.
Figure 8-18
Note: While your PC is connected to a remote LAN through a VPN, you might not have
normal Internet access. If this is the case, you will need to close the VPN
connection in order to have normal Internet access.
Reference Manual for the ADSL Modem Wireless Router DG834G
Virtual Private Networking 8-21
v1.4, April 2007
How to Set Up a Gateway-to-Gateway VPN Configuration
Follow this procedure to configure a gateway-to-gateway VPN tunnel using the VPN Wizard.
Set the LAN IPs on each DG834G v4 to different subnets and configure each properly for the
Internet. The examples below assume the following settings:
Note: This section uses the VPN Wizard to set up the VPN tunnel using the VPNC
default parameters listed in Table 8-2 on page 8-5. If you have special requirements
not covered by these VPNC-recommended parameters, refer to “How to Set Up
VPN Tunnels in Special Circumstances” on page 8-38 to set up the VPN tunnel.

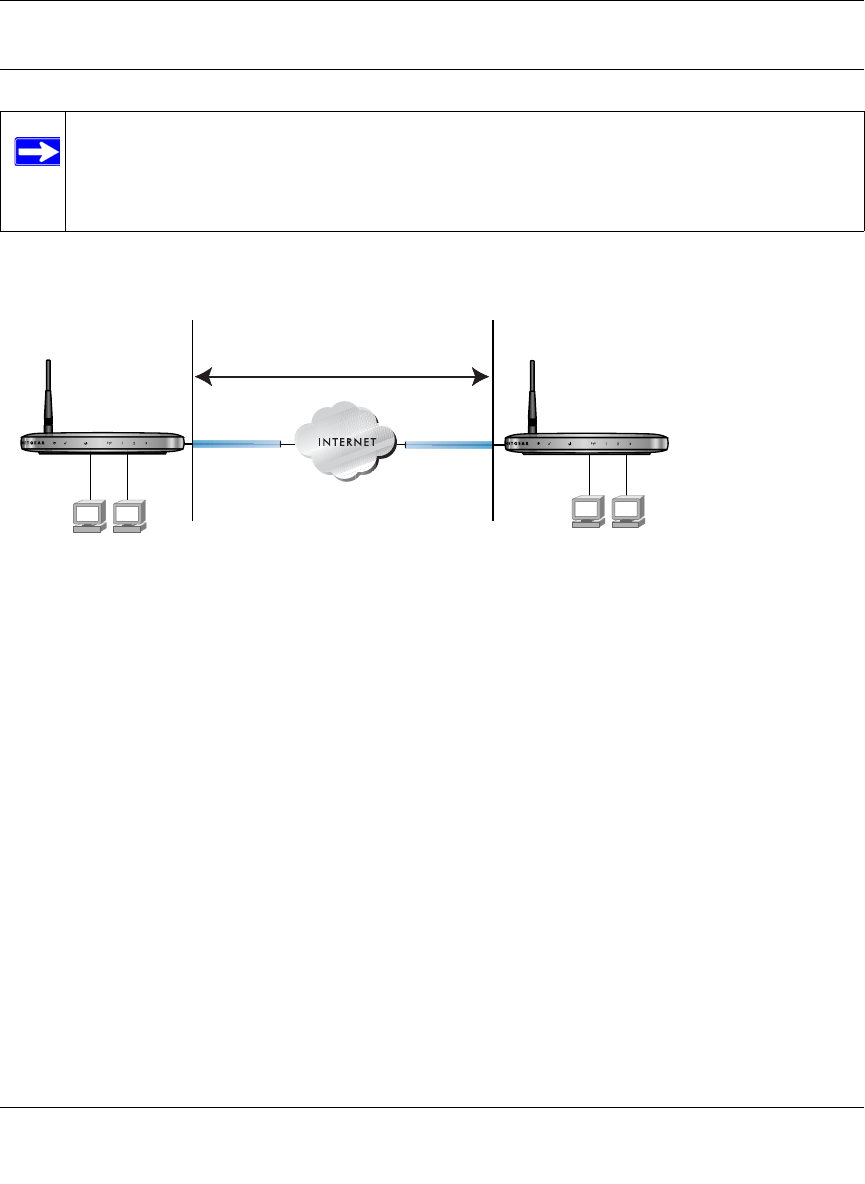

Figure 8-19
AB
VPN Tunnel
DG834G VPN
Firewall DG834G VPN Firewall
PCs PCs
192.168.0.1 192.168.3.1
14.15.16.17
22.23.24.25
Reference Manual for the ADSL Modem Wireless Router DG834G
8-22 Virtual Private Networking
v1.4, April 2007
Follow this procedure to configure a gateway-to-gateway VPN tunnel using the VPN Wizard.
1. Log in to the DG834G v4 on LAN A at its default LAN address of http://192.168.0.1 with its
default user name of admin and password of password. Click the VPN Wizard link in the
main menu to display this screen. Click Next to proceed.
Table 8-4. VPN Tunnel Configuration Worksheet
Connection Name: GtoG
Pre-Shared Key: 12345678
Secure Association -- Main Mode or Manual Keys: Main
Perfect Forward Secrecy -- Enabled or Disabled: Disabled
Encryption Protocol -- DES or 3DES: 3DES
Authentication Protocol -- MD5 or SHA-1: SHA-1
Diffie-Hellman (DH) Group -- Group 1 or Group 2: Group 2
Key Life in seconds: 28800 (8 hours)
IKE Life Time in seconds: 3600 (1 hour)
VPN Endpoint Local IPSec ID LAN IP Address Subnet Mask
FQDN or Gateway IP
(WAN IP Address)
DG834G v4_A GW_A 192.168.0.1 255.255.255.0 14.15.16.17
DG834G v4_B GW_B 192.168.3.1 255.255.255.0 22.23.24.25
Note: The LAN IP address ranges of each VPN endpoint must be different. The
connection will fail if both are using the NETGEAR default address range of
192.168.0.x.
Reference Manual for the ADSL Modem Wireless Router DG834G
Virtual Private Networking 8-23
v1.4, April 2007
2. Fill in the Connection Name and the pre-shared key, select the type of target end point, and
click Next to proceed.
Figure 8-20
Figure 8-21
Enter t
h
e new
C
onnect
i
on Name:
(e.g., GtoG)
Enter the pre-shared key:
(e.g., 12345678)
Select the radio button:
A remote VPN Gateway
Reference Manual for the ADSL Modem Wireless Router DG834G
8-24 Virtual Private Networking
v1.4, April 2007
3. Fill in the IP Address or FQDN for the target VPN endpoint WAN connection and click Next.
4. Identify the IP addresses at the target endpoint that can use this tunnel, and click Next.

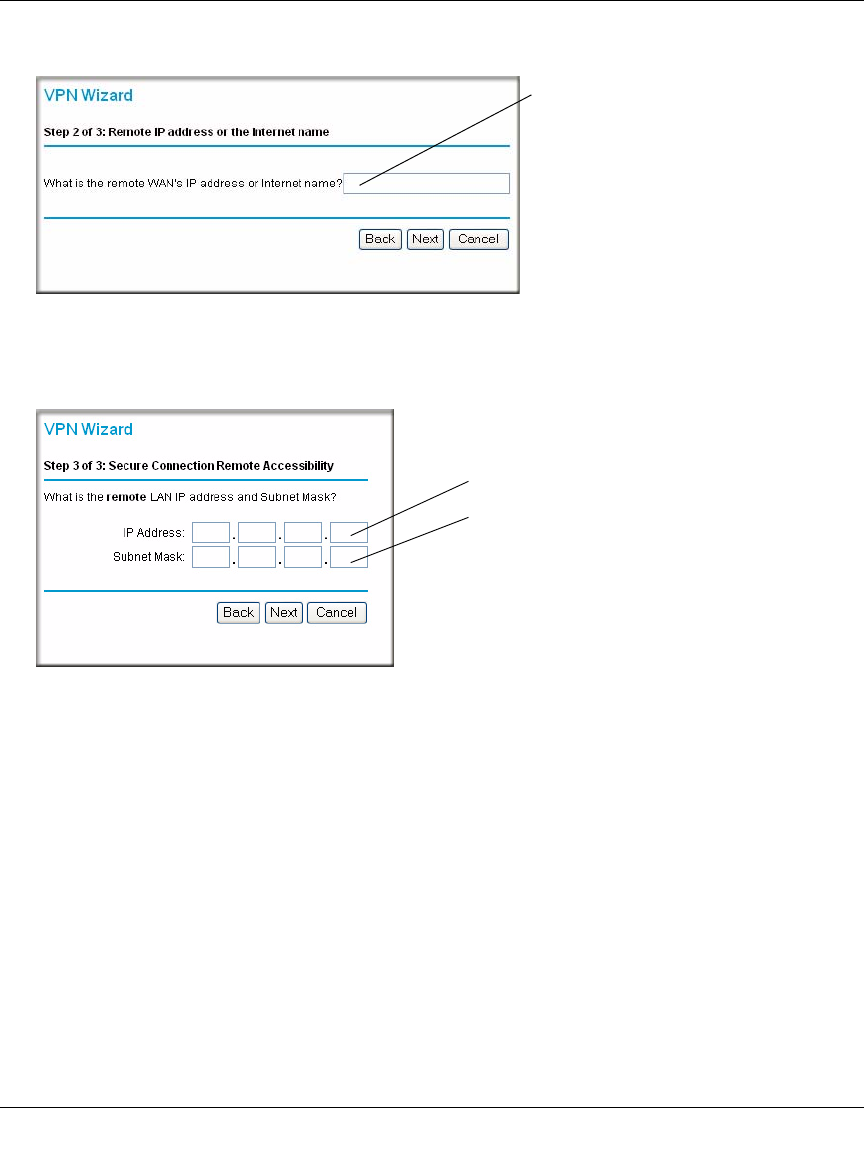

Figure 8-22
Figure 8-23
Enter the WAN IP address of the
remote VPN gateway: (e.g.,
22.23.24.25)
Enter t
h
e L
A
N IP sett
i
ngs o
f
t
h
e remote
VPN gateway:
• IP Address (e.g., 192.168.3.1)
• Subnet Mask (e.g., 255.255.255.0)
Reference Manual for the ADSL Modem Wireless Router DG834G
Virtual Private Networking 8-25
v1.4, April 2007
The Summary screen below displays.
Figure 8-24
Reference Manual for the ADSL Modem Wireless Router DG834G
8-26 Virtual Private Networking
v1.4, April 2007
To view the VPNC recommended authentication and encryption settings used by the VPN
Wizard, click the “here” link (see Figure 8-24). Click Back to return to the Summary screen.
5. Click Done on the Summary screen (see Figure 8-24) to complete the configuration

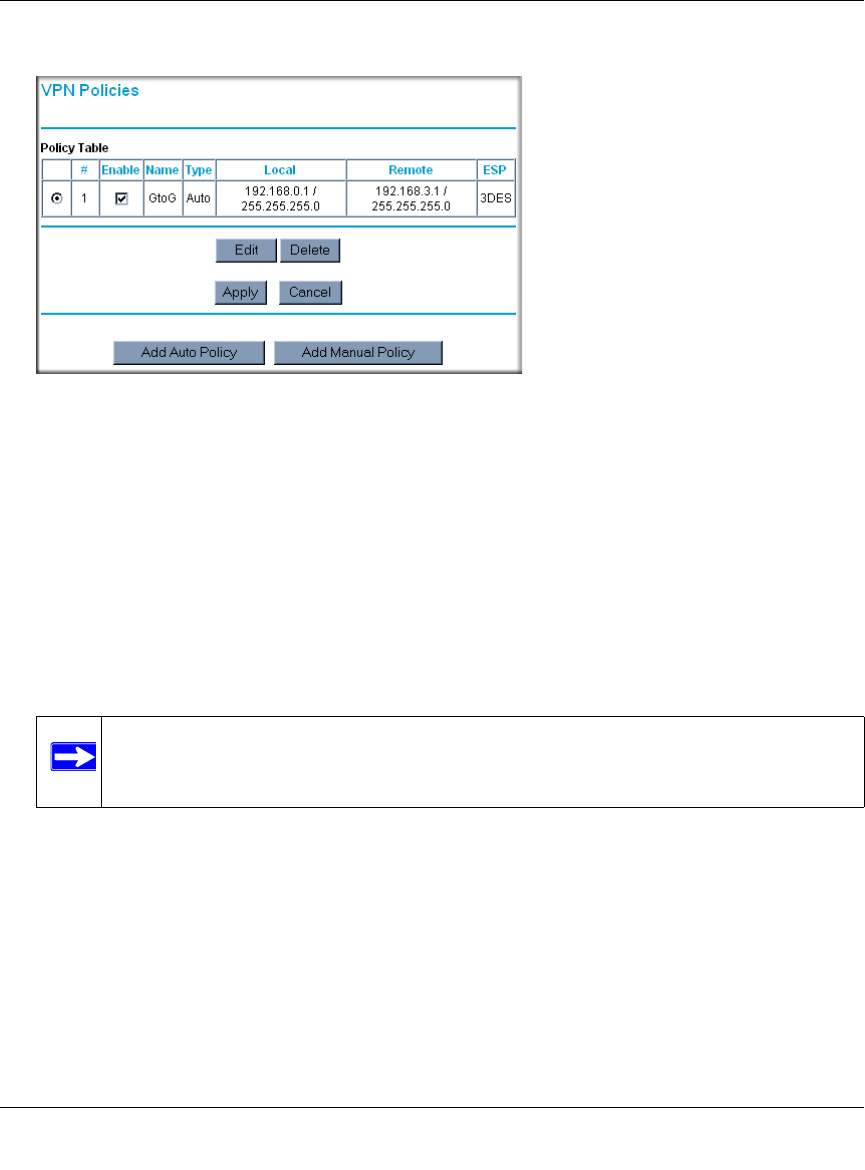

procedure. The VPN Settings menu below displays showing that the new tunnel is enabled.
Figure 8-25
Figure 8-26
Reference Manual for the ADSL Modem Wireless Router DG834G
Virtual Private Networking 8-27
v1.4, April 2007
6. Repeat for the DG834G v4 on LAN B and pay special attention to use the following network
settings as appropriate.
• WAN IP of the remote VPN gateway (e.g., 14.15.16.17)
• LAN IP settings of the remote VPN gateway:
— IP Address (e.g, 192.168.0.1)
— Subnet Mask (e.g., 255.255.255.0)
— Preshared Key (e.g., 12345678)
7. Use the VPN Status screen to activate the VPN tunnel by performing the following steps:
Note: Refer to “Using Auto Policy to Configure VPN Tunnels” on page 8-38 to
enable the IKE keepalive capability on an existing VPN tunnel.
Note: The VPN Status screen is only one of three ways to active a VPN tunnel. See
“Activating a VPN Tunnel” on page 8-29 for information on the other ways.
Reference Manual for the ADSL Modem Wireless Router DG834G
8-28 Virtual Private Networking
v1.4, April 2007
a. Open the DG834G v4 management interface and click on VPN Status to get the VPN
Status/Log screen (Figure 8-27).
b. Click on VPN Status (Figure 8-29) to get the Current VPN Tunnels (SAs) screen
(Figure 8-28). Click on Connect for the VPN tunnel you want to activate.
c. Look at the VPN Status/Log screen (Figure 8-27) to verify that the tunnel is connected.
Figure 8-27
Figure 8-28
Reference Manual for the ADSL Modem Wireless Router DG834G
Virtual Private Networking 8-29
v1.4, April 2007
VPN Tunnel Control
Activating a VPN Tunnel
There are three ways to activate a VPN tunnel:
• Use the VPN Status page.
• Activate the VPN tunnel by pinging the remote endpoint.
• Start using the VPN tunnel.
Using the VPN Status Page to Activate a VPN Tunnel
To use the VPN Status screen to activate a VPN tunnel, perform the following steps:
1. Log in to the modem router.
2. Open the DG834G v4 management interface and click on VPN Status to get the VPN Status/
Log screen (Figure 8-29).
Note: Refer to “Using Auto Policy to Configure VPN Tunnels” on page 8-38 to enable
the IKE keepalive capability on an existing VPN tunnel.

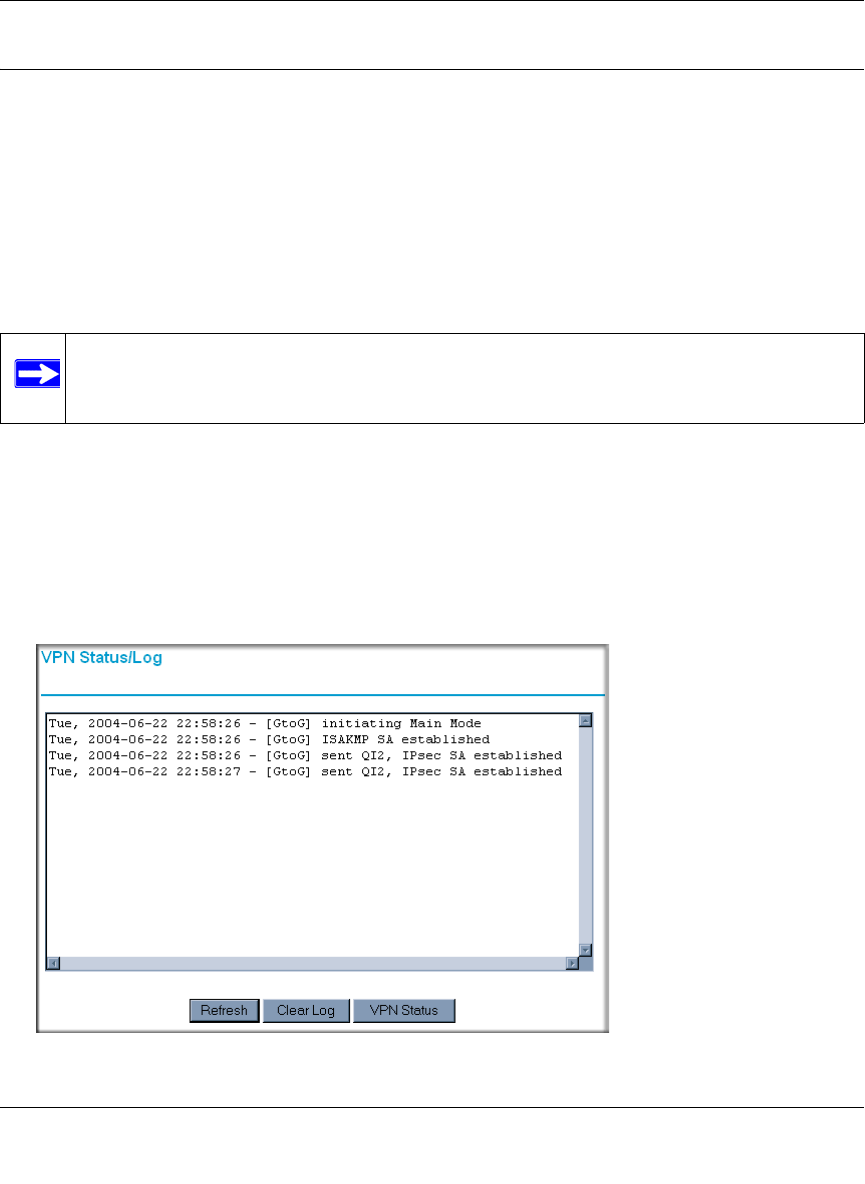

Figure 8-29
Reference Manual for the ADSL Modem Wireless Router DG834G
8-30 Virtual Private Networking
v1.4, April 2007
3. Click on VPN Status (Figure 8-29) to get the Current VPN Tunnels (SAs) screen
(Figure 8-30). Click on Connect for the VPN tunnel you want to activate.
Activate the VPN Tunnel by Pinging the Remote Endpoint
To activate the VPN tunnel by pinging the remote endpoint (e.g., 192.168.3.1), do the following
steps depending on whether your configuration is client-to-gateway or gateway-to-gateway:
•Client-to-Gateway Configuration—to check the VPN Connection, you can initiate a request
from the remote PC to the DG834G v4’s network by using the “Connect” option in the
NETGEAR ProSafe menu bar. The NETGEAR ProSafe client will report the results of the
attempt to connect. Since the remote PC has a dynamically assigned WAN IP address, it must
initiate the request.
To perform a ping test using our example, start from the remote PC:
a. Establish an Internet connection from the PC.
b. On the Windows taskbar, click the Start button, and then click Run.
c. Type ping -t 192.168.3.1 and then click OK.
Figure 8-30
Note: This section uses 192.168.3.1 for an example remote endpoint LAN IP address.
Reference Manual for the ADSL Modem Wireless Router DG834G
Virtual Private Networking 8-31
v1.4, April 2007

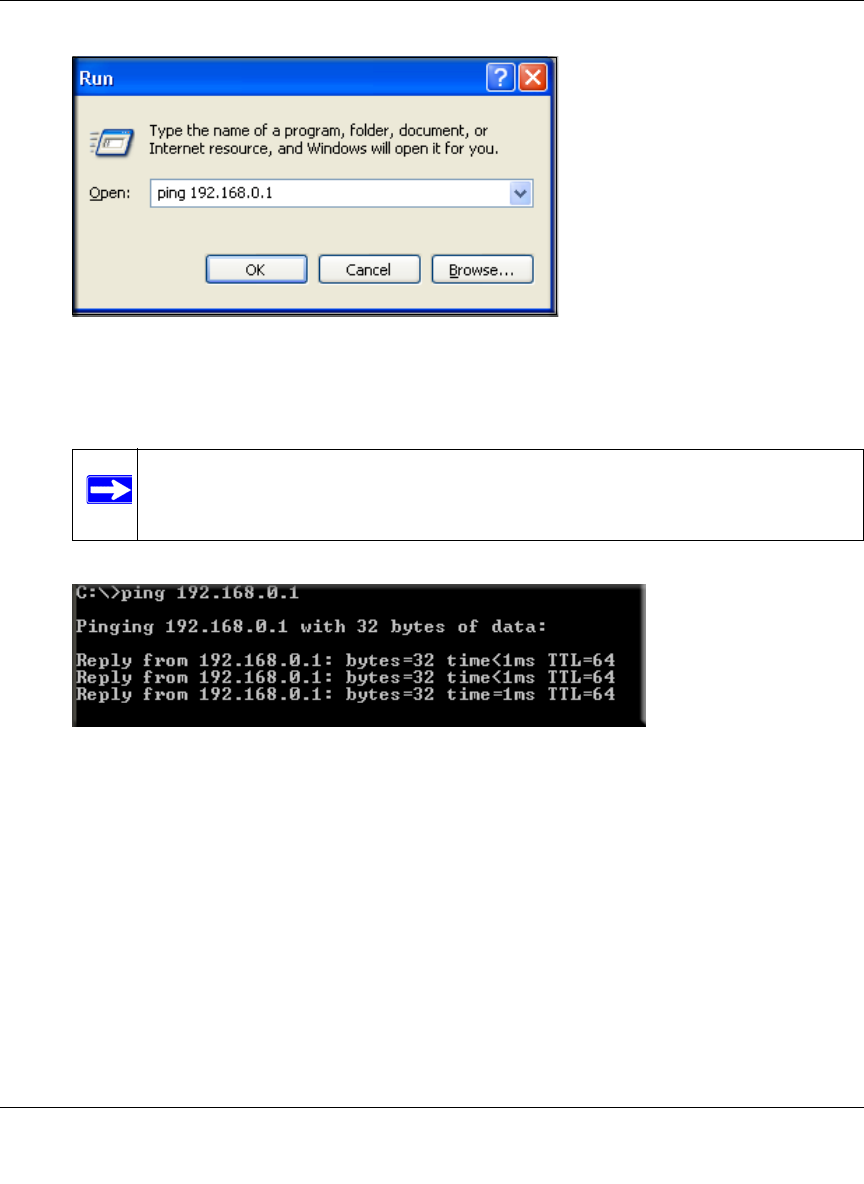

Figure 8-31: Running a Ping test to the LAN from the PC
This will cause a continuous ping to be sent to the first DG834G v4. After between several
seconds and two minutes, the ping response should change from “timed out” to “reply.”
Once the connection is established, you can open the browser of the PC and enter the LAN IP
address of the remote DG834G v4. After a short wait, you should see the login screen of the
modem router (unless another PC already has the DG834G v4 management interface open).
•Gateway-to-Gateway Configuration—test the VPN tunnel by pinging the remote network
from a PC attached to the DG834G v4.
a. Open command prompt (i.e., Start -> Run -> cmd).
Note: Use Ctrl-C to stop the pinging.
Figure 8-32
Reference Manual for the ADSL Modem Wireless Router DG834G
8-32 Virtual Private Networking
v1.4, April 2007
b. ping 192.168.3.1.
Start Using a VPN Tunnel to Activate It
To use a VPN tunnel, use a Web browser to go to a URL whose IP address or range is covered by
the policy for that VPN tunnel.

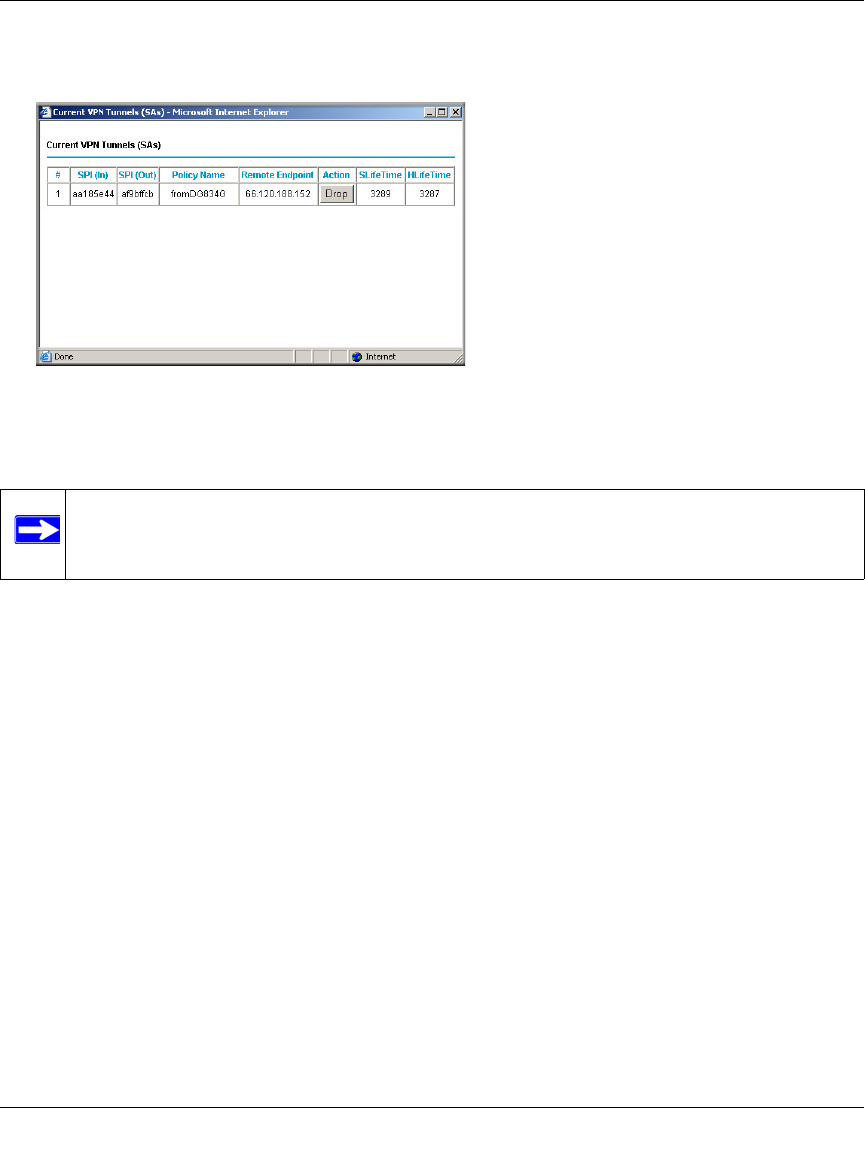

Figure 8-33
Note: The pings may fail the first time. If so, then try the pings a second time.
Reference Manual for the ADSL Modem Wireless Router DG834G
Virtual Private Networking 8-33
v1.4, April 2007
Verifying the Status of a VPN Tunnel
To use the VPN Status page to determine the status of a VPN tunnel, perform the following steps:
1. Log in to the modem router.
2. Open the DG834G v4 management interface and click on VPN Status to get the VPN Status/
Log screen (Figure 8-34).
Log—this log shows the details of recent VPN activity, including the building of the VPN
tunnel. If there is a problem with the VPN tunnel, refer to the log for information about what
might be the cause of the problem.
• Click Refresh to see the most recent entries.
• Click Clear Log to delete all log entries.
Figure 8-34
Reference Manual for the ADSL Modem Wireless Router DG834G
8-34 Virtual Private Networking
v1.4, April 2007

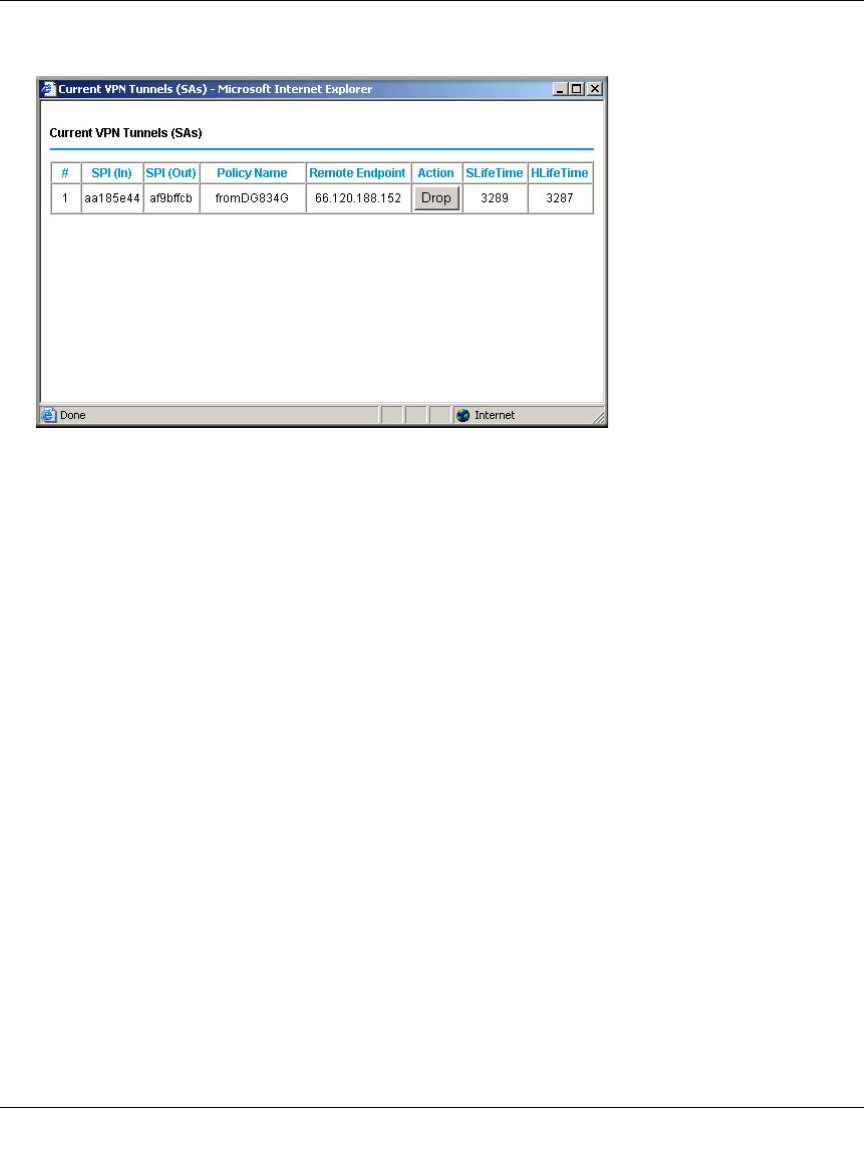

3. Click on VPN Status (Figure 8-29) to get the Current VPN Tunnels (SAs) screen.
This table lists the following data for each active VPN Tunnel.
•SPI—each SA has a unique SPI (Security Parameter Index) for traffic in each direction.
For "Manual" key exchange, the SPI is specified in the Policy definition. For "Automatic"
key exchange, the SPI is generated by the IKE protocol.
•Policy Name—the name of the VPN policy associated with this SA.
•Remote Endpoint—the IP address on the remote VPN Endpoint.
•Action—the action will be either a "Drop" or a "Connect" button.
•SLifeTime (Secs)—the remaining Soft Lifetime for this SA in seconds. When the Soft
Lifetime becomes zero, the SA (Security Association) will re-negotiated.
•HLifeTime (Secs)—the remaining Hard Lifetime for this SA in seconds. When the Hard
Lifetime becomes zero, the SA (Security Association) will be terminated. (It will be re-
established if required.)
Figure 8-35
Reference Manual for the ADSL Modem Wireless Router DG834G
Virtual Private Networking 8-35
v1.4, April 2007
Deactivating a VPN Tunnel
Sometimes a VPN tunnel must be deactivated for testing purposes. There are two ways to
deactivate a VPN tunnel:
• Policy table on VPN Policies page
• VPN Status page
Using the Policy Table on the VPN Policies Page to Deactivate a VPN Tunnel
To use the VPN Policies page to deactivate a VPN tunnel, perform the following steps:
1. Log in to the modem router.
2. Open the DG834G v4 management interface and click on VPN Policies to get the VPN
Policies screen (Figure 8-36).
3. Clear the Enable check box for the VPN tunnel you want to deactivate and click Apply. (To
reactivate the tunnel, check the Enable box and click Apply.)
Using the VPN Status Page to Deactivate a VPN Tunnel
To use the VPN Status page to deactivate a VPN tunnel, perform the following steps:
1. Log in to the modem router.
Figure 8-36
Reference Manual for the ADSL Modem Wireless Router DG834G
8-36 Virtual Private Networking
v1.4, April 2007
2. Open the DG834G v4 management interface and click on VPN Status to get the VPN Status/
Log screen (Figure 8-37).
3. Click VPN Status (Figure 8-37) to get the Current VPN Tunnels (SAs) screen (Figure 8-38).
Click Drop for the VPN tunnel you want to deactivate.
Figure 8-37
Figure 8-38
Reference Manual for the ADSL Modem Wireless Router DG834G
Virtual Private Networking 8-37
v1.4, April 2007
Deleting a VPN Tunnel
To delete a VPN tunnel:
1. Log in to the modem router.
2. Open the DG834G v4 management interface and click VPN Policies to display the VPN
Policies screen (Figure 8-39). Select the radio button for the VPN tunnel to be deleted and
click the Delete button.
Figure 8-39
Reference Manual for the ADSL Modem Wireless Router DG834G
8-38 Virtual Private Networking
v1.4, April 2007
How to Set Up VPN Tunnels in Special Circumstances
When the VPN Wizard and its VPNC defaults (see Table 8-2) are not appropriate for your special
circumstances, use one of the following alternatives:
•Auto Policy—for a typical automated Internet Key Exchange (IKE) setup, see “Using Auto
Policy to Configure VPN Tunnels” on page 8-38. Auto Policy uses the IKE protocol to define
the authentication scheme and automatically generate the encryption keys.
•Manual Policy—for a Manual Keying setup in which you must specify each phase of the
connection, see “Using Manual Policy to Configure VPN Tunnels” on page 8-48. Manual
Policy does not use IKE. Rather, you manually enter all the authentication and key parameters.
You have more control over the process, however the process is more complex and there are
more opportunities for errors or configuration mismatches between your DG834G v4 and the
corresponding VPN endpoint gateway or client workstation.
Using Auto Policy to Configure VPN Tunnels
You need to configure matching VPN settings on both VPN endpoints. The outbound VPN
settings on one end must match to the inbound VPN settings on other end, and vice versa.
See “Example of Using Auto Policy” on page 8-43 for an example of using Auto Policy.
Configuring VPN Network Connection Parameters
All VPN tunnels on the ADSL Modem Wireless Router require configuring several network
parameters. This section describes those parameters and how to access them.
The most common configuration scenarios will use IKE to manage the authentication and
encryption keys. The IKE protocol performs negotiations between the two VPN endpoints to
automatically generate and update the required encryption parameters.
Click the VPN Policies link of the main menu, and then click the Add Auto Policy button to
display the VPN - Auto Policy menu shown in Figure 8-40.
Reference Manual for the ADSL Modem Wireless Router DG834G
Virtual Private Networking 8-39
v1.4, April 2007

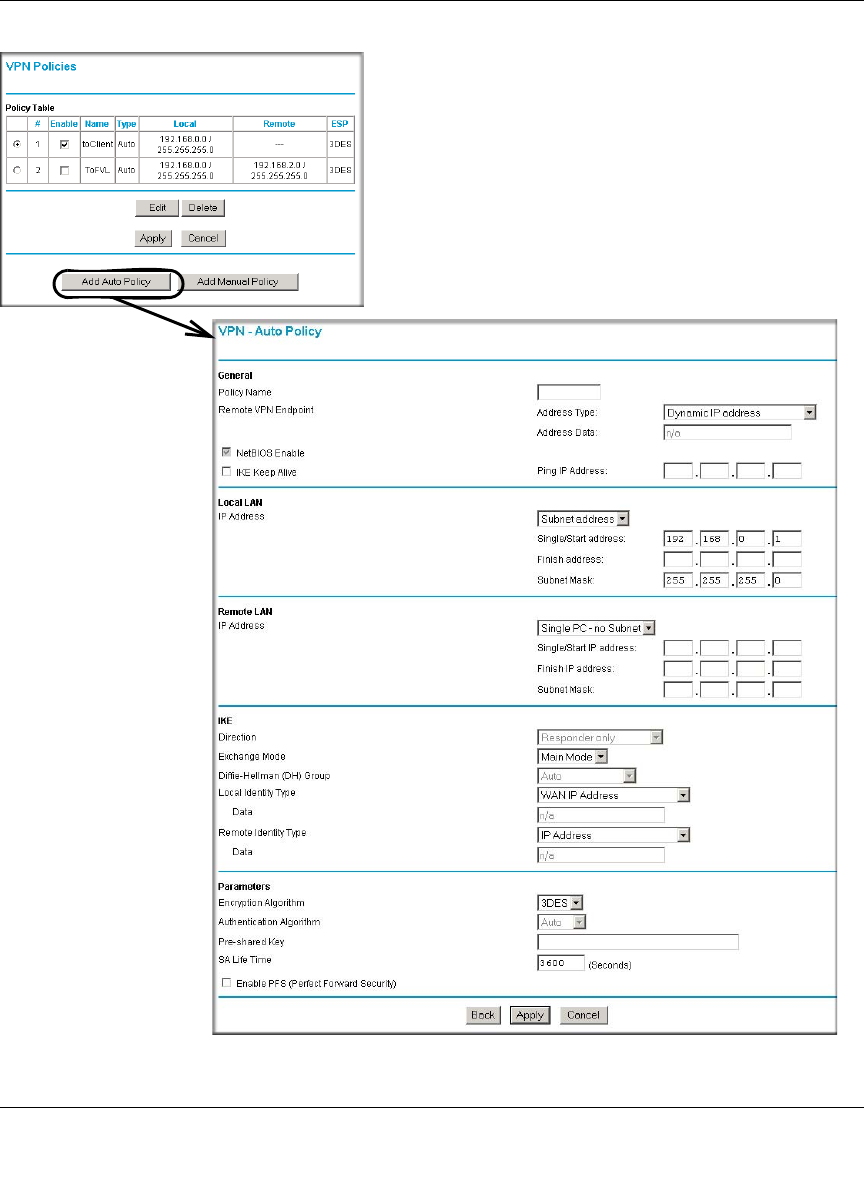

Figure 8-40
Reference Manual for the ADSL Modem Wireless Router DG834G
8-40 Virtual Private Networking
v1.4, April 2007
The DG834G v4 VPN tunnel network connection fields are defined as follows:
General. These settings identify this policy and determine its major characteristics.
•Policy Name—Enter a unique name to identify this policy. This name is not supplied to the
remote VPN endpoint. It is used only to help you manage the policies.
•Remote VPN Endpoint—If the remote endpoint has a dynamic IP address, select Dynamic
IP address. No "Address Data" input is required. You can set up multiple remote dynamic IP
policies, but only one such policy can be enabled at a time. Otherwise, select the desired
option (IP address or Domain Name) and enter the address of the remote VPN endpoint to
which you wish to connect.
•IKE Keep-alive—Enable this if you wish to ensure that a connection is kept open, or, if that is
not possible, that it is quickly re-established when disconnected.
The Ping IP Address must be associated with the remote endpoint. The remote LAN address
must be used. This IP address will be "pinged" periodically to generate traffic for the VPN
tunnel. The remote keep-alive IP address must be covered by the remote LAN IP range and
must correspond to a device that can respond to ping. The range should be made as narrow as
possible to meet this objective.
Local LAN. This identifies which PCs on your LAN are covered by this policy. For each
selection, data must be provided as follows:
•Single address—enter an IP address in the "Single/Start IP address" field. Typically, this
setting is used when you wish to make a single Server on your LAN available to remote users.
•Range address—enter the starting IP address in the "Single/Start IP address" field, and the
finish IP address in the "Finish IP address" field. This must be an address range used on your
LAN.
•Subnet address—enter an IP address in the "Single/Start IP address" field, and the desired
network mask in the "Subnet Mask" field. The remote VPN endpoint must have these IP
addresses entered as its "Remote" addresses.
•Any—the remote VPN endpoint may be at any IP address.
Remote LAN. This identifies which PCs on the remote LAN are covered by this policy. For each
selection, data must be provided as follows:
Note: The remote VPN endpoint must have this VPN Gateway's address entered as
its "Remote VPN Endpoint".
Reference Manual for the ADSL Modem Wireless Router DG834G
Virtual Private Networking 8-41
v1.4, April 2007
•Single PC - no Subnet—select this option if there is no LAN (only a single PC) at the remote
endpoint. If this option is selected, no additional data is required. The typical application is a
PC running the VPN client at the remote end.
•Single address—Enter an IP address in the "Single/Start IP address" field. This must be an
address on the remote LAN. Typically, this setting is used when you wish to access a server on
the remote LAN.
•Range address—enter the starting IP address in the "Single/Start IP address" field, and the
finish IP address in the "Finish IP address" field. This must be an address range used on the
remote LAN.
•Subnet address—enter an IP address in the "Single/Start IP address" field, and the desired
network mask in the "Subnet Mask" field.
•Any—any outgoing traffic from the “Local IP” computers will trigger an attempted VPN
connection to the remote VPN endpoint. Please be sure you want this option before selecting
it.
The remote VPN endpoint must have these IP addresses entered as its "Local" addresses.
IKE. Direction/Type—this setting is used when determining if the IKE policy matches the current
traffic. Select the desired option.
•Responder only—incoming connections are allowed, but outgoing connections will be
blocked.
•Initiator and Responder—both incoming and outgoing connections are allowed.
Exchange Mode—ensure the remote VPN endpoint is set to use "Main Mode".
Diffie-Hellman (DH) Group—the Diffie-Hellman algorithm is used when exchanging keys. The
DH Group setting determines the number of bit size used in the exchange. This value must match
the value used on the remote VPN Gateway.
Local Identity Type—select the desired option to match the "Remote Identity Type" setting on the
remote VPN endpoint.
•WAN IP Address—your Internet IP address.
•Fully Qualified Domain Name—your domain name.
•Fully Qualified User Name—your name, E-mail address, or other ID.
Local Identity Data—enter the data for the selection above. (If WAN IP Address is selected, no
input is required.)
Reference Manual for the ADSL Modem Wireless Router DG834G
8-42 Virtual Private Networking
v1.4, April 2007
Remote Identity Type—select the desired option to match the "Local Identity Type" setting on
the remote VPN endpoint.
•IP Address—the Internet IP address of the remote VPN endpoint.
•Fully Qualified Domain Name—the Domain name of the remote VPN endpoint.
•Fully Qualified User Name—the name, E-mail address, or other ID of the remote VPN
endpoint.
Remote Identity Data—enter the data for the selection above. (If IP Address is selected, no input
is required.)
Parameters. Encryption Algorithm—encryption Algorithm used for both IKE and IPSec. This
setting must match the setting used on the remote VPN Gateway. DES and 3DES are supported.
• DES—the Data Encryption Standard (DES) processes input data that is 64 bits wide,
encrypting these values using a 56 bit key. Faster but less secure than 3DES.
• 3DES—(Triple DES) achieves a higher level of security by encrypting the data three times
using DES with three different, unrelated keys.
Authentication Algorithm—authentication Algorithm used for both IKE and IPSec. This setting
must match the setting used on the remote VPN Gateway. Auto, MD5, and SHA-1 are supported.
Auto negotiates with the remote VPN endpoint and is not available in responder-only mode.
• MD5—128 bits, faster but less secure.
• SHA-1 (default)—160 bits, slower but more secure.
Pre-shared Key—the key must be entered both here and on the remote VPN Gateway.
SA Life Time—this determines the time interval before the SA (Security Association) expires. (It
will automatically be re-established as required.) While using a short time period (or data amount)
increases security, it also degrades performance. It is common to use periods over an hour (3600
seconds) for the SA Life Time. This setting applies to both IKE and IPSec SAs.
IPSec PFS (Perfect Forward Secrecy)—if enabled, security is enhanced by ensuring that the key
is changed at regular intervals. Also, even if one key is broken, subsequent keys are no easier to
break. (Each key has no relationship to the previous key.)
This setting applies to both IKE and IPSec SAs. When configuring the remote endpoint to match
this setting, you may have to specify the "Key Group" used. For this device, the "Key Group" is
the same as the "DH Group" setting in the IKE section.
Reference Manual for the ADSL Modem Wireless Router DG834G
Virtual Private Networking 8-43
v1.4, April 2007
Example of Using Auto Policy
1. Set the LAN IPs on each DG834G v4 to different subnets and configure each properly for the
Internet. The following settings are assumed for this example:
Figure 8-41
Table 8-5. VPN Tunnel Configuration Worksheet
Connection Name: GtoG
Pre-Shared Key: 12345678
Secure Association -- Main Mode or Manual Keys: Main
Perfect Forward Secrecy -- Enabled or Disabled: Disabled
Encryption Protocol -- DES or 3DES: 3DES
Authentication Protocol -- MD5 or SHA-1: SHA-1
Diffie-Hellman (DH) Group -- Group 1 or Group 2: Group 2
Key Life in seconds: 28800 (8 hours)
IKE Life Time in seconds: 3600 (1 hour)
VPN Endpoint Local IPSec ID LAN IP Address Subnet Mask
FQDN or Gateway IP
(WAN IP Address)
DG834G v4 A LAN_A 192.168.0.1 255.255.255.0 14.15.16.17
DG834G v4 B LAN_B 192.168.3.1 255.255.255.0 22.23.24.25
AB
VPN Tunnel
DG834G VPN
Firewall DG834G VPN Firewall
PCs PCs
192.168.0.1 192.168.3.1
14.15.16.17
22.23.24.25
Reference Manual for the ADSL Modem Wireless Router DG834G
8-44 Virtual Private Networking
v1.4, April 2007
2. Open the DG834G v4 on LAN A management interface and click on VPN Policies.
3. Click Add Auto Policy.
4. Enter policy settings (see Figure 8-43).
• General
— Policy Name = GtoG
— Remote VPN Endpoint Address Type = Fixed IP Address
— Remote VPN Endpoint Address Data = 22.23.24.25
• Local LAN – use default setting
• Remote LAN
— IP Address = select Subnet address from the pulldown menu.
— Start IP address = 192.168.3.1
— Subnet Mask = 255.255.255.0
•IKE
— Direction = Initiator and Responder
— Exchange Mode = Main Mode
— Diffie-Hellman (DH) Group = Group 2 (1024 Bit)
— Local Identity Type = use default setting
— Remote Identity Type = use default setting
• Parameters
— Encryption Algorithm = 3DES
Figure 8-42
Reference Manual for the ADSL Modem Wireless Router DG834G
Virtual Private Networking 8-45
v1.4, April 2007
— Authentication Algorithm = MD5
— Pre-shared Key = 12345678

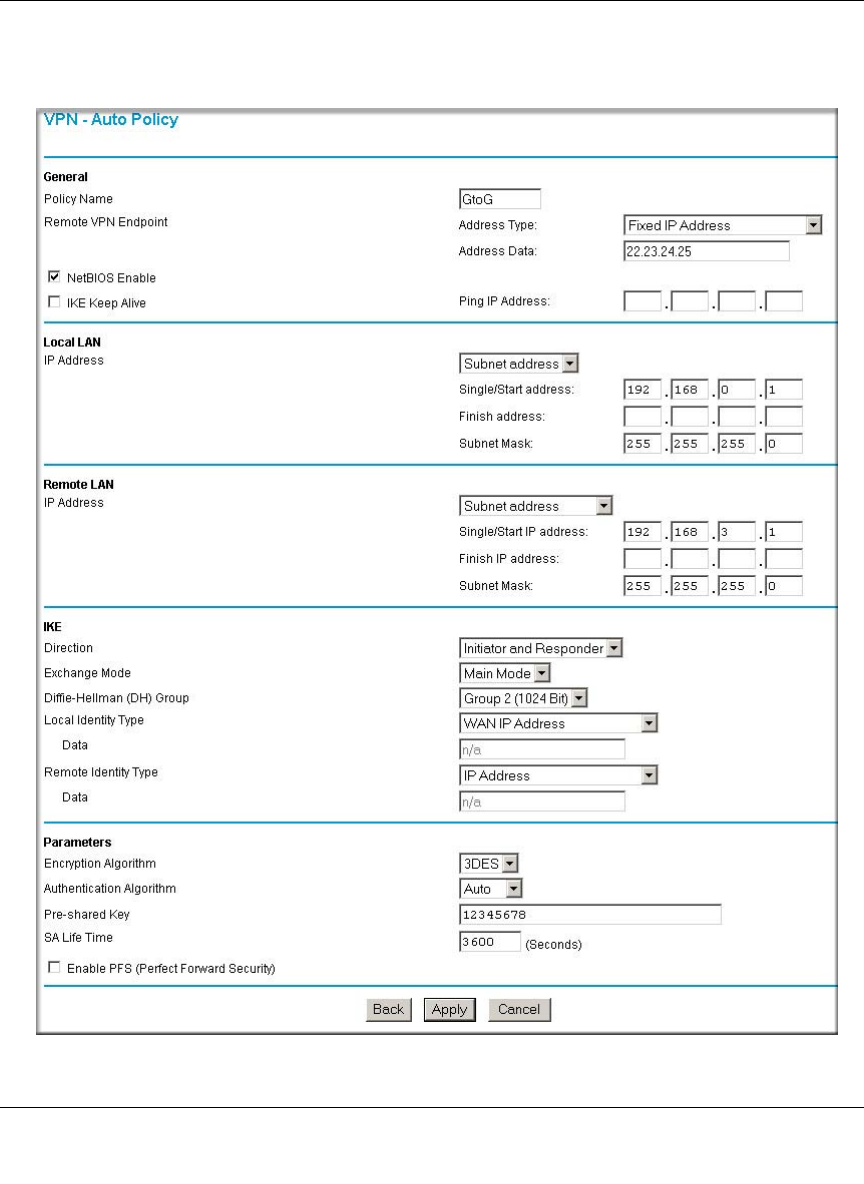

Figure 8-43
Reference Manual for the ADSL Modem Wireless Router DG834G
8-46 Virtual Private Networking
v1.4, April 2007
5. Click Apply. The Get VPN Policies web page is displayed.
6. Repeat for the DG834G v4 on LAN B and pay special attention to use the following network
settings as appropriate.
• General, Remote Address Data (e.g., 14.15.16.17)
• Remote LAN, Start IP Address
— IP Address (e.g, 192.168.0.1)
— Subnet Mask (e.g., 255.255.255.0)
— Preshared Key (e.g., 12345678)
7. Use the VPN Status screen to activate the VPN tunnel by performing the following steps:
Figure 8-44
Note: The VPN Status screen is only one of three ways to active a VPN tunnel. See
“Activating a VPN Tunnel” on page 8-29 for information on the other ways.
Reference Manual for the ADSL Modem Wireless Router DG834G
Virtual Private Networking 8-47
v1.4, April 2007
a. Open the DG834G v4 management interface and click on VPN Status to display the VPN
Status/Log screen (Figure 8-45).
b. Click VPN Status (Figure 8-45) to display the Current VPN Tunnels (SAs) screen
(Figure 8-46). Click on Connect for the VPN tunnel you want to activate.
c. Review the VPN Status/Log screen (Figure 8-45) to verify that the tunnel is connected.
Figure 8-45
Figure 8-46
Reference Manual for the ADSL Modem Wireless Router DG834G
8-48 Virtual Private Networking
v1.4, April 2007
Using Manual Policy to Configure VPN Tunnels
As an alternative to IKE, you may use Manual Keying, in which you must specify each phase of
the connection. A "Manual" VPN policy requires all settings for the VPN tunnel to be manually
input at each end (both VPN endpoints).
Click the VPN Policies link of the main menu, and then click the Add Manual Policy radio button
to display the Manual Keys menu shown in Figure 8-47.

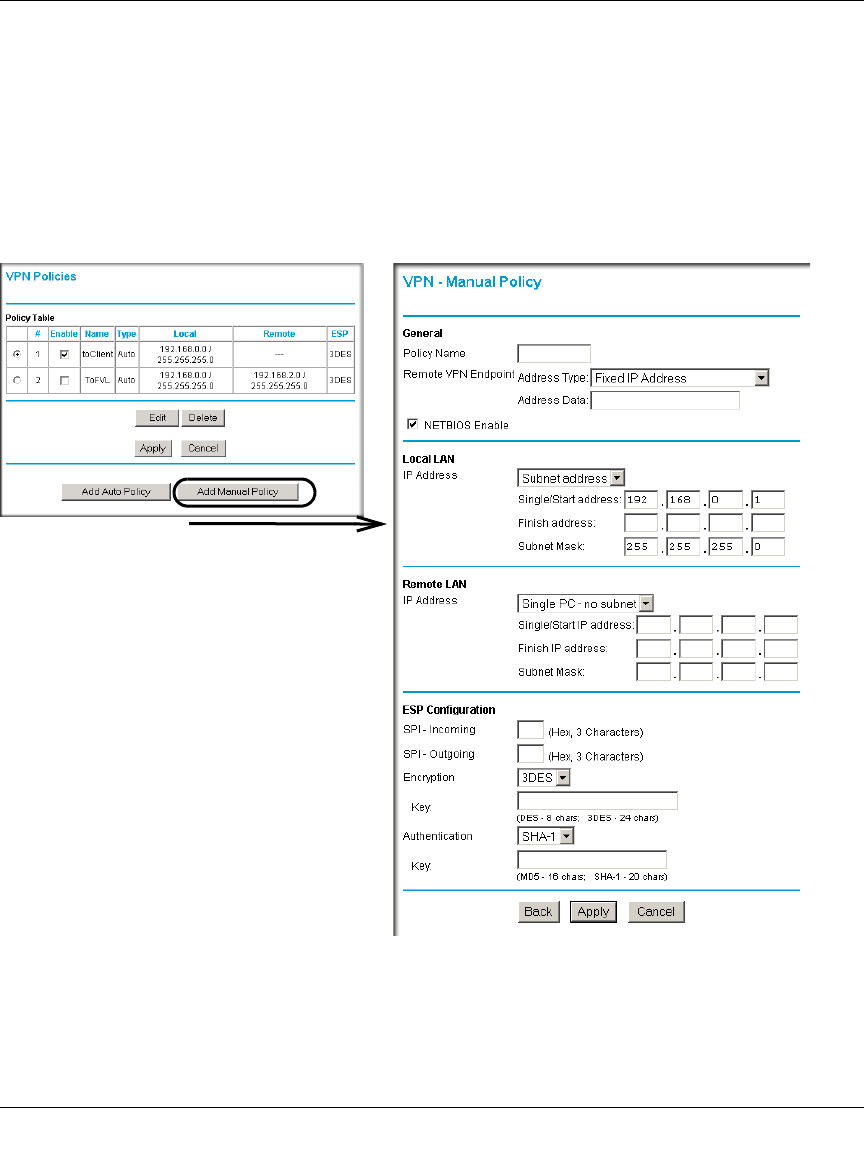

Figure 8-47
Reference Manual for the ADSL Modem Wireless Router DG834G
Virtual Private Networking 8-49
v1.4, April 2007
General. The DG834G v4 VPN tunnel network connection fields are defined as follows:
•Policy Name—enter a unique name to identify this policy. This name is not supplied to the
remote VPN endpoint. It is used only to help you manage the policies.
•Remote VPN Endpoint—select the desired option (IP address or Fully Qualified Domain
Name) and enter the address of the remote VPN endpoint to which you wish to connect.
Local LAN. This identifies which PCs on your LAN are covered by this policy. For each
selection, data must be provided as follows:
•Single address—enter an IP address in the "Single/Start IP address" field. Typically, this
setting is used when you wish to make a single Server on your LAN available to remote users.
•Range address—enter the starting IP address in the "Single/Start IP address" field, and the
finish IP address in the "Finish IP address" field. This must be an address range used on your
LAN.
•Subnet address—enter an IP address in the "Single/Start IP address" field, and the desired
network mask in the "Subnet Mask" field.
•Any—the remote VPN endpoint may be at any IP address.
The remote VPN endpoint must have these IP addresses entered as its "Remote" addresses.
Remote LAN. This identifies which PCs on the remote LAN are covered by this policy. For each
selection, data must be provided as follows:
•Single PC - no Subnet—select this option if there is no LAN (only a single PC) at the remote
endpoint. If this option is selected, no additional data is required.
•Single address—enter an IP address in the "Single/Start IP address" field. This must be an
address on the remote LAN. Typically, this setting is used when you wish to access a server on
the remote LAN.
•Range address—enter the starting IP address in the "Single/Start IP address" field, and the
finish IP address in the "Finish IP address" field. This must be an address range used on the
remote LAN.
•Subnet address—enter an IP address in the "Single/Start IP address" field, and the desired
network mask in the "Subnet Mask" field.
Note: The remote VPN endpoint must have this VPN Gateway's address entered as
its "Remote VPN Endpoint".
Reference Manual for the ADSL Modem Wireless Router DG834G
8-50 Virtual Private Networking
v1.4, April 2007
•Any—any outgoing traffic from the “Local IP” computers will trigger an attempted VPN
connection to the remote VPN endpoint. Please be sure you want this option before selecting
it.
The remote VPN endpoint must have these IP addresses entered as its "Local" addresses.
ESP Configuration. ESP (Encapsulating Security Payload) provides security for the payload
(data) sent through the VPN tunnel.
SPI—enter the required security policy indexes (SPIs). Each policy must have unique SPIs. These
settings must match the remote VPN endpoint. The "in" setting here must match the "out" setting
on the remote VPN endpoint, and the "out" setting here must match the "in" setting on the remote
VPN endpoint.
Encryption—select the desired Encryption Algorithm, and enter the key in the field provided. For
3DES, the keys should be 24 ASCII characters and for DES, the keys should be 8 ASCII
characters.
• DES—the Data Encryption Standard (DES) processes input data that is 64 bits wide,
encrypting these values using a 56 bit key. Faster but less secure than 3DES.
• 3DES—(Triple DES) achieves a higher level of security by encrypting the data three times
using DES with three different, unrelated keys.
Authentication—select the desired SHA-1 or MD5 Authentication Algorithm, and enter the key
in the field provided. For MD5, the keys should be 16 ASCII characters. For SHA-1, the keys
should be 20 ASCII characters.
• MD5—128 bits, faster but less secure.
• SHA-1 (default)—160 bits, slower but more secure.
Troubleshooting 9-1
v1.4, April 2007
Chapter 9
Troubleshooting
This chapter gives information about troubleshooting your 54 Mbps ADSL Modem Wireless
Router Model DG834G. After each problem description, instructions are provided to help you
diagnose and solve the problem. For the common problems listed, go to the section indicated.
• Is the router on?
• Have I connected the router correctly?
Go to “Basic Functioning” on page 9-1.
• I can’t access the router’s configuration with my browser.
Go to “Troubleshooting the Web Configuration Interface” on page 9-3.
• I’ve configured the router but I can’t access the Internet.
Go to “Troubleshooting the ISP Connection” on page 9-4.
• I can’t remember the router’s configuration password.
Go to “Restoring the Default Configuration and Password” on page 9-9.
• I want to clear the configuration and start over again.
Go to “Restoring the Default Configuration and Password” on page 9-9.
Basic Functioning
After you turn on power to the router, the following sequence of events should occur:
1. When power is first applied, verify that the Power LED is on (see “The Modem Router’s Front
Panel” on page 2-8 for an illustration and explanation of the LEDs).
2. Verify that the Test LED lights within a few seconds, indicating that the self-test procedure is
running.
3. After approximately 10 seconds, verify that:
a. The Test LED is not lit.
b. The LAN port LEDs are lit for any local ports that are connected.
Reference Manual for the ADSL Modem Wireless Router DG834G
9-2 Troubleshooting
v1.4, April 2007
c. The WAN port LED is lit.
If a port’s LED is lit, a link has been established to the connected device. If a LAN port is
connected to a 100 Mbps device, verify that the port’s LED is green. If the port is 10 Mbps, the
LED will be amber.
If any of these conditions does not occur, refer to the appropriate following section.
Power LED Not On
If the Power and other LEDs are off when your router is turned on:
• Make sure that the power cord is properly connected to your router and that the power supply
adapter is properly connected to a functioning power outlet.
• Check that you are using the 12 V DC power adapter supplied by NETGEAR for this product.
If the error persists, you have a hardware problem and should contact technical support.
Test LED Never Turns On or Test LED Stays On
When the router is turned on, the Test LED turns on for about 10 seconds and then turns off. If the
Test LED does not turn on, or if it stays on, there is a fault within the router.
If you experience problems with the Test LED:
• Cycle the power to see if the router recovers and the LED blinks for the correct amount of
time.
If all LEDs including the Test LED are still on one minute after power up:
• Cycle the power to see if the router recovers.
• Clear the router’s configuration to factory defaults. This will set the router’s IP address to
192.168.0.1. This procedure is explained in “Using the Reset button” on page 9-9.
If the error persists, you might have a hardware problem and should contact technical support.
LAN or Internet Port LEDs Not On
If either the LAN LEDs or Internet LED do not light when the Ethernet connection is made, check
the following:
Reference Manual for the ADSL Modem Wireless Router DG834G
Troubleshooting 9-3
v1.4, April 2007
• Make sure that the Ethernet cable connections are secure at the router and at the hub or
workstation.
• Make sure that power is turned on to the connected hub or workstation.
• Be sure you are using the correct cable:
— When connecting the router’s WAN ADSL port, use the cable that was supplied with the
DG834G v4.
Troubleshooting the Web Configuration Interface
If you are unable to access the router’s Web Configuration interface from a computer on your local
network, check the following:
• If you are using an Ethernet-connected computer, check the Ethernet connection between the
computer and the router as described in the previous section.
• Make sure your computer’s IP address is on the same subnet as the router. If you are using the
recommended addressing scheme, your computer’s address should be in the range of
192.168.0.2 to 192.168.0.254. Refer to “Preparing a Computer for Network Access” in
Appendix C to find your computer’s IP address.
• If your router’s IP address was changed and you do not know the current IP address, clear the
router’s configuration to factory defaults. This will set the router’s IP address to 192.168.0.1.
This procedure is explained in “Using the Reset button” on page 9-9.
• Make sure your browser has Java, JavaScript, or ActiveX enabled. If you are using Internet
Explorer, click Refresh to be sure the Java applet is loaded.
• Try quitting the browser and launching it again.
• Make sure you are using the correct login information. The factory default login name is
admin and the password is password. Make sure that CAPS LOCK is off when entering this
information.
Note: If your computer’s IP address is shown as 169.254.x.x:
Recent versions of Windows and MacOS will generate and assign an IP
address if the computer cannot reach a DHCP server. These auto-generated
addresses are in the range of 169.254.x.x. If your IP address is in this range,
check the connection from the computer to the router and reboot your
computer.
Reference Manual for the ADSL Modem Wireless Router DG834G
9-4 Troubleshooting
v1.4, April 2007
If the router does not save changes you have made in the Web Configuration Interface, check the
following:
• When entering configuration settings, be sure to click the Apply button before moving to
another menu or tab, or your changes are lost.
• Click the Refresh or Reload button in the Web browser. The changes may have occurred, but
the Web browser may be caching the old configuration.
Troubleshooting the ISP Connection
If your router is unable to access the Internet, you should check the ADSL connection, then the
WAN TCP/IP connection.
ADSL link
If your router is unable to access the Internet, you should first determine whether you have an
ADSL link with the service provider. The state of this connection is indicated with the Internet
LED.
Internet LED Green or Blinking Green
If your Internet LED is green or blinking green, then you have a good ADSL connection. You can
be confident that the service provider has connected your line correctly and that your wiring is
correct.
Internet LED Blinking Amber
If your Internet LED is blinking amber, then your modem router is attempting to make an ADSL
connection with the service provider. The LED should turn green within several minutes.
If the Internet LED does not turn green, disconnect all telephones on the line. If this solves the
problem, reconnect the telephones one at a time, being careful to use a microfilter on each
telephone. If the microfilters are connected correctly, you should be able to connect all your
telephones.
If disconnecting telephones does not result in a green Internet LED, there may be a problem with
your wiring. If the telephone company has tested the ADSL signal at your Network Interface
Device (NID), then you may have poor quality wiring in your house.
Reference Manual for the ADSL Modem Wireless Router DG834G
Troubleshooting 9-5
v1.4, April 2007
Internet LED Off
If the Internet LED is off, disconnect all telephones on the line. If this solves the problem,
reconnect the telephones one at a time, being careful to use a microfilter on each telephone. If the
microfilters are connected correctly, you should be able to connect all your telephones.
If disconnecting telephones does not result in a green Internet LED the problem may be one of the
following:
• Check that the telephone company has made the connection to your line and tested it.
• Verify that you are connected to the correct telephone line. If you have more than one phone
line, be sure that you are connected to the line with the ADSL service. It may be necessary to
use a swapper if you ADSL signal is on pins 1 and 4 or the RJ-11 jack. The ADSL Modem
Wireless Router uses pins 2 and 3.
Obtaining a WAN IP Address
If your modem router is unable to access the internet, and your Internet LED is green or blinking
green, you should determine whether the modem router is able to obtain a WAN IP address from
the ISP. Unless you have been assigned a static IP address, your modem router must request an IP
address from the ISP. You can determine whether the request was successful using the browser
interface.
To check the WAN IP address from the browser interface:
1. Launch your browser and select an external site such as www.netgear.com.
2. Access the Main Menu of the modem router’s configuration at http://192.168.0.1.
3. Under the Maintenance heading check that an IP address is shown for the WAN Port.
If 0.0.0.0 is shown, your modem router has not obtained an IP address from your ISP.
If your router is unable to obtain an IP address from the ISP, the problem may be one of the
following:
• Your ISP may require a Multiplexing Method or Virtual Path Identifier/Virtual Channel
Identifier parameter.
Verify with your ISP the Multiplexing Method and parameter value, and update the router’s
ADSL Settings accordingly.
• Your ISP may require a login program.
Ask your ISP whether they require PPP over Ethernet (PPPoE) or PPP over ATM (PPPOA)
login.
Reference Manual for the ADSL Modem Wireless Router DG834G
9-6 Troubleshooting
v1.4, April 2007
• If you have selected a login program, you may have incorrectly set the Service Name, User
Name and Password. See “Troubleshooting PPPoE or PPPoA”, below.
• Your ISP may check for your computer's host name.
Assign the computer Host Name of your ISP account to the modem router in the browser-
based Setup Wizard.
• Your ISP only allows one Ethernet MAC address to connect to Internet, and may check for
your computer’s MAC address. In this case:
Inform your ISP that you have bought a new network device, and ask them to use the router’s
MAC address.
OR
Configure your router to spoof your computer’s MAC address. This can be done in the Basic
Settings menu. Refer to the ADSL Modem Wirelesss Router Setup Manual (see Table 3-1 on
page 3-1).
Troubleshooting PPPoE or PPPoA
The PPPoA or PPPoA connection can be debugged as follows:
1. Access the Main Menu of the router at http://192.168.0.1.
2. Under the Maintenance heading, select the Router Status link.
3. Click the Connection Status button.
4. If all of the steps indicate “OK” then your PPPoE or PPPoA connection is up and working.
5. If any of the steps indicates “Failed”, you can attempt to reconnect by clicking Connect. The
modem router will continue to attempt to connect indefinitely.
If you cannot connect after several minutes, you may be using an incorrect Service Name, User
Name or Password. There also may be a provisioning problem with your ISP.
Note: Unless you connect manually, the modem router will not authenticate using
PPPoE or PPPoA until data is transmitted to the network.
Reference Manual for the ADSL Modem Wireless Router DG834G
Troubleshooting 9-7
v1.4, April 2007
Troubleshooting Internet Browsing
If your modem router can obtain an IP address but your computer is unable to load any Web pages
from the Internet:
• Your computer may not recognize any DNS server addresses.
A DNS server is a host on the Internet that translates Internet names (such as www addresses)
to numeric IP addresses. Typically your ISP will provide the addresses of one or two DNS
servers for your use. If you entered a DNS address during the modem router’s configuration,
reboot your computer and verify the DNS address as described in “Preparing a Computer for
Network Access” in Appendix C. Alternatively, you can configure your computer manually
with DNS addresses, as explained in your operating system documentation.
• Your computer may not have the modem router configured as its TCP/IP modem router.
If your computer obtains its information from the modem router by DHCP, reboot the
computer and verify the modem router address as described in “Preparing a Computer for
Network Access” in Appendix C.
Troubleshooting a TCP/IP Network Using the Ping Utility
Most TCP/IP terminal devices and routers contain a ping utility that sends an echo request packet
to the designated device. The device then responds with an echo reply. Troubleshooting a TCP/IP
network is made very easy by using the ping utility in your computer.
Testing the LAN Path to Your Router
You can ping the router from your computer to verify that the LAN path to your router is set up
correctly.
To ping the router from a PC running Windows 95 or later:
1. From the Windows toolbar, click the Start button and select Run.
2. In the field provided, type Ping followed by the IP address of the router, as in this example:
ping 192.168.0.1
3. Click OK.
You should see a message like this one:
Pinging <IP address> with 32 bytes of data
Reference Manual for the ADSL Modem Wireless Router DG834G
9-8 Troubleshooting
v1.4, April 2007
If the path is working, you see this message:
Reply from < IP address >: bytes=32 time=NN ms TTL=xxx
If the path is not working, you see this message:
Request timed out
If the path is not functioning correctly, you could have one of the following problems:
• Wrong physical connections
— Make sure the LAN port LED is on. If the LED is off, follow the instructions in “LAN
or Internet Port LEDs Not On” on page 9-2.
— Check that the corresponding Link LEDs are on for your network interface card and
for the hub ports (if any) that are connected to your workstation and router.
• Wrong network configuration
— Verify that the Ethernet card driver software and TCP/IP software are both installed
and configured on your PC or workstation.
— Verify that the IP address for your router and your workstation are correct and that the
addresses are on the same subnet.
Testing the Path from Your Computer to a Remote Device
After verifying that the LAN path works correctly, test the path from your PC to a remote device.
From the Windows run menu, type:
PING -n 10 <IP address>
where <IP address> is the IP address of a remote device such as your ISP’s DNS server.
If the path is functioning correctly, replies as in the previous section are displayed. If you do not
receive replies:
— Check that your PC has the IP address of your router listed as the default modem router. If
the IP configuration of your PC is assigned by DHCP, this information will not be visible
in your PC’s Network Control Panel. Verify that the IP address of the router is listed as the
default modem router as described in “Preparing a Computer for Network Access” in
Appendix C.
— Check to see that the network address of your PC (the portion of the IP address specified
by the netmask) is different from the network address of the remote device.
— Check that your cable or DSL modem is connected and functioning.
Reference Manual for the ADSL Modem Wireless Router DG834G
Troubleshooting 9-9
v1.4, April 2007
— If your ISP assigned a host name to your PC, enter that host name as the Account Name in
the Basic Settings menu.
— Your ISP could be rejecting the Ethernet MAC addresses of all but one of your PCs. Many
broadband ISPs restrict access by only allowing traffic from the MAC address of your
broadband modem, but some ISPs additionally restrict access to the MAC address of a
single PC connected to that modem. If this is the case, you must configure your router to
“clone” or “spoof” the MAC address from the authorized PC. Refer to your ADSL Modem
Wirelesss Router Setup Manual (see Table 3-1 on page 3-1).
Restoring the Default Configuration and Password
This section explains how to restore the factory default configuration settings, changing the
router’s administration password to password and the IP address to 192.168.0.1. You can erase the
current configuration and restore factory defaults in two ways:
• Use the Erase function of the Web Configuration Manager (see “Backing Up, Restoring, or
Erasing Your Settings” on page 6-1).
• Use the Default Reset button on the rear panel of the router. Use this method for cases when
the administration password or IP address is not known.
Using the Reset button
To restore the factory default configuration settings without knowing the administration password
or IP address, you must use the Default Reset button on the rear panel of the router.
1. Press and hold the Default Reset button until the Test LED turns on (about 10 seconds).
2. Release the Default Reset button and wait for the router to reboot.
Problems with Date and Time
The E-mail menu in the Content Filtering section displays the current date and time of day. The
ADSL Modem Wireless Router uses the Network Time Protocol (NTP) to obtain the current time
from one of several Network Time Servers on the Internet. Each entry in the log is stamped with
the date and time of day. Problems with the date and time function can include:
Reference Manual for the ADSL Modem Wireless Router DG834G
9-10 Troubleshooting
v1.4, April 2007
• Date shown is January 1, 2000
Cause: The router has not yet successfully reached a Network Time Server. Check that your
Internet access settings are configured correctly. If you have just completed configuring the
router, wait at least five minutes and check the date and time again.
• Time is off by one hour
Cause: The router does not automatically sense Daylight Savings Time. In the E-mail menu,
check or uncheck the box marked “Adjust for Daylight Savings Time”.
Technical Specifications A-1
v1.4, April 2007
Appendix A
Technical Specifications
This appendix provides technical specifications for the 54 Mbps ADSL Modem Wireless Router
Model DG834G.
Network Protocol and Standards Compatibility
Data and Routing Protocols: TCP/IP, RIP-1, RIP-2, DHCP, PPPoE, PPPoA, or PPTP, RFC 1483
Bridged or Routed Ethernet, and RFC 1577 Classical IP over ATM
Power Adapter
North America: 120V AC, 60 Hz, input
United Kingdom, Australia: 240V AC, 50 Hz, input
Europe: 230V AC, 50 Hz, input
Japan: 100V AC, 50/60 Hz, input
All regions (output): 12 V DC @ 1.0A output
Physical Specifications
Dimensions: 6.9" x 4.7" x 1.1"
175 mm x 119 mm x 28 mm
Weight: 0.7 lbs.
0.3 kg
Environmental Specifications
Operating temperature: 0° to 40° C (32º to 104º F)
Operating humidity: 90% maximum relative humidity, noncondensing
Electromagnetic Emissions
Meets requirements of: FCC Part 15 Class B; VCCI Class B; EN 55 022 (CISPR 22), Class B
Interface Specifications
LAN: 10BASE-T or 100BASE-Tx, RJ-45
WAN: ADSL, ADSL2+, Dual RJ-11, pins 2 and 3,T1.413, G.DMT, G.Lite, ITU
Annex A (for the DG834G) or ITU Annex B (for the DG834GB)
Reference Manual for the ADSL Modem Wireless Router DG834G
A-2 Technical Specifications
v1.4, April 2007
NETGEAR VPN Configuration B-1
v1.4, April 2007
Appendix B
NETGEAR VPN Configuration
DG834G v4 to FVL328
This appendix is a case study on how to configure a secure IPSec VPN tunnel from a NETGEAR
DG834G v4 to a FVL328. This case study follows the VPN Consortium interoperability profile
guidelines (found at http://www.vpnc.org/InteropProfiles/Interop-01.html).
Configuration Profile
The configuration in this document follows the addressing and configuration mechanics defined
by the VPN Consortium. Gather all the necessary information before you begin the configuration
process. Verify whether the firmware is up to date, all of the addresses that will be necessary, and
all of the parameters that need to be set on both sides. Check that there are no firewall restrictions.
Table B-1. Profile Summary
VPN Consortium Scenario: Scenario 1
Type of VPN LAN-to-LAN or Gateway-to-Gateway (not PC/Client-to-Gateway)
Security Scheme: IKE with Preshared Secret/Key (not Certificate-based)
IP Addressing:
NETGEAR-Gateway A Static IP address
NETGEAR-Gateway B Static IP address
Reference Manual for the ADSL Modem Wireless Router DG834G
B-2 NETGEAR VPN Configuration
v1.4, April 2007
Step-By-Step Configuration
1. Configure the DG834G v4 as in the Gateway-to-Gateway procedures using the VPN Wizard
(see “How to Set Up a Gateway-to-Gateway VPN Configuration” on page 8-21), being certain
to use appropriate network addresses for the environment.
The LAN Addresses used in this example are as follows:
a. In Step 1, enter toFVL328 for the Connection Name.
b. In Step 2, enter 22.23.24.25 for the remote WAN's IP address.
c. In Step 3, enter the following:
• IP Address = 172.23.9.1
• Subnet Mask = 255.255.255.0
Figure B-1
Note: Product updates are available on the NETGEAR, Inc. web site at
http://kbserver.netgear.com/DG834G v4.asp.
Unit WAN IP LAN IP LAN Subnet Mask
DG834G 14.15.16.17 10.5.6.1 255.255.255.0
FVL328 22.13.24.25 172.23.9.1 255.255.255.0
Gateway A
22.23.24.25
14.15.16.17
10.5.6.0/24 172.23.9.0/24
172.23.9.110.5.6.1
WAN IP WAN IP LAN IPLAN IP
Gateway B
VPNC Example
Network Interface Addressing
DG834G FVL328
Reference Manual for the ADSL Modem Wireless Router DG834G
NETGEAR VPN Configuration B-3
v1.4, April 2007
Figure B-2
toFVL328 10.5.6.1 172.23.9.1
toFVL328
22.23.24.25
10
10 5 6
172 23 9
Click VPN Policies under
Advanced - VPN to invoke
this screen
Reference Manual for the ADSL Modem Wireless Router DG834G
B-4 NETGEAR VPN Configuration
v1.4, April 2007
2. Configure the FVL328 as in the Gateway-to-Gateway procedures for the VPN Wizard (see
“How to Set Up a Gateway-to-Gateway VPN Configuration” on page 8-21), being certain to
use appropriate network addresses for the environment.
a. In Step 1, enter toDG834 for the Connection Name
b. In Step 2, enter 14.15.16.17 for the remote WAN's IP address
c. In Step 3, enter the following:
• IP Address = 10.5.6.1
• Subnet Mask = 255.255.255.0
Reference Manual for the ADSL Modem Wireless Router DG834G
NETGEAR VPN Configuration B-5
v1.4, April 2007
Figure B-3
toDG834
toDG834
toDG834
toDG834
toDG834
22.23.24.25 14.15.16.17
14.15.16.17
22.23.24.25
14.15.16.17
172.23.9.1 10.5.6.1
172 23 9
10 5 6
1
Click IKE Policies under
VPN to invoke this screen
Click VPN Policies under
VPN to invoke this screen
Reference Manual for the ADSL Modem Wireless Router DG834G
B-6 NETGEAR VPN Configuration
v1.4, April 2007
3. Test the VPN tunnel by pinging the remote network from a PC attached to the DG834G v4.
a. Open the command prompt (Start -> Run -> cmd)
b. ping 172.23.9.1
DG834G v4 with FQDN to FVL328
This appendix is a case study on how to configure a VPN tunnel from a NETGEAR DG834G v4 to
a FVL328 using a Fully Qualified Domain Name (FQDN) to resolve the public address of one or
both routers. This case study follows the VPN Consortium interoperability profile guidelines
(found at http://www.vpnc.org/InteropProfiles/Interop-01.html).
Configuration Profile
The configuration in this document follows the addressing and configuration mechanics defined
by the VPN Consortium. Gather all the necessary information before you begin the configuration
process. Verify whether the firmware is up to date, all of the addresses that will be necessary, and
all of the parameters that need to be set on both sides. Check that there are no firewall restrictions.
Figure B-4
Note: The pings may fail the first time. If this happens, try the pings a second
time.
Reference Manual for the ADSL Modem Wireless Router DG834G
NETGEAR VPN Configuration B-7
v1.4, April 2007
Table B-2. Profile Summary
VPN Consortium Scenario: Scenario 1
Type of VPN LAN-to-LAN or Gateway-to-Gateway (not PC/Client-to-Gateway)
Security Scheme: IKE with Preshared Secret/Key (not Certificate-based)
IP Addressing:
NETGEAR-Gateway A Fully Qualified Domain Name (FQDN)
NETGEAR-Gateway B FDQN
Figure B-5
Note: Product updates are available on the NETGEAR, Inc. web site at
http://kbserver.netgear.com/DG834G v4.asp.
Gateway A
fvl328.dyndns.org
dg834g.dyndns.org
10.5.6.0/24 172.23.9.0/24
172.23.9.110.5.6.1
WAN IP WAN IP LAN IPLAN IP
Gateway B
VPNC Example
Network Interface Addressing
DG834G FVL328
(FQDN) (FQDN)
Reference Manual for the ADSL Modem Wireless Router DG834G
B-8 NETGEAR VPN Configuration
v1.4, April 2007
The Use of a Fully Qualified Domain Name (FQDN)
Many ISPs (Internet Service Providers) provide connectivity to their customers using dynamic
instead of static IP addressing. This means that a user’s IP address does not remain constant over
time which presents a challenge for gateways attempting to establish VPN connectivity.
A Dynamic DNS (DDNS) service allows a user whose public IP address is dynamically assigned
to be located by a host or domain name. It provides a central public database where information
(such as email addresses, host names and IP addresses) can be stored and retrieved. Now, a
gateway can be configured to use a 3rd party service in lieu of a permanent and unchanging IP
address to establish bi-directional VPN connectivity.
To use DDNS, you must register with a DDNS service provider. Example DDNS Service
Providers include:
• DynDNS: www.dyndns.org
• TZO.com: netgear.tzo.com
• ngDDNS: ngddns.iego.net
In this example, Gateway A is configured using an example FQDN provided by a DDNS Service
provider. In this case we established the hostname dg834g.dyndns.org for gateway A using the
DynDNS service. Gateway B will use the DDNS Service Provider when establishing a VPN
tunnel.
In order to establish VPN connectivity Gateway A must be configured to use Dynamic DNS, and
Gateway B must be configured to use a DNS hostname to find Gateway A provided by a DDNS
Service Provider. Again, the following step-by-step procedures assume that you have already
registered with a DDNS Service Provider and have the configuration information necessary to set
up the gateways.
Step-By-Step Configuration
1. Log in to the DG834G v4 labeled Gateway A as in the illustration.
Out of the box, the DG834G v4 is set for its default LAN address of http://192.168.0.1 with its
default user name of admin and default password of password. For this example we will
assume you have set the local LAN address as 10.5.6.1 for Gateway A and have set your own
password.
2. Click on the Dynamic DNS link on the left side of the Settings management GUI. This will
take you to the Dynamic DNS Menu.
Reference Manual for the ADSL Modem Wireless Router DG834G
NETGEAR VPN Configuration B-9
v1.4, April 2007
3. On the DG834G v4, configure the Dynamic DNS settings.
a. Browse to the Dynamic DNS Setup Screen (see Figure B-6) in the Advanced menu.
b. Configure this screen with appropriate account and hostname settings and then click
Apply.
• Check the box Use a Dynamic DNS Service.
• Host Name = dg834g.dyndns.org
• User Name = <user's account username>
• Password = <user's account password>
c. Click Show Status. The resulting screen should show Update OK: good (see Figure B-7).
Figure B-6
Figure B-7
Reference Manual for the ADSL Modem Wireless Router DG834G
B-10 NETGEAR VPN Configuration
v1.4, April 2007
4. On the FVL328, configure the Dynamic DNS settings. Assume a properly configured
DynDNS account.
a. Browse to the Dynamic DNS Setup Screen (see Figure B-8) in the Advanced menu.
b. Select the DynDNS.org radio button (see Figure B-8), configure with appropriate account
and hostname settings (see Figure B-9), and then click Apply.
• Host and Domain Name = fvl328.dyndns.org
• User Name = <user's account username>
• Password = <user's account password>
Figure B-8
Reference Manual for the ADSL Modem Wireless Router DG834G
NETGEAR VPN Configuration B-11
v1.4, April 2007
c. Click Show Status. The resulting screen should show Update OK: good (see
Figure B-10).
Figure B-9
Figure B-10
Reference Manual for the ADSL Modem Wireless Router DG834G
B-12 NETGEAR VPN Configuration
v1.4, April 2007
5. Configure the DG834G v4 as in the Gateway-to-Gateway procedures using the VPN Wizard
(see “How to Set Up a Gateway-to-Gateway VPN Configuration” on page 8-21), being certain
to use appropriate network addresses for the environment.
The LAN Addresses used in this example are as follows:
a. In Step 1, enter toFVL328 for the Connection Name.
b. In Step 2, enter fvl328.dyndns.org for the remote WAN's IP address.
c. In Step 3, enter the following:
• IP Address = 172.23.9.1
• Subnet Mask = 255.255.255.0
6. Configure the FVL328 as in the Gateway-to-Gateway procedures for the VPN Wizard (see
“How to Set Up a Gateway-to-Gateway VPN Configuration” on page 8-21), being certain to
use appropriate network addresses for the environment.
a. In Step 1, enter toDG834 for the Connection Name.
b. In Step 2, enter dg834g.dyndns.org for the remote WAN's IP address.
c. In Step 3, enter the following:
• IP Address = 10.5.6.1
• Subnet Mask = 255.255.255.0
7. Test the VPN tunnel by pinging the remote network from a PC attached to the DG834G v4.
a. Open the command prompt (Start -> Run -> cmd)
b. ping 172.23.9.1
Device LAN IP Address LAN Subnet Mask
DG834G v4 10.5.6.1 255.255.255.0
FVL328 172.23.6.1 255.255.255.0
Reference Manual for the ADSL Modem Wireless Router DG834G
NETGEAR VPN Configuration B-13
v1.4, April 2007
Figure B-11
Note: The pings may fail the first time. If this happens, try the pings a second
time.
Reference Manual for the ADSL Modem Wireless Router DG834G
B-14 NETGEAR VPN Configuration
v1.4, April 2007
Configuration Summary (Telecommuter Example)
The configuration in this document follows the addressing and configuration mechanics defined
by the VPN Consortium. Gather all the necessary information before you begin the configuration
process. Verify whether the firmware is up to date, all of the addresses that will be necessary, and
all of the parameters that need to be set on both sides. Assure that there are no firewall restrictions.
Setting Up the Client-to-Gateway VPN Configuration
(Telecommuter Example)
Setting up a VPN between a remote PC running the NETGEAR ProSafe VPN Client and a
network gateway involves the following two steps:
•Step 1: Configuring the Client-to-Gateway VPN Tunnel on the VPN Router at the Employer’s
Main Office.
Table B-3. Configuration summary (telecommuter example)
VPN Consortium Scenario: Scenario 1
Type of VPN: PC/client-to-gateway, with client behind NAT router
Security Scheme: IKE with Preshared Secret/Key (not Certificate-based)
IP Addressing:
Gateway Fully Qualified Domain Name (FQDN)
Client Dynamic
Figure B-12
Gateway A
ntgr.dyndns.org
192.168.0.1/24
192.168.0.1
WAN IP WAN IP
LAN IP
Client B
FQDN 0.0.0.0
Router
(at employer's
main office)
Telecommuter Example
NAT Router B
Router
(at telecommuter's
home office)
PC
(running NETGEAR
ProSafe VPN Client)
192.168.2.3
"fromDG834G.com" "toDG834G.com"
Reference Manual for the ADSL Modem Wireless Router DG834G
NETGEAR VPN Configuration B-15
v1.4, April 2007
•Step 2: Configuring the NETGEAR ProSafe VPN Client on the Remote PC at the
Telecommuter’s Home Office configures the NETGEAR ProSafe VPN Client endpoint.
Step 1: Configuring the Client-to-Gateway VPN Tunnel on the
VPN Router at the Employer’s Main Office
Follow this procedure to configure a client-to-gateway VPN tunnel by filling out the VPN Auto
Policy screen.
1. Log in to the VPN router at its LAN address of http://192.168.0.1 with its default user name of
admin and password of password. Click the VPN Policies link in the main menu to display
the VPN Policies screen. Click Add Auto Policy to proceed and enter the information.
Reference Manual for the ADSL Modem Wireless Router DG834G
B-16 NETGEAR VPN Configuration
v1.4, April 2007

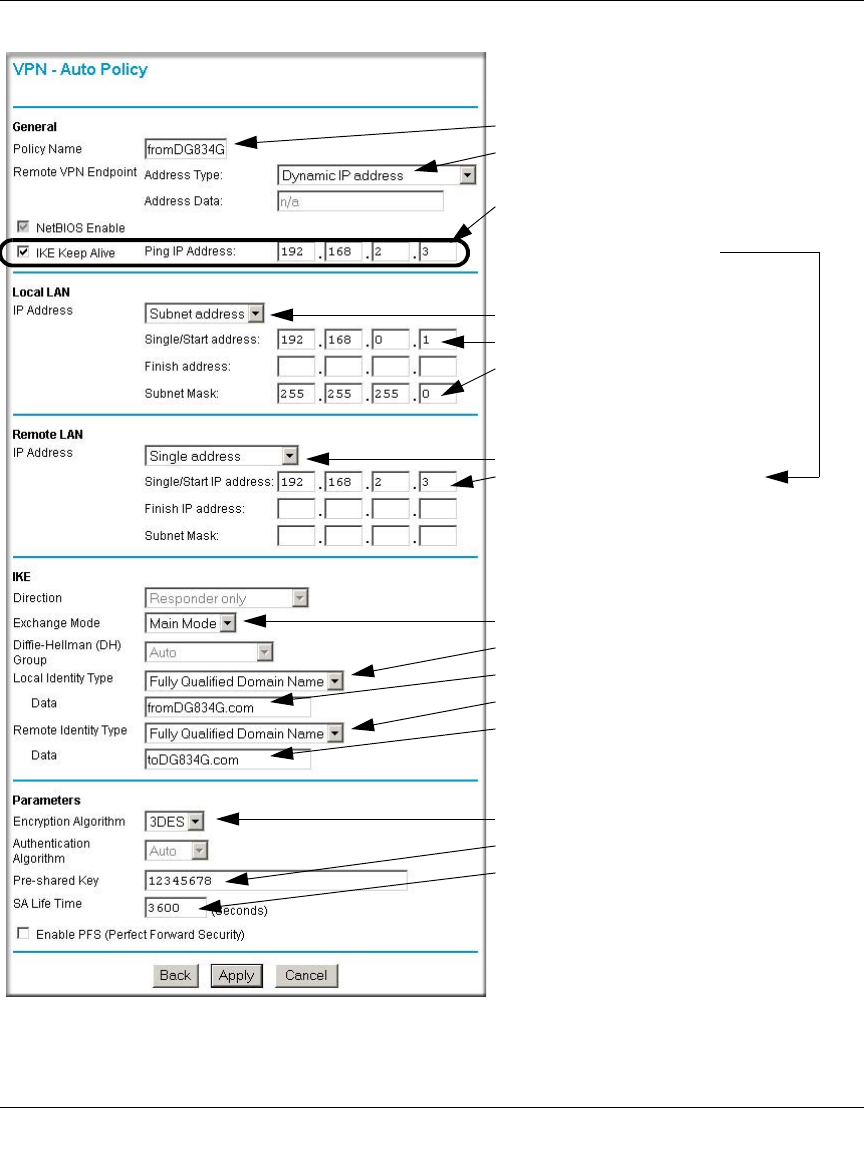

Figure B-13
Fully Qualified Domain Name
toDG834G.com (in this example)
Fully Qualified Domain Name
fromDG834G.com (in this example)
fromDG834G (in the example)
Dynamic IP address
Subnet address
Single address
192.168.0.1 (in this example)
255.255.255.0
192.168.2.3 (in this example)
IKE Keep Alive is optional;
must match Remote LAN IP
Address when enabled
Main Mode
(remote PC must respond to pings)
3DES
12345678 (in this example)
3600
(Remote NAT router must have
Address Reservation set and
VPN Passthrough enabled)
Reference Manual for the ADSL Modem Wireless Router DG834G
NETGEAR VPN Configuration B-17
v1.4, April 2007
2. Click Apply when done to get the VPN Policies screen.
To view or modify the tunnel settings, select the radio button next to the tunnel entry and click
Edit.

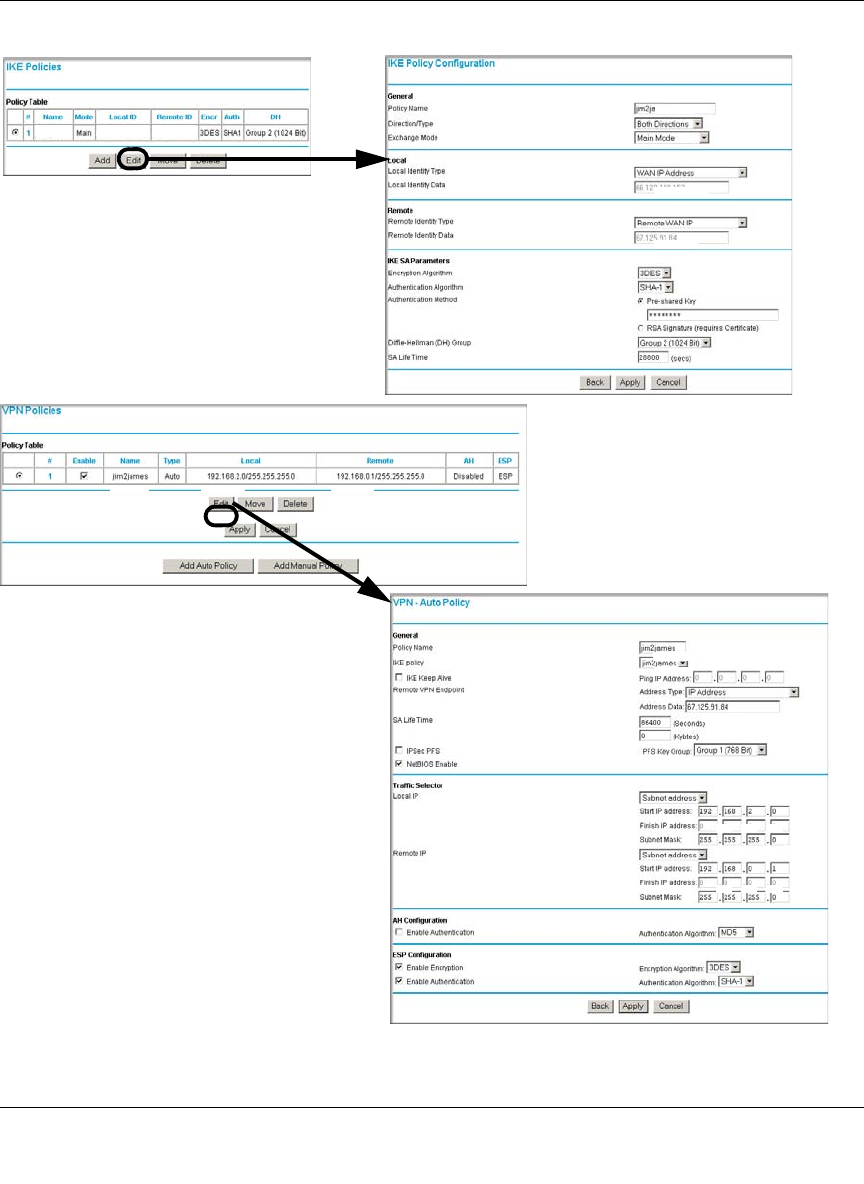

Figure B-14
Reference Manual for the ADSL Modem Wireless Router DG834G
B-18 NETGEAR VPN Configuration
v1.4, April 2007
Step 2: Configuring the NETGEAR ProSafe VPN Client on the
Remote PC at the Telecommuter’s Home Office
This procedure describes how to configure the 54 Mbps ADSL Modem Wireless Router Model
DG834G. We will assume the PC running the client has a dynamically assigned IP address.
The PC must have a VPN client program installed that supports IPSec (in this case study, the
NETGEAR VPN ProSafe Client is used). Go to the NETGEAR website (http://www.netgear.com)
and select VPN01L_VPN05L in the Product Quick Find drop-down menu for information on
how to purchase the NETGEAR ProSafe VPN Client.
1. Install the NETGEA ProSafe VPN Client on the remote PC and reboot.
a. You may need to insert your Windows CD to complete the installation.
b. If you do not have a modem or dial-up adapter installed in your PC, you may see the
warning message stating “The NETGEAR ProSafe VPN Component requires at least
one dial-up adapter be installed.” You can disregard this message.
c. Install the IPSec Component. You may have the option to install either the VPN Adapter
or the IPSec Component or both. The VPN Adapter is not necessary.
d. The system should show the ProSafe icon ( ) in the system tray after rebooting.
e. Double-click the system tray icon to open the Security Policy Editor.
2. Add a new connection.
a. Run the NETGEAR ProSafe Security Policy Editor program and create a VPN
Connection.
Note: Before installing the 54 Mbps ADSL Modem Wireless Router Model DG834G
software, be sure to turn off any virus protection or firewall software you may be
running on your PC.
Reference Manual for the ADSL Modem Wireless Router DG834G
NETGEAR VPN Configuration B-19
v1.4, April 2007
b. From the Edit menu of the Security Policy Editor, click Add, then Connection. A New
Connection listing appears in the list of policies. Rename the New Connection so that it
matches the Connection Name you entered in the VPN Settings of the DG834G v4 on
Gateway A.
Note: In this example, the Connection Name used on the client side of the VPN
tunnel is toDG834G and it does not have to match the VPN_client
Connection Name used on the gateway side of the VPN tunnel (see
Figure B-16) because Connection Names are arbitrary to how the VPN
tunnel functions.
Tip: Choose Connection Names that make sense to the people using and
administrating the VPN.
Figure B-15
Reference Manual for the ADSL Modem Wireless Router DG834G
B-20 NETGEAR VPN Configuration
v1.4, April 2007
c. Select Secure in the Connection Security check-box group.
d. Select IP Subnet in the ID Type menu.
e. In this example, type 192.168.0.1 in the Subnet field as the network address of the
DG834G v4.
f. Enter 255.255.255.0 in the Mask field as the LAN Subnet Mask of the DG834G v4.
g. Select All in the Protocol menu to allow all traffic through the VPN tunnel.
h. Select the Connect using Secure Gateway Tunnel check box.
i. Select Domain Name in the ID Type menu below the check box and enter
fromDG834G.com (in this example).
j. Select Gateway Hostname and enter ntgr.dyndns.org (in this example).
k. The resulting Connection Settings are shown in Figure B-16.
3. Configure the Security Policy in the 54 Mbps ADSL Modem Wireless Router Model
DG834G software.
a. In the Network Security Policy list, expand the new connection by double clicking its
name or clicking on the “+” symbol. My Identity and Security Policy subheadings
appear below the connection name.
Figure B-16
Reference Manual for the ADSL Modem Wireless Router DG834G
NETGEAR VPN Configuration B-21
v1.4, April 2007
b. Click on the Security Policy subheading to show the Security Policy menu.
c. Select the Main Mode in the Select Phase 1 Negotiation Mode check box.
4. Configure the VPN Client Identity.
In this step, you will provide information about the remote VPN client PC. You will need to
provide the Pre-Shared Key that you configured in the DG834G v4 and either a fixed IP
address or a “fixed virtual” IP address of the VPN client PC.
Figure B-17
Reference Manual for the ADSL Modem Wireless Router DG834G
B-22 NETGEAR VPN Configuration
v1.4, April 2007
a. In the Network Security Policy list on the left side of the Security Policy Editor
window, click My Identity.
b. Choose None in the Select Certificate menu.
c. Select Domain Name in the ID Type menu and enter toDG834G.com (in this example) in
the box below it. Choose Disabled in the Virtual Adapter menu.
d. In the Internet Interface box, select Intel PRO/100VE Network Connection (in this
example, your Ethernet adapter may be different) in the Name menu and enter
192.168.2.3 (in this example) in the IP Addr box.
Figure B-18
Reference Manual for the ADSL Modem Wireless Router DG834G
NETGEAR VPN Configuration B-23
v1.4, April 2007
e. Click the Pre-Shared Key button.
f. In the Pre-Shared Key dialog box, click the Enter Key button. Enter the DG834G v4's
Pre-Shared Key and click OK. In this example, 12345678 is entered. This field is case
sensitive.
5. Configure the VPN Client Authentication Proposal.
In this step, you will provide the type of encryption (DES or 3DES) to be used for this
connection. This selection must match your selection in the VPN router configuration.
a. In the Network Security Policy list on the left side of the Security Policy Editor
window, expand the Security Policy heading by double clicking its name or clicking on
the “+” symbol.
b. Expand the Authentication subheading by double clicking its name or clicking on the “+”
symbol. Then select Proposal 1 below Authentication.
Figure B-19
Reference Manual for the ADSL Modem Wireless Router DG834G
B-24 NETGEAR VPN Configuration
v1.4, April 2007
c. In the Authentication Method menu, select Pre-Shared key.
d. In the Encrypt Alg menu, select the type of encryption. In this example, use Triple DES.
e. In the Hash Alg menu, select SHA-1.
f. In the SA Life menu, select Unspecified.
g. In the Key Group menu, select Diffie-Hellman Group 2.
6. Configure the VPN Client Key Exchange Proposal.
In this step, you will provide the type of encryption (DES or 3DES) to be used for this
connection. This selection must match your selection in the VPN router configuration.
Figure B-20
Reference Manual for the ADSL Modem Wireless Router DG834G
NETGEAR VPN Configuration B-25
v1.4, April 2007
a. Expand the Key Exchange subheading by double clicking its name or clicking on the “+”
symbol. Then select Proposal 1 below Key Exchange.
b. In the SA Life menu, select Unspecified.
c. In the Compression menu, select None.
d. Check the Encapsulation Protocol (ESP) checkbox.
e. In the Encrypt Alg menu, select the type of encryption. In this example, use Triple DES.
f. In the Hash Alg menu, select SHA-1.
g. In the Encapsulation menu, select Tunnel.
h. Leave the Authentication Protocol (AH) checkbox unchecked.
7. Save the VPN Client settings.
From the File menu at the top of the Security Policy Editor window, select Save.
After you have configured and saved the VPN client information, your PC will automatically
open the VPN connection when you attempt to access any IP addresses in the range of the
remote VPN router’s LAN.
8. Check the VPN Connection.
Figure B-21
Reference Manual for the ADSL Modem Wireless Router DG834G
B-26 NETGEAR VPN Configuration
v1.4, April 2007
To check the VPN Connection, you can initiate a request from the remote PC to the VPN
router’s network by using the Connect option in the ADSL Modem Wireless Router menu bar
(see Figure B-22). Since the remote PC has a dynamically assigned WAN IP address, it must
initiate the request.
a. Right-click the system tray icon to open the popup menu.
b. Select Connect to open the My Connections list.
c. Choose toDG834G.
The 54 Mbps ADSL Modem Wireless Router Model DG834G will report the results of the
attempt to connect. Once the connection is established, you can access resources of the
network connected to the VPN router.
To perform a ping test using our example, start from the remote PC:
a. Establish an Internet connection from the PC.
b. On the Windows taskbar, click the Start button, and then click Run.
Figure B-22
Right-mouse-click on the
system tray icon to open the
popup menu.
Reference Manual for the ADSL Modem Wireless Router DG834G
NETGEAR VPN Configuration B-27
v1.4, April 2007
c. Type ping -t 192.168.0.1, and then click OK.
This will cause a continuous ping to be sent to the VPN router. After between several
seconds and two minutes, the ping response should change from timed out to reply.
Once the connection is established, you can open the browser of the PC and enter the LAN IP
address of the VPN router. After a short wait, you should see the login screen of the VPN router
(unless another PC already has the VPN router management interface open).
Figure B-23
Figure B-24
Note: You can use the VPN router diagnostic utilities to test the VPN connection from the
VPN router to the client PC. Run ping tests from the Diagnostics link of the VPN
router main menu.
Reference Manual for the ADSL Modem Wireless Router DG834G
B-28 NETGEAR VPN Configuration
v1.4, April 2007
Monitoring the VPN Tunnel (Telecommuter Example)
Viewing the PC Client’s Connection Monitor and Log Viewer
To view information on the progress and status of the VPN client connection, open the 54 Mbps
ADSL Modem Wireless Router Model DG834G Log Viewer.
1. To launch this function, click on the Windows Start button, then select Programs, then 54
Mbps ADSL Modem Wireless Router Model DG834G, then Log Viewer.
2. The Connection Monitor screen is shown below:
Note: Use the active VPN tunnel information and pings to determine whether a failed
connection is due to the VPN tunnel or some reason outside the VPN tunnel.
Figure B-25
Reference Manual for the ADSL Modem Wireless Router DG834G
NETGEAR VPN Configuration B-29
v1.4, April 2007
While the connection is being established, the Connection Name field in this menu will show SA
before the name of the connection. When the connection is successful, the SA will change to the
yellow key symbol.
Viewing the VPN Router’s VPN Status and Log Information
To view information on the status of the VPN client connection, open the VPN router’s VPN
Status screen by following the steps below:
1. To view this screen, click the Router Status link of the VPN router’s main menu, then click
the VPN Status button. The VPN Status/Log screen for a connection is shown below:
Note: While your PC is connected to a remote LAN through a VPN, you might not have
normal Internet access. If this is the case, you will need to close the VPN
connection in order to have normal Internet access.
Figure B-26
Reference Manual for the ADSL Modem Wireless Router DG834G
B-30 NETGEAR VPN Configuration
v1.4, April 2007
2. To view the VPN tunnels status, click the VPN Status link on the right side of the main menu.
Figure B-27
Reference Manual for the ADSL Modem Wireless Router DG834G
NETGEAR VPN Configuration B-31
v1.4, April 2007
Reference Manual for the ADSL Modem Wireless Router DG834G
B-32 NETGEAR VPN Configuration
v1.4, April 2007
Related Documents C-1
v1.4, April 2007
Appendix C
Related Documents
This appendix provides links to reference documents you can use to gain a more complete
understanding of the technologies used in your NETGEAR product.
Document Link
Internet Networking and TCP/IP
Addressing http://documentation.netgear.com/reference/enu/tcpip/index.htm
Wireless Communications http://documentation.netgear.com/reference/enu/wireless/index.htm
Preparing a Computer for
Network Access http://documentation.netgear.com/reference/enu/wsdhcp/index.htm
Virtual Private Networking (VPN) http://documentation.netgear.com/reference/enu/vpn/index.htm
Glossary http://documentation.netgear.com/reference/enu/glossary/index.htm
Reference Manual for the ADSL Modem Wireless Router DG834G
C-2 Related Documents
v1.4, April 2007
