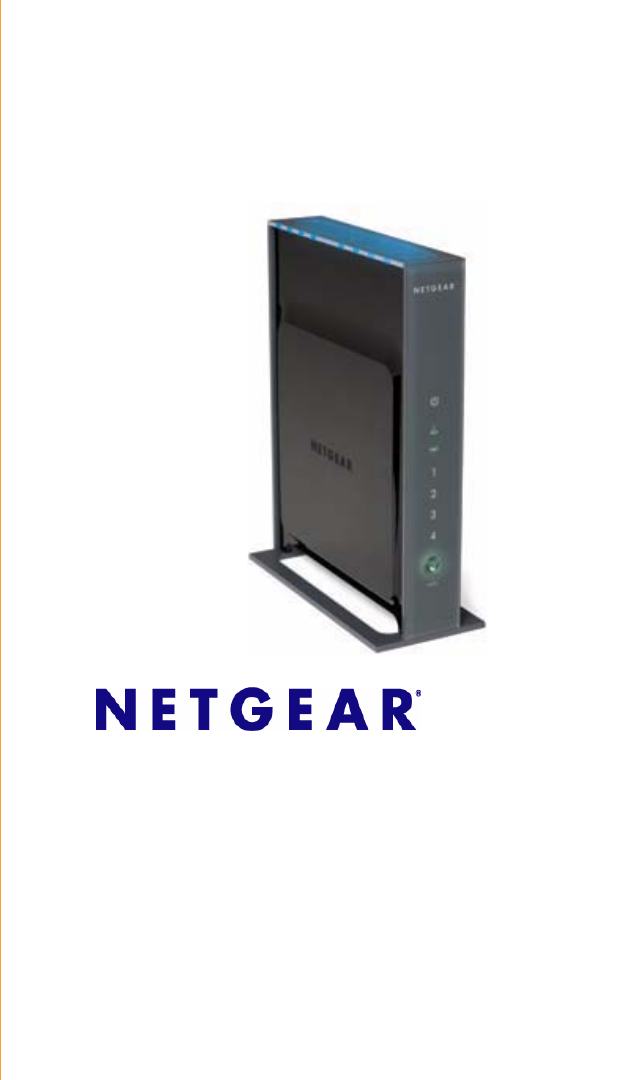

Netgear orporated 08400093 RangeMax Wireless-N Gigabit Router User Manual FullManual
Netgear Incorporated RangeMax Wireless-N Gigabit Router FullManual
Users Manual
August 2008
208-10149-04
v1.0
NETGEAR, Inc.
350 E. Plumeria Drive
San Jose, CA 95134 USA
Wireless Router Setup
Manual
ii
© 2008 by NETGEAR, Inc. All rights reserved.
Trademarks
NETGEAR and the NETGEAR logo are registered trademarks, and RangeMax and Smart Wizard are trademarks of
NETGEAR. Inc. Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Other
brand and product names are registered trademarks or trademarks of their respective holders.
Statement of Conditions
In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to
make changes to the products described in this document without notice.
NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit
layout(s) described herein.
iii
Contents
Getting to Know Your Wireless Router ................................................................................ 1
Unpacking Your New Wireless Router ............................................................................... 1
Hardware Features ............................................................................................................ 3
Positioning Your Wireless Router ...................................................................................... 5
Installing Your Wireless Router .......................................................................................... 5
Updating Your Router Firmware ........................................................................................ 6
Installing Your Wireless Router Using Smart Wizard ......................................................... 7
Installing Your Wireless Router Manually (Advanced, Mac, and Linux Users) ................ 9
Connecting Your Wireless Router ...................................................................................... 9
Verifying Your Connection ............................................................................................... 12
Setting Up Your Router for Internet Access ..................................................................... 13
Configuring Your Wireless Network for Internet Access ................................................. 17
Accessing Your Wireless Router after Installation and Checking for New Firmware ....... 17
Configuring Your Wireless Settings and Security Options ............................................... 19
Testing Basic Wireless Connectivity ................................................................................ 23
Troubleshooting................................................................................................................... 25
Basic Setup Checklist ...................................................................................................... 25
Checking Basic Router Functions ................................................................................... 26
Troubleshooting Login Problems ..................................................................................... 28
Checking the Internet Service Connection ...................................................................... 29
Troubleshooting Connectivity Using the Ping Utility ........................................................ 31
Default Configuration and Technical Specifications ........................................................ 35
Default Configuration Settings ......................................................................................... 35
Restoring the Default Password and Configuration ......................................................... 36
Technical Specifications ................................................................................................... 37
Related Documents.............................................................................................................. 39
Registration and Certifications............................................................................................ 41
iv
Getting to Know Your Wireless Router 1
v1.0, August 2008
Getting to Know Your Wireless Router
Congratulations on your purchase of a NETGEAR® high-speed wireless router, the RangeMax™
Wireless-N Gigabit Router WNR3500.
Before you begin installing your router, check the package contents (see “Unpacking Your New
Wireless Router” on page 1). Become familiar with the front and back panels of your router—
especially the LEDs—and the important information on the router label (see “Hardware Features”
on page 3). Then, read the section on “Positioning Your Wireless Router” on page 5 to ensure that
you have selected the best location to install your router.
Unpacking Your New Wireless Router
Your product package should contain the following items:
• The wireless router
• A snap-on stand for your wireless router
• An AC power adapter (varies by region)
• A yellow Ethernet cable
•The Resource CD, which includes:
– The Smart Wizard Installation Assistant (Autorun.exe)
– A PDF version of this manual
– A link to the online User Manual
• Warranty and Support Information cards
If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the
carton, including the original packing materials, in case you need to return the product for repair.
Wireless Router Setup Manual
2 Getting to Know Your Wireless Router
v1.0, August 2008

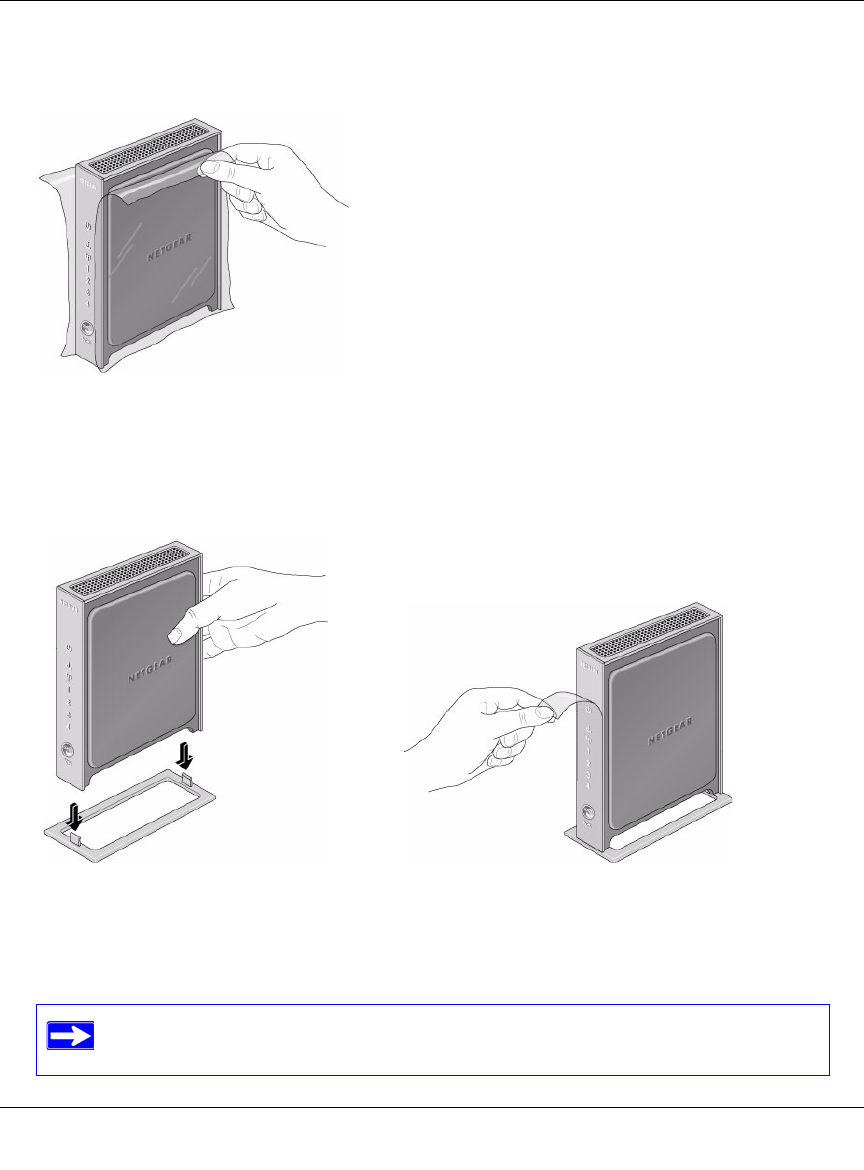

To prepare your router for installation:
1. Carefully peel off the protective film covering both sides of your router.
2. Set up your wireless router by inserting the tabs of the stand (supplied with your router) into
the slots on the bottom of your router as shown in Figure 2. Then, remove the protective film
covering the front panel of the router.
3. Place your router in a suitable area for installation (near an AC power outlet and accessible to
the Ethernet cables for your wired computers).
Figure 1
Figure 2
To ensure proper heat dissipation and for router stability, it is important that you
connect the stand and place your router in an upright position.
Wireless Router Setup Manual
Getting to Know Your Wireless Router 3
v1.0, August 2008
Hardware Features
Before you install and connect your router, take a moment to become familiar with the front and
back panels of the router—especially the LEDs on the front panel.

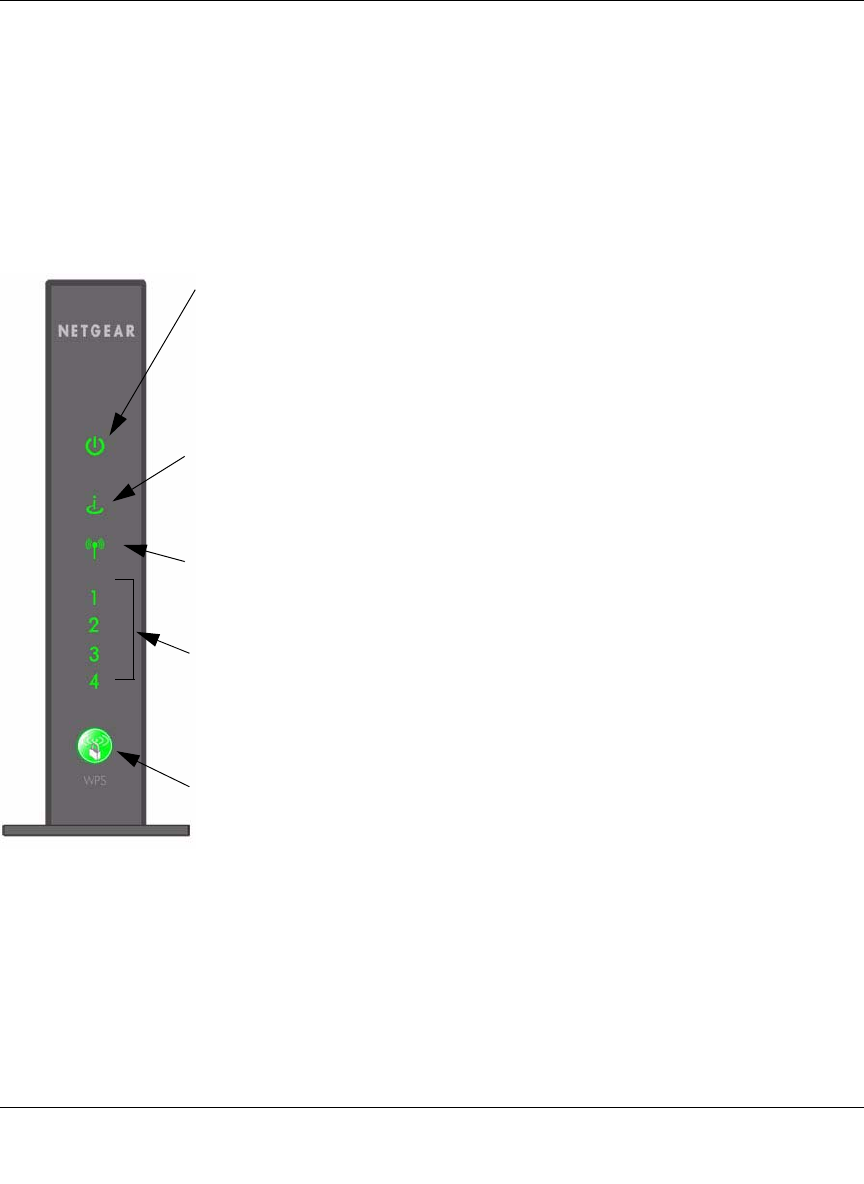

Front Panel
You can use the LEDs on the front of the router to verify various conditions.
Figure 3
Power
On – Amber The router is performing the power-on self-test diagnostic.
On – Green The power is on and the router is ready.
Blink fast– Green A software update is in progress.
Blink slow– Green The firmware is corrupt. See “Restore the wireless router
firmware:” on page 27 for instructions on restoring your
firmware.
Off Power is not being supplied to the router.
Internet
On – Amber No IP address acquired.
On – Green The wireless router has acquired an Internet address.
Blink – Green Data is being communicated with the Internet.
Off No Ethernet cable is connected to the modem.
Wireless
On – Blue The wireless interface is enabled.
Blink – Blue Data is being communicated over the wireless network.
Off The wireless interface is turned off.
LAN (Ports 1–4)
On – Green The local port is connected to a 1000 Mbps device.
Blink – Green Data is being transmitted at 1000 Mbps.
On – Amber The local port is connected to a 10/100 Mbps device.
Blink – Amber Data is being transmitted at 10/100 Mbps.
Off No link is detected on this port.
WPS button/light
On – Green WPS wireless security is being enabled.
Blink – Green Device is in the 2 minute interval to synchronize security.
Blink – Amber There is an error in enabling WPS security.
Off WPS is not being set or enabled.
Wireless Router Setup Manual
4 Getting to Know Your Wireless Router
v1.0, August 2008

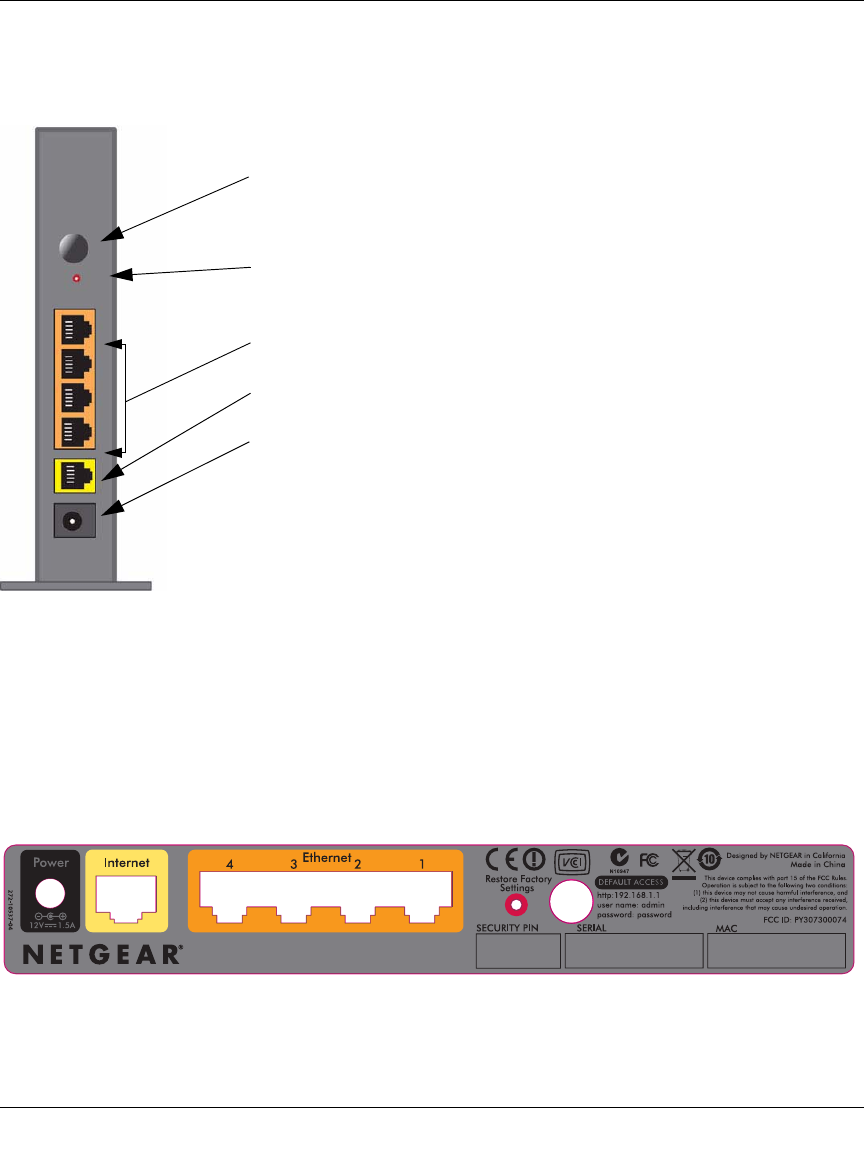

Back Panel
Figure 4 describes the port connections on the back panel of the wireless router.
Router Label
The label on the back of the wireless router shows the router’s MAC address, serial number,
security PIN, and factory default login information.
The ports on the router are color-coded to distinguish your Internet port from the other four ports
that connect to the wired computer(s) on your LAN.
Figure 4
Figure 5
1. Antenna light on/off push button. The lights on top of the router
identify the activity of the eight internal antennas, flashing to show
which combination of antennas is receiving the strongest signals.
These antenna lights are off by default but can be turned on.
2. Factory default reset button. Press the reset button with a sharp
object for approximately 20 seconds to reset the router to the
factory default settings.
3. Four Local Area Network (LAN) 10/100/1000 Mbps Ethernet ports
for connecting the router to your local computers.
4. Internet/Wide Area Network (WAN) Ethernet port for connecting
the router to a cable or DSL modem.
5. AC power adapter outlet for connecting the power adapter.
RangeMax™ Wireless-N Gigabit Router WNR3500
Wireless Router Setup Manual
Getting to Know Your Wireless Router 5
v1.0, August 2008
Positioning Your Wireless Router
The wireless router lets you access your network from virtually anywhere within the operating
range of your wireless network. However, the operating distance or range of your wireless
connection can vary significantly depending on the physical placement of your router. For
example, the thickness and number of walls the wireless signal must pass through may limit the
range. For best results, place your router:
• Near the center of the area where your computers and other devices will operate, preferably
within line of sight to your wireless devices.
• Accessible to an AC power outlet and near Ethernet cables for wired computers.
• In an elevated location such as a high shelf, keeping the number of walls and ceilings between
the wireless router and your other devices to a minimum.
• Away from electrical devices which are potential sources of interference, such as ceiling fans,
home security systems, microwaves, or the base for a cordless phone.
• Away from any large metal surfaces, such as a solid metal door or aluminum studs. Large
expanses of other materials such as glass, insulated walls, fish tanks, mirrors, brick, and
concrete can also affect your wireless signal.
Installing Your Wireless Router
To help you set up your router and get on the Internet quickly, the Resource CD contains a Smart
Wizard™. The Smart Wizard walks you through the steps required to connect your router, modem,
and PC(s); configure your wireless settings; and enable wireless security for your network. When
you have finished, you will be Internet ready!
You can set up your wireless router using one of two methods:.
•Smart Wizard Setup: The Smart Wizard setup is available on your Resource CD. See ,
“Installing Your Wireless Router Using Smart Wizard” to use the Smart Wizard.
Failure to follow these guidelines can result in significant performance degradation
or an inability to wirelessly connect to the Internet.
If you have a Macintosh or Linux system, you need to use the manual installation
method (see “Installing Your Wireless Router Manually (Advanced, Mac, and
Linux Users)” on page 9).
Wireless Router Setup Manual
6 Getting to Know Your Wireless Router
v1.0, August 2008
– This is the easiest option. The wizard guides you through the setup process. It automates
many of the steps and verifies that the steps have been successfully completed.
– The Smart Wizard requires a PC running Microsoft Windows.
•Manual Setup: If you cannot or prefer not to use the Smart Wizard, see “Installing Your
Wireless Router Manually (Advanced, Mac, and Linux Users)” on page 9. For example, if you
are connecting to a Macintosh, are using a Linux operating system, or are technically
knowledgeable, select this option. If you choose to use this option and install your router
manually, for best results, install and set up your router in this order:

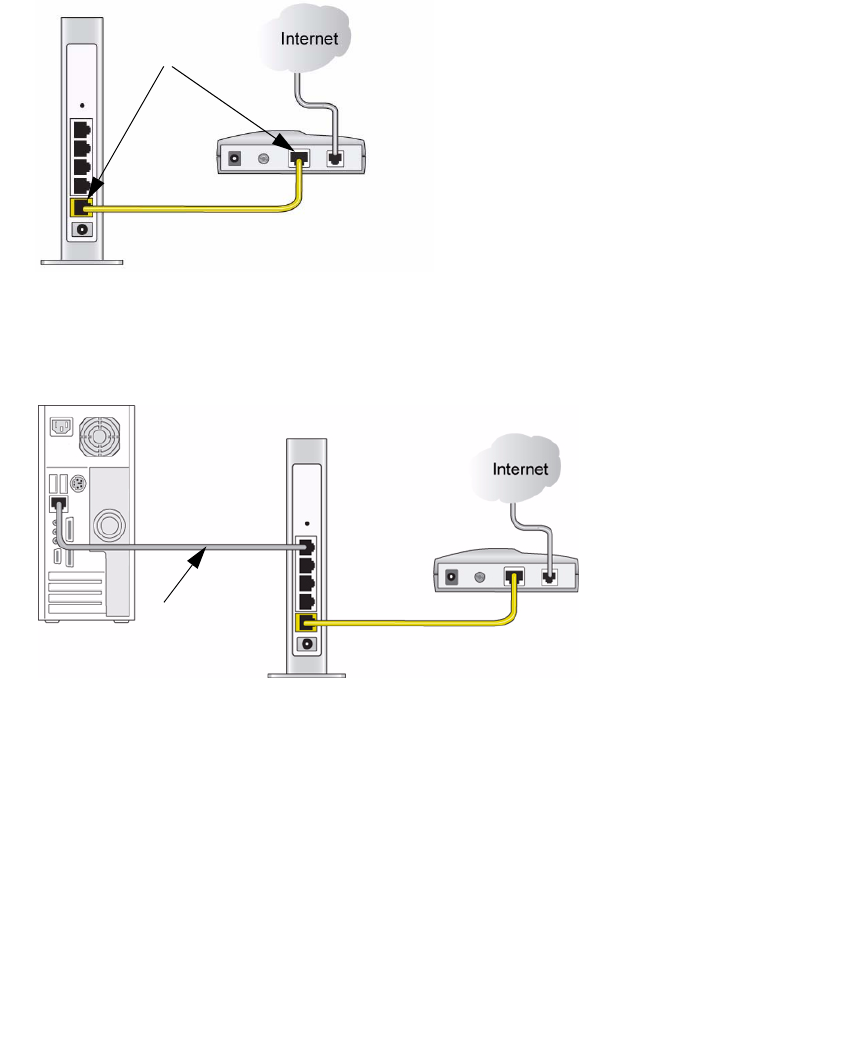

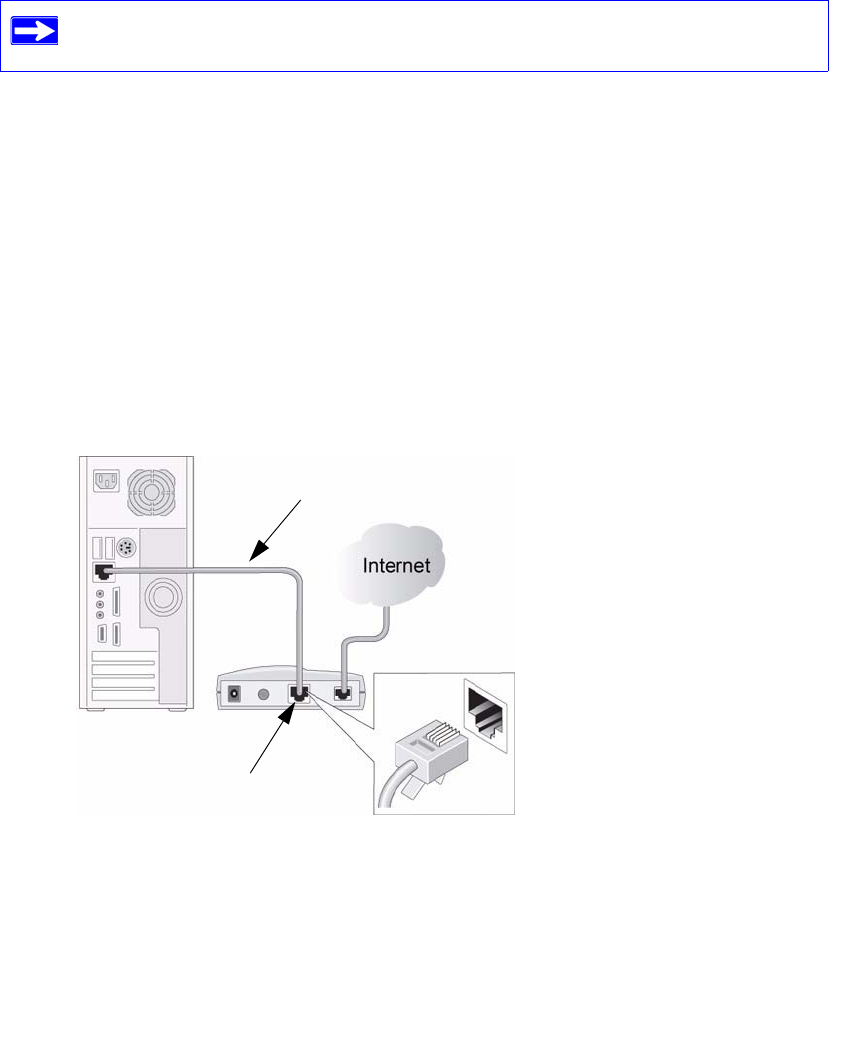

1. Install and connect your wireless router to your network (see “Connecting Your Wireless
Router” on page 9).
2. Set up your wireless router for Internet access (see “Setting Up Your Router for Internet
Access” on page 13).
3. Configure your wireless network and select wireless security settings to protect your
wireless network (see “Configuring Your Wireless Settings and Security Options” on
page 19).
Updating Your Router Firmware
NETGEAR is always improving the operability and features included with your router. To make it
easy for you to receive the best, most up-to-date features of your router, NETGEAR provides a
variety of methods for updating your product.
• The Smart Wizard installation assistant lets you check for and install updates as part of the
setup activity.
• The router includes an update feature that lets you check for and install updates. You must be
logged in to the router to use this feature.
These options are discussed later in “Restoring the Default Password and Configuration” on
page 36.
Before running the Smart Wizard on a corporate PC to set up your home
router, check with your company’s network support staff. Corporate
network settings or Virtual Private Network (VPN) client software may
conflict with the default settings of a home router. If you are unsure about
whether there might be a conflict, use a different computer.
Installing Your Wireless Router Using Smart Wizard 7
Installing Your Wireless
Router Using Smart
Wizard
Prepare the following before you set up your Product Family:
• Internet service.
• The configuration information your Internet Service Provider (ISP) gave you. Depending on
how your Internet account was set up, you might need one or more of these settings for the
wireless router to access the Internet:
– Host and domain names
– Internet login name and password (frequently an e-mail address and password)
– Domain Name Server (DNS) addresses
– Fixed or static IP address
Your ISP should have provided you with all the information needed to connect to the Internet.
If you cannot locate this information, you can ask your ISP to provide it.
• For cable modem service, use the computer you first used to set up your Internet service.
The NETGEAR Smart Wizard takes you through the procedure to connect your router and PC(s).
It then helps you to configure your wireless settings and enable wireless security for your network.
The Smart Wizard guides you through the setup process by automating many of the steps. At each
step in the setup process, the Smart Wizard checks to ensure that the steps you perform are
successfully completed.
The wizard set up process takes about 20 minutes to complete.
To install your router using the Smart Wizard:
1. Insert the Resource CD into your Windows PC. The CD automatically starts and detects the
language that you are using on your PC. Accept the language option, or change to a different
language.
Wireless Router Setup Manual
8 Installing Your Wireless Router Using Smart Wizard
2. When the Welcome screen appears, click Setup to start the Smart Wizard. Follow the
instructions and prompts to complete the installation.
The Smart Wizard guides you through installing your router, connecting your router to the
Internet, configuring your wireless network settings, and selecting the optimum security
protection for your network. If you choose not to select a security option during installation,
you can always access the router’s main menu later to select a security option (see “Setting
Your SSID and Wireless Security Manually” on page 19or “Using Push 'N' Connect (WPS) to
Configure Your Wireless Network” on page 21.
The Smart Wizard places a Router_Setup.html file containing your settings on your
computer’s desktop, so you can conveniently view the settings at any time. It also places the
Router login shortcut on the desktop for you to access the router’s main menu.
You are now connected to the Internet!
After connecting to the Internet, you can:
• Log in to the router and check for new firmware. Refer to the bottom label for the default login
information, or see the steps in “Accessing Your Router After Installation and Checking for
New Firmware” on page 19.
• Set up additional wireless computers in your network for Internet access (see “Configuring
Your Wireless Settings and Security Options” on page 21).
For advanced features not covered in this manual, see the User Manual on your Resource CD. A
link to the online User Manual also is available from the router main menu.
If the CD does not automatically start, browse the CD and double-click .
Autorun.exe. Be sure to double-click the Autorun file that begins with an
uppercase A.
To ensure optimum performance of your high-speed wireless router, the
wireless adapter card for each computer in your network should support the
same technology as your router (see the online User Manual for more
information).
The factory default state is restored when you use the restore factory settings button.
See “Restoring the Default Password and Configuration” on page 36 for more
information about this feature.
Installing Your Wireless Router Manually (Advanced, Mac, and Linux Users) 9
Installing Your Wireless Router Manually
(Advanced, Mac, and Linux Users)
Before installing and connecting your router manually, review the list below and make sure that
you have all of the necessary information.
• Internet service connection through an Internet Service Provider (ISP).
• The configuration information your ISP gave you. Depending on how your Internet account
was set up, you might need the following information to set up your wireless router and access
the Internet:
– Host and Domain Name
– Internet Login Name and Password (frequently an email address and password)
– Domain Name Server (DNS) Addresses
– Fixed or Static IP Address
Your ISP should have provided you with all the information needed to connect to the Internet.
If you cannot locate this information, ask your ISP.
• If you have cable modem service, make sure that you are using the same computer on which
you first set up your Internet account.
If you have not already done so:
• Check the package contents of your router to ensure that it is complete (see “Unpacking Your
New Wireless Router” on page 1”).
• Select an optimum location for your wireless router after reviewing the guidelines presented in
“Positioning Your Wireless Router” on page 5.”
Connecting Your Wireless Router
Before you install your wireless router, make sure that the Internet Protocol (TCP/IP) Property
settings on your computer are set to “automatically obtain an IP address” using DHCP and “Obtain
DNS server address automatically.” You can check these settings by looking at the TCP/IP
Properties of your Internal Network Connections, which are accessible through the Control Panel
Wireless Router Setup Manual
10 Installing Your Wireless Router Manually (Advanced, Mac, and Linux Users)
of your computer. If you are unsure about this, refer to the documentation for your computer or see
the link to TCP/IP Addressing in “Related Documents” on page 39.
There are two steps to setting up your wireless router:
1. Connect the Product Family to the ADSL or cable modem, and connect a computer to the
Product Family.
2. Configure the Product Family to use your Internet service.
To connect your wireless router:
1. Connect the wireless router, the computer, and the modem.
a. Turn off your computer.
b. Turn off and unplug the cable or ADSL broadband modem.
c. Locate the Ethernet cable (1) that connects your computer to the modem.
2. Disconnect the cable at the modem end only (2). You will connect it to the router later.
If you are replacing an existing router, disconnect it completely from your network
and set it aside before starting to install your new router.
Figure 6
1
2
Wireless Router Setup Manual
Installing Your Wireless Router Manually (Advanced, Mac, and Linux Users) 11
3. Locate the Ethernet cable that came with your NETGEAR product. Securely insert that
Ethernet cable into your modem and into the Internet port of the wireless router (3). The
Ethernet cable and the Internet port label are color coded.
4. Locate the cable you removed from the modem in step 2. Securely insert that cable (4) into a
LAN port on the router such as LAN port 1.
Your network cables are connected, and you are ready to start your network. It is important that
you start your network in the correct sequence.
Figure 7
Figure 8
3
4
Wireless Router Setup Manual
12 Installing Your Wireless Router Manually (Advanced, Mac, and Linux Users)
To start your network in the correct sequence:
1. First, plug in and turn on the cable or DSL modem. Wait 2 minutes.
2. Now, plug the power cord into your wireless router and into a power outlet. Wait 1 minute.
3. Last, turn on your computer. It might take several minutes for your router to establish a
connection with your computer and your Internet provider.
Verifying Your Connection
Verify that your router is connected correctly by checking the wireless router status lights (as
illustrated in Figure 9).
Failure to start or restart your network in the correct sequence could prevent you
from accessing the Internet.
For DSL customers, if software logs you in to the Internet, do not run that
software. You might need to go to the Internet Explorer Tools menu, select
Internet Options, and then click the Connections tab, where you can select
Never dial a connection.
Wireless Router Setup Manual
Installing Your Wireless Router Manually (Advanced, Mac, and Linux Users) 13
Setting Up Your Router for Internet Access
When configuring your wireless router manually, you must log in to your wireless router to set it
up initially and to make any changes to your wireless router’s settings later.
To access your router:
1. Connect to the router by typing http://www.routerlogin.net in the address field of your
browser, and then pressing Enter.
Figure 9
The factory default state is reset when you use the Restore Factory Settings button.
See “Restoring the Default Password and Configuration” on page 36 for more
information.
Figure 10
•Power. The power light should turn solid green. If it does not, see
“Checking Basic Router Functions” on page 26.
•Wireless. The wireless light should be lit after turning on the
Product Family.
•Internet. The Internet port light should be lit. If it is not, make sure
the Ethernet cable is securely attached to the wireless router Internet
port and the modem, and that the modem is powered on.
•LAN. A LAN light should be lit for each connected computer on
your network. Green indicates that your computer is communicating at
1000 Mbps; amber indicates communication at 10/100 Mbps. If a LAN
light is not lit for each connected Ethernet cable, make sure that the
Ethernet cable from the computer to the router is securely attached at
both ends, and that the computer is turned on.
WPS. The WPS button/light will not be lit unless you are enabling WPS
security.
Wireless Router Setup Manual
14 Installing Your Wireless Router Manually (Advanced, Mac, and Linux Users)

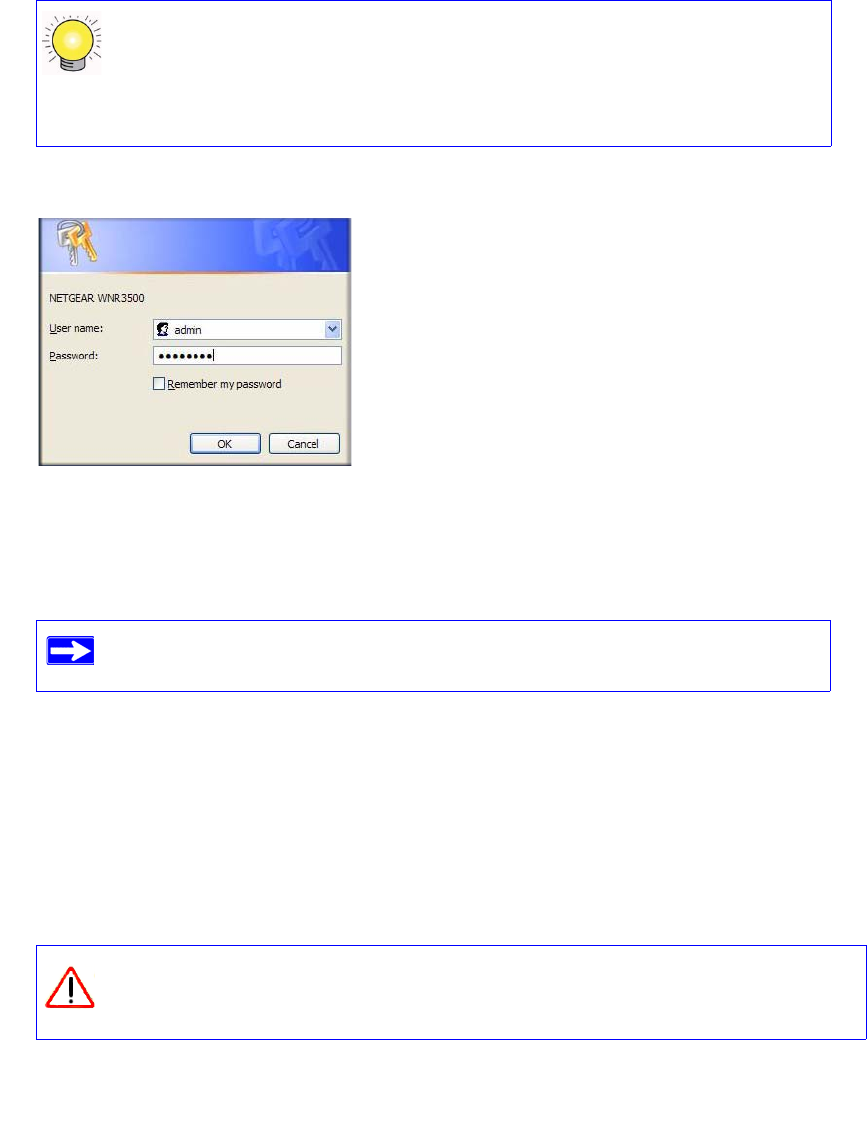

A login window similar to the one in the following figure opens.
2. For security reasons, the router has its own user name and password. When prompted, enter
admin for the router user name and password for the router password, both in lowercase
letters.
The Firmware Upgrade Assistant screen displays.
3. Click Yes to check for new firmware (recommended). The router will automatically check the
NETGEAR database for a new firmware image file. If no new firmware version is available,
the message “No New Firmware Version Available” will display. (If you select “No”, you can
check for new firmware later; see the online User Manual).
4. If new firmware is available, click Ye s , and the router will automatically upgrade itself with
the latest firmware.
Connect to the wireless router by typing any one of these three URLs in the
address field of your browser, then pressing Enter:
http://www.routerlogin.net
http://www.routerlogin.com
http://192.168.1.1
Figure 11
The router user name and password are not the same as any other user name or
password you might use to log in to your Internet connection.
Do not try to go online, turn off the router, shut down the computer, or do anything
else to the router until the router finishes restarting! When the Ready light stops
blinking, wait a few seconds more before using the router.
Wireless Router Setup Manual
Installing Your Wireless Router Manually (Advanced, Mac, and Linux Users) 15

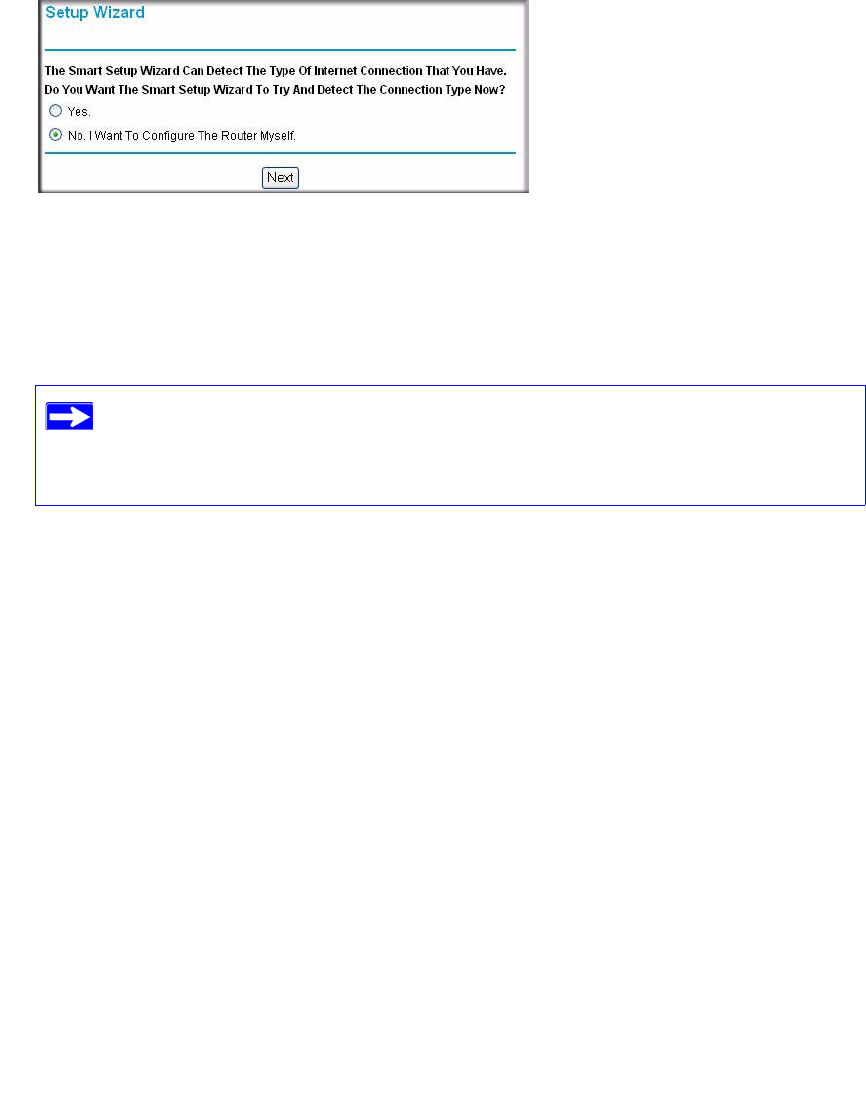

5. From the main menu, select Setup Wizard. The Setup Wizard screen displays.
6. Select No to set up the connection yourself. Click Next and the Basic Settings screen will
display. Enter the required information for your ISP connection in the appropriate fields. If
you need assistance, follow the Basic Settings Help screens on the router interface or see the
online User Manual for this wireless router.
7. Click Apply to save your settings and complete your connection.
You are now connected to the Internet! The wireless router home page will display.
To complete your router setup and to configure your wireless network, see “Accessing Your
Router After Installation and Checking for New Firmware” on page 19 and “Configuring Your
Wireless Settings and Security Options” on page 21.
If you do not connect successfully:
• Review your settings and make sure that you have selected the correct options and typed
everything correctly.
• Contact your ISP to verify that you have the correct configuration information.
•Read “Troubleshooting” on page 25.
If problems persist, register your NETGEAR product and contact NETGEAR Technical Support.
Figure 12
If you cannot connect to the wireless router, check the Internet Protocol (TCP/IP)
properties in the Network Connections section of your Control Panel. It should be
set to obtain both IP and DNS server addresses automatically. For assistance, see
your computer documentation or see the links in “Related Documents” on page 39.
Wireless Router Setup Manual
16 Installing Your Wireless Router Manually (Advanced, Mac, and Linux Users)
Configuring Your Wireless Network for Internet Access 17
Configuring Your Wireless Network for
Internet Access
After installing your router, you must log into the router to complete your wireless setup. When
you log in to the browser, you will be prompted to check for firmware updates from the
NETGEAR update server.
Accessing Your Wireless Router after Installation and
Checking for New Firmware
The Smart Wizard only appears when you first install the router or when the router is in its factory
default state (for example, if you have reset the router to its factory default settings). If you want to
change the settings after installing and configuring your router, you can use the desktop shortcut or
an Internet browser to log in to the router.
•Router login shortcut . If you used the Smart Wizard to install your router, the wizard
placed this icon on your desktop. Click it to view the router’s main menu.1
•Internet browser. Open a browser window and log in to the router. You will be prompted to
check for new router firmware to the router.
To log in to the router after installation:
1. Open a browser window and type http://www.routerlogin.net in the address field of your
browser. Press Enter.
1. The shortcut icon is installed on your desktop only when using the Smart Wizard installation method.
You can enter either of these addresses to connect to your wireless router:
http://www.routerlogin.net or http://www.routerlogin.com.
Wireless Router Setup Manual
18 Configuring Your Wireless Network for Internet Access
A login window similar to the one shown below displays.
2. When prompted, enter the default User Name and Password (admin for the router User Name
and password for the router Password), both in lowercase letters. If you changed the User
Name and Password from the defaults, then enter your new User Name and Password.
The Firmware Upgrade Assistant screen displays.
3. Click Yes to check for new firmware (recommended).The router will automatically check the
NETGEAR database for a new firmware image file. If no new firmware version is available,
the message “No New Firmware Version Available” will display. (If you selected No, you can
check for new firmware later; see “Configuring Your Wireless Settings and Security Options”
on page 19.)
4. If new firmware is available, click Ye s , and the router will automatically upgrade itself with
the latest firmware.
Figure 13
The router User Name and Password are unique to the router and are not the same as
any other User Name or Password you might use to log in to your Internet
connection.
Do not try to go online, turn off the router, shut down the computer, or do anything
else to the router until the router finishes restarting! When the Ready light stops
blinking, wait a few seconds more before using the router.
Wireless Router Setup Manual
Configuring Your Wireless Network for Internet Access 19
Configuring Your Wireless Settings and Security
Options
The wireless network settings of the router must match the wireless network settings of any
wireless devices that connect wirelessly to the router (such as wireless adapter cards and wireless
computers).
For a wireless connection, the router and each wireless computer must use the same SSID, also
called the wireless network name, and the same wireless security. NETGEAR strongly
recommends that you use wireless security.
The Wireless Settings screen lets you set your wireless network connections and the wireless
security option for your network and router. To configure the wireless network, you can either
manually specify your network name (SSID) and your wireless security settings (see “Setting Your
SSID and Wireless Security Manually”) or, if the clients in your network are WPS capable, you
can use Wi-Fi Protected Setup (WPS) to automatically set the SSID and implement WPA/WPA2
security on both the router and the client device (see “Using Push 'N' Connect (WPS) to Configure
Your Wireless Network” on page 21).
For a complete overview of all the security configurations that can be implemented on this router,
see the online User Manual. A link to the User Manual is on the Resource CD.
Setting Your SSID and Wireless Security Manually
To specify the wireless settings, you must know the following:
• Name (SSID). The default is NETGEAR.
Indoors, computers can connect over wireless networks at a range of several hundred feet. This can
allow others outside of your immediate area to access your network.
Indoors, computers can connect over wireless networks at a range of several
hundred feet. Such distances can allow for others outside of your immediate area to
access your network.
If you configure the router from a wireless computer and you change the router’s
SSID, channel, or security settings, you will lose your wireless connection when
you click Apply. You must then change your computer’s wireless settings to match
the router’s new settings. To avoid this situation, you can use a computer that is
connected to the router with an Ethernet cable.
Wireless Router Setup Manual
20 Configuring Your Wireless Network for Internet Access
• Wireless security option. NETGEAR strongly recommends that you use wireless security. To
successfully implement wireless security, check each wireless adapter to determine which
wireless security option it supports.
To set up basic wireless connectivity on your router:
1. Log in to the wireless router at its default LAN address of http://192.168.1.1 with the default
user name of admin and default password of password, or using whatever LAN address and
password you have set up.
2. Select Wireless Settings under Setup in the main menu to display the Wireless Settings
screen.
3. Select the region in which the wireless interface will operate.
4. Click Apply to save your changes.
To set up your computers for wireless connectivity:
1. Program the wireless settings of each computer or wireless adapter to have the same SSID
(wireless network name) as the router.
2. Check that the wireless adapter on each computer can support the mode and security option
that you selected. (If you have a question, see the online User Manual or review the settings
you selected in “Configuring Your Wireless Settings and Security Options” on page 19).
3. Check that the security settings on each wireless device match the security settings of the
router. For example, if you selected a security option requiring a passphrase, then the same
passphrase must be used for each wireless computer.
The SSID of any wireless adapters must match the SSID you configure in the
wireless router. If they do not match, you will not get a wireless connection.
If you are configuring the router from a wireless computer and you change the
router’s SSID, channel, or security settings, you will lose your wireless connection
when you click Apply. You must then change the wireless settings of your computer
to match the router’s new settings.
Wireless Router Setup Manual
Configuring Your Wireless Network for Internet Access 21
4. Check that each wireless computer has a wireless link and is able to obtain an IP address by
DHCP from the router.
To access the Internet from any computer connected to your wireless router, launch a browser such
as Microsoft Internet Explorer or Netscape Navigator. You should see the wireless router’s Internet
LED blink, indicating communication to the ISP.
Using Push 'N' Connect (WPS) to Configure Your Wireless
Network
If your wireless clients support Wi-Fi Protected Setup (WPS), you can use this feature to configure
the router’s SSID and security settings and, at the same time, connect the wireless client securely
and easily to the router. Look for the symbol on your client device.1 WPS automatically
configures the SSID and wireless security settings for the router (if the router is in its default state)
and broadcasts these settings to the wireless client
If the router has already been configured manually, and either WPS-PSK or WPA2-PSK security
has been enabled, a wireless client can be connected quickly and simply by using the WPS method
of connecting to the wireless network.In this case, the existing wireless settings are broadcast to
the WPS-capable client. (For more information on setting up a mixed network, see the online User
Manual. A link to the User Manual is on the Resource CD.)
These instructions assume that you are configuring WPS on the router for the first time and
connecting a WPS-capable device.
For a Windows PC, go to the Control Panel and select Network Connections.
Check the Wireless Connections Properties and ensure that TCP/IP Properties
are set to Obtain an IP address automatically.
1. For a list of other Wi-Fi-certified products available from NETGEAR, go to http://www.wi-fi.org.
NETGEAR’s Push 'N' Connect feature is based on the Wi-Fi Protected Setup (WPS)
standard. All other Wi-Fi-certified and WPS-capable products should be compatible
with NETGEAR products that implement Push 'N' Connect.
If you choose to use WPS, the only security methods supported are WPA-PSK and
WPA2-PSK. WEP security is not supported by WPS.
Wireless Router Setup Manual
22 Configuring Your Wireless Network for Internet Access
To connect to another device using WPS:
1. Open the networking utility of the device you want to connect to that supports WPS.
2. Push the wireless router’s push-button for 5 seconds, then release. The push-button light starts
to blink.
While the router is in WPS enable mode (a maximum of 2 minutes), wireless security is not
enabled.
3. While the push-button light is blinking, you have 2 minutes to enable WPS on the device you
are trying to connect with the router. The blinking ceases when one of these two conditions
occurs:
• WPS has enabled security between the router and the other device.The router has
generated an SSID, implemented WPA/WPA2 wireless security (including a PSK security
password) on the router and has sent this configuration to the wireless client.
• The 2-minute window period expires for establishing a connection using WPS. Whether
or not a connection is established, your router security and SSID (wireless network name)
are now configured for WPA/WPA2 security
The push-button remains lit to show you have enabled WPS security.
4. Note the new SSID and WPA/WPA2 password for the wireless network.
To access the Internet from any computer connected to your wireless router, launch a browser such
as Microsoft Internet Explorer or Netscape Navigator. You should see the wireless router’s Internet
LED blink, indicating communication to the ISP.
Indoors, computers can connect over wireless networks at a range of several
hundred feet. Unlike wired network data, your wireless data transmissions can
extend beyond your walls, and anyone with a compatible adapter can receive
them, allowing others outside your immediate area to access your network.
If you are planning a mixed network of WPS capable devices and non-WPS capable
devices, NETGEAR suggests that you set up your wireless network and security
settings manually first, and use WPS only for adding additional WPS capable
devices.
Wireless Router Setup Manual
Configuring Your Wireless Network for Internet Access 23
For more information about setting up your wireless network and configuring your wireless
security settings, see the User Manual. A link to the online User Manual is on your Resource CD.
Testing Basic Wireless Connectivity
Once you have established basic wireless connectivity and enabled security settings appropriate to
your needs, you can test connectivity between devices connected to your router.
To test basic wireless connectivity:
1. Log in to the wireless router at its default LAN address of http://192.168.0.1 with its default
user name of admin and default password of password, or using whatever LAN address and
password you have set up.
2. Select Wireless Settings in the main menu of the wireless router.
3. Note your SSID name. If you used WPS to establish a connection with other devices, the SSID
will now be a randomly selected name.
4. Make sure that you have selected the region in which the wireless router will operate.
5. Check your wireless security. If you used WPS to enable wireless security, your security will
be set to WPA/WPA2 with a randomly-selected PSK security password.
6. Click Apply to save any changes.
If you want to disable WPS, you must reset your router to its factory default
settings. For information about resetting to the default settings, see “Restoring the
Default Password and Configuration” on page 36.
The SSID of any wireless adapters or wireless devices connected to your router
must match the SSID you configured in the wireless router. If they do not match,
you will not get a wireless connection.
If you are configuring the router from a wireless computer and you change the
router’s SSID, channel, or security settings, you will lose your wireless connection
when you click Apply. You must then change the wireless settings of your computer
to match the router’s new settings.
Wireless Router Setup Manual
24 Configuring Your Wireless Network for Internet Access
7. Configure and test your computers for wireless connectivity.
Program the wireless adapter of your computers to have the same wireless network name
(SSID) as the wireless router and the same wireless security as your wireless router. Check that
they have a wireless link and are able to obtain an IP address by DHCP from the router.
Your wireless router is now configured to provide Internet access for your network. Your wireless
router automatically connects to the Internet when one of your computers requires access. It is not
necessary to run a dialer or login application such as Dial-Up Networking or Enternet to connect,
log in, or disconnect. These functions are performed automatically by the wireless router as
needed.
To access the Internet from any computer connected to your wireless router, launch a browser such
as Microsoft Internet Explorer or Mozilla Firefox. You should see the wireless router’s Internet
LED blink, indicating communication to the ISP. The browser should begin to display a Web page.
Troubleshooting 25
Troubleshooting
This chapter gives information about troubleshooting your wireless router. You can find help with
the following problems:
•“Basic Setup Checklist”
•“Checking Basic Router Functions” on page 26
•“Troubleshooting Login Problems” on page 28
•“Checking the Internet Service Connection” on page 29
•“Obtaining an Internet IP Address” on page 30
•“Troubleshooting Connectivity Using the Ping Utility” on page 31
Basic Setup Checklist
The following items are the most common errors made when initially setting up a router. Carefully
review the checklist to make sure that you have followed the recommended procedures.
Be sure you always start your network in this sequence:
1. Turn off and unplug the modem from the power outlet. Next, turn off the wireless router and
computer.
2. Turn on the modem and wait 2 minutes.
3. Turn on the wireless router and wait 1 minute.
4. Turn on the computer.
Make sure the Ethernet cables are securely plugged in.
1. Verify that the Internet status light on the wireless router is lit if the Ethernet cable to the
wireless router from the modem is plugged in securely and the modem and wireless router are
both turned on (see “Front Panel” on page 3).
2. For each powered-on computer connected to the wireless router with a securely plugged-in
Ethernet cable, the corresponding wireless router LAN port status light will be lit. The label on
the back of the wireless router identifies the number of each LAN port (see “Router Label” on
page 4).
Wireless Router Setup Manual
26 Troubleshooting
Make sure the network settings of the computer are correct:
1. Verify that your LAN-connected computers are configured to obtain an IP address
automatically through DHCP. For help with this, see the documentation for your computer or
“Related Documents” on page 39.
2. Verify whether the MAC address is needed. Some cable modem services require you to use the
MAC address of the computer registered on the account. If this is the case, in the Router MAC
Address section of the Basic Settings screen, select Use this Computer’s MAC Address. To
save your settings, click Apply. Restart the network in the correct sequence.
Check the router status lights to verify correct router operation:
If the Power light does not turn solid green within 2 minutes after turning the router on, reset the
router according to the instructions in “Restoring the Default Password and Configuration” on
page 36.
Checking Basic Router Functions
After you turn on power to the router, check that the following sequence of events has occurred:
1. When power is first applied, verify that the power light is on (see “Front Panel” on page 3 for
an illustration).
2. Verify that the power light turns amber within a few seconds, indicating that the self-test
procedure is running.
3. After approximately 20 seconds, verify that:
a. The color of the power light changes to green.
b. The LAN port lights are lit for any local ports that are connected.
If a port’s light is lit, a link has been established to the connected device. If a LAN port is
connected to a 100 Mbps device, verify that the port’s light is green. If the port is 10 Mbps,
the light will be amber.
c. The Internet port is connected and its light is lit.
4. If you have enabled WPS security, verify that the push-button stops blinking and changes to
green (otherwise the push-button light should be off).
Wireless Router Setup Manual
Troubleshooting 27
If the correct behavior does not occur, check for a remedy from the following table.
Table 1. Troubleshooting LED Behavior
Problem Recommended Action
Power light is off. See “Connecting Your Wireless Router” on page 9, and check the following:
• Make sure that the power cord is properly connected to your router and that
the power adapter is properly connected to a functioning power outlet.
• Check that you are using the power adapter supplied by NETGEAR for this
product.
If the error persists, you have a hardware problem and should contact technical
support.
Power light stays amber. When the router is turned on, the Power light turns amber for about 20 seconds
and then turns green. If the light does not turn green, the router has a problem.
If the Power light is still amber 1 minute after turning on power to the router:
1. Turn the power off and back on to see if the router recovers.
2. Clear the router’s configuration to factory defaults. This will set the router’s IP
address to 192.168.1.1. This procedure is explained in “Restoring the
Default Password and Configuration” on page 36.
If the error persists, you might have a hardware problem and should contact
technical support.
Power light blinks green
slowly and continuously.
The wireless router
firmware is corrupted.
Restore the wireless router firmware:
1. Make sure that your PC is connected to your wireless router and the wireless
router is powered on.
2. Insert the Resource CD that came with your router into your PC.
The CD automatically starts and detects the language you are using on your
PC. Select a different language option, if you prefer. If the CD does not
automatically start, browse the CD and double-click .
3. From the CD menu, select Supporting Software, then Netgear Firmware
Recovery Utility, and follow the prompts for the recovery process.
4. After firmware recovery is complete, follow the prompts to restore your
configuration.
The firmware recovery utility places a Netgear Router Recovery shortcut on
the desktop.
Wireless Router Setup Manual
28 Troubleshooting
Troubleshooting Login Problems
If you are unable to log in to the wireless router, check the following:
• If you are using an Ethernet-connected computer, check the Ethernet connection between the
computer and the router as described in “Checking Basic Router Functions” on page 26.
Internet light stays
amber.
When the router is turned on, the Internet light turns amber for about 20 seconds
and then turns green. If the light does not turn green, the router has a problem.
If the Internet light is still amber 1 minute after turning on power to the router:
1. The Internet is not accessible. Confirm that you have the correct internet
setting.
2. Clear the router’s configuration to factory defaults. This will set the router’s IP
address to 192.168.1.1. This procedure is explained in “Restoring the
Default Password and Configuration” on page 36.
3. Turn the power off and back on to see if the router recovers.
Internet or LAN port lights
are off.
If either the LAN or Internet lights do not light when the Ethernet connection is
made, check the following:
1. Make sure that the Ethernet cable connections are secure at the router and
at the computer.
2. Make sure that power is turned on to the connected computer.
3. Be sure you are using Ethernet cables like the cable that was supplied with
the wireless router.
See “Connecting Your Wireless Router” on page 9 for instructions.
WPS push-button blinks
amber after setting WPS
security.
Check the following:
1. Make sure that you are using the push-button and not the router’s built-in
registrar (see “Using Push 'N' Connect (WPS) to Configure Your Wireless
Network” on page 21).
2. Check that PIN verification has succeeded for the WPS-enabled device you
are connecting to the router.
3. Make sure you have not pushed the push-button after disabling the WPS
function (you logged into the router and disabled this previously).
4. Check that the router is not in the temporary AP setup locked state (if you are
using the wireless repeater function).
For more information about WPS security and advanced features, see the online
User Manual.
Table 1. Troubleshooting LED Behavior (continued)
Wireless Router Setup Manual
Troubleshooting 29
• Make sure you are using the correct login information. The factory default login name is
admin and the password is password. Make sure that the Caps Lock is off when entering this
information.
• Make sure your computer’s IP address is on the same subnet as the router. If your are using the
recommended addressing scheme, your computer’s address should be in the range of
192.168.1.2 to 192.168.1.254. Refer to your computer’s documentation or see “Preparing a
Computer for Network Access” in “Related Documents” on page 39 for help with configuring
your computer.
• If your router’s IP address has been changed and you don’t know the current IP address, reset
the router’s configuration to the factory defaults. This procedure will reset the router’s IP
address to 192.168.1.1 (see “Restoring the Default Password and Configuration” on page 36).
• Make sure your browser has Java, JavaScript, or ActiveX enabled. If you are using Internet
Explorer, click Refresh to be sure the Java applet is loaded. Try closing the browser and
reopening it again.
Checking the Internet Service Connection
If your router is unable to access the Internet, check the Internet connection, and then check the
wireless router.
•Internet Connection. The cable or DSL modem status lights indicate if the modem
connection is successful or not. Check your modem documentation or call your Internet
service provider for help with verifying that the modem has a successful connection.
•Wireless Router Internet Light is Green or Blinking Green. If your Internet light is green
or blinking green, then you have a good Internet connection and your wiring is correct.
•Wireless Router Internet Light Off. If the Internet light is off, verify that the Ethernet cable
is securely connected between the cable or DSL modem, and that both the modem and
wireless router are turned on.
If your computer cannot reach a DHCP server, some operating systems will
assign an IP address in the range 169.254.x.x. If your IP address is in this range,
verify that you have a good connection from the computer to the router, then
restart (reboot) your computer.
Wireless Router Setup Manual
30 Troubleshooting
Obtaining an Internet IP Address
If your wireless router is unable to access the Internet, and your Internet light is amber, check the
wireless router to see if it is able to get an Internet IP address from your service provider. Unless
you have a static IP address, your wireless router automatically requests an IP address from your
service provider.
To check the Internet IP address from the browser interface:
1. Log in to the wireless router.
2. Select the Router Status link under the Maintenance heading to check that an IP address is
shown for the Internet Port. If 0.0.0.0 is shown, your wireless router has not obtained an IP
address from your service provider.
If your router is unable to obtain an IP address from the your service provider, the problem might
be one of the following:
• Your service provider might require a login. Ask your service provider whether they require a
PPP over Ethernet (PPPoE) login.
• The service name, user name, and password might be set incorrectly. See “Troubleshooting
PPPoE” on page 30.
• Your service provider might check for your computer’s host name.
Assign the computer host name of your ISP account to the wireless router on the Basic
Settings screen.
• Your service provider allows only one Ethernet MAC address to connect to the Internet, and
might check for your computer’s MAC address. In this case, do one of the following:
– Inform your service provider that you have bought a new network device, and ask them to
use the wireless router’s MAC address.
– Configure your router to spoof your computer’s MAC address. This can be done in the
Basic Settings screen. Refer to the online help, which you can access from the wireless
router main menu.).
Troubleshooting PPPoE
To troubleshoot a PPPoE connection:
1. Log in to the wireless router.
2. Select Router Status under Maintenance on the main menu.
Wireless Router Setup Manual
Troubleshooting 31
3. Click the Connection Status button.
If all of the steps indicate OK, then your PPPoE connection is up and working.
4. If any of the steps indicate Failed, you can attempt to reconnect by clicking Connect. The
wireless router will continue to attempt to connect indefinitely.
If you cannot connect after several minutes, you might be using an incorrect service name,
user name, or password. There also might be a provisioning problem with your ISP.
Troubleshooting Internet Browsing
If your wireless router can obtain an IP address but your computer is unable to load any web pages
from the Internet, check the following:
• Your computer might not recognize any DNS server addresses.
A DNS server is a host on the Internet that translates Internet names (such as www addresses)
to numeric IP addresses. Typically, your ISP will provide the addresses of one or two DNS
servers for your use. If you entered a DNS address during the wireless router’s configuration,
restart your computer. Alternatively, you can configure your computer manually with a DNS
address, as explained in the documentation for your computer.
• Your computer might not have the wireless router configured as its default gateway.
Reboot the computer and verify that the wireless router address (192.168.1.1) is listed by your
computer as the default gateway address.
Troubleshooting Connectivity Using the Ping Utility
Most computers and routers have a diagnostic utility called ping that sends a request to a target
device. The device then replies. The ping utility makes it easy to troubleshoot a network.
Unless you connect manually, the wireless router will not authenticate using
PPPoE until data is transmitted to the network.
The factory default wireless router IP address is 192.168.1.1. However, if the router
detects a conflict with the address it gets from your modem, it automatically picks a
different address for itself. In this case, you can log in to the router using
www.routerlogin.net to verify its LAN IP address. Select LAN IP Setup under
Advanced on the main menu. Take note of the LAN TCP/IP setup IP address, which
should match the default gateway IP address on your computer.
Wireless Router Setup Manual
32 Troubleshooting
Testing the Path from Your PC to Your Router
You can ping the wireless router to verify that the LAN path from your computer to your router is
set up correctly.
To ping the wireless router from a Windows PC:
1. From the Windows task bar, click Start and select Run.
2. In the field provided, type ping followed by the address of the router, as in this example:
ping www.routerlogin.net
3. Click OK. You should see a message like this one:
Pinging www.routerlogin.net with 32 bytes of data
If the path is working, you see this message:
Reply from www.routerlogin.net: bytes=32 time=NN ms TTL=xxx
If the path is not working, you see this message:
Request timed out
If the path is not working correctly, you could have one of the following problems:
• Wrong physical connections
– Make sure the LAN port light is on. If the light is off, follow the instructions in
“Connecting Your Wireless Router” on page 9.
– Check that the corresponding lights are on for your computer’s network interface card.
• Wrong network configuration
– Verify that the Ethernet card driver software and TCP/IP software are both installed and
configured on your computer.
– Verify that the IP addresses for your router and your computer are correct and that both
addresses are on the same subnet (for example, 192.168.1.x/255.255.255.0).
Testing the Path from a PC to the Internet
After verifying that the path between your computer and the wireless router works correctly, test
the path from your PC to the Internet. From the Windows Start > Run... menu, type:
PING -n 10 <IP address>
where <IP address> is the IP address of a remote device such as your ISP’s DNS server.
Wireless Router Setup Manual
Troubleshooting 33
If the path is functioning correctly, replies as in the previous section are displayed. If you do not
receive replies:
• Check that your PC has the IP address of your router listed as the default gateway. If the IP
configuration of your PC is assigned by DHCP, this information is not visible in your PC’s
Network Control Panel. Verify that the IP address of the router is listed as the TCP/IP default
gateway.
• Check to see that the network address of your PC (the portion of the IP address specified by
the netmask) is different from the network address of the remote device.
• If your ISP assigned a host name to your PC, enter that host name as the account name in the
Basic Settings screen.
Wireless Router Setup Manual
34 Troubleshooting
Default Configuration and Technical Specifications 35
Default Configuration and Technical
Specifications
Default Configuration Settings
Table 2. Wireless Router Default Configuration Settings
Feature Default Setting
Smart Wizard Disabled
Router Login
Router Login URL http://www. routerlogin.net;
http://www.routerlogin.com; or http://192.168.1.1
Login Name (case sensitive) admin
Login Password (case sensitive) password
Internet Connection
WAN MAC Address Default hardware address (on label)
MTU Size 1500
Local Network
Router Lan IP address (the Gateway IP
address)
192.168.1.1
IP Subnet Mask 255.255.255.0
DHCP Server Enabled
Time Zone GMT
Time Zone Adjusted for Daylight Saving
Time
Disabled
Firewall
Inbound (communications coming in from
the Internet)
Disabled (bars all unsolicited requests except for
traffic on port 80, the http port)
Outbound (communications going out to
the Internet)
Enabled (all)
Wireless Router Setup Manual
36 Default Configuration and Technical Specifications
Restoring the Default Password and Configuration
You can restore the factory default configuration settings that reset the router’s User Name to
admin, the Password to password, and the IP address to 192.168.1.1. This procedure erases your
current configuration and restores the factory defaults.
To restore the factory default configuration settings:
1. Use a sharp object such as a pen or a paper clip to press and hold the Restore Factory Settings
button, located on the rear panel of the router, for about 20 seconds, until the power light
begins to blink (see “Back Panel” on page 4).
2. Release the Restore Factory Settings button and wait for the router to restart, and for the Power
light to become solid green.
The factory default settings will be restored so that you can access the router from your web
browser using the factory defaults.
Wireless
Wireless Communication Enabled
SSID Name NETGEAR
Security Disabled
Broadcast SSID Enabled
Transmission Speed Autoa
Country/Region United States (North America only; otherwise varies
by country and region)
RF Channel 6 until region selected
Operating Mode 130 Mbps
Data Rate Best
Output Power Full
a. Maximum Wireless signal rate derived from IEEE Standard 802.11 specifications. Actual throughput will vary. Network
conditions and environmental factors, including volume of network traffic, building materials and construction, and net-
work overhead lower actual data throughput rate.
Table 2. Wireless Router Default Configuration Settings (continued)
Feature Default Setting
Wireless Router Setup Manual
Default Configuration and Technical Specifications 37
Technical Specifications
Table 3. Wireless Router Technical Specifications
Network Protocol and Standards Compatibility
Data and Routing Protocols TCP/IP, RIP-1, RIP-2, DHCP, PPPoE, PPTP,
Bigpond, Dynamic DNS, and UPnP
Power Adapter
North America 120V, 60 Hz, input
UK, Australia 240V, 50 Hz, input
Europe 230V, 50 Hz, input
Japan 100V, 50/60 Hz, input
All regions (output) 12V DC @ 1.0A, output
Physical
Dimensions 8.9" x 6.8" x 1.5" (225.5 x 172 x 39 mm)
Weight 1.2 lbs. (0.56 kg)
Environmental
Operating temperature 0q to 40q C (32º to 104º F)
Operating humidity 90% maximum relative humidity, noncondensing
Electromagnetic Emissions
Designed to conform to the following
standards
FCC Part 15 Class B
EN 55022/24 (CISPR 22/24) Class B
EN 60950 (CE LVD) Class B
Interface Specifications
LAN 10BASE-T, 100BASE-Tx, or 1000BASE-T, RJ-45
WAN 10BASE-T, 100BASE-Tx, or 1000BASE-T, RJ-45
Wireless Router Setup Manual
38 Default Configuration and Technical Specifications
Related Documents 39
Related Documents
This section provides links to reference documents that you can use to gain a more complete
understanding of the technologies used in your NETGEAR product.
Document Link
Internet Networking and
TCP/IP Addressing http://documentation.netgear.com/reference/enu/tcpip/index.htm
Preparing a Computer for
Network Access http://documentation.netgear.com/reference/enu/wsdhcp/index.htm
Glossary http://documentation.netgear.com/reference/enu/glossary/index.htm
Wireless Router Setup Manual
40 Related Documents
41
Registration and Certifications
Product Registration, Support, and Documentation
Register your product at http://www.NETGEAR.com/register. You must register before you can use our telephone
support service. Product updates and Web support are always available by going to: http://www.NETGEAR.com/support.
Setup documentation is available on the CD, on the support website, and on the documentation website.When the
wireless router is connected to the Internet, click the KnowledgeBase link to view support information or click the
Documentation link to view the online User Manual for this wireless router.
Maximum Wireless Signal Rate Derived from IEEE Standard 802.11 Specifications
Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic,
building materials and construction, and network overhead, lower actual data throughput rate.
Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Statement:
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
For product available in the USA/Canada market, only channel 1~11 can be operated.
Selection of other channels is not possible.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment
The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
42
I
C Statement
This Class B digital apparatus complies with Canadian ICES-003. Operation is
subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may
cause undesired operation of the device. Cet appareil numérique de la classe B
conforme á la norme NMB-003 du Canada.
For product available in the USA/Canada market, only channel 1~11 can be
o
perated. Selection of other channels is not possible. This device and its antenna
(
s) must not be co-located or operation in conjunction with any other antenna or
t
ransmitter. To reduce potential radio interference to other users, the antenna type
a
nd its gain should be so chosen that the equivalent isotropic ally radiated power
(
e.i.r.p) is not more than that permitted for successful communication.
U
SERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has
t
o be informed to keep at least 20cm separation with the antenna while this end product is installed an
d
o
perated. The end user has to be informed that the IC radio-frequency exposure guidelines for an
u
ncontrolled environment can be satisfied. The end user has to also be informed that any changes or
m
odifications not expressly approved by the manufacturer could void the user's authority to operate
this equipment.
LABEL OF THE END PRODUCT:
The final end product must be labeled in a visible area with the
following " Contains TX IC: 4054A-08300093 ".
IC Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B conforme á la norme NMB-003 du Canada.
Operation is subject to the following two conditions: (1) this device may not cause interference and (2) this device must accept
any interference, including interference that may cause undesired operation of the device.
For product available in the USA/Canada market, only channel 1~11 can be operated.
Selection of other channels is not possible.
The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm between the radiator & your body.
