User Manual
202-10623-01
March 2010
NETGEAR, Inc.
350 E.Plumeria Dr.
San Jose, CA 95134 USA
NETGEAR Wireless N150
Access Point WN604
Reference Manual
v1.0, March 2010
ii
© 2010 by NETGEAR, Inc. All rights reserved..
Technical Support
Please refer to the support information card that shipped with your product. By registering your product at
http://www.netgear.com/register, we can provide you with faster expert technical support and timely notices of product
and software upgrades.
NETGEAR, INC. Support Information
Phone: 1-888-NETGEAR, for US & Canada only. For other countries, see your Support information card.
E-mail: support@netgear.com
North American NETGEAR website: http://www.netgear.com
Trademarks
NETGEAR, the NETGEAR logo, ProSafe, and Auto Uplink are trademarks or registered trademarks of NETGEAR, Inc.
Microsoft, Windows, Windows NT and Vista are registered trademarks of Microsoft Corporation.Other brand and
product names are registered trademarks or trademarks of their respective holders.
Statement of Conditions
In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to
make changes to the products described in this document without notice.
NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit
layout(s) described herein.
Certificate of the Manufacturer/Importer
It is hereby certified that the NETGEAR Wireless N150 Access Point WN604 has been suppressed in accordance with
the conditions set out in the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for
example, test transmitters) in accordance with the regulations may, however, be subject to certain restrictions. Please
refer to the notes in the operating instructions.
The Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market
and has been granted the right to test the series for compliance with the regulations.
Bestätigung des Herstellers/Importeurs
Es wird hiermit bestätigt, daß dasNETGEAR Wireless N150 Access Point WN604 gemäß der im BMPT-AmtsblVfg
243/1991 und Vfg 46/1992 aufgeführten Bestimmungen entstört ist. Das vorschriftsmäßige Betreiben einiger Geräte
(z.B. Testsender) kann jedoch gewissen Beschränkungen unterliegen. Lesen Sie dazu bitte die Anmerkungen in der
Betriebsanleitung.
Das Bundesamt für Zulassungen in der Telekommunikation wurde davon unterrichtet, daß dieses Gerät auf den Markt
gebracht wurde und es ist berechtigt, die Serie auf die Erfüllung der Vorschriften hin zu überprüfen.
Voluntary Control Council for Interference (VCCI) Statement
This equipment is in the Class B category (information equipment to be used in a residential area or an adjacent area
thereto) and conforms to the standards set by the Voluntary Control Council for Interference by Data Processing
Equipment and Electronic Office Machines aimed at preventing radio interference in such residential areas. When used
near a radio or TV receiver, it may become the cause of radio interference. Read instructions for correct handling.
v1.0, March 2010
iii
Regulatory Compliance Information
This section includes user requirements for operating this product in accordance with National laws for usage of radio
spectrum and operation of radio devices. Failure of the end-user to comply with the applicable requirements may result
in unlawful operation and adverse action against the end-user by the applicable National regulatory authority.
NOTE: This product's firmware limits operation to only the channels allowed in a particular Region or Country.
Therefore, all options described in this user's guide may not be available in your version of the product.
Europe – EU Declaration of Conformity
Marking by the above symbol indicates compliance with the Essential Requirements of the R&TTE Directive of the
European Union (1999/5/EC). This equipment meets the following conformance standards:
EN300 328, EN301 489-17, EN60950
Europe – Declaration of Conformity in Languages of the European Community
Note: Delete this note and the information below for products that are not wireless.
Cesky [Czech] NETGEAR Inc. tímto prohlašuje, že tento Radiolan je ve shode se základními
požadavky a dalšími príslušnými ustanoveními smernice 1999/5/ES..
Dansk
[Danish]
Undertegnede NETGEAR Inc. erklærer herved, at følgende udstyr Radiolan overholder
de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt NETGEAR Inc., dass sich das Gerät Radiolan in Übereinstimmung mit
den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der
Richtlinie 1999/5/EG befindet.
Eesti
[Estonian]
Käesolevaga kinnitab NETGEAR Inc. seadme Radiolan vastavust direktiivi 1999/5/EÜ
põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
English Hereby, NETGEAR Inc., declares that this Radiolan is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente NETGEAR Inc. declara que el Radiolan cumple con los
requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la
Directiva 1999/5/CE.
ÅëëçíéêÞ
[Greek]
ÌÅ ÔÇÍ ÐÁÑÏÕÓÁ NETGEAR Inc. ÄÇËÙÍÅÉ ÏÔÉ Radiolan ÓÕÌÌÏÑÖÙÍÅÔÁÉ ÐÑÏÓ
ÔÉÓ ÏÕÓÉÙÄÅÉÓ ÁÐÁÉÔÇÓÅÉÓ ÊÁÉ ÔÉÓ ËÏÉÐÅÓ Ó×ÅÔÉÊÅÓ ÄÉÁÔÁÎÅÉÓ
ÔÇÓ ÏÄÇÃÉÁÓ 1999/5/ÅÊ.
v1.0, March 2010
iv
FCC Requirements for Operation in the United States
FCC Information to User
This product does not contain any user serviceable components and is to be used with approved antennas only. Any
product changes or modifications will invalidate all applicable regulatory certifications and approvals
Français
[French]
Par la présente NETGEAR Inc. déclare que l'appareil Radiolan est conforme aux
exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
Italiano [Italian] Con la presente NETGEAR Inc. dichiara che questo Radiolan è conforme ai requisiti
essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo NETGEAR Inc. deklarç, ka Radiolan atbilst Direktîvas 1999/5/EK bûtiskajâm
prasîbâm un citiem ar to saistîtajiem noteikumiem.
Lietuviø
[Lithuanian]
Šiuo NETGEAR Inc. deklaruoja, kad šis Radiolan atitinka esminius reikalavimus ir kitas
1999/5/EB Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart NETGEAR Inc. dat het toestel Radiolan in overeenstemming is met de
essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti [Maltese] Hawnhekk, NETGEAR Inc., jiddikjara li dan Radiolan jikkonforma mal-htigijiet
essenzjali u ma provvedimenti ohrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, NETGEAR Inc. nyilatkozom, hogy a Radiolan megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski [Polish] Niniejszym NETGEAR Inc. oœwiadcza, ¿e Radiolan jest zgodny z zasadniczymi
wymogami oraz pozosta³ymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese]
NETGEAR Inc. declara que este Radiolan está conforme com os requisitos essenciais
e outras disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
NETGEAR Inc. izjavlja, da je ta Radiolan v skladu z bistvenimi zahtevami in ostalimi
relevantnimi doloèili direktive 1999/5/ES.
Slovensky
[Slovak]
NETGEAR Inc. týmto vyhlasuje, _e Radiolan spåòa základné po_iadavky a všetky
príslušné ustanovenia Smernice 1999/5/ES.
Suomi
[Finnish]
NETGEAR Inc. vakuuttaa täten että Radiolan tyyppinen laite on direktiivin 1999/5/EY
oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar NETGEAR Inc. att denna Radiolan står I överensstämmelse med de
väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv
1999/5/EG.
Íslenska
[Icelandic]
Hér með lýsir NETGEAR Inc. yfir því að Radiolan er í samræmi við grunnkröfur og aðrar
kröfur, sem gerðar eru í tilskipun 1999/5/EC.
Norsk
[Norwegian]
NETGEAR Inc. erklærer herved at utstyret Radiolan er i samsvar med de
grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.
v1.0, March 2010
v
FCC Guidelines for Human Exposure
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance of 20 cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
FCC Declaration Of Conformity
We NETGEAR, Inc., 4500 Great America Parkway, Santa Clara, CA 95054, declare under our sole responsibility that
the model WN604 NETGEAR Wireless N150 Access Point WN604 complies with Part 15 of FCC Rules. Operation is
subject to the following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that may cause undesired operation.
FCC Radio Frequency Interference Warnings & Instructions
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following methods:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment into an electrical outlet on a circuit different from that which the radio receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.
Modifications made to the product, unless expressly approved by NETGEAR, Inc., could void the user's right to operate
the equipment.
Canadian Department of Communications Radio Interference Regulations
This digital apparatus (NETGEAR Wireless N150 Access Point WN604) does not exceed the Class B limits for radio-
noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of
Communications.
Canada ID: 4054A-09300122
FOR HOME OR OFFICE USE
Tested to Comply
with FCC Standards
PY309300122
NETGEAR Wireless N150 Access Point WN604
v1.0, March 2010
vi
Industry Canada statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
IMPORTANT NOTE: Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20cm between the radiator & your body.
Product and Publication Details
Model Number: WN604
Publication Date: March 2010
Product Family: Wireless Access Point
Product Name: NETGEAR Wireless N150 Access Point WN604
Home or Business Product: Business
Language: English
Publication Part Number: 202-10623-01
Publication Version Number: 1.0
1.0, March 2010
vii
Contents
About This Manual
Conventions, Formats, and Scope ................................................................................... xi
How to Print This Manual .................................................................................................xii
Revision History ...............................................................................................................xiii
Chapter 1
Introduction
About the NETGEAR Wireless N150 Access Point WN604 ...........................................1-1
Key Features and Standards ..........................................................................................1-1
Supported Standards and Conventions ...................................................................1-2
Key Features ............................................................................................................1-2
802.11b/g/n Standards-based Wireless Networking ................................................1-3
Autosensing Ethernet Connections with Auto Uplink ...............................................1-4
Compatible and Related NETGEAR Products ................................................................1-4
System Requirements ....................................................................................................1-5
What’s In the Box? .........................................................................................................1-5
Hardware Description .....................................................................................................1-5
Front Panel ...............................................................................................................1-6
Rear Panel ...............................................................................................................1-8
Side Panel ................................................................................................................1-9
Chapter 2
Basic Installation and Configuration
Wireless Equipment Placement and Range Guidelines .................................................2-2
Understanding WN604 Wireless Security Options .........................................................2-2
Wi-Fi Protected Setup ..............................................................................................2-3
Installing the WN604 Wireless Access Point ..................................................................2-3
Setting up the WN604 Wireless Access Point .........................................................2-4
Configuring LAN and Wireless Access ....................................................................2-4
1.0, March 2010
viii
NETGEAR Wireless N150 Access Point WN604 Reference Manual

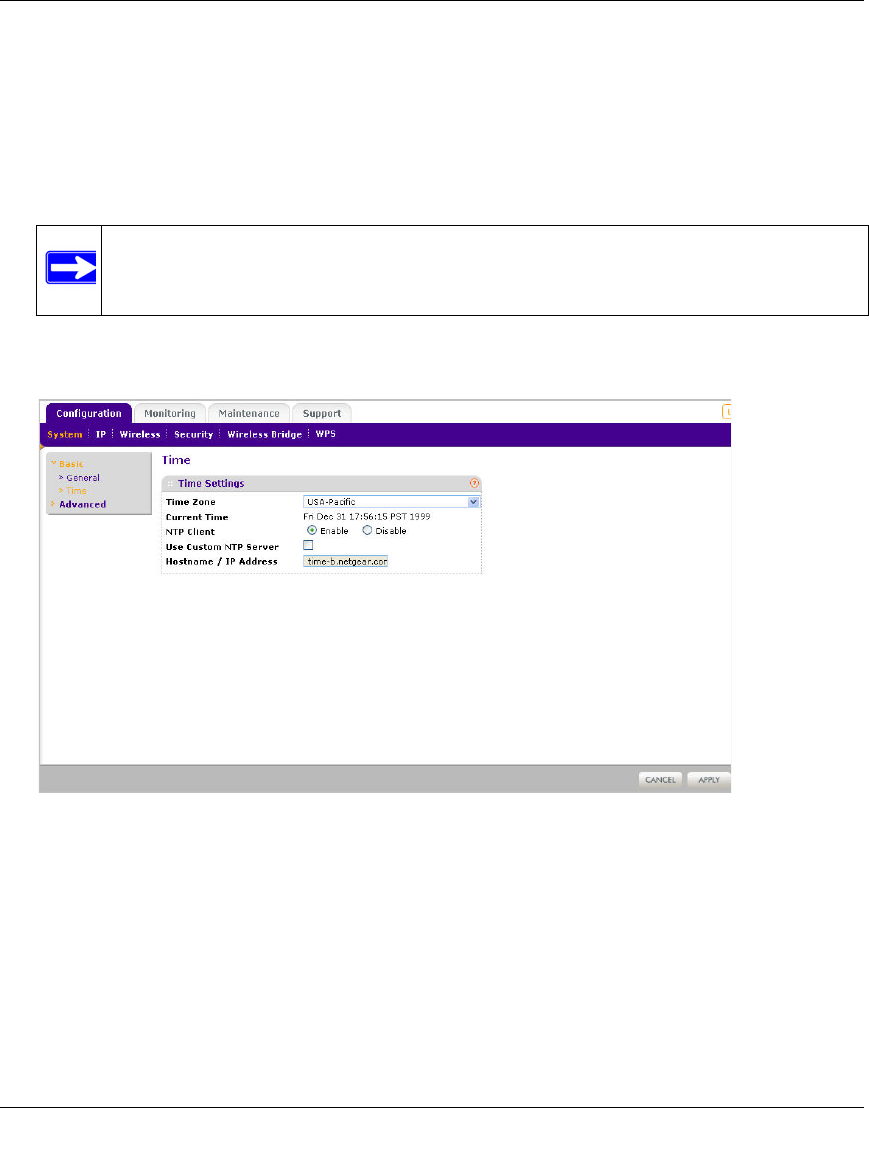

Configuring Time Settings .................................................................................2-7
Configuring Wireless Access .............................................................................2-9
Deploying the WN604 Wireless Access Point ..........................................................2-9
Verifying Wireless Connectivity ..............................................................................2-10
Logging In Using the Default IP Address ......................................................................2-11

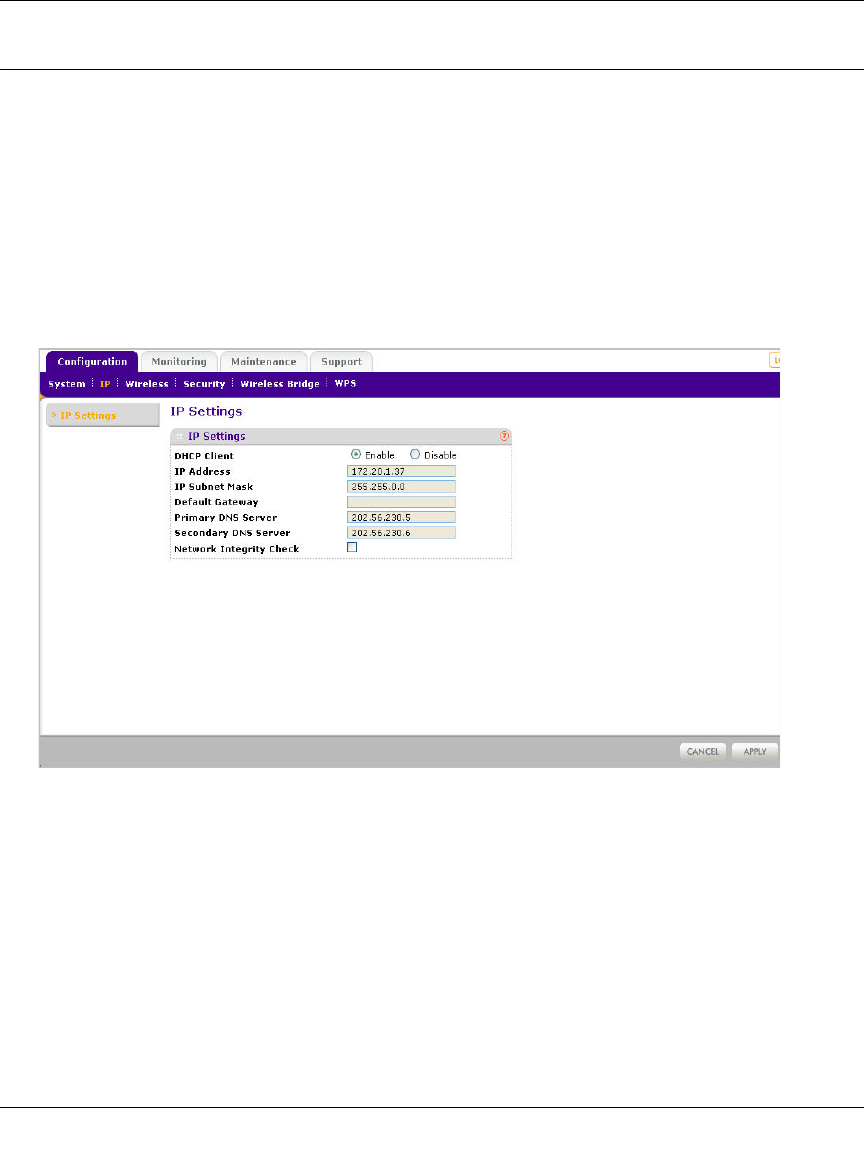

Setting Basic IP Options ...............................................................................................2-12
Wireless Settings ..........................................................................................................2-13

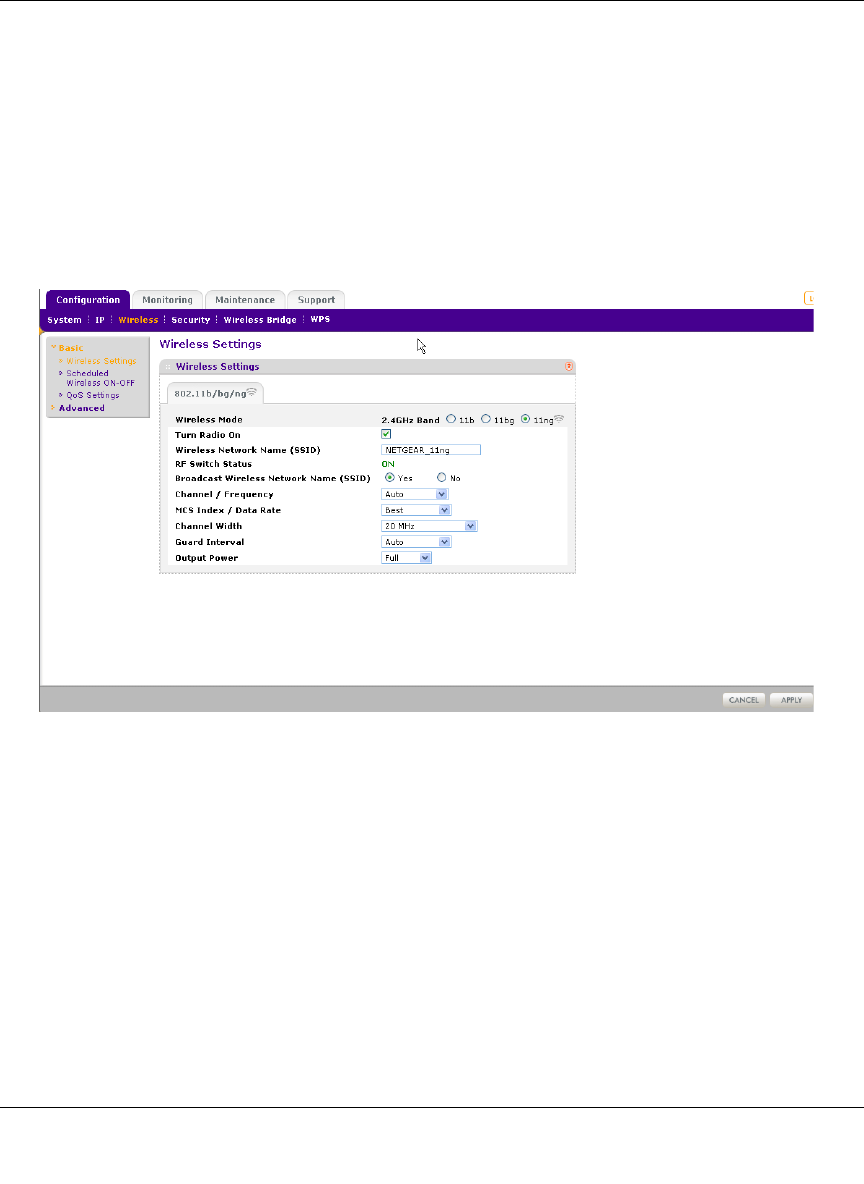

Configuring 802.11b/bg/ng Wireless Settings ........................................................2-13

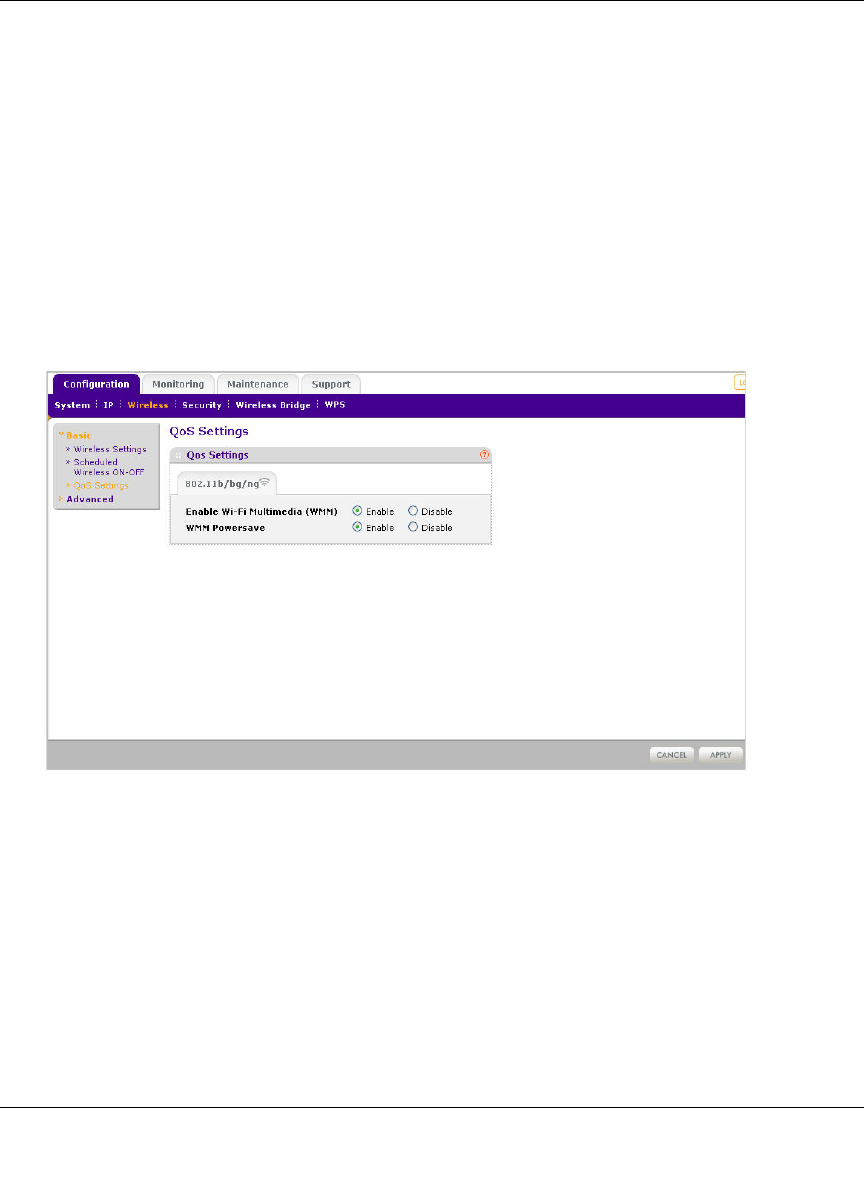

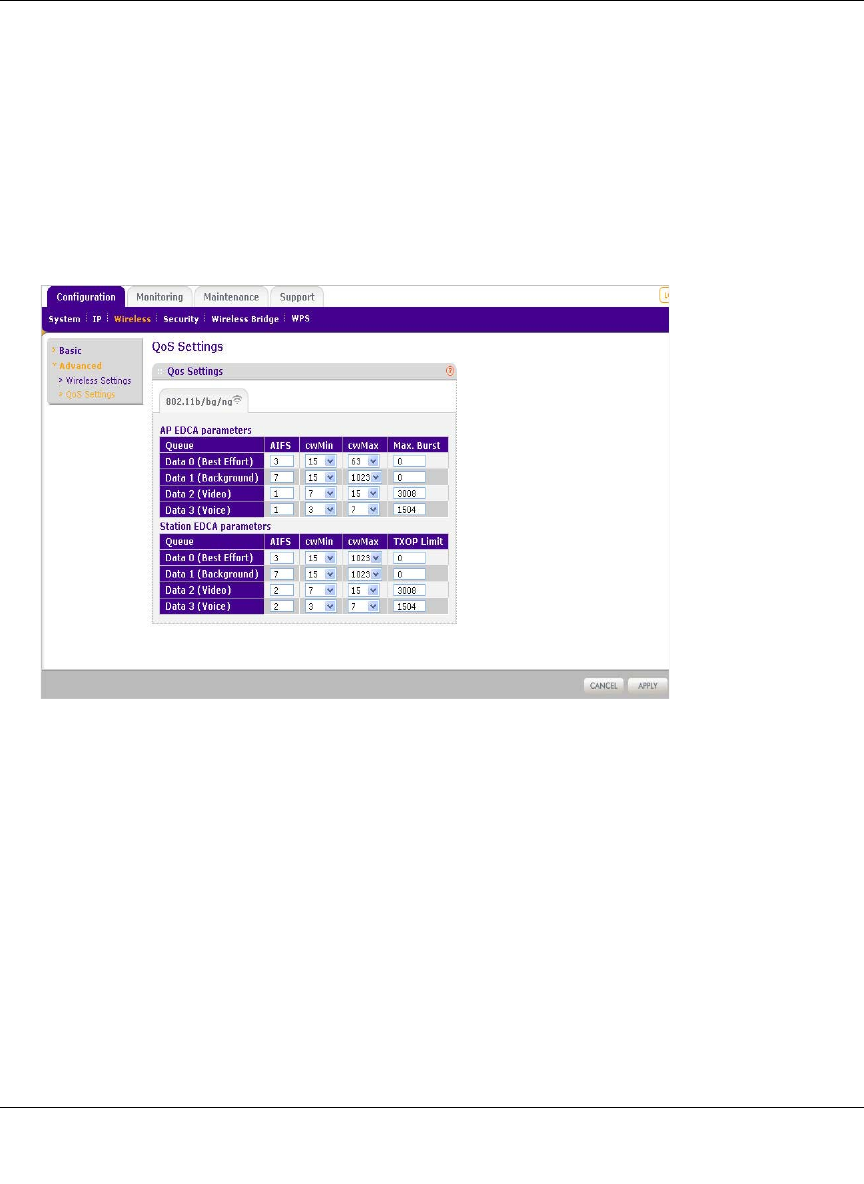

Configuring Basic QoS Settings .............................................................................2-17
Setting Up and Testing Basic Wireless Connectivity ....................................................2-18
Chapter 3
Understanding Security Profiles .....................................................................................3-2

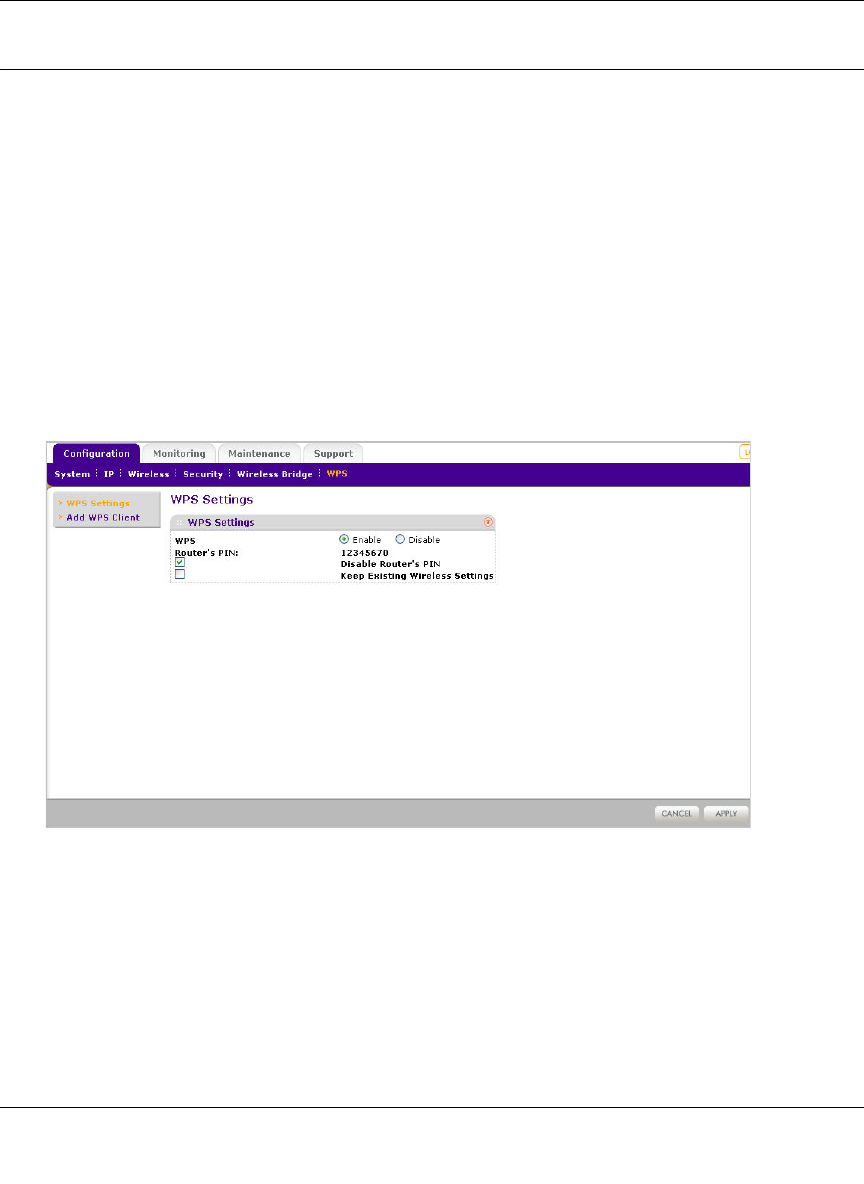

Wi-Fi Protected Setup (WPS) .........................................................................................3-5

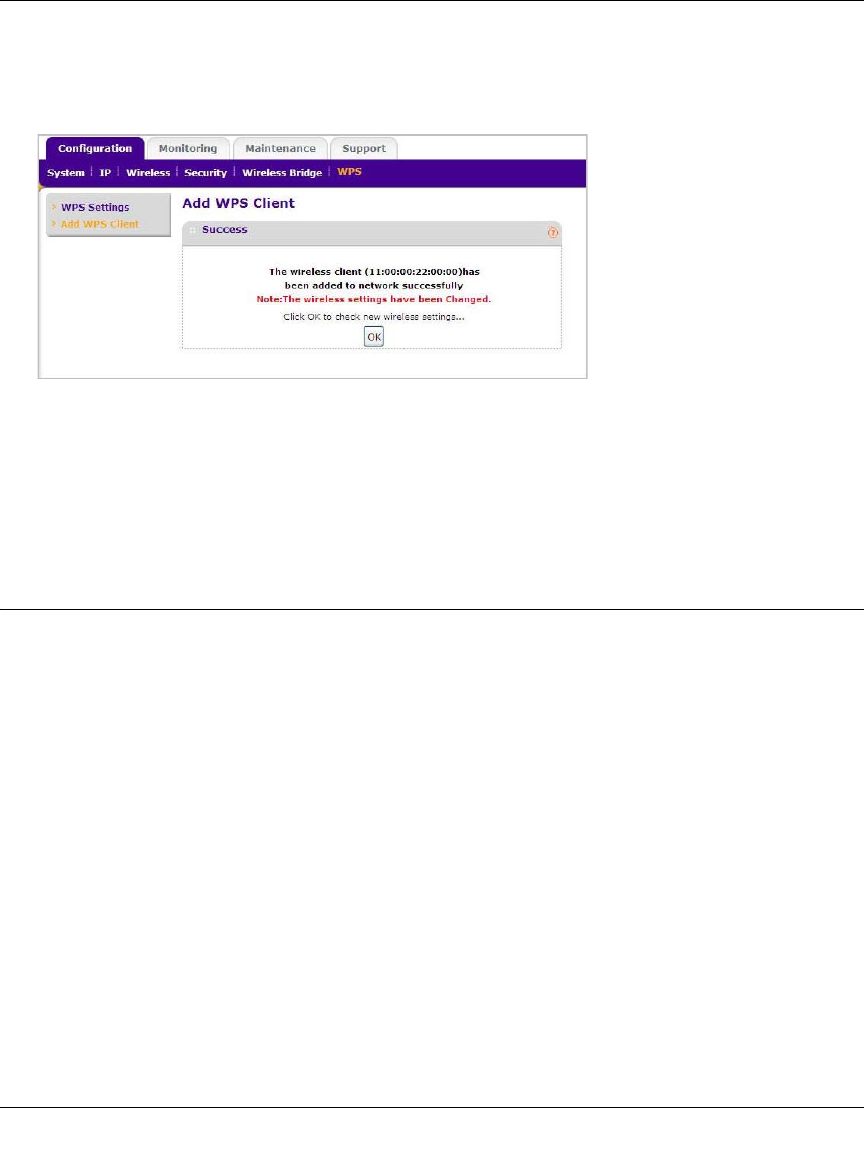

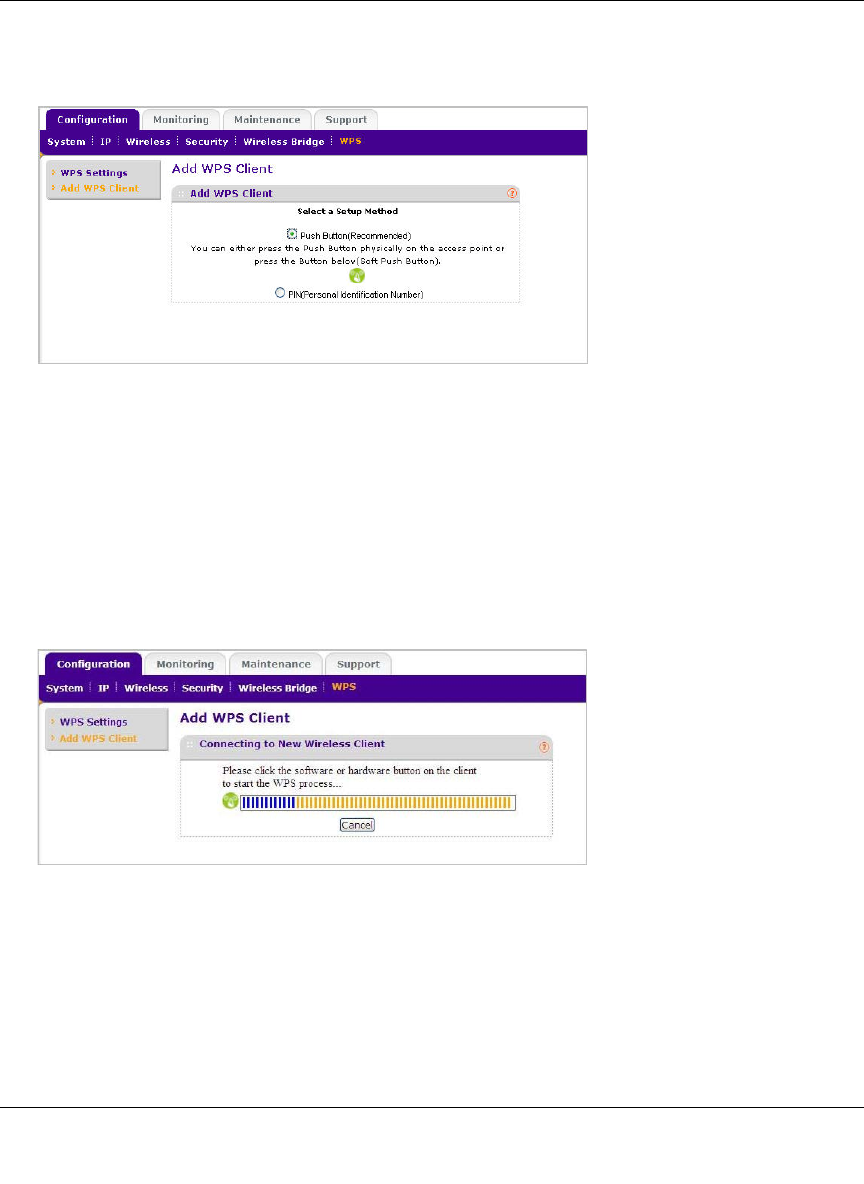

Configuring a client using WPS ................................................................................3-5
Configuring Security Manually ........................................................................................3-8
SSID and WEP/WPA Settings Setup Form ..............................................................3-8

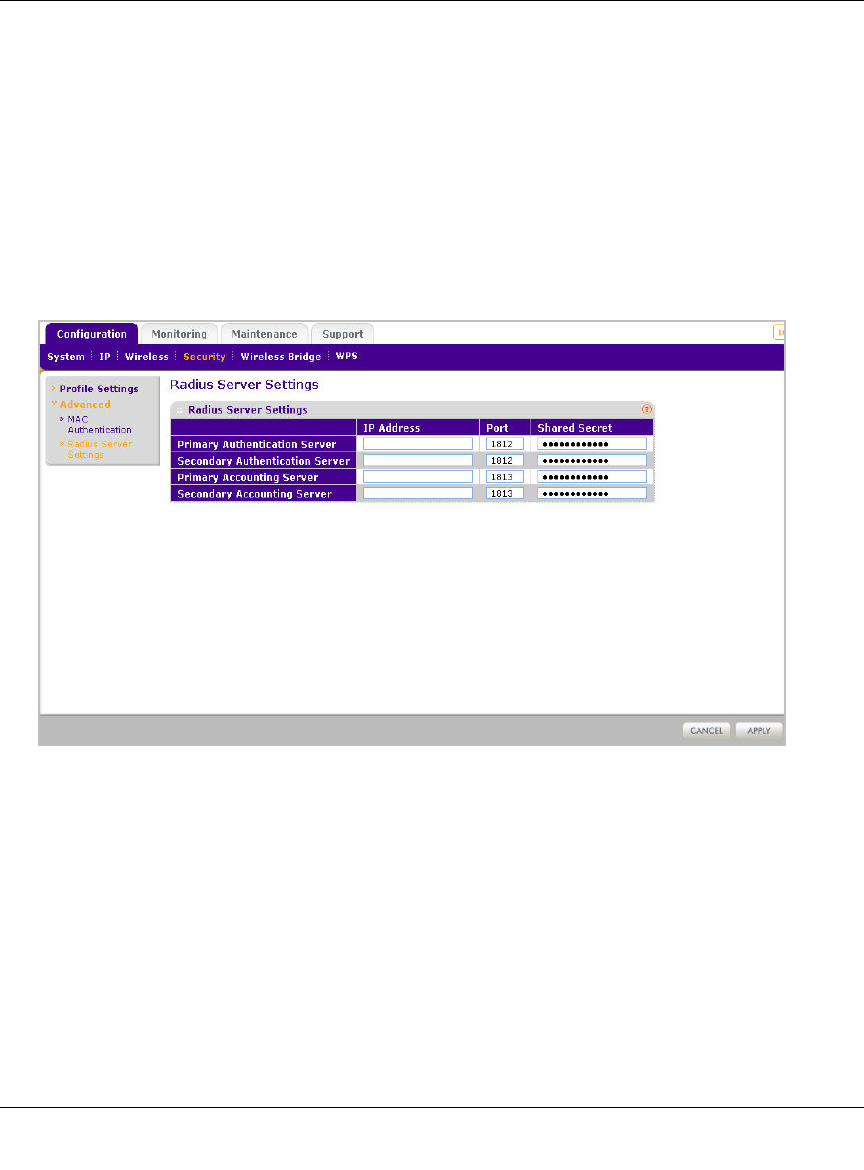

Configuring the RADIUS Server Settings .................................................................3-9

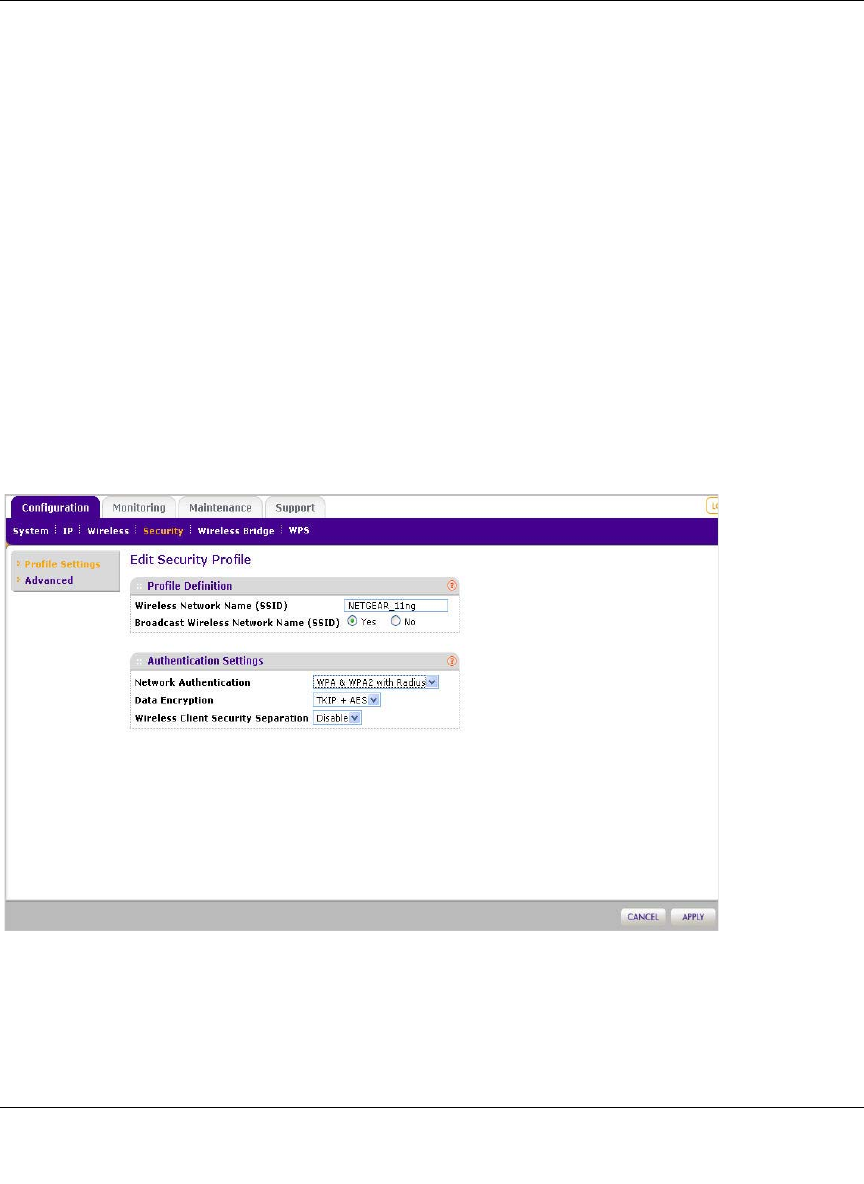

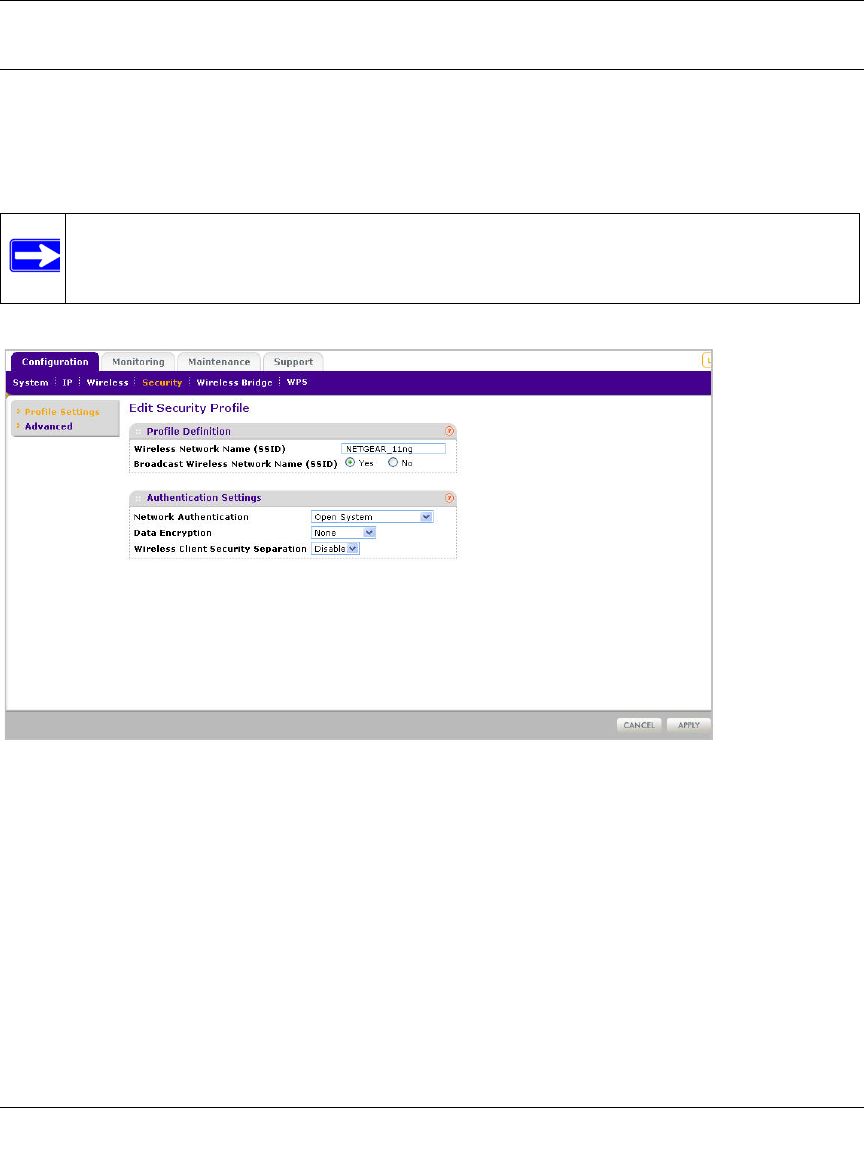

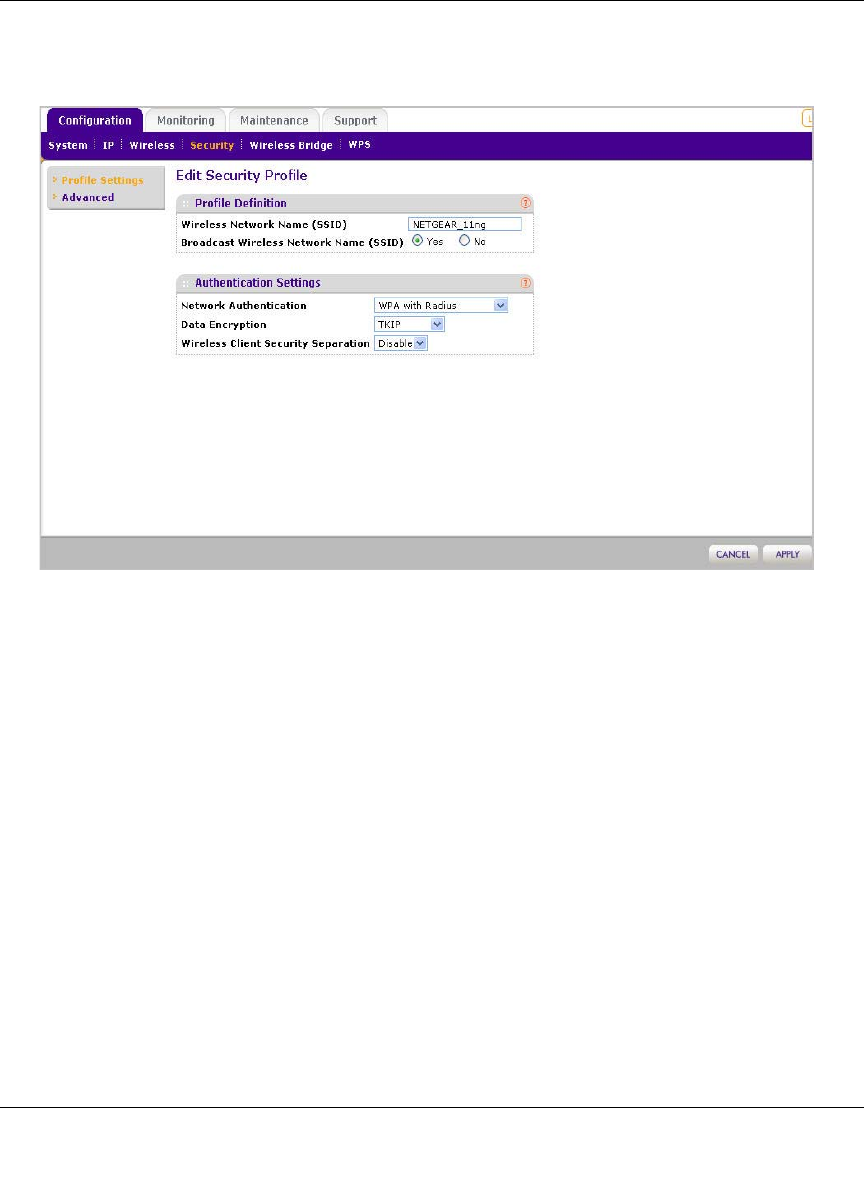

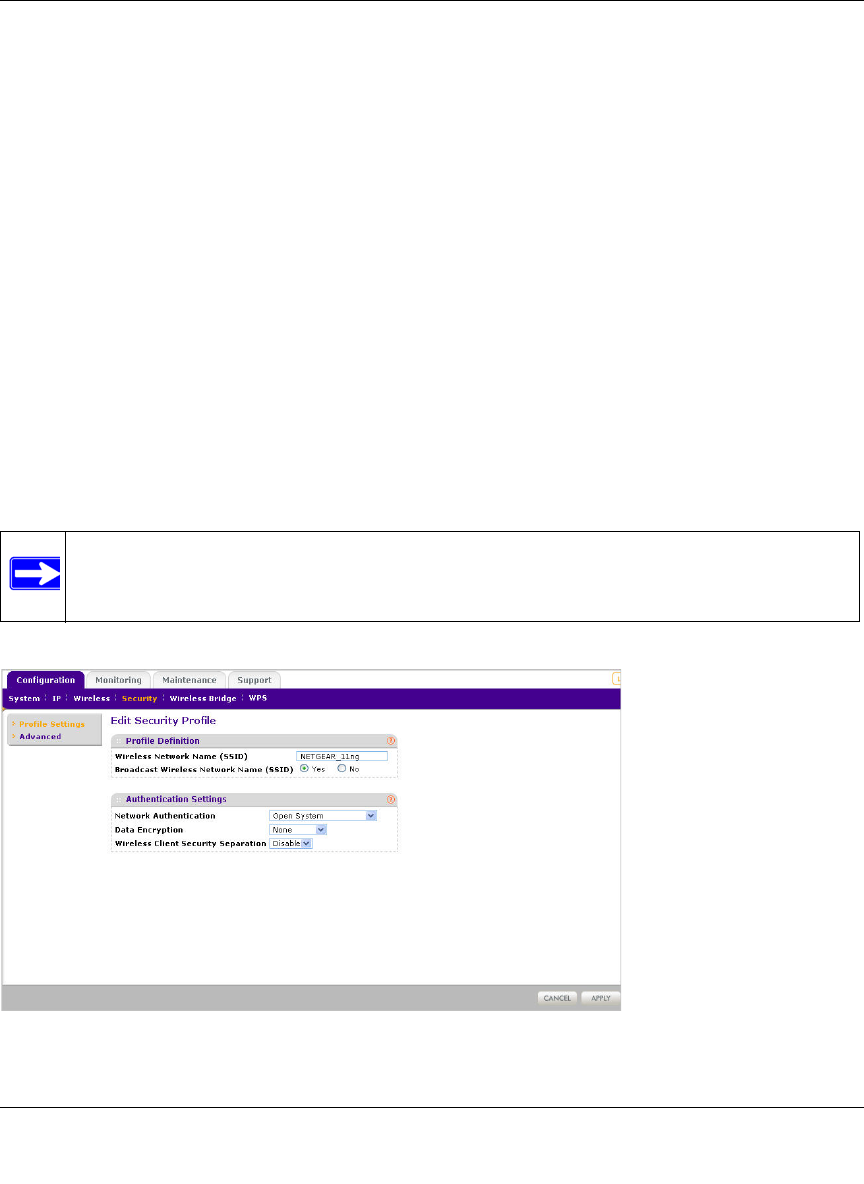

Setting up a Security Profile ...................................................................................3-11

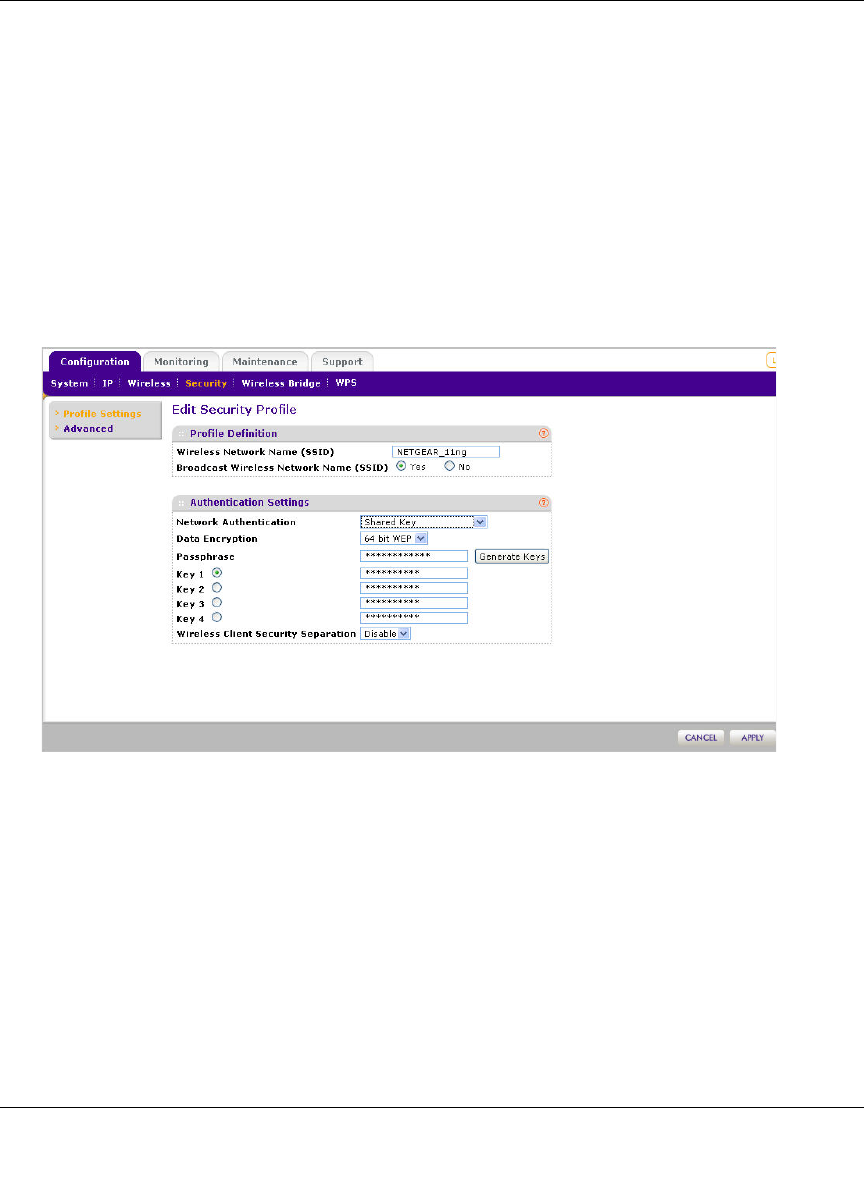

Configuring WEP ....................................................................................................3-12
Configuring WPA with RADIUS ..............................................................................3-14

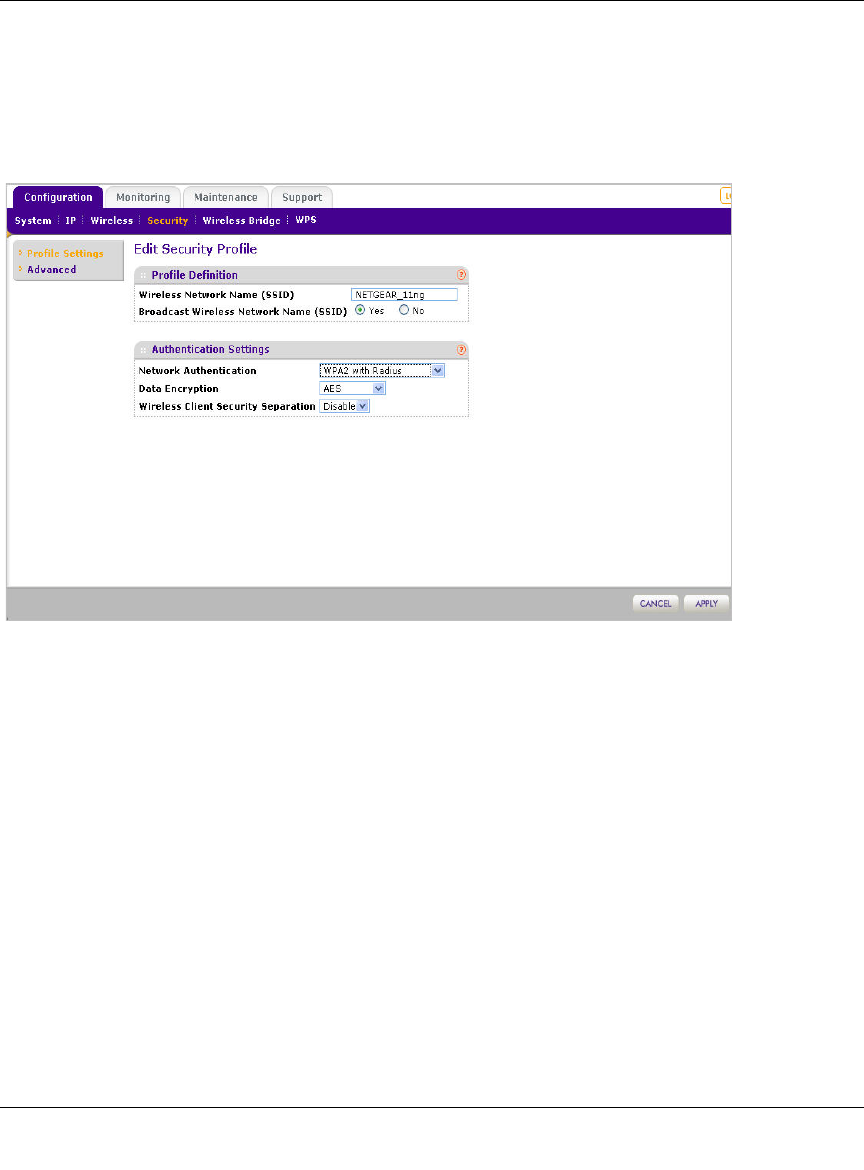

Configuring WPA2 with RADIUS ............................................................................3-16
Configuring WPA and WPA2 with RADIUS ............................................................3-17

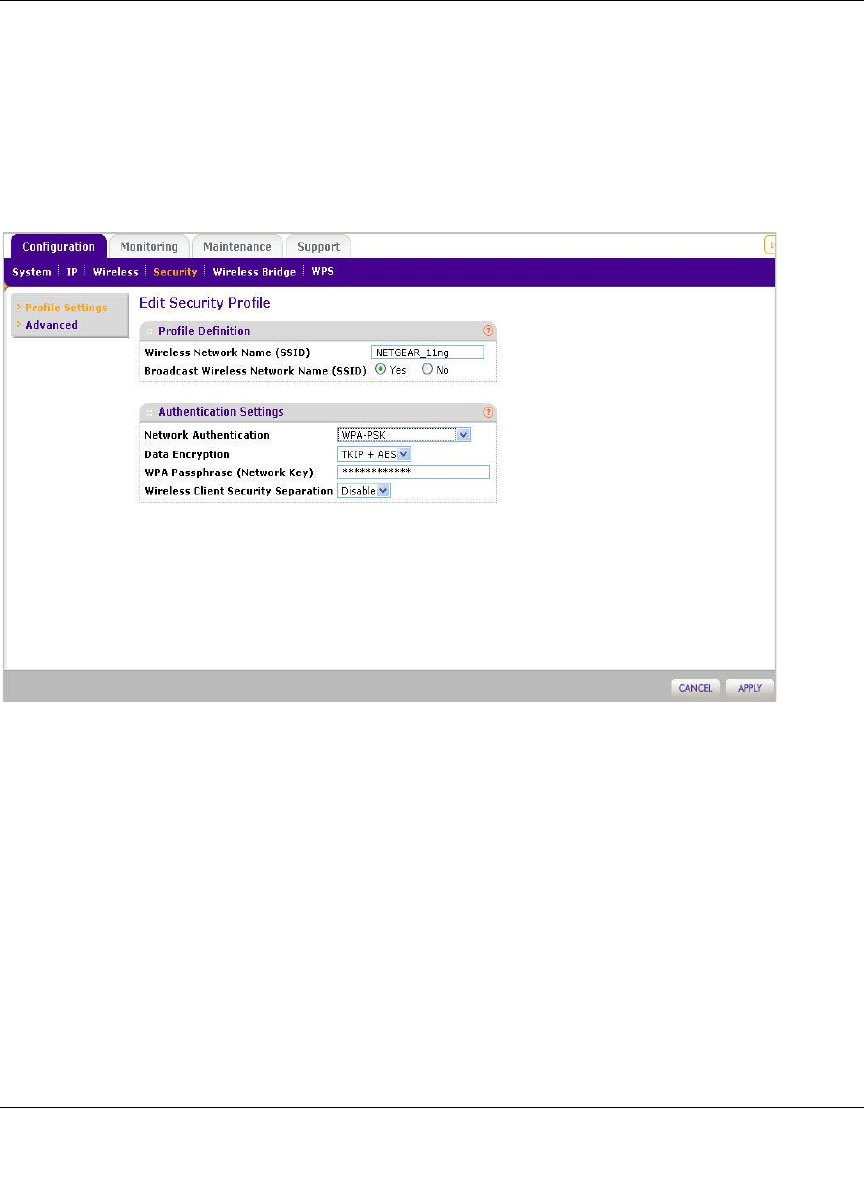

Configuring WPA-PSK ...........................................................................................3-19
Configuring WPA2-PSK .........................................................................................3-20

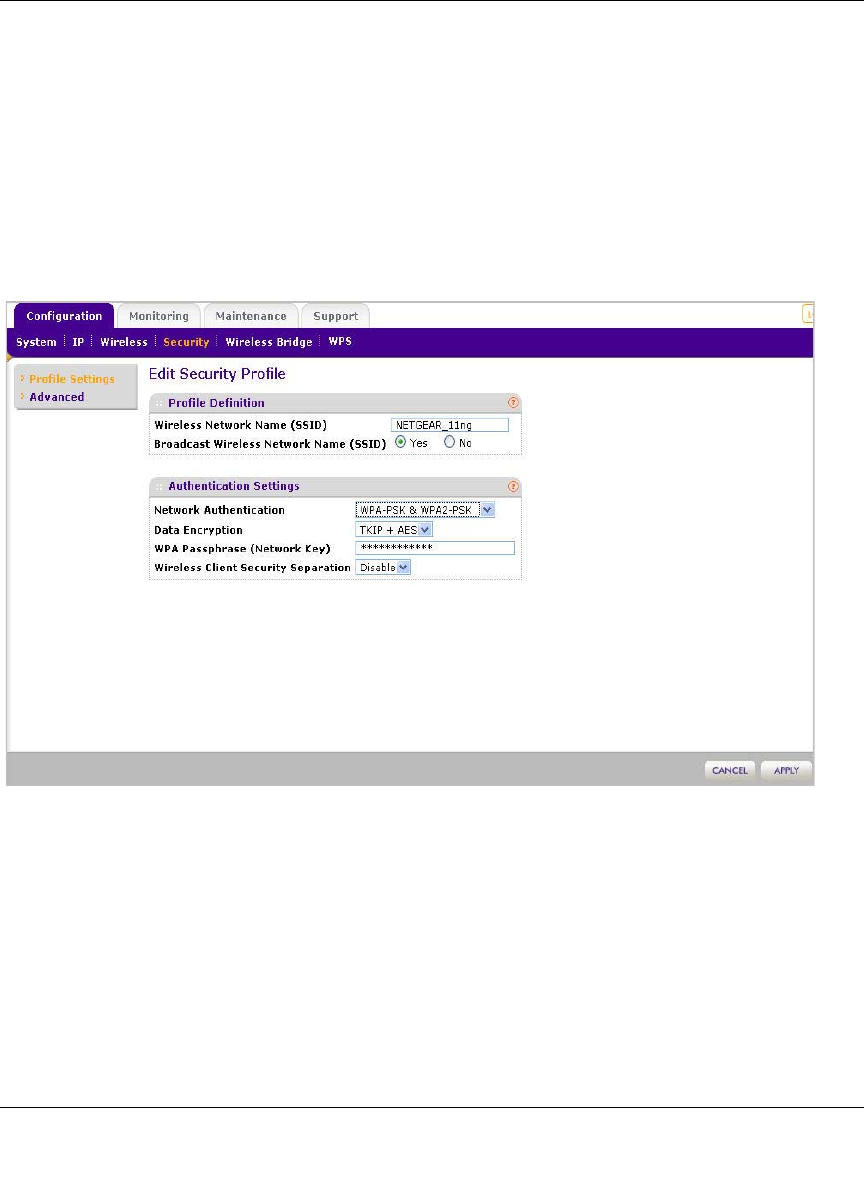

Configuring WPA-PSK and WPA2-PSK .................................................................3-20
Restricting Wireless Access by MAC Address .......................................................3-22
Chapter 4
Management
Upgrading the Wireless Access Point Software .............................................................4-1
Configuration File Management .....................................................................................4-3

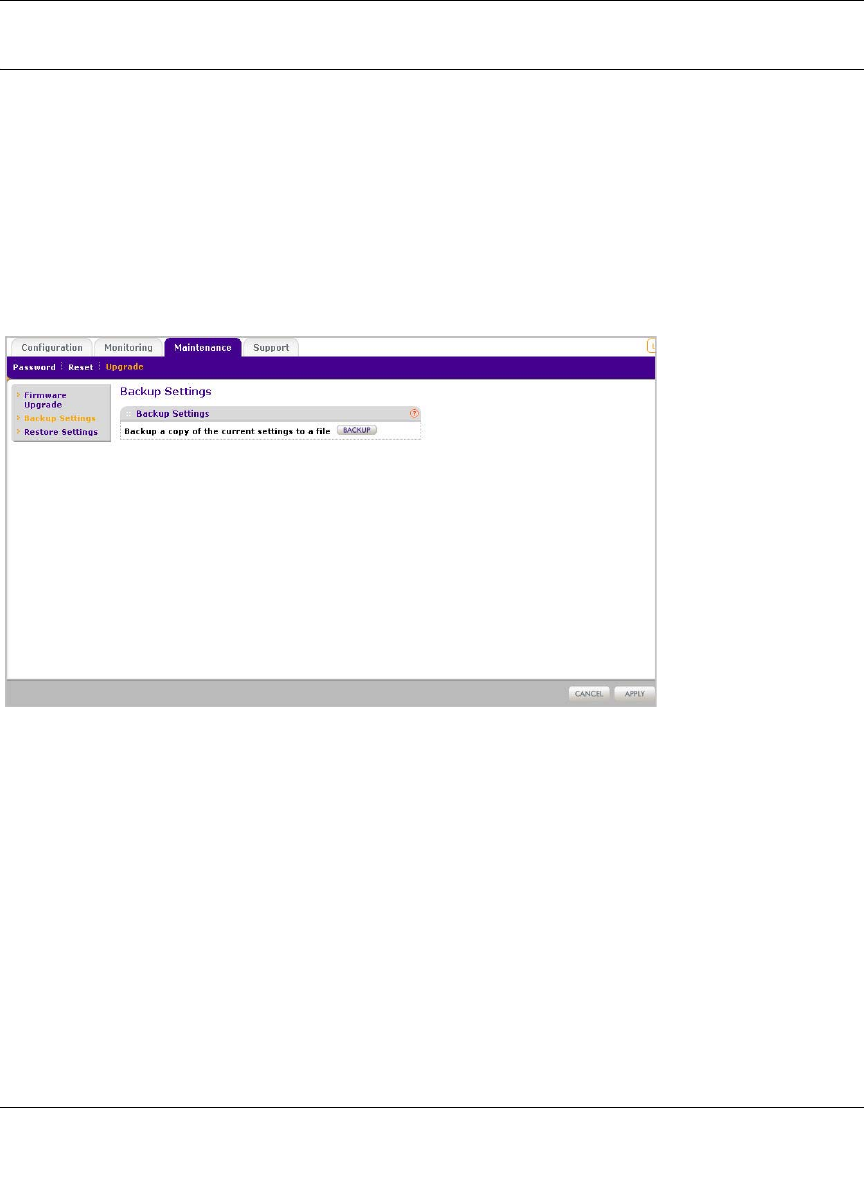

Saving Your Configuration Settings .........................................................................4-3

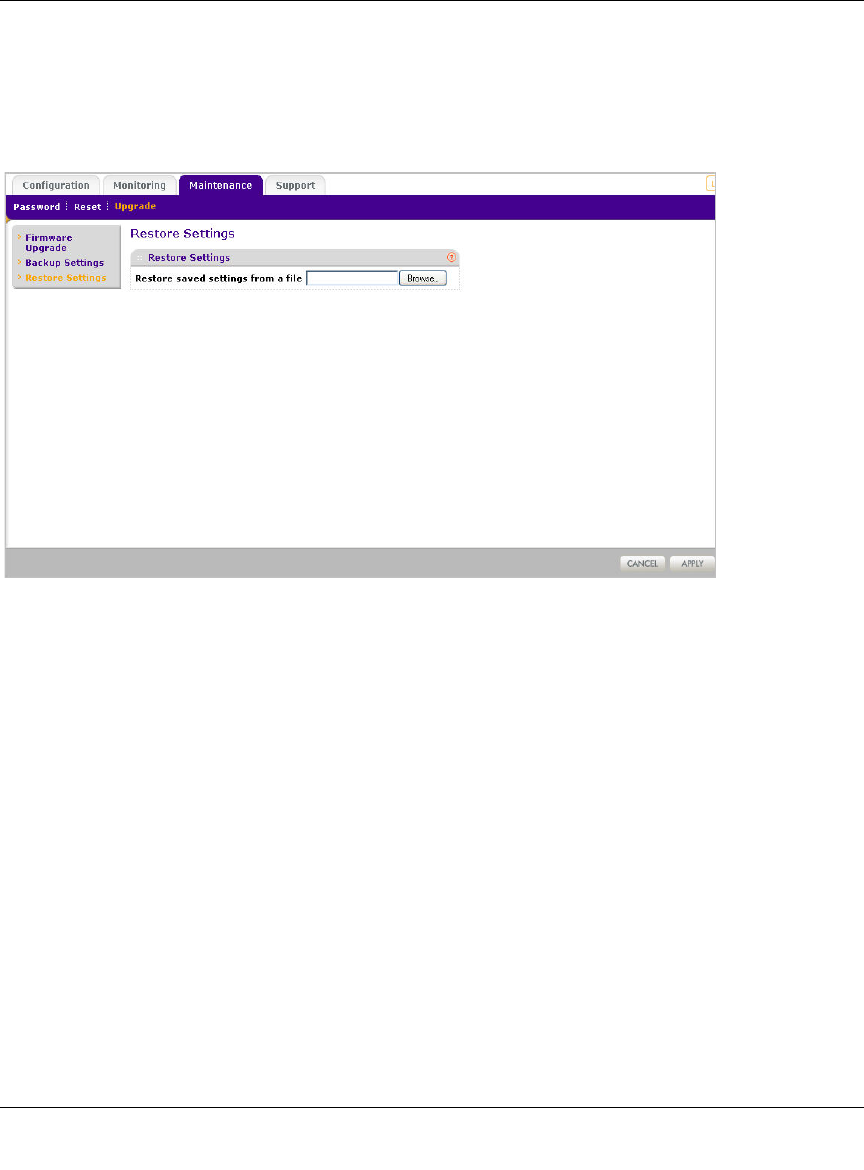

Restoring Saved Settings .........................................................................................4-4

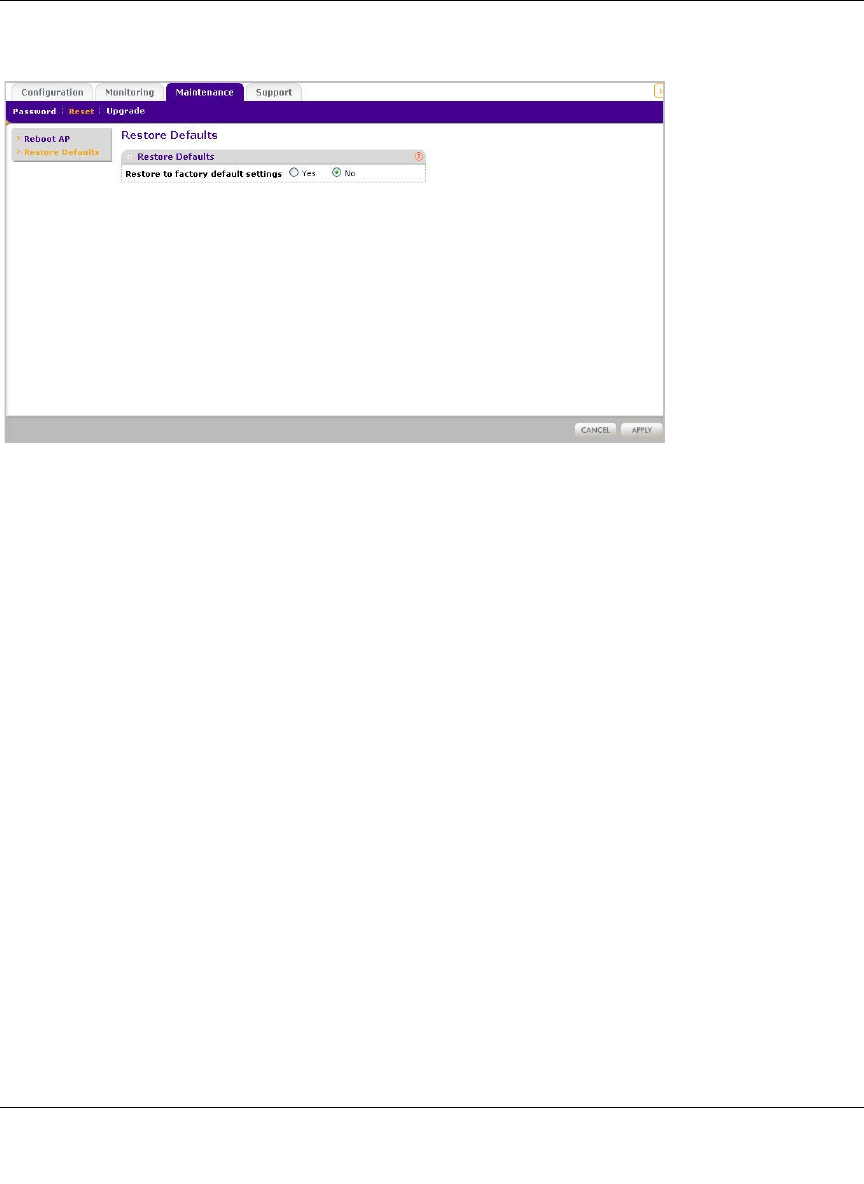

Restoring the WN604 to the Factory Default Settings .............................................4-4

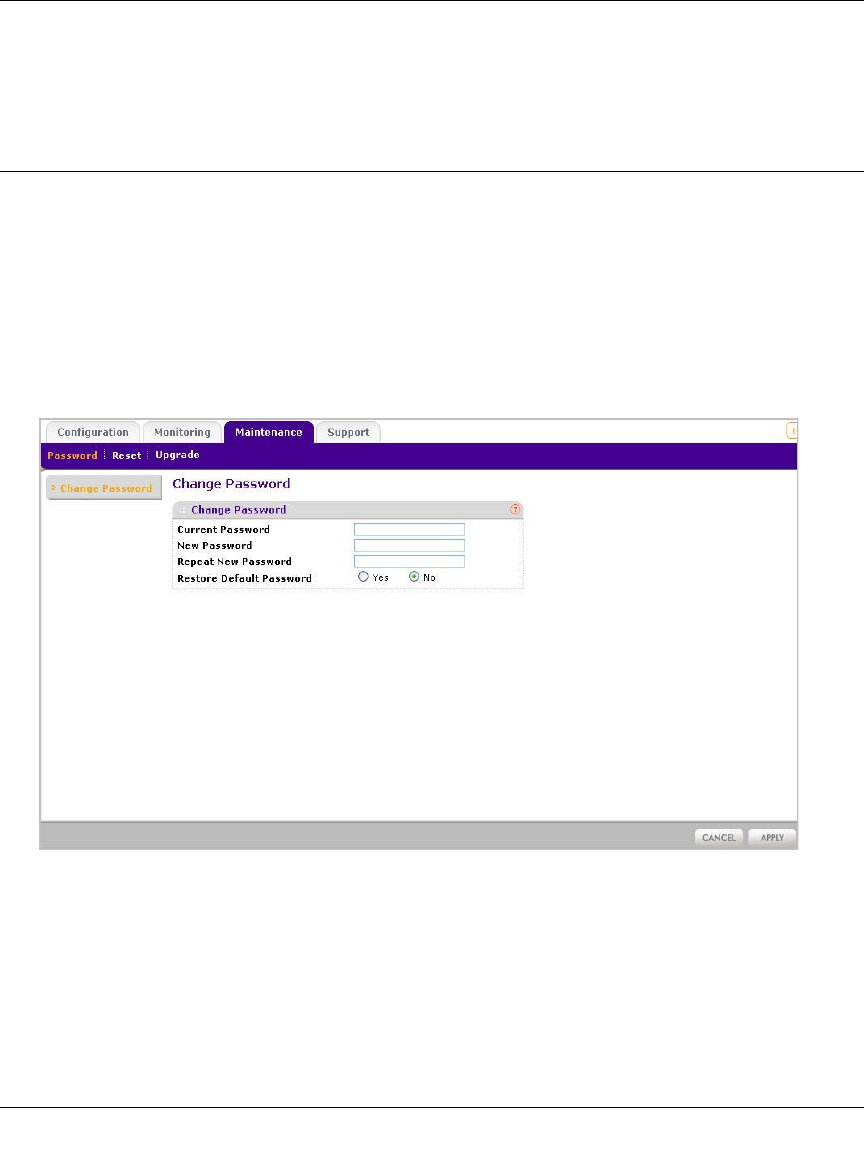

Changing the Administrator Password ...........................................................................4-6

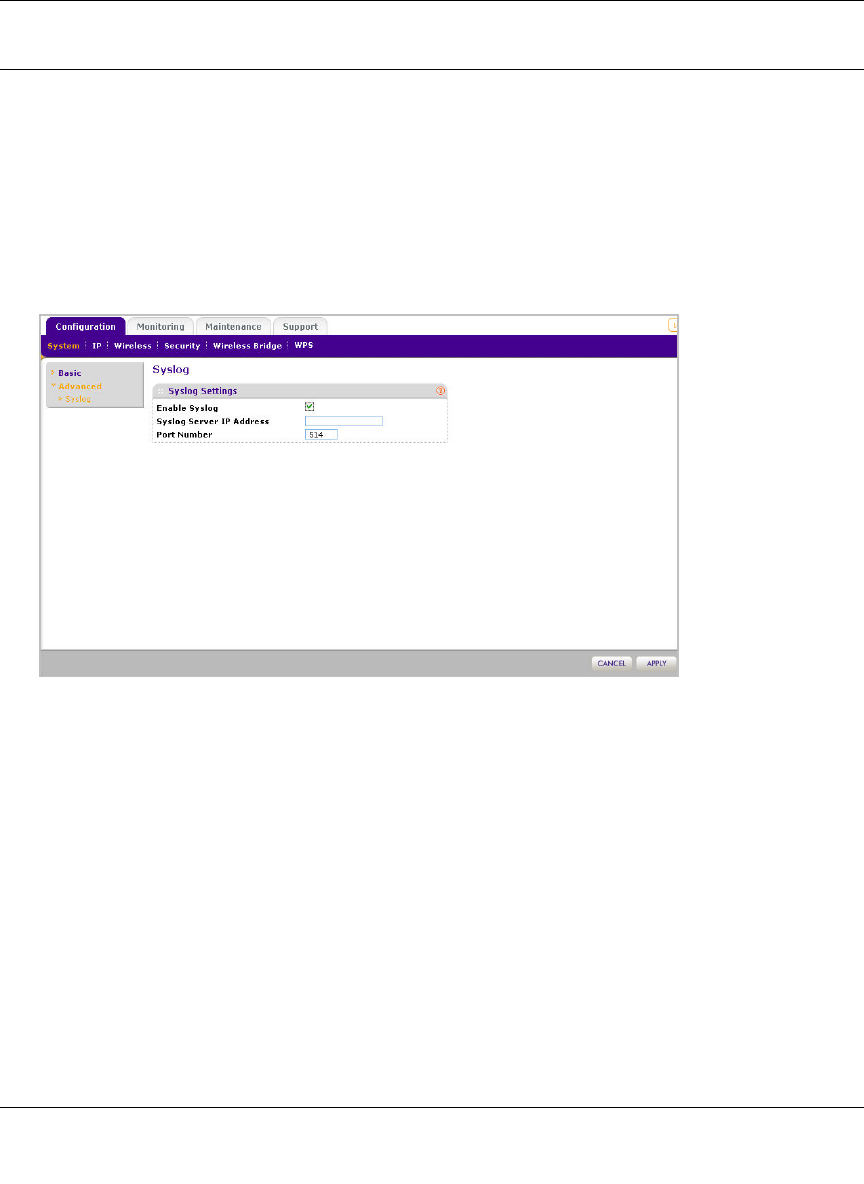

Enabling the SysLog Server ...........................................................................................4-7
ix
1.0, March 2010
NETGEAR Wireless N150 Access Point WN604 Reference Manual

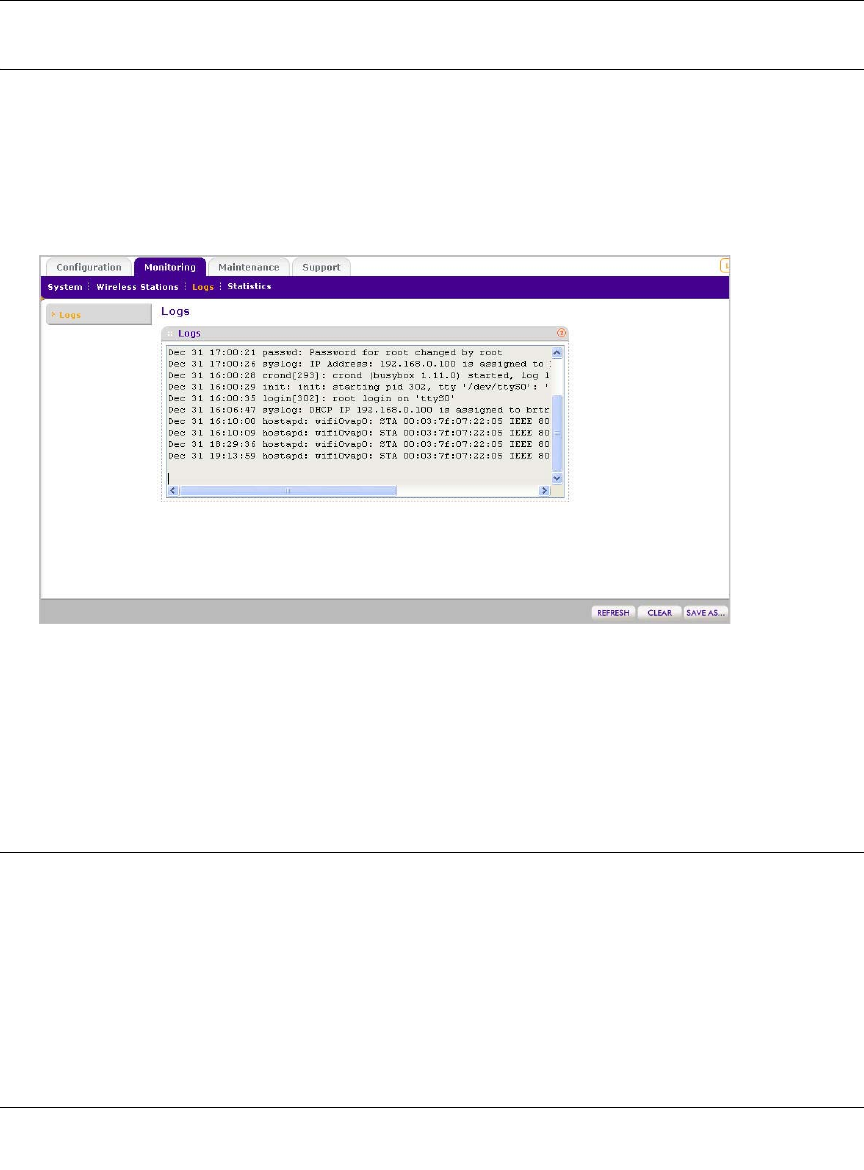

Using Activity Log Information ........................................................................................4-8

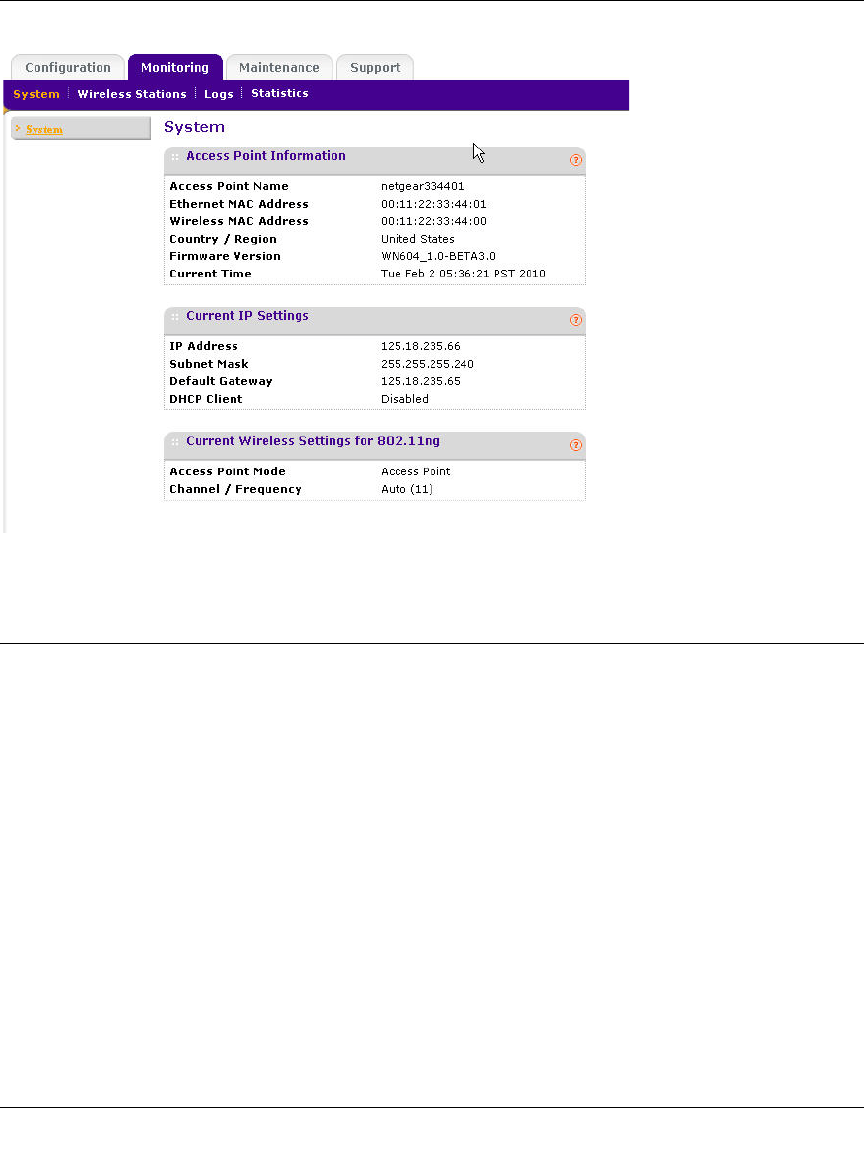

Viewing General Summary Information ..........................................................................4-8

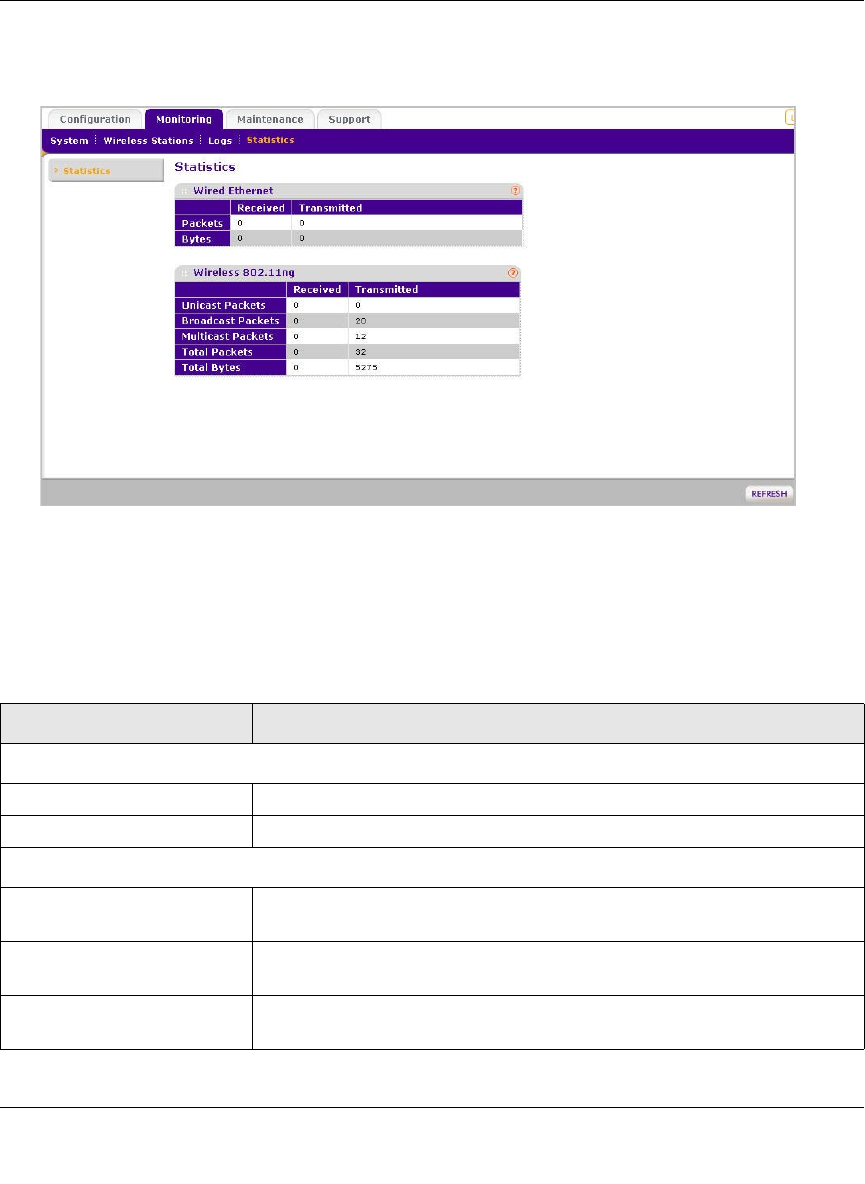

Viewing Network Traffic Statistics .................................................................................4-10

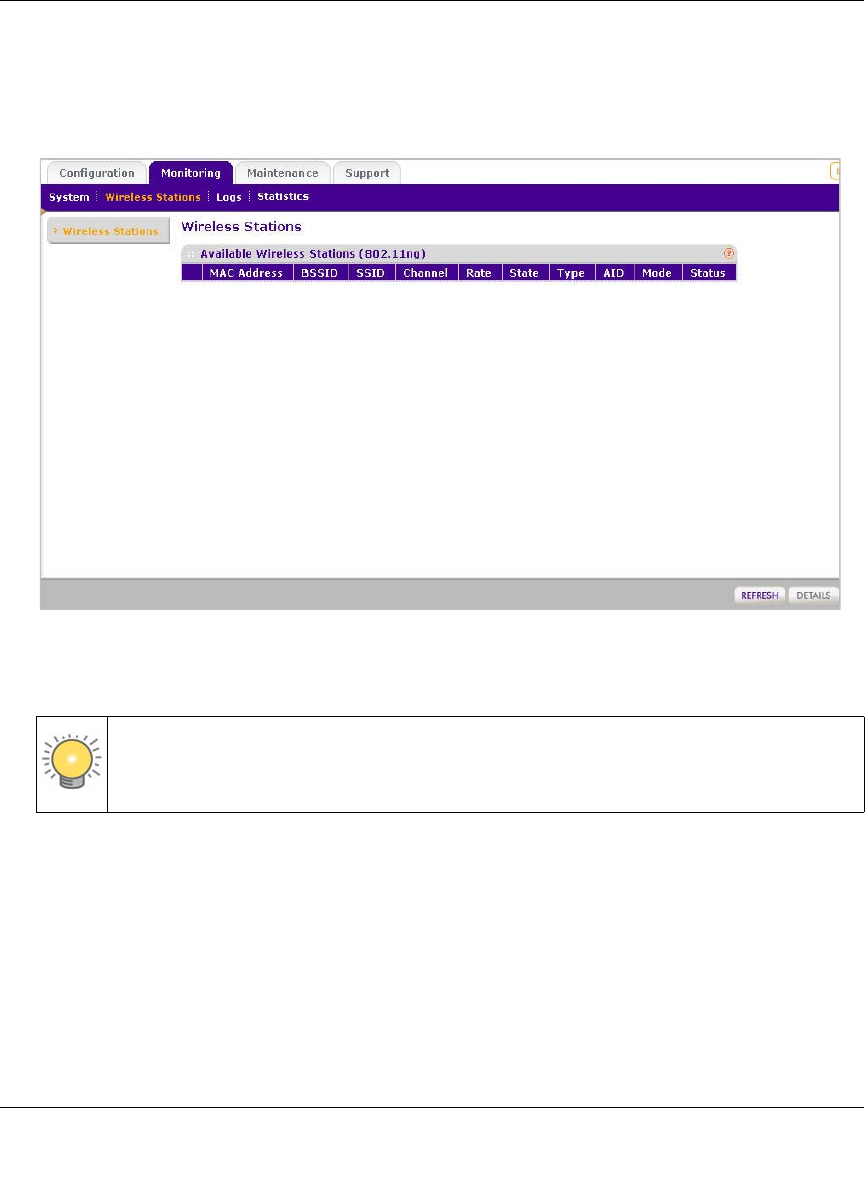

Viewing Available Wireless Station Statistics ................................................................4-12
Chapter 5
Advanced Configuration
Configuring Scheduled Wireless ....................................................................................5-1
Configuring Advanced Wireless Settings .......................................................................5-2

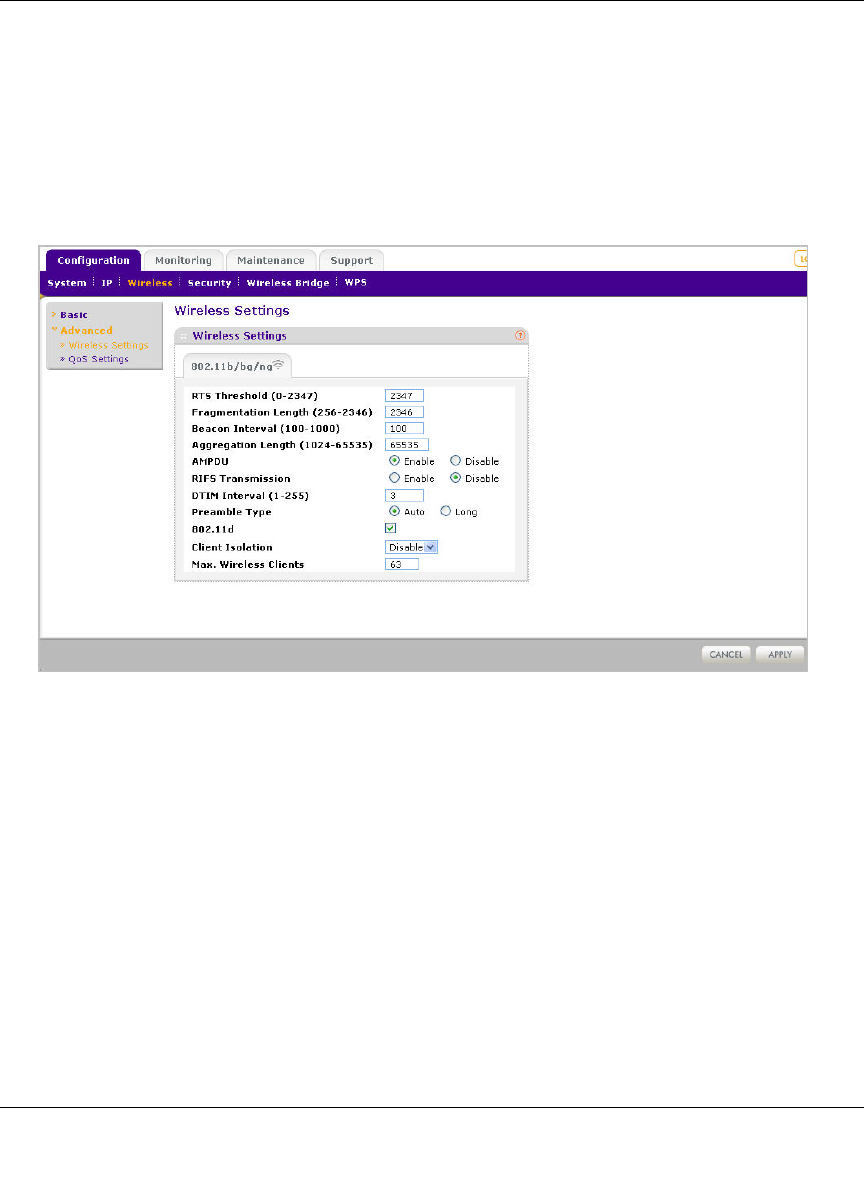

Configuring 802.11b/bg/ng Advanced Wireless Settings .........................................5-3
Configuring Advanced QoS Settings ..............................................................................5-4

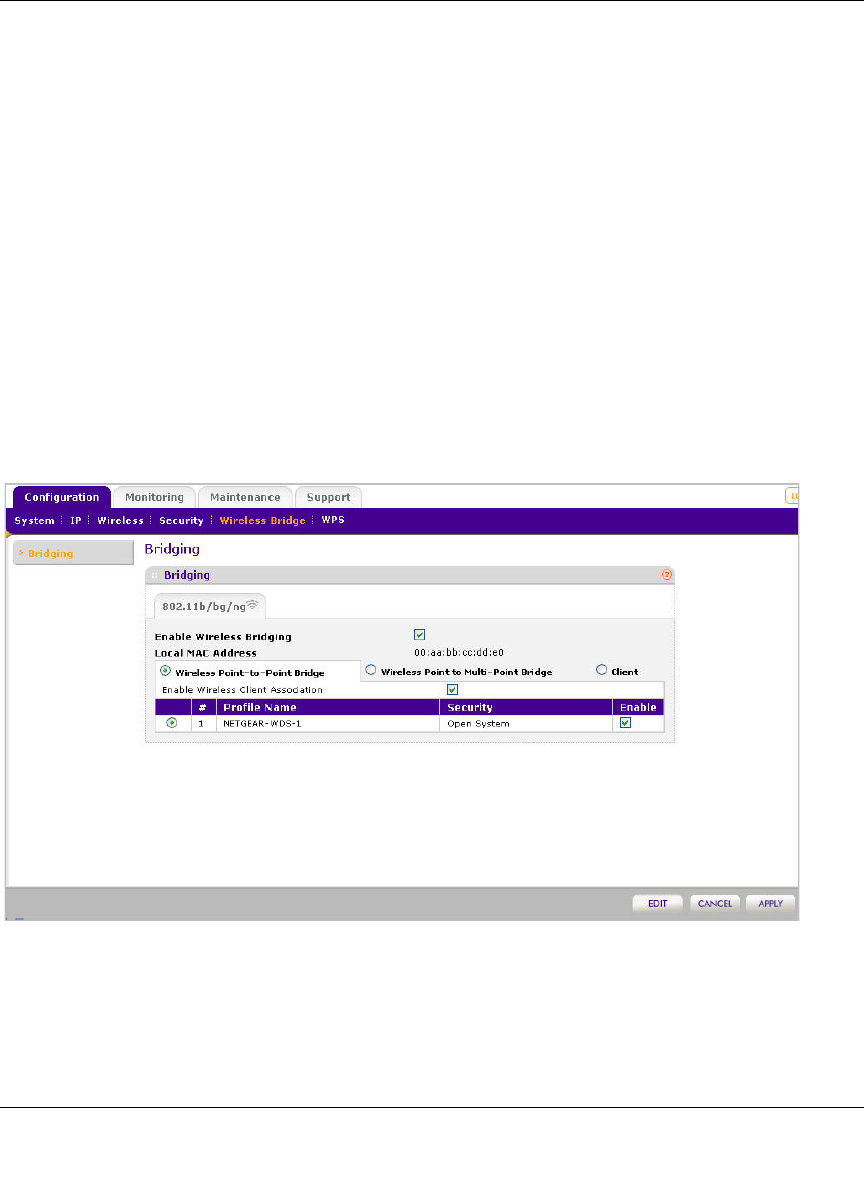

Enabling Wireless Bridging .............................................................................................5-6

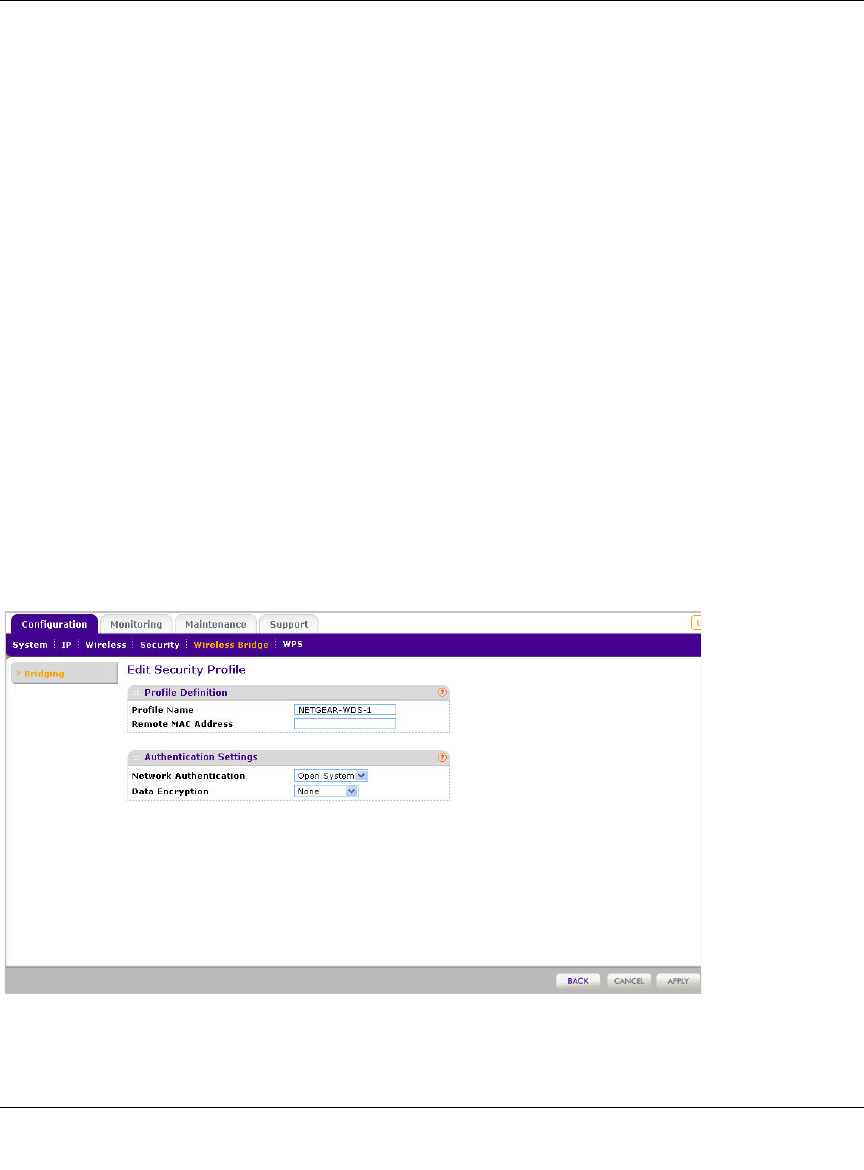

Configuring a WN604 as a Point-to-Point Bridge .....................................................5-9
Configuring a Point-to-Multi-Point Wireless Bridge ................................................5-10
Chapter 6
Troubleshooting and Debugging
No lights are lit on the wireless access point. .................................................................6-1
The Wireless LAN activity light does not light up. ...........................................................6-2
The LAN light is not lit. ....................................................................................................6-2
I cannot access the Internet or the LAN with a wireless capable computer. .................6-2
I cannot connect to the WN604 to configure it. ...............................................................6-3
When I enter a URL or IP address I get a timeout error. ................................................6-3
Using the Reset Button to Restore Factory Default Settings ..........................................6-4
Appendix A
Default Settings and Technical Specifications
Factory Default Settings ................................................................................................ A-1
Technical Specifications ................................................................................................. A-3
Appendix B
Related Documents
Index
1.0, March 2010
x
NETGEAR Wireless N150 Access Point WN604 Reference Manual
xi
v1.0, March 2010
About This Manual
The NETGEAR® Wireless N150 Access Point WN604 Reference Manual describes how to install,
configure and troubleshoot the NETGEAR Wireless N150 Access Point WN604. The information
in this manual is intended for readers with intermediate computer and Internet skills.
Conventions, Formats, and Scope
The conventions, formats, and scope of this manual are described in the following paragraphs:
•Typographical Conventions. This manual uses the following typographical conventions::
•Formats. This manual uses the following formats to highlight special messages:
Italic Emphasis, books, CDs, file and server names, extensions
Bold User input, IP addresses, GUI screen text
Fixed Command prompt, code
italic URL links
Note: This format is used to highlight information of importance or special interest.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
xii
v1.0, March 2010
•Scope. This manual is written for the WN604 Wireless Access Point according to these
specifications:
For more information about network, Internet, firewall, and VPN technologies, see the links to the
NETGEAR website in Appendix B, “Related Documents.”
How to Print This Manual
Your computer must have the free Adobe Acrobat reader installed in order to view and print PDF
files. The Acrobat reader is available on the Adobe Web site at
http://www.adobe.com.
– Printing a PDF chapter. Use the PDF of This Chapter link at the top left corner of any
page.
• Click the PDF of This Chapter link at the top left corner of any page in the chapter
you want to print. The PDF version of the chapter you were viewing opens in a
browser window.
• Click the print icon in the upper left of your browser window.
Tip: This format is used to highlight a procedure that will save time or resources.
Warning: Ignoring this type of note may result in a malfunction or damage to the
equipment.
Danger: This is a safety warning. Failure to take heed of this notice may result in
personal injury or death.
Product Version NETGEAR Wireless N150 Access Point WN604
Manual Publication Date March 2010
Note: Product updates are available on the NETGEAR, Inc. website at
http://kbserver.netgear.com/products/WN604.asp.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
xiii
v1.0, March 2010
–Printing a PDF version of the complete manual. Use the Complete PDF Manual link
at the top left corner of any page.
• Click the Complete PDF Manual link at the top left corner of any page in the manual.
The PDF version of the complete manual opens in a browser window.
• Click the print icon in the upper left corner of your browser window.
Revision History
Tip: If your printer supports printing two pages on a single sheet of paper, you can
save paper and printer ink by selecting this feature.
Part Number Version
Number Date Description
202-10623-01 1.0 March 2010 Product update: New firmware and new user Interface
NETGEAR Wireless N150 Access Point WN604 Reference Manual
xiv
v1.0, March 2010
1-1
v1.0, March 2010
Chapter 1
Introduction
This chapter describes some of the key features of the NETGEAR Wireless N150 Access Point
WN604. It also includes the minimum prerequisites for installation (“System Requirements” on
page 1-5.), package contents (“What’s In the Box?” on page 1-5) and a description of the front and
back panels of the WN604 (“Hardware Description” on page 1-5).

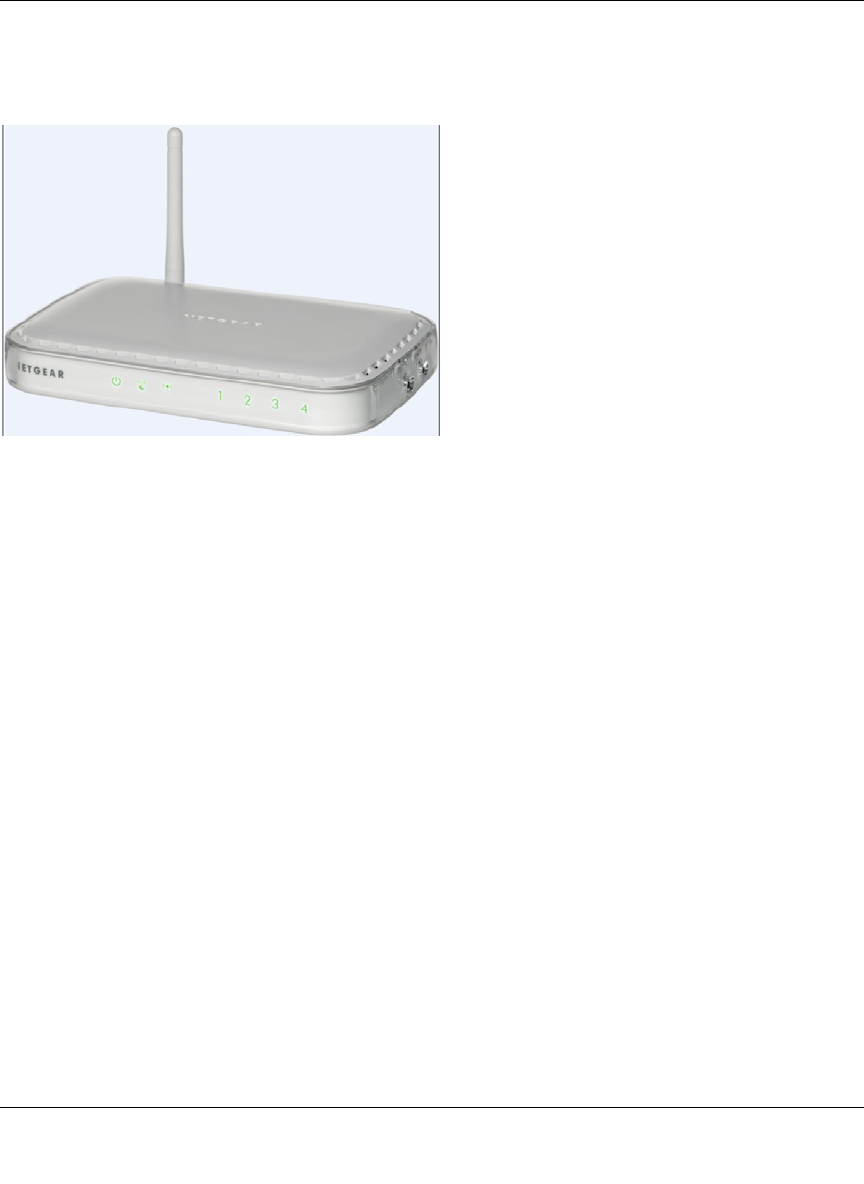

About the NETGEAR Wireless N150 Access Point WN604
The NETGEAR Wireless N150 Access Point WN604 is the basic building block of a wireless
LAN infrastructure. It provides connectivity between Ethernet wired networks and radio-equipped
wireless notebook systems, desktop systems, print servers, and other devices.
The WN604 provides wireless connectivity to multiple wireless network devices within a fixed
range or area of coverage—interacting with a wireless network interface card (NIC) via an
antenna. Typically, an individual in-building access point provides a maximum connectivity area
of about a 500 foot radius. Consequently, the NETGEAR Wireless N150 Access Point WN604 can
support a small group of users in a range of several hundred feet. Most access points can handle
between 10 to 30 users simultaneously per radio.

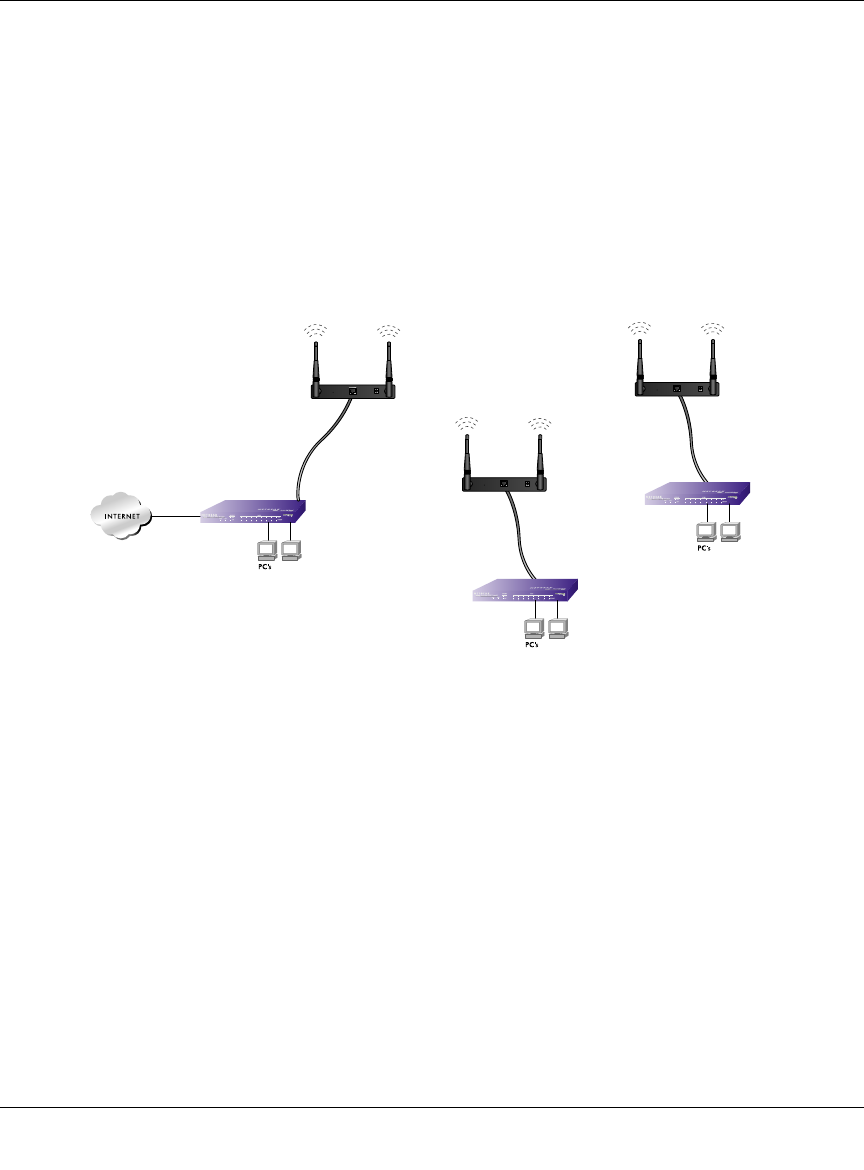

The NETGEAR Wireless N150 Access Point WN604 acts as a bridge between the wired LAN and
wireless clients. Connecting multiple WN604 Wireless Access Points via a wired Ethernet
backbone can further lengthen the wireless network coverage. As a mobile computing device
moves out of the range of one access point, it moves into the range of another. As a result, wireless
clients can freely roam from one Access Point to another and still maintain seamless connection to
the network.
Key Features and Standards
The WN604 Wireless Access Point is easy-to-use and provides solid wireless and networking
support. It also offers a wide range of security options.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
1-2 Introduction
v1.0, March 2010
Supported Standards and Conventions
The following standards and conventions are supported:
•Standards Compliance. The Wireless Access Point complies with the IEEE 802.11b/g/n
standards for Wireless LANs.
•Wi-Fi Protected Setup support. Wi-Fi Protected Setup (WPS) support, a standard created
and certified by the Wi-Fi Alliance for easy and secure home wireless network configuration.
•Full WPA and WPA2 support. WPA and WPA2 enterprise-class strong security with
RADIUS and certificate authentication as well as dynamic encryption key generation.WPA-
PSK and WPA2-PSK preshared key authentication without the overhead of RADIUS servers
but with all of the strong security of WPA.
•DHCP Client Support. DHCP provides a dynamic IP address to PCs and other devices upon
request. The WN604 can act as a client and obtain information from your DHCP server; it can
also act as a DHCP server and provide network information for wireless clients.
•LAN ports. 4 x 10/100 LAN ports support.
Key Features
The WN604 provides solid functionality, including the following features:
•Operating Frequency. The Wireless Access Point operates in the standard 2.4 GHz band. It
has Multiple operating modes:
– Wireless Access Point. Operates as a standard 11b/bg/ng access point.
– Point-to-Point Bridge. In this mode, the WN604 only communicates with another bridge-
mode wireless access point (with or without clients). Network authentication should be
used to protect this communication.
– Point-to-Multi-Point Bridge. In this mode the WN604 is the “Master” for a group of
bridge-mode wireless access points. The other bridge-mode wireless access points send all
traffic to this “Master”, and do not communicate directly with each other. Network
Authentication should be used to protect this traffic.
– Client mode. In this mode the access point acts as a client. It is used to extend the LAN of
clients that do not have wireless connectivity
•Scheduled Wireless ON/OFF. Schedule wireless to be ON/OFF through certain days of the
week and hours of each weekday.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Introduction 1-3
v1.0, March 2010
•Upgradeable Firmware. Firmware is stored in a flash memory and can be upgraded easily,
using only your Web browser, and can be upgraded remotely. In addition to using Web
browser to do so, command-line interface and SNMP can also be used.
•Access Control. The Access Control MAC address filtering feature can ensure that only
trusted wireless stations can use the WN604 to gain access to your LAN.
•Hidden Mode. The SSID is not broadcast, assuring only clients configured with the correct
SSID can connect.
•Configuration Backup. Configuration settings can be backed up to a file and restored.
•Autosensing Ethernet Connection with Auto Uplink Interface. Connects to 10/100 Mbps
IEEE 802.3 Ethernet networks.
•LED Indicators. Power, WPS, Wireless Activity, LAN speed, and LAN activity are easily
identified.
• Wireless Multimedia (WMM) Support. WMM is a subset of the 802.11e standard. WMM
allows wireless traffic to have a range of priorities, depending on the kind of data. Time-
dependent information, like video or audio, has a higher priority than normal traffic. For
WMM to function correctly, Wireless clients must also support WMM.
• WMM Power Save Support. Power Save uses mechanisms from 802.11e and legacy 802.11
to save power (for battery powered equipment) and fine-tune power consumption.
802.11b/g/n Standards-based Wireless Networking
The NETGEAR Wireless N150 Access Point WN604 provides a bridge between Ethernet wired
LANs and 802.11b/g/n compatible wireless LAN networks. It provides connectivity between
Ethernet wired networks and radio-equipped wireless notebook systems, desktop systems, print
servers, and other devices. Additionally, the WN604 supports the following wireless features:
• Aggregation Support
• Reduced Inter Frame Spacing support
• Multiple Input, Multiple Output (MIMO) support
• Distributed coordinated function (CSMA/CA, Back off procedure, ACK procedure,
retransmission of unacknowledged frames)
• RTS/CTS handshake
• Beacon generation
• Packet fragmentation and reassembly
• Auto or long preamble
• Roaming among access points on the same subnet
NETGEAR Wireless N150 Access Point WN604 Reference Manual
1-4 Introduction
v1.0, March 2010
Autosensing Ethernet Connections with Auto Uplink
The WN604 can connect to a standard Ethernet network. The LAN interface is autosensing and
capable of full-duplex or half-duplex operation.
The wireless access point incorporates Auto UplinkTM technology. The Ethernet port will
automatically sense whether the Ethernet cable plugged into the port should have a “normal”
connection such as to a computer or an “uplink” connection such as to a switch or hub. That port
will then configure itself to the correct configuration. This feature also eliminates any concerns
about crossover cables, as Auto Uplink will accommodate either type of cable to make the right
connection.
Compatible and Related NETGEAR Products
For a list of compatible products from other manufacturers, see the Wireless Ethernet
Compatibility Alliance Web site (WECA, see http://www.wi-fi.net).
The following NETGEAR products work with the WN604 Wireless Access Point:
• FS108P - ProSafe 8 Port 10/100 Switch with 4 Port PoE
• FS116P ProSafe 16 Port 10/100 Desktop Switch with 8 Port PoE
• FS726TP - ProSafe 24 Port 10/100 Smart Switch with 2 Gigabit Ports and 12 Port PoE
• FS728TP - ProSafe 24+4 10/100 Smart Switch with full PoE
• FS752TPS - ProSafe 48 Port 10/100 Stackable Smart Switch with 4 Gigabit Ports and 24 Port
PoE
• FSM7328PS - ProSafe 24-port 10/100 L3 Managed Stackable Switch with 24 PoE Ports
• FSM7352PS
• GS724TP
• GS748TP
• WNDA3100 - RangeMax Dual Band Wireless-N USB 2.0 Adapter
• WN121T RangeMax NEXT Wireless-N USB 2.0 Adapter
• WN111 - RangeMax Next Wireless-N USB Adapter
• WG511T 802.11g 108 Mbps Wireless CardBus Adapter
• WG511 802.11g 54 Mbps Wireless CardBus Adapter
• WG111 801.11g 54 Mbps Wireless USB Adapter
• WPN111 - RangeMax Wireless USB 2.0 Adapter
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Introduction 1-5
v1.0, March 2010
System Requirements
Before installing the WN604, make sure your system meets these requirements:
• A 10/100 Mbps Local Area Network device such as a hub or switch.
• The Category 5 UTP straight through Ethernet cable with RJ-45 connector included in the
package, or one like it.
• A 100-240 V, 50-60 Hz AC power source.
• A Web browser for configuration such as Microsoft Internet Explorer 6.0 or above, or Mozilla
3.0 or above.
• At least one computer with the TCP/IP protocol installed.
• 802.11b/g/n-compliant devices, such as the NETGEAR WNDA3100v2 Wireless Adapter.
What’s In the Box?
The product package should contain the following items:
• NETGEAR Wireless N150 Access Point WN604.
• Power adapter and cord (12V dc, 1A).
• Straight through Category 5 Ethernet cable.
•Resource CD which includes this manual.
• Support Registration card.
Contact your reseller or customer support in your area if there are any missing or damaged parts.
You can refer to the Support Information Card for the telephone number of customer support in
your area. You should keep the Support Information card, along with the original packing
materials, and use the packing materials to repack the WN604 if you need to return it for repair. To
qualify for product updates and product warranty registrations, we encourage you to register on the
NETGEAR Web site at: http://www.NETGEAR.com.
Hardware Description
This section describes the front and rear hardware functions of the WN604.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
1-6 Introduction
v1.0, March 2010
Front Panel
The WN604 front hardware functions are described below.
The following table explains the LED indicators on the front panel:
Figure 1-1 WN604 Front Panel
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Introduction 1-7
v1.0, March 2010
Table 1-1. Front Panel LED Indicators
Item LED DESCRIPTION
1Power Power Indicator
OFF No power.
Solid
Amber
AP performing the power on self-test diagnostic.
Solid
Green
Power ON and AP ready
Blinking
Green
Firmware upgrade in process
2W-Fi WPS
Function WPS LED
OFF There is no WPS activity or WPS error and the AP is not in the temporary
AP setup locked state
Blinking
Green
There are WPS activities.(0.5 sec on and 0.5 sec off)
3 802.11b/g/N WLAN LED
Blinking
Blue
Data transmission or receive activity occurs through the wireless
Solid Blue Wireless is up and running without wireless data transmission
OFF Wireless Interface is turned off
4 4* 10/100 LAN Link/Active LED
OFF No link detected.
Solid
Green
100 Mbps link detected, no data transmission on the port.
Blinking
Green
100 Mbps link detected, data transmission on the port.
Solid
Amber
10 Mbps link detected, no data transmission on the port.
Blinking
Amber
10 Mbps link detected, data transmission on the port.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
1-8 Introduction
v1.0, March 2010
Rear Panel
The WN604 rear panel functions are described below:
1. Power Socket
This socket connects to the WN604 12V 1A power adapter.
2. Power ON/OFF switch.
3. 4 x 10/100 RJ-45 Ethernet Ports
Use the WN604 Ethernet RJ-45 port to connect to an Ethernet LAN through a device such as a
hub, switch, router, or PoE switch.
4. Restore to Factory Defaults Button
The restore to default button located between the Ethernet RJ-45 connector and the antenna
restores the WN604 to the factory default settings.
1. Fixed rear Antenna
The WN604 provides a single fixed antenna on the rear panel.
Figure 1-2 WN604 Rear Panel
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Introduction 1-9
v1.0, March 2010
Side Panel
The WN604 side panel hardware functions are described below.
1. Wireless ON/OFF switch.
Use this switch to enable or disable the radio (see “Configuring 802.11b/bg/ng Wireless
Settings” on page 2-13).
2. WPS Push Button.
Use this push button to automatically configure security settings on the WN604 (see
“Configuring a client using WPS” on page 3-5).
Figure 1-3 WN604 Side Panel
NETGEAR Wireless N150 Access Point WN604 Reference Manual
1-10 Introduction
v1.0, March 2010
2-1
v1.0, March 2010
Chapter 2
Basic Installation and Configuration
This chapter describes how to set up your NETGEAR Wireless N150 Access Point WN604 for
wireless connectivity to your LAN. This basic configuration will enable computers with 802.11b/
g/n wireless adapters to do such things as connect to the Internet, or access printers and files on
your LAN.
This chapter contains the following sections:
1. “Wireless Equipment Placement and Range Guidelines”
2. “Understanding WN604 Wireless Security Options”
3. “Installing the WN604 Wireless Access Point”
4. “Logging In Using the Default IP Address”
5. “Setting Basic IP Options”
6. “Wireless Settings”
7. “Setting Up and Testing Basic Wireless Connectivity”
You need to prepare these three things before you can establish a connection through your wireless
access point:
• A location for the WN604 that conforms to the “Wireless Equipment Placement and Range
Guidelines” below.
• The wireless access point connected to your LAN through a device such as a hub, switch,
router, or Cable/DSL gateway.
• One or more computers with properly configured 802.11b/g/n or wireless adapters.
Note: Indoors, computers can connect over 802.11b/bg/ng or wireless networks at ranges
of several hundred feet or more. This distance can allow for others outside your
area to access your network. It is important to take appropriate steps to secure your
network from unauthorized access. The WN604 Wireless Access Point provides
highly effective security features which are covered in detail in “Understanding
Security Profiles” on page 3-2. Deploy the security features appropriate to your
needs.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
2-2 Basic Installation and Configuration
v1.0, March 2010
Wireless Equipment Placement and Range Guidelines
The operating distance or range of your wireless connection can vary significantly based on the
physical placement of the wireless access point. The latency, data throughput performance, and
notebook power consumption of wireless adapters also vary depending on your configuration
choices.
For best results, place your wireless access point:
• Near the center of the area in which your PCs will operate.
• In an elevated location such as a high shelf where the wirelessly connected PCs have line-of-
sight access (even if through walls).
• Away from sources of interference, such as PCs, microwaves, and 2.4 GHz cordless phones.
• Away from large metal surfaces.
Putting the antenna in a vertical position provides best side-to-side coverage. Putting the antenna
in a horizontal position provides best up-and-down coverage.
If you are using multiple access points for 11b/bg/ng, it is better if adjacent access points use
different radio frequency channels to reduce interference. The recommended Channel spacing
between adjacent access points is 5 Channels (for example, use Channels 1 and 6, or 6 and 11). For
11a/na, the 6 Channel spacing is not needed.
The time it takes to establish a wireless connection can vary depending on both your security
settings and placement. Some types of security connections can take slightly longer to establish
and can consume more battery power on a notebook computer.
Understanding WN604 Wireless Security Options
Your wireless data transmissions can be received well beyond your walls by anyone with a
compatible adapter. For this reason, use the security features of your wireless equipment. The
WN604 Wireless Access Point provides highly effective security features which are covered in
detail in the next chapter. Deploy the security features appropriate to your needs.
Note: Failure to follow these guidelines can result in significant performance degradation
or inability to wirelessly connect to the WN604. For complete performance
specifications, see Appendix A, “Default Settings and Technical Specifications.”
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Basic Installation and Configuration 2-3
v1.0, March 2010
There are several ways you can enhance the security of your wireless network:
•Restrict Access Based on MAC address. You can restrict access to only trusted PCs so that
unknown PCs cannot wirelessly connect to the WN604. MAC address filtering adds an
obstacle against unwanted access to your network, but the data broadcast over the wireless link
is fully exposed.
•Turn Off the Broadcast of the Wireless Network Name (SSID). If you disable broadcast of
the SSID, only devices that have the correct SSID can connect. This nullifies the wireless
network “discovery” feature of some products such as Windows XP, Vista and Unix systems
but the data is still fully exposed to a determined snoop using specialized test equipment like
wireless sniffers.
•Use WEP. Wired Equivalent Privacy (WEP) data encryption provides data security. WEP
open authentication and WEP data encryption will block all but the most determined
eavesdropper.
•Use WPA or WPA-PSK. Wi-Fi Protected Access (WPA) data encryption provides data
security. The very strong authentication along with dynamic per frame rekeying of WPA make
it virtually impossible to compromise. Because this is a new standard, wireless device driver
and software availability may be limited.
Wi-Fi Protected Setup
You can also use Wi-Fi Protected Setup (WPS) to automatically configure your AP to the best
available security options (see “Wi-Fi Protected Setup (WPS)” on page 3-5).
Installing the WN604 Wireless Access Point
Before installing the NETGEAR Wireless N150 Access Point WN604, you should make sure that
your Ethernet network is up and working. You will be connecting the access point to the Ethernet
network so that computers with 802.11b/g/n wireless adapters will be able to communicate with
computers on the Ethernet network. In order for this to work correctly, verify that you have met all
of the system requirements, shown on “System Requirements” on page 1-5.
Note: WEP and TKIP provide only legacy rates of operation. So, AES is the
recommended solution to use the 802.11n rates and speed.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
2-4 Basic Installation and Configuration
v1.0, March 2010
Setting up the WN604 Wireless Access Point
To set up the WN604 Wireless Access Point:
1. Prepare a computer with an Ethernet adapter. If this computer is already part of your network,
record its TCP/IP configuration settings.
2. Configure the computer with a static IP address of 192.168.0.210 and 255.255.255.0 for the
Subnet Mask.
3. Connect an Ethernet cable from the WN604 to the computer.
4. Turn on your computer, connect the power adapter to the WN604 and verify the following:
• The PWR power light goes on.
• The LAN light of the wireless access point is lit when connected to a powered on
computer.
• The WLAN LEDs should be blinking.
Configuring LAN and Wireless Access
To configure the WN604 Ethernet port for LAN access:
1. Connect to the WN604 by opening your browser and entering http://192.168.0.100 in the
address field. The WN604 login screen appears (see Figure 2-1).
2. Enter admin for the user name and password for the password, both in lower case letters.
Tip: Before mounting the WN604 in a high location, first set up and test the WN604 to
verify wireless network connectivity.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Basic Installation and Configuration 2-5
v1.0, March 2010
3. Click Login. The main menu of the WN604 displays as shown in Figure 2-2.
• When the wireless access point is connected to the Internet, under the Support tab, select
Documentation to view the documentation for the wireless access point.
• On the top-right of the screen, select Logout to exit the WN604 setup screens. (You will
automatically be logged out of the wireless access point after 5 minutes of no activity.)
4. Access Point Name: Enter the access point name of the WN604.
Figure 2-1 Login screen
Figure 2-2 Access Point Name and Country / Region
NETGEAR Wireless N150 Access Point WN604 Reference Manual
2-6 Basic Installation and Configuration
v1.0, March 2010
This unique name is the access point NetBIOS name. The default Access Point Name is
located on the bottom label of WN604. The default is netgearxxxxxx, where xxxxxx
represents the last 6 digits of the WN604 MAC address. You may modify the default name
with a unique name up to 15 characters long.
5. From the Country/Region pull-down menu, select the region where the WN604 can be used
(the default Country/Region is the United States).
6. Select Time from the left panel. The Time screen displays, as shown in Figure 2-3.
7. Enter the Time Settings for your area. See the online help or “Configuring Time Settings” on
page 2-7 for more information about how to configure the settings on this screen.
Note: If your country or region is not listed, please check with Netgear Support.
Figure 2-3 Timezone and system time related settings
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Basic Installation and Configuration 2-7
v1.0, March 2010
8. Select IP on the main menu. The IP Settings screen displays, as shown in Figure 2-4.
9. Configure the IP Address settings appropriate for your network. The default values are
suitable for most users and situations. (See the online help or “Setting Basic IP Options” on
page 2-12 for more information about how to configure the settings on this screen.
10. Click Apply.
Configuring Time Settings
To configure your time settings:
1. Under the Configuration tab, select System from the main menu, select Basic, and then select
Time. The Time screen displays, as shown in Figure 2-5.
Figure 2-4 IP Settings
NETGEAR Wireless N150 Access Point WN604 Reference Manual
2-8 Basic Installation and Configuration
v1.0, March 2010
2. Configure the following information:
–Time Zone. From the pull-down menu, select the local time zone for your wireless access
point from a list of all available time zones. The default is USA-Pacific.
–NTP Client. Enable NTP Client to synchronize the time of the access point with an NTP
Server. The Default is Enabled.
–Use Custom NTP Server. Check the option if you have a custom NTP server. The default
is Disabled.
–Hostname / IP Address. Enter the host name or the IP address of the custom NTP server.
The default is time-b.netgear.com.
3. Click Apply.
Figure 2-5 Timezone and system time related settings
Note: You must have an Internet connection to get the current time.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Basic Installation and Configuration 2-9
v1.0, March 2010
Configuring Wireless Access
To configure your wireless settings for 11b/bg/ng:
1. From the main menu under Configuration, select Wireless. The Wireless Settings screen
displays, as shown in Figure 2-6.
2. Enter the wireless settings for your area. See the online help or “Wireless Settings” on
page 2-13.
3. Click Apply to save your settings.
When you have completed the setup steps, you can deploy the WN604 in your network. If needed,
you can now reconfigure the computer you used in step 1 (from the Static IP) back to its original
TCP/IP settings.
Deploying the WN604 Wireless Access Point
To deploy the WN604 Wireless Access Point:
1. Disconnect the WN604 and position it where it will be deployed. The best location is elevated,
such as wall mounted or on the top of a cubicle, at the center of your wireless coverage area,
and within line of sight of all the mobile devices.
Figure 2-6 Basic Wireless Settings for 802.11b/bg/ng
NETGEAR Wireless N150 Access Point WN604 Reference Manual
2-10 Basic Installation and Configuration
v1.0, March 2010
2. Lift the antennae on either side so that they are vertical.
3. Connect an Ethernet cable from your WN604 Wireless Access Point to a LAN port on your
router, switch, or hub.
4. Connect the power adapter to the wireless access point and plug the power adapter in to a
power outlet. The PWR, LAN, and Wireless LAN lights and should light up.
Verifying Wireless Connectivity
Using a computer with an 802.11b/bg/ng wireless adapter with the correct wireless settings needed
to connect to the WN604 (SSID, WEP/WPA, MAC ACL, etc.), verify connectivity by using a
browser such as Mozilla Firefox or Internet Explorer to browse the Internet, or check for file and
printer access on your network.
The default SSID for the 802.11b/bg/ng wireless mode is NETGEAR-11g. The SSID of any
wireless access adapters must match the SSID configured in the NETGEAR Wireless N150
Access Point WN604. If they do not match, no wireless connection will be made.
Note: Refer to the antenna positioning and wireless mode configuration information
in the Advanced Configuration chapter of the Reference Manual.
Note: By default, WN604 is set with the DHCP client disabled. If your network uses
dynamic IP addresses, you must change this setting. To connect to the WN604
after the DHCP server on your network assigns it a new IP address, enter the
wireless access point name into your Web browser. The default wireless access
point name is netgearxxxxxx, where xxxxxx represents the last 6 bytes of the
MAC address. The default name is printed on the bottom label of the WN604.
Note: If you are unable to connect, see Chapter 6, “Troubleshooting and Debugging.”
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Basic Installation and Configuration 2-11
v1.0, March 2010
Logging In Using the Default IP Address
After you install the WN604, log in to the wireless access point to configure the basic settings and
the wireless settings. The WN604 is set, by default, with the IP address of 192.168.0.100 with
DHCP disabled.
To log in using the default IP Address:
1. Open a Web browser such as Internet Explorer or Mozilla Firefox.
2. Connect to the WN604 by entering its default address of http://192.168.0.100 into your
browser. The login screen displays. Enter admin for the user name and password for the
password, both in lower case letters.
3. Click Login.
Your Web browser should automatically find the WN604 Wireless Access Point and display
the home screen.
Note: The computer you are using to connect to the WN604 should be configured with
an IP address that starts with 192.168.0.x and a Subnet Mask of 255.255.255.0.
Figure 2-7 Connecting to the Access Point
NETGEAR Wireless N150 Access Point WN604 Reference Manual
2-12 Basic Installation and Configuration
v1.0, March 2010
Setting Basic IP Options
The basic IP settings for your wireless access point are entered on this screen. Most of the default
settings will work in most cases. However, if your wireless access point is part of a more complex
LAN network, then modify the settings to meet the requirements of your network based on the
explanation of the various fields.
To configure the basic IP settings of your wireless access point:
1. Under Configuration, select IP, and then IP Settings. The IP Settings screen displays as
shown in Figure 2-8 below.
2. Enter the IP Address fields of the WN604.
–DHCP Client. By default, the Dynamic Host Configuration Protocol (DHCP) client is
disabled. If you have a DHCP server on your LAN and you enable DHCP, the wireless
access point will get its IP address, subnet mask and default gateway settings
automatically from the DHCP server on your network when you connect the WN604 to
your LAN.
–IP Address. Enter the IP Address of your wireless access point.The default IP address is
192.168.0.100. To change it, enter an unused IP address from the address range used on
your LAN; or enable DHCP.
Figure 2-8 Basic IP options
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Basic Installation and Configuration 2-13
v1.0, March 2010
–IP Subnet Mask. The Access Point will automatically calculate the subnet mask based on
the IP address that you assign. Otherwise, you can use 255.255.255.0 (the default) as the
subnet mask.
–Default Gateway. Enter the IP address of the gateway for your LAN. For more complex
networks, enter the address of the router for the network segment to which the wireless
access point is connected.
–Primary DNS Servers. The WN604 will use this IP address as the primary Domain Name
Server used by stations on your LAN.
–Secondary DNS Servers. The WN604 will use this IP address as the secondary Domain
Name Server used by stations on your LAN.
–Network Intgrity Check. Check this box to enable the WN604 to validate that the
upstream link is active before allowing wirelessassociations.If you set this option you
must ensure your default gateway is configured.
3. Click Apply to save your basic IP settings.
Wireless Settings
The following sections describe how to configure the available wireless settings.
Configuring 802.11b/bg/ng Wireless Settings
To configure the wireless settings of your 802.11b/bg/ng wireless access point:
NETGEAR Wireless N150 Access Point WN604 Reference Manual
2-14 Basic Installation and Configuration
v1.0, March 2010
1. From main menu under Configuration, select Wireless. The Wireless Settings screen of your
802.11b/bg/ng wireless access point displays, as shown in Figure 2-9 below.
2. Configure the Wireless LAN settings based on the following field descriptions:
•Wireless Mode. Select the desired wireless operating mode. The default is 11ng. The
options are:
–11b – All 802.11b wireless stations can be used. (The 802.11g wireless stations can
still be used if they can operate in 802.11b mode.)
–11bg – Both 802.11b and 802.11g wireless stations can be supported.
–11ng – All 11b, 11g, and 11ng wireless stations can be used. This is the default. If you
select this option, then two additional options, Channel Width and Guard Interval, are
displayed.
Figure 2-9 Configure wireless settings 802.11b/bg/ng
Note: If you select one of these option and if other settings on this screen are
disabled, then you must select the Turn Radio On radio button to
enable available options on this screen.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Basic Installation and Configuration 2-15
v1.0, March 2010
•Turn Radio On. On by default, you can also turn off the radio to disable access through
this device. This can be helpful for configuration, network tuning, or troubleshooting
activities.
•Wireless Network Name (SSID). This is the name of your wireless network. It is set to
the default name of NETGEAR_11ng for 802.11b/bg/ng.
•RF Switch Status. The WN604 also has an external hardware switch to enable or disable
the radio (RF). This field shows its current status. When the RF switch is off, you cannot
change wireless parameters.
•Broadcast Wireless Network Name (SSID). If you disable broadcast of the SSID, only
devices that have the correct SSID can connect. This nullifies the wireless network
“discovery” feature of some products such as Windows XP, Vista and Unix systems but
the data is still fully exposed to a determined snoop using specialized test equipment like
wireless sniffers. Default is enabled.
•Channel/Frequency. From the pull-down menu, select the channel you wish to use on
your wireless LAN. The wireless channel in use will be between 1 to 11 for US and
Canada, 1 to 13 for Europe and Australia. The default is channel Auto.
It should not be necessary to change the wireless channel unless you experience
interference (shown by lost connections and/or slow data transfers). Should this happen,
you may need to experiment with different channels to see which is the best. Alternatively,
you can select the Auto channel option for the AP to intelligently pick the channel with
least interference. See the article on “Wireless Channels” available on the NETGEAR
website. (A link to this article and other articles of interest can be found in Appendix B,
“Related Documents.”). When selecting or changing channels, some points to bear in
mind:
– Access points use a fixed channel. You can select the channel used. This allows you to
choose a channel which provides the least interference and best performance. In the
USA and Canada, 11 channels are available
– If using multiple access points, it is better if adjacent access points use different
channels to reduce interference. The recommended channel spacing between adjacent
access points is 5 channels (for example, use channels 1 and 6, or 6 and 11).
– Wireless stations normally scan all channels, looking for an access point. If more than
one access point can be used, the one with the strongest signal is used. This can only
happen when the various access points are using the same SSID.
•MCS Index/Data Rate. From the pull-down menu, select the available transmit data rate
of the wireless network. Also, depending on the band selected, the set of rates will vary.
The possible data rates supported are:
NETGEAR Wireless N150 Access Point WN604 Reference Manual
2-16 Basic Installation and Configuration
v1.0, March 2010
•Data Rates for Channel Width=20MHz and Guard Interval=short (400ms): Best,
7.2 Mbps, 14.4 Mbps, 21.7 Mbps, 28.9 Mbps, 43.3 Mbps, 57.8 Mbps, 65 Mbps, 72.2
Mbps.
•Data Rates for Channel Width=20MHz and Guard Interval=long (800ms): Best,
6.5 Mbps.
•Data Rates for Channel Width=40MHz and Guard Interval=short: Best, 15
Mbps, 30 Mbps, 45 Mbps, 60 Mbps, 90 Mbps, 120 Mbps, 135 Mbps, 150 Mbps.
•Data Rates for Channel Width=40MHz and Guard Interval=long: Best, 13.5
Mbps, 27 Mbps, 40.5 Mbps, 54 Mbps, 81 Mbps, 108Mbps, 121.5 Mbps, 135 Mbps.
•Channel Width. From the pull-down menu, select the desired channel width.
• 20 MHz - This is the static, legacy mode. It gives the least throughput.
• 40 MHz - This is the static, high-throughput mode. Legacy clients will not be able to
connect in this mode.
• 20/40 MHz - This is the dynamic, compatibility mode.
•Guard Interval. From the pull-down menu, select the desired guard interval. The guard
interval protects from interference from other transmissions. The default is Auto.
•Output Power. From the pull-down menu, select the transmit power of the access point.
The options are Full, Half, Quarter, Eighth, and Minimum. Decrease the transmit power if
two or more APs are close together and use the same channel frequency. The default is
Full. (The transmit power may vary depending on the local regulatory regulations.
3. Click Apply to save your 802.11b/bg/ng wireless settings.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Basic Installation and Configuration 2-17
v1.0, March 2010
Configuring Basic QoS Settings
Wi-Fi Multimedia Support (WMM). Wireless Multimedia (WMM) is a subset of the 802.11e
standard. WMM allows wireless traffic to have a range of priorities, depending on the type of data.
Time-dependent information, such as video or audio, has a higher priority than normal traffic. For
WMM to function correctly, Wireless clients must also support WMM.
To configure basic wireless QoS settings for 11b/bg/ng and 11a/na:
1. Under the Configuration tab, select Wireless from the main menu, select Basic, and then
select QoS Settings from the left panel. The QoS Settings screen displays, as shown in
Figure 2-10.
2. Wi-FI Multimedia (WMM) is enabled by default. Select the Disable radio button to disable
WMM support.
3. WMM Power Save is enabled by default. Select the Disable radio button to disable WMM
power save.
4. Click Apply to save your settings
Figure 2-10Basic QoS settings screen
NETGEAR Wireless N150 Access Point WN604 Reference Manual
2-18 Basic Installation and Configuration
v1.0, March 2010
Setting Up and Testing Basic Wireless Connectivity
Follow the instructions below to set up and test basic wireless connectivity. Once you have
established basic wireless connectivity, you can enable security settings appropriate to your needs.
1. From your Web browser, log in to the WN604 using its default address of
http://192.168.0.100. Use the default user name of admin and default password of
password— or use a new LAN address and password if you have set them up.
2. From the main menu under Configuration, select System. Verify that the correct Country/
Region in which the wireless interface will operate has been selected.
3. Click Apply to save any changes.
4. Under the Configuration tab, select Wireless from the main menu. Ensure that the auto
channel (default) feature is selected for your network. This feature selects a channel that has
the least interference.
It should not be necessary to change the wireless channel unless you notice interference
problems or are near another wireless access point. Select a channel that is not being used by
any other wireless networks within several hundred feet of your wireless access point.
5. Click Apply to save any changes.
6. Under the Configuration tab, select Security from the main menu. For initial configuration
and testing, the Security Profile Settings are set to Open System and the default SSID to
NETGEAR_11ng. (see “Understanding Security Profiles” on page 3-2 to configure a profile).
7. Click Apply to save any changes.
8. Configure and test your PCs for wireless connectivity
Note: The SSID of any station must match the SSID you configured in the WN604
Wireless Access Point. If they do not match, you will not get a wireless
connection to the WN604.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Basic Installation and Configuration 2-19
v1.0, March 2010
Program the wireless adapter of your PCs to have the same SSID that you configured in the
WN604. Check that they have a wireless link and are able to obtain an IP address by DHCP
from the WN604.
Once your PCs have basic wireless connectivity to the WN604, you can configure the advanced
wireless security functions.
Note: If you are configuring the WN604 from a wireless computer and you change
the SSID, channel, or Security Profile settings, you will lose your wireless
connection when you click Apply. You must then change the wireless settings
of your computer to match the new settings.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
2-20 Basic Installation and Configuration
v1.0, March 2010
NETGEAR Wireless N150 Access Point WN604 Reference Manual
3-1
v1.0, March 2010
Chapter 3
Configuring Security
This chapter helps you to configure the security settings on your WN604, including the new and
simple Wi-Fi Protected Setup (WPS) method. It consists of the following sections.
1. “Understanding Security Profiles”
2. “Wi-Fi Protected Setup (WPS)”
•“Configuring a client using WPS”
3. “Configuring Security Manually”
•“SSID and WEP/WPA Settings Setup Form”
•“Configuring the RADIUS Server Settings”
•“Setting up a Security Profile”
•“Configuring WEP”
•“Configuring WPA with RADIUS”
•“Configuring WPA2 with RADIUS”
•“Configuring WPA and WPA2 with RADIUS”
•“Configuring WPA-PSK”
•“Configuring WPA2-PSK”
•“Configuring WPA-PSK and WPA2-PSK”
•“Restricting Wireless Access by MAC Address”
NETGEAR Wireless N150 Access Point WN604 Reference Manual
3-2
v1.0, March 2010
Understanding Security Profiles
Security Profiles let you configure unique security settings for each SSID. You can configure only
one 802.11b/bg/ng wireless security profile on the WN604 (see Figure 3-1) which is the default
profile..
An overview of the information that is required to set up a Security Profile follows—including a
description of the Network Authentication choices that are available:
•Profile Definition. Configure the following settings:
•Wireless Network Name (SSID). This is the name of your wireless network. It is set to
the default name of NETGEAR_11ng
Note: If you are using a RADIUS Server, configure the RADIUS settings first, as
described in the “Configuring WPA with RADIUS” on page 3-14.
Figure 3-1 Edit Security Profile
NETGEAR Wireless N150 Access Point WN604 Reference Manual
3-3
v1.0, March 2010
•Broadcast Wireless Network Name (SSID). If you disable broadcast of the SSID, only
devices that have the correct SSID can connect. This nullifies the wireless network
“discovery” feature of some products such as Windows XP, Vista and Unix systems but
the data is still fully exposed to a determined snoop using specialized test equipment like
wireless sniffers. Default is enabled.
•Authentication Settings. Configure the following settings:
•Network Authentication. The WN604 Access Point is set by default as an open system
with no authentication. When setting up Network Authentication, bear in mind the
following:
– If you are using Access Point mode, then all options are available. In bridge mode
some options may be unavailable.
– Not all wireless adapters support WPA or WPA2. Windows XP and Windows 2000
with Service Pack 3 do include the client software that supports WPA. However, client
software is required on the client. Consult the product documentation for your
wireless adapter and WPA or WPA2 client software for instructions on configuring
WPA2 settings.
You can configure the WN604 to use the types of network authentication shown in the
table below.
Table 3-1. Network Authentication Types
TypeaDescription
Open System Can be used with WEP encryption or no encryption.
Shared Key You must use WEP encryption and enter at least one shared key.
WPA with RADIUS You must configure the RADIUS Server Settings to use this option.
WPA2 with RADIUS
(WPA2 is a later version of WPA.)
Only select this if all clients support WPA2. If selected, you must use
AES encryption and configure the RADIUS Server Settings.
WPA and WPA2 with RADIUS This selection allows clients to use either WPA (with TKIP) or WPA2
(with AES). If selected, you must use TKIP + AES encryption and
configure the RADIUS Server Settings.
WPA-PSK You must use TKIP or TKIP + AES encryption and enter the WPA
passphrase (Network key).
WPA2-PSK
(WPA2 is a later version of WPA )
Only select this if all clients support WPA2. If selected, you must use
AES or TKIP + AES encryption and enter the WPA passphrase
(Network key).
WPA-PSK and WPA2-PSK This selection allows clients to use either WPA (with TKIP) or WPA2
(with AES). If selected, you must use TKIP + AES encryption and
enter the WPA passphrase (Network key).
NETGEAR Wireless N150 Access Point WN604 Reference Manual
3-4
v1.0, March 2010
•Data Encryption. The available options depend on the Network Authentication setting
selected (see Table 3-1 above); otherwise, the default is None. The Data Encryption
settings are explained in the table below:
• Use of Passphrases and Keys are explained below:
–Passphrase. To use the Passphrase to generate the WEP keys, enter a passphrase and
click the Generate Keys button. You can also enter the keys directly. These keys must
match the other wireless stations.
–Key 1, Key 2, Key 3, Key 4. If using WEP, select the key to be used as the default
key. Data transmissions are always encrypted using the default key. The other keys
can only be used to decrypt received data.
–WPA Preshared Key Passphrase. If using WPA-PSK or WPA2-PSK, enter the
passphrase here. All wireless stations must use the same passphrase (network key).
The network key must be from 8 to 64 characters in length.
•Wireless Client Security Separation. If enabled, the associated wireless clients will not
be able to communicate with each other. (This feature is intended for hotspots and other
public access situations.) The default is Disabled.
a. All options are available if using Access Point mode. In bridge modes some options may be unavailable.
Table 3-2. Data Encryption Settings
Data Encryption Type Description
None No encryption is used.
64 bits WEP Standard WEP encryption, using 40/64 bit encryption.
128 bits WEP Standard WEP encryption, using 104/128 bit encryption.
152 bits WEP Proprietary mode that will only work with other wireless devices that support
this mode.
TKIP This is the standard encryption method used with WPA and WPA2.
AES This is the standard encryption method for WPA2.
TKIP + AES This setting supports both WPA and WPA2. Broadcast packets use TKIP. For
unicast (point-to-point) transmissions, WPA clients use TKIP, and WPA2
clients use AES.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
3-5
v1.0, March 2010
Wi-Fi Protected Setup (WPS)
WPS is a new and simple method that lets you easily and securely add a client to the WN604
Wireless Access Point in a home network. The method allows home users who do not understand
all the available security options to confiigure Wi-Fi Protected Setup.
Configuring a client using WPS
The wireless client must support WPS for this method to work. Check the manual that came along
with the wireless client machine.
A wizard will guide you through the steps to add a wireless client to the network, as shown below:
1. Click Configuration > WPS on the main menu. The WPS Settings screen opens, as shown,
along with explanations of the fields:
•WPS. Click the Enable radio button to enable WPS on your WN604.
•AP’s PIN: This is the PIN that a registrar can use to configure the WN604's wireless
settings through WPS. This PIN is also available on the AP's product label. Users can use
an external registrar to configure the AP's SSID and security settings through WPS, and
they will be prompted to enter the PIN that is displayed here.
Figure 3-2 WPS settings
NETGEAR Wireless N150 Access Point WN604 Reference Manual
3-6
v1.0, March 2010
•Disable AP’s PIN. Click in the checkbox if you wish to disable the AP’s PIN. An external
registrar can only configure the router's wireless settings through WPS when the AP's PIN
is enabled. The default is Enable.
•Keep Existing Wireless Settings: Check this option if you wish to keep the current
wireless settings, i.e. the WN604 is in the WPS configured state. This option is unchecked
by default (i.e. the WN604 is unconfigured by default).
2. Click the Add WPS Client option in the left pane. The Add WPS Client information screen
appears, as shown below:
Warning: By using this AP's WPS PIN, an external registrar can set or get the AP's
wireless settings. So a wireless external registrar can get the AP's wireless
settings through WPS with the AP's PIN, and apply the settings to get
itself connected to the router.
Figure 3-3 Add WPS client info
NETGEAR Wireless N150 Access Point WN604 Reference Manual
3-7
v1.0, March 2010
3. After reading the information, click the Next button. The Select a Setup Method screen
appears, as shown below:
4. Select the Push Button method (default) which lets you add a client with a single click (using
the WPS push button on the side panel of the WN604 and the push button on the client), or the
PIN method. The PIN Number method requires the user to enter the wireless client’s PIN,
which should be prompted on the client’s utility GUI. The Push Button method is easier while
PIN Number method is more secure
5. A progress bar on the Connecting to New Wireless Client page shows the progress of the WPS
process and the process to collect client’s information.
Figure 3-4 Select setup method
Figure 3-5 Connecting to a wireless client
NETGEAR Wireless N150 Access Point WN604 Reference Manual
3-8
v1.0, March 2010
6. If the wireless client is added successfully and the WN604’s wireless settings have been
changed, a Success dialog appears with a message. The the user can click to view the new
settings.:
7. If the settings have not been changed, the user can click on the Success dialog to return to the
Add WPS Client screen.
8. In case of an error in completing the WPS process, refer to the help provided.
Configuring Security Manually
In case you are configuring security on your WN604 Wireless Access Point manually, the
remaining sections of this chapter will guide you through the process.
SSID and WEP/WPA Settings Setup Form
For a new wireless network, print or copy this form and fill in the configuration parameters. For an
existing wireless network, the person who set up or is responsible for the network will be able to
provide this information. Be sure to set the Regulatory Domain correctly as the first step.
•SSID: The Service Set Identification (SSID) identifies the wireless local area network.
NETGEAR_11ng is the default WN604 SSID. However, you may customize it by using up to
32 alphanumeric characters. Write your customized SSID on the line below.
___________________________________
Note: The SSID in the wireless access point is the SSID you configure in the wireless adapter
card. All wireless nodes in the same network must be configured with the same SSID:
• Authentication:
Figure 3-6 WPS success - settings changed
NETGEAR Wireless N150 Access Point WN604 Reference Manual
3-9
v1.0, March 2010
Circle one: Open System or Shared Key. (Choose Shared Key for more security.)
Note: If you select shared key, the other devices in the network will not connect unless they
are set to Shared Key as well and have the same keys in the same positions as those in the
WN604.
• WEP Encryption Keys.
Circle one: 64, 128, or 152 bits. (Enter all four keys for the Key Size chosen.)
Key 1: ___________________________________
Key 2: ___________________________________
Key 3: ___________________________________
Key 4: ___________________________________
• WPA-PSK (Preshared Key)
Record the WPA-PSK key. Key: ___________________________________
• WPA RADIUS Settings. For WPA, record the following settings for the primary and
secondary RADIUS servers:
Server Name/IP Address: Primary _________________ Secondary __________________
Port: ___________________________________
Shared Secret: ___________________________________
Use the procedures described in the following sections to configure the WN604. Store this
information in a safe place.
Configuring the RADIUS Server Settings
You can setup or modify the RADIUS Server settings to compliment Network Authentication
security options. The RADIUS Server must be used with Legacy 802.1x, and can be used with
WPA and WPA2 Network Authentication. When using a RADIUS Server, the RADIUS Server
settings must be configured before completing the Network Authentication security profile (see
“Configuring WPA with RADIUS” on page 3-14, “Configuring WPA2 with RADIUS” on
page 3-16, or “Configuring WPA and WPA2 with RADIUS” on page 3-17 for specifics on
implementing these security options).
Note: The RADIUS Server Settings apply to all profiles. They only need to be configured
once per wireless access point.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
3-10
v1.0, March 2010
To set up or modify the RADIUS Server Settings:
1. From your Web browser, log in to the WN604 using the default LAN address of
http://192.168.0.100, user name admin and password password, or use the LAN address and
password that you set up.
2. Under the Configuration tab, select Security on the main menu, select Advanced from the
left panel, and then select RADIUS Server Settings. The RADIUS Server Settings screen
displays, as shown in Figure 3-7.
3. Enter the following RADIUS Server settings:
•Authentication Server. This configuration is required for authentication using a RADIUS
Server.The IP Address, Port Number, and Shared Secret are required for communication
with the Primary RADIUS Server. You can also configure a Secondary RADIUS Server to
use, if the Primary RADIUS Server fails.
–IP Address. The IP address of the RADIUS Server.
–Port Number. The port number of the RADIUS Server. The default is 1812.
Figure 3-7 RADIUS server settings
NETGEAR Wireless N150 Access Point WN604 Reference Manual
3-11
v1.0, March 2010
–Shared Secret. This is shared between the Wireless Access Point and the RADIUS
Server while authenticating the supplicant (wireless client).
•Accounting Server. This configuration is required for accounting using a RADIUS
Server. The IP Address, Port Number, and Shared Secret are required for communication
with the Primary RADIUS Server. You can also configure a Secondary RADIUS Server to
use if the Primary RADIUS Server fails.
–IP Address. The IP address of the RADIUS Server.
–Port Number. Port number of the RADIUS Server. The default: 1813
–Shared Secret. This is shared between the Wireless Access Point and the RADIUS
Server while authenticating the supplicant (wireless client).
4. Click Apply to save your settings.
Setting up a Security Profile
The WN604 allows you to set up a single security profile for 802.11b/bg/ng, which is the default
profile..
.
Note: If you are using a RADIUS Server, configure the RADIUS settings first, as
described in the “Configuring the RADIUS Server Settings” on page 3-9.
Figure 3-8 Edit security profile settings
NETGEAR Wireless N150 Access Point WN604 Reference Manual
3-12
v1.0, March 2010
To configure a Security Profile:
1. From your Web browser, log in to the WN604 using the default LAN address of
http://192.168.0.100, user name admin and password password, or use the LAN address and
password that you set up.
2. Under the Configuration tab, select Security from the main menu. The screen for the Edit
Security Profile displays as shown in Figure 3-8above.
3. Enter the Wireless Network Name (SSID) to identify the wireless network. It is set by default
to NETGEAR_11ng.
4. Enable or disable the Broadcast Wireless Network Name (SSID). It is enabled by default. (If
it is broadcast, it can be easily detected by other clients.)
5. From the Network Authentication pull-down menu, select the Network Authentication Type
you want to use for this profile:
• To configure WEP encryption for Open Systems or Shared Key, see “Configuring WEP”
on page 3-12.
• To configure WPA with RADIUS, see “Configuring WPA with RADIUS” on page 3-14.
• To configure WPA2 with RADIUS, see “Configuring WPA2 with RADIUS” on
page 3-16.
• To configure WPA and WPA2 with RADIUS, see “Configuring WPA and WPA2 with
RADIUS” on page 3-17.
• To configure WPA-PSK, see “Configuring WPA-PSK” on page 3-19.
• To configure WPA2-PSK, see “Configuring WPA2-PSK” on page 3-20.
• To configure WPA-PSK and WPA2-PSK, see “Configuring WPA-PSK and WPA2-PSK”
on page 3-20.
6. Data Encryption: Select data encryption strength from the pull down menu.
7. Wireless Client Security Separation is disabled by default. If enabled, the associated
wireless clients will not be able to communicate with each other.
8. Click Apply to save your Security Profile settings.
Configuring WEP
To configure WEP data encryption:
1. From the Network Authentication drop-down menu, choose either Open System or Shared
Key authentication.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
3-13
v1.0, March 2010
2. From the Data Encryption drop-down menu, select encryption strength (64 bits, 128 bits, or
152 bits).
3. You manually or automatically program the four data encryption keys. These values must be
identical on all PCs and wireless access points in your network. Choose either:
• Automatic – Enter a word or group of printable characters in the Passphrase box and click
the Generate button. The four key boxes will be automatically populated with key values.
• Manual – Enter the number of hexadecimal digits appropriate to the encryption strength:
10 digits for 64-bit, 26 digits for 128-bit and 32 digits for 152-bit (any combination of 0-9,
a-f, or A-F)
Select which of the four keys will be the default.
4. Select the key to be used as the default key by checking the radio box. (Data transmissions are
always encrypted using the default key.)
See the document “Wireless Communications” for a full explanation of each of these options,
as defined by the IEEE 802.11 wireless communication standard. A link to this document on
the NETGEAR website is in Appendix B, “Related Documents.”
5. Wireless Client Security Separation is disabled by default. If enabled, associated wireless
clients will not be able to communicate with each other. (This feature is intended for hotspots
and other public access situations.
6. Click Apply to save your settings.
Figure 3-9 Configure WEP Shared Key
NETGEAR Wireless N150 Access Point WN604 Reference Manual
3-14
v1.0, March 2010
Configuring WPA with RADIUS
Not all wireless adapters support WPA. Furthermore, client software is required on the client.
Windows XP and Windows 2000 with Service Pack 3 or above do include the client software that
supports WPA. Nevertheless, the wireless adapter hardware and driver must also support WPA.
Consult the product document for your wireless adapter and WPA client software for instructions
on configuring WPA settings.
To configure WPA, follow these steps:
1. Under the Configuration tab, select Security on the main menu, select Advanced from the
left-hand menu, and then select RADIUS Server Settings. The RADIUS Server Settings
screen displays.
2. Enter the RADIUS Server Settings as shown in “Configuring the RADIUS Server Settings” on
page 3-9.
3. Click Apply to save your RADIUS Server settings.
Note: If you use a wireless computer to configure WEP settings, you will be
disconnected when you click Apply. Reconfigure your wireless adapter to match
the new settings or access the wireless access point from a wired computer to
make any further changes.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
3-15
v1.0, March 2010
4. Under the Configuration tab, select Security from the main menu. The screen for the Edit
Security Profile displays.
5. Choose WPA with RADIUS from the from the Network Authentication drop-down menu.
Data Encryption will be set to TKIP by default.
6. Wireless Client Security Separation is disabled by default. If enabled, associated wireless
clients will not be able to communicate with each other. (This feature is intended for hotspots
and other public access situations.
7. Click Apply to save your settings.
Figure 3-10 Configure WPA with RADIUS
NETGEAR Wireless N150 Access Point WN604 Reference Manual
3-16
v1.0, March 2010
Configuring WPA2 with RADIUS
Not all wireless adapters support WPA2. Furthermore, client software is required on the client.
Make sure your client card supports WPA2. Consult the product document for your wireless
adapter and WPA2 client software for instructions on configuring WPA2 settings.
To configure WPA2 with RADIUS:
1. Under the Configuration tab, select Security on the main menu, select Advanced from the
left panel, and then select RADIUS Server Settings. The RADIUS Server Settings screen
displays.
2. Enter the RADIUS settings as shown in ““Configuring the RADIUS Server Settings” on
page 3-9.
3. Click Apply to save your RADIUS settings.
4. Under the Configuration tab, select Security from the main menu The screen for Edit
Security Profile displays.
5. From the Network Authentication drop-down menu, select WPA2 with RADIUS from the list.
By default, Data Encryption will be set to AES.
Figure 3-11 Configure WPA2 with RADIUS
NETGEAR Wireless N150 Access Point WN604 Reference Manual
3-17
v1.0, March 2010
6. Wireless Client Security Separation is disabled by default. If enabled, associated wireless
clients will not be able to communicate with each other. (This feature is intended for hotspots
and other public access situations.
7. Click Apply to save your settings.
Configuring WPA and WPA2 with RADIUS
Not all wireless adapters support WPA and WPA2. Client software is required on the client:
• Windows XP and Windows 2000 with Service Pack 3, or above, do include the client software
that supports WPA. The wireless adapter hardware and driver must also support WPA.
• Service Pack 3 does not include the client software that supports WPA2. Make sure your client
card supports WPA2. The wireless adapter hardware and driver must also support WPA2.
Consult the product documentation for your wireless adapter; WPA client software for instructions
on configuring WPA settings; and WPA2 client software for instructions on configuring WPA2
settings.
To configure WPA and WPA2 with RADIUS:
Figure 3-12 Configure WPA and WPA2 with RADIUS
NETGEAR Wireless N150 Access Point WN604 Reference Manual
3-18
v1.0, March 2010
1. Under the Configuration tab, select Security on the main menu, select Advanced from the
left panel, and then select RADIUS Server Settings. The RADIUS Server Settings screen
displays.
2. Enter the RADIUS settings as shown in ““Configuring the RADIUS Server Settings” on
page 3-9.
3. Click Apply to save your RADIUS settings
4. Under the Configuration tab, select Security from the main menu. The screen for Edit
Security Profile displays.
5. From the Network Authentication drop-down menu, select WPA & WPA2 with RADIUS
from the list. By default, Data Encryption will be set to TKIP+AES.
6. Wireless Client Security Separation is disabled by default. If enabled, associated wireless
clients will not be able to communicate with each other. (This feature is intended for hotspots
and other public access situations.
7. Click Apply to save your settings.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
3-19
v1.0, March 2010
Configuring WPA-PSK
Not all wireless adapters support WPA. Furthermore, client software is required on the client.
Windows XP and Windows 2000 with Service Pack 3 or above include the client software that
supports WPA. Nevertheless, the wireless adapter hardware and driver must also support WPA.
Consult the product document for your wireless adapter and WPA client software for instructions
on configuring WPA settings.
To configure WPA-PSK:
1. From the Network Authentication drop-down menu, select WPA-PSK. By default, Data
Encryption will be set to TKIP.
2. Enter the preshared key passphrase (Network Key).
3. Wireless Client Security Separation is disabled by default. If enabled, associated wireless
clients will not be able to communicate with each other. (This feature is intended for hotspots
and other public access situations.
4. Click Apply to save your settings.
Figure 3-13 Configure WPA-PSK
NETGEAR Wireless N150 Access Point WN604 Reference Manual
3-20
v1.0, March 2010
Configuring WPA2-PSK
Not all wireless adapters support WPA2. Furthermore, client software is required on the client.
Make sure your client card supports WPA2. Consult the product document for your wireless
adapter and WPA2 client software for instructions on configuring WPA2 settings.
To configure WPA2-PSK:
1. From the Network Authentication drop-down menu, select WPA2-PSK from the list. By
default, Data Encryption will be set to AES.
2. Enter the preshared key passphrase (Network Key).
3. Wireless Client Security Separation is disabled by default. If enabled, associated wireless
clients will not be able to communicate with each other. (This feature is intended for hotspots
and other public access situations.
4. Click Apply to save your settings.
Configuring WPA-PSK and WPA2-PSK
Not all wireless adapters support WPA and WPA2. Client software is required on the client:
Figure 3-14 Configure WPA2-PSK
NETGEAR Wireless N150 Access Point WN604 Reference Manual
3-21
v1.0, March 2010
• Windows XP and Windows 2000 with Service Pack 3 or above do include the client software
that supports WPA. The wireless adapter hardware and driver must also support WPA.
• Service Pack 3 does not include the client software that supports WPA2. Make sure your client
card supports WPA2. The wireless adapter hardware and driver must also support WPA2.
Consult the product documentation for your wireless adapter; WPA client software for instructions
on configuring WPA settings; and WPA2 client software for instructions on configuring WPA2
settings
.
To configure WPA-PSK and WPA2-PSK:
1. From the Network Authentication drop-down menu, select WPA-PSK & WPA2-PSK. By
default, Data Encryption will be set to TKIP+AES.
2. Enter the WPA Passphrase (Network Key).
3. Wireless Client Security Separation is disabled by default. If enabled, associated wireless
clients will not be able to communicate with each other. (This feature is intended for hotspots
and other public access situations.
Figure 3-15 Configure WPA-PSK and WPA2-PSK
NETGEAR Wireless N150 Access Point WN604 Reference Manual
3-22
v1.0, March 2010
4. Click Apply to save your settings.
Restricting Wireless Access by MAC Address
The optional Access Control window lets you block the network access privilege of any specified
stations through the WN604 Wireless Access Point. When you enable access control, the access
point only accepts connections from clients on the selected access control list. This provides an
additional layer of security.
To restrict access based on MAC addresses:
1. Log in to the WN604 using the default address of http://192.168.0.100, user name of admin
and default password of password, or whatever LAN address and password you have set up.
2. Under the Configuration tab, select Security on the main menu, select Advanced from the
left panel, and then select MAC Authetication. The MAC Authetication screen displays.
Note: If configuring the WN604 from a wireless computer whose MAC address is not in
the access control list, if you select Turn Access Control On, you will lose your
wireless connection when you click Apply. You must then access the wireless
access point from a wired computer or from a wireless computer that is on the
access control list to make any further changes.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
3-23
v1.0, March 2010
3. Check the Turn Access Control On radio box to enable Access Control feature.
4. Select the desired Access Control Database options. The options are:
•Local MAC Address Database – The Access Point will use the local MAC address table
for Access Control. This is the default.
•RADIUS MAC Address Database – The Access Point will use the MAC address table
located on the external RADIUS server on the LAN for Access Control. If you choose this
database, you must configure the RADIUS Server Settings first (see “Configuring the
RADIUS Server Settings” on page 3-9).
5. The Trusted Wireless Stations list shows any wireless stations you have entered. If you have
not entered any wireless stations this list will be empty. To delete an existing entry, select it
and then click Delete.
6. Click Refresh to refresh the Available Wireless Stations list found in your area.
7. Select the stations from the list of Available Wireless Stations found in your area, or enter the
MAC address of a station to add a new station manually. (You can usually find the MAC
address printed on the bottom of the wireless adapter.)
Figure 3-16 Configure MAC authentication
NETGEAR Wireless N150 Access Point WN604 Reference Manual
3-24
v1.0, March 2010
8. Click Add to add the wireless device to the Trusted Wireless Stations list. Repeat these steps
for each additional device you want to add to the list.
9. Click Apply to save your wireless access control list settings.
Now, only devices on this list will be allowed to wirelessly connect to the WN604.
4-1
v1.0, March 2010
Chapter 4
Management
This chapter describes how to use the management features of your NETGEAR Wireless N150
Access Point WN604. To access these features, connect to the WN604 as described in “Logging In
Using the Default IP Address” on page 2-11. Then select the category under either the Monitoring
or Maintenance headings in the main menu of the browser interface.
This chapter contains the following sections:
1. “Upgrading the Wireless Access Point Software”
2. “Configuration File Management”
3. “Restoring the WN604 to the Factory Default Settings”
4. “Changing the Administrator Password”
5. “Enabling the SysLog Server”
6. “Using Activity Log Information”
7. “Viewing General Summary Information”
8. “Viewing Network Traffic Statistics”
9. “Viewing Available Wireless Station Statistics”
Upgrading the Wireless Access Point Software
The software of the WN604 Wireless Access Point is stored in FLASH memory, and can be
upgraded as new software is released by NETGEAR. Upgrade files can be downloaded from
Netgear's Web site.. The upgrade file can be sent to the wireless access point using your browser.
Note: The Web browser used to upload new firmware into the WN604 must support
HTTP uploads, such as Microsoft Internet Explorer 6.0 or above or Mozilla 1.5 or
above.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
4-2 Management
v1.0, March 2010
You cannot perform the software upgrade from a computer that is connected to the WN604
Wireless Access Point with a wireless link. You must use a computer that is connected to the
WN604 Wireless Access Point with a Ethernet cable.
.
To upgrade the WN604 firmware:
1. Download the new software file from the NETGEAR website, save it to your hard disk.
2. Under the Maintenance tab, select Upgrade from the main menu, and then select Firmware
Upgrade. The Firmware Upgrade screen displays as shown in Figure 4-1 above.
3. Click Browse and browse to the location of the upgrade file.
4. Click Apply.
When the upload completes, your wireless access point will automatically restart. The upgrade
process typically takes about 2 minutes.
Warning: When uploading software to the WN604 Wireless Access Point, it is
important not to interrupt the Web browser by closing the window, clicking a
link, or loading a new page. If the browser is interrupted, the upload may fail,
corrupt the software, and render the WN604 completely inoperable.
Figure 4-1 Firmware upgrade screen
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Management 4-3
v1.0, March 2010
Configuration File Management
The WN604 Wireless Access Point settings are stored in the wireless access point in a
configuration file. This file can be saved (backed up) to a user’s computer, retrieved (restored)
from the user’s computer, or cleared to factory default settings.
Saving Your Configuration Settings
Under the Maintenance tab on the main menu , select Upgrade, then select Backup Settings
from the left sidebar to back up your current settings. The following screen displays:
1. Click Backup. Your browser will extract the configuration settings from the wireless access
point and prompt you for a location on your computer to store the file.
2. Give the file a meaningful name, such as WN604.cfg, and click Save.
Figure 4-2 Backup configuration settings
NETGEAR Wireless N150 Access Point WN604 Reference Manual
4-4 Management
v1.0, March 2010
Restoring Saved Settings
Under the Maintenance tab on the main menu, select Upgrade, then select Restore Settings from
the sidebar to back up your current settings. The following screen displays:
1. Enter the full path to the backup file on your computer (see previous section) or click the
Browse button to locate the file.
2. When you have located the file, click Restore to upload the file. After completing the upload,
the WN604 will reboot automatically.
Restoring the WN604 to the Factory Default Settings
It is sometimes desirable to restore the wireless access point to the factory default settings. This
can be done by using the Restore Defaults option, which restores all factory settings.
To access this function:
1. Under the Maintenance tab on the main menu, select Reset, and then select Restore Defaults
from the sidebar. The Restore Defaults screen displays, as shown in Figure 4-4 below.
Figure 4-3 Restore Configuration settings from file
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Management 4-5
v1.0, March 2010
2. On the Restore Defaults screen, enable the Restore to factory default settings option by
selecting the Yes radio button.
3. Click Apply to reset to the factory default settings.
After a restore, the wireless access point password will be password, the default LAN IP address
will be 192.168.0.100, and the access point name will reset to the name printed on the label on the
bottom of the unit.
To restore the factory default configuration settings without knowing the login password or IP
address, you must use the Default Reset button on the rear panel of the wireless access point (see
Figure 1-1 on page 1-6). The reset button has two functions:
•Reboot. When pressed and released, the Wireless Access Point will reboot (restart).
•Reset to Factory Defaults. This button can also be used to clear all data and restore all
settings to the factory default values.
To clear all data and restore the factory default values:
1. Power off the WN604.
2. Use something with a small point, such as a pen, hold the Reset button for 5 seconds while you
Power On the WN604.
3. Continue holding the Reset Button until the LEDs blink twice.
Figure 4-4 Restore to factory defaults
NETGEAR Wireless N150 Access Point WN604 Reference Manual
4-6 Management
v1.0, March 2010
4. Release the Reset Button.
The factory default configuration has now been restored and the WN604 is ready for use.
Changing the Administrator Password
The default password is password. You should change this password to a more secure password,
since you cannot change the administrator login name.
To change the Administrator password:
1. Under the Maintenance tab on the main menu, select Password, and then select Change
Password. The Change Password screen displays as shown in Figure 4-5 below.
2. First enter the old password in the Current Password field.
3. Then enter the new password twice—once in the New Password field and again in the Repeat
New Password field.
4. Click Apply to save your change.
Figure 4-5 Change administrator password
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Management 4-7
v1.0, March 2010
Enabling the SysLog Server
The SysLog screen allows you to enable the SysLog option if you have a SysLog server on your
LAN.
To enable a SysLog server:
1. Under the Configuration tab on the main menu, select System, then select the Advanced
option, and select SysLog to view the screen shown in Figure 4-6.
2. Enable SysLog – Enable this option if you have a SysLog server on your LAN. If enabled,
you must enter the IP address of your SysLog server and the port number your SysLog server
is configured to use. The default is Disabled.
3. SysLog Server IP Address –The access point will send all the SysLog to the specified IP
address if SysLog option is enabled.
4. Port Number – The port number configured in the SysLog server on your LAN. Default is
514.
5. Click Apply to save your Syslog settings.
Figure 4-6 Enable Syslog server
NETGEAR Wireless N150 Access Point WN604 Reference Manual
4-8 Management
v1.0, March 2010
Using Activity Log Information
The Activity Log screen displays the Access Point system activity.
To view the Activity Log, under the Monitoring tab on the main menu, click Logs. The Activity
Logs screen displays as shown in Figure 4-7 below.
The Activity Log Window displays the Access Point system activity.
Click Refresh to update the display, click Clear to clear the log content, or click Save As to save
the log contents into a file on a disk drive.
Viewing General Summary Information
The System screen, under the Monitoring tab provides a summary of the current WN604
configuration settings, including current IP settings and current Wireless settings. This information
is read only, so any changes must be made on other pages.
To access the System screen:
Figure 4-7 View activity logs
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Management 4-9
v1.0, March 2010
Under the Monitoring tab on the main menu, select System to view the System screen, shown in
Figure 4-8 below. This screen shows the parameters listed in Table 4-1:
Table 4-1. System Information Fields
Field Description
Access Point Information
Access Point Name Indicates the NetBIOS name. The default name may be changed, if desired.
Ethernet MAC Address Displays the Media Access Control address (MAC address) of the wireless
access point’s Ethernet port.
Wireless MAC address. Displays the Media Access Control address (MAC address) of the wireless
access point’s wireless card.
Country/Region Displays the domain or region for which the wireless access point is
licensed for use. It may not be legal to operate this wireless access point in
a region other than one of those identified in this field.
Firmware Version The version of the firmware currently installed.
Current Time Displays the current system time of the access point.
Current IP Settings
IP Address The IP address of the wireless access point.
Subnet Mask The subnet mask for IP address of the wireless access point.
Default Gateway The default gateway for the wireless access point communication.
DHCP Client Enabled indicates that the current IP address of the AP was obtained from a
DHCP server on your network. Disabled indicated a static IP configuration.
Current Wireless Settings for 802.11b/bg/ng
Operating Mode Identifies the 802.11 operating mode of the WN604.
Channel/Frequency Identifies the channel the wireless port is using. ‘Auto’ is the default channel
setting. (Channel frequencies used on each channel can be found in “Wire-
less Communications”; a link to this article is in Appendix B, “Related
Documents”.).
NETGEAR Wireless N150 Access Point WN604 Reference Manual
4-10 Management
v1.0, March 2010
Viewing Network Traffic Statistics
The Statistics screen displays information for both wired (LAN) and wireless (WLAN) interface
network traffic.
To access Statistics information:
1. Under the Monitoring tab on the main menu, select Statistics. The Statistics screen displays,
as shown in Figure 4-9 below.
Figure 4-8 View system information
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Management 4-11
v1.0, March 2010
2. Click Refresh to update the Statistics information for each interface. .
Table 4-2, shown below, describes the information fields detailed on the Statistics screen.
Figure 4-9 View network statistics
Table 4-2. Statistics Fields
Field Description
Wired Ethernet
Packets The number of packets sent and received since the WN604 was restarted.
Bytes The number of bytes sent and received since the WN604 was restarted.
Wireless 11b/bg/ng
Unicast Packets The Unicast packets sent and received in 802.11n/g mode since the WN604
was restarted.
Broadcast Packets The Broadcast packets sent and received in 802.11n/g mode since the
WN604 was restarted.
Multicast Packets The Multicast packets sent and received in 802.11n/g mode since the
WN604 was restarted.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
4-12 Management
v1.0, March 2010
Viewing Available Wireless Station Statistics
The Available Wireless Stations List (AWSL) contains a table of all IP devices associated with this
wireless access point in the wireless network defined by the Wireless Network Name (SSID). For
each device, the table shows the MAC address, BSSID, SSID, Channel, Rate, State (whether the
device is allowed to communicate with the wireless access point or not), Type, AID, Mode, and
Status.
Total Packets The Wireless packets sent and received in 802.11n/g mode since the
WN604 was restarted.
Total Bytes The Wireless bytes sent and received in 802.11n/g mode since the WN604
was restarted.
Note: A wireless network can include multiple wireless access points, all using the same
network name (SSID). This enables extending the reach of the wireless network
and allows users to roam from one access point to another, providing seamless
network connectivity. Under these circumstances, be aware that only the stations
associated with this access point will be presented in the Available Station List.
Table 4-2. Statistics Fields
Field Description
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Management 4-13
v1.0, March 2010
To view the Available Wireless Stations List:
1. Under the Monitoring tab, select Wireless Stations on the main menu. The Available
Wireless Stations list displays, as shown in Figure 4-10.
2. Click Refresh to update the list.
Figure 4-10 Available Wireless Stations list
Tip: If the wireless access point is rebooted, the table data is lost until the wireless
access point rediscovers the devices. To force the wireless access point to look
for associated devices, click the Refresh button.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
4-14 Management
v1.0, March 2010
5-1
v1.0, March 2010
Chapter 5
Advanced Configuration
This chapter describes how to configure the advanced features of your NETGEAR Wireless N150
Access Point WN604. The advanced configuration features are located under various sub-menus
under Configuration and provide the following functions:
•Scheduled Wireless: Configuring Scheduled Wireless ON/OFF parameters (“Configuring
Scheduled Wireless”)
•Wireless Settings: Configuring advanced wireless LAN parameters (“Configuring Advanced
Wireless Settings”).
•Advanced QoS Settings: Configuring advanced QoS settings (“Configuring Advanced QoS
Settings”)
•Access Point Settings: Enabling wireless bridge and repeater modes (“Enabling Wireless
Bridging”).
Configuring Scheduled Wireless
The WN604 Wireless Access Point allows you to schedule wireless ON/OFF for any day(s) of the
week, from an ON time to an OFF time. Click Configuration > Wireless > Scheduled Wireless
ON-OFF.
This feature depends on the NTP (Network Time Protocol) functionality. If an NTP client request
fails, then last configured value of radio status by user will be restored. Also, if RF is disabled then
scheduled wireless functionality will not work.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
5-2 Advanced Configuration
v1.0, March 2010
Click Wireless > Basic > Scheduled Wireless ON/OFF on the main menu. The Scheduled
Wireless ON/OFF screen displays.
Follow the steps below to schedule wireless on your WN604:
1. Enable Scheduled Wireless ON/OFF by clicking the On radio button. The default is On.
2. Radio Off Schedule: Click any of the weekday checkboxes to set the WN604’s radio off on
that weekday(s).
3. Enter the Radio ON Time and Radio OFF Time to set the period that the WN604’s radio will
be enabled on the days not checked in the previous option. The default is ON for the whole
day.
4. Click Apply.
Configuring Advanced Wireless Settings
The Advanced option of the Wireless Settings menu is used to configure and enable various
wireless LAN parameters for the 802.11b/bg/ng modes. The default wireless LAN parameters
usually work well. However, you can use these settings to fine tune the overall performance of
your wireless access point for your environment.
The Wireless Settings option of the Advanced menu is used to configure the Wireless LAN
parameters. The default advanced wireless LAN parameter settings usually work well.
Figure 5-1
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Advanced Configuration 5-3
v1.0, March 2010
Configuring 802.11b/bg/ng Advanced Wireless Settings
To configure advanced Wireless Settings:
1. Under the Configuration tab, select Wireless.
2. From the sidebar, select Advanced, and then select Wireless Settings.
3. The Advanced Wireless Settings screen you selected displays, as shown in Figure 5-2.,
4. Enter the appropriate information in the fields described below:
•RTS Threshold (0 - 2347): Request to Send Threshold. The packet size that is used to
determine if it should use the CSMA/CD (Carrier Sense Multiple Access with Collision
Detection) mechanism or the CSMA/CA mechanism for packet transmission. With the
CSMA/CD transmission mechanism, the transmitting station sends out the actual packet
as soon as it has waited for the silence period. With the CSMA/CA transmission
mechanism, the transmitting station sends out an RTS packet to the receiving station, and
waits for the receiving station to send back a CTS (Clear to Send) packet before sending
the actual packet data. The default is 2347.
Figure 5-2 Advanced Wireless Settings - 802.11b/bg/ng
NETGEAR Wireless N150 Access Point WN604 Reference Manual
5-4 Advanced Configuration
v1.0, March 2010
•Fragmentation Length (256 - 2346): This is the maximum packet size used for
fragmentation. Packets larger than the size programmed in this field will be fragmented.
The Fragmentation threshold value must be larger than the RTS threshold value. The
default is 2346.
•Beacon Interval (100 - 1000): The Beacon Interval. Specifies the interval time between
100ms and 1000ms for each beacon transmission, which allows the access point to
synchronize the wireless network. The default is 100.
•Aggregation Length (1024-65535) (11ng): The aggregation length defines the size of
aggregated packets. Larger aggregation lengths may sometimes lead to better network
performance. The default is 65535.
•A-MPDU (11ng): Aggregated MAC Protocol Data Unit. Aggregates several MAC frames
into a single large frame to achieve higher throughput. The default is enabled.
•RIFS Transmission (11ng): Reduced Interframe Space. RIFS transmissions are shorter
than other interframe spaces, and if enabled allow transmission of successive frames at
different transmit powers. The default is disabled.
•DTIM Interval: The Delivery Traffic Indication Message. Specifies the data beacon rate
between 1 and 255. The default is 3.
•Preamble Type (11b/bg only): A long transmit preamble may provide a more reliable
connection or a slightly longer range. A short transmit preamble gives better performance.
The Auto settings automatically handles both long and short preambles. The default is
Auto.
•802.11d: Enable this option to include support for "additional regulatory domains" that are
not in the current standard.
• Max Wireless Clients: The number of wireless clients that can associate with the AP at
one time. The default is 20.
5. Click Apply to enable the Wireless Settings.
Configuring Advanced QoS Settings
Wireless Multimedia Extension (WME) or Wi-Fi Multimedia (WMM) is a subset of the 802.11e
standard. WME allows wireless traffic to have a range of priorities, depending on the type of data.
Time-dependent information, such as video or audio, has a higher priority than normal traffic. For
WME to function correctly, Wireless clients must also support WME.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Advanced Configuration 5-5
v1.0, March 2010
Figure 5-3 shows the Quality of Service (QoS) screen. For most networks, the default QoS queue
parameter settings work well.Quality of Service provides you with the ability to specify
parameters on multiple queues for increased throughput and better performance of differentiated
wireless traffic, like Voice-over-IP (VoIP), other types of audio, video, and streaming media, as
well as traditional IP data.
To configure advanced QoS settings, on the Configuration tab select Wireless, select Advanced,
and then select QoS Settings. The QoS Settings screen dispalys:
The QoS options on the WN604 are as follows:
•AP EDCA Parameters. Specify the AP EDCA (Enhanced Distributed Channel Access)
parameters for different types of data transmitted from the WN604 Wireless Access Point
to the wireless client.
•Station EDCA Parameters. Specify the Station EDCA parameters for different types of
data transmitted from the wireless client to the WN604 Wireless Access Point. If WMM is
disabled, you cannot configure Station EDCA parameters.
Figure 5-3 Advanced QoS settings
NETGEAR Wireless N150 Access Point WN604 Reference Manual
5-6 Advanced Configuration
v1.0, March 2010
Table 5-1 describes the settings for QoS Queues.
Enabling Wireless Bridging
The NETGEAR Wireless N150 Access Point WN604 lets you build large bridged wireless
networks. Select the desired wireless access point mode for your environment:
•Wireless Point-to-Point Bridge. In this mode, the WN604 can communicate with another
bridge mode wirelesss access point, and with wireless clients if enabled.
When you click the Edit button, you must enter the Profile Name and the MAC address
(physical address) of the other Bridge mode wireless access point in the fields provided (see
Figure 5-5 below). WEP, WPA-PSK, or WPA2-PSK are supported. WPA2-PSK can (and
should) be used to protect this communication.
Table 5-1. QoS Queues and Parameters
QoS Queue Description
Data 0 (Voice) High priority queue, minimum delay. Time-sensitive data such as VoIP
and streaming media are automatically sent to this queue.
Data 1(Video) High priority queue, minimum delay. Time-sensitive video data is auto-
matically sent to this queue.
Data 2 (Best Effort) Medium priority queue, medium throughput and delay. Most traditional
IP data is sent to this queue.
Data 3 (Background) Lowest priority queue, high throughput. Bulk data that requires maxi-
mum throughput and is not time-sensitive is sent to this queue (FTP
data, for example).
AIFS (Arbitration Inter-Frame
Space)
Specifies a wait time (in milliseconds) for data frames. Valid values for
AIFS are 1 through 255.
cwMin (Minimum Contention
Window)
Upper limit (in milliseconds) of a range from which the initial random
backoff wait time is determined. Valid values for the “cwmin” are 1, 3, 7,
15, 31, 63, 127, 255, 511, or 1024. The value for cwMin must be lower
than the value for cwMax.
cwMax (Maximum Contention
Window)
Upper limit (in milliseconds) for the doubling of the random backoff
value. Valid values for the “cwmax” are 1, 3, 7, 15, 31, 63, 127, 255,
511, or 1024. The value for cwMax must be higher than the value for
cwMin.
Max. Burst Length Specifies (in milliseconds) the Maximum Burst Length allowed for
packet bursts on the wireless network. A packet burst is a collection of
multiple frames transmitted without header information. Valid values for
maximum burst length are 0.0 through 999.9.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Advanced Configuration 5-7
v1.0, March 2010
•Wireless Point-to-Multi-Point Bridge. Select this only if this WN604 is the “Master” for a
group of bridge-mode wireless access points.
The other bridge-mode wireless access points must be set to point-to-point bridge mode, using
the MAC address of this WN604. They then send all traffic to this “Master”, rather than
communicate directly with each other.
When you click the Edit button, you must enter the profile name and the MAC address
(physical address) of the other bridge mode wireless station in the fields provided (see
Figure 5-5 below). WEP, WPA-PSK, or WPA2-PSK are supported. WPA2-PSK can (and
should) be used to protect this communication.
The AP can associate with wireless clients if this option is enabled.
•Client mode. In this mode the access point acts as a client. It is used to extend the LAN of
clients that do not have wireless connectivity
The screens used to configure these options are located by selecting Wireless Bridge under the
Configuration tab.
Follow the steps below to configure bridging on your WN604:
1. Click the Enable Wireless Bridging checkbox (see Figure 5.4 above).
2. Select one of the following options:
Figure 5-4 Enable Wireless Point-to-Point Bridge
NETGEAR Wireless N150 Access Point WN604 Reference Manual
5-8 Advanced Configuration
v1.0, March 2010
• Wireless Point to Point Bridge
•Wireless Point to Multipoint Bridge
• Client mode
3. If you have selected one of the first two options:
• Select Enable Wireless Client Association, if desired.
• Select the security profile whose settings you wish to edit
• Click Edit to edit the security profile as discussed in the previous sections. The Edit
Security Profile screen displays, as shown Figure 5-5 below.
• Click Back to return to the previous screen and enable the profile.
4. If you have selected Client:
•MAC Clone: This option appears only in client mode. Use it to configure a new MAC
address on the AP Client if desired.
•MAC Clone Address. If the MAC Clone option has been enabled enter the new MAC
address in hexadecimal format. It will be used by the AP client in place of its default
physical address.
5. Click Apply.
Figure 5-5 Bridging - Edit Security Profile
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Advanced Configuration 5-9
v1.0, March 2010
The following sections help you to physically configure your WN604 as a Point-to-Point Bridge or
a Point-to-Multi-Point Bridge.
Configuring a WN604 as a Point-to-Point Bridge
To configure a point-to-point bridge as shown in Figure 5-6:
1. Under the Configuration tab, select Wireless Bridge. Then, select Bridging. The Bridging
screen displays (see Figure 5-4).
2. Configure the WN604 (AP1) on LAN Segment 1 in Point-to-Point Bridge mode.
3. Configure the WN604 (AP2) on LAN Segment 2 in Point-to-Point Bridge mode.
AP1 must have AP2’s MAC address in its Remote MAC Address field and AP2 must have
AP1’s MAC address in its Remote MAC Address field.
4. Configure and verify the following parameters for both access points:
• Verify that the LAN network configuration of the WN604 Wireless Access Points both are
configured to operate in the same LAN network address range as the LAN devices
• Both use the same ESSID, Channel, authentication mode, if any, and security settings if
security is in use.
5. Verify connectivity across the LAN 1 and LAN 2.
Figure 5-6 Wireless point-to-point bridge setup
LAN
Segment 1
Router
AP in
Point-to-Point
Bridge Mode
AP in
Point-to-Point
Bridge Mode
LAN
Segment 2
Hub or Switch
AP1
ETHERNET
RESET
5-12V DC
AP2
ETHERNET
RESET
5-12V DC
NETGEAR Wireless N150 Access Point WN604 Reference Manual
5-10 Advanced Configuration
v1.0, March 2010
A computer on either LAN segment should be able to connect to the Internet or share files and
printers of any other PCs or servers connected to LAN Segment 1 or LAN Segment 2.
6. Click Apply to save your settings.
Configuring a Point-to-Multi-Point Wireless Bridge
To configure a point-to-multi-point wireless bridge as shown in Figure 5-7:
1. Under the Configuration tab, select Wireless Bridge. Then, select Bridging. The Bridging
screen displays.
2. Configure the Operating Mode of the WN604 Wireless Access Points.
• WN604 (AP1) on LAN Segment 1 in Point-to-Point Bridge mode with the Remote MAC
Address of AP2.
• Because it is in the central location, configure WN604 (AP2) on LAN Segment 2 in Point-
to-Multi-Point Bridge mode. The MAC addresses of the adjacent APs are required in AP2.
• Configure the WN604 (AP3) on LAN 3 in Point-to-Point Bridge mode with the Remote
MAC Address of AP2.
3. Verify the following parameters for all access points:
• Verify that the LAN network configuration the WN604 Wireless Access Points are
configured to operate in the same LAN network address range as the LAN devices
Figure 5-7 Wireless point-to-multipoint bridge setup
'Master' AP in
Point-to-Multi-Point
Bridge Mode
LAN
Segment 1
192.168.0.1
Router
AP in
Point-to-Point
Bridge Mode
Hub or Switch
LAN
Segment 3
AP in
Point-to-Point
Bridge Mode
LAN
Segment 2
Hub or Switch
AP1
ETHERNET
RESET
5-12V DC
AP3
ETHERNET
RESET
5-12V DC
AP2
ETHERNET
RESET
5-12V DC
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Advanced Configuration 5-11
v1.0, March 2010
• Only one access point is configured in Point-to-Multi-Point Bridge mode, and all the
others are in Point-to-Point Bridge mode.
• All access points must be on the same LAN. That is, all the APs LAN IP address must be
in the same network.
• If using DHCP, all WN604 Wireless Access Points should be set to “Obtain an IP address
automatically (DHCP Client)” in the IP Address Source portion of the Basic IP Settings
menu.
• All WN604 Wireless Access Points use the same SSID, Channel, authentication mode, if
any, and encryption in use.
• All Point-to-Point Access Points must have the AP2 MAC address in its Remote AP MAC
address field.
4. Verify connectivity across the LANs.
• A computer on any LAN segment should be able to connect to the Internet or share files
and printers with any other PCs or servers connected to any of the three LAN segments.
• Wireless stations will be able to connect to the WN604 Wireless Access Points in the
illustration above. If you require wireless stations to access any LAN segment, you can
add additional WN604 Wireless Access Points configured in Wireless Access Point mode
to any LAN segment.
5. Click Apply to save your settings.
Note: You can extend this multi-point bridging by adding additional WN604s configured
in Point-to-Point mode for each additional LAN segment. Furthermore, you can
extend the range of the wireless network with NETGEAR wireless antenna
accessories.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
5-12 Advanced Configuration
v1.0, March 2010
6-1
v1.0, March 2010
Chapter 6
Troubleshooting and Debugging
This chapter provides information about troubleshooting your NETGEAR Wireless N150 Access
Point WN604. After each problem description, instructions are given to help you diagnose and
solve the problem. For the common problems listed, go to the section indicated.
• Is the WN604 on?
Go to “Installing the WN604 Wireless Access Point” on page 2-3
• Have I connected the wireless access point correctly?
Go to “Installing the WN604 Wireless Access Point” on page 2-3.
• I cannot remember the wireless access point’s configuration password.
Go to “Changing the Administrator Password” on page 4-6.
If you have trouble setting up your WN604, check the tips below.
No lights are lit on the wireless access point.
It takes a few seconds for the power indicator to light up. Wait a minute and check the power light
status on the access point.
If the access point has no power.
• Make sure the power cord is connected to the access point.
• Make sure the power adapter is connected to a functioning power outlet. If it is in a power
strip, make sure the power strip is turned on. If it is plugged directly into the wall, verify that it
is not a switched outlet.
• Make sure you are using the correct NETGEAR power adapter supplied with your access
point.
Note: For up-to-date WN604 installation details and troubleshooting guidance visit http:/
/kbserver.netgear.com/products/WN604.asp.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
6-2 Troubleshooting and Debugging
v1.0, March 2010
The Wireless LAN activity light does not light up.
The access point antennas are not working.
• If the Wireless LAN activity light stays off, disconnect the adapter from its power source and
then plug it in again.
• Make sure the antennas are tightly connected to the WN604.
• Contact NETGEAR technical support if the Wireless LAN activity light remains off.
The LAN light is not lit.
There is a hardware connection problem.Check these items:
• Make sure the cable connectors are securely plugged in at the access point and the network
device (hub, switch, or router). A switch, hub, or router must be installed between the access
point and the Ethernet LAN or broadband modem.
• LAN light does not light up if it is a 10 Mbps link. In such cases, the Lan activity light will still
blink if there is activity.
• Make sure the connected device is turned on.
• Be sure the correct cable is used. Use a standard Category 5 Ethernet patch cable. If the
network device has Auto Uplink™ (MDI/MDIX) ports, you can use either a crossover cable or
a normal patch cable.
I cannot access the Internet or the LAN with a wireless
capable computer.
There is a configuration problem. Check these items:
• You may not have restarted the computer with the wireless adapter to have TCP/IP changes
take effect. Restart the computer.
• The computer with the wireless adapter may not have the correct TCP/IP settings to
communicate with the network. Restart the computer and check that TCP/IP is set up properly
for that network. The usual setting for Windows the Network Properties is set to “Obtain an IP
address automatically.”
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Troubleshooting and Debugging 6-3
v1.0, March 2010
• The access point’s default values may not work with your network. Check the access point
default configuration against the configuration of other devices in your network.
I cannot connect to the WN604 to configure it.
Check these items:
• The WN604 is properly installed, LAN connections are OK, and it is powered on. Check that
the LAN port LED is green to verify that the Ethernet connection is OK.
• The default configuration of the WN604 is for a static IP address of 192.168.0.100 and a Mask
of 255.255.255.0 with DHCP disabled. Make sure your network configuration settings are
correct.
• If you are using the NetBIOS name of the WN604 to connect, ensure that your computer and
the WN604 are on the same network segment or that there is a WINS server on your network.
• If your computer is set to “Obtain an IP Address automatically” (DHCP client), restart it.
• If your computer uses a Fixed (Static) IP address, ensure that it is using an IP Address in the
range of the WN604. The WN604 default IP Address is 192.168.0.100 and the default Subnet
Mask is 255.255.255.0. If you are not sure about these settings, follow the instructions for
“Installing the WN604 Wireless Access Point” on page 2-3.
When I enter a URL or IP address I get a timeout error.
A number of things could be causing this. Try the following troubleshooting steps.
• Check whether other PCs work. If they do, ensure that your PCs TCP/IP settings are correct. If
using a Fixed (Static) IP Address, check the Subnet Mask, Default Gateway, DNS, and IP
Addresses.
• If the PCs are configured correctly, but still not working, ensure that the WN604 is connected
and turned on. Connect to it and check its settings. If you cannot connect to it, check the LAN
and power connections.
• If the WN604 is configured correctly, check your Internet connection (DSL/Cable modem
etc.) to make sure that it is working correctly.
•Try again.
NETGEAR Wireless N150 Access Point WN604 Reference Manual
6-4 Troubleshooting and Debugging
v1.0, March 2010
Using the Reset Button to Restore Factory Default Settings
The Reset button (see “Rear Panel” on page 1-8) has two functions:
•Reboot. When pressed and released quickly, the WN604 will reboot (restart).
•Reset to Factory Defaults. This button can also be used to clear ALL data and restore ALL
settings to the factory default values.
To clear all data and restore the factory default values:
1. Power off the WN604 and power it back on.
2. Use something with a small point, such as a pen, to press the Reset button in and hold it in for
at least 5 seconds.
3. Release the Reset button.
The factory default configuration has now been restored, and the WN604 is ready for use.
Default Settings and Technical Specifications A-1
v1.0, March 2010
Appendix A
Default Settings and Technical Specifications
This appendix provides the factory default settings and technical specifications for the NETGEAR
Wireless N150 Access Point WN604.
Factory Default Settings
You can use the reset button located on the front of your device to reset all settings to their factory
defaults. This is called a hard reset.
• To perform a hard reset, push and hold the reset button for approximately 5 seconds (until the
Wireless LED blinks rapidly). Your device will return to the factory configuration settings
shown in Table A-1 below.
• Pressing the reset button for a shorter period of time will simply cause your device to reboot.
Table A-1. Access Point Default Configuration Settings
Feature Description
AP Login
User Login URL 192.168.0.100
User Name (case sensitive) ‘admin’
Login Password (case sensitive) ‘password’
Ethernet Connection
Static IP Address
Ethernet MAC Address See bottom label.
Port Speed 10/100
Local Network (LAN)
Lan IP
Subnet Mask 255.255.255.0
Gateway Address
DHCP Client Disabled
NETGEAR Wireless N150 Access Point WN604 Reference Manual
A-2 Default Settings and Technical Specifications
v1.0, March 2010
Time Zone USA-Pacific
Wireless
Operating Mode Access Point
Access Point Name netgearxxxxxx where xxxxxx are the last 6 digits of the
wireless access point “Ethernet” MAC address.
Wireless Communication Enabled
Wi-Fi Protected Setup (WPS) Disabled
11 b/bg/ng Wireless Network Name
(SSID) NETGEAR_11ng
Broadcast Network Name SSID Enabled
Security Disabled
Transmission Speed Besta
Country/Region Varies by region
Scheduled Wireless ON/OFF Disabled
80211.b/bg/ng Radio Frequency Channel Auto
Output Power Full
Wireless Card Access List All wireless stations allowed
WMM Support Enabled
a. Maximum Wireless signal rate derived from IEEE Standard 802.11 specifications. Actual throughput will vary.
Network conditions and environmental factors, including volume of network traffic, building materials and
construction, and network overhead, lower actual data throughput rate.
Table A-1. Access Point Default Configuration Settings
Feature Description
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Default Settings and Technical Specifications A-3
v1.0, March 2010
Technical Specifications
Table A-2. WN604 Technical Specifications
Parameter NETGEAR Wireless N150 Access Point WN604
802.11g Data Rates 1, 2, 5.5, 11, 12, 18, 24, 36, 38, 54, & 108 Mbps (Auto-rate capable)
802.11ng Data Rates Data Rates for Channel Width=20MHz and Guard Interval=short (400ms): Best,
7.2 Mbps, 14.4 Mbps, 21.7 Mbps, 28.9 Mbps, 43.3 Mbps, 57.8 Mbps, 65 Mbps,
72.2 Mbps
Data Rates for Channel Width=20MHz and Guard Interval=long (800ms): Best,
6.5 Mbps, 13 Mbps, 19.5 Mbps, 26 Mbps, 39 Mbps, 52 Mbps, 58.5 Mbps, 65
Mbps
Data Rates for Channel Width=40MHz and Guard Interval=short: Best, 15 Mbps,
30 Mbps, 45 Mbps, 60 Mbps, 90 Mbps, 120 Mbps, 135 Mbps, 150 Mbps
Data Rates for Channel Width=40MHz and Guard Interval=long: Best, 13.5
Mbps, 27 Mbps, 40.5 Mbps, 54 Mbps, 81 Mbps, 108Mbps, 121.5 Mbps, 135
Mbps
802.11b/bg/ng
Operating Frequencies
2.412 ~ 2.462 GHz (US) 2.457 ~ 2.462 GHz (Spain)
2.412 ~ 2.484 GHz (Japan) 2.457 ~ 2.472 GHz (France)
2.412 ~ 2.472 GHz (Europe ETSI)
802.11 b/bg/ng
Encryption
64-bits, 128- and 152-bits WEP, AES, TKIP data encryption
Network Management Web-based configuration and status monitoring
Maximum Clients Limited by the amount of wireless network traffic generated by each node;
maximum 64 supported.
Status LEDs Power/Ethernet LAN/Wireless LAN/Wi-Fi /WPS function
Power Adapter 12V DC, 1 A
Electromagnetic
Compliance
FCC Part 15 Class B and Class E, CE, and C-TICK
Environmental
Specifications
Operating temperature: 0 to 40° C; Storage temperature: -20 to 70° C
Operating humidity: 10-90% RH; Storage humidity: 5-95% RH
NETGEAR Wireless N150 Access Point WN604 Reference Manual
A-4 Default Settings and Technical Specifications
v1.0, March 2010
Related Documents B-1
v1.0, March 2010
Appendix B
Related Documents
This appendix provides links to reference documents you can use to gain a more complete
understanding of the technologies used in your NETGEAR product.
Document Link
Internet Networking and TCP/IP
Addressing http://documentation.netgear.com/reference/enu/tcpip/index.htm
Wireless Communications http://documentation.netgear.com/reference/enu/wireless/index.htm
Preparing a Computer for
Network Access http://documentation.netgear.com/reference/enu/wsdhcp/index.htm
Glossary http://documentation.netgear.com/reference/enu/glossary/index.htm
NETGEAR Wireless N150 Access Point WN604 Reference Manual
B-2 Related Documents
v1.0, March 2010
Index-1
v1.0, March 2010
Index
Numerics
2.4 GHz/5 GHz concurrent 1-2
20 MHz 2-16
20/40 MHz 2-16
40 MHz 2-16
802.11a/b/g/n 1-3
standards compliance 1-2
802.11b/g/n 2-13
default SSID 2-10
802.11e 1-3, 2-17, 5-4
802.11n
data encryption option, recommendation 2-3
A
access control
MAC address filtering 1-3
MAC authentication 3-22
trusted wireless stations 1-3
access control list
MAC authentication 3-22
access point mode
security options 3-3
access point name 2-5
access point, more than one 2-15
ACK 1-3
activity log 4-8
AES
802.11n, recommended for 2-3
with WPA2, with RADIUS 3-16
with WPA2-PSK 3-20
aggregation length 5-4
aggregation, support for 1-3
AID see association ID
A-MPDU (Aggregation of MAC Protocol Data Units) 5-
4
antenna
2.4 GHz 1-8
5 GHz 1-8
accessories 5-11
position 2-2, 2-10
AP’s PIN 3-5
associated stations
present in AWSL, only 4-12
association ID
authentication server settings
IP address 3-10, 3-11
port number 3-10, 3-11
shared secret 3-11
auto or long preamble, support for 1-3
Auto UplinkTM 1-4
autosensing ethernet, support for 1-3
autosensing, LAN interface 1-4
available wireless station list (AWSL) 4-12
available wireless stations list 3-23
AWSL table fields
channel 4-12
MAC address 4-12
mode 4-12
rate 4-12
SSID 4-12
state 4-12
status 4-12
type 4-12
wireless network name (SSID) 4-12
B
back off 1-3
beacon generation, support for 1-3
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Index-2
v1.0, March 2010
beacon interval 5-4
bridge
network authentication 3-3
bridge mode wireless station
wireless point to point bridge 5-6
wireless point-to-multi-point bridge 5-7
BSSID 4-12
C
Category 5 Ethernet cable 1-5
change password 4-6
channel auto
testing connectivity 2-18
channel auto selection 2-18
channel interference 2-18
channel spacing 2-2
channel spacing, recommended 2-15
channel, auto
configuring channel/frequency 2-15
channel, default 2-15
configuration file 4-3
conventions, typographical 1-xi
country/region, configure 2-6
coverage 2-2
coverage area 1-1, 2-9
CSMA/CA 5-3
CSMA/CD (Carrier Sense Multiple Access with Collision
Detection) 5-3
CTS (Clear to Send) 5-3
D
data encryption settings
128 bits WEP 3-4
152 bits WEP 3-4
64 bits WEP 3-4
AES 3-4
none 3-4
TKIP 3-4
TKIP + AES 3-4
data rates 802.11bgn 2-15
default access point name 2-6
default channel 2-15, 2-18
default gateway, configure 2-13
default IP address 2-4, 2-12
default password 2-4
default reset button 4-5
default SSID 2-10
default user name 2-4
default wireless access point name 2-10
DHCP
point-to-multi-point bridging 5-11
DHCP client
default setting 2-10
DHCP client, configure 2-12
DHCP client/server
support 1-2
DHCP server
on LAN 2-12
on LAN, assigns IP address 2-10
distributed coordinated function, support for 1-3
documentation 2-5
DTIM (Delivery Traffic Indication Message) interval 5-4
dual band concurrent, use 1-2
dynamic encryption key generation, support 1-2
dynamic IP address, configure 2-10
dynamic per frame rekeying 2-3
E
EDCA (Enhanced Distributed Channel Access) 5-5
Ethernet
RJ-45 port 1-8
ethernet cable, connect 2-10
External Registrar, WPS 3-5
F
factory default settings 4-3
reset button 1-8, 6-4
resetting 6-4
restore 4-4
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Index-3
v1.0, March 2010
table A-1
firmware
upgrade 4-2
FLASH 4-1
formats, document 1-xi
fragmentation 5-4
fragmentation threshold 5-4
front panel 1-6
full-duplex 1-4
H
half-duplex 1-4
hidden mode, support for 1-3
hotspot
wIreless client security separation 3-13
wireless client security separation 3-15, 3-17, 3-18, 3-
19, 3-20, 3-21
how to print, manual 1-xii
I
interference, channel settings 2-15
interference, least 2-15
interference, reduce 2-2, 2-15
interference, sources 2-2
IP address
configure 2-7, 2-12
IP settings, configure 2-12
K
keys, use with WEP 3-4
L
LAN IP address
default 6-3
latency 2-2
LED indicators, table of 1-6
legacy rates 2-3
line of sight 2-9
location 2-2, 2-9
log in 2-11
logs 4-7, 4-8
M
MAC address
access control list 3-22
bridge mode wireless station 5-6
wireless point-to-multi-point bridge 5-7
MAC authentication
available wireless stations list 3-23
MAC address database, local 3-23
MAC address database, RADIUS 3-23
trusted wireless stations 3-23
turn access control on 3-23
max users 1-1
maximum packet size 5-4
multiple access points
placement of 2-2
multiple input, multiple output (MIMO), support for 1-3
multi-point bridging
extend 5-11
extend range 5-11
N
NetBIOS name 2-6
Netgear products, compatible 1-4
network authentication, types of
open system 3-3
shared key 3-3
WPA and WPA2 with RADIUS 3-3
WPA with RADIUS 3-3
WPA2 with RADIUS 3-3
WPA2-PSK 3-3
WPA-PSK 3-3
WPA-PSK and WPA2-PSK 3-3
network key
with WPA-PSK and WPA2-PSK 3-21
WPA-PSK 3-19
network statistics 4-10
fields 4-11
NTP client, configure 2-8
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Index-4
v1.0, March 2010
NTP server, configure 2-8
O
operating modes, supported
point-to-multi-point bridge. 1-2
point-to-point bridge 1-2
wireless access point 1-2
P
package contents 1-5
packet fragmentation, support for 1-3
packet size 5-3
passphrase, use with WEP 3-4, 3-13
password
change 4-6
performance degradation
causes of 2-2
placement 2-2
point-to-multi-point bridge 5-7
configure 5-10
point-to-point bridge 5-6
configure 5-9
point-to-point bridge mode
wireless point-to-multi-point bridge 5-7
power adapter 1-8
power consumption 2-2
preamble type 5-4
preshared key passphrase
WPA-PSK 3-19
primary DNS server, configure 2-13
product registration 1-ii
profile name
bridge mode wireless station 5-6
wireless point-to-multi-point bridge 5-7
Q
QoS queues 5-6
QoS settings 2-17
QoS settings, advanced
AP EDCA parameters 5-5
station EDCA parameters 5-5
R
RADIUS and certificate authentication, support 1-2
RADIUS server, configure 3-9
accounting server 3-11
authentication server 3-10
RADIUS server, configure first 3-2, 3-11
range 1-1
guidelines 2-2
rear panel 1-8
reboot 4-5
reset button, using 6-4
rebooting
losing previous state 4-13
reception 2-2
reduced inter frame spacing, support for 1-3
registering 1-ii
Registrar, WPS 3-5
request to send threshold 5-3
reset button 4-5
reset to factory defaults 4-5
retransmission 1-3
revision history 1-xiii
RIFS
wireless settings 5-4
roaming
multiple wireless access points 4-12
roaming on same subnet, support for 1-3
RTS 5-3
RTS/CTS handshake, support for 1-3
S
Scheduled Wireless 5-1
security profile definition
authentication settings 3-3
broadcast wireless network name (SSID) 3-3
data encryption 3-4
wireless client security separation 3-4
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Index-5
v1.0, March 2010
wireless network name (SSID) 3-2
security profiles
about 3-2
security profiles, setting up 3-11
security profiloe
wireless client security separation 3-12
setup form 3-8
software upgrade 4-2
SSID 2-15
hidden mode 1-3
SSID broadcast, disable 3-3
SSID match
verify connectivity 2-10
SSID, wireless network name 3-2
standards, supported 1-2
static IP address 6-3
default 2-4
statistics 4-10
subnet mask
default 6-3
support 1-ii
support documentation 2-5
syslog server
setup 4-7
system information 4-8
fields 4-9
system requirements 1-5
T
technical specifications A-3
throughput performance 2-2
timezone, configure 2-6, 2-8
timezone, default 2-8
TKIP
data rates, provided by 2-3
with WPA, with RADIUS 3-15
with WPA-PSK 3-19
TKIP+AES
with WPA and WPA2, with RADIUS 3-18
with WPA-PSK + WPA2-PSK 3-21
transmit power 2-16
troubleshooting 6-1
access point, connecting to 6-3
configuring, 6-3
LAN activity 6-2
power connection 6-1
timeout error 6-3
wireless Internet connection 6-2
wireless LAN activity l 6-2
trusted wireless stations list
MAC authentication 3-23
U
unauthorized access, secure from 2-1
upgradeable firmware, support for 1-3
V
Voice-over-IP (VoIP) 5-5
W
WEP
data rates, provided by 2-3
WEP, configure
data encryption keys 3-13
data encryption strength 3-13
network authentication type 3-12
wireless client security separation 3-13
Wi-Fi Multimedia (WMM) 5-4
Wi-Fi Protected Access (WPA) 2-3
Wi-Fi Protected Setup (WPS) 3-5
wired equivalent privacy (WEP) 2-3
wireless access point
software 4-1
wireless access point name 2-10
wireless adapter
verifying connectivity 2-10
wireless adapter, settings 2-19
wireless adapters
WPA support, restriction 3-14
WPA2 support, restriction 3-16
NETGEAR Wireless N150 Access Point WN604 Reference Manual
Index-6
v1.0, March 2010
wireless bridging and repeating 5-6
wireless channel
changing 2-15, 2-18
wireless client security separation
hotspot setting 3-13
wireless computer, configuring from 3-14
wireless connection
losing 3-22
