Netgear orporated 17300392 Arlo Pro 2 User Manual Arlo Pro Quick Start Guide
Netgear Incorporated Arlo Pro 2 Arlo Pro Quick Start Guide
Users Manual.pdf
1
Arlo Pro 2 Quick Start Guide
32
Welcome
Thank you for choosing Arlo Pro 2.
Getting started is easy.
What’s Included
Base station
Base station AC
power adapter
Magnetic wall
mounts
Arlo Pro 2 Wire-Free
camera
Rechargeable battery
Ethernet cable
Mounting
screws
Camera AC power
adapter
Camera power
adapter cable
54
a. Unlock the battery compartment by pressing and holding the latch.
b. Gently pull the battery door back to open the compartment.
Insert the Battery Into Your Camera
1
c. Align the battery contacts.
d. Insert the battery.
e. Close the battery door.
Get the App
For the best experience, download the Arlo app for your smartphone by
scanning this QR code or searching for Arlo in the app store.
2
Note: The Arlo battery is fully charged
when it leaves the factory.
https://arlo.netgear.com
Note: If you already use the Arlo app, make sure that you are using the
latest version. To find out if an update is available, go to the app
store and search for Arlo.
76
3Connect Your Base Station to the Internet
a. Connect the base station to your
router using an Ethernet cable.
b. Connect the base station AC
adapter to your base station and
plug it in.
c. Turn the base station on by
pressing the On/O button.
The Power LED and Internet LED
on the front of the base station
light green in about two minutes.
98
¾To create a new Arlo account:
a. Launch the Arlo app from your smartphone, tap the New
to Arlo? button, and select Arlo Pro 2.
If you are using a computer, visit arlo.netgear.com.
b. Follow the onscreen instructions.
Get an Account
4Sync Your Cameras With the Base Station
5
a. Bring the camera within 1 to 3 feet (30 to 100 centimeters) of the
base station.
Note: Cameras must be synced one at a time.
¾To add an Arlo Pro 2 camera to an existing Arlo account:
a. If you already set up an Arlo account, log in, and click or
tap Add Device.
b. Follow the onscreen instructions.
1110

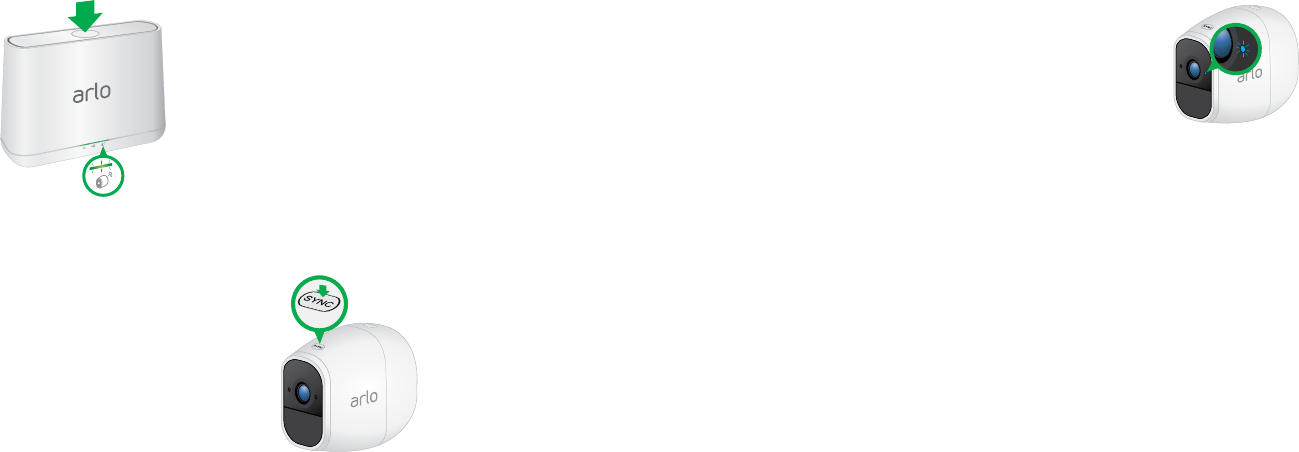

b. Press the Sync button on the top of the base station for
about two seconds and then release the button.
c. Wait for the Sync Status LED to blink green.
d. Press the Sync button on top of the camera for about two
seconds and then release the button.
The camera is ready for viewing.
The LED blinks amber if the sync is not successful. You must repeat the
sync process.
Syncing more than one camera?
Go to Page 9 and repeat steps 5a through 5d for each camera.
A blue LED on the camera blinks slowly when the sync process starts. The
blue LED blinks rapidly to confirm syncing.
1312
You can place your camera on a shelf or other flat surface, or you
can mount it to the wall.
Tip: Use the Arlo app in Position mode
(found in Camera Settings) to help aim the camera.
Place or Mount Your Cameras
6
¾To mount your camera to the wall:
Fasten the mounting screw into the wall,
and hang the magnetic mount from the
screw.
If you’re mounting the camera to drywall, be
sure to use the plastic drywall anchors that
are provided.
Charge Your Arlo Battery
The Arlo battery is fully charged when it leaves the factory.
¾To recharge the battery:
a. Place the camera indoors. If you are using the camera outside, bring it inside
while charging the battery.
b. Connect the power adapter cable to the camera power adapter.
Note: You must use an Arlo Pro 2 power adapter and cable to charge the
battery.
c. Connect the other end of the adapter cable to the camera.
d. Plug the power adapter into an electrical outlet.
The camera LED lights solid blue when the
camera battery is fully charged.
7
1514
You’re Done!
Congratulations! Your Arlo System is set up and ready to go.
To view useful tutorial videos, find troubleshooting tips, or get support,
visit https://www.arlo.com/support/.
Base Station LED Guide
Green
The base station
is powered on.
Blinking green
A firmware update
is in progress. DO
NOT TURN OFF THE
BASE STATION OR
CAMERAS.
O
The base station
is powered o.
Amber
The base station
is booting.
Power
Green
The base station
is connected to
the Internet.
Blinking green
The base station
is sending or
receiving data over
the Internet.
Amber
The base station is
connected to the
router but did not
establish an Internet
connection.
O
The base station is
not connected to
your router.
Internet
Green
Cameras are
connected to the
base station.
Blinking green
The base station
is attempting
to sync with a
camera.
Blinking amber
A camera is too
far from the base
station. Signal
strength is weak.
O
No cameras are
detected..
Camera
16
©NETGEAR, Inc., NETGEAR, the NETGEAR Logo, and Arlo are trademarks of NETGEAR, Inc. Any
non-NETGEAR trademarks are used for reference purposes only.
Compliance
For the current EU Declaration of Conformity, visit
http://kb.netgear.com/app/answers/detail/a_id/11621/.
For regulatory compliance information, visit
http://www.netgear.com/about/regulatory/.
August 2017
350 East Plumeria Drive
San Jose, CA 95134, USA
NETGEAR INTL LTD
Building 3, University Technology Centre
Curraheen Road, Cork, Ireland
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this
equipment.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
Industry Canada statement:
This device complies with ISED’s licence-exempt RSSs. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Le présent appareil est conforme aux CNR d’ ISED applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) le
dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit
accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un
fonctionnement indésirable.
Radiation Exposure Statement:
This equipment complies with ISED radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements ISED
établies pour un environnement non contrôlé. Cet équipement doit être installé et
utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre
corps.
