Aer the satellites are powered on, each
satellite’s ring LED lights white while the
satellite attempts to sync with the router.
Then the ring LED lights one of the following
colors for about three minutes and then
turns o:
Quick Start Guide
Blue
The connection between the
satellite and router is good.
Amber
The connection between the
satellite and router is fair. Consider
moving the satellite closer to the
router.
Magenta
The satellite failed to sync with the
router. Move the satellite closer to
the router.
Note: If the ring LED still lights
magenta aer about one minute,
press the Sync button on the router
and on the satellite. If the satellite
successfully syncs with the router,
the satellite’s ring LED lights white.
Then the ring LED lights blue to
indicate a good connection and then
turns o.
Satellite Sync LED Colors
NETGEAR INTL LTD
Building 3, University Technology Centre
Curraheen Road, Cork, Ireland
NETGEAR, Inc.
350 East Plumeria Drive
San Jose, CA 95134, USA
© NETGEAR, Inc., NETGEAR and the NETGEAR Logo
are trademarks of NETGEAR, Inc. Any non‑NETGEAR
trademarks are used for reference purposes only.
August 2017
Set Up Your Orbi Router
and Satellites
Set up your router and satellites using one of
the following options:
• NETGEAR Orbi app. Follow these steps:
a. Scan a QR code or search for
NETGEAR Orbi in the Apple App
Store or Google Play Store.
b. Download and launch the NETGEAR
Orbi app on your mobile device and
follow the prompts.
• Web browser. Follow these steps:
a. Unplug your modem and remove
and reinsert the backup battery if it
uses one.
b. Plug the modem back in.
c. Use the included Ethernet cable to
connect your modem to the yellow
Internet port on your router.
Note: If you want to connect your
router to an existing gateway, we
recommend that you turn o your
existing gateway’s WiFi.
d. Plug in your router.
The Power LED on the back of the
router lights green. If the Power
LED does not light, press the
Power On/O button.
e. Wait for the router’s ring LED to
light white.
f. Place your satellites, plug them in,
and wait for each satellite’s ring LED
to light blue or amber.
If a satellite’s ring LED lights
magenta, move the satellite closer
to the router.
For more information, see Satellite
Sync LED Colors.
g. Connect your computer or
mobile device to the router or
satellites with an Ethernet or WiFi
connection:
• Ethernet. Use an Ethernet cable
to connect your computer to
the router or satellites.
• WiFi. Use the preset WiFi
network name (SSID) and
password on the label of the
router or satellites to connect to
the Orbi WiFi network.
h. Launch a web browser, visit
orbilogin.com, and follow the
prompts.
If a login window opens, enter the
user name and password. The user
name is admin and the default
password is password.
Power On/O button and Power LED
DC power connector
Reset button
Ring LED (not shown in image)
Sync button (also used for WPS connection)
Internet port (the satellite does not include
an Internet port)
Ethernet ports

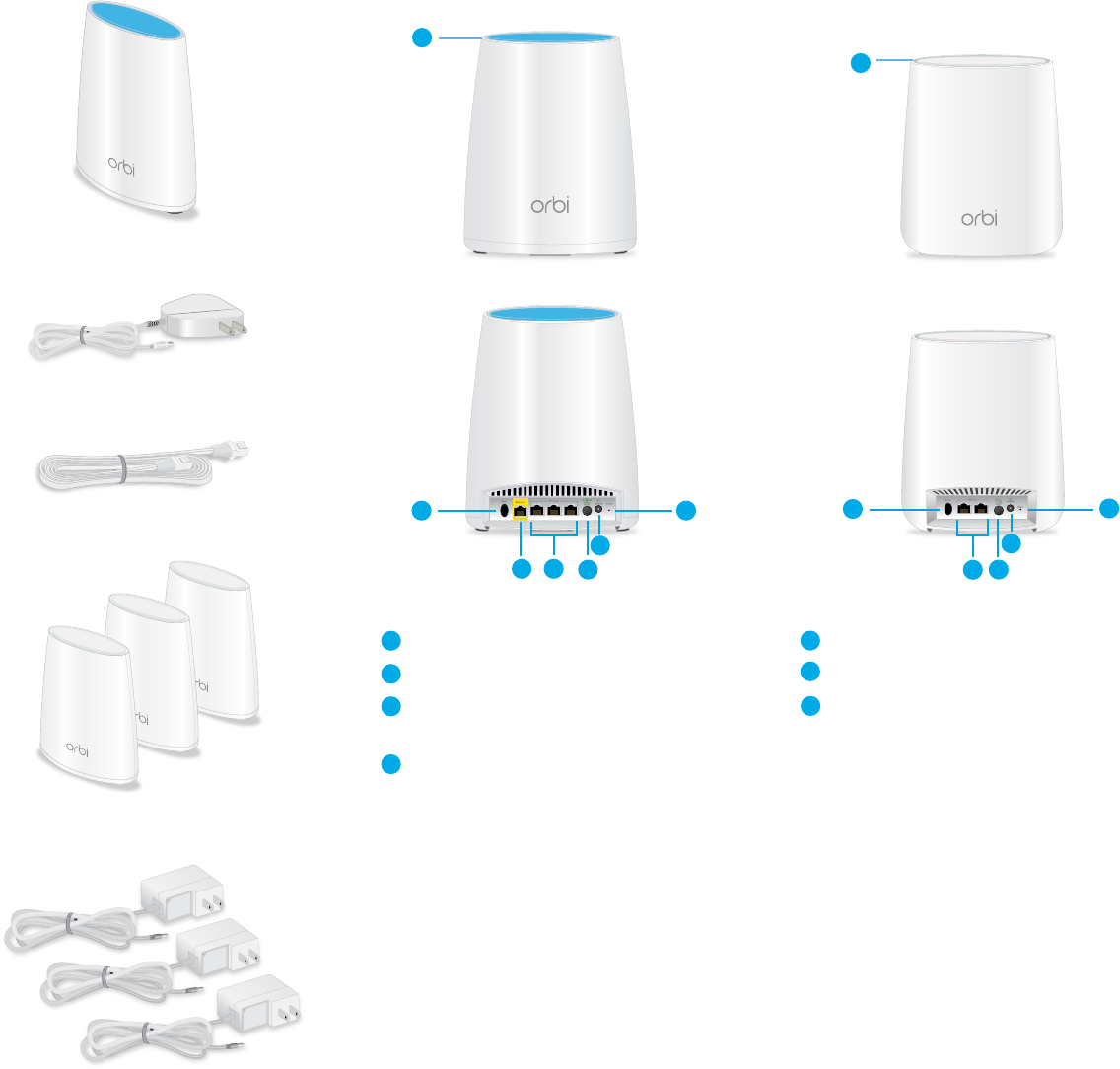

Orbi Router Overview
Orbi Router
(Model RBR40)
Orbi Satellite (3)
(Model RBS20)
Ethernet cable
Power adapter for RBR40
(varies by region)
Orbi Satellite OverviewPackage Contents
2
1
3
4
1
2
345
6
7
5
6
7
1
2
45
6
7
Support
Thank you for purchasing this NETGEAR
product. You can visit
www.netgear.com/support to register
your product, get help, access the latest
downloads and user manuals, and join our
community. We recommend that you use
only ocial NETGEAR support resources.
Si ce produit est vendu au Canada, vous
pouvez accéder à ce document en français
canadien à http://downloadcenter.netgear.
com/other/.
(If this product is sold in Canada, you can
access this document in Canadian French at
http://downloadcenter.netgear.com/other/.)
For the current EU Declaration of
Conformity, visit http://kb.netgear.
com/11621.
For regulatory compliance information, visit
http://www.netgear.com/about/regulatory/.
See the regulatory compliance document
before connecting the power supply.
Power adapters for RBS20 (3)
(vary by region)
