Netradyne DRI128 Intelligent Driver Monitoring System Smart Dash-cam User Manual

Netradyne Inc Intelligent Driver Monitoring System Smart Dash-cam

User Manual

Netradyne Vision based driver safety solution
Model name: Driver i
Model number: DRI-128-TMO
Device specifications:
Electrical Characteristics (Overall)
Input Voltage
7v-17v
Input current (full operation)
12v 2000mA
Max Power Consumption
24W
Signals Input – High Voltage (Pos)
+17v
Signals Input – Low Voltage (Neg)
0v
Camera Sensor (outward)
Camera Sensor:
OV2775
Pixel Size:
2.8μm OmniBSI-2 pixel
Dynamic Range:
>90dB dual capture; >120dB in HDR mode
Shutter type:
Global shutter
Responsivity:
~5 V/lux sec
Angle of view:
80° (horizontal), 45° (vertical), 95° (diagonal)
Camera Sensor (side and inward)
Camera Sensor:
OV9732
Pixel Size:
3μm x 3μm
Dynamic Range:
72db (not true HDR)
Shutter type:
Rolling Shutter
Responsivity:
3.3 V/lux sec
Angle of view:
127° (horizontal), 82° (vertical), 143° (diagonal)
Physical Characteristics
Length:
Width:
Height (with clamps):
Color:
Case Material:
Cable Length:
Cable Diameter:

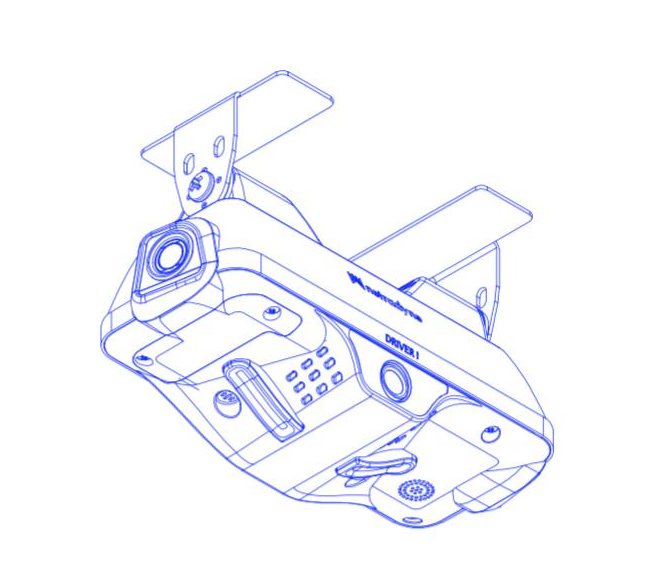

The product is an intelligent car DVR, sold as aftermarket product to fleets. This device has
below components integrated:
• Nvidia Jetson TX1 module
• 4 cameras to capture 360degree videos
• Sierra WP7504 module which is used for LTE connectivity and GPS
• Inertial sensors
The device is installed in trucks/cars behind the rearview mirror, and the power is supplied
from the car battery though a RJ45 cable. The device has also the capability to connect to the
OBD/J1939 of the vehicle to collect the engine data. This device is passive to the driver.
When the truck is running, the device captures 360degrees videos where the outward facing
camera is the primary recording and other 3 cameras are optional as per the customer
requirement. The recorded videos are processed (using our patented machine learning
algorithms) on the device together with the other sensory data and can detect any events related
to driving behavior and driver behavior. When any event detected, the output together with the
supporting processed data is uploaded to the cloud dashboard where the events and related data
can be accessed by the fleet management.
The device has 2 buttons on the bottom side of the device, by pressing the buttons, user can
generate alerts which will be uploaded to the cloud.
Device has 2 LED indicators towards driver facing side and indicates the operational state of
the device.
OPERATING REQUIREMENTS AND CONDITIONS
The design of Netradyne DRI-128 complies with U.S. Federal Communications Commission
(FCC) guidelines respecting safety levels of radio frequency (RF) exposure for Mobile
devices.
RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of
20 centimeters between the radiator and your body.
FCC PART 15 STATEMENT
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules.
REGULATORY INFORMATION
Model name: Netradyne DRI-128
FCC ID: 2AM8R-DRI128
IC company number 23098
FCC CAUTION STATEMENT FOR MODIFICATIONS
CAUTION: Any changes or modifications not expressly approved by Netradyne could void
the user’s authority to operate the equipment.
Warning
A vision-based platform designed to enhance driver safety within the commercial vehicle
market, Driveri™ focuses on identifying, recognizing and rewarding positive driver
performance. The platform was developed to capture every moment of the driving experience,
delivering stronger value to each driver, fleet manager, and a fleet’s bottom line. It does not
replace the role of the driver nor the functions a driver ordinarily performs. It does not
eliminate or decrease the need for a driver to stay alert and to obey all traffic laws while
operating a vehicle. Driveri is not an automated driving assistance program and it does not
act as a substitute for any aspect of driver vehicle control or safe driving practices. Whether
or not the device is in use, it is always the responsibility of the driver to take appropriate
corrective action. The driver should never wait for the Driveri program to provide a warning
or coaching opportunity before taking measures to avoid an accident. Failure to do so can
result in serious personal injury, death, or severe property damage.
While Driveri uses machine vision learning, artificial intelligence, and algorithms, it cannot
and does not guarantee 100% accuracy in the detection of street signs, other vehicles, traffic
lights, driving lanes, pedestrians, weather conditions, nor in providing warnings of all
potential road hazards. Drivers should never solely rely on Driveri, but instead should rely
on safe driving practices and maintain control of the vehicle at all times.
Driveri may have limited to no functionality in certain conditions such as inclement weather,
low visibility, and certain road conditions. Always keep the cameras and view of the device
unobstructed and properly calibrated so as not to inhibit the functionality of Driveri. Driving
in certain conditions or any interference with the device can result in false, few, or no alerts.
