Netronix W231A Wireless 11N 2T2R Access Point User Manual
Netronix Inc Wireless 11N 2T2R Access Point
Netronix >
manual

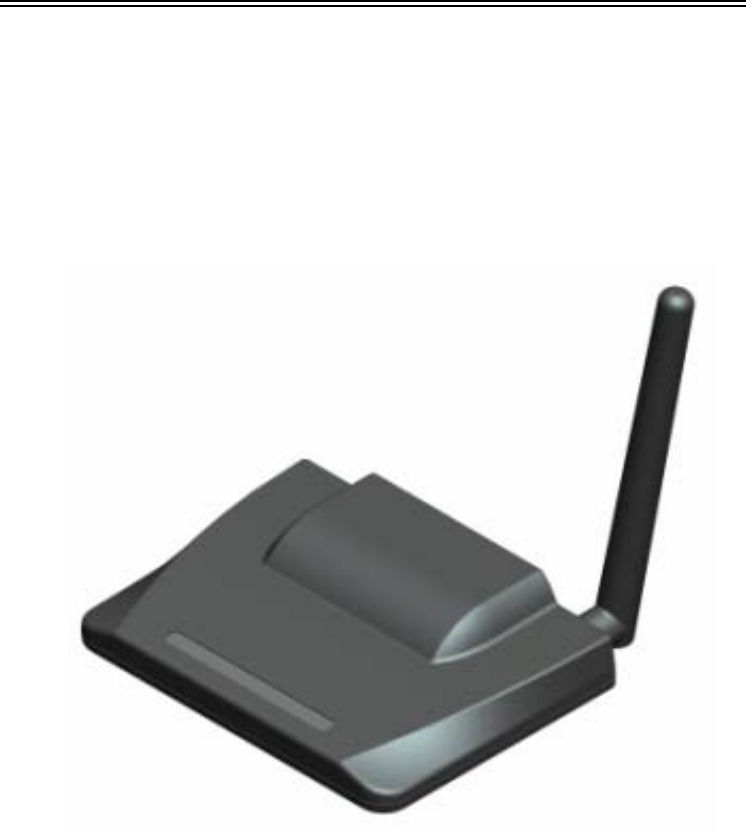

IEEE 802.11n Wireless Series
Wireless Access Point
User Manual
Version 2.0，March 20, 2010
Wireless 11n Access Point
ii
FCC Certifications
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Wireless 11n Access Point
iii
CE Mark Warning
This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022
Class A for ITE, the essential protection requirement of Council Directive 2004/108/EC on the
approximation of the laws of the Member States relating to electromagnetic compatibility and
R&TTE Directive 1999/5/EC to meet the regulation of the radio equipment and
telecommunications terminal equipment.
Company has an on-going policy of upgrading its products and it may be possible that information
in this document is not up-to-date. Please check with your local distributors for the latest
information. No part of this document can be copied or reproduced in any form without written
consent from the company.
Trademarks:
All trade names and trademarks are the properties of their respective companies.
Copyright © 2010, All Rights Reserved.
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、
加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停
用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。
Wireless 11n Access Point
iv
Contents
Unpacking Information······················································································································5
Chapter 1 Introduction to Wireless Access Point ·······································································6
1.1 General Description···································································································6
1.2 Key Features ·············································································································6
1.3 The Front Panel·········································································································7
1.4 The Rear Panel ·········································································································8
1.5 Placement (Optional)·································································································8
Chapter 2 Installing and Using Wireless Access Point·····························································10
2.1 Connecting this AP to your network·········································································10
2.2 Configuring the IP address of your computer·························································· 11
Chapter 3 Management ···········································································································13
3.1 Starting the WEB-Based Management Interface·····················································13
3.2 The Graphic User Interface ·····················································································14
3.3 Wireless···················································································································17
3.3.1 Basic Settings··································································································17

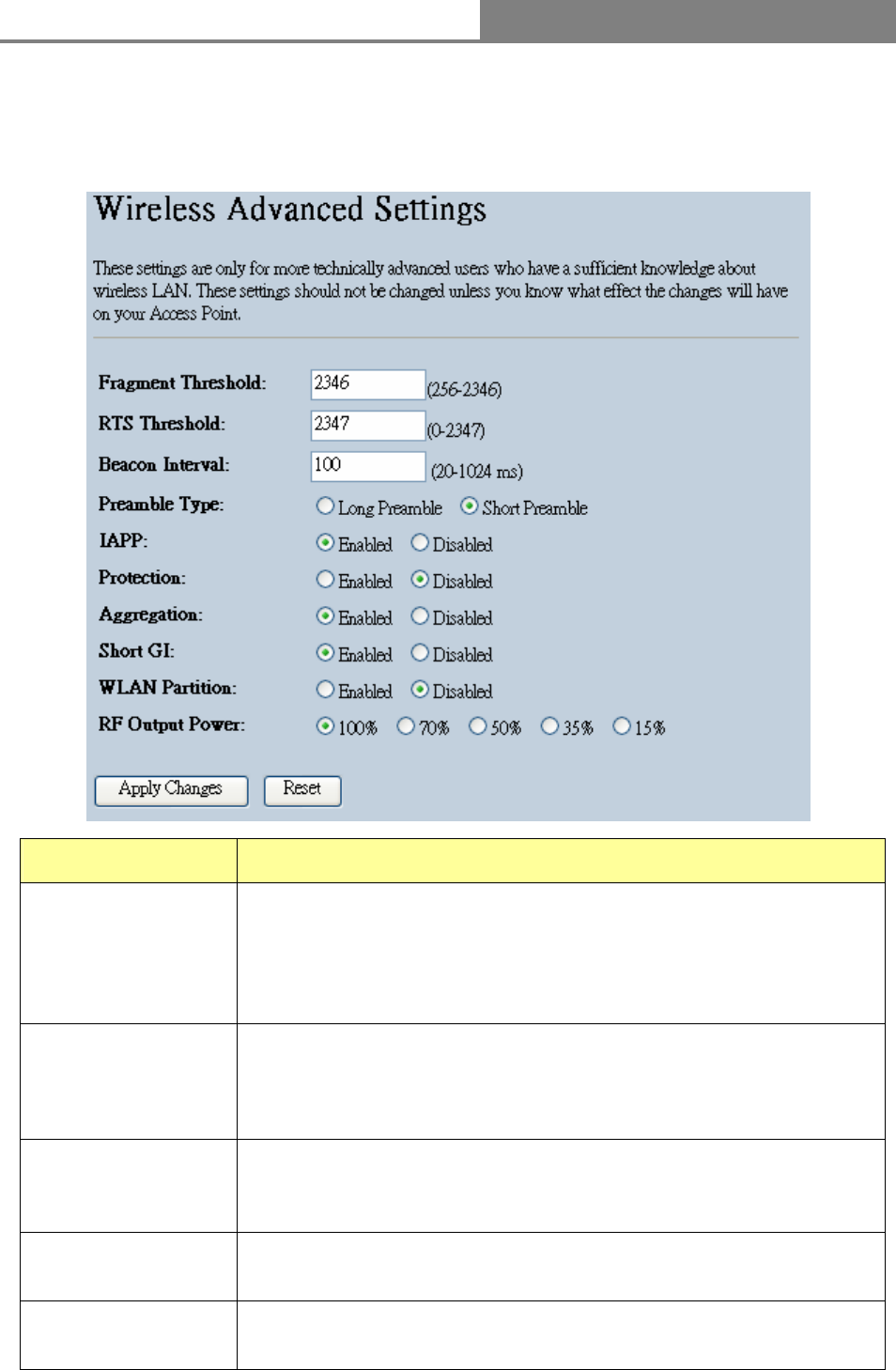

3.3.2 Advanced Settings···························································································20

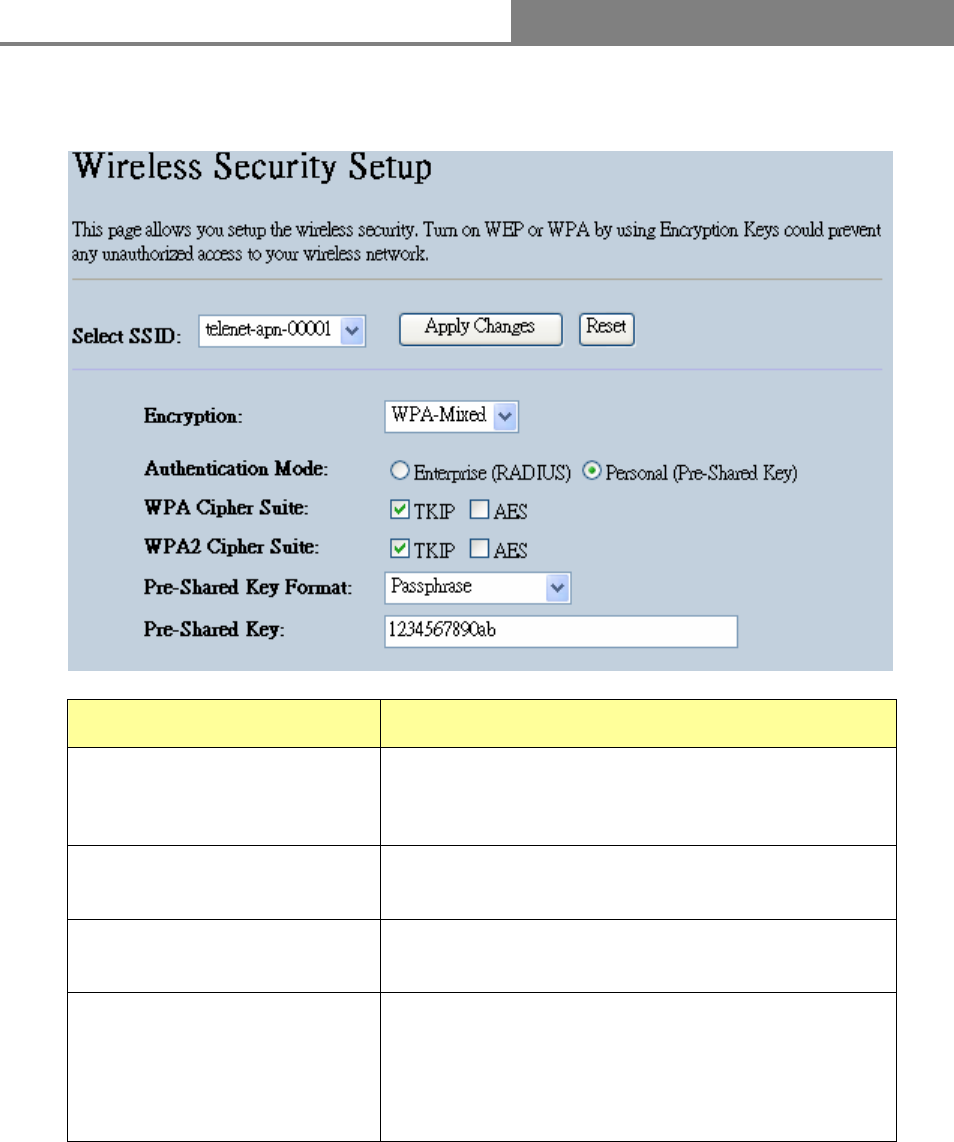

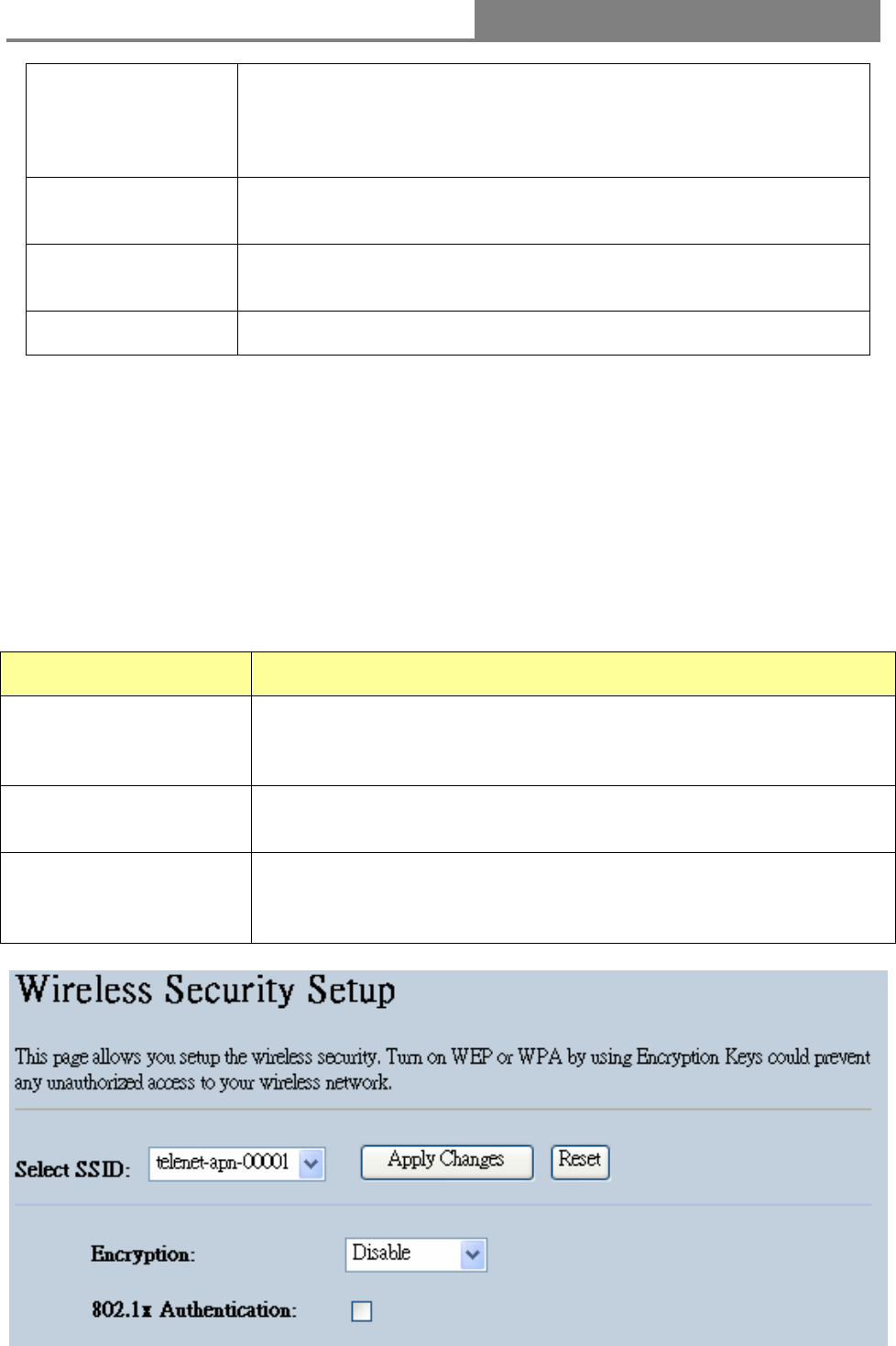

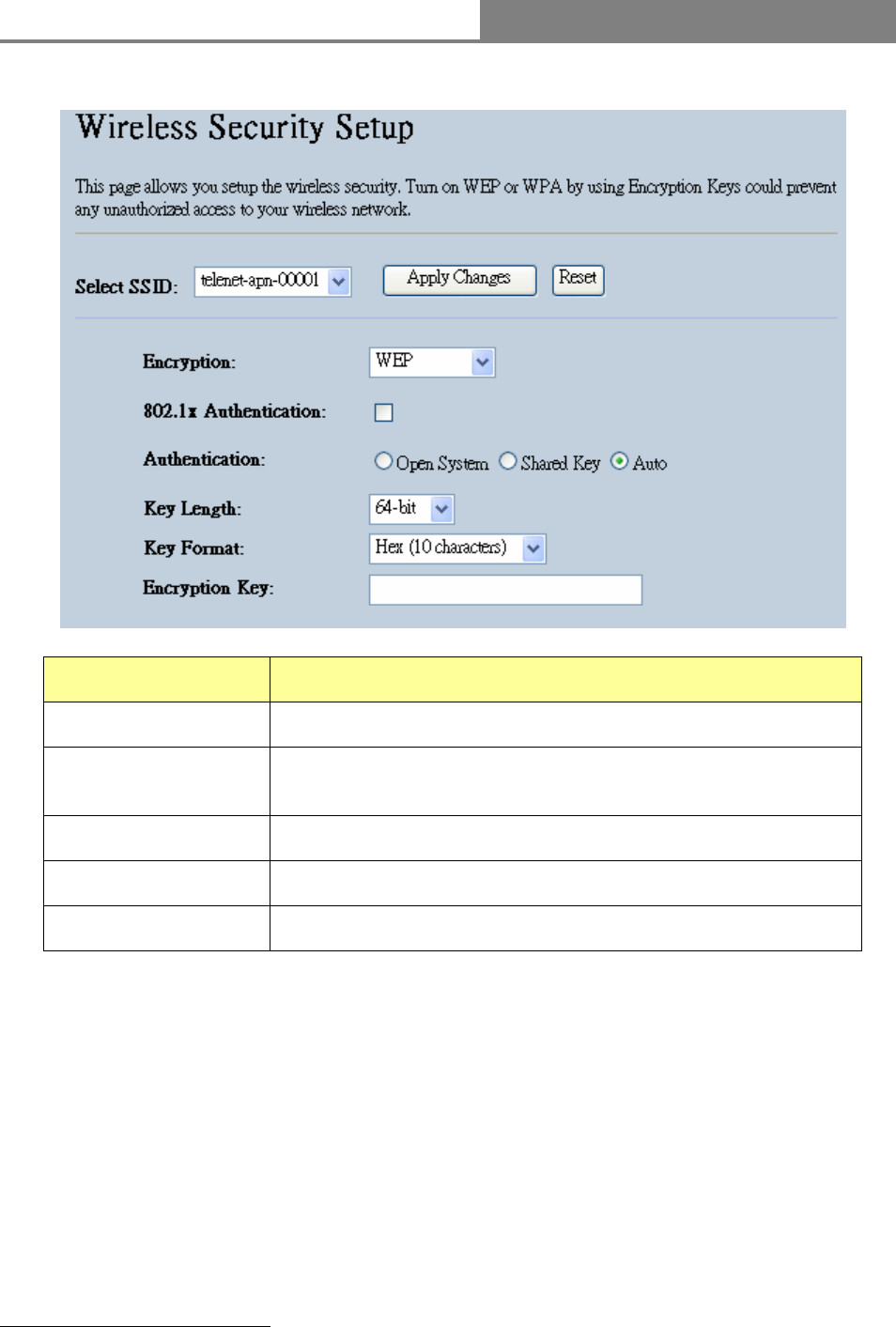

3.3.3 Security············································································································21

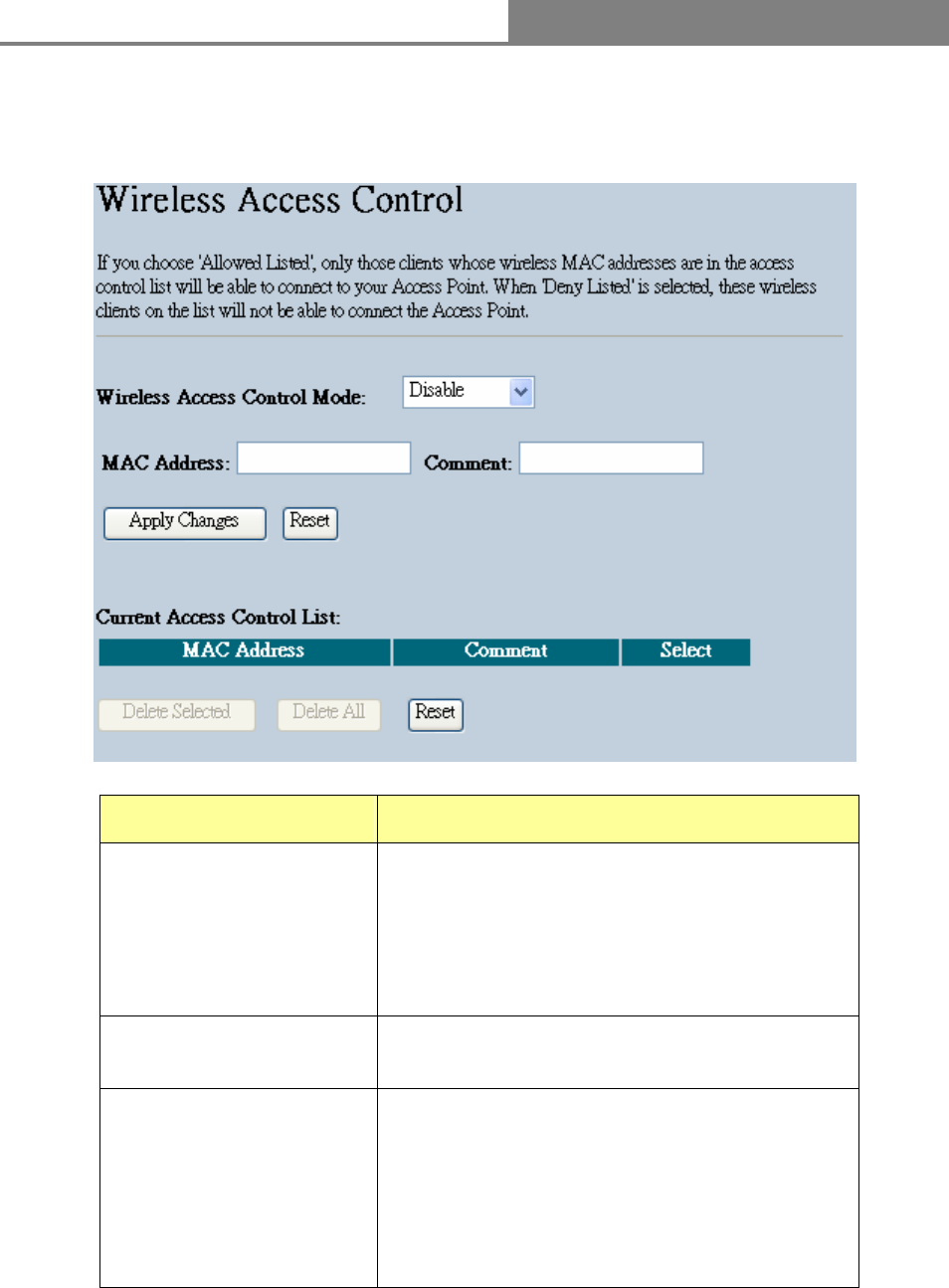

3.3.4 Access Control ································································································25

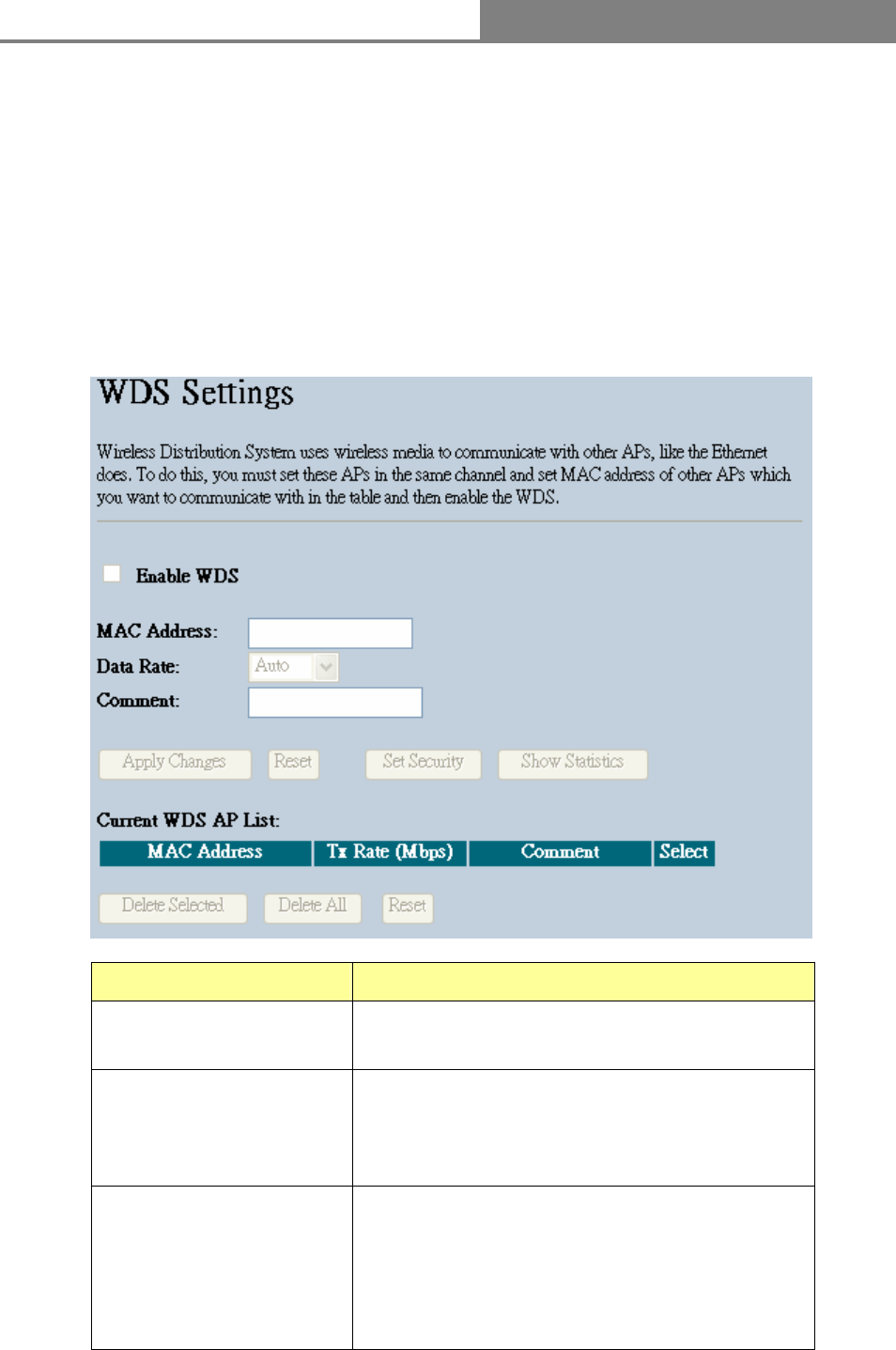

3.3.5 WDS Settings ··································································································26
3.3.6 Site Survey ······································································································27
3.3.7 WPS Settings ··································································································27
3.4 TCP/IP Setting·········································································································28

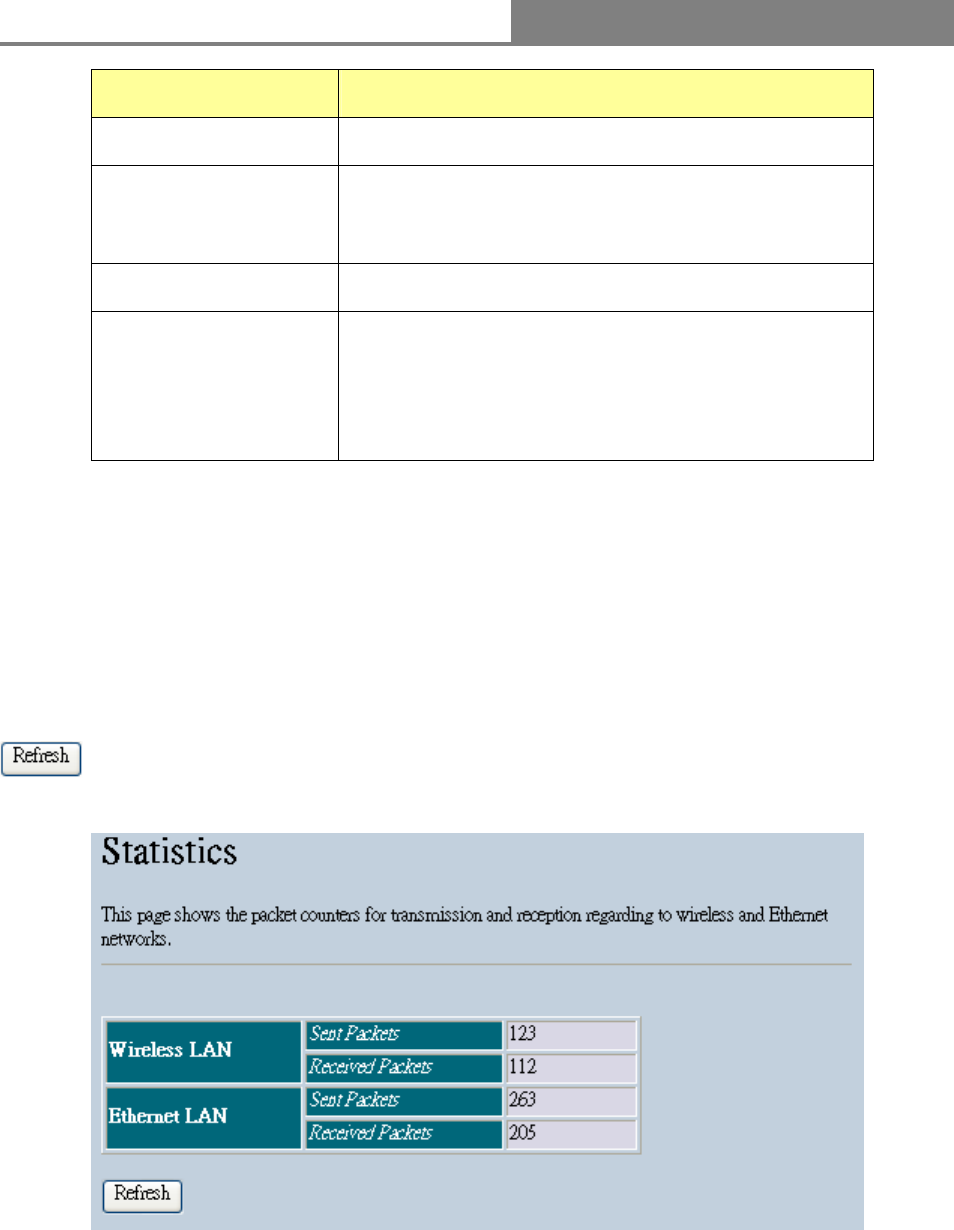

3.5 Statistics ··················································································································29

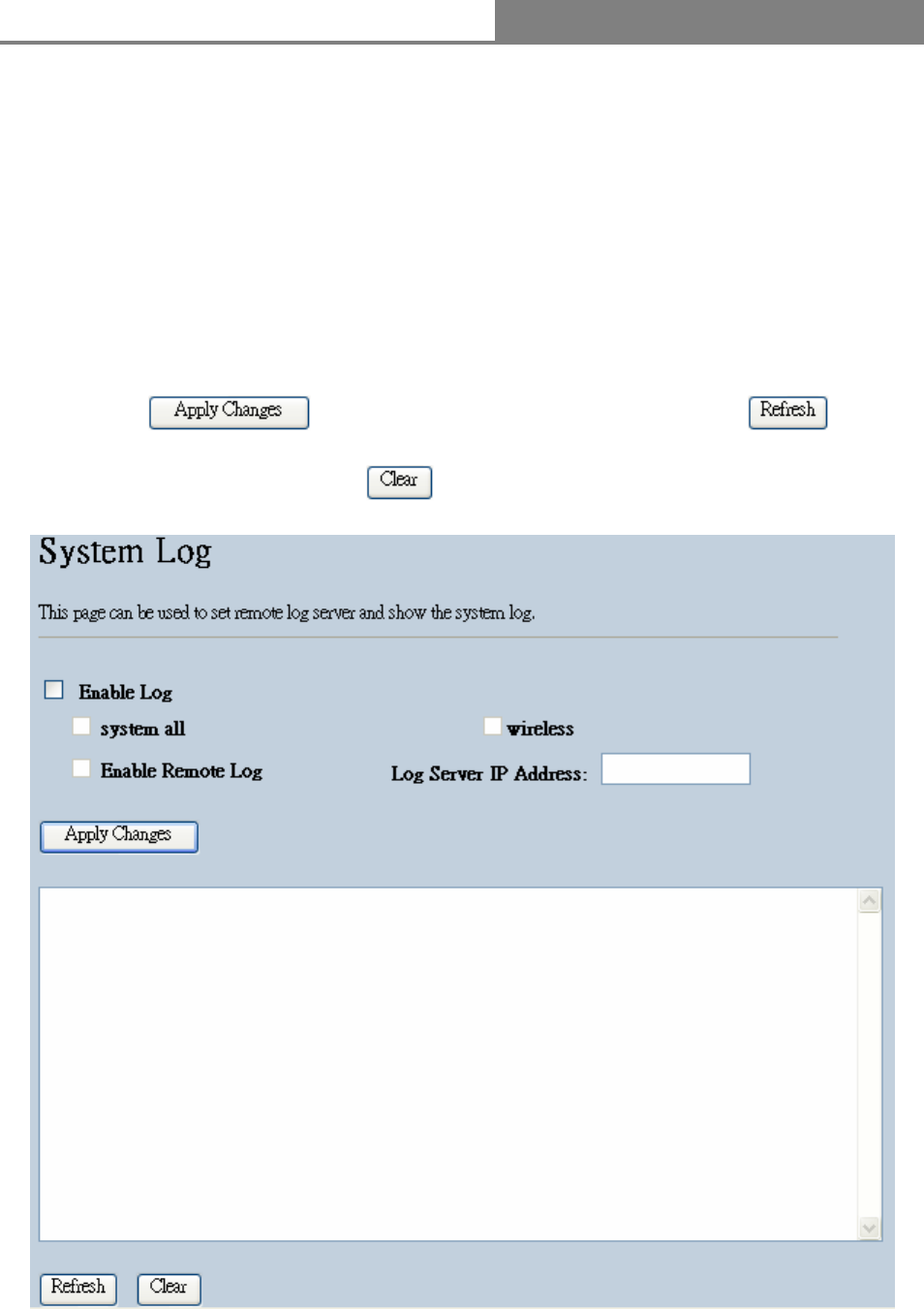

3.6 System Log ············································································································30

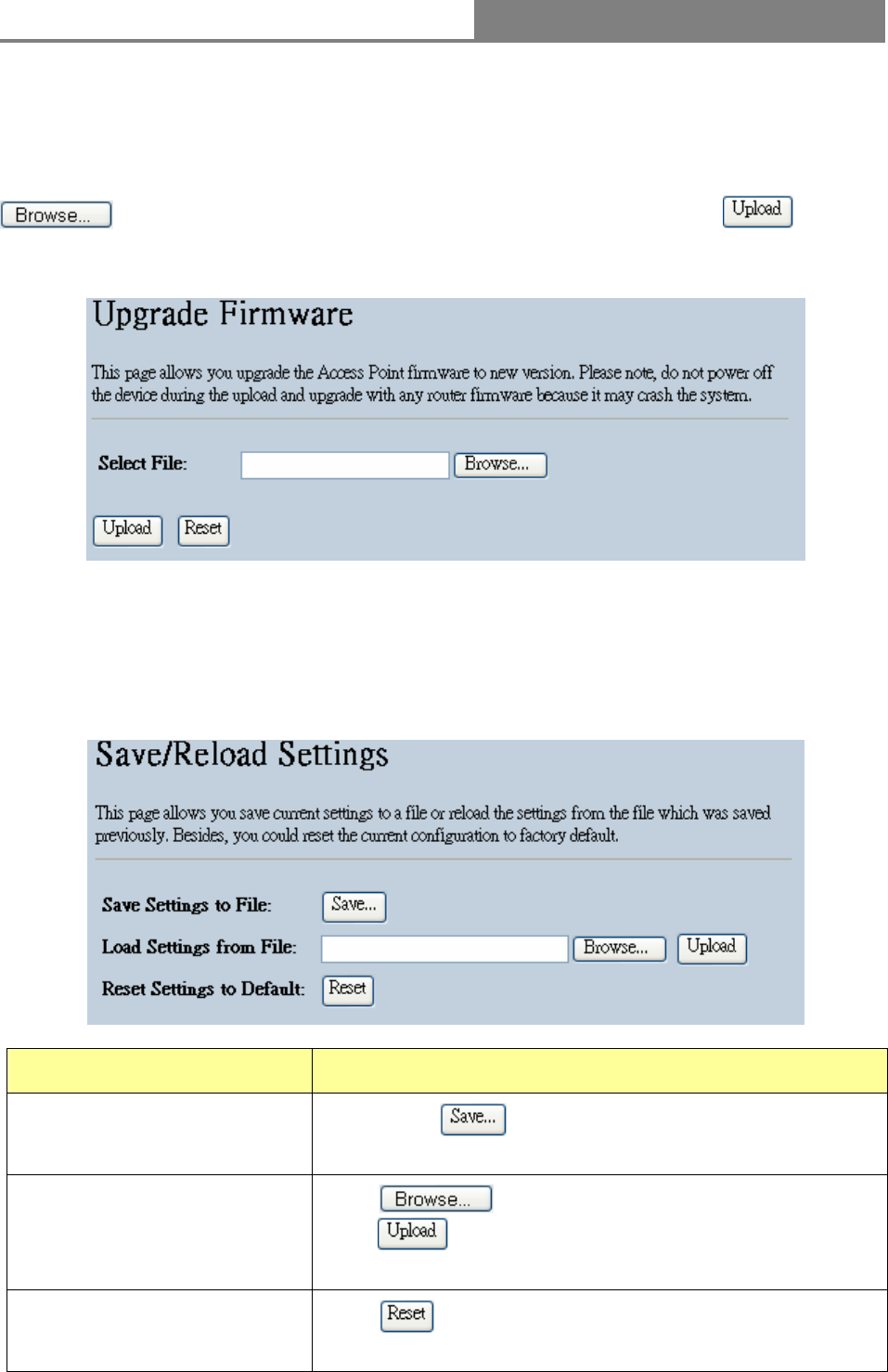

3.7 Upgrade Firmware···································································································31
3.8 Save/Reload Setting································································································31
3.9 Password·················································································································32
3.10 System Time Setting ·······························································································32
3.11 Logout ·····················································································································32
Appendix A: Product Specifications ································································································33
Wireless 11n Access Point
5
Unpacking Information
Thank you for purchasing the product. Before you start, please check all the contents of this
package.
The product package should include the following:
1. One Wireless Access Point with one antenna
2. One Power Adapter
3. Four Rubber Feet
4. One Quick installation Guide
5. One resource CD, including User’s Manual
Note:
Make sure that the package contains the above items. If any of the listed items are damaged or
missing, please contact with your distributor.
Conventions
The AP mentioned in this guide stands for IEEE 802.11n Wireless Access Point without any
explanation.
Wireless 11n Access Point
6
Chapter 1 Introduction to Wireless Access Point
1.1 General Description
Easily constructing your LAN, this wireless access point offers a wireless interface and eliminates
your effort busying cabling form one computer to another.
With being compliant to IEEE 802.11n specification, this wireless access point supports data rate
up to 300 Mbps and hence help to construct your high-speed home or office wireless network. The
IEEE 802.11n Wireless Access Point provides a better wireless signal for network than existing
wireless 802.11g technology. It complies with IEEE 802.11n draft 2.0 and IEEE 802.11b/g wireless
standards.
This access point equips two LAN ports, and one embedding antenna. As for security, it also
supports the latest wireless security features to help prevent unauthorized access, be it from over a
wireless network or from the Internet. Moreover, supporting for WPA and WPA2 standards ensure
that you will be able to use the best possible encryption, regardless of your client devices.
Additionally, this device supports WEB-based graphics user interface that helps users to configure
this device easily.
1.2 Key Features
Complies with IEEE 802.11n wireless standards
Provides two 802.11b/g/n wireless fixed antenna
High speed transfer data rate up to 300 Mbps
Supports 2.4 GHz frequency band
Supports wireless data encryption with WPA, WPA2, Open/ shared key, and pair-wise key
authentication services
Supports authentication for wireless connectivity based on ESSID
Support MDI/MDIX auto crossover function
Supports firmware upgrade function via Web
Wireless 11n Access Point
7

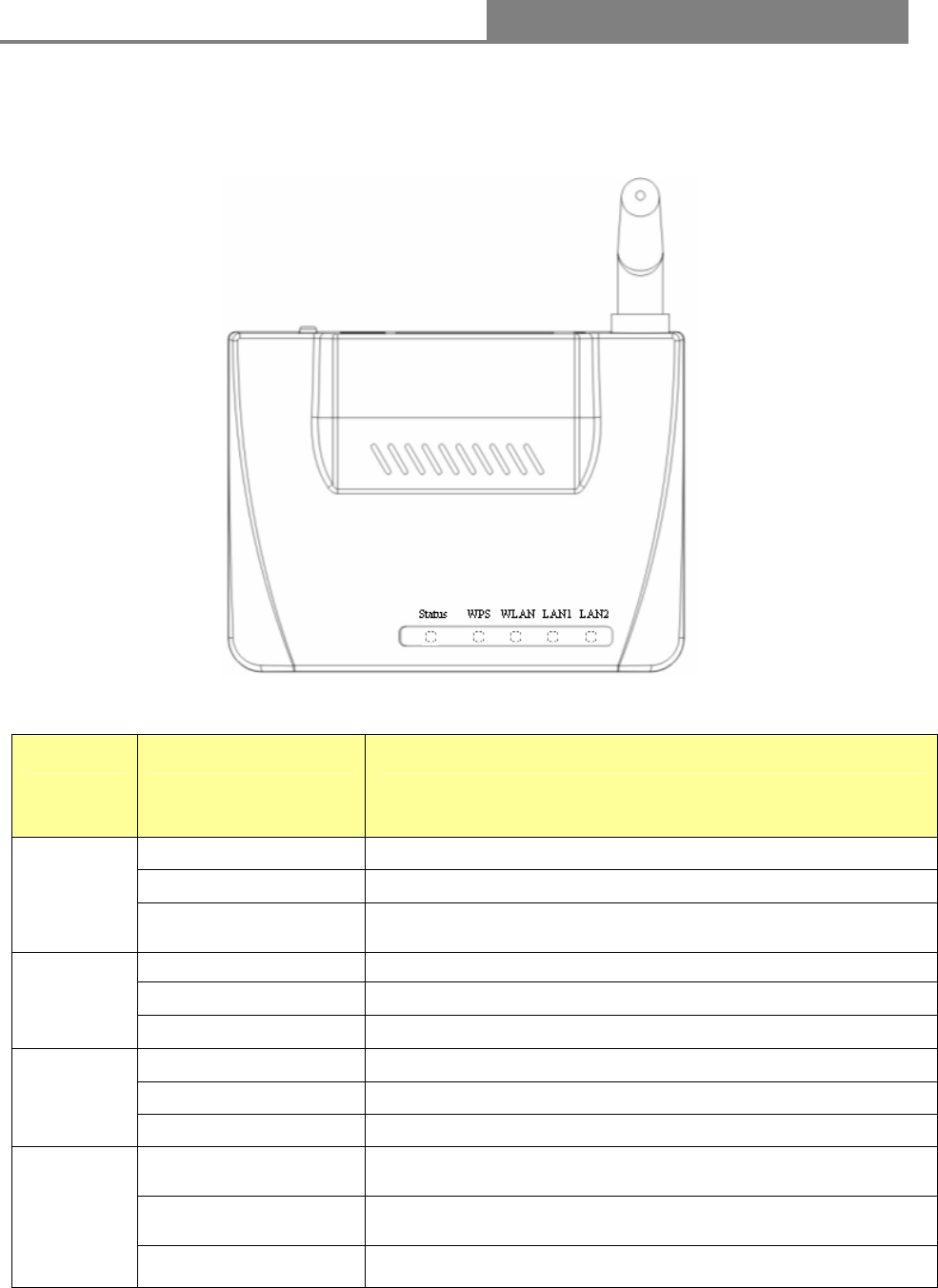

1.3 The Front Panel
The front panel of the Wireless 11n Access Point:
Name Status Indication
Green Power On
Dark Power Off
Status System Resetting
default Blink Green a few times
Blink Green one time System Reboot
Blink Green WPS Connecting
WPS
Dark System Stability
Off The wireless function is disabled
Flashing The wireless function is enabled
WLAN
Flashing fast Sending or receiving data over wireless
Off There is no device linked to the corresponding port or the
connection is dropping off.
On There are devices linked to the corresponding ports but no
data transmitted or received.
LAN 1-2
Flashing Sending or receiving data over corresponding port
Wireless 11n Access Point
8

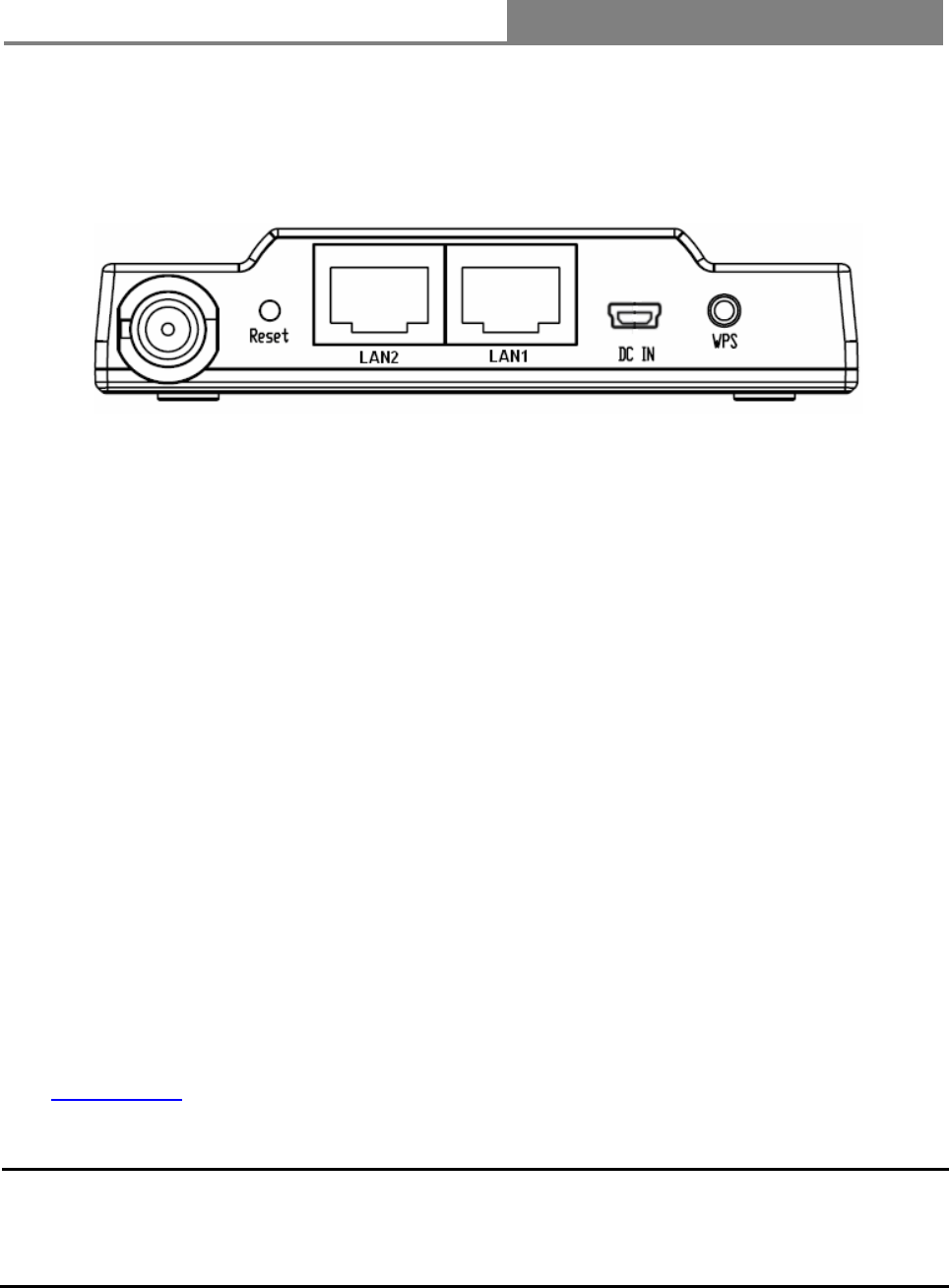

1.4 The Rear Panel
The rear panel of the Wireless 11n Access Point is shown below.
LAN(1~2): Through these ports, you can connect the AP to your PCs and the other Ethernet
network devices.
DC IN: Plug the circle end of the power adapter firmly into the rear panel of the Wireless AP,
and the other end put into an electric service outlet then the system is ready.
Reset Button
Push the button for more than 5 seconds and then release it, the system will return to factory
default setting. In the meantime, system rewrites flash to default value and SYS LED flash for
a while. Approximately 60 seconds later, the SYS LED turn dark, now the whole system
parameters have returned to factory default value. If the process has been interrupted by any
reason (power off), the system will fail. Before performing the process, ensure a safe
operating environment please!
Antenna: Used for enhancing the wireless signal, and expanding the range of signal.
WPS: Help users to connect this AP quickly and security. It uses PIN configuration method or
PBC configuration method, in which users can easy setup WPS connection. Please refer to
WPS settings for more information.
Warning ：Incomplete factory setting recovery procedure will cause the Wireless AP
malfunction！If you are unfortunately in this situation, do not try to repair it by
yourself. Consult your local distributor for help!
1.5 Placement (Optional)
There are two ways to place the AP. The first way is to place the AP vertically on a surface. The
Wireless 11n Access Point
9
second way is to attach it to the wall. If you select a wall-mount option, please follow the steps
below:
1. Select a location with access for cables and a power outlet.
2. Unplug the unit. Place it upside down on a flat surface and mark the two holes for anchors.
3. Installing the wall mount anchor (not supplied) into the wall with tools such as drill or hammer.
4. Insert the screws (not supplied) in each hole of the stand parts.
5. Attaches the unit to the anchors on the wall.
Wireless 11n Access Point
10
Chapter 2 Installing and Using Wireless Access Point
This chapter provides a step-by-step guide to the installation and configuration of the Wireless AP.
We suggest you go over the whole chapter and then do more advanced operation.

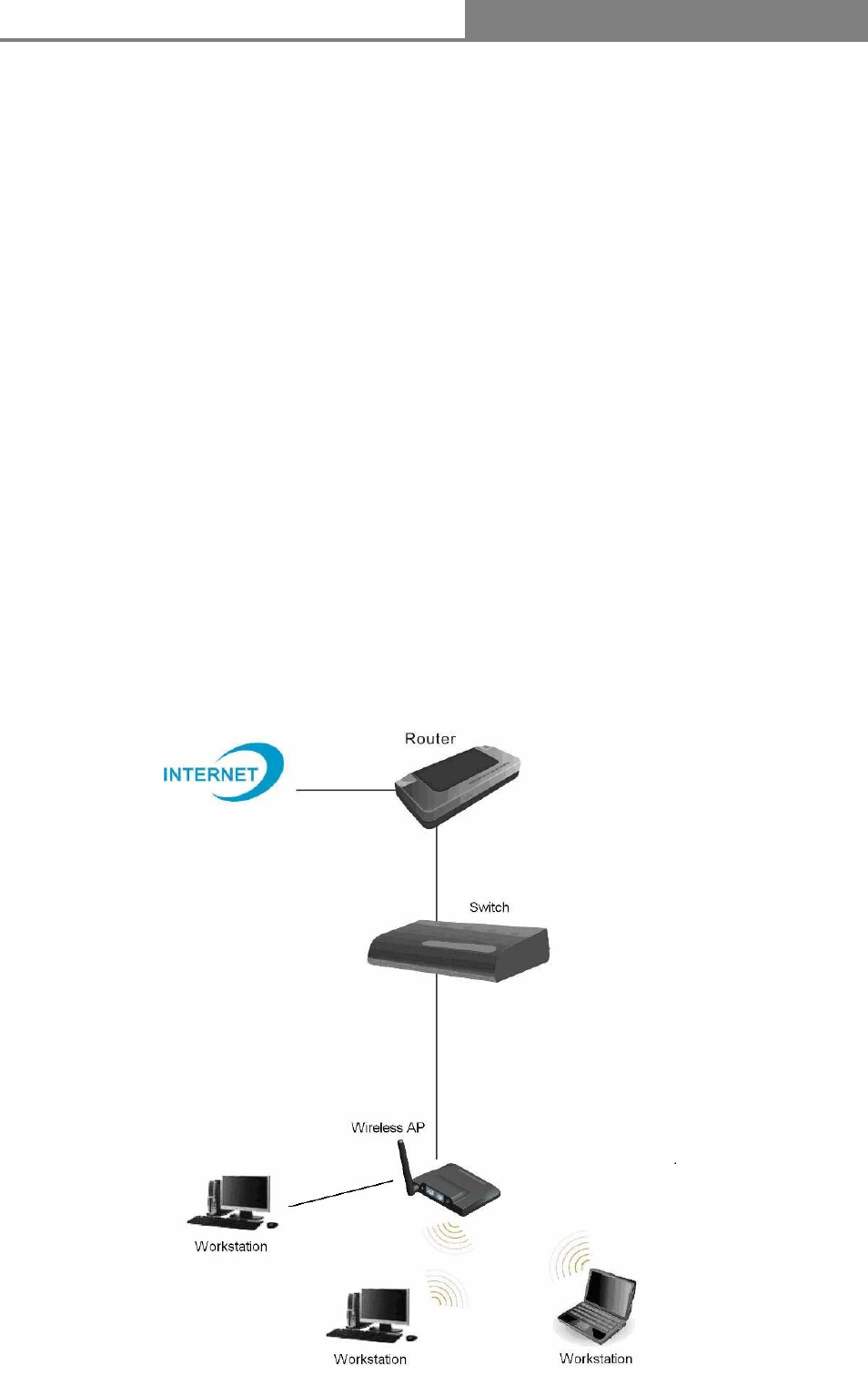

2.1 Connecting this AP to your network
This Chapter provides a step-by-step guide to the installation and configuration of this wireless
access point.
Connect the power adapter with the connector end to the power connector in the rear panel
of the device and the plug end to an appropriate outlet.
Connect the LAN port with RJ-45 cable to:
1. A broad band router to allow wireless clients to connect to WAN.
2. A switch to allow wireless clients to communicate with wired LAN.
3. A computer directly to use the computer configuring this AP.

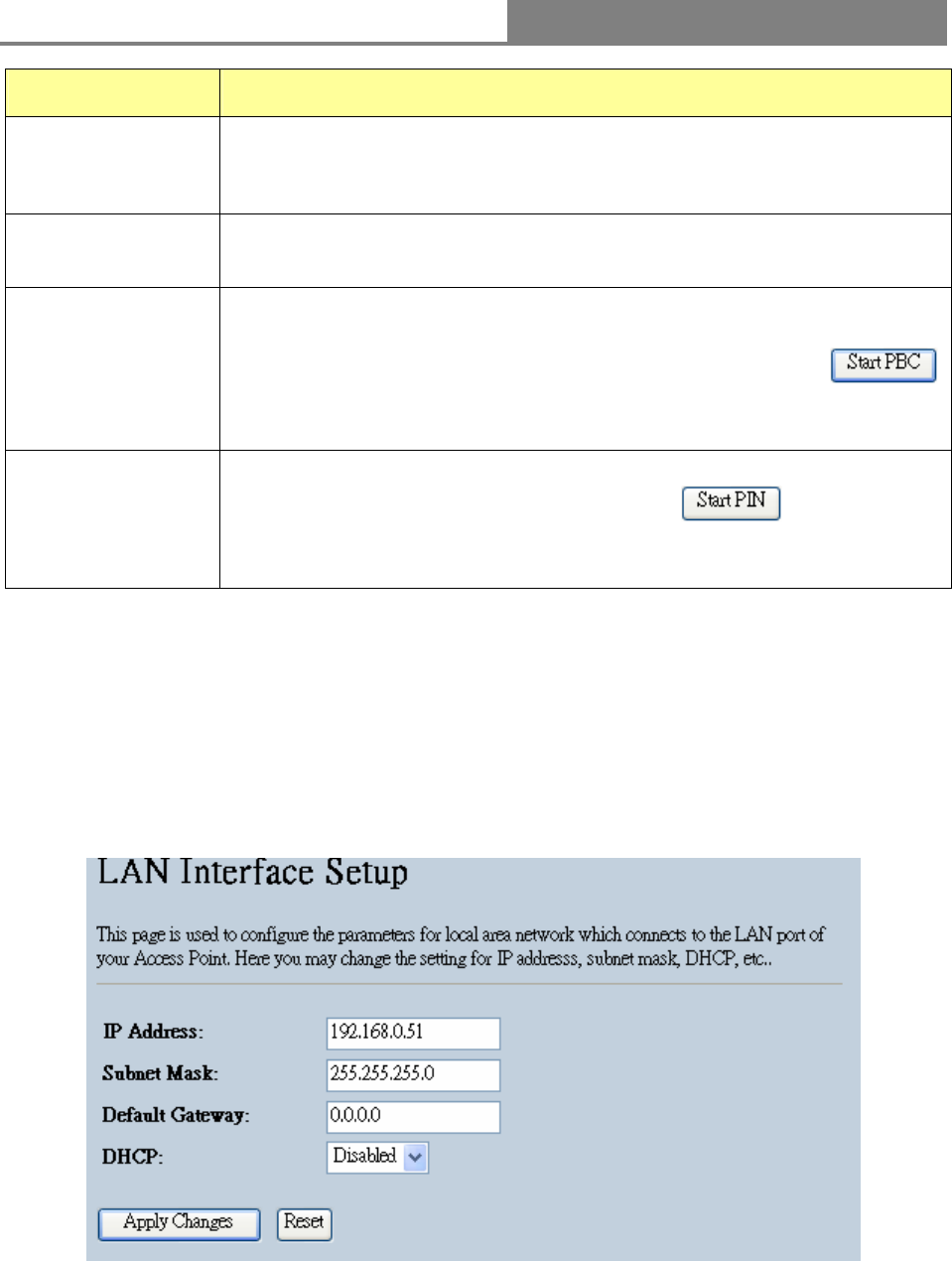

Note: You have to configure the network settings of this AP to be communicable with your router,
switch or computer first. To change the default network settings of the AP, please refer to “LAN
Interface setup”.
Wireless 11n Access Point
11
2.2 Configuring the IP address of your computer
In order to communicate with this Wireless AP, you have to configure the IP addresses of your
computer to make it compatible with the device.
1. The default network setting of the device:
IP address: 192.168.0.51
Subnet Mask: 255.255.255.0
Note: if you connect this AP to your PC with wireless mode firstly, the default security mode
is “WPA2”, and the default password is 123456780ab, after that you can also modify the
default password when you log in, or select other security mode.
2. In the following TCP/IP configuration guide, the IP address “192.168.0.42” is assumed to be
your IP address if you want to specify IP addresses manually. Please DO NOT choose
“192.168.0.51” as the IP address. For the IP address “192.168.0.51“ has been set as the
default IP for this device.
3. The following TCP/IP configuration guide uses windows XP as the presumed operation
system.
Procedures to configure IP addresses for your computer

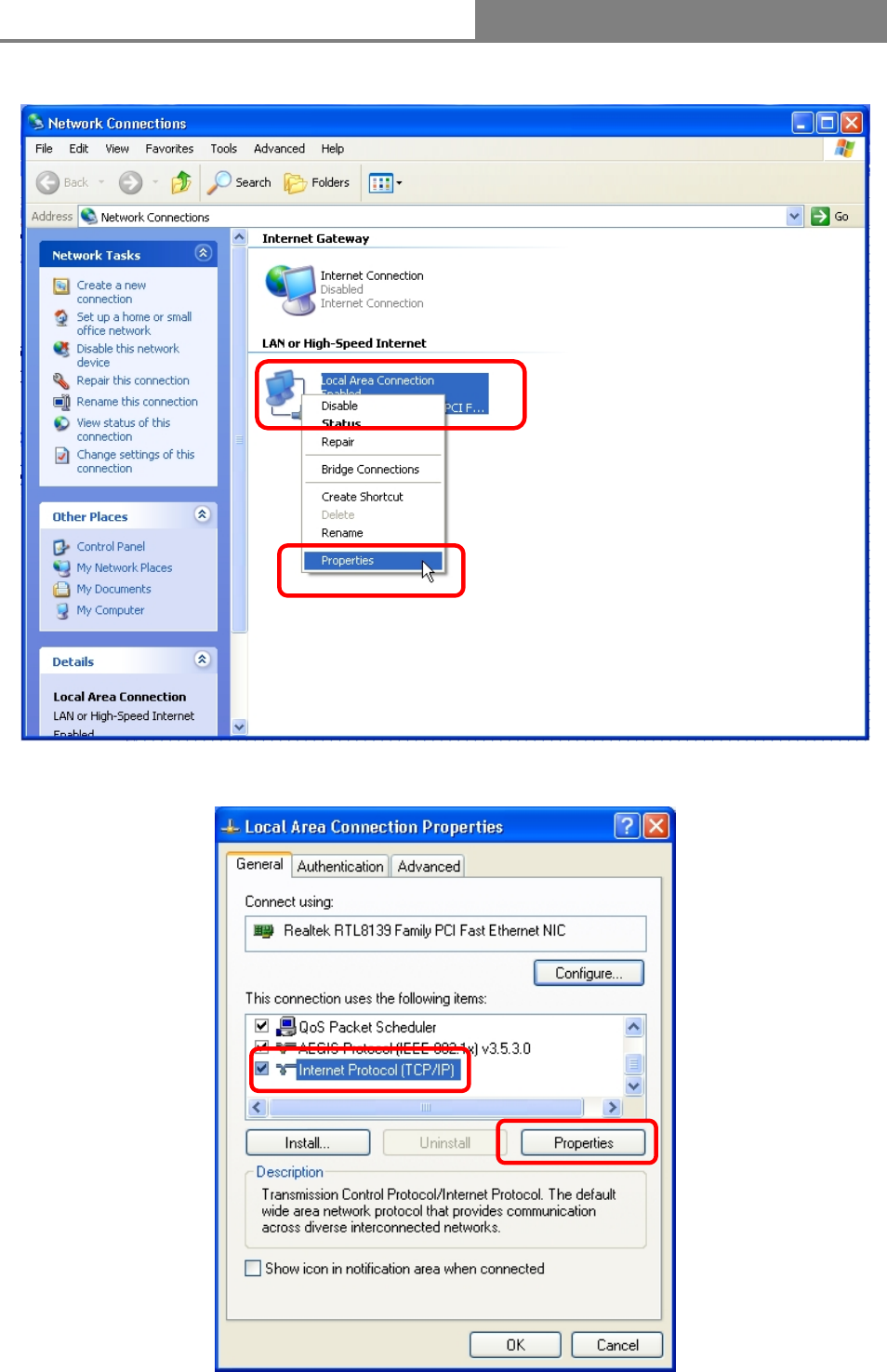

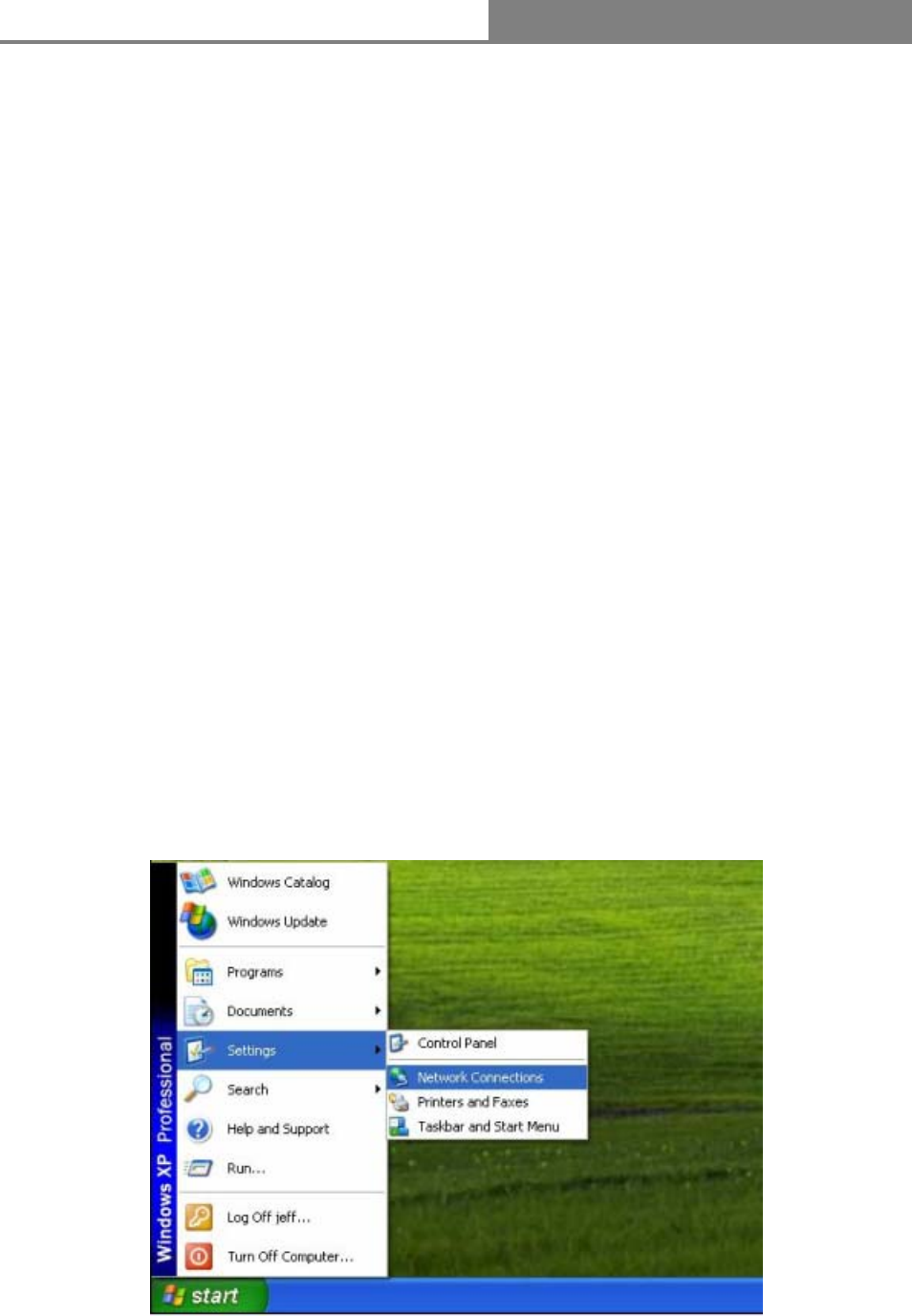

1. If you are in Classic Start menu view, click Start > Settings > Network Connections.
If you are in Start menu view, click Start > Control Panel > Network Connections.
Wireless 11n Access Point
12
2. Right-click on Local Area Connection item and click on Properties.

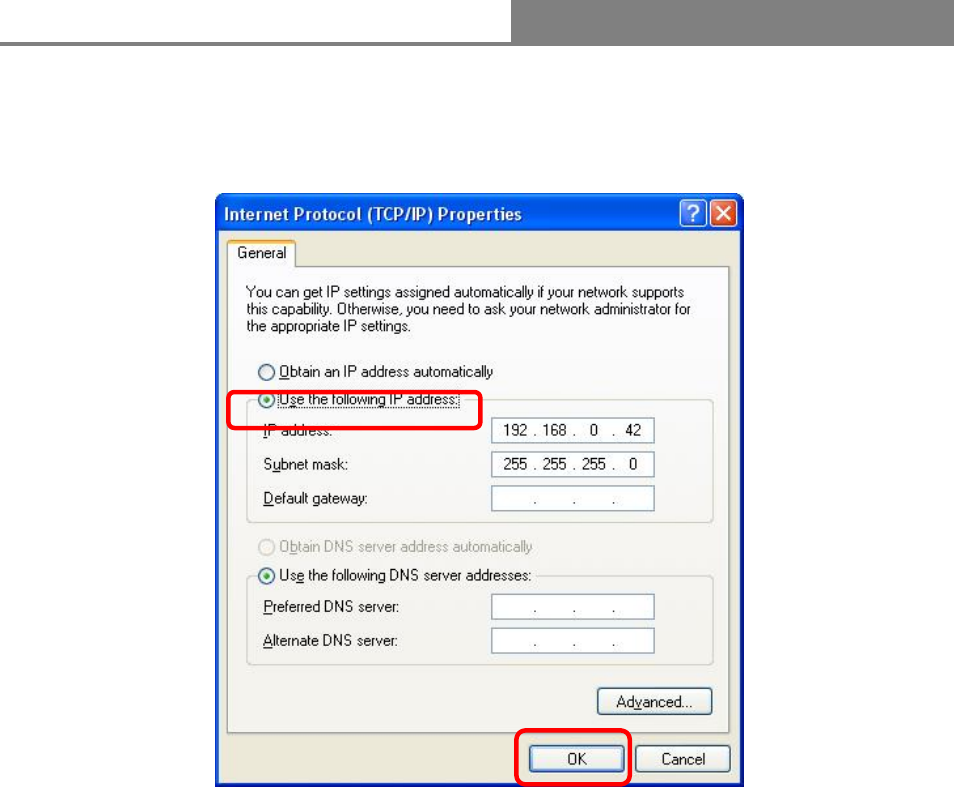

3. Choose Internet Protocol (TCP/IP) and click Properties.
Wireless 11n Access Point
13
4. You can’t choose “Obtain an IP address automatically” to get IP address automatically in this
configuration. Choose “Use the following IP address” to specify IP addresses manually. Please
click the OK button after your configuration.
Chapter 3 Management
3.1 Starting the WEB-Based Management Interface
The device uses WEB as the management interface. You can use a browser to access the
management interface easily. Please follow the steps listed below.
1. Open the Internet WEB browser.
2. Type 192.168.0.51 into the URL WEB address location and press Enter.

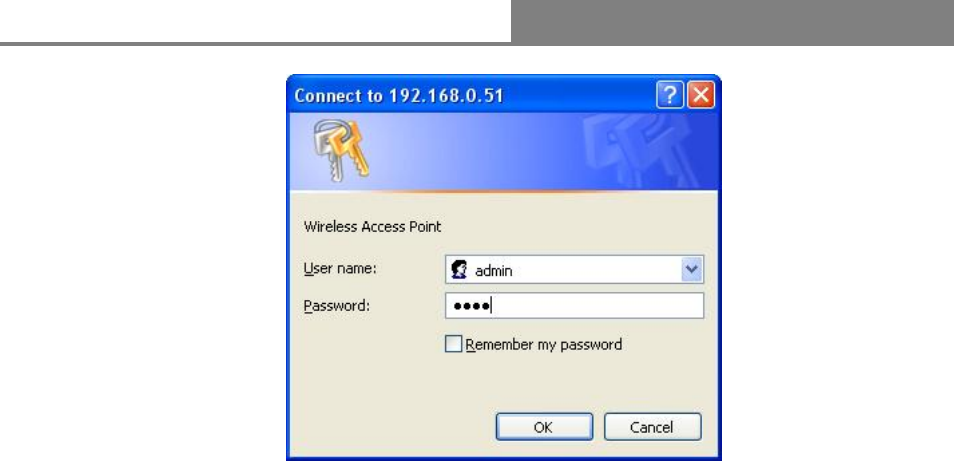

3. The Login window appears.
- Enter admin in the User Name location (default value).
- Enter 1234 in the Password location (default value).
- Click OK button.
Wireless 11n Access Point
14

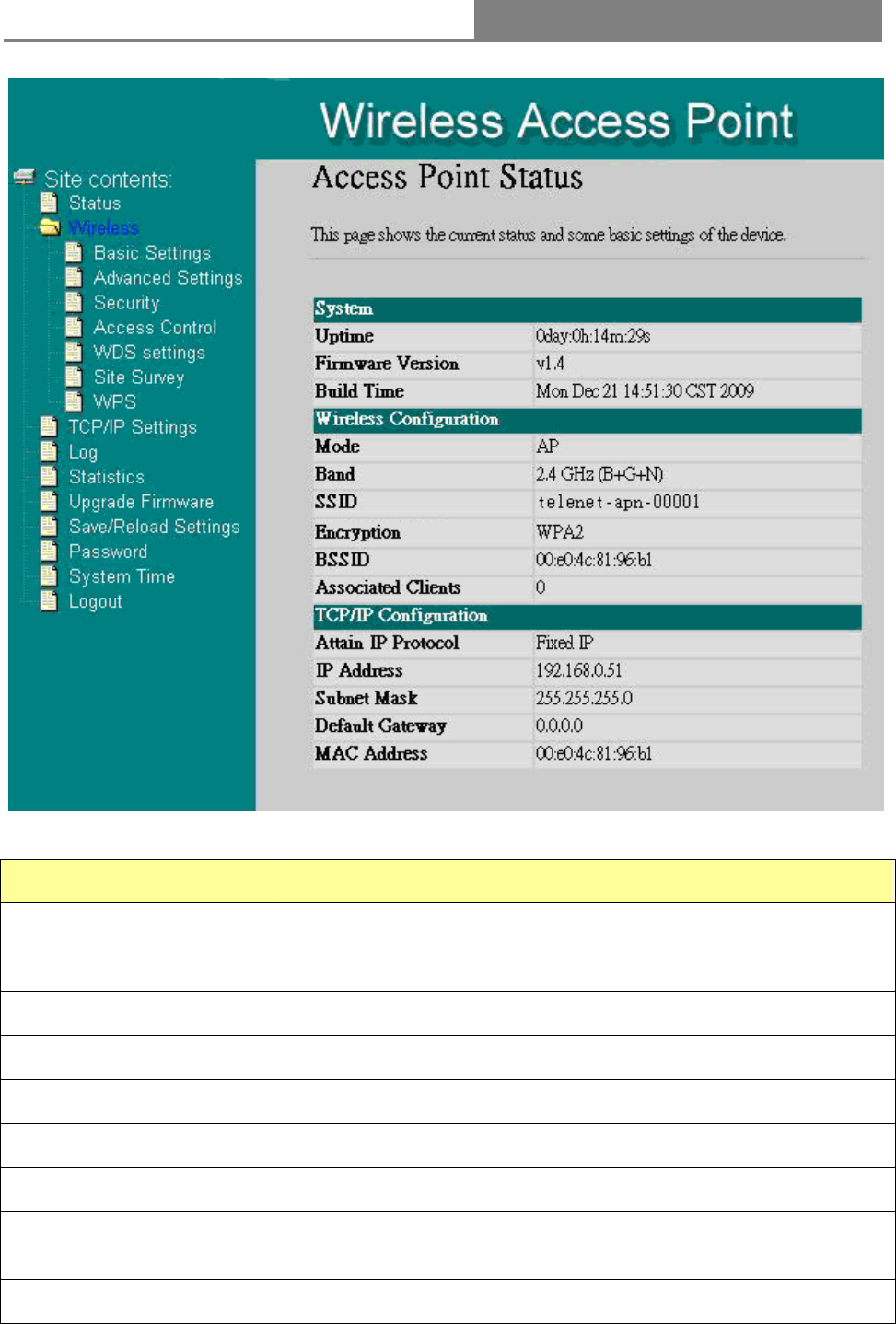

3.2 The Graphic User Interface
After the password authorization, the information page shows up as the home page of the Graphic
User interface. You may click on each folder on left column of each page to get access to each
configuration page. Please note that you should click the Save Settings button to apply your
configuration to this device. You can also restore the default settings by clicking the Reset
Settings button. The Graphic User Interface as follows:
Wireless 11n Access Point
15
Items Information
Uptime The period that you turn the device on.
Firmware version The current firmware version of the device.
Build Time The build time of the device originally.
Mode Shows if the device is operating in AP or WDS mode.
Band The band that the wireless AP operating.
SSID The name of this wireless network.
Encryption The security encryption type that the wireless network using.
BSSID The Basic Service Set Identity of this AP(This parameter is the
same as the MAC address of LAN port)
Associated Clients The number of members who is currently connected with this AP.
Wireless 11n Access Point
16
Attain IP Protocol The way for this AP to get a IP address.
IP Address The current IP address of this AP.
Subnet Mask The current subnet mask of this AP.
Default Gateway The current default gateway of this AP.
MAC Address The current MAC address of this AP.
Wireless 11n Access Point
17
3.3 Wireless

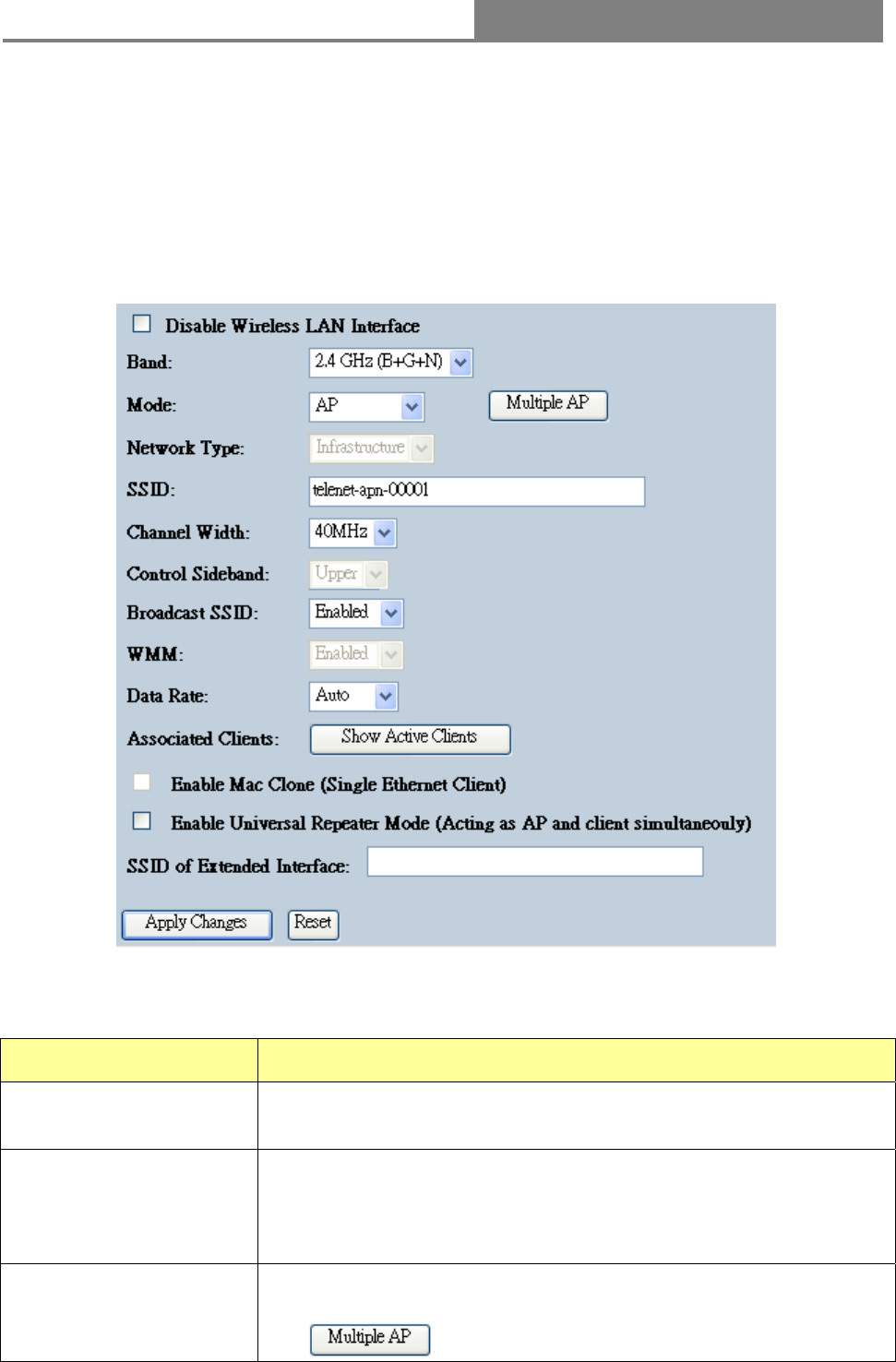

3.3.1 Basic Settings
This page is used to configure the parameters for wireless LAN clients which may connect to your
Access Point. Here you may change wireless encryption settings as well as wireless network
parameters. You can set up the configuration of your Wireless basic settings and monitor the
Wireless Clients associate with your router.
Items Information
Disable Wireless LAN
Interface Mark the checkbox to disable interface of Wireless LAN
Band
To select a band for this device to match 802.11b, 802.11g,
802.11n, 802.11b/g, 802.11g/n or 802.11b/g/n. optional parameters:
2.4GHz(B),2.4GHz(G),2.4GHz(N),2.4GHz(B+G),2.4GHz(G+N),
2.4GHz(B+G+N)
Mode Configure this device as AP, Client, WDS or AP+WDS ，
AP+MESH,MESH. If you set this device as AP or AP+WDS mode,
the button is available for you to set up four SSID for
Wireless 11n Access Point
18
this wireless network. Click on this button to do more
configurations.
Network Type
When you configure this device in Client mode, this drop-down list
allows users to change the network type into infrastructure mode or
ad-hoc mode.
Ad-Hoc mode: connects two computers directly without the use of
a router or AP. It is also know as a peer-to-peer network.
Infrastructure Mode: the wireless network contains at least one
wireless client and one wireless AP or router. This client connects to
Internet or intranet by communicating with this wireless AP.
SSID Service set identifier (SSID) for the name of the wireless network.
Channel Width Select to use 20MHz or 40MHz as the wireless channel frequency.
Control Sideband If you have selected the channel width of 40MHz for this AP, you
can control this AP to use the frequency for a deflection of “Upper”
or “Lower.”
Broadcast SSID
If you enable "Broadcast SSID", every wireless station located
within the coverage of this wireless AP can discover this wireless
AP easily. If you are building a public wireless network, enabling
this feature is recommended. Disabling "Broadcast SSID" can
provide better security.
WMM This will enhance the data transfer performance of multimedia
contents when they’re being transferred over wireless network.
WMM is not available in 11n mode.
Data Rate The transmit limitation of data packets of this wireless AP. The
wireless AP will use the highest possible selected transmission rate
to transmit the data packets.
Associated Client Click "Show Active Clients" button, then an "Active Wireless Client
Table" pops up. You can see the status of all active wireless
stations that are connecting to the access point.
Enable MAC clone Mark the checkbox to clone the MAC address of the device. This
function is only available when you set this AP as Client mode. You
can also manually set the MAC address in LAN setting.
Enable Universal
Repeater Mode Mark this checkbox to enable Universal Repeater Mode which acts
this device as an AP and client simultaneously.
SSID of Extended
Interface While you enable the Universal Repeater Mode, you have to
specify an SSID for the extended interface.
* Please click on the Apply Changes button or the Reset button at the bottom to save/reset the configurations.
Wireless 11n Access Point
19

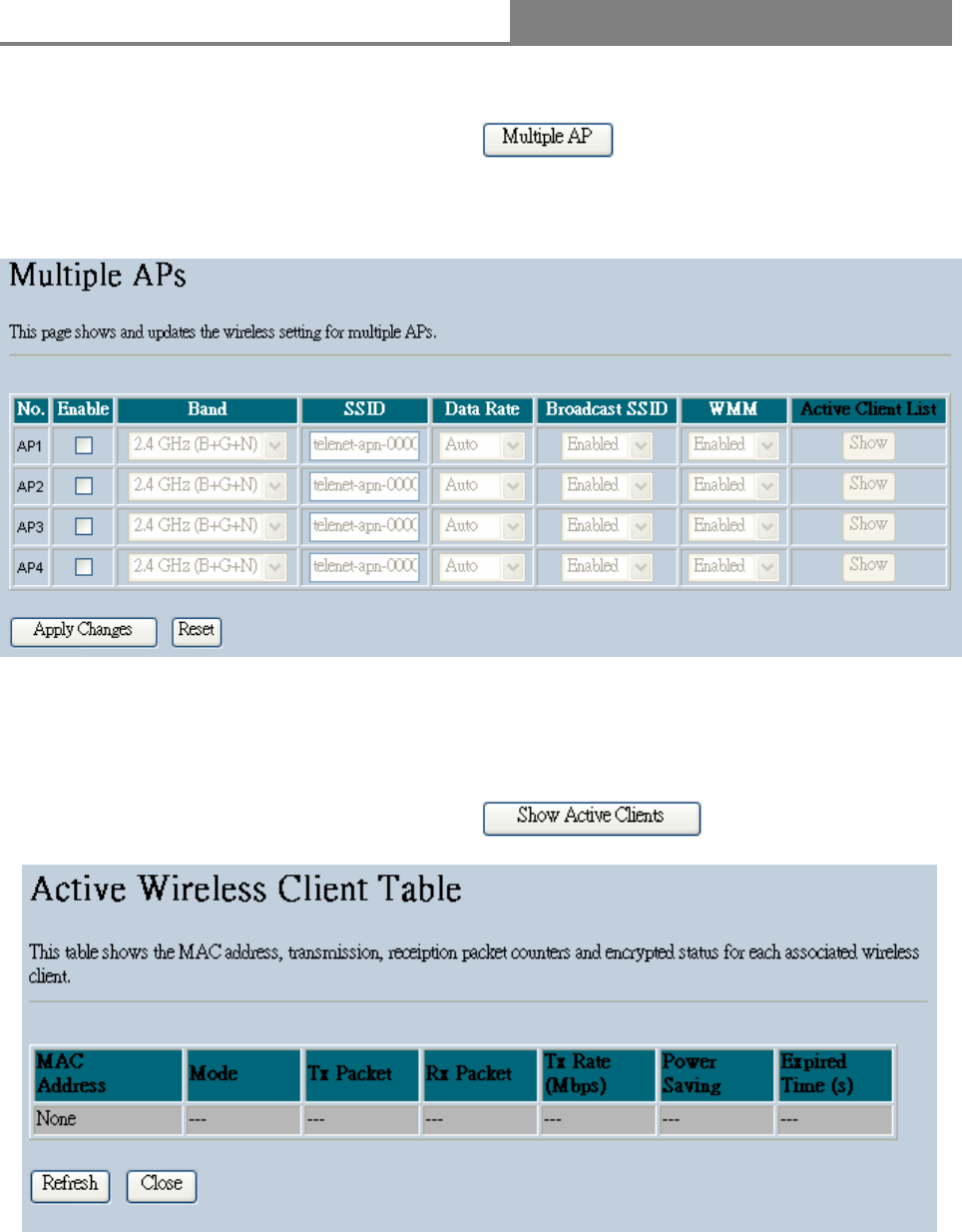

1. Multiple APs
This is the window that pops up after clicking the button.
Select one of the AP, and then click the button “Show”, “Active Wireless Client Table – AP1”
windows pops up.
2. Active Wireless Client Table
This is the window that pops up after clicking the button.
Wireless 11n Access Point
20
3.3.2 Advanced Settings
You can set advanced wireless LAN parameters of this AP. We recommend not changing these
parameters unless you know what changes will be on this AP.
Items Information
Fragment
Threshold
This value should remain at its default setting of 2346. If you
experience a high packet error rate, you may slightly increase your
fragmentation threshold within the value range of 256 to 2346.
Setting the fragmentation threshold too low may result in poor
performance.
RTS Threshold
Request To Send threshold. This value should remain at its default
setting of 2347. If you encounter inconsistent data flow, only minor
modifications to the value range between 0 and 2347 are
recommended.
Beacon Interval Beacons are packets sent by an access point to synchronize a
wireless network. Specify a beacon interval value. Default (100ms)
is recommended.
Preamble Type The length of CRC blocks in the frames during the wireless
communication.
IAPP To enables multiple AP to communicate and pass information
regarding the location of associated Stations.
Wireless 11n Access Point
21
Protection
Some 802.11g wireless adapters support 802.11g protections,
which allows the adapter search for 802.11b/g singles only. Select
“Enabled” to support protection or select “Disabled” to disable this
function.
Aggregation To aggregate lots of packets into a big one before transmitting
packets. This can reduce control packet overhead.
Short GI Indicates that the 802.11g network is using a short slot time
because there are no legacy (802.11b) stations present
RF Output Power Select the signal strength for the wireless network.
* Please click on the Apply Changes button or the Reset button at the bottom to save/reset the configurations.
3.3.3 Security
The Security function protects your wireless network from invasion. When you connect it to your
PC at the first time, the default configuration is WPA2, and the default password is 1234567890ab.
After you log in, you can modify it. We provide WEP and WPA encryption to secure your wireless
network. Please select Disable, WEP, WPA, WPA2, and WPA-Mixed in the drop list. If you select
none, any data will be transmitted without encryption and any station can access the AP.
Items Information
Select SSID Please choose a SSID you have set for this AP in the Wireless >
Basic Settings from the drop-down list. The SSID will be shown on
the wireless network for recognizing.
Encryption There are 5 modes for you to select: Disable, WEP, WPA, WPA2,
and WPA-Mixed. Please refer to the following description.
802.1x Authentication Users that do not use this function or connecting to an open-wireless
network please skip this part. Please configure the settings in
accordance with the Certificated Server.
Wireless 11n Access Point
22
1. Security Mode -- WEP
Items Information
Encryption Select a security encryption mode for this AP.
Authentication There provide three options for selecting: Open System,
Shared Key, Auto
Key Length Select 64-bit or 128-bit as the key encryption length.
Key Format Select ASCII1 or Hex2 to setup the key value.
Encryption Key Enter the key according to the key format you select.
* Please click on the Apply Changes button or the Reset button to save/reset the configurations.
1 ASCII (American Standard Code for Information Interchange) is a code for representing English letters as numbers
from 0-127.
2 Hexadecimal digits consist of the numbers 0-9 and the letters A-F.
Wireless 11n Access Point
23
2. Security Mode – WPA / WPA 2
Items Information
Authentication Mode There are two items, “Enterprise (RADIUS)” and
“Personal (Pre-Shared Key)”. You can select the mode
by clicking the item.
WPA Cipher Suite Select the WPA Cipher Suite to be TKIP or AES.
Pre-Shared Key
Format To decide the format, select Pass phrase or Hex in the
drop list.
Pre-Shared Key
Enter the Pre-shared Key according to the pre-shared
key format you select. This is the shared secret
between AP and STA. This field must be filled with
character longer than 8 and less than 64 lengths.(The
default value is 1234567890ab)
Wireless 11n Access Point
24
3. Security Mode – WPA-Mixed
Items Information
Authentication Mode There are two items, “Enterprise (WPA-Radius)”
and “Personal (Pre-Shared Key)”. You can select
the mode by clicking the item.
WPA / WPA2 Cipher Suite Select the WPA/WPA2 Cipher Suite to be TKIP or
AES.
Pre-Shared Key Format To decide the format, select Passphrase or Hex in
the drop list.
Pre-Shared Key Enter the Pre-shared Key according to the
pre-shared key format you select. This field must
be filled with character longer than 8 and less
than 64 lengths. (The default value is
1234567890ab)
* Please click on the Apply Changes button or the Reset button to save/reset the configurations.
Wireless 11n Access Point
25
3.3.4 Access Control
To restrict the clients of Access authentication of Stations, set up the control list in this page.
Items Information
Wireless Access
Control Mode
Click on the drop list to choose the access
control mode. You may select “Allow listed” to
allow those allowed MAC addresses or select
“Deny Listed” to ban those MAC addresses
from accessing to this device or select
“Disable”.
MAC Address &
Comment Fill in the MAC address that you wish to
control, and give a definition to it.
Current Access Control
list
Lists the MAC Access Control Settings you
have added before. Click on the list to change
configuration. To Delete the station on the list,
mark the check box in the select item and click
the “Delete Selected”. If you want to delete all
stations on the list, click “Delete All” to remove
all of them.
* Please click on the Apply Changes button or the Reset button to save/reset the configurations.
Wireless 11n Access Point
26
3.3.5 WDS Settings
When you use this device as WDS or AP+WDS mode, “WDS Setting” function can be operated.
Wireless Distribution System allows the AP to communicate with other APs wirelessly. To make it
work, you must ensure that these APs and the Router are in the same channel. Please add these
APs MAC address and comment values into the WDS list. Don’t Forget to Enable the WDS by
click the check box of “Enable WDS” and press “Apply Changes” button to save. To Delete the AP
on the list, Click the check box in the select item and click the “Delete Selected”. If you want to
delete all APs on the list, click “Delete All” to remove all of them.
Items Information
MAC Address &
Comment Fill in the MAC address that you wish to
control, and give a definition to it.
Data Rate The transmit limitation of data packets of this
wireless AP. The wireless AP will use the
highest possible selected transmission rate to
transmit the data packets.
Current WDS AP List Lists the WDS Settings you have added before.
Click on the list to change configuration. To
Delete the station on the list, mark the check
box in the select item and click the “Delete
Selected”. If you want to delete all stations on
the list, click “Delete All” to remove all of them.
Wireless 11n Access Point
27

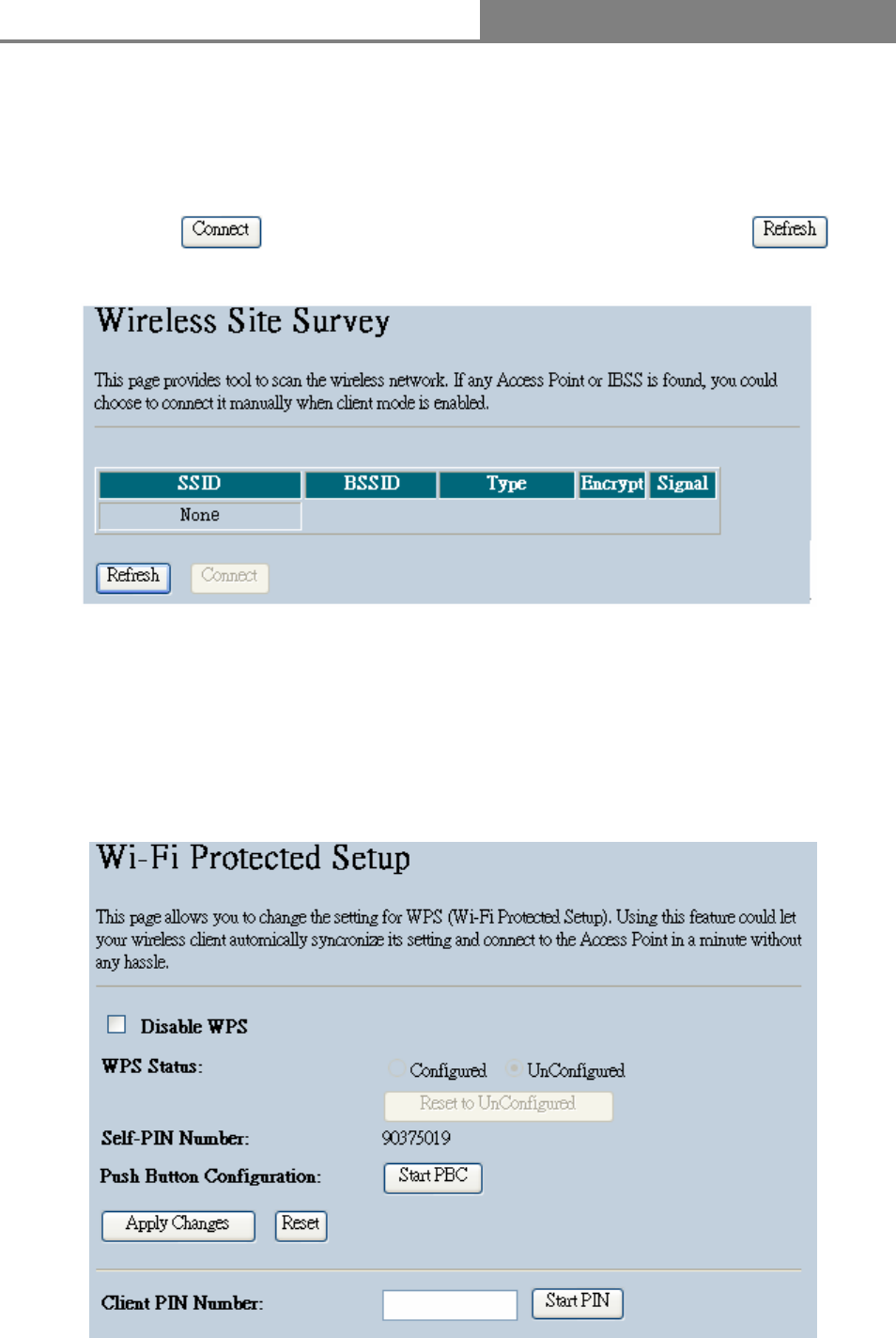

3.3.6 Site Survey
This page shows available wireless network information. When you use this device as a client
station (STA), you may connect to other AP or Router. Select one of the lists in the site survey
table and click on to connect to other wireless network nearby. The button
can be used to scan nearby AP again.
3.3.7 WPS Settings
The primary goal of Wi-Fi Protected Setup (Wi-Fi Simple Configuration) is to simplify the security
setup and management of Wi-Fi networks. This AP supports the configuration setup using PIN
configuration method or PBC configuration method through an internal or external Registrar.
Wireless 11n Access Point
28
Items Information
WPS Status You cannot manually select the items here. The WPS Status will change
from “UnConfigured” to “Configured” after you enable WPS function and
setup a wireless security key for this device.
Self-PIN Number If you use this device as a client, you can use this code when trying to
connect this device to other AP by using the PIN method.
Push Button
Configuration Push Button Communication (PBC) method use a simple action of
pushing a button on both the AP and the new STA to reach the function
of easy setup WPS connection. You can simply click the
button in this GUI page. After click on the button, please run the client’s
WPS and push the PBC button within 2 minutes.
Client PIN
Number Personal Identification Number (PIN) method. Users have to fill in the
PIN code of enrollee device and click on the button to make
communication with other AP. After click on the button, please run the
client’s WPS and push the PIN button within 2 minutes.
Please click on the Apply Changes button or the Reset button at the bottom to save/reset the configurations.
3.4 TCP/IP Setting
To set up the configuration of LAN interface, private IP of your AP LAN port and subnet mask for
your LAN segment.
Wireless 11n Access Point
29
Items Information
IP Address The IP of your AP LAN port (default 192.168.0.51).
Subnet Mask Subnet Mask of you LAN (default 255.255.255.0).
All devices on the network must have the same
subnet mask to communicate on the network.
Default Gateway Enter the IP Address of the AP in your network.
DHCP
DHCP stands for Dynamic Host Configuration
Protocol. It is a protocol for assigning dynamic IP
addresses “automatically”. In this device, manual
setting up your client IP is necessary when you
want to use the AP as your client’s default gateway.
Please click on the Apply Changes button or the Reset button
at the bottom to save/reset the configurations.
3.5 Statistics
This page allows users to get information of data transferring condition, and monitor the status
and performance of this AP including receiving and sending packets. To see the latest report, click
button.
Wireless 11n Access Point
30
3.6 System Log
This System Log page shows the information of the current activities on the AP. To enable system
log function:
1. Mark the “Enable Log” checkbox.
2. To see all information of the system, select the “system all” checkbox.
To see wireless information only, select the “wireless” checkbox.
To send the log information to a certain note, select the “Enable Remote Log” checkbox and
fill in the IP address in the “Log Server IP Address” box.
3. Click the button to activate. You could also click the button to
refresh the log information or click the button to clean the log table.
Wireless 11n Access Point
31
3.7 Upgrade Firmware
Sometimes a new firmware may be issued to upgrade the system of this device. You could
upgrade the firmware you got in this page. To upgrade the firmware, please click on the
button, locate the firmware in your computer and then click the button to
execute.
3.8 Save/Reload Setting
The Save/Reload Setting page allows users to backup and download the configuration status of
the device or restore the factory default configuration.
Items Information
Save Settings to File Click on the button to save the currently configure
settings.
Load Settings from File Click to select the file that you save, and then
click to start the process. Please wait for it to
complete.
Reset Settings to Default Click to start the process and it will be completed till
the status LED starts blinking.
Wireless 11n Access Point
32

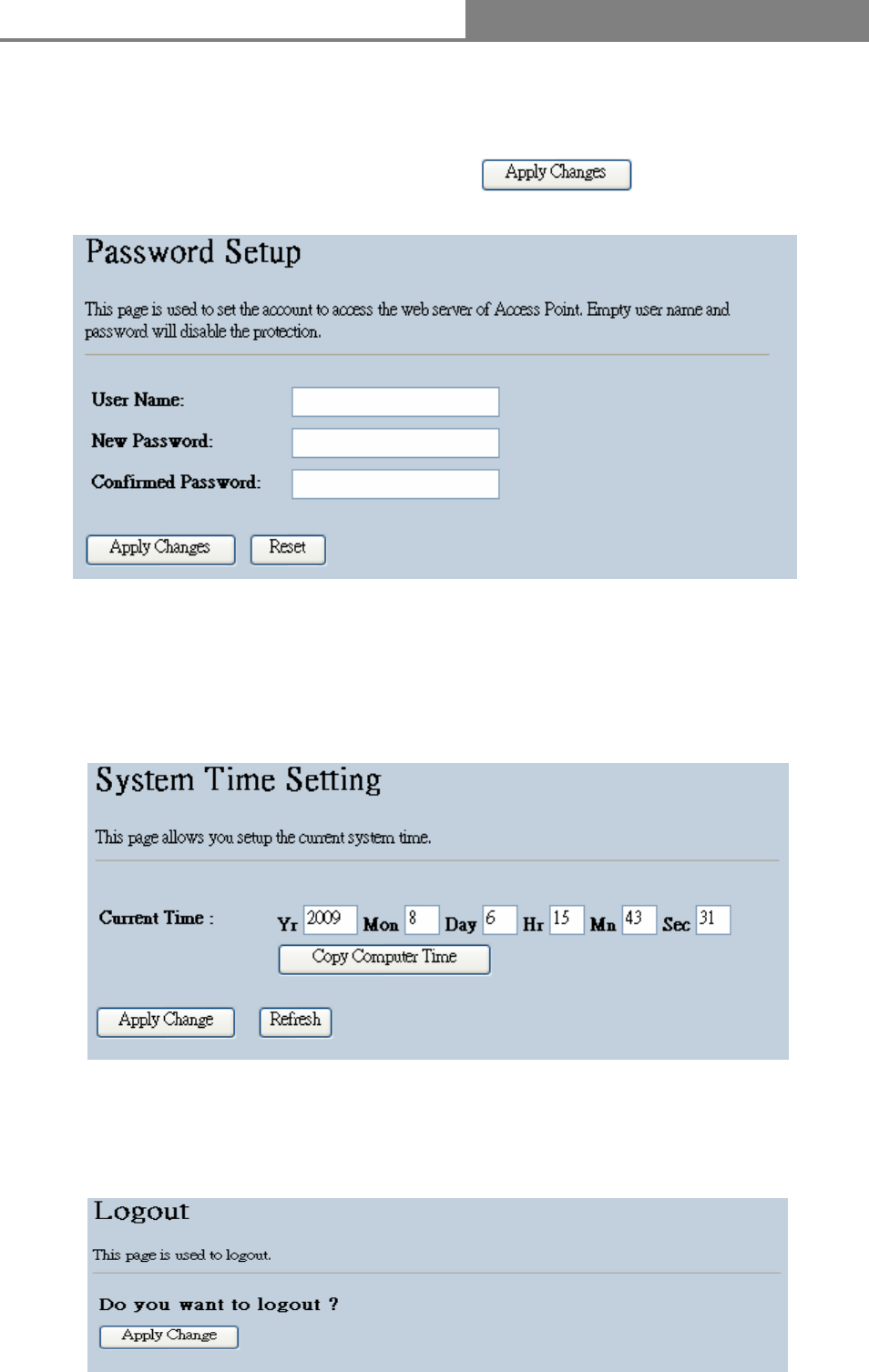

3.9 Password
To set up the Administrator Account information, enter the Username, New password, and reenter
the password on the text box. Don’t forget to click the to save the configuration.
3.10 System Time Setting
This page allows users to configure the time of the AP. To specify manually, fill in the blanks in
“Current Time” or select “Copy Computer Time”. Click the “Apply Change” button after your
configuration.
3.11 Logout
This page is used to logout. Click the “Apply Change” button to log out the system and save your
changes simultaneously.
Wireless 11n Access Point
33
Appendix A: Product Specifications
Standard IEEE 802.11n draft 2.0, IEEE 802.11g, IEEE 802.11b, IEEE 802.3,
IEEE 802.3u
Interface
LAN: 2 ports 10/100 Mbps Ethernet, RJ-45
1* fixed antenna (Standard 2 dB)
1* reset to factory default button
1* WPS button
Antenna Antenna type: Dipole
Antenna connector type: Fixed
Cable Connections RJ-45 (10BASE-T): Category 3,4,5 UTP
RJ-45 (100BASE-TX): Category 5 UTP
Transmission Mode Auto-Negotiation (Full-duplex, Half-duplex)
Security 64/128-bit WEP, WPA, WPA2
Network Data Rate
802.11b: 1,2,5.5, and 11Mbps
802.11g: 6,9,12,18,24,36,48 and 54Mbps
802.11n: up to 300 Mbps
Receiver Sensitivity
802.11n Typical -68 dBm
802.11g Typical -73 dBm
802.11b Typical -84 dBm
Transmit Power
16dBm typically @ 802.11b
14dBm typically @ 802.11g
13dBm typically @ 802.11n
LED indications 1*PWR, 1*SYS, 2*LAN, 1*WLAN
Power Supply External Power Adapter, 5V/ 1A
Range Coverage Indoor 35~100 meters :
Outdoor 100~300 meters.
Temperature Operating: 0°C ~ 40°C (32°~104°F)
Storage: -10°C ~ 70°C (14°~158°F)
Humidity Operating: 10% ~ 90% RH, non-condensing
Storage: 5%~90% RH, non-condensing
61NB-W231A00+207
