Netronix W413 Wireless 802.11n mini PCI Card User Manual 61NB W41300 204 for NCC

Netronix Inc Wireless 802.11n mini PCI Card 61NB W41300 204 for NCC

User mnaual

User’s Guide
IEEE 802.11n Wireless Mini PCI
Adapter
Model name: W413
1
FCC Certifications
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate
this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and
operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
IEEE 802.11b/g or 802.11n operation of this product in the U.S.A. is
firmware-limited to channels 1 through 11.
2
This device is intended only for OEM integrators under the following
conditions:
1) The antenna must be installed such that 20 cm is maintained between
the antenna and users, and
2) The transmitter module may not be co-located with any other
transmitter or antenna,
3) For all products market in US, OEM has to limit the operation channels
in CH1 to CH11 for 2.4G band by supplied firmware programming tool.
OEM shall not supply any tool or info to the end-user regarding to
Regulatory Domain change.
As long as 3 conditions above are met, further transmitter test will not be
required. However, the OEM integrator is still responsible for testing their
end-product for any additional compliance requirements required with this
module installed (for example, digital device emissions, PC peripheral
requirements, etc.).
IMPORTANT NOTE: In the event that these conditions can not be met (for
example certain laptop configurations or co-location with another
transmitter), then the FCC authorization is no longer considered valid and
the FCC ID can not be used on the final product. In these circumstances,
the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the
antenna may be installed such that 20 cm may be maintained between the
antenna and users. The final end product must be labeled in a visible area
with the following: “Contains FCC ID: NOI-W413”.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end
user regarding how to install or remove this RF module in the user’s
manual of the end product which integrates this module.
The end user manual shall include all required regulatory
information/warning as show in this manual.
3
DGT 警語
警語警語
警語 :
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得
擅自變更頻率、加大功率或變更原設計之特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現
象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依
電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科
學及醫療用電波輻射性電機設備之干擾。
本模組於取得認證後將依規定於模組本體標示審合格籤，並要求平台上標示
「本產品內含射頻模組：ID 編號」
4
Unpacking information
Unpacking informationUnpacking information
Unpacking information
Before getting started, please verify that your
package includes the following items:
1. IEEE 802.11n Wireless mini PCI
2. Three detachable antennae
3. One Quick Installation Guide
4. One Utility/ Manual CD
Installation Guide
Installation GuideInstallation Guide
Installation Guide
Note: The following driver installation guide uses
Windows XP as the presumed operation system.
For Linux and Mac driver installation guide, please
refer to the instruction in /Driver/Linux and
/Driver/Mac in the CD-Rom. The procedures
and screens in Windows 2000 and Vista are
familiar with Windows XP.
1. Insert this product to your computer. The
system finds the newly installed device
automatically. Click Cancel to close this
window.
2. Insert the CD-Rom that came with this
product to your CD-Rom drive. The menu
window pops up automatically. Please click
the Driver button of this product.
Note: If the CD-Rom fails to auto-run, please click
on My Computer> your CD-Rom drive>
(folder of this product)> Driver then
double-click the Setup icon to start this menu.
5
3. Select if you are going to configure your
wireless network with this device or with
Microsoft Zero Configuration tool. (Note:
This can be changed after installing this
software.)
4. Select to optimize this adapter in WiFi mode
or performance mode. Note: The
performance mode is only available while
connecting to a TX Burst supported AP.
Users that uses the AP without TX Burst
please select WiFi mode (standard mode).
5. Click the Install button to start installing.
6. Click the Finish button to complete
installation.
Connect this adapter to your
Connect this adapter to your Connect this adapter to your
Connect this adapter to your
AP quickly
AP quicklyAP quickly
AP quickly
You could use either the software we provide or
Microsoft Zero Configuration tool, please right
click on the icon on system tray to select.
6
To connect with Microsoft Zero
Configuration tool

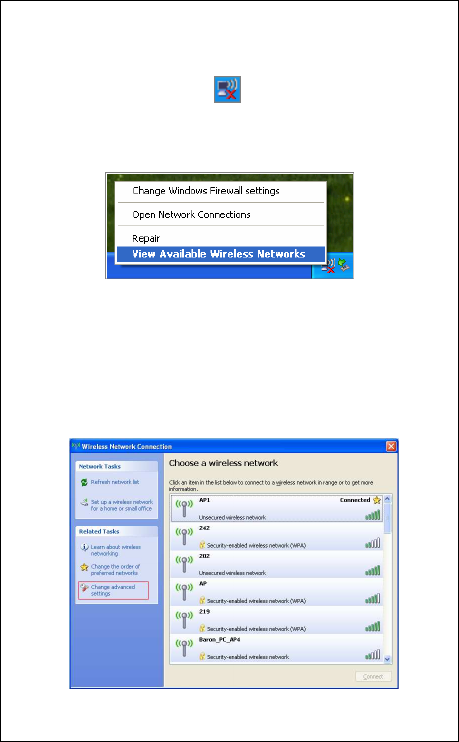

1. Right click on the icon on system tray.
2. Select View Available Wireless Networks
to specify your wireless network.
3. The tool shows the available wireless
networks. Select your demanding network to
connect with. To connect to a wireless
network with more security settings, please
click Change advanced settings to be
compatible with your wireless network
security settings.
7
61NB
-
W4
1

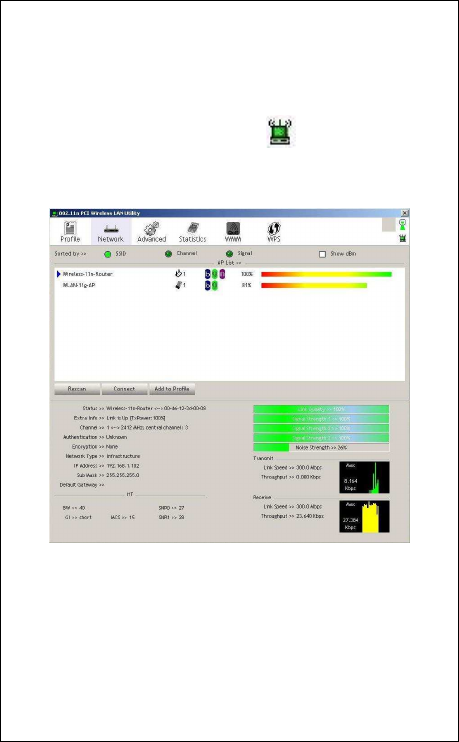

To connect with 802.11n Wireless LAN utility
As default, the Utility is started automatically
upon starting your computer and connects to a
connectable wireless network with best signal
strength. Right click on the icon and select
Launch Config utilities if the Utility does not
start.
You can change the connecting network by
clicking on the network name and click the
Connect button.
Select an available network and click Add to
Profile to configure the encryption settings if you
wish to connect to an AP with security protection.
