Instruction of NFC-2432
NFC-2432 is one of 2.45GHz RFID series that we independently developed. With contactless, free from
environment impact, long reading distance, excellent anti-collision etc., NFC-2432 tag is applied to various field.
Currently, NFC-2432 has widely applied to logistics and warehouse intelligent management, transportation intelligent
management, school management, luggage parcel management, docks container management ant personnel positioning
system, patrol management and asset management etc.
1. Overview
NFC-2432 is 2.4GHz RFID tag with integrity structure and full-function. It includes RFID transceiver,
microprocessor, kinds of sensors and button battery etc.
NFC-2432 supports multiple functions can be customized by customer’s demands, such as read/write, temperature,
sensor, vibration, dual frequency etc.

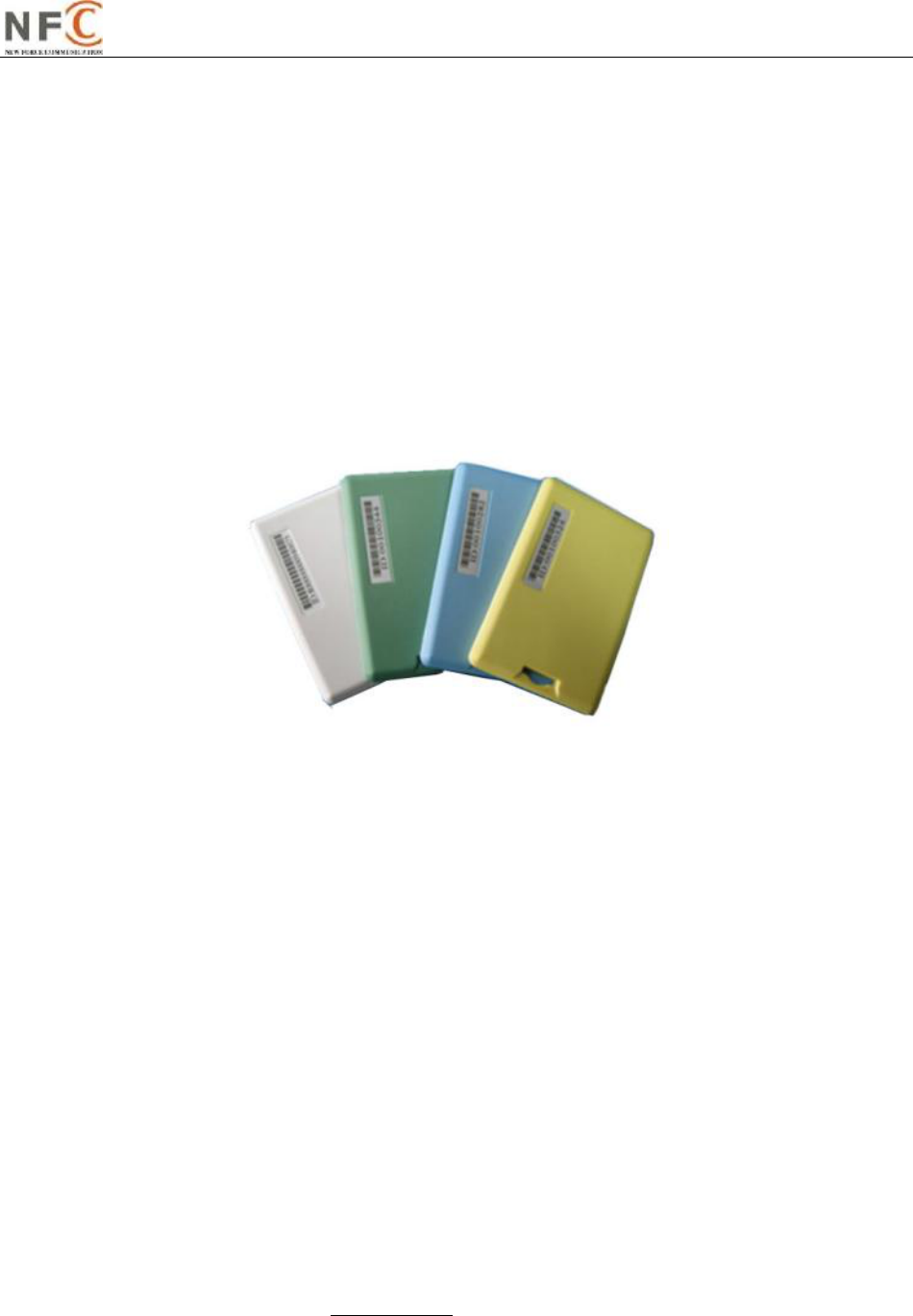

Figure 1: NFC-2432 Active tag
2. Function Introduction
l NFC-2432 adopts NFC company protocol for development, meanwhile, it also compatible with the
communication protocol of other suppliers;
l Long communication distance and high receiving sensitivity.
l Excellent anti-collision performance, up to 500 tags read simultaneously;
l Read and Write function: Real time read and write operation can be customized;
l Support 4K bytes user memory;
l Temperature sensor tag: Intelligent temperature detection (detecting precision ±0.5℃);
l Vibration sensor: Detect vibration status in real time;
l At 500ms transmitting interval, the life time of read only tag is 4~5 years; the lift time of read and write type
is about 2 years;
l IP68 environmental classification;
l Battery alarm function: Alarm when low battery;
l Communication rate can be adjusted according to customer’s demands, such as 250Kbps, 1Mbps, 2Mbps;
l Multiple functions can be customized, such as read and write, temperature, sensor, vibration;
l With superior durability, can be used in various environments.
Shenzhen New Force Communication Technology Co., Ltd
Leading RFID supplier Http: //www.rfid-nfc.com Hotline: 400--602--0005
Page 2
3. Technology Parameter
Table 1: NFC-2432 technology parameter
NFC-2432 technology parameter
Technology
parameter Specifications
RF module
Operating
frequency 2.401GHz~2.481GHz ISM
Modulation GFSK
Optional function
Read and write 4K byte user memory
Temperature Intelligent temperature detection, detecting precision ±0.5℃
Vibration Detecting vibration status in real time
Physical parameter
Working -20℃~+60℃ 90%RH
Life time Read and write: 2 years(at 500ms transmitting interval)
Read only: 4~5 years(at 500ms transmitting interval)
Battery Alarm when low battery
Material ABS(ROHS), flame retardant
Color White, blue, green, yellow
Environmental
classification IP68
Drop testing 1.2m
Weight 30g
Dimension 87mm*56mm*5mm
4. Appearance
NFC-2432 is in rectangle and card shape, and it has different colors as white, blue, green and yellow. The surface
of active tag has scrub and attached with ID number.

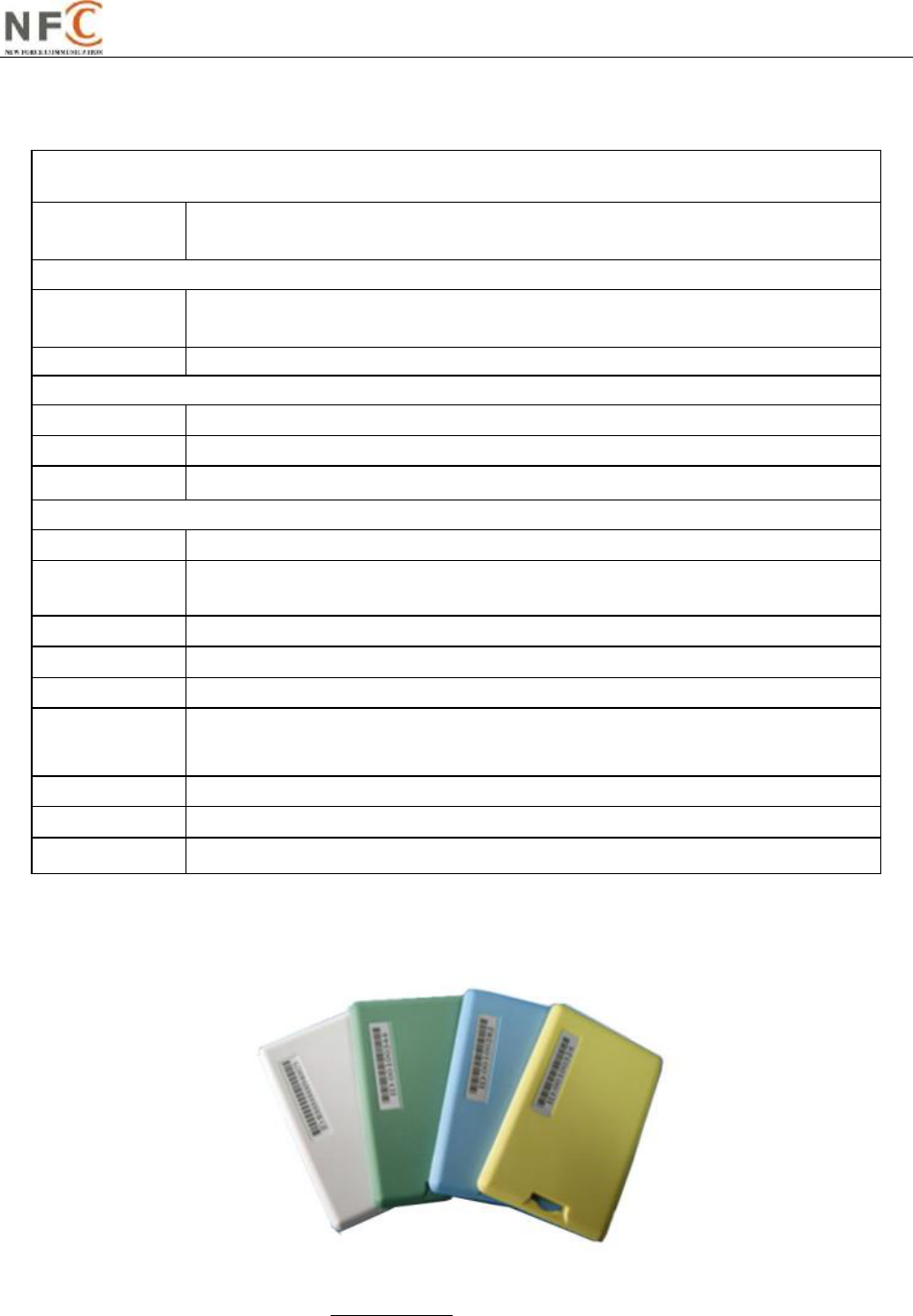

Figure 2: Front
Shenzhen New Force Communication Technology Co., Ltd
Leading RFID supplier Http: //www.rfid-nfc.com Hotline: 400--602--0005
Page 3
5. Caution
l When using active tag, do avoid to be used in metal or liquid.
6. Typical application
l Cold chain logistic
l Temperature monitoring and collecting
l School students’ management
l Vehicle and asset tracking
7. After-sale service
We have one year guarantee and any repair is free of charge within this guarantee time (Based on products model
No. and manufacture date). However, the damage in the event of mechanical impact, over-high voltage, improper
operating, dismantling the reader personally etc. shall be excluded from the guarantee.
Welcome your feedback to us while using the products, we would be dedicated to serve you. If you have any query,
please free to contact sales representatives.
Tel: 86-755-6118 1991
Hot line: 400--602--0005
Fax: 86-755-6118 1977
Email: info@rfid-nfc.com support@rfid-nfc.com
