Users Manual
MODEL: PMP-3815
2.4GHZ CORDLESS TELEPHONE
Please read this manual carefully prior to using the telephone.
600-0931201-A
INSTALLATION AND OPERATING GUIDE
This symbol is to alert you to important operating or servicing instructions that may appear in
the user's manual. Always follow basic safety precautions when using this product to reduce the
risk of injury, fire, or electrical shock.
When using this product, basic safety precautions should always be followed to reduce the risk of fire, electric shock
and injury to persons, including the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Use only with class 2 power source DC 9V 300mA.
4. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth
for cleaning.
5. Do not use this product near water; for example, near a bathtub, wash bowl, kitchen sink or laundry tub, in a wet basement
or near a swimming pool.
6. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.
7. Slots and openings in the cabinet back or bottom are provided for ventilation. To protect it from overheating, these openings
must not be blocked or covered. The openings should never be blocked by placing the product on the bed, sofa, rug, or other
similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed
in an enclosed environment unless proper ventilation is provided.
8. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by animals or
persons walking on it.
9. Do not overload wall outlets and extension cords as this can result in risk of fire or electrical shock.
10. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short
out parts that could result in a risk of fire or electrical shock. Never spill liquid of any kind on the product.
11. To reduce the risk of electrical shock, do not disassemble this product. Instead take it to a qualified service person when
service or repair work is required. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect
re-assembly can cause electrical shock when the appliance is subsequently used.
12. Unplug all cords and refer servicing to qualified service personnel under the following conditions:
A. When the power supply cord or plug is damaged or frayed.
B. If liquid has been spilled into the product.
C. If the product has been exposed to rain or water.
D. If the product does not operate normally by following the operating instructions. Adjust only those controls covered in
the operating instructions. Improper adjustment of other controls may result in damage and require work by a qualified
technician to restore the product to normal operation.
13. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock
from lightning.
14. Do not use a telephone to report a gas leak in the vicinity of the leak.
IF YOUR PRODUCT UTILIZES BATTERIES, THE FOLLOWING ADDITIONAL PRECAUTIONS SHOULD BE OBSERVED:
1. Use only the type and size of batteries specified in the users manual.
2. Do not dispose of batteries in a fire. The cells may explode. Check with local codes for possible special disposal instructions.
3. Do not open or mutilate the batteries. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be
toxic if swallowed.
4. Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets and
keys. The battery or conductor may overheat and cause burns.
5. Do not attempt to recharge the batteries with or identified for use with this product. The batteries may leak corrosive
electrolyte or explode.
6. Do not attempt to rejuvenate the batteries provided with or identified for use with this product by heating them. Sudden
release of the battery electrolyte may occur causing burns or irritation to eyes or skin.
7. When replacing batteries, all batteries should be replaced at the same time. Mixing fresh and discharged batteries could
increase internal cell pressure and rupture the discharged batteries.
8. When inserting the batteries into this product, the proper polarity or direction must be observed. Reverse insertion of batteries
can cause charging, which may result in leakage or explosion. If a battery is installed incorrectly it may explode.
9. Remove the batteries from this product if the product will not be used for a long period of time (several months or more) since
during this time the batteries could leak, damaging the product.
10. Discard "dead" batteries as soon as possible since they are more likely to leak in a product.
11. Do not store this product, or the batteries provided with or for identified use with this product, in high temperature areas.
12. If your product uses a rechargeable battery, charge the battery(ies) only in accordance with the instructions and limitation
specified in the User Manual.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
2
Important Safety Instructions .........2
FCC Regulations ..........................3-4
Battery Cautionary Instructions .....5
PMP-3815 Parts Checklist ...............6
Location of Controls and
Features ......................................7-11
Handset .......................................7-8
Base ..........................................9-10
Choosing a Location .....................11
Telephone Setup .......................12-14
Connecting the Base ....................12
Wall Mounting ...............................13
Tone/Pulse Switch ........................14
Battery Installation ........................15
Battery Duration ............................15
When the Battery Needs
Charging .......................................15
When to Purchase a New
Battery Pack .................................15
Headset and Data Jack ..................16
The Data Jack ..............................16
The Headset Jack .........................16
Belt-Clip .......................................16
Basic Operation .............................17
Making Calls .................................17
Receiving Calls .............................17
Additional Options .......................17
Speed Dialing ................................18
Storing Phone Numbers ................18
Making Speed Dial Calls ...............18
Deleting a Stored Number ............18
Other Features ...............................19
Using the Handset Finder
(PAGE) .........................................19
Security Code ...............................19
Channel Changing ........................19
Out of Range Warning ..................19
Care and Maintenance ..................20
Troubleshooting ............................21

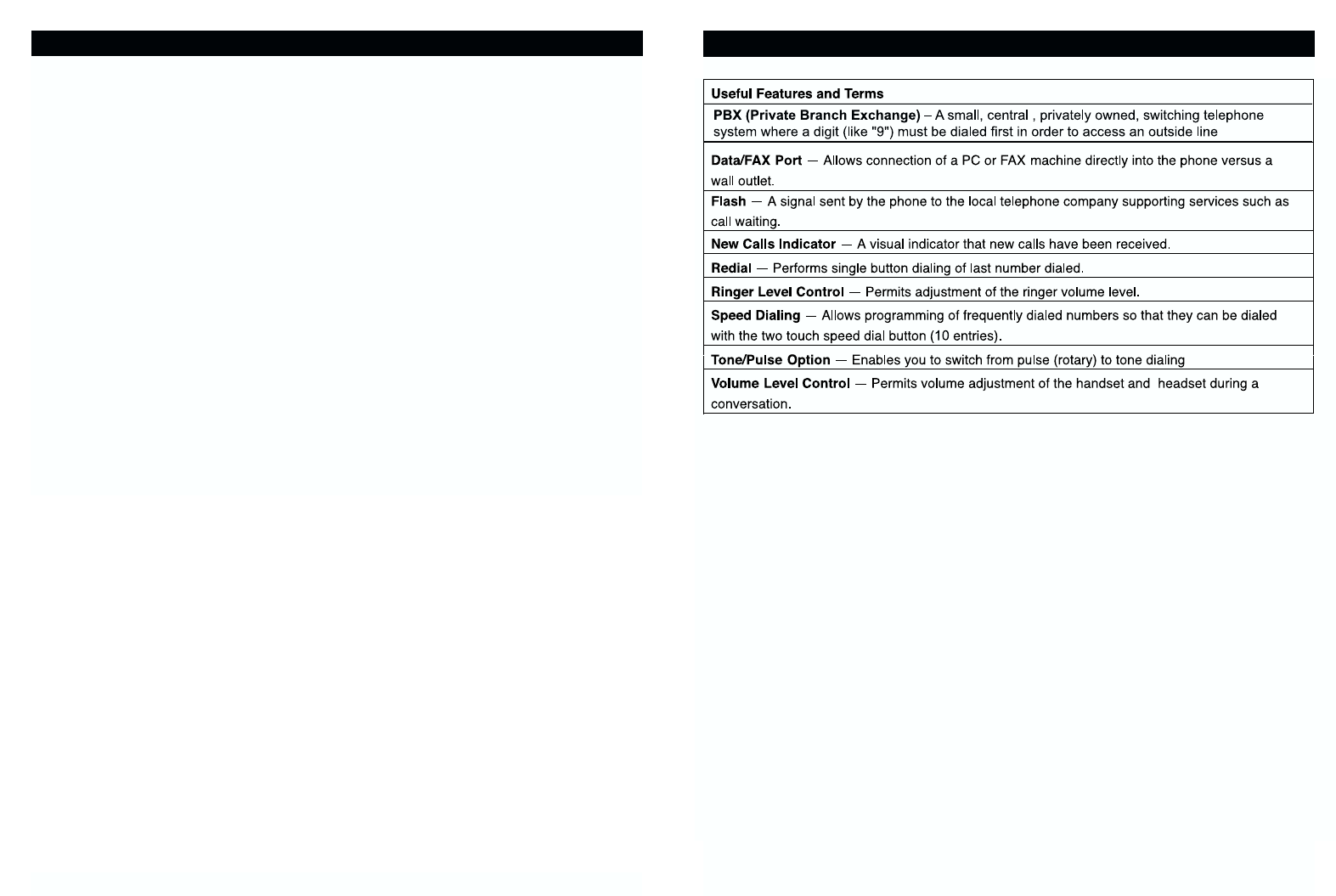

Glossary .........................................22
Warranty ....................................23-24
Wall Mount Template ......................25
Battery Order Form .......................26
PMP-3815 TABLE OF CONTENTS
1
6. Programming/testing emergency numbers:
When programming emergency numbers and/or making test calls to emergency
numbers
A. Remain on the line and briefly explain to the dispatcher the reason for the call
before hanging up.
B. Perform such activities in the off-peak hours, such as early morning or late evening.
INTERFERENCE INFORMATION: PART 15 OF FCC RULES
Some telephone equipment generates and uses radio frequency energy which if not
properly installed, may cause interference to radio and television reception.
This unit has been tested and found to comply with the limits for a Class B computing
device in accordance with the specifications in Part 15 of the FCC rules. These
specifications are designed to provide reasonable protection against such interference in
a residential installation. However, there is no guarantee that interference will not occur in
a particular installation.
If this equipment does cause interference to radio or television reception, when it’s in use,
the user is encouraged to try to correct the interference by one or more of the following
measures:
A. Where it can be done safely, reorient the radio or TV receiving antenna.
B. To the extent possible, relocate the television, radio, or other receiver with respect
to the telephone equipment.
C. If your telephone product runs on AC power, plug your product into an AC outlet
that’s not on the same circuit as the one used by the radio or television.
4
FCC REGULATIONS
Warning: Modifying or tampering with the telephone's internal components can cause a
malfunction and might invalidate the telephone's warranty and void your FCC
authorization to operate it. If the trouble is harming the telephone lines, the telephone
company might ask you to disconnect the telephone until you have resolved the problem.
As it complies with Part 68 of the FCC rules and the technical requirements for connection
to telephone networks published by ACTA, your unit has been registered with the FCC.
The FCC requires us to provide you with the following information:
1. Connection and use with the nationwide telephone network:
The FCC requires that you connect to a nationwide telephone network through a
modular telephone outlet which is TIA/EIA-IS-968 compliant. It is USOC jack type
RJ11C.
This equipment may not be used on coin service provided by the telephone company.
Connection to party lines is subject to state tariffs. Check with your local telephone
company.
2. Notification to the telephone company:
FCC rules require that upon request you provide the following information to the phone
company.
A. The line (telephone number) to which you will connect the telephone equipment,
and
B. The Registration Number and Ringer Equivalence Number (REN). These numbers
are found on the back or bottom of your telephone equipment.
The REN is useful to determine the quantity of devices you may connect to your
telephone line and still have all of those devices ring when your telephone number is
called. In most, but not all areas, the sum all RENs should be 5 or less. To determine
the number of devices permitted in your area, contact your local telephone company.
3. Repair instructions:
If it is determined that your telephone equipment is malfunctioning, the FCC requires
that it not be used and be unplugged from the modular outlet until the problem has
been corrected. Repairs to this telephone equipment can be made only by the manu-
facturer or its authorized agents, or by others who may be authorized by the FCC.
Unauthorized repairs void registration and warranty.
4. Rights of the telephone company:
If your product is causing harm to the telephone network, the telephone company may
temporarily discontinue your service. If possible, they will notify you in advance. But
if advance notice isn’t practical, you will be notified as soon as possible. You will be
given the opportunity to correct the problem, and you will be informed of your right to
file a complaint with the FCC. Your telephone company may make changes in its facil-
ities, equipment, operations or procedures that could affect the proper functioning of
your telephone equipment. If such changes are planned, you will be notified in
advance.
5. This product is compatible with inductively coupled hearing aids.
Note: This applies only if this product is equipped with a corded or cordless handset.
3
FCC REGULATIONS
PMP-3815 PARTS CHECKLIST
6
6. Short line cord for
wall installation
In Use/
Low Batt.
Mute
MEM
2.4 GHz
Charge
Page
1. Handset 2. Base
3. AC power adapter
7. Quick start card
5. 7-foot line
cord for desk use
QUICK START GUIDE
PMP-3815
1. Connect the telephone line cord to the "LINE"
jack and to a telephone outlet.
2. Connect the AC power adapter to the 9V DC
jack and to an AC outlet.
Note: Use only the supplied AC power adapter.Do not use any
other AC power adapter.Connect the AC power adapter to
a continuous power supply. Place the phone close to the
AC outlet so that you can plug in the AC power adapter
easily.
SETTING UP THE BASE
TEL LINE DATA
9VDC
300mA
1. Slide open the batter y compartment door on the bottom
of thehandset.
2. Plug the batter y connector into the 2-pin connector in the
battery compartment, and then insert the battery.
3. Close the batter y compartment door and place the
handset on the base unit cradle. You will hear a tone
and the CHARGE LED on the base will illuminate.
4. IMPORTANT:Charge the battery pack for at least 8
hours before using the handset the first time.
INSTALL THE BATTERY
1. Pick up the handset from the base and press T. The LED on the
handset will flash while the handset is scanning for a clear channel. The
handset will glow steadily when a connection is made. Wait until you hear
a dial tone.
2. Dial the number you wish to dial.
3. When you are finished talking, press the Tkey or place the unit back
into the base to end the call.
Note: The IN USE light on the handset will illuminate when the line is active.
MAKING CALLS
8. Belt-Clip
4. 10-number
memory card
9. Ni-MH battery pack
BATTERIES: CAUTION
To reduce the risk of fire or injury to persons, read and follow these instructions:
•For the cordless handset, use only 3.6V 600mAh Nickel-Metal Hydride (Ni-MH),
cordless telephone battery pack (included).
• Do not dispose of the batteries in a fire. The cells may explode. Check with local codes
for possible special disposal instructions.
•Do not open or mutilate the batteries. Released electrolyte is corrosive and may cause
damage to the eyes or skin. It may be toxic if swallowed.
•Exercise care in handling batteries in order not to short the battery with conducting
materials such as rings, bracelets, and keys. The battery or conductor may overheat
and cause burns.
•Do not attempt to rejuvenate the batteries identified for use with this product by
heating them. Sudden release of the battery electrolyte may occur causing burns or
irritation to eyes or skin.
•When inserting batteries into this product, the proper polarity or direction must be
observed. Reverse insertion of batteries can cause charging, and that may result in
leakage or explosion.
•Remove the batteries from this product if the product will not be used for a long period
of time (several months or more) since during this time the battery could leak in the
product.
•Do not store this product, or the batteries identified for use with this product, in high
temperature areas. Batteries that are stored in a freezer or refrigerator for the purpose
of extending shelf life should be protected from condensation during storage and
defrosting.
Batteries should be stabilized at room temperature prior to use after cold storage.
5
BATTERY CAUTIONARY INSTRUCTIONS
The EPA certified RBRC®Battery Recycling Seal on the nickel-metal-
hydride (Ni-MH) battery indicates TT Systems LLC is voluntarily
participating in an industry program to collect and recycle these
batteries at the end of their useful life, when taken out of service in the
United States or Canada. The RBRC®program provides a convenient
alternative to placing used Ni-MH batteries into the trash or the
municipal waste stream, which may be illegal in your area. Please call
1-800-8-BATTERY for information on Ni-MH battery recycling and
disposal bans/restrictions in your area. TT Systems LLC’s involvement
in this program is part of our commitment to preserving our
environment and conserving our natural resources.
Talk T
The Tkey is used to access the telephone line or end a call.
Redial Key R
When the phone is idle or off-hook, press Rto redial the last number
dialed. Ris also used to insert a measured pause into a number stored in
the phone book.
Channel Key c
The ckey, if pressed when the line is off-hook, will scan up to 50 chan-
nels and select the clearest one to provide the best possible reception.
Mute Key L
The Lkey is used to temporarily mute the handset microphone.
Volume Up/Down Key ▲▼
The ▲▼key lets you adjust the handset receiver volume.
Dial Pad
Numeric keys are used in the conventional manner for dialing.
Flash Key E
The Ekey is used to access telephone company services, such as call
waiting.
Memory Key l
Use lto program and retrieve the numbers in the speed dial directory.
Temporary Tone key *
If the base is set to pulse dialing, pressing <causes subsequent digits to be
dialed out using tone until the line is put back on hook. Also used to view the
left part of the display and move the cursor left when editing.
In Use LED
On (red) when line is in use. Flashes quickly when the battery is low. Flashes
steadily when the phone is muted.
Headset Jack
Allows using a standard 2.5mm headset (not included) for hands-free
convenience.
Ringer Switch
The RINGER switch is used to adjust the handset ringer level between Off, Low
and Hi.
LOCATION OF CONTROLS AND FEATURES
8
LOCATION OF CONTROLS AND FEATURES
Handset
7
In Use/
Low Batt.
Mute
MEM
2.4 GHz
Headset Jack
Flash Key
Microphone
Redial Key
Dial Pad
Channel Key
Ringer Switch
Talk Key
Temporary Tone
Key
Memory Key
In Use LED
Mute Key
Volume
Up/Down Key
Data Jack
Used for connecting a computer or fax machine.
Tone/Pulse Switch
Used to set the dialing method for tone or pulse dialing.
Base Bottom View
LOCATION OF CONTROLS AND FEATURES
Base Back View
10
TEL LINE DATA
9VDC
300mA
Data Jack
Wall Mount Holes
Cable Channel
Tone/Pulse Switch
Base
Page - Used to initiate a handset page.
Charge LED - On (red) when the handset is on the cradle being charged or
when the handset is in use. Flashes if the line is in use.
Charging Contacts - Used to recharge battery and reset the security code in
the handset.
9
LOCATION OF CONTROLS AND FEATURES
Charge
Page
Page Button
Antenna
Charge LED
Connecting the Base
1. Connect the telephone line cord to the "TEL LINE" jack and to a telephone
outlet.
2. Connect the AC power adapter to the 9V DC jack and to an AC outlet.
Note: Use only the supplied AC power adapter. Do not use any other AC
power adapter. Connect the AC power adapter to a continuous power
supply. Place the phone close to the AC outlet so that you can plug in
the AC power adapter easily.
Tip: If your telephone outlet is not modular, contact your telephone company for
assistance.
TELEPHONE SETUP
12
Do the following:
•Choose the best location
•Connect the phone
•Choose the dialing mode
Where you place the phone affects the reception quality of the handset:
•Away from another cordless telephone
•Place the base near an AC electrical outlet and near telephone line jack
•Place the base away from metal walls and metal file cabinets
CAUTION: The cordless telephone operates at a frequency that may cause
interference to nearby TVs and VCRs; the base phone should not
be placed near, or on top of a TV or VCR. If interference is experi-
enced, moving the cordless telephone farther away from the TV or
VCR will often reduce or eliminate the interference.
Note: While the 2.4GHz frequency is inherently clearer, we suggest that
you do not use this phone within 20 feet of a working microwave.
The microwave produces frequencies in this range which may
cause interference. This interference is normal for all 2.4GHz
phones and should not be considered a product defect.
11
CHOOSING A LOCATION
Away from noise sources such as a
window by a street with heavy traffic
Away from VCRs and TV sets and
other electronic equipment
Away from heat sources, such as
radiators, air ducts, and sunlight
Away from a microwave oven
Away from excessive
moisture, extremely low
temperatures, dust,
mechanical vibration, or
shock
Away from a
personal computer
Near a central
location and on a
level surface
TEL LINE DATA
9VDC
300mA
Tone/Pulse Switch
1. Choose the correct dialing mode.
2. Select the dialing mode Tone or Pulse
by setting the switch at the back of the
base unit (may require use of a pen,
pencil, or other small device to move
the switch).
Note: Changes to the switch position
during a call do not take effect until
the call has ended.
Tip: If you are unsure of the proper dialing mode, make a trial call with the dial
mode setting to TONE. If the call connects, leave the switch as is (TONE
mode), otherwise, set to PULSE.
Handset Ringer Volume
Adjust the handset ringer volume using the RINGER
switch on the right side of the handset. Select
between Hi ringer, Low ringer, and ringer Off.
14
TELEPHONE SETUP
Wall Mounting
The PMP-3815 telephone may be installed onto two screws (not included)
fastened into the wall. When installing screws into plasterboard walls, use wall
anchors (not included) to ensure that the screws remain secure. Insert the
screws into the wall leaving 3/16" of each screw extending out from the wall.
See the wall mount template on page 25 to properly space the screws in the
wall for mounting. The PMP-3815 is not compatible with mounting on a
standard telephone wall plate.
Wall Mounting Instructions:
1. Remove the handset from the
base.
2. Turn the base over so the under-
side of the base faces you.
3. Adjust the base to the wall mount
position.
4. Plug the supplied 7-foot
telephone cord into the LINE jack
on the telephone.
5. Connect the telephone line cord
to the wall jack.
6. Insert the AC adapter into the 9V
DC jack on the top of the base.
7. Run the cables down through the cable channel to allow for flush wall
mounting.
8. Slip the telephone base onto the wall, lining up the wall mounting holes over
the screws. Slide the telephone base down so it is firmly in place.
9. Return the handset to the telephone base.
10.Plug the other end of the AC adapter into the AC outlet.
13
TELEPHONE SETUP
Tone/Pulse
Switch
Ringer
Off Low Hi
To install the 3.6V 600mAh cordless handset battery pack:
1. Slide open the battery compartment door on the back
of the handset.
2. Plug the battery connector into the 2-pin connector in
the battery compartment, and then insert the battery.
3. Close the battery compartment door.
4. Place the handset on the base unit cradle.
5. Once you have installed the battery pack and placed
the handset on the base you will hear a tone indicating
the handset has connected with the base and will
successfully charge.
6. IMPORTANT: Charge the battery pack for at least 12
hours before using the handset the first time.
7. The CHARGE LED on the base illuminates when the
handset is properly making contact with the charge
terminals.
Battery Duration
A fully charged battery lasts for approximately:
•7 hours when you use the handset continuously (talk
time).
•6 days when the handset is not in use (standby).
When the Battery Needs Charging
•The handset will beep.
•The In Use/Low Batt. LED will flash.
When to Purchase a New Battery Pack
If the battery lasts only a few minutes even after a full charge, the usable life of
the battery has expired and needs to be replaced. Replacement batteries can
be purchase directly from https://www.ttsystems.com/ShoppingCart/
shoponline2.asp, or you can contact TT Systems LLC customer support center
at 1-800-592-1336 for information about how to order a new battery.
The Data Jack
The jack located on the side of the
telephone labeled "DATA" is a
convenience jack. It is useful for
connecting a fax machine or modem when
there is no telephone jack available for
that device.
The Headset Jack
The headset jack is located on the side of the
handset and is a standard 2.5mm plug. Simply
plug the headset (not included) into the jack and
the headset will be active.
Note: When the headset is plugged into the
telephone, the microphone and earpiece
on the handset are not active.
Belt-Clip
Be sure to remove the belt-clip filler cap prior to installing the
belt-clip. Install the belt-clip as shown.
To remove the belt-clip, squeeze the release at the top of the
clip where it attaches to the phone, and gently pull the clip up
and out of the handset.
16
HEADSET AND DATA JACK
15
BATTERY INSTALLATION
E
DATA
9VDC
300mA
Talk
CH
Flash
12
ABC
3
DEF
45
JKL
6
MNO
GHI
78
TUV
9
WXYZ
PQRS
2
.
4
GHz
Data Jack
Headset Jack
Belt-clip
The PMP-3815 will store up to 10 speed dial numbers.
Storing Phone Numbers
1. With the handset in the idle state, press l.
The handset will beep.
2. Dial the number you wish to store (up to 16 digits).
Note: Press R/PAUSE to insert a dialing pause
into the number. The pause lasts for 4 seconds
and uses one digit of the 16 digits available.
3. Press l.
4. Press the dial pad key for the location where you
wish to store the number. The handset will give a
confirmation tone.
Note: If you make a mistake the handset will give
three quick beeps to let you know that the
number was not stored.
Making Speed Dial Calls
1. Push T. The LED on the handset will flash while the handset is scanning
for a clear channel. The handset In Use LED will glow steadily when a
connection is made. Wait until you hear a dial tone.
2. Press land the dial pad key location where the number is stored.
3. When you are finished with your call, press T, or place the handset back
on the base.
Note: Be sure to check that the line is not in use by another extension.
Deleting a Stored Number
1. With the handset in the idle state, press l. The handset will beep.
2. Press Rand then press l. After each press the phone will beep.
3. Press the dial pad key location where the stored number that you want to
delete is located. The handset will give a confirmation tone.
SPEED DIALING
18
Making Calls
1. Pick up the handset from the base and press T.
The LED on the handset will flash while the
handset is scanning for a clear channel. The
handset will glow steadily when a connection is
made. Wait until you hear a dial tone.
2. Dial the number you wish to dial.
3. When you are finished talking, press the Tkey or
place the unit back into the base to end the call.
Note: The IN USE light on the handset will illuminate
when the line is active.
Receiving Calls
When you hear the phone ring:
1. If the handset is in the base, lift the handset from the base. The handset will
turn on. There is no need to push the Tkey if the unit is on the base when
the call comes in.
2. If the handset is off the base, you will need to press Tto answer the call.
3. When you are finished, push Tor place the handset back on the base.
Additional Options
BASIC OPERATION
To: Do This:
Redial the last number Press T. Wait for dial tone and then press R.
Adjust the volume in the Press ▲▼during a call until the desired volume level
earpiece is reached.
Switch to temporary tone Press the *key after the phone is in use. The phone
dialing will remain in tone dialing mode for the duration of the call.
Receive a call waiting call Press Eto go to the new caller.
Press Eagain to go back to the original caller.
Mute a call Press the Lkey.
Press Lto continue speaking to the caller.
17
In Use/
Low Batt.
Mute
MEM
2.4 GHz
Redial Key
Temporary
Tone Key
Talk Key
In Use LED
Mute Key
Flash Key
In Use/
Low Batt.
Mute
MEM
2.4 GHz
Redial Key
Memory Key
Talk Key
In Use LED
Your PMP-3815 telephone has been designed to give years of trouble-free
service. It is a sensitive electronic instrument. To assure its longevity, please
read the following maintenance instructions.
1. Keep the PMP-3815 away from heat as high temperatures can shorten the
life of the electrical components and distort or melt its plastic parts.
2. The PMP-3815 should be kept free of dust and moisture. If it gets wet, wipe
it dry immediately. Liquids can contain minerals that can corrode electronic
circuits.
3. Handle your PMP-3815 gently and carefully. Dropping it can cause serious
damage to circuitry, or the plastic case, which may result in malfunction.
4. Do not use any type of chemical or any abrasive powder to clean the
cabinet. Use only mild detergents on a soft, damp cloth to clean the PMP-
3815 telephone.
5. The PMP-3815 has built-in surge protection circuits that meet or exceed
FCC requirements. However, an incident such as a lightning strike at or near
the telephone lines, could cause serious damage.
6. If the PMP-3815 is installed in an area with frequent or severe electrical
storms, it is suggested that the telephone be disconnected during these
storms or that additional surge suppression equipment be added to the
installation.
7. In the case of trouble with the telephone, do not attempt to repair the
telephone yourself. It is the responsibility of users requiring service to report
the need for service to our Service Department. They will make the
necessary arrangements for repair or replacement.
8. If you should have any questions about the operation of your PMP-3815
telephone, please call our Service Department at 1-800-592-1336. Or you
may contact TT Systems LLC for technical assistance via our Internet Web
site: www.ttsystems.com or e-mail: tech@ttsystems.com.
9. Please register your product online at
www.ttsystems.com/CustomerSupport/RegOnline.asp
CARE AND MAINTENANCE
20
Using the Handset Finder (PAGE)
1. Press on the base. If the handset is within range, a triple beep will
sound for 20 seconds.
2. Place the handset back into the base or press the ckey on the
handset, or press any other handset key twice, to stop the page/find feature.
Security Code
The security code prevents your cordless telephone conversation from being
accessed by a phone on a different line. Once the handset battery is fully
charged, the handset will automatically select the code from a total of over
65,000 combinations. The code is changed every time the handset is placed in
the cradle (indicated by a beep).
If you experience difficulty with placing or receiving calls, a lost security code
may be the cause of the problem. When this occurs, the handset can no longer
communicate with the base. Reset by placing the handset on the base for 5-10
seconds. If that does not work, unplug the AC adapter from the wall outlet.
Disconnect the handset battery for 5-10 seconds and then reconnect. Place the
handset back on the base and then replug the AC adapter.
Channel Changing
If you are experiencing interference during a telephone call, press the c
key. The PMP-3815 will scan up to 50 channels and select the clearest one to
provide the best possible reception.
Out of Range Warning
If the handset is moving too far away from the base, the phone will sound a
triple beep every two seconds to warn you that it is out of range. Move closer to
the base to end the beeping and maintain the connection on your phone call.
Otherwise, the call may be disconnected.
19
OTHER FEATURES
Page
GLOSSARY
22
No dial tone/phone will not dial out.
•Check that the AC power adapter is plugged into a working AC power outlet.
•Check all telephone cord connections or try another wall jack.
•Do a basic reset of the phone: Disconnect the phone from the wall and
remove the battery. Leave for 30 minutes and then re-install as instructed by
the manual.
Can’t hear the ring signal.
•Check the ringer volume controls; verify that the switch is not set to “Off.”
While on a call, you hear another call on the line or experience radio
frequency interference.
•Switch channels to a clear channel.
•Check the wiring for bad connections.
•Do not use this phone within 20 feet of a working microwave. The microwave
produces frequencies in this range which may cause interference. This
interference is normal for all 2.4GHz phones and should not be considered a
product defect.
Can't receive or make phone calls.
•Check if the phone is set to the correct type of service, either Tone or Pulse.
TROUBLESHOOTING
21
•Some states do not allow limitations on how long an implied warranty lasts and/or do
not allow the exclusions or limitations of incidental or consequential damages, so the
above limitations or exclusions may not apply to you.
•TT Systems shall not be liable for any special or consequential damages or for loss or
expense directly or indirectly arising from use of the products or in inability to use them
either separately or in combination with other equipment or product accessories or from
any other cause.
•TT Systems reserves the right to make changes in the design of the PMP-3815 and to
make additions or improvements to the PMP-3815 without incurring any obligation to
modify any PMP-3815 previously sold.
WARRANTY
24
TT Systems One Year Limited Warranty within the United States
1. What does the limited warranty cover?
TT Systems LLC warrants that the PMP-3815 sold by TT Systems within the continental
limits of the United States, Hawaii and Alaska are free from defects in materials and
workmanship under normal use for one year. This warranty is only applicable to the orig-
inal purchaser of the PMP-3815, when accompanied by a sales receipt stating the date
of the purchase and the name of the company from which it was purchased. This
warranty is in lieu of and excludes all other warranties, expressed or implied, including
any implied warranty of merchantability or fitness, and of any other obligation on the part
of TT Systems.
2. What will TT Systems do when I send in my unit?
At our discretion, repair or replace the PMP-3815.
3. How do I send my unit, in or out of warranty?
•Properly pack your unit. Include any cables and accessories that were originally
provided with the product. We recommend using the original carton and packing
materials.
•Include in the package a copy of the sales receipt or other evidence of date of original
purchase (if the unit was purchased within the last year).
•Print your name, address and phone number, along with a description of the problem,
and include this in the package.
•Include payment for any service or repair not covered by the warranty, as determined
by TT Systems. Contact a customer service representative at 1-800-592-1336 or
tech@ttsystems.com to find out what payment is necessary.
•Ship the unit via UPS insured or equivalent to:
TT Systems LLC
4 Executive Plaza
Yonkers NY 10701
•If you have not received your returned unit within 3-4 weeks, you may call 1-914-968-
2100 regarding the status of your return.
4. What doesn’t the warranty cover?
•Damage from misuse, neglect, or acts of nature (lightning, floods, power surges, etc).
•Products that may have been repaired or altered by persons not expressly approved by
TT Systems.
•Products purchased outside the USA.
•Products purchased more than 12 months from the current date.
•Products which are not accompanied by a valid proof of purchase.
5. The legal information:
•There is no informal dispute settlement mechanism available.
•This warranty gives you specific legal rights, and you may also have other rights, which
vary from state to state.
23
WARRANTY
Place this template on the wall. The location of the screws is
indicated by the centers of the crossed lines.
Fasten the screws leaving 3/16”of the screw extending from the
wall.
Remove This Page to Mark Wall
25
WALL MOUNT TEMPLATE
Expansion
Anchor
#6 or #8 Pan Head
Self Tapping Screw
Screws needed for
wall mounting:
2 3/4”
26
TT SYSTEMS LLC
7 Odell Plaza
Yonkers, NY 10701
To order a replacement battery pack for the
PMP-3815 cordless telephone, please mail
this order form to the licensee for this
product.
Please enclose a check or money order
made out to TT SYSTEM LLC for the
respective amount. Shipping and handling
is included in the price.
Please ship order to:
Name:______________________________
Company:___________________________
Address:____________________________
___________________________________
City:____________State:____Zip:________
PM-38BAT Battery Packs are $14.95 each
TT SYSTEMS LLC
7 Odell Plaza
Yonkers, NY 10701
(This is your mailing label)
From:
To:
___________________________________
___________________________________
___________________________________
___________________________________
___________________________________
__________________
ORDER FORM
